Operating Instructions
Introduction
2
WARNING
To prevent fire or shock hazard, do not
expose the unit to rain or moisture.
To avoid electrical shock, do not open the
cabinet. Refer servicing to qualified
personnel only.
Power cord must only be changed at a
qualified service shop.
CAUTION
The use of optical instruments with this
product will increase eye hazard. As the laser
beam used in this CD/DVD player is harmful
to eyes, do not attempt to disassemble the
cabinet.
Refer servicing to qualified personnel only.
This label is located on the bottom enclosure
(Laser protective housing).
This symbol is intended to alert
the user to the presence of
uninsulated “dangerous voltage”
within the product’s enclosure that
may be of sufficient magnitude to
constitute a risk of electric shock to persons.
This symbol is intended to alert
the user to the presence of
important operating and
maintenance (servicing)
instructions in the literature
accompanying the appliance.
CAUTION
TO PREVENT ELECTRIC SHOCK MATCH
WIDE BLADE OF PLUG TO WIDE SLOT,
FULLY INSERT.
For customers in the U.S.A
Owner’s Record
The model and serial numbers are located at
the bottom of the unit. Record the serial
number in the space provided below. Refer to
them whenever you call upon your Sony
dealer regarding this product.
Model No. DVP-FX1/DVP-F5
Serial No.______________
CAUTION
You are cautioned that any change or
modifications not expressly approved in this
manual could void your authority to operate
this equipment.
NOTE:
This equipment has been tested and found to
comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide
reasonable protection against harmful
interference in a residential installation. This
equipment generates, uses, and can radiate
radio frequency energy and, if not installed
and used in accordance with the instructions,
may cause harmful interference to radio
communications. However, there is no
guarantee that interference will not occur in a
particular installation. If this equipment does
cause harmful interference to radio or
television reception, which can be determined
by turning the equipment off and on, the user
is encouraged to try to correct the
interference by one or more of the following
measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the
equipment and receiver.
– Connect the equipment into an outlet on a
circuit different from that to which the
receiver is connected.
– Consult the dealer or an experienced radio/
TV technician for help.
3
Introduction
About this manual
Conventions
• Instructions in this manual describe the
controls on the player.
You can also use the controls on the remote
if they have the same or similar names as
those on the player.
• The icons below are used in this manual:
Checking your model name
The instructions in this manual are for the
DVP-FX1 and DVP-F5. Check your model
number by looking at the bottom of the unit.
DVP-FX1 is used for the illustrations purposes.
Any difference in operation is clearly indicated
in the text, for example, “DVP-FX1 only.”
Icon Meaning
Indicates that you can use only
the remote to do the task.
Indicates tips and hints for
making the task easier.
Indicates that the function is for
DVD VIDEOs.
Indicates that the function is for
VIDEO CDs.
Indicates that the function is for
Audio CDs.
Z
z
DISPOSAL OF LITHIUM ION
BATTERY
LITHIUM ION BATTERY.
DISPOSE OF PROPERLY.
You can return your unwanted lithium ion
batteries to your nearest Sony Service Center
or Factory Service Center.
Note: In some areas the disposal of lithium ion
batteries in household or business trash may
be prohibited.
For the Sony Service Center nearest you, call 1-
800-222-SONY (United States only)
For the Sony Factory Service Center nearest
you, call 416-499-SONY (Canada only)
Caution: Do not handle damaged or leaking
lithium ion battery.
Welcome!
Thank you for purchasing this Sony CD/DVD
Player. Before operating the unit, please read
this manual thoroughly and retain it for future
reference.
Introduction
4
Table of contents
3 About this manual
6 This Player Can Play the
Following Discs
9 Precautions
12 Notes about the Discs
Getting Started
13 Unpacking

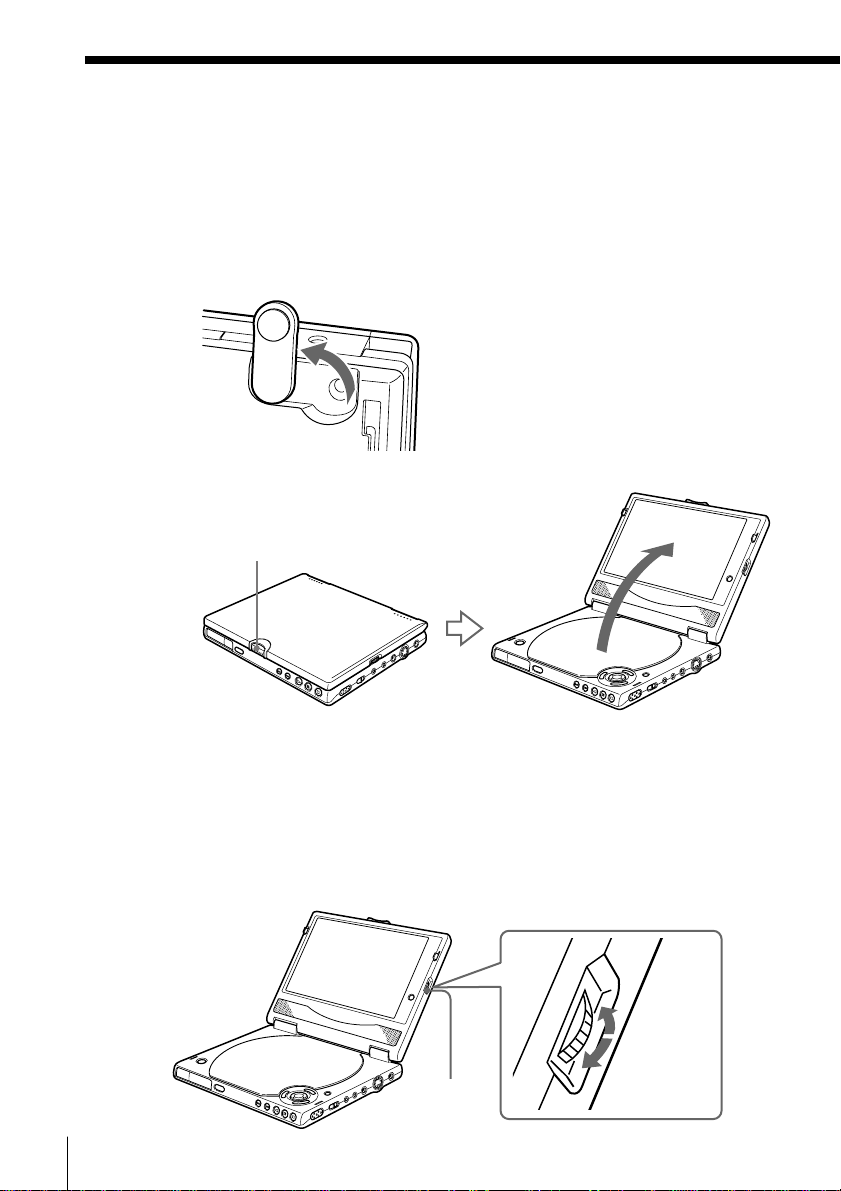

14 Using the LCD Screen (DVP-FX1
only)

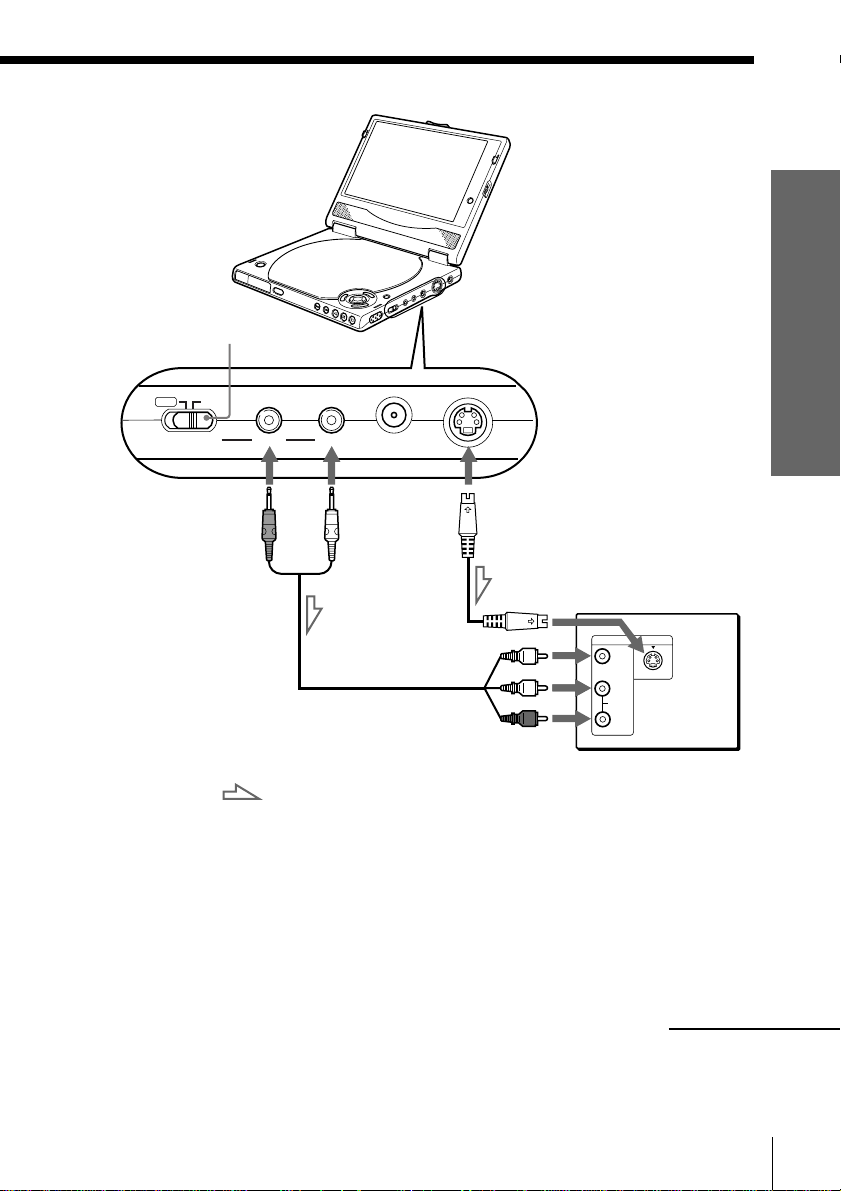

16 TV Hookups
19 Receiver (Amplifier) Hookups
22 5.1 Channel Surround Hookups

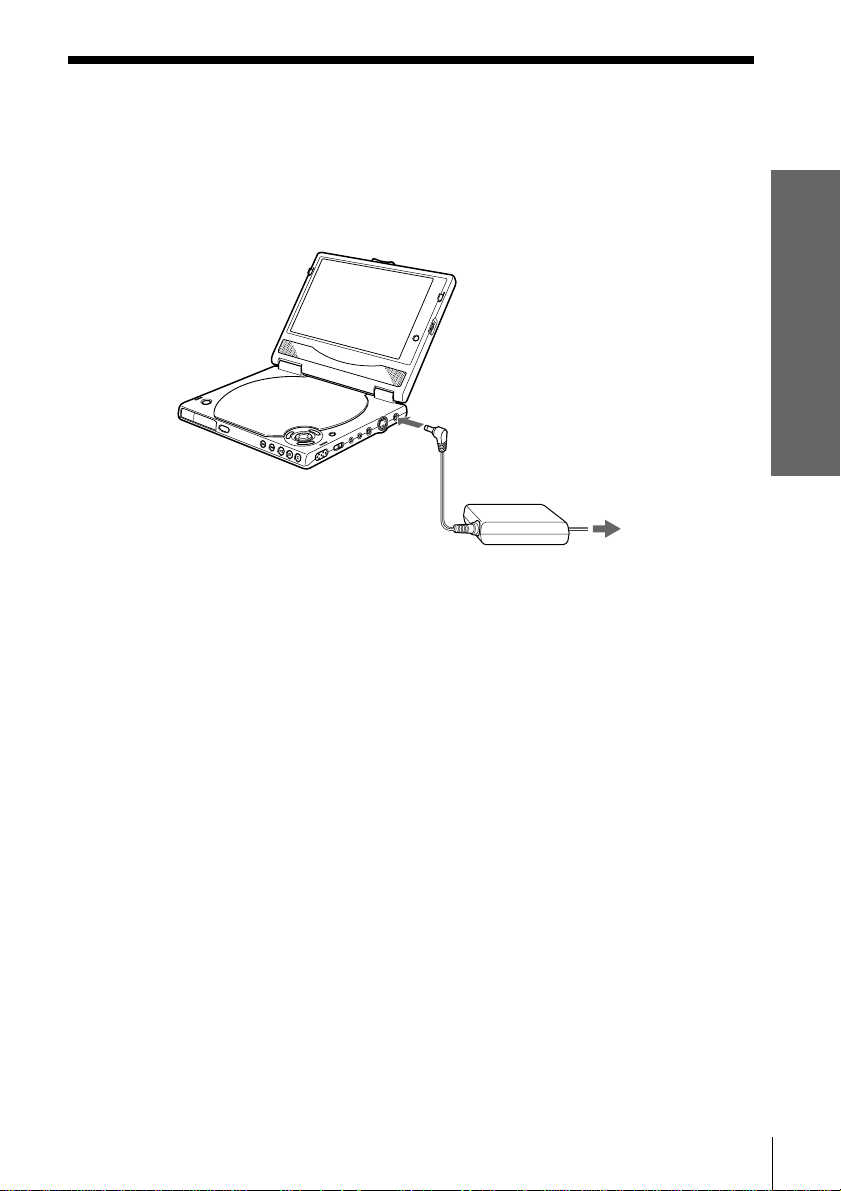

25 Connecting the AC Power
Adaptor
26 Using the Rechargeable Battery
Pack
28 Selecting the Language for the
On-Screen Display
Playing discs
30 Playing discs
33 Searching for a Particular Point
on a Disc
35 Resuming Playback from the
Point Where You Stopped the
Disc (Resume Play)
37 Using the DVD’s Menu
39 Playing VIDEO CDs with PBC
Functions (PBC Playback)
41 Using the Display Window
Using Various Functions with
the Control Menu
45 Using the Control Menu Display
48 Control Menu Item List
50 Searching for a Title/Chapter/
Track/Index/Scene
51 Checking the Playing Time and
Remaining Time
52 Selecting a Starting Point Using
the Time Code
53 Viewing the Disc Information
54 Changing the Sound
57 Displaying the Subtitles
58 Changing the Angles
60 Digital Cinema Sound Settings
63 Checking the Play Information
65 Locking Discs
(Custom Parental Control)
68 Creating Your Own Program
(Program Play)
72 Playing in Random Order
(Shuffle Play)
73 Playing Repeatedly
(Repeat Play)
74 Repeating a Specific Portion
(A-B Repeat)
5
Introduction
Settings and Adjustments
76 Using the Setup Display
79 Setup Display Item List
80 Setting the Display Language or
Sound Track
(LANGUAGE SETUP)

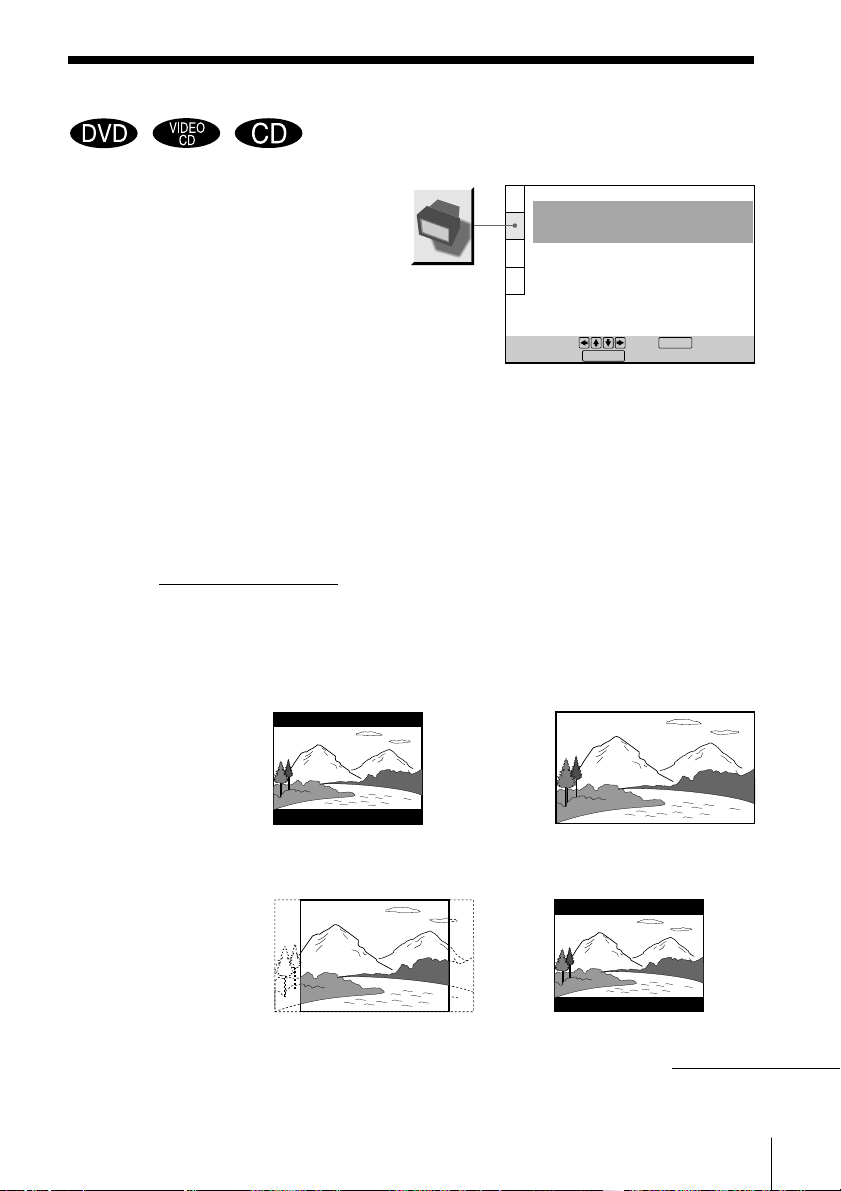

83 Settings for the Display
(SCREEN SETUP)
85 Custom Settings
(CUSTOM SETUP)
91 Settings for the Sound
(AUDIO SETUP)
94 Preventing the Buttons from
being Pressed Accidentally
Additional Operations
95 Listening with Headphones

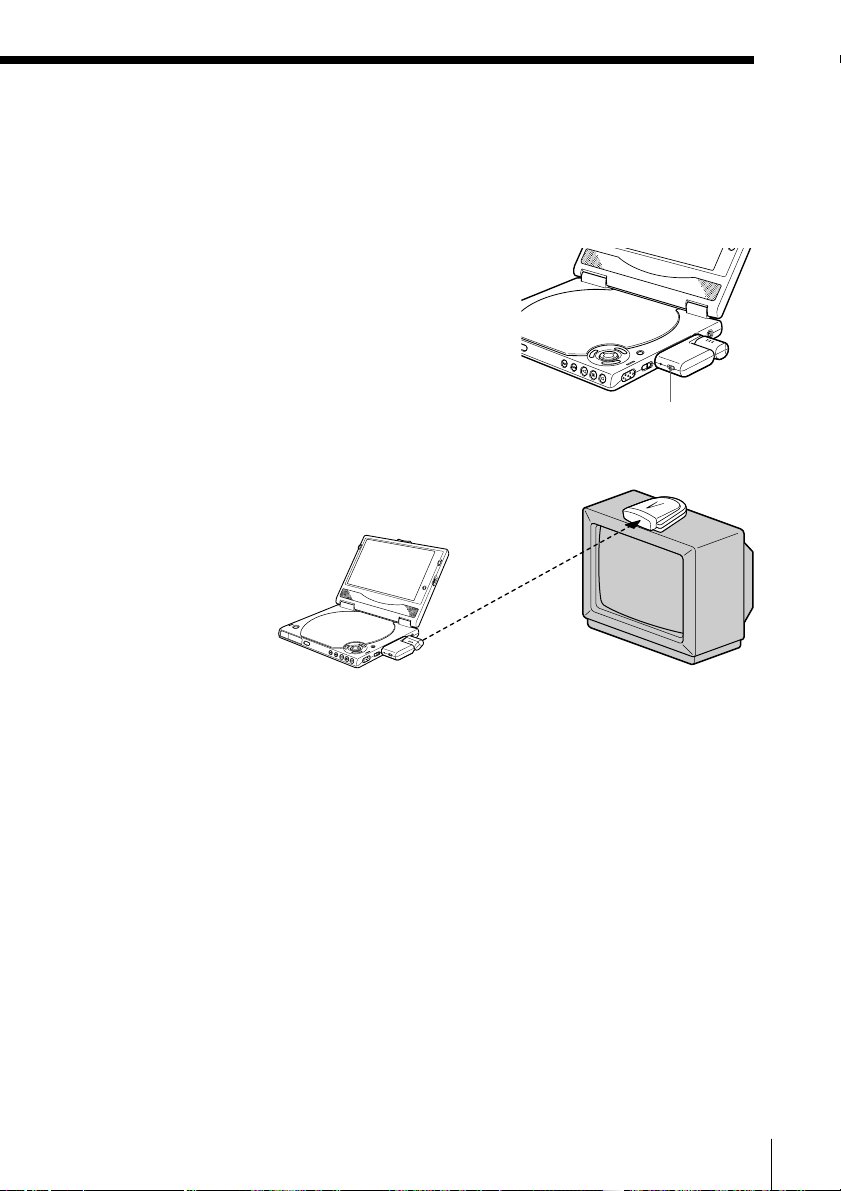

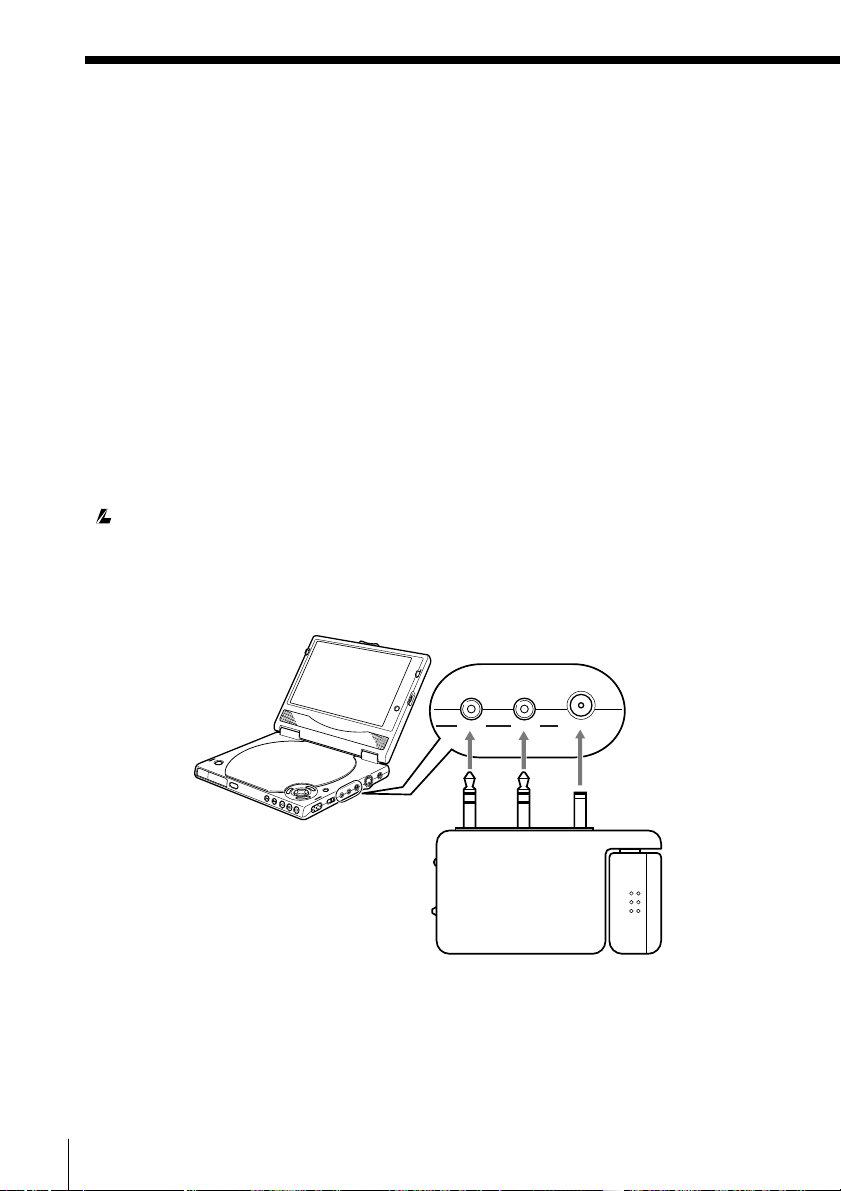

96 Watching the Picture without
Connecting Cables –– LASER
LINK
98 Watching the Picture of Other
Equipment on the LCD Screen
(DVP-FX1 only)
Additional Information
99 Troubleshooting
105 Self-diagnosis Function
106 Specifications
108 Glossary
110 Language Code List

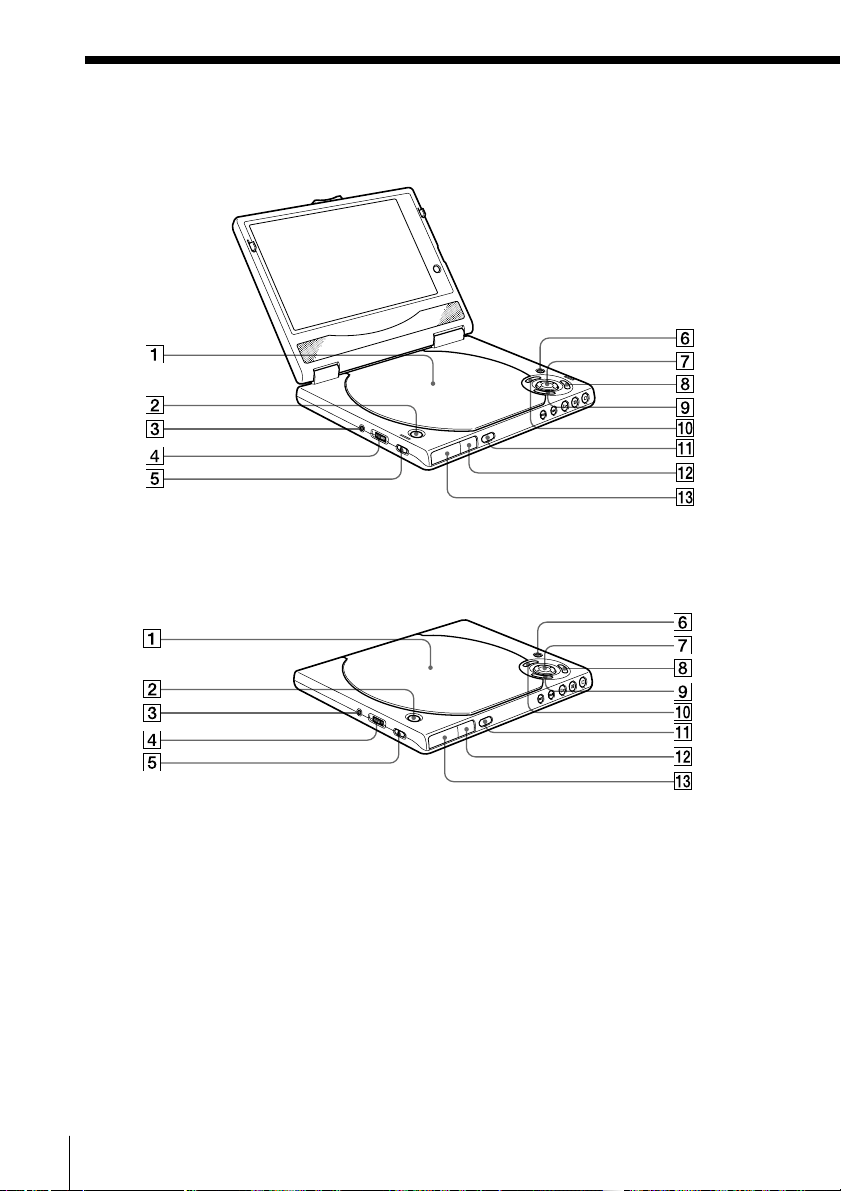

112 Index to Parts and Controls
119 Index
Introduction
6
This Player Can Play the Following Discs
DVD VIDEOs VIDEO CDs Audio CDs
Audio + Video
Audio + Video Audio
12 cm 8 cm 12 cm 8 cm 12 cm 8 cm
(CD single)
About 4 h
(for single-
sided DVD)
/ about 8 h
(for double-
sided DVD)
About 80
min. (for
single-sided
DVD) /
about 160
min. (for
double-
sided DVD)
74 min. 20 min. 74 min. 20 min.
Region code
Disc logo
Contents
Disc size
Play time
The “DVD VIDEO” logo is a trademark.
This player conforms to the NTSC color system. You cannot play discs recorded in other color
systems such as PAL or SECAM.
Region code of DVDs you can play on this unit
Your DVD player has a region
code printed on the bottom of the
unit and will only play DVDs that
are labeled with identical region
codes.
DVDs labeled
ALL
will also play on this unit.
If you try to play any other DVD, the message “Playback prohibited by area limitations.” will
appear on the screen. Depending on the DVD, no region code indication may be labeled even
though playing the DVD is prohibited by area restrictions.
Note on playback operations of DVDs and VIDEO CDs
Some playback operations of DVDs and VIDEO CDs may be intentionally fixed by software
producers. Since this player plays DVDs and VIDEO CDs according to the disc contents the
software producers designed, some playback features may not be available. Also refer to the
instructions supplied with the DVDs or VIDEO CDs.
MODEL No.
DVP-XX
PORTABLE CD/DVD PLAYER
7
Introduction
Terms for discs
• Title
The longest section of a picture or music
feature on a DVD, the movie, etc. in video
software, or the name of an album in audio
software.
• Chapter
Sections of a picture or a music feature that
are smaller than titles. A title is composed of
several chapters. Each chapter is assigned a
chapter number enabling you to locate the
chapter you want. Depending on the disc,
no chapters may be recorded.
• Track
Sections of a picture or a music feature on a
VIDEO CD or a CD. Each track is assigned
a track number enabling you to locate the
track you want.
DVD structure
VIDEO CD or CD structure
• Index (CD) / Video Index (VIDEO CD)
A number that divides a track into sections
to easily locate the point you want on a
VIDEO CD or a CD. Depending on the disc,
no indexes may be recorded.
• Scene
On a VIDEO CD with PBC (playback
control) functions, the menu screens,
moving pictures and still pictures are
divided into sections called “scenes.” Each
scene is assigned a scene number enabling
you to locate the scene you want.
Disc
Track
Index
Disc
Title
Chapter
Note on PBC (Playback Control)
(VIDEO CDs)
This player conforms to Ver. 1.1 and Ver. 2.0 of
VIDEO CD standards. You can enjoy two kinds
of playback according to the disc type.
Disc type
VIDEO CDs
without
PBC
functions
(Ver. 1.1
discs)
VIDEO CDs
with PBC
functions
(Ver. 2.0
discs)
Discs that the player cannot play
The player cannot play discs other than the
ones listed in the table on page 6. CD-ROMs
including PHOTO CDs, data sections in CD-
EXTRAs, DVD-ROMs, DVD-audio, HD (high
density) layer of Super Audio CD etc., cannot
be played.
Note
The player may not be able to play a CD-R if it
is in poor recording condition.
You can
Enjoy video playback
(moving pictures) as well as
music.
Play interactive software
using menu screens
displayed on the screen
(PBC Playback), in addition
to the video playback
functions of Ver 1.1 discs.
Moreover, you can play
high-resolution still pictures
if they are included on the
disc.
Introduction
8
This Player Can Play the Following Discs (continued)
When playing DTS*-encoded CDs, excessive
noise will be heard from the analog stereo
outputs. To avoid possible damage to the
audio system, the consumer should take
proper precautions when the analog stereo
outputs of the DVD player are connected to an
amplification system. To enjoy DTS Digital
Surround™ playback, an external 5.1-channel
DTS Digital Surround™ decoder system must
be connected to the digital output of the DVD
player.
This product incorporates copyright protection
technology that is protected by method claims
of certain U.S. patents and other intellectual
property rights owned by Macrovision
Corporation and other rights owners. Use of
this copyright protection technology must be
authorized by Macrovision Corporation, and is
intended for home and other limited viewing
uses only unless otherwise authorized by
Macrovision Corporation. Reverse
engineering or disassembly is prohibited.
* “DTS,” “DTS Digital Surround” and “DTS
Digital Out” are trademarks of Digital
Theater Systems, Inc.
9
Introduction
Precautions
On safety
• Caution – The use of optical
instruments with this product will
increase eye hazard.
• Should any solid object or liquid fall
into the cabinet, unplug the player
and have it checked by qualified
personnel before operating it any
further.
On AC power adaptor and AC power
cord
• Use only the supplied AC power
adaptor. Do not use any other AC
power adaptor. It may cause a
malfunction.
• If the AC power adaptor causes
interference to the raido reception,
move it away from the radio.
• Disconnect the DC IN 10V jack first,
then disconnect from the mains, even
if the player itself has been turned off.
• If you are not going to use the player
for a long time, be sure to disconnect
the player from the mains and/or
detach the battery pack. To disconnect
the AC power cord (mains lead), grasp
the plug itself; never pull the cord.
• The nameplate indicating operating
voltage, power consumption, etc. is
located at the bottom of the AC power
adaptor.
• Use a commercially available AC plug
adaptor, if necessary, depending on
the design of the wall outlet.
continued
• Do not plug the AC power cord into a
voltage transformer or similar device.
• Should the AC power cord (mains
lead) need to be changed, have it done
at a qualified service shop only.
On the bottom of the unit
• Do not allow dust to come into contact
with the terminals (A in the
illustration) or holes (B in the
illustration).
• Do not open the terminal covers (A in
the illustration).
On rechargeable batteries
• Do not short the terminals (A in the
illustration).
• Do not open the terminal covers (A in
the illustration).
• Do not allow dust to come into contact
with the terminals (A in the
illustration) or projecting guides (B
in the illustration).
• Do not expose to high temperatures
(60 ˚C (140 ˚F)).
Polarity of the plug
A
B
A
B
AC-FX1
AC plug
adaptor
Introduction
10
• The battery used in this device may
present a fire or chemical burn hazard
if mistreated. Do not disassemble, heat
above 100 ˚C (212 ˚F) or incinerate.
• Danger of explosion if battery is
incorrectly replaced. Replace battery
with Sony NP-FX1 only. Use of
another battery may present a risk of
fire or explosion.
• Battery pack is suitable for use only
with Sony Portable CD/DVD Player.
• Burn hazard if mistreated. Do not
disassemble. Handle damaged or
leaking lithium-ion battery with
extreme care. If the battery is
damaged, electrolyte may leak from
the cells and may cause personal
injury.
• There may be local restrictions on the
disposal or recycling of batteries.
Consult your local regulations or
waste disposal provider.
• Dispose of use battery promptly.
• Keep away from children.
On placement
• Place the player in a location with
adequate ventilation to prevent heat
build-up in the player.
• Do not put any heavy object on top of
the player. The unit and the disc may
be damaged.
• Do not leave the player in a location
near heat sources, or in a place subject
to direct sunlight, excessive dust or
sand, moisture, rain, mechanical
shock, unleveled surface, or in a car
with its windows closed.
• If the player causes interference to
radio or television reception, turn off
the player or move it away from the
radio or television.
• Do not wrap the player in a cloth or
blanket during use as it may cause
malfunction or serious accidents.
On operation
• If the player is brought directly from a
cold to a warm location, or is placed in
a very damp room, moisture may
condense on the lenses inside the
player. Should this occur, the player
may not operate properly. In this case,
remove the disc and leave the player
turned on for about half an hour until
the moisture evaporates.
• While operating, do not move, shake,
or otherwise allow any shock to the
player. It may cause a malfunction.
• Use this player in a stable, horizontal
position where it is not subject to
vibration.
• Do not touch the disc if it is still
spinning when you open the lid.
Doing so may cause injury.
On adjusting volume
Do not turn up the volume while
listening to a section with very low level
inputs or no audio signals. If you do, the
speakers may be damaged when a peak
level section is played.
Turn the volume down before you start
playback.
Road safety
Do not use headphones while driving,
cycling, or operating any motorized
vehicle. It may create a traffic hazard
and is illegal in some areas. It can also be
potentially dangerous to play your
headsets at high volume while walking,
especially at pedestrian crossing. You
should exercise extreme caution or
discontinue use in potentially hazardous
situations.
On headphones
Preventing hearing damage
Avoid using headphones at high
volume. Hearing experts advise against
continuous, loud and extended play. If
Precautions (continued)
11
Introduction
you experience a ringing in your ears,
reduce volume or discontinue use.
Caring for others
Keep the volume at a moderate level.
This will allow you to hear outside
sounds and to be considerate to the
people around you.
On cleaning
• Clean the cabinet, panel and controls
with a soft cloth slightly moistened
with a mild detergent solution. Do not
use any type of abrasive pad, scouring
powder or solvent such as alcohol or
benzine.
• If the turntable does not work
properly, check for dust or dirt on the
turntable and clean using a soft cloth.
• Never remove the printed “Warranty
void if removed.” seal attached
around the lens.
• If dust on the lens prevents the player
from operating properly, clean the lens
with a commercially available blower
brush designed for cameras. Be careful
not to touch the lens directly.
Do not use a lens cleaning disc. If you
do so, the lens may be damaged.
On transportation
• When you transport this player, use
the original carton box and packing
materials.
• Before you move this player, make
sure to remove any discs from the
player.
On handling the LCD screen
(DVP-FX1 only)
The LCD is manufactured using high-
precision technology. You may,
however, see tiny black points and/or
bright points (red, blue, or green) that
continuously appear on the LCD.
This is a normal result of the
manufacturing process and does not
indicate a malfunction.
• Do not scratch the LCD or exert
pressure on it. This could cause
malfunction.
• Using the player in low temperature
conditions may produce a residual
image on the screen. This is not a
malfunction. When the player returns
to normal temperature, the screen
returns to normal.
• A residual image may appear on the
screen if the same image is displayed
for a lengthy period of time. The
residual image disappears in a while.
You can use a screen saver to prevent
residual images.
• The screen becomes warm during
operation. This is normal and does not
indicate a malfunction.
If you have any questions or problems
concerning your player, please consult
your nearest Sony dealer.
Lens
Introduction
12
Notes about the Discs
On handling discs
• To keep the disc clean, handle the disc
by its edge. Do not touch the surface.
• Do not stick paper or tape on the disc.
If there is glue (or a similar substance)
on the disc, remove the glue
completely before using the disc.
• Do not expose the disc to direct
sunlight or heat sources such as hot air
ducts, or leave it in a car parked in
direct sunlight as the temperature may
rise considerably inside the car.
• After playing, store the disc in its case.
On cleaning
• Before playing, clean the disc with a
cleaning cloth. Wipe the disc from the
center out.
• Do not use solvents such as benzine,
thinner, commercially available
cleaners or anti-static spray intended
for vinyl LPs.
On novelty discs
• Do not use irregularly shaped CDs
such as heart- or star-shaped CDs as
they may cause the player to
malfunction.
Precautions (continued)
IMPORTANT NOTICE
Caution: The enclosed DVD player is
capable of holding a still video image
or on-screen display image on your
television screen indefinitely. If you
leave the still video image or on-
screen display image displayed on
your TV for an extended period of
time you risk permanent damage to
your television screen. Projection
televisions are especially susceptible
to this.
13
Getting Started
Getting Started
Getting Started
Unpacking
Check that you have the following items:
• Audio/video connecting cor d (1)
• AC power adaptor AC-FX1 (1)
• AC power cord (1)
• Remote commander (r emote) RMT-D114A (1)
• Size AA (R6) batteries (2)
• Battery pack NP-FX1 (DVP-FX1 only) (1)
Inserting batteries into the remote
You can contr ol the player using
the supplied r emote. Inser t two
Size AA (R6) batteries by
matching the + and – ends on
the batteries to the markings
inside the compartment. When
using the r emote, point it at the
remote sensor
on the player .
Notes
• Do not leave the r emote in an extr emely hot or humid place.
• Do not dr op any for eign object into the r emote casing, par ticularly when r eplacing
the batteries.
• Do not expose the r emote sensor to dir ect sunlight or lighting apparatuses. Doing so
may cause a malfunction.
• If you do not use the r emote for an extended period of time, r emove the batteries to
avoid possible damage fr om batter y leakage and cor rosion.
14 Getting Started
Using the LCD Screen (DVP-FX1 only)
You can watch the playback pictur e on the LCD scr een.
Opening the LCD panel
1 When using the AC power adaptor , pull out the stabilizer tab on the
bottom of the player to pr event the player fr om tipping over .
2 Press PUSH OPEN and lift open the LCD panel.
When using the LCD scr een, you do not have to connect the TV or the
receiver (amplifier). See “Connecting the AC power adaptor” on page 25 or
“Using the r echar geable batter y pack” on page 26.
Adjusting the brightness of the LCD screen
If necessar y, adjust the brightness
of the LCD screen using the
BRIGHT dial.
PUSH OPEN
Up
Down
BRIGHT
15
Getting Started
Getting Started
Selecting the display mode
You can select the display mode accor ding to the aspect ratio (4:3 or 16:9) of
the playback/input pictur e.
Each time you pr ess DISPLAY MODE, the mode changes as follows:
Selecting the display mode according to the aspect ratio of the picture
The aspect ratio of the picture recorded on the DVD is printed on the jacket
of the DVD ( , , ).
• Wide mode
Enlarges the 4:3 pictur e. The upper
and lower par ts of the pictur e are
condensed to fit the 16:9 scr een.
• Full mode
Displays the 16:9 pictur e to fit the
screen.
• Cinema mode
Enlarges the 4:3 letter box pictur e and
cuts of f the black bands to fit the 16:9
screen.
Depending on the DVD, the edges of
the pictur e may be distor ted.
• Normal mode
Displays the original pictur e as it is.
The 4:3 pictur e will have black bands
on both sides.
The 16:9/4:3 letter box pictur e will
have black bands on all sides.
Adjusting the volume
When you listen to the sound thr ough the built-in speakers, adjust the
volume by turning the VOL dial.
You can also adjust the volume of exter nal headphones with the VOL dial.
t Wide t Full t Cinema t Normal t Off
16 Getting Started
TV Hookups
This connection is for listening to the sound thr ough TV speakers
(L: left, R: right). Refer to the instr uctions supplied with the component
to be connected.
For DVP-FX1
Be sure to set the LINE SELECT switch to OUT.
z You can enjoy surround sound using your TV’s built-in speakers
You can use 3D sound imaging to cr eate vir tual rear speakers fr om the sound of built-
in TV speakers without using actual r ear speakers (VES TV : Virtual Enhanced
Surround TV). For details, see page 60.
Required cords
Audio/V ideo connecting cord (supplied) (1)
S video cord (not supplied) (1)
When connecting the cor ds, be sur e to match the color -coded cor d to the
appropriate jacks on the components: Y ellow (video) to Y ellow, Red (right) to
Red and White (left) to White. Connect the Black jack of the audio/video
connecting cor d to AUDIO OUT (White) on the player . Be sur e to make
connections firmly to avoid hum and noise.
If your TV has an S video input connector , connect the component via the S
VIDEO OUT connector using an S video cor d (not supplied) instead of the
video connecting cor d. You will get a better pictur e.
Yellow
White (L)
Red (R)
Yellow
Black
17
Getting Started
Getting Started
DC OUT 5V
OPTICAL
OUT
S VIDEO
OUT
VIDEOAUDIO
IN OUT
LINE SELECT
S VIDEO
VIDEO
AUDIO
INPUT
L
R
CD/DVD player
To AUDIO
OUT
TV
To VIDEO
OUT
To S VIDEO OUT
To S VIDEO input
To AUDIO input
To VIDEO input
continued
: Signal flow
Set LINE SELECT
to OUT
For DVP-FX1
• To tur n of f the LCD screen:
press the DISPLAY MODE button on the player r epeatedly .
• To adjust the volume of the built-in speakers:
turn the VOL dial on the player .
18 Getting Started
TV Hookups (continued)
Setups for the player
Some setup adjustments ar e necessar y for the player depending on the TV or
other components to be connected.
Use the setup display to change the various settings.
For details on using the setup display , see page 76.
• To connect the player to a normal TV
In the setup display , set “TV TYPE” in “SCREEN SETUP” to “4:3 LETTER
BOX” (default setting) or “4:3 P AN SCAN.” For details, see page 83.
• To connect the player to a TV having the WIDE MODE function
In the setup display , set “TV TYPE” in “SCREEN SETUP” to “16:9/4:3
WIDE MODE.” For details, see page 83.
• To connect the player to a wide-screen TV
In the setup display , set “TV TYPE” in “SCREEN SETUP” to “16:9/4:3
WIDE MODE.” For details, see page 83.
Notes
• Refer to the instr uctions supplied with the component to be connected.
• Do not connect this player to a video deck. If you do, noise may appear in the
picture.
Connect
directly
VCR
TV
CD/DVD
player
19
Getting Started
Getting Started
Receiver (Amplifier) Hookups
This connection is for listening to the sound thr ough speakers
connected to a r eceiver lacking a built-in DTS or Dolby* Digital
decoder. Refer as well to the instr uctions supplied with the component
to be connected.
For DVP-FX1
Be sure to set the LINE SELECT switch to OUT.
z You can enjoy surround sounds even if you connect front speakers only
You can use 3D sound imaging to cr eate vir tual rear speakers fr om the sound of the
front speakers (L, R) without using actual r ear speakers (VES:V irtual Enhanced
Surround). For details, see page 60.
* Manufactur ed under license fr om Dolby Laboratories.
“Dolby,” “Pro Logic” and the double-D symbol ar e trademarks of Dolby
Laboratories.
Confidential unpublished works. ©1992-1997 Dolby Laboratories. All rights
reser ved.
Required cords
Audio/V ideo connecting cord (supplied) (1)
S video cord (not supplied) (1)
When connecting the cor ds, be sur e to match the color -coded cor d to the
appropriate jacks on the components: Red (right) to Red and White (left) to
White. Connect the Black jack of the audio/video connecting cor d to AUDIO
OUT (White) on the player . Be sur e to make connections fir mly to avoid hum
and noise.
If you have a digital component such as a r eceiver (amplifier) with a digital
connector , DAT or MD, connect the component via the OPTICAL OUT
connector using an optical digital connecting cor d (not supplied).
Optical digital connecting cord (not supplied) (1)
continued
Yellow
White (L)
Red (R)
Yellow
Black
Optical
mini-plug
Optical plug
20 Getting Started
Receiver (Amplifier) Hookups (continued)
IN OUT
LINE SELECT
DC OUT 5V
OPTICAL
OUT
S VIDEO
OUT
VIDEOAUDIO
S VIDEO
VIDEO
AUDIO
INPUT
L
R
CD
L
R
DIGITAL IN
OPTICAL
COAXIAL
CD/DVD player
TV
To audio input
: Signal flow
Receiver
(Amplifier)
To
S VIDEO OUT
To S VIDEO
input
To
OPTICAL OUT
To optical digital
input Receiver (Amplifier)
with a digital
connector, MD deck,
DAT deck, etc.
To
AUDIO
OUT
or
Set LINE SELECT
to OUT
Note
You cannot enjoy a pictur e with an S video signal if your TV does not confor m to the S
video signal. When your TV does not have an S VIDEO input, connect the component
via the VIDEO INPUT connector using the video connecting cor d (not supplied)
instead of the S video cor d. For details, see page 17.
Refer to the instr uctions supplied with your TV .
21
Getting Started
Getting Started
Set the items as shown
AUDIO SETUP
AUDIO DRC:
DOWNMIX:
DOLBY DIGITAL:
DIGITAL OUT
To set, press , then .
To quit, press .
STANDARD
DOLBY SURROUND
D-PCM
DTS:
OFF
ENTER
DISPLAY
Setups for the optical digital connection
• To listen to the sound through speakers connected to a receiver
(amplifier) which has a digital connector and lacks a built-in DTS or
Dolby Digital decoder, or to output the sound to a digital component
such as a DAT or MD deck
Set the “AUDIO SETUP” items in the setup display (page 91) as shown in
the illustration below . These ar e the default settings.
z If you have a digital component with a built-in DTS or Dolby Digital decoder
You can enjoy multi-channel sur round sound by connecting the component via the
OPTICAL OUT connector using an optical digital connecting cor d (not supplied).
For details on hookups and settings, see page 22.
Notes
When you have made the connections using an optical digital connecting cord,
do not set “DOLBY DIGITAL” to “DOLBY DIGITAL” and “DTS” to “ON” in
“DIGIT AL OUT.” If you do, a loud noise will suddenly come out from the
speakers, affecting your ears or causing the speakers to be damaged.
• When you have made the connections using an optical digital connecting cor d, set
“VES” to “OFF” in the Contr ol Menu display (page 60). Other wise, the player will
not output the Dolby Digital signals when you select “DIGIT AL OUT” in “AUDIO
SETUP” and set “DOLBY DIGITAL” to “D-PCM.”
• When you have made the connections using an optical digital connecting cor d and
output the signals which do not r eproduce the Dolby Sur round (Pro Logic) ef fect,
set “DOWNMIX” to “NORMAL” in “AUDIO SETUP” in the setup display.
• You cannot make digital audio recordings of discs recorded in multi-channel
surround format directly using an MD deck or DAT deck.
22 Getting Started

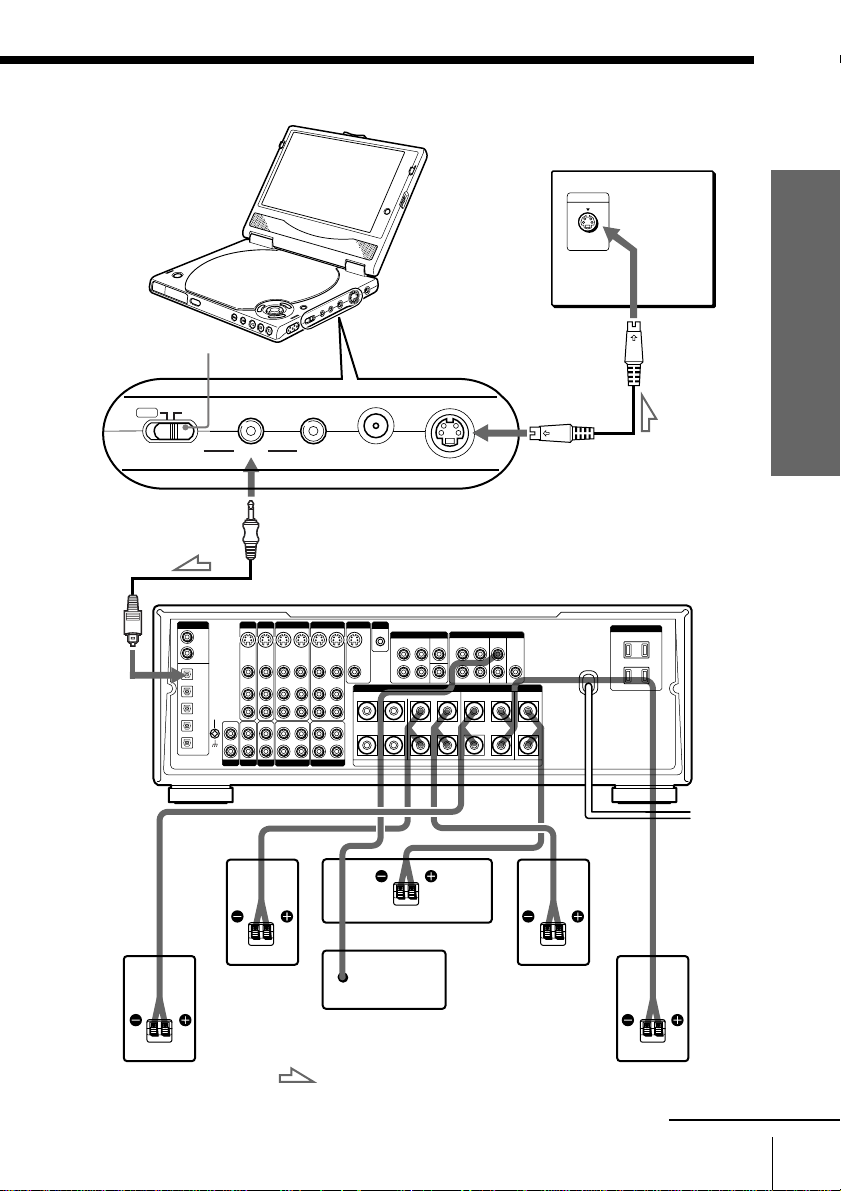

5.1 Channel Surround Hookups
With DVDs which contain DTS or Dolby Digital sound, you can enjoy
the sur round sound while pr oducing the ef fect of being in a movie
theater or a concert hall using a digital component with a built-in DTS
or Dolby Digital decoder (not supplied). The player outputs the
surround sound signals fr om the OPTICAL OUT connector.
Using a receiver (amplifier) having the OPTICAL OUT connector and
6 speakers, you can enjoy even gr eater r eal audio pr esence in the
comfort of your own home.
For DVP-FX1
Be sure to set the LINE SELECT switch to OUT.
Required cords
Optical digital connecting cord* (not supplied) (1)
S video cord (not supplied) (1)
* Connect the component via the OPTICAL OUT connector using an optical digital
connecting cor d (not supplied). See the figur e on the next page.
Notes
• Do not connect the power cor d to an AC outlet befor e completing all connections.
• Refer to the instr uctions supplied with the component to be connected.
• The cord connectors should be fully inser ted into the jacks. A loose connection may
cause hum and noise.
Optical
mini-plug
Optical plug
23
Getting Started
Getting Started
+
–
RLR LRL
CENTER
S-VIDEO
IN
VIDEO
S-VIDEO
OUT
VIDEO
S-VIDEO
OUT
VIDEO
S-VIDEO
IN
VIDEO
S-VIDEO
OUT
VIDEO
S-VIDEO
IN
VIDEO
IN
L
R
REC OUT
AUDIO
IN
L
R
L
R
AUDIO
OUT
AUDIO
IN
AUDIO
OUT
AUDIO
IN
FRONT REAR WOOFER CENTER
TAPE
VIDEO 2
DVD
VIDEO 1
MONITOR
PRE OUT
IN
CD
IN
REC OUT
MD/DAT
IN
TUNER
IN
PHONO
DVD IN OPT
DVD IN
COAX
TV/LD IN
AC-3 RF
SIGNAL
GND
DIGITAL
TV/LD IN OPT
CD IN OPT
MD/DAT OUT OPT
MD/DAT IN OPT
CTRL A1
AC OUTLET
L
R
WOOFER
FRONTB REARA
FRONT REAR
5.1 INPUT
CENTER
TV/LD
S-VIDEO
IN
VIDEO
AUDIO
IN
S-LINK
SPEAKERS
INPUT
IN OUT
LINE SELECT
DC OUT 5V
OPTICAL
OUT
S VIDEO
OUT
VIDEOAUDIO
S VIDEO
continued
Front speaker
(L)
Front speaker
(R)
Rear speaker (R) Rear speaker (L)
Center speaker
Subwoofer
(Active type)
: Signal flow
AV Receiver (Amplifier) with a
built-in DTS decoder or DOLBY
DIGITAL decoder
CD/DVD player
To S VIDEO
OUT
To S VIDEO
input
To OPTICAL OUT
To optical digital input
TV
Set LINE SELECT
to OUT
24 Getting Started
Setups for the player
Some setup adjustments ar e necessar y for the player depending on the
components to be connected.
Use the setup display to change the various settings.
For details on using the setup display , see page 76.
• When you connect an audio component with a built-in DOLBY
DIGIT AL decoder A
Select “DOLBY DIGITAL” under “DIGITAL OUT” in the “AUDIO
SETUP” display and set “DOLBY DIGITAL” to “DOLBY DIGITAL.”
(page 93)
•
When you connect an audio component with a built-in DTS decoder B
Select “DTS” under “DIGITAL OUT” in the “AUDIO SETUP” display and
set “DTS” to “ON.” (page 93)
Notes
• When you do not connect an audio component with a built-in DOLBY DIGITAL
decoder, do not set “DOLBY DIGITAL” to “DOLBY DIGITAL.”
• When you do not connect an audio component with a built-in DTS decoder, do
not set “DTS” to “ON.”
5.1 Channel Surround Hookups (continued)
AUDIO SETUP
AUDIO DRC:
DOWNMIX:
DOLBY DIGITAL:
DIGITAL OUT
To set, press , then .
To quit, press .
STANDARD
DOLBY SURROUND
DOLBY DIGITAL
DTS:
ON
B
A
ENTER
DISPLAY
25
Getting Started
Getting Started
Connecting the AC Power Adaptor
1 Connect the supplied AC power cor d to the AC power adaptor .
2 Connect the AC power adaptor to the player and then plug the cor d
into the AC outlet.
z You can attach a battery pack
See “Using the r echar geable batter y pack” on the next page.
Note
When you disconnect the AC power cor d, be sur e to stop playback. Disconnecting the
AC power cor d during playback may cause a malfunction.
To an AC outlet
To DC IN 10V
AC power adaptor
(supplied)
CD/DVD
player
26 Getting Started
Using the Rechargeable Battery Pack
You can use the NP-FX1 r echar geable batter y pack (supplied with DVP-
FX1 only) to enjoy the player when an AC outlet is not available.
Battery life*
Model name Playing time with
DVD VIDEO VIDEO CD AUDIO CD
DVP-FX1 (LCD screen: On) 4.5 4.5 4.5
DVP-FX1 (LCD screen: Of f) 8.0 8.0 8.0
DVP-F5 8.0 8.0 8.0
* Approximate hours when played continuously at r oom temperatur e (20°C) while:
– using the power saving function (DVP-FX1 only , page 90)
– using the headphones
– the brightness of the LCD scr een is set to the lowest level (DVP-FX1 only , page 14)
Attaching the battery pack
1 Fit the hooks of the battery pack to the holes on the bottom of the
player, as shown below .
2 Slide the player for ward in the dir ection of the ar row until it clicks.
To prevent the buttons from being pressed accidentally
Turn the power of f while attaching the batter y pack.
Note
Do not touch the ter minals on the unit and batter y. Doing so may cause a malfunction.
27
Getting Started
Getting Started
Detaching the battery pack
Unlock the battery pack and slide
the player .
Be car eful not to dr op the batter y
pack.
Note
Do not detach the battery pack during playback.
Charging the battery pack
After attaching the batter y pack, connect the AC power adaptor , then char ge
the battery pack.
1 Attach the batter y pack to the player .
2 Connect the AC power adaptor to the player and the plug into an AC
outlet.
When char ging star ts, “
” appears on the display window .
3 Disconnect the AC power adaptor fr om the player and pull out the plug
from the AC outlet after char ging.
When char ging is complete, “ ” appears on the display window .
This process takes appr oximately 8 hours.
When to charge the battery pack
You can check the r emaining power of the batter y on the display window .
Battery power is full.
o
o Batter y power is getting low .
o
Batter y power is low .
o
Batteries ar e depleted.
If “ ” flashes, connect the AC power adaptor to star t char ging the batter y
pack.
Notes
• If you tur n on the player while char ging, char ging is suspended until you tur n of f
the player .
• If you press · while char ging, char ging is suspended and playback star ts.
Charging will r esume when you tur n of f the player .
• If “ ” flashes while char ging, ther e may be a pr oblem with char ging.
Disconnect the AC power adaptor and detach the batter y pack. Then attach the
batter y pack and connect the AC power adaptor to star t char ging again.
28 Getting Started

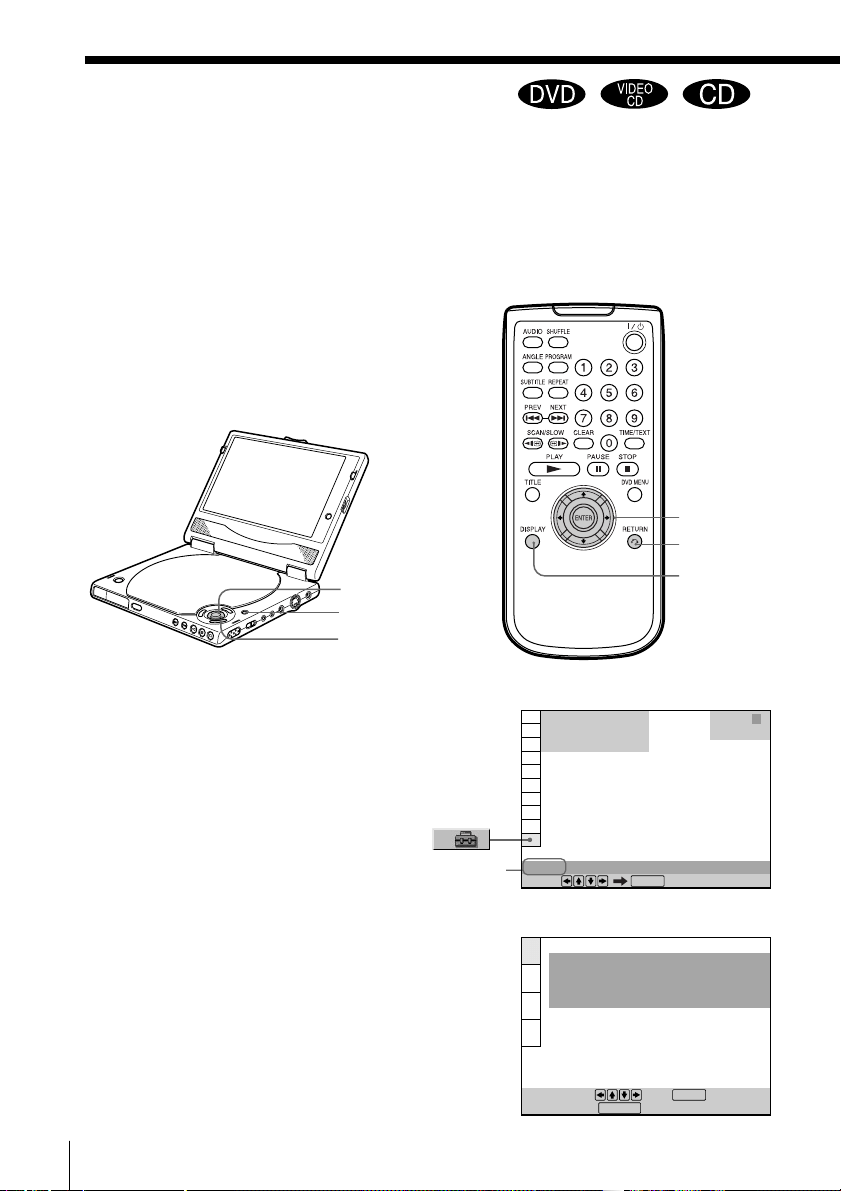

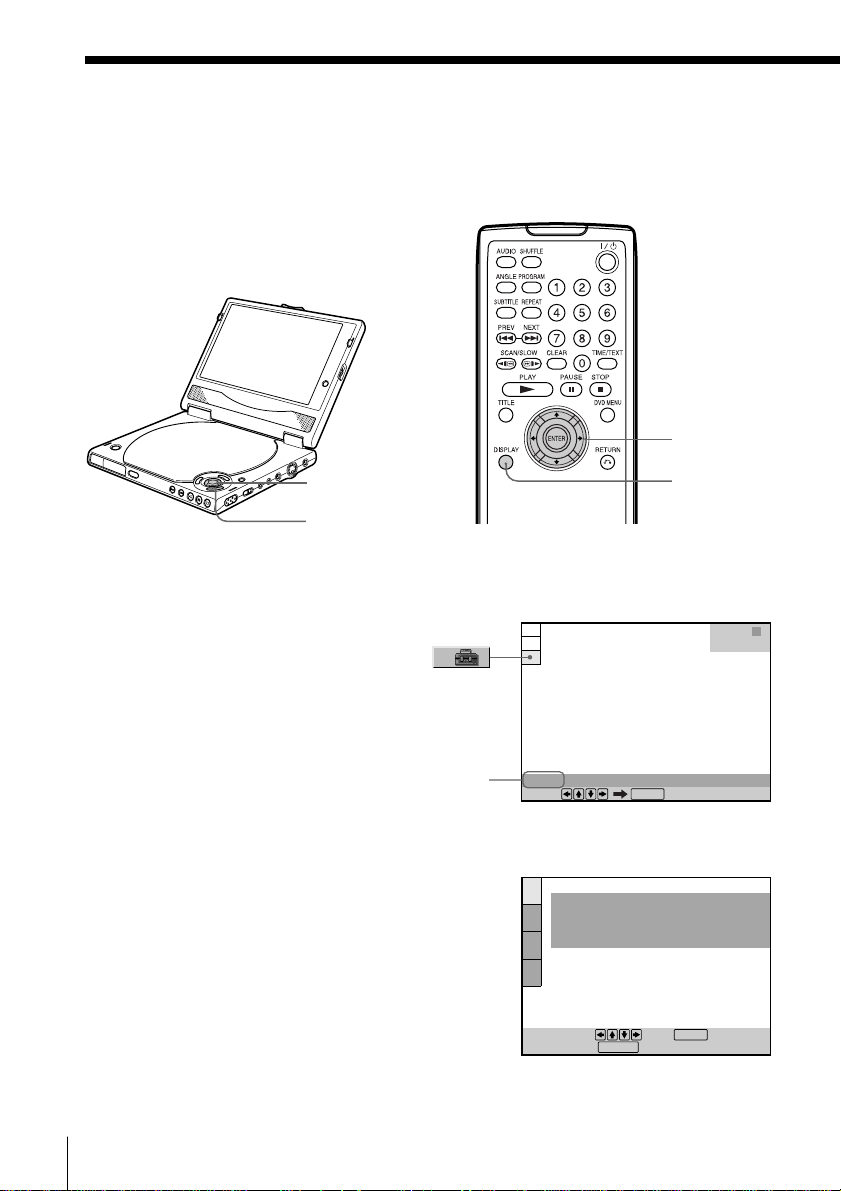

Selecting the Language for the
On-Screen Display
You can select the language for the setup
display, the Contr ol Menu display or the
messages displayed on the scr een.
The default setting is “ENGLISH.”
1 When the player is in stop mode, pr ess DISPLAY and select “SETUP”
using M/m.
The on-scr een menu
items ar e dif ferent
depending on whether
ther e is a disc in the
player or not.
2 Press ENTER.
The setup display appears on the
screen.
?/>/.///
ENTER
?/>/.///ENTER
DVD
STOP
Select:
SETUP
ENTER
Selected item
DISPLAY
LANGUAGE SETUP
OSD:
DVD MENU:
AUDIO:
SUBTITLE:
To set, press , then .
To quit, press .
ENGLISH
ENGLISH
ORIGINAL
AUDIO FOLLOW
ENTER
DISPLAY
DISPLAY
29
Getting Started
Getting Started
3 Select “LANGUAGE
SETUP” using M/m, and
then pr ess ENTER.
4 Select “OSD” using M/m, then pr ess
, or ENTER.
The languages you can select ar e
displayed.
5 Select the desir ed language using
M/m, then pr ess ENTER.
6 Press DISPLAY.
The setup display disappears.
7 Press DISPLAY repeatedly to tur n
off the on-scr een display .
To return to the previous screen
Press ORETURN.
To quit while making a selection
Press DISPLAY.
Note
The language you can select ar e the ones displayed in step 4. For details, see page 80.
LANGUAGE SETUP
OSD:
DVD MENU:
AUDIO:
SUBTITLE:
To set, press , then .
ENGLISH
ENGLISH
ORIGINAL
AUDIO FOLLOW
ENTER
To quit, press .
DISPLAY
LANGUAGE SETUP
OSD:
DVD MENU:
AUDIO:
SUBTITLE:
To set, press , then .
ENGLISH
FRENCH
SPANISH
PORTUGUESE
ENTER
ENGLISH
To quit, press .
DISPLAY
CHOIX DE LA LANGUE
ECRANS:
MENU DVD :
AUDIO:
SOUS-TITRE:
FRANÇAIS
ENGLISH
ORIGINAL
IDEM AUDIO
Pour régler, appuyez sur , puis sur
.
ENTER
Pour quitter, appuyez sur .
DISPLAY
Playing discs
30
,
Playing discs
Playing discs
Depending on the DVD or VIDEO CD,
some operations may be different or
restricted. Refer to the instructions
supplied with your disc.
For DVP-FX1
Be sure to set the LINE SELECT
switch to OUT.
1 Press POWER to turn on the player.
The display window lights up.
When using the AC power adaptor, you can turn on the player with @/1 on
the remote.
When connecting the player to a TV
Turn on the TV and select the video input so that you can view the pictures
from this player.
When using a receiver (amplifier)
Turn on the receiver (amplifier) and select the appropriate position so that
you can listen to the sound from this player.
2 Press OPEN to open the lid.
3 Insert a disc horizontally.
Push down the center of the disc
gently with two fingers. Make
sure the disc clicks into the
position.
4 Close the lid, then press ·.
The player starts playback (continuous play). Adjust the volume on the
player, the TV or the receiver (amplifier).
With the playback
side facing down
Push on the
disc here.
POWER
OPEN
LINE SELECT
·
Playing discs
31
Playing discs
After following Step 4
x When playing a DVD

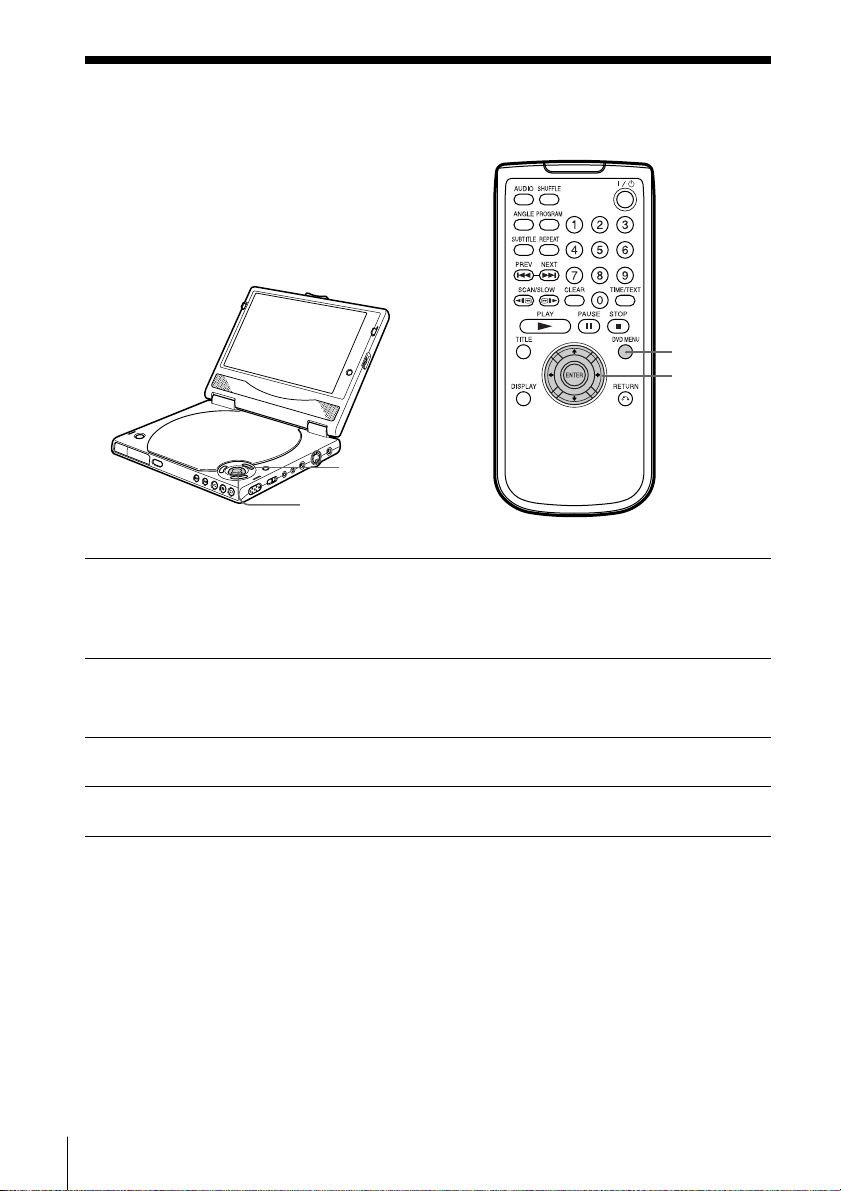

A DVD menu or title menu may appear on the screen (see page 37).

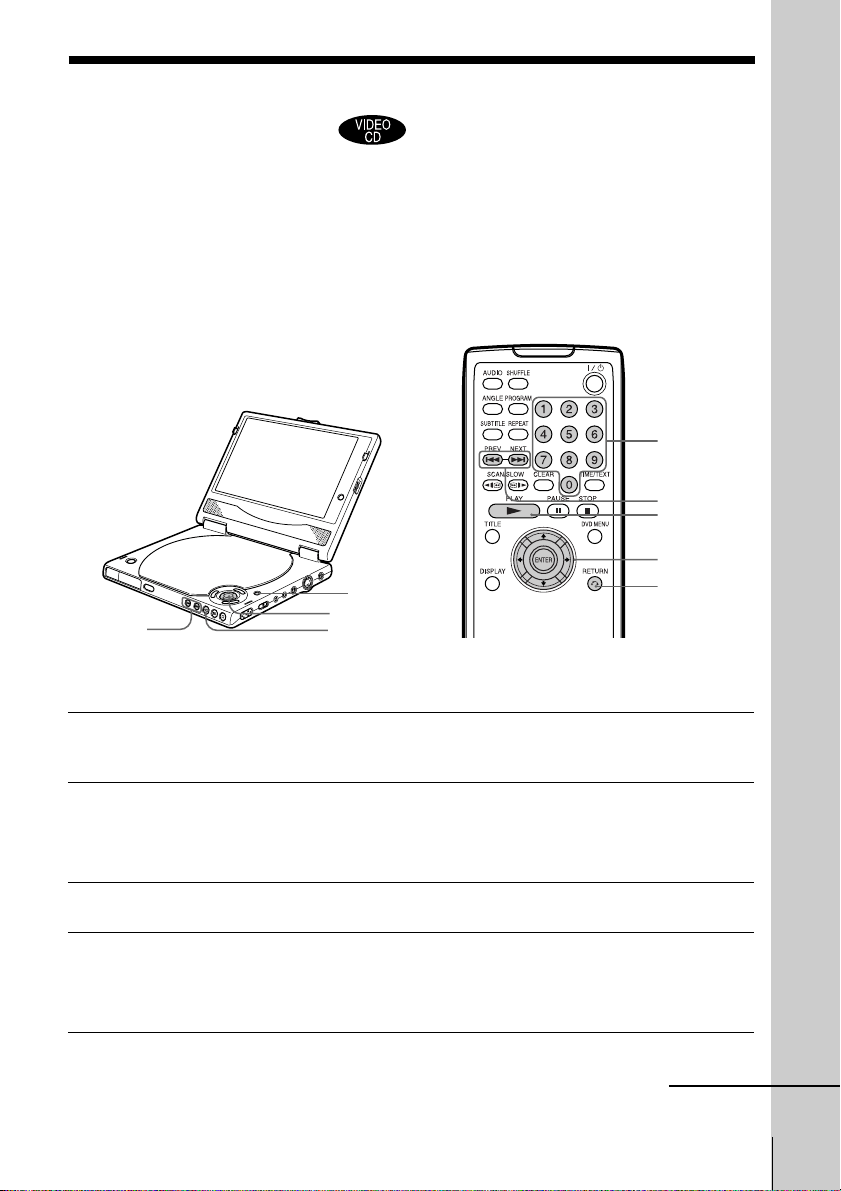

x When playing a VIDEO CD
A menu screen may appear on the screen depending on the VIDEO CD.
You can play the disc interactively, following the instructions on the
menu screen. (PBC Playback, see page 39.)
When using the battery pack
Normally you cannot use the remote to turn on the player. However, within
10 minutes after having turned off the player with the remote, you can use
the remote to turn on the player.
Notes on playing DTS sound tracks on a CD
• Do not play DTS sound tracks without first connecting the player to an audio
component having a built-in DTS decoder. The player outputs the DTS signal even
if “DTS” in “DIGITAL OUT” is set to “OFF” in “AUDIO SETUP” in the setup
display, and may affect your ears or cause your speakers to be damaged.
• Set the sound to “STEREO” when you play DTS sound tracks on a CD. (See
“Changing the Sound” on page 54.) If you have made the connections using an
optical digital connecting cord and set the sound to “1/L” or “2/R,” no sound will
come out.
• If you have made the connections using an audio connecting cord and play a CD
with a DTS sound track, a loud noise may come out, affecting your ears or causing
the speakers to be damaged.
Notes on playing DTS sound tracks on a DVD
The signals of the DTS sound tracks are output only when you have made the
connections using an optical digital connecting cord. No sound will be output when
you have made the connections using an audio connecting cord.
• If the player is connected to an audio component lacking a built-in DTS decoder, do
not set “DTS” in “DIGITAL OUT” to “ON” in “AUDIO SETUP” in the setup
display. Otherwise, when you play the DTS sound track, a loud noise will come out
from the speakers, affecting your ears or causing the speakers to be damaged.
• When you set “DTS” in “DIGITAL OUT” to “OFF,” no sound will come out even if
you have made the connections using an optical digital connecting cord and play
DTS sound tracks on DVDs.
Notes
• If you leave the player or the remote in pause or stop mode for 15 minutes, the
screen saver image appears automatically. To make the screen saver image go away,
press H. (If you want to set the screen saver function to off, see page 84.)
• While playing a disc, do not turn off the player. Doing so may cancel the settings of
the menu. When you turn off the player, press x first to stop playback and then
press POWER.
• The power is automatically turned off whenever,
– a disc is not being played.
– you do not operate the player or the remote for more than 30 minutes.
Playing discs
32
Operation
Press x
Press X
Press X or H
Press >
Press .
Press OPEN
Playing Discs (continued)
Additional operations
You can play discs in various modes such as Program Play using the
on-screen menu (Control Menu). For Control Menu operations, see page 45.
To
Stop
Pause
Resume playback after pause
Go to the next chapter, track or scene in
continuous play mode
Go back to the preceding chapter, track or
scene in continuous play mode
Stop play and remove the disc
OPEN
x
X
H
./>
X
./>
H
x
Playing discs
33
Playing discs
Searching for a Particular Point on a
Disc
You can locate a particular point on a
disc quickly by monitoring the picture
or playing back slowly.
Note
Depending on the DVD/VIDEO CD, you
may not be able to do some of the operations
described.
Locating a point quickly (Search)
While a disc is playing, keep >
pressed on the player to locate a point in
playback direction at the FF1M* speed
or keep . pressed on the player to
locate a point in opposite direction at the
FR1m* speed. When you find the
point you want, release the button to
return to normal playback speed.
* The FF1M/FR1m playback speed is one
of the scan speed described on the next
page.
./>
Playing discs
34

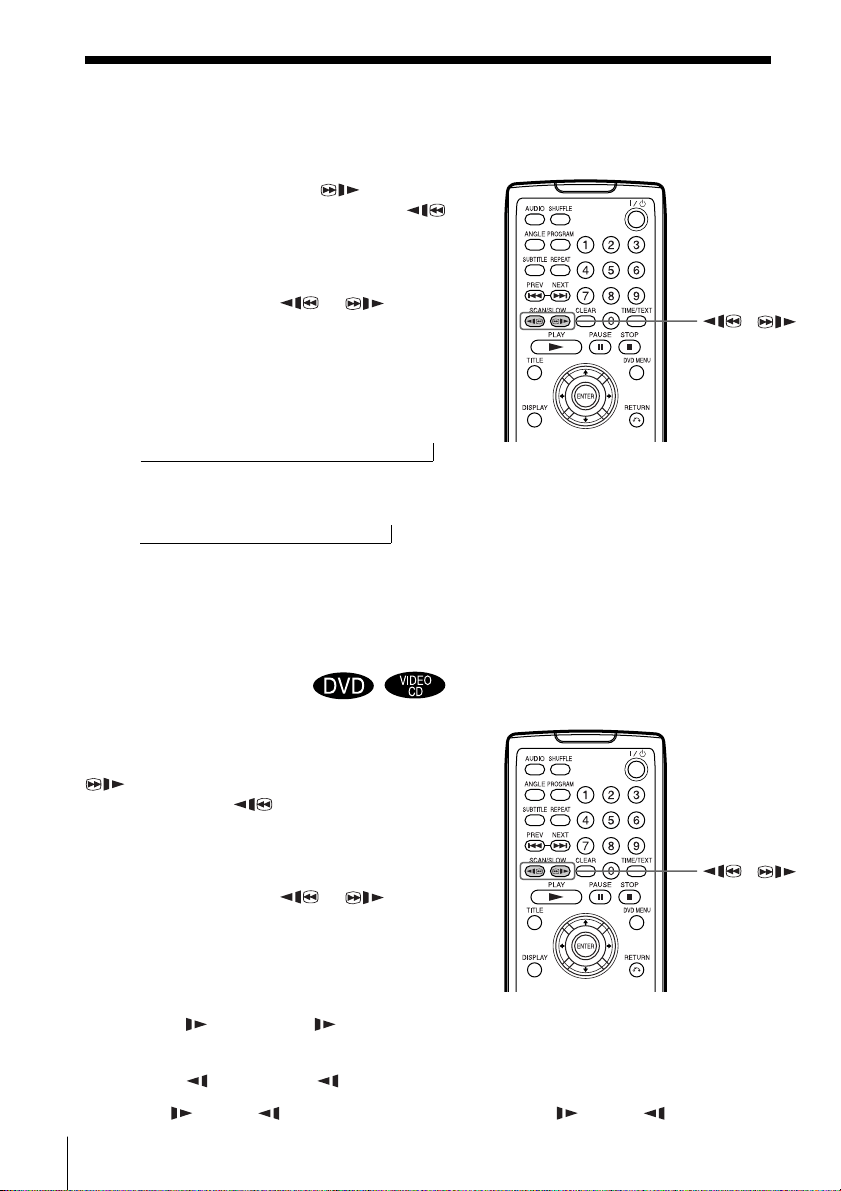

Locating a point quickly by playing a disc in fast
forward or fast reverse (Scan)
While a disc is playing, press to locate a
point in the playback direction, or press
to locate a point in the opposite direction.
When you find the point you want, press H
to return to normal playback speed.
Each time you press the
or button
during Speed scan, the playback speed
changes. Three speeds are available. With each
press, the display changes as follows:
Playback direction
×2B (DVD/CD only) t FF1M t FF2M
Opposite direction
×2b (DVD only) t FR1m t FR2m
The ×2B/×2b playback speed is about twice the normal speed.
The FF2M/FR2m playback speed is faster than FF1M/FR1m.
Locating a point slowly by watching the screen
(Slow-motion play)
You can use this function only for DVDs or
VIDEO CDs.
When the player is in the pause mode, press
to locate a point in the playback
direction, or press
to locate a point in the
opposite direction. When you find the point
you want, press H to return to the normal
playback speed.
Each time you press the
or button
during Slow-motion play, the playback speed
changes. Two speeds are available. With each
press, the indication changes as follows:
Playback direction
SLOW2
y SLOW1
Opposite direction (DVD only)
SLOW2 y SLOW1
The SLOW2 /SLOW2 playback speed is slower than SLOW1 /SLOW1 .
Searching for a Particular Point on a Disc (continued)
/
R
R
/
Playing discs
35
Playing discs
Resuming Playback from the Point
Where You Stopped the Disc
(Resume Play)
The player remembers the point where
you stopped the disc, and when
“RESUME” appears on the display
window, you can resume playback from
that point.
As long as you do not open the lid,
Resume Play will work even if you press
POWER.
1 While playing a disc, press x to stop playback.
“RESUME” appears on the display window and
“Disc will restart from current point. To start from
beginning, press [STOP] again.” appears on the
screen.
If “RESUME” does not appear, Resume Play is not
available.
2 Press H.
The player starts playback from the point where
you stopped the disc in Step 1.
z To play from the beginning of the disc
When the playing time appears on the display window before you start playing, press
x to reset the playing time, then press H.
continued
x
H
H
x
Playing discs
36
Notes
• Resume Play may not be available on some DVDs.
• Resume Play is not available in Shuffle or Program Play mode.
• Depending on where you stopped the disc, the player may resume playback from a
different point.
• The point where you stopped playing is cleared when:
– you open the lid
– you change the play mode
– you start playback after selecting a title, chapter or track
– you change the settings in the setup display
– you disconnect the AC power adaptor
– you detach the battery pack
Resuming Playback from the Point Where You Stopped the Disc
(Resume Play) (continued)
Playing discs
37
Playing discs
1 Press TITLE.
The title menu appears on the screen.
The contents of the menu vary from disc to disc.
2 Press </M/m/, to select the title you want to play.
Depending on the disc, you can use the number buttons to select the title.
3 Press ENTER.
The player starts playing the selected title.
Notes
• On some DVDs, you may not be able to select the title.
• On some DVDs, a “title menu” may simply be called a “menu” or “title ” in the
instructions supplied with the disc. “Press ENTER.” may also be expressed as
“Press SELECT.”
Using the DVD’s Menu
Some DVDs have a title menu or a DVD
menu that is provided with DVDs only.
TITLE
TITLE
?/>/.///ENTER
?/>/.//
/ENTER
Using the title menu
A DVD is divided into long sections of a
picture or a music feature called “titles.”
When you play a DVD which contains
several titles, you can select the title you
want using the title menu.
Playing discs
38
Using the DVD’s Menu (continued)
Using the DVD menu
Some DVDs allow you to select the disc
contents using a menu. When you play
these DVDs, you can select the language
for the subtitles, the language for the
sound, etc., using the DVD menu.
1 Press DVD MENU.
The DVD menu appears on the screen.
The contents of the menu vary from disc to disc.
2 Press </M/m/, to select the item you want to change.
Depending on the disc, you can use the number buttons to select the item.
3 To change other items, repeat Step 2.
4 Press ENTER.
z If you want to select the language for the DVD menu
Change the setting using “DVD MENU” in “LANGUAGE SETUP” in the setup
display. For details, see page 80.
Note
Depending on the DVD, a “DVD menu” may simply be called a “menu” in the
instructions supplied with the disc.
DVD MENU
DVD MENU
?/>/.///
ENTER
?/>/.///ENTER
Playing discs
39
Playing discs
Playing VIDEO CDs with PBC Functions
(PBC Playback)
When playing VIDEO CDs with PBC (Play Back Control) functions
(Ver. 2.0 discs), you can enjoy simple interactive operations, search
functions, and other such operations.
PBC Playback allows you to play VIDEO CDs interactively by
following the menu on the screen.
On this player, you can use the number
buttons, ENTER, ./>, M/m and
ORETURN during PBC Playback.
1 Start playing a VIDEO CD with PBC functions by following Steps 1 to 4 in
“Playing Discs” on page 30.
2 Select the item number you want.
Press M/m to select the item number.
You can also select the item number with the number buttons on the remote.
3 Press ENTER.
4 Follow the instructions in the menu for interactive operations.
Refer to the instructions supplied with the disc, as the operating procedure
may differ according to the VIDEO CD.
ORETURN
M/m/ENTER
Number
buttons
ORETURN
./>
H
H
M/m/ENTER
./>
continued
Playing discs
40
Playing VIDEO CDs with PBC Functions (PBC Playback) (continued)
To go back to the menu
Press ORETURN, . or >.
z To cancel PBC playback of a VIDEO CD with PBC functions and play the disc in
continuous play mode
There are two ways.
• Before you start playing, select the track you want using . or >, then press
ENTER or H.
• Before you start playing, select the track number using the number buttons on the
remote, then press ENTER or H.
“Play without PBC.” appears on the TV screen and the player starts continuous
play. You cannot play still pictures such as a menu.
To return to PBC playback, press x twice then press H.
Note
Depending on the VIDEO CD, “Press ENTER” in Step 3 may be expressed as “Press
SELECT” in the instructions supplied with the disc.
Playing discs
41
Playing discs

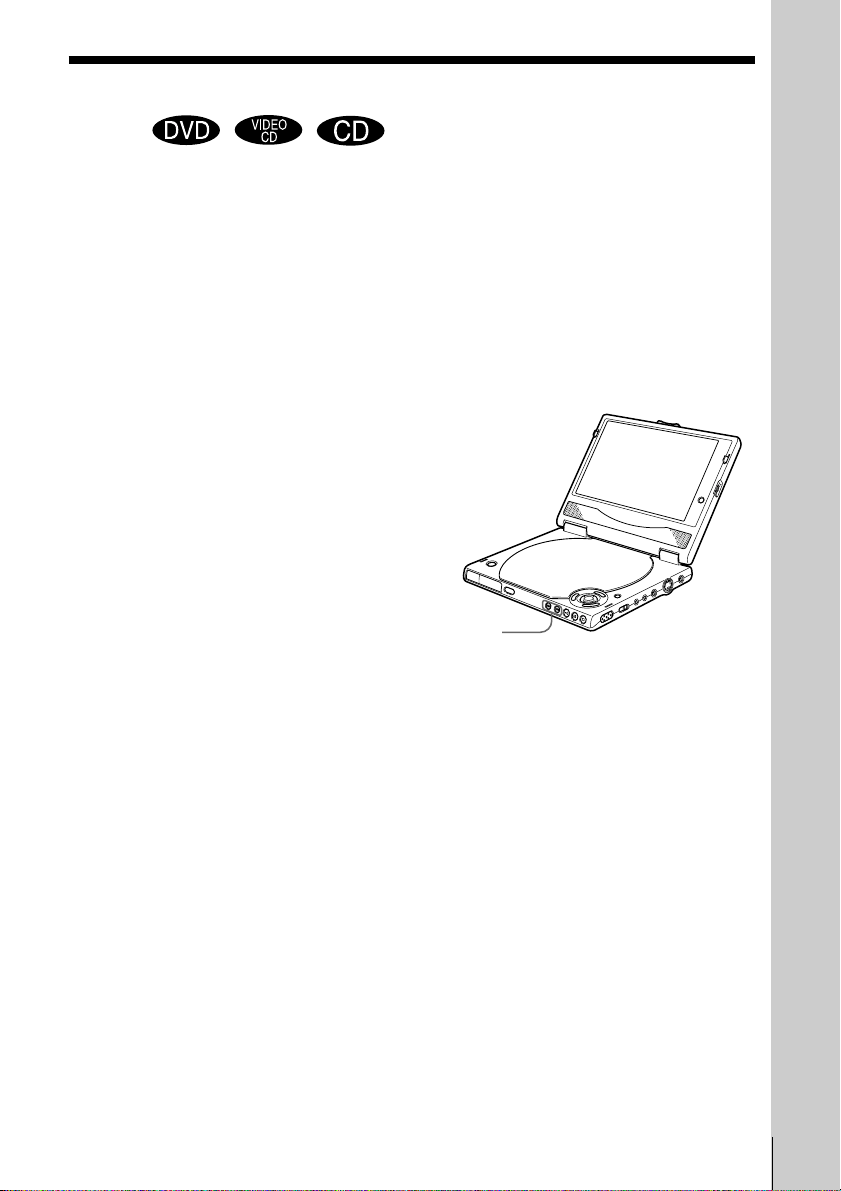

Using the Display
Window Z
You can check information about the
disc, such as the total number of titles or
tracks or remaining time, using the
display window.
When playing back a DVD
Displaying information while playing the disc
Lights up when you can
change the angle
Playing time,
current title number and
current chapter number
Disc type
TIME/TEXT
Lights up while playing
DTS sound tracks
Current play
mode
Battery remaining
indicator
Playing discs
42
Using the Display window (continued)

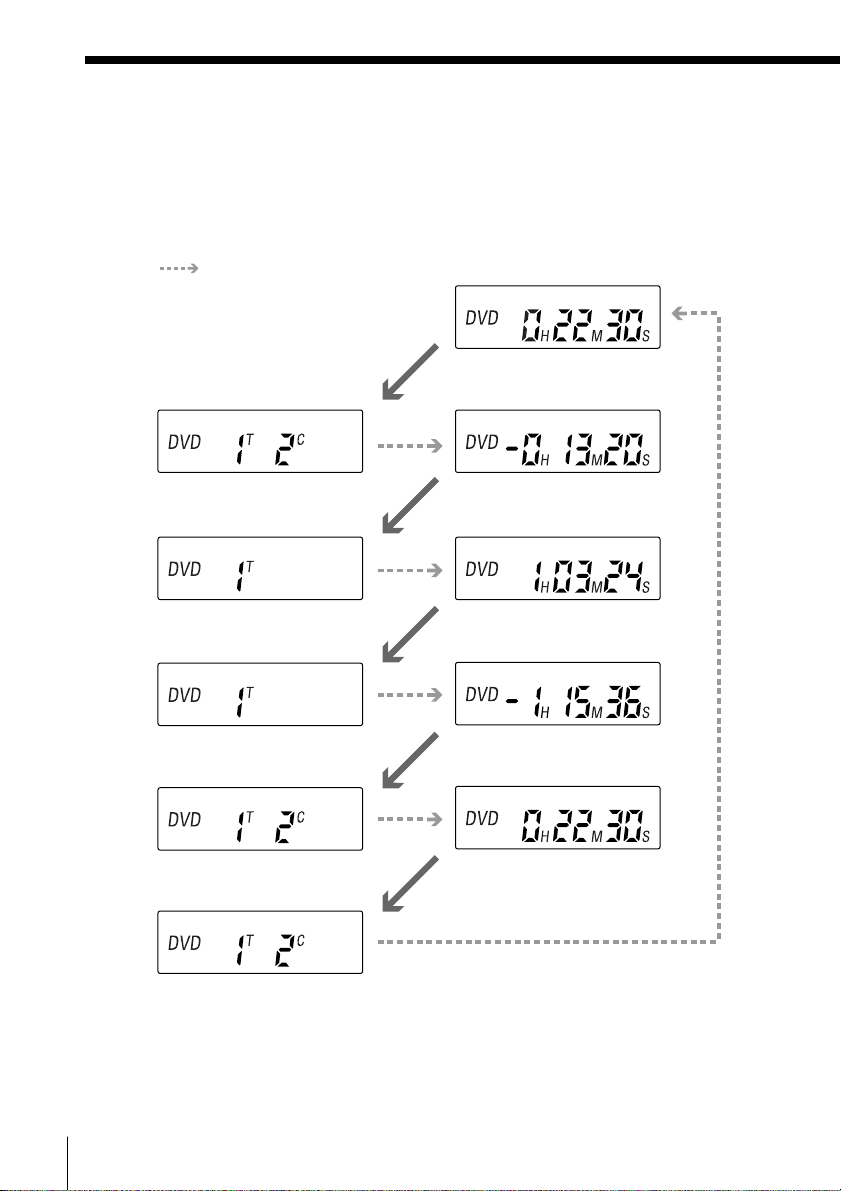

Checking the remaining time
Press TIME/TEXT.
Each time you press TIME/TEXT while playing the disc, the display changes
as shown in the following chart.
* The DVD TEXT is displayed on the screen.
Notes
• On some DVDs, the chapter number or time may not appear or you may not be able
to change the display window.
• While you are doing Shuffle Play or Program Play, the playing time of the title and
the remaining time of the title are not displayed.
: The display
automatically changes
after a few seconds
Press TIME/TEXT
Press TIME/TEXT
Press TIME/TEXT
Press
TIME/TEXT
Number of the current title
and chapter
Number of the current title
Number of the current title
Number of the current
title and chapter*
Press
TIME/TEXT
Number of the current
title and chapter
Playing time of the current
chapter
Remaining time of
the current title
Playing time of the current
title
Remaining time of
the current chapter
Playing time of the current
chapter*
Playing discs
43
Playing discs
When playing back a CD/VIDEO CD
Displaying information while playing the disc
z When playing VIDEO CDs with PBC functions
The current scene number is displayed instead of the current track number and the
current index number. In this case, the display window does not change when you
press TIME/TEXT (see page 51).
Playing time,
current track number and
current index number
Disc type
(“CD” appears
when playing CDs,
“VCD” appears
when playing
VIDEO CDs)
Lights up during PBC
playback (VIDEO CD only)
Lights up while playing
DTS sound tracks
Current play
mode
Battery remaining
indicator
Playing discs
44
Using the Display window (continued)
Press TIME/TEXT
Checking the remaining time
Press TIME/TEXT.
Each time you press TIME/TEXT while playing a disc, the display changes
as shown in the following chart.
* The CD TEXT is displayed on the screen.
Note
While you are doing Shuffle Play, or Program Play, the playing time of the disc and the
remaining time of the disc are not displayed.
Playing time and current
track number
Remaining time of the
current track
Remaining time
of the disc
Playing time
of the disc
Press TIME/TEXT
Press TIME/TEXT
Press TIME/TEXT
Playing time and current
track number*
: The display
automatically changes
after a few seconds
Current track number
Current track number*
Current track number
Press TIME/TEXT
Using Various Functions with the Control Menu 45
Using the Control Menu Display
Using the Control Menu display, you can select the starting point, play
scenes in any order you like, change the viewing angles, make Digital
Cinema Sound settings, and other such operations.
The possible operations are different depending on the kind of disc.
For details on each Control Menu
display item, see pages 48 to 75.
1 Press DISPLAY to show the Control
Menu display on the screen.
2 Select the item you want using M/m.
Using Various Functions with the Control Menu
DISPLAY
</M/m/,/ENTER
ORETURN
DISPLAY
ORETURN
1 8
(
3 4
)
1 2
(
2 7
)
C
0 1 : 3 2 : 5 5
DVD
Select:
TITLE
ENTER
PLAY
continued
1 8
(
3 4
)
1 2
(
2 7
)
C
0 1 : 3 2 : 5 5
1: ENGLISH
DVD
Select:
SUBTITLE
ENTER
PLAY
Items
Selected item
</M/m/,/
ENTER
Current Item
Using Various Functions with the Control Menu46
Using the Control Menu Display (continued)
3 Press ENTER.
4 Select the item you want using M/m.
5 Press ENTER.
To cancel while making a selection
Press ORETURN.
1 8
(
3 4
)
1 2
(
2 7
)
C
0 1 : 3 2 : 5 5
OFF
1: ENGLISH
2: FRENCH
3: SPANISH
1: ENGLISH
DVD
PLAY
Select: Cancel:
SUBTITLE
ENTER RETURN
1 8
(
3 4
)
1 2
(
2 7
)
C
0 1 : 3 2 : 5 5
DVD
Select:
SUBTITLE
ENTER
OFF
PLAY
Items
Selected item
OFF
1: ENGLISH
2: FRENCH
3: SPANISH
1:ENGLISH
1 8
(
3 4
)
1 2
(
2 7
)
C
0 1 : 3 2 : 5 5
DVD
Select: Cancel:
SUBTITLE
ENTER RETURN
PLAY
Using Various Functions with the Control Menu 47
To display other items
Each time you press DISPLAY, the Control Menu display changes as follows:
, Control Menu display 1
m
Control Menu display 2
(The items except the first three items from the top are changed to other
items.)
m
ADVANCED display (see page 63)
m
Control Menu display off
The Control Menu display items are different depending on the discs.
z You can select some items directly
Some items can be selected by pressing the corresponding button on the remote. In
this case, only the item you selected is displayed. For instructions on using the
remote, see the pages of each relevant item.
Note
Some Control Menu display items require operations other than selecting the setting.
For details on these items, see the relevant pages.
Using Various Functions with the Control Menu48
Control Menu Item List
TITLE (DVD only) (page 50)/
SCENE (VIDEO CD during PBC playback only) (page 50)/
TRACK (VIDEO CD only) (page 50)
CHAPTER (DVD only) (page 50)/
INDEX (VIDEO CD only) (page 50)
TRACK (CD only) (page 50)
INDEX (CD only) (page 50)
You can search for a point on the DVD by selecting the title, chapter, track,
index or scene.
TIME/TEXT (pages 51 to 53)
You can check the playing time and remaining time of the current title,
chapter, track and the total playing time or remaining time of the disc.
You can also search by inputting the time code.
You can check the DVD TEXT or CD TEXT of the disc on the screen.
AUDIO (page 54)
If the DVD is recorded with multilingual tracks, you can select the language
you want while playing the DVD.
If the DVD is recorded in multiple audio formats (PCM, Dolby Digital or
DTS), you can select the audio format you want while playing the DVD.
With multiplex CDs or VIDEO CDs, you can select the sound from the right
or left channel and listen to the sound of the selected channel through both
the right and left speakers.
SUBTITLE (DVD only) (page 57)
With DVDs on which multilingual subtitles are recorded, you can change the
subtitle language whenever you want while playing the DVD, and turn it on
or off whenever you want.
ANGLE (DVD only) (page 58)
With DVDs on which various angles (multi-angles) are recorded, you can
change the angle of the scene.
Using Various Functions with the Control Menu 49
VES (DVD only) (page 60)
Select a mode to enjoy multichannel surround sound such as Dolby Digital.
Even if you connect only front speakers, Virtual Enhanced Surround (VES)
lets you enjoy 3D sound by using 3D sound imaging to create virtual rear
speakers from the sound of the front speakers (L, R) without using actual
rear speakers.
ADVANCED (DVD only) (page 63)
You can check play information about the bit rate or the position where the
disc is being played (layer).
CUSTOM PARENTAL CONTROL (page 65)
Using a registered password, you can set playback restrictions for a desired
disc.
The same password is used for both Parental Control (page 85) and Custom
Parental Control.
SETUP (page 76)
Using the setup display, you can do the initial setup, adjust the picture and
sound and set the various outputs. You can also set a language for the
subtitles and the setup display, limit playback by children, and so on. For
details about the setup display, see page 76.
PROGRAM (page 68)
You can play the contents of the disc in the order you want by arranging the
order of the titles, chapters or tracks on the disc to create your own program.
SHUFFLE (page 72)
You can have the player “shuffle” titles, chapters or tracks and play them in
a random order. Subsequent “shuffling” may produce a different playing
order.
REPEAT (page 73)
You can play all the titles/tracks on a disc or a single title/chapter/track
repeatedly.
A-B REPEAT (page 74)
You can play a specific portion of a title, chapter, or track repeatedly.
Using Various Functions with the Control Menu50
Searching for a Title/Chapter/Track/
Index/Scene Z
You can search the disc by title, chapter,
track, index or scene.
Select “TITLE,” “ CHAPTER,”
“TRACK,” “INDEX” or “SCENE” after
pressing DISPLAY.
When you play back a DVD, “TITLE”
and “CHAPTER” are displayed.
When you play back a VIDEO CD/CD,
“TRACK” and “INDEX” are displayed.
When you play back a VIDEO CD with
PBC functions, “SCENE” is displayed.
1 Select “TITLE,” “CHAPTER,”
“TRACK,” “INDEX” or “SCENE”
using M/m.
“
” is highlighted. (
refers to a number) The number in
parentheses indicates the total
number of titles, chapters, tracks,
indexes or scenes.
2 Press , or ENTER.
“ ” changes to
“— — ”.
3 Select the number of the title,
chapter, track, index or scene you
want to search for using the number
buttons, then press ENTER.
The player starts playback at the selected number.
To cancel the number, press CLEAR before pressing ENTER.
To cancel while making a selection
Press ORETURN.
Notes
• The title, chapter or track number displayed is the same number recorded on the
disc.
• The index numbers are not displayed during PBC playback of VIDEO CDs.
1 8
(
3 4
)
1 2
(
2 7
)
C
0 1 : 3 2 : 5 5
DVD
Select:
CHAPTER
ENTER
PLAY
1 2
(
2 7
)
C
0 1 : 3 2 : 5 5
DVD
Number buttons Cancel:
CHAPTER
ENTER
– –
(
3 4
)
RETURN
PLAY
1 8
(
3 4
)
1 2
(
2 7
)
C
0 1 : 3 2 : 5 5
DVD
Select:
TITLE
ENTER
PLAY
Using Various Functions with the Control Menu 51
Checking the Playing Time and
Remaining Time
Z
You can check the playing time and
remaining time of the current title,
chapter or track and the total playing
time or remaining time of the disc.
Press DISPLAY. Then press TIME/TEXT
on the remote to change the time
information.
You can also check the DVD TEXT or CD
TEXT. See page 53.
When playing a DVD
x TIME/TEXT
•C
: Playing time of the current chapter
•C – : Remaining time of the current chapter
•T
: Playing time of the current title
•T – : Remaining time of the current title
When playing a VIDEO CD (during PBC playback)
x TIME/TEXT
• : Playing time of the current scene
When playing a VIDEO CD (in continuous play) or CD
x TIME/TEXT
•T : Playing time of the current track
•T –
: Remaining time of the current track
•D : Playing time of the current disc
•D– : Remaining time of the current disc
z You can select “TIME/TEXT” directly
Press TIME/TEXT on the remote. Each time you press the button, the time
information changes.
1 8
(
3 4
)
1 2
(
2 7
)
C
0 1 : 3 2 : 5 5
DVD
Select:
TIME/TEXT
ENTER
PLAY
Using Various Functions with the Control Menu52
Selecting a Starting Point Using the
Time Code Z
You can search for a starting point by
inputting the time code.
Select “TIME/TEXT” after pressing
DISPLAY.
The time code corresponds to the
approximate actual playing time. For
example, to search for a scene 2 hours 10
minutes 20 seconds past the beginning,
input 2:10:20.
1 Select “C ” (playing
time of the current chapter) when
playing a DVD.
2 Press , or ENTER.
Time code changes to “T – – : – – : – –”.
3 Input the time code using the number buttons, then press ENTER.
The player starts playing at the selected time code.
To cancel the number, press CLEAR before pressing ENTER.
To cancel while making a selection
Press ORETURN.
Note
When you input the time code, input the playing time of the title, not the chapter or
track time.
1 8
(
3 4
)
1 2
(
2 7
)
C
0 1 : 3 2 : 5 5
DVD
Select:
TIME/TEXT
ENTER
PLAY
1 8
(
3 4
)
1 2
(
2 7
)
C
0 1 : 3 2 : 5 5
DVD
Select:
TIME/TEXT
ENTER
PLAY
1 2
(
2 7
)
T – – : – – : – –
DVD
Number buttons Cancel:
TIME/TEXT
ENTER
1 8
(
3 4
)
RETURN
PLAY
Using Various Functions with the Control Menu 53
Viewing the Disc Information
Z
You can check the DVD TEXT or CD
TEXT of the disc on the screen.
DVD TEXT and CD TEXT are
information recorded on the disc which
you cannot change.
Press DISPLAY. Then press TIME/TEXT
on the remote until DVD/CD TEXT is
displayed.
The information is displayed at the
bottom of the display.
As DVD/CD text is not scrolled, some
characters may not be displayed.
z You can select “TIME/TEXT” directly
Press TIME/TEXT on the remote. To display DVD/CD TEXT, press TIME/TEXT until
DVD/CD TEXT is displayed.
Notes
• DVD TEXT is displayed only in English.
• “NO TEXT” appears when the DVD/CD TEXT is not recorded on the disc.
• This player can only display the first level of DVD/CD TEXT information.
• When the DVD/CD TEXT is displayed, the operation guide does not appear.
1 8
(
3 4
)
1 2
(
2 7
)
C
0 1 : 3 2 : 5 5
DVD
TIME/TEXT
BRAHMS SYMPHONY NO – 4
PLAY
DVD/CD
TEXT
Using Various Functions with the Control Menu54
Changing the Sound
If the DVD is recorded with multilingual tracks, you can select the
language you want while playing the DVD.
If the DVD is recorded in multiple audio formats (PCM, Dolby Digital
or DTS), you can select the audio format you want while playing the
DVD.
With multiplex CDs or VIDEO CDs, you
can select the sound from the right or
left channel and listen to the sound of
the selected channel through both the
right and left speakers. In this case, the
sound loses its stereo effect. For
example, with a disc containing a song,
the right channel may output the vocals
and the left channel may output the
instrumental. If you only want to hear
the instrumental, you can select the left
channel and hear it from both speakers.
Select “AUDIO” after pressing DISPLAY.
x AUDIO
When playing a DVD
Select the language. The languages you can select are different depending
on the DVD. When 4 digits are displayed, they represent the language code.
Select the language code from the list on page 110.
When the same language is displayed two or more times, the DVD is
recorded in multiple audio formats. The current audio format is shown on
the “PROGRAM FORMAT” display.
When playing a VIDEO CD or a CD
The default setting is underlined.
•
STEREO : The standard stereo sound
• 1/L : The sound of the left channel (monaural)
• 2/R : The sound of the right channel (monaural)
z You can select “AUDIO” directly
Press AUDIO on the remote. Each time you press the button, the item changes.
DVD
AUDIO
2: ENGLISH
3: FRENCH
1: ENGLISH
1 8
(
3 4
)
1 2
(
2 7
)
C
0 1 : 3 2 : 5 5
LRC
DOLBY DIGITAL 3/2.1
PROGRAM FORMAT
LFE
LS RS
1: ENGLISH
Select: Cancel:
ENTER RETURN
PLAY
Using Various Functions with the Control Menu 55
Notes
• Depending on the DVD, you may not be able to change the languages even if
multilingual tracks are recorded on the DVD.
• While playing the CD/VIDEO CD, standard stereo playback will be resumed when:
– you open the lid
– you turn the power off
• While playing the DVD, the sound may be changed when:
– you open the lid
– you change the title
– you disconnect the AC power adaptor
– you detach the battery pack
Displaying the audio information of the disc
When you select “AUDIO,” the
channels being played are
displayed on the screen.
For example, in Dolby Digital
format, multiple signals
ranging from monaural to 5.1
channel signals can be recorded
on a DVD. Depending on the
DVD, the number of the
recorded channels may be
different.
* “PCM,“ “DTS” or “DOLBY DIGITAL“ is displayed. In case of “DOLBY DIGITAL,”
the channels in the playing track are displayed by numbers as follows:
For Dolby Digital 5.1 ch:
**The letters in the program format display mean the following:
L: Front (left)
R: Front (right)
C: Center (monaural)
LS: Rear (left)
RS: Rear (right)
S: Rear (monaural) – the rear component of the Dolby Surround
processed stereo signal and the Dolby Digital signal.
LFE: – LFE (Low Frequency Effect)
Current
audio
format*
Current
playing
program
format**
DVD
AUDIO
1: ENGLISH
1 8
(
3 4
)
1 2
(
2 7
)
C
0 1 : 3 2 : 5 5
LRC
DOLBY DIGITAL 3/2.1
PROGRAM FORMAT
LFE
LS RS
Select:
ENTER
PLAY
Front component 2
+ Center component 1
Rear component 2
LFE (Low Frequency Effect)
component 1
DOLBY DIGITAL
3 / 2
.
1
continued
Using Various Functions with the Control Menu56
The display examples are as follows:
• PCM (stereo)
• Dolby Surround
• Dolby Digital 5.1ch
“LFE” appears only when a disc
contains an LFE signal component.
“LFE” remains on the “PROGRAM
FORMAT” display even if the LFE
signal component is not being output.
• DTS
“LFE” is always enclosed in a solid
line regardless of the LFE signal
component being output.
Note
When the signal does not contain rear signal components such as LS, RS or S, the
Virtual Enhanced Surround (VES) effect cannot be heard (page 60).
1: ENGLISH
PCM 48kHz 24bit
PROGRAM FORMAT
AUDIO
Select:
ENTER
1: ENGLISH
AUDIO
Select:
ENTER
DOLBY SURROUND
DOLBY DIGITAL 2/0
L RC
S
PROGRAM FORMAT
1: ENGLISH
AUDIO
Select:
ENTER
LRC
DOLBY DIGITAL 3/2.1
PROGRAM FORMAT
LFE
LS RS
Changing the Sound (continued)
1: ENGLISH
AUDIO
Select:
ENTER
LRC
DTS 3/2.1
PROGRAM FORMAT
LFE
LS RS
Using Various Functions with the Control Menu 57
Displaying the Subtitles
With DVDs on which subtitles are
recorded, you can turn the subtitles on
and off whenever you want while
playing the DVD.
With DVDs on which multilingual
subtitles are recorded, you can change
the subtitle language whenever you
want while playing the DVD, and turn it
on or off whenever you want. For
example, you can select the language
you want to practice and turn the
subtitles on for better understanding.
Select “SUBTITLE” after pressing
DISPLAY.
x SUBTITLE
Select the language. The languages you can select are different depending
on the DVD. When 4 digits are displayed, they indicate the language code.
Select the language code from the list on page 110.
z You can select “SUBTITLE” directly
Press SUBTITLE on the remote. Each time you press the button, the item changes.
Notes
• When playing a DVD on which no subtitles are recorded, no subtitles appear.
• Depending on the DVD, you may not be able to turn the subtitles on even if they
are recorded on the DVD.
• Depending on the DVD, you may not be able to turn the subtitles off.
• The type and number of languages for subtitles vary from disc to disc.
• Depending on the DVD, you may not be able to change the subtitles even if
multilingual subtitles are recorded on it.
• While playing the DVD, the subtitle may change when:
– you open the lid
– you change the title
– you disconnect the AC power adaptor
– you detach the battery pack
1 8
(
3 4
)
1 2
(
2 7
)
C
0 1 : 3 2 : 5 5
OFF
1: ENGLISH
2: FRENCH
3: SPANISH
1: ENGLISH
DVD
Select: Cancel:
SUBTITLE
ENTER RETURN
PLAY
Using Various Functions with the Control Menu58
Changing the Angles Z
With DVDs on which various angles
(multi-angles) for a scene are recorded,
you can change the angles. For example,
while playing a scene of a train in
motion, you can display the view from
either the front of the train, the left
window of the train or from the right
window without having the train’s
movement interrupted.
Select “ANGLE ” after pressing
DISPLAY. When the angles can be
changed, the “ANGLE “ indicator lights
up in green.
1 Select “ANGLE.”
2 Press ,.
The number of the angle changes to
“–”. The number in parentheses
indicates the total number of angles.
3 Select the angle number using the
number buttons or M/m, then press
ENTER.
The angle is changed to the selected
angle.
1 8
(
3 4
)
1 2
(
2 7
)
C
0 1 : 3 2 : 5 5
DVD
1
(
9
)
Select:
ANGLE
ENTER
PLAY
Indicator
1 8
(
3 4
)
5
(
9
)
1 2
(
2 7
)
C
0 1 : 3 2 : 5 5
DVD
Select:
ANGLE
ENTER
PLAY
1 8
(
3 4
)
1 2
(
2 7
)
C
0 1 : 3 2 : 5 5
DVD
(
9
)
Number buttons Cancel:
ANGLE
ENTER
RETURN
PLAY
1 8
(
3 4
)
1
(
9
)
1 2
(
2 7
)
C
0 1 : 3 2 : 5 5
DVD
Select:
ANGLE
ENTER
PLAY
Using Various Functions with the Control Menu 59
z You can select “ANGLE” directly
Press ANGLE on the remote. Each time you press the button, the angle changes.
Notes
• The number of angles varies from disc to disc or from scene to scene. The number
of angles that can be changed on a scene is equal to the number of angles recorded
for that scene.
• Depending on the DVD, you may not be able to change the angles even if multi-
angles are recorded on the DVD.
Using Various Functions with the Control Menu60
Digital Cinema Sound Settings
Select a mode to enjoy multichannel surround sound such as Dolby
Digital.
Even if you connect only a stereo TV or front speakers, Virtual
Enhanced Surround (VES) lets you enjoy 3D sound by using 3D sound
imaging to create virtual rear speakers from the sound of the front
speakers (L, R) without using actual rear speakers.
The surround sound signals are output when you have made the
connections using an audio connecting cord.
When you have made the connections using an optical digital
connecting cord and select a surround mode, the player does not
output the Dolby Digital signals when you select “DOLBY DIGITAL”
under “DIGITAL OUT” in the “AUDIO SETUP”display and set
“DOLBY DIGITAL” to “D-PCM.”
Select “VES” after pressing DISPLAY.
When you select any item except “OFF,”
the ”VES” indicator lights up in green.
x VES
Select the desired item. For details on each item, see “Effects of each item.”
The default setting is underlined.
•
OFF
• VES TV
• VES A
• VES B
• VIRTUAL SEMI MULTI DIMENSION
VES A
VES TV
VES B
VES TV
1 8
(
3 4
)
1 2
(
2 7
)
C
0 1 : 3 2 : 5 5
DVD
VES
Select: Cancel:
ENTER RETURN
PLAY
Indicator
Using Various Functions with the Control Menu 61
Effects of each item
OFF
Outputs 2-channel signals for stereo sound. 5-channel signals for Dolby
Digital sound of a DVD are mixed down to 2-channels.
VES (Virtual Enhanced Surround) TV
Uses 3D sound imaging to create virtual
rear speakers from the sound of the front
speakers (L, R) without using actual rear
speakers. This mode is effective when
the distance between the front L and R
speakers is short, such as built-in
speakers on a stereo TV.
VES (Virtual Enhanced Surround) A
Uses 3D sound imaging to create virtual
rear speakers from the sound of the front
speakers (L, R) without using actual rear
speakers. The virtual speakers are
reproduced as shown in the illustration
on the right.
VES (Virtual Enhanced Surround) B
Uses 3D sound imaging to create virtual
rear speakers from the sound of the front
speakers (L, R) without using actual rear
speakers. The virtual speakers are
reproduced as shown in the illustration
on the right.
VIRTUAL SEMI MULTI DIMENSION
Uses 3D sound imaging to create virtual
rear speakers from the sound of the front
speakers (L, R) without using actual rear
speakers. This mode creates 5 sets of
virtual speakers surrounding the listener
at a 30˚ angle of elevation.
LR
TV
L R
LR
Using Various Functions with the Control Menu62
Digital Cinema Sound Settings (continued)
Notes
• When you select an item, the sound cuts off for a moment.
• When the playing signal does not contain the surround component, the effects may
be difficult to hear even if you select “VES TV,” “VES A,” ”VES B” or “VIRTUAL
SEMI MULTI DIMENSION.”
• Set the front speakers to form an equilateral triangle with the listening position at
the top, or the effects may be difficult to hear even if you select “VES A,” ”VES B” or
“VIRTUAL SEMI MULTI DIMENSION.”
• When you select “VES TV,” “VES A,” ”VES B” or “VIRTUAL SEMI MULTI
DIMENSION,” set the surround settings of the connected units, such as the
amplifier, to OFF.
• You cannot use the headphone surround function and Virtual Enhanced Surround
(VES) at the same time. When you turn on the headphone surround function, “VES”
is automatically set to “OFF” (page 95).
Using Various Functions with the Control Menu 63
Checking the Play Information
You can check information such as the
bit rate or the disc layer that is being
played.
While playing a disc, the approximate
bit rate of the playback picture is always
displayed as Mbps (Mega bit per
second) and the audio as kbps (kilo bit
per second).
Select “ADVANCED” after pressing
DISPLAY.
x ADVANCED
The default setting is underlined.
When playing a DVD
•
BIT RATE: displays the bit rate.
• LAYER: displays the layer and the pick-up point.
• OFF: turns off ADVANCED display.
1 8
(
3 4
)
1 2
(
2 7
)
C
0 1 : 3 2 : 5 5
BIT RATE
DVD
Select:
ADVANCED
ENTER
PLAY
BIT RATE
05
10
384 kbps
Mbps
continued
Using Various Functions with the Control Menu64
Displays of each item
By pressing DISPLAY repeatedly, you can display either “BIT RATE” or
“LAYER,” whichever was selected in “ADVANCED.”
BIT RATE
Bit rate refers to the amount of video/audio data per second in a disc. The
higher the bit rate, the larger the amount of data. When the bit rate level is
high, there is a large amount of data. However, this does not always mean
that you can get higher quality pictures or sounds.
LAYER
Indicates the approximate point where the disc is playing.
If it is a dual-layer DVD, the player indicates which layer is being read
(“Layer 0” or “Layer 1”).
For details on the layers, see page 108 (DVD).
Checking the Play Information (continued)
Audio
Video
BIT RATE
05
10
384 kbps
Mbps
Appears when the DVD has
dual layers
Using Various Functions with the Control Menu 65
Locking Discs (Custom Parental
Control) Z
Using a registered password, you can set
playback restrictions for the desired disc.
You can set the same Custom Parental
Control password for up to 50 discs.
When you set the fifty-first disc, the first
disc is canceled.
The same password is used for both
Parental Control (page 85) and Custom
Parental Control.
Select “CUSTOM PARENTAL
CONTROL” after pressing DISPLAY.
Setting the Custom Parental Control for a disc
1 Insert the disc you want to lock.
If a disc is playing, press x to stop
playback.
2 Select “CUSTOM PARENTAL
CONTROL” using M/m, then press
ENTER.
3 Select “ON,” using M/m, then
press ENTER.
x If you have not entered a
password
The display for entering a
password appears.
OFF
DVD
CUSTOM PARENTAL CONTROL
Select:
ENTER
1 8
(
3 4
)
1 2
(
2 7
)
C
0 1 : 3 2 : 5 5
PLAY
OFF
PASSWORD
CUSTOM PARENTAL CONTROL
1 8
(
3 4
)
1 2
(
2 7
)
C
0 1 : 3 2 : 5 5
Select: Cancel:
ENTER RETURN
DVD
STOP
ON
CUSTOM PARENTAL CONTROL
Enter a new 4-digit password, then
press
.
To return, press .
RETURN
ENTER
continued
Using Various Functions with the Control Menu66
x When you have already
registered a password
The display for confirming the
password appears. Skip Step 4.
4 Enter a 4-digit password using the
number buttons, then press ENTER.
The digits change to asterisks (
),
and the display for confirming the
password appears.
5 Enter the same 4-digit password using the number buttons, then press
ENTER.
“Custom parental control is set.” appears and then the screen returns to
the Control Menu display.
To return to the normal screen
Press ORETURN.
To turn off the Custom Parental Control function
1 Select “CUSTOM PARENTAL CONTROL” using M/m, then press ENTER.
2 Select “OFF” using M/m, then press ENTER.
3 Enter your 4-digit password using the number buttons, then press ENTER.
To change the password
1 Select “CUSTOM PARENTAL CONTROL” using M/m, then press ENTER.
2 Select “PASSWORD,” using M/m, then press ENTER.
3 Enter your 4-digit password using the number buttons, then press ENTER.
The display for changing the password appears.
4 Enter a new 4-digit password using the number buttons, then press
ENTER.
5 To confirm your password, re-enter it using the number buttons, then
press ENTER.
Locking Discs (Custom Parental Control) (continued)
CUSTOM PARENTAL CONTROL
Enter password, then press
.
To return, press .
RETURN
ENTER
CUSTOM PARENTAL CONTROL
To confirm, enter password again,
then press
.
To return, press .
RETURN
ENTER
Using Various Functions with the Control Menu 67
Playing the disc for which the Custom Parental
Control is set
1 Insert the disc.
The CUSTOM PARENTAL CONTROL
display appears.
2 Enter your 4-digit password using the number buttons, then press
ENTER.
The player starts playback.
z If you forget your password
Enter the 6-digit number “199703” whenever the CUSTOM PARENTAL CONTROL
display asks you for your password, then press ENTER. The display will ask you to
enter a new 4-digit password.
Notes
• Unless you enter the password, the player cannot play the disc for which the
Custom Parental Control is set. When you do not know the password, press OPEN
and remove the disc.
• When you insert the disc for which the Custom Parental Control is set, “CPC”
appears on the display window. To play the disc, follow the steps above.
CUSTOM PARENTAL CONTROL
Custom parental control is already
set. To play, enter your password
and press
.
ENTER
Using Various Functions with the Control Menu68
Creating Your Own Program
(Program Play)
You can play the contents of the disc in
the order you want by arranging the
order of the titles, chapters or tracks on
the disc and create your own program.
One program can be stored in the player
and contain up to 99 titles, chapters and
tracks.
Select “PROGRAM” after pressing
DISPLAY. When you select “ON,” the
“PROGRAM” indicator lights up in
green.
x PROGRAM
The default setting is underlined.
•
OFF: plays normally.
• SET,: allows you to create your own program.
• ON: plays Program Play.
Creating the program
1 Select “SET,” in “PROGRAM.”
The programming display appears.
2 Press ,.
“01” is highlighted. It is ready to
set the first title or track for
Program Play.
“TRACK” is displayed when you
play a VIDEO CD or a CD.
PROGRAM
1. TITLE
ALL CLEAR
2. TITLE
– –
3. TITLE
– –
4. TITLE
– –
5. TITLE
– –
6. TITLE
– –
7. TITLE
– –
T
– –
01
02
03
04
05
Set: Quit:
ENTER
Start:
PLAY
DISPLAY
OFF
OFF
SET
ON
1 8
(
3 4
)
1 2
(
2 7
)
C
0 1 : 3 2 : 5 5
DVD
PROGRAM
Select: Cancel:
ENTER RETURN
PLAY
Title Chapter
PROGRAM
1. TITLE
– –
ALL CLEAR
2. TITLE
– –
3. TITLE
– –
4. TITLE
– –
5. TITLE
– –
6. TITLE
– –
7. TITLE
– –
T
C
ALL
01
02
03
04
05
06
– –
01
02
03
04
05
Set: Quit:
ENTER
Start:
PLAY
DISPLAY
Indicator
Using Various Functions with the Control Menu 69
3 Select the title, chapter or track you want to program using M/m, then
press ENTER.
For example, select title or track 2.
(You can also use the number buttons and ENTER button to make a
selection. In this case, the selected number is displayed on the screen.)
x When playing a DVD
When both titles and chapters
are recorded on the disc, select
the title, then the chapter.
x When playing a VIDEO CD or CD
Select the track you want to program.
PROGRAM
1. TITLE
– –
ALL CLEAR
2. TITLE
– –
3. TITLE
– –
4. TITLE
– –
5. TITLE
– –
6. TITLE
– –
7. TITLE
– –
C
ALL
02
03
04
05
06
T
– –
01
02
03
04
05
T
– –
01
02
03
04
05
PROGRAM
1. TITLE 0 1
–
0 2
ALL CLEAR
2. TITLE
3. TITLE
– –
4. TITLE
– –
5. TITLE
– –
6. TITLE
– –
7. TITLE
– –
01
Set: Quit:
ENTER
Start:
PLAY
Set: Quit:
ENTER
Start:
PLAY
DISPLAY
DISPLAY
Total time of the
programmed tracks
Set: Quit:
ENTER
Start:
PLAY
PROGRAM
1. TRACK 0 2
ALL CLEAR
2. TRACK
3. TRACK
– –
4. TRACK
– –
5. TRACK
– –
6. TRACK
– –
7. TRACK
– –
0:15:30
– –
01
02
03
04
05
T
DISPLAY
continued
Using Various Functions with the Control Menu70
Creating Your Own Program (Program Play) (continued)
4 To program other titles, chapters or tracks, repeat Step 3.
The programmed titles, chapters or tracks are displayed in the selected
order.
5 Press H to start Program Play.
To stop Program Play
Press CLEAR on the remote.
To change the program
1 In Step 2, select the program number of the title, chapter or track you want
to change using M/m.
2 Follow Step 3 for new programming.
To cancel the programmed order
To cancel all the titles, chapters or tracks in the programmed order, select
“ALL CLEAR” in Step 2.
To cancel the selected program, select the program using M/m in Step 2 then
press CLEAR, or select “– –” in Step 3 then press ENTER.
z The program remains even after Program Play ends
When you press H, you can play the same program again.
z You can do Repeat Play or Shuffle Play of the programmed titles, chapters or
tracks
During Program Play, set “REPEAT” or “SHUFFLE” to “ON” in the Control Menu
display.
z You can select “PROGRAM” directly
Press PROGRAM on the remote.
Using Various Functions with the Control Menu 71
Program number
Notes
• The number of titles, chapters or tracks displayed are the same number of titles,
chapters or tracks recorded on a disc.
• The program is canceled when:
– you open the lid
– you turn the power off
• Depending on the DVD, you may not be able to perform Program Play.
• If you are using the PBC playback function, you must first stop the disc before you
can set a program.
Track number
z You can select discs, titles, chapters and tracks for the program by looking at
the display window
You can program by looking at the display window instead of using the programming
display on the screen.
When you select Track 3 in a VIDEO CD for Program 1, the display window will
appear as follows:
Using Various Functions with the Control Menu72
Playing in Random Order
(Shuffle Play)
You can have the player “shuffle” titles
or tracks and play them in a random
order. Subsequent “shuffling” may
produce a different playing order.
Select “SHUFFLE” after pressing
DISPLAY. When you select a shuffle
mode other than “OFF,” the “SHUFFLE“
indicator lights up in green.
x SHUFFLE
Selects the Shuffle Play setting. The default settings are underlined.
When playing a DVD and when Program Play is set to OFF
•
OFF: does not play a disc in random order.
• TITLE: has the player “shuffle” titles and play them in a random order.
• CHAPTER: has the player “shuffle” chapters and play them in a random
order.
When playing a VIDEO CD or CD (when Program Play is set to OFF)
•
OFF: does not play a disc in random order.
• TRACK: has the player “shuffle” tracks and play them in a random order.
When playing a VIDEO CD, CD or DVD (when Program Play is set to ON)
• OFF: does not play a disc in random order.
• ON: has the player “shuffle” titles or tracks selected in Program Play and
play them in a random order.
To stop Shuffle Play
Press CLEAR on the remote.
z You can set Shuffle Play while the disc is stopped
After selecting the “SHUFFLE” option, press H. The player starts Shuffle Play.
z You can select “SHUFFLE” directly
Press SHUFFLE on the remote.
Notes
• Shuffle Play is canceled when:
– you open the lid
– you turn the power off
• Depending on the DVD, you may not be able to perform Shuffle Play.
• Up to 200 chapters in a disc can be played in random order when “CHAPTER” is
selected.
• You cannot perform Shuffle Play during PBC playback of VIDEO CDs (page 39).
1 8
(
3 4
)
1 2
(
2 7
)
C
0 1 : 3 2 : 5 5
OFF
CHAPTER
TITLE
CHAPTER
DVD
SHUFFLE
Select: Cancel:
ENTER RETURN
PLAY
Indicator
Using Various Functions with the Control Menu 73
Playing Repeatedly (Repeat Play)
You can play all of the titles or tracks on
a disc or a single title, chapter or track
repeatedly.
In Shuffle or Program Play mode, the
player repeats the titles or tracks in the
shuffled or programmed order.
You cannot perform Repeat Play during
PBC playback of VIDEO CDs (page 39).
Select “REPEAT” after pressing DISPLAY. When you select a repeat
mode other than “OFF,” the “REPEAT “ indicator lights up in green.
x REPEAT
Selects the Repeat Play setting. The default settings are underlined.
When playing a DVD and when Program Play and Shuffle Play are set to
OFF
•
OFF: does not play repeatedly.
• DISC: repeats all of the titles.
• TITLE: repeats the current title on a disc.
• CHAPTER: repeats the current chapter.
When playing a VIDEO CD/CD and when Program Play and Shuffle Play
are set to OFF
•
OFF: does not play repeatedly.
• DISC: repeats all of the tracks on a disc.
• TRACK: repeats the current track.
When Program Play or Shuffle Play is on
•
OFF: does not play repeatedly.
• ON: repeats Program Play or Shuffle Play.
To stop Repeat Play
Press CLEAR on the remote.
z You can set Repeat Play while the disc is stopped
After selecting the “REPEAT” option, press H. The player starts Repeat Play.
z You can select “REPEAT” directly
Press REPEAT on the remote.
Notes
• Repeat play is canceled when:
– you open the lid
– you turn the power off
• Depending on the DVD, you may not be able to perform Repeat Play.
REPEAT
Select: Cancel:
ENTER RETURN
1 8
(
3 4
)
1 2
(
2 7
)
C
0 1 : 3 2 : 5 5
CHAPTER
DISC
DISC
TITLE
OFF
DVD
PLAY
Indicator
Using Various Functions with the Control Menu74
Repeating a Specific Portion
(A-B Repeat)
You can play a specific portion of a title,
chapter or track repeatedly. This
function is useful when you want to do
such things as memorize lyrics.
During PBC Playback of VIDEO CDs
(page 39), this function is available only
while playing moving pictures.
Select “A-B REPEAT” after pressing
DISPLAY. During A-B Repeat Play, the
“A-B REPEAT” indicator lights up in
green.
x A-B REPEAT
The default setting is underlined.
• SET,: sets the A and B points.
•
OFF: does not play a specific portion of a title/chapter/track repeatedly.
Setting a portion for A-B repeat
1 Select “SET,” in “A-B REPEAT.”
The A-B REPEAT setting display
appears.
SET
OFF
OFF
To select, press , then .
1 8
(
3 4
)
1 2
(
2 7
)
C
0 1 : 3 2 : 5 5
DVD
PLAY
Set point A with .
A-B REPEAT
ENTER
Return:
RETURN
1 8
(
3 4
)
1 2
(
2 7
)
C
0 1 : 3 2 : 5 5
DVD
Select: Cancel:
ENTER RETURN
A–B REPEAT
PLAY
1 8
(
3 4
)
1 2
(
2 7
)
C
0 1 : 3 2 : 5 5
SET
OFF
OFF
DVD
Select: Cancel:
ENTER RETURN
A–B REPEAT
PLAY
Indicator
Using Various Functions with the Control Menu 75
2 During playback, when you find
the starting point (point A) of the
portion to be played repeatedly,
press ENTER.
The starting point (point A) is set.
3 When you reach the ending point
(point B), press ENTER again.
The set points are displayed and the
player starts repeating this specific
portion.
“A-B” appears on the display
window during A-B repeat play.
To stop A-B Repeat Play
Press CLEAR on the remote.
Notes
• You can set A-B Repeat for only one specific portion.
• A-B Repeat is canceled when:
– you open the lid
– you turn the power off
• When you set A-B Repeat, the settings for Shuffle Play, Repeat Play and Program
Play are canceled.
• You may not be able to set A-B Repeat for some DVD or VIDEO CD scenes.
1 8
(
3 4
)
1 2
(
2 7
)
C
0 1 : 34 : 30
DVD
A: 18 – 01 : 32 : 55
B: 18 – 01 : 34 : 30
CHAPTER
TIME
ON
Select:
ENTER
A–B REPEAT
PLAY
1
8
(
3
4
)
C
0 1 : 3 2 : 5 5
DVD
A: 18 – 01 : 32 : 55
CHAPTER
TIME
Set point B with .
ENTER
Cancel:
CLEAR
A-B REPEAT
Settings and Adjustments76
Using the Setup Display
Using the setup display, you can do the
initial setup, adjust the picture and
sound and set the various outputs. You
can also set a language for the subtitles
and the setup display, limit playback by
children, and so on.
For details on each setup display item,
see pages 79 to 93.
Note
You can display the setup display only when
the player is in stop mode.
1 Press DISPLAY and select “SETUP”
using M/m.
2 Press ENTER.
The setup display appears.
DISPLAY
</M/m/,/ENTER
DISPLAY
ORETURN
ORETURN
Select:
SETUP
ENTER
1 8
(
3 4
)
1 2
(
1
)
C
0 0 : 0 0 : 0 0
DVD
STOP
DVD
LANGUAGE SETUP
OSD:
DVD MENU:
AUDIO:
SUBTITLE:
To set, press , then .
To quit, press .
ENGLISH
ENGLISH
ORIGINAL
AUDIO FOLLOW
ENTER
DISPLAY
Selected item
Settings and Adjustments
</M/m/,/
ENTER
Settings and Adjustments 77
3 Select the main item you want using
M/m.
4 Press ENTER.
The selected main item is highlighted.
5 Select the item you want using
M/m.
6 Press ENTER.
Main item
LANGUAGE SETUP
OSD:
DVD MENU:
AUDIO:
SUBTITLE:
To set, press , then .
To quit, press .
ENGLISH
ENGLISH
ORIGINAL
AUDIO FOLLOW
ENTER
DISPLAY
continued
SCREEN SETUP
TV TYPE:
SCREEN SAVER:
BACKGROUND:
To set, press , then .
To quit, press .
16:9/4:3 WIDE MODE
ON
JACKET PICTURE
ENTER
DISPLAY
SCREEN SETUP
TV TYPE:
SCREEN SAVER:
BACKGROUND:
To set, press , then .
To quit, press .
16:9/4:3 WIDE MODE
ON
JACKET PICTURE
ENTER
DISPLAY
SCREEN SETUP
TV TYPE:
SCREEN SAVER:
BACKGROUND:
To set, press , then .
To quit, press .
ENTER
16:9/4:3 WIDE MODE
4:3 PAN SCAN
4:3 LETTER BOX
16:9/4:3 WIDE MODE
DISPLAY
Settings and Adjustments78
7 Select the setting you want using
</M/m/,.
8 Press ENTER.
9 Press DISPLAY.
The setup display disappears.
10 Press DISPLAY repeatedly to turn off the on-
screen menu.
To return to the previous screen
Press ORETURN.
To quit while making a selection
Press DISPLAY.
Note
Some setup display items require operations other than selecting the setting. For
details on these items, see the relevant pages.
Using the Setup Display (continued)
SCREEN SETUP
TV TYPE:
SCREEN SAVER:
BACKGROUND:
To set, press , then .
To quit, press .
16:9/4:3 WIDE MODE
4:3 LETTER BOX
4:3 PAN SCAN
16:9/4:3 WIDE MODE
ENTER
DISPLAY
SCREEN SETUP
TV TYPE:
SCREEN SAVER:
BACKGROUND:
To set, press , then .
To quit, press .
4:3 LETTER BOX
ON
JACKET PICTURE
ENTER
DISPLAY
Settings and Adjustments 79
Setup Display Item List
Default settings are underlined.
AUDIO DRC
STANDARD
TV MODE
WIDE RANGE
DOLBY DIGITAL
DTS
TRACK SELECTION OFF
AUTO
DOWNMIX
DIGITAL OUT
DOLBY SURROUND
NORMAL
D-PCM
DOLBY DIGITAL
OFF
ON
AUDIO SETUP (page 91)
CUSTOM SETUP (page 85)
AUTO PLAY OFF
TIMER
DEMO1
DEMO2
PAUSE MODE AUTO
FRAME
PARENTAL CONTROL ,
POWER SAVING
(DVP-FX1 only)
OFF
ON
FRENCH
SPANISH
PORTUGUESE
ENGLISH
LANGUAGE SETUP (page 80)
OSD
DVD MENU
OTHERS ,
AUDIO ORIGINAL
(same as DVD MENU)
SUBTITLE
AUDIO FOLLOW
(same as DVD MENU)
ITALIAN
GERMAN
DUTCH
CHINESE
JAPANESE
DANISH
SWEDISH
FINNISH
NORWEGIAN
RUSSIAN
SCREEN SETUP (page 83)
TV TYPE 4:3 LETTER BOX
* The default setting for DVP-F5 is "4:3 LETTER BOX."
4:3 PAN SCAN
16:9/4:3 WIDE MODE*
BACKGROUND JACKET PICTURE
GRAPHICS
BLUE
BLACK
SCREEN SAVER
ON
OFF
FRENCH
SPANISH
PORTUGUESE
ENGLISH
Settings and Adjustments80
Setting the Display Language or Sound
Track (LANGUAGE SETUP)
“LANGUAGE SETUP” allows you to set
various languages for the on-screen
display or sound track.
The default settings are underlined.
Select “LANGUAGE SETUP” in the
setup display.
Notes
• When you select a language that is not recorded on the DVD, one of the recorded
languages is automatically selected for the “DVD MENU”, “AUDIO” and
“SUBTITLE” settings.
• Depending on the DVD, the player may not start playing with the selected language
even when you select a language in “DVD MENU,” “AUDIO” or “SUBTITLE.”
x OSD (On-Screen Display)
Selects the language for the on-screen display.
• ENGLISH
• FRENCH
• SPANISH
• PORTUGUESE
xDVD MENU
Selects the language for the DVD menu.
•
ENGLISH
• FRENCH
• SPANISH
• PORTUGUESE
• GERMAN
• ITALIAN
• DUTCH
• CHINESE
• JAPANESE
• DANISH
• SWEDISH
• FINNISH
• NORWEGIAN
• RUSSIAN
• OTHERS,
LANGUAGE SETUP
OSD:
DVD MENU:
AUDIO:
SUBTITLE:
To set, press , then .
To quit, press .
ENGLISH
ENGLISH
ORIGINAL
AUDIO FOLLOW
ENTER
DISPLAY
Settings and Adjustments 81
continued
When you select “OTHERS,,” select and enter the language code from
the list using the number buttons (page 110).
After you have made a selection, the language code (4 digits) is displayed.
x AUDIO
Selects the language for the sound track.
•
ORIGINAL: the language given priority in the disc
• ENGLISH
• FRENCH
• SPANISH
• PORTUGUESE
• GERMAN
• ITALIAN
• DUTCH
• CHINESE
• JAPANESE
• DANISH
• SWEDISH
• FINNISH
• NORWEGIAN
• RUSSIAN
• OTHERS,
When you select “OTHERS,,” select and enter the language code from
the list using the number buttons (page 110).
After you have made a selection, the language code (4 digits) is displayed.
Settings and Adjustments82
Setting the Display Language or Sound Track (LANGUAGE SETUP)
(continued)
x SUBTITLE
Selects the language for the subtitles.
• AUDIO FOLLOW*
• ENGLISH
• FRENCH
• SPANISH
• PORTUGUESE
• GERMAN
• ITALIAN
• DUTCH
• CHINESE
• JAPANESE
• DANISH
• SWEDISH
• FINNISH
• NORWEGIAN
• RUSSIAN
• OTHERS,
When you select “OTHERS,,” select and enter the language code from
the list using the number buttons (page 110).
After you have made a selection, the language code (4 digits) is displayed.
* When you select “AUDIO FOLLOW,” the language for the subtitles changes
according to the language for the setting you selected in “AUDIO.”
Settings and Adjustments 83
Settings for the Display (SCREEN SETUP)
“SCREEN SETUP” allows you to set the
display according to the playback
conditions.
The default settings are underlined.
Select “SCREEN SETUP” in the setup
display.
x TV TYPE
Selects the aspect ratio of the TV to be connected.
• 4:3 LETTER BOX: select this when you connect a normal TV to the player.
Displays a wide picture with bands on the upper and lower portions of the
screen.
• 4:3 PAN SCAN: select this when you connect a normal TV to the player.
Displays the wide picture on the whole screen automatically and cuts off
the portions that do not fit.
•
16:9/4:3 WIDE MODE: select this when you connect a wide-screen TV to
the player or when you connect a TV with WIDE MODE function to the
player (displays a wide picture with bands displayed on the upper and
lower portions of the screen).
SCREEN SETUP
TV TYPE:
SCREEN SAVER:
BACKGROUND:
To set, press , then .
To quit, press .
16:9/4:3 WIDE MODE
ON
JACKET PICTURE
ENTER
DISPLAY
4:3 LETTER BOX
4:3 PAN SCAN
16:9
continued
4:3 WIDE MODE
Settings and Adjustments84
Settings for the Display (SCREEN SETUP)
(continued)
z To select the display mode (DVP-FX1 only)
You can select the display mode of the LCD screen according to the TV TYPE setting.
Press DISPLAY MODE on the player repeatedly to select the display mode. For
details, see “Selecting the display mode” (page 15).
Notes
• Depending on the DVD, “4:3 LETTER BOX“ may be selected automatically instead
of “4:3 PAN SCAN” and vice versa.
• The default setting for DVP-F5 is “4:3 LETTER BOX.”
x SCREEN SAVER
Turns on and off the screen saver. If you turn on the screen saver, the screen
saver image appears when you leave the player or the remote in pause or
stop mode for 15 minutes, or when you play back a CD for more than 15
minutes. The screen saver will help prevent your display device from
becoming damaged.
•
ON: turns on the screen saver.
• OFF: turns off the screen saver.
x BACKGROUND
Selects the background color or picture on the screen in stop mode or while
playing a CD.
•
JACKET PICTURE: The jacket picture appears in the background, but only
when the jacket picture is already recorded on the disc.
• GRAPHICS: A preset picture stored in the player appears in the
background.
• BLUE: The background color is blue.
• BLACK: The background color is black.
Note
If a disc which does not contain the jacket picture is played while “BACKGROUND”
is set to “JACKET PICTURE,“ the picture stored in the player will automatically
appear in the background.
Settings and Adjustments 85
Custom Settings (CUSTOM SETUP)
“CUSTOM SETUP” allows you to set
the playback conditions.
The default settings are underlined.
Select “CUSTOM SETUP” in the setup
display.
CUSTOM SETUP
AUTO PLAY:
PAUSE MODE:
To set, press , then .
To quit, press .
OFF
AUTO
TRACK SELECTION:
OFF
POWER SAVING
OFF
ENTER
PARENTAL CONTROL
DISPLAY
x AUTO PLAY
Selects the Auto Play setting when you connect the AC power cord to the AC
outlet.
•
OFF: does not use “TIMER,” “DEMO1” or “DEMO2” to start playback.
• TIMER: starts playing when the player is turned on, or at any time you
want when connected to a timer (not supplied). Before setting the timer,
detach the battery pack, connect the AC power adaptor and turn off the
player.
• DEMO1: starts playing the first demonstration automatically.
• DEMO2: starts playing the second demonstration automatically.
x PAUSE MODE (DVD only)
Selects the picture in pause mode.
•
AUTO: A picture including subjects that move dynamically is output with
no jitter. Normally select this position.
• FRAME: A picture including subjects that do not move dynamically is
output with high resolution.
x PARENTAL CONTROL,
Sets a password and playback limitation level for DVDs with playback
limitation for children.
The same password is used for both Parental Control and Custom Parental
Control (page 65) .
For details, see “Limiting Playback by Children (Parental Control) .”
continued
Settings and Adjustments86
Limiting Playback by Children (Parental Control)
Playback of some DVDs can be
limited depending on the age of
the users. The “Parental
Control” function allows you to
set a playback limitation level.
Select “CUSTOM SETUP” in
the setup display.
1 Select “PARENTAL CONTROL”
using M/m, then press ENTER.
x When you have not entered a
password
The display for entering a
password appears.
x When you have already
registered a password
The display for confirming the
password appears. Skip Step 2.
CUSTOM SETUP
To set, press , then .
To quit, press .
ENTER
DISPLAY
AUTO PLAY:
PAUSE MODE:
OFF
AUTO
TRACK SELECTION:
OFF
POWER SAVING
OFF
PARENTAL CONTROL
CUSTOM SETUP
To set, press , then .
To quit, press .
ENTER
DISPLAY
AUTO PLAY:
PAUSE MODE:
OFF
AUTO
TRACK SELECTION:
OFF
POWER SAVING
OFF
PARENTAL CONTROL
CUSTOM SETUP
PARENTAL CONTROL
Enter a new 4-digit password, then
press
.
To return, press .
To cancel, press .
RETURN
ENTER
DISPLAY
CUSTOM SETUP
PARENTAL CONTROL
Enter password, then press
.
To cancel, press .
ENTER
DISPLAY
To return, press .
RETURN
Custom Settings (CUSTOM SETUP) (continued)
Settings and Adjustments 87
2 Enter a password in 4 digits using
the number buttons, then press
ENTER.
The digits change to asterisks (
),
and the display for confirming the
password appears.
3 To confirm your password, enter it
again using the number buttons,
then press ENTER.
The display for setting the playback
limitation level and changing the
password appears.
4 Select “STANDARD” using M/m,
then press ,.
5 Select a geographic area as the
playback limitation level standard
using M/m, then press ,.
When you select “OTHERS,,”
select and enter the standard code
in the table on page 89 using the
number buttons.
CUSTOM SETUP
PARENTAL CONTROL
To confirm,enter password again,
then press
.
To cancel, press .
ENTER
DISPLAY
To return, press .
RETURN
CUSTOM SETUP
PARENTAL CONTROL
LEVEL:
OFF
STANDARD:
CHANGE PASSWORD
USA
To set, press , then .
To cancel, press .
ENTER
DISPLAY
CUSTOM SETUP
PARENTAL CONTROL
LEVEL:
OFF
STANDARD:
CHANGE PASSWORD
USA
To set, press , then .
To cancel, press .
ENTER
DISPLAY
CUSTOM SETUP
PARENTAL CONTROL
LEVEL:
OFF
USA
STANDARD:
CHANGE PASSWORD
USA
OTHERS
To set, press , then .
To cancel, press .
ENTER
DISPLAY
continued
Settings and Adjustments88
6 Select “LEVEL” using M/m, then
press ,.
7 Select the level you want using
M/m, then press ENTER.
The lower the value, the more strict
the limitation.
To return to the normal screen
Press DISPLAY.
To turn off the Parental Control function and play the DVD after
entering your password
Set “LEVEL” to “OFF” in Step 7, then press H.
To change the password
1 After Step 3, select “CHANGE PASSWORD” using M/m, then press , or
ENTER.
The display for changing the password appears.
2 Follow Steps 2 and 3 to enter a new password.
Playing a disc which is blocked by the playback limitation level
1 Insert the disc and press H.
The PARENTAL CONTROL display appears.
2 Enter your 4-digit password using the number buttons, then press ENTER.
The player starts playback.
When you stop playing the DVD, the level returns to the original level.
CUSTOM SETUP
PARENTAL CONTROL
LEVEL: OFF
OFF
STANDARD:
CHANGE PASSWORD
8:
7:
6:
5:
NC17
R
To set, press , then .
To cancel, press .
ENTER
DISPLAY
CUSTOM SETUP
PARENTAL CONTROL
LEVEL:
STANDARD:
CHANGE PASSWORD
USA
To set, press , then .
To cancel, press .
ENTER
4: PG13
DISPLAY
Custom Settings (CUSTOM SETUP) (continued)
Settings and Adjustments 89
z If you forget your password
Enter the 6-digit number “199703” whenever the PARENTAL CONTROL display asks
you for your password, then press ENTER. The display will ask you to enter a new
4-digit password.
Notes
• When you play DVDs which do not have the Parental Control function, playback
cannot be limited on this player.
• If you do not set a password, you cannot change the settings for playback
limitation.
• Depending on the DVD, you may be asked to change the parental control level
while playing the disc. In this case, enter your password, then change the level.
When you stop playing the DVD, the level returns to the original level.
• The same password is used for both Parental Control and Custom Parental Control
(page 65).
Standard Code number
Korea 2304
Malaysia 2363
Mexico 2362
Netherlands 2376
New Zealand 2390
Norway 2379
Pakistan 2427
Philippines 2424
Portugal 2436
Russia 2489
Singapore 2501
Spain 2149
Sweden 2499
Switzerland 2086
Taiwan 2543
Thailand 2528
United Kingdom 2184
Standard Code number
Argentina 2044
Australia 2047
Austria 2046
Belgium 2057
Brazil 2070
Canada 2079
Chile 2090
China 2092
Denmark 2115
Finland 2165
France 2174
Germany 2109
Hong Kong 2219
India 2248
Indonesia 2238
Italy 2254
Japan 2276
Settings and Adjustments90
x TRACK SELECTION
Gives the sound track which contains the highest number of channels
priority when you play a DVD on which multiple audio formats (PCM, DTS
or Dolby Digital format) are recorded.
•
OFF : No priority given.
• AUTO : Priority given.
Notes
• When you set this item to “AUTO”, the language may change depending on the
“AUDIO” settings in “LANGUAGE SETUP.”
The “TRACK SELECTION“ setting has higher priority than the “AUDIO” settings
in “LANGUAGE SETUP” (page 81).
• If you select “DIGITAL OUT” in “AUDIO SETUP” and set “DTS” to “OFF,” the DTS
sound track is not played even if you set this item to “AUTO” and the highest-
numbered audio channel is recorded in DTS format.
• If PCM, DTS and Dolby Digital sound tracks have the same number of channels, the
player selects PCM, DTS and Dolby Digital sound tracks in this order.
• Depending on the DVD, the audio channel with priority may be predetermined. In
this case, you cannot give priority to the DTS or Dolby Digital format by selecting
“AUTO.”
x POWER SAVING (DVP-FX1 only)
Turns on and off the power saving function. If you turn on the power saving
function, the brightness of the LCD screen is reduced to conserve the battery
life of the battery pack.
•
OFF : turns off the power saving function.
• ON : turns on the power saving function. The player can reduce the power
consumption by approximately 10 percent.
Note
Even if you set this item to “ON,” the display window lights up whenever:
– you set the LINE SELECT switch to “IN” to watch the picture from other equipment
– you turn on the player
Custom Settings (CUSTOM SETUP) (continued)
Settings and Adjustments 91
Settings for the Sound (AUDIO SETUP)
“AUDIO SETUP” allows you to set the sound according to the playback
conditions.
The default settings are underlined.
Select “AUDIO SETUP” in the setup
display.
x AUDIO DRC (Dynamic Range Control)
Makes the sound clear when the volume is turned down when playing a
DVD. This function works only when you play a DVD which has the
AUDIO DRC function.
This affects the output when:
– you have made the connections using an audio connecting cord
– you have made the connections using an optical digital connecting cord
(when you set “DOLBY DIGITAL” to “D-PCM” in “DIGITAL OUT”)
•
STANDARD: Normally select this position.
• TV MODE: makes the low sounds clear even if you turn the volume down.
It is especially recommended when you listen to the sound using the
speakers of the TV.
• WIDE RANGE: It gives you the feeling of being at a live performance.
When you use high quality speakers, it is more effective.
Note
When you play DVDs without the AUDIO DRC function, there may be no effect on
the sound.
AUDIO SETUP
AUDIO DRC:
DOWNMIX:
To set, press , then .
To quit, press .
STANDARD
DOLBY SURROUND
DIGITAL OUT
ENTER
DOLBY DIGITAL:
D-PCM
DTS:
OFF
DISPLAY
Settings and Adjustments92
Settings for the Sound (AUDIO SETUP) (continued)
x DOWNMIX
Switches the mixing down methods when you play a DVD on which rear
signal components such as LS, RS or S are recorded in Dolby Digital format.
For details on the rear signal components, see “Displaying the audio
information of the disc” (page 55).
This affects the output when:
– you have made the connections using an audio connecting cord
– you have made the connections using an optical digital connecting cord
(when you set “DOLBY DIGITAL” to “D-PCM” in “DIGITAL OUT”)
•
DOLBY SURROUND: when the player is connected to an audio
component that conforms to Dolby Surround (Pro Logic). The output
signals which reproduce the Dolby Surround (Pro Logic) effect are mixed
down to 2 channels.
• NORMAL: when the player is connected to an audio component that does
not conform to Dolby Surround (Pro Logic). The signal without the Dolby
Surround (Pro Logic) effect are output.
Setting the digital output signal (DIGITAL OUT)
Switches the methods of outputting audio signals when you, connect 1.
a digital component such as a receiver (amplifier) having a digital
connector, 2. an audio component having a built-in decoder (Dolby
Digital or DTS), 3. a DAT or MD using an optical digital connecting
cord. For connection details, see pages 19 and 22.
Note
When you have made the connections using an optical digital connecting cord and
play sound tracks with a 96 kHz sampling frequency, the output signals are converted
to 48 kHz (sampling frequency). When you have made the connections using an
audio connecting cord, sampling frequency stays at 96 kHz and the output signals are
converted to analog signals.
Settings and Adjustments 93
x DOLBY DIGITAL
Selects the Dolby Digital signals to be output when you have made the
connections using an optical digital connecting cord.
•
D-PCM (Downmix PCM): when you play Dolby Digital sound tracks, the
output audio signals are mixed down to 2 channels. You can select
whether the signals conform to Dolby Surround (Pro Logic) or not by
making adjustments to the “DOWNMIX” item in “AUDIO SETUP.”
• DOLBY DIGITAL: when the player is connected to an audio component
with a built-in Dolby Digital decoder.
If the player is connected to an audio component lacking a built-in Dolby
Digital decoder, do not set this. Otherwise, when you play the Dolby
Digital sound track, a loud noise or no sound will come out from the
speakers, affecting your ears or causing the speakers to be damaged.
Note
When you select “D-PCM, ” set Virtual Enhanced Surround (VES) to “OFF.”
Otherwise, the player will not output signals when you have made the connections
using an optical digital connecting cord.
x DTS
Selects the DTS signals to be output when you have made the connections
using an optical digital connecting cord.
•
OFF: when the player is connected to an audio component lacking a built-
in DTS decoder.
• ON: when the player is connected to an audio component having a built-
in DTS decoder.
If the player is connected to an audio component lacking a built-in DTS
decoder, do not set this. Otherwise, when you play the DTS sound track, a
loud noise will come out from the speakers, affecting your ears or causing
the speakers to be damaged.
Settings and Adjustments94
HOLD
HOLD
Preventing the Buttons from being
Pressed Accidentally
You can prevent the buttons from being
pressed accidentally on this player
(when carrying it, for example). After
setting the HOLD switch to on, the
buttons are locked.
(You can still use the remote to operate
the player.)
Slide HOLD in the direction of the arrow.
The buttons are locked.
If you press the buttons, “Hold” appears on the display window.
To cancel the Hold function
Slide HOLD back.
Additional Operations
95
Additional Operations
Listening with
Headphones
You can enjoy the audio sound through
headphones (not supplied) by
connecting them to the PHONES jack.
Turn VOL to adjust the volume.
Before starting playback
Adjust the sound volume to MIN (lowest level), then press N and turn up
the volume little by little.
Using the headphone surround function
Even if you listen to the sound
through headphones, the
headphone surround function
gives the sound a 3D surround
effect for a more realistic
listening experience. The
headphone surround function
uses the SRS HEADPHONE*
technology.
Set HP SURROUND to ON to
turn on the headphone
surround function.
Notes
• You cannot use the headphone surround function and Virtual Enhanced Surround
(VES) at the same time. When you turn on the headphone surround function, “VES”
is automatically set to “OFF” (page 60).
• The sound may be interrupted for a moment when you switch HP SURROUND on
or off.
• Depending on the disc, the headphone surround function may not work properly.
* SRS HEADPHONE and the symbol are trademarks of SRS Labs, Inc. in the
United States and selected foreign countries. SRS HEADPHONE technology is
incorporated under license from SRS Labs, Inc.
PHONES jack
VOL dial
HP SURROUND
Additional Operations
96
VIDEO
OPTICAL
OUT
DC OUT 5VAUDIO
Watching the Picture without
Connecting Cables –– LASER LINK
If you use the LASER LINK* function,
you can easily view the picture on your
TV without connecting cables.
LASER LINK is a system which
transmits and receives pictures and
sound between LASER LINK compatible
video equipment by using infrared rays.
To enjoy the LASER LINK function, the
following accessories are needed:
• AV cordless IR transmitter IFV-FX1
(not supplied)
• AV cordless IR receiver IFT-R20
(not supplied)
* LASER LINK is a trademark of Sony Corporation.
Hookups
1 Connect the IFV-FX1 AV cordless IR transmitter (not supplied) to the
player.
2 Connect the AV cordless IR receiver (ex. IFT-R20, not supplied) to your
TV.
For details, refer to the operating instructions of the receiver.
AV cordless
IR transmitter
CD/DVD
player
Additional Operations
97
Operation
1 Turn on the TV and select the video input.
2 Turn on the AV cordless IR receiver.
3 Set the LINE SELECT switch on the
player to OUT.
4 Press POWER to turn on the player.
5 Set the POWER switch on the AV cordless
IR transmitter to ON.
The POWER indicator lights up.
6 Adjust the angle and direction of the AV
cordless IR transmitter to match the AV
cordless IR receiver.
Place the player directly in front of the TV
within the range specified on the right.
7 Start playback on the player.
8 Adjust the distance and angle between the AV cordless IR transmitter
and the AV cordless IR receiver so that the playback picture appears
clearly on the TV.
To turn off the equipment
Be sure to turn off the AV cordless IR transmitter before you turn off the
player.
Notes
• Do not connect the AV cordless IR receiver to a video deck, or do not use an AV
cordless IR receiver built into a video deck. If you do, noise may appear in the
picture.
• Do not cover the AV cordless IR transmitter and the AV cordless IR receiver with
your hands or other objects.
• Infrared rays cannot pass through walls or opaque glass. Be sure to place the player
in an unobstructed position. Using LASER LINK through glass will shorten the
transmission range.
• Do not place the player too close to the TV, as this may cause noise and/or beat.
• When using the battery pack, picture or sound noise may appear or the
transmission range may be shortened if the battery power is low. Use the AC power
adaptor or charge the battery pack.
POWER
3 m or less,
directly in front
AV cordless IR
transmitter
AV cordless
IR receiver
Additional Operations
98
Watching the Picture of Other Equipment
on the LCD Screen (DVP-FX1 only)
You can watch the picture of other
connected equipment, such as a video
camera, on the LCD screen.
Be sure to set the LINE SELECT switch
on the player to IN.
Note
When LINE SELECT is set to IN, you cannot play discs on the player.
OPTICAL
OUT
VIDEOAUDIO
S VIDEO
VIDEO
AUDIO
L
R
OUTPUT
IN OUT
LINE SELECT
To AUDIO
Other
equipment
To VIDEO
To AUDIO output
To VIDEO output
: Signal flow
Set LINE SELECT
to IN
CD/DVD player
99
Additional Information
Troubleshooting
Additional Information
continued
Symptom
The power is not turned on.
The power is turned off
automatically.
There is no picture.
Power
Remedy
• Check that the AC power cord is connected securely.
• When using the battery pack, check the remaining
battery life.
• Make sure you use the supplied AC power adaptor.
(Do not use any other AC power adaptor.)
• Check that the HOLD switch is set to off.
• Disconnect the AC power adaptor from this player for
more than 10 minutes. Then connect the AC power
adaptor and turn the power on again. If the power is
still not turned on, disconnect the AC power adaptor
and the battery pack and refer to your nearest Sony
dealer.
• The Auto Power Off function is activated. (If you do
not operate the player or the remote for more than 30
minutes when a disc is not being played, the power
will be automatically turned off.)
Press POWER on the player to turn the power on.
• Batteries are depleted.
Recharge the battery pack.
• The LINE SELECT switch is set to IN. Set it to OUT.
(DVP-FX1 only)
• Check that the player is connected securely.
• The video connecting cord is damaged. Replace it with
a new one.
• Use only the supplied video connecting cord.
• Make sure you connect the player to the video input
connector on the TV (page 17).
• Make sure you turn on the TV.
• Make sure you select the video input on the TV so that
you can view the pictures from the player.
• The display mode is set to off. Press DISPLAY MODE
to change the display mode. (DVP-FX1 only)
If you experience any of the following difficulties while using the player, use this
troubleshooting guide to help remedy the problem. Should any problem persist,
consult your nearest Sony dealer.
100
Additional Information
Remedy
• Clean the disc.
• If the video signal from your DVD player has to go
through your VCR to get to your TV, the copy-
protection applied to some DVD programs could affect
picture quality. If you still experience problems after
checking your connections, please try connecting your
DVD player directly to your TV’s S-input, if your TV is
equipped with this input (page 17).
• Check that this player is placed in a horizontal position
and there is no mechanical vibration or shock.
• There is a flaw on the disc.
• When you watch the picture of other equipment using
the LCD screen, the picture noise may appear if the
color system of the input signal is different from that of
the LCD screen. Change the color system of the LCD
screen by pressing DISPLAY on the player for more
than two seconds (DVP-FX1 only, page 98).
• Picture noise may appear when you use the LASER
LINK function. Use the supplied audio/video
connecting cord to get a clear picture.
• The aspect ratio is fixed on your DVD.
• Make sure you play a VIDEO CD with PBC functions.
• Make sure you follow the instructions for interactive
operations.
Refer to the instructions supplied with the disc.
• Check that the player is connected securely.
• The audio connecting cord is damaged. Replace it
with a new one.
• Make sure you connect the player to the audio input
connectors on the receiver (amplifier) (page 20).
• Make sure you turn on the TV and the receiver
(amplifier).
• Make sure you select the appropriate input on the
receiver (amplifier) so that you can listen to the sound
from the player.
Troubleshooting (continued)
Symptom
Picture noise appears.
Even though you set the aspect
ratio in “TV TYPE” in
“SCREEN SETUP” of the setup
display, the picture does not fill
the screen.
The VIDEO CD menu does not
appear.
There is no sound.
Sound
101
Additional Information
Remedy
• The player is in pause mode or in Slow-motion Play
mode. Press H to return to normal play mode.
• The player is in fast forward or fast reverse mode.
Press H to return to normal play mode.
• Check the speaker connections (page 23). Refer to the
operating manual of your receiver (amplifier).
• You selected a VES mode other than “OFF” in the
Control Menu display when you connected the
component using the optical digital connecting cord.
Set “VES” to “OFF” in the Control Menu display
(page 60).
• When you have made the connections using an audio
connecting cord and play DTS sound tracks, no sound
will come out (page 31).
• Check that the headphones plug connected to the
headphones jack is firmly connected to this player.
• Check that the VOL dial is not set to “MIN.”
• When you close the LCD panel, no sound will come
out from the built-in speakers (DVP-FX1 only).
• Clean the disc.
• There is a flaw on the disc.
• When you have made the connections using an audio
connecting cord and play a CD with DTS sound tracks,
sound noise will come out (page 31).
• Check that this player is placed in a horizontal position
and there is no mechanical vibration or shock.
• Set “AUDIO” to “STEREO” in the Control Menu
display (page 54).
• Make sure you connect the player correctly (pages 17,
20, 23).
• Check the speaker connections (page 23).
Refer to the operating manual of your receiver
(amplifier).
• Depending on the DVD, the output signal may not be
the entire 5.1 channels. It may be monaural or stereo
even if the sound track is recorded in Dolby Digital
format.
Symptom
There is no sound.
Sound is noisy.
The sound loses its stereo effect
when you play a VIDEO CD or a
CD.
The surround effect is difficult to
hear when you are playing a
Dolby Digital sound track.
Sound
continued
102
Additional Information
Symptom
The remote does not function.
The disc does not play.
VES (Virtual Enhanced
Surround) does not function.
The player does not play from
the beginning when playing a
disc.
Troubleshooting (continued)
Remedy
• Remove any obstacles between the remote and the
player.
• Use the remote near the player.
• Point the remote at the remote sensor on the player.
• Replace all of the batteries in the remote with new ones
if they are weak.
• When using the battery pack, press POWER on the
player to turn on it.
• When using the battery pack and 10 minutes have
passed after turning off the player, you cannot turn on
the player with the remote.
• Make sure you use the supplied remote.
• There is no disc inside (“Insert disc.” appears on the
screen).
Insert a disc.
• Insert the disc correctly with the playback side facing
down.
• Clean the disc.
• There is a flaw on the disc.
• The player cannot play CD-ROMs, etc (page 7).
Insert a DVD, a VIDEO CD, or CD.
• Check the region code of the DVD (page 6).
• Moisture has condensed inside the player. Remove the
disc and leave the player turned on for about half an
hour (page 10).
• Check that the player is placed in a horizontal position.
• The buttons on the player are locked. Slide HOLD back
to the off position.
• The LINE SELECT switch is set to IN. Set it to OUT.
(DVP-FX1 only)
• The headphone surround function is turned on.
Set HP SURROUND to OFF.
• Repeat Play, Shuffle Play or Program Play has been
selected. Press CLEAR (pages 68 to 73).
• Resume Play has been selected.
Press x on the player or on the remote before you start
playing (page 35).
• A title menu or a DVD menu automatically appears on
the TV screen when you play your DVD, or a setup
display automatically appears on the TV screen when
you play your VIDEO CD with PBC functions.
Operation
103
Additional Information
continued
Symptom
The player starts playing the
disc automatically.
Playback stops automatically.
You cannot perform some
functions such as Stop, Search,
Slow-motion Play, Repeat Play,
Shuffle Play or Program Play.
Messages do not appear on the
screen in the language you
want.
The language for the sound
track cannot be changed when
you play a DVD.
The subtitle language cannot be
changed when you play a DVD.
The subtitles cannot be turned
off when you play a DVD.
The angles cannot be changed
when you play a DVD.
The player does not operate
properly.
“Lo dc 1n” appears on the
display window.
“H1 dc 1n” appears on the
display window.
“H1 ba ” appears on the
display window.
Remedy
• The DVD features the auto playback function.
• “AUTO PLAY” in “CUSTOM SETUP” is set to
“TIMER.” (page 85)
• The disc may contain an auto pause signal. While
playing such a disc, the player stops playback at the
signal.
• There is a flaw on the disc.
• Depending on the disc, you may not be able to do
some of these operations.
• In the setup display, select the desired language for the
on-screen display in “OSD” under “LANGUAGE
SETUP” (page 80).
• Multilingual tracks are not recorded on the DVD.
• Changing the language for the track is prohibited on
the DVD.
• Multilingual subtitles are not recorded on the DVD.
• Changing the language for the subtitles is prohibited
on the DVD.
• Depending on the DVD, you may not be able to turn
the subtitles off.
• Multi-angles are not recorded on the DVD.
• Changing the angles is prohibited on the DVD.
• Static electricity, etc., may affect the player's operation.
Disconnect the AC power cord once, then connect it
again.
When using the battery pack, detach it once and attach
it again.
• When using the battery pack, the AC power adaptor is
not connected to an AC outlet even if the AC power
adaptor is connected to the player. Disconnect the AC
power adaptor from the player.
• Check that the AC power adaptor is connected to an
AC outlet, then disconnect from this player and
connect again.
• Use only the supplied AC power adaptor.
• Use only the supplied AC power adaptor.
• There may be a problem with the battery pack. Detach
it and consult your nearest Sony dealer.
Operation
104
Additional Information
Remedy
• There may be a problem with charging. Disconnect the
AC power adapter and detach the battery pack. Then
attach the battery pack and connect the AC power
adapter to start charging again.
If “ ” still flashes, consult your nearest Sony dealer.
• The player and the battery pack unusually heat up
while charging. Charge the battery pack at a
temperature between 41 ˚F to 95 ˚F (5 ˚C to 35 ˚C).
• There may be a problem with the AV cordless IR
transmitter. Detach it and consult your nearest Sony
dealer.
• The self diagnosis function was activated. See the table
on page 105.
Troubleshooting (continued)
Symptom
“ ” flashes on the display
window.
“H1 EMP” appears and “ ”
flashes on the display window.
“dcou ” appears on the
display window.
5 numbers or letters are
displayed on the screen and on
the display window.
Operation
105
Additional Information
Cause and/or Corrective Action
• The disc is dirty.
, Clean the disc with a cleaning cloth (page 12).
• The disc is not inserted correctly.
, Open the disc tray and insert the disc correctly.
• To prevent a malfunction, the player has performed the self-
diagnosis function.
, When you contact your Sony dealer or local authorized
Sony service facility, give the 5-character service number.
(example: E:61:10)
Self-diagnosis Function
When the self-diagnosis function
activates to prevent the player from
malfunctioning, a five-character service
number (combination of a letter and
digits) flashes on the screen and on the
display window. In this case, check the
following table.
First three characters
C13
C31
Exx (xx is any number)
C:13:00
106
Additional Information
Specifications
CD/DVD player
Laser
Semiconductor laser
Signal format system
NTSC
Audio characteristics
Frequency response
DVD (PCM 96 kHz): 4 Hz to 44 kHz (±1 dB)*
DVD (PCM 48 kHz): 4 Hz to 22 kHz (±0.5 dB)*
CD: 4 Hz to 20 kHz (±0.5 dB)*
Signal-to-noise ratio
More than 115 dB*
(AUDIO OUT connectors only)
Harmonic distortion
Less than 0.005 %*
Dynamic range
More than 99 dB* (DVD)
More than 98 dB* (CD)
Wow and flutter
Less than detected value*
(±0.001% W PEAK)
Speaker output level
More than 1 W + 1 W
* The signals from AUDIO OUT connectors are
measured. When you play PCM sound tracks
with a 96 kHz sampling frequency, the output
signals from the OPTICAL OUT are converted to
48 kHz (sampling frequency).
General
Power requirements
Power supply jack
DC IN 10V jack accepts the AC-FX1 AC
power adaptor (supplied),
100-240 V AC, 50/60 Hz
Battery pack (supplied with DVP-FX1 only)
Power consumption
10 W (DVP-FX1, DVD VIDEO playback
with the LCD screen turned on)
5 W (DVP-F5, DVD VIDEO playback)
0.1 W (DVP-FX1/F5, standby)
Dimensions (approx.)
189 × 26.1 × 137 mm
(7
1
/
2
× 1
1
/
16
× 5
1
/
2
in.) (DVP-FX1)
189 × 16 × 137 mm
(7
1
/
2
×
21
/
32
× 5
1
/
2
in.) (DVP-F5)
(w/h/d) incl. projecting parts
Mass (approx.)
641 g (1 lb 7 oz) (DVP-FX1)
308 g (11 oz) (DVP-F5)
Operating temperature
41 ˚F to 95 ˚F (5 ˚C to 35 ˚C)
Operating humidity
5% to 80%
Outputs and inputs
Jack type Output level Input level* Load impedance
AUDIO
OPTICAL OUT
VIDEO
S VIDEO OUT
PHONES
2 Vrms
(at 50 kilohms)
–18 dBm
1.0 Vp-p
Y: 1.0 Vp-p
C: 0.286 Vp-p
12 mW +
12 mW
Over 10 kilohms
Wave length: 660 nm
75 ohms,
sync negative
75 ohms,
sync negative
75 ohms terminated
32 ohms
Stereo mini
jack
Optical output
connector
Mini jack
4-pin mini DIN
Stereo mini
jack
2 Vrms
1.0 Vp-p
* DVP-FX1 only
107
Additional Information
Supplied accessories
See page 13.
Optional accessories
• Battery pack
NP-FX1
• AV cordless IR transmitter
IFV-FX1
• Optical digital connecting cord
POC-15B/15AB
• AV cordless IR receiver
IFT-R20
Some accessories may not be available depending
on the area.
Design and specifications are subject to change
without notice.
ENERGY STAR
R
is a U.S. registered mark.
As an ENERGY STAR
R
Partner, Sony Corporation
has determined that this product meets the
ENERGY STAR
R
guidelines for energy efficiency.
108
Additional Information
Glossary
Dolby Pro Logic (page 92)
Audio signal processing technology that
Dolby Laboratories Corporation
developed for surround sound. When
the input signal contains a surround
component, the Pro Logic process
outputs the front, center and rear
signals. The rear channel is monaural.
DTS (page 22)
Digital audio compression technology
that Digital Theater Systems, Inc.
developed. This technology conforms to
5.1-channel surround. The rear channel
is stereo and there is a discrete
subwoofer channel in this format. DTS
provides the same 5.1 discrete channels
of high quality digital audio. Good
channel separation is realized because
all of the channel data is recorded
discretely and processed in digital.
DVD (page 6)
A disc that contains up to 8 hours of
moving pictures even though its
diameter is the same as a CD.
The data capacity of a single-layer and
single-sided DVD is 4.7 GB (Giga Byte)
which is 7 times that of a CD. The data
capacity of a dual-layer and single-sided
DVD is 8.5 GB, a single-layer and
double-sided DVD is 9.4 GB, and a dual-
layer and double-sided DVD is 17 GB.
The picture data uses the MPEG 2
format, one of the worldwide standards
of digital compression technology. The
picture data is compressed to about 1/40
of its original size. The DVD also uses a
variable rate coding technology that
changes the data to be allocated
according to the status of the picture.
Audio data is recorded in Dolby Digital
as well as in PCM, allowing you to enjoy
a more real audio presence.
Bit rate (page 64)
Value indicating the amount of video
data compressed in a DVD per second.
The unit is Mbps (Mega bit per second).
1 Mbps indicates that the data per
second is 1,000,000 bits. The higher the
bit rate, the larger the amount of data.
However, this does not always mean
that you can get higher quality pictures.
Chapter (page 7)
Sections of a picture or a music piece on
a DVD that are smaller than titles. A title
is composed of several chapters. Each
chapter is assigned a chapter number
enabling you to locate the chapter you
want.
Digital Cinema Sound (DCS) (page 60)
The general name of technology that
Sony developed to enjoy surround
sound in a home. It simulates the sound
of a movie editing studio instead of the
usual concert hall so that you can enjoy
the surround sound of a movie theater
in the comfort of your own home. The
VES (Virtual Enhanced Surround)
system contained in DCS programs can
create the sound image of virtual rear
speakers from the sound of the front
speakers (L, R) without using actual rear
speakers.
Dolby Digital (page 22, 93)
Digital audio compression technology
developed by Dolby Laboratories
Corporation. This technology conforms
to 5.1-channel surround sound. The rear
channel is stereo and there is a discrete
subwoofer channel in this format.
Dolby Digital provides the same 5.1
discrete channels of high quality digital
audio found in Dolby Digital cinema
audio systems. Good channel separation
is realized because all of the channel
data is recorded discretely and
processed in digital.
109
Additional Information
Furthermore, various advanced
functions such as the multi-angle,
multilingual, and Parental Control
functions are provided with the DVD.
Multi-angle function (page 58)
Various angles for the scene, or
viewpoints of the video camera, for a
scene are recorded on some DVDs.
Multilingual function (page 28, 57, 80)
Several languages for the audio track or
sub-titles in a picture are recorded on
some DVDs.
Parental Control (page 85)
A function of the DVD used to limit
playback of the disc according to the age
of the user and the limitation level in
each country. The limitation varies from
disc to disc; when it is activated,
playback is completely prohibited,
violent scenes are skipped or replaced
with other scenes, and so on.
Playback Control (PBC) (page 39)
Signals encoded on VIDEO CDs (Version
2.0) to control playback.
By using menus recorded on VIDEO
CDs with PBC functions, you can enjoy
playing simple interactive programs,
programs with search functions, and so
on.
Title (page 7)
The longest section of a picture or a
music piece on a DVD; a movie, etc., for
a picture piece on video software; or an
album, etc., for a music piece on audio
software. Each title is assigned a title
number enabling you to locate the title
you want.
Track (page 7)
Sections of a picture or a music piece on
a CD or VIDEO CD. Each track is
assigned a track number enabling you to
locate the track you want.
VIDEO CD (page 6)
A compact disc that contains moving
pictures.
The picture data uses the MPEG 1
format, one of the worldwide standards
of digital compression technology. The
picture data is compressed to about 1/
140 of its original size. Consequently, a
12 cm VIDEO CD can contain up to 74
minutes of moving pictures.
VIDEO CDs also contain compact audio
data. Sounds outside the range of
human hearing are compressed while
the sounds we can hear are not
compressed. VIDEO CDs can hold 6
times the audio information of
conventional audio CDs.
There are 2 versions of VIDEO CDs.
• Version 1.1: You can play only moving
pictures and sounds.
• Version 2.0: You can play high-
resolution still pictures and enjoy PBC
functions.
This player conforms to both versions.
110
Additional Information
Language Code List
For details, see pages 54, 57 and 81.
The language spellings conform to the ISO 639: 1988 (E/F) standard.
Code Language Code Language Code Language
1027 Afar
1028 Abkhazian
1032 Afrikaans
1039 Amharic
1044 Arabic
1045 Assamese
1051 Aymara
1052 Azerbaijani
1053 Bashkir
1057 Byelorussian
1059 Bulgarian
1060 Bihari
1061 Bislama
1066 Bengali; Bangla
1067 Tibetan
1070 Breton
1079 Catalan
1093 Corsican
1097 Czech
1103 Welsh
1105 Danish
1109 German
1130 Bhutani
1142 Greek
1144 English
1145 Esperanto
1149 Spanish
1150 Estonian
1151 Basque
1157 Persian
1165 Finnish
1166 Fiji
1171 Faroese
1174 French
1181 Frisian
1183 Irish
1186 Scots Gaelic
1194 Galician
1196 Guarani
1203 Gujarati
1209 Hausa
1217 Hindi
1226 Croatian
1229 Hungarian
1233 Armenian
1235 Interlingua
1239 Interlingue
1245 Inupiak
1248 Indonesian
1253 Icelandic
1254 Italian
1257 Hebrew
1261 Japanese
1269 Yiddish
1283 Javanese
1287 Georgian
1297 Kazakh
1298 Greenlandic
1299 Cambodian
1300 Kannada
1301 Korean
1305 Kashmiri
1307 Kurdish
1311 Kirghiz
1313 Latin
1326 Lingala
1327 Laothian
1332 Lithuanian
1334 Latvian; Lettish
1345 Malagasy
1347 Maori
1349 Macedonian
1350 Malayalam
1352 Mongolian
1353 Moldavian
1356 Marathi
1357 Malay
1358 Maltese
1363 Burmese
1365 Nauru
1369 Nepali
1376 Dutch
1379 Norwegian
1393 Occitan
111
Additional Information
Code Language Code Language Code Language
1403 (Afan) Oromo
1408 Oriya
1417 Punjabi
1428 Polish
1435 Pashto; Pushto
1436 Portuguese
1463 Quechua
1481 Rhaeto-Romance
1482 Kirundi
1483 Romanian
1489 Russian
1491 Kinyarwanda
1495 Sanskrit
1498 Sindhi
1501 Sangho
1502 Serbo-Croatian
1503 Singhalese
1505 Slovak
1506 Slovenian
1507 Samoan
1508 Shona
1509 Somali
1511 Albanian
1512 Serbian
1513 Siswati
1514 Sesotho
1515 Sundanese
1516 Swedish
1517 Swahili
1521 Tamil
1525 Telugu
1527 Tajik
1528 Thai
1529 Tigrinya
1531 Turkmen
1532 Tagalog
1535 Tonga
1538 Turkish
1539 Tsonga
1540 Tatar
1543 Twi
1557 Ukrainian
1564 Urdu
1572 Uzbek
1581 Vietnamese
1587 Volapük
1613 Wolof
1632 Xhosa
1665 Yoruba
1684 Chinese
1697 Zulu
1703 Not specified
112
Additional Information
Index to Parts and Controls
Console
DVP-FX1
Refer to the pages indicated in parentheses for details.
DVP-F5
113
Additional Information
1 LCD screen (14)
Displays the playback picture, etc.
2 Speaker (15)
Emits the sound.
3 . PREV button (32)
Press to go back to the previous
chapter or track.
4 > NEXT button (32)
Press to go to the next chapter or
track.
5 HPLAY button (31)
Plays a disc.
6 XPAUSE button (32)
Pauses playing a disc.
7 xSTOP button (32, 35)
Stops playing a disc.
8 PUSH OPEN button (14)
Press to lift open the LCD panel.
9 BRIGHT dial (14)
Adjusts the brightness of the LCD
screen.
0 DISPLAY MODE button (15)
Changes the display mode of the
LCD screen.
qa DC IN 10V connector (25)
Connect to the AC power adaptor.
qs S VIDEO OUT connector (17, 20)
Connect to the S video input
connector on your TV or monitor.
qd DC OUT 5V connector (96)
Connect the DC IN 5V connector of
another component requiring a
power souce.
qf VIDEO IN/OUT connector (17, 98)
Connect to the video input/output
connector on your TV or monitor.
qg AUDIO IN/OUT / OPTICAL OUT
connector (17, 20, 23, 98)
Connect to the audio input/output
connector on your TV or receiver
(amplifier), or connect to an audio
component using an optical digital
connecting cord.
qh LINE SELECT switch (17, 20, 98)
Switches input/output of the VIDEO
and AUDIO connectors.
qj HOLD switch (94)
Turns on and off the hold function.
114
Additional Information
Index to Parts and Controls (continued)
Console
DVP-FX1
DVP-F5
115
Additional Information
1 Lid (30)
2 OPEN button (30)
Opens the lid.
3 PHONES connector (95)
Connect the headphones.
4 VOL dial (95)
Adjusts the volume of the built-in
speakers and the headphones.
5 HP SURROUND switch (95)
Turns on and off the headphone
surround function.
6 ORETURN button (39, 46)
Press to return to the previously
selected screen, etc.
7 </M/m/,/ENTER button
Selects and executes the items or
settings.
8 DISPLAY button (45)
Displays the Control Menu display
on the screen to set or adjust the
Control Menu items.
9 TITLE button (37)
Displays the title menu on the
screen.
0 DVD MENU button (38)
Displays the DVD menu on the
screen.
qa POWER button (30)
Turns on and off the power of the
player.
qs
(remote sensor) (13)
Accepts the remote control signals.
qd Display window (41)
Indicates the playing time, etc.
116
Additional Information
Index to Parts and Controls (continued)
Bottom
1 Stabilizer tab (DVP-FX1 only) (14)
Pull out to prevent the player from
tipping over when using the LCD
screen.
2 Battery terminals (9)
3 Slots for the battery (9)
117
Additional Information
Remote commander
1 SHUFFLE button (72)
Changes the “SHUFFLE” mode.
2 AUDIO button (54)
Changes the sound while playing a
DVD or VIDEO CD.
3 PROGRAM button (68)
Displays the “PROGRAM” display
on the screen.
4 ANGLE button (59)
Changes the angles when playing a
DVD.
5 REPEAT button (73)
Changes the “REPEAT” mode.
6 SUBTITLE button (57)
Changes the subtitles when playing a
DVD.
7 ./>PREV/NEXT buttons (32)
Press to go to the next chapter or
track, or to go back to the previous
chapter or track.
8
/ SCAN/SLOW buttons
(34)
Locate a point quickly while
monitoring the picture or play a disc
in slow motion.
continued
118
Additional Information
9 CLEAR button (70, 72, 73, 75)
Press to return to continuous play
etc.
0 HPLAY button (31)
Plays a disc.
qa TITLE button (37)
Displays the title menu on the
screen.
qs DISPLAY button (45)
Displays the Control Menu display
on the screen to set or adjust the
Control Menu items.
qd @/1 button (30)
Turns on and off the power of the
player.
qf Number buttons
Selects the items or settings.
qg TIME/TEXT button (41)
Displays the playing time of the disc,
etc., on the display window.
qh xSTOP button (32, 35)
Stops playing a disc.
qj XPAUSE button (32)
Pauses playing a disc.
qk DVD MENU button (38)
Displays the DVD menu on the
screen.
ql </M/m/,/ENTER buttons
Selects and executes the items or
settings.
w; ORETURN button (39, 46)
Press to return to the previously
selected screen, etc.
Index to Parts and Controls (continued)
119
Additional Information
Index
Numerics
4:3 LETTER BOX 83
4:3 PAN SCAN 83
4:3 WIDE MODE 83
5.1 Channel Surround 22
16:9 83
A
A-B REPEAT 74
AC power adaptor 25
ADVANCED 63
ANGLE 58
AUDIO 54, 81
AUDIO DRC 91
AUDIO SETUP 91
AUTO PLAY 85
Auto power off 31
B
BACKGROUND 84
Batteries 13
Battery pack
Attaching 26
Charging 27
Detaching 27
BIT RATE 63, 64, 108
C
CD 6
CD TEXT 53
Chapter 7, 50
CHAPTER 50
Connecting 16, 19, 22
Continuous play
CD/VIDEO CD 30
DVD 30
Control Menu display 45
CUSTOM PARENTAL
CONTROL 65
CUSTOM SETUP 85
D, E
Digital Cinema Sound 60, 108
DIGITAL OUT 92
Digital output 21, 24, 92
PARENTAL CONTROL 85
PAUSE MODE 85
PBC functions 39
PBC Playback 39, 109
POWER SAVING 90
Pro Logic 92, 108
PROGRAM 68
Program Play 68
R
Remote 13
REPEAT 73
Resume Play 35
S
S video output 17, 20
Scan 34
Scene 7, 50
SCENE 50
SCREEN SAVER 84
SCREEN SETUP 83
Searching. See Locating.
SETUP 76
Setup display 76
SHUFFLE 72
Shuffle Play 72
Slow-motion Play 34
Speakers hookup 23
SUBTITLE 57, 82
T
TIME/TEXT 51, 52, 53
Title 7, 50, 109
TITLE 50
Title menu 37
Track 7, 50, 109
TRACK 50
TRACK SELECTION 90
Troubleshooting 99
TV TYPE 83
U
Usable discs 6
V, W, X, Y, Z
VIDEO CD 6
VES 60
Display
Control Menu display 45
Display window 41
Setup display 76
DOLBY DIGITAL
22, 56, 93, 108
DOWNMIX 92
DTS 8, 22, 56, 93, 108
DVD 6
DVD menu 38
DVD MENU 80
DVD TEXT 53
F, G
Fast Forward 34
Fast Reverse 34
H
Handling discs 12
Headphones 95
Headphone surround 95
Hooking up 16, 19, 22
I, J, K
Index 7, 50
INDEX 50
L
LANGUAGE SETUP 80
LAYER 63, 64
LCD screen 14, 98
LETTER BOX 83
Locating
a specific point 33, 34
by watching the TV
screen 33, 34
M, N
Multi-angle 58
Multi-language 54
O
On-screen display
Control Menu display 45
Setup display 76
OSD 80
P, Q
PAN SCAN 83
Sony Corporation Printed in Japan
