Installation Instructions for
M-LCA-C-W
&
M-LCB-C-W
LED LIGHT CAP
FOR ETXv3 & VeX™ ENCLOSED SPEAKER SYSTEMS
NOTE: The M-LCA-C-W Light Cap and M880-ETXv3-SG-WH Enclosed Speaker System are
used in this manual for illustrative purposes only. The installation steps are the same for
all ETXv3 and VeX™ Enclosed Speaker Systems and all LED Light Caps.
LIMITED WARRANTY MARINE PRODUCTS USA
JL AUDIO warrants this product to be free of defects in materials and workmanship for a period of two (2) years from the
original date of purchase.
This warranty is not transferable and applies only to the original purchaser from an authorized JLAUDIO dealer. Should service
be necessary under this warranty for any reason due to manufacturing defect or malfunction, JL AUDIO will (at its discretion),
repair or replace the defective product with new or remanufactured product at no charge. Damage caused by the following is not
covered under warranty: accident, misuse, abuse, product modification or neglect, failure to follow installation instructions,
unauthorized repair attempts, misrepresentations by the seller. This warranty does not cover incidental or consequential damages
and does not cover the cost of removing or reinstalling the unit(s). Cosmetic damage due to accident or normal wear and tear is not
covered under warranty.
Any applicable implied warranties are limited in duration to the period of the express warranty as provided herein beginning
with the date of the original purchase at retail, and no warranties, whether express or implied, shall apply to this product
thereafter. Some states do not allow limitations on implied warranties, therefore these exclusions may not apply to you. This
warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
For Service Information in the U.S.A. please call
JL Audio Customer Service: (95 4) 4 43-110 0
9:00 AM – 5:30 PM (Eastern Time Zone)
JL Audio, Inc
10369 North Commerce Pkwy.
Miramar, FL 33025, USA
International Warranties:
Products purchased outside the United States of America are covered only
by that country’s distributor and not by JL Audio, Inc.
w w w . j l a u d i o . c o m
JL Audio® and the JL Audio logo are registered trademarks of JL Audio, Inc. “Ahead of the Curve” and its respective logo is a trademark of JL Audio, Inc.
©2017 JLAudio, Inc. • For more detailed information please visit us online at www.jlaudio.com. Due to our policy of continuous product development, all specifications are subject to change without notice.
Included Hardware:
BOM ID Quantity Description
1 1 M10 Locknut Tool
2 2
M10 x 1.5 Nylon Insert Flange Locknut
3 2 LED Light Cap
4* 2 readed Stud
5* 2 O-Ring
- 2 150mA Fuse (not shown)
- 2 Fuse Holder (not shown)
- 2 Female Connector (not shown)
Note: Not all wires may be used in normal applications.
Wire Size Wire Color Use
16 AWG
Red/Stripe Speaker Positive (+)
Black/Stripe
Speaker Negative (–)
20 AWG
Red LED Light Cap Positive (+)
Green LED Light Cap Negative (-)
Blue Speaker LED Positive (+)
Yellow Speaker LED Negative (–)
* Pre-installed on LED Cap
(hardware pictured for one)

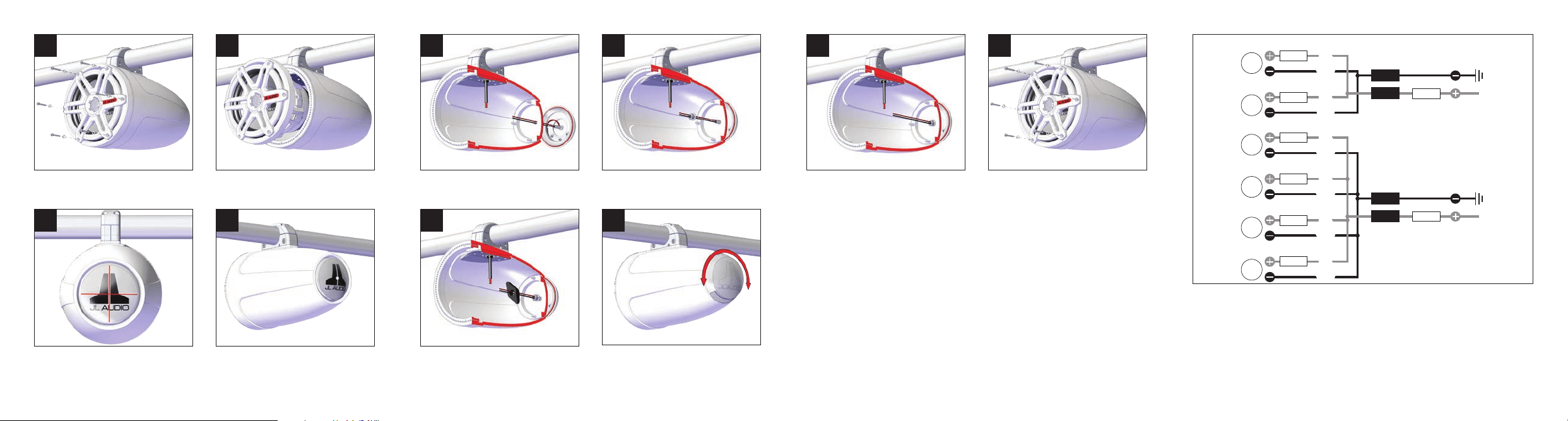

Enclosed Speaker System Wiring:
Wire Size Wire Color Use
18 AWG
Red LED Positive (+)
Black
LED Negative (–)
LED Light Cap Wiring:
Printed in U.S.A. • 112017
