3-074-375-12 (1)
©2002 Sony Corporation
Operating Instructions
Before operating the unit, please read this manual thoroughly,
and retain it for future reference.
Owner’s Record
The model and serial numbers are located on the bottom. Record the
serial number in the space provided below. Refer to these numbers
whenever you call upon your Sony dealer regarding this product.
DCR-TRV40/TRV50
Digital
Video Camera
Recorder
Model No. DCR-TRV Model No. AC-
Serial No. Serial No.
SERIES
TM
DCR-TRV50
2
Welcome!
Congratulations on your purchase of this Sony Handycam. With your Handycam, you can
capture life’s precious moments with superior picture and sound quality. Your Handycam is
loaded with advanced features, but at the same time it is very easy to use. You will soon be
producing home video that you can enjoy for years to come.
WARNING
To prevent fire or shock hazard, do
not expose the unit to rain or
moisture.
CAUTION
The use of optical instruments with this
product will increase eye hazard. As the laser
beam used in this Handycam is harmful to
eyes, do not attempt to disassemble the
cabinet.
Refer to servicing to qualified personnel only.
Notice
If static electricity or electromagnetism causes
data transfer to discontinue midway (fail),
restart the application or disconnect and
connect the USB cable again.

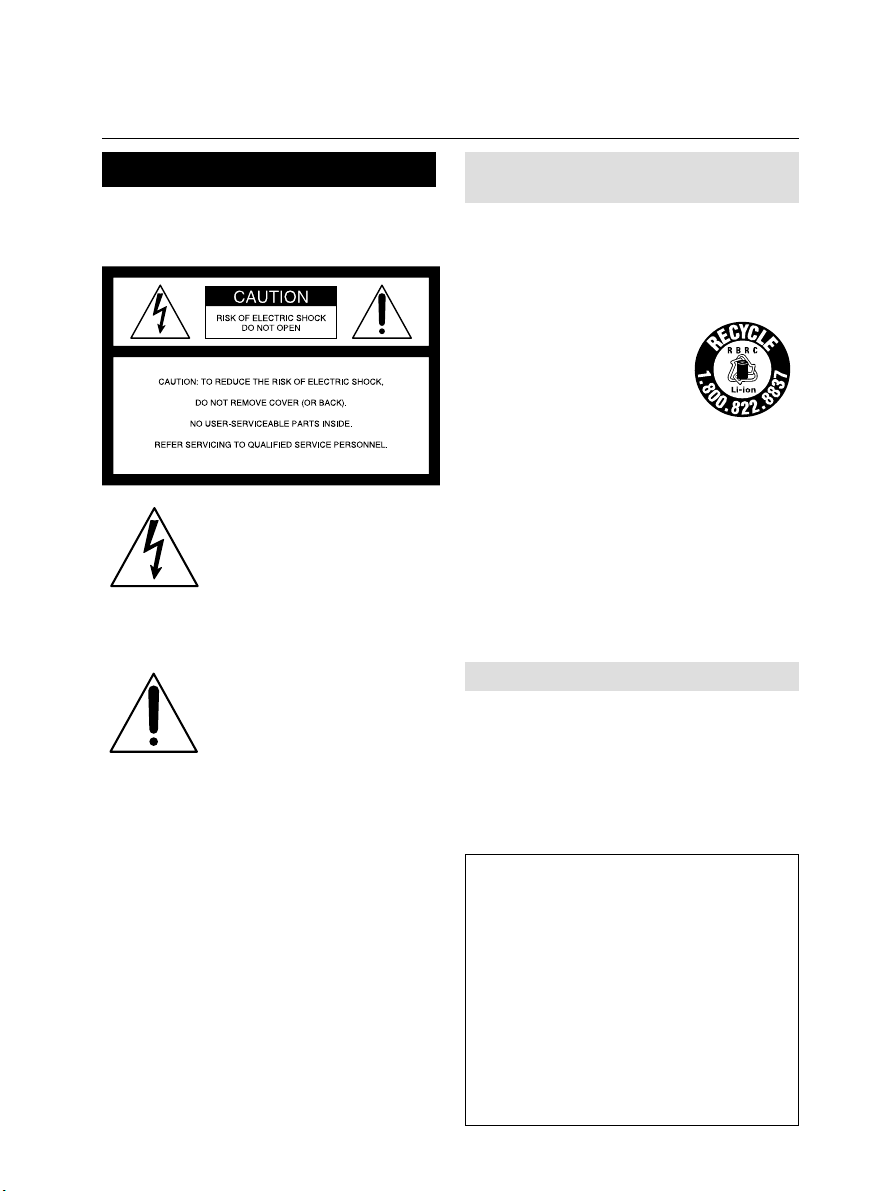

This symbol is intended to
alert the user to the presence
of uninsulated “dangerous
voltage” within the product’s
enclosure that may be of
sufficient magnitude to
constitute a risk of electric
shock to persons.
This symbol is intended to
alert the user to the presence
of important operating and
maintenance (servicing)
instructions in the literature
accompanying the appliance.
For customers in the U.S.A.
and CANADA
CAUTION
TO PREVENT ELECTRIC SHOCK, MATCH
WIDE BLADE OF PLUG TO WIDE SLOT,
FULLY INSERT.
RECYCLING LITHIUM-ION BATTERIES
Lithium-Ion batteries are
recyclable.
You can help preserve our
environment by returning
your used rechargeable
batteries to the collection and
recycling location nearest you.
For more information regarding recycling of
rechargeable batteries, call toll free 1-800-822-
8837, or visit http://www.rbrc.org/
Caution: Do not handle damaged or leaking
Lithium-Ion batteries.
DCR-TRV50 only
Countries and areas where you can use
network functions are restricted.
For details, refer to the separate Network
Operating Instructions.
For customers in the U.S.A.
If you have any questions about this product,
you may call:
Sony Customer Information Center 1-800-222-
SONY (7669)
The number below is for the FCC related
matters only.
Regulatory Information
Declaration of Conformity
Trade Name: SONY
Model No.: DCR-TRV50
Responsible Party: Sony Electronics Inc.
Address: 680 Kinderkamack
Road, Oradell,
NJ07649 U.S.A.
Telephone No.: 201-930-6972
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This device
may not cause harmful interference, and
(2)this device must accept any interference
received, including interference that may
cause undesired operation.
3
IMPORTANT NOTE
To comply with FCC RF exposure compliance
requirements, the following antenna
installation and device operating
configurations must be satisfied: the antenna
has been installed by the
manufacturer and no changes can be made.
“Memory Stick”
This device complies with Part 15 of the FCC
Rules. Operation is subject to the following
two conditions: (1) This device may not cause
harmful interference, and (2) this device must
accept any interference received, including
interference that may cause undesired
operation.
CAUTION
You are cautioned that any changes or
modifications not expressly approved in this
manual could void your authority to operate
this equipment.
Note:
This equipment has been tested and found to
comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC Rules.
These limits are designed to provide
reasonable protection against harmful
interference in a residential installation. This
equipment generates, uses, and can radiate
radio frequency energy and, if not installed
and used in accordance with the instructions,
may cause harmful interference to radio
communications. However, there is no
guarantee that interference will not occur in a
particular installation. If this equipment does
cause harmful interference to radio or
television reception, which can be determined
by turning the equipment off and on, the user
is encouraged to try to correct the interference
by one or more of the following measures:
— Reorient or relocate the receiving antenna.
— Increase the separation between the
equipment and receiver.
— Connect the equipment into an outlet on a
circuit different from that to which the
receiver is connected.
— Consult the dealer or an experienced
radio/TV technician for help.
The supplied interface cable must be used with
the equipment in order to comply with the
limits for a digital device pursuant to Subpart
B of Part 15 of FCC Rules.
The term “IC:” before the radio certification
number only signifies that Industry Canada
technical specifications were met.
For customers in CANADA
“Memory Stick”
This Class B digital apparatus complies with
Canadian ICES-003.
4
Main features
Recording moving pictures
or still images, and playing
them back
•Recording moving pictures on a
tape (p. 26)
•Recording still images on a tape
(p. 52)
•Playing back a tape (p. 40)

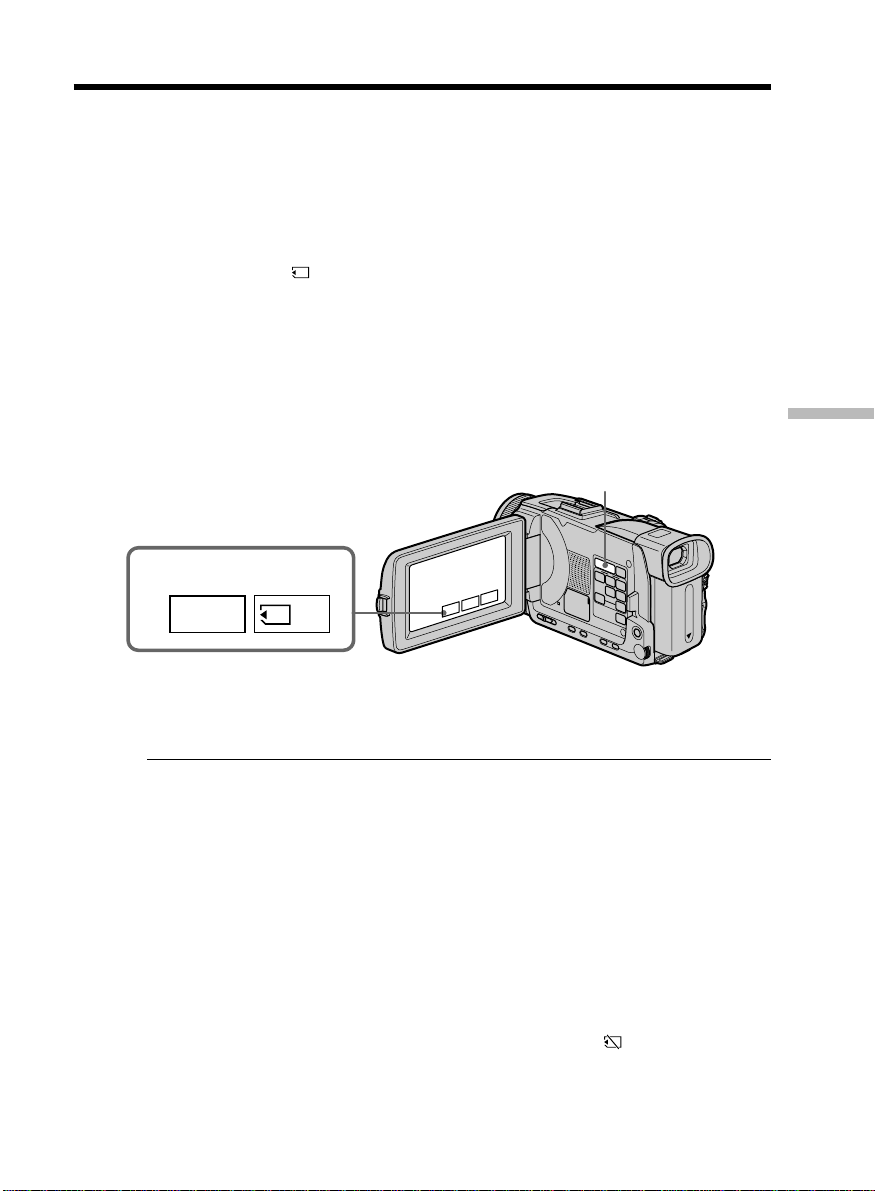

•Recording still images on
“Memory Stick”s (p. 47, 126)
•Recording moving pictures on
“Memory Stick”s (p. 144)
•Viewing still images recorded on
“Memory Stick”s (p. 156)
•Viewing moving pictures on
“Memory Stick”s (p. 159)
Capturing images on your
computer

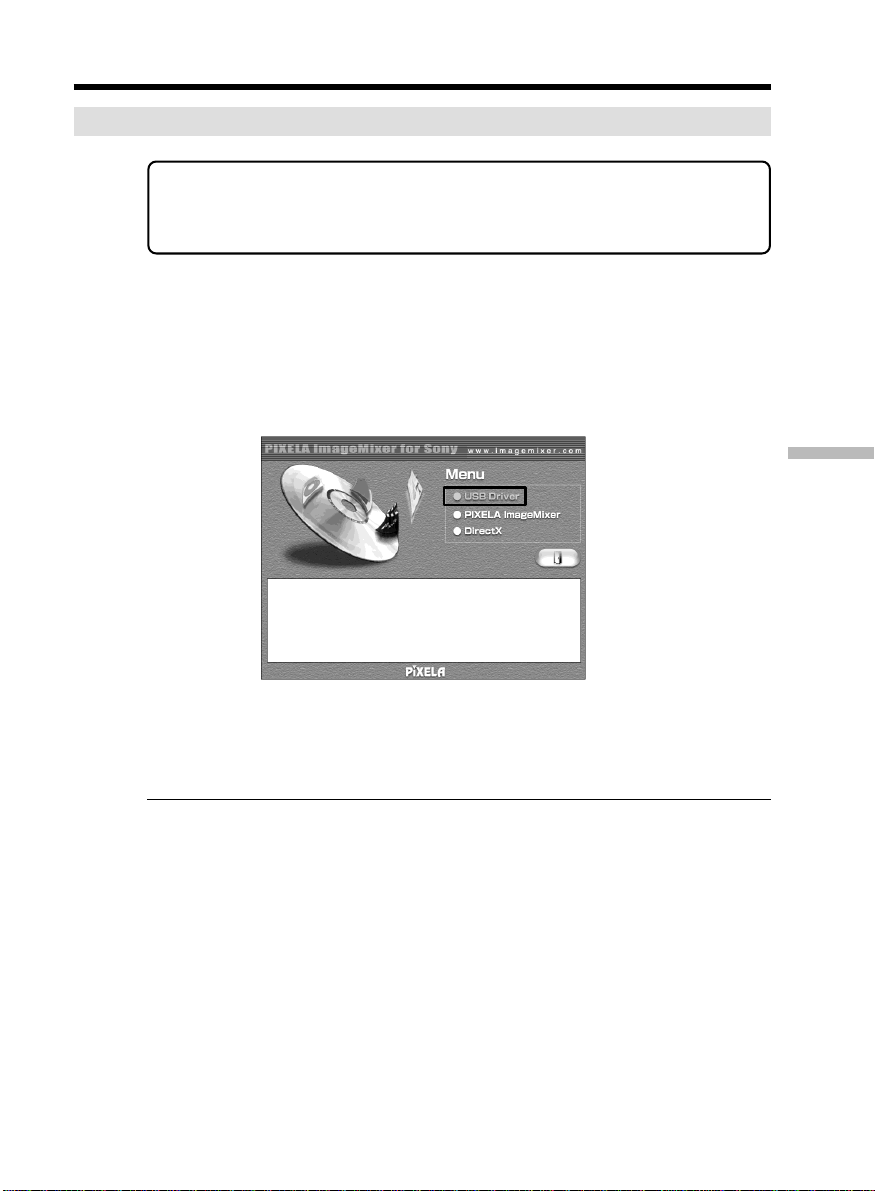

•Viewing images recorded on
“Memory Stick”s using the USB cable
(p. 190, 195)
•Viewing moving pictures recorded on
tapes using the USB cable (p. 185)

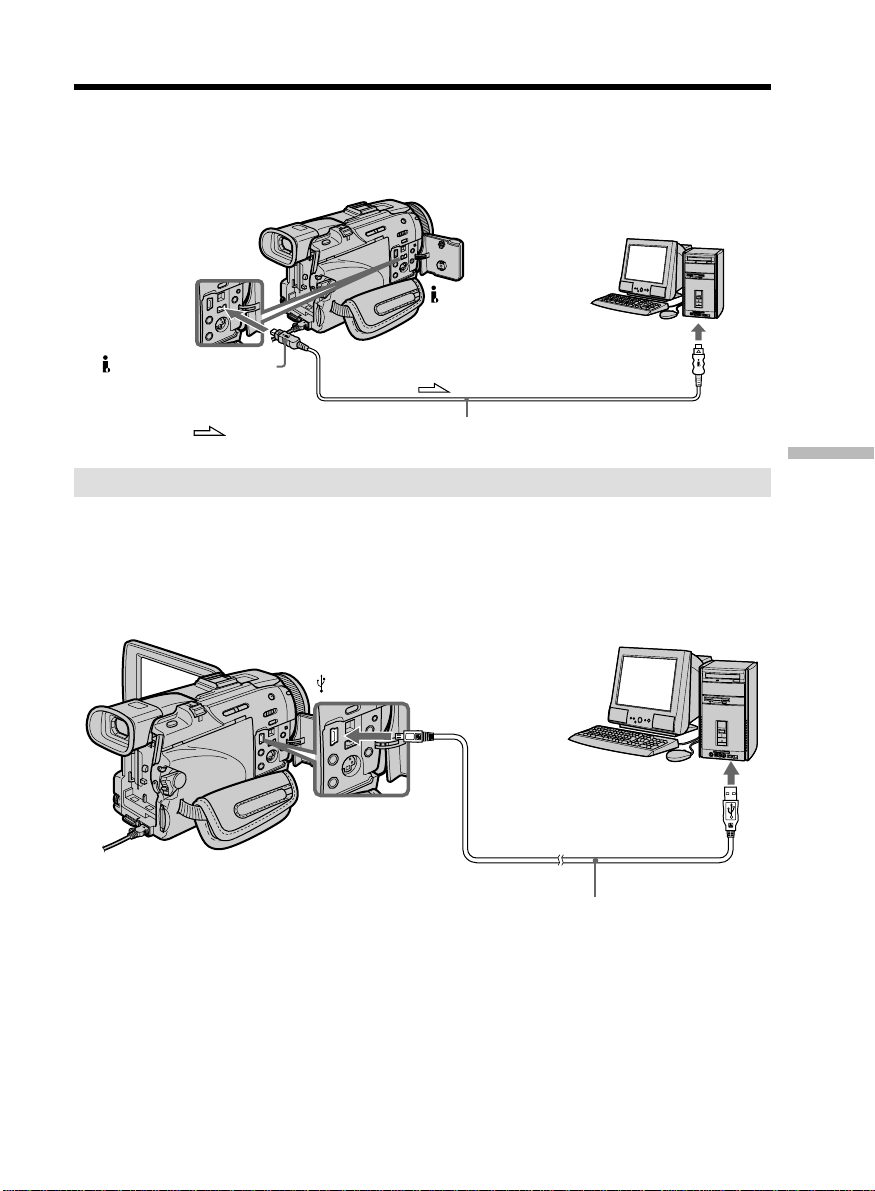

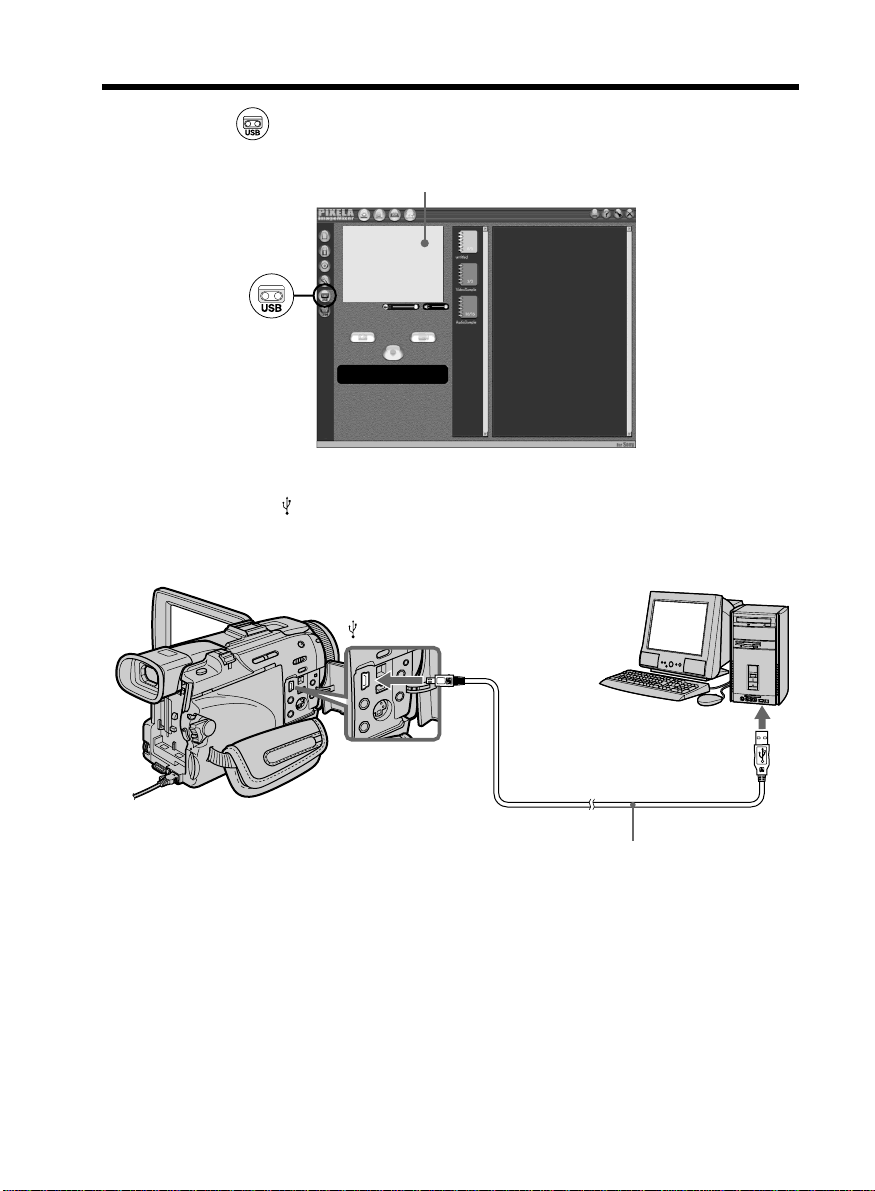

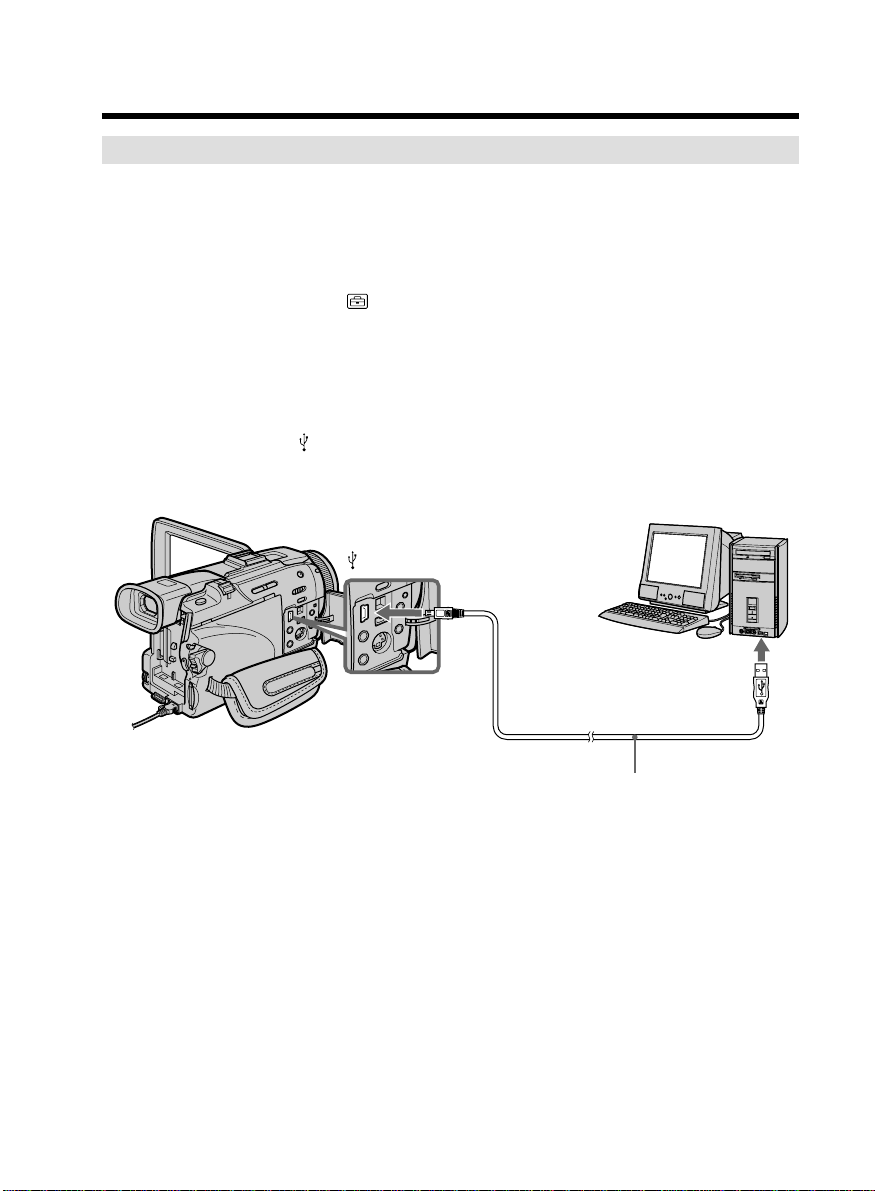

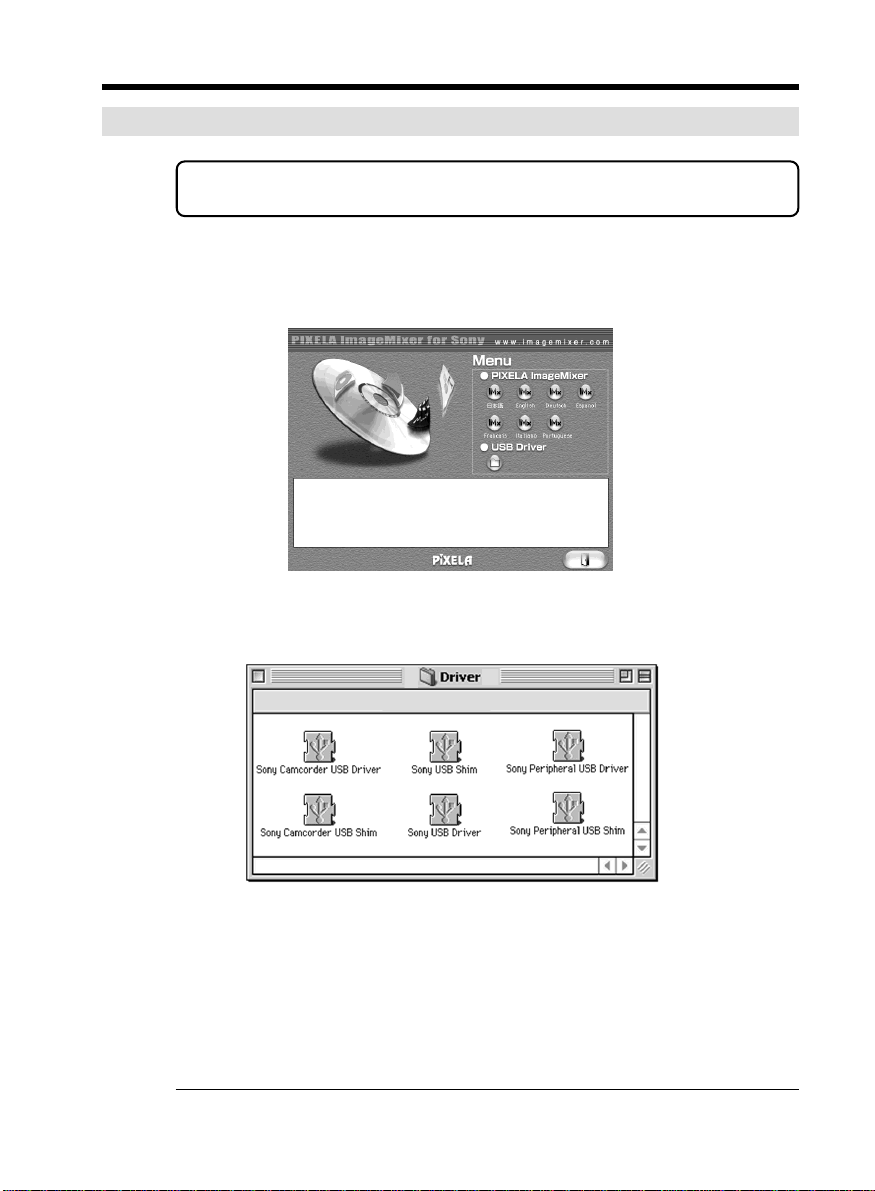

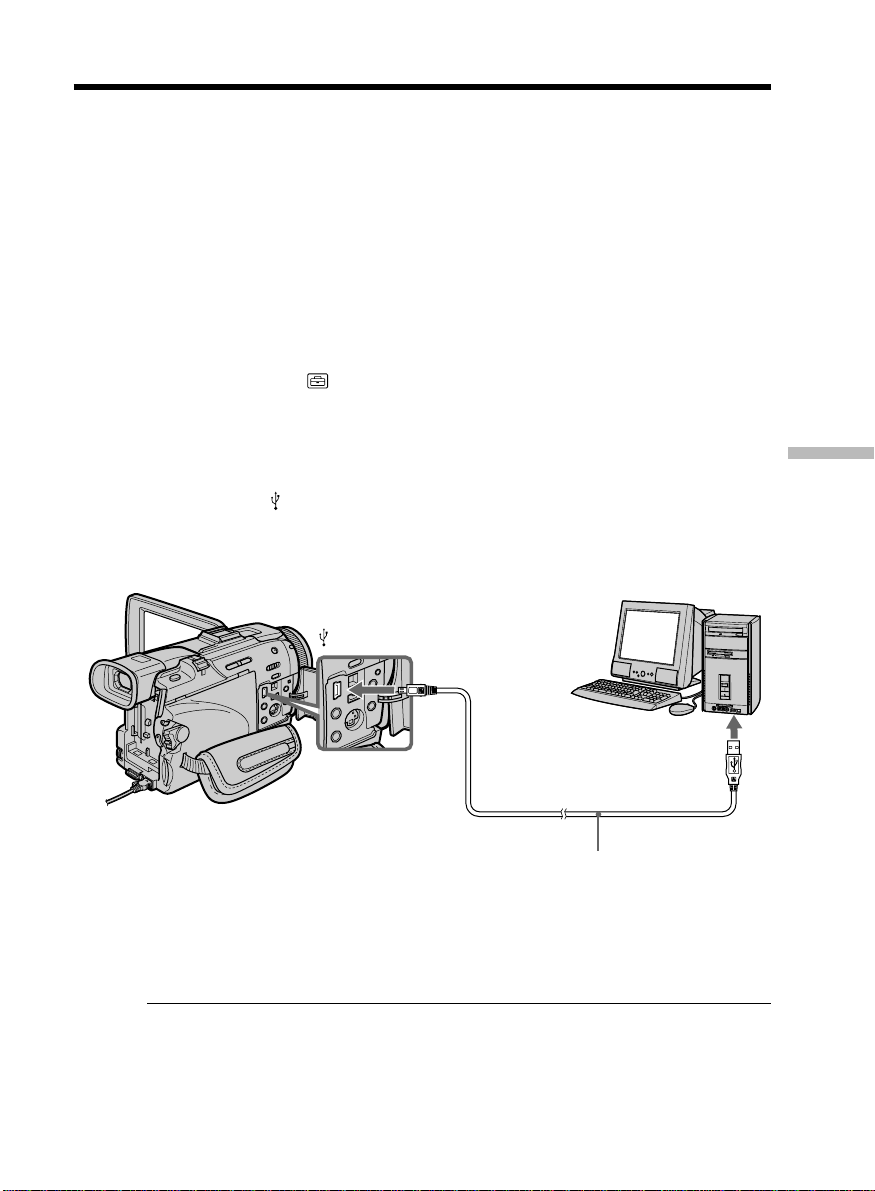

•Capturing images on your computer
from your camcorder using the USB
cable (p. 187)

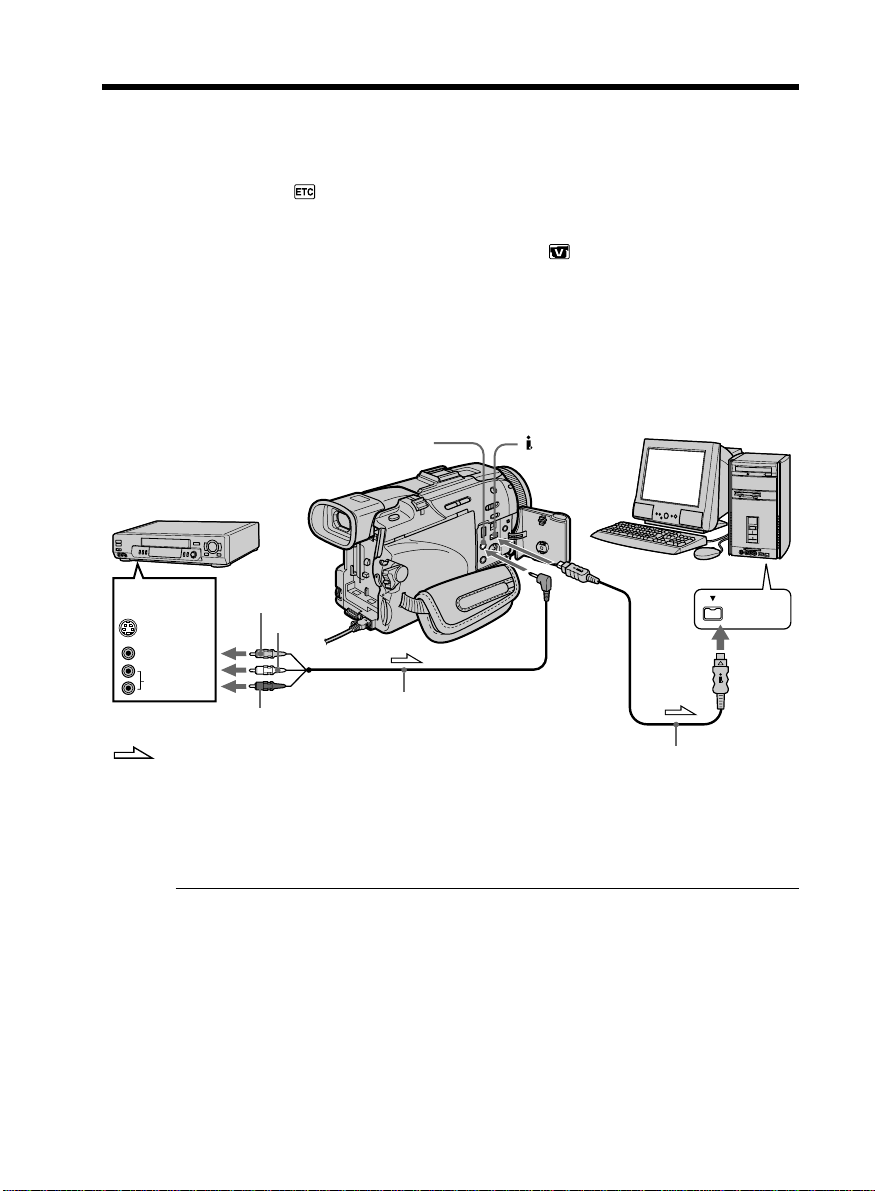

•Converting an analog signal into
digital to capture images onto your
computer (p. 196)
4
Main Features
Getting Started
5
Main features
Accessing the Internet via a
Bluetooth equipped device
(DCR-TRV50 only)
Accessing the Internet, sending/
receiving your e-mail. For details,
refer to the Network Function
Operating Instructions supplied
with your camcorder. (DCR-
TRV50 only) (p. 197)
5
Other uses
Functions for adjusting exposure in the recording mode
•BACK LIGHT (p. 34)
•NightShot/Super NightShot/Color Slow Shutter (p. 34)

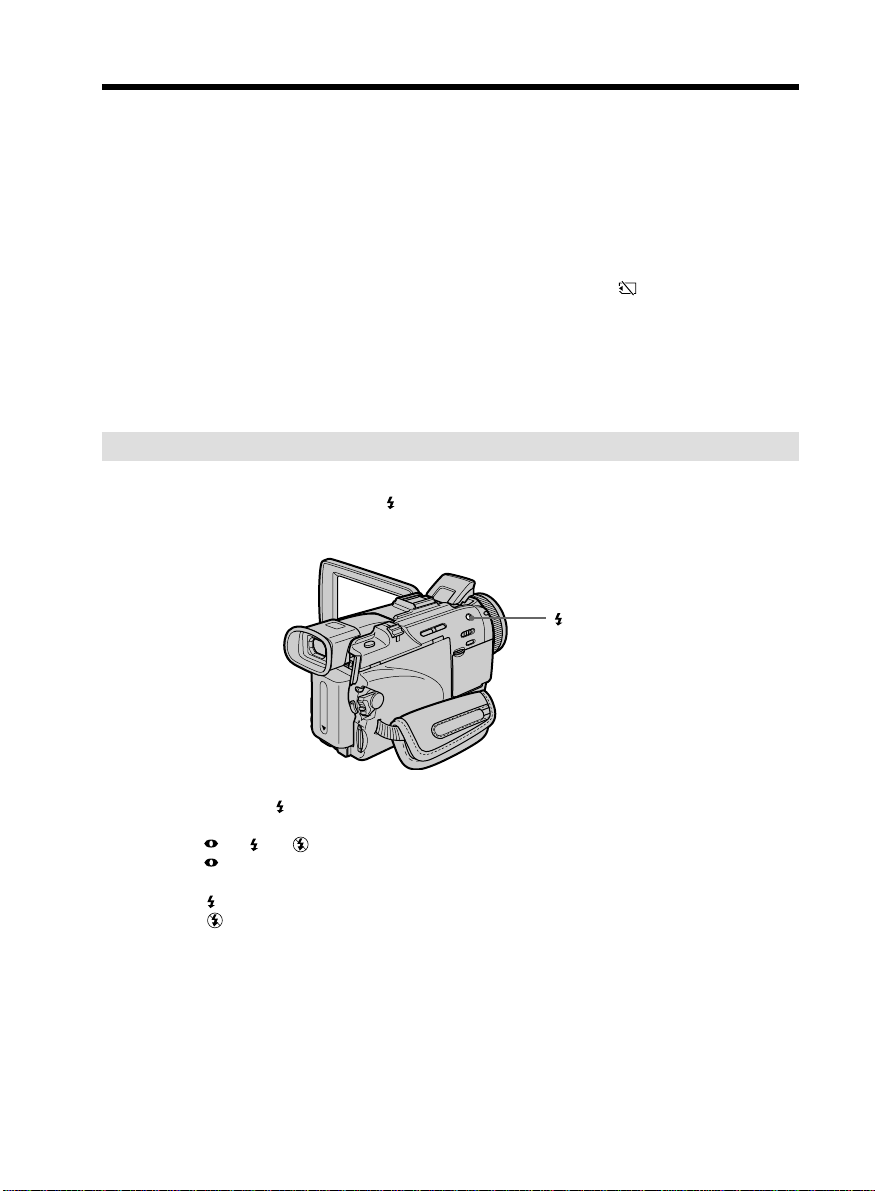

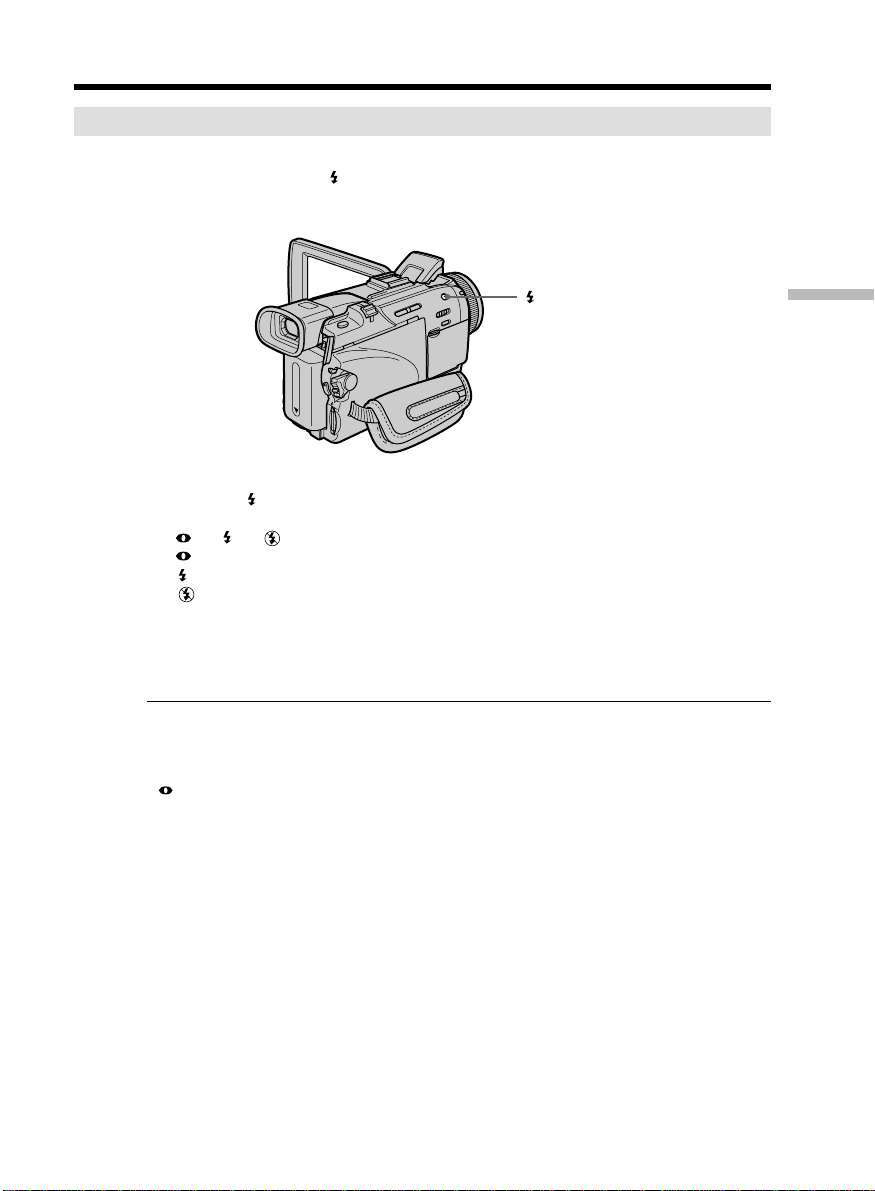

•Recording images with the flash (p. 49, 130)
•PROGRAM AE (p. 64)
•Adjusting the exposure manually (p. 67)
•Flexible Spot Meter (p. 68)
Functions for giving images more impact

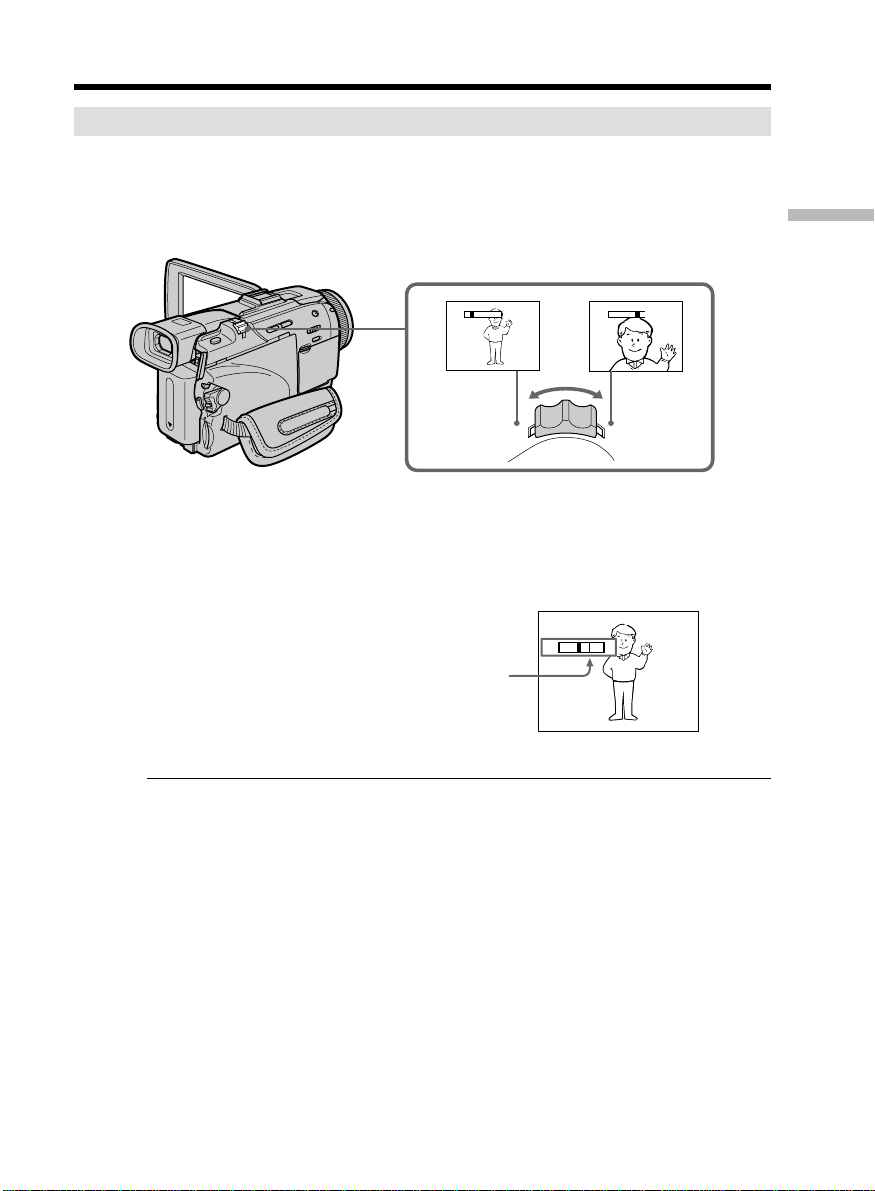

•Digital zoom (p. 31)
The default setting is OFF. (To zoom greater than 10×, select the digital zoom power in
D ZOOM in the menu settings.)

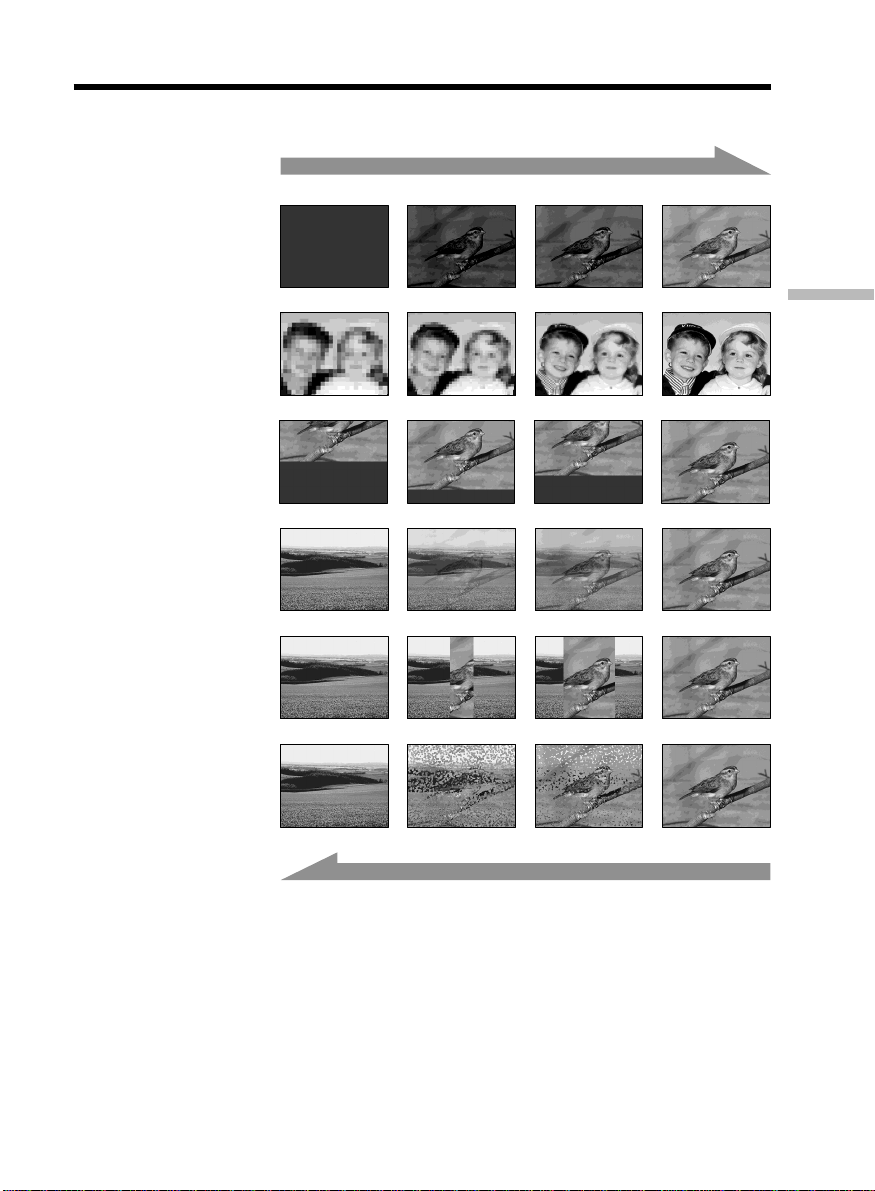

•Fader (p. 57)

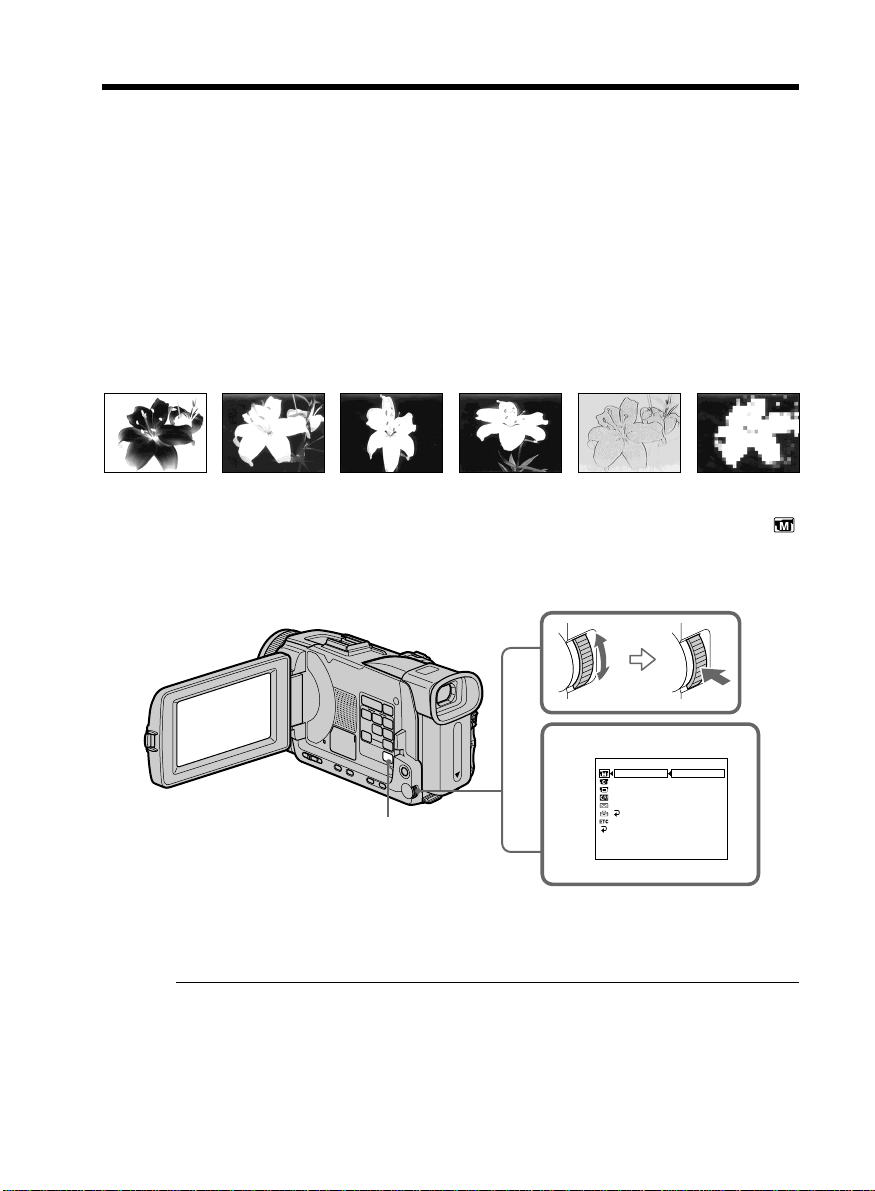

•Picture effect (p. 60)

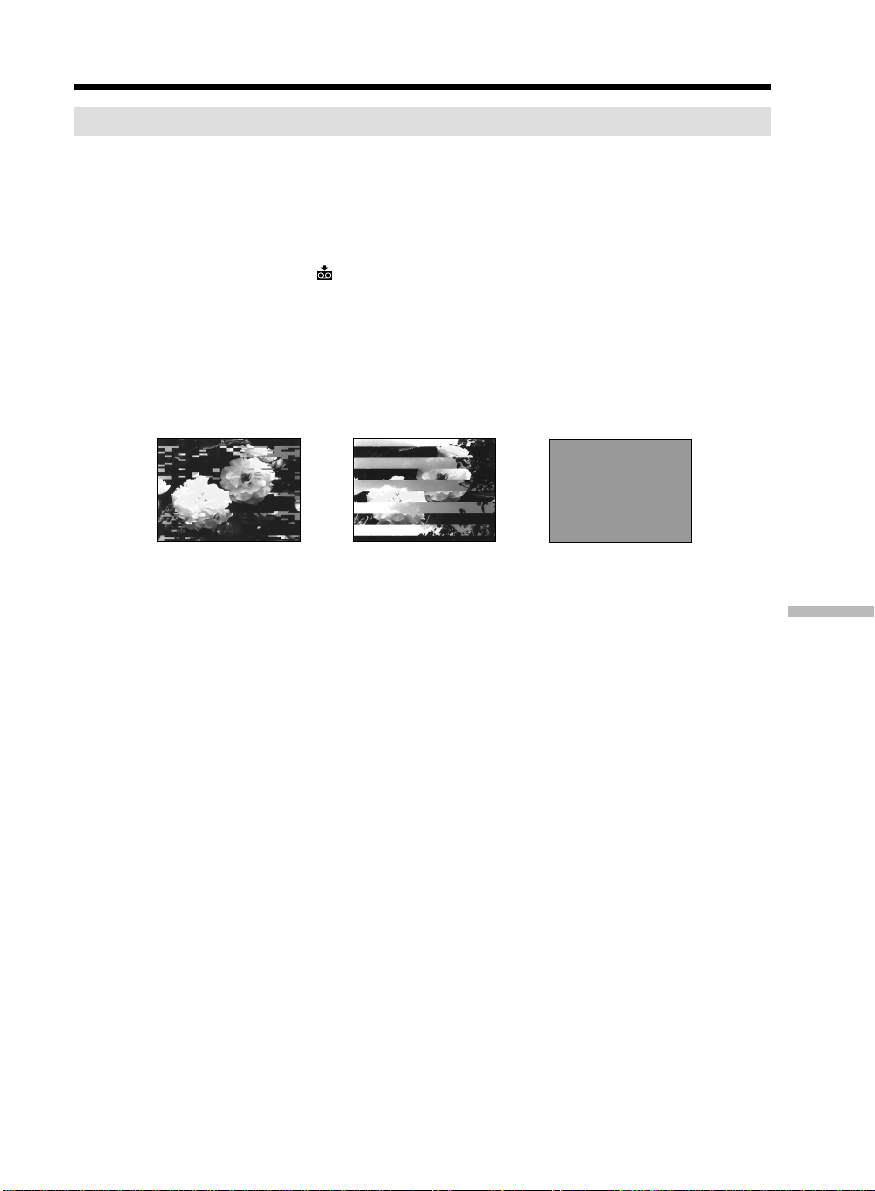

•Digital effect (p. 61)

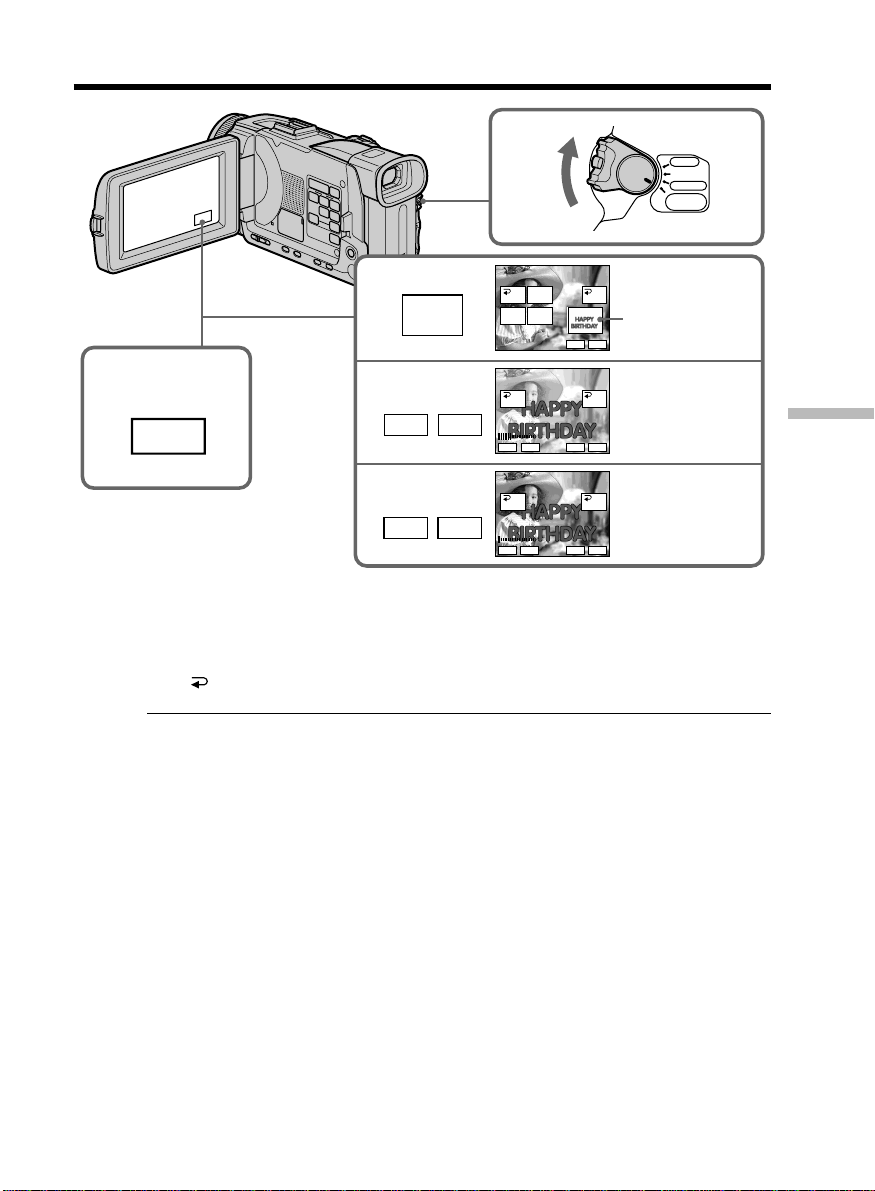

•Titles (p. 110)

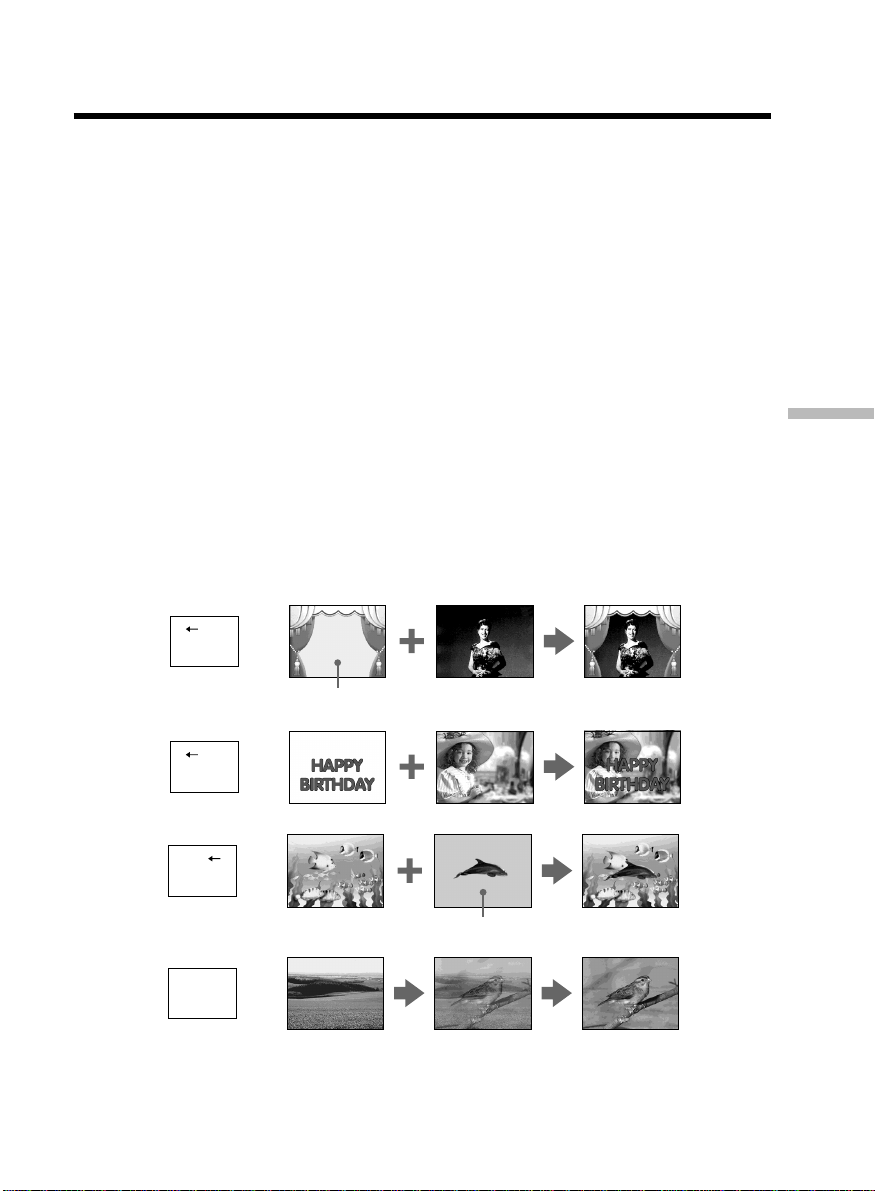

•MEMORY MIX (p. 139)
Functions for giving a natural appearance to your recordings
•Manual focus (p. 69)
•Sports lesson (p. 64)
•Landscape (p. 64)
•Spot Focus (p. 71)
Functions for using after recording

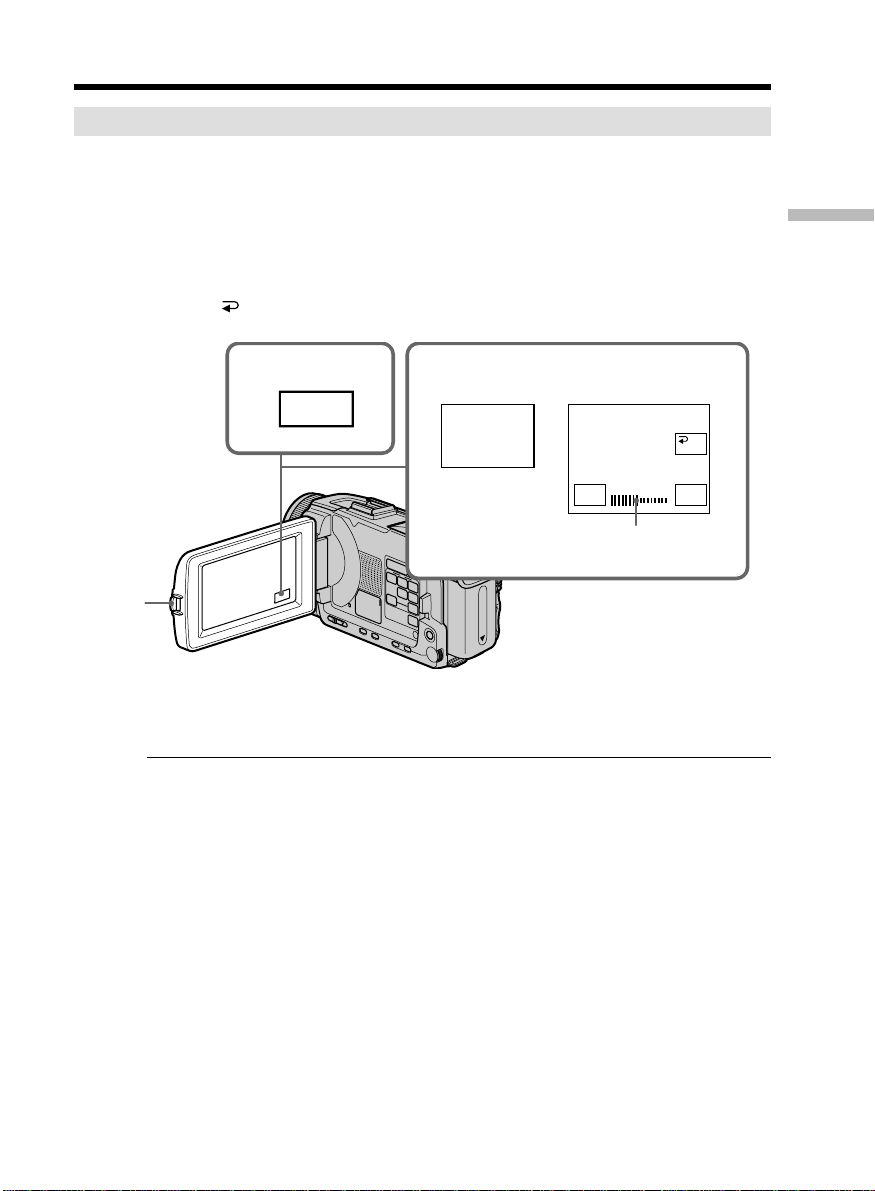

•END SEARCH/EDITSEARCH/Rec Review (p. 38)
•DATA CODE (p. 42)
•Tape PB ZOOM (p. 77)
•ZERO SET MEMORY (p. 79)
•TITLE SEARCH (p. 80)
•Digital program editing (p. 89, 151)
Main Features
6
Table of contents
Main features ..................................... 4

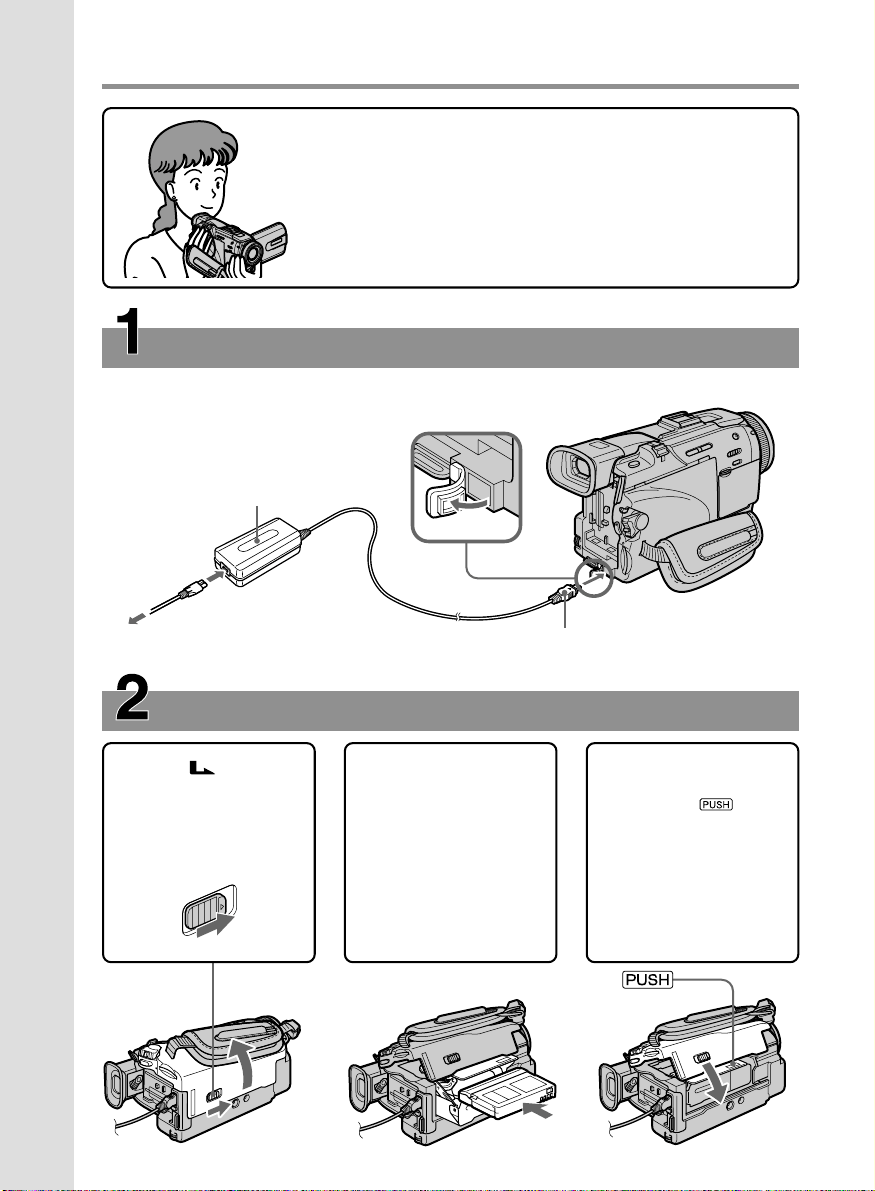

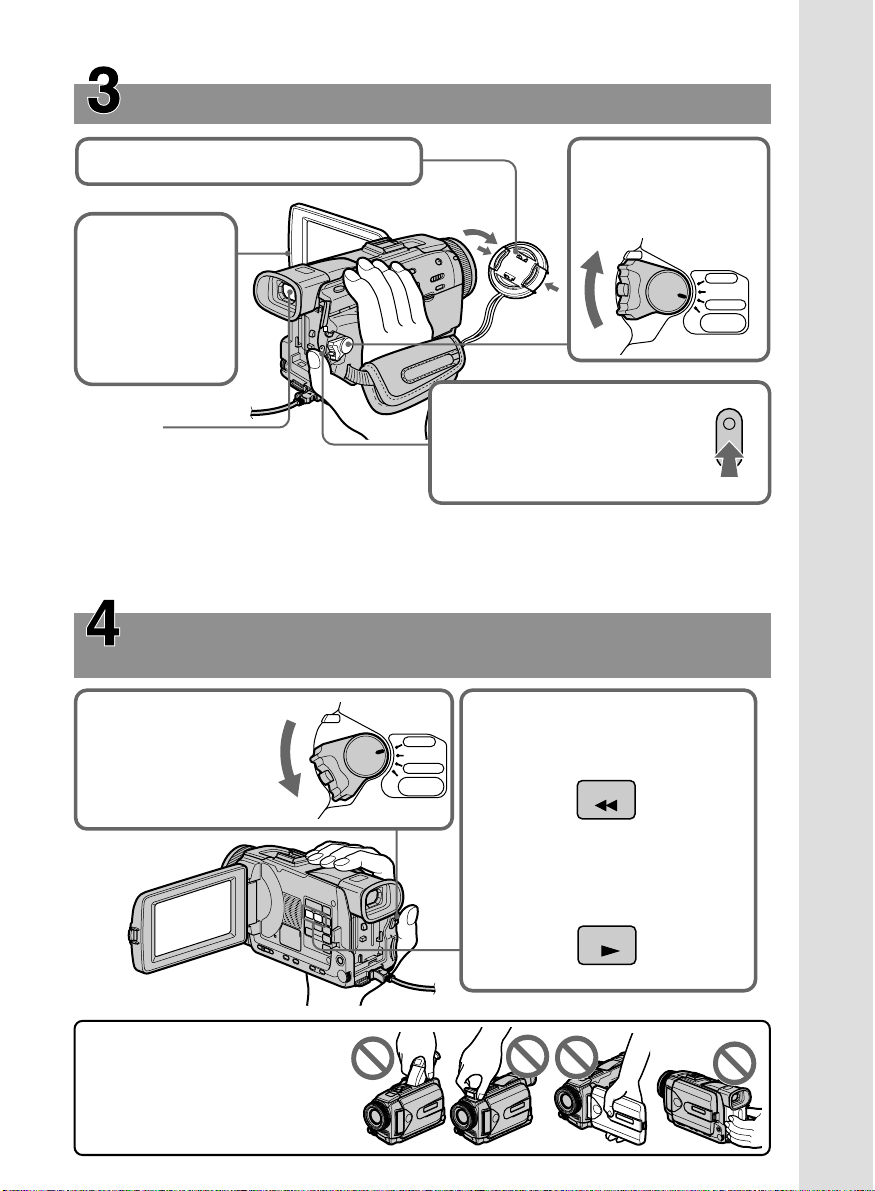

Quick Start Guide
– Recording on a tape ............................. 8
– Recording on a “Memory Stick”...... 10
Getting Started
Using this manual ................................. 12

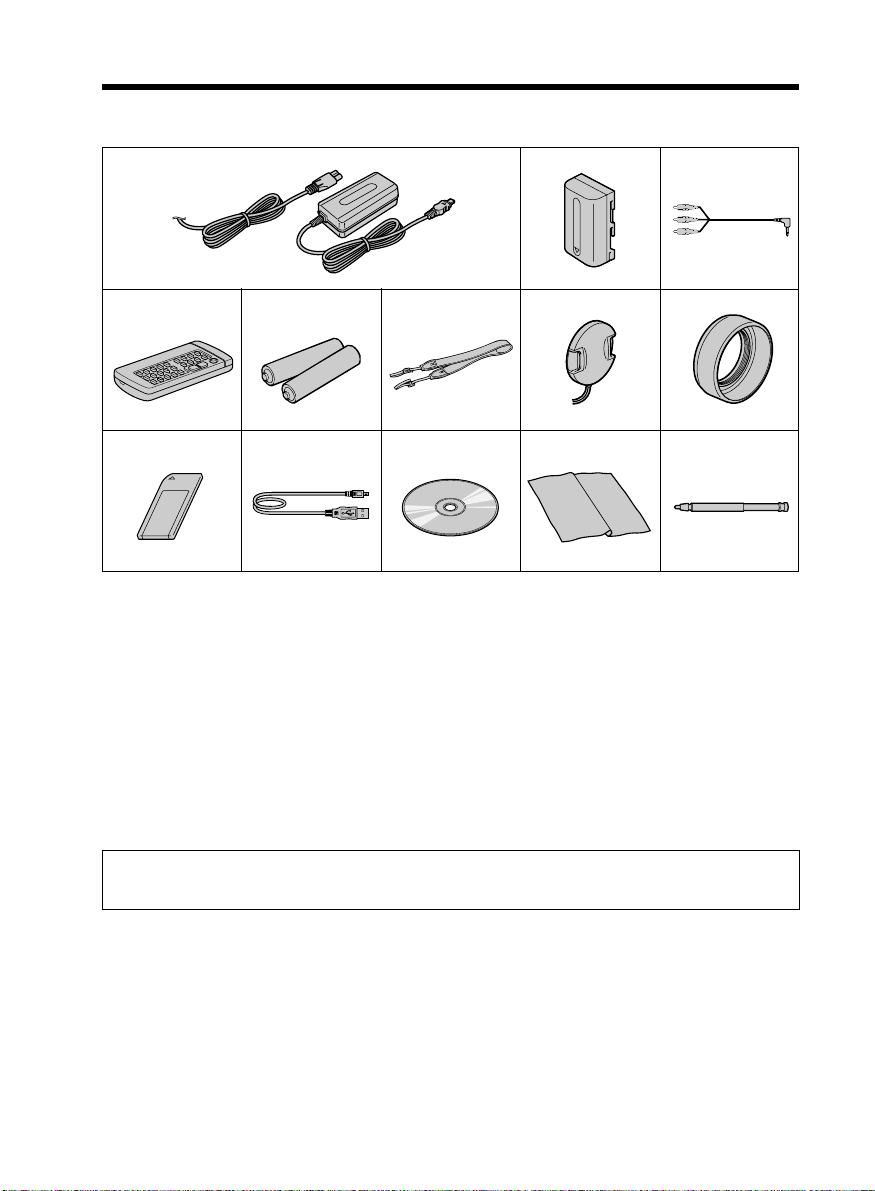

Checking supplied accessories............ 14

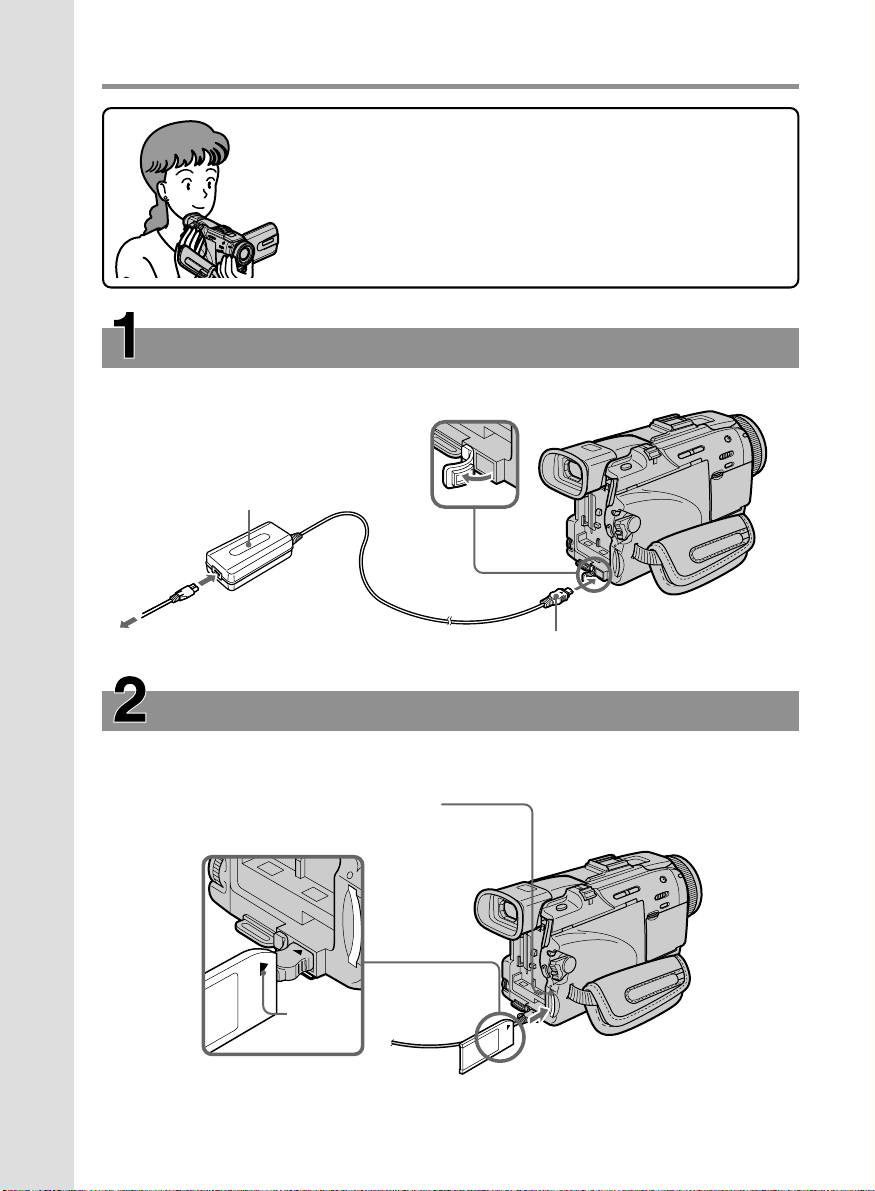

Step 1 Preparing the power supply... 15

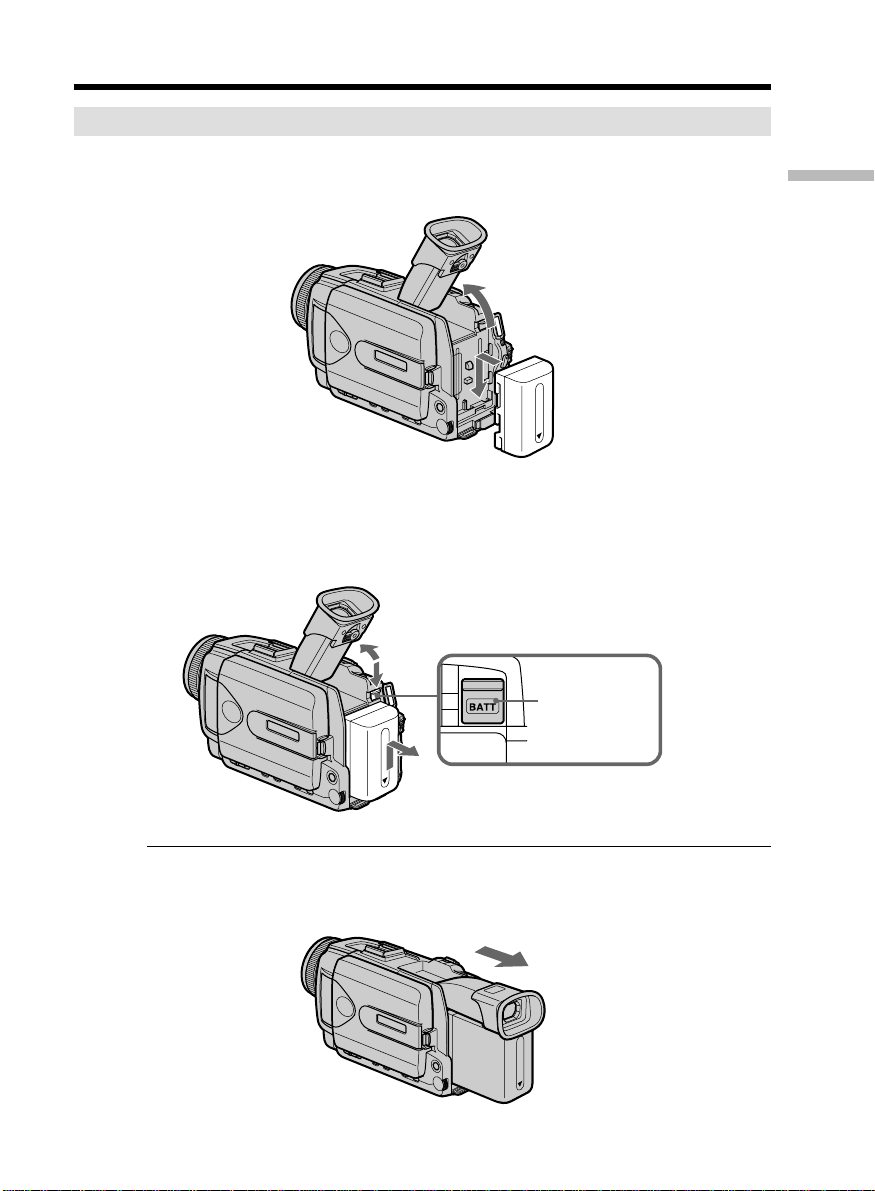

Installing the battery pack ............ 15
Charging the battery pack............. 16
Connecting to a wall outlet ........... 19
Step 2 Setting the date and time ........ 20

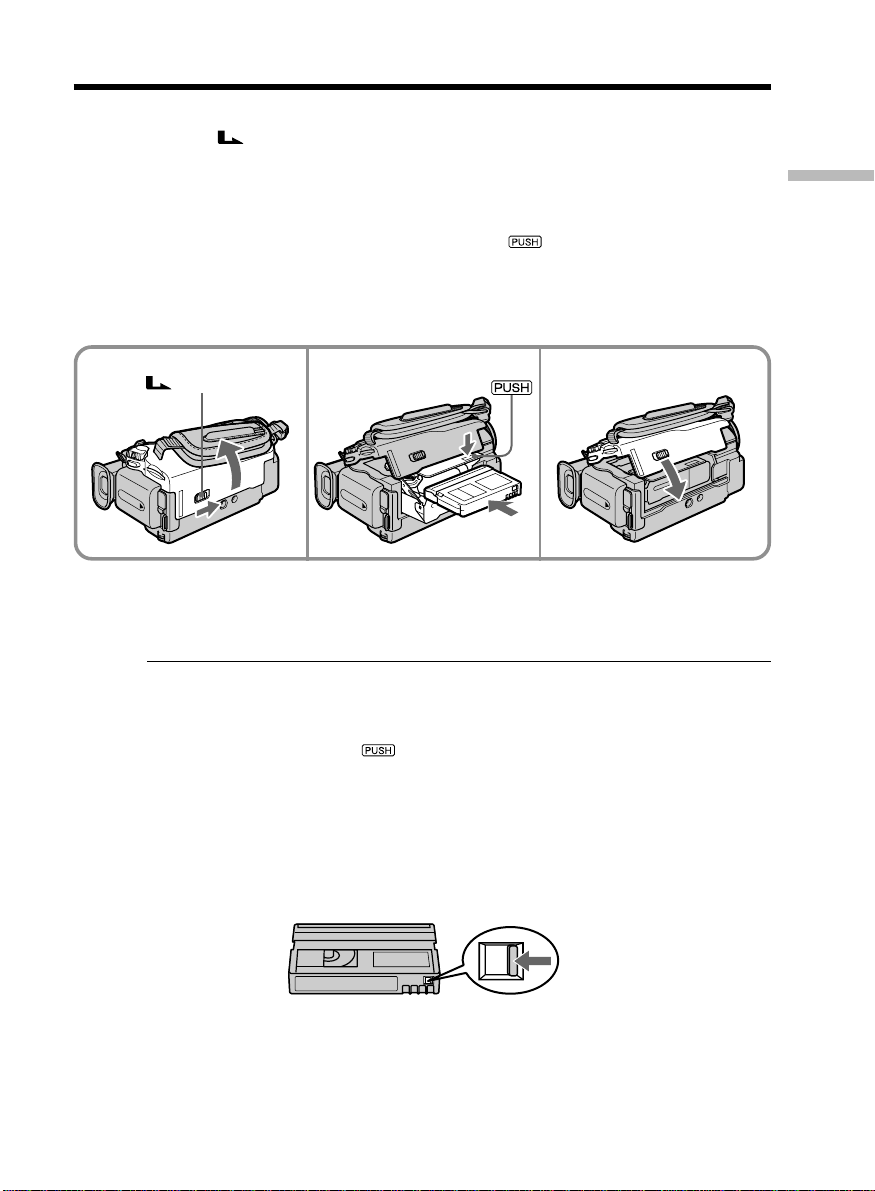

Step 3 Inserting a cassette ................... 23
Step 4 Using the touch panel.............. 24
Recording – Basics
Recording a picture............................... 26
Shooting backlit subjects
– BACK LIGHT ........................ 34
Shooting in the dark
– NightShot/Super NightShot/
Color Slow Shutter .................. 34

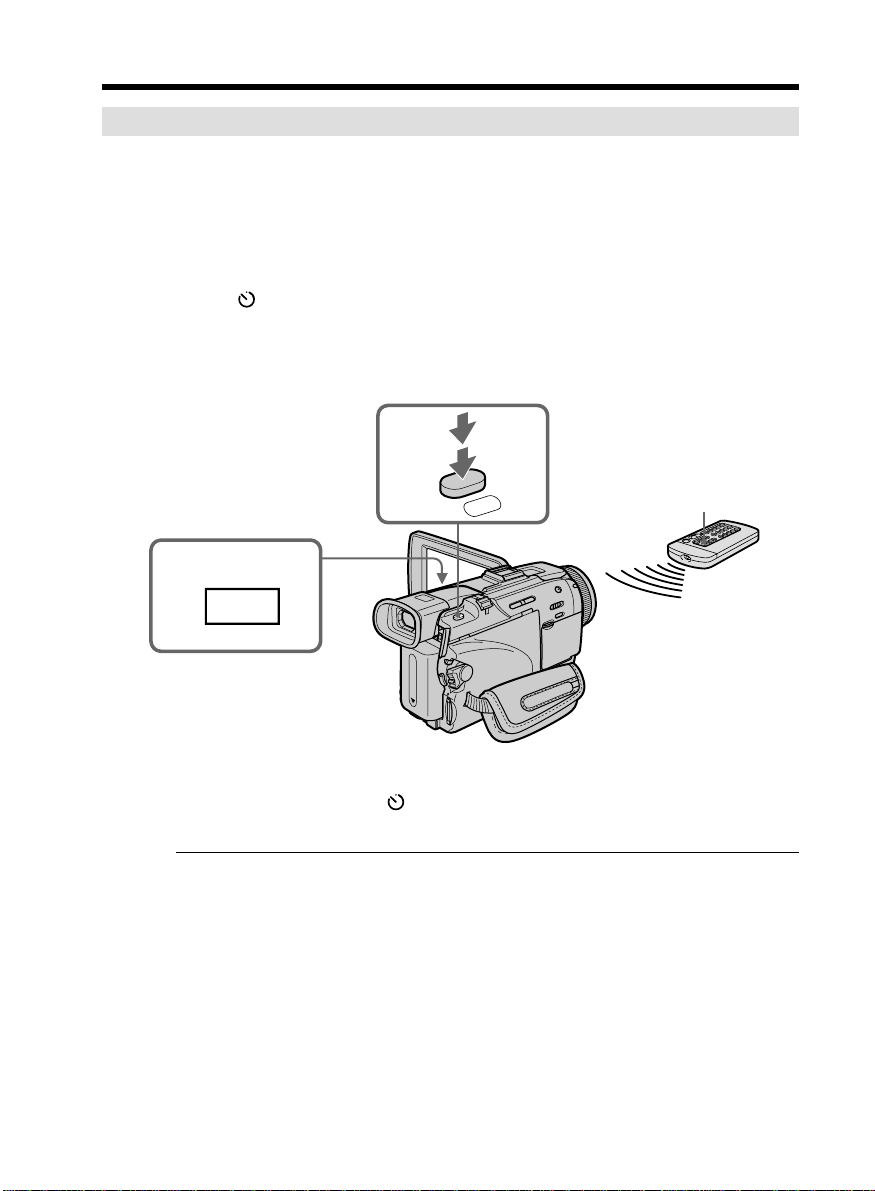

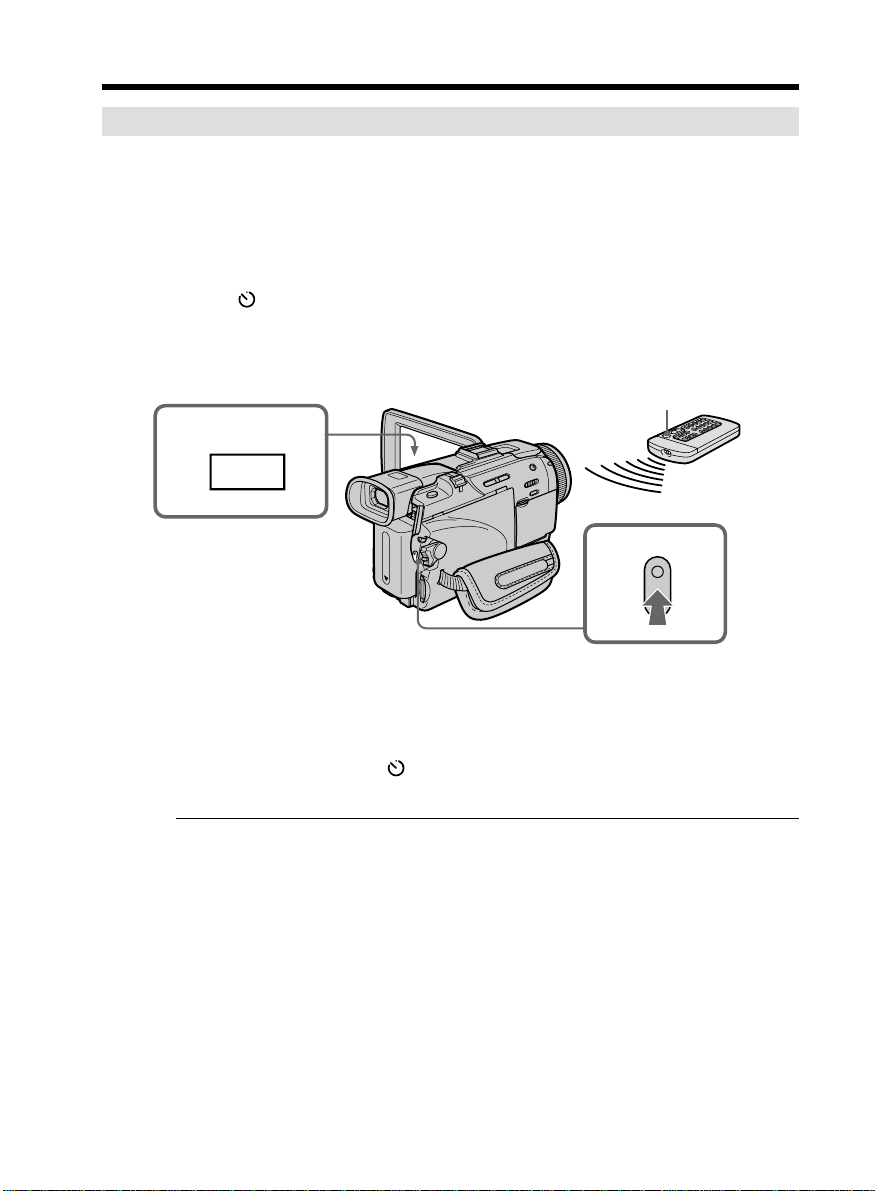

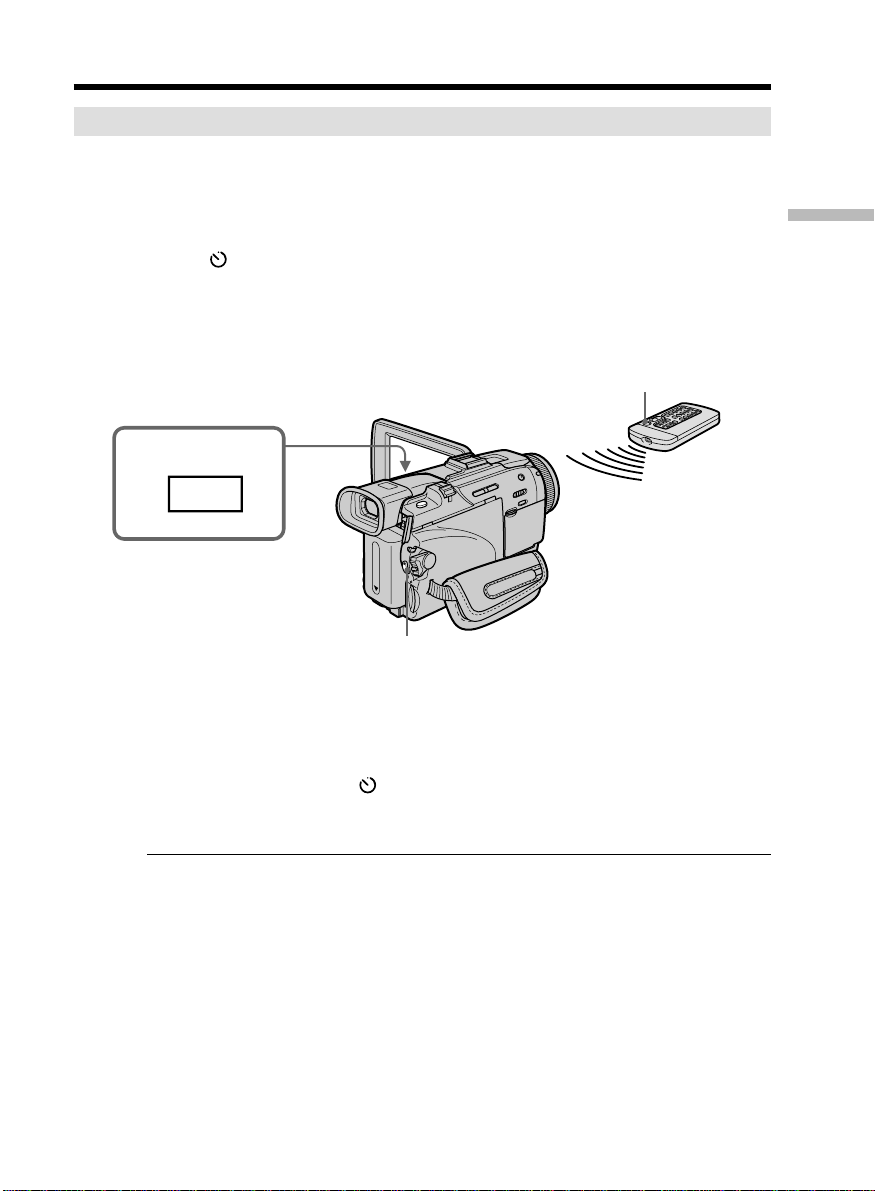

Self-timer recording ....................... 37
Checking recordings
– END SEARCH/
EDITSEARCH/Rec Review .......... 38
Playback – Basics
Playing back a tape ............................... 40
To display the screen indicators
– Display function ................... 42

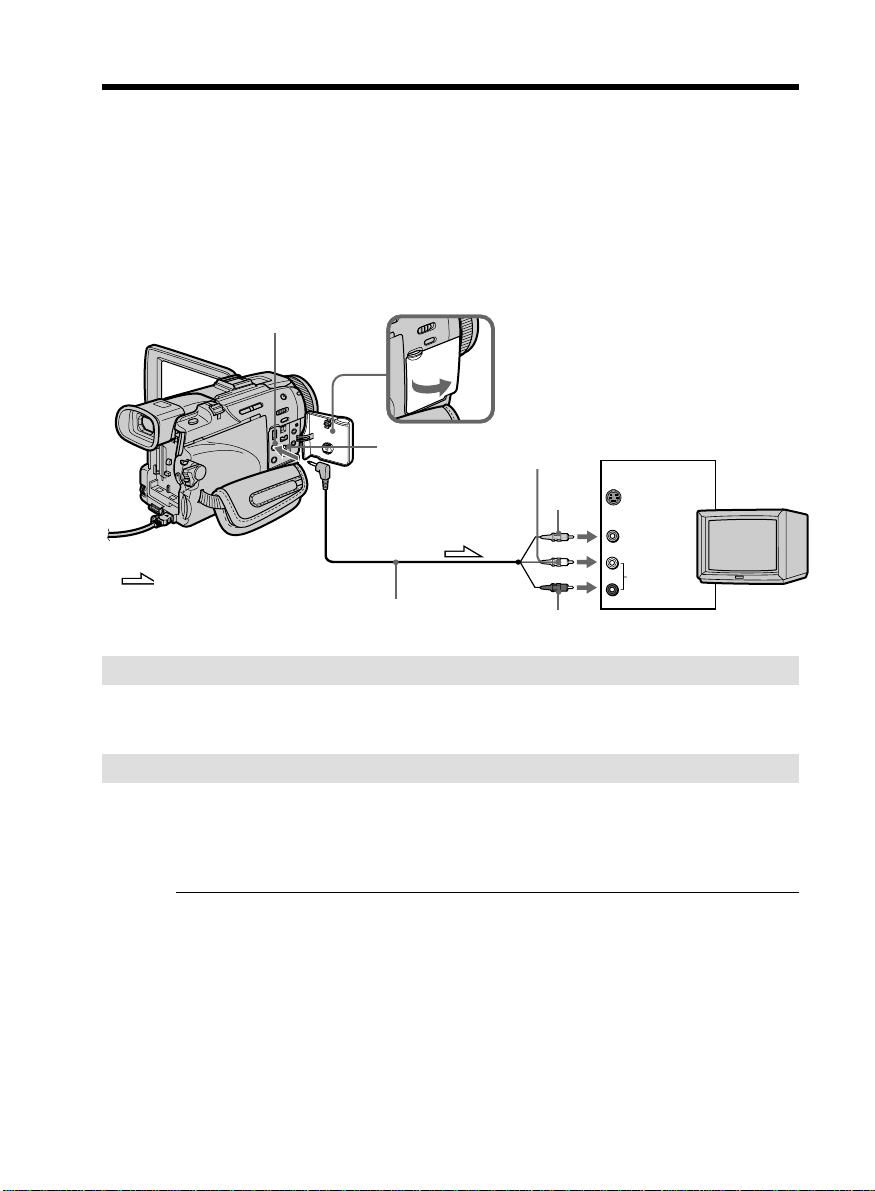

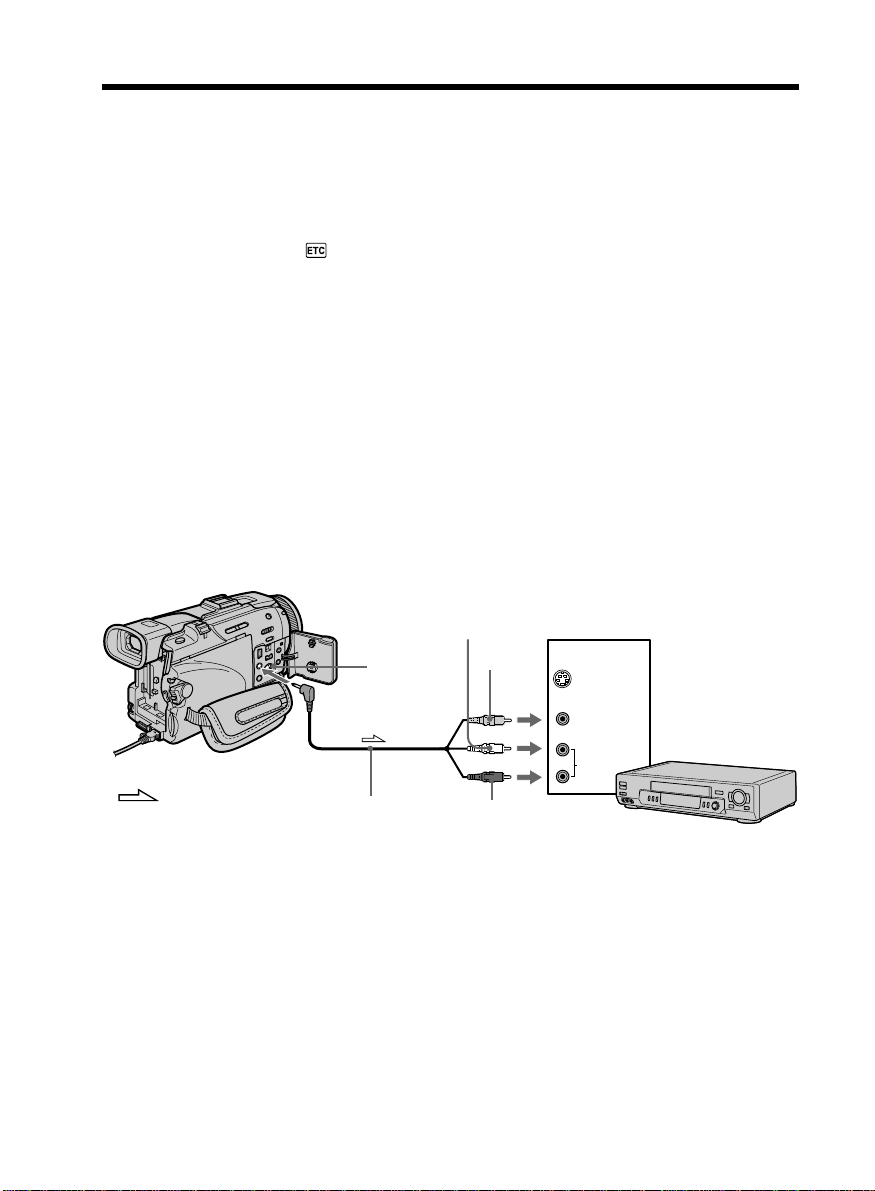

Viewing the recording on TV.............. 46
Advanced Recording
Operations
Recording still images on a “Memory
Stick” during tape recording ........ 47
Recording still images on a tape
– Tape Photo recording ................. 52
Adjusting the white balance manually
........................................................... 54

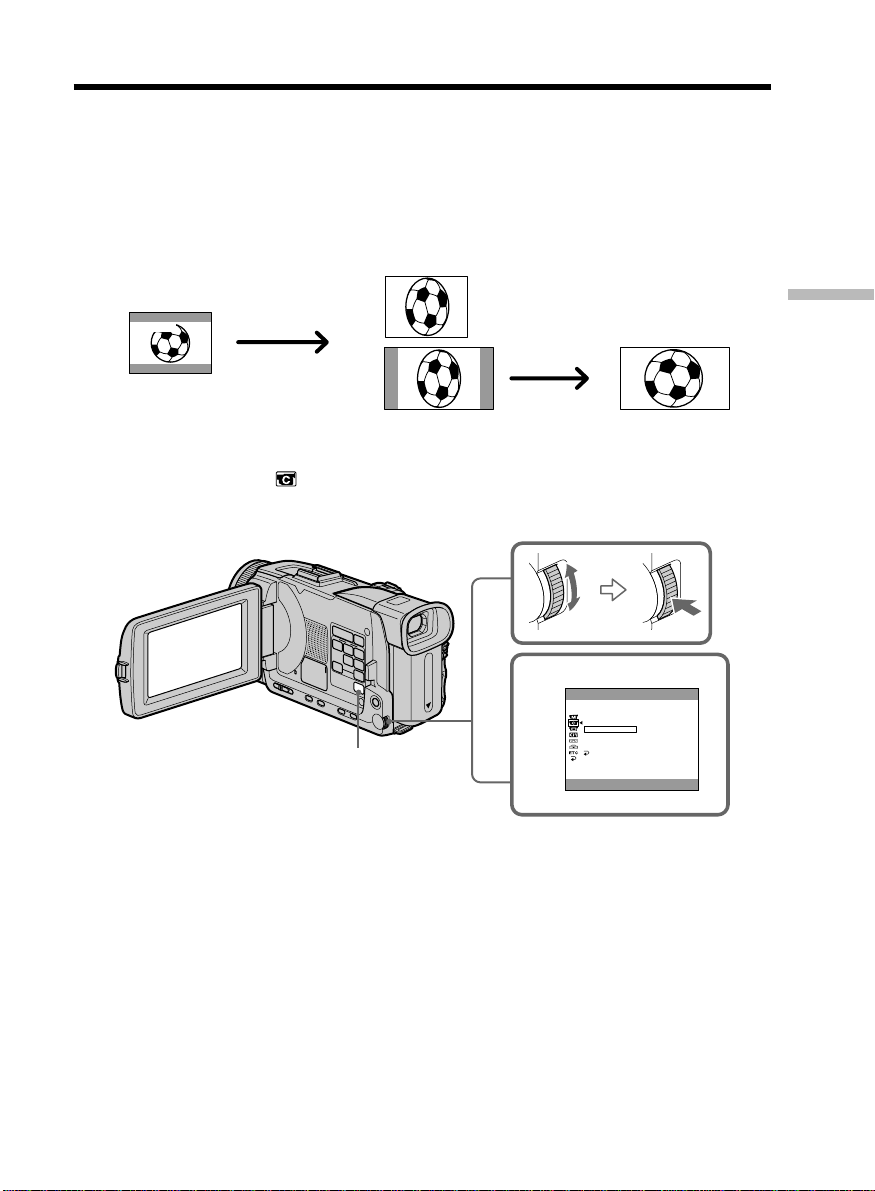

Using the wide mode ........................... 55
Using the fader ...................................... 57
Using special effects
– Picture effect................................. 60
Using special effects
– Digital effect ................................. 61

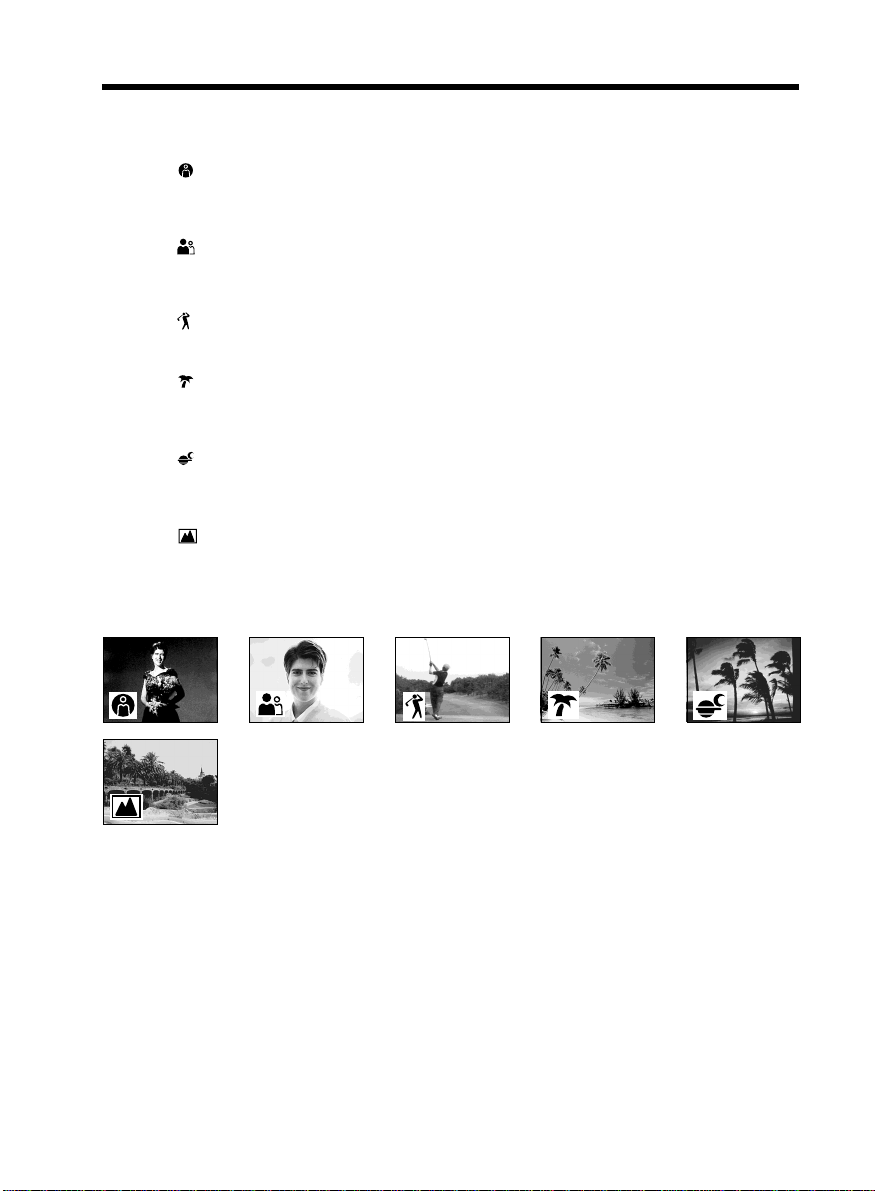

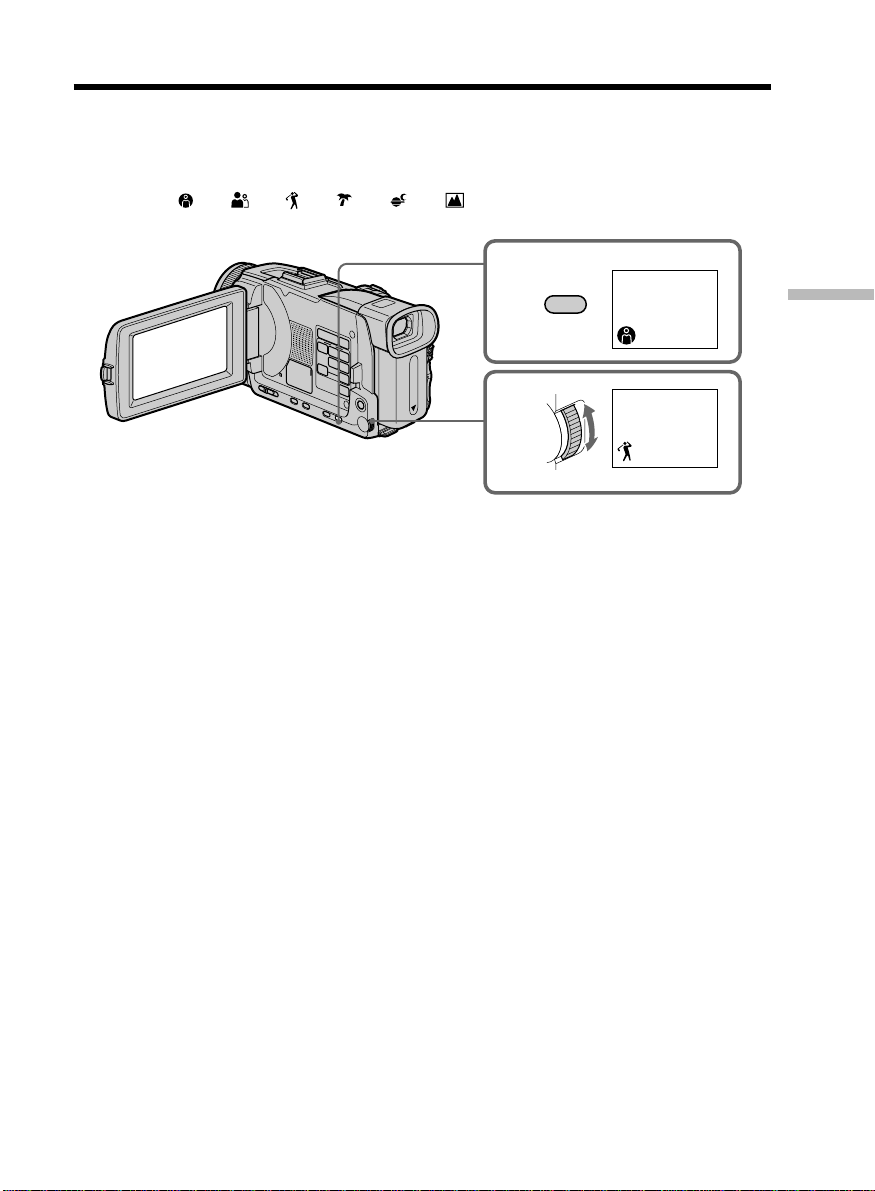

Using the PROGRAM AE .................... 64
Adjusting the exposure manually ...... 67
Using the spot light-metering
– Flexible Spot Meter ..................... 68

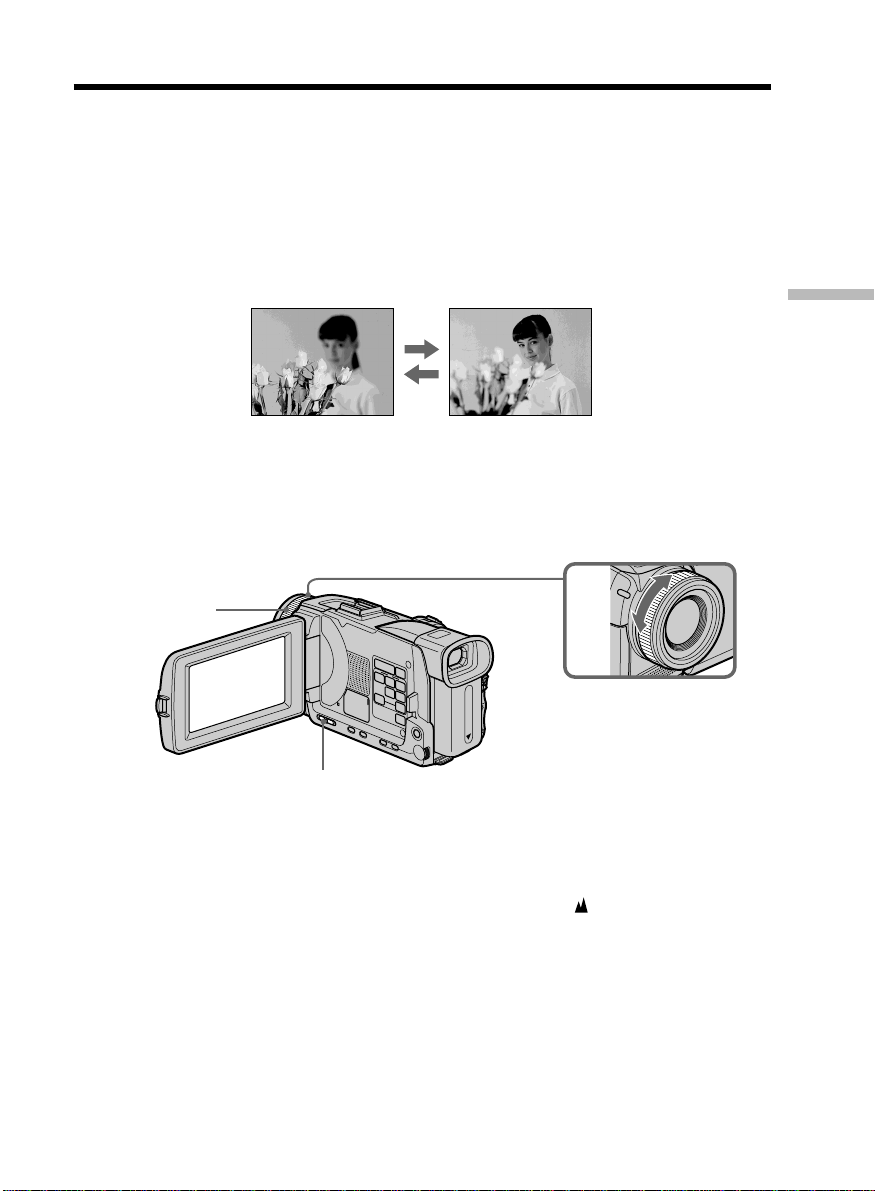

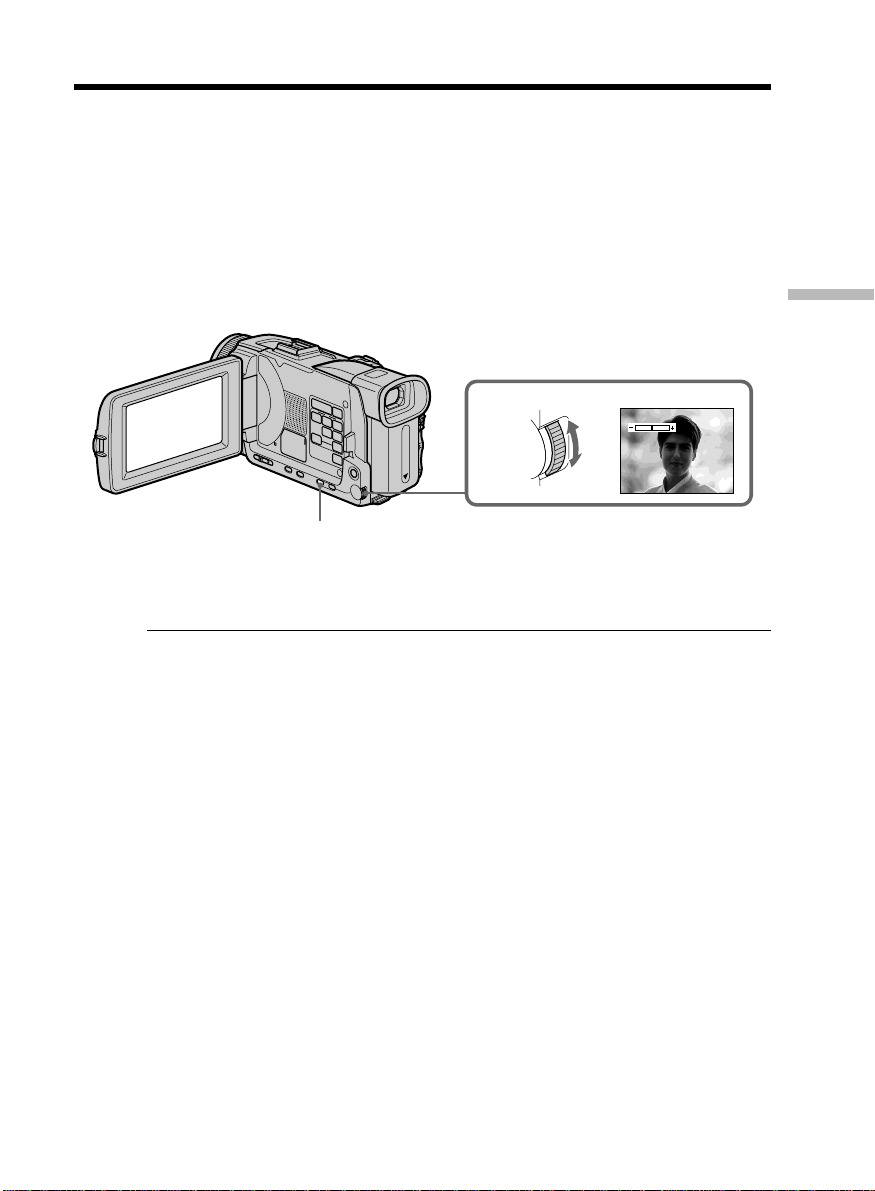

Focusing manually................................ 69
Using the spot focus – Spot Focus ...... 71
Interval recording ................................. 72
Frame by frame recording
– Frame recording .......................... 74
Advanced Playback
Operations
Playing back tapes with picture effect
........................................................... 75
Playing back tapes with digital effect
........................................................... 76
Enlarging images recorded on tapes
– Tape PB ZOOM ........................... 77
Quickly locating a scene
– ZERO SET MEMORY ................. 79
Searching the boundaries of recorded
tape by title – TITLE SEARCH ..... 80

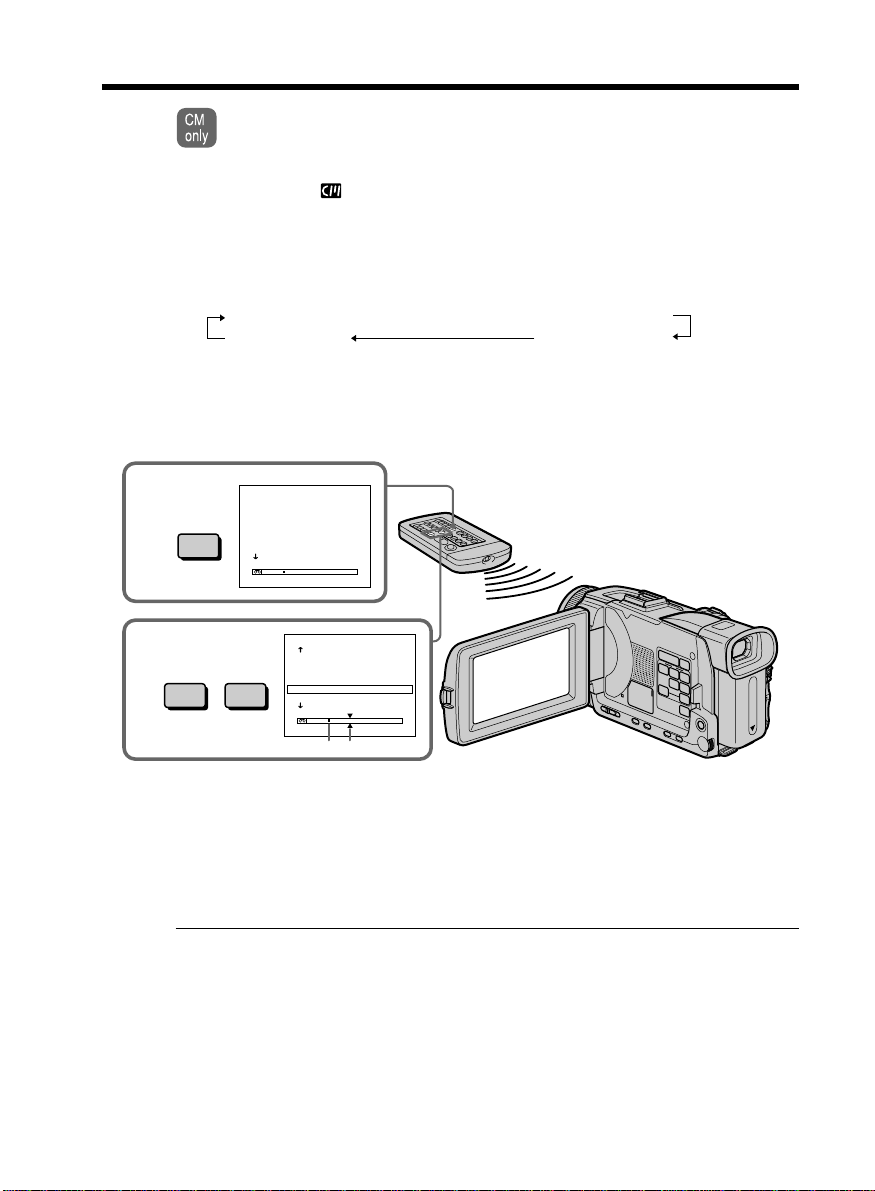

Searching a recording by date
– DATE SEARCH ........................... 81
Searching for a photo – PHOTO
SEARCH/PHOTO SCAN ............. 83
Editing

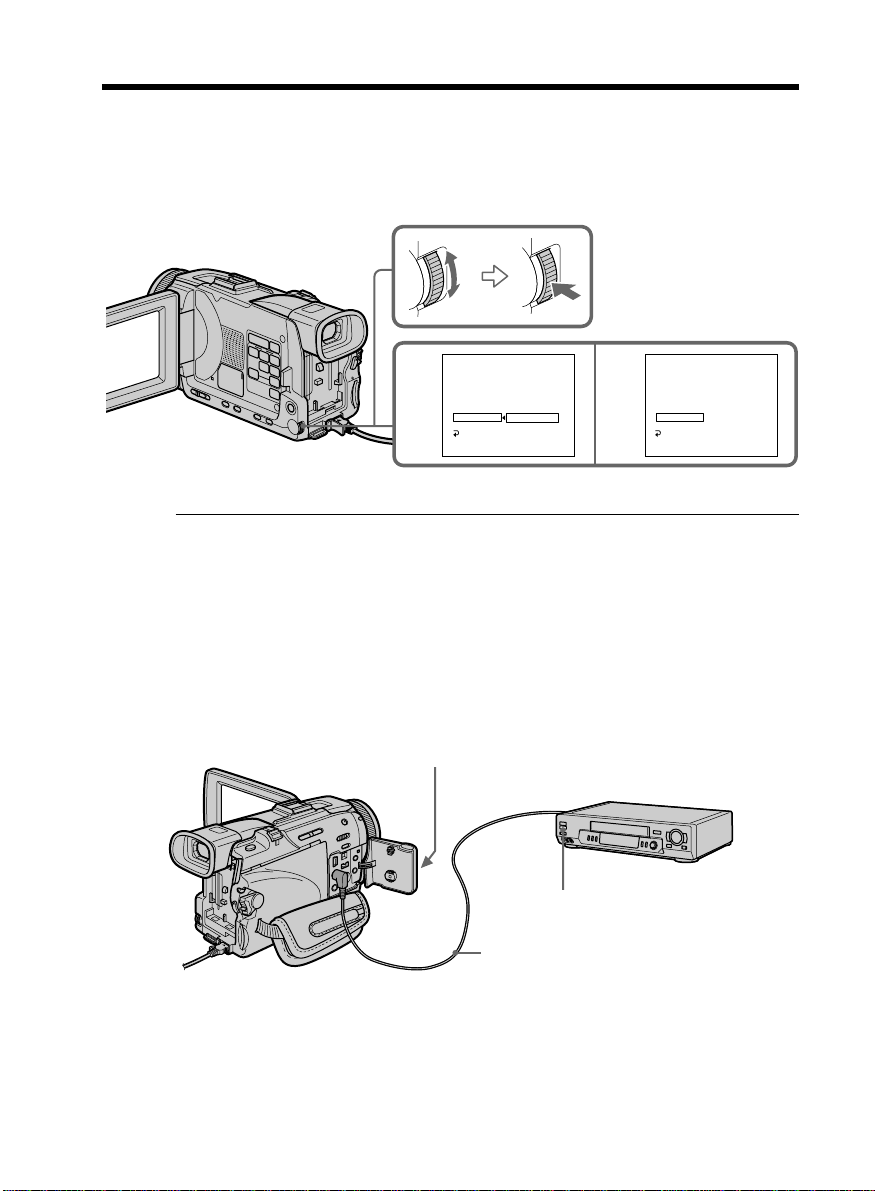

Dubbing a tape ...................................... 86
Dubbing only desired scenes
– Digital program editing (on tapes)
........................................................... 89

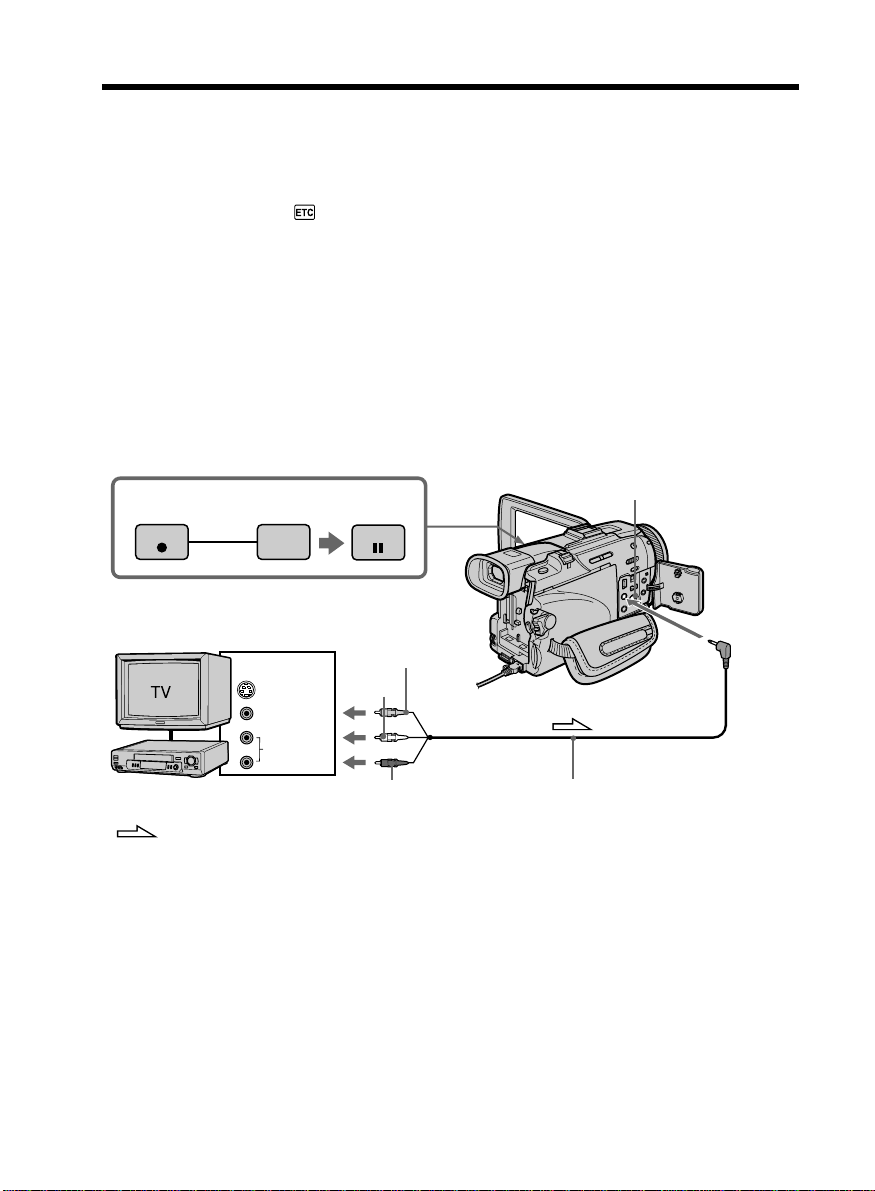

Recording video or TV programs ..... 100
Inserting a scene from a VCR
– Insert Editing ............................. 104
Audio dubbing .................................... 106
Superimposing a title ......................... 110
Making your own titles ...................... 113
Labeling a cassette .............................. 115
“Memory Stick” Operations
Using a “Memory Stick”
– Introduction ............................... 117
Recording still images on
“Memory Stick”s
– Memory Photo recording ......... 126
Recording images from a tape as
still images..................................... 135
Superimposing a still image in the
“Memory Stick” on an image
– MEMORY MIX .......................... 139
Recording moving pictures on
“Memory Stick”s
– MPEG movie recording............ 144
Getting Started
7
Table of contents
Recording pictures from tape as a
moving picture ............................. 147
Recording edited pictures from a
tape as a moving picture
– Digital program editing
(on “Memory Stick”s) .................. 151
Copying still images from a tape
– PHOTO SAVE............................ 154
Viewing still images
– Memory Photo playback .......... 156
Viewing moving pictures
– MPEG movie playback ............. 159
Copying images recorded on
“Memory Stick”s to tape ............. 162
Enlarging still images recorded on
“Memory Stick”s
– Memory PB ZOOM ................... 164
Playing back images in a continuous
loop – SLIDE SHOW.................... 166
Preventing accidental erasure
– Image protection........................ 167
Deleting images – DELETE ............... 168
Writing a print mark
– PRINT MARK ............................ 171
Using the optional printer ................. 172
Viewing Images Using your
Computer

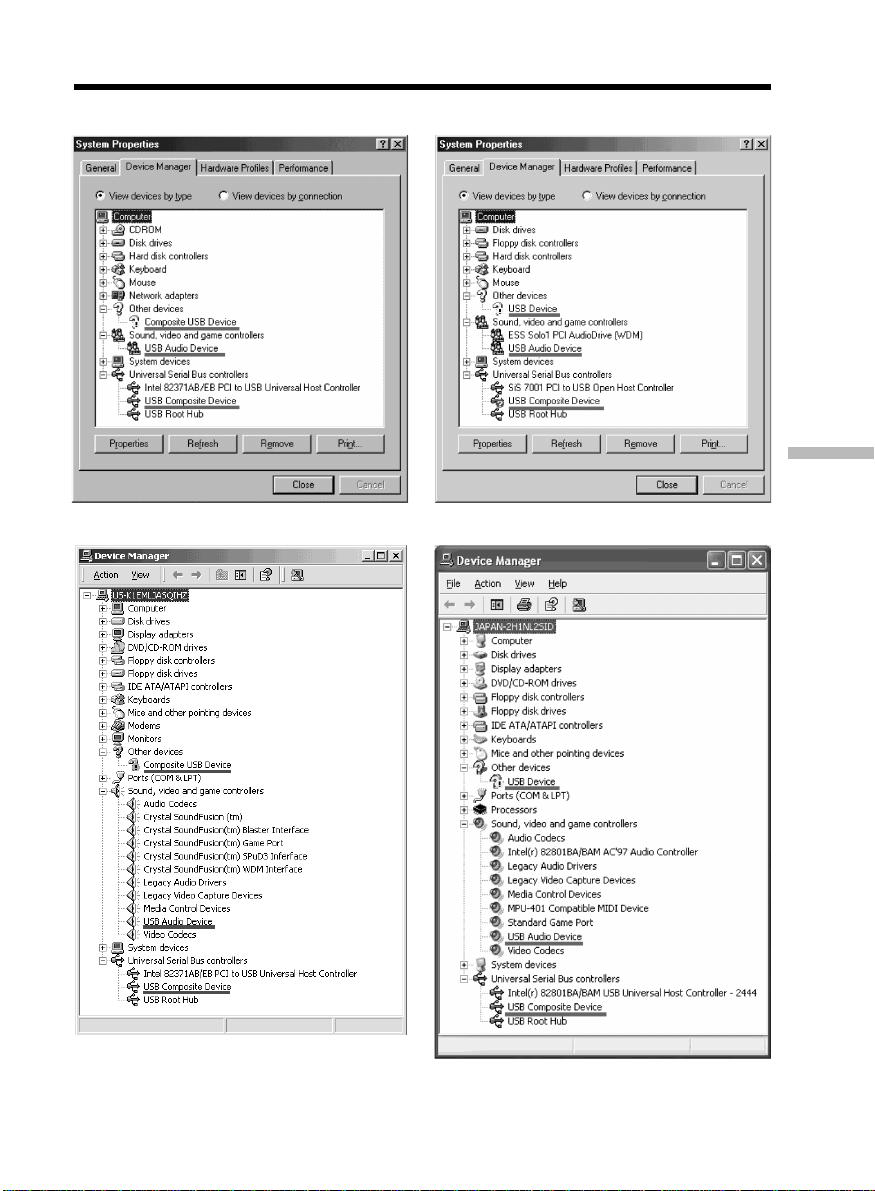

Viewing images on your computer
– Introduction ............................... 174
Connecting your camcorder to your
computer using the USB cable
– For Windows users ................... 177
Viewing images recorded on a tape
on your computer
– For Windows users ................... 185
Viewing images recorded on a
“Memory Stick” on your
computer
– For Windows users ................... 190
Connecting your camcorder to your
computer using the USB cable
– For Macintosh users .................. 193
Viewing images recorded on a
“Memory Stick” on your computer
– For Macintosh users .................. 195
Capturing images from an analog
video unit on your computer
– Signal convert function............. 196
Using the Network function
(DCR-TRV50 only)
Accessing the network ....................... 197
For the details, refer to the Network
Function Operating Instructions
supplied with your camcorder.
Customizing Your Camcorder
Changing the default settings with
the menu ........................................ 199
Troubleshooting
Types of trouble and how to correct
trouble ............................................ 210
Self-diagnosis display......................... 217
Warning indicators and messages.... 218
Additional Information
Usable cassettes ................................... 220
About the “InfoLITHIUM” battery
pack ................................................ 223
About i.LINK ....................................... 225
Using your camcorder abroad .......... 227
Maintenance information and
precautions .................................... 228
Specifications ....................................... 234
Quick Reference

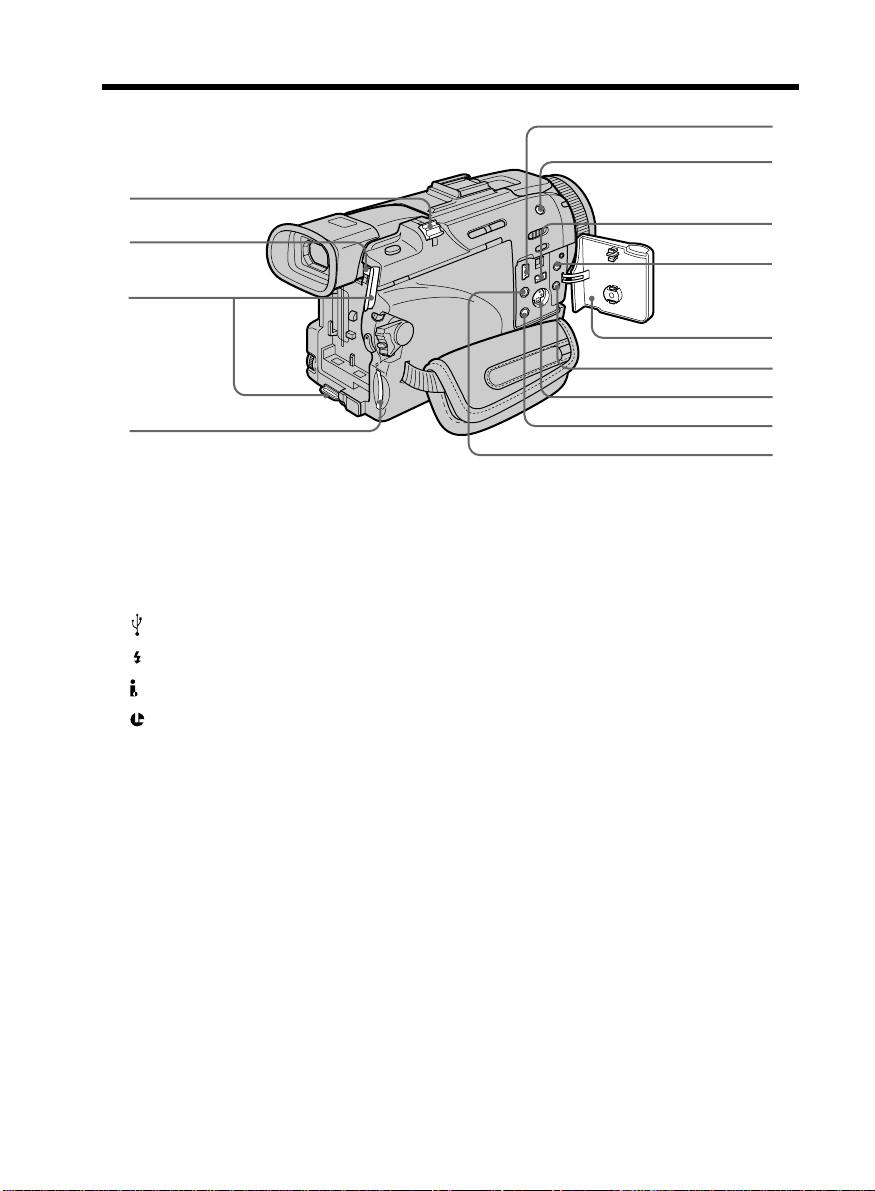

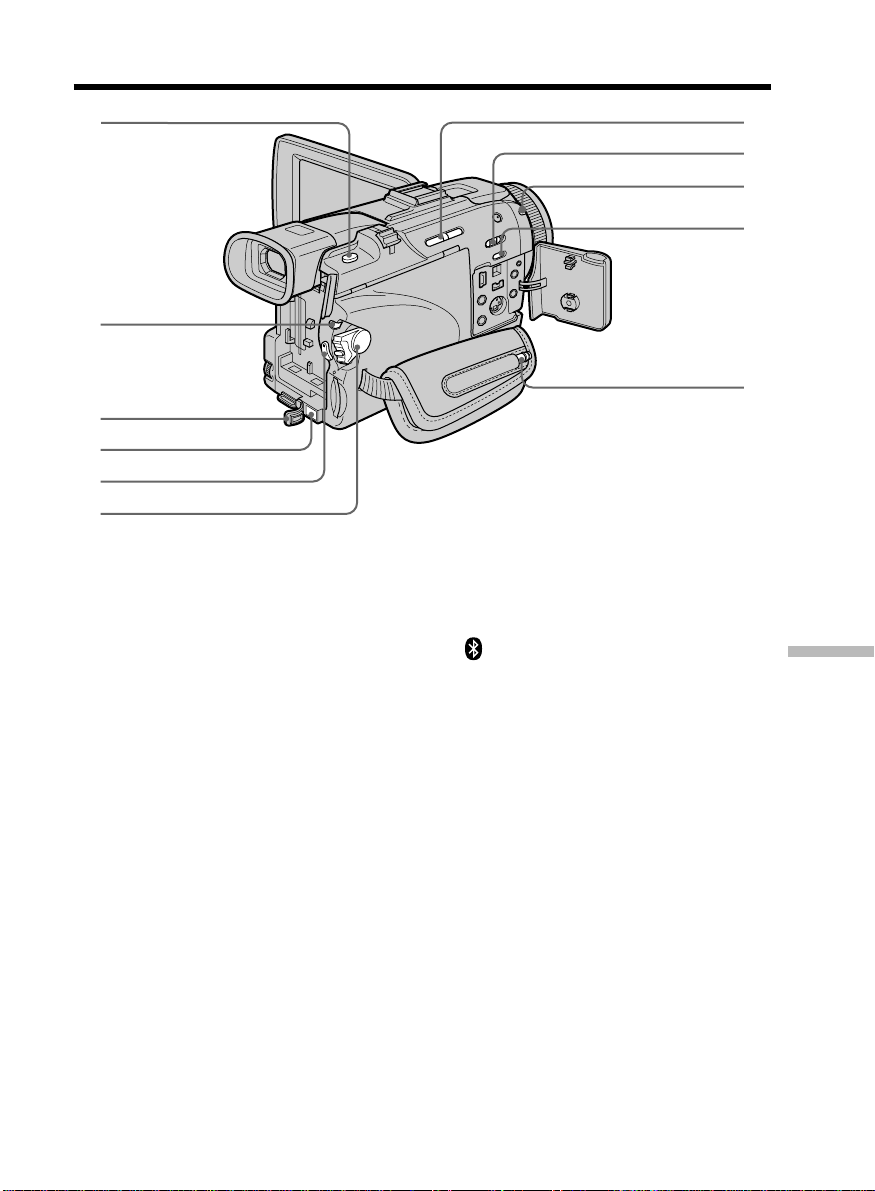

Identifying parts and controls........... 236
Index ..................................................... 245
Quick Start Guide
8
Quick Start Guide – Recording on a tape
Inserting a cassette (p. 23)
Connecting the power cord (p. 19)
Use the battery pack when using your camcorder outdoors (p. 15).
1 Slide OPEN/
EJECT in the
direction of the
arrow and open the
lid.
3 Close the cassette
compartment by
pressing
on the
cassette
compartment.
After the cassette
compartment goes
down completely,
close the lid until it
clicks.
This chapter introduces you to the basic features to recorded
pictures on tapes of your camcorder. See the page in parentheses
“( )” for more information.
AC power adaptor (supplied)
Connect the plug with its v
mark facing up.
Open the DC
IN jack cover.
2 Push the center of
the cassette back to
insert the cassette.
Insert the cassette
straight as far as
possible into the
cassette
compartment with
the window facing
up.
Quick Start Guide
9
VCR
MEMORY/
NETWORK
CAMERA
OFF(CHG)
P
O
W
E
R

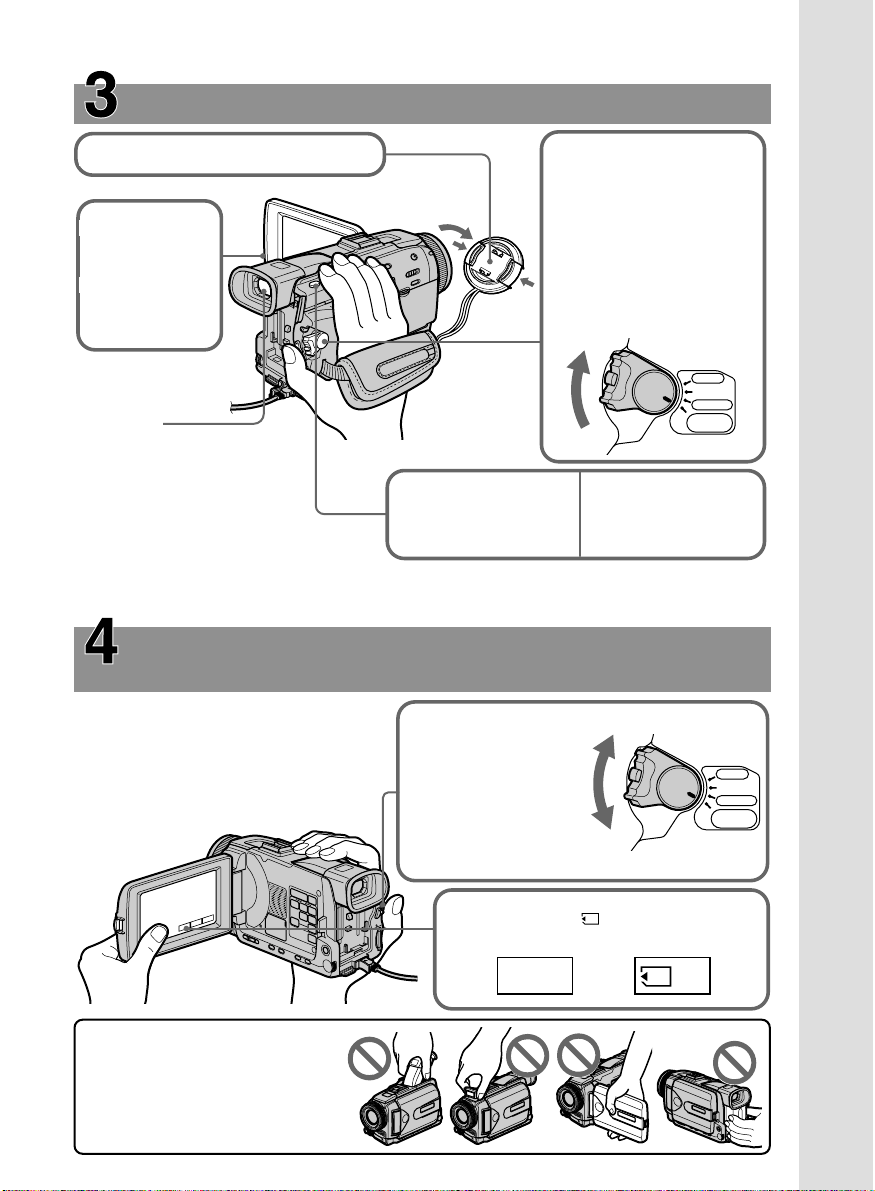

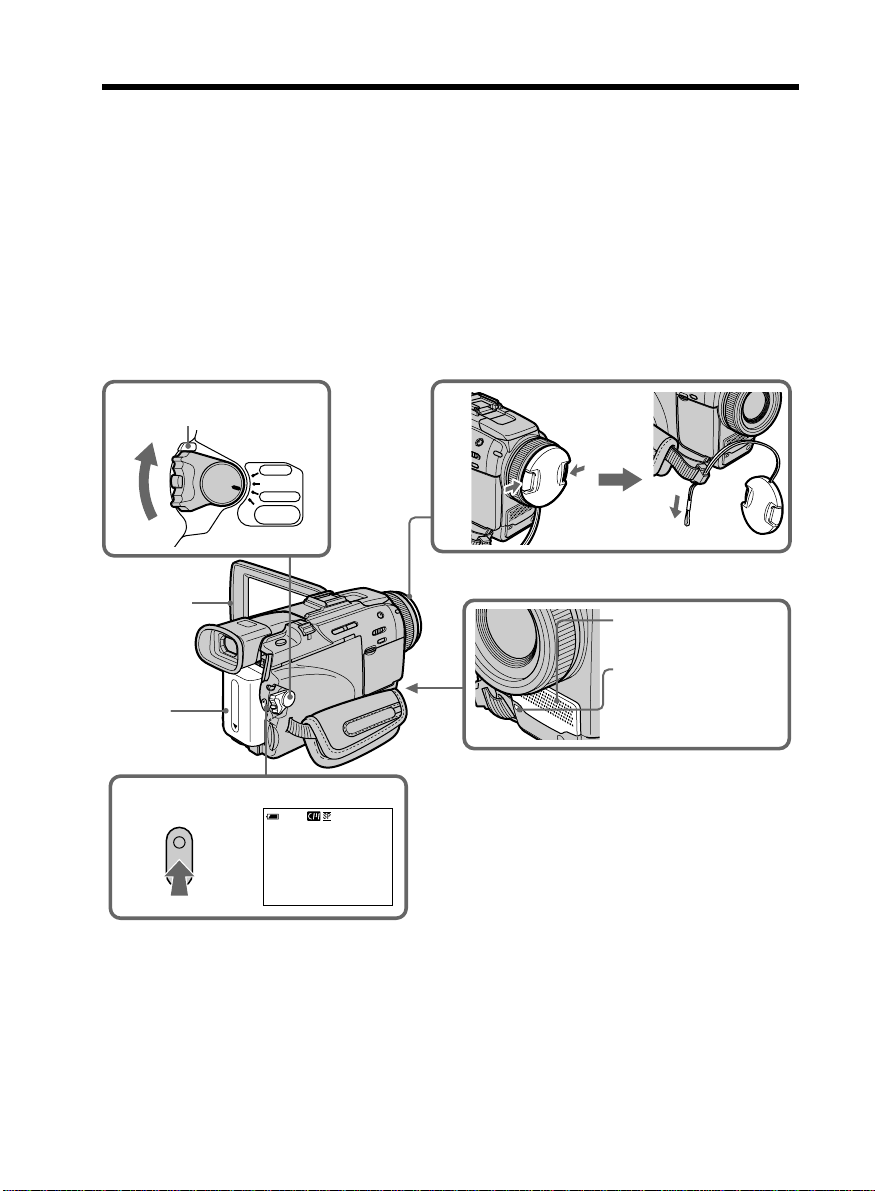

Recording a picture (p. 26)
1Remove the lens cap.
3Press OPEN to
open the LCD
panel.
The picture
appears on the
screen.
2Set the POWER
switch to CAMERA
while pressing the
small green button.
4Press START/STOP. Your
camcorder starts recording. To
stop recording, press START/
STOP again.

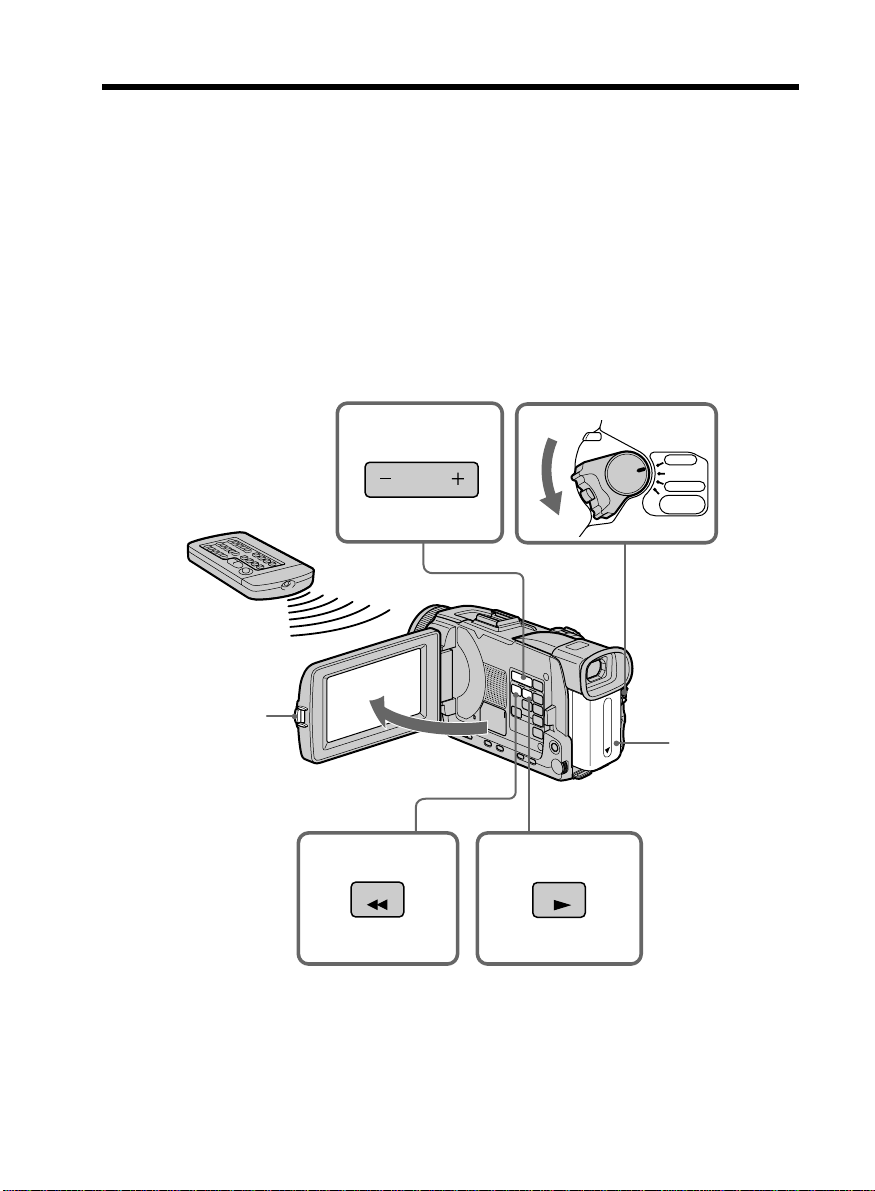

Monitoring the playback picture on the LCD
screen (p. 40)
NOTE
Do not pick up your camcorder by
holding the viewfinder, the flash,
the LCD panel or the battery pack.
When you purchase your camcorder, the clock setting is set to off. If you want to record the date
and time for a picture, set the clock setting before recording (p. 20).
PLAY
VCR
MEMORY/
NETWORK
CAMERA
OFF(CHG)
PO
W
ER
REW
1Set the POWER switch
to VCR while pressing
the small green button.
2Press m to rewind the tape.
3Press N to start playback.
Viewfinder
When the LCD panel is closed,
use the viewfinder with your eye
against the eyecup.
Adjust the viewfinder lens to
your eyesight (p. 30).
Quick Start Guide
10
Quick Start Guide – Recording on a “Memory Stick”
This chapter introduces you to the basic features to record on a
“Memory Stick” of your camcorder. See the page in parentheses
“( )” for more information.

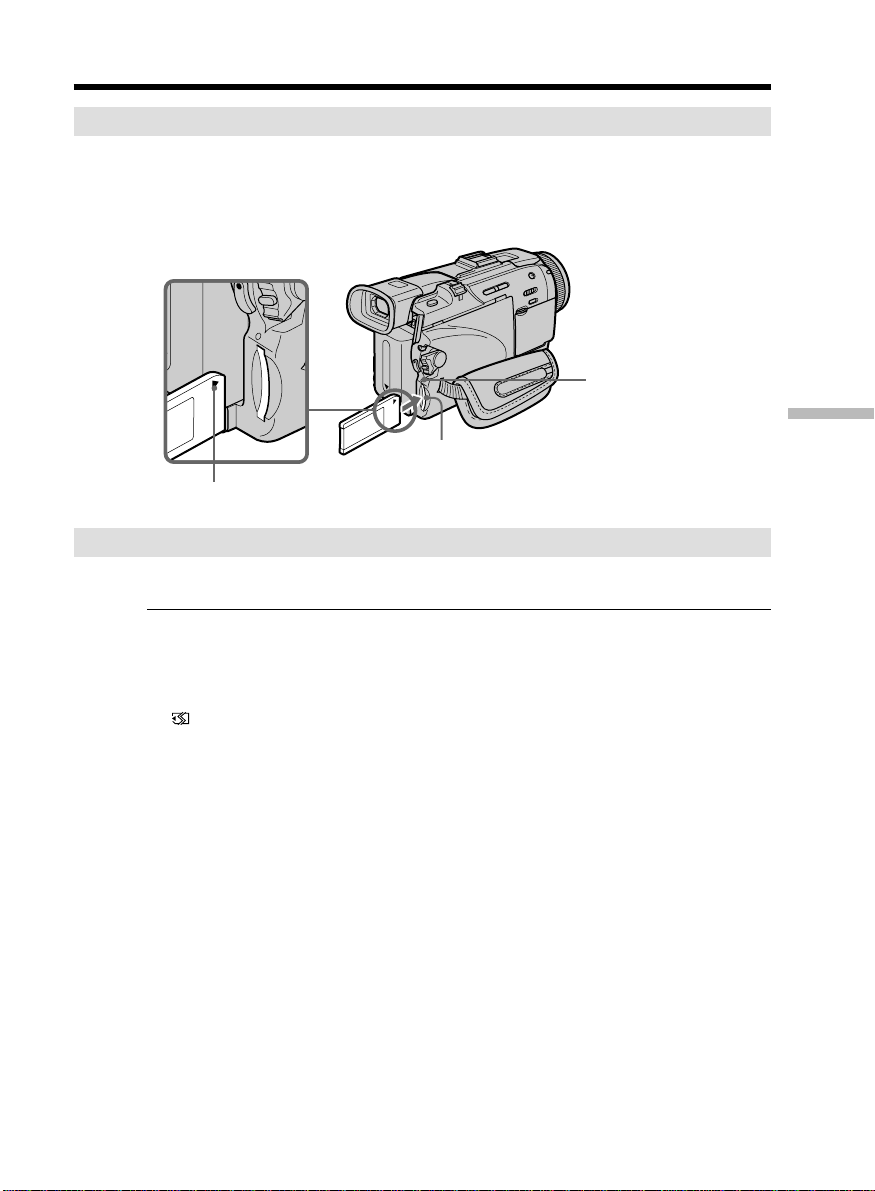

Inserting a “Memory Stick” (p. 119)
Insert a “Memory Stick” in the “Memory Stick” slot as far as it can go with the B mark
facing up as illustrated.
Connecting the power cord (p. 19)
Use the battery pack when using your camcorder outdoors (p. 15).
“Memory Stick” slot
B mark
Press the “Memory Stick”
once lightly to eject it.
Open the DC IN
jack cover.
Connect the plug with its v
mark facing up.
AC power adaptor (supplied)
Quick Start Guide
11

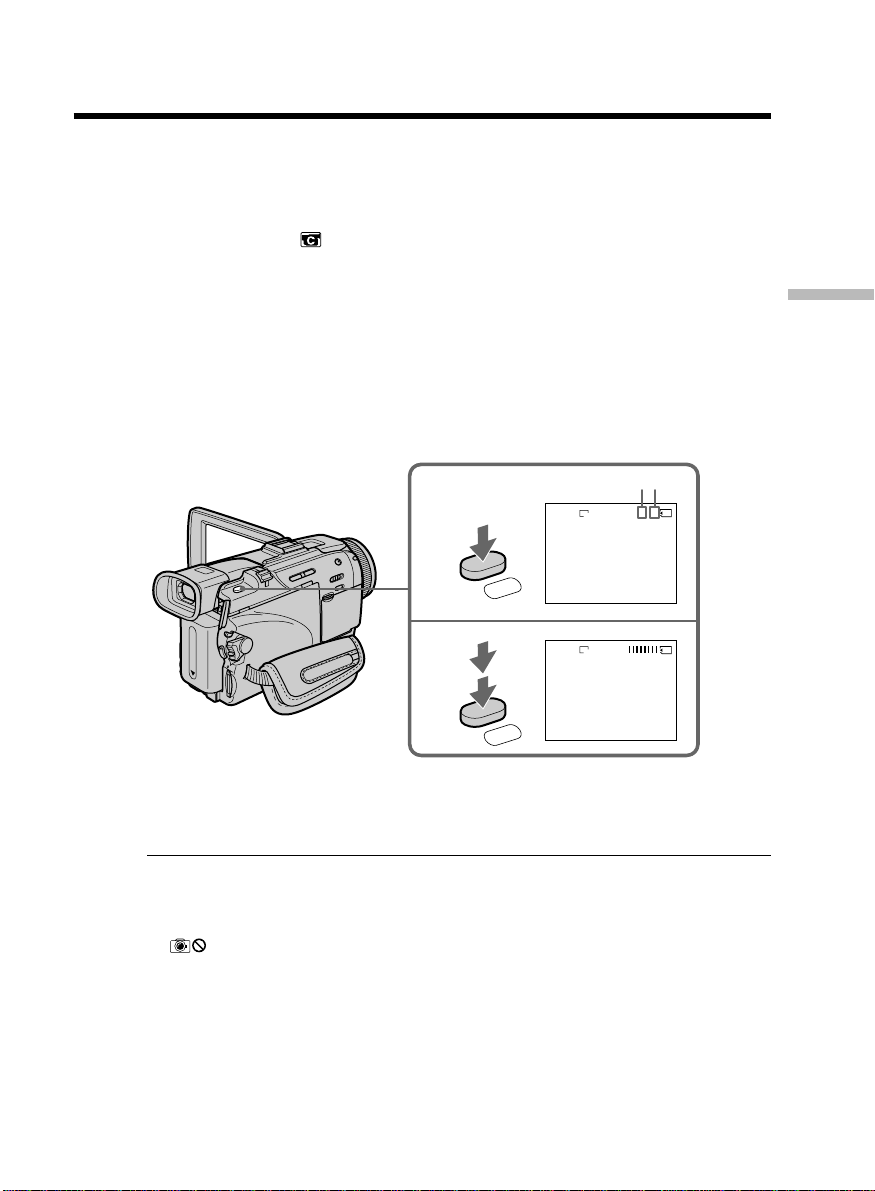

Recording a still image on “Memory Stick” (p. 126)
When you purchase your camcorder, the clock setting is set to off. If you want to record the date
and time for a picture, set the clock setting before recording (p. 20).
NOTE
Do not pick up your camcorder by
holding the viewfinder, the flash,
the LCD panel or the battery pack.
Monitoring the playback still image on the LCD
screen (p. 156)
VCR
MEMORY/
NETWORK
CAMERA
OFF(CHG)
POW
ER
PLAY PB
1Set the POWER
switch to MEMORY/
NETWORK
(DCR-TRV50 only)
or VCR while
pressing the small
green button.
2Press PLAY or PB. The last recorded
image is displayed.
VCR
MEMORY/
NETWORK
CAMERA
OFF(CHG)
PO
W
ER
1Remove the lens cap.
3Press OPEN
to open the
LCD panel.
The picture
appears on
the screen.
Viewfinder
When the LCD panel is closed,
use the viewfinder with your
eye against the eyecup.
Adjust the viewfinder lens to
your eyesight (p. 30).
2Set the POWER switch
to MEMORY/
NETWORK (DCR-
TRV50 only) while
pressing the small green
button.
Make sure that the
LOCK switch is set to
the left (unlock)
position.
4Press PHOTO
lightly.
5Press PHOTO
deeper.
or
12
— Getting Started —
Using this manual
The instructions in this manual are for the two models listed in the table below. Before
you start reading this manual and operating your camcorder, check the model number
by looking at the bottom of your camcorder. The DCR-TRV50 is the model used for
illustration purposes. Otherwise, the model name is indicated in the illustrations. Any
differences in operation are clearly indicated in the text, for example, “DCR-TRV50
only”.
As you read through this manual, buttons and settings on your camcorder are shown in
capital letters.
e.g. Set the POWER switch to CAMERA.
When you carry out an operation, you can hear a beep to indicate that the operation is
being carried out.
Types of differences
DCR- TRV40 TRV50
Mark on the POWER switch MEMORY MEMORY/NETWORK
Network function — z
z Provided
— Not provided
Note on Cassette Memory
Your camcorder is based on the DV format. You can use only mini DV cassettes with
your camcorder. We recommend that you use a tape with cassette memory .
Functions that require different operations depending on whether or not the tape has a
cassette memory are:
– End search (p. 38)
– Date search (p. 81)
– Photo search (p. 83)
Functions you can operate only with the cassette memory are:
– Title search (p. 80)
– Superimposing a title (p. 110)
– Labeling a cassette (p. 115)
For details of cassette types, see page 220.
You see this mark in the introduction of features that are operated only with
cassette memory.
Cassettes with cassette memory are marked by (Cassette Memory).
Getting Started
13
Using this manual
Note on TV color systems
TV color systems differ depending on the country or region. To view your recordings
on a TV, you need an NTSC system-based TV.
Copyright precautions
Television programs, films, video tapes, and other materials may be copyrighted.
Unauthorized recording of such materials may be contrary to the copyright laws.

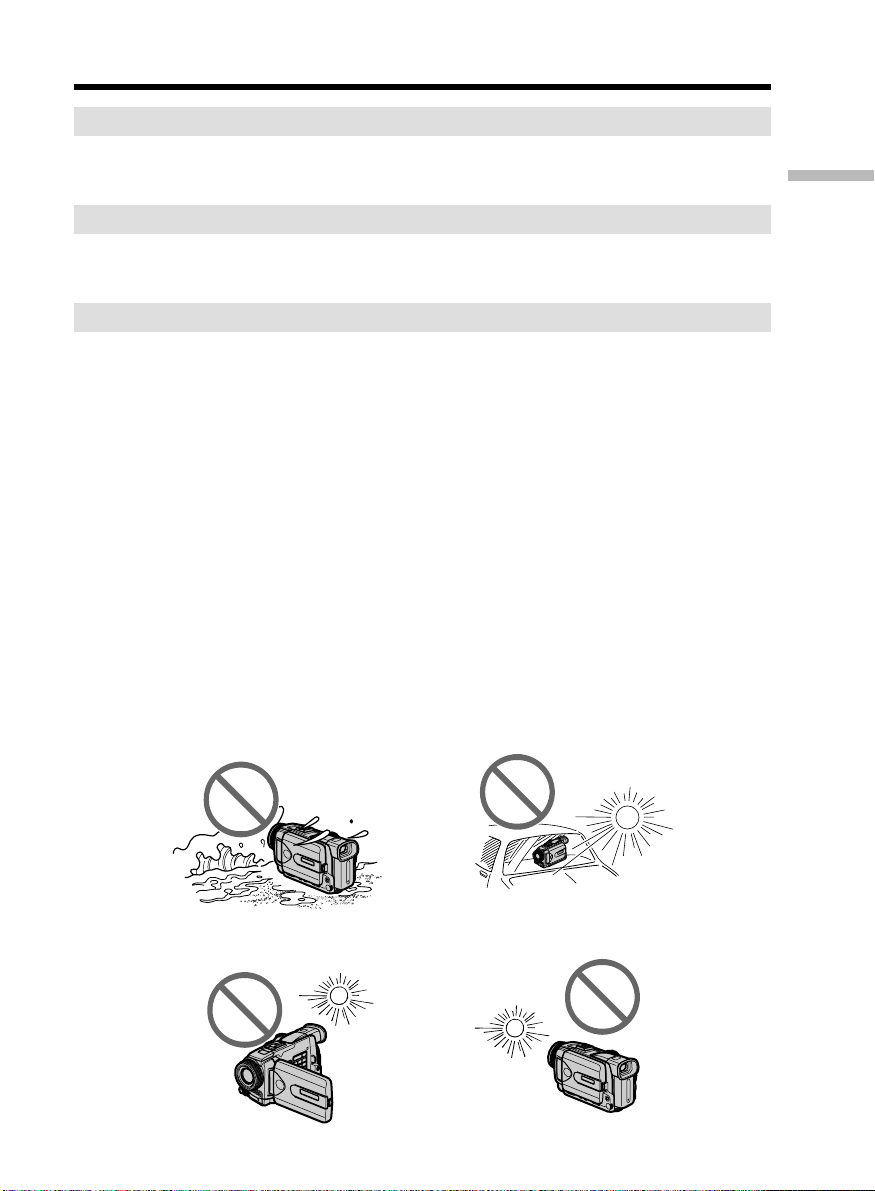

Precautions on camcorder care
Lens and LCD screen/finder (on mounted models only)
•The LCD screen and the finder are manufactured using extremely high-precision
technology, so over 99.99% of the pixels are operational for effective use.
However, there may be some tiny black points and/or bright points (white, red,
blue or green in color) that constantly appear on the LCD screen and the finder.
These points are normal in the manufacturing process and do not affect the
recording in any way.
•Do not let your camcorder get wet. Keep your camcorder away from rain and sea
water. Letting your camcorder get wet may cause your camcorder to malfunction.
Sometimes this malfunction cannot be repaired [a].
•Never leave your camcorder exposed to temperatures above 60°C (140°F), such as in a
car parked in the sun or under direct sunlight [b].
•Be careful when placing the camera near a window or outdoors. Exposing the LCD
screen, the finder or the lens to direct sunlight for long periods may cause
malfunctions [c].
•Do not directly shoot the sun. Doing so might cause your camcorder to malfunction.
Take pictures of the sun in low light conditions such as dusk [d].
[a][b]
[c][d]
14
Checking supplied accessories
Make sure that the following accessories are supplied with your camcorder.
1 AC-L10A/L10B/L10C AC power
adaptor (1), power cord (1) (p. 16)
2 NP-FM50 battery pack (1) (p. 15, 16)
3 A/V connecting cable (1) (p. 46)
4 Wireless Remote Commander (1)
(p. 242)
5 Size AA (R6) battery for Remote
Commander (2) (p. 243)
6 Shoulder strap (1)
Contents of the recording cannot be compensated if recording or playback is not made due to a
malfunction of the camcorder, storage media, etc.
7 Lens cap (1) (p. 26)
8 Lens hood (1) (p. 30)
9 “Memory Stick” (1) (p. 117)
0 USB cable (1) (p. 180)
qa CD-ROM (SPVD-008 USB Driver) (1)
(p. 179)
qs Cleaning cloth (1) (p. 229)
qd Stylus (1) (DCR-TRV50 only) (p. 198)
9
1
4
q;
5
qa
6
qs
2
7
qd
3
8
15
Getting Started
Step 1 Preparing the power supply
Installing the battery pack
(1) Lift up the viewfinder.
(2) Slide the battery pack down until it clicks.
To remove the battery pack
(1) Lift up the viewfinder.
(2) Slide the battery pack out in the direction of the arrow while pressing BATT
down.
If you use the large capacity battery pack
If you install the NP-FM70/QM71/FM90/FM91/QM91 battery pack on your camcorder,
extend its viewfinder.
1
2
2
BATT release
button
1
2
16

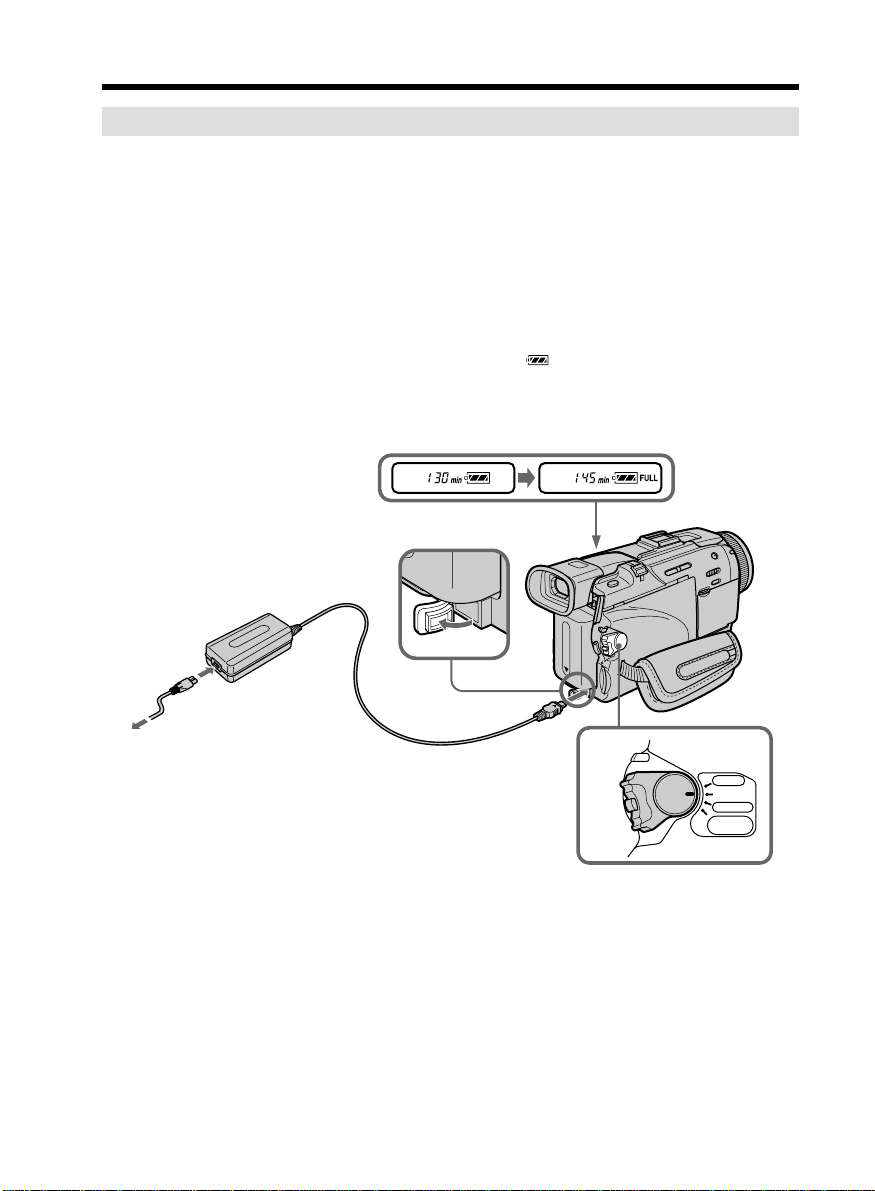

Charging the battery pack
Use the battery pack after charging it for your camcorder.
Your camcorder operates only with the “InfoLITHIUM” battery pack (M series).
See page 223 for details of “InfoLITHIUM” battery pack.
(1) Open the DC IN jack cover and connect the AC power adaptor supplied with
your camcorder to the DC IN jack with the plug’s v mark facing up.
(2) Connect the power cord to the AC power adaptor.
(3) Connect the power cord to the wall outlet.
(4) Set the POWER switch to OFF (CHG). Charging begins. The remaining battery
time is indicated in minutes on the display window.
When the remaining battery indicator changes to , normal charge is completed. To
fully charge the battery (full charge), leave the battery pack attached for about one hour
after normal charge is completed until FULL appears in the display window. Fully
charging the battery allows you to use the battery longer than usual.
After charging the battery pack
Disconnect the AC power adaptor from the DC IN jack on your camcorder.
Step 1 Preparing the power supply
2
1
4
VCR
MEMORY/
NETWORK
CAMERA
OFF(CHG)
POWER
17
Getting Started
Step 1 Preparing the power supply
Note
Prevent metallic objects from coming into contact with the metal parts of the DC plug of
the AC power adaptor. This may cause a short-circuit, damaging the AC power
adaptor.
Remaining battery time indicator
The remaining battery time indicator in the display window indicates the approximate
recording time with the viewfinder.
Until your camcorder calculates the actual remaining battery time
“---- min” appears in the display window.
When you use the AC power adaptor
Place the AC power adaptor near a wall outlet. If any trouble occurs with this unit,
disconnect the plug from a wall outlet as soon as possible to cut off the power.
Charging time
Battery pack Full charge (Normal charge)
NP-FM50 (supplied) 150 (90)
NP-FM70 240 (180)
NP-QM71 260 (200)
NP-FM90 330 (270)
NP-FM91/QM91 360 (300)
Approximate minutes at 25°C (77°F) to charge an empty battery pack
The charging time may increase if the battery’s temperature is extremely high or low
because of the ambient temperature.
Recording time
Recording with Recording with
Battery pack the viewfinder the LCD screen
Continuous Typical* Continuous Typical*
NP-FM50 (supplied) 145 80 105 60
NP-FM70 305 175 225 130
NP-QM71 355 205 265 150
NP-FM90 460 265 345 200
NP-FM91/QM91 535 310 400 230
Approximate minutes when you use a fully charged battery
* Approximate number of minutes when recording while you repeat recording start/
stop, zooming and turning the power on/off. The actual battery life may be shorter.
18
Step 1 Preparing the power supply
Playing time
Battery pack
Playing time Playing time
with LCD closed on LCD screen
NP-FM50 (supplied) 200 135
NP-FM70 415 285
NP-QM71 485 335
NP-FM90 630 435
NP-FM91/QM91 725 505
Approximate minutes when you use a fully charged battery
Note
Approximate recording time and continuous playing time at 25°C (77°F). The battery
life will be shorter if you use your camcorder in a cold environment.
If the power goes off although remaining battery time indicator indicates that the
battery pack has enough power to operate
Charge the battery pack fully again so that the indication on the battery remaining
indicator is correct.
Recommended charging temperature
We recommend charging the battery pack in an ambient temperature of between 10°C
to 30°C (50°F to 86°F).
What is ”InfoLITHIUM”?
The “InfoLITHIUM” is a lithium ion battery pack that can exchange data such as
battery consumption with compatible electronic equipment. This unit is compatible
with the “InfoLITHIUM” battery pack (M series). Your camcorder operates only with
the “InfoLITHIUM” battery. “InfoLITHIUM” M series battery packs have the
SERIES
TM
mark.
“InfoLITHIUM” is a trademark of Sony Corporation.
19
Getting Started
Connecting to a wall outlet
When you use your camcorder for a long time, we recommend that you power it from a
wall outlet using the AC power adaptor.
(1) Open the DC IN jack cover. Connect the AC power adaptor supplied with
your camcorder to the DC IN jack on your camcorder with the plug’s v mark
facing up.
(2) Connect the power cord to the AC power adaptor.
(3) Connect the power cord to a wall outlet.
PRECAUTION
The set is not disconnected from the AC power supply (wall outlet) as long as it is
connected to the wall outlet, even if the set itself has been turned off.
Notes
•The AC power adaptor can supply power even if the battery pack is attached to your
camcorder.
•The DC IN jack has “source priority.” This means that the battery pack cannot supply
any power if the power cord is connected to the DC IN jack, even when the power
cord is not plugged into a wall outlet.
Using a car battery
Use Sony Car Battery Adaptor (optional).
Refer to the operating instructions of the Car Battery Adaptor for further information.
Step 1 Preparing the power supply
2,3
1
20

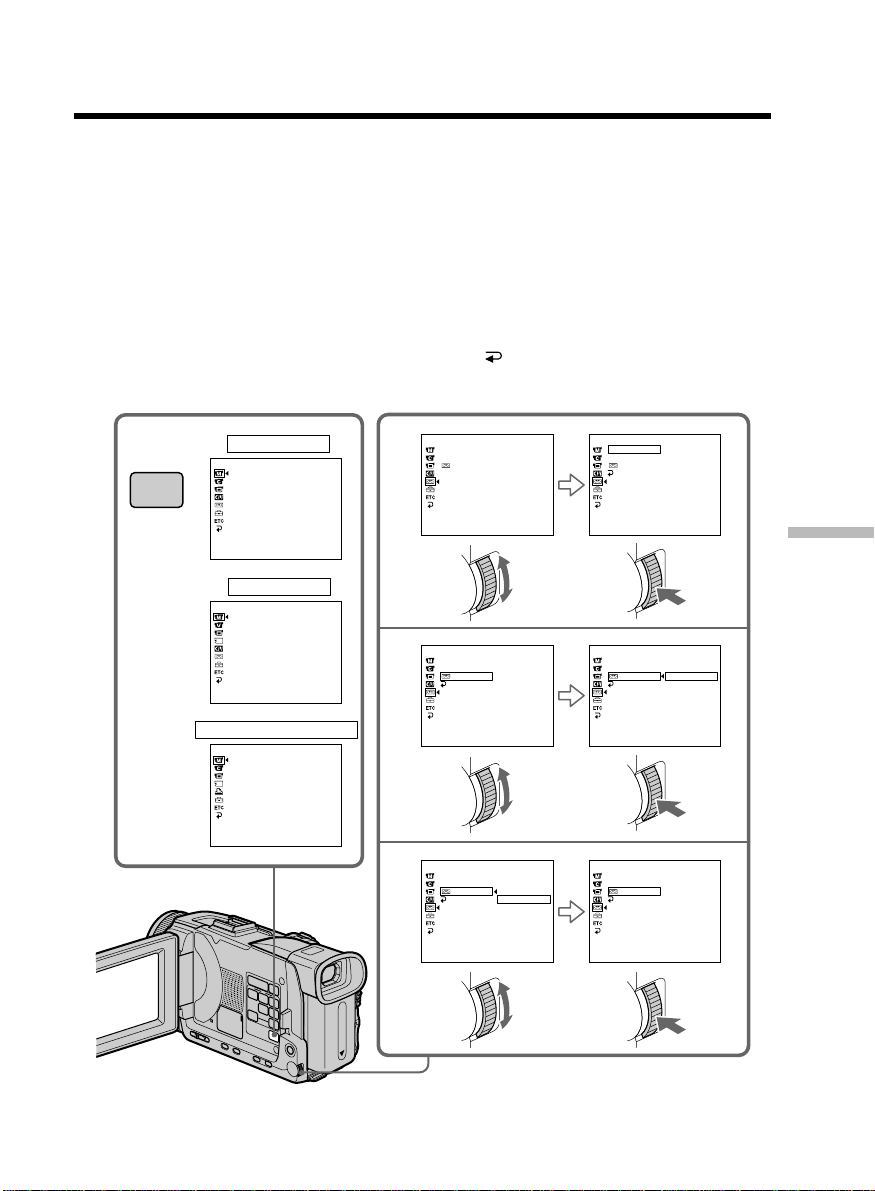

Set the date and time when you use your camcorder for the first time. “CLOCK SET”
will be displayed each time that you set the POWER switch to CAMERA or MEMORY/
NETWORK (DCR-TRV50 only) unless you set the date and time settings.
If you do not use your camcorder for about four months, the date and time may be
cleared from memory (bars may appear) because the built-in rechargeable battery
installed in your camcorder will have been discharged (p. 231).
Set the area, the daylight saving time, year, month, day, hour and then the minute, in
that order.
(1) Set the POWER switch to CAMERA or MEMORY/NETWORK (DCR-TRV50
only), then press MENU to display the menu settings.
(2) Turn the SEL/PUSH EXEC dial to select
, then press the dial.
(3) Turn the SEL/PUSH EXEC dial to select CLOCK SET, then press the dial.
(4) Turn the SEL/PUSH EXEC dial to select the desired area (where you are), then
press the dial.
(5) Turn the SEL/PUSH EXEC dial to select whether or not the time is daylight
saving time, then press the dial.
Select OFF if the time is not daylight saving time. Select ON if it is.
(6) Turn the SEL/PUSH EXEC dial to select the desired year, then press the dial.
The year changes as follows:
(7) Set the month, day and hour by turning the SEL/PUSH EXEC dial and
pressing the dial.
(8) Set the minute by turning the SEL/PUSH EXEC dial and pressing the dial by
the time signal. The clock starts to move.
(9) Press MENU to make the menu settings disappear.
Step 2 Setting the date and time
1995 T · · · · t 2002 T · · · · t 2079
21
Getting Started
Note
Instead of DST, SUMMERTIME is displayed on the screen for some models.
If you do not set the date and time
“--:--:--” and “--- -- ----” are recorded on the data code of the tape and the “Memory
Stick.”
When using your camcorder abroad
Set the clock to the local time (p. 22).
If you use the camcorder in a region where summer time is used
Set DST SET to ON in the menu setting.
Note on the time indicator
The internal clock of your camcorder operates on a 12-hour cycle.
•12:00 AM stands for midnight.
•12:00 PM stands for noon.
Step 2 Setting the date and time
2
3
4
5
6
8
SETUP MENU
CLOCK SET
USB STREAM
LTR SIZE
LANGUAGE
DEMO MODE
SETUP MENU
CLOCK SET
USB STREAM
LTR SIZE
LANGUAGE
DEMO MODE
RETURN
[
MENU
]
:
END
[
MENU
]
:
END
[
MENU
]
:
END
– –:– –:– –
– –:– –:– –
SETUP MENU
CLOCK SET
USB STREAM
LTR SIZE
LANGUAGE
DEMO MODE
RETURN
DST OFF
DATE Y M D
GMT +0.0
Lisbon, London
CLOCK SET
AREA 1
R
r
R
r
R
RRR RRR
RRR RRR
r
rrr rrr
rrr rrr
[
EXEC
]
:
NEXT ITEM
[
EXEC
]
:
NEXT ITEM
CLOCK SET
AREA26
GMT –5.0
GMT –5.0
R
GMT –5.0
NewYork, Bogota
NewYork, Bogota
r
NewYork, Bogota
DST OFF
DATE Y M D
DST OFF
DATE Y M D
DST OFF
DATE Y M D
[
EXEC
]
:
NEXT ITEM
[
EXEC
]
:
NEXT ITEM
[
EXEC
]
:
END
[
MENU
]
:
END
CLOCK SET
AREA26
GMT –5.0
NewYork, Bogota
DATE Y M D
DST OFF
ON
CLOCK SET
AREA26
CLOCK SET
AREA26
2002 JAN 1 12
:
00AM
2002 JUL 4 5
:
30PM
– – – – – – – – – – : – – – – – – – – – – – – : – –
– – – – – – – – – – : – –
R
RRR RRR
r
rrr rrr
GMT –5.0
NewYork, Bogota
DST OFF
DATE Y M D
[
EXEC
]
:
NEXT ITEM
CLOCK SET
AREA26
2002 JAN 1 12
:
00AM
SETUP MENU
CLOCK SET
USB STREAM
LTR SIZE
LANGUAGE
DEMO MODE
RETURN
JUL 4 2002
5:30:00 PM
STBY
STBY
STBY
MENU
22
Step 2 Setting the date and time
Simple setting of clock by a time difference
You can easily set the clock to the local time by setting a time difference. Select AREA
SET, DST SET* in the menu settings. See page 208 for more information.
* Instead of DST, SUMMERTIME is displayed on the screen for some models.

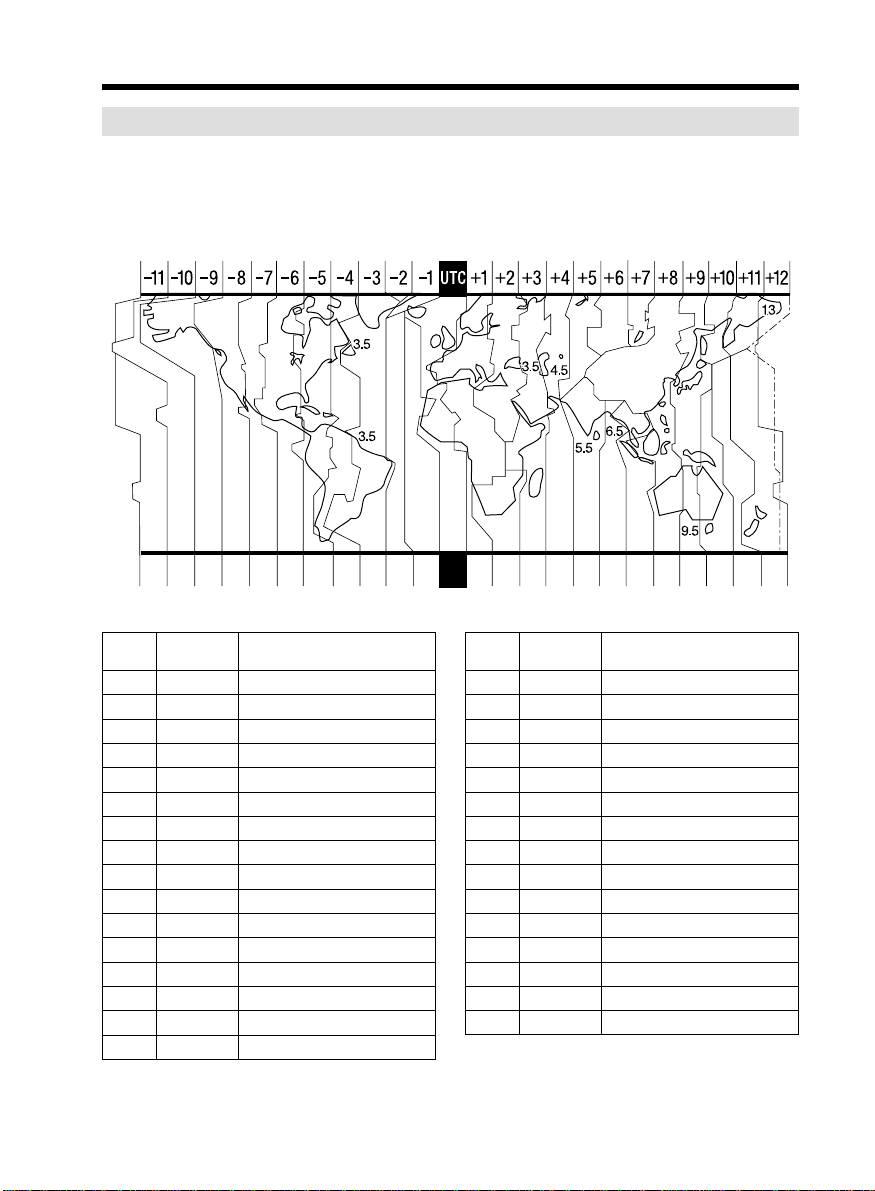

World time differences
AREA
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
Time
difference
GMT
+01:00
+02:00
+03:00
+03:30
+04:00
+04:30
+05:00
+05:30
+06:00
+06:30
+07:00
+08:00
+09:00
+09:30
+10:00
Area or country
Lisbon, London
Berlin, Paris
Helsinki, Cairo
Moscow, Nairobi
Tehran
Abu Dhabi, Baku
Kabul
Karachi, Islamabad
Calcutta, New Delhi
Almaty, Dhaka
Rangoon
Bangkok, Jakarta
HongKong, Singapore
Seoul, Tokyo
Adelaide, Darwin
Melbourne, Sydney
AREA
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
Time
difference
+11:00
+12:00
–12:00
–11:00
–10:00
–09:00
–08:00
–07:00
–06:00
–05:00
–04:00
–03:30
–03:00
–02:00
–01:00
Area or country
Solomon Is
Fiji, Wellington
Eniwetok, Kwajalein
Midway Is., Samoa
Hawaii
Alaska
LosAngeles, Tijuana
Denver, Arizona
Chicago, MexicoCity
New York, Bogota
Santiago
St. John’s
Brasilia, Montevideo
Fernando de Noronha
Azores
To adjust a time difference
Select AREA SET in the menu setting, and select an area or a country you want to adjust
to, then press the SEL/PUSH EXEC dial.
1920212223 2425 26 27293031 1 2346810121314161718
23
Getting Started
(1) Prepare the power supply.
(2) Slide
OPEN/EJECT in the direction of the arrow and open the lid.
The cassette compartment automatically lifts up and opens.
(3) Push the center of the cassette back to insert.
Insert the cassette straight as far as possible into the cassette compartment with
the window facing up.
(4) Close the cassette compartment by pressing
on the cassette compartment.
The cassette compartment automatically goes down.
(5) After the cassette compartment goes down completely, close the lid until it
clicks.
To eject a cassette
Follow the procedure above, and take out the cassette in step 3.
Notes
•Do not press the cassette compartment down forcibly. Doing so may cause a
malfunction.
•The cassette compartment may not be closed when you press any part of the cassette
compartment other than the mark.
When you use a cassette with cassette memory
Read the instruction about cassette memory to use this function properly (p. 220).
To prevent accidental erasure
Slide the write-protect tab on the cassette to expose the red mark.
Step 3 Inserting a cassette
3, 4
5
2
OPEN/EJECT
24

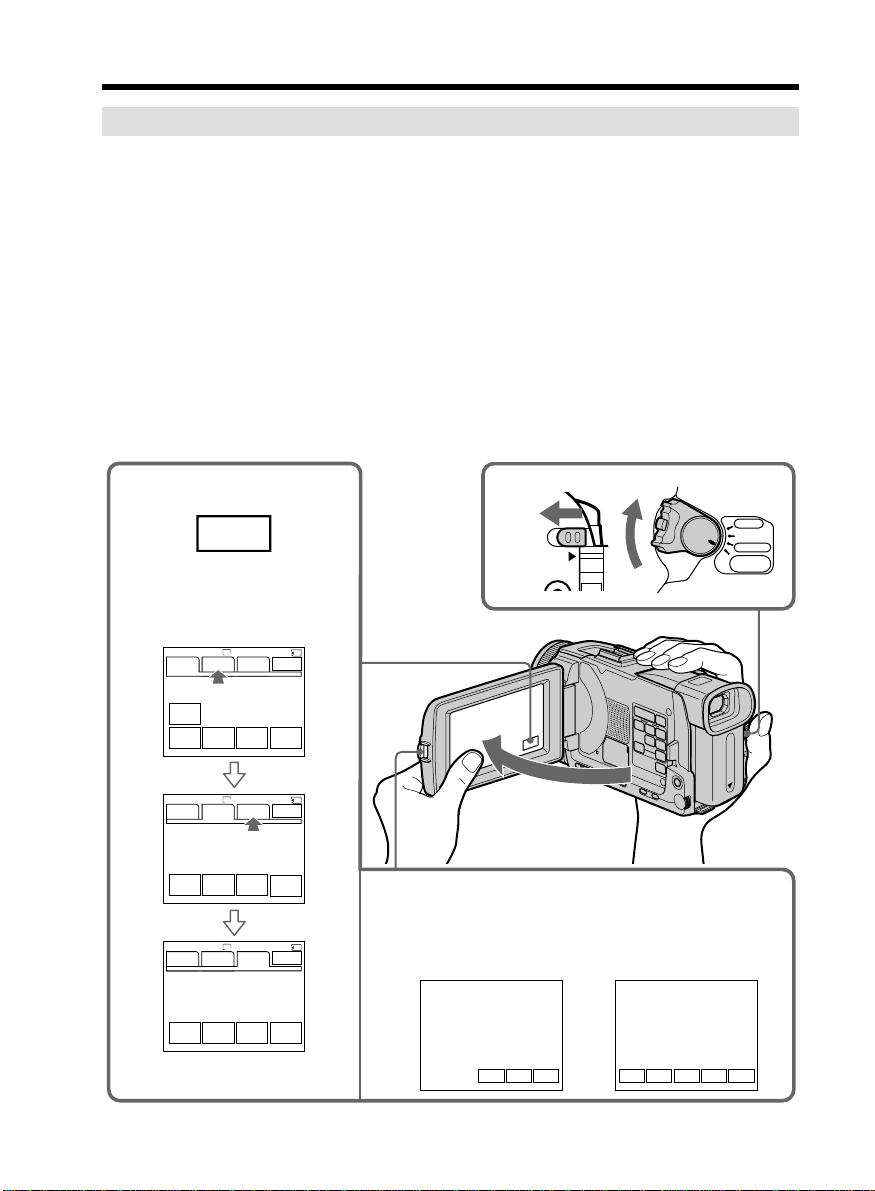

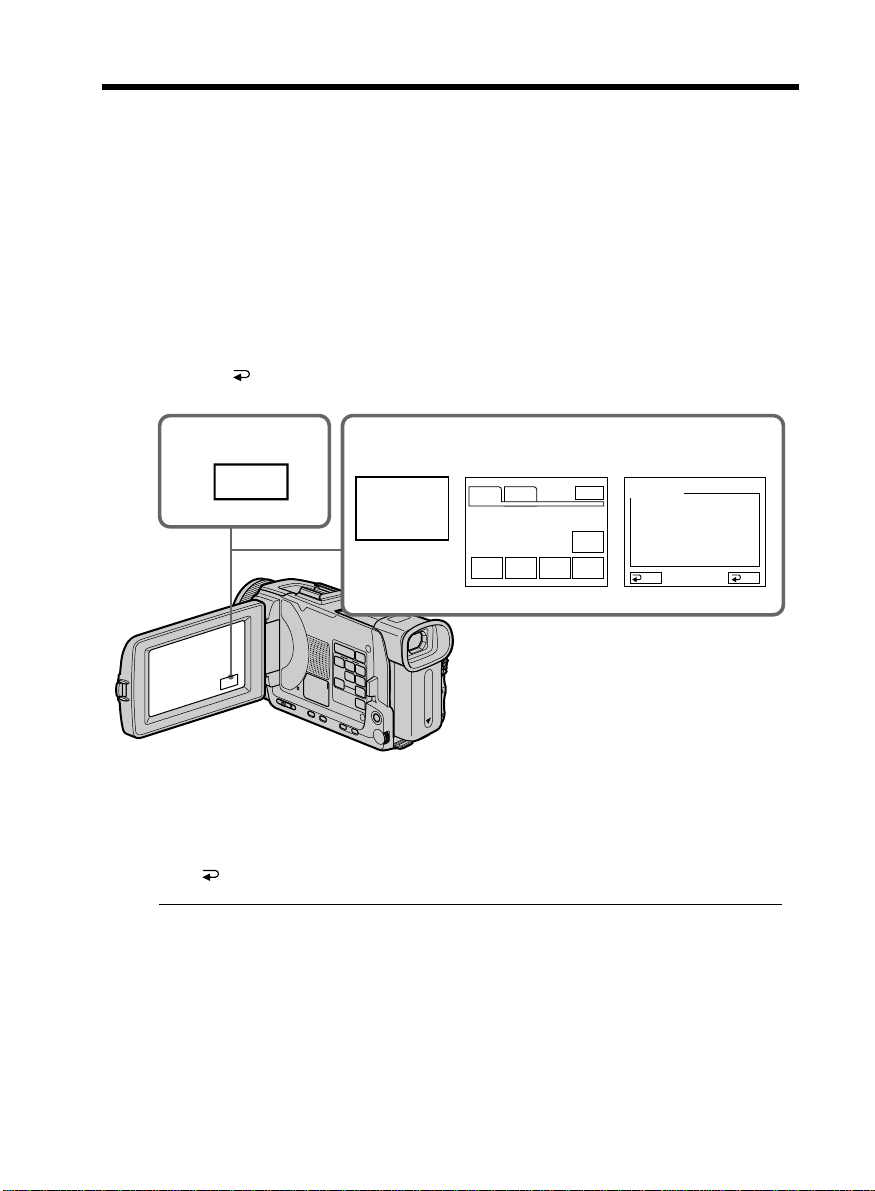

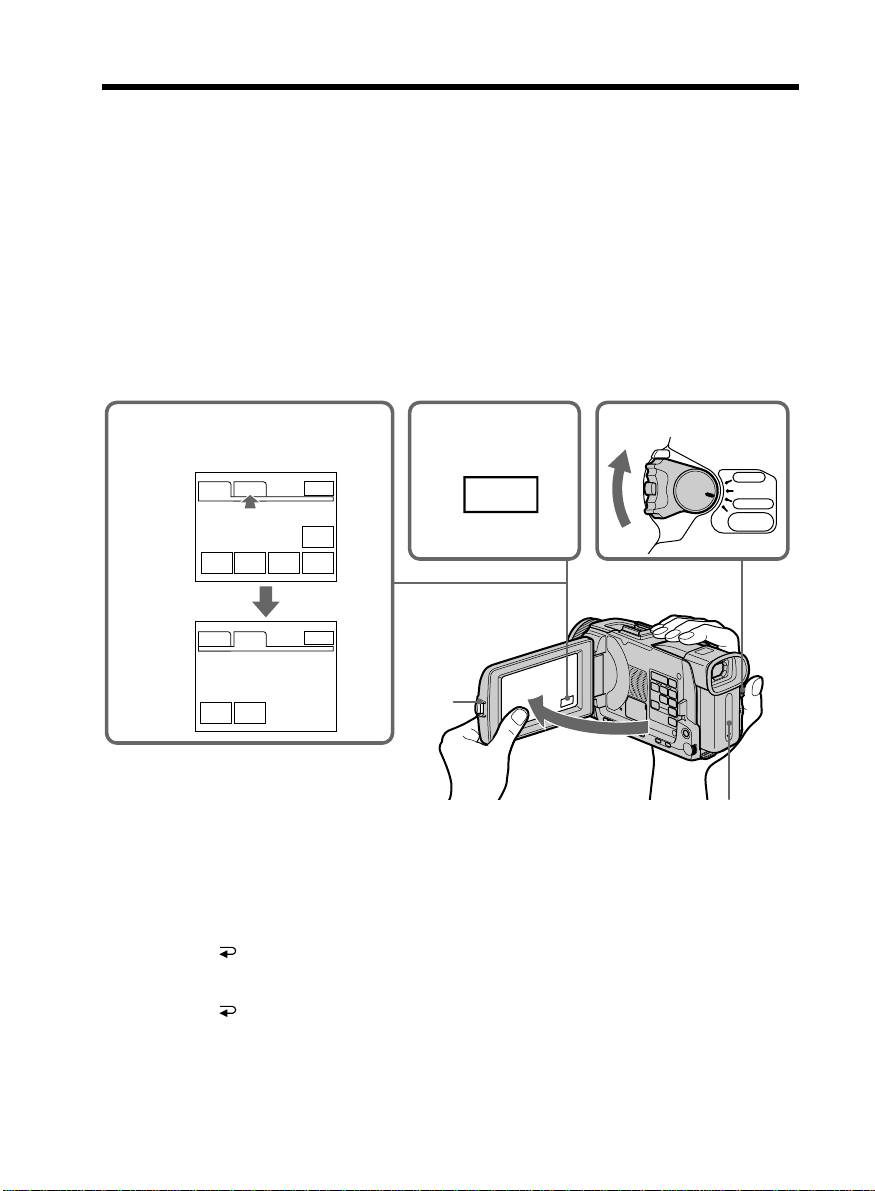

Your camcorder has operation buttons on the LCD screen.
Touch the LCD screen directly with your finger or the supplied stylus (DCR-TRV50
only) to operate each function. This section describes how to operate the touch panel
during recording or playing back images on a tape.
(1) Prepare the power supply (p. 15 to 19).
(2) Press OPEN to open the LCD panel.
(3) Set the POWER switch to CAMERA, VCR or MEMORY/NETWORK (DCR-
TRV50 only) while pressing the small green button.
(4) Press FN. Operation buttons appear on the LCD screen.
(5) Press PAGE2 to go to PAGE2. Operation buttons appear on the LCD screen.
(6) Press a desired operation item. Refer to relevant pages of this manual for each
function.
To return to FN
Press EXIT.
To execute settings
Press OK. The display returns to PAGE1/PAGE2.
To cancel settings
Press OFF to return to PAGE1/PAGE2.
Step 4 Using the touch panel
345,6
1
2
FN
PAGE1 PAGE2
EXIT
END
SCH
SPOT
FOCUS
DIG
EFFT
MEM
M I X
SPOT
METER
SELF
TIMER
LCD
BRT
PAGE1 PAGE2
EXIT
VCR
MEMORY/
NETWORK
CAMERA
OFF(CHG)
PO
W
ER
When the POWER switch
is set to CAMERA
25
Getting Started
Step 4 Using the touch panel
Notes

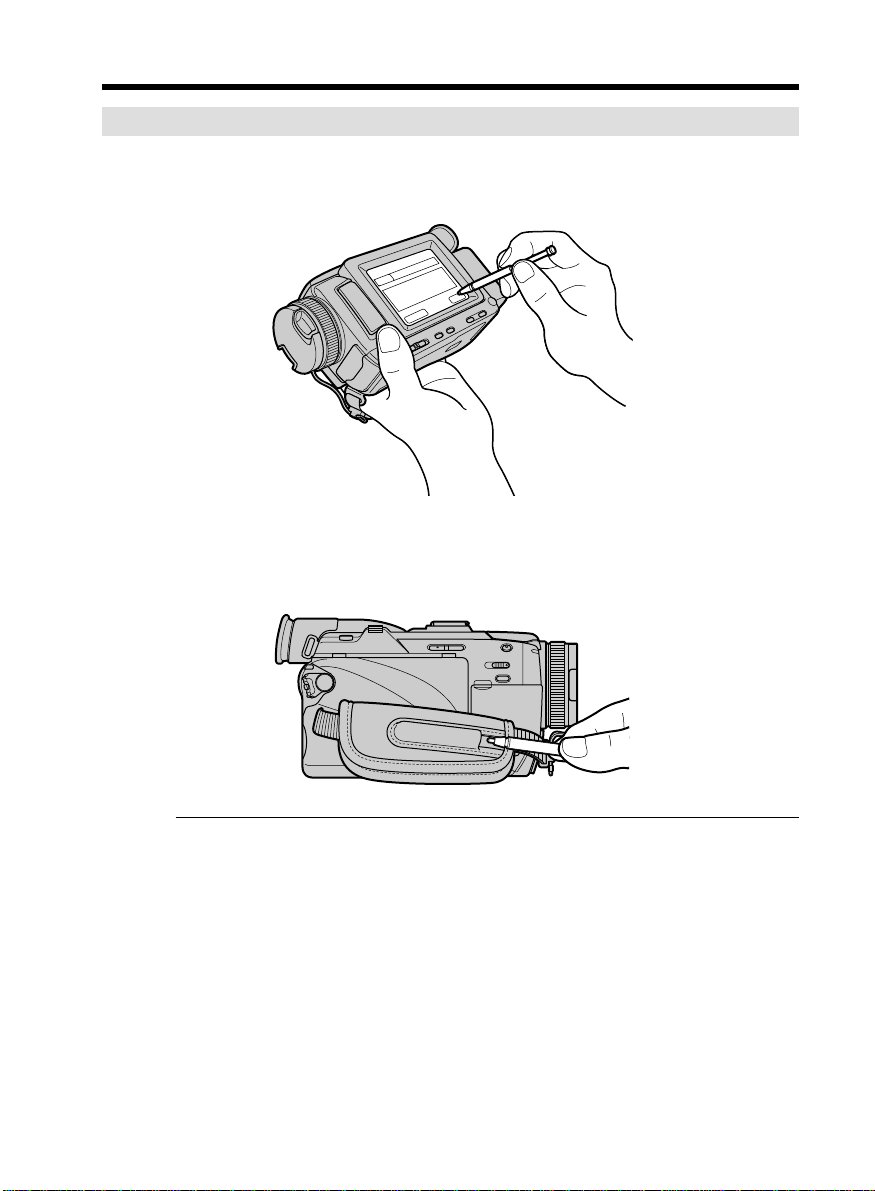

•When using the touch panel, press operation buttons with your thumb supporting the
LCD panel from the back side of it or press those buttons lightly with your index
finger.
•Do not press the LCD screen with sharp-pointed objects other than the stylus
supplied. (DCR-TRV50 only)
•Do not press the LCD screen too hard.
•Do not touch the LCD screen with wet hands.
•If FN is not on the LCD screen, touch the LCD screen lightly to make it appear. You
can control the display with DISPLAY/TOUCH PANEL on your camcorder.
•When operation buttons do not work even if you press them, an adjustment is
required (CALIBRATION) (p. 230).
•When the LCD screen gets dirty, use the supplied cleaning cloth.
When executing each item
The green bar appears above the item.
If the items are not available
The color of the items changes to gray.
Press FN to display the following buttons:
When the POWER switch is set to CAMERA
PAGE1 END SCH, SPOT FOCUS, DIG EFFT, MEM MIX, SPOT METER
PAGE2 LCD BRT, SELFTIMER
When the POWER switch is set to VCR
PAGE1 LCD BRT, PB, INDEX, END SCH
PAGE2 DIG EFFT, PB ZOOM, PB, INDEX, DATA CODE
See page 120 when the POWER switch is set to MEMORY/NETWORK (DCR-TRV50
only).
26
Your camcorder automatically focuses for you.
(1) Remove the lens cap by pressing both knobs on its sides and pull the lens cap
string to fix it.
(2) Prepare the power supply and insert a cassette. See “Step 1” to “Step 3” for
more information (p. 15 to 23).
(3) Set the POWER switch to CAMERA while pressing the small green button.
This sets your camcorder to the standby.
(4) Press OPEN to open the LCD panel. The viewfinder automatically turns off.
(5) Press START/STOP. Your camcorder starts recording. The REC indicator
appears. The camera recording lamp located on the front of your camcorder
lights up. To stop recording, press START/STOP again.
— Recording – Basics —
Recording a picture
5
2
4
40min
REC
0:00:01
3
VCR
MEMORY/
NETWORK
CAMERA
OFF(CHG)
POW
ER
1
LOCK switch
Microphone
Camera recording
lamp
27
Recording
– Basics
Notes
•Fasten the grip strap firmly.
•The recording data (date/time or various settings when recorded) are not displayed
while recording. However, they are recorded automatically on the tape. To display the
recording data, press DATA CODE during playback. You can also use the Remote
Commander for this operation (p. 42).
Note on recording
Your camcorder records and plays back in the SP (standard play) mode and in the LP
(long play) mode. Select SP or LP in the menu settings (p. 206). In the LP mode, you can
record 1.5 times as long as in the SP mode.
When you record a tape in the LP mode on your camcorder, we recommend playing
back the tape on your camcorder.
Note on the LOCK switch
When you slide the LOCK switch to the right, the POWER switch can no longer be set
to MEMORY/NETWORK (DCR-TRV50 only) accidentally. The LOCK switch is set to
the left as the default setting.

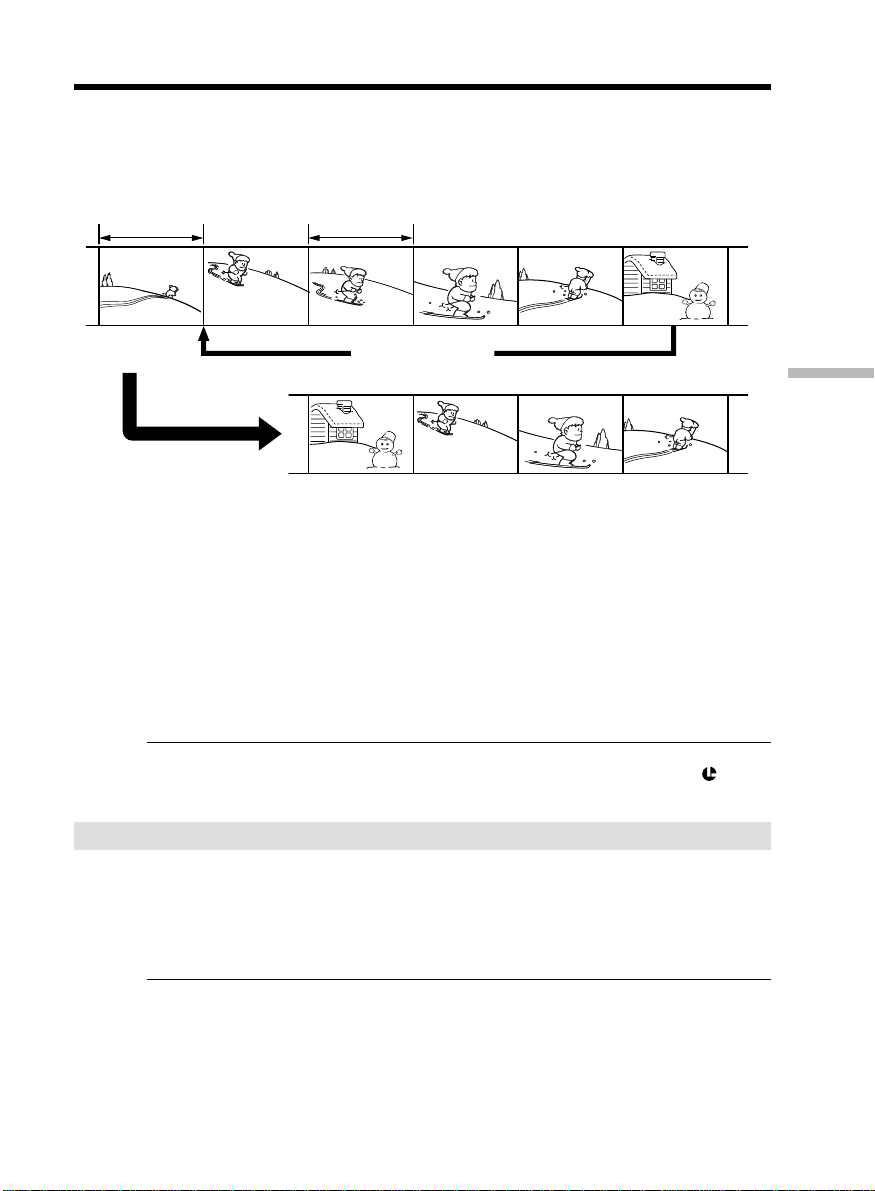

To enable smooth transition
Transition between the last scene you recorded and the next scene is smooth as long as
you do not eject the cassette even if you turn off your camcorder.
However, check the following:
– Do not mix recordings in the SP mode and in the LP mode on one tape.
– When you change the battery pack, set the POWER switch to OFF (CHG).
– When you use a cassette with cassette memory, however, you can make the transition
smooth even after ejecting the cassette if you use the END SEARCH (p. 38).
If you leave your camcorder in the standby for five minutes while the cassette is
inserted
Your camcorder automatically turns off. This is to save battery power and to prevent
battery and tape wear. To return to the standby, set the POWER switch to OFF (CHG)
and then back to CAMERA. To start recording, press the START/STOP button again
without switching the POWER switch. However, your camcorder does not turn off
automatically while the cassette is not inserted.
When you record in the SP and LP modes on one tape or you record in the LP
mode
•The transition between scenes may not be smooth.
•The playback picture may be distorted or the time code may not be written properly
between scenes.
The battery use time when you record using the LCD screen
The battery time is slightly shorter than the shooting time using the viewfinder.
Recording a picture
28
After recording
(1) Set the POWER switch to OFF (CHG).
(2) Close the LCD panel.
(3) Eject the cassette.
(4) Remove the battery pack.
Adjusting the LCD screen
The LCD panel can be opened up to 90 degrees.
The LCD panel moves about 90 degrees to the viewfinder side and about 180 degrees to
the lens side.
When closing the LCD panel, set it vertically, and swing it into the camcorder body.
Note
When using the LCD screen except in the mirror mode, the viewfinder automatically
turns off (p. 32).
LCD screen
•When you use the LCD screen outdoors in direct sunlight, the LCD screen may be
difficult to see. If this happens, we recommend that you use the viewfinder.
•When you adjust the angle of the LCD panel, make sure if the LCD panel is opened up
to 90 degrees.
Recording a picture
180°
90°
29
Recording
– Basics

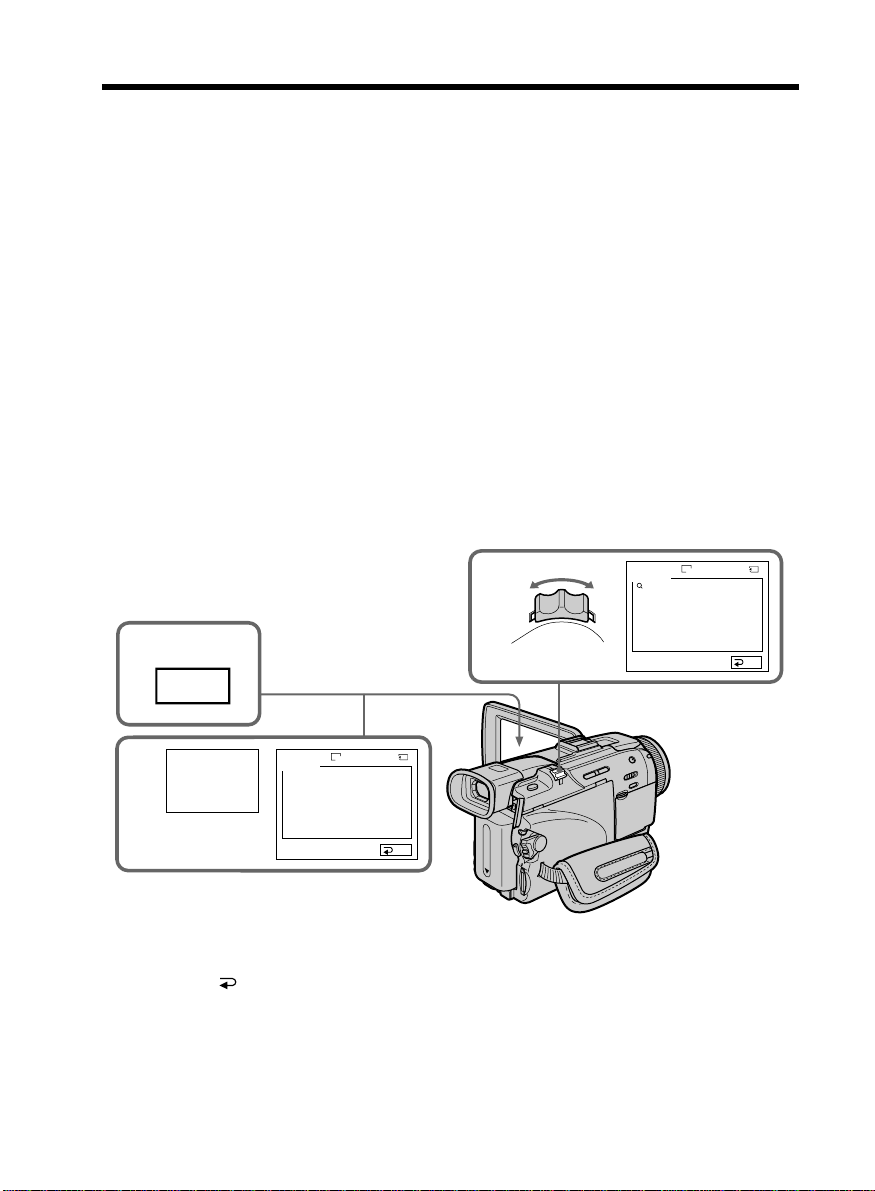

Adjusting the brightness of the LCD screen
(1) Set the POWER switch to CAMERA or MEMORY/NETWORK (DCR-TRV50
only). Press FN and select PAGE2.
When you set the POWER switch to VCR, press FN to display PAGE1 (p. 24).
(2) Press LCD BRT. The screen to adjust the brightness of the LCD screen appears.
(3) Adjust the brightness of the LCD screen using –/+.
– : To dim
+ : To brighten
(4) Press
OK to return to PAGE1/PAGE2.
To return to FN
Press EXIT.

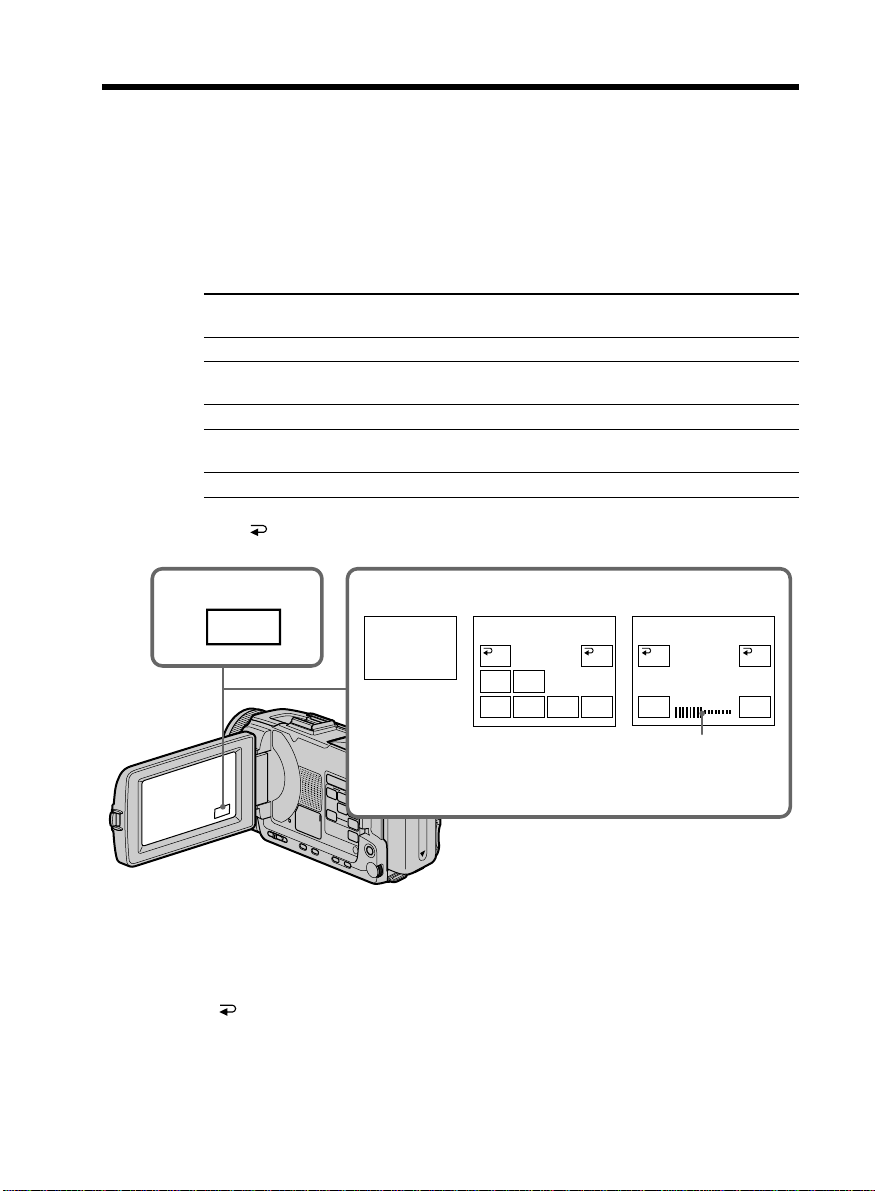

LCD screen backlight
You can change the brightness of the backlight. Select LCD B.L. in the menu settings
when using the battery pack (p. 202).
Recording a picture
1
2,3
FN
LCD
BRT
LCD BRT
– +
OK
OPEN
the bar indicator
30

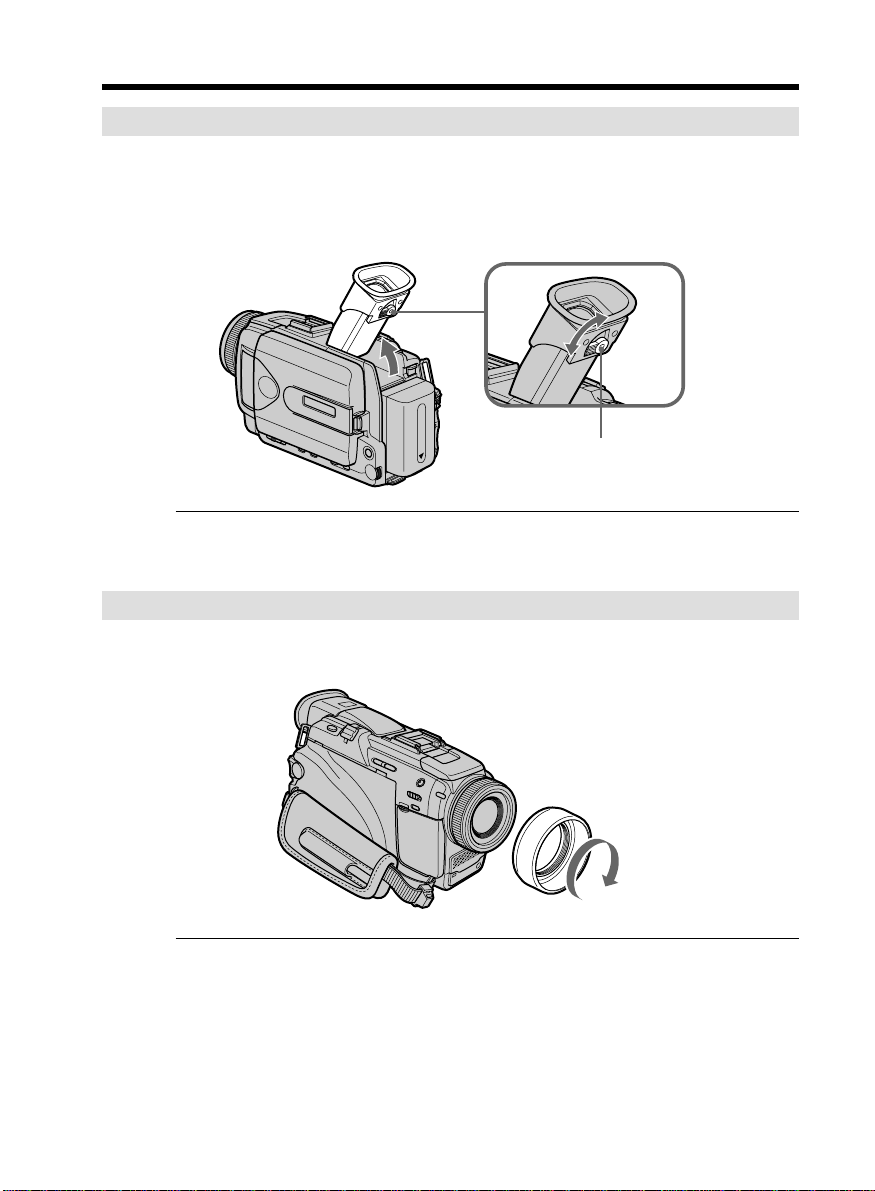

Adjusting the viewfinder
If you record pictures with the LCD panel closed, check the picture with the viewfinder.
Adjust the viewfinder lens to your eyesight so that the images in the viewfinder come
into sharp focus.
Lift up the viewfinder and move the viewfinder lens adjustment lever.
Viewfinder backlight
You can change the brightness of the backlight. Select VF B.L. in the menu settings
when using the battery pack (p. 202).
Attaching the supplied lens hood
To record fine pictures under strong light, we recommend attaching the lens hood. Also
the lens cap can be attached even with the lens hood on.
Note
You cannot attach filters or other objects onto the lens hood.
If you forcibly attach these objects onto the lens hood, you will no longer be able to
remove filters or other objects from the hood.
When you use the filter (optional)
The shadow of the lens hood may appear in the corners of the screen.
Recording a picture
The viewfinder lens
adjustment lever
31
Recording
– Basics
Using the zoom feature
Move the power zoom lever a little for a slower zoom. Move it further for a faster zoom.
Using the zoom sparingly results in better-looking recordings.
W : Wide-angle (subject appears farther away)
T : Telephoto (subject appears closer)
To use zoom greater than 10×
Zoom greater than 10× is performed digitally. Digital zoom can be set to 20× or 120×.
To activate digital zoom, select the digital zoom power in D ZOOM in the menu
settings (p. 201). The digital zoom is set to OFF as a default setting.
When you shoot close to a subject
If you cannot get a sharp focus, move the power zoom lever to the “W” side until the
focus is sharp. You can shoot a subject that is at least about 80 cm (about 2 feet 5/8 inch)
away from the lens surface in the telephoto position, or about 1 cm (about 1/2 inch)
away in the wide-angle position.
Note on digital zoom
The picture quality deteriorates as you move the power zoom lever towards the “T”
side.
When the POWER switch is set to MEMORY/NETWORK (DCR-TRV50 only)
You cannot use the digital zoom.
Recording a picture
The right side of the bar shows the digital zooming
zone.
The digital zooming zone appears when you select
the digital zoom power in the menu settings.
T
W
T
W
T
W
W
T
32

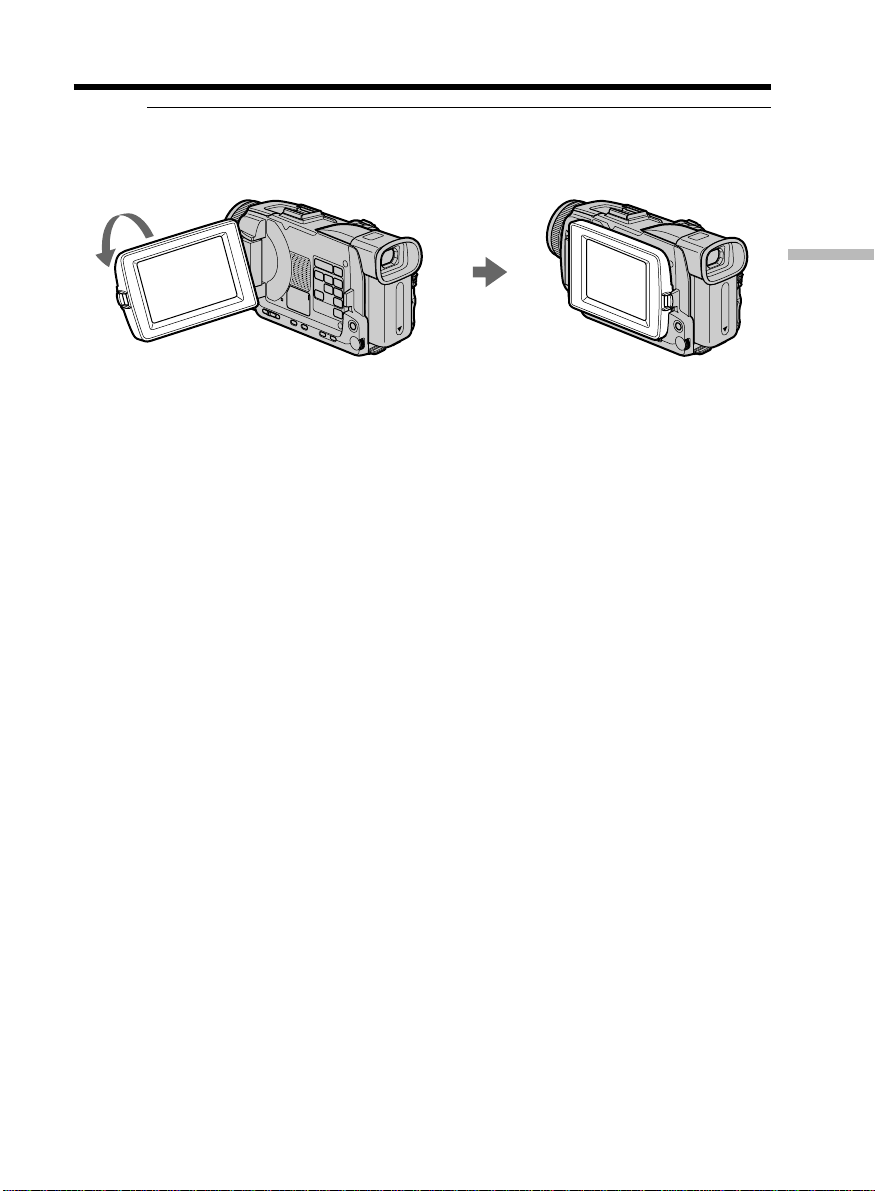

Shooting with the Mirror Mode
This feature allows the camera subject to view him-or herself on the LCD screen.
The subject uses this feature to check his or her own image on the LCD screen while you
look at the subject in the viewfinder.
Set the POWER switch to CAMERA or MEMORY/NETWORK (DCR-TRV50 only).
Rotate the LCD screen 180 degrees.
The indicator appears in the viewfinder and on the LCD screen.
Xz appears in the standby, and z appears in the recording. Some of other indicators
appear mirror-reversed and others are not displayed.
Picture in the mirror mode
The picture on the LCD screen is a mirror-image. However, the picture will be normal
when recorded.
During recording in the mirror mode
•ZERO SET MEMORY on the Remote Commander does not work.
•FN appears mirror-reversed in the viewfinder.
When you press FN
The does not appear on the screen.
Recording a picture
33
Recording
– Basics
Indicators displayed in the recording
Indicators are not recorded on tapes.
Remaining battery time indicator during recording
The remaining battery time indicator roughly indicates the continuous recording time.
The indicator may not be correct, depending on the conditions in which you are
recording. When you close the LCD panel and open it again, it takes about one minute
for the correct remaining battery time in minutes to be displayed.
Time code
The time code indicates the recording or playback time, “0:00:00” (hours : minutes :
seconds) in CAMERA and “0:00:00:00” (hours : minutes : seconds : frames) in VCR.
You cannot rewrite only the time code.
Remaining tape indicator
The indicator may not be displayed accurately depending on the tape.
Recording data
The recording data (date/time or various settings when recorded) are not displayed
while recording. However, they are recorded automatically on the tape. To display the
recording data, press DATA CODE during playback. You can also use the Remote
Commander for this operation (p. 42).
Recording a picture
0:00:01
45min
50
min
REC
JUL 4 2002
12:05:56PM
FN
Recording mode
Cassette memory
This appears when using a cassette with cassette memory.
Time
The time is displayed about five seconds after the
power is turned on.
Date
The date is displayed about five seconds after the
power is turned on.
STBY/REC
Remaining battery time
Time code/Tape counter
Remaining tape
This appears after you insert a cassette and record or
play back for a while.
FN button
Press this button to display operation buttons on the
LCD screen.
34
Shooting backlit subjects – BACK LIGHT
When you shoot a subject with the light source behind the subject or a subject with a
light background, use the backlight function.
Set the POWER switch to CAMERA or MEMORY/NETWORK (DCR-TRV50 only),
press BACK LIGHT.
The . indicator appears on the screen. To cancel, press BACK LIGHT again.
When shooting backlit subjects
If you press EXPOSURE or SPOT METER, the backlight function will be canceled
(p. 68).
Shooting in the dark
– NightShot/Super NightShot/Color Slow Shutter
Using NightShot
The NightShot enables you to shoot a subject in a dark place. For example, you can
satisfactorily record the environment of nocturnal animals for observation when you
use this function.
Set the POWER switch to CAMERA or MEMORY/NETWORK (DCR-TRV50 only),
slide NIGHTSHOT to ON.
The and “NIGHTSHOT” indicators flash on the screen. To cancel the NightShot,
slide NIGHTSHOT to OFF.
Recording a picture
BACK LIGHT
NIGHTSHOT
OFF ON
COLOR SLOW S
SUPER NS

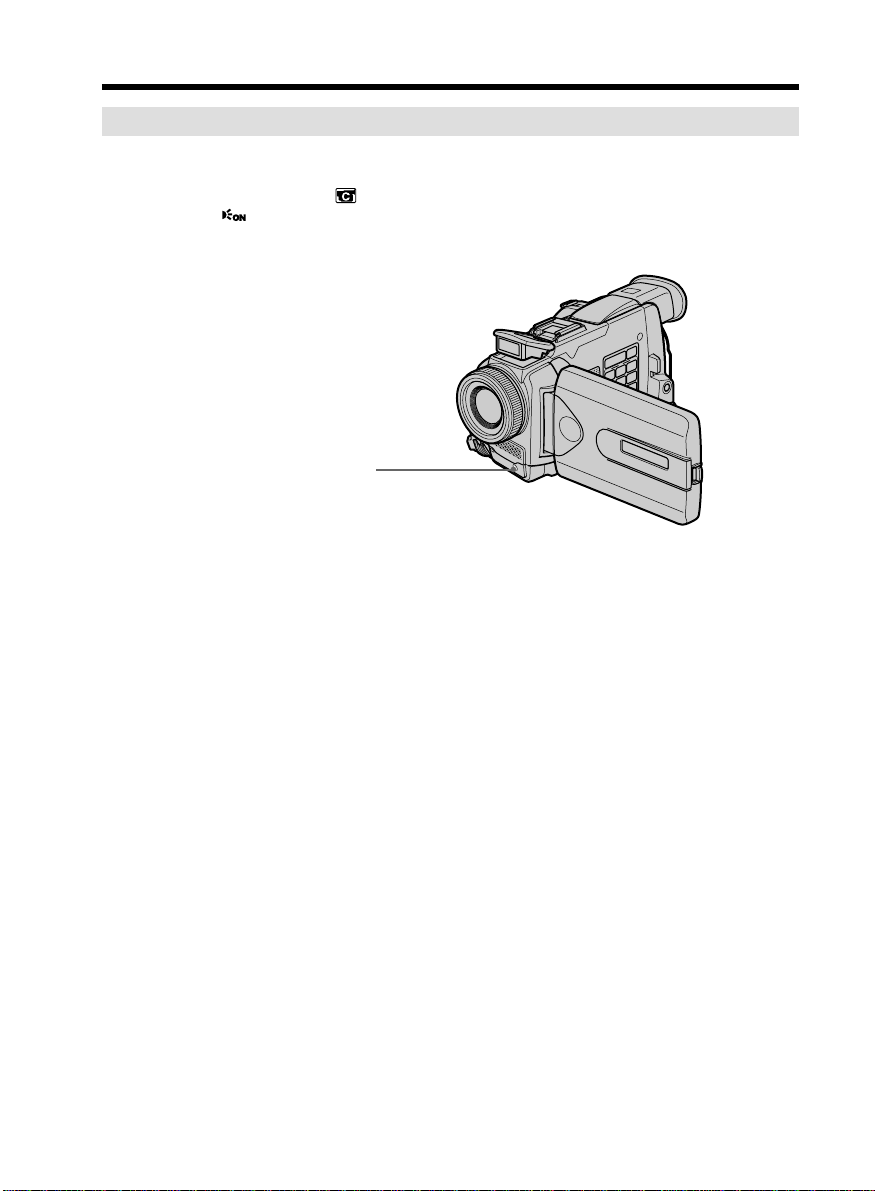

NightShot Light emitter
35
Recording
– Basics
Using Super NightShot
The Super NightShot makes subjects more than 16 times brighter than those recorded in
the NightShot.
(1) Set the POWER switch to CAMERA, slide NIGHTSHOT to ON. The and
“NIGHTSHOT” indicators flash on the screen.
(2) Press SUPER NS. The
and “SUPER NIGHTSHOT” indicators flash on the
screen.
To return the NightShot, press SUPER NS again.
Using NightShot Light
The picture will be clearer with the NightShot Light on. To enable the NightShot Light,
set N.S. LIGHT in to ON in the menu settings. (The default setting is ON.)
Using Color Slow Shutter
The Color Slow Shutter enables you to record color images in a dark place.
(1) Slide NIGHTSHOT to OFF when the POWER switch is set to CAMERA.
(2) Press COLOR SLOW S.
The
and COLOR SLOW SHUTTER indicators flash on the screen.
To cancel the Color Slow Shutter, press COLOR SLOW S again.
Notes
•Do not use the NightShot in bright places (e.g. the outdoors in the daytime). This may
cause your camcorder to malfunction.
•When you keep NIGHTSHOT set to ON in normal recording, the picture may be
recorded in incorrect or unnatural colors.
•If focusing is difficult when using the NightShot, focus manually.
While using the NightShot, you cannot use the following functions:
– Exposure
– PROGRAM AE
– White balance
– HOLOGRAM AF
While using the Super NightShot or Color Slow Shutter
The shutter speed is automatically adjusted depending on the brightness. At this time,
moving pictures may slow down.
While using the Super NightShot, you cannot use the following functions:
– Fader
– Digital effect
– PROGRAM AE
– Exposure
– Recording still images on a “Memory Stick” in the tape recording or tape recording
standby
– White balance
– Flexible Spot Meter
– Spot Focus
– Recording with the flash
Recording a picture
36
Recording a picture
When the POWER switch is set to MEMORY/NETWORK (DCR-TRV50 only)
You cannot use the following functions:
– Super NightShot
– Color Slow Shutter
NightShot Light
NightShot Light rays are infrared and so are invisible. The maximum shooting distance
using the NightShot Light is about 3 m (10 feet).
While using the Color Slow Shutter, you cannot use the following functions:
– Fader
– Digital effect
– PROGRAM AE
– Exposure
– Recording still images on a “Memory Stick” in the tape recording or tape recording
standby
– Flexible Spot Meter
– Spot Focus
– Recording with the flash
In total darkness
The Color Slow Shutter may not work normally.
37
Recording
– Basics
Recording a picture

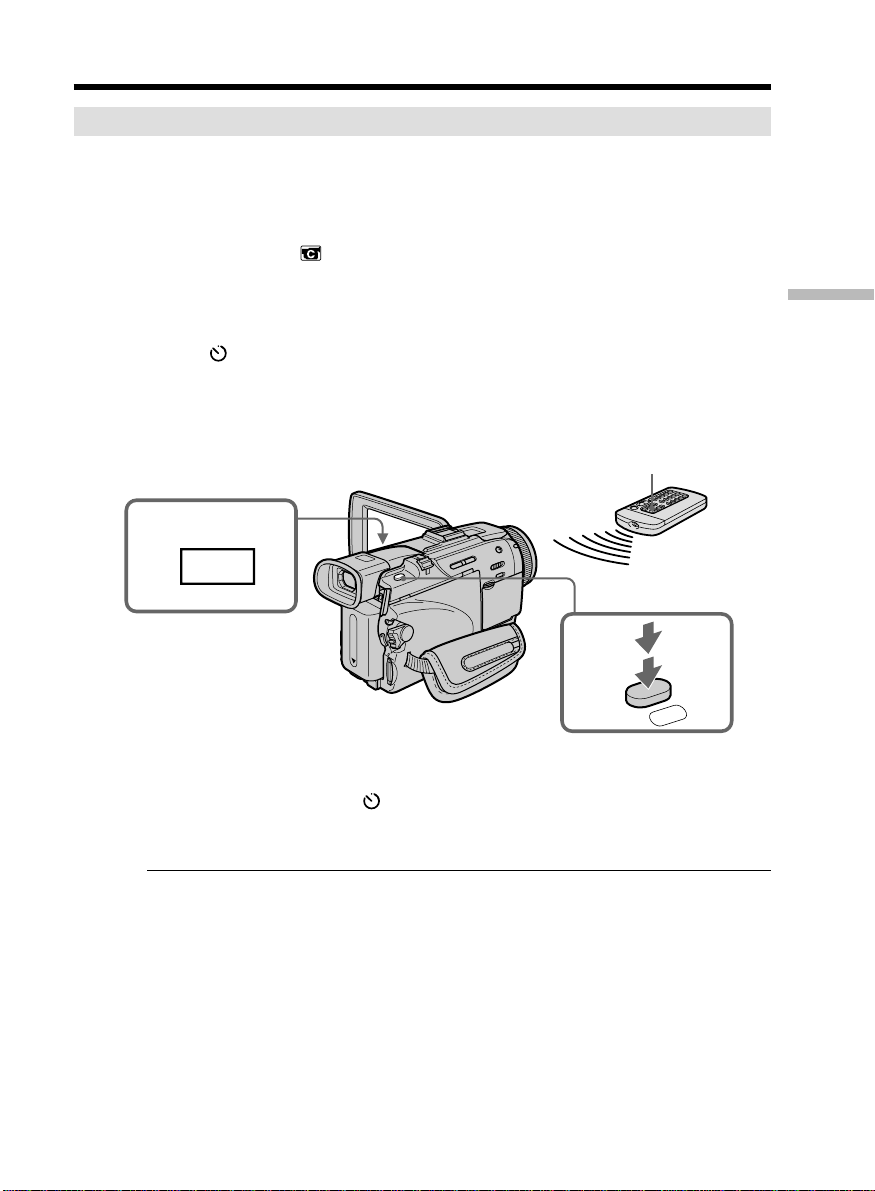

Self-timer recording
Recording with the self-timer starts in 10 seconds automatically. You can also use the
Remote Commander for this operation.
(1) In the standby, press FN and select PAGE2 (p. 24).
(2) Press SELFTIMER.
The
(self-timer) indicator appears on the screen.
(3) Press START/STOP.
The self-timer starts counting down from 10 with a beep. In the last two
seconds of the countdown, the beep gets faster, then recording starts
automatically.
To stop the countdown
Press START/STOP.
To restart the countdown, press START/STOP again.
To cancel the self-timer
Press SELFTIMER so that the (self-timer) indicator disappears from the screen while
your camcorder is in the standby. You cannot cancel self-timer using the Remote
Commander.
Note
The self-timer is automatically canceled when:
– The self-timer recording is finished.
– The POWER switch is set to OFF (CHG) or VCR.
When the POWER switch is set to MEMORY/NETWORK (DCR-TRV50 only)
You can also record still images on “Memory Stick”s with the self-timer (p. 134).
1
FN
START/STOP
START/STOP
38

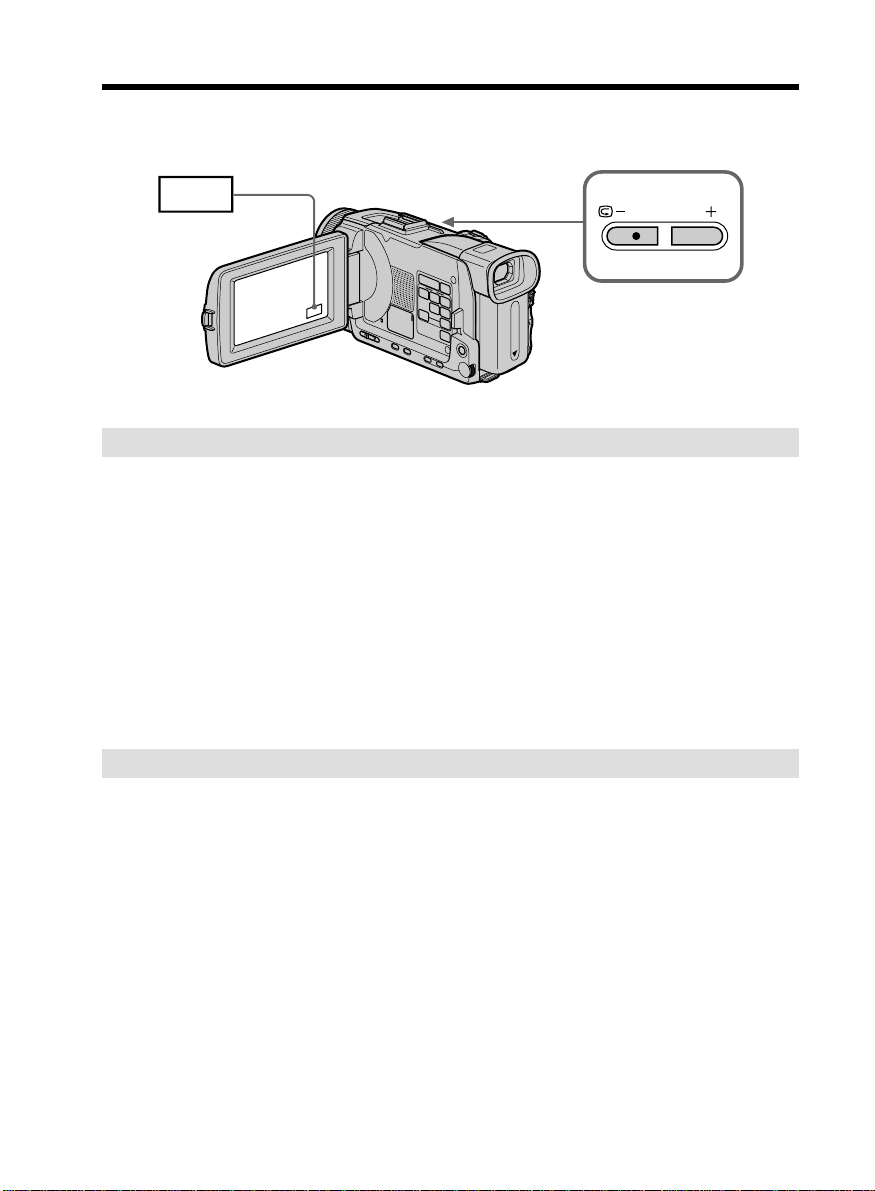

You can use these buttons to check the recorded picture or shoot so that the transition
between the last recorded scene and the next scene you record is smooth.
END SEARCH
You can go to the end of the recorded section after you record.
(1) In the standby, press FN to display PAGE1 (p. 24).
(2) Press END SCH.
The last five seconds of the recorded section are played back and your
camcorder returns to the standby. You can monitor the sound from the speaker
or headphones.
To return to FN
Press EXIT.
To stop searching
Press END SCH again.
EDITSEARCH
You can search for the next recording start point.
Hold down the EDITSEARCH in the standby. The recorded portion is played back.
7 – : To go backward
+ : To go forward
Release EDITSEARCH to stop playback. If you press START/STOP, recording begins
from the point you released EDITSEARCH. You cannot monitor the sound.
Checking recordings
– END SEARCH/EDITSEARCH/Rec Review
FN
EDITSEARCH
39
Recording
– Basics
Checking recordings – END SEARCH/EDITSEARCH/Rec Review
Rec Review
You can check the last recorded section.
Press the 7 – side of EDITSEARCH momentarily in the standby.
The section you have stopped most recently will be played back for a few seconds, and
then your camcorder will return to the standby. You can monitor the sound from the
speaker or headphones.
End search
When you use a cassette without cassette memory, the end search function does not
work once you eject the cassette after you have recorded on the tape. If you use a
cassette with cassette memory, the end search works even once you eject the cassette.
If a tape has a blank portion between recorded portions
The end search may not work correctly.
40
You can monitor the playback picture on the screen. If you close the LCD panel, you can
monitor the playback picture in the viewfinder. You can control playback using the

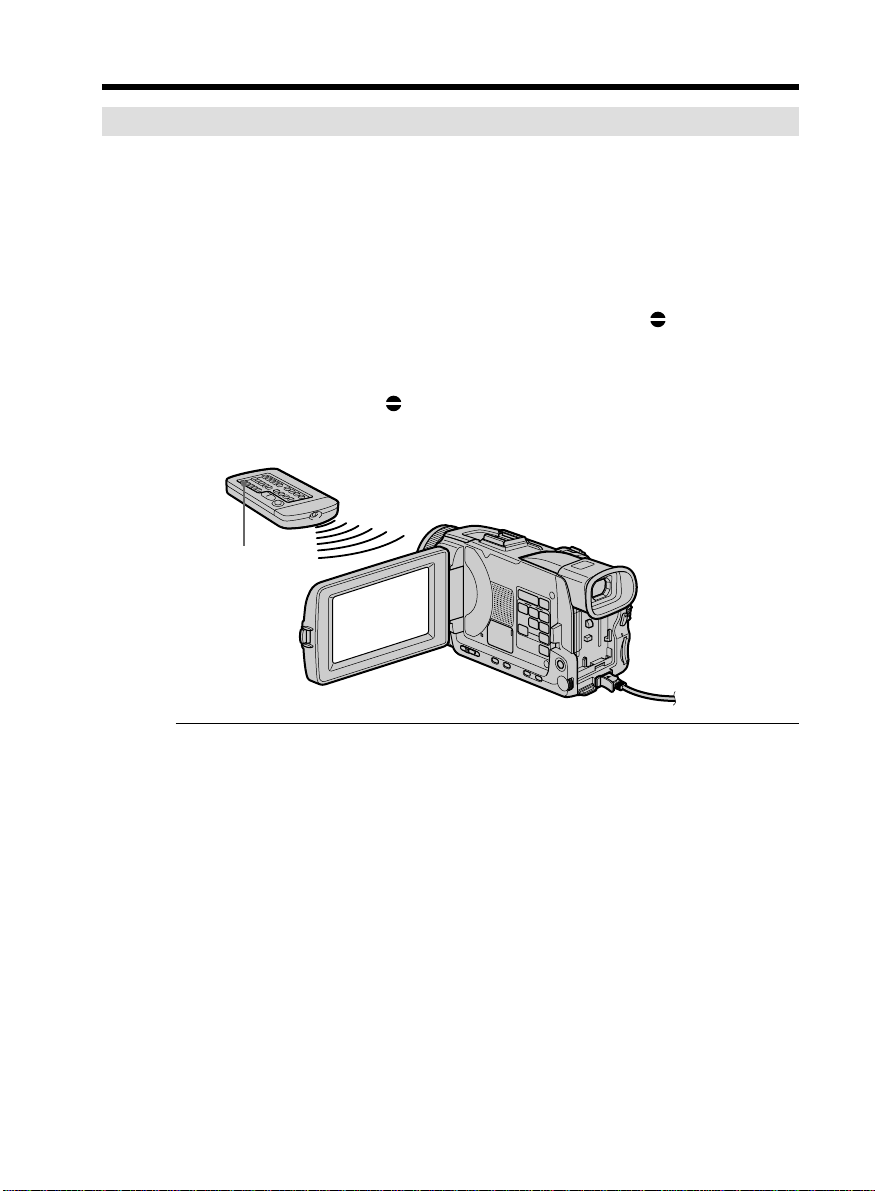

Remote Commander supplied with your camcorder.
(1) Prepare the power supply and insert the recorded tape.
(2) Set the POWER switch to VCR while pressing the small green button.
(3) Open the LCD panel while pressing OPEN.
(4) Press m to rewind the tape.
(5) Press N to start playback.
(6) To adjust the volume, press either of the two buttons on VOLUME.
– : To turn down
+ : To turn up
When you close the LCD panel, sound is muted.
To stop playback
Press x.
— Playback – Basics —
Playing back a tape
45
6
2
1
3
REW
PLAY
VOLUME
VCR
MEMORY/
NETWORK
CAMERA
OFF(CHG)
PO
W
ER
41
Playback
– Basics
When monitoring on the LCD screen
You can turn the LCD panel over and move it back to the camcorder body with the
LCD screen facing out.
If you leave the power on for a long time
Your camcorder gets warm. This is not a malfunction.
When you open or close the LCD panel
Make sure that the LCD panel is set vertically.
Playing back a tape
42
To display the screen indicators – Display function
Press DISPLAY/TOUCH PANEL on your camcorder or DISPLAY on the Remote
Commander supplied with your camcorder. The indicators disappear on the screen. To
make the indicators appear, press DISPLAY/TOUCH PANEL or DISPLAY again.
About date/time and various settings
Your camcorder automatically records not only images on the tape but also the
recording data (date/time or various settings when recorded) (data code).
Follow the steps below to display the data code using the touch panel or the Remote
Commander.
Using the touch panel
1 Set the POWER switch to VCR, then play back a tape.
2 Press FN and select PAGE2.
3 Press DATA CODE.
4 Select CAM DATA or DATE DATA, then press OK.
5 Press EXIT.
Using the Remote Commander
Press DATA CODE on the Remote Commander in the playback.
The display changes as follows when you press the DATA CODE on the Remote
Commander:
date/time t various settings (SteadyShot, exposure, white balance, gain, shutter
speed, aperture value) t no indicator
Playing back a tape
DISPLAY/
TOUCH PANEL
DATA CODE
DISPLAY
DATACODE
CAM
DATA
DATE
DATA
OFF OK
43
Playback
– Basics
Playing back a tape
[a] Tape counter
[b] SteadyShot OFF
[c] Exposure mode
[d] White balance
[e] Gain
[f] Shutter speed
[g] Aperture value
To not display various settings
Set DATA CODE to DATE in the menu settings (p. 208).
The display changes as follows when you press DATA CODE on the Remote
Commander:
date/time y no indicator
Various settings
Various settings are your camcorder’s information when you have recorded. In the
recording, the various settings will not be displayed.
When you use the data code, bars (-- -- --) appear if:
– A blank portion of the tape is being played back.
– The tape is unreadable due to tape damage or noise.
– The tape was recorded by a camcorder without the date and time set.
Data code
When you connect your camcorder to the TV, the data code appears on the TV screen.
Remaining battery time indicator during playback
The indicator indicates the approximate continuous playback time. The indicator may
not be correct, depending on the conditions in which you are playing back. When you
close the LCD panel and open it again, it takes about one minute for the correct
remaining battery time to be displayed.
Date/time Various settings
[g]
[b]
[d]
[e]
[f]
[c]
60 AWB
F1.8 9dB
AUTO
JUL 4 2002
12:05:56 AM
50min
0:00:23:01
40min
0:00:23:01
[a]
44
Playing back a tape
Various playback modes
To operate video control buttons, set the POWER switch to VCR.
To play back pause (viewing a still picture)
Press X during playback. To resume normal playback, press N or X.
To advance the tape
Press M in the stop mode. To resume normal playback, press N.
To rewind the tape
Press m in the stop mode. To resume normal playback, press N.
To change the playback direction
Press on the Remote Commander during playback to reverse the playback direction.
To resume normal playback, press N.
To locate a scene monitoring the picture (picture search)
Keep pressing m or M during playback. To resume normal playback, release the
button.
To monitor high-speed pictures while advancing or rewinding
the tape (skip scan)
Keep pressing m while rewinding or M while advancing the tape. To resume
rewinding or advancing, release the button.
To view the picture at slow speed (slow playback)
Press y on the Remote Commander during playback. For slow playback in the reverse
direction, press , then press y on the Remote Commander. To resume normal
playback, press N.
To view pictures at double speed
Press ×2 on the Remote Commander during playback. For double speed playback in the
reverse direction, press , then press ×2 on the Remote Commander. To resume
normal playback, press N.
To view pictures frame-by-frame
Press C on the Remote Commander in the playback pause. For frame-by-frame
playback in the reverse direction, press c. To resume normal playback, press N.
To search the last scene recorded (END SEARCH)
Press FN, then press END SCH in the stop mode. The last five seconds recorded portion
is played back and then stopped.
45
Playback
– Basics
In the various playback modes
•Sound is muted.
•The previous picture may remain as a mosaic image during playback.
When the playback pause lasts for five minutes
Your camcorder automatically enters the stop mode. To resume playback, press N.
Slow playback
The slow playback can be performed smoothly on your camcorder. However, this
function does not work for an output signal through the DV IN/OUT jack.
When you play back a tape in reverse
Horizontal noise may appear at the center, or the top and bottom of the screen. This is
not a malfunction.
Playing back a tape
46

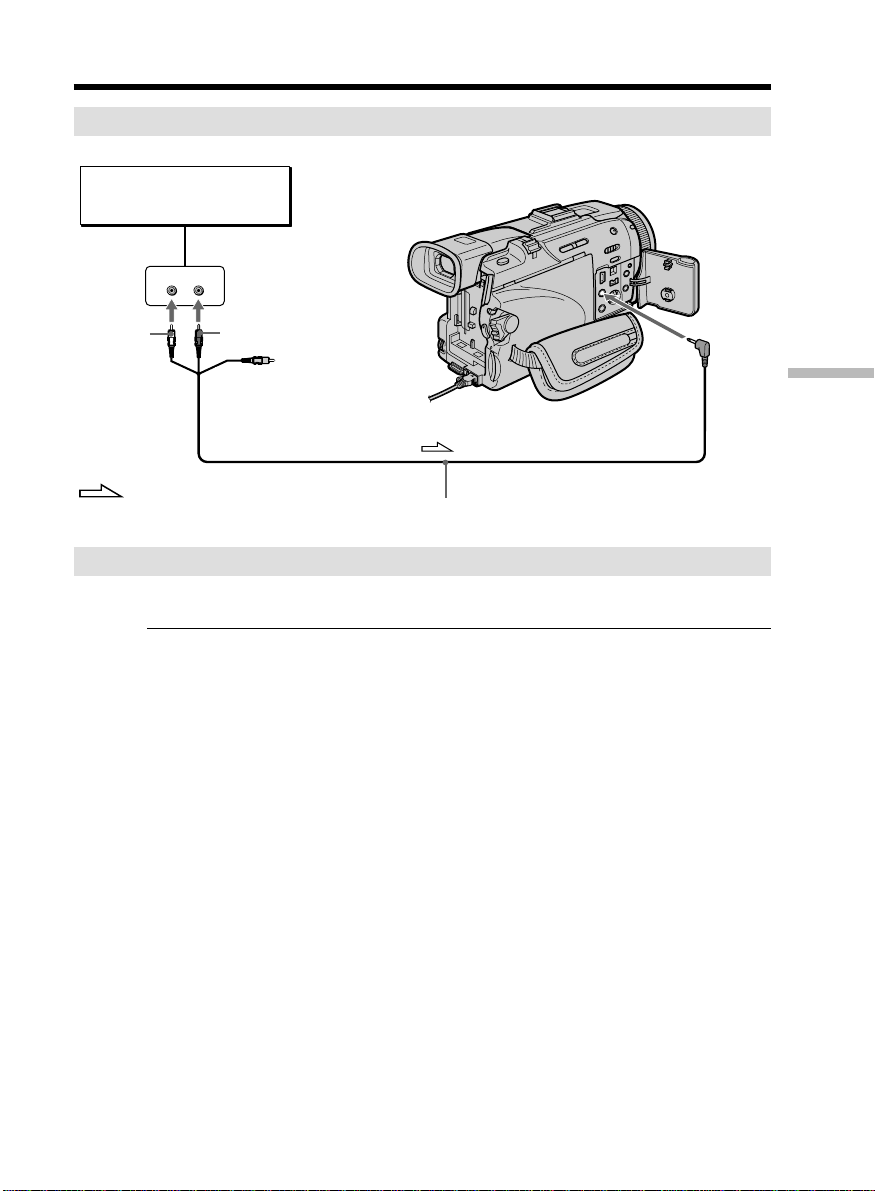

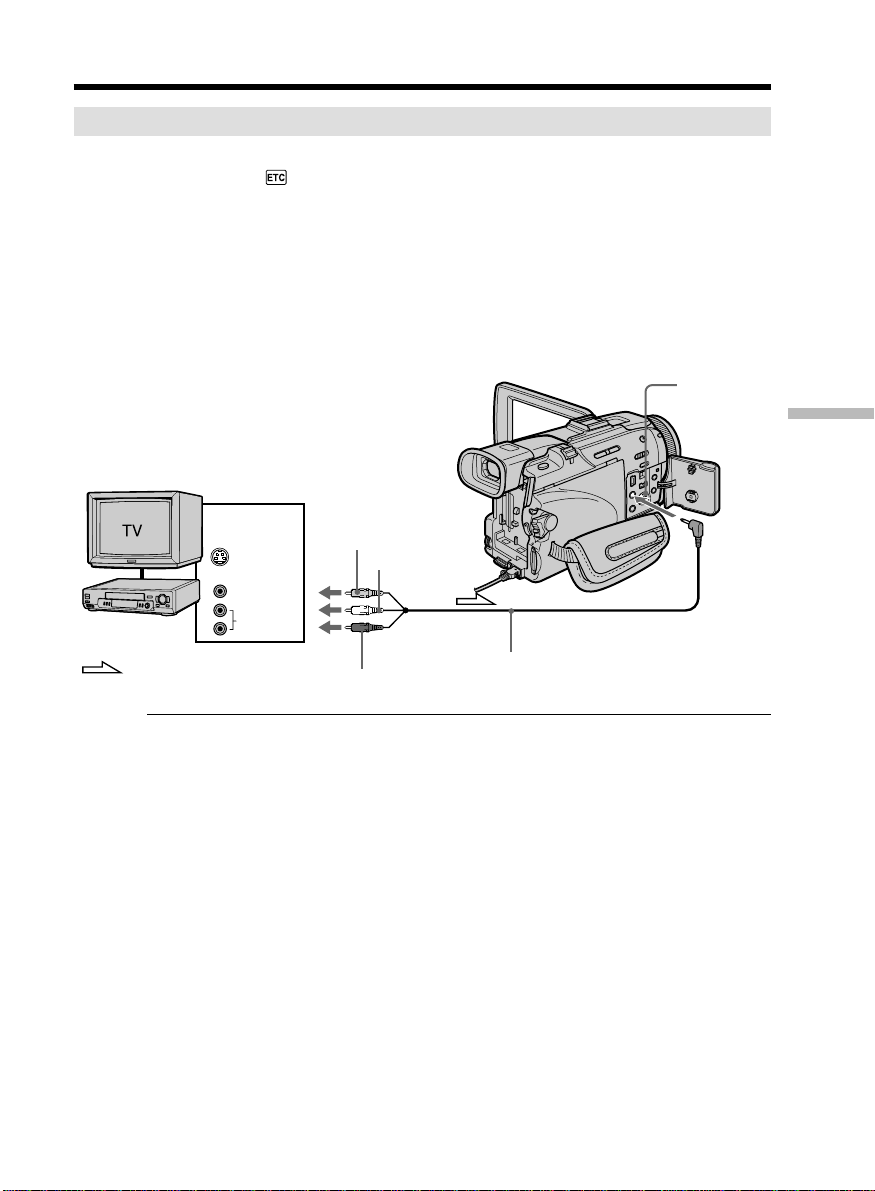

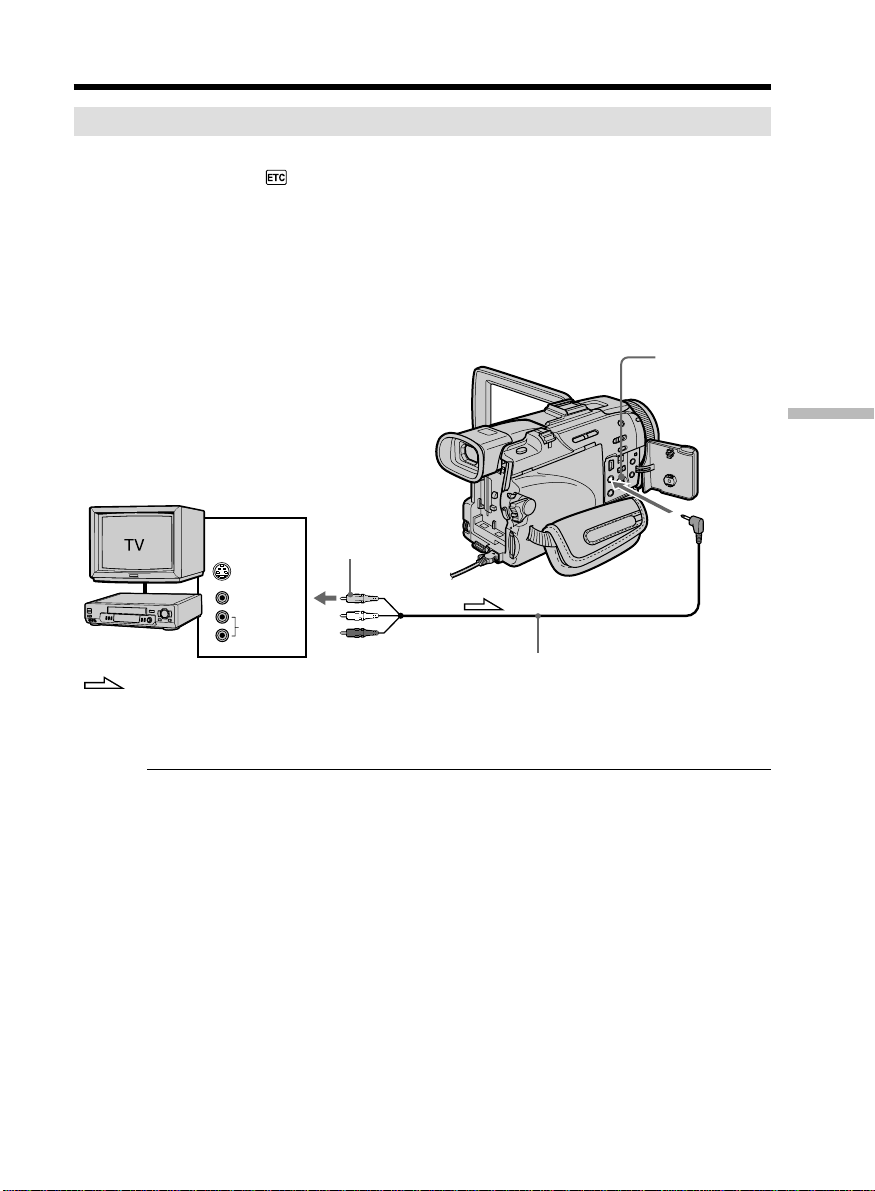

Connect your camcorder to your TV with the A/V connecting cable supplied with your
camcorder to watch playback picture on the TV screen. You can operate the video
control buttons in the same way as when you monitor playback pictures on the screen.
When monitoring playback pictures on the TV screen, we recommend that you power
your camcorder from a wall outlet using the AC power adaptor (p. 19). Refer to the
operating instructions of your TV.
Open the jack cover. Connect your camcorder to the TV with the A/V connecting cable
supplied with your camcorder. Then, set the TV/VCR selector on the TV to VCR.
If your TV is already connected to a VCR
Connect your camcorder to the LINE IN input on the VCR by using the A/V connecting
cable supplied with your camcorder. Set the input selector on the VCR to LINE.
If your TV or VCR is a monaural type
Connect the yellow plug of the A/V connecting cable to the video input jack and the
white or the red plug to the audio input jack on the VCR or the TV. If you connect the
white plug, the sound is L (left) signal. If you connect the red plug, the sound is R
(right) signal.
If your TV has an S video jack
Pictures can be reproduced more faithfully by using an S video cable (optional). With
this connection, you do not need to connect the yellow (video) plug of the A/V
connecting cable. Connect the S video cable (optional) to the S video jacks on both your
camcorder and the TV.
This connection produces higher quality DV format pictures.
To display the screen indicators on TV
Set DISPLAY to V-OUT/LCD in the menu settings (p. 209).
Then, press DISPLAY/TOUCH PANEL on your camcorder. To turn the screen
indicators off, press DISPLAY/TOUCH PANEL on your camcorder again.
Viewing the recording on TV
TV
S VIDEO
AUDIO/VIDEO
S VIDEO
VIDEO
AUDIO
IN
: Signal flow
Yellow
White
Red
A/V connecting cable (supplied)
47
Advanced Recording Operations

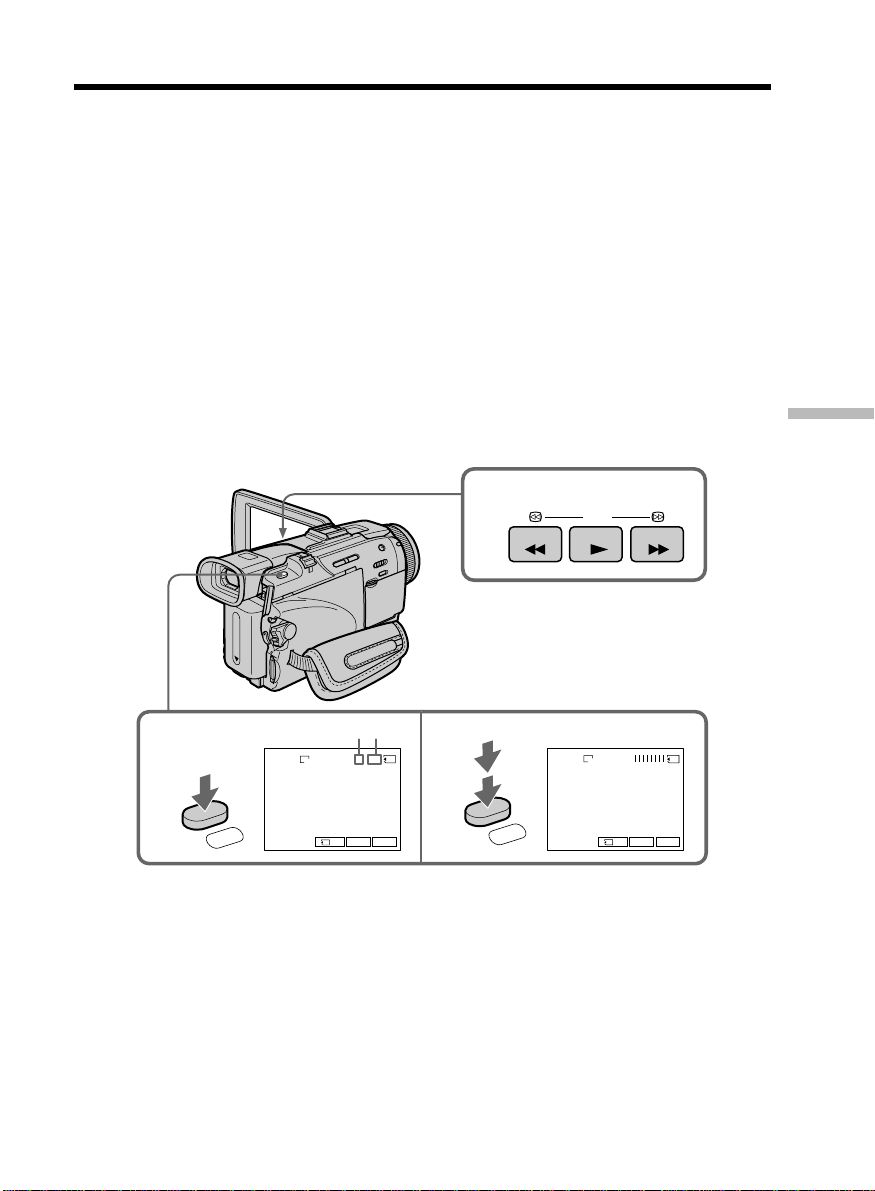

You can record still images on a “Memory Stick” in the tape recording or tape recording
standby. You can also record still images on a tape (p. 52).
Before operation
•Insert a “Memory Stick” into your camcorder (p. 119).
•Set PHOTO REC in to MEMORY in the menu settings (The default setting is
MEMORY).

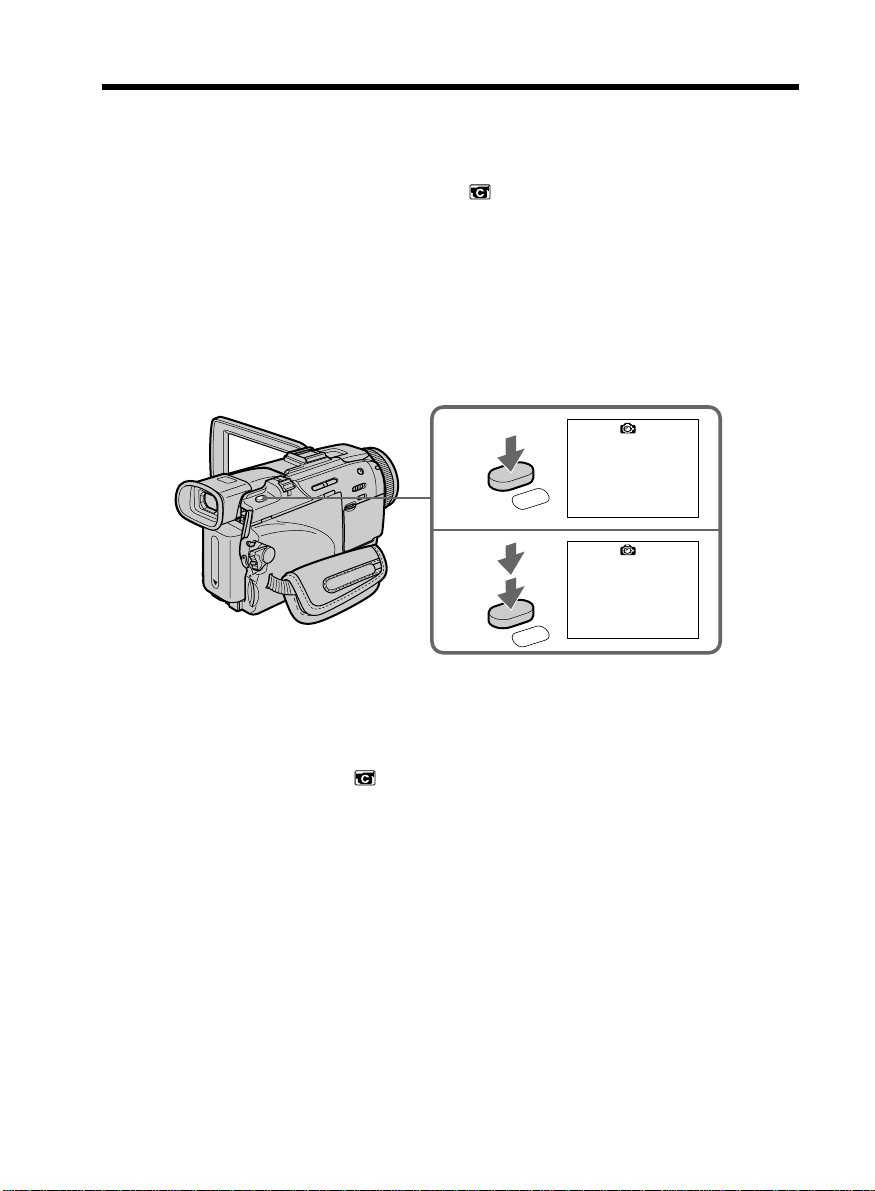

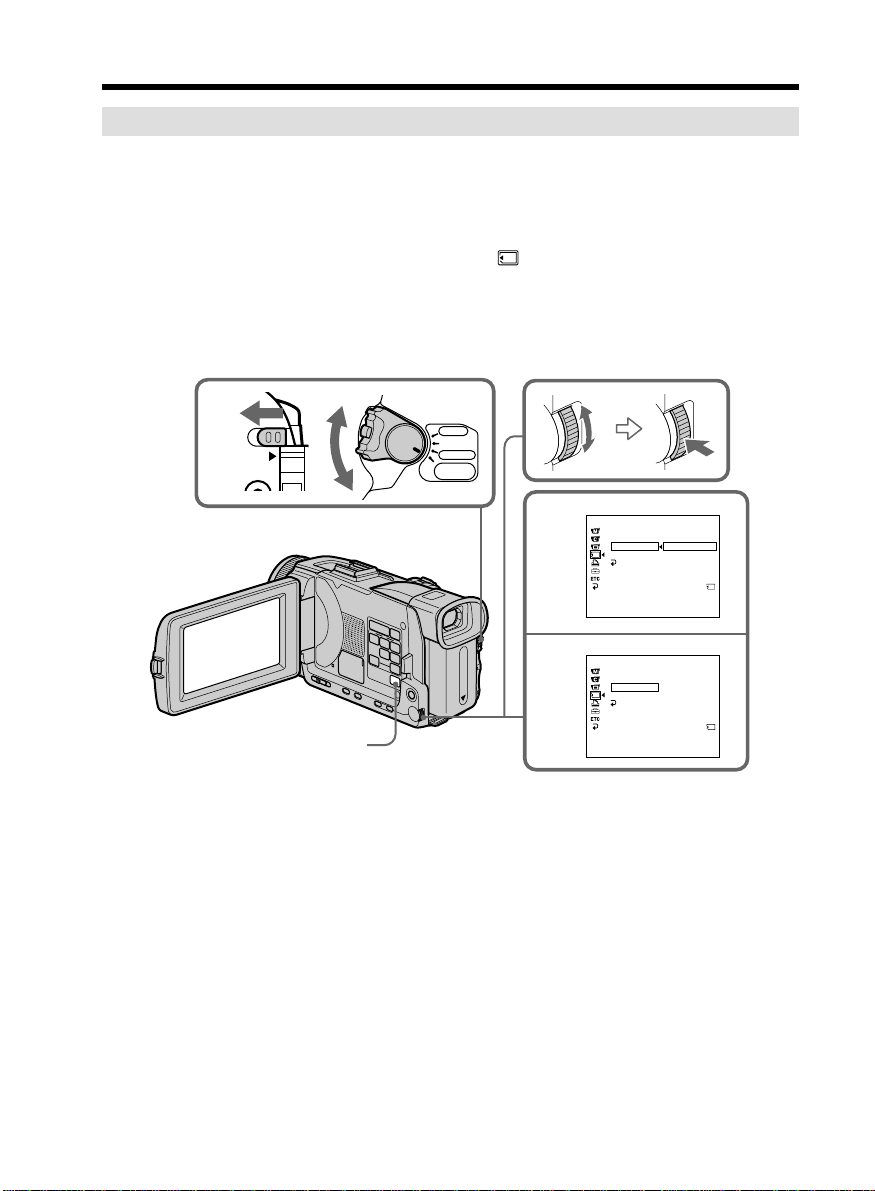

(1) In the standby, keep pressing PHOTO lightly until a still image appears. The
CAPTURE indicator appears. Recording does not start yet. To change the still
image, release PHOTO, select a still image again, and then press and hold
PHOTO lightly.
(2) Press PHOTO deeper.
Recording is complete when the bar scroll indicator disappears.
The image when you pressed PHOTO deeper will be recorded on the
“Memory Stick.”
Notes
•Do not shake or strike your camcorder when you record still images.
The image may fluctuate.
•You cannot record still images on a “Memory Stick” during following operations
( indicator flashes on the screen.):
– Wide mode
– Fader
– Picture effect
– Digital effect
– Super NightShot
– Color Slow Shutter
– MEMORY MIX
“Memory Stick”
For details, see page 117 for more information.
— Advanced Recording Operations —
Recording still images on a “Memory
Stick” during tape recording
1
2
1 / 6
CAPTURE
SFN
640
SFN
640
[a]: Number of recorded images
[b]: Approximate number of images that
can be recorded on the “Memory
Stick”
[a][b]
48
Image size of still images
Image size is automatically set to 640 × 480.
When you want to record still images in different size, use the Memory Photo recording
(p. 126).
When the POWER switch is set to CAMERA
You cannot select image quality.
The image quality when you set the POWER switch to MEMORY/NETWORK (DCR-
TRV50 only) is used. (The default setting is SUPER FINE).
During and after recording still images on a “Memory Stick”
Your camcorder continues recording on tape.
To record still images using the Remote Commander
Press PHOTO on the Remote Commander. Your camcorder immediately records the
image on the screen.
To record still images on a “Memory Stick” during tape recording
You cannot check an image on the screen by pressing PHOTO lightly. The image when
you press PHOTO will be recorded on the “Memory Stick.”
To record images with higher quality
We recommend that you use the Memory Photo recording (p. 126).
Title
The title cannot be recorded.
Recording still images on a “Memory Stick” during tape recording
49
Advanced Recording Operations
Recording still images on a “Memory Stick” during tape recording
Recording images with the flash
The flash pops up automatically. The default setting is auto (no indicator). To change
the flash mode, press the (flash) repeatedly until the flash mode indicator appears on
the screen.
Each press of (flash) changes the indicator as follows:
t t t No indicator
Auto red-eye reduction: The flash fires before recording to reduce red-eye.
Forced flash: The flash fires regardless of the surrounding brightness.
No flash: The flash does not fire.
The flash is automatically adjusted to the appropriate brightness. You can also change
FLASH LVL to the desired brightness in the menu settings (p. 200). Try recording
various images to find the most appropriate setting for FLASH LVL.
Notes
•Attaching the lens hood (supplied) or a conversion lens (optional) may block the light
from the flash or cause lens shadow to appear.
•You cannot use an external flash (optional) and the built-in flash at the same time.
• (auto red-eye reduction) may not produce the desired effect depending on
individual differences, the distance to the subject, the subject not looking at the pre-
recording flash or other conditions.
•A flash effect cannot be obtained easily when you use forced flash in a bright location.
•When you record images with the flash, sound may not be recorded clearly.
•When recording with the flash, it takes longer to prepare for image capture. This is
because your camcorder starts to charge power for firing after the flash pops up.
Darken the surroundings by covering the lens, and press PHOTO lightly so that your
camcorder starts to charge power after the flash pops up.
•If it is not easy to focus on the subject automatically, for example, when recording in
the dark, use the focal distance information (p. 70) for focusing manually.
When you record images with the flash
The allowed shooting distance is shorter than when you record on a “Memory Stick” in
Memory Photo recording.
(flash)
50
Recording still images on a “Memory Stick” during tape recording
If you leave your camcorder for five or more minutes after disconnecting the
power supply
Your camcorder returns to the default setting (auto).
You cannot shoot images with the flash during the following operations:
– Fader
– Recording
The flash does not fire even if you select auto (no indicator) and (auto red-eye
reduction) during the following operations:
– Exposure
– Flexible Spot Meter
– NightShot
– Spotlight of PROGRAM AE
– Sunset & moon of PROGRAM AE
– Landscape of PROGRAM AE
When you use an external flash (optional) which does not have the auto red-eye
reduction
You cannot select the auto red-eye reduction.
51
Advanced Recording Operations
Self-timer recording
You can record still images on “Memory Stick”s with the self-timer. You can also use
the Remote Commander for this operation.
Before operation
•Insert a “Memory Stick” into your camcorder (p. 119).
•Set PHOTO REC in to MEMORY in the menu settings.(The default setting is
MEMORY.)
(1) In the standby, press FN and select PAGE2.
(2) Press SELFTIMER.
The
(self-timer) indicator appears on the screen.
(3) Press PHOTO deeper.
The self-timer starts counting down from 10 with a beep. In the last two
seconds of the countdown, the beep gets faster, then the recording starts
automatically.
To cancel the self-timer
Press SELFTIMER so that the (self-timer) indicator disappears from the screen while
your camcorder is in the standby. You cannot cancel self-timer using the Remote
Commander.
Note
The self-timer recording is automatically canceled when:
– The self-timer recording is finished.
– The POWER switch is set to OFF (CHG) or VCR.
Self-timer recording
You can operate the self-timer recording only during the recording standby.
Recording still images on a “Memory Stick” during tape recording
3
1
FN
52
You can record still images such as photographs on tapes.
You can record about 510 images in the SP mode and about 765 images in the LP mode
on a 60-minute tape.
(1) In the standby, set PHOTO REC in to TAPE in the menu settings (p. 201).
(2) Keep pressing PHOTO lightly until a still image appears.
The CAPTURE indicator appears. Recording does not start yet.
To change the still image, release PHOTO, select a still image again, and then
press and hold PHOTO lightly.
(3) Press PHOTO deeper.
The still image on the screen is recorded for about seven seconds. The sound
during those seven seconds is also recorded.
The still image is displayed on the screen until recording is completed.
Recording images with the flash
For the details, see page 49.
Recording images with self-timer
(1) Set PHOTO REC in to TAPE in the menu settings (p. 201).
(2) Follow steps 1 and 3 on page 51.
Recording still images on a tape
– Tape Photo recording
2
•••••••
3
CAPTURE
53
Advanced Recording Operations
Recording still images on a tape – Tape Photo recording
Notes
•During tape photo recording, you cannot change the mode or setting.
•When recording a still image, do not shake your camcorder. The image may fluctuate.
•You cannot use PHOTO during the following operations ( indicator flashes on
the screen):
– Fader
– Digital effect
If you record a moving subject with the tape photo recording
When you play back the still image on other equipment, the image may fluctuate.
This is not a malfunction.
To use the tape photo recording with the Remote Commander
Press PHOTO on the Remote Commander. Your camcorder records an image on the
screen immediately.
To use the tape photo recording during the normal camera recording
You cannot check an image on the screen by pressing PHOTO lightly. Press PHOTO
deeper. The still image is then recorded for about seven seconds, and your camcorder
returns to the standby.
To record clear still images with little unsteadiness
We recommend that you record on “Memory Stick”s using the Memory Photo
recording.
When playing back images recorded with the flash on other equipment
These images may flicker.
54

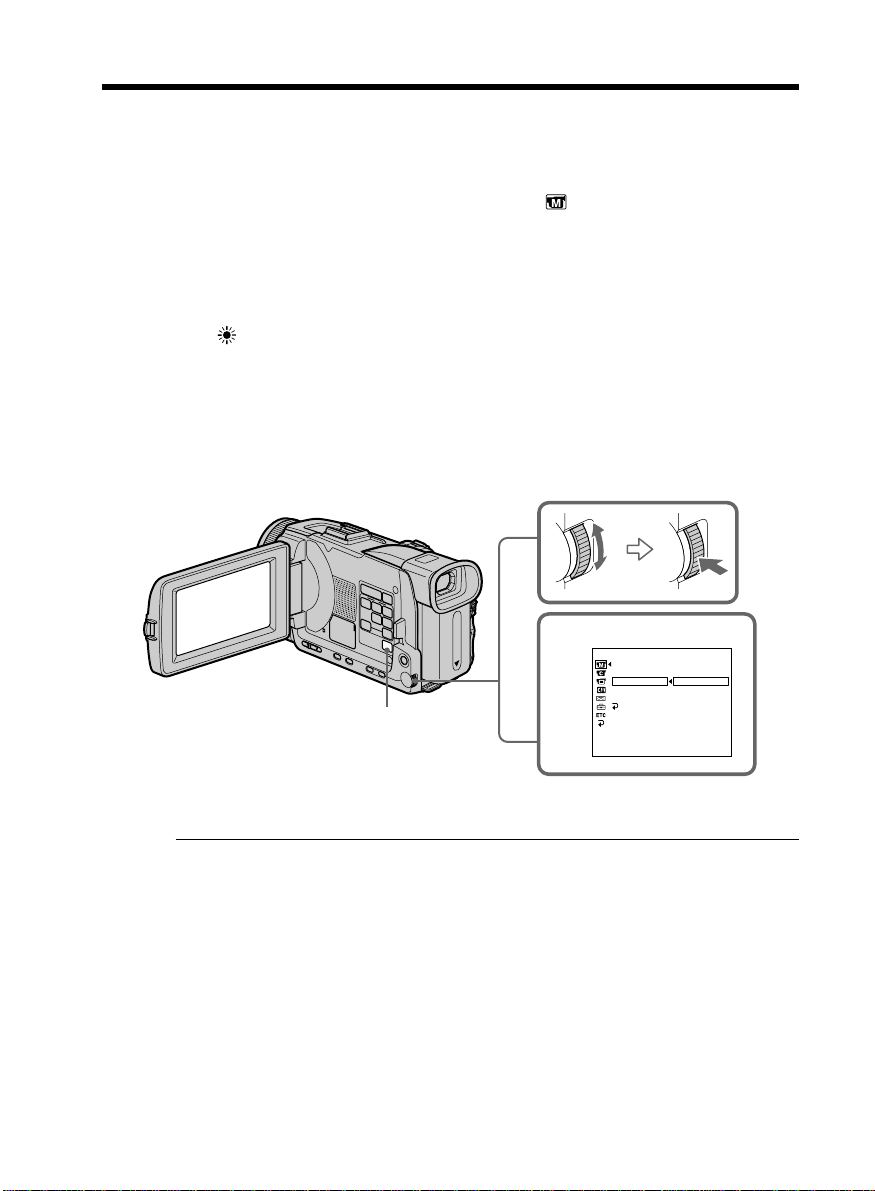

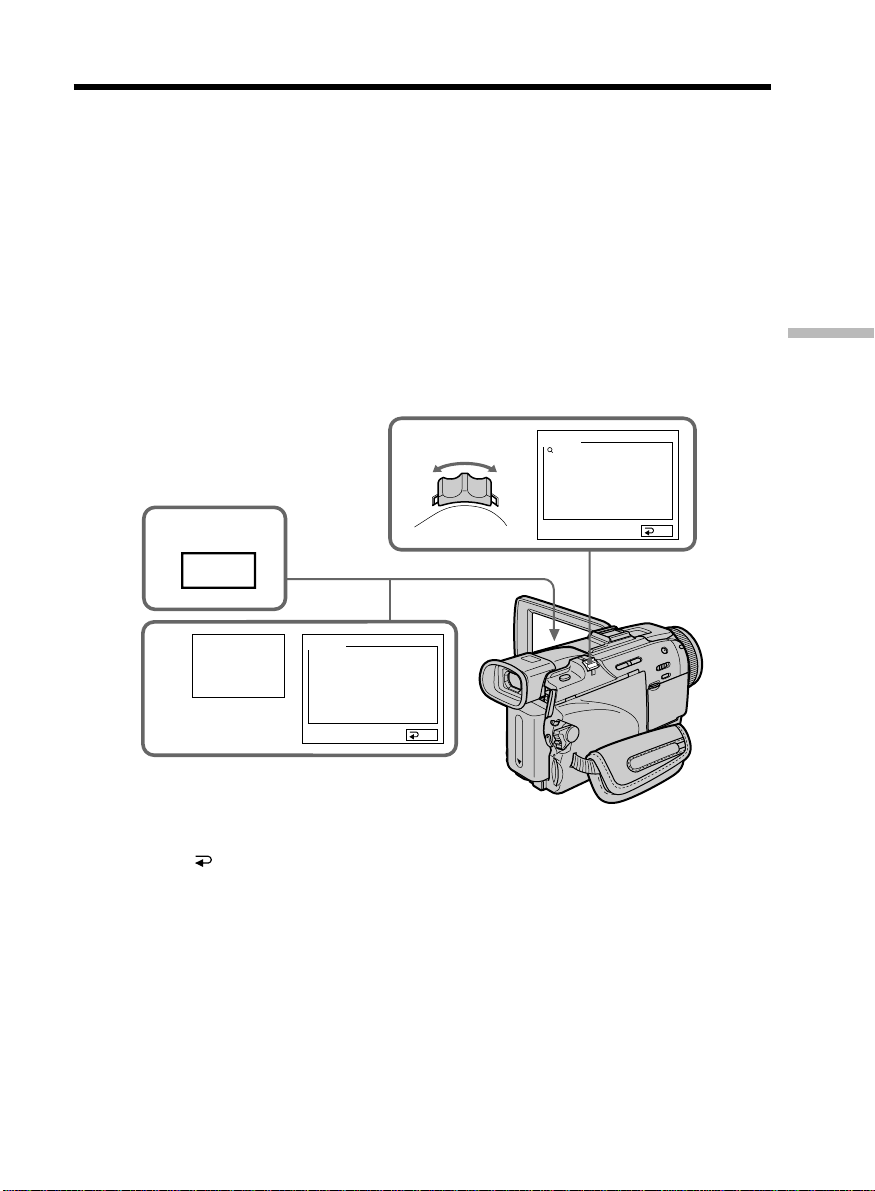

You can manually adjust and set the white balance. This adjustment makes white
subjects look white and allows more natural color balance. Normally white balance is
automatically adjusted.
(1) Set the POWER switch to CAMERA or MEMORY/NETWORK (DCR-TRV50
only). Press MENU, then select WHT BAL in
with the SEL/PUSH EXEC
dial (p. 200).
(2) Turn the SEL/PUSH EXEC dial to select the desired white balance, then press
dial.
HOLD :
Recording a single-colored subject or background
OUTDOOR :
•When recording a sunset/sunrise, just after sunset, just before sunrise, neon
signs, or fireworks
•Under a color-matching fluorescent lamp
n INDOOR :
•Where lighting condition changes quickly
•Excessively bright places such as studios
•Under sodium lamps or mercury lamps
To return to the automatic white balance
Set WHT BAL to AUTO in the menu settings.
If the picture is being taken in a studio lit by TV lighting
We recommend that you record in the INDOOR.
When you record under fluorescent lighting
Use the automatic white balance or HOLD.
Your camcorder may not adjust the white balance correctly in the INDOOR.
In the automatic white balance
Point your camcorder at a white subject for about 10 seconds after setting the POWER
switch to CAMERA to get a better adjustment when:
– You detach the battery for replacement.
– You take your camcorder outdoors from inside a house holding the exposure, or vice
versa.
In the HOLD white balance
Set the white balance to AUTO and reset to HOLD after a few seconds when:
– You change the PROGRAM AE.
– You take your camcorder outdoors from inside a house, or vice versa.
1
[
MENU
]
:
END
MANUAL SET
P EFFECT
FLASH LVL
WHT BAL
N.S. LIGHT
AUTO SHTR
RETURN
AUTO
HOLD
OUTDOOR
INDOOR
STBY
MENU
Adjusting the white balance manually
55
Advanced Recording Operations
You can record a 16:9 wide picture to watch on a 16:9 wide-screen TV (16:9WIDE).
If you connect a TV compatible with the ID-1/ID-2 system, the screen size is
automatically selected.
Black bands appear on the screen during recording in 16:9WIDE mode [a]. The picture
during playback on a normal TV [b] or on a wide-screen TV [c] is compressed in the
longwise direction. If you set the screen mode of the wide-screen TV to the full mode,
you can watch pictures of normal images [d].
(1) In the standby, press MENU, then turn the SEL/PUSH EXEC dial to select
16:9WIDE in
, then press the dial (p. 201).
(2) Turn the SEL/PUSH EXEC dial to select ON, then press the dial.
To cancel the wide mode
Set 16:9WIDE to OFF in the menu settings.
Using the wide mode
[a]
[c]
[b]
[d]
16:9
WIDE
2
ON
CAMERA SET
D ZOOM
PHOTO REC
16:9WIDE
STEADYSHOT
FRAME REC
INT. REC
RETURN
[
MENU
]
:
END
MENU
56
In the wide mode
You cannot select the following functions:
– Recording still images on a “Memory Stick” in the tape recording or tape recording
standby
– OLD MOVIE
– BOUNCE
During recording
You cannot select or cancel the wide mode. When you cancel the wide mode, set your
camcorder to the standby and then set 16:9WIDE to OFF in the menu settings.
Connection for a TV
Pictures recorded in the 16:9WIDE mode automatically appear on the TV screen at full
size when:
– You connect your camcorder to a TV that is compatible with the video ID (ID-1/ID-2)
system.
– You connect your camcorder to the S video jack on the TV.
ID-1 system
The ID-1 system sends aspect ratio (screen horizontal/vertical ratio) information (16:9,
4:3, or letter box) with video signals.
ID-2 system
The ID-2 system sends a copyright protection signal with ID-1 signals inserted between
video signals when you connect your camcorder to other equipment using an A/V
connecting cable.
Using the wide mode
57
Advanced Recording Operations
You can fade in or out to give your recording a more professional appearance.
MONOTONE
When fading in, the picture gradually changes from black-and-white to color.
When fading out, the picture gradually changes from color to black-and-white.
1)
You can use the bounce when D ZOOM is set to OFF in the menu settings.
2)
Fade in only.
Using the fader
FADER
OVERLAP
2)
WIPE
2)
DOT
2)
[a]
RECSTBY
RECSTBY
[b]
M. FADER
(mosaic)
BOUNCE
1) 2)
58

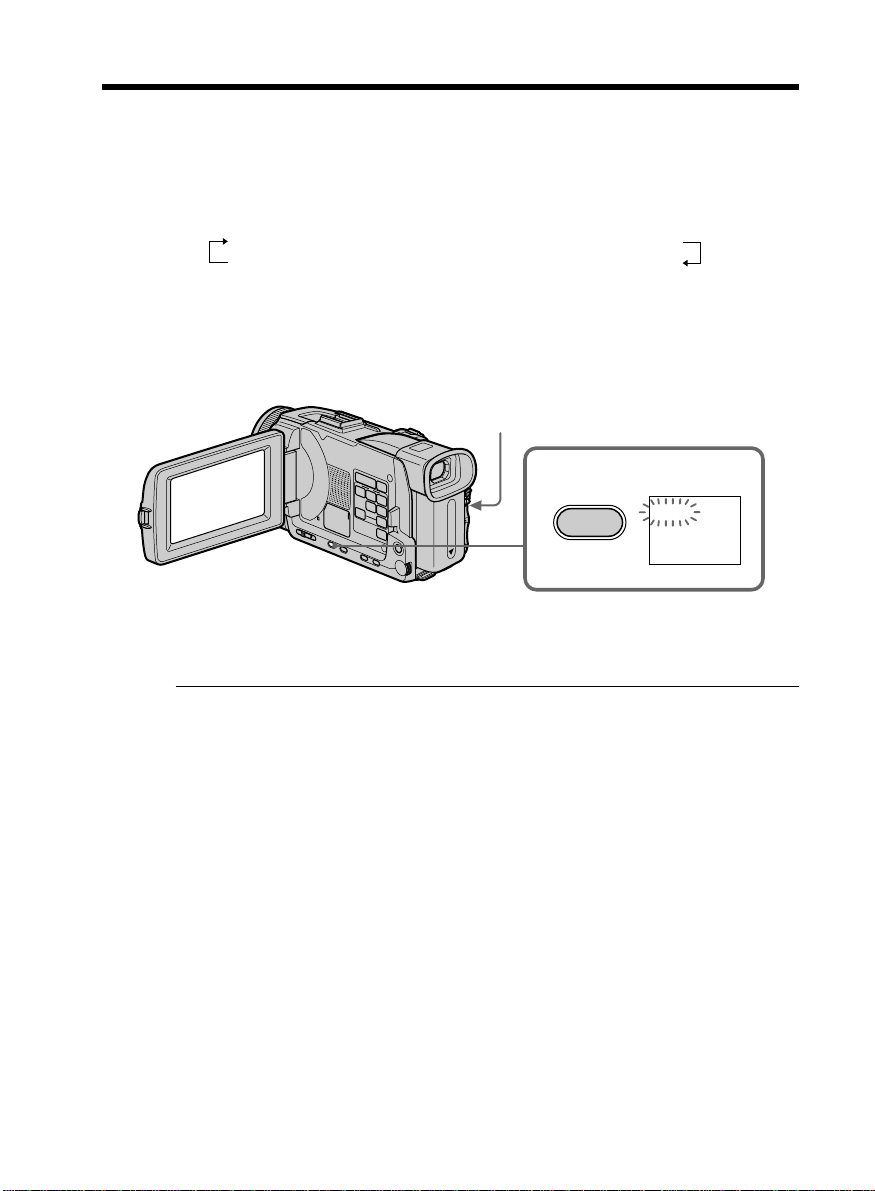

(1) When fading in [a]
In the standby, press FADER until the desired fader indicator flashes.
When fading out [b]
In the recording, press FADER until the desired fader indicator flashes.
The indicator changes as follows:
FADER t M. FADER t BOUNCE t MONOTONE
(no indicator)T DOT T WIPE T OVERLAP
The last selected fader is indicated first of all.
(2) Press START/STOP. The fader indicator stops flashing.
After fade in/out ends, your camcorder automatically returns to the normal
mode.
To cancel the fader
Before pressing START/STOP, press FADER until the indicator disappears.
Note
You cannot use the following functions while using the fader. Also, you cannot use the
fader while using the following functions:
– Digital effect
– Super NightShot
– Color Slow Shutter
– Tape photo recording
– Recording still images on a “Memory Stick” in the tape recording or tape recording
standby
– Recording with the flash
– Interval recording
– Frame recording
When you select OVERLAP, WIPE, or DOT
Your camcorder automatically stores the image recorded on a tape. While the image is
being stored, the indicators flash fast, and the playback picture disappears. At this
stage, the picture may not be recorded clearly, depending on the tape condition.
Using the fader
1
FADER
FADER
START/STOP
59
Advanced Recording Operations
When you set the POWER switch to MEMORY/NETWORK (DCR-TRV50 only)
You cannot use the fader.
While using the bounce, you cannot use the following functions:
– Focus
– Zoom
– Picture effect
– Exposure
– Flexible Spot Meter
Note on the bounce
The BOUNCE indicator does not appear in the following mode or functions:
– When D ZOOM is activated in the menu settings
– Wide mode
– Picture effect
– PROGRAM AE
Using the fader
60
You can digitally process images to obtain special effects like those in films or on TV.
NEG. ART [a] : The color and brightness of the picture are reversed.
SEPIA : The picture appears in sepia.
B&W : The picture appears in monochrome (black-and-white).
SOLARIZE [b] : The light intensity becomes clearer, to make the picture look more like
an illustration.
SLIM [c] : The picture expands vertically.
STRETCH [d] : The picture expands horizontally.
PASTEL [e] : The contrast of the picture is emphasized, to make the picture look
more like an animated cartoon.
MOSAIC [f] : The picture appears mosaic-patterned.
(1) Set the POWER switch to CAMERA. Press MENU, then select P EFFECT in
with the SEL/PUSH EXEC dial, then press the dial (p. 200).
(2) Turn the SEL/PUSH EXEC dial to select the desired picture effect, then press
the dial.
To cancel the picture effect
Set P EFFECT to OFF in the menu settings.
The following functions do not work during the picture effect
– Recording still images on a “Memory Stick” in the tape recording or tape recording
standby
– OLD MOVIE of digital effect
– Bounce
When you set the POWER switch to OFF (CHG)
Picture effect is automatically canceled.
Using special effects – Picture effect
[a] [b] [c] [d] [e] [f]
1
MANUAL SET
P EFFECT
FLASH LVL
WHT BAL
N. S. LIGHT
AUTO SHTR
RETURN
OFF
NEG. ART
SEPIA
B&W
SOLARIZE
SLIM
STRETCH
PASTEL
MOSAIC
[
MENU
]
:
END
MENU
61
Advanced Recording Operations
Using special effects – Digital effect
You can add special effects to recorded pictures using the various digital functions.
Sound is recorded normally.
STILL
You can record a still image so that it is superimposed on a moving picture.
FLASH (FLASH MOTION)
You can record still images successively at constant intervals.
LUMI. (LUMINANCE KEY)
You can swap a brighter area in a still image with a moving picture.
TRAIL
You can record the picture so that an incidental image like a trail is left.
SLOW SHTR (SLOW SHUTTER)
You can slow down the shutter speed. The slow shutter is good for recording dark
pictures more brightly.
OLD MOVIE
You can add an old movie type atmosphere to pictures. Your camcorder automatically
sets the wide mode to ON and picture effect to SEPIA, and sets the appropriate shutter
speed.
STILL
LUMI.
Still image
Still image
Moving picture
Moving picture
62
Using special effects – Digital effect
(1) Set the POWER switch to CAMERA, press FN to display PAGE1.
(2) Press DIG EFFT. The screen to select a desired digital effect appears.
(3) Press a desired digital effect. In the STILL and LUMI. modes, the still image is
stored in memory.
(4) Press –/+ to adjust the effect.
–: To reduce the effect
+: To increase the effect
Items to be adjusted
STILL The rate of the still image you want to superimpose on the moving
FLASH The interval of frame by frame playback
LUMI. The color scheme of the area in the still image which is to be
swapped with a moving picture
TRAIL The vanishing time of the incidental image
SLOW SHTR Shutter speed. The larger the shutter speed number, the slower the
shutter speed.
OLD MOVIE No adjustment necessary
(5) Press OK to return to PAGE1.
To return to FN
Press EXIT.
To cancel the digital effect
Press OFF to return to PAGE1.
1
2~4
FN
LUMI.
– +
OK
OFF
DIG
EFFT
DIG EFFT DIG EFFT
STILL
SLOW
SHTR
OLD
MOVIE
OFF OK
LUMI.FLASH TRAIL
The bar appears when setting following
digital effect : STILL, FLASH, LUMI.,
TRAIL.
63
Advanced Recording Operations
Using special effects – Digital effect
Notes
•The following functions do not work during digital effect:
– Fader
– Super NightShot
– Color Slow Shutter
– Tape photo recording
– Recording still images on a “Memory Stick” in the tape recording or tape recording
standby
•The PROGRAM AE does not work in the slow shutter.
•The following functions do not work in the old movie:
– Wide mode
– Picture effect
– PROGRAM AE
When you set the POWER switch to OFF (CHG)
Digital effect is automatically canceled.
When recording in the slow shutter
Auto focus may not be effective. Focus manually using a tripod.
Shutter speed
Shutter speed number Shutter speed
SLOW SHTR 1 1/30
SLOW SHTR 2 1/15
SLOW SHTR 3 1/8
SLOW SHTR 4 1/4
64
Using the PROGRAM AE
You can select the PROGRAM AE (Auto Exposure) to suit your specific shooting
requirements.
Spotlight
This mode prevents people’s faces, for example, from appearing excessively white
when shooting subjects lit by strong light in the theater.
Soft portrait
This mode brings out the subject while creating a soft background for subjects such as
people or flowers.
Sports lesson
This mode minimizes camera-shake on fast-moving subjects such as in tennis or golf.
Beach & ski
This mode prevents people’s faces from appearing dark in strong light or reflected light,
such as at a beach in midsummer or on a ski slope.
Sunset & moon
This mode allows you to maintain atmosphere when you are recording sunsets, general
night views, fireworks displays and neon signs.
Landscape
This mode is for when you are recording distant subjects such as mountains, and
prevents your camcorder from focusing on glass or metal mesh in windows when you
are recording a subject behind glass or a screen.
65
Advanced Recording Operations
(1) Set the POWER switch to CAMERA or MEMORY/NETWORK (DCR-TRV50
only), press PROGRAM AE. The PROGRAM AE indicator appears.
(2) Turn the SEL/PUSH EXEC dial to select the desired PROGRAM AE.
The indicator changes as follows:
y y y y y
To cancel the PROGRAM AE
Press PROGRAM AE.
Using the PROGRAM AE
1
2
PROGRAM
AE
66
Using the PROGRAM AE
Notes
•Because your camcorder is set to focus only on subjects in the middle to far distance,
you cannot take close-ups in the following modes:
– Spotlight
– Sports lesson
– Beach & ski
•Your camcorder is set to focus only on distant subjects in the following modes:
– Sunset & moon
– Landscape
•The following functions do not work in the PROGRAM AE:
– Color Slow Shutter
– Slow Shutter
– Old movie
– Bounce
•When you set the POWER switch to MEMORY/NETWORK (DCR-TRV50 only),
Sports lesson does not work. (The indicator flashes.)
•The PROGRAM AE does not work in the following cases. (The indicator flashes.)
– To set NIGHTSHOT to ON
– To record images on a “Memory Stick” using the MEMORY MIX.
While WHT BAL is set to AUTO in the menu settings
The white balance is adjusted even if the PROGRAM AE is selected.
You can adjust the following functions while using the PROGRAM AE
– Exposure
– Flexible Spot Meter
If you are recording under a discharge tube such as a fluorescent lamp, sodium
lamp or mercury lamp
Flickering or changes in color may occur in the following modes. If this happens, turn
the PROGRAM AE off.
– Soft portrait
– Sports lesson
67
Advanced Recording Operations

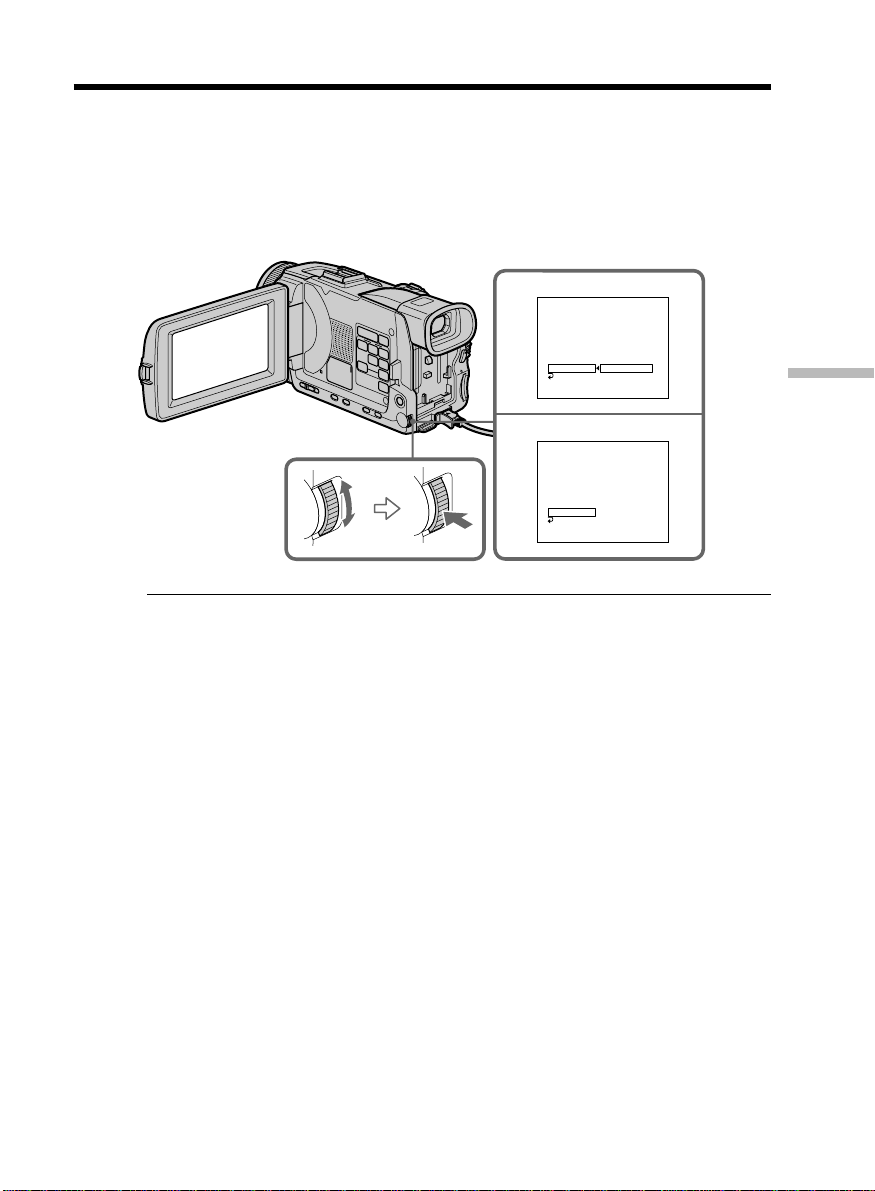

You can manually adjust and set the exposure. Normally the exposure is automatically
adjusted. Adjust the exposure manually in the following cases:
– When the subject is backlit
– When shooting subjects and dark backgrounds
– When recording dark pictures (e.g. night scenes) faithfully
(1) Set the POWER switch to CAMERA or MEMORY/NETWORK (DCR-TRV50
only), press EXPOSURE.
The exposure indicator appears.
(2) Turn the SEL/PUSH EXEC dial to adjust the brightness.
To return to the automatic exposure
Press EXPOSURE.
When you adjust the exposure manually, the following functions do not work:
– Color Slow Shutter
– Backlight
Your camcorder automatically returns to the automatic exposure:
– If you change the PROGRAM AE.
– If you slide NIGHTSHOT to ON.
Adjusting the exposure manually
2
EXPOSURE
68
You can take a picture with the appropriate exposure automatically for just the point
you want to focus on and with its exposure fixed. Use the Flexible Spot Meter in the
following cases:
– The subject is backlit.
– When there is strong contrast between the subject and background such as with a
subject that is on stage and lighted by a spotlight.

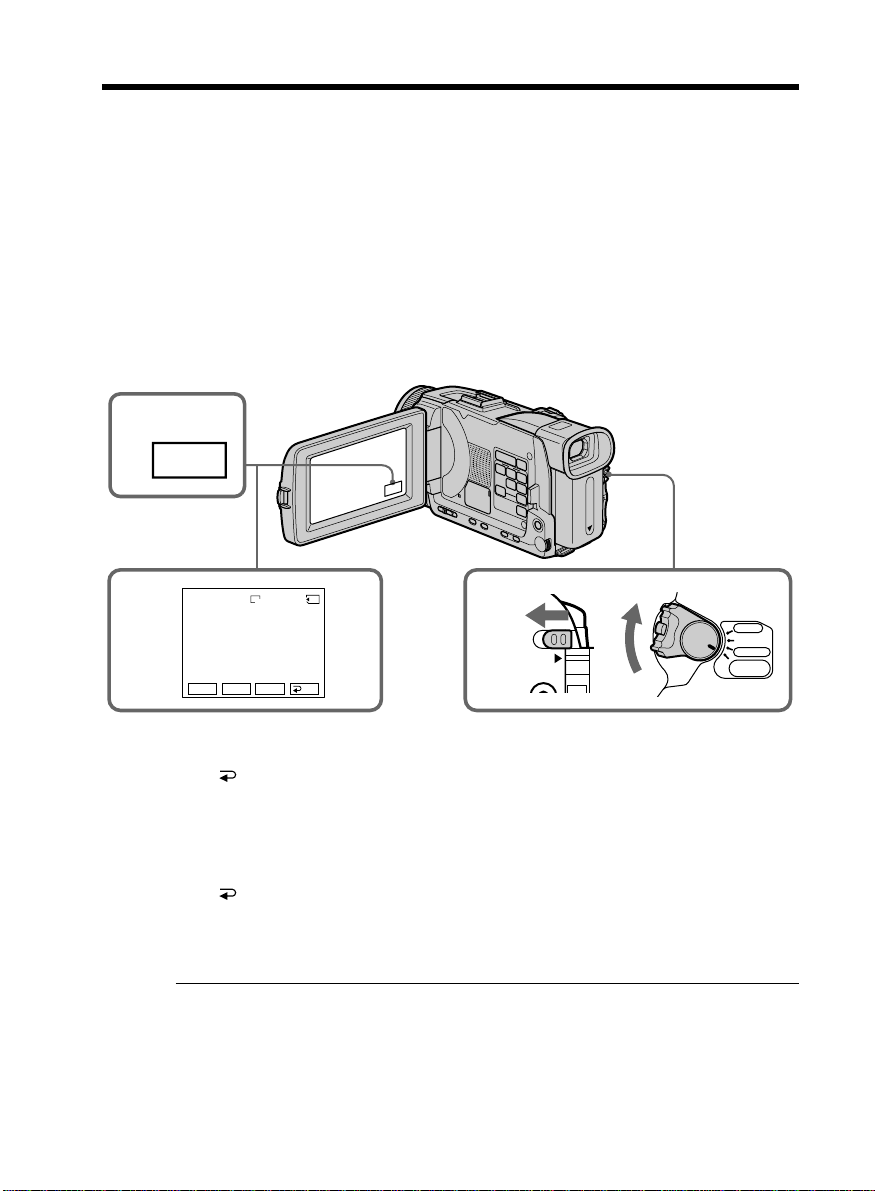

(1) When the POWER switch is set to CAMERA or MEMORY/NETWORK (DCR-
TRV50 only), press FN to display PAGE1.
(2) Press SPOT METER. The SPOT METER screen appears.
(3) Press the desired area in the frame on the LCD screen.
The SPOT METER indicator flashes on the LCD screen. The exposure of the
point you selected is adjusted.
(4) Press
OK to return to PAGE1.
To return to FN
Press EXIT.
To return to the automatic exposure
Press AUTO to return to PAGE1.
The following functions do not work during Flexible Spot Meter
– Color Slow Shutter
– Backlight
– Exposure
If you slide NIGHTSHOT to ON
Your camcorder automatically returns from the Flexible Spot Meter to automatic
exposure.
Using the spot light-metering
– Flexible Spot Meter
1
2~4
FN
SPOT
METER
OK
AUTO
PAGE1 PAGE2
EXIT
END
SCH
SPOT
FOCUS
DIG
EFFT
MEM
M I X
SPOT
METER
SPOT METER
69
Advanced Recording Operations
You can gain better results by manually adjusting the focus in the following cases.
Normally, focus is automatically adjusted.
•The autofocus is not effective when shooting
– Subjects through glass coated with water droplets
– Horizontal stripes
– Subjects with little contrast with backgrounds such as walls and sky
•When you want to change the focus from a subject in the foreground to a subject in
the background.
•Shooting a stationary subject when using a tripod.
(1) Set FOCUS to MAN when the POWER switch is set to CAMERA or
MEMORY/NETWORK (DCR-TRV50 only).
The 9 indicator appears.
(2) Turn the focus ring to sharpen focus.
To return to the autofocus
Set FOCUS to AUTO.
To record distant subjects
When you set FOCUS to INFINITY, the lens focuses on and indicator appears. When
you release FOCUS, your camcorder returns to the manual focus. Use this mode when
your camcorder focuses on near objects even though you are trying to shoot a distant
object.
Focusing manually
2
Focus ring
FOCUS switch
70
To focus precisely
It is easier to focus on subjects if you adjust the zoom to shoot at the “W” (wide-angle)
after focusing at the “T” (telephoto) position.
When you shoot close to the subject
Focus at the end of the “W” (wide-angle) position.
9 changes as follows:
when recording a distant subject
when the subject is too close to focus on
Focal distance information is displayed for about three seconds on the screen in
the following cases:
– When switching the focus adjustment mode from autofocus to manual
– When turning the focus ring
Focal distance information
– This information aids focusing if it is not easy to focus on the subject, for example,
when recording in the dark. Use this information as a rough guide to get a sharp
focus.
– You cannot get correct information if you have attached a conversion lens (optional) to
your camcorder.
Focusing manually
71
Advanced Recording Operations
You can take a picture with the appropriate focus automatically for just the point you
want to focus on and with its focus fixed.
(1) When the POWER switch is set to CAMERA or MEMORY/NETWORK (DCR-
TRV50 only), set FOCUS to MAN.
(2) Press FN to display PAGE1.
(3) Press SPOT FOCUS. The SPOT FOCUS screen appears.
(4) Press the desired area in the frame on the LCD screen.
The 9 indicator flashes on the LCD screen. The focus of the point you selected
is adjusted.
(5) Press
OK to return to PAGE1.
To return to FN
Press EXIT.
To return to the autofocus
Set FOCUS to AUTO.
The following functions do not work during Spot Focus:
– Exposure
– Fader
– Backlight
– PROGRAM AE
Focal distance information
It is not displayed on the screen.
Using the spot focus – Spot Focus
2
3~5
FN
SPOT
FOCUS
OK
SPOT
FOCUS
DIG
EFFT
MEM
M I X
SPOT
METER
END
SCH
PAGE1 PAGE2
EXIT
SPOT FOCUS
FOCUS switch
72

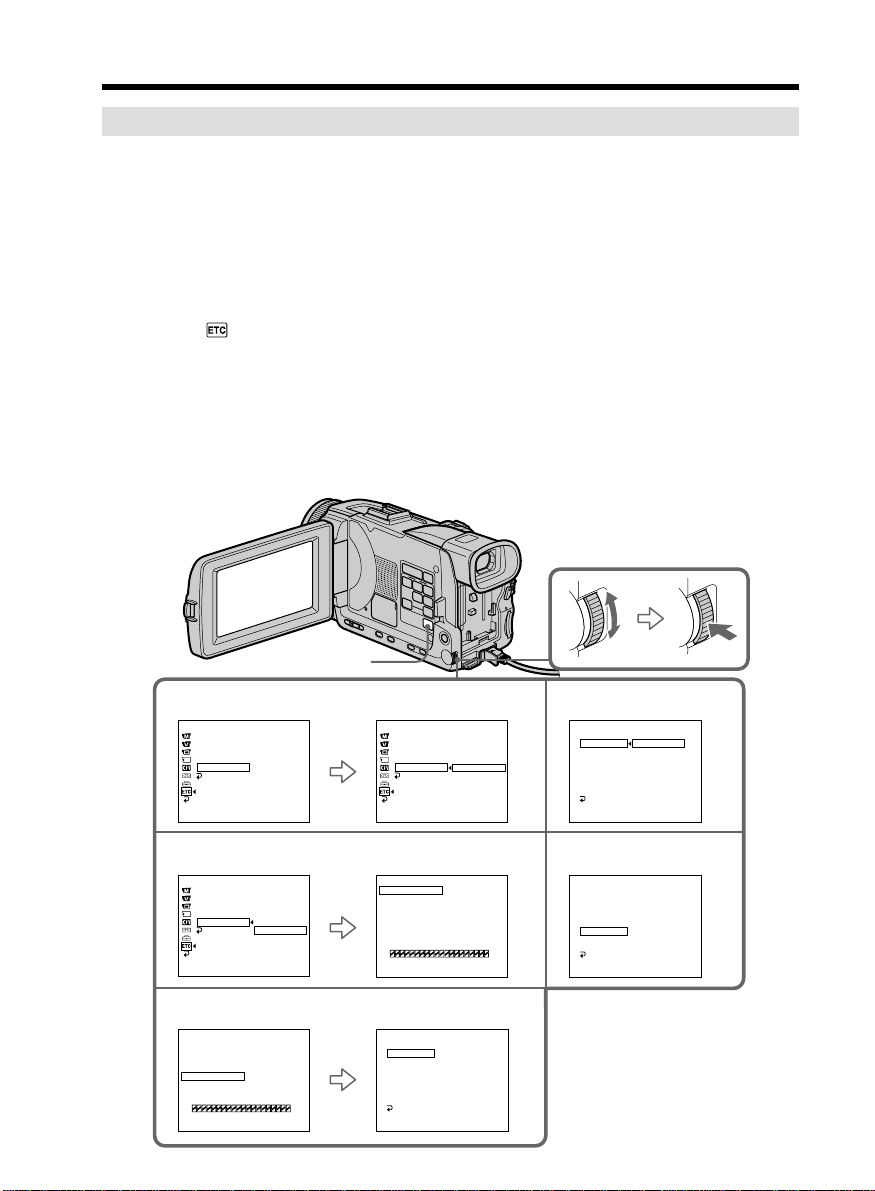

You can make a time-lapse recording by setting the camcorder to automatically record
and standby sequentially. You can achieve an excellent recording for flowering, gradual
appearances, etc., with this function.

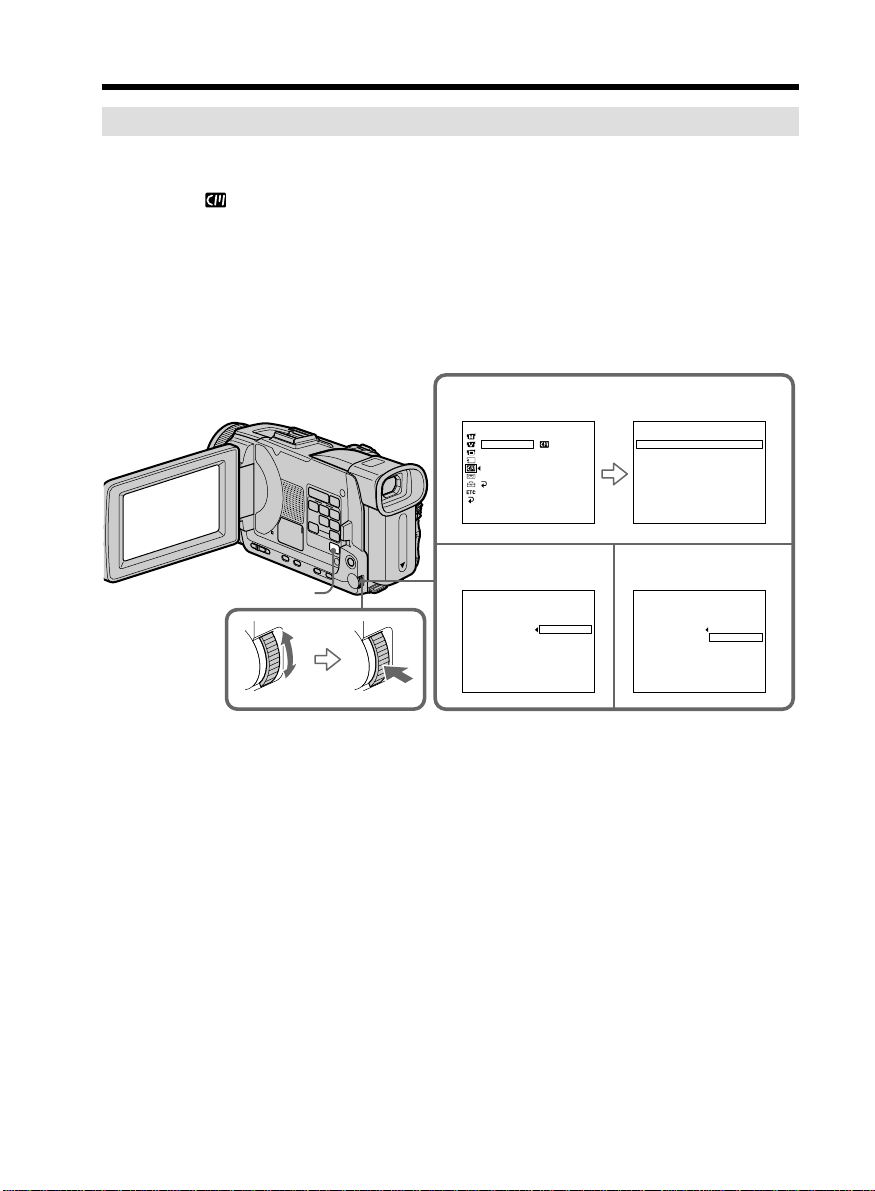

(1) In the standby, press MENU, then turn the SEL/PUSH EXEC dial to select
INT. REC in
, then press the dial (p. 201).
(2) Turn the SEL/PUSH EXEC dial to select SET, then press the dial.
(3) Turn the SEL/PUSH EXEC dial to set INTERVAL and REC TIME.
1 Turn the SEL/PUSH EXEC dial to select INTERVAL, then press the dial.
2 Turn the SEL/PUSH EXEC dial to select the desired interval time, then
press the dial.
The time: 30SEC y 1MIN y 5MIN y 10MIN
3 Turn the SEL/PUSH EXEC dial to select REC TIME, then press the dial.
4 Turn the SEL/PUSH EXEC dial to select the desired recording time, then
press the dial.
The time: 0.5SEC y 1SEC y 1.5SEC y 2SEC
5 Turn the SEL/PUSH EXEC dial to select
RETURN, then press the dial.
(4) Turn the SEL/PUSH EXEC dial to select ON, then press the dial.
(5) Press MENU to erase the menu display. The INTERVAL indicator flashes.
(6) Press START/STOP to start interval recording. The INTERVAL indicator lights
up.
Interval recording
10 min10 min
1 s 1 s
9 min 59 s
9 min 59 s
[a]
[b]
[c]
Example
[a]REC TIME
[b]Waiting time
[c] INTERVAL
73
Advanced Recording Operations
Interval recording
4
6
CAMERA SET
D ZOOM
PHOTO REC
16:9WIDE
STEADYSHOT
FRAME REC
INT. REC
RETURN
ON
[
MENU
]
:
END
5
INTERVAL
STBY
[
MENU
]
:
END
[
MENU
]
:
END
[
MENU
]
:
END
[
MENU
]
:
END
CAMERA SET
INT. REC
INTERVAL
REC TIME
RETURN
30SEC
CAMERA SET
INT. REC
INTERVAL
REC TIME
RETURN
30SEC
1MIN
5MIN
10MIN
CAMERA SET
INT. REC
INTERVAL
REC TIME
RETURN
0.5SEC
CAMERA SET
INT. REC
INTERVAL
REC TIME
RETURN
0.5SEC
1SEC
1.5SEC
2SEC
2
3
MENU
[
MENU
]
:
END
CAMERA SET
D ZOOM
PHOTO REC
16:9WIDE
STEADYSHOT
FRAME REC
INT. REC
RETURN
ON
OFF
SET
STBY
STBY
STBY
STBY
[
MENU
]
:
END
CAMERA SET
INT. REC
INTERVAL
REC TIME
RETURN
30SEC
STBY
STBY
STBY
To cancel the interval recording
Perform either of the following:
– Set INT. REC to OFF in the menu settings.
– Set the POWER switch to other than CAMERA.
To perform normal recording during the watinig time
You can perform normal recording only once during the waiting time. Press START/
STOP, and the indicator flashes and normal recording starts.
To stop normal recording, press START/STOP again. To restart interval recording,
perform step 6.
On recording time
There may be a discrepancy in the recording time of up to +/– six frames from the
selected time.
When pressing START/STOP during recording time
Interval recording stops. To restart it, perform step 6.
74
You can make a recording with a stop-motion animated effect using frame recording.
To create this effect, alternately move the subject a little and make a frame recording.
We recommend that you use a tripod, and operate your camcorder using the Remote
Commander after step 4.

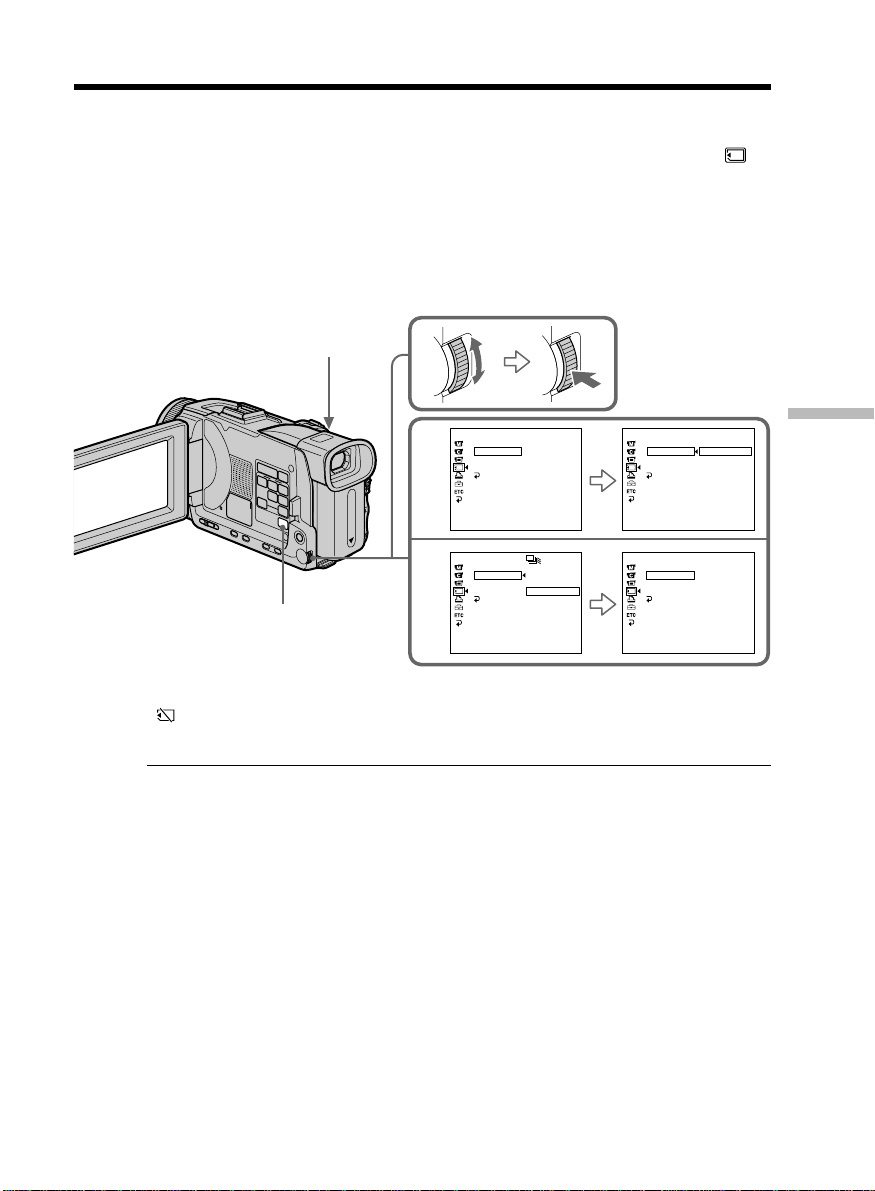

(1) In the standby, press MENU, then turn the SEL/PUSH EXEC dial to select
FRAME REC in
, then press the dial (p. 201).
(2) Turn the SEL/PUSH EXEC dial to select ON, then press the dial.
(3) Press MENU to erase the menu display.
The FRAME REC indicator lights up.
(4) Press START/STOP to start frame recording. Your camcorder makes a
recording for about six frames, and returns to recording standby.
(5) Move the subject, and repeat step 4.
To cancel the frame recording
Perform either of the following:
– Set FRAME REC to OFF in the menu settings.
– Set the POWER switch to other than CAMERA.
Note
The remaining tape time is not indicated correctly if you use this function continuously.
When using the frame recording
The last recorded frame is longer than other frames.
Frame by frame recording
– Frame recording
2
4
CAMERA SET
D ZOOM
PHOTO REC
16:9WIDE
STEADYSHOT
FRAME REC
INT. REC
RETURN
ON
[
MENU
]
:
END
CAMERA SET
D ZOOM
PHOTO REC
16:9WIDE
STEADYSHOT
FRAME REC
INT. REC
RETURN
OFF
ON
[
MENU
]
:
END
STBY
STBY
MENU
75
Advanced Playback Operations
During playback, you can process a scene using the following picture effect:
NEG. ART, SEPIA, B&W and SOLARIZE.
(1) In the playback or playback pause, press MENU, then select P EFFECT in
with the SEL/PUSH EXEC dial (p. 200).
(2) Turn the SEL/PUSH EXEC dial to select the desired picture effect, then press
the dial.
For details of each picture effect, see page 60.
To cancel the picture effect
Set P EFFECT to OFF in the menu settings.
Notes
•You cannot process externally input scenes using picture effect.
•You cannot record images on a tape on your camcorder when you have processed the
image using picture effect. However, you can record images on a “Memory Stick”
(p. 135, 147), or on a VCR using your camcorder as a player.
Pictures processed by picture effect
Pictures processed by picture effect is not output through the DV IN/OUT jack.
When you set the POWER switch to OFF (CHG) or stop playing back
The picture effect is automatically canceled.
— Advanced Playback Operations —
Playing back tapes with picture effect
MENU
1
MANUAL SET
P EFFECT
RETURN
OFF
NEG. ART
SEPIA
B&W
SOLARIZE
[
MENU
]
:
END
76
During playback, you can process a scene using the following digital effect:
STILL, FLASH, LUMI. and TRAIL.
(1) In the playback or playback pause, press FN and select PAGE2.
(2) Press DIG EFFT. The screen to select a desired digital effect appears.
(3) Press a desired digital effect. In the STILL or LUMI., the picture where you
select the mode is stored in memory as a still image.
(4) Press –/+ to adjust the effect. Refer to page 62 for details.
(5) Press
OK to return to PAGE2.
To return to FN
Press EXIT.
To cancel the digital effect
Press OFF to return to PAGE2.
Notes
•You cannot process externally input scenes using digital effect.
•You cannot record images on a tape on your camcorder when you have processed the
image using digital effect. However, you can record images on a “Memory Stick”
(p. 135, 147), or on a VCR using your camcorder as a player.
Pictures processed by digital effect
Pictures processed by digital effect is not output through the DV IN/OUT jack.
When you set the POWER switch to OFF (CHG) or stop playing back
Digital effect is automatically canceled.
Playing back tapes with digital effect
1
2,3
FN
DIG
EFFT
OKOFF
STILL FLASH
LUMI. TRAIL
DIG EFFT
77
Advanced Playback Operations
You can enlarge playback images recorded on tapes. Besides the operation described
here, your camcorder can enlarge still images recorded on “Memory Stick”s (p. 164).
(1) In the playback or playback pause, press FN and select PAGE2.
(2) Press PB ZOOM. The PB ZOOM screen appears.
(3) Press the area you want to enlarge in the frame on the PB ZOOM screen.
The area you pressed moves to the center of the screen, and the playback
image is enlarged approximately at twice the size. If you press the other area
again, the area moves to the center of the screen.
(4) Adjust the zoom ratio by the power zoom lever.
You can enlarge the image from approximately 1.1 times up to five times its
size.
W: Decreases the zoom ratio.
T: Increases the zoom ratio.
To cancel the PB ZOOM
Press END.
Enlarging images recorded on tapes
– Tape PB ZOOM
1
FN
W
T
2
PB
ZOOM
END
END
4
× 5.0
PB ZOOM
PB ZOOM
78
Enlarging images recorded on tapes – Tape PB ZOOM
Notes
•You cannot process externally input scenes using the PB ZOOM.
•You cannot record images on a tape on your camcorder when you have processed the
image using the tape PB ZOOM. However, you can record images on a VCR using
your camcorder as a player.
•You cannot record moving pictures on a “Memory Stick” on your camcorder when
you have processed the picture using the tape PB ZOOM.
The PB ZOOM is automatically canceled when you activate the following:
– Set the POWER switch to OFF (CHG).
– Stop playback.
– Press MENU.
– Insert a “Memory Stick.”
Pictures in the PB ZOOM
Pictures in the PB ZOOM are not output through the DV IN/OUT jack and the
(USB) jack.
In the PB ZOOM
If you press DISPLAY/TOUCH PANEL button, the frame on the PB ZOOM screen
disappears. You cannot move the part you pressed to the center of the screen.
Edge of the enlarged image
The edge of the enlarged image cannot be displayed at the center of the screen.
79
Advanced Playback Operations

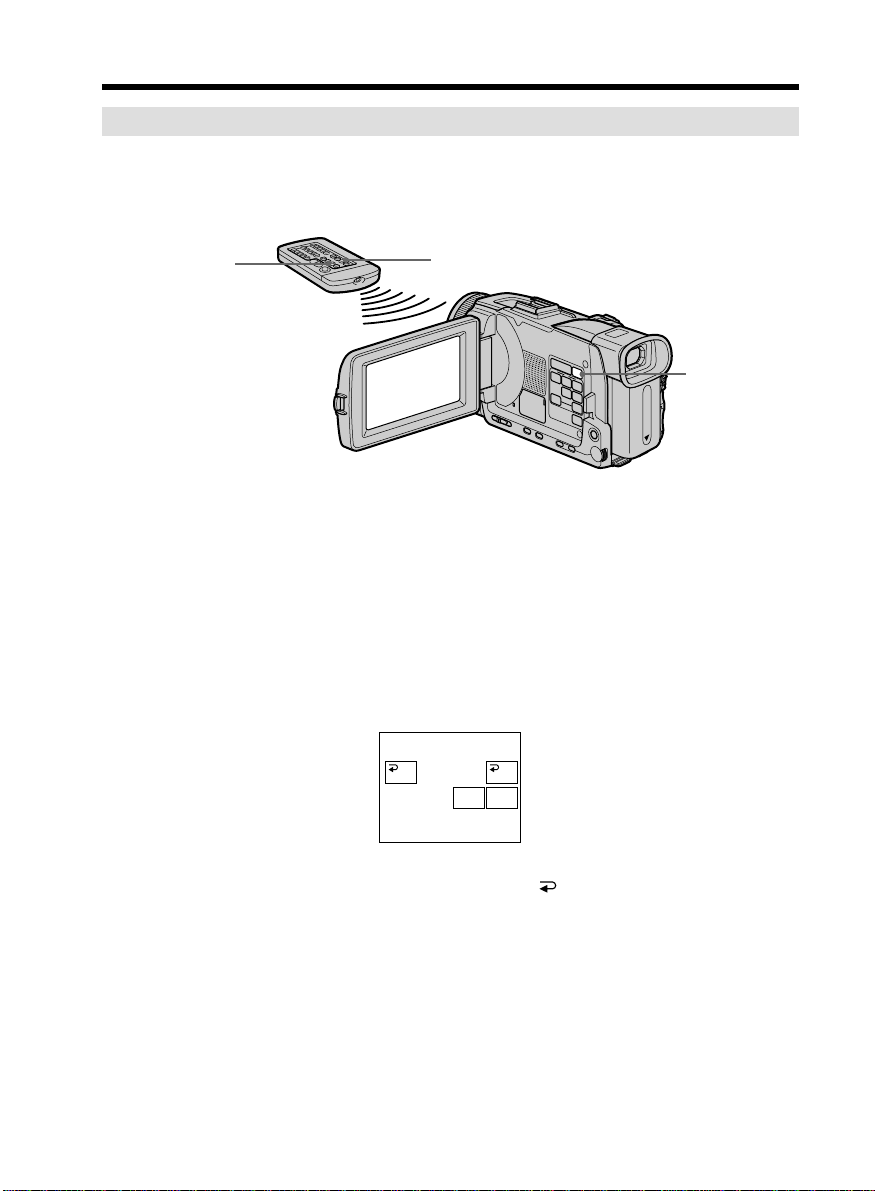

Your camcorder goes forward or backward to automatically stop at a desired scene
having a tape counter value of “0:00:00”. Use the Remote Commander for this
operation.
(1) In the playback, press DISPLAY when the ZERO SET MEMORY indicator does
not appear.
(2) Press ZERO SET MEMORY at the point you want to locate later. The tape
counter shows “0:00:00” and then starts counting. The ZERO SET MEMORY
indicator flashes.
(3) Press x when you want to stop playback.
(4) Press m to rewind the tape to the tape counter’s zero point. The tape stops
automatically when the tape counter reaches approximately zero. The ZERO
SET MEMORY indicator disappears, and the time code appears.
(5) Press N. Playback starts from the counter’s zero point.
Notes
•When you press ZERO SET MEMORY before rewinding the tape, the zero set memory
will be canceled.
•There may be a discrepancy of several seconds from the time code.
•The ZERO SET MEMORY indicator disappears when you press FN.
If a tape has a blank portion between recorded portions
The zero set memory may not work correctly.
Quickly locating a scene
– ZERO SET MEMORY
ZERO SET MEMORY
DISPLAY
m
x
N
80

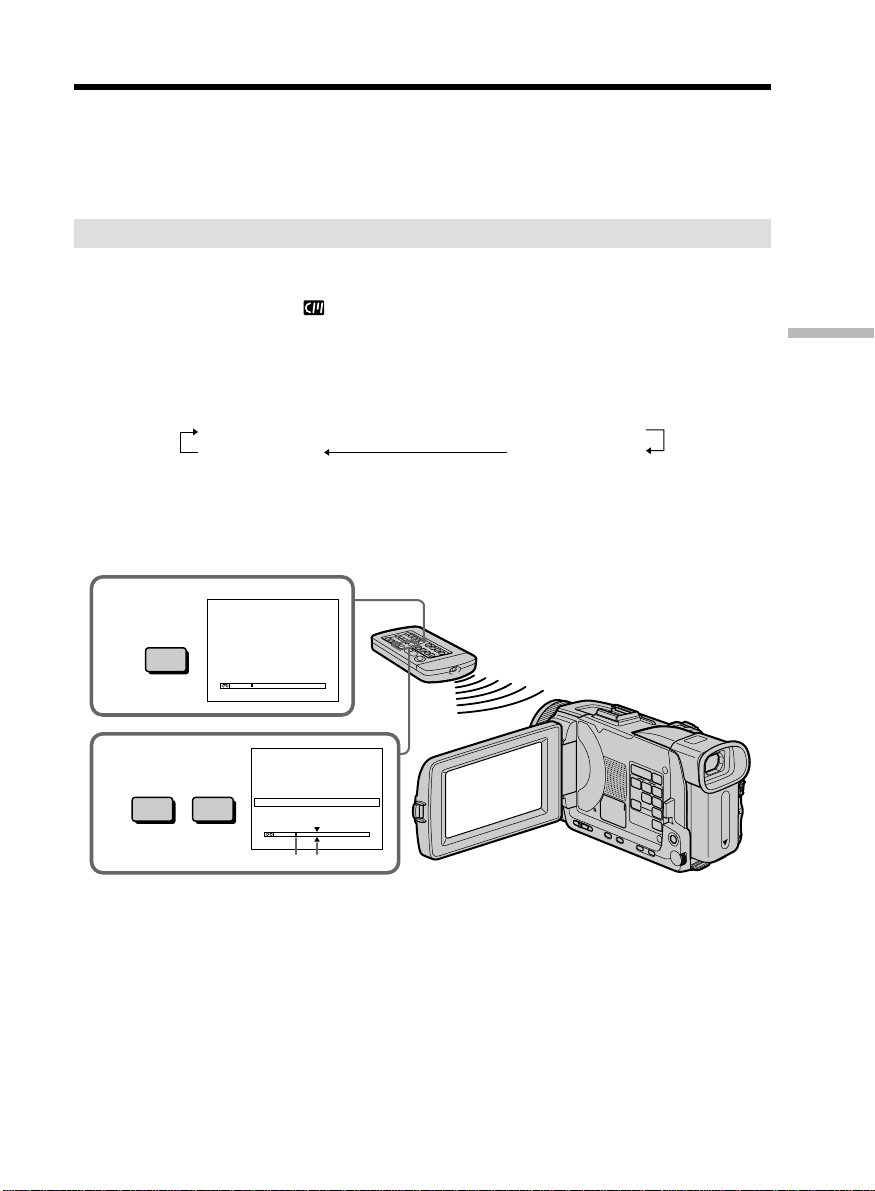

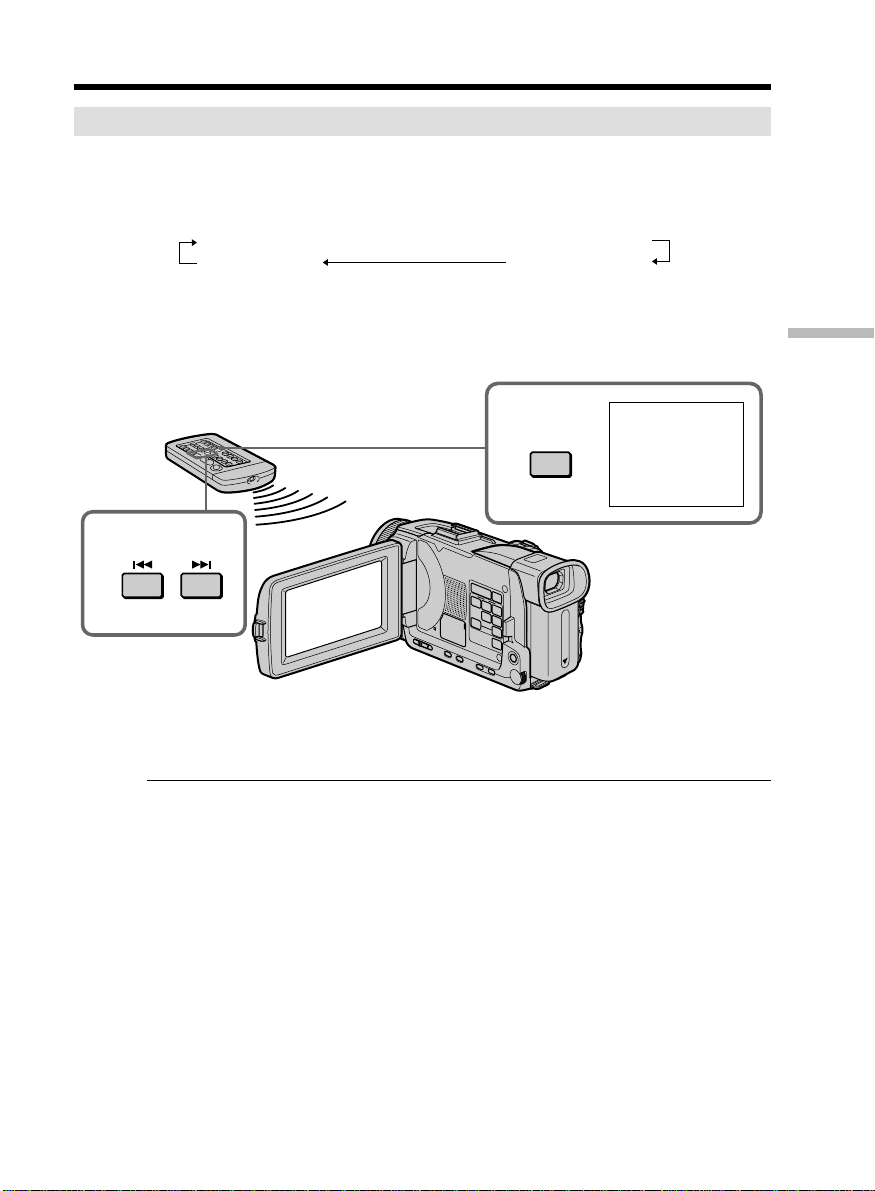

If you use a cassette with cassette memory, you can search for the boundaries of
recorded tape by title. Use the Remote Commander for this operation.
Before operation
Set CM SEARCH in to ON in the menu settings. (The default setting is ON.)
(1) Set the POWER switch to VCR.
(2) Press SEARCH MODE on the Remote Commander repeatedly until the TITLE
SEARCH indicator appears. The indicator changes as follows:
TITLE SEARCH t DATE SEARCH t PHOTO SEARCH
(no indicator) T PHOTO SCAN
(3) Press . or > on the Remote Commander to select the title for playback.
Your camcorder automatically starts playback of the scene having the title that
you selected.
[a] Actual point you are trying to search for
[b] Present point on the tape
To stop searching
Press x.
If you use a cassette without cassette memory
You cannot superimpose or search a title.
If a tape has a blank portion between recorded portions
The title search may not work correctly.
To superimpose a title
See page 110.
Searching the boundaries of recorded
tape by title – TITLE SEARCH
3
.>
2
SEARCH
MODE
TITLE SEARCH
1 HELLO!
2 CONGRATULATIONS!
3 HAPPY NEW YEAR!
4 PRESENT
5 GOOD MORNING
6 WEDDING
TITLE SEARCH
3 HAPPY NEW YEAR!
4 PRESENT
5 GOOD MORNING
6 WEDDING
7 NIGHT
8 BASEBALL
[b][a]
81
Advanced Playback Operations
You can automatically search for the point where the recording date changes and start
playback from that point (date search). Use a cassette with cassette memory for
convenience. Use the Remote Commander for this operation.
Use this function to check where recording dates change or to edit the tape at each
recording date.
Searching for the date by using cassette memory
Before operation
•You can use this function only when playing back a cassette with cassette memory.
•Set CM SEARCH in to ON in the menu settings. (The default setting is ON.)
(1) Set the POWER switch to VCR.
(2) Press SEARCH MODE on the Remote Commander repeatedly until the DATE
SEARCH indicator appears. The indicator changes as follows:
TITLE SEARCH t DATE SEARCH t PHOTO SEARCH
(no indicator) T PHOTO SCAN
(3) Press . or > on the Remote Commander to select the date for playback.
Your camcorder automatically starts playback at the beginning of the selected
date.
[a] Actual point you are trying to search for
[b] Present point on the tape
To stop searching
Press x.
Searching a recording by date
– DATE SEARCH
3
.>
2
SEARCH
MODE
DATE SEARCH
1 SEP/ 5/02
2 SEP/ 6/02
3 DEC/24/02
4 JAN/ 1/03
5 FEB/ 11/03
6 APR/ 29/03
DATE SEARCH
1 SEP/ 5/02
2 SEP/ 6/02
3 DEC/24/02
4 JAN/ 1/03
5 FEB/ 11/03
6 APR/ 29/03
[b][a]
82
Note
If one day’s recording is less than two minutes, your camcorder may not accurately find
the point where the recording date changes.
If a tape has a blank portion between recorded portions
The date search may not work correctly.
Cassette memory
The tape with cassette memory can hold six recording dates. If you search among seven
or more dates, see “Searching for the date without using cassette memory” below.
Searching for the date without using cassette memory
(1) Set the POWER switch to VCR.
(2) Press MENU, then select CM SEARCH in
to OFF with the SEL/PUSH
EXEC dial (p. 205).
(3) Press SEARCH MODE on the Remote Commander repeatedly until the DATE
SEARCH indicator appears. The indicator changes as follows:
DATE SEARCH t PHOTO SEARCH t PHOTO SCAN t (no indicator)
(4) Press . on the Remote Commander to search for the previous date or press
> on the Remote Commander to search for the next date. Your camcorder
automatically starts playback at the point where the date changes. Each time
you press . or > your camcorder searches for the previous or next date.
To stop searching
Press x.
Searching a recording by date – DATE SEARCH
83
Advanced Playback Operations
You can search for a still image you have recorded on a tape (PHOTO SEARCH).
You can also search for still images one after another and display each image for
five seconds automatically regardless of cassette memory (PHOTO SCAN). Use the
Remote Commander for these operations.
Use this function to check or edit still images.
Searching for a photo by using cassette memory
Before operation
•You can use this function only when playing back a cassette with cassette memory.
•Set CM SEARCH in to ON in the menu settings. (The default setting is ON.)
(1) Set the POWER switch to VCR.
(2) Press SEARCH MODE on the Remote Commander repeatedly until the
PHOTO SEARCH indicator appears. The indicator changes as follows:
TITLE SEARCH t DATE SEARCH t PHOTO SEARCH
(no indicator) T PHOTO SCAN
(3) Press . or > on the Remote Commander to select the date for playback.
Your camcorder automatically starts playback of the photo having the date
that you selected.
[a] Actual point you are trying to search for
[b] Present point on the tape
To stop searching
Press x.
Searching for a photo
– PHOTO SEARCH/PHOTO SCAN
3
.>
2
SEARCH
MODE
PHOTO SEARCH
1 SEP/ 5/02 5
:
30PM
2 SEP/ 6/02 8
:
50AM
3 DEC/24/02 10
:
30AM
4 JAN/ 1/03 11
:
25PM
5 FEB/ 11/03 4
:
11PM
6 APR/ 29/03 1
:
45PM
PHOTO SEARCH
1 SEP/ 5/02 5
:
30PM
2 SEP/ 6/02 8
:
50AM
3 DEC/24/02 10
:
30AM
4 JAN/ 1/03 11
:
25PM
5 FEB/ 11/03 4
:
11PM
6 APR/ 29/03 1
:
45PM
[b][a]
MENU
84
Searching for a photo without using cassette memory
(1) Set the POWER switch to VCR.
(2) Press MENU, then turn the SEL/PUSH EXEC dial to select CM SEARCH in
to OFF, then press the dial (p. 205).
(3) Press SEARCH MODE on the Remote Commander repeatedly until the
PHOTO SEARCH indicator appears. The indicator changes as follows:
DATE SEARCH t PHOTO SEARCH t PHOTO SCAN t (no indicator)
(4) Press . or > on the Remote Commander to select the photo for playback.
Each time you press . or > your camcorder searches for the previous or
next photo.
Your camcorder automatically starts playback of the photo.
To stop searching
Press x.
Searching for a photo – PHOTO SEARCH/PHOTO SCAN
85
Advanced Playback Operations
Scanning photo
(1) Set the POWER switch to VCR.
(2) Press SEARCH MODE on the Remote Commander repeatedly until the
PHOTO SCAN indicator appears. The indicator changes as follows:
TITLE SEARCH* t DATE SEARCH t PHOTO SEARCH
(no indicator) T PHOTO SCAN
* Displayed only when CM SEARCH is set to ON in the menu settings.
(3) Press . or > on the Remote Commander.
Each photo is played back for about five seconds automatically.
To stop scanning
Press x.
If a tape has a blank portion between recorded portions
The photo search/photo scan may not work correctly.
The available number of photos that can be searched using the cassette memory
The available number is up to 12 photos. However, you can search 13 photos or more
using the photo scan.
SEARCH
MODE
3
2
PHOTO 00
SCAN
Searching for a photo – PHOTO SEARCH/PHOTO SCAN
86
Using the A/V connecting cable
You can dub or edit on the VCR connected to your camcorder using your camcorder as
a player.
Connect your camcorder to the VCR using the A/V connecting cable supplied with
your camcorder.
Before operation
•Set DISPLAY in to LCD in the menu settings. (The default setting is LCD.)
•Press the following buttons to make the indicator disappear so that they will not be
superimposed on the edited tape:
On your camcorder:
DISPLAY/TOUCH PANEL, DATA CODE
On the Remote Commander:
DISPLAY, DATA CODE, SEARCH MODE
(1) Insert a blank tape (or a tape you want to record over) into the VCR, and insert
the recorded tape into your camcorder.
(2) Prepare the VCR for recording, then set the input selector to LINE.
Connect the A/V connecting cable to AUDIO/VIDEO jack.
Refer to the operating instructions of the VCR.
(3) Set the POWER switch to VCR on your camcorder.
(4) Play back the recorded tape on your camcorder.
(5) Start recording on the VCR. Refer to the operating instructions of your VCR.
When you have finished dubbing a tape
Press x on both your camcorder and the VCR.
— Editing —
Dubbing a tape
S VIDEO
VIDEO
AUDIO
IN
AUDIO/VIDEO
S VIDEO
: Signal flow
VCR
Yellow
White
Red
A/V connecting
cable (supplied)
87
Editing
You can edit on VCRs that support the following systems:
8 mm, Hi8, VHS, S-VHS, VHSC, S-VHSC,
Betamax, ED Betamax, mini DV, DV, Digital8, MICRO MV
If your VCR is a monaural type
Connect the yellow plug of the A/V connecting cable to the video input jack and the
white or the red plug to the audio input jack on the VCR or the TV. When the white
plug is connected, the left channel audio is output, and when the red plug is connected,
the right channel audio is output.
If your VCR has an S video jack
Pictures can be reproduced more faithfully by using an S video cable (optional).
With this connection, you do not need to connect the yellow (video) plug of the A/V
connecting cable.
Connect an S video cable (optional) to the S video jacks of both your camcorder and the
VCR.
This connection produces higher quality DV format pictures.
Dubbing a tape
88

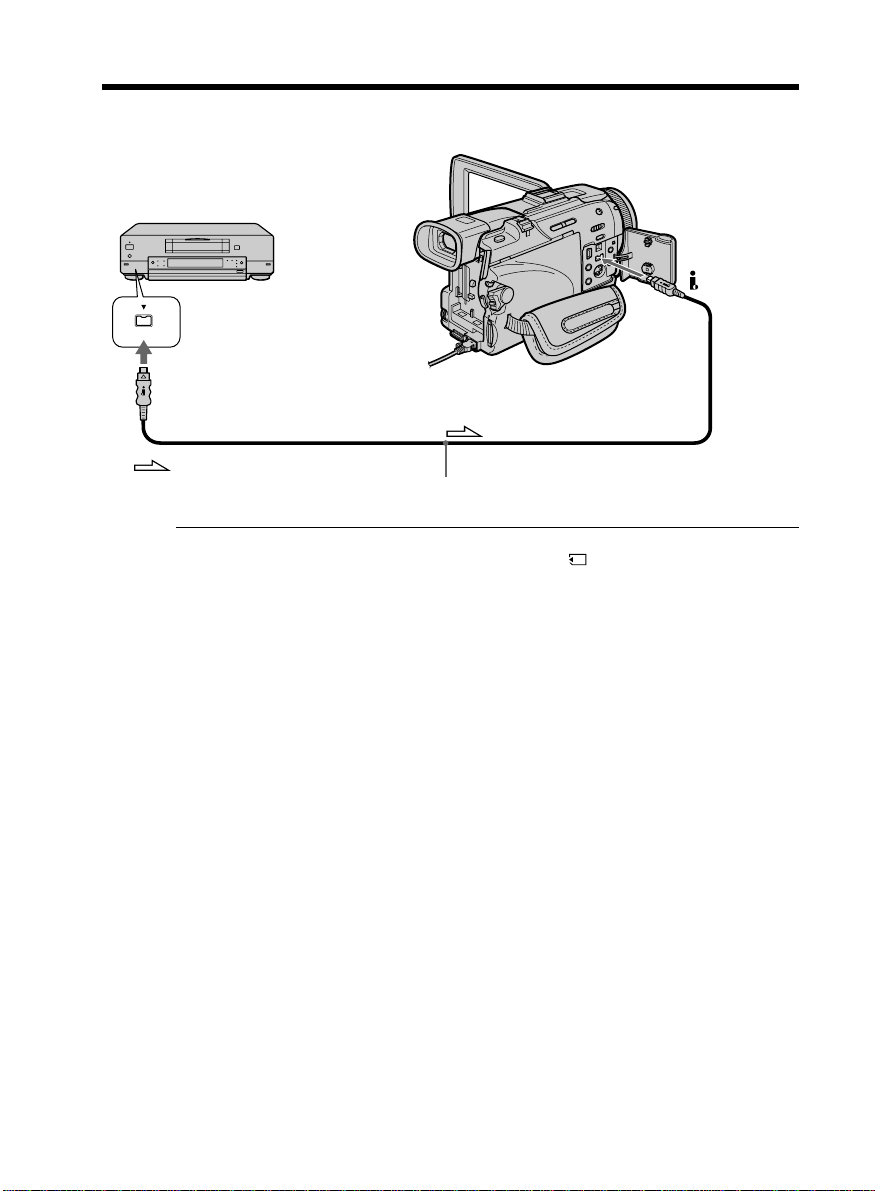

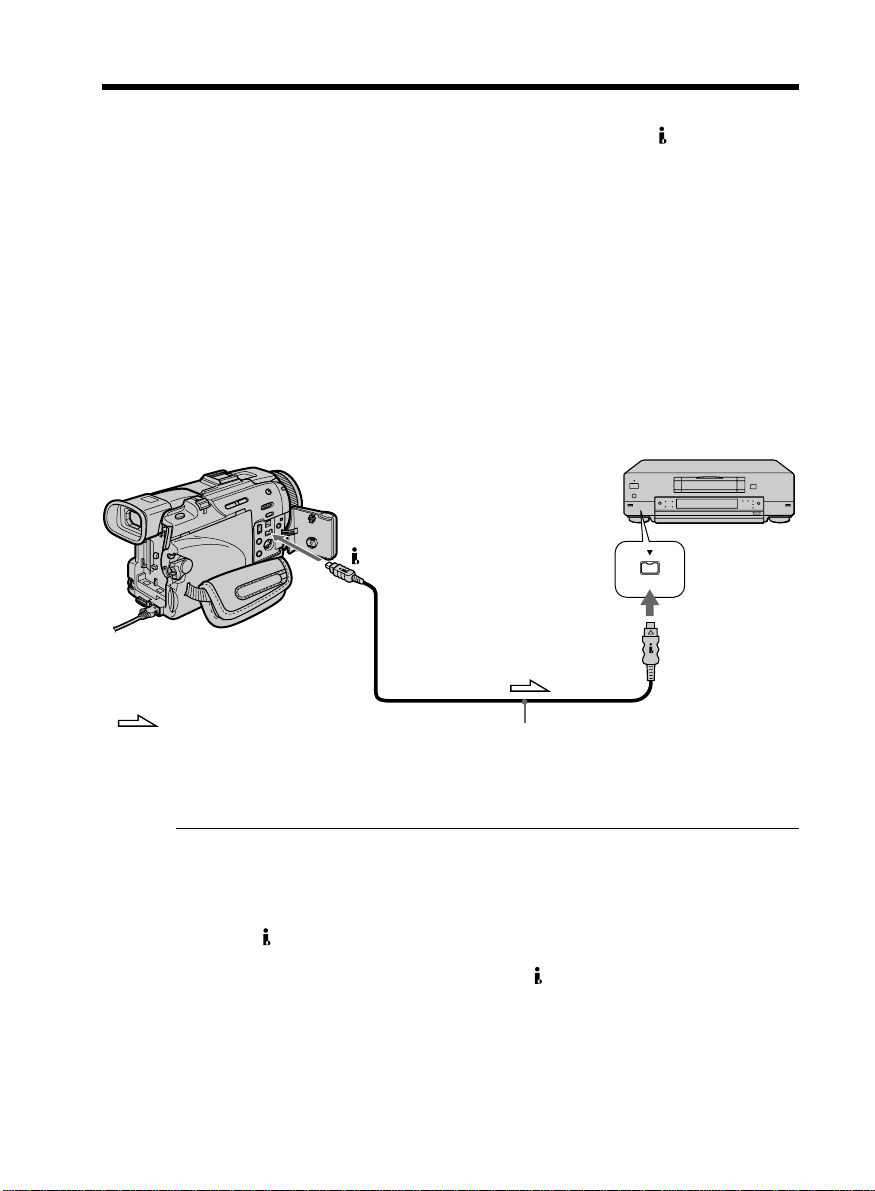

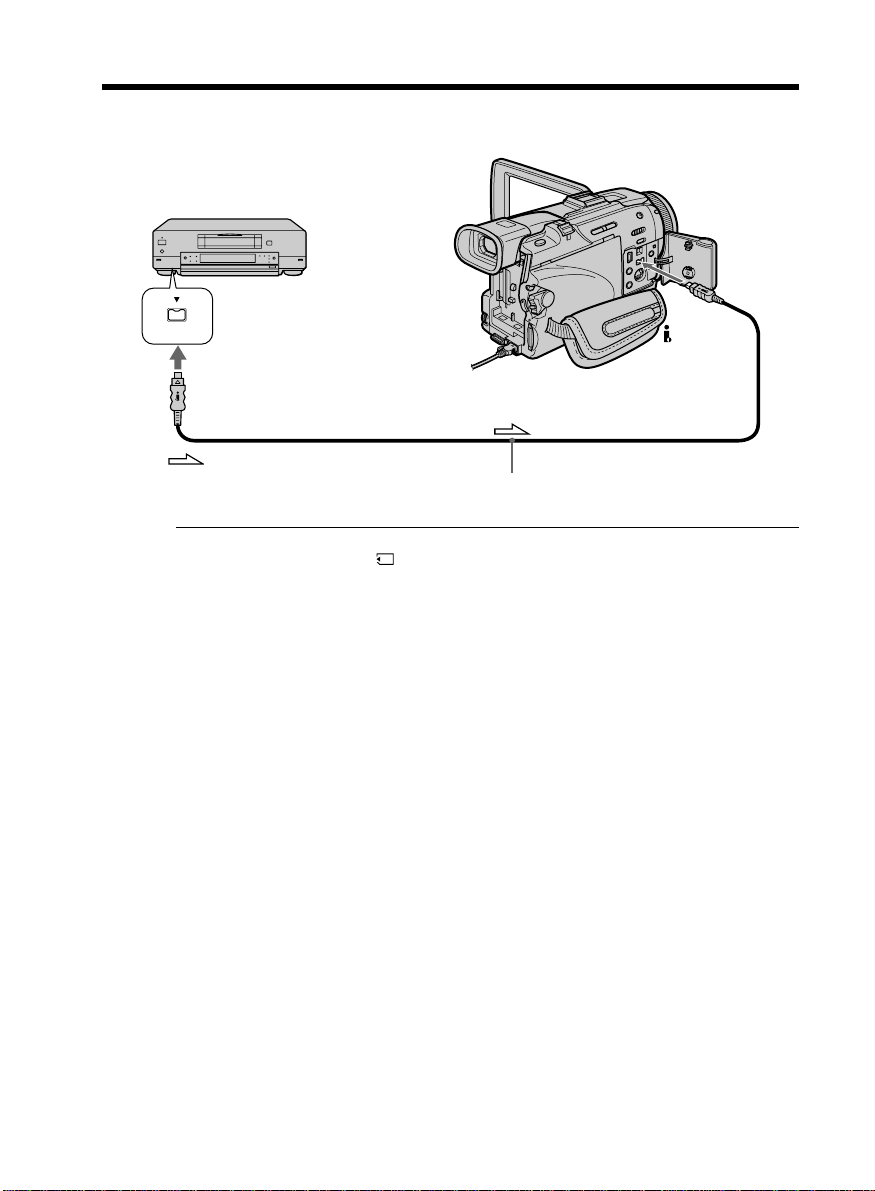

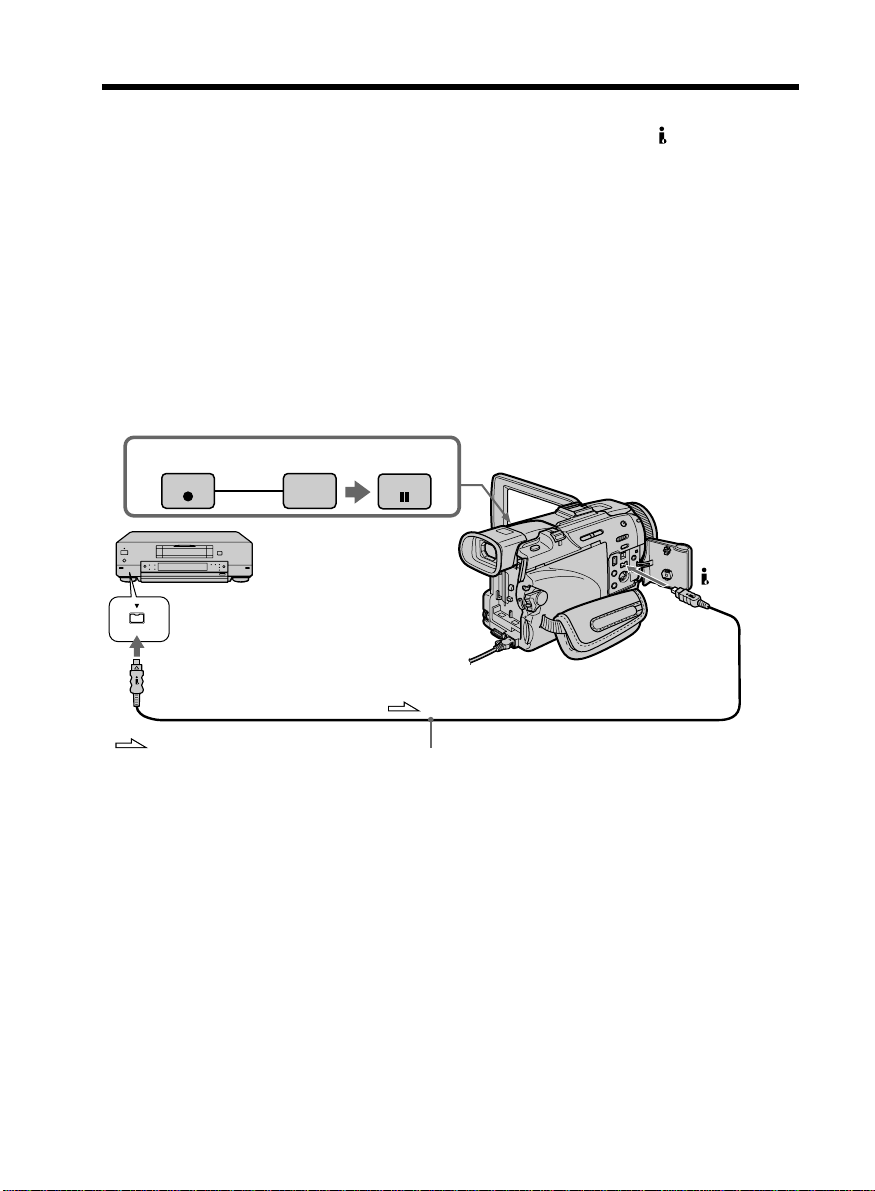

Using the i.LINK cable (DV connecting cable)
Simply connect the i.LINK cable (DV connecting cable) (optional) to DV IN/OUT jack
on your camcorder and to DV IN on the DV products. With a digital-to-digital
connection, video and audio signals are transmitted in digital form for high-quality
editing. You cannot dub the titles, display indicators or the contents of cassette memory
or letters on the “Memory Stick” index screen.
Set the input selector on the VCR to the DV input position if the VCR is equipped with
the input selector.
(1) Insert a blank tape (or a tape you want to record over) into the VCR, and insert
the recorded tape into your camcorder.
(2) Prepare the VCR for recording, then set the input selector to LINE. Refer to the
operating instructions of the VCR.
(3) Set the POWER switch to VCR on your camcorder.
(4) Play back the recorded tape on your camcorder.
(5) Start recording on the VCR. Refer to the operating instructions of the VCR.
When you have finished dubbing a tape
Press x on both your camcorder and the VCR.
You can connect one VCR only using the i.LINK cable (DV connecting cable)
See page 225 for more information about i.LINK.
Pictures processed by the picture effect, the digital effect or PB ZOOM
Pictures processed by the picture effect, the digital effect or PB ZOOM are not output
through the DV IN/OUT jack.
If you record a playback pause picture with the DV IN/OUT jack
The recorded picture becomes rough. Also, when you play back the picture using other
video equipment, the picture may jitter.
Dubbing a tape
DV
DV IN/OUT
DV IN
i.LINK cable (DV connecting cable) (optional)
: Signal flow
89
Editing
You can duplicate selected scenes (programs) for editing onto a tape without operating
the VCR.
Scenes can be selected by frame. You can set up to 20 programs.
Your camcorder can also dub on “Memory Stick”s. See page 151 for more information.
Before operating the Digital program editing on tapes
recorded on other equipment
Step 1 Connecting the VCR (p. 89).
Step 2 Setting the VCR for operation (p. 90, 94).
Step 3 Adjusting the synchronization of the VCR (p. 95).
When you dub using the same VCR again, you can skip steps 2 and 3.
Using the Digital program editing on tapes recorded on other
equipment
Operation 1 Making a program (p. 97).
Operation 2 Performing the program (dubbing a tape) (p. 99).
Note
When editing digital video on tapes, the operation signals cannot be sent with
LANC.
Step 1: Connecting the VCR
You can connect both an A/V connecting cable and an i.LINK cable (DV connecting
cable).
When you use the A/V connecting cable, connect the devices as illustrated on page 86.
When you use an i.LINK cable (DV connecting cable), connect the devices as illustrated
on page 88.
If you connect using an i.LINK cable (DV connecting cable)
With a digital-to-digital connection, video and audio signals are transmitted in digital
form for high-quality editing.
Dubbing only desired scenes
– Digital program editing (on tapes)
Unwanted scene Unwanted scene
Switch the order
90
Step 2: Setting the VCR to operate with the A/V connecting cable
To edit using the VCR, send the control signal by infrared rays to the remote sensor on
the VCR.
When you connect using an A/V connecting cable, follow the procedure below, steps
(1) to (4), to send the control signal correctly.
(1) Set the IR SETUP code
1 Set the POWER switch to VCR on your camcorder.
2 Turn the power of the connected VCR on, then set the input selector to LINE.
When you connect a video camera recorder, set its power switch to VCR/VTR.
3 Press MENU, then turn the SEL/PUSH EXEC dial to select VIDEO EDIT in
, then press the dial (p. 209).
4 Turn the SEL/PUSH EXEC dial to select TAPE, then press the dial.
5 Turn the SEL/PUSH EXEC dial to select EDIT SET, then press the dial.
6 Turn the SEL/PUSH EXEC dial to select CONTROL, then press the dial.
7 Turn the SEL/PUSH EXEC dial to select IR, then press the dial.
8 Turn the SEL/PUSH EXEC dial to select IR SETUP and turn the dial to select
IR SETUP code number of your VCR, then press the dial.
Check the code in “About IR SETUP codes.” (p. 91)
Dubbing only desired scenes – Digital program editing (on tapes)
4
3
6
5
8
VIDEO EDIT
MARK
UNDO
ERASE ALL
START
EDIT SET
OTHERS
DATA CODE
BEEP
COMMANDER
DISPLAY
VIDEO EDIT
RETURN
RETURN
TAPE
MEMORY
IR
0
:
08
:
55
:
06
TOTAL 0
:
00
:
00
:
00
SCENE 0
[
MENU
]
:
END
VIDEO EDIT
EDIT SET
CONTROL
ADJ TEST
”CUT–IN”
”CUT–OUT”
IR SETUP
PAUSEMODE
IR TEST
RETURN
IR
i. LINK
0
:
08
:
55
:
06
[
MENU
]
:
END
VIDEO EDIT
EDIT SET
CONTROL
ADJ TEST
”CUT–IN”
”CUT–OUT”
IR SETUP
PAUSEMODE
IR TEST
RETURN
3
0
:
08
:
55
:
06
[
MENU
]
:
END
VIDEO EDIT
EDIT SET
CONTROL
ADJ TEST
”CUT–IN”
”CUT–OUT”
IR SETUP
PAUSEMODE
IR TEST
RETURN
IR
0
:
08
:
55
:
06
[
MENU
]
:
END
VIDEO EDIT
MARK
UNDO
ERASE ALL
START
EDIT SET
1 IN
0
:
08
:
55
:
06
TOTAL 0
:
00
:
00
:
00
SCENE 0
[
MENU
]
:
END
[
MENU
]
:
END
OTHERS
DATA CODE
BEEP
COMMANDER
DISPLAY
VIDEO EDIT
RETURN
READY
[
MENU
]
:
END
OTHERS
DATA CODE
BEEP
COMMANDER
DISPLAY
VIDEO EDIT
RETURN
RETURN
TAPE
MEMORY
[
MENU
]
:
END
MENU
91
Editing
Dubbing only desired scenes – Digital program editing (on tapes)
* TV/VCR component
Note on IR SETUP codes
Digital program editing is not possible if the VCR does not support IR SETUP codes.
About IR SETUP codes
The IR SETUP code is stored in the memory of your camcorder. Be sure to set the
correct code to match your VCR. The default setting is code number 3.
Brand IR SETUP code
Sony 1, 2, 3, 4, 5, 6
Admiral (M. Wards) 89
Aiwa 47, 54, 80
Akai 49, 51
Audio Dynamic 21, 35
Bell&Howell 36
(M. Wards)
Broksonic 21, 70, 82
Canon 77, 78
Citizen 47
Craig 47, 73
Curtis Mathis 8, 77, 80
Daewoo 26, 40, 77
DBX 21, 33, 35
Dimensia 8
Emerson 26, 48, 59, 70, 80, 81, 82
Fisher 36, 37, 44, 45
Funai 80
General Electric 8, 32*, 77, 94*, 101
Goldstar/LG 47
GO VIDEO 71
Hitachi 8, 42, 78
HQ 40
Instant Replay 77, 78
JC Penny 8, 21, 33, 35, 36, 42, 77
JVC 12, 13, 14, 21, 33, 35
Kenwood 21, 33, 35, 47
LXI (Sears) 36, 37, 42, 44, 45, 47, 49, 80
Magnavox 17, 77, 78, 83
Marantz 21, 33, 35
Marta 47
Memorex 37, 77
Minolta 8, 42
Brand IR SETUP code
Mitsubishi/MGA 22, 23, 24, 28, 29
Multitech 23, 32, 80
NEC 21, 33, 35
Olympic 77, 78
Optimus 22
Orion 60
Panasonic 16, 17, 77, 78
Pentax 8, 42
Philco 26, 70, 77, 78
Philips 47, 77, 78, 83
Pioneer 78
Quasar 6, 16, 17, 77, 78
RCA/PROSCAN 7, 8, 16, 40, 41, 42, 77, 78, 78*, 83,
101
Realistic 22, 36, 37, 77, 80, 88
Sansui 21
Singer 73
Samsung 24, 24*, 32, 32*, 41, 94, 94*
Sanyo 26, 36, 37, 47
Scott 22, 23, 24, 28, 32, 37, 40, 41
Sharp 88, 89
Shintom 73
Signature 2000 80, 89
Sylvania 77, 78, 80, 83
Symphonic 80
Tashiro 47
Tatung 21, 33, 35
Teac 21, 33, 35, 80
Technics 77, 78
Toshiba 7, 40, 49
Wards 37, 47, 88, 89, 95
Yamaha 21, 33, 35, 36
Zenith 95
92
(2) Setting the modes to cancel the recording pause on the VCR
1 Turn the SEL/PUSH EXEC dial to select PAUSEMODE, then press the dial.
2 Turn the SEL/PUSH EXEC dial to select the mode to cancel recording pause
on the VCR, then press the dial.
Refer to the operating instructions of your VCR.
Buttons to cancel recording pause on the VCR
The buttons vary depending on your VCR. To cancel recording pause:
– Select PAUSE if the button to cancel recording pause is X.
– Select REC if the button to cancel recording pause is z.
– Select PB if the button to cancel recording pause is N.

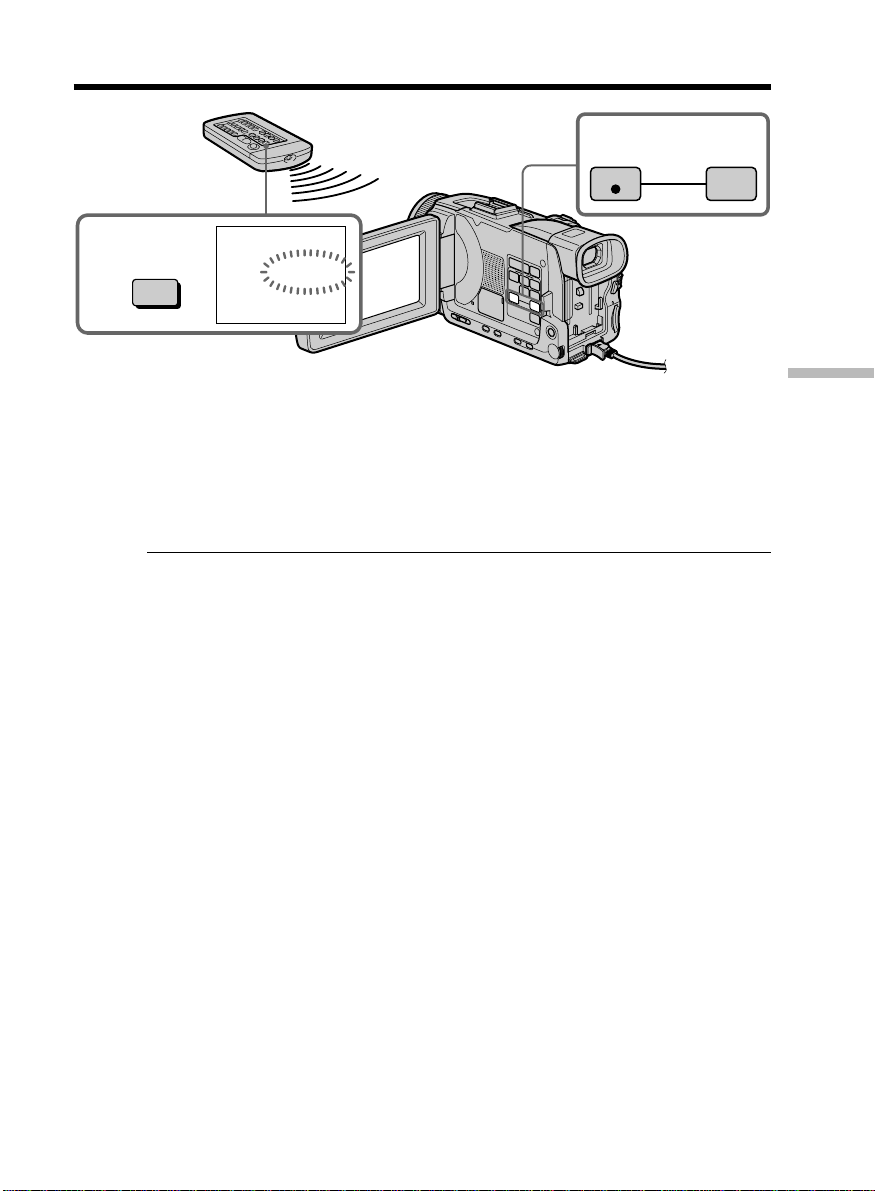

(3) Setting your camcorder and the VCR to face each other
Locate the infrared rays emitter of your camcorder and face it towards the remote
sensor of the VCR.
Set the devices about 30 cm (12 in.) apart, and remove any obstacles between the
devices.
Dubbing only desired scenes – Digital program editing (on tapes)
VCR
Remote sensor
A/V connecting cable (supplied)
Infrared rays emitter
12
VIDEO EDIT
EDIT SET
CONTROL
ADJ TEST
”CUT–IN”
”CUT–OUT”
IR SETUP
PAUSEMODE
IR TEST
RETURN
PAUSE
REC
PB
0
:
08
:
55
:
06
[
MENU
]
:
END
VIDEO EDIT
EDIT SET
CONTROL
ADJ TEST
”CUT–IN”
”CUT–OUT”
IR SETUP
PAUSEMODE
IR TEST
RETURN
PAUSE
0
:
08
:
55
:
06
[
MENU
]
:
END
93
Editing
(4) Confirming VCR operation
1 Insert a recordable tape into the VCR, then set to recording pause.
2 Turn the SEL/PUSH EXEC dial to select IR TEST, then press the dial.
3 Turn the SEL/PUSH EXEC dial to select EXECUTE, then press the dial.
If the VCR starts recording, the setting is correct.
When recording is finished, the indicator changes to COMPLETE.
When the VCR does not operate correctly
•After checking the code in “About IR SETUP codes”, set the IR SETUP or the
PAUSEMODE again.
•Place your camcorder at least 30 cm (12 in.) away from the VCR.
•Refer to the operating instructions of your VCR.
Dubbing only desired scenes – Digital program editing (on tapes)
2
3
VIDEO EDIT
EDIT SET
CONTROL
ADJ TEST
”CUT–IN”
”CUT–OUT”
IR SETUP
PAUSEMODE
IR TEST
RETURN
ENGAGE
REC PAUSE
RETURN
EXECUTE
0:08:55:06
[
MENU
]
:
END
VIDEO EDIT
EDIT SET
CONTROL
ADJ TEST
”CUT–IN”
”CUT–OUT”
IR SETUP
PAUSEMODE
IR TEST
RETURN
COMPLETE
0:08:55:06
[
MENU
]
:
END
94

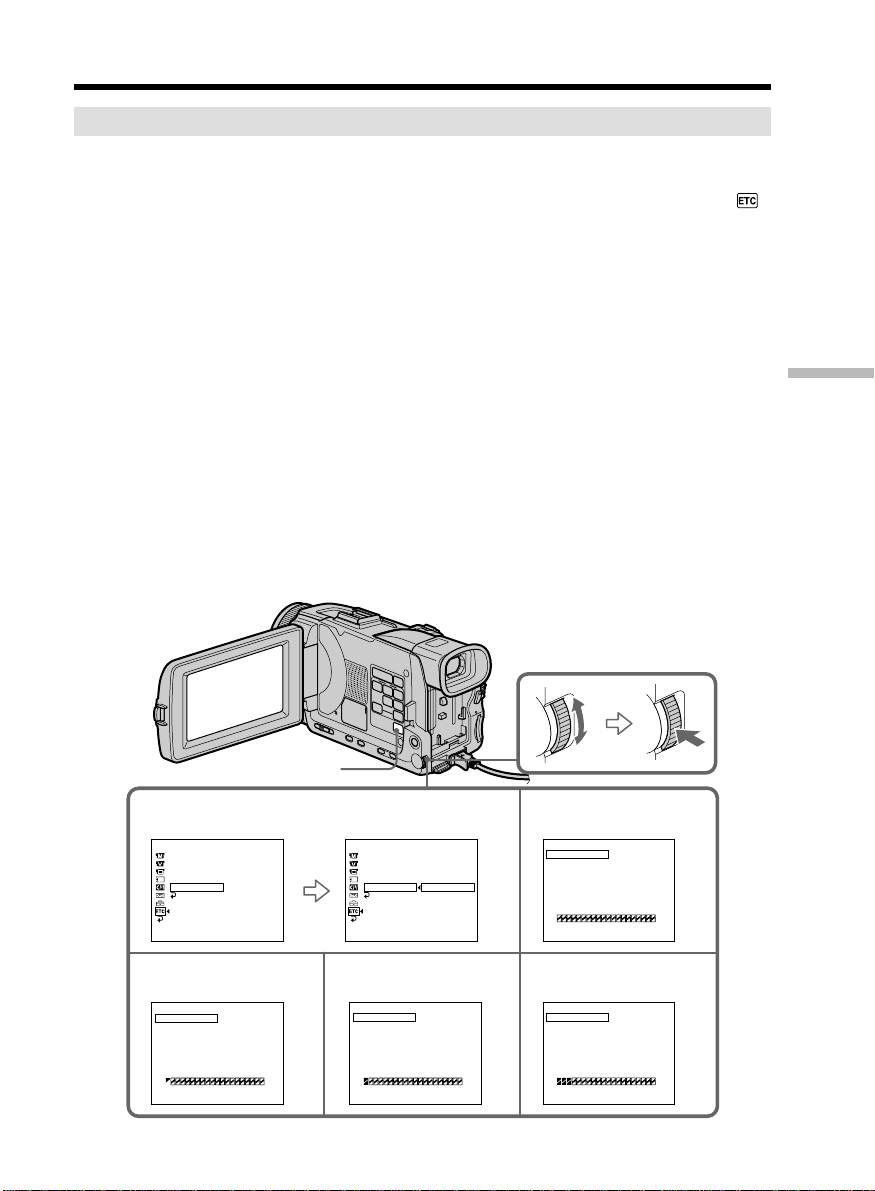

Step 2: Setting the VCR to operate with the i.LINK cable
(DV connecting cable)
When you connect using the i.LINK cable (DV connecting cable) (optional), follow the
procedure below.
(1) Set the POWER switch to VCR on your camcorder.
(2) Turn the power of the connected VCR on, then set the input selector to DV
input. When you connect a digital video camera recorder, set its power switch
to VCR/VTR.
(3) Press MENU, then turn the SEL/PUSH EXEC dial to select VIDEO EDIT in
, then press the dial (p. 209).
(4) Turn the SEL/PUSH EXEC dial to select TAPE, then press the dial.
(5) Turn the SEL/PUSH EXEC dial to select EDIT SET, then press the dial.
(6) Turn the SEL/PUSH EXEC dial to select CONTROL, then press the dial.
(7) Turn the SEL/PUSH EXEC dial to select i.LINK, then press the dial.
4
3
6
5
7
VIDEO EDIT
MARK
UNDO
ERASE ALL
START
EDIT SET
OTHERS
DATA CODE
BEEP
COMMANDER
DISPLAY
VIDEO EDIT
RETURN
RETURN
TAPE
MEMORY
IR
0
:
08
:
55
:
06
TOTAL 0
:
00
:
00
:
00
SCENE 0
[
MENU
]
:
END
VIDEO EDIT
EDIT SET
CONTROL
ADJ TEST
”CUT–IN”
”CUT–OUT”
IR SETUP
PAUSEMODE
IR TEST
RETURN
IR
i. LINK
0
:
08
:
55
:
06
[
MENU
]
:
END
VIDEO EDIT
EDIT SET
CONTROL
ADJ TEST
”CUT–IN”
”CUT–OUT”
IR SETUP
PAUSEMODE
IR TEST
RETURN
i. LINK
0
:
08
:
55
:
06
[
MENU
]
:
END
VIDEO EDIT
MARK
UNDO
ERASE ALL
START
EDIT SET
1 IN
0
:
08
:
55
:
06
TOTAL 0
:
00
:
00
:
00
SCENE 0
[
MENU
]
:
END
[
MENU
]
:
END
OTHERS
DATA CODE
BEEP
COMMANDER
DISPLAY
VIDEO EDIT
RETURN
READY
[
MENU
]
:
END
OTHERS
DATA CODE
BEEP
COMMANDER
DISPLAY
VIDEO EDIT
RETURN
RETURN
TAPE
MEMORY
[
MENU
]
:
END
VIDEO EDIT
EDIT SET
CONTROL
ADJ TEST
”CUT–IN”
”CUT–OUT”
IR SETUP
PAUSEMODE
IR TEST
RETURN
IR
0
:
08
:
55
:
06
[
MENU
]
:
END
MENU
Dubbing only desired scenes – Digital program editing (on tapes)
95
Editing
Dubbing only desired scenes – Digital program editing (on tapes)
When you connect using the i.LINK cable (DV connecting cable)
You cannot dub the titles, display indicators.
Note
When you connect with an i.LINK cable (DV connecting cable), you may not be able to
operate the dubbing function correctly, depending on the VCR.
Set CONTROL to IR in the menu settings of your camcorder.
Step 3: Adjusting the synchronization of the VCR
You can adjust the synchronization of your camcorder and the VCR. Have a pen and
paper ready for notes. Before operation, eject a cassette from your camcorder.
(1) Insert a blank tape (or a tape you want to record over) into the VCR, then set
to recording pause.
When you select i.LINK in CONTROL, you do not need to set to recording
pause.
(2) Turn the SEL/PUSH EXEC dial to select ADJ TEST, then press the dial.
(3) Turn the SEL/PUSH EXEC dial to select EXECUTE, then press the dial.
IN and OUT are recorded on an image for five times each to calculate the
number values for adjusting the synchronization.
The EXECUTING indicator flashes on the screen.
When finished, the indicator changes to COMPLETE.
(4) Rewind the tape in the VCR, then start slow playback.
Take a note of the first number value of each IN and the closing number value
of each OUT.
(5) Calculate the average of all the first number values of each IN, and the
average of all the last number values of each OUT.
(6) Turn the SEL/PUSH EXEC dial to select “CUT-IN”, then press the dial.
(7) Turn the SEL/PUSH EXEC dial to select the average number value of IN, then
press the dial.
The calculated start position for recording is set.
(8) Turn the SEL/PUSH EXEC dial to select “CUT-OUT”, then press the dial.
(9) Turn the SEL/PUSH EXEC dial to select the average number value of OUT,
then press the dial.
The calculated stop position for recording is set.
(10)Turn the SEL/PUSH EXEC dial to select
RETURN, then press the dial.
96
Notes
•When you complete step 3, the image used to adjust the synchronization is recorded
for about 50 seconds.
•If you start recording from the very beginning of the tape, the first few seconds of the
tape may not record properly. Be sure to allow about 10 seconds’ lead before starting
recording.
•When you connect with an i.LINK cable (DV connecting cable) you may not be able to
operate the dubbing function correctly, depending on the VCR. Keep the i.LINK
connection, and set CONTROL to IR in the menu settings. Video and audio are sent
by digital signals.
Dubbing only desired scenes – Digital program editing (on tapes)
2,3
6
8
VIDEO EDIT
EDIT SET
CONTROL
ADJ TEST
”CUT–IN”
”CUT–OUT”
IR SETUP
PAUSEMODE
IR TEST
RETURN
RETURN
EXECUTE
ENGAGE
REC PAUSE
0
:
08
:
55
:
06
[
ME
VIDEO EDIT
EDIT SET
CONTROL
ADJ TEST
”CUT–IN”
”CUT–OUT”
IR SETUP
PAUSEMODE
IR TEST
RETURN
EXECUTING
No. 5
IN
–60
0
:
08
:
55
:
06
[
ME
VIDEO EDIT
EDIT SET
CONTROL
ADJ TEST
”CUT–IN”
”CUT–OUT”
IR SETUP
PAUSEMODE
IR TEST
RETURN
COMPLETE
0
:
08
:
55
:
06
[
MENU
]
:
END
VIDEO EDIT
EDIT SET
CONTROL
ADJ TEST
”CUT–IN”
”CUT–OUT”
IR SETUP
PAUSEMODE
IR TEST
RETURN
0
0
:
08
:
55
:
06
[
MENU
]
:
END
VIDEO EDIT
EDIT SET
CONTROL
ADJ TEST
”CUT–IN”
”CUT–OUT”
IR SETUP
PAUSEMODE
IR TEST
RETURN
0
0
:
08
:
55
:
06
[
MENU
]
:
END
97
Editing
Dubbing only desired scenes – Digital program editing (on tapes)

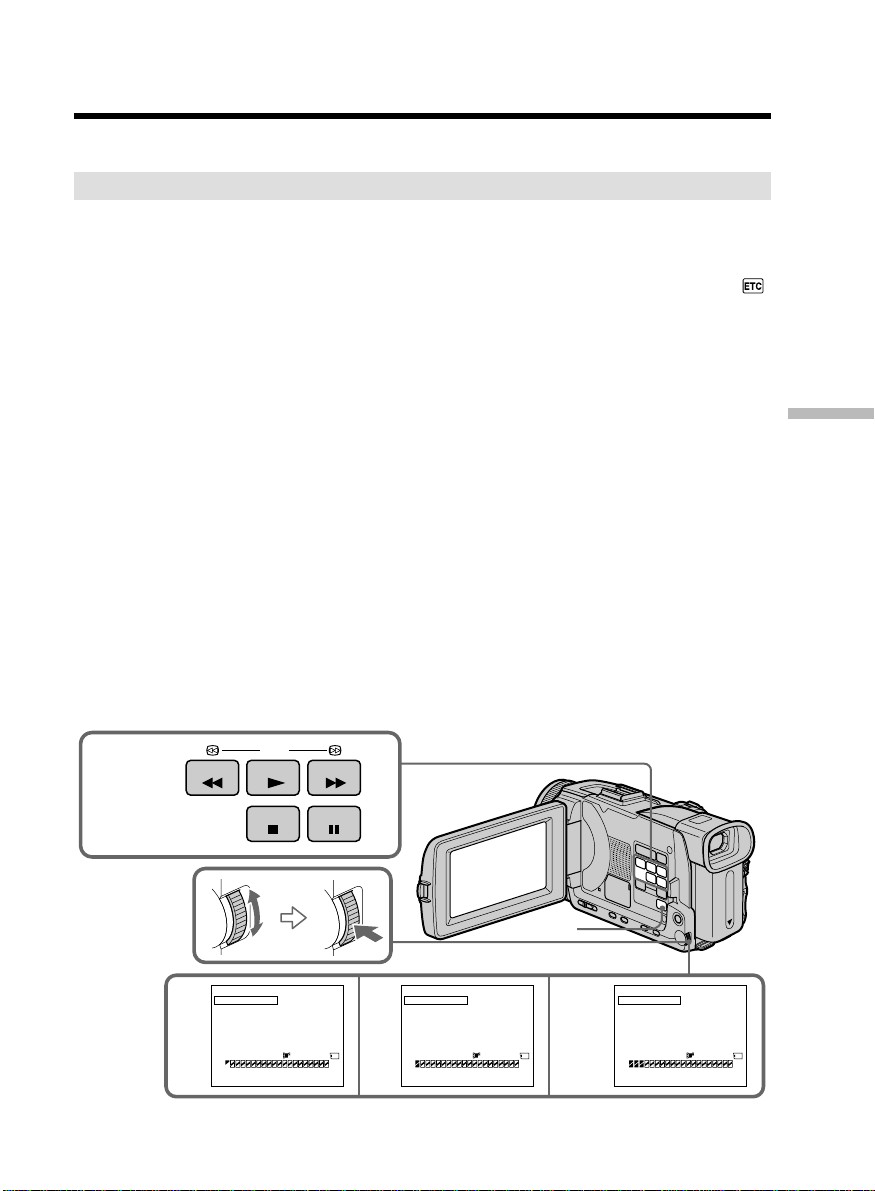

Operation 1: Making a program
(1) Insert the tape for playback into your camcorder, and insert a tape for
recording into the VCR.
(2) Press MENU and turn the SEL/PUSH EXEC dial to select VIDEO EDIT in
,
then press the dial (p. 209).
(3) Turn the SEL/PUSH EXEC dial to select TAPE, then press the dial.
(4) Search for the beginning of the first scene you want to insert using the video
operation buttons, then pause playback.
You can fine-adjust one frame at a time with EDITSEARCH.
(5) Press MARK on the Remote Commander, or turn the SEL/PUSH EXEC dial to
select MARK, then press the dial.
The IN point of the first program is set, and the top part of the program mark
changes to light blue.
(6) Search for the end of the first scene you want to insert using the video
operation buttons, then pause playback.
(7) Press MARK on the Remote Commander, or the SEL/PUSH EXEC dial.
The OUT point of the first program is set, then the bottom part of the program
mark changes to light blue.
(8) Repeat steps 4 to 7, then set the program.
When the program is set, the program mark changes to light blue.
You can set up to 20 programs in maximum.
5
23
8
7
OTHERS
DATA CODE
BEEP
COMMANDER
DISPLAY
VIDEO EDIT
RETURN
READY
[
MENU
]
:
END
OTHERS
DATA CODE
BEEP
COMMANDER
DISPLAY
VIDEO EDIT
RETURN
RETURN
TAPE
MEMORY
[
MENU
]
:
END
VIDEO EDIT
MARK
UNDO
ERASE ALL
START
EDIT SET
1 IN
0
:
08
:
55
:
06
TOTAL 0
:
00
:
00
:
00
SCENE 0
[
MENU
]
:
END
VIDEO EDIT
MARK
UNDO
ERASE ALL
START
EDIT SET
4 IN
0
:
10
:
01
:
23
TOTAL 0
:
00
:
47
:
12
SCENE 3
[
MENU
]
:
END
VIDEO EDIT
MARK
UNDO
ERASE ALL
START
EDIT SET
2 IN
0
:
09
:
07
:
06
TOTAL 0
:
00
:
12
:
00
SCENE 1
[
MENU
]
:
END
VIDEO EDIT
MARK
UNDO
ERASE ALL
START
EDIT SET
1 OUT
0
:
08
:
55
:
06
TOTAL 0
:
00
:
00
:
00
SCENE 0
[
MENU
]
:
END
N X N X N X
MENU
98
Dubbing only desired scenes – Digital program editing (on tapes)
Erasing the program you have set
Erase OUT first and then IN from of the last program.
(1) Turn the SEL/PUSH EXEC dial to select UNDO, then press the dial.
(2) Turn the SEL/PUSH EXEC dial to select EXECUTE, then press the dial.
The last set program mark flashes, then the setting is canceled.
To cancel erasing
Turn the SEL/PUSH EXEC dial to select RETURN, then press the dial in step 2.
Erasing all programs
(1) Turn the SEL/PUSH EXEC dial to select VIDEO EDIT in the menu settings,
then select TAPE, then press the dial.
(2) Turn the SEL/PUSH EXEC dial to select ERASE ALL, then select EXECUTE,
then press the dial.
All the program marks flash, then the settings are canceled.
To cancel erasing all programs
Select RETURN with the SEL/PUSH EXEC dial in step 2.
To cancel a program you have set
Press MENU.
The program is stored in memory until the tape is ejected.
Note
You cannot operate recording during Digital program editing.
On a blank portion of the tape
You cannot set IN or OUT on a blank portion of the tape.
If there is a blank portion between IN and OUT on the tape
The total time code may not be displayed correctly.
99
Editing
Operation 2: Performing the program (Dubbing a tape)
Make sure that your camcorder and VCR are connected, and that the VCR is set to
recording pause. When you use an i.LINK cable (DV connecting cable), this procedure
is not necessary.
When you use a digital video camera recorder, set its power switch to VCR/VTR.
(1) Turn the SEL/PUSH EXEC dial to select VIDEO EDIT in the menu settings,
then select TAPE, then press the dial.
(2) Turn the SEL/PUSH EXEC dial to select START, then select EXECUTE, then
press the dial.
Search for the beginning of the first program, then start dubbing.
The program mark flashes.
The SEARCH indicator appears during search, and the EDITING indicator
appears during edit on the screen.
The program mark changes to light blue after dubbing ends.
When dubbing ends, your camcorder and the VCR automatically stop.
To stop dubbing during editing
Press x using the video operation buttons.
To end the Digital program editing
Your camcorder stops when the dubbing ends. Then the display returns to VIDEO
EDIT in the menu settings.
Press MENU to end the Digital program editing.
You cannot record on the VCR when:
– The tape has run out.
– The write-protect tab on the cassette is set to lock.
– The IR SETUP code is not correct. (when IR is selected)
– The button to cancel recording pause is not correct. (when IR is selected)
NOT READY appears on the LCD screen when:
– The program to operate the Digital program editing has not been made.
– i.LINK is selected but an i.LINK cable (DV connecting cable) is not connected.
– The power of the connected VCR is not turned on. (when you set i.LINK)
Dubbing only desired scenes – Digital program editing (on tapes)
100
Recording video or TV programs
Using the A/V connecting cable
You can record a tape from another VCR or a TV program from a TV that has video/
audio outputs. Use your camcorder as a recorder.
Before operation
Set DISPLAY in to LCD in the menu settings. (The default setting is LCD.)

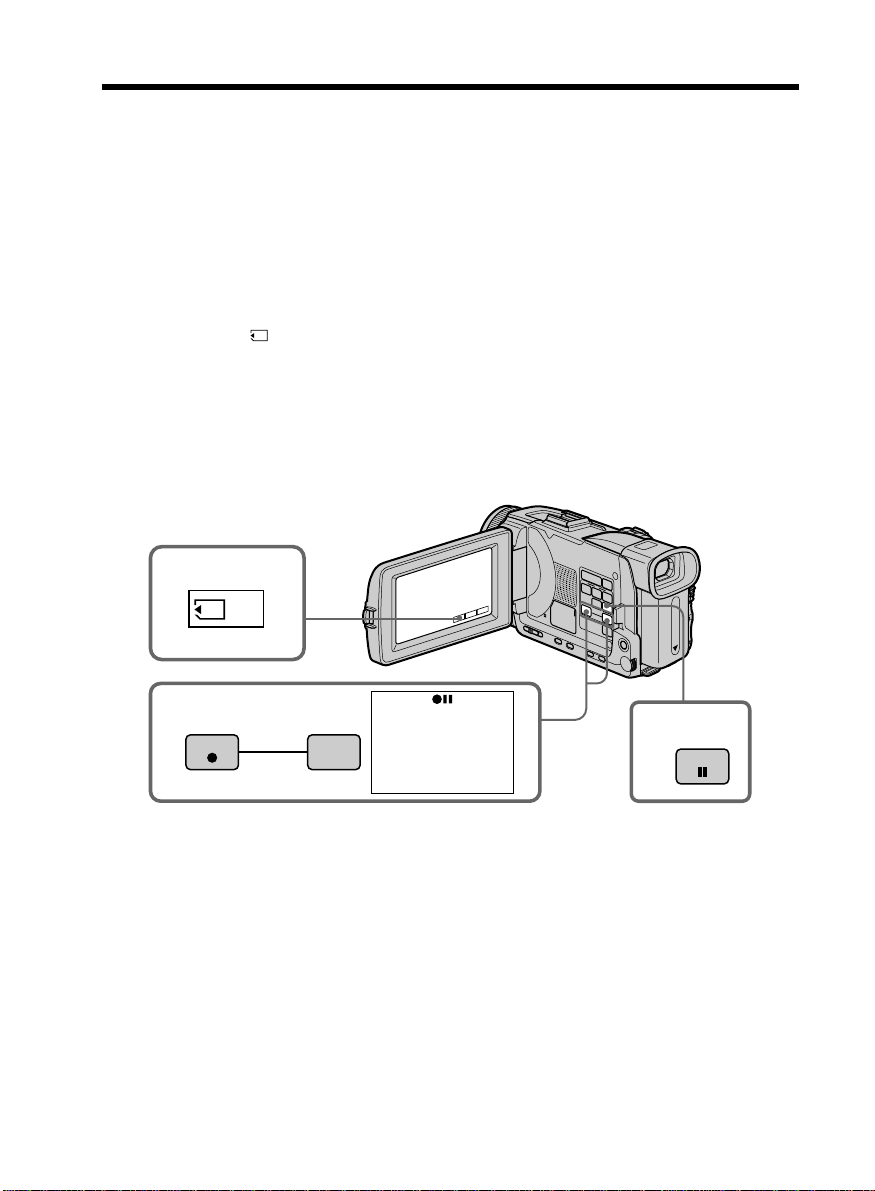

(1) Insert a blank tape (or a tape you want to record over) into your camcorder. If
you are recording a tape from the VCR, insert a recorded tape into the VCR.
(2) Set the POWER switch to VCR on your camcorder.
(3) Press z REC and the button on its right simultaneously on your camcorder,
then immediately press X on your camcorder.
(4) Press N on the VCR to start playback if you record a tape from a VCR. Select
a TV program if you are recording from a TV. The picture from a TV or VCR
appears on the screen.
(5) Press X on your camcorder at the scene where you want to start recording
from.
When you have finished dubbing a tape
Press x on both your camcorder and the VCR.
Using the Remote Commander
In step 3, press z REC and MARK simultaneously, then immediately press X. In step 5,
press X at the scene where you want to start recording from.
3
REC
PAUSE
S VIDEO
VIDEO
AUDIO
OUT
AUDIO/
VIDEO
S VIDEO
: Signal flow
VCR
White
Yellow
Red A/V connecting cable (supplied)
101
Editing
If your TV or VCR is a monaural type
Connect the yellow plug of the A/V connecting cable to the video output jack and the
white or the red plug to the audio output jack on the VCR or the TV. When the white
plug is connected, the left channel audio is recorded, and when the red plug is
connected, the right channel audio is recorded.
If your TV or VCR has an S video jack
Pictures can be reproduced more faithfully by using an S video cable (optional).
With this connection, you do not need to connect the yellow (video) plug of the A/V
connecting cable.
Connect an S video cable (optional) to the S video jacks of both your camcorder and the
TV or VCR.
This connection produces higher quality DV format pictures.
Note on the Remote Commander
Your camcorder works in the commander mode VTR 2. Commander modes 1, 2 and 3
are used to distinguish your camcorder from other Sony VCRs to avoid erroneous
remote control operation. If you use another Sony VCR in the commander mode VTR 2,
we recommend changing the commander mode or covering the sensor of the VCR with
black paper.
Recording video or TV programs
102
Recording video or TV programs
Using the i.LINK cable (DV connecting cable)
Simply connect the i.LINK cable (DV connecting cable) (optional) to DV IN/OUT jack
on your camcorder and to DV OUT on the DV products. With a digital-to-digital
connection, video and audio signals are transmitted in digital form for high-quality
editing.
(1) Insert a blank tape (or a tape you want to record over) into your camcorder,
and insert the recorded tape into the VCR.
(2) Set the POWER switch to VCR on your camcorder.
(3) Press z REC and the button on its right simultaneously on your camcorder,
then immediately press X on your camcorder.
(4) Press N on the VCR to start playback. The picture to be recorded appears on
the screen.
(5) Press X on your camcorder at the scene where you want to start recording
from.
When you have finished dubbing a tape
Press x on both your camcorder and the VCR.
Using the Remote Commander
In step 3, press z REC and MARK simultaneously, then immediately press X. In step 5,
press X at the scene where you want to start recording from.
DV
3
DV OUT
DV IN/OUT
REC
PAUSE
i.LINK cable (DV connecting cable) (optional)
: Signal flow
103
Editing
You can connect one VCR only using the i.LINK cable (DV connecting cable).
During digital editing
The color of the display may be uneven. However, this does not affect the dubbed
picture.
If you record playback pause picture with the DV IN/OUT jack
The recorded picture becomes rough. When you play back the picture using your
camcorder, the picture may jitter.
Before recording
Make sure that the DV IN indicator appears on the screen or in the viewfinder. The DV
IN indicator may appear on both equipment.
Note on the Remote Commander
Your camcorder works in the commander mode VTR 2. Commander modes 1, 2 and 3
are used to distinguish your camcorder from other Sony VCRs to avoid erroneous
remote control operation. If you use another Sony VCR in the commander mode VTR 2,
we recommend changing the commander mode or covering the sensor of the VCR with
black paper.
Recording video or TV programs
104
Inserting a scene from a VCR
– Insert Editing
You can insert a new scene from a VCR onto your originally recorded tape by
specifying the insert start and end points. Use the Remote Commander for this
operation. Connections are the same as on page 100 or 102.
Insert a cassette containing the desired scene to insert into the VCR.
[A]: A tape that contains the scene to be superimposed
[B]: A tape before editing
[C]: A tape after editing
(1) Set the POWER switch to VCR on your camcorder.
(2) On the connected VCR, locate just before the insert start point [a], then press
X to set the VCR to the playback pause.
(3) On your camcorder, locate the insert end point [c]. Then press X to set your
camcorder to the playback pause.
(4) Press ZERO SET MEMORY on the Remote Commander. The ZERO SET
MEMORY indicator flashes and the end point of the insert is stored in
memory. The tape counter shows “0:00:00.”
(5) On your camcorder, locate the insert start point [b] by pressing m, then press
z REC and the button on its right simultaneously.
(6) First press X on the VCR, and after a few seconds press X on your camcorder
to start inserting the new scene.
Inserting automatically stops near the zero point on the tape counter. Your
camcorder automatically returns to the recording pause.
[a]
[b]
[c]
[A]
[B]
[C]
105
Editing
To change the insert end point
Press ZERO SET MEMORY again after step 5 to erase the ZERO SET MEMORY
indicator and begin from step 3.
Using the Remote Commander
In step 5, press z REC and MARK simultaneously, then immediately press X. In step 6,
press X at the scene where you want to start recording from.
Note
Pictures and sound recorded on the portion between the insert start and end points will
be erased when you insert the new scene.
If you insert scenes on the tape recorded on another camcorder (including other
DCR-TRV40/TRV50)
The pictures and sound may be distorted. We recommend that you insert scenes on a
tape recorded on your camcorder.
When the inserted picture is played back
Pictures and sound may be distorted at the end of the inserted portion. This is not a
malfunction.
Pictures and sound at the start point and the end point may be distorted in the LP
mode.
To insert a scene without setting the insert end point
Skip steps 3 and 4. Press x when you want to stop inserting.
If you press FN
The ZERO SET MEMORY indicator is not displayed.
Note on the Remote Commander
Your camcorder works in the commander mode VTR 2. Commander modes 1, 2 and 3
are used to distinguish your camcorder from other Sony VCRs to avoid erroneous
remote control operation. If you use another Sony VCR in the commander mode VTR 2,
we recommend changing the commander mode or covering the sensor of the VCR with
black paper.
Inserting a scene from a VCR – Insert Editing
4
0:00:00
ZERO SET
MEMORY
ZERO SET
MEMORY
5
REC
106
You can record audio to add to the original sound on a tape by connecting audio
equipment or a microphone. If you connect audio equipment, you can add sound to
your recorded tape already recorded in the 12-bit sound mode by specifying the start
and end points. The original sound will not be erased.
Use the Remote Commander for this operation.
Select one of the following connections to add audio.
Connecting the microphone with the MIC jack
You can check recorded picture and sound by connecting your camcorder to a TV with
the A/V connecting cable.
Recorded sound is not output from the speaker. Check the sound by using a TV or
headphones.
Connecting the microphone to the intelligent accessory shoe
Audio dubbing
Microphone (optional)
Intelligent accessory shoe
Microphone (optional)
: Signal flow
MIC
(PLUG IN POWER)
107
Editing
Connecting the A/V connecting cable to the AUDIO/VIDEO jack
Dubbing with the built-in microphone
No connection is necessary.
Note
When dubbing with the AUDIO/VIDEO jack or the built-in microphone, pictures are
not output through the S VIDEO jack or the AUDIO/VIDEO jack. Check the recorded
picture on the screen. You can check the recorded sound by using headphones.
If you make all the connections
The audio input to be recorded will take precedence over others in the following order:
•MIC (PLUG IN POWER) jack
•Intelligent accessory shoe
•AUDIO/VIDEO jack
•Built-in microphone
Audio dubbing
LINE OUT
LR
AUDIO
/
VIDEO
Audio equipment
Do not connect the
video (yellow) plug.
: Signal flow
AUDIO L AUDIO R
A/V connecting cable (supplied)
RedWhite
108
Adding audio on a recorded tape
Choose a connection described on the previous pages, and connect audio equipment or
microphone to your camcorder. Then follow the procedure below.
(1) Insert the recorded tape into your camcorder.
(2) Set the POWER switch to VCR on your camcorder.
(3) Locate the recording start point by pressing N. Then press X at the point
where you want to start recording to set your camcorder to the playback
pause.
(4) Press AUDIO DUB on the Remote Commander. The green
X indicator
appears on screen.
(5) Press X and start playing back the audio you want to record at the same time.
The new sound is recorded in stereo 2 (ST2) during playback. While audio is
being recorded, the red
appears on the screen.
(6) Press x at the point where you want to stop recording.
To add audio more precisely
Press ZERO SET MEMORY on the Remote Commander at the point where you want to
stop recording later in the playback.
Carry out from steps 3 to 5. Recording automatically stops at the point where ZERO
SET MEMORY was pressed.
Audio dubbing
AUDIO DUB
109
Editing
Audio dubbing
Monitoring the new recorded sound
(1) Play back the tape on which you added audio.
(2) Turn the SEL/PUSH EXEC dial to select AUDIO MIX in
in the menu
settings, then press the dial.
(3) Turn the SEL/PUSH EXEC dial to adjust the balance between the original
sound (ST1) and the new sound (ST2), then press the dial.
Five minutes after you disconnect the power supply or remove the battery
pack, the AUDIO MIX setting returns to original sound (ST1) only. The default
setting is original sound only.
Notes
•New audio cannot be recorded on a tape already recorded in the 16-bit mode (32 kHz,
44.1 kHz or 48 kHz).
•New audio cannot be recorded on a tape already recorded in the LP mode.
•You cannot add audio with the DV IN/OUT jack.
•You cannot add audio on the blank portion of the tape.
If an i.LINK cable (DV connecting cable) (optional) is connected to your camcorder
You cannot add audio to a recorded tape.
We recommend that you add audio on a tape recorded with your camcorder
If you add audio on a tape recorded with another camcorder (including other
DCR-TRV40/TRV50), the sound quality may become worse.
If you set the write-protect tab of the cassette to lock
You cannot record on a tape. Slide the write-protect tab to release the write protection.
ST1 ST2
VCR SET
HiFi SOUND
AUDIO MIX
A/VcDV OUT
RETURN
[
MENU
]
:
END
110

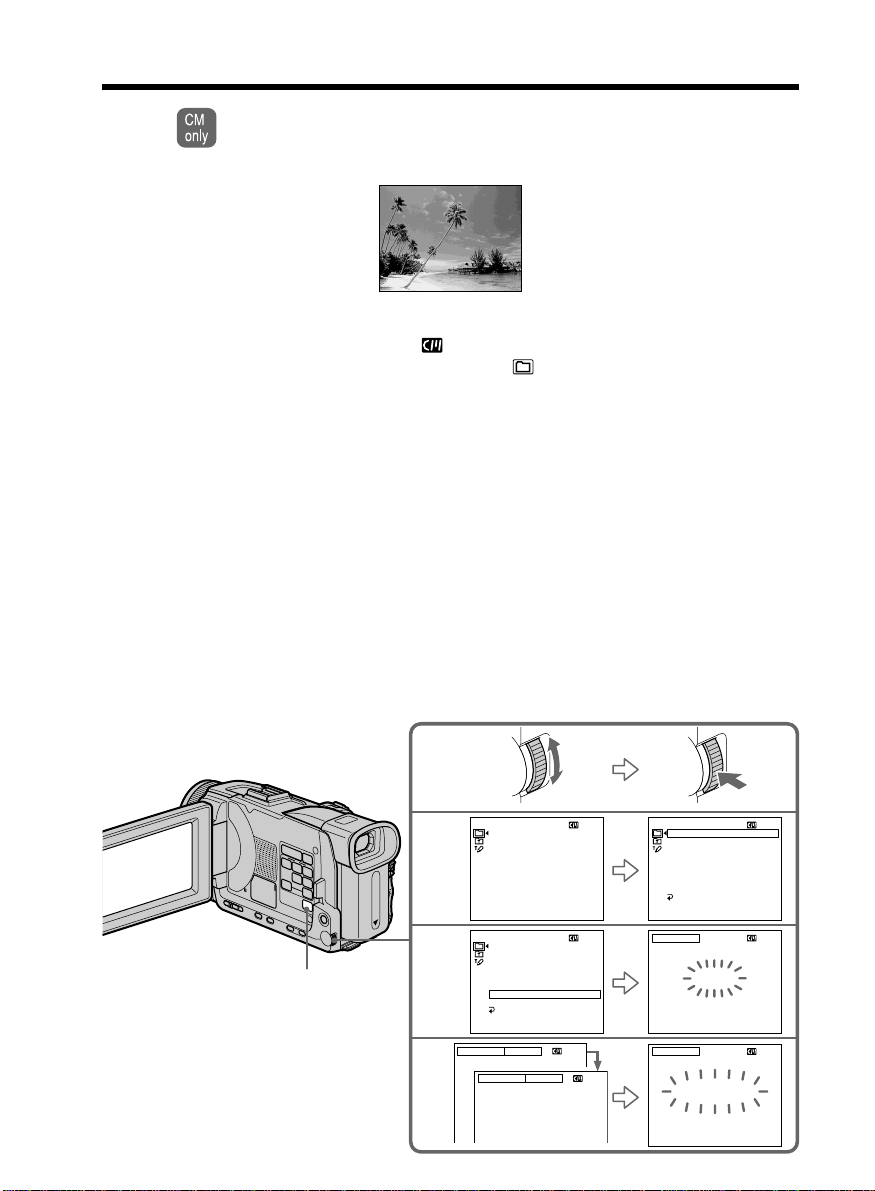

Superimposing a title
If you use a tape with cassette memory, you can superimpose the title. When
you play back the tape, the title is displayed for five seconds from the point
where you superimposed it.
(1) In the recording , recording standby, playback or playback pause, press
MENU, then select TITLE in
with the SEL/PUSH EXEC dial (p. 205).
(2) Turn the SEL/PUSH EXEC dial to select
, then press the dial.
(3) Turn the SEL/PUSH EXEC dial to select the desired title, then press the dial.
The title flashes.
(4) Change the color, size, or position, if necessary.
1 Turn the SEL/PUSH EXEC dial to select COLOR, SIZE or POSITION, then
press the dial. The selected item appears.
2 Turn the SEL/PUSH EXEC dial to select the desired item, then press the
dial.
3 Repeat steps 1 and 2 until the title is laid out as desired.
(5) Press the SEL/PUSH EXEC dial again to complete the setting.
In the recording, playback or playback pause:
The TITLE SAVE indicator appears on the screen for five seconds and the title
is set.
In the standby:
The TITLE indicator appears. When you press START/STOP to start
recording, TITLE SAVE appears on the screen for five seconds, and the title is
set.
VACATION
2
3
4
VACATION
VACATION
VACATION
PRESET TITLE
HELLO!
HAPPY BIRTHDAY
HAPPY HOLIDAYS
CONGRATULATIONS!
OUR SWEET BABY
WEDDING
VACATION
THE END
[
MENU
]
:
END
PRESET TITLE
HELLO!
HAPPY BIRTHDAY
HAPPY HOLIDAYS
CONGRATULATIONS!
OUR SWEET BABY
WEDDING
VACATION
THE END
RETURN
[
MENU
]
:
END
PRESET TITLE
HELLO!
HAPPY BIRTHDAY
HAPPY HOLIDAYS
CONGRATULATIONS!
OUR SWEET BABY
WEDDING
VACATION
THE END
RETURN
[
MENU
]
:
END
TITLE
[
EXEC
]
:
SAVE
[
MENU
]
:
END
TITLE
[
EXEC
]
:
SAVE
[
MENU
]
:
END
SIZE SMALL
SIZE LARGE
MENU
111
Editing
Superimposing a title
If you set the write-protect tab of the cassette to lock
You cannot superimpose or erase the title. Slide the write-protect tab to release the write
protection.
To use a custom title
If you want to use a custom title, select in step 2.
If the tape has a blank portion
You cannot superimpose a title on the portion.
If the tape has a blank portion between recorded portions
Titles may not be displayed correctly.
Titles superimposed with your camcorder
•Titles are displayed by only the DV format video equipment with an index titler.
•The point you superimposed the title may be detected as an index signal when
searching a recording with other video equipment.
If the tape has too many index signals
You may not be able to superimpose a title because the cassette memory becomes full.
In this case, delete data you do not need.
To not display titles
Set TITLE DSPL to OFF in the menu settings (p. 205).
Title setting
•The title color changes as follows:
WHITE y YELLOW y VIOLET y RED y CYAN y GREEN y BLUE
•The title size changes as follows:
SMALL y LARGE
You cannot input 13 characters or more in LARGE size. If you input more than 12
characters, the title size returns to SMALL even if you select LARGE.
•If you select SMALL, you have nine choices for the title position.
If you select LARGE, you have eight choices for the title position.
One cassette can have up to about 20 titles, with each title comprising five
characters
However, if the cassette memory is full with date, photo and cassette label data, one
cassette can have only up to about 11 titles each comprising five characters.
Cassette memory capacity is as follows:
– six date data
– 12 photo data
– one cassette label
If the “ FULL” mark appears
The cassette memory is full. Erase unwanted titles.
112
Erasing a title
(1) Set the POWER switch to CAMERA or VCR.
(2) Press MENU, then turn the SEL/PUSH EXEC dial to select TITLEERASE in
, then press the dial (p. 205).
(3) Turn the SEL/PUSH EXEC dial to select the title you want to erase, then press
the dial. ERASE OK ? indicator appears.
(4) Make sure that the title is the one you want to erase, and turn the SEL/PUSH
EXEC dial to select OK, then press the dial. OK changes to EXECUTE.
(5) Turn the SEL/PUSH EXEC dial to select EXECUTE, then press the dial.
The ERASING flashes on the screen. When the title is erased, the COMPLETE
is displayed.
To cancel erasing a title
Select RETURN in step 4 or 5.
Superimposing a title
2
34
CM SET
TITLE
TITLEERASE
TITLE DSPL
CM SEARCH
TAPE TITLE
ERASE ALL
RETURN
[
MENU
]
:
END
TITLE ERASE
1 HELLO!
2 CONGRATULATIONS!
3 HAPPY NEW YEAR!
4 PRESENT
5 GOOD MORNING
6 WEDDING
[
MENU
]
:
END
TITLE ERASE
4 PRESENT
ERASE OK?
[
MENU
]
:
END
TITLE ERASE
4 PRESENT
ERASE OK? RETURN
EXECUTE
RETURN
OK
[
MENU
]
:
END
MENU
113
Editing

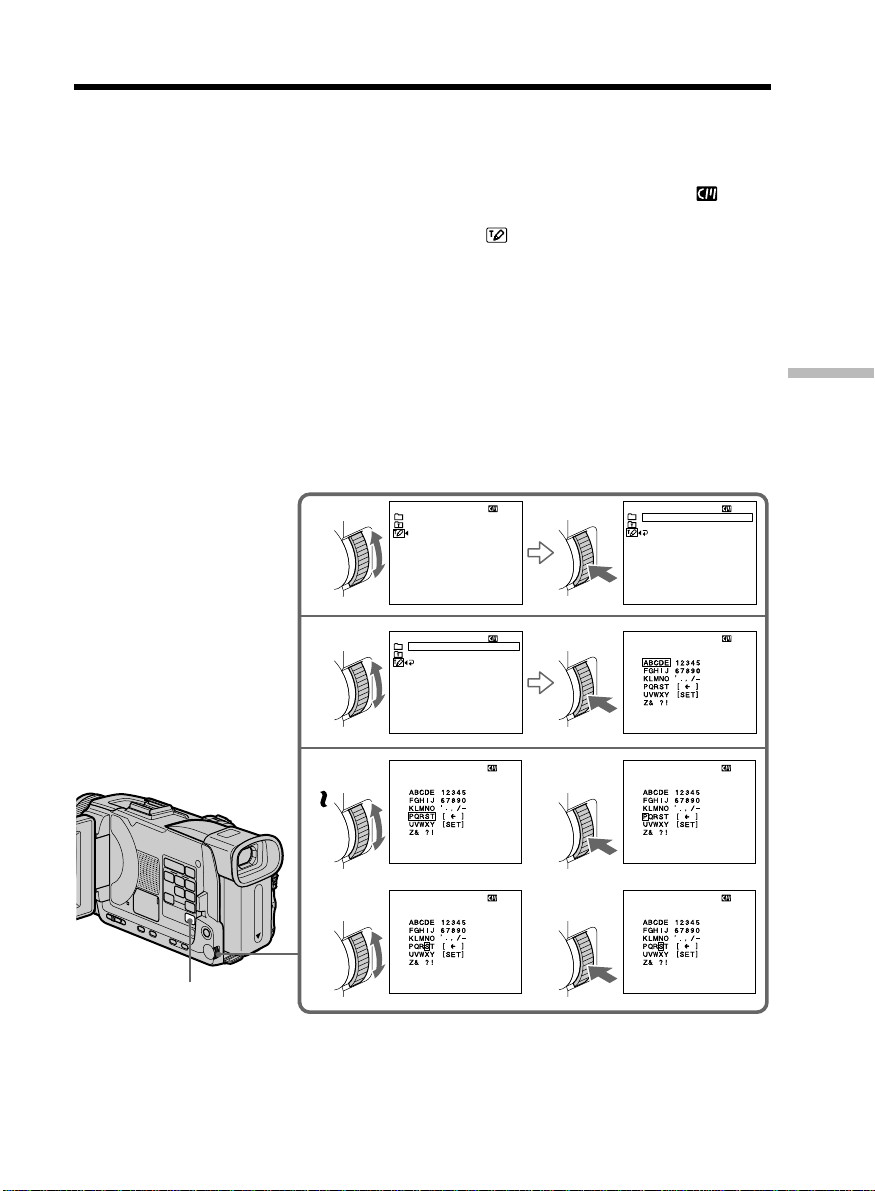

You can make up to two titles and store them in the memory of your camcorder. Each
title can have up to 20 characters.
(1) Set the POWER switch to CAMERA or VCR.
(2) Press MENU, then turn the SEL/PUSH EXEC dial to select TITLE in
, then
press the dial (p. 205).
(3) Turn the SEL/PUSH EXEC dial to select
, then press the dial.
(4) Turn the SEL/PUSH EXEC dial to select CUSTOM1 SET or CUSTOM2 SET,
then press the dial.
(5) Turn the SEL/PUSH EXEC dial to select the column of the desired character,
then press the dial.
(6) Turn the SEL/PUSH EXEC dial to select the desired character, then press the
dial.
(7) Repeat steps 5 and 6 until you have selected all characters and completed the
title.
(8) To finish making your own titles, turn the SEL/PUSH EXEC dial to select
[SET], then press the dial.
Making your own titles
3
4
5
7
12
34
TITLE SET
CUSTOM1 SET
CUSTOM2 SET
[
MENU
] :
END
TITLE SET
CUSTOM1 SET
CUSTOM2 SET
RETURN
[
MENU
] :
END
TITLE SET
–––––––––––––––––––
–
[
MENU
] :
END
TITLE SET
––––––––––––––––––––
[
MENU
] :
END
[
MENU
] :
END
TITLE SET
S
–––––––––––––––––––
[
MENU
] :
END
TITLE SET
CUSTOM1 SET
CUSTOM2 SET
RETURN
[
MENU
] :
END
[
MENU
] :
END
TITLE SET
–––––––––––––––––––
–
TITLE SET
––––––––––––––––––––
MENU
114
Making your own titles
To change a title you have stored
In step 4, select CUSTOM1 SET or CUSTOM2 SET, depending on which title you want
to change, then press the SEL/PUSH EXEC dial. Turn the SEL/PUSH EXEC dial to
select [C], then press the dial to delete the title. The last character is erased. Enter the
new title as desired.
If you take five minutes or longer to enter characters in the standby while a
cassette is in your camcorder
The power automatically goes off. The characters you have entered remain stored in
memory. Set the POWER switch to OFF (CHG) once and then to CAMERA again, then
proceed from step 1.
We recommend setting the POWER switch to VCR or removing the cassette so that
your camcorder does not automatically turn off while you are entering title characters.
To delete the title
Select [C]. The last character is erased.
To enter a space
Select [ Z& ? ! ], then select the blank part.
115
Editing

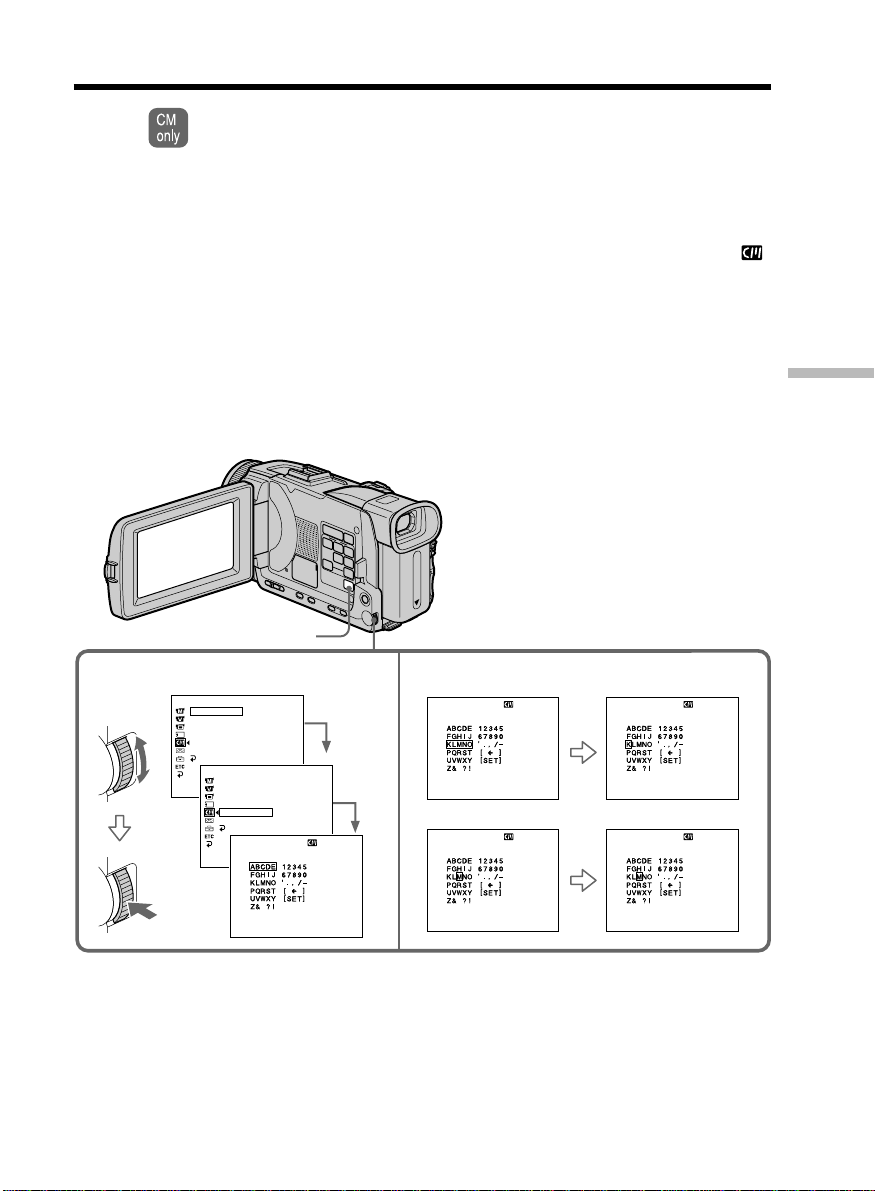

If you use a cassette with cassette memory, you can label a cassette. Labels can
consist of up to 10 characters and is stored in cassette memory. When you insert
the labeled cassette and when the POWER switch is set to CAMERA or VCR, the
label is displayed for about five seconds.
(1) Insert the cassette you want to label.
(2) Set the POWER switch to CAMERA or VCR.
(3) Press MENU, then turn the SEL/PUSH EXEC dial to select TAPE TITLE in
,
then press the dial (p. 205). Tape title display appears.
(4) Turn the SEL/PUSH EXEC dial to select the column of the desired character,
then press the dial.
(5) Turn the SEL/PUSH EXEC dial to select the desired character, then press the
dial.
(6) Repeat steps 4 and 5 until you finish the label.
(7) Turn the SEL/PUSH EXEC dial to select [SET], then press the dial.
The label is stored in memory.
Labeling a cassette
3
4~6
[
MENU
] :
END
TAPE TITLE
––––––––––
[
MENU
] :
END
TAPE TITLE
––––––––––
[
MENU
] :
END
TAPE TITLE
––––––––––
[
MENU
] :
END
TAPE TITLE
M
–––––––––
[
MENU
] :
END
CM SET
TITLE
TITLEERASE
TITLE DSPL
CM SEARCH
TAPE TITLE
ERASE ALL
RETURN
READY
––––––––––
[
MENU
] :
END
CM SET
TITLE
TITLEERASE
TITLE DSPL
CM SEARCH
TAPE TITLE
ERASE ALL
RETURN
[
MENU
] :
END
TAPE TITLE
––––––––––
MENU
116
To erase the label you have made
In step 4 turn the SEL/PUSH EXEC dial to select [C], then press the dial. The last
character is erased.
To change the label you have made
Insert the cassette to change the label, and operate in the same way to make a new label.
If you set the write-protect tab of the cassette to lock
You cannot label the tape. Slide the write-protect tab to release the write protection.
If the tape has too many index signal
You may not be able to label a cassette because the cassette memory becomes full. In
this case, delete data you do not need.
If you have superimposed titles in the cassette
When the label is displayed, up to four titles also appear.
When the “-----” indicator has fewer than 10 spaces
The cassette memory is full.
The “-----” indicates the number of characters you can select for the label.
To enter a space
Select [ Z& ? ! ], then select the blank part.
Erasing all the data in cassette memory
You can erase all the data in cassette memory at once.
(1) Set the POWER switch to CAMERA or VCR.
(2) Press MENU, then turn the SEL/PUSH EXEC dial to select ERASE ALL in
,
then press the dial (p. 205).
(3) Turn the SEL/PUSH EXEC dial to select OK, then press the dial. OK changes
to EXECUTE.
(4) Turn the SEL/PUSH EXEC dial to select EXECUTE, then press the dial.
ERASING flashes on the screen. When all the data is erased, COMPLETE is
displayed.
To cancel deleting
Select RETURN with the SEL/PUSH EXEC dial in step 3 or 4.
Labeling a cassette
[
MENU
] :
END
CM SET
TITLE
TITLEERASE
TITLE DSPL
CM SEARCH
TAPE TITLE
ERASE ALL
RETURN
RETURN
OK
[
MENU
] :
END
CM SET
TITLE
TITLEERASE
TITLE DSPL
CM SEARCH
TAPE TITLE
ERASE ALL
RETURN
RETURN
EXECUTE
117
“Memory Stick
” Operations
You can record and play back images on a “Memory Stick” supplied with your
camcorder. You can easily play back, record or delete images. You can exchange image
data with other equipment such as your computer etc., using the USB cable for
“Memory Stick” supplied with your camcorder.
On file format
Still image (JPEG)
Your camcorder compresses image data in JPEG format (extension .jpg).
Moving picture (MPEG)
Your camcorder compresses picture data in MPEG format (extension .mpg).
Typical image data file name
Still image
100-0001: This file name appears on the screen of your camcorder.
Dsc00001.jpg: This file name appears on the display of your computer.
Moving picture
MOV00001: This file name appears on the screen of your camcorder.
Mov00001.mpg: This file name appears on the display of your computer.
Using a “Memory Stick”
•You cannot record or erase images when the write-protect tab on the “Memory Stick”
is set to LOCK.
•The position and shape of the write-protect tab may be different depending on the
model.
•We recommend backing up important data on the hard disk of your computer.
•Image data may be damaged in the following cases:
– If you eject the “Memory Stick” or turn the power off during reading or writing.
– If you use “Memory Stick”s near static electricity or magnetic fields.
•Prevent metallic objects or your finger from coming into contact with the metal parts
of the terminal.
•Stick the label at the labeling position.
•Do not bend, drop or apply strong shock to “Memory Stick”s.
•Do not disassemble or modify “Memory Stick”s.
•Do not let “Memory Stick”s get wet.
•Do not use or keep “Memory Stick”s in locations that are:
– Extremely hot such as in a car parked in the sun or under the scorching sun.
– Under direct sunlight
– Very humid or subject to corrosive gases
•When you carry or store a “Memory Stick,” put it in its case.
— “Memory Stick” Operations —
Using a “Memory Stick” – Introduction
Write-protect tab
Labeling position
Terminal
118
“Memory Stick”s formatted on computer
“Memory Stick”s formatted on Windows OS or Macintosh computers are not
guaranteed compatible with your camcorder.
Notes on image data compatibility
•Image data files recorded on “Memory Stick”s by your camcorder conform with the
Design Rules for Camera File Systems universal standard established by the JEITA
(Japan Electronics and Information Technology Industries Association). You cannot
play back on your camcorder still images recorded on other equipment (DCR-
TRV890E/TRV900/TRV900E or DSC-D700/D770) that does not conform with this
universal standard. (These models are not sold in some areas.)
•If you cannot use the “Memory Stick” that is used with other equipment, format it
with this camcorder (p. 204). However, formatting erases all information on the
“Memory Stick.”
•“Memory Stick” and are trademarks of Sony Corporation.
•All other product names mentioned here may be the trademarks or registered
trademarks of their respective companies.
“TM” and “®” are not mentioned in each case in this manual.
Using a “Memory Stick” – Introduction
119
“Memory Stick
” Operations
Inserting a “Memory Stick”
Insert a “Memory Stick” in the “Memory Stick” slot as far as it can go with the B mark
facing as illustrated.
Ejecting a “Memory Stick”
Press the “Memory Stick” once lightly.
While the access lamp is lit or flashing
Do not shake or knock your camcorder because your camcorder is reading the data
from the “Memory Stick” or recording the data on the “Memory Stick.” Do not turn the
power off, eject a “Memory Stick.” Otherwise, image data may become damaged.
If “ MEMORY STICK ERROR” is displayed
Reinsert “Memory Stick” a few times. The “Memory Stick” may be damaged if the
indicator is still displayed. If this occurs, use another “Memory Stick.”
“Memory Stick” slot
B mark
Access lamp
Using a “Memory Stick” – Introduction
120
Using a “Memory Stick” – Introduction
Using a touch panel
Most operation buttons for use of “Memory Stick”s are displayed on the LCD screen.
Touch the LCD screen directly with your finger or the supplied stylus (DCR-TRV50
only) to operate each function.
(1) Set the POWER switch to MEMORY/NETWORK (DCR-TRV50 only). Make
sure that the LOCK switch is set to the left (unlock) position.
(2) Press OPEN to open the LCD panel. Operation buttons appear on the LCD
screen. You can switch the memory playback/memory camera by pressing
PLAY/CAM.
(3) Press FN. Operation buttons appear on the LCD screen.
(4) Press PAGE2 to go to PAGE2. Operation buttons appear on the LCD screen.
(5) Press PAGE3 to go to PAGE3. Operation buttons appear on the LCD screen.
(6) Press a desired operation item.
Refer to relevant pages for each function.
FN
1
3~6
2
FNINDEXPLAY FNINDEXCAM
SPOT
FOCUS
PLAY
INDEX SPOT
METER
SELF
TIMER
MEM
MIX
9PIC
PRINT
LCD
BRT
PLAY
INDEX
PLAY
INDEX
+–
PAGE1 PAGE2 PAGE3
PAGE1 PAGE2 PAGE3
SLIDE
SHOW
PAGE1 PAGE2 PAGE3
EXIT
EXIT
EXIT
1360
1/12SFN
1360
1/12SFN
1360
1/12SFN
VCR
MEMORY/
NETWORK
CAMERA
OFF(CHG)
POWER
LOCK
In the memory camera
In the memory
camera
In the memory
playback (still
image)
121
“Memory Stick
” Operations
To return to FN
Press EXIT.
To execute settings
Press OK.
To cancel settings
Press OFF to return to PAGE1/PAGE2/PAGE3.
Notes
•When using the touch panel, press operation buttons with your thumb supporting the
LCD screen from the back side of it or press those buttons lightly with your index
finger.
•Do not press the LCD screen with sharp objects other than the supplied stylus. (DCR-
TRV50 only)
•Do not press the LCD screen too hard.
•Do not touch the LCD screen with wet hands.
•If FN is not on the LCD screen, touch the LCD screen lightly to make it appear. You
can control the display with DISPLAY/TOUCH PANEL on your camcorder.
•When operation buttons do not work even if you press them, an adjustment is
required (CALIBRATION) (p. 230).
•When the LCD screen gets dirty, clean it with the supplied cleaning cloth.
When executing each item
The green bar appears above the item.
If the items are not available
The color of the items changes to gray.
Press FN to display the following buttons:
In the memory camera
PAGE1 SELFTIMER, SPOT FOCUS, PLAY, INDEX, SPOT METER
PAGE2 LCD BRT, PLAY, INDEX, MEM MIX
PAGE3 SLIDE SHOW, PLAY, INDEX, 9PIC PRINT
In the memory playback
PAGE1 PB ZOOM, CAM, INDEX, DELETE,
+
,
–
PAGE2 LCD BRT, CAM, INDEX, DATA CODE,
+
,
–
PAGE3 SLIDE SHOW, CAM, INDEX, 9PIC PRINT,
+
,
–
Using a “Memory Stick” – Introduction
122
Selecting the still image quality
You can select the image quality in still image recording. The default setting is SUPER
FINE.
(1) Set the POWER switch to MEMORY/NETWORK (DCR-TRV50 only) or VCR.
Make sure that the LOCK switch is set to the left (unlock) position.
(2) Press MENU, then select STILL SET in
with the SEL/PUSH EXEC dial
(p. 203).
(3) Turn the SEL/PUSH EXEC dial to select QUALITY , then press the dial.
(4) Turn the SEL/PUSH EXEC dial to select the desired image quality , then press
the dial.
Using a “Memory Stick” – Introduction
1
3
4
VCR
MEMORY/
NETWORK
CAMERA
OFF(CHG)
POWER
LOCK
MEMORY SET
STILL SET
BURST
QUALITY
IMAGESIZE
RETURN
SUPER FINE
FINE
STANDARD
[
MENU
]
:
END
REMAIN
12
MEMORY SET
STILL SET
BURST
QUALITY
IMAGESIZE
RETURN
STANDARD
[
MENU
]
:
END
REMAIN
36
MENU
123
“Memory Stick
” Operations
Image quality settings
Setting Meaning
SUPER FINE (SFN) This is the highest image quality in your camcorder.
The number of still images you can record is less than
in FINE mode. Super fine images are compressed to
about 1/3.
FINE (FINE) Use this mode when you want to record high quality
images. Fine images are compressed to about 1/6.
STANDARD (STD) This is the standard image quality in your camcorder.
Standard images are compressed to about 1/10.
Note
In some cases, changing the image quality may not affect the image quality, depending
on the type of images you are shooting.
Differences in image quality
Recorded images are compressed in JPEG format before being stored in memory. The
memory capacity allotted to each image varies depending on the selected image quality
and image size. Details are shown in the table below. (You can select 1360 × 1020 or 640
× 480 image size in the menu settings.)
1360 × 1020 image size
Image quality Memory capacity
SUPER FINE About 900 KB
FINE About 450 KB
STANDARD About 300 KB
640 × 480 image size
Image quality Memory capacity
SUPER FINE About 190 KB
FINE About 100 KB
STANDARD About 60 KB
Image quality indicator
The image quality indicator is not displayed during playback.
When you select image quality
The number of images you can shoot in the currently selected image quality appears on
the screen.
Using a “Memory Stick” – Introduction
124

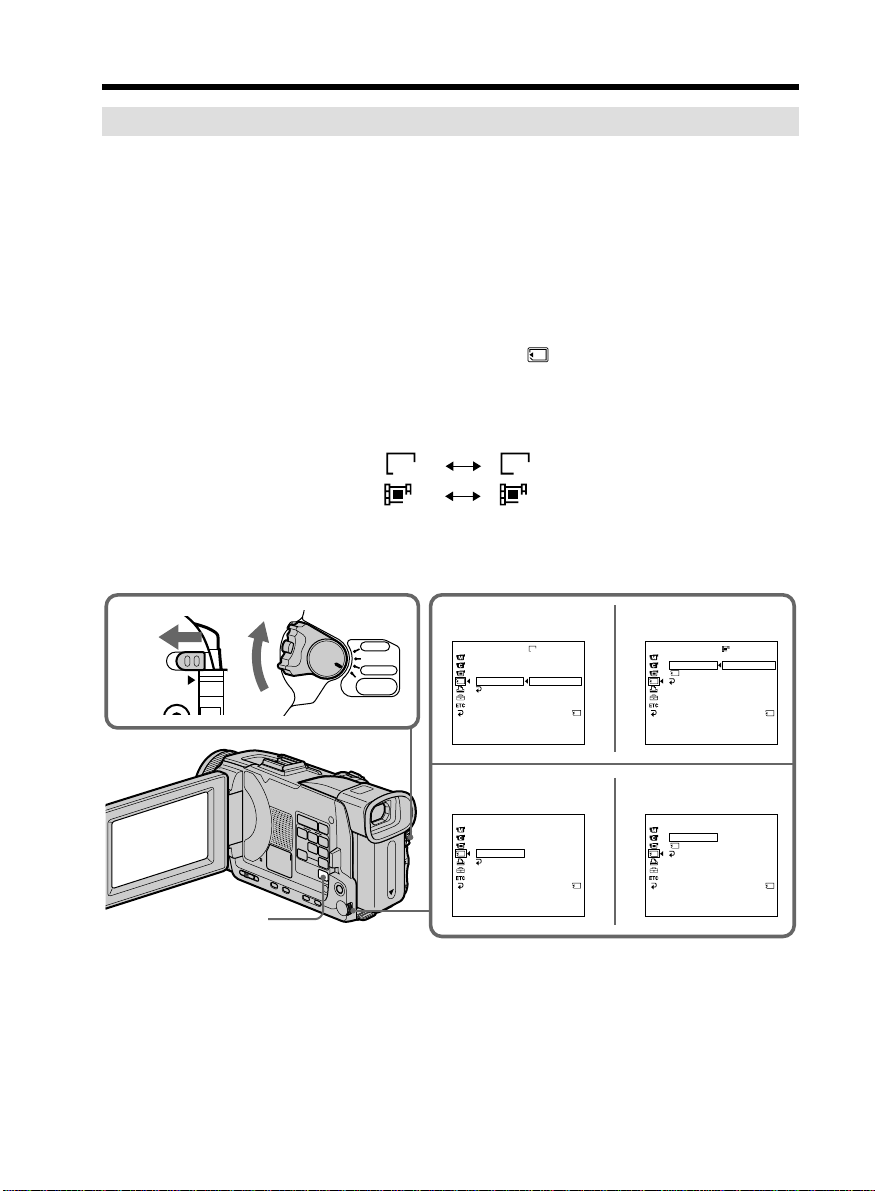

Selecting the image size
You can select either of two image sizes
Still images: 1360 × 1020 or 640 × 480. (When the POWER switch is set to CAMERA
or VCR, the image size is automatically set to 640 × 480.)
The default setting is 1360 × 1020.
Moving pictures: 320 × 240 or 160 × 112
The default setting is 320 × 240.
(1) Set the POWER switch to MEMORY/NETWORK (DCR-TRV50 only). Make
sure that the LOCK switch is set to the left (unlock) position.
(2) Press MENU, then turn the SEL/PUSH EXEC dial to select STILL SET (still
image) or MOVIE SET (moving picture) in
, then press the dial (p. 203).
(3) Turn the SEL/PUSH EXEC dial to select IMAGESIZE, then press the dial.
(4) Turn the SEL/PUSH EXEC dial to select the desired image size, then press the
dial.
The indicator changes as follows:
Still images:
1360 640
Moving pictures:
320 160
Using a “Memory Stick” – Introduction
3
4
1
VCR
MEMORY/
NETWORK
CAMERA
OFF(CHG)
POWER
LOCK
320
1360
MEMORY SET
STILL SET
BURST
QUALITY
IMAGESIZE
RETURN
1360 × 1020
640 × 480
[
MENU
]
:
END
MEMORY SET
MOVIE SET
IMAGESIZE
REMAIN
RETURN
320 × 240
160 × 112
[
MENU
]
:
END
REMAIN
40sec
MEMORY SET
STILL SET
BURST
QUALITY
IMAGESIZE
RETURN
640 × 480
[
MENU
]
:
END
REMAIN
60
REMAIN
12
MEMORY SET
MOVIE SET
IMAGESIZE
REMAIN
RETURN
160 × 112
[
MENU
]
:
END
REMAIN
2min
STILL SET MOVIE SET
STILL SET
MOVIE SET
MENU
125
“Memory Stick
” Operations
Using a “Memory Stick” – Introduction
Image size settings
Setting Meaning Indicator
1360 × 1020 Records 1360 × 1020 still images.
1360
640 × 480 Records 640 × 480 still images.
640
320 × 240 Records 320 × 240 moving pictures.
320
160 × 112 Records 160 × 112 moving pictures.
160
Approximate number of still images you can record on a
“Memory Stick”
The number of images you can record varies depending on which image quality and
image size you select and the complexity of the subject.
Approximate time of moving pictures you can record on a
“Memory Stick”
The time of moving pictures you can record varies depending on which image size you
select and the complexity of the subject.
The table above shows approximate number and times of still images and moving
pictures you can record on a “Memory Stick” formatted by your camcorder.
Note
When still images recorded on your camcorder in 1360 × 1020 size are played back on
other equipment that does not support 1360 × 1020 size, the full image may not appear.
Type of “Memory Stick”s
Image size
8MB 16MB 32MB 64MB 128MB
(supplied) (optional) (optional) (optional) (optional)
320 × 240
1 min. 2 min. 5 min. 10 min. 21 min.
20 sec. 40 sec. 20 sec. 40 sec. 20 sec.
160 × 112
5 min. 10 min. 21 min. 42 min. 85 min.
20 sec. 40 sec. 20 sec. 40 sec. 20 sec.
Type of “Memory Stick”s
Image quality Image size
8MB 16MB 32MB 64MB 128MB
(supplied) (optional) (optional) (optional) (optional)
SUPER FINE
1360 × 1020 8 images 17 images 35 images 71 images 140 images
640 × 480 40 images 80 images 160 images 325 images 650 images
FINE
1360 × 1020 17 images 34 images 69 images 140 images 280 images
640 × 480 80 images 160 images 325 images 650 images 1310 images
STANDARD
1360 × 1020 25 images 50 images 100 images 205 images 415 images
640 × 480 120 images 240 images 485 images 980 images 1970 images
126
You can record still images on “Memory Stick”s.
Before operation
Insert a “Memory Stick” into your camcorder.
(1) Set the POWER switch to MEMORY/NETWORK (DCR-TRV50 only). Make
sure that the LOCK switch is set to the left (unlock) position.
(2) Press PHOTO lightly. The green z mark stops flashing, then lights up. The
brightness of the image and focus are adjusted, being targeted for the middle
of the image and are fixed. Recording does not start yet.
(3) Press PHOTO deeper.
The still image will be displayed after the shutter sounds.
Recording is complete when the bar scroll indicator disappears.
The image when you pressed PHOTO deeper will be recorded on the
“Memory Stick.”
You can record still images on “Memory Stick”s in the tape
recording or tape recording standby
For the details, see page 47.
Recording still images on “Memory
Stick”s – Memory Photo recording
3
2
1 / 12
SFN
1360
SFN
1360
FN
INDEXPLAY
FN
INDEXPLAY
1
LOCK
VCR
MEMORY/
NETWORK
CAMERA
OFF(CHG)
POWER
[a][b]
[a]: Number of recorded images
[b]: Approximate number of images that can
be recorded on the “Memory Stick”
127
“Memory Stick
” Operations
Recording still images on “Memory Stick”s
– Memory Photo recording
When the POWER switch is set to MEMORY/NETWORK (DCR-TRV50 only)
The following functions do not work:
– Wide mode
– Digital zoom
– SteadyShot
– Super NightShot
– Color Slow Shutter
– Fader
– Picture effect
– Digital effect
– Title
– Sports lesson of PROGRAM AE (The indicator flashes.)
While you are recording a still image
You can neither turn off the power nor press PHOTO.
When you press PHOTO on the Remote Commander
Your camcorder immediately records the image that is on the screen when you press
the button.
When you press PHOTO lightly in step 2
The image momentarily flickers. This is not a malfunction.
Recording data
The recording data (date/time or various settings when recorded) are not displayed
while recording. However, they are recorded automatically onto the “Memory Stick.”
To display the recording data, press DATA CODE during playback. You can also use
the Remote Commander for this opration (p. 42).
When the POWER switch is set to MEMORY/NETWORK (DCR-TRV50 only)
The angle of view is slightly larger compared with the angle of view when the POWER
switch is set to CAMERA.
128
Recording still images on “Memory Stick”s
– Memory Photo recording

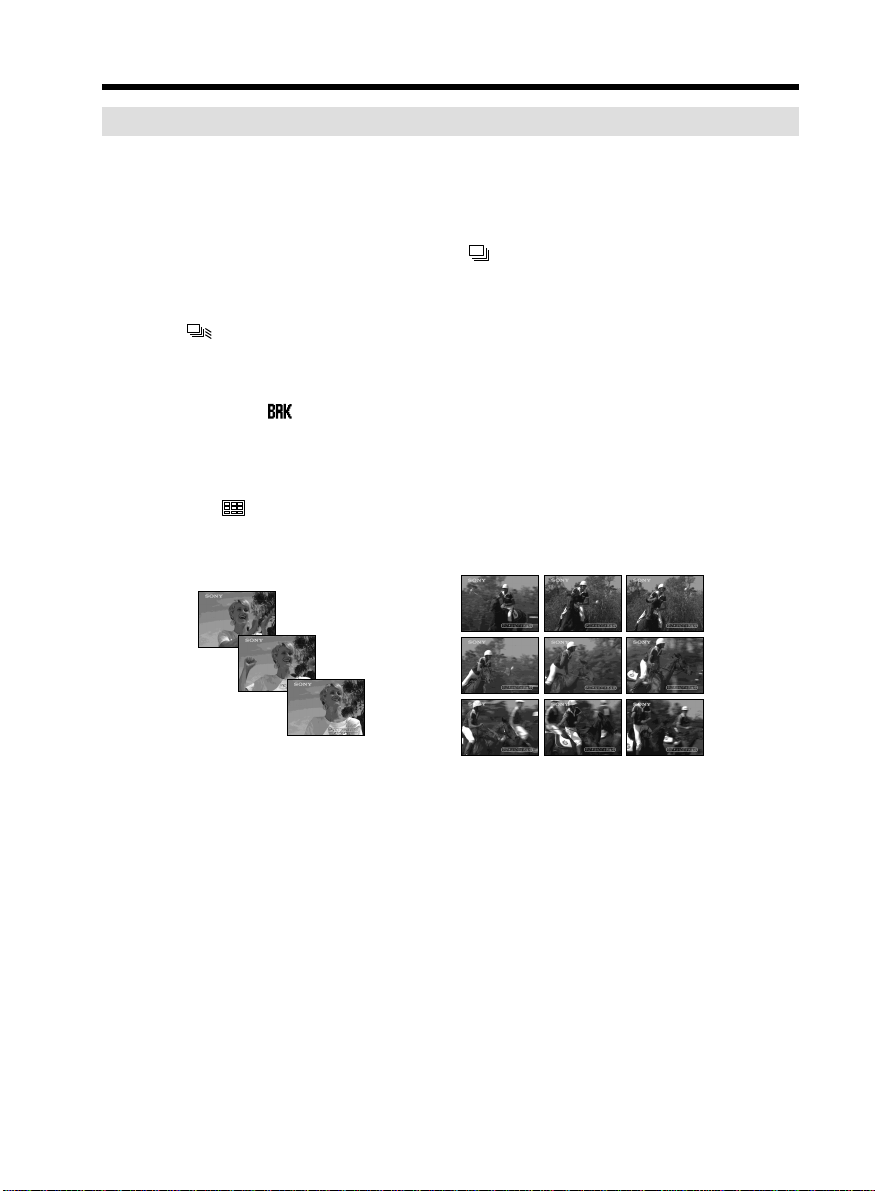

Recording images continuously
You can record still images continuously. Before recording, select one of the four modes
described below in the menu settings.
NORMAL [a]
Your camcorder shoots up to three still images in 1360 × 1020 size or nine still images in
640 × 480 size at about 0.5 sec intervals. ( )
HIGH SPEED [a]
Your camcorder shoots up to 16 still images in 640 × 480 size at about 0.07 sec intervals.
( )
EXP BRKTG (Exposure Bracketing)
Your camcorder automatically shoots three images at about 0.5 sec intervals at different
exposures. ( )
MULTI SCRN (Multi Screen) [b]
Your camcorder shoots nine still images at about 0.4 sec intervals and displays the
images on a single page divided into nine boxes. Still images are recorded in 640 × 480
size. ( )
[a] [b]
129
“Memory Stick
” Operations
(1) Set the POWER switch to MEMORY/NETWORK (DCR-TRV50 only). Make
sure that the LOCK switch is set to the left (unlock) position.
(2) Press MENU, then turn the SEL/PUSH EXEC dial to select STILL SET in
,
then press the dial (p. 203).
(3) Turn the SEL/PUSH EXEC dial to select BURST, then press the dial.
(4) Turn the SEL/PUSH EXEC dial to select the desired setting, then press the
dial.
(5) Press MENU to make the menu setting disappear.
(6) Press PHOTO deeper.
If the capacity of the “Memory Stick” becomes full
” FULL” appears on the screen, and you cannot record a still image on this “Memory
Stick.”
The number of still images in continuous shooting
The number of still images you can shoot continuously varies depending on the image
size and the capacity of the “Memory Stick.”
During recording still images continuously
The flash does not work.
When shooting with the self-timer or the Remote Commander
Your camcorder automatically records up to the maximum recordable number of still
images.
Recording still images on “Memory Stick”s
– Memory Photo recording
3
4
MEMORY SET
STILL SET
BURST
QUALITY
IMAGESIZE
RETURN
OFF
[
MENU
]
:
END
MEMORY SET
STILL SET
BURST
QUALITY
IMAGESIZE
RETURN
OFF
NORMAL
HIGH SPEED
EXP BRKTG
MULTI SCRN
[
MENU
]
:
END
MEMORY SET
STILL SET
BURST
QUALITY
IMAGESIZE
RETURN
HIGH SPEED
[
MENU
]
:
END
MEMORY SET
STILL SET
BURST
QUALITY
IMAGESIZE
RETURN
OFF
NORMAL
HIGH SPEED
EXP BRKTG
MULTI SCRN
[
MENU
]
:
END
MENU
130
When selecting NORMAL or HIGH SPEED
Recording continues up to the maximum number of still images during pressing
PHOTO deeper. Release PHOTO to stop recording.
When selecting HIGH SPEED
Flickering or changes in color may occur. Also, your camcorder prevents focusing on
near objects.
If there is space remaining on the “Memory Stick” for less than three photos
You cannot carry out the exposure bracketing (EXP BRKTG). “ FULL” is displayed
when you press PHOTO.
The effect of exposure bracketing (EXP BRKTG)
The effect may not appear clearly on the LCD screen.
Checking images on a TV monitor or computer display for the expected effect is
recommended.
Recording images with the flash
The flash automatically pops up to strobe. The default setting is auto (no indicator). To
change the flash mode, press (flash) repeatedly until the flash mode indicator
appears on the screen.
Each press of (flash) changes the indicator as follows:
t t t No indicator
Auto red-eye reduction: The flash fires before recording to reduce the red-eye
phenomenon.
Forced flash: The flash fires regardless of the surrounding brightness.
No flash: The flash does not fire.
The flash is automatically adjusted to the appropriate brightness. You can also change
FLASH LVL to the desired brightness in the menu settings (p. 200). Try recording
various images to find the most appropriate setting for FLASH LVL.
Recording still images on “Memory Stick”s
– Memory Photo recording
(flash)
131
“Memory Stick
” Operations
Recording still images on “Memory Stick”s
– Memory Photo recording
Notes
•The recommended shooting distance using the built-in flash is 0.3 m to 2.5 m (31/32
feet to 8 1/3 feet).
•Attaching the lens hood (supplied) or a conversion lens (optional) may block the light
from the flash or cause lens shadow to appear.
•You cannot use an external flash (optional) and the built-in flash at the same time.
• (auto red-eye reduction) may not produce the desired effect depending on
individual differences, the distance to the subject, the subject not looking at the pre-
recording flash or other conditions.
•The flash effect cannot be obtained easily when you use forced flash in a bright
location.
•If it is not easy to focus on a subject automatically, for example, when recording in the
dark, use HOLOGRAM AF (p. 132) or the focal distance information (p. 70) for
focusing manually.
If you leave your camcorder for five or more minutes after disconnecting the
power supply
Your camcorder returns to the default setting (auto).
The flash does not fire even if you select auto and (auto red-eye reduction)
during the following operations:
– NightShot
– Exposure
– Flexible Spot meter
– Spotlight of PROGRAM AE
– Sunset & moon of PROGRAM AE
– Landscape of PROGRAM AE
When you use an external flash (optional) which does not have the auto red-eye
reduction
You cannot select the auto red-eye reduction.
During recording images continuously
The flash does not work.
132
Shooting with an auxiliary light – HOLOGRAM AF
The HOLOGRAM AF is an auxiliary light source used for focusing on subjects in dark
places.
Set HOLOGRAM F in to AUTO in the menu settings. (The default setting is AUTO.)
When appears on the screen in a dark place, press PHOTO lightly. Then the
auxiliary light will automatically emit until the subject is focused.
About HOLOGRAM AF
“HOLOGRAM AF (Auto-Focus),” an application of laser holograms, is a new AF
optical system that enables still image shooting in dark places. Having gentler radiation
than conventional high-brightness LEDs or lamps, the system satisfies Laser Class 1 (*)
specification and thus maintains higher safety for human eyes.
No safety problems will be caused by directly looking into the HOLOGRAM AF emitter
at a close range. However, it is not recommended to do so, because you may experience
such effects like several minutes of image residual and dazzling, that you encounter
after looking into a flashlight.
* HOLOGRAM AF satisfies Class 1(time base 30 000 seconds), specified in all of JIS
(Japan), IEC(EU), and FDA(US) industry standards.
Complying with these standards identifies the laser product to be safe, under a
condition that a human looks at the laser light either directly or even through a lens
for 30 000 seconds.
Recording still images on “Memory Stick”s
– Memory Photo recording
HOLOGRAM AF emitter
133
“Memory Stick
” Operations
Recording still images on “Memory Stick”s
– Memory Photo recording
Notes
•A conversion lens (optional) may obstruct the HOLOGRAM AF light and make
focusing difficult.
•If enough light does not reach the subject even if the HOLOGRAM AF emitter is
emitted (recommended shooting distance is 2.5 m (8 1/3 feet)), the subject will not be
focused.
•Focusing may be hampered if the light emitted from the HOLOGRAM AF is blocked
by an obstruction.
•Focus is achieved as long as HOLOGRAM AF light reaches to the subject even if its
light is slightly out of the middle position of the subject.
•If HOLOGRAM AF light is dim, it sometimes becomes difficult to focus. If this
happens, wipe the HOLOGRAM AF emitter with a soft, dry cloth.
The HOLOGRAM AF does not emit when:
– Flash is set to No flash
– NightShot is set to ON
– Focusing manually
– Using Spot Focus
– Sunset & moon of PROGRAM AE
– Landscape of PROGRAM AE
– Continuous photo recording
When you use the external flash (optional)
HOLOGRAM AF emits.
134
Self-timer memory photo recording
You can record images on “Memory Stick”s with the self-timer. You can also use the
Remote Commander for this operation.
(1) Set the POWER switch to MEMORY/NETWORK (DCR-TRV50 only). Make
sure that the LOCK switch is set to the left (unlock) position.
(2) Press FN to display PAGE1.
(3) Press SELFTIMER.
The
(self-timer) indicator appears on the screen.
(4) Press PHOTO deeper.
Self-timer starts counting down from 10 with a beep. In the last two seconds of
the countdown, the beep gets faster, then recording starts automatically.
To cancel the self-timer
Press SELFTIMER so that the (self-timer) indicator disappears on the screen. You
cannot cancel self-timer using the Remote Commander.
Note
The self-timer recording is automatically canceled when:
– Self-timer recording is finished.
– The POWER switch is set to OFF (CHG) or VCR.
Recording still images on “Memory Stick”s
– Memory Photo recording
2
FN
4
135
“Memory Stick
” Operations
Your camcorder can read moving picture data recorded on a tape and record it as a still
image on a “Memory Stick.” Your camcorder can also capture moving picture data
through the input connector and record it as a still image on a “Memory Stick.”
Before operation
•Insert a recorded tape into your camcorder.
•Insert a “Memory Stick” into your camcorder.
(1) Set the POWER switch to VCR.
(2) Press N. Moving pictures recorded on the tape are played back.
(3) Press PHOTO lightly until picture you want to capture from the tape freezes
and CAPTURE appears on the screen. Recording does not start yet.
To change from the image selected to another image, release PHOTO once and
press it lightly again.
(4) Press PHOTO deeper. The image displayed on the screen will be recorded on
the “Memory Stick.” Recording is complete when the bar scroll indicator
disappears.
2
34
CAPTURE
FN
INDEXPB
FN
INDEXPB
1 / 12
SFN
640
SFN
640
REW PLAY FF
Recording images from a tape as still
images
[a]: Number of recorded images
[b]: Approximate number of images that can
be recorded on the “Memory Stick”
[a][b]
136
Image size of still images
Image size is automatically set to 640 × 480.
When the access lamp is lit or flashing
Do not shake or strike the unit. Also, do not turn the power off , eject a “Memory Stick.”
Otherwise, image data may become damaged.
If “ ” appears on the screen
The inserted “Memory Stick” is incompatible with your camcorder because its format
does not conform with your camcorder. Check the format of the “Memory Stick.”
If you press PHOTO lightly in the playback
Your camcorder stops momentarily.
Sound recorded on a tape
You cannot record audio from a tape.
Titles already recorded on cassettes
You cannot record titles on “Memory Stick”s. Titles do not appear while you are
recording a still image with PHOTO.
Recording date/time
The recording data (date/time) when it is recorded on a “Memory Stick” is recorded.
Various settings are not recorded.
Data codes recorded on a tape cannot be recorded on a “Memory Stick”.
When you press PHOTO on the Remote Commander
Your camcorder immediately records the image that is on the screen when you press
the button.
Recording images from a tape as still images
137
“Memory Stick
” Operations
Recording images from a tape as still images
Recording a still image from external equipment
Before operation
Set DISPLAY in to LCD in the menu settings. (The default setting is LCD.)
(1) Set the POWER switch to VCR.
(2) Play back the recorded tape, or turn the TV on to see the desired program.
The image of the external equipment is displayed on the screen.
(3) Follow steps 3 and 4 on page 135.
Using the A/V connecting cable
Connect the yellow plug of the A/V connecting cable to the video jack on the VCR or
the TV.
If your TV or VCR has an S video jack
Pictures can be reproduced more faithfully by using an S video cable (optional).
With this connection, you do not need to connect the yellow (video) plug of the A/V
connecting cable.
Connect an S video cable (optional) to the S video jacks of both your camcorder and the
TV or VCR.
AUDIO/
VIDEO
S VIDEO
S VIDEO
VIDEO
OUT
AUDIO
: Signal flow
VCR
Yellow
A/V connecting cable (supplied)
138
Using the i.LINK cable (DV connecting cable)
Note
In the following instances, recording is interrupted or “ REC ERROR” is displayed,
and recording is not possible. Record distortion-free images.
– When recording on a tape in a poor recording state, for example, on a tape that has
been repeatedly used for dubbing
– When attempting to input images that are distorted due to poor radio wave reception
when a TV tuner unit is in use
Recording images from a tape as still images
DV
DV OUT
DV IN/OUT
: Signal flow
i.LINK cable (DV connecting cable) (optional)
139
“Memory Stick
” Operations
You can superimpose a still image you have recorded on the “Memory Stick” on the
moving picture you are recording. You can record the superimposed images on a tape
or a “Memory Stick.” (However, you can record only superimposed still images on the
“Memory Stick.”)
M. CHROM (memory chroma key)
You can swap a blue area of a still image such as an illustration or a frame with a
moving picture.
M. LUMI (memory luminance key)
You can swap a brighter area of a still image such as a handwritten illustration or title
with a moving picture. Record a title on the “Memory Stick” before a trip or event for
convenience.
C. CHROM (camera chroma key)
You can superimpose a moving picture on a still image such as an image that can be
used as background. Shoot the subject against a blue background. The blue area of the
moving picture will be swapped with a still image.
M. OVERLAP* (memory overlap)
You can make a moving picture fade in on top of a still image recorded on the “Memory
Stick” as the overlap.
* The superimposed image using Memory overlap can be recorded on tapes only.
Superimposing a still image in the
“Memory Stick” on an image
– MEMORY MIX
M. CHROM
M C A M
C H R O M
Still image Moving picture
Blue
M. OVERLAP*
Still image
Moving picture
C. CHROM
C A M M
C H R O M
Still image Moving picture
Blue
M. LUMI
M C A M
L U M I
Still image Moving picture
O V E R –
L A P
140
Superimposing a still image in the “Memory Stick” on an image
– MEMORY MIX
Recording superimposed images on a tape
Before operation
•Insert a tape for recording into your camcorder.
•Insert a “Memory Stick” recorded still images into your camcorder.
(1) Set the POWER switch to CAMERA.
(2) Press FN to display PAGE1.
(3) Press MEM MIX. The last recorded or last composed image appears on the
lower part of the screen as a thumbnail image.
(4) Press –/+ on the right lower corner of the screen to select the still image which
you want to superimpose.
–: To see the previous image
+: To see the next image
(5) Press a desired mode. The still image is superimposed on the moving picture.
(6) Press –/+ on the left lower corner of the screen to adjust the effect, then press
OK to return to PAGE1.
M. CHROM: Blue chroma key (only blue background portion) to extract a
still image and superimpose it on a moving image
M. LUMI: Brightness level used when extracting a still image and
superimposing it on a moving image
C. CHROM: Blue chroma key (only blue background portion) to extract a
moving picture and superimpose it on a still image
M. OVERLAP: No adjustment necessary
The fewer bars there are on the screen, the stronger the effect.
(7) Press EXIT to return to FN.
(8) Press START/STOP to start recording.
141
“Memory Stick
” Operations
Superimposing a still image in the “Memory Stick” on an image
– MEMORY MIX
To change the still image to be superimposed
Press –/+ on the right lower corner before step 6.
To cancel MEMORY MIX
Press OFF to return to PAGE1.
Notes
•You cannot use the MEMORY MIX for moving pictures recorded on “Memory Stick”s.
•When the overlapping still image has a large amount of white, the thumbnail image of
the picture may not be clear.
Image data modified on your computer or shot with other equipment
You may not be able to play back modified images with your camcorder.
When you select M. OVERLAP
You cannot change the still image or the mode setting.
During recording
You cannot change the mode setting.
To record the superimposed image as a still image
Press PHOTO deeper in step 8 (You should set PHOTO REC in to TAPE in the
menu settings beforehand).
3,4
5
6
FN
MEM
M
I
X
+–
+–
2
1
100–0001
+–
MEM MIX
MCCAM
LUMI
OVER-
LAP
OFF OK
MCCAM
CHROM
CAMCM
CHROM
M. LUMI
100–0001
+–
MEM MIX
OFF OK
+–
M. LUMI
100–0001
+–
MEM MIX
OFF OK
+–
VCR
MEMORY/
NETWORK
CAMERA
OFF(CHG)
P
O
W
ER
Still image
142
Recording superimposed images on a “Memory Stick” as a still
Before operation
Insert a “Memory Stick” recorded still images into your camcorder.
(1) Set the POWER switch to MEMORY/NETWORK (DCR-TRV50 only). Make
sure that the LOCK switch is set to the left (unlock) position.
(2) Press FN and select PAGE2.
(3) Press MEM MIX. The last recorded or last composed image appears on the
lower part of the screen as a thumbnail image.
(4) Press –/+ on the right lower corner of the screen to select the still image which
you want to superimpose.
–: To see the previous image
+: To see the next image
(5) Press a desired mode. The still image is superimposed on the moving picture.
(6) Press –/+ on the left lower corner of the screen to adjust the effect, then press
OK to return to PAGE2.
M. CHROM: Blue chroma key (only blue background portion) to extract a
still image and superimpose it on a moving image
M. LUMI: Brightness level used when extracting a still image and
superimposing it on a moving image
C. CHROM: Blue chroma key (only blue background portion) to extract a
moving picture and superimpose it on a still image
The fewer bars there are on the screen, the stronger the effect.
(7) Press EXIT to return to FN.
(8) Press PHOTO deeper to start recording.
The image displayed on the screen will be recorded on a “Memory Stick.”
Recording is complete when the bar scroll indicator disappears.
Superimposing a still image in the “Memory Stick” on an image
– MEMORY MIX
143
“Memory Stick
” Operations
Superimposing a still image in the “Memory Stick” on an image
– MEMORY MIX
To change the still image to be superimposed
Press –/+ on the right lower corner before step 6.
To cancel MEMORY MIX
Press OFF to return to PAGE2.
Notes
•You cannot use MEMORY MIX for moving pictures recorded on “Memory Stick”s.
•When the overlapping still image has a large amount of white, the thumbnail image of
the picture may not be clear.
Image size of still pictures
Image size is automatically set to 640 × 480.
Image data modified with your computers or shot with other equipment
You may not be able to play back modified images with your camcorder.
During recording
You cannot change the mode setting.
When recording images on a “Memory Stick” using the MEMORY MIX
The PROGRAM AE does not work. (The indicator flashes.)
The “Memory Stick” supplied with your camcorder stores 20 images
– For M. CHROM: 18 images (such as a frame) 100-0001~100-0018
– For C. CHROM: two images (such as a background) 100-0019~100-0020
Sample images
Sample images stored in the “Memory Stick” supplied with your camcorder are
protected (p. 167).
3,4
5
6
FN
MEM
M
I
X
+–
+–
VCR
MEMORY/
NETWORK
CAMERA
OFF(CHG)
POWER
2
1
100–0001
+–
MEM MIX
MCCAM
LUMI
OFF OK
MCCAM
CHROM
CAMCM
CHROM
M. LUMI
100–0001
+–
MEM MIX
OFF OK
+–
M. LUMI
100–0001
+–
MEM MIX
OFF OK
+–
Still image
144
You can record moving pictures with sound on “Memory Stick”s.
The picture and sound and recorded up to the capacity of “Memory Stick” (MPEG
MOVIE EX).
Before operation
Insert a “Memory Stick” into your camcorder.
(1) Set the POWER switch to MEMORY/NETWORK (DCR-TRV50 only). Make
sure that the LOCK switch is set to the left (unlock) position.
(2) Press START/STOP. Your camcorder starts recording. The camera recording
lamp located on the front of your camcorder lights up. The picture and sound
are recorded up to the remaining capacity of “Memory Stick”. For more
information about recording time, see page 125.
To stop recording
Press START/STOP.
Recording moving pictures on “Memory
Stick”s – MPEG movie recording
2
320
40min REC 0:00
:
03
15
min
BBB
FN
INDEXPLAY
[a]
[b]
[a]: Recording time that can be recorded on
the “Memory Stick”.
[a] [b]: These indicators are displayed for five
seconds after pressing START/STOP.
This indicator is not recorded.
145
“Memory Stick
” Operations
Note
Sound is recorded in monaural.
When the POWER switch is set to MEMORY/NETWORK (DCR-TRV50 only)
The following functions do not work:
– Wide mode
– Digital zoom
– SteadyShot
– Super NightShot
– Color Slow Shutter
– Fader
– Picture effect
– Digital effect
– Title
– Sports lesson of PROGRAM AE (The indicator flashes.)
When using an external flash (optional)
Turn the power of the external flash off when recording moving pictures on “Memory
Stick”s. Otherwise, the charging sound for the flash may be recorded.
Recording date/time
The date/time are not displayed while recording. However, they are automatically
recorded onto the “Memory Stick.”
To display the recording date/time, press DATA CODE during playback. You can also
use the Remote Commander for this operation (p. 42). Various settings cannot be
recorded.
During recording on “Memory Stick”
Do not eject the cassette tape from your camcorder. During ejecting the tape, sound is
recorded on the “Memory Stick.”
When the POWER switch is set to MEMORY/NETWORK (DCR-TRV50 only)
The angle of view is slightly larger compared with the angle of view when the POWER
switch is set to CAMERA.
Recording moving pictures on “Memory Stick”s
– MPEG movie recording
146
Self-timer MPEG movie recording
You can record moving pictures on “Memory Stick”s with the self-timer. You can also
use the Remote Commander for this operation.
(1) Set the POWER switch to MEMORY/NETWORK (DCR-TRV50 only). Make
sure that the LOCK switch is set to the left (unlock) position.
(2) Press FN to display PAGE1.
(3) Press SELFTIMER.
The
(self-timer) indicator appears on the screen.
(4) Press START/STOP.
Self-timer starts counting down from 10 with a beep. In the last two seconds of
the countdown, the beep gets faster, then recording starts automatically.
To stop the countdown
Press START/STOP. To restart the self-timer, press START/STOP again.
To cancel the self-timer
Press SELFTIMER so that the (self-timer) indicator disappears on the screen. You
cannot cancel self-timer using the Remote Commander.
Note
The self-timer recording is automatically canceled when:
– Self-timer recording is finished.
– The POWER switch is set to OFF (CHG) or VCR.
Recording moving pictures on “Memory Stick”s
– MPEG movie recording
2
FN
4
START/STOP
147
“Memory Stick
” Operations

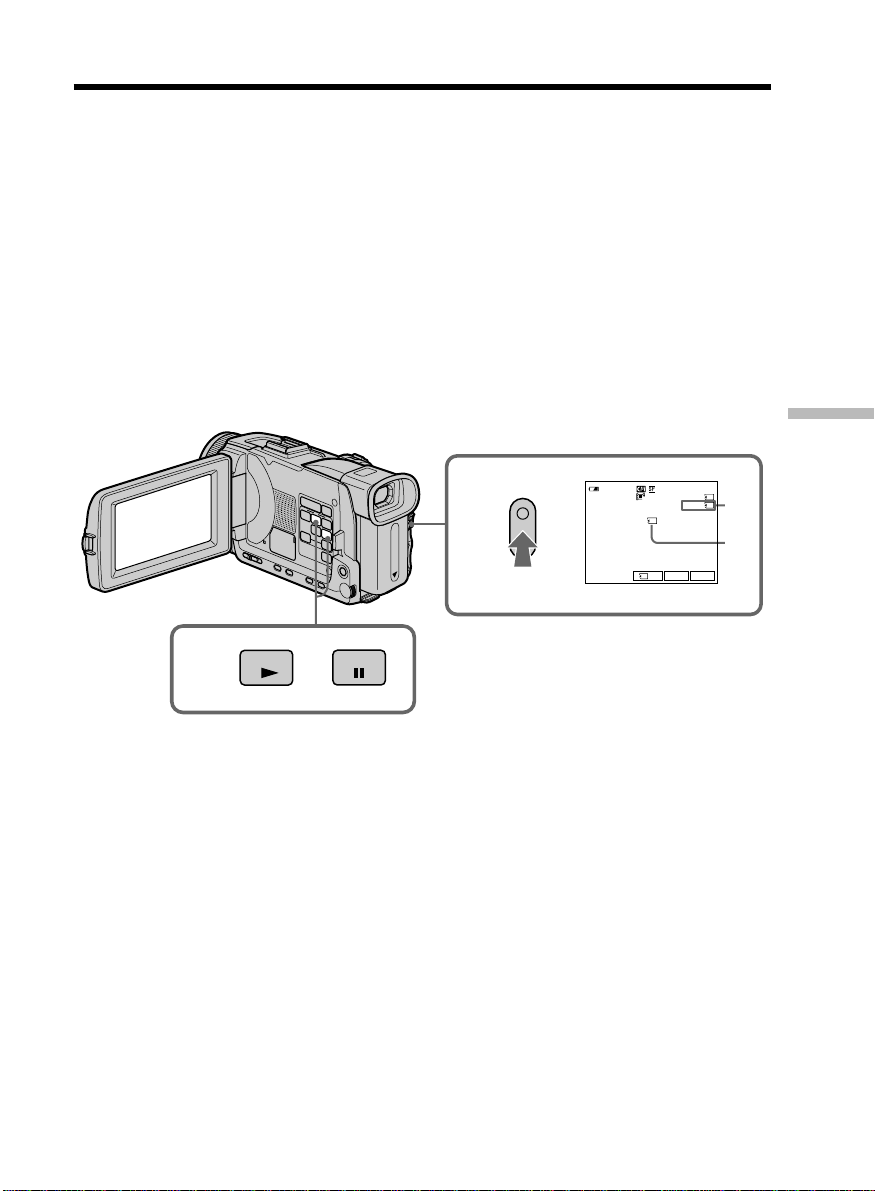

Your camcorder can read moving picture data recorded on a tape and record it as a
moving picture on a “Memory Stick.” Your camcorder can also capture moving picture
data through the input connector and record it as a moving picture on a “Memory
Stick.”
Before operation
•Insert a recorded tape into your camcorder.
•Insert a “Memory Stick” into your camcorder.
(1) Set the POWER switch to VCR.
(2) Press N. The picture recorded on the tape is played back.
And press X at the scene where you want to start recording from.
(3) Press START/STOP on your camcorder. The picture and sound are recorded
up to the remaining capacity of the “Memory Stick”. For more information
about recording time, see page 125.
To stop recording
Press START/STOP.
Recording pictures from tape as a moving
3
2
320
BBB
N
40min
REC 0:00
:
03
15
min
0
:
15
:
42
:
43
PLAY
PAUSE
FN
INDEXPB
[a]: The recording time that can be
recorded on the “Memory Stick.”
[a] [b]: This indicator is displayed for
five seconds after pressing START/
STOP. This indicator is not recorded.
[a]
[b]
148
Notes
•Sound recorded in 48 kHz is converted to 32 kHz sound when recording images from
a tape to “Memory Stick”s.
•Sound recorded in stereo is converted to monaural sound when recording from tape.
When the access lamp is lit or flashing
Do not shake or knock the unit. Also, do not turn the power off , eject a “Memory
Stick”. Otherwise, image data may become damaged.
Titles already recorded on cassettes
You cannot record titles on “Memory Stick”s. Titles do not appear while you are
recording moving picture with START/STOP.
If “ AUDIO ERROR” is displayed
Sound that cannot be recorded by your camcorder has been recorded. Connect the A/V
connecting cable to input images from external equipment used to play back the image
(p. 149).
Recording date/time
The recording data (date/time) when it is recorded on “Memory Stick” is recorded.
Various settings are not recorded.
Data codes recorded on a tape cannot be recorded on a “Memory Stick”.
Recording pictures from tape as a moving picture
149
“Memory Stick
” Operations
Recording a moving picture from external equipment
Before operation
Set DISPLAY in to LCD in the menu settings. (The default setting is LCD.)
(1) Set the POWER switch to VCR.
(2) Play back the recorded tape, or turn the TV on to see the desired program.
The image of the other equipment is displayed on the screen.
(3) Follow the procedure on page 147 from the step 3 onwards at the point where
you want to start recording from.
Using the A/V connecting cable
If your TV or VCR has an S video jack
Pictures can be reproduced more faithfully by using an S video cable (optional).
With this connection, you do not need to connect the yellow (video) plug of the A/V
connecting cable.
Connect an S video cable (optional) to the S video jacks of both your camcorder and the
TV or VCR.
Recording pictures from tape as a moving picture
S VIDEO
VIDEO
OUT
AUDIO/
VIDEO
S VIDEO
AUDIO
: Signal flow
VCR
Yellow
White
A/V connecting cable (supplied)
Red
150
Using the i.LINK cable (DV connecting cable)
Note
In the following instances, “ REC ERROR” is displayed and you cannot record
pictures.
– When recording on a tape in a poor recording state, for example, on a tape that has
been repeatedly used for dubbing
– When attempting to input images that are distorted due to poor radio wave reception
when a TV tuner unit is in use
– When the input signal is cut off
During recording on “Memory Stick”
Do not eject the cassette tape from your camcorder.
Recording pictures from tape as a moving picture
DV OUT
DV IN/OUT
DV
: Signal flow
i.LINK cable (DV connecting cable) (optional)
151
“Memory Stick
” Operations
You can duplicate selected scenes (programs) for editing onto “Memory Stick”s.
Making the program
(1) Set the POWER switch to VCR.
(2) Insert the tape for playback, and a “Memory Stick” for recording into your
camcorder.
(3) Press MENU and turn the SEL/PUSH EXEC dial to select VIDEO EDIT in
,
then press the dial (p. 209).
(4) Turn the SEL/PUSH EXEC dial to select MEMORY, then press the dial.
(5) Turn the SEL/PUSH EXEC dial to select IMAGESIZE and select the desired
image size, then press the dial.
(6) Search for the beginning of the first scene you want to insert using the video
operation buttons, then pause playback.
You can fine-adjust one frame at a time with EDITSEARCH.
(7) Press MARK on the Remote Commander, or turn the SEL/PUSH EXEC dial to
select MARK, the press the dial.
The IN point of the first program is set, and the top part of the program mark
changes to light blue.
(8) Search for the end of the first scene you want to insert using the video
operation buttons, then pause playback.
(9) Press MARK on the Remote Commander, or the SEL/PUSH EXEC dial.
The OUT point of the first program is set, then the bottom part of the program
mark changes to light blue.
(10)Repeat steps 6 to 9, then set the program.
When one program is set, the program mark changes to light blue.
You can set 20 programs in maximum.
7
9
10
6,8
REW PLAY FF
STOP PAUSE
320
320
320
VIDEO EDIT
MARK
UNDO
ERASE ALL
START
IMAGESIZE
1 OUT
0
:
08
:
55
:
06
TOTAL 0
:
00
:
00
SCENE 0 2min
TOTAL 0
:
00
:
12
SCENE 1 2min
TOTAL 0
:
00
:
31
SCENE 3 2min
[
MENU
]
:
END
VIDEO EDIT
MARK
UNDO
ERASE ALL
START
IMAGESIZE
2 IN
0
:
08
:
58
:
06
[
MENU
]
:
END
VIDEO EDIT
MARK
UNDO
ERASE ALL
START
IMAGESIZE
4 IN
0
:
10
:
01
:
23
[
MENU
]
:
END
N X
N X N X
MENU
Recording edited pictures from a tape as
a moving picture – Digital program
editing (on “Memory Stick”s)
152
Recording edited pictures from a tape as a moving picture
– Digital program editing (on “Memory Stick”s)
Erasing the program you have set
Erase OUT first and then IN from of the last program.
(1) Turn the SEL/PUSH EXEC dial to select UNDO, then press the dial.
(2) Turn the SEL/PUSH EXEC dial to select EXECUTE, then press the dial.
The last set program mark flashes, then the setting is canceled.
To cancel erasing
Select RETURN with the SEL/PUSH EXEC dial in step 2.
Erasing all programs
(1) Turn the SEL/PUSH EXEC dial to select VIDEO EDIT in the menu settings,
then select MEMORY, then press the dial.
(2) Turn the SEL/PUSH EXEC dial to select ERASE ALL, then select EXECUTE,
then press the dial.
All the program marks flash, then the settings are canceled.
To cancel erasing all programs
Select RETURN with the SEL/PUSH EXEC dial in step 2.
To cancel a program you have set
Press MENU.
The program is stored in memory until the tape is ejected.
Notes
•You cannot dub the titles, display indicators, or the contents of cassette memory.
•You cannot operate recording during the Digital program editing on “Memory
Stick”s.
On a blank portion of the tape
You cannot set IN or OUT on a blank portions of the tape.
If there is a blank portion between IN and OUT on the tape
The total time code may not be displayed correctly.
During making a program
If you eject the cassette, NOT READY appears on the screen. The program will be
erased.
153
“Memory Stick
” Operations
Recording edited pictures from a tape as a moving picture
– Digital program editing (on “Memory Stick”s)
Performing the program (Dubbing on a “Memory Stick”)
(1) Turn the SEL/PUSH EXEC dial to select VIDEO EDIT in the menu settings,
then select MEMORY, then press the dial.
(2) Turn the SEL/PUSH EXEC dial to select START, then select EXECUTE, then
press the dial.
Search for the beginning of the first program, then start dubbing.
The program mark flashes.
The SEARCH indicator appears during search, and the EDITING indicator
appears during writing of data on your camcorder, and REC appears during
dubbing on the screen.
The program mark changes to light blue after dubbing is complete.
When the dubbing ends, your camcorder automatically stops.
To stop dubbing during editing
Press x using the video operation buttons.
The program you made is recorded on a “Memory Stick” up to the place where you
pressed x.
To end the Digital program editing
Your camcorder stops when the dubbing ends. Then the display returns to VIDEO
EDIT in the menu settings.
Press MENU to end the Digital program editing.
NOT READY appears on the LCD screen when:
– The program to operate the Digital program editing has not been made.
– The “Memory Stick” is not inserted.
– The write-protect tab on the “Memory Stick” is set to LOCK.
When “Memory Stick” does not have enough space to record
LOW MEMORY appears on the screen. However, you can record pictures up to the
time indicated.
154
Using the search function, you can automatically capture only still images from tapes
and record them on a “Memory Stick” in sequence.
Before operation
•Insert a recorded tape into your camcorder and rewind the tape.
•Insert a “Memory Stick” into your camcorder.
(1) Set the POWER switch to VCR.
(2) Press MENU and turn the SEL/PUSH EXEC dial to select PHOTO SAVE in
, then press the dial (p. 204).
PHOTO BUTTON appears on the screen.
(3) Press PHOTO deeper. The still images from the tape are recorded on the
“Memory Stick.” The number of still images copied is displayed. END is
displayed when copying ends.
To stop copying
Press MENU or x.
When the “Memory Stick” becomes full
MEMORY FULL appears on the screen, and copying stops. Insert another “Memory
Stick” and repeat the procedure from step 2.
Copying still images from a tape
– PHOTO SAVE
3
2
SAV
I
NG
0
END
4
PHOTO BUTTON
640
STD
640
STD
640
STD
PHOTO SAVE 0
:
00
:
00
:
00
4/15
PHOTO SAVE 0
:
30
:
00
:
00
8/15
MEMORY SET
STILL SET
MOVIE SET
PHOTO SAVE
FILE NO.
RETURN
READY
[
MENU
]
:
END
PHOTO SAVE 0
:
00
:
00
:
00
4/15
[
]
:
START
[
MENU
]
:
END
[
MENU
]
:
END
[
MENU
]
:
END
MENU
155
“Memory Stick
” Operations
Copying still images from a tape – PHOTO SAVE
Image size of still images
Image size is automatically set to 640 × 480.
When the access lamp is lit or flashing
Do not shake or knock your camcorder. As well do not turn the power off, eject a
“Memory Stick”. Otherwise, image data may become damaged.
If the write-protect tab on the “Memory Stick” is set to LOCK
NOT READY appears when you select the item in the menu settings.
When you change “Memory Stick”s during copying
Your camcorder resumes copying from the last image recorded on the previous
“Memory Stick.”
156
You can play back still images recorded on a “Memory Stick.” You can also play back
six images including moving pictures in order at a time by selecting the index screen.
You can also use the Remote Commander for this operation.
Before operation
Insert a “Memory Stick” into your camcorder.
(1) Set the POWER switch to MEMORY/NETWORK (DCR-TRV50 only) or VCR.
Make sure that the LOCK switch is set to the left (unlock) position.
(2) Press PLAY or
PB. The last recorded image is displayed.
(3) Press –/+ on your camcorder to select the desired still image.
–: To see the previous image
+: To see the next image
To stop Memory Photo playback
Press CAM, VCR on your camcorder or MEMORY PLAY button on the Remote
Commander.
Viewing still images
– Memory Photo playback
PLAY
PB
2
157
“Memory Stick
” Operations
You may not be able to play back images with your camcorder:
– When playing back image data modified on your computer.
– When playing back image data shot with other equipment.
Notes on the file name
•The directory number may not be displayed and only the file name may be displayed
if the structure of the directory does not conform to the DCF standard.
•“ - DIRECTORY ERROR” may appear on screen if the structure of the directory
does not conform to the DCF standard. While this message appears, you can play back
images but cannot record them on the “Memory Stick.”
•The file name flashes on the screen if the file is corrupted or the file is unreadable.
To play back recorded images on a TV screen
•Before operation, connect your camcorder to the TV with the A/V connecting cable
supplied with your camcorder.
•When operating memory photo playback on a TV or on the LCD screen, image quality
may appear to have deteriorated. This is not a malfunction. The image data is as good
as ever.
•Turn the audio volume of the TV down before operation, or noise (howling) may be
output from the TV speakers.
Still image
You can select still images also with –/+ on PAGE1/PAGE2/PAGE3.
When no image is recorded on the “Memory Stick”
When you press MEMORY PLAY on the Remote Commander, “ NO FILE” appears.
Screen indicators during still image playback
Recording data
You can view recording data (date/time or various settings when recorded) when you
press DATA CODE on PAGE2. You can also use the Remote Commander for this
operation.
To make screen indicators disappear
Press DISPLAY/TOUCH PANEL.
Viewing still images – Memory Photo playback
6/100
MEMORY PLAY
100–0006
1360
JUL 4 2002
12:05:56 AM
FNINDEXCAM
+–
Image number/Total number of recorded images
Image size
Data Directory Number, File Number
Protect
Print mark
When the POWER switch is set to VCR, VCR is
displayed instead of CAM
Recording date/time/various settings
158

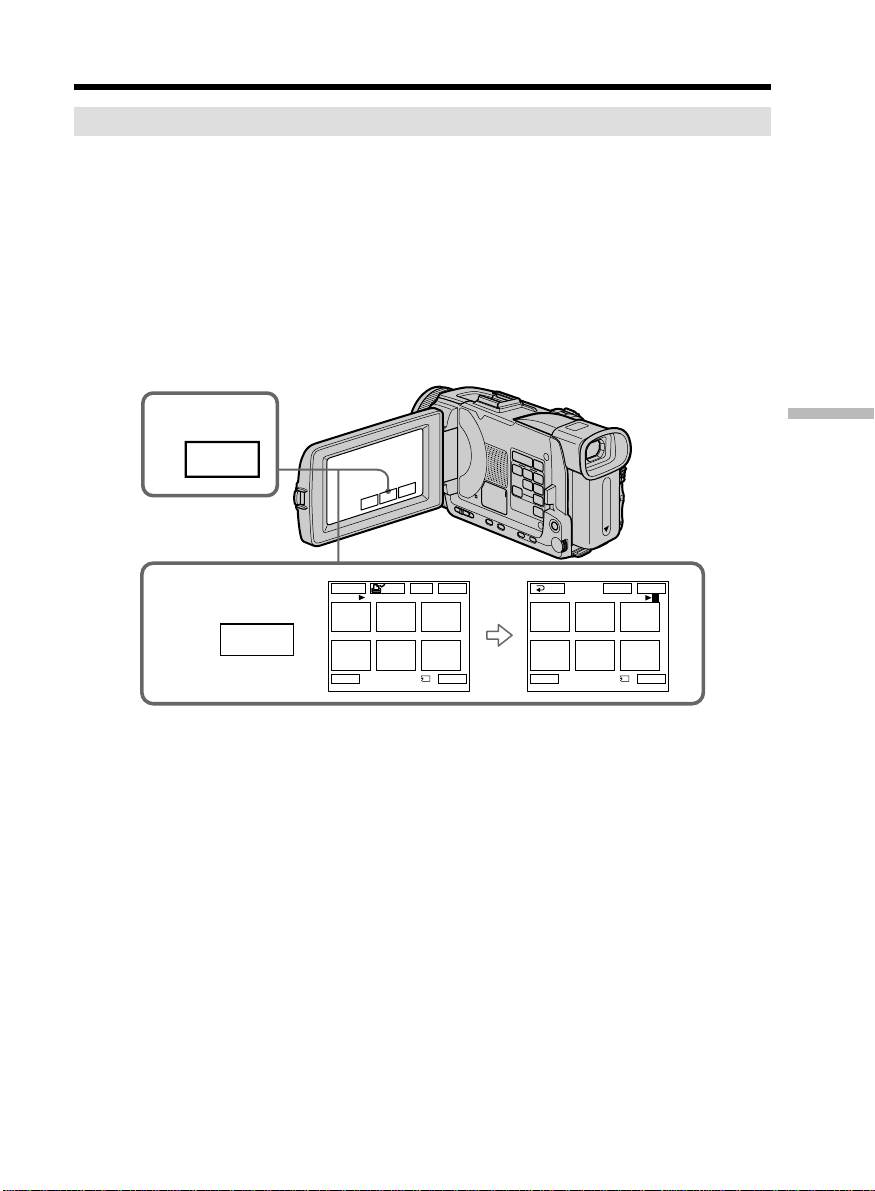

Playing back six recorded images at a time (index screen)
You can play back six recorded images at a time. This function is especially useful when
searching for a particular image.
Before operation
Insert a “Memory Stick” into your camcorder.
(1) Set the POWER switch to MEMORY/NETWORK (DCR-TRV50 only) or VCR.
Make sure that the LOCK switch is set to the left (unlock) position.
(2) Press INDEX to display the index screen.
A red B mark appears above the image that is displayed before changing to the index
screen mode.
T : To display the previous six images
t : To display the following six images
To return to FN
Press EXIT.
To return to the normal playback screen (single screen)
Press the image you want to display.
Note
When displaying the index screen, the number appears above each image. This
indicates the order in which images are recorded on the “Memory Stick.” These
numbers are different from the data file names.
Image data modified on your computer or shot with other equipment
These files are sometimes not displayed on the index screen.
Viewing still images – Memory Photo playback
1 / 40
123
456
EXITDEL
MARK
-
MARK
T t
B mark
159
“Memory Stick
” Operations
You can play back moving pictures recorded on a “Memory Stick.” You can also play
back six images including still images in order at a time by selecting the index screen.
Before operation
Insert a “Memory Stick” into your camcorder.
(1) Set the POWER switch to MEMORY/NETWORK (DCR-TRV50 only) or VCR.
Make sure that the LOCK switch is set to the left (unlock) position.
(2) Press PLAY or
PB.
(3) Press –/+ to select the desired moving pictures.
– : To see the previous picture
+ : To see the next picture
(4) Press MPEG N X to start playback.
(5) To adjust the volume, press either of the two buttons on VOLUME.
– : To turn down
+ : To turn up
When you close the LCD panel, sound is muted.
To stop MPEG movie playback
Press MPEG N X.
You may not be able to play back images with your camcorder:
– When playing back image data modified on your computer.
– When playing back image data shot with other equipment.
To play back recorded picutres on a TV screen
•Before operation connect your camcorder to the TV with the A/V connecting cable
supplied with your camcorder.
•Turn the audio volume of the TV down before operation, or noise (howling) may be
output from the TV speakers.
Moving picture
You can select moving pictures also with –/+ on PAGE1/PAGE2/PAGE3.
When no image is recorded on the “Memory Stick”
When you press MEMORY PLAY on the Remote Commander, “ NO FILE” appears.
Viewing moving pictures
– MPEG movie playback
PLAY
PB
2
VOLUME
160
Viewing moving pictures – MPEG movie playback
Playing back a moving picture from the desired part
The moving picture recorded on “Memory Stick” is divided into 23 parts.
You can select every each one point and play back pictures.
Before operation
Insert a “Memory Stick” into your camcorder.
(1) Set the POWER switch to MEMORY/NETWORK (DCR-TRV50 only) or VCR.
Make sure that the LOCK switch is set to the left (unlock) position.
(2) Press PLAY or
PB.
(3) Press +/– to select the desired moving pictures.
– : To see the previous picture
+ : To see the next picture
(4) Press </, to select the point where you want to play back.
< :To see previous part
, :To see next part
(5) Press MPEG N X to start playback.
To stop MPEG movie playback
Press MPEG N X.
When recording time is too short
The moving picture may not be divided into 23 parts.
FN
MPEG
N X
INDEXCAM
+–
320
1/2
0
:
00
:
00MOV00001
161
“Memory Stick
” Operations
Screen indicators during moving picture playback
Recording date/time
You can view recording date/time when you press DATA CODE on PAGE2. Various
settings are not recorded. You can also use the Remote Commander for this operation.
(p. 42)
To make screen indicator disappear
Press DISPLAY/TOUCH PANEL.
Viewing moving pictures – MPEG movie playback
FN
MPEG
N X
–––
–––
INDEXCAM
+–
320
1/20
0
:
01
:
00MOV00001
––
JUL
4 2002
12 : 05 : 56
Data directory number/File number
Picture number/Total number of recorded pictures
Image size
Protect
Recording date/time. (Various settings are displayed as “– – –”.)
When the POWER switch is set to VCR, VCR is
displayed instead of CAM.
162
You can copy images recorded on “Memory Stick”s and record them to tape.
Before operation
•Insert a tape for recording into your camcorder.
•Insert a “Memory Stick” into your camcorder.
(1) Set the POWER switch to VCR.
(2) Using the video control buttons, search a point where you want to record the
desired images. Set the tape to playback pause.
(3) Press z REC and the button on its right simultaneously on your camcorder.
The tape is set to the recording pause.
(4) Press
PB. The last recorded image is displayed.
(5) Press +/– to select the desired image.
– : To see the previous image
+ : To see the next image
(6) Press X to start recording and press X again to stop.
z appears on the screen during recording.
(7) If you have more to copy, repeat steps 5 and 6.
To stop copying in the middle
Press x.
Copying images recorded on “Memory
Stick”s to tape
3
4
REC
PB
2
PAUSE
163
“Memory Stick
” Operations
Copying images recorded on “Memory Stick”s to tape
During copying
You cannot operate the following functions:
– MEMORY PLAY
– MEMORY INDEX
– MEMORY DELETE
– MEMORY +/–
Note on the index screen
You cannot record the index screen.
If you press EDITSEARCH during pause
Memory playback stops.
Image data modified on your computers or shot with other equipment
You may not be able to copy modified images with your camcorder.
When copying movies
After step 6, press the MPEG N X and play back the image.
164
You can enlarge still images recorded on a “Memory Stick.” You can select and view a
desired part from the enlarged still image. Also, you can copy the desired part of the
enlarged still image to tapes or “Memory Stick”s.
Before operation
Insert a “Memory Stick” into your camcorder.
(1) Set the POWER switch to MEMORY/NETWORK (DCR-TRV50 only). Press FN
to display PAGE1 during the memory playback (p. 120).
When you set the POWER switch to VCR, press FN and select PAGE2 during
the memory playback (p. 24).
(2) Press PB ZOOM. PB ZOOM screen appears.
(3) Press the area that you want to enlarge in the frame on the PB ZOOM screen.
The area you pressed moves to the center of the screen, and the playback
image is enlarged approximately at twice the size. If you press the other area,
the area moves to the center of the screen.
(4) Adjust the zoom ratio by the power zoom lever.
You can enlarge the image from approximately 1.1 times up to five times its
size.
W : Decreases the zoom ratio
T : Increases the zoom ratio
To cancel PB ZOOM
Press END.
Enlarging still images recorded on
“Memory Stick”s – Memory PB ZOOM
1
4
FN
2
PB
ZOOM
MEMORY PLAY
3/14
END
100–0003
1360
MEMORY PLAY
3/14
END
100–0003
1360
W
T
PB ZOOM
PB ZOOM
× 5.0
165
“Memory Stick
” Operations
Enlarging still images recorded on “Memory Stick”s
– Memory PB ZOOM
The PB ZOOM is canceled when the following operations:
– MENU
– MEMORY PLAY
– MEMORY INDEX
– MEMORY +/–
Moving pictures recorded on “Memory Stick”s
The PB ZOOM does not work.
To record the still image processed by Memory PB ZOOM on “Memory Stick”s
Press the PHOTO button to record the still image processed by PB ZOOM. (Images are
recorded at 640 × 480 size.)
In the PB ZOOM mode
If you press DISPLAY/TOUCH PANEL button, the frame on the PB ZOOM screen
disappears. You cannot move the part you pressed to the center of the screen.
Edge of the enlarged image
The edge of the enlarged image cannot be displayed at the center of the screen.
To record an image proceeded on PB ZOOM on tapes
Record an image following the procedure on page 162.
166
You can automatically play back images in sequence. This function is useful especially
when checking recorded images or during a presentation.
Before operation
Insert a “Memory Stick” into your camcorder.
(1) Set the POWER switch to MEMORY/NETWORK (DCR-TRV50 only). Make
sure that the LOCK switch is set to the left (unlock) position.
(2) Press FN and select PAGE3.
(3) Press SLIDE SHOW.
(4) Press START. Your camcorder plays back the images recorded on a “Memory
Stick” in sequence.
To stop the slide show
Press END.
To pause during a slide show
Press PAUSE.
To return to FN
Press END to return to PAGE3, then press EXIT.
To start the slide show from a particular image
Select the desired image using –/+ buttons before step 4.
To view recorded images on TV
Before operation connect your camcorder to a TV with the A/V connecting cable
supplied with your camcorder.
If you change the “Memory Stick” during operation
The slide show does not operate. If you change the “Memory Stick,” be sure to follow
the steps again from the beginning.
Playing back images in a continuous loop
– SLIDE SHOW
1
2
FN
4
1 / 6
SLIDE SHOW
100–0001
+–
PAUSE
END
VCR
MEMORY/
NETWORK
CAMERA
OFF(CHG)
POWER
LOCK
1360
167
“Memory Stick
” Operations
You can protect selected images to prevent accidental erasure of important images.
Before operation
Insert a “Memory Stick” into your camcorder.
(1) Set the POWER switch to MEMORY/NETWORK (DCR-TRV50 only) or VCR.
Make sure that the LOCK switch is set to the left (unlock) position.
(2) Press INDEX on your camcorder to display the index.
(3) Press - MARK. The screen to protect the image appears.
(4) Press the image you want to protect. The “-” appears on the protected
image.
To return to FN
Press EXIT.
To cancel image protection
Press the image you want to cancel image protection in step 4 again. The “-”
disappears.
Note
Formatting erases all information on the “Memory Stick,” including the protected
image data. Before formatting a “Memory Stick”, check its contents.
If the write-protect tab on the “Memory Stick” is set to LOCK
You cannot protect images.
Preventing accidental erasure
– Image protection
2
INDEX
3,4
123
456
EXIT
RET.
-
MARK
1 / 40
123
456
EXITDEL
MARK
-
MARK
T t
-
2 / 40
Tt
-
MARK
168
You can delete images stored in a “Memory Stick.” You can delete all images or only
selected images.
Deleting selected images
Before operation
Insert a “Memory Stick” into your camcorder.
(1) Set the POWER switch to MEMORY/NETWORK (DCR-TRV50 only) or VCR.
Make sure that the LOCK switch is set to the left (unlock) position.
(2) Play back the image you want to delete.
(3) Press FN to display PAGE1.
(4) Press DELETE. “DELETE?” appears on the LCD screen.
(5) Press OK. The selected image is deleted.
To return to FN
Press EXIT.
To cancel deleting an image
Press CANCEL in step 5.
Notes
•To delete a protected image, first cancel image protection.
•Once you delete an image, you cannot restore it. Before deleting an image, carefully
check the image.
If the write-protect tab on the “Memory Stick” is set to LOCK
You cannot delete images.
Deleting images – DELETE
4
DELE–
TE
DELETE
100–0003
3 / 40
DELETE?
OK
CAN–
CEL
3
FN
1360
169
“Memory Stick
” Operations
Deleting selected images on the index screen
Before operation
Insert a “Memory Stick” into your camcorder.
(1) Set the POWER switch to MEMORY/NETWORK (DCR-TRV50 only). Make
sure that the LOCK switch is set to the left (unlock) position.
(2) Press INDEX to display the index screen.
(3) Press DEL. Then press the images you want to delete. The number of the
selected image is highlighted.
(4) Press EXEC. “DELETE?” appears on the LCD screen.
(5) Press OK. The selected images are deleted.
To return to FN
Press EXIT.
To cancel deleting an image
Press CANCEL in step 5.
Deleting images – DELETE
2
INDEX
3
1
3
2
456
EXIT
123
456
EXITDEL
MARK
-
MARK
-
EXEC
DEL
1 / 40
Tt
3 / 40
Tt
RET
.
DEL
170
Deleting all images
You can delete all unprotected images in a “Memory Stick.”
Before operation
Insert a “Memory Stick” into your camcorder.
(1) Set the POWER switch to MEMORY/NETWORK (DCR-TRV50 only). Make
sure that the LOCK switch is set to the left (unlock) position.
(2) Press MENU, then turn the SEL/PUSH EXEC dial to select DELETE ALL in
, then press the dial (p. 204).
(3) Turn the SEL/PUSH EXEC dial to select OK, then press the dial. OK changes
to EXECUTE.
(4) Turn the SEL/PUSH EXEC dial to select EXECUTE, then press the dial.
DELETING flashes on the screen. When all unprotected images are deleted,
COMPLETE is displayed.
To cancel deleting all the images in the “Memory Stick”
Select RETURN in step 3 or 4.
While DELETING appears
Do not turn the POWER switch or press any buttons.
Deleting images – DELETE
2
4
3
MEMORY SET
STILL SET
MOVIE SET
FILE NO.
DELETE ALL
FORMAT
RETURN
[
MENU
]
:
END
READY
MEMORY SET
STILL SET
MOVIE SET
FILE NO.
DELETE ALL
FORMAT
RETURN
[
MENU
]
:
END
RETURN
OK
MEMORY SET
STILL SET
MOVIE SET
FILE NO.
DELETE ALL
FORMAT
RETURN
[
MENU
]
:
END
RETURN
OK
MEMORY SET
STILL SET
MOVIE SET
FILE NO.
DELETE ALL
FORMAT
RETURN
[
MENU
]
:
END
RETURN
EXECUTE
MEMORY SET
STILL SET
MOVIE SET
FILE NO.
DELETE ALL
FORMAT
RETURN
[
MENU
]
:
END
DELETING
MEMORY SET
STILL SET
MOVIE SET
FILE NO.
DELETE ALL
FORMAT
RETURN
[
MENU
]
:
END
COMPLETE
MENU
171
“Memory Stick
” Operations
You can specify a recorded still image to print out by writing a print mark. This
function is useful for printing out still images later.
Your camcorder conforms to the DPOF (Digital Print Order Format) standard for
specifying still images to print out.
Before operation
Insert a “Memory Stick” into your camcorder.
(1) Set the POWER switch to MEMORY/NETWORK (DCR-TRV50 only) or VCR.
Make sure that the LOCK switch is set to the left (unlock) position.
(2) Press INDEX to display the index screen.
(3) Press
MARK. The screen to write a print mark appears.
(4) Press the image you want to write a print mark. The “
” appears on the
selected image.
To return to FN
Press EXIT.
To cancel writing print marks
Press the image you want to cancel the print mark in step 4 again . The disappears.
If the write-protect tab on the “Memory Stick” is set to LOCK
You cannot write print marks on still images.
Moving pictures
You cannot write print marks on moving pictures.
Writing a print mark – PRINT MARK
2
INDEX
3,4
123
456
EXIT
123
456
EXITDEL
MARK
-
MARK
MARK
1 / 40
Tt
2 / 40
Tt
RET. MARK
172
You can use the optional printer on your camcorder to print images on print paper.
For details, refer to the operating instructions of the printer.
There are various ways of printing still images. The following describes the setup for
print by selecting in the menu settings and the set up for print setup by selecting
9PIC PRINT on the touch panel on your camcorder.
Before operation
•Insert a recorded “Memory Stick” into your camcorder.
•Attach the optional printer to your camcorder as illustrated.
Setting with the menu
You can print DATE/TIME on print paper.
(1) Set the POWER switch to MEMORY/NETWORK (DCR-TRV50 only). Make
sure that the LOCK switch is set to the left (unlock) position.
(2) Press MENU, then turn the SEL/PUSH EXEC dial to select DATE/TIME in
, then press the dial (p. 205).
(3) Turn the SEL/PUSH EXEC dial to select the desired mode.
Using the optional printer
DATE
JUL 4 2002
DAY & TIME
4 12
:
00
AM
Printer
MENU
FN
173
“Memory Stick
” Operations
Setting with the touch panel
You can make 9 stickers on a single sheet when you print images recorded on a
“Memory Stick” in 9PIC PRINT.
(1) Set the POWER switch to MEMORY/NETWORK (DCR-TRV50 only). Make
sure that the LOCK switch is set to the left (unlock) position.
(2) Press FN and select PAGE3.
(3) Press 9PIC PRINT.
(4) Press the desired mode.
* Nine still images with print marks are printed together.
Moving pictures recorded on “Memory Stick”
You cannot print moving pictures.
When “Memory Stick” has no files
“ NO STILL IMAGE FILE” appears on the screen.
When there are no files with a PRINT MARK
“ NO PRINT MARK” appears on the screen.
Images processed by 9PIC PRINT
You cannot insert a DATE/TIME indicator.
Images recorded in the MULTI SCRN
You cannot print images recorded in the multi screen mode on sticker type print paper.
Using the optional printer
SAME PICS MULTI PICS or MARKED PICS*
174
There are the following ways of connecting the camcorder to a computer in order to
view images saved on a “Memory Stick” or recorded on tape on your computer.
To view images on a computer which has a Memory Stick slot, first eject the “Memory
Stick” from the camcorder and then insert it into the computer’s Memory Stick slot.
When connecting to a computer via the USB jack, complete installation of the
USB driver before connecting the camcorder to the computer. If you connect
the camcorder to the computer first, you will not be able to install the USB
driver correctly.
For details about your computer’s connectors and editing software, contact the
computer manufacturer.
Viewing images recorded on a tape
When connecting to a computer using the USB jack
For more information, see page 177.
Camcorder Connection Computer environment
Connection jack cable requirements
USB jack
USB cable USB connector,
(supplied) editing software
Tape stills and
i.LINK cable
DV connector,
movies
DV jack (DV connecting
editing software
cable ) (optional)
“Memory Stick”
USB jack
USB cable USB connector,
stills and movies (supplied) editing software
— Viewing Images Using your Computer —
Viewing images on your computer
– Introduction
(USB) jack
USB connector
USB cable (supplied)
Push into the end
175
Viewing Images Using your Computer
When connecting to a computer using the DV jack
Your computer must have a DV connector and editing software installed that can read
video signals.
Viewing images recorded on a “Memory Stick”
When connecting to a computer using the USB jack
There are two methods of USB connection, NORMAL and PTP. The default setting is
NORMAL. Here we explain how to use the camcorder with a standard USB connection
(NORMAL).
See page 177 when using Windows and page 193 when using Macintosh.
You can also use a Memory Stick Reader/Writer (optional).
When connecting to a computer without a USB jack
Use an optional floppy disk adaptor for Memory Stick or a PC card adaptor for Memory
Stick.
When purchasing an accessory, check its catalog beforehand for the recommended
operating environment.
Viewing images on your computer – Introduction
USB cable (supplied)
(USB) jack
USB connector
: Signal flow
i.LINK cable (DV connecting cable) (optional)
DV IN/OUT
is marked on this side
DV connector
176
Viewing images on your computer – Introduction
Notes on using your computer
“Memory Stick”
•“Memory Stick” operations on your camcorder cannot be assured if a “Memory Stick”
formatted on your computer is used on your camcorder, or if the “Memory Stick” in
your camcorder was formatted from your computer when the USB cable was
connected.
•Do not compress the data on the “Memory Stick.” Compressed files cannot be played
back on your camcorder.
Software
•Depending on your application software, the file size may increase when you open a
still image file.
•When you load an image modified using retouching software from your computer to
your camcorder or when you directly modify the image on your camcorder, the image
format will differ so a file error indicator may appear and you may be unable to open
the file.
Communications with your computer
Communications between your camcorder and your computer may not recover after
recovering from Suspend, Resume, or Sleep.
177
Viewing Images Using your Computer
Connecting your camcorder to your
computer using the USB cable
– For Windows users
Complete installation of the USB driver before connecting the camcorder to
the computer. If you connect the camcorder to the computer first, you will not
be able to install the USB driver correctly.
When connecting to a computer using the USB cable
You must install a USB driver onto your computer in order to connect the camcorder to
the computer’s USB connector. The USB driver can be found on the CD-ROM supplied,
along with the application software required for viewing images.
If you connect your camcorder and your computer using the USB cable, you can view
pictures live from your camcorder and pictures recorded on a tape on your computer
(USB streaming function).
Furthermore, if you download pictures from your camcorder to your computer, you can
process or edit them in image processing software and append them to e-mail.
You can view images recorded on a “Memory Stick” on your computer.
Recommended computer usage environment when connecting
via USB cable and viewing tape images on the computer
OS:
Microsoft Windows 98SE, Windows Me, Windows 2000 Professional, Windows XP
Home Edition or Windows XP Professional
Standard installation is required.
However, operation is not assured if the above environment is an upgraded OS.
You cannot hear sound if your computer is running Windows 98, but you can read still
images.
CPU:
Minimum 500 MHz Intel Pentium III or faster (800 MHz or faster recommended)
Application:
DirectX 8.0a or later
Sound system:
16 bit stereo sound card and stereo speakers
Memory:
64 MB or more
Hard disk:
Available memory required for installation:
at least 200MB
Available hard disc memory recommended:
at least 1GB (depending on the size of the image files edited)
Display:
4 MB VRAM video card, Minimum 800 × 600 dot Hi color (16 bit color, 65 000 colors),
Direct Draw display driver capability (At 800 × 600 dot or less, 256 colors and less, this
product will not operate correctly.)
Others:
This product is compatible with DirectX technology, so it is necessary to install DirectX.
The USB connector must be provided as standard.
You cannot use this function in the Macintosh environment.
178
Connecting your camcorder to your computer using the USB cable
– For Windows users
Recommended computer usage environment when connecting
via USB cable and viewing “Memory Stick” images on the
computer
OS:
Microsoft Windows 98, Windows 98SE, Windows Me, Windows 2000 Professional,
Windows XP Home Edition or Windows XP Professional
Standard installation is required.
However, operation is not assured if the above environment is an upgraded OS.
CPU:
MMX Pentium 200 MHz or faster
The USB connector must be provided as standard.
Windows Media Player must be installed (to play back moving pictures).
Notes
•Operations are not guaranteed for the Windows environment if you connect two or
more USB equipment to a single computer at the same time, or when using a hub.
•Some equipment may not operate depending on the type of USB equipment that is
used simultaneously.
•Operations are not guaranteed for all the recommended computer environments
mentioned above.
•Windows and Windows Media are trademarks or registered trademarks of Microsoft
Corporation in the United States and/or other countries.
•Pentium is trademark or registered trademark of Intel Corporation.
•All other product names mentioned herein may be the trademarks or registered
trademarks of their respective companies. Furthermore, “TM” and “®” are not
mentioned in each case in this manual.
179
Viewing Images Using your Computer
Installing the USB driver
Start the following operation without connecting the USB cable to your
computer.
Connect the USB cable according to “Making the computer recognize the
camcorder”.
If you are using Windows 2000 Professional or Windows XP Home Edition/
Professional, log in with permission of Administrators.
(1) Turn on your computer and allow Windows to load.
(2) Insert the supplied CD-ROM in the CD-ROM drive of your computer. The
application software starts up and the title screen appears.
(3) Move the cursor to USB Driver and click. This starts USB driver installation.
(4) Follow the on-screen messages to install the USB driver.
(5) Remove the CD-ROM and then restart the computer, in accordance with the
instructions on the screen.
Note
If you connect the USB cable before USB driver installation is complete, the USB driver
will not be properly registered. Carry out installation again in accordance with the steps
on page 182.
Windows XP Home Edition/Professional users
If you go to USBCONNECT in the menu settings and select PTP, you can copy
“Memory Stick” images from the camcorder onto your computer without installing the
USB driver. This is ideal for simply copying images from a camcorder onto a computer.
Refer to page 207 for details.
Connecting your camcorder to your computer using the USB cable
– For Windows users
180
USB connector
(USB) jack
USB cable (supplied)
Push into the end
Making the computer recognize the camcorder
Viewing images recorded on a tape
Refer to page 181 for details on viewing “Memory Stick” images on your computer.
You need to install PIXELA ImageMixer to view images recorded on a tape on your
computer. Install it from the CD-ROM supplied with your camcorder.
To install and use this software in Windows 2000 Professional, you must be authorized
as Power Users or Administrators. For Windows XP Home Edition/Professional, you
must be authorized as Administrators.
(1) Turn on your computer and allow Windows to load.
If you are using your computer, close all running applications.
(2) Insert the supplied CD-ROM into the CD-ROM drive of your computer.
The application software starts up and the title screen appears. If the title
screen does not appear, double-click “My Computer” and then “ImageMixer”
(CD-ROM Drive). The application software screen appears after a while.
(3) Move the cursor to “PIXELA ImageMixer” and click.
The Install Wizard program starts up and the “Select Settings Language”
screen appears.
(4) Select the language for installation.
(5) Follow the on-screen messages.
The installation screen disappears when installation is complete.
(6) Click DirectX.
Follow the on-screen messages to install DirectX.
Restart your computer when the installation is completed.
(7) Connect the AC power adaptor to your camcorder.
(8) Set the POWER switch to VCR.
(9) Select USB STREAM in
to ON in the menu settings (p. 207).
(10)With the CD-ROM inserted, connect the USB jacks of the camcorder and
computer using the USB cable supplied with your camcorder.
Your computer recognizes the camcorder, and the Windows Add Hardware
Wizard starts.
Connecting your camcorder to your computer using the USB cable
– For Windows users
181
Viewing Images Using your Computer
(11)Follow the on-screen messages so that the Add Hardware Wizard recognizes
that the USB drivers have been installed. The Add Hardware Wizard starts
three times because three different USB drivers are installed. Be sure to allow
the installation to complete without interrupting it.
For Windows 2000 Professional, Windows XP Home Edition/Professional users
(12)After the “File Needed” screen appears.
Open “Browse...” t “My Computer” t “ImageMixer” t “Sonyhcb.sys”,
and click “OK”.
Viewing images recorded on “Memory Stick”s
Before operation
Set USBCONNECT in to NORMAL in the menu settings. (The default setting is
NORMAL.)
(1) Insert a “Memory Stick” into your camcorder.
(2) Connect the AC power adaptor and set the POWER switch to MEMORY/
NETWORK (DCR-TRV50 only).
(3) Connect the
(USB) jack on your camcorder with the USB connector on your
computer using the supplied USB cable.
USB MODE appears on the LCD screen of your camcorder. Your computer
recognizes the camcorder, and the Add Hardware Wizard starts.
(4) Follow the on-screen messages so that the Add Hardware Wizard recognizes
that the USB drivers have been installed. The Add Hardware Wizard starts
two times because two different USB drivers are installed. Be sure to allow the
installation to complete without interrupting it.
You cannot install the USB driver if a “Memory Stick” is not in your camcorder.
Be sure to insert a “Memory Stick” into your camcorder before installing the USB
driver.
Connecting your camcorder to your computer using the USB cable
– For Windows users
USB connector
(USB) jack
USB cable (supplied)
Push into the end
182
Connecting your camcorder to your computer using the USB cable
– For Windows users
If you cannot install the USB driver
The USB driver has been registered incorrectly as your computer was connected to your
camcorder before installation of the USB driver was completed. Perform the following
procedure to correctly install the USB driver.
Viewing images recorded on a tape
Step 1: Uninstall the incorrect USB driver
1 Turn on your computer and allow Windows to load.
2 Connect the AC power adaptor, and set the POWER switch to VCR.
3 Connect the USB connector on your computer to the
(USB) jack on your
camcorder using the USB cable supplied with your camcorder.
4 Open your computer’s “Device Manager”.
Windows XP Home Edition/Professional:
Select “Start” t “Control Panel” t “System” t “Hardware”, and click the
“Device Manager” button.
If there is no “System” inside “Pick a category” after clicking “Control Panel”,
click “Switch to classic view” instead.
Windows 2000 Professional:
Select “My Computer” t “Control Panel” t “System” t “Hardware” tab,
and click the “Device Manager” button.
Windows 98SE/Windows Me:
Select “My Computer” t “Control Panel” t “System”, and click “Device
Manager”.
183
Viewing Images Using your Computer
Windows 2000 Professional
Windows XP Home Edition/Professional
Connecting your camcorder to your computer using the USB cable
– For Windows users
Windows 98SE Windows Me
5 Select and delete the underlined devices below.
184
6 Turn the POWER switch to OFF (CHG) on your camcorder, and then
disconnect the USB cable.
7 Restart your computer.
Step 2: Install the USB driver on the supplied CD-ROM
Perform the entire procedure described in “Installing the USB driver” on page 179.
Viewing images recorded on a “Memory Stick”
Step1: Uninstall the incorrect USB driver
1 Turn on your computer and allow Windows to load.
2 Insert a “Memory Stick” into your camcorder.
3 Connect the AC power adaptor, and set the POWER switch to MEMORY/
NETWORK (DCR-TRV50 only).
4 Connect the USB connector on your computer to the
(USB) jack on your
camcorder using the USB cable supplied with your camcorder.
5 Open your computer’s “Device Manager”.
Windows 2000 Professional:
Select “My Computer” t “Control Panel” t “System” t “Hardware”, and
click the “Device Manager” button.
Other OS:
Select “My Computer” t “Control Panel” t “System”, and click “Device
Manager”.
6 Select “Other devices”.
Select the device prefixed with the “?” mark and delete.
Ex: (?)Sony Handycam
7 Turn the POWER switch to OFF (CHG) on your camcorder, and then
disconnect the USB cable.
8 Restart your computer.
Step2: Install the USB driver on the supplied CD-ROM
Perform the entire procedure described in “Installing the USB driver” on page 179.
Connecting your camcorder to your computer using the USB cable
– For Windows users
185
Viewing Images Using your Computer
Capturing images with “PIXELA ImageMixer Ver.1.0 for Sony”
You need to install the USB driver and PIXELA ImageMixer to view images recorded
on a tape on your computer (p. 179).
To install and use the software in Windows 2000 Professional, you must be authorized
as Power Users or Administrators. For Windows XP Home Edition/Professional, you
must be authorized as Administrators.
Viewing images recorded on a tape
(1) Turn on your computer and allow Windows to load.
(2) Connect the AC power adaptor, and insert a cassette into your camcorder.
(3) Set the POWER switch to VCR.
Select USB STREAM in
to ON in the menu settings (p. 207).
(4) Select “Start” t “Programs” t “PIXELA” t “ImageMixer” t “PIXELA
ImageMixer Ver.1.0 for Sony”.
(5) Click
on the screen.
The “PIXELA ImageMixer Ver.1.0 for Sony” startup screen appears on your
computer. The title screen appears.
Viewing images recorded on a tape on
your computer – For Windows users
186
(6) Select .
(7) Connect the
(USB) jack on your camcorder with the USB connector on your
computer using the supplied USB cable.
(8) Press N to start playback.
The picture from the tape appears on preview window on your computer.
Preview window
USB connector
(USB) jack
USB cable (supplied)
Push into the end
Viewing images recorded on a tape on your computer
– For Windows users
187
Viewing Images Using your Computer
Viewing pictures live from your camcorder
(1) Follow the steps 1, 2 on page 185.
(2) Set the POWER switch to CAMERA.
Select USB STREAM in
to ON in the menu settings (p. 207).
(3) Follow the steps 4 to 7 on pages 185, 186.
The picture from your camcorder appears on preview window on your
computer.
Capturing still images
(1) Select .
(2) Looking at the preview window, move the cursor to
and press it at the
point you want to capture.
The still image on the screen is captured.
Captured images are displayed in the thumbnail list window.
Viewing images recorded on a tape on your computer
– For Windows users
Preview window Thumbnail list widow
188
Capturing moving pictures
(1) Select .
(2) Look at the preview window and click on
at the first scene of the movie
you want to capture.
changes to .
(3) Look at the preview window and click on
at the last scene you want to
capture. The captured images appear in the thumbnail list window.
Notes
•The following may occur while using your camcorder, and are not due to any
malfunction.
– The image shakes up and down.
– Some images are not displayed correctly due to noise, etc.
– Images of different color systems to that of the camcorder are not displayed correctly.
•When your camcorder is in the standby with a cassette inserted, it turns off
automatically after five minutes.
•We recommend setting DEMO MODE to OFF in the menu settings when your
camcorder is in the standby, and no cassette is inserted.
•Indicators in the camcorder LCD screen do not appear on images that are captured into
your computer.
Preview window Thumbnail list widow
Viewing images recorded on a tape on your computer
– For Windows users
189
Viewing Images Using your Computer
If image data cannot be transferred by the USB connection
The USB driver has been registered incorrectly as your computer was connected to your
camcorder before installation of the USB driver was completed. Reinstall the USB driver
following the procedure on page 182.
If any trouble occurs
Close all running applications, then restart your computer.
Carry out the following operations after quitting the application:
– Disconnect the USB cable.
– Change the POWER switch to the other position or set the POWER switch to OFF
(CHG) on your camcorder.
Seeing the on-line help (operating instructions) of “PIXELA
ImageMixer Ver.1.0 for Sony”
A “PIXELA ImageMixer Ver.1.0 for Sony” on-line help site is available where you can
find the detailed operating method of “PIXELA ImageMixer Ver.1.0 for Sony”.
(1) Click located in the upper-right corner of the screen.
The ImageMixer’s Manual screen appears.
(2) You can find the information you need from the list of contents.
To close on-line help
Click at the top right of the screen.
If you have any questions about “PIXELA ImageMixer Ver.1.0 for Sony”
“ImageMixer Ver.1.0 for Sony” is a trademark of PIXELA corporation. For more
information, refer to the instruction manual of the CD-ROM supplied with your
camcorder.
Note on using your computer
Communications with your computer
Communications between your camcorder and your computer may not recover after
recovering from Suspend, Resume, or Sleep.
Viewing images recorded on a tape on your computer
– For Windows users
190
Viewing images
Before operation
•You need to install the USB driver to view “Memory Stick” images on your computer.
(p. 179)
An application such as Windows Media Player must be installed to play back moving
pictures in Windows environment.
•Set USBCONNECT in to NORMAL in the menu settings. (The default setting is
NORMAL.)
(1) Turn on your computer and allow Windows to load.
(2) Insert a “Memory Stick” into your camcorder, and connect the AC power
adaptor to your camcorder.
(3) Set the POWER switch to MEMORY/NETWORK (DCR-TRV50 only).
(4) Connect the
(USB) jack on your camcorder with the USB connector on your
computer using the supplied USB cable.
USB MODE appears on the LCD screen of your camcorder.
(5) Open “My Computer” on Windows and double-click the newly recognized
drive (Example: “Removable Disk (E:)”).
The folders inside the “Memory Stick” are displayed.
USB connector
USB cable (supplied)
(USB) jack
Viewing images recorded on a “Memory
Stick” on your computer
– For Windows users
191
Viewing Images Using your Computer
(6) Select and double-click the desired image file from the folder.
For the detailed folder and file name, see “Image file storage destinations and
image files”.
Desired file type Double-click in this order
Still image “Dcim” folder t “100msdcf” folder t Image file
Moving picture* “Mssony” folder t “Moml0001” folder t Image file*
* Copying a file to the hard disk of your computer before viewing it is recommended. If
you play back the file directly from the “Memory Stick,” the image and sound may
break off.
Image file storage destinations and image files
Image files recorded with your camcorder are grouped in folders by recording mode.
The meanings of the file names are as follows. ssss stands for any number within
the range from 0001 to 9999.
For Windows Me users
(The drive recognizing your camcorder is [E:].)
Folder File Meaning
100MSDCF DSC0ssss.JPG Still image file
MOML0001 MOV0ssss.MPG Moving picture file
Folder containing moving picture data
Folder containing still image data
Viewing images recorded on a “Memory Stick” on your computer
– For Windows users
192
Disconnect the USB cable and eject the “Memory Stick” or set
the POWER switch to OFF(CHG).
– For Windows 2000 Professional/Me, Windows XP Home Edition/Professional
users
To unplug the USB cable, eject the “Memory Stick” or set the POWER switch to OFF
(CHG) follow the procedure below.
(1) Move the cursor to the “Unplug or Eject Hardware” icon on the Task Tray and
click to cancel the applicable drive.
(2) After the “Safe to remove” message appears, disconnect the USB cable and
eject the “Memory Stick” or set the POWER switch to OFF(CHG).
Viewing images recorded on a “Memory Stick” on your computer
– For Windows users
193
Viewing Images Using your Computer
Connecting your camcorder to your
computer using the USB cable
– For Macintosh users
When connecting to a computer using the USB cable
You must install a USB driver onto your computer in order to connect the camcorder to
the computer’s USB connector. The USB driver can be found on the CD-ROM supplied,
along with the application software required for viewing images.
Recommended computer usage environment when connecting
via USB cable and viewing “Memory Stick” images on the
computer
Mac OS 8.5.1/8.6/9.0/9.1/9.2 or Mac OS X (v10.0/v10.1)
Standard installation is required.
However, note that the upgrade to Mac OS 9.0/9.1 should be used for the following
models.
•iMac with the Mac OS 8.6 standard installation and a slot loading type CD-ROM drive
•iBook or Power Mac G4 with the Mac OS 8.6 standard installation
The USB connector must be provided as standard.
QuickTime 3.0 or newer must be installed (to play back moving pictures).
Notes
•Operations are not guaranteed for the Macintosh environment if you connect two or
more USB equipment to a single computer at the same time, or when using a hub.
•Some equipment may not operate depending on the type of USB equipment that is
used simultaneously.
•Operations are not guaranteed for all the recommended computer environments
mentioned above.
•Macintosh and Mac OS, QuickTime are trademarks of Apple Computer Inc.
•All other product names mentioned herein may be the trademarks or registered
trademarks of their respective companies. Furthermore, “TM” and “®” are not
mentioned in each case in this manual.
194
Installing the USB driver
Do not connect the USB cable to your computer before installation of the USB
driver is completed.
For Mac OS 8.5.1/8.6/9.0 users
(1) Turn on your computer and allow the Mac OS to load.
(2) Insert the supplied CD-ROM in the CD-ROM drive of your computer.
The application software screen appears.
(3) Click the “USB Driver” to open the folder containing the six files related to
“Driver.”
(4) Select the following two files, and drag and drop them into the System Folder.
• Sony Camcorder USB Driver
• Sony Camcorder USB Shim
(5) When the message appears, click “OK.”
The USB driver is installed on your computer.
(6) Remove the CD-ROM from the computer.
(7) Restart your computer.
For Mac OS 9.1/9.2/Mac OS X (v10.0/v10.1)
The USB driver need not be installed. Your Mac is automatically recognized as a drive
just by connecting your Mac using the USB cable.
Connecting your camcorder to your computer using the USB cable
– For Macintosh users
195
Viewing Images Using your Computer
Viewing images
Before operation
You need to install the USB driver to view “Memory Stick” images on your computer.
(p. 194)
QuickTime 3.0 or newer must be installed to play back moving pictures.
(1) Turn on your computer and allow Mac OS to load.
(2) Insert a “Memory Stick” into your camcorder, and connect the AC power
adaptor to your camcorder.
(3) Set the POWER switch to MEMORY/NETWORK (DCR-TRV50 only).
(4) Connect the
(USB) jack on your camcorder with the USB connector on your
computer using the supplied USB cable.
USB MODE appears on the LCD screen of your camcorder.
(5) Double-click the “Memory Stick” icon on the desktop.
The folders inside the “Memory Stick” are displayed.
(6) Select and double-click the desired image file from the folder.
Desired file type Double-click in this order
Still image “Dcim” folder t “100msdcf” folder t Image file
Moving picture* “Mssony” folder t “Moml0001” folder t Image file*
* Copying a file to the hard disk of your computer before viewing it is recommended. If
you play back the file directly from the “Memory Stick,” the image and sound may
break off.
Disconnect the USB cable and eject the “Memory Stick” or set
the POWER switch to OFF(CHG)
Follow the procedure below.
(1) Close all running applications.
Make sure that the access lamp of your camcorder is not lit.
(2) Drag the “Memory Stick” icon into the “Trash”. Alternatively, select the
“Memory Stick” icon by clicking on it, and then select “Eject disk” from the
“Special” menu at the top left of the screen.
(3) Disconnect the USB cable and eject the “Memory Stick” or the POWER switch
to OFF (CHG).
For Mac OS X (v10.0) users
Shut down your computer, then disconnect the USB cable and eject the “Memory Stick”
or the POWER switch to OFF (CHG).
Viewing images recorded on a “Memory
Stick” on your computer
– For Macintosh users
196
You can capture images and sound from an analog video unit connected to your
computer which has the i.LINK (DV) jack connected to your camcorder.
Before operation
Set DISPLAY in to LCD in the menu settings. (The default setting is LCD.)
(1) Set the POWER switch to VCR.
(2) Press MENU, then select A/V t DV OUT in
to ON with the SEL/PUSH
EXEC dial (p. 202).
(3) Start playback on the analog video unit.
(4) Start procedures for capturing images and sound on your computer. The
operation procedures depend on your computer and the software you are
using.
For details on how to capture images, refer to the instruction manual of your
computer and software you are using.
After capturing images and sound
Stop capturing procedures on your computer , and stop the playback on the analog
video unit.
Notes
•You need to install software that supports the exchange video signals.
•Depending on the state of the video signals, the computer may not be able to output
the images correctly when you convert video signals into digital video signals via
your camcorder.
•You cannot record or capture the video output via your camcorder when the video
tapes include copyright protection signals such as the ID-2 system.
•You can capture images and sound with an S video cable (optional) instead of the
A/V connecting cable (supplied).
If your computer has a USB connector
You can connect using a USB cable, but images may not be transfered smoothly.
Capturing images from an analog video unit
on your computer – Signal convert function
i.LINK
VIDEO
AUDIO
S VIDEO
OUT
AUDIO/VIDEO
DV IN/OUT
i.LINK cable (DV connecting cable) (optional)
: Signal flow
VCR
Yellow
White
Red
A/Vconnecting cable (supplied)
197
Using the Network function
– DCR-TRV50 only
You can access the Internet using a Bluetooth equipped device that is complied to the
camcorder. Once the access is made, you can view a Web page, send/receive your
e-mail, etc. This section describes only how to open the Network Menu.
(1) Set the POWER switch to MEMORY/NETWORK.
Make sure that the LOCK switch is set to the left (unlock) position.
(2) Press NETWORK.
(Bluetooth) lamp lights up and Network Menu appears.
For the details, refer to the Network Function Operating Instructions supplied with
your camcorder.
— Using the Network function —
Accessing the network
1
VCR
MEMORY/
NETWORK
CAMERA
OFF(CHG)
POWER
LOCK
(Bluetooth) lamp
NETWORK
198
Accessing the network
How to hold your camcorder when operating in NETWORK mode
Hold your camcorder with your hand through the grip belt to keep from dropping it.
The operation buttons needed in NETWORK mode are displayed on the LCD screen.
Press the buttons with the stylus supplied.
After using the stylus
Put it back in the holder. Hold the stylus correctly as shown in the illustration and insert
it until it clicks.
On trademarks
•The BLUETOOTH trademarks are owned by their proprietor and used by Sony
Corporation under license.
•All other product names mentioned herein may be the trademarks or registered
trademarks of their respective companies. Furthermore, “TM” and “®” are not
mentioned in each case in this manual.
Note
Make sure that your camcorder is in the standby with the POWER switch set to
MEMORY/NETWORK.
During using the network function
You cannot use the optional printer.
199
Customizing Your Camcorder
To change the mode settings in the menu settings, select the menu items with the SEL/
PUSH EXEC dial. The default settings can be partially changed. First, select the icon,
then the menu item and then the mode.
(1) Set the POWER switch to CAMERA, VCR or MEMORY/NETWORK (DCR-
TRV50 only), press MENU.
(2) Turn the SEL/PUSH EXEC dial to select the desired icon, then press the dial to
set.
(3) Turn the SEL/PUSH EXEC dial to select the desired item, then press the dial to
set.
(4) Turn the SEL/PUSH EXEC dial to select the desired mode, then press the dial
to set.
(5) If you want to change other items, select
RETURN and press the dial, then
repeat steps 2 to 4.
For details, see “Selecting the mode setting of each item” (p. 200).
— Customizing Your Camcorder —
Changing the default settings with the
menu
CAMERA
VCR
MEMORY/NETWORK*
1
2
3
4
or
or
MENU
MANUAL SET
P EFFECT
FLASH LVL
WHT BAL
N. S. LIGHT
AUTO SHTR
[
MENU
]
:
END
TAPE SET
REC MODE
AUDIO MODE
REMAIN
[
MENU
]
:
END
TAPE SET
REC MODE
AUDIO MODE
REMAIN
RETURN
SP
[
MENU
]
:
END
TAPE SET
REC MODE
AUDIO MODE
REMAIN
RETURN
AUTO
[
MENU
]
:
END
TAPE SET
REC MODE
AUDIO MODE
REMAIN
RETURN
AUTO
ON
[
MENU
]
:
END
TAPE SET
REC MODE
AUDIO MODE
REMAIN
RETURN
AUTO
ON
[
MENU
]
:
END
TAPE SET
REC MODE
AUDIO MODE
REMAIN
RETURN
ON
[
MENU
]
:
END
MANUAL SET
FLASH LVL
WHT BAL
N. S. LIGHT
[
MENU
]
:
END
MANUAL SET
P EFFECT
[
MENU
]
:
END
* DCR-TRV50 only
(continued on the following page)
200
Icon/item
MANUAL SET
P EFFECT
FLASH LVL
WHT BAL
N.S. LIGHT
AUTO SHTR
To make the menu display disappear
Press MENU.
Menu items are displayed as the following icons:
MANUAL SET
CAMERA SET
VCR SET
LCD/VF SET
MEMORY SET
PRINT SET
CM SET
TAPE SET
SETUP MENU
OTHERS
Selecting the mode setting of each item z is the default setting.
Menu items differ depending on the position of the POWER switch. The screen shows
only the items you can operate at the moment.
The POWER switch is the name of the switch on the DCR-TRV50. It is referred to as
MEMORY on the DCR-TRV40.
Changing the default settings with the menu
Mode
——
HIGH
z NORMAL
LOW
——
z ON
OFF
z ON
OFF
Meaning
To add special effects like those in films or on
the TV to images (p. 60, 75)
Makes the flash level higher than normal.
Normal setting
Makes the flash level lower than normal.
To adjust the white balance (p. 54)
To use the NightShot Light (p. 35)
To cancel the NightShot Light
To automatically activate the electronic shutter
when shooting in bright conditions
To not automatically activate the electronic
shutter even when shooting in bright conditions
POWER
switch
VCR
CAMERA
CAMERA
MEMORY/
NETWORK
CAMERA
MEMORY/
NETWORK
CAMERA
MEMORY/
NETWORK
CAMERA
Note on FLASH LVL
You cannot adjust FLASH LVL if the external flash (optional) is not compatible with the
flash level.
201
Customizing Your Camcorder
Changing the default settings with the menu
Icon/item
CAMERA SET
D ZOOM
PHOTO REC
16:9WIDE
STEADYSHOT
FRAME REC
INT. REC
HOLOGRAM F
Mode
z OFF
20×
120×
z MEMORY
TAPE
z OFF
ON
z ON
OFF
z OFF
ON
ON
z OFF
SET
z AUTO
OFF
Meaning
To deactivate the digital zoom. Up to 10× zoom
is performed.
To activate the digital zoom. More than 10× to
20× zoom is performed digitally (p. 31)
To activate the digital zoom. More than 10× to
120× zoom is performed digitally
To record still images on “Memory Stick”s when
you press PHOTO in the tape recording or tape
recording standby (p. 47)
To record still images on tape when you press
PHOTO in the tape recording or tape recording
standby (p. 52)
——
To record a 16:9 wide picture (p. 55)
To compensate for camera-shake
To cancel the SteadyShot. Natural pictures are
produced when shooting a stationary object
with a tripod.
To deactivate Frame recording
To activate Frame recording (p. 74)
To activate interval recording (p. 72)
To deactivate interval recording
To set the INTERVAL and REC TIME for
interval recording
The HOLOGRAM AF emits when focusing on
subjects is difficult in dark places (p. 132)
The HOLOGRAM AF does not emit.
POWER
switch
CAMERA
CAMERA
CAMERA
CAMERA
CAMERA
CAMERA
MEMORY/
NETWORK
Notes on the SteadyShot
•The SteadyShot will not correct excessive camera-shake.
•Attachment of a conversion lens (optional) may influence the SteadyShot.
If you cancel the SteadyShot
The SteadyShot off indicator appears. Your camcorder prevents excessive
compensation for camera-shake.
(continued on the following page)
202
Icon/item
VCR SET
HiFi SOUND
AUDIO MIX
A/VtDV OUT
LCD/VF SET
LCD B.L.
LCD COLOR
VF B.L.
Meaning
To play back a stereo tape or dual sound track
tape with main and sub sound (p. 221)
To play back a stereo tape with the left sound or
a dual sound tape with main sound
To play back a stereo tape with the right sound
or a dual sound track tape with sub sound
To adjust the balance between the stereo 1 and
stereo 2 (p. 109)
To output digital images and sound in analog
format using your camcorder
To output analog images and sound in digital
format using your camcorder (p. 196)
To set the brightness on the LCD screen to
normal
To brighten the LCD screen
To adjust the color on the LCD screen, turn the
SEL/PUSH EXE dial.
To set the brightness on the viewfinder screen to
normal
To brighten the viewfinder screen
Mode
z STEREO
1
2
——
z OFF
ON
z BRT NORMAL
BRIGHT
——
z BRT NORMAL
BRIGHT
Changing the default settings with the menu
POWER
switch
VCR
VCR
VCR
VCR
CAMERA
MEMORY/
NETWORK
VCR
CAMERA
MEMORY/
NETWORK
VCR
CAMERA
MEMORY/
NETWORK
Notes on LCD B.L. and VF B.L.
•When you select BRIGHT, battery life is reduced by about 10 percent during
recording.
•When you use power supplies other than the battery pack, BRIGHT is automatically
selected.
Even if you adjust LCD B.L., LCD COLOR and/or VF B.L.
The recorded picture will not be affected.
To get low-
intensity
To get high-
intensity
ST1 ST2
203
Customizing Your Camcorder
Changing the default settings with the menu
Icon/item
MEMORY SET
STILL SET
BURST
QUALITY
IMAGESIZE
MOVIE SET
IMAGESIZE
REMAIN
(continued on the following page)
Mode
z OFF
NORMAL
HIGH SPEED
EXP BRKTG
MULTI SCRN
z SUPER FINE
FINE
STANDARD
z 1360 × 1020
640 × 480
z 320 × 240
160 × 112
z AUTO
ON
Meaning
To not record continuously.
To record from three to nine images
continuously (p. 128)
To record up to 16 images continuously fast
To record three images continuously with
different exposure
To record nine images continuously, display the
images on a single page divided into nine boxes
To record still images in the finest image quality
mode (p. 122)
To record still images in the fine image quality
mode
To record still images in the standard image
quality mode
To record still images at 1360 × 1020 size
(p. 124)
To record still images at 640 × 480 size
To record moving pictures at 320 × 240 size
(p. 124).
To record moving pictures at 160 × 112 size.
To display the remaining capacity of the
“Memory Stick” in the following cases:
•For five seconds after setting the POWER
switch to MEMORY/NETWORK (DCR-
TRV50 only) or VCR
•For five seconds after setting the POWER
switch to MEMORY/NETWORK (DCR-
TRV50 only) or VCR and inserting a “Memory
Stick”
•When the remaining capacity of the “Memory
Stick” is less than two minutes after setting the
POWER switch to MEMORY/NETWORK
(DCR-TRV50 only)
•For five seconds from the start of moving
picture recording
•For five seconds after completing a moving
picture recording
To always display the remaining capacity of the
“Memory Stick”
POWER
switch
MEMORY/
NETWORK
VCR
MEMORY/
NETWORK
MEMORY/
NETWORK
VCR
MEMORY/
NETWORK
VCR
MEMORY/
NETWORK
204
Changing the default settings with the menu
Icon/item
MEMORY SET
PHOTO SAVE
FILE NO.
DELETE ALL
FORMAT
Mode
——
z SERIES
RESET
——
z RETURN
OK
POWER
switch
VCR
VCR
MEMORY/
NETWORK
MEMORY/
NETWORK
MEMORY/
NETWORK
Notes on formatting
•Do not do any of the following while FORMATTING is displayed:
– Switch the POWER switch
– Operate buttons
– Eject the “Memory Stick”
•The supplied or optional “Memory Stick” has been formatted at factory. Formatting
“Memory Stick”s on your camcorder is not required.
•You cannot format the “Memory Stick” if the write-protect tab on the “Memory Stick”
is set to LOCK.
•Format the “Memory Stick” when FORMAT ERROR is displayed.
•Formatting erases protected image data on the “Memory Stick.”
Meaning
To copy still images on tape onto “Memory
Stick” (p. 154).
To assign numbers to file in sequence even if the
“Memory Stick” is changed
To reset the file numbering each time the
“Memory Stick” is changed
To delete all unprotected images (p. 170)
To cancel formatting
To format an inserted “Memory Stick”
Formatting erases all information on the
“Memory Stick”
Check the contents of the “Memory Stick”
before formatting.
1. Select FORMAT.
2. Select OK with the SEL/PUSH EXEC dial,
then press the dial.
3. After EXECUTE appears, press SEL/PUSH
EXEC dial. FORMATTING flashes during
formatting. COMPLETE appears when
formatting is finished.
205
Customizing Your Camcorder
Changing the default settings with the menu
Icon/item
PRINT SET
DATE/TIME
CM SET
TITLE
TITLEERASE
TITLE DSPL
CM SEARCH
TAPE TITLE
ERASE ALL
Mode
z OFF
DATE
DAY&TIME
——
——
z ON
OFF
z ON
OFF
——
——
Meaning
To make prints without the recording date and
time
To make prints with the recording date (p. 172)
To make prints with the recording date and time
To superimpose a title or make your own title
(p. 110, 113)
To erase the title you have superimposed
(p. 112)
To display the title you have superimposed
To not display the title
To search using cassette memory (p. 80, 81, 83)
To search without using cassette memory
To label a cassette (p. 115)
To erase all the data in cassette memory (p. 116)
POWER
switch
MEMORY/
NETWORK
VCR
CAMERA
VCR
CAMERA
VCR
VCR
VCR
CAMERA
VCR
CAMERA
Note on PRINT SET
DATE/TIME is displayed only when an external printer (optional) is connected to the
intelligent accessory shoe.
(continued on the following page)
206
Icon/item
TAPE SET
REC MODE
AUDIO MODE
qREMAIN
Mode
z SP
LP
z 12BIT
16BIT
z AUTO
ON
Meaning
To record in the SP (Standard Play) mode
To increase the recording time to 1.5 times the
SP mode
To record in the 12-bit mode (two stereo sounds)
To record in the 16-bit mode (one stereo sound
with high quality)
To display the remaining tape bar:
•For about eight seconds after a cassette is
inserted and your camcorder calculates the
remaining amount of tape
•For about eight seconds after N or
DISPLAY/TOUCH PANEL is pressed
To always display the remaining tape indicator
POWER
switch
VCR
CAMERA
VCR
CAMERA
VCR
CAMERA
Changing the default settings with the menu
Notes on the LP mode
•When you record a tape in the LP mode on your camcorder, we recommend playing
the tape on your camcorder. When you play back the tape on other camcorders or
VCRs, noise may occur in pictures or sound.
•When you record in the LP mode, we recommend using a Sony Excellence/Master
cassette so that you can get the most out of your camcorder.
•You cannot dub audio on a tape recorded in the LP mode. Use the SP mode for the
tape to be audio dubbed.
•When you record in the SP and LP modes on one tape or you record some scenes in
the LP mode, the playback picture may be distorted or the time code may not be
written properly between scenes.
Notes on AUDIO MODE
•You cannot dub audio on a tape recorded in the 16-bit mode.
•When playing back a tape recorded in the 16-bit mode, you cannot adjust the balance
in AUDIO MIX.
207
Customizing Your Camcorder
Changing the default settings with the menu
Icon/item
SETUP MENU
CLOCK SET
USB STREAM
USBCONNECT
LTR SIZE
LANGUAGE
DEMO MODE
Mode
——
z OFF
ON
z NORMAL
PTP
z NORMAL
2×
z ENGLISH
FRANÇAIS
ESPAÑOL
PORTUGUÊS
z ON
OFF
Meaning
To set the date or time (p. 20).
To deactivate the USB streaming
To activate the USB streaming
To connect and recognize the “Memory Stick”
drive.
To connect and only copy a “Memory Stick”
image from your camcorder to a computer (only
with Windows XP or Mac OS X)
1 Turn the SEL/PUSH EXEC dial to select
USBCONNECT followed by PTP, then press
the dial to set.
2 Insert the “Memory Stick” in the camcorder,
and connect the camcorder to the computer
using a USB cable. Copy Wizard will
automatically start up.
To display selected menu items in normal size
To display selected menu items at twice the
normal size
To display the following information indicators
in English: min, REC, STBY and START.
To display the information indicators in French.
To display the information indicators in
Spanish.
To display the information indicators in
Portuguese.
To display the information indicators in
Chinese.
To display the information indicators in Korean.
To make the demonstration appear
To cancel the demonstration
POWER
switch
CAMERA
MEMORY/
NETWORK
VCR
CAMERA
MEMORY/
NETWORK
VCR
CAMERA
MEMORY/
NETWORK
VCR
CAMERA
MEMORY/
NETWORK
CAMERA
Notes on DEMO MODE
•You cannot select DEMO MODE when a cassette or a “Memory Stick” is inserted in
your camcorder.
•When NIGHTSHOT is set to ON, the “NIGHTSHOT” indicator appears on the screen
and you cannot select DEMO MODE in the menu settings.
•The DEMO MODE default setting is STBY (Standby) and the demonstration starts
about 10 minutes after you have set the POWER switch to CAMERA without a
cassette and a “Memory Stick” inserted.
To cancel the demonstration, insert a cassette or a “Memory Stick,” set the POWER
switch to other than CAMERA, or set DEMO MODE to OFF. To set to STBY (Standby)
again, leave the DEMO MODE at ON in the menu settings, turn the POWER switch to
OFF (CHG), and return the POWER switch to CAMERA.
(continued on the following page)
208
Icon/item
OTHERS
DATA CODE*
1
AREA SET
DST SET*
2
BEEP
COMMANDER
Meaning
To display date, time and various settings
during playback when pressing DATA CODE
on the Remote Commander (p. 42)
To display date and time during playback when
pressing DATA CODE on the Remote
Commander
Temporarily change the area where you are
using your camcorder
Not during daylight saving time
During daylight saving time
To output the melody when you start/stop
recording or when an unusual condition occurs
on your camcorder
To output the beep instead of the melody
To cancel all sound including shutter sound
To activate the Remote Commander supplied
with your camcorder
To deactivate the Remote Commander to avoid
erroneous remote control operation caused by
other VCR’s remote control
Changing the default settings with the menu
Mode
z DATE/CAM
DATE
——
z OFF
ON
z MELODY
NORMAL
OFF
z ON
OFF
*
1
When using the Remote Commander.
*
2
Instead of DST, SUMMERTIME is displayed on the screen for some models.
POWER
switch
VCR
MEMORY/
NETWORK
CAMERA
MEMORY/
NETWORK
CAMERA
MEMORY/
NETWORK
VCR
CAMERA
MEMORY/
NETWORK
VCR
CAMERA
MEMORY/
NETWORK
209
Customizing Your Camcorder
Changing the default settings with the menu
Icon/item
OTHERS
DISPLAY
REC LAMP
VIDEO EDIT
Meaning
To show the display on the LCD screen and in
the viewfinder
To show the display on the TV screen, LCD
screen and in the viewfinder
To light up the camera recording lamp at the
front of your camcorder
To turn the camera recording lamp off so that
the person is not aware of the recording
To cancel video editing.
To make a program and perform video editing
(p. 89)
To make program and perform MPEG editing
(p. 151)
Mode
z LCD
V-OUT/LCD
z ON
OFF
z RETURN
TAPE
MEMORY
POWER
switch
VCR
CAMERA
MEMORY/
NETWORK
CAMERA
MEMORY/
NETWORK
VCR
Note
If you press DISPLAY/TOUCH PANEL with DISPLAY set to V-OUT/LCD in the menu
settings, the picture from a TV or VCR will not appear on the LCD screen even when
your camcorder is connected to outputs on the TV or VCR.
When recording a close subject
When REC LAMP is set to ON, the red camera recording lamp on the front of the
camcorder may reflect on the subject if it is close. In this case, we recommend that you
set REC LAMP to OFF.
In more than five minutes after removing the power supply
The WHT BAL, FLASH LVL, HiFi SOUND, AUDIO MIX and COMMANDER settings
are returned to their default settings.
Other menu settings are held in memory even when the battery is removed.
210
— Troubleshooting —
Types of trouble and how to correct
trouble
If you run into any problem using your camcorder, use the following table to
troubleshoot the problem. If the problem persists, disconnect the power supply and
contact your Sony dealer or local authorized Sony service facility. If “C:ss:ss”
appears on the screen, the self-diagnosis display function has worked. See page 217.
In the recording
Symptom Cause and/or Corrective Actions
• The POWER switch is not set to CAMERA.
c Set it to CAMERA (p. 26).
• The tape has run out.
c Rewind the cassette or insert a new one (p. 23, 44).
• The write-protect tab is set to expose the red mark.
c Use a new cassette or slide the tab (p. 23).
• The tape is stuck to the drum (moisture condensation).
c Remove the cassette and leave your camcorder for at
least one hour to acclimatize (p. 228).
• While being operated when the POWER switch is set to
CAMERA, your camcorder has been in the standby for
more than five minutes.
c Set the POWER switch to OFF (CHG) and then to
CAMERA.
• The battery pack is dead or nearly dead.
c Install a charged battery pack.
• PHOTO REC is set to TAPE in the menu settings.
c Set it to MEMORY (p. 201).
• PHOTO REC is set to MEMORY in the menu settings.
c Set it to TAPE (p. 201).
• The viewfinder lens is not adjusted.
c Adjust the viewfinder lens (p. 30).
• STEADYSHOT is set to OFF in the menu settings.
c Set it to ON (p. 201).
• The setting is the manual focus.
c Set FOCUS to the autofocus (p. 69).
• Shooting conditions are not suitable for autofocus.
c Adjust for manual focusing (p. 69).
START/STOP does not operate.
The power goes off.
You cannot record still images on a
“Memory Stick” in the tape recording
or tape recording standby.
You cannot record still images on a
tape.
The image on the viewfinder screen
is not clear.
The SteadyShot does not work.
The autofocusing does not work.
211
Troubleshooting
Symptom Cause and/or Corrective Actions
• The LCD panel is open.
c Close the LCD panel (p. 28).
• The contrast between the subject and background is too
high. This is not a malfunction.
• This is not a malfunction.
• Slow shutter, Super NightShot or Color Slow Shutter is
activated. This is not a malfunction.
• If 10 minutes elapse after you set the POWER switch to
CAMERA or DEMO MODE is set to ON in the menu
settings without a cassette and a “Memory Stick” inserted,
your camcorder automatically starts the demonstration.
c Insert a cassette or a “Memory Stick” and the
demonstration stops.
You can also cancel DEMO MODE (p. 207).
• NIGHTSHOT is set to ON.
c Set it to OFF (p. 34).
• NIGHTSHOT is set to ON in a bright place.
c Set it to OFF (p. 34).
• The backlight is active.
c Set it off (p. 34).
• BEEP is set to OFF in the menu settings.
c Set it to MELODY or NORMAL (p. 208).
• Set the STEADYSHOT in the menu settings to OFF
(p. 201).
• The power of the external flash is off or the power supply
is not installed.
c Turn on the external flash or install the power supply.
• Two or more external flashes (optional) are attached.
c Only one external flash (optional) can be attached.
(continued on the following page)
Types of trouble and how to correct trouble
The picture does not appear in the
viewfinder.
A vertical band appears when you
shoot a subject such as lights or a
candle flame against a dark
background.
A vertical band appears when you
shoot a very bright subject.
Some tiny white, red, blue or green
spots appear on the screen.
An unknown picture is displayed on
the screen.
The picture is recorded in incorrect or
unnatural colors.
The picture appears too bright, and
the subject does not appear on the
screen.
The click of the shutter does not
sound.
Black bands appear when you
record TV or computer screen.
An external flash (optional) does not
work.
212
In the playback
Symptom Cause and/or Corrective Actions
• The POWER switch is not set to VCR.
c Set it to VCR (p. 40).
• The cassette has run out of tape.
c Rewind the tape (p. 40).
• The video heads may be dirty.
c Clean the heads using the cleaning cassette (optional)
(p. 229).
• The stereo tape is played back with HiFi SOUND set to 2
in the menu settings.
c Set it to STEREO (p. 202).
• The volume is turned to minimum.
c Turn up the volume (p. 40).
• AUDIO MIX is set to ST2 in the menu settings.
c Adjust AUDIO MIX (p. 202).
• The cassette has no cassette memory.
c Use a cassette with cassette memory (p. 81).
• CM SEARCH is set to OFF in the menu settings.
c Set it to ON (p. 205).
• The tape has a blank portion between recorded portions
(p. 82).
• The cassette has no cassette memory.
c Use a cassette with cassette memory (p. 80).
• CM SEARCH is set to OFF in the menu settings.
c Set it to ON (p. 205).
• There is no title in the tape.
c Superimpose the titles (p. 110).
• The tape has a blank portion between recorded portions
(p. 80).
• AUDIO MIX is set to the ST1 side in the menu settings.
c Adjust AUDIO MIX (p. 109).
• TITLE DSPL is set to OFF in the menu settings.
c Set it to ON (p. 205).
The tape does not move when a
video control button is pressed.
The playback button does not work.
There are horizontal lines on the
picture, or the playback picture is not
clear or does not appear.
No sound or only a low sound is
heard when playing back a tape.
During displaying the recorded date,
date search does not work.
The title search does not work.
The new sound added to the
recorded tape is not heard.
The title is not displayed.
Types of trouble and how to correct trouble
213
Troubleshooting
Types of trouble and how to correct trouble
In the recording and playback
Symptom Cause and/or Corrective Actions
• The battery pack is not installed, or is dead or nearly dead.
c Install a charged battery pack (p. 15, 16).
• The AC power adaptor is not connected to a wall outlet.
c Connect the AC power adaptor to a wall outlet (p. 19).
• The cassette was ejected after recording when using a
cassette without cassette memory (p. 38).
• You have not recorded on the new cassette yet (p. 39).
• The tape has a blank portion at the beginning or midway
(p. 38).
• The operating temperature is too low.
• The battery pack is not fully charged.
c Charge the battery pack fully again (p. 16).
• The battery pack is completely dead, and cannot be
recharged.
c Replace with a new battery pack (p. 15).
• You have used the battery pack in an extremely hot or
cold environment for a long time.
• The battery pack is completely dead, and cannot be
recharged.
c Replace with a new battery pack (p. 15).
• The battery is not fully charged.
c Install a charged battery pack (p. 15, 16).
• A deviation has occurred in the remaining battery time.
c Charge the battery pack fully again so that the indication
on the battery remaining indicator is correct (p. 16).
• A deviation has occurred in the remaining battery time.
c Charge the battery pack fully again so that the indication
on the battery remaining battery time indicator is correct
(p. 16).
• The power supply is disconnected.
c Connect it firmly (p. 15, 19).
• The battery is dead.
c Use a charged battery pack (p. 15, 16).
• Moisture condensation has occurred.
c Remove the cassette and leave your camcorder for at
least one hour to acclimatize (p. 228).
• The gold-plated connector of the cassette is dirty or dusty.
c Clean the gold-plated connector (p. 222).
• The q REMAIN is set to AUTO in the menu settings.
c Set it to ON to always display the remaining tape
indicator (p. 206).
(continued on the following page)
The power does not turn on.
The end search does not work.
The end search does not work
correctly.
The battery pack is quickly
discharged.
The battery remaining time indicator
does not indicate the correct time.
The power goes off although the
battery remaining time indicator
indicates that the battery pack has
enough power to operate.
The cassette cannot be removed from
the holder.
The % and Z indicators flash and no
functions except for cassette ejection
work.
indicator does not appear when
using a cassette with cassette
memory.
Remaining tape indicator is not
displayed.
214
Types of trouble and how to correct trouble
When operating using the “Memory Stick”
Symptom Cause and/or Corrective Actions
• The POWER switch is not set to MEMORY/NETWORK
(DCR-TRV50 only).
c Set it to MEMORY/NETWORK (DCR-TRV50 only)
(p. 126).
• The “Memory Stick” is not inserted.
c Insert a “Memory Stick” (p. 119).
• The “Memory Stick” has already been full.
c Delete unnecessary images and record again (p. 168).
• The “Memory Stick” formatted incorrectly is inserted.
c Format the “Memory Stick” or use another “Memory
Stick” (p. 119, 204).
• The write-protect tab on the “Memory Stick” is set to
LOCK.
c Release the lock (p. 117).
• The image is protected.
c Cancel image protection (p. 167).
• The write-protect tab on the “Memory Stick” is set to
LOCK.
c Release the lock (p. 117).
• The write-protect tab on the “Memory Stick” is set to
LOCK.
c Release the lock (p. 117).
• The write-protect tab on the “Memory Stick” is set to
LOCK.
c Release the lock (p. 117).
• The write-protect tab on the “Memory Stick” is set to
LOCK.
c Release the lock (p. 117).
• INDEX screen is not displayed.
c Press INDEX to display the INDEX screen and protect
the image (p. 167).
• The write-protect tab on the “Memory Stick” is set to
LOCK.
c Release the lock (p. 117).
• INDEX screen is not displayed.
c The print marks cannot be written to the single screen
(p. 171).
• The “Memory Stick” is full.
c Delete unnecessary print marks and write a print mark
again (p. 168).
• You are trying to write a print mark on a moving picture.
c Print marks cannot be written on a moving picture.
• The write-protect tab on the “Memory Stick” is set to
LOCK.
c Release the lock (p. 117).
• You may not be able to play back images in actual size
when you try to play back images recorded by other
equipment. This is not a malfunction.
• Your camcorder cannot play back some images processed
with a computer (The file name will blink).
• If you record images with any other equipment, the
images may not play back normally on your camcorder.
The “Memory Stick” does not
function.
Recording does not function.
The image cannot be deleted.
You cannot format the “Memory
Stick”.
Deleting all the images cannot be
carried out.
You cannot protect the image.
You cannot write a print mark on
the still image.
The photo save does not work.
You cannot play back images in
actual size.
You cannot play back image data.
215
Troubleshooting
Others
Symptom Cause and/or Corrective Actions
• The cassette has no cassette memory.
c Use a cassette with cassette memory (p. 110).
• The cassette memory is full.
c Erase unwanted titles (p. 112).
• The cassette is set to prevent accidental erasure.
c Slide the write-protect tab so that red portion is not
visible (p. 23).
• The tape has a blank portion between recorded portions.
c Superimpose the title to recorded positions (p. 110).
• The cassette has no cassette memory.
c Use a cassette with cassette memory (p. 115).
• The cassette memory is full.
c Erase unwanted data (p. 112).
• The cassette is set to prevent accidental erasure.
c Slide the write-protect tab so that red mark is not visible
(p. 23).
• The input selector on the VCR is not set correctly.
c Check the connection and set the input selector on the
VCR again (p. 89)
• The camcorder is connected to DV equipment of other
than Sony using the i.LINK cable (DV connecting cable).
c Set it to IR (p. 94).
• You have attempted to set a program on a blank portion of
the tape.
c Set the program again on a recorded portion (p. 97).
• The camcorder and the VCR are not synchronized.
c Adjust the synchronization (p. 95).
• The IR SETUP code is incorrect.
c Set the correct code (p. 91).
• Setting program on a blank portion of the tape is
attempted.
c Set the program again on a recorded portion (p. 151).
• COMMANDER is set to OFF in the menu settings.
c Set it to ON (p. 208).
• Something is blocking the infrared rays.
c Remove the obstacle.
• The batteries are inserted with + and – incorrectly
matching + and – inside the battery compartment.
c Insert the batteries correctly (p. 243).
• The batteries are dead.
c Insert new ones (p. 243).
• DISPLAY is set to V-OUT/LCD in the menu settings.
c Set it to LCD (p. 209).
(continued on the following page)
The title is not recorded.
The cassette label is not recorded.
Digital program editing to a tape
does not function.
Digital program editing to a
“Memory Stick” does not function.
The Remote Commander supplied
with your camcorder does not work.
The picture from a TV or VCR does
not appear even when your
camcorder is connected to output on
the TV or VCR.
Types of trouble and how to correct trouble
216
Symptom Cause and/or Corrective Actions
• Moisture condensation has occurred.
c Remove the cassette and leave your camcorder for at
least one hour to acclimatize (p. 228).
• Some troubles have occurred in your camcorder.
c Remove the cassette and insert it again, then operate
your camcorder.
• The POWER switch is not set to OFF (CHG).
c Set it to OFF (CHG) (p. 16).
• The battery pack is not properly installed.
c Install it properly (p. 15).
• Something is wrong with the battery pack.
c Please contact your Sony dealer or local authorized Sony
service facility.
• Disconnect the power cord of the AC power adaptor or
remove the battery, then reconnect it in about one minute.
Turn the power on. If the functions still do not work, press
the RESET button using a sharp-pointed object (If you
press the RESET button, all the settings including the date
and time return to their defaults.) (p. 15, 19, 240).
• This is because some functions use a linear mechanism.
Your camcorder is not malfunctioning.
• The DISPLAY/TOUCH PANEL button is pressed.
c Press the LCD screen lightly.
c Press the DISPLAY/TOUCH PANEL button on your
camcorder or the DISPLAY button on the Remote
Commander (p. 42).
• Adjust the screen (CALIBRATION) (p. 230).
• The mirror mode is activated.
This is not a malfunction.
• The USB cable was connected before installation of the
USB driver was completed.
c Uninstall the incorrect USB driver and re-install the USB
driver (p. 179, 182).
• USBCONNECT is set to PTP in the menu settings when
the POWER switch is set to MEMORY/NETWORK (DCR-
TRV50 only).
c Set it to NORMAL (p. 207).
• Moisture has started to condense in your camcorder
(p. 228).
The melody or beep sounds for
five seconds.
You cannot charge the battery pack.
While charging the battery pack, no
indicator appears, the indicator
flashes in the display window.
No function works though the
power is on.
When you set the POWER switch to
VCR or OFF (CHG), if you move
your camcorder, you may hear a
clattering sound from inside your
camcorder.
The buttons do not appear on the
touch panel.
The buttons on the LCD screen do
not work.
The indicators appear mirror-
reversed in the viewfinder or on the
TV screen.
Image data cannot be transferred by
the USB connection.
The cassette cannot be removed
even if the cassette lid is open.
Types of trouble and how to correct trouble
217
Troubleshooting
Self-diagnosis display
Five-digit display Cause and/or Corrective Actions
• You are using a battery pack that is not an
“InfoLITHIUM” battery pack.
c Use an “InfoLITHIUM” battery pack (p. 18, 223).
• Moisture condensation has occurred.
c Remove the cassette and leave your camcorder for at
least one hour to acclimatize (p. 228).
• The video heads are dirty.
c Clean the heads using the cleaning cassette (optional)
(p. 229).
• A malfunction other than the above that you can service
has occurred.
c Remove the cassette and insert it again, then operate
your camcorder.
c Disconnect the power cord of the AC power adaptor or
remove the battery pack. After reconnecting the power
supply, operate your camcorder.
• A malfunction that you cannot service has occurred.
c Contact your Sony dealer or local authorized Sony
service facility and inform them of the 5-digit code
(example: E:61:10).
Your camcorder has a self-diagnosis display
function.
This function displays the current state of your
camcorder as a 5-digit code (a combination of a
letter and figures) on the screen. If a 5-digit code is
displayed, check the following list of codes. The
last two digits (indicated by ss) differ depending
on the state of your camcorder.
LCD screen, viewfinder or
display window
C:04:ss
C:21:ss
C:22:ss
C:31:ss
C:32:ss
E:20:ss
E:61:ss
E:62:ss
E:91:ss
Self-diagnosis display
•C:ss:ss
You can service your camcorder
yourself.
•E:ss:ss
Contact your Sony dealer or local
authorized Sony service facility.
C:21:00
If you are unable to rectify the problem even if you try corrective actions a few times,
contact your Sony dealer or local authorized Sony service facility.
218
Warning indicators and messages
100-0001 Warning indicator as to file
Slow flashing:
•The file is corrupted.
•The file is unreadable.
•You are trying to use the MEMORY MIX on a
moving picture (p. 139).
C:21:00 Self-diagnosis display (p. 217).
E The battery is dead or nearly dead
Slow flashing:
•The battery is nearly dead.
Depending on the operating conditions,
environment and battery condition, the E
indicator may flash even if there are
approximately five to 10 minutes remaining.
Fast flashing:
•The battery is dead (p. 16).
% Moisture condensation has occurred*
Fast flashing:
•Eject the cassette, turn off your camcorder,
and leave it for about one hour with the
cassette compartment open (p. 228).
Warning indicator as to cassette
memory*
Slow flashing:
•No cassette with cassette memory is inserted
(p. 220).
Warning indicator as to “Memory Stick”
Slow flashing:
•No “Memory Stick” is inserted.
Fast flashing*:
•The “Memory Stick” is not readable on your
camcorder (p. 117).
•The image cannot be recorded on “Memory
Stick”.
If indicators and messages appear on the screen or in the display window, check the
following:
See the page in parentheses “()” for more information.
Warning indicators
C:21:00100–0001
Warning indicator as to “Memory Stick”
formatting*
Fast flashing:
•“Memory Stick” is not formatted correctly
(p. 204).
•The “Memory Stick” data is corrupted
(p. 117).
Q Warning indicator as to tape
Slow flashing:
•The tape is near the end.
•No cassette is inserted.*
•The write-protect tab on the cassette is
exposed (red) (p. 23).*
Fast flashing:
•The cassette has run out of tape.*
Z You need to eject the cassette*
Slow flashing:
•The write-protect tab on the cassette is
exposed (red) (p. 23).
Fast flashing:
•Moisture condensation has occurred (p. 228).
•The cassette has run out of tape.
•The self-diagnosis display function is
activated (p. 217).
- The image is protected*
Slow flashing:
•The image is protected (p. 167).
Warning indicator as to the flash
Slow flashing:
•During charging
Fast flashing:
•The self-diagnosis display function is
activated (p. 217).*
•There is something wrong with the built-in
flash or the external flash (optional).
Warning indicator as to recording of
still image
Slow image:
•The still image cannot be recorded on a tape
or a “Memory Stick” (p. 47, 52).
* You hear the melody or beep.
219
Troubleshooting
Warning messages
•CLOCK SET Set the date and time (p. 20).
•FOR “InfoLITHIUM” Use an “InfoLITHIUM” battery pack (p. 18).
BATTERY ONLY
• CLEANING CASSETTE** The video heads are dirty (p. 229).
• FULL The cassette memory is full.*
• 16BIT AUDIO MODE is set to 16BIT (p. 206).* You cannot
dub new audio.
• REC MODE REC MODE is set to LP (p. 206).* You cannot dub
new audio.
• TAPE There is no recorded portion on the tape.* You cannot
dub new audio.
• “i.LINK” CABLE The i.LINK cable is connected (p. 109).* You cannot
dub new audio.
• FULL The “Memory Stick” is full (p. 129).*
• - The write-protect tab on the “Memory Stick” is set to
LOCK (p. 117).*
• NO FILE No still image is recorded on the “Memory Stick”
(p. 157).*
• NO MEMORY STICK No “Memory Stick” is inserted.*
• AUDIO ERROR You are trying to record an image with sound that
cannot be recorded by your camcorder on “Memory
Stick” (p. 148).*
• MEMORY STICK ERROR The “Memory Stick” data is corrupted (p. 119).*
• FORMAT ERROR The “Memory Stick” is not recognized. Check the
format (p. 204).*
• - DIRECTORY ERROR There are more than two of the same directories
(p. 157).*
• PLAY ERROR The image cannot be played back. Reinsert the
“Memory Stick,” then play back the image again.
• REC ERROR Check the input signal before retrying recording
(p. 138, 150).*
•COPY INHIBIT The tape contains copyright control signals for
copyright protection of software (p. 221).*
•Q Z TAPE END The tape has reached its end.*
•Q NO TAPE Insert a cassette.*
• NO PRINT MARK You selected MARKED in 9PIC PRINT on the touch
panel using a “Memory Stick” containing no image
with a print mark. (p. 173)*
• NO STILL IMAGE FILE You selected MULTI in 9PIC PRINT on the touch
panel using a “Memory Stick” containing no still
image. (p. 173)*
•DELETING You have pressed PHOTO during deleting all images
on “Memory Stick.”*
•FORMATTING You have pressed PHOTO during formatting a
“Memory Stick.”*
• NOW CHARGING Charging an external flash (optional) does not work
correctly.*
* You hear the melody or beep.
**The x indicator and “ CLEANING CASSETTE” message appear one after
another on the screen.
Warning indicators and messages
220
— Additional Information —
Usable cassettes
Selecting cassette types
You can use mini DV cassettes only*. You cannot use any other 8 mm, Hi8,
Digital8, VHS, VHSC, S-VHS, S-VHSC, Betamax,
ED Betamax, DV or MICRO MV cassette.
* There are two types of mini DV cassettes: with cassette memory and without cassette
memory. Cassettes with cassette memory have the (Cassette Memory) mark.
We recommend that you use cassette with cassette memory.
IC memory is mounted on this type of cassette. Your camcorder can read and write
data such as dates of recording or titles, etc. to this memory.
The functions using the cassette memory require successive signals recorded on the
tape. If the tape has a blank portion at the beginning or between recorded portions,
titles may not be displayed properly or the search functions may not work properly.
Perform the following to prevent a blank portion from being made on the tape.
Press END SEARCH to go to the end of the recorded portion before you begin the
next recording if you operate the following:
– You have ejected the cassette while recording.
– You have played back the tape.
– You have used the edit search.
If there is a blank portion or discontinuous signal on your tape, re-record from the
beginning to the end of the tape as described above.
The same result may occur when you record using a digital video camera recorder
without a cassette memory on a tape recorded by one with the cassette memory.
mark on the cassette
The memory capacity of cassettes marked with is 4Kbit. Your camcorder can
accommodate tapes having a memory capacity of up to 16Kbit. 16Kbit cassettes are
marked with .
This is the mini DV mark.
This is the Cassette Memory mark.
These are trademarks.
221
Additional Information
Usable cassettes
Copyright signal
When you play back
Using any other video camera recorder, you cannot record on tape that has recorded
copyright control signals for copyright protection of software which is played back on
your camcorder.
When you record
You cannot record software on your camcorder that contains copyright control signals
for copyright protection of software.
“COPY INHIBIT” appears on the screen or on the TV screen if you try to record such
software.
Your camcorder does not record copyright control signals on the tape when it records.
Audio mode
12-bit mode: The original sound can be recorded in stereo 1, and the new sound in
stereo 2 in 32 kHz. The balance between stereo 1 and stereo 2 can be
adjusted by selecting AUDIO MIX in the menu settings during playback.
Both sounds can be played back.
16-bit mode: New audio cannot be recorded but the original sound can be recorded in
high quality. Moreover, your camcorder can also play back sound
recorded in 32 kHz, 44.1 kHz or 48 kHz. When playing back a tape
recorded in the 16-bit mode, the 16BIT indicator appears on screen.
When you play back a dual sound track tape
When you play back a dual sound track tape recorded in a stereo system, set HiFi
SOUND to the desired mode in the menu settings (p. 202).
Sound from speaker
HiFi SOUND Playing back Playing back a dual
mode a stereo tape sound track tape
STEREO Stereo
Main sound and
sub sound
1 Left sound Main sound
2 Right sound Sub sound
You cannot record dual sound programs on your camcorder.
222
Notes on the cassette
When affixing a label on the cassette
Be sure to affix a label only at the locations illustrated below [a] to prevent malfunction
of your camcorder.
After using the cassette
Rewind the tape to the beginning, put the cassette in its case, and store it upright.
When the cassette memory does not work
Reinsert a cassette. The gold-plated connector of the cassette may be dirty or dusty.
Cleaning the gold-plated connector
If the gold-plated connector on the cassette is dirty or dusty, the remaining tape
indicator is sometimes not displayed correctly, and you may not be able to operate
functions using cassette memory. Clean the gold-plated connector with a cotton-wool
swab, about every 10 times that the cassette is ejected. [b]
Usable cassettes
[b]
[a]
Do not affix a label
along this border.
223
Additional Information
About the “InfoLITHIUM” battery pack
What is the “InfoLITHIUM” battery pack?
The “InfoLITHIUM” battery pack is a lithium-ion battery pack that has functions for
communicating information related to operating conditions between the battery pack
and an optional AC adaptor/charger.
The “InfoLITHIUM” battery pack calculates the power consumption according to the
operating conditions of your camcorder, and displays the remaining battery time in
minutes. With an AC adaptor/charger (optional), the remaining battery time and
charging time are displayed.
Charging the battery pack
•Be sure to charge the battery pack before you start using your camcorder.
•We recommend charging the battery pack in an ambient temperature of between
10°C to 30°C (50°F to 86°F) until FULL appears in the display window, indicating that
the battery pack is fully charged. If you charge the battery outside of this temperature
range, you may not be able to efficiently charge the battery pack.
•After charging is completed, either disconnect the cable from the DC IN jack on your
camcorder or remove the battery pack.
Effective use of the battery pack
•Battery pack performance decreases in low-temperature surroundings. So, the time
that the battery pack can be used becomes shorter. We recommend the following to
ensure longer battery pack use:
– Put the battery pack in a pocket to warm it up, and insert it in your camcorder
immediately before you start taking shots.
– Use the large-capacity battery pack (NP-FM70/QM71/FM90/FM91/QM91,
optional).
•Frequently using the LCD panel or frequently operating playback, fast forward or
rewind wears out the battery pack faster. We recommend using the large-capacity
battery pack (NP-FM70/QM71/FM90/FM91/QM91, optional).
•Be sure to turn off the power switch when not taking shots or playing back on your
camcorder. The battery pack is also consumed when your camcorder is in the standby
or playback pause.
•Have spare battery packs handy for two or three times the expected recording time,
and make trial recordings before taking the actual recording.
•Do not expose the battery pack to water. The battery pack is not water-resistant.
Remaining battery time indicator
•If the power goes off although the remaining battery time indicator indicates that the
battery pack has enough power to operate, fully charge the battery pack again so that
the indication on the remaining battery time indicator is correct. Note, however, that
the correct battery indication sometimes will not be restored if it is used in high
temperatures for a long time or left in a fully charged state, or the battery pack is
frequently used. Regard the remaining battery time indication as the approximate
recording time.
•The E mark indicating that there is little remaining battery time sometimes flashes
depending on the operating conditions or ambient temperature and environment even
if the remaining battery time is about five to 10 minutes.
(Continued on the following page)
224
How to store the battery pack
•If the battery pack is not used for a long time, do the following procedure once per
year to maintain proper function.
1. Fully charge the battery.
2. Discharge on your electronic equipment.
3. Remove the battery from the equipment and store it in a dry, cool place.
•To use the battery pack up on your camcorder, leave your camcorder in the recording
standby until the power goes off without a cassette inserted.
Battery life
•The battery life is limited. Battery capacity drops little by little as you use it more and
more, and as time passes. When the available battery time is shortened considerably, a
probable cause is that the battery pack has reached the end of its life. Buy a new
battery pack.
•The battery life varies according to how it is stored and operating conditions and
environment for each battery pack.
About the “InfoLITHIUM” battery pack
225
Additional Information
The DV jack on this unit is an i.LINK-compliant DV input/output jack. This section
describes the i.LINK standard and its features.
What is i.LINK?
i.LINK is a digital serial interface for handling digital video, digital audio and other
data in two directions between equipment having the i.LINK jack, and for controlling
other equipment.
i.LINK-compatible equipment can be connected by a single i.LINK cable. Possible
applications are operations and data transactions with various digital AV equipment.
When two or more i.LINK-compatible equipment are connected to this unit in a daisy
chain, operations and data transactions are possible with not only the equipment that
this unit is connected to but also with other devices via the directly connected
equipment.
Note, however, that the method of operation sometimes varies according to the
characteristics and specifications of the equipment to be connected, and that operations
and data transactions are sometimes not possible on some connected equipment.
Note
Normally, only one piece of equipment can be connected to this unit by the i.LINK
cable (DV cable). When connecting this unit to i.LINK-compatible equipment having
two or more i.LINK jacks (DV jacks), refer to the operating instructions of the
equipment to be connected.
About the name “i.LINK”
i.LINK is a more familiar term for IEEE 1394 data transport bus proposed by SONY,
and is a trademark approved by many corporations.
IEEE 1394 is an international standard standardized by the Institute of Electrical and
Electronic Engineers.
i.LINK baud rate
i.LINK’s maximum baud rate varies according to the equipment. Three maximum
baud rates are defined:
S100 (approx. 100Mbps*)
S200 (approx. 200Mbps)
S400 (approx. 400Mbps)
The baud rate is listed under “Specifications” in the operating instructions of each
equipment. It is also indicated near the i.LINK jack on some equipment.
The maximum baud rate of equipment on which it is not indicated such as this unit is
“S100”.
When units are connected to equipment having a different maximum baud rate, the
baud rate sometimes differs from the indicated baud rate.
*What is Mbps?
Mbps stands for megabits per second, or the amount of data that can be sent or
received in one second. For example, a baud rate of 100Mbps means that 100 megabits
of data can be sent in one second.
About i.LINK
226
i.LINK functions on this unit
For details on how to dub when this unit is connected to other video equipment having
DV jacks, see page 88 and 102.
This unit can also be connected to other i.LINK (DV) compatible equipment made by
SONY (e.g. VAIO series personal computer) other than video equipment.
Before connecting this unit to a personal computer, make sure that application software
supported by this unit is already installed on the personal computer.
For details on precautions when connecting this unit, also refer to the operating
instructions of the equipment to be connected.
Required i.LINK cable
Use the Sony i.LINK 4-pin-to-4-pin cable (during DV dubbing).
i.LINK and are trademarks.
About i.LINK
227
Additional Information
Using your camcorder abroad
Countries and areas where you can use network functions are restricted. For details,
refer to the separate Network Operating Instructions. (DCR-TRV50 only)
You can use your camcorder in any country or area with the AC power adaptor
supplied with your camcorder within 100 V to 240 V AC, 50/60 Hz.
Use a commercially available AC plug adaptor [a], if necessary, depending on the
design of the wall outlet [b].
Your camcorder is an NTSC system based camcorder. If you want to view the playback
picture on a TV, it must be an NTSC system based TV with the AUDIO/VIDEO input
jack.
The following shows TV color systems used overseas.
NTSC system
Bahama Islands, Bolivia, Canada, Central America, Chile, Colombia, Ecuador, Guyana,
Jamaica, Japan, Korea, Mexico, Peru, Surinam, Taiwan, the Philippines, the U.S.A.,
Venezuela, etc.
PAL system
Australia, Austria, Belgium, China, Czech Republic, Denmark, Finland, Germany,
Holland, Hong Kong, Hungary, Italy, Kuwait, Malaysia, New Zealand, Norway,
Poland, Portugal, Singapore, Slovak Republic, Spain, Sweden, Switzerland, Thailand,
United Kingdom etc.
PAL-M system
Brazil
PAL-N system
Argentina, Paraguay, Uruguay
SECAM system
Bulgaria, France, Guiana, Iran, Iraq, Monaco, Russia, Ukraine, etc.
Using your camcorder abroad
[b]
[a]
AC-L10A/L10B/L10C
228
Maintenance information and
precautions
Moisture condensation
If your camcorder is brought directly from a cold place to a warm place, moisture may
condense inside your camcorder, on the surface of the tape, or on the lens. In this state,
the tape may stick to the head drum and be damaged or your camcorder may not
operate correctly. If there is moisture inside your camcorder, the beep and the %
indicator flashes. When the Z indicator flashes at the same time, the cassette is inserted
in your camcorder. If moisture condenses on the lens, the indicator will not appear.
If moisture condensation has occurred
None of the functions except cassette ejection will work. Eject the cassette, turn off your
camcorder, and leave it for about one hour with the cassette lid open. Your camcorder
can be used again if the % indicator does not appear when the power is turned on
again.
If moisture starts to condense, your camcorder sometimes cannot detect condensation.
If this happens, the cassette is sometimes not ejected for 10 seconds after the cassette lid
is opened. This is not a malfunction. Do not close the cassette lid until the cassette is
ejected.
Note on moisture condensation
Moisture may condense when you bring your camcorder from a cold place into a warm
place (or vice versa) or when you use your camcorder in a hot place as follows:
•You bring your camcorder from a ski slope into a place warmed up by heating device.
•You bring your camcorder from an air-conditioned car or room into a hot place
outside.
•You use your camcorder after a squall or a shower.
•You use your camcorder in a high temperature and humid place.
How to prevent moisture condensation
When you bring your camcorder from a cold place into a warm place, put your
camcorder in a plastic bag and tightly seal it. Remove the bag when the air temperature
inside the plastic bag has reached the surrounding temperature (after about one hour).
229
Additional Information
Maintenance information
Cleaning the video heads
To ensure normal recording and clear pictures, clean the video heads. The video heads
may be dirty when:
•Mosaic-pattern noise appears on the playback picture.
•Playback pictures do not move.
•Playback pictures do not appear.
•The x indicator and “ CLEANING CASSETTE” message appear one after another,
or the x indicator flashes on the screen during recording.
If the above problem [a], [b] or [c] occurs, clean the video heads for 10 seconds with the
Sony DVM-12CLD cleaning cassette (optional). Check the picture and if the above
problem persists, repeat cleaning.
If the video heads get dirtier, the entire screen becomes blue [c].
Cleaning the LCD screen
If fingerprints or dust make the LCD screen dirty, we recommend using the Cleaning
cloth (supplied) to clean the LCD screen. When you use the LCD Cleaning Kit
(optional), do not apply the cleaning liquid directly to the LCD screen. Clean the LCD
screen with cleaning paper moistened with the liquid.
Maintenance information and precautions
[a]
[b] [c]
230
Adjusting the LCD screen (CALIBRATION)
The buttons on the touch panel may not work correctly. If this happens, follow the
procedure below.
(1) Set the POWER switch to OFF (CHG).
(2) Eject the cassette from your camcorder, then disconnect any connecting cable
from your camcorder.
(3) Set the POWER switch to VCR while pressing DISPLAY/TOUCH PANEL on
your camcorder, then keep pressing DISPLAY/TOUCH PANEL for about five
seconds.
(4) Follow the procedure below using an object such as the corner of a “Memory
Stick” supplied with your camcorder.
You can use the supplied stylus for this operation (DCR-TRV50 only).
1 Touch
at the upper left corner.
2 Touch
at the lower right corner.
3 Touch
in the middle of the screen.
Note
If you do not press the right spot, always returns to the position at the upper left
corner. In this case, start from step 4 again.
Maintenance information and precautions
CALIBRATE
CALIBRATE
CALIBRATE
FNINDEXPB
231
Additional Information
Maintenance information and precautions
Charging the built-in rechargeable battery
Your camcorder has a built-in rechargeable battery so that the date, time and other
settings are retained even when the POWER switch is turned off. The built-in
rechargeable battery is always charged as long as you are using your camcorder. The
battery, however, will become discharged gradually if you do not use your camcorder.
It will be completely discharged in about four months if you do not use your
camcorder at all. Even if the built-in rechargeable battery is not charged, it will not
affect camcorder operation. To retain the date, time, and other information, charge the
battery if the battery is discharged.
Charging the built-in rechargeable battery:
•Connect your camcorder to house current using the AC power adaptor supplied with
your camcorder, and leave your camcorder with the power switch turned off for more
than 24 hours.
•Or, install a charged battery pack in your camcorder, and leave your camcorder with
the POWER switch set to OFF (CHG) for more than 24 hours.
Precautions
Camcorder operation
•Operate your camcorder on 7.2 V (battery pack) or 8.4 V (AC power adaptor).
•For DC or AC operation, use the accessories recommended in these operating
instructions.
•If any solid object or liquid gets inside the casing, unplug your camcorder and have it
checked by a Sony dealer before operating it any further.
•Avoid rough handling or mechanical shock. Be particularly careful of the lens.
•Keep the POWER switch set to OFF (CHG) when you are not using your camcorder.
•Do not wrap your camcorder with a towel, for example, and operate it. Doing so
might cause heat to build up inside.
•Keep your camcorder away from strong magnetic fields or mechanical vibration.
•Do not press the LCD screen with sharp objects other than the stylus supplied. (DCR-
TRV50 only)
•If your camcorder is used in a cold place, a residual image may appear on the LCD
screen. This is not a malfunction.
•While using your camcorder, the back of the LCD screen may heat up. This is not a
malfunction.
On handling tapes
•Do not insert anything into the small holes on the rear of the cassette. These holes are
used to sense the type and thickness of the tape and if the recording tab is in or out.
•Do not open the cassette protect cover or touch the tape.
•Avoid touching or damaging the terminals. To remove dust, clean the terminals with
a soft cloth.
232
Maintenance information and precautions
Camcorder care
•Remove the cassette, and periodically turn on the power, operate the CAMERA and
VCR sections and play back a tape for about three minutes when your camcorder is
not to be used for a long time.
•Clean the lens with a soft brush to remove dust. If there are fingerprints on the lens,
remove them with a soft cloth.
•Clean the camcorder body with a dry soft cloth, or a soft cloth lightly moistened with
a mild detergent solution. Do not use any type of solvent which may damage the
finish.
•Do not let sand get into your camcorder. When you use your camcorder on a sandy
beach or in a dusty place, protect it from the sand or dust. Sand or dust may cause
your camcorder to malfunction, and sometimes this malfunction cannot be repaired.
AC power adaptor
•Unplug the unit from the wall outlet when you are not using it for a long time. To
disconnect the power cord, pull it out by the plug. Never pull the power cord itself.
•Do not operate the unit with a damaged cord or if the unit has been dropped or
damaged.
•Do not bend the power cord forcibly, or place a heavy object on it. This will damage
the cord and may cause fire or electric shock.
•Prevent metallic objects from coming into contact with the metal parts of the
connecting section. If this happens, a short may occur and the unit may be damaged.
•Always keep metal contacts clean.
•Do not disassemble the unit.
•Do not apply mechanical shock or drop the unit.
•While the unit is in use, particularly during charging, keep it away from AM receivers
and video equipment. AM receivers and video equipment disturb AM reception and
video operation.
•The unit becomes warm during use. This is not a malfunction.
•Do not place the unit in locations that are:
– Extremely hot or cold
– Dusty or dirty
– Very humid
– Vibrating
About care and storage of the lens
•Wipe the surface of the lens clean with a soft cloth in the following instances:
– When there are fingerprints on the lens surface
– In hot or humid locations
– When the lens is used in environments such as the seaside
•Store the lens in a well-ventilated location subject to little dirt or dust.
To prevent mold from growing, periodically perform the above.
We recommend turning on and operating the video camera recorder about once per
month to keep the video camera recorder in an optimum state for a long time.
233
Additional Information
Maintenance information and precautions
Battery pack
•Use only the specified charger or video equipment with the charging function.
•To prevent accident from a short circuit, do not allow metal objects to come into
contact with the battery terminals.
•Keep the battery pack away from fire.
•Never expose the battery pack to temperatures above 60°C (140°F), such as in a car
parked in the sun or under direct sunlight.
•Keep the battery pack dry.
•Do not expose the battery pack to any mechanical shock.
•Do not disassemble nor modify the battery pack.
•Attach the battery pack to the video equipment securely.
•Charging while some capacity remains does not affect the original battery capacity.
Notes on dry batteries
To avoid possible damage from battery leakage or corrosion, observe the following:
– Be sure to insert the batteries with the + and – correctly matching the + and – inside
the battery compartment.
– Dry batteries are not rechargeable.
– Do not use a combination of new and old batteries.
– Do not use different types of batteries.
– Current flows from batteries when you are not using them for a long time.
– Do not use leaking batteries.
If batteries are leaking
•Wipe off the liquid in the battery compartment carefully before replacing the batteries.
•If you touch the liquid, wash it off with water.
•If the liquid gets into your eyes, wash your eyes with a lot of water and then consult a
doctor.
If any problem occurs, unplug your camcorder and contact your nearest Sony dealer.
234
Specifications
Video camera
recorder
System
Video recording system
2 rotary heads
Helical scanning system
Audio recording system
Rotary heads, PCM system
Quantization: 12 bits (Fs 32 kHz,
stereo 1, stereo 2), 16 bits
(Fs 48 kHz, stereo)
Video signal
NTSC color, EIA standards
Usable cassette
Mini DV cassette with the
mark printed
Tape speed
SP: Approx. 18.81 mm/s
LP: Approx. 12.56 mm/s
Recording/playback time
(using cassette DVM60)
SP: 1 hour
LP: 1.5 hours
Fastforward/rewind time
(using cassette DVM60)
When using the battery pack:
Approx. 2 min. and 30 seconds
When using the AC power
adaptor:
Approx. 1 min. and 45 seconds
Viewfinder
Electric viewfinder (color)
Image device
4.5 mm (1/4 type) CCD (Charge
Coupled Device)
Gross: Approx. 1 550 000 pixels
Effective (still):
Approx. 1 390 000 pixels
Effective (moving):
Approx. 970 000 pixels
Lens
Carl Zeiss Vario-Sonnar
Combined power zoom lens
Filter diameter: 37 mm
(1 1/2 in)
10× (Optical), 120× (Digital)
F = 1.8 ~ 2.2
Focal length
4.2 – 42 mm (3/16 – 1 11/16 in.)
When converted to a 35 mm still
camera
In CAMERA:
48 – 480 mm (1 15/16 – 19 in.)
In MEMORY:
40 – 400 mm (1 5/8 – 15 3/4 in.)
Color temperature
Auto, HOLD (Hold), nIndoor
(3 200 K),
Outdoor (5 800 K)
Minimum illumination
7 lx (lux) (F 1.8)
0 lx (lux) (in the NightShot mode)*
* Objects unable to be seen due to
the dark can be shot with
infrared lighting.
Input/Output connectors
S video input/output
4-pin mini DIN
Luminance signal: 1 Vp-p,
75 Ω (ohms), unbalanced
Chrominance signal: 0.286 Vp-p,
75 Ω (ohms), unbalanced
Audio/Video input/output
AV MINI JACK, 1 Vp-p,
75 Ω (ohms), unbalanced, sync
negative
327 mV, (at output impedance
more than 47 kΩ (kilohms))
Output impedance with less than
2.2 kΩ (kilohms)/Stereo minijack
(ø 3.5 mm)
Input impedance more than
47 kΩ (kilohms)
DV input/output
4-pin connector
Headphone jack
Stereo minijack (ø 3.5 mm)
LANC jack
Stereo mini-minijack (ø 2.5 mm)
USB jack
mini-B
MIC jack
Minijack, 0.388 mV low impedance
with 2.5 to 3.0 V DC, output
impedance 6.8 kΩ (kilohms) (ø 3.5
mm)
Stereo type
LCD screen
8.8 cm (3.5 type)
72.2 × 50.4 mm (2 4/5 × 2 in.)
Total dot number
246 400 (1 120 × 220)
Wireless communications
(DCR-TRV50 only)
Communications system
Bluetooth standard Ver.1.1
Max. baud rate
1) 2)
Approx. 723 kbps
Output
Bluetooth standard Power Class 2
Communications distance
2)
Max. wireless distance Approx. 10
m (393 3/4 in.) (When connecting
to BTA-NW1)
Compatible Bluetooth profile
3)
Generic Access Profile
Dial-up Networking Profile
Operating frequency band
2.4 GHz band (2.400 GHz –
2.483 5 GHz)
1)
Max. baud rate of Bluetooth
standard Ver.1.1
2)
Varies according to the distance
between communicating
devices, presence of obstacles,
radiowave conditions, and other
factors.
3)
This is a specification matched
to specific usage requirements
between Bluetooth compatible
devices. It is laid down in the
Bluetooth standards.
235
Additional Information
Specifications
General
Power requirements
7.2 V (battery pack)
8.4 V (AC power adaptor)
Average power consumption
(when using the battery pack)
During camera recording using
LCD
4.5 W
Viewfinder
3.4 W
Operating temperature
0°C to 40°C (32°F to 104°F)
Storage temperature
–20°C to + 60°C
(–4°F to + 140°F)
Dimensions (Approx.)
72 × 91 × 168 mm
(2 7/8 × 3 5/8 × 6 5/8 in.) (w/h/d)
Mass (Approx.)
700 g (1 lb 8 oz)
main unit only
800 g (1 lb 12 oz)
including the battery pack
NP-FM50, cassette DVM60 and
lens cap
Supplied accessories
See page 14.
AC power adaptor
Power requirements
100 – 240 V AC, 50/60 Hz
Power consumption
23 W
Output voltage
DC OUT: 8.4 V, 1.5 A in the
operating mode
Operating temperature
0°C to 40°C (32°F to 104°F)
Storage temperature
–20°C to + 60°C
(–4°F to + 140°F)
Dimensions (approx.)
125 × 39 × 62 mm
(5 × 1 9/16 × 2 1/2 in.) (w/h/d)
excluding projecting parts
Mass (approx.)
280 g (9.8 oz)
excluding power cord
Battery pack
Maximum output voltage
DC 8.4 V
Output voltage
DC 7.2 V
Capacity
8.5 Wh (1 180 mAh)
Dimensions (approx.)
38.2 × 20.5 × 55.6 mm
(1 9/16 × 13/16 × 2 1/4 in.)
(w/h/d)
Mass (approx.)
76 g (2.7 oz)
Type
Lithium ion
“Memory Stick”
Memory
Flash memory
8MB: MSA-8A
Operating voltage
2.7 – 3.6 V
Power consumption
Approx. 45 mA in the operating
mode
Approx. 130 µA in the standby
mode
Dimensions (approx.)
50 × 2.8 × 21.5 mm
(2 × 1/8 × 7/8 in.) (w/h/d)
Mass (approx.)
4 g (0.14 oz)
Design and specifications are
subject to change without notice.
236
— Quick Reference —
Identifying parts and controls
1 Flash (p. 49, 130)
2 Focus ring (p. 69)
3 Lens
4 Camera recording lamp (p. 26)
5 Infrared rays emitter (p. 34, 92)
Camcorder
6 Microphone
7 Remote sensor
8 Viewfinder (p. 30)
9 Display window (p. 16)
0 HOLOGRAM AF emitter (p. 132)
1
2
3
4
5
6
8
9
q;
7
Note on the Carl Zeiss lens
Your camcorder is equipped with a Carl Zeiss lens which can reproduce fine images.
The lens for your camcorder was developed jointly by Carl Zeiss, in Germany, and
Sony Corporation. It adopts the MTF
#
measurement system for video camera and
offers a quality as the Carl Zeiss lens.
#
MTF Stands for Modulation Transfer Function.
The value number indicates the amount of light of a subject coming into the lens.
237
Quick Reference
Identifying parts and controls
qa PHOTO button (p. 47, 52, 126)
qs LOCK switch (p. 26)
qd DC IN jack cover
qf DC IN jack (p. 19)
qg START/STOP button (p. 26)
qh POWER switch (p. 26)
qj EDITSEARCH button (p. 38)
qk NIGHTSHOT switch (p. 34)
ql
(Bluetooth) lamp (DCR-TRV50 only)
(p. 197)
w; SUPER NS/COLOR SLOW S button
(p. 34)
wa Stylus (DCR-TRV50 only) (p. 198)
qj
qk
ql
w;
wa
qs
qa
qd
qg
qf
qh
238
Identifying parts and controls
ws Power zoom lever (p. 31, 77, 164)
wd BATT release button (p. 15)
wf Hooks for shoulder strap
wg “Memory Stick” slot (p. 119)
wh
(USB) jack (p. 174)
wj
(flash) button (p. 49, 130)
wk
DV IN/OUT jack (p. 88, 102, 138, 150)
wl
(LANC) jack (blue)
e; Jack cover (p. 46)
ea MIC jack (PLUG IN POWER) (red)
Connect an external microphone
(optional). This jack also accepts a
“plug-in-power” microphone.
es S VIDEO ID-2 jack (p. 46, 86, 137, 149)
ed i (headphones) jack (green)
When you use headphones, the speaker
on your camcorder is silent.
ef AUDIO/VIDEO jack (yellow) (p. 46, 86,
137, 149)
wj
wg
ws
wf
wk
wl
e;
ef
wh
es
ed
ea
wd
239
Quick Reference
eg Intelligent accessory shoe (p. 106)
eh LCD/Touch panel screen (p. 24, 29, 120)
ej Speaker
ek VOLUME buttons (p. 40)
el DISPLAY/TOUCH PANEL button (p. 42)
r; MENU button (p. 199)
Identifying parts and controls
REW PLAY FF
REC
STOP PAUSE
r;
el
ej
ek
eh
eg
ra
ra Video control buttons
x STOP (stop)
m REW (rewind)
N PLAY (playback)
M FF (fastforward)
X PAUSE (pause)
z REC (record)
Notes on the intelligent accessory shoe
•The intelligent accessory shoe supplies power to optional accessories such as a video
light or microphone.
•The intelligent accessory shoe is linked to the POWER switch, allowing you to turn the
power supplied by the shoe on and off. Refer to the operating instructions of the
accessory for further information.
•The intelligent accessory shoe has a safety device for fixing the installed accessory
securely. To connect an accessory, press down and push it to the end, and then tighten
the screw.
•To remove an accessory, loosen the screw, and then press down and pull out the
accessory.
240
rs OPEN button (p. 26)
rd FOCUS switch (p. 69)
rf RESET button (p. 216)
rg FADER button (p. 58)
rh BACK LIGHT button (p. 34)
Identifying parts and controls
rj Viewfinder lens adjustment lever
(p. 30)
rk NETWORK button (DCR-TRV50 only)
(p. 197)
rl SEL/PUSH EXEC dial (p. 199)
t; PROGRAM AE button
ta EXPOSURE button (p. 67)
rs
rd
rf
rg
rj
rh
rk
rl
ta
t;
241
Quick Reference
Identifying parts and controls
td
ts
tf
th
tg
tj
tl
y;
tk
ts Access lamp
td Battery pack (p. 15)
tf
OPEN/EJECT lever (p. 23)
tg Cassette compartment
th Grip strap
tj Holder (DCR-TRV50 only) (p. 198)
tk Lens cap (p. 26)
tl Cassette lid (p. 23)
y; Tripod receptacle
Make sure that the length of the tripod
screw is less than 5.5 mm (7/32 inch).
Otherwise, you cannot attach the tripod
securely, and the screw may damage
your camcorder.
Fastening the grip strap
Fasten the grip strap firmly.
4
3
2
1
242
Identifying parts and controls
Remote Commander
The buttons that have the same name on the Remote Commander as on your camcorder
function identically to the buttons on your camcorder.
1 PHOTO button (p. 47, 52, 126)
2 DISPLAY button (p. 42)
3 Memory control buttons
4 SEARCH MODE button (p. 80, 81, 83)
5 Video control buttons (p. 44)
6 REC button
7 MARK button (p. 97)
8 Transmitter
Point toward the remote sensor to
control your camcorder after turning on
your camcorder.
9 ZERO SET MEMORY button (p. 79)
q; START/STOP button (p. 26)
qa DATA CODE button (p. 42)
qs Power zoom button (p. 31)
qd ./> buttons (p. 80, 81, 83)
qf AUDIO DUB button (p. 108)
7
qf
5
4
3
2
1
qs
qd
0
qa
9
8
6
243
Quick Reference
To prepare the Remote Commander
Insert two size AA (R6) batteries by matching the + and – on the batteries to
the + and – in the battery compartment.
Notes on the Remote Commander
•Point the remote sensor away from strong light sources such as direct sunlight or
overhead lighting. Otherwise, the Remote Commander may not function properly.
•Your camcorder works in the commander mode VTR 2. Commander modes 1, 2 and 3
are used to distinguish your camcorder from other Sony VCRs to avoid erroneous
remote control operation. If you use another Sony VCR in the commander mode VTR
2, we recommend changing the commander mode or covering the sensor of the VCR
with black paper.
Identifying parts and controls
244
Identifying parts and controls
Operation indicators
1 Cassette memory (p. 33, 220)
2 Remaining battery time (p. 33)
3 Zoom (p. 31)/Exposure (p. 67)/
Data file name (p. 117)
4 Digital effect (p. 61, 76)/MEMORY MIX
(p. 139)/FADER (p. 57)
5 16:9WIDE (p. 55)
6 Picture effect (p. 60, 75)
7 Data code (p. 42)
8 Volume (p. 40)/Date (p. 33)
9 PROGRAM AE (p. 64)
0 Backlight (p. 34)
qa SteadyShot off (p. 201)
qs Manual focus/Infinity (p. 69)
qd Self-timer (p. 37, 51, 134)
qf Recording mode (p. 33)
qg HOLOGRAM AF (p. 132)
qh STBY/REC (p. 33)/Video control mode
(p. 44)/Image size (p. 124)/Image
quality (p. 122)
qj NIGHTSHOT (p. 34)/SUPER NIGHTSHOT
(p. 35) COLOR SLOW SHUTTER (p. 35)
LCD screen and Viewfinder
qk Warning (p. 218)
ql Tape counter (p. 33)/Time code
(p. 33)/Self-diagnosis (p. 217)/Tape
photo (p. 52)/Memory photo (p. 126)/
Image number (p. 157)
w; Remaining tape (p. 33)/Memory
playback (p. 157)
wa ZERO SET MEMORY (p. 79)
ws END SEARCH (p. 38)
wd A/V t DV (p. 196)/DV IN (p. 103)
wf Audio mode (p. 206)
wg Data file name (p. 117)/Time (p. 33)
wh Flash (p. 49, 130)
This indicator appears only when the
flash is in use.
wj Continuous photo recording (p. 128)
wk Remaining battery time indicator (p.
33)/Tape counter (p. 33)/Memory
counter (p. 33)/Time code indicator (p.
33)/Self-diagnosis indicator (p. 217)
wl FULL charge indicator (p. 16)
wl
wk B
Display window
AUTO
60 AWB
F1.8 9db
0
:
12
:
34
12min
ZERO SET
MEMORY
END
SEARCH
DV IN
16BIT
100–0001
120min STBY
STILL
16
:
9WIDE
NEG. ART
– +
6
5
4
3
2
1
9
0
qa
qs
wa
w;
ql
qk
qj
qg
qh
qf
qd
wd
wf
ws
wh
wg
wj
7
8
245
Quick Reference
Index
A, B
AC power adaptor .................. 16
Adjusting viewfinder ............. 30
Audio dubbing...................... 106
AUDIO MIX .......................... 202
Audio mode........................... 206
Auto red-eye reduction
........................................ 49, 130
AUTO SHTR.......................... 200
A/V connecting cable
.......... 46, 86, 100, 137, 149, 196
BACK LIGHT .......................... 34
Battery pack ............................. 15
BEEP ....................................... 208
BOUNCE.................................. 57
C, D
CALIBRATION ..................... 230
Camera chroma key ............. 139
Cassette memory ............ 12, 220
Charging battery ..................... 16
Charging built-in rechargeable
battery ................................. 231
Clock set ................................... 20
Color Slow Shutter ................. 35
Continuous photo recording
.............................................. 128
Data code ................................. 42
Date search .............................. 81
DEMO..................................... 207
Digital effect ...................... 61, 76
Digital program editing
........................................ 89, 151
DISPLAY .................................. 42
DOT .......................................... 57
Dual sound track tape .......... 221
DV connecting cable
................................ 88, 138, 196
E
EDITSEARCH ......................... 38
END SEARCH................... 38, 44
EXP BRKTG ........................... 128
Exposure .................................. 67
F, G, H
FADER ..................................... 57
Fade in/out.............................. 57
Flash.................................. 49, 130
FLASH MOTION.................... 61
Flexible Spot Meter ................. 68
FOCUS...................................... 69
Format ............................ 117, 204
Frame recording...................... 74
Full charge ............................... 16
Grip strap ............................... 241
i (Headphone) jack ............. 238
Heads...................................... 229
HiFi SOUND ......................... 202
HIGH SPEED ........................ 128
HOLOGRAM AF .................. 132
I, J, K, L
i.LINK ..................................... 225
Image protection ................... 167
Image quality ........................ 122
Image size .............................. 124
Index screen ........................... 158
“InfoLITHIUM” battery ...... 223
Infrared rays emitter ......... 34, 92
Insert editing ......................... 104
Intelligent accessory shoe .... 239
Interval recording ................... 72
JPEG ........................................ 117
Labeling a cassette ................ 115
LANC jack ............................. 238
LUMINANCE KEY ................ 61
M, N
Main sound............................ 221
Manual focus ........................... 69
Memory chroma key ............ 139
Memory luminance key ....... 139
MEMORY MIX...................... 139
Memory PB ZOOM .............. 164
Memory photo recording .... 126
“Memory Stick” .................... 117
“Memory Stick” recording
capacity ............................... 125
Menu settings ........................ 199
Memory overlap ................... 139
M. FADER................................ 57
Mirror mode ............................ 32
Moisture condensation ........ 228
MONOTONE .......................... 57
MPEG ..................................... 117
MPEG movie recording ....... 144
MULTI SCRN ........................ 128
NETWORK ............................ 197
Nightshot ................................. 34
NTSC system ......................... 227
O, P, Q
OLD MOVIE............................ 61
Operation indicators ............ 244
OVERLAP ................................ 57
Photo save.............................. 154
Photo scan ................................ 85
Photo search ............................ 83
