Whirlpool GD5NVAXWA 25 cu. ft. Side by Side Refrigerator User Manual

THANK YOU for purchasing this high-quality product. If you should experience a problem not covered in TROUBLESHOOTING,

please visit our website at www.whirlpool.com for additional information. If you still need assistance, call us at 1-800-253-1301.

In Canada, visit our website at www.whirlpool.ca or call us at 1-800-807-6777.

You will need your model and serial number, located on the inside wall of the refrigerator compartment.

REFRIGERATOR SAFETY

Table of Contents / Índice / Table des matières

REFRIGERATOR SAFETY ................................1

INSTALLATION INSTRUCTIONS.....................2

REFRIGERATOR USE.......................................5

REFRIGERATOR CARE ....................................8

TROUBLESHOOTING .......................................9

ACCESSORIES................................................11

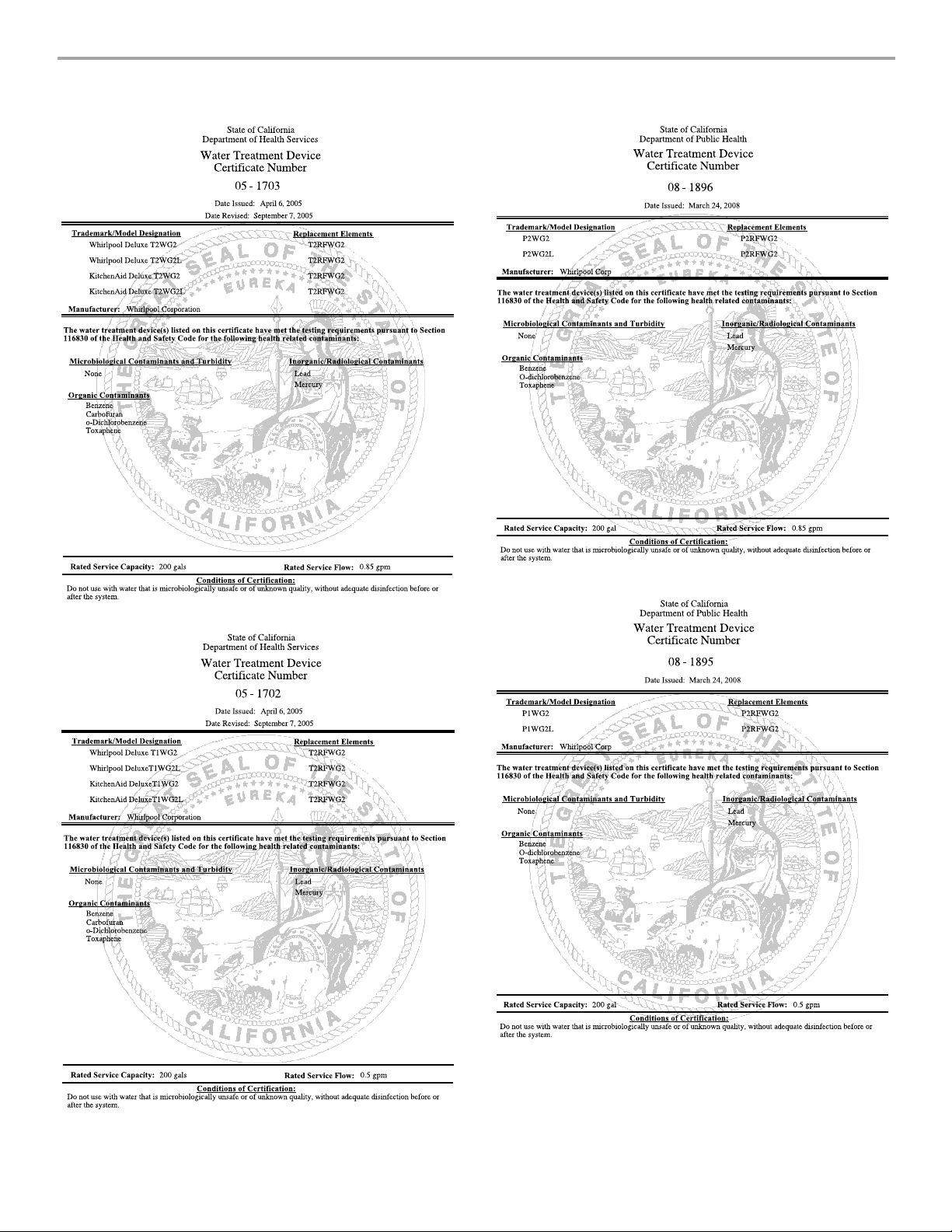

WATER FILTER CERTIFICATIONS................12

PERFORMANCE DATA SHEETS...................13

WARRANTY .....................................................17

SEGURIDAD DEL REFRIGERADOR..............18

INSTRUCCIONES DE INSTALACIÓN............19

USO DE SU REFRIGERADOR........................22

CUIDADO DE SU REFRIGERADOR ..............25

SOLUCIÓN DE PROBLEMAS ........................26

ACCESORIOS..................................................28

HOJA DE DATOS DEL RENDIMIENTO.........29

GARANTÍA .......................................................33

SÉCURITÉ DU RÉFRIGÉRATEUR .................35

INSTRUCTIONS D'INSTALLATION...............36

UTILISATION DU RÉFRIGÉRATEUR.............39

ENTRETIEN DU RÉFRIGÉRATEUR...............43

DÉPANNAGE ...................................................44

ACCESSOIRES................................................46

FEUILLES DE DONNÉES

SUR LA PERFORMANCE...............................47

GARANTIE .......................................................51

REFRIGERATOR USER INSTRUCTIONS

W10245641A

You can be killed or seriously injured if you don't immediately

You

can be killed or seriously injured if you don't

All safety messages will tell you what the potential hazard is, tell you how to reduce the chance of injury, and tell you what can

happen if the instructions are not followed.

Your safety and the safety of others are very important.

We have provided many important safety messages in this manual and on your appliance. Always read and obey all safety

messages.

This is the safety alert symbol.

This symbol alerts you to potential hazards that can kill or hurt you and others.

All safety messages will follow the safety alert symbol and either the word “DANGER” or “WARNING.”

These words mean:

follow instructions.

instructions.

DANGER

WARNING

INSTALLATION INSTRUCTIONS

Unpack the Refrigerator

Remove packaging materials. Do not use sharp instruments,

rubbing alcohol, flammable fluids, or abrasive cleaners to remove

tape or glue. These products can damage the surface of your

refrigerator. For more information, see “Refrigerator Safety.”

Proper Disposal of Your Old Refrigerator

IMPORTANT: Child entrapment and suffocation are not problems

of the past. Junked or abandoned refrigerators are still dangerous

– even if they will sit for “just a few days.” If you are getting rid of

your old refrigerator, please follow these instructions to help

prevent accidents.

Before You Throw Away Your Old Refrigerator or Freezer:

■ Take off the doors.

■ Leave the shelves in place so that children may not easily

climb inside.

IMPORTANT SAFETY INSTRUCTIONS

WARNING:

To reduce the risk of fire, electric shock, or injury when using your refrigerator, follow these basic precautions:

SAVE THESE INSTRUCTIONS

■ Plug into a grounded 3 prong outlet.

■ Do not remove ground prong.

■ Do not use an adapter.

■ Do not use an extension cord.

■ Disconnect power before servicing.

■ Replace all parts and panels before operating.

■ Remove doors from your old refrigerator.

■ Use nonflammable cleaner.

■ Keep flammable materials and vapors, such as gasoline,

away from refrigerator.

■ Use two or more people to move and install refrigerator.

■ Disconnect power before installing ice maker (on ice maker

kit ready models only).

■ Use a sturdy glass when dispensing ice (on some models).

WARNING

Suffocation Hazard

Remove doors from your old refrigerator.

Failure to do so can result in death or brain damage.

WARNING

Excessive Weight Hazard

Use two or more people to move and install

refrigerator.

Failure to do so can result in back or other injury.

When Moving Your Refrigerator:

Your refrigerator is heavy. When moving the refrigerator for

cleaning or service, be sure to cover the floor with

cardboard or hardboard to avoid floor damage. Always pull

the refrigerator straight out when moving it. Do not wiggle or

“walk” the refrigerator when trying to move it, as floor

damage could occur.

Important information to know about glass shelves

and covers:

Do not clean glass shelves or covers with warm water when

they are cold. Shelves and covers may break if exposed to

sudden temperature changes or impact, such as bumping.

Tempered glass is designed to shatter into many small,

pebble-size pieces. This is normal. Glass shelves and covers

are heavy. Use both hands when removing them to avoid

dropping.

Location Requirements

To ensure proper ventilation for your refrigerator, allow for ¹⁄₂"

(1.25 cm) space on each side and at the top. When installing your

refrigerator next to a fixed wall, leave 2" (5.08 cm) minimum on

each side (depending on your model) to allow for the door to

swing open. If your refrigerator has an ice maker, allow extra

space at the back for the water line connections.

NOTES:

■ It is recommended that you do not install the refrigerator near

an oven, radiator, or other heat source. Do not install in a

location where the temperature will fall below 55°F (13°C).

■ Normal minimum cabinet cut-out width required for product

installation is 36" (91.44 cm). However, if the product is placed

against an extended wall and the ability to remove the crisper

pans is desired, an additional 18" (45.72 cm) of cabinet width

is required, so a total cabinet opening width of 54"

(137.16 cm) is recommended.

Electrical Requirements

Before you move your refrigerator into its final location, it is

important to make sure you have the proper electrical connection.

Recommended Grounding Method

A 115 Volt, 60 Hz., AC only, 15- or 20-amp fused, grounded

electrical supply is required. It is recommended that a separate

circuit serving only your refrigerator be provided. Use an outlet

that cannot be turned off by a switch. Do not use an

extension cord.

NOTE: Before performing any type of installation, cleaning, or

removing a light bulb, turn the control (Thermostat, Refrigerator or

Freezer Control depending on the model) to OFF and then

disconnect the refrigerator from the electrical source. When you

are finished, reconnect the refrigerator to the electrical source and

reset the control (Thermostat, Refrigerator or Freezer Control

depending on the model) to the desired setting. See “Using the

Controls.”

Water Supply Requirements

Gather the required tools and parts before starting installation.

Read and follow the instructions provided with any tools listed

here.

TOOLS NEEDED:

NOTE: Your refrigerator dealer has a kit available with a ¹⁄₄"

(6.35 mm) saddle-type shutoff valve, a union, and copper tubing.

Before purchasing, make sure a saddle-type valve complies with

your local plumbing codes. Do not use a piercing-type or ³⁄₁₆"

(4.76 mm) saddle valve which reduces water flow and clogs more

easily.

IMPORTANT:

■ All installations must meet local plumbing code requirements.

■ Use copper tubing and check for leaks. Install copper tubing

only in areas where the household temperatures will remain

above freezing.

WARNING

Explosion Hazard

Keep flammable materials and vapors, such as

gasoline, away from refrigerator.

Failure to do so can result in death, explosion, or fire.

" (1.25 cm)

2" (5.08 cm)

■ Flat-blade screwdriver

■ ⁷⁄₁₆" and ¹⁄₂" Open-end or two

adjustable wrenches

■ ¹⁄₄" Nut driver

■ ¹⁄₄" Drill bit

■ Cordless drill

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death,

fire, or electrical shock.

WARNING

Water Pressure

A cold water supply with water pressure of between 30 and

120 psi (207 and 827 kPa) is required to operate the water

dispenser and ice maker. If you have questions about your water

pressure, call a licensed, qualified plumber.

Reverse Osmosis Water Supply

IMPORTANT: The pressure of the water supply coming out of a

reverse osmosis system going to the water inlet valve of the

refrigerator needs to be between 30 and 120 psi (207 and

827 kPa).

If a reverse osmosis water filtration system is connected to your

cold water supply, the water pressure to the reverse osmosis

system needs to be a minimum of 40 to 60 psi (276 to 414 kPa).

If the water pressure to the reverse osmosis system is less than

40 to 60 psi (276 to 414 kPa):

■ Check to see whether the sediment filter in the reverse

osmosis system is blocked. Replace the filter if necessary.

■ Allow the storage tank on the reverse osmosis system to refill

after heavy usage.

■ If your refrigerator has a water filter, it may further reduce the

water pressure when used in conjunction with a reverse

osmosis system. Remove the water filter. See “Water Filtration

System.”

If you have questions about your water pressure, call a licensed,

qualified plumber.

Connect the Water Supply

Read all directions before you begin.

IMPORTANT: If you turn the refrigerator on before the water line is

connected, turn the ice maker OFF.

Connect to Water Line

1. Unplug refrigerator or disconnect power.

2. Turn OFF main water supply. Turn ON nearest faucet long

enough to clear line of water.

3. Locate a ¹⁄₂" (12.70 mm) to 1¹⁄₄" (3.18 cm) vertical cold water

pipe near the refrigerator.

IMPORTANT:

■ Make sure it is a cold water pipe.

■ Horizontal pipe will work, but drill on the top side of the

pipe, not the bottom. This will help keep water away from

the drill and normal sediment from collecting in the valve.

4. Determine the length of copper tubing you need. Measure

from the connection on the lower rear corner of the refrigerator

to the water pipe. Add 7 ft (2.1 m) to allow for cleaning. Use

¹⁄₄" (6.35 mm) O.D. (outside diameter) copper tubing. Be sure

both ends of copper tubing are cut square.

5. Using a cordless drill, drill a ¹⁄₄" (6.35 mm) hole in the cold

water pipe you have selected.

6. Fasten shutoff valve to cold water pipe with pipe clamp. Be

sure outlet end is solidly in the ¹⁄₄" (6.35 mm) drilled hole in the

water pipe and that washer is under the pipe clamp. Tighten

packing nut. Tighten the pipe clamp screws slowly and evenly

so the washer makes a watertight seal. Do not overtighten or

you may crush the copper tubing.

7. Slip the compression sleeve and compression nut on the

copper tubing as shown. Insert the end of the tubing into the

outlet end squarely as far as it will go. Screw the compression

nut onto the outlet end with an adjustable wrench. Do not

overtighten.

8. Place the free end of the tubing into a container or sink, and

turn ON main water supply and flush out the tubing until water

is clear. Turn OFF the shutoff valve on the water pipe. Coil the

copper tubing.

Connect to Refrigerator

Style 1

1. Unplug refrigerator or disconnect power.

2. Remove and discard the black nylon plug from the gray water

tube on the rear of the refrigerator.

3. If the gray water tube supplied with the refrigerator is not long

enough, a ¹⁄₄" x ¹⁄₄" (6.35 mm x 6.35 mm) coupling is needed in

order to connect the water tubing to an existing household

water supply line. Thread the provided nut onto the coupling

on the end of the copper tubing.

NOTE: Tighten the nut by hand. Then tighten it with a wrench

two more turns. Do not overtighten.

4. Turn shutoff valve ON.

5. Check for leaks. Tighten any nuts or connections (including

connections at the valve) that leak.

Style 2

1. Unplug refrigerator or disconnect power.

2. Remove and discard the black nylon plug from the gray water

tube on the rear of the refrigerator.

3. Thread the provided nut onto the water valve as shown.

NOTE: Tighten the nut by hand. Then tighten it with a wrench

two more turns. Do not overtighten.

A. Cold water pipe

B. Pipe clamp

C. Copper tubing

D. Compression nut

E. Compression sleeve

F. Shutoff valve

G. Packing nut

DEF

A. Refrigerator water tubing

B. Nut (provided)

C. Bulb

D. Coupling (provided)

E. Ferrule (purchased)

F. N ut (p urch ased)

G. Household water line

A. Bulb

B. Nut (provided)

A B C D E F G

4. Turn shutoff valve ON.

5. Check for leaks. Tighten any nuts or connections (including

connections at the valve) that leak.

Complete the Installation

1. Plug into a grounded 3 prong outlet.

2. Flush the water system. See “Prepare the Water System” or

“Water and Ice Dispensers.”

NOTE: It may take up to 24 hours for your ice maker to begin

producing ice.

REFRIGERATOR USE

Using the Controls

For your convenience, your refrigerator controls are preset at the

factory. When you first install your refrigerator, make sure that the

controls are still preset. The Refrigerator Control and the Freezer

Control should both be set to the “mid-settings.”

IMPORTANT:

■ Your product will not cool when the Refrigerator Control is set

to OFF.

■ The Refrigerator Control adjusts the refrigerator compartment

temperature. The Freezer Control adjusts the freezer

compartment temperature.

■ Wait 24 hours before you put food into the refrigerator. If you

add food before the refrigerator has cooled completely, your

food may spoil.

NOTE: Adjusting the Refrigerator and Freezer Controls to a

higher (colder) than recommended setting will not cool the

compartments any faster.

Digital Controls

NOTE: The factory recommended set points are 0°F (-18°C) for

the freezer and 37°F (3°C) for the refrigerator.

To turn refrigerator on and view set points:

■ Press and hold POWER (ON/OFF) pad for 2 seconds.

To view the Celsius temperatures:

■ Press the °C SELECT pad. The indicator will light up. To

redisplay degrees in Fahrenheit, press the °C SELECT pad

again.

NOTE: If the freezer temperature is below zero, the negative sign

next to the freezer display will light up.

Adjusting Controls

The settings indicated in the previous section should be correct

for normal household refrigerator usage. The controls are set

correctly when milk or juice is as cold as you like and when ice

cream is firm.

If you need to adjust temperatures in the refrigerator or freezer,

press the refrigerator or freezer PLUS (+) or MINUS (-) pad until

the desired temperature is reached. Use the settings listed in the

chart below as a guide. Wait at least 24 hours between

adjustments.

Additional Control Panel Features

Additional features are located on the control panel at the top of

the refrigerator compartment.

Fast Cool

The Fast Cool feature assists with periods of heavy ice usage, full

grocery loads, or temporarily warm room temperatures.

■ Press the FAST COOL pad to turn on the Fast Cool feature.

The Fast Cool indicator light will remain on for 24 hours unless

manually turned off.

NOTE: The temperature display will not change. After

24 hours, the refrigerator returns to the previous temperature

set points.

Accelerated Ice Production (on some models)

This feature assists with temporary periods of heavy ice use by

increasing ice production over a 24-hour period.

■ Press the FAST ICE pad to turn on the Fast Ice feature. The

Fast Ice setting will remain on for 24 hours unless manually

turned off.

■ If increased ice production is desired at all times, set the

Freezer Control to a colder number. Setting the freezer to a

colder temperature may make some foods, such as ice cream,

harder.

Temperature System

The Temperature System feature lets you know the compressor or

evaporator fan is running. It is normal for this indicator light to be

on.

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death,

fire, or electrical shock.

WARNING

CONDITION/REASON: TEMPERATURE

ADJUSTMENT:

REFRIGERATOR too cold

Not set correctly for conditions

REFRIGERATOR

Control 1° higher

REFRIGERATOR too warm

High use or room very warm

REFRIGERATOR

Control 1° lower

FREEZER too cold

Not set correctly for conditions

FREEZER Control

1° higher

FREEZER too warm/too little ice

High use or heavy ice use

FREEZER Control

1° lower

Convertible Drawer Temperature Control

The control can be adjusted to properly chill meats or vegetables.

The air inside the pan is cooled to avoid “spot” freezing and can

be set to keep meats at the National Livestock and Meat Board

recommended storage temperatures of 28° to 32°F (-2° to 0°C).

The convertible vegetable/meat drawer control comes preset at

the lowest meat setting.

To store meat:

Set the control to one of the three MEAT settings to store meat at

its optimal storage temperature.

To store vegetables:

Set the control to VEG to store vegetables at their optimal storage

temperatures.

NOTE: If food starts to freeze, move the control to the left (less

cold). Remember to wait 24 hours between adjustments.

Crisper Humidity Control

(on some models)

You can control the amount of humidity in the moisture-sealed

crisper. Adjust the control to any setting between LOW and HIGH.

LOW (open) for best storage of fruits and vegetables with skins.

HIGH (closed) for best storage of fresh, leafy vegetables.

Water and Ice Dispensers

(on some models)

Depending on your model, your water and ice dispensers may

have one or more of the following features: a rotating water

dispenser faucet and pull-out tray, a special light that turns on

when you use the dispenser, or a lock option to avoid

unintentional dispensing.

NOTES:

■ The dispensing system will not operate when the freezer door

is open.

■ After connecting the refrigerator to a water source, flush the

water system. Use a sturdy container to depress and hold the

water dispenser lever for 5 seconds, then release it for

5 seconds. Repeat until water begins to flow. Once water

begins to flow, continue depressing and releasing the

dispenser lever (5 seconds on, 5 seconds off) for an additional

5 minutes. This will flush air from the filter and water

dispensing system. Additional flushing may be required in

some households. As air is cleared from the system, water

may spurt out of the dispenser.

■ Allow 24 hours for the refrigerator to cool down and chill

water.

■ Allow 24 hours to produce the first batch of ice. Discard the

first three batches of ice produced.

The Water Dispenser

IMPORTANT: Dispense enough water every week to maintain a

fresh supply.

To Dispense Water:

1. Press a sturdy glass against the water dispenser pad OR

place the glass below the water dispenser and press the

WATER button.

NOTE: While dispensing water and for 5 seconds after

dispensing has stopped, the digital display will show how

much water has been dispensed. The default unit is ounces.

To switch to cups or liters, press the UNITS button before

dispensing.

2. Remove the glass OR release the button to stop dispensing.

Rotating Faucet and Pull-out Tray (on some models)

Your dispenser may include a rotating water faucet and a small

pull-out tray at the bottom of the dispenser.

■ The faucet rotates up to 180° to allow for easy dispensing into

large containers. Rotate it by pressing PUSH HERE, located

on the right-hand side of the faucet as shown.

NOTE: When using the dispenser with the faucet rotated, do

not use the water dispenser pad. Only use the WATER button

to dispense. Dispensing by pressing the container against the

water dispenser pad may result in unintentional spilling.

■ The tray can be pulled out approximately 2" (5.08 cm) to

better support large containers. It is designed to catch small

spills and allow for easy cleaning. There is no drain in the tray.

NOTE: The tray can be removed from the dispenser and

carried to the sink to be emptied or cleaned. Pull the tray out

until it hits the stop, then gently lift up on the back of the tray

and slide it out the rest of the way.

The Ice Dispenser

Ice dispenses from the ice maker storage bin in the freezer when

the dispenser pad is pressed. The dispensing system will not

operate when the freezer door is open. To turn off the ice maker,

see “Ice Maker and Storage Bin.”

Before dispensing ice, select which type of ice you prefer by

pressing the CUBED or CRUSHED button. For crushed ice, cubes

are crushed before being dispensed. This may cause a slight

delay when dispensing crushed ice. Noise from the ice crusher is

normal, and pieces of ice may vary in size. When changing from

crushed to cubed, a few ounces of crushed ice will be dispensed

along with the first cubes.

A. Faucet rotated 180°

B. Pull-out tray

To Dispense Ice:

1. Press the button to select the desired type of ice.

2. Press a sturdy glass against the ice dispenser pad. Hold the

glass close to the dispenser opening so ice does not fall

outside of the glass.

IMPORTANT: You do not need to apply a lot of pressure to the

pad in order to activate the ice dispenser. Pressing hard will

not make the ice dispense faster or in greater quantities.

3. Remove the glass to stop dispensing.

NOTE: Ice may continue to dispense for up to 10 seconds

after removing the glass from the pad. The dispenser may

continue to make noise for a few seconds after dispensing.

The Dispenser Light (on some models)

When you use the dispenser, the light will automatically turn on.

If you want the light to be on continuously, you may choose either

ON or NIGHT LIGHT.

ON: Press LIGHT to turn the dispenser light on.

NIGHT LIGHT: Press LIGHT a second time to select the Night

Light. The dispenser light will automatically adjust to become

brighter as the room brightens, dimmer as the room darkens.

OFF: Press LIGHT a third time to turn the dispenser light off.

The dispenser lights are LEDs that cannot be changed. If it

appears that your dispenser lights are not working, be sure that

the light sensor is not blocked (in Night Light mode). See

“Troubleshooting” for more information.

The Dispenser Lock (on some models)

The dispenser can be turned off for easy cleaning or to avoid

unintentional dispensing by small children and pets.

NOTE: The lock feature does not shut off power to the product, to

the ice maker, or to the dispenser light. It simply deactivates the

ice and water dispensers. To turn off the ice maker, see “Ice

Maker and Storage Bin.”

■ Press and hold LOCKOUT for 3 seconds to lock the

dispenser.

■ Press and hold LOCKOUT a second time to unlock the

dispenser.

Ice Maker and Storage Bin

Turning the Ice Maker On/Off

Style 1:

The On/Off switch is located on the top right side of the freezer

compartment.

■ To turn on the ice maker, slide the control to the ON (left)

position.

■ To manually turn off the ice maker, slide the control to the

OFF (right) position.

Style 2:

The On/Off switch is located on the ice maker, behind the ice

maker cover door.

■ To turn on the ice maker, flip the switch to the ON (top)

position.

■ To manually turn off the ice maker, flip the switch to the

OFF (bottom) position.

NOTE: Your ice maker has an automatic shutoff. The ice maker

sensors will automatically stop ice production when the ice

storage bin is full or the freezer door is opened, but the control will

remain in the ON position.

REMEMBER:

■ Allow 24 hours to produce the first batch of ice. Discard the

first three batches of ice produced.

■ The quality of your ice will be only as good as the quality of the

water supplied to your ice maker. Avoid connecting the ice

maker to a softened water supply. Water softener chemicals

(such as salt) can damage parts of the ice maker and lead to

poor quality ice. If a softened water supply cannot be avoided,

make sure the water softener is operating properly and is well

maintained.

■ Do not use anything sharp to break up the ice in the bin or

bucket. This can cause damage to the ice container and the

dispenser mechanism.

■ Do not store anything on top of or in the ice maker or storage

bin.

Cut Hazard

Use a sturdy glass when dispensing ice.

Failure to do so can result in cuts.

WARNING

Removing and Replacing Ice Storage Bin

1. Hold the base of the storage bin with both hands and press

the release button to lift the storage bin up and out.

NOTE: It is not necessary to turn the ice maker control to the

OFF position when removing the storage bin. The sensor

cover (“flipper door”) on the left wall of the freezer stops the

ice maker from producing ice if the door is open or the storage

bin is removed.

2. Replace the storage bin on the door and push down to make

sure it is securely in place.

Water Filtration System

Water Filter Status Light (on some models)

The filter status light will help you know when to change your

water filter. The light will change from green to yellow. This tells

you that it is almost time to change the filter. It is recommended

that you replace the filter when the status light changes to red OR

water flow to your water dispenser or ice maker decreases

noticeably. The filter should be replaced at least every 6 months

depending on your water quality and usage.

After changing the filter, reset the filter status light by pressing the

FILTER RESET button. The status light will change from red to

green when the system is reset.

Non-Indicator Water Filter (on some models)

If your refrigerator does not have the water filter status light, you

should change the water filter cartridge at least every 6 months

depending on your water quality and usage. If the water flow to

the water dispenser or ice maker decreases noticeably before

6 months have passed, replace the water filter more often.

Changing the Water Filter

1. Press the eject button to release the filter from the base grille.

2. Pull the filter straight out.

3. Turn the cap counterclockwise to remove it from the filter.

IMPORTANT: Do not discard the cap. It is part of your

refrigerator. Keep the cap to use with the replacement filter.

4. Align the ridge on the cap with the arrow on the new filter and

turn the cap until it snaps into place.

NOTE: You can run the dispenser without a filter. Your water

will not be filtered. Simply insert the cap all of the way into the

base grille and rotate the cap until it is firmly in place.

5. Remove the covers from the O-rings. Be sure the O-rings are

still in place after the covers are removed.

6. Push the filter into the base grille. The eject button will pop

back out when the filter is fully engaged.

7. Flush the water system. See “Water and Ice Dispensers.”

REFRIGERATOR CARE

Cleaning

Both the refrigerator and freezer sections defrost automatically.

However, clean both sections about once a month to avoid

buildup of odors. Wipe up spills immediately.

IMPORTANT: Because air circulates between both sections, any

odors formed in one section will transfer to the other. You must

thoroughly clean both sections to eliminate odors. To avoid odor

transfer and drying out of food, wrap or cover foods tightly.

To Clean Your Refrigerator:

NOTE: Do not use abrasive or harsh cleaners such as window

sprays, scouring cleansers, flammable fluids, cleaning waxes,

concentrated detergents, bleaches or cleansers containing

petroleum products on plastic parts, interior and door liners or

gaskets. Do not use paper towels, scouring pads, or other harsh

cleaning tools.

1. Unplug refrigerator or disconnect power.

2. Hand wash, rinse, and dry removable parts and interior

surfaces thoroughly. Use a clean sponge or soft cloth and a

mild detergent in warm water.

3. Wash stainless steel and painted metal exteriors with a clean

sponge or soft cloth and a mild detergent in warm water.

4. On some models, wash glass door panels with a clean

sponge or soft cloth and a mild detergent in warm water.

NOTES:

■ Do not hit the glass with pots, pans, furniture, toys, or

other objects. Scratching, hitting, jarring or stressing the

glass may weaken its structure, causing an increased risk

of breakage at a later date.

■ Do not close the doors until all shelves, drawers and bins

are in place.

5. There is no need for routine condenser cleaning in normal

home operating environments. If the environment is

particularly greasy or dusty, or there is significant pet traffic in

the home, the condenser should be cleaned every 2 to

3 months to ensure maximum efficiency.

If you need to clean the condenser:

■ Remove the base grille.

■ Use a vacuum cleaner with a soft brush to clean the grille,

the open areas behind the grille and the front surface area

of the condenser.

■ Replace the base grille when finished.

6. Plug in refrigerator or reconnect power.

Do not use with water that is microbiologically unsafe or of

unknown quality without adequate disinfection before or

after the system.

WARNING

Explosion Hazard

Use nonflammable cleaner.

Failure to do so can result in death, explosion, or fire.

Changing the Light Bulbs

NOTE: Not all bulbs will fit your refrigerator. Be sure to replace the

bulb with one of the same size, shape and wattage. Replacement

bulbs are available from your dealer.

■ The dispenser lights are LEDs that cannot be changed.

■ All other lights require a 40-watt bulb.

1. Unplug refrigerator or disconnect power.

2. Remove light shield when applicable.

NOTE: To clean the light shield, wash it with warm water and

liquid detergent. Rinse and dry the shield well.

3. Remove light bulb and replace with one of the same size,

shape and wattage.

4. Replace light shield when applicable.

5. Plug in refrigerator or reconnect power.

TROUBLESHOOTING

First try the solutions suggested here or visit our website and reference FAQs (Frequently Asked Questions)

to possibly avoid the cost of a service call.

In the U.S.A., www.whirlpool.com In Canada, www.whirlpool.ca

Refrigerator Operation

The refrigerator will not operate

■ Power cord unplugged? Plug into a grounded 3 prong outlet.

■ Is outlet working? Plug in a lamp to see if the outlet is

working.

■ Household fuse blown or circuit breaker tripped? Replace

the fuse or reset the circuit breaker. If the problem continues,

call an electrician.

■ Are controls on? Make sure the refrigerator controls are on.

See “Using the Controls.”

■ New installation? Allow 24 hours following installation for the

refrigerator to cool completely.

NOTE: Adjusting the temperature controls to coldest setting

will not cool either compartment more quickly.

The motor seems to run too much

Your new refrigerator may run longer than your old one due to its

high-efficiency compressor and fans. The refrigerator may run

even longer if the room is warm, a large food load is added, doors

are opened often, or if the doors have been left open.

The refrigerator is noisy

Refrigerator noise has been reduced over the years. Due to this

reduction, you may hear intermittent noises from your new

refrigerator that you did not notice from your old model. Below are

listed some normal sounds with an explanation.

■ Buzzing - heard when the water valve opens to fill the ice

maker

■ Pulsating - fans/compressor adjusting to optimize

performance

■ Rattling - flow of refrigerant, water line, or from items placed

on top of the refrigerator

■ Sizzling/Gurgling - water dripping on the heater during

defrost cycle

■ Popping - contraction/expansion of inside walls, especially

during initial cool-down

■ Water running - may be heard when ice melts during the

defrost cycle and water runs into the drain pan

■ Creaking/Cracking - occurs as ice is being ejected from the

ice maker mold.

The doors will not close completely

■ Door blocked open? Move food packages away from door.

■ Bin or shelf in the way? Push bin or shelf back in the correct

position.

Electrical Shock Hazard

Plug into a grounded 3 prong outlet.

Do not remove ground prong.

Do not use an adapter.

Do not use an extension cord.

Failure to follow these instructions can result in death,

fire, or electrical shock.

WARNING

The doors are difficult to open

■ Are the gaskets dirty or sticky? Clean gaskets with mild

soap and warm water.

The lights do not work

■ Is a light bulb loose in the socket or burned out? See

“Changing the Light Bulbs.”

■ Is the dispenser light set to OFF? On some models, the

dispenser light will operate only when a dispenser lever/pad is

pressed. If you want the dispenser light to stay on

continuously, set the dispenser light to ON, or (on some

models) NIGHT LIGHT or AUTO or HALF or DIM. See “Water

and Ice Dispensers.”

■ Is the dispenser light set to NIGHT LIGHT or AUTO? On

some models, if the dispenser is set to the NIGHT LIGHT or

AUTO mode, be sure the dispenser light sensor is not

blocked. See “Water and Ice Dispensers.”

Temperature and Moisture

Temperature is too warm

■ New installation? Allow 24 hours following installation for the

refrigerator to cool completely.

■ Door(s) opened often or left open? Allows warm air to enter

refrigerator. Minimize door openings and keep doors fully

closed.

■ Large load of food added? Allow several hours for

refrigerator to return to normal temperature.

■ Controls set correctly for the surrounding conditions?

Adjust the controls a setting colder. Check temperature in

24 hours. See “Using the Controls.”

There is interior moisture buildup

NOTE: Some moisture buildup is normal.

■ Humid room? Contributes to moisture buildup.

■ Door(s) opened often or left open? Allows humid air to enter

refrigerator. Minimize door openings and keep doors fully

closed.

Ice and Water

The ice maker is not producing ice or not enough ice

■ Refrigerator connected to a water supply and the supply

shutoff valve turned on? Connect refrigerator to water

supply and turn water shutoff valve fully open.

■ Kink in the water source line? A kink in the line can reduce

water flow. Straighten the water source line.

■ Ice maker turned on? Make sure wire shutoff arm or switch

(depending on model) is in the ON position.

■ New installation? Wait 24 hours after ice maker installation

for ice production to begin. Wait 72 hours for full ice

production.

■ Large amount of ice recently removed? Allow 24 hours for

ice maker to produce more ice.

■ Ice cube jammed in the ice maker ejector arm?

Remove ice from the ejector arm with a plastic utensil.

■ Reverse osmosis water filtration system connected to

your cold water supply? This can decrease water pressure.

See “Water Supply Requirements.”

The ice cubes are hollow or small

NOTE: This is an indication of low water pressure.

■ Water shutoff valve not fully open? Turn the water shutoff

valve fully open.

■ Kink in the water source line? A kink in the line can reduce

water flow. Straighten the water source line.

■ Reverse osmosis water filtration system connected to

your cold water supply? This can decrease water pressure.

See “Water Supply Requirements.”

■ Questions remain regarding water pressure? Call a

licensed, qualified plumber.

Off-taste, odor or gray color in the ice

■ New plumbing connections? New plumbing connections

can cause discolored or off-flavored ice.

■ Ice stored too long? Discard ice. Wash ice bin. Allow

24 hours for ice maker to make new ice.

■ Odor transfer from food? Use airtight, moisture-proof

packaging to store food.

■ Are there minerals (such as sulfur) in the water? A water

filter may need to be installed to remove the minerals.

■ Is there a water filter installed on the refrigerator? Gray or

dark discoloration in ice indicates that the water filtration

system needs additional flushing.

WARNING

Explosion Hazard

Use nonflammable cleaner.

Failure to do so can result in death, explosion, or fire.

The ice dispenser will not operate properly

■ Freezer door closed completely? Close the door firmly. If it

does not close completely, see “The doors will not close

completely.”

■ Ice bin installed correctly? Be sure the ice bin is firmly in

position.

■ New installation? Wait 24 hours after ice maker installation

for ice production to begin. Wait 72 hours for full ice

production.

■ Ice stuck in the delivery chute? Use a plastic utensil to clear

the delivery chute.

■ Has the wrong ice been added to the bin? Use only cubes

produced by the current ice maker.

■ Has the ice melted around the auger (metal spiral) in the

ice bin? Empty the ice container. Use warm water to melt the

ice if necessary.

■ Is the ice dispenser stalling while dispensing “crushed”

ice? Change the ice button from “crushed” to “cubed.” If

cubed ice dispenses correctly, depress the button for

“crushed” ice and begin dispensing again.

■ Has the dispenser arm been held in too long? Ice will stop

dispensing when the arm is held in too long. Wait 3 minutes

for dispenser motor to reset before using again.

The water dispenser will not operate properly

■ Freezer door closed completely? Close the door firmly. If it

does not close completely, see “The doors will not close

completely.”

■ Refrigerator connected to a water supply and the supply

shutoff valve turned on? Connect refrigerator to water

supply and turn water shutoff valve fully open.

■ Is the water pressure at least 30 psi (207 kPa)? The water

pressure to the home determines the flow from the dispenser.

See “Water Supply Requirements.”

■ Kink in the home water source line? Straighten the water

source line.

■ New installation? Flush and fill the water system.

■ Water filter installed on the refrigerator? The filter may be

clogged or incorrectly installed.

■ Is a reverse osmosis water filtration system connected to

your cold water supply? See “Water Supply Requirements.”

Water is leaking from the dispenser

NOTE: One or two drops of water after dispensing is normal.

■ Glass not being held under the dispenser long enough?

Hold the glass under the dispenser for 2 to 3 seconds after

releasing the dispenser lever/pad.

■ New installation? Flush the water system. See “Prepare the

Water System” or “Water and Ice Dispensers.”

■ Recently changed water filter? Flush the water system. See

“Prepare the Water System” or “Water and Ice Dispensers.”

The dispenser water is not cool enough (on some models)

NOTE: Water from the dispenser is chilled to only 50°F (10°C).

■ New installation? Allow 24 hours after installation for the

water supply to cool completely.

■ Recently dispensed large amount of water? Allow 24 hours

for water supply to cool completely.

■ Water not been recently dispensed? The first glass of water

may not be cool. Discard the first glass of water.

■ Refrigerator connected to a cold water pipe? Make sure

the refrigerator is connected to a cold water pipe. See “Water

Supply Requirements.”

ACCESSORIES

To order replacement filters, call 1-800-442-9991 and ask for the

part number listed below or contact your authorized Whirlpool

dealer. In Canada, call 1-800-807-6777.

Stainless Steel Cleaner and Polish:

Order Part #4396095

Standard Base Filter Cartridge:

Order Part #4396841 (T2RFWG2 and P2RFWG2)

Cut Hazard

Use a sturdy glass when dispensing ice.

Failure to do so can result in cuts.

WARNING

WATER FILTER CERTIFICATIONS

PERFORMANCE DATA SHEETS

Base Grille Water Filtration System

Model T2WG2L/T2RFWG2 Capacity 200 Gallons (757 Liters)

Model T2WG2/T2RFWG2 Capacity 200 Gallons (757 Liters)

This system has been tested according to NSF/ANSI Standards 42 and 53 for the reduction of the substances listed below. The

concentration of the indicated substances in water entering the system was reduced to a concentration less than or equal to the

permissible limit for water leaving the system, as specified in NSF/ANSI Standards 42 and 53.

Test Parameters: pH = 7.5 ± 0.5 unless otherwise noted. Flow = 0.85 gpm (3.2 Lpm). Pressure = 60 psig (413.7 kPa).

Temp. = 68°F to 71.6°F (20°C to 22°C). Rated service capacity = 200 gallons (757 liters).

■ It is essential that operational, maintenance, and filter

replacement requirements be carried out for the product to

perform as advertised.

■ Use replacement filter T2RFWG2, part #4396841.

2008 suggested retail price of $39.99 U.S.A./$54.95 Canada.

Prices are subject to change without notice.

Model T2WG2L: Style 1 – When the filter indicator reads 10%,

order a new filter. When the indicator reads 0%, it is

recommended that you replace the filter.

Style 2 – When the filter indicator changes from green to yellow,

order a new filter. When the indicator changes from yellow to red,

it is recommended that you replace the filter.

Style 3 – When the water filter status display changes from

“GOOD” to “ORDER,” order a new filter. When the filter indicator

reads “REPLACE,” it is recommended that you replace the filter.

Style 4 – Press FILTER to check the status of your water filter. If

the filter indicator light is yellow, order a new filter. If the filter

indicator light is red, it is recommended that you replace the filter.

Model T2WG2: Change the water filter cartridge every 6 months.

If the water flow to the water dispenser or ice maker decreases

noticeably before 6 months have passed, replace the water filter

cartridge more often.

■ These contaminants are not necessarily in your water supply.

While testing was performed under standard laboratory

conditions, actual performance may vary.

■ The product is for cold water use only.

■ Do not use with water that is microbiologically unsafe or of

unknown quality without adequate disinfection before or after the

system.

■ Refer to the “Warranty” section for the Manufacturer’s name,

address and telephone number.

■ Refer to the “Warranty” section for the Manufacturer’s limited

warranty.

Application Guidelines/Water Supply Parameters

System tested and certified by NSF International against NSF/ANSI

Standard 42 for the reduction of Chlorine Taste and Odor, Particulate

Class II*; and against NSF/ANSI Standard 53 for the reduction of Mercury,

Benzene, Toxaphene, O-dichlorobenzene, and Carbofuran.

Substance Reduction

Aesthetic Effects

NSF Reduction

Requirements

Average

Influent

Influent Challenge

Concentration

Maximum

Effluent

Average

Effluent

Minimum %

Reduction

Average %

Reduction

Chlorine Taste/Odor

Particulate Class II

50% reduction

85% reduction

2.0182 mg/L

1333333 #/mL

2.0 mg/L ± 10%

At least 10,000 particles/mL

0.06 mg/L

6600 #/mL

0.0536 mg/L

2325 #/mL

97.03

99.51

97.34

99.83

Contaminant

Reduction

NSF Reduction

Requirements

Average

Influent

Influent Challenge

Concentration

Maximum

Effluent

Average

Effluent

Minimum %

Reduction

Average %

Reduction

Lead: @ pH 6.5***

Lead: @ pH 8.5***

0.010 mg/L

0.1533 mg/L

0.1400 mg/L

0.15 mg/L ± 10%

0.0005 mg/L

0.0007 mg/L

0.0005 mg/L

0.0006 mg/L

99.67

99.50

99.67

99.57

Mercury: @ pH 6.5

Mercury: @ pH 8.5

0.002 mg/L

0.0058 mg/L

0.0059 mg/L

0.006 mg/L ± 10%

0.0002 mg/L

0.0005 mg/L

0.0002 mg/L

0.0003 mg/L

96.54

91.57

96.54

94.92

Benzene 0.005 mg/L 0.0154 mg/L 0.015 mg/L ± 10% 0.0012 mg/L 0.0006 mg/L 92.22 96.34

O-Dichlorobenzene 0.6 mg/L 1.7571 mg/L 1.8 mg/L ± 10% 0.0250 mg/L 0.0066 mg/L 98.58 99.63

Toxaphene 0.003 mg/L 0.015 mg/L 0.015 mg/L ± 10% 0.001 mg/L 0.001 mg/L 93.33 93.33

Carbofuran 0.04 mg/L 0.0819 mg/L 0.08 mg/L ± 10% 0.0400 mg/L 0.0213 mg/L 51.13 74.00

Water Supply

Water Pressure

Water Temperature

Service Flow Rate

City or Well

30 - 120 psi (207 - 827 kPa)

33° - 100°F (0.6° - 37.8°C)

0.85 gpm (3.2 Lpm) @ 60 psi

***

Class II particle size: 1 um to <5 um

Test requirement is at least 100,000 particles/mL of AC Fine Test Dust.

Compliant for Lead reduction requirements under NSF/ANSI Standard 53 as tested by Pace Analytical Services, Inc.

® NSF is a registered trademark of NSF International.

Base Grille Water Filtration System

Model T1WG2L/T2RFWG2 Capacity 200 Gallons (757 Liters)

Model T1WG2/T2RFWG2 Capacity 200 Gallons (757 Liters)

This system has been tested according to NSF/ANSI Standards 42 and 53 for the reduction of the substances listed below. The

concentration of the indicated substances in water entering the system was reduced to a concentration less than or equal to the

permissible limit for water leaving the system, as specified in NSF/ANSI Standards 42 and 53.

Test Parameters: pH = 7.5 ± 0.5 unless otherwise noted. Flow = 0.5 gpm (1.9 Lpm). Pressure = 60 psig (413.7 kPa).

Temp. = 68°F to 71.6°F (20°C to 22°C). Rated service capacity = 200 gallons (757 liters).

■ It is essential that operational, maintenance, and filter

replacement requirements be carried out for the product to

perform as advertised.

■ Use replacement filter T2RFWG2, part #4396841.

2008 suggested retail price of $39.99 U.S.A./$54.95 Canada.

Prices are subject to change without notice.

Model T1WG2L: Style 1 – When the filter indicator reads 10%,

order a new filter. When the indicator reads 0%, it is

recommended that you replace the filter.

Style 2 – When the filter indicator changes from green to yellow,

order a new filter. When the indicator changes from yellow to red,

it is recommended that you replace the filter.

Style 3 – When the water filter status display changes from

“GOOD” to “ORDER,” order a new filter. When the filter indicator

reads “REPLACE,” it is recommended that you replace the filter.

Style 4 – Press FILTER to check the status of your water filter. If

the filter indicator light is yellow, order a new filter. If the filter

indicator light is red, it is recommended that you replace the filter.

Model T1WG2: Change the water filter cartridge every 6 months.

If the water flow to the water dispenser or ice maker decreases

noticeably before 6 months have passed, replace the water filter

cartridge more often.

■ These contaminants are not necessarily in your water supply.

While testing was performed under standard laboratory

conditions, actual performance may vary.

■ The product is for cold water use only.

■ Do not use with water that is microbiologically unsafe or of

unknown quality without adequate disinfection before or after the

system.

■ Refer to the “Warranty” section for the Manufacturer’s name,

address and telephone number.

■ Refer to the “Warranty” section for the Manufacturer’s limited

warranty.

Application Guidelines/Water Supply Parameters

System tested and certified by NSF International against NSF/ANSI

Standard 42 for the reduction of Chlorine Taste and Odor, Particulate

Class II*; and against NSF/ANSI Standard 53 for the reduction of Mercury,

Benzene, Toxaphene, O-dichlorobenzene, and Carbofuran.

Substance Reduction

Aesthetic Effects

NSF Reduction

Requirements

Average

Influent

Influent Challenge

Concentration

Maximum

Effluent

Average

Effluent

Minimum %

Reduction

Average %

Reduction

Chlorine Taste/Odor

Particulate Class II

50% reduction

85% reduction

2.0182 mg/L

1333333 #/mL

2.0 mg/L ± 10%

At least 10,000 particles/mL

0.06 mg/L

6600 #/mL

0.0536 mg/L

2325 #/mL

97.03

99.51

97.34

99.83

Contaminant

Reduction

NSF Reduction

Requirements

Average

Influent

Influent Challenge

Concentration

Maximum

Effluent

Average

Effluent

Minimum %

Reduction

Average %

Reduction

Lead: @ pH 6.5***

Lead: @ pH 8.5***

0.010 mg/L

0.1533 mg/L

0.1400 mg/L

0.15 mg/L ± 10%

0.0005 mg/L

0.0007 mg/L

0.0005 mg/L

0.0006 mg/L

99.67

99.50

99.67

99.57

Mercury: @ pH 6.5

Mercury: @ pH 8.5

0.002 mg/L

0.0058 mg/L

0.0059 mg/L

0.006 mg/L ± 10%

0.0002 mg/L

0.0005 mg/L

0.0002 mg/L

0.0003 mg/L

96.54

91.57

96.54

94.92

Benzene 0.005 mg/L 0.0154 mg/L 0.015 mg/L ± 10% 0.0012 mg/L 0.0006 mg/L 92.22 96.34

O-Dichlorobenzene 0.6 mg/L 1.7571 mg/L 1.8 mg/L ± 10% 0.0250 mg/L 0.0066 mg/L 98.58 99.63

Toxaphene 0.003 mg/L 0.015 mg/L 0.015 mg/L ± 10% 0.001 mg/L 0.001 mg/L 93.33 93.33

Carbofuran 0.04 mg/L 0.0819 mg/L 0.08 mg/L ± 10% 0.0400 mg/L 0.0213 mg/L 51.13 74.00

Water Supply

Water Pressure

Water Temperature

Service Flow Rate

City or Well

30 - 120 psi (207 - 827 kPa)

33° - 100°F (0.6° - 37.8°C)

0.5 gpm (1.9 Lpm) @ 60 psi

***

Class II particle size: 1 um to <5 um

Test requirement is at least 100,000 particles/mL of AC Fine Test Dust.

Compliant for Lead reduction requirements under NSF/ANSI Standard 53 as tested by Pace Analytical Services, Inc.

® NSF is a registered trademark of NSF International.

Base Grille Water Filtration System

Model P2WG2L/P2RFWG2 Capacity 200 Gallons (757 Liters)

Model P2WG2/P2RFWG2 Capacity 200 Gallons (757 Liters)

This system has been tested according to NSF/ANSI Standards 42 and 53 for the reduction of the substances listed below. The

concentration of the indicated substances in water entering the system was reduced to a concentration less than or equal to the

permissible limit for water leaving the system, as specified in NSF/ANSI Standards 42 and 53.

Test Parameters: pH = 7.5 ± 0.5 unless otherwise noted. Flow = 0.85 gpm (3.2 Lpm). Pressure = 60 psig (413.7 kPa).

Temp. = 68°F to 71.6°F (20°C to 22°C). Rated service capacity = 200 gallons (757 liters).

■ It is essential that operational, maintenance, and filter

replacement requirements be carried out for the product to

perform as advertised.

■ Use replacement filter P2RFWG2, part #4396841.

2008 suggested retail price of $39.99 U.S.A./$54.95 Canada.

Prices are subject to change without notice.

Model P2WG2L/P2WG2: Style 1 – When the filter indicator

reads 10%, order a new filter. When the indicator reads 0%, it is

recommended that you replace the filter.

Style 2 – When the filter indicator changes from green to yellow,

order a new filter. When the indicator changes from yellow to red,

it is recommended that you replace the filter.

Style 3 – When the water filter status display changes from

“GOOD” to “ORDER,” order a new filter. When the filter indicator

reads “REPLACE,” it is recommended that you replace the filter.

Style 4 – Press FILTER to check the status of your water filter. If

the filter indicator light is yellow, order a new filter. If the filter

indicator light is red, it is recommended that you replace the filter.

Change the water filter cartridge every 6 months. If the water

flow to the water dispenser or ice maker decreases noticeably

before 6 months have passed, replace the water filter cartridge

more often.

■ These contaminants are not necessarily in your water supply.

While testing was performed under standard laboratory

conditions, actual performance may vary.

■ The product is for cold water use only.

■ Do not use with water that is microbiologically unsafe or of

unknown quality without adequate disinfection before or after the

system.

■ Refer to the “Warranty” section for the Manufacturer’s name,

address and telephone number.

■ Refer to the “Warranty” section for the Manufacturer’s limited

warranty.

Application Guidelines/Water Supply Parameters

System tested and certified by NSF International against NSF/ANSI

Standard 42 for the reduction of Chlorine Taste and Odor, Particulate

Class I*; and against NSF/ANSI Standard 53 for the reduction of Lead,

Mercury, Benzene, Toxaphene, and O-dichlorobenzene.

Substance Reduction

Aesthetic Effects

NSF Reduction

Requirements

Average

Influent

Influent Challenge

Concentration

Maximum

Effluent

Average

Effluent

Minimum %

Reduction

Average %

Reduction

Chlorine Taste/Odor

Particulate Class I

50% reduction

85% reduction

1.909 mg/L

9700000 #/mL

2.0 mg/L ± 10%

At least 10,000 particles/mL

0.05 mg/L

2600 #/mL

<0.05 mg/L

62000 #/mL

>97.4

>97.6

>97.4

>99.4

Contaminant

Reduction

NSF Reduction

Requirements

Average

Influent

Influent Challenge

Concentration

Maximum

Effluent

Average

Effluent

Minimum %

Reduction

Average %

Reduction

Lead: @ pH 6.5

Lead: @ pH 8.5

0.010 mg/L

143.33 ug/L

140 ug/L

0.15 mg/L ± 10%

1.0 ug/L

>99.3

99.3

Mercury: @ pH 6.5

Mercury: @ pH 8.5

0.002 mg/L

0.0058 mg/L

0.00646 mg/L

0.006 mg/L ± 10%

0.3 ug/L

1.4 ug/L

0.0002 mg/L

0.0004 mg/L

>96.5

76.3

96.5

88.1

Benzene 0.005 mg/L 0.015 mg/L 0.015 mg/L ± 10% 0.5 ug/L 0.0005 mg/L >96.5 >96.5

O-Dichlorobenzene 0.6 mg/L 1.83333 mg/L 1.8 mg/L ± 10% 4.8 ug/L 0.014 mg/L 99.7 99.9

Toxaphene 0.003 mg/L 0.016 mg/L 0.015 mg/L ± 10% 1 ug/L 0.001 mg/L >93.2 >93.2

Water Supply

Water Pressure

Water Temperature

Service Flow Rate

City or Well

30 - 120 psi (207 - 827 kPa)

33° - 100°F (0.6° - 37.8°C)

0.85 gpm (3.2 Lpm) @ 60 psi

Class I particle size: >0.5 um to <1 um

Test requirement is at least 100,000 particles/mL of AC Fine Test Dust.

® NSF is a registered trademark of NSF International.

Base Grille Water Filtration System

Model P1WG2L/P2RFWG2 Capacity 200 Gallons (757 Liters)

Model P1WG2/P2RFWG2 Capacity 200 Gallons (757 Liters)

This system has been tested according to NSF/ANSI Standards 42 and 53 for the reduction of the substances listed below. The

concentration of the indicated substances in water entering the system was reduced to a concentration less than or equal to the

permissible limit for water leaving the system, as specified in NSF/ANSI Standards 42 and 53.

Test Parameters: pH = 7.5 ± 0.5 unless otherwise noted. Flow = 0.5 gpm (1.9 Lpm). Pressure = 60 psig (413.7 kPa).

Temp. = 68°F to 71.6°F (20°C to 22°C). Rated service capacity = 200 gallons (757 liters).

■ It is essential that operational, maintenance, and filter

replacement requirements be carried out for the product to

perform as advertised.

■ Use replacement filter P2RFWG2, part #4396841.

2008 suggested retail price of $39.99 U.S.A./$54.95 Canada.

Prices are subject to change without notice.

Model P1WG2L/P1WG2: Style 1 – When the filter indicator
