XBR-65X900A/55X900A
4-457-217-E2(1)
4-457-217-E2(1)
LCD TV
(Setup Guide)
Operating Instructions
XBR-65X900A / 55X900A
Lea este manual antes de usar el
producto
Centro de Asistencia de Sony
http://esupport.sony.com/ES/LA/
Llame al número telefónico que aparece en
su póliza de garantía.
Por favor no devuelva el producto a la
tienda donde adquirió el producto.
C:\Users\fle1\Desktop\SY130162_H19 (Rev-1)\4457217E21_US\US02REG.fm
XBR-65X900A/55X900A
4-457-217-E2(1)
2
IMPORTANT NOTICE TO
COFETEL
This equipment operation is subject
to the following two conditions: (1) It
is possible that this equipment or
device may not cause harmful
interference, and (2) this equipment
or device must accept any
interference, including interference
that may cause undesired operation.
For information related to COFETEL
certificate number, refer to the
package label and/or product.
CAUTION
To prevent electric shock and blade
exposure, do not use this polarized
AC plug with an extension cord,
receptacle or other outlet unless the
blades can be fully inserted.
• Operate the TV only on 110-240 V
AC
• Some people may experience
discomfort (such as eye strain,
fatigue, or nausea) while watching
3D video images or playing
stereoscopic 3D games. Sony
recommends that all viewers take
regular breaks while watching 3D
video images or playing
stereoscopic 3D games. The length
and frequency of necessary breaks
will vary from person to person. You
must decide what works best. If you
experience any discomfort, you
should stop watching the 3D video
images or playing stereoscopic 3D
games until the discomfort ends;
consult a doctor if you believe
necessary. You should also review
(i) the instruction manual of any
other device or media used with
this television and (ii) our website
(http://www.sony.com/tvsupport) for
the latest information. The vision of
young children (especially those
under six years old) is still under
development. Consult your doctor
(such as a pediatrician or eye
doctor) before allowing young
children to watch 3D video images
or play stereoscopic 3D games.
Adults should supervise young
children to ensure they follow the
recommendations listed above.
• Do not use, store, or leave the 3D
Glasses or battery near a fire, or in
places with a high temperature,
e.g., in direct sunlight, or in sun-
heated cars.
• When using the simulated 3D
function, please note that the
displayed image is modified from
the original due to the conversion
done by this television.
Licensing Information
The terms HDMI and HDMI High-
Definition Multimedia Interface, and
the HDMI Logo are trademarks or
registered trademarks of HDMI
Licensing LLC in the United States
and other countries.
Fergason Patent Properties, LLC:
U.S. Patent No. 5,717,422
U.S. Patent No. 6,816,141
Manufactured under license from
Dolby Laboratories.
“Blu-ray Disc”, “Blu-ray” and “Blu-ray
Disc” logo are trademarks of Blu-ray
Disc Association.
“BRAVIA” and , S-Force,
Motionflow, BRAVIA Sync, and are
trademarks or registered marks of
Sony Corporation.
DLNA
®
, the DLNA Logo and DLNA
CERTIFIED
®
are trademarks, service
marks, or certification marks of the
Digital Living Network Alliance.
TrackID is a trademark or registered
trademark of Sony Mobile
Communications AB.
Music and video recognition
technology and related data are
provided by Gracenote®. Gracenote
is the industry standard in music
recognition technology and related
content delivery. For more
information, please visit
www.gracenote.com.
CD, DVD, Blu-ray Disc, and music
and video-related data from
Gracenote, Inc., copyright ©
2000-present Gracenote. Gracenote
Software, copyright © 2000-present
Gracenote. One or more patents
owned by Gracenote apply to this
product and service. See the
Gracenote website for a non-
exhaustive list of applicable
Gracenote patents. Gracenote,
MusicID, VideoID, Video Explore, the
Gracenote logo and logotype, and
the “Powered by Gracenote” logo are
either registered trademarks or
trademarks of Gracenote in the
United States and/or other countries.
Opera
®
Devices SDK from Opera
Software ASA. Copyright 1995-2013
Opera Software ASA. All rights
reserved.
Wi-Fi, Wi-Fi Direct and Miracast are
marks or registered marks of the
Wi-Fi Alliance.
“Sony Entertainment Network logo”
and “Sony Entertainment Network”
are trademarks of Sony Corporation.
MHL, Mobile High-Definition Link and
the MHL Logo are trademarks or
registered trademarks of MHL
Licensing, LLC.
Manufactured under license from
DTS Licensing Limited. For U.S. and
worldwide patent and trademark
information, see
www.dts.com/patents/legacy.aspx.
(c) DTS Licensing Limited and DTS,
Inc. 2012.
The Bluetooth® word mark and logos
are owned by the Bluetooth SIG, Inc.
and any use of such marks by Sony
Corporation is under license. Other
trademarks and trade names are
those of their respective owners.
Color IQ and the Color IQ logo are
trademarks of QD Vision, Inc.
The N Mark is a trademark or
registered trademark of NFC Forum,
Inc. in the United States and in other
countries.
Owner’s Record
The model and serial numbers
are located at the side and rear
of the TV. Record these
numbers in the spaces provided
below. Refer to them whenever
you call upon your Sony dealer
regarding this TV.
Model Name
Serial No.
C:\Users\fle1\Desktop\SY130162_H19 (Rev-1)\4457217E21_US\US02REG.fm
XBR-65X900A/55X900A
4-457-217-E2(1)
3
~
• The illustrations of the remote
control used in this manual are of
the RM-YD087 unless otherwise
stated.
• The illustrations used in this manual
may differ depending on your TV
model.
• Retain this manual for future
reference.
The 55 class has a 54.6 inch
(138.8 cm) viewable image size
and the 65 class has a 64.5 inch
(163.9 cm) viewable image size
(measured diagonally).
C:\Users\fle1\Desktop\SY130162_H19 (Rev-1)\4457217E21_US\US02REG.fm
XBR-65X900A/55X900A
4-457-217-E2(1)
4
The following chart shows the high-definition (HD) and standard-definition (SD) video formats
supported by your BRAVIA TV inputs.
*
1
For details of supported formats, refer to the “Specifications” in this manual.
*
2
For supported PC formats refer to the i-Manual.
The BRAVIA
®
4K TV Experience
Thank you for choosing Sony! Your new
BRAVIA
®
TV opens the door to the “4K TV
Experience”. This document will help you get
the most out of your TV.
Please take a moment to register your TV at:
http://esupport.sony.com/LA/perl/
registration.pl
Four Steps to a 4K TV Experience
Set, Source, Sound, and Setup.
1 Set
Now that you have made the best selection
in LED backlit LCD TV technology, be sure to
remove all accessory contents from the
packaging before setting up your TV.
2 Source
To experience the stunning detail of your
BRAVIA TV, you need access to
High-Definition programming.
• Upgrade your signal or content source to
high-definition (4K) by contacting your HD
service provider.
• Receive over-the-air HD broadcasts with
an HD-quality antenna connected
directly to the back of your TV.
Visit http://www.antennaweb.org for
more information on antenna selection
and setup.
• Discover the wealth of entertainment now
available on super-high resolution
Blu-ray Disc™ player and other Sony HD
equipment.
3 Sound
Complete the high-definition experience
with a BRAVIA Sync™ surround sound
system or A/V receiver from Sony.
4 Setup
Install your TV and connect your sources.
See page 11 for sample connection
diagrams. To help assure the highest
quality for your 4K experience, use Sony
HDMI (High-Definition Multimedia
Interface) cables.
This TV displays all video input signals in a resolution of 3,840 dots × 2,160 lines.
INPUT VIDEO AUDIO
SUPPORTED FORMATS
1080/24p/30p
1080p*
1
1080i
720/24p/30p
720p*
1
480p 480i PC*
2
HD
HDMI
COMPONENT
Audio L/R
SD
VIDEO
Composite video
connection
Audio L/R
C:\Users\fle1\Desktop\SY130162_H19 (Rev-1)\4457217E21_US\US02REG.fm
XBR-65X900A/55X900A
4-457-217-E2(1)
5
C:\Users\fle1\Desktop\SY130162_H19 (Rev-1)\4457217E21_US\US01TOC.fm
XBR-65X900A/55X900A
4-457-217-E2(1)
6
About this manual (Operating Instructions)
This manual explains how to setup your TV. For more
information on how to use BRAVIA TV, refer to the “Electronic
manual”.
Operating Instructions
Electronic manual
(i-Manual)
Explains how to setup your TV such as connections,
initial setup, and basic operations.
For more information, press the i-MANUAL button
Explains how to use all the features. See page 29 on
how to use the i-Manual.
Images and illustrations used in this manual may differ from
the actual screen.
C:\Users\fle1\Desktop\SY130162_H19 (Rev-1)\4457217E21_US\US01TOC.fm
XBR-65X900A/55X900A
4-457-217-E2(1)
7
Table of Contents
Getting Started
Checking the accessories........................................................................8
Inserting batteries into the remote control................................................8
Before setting up your TV.........................................................................9
1: Attaching the Table-Top Stand ..........................................................10
2: Connecting the TV..............................................................................11
3: Securing the TV..................................................................................17
4: Bundling the cables ...........................................................................19
5: Connecting the TV to the Internet.......................................................20
6: Running initial setup...........................................................................21
Using a Wall-Mount Bracket...................................................................22
Installing the TV against a wall or enclosed area...................................23
Using Your BRAVIA TV
Watching TV
B
............................. wf
Selecting various functions and settings (Home Menu).........................26
Watching Internet Video.........................................................................28
Looking for Instructions
Looking for instructions in the
electronic manual (i-Manual)
B
... wl
Additional Information
Troubleshooting......................................................................................32
How to care for your BRAVIA TV ............................................................33
Specifications.........................................................................................34
Additional Information ............................................................................36
C:\Users\fle1\Desktop\SY130162_H19 (Rev-1)\4457217E21_US\US03STU.fm
XBR-65X900A/55X900A
4-457-217-E2(1)
8
Getting Started
Checking the
accessories
Remote control (1)*
1
One-touch Remote Control (1)*
1
Size AAA batteries (4)
Under cover (1)
Cable clamper (1)
Table-Top Stand (1)*
2
Fixing screws for Table-Top Stand
(M5 × 12) (4)
Passive 3D Glasses (4)
Operating Instructions (this manual) and
other documents
*
1
See the specification table at the end of this
manual.
*
2
Assembling the Table-Top Stand is required.
Refer to the supplied Table-Top Stand leaflet to
assemble the Table-Top Stand.
Inserting batteries
into the remote
control
1 Remove the protection sheet.
2 Push and slide the cover to open.
1 Remove the protection sheet.
2 Push and slide the cover to open.
C:\Users\fle1\Desktop\SY130162_H19 (Rev-1)\4457217E21_US\US03STU.fm
XBR-65X900A/55X900A
4-457-217-E2(1)
9
Getting Started
~
• One-touch Remote Control can only be used
after registration with the TV. For more
information on how to register, press
i-MANUAL, then select “Table of Contents”
t “Configuring Various Settings” t
“General Settings” t “Setting One-touch
Remote Control”.
x Guidelines for Remote Control
• Point your remote control directly at the
IR sensor located on your TV.
• Make sure that no objects are blocking
the path between the remote control and
the IR sensor on your TV.
• Fluorescent lamps can interfere with your
remote control; try turning off the
fluorescent lamps.
• If you are having problems with the
remote control, reinsert or replace your
batteries and make sure that they are
correctly inserted.
Before setting up
your TV
Some TV models are packaged with a
detached Table-Top Stand so you can
mount your TV to a wall right away. See
page 22 (Using a Wall-Mount Bracket) if you
want to mount the TV to a wall. If you are not
mounting the TV to a wall, you will need to
attach the Table-Top Stand. You will need a
Phillips screwdriver (not supplied) and the
supplied screws to complete the task. Look
for the supplied Table-Top Stand instruction
leaflet.
Be sure to consider the following while
setting up your TV:
• Disconnect all cables when carrying the
TV.
• Carry the TV with the adequate number
of people; larger size TVs require two or
more people.
• Correct hand placement while carrying
the TV is very important for safety and to
avoid damage.
• Ensure your TV has adequate ventilation,
see page 23.
• For best picture quality, do not expose
the screen to direct illumination or
sunlight.
• Avoid installing the TV in a room with
reflective wall and floor materials.
• Avoid moving the TV from a cold area to
a warm area. Sudden room temperature
changes may cause moisture
condensation. This may cause the TV to
show poor picture and/or poor color.
Should this occur, allow moisture to
evaporate completely before powering
the TV on.
(Continued)
C:\Users\fle1\Desktop\SY130162_H19 (Rev-1)\4457217E21_US\US03STU.fm
XBR-65X900A/55X900A
4-457-217-E2(1)
10
• Ensure that there are no objects in front
of the TV.
1: Attaching the
Table-Top Stand
Refer to the supplied Table-Top Stand
leaflet for proper attachment.
~
• Do not put stress on the LCD panel or the
frame around the screen.
• Be careful to not pinch your hands or the AC
power cord when you install the TV set to the
Table-Top Stand.
1 Place the TV set on the Table-Top Stand.
Arrow direction shows front of the Table-Top
Stand.
2 Fix the TV to the Table-Top Stand using
the supplied screws. The arrow marks
indicate the location of the screw
holes used for securing the Table-Top
Stand.
IR Sensor
×
2
C:\Users\fle1\Desktop\SY130162_H19 (Rev-1)\4457217E21_US\US03STU.fm
XBR-65X900A/55X900A
4-457-217-E2(1)
11
Getting Started
~
• If using an electric screwdriver, set the
torque at approximately 1.5 N·m
{15 kgf·cm}.
3 Attach the under cover.
To detach the Table-Top Stand from the TV,
remove the screws fixed in step 2.
~
• Do not remove the Table-Top Stand for any
reason other than to install corresponding
accessories on the TV.
• Be sure the TV is vertical before turning on.
To avoid uneven picture uniformity do not
power on the TV with the LCD panel facing
down.
• When installing the TV on a wall, remove the
screws from the rear of the TV. Be sure to
store the removed screws in a safe place,
keeping them away from children.
• When attaching the Table-Top Stand again,
be sure to fasten the screws (previously
removed) to the original holes on the rear of
the TV.
2: Connecting the TV
~
• Use an antenna cable connector no greater
than 14 mm thick.
• Use an HDMI cable connector within 12 mm
(thickness) × 21 mm (width).
• Use Sony HDMI cable with “High Speed”
indication for HDMI connection.
• For more information on connections, refer to
the i-Manual.
x Shown with a Set Top Box with
HDMI connection
Detaching the Table-Top
Stand from the TV
1
2
3
Set Top Box
(Continued)
C:\Users\fle1\Desktop\SY130162_H19 (Rev-1)\4457217E21_US\US03STU.fm
XBR-65X900A/55X900A
4-457-217-E2(1)
12
Recommendation of the F type plug
Projection of the inner wire from the
connection part must be less than 1.5 mm.
x Shown with a Set Top Box with
COMPONENT connection
(Reference drawing of the F type plug)
1.5 mm max.
7 mm max.
Set Top Box
C:\Users\fle1\Desktop\SY130162_H19 (Rev-1)\4457217E21_US\US03STU.fm
XBR-65X900A/55X900A
4-457-217-E2(1)
13
Getting Started
x Cable System or VHF/UHF Antenna
System
x Shown with MHL device with MHL
connection
The MHL (Mobile High-Definition Link)
enables the TV to communicate with a
connected MHL-compatible device. The TV
can charge the connected MHL-compatible
device while playing photo/music/video
from it. You can use the TV remote control to
control the connected MHL-compatible
device.
~
• If Auto Input Change (MHL) is set to On, the
TV automatically switches to HDMI IN 2/MHL
from other input when MHL-compatible
device is connected to HDMI IN 2/MHL jack.
The availability of Auto Input Change (MHL)
depends on whether the MHL-compatible
device can support this feature.
• You can continue normal usage of the
connected MHL-compatible device (such as
receiving calls) depending on its capability.
• Some remote control functions may not be
available depending on features of the
connected MHL-compatible device. Please
refer to the device manual for details.
• If Charge MHL during Power Off is set to
On, you can continue charging the MHL-
compatible device even when the TV is in
standby mode.
• This product is officially MHL-certified for
operation with other MHL-certified devices. If
you encounter any problems when using the
MHL function, please consult the device
manufacturer for support.
Cable or
Antenna
Use authorized
MHL 2 CABLE
with MHL logo MHL device
(Continued)
C:\Users\fle1\Desktop\SY130162_H19 (Rev-1)\4457217E21_US\US03STU.fm
XBR-65X900A/55X900A
4-457-217-E2(1)
14
x Shown with BRAVIA
®
Sync™ Basic Connection
*
1
Rear of TV
*
1
Blu-ray Disc
HD Cable Box or
HD Satellite Receiver
*
1
A/V Receiver
SAT (Dish)
Cable/Antenna
*
1
Signifies a BRAVIA Sync capable device.
*
2
The optical connection is only needed for A/V receivers that do not support ARC (Audio Return Channel).
*
2
Optical Connection
*
1
Rear of TV
C:\Users\fle1\Desktop\SY130162_H19 (Rev-1)\4457217E21_US\US03STU.fm
XBR-65X900A/55X900A
4-457-217-E2(1)
15
Getting Started
x Shown with Basic Connection with Home Theater System
VIDEO
L
R
Rear of TV
Cable/
Antenna
or
Blu-ray Disc/DVD
SD Cable Box or
SD Satellite Receiver
Cable/SAT
(Dish)
Home Theater System
*Optical
Connection
* The optical connection is only needed for home theater system that do not support ARC (Audio Return
Channel) when connecting with HDMI.
Rear of TV
(Continued)
C:\Users\fle1\Desktop\SY130162_H19 (Rev-1)\4457217E21_US\US03STU.fm
XBR-65X900A/55X900A
4-457-217-E2(1)
16
x Shown with PC Connection with SD VCR/DVD
Rear of TV
PC
DVDVCR
Splitter
Cable/Antenna
VCR/DVD Combo
Rear of TV
* DVI does not support audio signals. Connect the audio output of the PC to the PC speakers or an A/V receiver
to listen to sound from the PC.
*DVI
or
Notebook PC
Side Panel
C:\Users\fle1\Desktop\SY130162_H19 (Rev-1)\4457217E21_US\US03STU.fm
XBR-65X900A/55X900A
4-457-217-E2(1)
17
Getting Started
3: Securing the TV
Sony strongly recommends
taking measures to prevent
the TV from toppling over.
Unsecured TVs may topple
and result in property
damage, serious bodily
injury or even death.
• Secure the TV to a wall and/or stand.
• Do not allow children to play or climb on
furniture and TV sets.
• Avoid placing or hanging items on the
TV.
• Never install the TV on:
– slippery, unstable and/or uneven
surfaces.
– furniture that can easily be used as
steps, such as a chest of drawers.
• Install the TV where it cannot be pulled,
pushed, or knocked over.
• Route all AC power cords and
connecting cables so that they are not
accessible to curious children.
Consider the following measures when
securing your TV to a Stand (not supplied).
1 Secure the Stand for the TV.
Make sure the Stand can adequately
support the weight of the TV. Use two
angle braces (not supplied) to secure
the stand. For each angle brace use the
appropriate hardware to:
• Attach one side of the angle brace to
the wall stud.
• Attach the other side to the Stand.
2 Secure the TV to the Stand.
Use the optional hardware listed as
follows (not supplied):
• M4 machine screw (screwed into the
TV’s Table-Top Stand)
• A screw or similar (attach it to the
Stand)
• Rope or chain (strong enough to
support the weight of the TV). Make
sure that there is no excess slack in
the rope or chain.
Preventing the TV from
Toppling
Recommended Measures
to Secure the TV
Stand
Angle brace
(not supplied)
(Continued)
C:\Users\fle1\Desktop\SY130162_H19 (Rev-1)\4457217E21_US\US03STU.fm
XBR-65X900A/55X900A
4-457-217-E2(1)
18

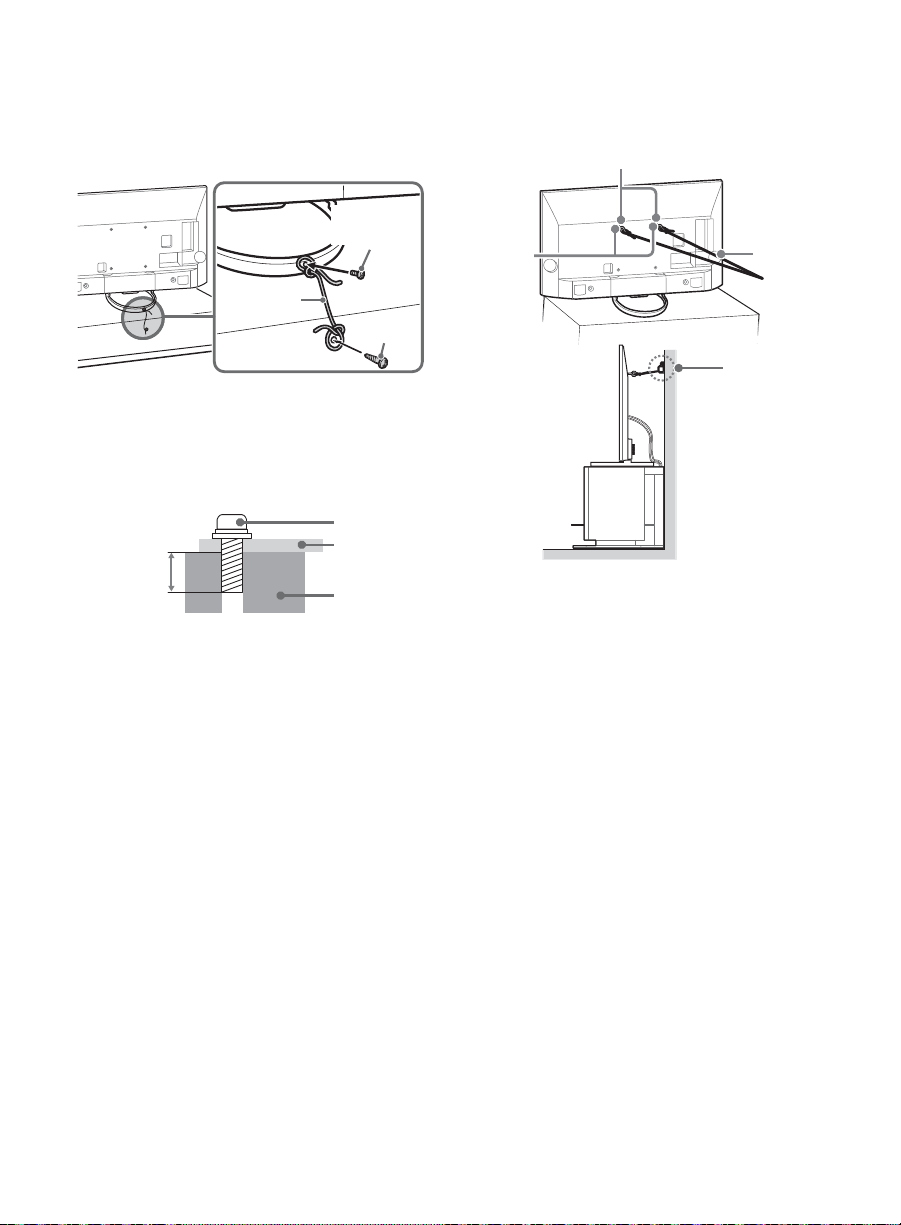

An alternative way to secure the TV is
with an optional Sony Support Belt Kit.
The Sony Support Belt Kit is available as
an optional accessory, depending on
your TV model.
The length of the M4 machine screw
differs depending on the rope or chain
diameter. Please see below illustration.
~
Contact Sony Customer Support to obtain the
optional Support Belt Kit by providing your TV
model name.
• For Mexico call: 01-800-759-7669
3 Anchor the TV to the Wall.
Anchor the TV to the wall by using bolts,
wall anchor and chain (or rope).
~
• Your TV is shipped with screws attached
to the rear of the TV depending on the TV
model. (They are fastened in the screw
holes for wall mounting.) Be sure to
remove the upper two screws prior to
anchoring the TV to a wall.
• Securing the TV to the stand without
securing the TV and the stand to the wall
provides minimum protection against the
TV toppling over. For further protection,
be sure to follow the three measures
recommended.
Rope or chain
(not supplied)
M4 machine
screw
(not supplied)
Screw (not
supplied)
Screw M4
Rope or
chain
TV’s
Table-Top
Stand
6-7 mm
Anchor bolts (M6) (not supplied)
Wall-
mount
holes
Rope or
chain (not
supplied)
Wall-anchor
(not
supplied)
C:\Users\fle1\Desktop\SY130162_H19 (Rev-1)\4457217E21_US\US03STU.fm
XBR-65X900A/55X900A
4-457-217-E2(1)
19
Getting Started
4: Bundling the
cables
Before bundling the cables, remove the
cable holder from the AC cover. Reuse the
cable holder to bundle the other cables.
~
• Do not bundle the AC power cord together
with other cables.
* When installing on the wall, attach the cable holder
under the terminals.
3
1
4
2
6
5
*
8
7
9
3
1
4
2
6
5
*
8
10
7
9
OR
C:\Users\fle1\Desktop\SY130162_H19 (Rev-1)\4457217E21_US\US03STU.fm
XBR-65X900A/55X900A
4-457-217-E2(1)
20
5: Connecting the TV
to the Internet
When you connect this TV to the Internet,
you can enjoy multiple functions. For details
on the functions, refer to the i-Manual.
~
• You will need to contract with an Internet
service provider to connect to the Internet.
~
• For LAN connections, use a Category 7
cable (not supplied).
The built-in wireless LAN device allows you
to access the Internet and your home
network. With this feature, you can connect
to a wireless LAN and enjoy the benefits of
networking in a cable-free environment.
Before setting up the wireless LAN function
of the TV, be sure to set up a wireless LAN
router.
Preparing a wired network
TV
Internet
Modem
with router
functions
Router
Modem
Internet
or
Preparing a wireless LAN
Wireless
router
Modem
Internet
TV
C:\Users\fle1\Desktop\SY130162_H19 (Rev-1)\4457217E21_US\US03STU.fm
XBR-65X900A/55X900A
4-457-217-E2(1)
21
Getting Started
6: Running initial
setup
1 Complete your cable connections before
proceeding with the Initial Setup.
Connect the TV to your nearest power
outlet.
2 Press "/1 on the TV. The illumination
LED will light up in white.
When you switch on the TV for the first
time, the Language menu appears on
the screen.
~
• When you turn on the TV for the first time,
the TV requires some internal processing
for optimization before you can perform
the initial setup. There will be no picture
and sound, and the illumination LED on
the front of the TV blinks white for about
40 seconds. Do not turn off the TV during
this process.
This process has been completed at the
factory for some TVs.
• The illumination LED lights up in different
colors according to the status of the TV.
If you do not wish to light up the
illumination LED, you can turn it off later.
Press HOME, then select Settings t
Preferences t Front Panel
Illumination t Illumination LED t
Off. You can also press OPTIONS, then
select Illumination LED t Off.
3 Press V/v/B/b to select an item, then
press .
Follow the instructions on the screen.
~
• Home mode sets the TV to settings
optimized for home viewing.
4 Scan for available channels. If you
receive channels from a cable box or
satellite receiver and do not wish to use
the TV’s built-in tuner, select Skip.
5 Set up the Internet settings. If you do not
access the Internet, or to set up later,
select Skip. After you select Continue or
Start (depending on model) at the
Internet setup confirmation screen,
select Auto to connect to the network
automatically. Select Custom to connect
manually.
~
• If you use WEP security, select Custom
t Wireless Setup t Scan. Then,
select the network name (SSID) you want
to connect. If you cannot find the
required network name, select [Manual
Entry] and press to enter network
name.
• To set Network Setup later, press
HOME, then select Settings t Network
t Network Setup.
• Use the optional USB Wireless LAN
Adapter to connect with your wireless
router (or access point) at 5GHz. Insert
USB Wireless LAN Adapter and set Wi-Fi
Direct to Off. Press HOME, then select
Settings t Network t Wi-Fi Direct t
Off.
C:\Users\fle1\Desktop\SY130162_H19 (Rev-1)\4457217E21_US\US03STU.fm
XBR-65X900A/55X900A
4-457-217-E2(1)
22
Using a Wall-Mount
Bracket
Your TV can be mounted on a wall using a
Wall-Mount Bracket (not supplied) out of the
box as packaged. If the Table-Top Stand is
attached to the TV, the TV may require
detaching the Table-Top Stand; see
page 11 (Detaching the Table-Top Stand
from the TV).
Prepare the TV for the Wall-Mount Bracket
before making cable connections.
For product protection and safety
reasons, Sony strongly recommends that
you use the Wall-Mount Bracket designed
for your TV and the installation should be
performed by a Sony dealer or licensed
contractor.
• See page 36 (Compatible Wall-Mount
Bracket Information) (XBR-55X900A
only).
• Follow the instruction guide provided
with the Wall-Mount Bracket for your
model. Sufficient expertise is required in
installing this TV, especially to determine
the strength of the wall for withstanding
the TV’s weight.
• Be sure to use the screws supplied with
the Wall-Mount Bracket when attaching
the mounting hooks to the TV set.
The supplied screws are designed as
indicated by illustration when measured
from the attaching surface of the
mounting hook.
The diameter and length of the screws
differ depending on the Wall-Mount
Bracket model. Use of screws other than
those supplied may result in internal
damage to the TV set or cause it to fall,
etc.
• Be sure to store the unused screws and
Table-Top Stand in a safe place until you
are ready to attach the Table-Top Stand.
Keep the screws away from small
children.
~
• Read the supplied Safety Booklet for
additional safety information.
8-12 mm
Screw
Mounting Hook
Hook attachment on rear of
TV set
C:\Users\fle1\Desktop\SY130162_H19 (Rev-1)\4457217E21_US\US03STU.fm
XBR-65X900A/55X900A
4-457-217-E2(1)
23
Getting Started
Installing the TV
against a wall or
enclosed area
Make sure that your TV has adequate
ventilation. Allow enough space around the
TV as shown in the illustration.
~
• Inadequate ventilation can lead to
overheating of the TV and may cause
damage to your TV or cause a fire.
Leave at least this much space around the set.
Installed with stand
10 cm
30 cm
10 cm
6 cm
Installed on the wall
Leave at
least this
much space
around the
set.
10 cm
10 cm
10 cm
30 cm
Never install the TV set as follows:
Air circulation is blocked. Air circulation is blocked.
Wall Wall
C:\Users\fle1\Desktop\SY130162_H19 (Rev-1)\4457217E21_US\US04SAF.fm
XBR-65X900A/55X900A
4-457-217-E2(1)
24
Using Your BRAVIA TV
Watching TV
1 Turn on the TV.
Press "/1 on the TV or POWER on the remote
control to turn on the TV.
2 Select a TV channel or select an
input.
x To select digital channels
Use 0-9 and . For example, to enter channel
2.1:
Press , and , then press .
~
• See below illustration for location of the CH+/-,
, V/v/B/b, , and HOME buttons on the
TV.
1
2
2
1
or or
+/-
Rear of TV
C:\Users\fle1\Desktop\SY130162_H19 (Rev-1)\4457217E21_US\US04SAF.fm
XBR-65X900A/55X900A
4-457-217-E2(1)
25
Using Your BRAVIA TV
This feature lets you experience powerful 3D entertainment, such as stereoscopic 3D games
and 3D Blu-ray Disc. Refer to the i-Manual on how to set the 3D settings or watch the 3D
contents.
Watching 3D contents
Frequently used buttons
1
2
3
4
5
1 PIC OFF
Turns picture off, and sound remains on.
2 Color buttons
When the color buttons are available, an
operation guide appears on the screen.
3 JUMP
You can jump back and forth between two
channels or inputs. The TV alternates
between the current channel or input and the
last channel or input that was selected.
4 DISPLAY
Displays channel number, details of
programs, and the clock.
5 SUBTITLE/CC
You can turn closed captions/subtitles on/off.
C:\Users\fle1\Desktop\SY130162_H19 (Rev-1)\4457217E21_US\US04SAF.fm
XBR-65X900A/55X900A
4-457-217-E2(1)
26
Selecting various functions and
settings (Home Menu)
You can select the features of your TV from the Home menu.
Here is an example on how to select an item and
modify the TV settings.
1 Press HOME.
2 Press V/v to select Settings
category.
The contents of Settings are displayed
horizontally.
See page 27 (Category list) for all categories.
3 Press B/b to select a desired
setting item, then press .
4 Modify the settings.
x To exit the Home menu
Press HOME.
x To select using the OPTIONS button
Press OPTIONS.
A list of convenient functions and menu shortcuts
are displayed. The menu items vary based on the
current input and/or content.
2, 3
1
OPTIONS
C:\Users\fle1\Desktop\SY130162_H19 (Rev-1)\4457217E21_US\US04SAF.fm
XBR-65X900A/55X900A
4-457-217-E2(1)
27
Using Your BRAVIA TV
The categories are available depending on your TV model, region and country.
Category list
Featured
Provides information on available applications and content.
If there is no network connection, or the Featured Display setting is
set to Off, the Featured category will not be displayed.
History
Displays recently viewed items.
TV
Allows you to select a list of TV channels, or a program guide.
Program guide is available depending on your TV model or region.
A list of channels registered as favorites in the TV category are
displayed.
Applications
Launches applications that require an Internet connection, including
Media Player which does not require an Internet connection.
A list of applications registered as favorites in the Applications
category are displayed.
Connected Devices
Enables selection of devices connected to the TV.
Settings
Provides settings (e.g. picture settings, sound settings, key tone
setting) that allow you to customize your TV.
Category
C:\Users\fle1\Desktop\SY130162_H19 (Rev-1)\4457217E21_US\US04SAF.fm
XBR-65X900A/55X900A
4-457-217-E2(1)
28
Watching Internet Video
This feature serves as a gateway to Internet content, delivering a variety of on-demand
entertainment straight to your TV. You can enjoy video content, including movies and cartoons.
You will need to make a broadband Internet connection. For details, see page 20
(5: Connecting the TV to the Internet).
~
• If you experience difficulties with this feature, check that the Internet connection is set up properly.
• The interface to Internet content depends on the Internet content providers.
• Services block video content based on the Parental Lock setting of the TV. Some service
providers do not support this function.
• To update Internet Video content services, press HOME, then select Settings t Network t
Refresh Internet Content.
1 Press HOME.
2 Press V/v to select Applications
category.
3 Press B/b to select All
Applications, then press .
4 Press V/v/B/b to select the
desired service, then press .
2, 3, 4
1
C:\Users\fle1\Desktop\SY130162_H19 (Rev-1)\4457217E21_US\US05OVR.fm
XBR-65X900A/55X900A
4-457-217-E2(1)
29

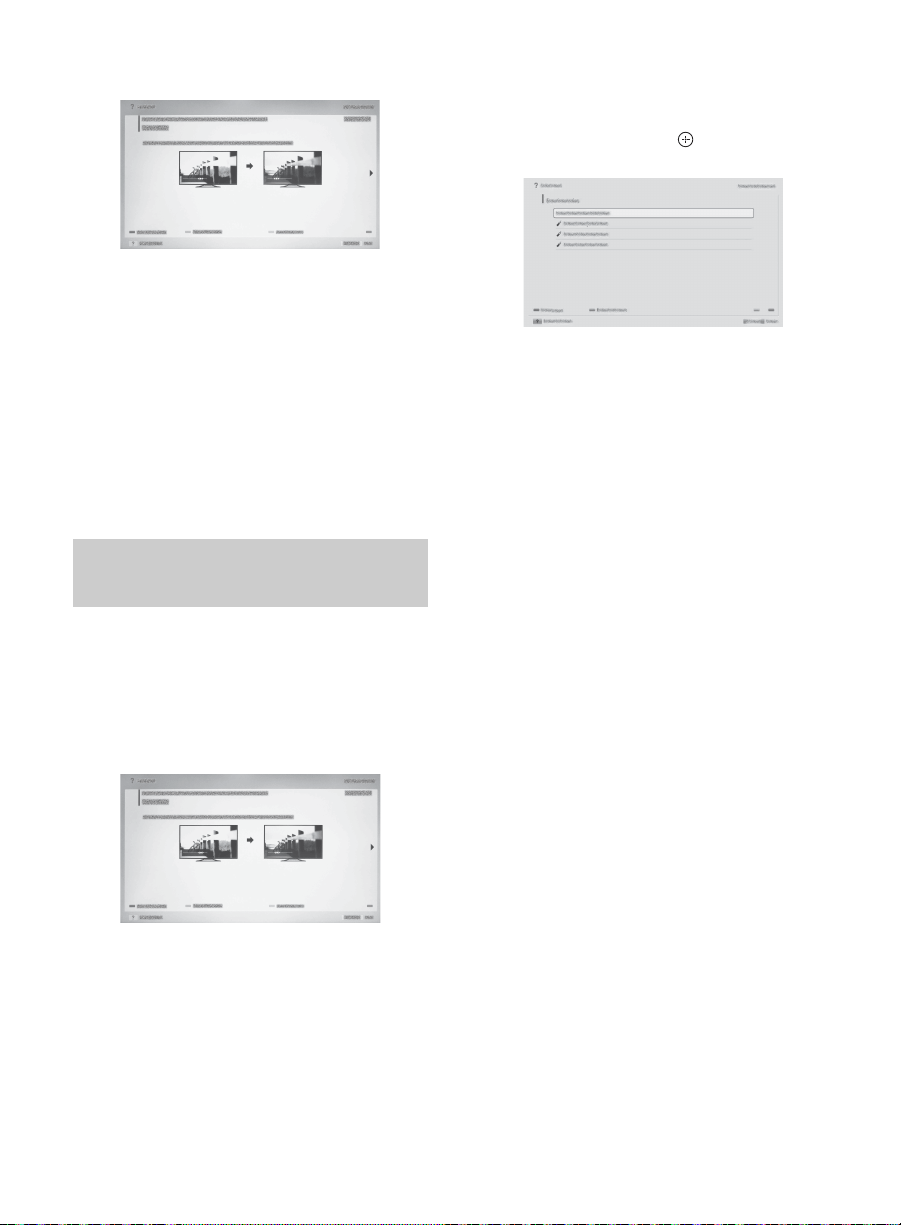

Looking for Instructions
Looking for Instructions
Looking for instructions in the
electronic manual (i-Manual)
Operating instructions are built into your BRAVIA TV and can be displayed on the screen.
To learn more about your TV features, access your i-Manual with the touch of a button.
1 Press i-MANUAL.
2 Select an item.
1 Press B/b to select an item.
2 Press V/v/B/b to select an item, then press
.
* If an arrow mark appears, press v repeatedly to
display more items.
1
2
RETURN
Arrow mark*
(Continued)
C:\Users\fle1\Desktop\SY130162_H19 (Rev-1)\4457217E21_US\US05OVR.fm
XBR-65X900A/55X900A
4-457-217-E2(1)
30
You can save frequently viewed pages for
easy access anytime.
x To save a page
In the page to bookmark, press the red
button on the remote control.
x To access the bookmarked page
When displaying the i-Manual, press the
blue button on the remote control to display
the bookmark list. Press V/v to select the
desired item, then press .
~
• To return to the previous screen, press
RETURN.
x To remove a bookmark
When the bookmarked page is displayed,
press the red button on the remote control.
The page of the selected item appears.
~
• If your TV is connected to the Internet, you
can check for latest FAQ (Frequently Asked
Questions). Refer to “Troubleshooting” in the
i-Manual, select “Frequently Asked
Questions” and then follow the instructions
on the screen. (Available in English and for
United States only)
• You can step through pages using B/b.
Press RETURN to return to the previous
page.
Saving frequently viewed
pages (Bookmark)
C:\Users\fle1\Desktop\SY130162_H19 (Rev-1)\4457217E21_US\US05OVR.fm
XBR-65X900A/55X900A
4-457-217-E2(1)
31
Looking for Instructions
You can switch between the i-Manual
screen and the TV screen. This feature
allows you to refer to the instructions in the
i-Manual while using your BRAVIA TV. Press
i-MANUAL to switch between the i-Manual
screen previously displayed and the TV
screen.
~
• To jump to the top page of i-Manual, press
the yellow button on the remote control. You
can also press HOME, then select Settings
t i-Manual to jump to the top page of
i-Manual.
• Once you turn off the TV or the TV goes to
standby mode, the i-Manual will be
displayed from the top page when you select
i-Manual.
Displaying the page again
while operating the TV
i-Manual screen previously displayed
BRAVIA TV screen
C:\Users\fle1\Desktop\SY130162_H19 (Rev-1)\4457217E21_US\US06OPT.fm
XBR-65X900A/55X900A
4-457-217-E2(1)
32
Additional Information
Troubleshooting
When the illumination LED is flashing in red, count how many times it flashes
(interval time is three seconds).
Press "/1 on the TV to turn it off, disconnect the AC power cord, and contact Sony Customer
Support (information provided on the front cover) with how many times the indicator flashes.
When the illumination LED is not flashing, check the items in the table below.
Also refer to “Troubleshooting” in the i-Manual. If the problem persists, contact Sony Customer
Support (information provided on the front cover).
~
When viewing photo files in 4K resolution:
• The menu screen, operation guide or messages may not appear when displaying photos.
• To finish playback of photos, press RETURN, or switch the input by pressing .
Condition Explanation/Solution
There is no picture (screen
is dark) and no sound.
• Check the antenna/cable connection.
• Connect the TV to the AC power, and press "/1 on the
TV or POWER on the remote control.
Some programs cannot be
tuned.
• Check the antenna.
The remote control does not
function.
• Replace the batteries.
• Your TV may be in SYNC mode.
Press SYNC MENU, select TV Control and then
select Home (Menu) or Options to control the TV.
The Parental Lock
password has been
forgotten.
• Enter 4357 for the PIN code. (PIN code 4357 is always
accepted.)
The TV and its surrounding
become warm.
• When the TV is used for an extended period of time,
the TV and its surroundings may become warm to
touch. This is not a malfunction of the TV.
How to reset the TV to
factory settings
• Turn on the TV. While holding down V on the remote
control, press "/1 on the TV. (The TV will turn itself off,
then back on again.) Release V.
WARNING: The reset will clear all of your customized
settings including the Parental Lock setting.
Frozen audio or video, a
blank screen, or the TV
does not respond to TV or
remote control buttons.
• Perform a simple reset of the TV by unplugging the
AC power cord for two minutes, then plug it in again.
C:\Users\fle1\Desktop\SY130162_H19 (Rev-1)\4457217E21_US\US06OPT.fm
XBR-65X900A/55X900A
4-457-217-E2(1)
33
Additional
Information
How to care for your BRAVIA TV
Safety is very important. Please read and follow the safety documentation (Safety Booklet)
separately provided.
Unplug the TV and other connected equipment from the wall
outlet before you begin cleaning your TV.
• Wipe the LCD screen gently with a soft cloth.
• Do not handle the speakers with excessive force during
cleaning or maintenance to prevent any damages.
• Stubborn stains may be removed with a cloth slightly
moistened with a solution of mild soap and warm water.
• If using a chemically pretreated cloth, please follow the
instruction provided on the package.
• Never spray water or detergent directly on the TV set. It
may drip to the bottom of the screen or exterior parts and
enter the TV set, and may cause damage to the TV set.
• Never use strong solvents such as a thinner, alcohol or
benzine for cleaning.
• Do not plug in the TV into the wall outlet until the moisture
from cleaning has evaporated.
The TV should also be placed on a stable surface to prevent it from toppling over (see
page 17). If you have young children or pets at home, check regularly to ensure the TV is
securely fastened.
C:\Users\fle1\Desktop\SY130162_H19 (Rev-1)\4457217E21_US\US06OPT.fm
XBR-65X900A/55X900A
4-457-217-E2(1)
34
Specifications
System
Television system NTSC: American TV standard
ATSC (8VSB terrestrial): ATSC compliant 8VSB
QAM on cable: ANSI/SCTE 07 2000 (Does not include CableCARD functionality)
Channel coverage Analog terrestrial: 2 - 69 / Digital terrestrial: 2 - 69
Analog Cable: 1 - 135 / Digital Cable: 1 - 135
Panel system LCD (Liquid Crystal Display) Panel
Speaker output 12.5 W + 12.5 W + 20 W + 20 W
Input/Output jacks
CABLE/ANTENNA 75-ohm external terminal for RF inputs
VIDEO IN 1 Video / Audio input (phono jacks)
COMPONENT IN
VIDEO IN 2
YP
BPR (Component Video): 1080p (60 Hz), 1080i (60 Hz), 720p (60 Hz), 480p, 480i
Audio input (phono jacks)
Video input (common phono pin with Y input)
HDMI IN 1/2/3/4
(Support 4K resolution)
Video (2D): 4096 × 2160p (24 Hz), 3840 × 2160p (24, 25, 30 Hz), 1080p (30, 60 Hz),
1080/24p, 1080i (60 Hz), 720p (30, 60 Hz), 720/24p, 480p, 480i,
PC Formats
Video (3D):
Frame Packing 1080p (30 Hz), 1080/24p, 1080i (60 Hz), 720p (30, 60 Hz), 720/24p
Side-by-Side 1080p (60 Hz), 1080/24p, 1080i (60 Hz), 720p (60 Hz)
Over-Under 1080p (30, 60 Hz), 1080/24p, 1080i (60 Hz), 720p (60 Hz)
Audio: Two channel linear PCM: 32, 44.1 and 48 kHz, 16, 20 and 24 bits, Dolby Digital
ARC (Audio Return Channel) (HDMI IN 1 only)
MHL
(common with HDMI IN 2)
Video (2D): 1080p (30 Hz), 1080/24p, 1080i (60 Hz), 720p (30, 60 Hz), 720/24p, 480p,
480i
Video (3D):
Side-by-Side 1080/24p, 1080i (60 Hz), 720p (60 Hz)
Over-Under 1080p (30 Hz), 1080/24p, 1080i (60 Hz), 720p (60 Hz)
Audio: Two channel linear PCM: 32, 44.1 and 48 kHz, 16, 20 and 24 bits, Dolby Digital
AUDIO OUT/Headphones Stereo mini jack
DIGITAL AUDIO OUT
(OPTICAL)
Digital optical jack (Two channel linear PCM, Dolby Digital)
LAN 10BASE-T/100BASE-TX connector (Connection speed may differ depending on the
network environment. 10BASE-T/100BASE-TX communication rate and
communication quality are not guaranteed for this TV.)
USB/DLNA Refer to the i-Manual for supported formats.
C:\Users\fle1\Desktop\SY130162_H19 (Rev-1)\4457217E21_US\US06OPT.fm
XBR-65X900A/55X900A
4-457-217-E2(1)
35
Additional
Information
* Screen size, dimensions and mass are approximate values.
• Optional accessories availability depends on countries/region/TV model/stock.
Design and specifications are subject to change without notice.
Others
Supplied accessories See page 8 (Checking the accessories).
Remote control
Model
RM-YD087
RMF-YD001
Power requirement 3 V DC (2 batteries type AAA)
Passive 3D Glasses TDG-500P
Optional accessories Connecting cables
Support Belt Kit
Wall-Mount Bracket: SU-WL400 (XBR-55X900A only)
Camera and Microphone Unit: CMU-BR200/CMU-BR100
USB Wireless LAN Adapter: UWA-BR100
Passive 3D Glasses: TDG-500P
SimulView™ Passive Glasses: TDG-SV5P
Operating temperature 0 ºC – 40 ºC
Model name XBR- 65X900A 55X900A
Power and others
Power requirement 110-240 V AC, 50/60 Hz
Power
consumption
in use 338 W 268 W
in standby Less than 0.20 W with 120 V AC and less than 0.40 W with 240 V AC
Screen size
*
(cm)
(inches measured diagonally)
163.9
64.5 inches
(65 class)
138.8
54.6 inches
(55 class)
Display resolution 3,840 dots (horizontal) × 2,160 lines (vertical)
Dimensions
*
with stand (mm) 1,682 × 903 × 405 1,463 × 778 × 405
without stand
(mm) 1,682 × 875 × 100 1,463 × 749 × 100
wall-mount hole pattern (mm) 400 × 300 300 × 300
wall-mount screw size (mm) M6 (length: see diagram on page 22.)
Mass
*
with stand (kg) 46.4 34.5
without stand (kg) 45.0 33.1
C:\Users\fle1\Desktop\SY130162_H19 (Rev-1)\4457217E21_US\US07PRE.fm
XBR-65X900A/55X900A
4-457-217-E2(1)
36
Additional Information
Additional
Information
Note
This television includes a QAM demodulator
which should allow you to receive unscrambled
digital cable television programming via
subscription service to a cable service provider.
Availability of digital cable television
programming in your area depends on the type of
programming and signal provided by your cable
service provider.
Compatible Wall-Mount Bracket
Information (XBR-55X900A only)
Use the following Sony Wall-Mount Bracket with
your TV model.
Use with other Wall-Mount Brackets* may cause
instability and could result in property damage or
injury.
* For instructions on using the Wall-Mount Bracket
with your TV please go to
http://esupport.sony.com/LA/
for your TV model
and download “Additional Information for Using
Sony Wall-Mount Bracket”.
To Customers
Sufficient expertise is required for TV installations.
Be sure to subcontract the installation to a Sony
dealer or licensed contractor and pay adequate
attention to safety during the installation.
Sony TV Model No.
XBR-55X900A
Sony Wall-
Mount
Bracket
Model No.
SU-WL400
XBR-65X900A/55X900A
4-457-217-E2(1)
For Your Convenience
Online
Registration:
Be sure to register your TV.
United States
Canada
http://productregistration.sony.com
http://www.sony.ca/registration
Software
Updates:
Your TV is capable of receiving software updates. For the
latest information about software updates for your TV, visit:
United States
Canada
http://www.sony.com/tvsupport
http://www.sony.ca/support
NOTE: If your TV is connected to the Internet, you can check
for software updates by selecting Settings, Product
Support and then Software Update.
© 2013 Sony Corporation Printed in Mexico
4-457-217-E2(1)
