Page 1 of 2
Because Whirlpool Corporation policy includes a continuous commitment to improve
our products, we reserve the right to change materials and specifications without notice.
Dimensions are for planning purposes only. For complete details, see Installation
Instructions packed with product. Specifications subject to change without notice.
Ref. W10320576
3/16
PRODUCT MODEL NUMBERS
GXU7130DX

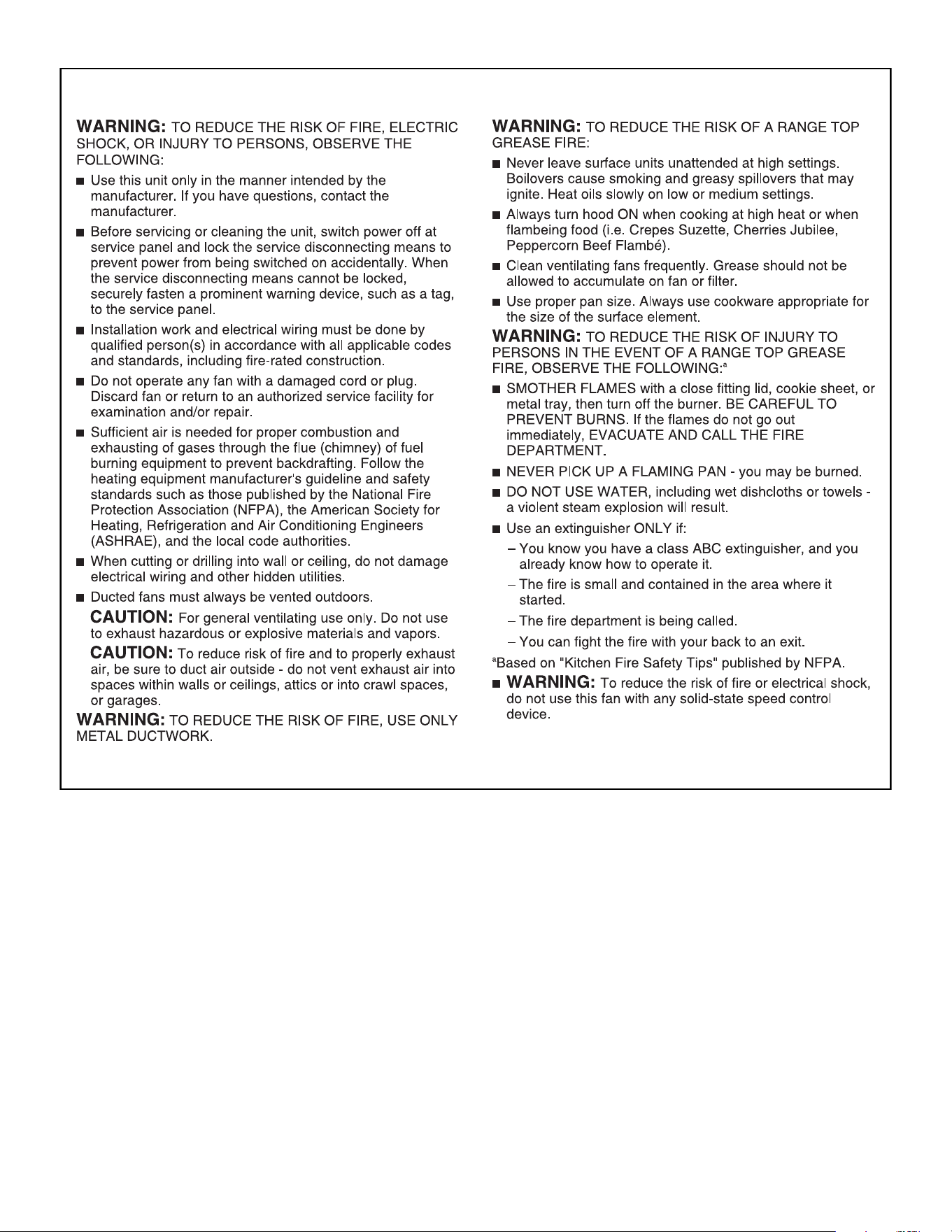

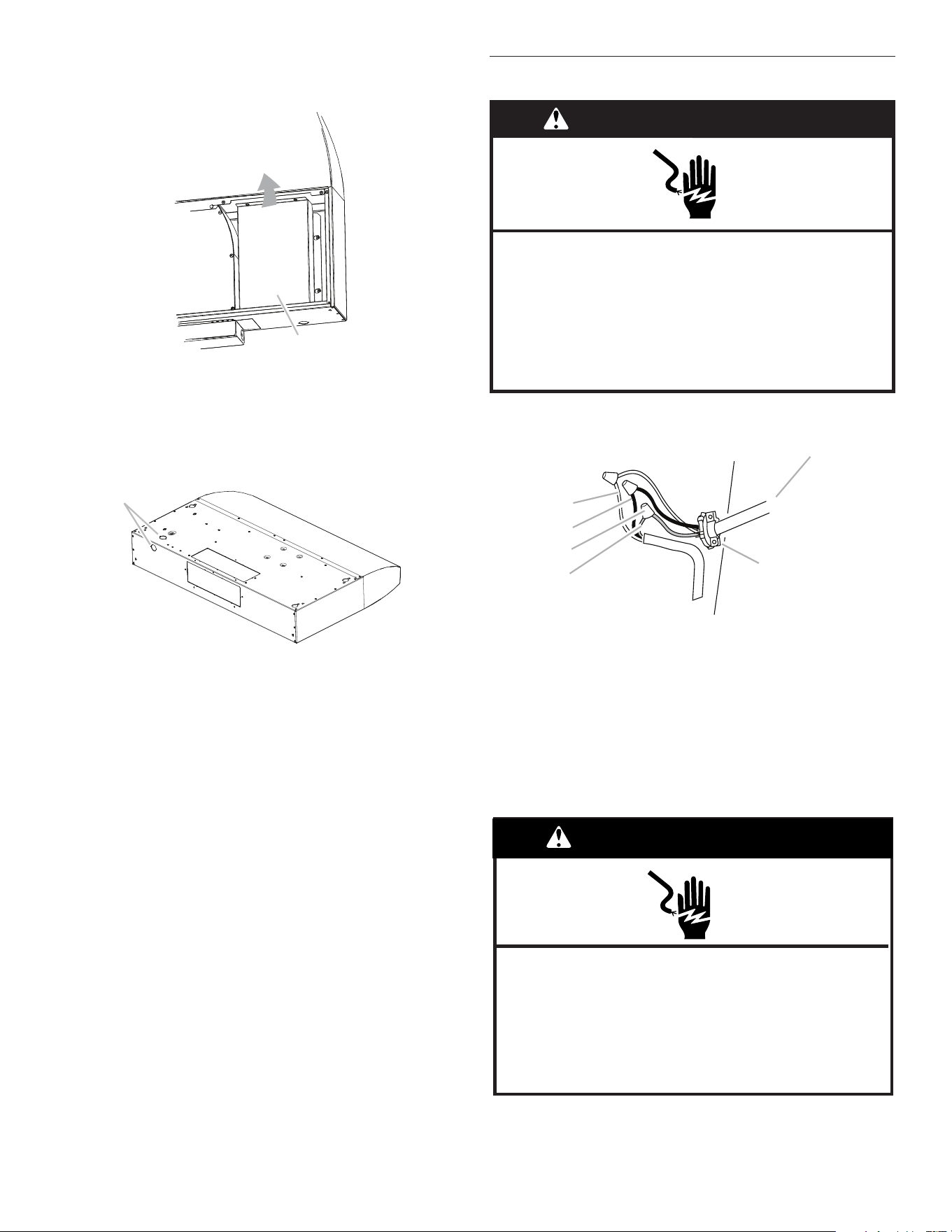

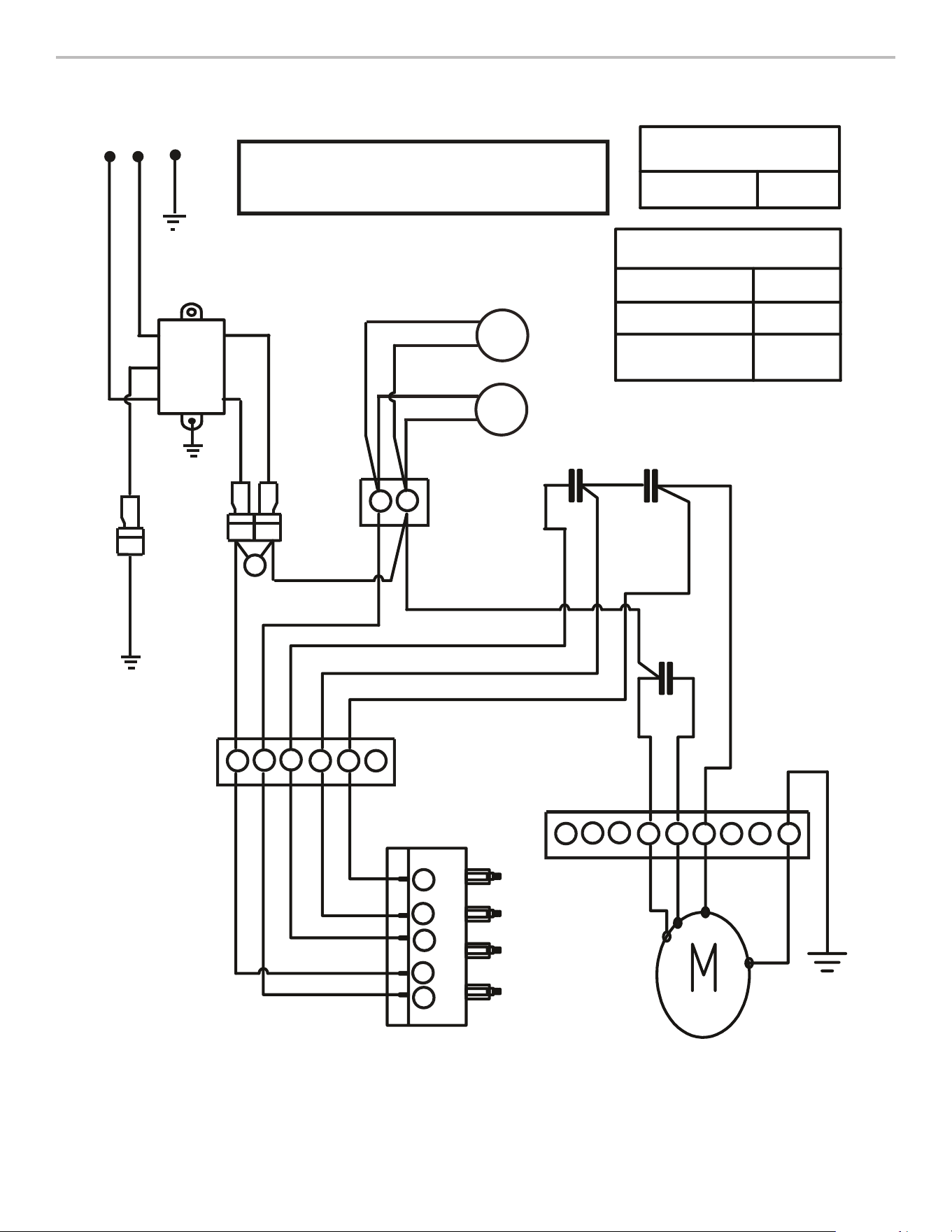

ELECTRICAL REQUIREMENTS
■ A 120 Volt, 60 Hz., AC only, 15-amp, fused electrical circuit is required.

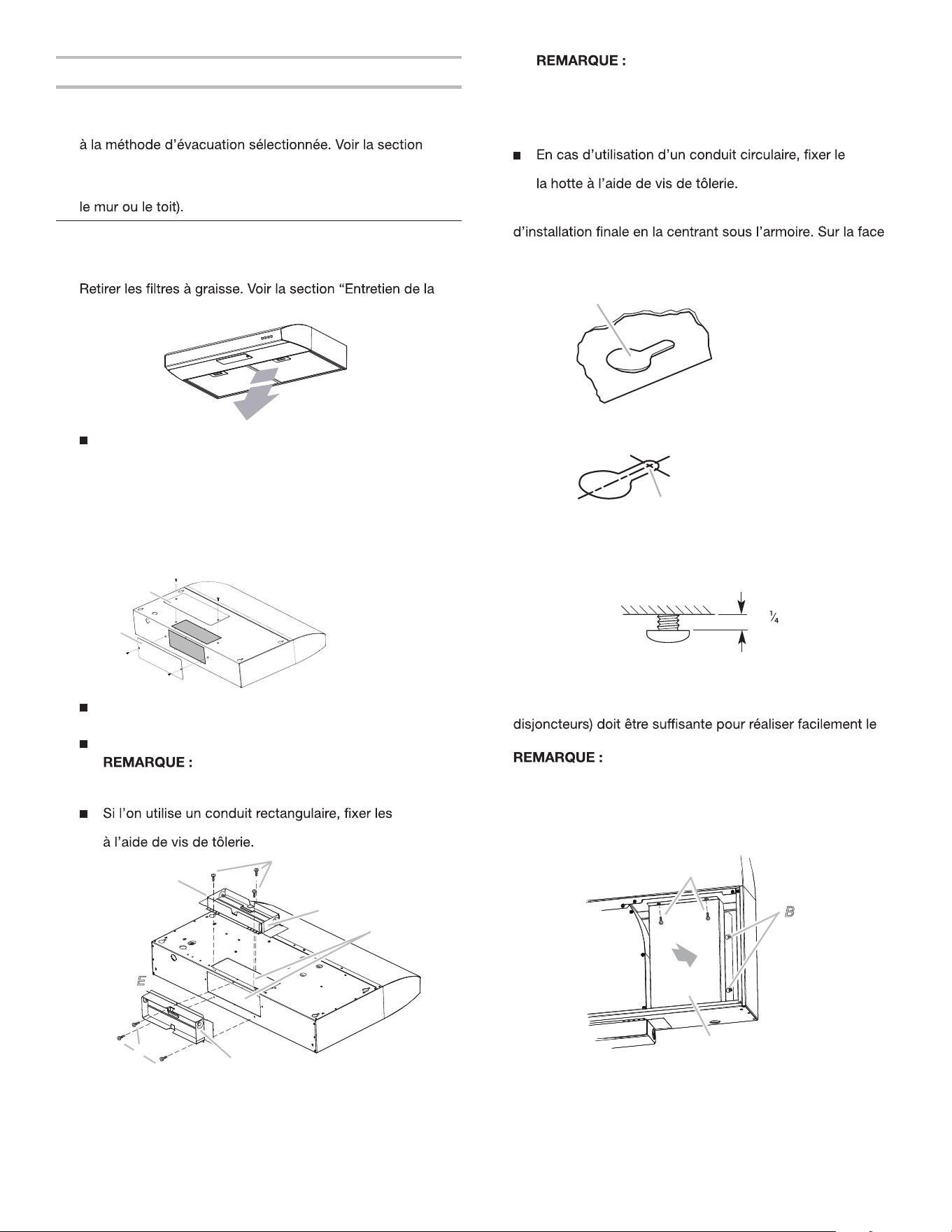

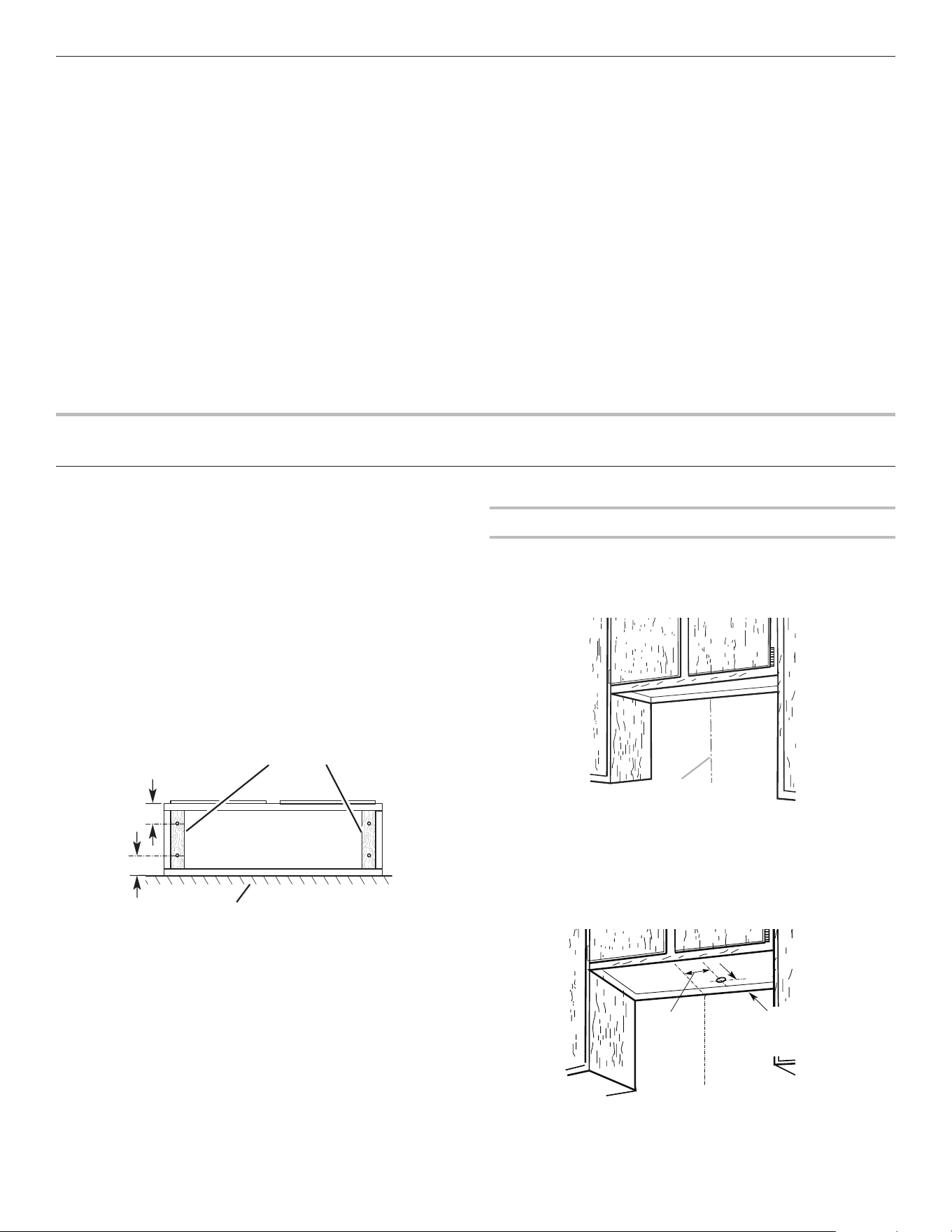

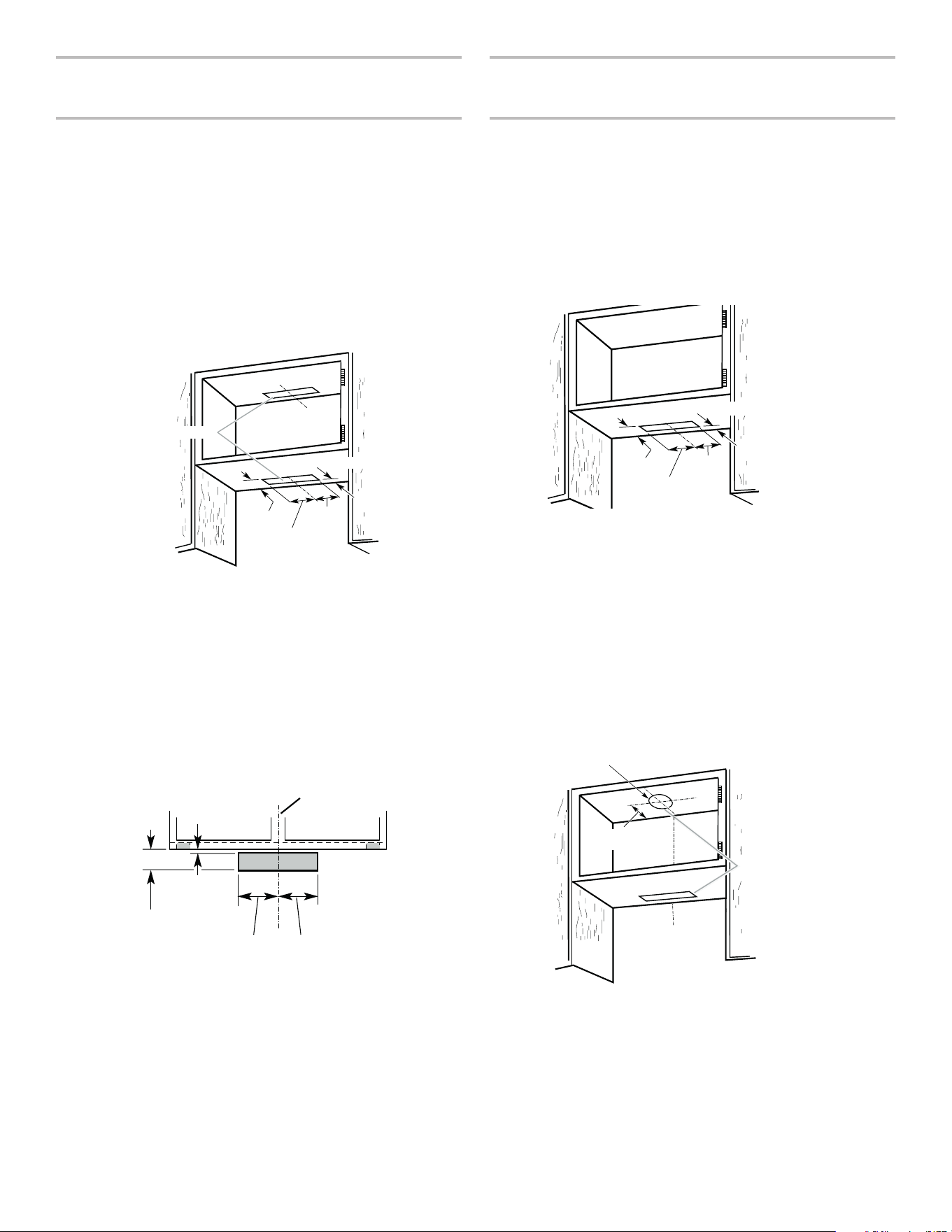

VENTING REQUIREMENTS
Vent system can terminate either through the roof or wall. Use 3¼" x 10"
(8.3 x 25.4 cm) with a maximum vent length of 35 ft (10.7 m) or 6" (15.2 cm)
or larger round vent with a maximum length of 50 ft (15.2 m) for vent system.
NOTE: Flexible vent is not recommended. Flexible vent creates back pressure and air
turbulence that gently reduces performance.
The ducting from this fan to the outside of the building has a strong effect on the air flow,
noise and energy use of the fan. Use the shortest, straightest duct routing possible for
best performance, and avoid installing the fan with smaller ducts than recommended.
Insulation around the ducts can reduce energy loss and inhibit mold growth. Fans installed
with existing ducts may not achieve their rated airflow.
Ensure duct joints and exterior penetrations are sealed with caulk or other similar material
to create an air-tight path and to minimize building heat loss and gain and reduce the
potential for condensation.
Place/wrap insulation around duct and/or fan in order to minimize possible condensation
buildup within the duct, building heat loss and gain

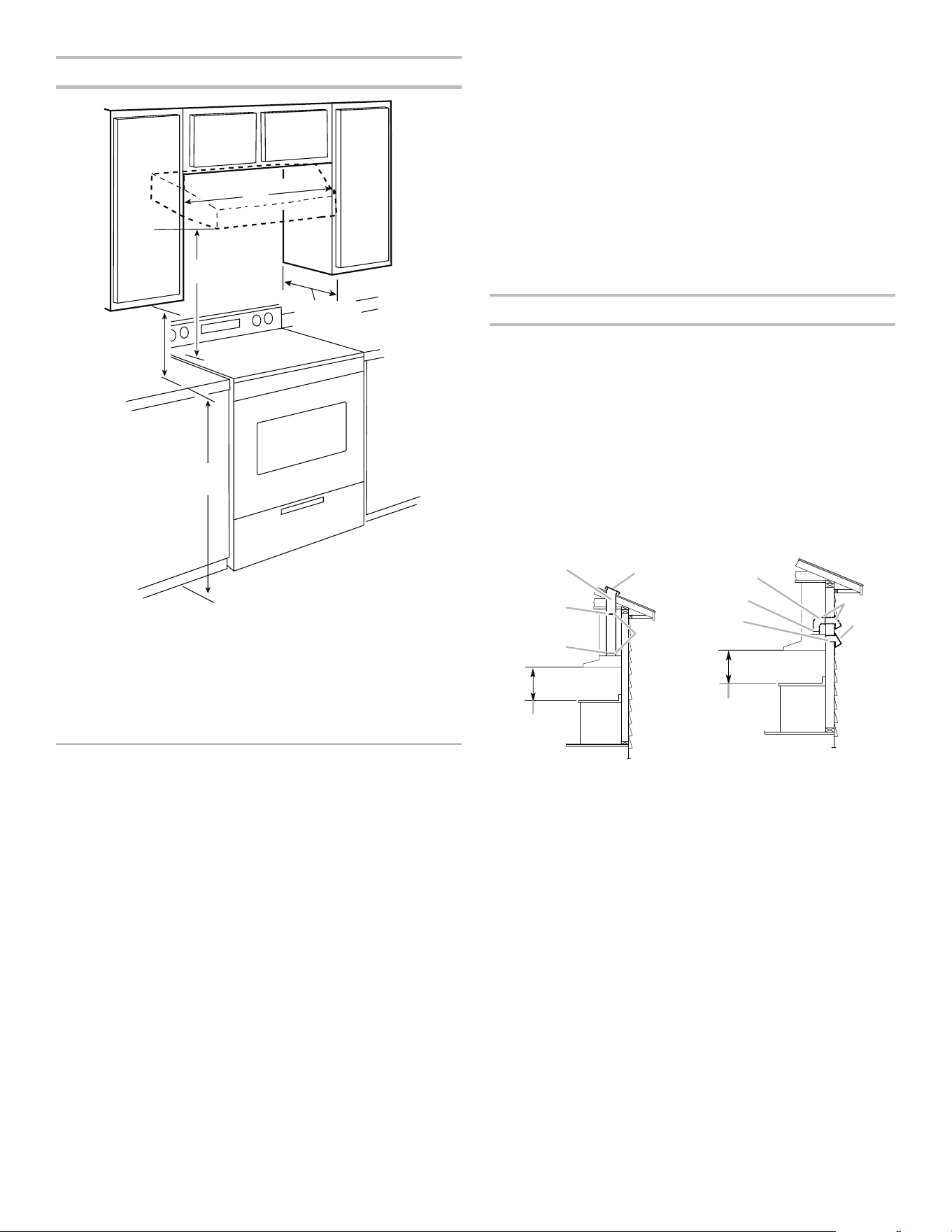

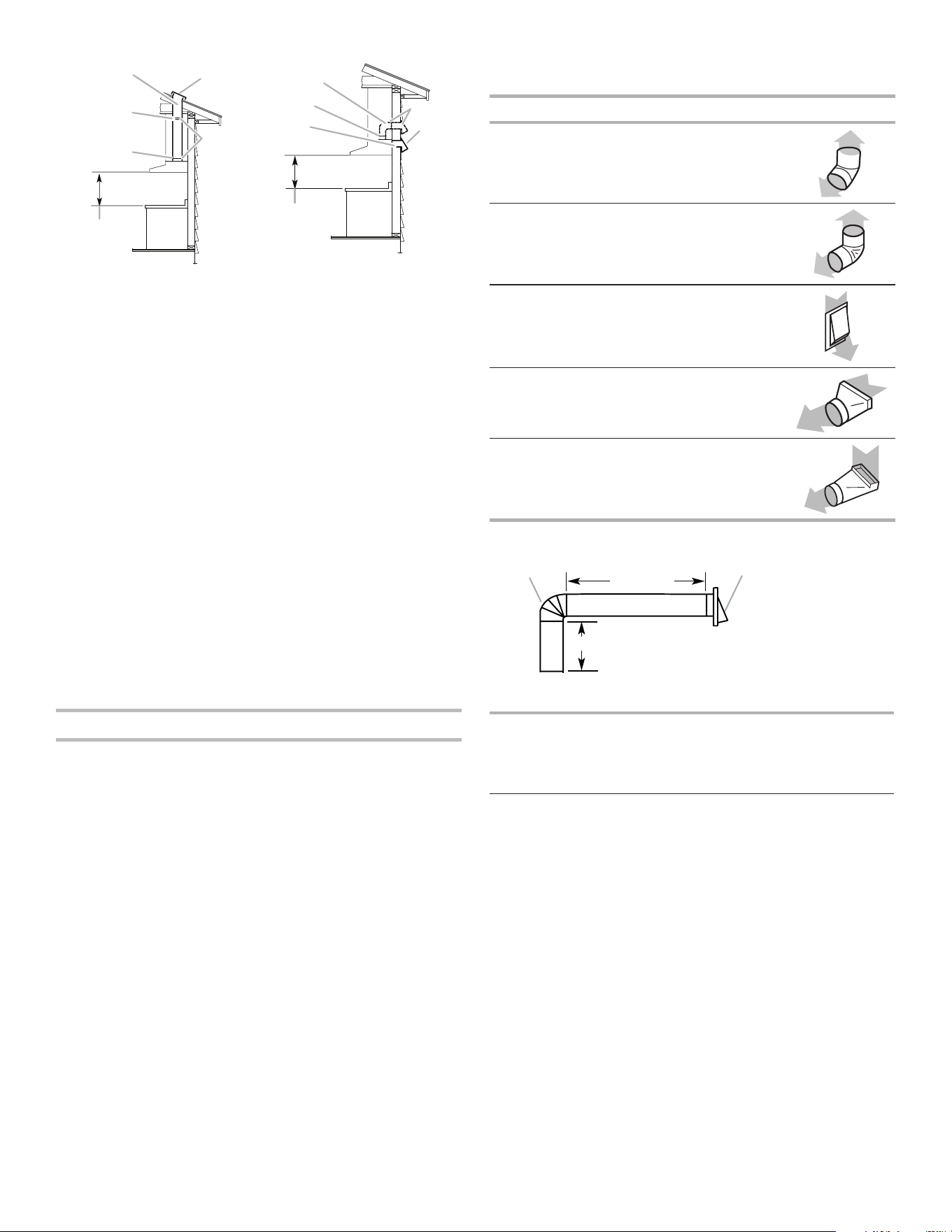

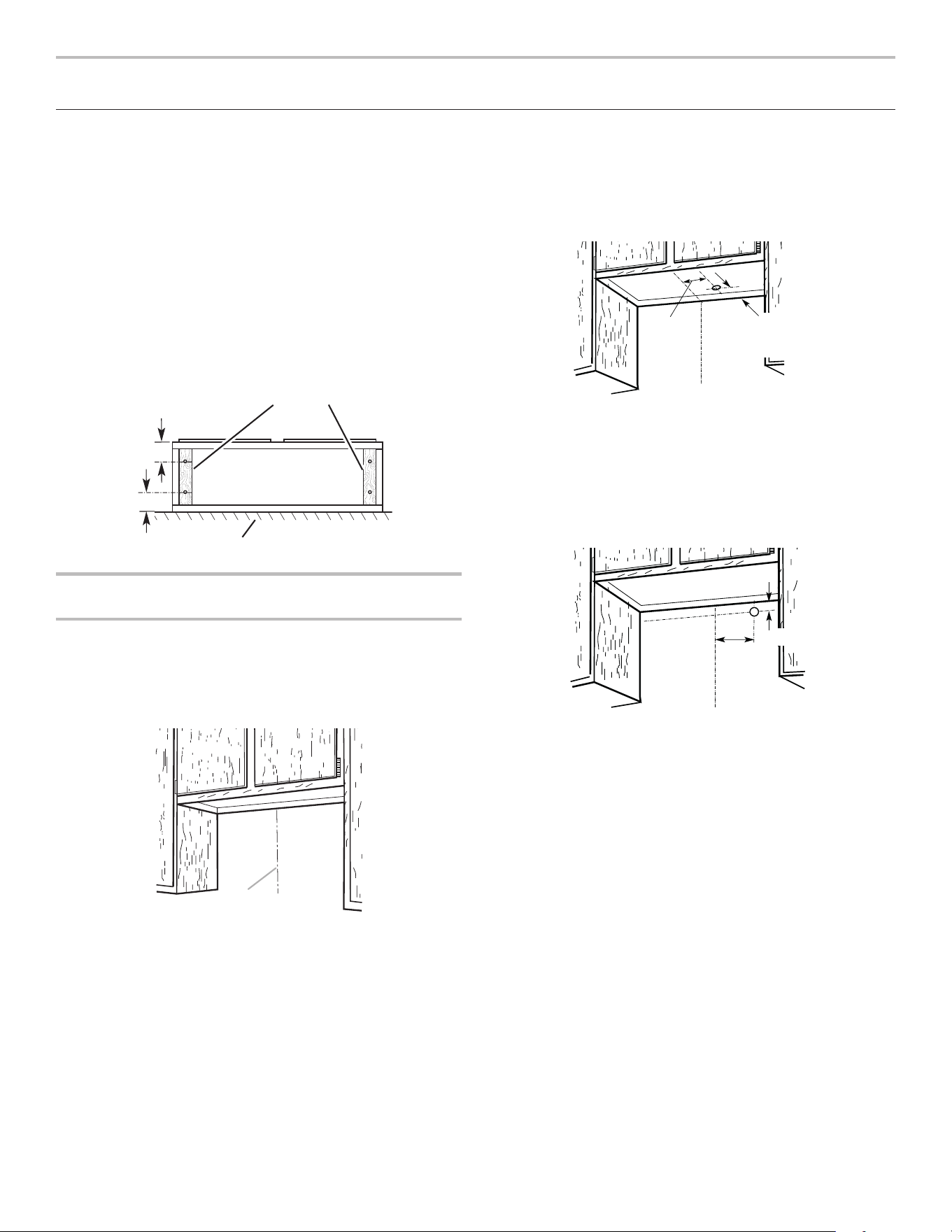

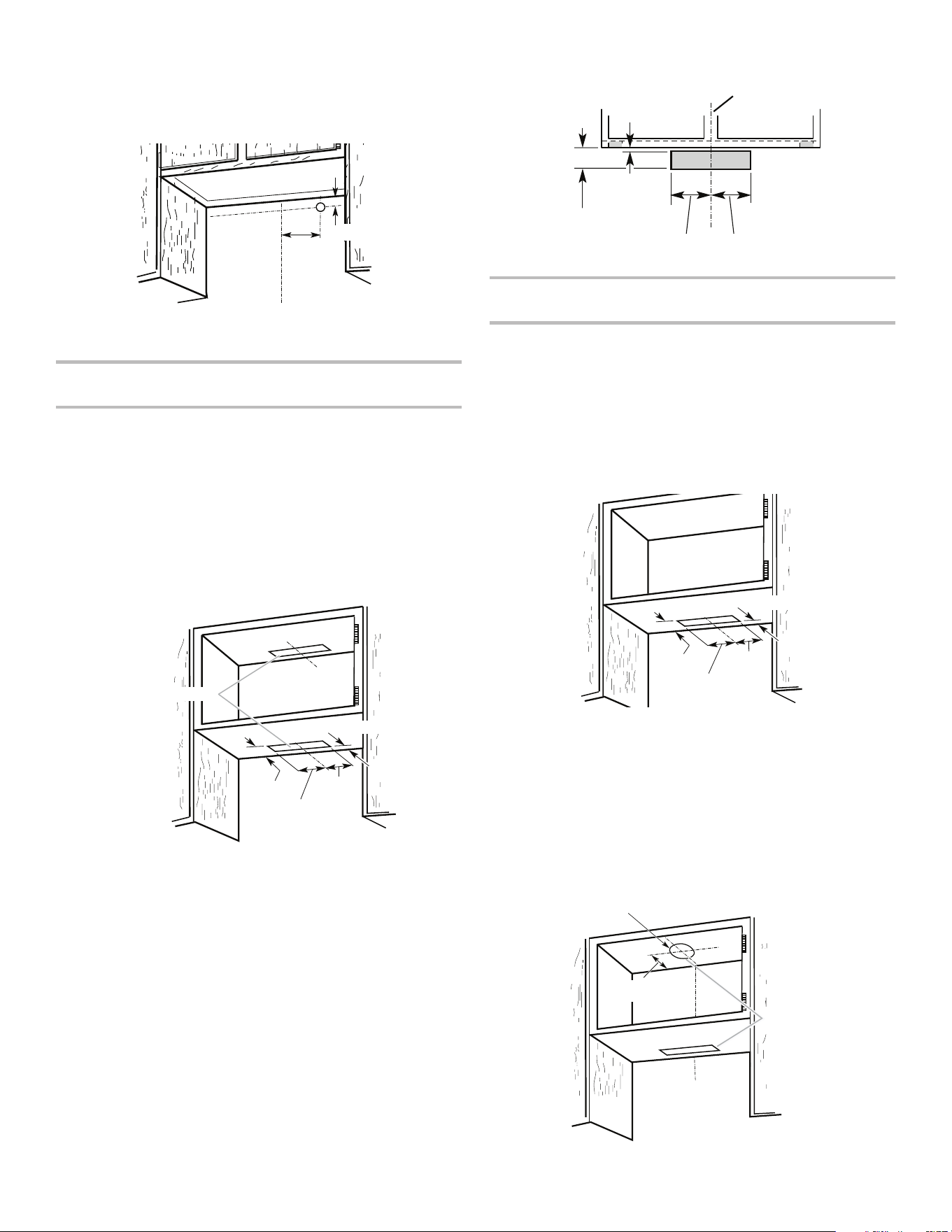

Wall Venting
Roof Venting
A
B
D
C
E
A
B
C
D
E
F
F
A. 6" (15.2 cm) or larger round
vent or a 3
1
/
4
" x 10"
(8.3 x 25.4 cm) rectangular
vent through roof
B. Round vent: use 6"
(15.2 cm) or larger round
damper (purchased
separately)
C. Round vent: use
3
1
/
4
" x 10" (8.3 x 25.4 cm)
to 6" (15.2 cm) or larger
diameter transition piece
(purchased separately)

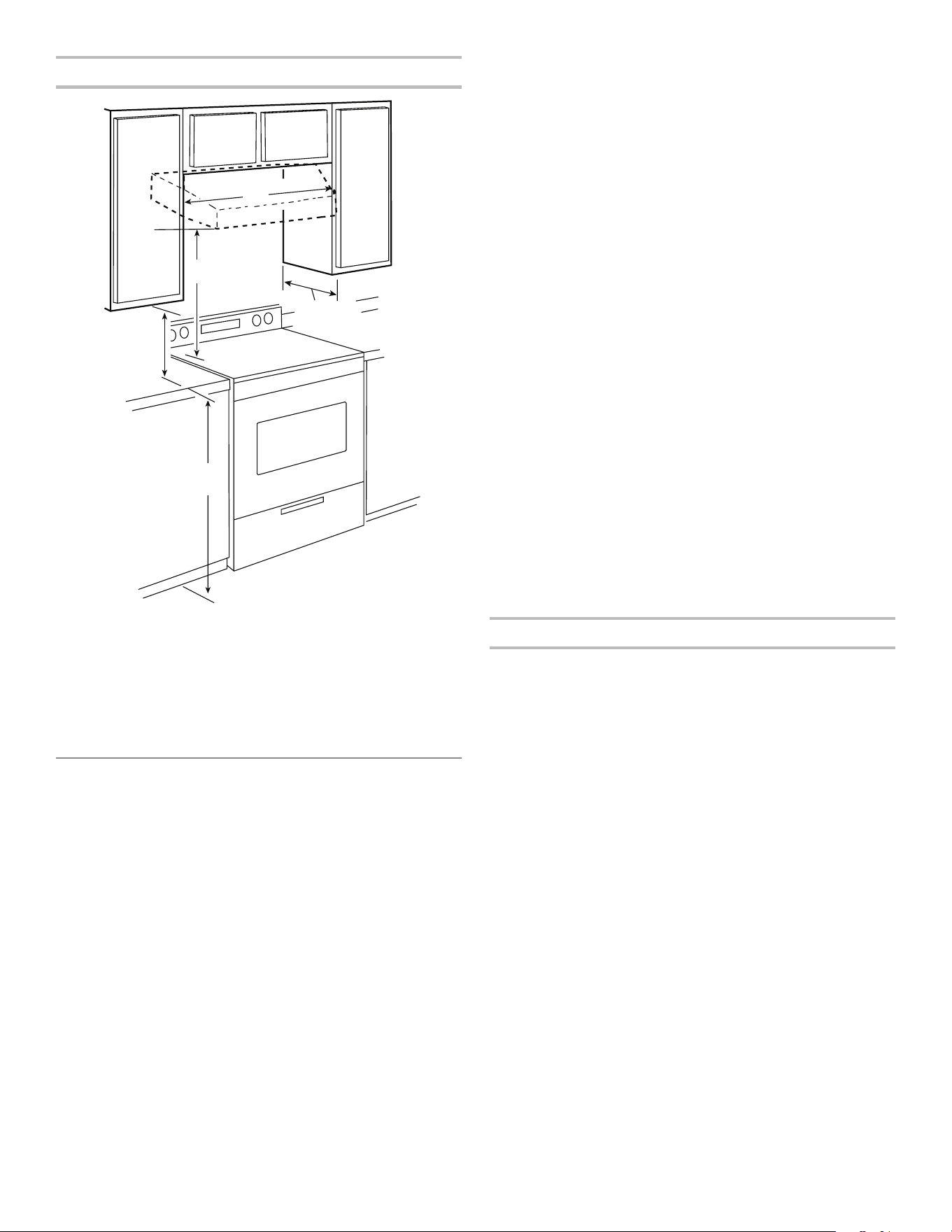

D. 27" (68.6 cm) - 30" (76.2 cm)
above gas cooking surface
24" (61.0 cm) - 30" (76.2 cm)
above electric cooking
surface
E. Roof cap
F. Seal duct joints with duct
tape/caulk
A. 6" (15.2 cm) or larger round
vent or a 3
1
/
4
" x 10"
(8.3 x 25.4 cm) rectangular
vent through the wall
B. Round vent: use
3
1
/
4
" x 10" (8.3 x 25.4 cm)
to 6" (15.2 cm) or larger
diameter transition piece
(purchased separately)
C. 3
1
/
4
" x 10" (8.3 x 25.4 cm)
through the wall
D. 27" (68.6 cm) - 30" (76.2 cm)
above gas cooking surface
24" (61.0 cm) - 30" (76.2 cm)
above electric cooking
surface
E. Wall cap
F. Seal duct joints with duct
tape/caulk

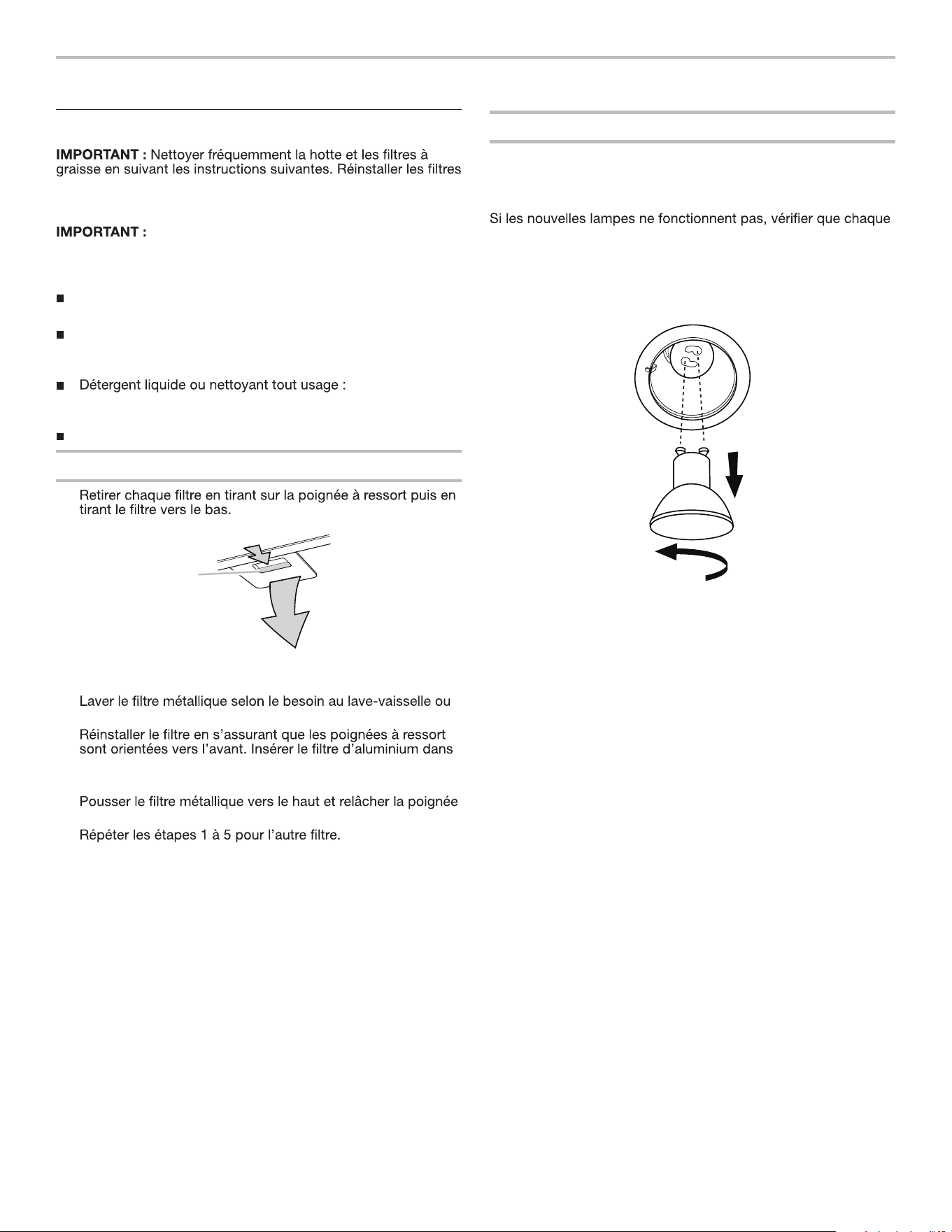

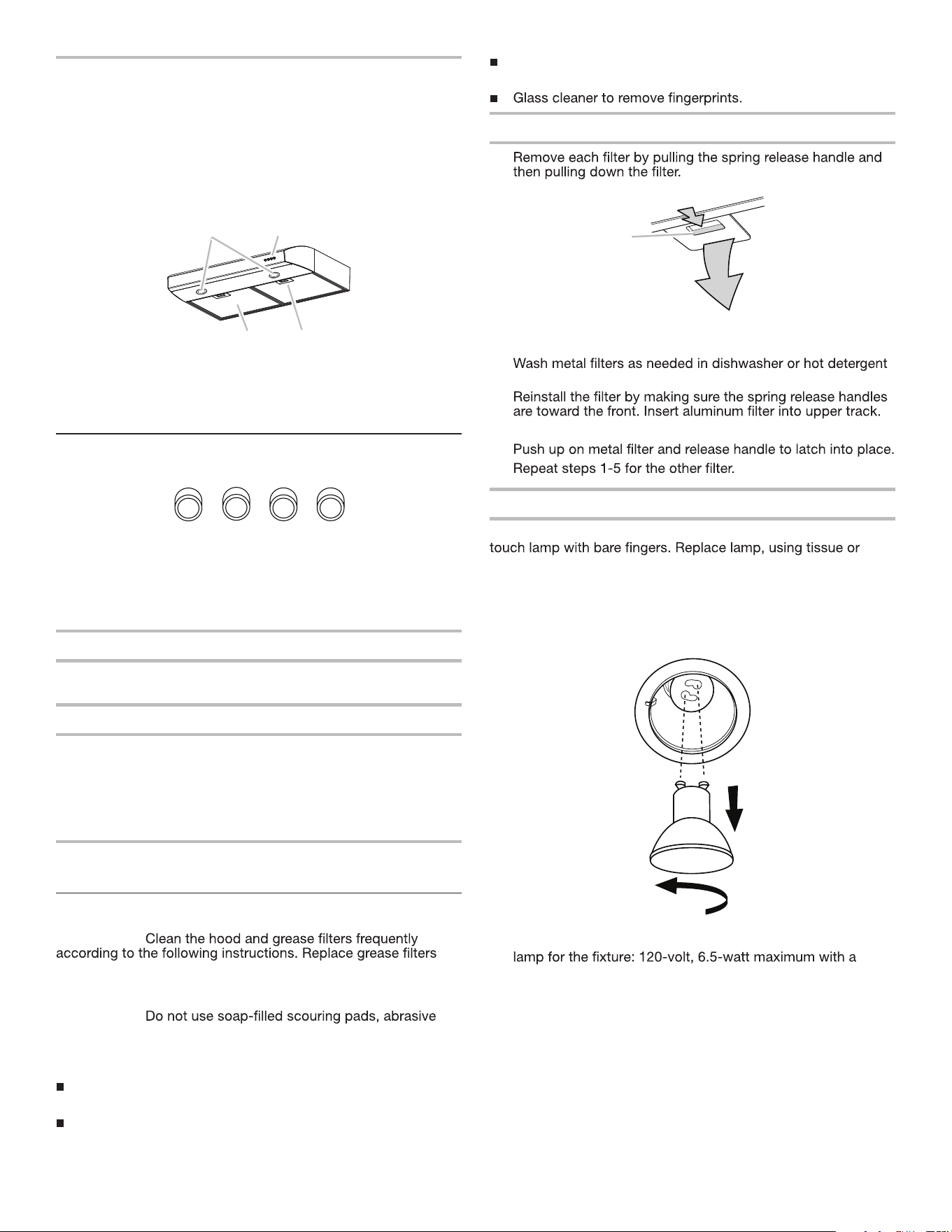

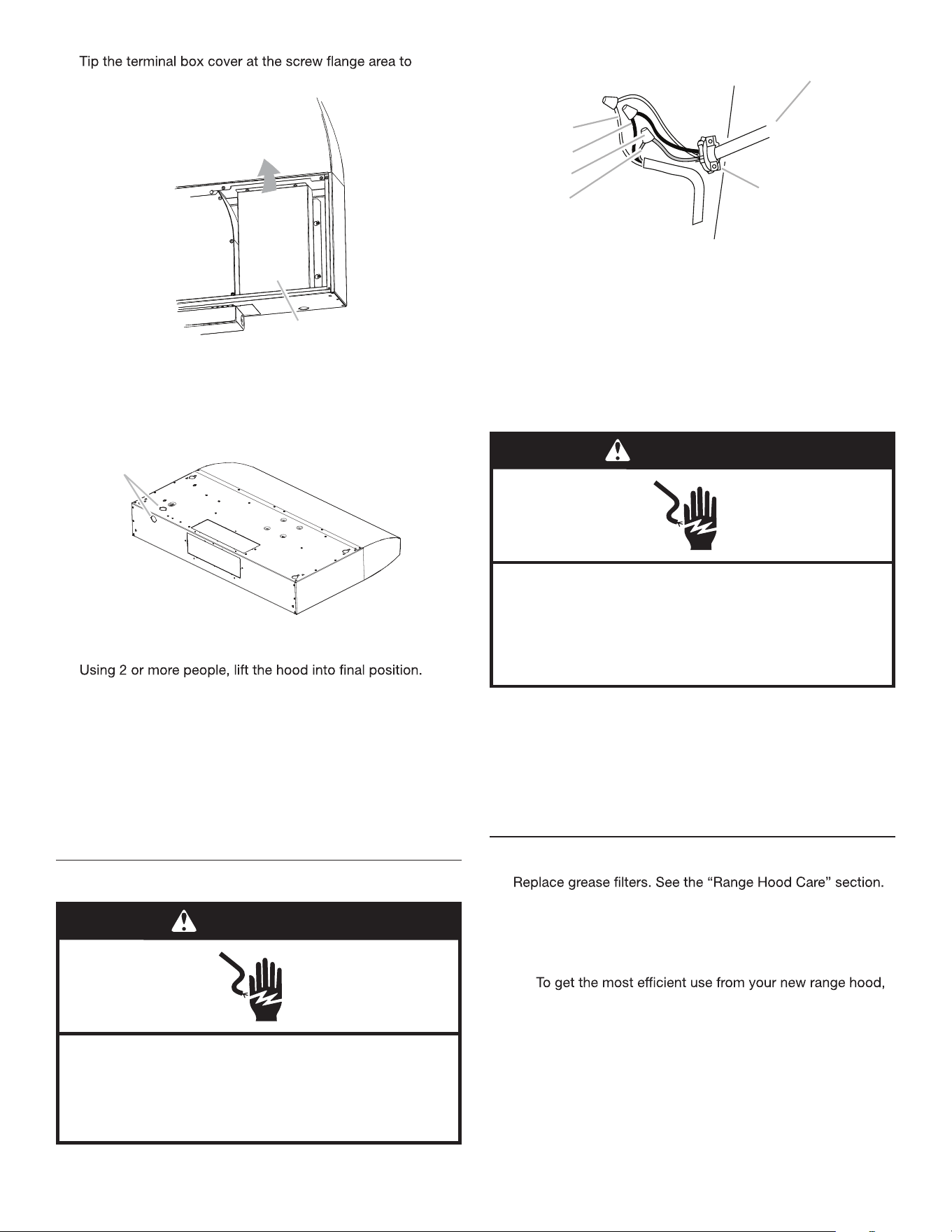

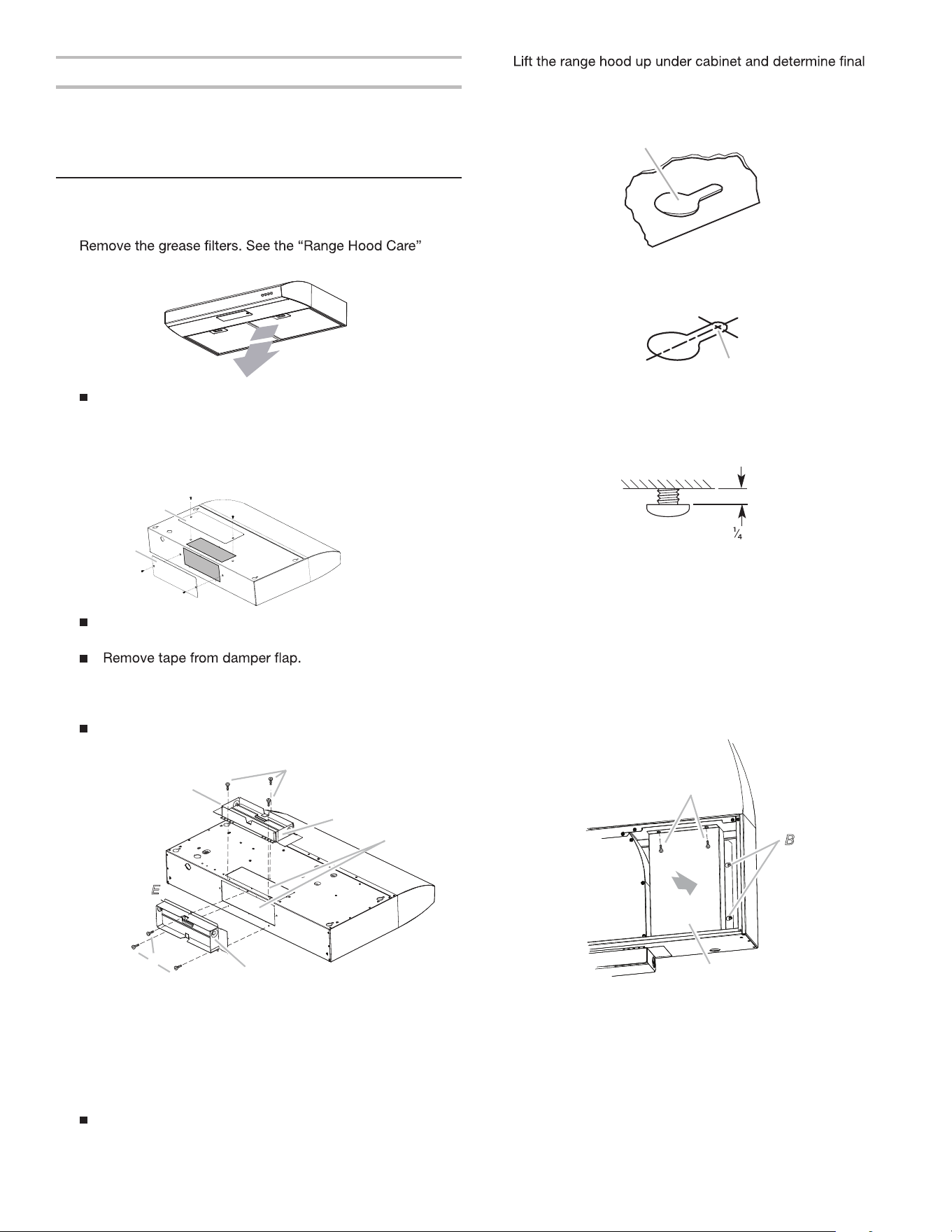

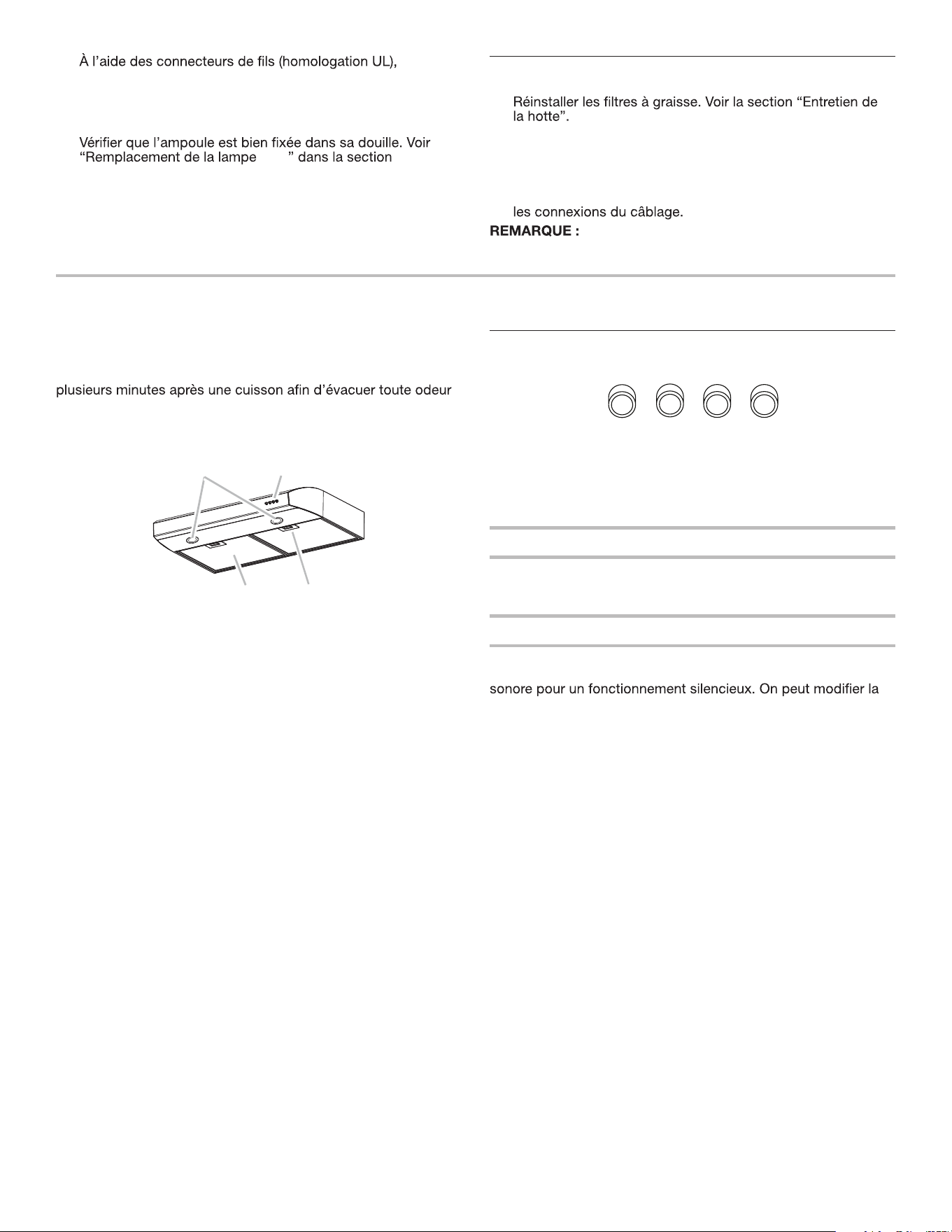

30" (76.2 CM) Range Hood

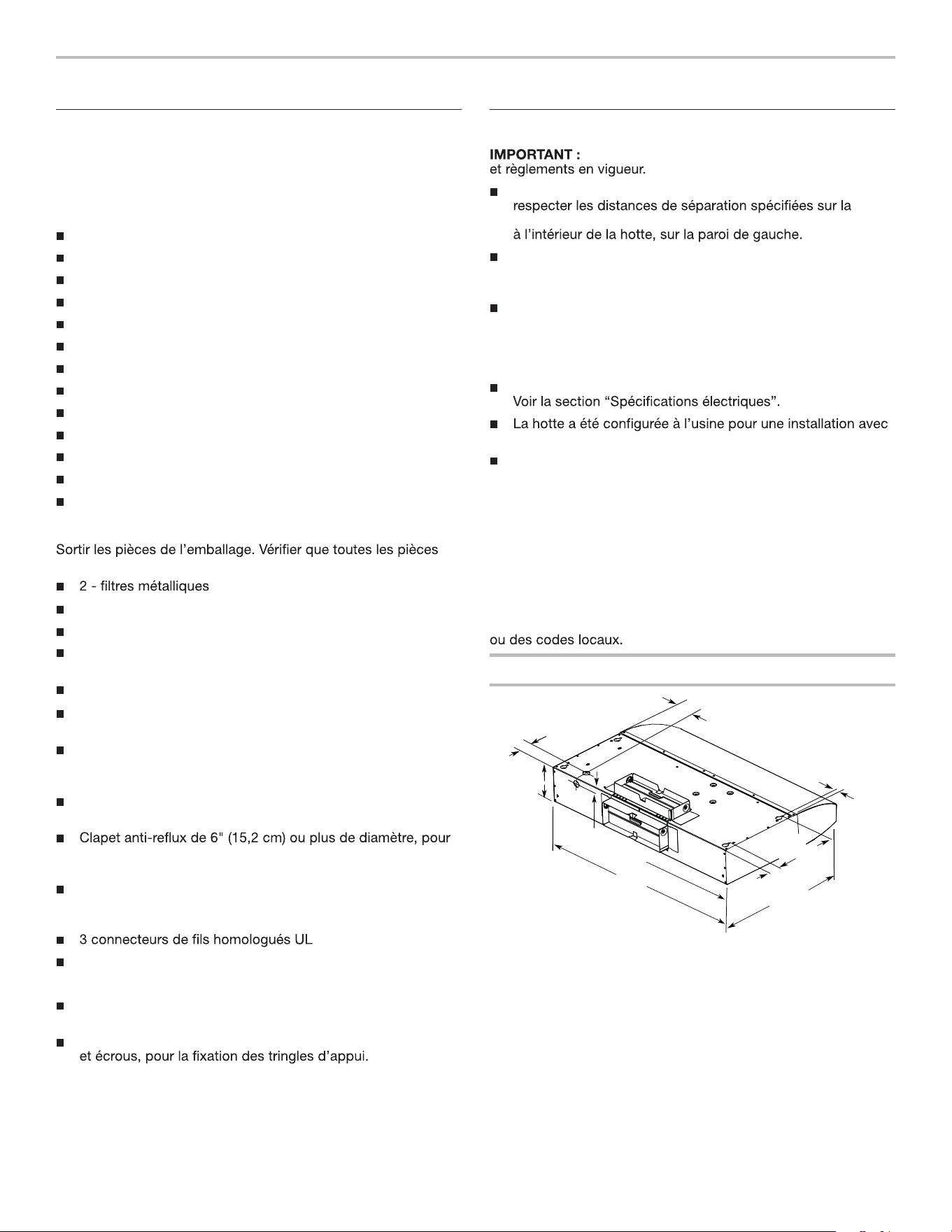

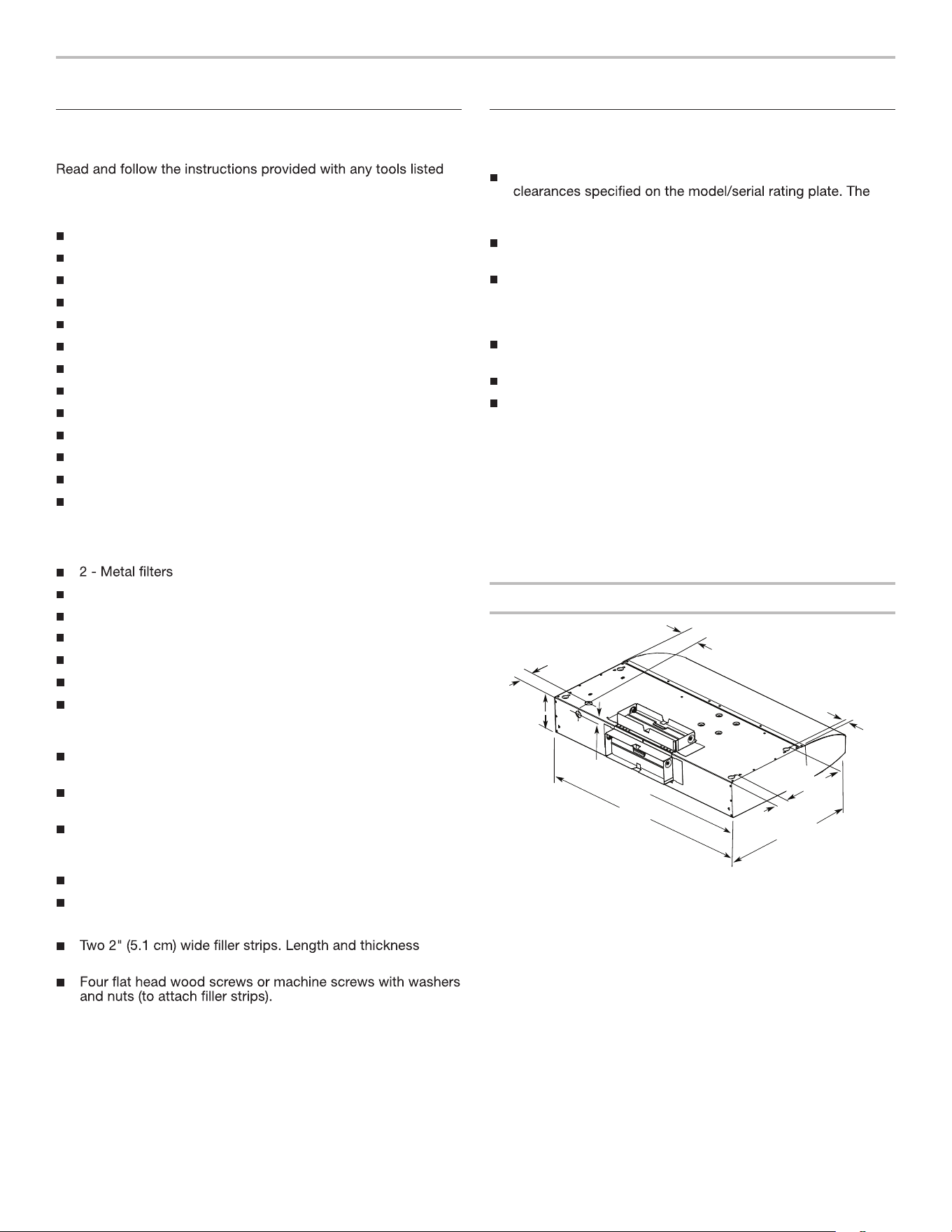

PRODUCT DIMENSIONS

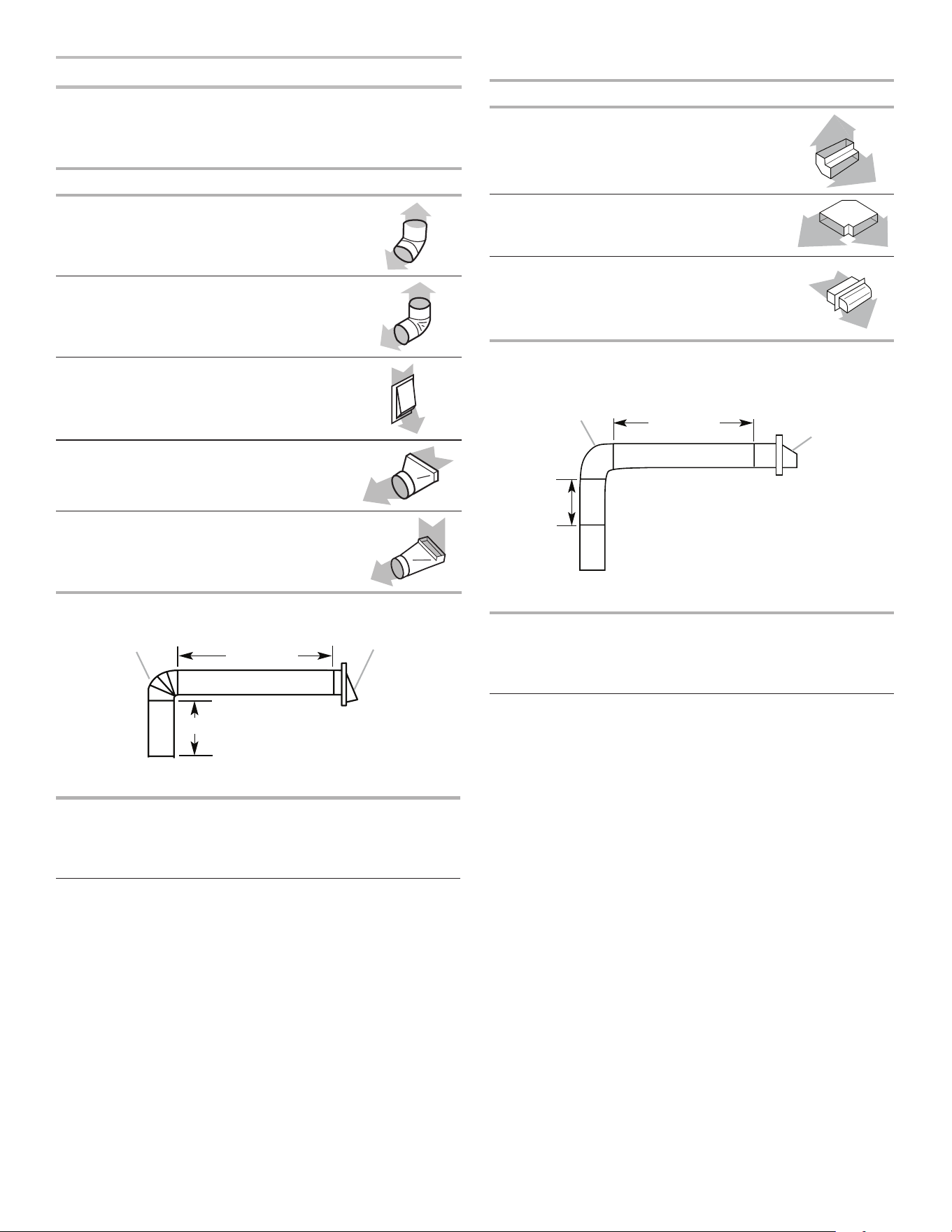

Calculating Vent System Length
To calculate the length of the system you need, add the equivalent feet (meters) for each
vent piece used in the system.
6" (15.2 cm) or Larger Round Vent System
Vent Piece Round
45° elbow 2.5 ft (0.8 m)
90° elbow 5 ft (1.5 m)
6" (15.2 cm) or larger wall cap 0 ft (0 m)
3
1
/
4
" x 10" (8.3 cm x 25.4 cm) to 6" (15.2 cm)
or larger
4.5 ft (1.4 m)
3
1
/
4
" x 10" (8.3 cm x 25.4 cm) to 6" (15.2 cm)
or larger 90° elbow
5 ft (1.5 m)
Example vent system
Maximum Recommended Length = 50 ft (15.2 m)
1 - 90° elbow = 5.0 ft (1.5 m)
1 - wall cap = 0.0 ft (0 m)
8 ft (2.4 m) straight = 8.0 ft (2.4 m)
Length of 7" (15.2 cm) system = 13.0 ft (3.9 m)
29¹⁵⁄₁₆" (76.0 cm)
20"
(50.8 cm)
9"
(22.9 cm)
1¹⁄₂"
(3.8 cm)
4³⁄₄"
(12.1 cm)
1"
(2.5 cm)
4¹⁄₁₆" (10.3 cm)
1³⁄₄"
(4.4 cm)
³⁄₄"
(2.0 cm)
Wall cap
90˚ elbo
w
2 ft (0.6 m)
6 ft (1.8 m)
