RAZER NAGA TRINITY
MASTER GUIDE
FOR GAMERS. BY GAMERS.
™
1
Experience the power of total control in your hand, no matter what
game you play.
Designed to provide you that edge you need in MOBA/MMO
gameplay, the Razer Naga Trinity lets you configure your mouse for
everything from weapons to build customizations so you’ll always be
ahead of the competition. The Razer Naga Trinity is equipped with 3
interchangeable side plates that allow you to switch between 2, 7 and
12-button configurations, depending on your in-game needs. With a
16,000 DPI 5G Optical Sensor, mouse movements are swift and
executed exactly. Also, get access to even more commands with up to
19 programmable buttons. Designed with an enhanced right-handed
form factor for comfort and well-positioned buttons for easy actuation,
you can game for long hours without feeling the strain.
FOR GAMERS. BY GAMERS.
™
2
CONTENTS
1. PACKAGE CONTENTS / SYSTEM REQUIREMENTS ........................................................ 3
2. REGISTRATION / TECHNICAL SUPPORT ......................................................................... 4
3. TECHNICAL SPECIFICATIONS ........................................................................................... 5
4. DEVICE LAYOUT ................................................................................................................. 6
5. SETTING UP YOUR RAZER NAGA TRINITY ...................................................................... 1
6. INSTALLING RAZER SYNAPSE FOR YOUR RAZER NAGA TRINITY ............................... 2
7. CONFIGURING YOUR RAZER NAGA TRINITY .................................................................. 3
8. SAFETY AND MAINTENANCE .......................................................................................... 23
9. LEGALESE ......................................................................................................................... 25
FOR GAMERS. BY GAMERS.
™
3
1. PACKAGE CONTENTS / SYSTEM REQUIREMENTS
PACKAGE CONTENTS
▪ Razer Naga Trinity gaming mouse
▪ 3 interchangeable side plates
▪ Important Product Information Guide
SYSTEM REQUIREMENTS
PRODUCT REQUIREMENTS
▪ PC or Mac with a free USB port
RAZER SYNAPSE 3 REQUIREMENTS
▪ Windows® 7 (or higher)
▪ Internet connection
▪ 500 MB of free hard disk space
RAZER SYNAPSE REQUIREMENTS
▪ OS X® 10.9 (or higher)
▪ Internet connection
▪ 100 MB of free hard disk space
FOR GAMERS. BY GAMERS.
™
4
2. REGISTRATION / TECHNICAL SUPPORT
REGISTRATION
Register your product online at razer-id.razerzone.com/warranty to get real-time information
on your product’s warranty status.
If you haven’t registered for a Razer ID yet, register now at razer-id.razerzone.com to get a
wide range of Razer benefits.
TECHNICAL SUPPORT
▪ 2 years limited manu facturer’s warranty.
▪ Free online technical support at razersupport.com.
Your product’s serial
number can be found
here.
FOR GAMERS. BY GAMERS.
™
5
3. TECHNICAL SPECIFICATIONS
TECHNICAL SPECIFICATIONS
▪ Razer 5G optical sensor with true 16,000 DPI
▪ Up to 450 inches per second (IPS) / 50 G acceleration
▪ 3 interchangeable side plates with 2, 7 and 12-button thumb grid configurations
▪ Up to 19 independently programmable Hyperesponse buttons
▪ Razer™ Mechanical Mouse Switches
▪ Gaming-grade tactile scroll wheel
▪ Ergonomic right-handed design with enhanced rubber side grips
▪ Razer Chroma™ lighting with 16.8 million customizable color options
▪ 1000 Hz Ultrapolling
▪ Razer Synapse 3 (Beta) enabled
APPROXIMATE SIZE & WEIGHT
▪ Length: 119 mm / 4.69 in
▪ Width: 74 mm / 2.93 in
▪ Height: 43 mm / 1.69 in
▪ Weight: 120 g / 0.26 lbs (excluding cable)
FOR GAMERS. BY GAMERS.
™
6
4. DEVICE LAYOUT
A. Left mouse button
B. Right mouse button
C. Scroll wheel
D. Right tilt-click —repeat scroll down
E. Left tilt-click —repeat scroll up
F. DPI stage up
G. DPI stage down
H. Ultraslick mouse feet
I. Profile indicator
J. Profile button
K. True 16,000 DPI 5G optical sensor
L. 12-button side plate
M. 7-button side plate
N. 2-button side plate
Default DPI stages are as follows: 800, 1800, 4500, 9000, and 16000. The DPI stages can
be customized using Razer Synapse 3.
FOR GAMERS. BY GAMERS.
™
1
5. SETTING UP YOUR RAZER NAGA TRINITY
CHANGING THE SIDE PLATE
Pull from the bottom of the side plate to remove it; and then replace it with another side plate
of a different button configuration.
Note: To customize each side plate’s button assignments, please install Razer Synapse
3.
FOR GAMERS. BY GAMERS.
™
2
6. INSTALLING RAZER SYNAPSE FOR YOUR RAZER NAGA
TRINITY
Step 1: Connect your Razer device to the USB port of your computer.
Step 2: Install Razer Synapse when prompted* or download the installer from
razerzone.com/synapse.
Step 3: Create your Razer ID or log into Razer Synapse with an existing account.
*Applicable for Windows 8 or later.
FOR GAMERS. BY GAMERS.
™
3
7. CONFIGURING YOUR RAZER NAGA TRINITY
Disclaimer: The features listed here require you to log in to Razer Synapse. These
features are also subject to change based on the current software version and your
Operating System.
SYNAPSE TAB
The Synapse tab is your default tab when you first launch Razer Synapse 3. This tab allows
you to navigate the Dashboard subtab.
Dashboard
The Dashboard subtab is an overview of your Razer Synapse 3 where you can access all
your Razer devices, modules, and online services.
FOR GAMERS. BY GAMERS.
™
4
MOUSE TAB
The Mouse tab is the main tab for your Razer Naga Trinity. From here, you can change your
device’s settings such as button assignment, DPI sensitivity, and lighting. Changes made
under this tab are automatically saved to your system and cloud storage however, you need
to click the Save button ( ) to open the storage slots for your Razer device’s on-board
memory then drag and drop the profiles you want to store.
Customize
The Customize subtab is for modifying your mouse’s button assignments.
Profile
Profile is a data storage for keeping all your Razer peripheral’s settings. By default, the profile
name is based on your system’s name. To add, rename, duplicate, or delete a profile, simply
press the Miscellaneous button ( ).
Hypershift
Hypershift mode is a secondary set of button assignments that is activated when the
Hypershift key is held down. By default, the Hypershift key is assigned to the FN key of your
Razer Synapse 3 supported keyboard however, you can also assign any mouse button as a
Hypershift key.
FOR GAMERS. BY GAMERS.
™
5
Sidebar
Clicking the Sidebar button ( ) will reveal all current button assignments for your Razer
Naga Trinity.
Alternatively, you can skip to a specific button assignment by selecting it on the Customize
tab.
FOR GAMERS. BY GAMERS.
™
6
Upon selecting a button assignment, you may then change it to one of the following functions:
Default
This option enables you to return the mouse button to its original setting.
Keyboard Function
This option changes the button assignment into a keyboard function. You can also choose
enable Turbo mode which allows you to emulate repeatedly pressing the keyboard function
while the button is held down.
Mouse Function
This option substitutes the current button assignment into another mouse function. Listed
below are the functions which you can choose from:
▪ Left Click - Performs a left mouse click using the assigned button.
▪ Right Click - Performs a right mouse click using the assigned button.
▪ Scroll Click - Activates the universal scrolling function.
▪ Double Click - Performs a double left click using the assigned button.
▪ Mouse Button 4 - Performs a “Backward” command for most internet browsers.
FOR GAMERS. BY GAMERS.
™
7
▪ Mouse Button 5 - Performs a “Forward” command for most internet browsers.
▪ Scroll Up - Performs a “Scroll Up” command using the assigned button.
▪ Scroll Down - Performs a “Scroll Down” command using the assigned button.
▪ Scroll Left - Performs a “Scroll Left” command using the assigned button.
▪ Scroll Right - Performs a “Scroll Right” command using the assigned button.
▪ Repeat Scroll Up - Continuously performs a “Scroll Up” command while the assigned
button is pressed.
▪ Repeat Scroll Down - Continuously performs a “Scroll Down” command while the
assigned button is pressed.
You can also choose to enable Turbo mode in some of the mouse functions which allow you
to emulate repeatedly pressing and releasing said function while the button is held down.
Sensitivity
This function allows you to manipulate the DPI setting of your Razer Naga Trinity with a touch
of a button. Listed below are the Sensitivity options and their description:
▪ Sensitivity Clutch - Changes the sensitivity to a predefined DPI while the designated
button is held down. Releasing the button will return it to the previous sensitivity.
▪ Sensitivity Stage Up - Increases the current sensitivity by one stage.
▪ Sensitivity Stage Down - Decreases the current sensitivity by one stage.
▪ On-The-Fly Sensitivity - Pressing the designated button and moving the scroll wheel
either up or down will increase or decrease the current DPI respectively.
▪ Cycle Up Sensitivity Stages - Increases the current sensitivity stage by one. Once it
reaches the highest sensitivity stage, it will return to stage 1 when the button is
pressed again.
▪ Cycle Down Sensitivity Stages - Decreases the current sensitivity stage by one. Once
it reaches stage 1, it will return to the highest sensitivity stage when the button is
pressed again. Click here to learn more about Sensitivity Stages
Macro
A Macro is a prerecorded sequence of keystrokes and button presses that is executed with
precise timing. By setting the button function to Macro, you can conveniently execute a chain
of commands. Click here to learn more about Macros
Switch Profile
FOR GAMERS. BY GAMERS.
™
8
Switch Profile enables you to quickly change profiles and load a new set of button
assignments. An on-screen notification will appear whenever you switch profiles.
Switch Lighting
Switch Lighting allows you to easily switch between the current lighting effect to a custom
lighting effect. Click here to learn more about Advanced Chroma Effects
Razer Hypershift
Setting the button to Razer Hypershift will allow you to activate Hypershift mode as long as
the button is held down.
Launch Program
Launch Program enables you to open an app or a website using the assigned button. When
you select Launch Program, two choices will appear which requires you to search for a
specific app you want to open, or write the address of the website you want to visit.
Multimedia
This option allows you to assign multimedia controls to your Razer device. Listed below are
the multimedia controls you can choose from:
▪ Volume Down - Decreases the audio output.
▪ Volume Up - Increases the audio output.
▪ Mute Volume - Mutes the audio.
▪ Mic Volume Up - Increases the microphone volume.
▪ Mic Volume Down - Decreases the microphone volume.
▪ Mute Mic - Mutes the microphone.
▪ Mute All - Mutes both microphone and audio output.
▪ Play / Pause - Play, pause, or resume playback of the current media.
▪ Previous Track - Play the previous media track.
▪ Next Track - Play the next media track.
Windows 8 Charms
This option enables you to assign the mouse button into a Windows 8 shortcut command. For
more information, please visit: http://windows.microsoft.com/en-us/windows-8/getting-around-
tutorial
FOR GAMERS. BY GAMERS.
™
9
FOR GAMERS. BY GAMERS.
™
10
Windows Shortcuts
This option allows you to assign the mouse button into a Windows Operating System shortcut
command. For more information, please visit: http://support.microsoft.com/kb/126449
Text Function
Text Function enables you to type a prewritten text with a touch of a button. Simply write your
desired text on the given field and your text will be typed whenever the assigned button is
pressed. This function has full Unicode support and you can also insert special symbols from
character maps.
Disable
This option renders the assigned key unusable. Use Disable if you do not want to use the
mouse button or if it interferes with your gaming.
FOR GAMERS. BY GAMERS.
™
11

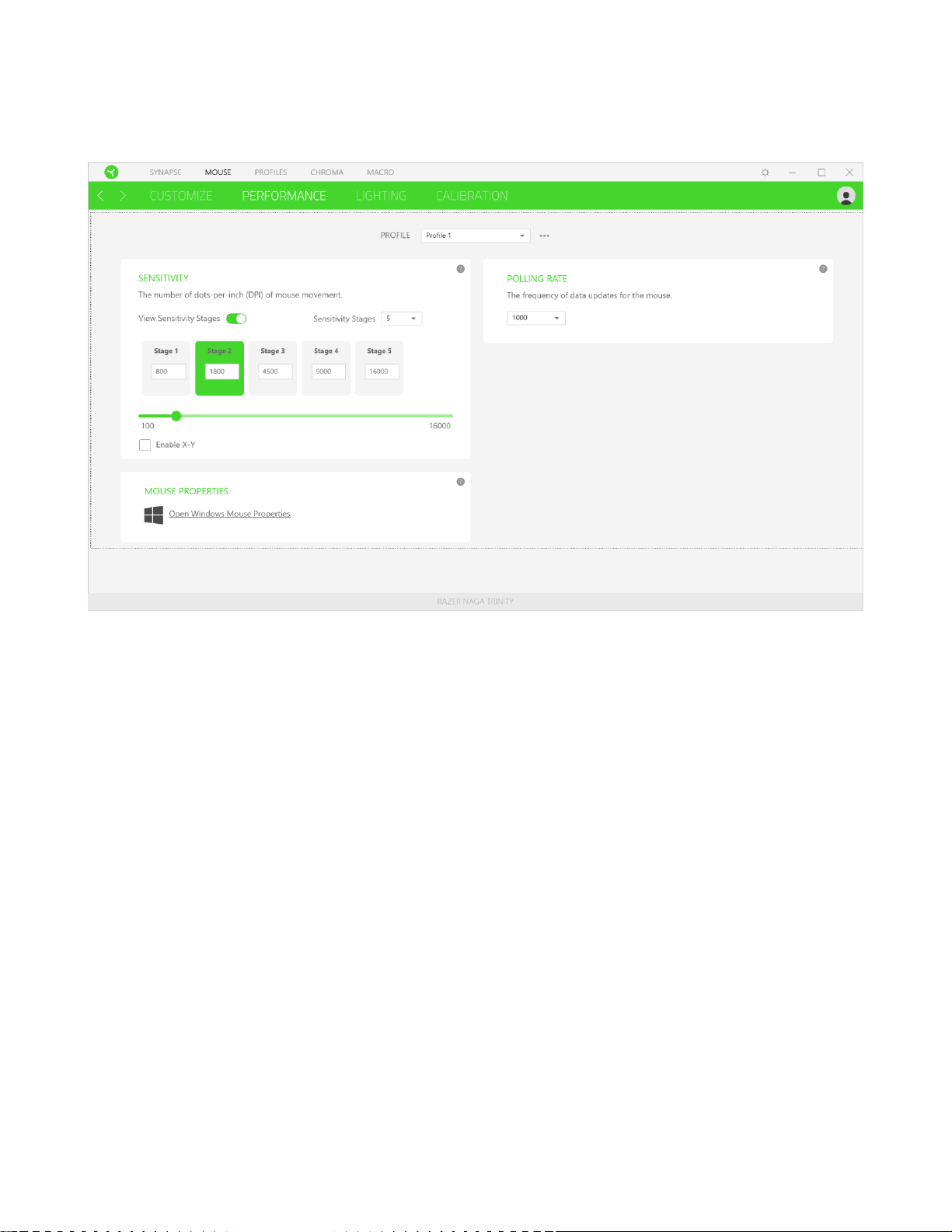

Performance
The Performance subtab allows you to modify the sensitivity, acceleration, and polling rate.
Listed below are the performance options and their descriptions.
Sensitivity
Sensitivity refers to the distance the cursor will travel based on how far the mouse moved.
The higher the DPI, the farther the cursor will travel given the same distance of mouse
movement.
Enable X-Y Sensitivity
By default, the X-axis (horizontal) and Y-axis (vertical) use the same sensitivity values.
However, you may set different sensitivity values to each of the axes by selecting the Enable
X-Y Sensitivity option.
View Sensitivity Stages
A sensitivity stage is a preset sensitivity value. You can create up to 5 different sensitivity
stages which you can cycle through using the sensitivity stage up/down buttons. You may use
the Enable X-Y Sensitivity concurrently with this option.
FOR GAMERS. BY GAMERS.
™
12
Polling Rate
The higher the polling rate, the more often the computer receives information about the status
of your mouse, thus increasing the mouse pointer’s reaction time. You can switch between
125Hz (8ms), 500Hz (2ms) and 1000Hz (1ms) by selecting your desired polling rate on the
dropdown menu.
Mouse Properties
From here, you can access the Windows Mouse Properties where you modify operating
system settings that can directly affect your Razer Naga Trinity.
Lighting
The Lighting subtab enables you to modify your Razer device’s light settings.
Brightness
You can turn off your Razer device’s lighting by toggling the Brightness option or
increase/decrease the luminance using the slider.
Switch Off Lighting
This is a power saving tool which allows you to disable your device’s lighting in response to
your system’s display turning off and/or automatically power down when your Razer Naga
Trinity has been idle for a set amount of time.
FOR GAMERS. BY GAMERS.
™
13
Quick Effects
A number of quick effects can be selected and applied to your mouse’s lighting, as listed
here:
Name
Description
How to set up
Breathing
The lighting fades in and out of
the selected color(s)
Select up to 2 colors or
randomize
Reactive
The LEDs will light up when you
click any of the mouse buttons
Select the color and the length
of time for the LED to remain
lit
Spectrum
cycling
The LEDs will cycle between
16.8 million colors indefinitely
No further customization
required
Static
The LEDs will remain lit in the
selected color
Select a color
If you have other supported Razer Chroma-enabled devices, you can synchronize their quick
effects with your Razer device by clicking the Chroma Sync button ( ).
Advanced Effects
The Advanced Effects option allows you to choose a Chroma Effect you want to use on your
Razer Chroma-enabled peripheral. To start making your own Chroma Effect, simply press the
Chroma Studio button ( ). Click here to learn more about the Chroma Studio
FOR GAMERS. BY GAMERS.
™
14
Calibration
The Calibration subtab allows you to optimize your Razer Precision Sensor to any surface for
better tracking. To use this feature, you must click the Add A Surface option where you can
select from a comprehensive list of Razer mouse mats or add your own mouse mat.
FOR GAMERS. BY GAMERS.
™
15
PROFILES TAB
The Profiles tab is a convenient way of managing all your profiles and linking them to your
games and applications.
Devices
View which Razer device is using a specific profile using the Devices subtab. To create a new
profile within the selected device, simply click the add button ( ). To rename, duplicate, or
delete a profile, simply press the Miscellaneous button ( ). Each profile can be set to
automatically activate when you run an application using the Link Games option.
FOR GAMERS. BY GAMERS.
™
16
Linked Games
The Linked Games subtab gives you the flexibility to add games, view peripherals that are
linked to games, or search for added games. You can also sort games based on alphabetical
order, last played, or most played. Added games will still be listed here even if it is not linked
to a Razer device.
FOR GAMERS. BY GAMERS.
™
17
CHROMA TAB
The Chroma tab enables you to either create advanced lighting effects through the Studio
subtab or enable/disable third party integrated apps to all Razer Chroma-enabled devices for
a truly immersive lighting and gaming experience.
Studio
The Studio subtab enables you to create and edit your own Chroma Effects which you can
apply to all supported Razer Chroma-enabled devices. This tab can also be accessed under
the Dashboard’s Chroma module.
To add, rename, duplicate, or delete a Chroma Effect, simply click the Miscellaneous button (
). To revert the selected layer to its original setting, click the Reset button ( ). And to
apply and save a modified layer, click the Save button ( ).
Quick Selections
The Quick Selections menu are a preset of lighting regions which you can use to easily
customize your Razer device. Alternatively, you can individually select an LED by clicking on
the area or select multiple LEDs by using click and drag.
FOR GAMERS. BY GAMERS.
™
18
Effect Layer
Lighting effects are arranged in layers wherein the topmost layer takes priority. . You can
group multiple lighting effects by clicking the Add Group button ( ) and dragging the layers
you want to group to the newly added folder, duplicate a layer by clicking the Copy button (
), or delete a layer by clicking the Trash button ( ). Some layers may have overlapping
effects so you may need to arrange layers in a specific order.
Add Effect
All supported quick effects are listed under the Add Effect option which you can click to insert
onto the Effect Layer. Quick Effects can be edited on the Chroma Studio by allowing you to
change its preset color, properties, and playback options.
Apps
The Apps subtab is where you can enable or disable third party integrated apps for your
Razer Chroma-enabled peripherals. The Apps tab can also direct you to the Chroma
Workshop where you can download these third-party apps.
FOR GAMERS. BY GAMERS.
™
19
MACROS TAB
If you need to accurately execute a series of complex commands then you need a Macro. A
macro is a set of recorded keystrokes, button presses, and cursor movements. The Macros
tab allows you to create, edit, and organize these macros so that you can assign them to your
mouse buttons. You can also share macros with others using the import button ( ) and
export button ( ).
There are also other options available in the macro section such as creating a new macro by
clicking the add button ( ), delete the current macro by clicking the trash button ( ), and
duplicate the current macro using the copy button ( ).
FOR GAMERS. BY GAMERS.
™
20
To create a macro, simply select a macro name to store your commands, then click the
Record menu. Assign a key or button for the macro on Shortcut Key field, select a delay, and
select if you want to include mouse movement tracking. Once you have chosen the settings
for the macro, click the Start button ( ). After a brief countdown, all your keystrokes
and button presses will be recorded on the macro screen. When you are done recording your
macro commands, click on the Stop button ( ) to end the session.
FOR GAMERS. BY GAMERS.
™
21
Once you have recorded a macro, you may edit the commands you have entered by selecting
each command on the macro screen. Each keystroke or button press is arranged sequentially
with the first command shown at the top of the screen. The Insert menu allows you to put in
additional keystrokes, button presses, type texts, run commands, loop a set of commands, or
insert an entire macro group.
Key Binds
The Key binds option allows you to view the Shortcut Keys for the selected macro.
Properties
The Properties option enables you to individually edit commands, adjust their delay, change
actions, and also change the total duration of the macro so that it executes faster or slower.
FOR GAMERS. BY GAMERS.
™
22
SETTINGS WINDOW
The Settings window, accessible by clicking the ( ) button on Razer Synapse 3, enables
you to configure the startup behavior, change language, view your Razer device’s master
guide, or perform factory reset on any connected Razer device.
General tab
The default tab of the Settings window, The General tab enables you to change the software’s
display language and start-up behavior, or view the master guide of all connected Razer
devices.
Reset tab
The Reset tab allows you to perform a factory reset on all connected Razer devices with on-
board memory. All profiles stored on the selected device’s on-board memory will be erased.
Note: Performing a factory reset on devices without on-board memory will only create a new
profile for your device on Razer Synapse 3 using the default settings.
About tab
The About tab displays brief software information, its copyright statement, and also provides
relevant links for its terms of use. You may also use this tab to check for software updates, or
as a quick access to Razer’s social communities.
FOR GAMERS. BY GAMERS.
™
23
8. SAFETY AND MAINTENANCE
SAFETY GUIDELINES
Should you have trouble operating the device properly and troubleshooting does not work,
unplug the device and contact the Razer hotline or go to razersupport.com for support.
Do not take apart the device (doing so will void your warranty) and do not attempt to operate it
under abnormal current loads.
Keep the device away from liquid, humidity or moisture. Operate the device only within the
specific temperature range of 0°C (32°F) to 40°C (104°F). Should the temperature exceed
this range, unplug and/or switch off the device in order to let the temperature stabilize to an
optimal level.
COMFORT
Research has shown that long periods of repetitive motion, improper positioning of your
computer peripherals, incorrect body position, and poor habits may be associated with
physical discomfort and injury to nerves, tendons, and muscles. Below are some guidelines to
avoid injury and ensure optimum comfort while using your Razer Naga Trinity.
▪ Position your keyboard and monitor directly in front of you with your mouse next to it.
Place your elbows next to your side, not too far away and your keyboard within easy
reach.
▪ Adjust the height of your chair and table so that the keyboard and mouse are at or
below elbow-height.
▪ Keep your feet well supported, posture straight and your shoulders relaxed.
▪ During gameplay, relax your wrist and keep it straight. If you do the same tasks with
your hands repeatedly, try not to bend, extend or twist your hands for long periods.
▪ Do not rest your wrists on hard surfaces for long periods. Use a wrist rest to support
your wrist while gaming.
▪ Customize the keys on your keyboard to suit your style of gaming in order to minimize
repetitive or awkward motions while gaming.
▪ Do not sit in the same position all day. Get up, step away from your desk and do
exercises to stretch your arms, shoulders, neck and legs.
FOR GAMERS. BY GAMERS.
™
24
If you should experience any physical discomfort while using your mouse, such as pain,
numbness, or tingling in your hands, wrists, elbows, shoulders, neck or back, please consult a
qualified medical doctor immediately.
MAINTENANCE AND USE
The Razer Naga Trinity requires minimum maintenance to keep it in optimum condition. Once
a month we recommend you unplug the device from the computer and clean it using a soft
cloth or cotton swab to prevent dirt buildup. Do not use soap or harsh cleaning agents.
To get the ultimate experience in movement and control, we highly recommend a premium
mouse mat from Razer. Some surfaces will cause undue wear on the feet requiring constant
care and eventual replacement.
Do note that the sensor of the Razer Naga Trinity is ‘tuned’ or optimized especially for the
Razer mouse mats. This means that the sensor has been tested extensively to confirm that
the Razer Naga Trinity reads and tracks best on Razer mouse mats.
FOR GAMERS. BY GAMERS.
™
25
9. LEGALESE
COPYRIGHT AND INTELLECTUAL PROPERTY INFORMATION
©2018 Razer Inc. All rights reserved. Razer, the triple-headed snake logo, Razer logo, “For
Gamers. By Gamers.”, and “Powered by Razer Chroma” logo are trademarks or registered
trademarks of Razer Inc. and/or affiliated companies in the United States or other countries.
All other trademarks and trade names are the property of their respective owners and other
company and product names mentioned herein may be trademarks of their respective
companies.
Windows and the Windows logo are trademarks or registered trademarks of the Microsoft
group of companies.
OS X, Mac and the Mac logo are trademarks or registered trademarks of Apple.
Razer Inc. (“Razer”) may have copyright, trademarks, trade secrets, patents, patent
applications, or other intellectual property rights (whether registered or unregistered)
concerning the product in this guide. Furnishing of this guide does not give you a license to
any such copyright, trademark, patent or other intellectual property right. The Razer Naga
Trinity (the “Product”) may differ from pictures whether on packaging or otherwise. Razer
assumes no responsibility for such differences or for any errors that may appear. Information
contained herein is subject to change without notice.
LIMITED PRODUCT WARRANTY
For the latest and current terms of the Limited Product Warranty, please visit
razerzone.com/warranty.
LIMITATION OF LIABILITY
Razer shall in no event be liable for any lost profits, loss of information or data, special,
incidental, indirect, punitive or consequential or incidental damages, arising in any way out of
distribution of, sale of, resale of, use of, or inability to use the Product. In no event shall
Razer’s liability exceed the retail purchase price of the Product.
FOR GAMERS. BY GAMERS.
™
26
COSTS OF PROCUREMENT
For the avoidance of doubt, in no event will Razer be liable for any costs of procurement
unless it has been advised of the possibility of such damages, and in no case shall Razer be
liable for any costs of procurement liability exceeding the retail purchase price of the Product.
GENERAL
These terms shall be governed by and construed under the laws of the jurisdiction in which
the Product was purchased. If any term herein is held to be invalid or unenforceable, then
such term (in so far as it is invalid or unenforceable) shall be given no effect and deemed to
be excluded without invalidating any of the remaining terms. Razer reserves the right to
amend any term at any time without notice.
