BN-2 MULTI-FUNCTION
BENCH OWNER’S
MANUAL
Product may vary slightly from the item pictured due to model upgrades
Read all instructions carefully before using this product. Retain this owner’s manual for future
reference.
2
TABLE OF CONTENTS
1. IMPORTANT SAFETY INSTRUCTIONS 3
2. CARE INSTRUCTIONS 4
3. PARTS LIST 5
4. ASSEMBLY INSTRUCTIONS 6
5. EXPLODED DIAGRAM 10
6. WARRANTY 11
3
1. IMPORTANT SAFETY INSTRUCTIONS
WARNING - Read all instructions before using this product.
Please keep this manual with you at all times
a. It is important to read this entire manual before assembling and using the equipment. Safe and effective
use can only be achieved if the equipment is assembled, maintained and used properly.
Please note: It is your responsibility to ensure that all users of the equipment are informed of all warnings
and precautions.
b. Before starting any exercise program you should consult your doctor to determine if you have any
medical or physical conditions that could put your health and safety at risk, or prevent you from using
the equipment properly. Your doctor’s advice is essential if you are taking medication that affects your
heart rate, blood pressure or cholesterol level.
c. Be aware of your body’s signals. Incorrect or excessive exercise can damage your health. Stop
exercising if you experience any of the following symptoms: pain, tightness in your chest, irregular
heartbeat, and extreme shortness of breath, lightheadedness, dizziness or feelings of nausea. If you do
experience any of these symptoms, you should consult your doctor before continuing with your exercise
program.
d. Keep children and pets away from the equipment. This equipment is designed for adult use only.
e. Use the equipment on a solid, flat level surface with a protective cover for your floor or carpet. To ensure
safety, the equipment should have at least 2 meters of free space around it.
f. Before using the equipment, check that the nuts and bolts are securely tightened. If you hear any
unusual noises coming from the equipment during use and assembly, stop immediately. Do not use the
equipment until the problem has been rectified.
g. Wear suitable clothing while using the equipment. Avoid wearing loose clothing that may get caught in
the equipment or that may restrict or prevent movement.
h. This equipment is designed for indoor and family use only
i. Care must be taken when lifting or moving the equipment so as not to injure your back.
j. Always keep this instruction manual and assembly tools at hand for reference.
4
k. The equipment is not suitable for therapeutic use.
2. CARE INSTRUCTIONS
• Lubricate moving joints with grease after periods of usage
• Be careful not to damage plastic or metal parts of the machine with heavy or sharp objects
• The machine can be kept clean by wiping it down using dry cloth
5

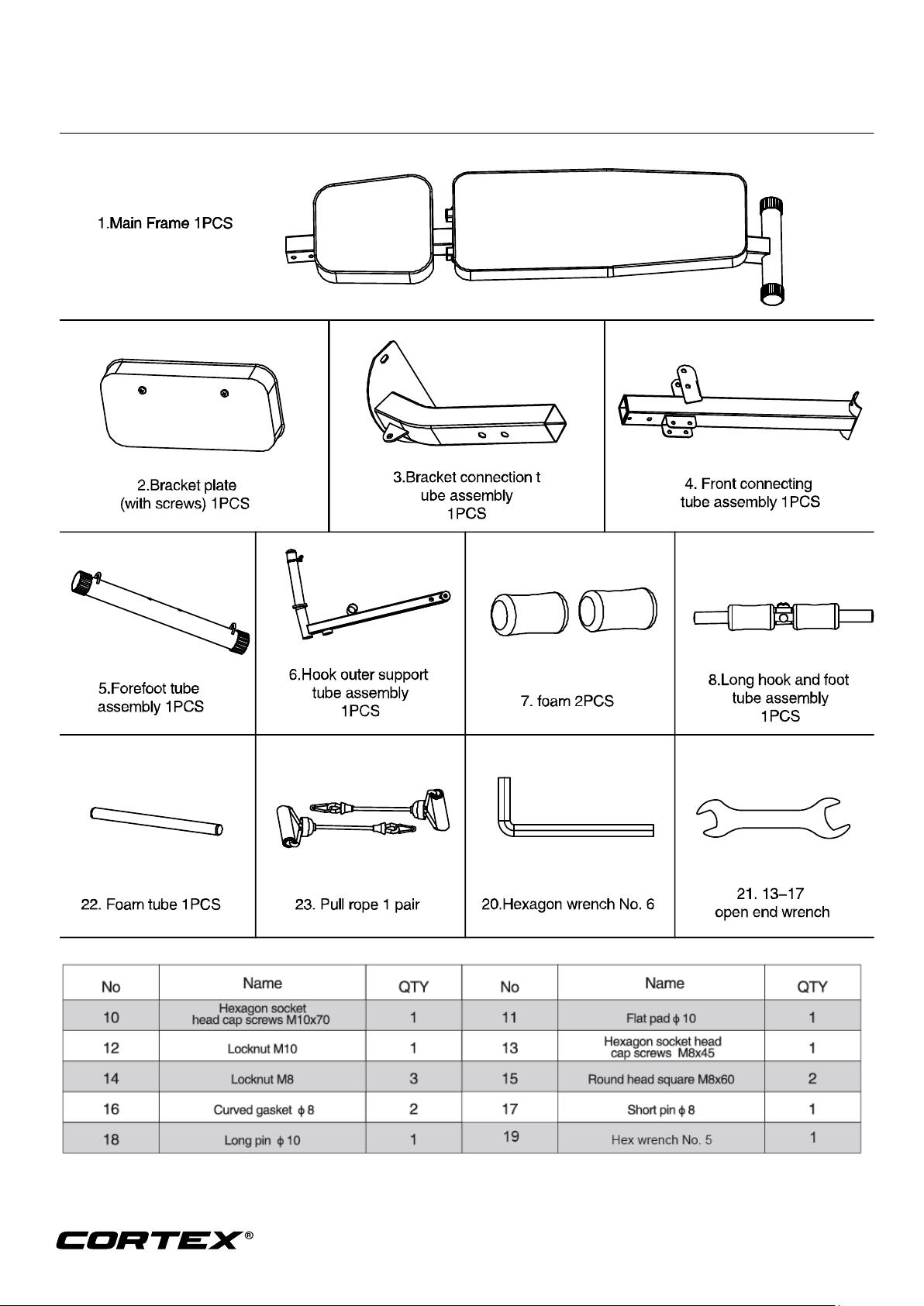

3. PARTS LIST
6
4. ASSEMBLY INSTRUCTIONS

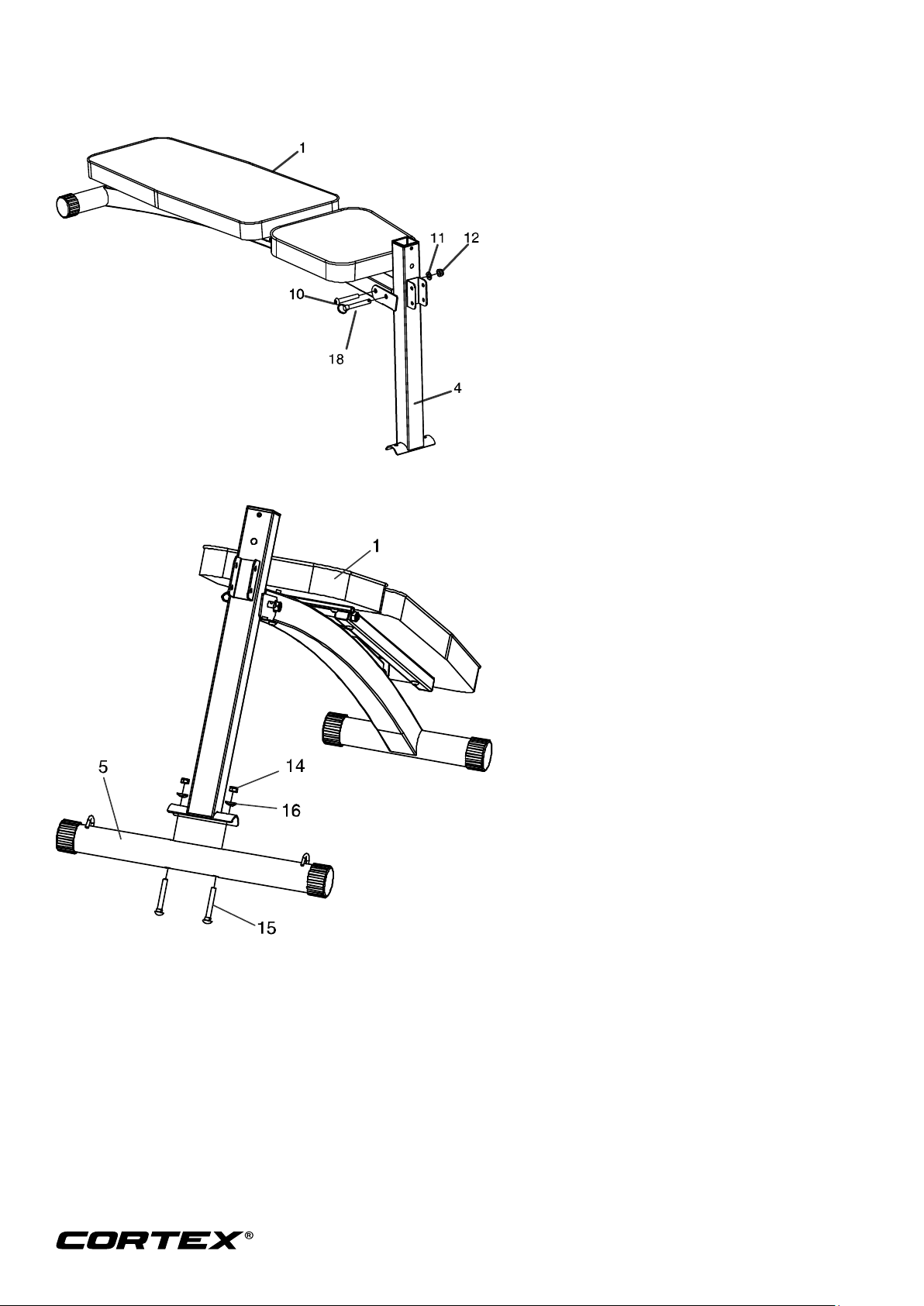

Step 1
1. Assemble #4 front connecting tube
onto the #1 main frame with:
- 1x #10 hexagonal flat head screw
M10x70mm
- 1x Flat washer Φ10
- 1x #12 Lock nut M10
2. Use the tool 20. Hexagonal Tool #6
and 21. 13-17 Open End Wrench to
lock the nut clockwise and finally
insert#18 long pin Φ10 into the hole as
shown in the figure and fix it on the
main frame.
Step 2
1. Assemble the #5 forefoot tube
assembly to the #1 main frame with
- 2x #14 locknut M8
- 2x #16 arc washers Φ8
- 2x #15 round head neck bolts
2. Use the tool 21. 13-17 Open End
Wrench to lock the nut clockwise.
7

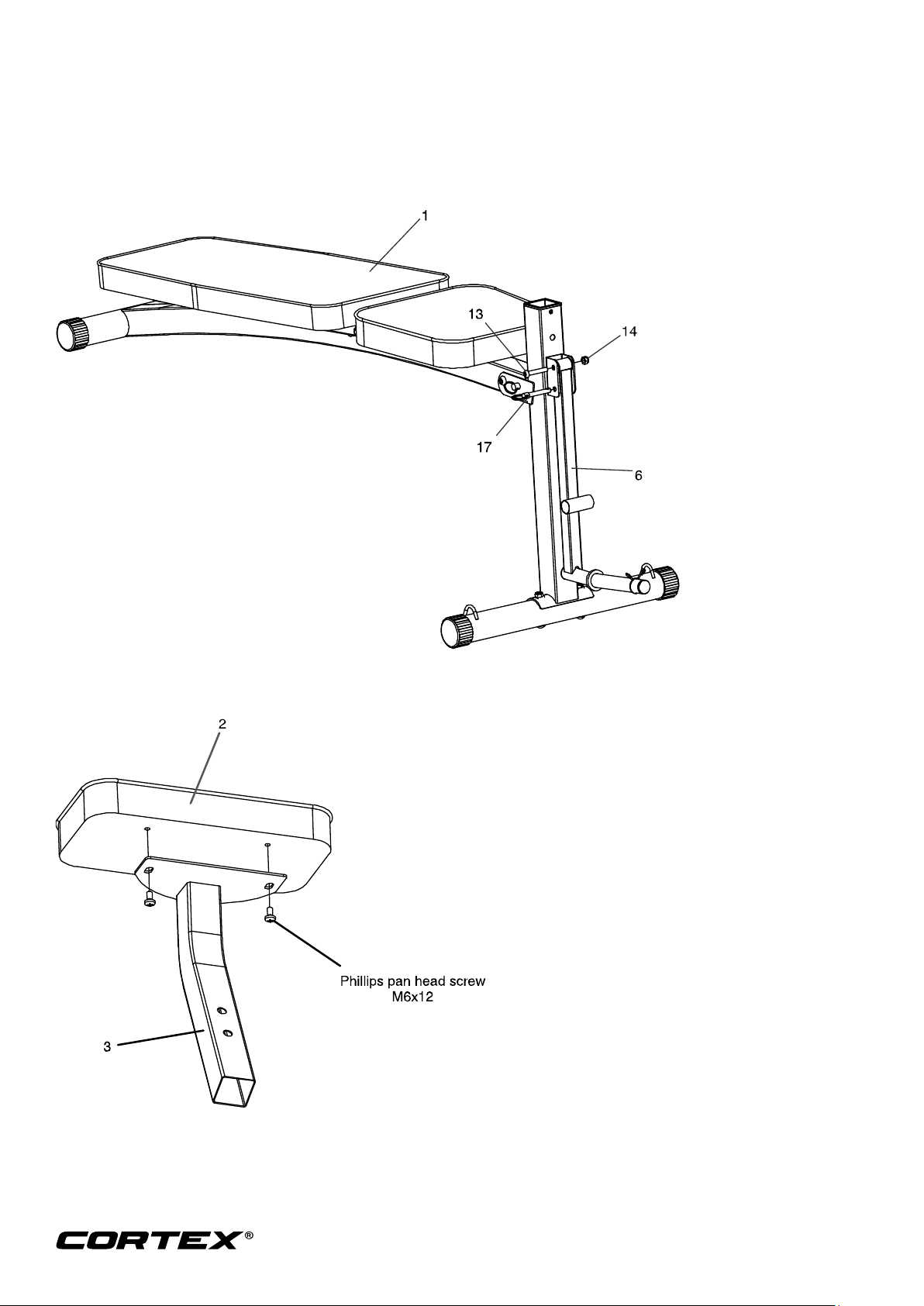

Step 4
1. Use the #19 Hex Wrench 5 to loosen
#6 bracket’s own Philips pan head
screw M6x12mm and place the #2
bracket plate on the #3 bracket
connecting tube, relock the screw.
Step 3
1. Assemble #6 hook outer support tube onto #1 main frame with:
- 1x #13 Hexagonal flat head screw M8x45mm
- 1x #14 locknut M8
2. Use the tool #19 Allen Key and 21. 13-17 Open End Wrench to tighten the nut clockwise.
3. Insert the #17 short pin Φ8 into the hole as shown on the image.
8

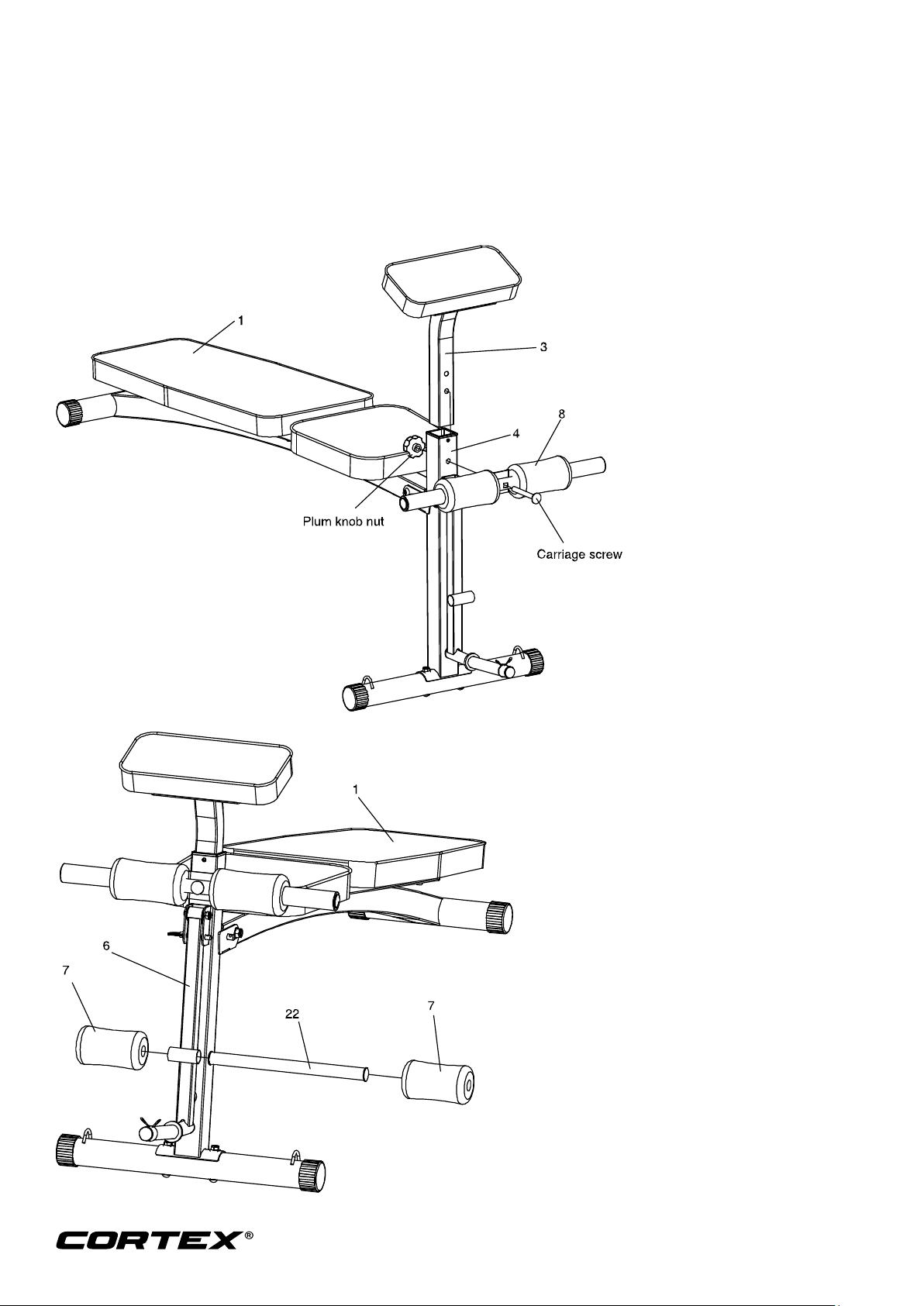

Step 5
1. Insert #3 bracket connecting tube assembly into the #1 main frame as shown in the figure,
loosed the plum knob nut on #8 long hook foot tube.
2. Pass the carriage screw with the long hook and foot tube through #4 and #3 front
connecting tube and lock with the plum knob nut.
Step 6
1. After inserting the #22 foam tube
into the #6 hook outer support
tube and insert #7 foam at both
ends.
9
Step 7

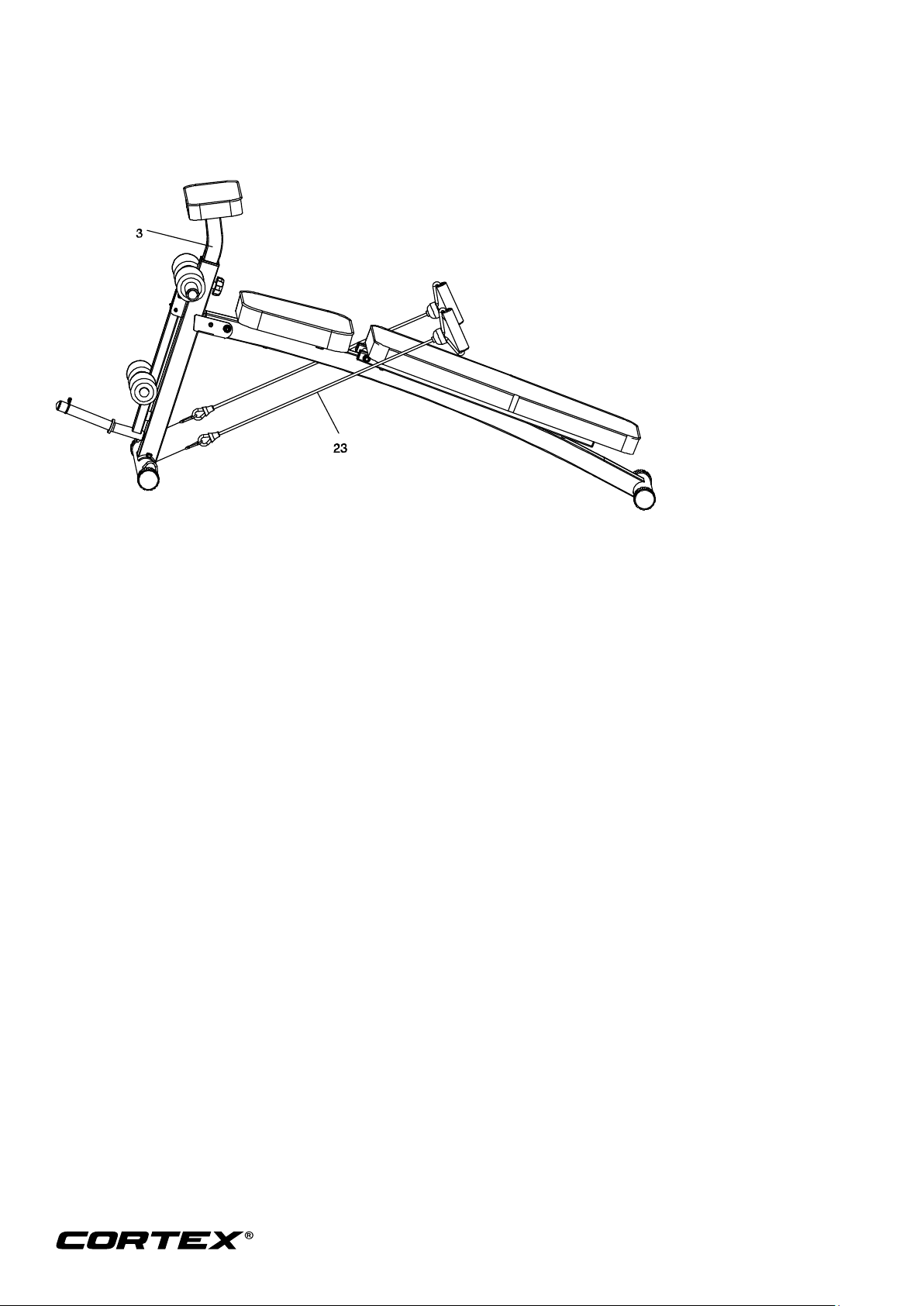

1. Place the #3 bracket on the pipe assembly and connect the #23 pull rope onto the foot tube as
shown in image.
10

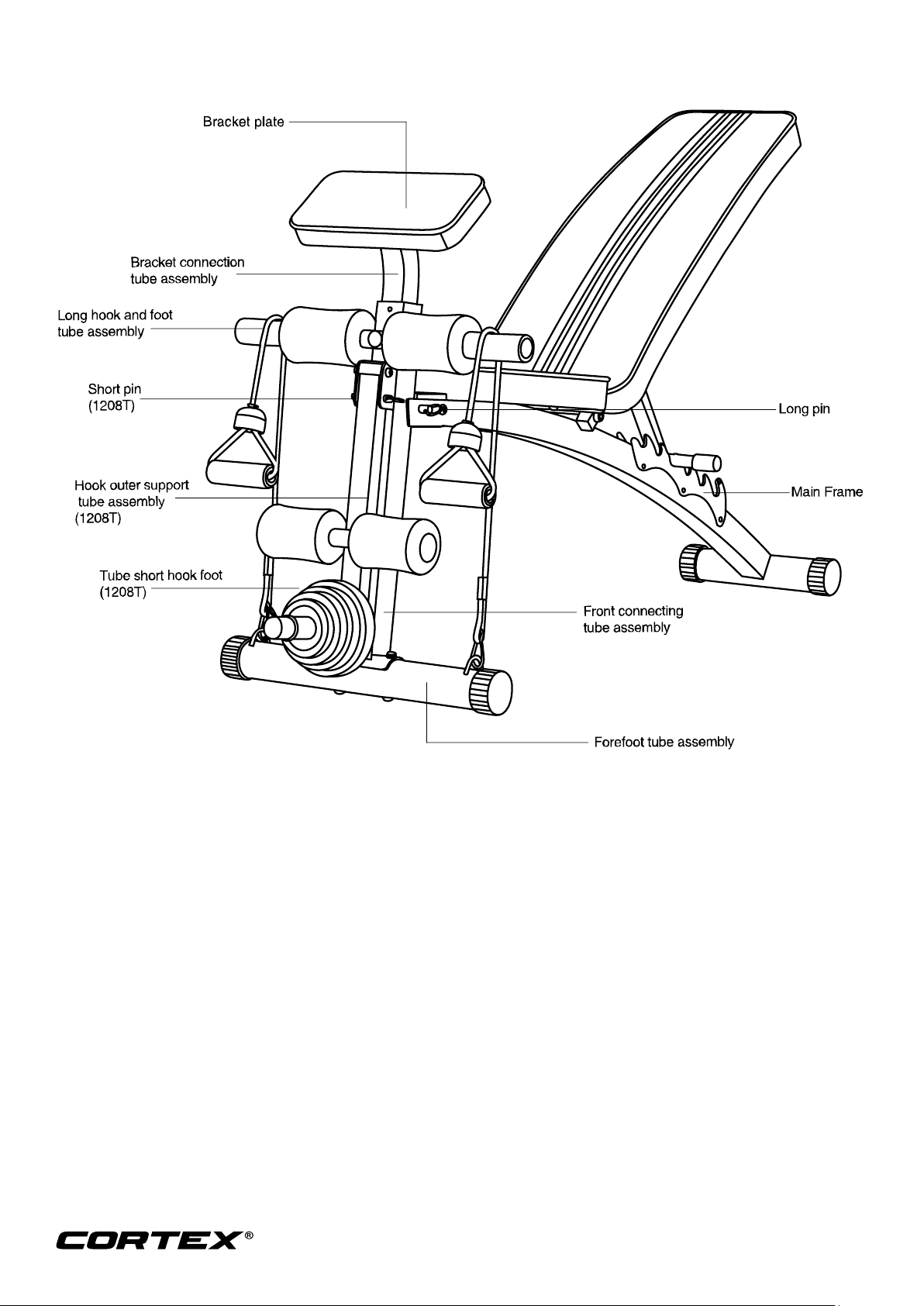

5. EXPLODED DIAGRAM
11
6. WARRANTY
AUSTRALIAN CONSUMER LAW
Many of our products come with a guarantee or warranty from the manufacturer. In addition, they come with
guarantees that cannot be excluded under the Australian Consumer Law. You are entitled to a replacement or
refund for a major failure and compensation for any other reasonably foreseeable loss or damage.
You are entitled to have the goods repaired or replaced if the goods fail to be of acceptable quality and the failure
does not amount to a major failure. Full details of your consumer rights may be found at
www.consumerlaw.gov.au
Please visit our website to view our full warranty terms and conditions:
http://www.lifespanfitness.com.au/warranty-repairs
Warranty and Support:
Please email us at suppor[email protected]om.au for all warranty or support issues.
For all warranty or support related enquiries an email must be sent before contacting us via any other means.
