Delonghi ECAM37095TI Dinamica Plus, Smart Coffee & Espresso User Manual

ECAM37095

COFFEE MAKER

Instructions for use. Keep these instructions

Visit www.delonghi.com for a list of service

centers near you.

ELECTRIC CHARACTERISTICS

120 V~ 60 Hz 1250 W

MACHINE À CAFÉ

Mode d’emploi . Conservez cette notice

Visitez www.delonghi.com pour y voir une liste

des centres de réparation proches de chez vous.

CARACTÉRISTIQUES ÉLECTRIQUES

120 V~ 60 HZ 1250 W

CAFETERA

Repase y guarde estas instrucciones.

Lea cuidadosamente este instructivo antes de

usar su aparato.

Visite www.delonghi.com para ver la lista de

centros de servicios cercanos a usted.

CARACTERISTICAS ELECTRICAS:

120 V~ 60 HZ 1250 W

B C

A12

A17

A18

A11

A10

A14

A15

A13

A16

A20

A19

A22

A21

B C

PROFILE 1

B1B9

CONTENTS

IMPORTANT SAFEGUARDS .................................5

SAVE THESE INSTRUCTIONS ..................................................5

SHORT CORD INSTRUCTIONS ..............................5

1. INTRODUCTION ...........................................6

1.1 Letters in brackets ....................................................6

1.2 Troubleshooting and repairs..................................... 6

1.3 Download the App! .................................................. 6

2. DESCRIPTION ..............................................6

2.1 Description of the machine (page 2 - A) ...................6

2.2 Description of the homepage (page 3 - B) ............... 6

2.3 Description of the control panel (page 3 - C) ............ 6

2.4 Description of the accessories (page 3 - D) ............... 6

2.5 Description of the milk container (page 3 - E) ..........7

4. TURNING THE MACHINE ON ..................8

5. TURNING THE MACHINE OFF .........................8

MENU SETTINGS ..................................8

6.1 Access the settings menu ......................................... 8

6.2 Exit the menu ........................................................... 8

6.3 Rinse ....................................................................... 8

6.4 Descaling ................................................................ 9

6.5 Water lter .............................................................. 9

6.6 Beverages settings .................................................. 9

6.7 Auto-o (standby) .................................................. 9

6.8 Energy saving ......................................................... 9

6.9 Coee temperature .................................................9

6.10 Water hardness .......................................................9

6.11 Set language ........................................................... 9

6.12 Beep ........................................................................ 9

6.13 Bluetooth ................................................................ 9

6.14 Default values .......................................................10

6.15 Statistics ................................................................ 10

6.16 Customise prole ..................................................10

7. MAKING COFFEE ................................ 10

7.1 Making coee using coee beans .......................... 10

7.2 Selecting the coee strength ................................. 10

7.3 Selecting the coee quantity .................................10

7.4 Making coee using pre-ground coee..................11

7.5 Adjusting the coee grinder...................................11

7.6 Tips for a hotter coee ........................................... 11

9. MAKING MILKBASED RECIPES ........... 12

9.1 Filling and attaching the milk container ................ 12

9.2 Adjusting the amount of froth ............................... 12

9.3 Making milk-based recipes automatically .............. 13

9.4 Cleaning the milk container after use ................... 13

10. COFFEE CARAFE ......................................... 13

11.

DELIVERING HOT WATER .................... 14

12.

CUSTOMISING THE BEVERAGES . 14

13.

MEMORISING YOUR OWN USER PROFILE .

............................................................... 14

14.

CLEANING ........................................ 15

14.1 Cleaning the machine ............................................ 15

14.2 Cleaning the internal circuit ................................... 15

14.3 Cleaning the coee grounds container ................... 15

14.4 Cleaning the drip tray and condensate tray ............ 15

14.5 Cleaning the inside of the coee machine .............16

14.6 Cleaning the water tank ......................................... 16

14.7 Cleaning the coee spouts ..................................... 16

14.8 Cleaning the pre-ground coee funnel .................. 16

14.9 Cleaning the infuser ............................................... 16

14.10 Cleaning the milk container ...................................17

14.11 Cleaning the hot water nozzle ................................ 18

15. DESCALING ...................................... 18

16.

SETTING WATER HARDNESS .............. 19

16.1 Measuring water hardness ..................................... 19

16.2 Setting water hardness .........................................19

17. WATER SOFTENER FILTER ................... 19

17.1 Installing the lter ................................................. 19

17.2 Replacing the lter.................................................20

17.3 Removing the lter ................................................ 20

19. DISPLAYED MESSAGES ....................... 22

20.

TROUBLESHOOTING .......................... 26

IMPORTANT SAFEGUARDS

When using electrical machines, basic safety precautions should always be followed, including the following.

• Read all instructions carefully.

• Make sure the voltage of your electrical system corresponds to the voltage shown on the bottom of the

machine.

• Do not touch hot surfaces. Use handles or knobs.

• To protect against re, electrical shock and personal injury, do not immerse cord, plug or machine in

water or other liquid.

• Keep the machine out of the reach of children and do not leave machine unattended while in operation.

• Unplug from the outlet when not in use and before cleaning.

• Do not operate with a damaged cord or plug, or after the machine malfunctions, or has been damaged

in any manner. Return the machine to the nearest authorized service facility for examination, repair or

adjustment.

• The use of accessory attachments not recommended by the manufacturer may result in re, electrical

shock, or personal injury.

• Do not use outdoors.

• Make sure the power cord does not hang over the edge of the table or counter-top to avoid getting acci-

dentally caught or entangled.

•

Do not place the machine or its electrical parts on or near electric stoves, cooking surfaces, or gas burners.

• Plug cord into the wall outlet. To disconnect, rst turn machine “o”, then remove plug from wall outlet.

• Do not use the machine for other than the intended use. This machine is to be utilized for domestic use

only. The manufacturer declines all responsibility for any damage caused by improper, incorrect, or irre-

sponsible use.

WARNING: To reduce the risk of re or electric shock, do not remove the cover or the exterior of

the unit. Don’t attempt to repair or modify the machine, doing so will void the warranty. Repair

should be done by authorized service personnel only!

SAVE THESE INSTRUCTIONS

THIS MACHINE IS FOR HOUSEHOLD USE ONLY

SHORT CORD INSTRUCTIONS

- A short power cord is provided to reduce risks resulting from becoming entangled in or tripping over a

longer cord.

- Longer, detachable power supply cords or extension cords are available and may be used if care is exer-

cised in their use.

- If an extension cord is used, the marked electrical rating should be at least as great as the electrical rating

of the machine. If the machine is provided with 3- wire, grounding type cord, the extension should be a

GROUNDING TYPE 3 - WIRE CORD. The longer cord should be arranged so that it will not drape over the

counter-top or table top where it can be pulled on by children or tripped over.

- Your product is equipped with a polarized alternating current line plug (a plug having one blade wider

than the other). This plug will t into the power outlet only one way. This is a safety feature. If you are un-

able to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to t, contact

your electrician to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.

1. INTRODUCTION

Thank you for choosing this fully automatic espresso machine.

Take a few minutes to read this Instruction for Use. This will

avoid all risks and damage to the machine.

1.1 Letters in brackets

The letters in brackets refer to the legend in the description of

the machine on pages 2-3.

1.2 Troubleshooting and repairs

In the event of problems, rst try and resolve them by reading

the information given in sections "19. Displayed messages" and

"20. Troubleshooting".

If this does not resolve the problem or you require further in-

formation, you should consult Customer Services by calling the

number given on the warranty card.

1.3 Download the App!

A number of functions can be controlled remotely using the

De’Longhi Coee Link App.

In the App, you can also nd information, tips and curious facts

about the world of coee, together with information on your

machine at your ngertips.

This symbol highlights the functions you can control or

consult using the App.

You can also create up to 3 new beverages and save them in your

machine.

Please note:

• Check compatible devices on "compatibledevices.delonghi.

com".

• Advertencia: Los cambios o modicaciones no aprobados

expresamente por DE LONGHI podrían anular la autoridad

del usuario para operar el equipo.

• Para cancelar un comando remoto, actúe directamente en

la pantalla de la máquina presionando Stop.

2. DESCRIPTION

2.1 Description of the machine

(page 2 - A)

A1. Beans container lid

A2. Pre-ground coee funnel lid

A3. Beans container

A4. Pre-ground coee funnel

A5. Grinding adjustment dial

A6. Cup shelf

A7.

button: to turn the machine on and o (standby)

A8. Hot water connection nozzle

A9. Coee spouts (adjustable height)

A10. Condensate tray

A11. Coee grounds container

A12. Cup tray

A13. Drip tray water level indicator

A14. Drip tray grille

A15. Drip tray

A16. Water tank lid

A17. Water tank

A18. Water softener lter housing

A19. Infuser door

A20. Infuser

A21. Power cord

A22. Main switch

2.2 Description of the homepage (page 3 - B)

B1. Bluetooth active symbol

B2. Energy Saving active symbol

B3. Selected strength

B4. Directly selected beverages

B5. Scroll arrow

B6. Quantity selected

B7. Descale required alarm

B8. Milk container needs cleaning alarm

B9. Filter needs replacing alarm

2.3 Description of the control panel (page 3 - C)

C1.

: beverage quantity selection

C2.

: prole selection

C3.

: machine settings menu

C4.

: press to exit from the selected function and go

back to the main menu

C5.

: My beverages selection menu. Unless previ-

ously programmed from the settings menu as described in

chapter "12. Customising the beverages ", the beverage is

programmed directly the rst time you use the machine

C6.

: beverage strength selection

2.4 Description of the accessories (page 3 - D)

D1. Water hardness indicator paper (attached to page 2 of the

instructions)

D2. Pre-ground measuring scoop

D3. Descaler

D4. Water softener lter (certain models only)

D5. Cleaning brush

D6. Hot water spout

2.5 Description of the milk container (page 3 - E)

E1. Froth adjustment and CLEAN dial

E2. Milk container lid

E3. Milk container

E4. Milk intake tube

E5. Frothed milk spout (adjustable)

3. BEFORE USE

3.1 Checking the machine

After removing the packaging, make sure the product is com-

plete and undamaged and that all accessories (C) are present. Do

not use the machine if it is visibly damaged. Contact De’Longhi

Customer Services.

3.2 Installing the machine

Important!

When you install the machine, you should respect the following

safety warnings:

• The machine gives o heat. After positioning the machine

on the worktop, leave a space of at least 1.18 in / 3 cm be-

tween the surfaces of the machine and the side and rear

walls and at least 5.9 in/15 above the coee maker.

• Water penetrating the coee machine could cause damage.

Do not place the machine near taps or sinks.

• The machine could be damaged if the water it contains

freezes.

Do not install the machine in a room where the tempera-

ture could drop below freezing point.

• Arrange the power cord (A21) in such a way that it cannot

be damaged by sharp edges or contact with hot surfaces

(e.g. electric hot plates).

3.3 Connecting the machine

Important!

Check that the main power supply voltage corresponds to that

indicated on the rating plate on the bottom of the machine.

Connect the machine to an eciently earthed and correctly in-

stalled socket with a minimum current rating of 10A only.

If the power socket does not match the plug on the machine,

have the socket replaced with a suitable type by a qualied

professional.

3.4 Setting up the machine

Please note!

• The rst time you use the machine, the water circuit is

empty and the machine could be very noisy. The noise be-

comes less as the circuit lls.

• Coee has been used to factory test the machine and it is

therefore completely normal for there to be traces of coee

in the grinder. The machine is, however, guaranteed to be

new.

• You should customise water hardness as soon as possible

following the instructions in section "16. Setting water

hardness".

1. Connect the machine to the mains electricity supply (g.

1). Make sure the main switch (A22) at the back of the ma-

chine is pressed (g. 2);

Follow the instructions indicated on the machine display:

2. "SELECT LANGUAGE": Press and hold until

the required language appears on the display, then press

the ag corresponding to the language.

433

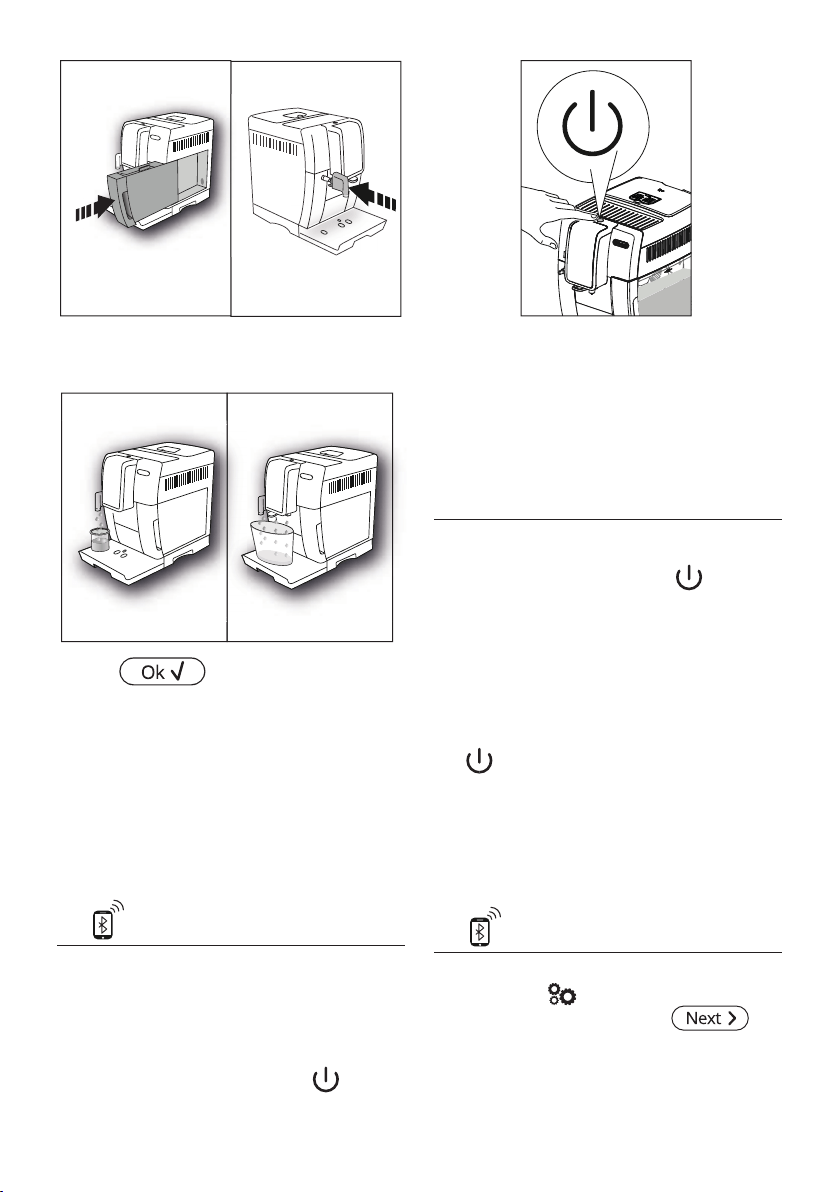

3. "FILL TANK WITH" "FRESH WATER": remove the water tank

(A17) (g. 3), ll to the MAX line (marked on the tank) with

fresh water (g. 4, then place back in machine (g. 5);

4. "INSERT WATER SPOUT": Check that the hot water spout

(D6) is inserted on the connection nozzle (A8) (g. 6) and

place a container holding a minimum of 3.38 oz/ 100 ml

underneath (g. 7);

5. "WATER CIRCUIT EMPTY" "PRESS OK TO START": press

to conrm. The machine delivers hot water

from the spout (g. 8) then goes o automatically.

The coee machine is now ready for normal use.

Please note:

• The rst time you use the machine, you need to make 4-5

cappuccinos before it starts to give optimal results.

• To improve the performance of your machine, we recom-

mend installing a water softener lter (D4) as described in

section "17. Water softener lter".

4. TURNING THE MACHINE ON

Please note:

Before turning the machine on, make sure the main switch

(A22) is pressed (g. 2).

Each time the machine is turned on, it performs an automatic

preheat and rinse cycle.

• To turn the machine on, press the button (A7) (g.

9). The message "HEATING UP UNDERWAY" "PLEASE WAIT"

appears on the display.

• When heating is complete, t

he message changes to: "RINSING

UNDERWAY" "PLEASE WAIT". As well as heating the boiler,

this also heats the internal circuits by circulating hot water.

The machine is ready for use when the main screen (homepage)

appears.

5. TURNING THE MACHINE OFF

Whenever the machine is turned o after being used to make

espresso or coee, it performs an automatic rinse cycle.

• To turn the machine o, press the button (A15) (g. 9).

• The message

"TURNING OFF UNDERWAY" "PLEASE WAIT"

appears on the display, then (if envisaged) the machine

performs a rinse cycle and goes o (standby).

Please note:

If you will not be using the machine for some time, unplug from

the mains socket:

• rst turn the machine o by pressing the

button

(g. 9);

• release the main switch (A22) at the back of the machine

(g. 2).

Important!

Never press the main switch while the machine is on.

6. MENU SETTINGS

6.1 Access the settings menu

1. Press the " " button (C3) to enter the menu;

2. Scroll through the menu items by pressing

until the required items is displayed;

3. Press the menu item you want to select.

6.2 Exit the menu

When you have made the adjustments, press

until you are back on the homepage.

6.3 Rinse

Use this function to deliver hot water from the coee spouts

(A9) and hot water spout (D6), if inserted, to clean and heat the

machine’s internal circuit.

1. Place a container with a minimum capacity of 3.38 oz /

100ml under the coee and hot water spouts (g. 8).

2. A few seconds after the "RINSING" item has been selected,

hot water is delivered rst from the coee spouts and then

from the hot water spout (if inserted) (g. 7).

3. To stop rinsing, press or wait for rinsing to

stop automatically.

Please note:

• If the machine is not used for more than 3-4 days, when

you turn it on again, we strongly recommend performing

2/3 rinses before use;

• After cleaning, it is normal for the grounds container (A11)

to contain water.

6.4 Descaling

For instructions on descaling, see section "15. Descaling".

6.5 Water lter

For instructions on how to install the lter (D4), see section "17.

Water softener lter".

6.6 Beverages settings

In this section, you can consult your customised settings and, if

you wish, reset the default values for each beverage and each

prole.

1. Once in the settings menu, press "DRINK SETTINGS". The

values for the rst beverage appear on the display;

2. The values are displayed on vertical bars. The default value

is indicated by the

symbol, while the current value is

highlighted by the solid part of the vertical bar;

3. To go back to the settings menu, press

. To

scroll and display the beverages, press

;

4. To reset the default values for the beverage displayed,

press

;

5. "CONFIRM RESET?": to conrm, press

(to

cancel, press

);

6. "DEFAULT VALUES""SET": press

The beverage has been reset to the default values. Proceed with

the other beverages or go back to the homepage by pressing

twice.

Please note:

To change the beverages in another prole, go back to the

homepage, select the required prole and repeat the procedure.

6.7 Auto-o (standby)

Auto-o can be set so that the machine goes o after 15 or 30

minutes, or 1, 2 or 3 hours.

To programme Auto-o, proceed as follows:

1. Press "AUTO-OFF";

2. Select the required time interval by pressing the selection

arrows

(increase) or (decrease);

3. To conrm, press .

Auto-o is programmed.

6.8 Energy saving

Use this function to enable or disable energy saving. When en-

abled, the function reduces energy consumption in compliance

with European regulations.

To disable or enable "Energy Saving", proceed as follows:

1. Press "ENERGY SAVING" to disable (

) or ena-

ble (

) the function;

The corresponding symbol (B2) appears on the top bar of the

homepage to indicate that the function has been enabled.

Please note:

If "Energy Saving" is active, you may have to wait a few seconds

before delivery.

6.9 Coee temperature

To modify the temperature of the water used to make the coee,

proceed as follows:

1. Press

"COFFEE TEMPERATURE"

. The selectable values

appear on the display (B1) (the current value is underlined);

2. Press the value you want to set (LOW, MEDIUM, HIGH,

MAXIMUM).

6.10 Water hardness

For instructions on setting water hardness, see section "16.

Setting water hardness".

6.11 Set language

To modify the language of the display, proceed as follows:

1. Press

"SET LANGUAGE";

2. Press the ag corresponding to the language you want

to set (press

to display all the languages

available).

6.12 Beep

This enables or disables the beep emitted by the machine each

time an icon is pressed or an accessory is inserted/removed. To

disable or enable the beep, proceed as follows:

1. Press "BEEP" to disable (

) or enable ( ) the

function;

6.13 Bluetooth

This function enables or disables the protection PIN to connect

to the machine from a device.

1. Press "BLUETOOTH".

The serial number of the machine (19

digits) and a 4 digit number (PIN) appear on the display (B1);

2. Press ( ) to enable or ( ) to disable the request for

the PIN when you connect via the App;

The preset PIN is "0000". You are recommended to customise the

PIN directly from the APP.

Please note:

The serial number of the machine, visible in the "Bluetooth"

function, enables it to be identied unambiguously when an

association is created with the APP.

6.14 Default values

This resets all menu settings and programmed quantities for

all proles back to the default values (with the exception of the

language which remains as set).

To reset the default values, proceed as follows:

1. Press "DEFAULT VALUES". "DEFAULT VALUES" is displayed.

Press

to conrm (or press to

cancel the operation);

2. "DEFAULT VALUES SET": press

to conrm.

6.15 Statistics

This displays statistics relating to the machine. To view the sta-

tistics, proceed as follows:

1. Press "STATISTICS" and check all the statistics by scrolling

through the items using

6.16 Customise prole

To customise the icon of the current prole, proceed as follows:

1. Press "CUSTOMISE PROFILE";

2. Press the desired icon. On the homepage, the top band is

displayed with the colour of the icon.

7. MAKING COFFEE

7.1 Making coee using coee beans

Important!

Do not use green, caramelised, avored or candied coee beans

as they could stick to the coee grinder and make it unusable.

1. Fill the container (A3) with coee beans (g. 10);

1110

2. Place a cup under the coee spouts (A9);

3. Lower the spouts as near as possible to the cup (g. 11).

This makes a creamier coee;

4. Then select the desired recipe:

• ESPRESSO

• LONG

• COFFEE

• DOPPIO+

• 2X ESPRESSO

5. Preparation begins. An image of the selected beverage

appears on the display, together with a progress bar which

gradually lls as preparation proceeds.

Please note:

• You can prepare 2 cups of ESPRESSO coee at the same

time by pressing "2X

" during preparation of 1 ES-

PRESSO (the image is displayed for a few seconds at the

start of preparation).

• While the machine is making coee, delivery can be inter-

rupted at any moment by pressing

Once the coee has been delivered, the machine will be ready

for further use.

Please note!

• Various alarm messages could be displayed while using

the machine (FILL TANK, EMPTY GROUNDS CONTAINER,

ETC.). Their meaning is explained in section "19. Displayed

messages".

• For hotter coee, see section "7.6 Tips for a hotter coee".

• If the coee is delivered a drop at a time, too weak and not

creamy enough or too cold, read the tips in sections "7.5

Adjusting the coee grinder" and "20. Troubleshooting".

• Preparation of each coee can be customised (see sections

"12. Customising the beverages

" and "13. Memorising

your own user prole").

7.2 Selecting the coee strength

Press the button (C6):

Custom (if programmed) /

Standard

EXTRA LIGHT

LIGHT

MEDIUM

STRONG

X-STRONG

(see "7.4 Making coee

using pre-ground coee")

After delivering the beverage, the strength setting is reset to the

value.

7.3 Selecting the coee quantity

Press the button (C1):

Custom (if programmed) /

Standard

SMALL SIZE

MEDIUM SIZE

LARGE SIZE

EXTRA-LARGE SIZE

After delivering the beverage, the quantity setting is reset to the

value

7.4

Making coee using pre-ground coee

Important!

• Never add pre-ground coee when the machine is o or

it could spread through the inside of the machine and

damage it.

• Never use more than 1 level measure (D2) as it could dam-

age the machine or block the funnel (A4).

• When using pre-ground coee, only one cup can be made

at a time.

1. Press the

button (C6) until " " (ground) is

displayed.

2. Open the pre-ground coee funnel lid (A2).

3. Make sure the funnel(A4) is not blocked, then add one level

measure of pre-ground coee (g. 12).

4. Place a cup under the coee spouts (A9).

5. Then select your required coee:

• ESPRESSO

• LONG

• COFFEE

6. Preparation begins. An image of the selected beverage

appears on the display, together with a progress bar which

gradually lls as preparation proceeds.

Once the coee has been delivered, the machine will be ready

for further use.

Important! Making LONG coee:

Halfway through preparation, the message "ADD GROUND COF-

FEE" "MAX. ONE MEASURE" is displayed. Add one level measure

of pre-ground coee and press

7.5 Adjusting the coee grinder

The coee grinder is set by default to prepare coee correctly

and should not require regulating initially.

However, if after making the rst few coees you nd that the

coee is either too weak and not creamy enough or delivery is

too slow (a drop at a time), this can be corrected by adjusting

the grinding adjustment dial (A5) (g. 13).

Please note:

The grinding adjustment dial must only be turned when the

coee grinder is in operation during the initial phase of coee

preparation.

If the coee is delivered too slowly or not

at all, turn one click clockwisetowards 7..

For fuller bodied creamier coee, turn

one click anticlockwise (do not turn

more than one click at a time.

These adjustments will only be evident after at least 2 cups of

coee have been delivered. If this adjustment does not produce

the desired result, turn the dial another click.

7.6 Tips for a hotter coee

For hotter coee, proceed as follows:

• perform a rinse cycle by selecting the "Rinsing" function in

the settings menu (section "6.3 Rinse

");

• warm the cups with hot water using the hot water function

(see section"11. Delivering hot water");

• increase the coee temperature in the settings menu

"(C3) (see section "6.9 Coee temperature ").

8. TRUEBREW OVER ICE™ COFFEE

1. Select "Brew over ice" on the homepage;

2. Select the desired quantity and strength by pressi "+" or

"-": then press

;

3. Add ice to a large glass about half way full and place the

glass under the brewing unit;

4. Press to start delivery;

5. Add additional ice to the glass/coee plus any syrup,

sweetener or milk desired and enjoy

Important!

Always use glasses resistant to thermal shock.

9. MAKING MILKBASED RECIPES

Please note:

To avoid milk with poor froth or large bubbles, always clean the

milk container lid (E2) and hot water connection nozzle (A8)

as described in sections "9.4 Cleaning the milk container after

use", "14.10 Cleaning the milk container" and "14.11 Cleaning

the hot water nozzle".

9.1 Filling and attaching the milk container

1. Remove the lid (E2) (g. 14);

MILK

2. Fill the milk container (E3) with a sucient quantity of milk,

not exceeding the MAX level marked on the container (g.

15). Each mark on the side of the container corresponds to

about

3.38 oz /

100 ml of milk;

Please note:

• For a denser more even froth, you must use skimmed or

partially skimmed milk at refrigerator temperature (about

5°C).

• If "Energy Saving" mode is enabled, you may have to wait a

few seconds before the beverage is delivered.

3. Make sure the milk intake tube (E4) is correctly inserted in

the bottom of the milk container lid (g. 16);

16 17

4. Place the lid back on the milk container;

5. Remove the hot water spout (D6);

6. Attach the milk container (E) to the connection nozzle (A8)

and push as far as it will go (g. 17). The machine emits a

beep (if the beep function is enabled);

7. Place a suciently large cup under the coee spouts (A9)

and the frothed milk spout (E5). Adjust the length of the

milk spout. To move it nearer the cup, simply pull it down-

wards (g. 18).

8. Follow the instructions below for each function.

9.2 Adjusting the amount of froth

Turn the froth adjustment dial (E1) to adjust the amount of froth

on the milk delivered while making cappuccinos and milk-based

coees.

Dial

position

Description Recommended for…

NO FROTH HOT MILK (not frothed) /

CAFFELATTE

MIN. FROTH latte macchiato/

FLAT WHITE

MAX. FROTH CAPPUCCINO / CAPPUCCI

NO+ / CAPPUCCINO MIX /

ESPRESSO MACCHIATO / HOT

MILK (frothed)

9.3 Making milk-based recipes automatically

1. Fill the milk container (E) and attach it as described above.

2. Select the required beverage:

• CAPPUCCINO

• LATTE MACCHIATO

• HOT MILK

• CAPPUCCINO+

• CAPPUCCINO MIX

• CAFFELATTE

• FLAT WHITE

• ESPRESSO MACCHIATO

3. A message on the display instructs you to turn the froth

adjustment dial (E1) according to the froth required by the

original recipe. Turn the dial on the milk container lid.

4. After a few seconds, preparation begins automatically and

an image of the selected beverage appears on the display,

together with a progress bar which gradually lls as prepa-

ration progresses.

Once the coee has been delivered, the machine will be ready

for further use.

Please note: general indications when preparing all milk-

based beverages

•

: press to interrupt preparation completely

and go back to the homepage.

•

: press to interrupt milk or coee delivery and

move on to the next delivery (if applicable) to complete the

beverage.

• Preparation of each coee can be customised (see sections

"12. Customising the beverages

" and "13. Memorising

your own user prole").

• Do not leave the milk container out of the refrigerator for

long periods. The warmer the milk (5°C is ideal), the poorer

the quality of froth produced.

9.4 Cleaning the milk container after use

Each time you use a milk function, "TURN MILK FROTH ADJUST-

MENT DIAL" "TO CLEAN POSITION" appears on the display and

the milk frother lid must be cleaned:

1. Leave the milk container (E) in the machine (you do not

need to empty it);

2. Place a cup or other recipient under the frothed milk spout;

3. Turn the froth adjustment dial (E1) to "CLEAN" (g. 19).

"CLEANING UNDERWAY" "RECIPIENT UNDER SPOUT" ap-

pears on the display together with a bar which gradually

lls as cleaning progresses (g. 20). Steam mixed with hot

water comes out of the frothed milk spout. Cleaning stops

automatically;

CLEAN

4. Turn the dial back to one of the froth selections;

5. Remove the milk container and always clean the hot water

connection nozzle (A8) with a sponge (g. 21).

Please note:

• To prepare a number of cappuccinos and milk based cof-

fees, clean the milk container after you have prepared the

last beverage only.

To proceed with making the next beverages, when the

CLEAN message is displayed, press .

• If you do not clean the milk container, the

symbol ap-

pears on the display to remind you that it needs cleaning.

• The milk container can be kept in the refrigerator.

• In some cases, to clean you must wait for the machine to

heat up.

10. COFFEE CARAFE

1. Position a carafe under the coee spouts (A9). When

choosing the carafe to use, bear in mind the quantity to

be delivered, namely:

Selected quantity Quantity ( oz/ml)

8.45 / 250

Selected quantity Quantity ( oz/ml)

16.9 / 500

25.4 / 750

2. Press "COFFEE POT", "SELECT Strength" "AND NUMBER OF

CUPS";

3. Press

4. After a few seconds, preparation begins automatically and

an image of the selected beverage appears on the display,

together with a progress bar which gradually lls as prepa-

ration progresses.

Once the coee has been delivered, the machine will be ready

for further use.

Please note:

•

: press to interrupt preparation completely

and go back to the homepage.

SAFETY WARNING:

After making the pot of coee, leave the

machine to cool for 5 minutes before mak-

ing another beverage. Risk of overheating!

11. DELIVERING HOT WATER

1. Make sure the hot water spout (D6) is attached correctly to

the hot water connection nozzle(A8);

2. Place a container under the spout (as close as possible to

avoid splashes);

3. Press "HOT WATER";The corresponding image appears on

the display, together with a progress bar which lls gradu-

ally as preparation proceeds;

4. The machine delivers hot water, then delivery stops auto-

matically. To interrupt hot water delivery manually, press

Please note!

• If "Energy Saving" mode is active, you may have to wait a few

seconds before the hot water is delivered.

• Preparation of hot water can be customised (see sections

"12. Customising the beverages

" and "13. Memorising

your own user prole").

12. CUSTOMISING THE BEVERAGES

The strength (when required) and quantity of the beverages can

be customised.

1. Make sure the user prole for which you want to customise

the beverage is active. You can select "MY" beverages for

each of the proles;

2. Press (C5);

3. To access the customising screen, choose the beverage you

want to customise. The corresponding accessories must be

inserted;

4. (Beverages including coee only) "CHOOSE COFFEE

Strength": Select the required strength by pressing "-" or

"+" and press "

5. "COFFEE QUANTITY" "STOP TO SAVE": Preparation begins

and the machine displays the quantity customising screen

in the form of a vertical bar. The star alongside the bar rep-

resents the current quantity;

6. When the amount reaches the minimum quantity you can

set, is displayed;

7. Press

when the required quantity in the cup

is reached;

8. "SAVE NEW SETTINGS?": Press

to save (or

to cancel).

The machine conrms if the values have been saved or not (de-

pending on the previous selection). Press .

The machine goes back to the homepage.

Please note!

• Cappuccinos and milk-based coees: the coee

strength is saved rst, followed by the quantity of rst

milk, then coee;

• Hot water: the machine delivers hot water. Press

to save the required quantity.

• You can also customise the beverages by connecting with

the DeLonghi Coee Link App.

• Press

to exit programming. The values will

not be saved.

Beverage quantity table

Beverage Standard quan-

tity ( oz/ ml)

Programmable

quantity ( oz/ ml)

ESPRESSO 1.3 / 40 0.7 - 6 / 20-180

LONG 5.4 / 160 3.9 - 8.4 / 115-250

COFFEE 6 / 180 3.4 - 8.1 / 100-240

DOPPIO+ 4 / 120 2.7 - 6 / 80-180

HOT WATER 8.4 / 250 0.7 - 14.2 / 20-420

TRUEBREW

OVER ICE

COFFEE™

≃ 3.38 / 100 from ≃ 1.35/ 40 to

≃8.11 / 240

13. MEMORISING YOUR OWN USER PROFILE

The machine allows you to memorise 3 dierent proles, each

associated with a dierent icon.

The customised "MY" beverages "Strength" and "QUANTITY"

values are saved in each prole (see section "12. Customising

the beverages

"). The order in which all the beverages are

displayed is based on the frequency of selection.

To select a prole, press

and select the desired prole.

Please note!

• "

GUEST" prole: select this prole to deliver beverages

with the default settings.

• You can rename your personal prole by connecting with

the DeLonghi Coee Link App (only the rst three charac-

ters will be displayed).

• To customise the prole icon, see section "6.16 Customise

prole".

14. CLEANING

14.1 Cleaning the machine

The following parts of the machine must be cleaned regularly:

• the machine’s internal circuit;

• coee grounds container (A11);

• drip tray (), condensate tray (A10), drip tray grille (A14)

and tray full indicator (A13);

• water tank (A17);

• coee spouts (A9);

• pre-ground coee funnel (A4);

• infuser (A20), accessible after opening the infuser door

(A19);

• milk container (E);

• hot water connection nozzle (A8);

• touch screen (B).

Important!

• Do not use solvents, abrasive detergents or alcohol to clean

the coee machine. With De’Longhi superautomatic coee

machines, no chemical products are required for cleaning

purposes.

• None of the components of the machine can be washed

in a dishwasher with the exception of the drip tray grille

(A14) and milk container (E).

• Do not use metal objects to remove encrustations or coee

deposits as they could scratch metal or plastic surfaces.

14.2 Cleaning the internal circuit

If the machine is not used for more than 3/4 days, before using it

again, we strongly recommend switching it on and:

• performing 2/3 rinse cycles by selecting the "Rinse" func-

tion (section "6.3 Rinse ");

• delivering hot water for a few seconds (section "11. Deliv-

ering hot water").

Please note!

After cleaning, it is normal for the grounds container (A11) to

contain water.

14.3 Cleaning the coee grounds container

When "EMPTY GROUNDS CONTAINER" appears on the display,

the grounds container must be emptied and cleaned. The ma-

chine cannot be used to make coee until you have cleaned the

grounds container (A11). Even if not full, the empty grounds

container message is displayed 72 hours after the rst coee has

been prepared. For the 72 hours to be calculated correctly, the

machine must never be turned o with the main switch (A22).

Important! Danger of scalding

If you make a number of cappuccinos one after the other, the

metal cup tray (A12) becomes hot. Wait for it to cool down be-

fore touching it and handle it from the front only.

To clean (with the machine on):

1. Remove the drip tray (A15) (g. 22), empty and clean.

2. Empty the grounds container (A11) and clean thoroughly

to remove all residues left on the bottom. This can be done

using the spatula on the brush (D5) provided.

3. Check the condensate tray (A10) (red) and empty if

necessary.

Important!

When removing the drip tray, the grounds container must be

emptied, even if it contains few grounds. If this is not done,

when you make the next coees, the grounds container may ll

up more than expected and clog the machine.

14.4 Cleaning the drip tray and condensate tray

Important!

The drip tray (A15) is tted with a level indicator (A13) (red)

showing the amount of water it contains (g. 23).

Before the indicator protrudes from the cup tray (A12), the drip

tray must be emptied and cleaned, otherwise the water may

overow the edge and damage the machine, the surface it rests

on or the surrounding area.

To remove the drip tray, proceed as follows:

1. Remove the drip tray and coee grounds container (A11)

(g. 22);

2. Remove the cup tray (A12) and drip tray grille (A14), then

empty the drip tray and grounds container and wash all

components.

3. Check the condensate tray (A15) (red) and empty if

necessary;

4. Put the drip tray complete with grille and grounds contain-

er back in the machine.

14.5 Cleaning the inside of the coee machine

Danger of electric shock!

Before cleaning internal parts, the machine must be turned o

(see section "5. Turning the machine o") and unplugged from

the mains power supply. Never immerse the machine in water.

1. Check regularly (about once a month) that the inside of the

machine (accessible after removing the drip tray (A15))

is not dirty. If necessary, remove coee deposits with the

brush (D5) supplied and a sponge.

2. Remove all residues with a vacuum cleaner (g. 24).

14.6 Cleaning the water tank

Clean the water tank (A17) regularly (about once a month)

and whenever the water softener lter (D4) (if installed) is

replaced with a damp cloth and a little mild washing up de-

tergent. Rinse thoroughly before lling the tank and putting

it back in the machine;

Remove the lter (if installed) and rinse with running

water;

3. Replace the lter (if installed), ll the tank with fresh water

and replace;

4. (Models with water softener lter only) Deliver about 3.38

oz / 100ml of hot water to reactivate the lter.

14.7 Cleaning the coee spouts

1. Clean the coee spouts (A9) regularly with a sponge or

cloth (g. 25A);

2. Check the holes in the coee spouts are not blocked. If nec-

essary, remove coee deposits with a toothpick (g. 25B).

25B

25A

14.8 Cleaning the pre-ground coee funnel

Check regularly (about once a month) that the pre-ground

coee funnel (A4) is not blocked. If necessary, remove coee

deposits with the brush (D5) supplied.

14.9 Cleaning the infuser

The infuser (A20) must be cleaned at least once a month.

Important!

The infuser cannot be removed when the machine is on.

1. Make sure the machine is correctly turned o (see section

"5. Turning the machine o");

2. Remove the water tank (A17) (g. 3);

3. Open the infuser door (A19) (g. 26) on the right side of

the machine;

PUSH

4. Press the two coloured release buttons inwards and at the

same time pull the infuser outwards (g. 27);

5. Soak the infuser in water for about 5 minutes, then rinse

under the tap;

Important!

RINSE WITH WATER ONLY

NO WASHING UP DETERGENT  NO DISH WASHER

Clean the infuser without using washing up detergent as it

could be damaged.

6. Use the brush (D5) to remove any coee residues left in the

infuser housing, visible through the infuser door;

7. After cleaning, replace the infuser by sliding it onto the

internal support (g. 28), then push the PUSH symbol fully

in until it clicks into place;

Please note:

If the infuser is dicult to insert, before insertion, adapt it to the

right size by pressing the two levers shown in g. 29.

8. Once inserted, make sure the two coloured buttons have

snapped out (g. 30);

PUSH

9. Close the infuser door;

10. Put the water tank back.

14.10 Cleaning the milk container

To keep the frother ecient, clean the milk container every two

days as described below.

1. Remove the lid (E2);

2. Remove the milk spout (E5) and intake tube (E4) (g. 31);

3. Turn the froth adjustment dial (E1) anticlockwise to the

"INSERT" position (g. 31) and pull it o upwards;

4. Wash all the components thoroughly with hot water and

mild washing-up liquid. All components are dishwash-

er safe, but must be placed in the top basket of the

dishwasher. Make sure there are no milk residues on the

hollow and groove under the dial (g. 32). If necessary,

scrape the groove with a toothpick;

5. Rinse inside the froth adjustment dial seat with running

water (g. 33);

6. Check that the intake tube and spout are not clogged with

milk residues;

7. Replace the dial (in correspondence to the word "INSERT"),

spout and milk intake tube;

8. Place the lid back on the milk container (E2).

14.11 Cleaning the hot water nozzle

Each time you prepare milk, clean the connection nozzle (A8)

with a sponge to remove milk residues from the gaskets (g. 21).

15. DESCALING

Important!

• Before use, read the instructions and the labelling on the

descaler pack.

• You should use De’Longhi descaler only. Using unsuita-

ble descalers, or failing to perform the descale procedure

correctly, could lead to the machine developing faults not

covered by the manufacturer's guarantee.

Descale the machine when "DESCALING NEEDED" "PRESS OK TO

START (~45min)" appears on the display: To descale immedi-

ately, press

and follow the operations from point 3.

To descale the machine later, press . The

symbol appears on the display to remind you that the machine

needs descaling. (the message appears each time you turn the

machine on).

To access the descaling menu:

1. Pressthe "

" button (C3) to enter the menu;

2. Press "DESCALE" and follow the instructions on the

display;

3. "REMOVE WATER FILTER" (g. 34): extract the water tank

(A17), remove the water softener lter (D4) (if present)

and empty the water tank. Press

;

34 35

3535

3434

3535

A B

4. "DESCALER (LEVEL A)" "AND WATER (LEVEL B)" (g. 35);

Pour the descaler into the tank up to the level A marked

inside the tank (equal to one 3.38 oz /100ml pack), then

add water (one litre) up to level B and put the water tank

back. Press

;

5. "EMPTY DRIP TRAY" (g. 22):

6. Remove, empty and replace the drip tray (A15) and

grounds container (A11). Press

;

7. "POSITION 2l CONTAINER" "OK TO START":

Place an empty container with a minimum capacity of 67.6 

oz/ 2 litres under the hot water spout (D6) and coee spouts

(A9) (g. 8);

Important! Danger of scalding

Hot water containing acid ows from the hot water and coee

spouts. Take care to avoid contact with splashes of this solution.

8. Press "

" to conrm that you have added

the descaling solution. "DESCALING UNDERWAY" "PLEASE

WAIT" is displayed: The descale programme starts and

the descaler liquid comes out of the hot water and coee

spouts. A series of rinses is performed automatically to re-

move all the scale residues inside the coee machine;

After about 25 minutes, descaling stops;

9. "RINSE AND FILL WATER TANK" "UP TO MAX LEVEL" (g.

4): the machine is now ready to rinse with fresh water.

Empty the container used to collect the descaler solution.

Extract the water tank, empty, rinse under running water,

ll with fresh water up to the MAX level and put back in

the machine;

10. "POSITION 2l CONTAINER" "OK TO START RINSING": Place

the container used to collect the descaler solution empty

under the coee spouts and hot water spout (g. 8) and

press

;

11. Hot water is delivered rst from the coee spouts, then

from the hot water spout and "RINSING UNDERWAY" is

displayed;

12. When the water in the tank has run out, empty the con-

tainer used to collect the rinsing water;

13. (If the lter is installed) "INSERT FILTER" "INTO ITS HOUS-

ING" (g. 36). Press "

" and extract the

water tank. Replace the water softener lter if removed

previously;

3636

14. "RINSE AND FILL WATER TANK" "UP TO MAX LEVEL" (g. 4):

Fill the tank up to the MAX level with fresh water;

15. "INSERT WATER TANK" (g. 5): Put the water tank back in

the machine;

16. "POSITION 2l CONTAINER" "OK TO START RINSING": Place

the container used to collect the descaler solution empty

under the hot water spout (g. 8) and press

17. Hot water is delivered from the hot water/steam spout and

"RINSING UNDERWAY" "PLEASE WAIT" is displayed;

18. "EMPTY DRIP TRAY" (g. 22): At the end of the second

rinse, remove, empty and replace the drip tray (A15) and

grounds container (A11) and press ;

19. "DESCALE COMPLETE": press ;

20. "FILL TANK WITH" "FRESH WATER": empty the container

used to collect the rinse water, remove the water tank and

ll with fresh water up to the MAX level, then put back in

the machine.

The descaling cycle is now complete.

Please note:

• If the descaling cycle is not completed correctly (e.g. no

electricity) we recommend repeating the cycle;

• After descaling, it is normal for the grounds container

(A11) to contain water.

• If the water tank has not been lled to the MAX level, at

the end of descaling, the machine requests a third rinse to

guarantee that the descaler solution has been complete-

ly eliminated from the machine's internal circuits. Before

starting rinsing, remember to empty the drip tray;

• The machine may request descaling cycles at very short in-

tervals. This is normal and due to the machine’s advanced

control system.

16. SETTING WATER HARDNESS

The "DESCALING NEEDED" "PRESS OK TO START ~45MIN

" message is displayed after a period of time established

according to water hardness.

The machine is set by default for a hardness value of "4". The

machine can also be programmed according to the hardness

of the mains water in the various regions so that the machine

needs to be descaled less often.

16.1 Measuring water hardness

1. Remove the TOTAL HARDNESS TEST indicator paper (D1)

from its pack (attached to the English instructions).

2. Immerse the paper completely in a glass of water for one

second.

3. Remove the paper from the water and shake lightly. After

about a minute, 1, 2, 3, or 4 red squares form, depending

on the hardness of the water. Each square corresponds to

one level.

Indicator paper Water hardness

Level 1 - soft water

Level 2 - slightly hard

water

Level 3 - hard water

Level 4 - very hard water

16.2 Setting water hardness

1. Access the menu as described in section "6.1 Access the

settings menu";

2. Press "WATER HARDNESS";

3. "WATER HARDNESS" "CURRENT VALUE UNDERLINED": Press

the required level (Level 1 = soft water; Level 4 = very hard

water);

4. Press "

" to go back to the homepage.

The machine is now reprogrammed with the new water hard-

ness setting.

17. WATER SOFTENER FILTER

Certain models are tted with a water softener lter (D4). If this

is not the case with your model, you are recommended to pur-

chase one from De’Longhi Customer Services.

To use the lter correctly, follow the instructions below.

17.1 Installing the lter

1. Remove the lter (D4) from the packaging;

2. Access the menu as described in section "6.1 Access the

settings menu";

3. Press "WATER FILTER"; "TURN DATE INDICATOR TO NEXT 2

MONTHS" (g. 37): turn the date disk to display the next

2 months of use.

4. Press

;

37 38

Please note

The lter lasts about two months if the machine is used normal-

ly. If the coee machine is left unused with the lter installed, it

will last a maximum of 3 weeks.

5. "RUN WATER INTO FILTER HOLE" "UNTIL IT COMES OUT" (g.

38): To activate the lter, run tap water through the hole

in the lter as shown in the gure until water comes out

of the openings at the side for more than a minute. Press

;

6. Extract the tank (A17) from the machine and ll with

water.

7. "IMMERSE FILTER TO" "EXPEL AIR BUBBLES" (g. 39): Insert

the lter in the water tank and immerse it completely for

about ten seconds, sloping it and pressing it lightly to ena-

ble the air bubbles to escape. Press

;

3939

8. "INSERT FILTER" "IN HOUSING": Insert the lter (D4) in the

lter housing (g. 36) and press as far as it will go. Press

;

9. "INSERT WATER TANK": Close the tank with the lid (A17),

then put the tank back in the machine (g. 5);

10. "POSITION 0.5L CONTAINER" "OK TO ENABLE FILTER"

(g. 7): Place the container under the hot water spout

(D6) and press

. Delivery begins and stops

automatically.

The lter is now active and the coee machine can be used.

17.2 Replacing the lter

Replace the lter (D4) when "REPLACE WATER FILTER" "PRESS

OK TO START" appears on the display: to replace immediately,

press

and follow the instructions from point 5.

To replace the lter later, press

. The sym-

bol appears on the display to remind you that the lter needs

replacing. To replace, proceed as follows:

1. Extract the tank (A17) and exhausted lter;

2. Remove the new lter from the packaging;

3. Access the menu as described in section "6.1 Access the

settings menu";

4. Follow the operations described in the previous section

from point 3.

The lter is now active and the coee machine can be used.

Please note:

After two months (see date indicator) or when the machine has

not been used for 3 weeks, you should replace the lter even if

the message has not yet been displayed.

17.3 Removing the lter

If you want to use the machine without the lter (D4), you must

remove it and notify the machine of its removal. Proceed as

follows:

1. Extract the tank (A17) and exhausted lter;

2. Access the menu as described in section "6.1 Access the

settings menu";

3. PRESS "WATER FILTER";

4. Press the selector corresponding to " REMOVE WATER

FILTER";

5. "CONFIRM FILTER REMOVAL": press

(or

press

to go back to the settings menu);

6. "FILTER REMOVED": the change has been saved. Press

to go back to the homepage.

Please note:

After two months (see date indicator) or when the machine has

not been used for 3 weeks, you should replace the lter even if

the message has not yet been displayed.

18. REGULATORY COMPLIANCE

FCC for USA

This equipment has been tested and found to comply with the

limits for a Class B digital device, pursuant to part 15 of the FCC

rules. These limits are designed to provide reasonable protec-

tion against harmful interference in a residential installation.

This equipment generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with the in-

structions, may cause harmful interference to radio communica-

tions. However, there is no guarantee that interference will not

occur in a particular installation. If this equipment does cause

harmful interference to radio or television reception, which can

be determined by turning the equipment o and on, the user is

encouraged to try to correct the interference by one or more of

the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and

receiver.

• Connect the equipment into an outlet on a circuit dierent

from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician

for help.

IC for CND

This device complies with Industry Canada licence-exempt RSS

standard(s). Operation is subject to the following two condi-

tions: (1) this device may not cause interference, and (2) this

device must accept any interference, including interference that

may cause undesired operation of the device.

19. DISPLAYED MESSAGES

DISPLAYED MESSAGE POSSIBLE CAUSE REMEDY

FILL TANK WITH FRESH

WATER

Insucient water in the tank

(A17)

. Fill the tank with water and/or insert it correct-

ly, pushing it as far as it will go until it clicks

into place.

INSERT WATER TANK

The tank

(A17)

is not correctly in place. Insert the tank correctly and press as far as it

will go.

EMPTY GROUNDS CONTAINER

The grounds container (A11) is full.

Empty the grounds container and drip tray

(A15), clean and put back in the machine.

Important: when removing the drip tray, the

grounds container MUST be emptied, even if it

contains few grounds. If this is not done, when

you make the next coees, the grounds contain-

er may ll up more than expected and clog the

machine.

INSERT GROUNDS CONTAINER After cleaning, the grounds container

(A11)

has

not been replaced.

Remove the drip tray (A15) and insert the

grounds container.

ADD GROUND COFFEE MAX.

ONE MEASURE

The pre-ground coee function has been se-

lected without placing any pre-ground coee

in the funnel

(A4)

Place pre-ground coee in the funnel

(g. 12)

and repeat delivery

→

DISPLAYED MESSAGE POSSIBLE CAUSE REMEDY

ADD GROUND COFFEE MAX.

ONE MEASURE

A LONG coee with pre-ground coee has been

requested

Place pre-ground coee in the funnel (A4) (g.

12) and press the selector corresponding to

"OK" to continue and complete delivery.

FILL BEANS CONTAINER

The coee beans have run out. Fill the beans container

(A4) (g. 10)

The pre-ground coee funnel

(A4)

is clogged. Empty the funnel with the help of the brush

(D5) as described in section "14.8 Cleaning the

pre-ground coee funnel".

GROUND TOO FINE. ADJUST

GRINDER

The grinding is too ne and the coee is deliv-

ered too slowly or not at all.

Repeat coee delivery and turn the grinding

adjustment dial

(A5) (g. 13)

one click clock-

wise towards "7" while the coee grinder is

in operation. If after making at least 2 coees

delivery is still too slow, repeat the correction

procedure, turning the grinding adjustment

dial another click until delivery is correct (see

section "7.5 Adjusting the coee grinder"

)

. If

the problem persists, make sure the water tank

(A17) is fully inserted.

If the water softener lter (D4) is present, an

air bubble may have been released inside the

circuit, obstructing delivery.

Insert the hot water spout (D6) in the machine

and deliver a little water until the ow be-

comes regular.

SELECT A MILDER TASTE OR

REDUCE COFFEE AMOUNT

Too much coee has been used. Select a milder taste by pressing the "Strength"

button (C5) or reduce the quantity of ground

coee (maximum 1 measure).

→

DISPLAYED MESSAGE POSSIBLE CAUSE REMEDY

INSERT WATER SPOUT

The hot water spout (D6) is not inserted or is

inserted incorrectly

Insert the water spout as far as it will go.

INSERT MILK CONTAINER

The milk container (E) is not inserted correctly. Insert the milk container, pushing it as far as

it will go.

INSERT INFUSER ASSEMBLY

The infuser (A20) has not been replaced after

cleaning.

Insert the infuser as described in section "14.9

Cleaning the infuser".

WATER CIRCUIT EMPTY

PRESS OK TO START

The water circuit is empty Press the selector corresponding to "OK" to

deliver water from the spout (D6) until it ows

out normally.

If the problem persists, make sure the water

tank (A17) is fully inserted.

→

DISPLAYED MESSAGE POSSIBLE CAUSE REMEDY

PRESS OK TO CLEAN OR TURN

DIAL

The milk container has been inserted with

the froth adjustment dial (E1) in the CLEAN

position.

To proceed with the CLEAN function, press the

selector corresponding to

"OK", or turn the froth

adjustment dial to one of the milk positions.

TURN MILK FROTH

ADJUSTMENT DIAL TO CLEAN

POSITION

CLEAN

Milk has been delivered recently and the tubes

inside the milk container (E) must be cleaned.

Turn the froth adjustment dial (E1) to CLEAN

(g. 19).

TURN FROTH ADJUSTMENT

DIAL

The milk container has been inserted with

the froth adjustment dial (E1) in the CLEAN

position.

Turn the dial to the required froth position.

DESCALING NEEDED

PRESS OK TO START

~45MIN

The machine must be descaled. Press the selector corresponding to "OK" to

start descaling or "ESC" to descale later. The

descaling procedure described in section "15.

Descaling" needs to be performed.

→

PROBLEM POSSIBLE CAUSE REMEDY

The coee is not hot. The cups were not preheated. Warm the cups by rinsing them with hot

water (Please note: you can use the hot water

function).

The infuser has cooled down because

2/3 minutes have elapsed since the last

coee was made.

Before making the coee, heat the infuser by

rinsing using the rinse function

(see section

"6.3 Rinse ").

A low coee temperature is set.

Set a hotter coee temperature in the menu (see

section "6.9 Coee temperature" ).

→

20. TROUBLESHOOTING

Below is a list of some of the possible malfunctions.

If the problem cannot be resolved as described, contact Customer Services.

DISPLAYED MESSAGE POSSIBLE CAUSE REMEDY

REPLACE WATER FILTER

PRESS OK TO START

The water softener lter (D4) is exhausted. Press the selector corresponding to "OK" to re-

place or remove the lter, or "ESC" to carry out

the procedure later. Follow the instructions in

section "17. Water softener lter".

GENERAL ALARM: REFER TO

USER MANUAL / APP

The inside of the machine is very dirty. Clean the inside of the machine thoroughly, as

described in section "14. Cleaning". If the mes-

sage is still displayed after cleaning, contact a

customer service centre.

The tubes inside the milk container (E) must be

cleaned.

Turn the froth adjustment dial (E1) to CLEAN

(g. 19).

Reminds you the lter (D4) must be replaced. Replace the lter or remove it as described in

section "17. Water softener lter".

The machine must be descaled. The descaling procedure described in section

"15. Descaling" needs to be performed.

The machine may request descaling cycles at

very short intervals. This is normal and due to

the machine’s advanced control system.

Energy saving is enabled. To disable the function, proceed as described in

section "6.8 Energy saving".

The machine is connected to a device via

bluetooth.

CLEANING UNDERWAY

PLEASE WAIT

The machine has detected impurities in its in-

ternal circuits.

Wait for the machine to be ready for use again

and reselect the required beverage. Contact

Customer Services if the problem persists.

PROBLEM POSSIBLE CAUSE REMEDY

The coee is weak or not creamy

enough.

The coee is ground too coarsely. Turn the grinding adjustment dial (A5) one

click anticlockwise towards "1" while the cof-

fee grinder is in operation (g. 13). Continue

one click at a time until coee delivery is sat-

isfactory. The eect is only visible after deliv-

ering 2 coees (see section "7.5 Adjusting the

coee grinder").

The coee is unsuitable. Use coee for espresso machines.

The coee is not fresh. The coee pack has been opened for too long

and has lost its taste.

The coee is delivered too slowly or a

drop at a time.

The coee is ground too nely. Turn the grinding adjustment dial (A5) one

click clockwise towards "7" while the coee

grinder is in operation (g. 13). Continue one

click at a time until coee delivery is satisfac-

tory. The eect is only visible after delivering

2 coees (see section "7.5 Adjusting the coee

grinder").

Coee does not come out of one or

both of the spouts.

The coee spouts (A9) are blocked. Clean the spouts with a toothpick (g. 25B).

The machine will not make coee The machine has detected impurities

in its internal circuits. "Cleaning under-

way" is displayed.

Wait for the machine to be ready for use again

and reselect the required beverage. Contact

Customer Services if the problem persists.

The machine does not come on It is not plugged into the mains socket. Plug into the mains socket (g. 1).

The main switch (A22) is not turned on. Press the main switch (g. 2).

The infuser cannot be extracted The machine has not been turned o

correctly

Turn the machine o by pressing the but-

ton (A15)

(see section "5. Turning the machine

o").

At the end of descaling, the machine

requests a third rinse

During the two rinse cycles, the water

tank (A17) has not been lled to the

MAX level

Follow the instructions displayed by the ma-

chine, but rst empty the drip tray (A15) to

avoid the water overowing.

Milk does not ow from the milk

spout (E5)

The milk container (E) lid (E2) is dirty Clean the milk container lid as described in sec-

tion "14.10 Cleaning the milk container".

→

PROBLEM POSSIBLE CAUSE REMEDY

The milk contains large bubbles and

squirts out of the milk spout (E5) or

there is little froth

The milk is not cold enough or is not

semi-skimmed or skimmed.

Use skimmed or semi-skimmed milk at refrig-

erator temperature (about 5° C). If the result is

not as expected, try a dierent brand of milk.

The froth adjustment dial (E1) is incor-

rectly adjusted.

Adjust following the instructions in section "9.

making milk-based recipes".

The milk container lid (E2) or froth ad-

justment dial (E1) are dirty

Clean the milk container lid and dial as de-

scribed in section "14.10 Cleaning the milk

container".

The hot water connection nozzle (A8)

is dirty

Clean the connection nozzle as described in

section "14.11 Cleaning the hot water nozzle".

The machine emits noises or small

pus of steam while not in use

The machine is ready for use, or has re-

cently been turned o, and condensate

is dripping into the hot vaporiser

This is part of normal operation. To limit the

phenomenon, empty the drip tray.

SOMMAIRE

AVERTISSEMENTS IMPORTANTS ....................... 30

INSTRUCTIONS POUR LE CORDON COURT .......... 30

1.1 Lettres entre parenthèses ....................................... 31

1.2 Problèmes et réparations ....................................... 31

1.3 Téléchargez l'App !..................................................31

2. DESCRIPTION ............................................ 31

2.1 Description de l’appareil (page 2 - A) ..................... 31

2.2 Description de la page d'accueil (page 3 - B) ......... 31

2.3 Description du panneau de contrôle (page 3 - C) ... 32

2.4 Description des accessoires (page 3 - D) ................ 32

2.5 Description du pot à lait (page 3 - E) ...................... 32

4. ALLUMAGE DE L'APPAREIL..................33

5. ARRÊT DE L’APPAREIL ................................ 33

RÉGLAGES DU MENU ..........................34

6.1 Accéder au menu ...................................................34

6.2 Quitter le menu ...................................................... 34

6.3 Rin

ça

ge ..........................................................................34

6.4 Détartrage .............................................................34

6.5 Filtre à eau ............................................................34

6.6 Réglages boissons ................................................34

6.7 Arrêt automatique (veille) .....................................34

6.8 Économie d'énergie .............................................34

6.9 Température café .................................................. 35

6.10 Dureté de l'eau ...................................................... 35

6.11 Programmer langue .............................................. 35

6.12 Signal sonore ........................................................ 35

6.13 Bluetooth .............................................................. 35

6.14 Valeurs d'usine .....................................................35

6.15 Statistiques ...........................................................35

6.16 Personnaliser prol ...............................................35

7. PRÉPARATION DU CAFÉ .....................35

7.1 Préparation du café avec du café en grains ............. 35

7.2 Sélection de l'arôme du café ..................................36

7.3 Sélection de la quantité de café .............................36

7.4 Préparation du café en utilisant le café prémoulu .. 36

7.5 Réglage du moulin à café ....................................... 37

7.6 Conseils pour un café plus chaud ............................ 37

9. PRÉPARATION DE BOISSONS AU LAIT ..37

9.3 Préparation automatique de boissons à base de lait 38

9.4 Nettoyage du pot à lait après chaque utilisation ... 39

10. CARAFE À CAFÉ .......................................... 39

11.

DISTRIBUTION D'EAU CHAUDE ........... 39

12.

PERSONNALISER LES BOISSONS ........ 40

13.

MÉMORISER SON PROPRE PROFIL

UTILISATEUR ............................................ 40

14.

NETTOYAGE ...................................... 40

14.1 Nettoyage de la machine ....................................... 40

14.2 Nettoyage du circuit interne de la machine ............41

14.3 Nettoyage du tiroir à marc de café ......................... 41

14.4 Nettoyage de l’égouttoir et de la coupelle de

condensation .........................................................41

14.5 Nettoyage interne de la machine ..........................42

14.6 Nettoyage du réservoir à eau ................................. 42

14.7 Nettoyage des becs verseurs de café ......................42

14.8 Nettoyage de l’entonnoir pour l’introduction du café

moulu ....................................................................42

14.9 Nettoyage de l'infuseur .......................................... 42

14.10 Nettoyage du pot à lait...........................................43

14.11 Nettoyage du gicleur eau chaude ...........................43

15. DÉTARTRAGE ................................... 44

16.

PROGRAMMATION DE LA DURETÉ DE

L'EAU ....................................................... 45

16.1 Mesure de la dureté de l'eau ..................................45

16.2 Réglage de la dureté de l'eau ..............................45

17. FILTRE ADOUCISSEUR ........................ 45

17.1 Installation du ltre ...............................................45

17.2 Remplacement du ltre ......................................... 46

17.3 Enlever le ltre ....................................................... 46

19. MESSAGES AFFICHÉS À L'ÉCRAN ......... 47

20.

RÉSOLUTION DES PROBLÈMES ........... 52

AVERTISSEMENTS IMPORTANTS

Lors de l’utilisation des appareils électriques, vous devez toujours respecter des précautions de base, et notam-

ment les suivantes.

• Lisez attentivement toutes les instructions.

• Assurez-vous que la tension de votre système électrique correspond à la tension indiquée sur le fond de

la machine.

• Ne touchez pas les surfaces chaudes. Utilisez les poignées ou les boutons.

• Pour vous protéger contre l’incendie, les électrocutions et les blessures, ne plongez pas le cordon, la che

ou l’appareil dans l’eau ou tout autre liquide.

• Conservez l’appareil hors de portée des enfants et ne laissez pas l’appareil sans surveillance lorsqu’il est

en marche.

• Débranchez-le de la prise lorsqu’il n’est pas utilisé et avant le nettoyage.

• N’utilisez pas l’appareil avec un cordon ou une che endommagés, si l’appareil présente un dysfonctionne-

ment ou s’il a subi des dégâts. Renvoyez l’appareil au centre assistance autorisé le plus proche pour un

examen, une réparation ou un ajustement.

• L’utilisation d’accessoires non recommandés par le fabricant peut provoquer un incendie, une électrocu-

tion ou des blessures.

• N’utilisez pas l’appareil à l’extérieur.

• Assurez-vous que le cordon d’alimentation ne pende pas du bord de la table ou du plan de travail an

d’éviter tout enchevêtrement.

• Ne placez pas l’appareil ou ses parties électriques au-dessus ou à proximité des cuisinières électriques,

surfaces de cuisson ou brûleurs à gaz.

• Branchez le cordon dans la prise murale. Pour le débrancher, mettez d’abord la machine hors tension, puis

retirez la che de la prise murale.

• N’utilisez pas l’appareil pour d’autres usages que ceux qui sont prévus. Cet appareil doit être utilisé dans

un milieu domestique uniquement. Le fabricant décline toute responsabilité quant aux dégâts causés par

une utilisation impropre, incorrecte ou irresponsable.

AVERTISSEMENT : An de réduire le risque d’incendie ou d’électrocution, ne retirez pas le capot

ou l’extérieur de l’unité. Ne tentez aucune réparation ou modication de la machine sous peine

d’annuler la garantie. Les réparations doivent être eectuées exclusivement par du personnel

d’assistance autorisé.

CONSERVEZ CES INSTRUCTIONS

CET APPAREIL DOIT ÊTRE UTILISÉ DANS UN MILIEU DOMESTIQUE UNIQUEMENT

INSTRUCTIONS POUR LE CORDON COURT

- Un cordon d’alimentation court est fourni pour réduire les risques d’enchevêtrement ou de trébuchement

sur un cordon plus long.

- Des cordons d’alimentation plus longs et amovibles ou des rallonges sont disponibles et peuvent être

utilisées à condition de prendre des précautions.

1. INTRODUCTION

Merci d'avoir choisi la machine automatique pour café et

cappuccino.

Nous vous souhaitons de bien proter de votre nouvel appareil.

Prenez quelques minutes pour lire ce mode d'emploi. Vous évi-

terez ainsi de vous exposer à des risques ou d'endommager la

machine.

1.1 Lettres entre parenthèses

Les lettres entre parenthèses correspondent à la légende indi-

quée dans la Description de l'appareil (pages 2-3).

1.2 Problèmes et réparations

En cas de problèmes, essayez avant tout de les résoudre en sui-

vant les instructions fournies dans les chapitres "19. Messages

achés à l'écran" et "20. Résolution des problèmes".

En cas d'inecacité ou pour plus d'informations, il est conseillé

de s'adresser au service client en téléphonant au numéro indi-

qué sur le feuillet "Service client" joint.

1.3 Téléchargez l'App !

Grâce à l’App De’Longhi Coee Link, il est possible de gérer à dis-

tance certaines fonctions.

Dans l'App on trouve aussi des informations, conseils, curiosités

sur le monde du café et il est possible d'avoir à portée de main

toutes les informations sur votre machine.

Ce symbole met en évidence les fonctions qu'il est pos-

sible de gérer ou consulter dans l'App.

Il est en outre possible de créer jusqu'à un maximum de 3 nou-

velles boissons et de les sauvegarder sur votre machine.

Nota Bene :

• Vérier les dispositifs compatibles sur “compatibledevices.

delonghi.com”.

• Avertissement: Les changements ou modications non

expressément approuvés par DE LONGHI peuvent annuler

le droit de l'utilisateur à utiliser l'équipement.

• Pour annuler une commande à distance, il est toujours

possible d'agir directement sur l'écran de la machine en

appuyant sur Arrêt.

2. DESCRIPTION

2.1 Description de l’appareil

(page 2 - A)

A1. Couvercle du réservoir à grains

A2. Couvercle de l'entonnoir pour le café prémoulu

A3. Réservoir à grains

A4. Entonnoir pour l’introduction du café prémoulu

A5. Bouton de réglage du degré de mouture

A6. Range-tasses

A7. Touche : pour allumer ou éteindre la machine (veille)

A8. Gicleur eau chaude

A9. Bec verseur de café (hauteur réglable)

A10. Coupelle de condensation

A11. Tiroir à marc

A12. Plateau d'appui pour tasses

A13. Flotteur indiquant le niveau de l'eau de l'égouttoir

A14. Grille égouttoir

A15. Égouttoir

A16. Couvercle réservoir à eau

A17. Réservoir à eau

A18. Logement du ltre adoucisseur d'eau

A19. Volet infuseur

A20. Infuseur

A21. Cordon d'alimentation

A22. Interrupteur général

2.2 Description de la page d'accueil (page 3 - B)

B1. Symbole bluetooth actif

B2. Symbole économie d'énergie actif

B3. Arôme sélectionné

B4. Boissons à sélection directe

B5. Flèche de délement

B6. Longueur sélectionnée

B7. Alarme détartrage requis
