MAKE THE MOST OF YOUR
ALL
-
TRIDENT ™ CARE & USE/INSTALLATION
2
|
CARE & USE/INSTALLATION
CARE & USE/INSTALLATION
|
3
WARNINGS
WARNING
This product complies with ANSI standard Z21.58 2015
Ed. 4/CSA 1.6 2015 Ed. 4 and has been tested and
approved by Intertek.
To obtain replacement parts or service contact:
Lynx Professional Grills
7300 Flores Street
Downey, CA 90242
888-289-5969
• Never use dented, rusty or damaged propane cylinders. Never store additional or empty propane cylinders
in the grill cabinet or in the vicinity of this or any other appliance. Do not store propane cylinders indoors or
on their sides.
• Children should never be left alone or unattended in an area where a grill is located. Place your grill well
away from areas where children play. Do not store items that may interest children in or around the grill, in
the cart, or in the masonry enclosure.
• Never move the grill when hot. When in use, portions of the grill are hot enough to cause severe burns.
• Always maintain the required clearances from combustibles as detailed. The grill is designed for outdoor
use only. Never use in a garage, building, shed, breezeway, or other enclosed area. Do not use this grill
under any unprotected overhead combustible construction.
• Gas grills are not designed or certified for and are not to be installed in or on recreational vehicles, portable
trailers, boats or any other moving installation.
• Always have an ABC Fire Extinguisher accessible — never attempt to extinguish a grease fire with water or
other liquids.
• Storing your grill: Store your grill in a well-ventilated area. If stored indoors, detach and leave L.P. cylinder
outdoors in a well-ventilated area away from heat and away from where children may tamper with it.
• Keep any electrical supply cord and the fuel supply hose away from any heated surfaces. Electrical cords
should be placed away from walkways to avoid tripping hazard.
• Do not repair or replace any part of the grill unless specifically recommended in this manual. Other service
should be performed by a qualified technician.
• If the grill is installed by a professional installer or technician, be sure that he/she shows you where your gas
supply shut-off is located. All gas lines must have a shut-off that is readily and easily accessible. If you smell
gas, check for gas leaks immediately. Check only with a soap and water solution. (See INDEX: “Leak Test-
ing” for further details.) Never check for gas leaks with an open flame.
• Inspect the L.P. gas supply hose prior to each use of the grill. If there is evidence of excessive abrasion or
wear, or the hose is cut, it must be replaced before using the grill.
• Never remove the grounding prong from the plug or use this product with an ungrounded, 2-prong adapter.
THIS MANUAL MUST REMAIN WITH THE PRODUCT OWNER FOR FUTURE REFERENCE.
Automatic Electrical Controls: UL 60730-1 - 2016.
4
|
CARE & USE/INSTALLATION
WARNINGS
READ THIS MANUAL CAREFULLY and completely before using your grill to reduce the risk of:
1. Fire
2. Burn hazard, personal injury or property damage
3. Ruined steaks or other unpleasant cooking experiences
4. Unapproved installation or servicing.
THIS PRODUCT IS DESIGNED FOR OUTDOOR USE ONLY. Improper installation, adjustment, alteration, service
or maintenance can cause property damage, injury or death.
Read this manual thoroughly before installation, use, or servicing of this product.
1. The burning of gas cooking fuel generates some by-products which are on the list of substances which are
known by the State of California to cause cancer or reproductive harm.
2. California law requires businesses to warn customers of potential exposure to such substances. To minimize
exposure to the substances, always operate this unit according to the use and care instructions found in this
manual. Be certain to provide adequate ventilation when cooking.
IF YOU SMELL GAS:
1. Shut off all gas supply lines to the grill.
2. Extinguish any open flames.
3. Carefully open the lid. Remember, it may be
extremely hot!
4. If odor continues, keep everyone away from the
grill and immediately call your gas supplier or
your fire department.
1. DO NOT store or use gasoline or other
flammable vapors and liquids in the vicinity of
this or any other appliance.
2. An LP cylinder not connected for use shall
not be stored in the vicinity of this or any
other appliance.
S’IL Y A UNE ODEUR DE GAZ:
1. Coupez l’admission de gaz de l’appariel.
2. Éteindre toute flamme nue.
3. Ouvrir le couvercle.
4. Si l’odeur persiste, éloignez-vous de
l’appareil et appelez immédiatement le
fournisseur de gaz ou le service d’incendie.
1. Ne pas entreposer ni utiliser de l’essence ni
d’autres vapeurs ou liquides inflammables
dans le voisinage de l’appareil, ni de tout
autre appareil.
2. Une bouteille de propane qui n’est pas rac-
cordée en vue de son utilisation, ne doit pas
être entreposée dans le voisinage de cet
appareil ou de tout autre appareil.
WARNING
DANGER
WARNING
DANGER
AVERTISSMENT
WARNING! CALIFORNIA PROPOSITION 65
CARE & USE/INSTALLATION
|
5
WARNINGS
WARNING
STATE OF MASSACHUSETTS
1. Massachusetts requires all gas be installed using a plumber or gas fitter carrying the appropriate
Massachusetts license.
2. All permanently-installed natural gas or propane installations require a “T” handle type manual gas valve be
installed in the gas supply line to this appliance.
3. This does not apply to portable propane installations using a 20 pound cylinder.
1. The outdoor cooking gas appliance and its individual shutoff valve must be disconnected from the gas supply
piping system during any pressure testing of that system at test pressures in excess of 0.5 psi (3.5 kPa).
2. The outdoor cooking gas appliance must be isolated from the gas supply piping system by closing its
individual manual shutoff valve during any pressure testing of the gas supply piping system at test pressures
equal to or less than 1/2 psi (3.5 kPa).
WARNING
1. Always maintain the required clearances from combustible construction as detailed. The grill is designed for
outdoor use only. Never use in a garage, building, shed, breezeway or other enclosed area. This grill shall not
be used under any unprotected overhead combustible construction.
2. Gas grills are not design certified for and are not to be installed in or on recreational vehicles, portable
trailers, boats or any other moving installation.
3. Keep any electrical supply cord and the fuel supply hose away from any heated surfaces. Electrical cords
should be placed away from walkways to avoid creating a tripping hazard.
4. Do not repair or replace any part of the grill unless specifically recommended in this manual. Other service
should be performed by a qualified technician.
5. All gas lines must have a shut-off that is readily and easily accessible. Be sure the owner knows where the
shut-off is located. If you smell gas, check for gas leaks immediately. Check only with a soap and water
solution. Never check for gas leaks with an open flame. (See INDEX: “Leak Testing” for further details.)
6
|
CARE & USE/INSTALLATION
USE & CARE GUIDELINES 7
Lynx Grill Models 7
HOW TO LIGHT YOUR GRILL 7
HOW TO LIGHT YOUR ROTISSERIE BURNER 7
ABOUT FLAMETRAK 8
BEFORE YOU START 9
If Shipment Arrives Damaged 9
Important Notes 9
Built in Installations 10
Clearance to Combustibles 10

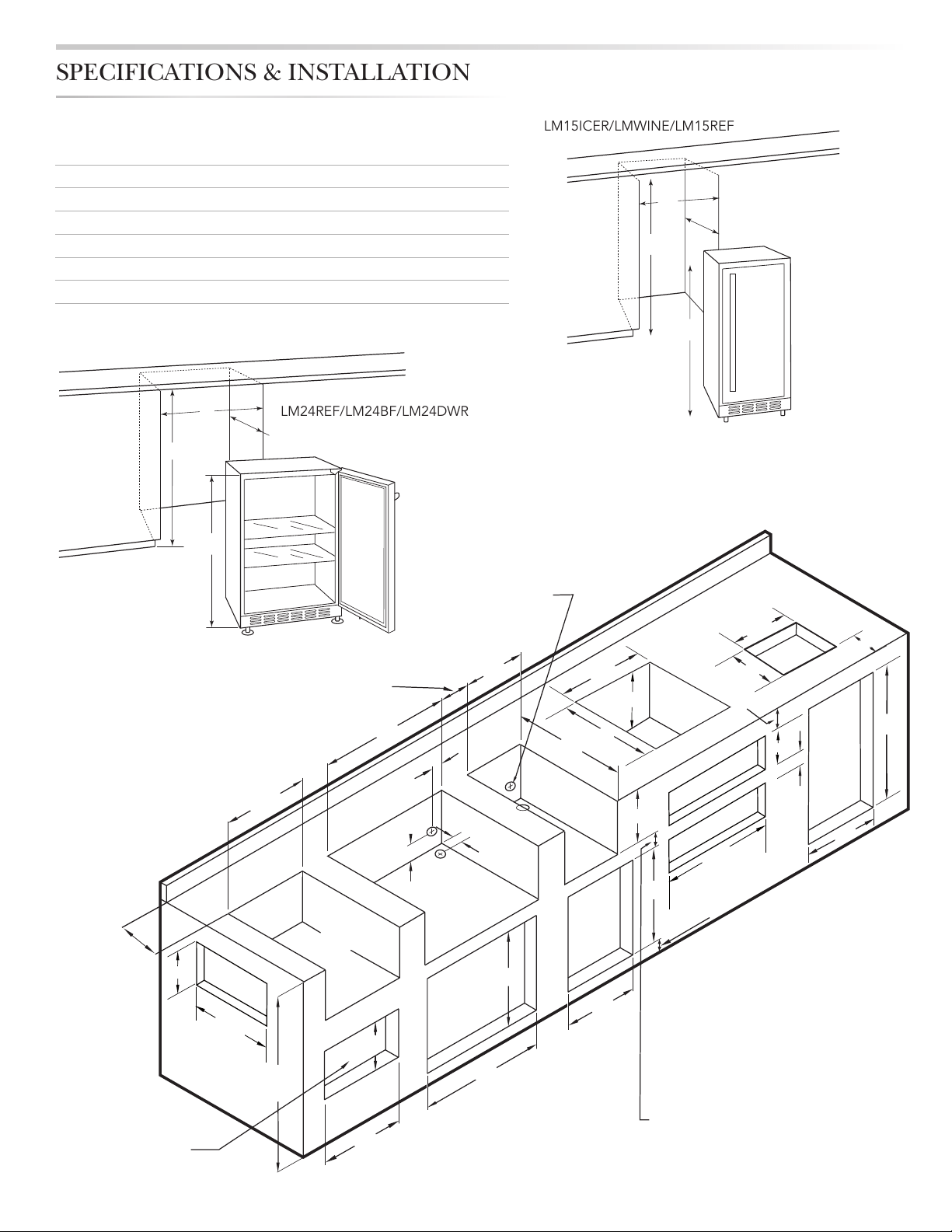

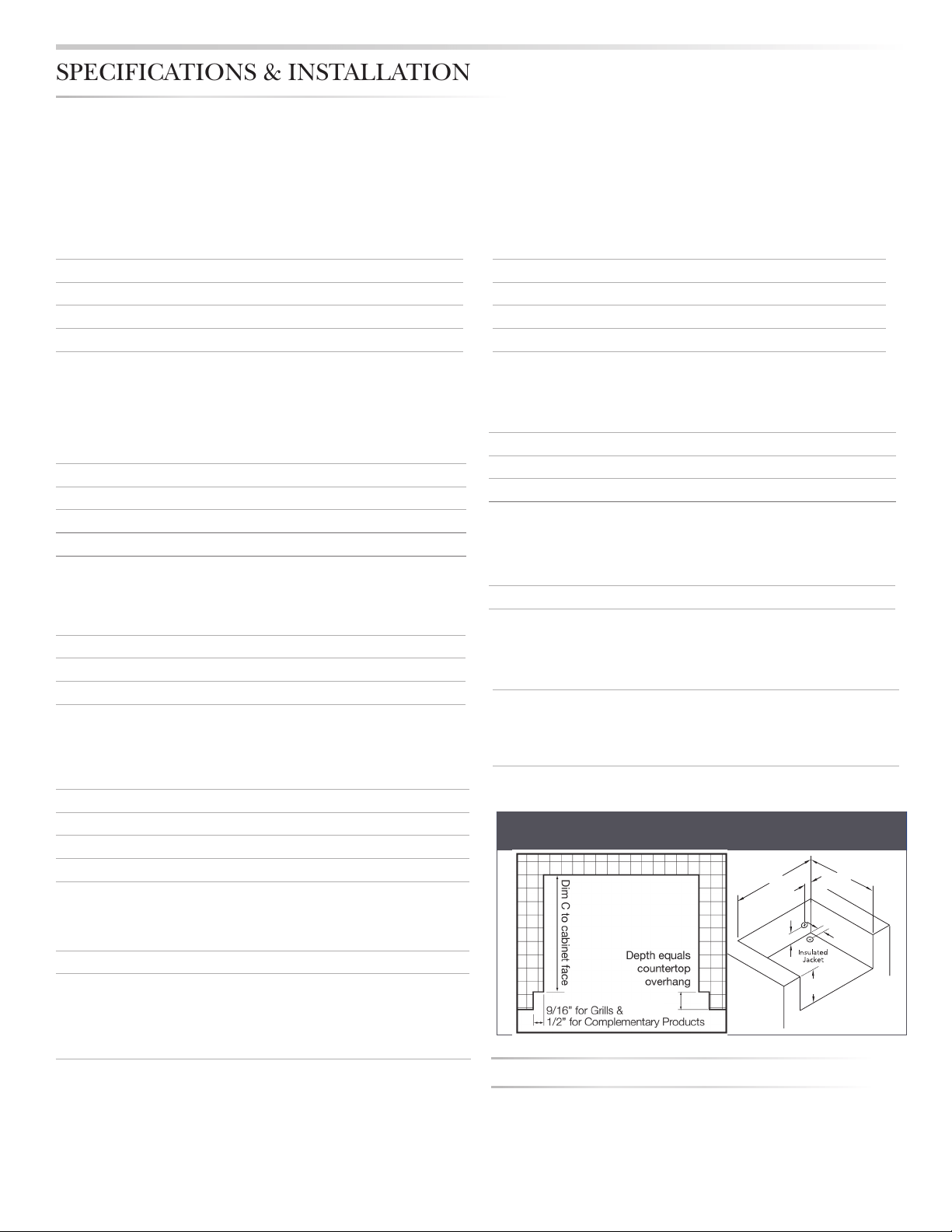

SPECIFICATIONS & INSTALLATION 11

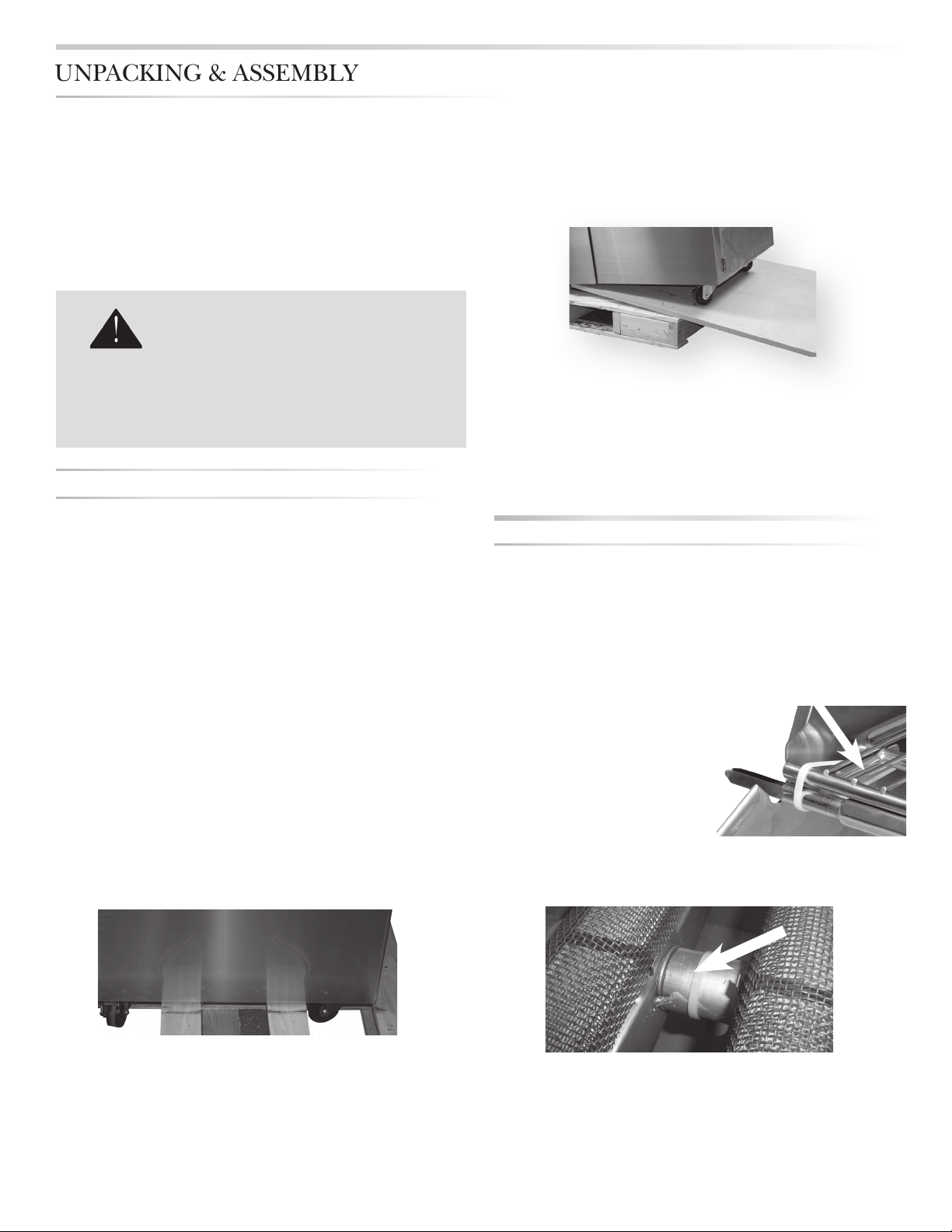

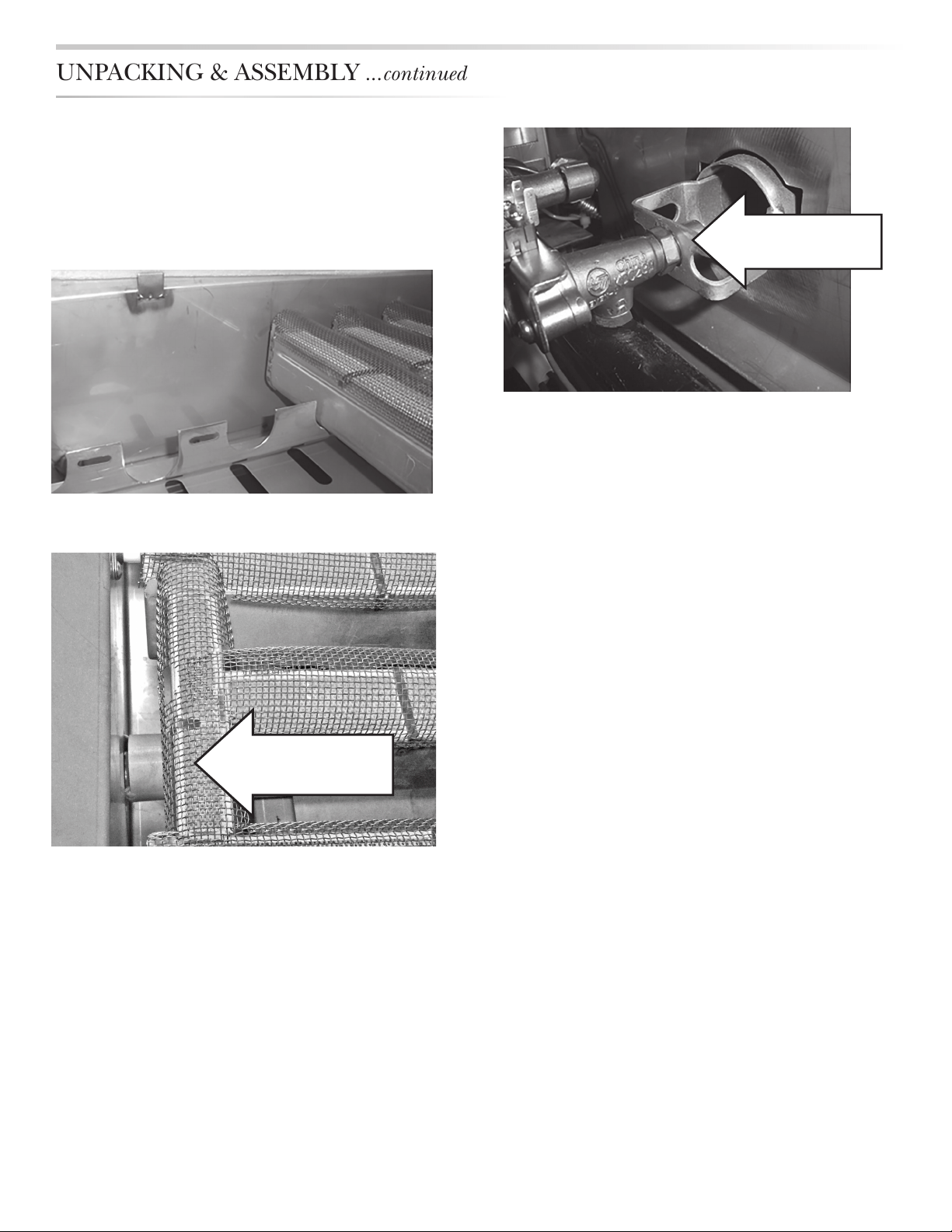

UNPACKING & ASSEMBLY 13

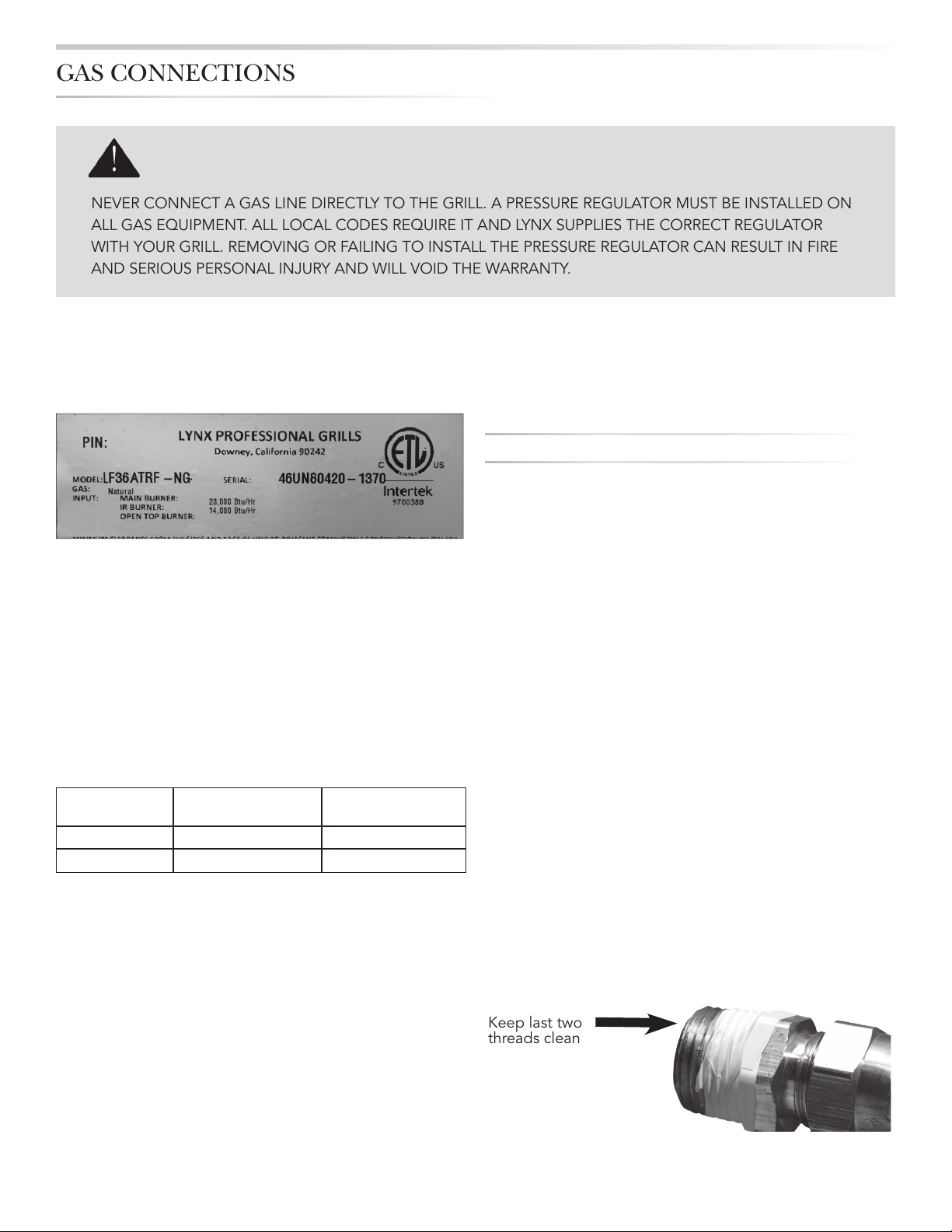

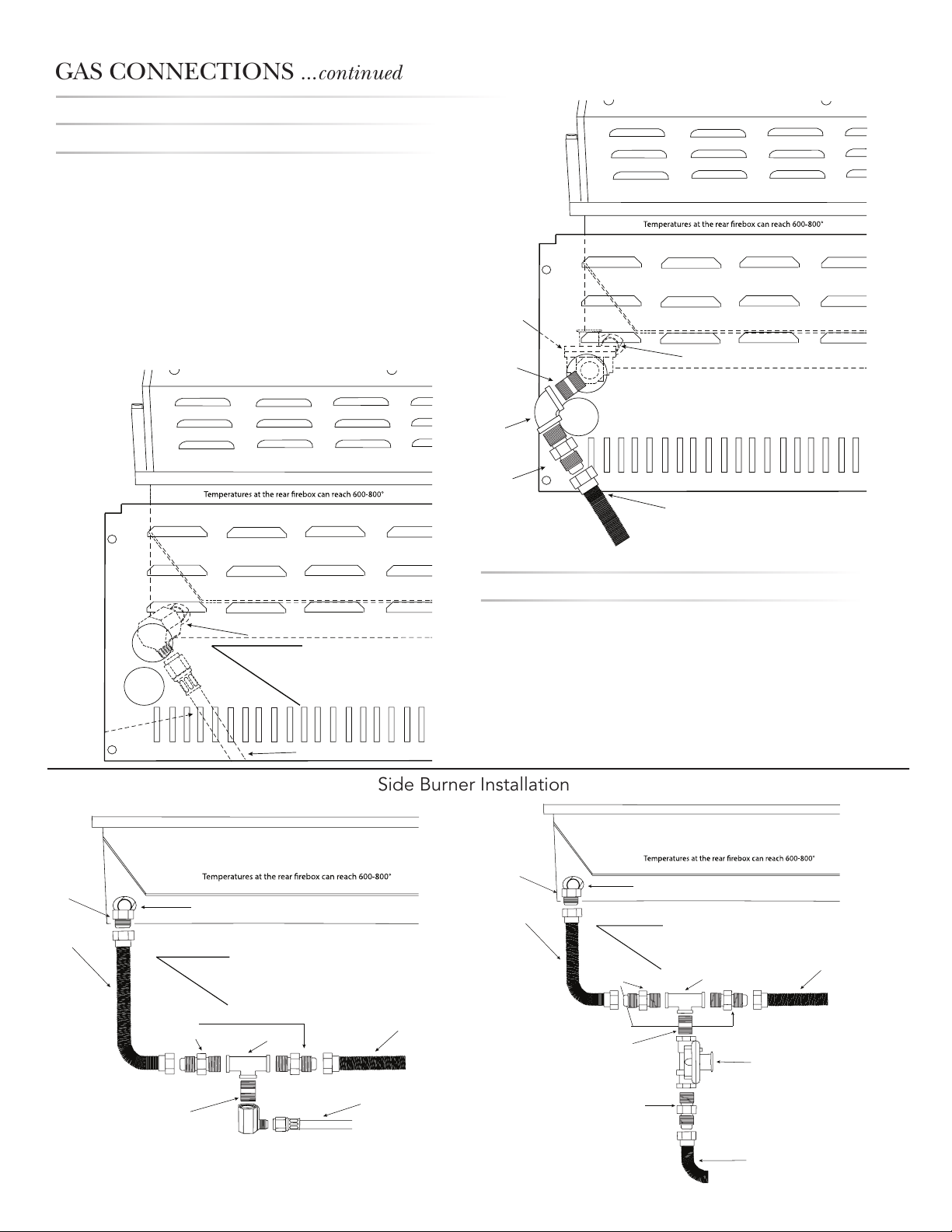

GAS CONNECTIONS 15
Natural Gas 15

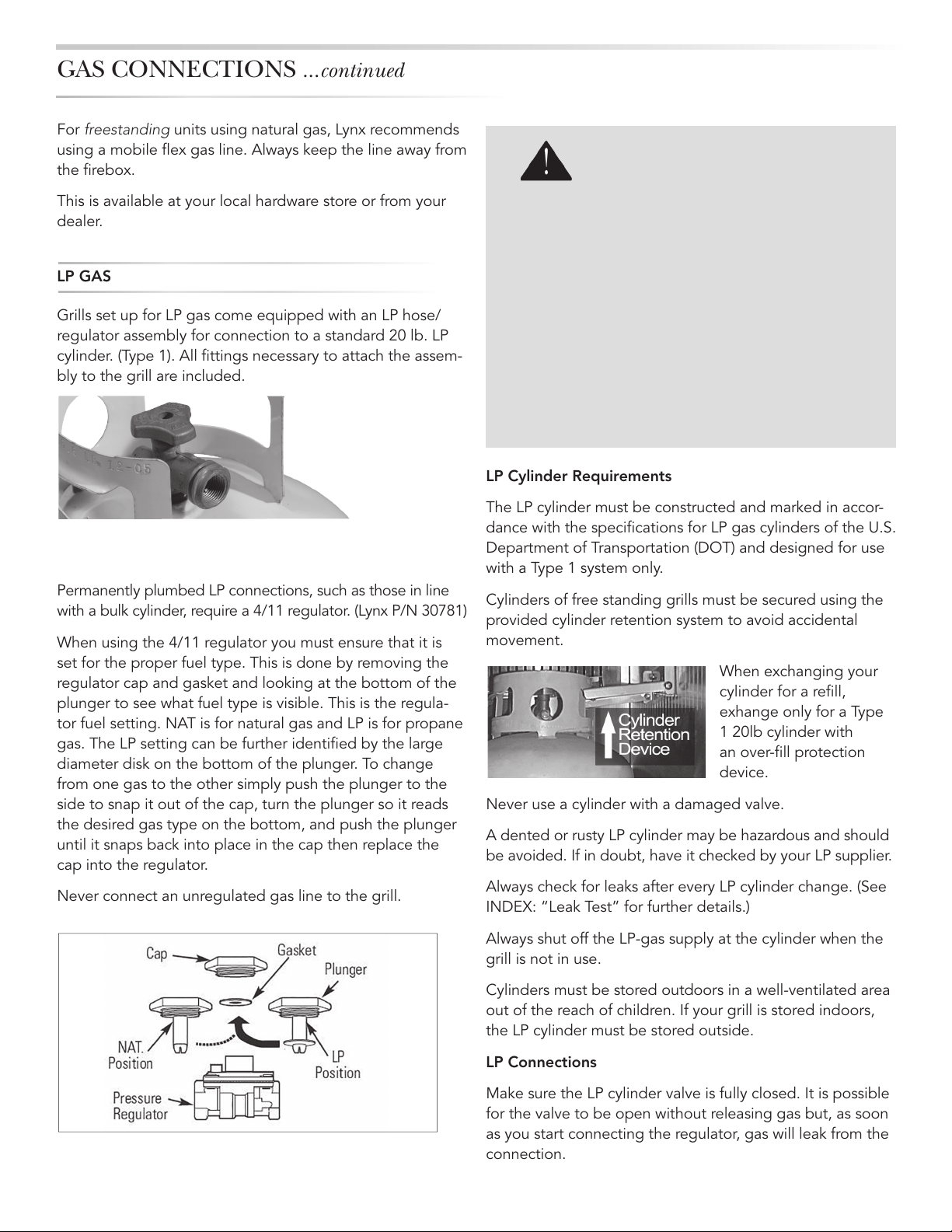

LP Gas 16

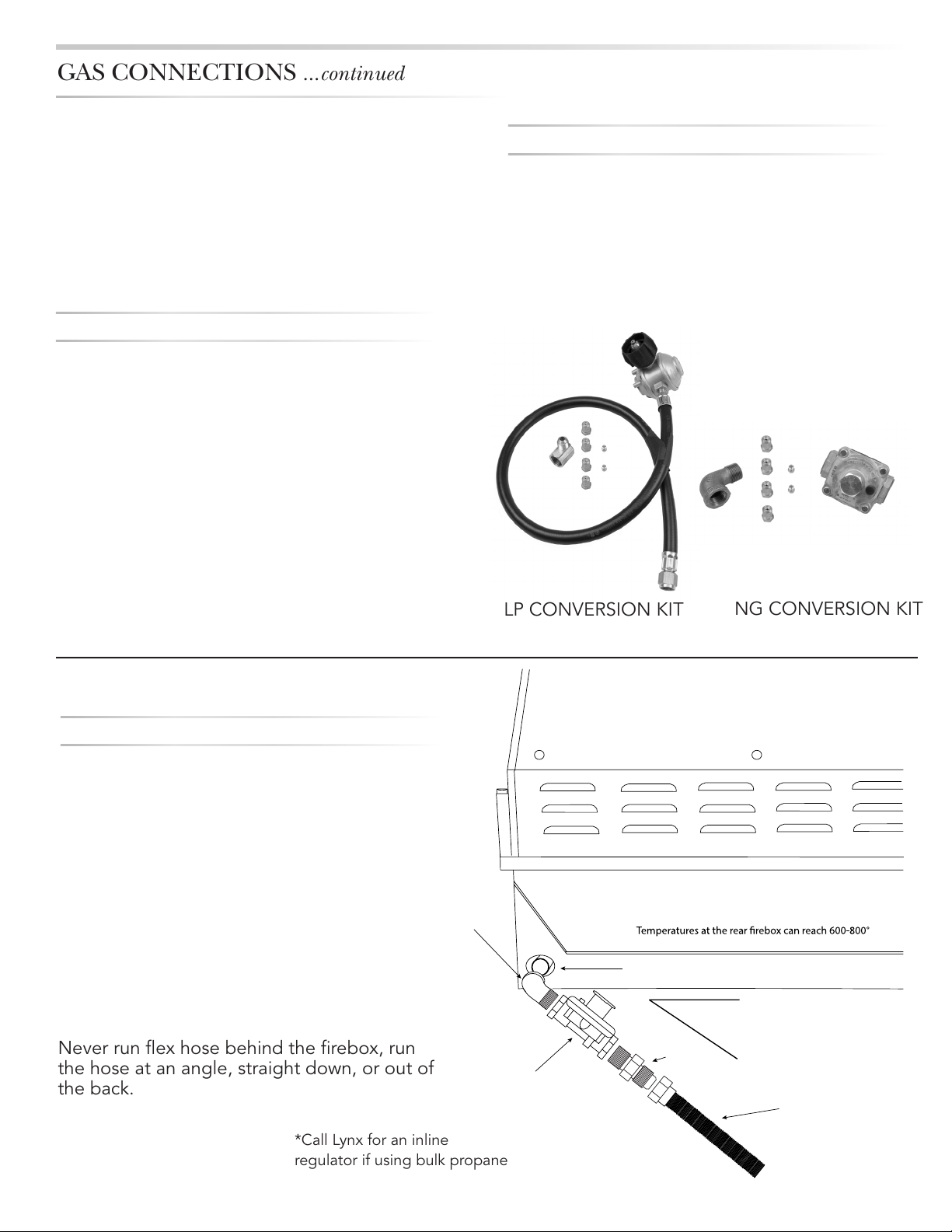

Gas Conversion Kits 17

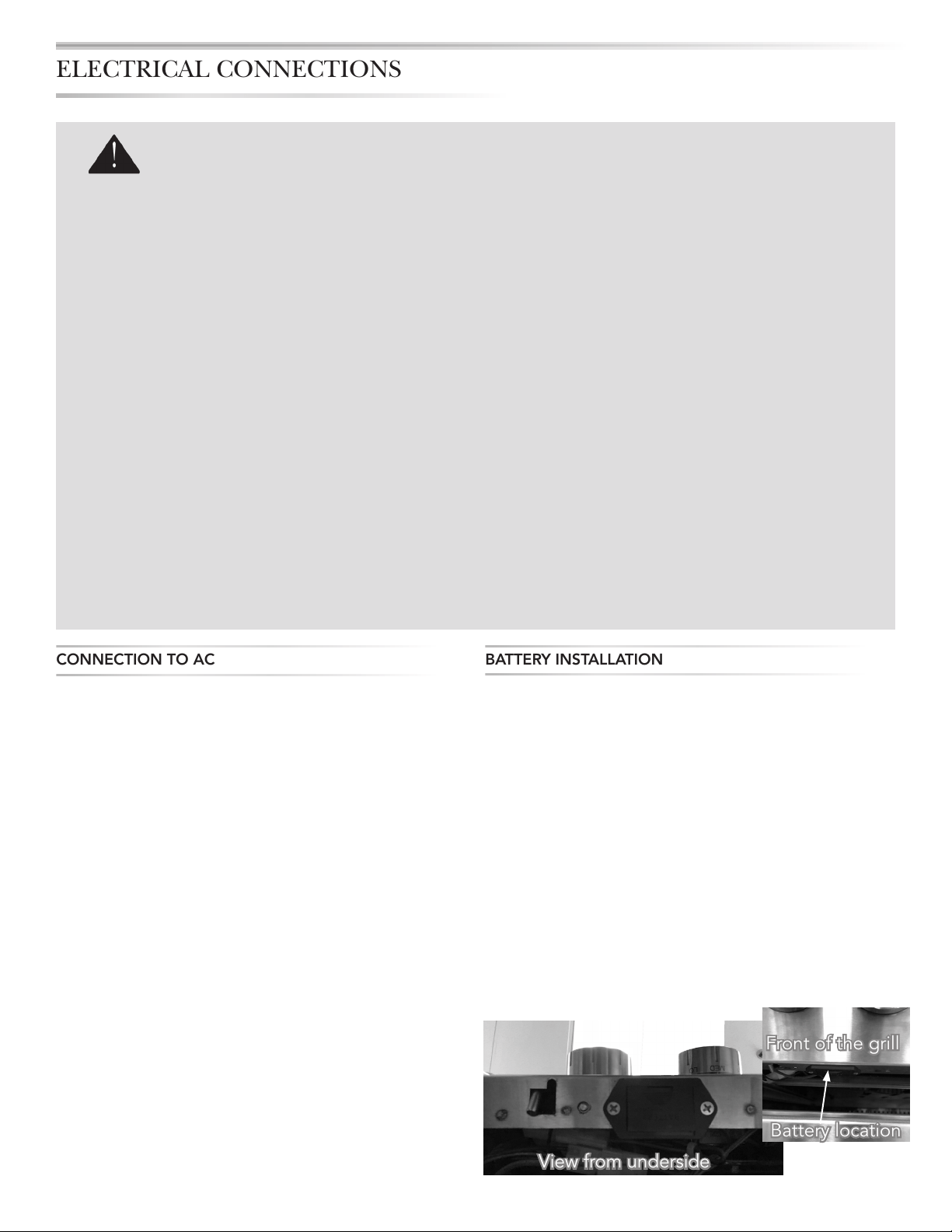

ELECTRICAL CONNECTIONS 19

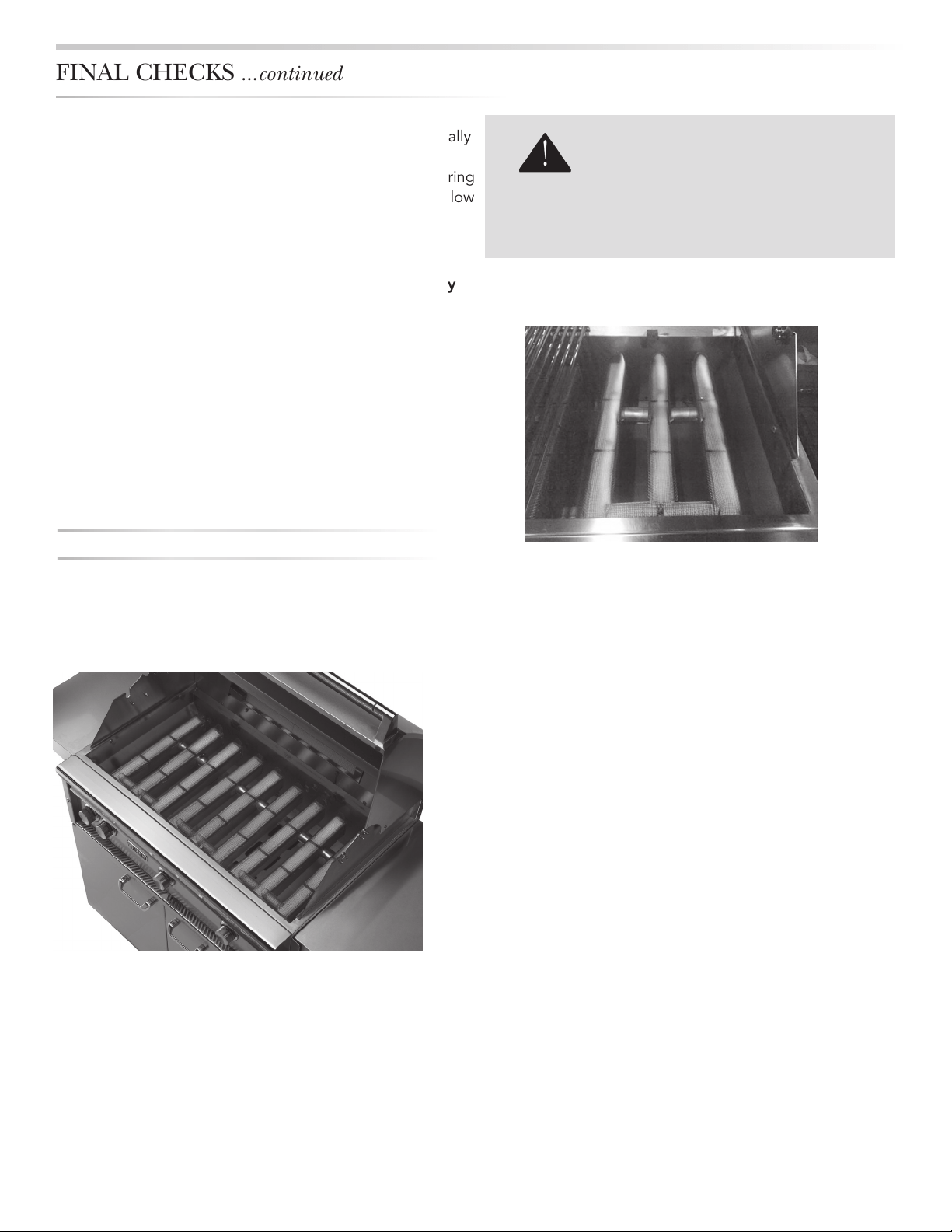

FINAL CHECKS 20

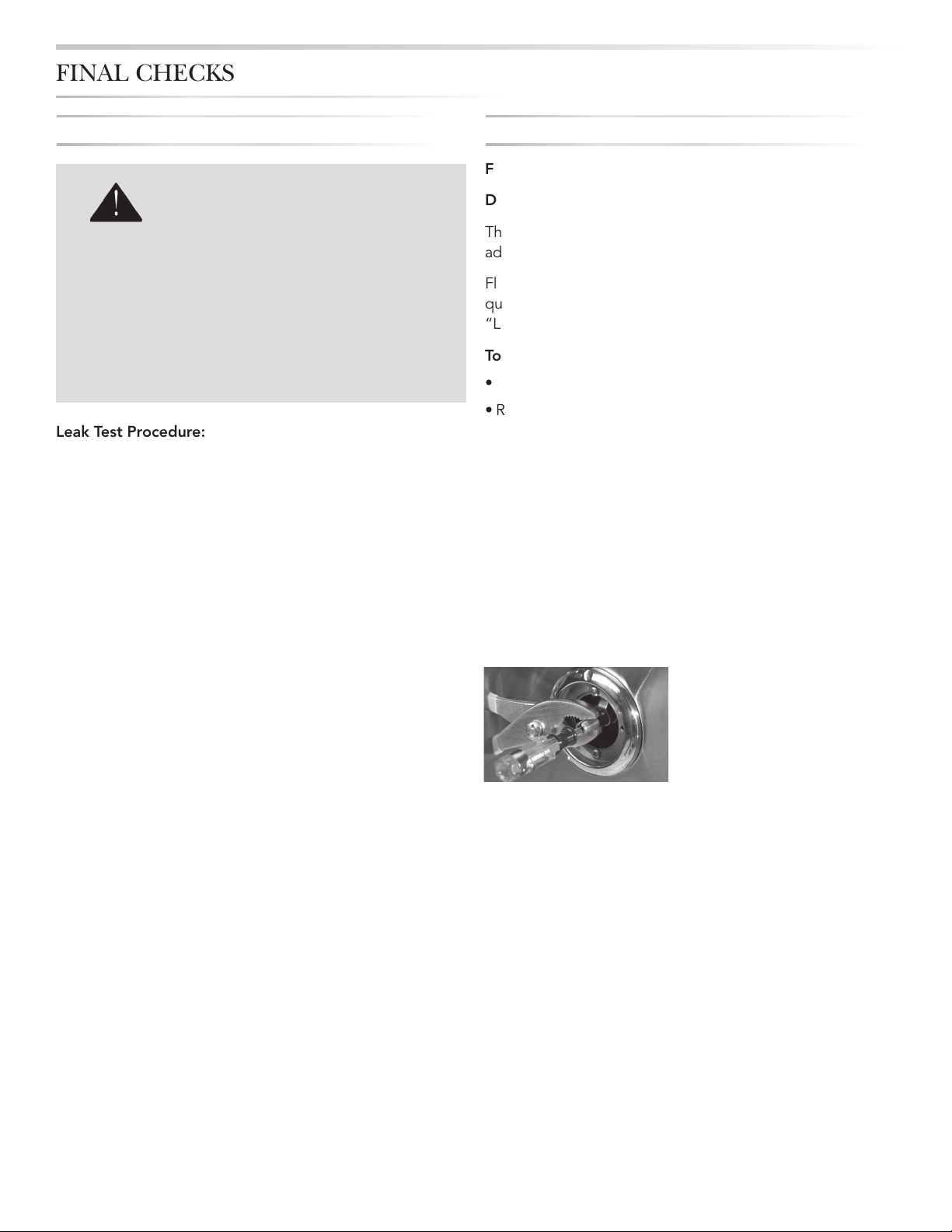

Leak Testing 20
SAFETY CHECKLIST 22
A MESSAGE TO OUR CUSTOMERS 22
IMPORTANT SAFETY PRECAUTIONS 23

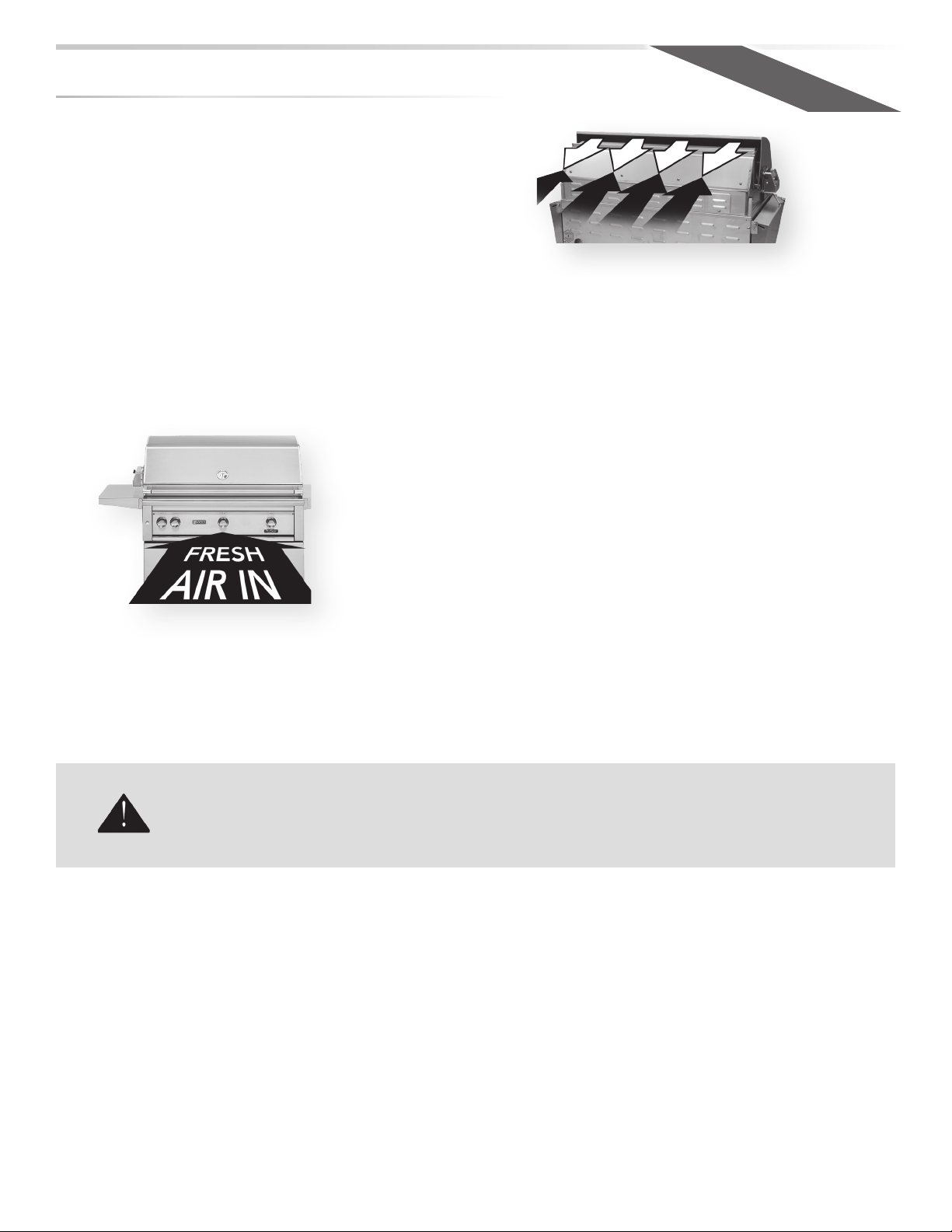

GRILLING IN WINDY CONDITIONS 24

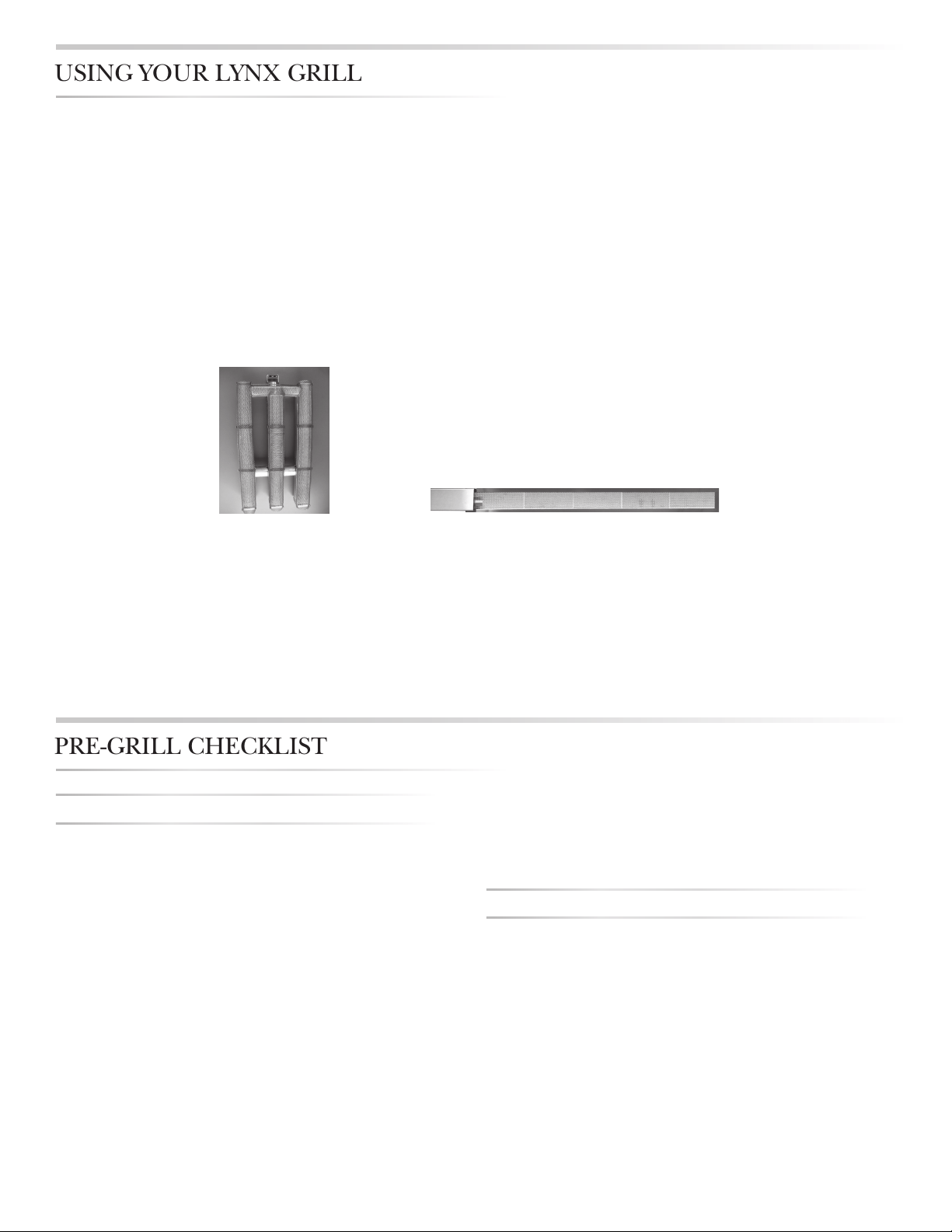

USING YOUR LYNX GRILL 25
Pre-Grill Checklist 25

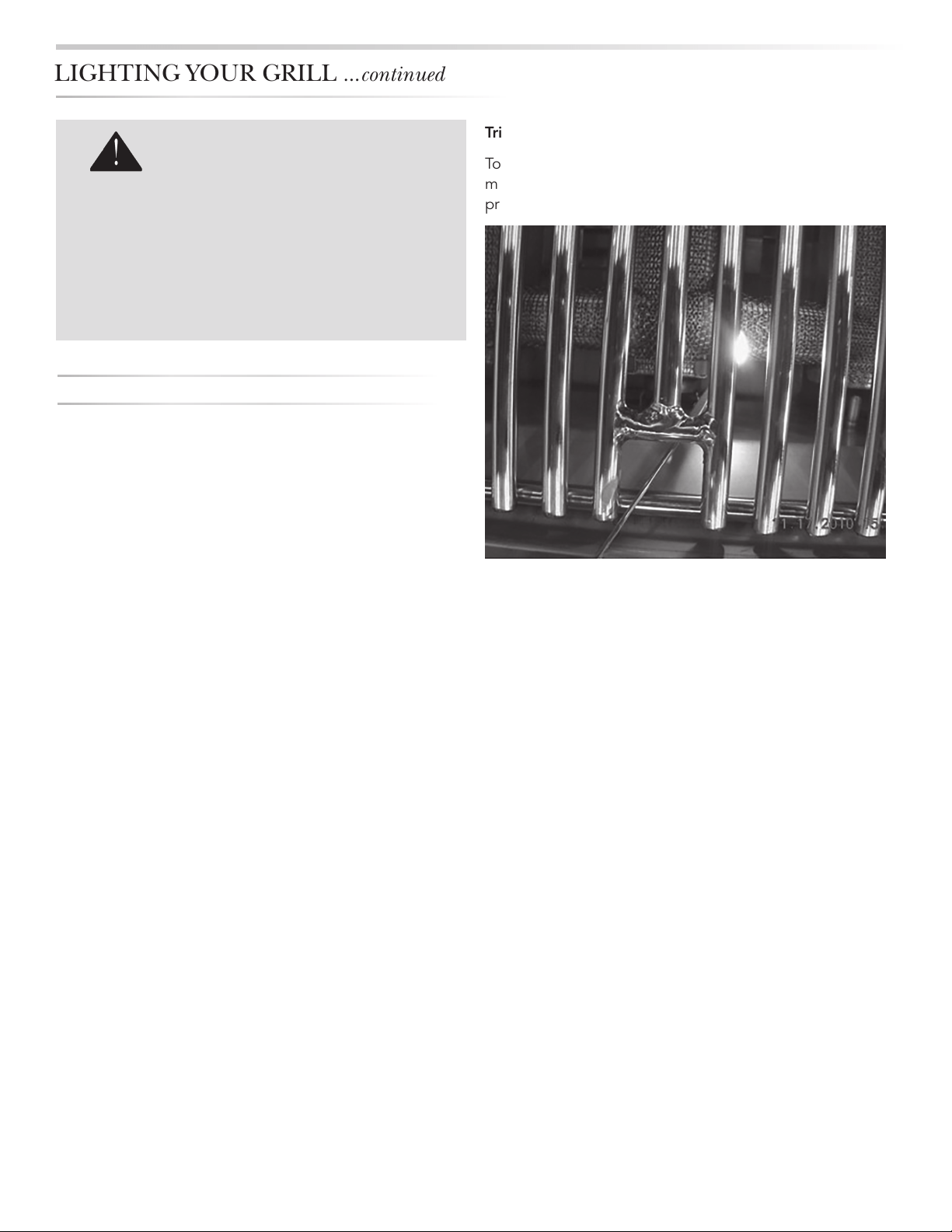

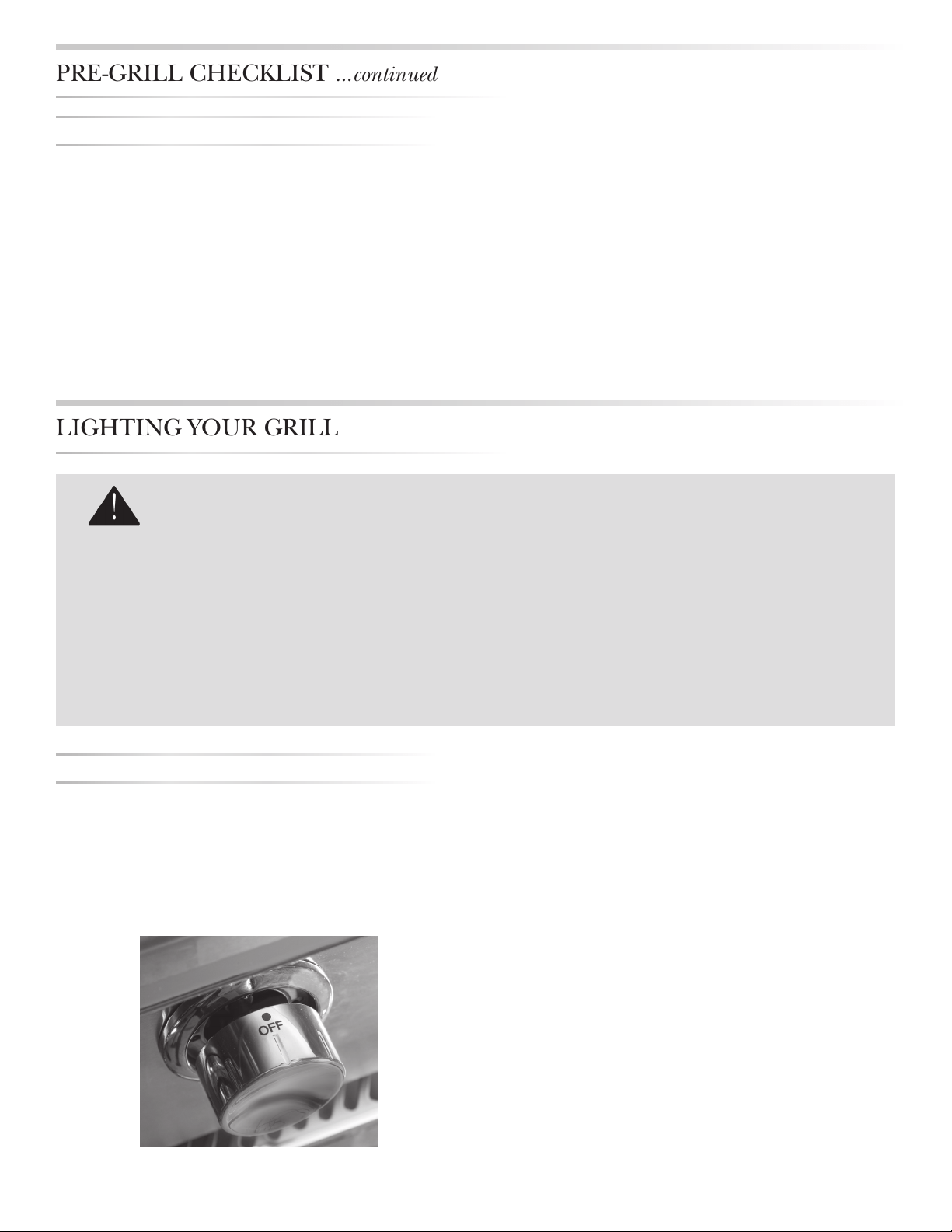

Lighting your Grill 26
Basic Grilling 28

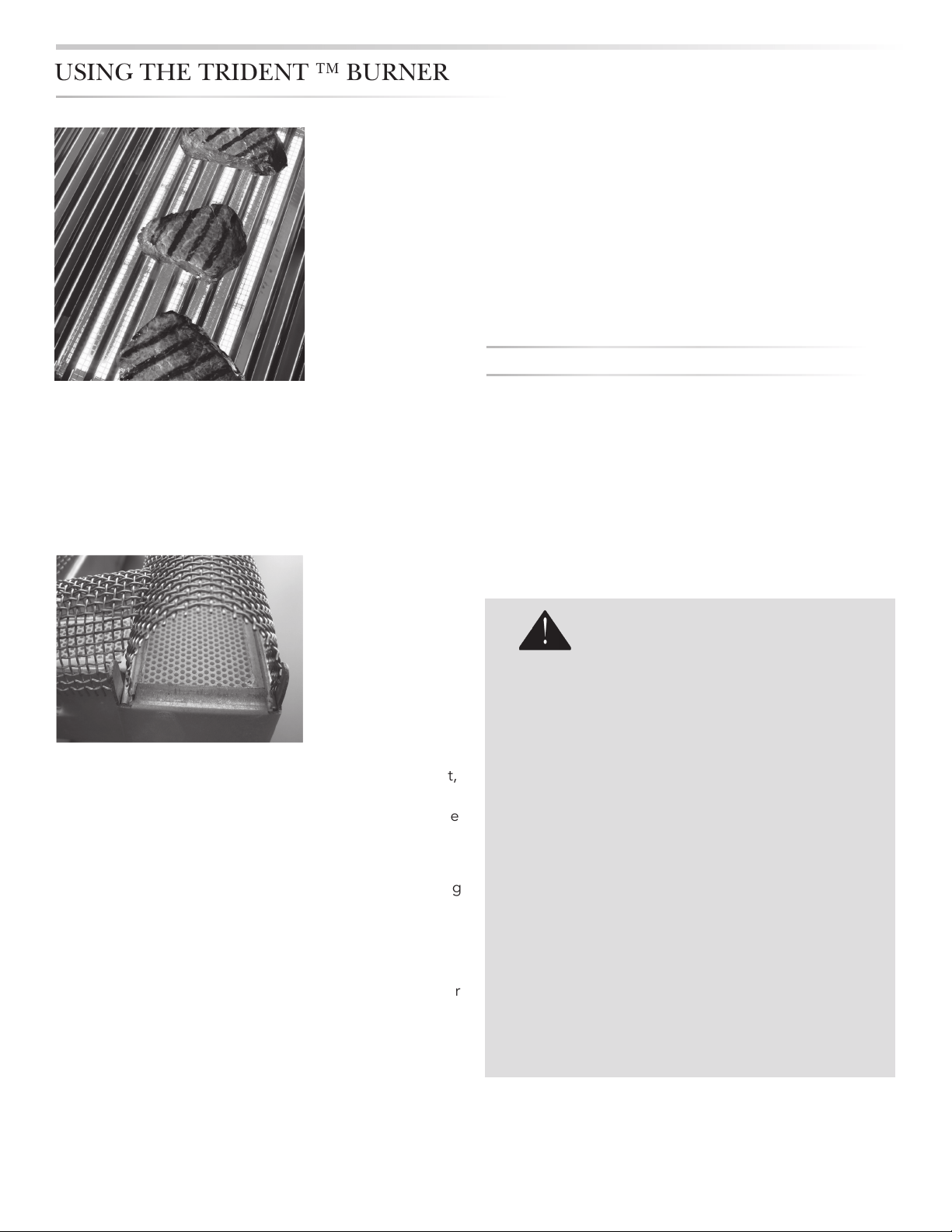

Using the Trident ™ Burner 29

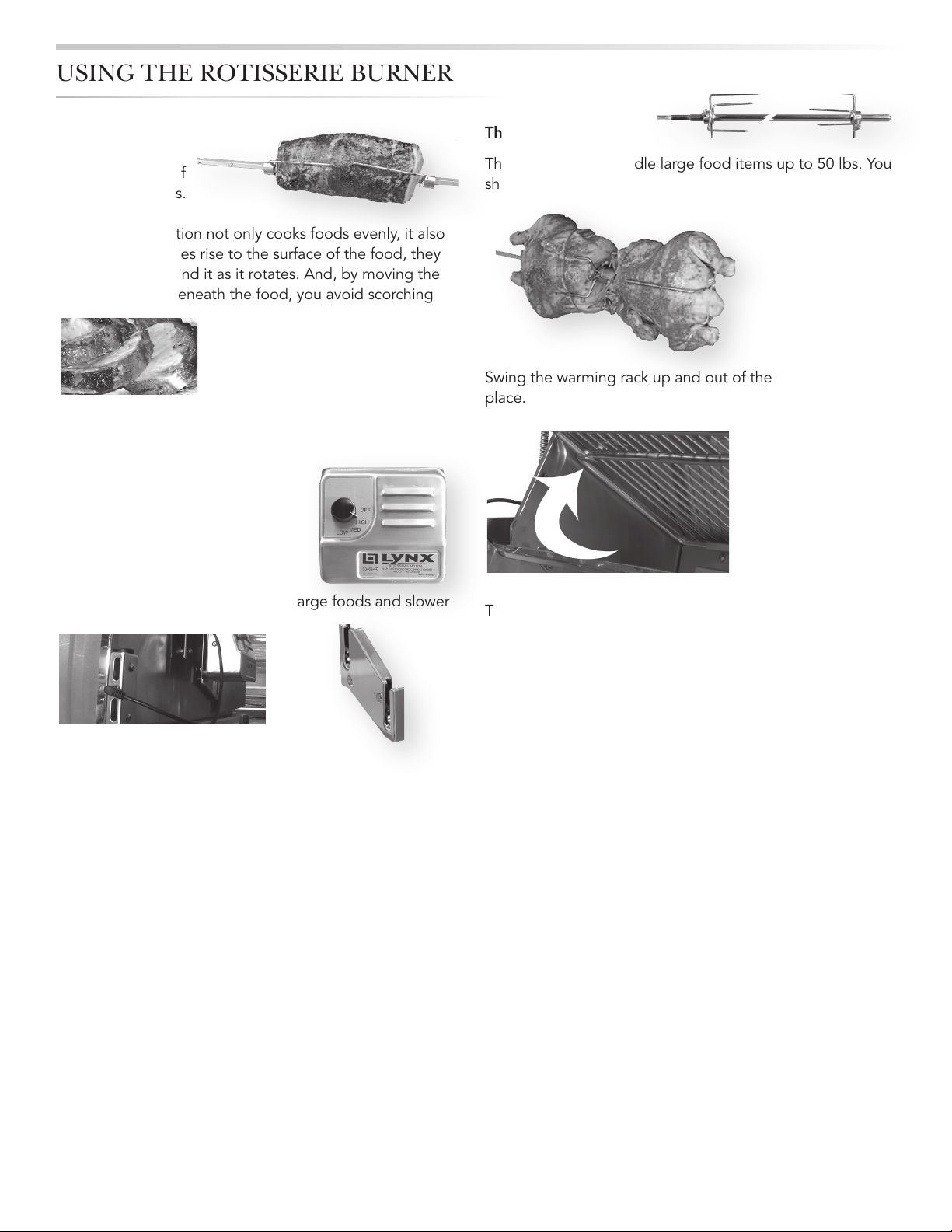

Using the Rotisserie Burner 30

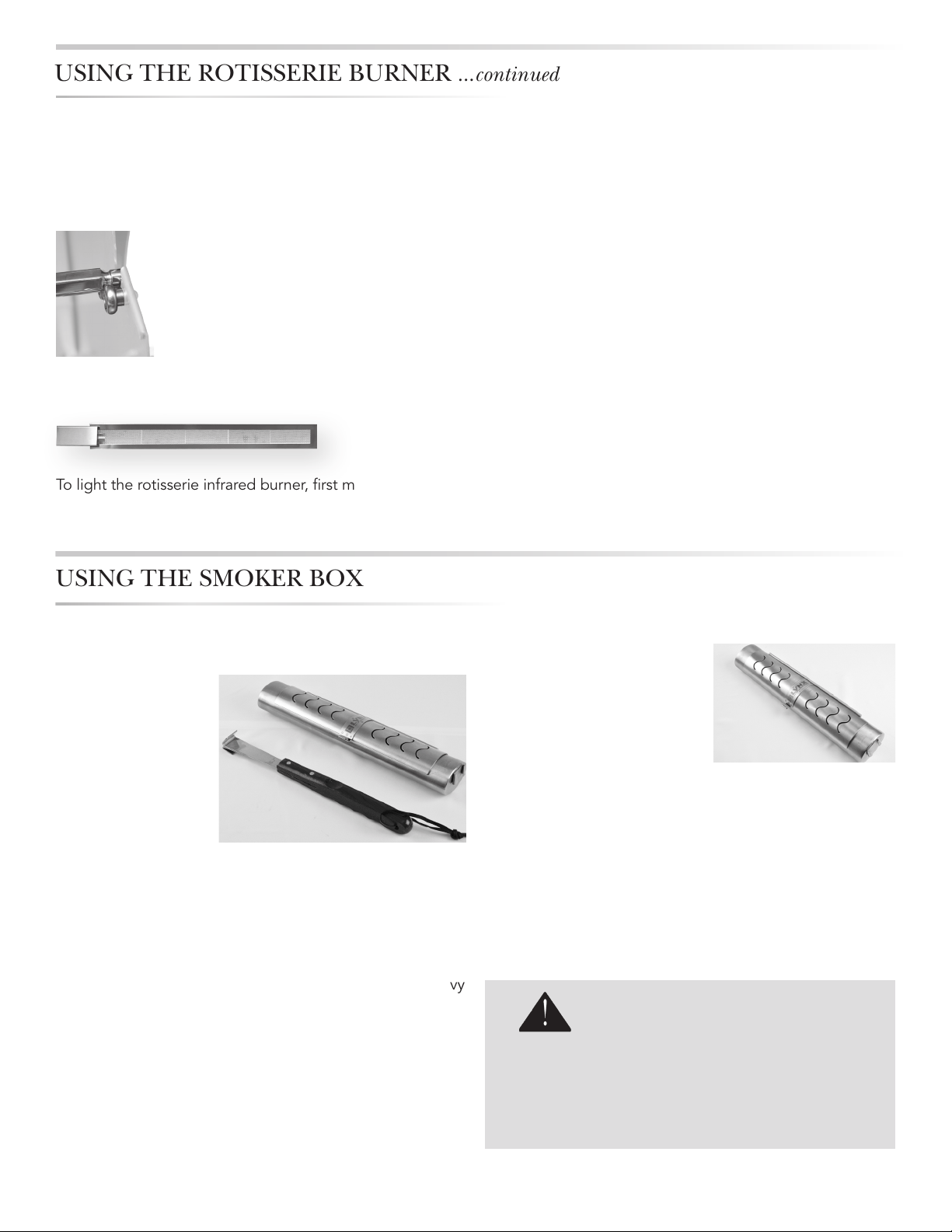

Using the Smoker Box 31

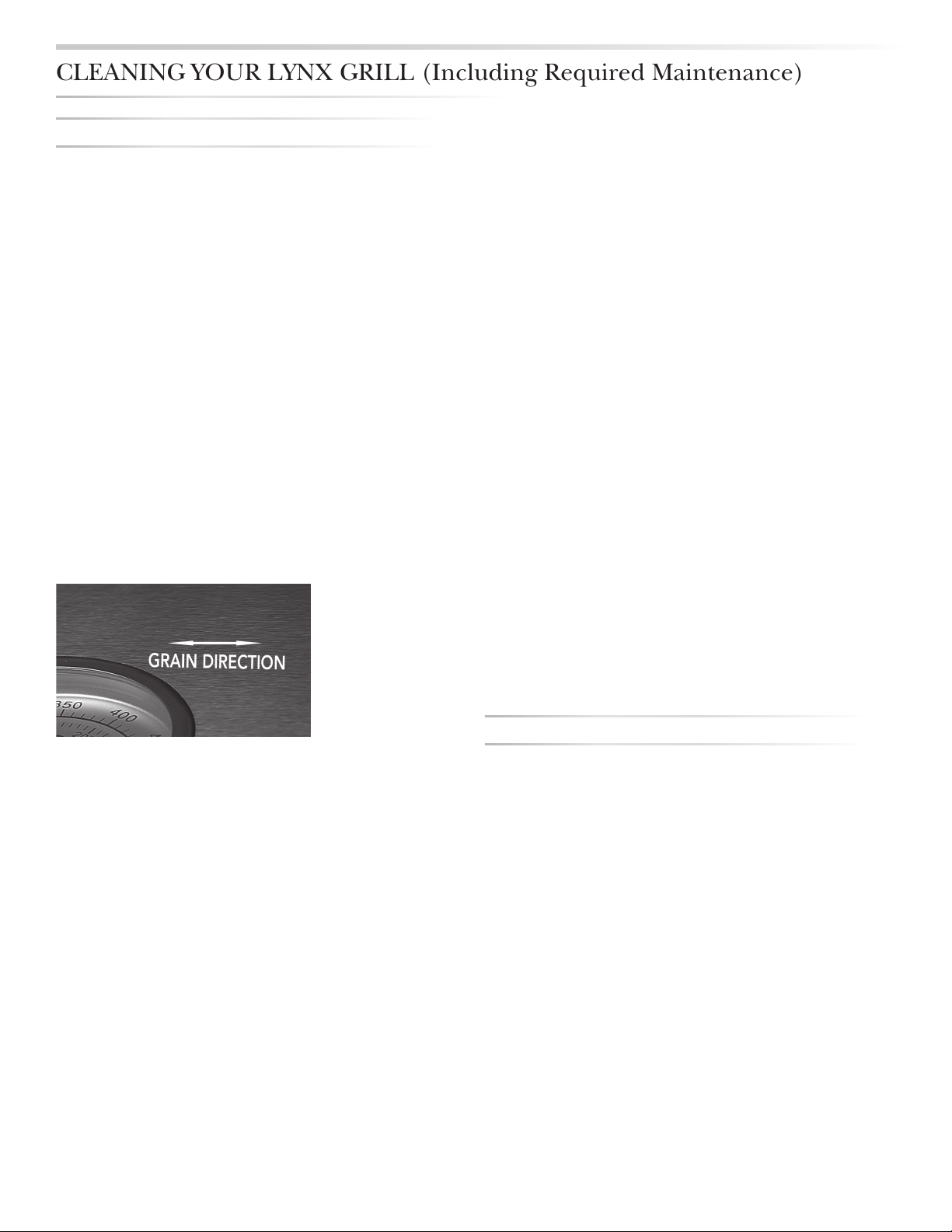

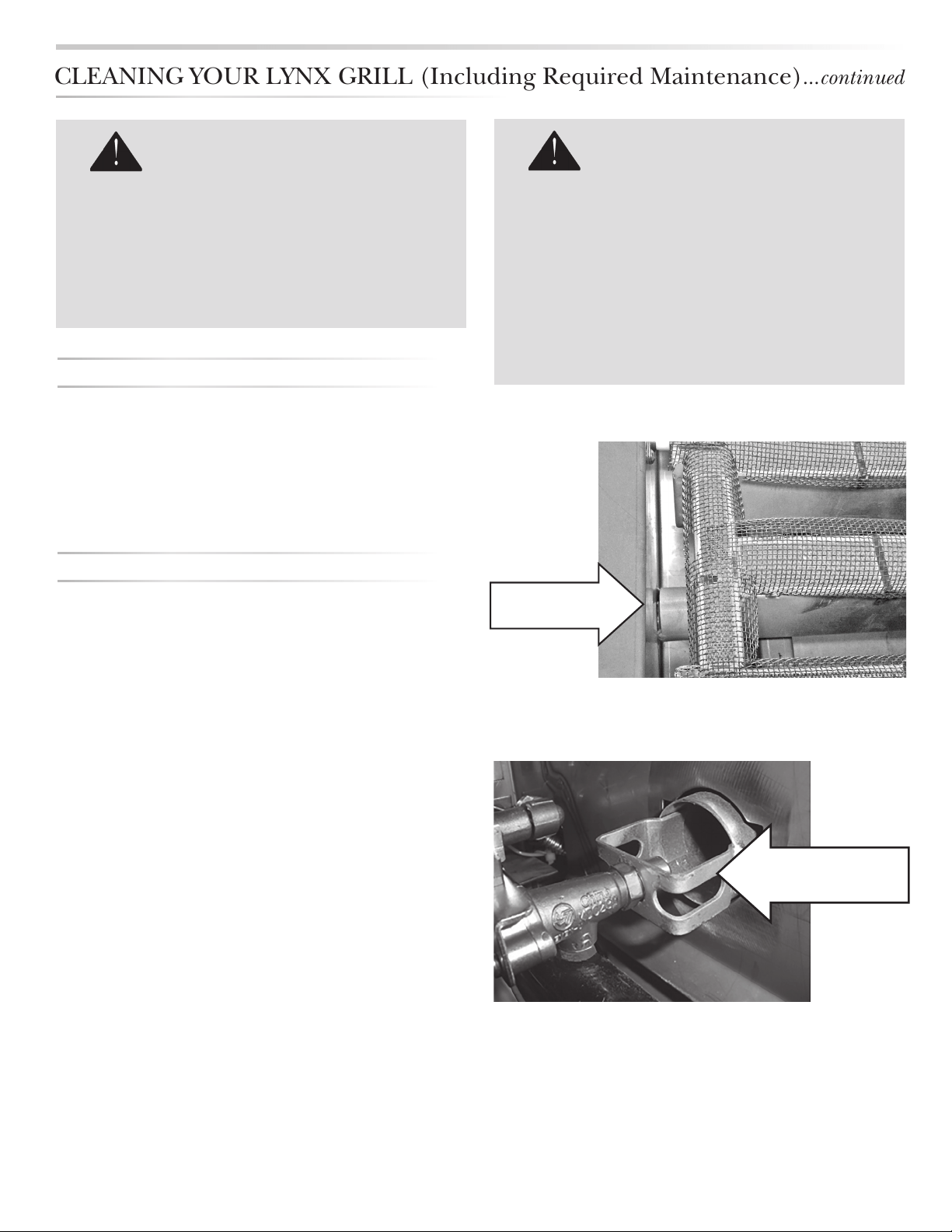

CLEANING YOUR LYNX GRILL (Required Maintenance) 32
TROUBLESHOOTING YOUR LYNX GRILL 34

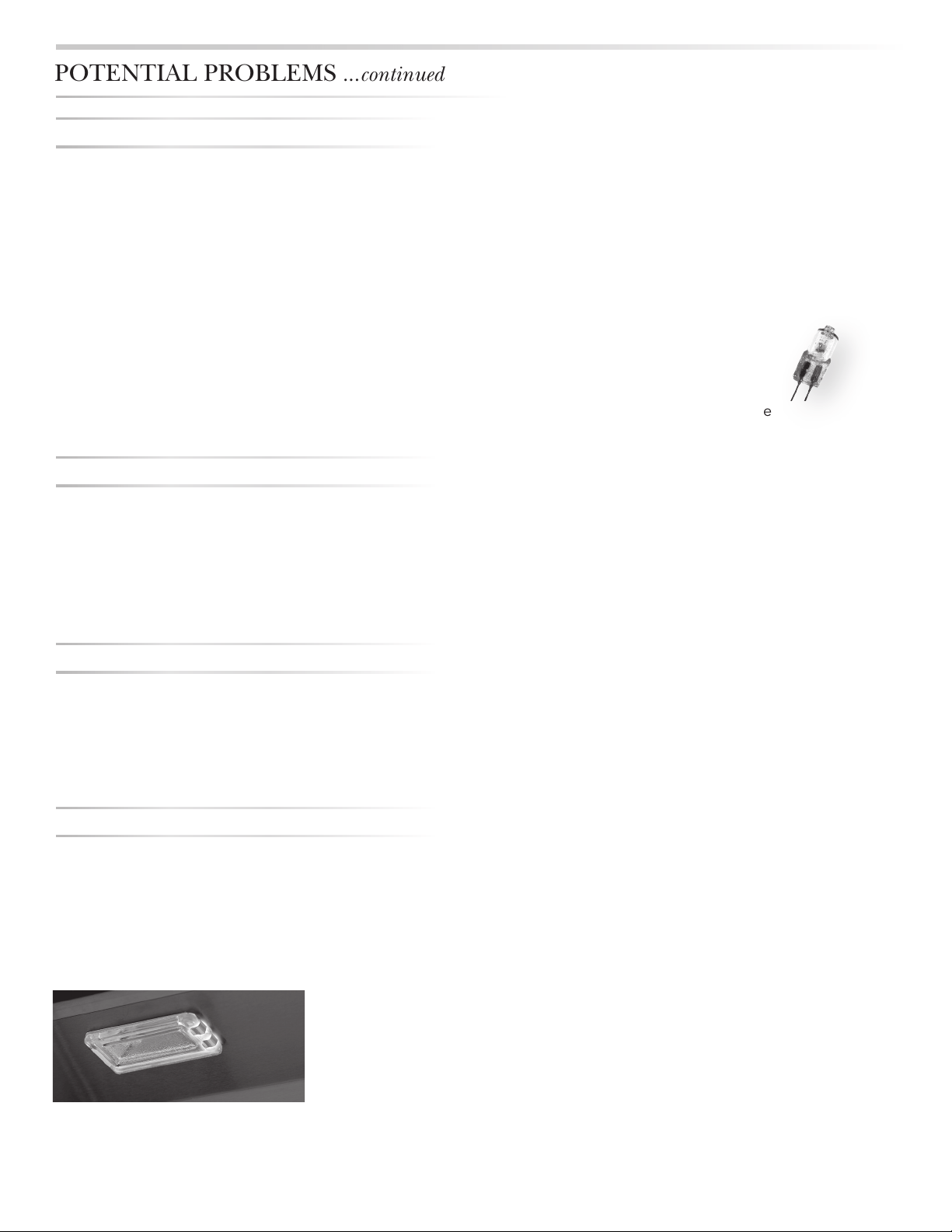

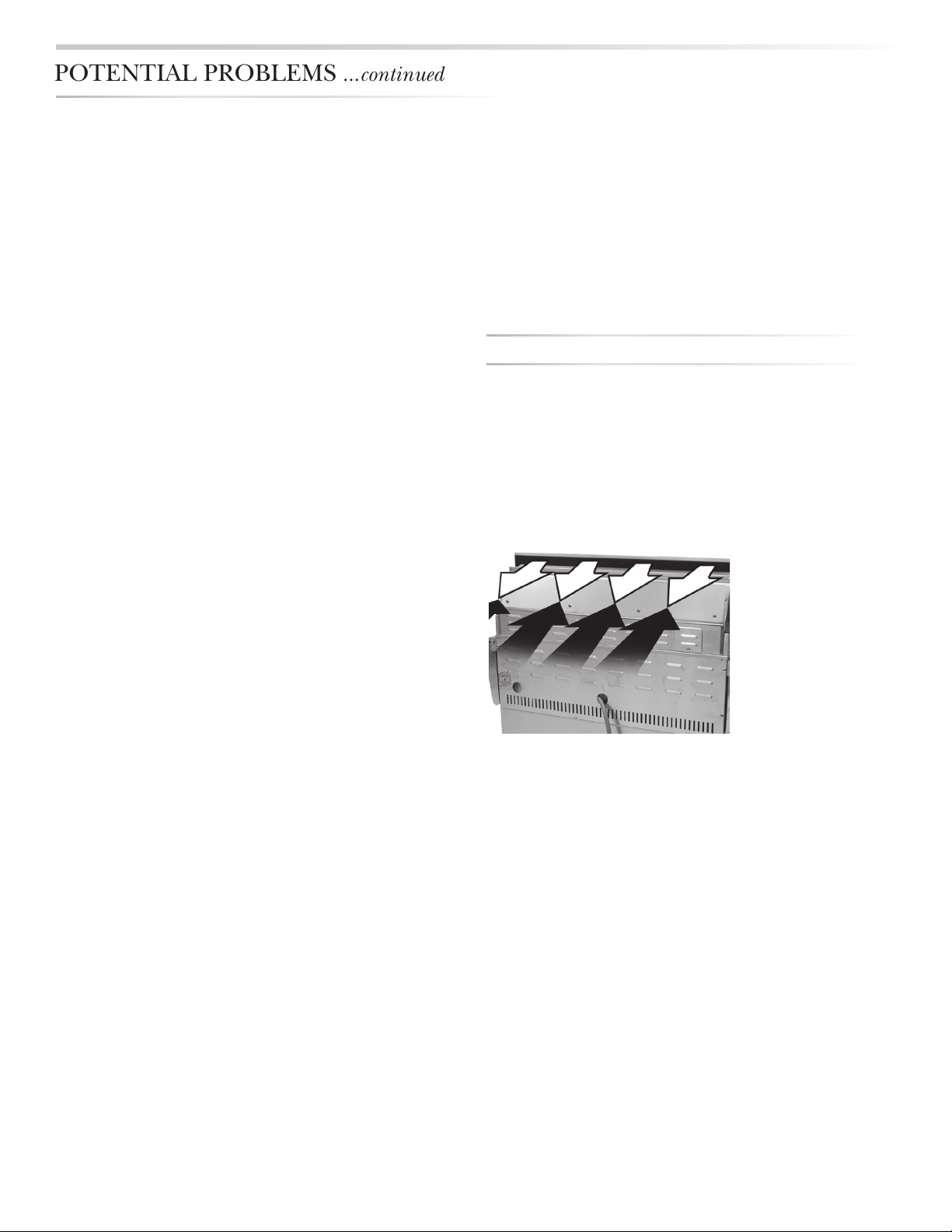

Potential Problems 35
Contacting Lynx Customer Care 38
The Lynx Story 38
LYNX LIMITED WARRANTY 39
LYNX COMMON AREA LIMITED WARRANTY 40

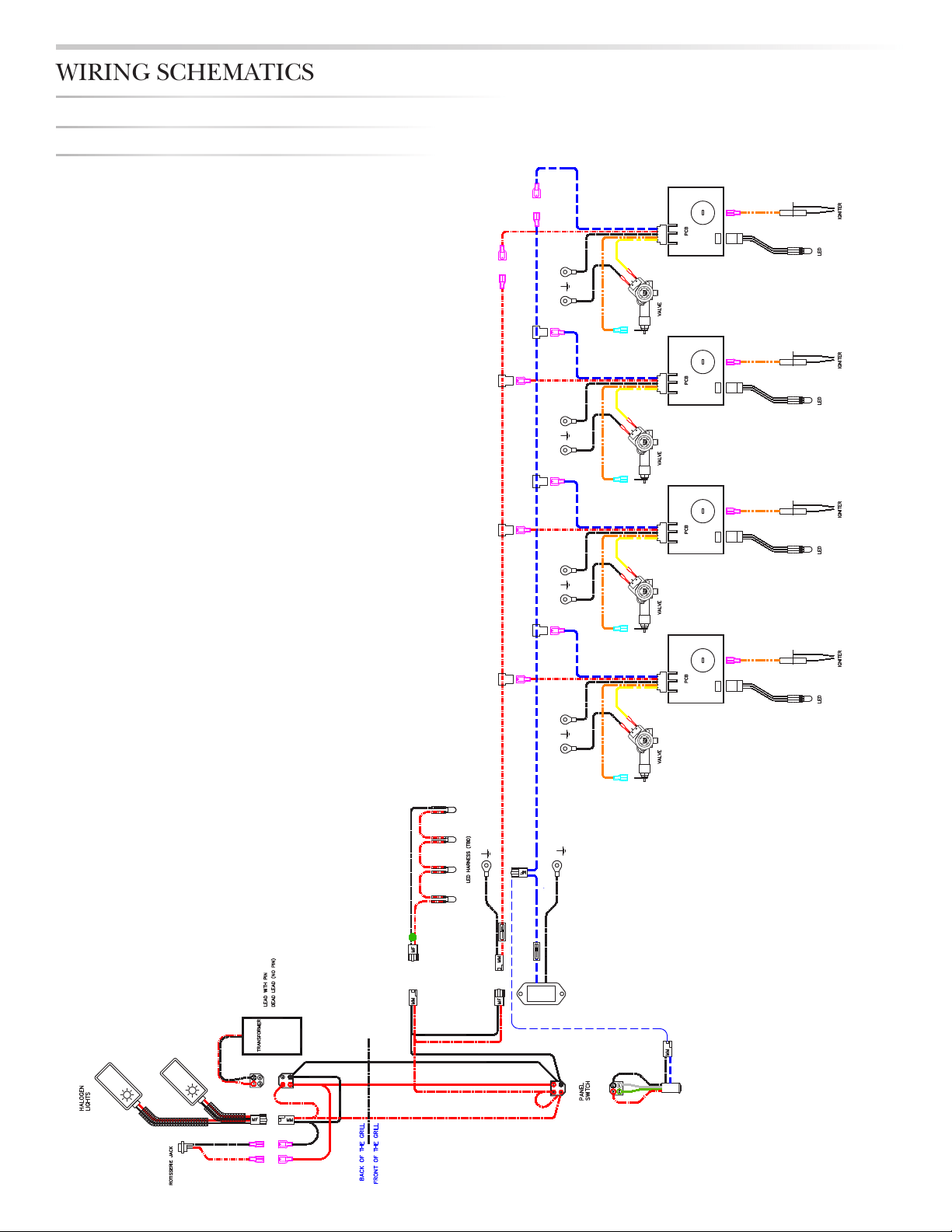

WIRING SCHEMATICS 41
L36ATR/L36ATRF 41

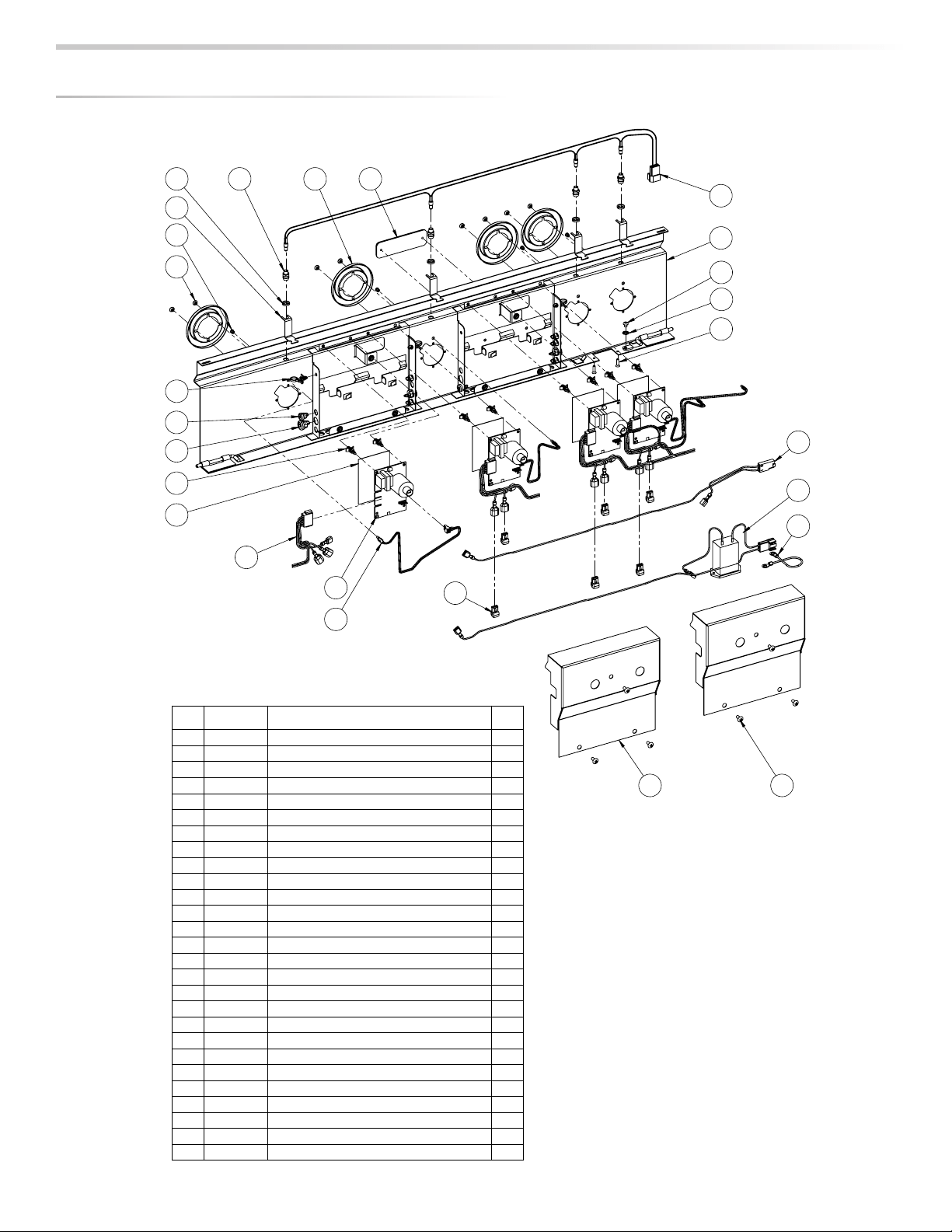

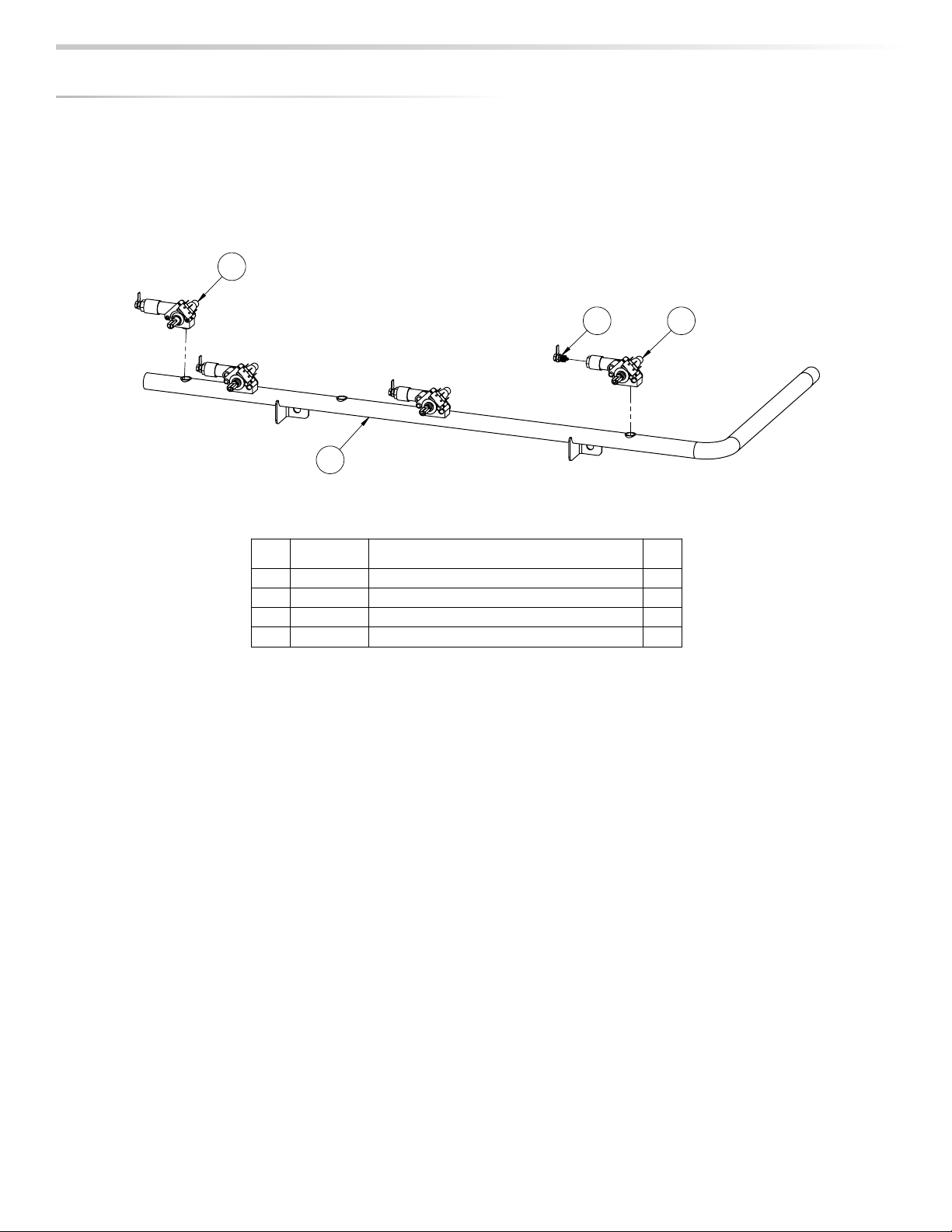

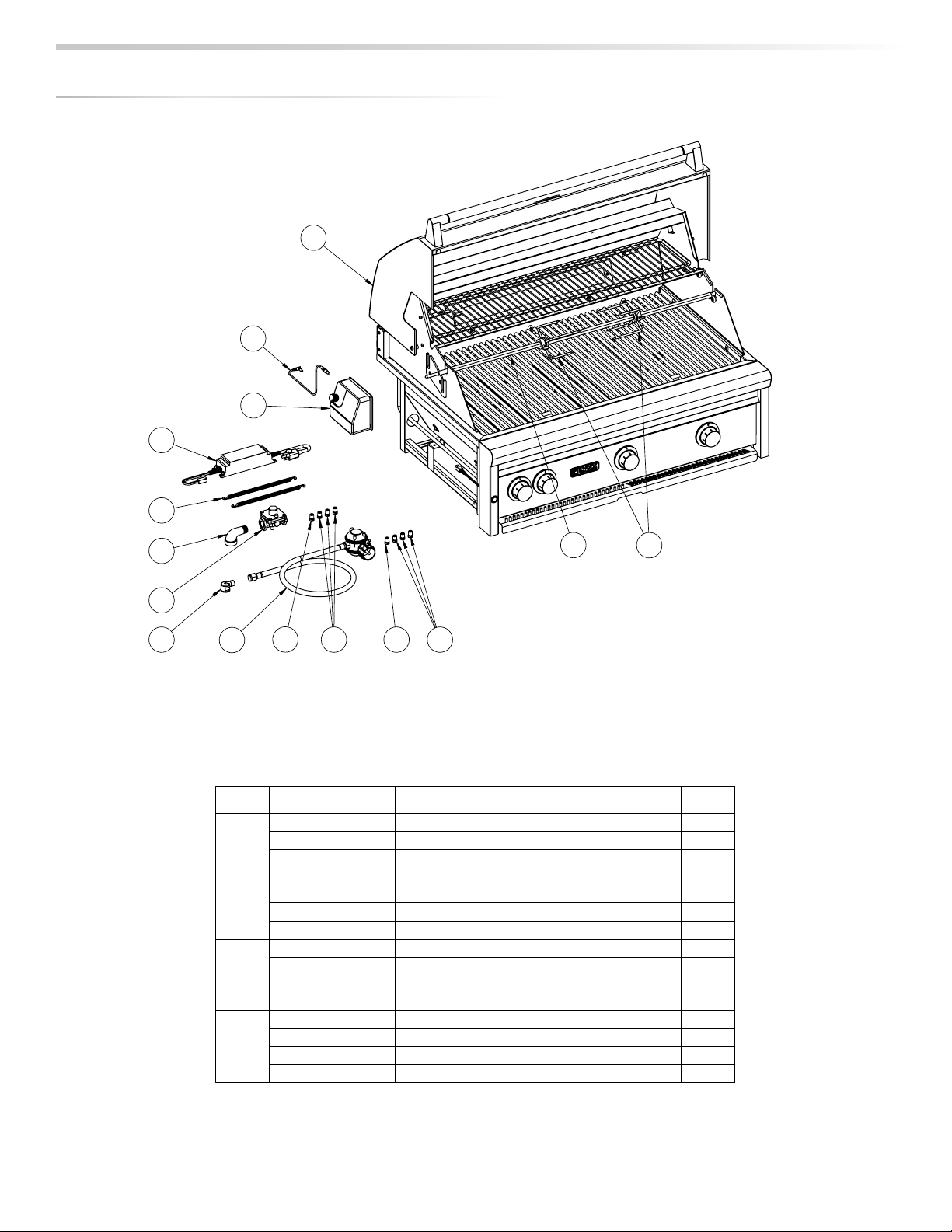

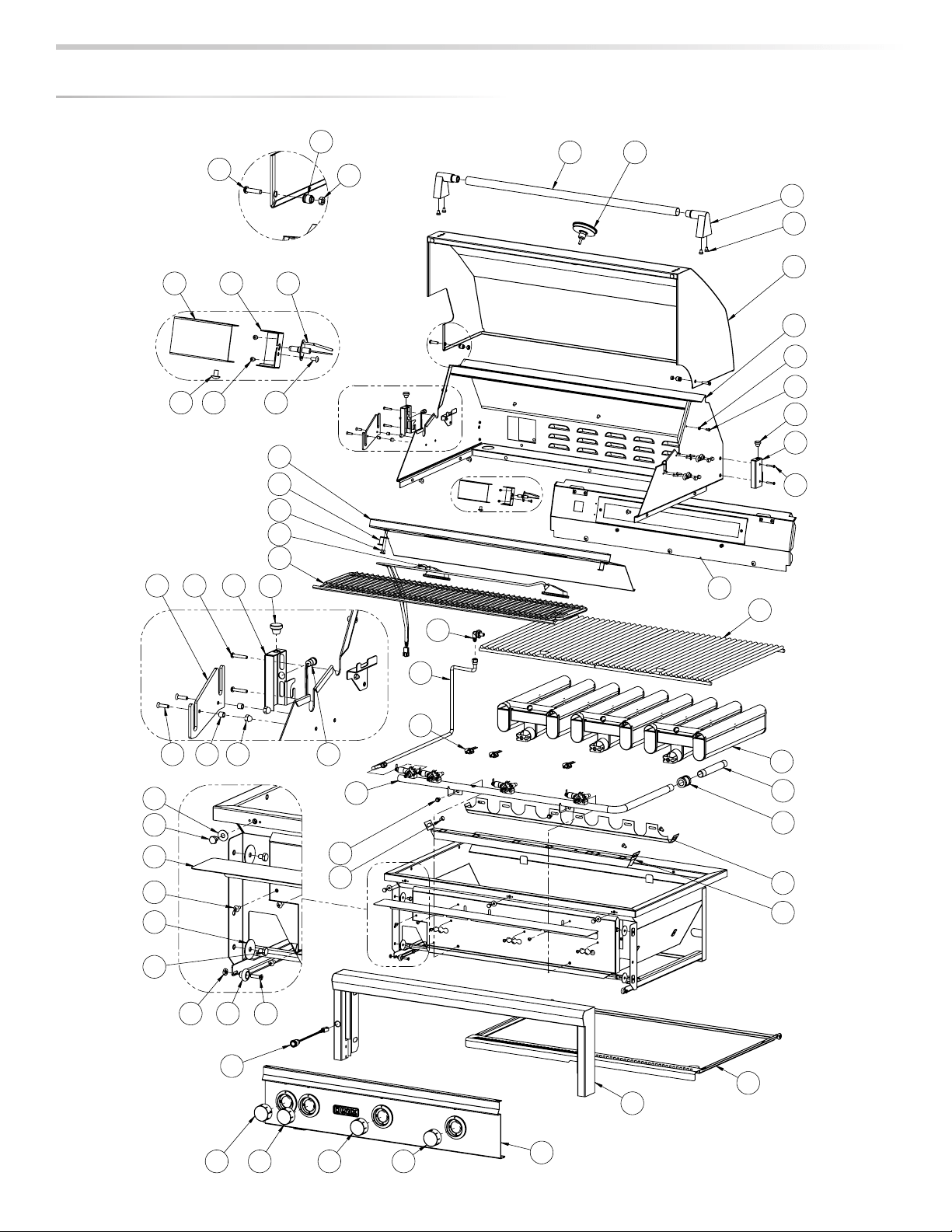

LYNX PROFESSIONAL GRILLS EXPLODED PARTS VIEW/LIST 42-46
MODEL-SPECIFIC BTU OUTPUTS & MAX. RUNS FOR APPLIANCES 44

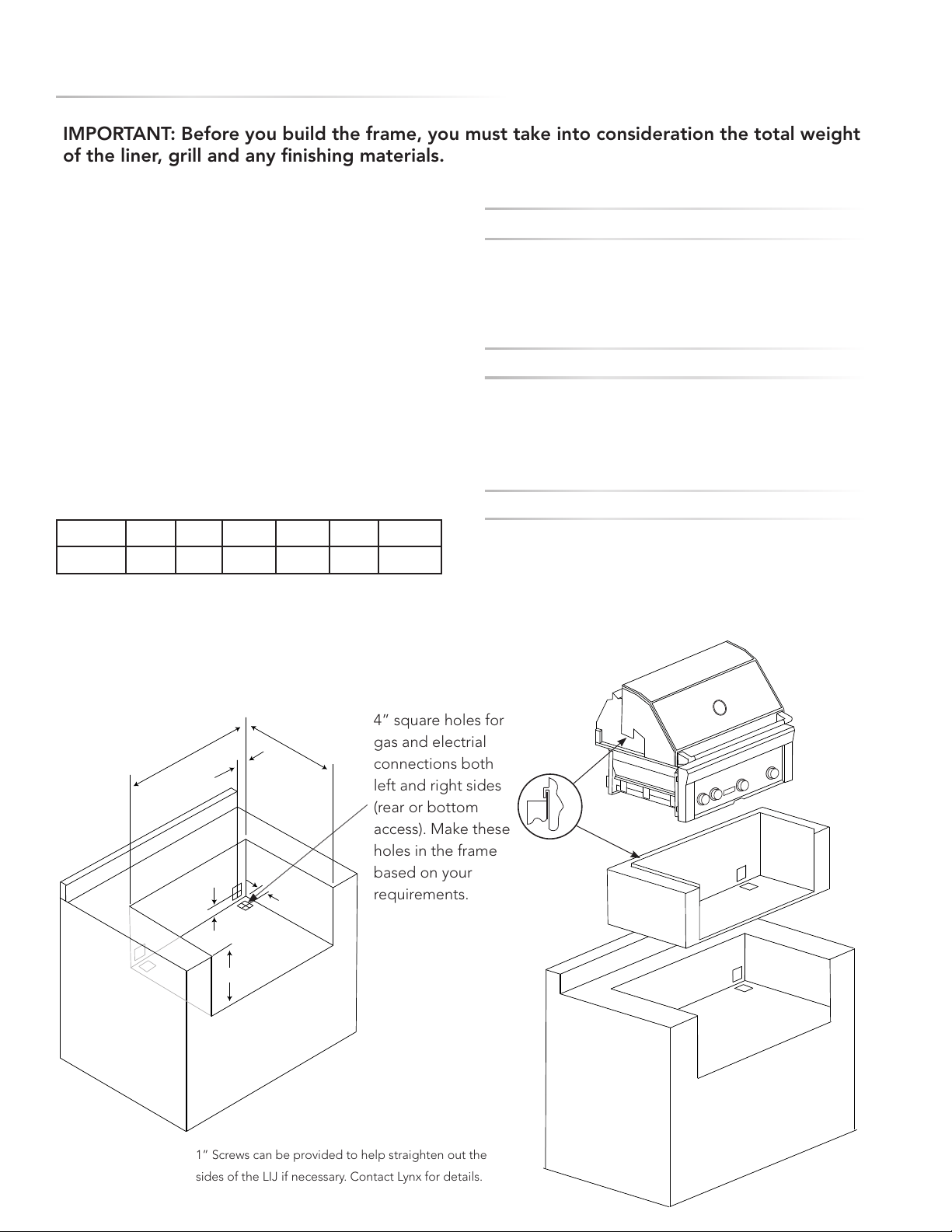

INSULATED JACKET INSTALLATION 45
INDEX 46
TABLE OF CONTENTS
CARE & USE/INSTALLATION
|
7
This use & care manual covers the Lynx grill models listed below. Some features and options will vary based upon
the model that you purchased.
LYNX GRILL MODELS
USE & CARE GUIDELINES
1. Before each use, complete the checklist on page 26.
2. Make sure all burner control knobs are in the “OFF” position.
3. Push in the power button.
4. Turn the control knob to the “LITE/MAX” position.
5. The blue indicator light will flash and remain lit once the burner ignites.
6. After ignition, wait one minute before adjusting to the desired setting.
HOW TO LIGHT YOUR ROTISSERIE BURNER
HOW TO LIGHT YOUR GRILL
1. Before each use, complete the checklist on page 26.
2. Make sure all burner control knobs are in the “OFF” position.
3. Push in the power button.
4. Turn the control knob to the “LITE/HI” position.
5. The blue indicator light will flash and remain lit once the burner ignites.
6. After ignition leave the knob on the “LITE/HI” setting.
Note: This Flametrak unit features a flame sensor with a safety valve that automatically shuts off the flow of
gas if the burner goes out for any reason.
BUILT-IN FREESTANDING
LF36ATR LF36ATRF
8
|
CARE & USE/INSTALLATION

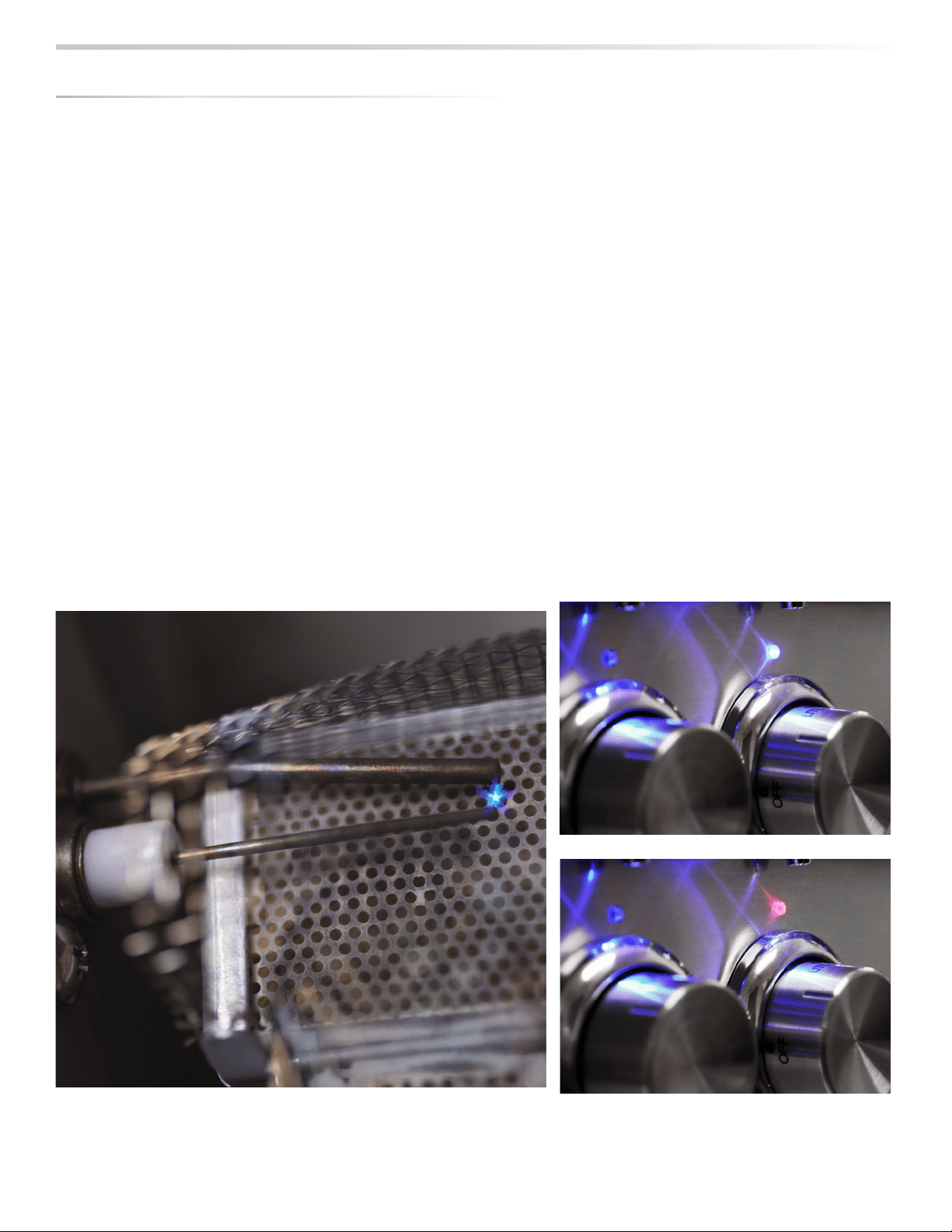

ABOUT FLAMETRAK™
The FLAMETRAK is an ignition and control system that continually monitors the presence of flame, acts to ensure that
flame and closes the gas supply to the valve when flame cannot be verified. FLAMETRAK is present at each burner in
the grill. A FLAMETRAK indicator, placed just above each burner knob, lets the grill user know the flame’s status at a
glance without having to open the grill and look for a flame beneath the grates or briquette trays.
The indicator initially blinks blue when the igniter is starting to light the burner. The indicator is solid blue whenever
the burner is safely ON and flame is present. The indicator is blinking red when there is an error detected and
FLAMRETRAK has shut off the gas to that burner. To reset, simply turn the burner off and back on again.
THE SCIENCE BEHIND THE SAFETY
The FLAMETRAK system is based on flame rectification. Flame rectification is the effect where electrical a current
change from alternating current (AC) to direct current (DC) as it passes through a flame. If the current does not change,
then FLAMETRAK knows the flame is not present—and it relights the burner or, if it fails to relight, shuts the gas off to
that burner.
Flame rectification is proven technology that many water heaters and other devices use to confirm the presence of a
flame.
THE LYNX ALL TRIDENT GRILL
In 2018, the Lynx All Trident Grill is the first grill to feature the FLAMETRAK safety system. It sets the industry standard in
safety and performance. The FLAMETRAK safety system is patent pending.
Ignition System
FLAMETRAK Indicator
FLAMETRAK Indicator Error
CARE & USE/INSTALLATION
|
9
VISIBLE LOSS OR DAMAGE
Be certain any visible damage to the carton is noted on
freight bill or express receipt and signed by the person
making delivery.
FILE CLAIM FOR DAMAGES IMMEDIATELY, regardless of
extent of damage.
CONCEALED LOSS OR DAMAGE
If damage is unnoticed until the grill is unpacked, notify
the transportation company or carrier immediately and file
a “concealed damage” claim with them. This should be
done within (5) days of the date delivery is made to you. Be
sure to hold on to the container for inspection. We cannot
assume responsibility for damage or loss incurred in transit.
(See INDEX: “Obtaining Service from Lynx” for further
details.)
• Never install this product into a combustible enclosure without an insulated jacket. Doing so could result in fire,
property damage and personal injury.
• Never locate the grill under an uprotected roof or overhang, in a building, garage, shed or other such enclosed
area.
• Never locate the grill under unprotected combustible construction.
• Installation must conform with local codes or, in the absence of local codes, with either the National Fuel Gas
Code, ANSI Z223.1/NFPA 54, Natural Gas and propane Installation Code, CSA B149.1, or Propane Storage and
Handling Code, B149.2, in Canada.
BEFORE YOU START
WARNING
IF SHIPMENT ARRIVES DAMAGED

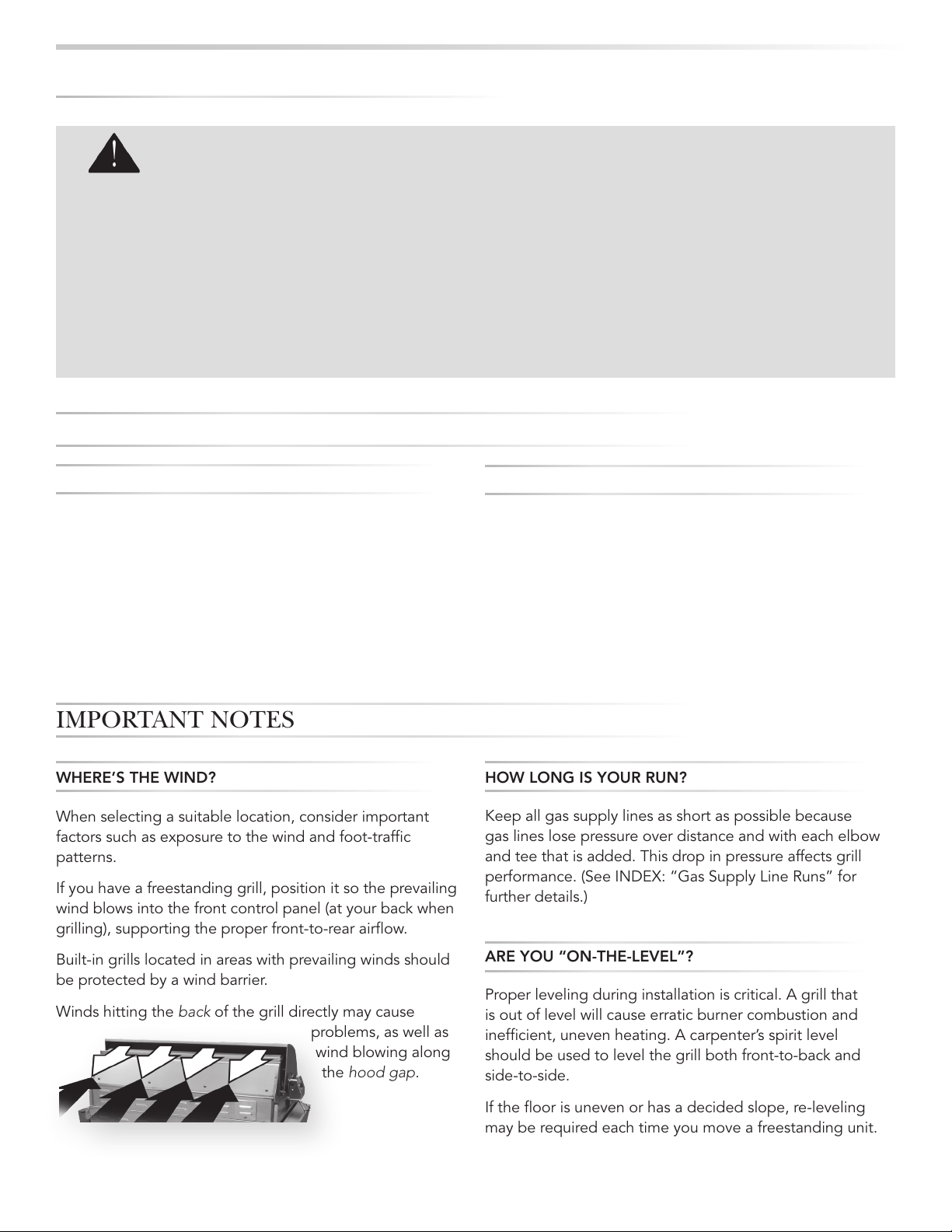

IMPORTANT NOTES

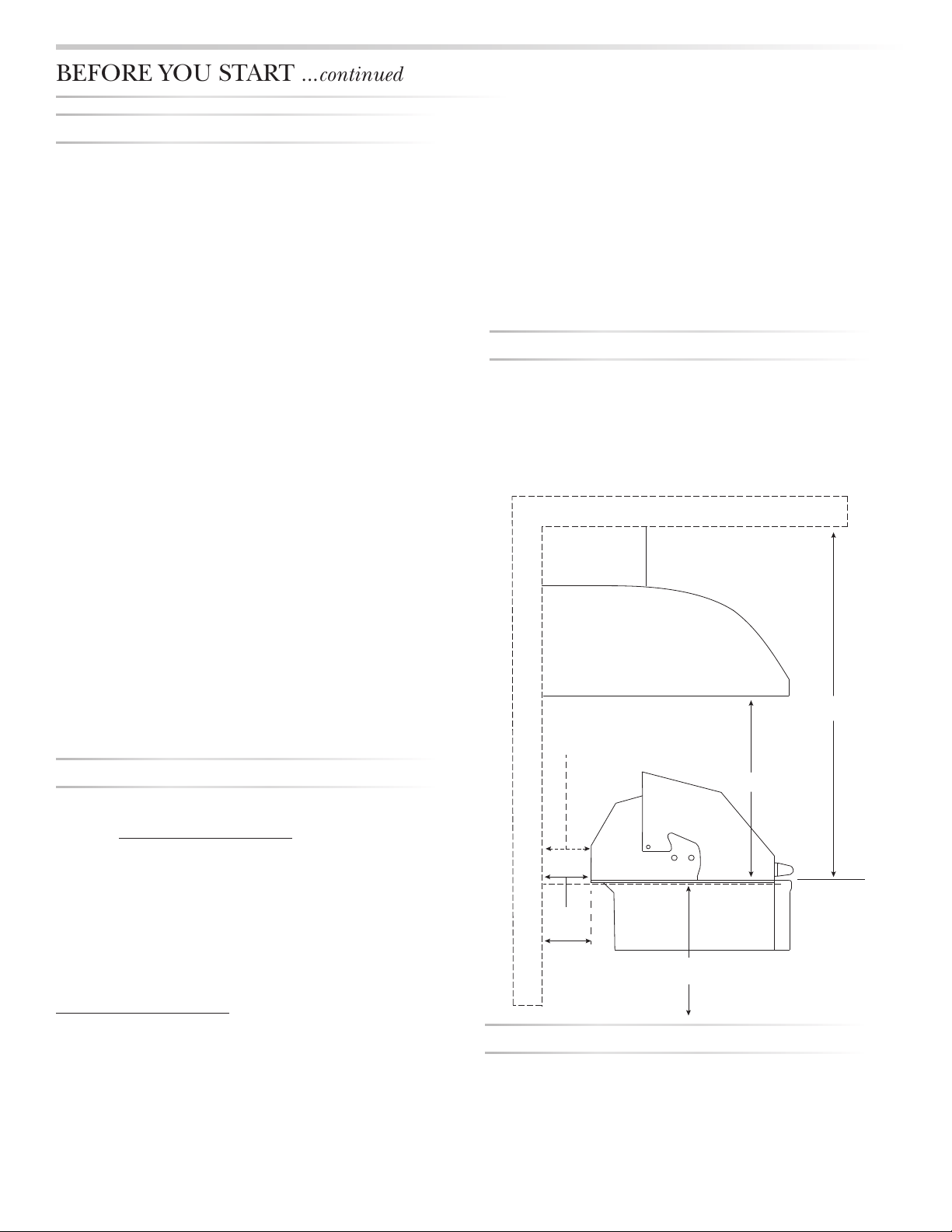

WHERE’S THE WIND?
When selecting a suitable location, consider important
factors such as exposure to the wind and foot-traffic
patterns.
If you have a freestanding grill, position it so the prevailing
wind blows into the front control panel (at your back when
grilling), supporting the proper front-to-rear airflow.
Built-in grills located in areas with prevailing winds should
be protected by a wind barrier.
Winds hitting the back of the grill directly may cause
problems, as well as
wind blowing along
the hood gap.
HOW LONG IS YOUR RUN?
Keep all gas supply lines as short as possible because
gas lines lose pressure over distance and with each elbow
and tee that is added. This drop in pressure affects grill
performance. (See INDEX: “Gas Supply Line Runs” for
further details.)
ARE YOU “ON-THE-LEVEL”?
Proper leveling during installation is critical. A grill that
is out of level will cause erratic burner combustion and
inefficient, uneven heating. A carpenter’s spirit level
should be used to level the grill both front-to-back and
side-to-side.
If the floor is uneven or has a decided slope, re-leveling
may be required each time you move a freestanding unit.
Be sure wind doesn’t blow into the hood gap.
10
|
CARE & USE/INSTALLATION
BUILT-IN INSTALLATIONS
The Lynx Built-In Grill is designed for easy installation into
masonry enclosures.
NOTE: Lynx built-in grills are intended either for
installation in a built-in enclosure constructed of
non-combustible materials or for an installation in a built
in enclosure constructed of combustible material when
installed with a Lynx insulating jacket (LIJ).
For non-combustible applications, the grill drops into the
opening shown in the cutout detail drawing (See INDEX:
“Gas Requirements”) and hangs from its counter-top trim. A
deck is not required to support it from the bottom.
When using the insulated jacket in a combustible enclosure,
the jacket must be supported from the bottom by a ledge
on each side or a full deck beneath the jacket.
(See INDEX: “Gas Requirements”) Pay special attention to
the provisions shown for gas line hook-up.
The enclosure should have ventilation holes to prevent gas
build-up in the event of a leak. The deck ledges and
counter should be flat and level. (refer to ANSI Z21.58
Standard for Outdoor Cooking Gas Appliances, Section 1.7
Enclosures For Self Contained LP-Gas Supply Systems)
This grill requires that a 120 volt, 60 hertz, 15 amp GFI
certified outlet be installed by a qualified electrician.
Never locate the transformer or grill gas line behind the
grill inside the insulated jacket.
CLEARANCE TO COMBUSTIBLE MATERIALS
Minimum clearance from the sides and back of the grill to
adjacent combustible construction below the counter top
surface is 12” from the sides and 6 1/4” from the back of
the hood.
Dégagement minimal entre les parois latérales et l’arrière de l’appariel
et la construction combustible au-dessous du panneau supérieur de
l’appareil (30 cm à partir des parois latérales et 15.9 cm à partir de
l’arrière de la hotte).
Minimum clearance from sides and back of grill to adjacent
combustible construction extending above the counter top
surface is 12” from the sides and 6 1/4” from the back.
Dégagement horizontal minimal entre les parois latérales et l’arrière
de l’appariel et la construction verticale combustible au-dessus de
l’appareil (30 cm à partir des parois latérales et 15.9 cm à partir de
l’arrière).
Do not use this appliance under unprotected overhead
combustible surfaces.
N’utilisez pas cet appareil sous des surfaces inflammables non
protégées.
A minimum of 6” of clearance is needed on the left side of
the grill above the counter top for the rotisserie motor and
spit rod.
If the grill is to be placed into a combustible enclosure, an
approved insulated jacket is necessary and is available only
from your Lynx dealer. Lynx insulated jackets have been
designed and tested specifically for your Grill.
REAR HOOD CLEARANCE
A 3 inch clearance is required behind the grill to allow the
front hood to open.
The grill exhausts combustion products and cooking
greases to the back. Never locate the grill where this
exhaust will be difficult to clean.
OVERHEAD PROTECTION AND EXHAUST REMOVAL
If installed under any combustible contruction the cooking
area over the grill must be covered with an exhaust hood.
The hood must provide 3-6 inches of overhang on all
exposed sides. The exhaust hood shall provide no less than
1,200 CFM for proper exhaust ventilation. The hood must
be approved for outdoor installation and provided with a
dedicated GFCI protected branch circuit.
BEFORE YOU START ...continued
Vent Hood
Overhead Construction
R
e
a
r
W
a
l
l
3” overhang on left and right side of grill
36” Minimum
6’ Minimum to
non-combustible
6 1/4” Clearance from the
grill back to above
counter combustibles
12” clearance to combustibles from
surface level right/left/below
Combustible overhead
construction requires a
vent hood
Non-combustible overhead
construction a vent hood is
highly recommended
6 1/4” Minimum
clearance to
combustibles
3” Minimum
hood clearance
CARE & USE/INSTALLATION
|
11
The guides, measurements and dimensions detailed below are designed to assist you with planning your outdoor kitchen.
NOTE: Due to continuing product innovation, specifications are subject to change without notice.
IMPORTANT: Please reference the Care & Use / Installation manual for details on gas plumbing requirements, electrical specifications and the
proper installation of your Lynx outdoor kitchen equipment. This manual can be downloaded from the Lynx website at www.lynxgrills.com
GRILLS
MODEL A B C
L27 26.00 10.88 22.00
L30 29.00 10.88 24.50
L36 35.00 10.13 22.00
L42 41.00 10.88 24.50
L54 53.00 10.88 24.50
COMPLEMENTARY PRODUCTS
ACCESS DOORS
MODEL
A B
LDR18L/R-4 13.38 19.00
LDR24L/R-4 19.25 19.00
LDR30T-4 25.13 19.00
LDR36T-4 31.50 19.00
LDR42T-4 37.50 19.00
SIDE BURNERS
MODEL
A B C
LSB1-3 12.13 10.63 12.50
LSB2-2 12.13 10.63 24.50
LSB2PC-1 24.25 10.63 24.50
LPB 19.00 10.63 22.00
UTILITY DRAWERS
MODEL A B C
LDW16-4 12.25 19.00 24.50
LDW19-4 15.25 19.00 24.50
LMD-4 21.75 5.63 23.38
LTWL 14.63 7.00 7.00
WARMING DRAWERS
MODEL A B C
L30WD-1 28.50 10.00 20.50
L42CC-1 40.25 19.38 24.50
COCKTAIL PRO/SINK
MODEL A B C
LCS30 29.00 10.50 22.00
LSK18 17.00 10.50 22.00
LSK24 23.00 10.50 22.00
LSK30 29.00 10.50 22.00
STORAGE SYSTEMS
MODEL A B C
LSA30-4 25.44 19.00 24.50
LSA36-4 31.44 19.00 24.50
LSA42-4 37.44 19.00 24.50
LPA36-4 31.50 19.00 25.00
TRASH CENTERS
MODEL A B C
L20TR-4 16.81 24.00 24.50
LTA30-4 25.44 19.00 24.50
WITH INSULATED JACKET INSTALLED
MODEL A B C
LIJ27 33.00 11.63 23.75
LIJ30 36.00 11.63 26.50
LIJ36 42.00 11.63 23.75
LIJ42 48.00 11.63 26.50
LIJ54 60.00 11.63 26.50
5”
4.5”
3”
AA
B
C
COUNTER TOP NOTCH DETAIL
Only required if island counter top overhangs the face of the island
SPECIFICATIONS & INSTALLATION
UNCONVENTIONAL ISLAND INSTALLS
If building an island that does not conform to the standard
properties listed in the following pages, please contact
Lynx Grills at 888-259-5969 to verify all safety requirements
regarding installation have been met.
PIZZA OVEN
MODEL A B C
LPZA 29.00 4.00 24.50
SMOKER
MODEL A B C
LSMK 29.00 4.00 24.50
LCS30
12
|
CARE & USE/INSTALLATION
LM24REF/LM24BF/LM24DWR
OUTDOOR ICE AND REFRIGERATION
MODEL A
B C D
LM15REFL/R 15.00 34.00-35.00 24.00 33.75-34.75
LM24REFL/R 24.00 34.00-35.00 24.00 33.75-34.75
LM24REFCL/CR 24.00 34.00-35.00 24.00 33.75-34.75
LM24BFL/R 24.00 34.00-35.00 24.00 33.75-34.75
LM24DWR 24.25 34.00-35.00 24.00 33.75-34.75
LMWINE 15.00 34.00-35.00 24.00 33.75-34.75
LM15ICER 15.00 34.00-35.00 24.00 33.75-34.75
D
B
C
A
D
B
C
A
SPECIFICATIONS & INSTALLATION
LM15ICER/LMWINE/LM15REF
1
1/8
” min. for model LUDE
3
1/2
” min. for model LUDXL
2
1/2
” min. for model LDR (access door)
* Cocktail Pro should have an open bottom for plumbing and drain access.
** 1” square hole must be located at rear of grill cutout. 120V GFI outlet must
be located within 6’ of the 1” hole.
1/2” NPT
gas connection
CLEARANCE
33
1/2
”
34”
15”
25”
ICE MACHINE
3”
2”Ø or 2” square holes
for manifold connection
(rear or bottom access)
12” min.
Grill**
Cocktail Pro*
Warming Drawer/
Convenience Center
Utility
Drawer
Side
Burner
Drop In
Cooler
(LDC18)
Access
Doors
A
B
2
1/4
”
3
1/2
”
3
1/4
” min.
2”
3” min.
C
Trash
Center
36
3/8
”
min.
3
1/2
”
8
1/4
”
18
1/4
”
6
1/4
”
18
1/4
”
Trash
Chute
(L18TS)
2
3/
16
''
13 ''
Single
Storage Drawer
3”
min.
14
1/2
''
8
1/4
''
Towel
Dispenser
(L16TWL)
A
A
A
A
A
B
B
B
B
A
B
B
A
min.
max.
OUTDOOR REFRIGERATORS
a
e
d
f
c
b
CARE & USE/INSTALLATION
|
13
UNPACKING & ASSEMBLY
Use two or more people to move or install this
unit. Failure to follow this instruction can result in
back or other personal injuries.
WARNING:
EXCESSIVE WEIGHT HAZARD!
Grill will not slide directly off pallet.
The grill arrives nearly ready to use and requires only minor
assembly.
By carefully following the uncrating and unpacking steps,
you will improve the customer’s first Lynx experience.
Shipping weight on smaller units is app. 300 pounds and
larger units may weigh over 500 pounds.
CRATE & CARTON
• IMPORTANT! Do not remove staples around the top of
the carton. These staples hold a wooden pallet in place
inside the carton that protects the unit from damage.
Removing these staples may cause the pallet to fall on
the top of grill.
How to Remove the Carton
• Cut the main strap holding the grill to the pallet.
• Remove the staples at the bottom of the carton.
• Lift off the carton. There is a pallet over the grill for hood
protection.
• With assistance, remove the grill from the pallet and
place into desired location.
The wheels sit down in the gaps of the shipping crate so
that the grill can sit safely and solidly on the crate during
shipping. The grill cannot be slid directly off of the pallet.
One way to safely move the grill off of the pallet is by lifting
one end of the grill high enough to place a ramp under the
wheel and then lift the other end while rolling the grill off of
the pallet.
When pushing, lifting, or pulling a freestanding Lynx Grill
across gravel, grass, pavers, brick, stone, imperfections in
the surface, or wood slatted decks be cautious and move
slowly or use a carpet dolly. Failure to do so may damage
the structure of the cart which will not be covered under
warranty.
INTERIOR PACKING
Lynx uses sturdy tie-down cables and straps to ensure
your grill arrives at your home in the same condition that
it left our factory. BE SURE YOU HAVE REMOVED ALL TIE
DOWNS BEFORE USING YOUR GRILL.
• Remove the white accessory box and wood packing, the
grill racks, and remove any loose items from the firebox.
• Carefully cut the cable ties
securing the warming rack
and rotisserie spit.
• Trident ™ burner, cut and
remove ties from the burner
partition of the Trident ™ burner.
14
|
CARE & USE/INSTALLATION
Heat Shield Removed,
Orifice/Venturi Position
UNPACKING & ASSEMBLY ...continued
• Ensure that all burners are properly seated on the
burner valve orifice and sitting level with the legs in
the frame slots and no side-to-side movement.
• The crossbar of the burner must sit in front of the
bracket pictured below.
Inside View, Orifice all
the way into venturi
CARE & USE/INSTALLATION
|
15
WARNING
NEVER CONNECT A GAS LINE DIRECTLY TO THE GRILL. A PRESSURE REGULATOR MUST BE INSTALLED ON
ALL GAS EQUIPMENT. ALL LOCAL CODES REQUIRE IT AND LYNX SUPPLIES THE CORRECT REGULATOR
WITH YOUR GRILL. REMOVING OR FAILING TO INSTALL THE PRESSURE REGULATOR CAN RESULT IN FIRE
AND SERIOUS PERSONAL INJURY AND WILL VOID THE WARRANTY.
The grill is factory set to use either propane (LP) or
natural gas (NAT). It is critical that the gas you use matches
that which the grill was set up for. You can verify that by
checking the rating plate.

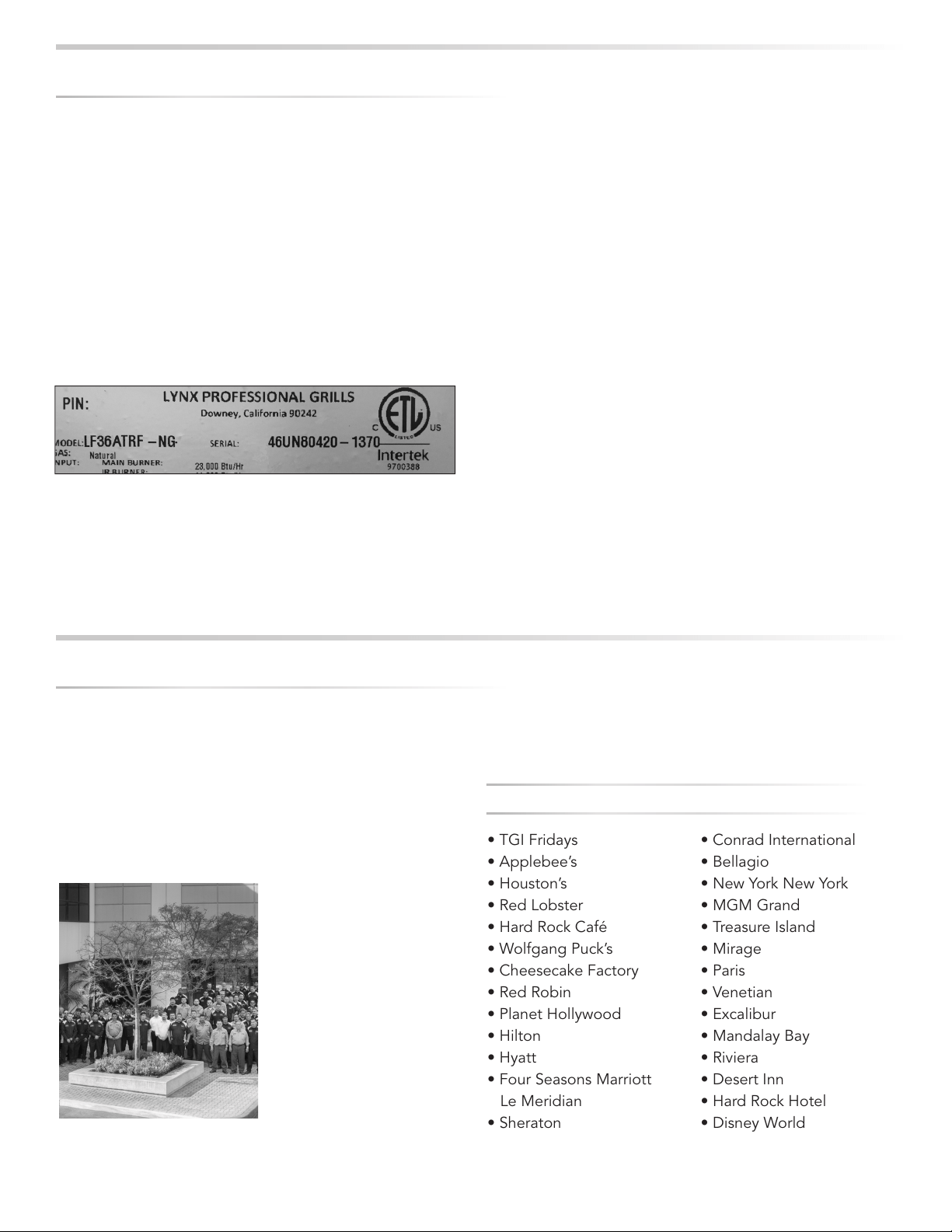

The Rating plate lists serial numbers, model numbers and gas
type. This one is underneath the drip tray.
The rating plate is located in one or more of the following
places:
• Attached to the underside of the drip tray
• On the heat shield behind the front panel
Ensure that the gas supplied meets with the minimum
pressure requirements. Do not operate the grill on any gas
other than that for which the grill has been set.
Fuel WC Max Inlet WC Min Under
Full Load
Nat Gas 10 in 4 in
LP 14 in 11 in
Water Column Requirements
Both the regulator and the manifold orifices have been
tuned for the type of gas specified on the rating plate.
Converting to a different type of gas requires a conversion
kit, available from Lynx or from your dealer and must be
installed by a qualified technician or certified plumber.
All installation and all installation parts must conform to
local codes with the National Electrical Code, ANSI Z223.1/
NFPA 70 latest edition and the National Fuel Gas Code,
ANSI Z223.1/NFPA 54 in the U.S. and CGA-B149.1/.2 in
Canada.
Canadian installations must conform to CGA-B149.1/.2
natural gas/propane installation code. (Canada)
Lynx recommends that only qualified professionals
perform the required plumbing on this product.
NATURAL GAS
To ensure satisfactory performance, the gas supply line
must be sized to accommodate the total BTU requirements
of all the gas-fired equipment that will be connected to that
line.
In no case should an inlet pipe less than 3/4” inside
diameter or 1” outside diameter ever be used to connect
this product.
• Calculate the total BTU output of all equipment and
refer to “INDEX: Gas Supply Line Runs” for allowable run
distances for ¾ inch pipe. Failure to meet these minimum
requirements may reduce performance of the grill and
any other appliances running on that supply line.
• Always keep supply line runs as short as possible. (See
INDEX: “BTU Output” for specific model outputs)
• A gas shut-off valve must be installed in an easily
accessible location,away from the grill and island location
by a qualified plumber.
• Keep threading compound off of the first two pipe
threads to avoid having any small pieces of compound
break loose and clog a burner valve or orifice. Do not use
threading compound on any flare fittings.
For built-in installations, it is recommended that any flexible
pipe used be kept as short as possible. (See INDEX: “Gas
Connections” for typical permanent hook up.)
GAS CONNECTIONS
Keep last two
threads clean
16
|
CARE & USE/INSTALLATION
For freestanding units using natural gas, Lynx recommends
using a mobile flex gas line. Always keep the line away from
the firebox.
This is available at your local hardware store or from your
dealer.
LP GAS
Grills set up for LP gas come equipped with an LP hose/
regulator assembly for connection to a standard 20 lb. LP
cylinder. (Type 1). All fittings necessary to attach the assem-
bly to the grill are included.
Permanently plumbed LP connections, such as those in line
with a bulk cylinder, require a 4/11 regulator. (Lynx P/N 30781)
When using the 4/11 regulator you must ensure that it is
set for the proper fuel type. This is done by removing the
regulator cap and gasket and looking at the bottom of the
plunger to see what fuel type is visible. This is the regula-
tor fuel setting. NAT is for natural gas and LP is for propane
gas. The LP setting can be further identified by the large
diameter disk on the bottom of the plunger. To change
from one gas to the other simply push the plunger to the
side to snap it out of the cap, turn the plunger so it reads
the desired gas type on the bottom, and push the plunger
until it snaps back into place in the cap then replace the
cap into the regulator.
Never connect an unregulated gas line to the grill.
LP Cylinder Requirements
The LP cylinder must be constructed and marked in accor-
dance with the specifications for LP gas cylinders of the U.S.
Department of Transportation (DOT) and designed for use
with a Type 1 system only.
Cylinders of free standing grills must be secured using the
provided cylinder retention system to avoid accidental
movement.
When exchanging your
cylinder for a refill,
exhange only for a Type
1 20lb cylinder with
an over-fill protection
device.
Never use a cylinder with a damaged valve.
A dented or rusty LP cylinder may be hazardous and should
be avoided. If in doubt, have it checked by your LP supplier.
Always check for leaks after every LP cylinder change. (See
INDEX: “Leak Test” for further details.)
Always shut off the LP-gas supply at the cylinder when the
grill is not in use.
Cylinders must be stored outdoors in a well-ventilated area
out of the reach of children. If your grill is stored indoors,
the LP cylinder must be stored outside.
LP Connections
Make sure the LP cylinder valve is fully closed. It is possible
for the valve to be open without releasing gas but, as soon
as you start connecting the regulator, gas will leak from the
connection.
LP cylinder with type 1 valve connection
GAS CONNECTIONS ...continued
Do not change the regulator/hose assembly or
use any other assembly than the one supplied
with your Lynx grill.
Do not attempt to use a 5LP-A equipped
regulator/hose assembly with a standard 510
POL cylinder/valve assembly.
Do not store a spare LP-gas cylinder under or
near this appliance.
Never fill the cylinder beyond 80 percent full.
If the information above is not followed exactly, a
fire causing death or serious injury may occur.
WARNING
CARE & USE/INSTALLATION
|
17
Never run flex hose behind the firebox, run
the hose at an angle, straight down, or out of
the back.
GAS CONNECTIONS ...continued
Insert the regulator inlet into the cylinder valve and turn the
black coupler clockwise until the coupler is hand tight. Do
not over-tighten this connection.
To disconnect the coupler, first make sure the main cylinder
valve is turned off. Grasp the coupler and turn counter
clockwise. The inlet will then disengage.
Always leak-test the connection after refilling or exchanging
LP cylinders. (See INDEX: “Leak Test” for further details.)
GAS LINE PURGING
You should purge the gas line of air before attempting to
light the grill.
• Make sure all grill controls are in the “OFF” position.
• Slowly turn on the main gas supply.
• Push in the rotisserie knob and confirm that the igniter
is glowing. It is furthest from the fuel source and will
completely purge the lines. It will take several seconds for
the burner to light.
• Hold the knob ON for about 20 seconds to allow the air
in the system to purge and the burner to light
• Wait at least 5 minutes after shutting off the control
before attempting to light the burners.
GAS CONVERSION KITS
Gas conversion kits are available from Lynx Grills to
allow the grill to operate on either Natural gas or
LPG. These kits should be installed by a qualified
technician or certified plumber.
The kits come with complete installation instructions.
These instructions should be read completely and
fully understood before installing the conversion kit.
NG AND BULK LP BUILT-IN INSTALLATION*
• Shut off the gas supply at the main valve.
• If connecting to a bulk propane tank, disconnect the brass
elbow, hose and regulator from the grill.
• Remove all the fittings from the grill manifold.
• Connect the gas supply to the grill as shown in the
diagram on this page.
• Turn the gas supply on and leak test all connections.
(See INDEX: “Leak Test” for further details.)
LP CONVERSION KIT
NG CONVERSION KIT
Inline Regulator
P/N 30781
1/2” MxF
Street
Elbow
Angle At Least
20˚ From Horizon
Grill Manifold
1/2” MIP
Fitting
Flexible Gas Line to Inlet
*Call Lynx for an inline
regulator if using bulk propane
18
|
CARE & USE/INSTALLATION
NG AND BULK PROPANE* CART INSTALLATION
• Shut off the gas supply at the main valve.
• Disconnect all plumbing (if already attached) from the grill
and the gas supply valve.
• Remove all the fittings from the grill manifold if necessary.
• Connect the gas supply to the grill as shown in the
diagram on this page for your gas type.
• Turn the gas supply on and leak test all connections. (See
INDEX: “Leak Test” for further details.)
GAS CONNECTIONS ...continued
Inline
Regulator
P/N 30781
Grill Manifold
1/2” MIP
Fitting
Flexible Gas Line to Inlet
1/2” Close
Nipple
1/2” FIP
Street
Elbow
Regulator
P/N 13053
Grill Manifold with Brass Elbow
To Propane Tank
Angle At Least
20˚ From Horizon
Side Burner Installation
LP BOTTLE CART INSTALLATION
• Shut off the gas supply at the main valve.
• Connect the gas supply to the grill as shown in the
diagram on this page for your gas type.
• Turn the gas supply on and leak test all connections. (See
INDEX: “Leak Test” for further details.)
1/2” Close
Nipple
Angle At Least
20˚ From Horizon
Grill Manifold
1/2” MIP
Fitting
Flexible Gas Line
to Side Burner
Flexible Gas
Line
To Propane Tank
1/2” FIP T Fitting
1/2” MxF
Fitting
1/2” Close
Nipple
Angle At Least
20˚ From Horizon
Grill Manifold
1/2” MIP
Fitting
Flexible Gas Line
to Side Burner
Flexible Gas
Line
To Propane Tank
1/2” FIP T Fitting
Inline Regulator
P/N 30781
1/2” MIP
Fitting
Flexible Gas Line
to Inlet
1/2” MxF
Fitting
*If using bulk propane, be sure the regulator plunger is flipped to LP. (see page 15)
CARE & USE/INSTALLATION
|
19
CONNECTION TO AC
Installation requires an outdoor 120VAC 15A GFI (Ground
Fault Interrupter) electrical outlet adjacent to the grill.
The GFI outlet features an internal breaker that reduces
shock hazard. This type of outlet should be installed by a
qualified electrician either inside the island enclosure for
built-in units, or near the location where a free-standing unit
will be used.
For built-in grills, the supplied 12VDC should be installed
below the grill within the cabinet enclosure. Select a
location where the transformer is protected against water,
heat and physical damage.
When installing the transformer to the grill be careful to
prevent the wiring and transformer from contacting any
hot surfaces behind or below the grill. It is recommended
that the transformer be located below the grill in a readily
accessible location. Be sure to provide adequate access to
facilitate service if the transformer or connections should
need future maintenance.
If the electrical system fails to operate, a connection may
have come loose in shipping or the GFI may have tripped,
requiring a reset. See the Troubleshooting section for more
details.
BATTERY INSTALLATION
Your grill includes a standard 9V battery that provides
backup power for the electronic ignition system. To install
or replace the battery, follow this procedure:
1. Locate the battery compartment on bottom of the front
panel. You will need to slide out the drip tray to access
the compartment.
2. Disengage the battery compartment by pushing the
battery cover in the direction indicated by the arrow on
the cover. You may also use a flat head screwdriver.
3. The battery compartment will disengage and protrude
so that you may pull and remove the battery and
compartment.
4. Insert and/or replace a new 9V battery into the battery
compartment.
ELECTRICAL CONNECTIONS
• Product installation must meet local electric codes or, in the absence of local codes, the latest edition of the
National Electrical Code ANSI/NFPA No. 70 or the Canadian Electrical Code CGA 1.6b2005.
• Use only a Ground Fault Interrupter (GFI) protected circuit with this outdoor cooking gas appliance.
• IMPORTANT: When connecting your rotisserie motor, first connect the motor to the grill and then plug the grill
into the outlet.
• This grill is equipped with a three prong (grounding) electric plug for your protection against shock hazard and
must be plugged directly into a properly grounded three prong outlet. Never cut or remove the grounding
prong from this plug.
• Use only extension cords with a 3 prong grounding plug, rated for the power of the equipment, and approved
for outdoor use with a “W-A” marking.
• To protect against electric shock, do not immerse any part of the power cord, an extension cord or any plugs in
water or other liquid.
• Unplug the product from the outlet when not in use and before cleaning. Allow it to cool before putting on or
taking off parts.
• Do not let the cord hang over the edge of a table or touch hot surfaces.
• Do not use an outdoor cooking gas appliance for purposes other than intended.
• Do not operate any outdoor cooking gas appliance with a damaged cord, plug, or after the appliance malfunc-
tions or has been damaged in any manner. Contact the manufacturer for repair.
WARNING: ELECTRICAL GROUNDING
Front of the grill
Battery location
View from underside
20
|
CARE & USE/INSTALLATION
FINAL CHECKS
LEAK TESTING
Leak Test Procedure:
• Create a soapy solution of 1 part soap and 3 parts water.
• Confirm that all control knobs are in the off position.
• Turn on the fuel supply. For natural gas, turn the valve
handle 1/4 turn to align with the gas flow.
• For L.P., turn the cylinder valve knob counter clockwise
one full rotation.
• Apply the soap solution generously by paint brush or
squirt bottle on all connections and fittings.
• If bubbles appear to “grow” on any of the connections,
you have a gas leak. IMMEDIATELY turn off the gas
supply.
Fixing a Gas Leak:
• Shut off the gas supply
• Turn all grill controls to the “ON” position to purge the
grill of any gas build-up, then turn the controls back
“OFF”.
• Wash off the soapy solution with cold water and dry.
• Tighten the loose joint, or replace the faulty part with
manufacturer-recommended replacement parts.
• DO NOT attempt to repair the L.P. cylinder valve if it
is damaged. The only way to safely resolve a damaged
cylinder is to REPLACE IT.
• Repeat the leak test to ensure that no leaks are present.
LOW HEAT BURNER ADJUSTMENT
FOR TRIDENT ™ BURNERS ONLY!
DO NOT ADJUST THE ROTISSERIE BURNER.
The Trident ™ burners on your Lynx grill feature an
adjustable low setting.
Fluctuations in gas pressure, gas conversion and even in the
quality of the gas itself may affect burner performance at the
“LOW” setting. It could be either too high or too low.
To Adjust the Burner to a Low Setting:
• Make sure the grill is cool.
• Remove the racks so you can see the flames while
adjusting the burners.
The proper setting is where the flame is stable at its
lowest setting. A slight flutter will be present in the
crossover portion of the front of the Trident burner before
the burner itself becomes weak.
• To make the adjustment, turn the burner off and remove
the control knob.
• While holding the valve shaft with pliers as shown insert a
small flat screwdriver into the center shaft and adjust the
flame’s low setting. (1/8” blade 3” long shaft)
Clockwise will lower the flame setting, counterclockwise will
raise it. Make adjustments in 1/2 turn increments.
The factory setting for propane gas is ½ to ¾ turn from the
very bottom of the adjustment. The setting for natural gas
is 3-½ to 3-¾ from the bottom. After the low settings are
adjusted, replace the control knob, turn the burner to HI
for 30 seconds and check the low setting again. Repeat the
process as necessary.
To prevent fire or explosion hazard, DO NOT
smoke or allow any potential source of ignition
(sparks, electrical arcing, etc) in the area while
performing a leak test. Leak tests should be
conducted outdoors only. Never conduct a leak
test using fire or flame.
DANGER!
CARE & USE/INSTALLATION
|
21
• The appearance of the Trident ™ burner should be visually
checked. The ceramic tiles should be uniformly red to
orange in appearance. There should be no lifting, fluttering
or lazy blue flames. Some food particles will show as yellow
flames but should burn off.
IMPORTANT:
Make sure the owner knows where the main gas supply
shut off valve is located.
Finally, for safety and for proper use & care, you must
leave this manual with the owner. Make sure you advise
them to keep it for future reference.
For technical assistance call:
Lynx Customer Care
888-289-5969
ONE LAST THING
Finally, before leaving, check all the burners for proper opera-
tion. Make sure the control knobs turn freely and completely
through their full range.
NOTE: The Trident ™ does not have an air shutter.
FINAL CHECKS ...continued
BE EXTREMELY CAREFUL AROUND HOT
BURNERS AND OTHER GRILL PARTS.
DANGER!
22
|
CARE & USE/INSTALLATION
• Do you smell gas? If yes, shut off everything and call the
gas company or a qualified plumber to check for leaks, if
not please continue.
• Are you prepared to stay with the grill during the entire
cooking process? If not, gather what you need before
starting the lighting process. If yes, please continue.
• Is your cooking area free and clear of any combustibles,
besides your food, that might ignite? If not, clear the area
before starting the lighting process, If yes, please continue.
• Do all control knobs turn freely? If not, call for service, if
yes, please continue.
• If you are using a portable propane cylinder, is it
connected and leak tested? If not, check the connection
before continuing. If yes, please continue.
• Do you know where your grill’s main gas supply shut off
valve is located? If not, locate it before continuing. If yes,
please continue.
• Are all burners properly seated in the grill with mounting
legs in slots? If not, seat the burners properly before
continuing. If yes, please continue.
• Is the wind blowing just lightly and not blowing on the
back of the grill? If not, wait until the wind subsides or turn
your free standing grill so the wind goes into the front of
the grill. If yes, please continue with the lighting process.
SAFETY CHECKLIST
You’ve just joined the world of Lynx cooks … a discriminating
collection of amateur and professional chefs that take outdoor
cooking to a new level.
Your grill has been designed and built with meticulous attention
to detail and it offers some unique and powerful features. You can
achieve maximum performance and enjoyment of these features only
by carefully reading this manual ... before your first cook-out.
This manual includes important safety tips and great hints for better
grilling. You’ll want to keep it handy for easy reference.
Also, at Lynx, we enjoy hearing from our customers. We like to hear
about your successes but also about any difficulties you are having.
Please feel free to contact us with any questions or problems, or just
to share a new recipe. Please include the model number of your grill
in your correspondence.
With the proper use and care this product will provide years of
trouble-free service.
Should your Lynx grill change ownership, please make sure that the
new owner receives this manual.
Thanks again for your purchase. Enjoy!
A MESSAGE TO OUR CUSTOMERS
CARE & USE/INSTALLATION
|
23
1. NEVER LEAVE THE GRILL UNATTENDED WHILE
COOKING.
2. Ensure all zip ties have been removed from the burners.
3. Always use caution when operating the grill in a windy
area. (See INDEX: “Grilling in Windy Conditions” for
further details.)
4. Avoid wearing loose-fitting garments or long sleeves
while grilling. They could ignite.
5. Never touch the grill racks, hood or immediate sur-
rounding metal surfaces with your bare hands while
grilling.
6. Use an insulated glove or mitt when opening and
operating the grill. Always open the grill lid slowly to
allow heat and smoke to escape before fully opening.
7. The grill hood must be fully opened while lighting the
grill. Releasing fuel into a closed grill before lighting
will not make it light sooner or more efficiently. It will
only risk explosion and personal injury or death. Never
lean over a hot grill surface or look directly into the grill
when attempting to light.
8. Do not heat unopened food containers as pressure
build-up will cause the container to explode.
9. Do not use aluminum foil to line grill racks or drip pans.
This will alter the airflow or trap excessive heat in the
control area and can melt control knobs and ignition
modules. Such damage is specifically excluded from
your warranty.
10. Never use charcoal or any other solid fuel in the grill.
11. Cooking excessively fatty meats and oils will cause flare
ups. Internal fires or damage caused by them or by the
grill being left unattended while cooking are not cov-
ered under the terms and conditions of our warranty.
12. Never grill without the drip pan in place. Always ensure
the drip pan is pushed all the way to the back of the
grill. Hot grease can leak downward and produce a fire
or explosion.
13. Grease is extremely flammable. Let hot grease cool
down before attempting to handle or dispose of it.
The drip tray should be cleaned of grease on a regular
basis.
14. Do not use the grill unless a leak check has been per-
formed on all gas connections. (See INDEX: “Leak Test
Procedure” for further details.)
15. Never operate the grill while under the influence of
alcohol or drugs.
16. Do not lean on side shelves and never place a load
weighing more than 25 pounds on a side shelf.
17. If any burner does not light or goes out during opera-
tion, turn off all gas control knobs, open the hood and
wait five (5) minutes before attempting to re-light.
18. Portable L.P. cylinders: Always shut off the main valve
on the L.P. cylinder after each use.
19. Spiders and insects like to nest in the burners, venturis,
valves and orifices of a grill, disrupting the gas flow.
This very dangerous condition can cause a fire be-
hind the control panel, damaging the grill and risking
personal injury. If your grill has been unused for a long
time, inspect and clean the burners, venturis, valves
and orifices.
IMPORTANT SAFETY PRECAUTIONS
PLEASE REVIEW THESE IMPORTANT SAFETY PRECAUTIONS BEFORE YOU USE YOUR
GRILL.
24
|
CARE & USE/INSTALLATION
Outdoor grills create more heat than interior kitchen
ranges. That’s how they sear and grill steaks and other
foods.
These high-performance burners require a constant, steady
supply of fresh air to mix with the fuel. Your Lynx grill pulls air
in through the front and vents hot gases out through the rear.
Using your grill in windy conditions may disrupt the front-
to-back air flow. If, while grilling with all burners on high
and the hood closed, you notice that the temperature
gauge fails to rise ... be careful. If wind has kept hot gases
from exiting the rear of the grill the control panel and knobs
may have become extremely hot.
Your Lynx grill features an exclusive, patent-pending Heat
Stabilizer that will deflect wind and, in most cases, prevent
this situation.
But there are a few things you can do to further prevent
the possibility of improper heat buildup:
• On breezy days, be careful not to leave the front
hood down when the burners are on high if the is grill
unattended.
• If you suspect the grill is overheating, using an oven mitt,
open the front hood. Then adjust the burner control knob
to a lower setting.
• Install your grill with a wind break behind it.
• Orient the grill so prevailing winds are not blowing into
the rear of the grill.
GRILLING IN WINDY CONDITIONS
Wind hitting the back of the grill can
disrupt proper exhaust.
Air enters through the front of the grill.
Please Note: Any damage caused from use in windy conditions, such as melted knobs or igniter wires,
or control panel discoloration from heat buildup, is excluded from warranty coverage.
IMPORTANT!
CARE & USE/INSTALLATION
|
25
BEFORE YOUR FIRST USE
There are a few must-check safety precautions to consider
before you use your grill. Please be sure that:
• All packing materials and tie-downs have been removed
from the burners. (See INDEX: “Unpacking & Assembly”
for further details.)
• You have fuel connected. (See INDEX: “Gas
Requirements” for further details.)
• You have electric connected. (See INDEX:
“Electric Requirements” for further details.)
• A qualified plumber has performed a leak test on all the
fittings that supply fuel to your grill.
• IF YOUR GRILL DOES NOT LIGHT IN 4 TO 5 SECONDS
you may need to purge the line. (See INDEX: “Purging
the Gas Line”
AT EACH NEW SEASON
At the start of each new grilling season you should remove
the grilling racks and check the burners, venturis, orifices
and valves for obstructions.
Spiders and insects often nest in these areas of the grill
and can disrupt air flow, causing damage to the grill and
personal injury.
Also, check all hoses and fittings for damage, abrasion,
wear and tear.
USING YOUR LYNX GRILL
Grilling requires high heat for searing and low, controlled
heat for slow cooking.
Thinner cuts of food are often cooked at a “HI” heat setting
with the lid open.
On the other hand, large, thick pieces of meat or poultry
are often first seared at the high setting and then grilled
at a lower setting ... sometimes with the lid closed …
achieving the best results in the middle of the food without
burning the outside.
Some foods are cooked using direct heat and some using
indirect heat.
Your Lynx grill features a variety of professional-level
burners and tools for meeting the wide variety of cooking
challenges. We will reveal how these features work for you.
So please read and enjoy!
PRE-GRILL CHECKLIST
Trident ™ Burner
This advanced infrared
burner provides high-
intensity infrared heat
for searing foods and
sealing in flavor.
Rotisserie Burner
This infrared burner spans the back of the
cooking surface and provides consistent heat
for slow rotisserie cooking.
26
|
CARE & USE/INSTALLATION
BEFORE EACH USE
Before any use, always make sure that:
• ... you do not smell gas before you light the grill. If you
do smell gas, shut everything off and have a qualified
plumber check for leaks.
• … the cooking area is free and clear of any combustibles,
besides your food, that might ignite.
• … the control knobs turn freely.
• … if you are using a portable propane cylinder, it is
securely connected and leak tested. (See INDEX: “LP
Cylinder Requirements” for details.)
• … you know where the main gas supply shut-off is
located.
• … the burners are seated properly in the grill. The main
burners must sit level and firmly on the burner mounting
support frame. (See INDEX: “Unpacking & Assembly” for
further details.)
• … wind is not blowing too strongly or blowing on the
back of grill.
LIGHTING YOUR GRILL
1. Never attempt to light a burner if you smell gas.
2. Always keep the lid open when lighting your grill.
3. Releasing fuel into a closed grill before lighting will increase the risk of explosion, property damage, personal
injury or death.
4. Keep your face and body as far from the grill as possible when lighting. Any time a burner doesn’t light within
5 seconds, turn off the control, wait 5 minutes for gas to dissipate, and repeat the lighting procedure.
5. YOU NEVER LEAVE THE GRILL UNATTENDED WHILE THE GRILL IS LIT.
WARNING
PRE-GRILL CHECKLIST ...continued
ELECTRIC IGNITION
Before proceeding, make sure you have completed the
“Before Each Use” checklist.
Follow these steps to light any of the burners on your grill:
First, make sure all burner control knobs are set to OFF.
Depress the front panel switch. The lights will come on and
the FlameTrak will be enabled.
For the Trident™ Burner:
Push and turn the control knob to the “LITE/MAX”
position, allowing the igniter to spark and the gas to flow.
The blue indicator light wil flash and remain lit once the
burner ignites. You can then set the knob to the desired
heat setting.
For the Rotisserie Burner:
Push and turn the control knob to the “LITE/HI”
position, allowing the igniter to spark and the gas to flow.
The blue indicator light wil flash and remain lit one the
burner ignites.
The grill features a flame sensor with a safety valve that
automatically shuts off the flow of gas if the burner goes
out for any reason.
CARE & USE/INSTALLATION
|
27
MANUAL LIGHTING
If a burner doesn’t light after several attempts, it can be
match lit using the lighting rod stored in the drip tray.
First, make sure you’ve returned all of the control knobs
to the OFF position and have allowed 5 minutes for any
accumulated gas to dissipate before attempting to match
light a burner.
Match lighting is only possible when the grill is
connected to a working outlet or a fresh battery is
installed.
Trident ™ Burner
To match-light this burner, use the lighting rod to insert a lit
match through the cooking grate and through the
protective screen.
Push and turn the corresponding burner control knob to
“LITE”. If the burner doesn’t light within 5 seconds turn the
knob off and wait 5 minutes before attempting to light it
again.
LIGHTING YOUR GRILL ...continued
Extremely cold temperatures may cause your
Trident ™ burners to light inside the bur ners
instead of outside. Once lit, if you hear a
‘whooshing’ sound, immediately turn the burner
knobs off to extinguish the flame and then
immediately re-light the burners.
COLD WEATHER WARNING:
PROPANE
28
|
CARE & USE/INSTALLATION
PRE-HEATING
Pre-heating your grill every time you use it is extremely
important.
Pre-heat your grill by igniting all main burners, including
the Trident burner, and setting them to “HI”.
Then close the hood and allow the grill to heat for 5
to 10 minutes, the hood thermometer should reach
approximately 450°. Once you’ve reached your desired
pre-heat temperature, turn off the burners that you
won’t be using to cook your food. Remember, surface
temperature can be up to 200° higher.
TYPES OF COOKING
The Trident burner in your Lynx grill are capable of
creating a range of heat intensities. By varying the heat
output, the number of burners used and the position of
the hood, you can create either direct or indirect heat
or a combination of both and develop a wide variety of
succulent recipes. There are two basic types of grilling in
an outdoor grill... Direct Heat and Indirect Heat
Direct Heat
Direct heat cooking occurs when foods are placed
directly over the heat source. This form of heat is known
as “radiant” heat because the heat radiates directly from
the source to the food.
Direct heat is a must when you want to sear the
outside of your food to seal in flavor. Lynx Trident
Burners provide the heat necessary to sear foods and
seal in flavor.
Indirect Heat
Indirect heat cooking occurs when the food is not
close to the heat source. Heat reaches the food via air
movement within the cooking area. This form of heat is
known as “convection” heat.
Indirect, or “convection” cooking is achieved by
placing the food on one side of the grill and igniting
burners on the other side. You leave the burner below
the food “OFF”. You should keep the hood closed as
much as possible during this type of cooking to
maintain even heat around the food. You regulate the
heat by adjusting the burner, using the hood
thermometer to monitor the temperature.
WARNING!
DO NOT LEAVE THE GRILL UNATTENDED
DURING THE PRE-HEAT CYCLE OR AT ANY
TIME WHILE THE GRILL IS IN USE.
PRE-HEATING FOR MORE THAN 10 - 15
MINUTES MAY OVERHEAT THE GRILL, CAUSING
DAMAGE TO THE GRILL.
BASIC GRILLING
CARE & USE/INSTALLATION
|
29
Professional restaurant chefs rely on a different type of heat
... infrared heat ... to create a higher searing temperature
than what standard burners can achieve. So Lynx provides
the Trident ™ infrared burner.
Infrared burners work by focusing the gas flame through a
ceramic element filled with tiny holes.
These holes focus the flame on the surface of the element,
creating an intense heat much higher than that of a
standard brass burner. It allows you to sear your food more
quickly while leaving the inside rare, if desired.
The Trident ™ burner, with its advanced components,
requires particular attention to lighting, usage and cleaning
guidelines.
Pre-Heating the Trident ™ Burner
Always preheat the entire grill before cooking to achieve
consistent, successful results. (See INDEX: “Preheating” for
further details.)
If the grill is already hot from cooking you should still
pre-heat the Trident ™ burner for 2-3 minutes, or
until it glows red.
Never place food over a Trident ™ burner before it is fully
pre-heated because food particles and grease dripping
onto a cold Trident ™ burner can clog the tiny ports and
damage the burner.
For the same reason you should minimize water spills on
the Trident ™ burner and should not use water to control
flare-ups. Take special care to minimize dropping any
liquids on the Trident ™ burner while cleaning the cooking
grids.
HOW TO SEAR
Searing locks in flavor and juices while allowing the food’s
outer surface to absorb smoke and food-born aromas
produced when drippings are vaporized by the burner.
The result is a restaurant-style finish … crisp, flavorful
outside with a tender, juicy inside.
The Trident ™ burner is specifically designed to provide
intense heat making it possible to sear like a Pro.
USING THE TRIDENT ™ BURNER
Lynx grill cooking grids are heavy duty.
Dropping them on the Trident ™ Burner will
damage the burner. Such damage is not cov-
ered by the product warranty and will cause a
fire, burns or other personal injury.
TRIDENT™ BURNER CLEANING
It’s easy to keep your Trident ™ Burner
operating at peak performance. Just run it on
“HI” with the hood open for 5 minutes after
each use to burn away any food particles or
drippings.
Any ash accumulation on the burner screen
can be removed with a light brush (like a paint
brush) or vacuum … BUT WAIT UNTIL THE
BURNER IS COOL! Never use water.
Do not poke anything into the holes.
SAFETY PRECAUTIONS
30
|
CARE & USE/INSTALLATION
Rotisserie
cooking provides
an even delivery of
heat to your foods.
It has no equal.
The constant rotation not only cooks foods evenly, it also
self bastes. As juices rise to the surface of the food, they
naturally flow around it as it rotates. And, by moving the
burner out from beneath the food, you avoid scorching
flare-ups.
Your foods will be more evenly
cooked, more tender and juicier
when slow-roasted on a Lynx’s
rotisserie.
The Lynx rotisserie system consists of four main parts, the
motor, the skewer, the forks and
the infrared burner.
The Motor
Install the motor by sliding it into
one of the slots shown here. Use
the top slot for small foods or
fast cooking and the lower slot for large foods and slower
cooking.
Plug the motor power cord into the
motor and into the built-in power
outlet on the rear left panel. Your
grill must be plugged into an AC power supply for the
rotisserie to work.
Place a basting pan in the grill to prevent food
accumulations on the burners. But BE SURE YOU REMOVE
IT before using any of the other burners.
The location of the rotisserie burner makes it more
susceptible to strong wind conditions (more so than the
main grill burners).
For this reason it features a safety valve that automatically
closes any time the rotisserie burner is not properly lit …
like if it were to extinguish in windy conditions. During
windy conditions, it’s best to keep the lid closed and to
periodically check the burner.
When the rotisserie is not in use the rotisserie motor should
be stored in a cool dry location.
The Spit Rod & Forks
The rotisserie can handle large food items up to 50 lbs. You
should prepare any item and first mount it on the skewer.
Swing the warming rack up and out of the way. It will rest in
place.
Then mount the skewer on the grill before lighting the
rotisserie infrared burner. Lighting the burner first could
result in burning your hands while trying to mount the
skewer on the grill.
It’s okay to remove the grill racks to make room for large
foods on the skewer.
To load the skewer, slide one of the forks onto the skewer.
Push the skewer through the center of the food, then slide
the second fork onto the skewer. Center the food to be
cooked on the skewer then push the forks firmly together.
Tighten the thumb screws (use pliers if necessary). You
should wrap any loose, dangling pieces of food (like wings)
with butcher’s string (never use nylon or plastic string).
With the food secured to the skewer slowly roll the skewer
in the palms of your hands to check for balance. It should
rotate smoothly. If you find it has a heavy side, adjust where
the skewer pierces the meat. An unbalanced skewer will
cause uneven rotation and uneven cooking. It’s normal for
the skewer to flex with large foods.
USING THE ROTISSERIE BURNER
Rotisserie
Motor Mount
CARE & USE/INSTALLATION
|
31
Professional chefs far and wide set their restaurant cuisine
apart by cooking
over wood fires.
Imparting a delicate
hint of wood smoke
enhances food,
raising your culinary
skills to the next
level.
Your new grill comes
with the Lynx Smoker
Set with handle. This Lynx Smoker box can be placed
anywhere on the grates directly over any burner. The
unique handle and interlock mechanism is designed to
allow quick removal or refilling of the Lynx smoker box.
The smoker box is designed with special draft and flow
through for maximum smoke. It is constructed of 304 Heavy
Gauge Stainless Steel for years of use.
The Lynx Smoker box can be used with smoker pellets
or wood chips. Whether using wood chips or pellets, we
recommend using approximately 3 oz. of either material.
There is no need for presoaking, just fill the smoker box.
Now use the handle to place
the smoker box directly on
the hot grates. Don’t forget
to remove the smoker handle
before closing the grill lid.
Smoke occurs at approximately
575 degrees F. at the grilling
surface. Set the burner knob to medium/medium low to
achieve this temperature. Use the handle to move or refill
the smoker box. Control the smoking by adjusting the heat
and being careful not to adjust it too high.
For best results keep the lid closed. The best absorption
of smoke flavor occurs early in the cooking process. When
finished with smoking, allow the smoker box to cool and
dispose of remnants.
Slide the pointed end of the skewer into the motor and rest
the other end on the rollers on the other side of the grill.
The notched portion of the skewer must rest on the rollers
for proper operation.
The Rotisserie Burner
To light the rotisserie infrared burner, first mount the
skewered food item on the grill then follow the rotis-
serie lighting procedure. (See INDEX: “Rotisserie Burner,
Lighting” for further details.)
Once lit, the rotisserie burner should reach cooking
temperatures in about 1 minute. It will glow evenly across
its surface in about 5 minutes.
NOTE: The grill thermometer should not be used for
rotisserie cooking. It is not designed to read direct infrared
heat.
If the burner will not stay lit when you release the control
knob, re-light it and hold the control knob in for at least 60
seconds to allow the thermocouple to heat up.
If, after holding the control knob in for at least 60 seconds,
the burner still will not stay lit when releasing the control
knob, call for service.
(See INDEX: “Obtaining service from Lynx” for further
details.)
USING THE ROTISSERIE BURNER ...continued
Must rest
on rollers
USING THE SMOKER BOX
Handle the smoker box with care. The cover
becomes extremely hot when in use. Use sturdy,
properly insulated gloves or dry pot holders.
CAUTION
32
|
CARE & USE/INSTALLATION
STAINLESS STEEL
Lynx products are known for their attractive appearance.
We achieve this by selecting only the finest grades of
stainless steel and applying exacting workmanship.
In order to maintain this attractive appearance over the life
of the grill it is important to take the following steps:
• After each use wipe down the exterior of the grill to
remove grease and splatters.
• Be sure to follow the cleaning instructions for keeping the
grates and burners clean and ready for use.
• Use a commercially available Stainless Steel cleaner* to
clean and polish the exterior surfaces.
Doing these things on a regular basis minimizes the amount
of effort required.
Part of the appeal of your Lynx Grill is the fine grain finish.
When removing stubborn stains:
• Do not use metallic abrasives and always rub in the
direction of the grain.
• Some household cleaning products* are not suitable for
stainless steel; be sure to read the label before using on
your Lynx Grill.
• Always use the mildest cleaning solution first, scrubbing
in the direction of the grain. Specks of grease may gather
in the grain of the stainless steel and bake on to the
surface, giving the appearance of rust.
To remove these baked-on foods use a fine to medium
grit non-metallic abrasive pad (Scotch Brite is good) in
conjunction with a stainless steel cleaner.
• Solutions used for cleaning concrete and masonry
can be very corrosive and will ‘attack’ stainless steel.
Ensure your Lynx products are well protected before
you allow the use of such chemicals near your grill.
SPECIAL NOTE FOR LOCATIONS NEAR POOLS AND
COASTAL AREAS:
The 304 stainless steel material used in the construction of
a Lynx Grill is highly rust resistant, however, chlorine in the
air from swimming pools or the salt from sea air may cause
surface rust to appear and even create some pitting if left
on the product.
Here are a few tips to avoid this:
• Regularly wipe down the exterior surfaces with a damp
cloth. (Micro fiber cloths such perform very well).
• Allow the surfaces to dry before installing the cover. Do
not cover a damp grill.
• In extreme environments apply a rust inhibitor which
leaves a microscopic protective layer on the grill.
Products that provide a layer of vapor corrosion inhibitors
(VpCI™) protect the surface very well.
• For seasonal storage use the product referred to above,
ensure the grill is dry and then cover and secure the
cover to minimize the amount of damp air getting to the
surfaces.
THE LYNX LIMITED LIFE TIME WARRANTY PROVIDES
PROTECTION AGAINST RUST THROUGH OF PARTS THAT
RENDER THE PRODUCT INOPERATIVE. IT DOES NOT
COVER OCCASIONAL SURFACE RUST OR STAINING DUE
TO ENVIRONMENTAL CONDITIONS.
After your first use certain areas of the grill may discolor
from the intense heat given off by the burners - this is
normal and cannot be cleaned off.
For light and heavy food stains there are many different
stainless steel cleaners available.
DRIP TRAY
The drip tray should be cleaned after each use. After the
grill is completely cool, remove the drip tray by pulling it
out until it stops, then lifting the front edge until the drip
tray comes free.
Clean it with hot soapy water or an oven-style
cleaning product and re-install. When using an oven-style
cleaning product be sure to carefully follow the
manufacturer’s instructions. Many of these cleaners are
toxic and can damage the stainless steel finish if not used
properly.
Also, check the tray after rain. If you’ve left the grill
uncovered, you may need to remove the drip tray drain
plug to drain the water from the tray. The drain plug can be
removed with a flat-head screwdriver.
*RATED FOR HIGH HEAT
CLEANING YOUR LYNX GRILL (Including Required Maintenance)
CARE & USE/INSTALLATION
|
33
GRILLING RACKS
The easiest way to clean the grill racks is to do so
immediately after turning off the burners, while they are
still hot. Wearing a long BBQ mitt to protect your hand
from steam, dip a brass bristle brush in hot water and
scrub the grill rack. Dip the brush frequently because the
steam helps remove baked-on foods.
TRIDENT ™ BURNER
It’s easy to keep your Trident ™ burner operating at peak
performance. Just run it on “HI” with the hood open for 5
minutes after each use to burn away any food
particles or drippings.
Any ash accumulation on the burner screen can be
removed with a light brush or vacuum … BUT WAIT
UNTIL THE BURNER IS COOL! Never use water or liquid
to clean.
Every 3 to 6 months, remove the burner and inspect the
venturi (inlet) and orifice to ensure that they’re free of
obstructions.
Food debris on the inside of the burner can be gently
shaken out. Do not touch the ceramic surface.
When re-installing the Trident ™ burner, be sure to
correctly position the burner.
CLEANING YOUR LYNX GRILL (Including Required Maintenance)...continued
DO NOT ALLOW EXCESS GREASE OR LIQUIDS
TO ACCUMULATE IN THE DRIP TRAY AS THIS
MAY CREATE A FIRE HAZARD.
NEVER USE GRILL WITHOUT DRIP TRAY PROP-
ERLY INSTALLED.
WARNING
PROPER PLACEMENT OF EACH BURNER IS
CRITICAL. AFTER CLEANING THEY MUST BE
CENTERED ON THE BRASS ORIFICE,
RESTING LEVEL WITHOUT ANY ROCKING.
FAILURE TO MEET THESE CONDITIONS MAY
CAUSE A VERY DANGEROUS CONDITION
THAT CAN CAUSE PERSONAL INJURY AND
PROPERTY DAMAGE.
WARNING
Heat Shield Removed,
Orifice/Venturi Position
Inside View, Orifice all
the way into venturi
34
|
CARE & USE/INSTALLATION
CLEANING YOUR LYNX GRILL (Including Required Maintenance)...continued
BEFORE YOU CALL FOR SERVICE
Please check a few things before calling for service:
• Is there fuel supplied to the grill?
• Is the main shut-off valve open?
• Are you using the correct type of fuel? (LP or Natural Gas)
(See INDEX: “Gas Requirements” for further details.)
• Is your propane cylinder empty? Have you recently
refilled the propane cylinder? If so, is the connection
tight?
• Have you opened the valve on the propane cylinder?
• Is the grill plugged in to a live electric circuit?
• If you’ve checked the above items, review the potential
problems on the following pages before calling for Lynx
for service.
TROUBLESHOOTING YOUR LYNX GRILL
1. Failure to perform required maintenance will void your warranty.
2. Scrape the bottom of the firebox with a plastic putty knife or similar tool and discard the
residue.
3. Clean out the burner orifices and ensure they are free of debris.
4. Clean the drip tray.
WARNING: REQUIRED MAINTENANCE
CARE & USE/INSTALLATION
|
35
GRILL WON’T LIGHT
First, confirm that the grill is getting electricity by turning
on the lights, then:
Check The Igniters
Your Lynx grill uses an electric ignition system.
• Watch an igniter as you push in the knob and verify there
is a spark present.
Check The Burners
If the igniters are working check to see if gas is reaching the
burners by attempting to match light a burner.
IF THE BURNER FAILS TO IGNITE, FLAMETRAK WILL
ATTEMP TO IGNITE BURNERS!
If match lighting doesn’t work, re-check fuel connections for
leaks and ensure the supply is of the correct type and is of
adequate pressure. (See INDEX: “Leak Test Procedure” for
further details.)
If the burner will light with a match, then the igniter may
not be functioning correctly. Call for service.
If the burner will not match light, and you know you are
getting gas, wait for any gas to dissipate and remove the
burner and check it for blockages.
SMELL OF GAS WHILE COOKING
IF YOU SMELL GAS WHILE THE GRILL IS OPERATING,
IMMEDIATELY TURN OFF ALL BURNERS AND SHUT OFF
THE MAIN FUEL SUPPLY.
• Perform a leak test (See INDEX: “Leak Test Procedure”
for further details.)
LOW OR INSUFFICIENT HEAT
No part of the grill should ever be lined with aluminum foil.
Doing so will interfere with airflow and can cause a low heat
condition.
Ensure that you’ve preheated the Trident ™ burner for 3
minutes.
Proper leveling during installation is critical. A grill that
is out of level will cause erratic bur ner combustion and
inefficient, uneven heating. A carpenter’s spirit level
should be used to level the grill both front-to-back and
side-to-side.
If the low heat problem persists:
• Check the gas supply line sizing requirements.
• Check the gas supply line for kinks or damage.
REPLACE any damaged supply lines.
POTENTIAL PROBLEMS
36
|
CARE & USE/INSTALLATION
• Check the Regulator
Make sure that the regulator & hose assembly is the one
designed for and supplied with your Lynx grill and that it
is correctly set up for the type of fuel you are using. (See
INDEX: “Regulator Conversion” for further details.)
The hose and regulator provided by Lynx must be used if
your grill is set-up for a portable LP Gas Cylinder. Ensure
the LP hose is not behind the firebox.
Check that there is no physical pressure being applied to
the regulator attached to the back of the grill. The regulator
contains a flexible diaphragm and should not be allowed to
touch the grill body or its surroundings.
• Check for Obstructions
Ensure that the burners and drip tray are clean and free
from obstructions.
LP (Propane) units:
• Is the cylinder almost empty?
Almost-empty cylinders may not have sufficient pressure
to run the burners at high heat.
• Have the line pressure checked by a qualified technician
(See INDEX: “Gas Requirements” for further details.)
• Flow Limiting Device
Improper lighting procedures may have activated the LP
cylinder’s flow control device, reducing the heat output.
To reset the flow control:
• Shut off all burner controls and close the LP cylinder
valve.
• Wait 30 seconds and, very slowly, reopen the cylinder
valve.
• Wait a few seconds and relite a burner.
Bulk LP cylinder users:
Bulk LP cylinder lines must be properly regulated.
Ensure that you are using a 4/11 appliance regulator
supplied by Lynx and converted to LP gas. Also ensure that
you do not have more than one regulator in line.
Natural Gas units:
• Supply Line
Ensure that the supply line is at least 3/4” inside diameter
or 1” outside diameter.
• Check line pressure
Natural gas inlet pressure should be at least 5” W.C. and
manifold pressure not less than 4” W.C. under full load
(with all burners on.)
• Check burners for blockages.
• Check flame characteristics. (See INDEX: “Flame, Correct
Size” )
• Clean or adjust air shutter (See INDEX: “Air Shutter
Adjustment.”
WIND HITTING GRILL
Wind hitting the grill while in use, especially winds blowing
into or across the hood gap from behind, can cause poor
performance and in some cases can cause the control panel
and knobs to get dangerously hot.
Steady or gusty winds can prevent the normal exhaust of
hot gases. Locate your grill away from prevailing winds and
avoid grilling in windy conditions (see pg. 23).
POTENTIAL PROBLEMS ...continued
CARE & USE/INSTALLATION
|
37
BURNER GOES OUT
• Location
First determine if the problem is being caused by location.
If the grill is subject to high winds, reposition it to provide
some protection.
• Check the Gas Supply
• Burners Seated
Check to ensure that the burners are correctly positioned
in the grill. (See INDEX: “Burner Placement” for further
details.)
Correctly-installed burners should be seated firmly and
level with no side-to-side movement.
BURNER GOES OUT ONLY WHEN SET TO “LOW”
The valves on the grill feature an adjustable low setting.
Fluctuations in gas pressure, gas conversion and even in
the quality of the gas itself may affect burner performance
at the “LOW” setting. It could be either too high or too
low. (See INDEX: “Burner Adjustment” for further details.)
ROTISSERIE WON’T LIGHT
Follow the same procedure as described for the grill
burners to diagnose problems with the rotisserie burner.
BE CAREFUL! The rotisserie burner flame may be hard to
see in bright sunny conditions.
LIGHTS WILL NOT ILLUMINATE
• Check Power
Ensure that the grill is connected to a live AC power source
and check for rotisserie motor operation.
• Replace the Bulb
Replacement bulbs are halogen, 12 volt, 10W max, T3 type
with a G4 bi-pin, and are readily available at most home
improvement stores. The glass cover is held in place by two
spring tension tabs. The bulbs are easily removable without
the use of tools. Simply grasp the glass lens at the outer
corners, near the front tension clips and push the lens back.
Then, swing the lens down and pull it loose. You may have
to loosen the screw to remove the lens.
Avoid touching the glass of a new bulb. Halogen bulbs are
very sensitive to the oils found in human skin. Touching the
bulbs may shorten their life.
Pull the bulb straight out from the socket
without twisting.
Hold the bulb using a paper towel or
other cloth and gently press it straight
into the socket. The glass cover should be
gently snapped back into place.
POTENTIAL PROBLEMS ...continued
Pull on
spring
tabs to
release
light
cover
38
|
CARE & USE/INSTALLATION
CONTACTING LYNX CUSTOMER CARE
Before calling Lynx Customer Care, please make sure you
have the following information:
• Model number
• Date of purchase
• Proof of purchase by the original owner
• Serial number
The serial number can be located on the rating plate which
is located on the underside of the drip tray and on the heat
shield behind the front panel.
For warranty service, contact the Lynx Customer Care
Department for an authorized service agent near you at:
(888) 289-5969
www.lynxgrills.com
Your satisfaction is of the utmost importance to us. If a
problem cannot be resolved to your satisfaction, please
write, fax or email us:
Lynx Professional Grills
7300 Flores Street
Downey, CA 90242
Service: (888) 289-5969
Tel: (562) 299-6900
Fax: (562) 299-6978
email: [email protected]
www.lynxgrills.com
Contact Lynx for replacement parts. Parts are shipped
F.O.B. Downey, CA.
THE LYNX STORY
Lynx began with a vision.
A small group of manufacturing engineers with over a
century of collective experience had a dream. They dared
to take their extensive commercial manufacturing know-how
and create a line of outdoor cooking products that offer
commercial elegance and performance to the consumer
market.
Lynx has taken the
quality, workmanship,
service and
innovation of the
commercial market and
incorporated it into the
Lynx Professional Grills
line of consumer and
commercial products.
The combination of
creative design, superior
materials and exceptional
craftsmanship elevates
Lynx products to a class
of their own.
Lynx original commercial products are used every day in
restaurants, hotels and theme parks across the USA:
LYNX SATISFIED CUSTOMERS
• TGI Fridays
• Applebee’s
• Houston’s
• Red Lobster
• Hard Rock Café
• Wolfgang Puck’s
• Cheesecake Factory
• Red Robin
• Planet Hollywood
• Hilton
• Hyatt
• Four Seasons Marriott
Le Meridian
• Sheraton
• Conrad International
• Bellagio
• New York New York
• MGM Grand
• Treasure Island
• Mirage
• Paris
• Venetian
• Excalibur
• Mandalay Bay
• Riviera
• Desert Inn
• Hard Rock Hotel
• Disney World
CARE & USE/INSTALLATION
|
39
LYNX LIMITED WARRANTY
I. Limited Lifetime Warranty
The stainless steel grill body, cooking grates, Trident ™
burner and rotisserie infrared burner are warranted to be free
from defects in material and workmanship when subjected to
normal domestic use and maintenance for the lifetime of the
original purchaser. This warranty excludes surface corrosion,
scratches, and discoloration which may occur during normal
use. This warranty is limited to the replacement of the
defective parts, with the owner paying a processing fee and
all other costs including labor. Failure to perform required
maintenance will void this warranty
II. Limited Five-Year Warranty
The following grill parts are warranted to be free from defects
in material and workmanship, when subjected to normal
domestic use and maintenance, for a period of five (5) years
from the original date of purchase; warming racks, spit rods,
manifolds and gas valves. This warranty is limited to the
replacement of the defective parts, with the owner paying a
processing fee and all other costs including labor.
III. Limited two-Year Warranty
All other grill components are warranted to be free from
defects in material and workmanship, when subjected to
normal domestic use and maintenance, for a period of two
(2) years from the original date of purchase. This warranty is
limited to the replacement of the defective parts, with the
consumer paying all labor costs.
IV. Limited One-Year Warranty
For a period of one (1) year from the original date of
purchase, Lynx will replace or repair parts found to be
defective at no cost to the original purchaser. This includes
the cost of shipping replacement parts and, where necessary,
service labor at prevailing local rates by a Lynx authorized
service person. Service will be provided during normal
business hours and must be authorized in advance by Lynx.
V. Limitations & Exclusions
1) This Warranty shall apply to products purchased and
located in the United States and Canada. Products must
be purchased in the country where service is requested.
2) Warranty applies only to the original purchaser and may
not be transferred.
3) Warranty is in lieu of all other warranties expressed or
implied and all other obligations or liabilities related to the
sale or use of Lynx products.
4) Warranty shall not apply and Lynx is not responsible for
damage resulting from misuse, abuse, failure to provide
reasonable and necessary required maintenance, natural
disaster, animals, alteration of or tampering with the
appliance, accident, hostile environment, flare-up fires,
improper installation or operation, or an installation not in
accordance with the instructions contained in this manual,
or the local codes.
5) Lynx shall not be liable for incidental, consequential,
special or contingent damages resulting from its breach of
this written warranty or any implied warranty.
6) Some states do not allow limitations on how long an
implied warranty lasts, or the exclusions of or limitations on
consequential damages. This warranty gives you specific
legal rights and you may have other rights which vary from
state to state.
7) No one has the authority to add to or vary Lynx’s warranty,
or to create for Lynx any other obligation or liability in
connection with the sale or use of its products.
8) Limited to the replacement of defective parts with the
owner paying all other costs including labor.
VI. What is not covered: Lynx shall not be responsible for
and shall not pay for the following
1) Installation or start-up, damages or problems caused by
improper installation or use;
2) Service by an unauthorized service provider;
3) Damage or repair due to service by an unauthorized
service provider or use of unauthorized parts;
4) Warranty does not apply to products installed in any
commercial or non-residential application. Examples of
excluded applications include, but are not limited to day
care centers, schools, bed and breakfast centers, churches,
private clubs, fire stations, club houses, common areas in
multi-family dwellings, restaurants, hotels, nursing homes,
food service locations and institutional food service
locations. *Contact Lynx for Common Area Warranty.
5) To correct normal adjustments or settings, due to improper
installation, commissioning or local gas supply properties.
6) Shipping and handling costs, export duties, installation,
removal, or re-installation cost (RMA excluded).
7) Display models are sold “as is”. If you have purchased
a display model, please be advised that it is sold “as is”
and that it is subject to the following warranty exclusions:
any exterior or cosmetic damage is nonwarrantable;
any missing components will be replaced at consumers
expense; major handling damage to manifold, valve and
ignition system will be serviced at consumer’s expense; all
other warranties will remain in effect.
8) The cost of a service call to diagnose complaint.
9) Modification to Lynx product will void related warranties.
Please refer to Accessory Care & Use for respective warranties.
*
*
40
|
CARE & USE/INSTALLATION
LYNX COMMON AREA LIMITED WARRANTY
The Lynx Limited Warranty covers residential
installations only and is non-transferable to any other party.
This ‘non-residential’ warranty applies when the product is
installed in common areas where more than a single party
has rightful access to its use or in locations considered
beyond normal residential use such as B&B’s, and private
clubs.
THIS PROVISION EXCLUDES ALL COMMERCIAL
APPLICATIONS, INCLUDING, BUT NOT LIMITED TO
RESTAURANTS AND INSTITUTIONAL FOOD SERVICE
LOCATIONS.
I. Limited Five-Year Warranty
The stainless steel body is warranted to be free from defects
in material and workmanship when subjected to normal use
and maintenance for a five year period from the original
purchase date. This warranty excludes surface corrosion,
scratches, and discoloration which may occur during regular
use. This warranty is limited to the replacement of the
defective parts, with the consumer paying labor.
II. Limited One-Year Warranty
The structural integrity of the interior grill parts, exterior,
and drip pans are warranted to be free from defects in
material and workmanship, when subjected to normal
domestic use and service, for a period of one year from the
date of purchase. This warranty is limited to the replacement
of the defective parts, with the owner paying all other costs
including labor.
III. Limited Parts & Labor Warranty
All other grill components are warranted to be free from
defects in material and workmanship for a period of 90
days from the original date of purchase. Lynx will replace or
repair parts found to be defective at no cost to the original
purchaser. After the 90 day period Lynx will sell parts to
the holder of this warranty at Lynx contractor prices for an
additional 9 months.
IV. Limitations & Exclusions
1) This Warranty shall apply to products purchased and
located in the United States and Canada. Products must
be purchased in the country where service is requested.
2) Warranty applies only to the original location of
installation and may not be transferred.
3) Warranty is in lieu of all other warranties expressed or
implied and all other obligations or liabilities related to
the sale or use of Lynx products.
4) Warranty shall not apply and Lynx is not responsible
for damage resulting from misuse, abuse, failure to
provide reasonable and necessary required maintenance,
natural disaster, animals, alteration of or tampering with
the appliance, accident, hostile environment, flare-up fires,
improper installation or operation, or an installation not in
accordance with the instructions contained in this manual,
or the local codes.
5) Lynx shall not be liable for incidental, consequential,
special or contingent damages resulting from its breach
of this written warranty or any implied warranty.
6) Some states do not allow limitations on how long an
implied warranty lasts, or the exclusions of or limitations
on consequential damages. This warranty gives you
specific legal rights and you may have other rights which
vary from state to state.
7) No one has the authority to add to or vary Lynx’s warranty,
or to create for Lynx any other obligation or liability in
connection with the sale or use of its products.
8) Limited to the replacement of defective parts with the
owner paying all other costs including labor.
V. What is not covered: Lynx shall not be responsible for
and shall not pay for the following:
1) Installation or start-up, damages or problems caused by
improper installation or use;
2) Service by an unauthorized service provider;
3) Damage or repair due to service by an unauthorized
service provider or use of unauthorized parts;
4) To correct normal adjustments or settings, due to
improper installation, commissioning or local gas supply
properties;
5) Shipping and handling costs, export duties, installation,
removal, or re-installation cost (RMA exluded).
6) Display models are generally sold “as is.” If you have
purchased a display model, please be advised that it is
sold “as is” and that it is subject to the following warranty
exclusions: any exterior or cosmetic damage is non-
warrantable; any missing components will be replaced at
consumer’s expense; major handling damage to
manifold, valve and ignition system will be serviced at
consumer’s expense; all other warranties will remain in
effect.
7) The cost of a service call to diagnose complaint.
8) Modification to Lynx product will void related warranties.
Please refer to Accessory Care & Use for respective warranties.
*
*
CARE & USE/INSTALLATION
|
41
LF36ATR & LF36ATRF
WIRING SCHEMATICS
42
|
CARE & USE/INSTALLATION
LYNX PROFESSIONAL GRILLS EXPLODED PARTS VIEW AND LIST
1
3
6
12
13
14
158
9
10 11
4
2
5
7
03/20/18
ITEM
NO.
PART
NUMBER
DESCRIPTION
Default/
QTY.
1 81146
GRILL, L36, ALL SEAR, FT, ASSY
1
2 80277
ROTISS MOTOR ASSEMBLY
1
3
35380
POWER SUPPLY ( 3 Amp )
1
4
33416
ROTIS POWER CORD
1
5 31563
FORK, ROTISSERIE
2
6 31780
EXTENSION SPRING W/HOOKS
2
7 32129
SPIT ROD, 36"
1
LP
8 13054
FTNG, ELBOW, 90, 3/8" FTF TO 1/2" FIP
1
9 13053
REGULATOR 2-STAGE, 30" HOSE
1
10 13021
ORIFICE, #57, IR
1
11 13020
ORIFICE, #54
3
NG
12 13010
ELBOW, PIPE, FEM X MALE, 1/2 NPT, 90 DEG
1
13 30781
REGULATOR, 4/11
1
14 13016
ORIFICE, #50
1
15 13015
ORIFICE, #44
3
CARE & USE/INSTALLATION
|
43
1
25
51
31
4
23
17
45
29
32
22
36
37
6
15
16
9
27
33 34 34
3
SEE ASSY BILL
2
8
12
26
5
41
20
47
48
54
24
52
7
51
34
SEE ASSY BILL
53
57
39
49
11 47 21
41
40 56 30
58
51
10
45
59
55 38
49
51
14 13 28
45
4450
03/20/18
LYNX PROFESSIONAL GRILLS EXPLODED PARTS VIEW
44
|
CARE & USE/INSTALLATION
03/20/18
ITEM
NO.
PART
NUMBER
DESCRIPTION
QTY.
1 80310
FRONT HOOD, 36", WLDMT
1
2 70580
BULLNOSE, L36, FT, WLDMT
1
3 80910
PANEL, CONT, FRONT, L36, FT, ASSY
1
4 80270
REAR HOOD, 36", WLDMT
1
5 80274
INFRARED PANEL ASSY 36"
1
6 81141
MANIFOLD, 36", FT, ASSY
1
7 31794
FLEX HOSE, 9mm OD, 7/16-20, 38"
1
8 81145
DRIP PAN, 36", FT, ASSY
1
9 33478
BURNER, IR MAIN, PROSEAR2
3
10 36230
RETAINER, INSUL, FT, L36
1
11 32940
BRACKET, MOUNT, ROTIS MOTOR
1
12 36468
LIGHT SWITCH ASSY
1
13 70563
BRKT, IGNITER, IR, WLDMT
1
14 33136
IR IGNITER COVER, LYNX PRO
1
15 33445
BACK BURNER SUPPORT, 27"/36"
1
16 32245
BURNER HANGER, PRO 36
1
17 33033
FRONT RETAINING BRACKET
2
18 33597
BRACKET, RETAIN, WARMING RACK, LH
1
19 30417
COVER, IR ACCESS
1
20 36421
HOOD STOP, W/ROTIS ROD RH
1
21 36420
HOOD STOP, W/ROTIS ROD, LH
1
22 31795
FTNG, ELBOW 90 DEG. 1/4" TUBE, BRASS
1
23 32441
REAR HOOD LINER, 36"
1
24 32523
HOOD HANDLE, 36" PRO
1
25 31736
END CAP, HOOD HANDLE, W/INSUL
2
26 17020
GRATE, 16-1/2 X 18-1/2
2
27 34900
ELECTRODE, SPARK, STRAIGHT, 12"
3
28 34901
ELEC SPARK, STRAIGHT, CONFIG
1
29 80447
DUAL LIGHT ASSEMBLY
1
30 80440
ROTIS JACK WIRE HARNESS
1
31 35765
THERMOMETER, BLACK
1
32 32110
WARMING RACK, 36" PRO
1
33 36209
KNOB, ROTIS
1
34 36210
KNOB,ALL-SEAR
3
35 81136
POWER HARNESS, MAIN, FLAMETRAK
1
36 33781
NIPPLE, PIPE, 1/2 NPT X 6
1
37 31582
UNION COUPLER, 1/2" NPT
1
38 20055
WHEEL, BALL BERING, SS
6
39 34510
HOOD SPACER, UNIVERSAL
2
40 32939
SPACER, #10 NOM, 5/16 OD X 9/32, SS
2
41 32470
BUMPER, 3/4 , RUBBER, PRESS IN
2
42 32477
BUMPER, 1/2" DIA, RUBBER, PRESS IN
2
43 30617
SCREW, #6-32 X 1/4, FIP, STEEL
2
44 14018
SCREW, #6-32 X 1/4, PHP, SS
2
45 14014
SCREW, #8-32 X 3/8, THP, SS
16
46 31804
SCREW, #8-32 X 5/8, FHP, STEEL
4
47 32469
SCREW, #8-32 X 1, THP, SS
4
48 31781
SCREW, SHLDR, #8-32 X 3/16, SLTD, SS, 3/16 DIA X
3/16
2
49 14099
SCREW, #10-24 X 3/4, FHP, SS
4
50 14012
SCREW, 1/4-20 X 3/8, THP, STEEL
12
51 31930 SCREW, 1/4-20 X 3/8, HHD, SS 15
52 30223
SCREW, 1/4-20 X 1/2, HWH, STEEL, ZINC, SERRATED
2
53 14013
SCREW, 1/4-20 X 1, BHS, STEEL
2
54 31814
NUT, #6-32, LKN, STEEL, W/ESL
3
55 20083
NUT, #10-24, HEX, SS, MACHINE
2
56 32196
NUT, #10-24, ACORN, SS
6
57 14009 NUT, 1/4-20, HEX, SS 2
58 14044
WASHER, 1/4, FLT, SS, 11/16 O.D.
3
59 31317
WASHER, 1/4, FLAT, SS, 1-1/4 O.D.
4
60 20021
INSULATION, LIJ
1
LYNX PROFESSIONAL GRILLS PARTS LIST
CARE & USE/INSTALLATION
|
45
11
1
26
23
21
2X
10
4X
6
4X
8
8X
16
4X
2
4X
13
14
15
3
2X
25
6X
17
6X
9
5
4X
4
4X
24
8X
7
4X
18
3X
19
7X
20
3X
27
4X
12
4X
03/20/18
ITEM
NO.
PART
NUMBER
DESCRIPTION
QTY.
1 70297
PANEL, CONT, FRONT, L36, FT, WLDMT
1
2 35999
PCB, MODULE, FLAMETRAK
4
3 36413
COVER, PCB, 2X, FT
2
4 36216
BEZEL, KNOB
4
5 36172
CLIP, PANEL MOUNT, LED, 3mm
4
6 34997
INSUL, ELEC, FIBER BOARD SHT
4
7 32554
LED HOUSING
4
8 35298
STANDOFF, SNAP-IN, LOCK, NYLON
8
9 33453
LYNX LOGO WITH NO MOUNTING PINS
1
10 34998
BRKT, LED HARNESS
4
11 80436
LED WIRE HARNESS 36/42
1
12 81132
HARNESS, WIRE, PCB BOARD, FT
4
13 81133
HARNESS, WIRE, MAIN POWER, FT
1
14 81134
HARNESS, WIRE, BATTERY, FT
1
15 81142
HARNESS, WIRE, CHASSIS GROUND, FT
1
16 81137
HARNESS, LED, INDICATOR, ASSY
4
17 34806
TERMINAL, QUICK DISC, T-TAP
6
18 35355
CORD GRIP, SNAP-IN, .25-.30 CABLE
3
19 35390
CORD GRIP, SNAP-IN, .13-.19 CABLE
7
20 36407
CABLE TIE, NYLON, 7", PUSH MNT
3
21 30751
SCREW, #6-32 X 1/2, FHP, SS
2
22 32218
NUT, #8-32, RIVET, SS, KNUR
6
23 31059
WASHER, #10, ESL
1
24 36469
SCREW, #6-32 X 3/16, FHH, ZINK, UNDERCUT
8
25 14014
SCREW, #8-32 X 3/8, THP, SS
6
26 33517
SCREW, #8-32 X 3/16, PHP, SS
1
27 32055
WASHER, 5/16, SPL, SS, FOR SHC SCREW
4
LYNX PROFESSIONAL GRILLS EXPLODED PARTS VIEW AND LIST
46
|
CARE & USE/INSTALLATION
1
24
3
03/20/18
ITEM
NO.
PART
NUMBER
DESCRIPTION
QTY.
1 70585
MANIFOLD, 36", FT, WLDMT
1
2 81139
VALVE, SAFETY, ADJUSTABLE, ASSY
3
3 81138
VALVE, SAFETY, ON/OFF, ASSY
1
4 81140
ELEC CONTACT, SAFETY VALVE, ASSY
4
LYNX PROFESSIONAL GRILLS EXPLODED PARTS VIEW AND LIST
CARE & USE/INSTALLATION
|
47
MAXIMUM RUNS FOR ALL
APPLIANCES ON SUPPLY LINE
Run Length
3/4” Pipe (in feet)
Max BTU for all
Appliances on line
10 360,000
20 245,000
30 198,000
40 169,000
50 150,000
60 135,000
70 123,000
80 115,000
MODEL-SPECIFIC BTU OUTPUTS & MAX. RUNS FOR APPLIANCES
MODEL-SPECIFIC BTU OUTPUTS
MODEL ROTISSERIE TRIDENT TOTAL INPUT
LF36AT(F)R 1 @ 14,000 3 @ 23,000 83,000 Btu/Hr
|
CARE & USE/INSTALLATION
INSULATED JACKET INSTALLATION INSTRUCTIONS
IMPORTANT: Before you build the frame, you must take into consideration the total weight
of the liner, grill and any finishing materials.
A
B
C
D
E
F
4” square holes for
gas and electrial
connections both
left and right sides
(rear or bottom
access). Make these
holes in the frame
based on your
requirements.
1” Screws can be provided to help straighten out the
sides of the LIJ if necessary. Contact Lynx for details.
Refer to the table below for the proper framing
dimensions for the insulation jacket. Determine the entry
point for both the gas inlet and electricl connections. Make
the 4” square holes for gas and electrical connections (rear
or bottom access) based on your requrements. Note that
the electrical connections are located on the left side and
the gas connections are located on the right side.
A Carpenter’s “spirit level” should be used to assure that
the framing is level, both front to back and side to side.
Note: Never under any circumstance should you install
the transformer, run wiring or run a quick disconnect
hose inbetween the grill and the inside of the insulating
jacket.
Model A B C D E F
LIJ36
42 5 23 ¾ 4 ½ 3 11 5/8
LINER INSTALLATION
Posititon the liner into the frame. No part of the
combustible enclosure can protrude above the top surface
or in front of the face surface of the liner. Shim the liner if
necessary.
GRILL INSTALLATION
Use the proper equipment to support the grill. Place the
grill into the liner and engage it over the liner lip across the
back and sides. The liner is designed to support the grill
without additional fasteners.
FINISHING
If desired any gap remainng between the liner and
the combustible enclosure may be filled with a
non-combustilble sealant or caulk.
Note: for service the grill must be removable.
CARE & USE/INSTALLATION
|
49
A
About Flametrak ............................................................. 8
B
Before Each Use ........................................................... 26
Before You Start ............................................................. 9
BTU Outputs, Model Specific ...................................... 47
Burner Adjustment, Low ............................................... 20
Burner Appearance ...................................................... 21
Burner Placement ........................................................ 33
C
Checklist Before Each Use ............................................ 22
Clean the Burner .......................................................... 33
Cleaning Your Lynx Grill ............................................... 32
Clearance to Combustibles .......................................... 10
Contacting LYNX .......................................................... 38
Cut-out Dim., Built-in Grills .......................................... 11
D
Damage:
Concealed ...................................................................... 9
Visible ............................................................................. 9
Direct Heat Cooking .................................................... 28
Drip Tray ...................................................................... 32
E
Electrical Connections ................................................. 19
Exploded Parts View .................................................... 42
F
Final Checks ................................................................. 20
G
Gas Connections .......................................................... 15
Gas Line Purging .......................................................... 17
Gas Requirements ........................................................ 15
Gas Supply Line Runs ................................................... 47
Grilling in Windy Conditions ........................................ 24
I
Important Safety Precautions ....................................... 23
Indirect Heat Cooking ................................................. 28
Insulated Jacket Installation........................................... 48
L
Leak Test Procedure ..................................................... 20
Lighting, Manual .......................................................... 27
Lighting Your Grill .................................................... 7, 26
Lighting Rotisserie Burner ........................................ 7, 26
Low Heat Burner Adjustment ...................................... 20
LP Cylinder Requirements ........................................... 16
LP Gas ......................................................................... 16
M
Manual Lighting ............................................................ 27
Match Lighting ............................................................. 27
Maximum Runs for all appliances on supply line .......... 47
O
Obtaining Service From LYNX ...................................... 38
P
Parts List .................................................................. 42-46
Parts View, Exploded .............................................. 42-46
Pre-Heating Trident ™ Burner ...................................... 29
Pre-Heating the Grill .................................................... 28
Purging the Gas Line .................................................... 17
R
Regulator Conversion .................................................. 17
Required Maintenance ................................................ 34
S
Schematic, L36 ............................................................ 41
Service, Contacting Lynx ............................................. 38
T
Technical Support ........................................................ 38
Troubleshooting ........................................................... 34
U
Unpacking & Assembly ................................................. 13
Using Your Lynx Grill .................................................... 25
W
Warranty:
Warranty, Limited .......................................................... 39
Warranty, Common Area Limited ................................. 40
Windy Conditions, Grilling in ....................................... 24
INDEX
50
|
CARE & USE/INSTALLATION
CARE & USE/INSTALLATION
|
51
The best outdoor kitchen products come from:
Lynx Grills, Inc.
7300 Flores Street Downey, CA 90242
Service: (888)-289-5969 Fax: (562) 299-6978
www.lynxgrills.com
P/N 35405
