3-069-761-11(1)
Digital Still
Camera
Operating Instructions
Before operating the unit, please read this manual thoroughly, and retain
it for future reference.
Owner’s Record
The model and serial numbers are located on the bottom. Record the
serial number in the space provided below. Refer to these numbers
whenever you call upon your Sony dealer regarding this product.
Model No. DSC-P20
Serial No. ________________________
DSC-P20
©2001 Sony Corporation
2
To prevent fire or shock hazard, do
not expose the unit to rain or
moisture.
If you have any questions about this product,
you may call:
Sony Customer Information Services Center
1-800-222-SONY (7669)
The number below is for the FCC related
matters only.
CAUTION
You are cautioned that any changes or
modifications not expressly approved in this
manual could void your authority to operate
this equipment.
WARNING
For the Customers in the
U.S.A.
This symbol is intended to
alert the user to the presence
of uninsulated “dangerous
voltage” within the
product’s enclosure that
may be of sufficient
magnitude to constitute a
risk of electric shock to
persons.
This symbol is intended to
alert the user to the presence
of important operating and
maintenance (servicing)
instructions in the literature
accompanying the
appliance.
Declaration of Conformity
Trade Name: SONY
Model No.: DSC-P20
Responsible Party:Sony Electronics Inc.
Address: 680 Kinderkamack
Road, Oradell, NJ
07649 USA
Telephone No.: 201-930-6972
This device complies with Part 15 of the
FCC Rules. Operation is subject to the
following two conditions: (1) This
device may not cause harmful
interference, and (2) this device must
accept any interference received,
including interference that may cause
undesired operation.
3
Note:
This equipment has been tested and found to
comply with the limits for a Class B digital
device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide
reasonable protection against harmful
interference in a residential installation. This
equipment generates, uses, and can radiate
radio frequency energy and, if not installed
and used in accordance with the
instructions, may cause harmful interference
to radio communications. However, there is
no guarantee that interference will not occur
in a particular installation. If this equipment
does cause harmful interference to radio or
television reception, which can be
determined by turning the equipment off and
on, the user is encouraged to try to correct
the interference by one or more of the
following measures:
— Reorient or relocate the receiving
antenna.
— Increase the separation between the
equipment and receiver.
— Connect the equipment into an outlet
on a circuit different from that to which
the receiver is connected.
— Consult the dealer or an experienced
radio/TV technician for help.
The supplied interface cable must be used
with the equipment in order to comply with
the limits for a digital device pursuant to
Subpart B of Part 15 of FCC Rules.
DISPOSAL OF LITHIUM ION
BATTERY.
LITHIUM ION BATTERY.
DISPOSE OF PROPERLY.
You can return your unwanted lithium ion
batteries to your nearest Sony Service
Center.
Note:
In some areas the disposal of lithium ion
batteries in household or business trash may
be prohibited.
For the Sony Service Center nearest you call
1-800-222-SONY (United States only)
Caution:
Do not handle damaged or leaking lithium
ion battery.
Directive:EMC Directive 89/336/EEC,
92/31/EEC
This equipment complies with the EMC
regulations when used under the following
circumstances:
•
Residential area
•
Business district
•
Light-industry district
(This equipment complies with the EMC
standard regulations EN55022 Class B.)
For the Customers in the
U.S.A.
For the Customers in
Germany
4
This product has been tested and found
compliant with the limits sets out on the
EMC Directive for using connection cables
shorter than 3 meters.
The electromagnetic fields at the specific
frequencies may influence the picture and
sound of this camera.
For the Customers in the
U.S.A. and Canada
THIS CLASS B DIGITAL DEVICE
COMPLIES WITH PART 15 OF THE FCC
RULES AND THE CANADIAN ICES-003
OPERATION IS SUBJECT TO THE
FOLLOWING TWO CONDITIONS:
(1) THIS DEVICE MAY NOT CAUSE
HARMFUL INTERFERENCE, AND
(2) THIS DEVICE MUST ACCEPT ANY
INTERFERENCE RECEIVED,
INCLUDING INTERFERENCE THAT
MAY CAUSE UNDESIRED OPERATION.
Trial recording
Before you record one-time events, you may
want to make a trial recording to make sure
that the camera is working correctly.
No compensation for contents of
the recording
Contents of the recording cannot be
compensated for if recording or playback is
not possible due to a malfunction of your
camera or recording medium, etc.
Notes on image data compatibility
•
This camera conforms with the Design
Rules for Camera File Systems universal
standard established by the JEITA (Japan
Electric and Information Technology
Industries Association). You cannot play
back on your camera still images recorded
on other equipment (DCR-TRV890E/
TRV900/TRV900E, DSC-D700, DSC-
D770) that does not conform with this
universal standard. (These models are not
sold in some areas.)
•
Playback of images recorded with your
camera on other equipment and playback
of images recorded or edited with other
equipment on your camera are not
guaranteed.
Precaution on copyright
Television programs, films, video tapes, and
other materials may be copyrighted.
Unauthorized recording of such materials
may be contrary to the provision of the
copyright laws.
Do not shake or strike the camera
In addition to malfunctions and inability to
record images, this may render the
“Memory Stick” unusable or image data
breakdown, damage or loss may occur.
Attention for the Customers in
Europe
Attention
“Memory Stick”
N50
Be sure to read the following
before using your camera
5
Do not aim the camera at the sun
or other bright light
This may cause irrecoverable damage to
your eyes.
LCD screen, LCD finder (only
models with a finder) and lens
•
The LCD screen and the LCD finder are
manufactured using extremely high-
precision technology so over 99.99% of
the pixels are operational for effective use.
However, there may be some tiny black
points and/or bright points (white, red,
blue or green in color) that constantly
appear on the LCD screen and the LCD
finder. These points are normal in the
manufacturing process and do not affect
the recording in any way.
•
Be careful when placing the camera near a
window or outdoors. Exposing the LCD
screen, the finder or the lens to direct
sunlight for long periods may cause
malfunctions.
Notes on batteries
Be careful when removing the batteries, as
they may be hot after the camera is used for
long periods.
Do not get the camera wet
When taking pictures outdoors in the rain or
under similar conditions, be careful not to
get the camera wet. If moisture
condensation occurs, refer to page 67 and
follow the instructions on how to remove it
before using the camera.
Back up recommendation
To avoid the potential risk of data loss,
always copy (back up) data to a disk.
When the camera is used for long
periods
Note that the camera body may become hot.
Notice
If static electricity or electromagnetism
causes data transfer to discontinue midway
(fail), restart the application or disconnect
and connect the USB cable again.
6

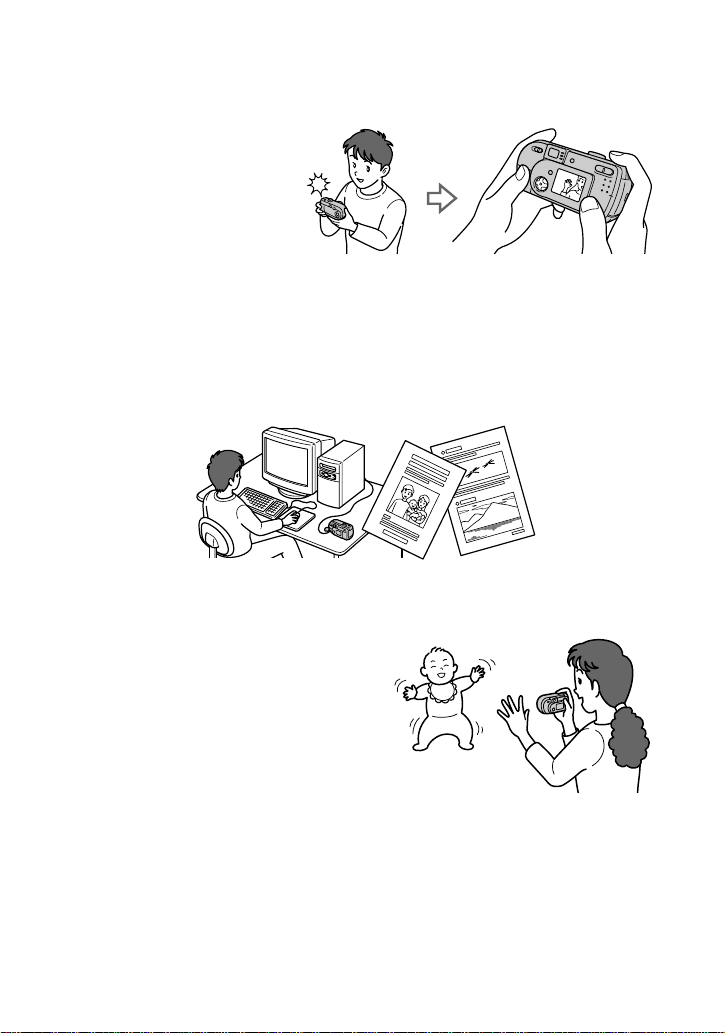

Introduction
Checks the image after recording images
Recording still images:
page 19
Playing back still images:
page 27
Deleting images (DELETE):
page 58
Captures images with your computer
You can copy images onto your computer and view and modify images or attach
images to e-mail on your computer using the supplied USB cable and application
software.
Viewing images using a personal computer: page 29
Recording still images for e-mail (E-MAIL): page 46
Records a moving picture (MPEG Movie or Clip Motion)
according to your purpose
Recording moving images (MPEG
MOVIE): page 25
Selects the recording mode from various types of recordings
according to your situation
Creating Clip Motion Files: page 48
Recording text documents (TEXT): page 47
Recording still images as uncompressed files (TIFF): page 48
7
Table of contents

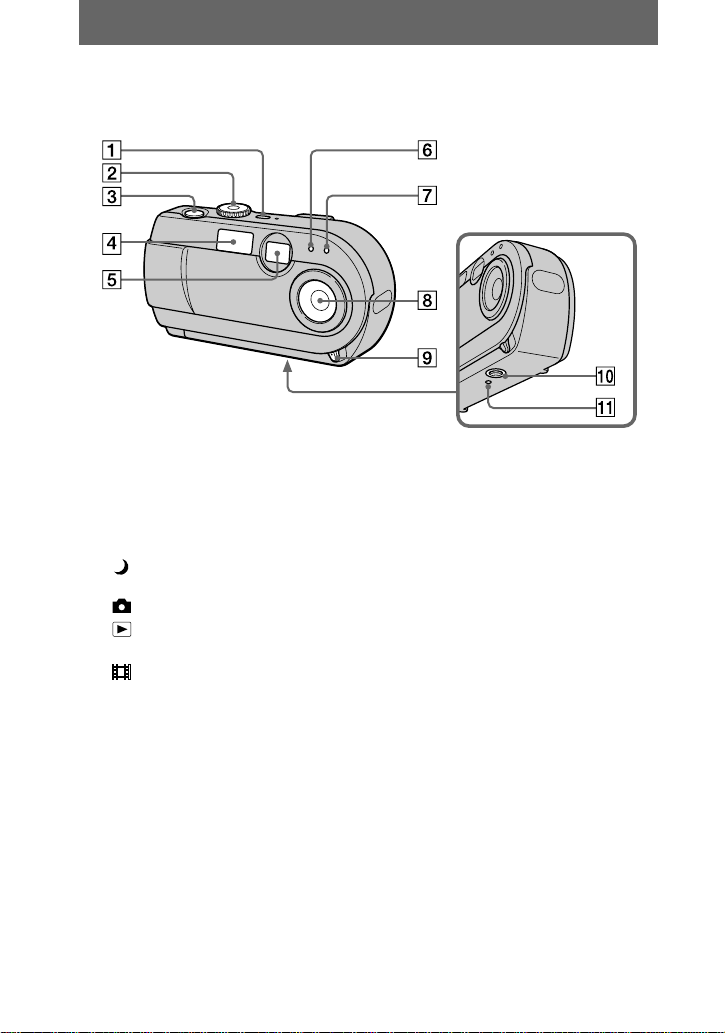

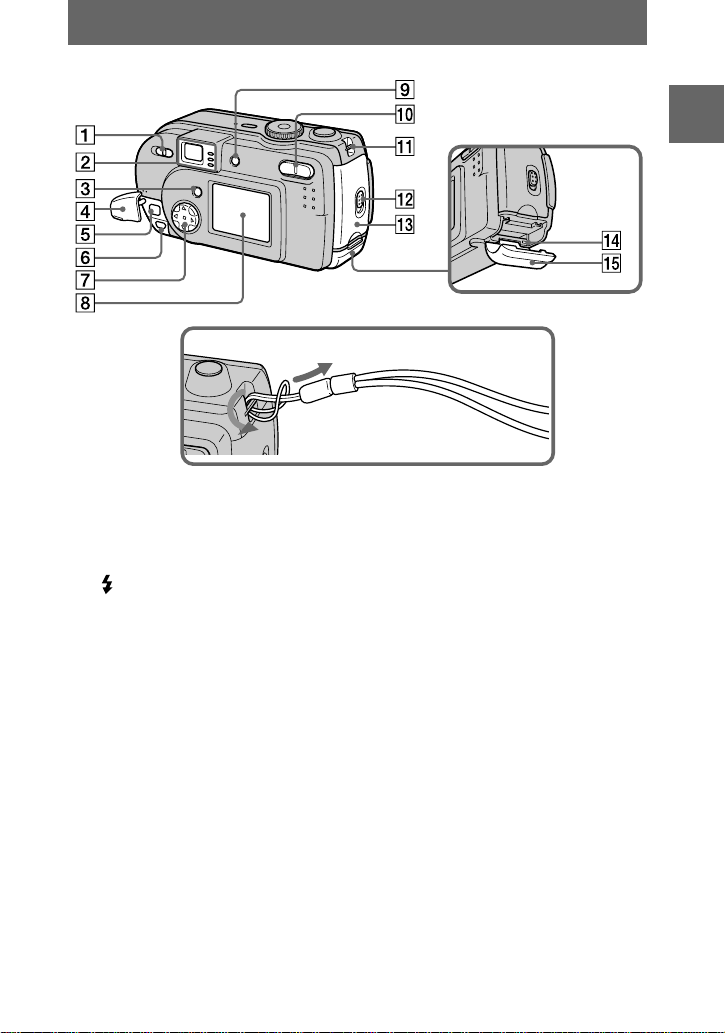

Identifying the parts ..............................8

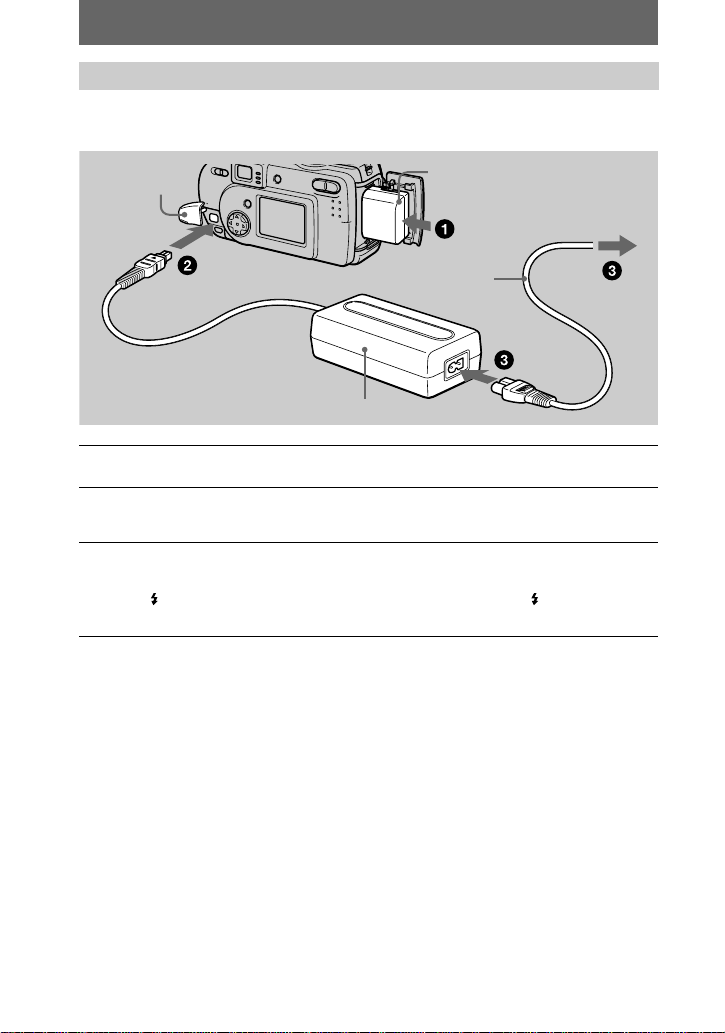

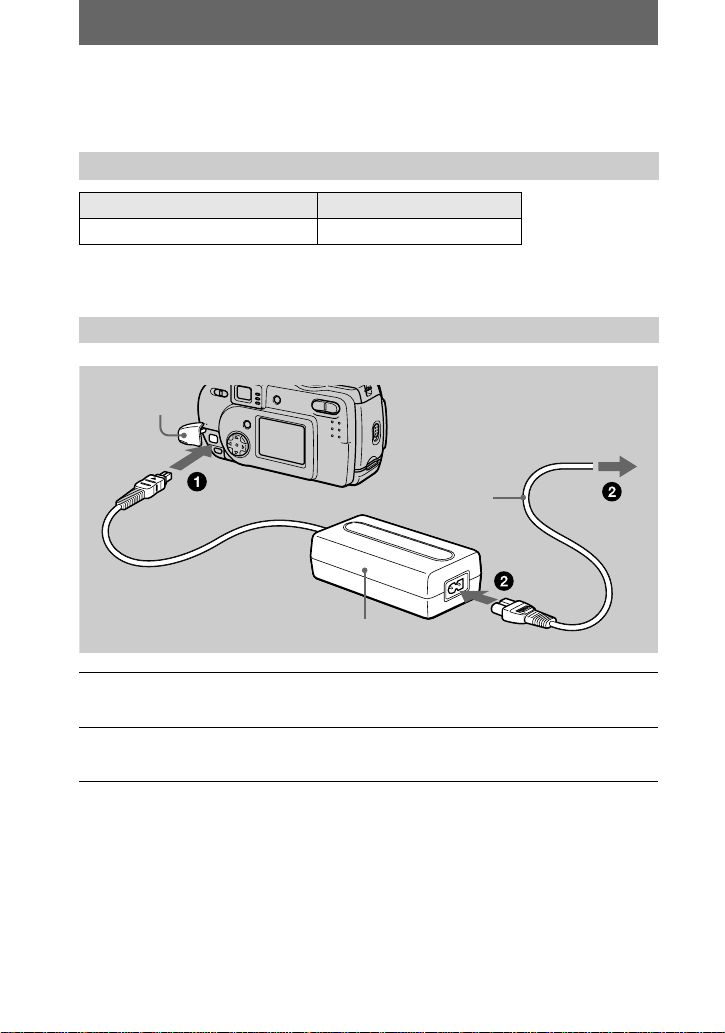

Preparing the power supply ................10

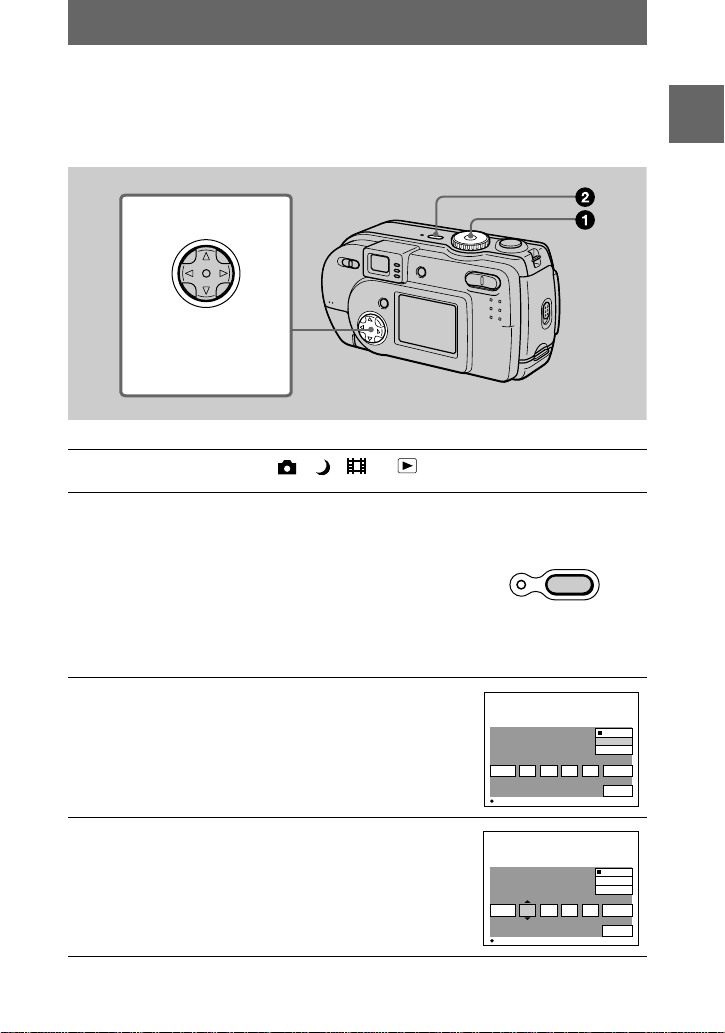

Setting the date and time .....................15

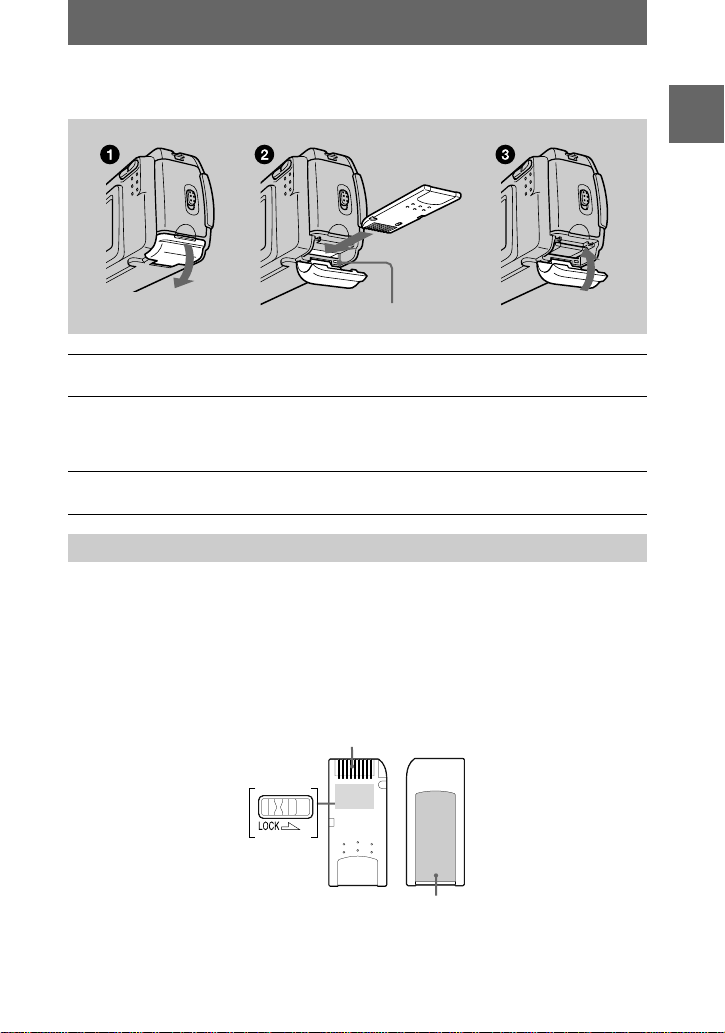

Inserting the “Memory Stick” .............17
B
Recording

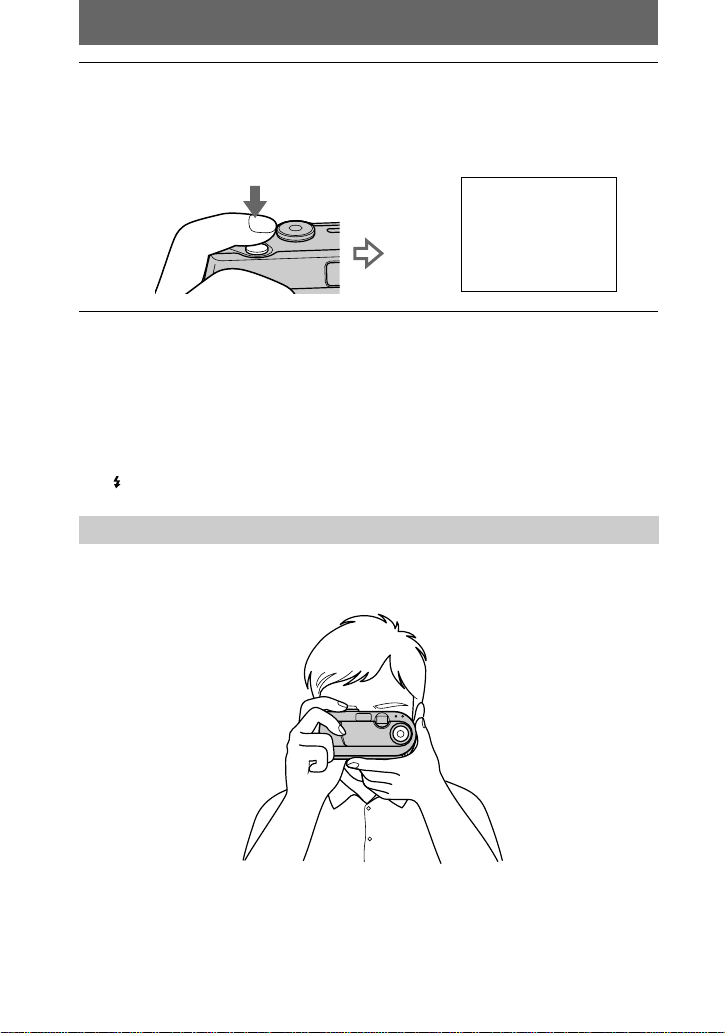

Recording still images ........................19
Recording moving images ..................25
B
Playback
Playing back still images ....................27
Playing back moving images .............. 28
Viewing images using a personal
computer ......................................29
Image file storage destinations and image
files ...............................................36

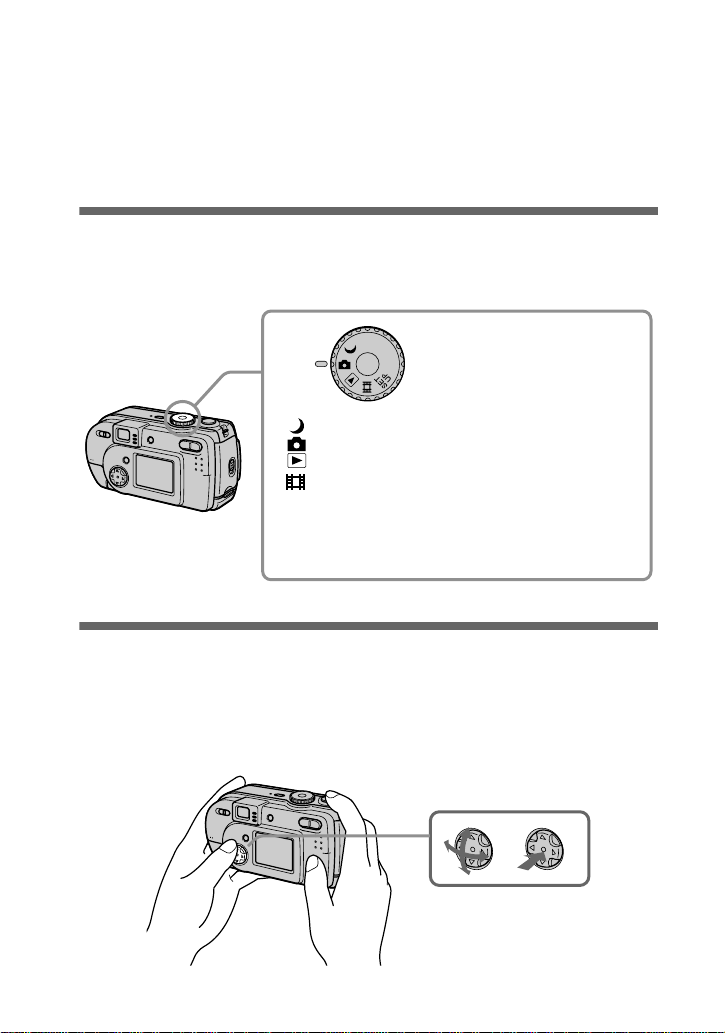

How to use the mode dial ...................38
How to use the control button .............38
Setting the image size
(IMAGE SIZE) ............................43
B
Various recording
Records images according to shooting
conditions (TWILIGHT mode) ....45
Recording still images for e-mail
(E-MAIL) .....................................46
Recording text documents (TEXT) ..... 47
Recording still images as uncompressed
files (TIFF) ...................................48
Creating Clip Motion Files .................48

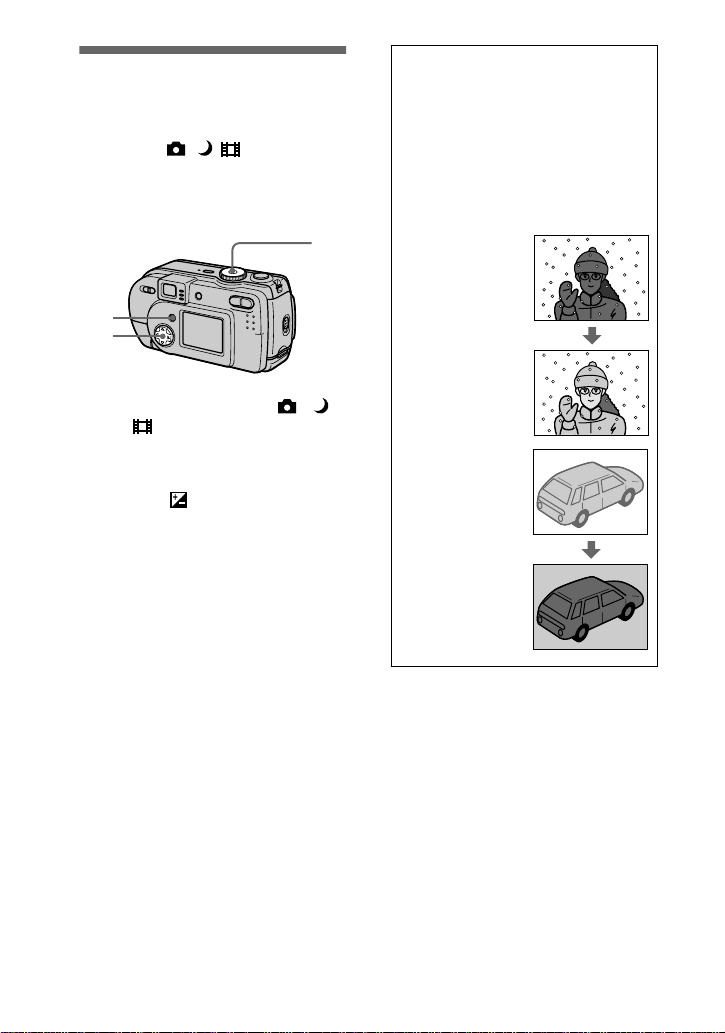

Adjusting the exposure
(EXPOSURE) ..............................50
Adjusting the white balance
(WHITE BALANCE) ..................51
Enjoying picture effects
(P. EFFECT) ................................ 52
Recording the date and time on the still
image (DATE/TIME) ..................52
B
Various playback
Playing back three or nine images
at once ..........................................54
Enlarging a part of the still image
(Zoom and trimming) ...................55
Playing back the still images in order
(SLIDE) .......................................56
Rotating a still image (ROTATE) .......57
B
Editing
Deleting images (DELETE) ................58
Preventing accidental erasure
(PROTECT) .................................59
Changing the recorded still image size
(RESIZE) .....................................61
Selecting still images to print
(PRINT) .......................................62
Dividing a moving image file
(DIVIDE) .....................................63
Changing the setup settings
(SETUP) .......................................65
Precautions .......................................... 67
On “Memory Sticks” ..........................68
About “InfoLITHIUM” battery pack
(not supplied) ...............................69
Using your camera abroad ..................70
Troubleshooting ..................................71
Warning and notice messages .............77
Self-diagnosis display .........................79
Specifications ......................................81
LCD screen indicators ........................82
Notes on Using Batteries ....................85
Index ................................................... 86
Getting started
Basic operations
Advanced operations
Before performing advanced operations
Additional information
8
Getting started
Identifying the parts
See the pages in parentheses for details of operation.
A POWER button/lamp (15)
Press and hold down this button
for approximately one second to
turn on the camera.
B Mode dial (18, 38)
: To record in TWILIGHT
mode
: To record still images
: To playback or edit
images
: To record moving images
or Clip Motion images
SET UP:To set the setup items
C Shutter button (19, 26)
D Flash (23)
E Finder window
F Photocell window for flash
Do not block while recording with
the flash.
G Self-timer (22, 26)
H Lens
I Lens cover OPEN/CLOSE tab
J Tripod receptacle (bottom
surface)
Use a tripod with a screw length of
less than 5.5 mm (7/32 inch). You
will be unable to firmly secure the
camera to tripods having longer
screws, and may damage the
camera.
K RESET button (71)
Getting started
9
A MACRO switch (24)
B Finder
Self-timer/recording lamp (red)
AE lock lamp (green)
/CHG (flash charge/battery
charge) lamp (orange) (21)
C MENU button (39)
D Jack cover (12, 14)
E DC IN jack (12, 14)
F USB jack (31, 33)
G Control button (18, 38)
H LCD screen
I DISPLAY/LCD ON/OFF button
(21)
J Digital zoom button (for
recording) (22)
INDEX/zoom button (for
playback) (55)
K Hook for wrist strap
L OPEN switch
M Battery cover
N Access lamp (17)
O “Memory Stick” cover
Attaching the strap
10

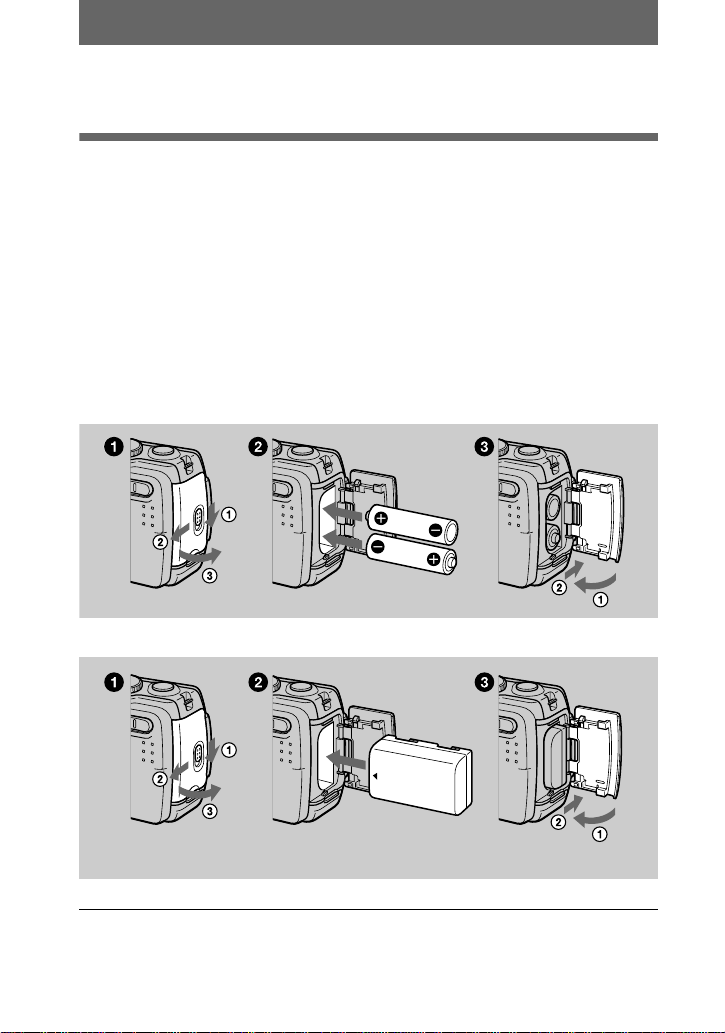

Preparing the power supply
Installing the supplied batteries or an optional
battery pack
Your camera operates only with the following batteries.
•
Two size AA alkaline batteries (supplied)*
•
“InfoLITHIUM” (S series) battery pack (NP-FS11) (recommended, not supplied)
•
Two size AA nickel metal hydride batteries (not supplied)
•
Two size AA nickel-cadmium batteries (not supplied)
The “InfoLITHIUM” battery pack is recommended for long operating times. Note
that in this Operating Instructions, “batteries” refers to size AA alkaline batteries.
∗
Sony stamina alkaline batteries are recommended. When you use your camera with alkaline
batteries, refer to “Notes on Using Batteries” on page 85.
Batteries
“InfoLITHIUM” battery pack (not supplied)
1
Open the battery cover.
Open the cover while sliding the OPEN switch in the direction of the arrow.
Insert the battery pack with the
v
mark facing toward the battery compartment.
Getting started
11
Open the battery cover with the battery cover side facing upward and remove the
batteries. Be careful not to drop the batteries when removing them.
Power save mode
When operating the camera with batteries, set POWER SAVE in the SET UP screen
to ON to extend the battery life. The factory setting is ON (page 66).
See page 85 for more information on power save mode.
Auto power-off function
If you do not operate the camera for about three minutes during recording or
playback, the camera turns off automatically to prevent wearing down the battery. To
use the camera again, press the POWER button to turn on the camera again. The auto
power-off function only operates when the camera is operating using a battery pack.
The auto power-off also will not operate when playing back moving images or
playing back a slide show (page 56), or when a connector is plugged into the USB
jack or the DC IN jack.
* What is “InfoLITHIUM”?
“InfoLITHIUM” is a lithium ion battery pack which can exchange information such as battery
consumption with compatible video equipment. This unit is compatible with the
“InfoLITHIUM” battery pack (S series). “InfoLITHIUM” S series battery packs have the
mark. “InfoLITHIUM” is a trademark of Sony Corporation.
NP-FS11 battery pack (not supplied)
When you record images in an extremely cold location or using the LCD screen, the
operating time becomes short. When using the camera in an extremely cold location,
place the battery pack in your pocket or other place to keep it warm, then insert the
battery pack into the camera just before recording. When using a pocket heater, take
care not to let the heater directly contact the battery.
2
Install the batteries.
Insert the two size AA batteries with the
3
and
#
ends facing as illustrated. Be
careful not to insert the batteries facing the wrong way.
3
Close the battery cover.
Pressing the batteries with the cover, close the cover firmly until it clicks into
place.
To remove the batteries
12
You cannot charge the battery pack while your camera is turned on. Be sure to turn
off your camera.
After charging the battery pack
Disconnect the AC power adaptor from the DC IN jack on your camera.
Battery remaining indicator
When using an optional “InfoLITHIUM” battery pack, the LCD screen on the
camera shows the remaining time for which you can still record or play back images.
This indication may not be entirely accurate depending on the conditions of use and
the operating environment.
Charging of 10°C to 30°C (50°F to 86°F) circumstances is recommended.
When using size AA alkaline batteries, the remaining time is not shown.
Using your camera abroad
For details, see page 70.
Note
When you turn the LCD screen on and off, it takes about one minute for the correct battery
remaining time to appear.
Charging the battery pack (not supplied)
1
Insert the battery pack into your camera.
2
Open the jack cover and connect the DC connecting cable to the
DC IN jack of your camera with the
v
mark facing up.
3
Connect the power cord (mains lead) to the AC power adaptor (not
supplied) and then to a wall outlet (mains).
The /CHG lamp lights up when charging begins. When the /CHG lamp goes
off, charging is completed.
AC-LS1 AC power adaptor (not supplied)
Jack cover
To the wall outlet (mains)
Battery pack (NP-FS11)
(not supplied)
Power cord
(mains lead)
Getting started
13
Still image recording*
Approximate battery life and number of images that can be recorded/played back
640×480 image size, standard picture quality, no flash , and in NORMAL
recording mode.
∗
Recording at about 3-second intervals with the power save mode off (when continuous
recording, the power save mode does not operate effectively.)
∗∗
When using a fully charged battery pack at a temperature of 25°C (77°F).
Still image playback***
Approximate battery life and number of 640×480 images.
∗∗
When using a fully charged battery pack at a temperature of 25°C (77°F).
∗∗∗
Playing back single images in order at about 3-second intervals
Moving image recording
Approximate recording time in 160×112 image size.
∗
When using a fully charged battery pack at a temperature of 25°C (77°F).
Notes
•
The camera may not operate in an extremely cold location when using alkaline batteries.
Even when using an “InfoLITHIUM” battery pack (not supplied), the battery life and number
of images will be decreased if you use your camera at low temperatures, use the flash or
repeatedly turn the power on/off.
•
The numbers of images shown on tables above are as a guide. The numbers may be smaller
depending on conditions.
Battery life and number of images that can be recorded/played back
SONY alkaline batteries
(supplied)
NP-FS11 (not supplied)**
Battery life
(min.)
Number of
images
Battery life
(min.)
Number of
images
LCD screen ON Approx. 30 Approx. 600 Approx. 90 Approx. 1800
LCD screen OFF Approx. 60 Approx. 1200 Approx. 120 Approx. 2400
SONY alkaline batteries
(supplied)
NP-FS11 (not supplied)**
Battery life
(min.)
Number of
images
Battery life
(min.)
Number of
images
LCD screen ON Approx. 60 Approx. 1200 Approx. 120 Approx. 2400
SONY alkaline batteries
(supplied)
NP-FS11 (not supplied)*
LCD screen
OFF (min.)
LCD screen
ON (min.)
LCD screen
OFF (min.)
LCD screen
ON (min.)
Continuous
recording
Approx. 60 Approx. 30 Approx. 120 Approx. 90
14
•
The capacity of the “Memory Stick” is limited. The above figures are a guide when you
continuously record/play back while replacing the “Memory Stick.”
•
When LCD BACKLIGHT is set to BRIGHT, the battery life and number of images will be
decreased.
Approximate time to charge a completely discharged battery pack using the AC-LS1
AC power adaptor (not supplied) at a temperature of 25°C (77°F).
Using a car battery
Use Sony DC adaptor/charger (not supplied).
When using the AC power adaptor
Be sure to use it near the wall outlet. If a malfunction occurs, disconnect the plug
from the wall outlet.
Charging time
Battery pack Full charge (min.)
NP-FS11 (not supplied) Approx. 180
Using the AC power adaptor (not supplied)
1
Open the jack cover and connect the DC connecting cable to the
DC IN jack of your camera with the
v
mark facing up.
2
Connect the power cord (mains lead) to the AC power adaptor (not
supplied) and then to a wall outlet (mains).
AC-LS1 AC power adaptor (not supplied)
Jack cover
To the wall outlet (mains)
Power cord
(mains lead)
Getting started
15
Setting the date and time
When you first use your camera, set the date and time. If these are not set, the
CLOCK SET screen appears whenever you turn on your camera.
1
Set the mode dial to , , or
2
Press and hold down the POWER button for
approximately one second to turn on the
power.
The POWER ON/OFF (CHG) lamp (green) lights
up.
The CLOCK SET screen appears on the LCD
screen.
To change the date and time, set the mode dial to
SET UP (page 65) and perform the procedure from step
3
.
3
Select the desired date display format with
v
/
V
on the control button, then press the
center
z
.
Select from [Y/M/D] (year/month/day), [M/D/Y]
(month/day/year) or [D/M/Y] (day/month/year).
4
Select the year, month, day, hour or minute
item you want to set with
b
/
B
on the control
button.
The item to be set is indicated with
v
/
V
.
Control button
Select the item with
vVbB
, then set with
the center
z
.
POWER
ON/OFF(CHG)
2001
/:/
1
1
12 00
AM
Y / M / D
D / M / Y
OK
CANCEL
M / D / Y
CLOCK SET
OK
2001
/:/
1
1
12 00
AM
Y / M / D
D / M / Y
OK
CANCEL
M / D / Y
CLOCK SET
OK
16
To cancel the date and time setting
Select [CANCEL] with
v
/
V
/
b
/
B
on the control button, then press the center
z
.
Note
If the rechargeable button battery is ever fully discharged (page 68), the CLOCK SET screen will
appear again. When this happens, reset the date and time by starting from step
3
above.
5
Set the numeric value with
v
/
V
on the
control button, then press the center
z
to
enter it.
After entering the number,
v
/
V
moves to the next
item.
If you selected [D/M/Y] in step
3
, set the time on a
24-hour cycle.
6
Select [OK] with
B
on the control button,
then press the center
z
at the desired
moment to begin clock movement.
The date and time are entered.
2001
/:/
1
7
12 00
AM
Y / M / D
D / M / Y
OK
CANCEL
M / D / Y
CLOCK SET
OK
2001
/:/
4
7
10 30
PM
Y / M / D
D / M / Y
OK
CANCEL
M / D / Y
CLOCK SET
OK
Getting started
17
Inserting the “Memory Stick”
Open the “Memory Stick” cover, then press the “Memory Stick” once lightly.
Notes
•
Insert the “Memory Stick” firmly until it clicks, otherwise a message such as “MEMORY
STICK ERROR” will be displayed.
•
Never remove the “Memory Stick” or turn off the power while the access lamp is lit up.
•
You cannot record or edit images on a “Memory Stick” if the erasure prevention switch is set to
the LOCK position.
The position and shape of the erasure prevention switch may differ depending on the types of
“Memory Stick” used.
1
Open the “Memory Stick” cover.
2
Insert the “Memory Stick.”
Insert the “Memory Stick” with the
B
mark facing toward the battery
compartment as illustrated until it clicks.
3
Close the “Memory Stick” cover.
Removing the “Memory Stick”
Access lamp
Erasure
prevention
switch
Connector
Label space
18
Basic operations
B
Recording
Basic operations

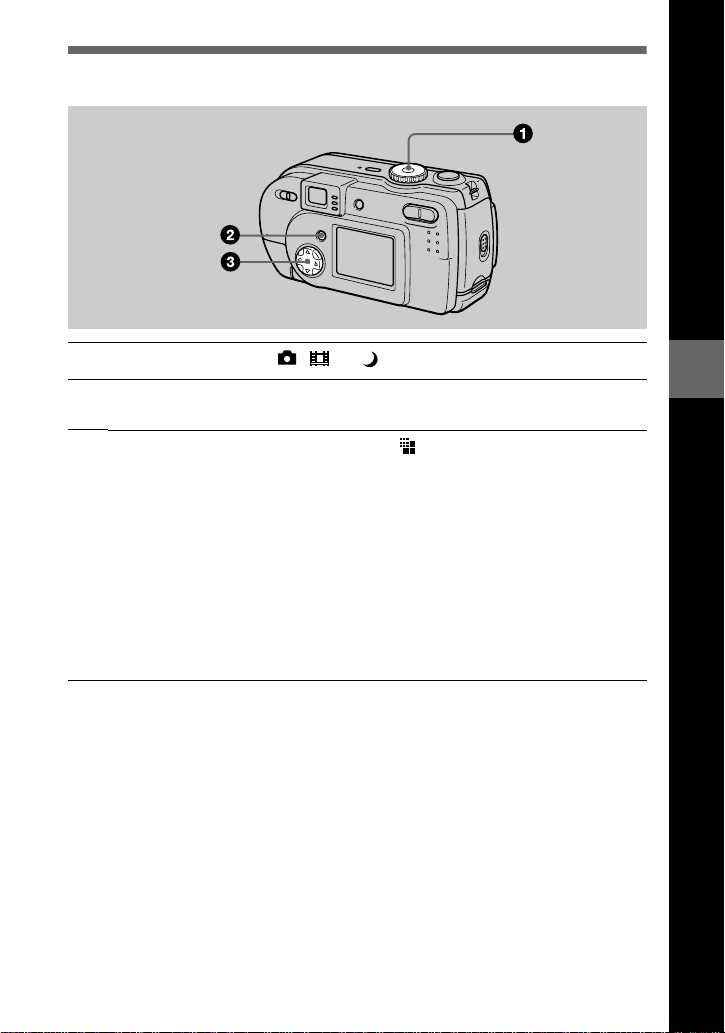

How to use the mode dial
The mode dial switches the function which is used for recording, playback, or
editing. Set the dial as follows before starting to operate your camera.
How to use the control button
When the menu is not displayed, the control button is used to perform the following
operations.
When you select above functions with the control button while recording with the
LCD screen turned off, the LCD screen lights for approximately 2 seconds and the
selected function icon appears on the screen. The LCD screen also lights
automatically when the MENU button is pressed, but in this case the LCD screen
does not turn off automatically.
: To record still images in TWILIGHT mode
: To record still images
: To play back or edit images
: To record moving images or Clip Motion images
SET UP: To set the setup items (The SET UP position
changes the settings of infrequently-used
items.)
(
v
): Recording with flash
(
V
): Recording with self-timer
7
(
b
): Checking the last recorded image
(
B
): Recording while adjusting the exposure for the
point that you want to record
B
BB
B
Recording
19

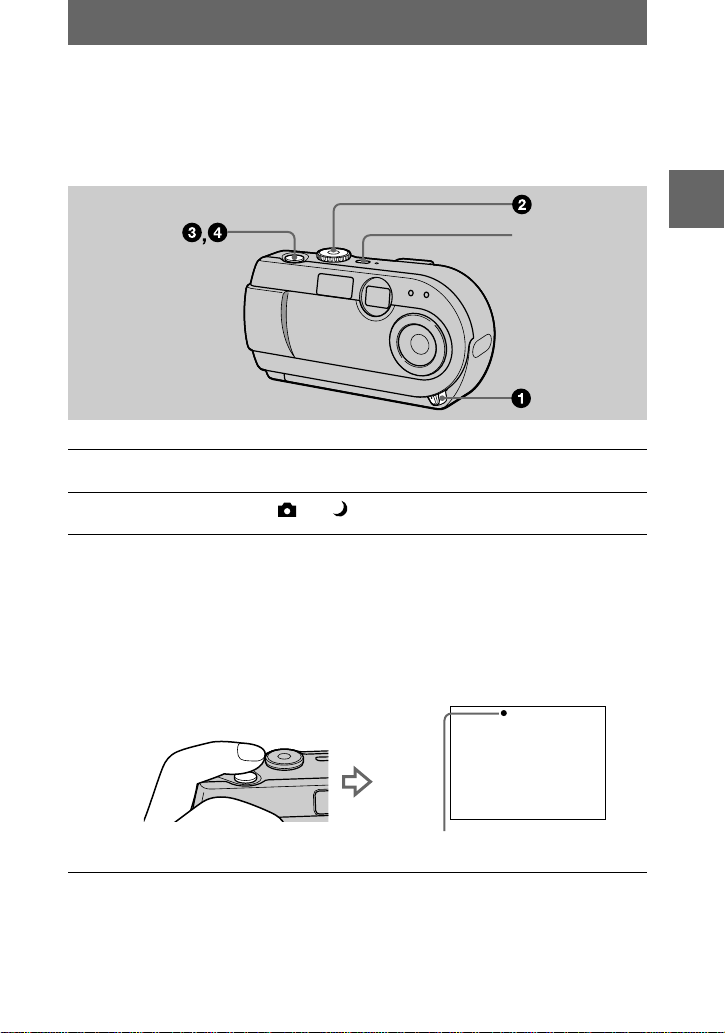

Recording still images
Still images are recorded in JPEG format.
Before recording still images, press the POWER button to turn on the power and
insert a “Memory Stick.”
1
Open the lens cover.
2
Set the mode dial to or .
3
Press and hold the shutter button halfway down.
The image freezes momentarily, but is not yet recorded. While the AE lock
indicator
z
is flashing, the camera automatically adjusts the exposure of the
captured image. When the camera finishes the automatic adjustments, the AE
lock indicator
z
stops flashing, then lights up and the camera is ready for
recording.
If you release the shutter button, the recording will be canceled.
POWER
AE lock indicator (green) flashes
t
lights up
20
The number of images you can record on a “Memory Stick”
See pages 44 and 46 to 49.
Notes
•
When recording a bright subject, the LCD screen color may change after AE lock, but this does
not affect the recorded image.
•
When you press the shutter button fully down at once in step
3
, the camera starts recording
after the automatic adjustment is complete. However, the recording cannot be carried out while
the /CHG lamp (page 21) is flashing. (During this time, the camera is charging the flash.)
Hold the camera so that your fingers do not block the flash and do not touch the lens
portion when recording images.
4
Press the shutter button fully down.
The shutter sounds.
“RECORDING” appears on the LCD screen, and the image will be recorded on
the “Memory Stick.” When “RECORDING” disappears, you can record the
next image.
Holding the camera correctly
RECORDING
B
BB
B
Recording
21
You can extend the battery time by turning off the LCD screen and recording using
the finder.
Each time you press DISPLAY/LCD ON/OFF, the status of the LCD screen changes
as follows:
See page 82 for a detailed description of the indicated items.
The LCD backlight is turned on.
(All the available indicators are turned on.)
r
The LCD backlight is turned on.
(Warning messages are turned on.)
r
The LCD backlight is turned off.
Indicators in the finder
Notes
•
You cannot check the entire recording range with the finder. Recording with the LCD screen is
recommended when it is necessary to correctly understand the recording range.
•
Because of the difference of the portion of the finder and the lens, use the LCD screen when
you record a subject closer than 1 m (3 1/4 feet).
•
When [DEMO] is set to [ON] in the SET UP settings, you cannot turn off the LCD screen once
the demonstration starts.
•
You cannot turn off the LCD backlight in SET UP and when displaying the menu.
•
You cannot turn off the self-timer indicators and some of the indicators used in advanced
operations.
•
The indicators on the LCD screen are not recorded.
Recording images with the finder or the LCD screen
DISPLAY/LCD ON/OFF
Recording lamp (red)
AE lock lamp (green)
/CHG lamp (orange)
22
You can check the last recorded image by clearing the menu from the screen
(page 39) and pressing
b
(
7
) on the control button. (You can perform this operation
even when the LCD screen is off.)
To return to the normal recording mode: press lightly on the shutter button or
press
b
(
7
) again.
To delete the image: 1. Press MENU. 2. Select [DELETE] with
B
on the control
button, then press the center
z
. 3. Select [OK] with
v
on the control button, then
press the center
z
.
This camera has a digital zoom function with a magnification of up to 3
×
. Digital
zoom enlarges the image by digital processing.
Digital zoom does not operate when the LCD screen is off.
Notes
•
Digital zoom does not work for moving images.
•
Use the LCD screen when using digital zoom function. Digitally zoomed images do not appear
in the finder.
When you use the self-timer function, the subject is recorded about 10 seconds after
you press the shutter button.

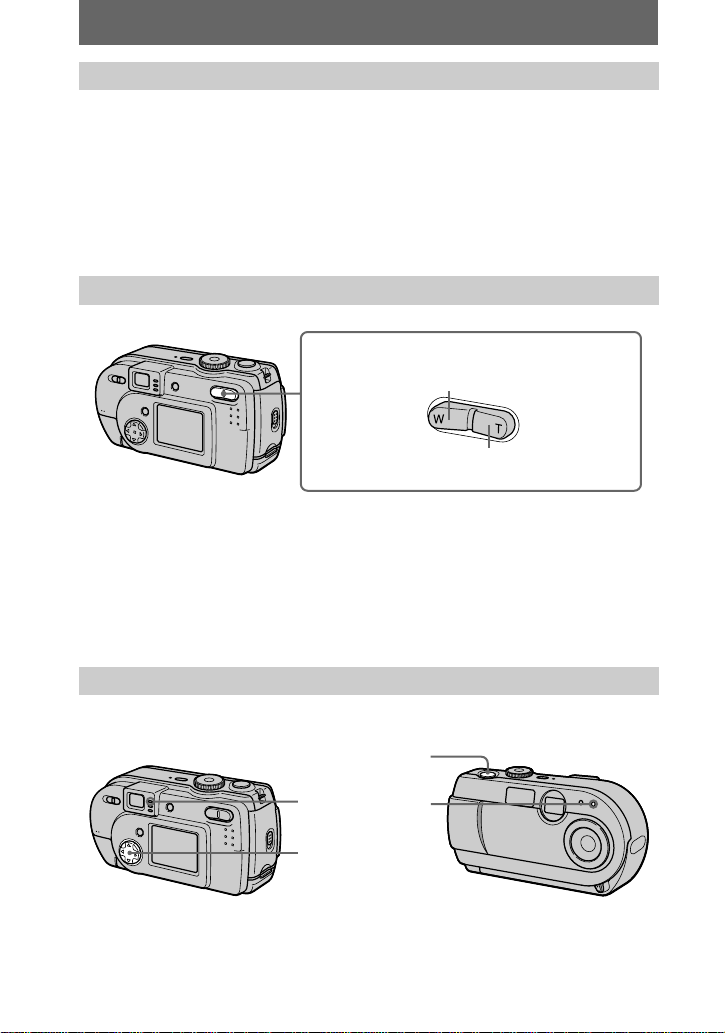

Checking the last recorded image (Quick Review)
Using the digital zoom function
Using the self-timer
T side: for telephoto (subject appears closer)
Digital zoom button
W side: for wide-angle (subject appears
farther away)
Control button
Shutter button
Self-timer lamp
B
BB
B
Recording
23
Clear the menu (page 39), then press the control button
V
( ). The (self-timer)
indicator appears on the LCD screen, and about 10 seconds after you press the shutter
button, the subject is recorded. The self-timer lamp flashes and the beep sounds after
you press the shutter button until the shutter is released. To cancel the self-timer
recording, press the control button
V
( ) again.
The factory setting is auto (no indicator). In this mode, the flash automatically
strobes when the surroundings is dark. To change the flash mode, clear the menu
(page 39), then press the
control button
v
(
) repeatedly so that the flash mode
indicator appears on the LCD screen.
Each time you press the control button
v
( ), the indicator changes as follows.
(No indicator)
t
t
t
(No indicator)
Forced flash: The flash strobes regardless of the surrounding brightness.
No flash: The flash does not strobe.
You can change the brightness of the flash with [ ±] (FLASH LEVEL) in the menu
settings (page 40).
To reduce the red-eye phenomenon
Set [RED EYE REDUCTION] to [ON] in the setup settings, the flash strobes before
recording to reduce the red-eye phenomenon (page 65). When [ON] is selected and
the mode dial is set to or , appears on the LCD screen.
Notes
•
When [ISO] is set to [AUTO] in the menu settings, the recommended shooting distance using
the built-in flash is 0.7 m to 2.0 m (27 5/8 inches to 6 feet 6 3/4 inches). When it is not set to
[AUTO], the flash may be ineffective even if the flash level is changed.
•
Red-eye reduction may not produce the desired effects depending on individual differences, the
distance to the subject, if the subject does not see the pre-strobe, or other conditions.
•
The flash effect is not obtained easily when you use forced flash in a bright location.
•
While charging the flash, the /CHG lamp flashes. After the charging is complete, the lamp
goes out.
•
The flash does not function when recording moving images (excluding Clip Motion).
•
When you record images in a dark place with the camera set to
(no flash), the shutter speed
becomes slow, so using a tripod is recommended to prevent shaking.
Recording images with the flash
Control button
v
()
24
Clear the menu, then press the control button
B
( ). The spot light-metering cross
hair appears on the LCD screen. You can adjust the exposure (spot light-metering) for
the point that you want to record, when there is a backlight or when there is a strong
contrast between the subject and the background. Position the point that you want to
record on the spot light-metering cross hair. To cancel spot light-metering, press the
control button
B
() again.
Set the MACRO switch to ON. The (macro) indicator appears on the LCD screen.
You can record a subject as close as about 15 cm (6 inches) to 19 cm (7 1/2 inches).
0.2 m is indicated on the camera as the approximate recording distance. Use this
function to record a small subject, such as a flower or insect, at close range.
Notes
•
After finishing recording in macro, return the MACRO switch to OFF. If you leave the MACRO
switch set to ON, the camera may not be able to focus on distant subjects or the image may
become dark when you use the flash.
•
When recording images in macro, use the LCD screen. If you record using the finder, the range
visible in the finder may differ from the actual recording range.
Adjusting the exposure for the subject
Recording images at close range
Spot light-metering cross hair
LCD screen
MACRO
OFFON
(0.2 m)
B
BB
B
Recording
25

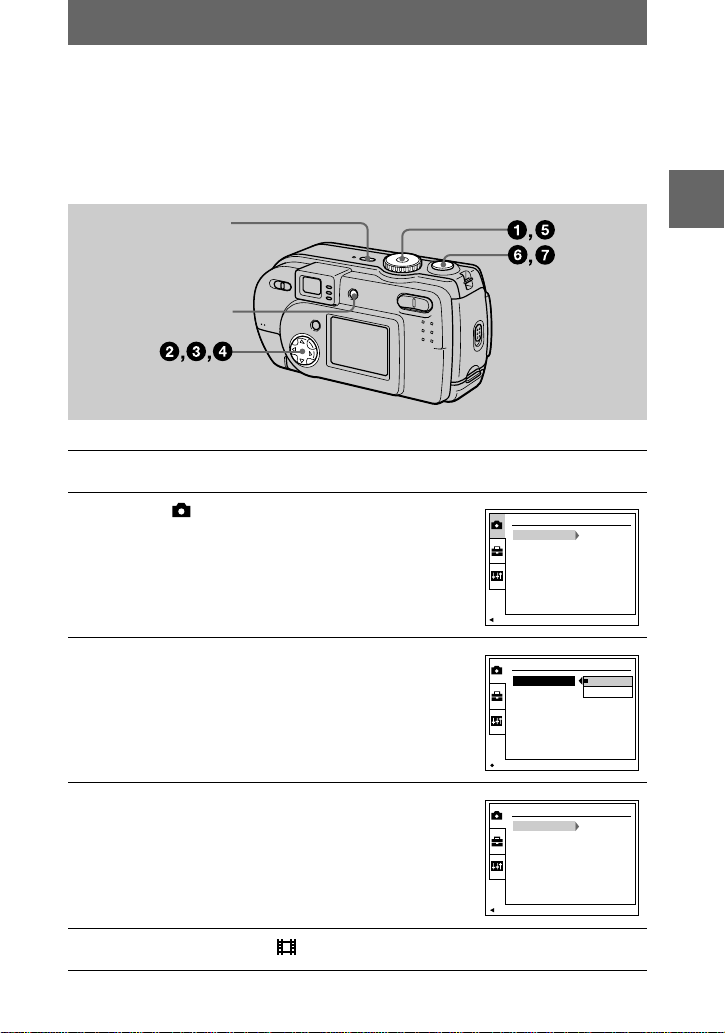

Recording moving images
Moving images are recorded in MPEG format (page 37).
To record moving images, press the POWER button to turn on the power and insert a
“Memory Stick.”
Open the lens cover beforehand.
1
Set the mode dial to SET UP.
2
Select [ ] (CAMERA) with
v
/
V
on the
control button, then press
B
.
3
Select [MOVING IMAGE] with
v
/
V
on the
control button, then press
B
.
4
Select [MPEG MOVIE] with
v
/
V
on the
control button, then press the center
z
.
5
Set the mode dial to .
POWER
DISPLAY/LCD ON/OFF
CAMERA
MOVING IMAGE:
DATE/TIME:
RED EYE REDUCTION:
MPEG MOVIE
OFF
OFF
PAGE SELECT
MPEG MOVIE
CLIP MOTION
CAMERA
MOMOVING IMAVING IMAGE:GE:
DATE/TIME:
RED EYE REDUCTION:
OK
CAMERA
MOVING IMAGE:
DATE/TIME:
RED EYE REDUCTION:
MPEG MOVIE
OFF
OFF
PAGE SELECT
26
When you use the self-timer function, the subject is recorded about 10 seconds after
you press the shutter button.
Clear the menu (page 39), then press the control button
V
( ). The (self-timer)
indicator appears on the LCD screen, and the recording starts about 10 seconds after
you press the shutter button. The self-timer lamp flashes and the beep sounds after
you press the shutter button until the shutter is released. To stop the self-timer
recording, press the control button
V
( ) again.
Each time you press DISPLAY/LCD ON/OFF, the status of the LCD screen changes
as follows: all indicators on
t
indicators off
t
LCD screen off.
These indicators are not recorded. See page 83 for a detailed description of the
indicators.
Note
If you remove the battery or otherwise turn off the power partway through a recording, the
moving image recorded thus far is not saved. When the
E
mark appears while operating the
camera with batteries, stop the recording at this point before the batteries completely run out.
6
Press the shutter button fully down.
“REC” appears on the LCD screen, and recording of the image on the
“Memory Stick” begins.
Sound cannot be recorded with moving images.
7
Press the shutter button fully down again to stop recording.
The recording stops. Or, the recording stops when the “Memory Stick” is full.
For details on the image size, see “Setting the image size (IMAGE SIZE)” on
page 43.
Using the self-timer
LCD screen indicators during recording
B
BB
B
Playback
27
B
Playback

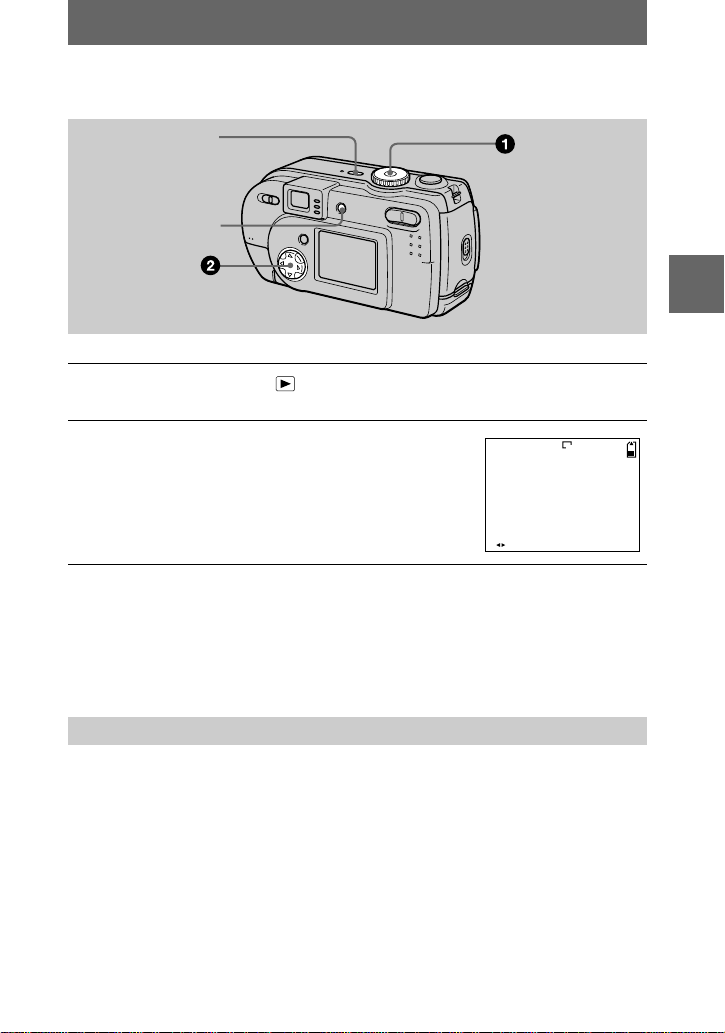

Playing back still images
Notes
•
You might not be able to correctly play back images recorded with this camera on other
equipment.
•
You cannot play back on this camera images larger than the maximum image size that can be
recorded with this camera.
•
A rough image is played back, followed by the normal image.
Each time you press DISPLAY/LCD ON/OFF, the status of the LCD screen changes
as follows: all indicators on
t
indicators off
t
LCD screen off.
See page 84 for a detailed description of the indicators.
1
Set the mode dial to .
The last recorded image (still or moving) appears on the LCD screen.
2
Select the desired still image with the
control button
b
/
B
.
b
: To display the preceding image.
B
: To display the next image.
LCD screen indicators during still image playback
DISPLAY/LCD ON/OFF
POWER
FILE BACK/NEXT
10:30
PM
2001 7 4100-0028
6/8
640
28

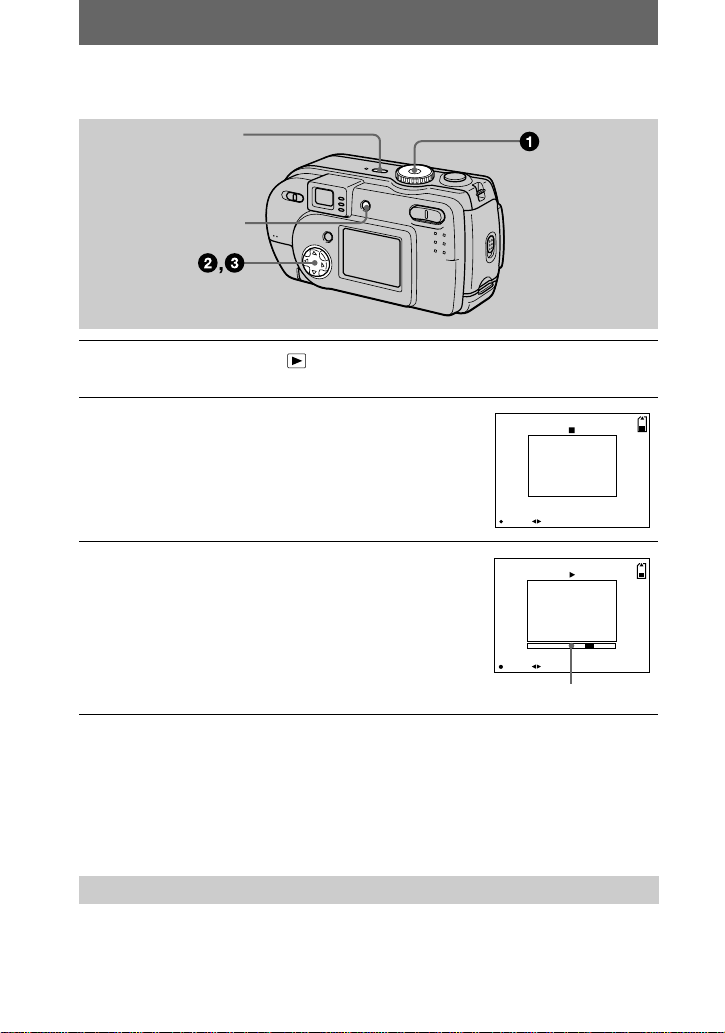

Playing back moving images
To pause playback
Press the center
z
on the control button to stop the playback.
To advance or rewind the moving image
Press the control button
b
/
B
during playback.
To return to the normal playback, press the center
z
on the control button.
Each time you press DISPLAY/LCD ON/OFF, the status of the LCD screen changes
as follows: all indicators on
t
indicators off
t
LCD screen off.
See page 84 for a detailed description of the indicators.
1
Set the mode dial to .
The last recorded image (still or moving) appears on the LCD screen.
2
Select the desired moving image with the
control button
b
/
B
.
Moving images are displayed one-size smaller than
still images.
b
: To display the preceding image.
B
: To display the next image.
3
Press the center
z
to start the playback.
The moving image is played back.
During playback,
B
(playback) appears on the LCD
screen.
To advance or rewind, press the control button
b
/
B
during playback.
LCD screen indicators during moving image playback
POWER
DISPLAY/LCD ON/OFF
FILE BACK/NEXTPLAY
6/8
10:30
PM
2001 7 4MOV 00001
STOP REV/CUE
6/8
10:30
PM
2001 7 4MOV 00001
Playback bar
B
BB
B
Playback
29
Viewing images using a personal
computer
You can view data recorded with your camera on a personal computer, modify and
attach it to e-mail using application software. This section describes the method for
viewing images on a personal computer using the supplied USB cable.
There are two ways to make the USB connection, which are the normal connection
and the PTP connection (page 66). This is set using [USB CONNECT] in the setup
settings. Here describes the way using the [NORMAL] setting. Users will be
informed at the Sony website when PTP connection is supported.
The factory setting of USB mode is [NORMAL].
The mode can be checked and set as follows.
1
Set the mode dial to SET UP.
2
Select [SETUP2] with
v
/
V
, then press
B
.
3
Select [USB CONNECT] with
v
/
V
, then press
B
.
4
Select the connection mode with
v
/
V
.
The USB cable is used to connect the camera to a personal computer so that
operations can be performed on image files recorded in a “Memory Stick” from the
personal computer.
In order to use the USB cable, a USB driver must be installed in the personal
computer beforehand.
Be sure to also refer to the operation manuals for your personal computer and the
application software.
Notes
•
Data recorded with your camera is stored in the following formats. Make sure that applications
that support these file formats are installed on your personal computer.
— Still images (other than TEXT mode, uncompressed mode and Clip Motion): JPEG format
— Moving images: MPEG format
— Uncompressed mode still images: TIFF format
— TEXT mode/Clip Motion: GIF format
•
Depending on your application software, the file size may increase when you open a still image
file.
•
When you copy the image to the camera from your computer, which was modified with a
retouching software and was converted to another file format, the “FILE ERROR” message
may appear and you may be unable to open the image.
•
Depending on your application software, only the first frame of the Clip Motion file may be
played back.
Communications with your computer (for Windows only)
•
Communications between your camera and your computer may not recover after recovering
from Suspend or Sleep.
•
When connecting the camera to a computer, use the AC power adapter (not supplied). When
you use your camera with alkaline batteries, make sure that there is enough battery life, as the
images in the “Memory Stick” may be damaged or lost if the camera power runs out during
communication with the computer.
30
Recommended Windows environment
OS: Microsoft Windows98, Windows 98SE, Windows 2000 Professional, Windows
Millennium Edition
The above OS is required to be installed at the factory.
Operation is not assured in an environment upgraded to the operating systems described
above.
CPU: MMX Pentium 200 MHz or faster
The USB connector must be provided as standard.
Recommended Macintosh environment
Macintosh computer with the Mac OS 8.5.1/8.6/9.0/9.1 standard installation
However, note that the update to Mac OS 9.0/9.1 should be used for the following models.
•
iMac with the Mac OS 8.6 factory pre-installed and a slot loading type CD-ROM drive
•
iBook or Power Mac G4 with the Mac OS 8.6 factory pre-installed
Macintosh computer with Mac OS X (v10.0)
The USB connector must be provided as standard.
QuickTime 3.0 or newer must be installed (to play back moving pictures).
Notes
•
If you connect two or more USB equipment to a single personal computer at the same time,
some equipment may not operate depending on the type of USB equipment.
•
Operations are not guaranteed when using a hub.
•
Operations are not guaranteed for all the recommended computer environments mentioned
above.
•
Microsoft and Windows are registered trademarks of Microsoft Corporation in the United
States and /or other countries.
•
Macintosh and Mac OS, QuickTime are either registered trademarks or trademarks of Apple
Computer, Inc.
•
All other product names mentioned herein may be the trademarks or registered trademarks of
their respective companies. Furthermore, “™” and “®” are not mentioned in each case in this
manual.
Recommended computer environment
B
BB
B
Playback
31
Before connecting your camera to your personal computer, install the USB driver to
the computer. The USB driver is included with the application software in the CD-
ROM which is supplied with your camera.
See page 76 for corrective measures if the USB cable was connected before installing
the driver and the driver software could not be installed correctly.
For Windows 98/98SE/Me and Windows 2000 users
Installing the USB driver
Be sure to complete installation of the USB driver before connecting the
USB cable. If you connect the USB cable first, you will be unable to
install the USB driver properly.
1
Turn on your personal computer and allow Windows to load.
Do not connect the USB cable in this step.
2
Insert the supplied CD-ROM in the CD-ROM drive of your personal
computer.
The application software screen appears.
3
Click “USB Driver Installation for Windows 98/98SE/Me and
Windows 2000”.
USB driver installation starts.
4
Follow the on-screen messages to install the USB driver.
Your personal computer may restart.
5
Connect the USB jack (mini-B) on your camera with the USB
connector on your personal computer using the supplied USB
cable.
6
Insert a “Memory Stick” into your camera, connect the AC power
adaptor (not supplied) and turn on your camera.
“USB MODE” appears on the LCD screen of your camera and the camera is set
to communication standby mode. Your personal computer recognizes the
camera, and the Windows Add Hardware Wizard starts.
to the USB connector
Personal computer
USB cable
Push the
connector in as
far as it will go.
to the USB jack
(mini-B)
32
For Macintosh users
• When using Mac OS 9.1/Mac OS X (v10.0)
It is not necessary to install the USB driver. The Macintosh recognizes the camera as
a drive simply by connecting it to the Macintosh with the USB cable.
• When using Mac OS 8.5.1/8.6/9.0
Follow the procedures below to install the driver.
7
Follow the on-screen messages to have the Add Hardware Wizard
recognize the hardware.
The Add Hardware Wizard starts twice because two different USB drivers are
to be installed. Be sure to allow the installation to complete without interrupting
it.
Notes
•
Do not connect the USB cable before the USB driver installation is completed in step
4
.
•
In step
7
, make sure that a “Memory Stick” is inserted into your camera before installing the
USB driver. Otherwise, you will be unable to install the USB driver.
1
Turn on your personal computer and allow the Mac OS to load.
2
Insert the supplied CD-ROM in the CD-ROM drive of your personal
computer.
3
Double-click the CD-ROM drive icon to open the window.
4
Double-click the icon of the hard disk containing the OS to open
the window.
5
Move the following two files from the window opened in step
3
to
the “System Folder” icon in the window opened in step
4
(drag
and drop).
•
Sony USB Driver
•
Sony USB Shim
6
When “Put these items into the Extensions folder?” appears, click
“OK.”
7
Restart your personal computer.
B
BB
B
Playback
33
When viewing moving images on a Windows system, RealPlayer, Windows Media
Player or other moving image playback applications must be installed. When viewing
moving images on a Macintosh system, QuickTime 3.0 or later must be installed.
Viewing images
1
Turn on the power of your personal computer and allow Windows
or Mac OS to load.
2
Connect the USB jack (mini-B) on the camera with the USB
connector on your personal computer using the supplied USB
cable.
3
Insert a “Memory Stick” into your camera, and connect the AC
power adaptor (not supplied) to your camera and then to a wall
outlet (mains).
4
Turn on the power of your camera.
“USB MODE” appears on the LCD screen of the camera.
For Windows 98/98SE/Me and Windows 2000 users
5
Open “ My Computer” on Windows and double click the newly
recognized drive. (Example: “Removable Disk (E:)”)
The folders inside the “Memory Stick” are displayed.
If the drive is not recognized, see “Troubleshooting” on page 71.
to the USB connector
Personal computer
USB cable
Push the
connector in as
far as it will go.
to the USB jack
(mini-B)
34
Follow the procedure
1
–
4
on page 33.
“Memory Stick”
•
Operation is not guaranteed if you are using a “Memory Stick” that was formatted with a
personal computer, or if you used a personal computer to format the “Memory Stick” in your
camera through a USB connection.
•
Do not optimize the “Memory Stick” on a Windows machine. This will shorten the “Memory
Stick” life.
•
Do not compress the data on the “Memory Stick.” Compressed files cannot be played back on
your camera.
6
Select and double-click the desired image file from the folder.

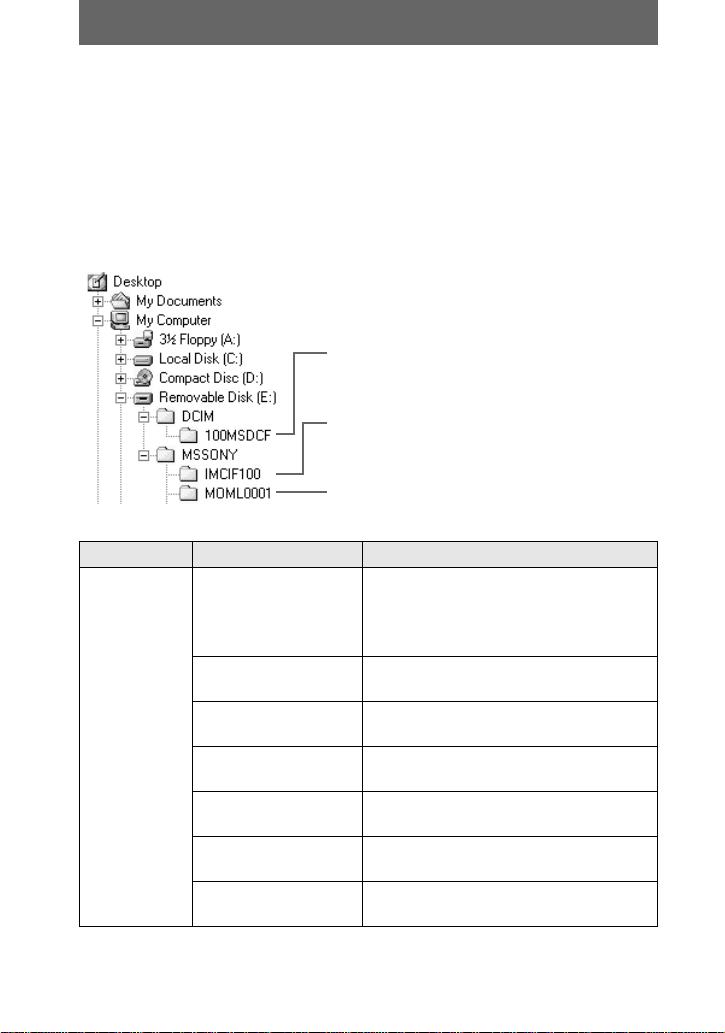

For the detailed folder and file name, see “Image file storage destinations and
image files” on page 36.
∗
Copying a file to the hard disk of your personal computer before viewing it is
recommended. If you play back the file directly from the “Memory Stick”, the image
may break off.
For Macintosh users
5
Double click the newly recognized icon on the desktop.
The folders inside the “Memory Stick” are displayed.
6
Select and double-click the desired image file from the folder.
Notes on using your personal computer
Desired file type Double-click in this order
Still image “Dcim” folder
t
“100msdcf” folder
t
Image file
Moving image* “Mssony” folder
t
“Moml0001” folder
t
Image file*
Clip Motion
“Dcim” folder
t
“100msdcf” folder
t
Image file
E-mail image
TIFF image
(uncompressed)
“Mssony” folder
t
“Imcif100” folder
t
Image file
B
BB
B
Playback
35
For Windows Me and Windows 2000 users
The following procedures are recommended when disconnecting the USB cable from
your personal computer or ejecting the “Memory Stick” from the camera while it is
connected to your personal computer.
1
Stop the drive by clicking on the “Unplug/Eject” icon in the task tray.
2
When the message appears confirming the safe removal of the hardware,
disconnect the USB cable or eject the “Memory Stick”.
Software
•
Depending on your application software, the file size may increase when you open a still image
file.
•
When you load an image modified using the supplied retouch software from your personal
computer to the camera or when you directly modify the image on the camera, the image
format will differ so the “FILE ERROR” message may appear and you may be unable to open
the file.
•
Depending on your application software, only the first frame of the Clip Motion file may be
played back.
Communications with your personal computer (for Windows
only)
Communications between your camera and your personal computer may not recover after
recovering from Suspend, Resume, or Sleep.
36
Image file storage destinations and
image files
Image files recorded with your camera are grouped in folders by recording mode.
The meanings of the file names are as follows.
ssss
stands for any number
within the range from 0001 to 9999.
For Windows Me users (The drive recognizing the camera is
“E.”)
Folder File Meaning
100MSDCF DSC0
ssss
.JPG
•
Still image file recorded normally
•
Still image file recorded in
– E-MAIL mode (page 46)
– TIFF mode (page 48)
CLP0
ssss
.GIF
•
Clip Motion file recorded in NORMAL
mode (page 48)
CLP0
ssss
.THM
•
Index image file of Clip Motion file
recorded in NORMAL mode
MBL0
ssss
.GIF
•
Clip Motion file recorded in MOBILE
mode (page 48)
MBL0
ssss
.THM
•
Index image file of Clip Motion file
recorded in MOBILE mode
TXT0
ssss
.GIF
•
Still image file recorded in TEXT mode
(page 47)
TXT0
ssss
.THM
•
Index image file of still image file
recorded in TEXT mode
Folder containing still image, TEXT mode image
and Clip Motion image data
Folder containing E-MAIL mode and TIFF mode
image data
Folder containing moving image data
B
BB
B
Playback
37
The numerical portions of the following files are the same.
– A small-size image file recorded in E-MAIL mode and its corresponding image file
– An uncompressed image file recorded in TIFF mode and its corresponding image file
– An image file recorded in TEXT mode and its corresponding index image file
– An image file recorded with Clip Motion and its corresponding index image file
IMCIF100 DSC0
ssss
.JPG
•
Small-size image file recorded in
E-MAIL mode (page 46)
DSC0
ssss
.TIF
•
Uncompressed image file recorded in
TIFF mode (page 48)
MOML0001 MOV0
ssss
.MPG
•
Moving image file recorded normally
Tips
The digital still camera saves recorded images as digital data. The format of the
saved data is called as the file format. The formats that can be used with this
camera are as follows:
JPEG format
Most digital still cameras, operating systems of computers, and browser
software adopt this format. This format is able to compress files without
appreciable deterioration. However, if the image is compressed and saved on
repeated occasions, the image will deteriorate. This camera records still images
using the JPEG format for normal recording.
GIF format
Using this format, the image will not deteriorate even if the image is compressed
and saved on repeated occasions. This format limits the number of colors to
256 colors. This camera records still images using the GIF format in Clip
Motion (page 48) or TEXT mode (page 47).
TIFF format
Stores shooting images without compression, so the image does not deteriorate.
Most of operating systems and applications correspond to this format. This
camera records still images using the TIFF format for the TIFF mode (page 48).
MPEG format
This format is very typical for moving images. This camera records moving
images using the MPEG format.
Folder File Meaning
38
Advanced operations
Before performing advanced
operations
This section describes the basic control methods that are frequently used for
“Advanced operations.”
How to use the mode dial
The mode dial switches the function which is used for recording, playback, or
editing. Set the dial as follows before starting to operate your camera.
How to use the control button
When the menu or setup screen is displayed, the control button is used to select the
buttons, images and menu items displayed on the LCD screen of your camera and
modify the settings. The operation methods that are frequently used for “Advanced
operations” are described below.
: To record still images in TWILIGHT mode
: To record still images
: To play back or edit images
: To record moving images or Clip Motion
images
SET UP: To set the setup items (The SET UP position
changes the settings of infrequently-used
items.)
Before performing advanced operations
39
You can perform this operation even when the LCD screen is off.
Turning on/off the operation buttons (menu) on the LCD screen
Setting up the items in the setup or menu
1
Set the mode dial to SET UP so that the
setup screen appears, or press MENU so
that the menu appears.
2
When the mode dial is set to SET UP or :
1
Press
v
/
V
/
b
/
B
on the control button to select the item you want to set up.
2
Press the center
z
on the control button to enter the item.
When the mode dial is set to , , or :
Press
v
/
V
/
b
/
B
on the control button to select the
setting of the item.
The selected setting is turned to yellow, and the
setup is complete.
ISO
0 EV
EV
WB
0
EV
Press MENU to display/
clear the menu on the
LCD screen.
Menu
CAMERA
MOVING IMAGE:
DATE/TIME:
RED EYE REDUCTION:
MPEG MOVIE
OFF
OFF
SELECT
400
200
100
AUTO
40
Menu items that can be modified differ depending on the positions of the mode dial.
The LCD screen shows only the items you can operate at the moment. Factory
settings are indicated with
x
.
When the mode dial is set to /
Menu settings
Item Setting Description
(EV)
+2.0EV to
–2.0EV
Adjust the exposure value (page 50).
WB
(WHITE
BAL)
HOLD
x
AUTO
IN DOOR
OUT DOOR
Sets the white balance (page 51).
ISO 400
200
100
x
AUTO
Selects the ISO film speed. When recording
under dark situations or recording a fast-moving
subject, use a high-number setting. When you
record high-quality images, use a low-number
setting (except when the mode dial is set to ).
(IMAGE
SIZE)
x
1216×912
1216 (3:2)
1024×768
640×480
Selects the image size when recording still
images (page 43).
(P. QUALITY)
x
FINE Records still images in the fine image quality
mode.
STANDARD Records still images in the standard image
quality mode.
MODE
(REC
MODE)
TIFF Records a TIFF (uncompressed) file in addition
to the JPEG file (page 48).
TEXT Records a GIF file in black-and-white (page 47).
E-MAIL Records a small-size (320×240) JPEG file in
addition to the selected image size (page 46).
x
NORMAL Records an image using the normal recording
mode.
±
(FLASH
LEVEL)
HIGH Makes the flash level higher than normal.
x
NORMAL Normal setting.
LOW Makes the flash level lower than normal.
PFX
(P. EFFECT)
SOLARIZE
B&W
SEPIA
NEG.ART
x
OFF
Sets the image special effects (page 52).
Before performing advanced operations
41
When the mode dial is set to (MOVING IMAGE is set to
MPEG MOVIE in the setup settings.)
When the mode dial is set to (MOVING IMAGE is set to CLIP
MOTION in the setup settings.)
(
SHARPNESS
)
+2
+1
x
0
–1
–2
Adjusts the sharpness of the image.
The indicator appears (except when the
setting is 0).
Item Setting Description
(EV)
+2.0EV to
–2.0EV
Adjust the exposure value (page 50).
WB
(WHITE
BAL)
HOLD
x
AUTO
IN DOOR
OUT DOOR
Sets the white balance (page 51).
(IMAGE
SIZE)
320×240
x
160×112
Selects the MPEG image size when recording
moving images (page 43).
PFX
(P. EFFECT)
SOLARIZE
B&W
SEPIA
NEG.ART
x
OFF
Sets the image special effects (page 52).
Item Setting Description
(EV)
+2.0EV to
–2.0EV
Adjust the exposure value (page 50).
WB
(WHITE
BAL)
HOLD
x
AUTO
IN DOOR
OUT DOOR
Sets the white balance (page 51).
(IMAGE
SIZE)
x
NORMAL
MOBILE
Selects the Clip Motion image size (page 43,
48).
±
(FLASH
LEVEL)
HIGH Makes the flash level higher than normal.
x
NORMAL Normal setting.
LOW Makes the flash level lower than normal.
Item Setting Description
42
When the mode dial is set to
∗
Only in single-image mode.
PFX
(P. EFFECT)
SOLARIZE
B&W
SEPIA
NEG.ART
x
OFF
Sets the image special effects (page 52).
(
SHARPNESS
)
+2
+1
x
0
–1
–2
Adjusts the sharpness of the image.
The indicator appears (except when the
setting is 0).
Item Setting Description
DELETE OK Deletes the displayed image (page 58).
CANCEL Cancels deleting of the image.
PROTECT – Protects images against accidental erasure
(page 59).
PRINT – Marks the print mark on still images (page 62).
SLIDE*
INTERVAL
Sets the slide show interval.
x
3 sec/5 sec/10 sec/30 sec/1 min
REPEAT
x
ON/OFF
START Starts the slide show.
CANCEL Cancels the slide show.
RESIZE* 1216×912
1024×768
640×480
CANCEL
Changes the recorded image size (page 61).
ROTATE*
OK
CANCEL
Rotates the still image (page 57).
DIVIDE* OK
CANCEL
Divides a moving image (page 63).
Item Setting Description
Before performing advanced operations
43
Setting the image size (IMAGE SIZE)
1
Set the mode dial to , or
.
2
Press MENU.
The menu appears.
3
Select the desired image size from [ ] (IMAGE SIZE) and press
v
/
V
.
Still image sizes:
1216×912, 1216 (3:2)*, 1024×768, 640×480
∗
The image is recorded in the ratio of three to two to fit the printing paper size. Using this
image size, the margin of an image is not printed out. However, the slight amount of the
upper and lower black portions are displayed on the LCD screen.
Moving image (MPEG movie) sizes:
320×240, 160×112
Clip Motion sizes:
NORMAL (160×120), MOBILE (80×72)
44
The number of images* or the time** that you can record on a “Memory
Stick” (4 MB)
Still images:
Moving images:
∗
When MODE (REC MODE) is set to NORMAL.
∗∗
The maximum recording time in continuous recording
∗∗∗
When recording 10 frames per Clip Motion file.
Remaining number of recordable images or recordable time
The actual number of remaining images or recordable time may differ depending on the
recording conditions.
Image size
Usage
Quality
STANDARD FINE
1216×912 Printing in post card size Approx. 12 Approx. 6
1216 (3:2) Printing in 3:2 ratio Approx. 12 Approx. 6
1024×768 Viewing on PC Approx. 16 Approx. 10
640×480 Attaching to e-mail Approx. 57 Approx. 23
Image size
Usage
Number of images or time
320×240 Viewing on PC Approx. 40 sec.
160×112 Attaching to e-mail Approx. 160 sec.
MOBILE
(80×72)
— Approx. 200
NORMAL
(160×120)***
— Approx. 20
B
BB
B
Various recording
45
B
Various recording
Records images
according to shooting
conditions (TWILIGHT
mode)
Mode dial:
This camera has a preset TWILIGHT
mode. This mode is suitable for the
night scene.
1
Set the mode dial to .
Allows you to record bright
subjects in dark places without
losing the dark atmosphere of the
surroundings. The shutter speed
becomes slower, so we
recommend that you use a tripod
to prevent shaking.
2
Record the image.
To cancel the TWILIGHT
mode
Set the mode dial to .
Notes
•
Set the forced flash when you use the
flash in the TWILIGHT mode.
•
You cannot record moving images in the
TWILIGHT mode.
1
2
Tips
Under normal recording conditions, the
camera automatically makes various
adjustments, such as those for the iris,
exposure, and white balance, as it shoots.
However, you may not be able to carry
out your desired shooting depending on
shooting conditions. The TWILIGHT
mode provides you with near-optimum
adjustments to suit your shooting
situation.
46
Recording still
images for e-mail
(E-MAIL)
Mode dial: /
In the E-MAIL mode, a small-size
image which is suitable for e-mail
transmission is also recorded at the
same time as recording a normal still
image. (The size of the normal still
image is set using [ ] (IMAGE
SIZE) in the menu settings (page 43).)
1
Set the mode dial to or
.
2
Press MENU.
The menu appears.
3
Select [MODE] (REC MODE)
with
b
/
B
, [E-MAIL] with
v
/
V
.
4
Record the image.
The number of images that you can
record on a “Memory Stick” (4 MB)
in E-MAIL mode
Image size
Quality
STANDARD FINE
1216×912 Approx. 11 Approx. 6
1216 (3:2) Approx. 11 Approx. 6
1024×768 Approx. 15 Approx. 9
640×480
Approx.
46
Approx.
21
1
4
2
3
Remaining number of recordable
images (page 82)
The actual number of remaining images
may differ depending on the recording
conditions.
To return to normal
recording mode
Select [NORMAL] with
v
/
V
in step
3
.
B
BB
B
Various recording
47
Recording text
documents (TEXT)
Mode dial:
The TEXT mode is suitable for
recording a document to emphasize its
character by the black and white
colors. The LCD screen also turns to
black and white, and the image is
recorded in the GIF format.
1
Set the mode dial to .
2
Press MENU.
The menu appears.
3
Select [MODE] (REC MODE)
with
b
/
B
, [TEXT] with
v
/
V
.
4
Record the image.
The number of images that you can
record on a “Memory Stick” (4 MB)
in TEXT mode*
∗
The maximum number of recordable
images depends on the document
condition, such as the amount of text
portions.
To return to normal
recording mode
Select [NORMAL] with
v
/
V
in step
3
.
Image size Number of images
1216×912 Approx. 19–95
1216 (3:2) Approx. 22–95
1024×768 Approx. 26–95
640×480 Approx. 59–158
1
4
2
3
Notes
•
If the subject is not evenly illuminated, you
may be unable to record a clear image.
•
Writing and reading data take more time
than normal recording.
•
When the mode dial is set to , images
can be recorded, but the image may be
bleached out or may be turned black.
•
Remaining number of recordable images is
not displayed.
•
The number of recordable images is the
same regardless of whether [ ]
(P. QUALITY) is set to STANDARD or
FINE.
48

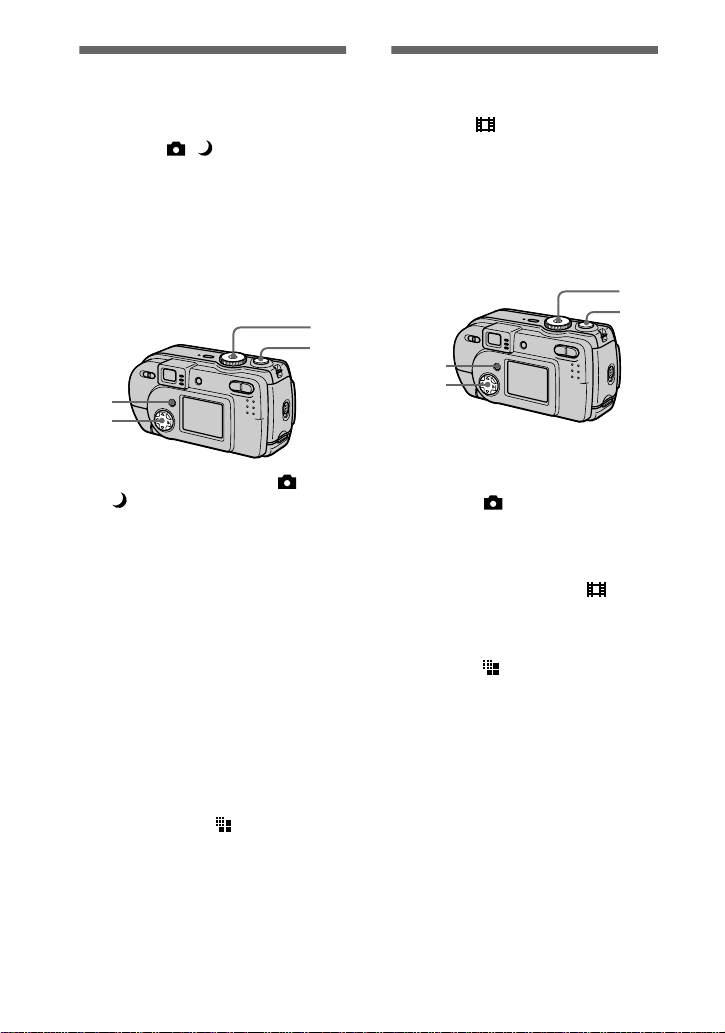

Recording still images
as uncompressed
files (TIFF)
Mode dial: /
Records the images without
compression, so the image does not
deteriorate. Images recorded in this
mode are suitable for printing with a
high-quality image. The JPEG
(compressed) format image is also
recorded with the TIFF format image.
1
Set the mode dial to or
.
2
Press MENU.
The menu appears.
3
Select [MODE] (REC MODE)
with
b
/
B
, [TIFF] with
v
/
V
.
4
Record the image.
The number of images that you
can record on a “Memory Stick”
(4 MB) in TIFF mode is approx. 1.
To return to normal
recording mode
Select [NORMAL] with
v
/
V
in step
3
.
Notes
•
JPEG images are recorded in the image
size selected by the [ ] (IMAGE SIZE)
menu (page 43). TIFF images are recorded
in [1216×912] size other than when [1216
(3:2)] is selected.
•
Writing data takes more time than in
normal recording.
1
4
2
3
Creating Clip Motion
Files
Mode dial:
Clip Motion is an animation function
that plays back still images in
succession. The images are stored in
GIF format, which is convenient for
creating home pages or attaching
images to an e-mail.
1
Set the mode dial to SET UP.
The setup screen appears.
2
Select [ ] (CAMERA) with
v
/
V
, [MOVING IMAGE] with
B
/
v
/
V
, [CLIP MOTION] with
v
/
V
, then press
z
.
3
Set the mode dial to .
4
Press MENU.
The menu appears.
5
Select [ ] (IMAGE SIZE)
with
b
/
B
, the desired mode
with
v
/
V
.
NORMAL (160×120)
Clip Motion of up to 10 frames can
be recorded. This is suitable for
use on home pages, etc.
MOBILE (80×72)
Clip Motion of up to 2 frames can
be recorded. This is suitable for
use with portable data terminals.
1,3
6,7
4
2,5,8
B
BB
B
Various recording
49
6
Record the image for the first
frame.
Before carrying out step
8
, the
images are temporarily stored in
memory. These images are not
recorded on the “Memory Stick”,
yet.
7
Record the image for the next
frame.
Image recording can be repeated
up to the maximum number of
recordable frames.
8
Press
z
.
All the frame images are recorded
on the “Memory Stick”.
To delete some or all the
frame images while making
a Clip Motion recording
1
Press the control button
b
(
7
) in
step
6
or
7
.
The recorded frame images are
played back in turn and stop at the
last image.
2
Press MENU, and select [DELETE
LAST] or [DELETE ALL], then
press
z
.
3
Select [OK], then press
z
.
When [DELETE LAST] is selected
in step
2
, each time you repeat
steps
1
through
3
the recorded
frame is deleted from the newest
one.
MAKING "CLIP MOTION"
The number of Clip Motion frames
that you can record on a “Memory
Stick” (4 MB)
∗
When recording 10 frames per Clip
Motion file
Notes
•
You cannot change the image size partway
through a Clip Motion recording.
•
Reading and writing data take more time
than normal image recording.
•
Due to the limitations of the GIF format,
the number of colors for Clip Motion
images is reduced to 256 colors or less.
Therefore, the picture quality may
deteriorate for some images.
•
The file size is reduced in MOBILE mode,
so the picture quality deteriorates.
•
GIF files not created on this camera may
not be displayed correctly.
•
All the frame images are immediately
recorded on the “Memory Stick” if the
mode dial is switched or the power is
turned off.
Image size
Number of
images
NORMAL (160×120)
Approx. 20*
MOBILE (80×72) Approx. 200
50

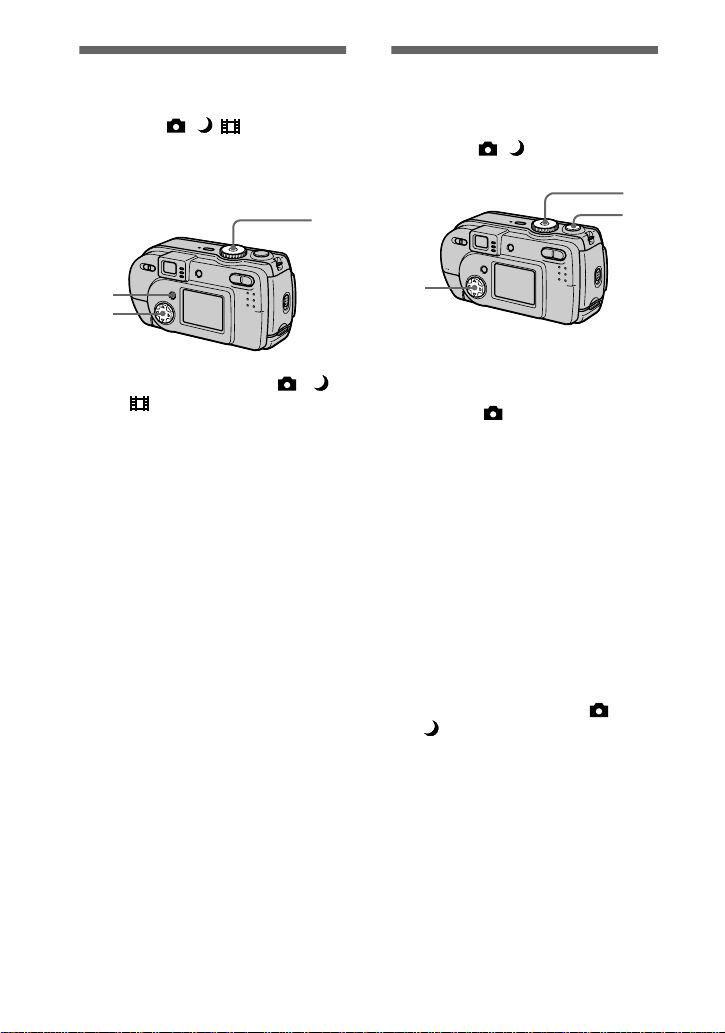

Adjusting the
exposure
(EXPOSURE)
Mode dial: / /
Adjusts the exposure value which is set
in the automatic adjustment.
1
Set the mode dial to ,
or
.
2
Press MENU.
The menu appears.
3
Select [ ] (EV) with
b
/
B
, the
desired exposure value with
v
/
V
.
Adjust the exposure value while
checking the brightness of the
background.
You can select values ranging from
+2.0 EV to –2.0 EV in steps of 1/3
EV.
Note
If a subject is under extremely bright or dark
situations, or the flash is used, the exposure
adjustment may not be effective.
1
2
3
Tips
Normally, the camera automatically
adjusts the exposure. If the color of the
image is too dark or bright as illustrated
below, we recommend that you adjust the
exposure manually. When recording a
backlighted subject or a subject in the
snow, set it toward +, and when recording
a dark subject with fully displayed on the
LCD screen, set it toward –.
Set the exposure
toward +
Set the exposure
toward –
B
BB
B
Various recording
51

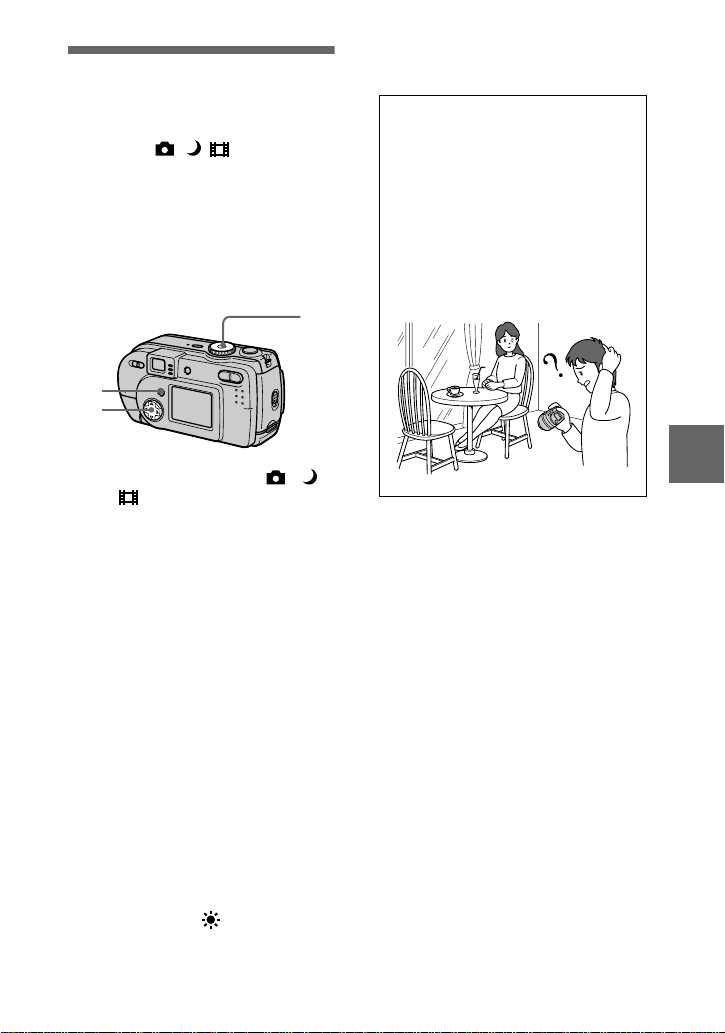

Adjusting the white
balance (WHITE
BALANCE)
Mode dial: / /
Normally, the white balance is
automatically adjusted (AUTO). When
you record with the shooting condition
fixed or under the specific lighting
condition, you can manually adjust the
white balance.
1
Set the mode dial to ,
or .
2
Press MENU.
The menu appears.
3
Select [WB] (WHITE BAL)
with
b
/
B
,
the desired setting
with
v
/
V
.
HOLD
Recording a single-colored subject
or background
AUTO (No indicator)
Adjusts the white balance
automatically
Under fluorescent lighting
IN DOOR (
n
)
•
Places where the lighting
condition changes quickly
•
Under bright lighting such as
photography studios
•
Under sodium or mercury lamps
OUT DOOR ( )
Recording a sunrise/sunset, night
scene, neon signs, or fireworks
1
2
3
To reactivate auto adjustment
Select [AUTO] with
v
/
V
in step
3
.
Tips
The image is susceptible to lighting
conditions. The image looks blue under
sunlight in the summer, and looks red
under mercury lamps. Human eyes can
resolve these problems. However, the
camera cannot resolve the problem
without making adjustments. Normally,
the camera adjusts it automatically, but, if
the image appears in strange colors, we
recommend that you change the white
balance mode.
52
Enjoying picture
effects (P. EFFECT)
Mode dial: / /
You can digitally process images to
obtain special effect.
1
Set the mode dial to ,
or .
2
Press MENU.
The menu appears.
3
Select [PFX] (P. EFFECT) with
b
/
B
, the desired mode with
v
/
V
.
SOLARIZE
The light contrast is clearer and the
picture looks like an illustration.
B&W
The picture is monochrome (black
and white).
SEPIA
The picture is sepia-toned like an
old photograph.
NEG.ART
The color and brightness of the
picture are reversed as in a
negative.
OFF
Does not use the picture effect
function.
To cancel picture effect
Select [OFF] with
v
/
V
in step
3
.
1
2
3
Recording the date
and time on the still
image (DATE/TIME)
Mode dial: /
1
Set the mode dial to SET UP.
The setup screen appears.
2
Select [ ] (CAMERA) with
v
/
V
, [DATE/TIME] with
B
/
v
/
V
,
then press
B
.
3
Select the date and time
setting with
v
/
V
, then press
z
.
DAY & TIME
Imposes the date, hour, and
minute.
DATE
Imposes the year, month, and day.
OFF
Does not impose the date and time.
4
Set the mode dial to or
.
1,4
5
2,3
B
BB
B
Various recording
53
5
Record the image.
The date and time do not appear on
the LCD screen during shooting.
These appear during playback
only.
Notes
•
If you select [DATE] in step
3
, the date is
imposed onto the image in the order
selected with “Setting the date and time”
(page 15).
•
The date and time are not superimposed
onto moving images or Clip Motion
images.
2001 7
54
B
Various playback
Playing back three or
nine images at once
Mode dial:
You can display multiple images on the
LCD screen at one time using the
zoom buttons.
1
Set the mode dial to .
2
Press the zoom W button
repeatedly.
The LCD screen display changes
as follows:
•
Single (single-image) screen
•
Index (nine-image) screen
1
2
10:30
PM
2001 7 4100-0001
FILE BACK/NEXT
CLIP TEXT
SINGLE DISPLAY
•
Triple-image screen
The image indicated by the yellow
frame in the index screen is
displayed in the middle of the
triple-image screen with the
recording information. To display
the other information, press the
control button
v
/
V
.
The following marks are displayed
on each image according to the
image type and settings.
: Moving image file
: E-mail file
: Print mark
-
: Protect mark
TEXT: TEXT file
TIFF: TIFF file
CLIP: Clip Motion file
(No mark): Normal recording (no
settings)
To display the next
(previous) index screen
Press the control button
v
/
V
/
b
/
B
.
To return to normal playback
(single-image)
•
Press the zoom T button repeatedly.
•
Press the control button
z
.
Note
When viewing an image recorded in Clip
Motion or TEXT mode on the index screen,
the image may appear different from the
actual image.
Tips
When the triple-image screen is displayed,
pressing MENU opens the menu including
[PRINT], [PROTECT], and [DELETE].
For details on these items, see pages 58,
59, or 62. To close the menu, press MENU
again. The menu disappears and the
recording information is indicated.
CLIP TEXT
APERTURE VALUE :
SHUTTER SPEED :
EXPOSURE VALUE :
F4.5
1/125
0.0
10:30
PM
2001 7 4100-0005
SINGLE DISPLAY
B
BB
B
Various playback
55
Enlarging a part of
the still image (Zoom
and trimming)
Mode dial:
1
Set the mode dial to .
2
Display the image to be
enlarged.
3
Zoom in/out the image with
the zoom T/W buttons.
4
Press the control button
repeatedly to select the
desired portion of the image.
v
: The image moves downward
V
: The image moves upward
b
: The image moves rightward
B
: The image moves leftward
To return to the normal size
Press the control button
z
.
To record an enlarged image
(trimming)
1
Press MENU after zooming.
2
Select [TRIMMING] with
B
, then
press
z
.
3
Select the image size with
v
/
V
,
then press
z
.
The image is recorded and the
image on the LCD screen returns
to the normal size after recording.
1
3
2,4
Notes
•
You cannot zoom moving images.
•
You can zoom images recorded in TEXT
mode, but cannot trim them.
•
Zoom scaling is up to 5× regardless of the
original image size.
•
The quality of enlarged images may be
deteriorated.
•
The original data is left even if you enlarge
the image.
•
The enlarged image is recorded as the
newest file.
•
If you trim an image, the remaining
“Memory Stick” capacity will be
decreased.
•
If the remaining “Memory Stick” capacity
is not sufficient, you may be unable to trim
an image.
•
You cannot trim to an image of 3:2.
•
You cannot trim uncompressed (TIFF)
images.
56
Playing back the still
images in order
(SLIDE)
Mode dial:
This function is useful for checking the
recorded images or for presentations,
etc.
1
Set the mode dial to .
2
Press MENU.
The menu appears.
3
Select [SLIDE] with
b
/
B
, then
press
z
.
Set the following items.
INTERVAL
You can select from 1 min (one
minute), 30 sec (30 seconds),
10 sec (10 seconds), 5 sec
(5 seconds), or 3 sec (3 seconds).
REPEAT
ON: Plays back images in a
continuous loop.
OFF: After all images have been
played back, the slide show ends.
4
Select [START] with
v
/
V
/
b
/
B
,
then press
z
.
The slide show begins.
To cancel the SLIDE SHOW
setting
Select [CANCEL] with
v
/
V
/
b
/
B
in
step
3
, then press
z
.
1
2
3,4
To stop the SLIDE SHOW
playback
Press
z
, select [EXIT] with
B
, then
press
z
.
To skip to the next/previous
image during the SLIDE
SHOW
Press
B
(next) or
b
(previous).
Note
The interval setting time may vary
depending on the image size.
B
BB
B
Various playback
57
Rotating a still image
(ROTATE)
Mode dial:
You can rotate the image recorded in
portrait orientation and display it in
landscape orientation.
1
Set the mode dial to , and
display the image to rotate.
2
Press MENU.
The menu appears.
3
Select [ROTATE] with
b
/
B
,
then press
z
.
4
Select [ , ] with
v
/
V
,
then rotate the image with
b
/
B
.
Select [OK] with
v
/
V
,
then
press
z
.
To cancel rotation
Select [CANCEL] with
v
/
V
in step
4
,
then press
z
.
Notes
•
You cannot rotate protected or
uncompressed images, or images recorded
in TEXT mode.
•
You may not be able to rotate images
recorded with other equipment.
•
Also, when viewing images on a computer,
the image rotation information may not be
reflected depending on the application
software.
1
2
3,4
58
B
Editing

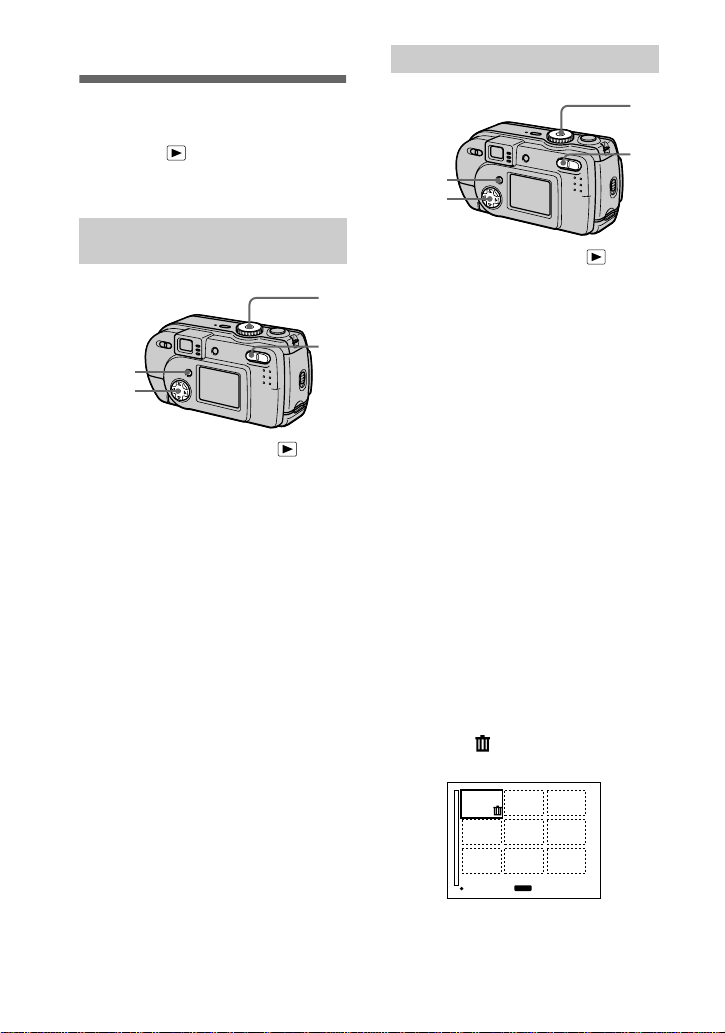

Deleting images
(DELETE)
Mode dial:
You can delete unwanted files.
1
Set the mode dial to .
2
In single-image mode:
Display the image you want to
delete with
b
/
B
.
In triple-image mode:
Press the zoom W button twice in
the single-image mode to turn to
the triple-image mode. Display the
image you want to delete with
b
/
B
.
3
Press MENU.
The menu appears.
4
Select [DELETE] with
b
/
B
in
single-image mode, or with
v
/
V
in triple-image mode,
then press
z
.
5
Select [OK] with
v
/
V
, then
press
z
.
The image (or the middle-
positioned image in triple-image
mode) is deleted.
In single-image or triple-
image mode
1
W
2,4,5
3
1
Set the mode dial to , then
display the index screen with
the zoom W button.
2
Press MENU.
The menu appears.
3
Select [DELETE] with
b
/
B
,
then press
z
.
4
Select [ALL] or [SELECT]
with
b
/
B
, then press
z
.
5
When you select [ALL]
Select [ENTER] with
b
/
B
, then
press
z
.
All the unprotected images are
deleted.
When you select [SELECT]
The frame of the selected image
turns green.
1
Select the images to be deleted
with the control button, then
press
z
.
To cancel, press
z
again.
Repeat this step to select other
images.
The (delete) indicator
appears on the selected images.
2
Press MENU.
3
Select [OK] with
b
/
B
, then
press
z
.
In index mode
1
W
3,4,5
2
MENU
SET TO NEXT
B
BB
B
Editing
59
To cancel deleting
Select [CANCEL] with
b
/
B
in step
4
or [EXIT] with
b
/
B
in step
5
, then
press
z
.
Note
If there are files on the “Memory Stick” with
names having the same last 4 digits as the
file name of the image to be deleted, these
files are also deleted at the same time.
Preventing accidental
erasure (PROTECT)
Mode dial:
Protects images against accidental
erasure.
1
Set the mode dial to .
2
In single-image mode
Display the image you want to
protect with
b
/
B
.
In triple-image mode
Press the zoom W button twice in
the single-image mode to turn to
the triple-image mode.
Display the image you want to
protect with
b
/
B
.
3
Press MENU.
The menu appears.
4
Select [PROTECT] with
b
/
B
in single-image mode, or with
v
/
V
in triple-image mode,
then press
z
.
The displayed image (or the
middle-positioned image in triple-
image mode) is protected.
The
-
indicator appears on the
image.
To release protection
Press
z
again in step
4
.
-
indicator
disappears.
In single-image or triple-
image mode
1
W
2,4
3
60
1
Set the mode dial to , then
display the index screen with
the zoom W button.
2
Press MENU.
The menu appears.
3
Select [PROTECT] with
b
/
B
,
then press
z
.
4
Select [ALL] or [SELECT]
with
b
/
B
, then press
z
.
5
When you select [ALL]
Select [ON] with
b
/
B
, then press
z
.
All the images in the “Memory
Stick” are protected.
When you select [SELECT]
The frame of the selected image
turns green.
1
Select the images to be
protected with the control
button, then press
z
.
To cancel, press
z
again.
Repeat this step to select other
images.
The
-
indicator appears on
the selected images.
2
Press MENU.
In index mode
1
W
3,4,5
2
MENU
-
SET TO NEXT
3
Select [OK] with
b
/
B
, then
press
z
.
To release protection
If you selected [ALL] in step
4
, select
[OFF] with
b
/
B
, then press
z
. If you
selected [SELECT] in step
4
, select the
images to be unprotected with
v
/
V
/
b
/
B
, then press
z
. Repeat this step to
select other images. When you have
selected all the images to be
unprotected, press MENU and select
[OK] with
b
/
B
, then press
z
.
To cancel protection
Select [CANCEL] with
b
/
B
in step
4
or [EXIT] with
b
/
B
in step
5
, then
press
z
.
B
BB
B
Editing
61
Changing the
recorded still image
size (RESIZE)
Mode dial:
You can change the image size of the
recorded image.
1
Set the mode dial to , then
display the image of which
you want to change the size.
2
Press MENU.
The menu appears.
3
Select [RESIZE] with
b
/
B
,
then press
z
.
4
Select the desired size with
v
/
V
, then press
z
.
1216×912, 1024×768, 640×480
The resized image is recorded.
To cancel changing the size
Select [CANCEL] with
v
/
V
in step
4
,
then press
z
.
1
2
3,4
Notes
•
The original image is retained even after
resizing.
•
You cannot change the size of images
recorded in TEXT mode, moving images,
uncompressed images, or Clip Motion
images.
•
The resized image is recorded as the
newest file.
•
If you resize an image, the remaining
“Memory Stick” capacity will be
decreased.
•
When you change from a small size to a
large size, the picture quality deteriorates.
•
If the remaining “Memory Stick” capacity
is not sufficient, you may not be able to
resize an image.
•
You cannot resize to an image of 3:2.
•
When you resize a 3:2 image, the upper
and lower black portions are displayed on
the LCD screen.
62

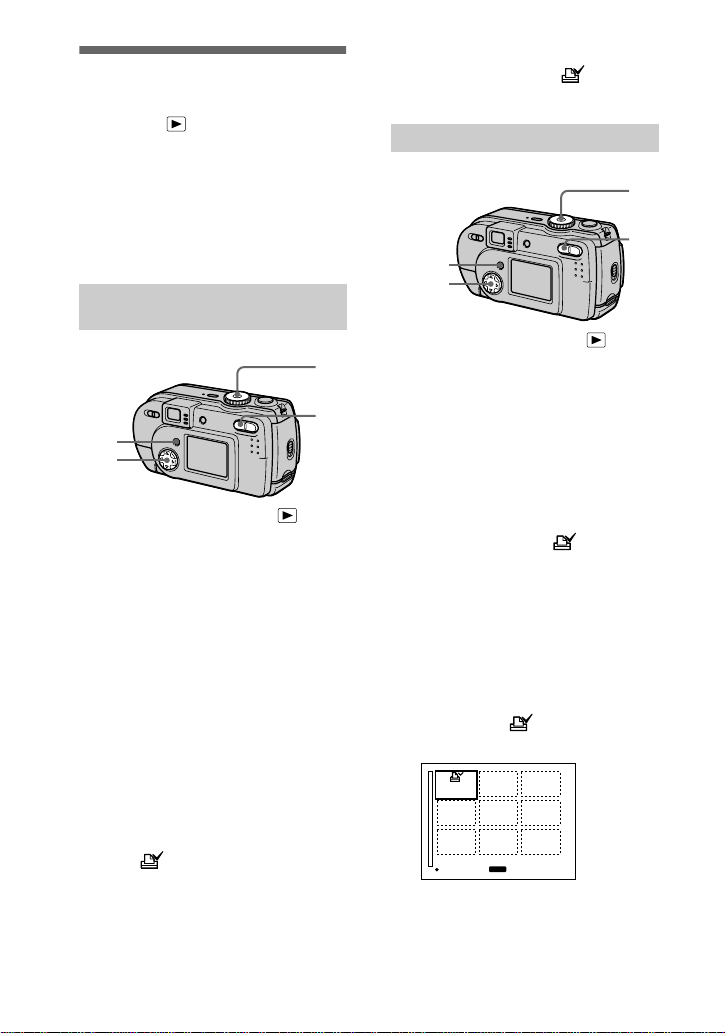

Selecting still images
to print (PRINT)
Mode dial:
You can mark a print mark on still
images recorded with your camera.
This mark is convenient when you
have images printed at a shop that
conforms with the DPOF (Digital Print
Order Format) standard.
.
1
Set the mode dial to .
2
In single-image mode
Display the image you want to
print with
b
/
B
.
In triple-image mode
Press the zoom W button twice in
the single-image mode to turn to
the triple-image mode.
Display the image you want to
print with
b
/
B
.
3
Press MENU.
The menu appears.
4
Select [PRINT] with
b
/
B
in
single-image mode, or with
v
/
V
in triple-image mode,
then press
z
.
The (print) mark is marked on
the displayed image (or the
middle-positioned image in triple-
image mode).
In single-image or triple-
image mode
1
W
2,4
3
To unmark the print mark
Press
z
again in step
4
. mark
disappears.
1
Set the mode dial to , then
display the index screen with
the zoom W button.
2
Press MENU.
The menu appears.
3
Select [PRINT] with
b
/
B
, then
press
z
.
4
Select [SELECT] with
b
/
B
,
then press
z
.
When marking the mark, you
cannot select [ALL].
The frame of the selected image
turns green.
5
Select the images to be
marked with the control
button, then press
z
.
To cancel, press
z
again.
Repeat this step to select other
images. The mark appears on
the selected image.
6
Press MENU.
The menu appears.
7
Select [OK] with
b
/
B
, then
press
z
.
In index mode
1
W
3–5,7
2,6
MENU
SET TO NEXT
B
BB
B
Editing
63
To unmark selected print
marks
Select the images to be unmarked in
step
5
with the control button, then
press
z
.
To unmark all the print
marks
Select [ALL] with
b
/
B
in step
4
, then
press
z
. Select [OFF] with
b
/
B
, then
press
z
.
The marks on all images are
unmarked.
To cancel marking the print
mark
Select [CANCEL] with
b
/
B
in step
4
or select [EXIT] with
b
/
B
in step
7
,
then press
z
.
Notes
•
You cannot mark moving images, Clip
Motion images or images recorded in
TEXT mode.
•
If you mark an image recorded in TIFF
mode with a print mark, only the
uncompressed image is printed, and the
JPEG image recorded at the same time is
not printed.
•
In E-mail mode, a print mark is marked on
the normal size image that is recorded at
the same time.
Dividing a moving
image file (DIVIDE)
Mode dial:
You can divide moving images
recorded in MPEG MOVIE mode. This
is convenient when there is not enough
space on a “Memory Stick” or when
attaching moving images to e-mails.
1
Set the mode dial to and
display the moving image
you want to divide.
2
Press MENU.
The menu appears.
3
Select [DIVIDE] with
b
/
B
,
then press
z
, select [OK]
with
v
/
V
, then press
z
.
4
Play the moving image.
If you press
z
at the divide point,
[
c
,
C
] (frame forward, frame
reverse), [OK], [CANCEL] and
[EXIT] appear on the screen. If
you select [
c
,
C
] with
v
/
V
,
you can finely adjust the divide
location using
b
/
B
.
If you select [CANCEL], moving
image playback restarts and you
can reselect the divide location.
5
When you have decided the
divide point, select [OK] with
v
/
V
, then press
z
.
6
[OK], [CANCEL] and [EXIT]
appear on the screen. Select
[OK] with
v
/
V
, then press
z
.
The moving image file is divided.
1
3–6
2
64
You cannot divide the
following types of files:
•
Clip Motion files
•
Still image files
•
Moving image files that are too short
to divide
The file number changes as
follows when you divide a
file.
<eg.> If you divide the
MOV00003.mpg file, the divided file
numbers become MOV00004.mpg and
MOV00005.mpg, and
MOV00003.mpg is skipped. The
divided files are saved as the latest
files.
To cancel file division
Press [EXIT]. The image playback
screen appears.
To delete unwanted portions
1
Display the portion of the moving
image you want to delete and press
MENU.
2
Select [DELETE] with
b
/
B
, then
press
z
.
3
Select [OK] with
v
/
V
, then press
z
.
1
MOV00003.mpg
2
1 2 MOV00005.mpg
MOV00004.mpg
DIVIDE point
Divided at the designated point
Step 1: Divide the unwanted scene A.
Step 2: Divide the unwanted scene B.
Step 3:Delete the unwanted scenes
A and B.
Step 4:Only the desired scene
remains.
Notes
•
You cannot divide Clip Motion files.
•
You cannot recombine divided files.
•
The original undivided file is not saved.
1
MOV00002.mpg
3AB
DIVIDE point
MOV00004.mpg
1 MOV00005.mpg3 BA
DIVIDE point
13
MOV00006.mpg
MOV00004.mpg MOV00007.mpg
AB
DELETEDELETE
13
MOV00006.mpg
B
BB
B
Editing
65
Changing the setup settings (SETUP)
Set the mode dial to SET UP. The setup screen appears. You can set up the following
items with the control button. Factory settings are indicated with
x
.
CAMERA
SETUP 1
SETUP 2
Item Setting Description
MOVING
x
MPEG MOVIE Records the MPEG movie (pages 25, 48).
CLIP MOTION Records the Clip Motion.
DATE/TIME DAY & TIME
DATE
x
OFF
Sets whether to insert the date and time into
the image (page 52).
RED EYE
REDUCTION
ON
x
OFF
Reduces the red-eye phenomenon (page 23).
Item Setting Description
FORMAT OK Formats a “Memory Stick”.
Note that formatting erases all the
information recorded on a “Memory Stick”,
including even erasure protected images
(page 79).
CANCEL Cancels formatting of a “Memory Stick”.
FILE NUMBER
x
SERIES Assigns numbers to files in sequence even if
the “Memory Stick” is changed.
RESET Resets the file numbering each time the
“Memory Stick” is changed.
/
LANGUAGE
x
ENGLISH Displays the menu items in English.
/JPN Displays the menu items in Japanese.
CLOCK SET OK Sets the date and time (Perform the
procedure from step
3
on page 15).
CANCEL
Item Setting Description
LCD
BRIGHTNESS
BRIGHT
x
NORMAL
DARK
Selects the LCD brightness.
This has no effect on the recorded images.
66
Notes on [DATE/TIME]
•
The date and time do not appear on the LCD screen during shooting. These appear during
playback.
•
The date and time are not superimposed onto moving images and Clip Motion images.
LCD
BACKLIGHT
BRIGHT
x
NORMAL
Displayed only when using your camera
with the battery pack:
Selects the brightness of the LCD backlight.
Lets you set the brightness of the LCD
backlight to [BRIGHT] or [NORMAL].
Selecting [BRIGHT] makes the screen
bright and easy to see when using the
camera outdoors or in other bright locations,
but also uses up the battery charge faster.
BEEP SHUTTER Turns on the shutter sound only. (The shutter
sound is heard when you press the shutter
button.)
x
ON Turns on the beep/shutter sound (when you
press the control button/shutter button).
OFF Turns off the beep/shutter sound.
USB CONNECT PTP Switches the USB mode (page 29).
x
NORMAL
POWER SAVE
x
ON Set to ON to extend the battery life when
operating the camera with batteries.
OFF When POWER SAVE is set to ON, the LCD
screen turns off while the flash is charging
(pages 11, 85).
DEMO
x
ON/STBY Displayed only when you use your camera
with the AC power adaptor. [DEMO] is set
to [STBY] at the factory and the
demonstration starts about 10 minutes after
you have set the mode dial to or . To
cancel the demonstration, turn off the power.
OFF
Item Setting Description
Additional information
67
Additional information
Precautions
Cleaning the LCD screen
Wipe the screen surface with a cleaning
cloth (not supplied) or a LCD cleaning kit
(not supplied) to remove fingerprints, dust,
etc.
Cleaning the camera surface
Clean the camera surface with a soft cloth
slightly moistened with water, then wipe the
surface dry. Do not use any type of solvent
such as thinner, alcohol or benzine as this
may damage the finish or the casing.
After using your camera at the
seashore or other dusty locations
Clean your camera carefully. Otherwise, the
salty air may corrode the metal fittings or
dust may enter the inside of your camera,
causing a malfunction.
Your camera is designed for use between the
temperatures of 0°C and 40°C (32°F and
104°F). Recording in extremely cold or hot
places that exceed this range is not
recommended.
If the camera is brought directly from a cold
to a warm location, or is placed in a very
damp room, moisture may condense inside
or outside the camera. Should this occur, the
camera will not operate properly.
Moisture condensation occurs
easily when:
•
The camera is brought from a cold location
such as a ski slope into a warmly heated
room.
•
The camera is taken from an air-
conditioned room or car interior to the hot
outdoors, etc.
How to prevent moisture
condensation
When bringing the camera from a cold place
to a warm place, seal the camera in a plastic
bag and allow it to adapt to conditions at the
new location over a period of time (about an
hour).
If moisture condensation occurs
Turn off the camera and wait about an hour
for the moisture to evaporate. Note that if
you attempt to record with moisture
remaining inside the lens, you will be unable
to record clear images.
•
Unplug the unit from the wall outlet
(mains) when you are not using the unit for
a long time.
•
To disconnect the power cord (mains lead),
pull it out by the plug. Never pull the
power cord (mains lead) itself.
•
Do not operate the unit with a damaged
cord (mains lead) or if the unit has been
dropped or damaged.
•
Do not bend the power cord (mains lead)
forcibly, or place a heavy object on it. This
will damage the cord (mains lead) and may
cause fire or electrical shock.
•
Prevent metallic objects from coming into
contact with the metal parts of the
connecting section. If this happens, a short
may occur and the unit may be damaged.
•
Always keep metal contacts clean.
•
Do not disassemble the unit.
•
Do not apply mechanical shock or drop the
unit.
•
While the unit is in use, particularly during
charging, keep it away from AM receivers
and video equipment. AM reception and
video operation are disturbed.
•
The unit becomes warm during use. This is
not a malfunction.
•
Do not place the unit in locations that are:
—Extremely hot or cold
—Dusty or dirty
—Very humid
—Vibrating
On cleaning
Note on operating
temperature
On moisture condensation
On AC power adaptor (not
supplied)
68
•
Use only the specified charger with the
charging function.
•
To prevent accident from a short circuit, do
not allow metal objects to come into
contact with the battery terminals.
•
Keep the battery pack away from fire.
•
Never expose the battery pack to
temperatures above 60°C (140°F), such as
in a car parked in the sun or under direct
sunlight.
•
Keep the battery pack dry.
•
Do not expose the battery pack to any
mechanical shock.
•
Do not disassemble nor modify the battery
pack.
•
Install the battery pack to the camera
securely.
•
Charging while some capacity remains
does not affect the original battery
capacity.
If any problem occurs, unplug your camera
and contact your nearest Sony dealer.
This camera has an internal rechargeable
button battery for maintaining the date and
time and other settings regardless of whether
the power is on or off. This rechargeable
button battery is constantly charged as long
as you are using the camera. However, if
you use the camera for only short periods it
discharges gradually, and if you do not use
the camera at all for about one month it
becomes completely discharged. In this
case, be sure to charge this rechargeable
button battery before using the camera.
However, even if this rechargeable button
battery is not charged, you can still use the
camera as long as you do not record the date
and time.
Charging method
Connect the camera to a wall outlet (mains)
with the AC power adaptor (not supplied),
or install a charged battery pack or new
alkaline batteries, and leave the camera for
24 hours or more with the POWER button
set to OFF.
On “Memory Sticks”
“Memory Stick” is a new compact, portable
and versatile IC recording medium with a
data capacity that exceeds a floppy disk.
“Memory Stick” is specially designed for
exchanging and sharing digital data among
“Memory Stick” compatible products.
Because it is removable, “Memory Stick”
can also be used for external data storage.
There are two types of “Memory Sticks”:
general “Memory Sticks” and “MagicGate
Memory Sticks” that are equipped with the
MagicGate* copyright protection
technology.
You can use both types of “Memory Stick”
with your camera. However, because your
camera does not support the MagicGate
standards, data recorded with your camera is
not subject to MagicGate copyright
protection.
∗
MagicGate is copyright protection
technology that uses encryption
technology.
Notes
•
Do not remove the “Memory Stick” while
reading or writing data.
•
Data may be damaged if:
—you remove the “Memory Stick” or turn
off your camera while reading or
writing data.
—you use the “Memory Stick” in a
location subject to the effects of static
electricity or noise.
•
Do not attach any other material than the
supplied label on the labeling position.
•
Attach the label so that it does not stick out
from the proper attachment location.
•
When you carry or store the “Memory
Stick,” put it in its supplied case.
•
Do not touch the terminals of a “Memory
Stick” with your hand or a metal object.
•
Do not strike, bend or drop the “Memory
Stick.”
•
Do not disassemble or modify the
“Memory Stick.”
•
Do not allow the “Memory Stick” to get
wet.
On battery pack (not supplied)
On internal rechargeable
button battery
Additional information
69
“Memory Stick”, , “MagicGate
Memory Stick” and are trademarks of
Sony Corporation.
“MagicGate” and are
trademarks of Sony Corporation.
About “InfoLITHIUM”
battery pack (not
supplied)
What is the “InfoLITHIUM” battery
pack?
The “InfoLITHIUM” battery pack (not
supplied) is a lithium-ion battery pack that
has functions for communicating
information related to operating conditions
between your camera and the AC power
adaptor (not supplied).
The “InfoLITHIUM” battery pack
calculates the power consumption according
to the operating conditions of your camera,
and displays the remaining battery time in
minutes.
Charging the battery pack
•
Be sure to charge the battery pack before
you start using your camera.
•
We recommend charging the battery pack in
an ambient temperature of between 10°C to
30°C (50°F to 86°F) until the /CHG lamp
goes out, indicating that the battery pack is
fully charged. If you charge the battery
pack outside of this temperature range, you
may not be able to efficiently charge the
battery pack.
•
After charging is completed, disconnect
the AC power adaptor from the DC IN jack
on your camera or remove the battery
pack.
Effective use of the battery pack
•
Battery performance decreases in low-
temperature surroundings. So, the time that
the battery pack can be used is shorter in
cold places. We recommend the following
to use the battery pack longer:
—Put the battery pack in a pocket close to
your body to warm it up, and insert it in
your camera immediately before you
start taking shots.
•
Frequently using the LCD panel wears out
the battery pack faster.
•
Be certain to turn the POWER to off when
not taking shots or playing back on your
camera.
•
We recommend having spare batteries
handy for two or three times the expected
shooting time, and make trial shots before
taking the actual shots.
•
Do not expose the battery pack to water.
The battery pack is not water-resistant.
Remaining battery time indicator
•
If the power goes off although the battery
remaining indicator indicates that the
battery pack has enough power to operate,
charge the battery pack fully again so that
the indication on the battery remaining
indicator is correct. Note, however, that the
correct battery indication sometimes will
not be restored if it is used in high
temperatures for a long time or left in a
fully charged state, or the battery pack is
frequently used. Regard the remaining
battery time indication as the approximate
shooting time.
How to store the battery pack
•
If the battery pack will not be used for a
long time, use up the battery pack after
fully charging it once per year. Remove the
battery pack from your camera, then store
it in a dry, cool place. This is to maintain
the battery pack’s functions.
•
To use the battery pack up on your camera,
leave the POWER to on in slide show
playback mode until the power goes off.
Battery life
•
The battery life is limited. Battery capacity
decreases little by little as you use it more
and more, and as time passes. When the
battery operating time is shortened
considerably, a probable cause is that the
battery pack has reached the end of its life.
Please buy a new battery pack.
•
The battery life varies according to how it
is stored and operating conditions and
environment for each battery pack.
70
Using your camera
abroad
Power sources
You can use your camera in any
country or area with the battery charger
(not supplied) within 100 V to 240 V
AC, 50/60 Hz. Use a commercially
available AC plug adaptor
[a]
, if
necessary, depending on the design of
the wall outlet (mains)
[b]
.
AC-LS1
Additional information
71
Troubleshooting
If you experience trouble with your camera, first check the following items. Should
your camera still not operate properly after you have made these checks, press the
reset button located on the bottom. (If you press the reset button, the date and time
setting is cleared.) Should your camera still not operate properly, consult your Sony
dealer or local authorized Sony service facility. If code displays (C:
ss
ssss
ss
:
ss
ssss
ss
)
appear on the LCD screen, the self-diagnosis display function is working
(page 79).
Symptom Cause and/or Solution
The power is not turned on
if you press the POWER
button.
t
Press and hold down the POWER button for
approximately one second.
Your camera does not
work.
•
The battery level is low (the
E
indicator appears
on the LCD screen).
t
Replace the alkaline batteries or charge the
battery pack (pages 10, 12).
•
The AC power adaptor is not connected securely.
t
Connect it firmly to the DC IN jack of your
camera and a wall outlet (mains) (pages 12, 14).
•
The built-in microcomputer is not working
properly.
t
Disconnect and then reconnect all power
sources after one minute. Then turn the power
on and check that the camera works properly.
Press the reset button located on the bottom
using a sharp-pointed object.
Your camera cannot
record images.
•
The lens cover is closed.
t
Open the lens cover.
•
You cannot record images while charging the flash.
•
The mode dial is set to or SET UP.
t
Set it to , or (pages 19, 25).
•
No “Memory Stick” has been inserted into your
camera.
t
Insert a “Memory Stick” (page 17).
•
The write-protect tab on the “Memory Stick” is set
to LOCK.
t
Set it to the recording position.
72
The LCD screen does not
light when the power is
turned on.
•
The power was turned off with the LCD screen set
to OFF the last time the camera was used.
t
The camera retains the settings from the last
time it was used. If you turn the power off with
the LCD screen set to OFF, the LCD is still set
to OFF the next time you turn the power on.
•
The LCD screen automatically turns off while the
charging lamp is flashing (page 85).
The picture is out of focus.
•
The MACRO switch is set to ON.
t
Set the MACRO switch to OFF to return to the
normal recording (page 24).
The resizing function does
not work.
•
You cannot resize moving images, text images, Clip
Motion and uncompressed images.
Images recorded in TEXT
mode are blurry.
•
Light is not striking the subject evenly.
t
Adjust so that the lighting strikes the subject
evenly.
You cannot record images
in TEXT mode.
•
The mode dial is set to .
t
Set the mode dial to .
You cannot display a print
mark.
•
You cannot display print marks on moving images,
text images and Clip Motion images.
The picture is noisy.
•
Your camera is placed near a TV or other
equipment that uses strong magnets.
t
Move your camera away from the TV, etc.
The picture is too dark.
•
You are shooting a subject with a light source
behind the subject.
t
Adjust the exposure (page 50).
•
The brightness of the LCD screen is too low.
t
Adjust the brightness of the LCD screen
(page 65).
The flash does not work.
•
The flash is set to .
t
Set the flash to auto (no indicator) or
(page 23).
•
The mode dial is set to .
t
Set the flash to .
•
The mode dial is set to , SETUP or (MPEG
MOVIE).
t
Set it to .
The date and time are
recorded incorrectly.
•
The date and time are not set correctly.
t
Set the correct date and time (page 15).
Symptom Cause and/or Solution
Additional information
73
Vertical streaks appear
when you are shooting a
very bright subject.
•
The smear phenomenon is happening.
t
This is not a malfunction.
The battery life is short.
•
You are recording/playing back images under
extremely cold temperatures.
•
The battery pack is not charged enough.
t
Charge the battery pack fully.
•
Alkaline batteries or the battery pack is dead.
t
Replace the battery (page 10).
•
You are not using the recommended batteries.
t
Use the recommended batteries (pages 10, 85).
The battery remaining
indicator is incorrect.
Or sufficient battery
remaining indicator is
displayed but the power
runs out soon. (when
using the “InfoLITHIUM”
battery pack)
•
You have used the camera for a long time in an
extremely hot or an extremely cold location.
•
The battery pack is dead.
t
Replace the battery pack with a new one
(page 69).
•
The battery pack is discharged.
t
Install a charged battery pack (pages 10, 12).
•
A deviation has occurred in the remaining battery
time.
t
Fully charge the battery pack (page 12).
You cannot charge the
battery pack.
•
The camera is turned on.
t
Turn the camera off (page 12).
The /CHG lamp flashes
during charging the
battery pack.
•
The battery pack is not installed correctly.
t
Install the battery pack correctly (page 10).
•
The battery pack has malfunctioned.
t
Contact your Sony dealer or local authorized
Sony service facility.
Digital zoom does not
function.
•
The digital zoom cannot be used when recording a
moving image with [MOVING IMAGE] set to
[MPEG MOVIE], or the LCD screen is OFF.
Your camera cannot play
back images.
•
The mode dial is set to , , or SET UP.
t
Set it to (pages 27, 28).
The image is interfered by
noise when you play back
an image on a personal
computer.
•
You are playing back the file directly from the
“Memory Stick.”
t
Copy the file to the hard disk of the personal
computer and then play back the file from the
hard disk (page 34).
The image cannot be
played back on a personal
computer.
t
Consult the personal computer or software
manufacturer.
Symptom Cause and/or Solution
74
Your camera cannot delete
an image.
•
The image is protected.
t
Cancel the protection (page 59).
The power turns off
suddenly.
•
If you do not operate the camera for about three
minutes while the power is on, the camera turns off
automatically to prevent wearing down the battery
(page 11).
t
The auto-power off function (page 11) is
activated. Turn on the camera.
•
The battery is discharged.
t
Replace it with a charged battery or new
alkaline batteries.
A file error occurs when
you play back a file.
•
The image size is larger than 1216×912.
The picture is
monochrome (black and
white).
•
The camera is set to TEXT mode.
t
Cancel TEXT mode (page 47).
•
P. EFFECT is set to B&W mode.
t
Cancel B&W mode (page 52).
Your personal computer
does not recognize your
camera.
•
The battery level is low.
t
Use the AC power adaptor (not supplied)
(page 14).
•
The camera is turned off.
t
Turn on the camera.
•
The USB cable is not connected firmly.
t
Disconnect the USB cable, and connect it again
firmly. Make sure that “USB MODE” is
displayed on the LCD screen (pages 31, 33).
•
The USB connectors on your personal computer are
connected to other equipment besides the keyboard,
the mouse, and your camera.
t
Disconnect the USB cables except for the ones
connected to the keyboard, the mouse, and your
camera.
•
The USB driver is not installed.
t
Install the USB driver (page 31).
•
[USB CONNECT] is set to [PTP] in the setup
settings.
t
Set it to [NORMAL] (page 66).
•
Since the camera is connected to a computer with
the USB cable before installing the USB driver, the
drive is not recognized by the computer.
t
Delete the drive which is not recognized, then
install the USB driver. For details, see the
procedure on page 76.
Symptom Cause and/or Solution
Additional information
75
No function works though
the power is on.
t
Remove the battery pack, then install it again
after about one minute. If the function still do
not work, press the reset button located on the
bottom using a sharp-pointed object. (If you
press the reset button, the date and time setting
is cleared.)
Symptom Cause and/or Solution
76
Reinstall the USB driver when using Windows 98, Windows
98SE, Windows Me and Windows 2000 Professional
Perform all steps without skipping.
1
Turn on your computer and allow Windows to load.
2
Connect the USB jack on the camera and the computer with the
supplied USB cable.
3
Insert a “Memory Stick”.
4
Connect the AC power adaptor to your camera and then to a wall
outlet (mains), and turn on the power of your camera.
5
Open “Device Manager” on Windows.
6
After the message appears to verify that you delete the device, click
“OK.”
7
Turn off the camera, disconnect the USB cable, and restart the
computer.
8
Install the USB driver in the supplied CD-ROM to the computer
following the procedure on page 31.
For Windows 98, Windows 98SE and Windows Me users:
For Windows 2000 Professional users:
*
Log in with the permission of administrator.
1
Open [Control Panel] from [ My Computer], then double-click
[System].
2
“System properties” is displayed. Click the [Device Manager] tab located at
the top.
3
Click [ Sony DSC] in [ Other devices], then click the [Delete (E)]
button located at the lower-right corner.
1
Open [Control Panel] from [ My Computer], then double-click
[System].
2
“System properties” is displayed. Click the [Hardware] tab located at the top,
then click the [Device Manager (D
)] button.
3
Click [View] in [Device Manager], then click [Devices by type (E)].
4
Right-click [ Sony DSC] in [ Other devices], then click [Delete (E)].
Additional information
77
Warning and notice messages
Various messages appear on the LCD screen. Check the corresponding descriptions
in the following list.
Message Meaning
NO MEMORY STICK No “Memory Stick” has been inserted.
SYSTEM ERROR Turn the power off and on again.
MEMORY STICK ERROR
•
The inserted “Memory Stick” cannot
be used with your camera, or is
damaged.
•
The “Memory Stick” is not inserted
correctly.
FORMAT ERROR Failed to format the “Memory Stick.”
MEMORY STICK LOCKED The write-protect tab on the “Memory
Stick” is set to the LOCK position.
NO MEMORY SPACE The capacity of the “Memory Stick” is
full, and you cannot record images.
NO FILE No image has been recorded on the
“Memory Stick.”
FILE ERROR An error occurred while playing back the
image.
FILE PROTECT The image is protected against erasure.
DIRECTORY ERROR A directory with the same name already
exists on the “Memory Stick”.
IMAGE SIZE OVER You are playing back an image of a size
that cannot be played back with your
camera.
INVALID OPERATION You are playing back a file that was
created on equipment other than your
camera.
E
The battery level is low or zero.
Depending on the conditions of use or
the type of battery pack, the indicator
may flash even though there is still 5 to
20 minutes of remaining battery time
left.
CANNOT DIVIDE • The file is not long enough to be
divided.
• The file is not a moving image.
78
The amount of light is not sufficient or
the shutter speed is too slow. (Mount the
camera on a tripod or otherwise secure
the camera in place.)
LENS COVER CLOSED The lens cover is closed.
Message Meaning
Additional information
79
Self-diagnosis display
Your camera has a self-diagnosis display. This
function displays the camera condition on the LCD
screen with a combination of a letter and four digits
of numbers. If this occurs, check the following code
chart. The code informs you of the camera’s current
condition. The last two digits (indicated by
ss
)
will differ depending on the state of the camera.
First three digits Cause and/or Corrective Action
C:32:
ss
•
There is trouble with your camera’s hardware.
t
Turn the power off and on again.
C:13:
ss
•
An unformatted “Memory Stick” is inserted.
t
Format the “Memory Stick” (page 65).
•
The inserted “Memory Stick” cannot be used with your
camera, or is damaged.
t
Insert a new “Memory Stick” (page 17).
•
The camera cannot read or write data on the “Memory
Stick”.
t
Re-insert the “Memory Stick” several times.
E:92:
ss
•
You are using a battery pack that is not “InfoLITHIUM”
compatible.
t
Use an “InfoLITHIUM” battery pack.
•
You installed or removed the “InfoLITHIUM” battery
pack when using the AC adapter.
t
Turn the power off and on again.
•
A camera malfunction that you cannot reverse has
occurred.
t
Contact your Sony dealer or local authorized Sony
service facility and inform them of the 5-digit service
code. (example: E:92:10)
C:32:ss
Self-diagnosis display
•
C:
ss
:
ss
You can reverse the camera
malfunction yourself.
•
E:
ss
:
ss
Contact your Sony dealer or local
authorized Sony service facility.
80
If you are unable to solve the problem even after trying the corrective
actions a few times and when the camera is not reset even if you press the
reset button located on the bottom, contact your Sony dealer or local
authorized Sony service facility.
E:61:
ss
E:91:
ss
•
A camera malfunction that you cannot reverse has
occurred.
t
Contact your Sony dealer or local authorized Sony
service facility and inform them of the 5-digit service
code. (example: E:61:10)
First three digits Cause and/or Corrective Action
Additional information
81
Specifications
System
Image device
6.56 mm (1/2.7 type) color CCD
Lens
f = 6 mm (9/32 inches)
(42 mm (1 11/16 inches) when
converted into a 35 mm still
camera)
F = 4.5
Exposure control
Automatic exposure
White balance
Automatic, Indoor, Outdoor,
Hold
Data system
Movie: MPEG1
Still: JPEG, GIF (in TEXT
mode, Clip Motion), TIFF
Recording medium
“Memory Stick”
Flash
Recommended recording
distance (ISO is set to AUTO):
0.7 m to 2.0 m
(27 5/8 inches to
6 feet 6 3/4 inches)
USB jack
mini-B
LCD screen
Used LCD panel
3.8 cm (1.5 type) TFT (Thin
Film Transistor active matrix)
drive
Total number of dots
123 200 (560×220) dots
General
Used battery
Two size AA alkaline
batteries: 3 V
NP-FS11: 3.6 V (not supplied)
Power consumption
(during recording)
2.5 W
Operation temperature
0°C to 40°C
(32°F to 104°F)
Storage temperature
–20°C to +60°C
(–4°F to +140°F)
Maximum dimensions
123×62×46 mm
(4 7/8×2 1/2×1 13/16 inches)
(w/h/d)
Mass
Approx. 230 g (8 oz)
(including two size AA
batteries, “Memory Stick” and
wrist strap etc.)
AC-LS1 AC power
adaptor (not supplied)
Power requirements
100 to 240 V AC, 50/60 Hz
Rated output voltage
DC 4.2 V, 1.5 A in operating
mode
Operation temperature
0°C to 40°C (32°F to 104°F)
Storage temperature
–20°C to +60°C
(–4°F to +140°F )
Maximum dimensions
105×36×56 mm
(4 1/4×1 7/16×2 1/4 inches)
(w/h/d) (excluding maximum
protrusions)
Mass
Approx. 180 g (6 oz)
NP-FS11 battery pack
(not supplied)
Used battery
Lithium ion battery
Maximum voltage
DC 4.2 V
Nominal voltage
DC 3.6 V
Capacity
4.1 Wh (1 140 mAh)
Accessories
Size AA alkaline batteries (2)
USB cable (1)
Wrist strap (1)
“Memory Stick” (4 MB) (1)
CD-ROM (USB driver
SPVD-004) (1)
Operating Instructions (1)
Design and specifications are
subject to change without
notice.
82
LCD screen indicators
A Battery remaining indicator
B Flash mode/red eye reduction/
white balance
C Date/time/ISO number indicator
D Sharpness indicator
E Picture effect indicator
F Spot light-metering cross hair
G AE lock indicator
H Recording mode indicator
I Image size indicator
J Image quality indicator
K TWILIGHT mode indicator
L Remaining number of
recordable images indicator/
Self-diagnosis function
indicator
The actual number of remaining
images may differ depending on
the recording conditions.
M Remaining memory capacity
indicator
N Macro indicator
O EV level indicator
P Aperture value indicator
Q Shutter speed indicator
R Self-timer indicator
S Light amount warning indicator
T Menu and guide menu
Pressing MENU switches the
menu on/off.
The indicators during recording still images
min
SOLARIZE
ISO
WB
EV
w;
ql
1
2
3
4
5
789 qa0
qs
qd
qf
qg
qh
qj
qk
6
Additional information
83
A Battery remaining indicator
B White balance indicator
C Picture effect indicator
D Recording mode indicator
E Image size indicator
F Recording time [maximum
recordable time] indicator/
Self-diagnosis function
indicator
G Remaining memory capacity
indicator
H Macro indicator
I EV level indicator
J Self-timer indicator
K Spot light-metering cross hair
L Menu and guide menu
Pressing MENU switches the
menu on/off.
The indicators during recording moving images
+
STBY
min
SOLARIZE
WB PFX
EV
456
7
8
9
qs
qa
3
2
1
0
84
A Protect/print mark indicator
B Zoom scaling indicator
C File name
D Recording mode indicator
E Image size indicator
F Image number
G Number of stored images in
“Memory Stick”
H Remaining memory capacity
indicator
I Recording date of the playback
image/menu and guide menu
A Recording mode indicator
B Image size indicator
C Image number/number of
stored images in “Memory
Stick”
D Remaining memory capacity
indicator
E Counter
F Playback image
G Play bar
H Menu and guide menu
When playing back still images
120
min
11/12
640
45 76
8
1
2
3
9
x1.3
FILE BACK/NEXT
When playing back moving images
60
min
0:12
320
6/8
DELETE
PROTECT
PRINT SLIDE
OK
12 3
4
6
5
7
8
Additional information
85
Notes on Using
Batteries
When operating the camera with size
AA alkaline batteries, set POWER
SAVE in the SET UP screen to ON.
This increases the battery efficiency
and life when recording still images.
When POWER SAVE is ON
•
The LCD screen turned off while the
flash is being charged (while the /
CHG lamp is flashing*). When the
camera is turned on for the first time
after being left unused for a long
period of time, the flash will take
longer than usual to charge.
*
If the charging time is short,
the
/CHG
lamp may not be light.
Power save mode
•
The factory setting is ON (page 66).
•
Power save mode is also effective
when using an “InfoLITHIUM”
battery pack (NP-FS11, not
supplied), but in this case recording
can be performed more comfortably
by setting POWER SAVE in the SET
UP screen to OFF.
•
The batteries may be hot
immediately after using the camera.
Wait until the batteries have cooled
before removing them.
•
Remove the batteries when you will
not be using the camera for a long
time.
•
Do not disassemble batteries, short
the terminals with metallic objects, or
place batteries in or near heat
sources.
•
Be sure to replace both batteries at
the same time. In addition, do not
mix new and old batteries or different
types of batteries such as alkaline and
nickel metal hydride batteries.
•
“InfoLITHIUM” battery pack
(NP-FS11) (recommended, not
supplied)
•
Size AA alkaline batteries (2)
•
Size AA nickel metal hydride
batteries (2) (not supplied)
•
Size AA nickel-cadmium batteries
(2) (not supplied)
Notes
•
When using size AA alkaline batteries, we
recommend Sony Stamina alkaline
batteries. Other batteries may not bring out
the full performance of the camera.
•
When using the camera in low temperature
environments, use the “InfoLITHIUM”
battery pack (NP-FS11, not supplied). The
performance of alkaline batteries drops
significantly at low temperatures, making
use impossible.
•
Nickel metal hydride batteries and nickel-
cadmium batteries can be used, but the
battery remaining time may not be
displayed correctly.
•
Manganese and primary lithium batteries
cannot be used with the camera.
Power save mode
Handling precautions for size
AA batteries
Batteries that can be used
86
Index
A
Adjusting the exposure ...50
AE lock...........................19
Auto power-off
function ......................11
Auto red-eye
reduction...............23, 65
B
Battery
battery life ..................13
battery remaining
indicator......................82
charging......................12
installing.....................10
BEEP...............................66
C
Charging the battery
pack............................12
Cleaning..........................67
Clip Motion.....................48
Control button...........18, 38
D
DELETE .........................58
Digital zoom ...................22
DPOF..............................62
E
Editing
DELETE.....................58
PROTECT.................. 59
E-MAIL ..........................46
Enlarging a part of the still
image..........................55
F
File name ........................36
FILE NUMBER..............65
FLASH LEVEL........23, 40
FORMAT........................65
G
GIF......................37, 47, 48
I
Deleting......................58
Print mark...................62
Protect ........................59
Size.............................43
