EN
DETAILED
INSTRUCTIONS FOR USE
OF UPRIGHT
REFRIGERATOR AND
FREEZER
2
818898
We thank you for the confidence you have shown by purchasing
our appliance which is designed to simplify your life. To make the use of the
product easier, we have supplied detailed instructions for use, and installation
instructions supplied on a separate sheet. The instructions should allow you to
learn about your new appliance as quickly as possible.
We wish you find a lot of pleasure in its use.
The appliance is intended solely for household use.
The refrigerator is intended for storing fresh food at temperatures above 0°C.
The freezer is intended for freezing fresh food and for long-term storage of
frozen food (up to one year, depending on the type of food).
Please visit our website where you can enter your appliance model number,
indicated on the rating plate or the warranty sheet, to find detailed description
of your appliance, tips on use, troubleshooting, service information, instructions
for use etc.
Important safety warning
General information and tips
i
Protecting the environment
!
Do not wash in the dishwasher
3
CONTENTS
818898
INTRODUCTION
APPLIANCE
DESCRIPTION
DEFROSTING
AND CLEANING
THE APPLIANCE
4 IMPORTANT NOTES AND PRECAUTIONS
4 BEFORE USING THE APPLIANCE FOR THE FIRST TIME
5 IMPORTANT SAFETY INSTRUCTIONS
8 IMPORTANT INFORMATION ON THE USE OF APPLIANCE
9 ENVIRONMENT PROTECTION
10 ADVICE FOR SAVING POWER WITH REFRIGERATION
APPLIANCES
11 INSTALLATION AND CONNECTION

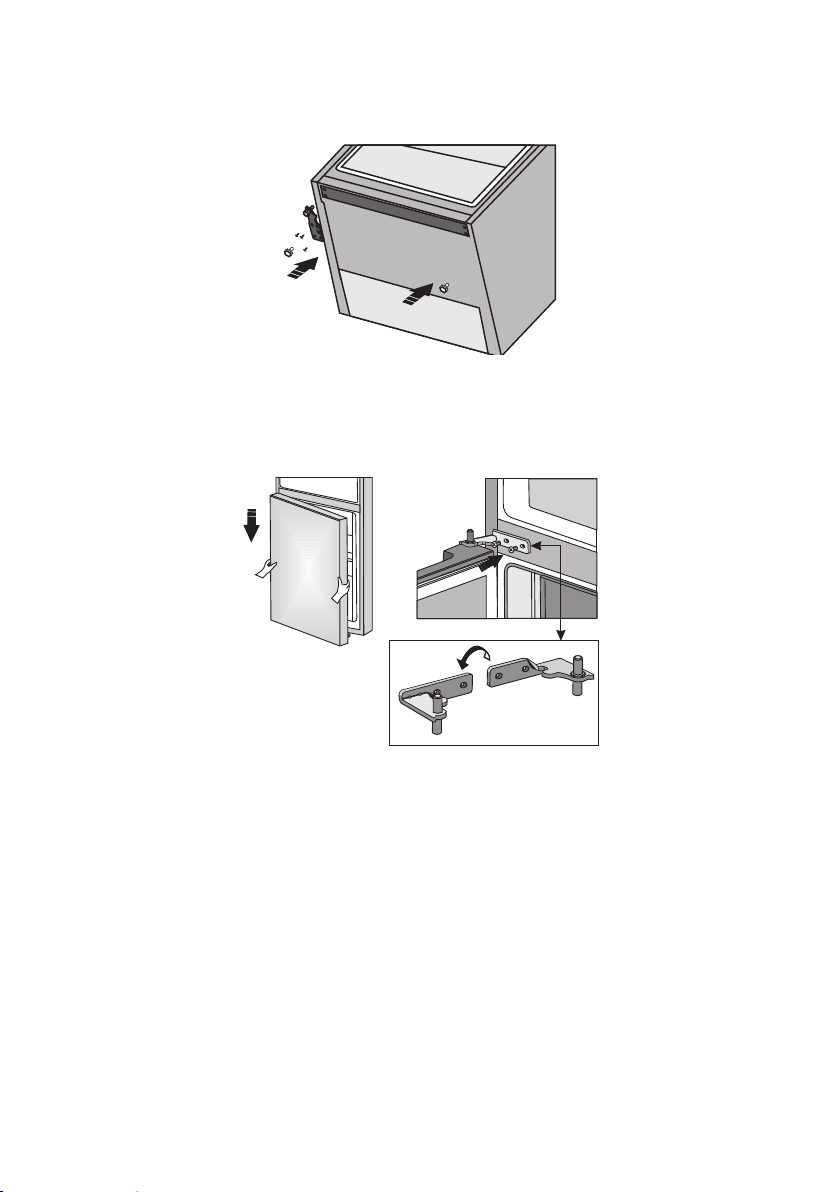

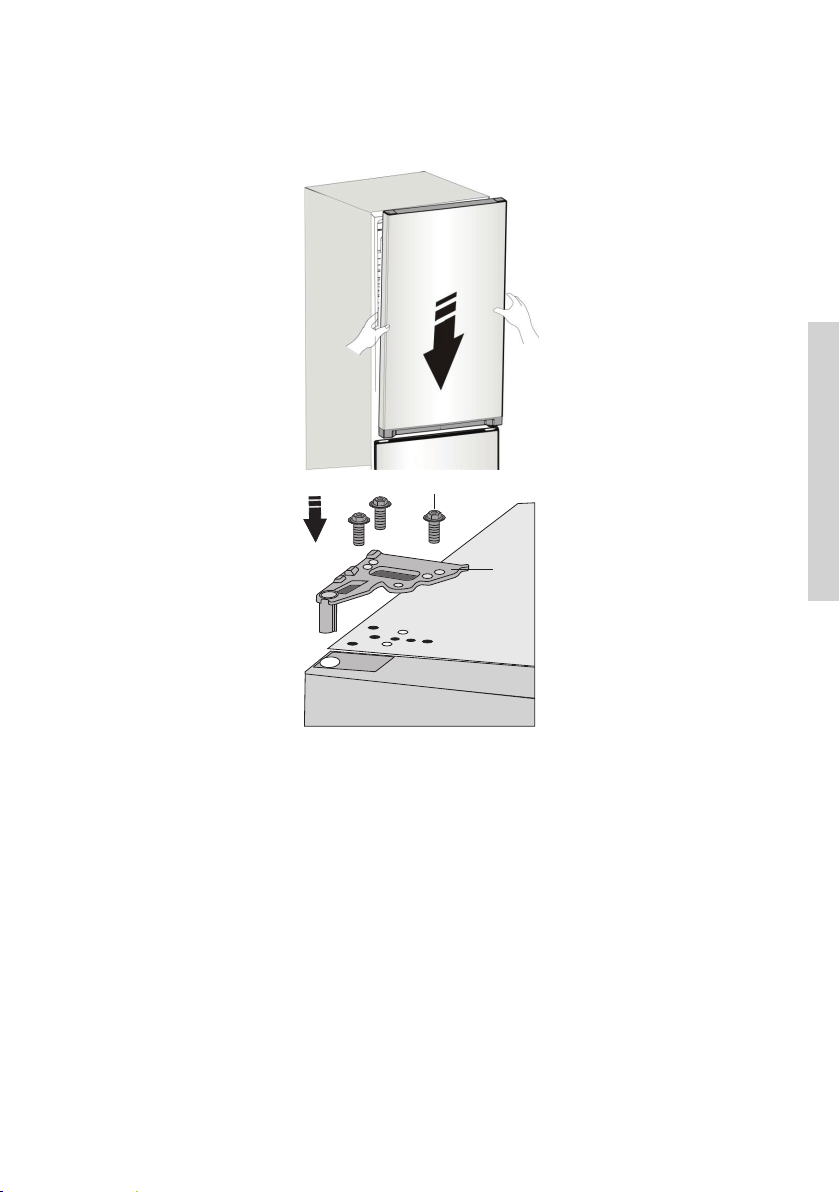

15 REVERSING THE DOOR OPENING DIRECTION
26 APPLIANCE DESCRIPTION
27 OPERATING THE APPLIANCE
34 APPLIANCE INTERIOR EQUIPMENT
40 RECOMMENDED DISTRIBUTION OF FOOD IN THE
APPLIANCE
41 STORING FOOD IN THE REFRIGERATOR
46 FREEZING AND STORING FROZEN FOOD
46 Freezing procedure
47 Important warnings on freezing
47 Storing industrially frozen food
48 Frozen food storage time
48 Defrosting frozen food
49 DEFROSTING THE APPLIANCE
50 CLEANING THE APPLIANCE
51 TROUBLESHOOTING
53 INFORMATION ABOUT APPLIANCE NOISE
MISCELLANEOUS
STORING AND
FREEZING FOOD
4
IMPORTANT NOTES AND
PRECAUTIONS
818898
Before connecting the appliance to the power mains,
please read carefully the instructions for use which
describe the appliance and its correct and safe use.
The instructions apply to several appliance types/
models; thus, settings or equipment may be described
herein which is not available in your appliance. We
recommend saving this instruction manual for future
reference and attach it to the appliance if it is sold in
the future.
The instruction manual includes the NO FROST
version/model of the freezer which is fitted with a fan
and in which the defrosting process is automatic (only
with some models).
Check for any damage or irregularities on your
appliance. If you find your appliance is damaged,
notify the retailer from which you have purchased the
appliance.
Before connecting the appliance to the power mains,
let the appliance rest in a vertical position for a
minimum of 2 hours. This will reduce the possibility of
operation faults due to the effect of transport on the
cooling system.
BEFORE USING THE APPLIANCE FOR
THE FIRST TIME
i
5
818898
The appliance must be connected to the power
mains and grounded in compliance with the effective
standards and regulations.
WARNING! Do not locate multiple portable socket-
outlets or portable power supplies at the rear of the
appliance.
Before cleaning the appliance, unplug it from the
power mains (unplug the power cord from the wall
outlet).
WARNING! If the supply cord is damaged, it must be
replaced by the manufacturer, its service agent or
similarly qualified persons in order to avoid a hazard.
WARNING! When positioning the appliance, ensure the
supply cord is not trapped or damaged.
If LED lighting does not work, call a service technician.
Do not attempt a repair of the LED lighting yourself, as
there is danger of contact with high voltage!
IMPORTANT SAFETY INSTRUCTIONS
!
WARNING! Do not use electrical appliances inside
the food storage compartments of the appliance,
unless they are of the type recommended by the
manufacturer.
WARNING! Do not use mechanical devices or other
means to accelerate the defrosting process, other
than those recommended by the manufacturer.
WARNING! To avoid any hazard resulting from poor
stability of the appliance, make sure it is installed as
instructed.
!
!
!
WARNING! Risk of fire/flammable materials.
6
818898
Danger of frostbite
Never put frozen food in your mouth and avoid
touching frozen food as this may cause frostnip or
frostbite.
Safety of children and vulnerable persons
The appliance is not intended for use by persons
(including children) with reduced physical, sensory
or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person
responsible for their safety.
Children should be supervised to ensure that they do
not play with the appliance.
Cleaning and user maintenance shall not be made by
children without supervision.
Remove the packaging intended to protect the
appliance or particular parts during transport and keep
it outside the reach of children.
It presents danger of injury or suffocation.
When removing a used appliance, disconnect the
power cord, remove the door, and leave the shelves in
the appliance. This will prevent children from locking
themselves in the appliance.
For European markets only
This appliance can be used by children aged from 8
years and above and persons with reduced physical,
sensory or mental capabilities or lack of experience
7
818898
and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe
way and understand the hazards involved.
Children shall not play with the appliance.
Cleaning and user maintenance shall not be made by
children without supervision.
Children aged from 3 to 8 years are allowed to load
and unload refrigerating appliances.
Warning regarding the refrigerant
The appliance contains a small amount of an
environmentally friendly yet flammable gas R600a.
Make sure that no parts of the cooling system
are damaged. A gas leak is not hazardous to the
environment, but it could cause eye injury or fire.
In case of a gas leak, ventilate the room thoroughly,
disconnect the appliance from the power mains, and
call a service technician.
8
818898
The appliance may not be used outdoors and it may
not be exposed to rain.
Do not store explosive substances such as aerosol cans
with a flammable propellant in this appliance.
If the appliance will be out of use for an extended
period of time, switch it off using the relevant button,
and unplug it from the power mains. Empty the
appliance, defrost it, clean it, and leave the door ajar.
In case of an error or power supply failure, do not
open the freezer compartment unless the freezer has
not operated for over 16 hours. After this period, use
the frozen food or provide sufficient cooling (e.g. a
replacement appliance).
IMPORTANT INFORMATION ON THE USE
OF APPLIANCE
WARNING! Keep ventilation openings, in the
appliance enclosure or in the built-in structure, clear
of obstruction.
WARNING! This appliance is intended to be used in
household and similar applications such as:
- staff kitchen areas in shops, offices and other working
environments;
- farm houses and by clients in hotels, motels and other
residential type environments;
- bed and breakfast type environments;
- catering and similar non-retail applications.
i
9
818898
The symbol on the product or its packaging indicates that the product
should not be treated as normal household waste. The product should be
taken to an authorized collection centre for waste electric and electronic
equipment processing. Correct disposal of the product will help prevent
any negative effects on the environment and health of people which could
occur in case of incorrect product removal. For detailed information on
removal and processing of the product, please contact the relevant municipal
body in charge of waste management, your waste disposal service, or the
store where you bought the product.
Packaging is made of environmentally friendly materials
that can be recycled, disposed of, or destroyed without
any hazard to the environment.
!
Removing an obsolete appliance
To protect the environment, take the obsolete
appliance to an authorized home appliance collection
centre.
Before doing so, do the following:
• disconnect the appliance from the power mains;
• do not allow children to play with the appliance.
ENVIRONMENT PROTECTION
WARNING! Do not damage the refrigerant circuit.
This will also prevent pollution.
Technical information on the appliance
Rating plate can be found in the appliance interior. It
indicates data on voltage, gross and net volume, type
and amount of refrigerant, and information on the
climate classes.
If the language on the rating plate is not the language
of your choice or the language of your country, replace
it with the one supplied.
i
10
ADVICE FOR SAVING POWER
WITH REFRIGERATION
APPLIANCES
818898
• Install the appliance as specifi ed in the instruction manual.
• Do not open the door more often than necessary.
• Occasionally make sure air circulation underneath the appliance is
unobstructed.
• If the gasket is damaged or does not provide a perfect seal for any reason,
have it replaced as soon as possible.
• Store the food in tightly sealed containers or appropriate packaging.
• Before placing the food in the refrigerator, allow it to cool down to room
temperature.
• Defrost frozen food in the refrigerator compartment.
• To make use of the entire freezer compartment interior volume, remove some
of the drawers as described in the instruction manual.
• Defrost your conventional freezer when an approximately 3–5 millimetre layer
of frost or ice has built up on the refrigerated surfaces.
• Make sure the layout of shelves in the compartment is uniform and that
the food is placed so that the air can freely circulate in the appliance
interior (observe the recommended placement of food as described in the
instructions).
• In appliances with a fan, do not block the fan slots or vents.
• If you do not need the fan or the ionizer, switch them o to reduce power
consumption.
11
818898
INSTALLATION AND CONNECTION
SELECTING THE ROOM
• Install the appliance in a dry and well ventilated room. The appliance will operate
correctly if the environment temperature is in the interval specifi ed in the table. The
appliance class is indicated on the rating plate / label with the basic information on
the appliance.
Class Temperature Relative Humidity
SN (subnormal) from +10 °C to +32 °C
75%
N (normal) from +16 °C to +32 °C
ST (subtropical) from +16 °C to +38 °C
T (tropical) from +16 °C to +43 °C
• Do not place an appliance in a room where temperature can drop to
below 5 °C as this may cause abnormal appliance operation or failure!
i
• After the installation, the appliance mains plug should be accessible!
• Do not place the appliance near appliances or devices radiating heat, such as
a cooker, a stove, a radiator, water heater etc., and do not expose it to direct
sunlight. The appliance should stand at least 3 cm away from an electric or gas
cooker or at least 30 cm away from an oil or solid fuel stove. If the distance
between such source of heat and the appliance is smaller, use an insulating
panel.
Note: Place the appliance in a su ciently large room. There should be at least
1 m
3
of space per 8 grams of refrigerant. Amount of refrigerant is indicated on
the rating plate in the appliance interior.
• At the base of the kitchen unit intended for building in the integrated
appliance, there should be at least 200 cm
2
free space, for adequate air
circulation.
On the upper part of the appliance the air is coming out, so try not to cover
the opening for the outfl ow air.
Ignoring this caution may result in damage to the appliance.
12
818898
APPLIANCE PLACEMENT
Appliance installation should be carried
out by at least two persons to avoid
any personal injury or damage to the
appliance.
• The appliance must stand level or
tilted slightly to the back. It should be
stable and placed a solid base. At the
front, the appliance is fi tted with two
adjustable feet that can be used to
level the appliance. At the rear side,
casters allow for easier installation of
the appliance (only with some models).
• After you have levelled the appliance
using the adjustable feet, adjust the
additional foot for extra stability of the
appliance.
max
30 mm
> 90°
• There should be a clearance of at least 5 cm between the appliance and
any cupboard installed above it, in order to allow adequate cooling of the
condenser unit.
• Do not expose the appliance to direct sunlight and do not place it near
sources of heat. If this cannot be avoided, install an insulation panel.
13
818898
• The appliance may be free-standing or it may be placed next to a cupboard, a
cabinet or a wall. If you place the appliance next to a cupboard, a cabinet or a
wall, its power consumption may increase.
• There has to be a clearance of at least 50 mm between the appliance and
any cabinet above it. To allow for adequate ventilation and cooling of the
appliance, there has to be su cient clearance behind the appliance as well
(see installation diagram).
• Take into account the space or clearance required to open the appliance door,
in order to allow the drawers and shelves to be pulled out or removed (see
installation diagram).
592/663* mm
636/707* mm
9
0
°
(
m
a
x
1
1
5
°
)
599 mm**
641 mm***
50 mm
* depending on the model
** model with integrated handle
*** model with external/protruding handle
14
818898
CONNECTING THE APPLIANCE
• Connect the appliance to the power
mains using the power cord. The wall
outlet should be fi tted with a ground
contact (safety socket). Nominal
voltage and frequency are indicated
on the rating plate/label with basic
information on the appliance.
• The appliance must be connected
to the power mains and grounded
in compliance with the e ective
standards and regulations. The
appliance will withstand short-term
deviations from the nominal voltage,
but not more than +/- 6%.
15
818898
REVERSING THE DOOR
OPENING DIRECTION
The direction in which the appliance door opens can be reversed.
Note: Disconnect the appliance from the power mains before reversing the door
opening direction.
Tools required:
Socket wrench No. 8, shaped screwdriver
Flat screwdriver Spanner No. 8
Note:
• If the appliance has to be tilted to allow access to parts on the bottom, ask
another person for assistance or gently place the appliance on some soft
padding to prevent damaging it. To reverse the opening direction, proceed as
follows.
• The door reversing procedure described below pertains to models with
control unit installed inside the appliance or on the appliance door.
Therefore, observe the part relevant for your appliance in steps 2, 3, 6
and 15.
i
16
818898
1. Place the appliance in an upright position. Open the top door and remove
the door racks (to prevent damaging them during the procedure). Close the
door.
2.A. Control unit inside the appliance
Remove the top hinge cap (1).
1
17
818898
2.B. Controls on the appliance door
Remove the top hinge cap (1). Be particularly careful not to damage the
connector (A). Unplug the connector (A).
1
A
1
A
3.A. Controls in the appliance interior
Undo the screws (2) and remove the hinge (3). Hold the door while doing
this to prevent it from falling.
2
3
18
818898
3.B. Controls on the appliance door
Undo the screws (2) and remove the hinge (3). Run the connector (A)
through the hole in the hinge. Hold the door while doing this to prevent it
from falling.
2
3
A
4. Remove the top door from the middle hinge by carefully lifting it straight up.
Lay the door onto a smooth surface.
5. Take the (right) cap/cover (4) from the bag and place it on the spot from
which the top hinge was removed. Remove and save the cap/cover from the
other side (5) to which the hinge will be relocated.
4
5
19
818898
6.A. Controls in the appliance interior
Remove the cap (6) from the left side of the top door. Then, remove the cap
(7) from the right side of the top door. Place the cap (7) on the left side of
the top door and place the cap (6) on the right side of the top door.
6
7
6
7
6.B. Controls on the appliance door
Remove the cap (6) from the left side of the top door and pull out the
connector (A). Then, remove the cap (7) from the right side of the top door.
Place the cap (7) on the left side of the top door and place the cap (6) on
the right side of the top door.
6
7
6
7
A
A
20
818898
7. Undo the screw (8) and remove the door retainer (10) and the door stop
(9). Then, use a screw (8) to install the door retainer supplied in the bag,
and the door stop (9).
Keep the door retainer (10) in case you need it later.
10
9
8
8. Undo the screws from the middle hinge and remove it. Then, remove the
bottom door from the bottom hinge.
21
818898
9. Lay the bottom door onto a smooth surface. Undo the screw (8) and
remove the door retainer (10) and the door stop (9). Then, use a screw (8)
to attach the door retainer supplied in the bag, and the door stop (9). Keep
the door retainer (10) in case you need it later.
10
9
8
10. Remove the middle hinge cap and replace it on the opposite side.
11. Tilt the appliance backwards and remove the adjustable foot (13).
12. Unscrew the bottom hinge (14). Remove the adjustable foot (13) from the
bottom hinge pin (11). Unscrew the pin (11) from the bottom hinge and screw
it onto the opposite side of the hinge.
11
12
13
14
22
818898
13. Use the screws to attach the foot from step 11 and the bottom hinge from
step 12 to the opposite side.
14. Place the bottom door onto the bottom hinge and hold them in place.
Rotate the middle hinge by 180°. Place the washer in the correct position
and adjust the position of the middle hinge so that you can install and fix
the bottom door.
23
818898
15.A. Controls in the appliance interior
Place the top door in the correct position and use the screws (2) to attach
the upper hinge (3). Hold the top door in place while positioning them.
2
3
24
818898
15.B. Controls on the appliance door
Correctly position the top door, run the connector (A) through the hole in
the top hinge (3) and use the screws (2) to attach it. Hold the top door in
place while positioning them. Reconnect the connector (A).
2
3
A
A
16. Replace the upper hinge cap (1).
1
25
818898
17. Open the top door and replace the door rack; then, close the door.
Note: If your model has a handle, then move it to the opposite side by following
the instructions below. Remove the top door and lay them onto a smooth
surface. Remove the caps (1) and (4) and undo the screws (2) as shown in the
figure. Replace the handle (3) on the opposite side, tighten the screws (2) and
replace the caps (1) and (4).
26
818898
APPLIANCE DESCRIPTION
Appliance interior equipment may change according to the appliance model.
A Refrigerator
1 Control unit**
2 LED lighting
3 MultiFlow column
4 Glass shelves
5 FreshZone drawer
6 CrispZone fruit and
vegetables drawer with
humidity control*
7 Bottom door shelves
8 Bottle shelf
B Freezer
9 Top freezing and storage
drawer***
10 Deep SpaceBox drawer
for freezing and storage
11 Bottom storage drawer
2
4
5
6
A
B
9
10
11
7
8
1
1
3
• The drawers are fi tted with a system that prevents them from being
unintentionally pulled out. To remove a drawer from the appliance, pull it out
as far as it will go, then lift at the front and pull out completely.
* Only in some models
** In some models, the control unit is located on the door.
*** Some models have a tray instead
of the uppermost drawer.
27
818898
OPERATING THE APPLIANCE
To set the appliance temperature or activate the Eco function, press the B key
successively. The indicator cycles through the settings in a circular manner,
from right to left. Three seconds after the key is released, the setting will be
stored automatically and the relevant symbol will be lit.
To activate or deactivate intensive freezing (freezer boost), press the B key
and hold it for a few seconds.
A
B
C
D
E
CONTROL UNIT 1
(CONTROLS IN THE APPLIANCE INTERIOR)
A Appliance on/off key
B Temperature and extra functions settings key
C Set temperature display for the refrigerator compartment
The signal light above the set temperature display is lit
D Freezer boost function indicator
If intensive freezing (freezer boost) is activated, the signal light above the D
symbol will be lit.
E Eco function indicator
If the Eco function is activated, the signal light above the E symbol will be
lit.
28
818898
ADJUSTING THE TEMPERATURE IN THE APPLIANCE
SWITCHING THE APPLIANCE ON/OFF
Switching the appliance on: Press A
key and hold it for 2 seconds.
Switching off the appliance: Press the
A key again and hold it for 2 seconds.
The appliance will be switched off, but
it will remain powered.
• Adjust the temperature as desired
using the B key.
• Set the desired temperature by
successively pressing the B key.
• The indicator cycles through the
settings in a circular manner, from
right to left.
The numbers 2, 3, 4, 5, 6 and 8 indicate
the temperature in degrees Celsius (°C) in
the refrigerator compartment.
• We recommend setting the
temperature to +4 °C, as this will
preserve the quality and freshness of
food longer.
• The temperature in the refrigerator
compartment also a ects the
temperature in the freezer
compartment. For a lower temperature
in the freezer compartment, set a
lower temperature in the refrigerator
compartment.
• If the temperature of the room where
the appliance is installed is below
16 °C, we recommend setting the
temperature below 4 °C.
• The factory default setting is the recommended temperature of 4 °C. At this
setting; the temperature in the freezer compartment will be around –18 °C.
• After the appliance is switched on, it may take several hours for the set
temperature to be reached. Do not place any food into the refrigerator
before the temperature drops to the selected setting.
i
29
818898
INTENSIVE FREEZING (FREEZER BOOST) FUNCTION
Switching on: To activate intensive
freezing, press the B key and hold
it until the signal light above the D
symbol lights up.
• When intensive freezing is activated, you may still adjust the refrigerator
compartment temperature by briefl y pressing the B key.
Switching off: Press and hold the B key again, until the light above the D
symbol goes off. If the intensive freezing function is not deactivated manually,
it will be automatically switched off (after approximately two days), and the
temperature will return to the most recently set value.
• If there is a power outage while the intensive freezing function is active, the
function will be restarted when power supply resumes.
ECO FUNCTION
Switching on: To activate the Eco
function, press the B key until light
above the E symbol lights up.
When this function is activated, the
appliance operates under optimum
settings.
Switching off: To switch off the Eco
function, use the B key to select the
desired temperature.
• Use this setting after switching on the appliance for the fi rst time, before
cleaning, or 24 hours before adding a large amount of food.
• When the intensive freezing function is activated, the appliance will
operate with maximum power. During this time, operation may be
temporarily somewhat louder.
i
30
818898
HIGH TEMPERATURE ALARM
If the temperature inside the appliance
is too high, acoustic alarm will be
activated (intermittent tone) and the
signal light above the set temperature
(C) will start flashing.
• Every time you switch on the appliance using the A key, a 24-hour delay in
alarm operation is activated. If the appliance fails to reach a su ciently low
temperature after this period, the alarm will be activated.
Switching o the alarm:
• To acknowledge and switch o the
acoustic alarm, press the B key.
If the alarm is not switched o , it
will be activated every hour for
approximately 15 minutes.
• When you press the B key for
the fi rst time, the alarm will be
acknowledged and turned o .
When you press the B key again,
it will already work as a settings
adjustment key.
• The light above the set temperature
C will fl ash until the appliance
reaches a su ciently low
temperature.
If the refrigerator or freezer compartment door is open for more than 2
minutes, an acoustic alarm (repetitive beep) will be activated. If the alarm is not
deactivated manually, it will be sounded for 10 minutes.
Switching off the alarm: To switch off the alarm, close the door.
If you switch off the alarm by pressing the B key, the alarm will be
reactivated in 4 minutes if the door is still open.
i
If you leave the door open for more than 10 minutes, the alarm will stop
and the light above the display 8 will start to flash. Appliance operation
switches to safe mode in order to provide sufficient cooling and prevent
food spoilage despite the open door.
i
OPEN DOOR ALARM
31
818898
CONTROL UNIT 2
(CONTROLS ON THE APPLIANCE DOOR)
A Appliance on/off key
B Refrigerator/freezer compartment
switch key
B1 Freezer compartment display
B2 Refrigerator compartment display
C Temperature adjustment key
C1 Set temperature display
D Intensive freezing (freezer boost)
on/off key
D1 Intensive freezing (freezer boost)
function indicator
E Eco function on/off key
E1 Eco function indicator
A
B
C
D
E
E1
D1
B1
B2
C1
32
818898
SWITCHING THE APPLIANCE ON/OFF
Switching the appliance on: Press A
key and hold it for 3 seconds, after
a buzzer sound the appliance will be
turned on
Switching off the appliance: Press
the A key again and hold it for 3
seconds, aftera buzzer sound, mean
while the display C1 will show “OF”, the
appliance will be turned off.
We recommend that when you start your refrigerator for the first time, the
temperature for the refrigerator is set to 4°C. If you want to change the
temperature, follow the instructions below.
Caution! When you set a temperature, you set an average temperature for the
whole refrigerator cabinet. Temperatures inside each compartment may vary
from the temperature values displayed on the panel, depending on how much
food you store and where you place them. Ambient temperature may also affect
the actual temperature inside the appliance.
1. Fridge
Press B key (ZONE CHOICE), the symbol B2 will turn on. Then press C key, you
can set fridge temperature between 2°C and 8°C as needed, and display panel
will display corresponding values according to the following sequence.
8
2. Freezer
Press B key (ZONE CHOICE), the symbol B1 will turn on. Then press C key, you
can set freezer temperature between -14°C and -24°C as needed, and display
panel will display corresponding values according to the following sequence.
-18°C
-17°C
-15°C
-19°C
-16°C
-20°C
-21°C
-22°C -23°C
-14°C -24°C
ADJUSTING THE TEMPERATURE IN THE APPLIANCE
33
818898
3. Super Freeze
Super Freeze will quickly lower the temperature within the freezer so food will
freeze faster. This can lock in the vitamins and nutrients of fresh food and keep
food fresh longer.
• You can press D key (SUPER), to get into super freezer mode.
• When super freeze mode is selected, the light will be illuminated and the
freezer temperature will be set at -24°C.
• In case of the maximum amount of food to be frozen, please wait about 24 h.
• Super freeze automatically switches o after 50 hours and then the freezer
temperature setting will revert back to the previous setting.
4. ECO function
This function makes the freezer work in a power saving mode which is useful for
reducing energy consumption when you are away.
• You can press E key (ECO MODE), to get into Eco function.
• When Eco function is activated, the light E1 will be illuminated. The freezer
temperature will be set at -17°C and the fridge temperature will be set at 6°C.
5. Alarm
• When the door of fridge has been opened for over 2 minutes, the door alarm
will sound. In case of door alarm, buzzer will sound 3 times every 1 minute and
will stop alarming automatically after 8 minutes.
• To save energy, please avoid keeping the door open fora long time when using
the appliance. The door alarm can also be cleared by closing the door.
34
APPLIANCE INTERIOR
EQUIPMENT
(* EQUIPMENT DEPENDS ON THE MODEL)
818898
SHELF
WIRE BOTTLE RACK*
• Some models also feature a wire
bottle rack. It is protected against
being inadvertently pulled out. It can
only be pulled out when it is empty.
To pull it out, lift it slightly at the
back and pull it towards you. Place
the bottle rack so that the length of
the bottles does not hinder proper
closing of the door.
The holder can take a maximum load of nine 0.75-litre bottles or 13 kilograms
of total weight – see label on the right side in the appliance interior.
• Cans may also be placed on the bottle rack (lengthwise or crosswise).
• You can lay out the empty shelves to
your liking across the guides in the
refrigerator interior without having to
remove them from the refrigerator.
To move the shelf or take it out from
the refrigerator, slightly lift it at the
back, pull it towards you, and then
either move it or take it out of the
appliance.
Store quickly perishable food at
the back of the shelf where the
temperature is the lowest.
1
2
35
818898
FRUIT AND VEGETABLE BIN WITH HUMIDITY
CONTROL*
• The bin at the bottom of the refrigerator is intended for storing fruit and
vegetables. It provides humidity and prevents the food from drying out. The
bin has integrated humidity regulator which allows setting the humidity level.
Slider position to the right: closed
vents, higher humidity in the bin
Slider position to the left: open vents,
lower humidity in the bin
If you observe droplets accumulating
below the glass shelf, open the vents
and wipe the shelf (see chapter
TROUBLESHOOTING).
• Pulling out the bin:
- Pull out the bin as far as it will go.
Then, lift the front part and pull it
out completely.
36
818898
FRESHZONE DRAWER (FRESH BOX)
In the FreshZone compartment, food stays fresh longer than in a conventional
refrigerator, retaining more flavour and nutrients.
Decay and loss of mass are slowed down; therefore, fruit and vegetables remain
fresh and natural longer. For optimum performance, the drawer should be fully
closed.
• When buying food, make sure it is fresh as this will determine the quality of
the food, as well as how long it will keep in the fridge.
• Store the food in closed containers or appropriate packaging to prevent it
from emitting or receiving odours.
• Take the food from the drawer 30 to 60 minutes before use to allow the aroma
and fl avour develop at room temperature.
• Food sensitive to low temperature and not appropriate for storage in the
FreshZone drawer includes the following: pineapples, avocado, bananas,
olives, potatoes, eggplant, cucumbers, beans, peppers (capsicum), melons,
watermelons, pumpkins, squash, zucchini etc.
• To remove the drawer:
- Pull out the drawer until it is
blocked.
- Then, lift it at the front and pull it
all the way out.
(Only in some models)
37
818898
TURNING THE FRESHZONE DRAWER INTO A FRUIT AND
VEGETABLES DRAWER*
• If you fi nd you need extra space for your fruit and vegetables, you can turn
your FreshZone drawer into a fruit and vegetables drawer (CrispZone).
• To do this, use the slider as follows:
- To use the drawer as a FreshZone: push the slider to the right.
- To use the drawer as a fruit and vegetables drawer (CrispZone): move the
slider to the left.
CrispZone
FreshZone
(only with some NoFrost models)
38
818898
Interior side of the refrigerator door is
fitted with racks intended for storing
cheese, butter, eggs, yoghurt, and
other smaller packages, tubes, cans
etc.
You may lay out the racks as desired
by lifting them slightly from the
grooves that hold them in place and
moving them to the desired spot,
making sure to fit them in the grooves
there.
The bottom rack is intended for
storing bottles.
Maximum load on each door rack is 5
kg.
DOOR RACKS
39
Innovative sensor technology allows adjusting appliance operation to the
user's habits or behaviour. Adaptive intelligent system monitors, analyzes, and
records on a daily and weekly basis the use of appliance and adapts appliance
operation to the perceived patterns. If the appliance is able to anticipate
increased frequency of door opening, the appliance will automatically lower the
temperature before such time to prevent the increase of food temperature as
the door is opened more often. The appliance will also anticipate adding larger
amounts of food into the refrigerator or freezer and adapt by cooling or freezing
more intensively.
AdaptTech
• The advanced MultiFlow fan system evenly distributes the ionized air and
equalizes the temperature throughout the entire refrigerator. Air enriched with
extra negative ions mimics the natural microclimate that keeps the food fresh
for longer. This system also allows placing any type of food on any shelf in the
fridge, as there are not temperature di erences between them.
MultiFlow with air ionizer (NoFrost appliances)*
818898
40
RECOMMENDED DISTRIBUTION
OF FOOD IN THE APPLIANCE
818898
Sections in the refrigerator compartment:
- upper part: canned food, bread, wine, pastry etc.
- middle part: dairy products, ready-made meals, desserts, soft drinks, beer,
cooked food, etc.
- FreshZone bin: - meat, meat produce, delicatessen;
- Fruit and vegetable bin: fresh fruit, vegetables, salads, root vegetables,
potatoes, onions, garlic, tomatoes, sauerkraut, turnips etc.
PIZZA
PIZZA
Sections in the refrigerator
compartment door:
- upper/middle door bins: eggs,
butter, cheese etc.
- lower door bins: beverages, cans,
bottles
Do not store fruit (bananas,
pineapples, papaya, citruses) and
vegetables (zucchini, eggplant,
cucumbers, bell peppers,
tomatoes, and potatoes) sensitive
to low temperatures in the
refrigerator.
i
Freezer sections:
- freezing, storing frozen food (see chapter Freezing and storing frozen food).
Do not store the following in the freezer: lettuce, eggs, apples, pears,
grapes, peaches, yoghurt, soured milk, sour cream, and mayonnaise.
i
41
STORING FOOD IN THE
REFRIGERATOR
818898
IMPORTANT WARNINGS REGARDING FOOD STORAGE
i
Correct use of the appliance, appropriate packaging,
maintaining the right temperature, and observing the food
hygiene standards have a decisive impact on the quality
of food storage.
Observe the expiry dates for the food, indicated on the
packaging.
Food stored in the refrigerator should be kept in closed
containers or in appropriate packaging to prevent it from
emitting or receiving odours and humidity.
Do not store inflammable, volatile, and explosive
substances in the refrigerator.
Bottles with high alcohol content should be tightly sealed
and stored in an upright position.
Some organic solutions, essential oils in lemon and orange
peel, butter acid, etc. may damage the plastic surfaces
in case of a prolonged contact, causing damage and
premature ageing of these materials.
Unpleasant odour warns of lacking cleanliness of the
appliance or perished contents (see chapter Cleaning the
Appliance).
If you are leaving home for a longer period of time,
remove perishables from the refrigerator.
42
818898
AVOID CONTAMINATION OF FOOD
To avoid contamination of food, please respect the following instructions:
• Opening the door for long periods can cause a signifi cant increase of the
temperature in the compartments of the appliance.
• Regularly clean surfaces that can come in contact with food and accessible
drainage systems.
• Store raw meat and fi sh in suitable containers in the refrigerator, so that it is
not in contact with or drip onto other food.
• If the refrigerating appliance is left empty for long periods, switch o , defrost,
clean, dry, and leave the door open to prevent mould developing within the
appliance.
43
818898
STORING FOOD*
TYPE OF FOOD Optimum
storage
temperature (°C)
Optimum
storage humidity
level (%)
Approximate
storage time
Pork -1 to 4 95 3 days
Beef 0 to 4 95 up to 3 weeks
Lamb 0 to 4 95 14 days
Chicken 0 to 4 95 3 days
Fish 0 to 4 95 3 to 10 days
Mollusc 0 to 4 95 2 days
Wet-aged beef 1,5 95 16 weeks
Dairy products
(yoghurt, sour
cream, butter,
soft cheese,
cheese spreads
etc.)
2 to 4 95 7 to 10 days
Beetroot 0 95 3 to 5 months
Broccoli 0 95-100 10 to 14 days
Cabbage, young 0 98-100 3 to 6 weeks
Carrots, ripe 0 98-100 4 to 5 months
Lettuce, winter 0 95-100 2 to 3 weeks
Garlic 0 65-70 6 to 7 months
Kohlrabi 0 98-100 2 to 3 months
Brussels sprouts 0 90-95 3 to 5 weeks
Cabbage,
Chinese
0 95-100 2 to 3 months
Cabbage, late
varieties
0 98-100 3 to 4 months
Carrots 0 95-100 2 weeks
Cauliflower 0 95-98 2 to 4 weeks
Celery, regular 0 98-100 2 to 3 months
Swiss chard 0 95-100 10 to 14 days
Radicchio 0 95-100 2 to 4 weeks
Corn, sweet 0 95-98 5 to 8 days
44
818898
TYPE OF FOOD Optimum
storage
temperature (°C)
Optimum
storage humidity
level (%)
Approximate
storage time
Leeks 0 95-100 2 to 3 months
Mushrooms 0 95 3 to 4 days
Parsley 0 95-100 2 to 3 days
Parsnip 0 98-100 4 to 6 months
Radish, winter 0 95-100 2 to 4 months
Horseradish 0 98-100 10 to 12 months
Cauliflower 0 to 2 90-95 2 to 4 weeks
Onions 0 to 2 65-70 6 to 7 months
Asparagus 0 to 2 95-100 2 to 3 weeks
Peas, green 0 to 2 95-98 1 to 2 weeks
Vegetables,
chopped
0 to 2 90-95 up to 5 days
Brussels sprout 0 to 2 90-95 1 to 2 weeks
Gooseberries 0 to 2 90-95 3 to 4 weeks
Cucumbers 4 to 10 95 10 to 14 days
Potatoes 7 to 10 90-95 up to 9 months
Avocado, unripe 7 to 10 85-95 up to 6 weeks
Bell peppers 7 to 10 90-95 2 to 3 weeks
Tomatoes 10 to 12 85-90 4 to 7 days
Beans, seeds < 15 40-50 6 to 10 months
Pears -3 90-95 2 to 7 months
Apricots -1 90-95 1 to 3 weeks
Strawberries 0 90-95 3 to 7 days
Raspberries 0 to 2 90-95 2 to 3 days
Currants 0 to 2 90-95 1 to 4 weeks
Blueberries 0 to 2 90-95 14 days
Cherries 0 to 2 90-95 2 to 3 weeks
Grapes 0 to 2 85 2 to 8 weeks
Kiwi, ripe 0 to 2 90-95 1 to 3 months
Peaches 0 to 2 90-95 2 to 4 weeks
45
818898
TYPE OF FOOD Optimum
storage
temperature (°C)
Optimum
storage humidity
level (%)
Approximate
storage time
Cherries 0 to 2 90-95 2 to 3 weeks
Kiwi, unripe 0 to 2 90-95 2 to 6 months
Nectarines 0 to 2 90-95 1 to 3 weeks
Oranges 0 to 2 90-95 2 to 4 weeks
Persimmon 0 to 2 90-95 2 to 3 months
Plums 0 to 2 90-95 2 to 5 weeks
Fruit, chopped 0 to 2 90-95 up to 10 days
Apples 0 to 4 90-95 1 to 12 months
Melons 4 90-95 15 days
Oranges 4 to 7 90-95 2 to 4 weeks
Tangerines 5 to 8 90-95 2 to 4 weeks
Mango 10 to 13 85-95 2 to 3 weeks
Melons 10 to 13 85-95 1 to 2 weeks
Pineapples 10 to 13 85-95 2 to 4 weeks
Lemons 11 to 13 90-95 2 to 3 weeks
Watermelon 12 to 15 85-95 1 to 3 weeks
Bananas, ripe 13 to 16 85-95 3 days
Grapefruit 13 to 16 90-95 1 to 3 weeks
46
FREEZING AND STORING
FROZEN FOOD
818898
i
Maximum amount of fresh food that may be inserted
at once is specified on the appliance rating plate. If
the amount of food to be frozen exceeds the indicated
amount, the quality of freezing will be inferior; in addition,
the quality of the food already frozen will deteriorate.
• To make use of the entire freezer volume, remove all drawers. To make sure
the food is frozen as soon as possible, place it directly onto the bottom of the
freezer compartment.
• Activate the super freeze function 24 hours before freezing fresh food:
- Control unit 1: press and hold the B key until the light above the D symbol
lights up.
- Control unit 2: press the D key until the D1 symbol lights up.
Make sure the fresh food is not in contact with the food that is already frozen.
• When freezing smaller amounts of food (1-2 kilograms), activating the super
freeze function is not required.
FREEZING PROCEDURE
47
818898
i
Only use the freezer to freeze food appropriate for freezing.
Always use quality and fresh food.
Select the most suitable packaging for the food and use the
packaging correctly.
Make sure the packaging is air and water tight so that the
food does not dry out and loose its vitamins.
Indicate the type of food, amount, and date of freezing on
the packaging.
It is important that the food freezes quickly. Therefore,
smaller packages are recommended. Refrigerate the food
before freezing.
IMPORTANT WARNINGS ON FREEZING
STORING INDUSTRIALLY FROZEN FOOD
• When storing and using frozen food, observe the manufacturer's instructions.
Temperature and expiry date are indicated on the packaging.
• Only choose food with undamaged packaging, stored in freezers at
temperatures of –18 °C or lower.
• Do not purchase food covered in frost as this indicates it has been partly
thawed several times and that it is of inferior quality.
• Protect the food from thawing during transport. In case of an increase in
temperature, storage time will be shorter and quality will deteriorate.
48
818898
FROZEN FOOD STORAGE TIME
RECOMMENDED STORAGE TIME IN THE FREEZER
Type of food Time
fruit, beef from 10 to 12 months
vegetables, veal, poultry from 8 to 10 months
Venison from 6 to 8 months
Pork from 4 to 6 months
finely chopped or ground meat 4 months
bread, pastry, cooked meals, lean fish 3 months
entrails 2 months
smoked sausage, fatty fish 1 month
DEFROSTING FROZEN FOOD
• Defrosting is an important step when storing frozen food. The food has to be
defrosted correctly.
• Following are suitable defrosting methods:
- in the refrigerator,
- in cold water,
- in a microwave oven or a convection oven with a suitable defrosting
program.
• Some frozen products can be cooked without prior defrosting.
This will be specifi ed by the manufacturer on the packaging.
• Pack the food in small amounts. This will allow the food to defrost quicker.
• Use partly or completely defrosted food as soon as possible. Bacteria
in defrosted food is reactivated and the food will spoil fast. This applies
particularly to fruit, vegetables, and ready-made food.
• Do not re-freeze food that has been partly or completely defrosted.
49
DEFROSTING THE APPLIANCE
818898
Refrigerator does not need defrosting because the ice on the back interior wall
is thawed automatically.
Any accumulated ice will melt when the compressor unit is inactive. Drops will
flow through an opening in the refrigerator rear wall into a tray fitted above the
compressor, from where they will evaporate.
Make sure the opening in the back wall in the refrigerator interior is never
blocked by food or any other object.
If an excessive layer of ice is formed on the rear wall of refrigerator interior (3–5
mm), switch off the appliance and defrost the appliance manually.
AUTOMATIC REFRIGERATOR DEFROSTING
DEFROSTING A NO FROST FREEZER
• The NO FROST freezer will defrost automatically. Any frost layer that may
build up occasionally will disappear automatically.
50
CLEANING THE APPLIANCE
818898
• Use a soft cloth to clean all surfaces. Cleaners that contain abrasive
substances, acids, or solvents are not suitable for cleaning as they may
damage the surface.
Clean the appliance exterior with water or a mild solution of suds.
Lacquer-coated and aluminium surfaces may be cleaned with lukewarm water
to which you have added a mild detergent. Use of cleaners with low alcohol
content is allowed (e.g. window cleaners). Do not use cleaners containing
alcohol for cleaning plastic materials.
Appliance interior can be cleaned with lukewarm water to which you can
add some vinegar.
Before cleaning, unplug the appliance from the power mains – switch off the
appliance (see chapter Switching the Appliance On/Off) and unplug the power
cord from the wall outlet.
!
• Do not wash the parts of appliance interior equipment in a dishwasher as
they may be damaged.
51
TROUBLESHOOTING
Problem: Cause or remedy:
Appliance is connected
to the power mains but
it does not work.
• Make sure there is voltage in the power outlet and
that the appliance is switched on.
Cooling system
operates continuously
for a long period of
time:
• Too high environment temperature.
• Door opened too frequently or too long.
• Door not closed correctly (possible impurities on
the seal, misaligned door, damaged seal etc.).
• Too much fresh food inserted at once.
Condensate (dew) on
the shelf above the
drawers:
• This is transient phenomenon which cannot be
entirely avoided in periods of high environment
temperature and humidity. It subsides when
temperature and humidity are normalized. We
recommend cleaning the drawers more frequently
and wiping the droplets occasionally.
• Open the humidity control slider.
• Put food in bags or other packaging with a good
seal.
Droplets on
the refrigerator
compartment back wall.
• This is normal. The refrigerator compartment
is defrosted automatically, which results in
droplets of water that flows through an opening
in the refrigerator compartment back wall into
a tray above the compressor unit, from which it
evaporates.
Water is dripping/
leaking from the
refrigerator:
• Clogged water discharge opening or water
dripping past the water gutter.
• Clean the blocked opening, e.g. using a plastic
straw.
• If a thick layer of ice builds up, defrost the
appliance manually (see Defrosting the Appliance).
The light above the set
temperature display will
flash (control unit 1).
• Door opened too frequently or too long.
• Door not closed correctly (possible impurities on
the seal, misaligned door, damaged seal etc.).
• An extended power failure.
• Too much fresh food inserted at once.
818898
52
Problem: Cause or remedy:
Door is difficult to open: • If you are trying to open the freezer door after
just having closed it, this could be difficult to do.
As you open the door, some cool air escapes from
the appliance and it is replaced by warm air from
the environment. When this air is cooled, negative
pressure is generated which results in problems as
you try to open the door. After a few minutes, the
condition is normalized and the door can be easily
opened again.
Appliance sides are
warm.
• This is normal. There are pipes and tubes installed
in the appliance sides, which tend to heat up
during appliance operation.
LED lighting does not
work:
• If LED lighting does not work, call a service
technician.
• Do not attempt a repair of the LED lighting
yourself, as there is danger of contact with high
voltage!
If the above tips do not resolve your problem, call the nearest authorized service
centre and state the type, model, and serial number indicated on the appliance
rating plate or label located in the appliance interior.
818898
53
INFORMATION ABOUT
APPLIANCE NOISE
818898
Cooling in refrigerator freezers is made possible by a cooling system that also
includes a compressor (and a fan with some appliances), which generates some
noise. The level of noise depends on installation, proper use, and age of the
appliance.
• After connecting the appliance to the power mains, compressor operation,
or the sound of fl owing liquid, may be somewhat louder. This is not a sign
of malfunction and it will not a ect the useful life of the appliance. In time,
appliance operation and this noise will become quieter.
• Sometimes, unusual or loud noises may appear during appliance operation;
these are mostly the result of improper installation:
- The appliance must stand level and stable on a solid base.
- The appliance may not be in contact with a wall or adjacent furniture.
- Make sure the interior equipment sits firmly in its place and that the noise is
not caused by rattling cans, bottles or other containers placed next to each
other.
• Due to the higher workload on the cooling system when the door is opened
more frequently or for a longer time, when a large amount of fresh food is
introduced or when intensive freezing or cooling functions are activated, the
appliance can temporarily generate more noise.
WE RESERVE THE RIGHT TO CHANGES THAT DO NOT AFFECT THE
APPLIANCE FUNCTIONALITY.
54
Hisense UK Ltd
Unit 2 Meadow Court Millshaw Lane Leeds, West Yorkshire, LS11 8LZ,
United Kingdom
Hisense France SAS
9 Rue des 3 Sœurs, 93420 Villepinte, France
Hisense Germany GmbH
Garmischer Strasse 4-6, 80339 München, Germany
Hisense Italia SRL
Via Montefeltro, 6/A 20156 Milano, Italia
Hisense Iberia S.L
Ronda Auguste y Louis Lumiere, 23 Nave 12
Edificio Lumiere – Parque Technológico 46980 Paterna (Valencia). España
Gorenje gospodinjski aparati, d.o.o.
Partizanska cesta 12, 3320 Velenje, Slovenia
818898
COMBI FS600-20 ADV HSN en (08-20)
