User manual Vacuum

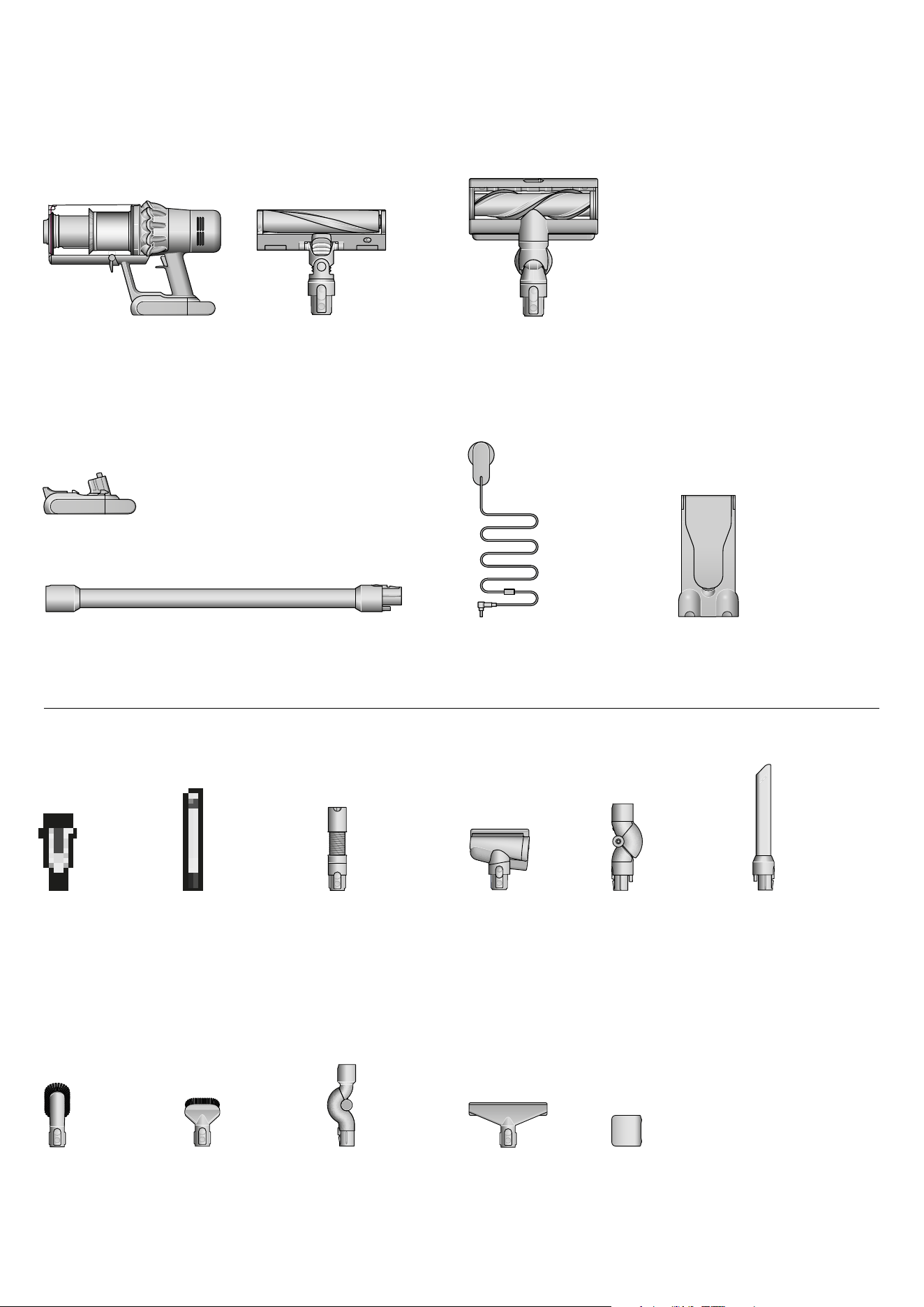

In the box
Your machine will come with one or more of these cleaner heads – not all will be included.
Vacuum cleaner with click-in battery
Laser Slim Fluffy™ cleaner headA precisely-angled laser makes invisible dust visible on hard floors.
High torque cleaner head with anti-tangle combDyson DLS™ technology monitors brush bar resistance and adapts power across different floor types. Polycarbonate teeth prevent tangling around the bristles.
Additional click-in battery
Wand
Charger
Charges your vacuum with or without a dock.
Wall dock
Your Dyson vacuum drops into the wall-mounted charging dock, ready for your next clean.

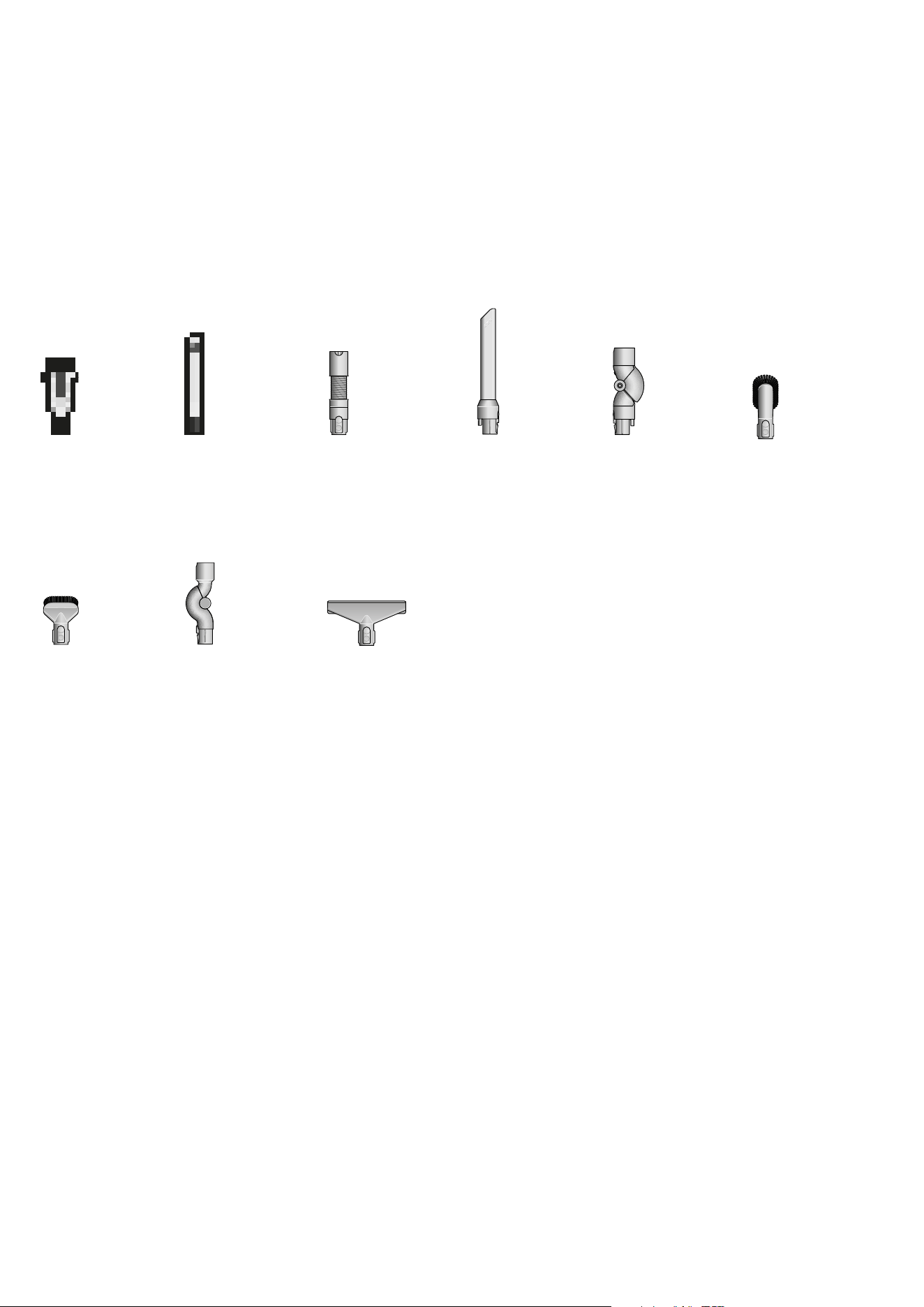

Some tools may not be included.
You can buy additional tools at www.dysan.com.
Combination tool
Two tools in one-wide nozzle and brush, for quick switching between cleaning and dusting tasks around your home or car.
Crevice tool
Engineered for precise cleaning around tricky edges and into hard-to-reach narrow spaces.
Extension hose
Adds up to 61cm of flexible reach to any tool attachment, to clean up high or down low in your home or car.
Hair screw tool
Anti-tangle conical brush bar spirals hair off and into the bin. Motor-driven cleaning for smaller spaces.
Low-reach adaptor
Bends to comfortably reach down low. Engineered to clean further under low furniture by adjusting the wand angle up to 90°.
Light pipe crevice tool Crevice tool with LED lights lets you reach into dark, narrow spaces and see where you're cleaning.
Soft dusting brush
Enclosed in a skirt of soft nylon bristles for gentle, vacuum- assisted dusting of delicate objects and surfaces.
Stubborn dirt brush
Stiff nylon bristles dislodge ground-in dirt from coarse carpets, high traffic areas and car interiors.
Up-top adapter
Twists into different positions and angles for easy high-reach cleaning.
Mattress tool
Removes dust, dirt and allergens from mattresses and upholstery.
Wand clip
Clips to your vacuum's wand to hold tools.

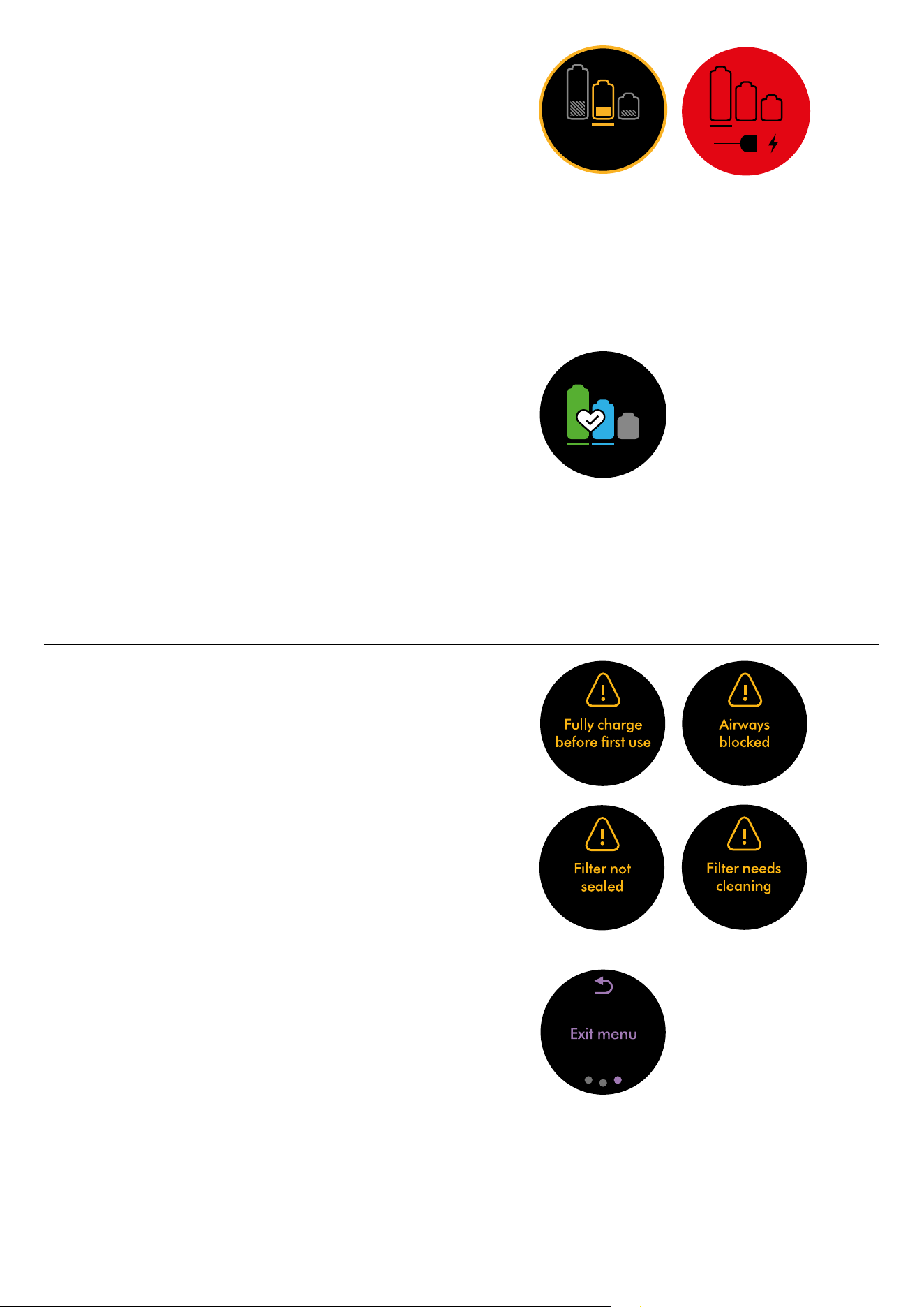

Getting started
Location of the Selection button on the screen on the filter end of the machine.

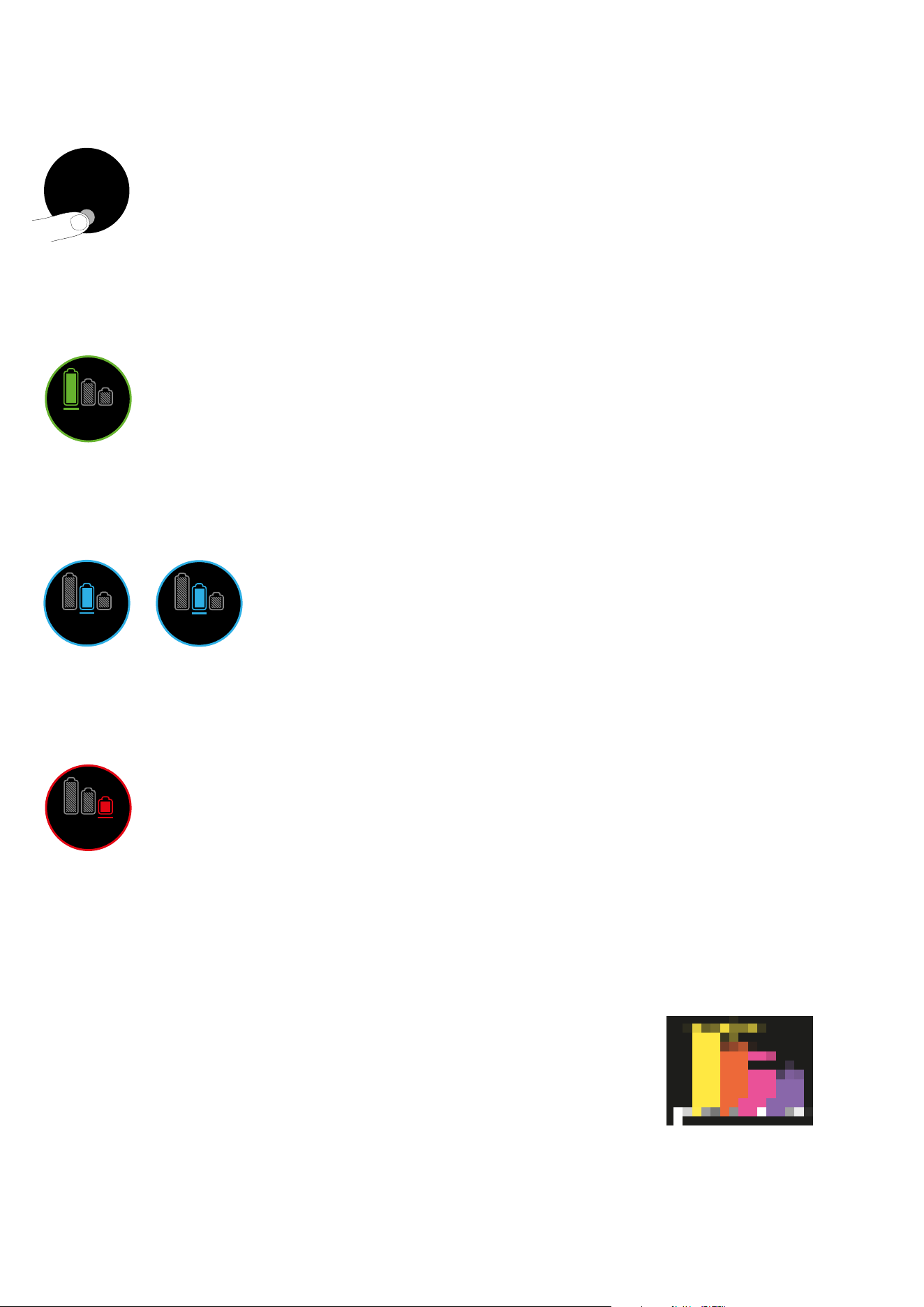

Power modes
Your machine has three power modes for different tasks. Change power modes quickly using a single button.
The screen showing the machine set to Eco mode with a full battery in green to show that this will give the longest battery life of the three modes.
Eco mode
Maximum run time for longer cleans all around your home.
Diagram showing the connection of the wand onto the main body, with the wand release button aligned with the top of the main body.
Two screens showing the machine set to Auto mode and Med mode with a blue battery showing that this will give a medium length of battery
Auto and Med mode
The optimum balance of power and run time. Attach your cleaner head or Hair screw tool to activate Auto mode. Suction power automatically adapts to dust levels.
The screen showing the machine set to Boost mode with a red battery to show that this will give the shortest battery life of the three modes.
Boost mode
Designed for intensive spot cleaning of ground-in dirt
Turn your laser on and off
Turn your laser on or off with the slider switch on your cleaner head.
Class 1 laser product-safe for pets and humans. Avoid looking directly into the beam
Measures microscopic dust particles
A piezo sensor continuously sizes and counts dust particles at the inlet. Attach your cleaner head or Hair screw tool and use in Auto mode to automatically increase suction power when needed.
Charging your machine
It's important to fully charge your new machine before using it for the first time, and after every clean. This is because the battery and monitoring system's algorithm 'learns' over time, and fully charging your machine helps it to more accurately calculate and display remaining run time.
Connect to charger either directly or in the dock.
The blue LEDs on either side of the battery will flash during charging.
When the battery is fully charged, both LEDs will light for 5 seconds.
Your battery is fully charged when the display shows 100%.
Your machine won't operate or charge if the ambient temperature is below 5°C(41°F). This is designed to protect both the motor and battery.

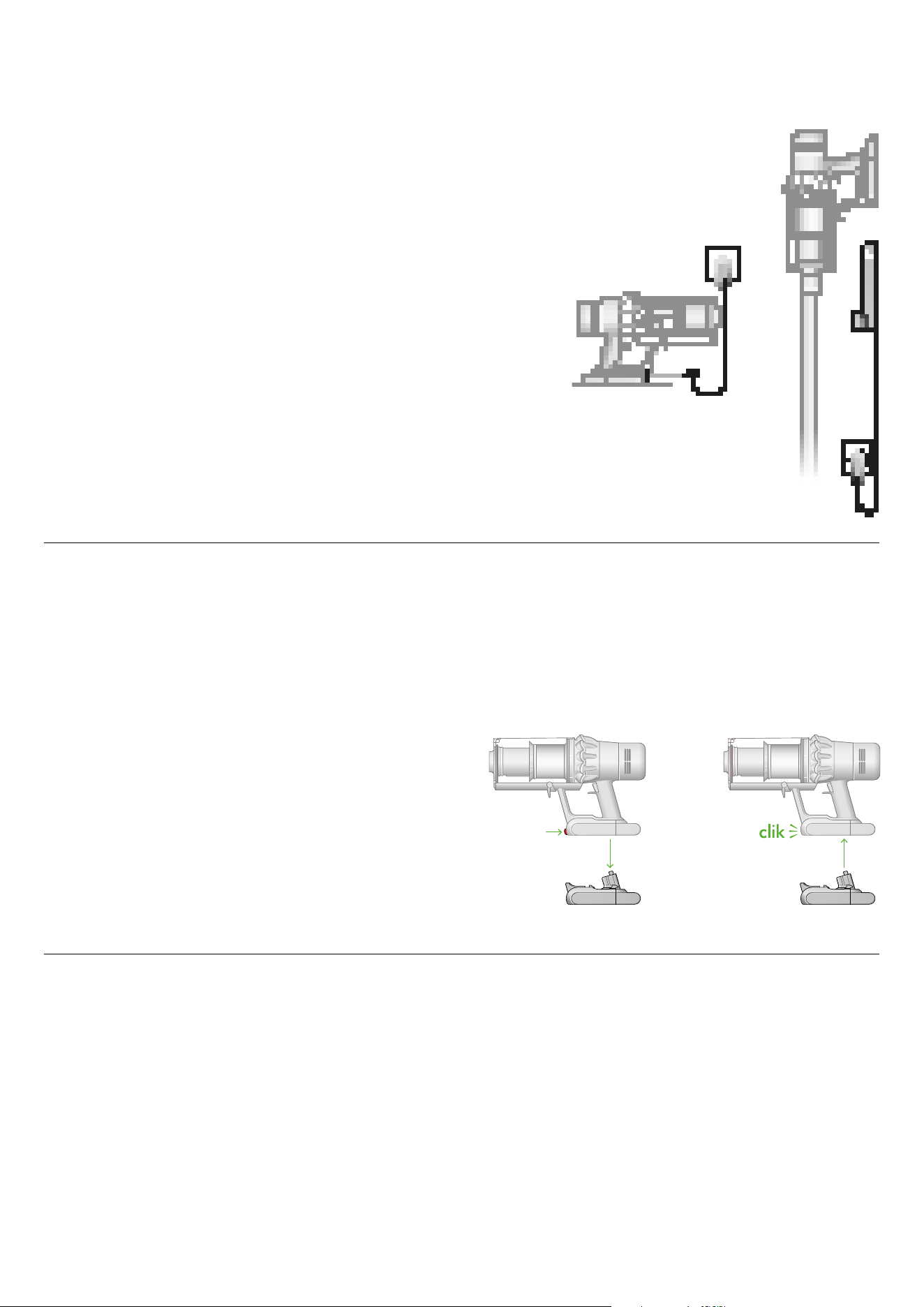

The charger connected from the power supply directly into the front of the battery.
The charger connected from the power supply using the wall dock.
Changing your click-in battery
If you have additional click-in batteries, we recommend that you alternate the batteries to maintain even performance.
Removing your battery
Push the Battery release button on the handle and slide the battery off your machine.
Charge the battery.
Refitting your battery
Align your battery with the handle and slide it in. Push firmly until it clicks into place. clik
Arrows showing the location of the Battery release button and the battery coming off the handle when the button is pressed. The battery is then shown being replaced on the base of the handle, clicking into place.
Caring for your floors
Check that the underside of the cleaner head or tool is clean and free from any objects that may cause damage.
Before vacuuming your flooring, rugs, and carpets, check the manufacturer's recommended cleaning instructions.
The brush bar on your machine can damage certain carpet types and floors. Some carpets will fuzz if a rotating brush bar is used when vacuuming. If this happens, we recommend vacuuming without the motorised floor tool and consulting with your flooring manufacturer.

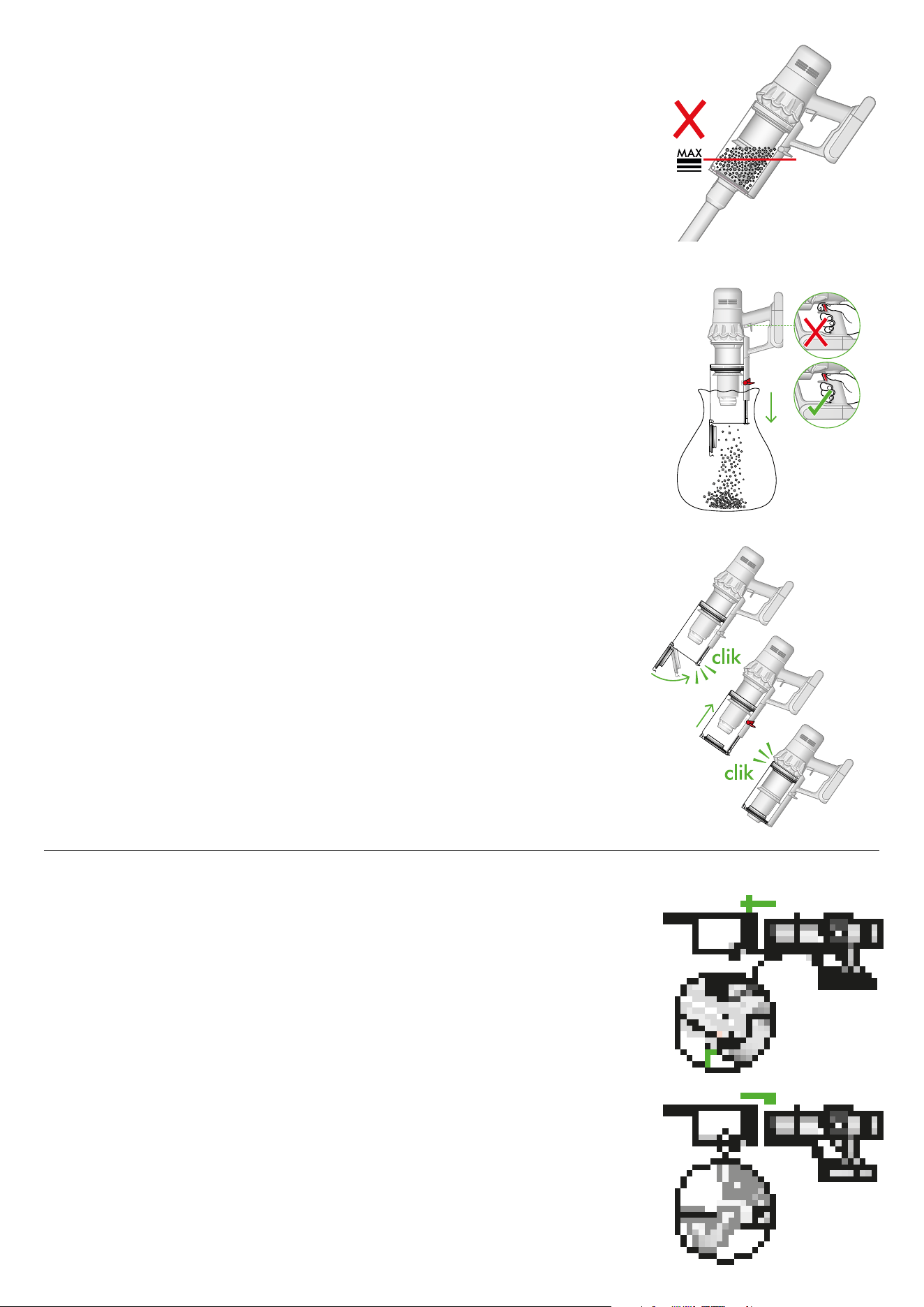

Cleaning your bin
Remove your bin
If it is necessary to clean your bin, empty it as shown in the 'Emptying your bin' section.
Press the red button located on the bin runner to release the bin and slide your bin off the runner.
Only clean your bin with a damp cloth.
Make sure that the bin and seals are completely dry before replacing.
The bin being removed and the location of the bin release lever on the underside of the bin runner.
Refit your bin
Insert the spine on to the bin runner.
Close your bin by pushing the bin base upwards until the bin and bin base click into place.
Your bin isn't dishwasher safe and the use of detergents, polishes or air fresheners to clean your bin isn't recommended, as it may damage your machine.
The bin being pushed back into position on the bin runner.
Clearing blockages

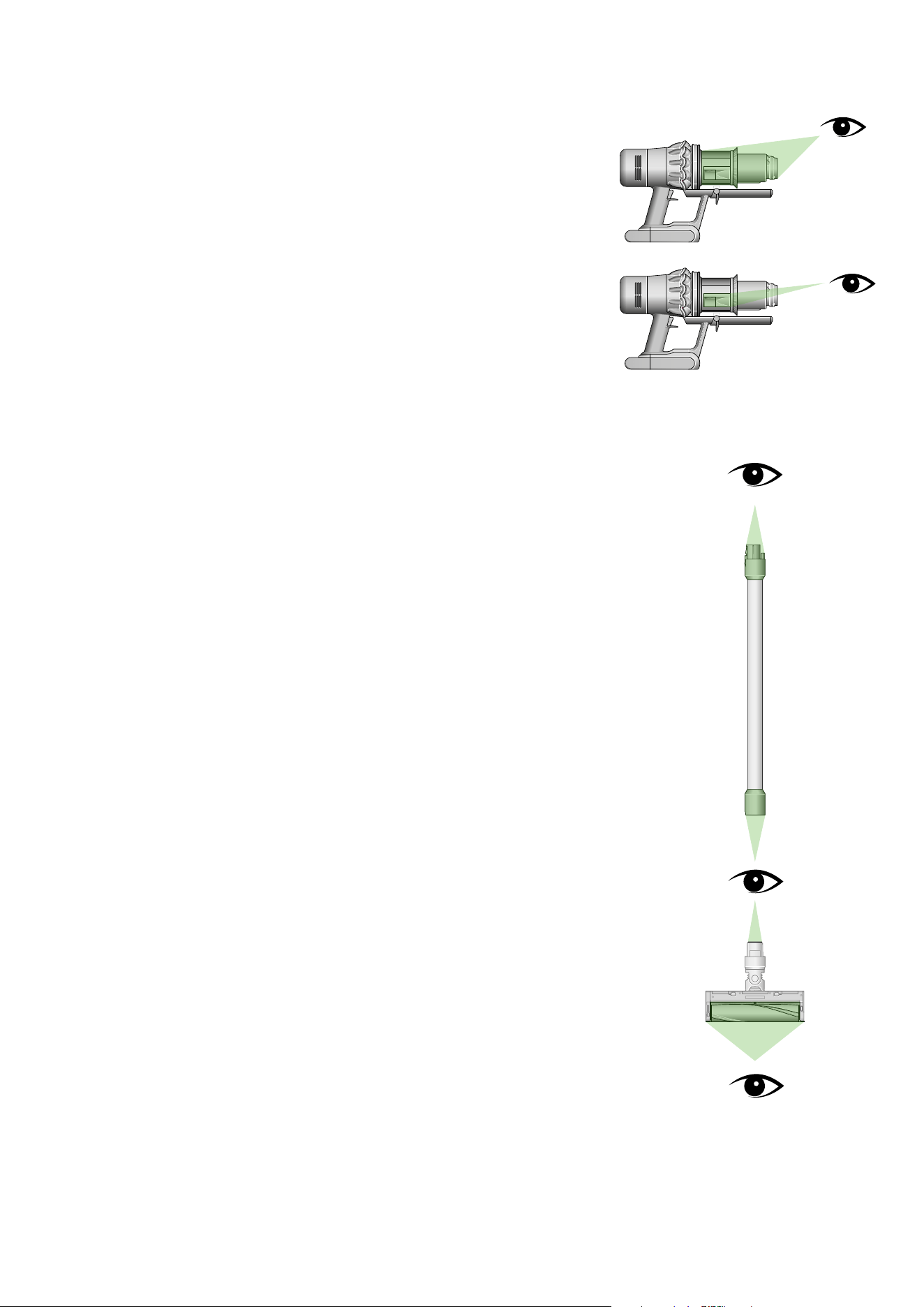

Disconnect your machine from the charger before looking for blockages. Be careful not to touch the trigger and be aware of sharp objects.
Leave your machine to cool down before looking for blockages.
Don't use your machine when looking for blockages as this could cause injury.
If your machine detects a blockage, the motor will pulse and you won't be able to use your machine until the blockage has been cleared.
If you try to use your machine when the motor is pulsing, it will automatically cut out.
With the bin removed, check for blockages, paying particular attention to the air inlet, located at on the right- hand side of the machine just below the point where the bin joins the main body of the machine.
Check the main body
Remove the bin and check for blockages in the main body of your machine.
Make sure any blockages are completely cleared and all parts are fitted before using your machine.
Check the wand and cleaner head
Check the wand for blockages.
Check your cleaner head for blockages, following the instructions to remove the brush bar, where necessary.
Re-assemble your machine
Refit all parts securely before using your machine.
Clearing blockages isn't covered by your guarantee.
With the wand removed from the machine, check for blockages at both ends of the wand.
Turn the cleaner head over to check for obstructions on the brush bar and air inlet.

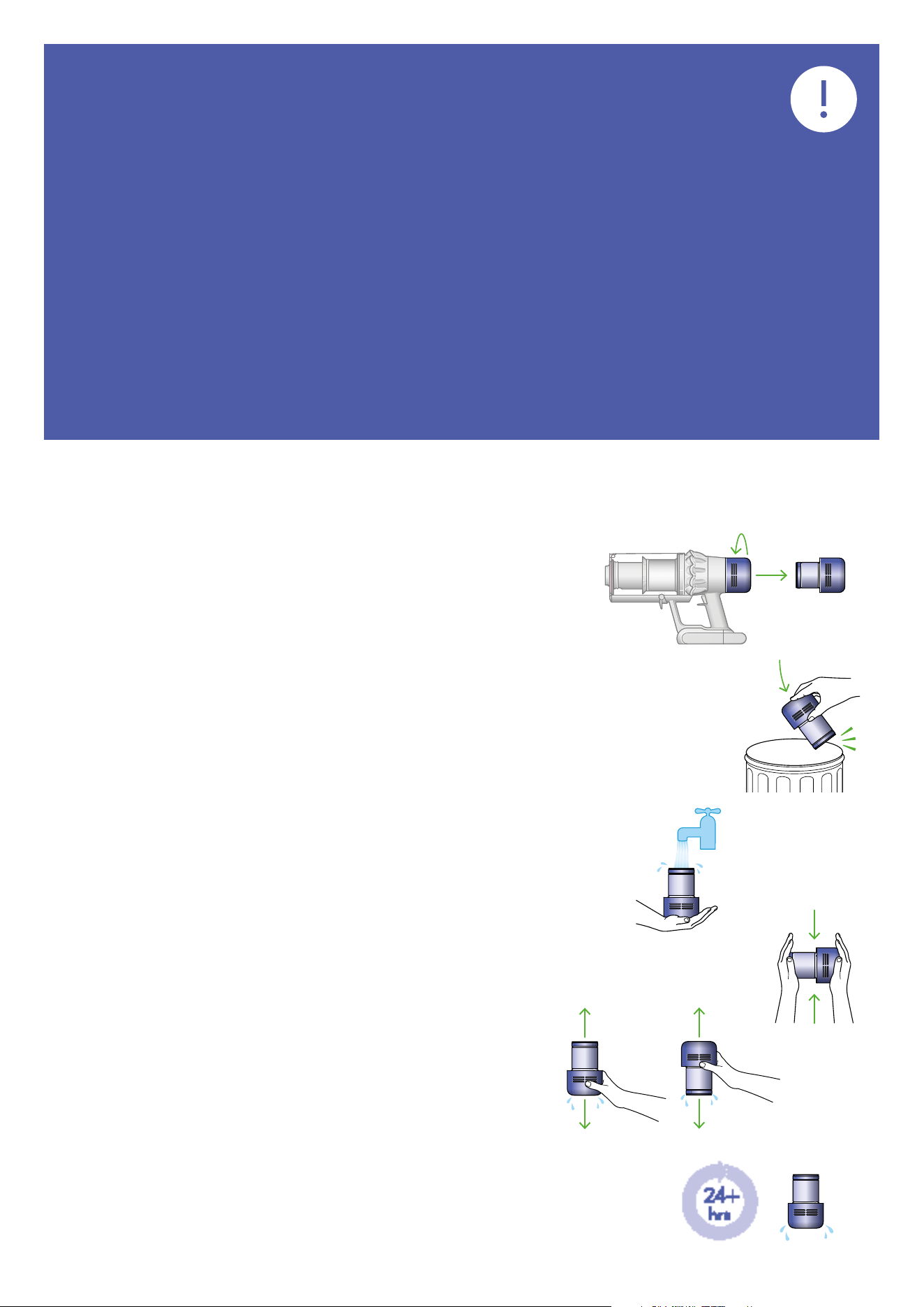

Twist off your filter
Twist your filter anti-clockwise and pull it away from your machine.
Tap your filter
Before washing your filter, tap it gently over a bin to remove any loose dust and debris.
Wash your filter
Wash with warm, running tap water-gently rubbing your filter with your fingers to remove the dirt.
Fill and shake
Place your hand over one end of your filter.
Fill the filter with warm tap water.
Place your hand over the open end of the filter and shake it firmly to remove trapped dirt and debris.
Shake out the water
Empty the filter and shake firmly to remove excess water.
Shake with the filter in both an upward and downward position.
Keep shaking until there's no water coming from the filter.
Dry your filter
Leave your filter to dry for at least 24 hours in a well-ventilated, warm place.
Don't dry your filter in a tumble dryer, microwave or near a naked flame.
Important: your filter must be completely dry before you put it back into the machine. Your machine could be damaged if used with a damp filter.
Washing your Laser Slim FluffyTM brush bar
Your Laser Slim Fluffy" cleaner head has a washable brush bar. To maintain optimum performance, check and wash your brush bar regularly.
Make sure your machine is disconnected from the charger and take care not to touch the trigger.
Remove your brush bar
Don't put any part of your machine in a dishwasher or use detergents, polishes or air fresheners.
Press the cleaner head release button on the end of the wand. Place the cleaner head upside down.
Push the end cap up fully and pull the brush bar out of the cleaner head.

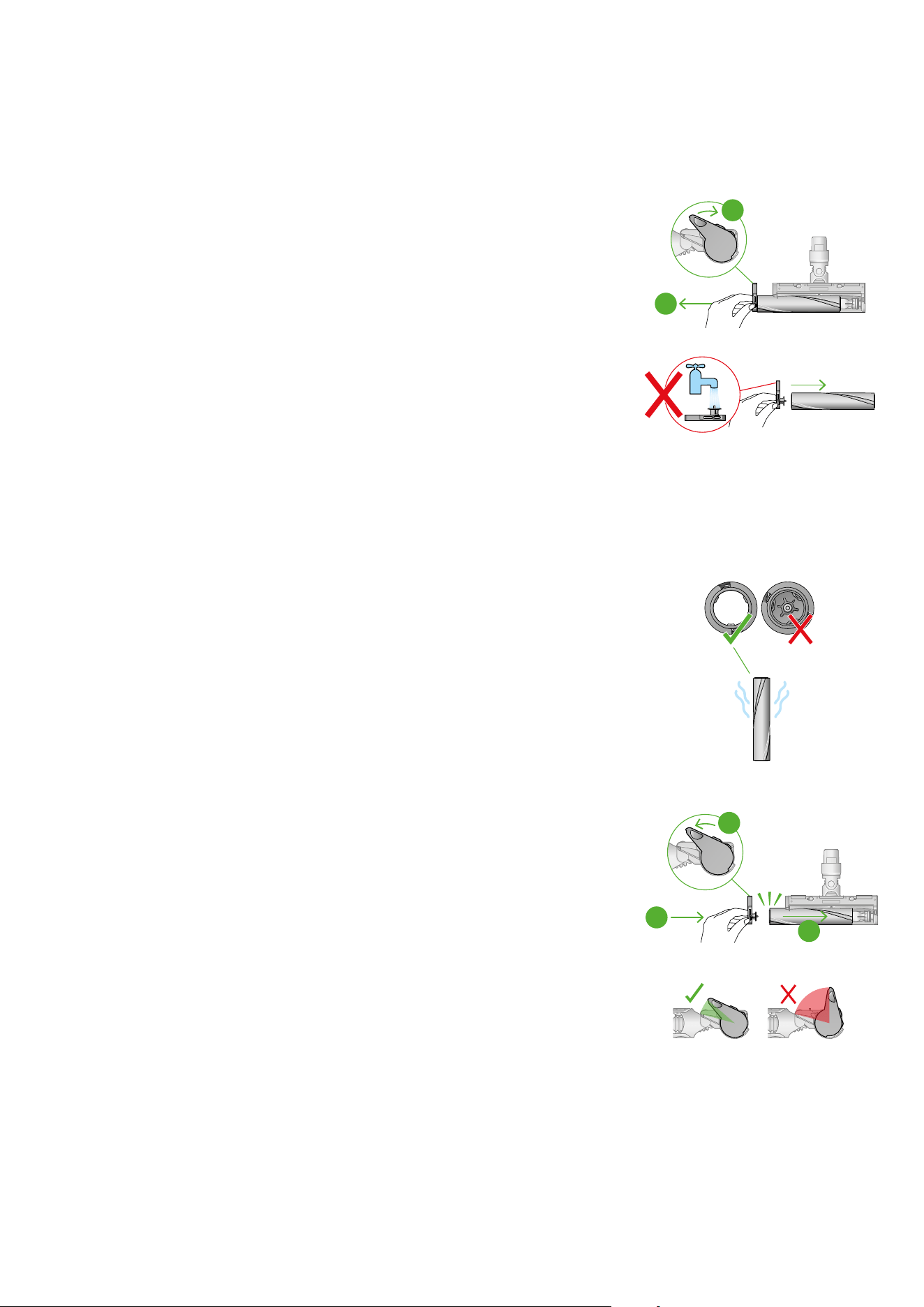

Wash and dry your brush bar
Hold your brush bar under running water and gently rub to remove any lint or dirt.
Stand your brush bar upright as shown. Leave to dry completely for at least 24 hours.
Replace your brush bar
Before replacing, check that your brush bar is completely dry.
Reattach the end cap to your brush bar.
Slide your brush bar into the cleaner head. Push the end cap back down to the closed position.
Cleaning your laser lens
To maintain optimum performance, keep your laser lens clean. Only clean the lens when the cleaner head is not attached to your machine.
Use a soft, dry, lint-free cloth to wipe the lens.
Clearing obstructions from your High Torque cleaner head with anti-tangle comb
Your High Torque cleaner head with anti-tangle comb doesn't have a washable brush bar. To maintain optimum performance, check your brush bar regularly and clear any obstructions.
Make sure your machine is disconnected from the charger and take care not to touch the trigger.
Remove your brush bar
Don't put any part of your machine in a dishwasher or use detergents, polishes or air fresheners.

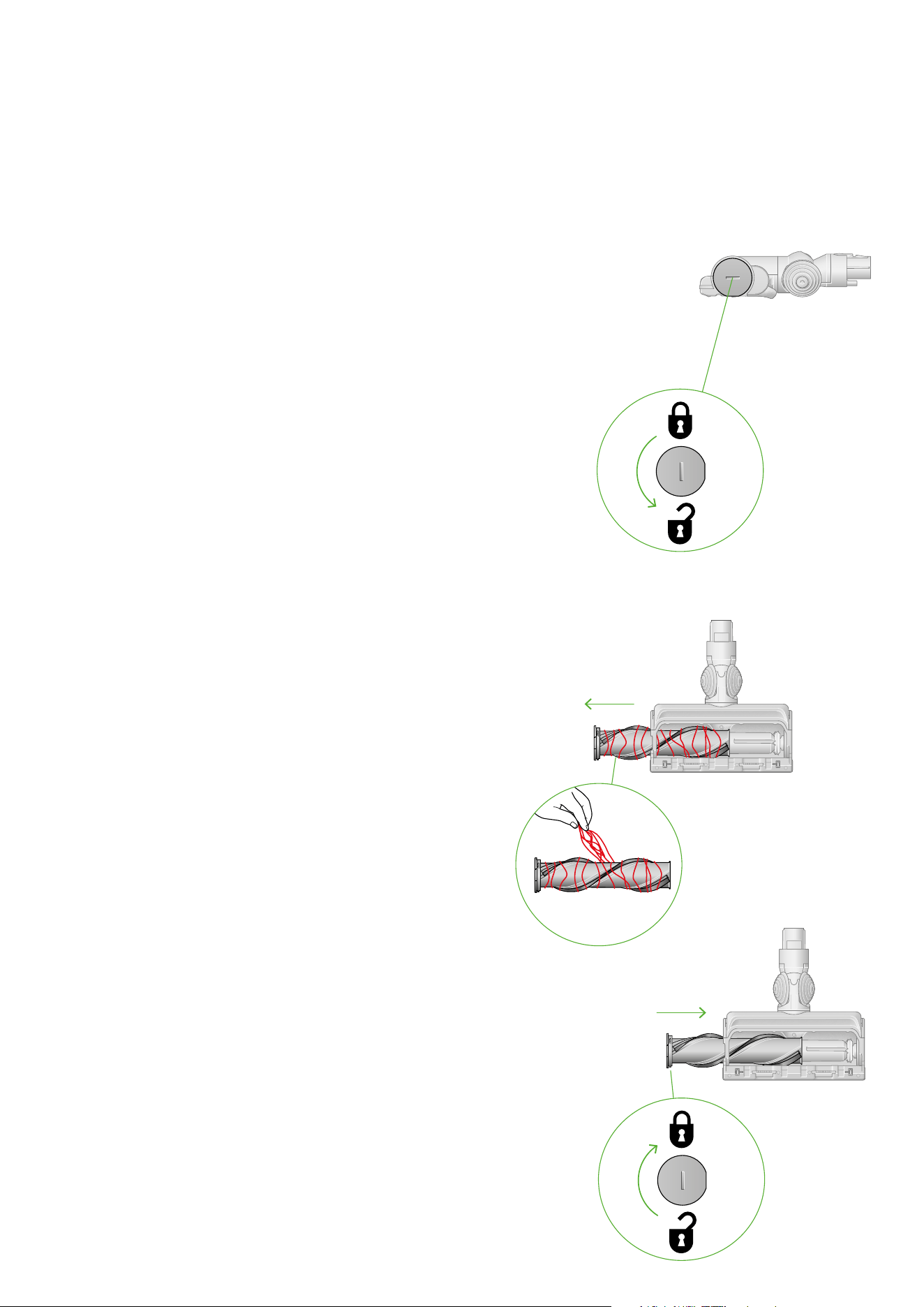

Press the cleaner head release button on the end of the wand. Place the cleaner head upside down.
Use a coin to unlock the end cap.
Twist the end cap and remove it from your brush bar. Don't wash the end cap.
Slide your brush bar out of the cleaner head.
Look for obstructions
Clear any debris from your brush bar.
Check inside the cleaner head and remove any debris or blockages.
Your High Torque cleaner head and brush bar aren't washable. Wipe over with a damp lint-free cloth.
Don't put any part of your machine in a dishwasher or use detergents, polishes or air fresheners.
Replace your brush bar
Push the end cap back on to your brush bar and slide it back into the cleaner head.
Turn the end cap into the locked position.
Your cleaner head isn't washable and should only be wiped over with a damp lint-free cloth.
Cleaning your tools
Don't put any part of your machine in a dishwasher or use detergents, polishes or air fresheners.
Wipe with a damp, lint-free cloth, without touching the connector end.
Make sure your tools are completely dry before using.
Clearing blockages from your Hair screw tool
Your Hair screw tool doesn't have a washable brush bar. To maintain optimum performance, check your brush bar regularly and clear any obstructions.
Make sure your machine is disconnected from the charger and take care not to touch the trigger.
Remove the cover and brush bar
Remove the Hair screw tool from the wand or machine.

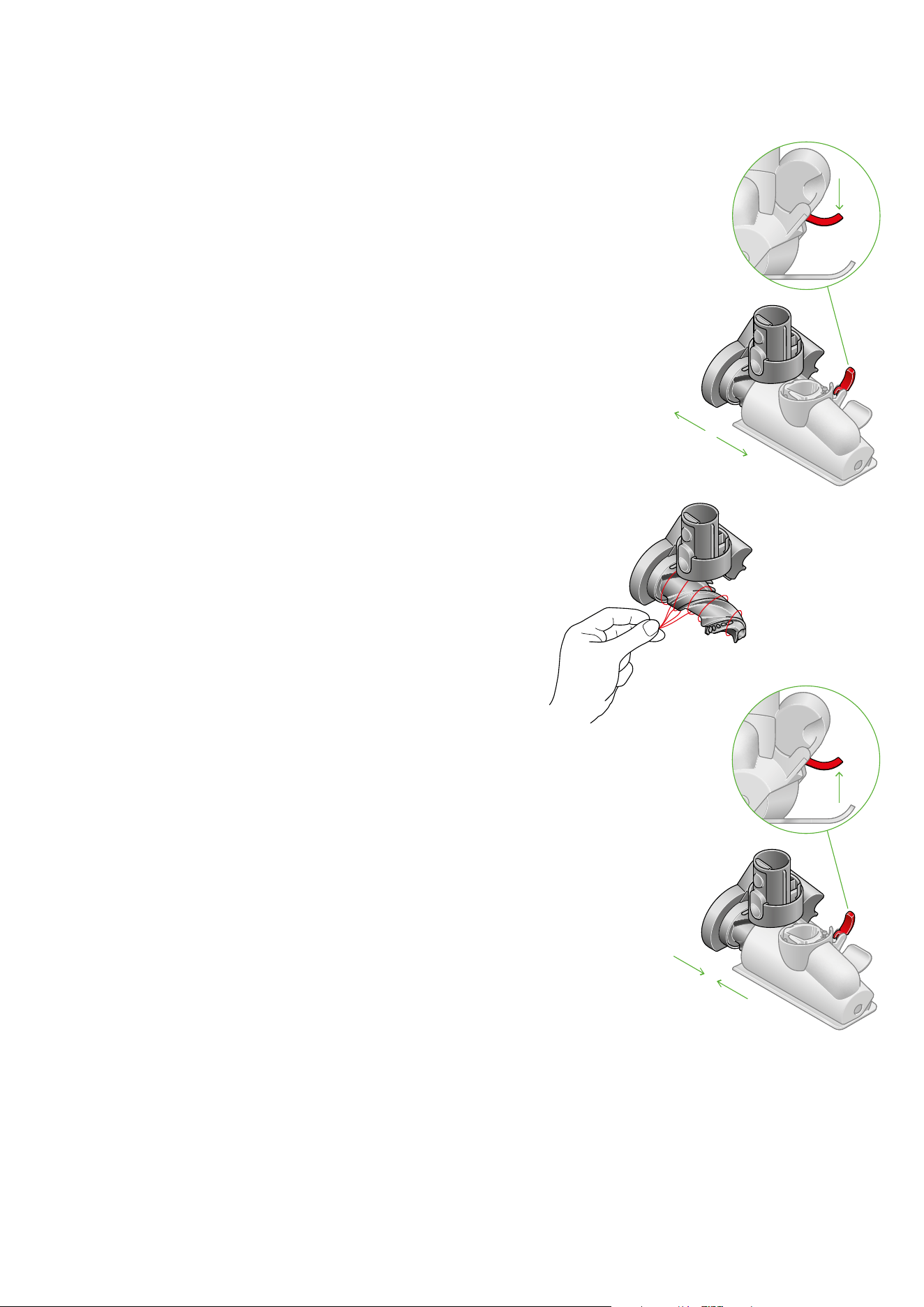

Push the base plate open. Press the red lever down to release the cleaner head cover.
Pull the cleaner head cover off the main body of the tool
Look for obstructions
Pull your brush bar firmly to remove it from the main body.
Check and remove any obstructions from all three parts of your Hair screw tool.
Your Hair screw tool isn't washable. Wipe over with a damp lint-free cloth.
Don't put any part of your machine in a dishwasher or use detergents, polishes or air fresheners.
Re-assemble Hair screw tool
Put your brush bar back into position and press firmly until it clicks back into position.
Check the red locking lever is in the unlocked position. Align the cleaner head cover with the guide on the main body. Push it down until it clicks into position.
Push the red locking lever up until it clicks into position and push the base plate back into place.
Looking after your machine
To always get the best performance from your machine, it's important to clean it regularly and check for blockages.
Look after your machine
If your machine is dusty, wipe with a damp lint-free cloth.
Check for blockages in the cleaner head, tools and main body of your machine.
Wash your filter regularly and leave to dry completely.
Don't use detergents or polishes to clean your machine.
Look after your battery
To get the best performance and life from your battery, use Eco or Auto/Med mode.
Your machine won't operate or charge if the ambient temperature is below 5°C(41°F). This is designed to protect both the motor and battery.
Your serial numbers
You can find your serial numbers on your machine, battery and charger.
Use your serial number to register.
For more information and support for your machine go online: www.dyson.com/support.
