Operating and Installation Instructions
Gas Cooktop
To prevent accidents and machine damage, read the Operating Manual
before installation or use.
M.-Nr. 09 317 500en - US, CA
2
WARNING:
If the information in this manual is not followed
exactly, a fire or explosion may result causing
property damage, personal injury or death.
–
Do not store or use gasoline or other flammable
vapors and liquids in the vicinity of this or any
other appliance.
–
WHAT TO DO IF YOU SMELL GAS
ß Do not try to light any appliance.
ß Do not touch any electrical switch.
ß Do not use any phone in your building.
ß Immediately call your gas supplier from a
neighbor’s phone. Follow the gas supplier’s
instructions.
ß If you cannot reach your gas supplier, call the
fire department.
– Installation and service must be performed by a
qualified installer, service agency or the gas
supplier.
(In Massachusetts installation must be performed
by a licensed plumber / gas fitter.)
–
Note to the installer:
Please leave this instruction book with the
consumer for the local electrical / gas inspector’s
use.
®
®
IMPORTANT SAFETY INSTRUCTIONS.................................4

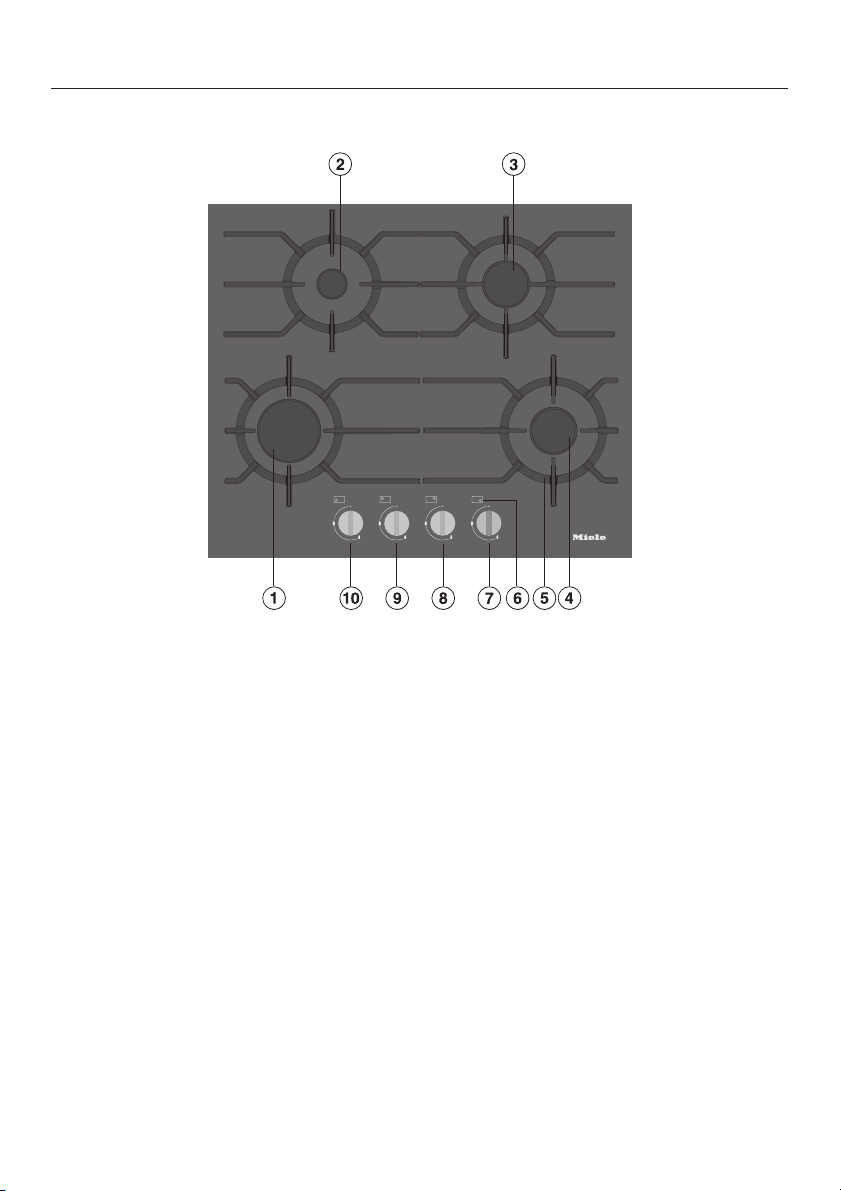

Guide to the appliance .............................................9
Before the first use ...............................................11
Operation .......................................................12
Control knobs.....................................................12
Turning on .......................................................12
Turning on in the event of a power failure ............................13
Regulating .......................................................13
Turning off .......................................................13
Cookware .......................................................14
Energy saving tips ................................................15
Safety feature ....................................................16
Cleaning and care ................................................17
Frequently asked questions ........................................20
Technical Service.................................................21
IMPORTANT INSTALLATION SAFETY INSTRUCTIONS ..................24
Installation dimensions ............................................27
Installation ......................................................28
Electrical connection..............................................30
Wiring diagram ...................................................31
Gas connection ..................................................32
Gas pressure regulator .............................................33
Conversion to another type of gas...................................34
Burner capacity ..................................................35
Nominal ratings ...................................................35
Help protect our environment.......................................36
Contents
3
WARNING - When using your gas
appliance follow basic
precautions, including the
following:
This gas cooktop conforms to all
uniform safety codes and
regulations.
Read all instructions before
installation or use to prevent
injury and appliance damage.
These instructions contain
important information on
installation, safety, use and
maintenance of this appliance.
They will help you avoid injury
and damage to the appliance.
Keep these operating instructions
in a safe place and pass them on
to any future user.
SAVE THESE INSTRUCTIONS
Correct usage
~
This appliance is intended for use in
domestic households and in similar
working and residential environments.
~
Only use this gas cooktop for
residential purposes such as cooking
and keeping food warm.
Other uses are not permitted and can
be dangerous.
~
This appliance is not intended for
outdoor use.
~
This equipment has not been
designed for maritime use or for use in
mobile installations such as aircraft or
recreational vehicles.
~
Persons who lack physical, sensory
or mental abilities, or experience with
the appliance should not use it without
supervision or instruction by a
responsible person.
IMPORTANT SAFETY INSTRUCTIONS
4
Children
~
Children should not be left
unattended in an area where the
appliance is in use. Never allow
children to sit or stand on any part of
the appliance.
Caution: Do not store items of interest
to children in cabinets above the
appliance. Children climbing on the
appliance to reach these items could
be injured.
~
The appliance is hot during use and
remains so for some time after being
switched off. Keep children away from
the appliance.
~
Keep all pots and pans out of the
reach of children. Danger of burning or
scalding.
~
Ensure that any packing material, is
disposed of safely and kept out of the
reach of children. Danger of
suffocation!
Technical safety
~
Installation, repair and maintenance
work should be performed by a Miele
authorized service technician in
accordance with local building and
safety codes. Work by unqualified
persons could be dangerous and may
void the warranty.
~
Before installing the cooktop, check
for externally visible damage. Do not
operate a damaged appliance. A
damaged gas cooktop is a hazard.
~
Be certain your appliance is
properly installed and grounded by a
qualified technician.
~
To guarantee the electrical safety of
this appliance, continuity must exist
between the appliance and an effective
grounding system. It is imperative that
this basic safety requirement be met. If
there is any doubt, have the electrical
system of the house checked by a
qualified electrician.
~
Before installation, make sure that
the voltage and frequency listed on the
rating label correspond with the
household electrical supply. This data
must correspond to prevent injury and
appliance damage. Consult a qualified
electrician if in doubt.
~
Do not operate the appliance until it
has been properly installed in the
countertop.
~
Under no circumstance open the
outer casing of the appliance. This is a
safety hazard and may damage the
appliance.
IMPORTANT SAFETY INSTRUCTIONS
5
~
Before servicing, turn off the gas
valve and disconnect the power supply
by either removing the fuse, unplugging
the unit or manually "tripping" the circuit
breaker.
~
While the appliance is under
warranty repairs should only be
performed by a Miele authorized ser
-
vice technician. Otherwise the warranty
is void.
~
Defective components should be
replaced by Miele original spare parts
only. Only with these parts can the
manufacturer guarantee the safety of
the appliance.
~
The appliance is not designed for
use with an external timer or a remote
control system.
~
Do not operate any appliance with a
damaged cord or plug, or if the
appliance has been damaged in any
manner. Contact Miele’s Technical Ser-
vice Department.
~
Do not use an extension cord to
connect this appliance to electricity.
Extension cords do not guarantee the
required safety of the appliance.
~
In the event of damage or defect,
turn off the appliance immediately. Turn
off the gas shut off valve and
disconnect completely from the
electrical supply. Contact the Miele
Technical Service Department.
Do not use the appliance until it has
been repaired.
Ensure power is not supplied to the
appliance while repair work is carried
out.
~
Any breakages or cracks in the
ceramic surface of the appliance are
defects and must be treated as such.
Turn it off immediately. Disconnect the
gas cooktop from the electrical and gas
supplies. Contact Miele Technical Ser
-
vice.
Safety
~
The appliance is hot during use and
remains so for some time after being
switched off. Be careful not to touch the
appliance if it may still be hot.
~
Do not heat empty pots or pans.
This may cause damage to the
cookware and the surrounding area.
Danger of fire.
~
Do not leave the cooktop
unattended while in use. Boil-overs
cause smoking, and greasy spill-overs
may ignite.
~
Do not use water on grease fires.
Smother any fire or flame using a lid, or
use a dry chemical or foam-type
extinguisher.
,
WARNING - NEVER use this
appliance as a space heater to heat
or warm the room. Doing so may
result in carbon monoxide poisoning
and overheating.
~
Protect your hands with oven mitts
or potholders when using the
appliance. Use only dry, heat resistant
potholders. Moist or damp potholders
used on hot surfaces can result in
steam burns. Do not let the potholder
touch the hot heating elements. Do not
use towels or other bulky items near the
appliance.
IMPORTANT SAFETY INSTRUCTIONS
6
~
Do not flambé under an exhaust
hood. Flames could be drawn up into
the hood by the suction or the grease
filters may ignite.
~
Take care that drafts do not blow
flammable material toward the flames
or push the flames so that they extend
beyond the edges of the pan.
~
Only certain types of glass / ceramic
or other glazed cookware are suitable
for use on a cooktop without breaking
due to a sudden temperature change.
Verify with cookware manufacturer.
~
Be aware of loose fitting or hanging
garments while operating the cooktop,
they may present a fire hazard.
~
Be careful not to drop anything on
the ceramic surface. Even lightweight
objects may cause damage.
~
Only use cooking utensils suitable
for cooktop use.
~
Do not store items on the appliance
when not in use. Items could melt or
catch fire from residual heat or if the
appliance is turned on inadvertently.
Always switch the burner(s) off after
use.
~
Do not store aerosols, combustibles
or any other easily flammable materials
underneath or adjacent to the
appliance.
~
Do not use plastic or aluminium foil
on any part of the cooktop. It melts at
high temperatures. Fire hazard.
~
Do not heat unopened containers.
Built-up pressure may cause the
container to burst and result in injury.
~
Make sure all components of the
gas burner are assembled correctly
before using the cooktop.
~
Do not use pans that extend past
the burner grate. Using larger pans
may cause the flames to spread out
and damage the surrounding
countertop or other countertop
appliances.
~
For safety and stability, do not use
pans with a bottom diameter smaller
than the burner grate.
~
Only certain types of glass, ceramic
or other glazed cookware are suitable
for use on a combiset without breaking
due to the sudden temperature change.
~
Do not use containers made of
plastic or aluminium. They may melt at
high temperatures.
~
The burner grates supplied with the
appliance must always be used. Never
place a pan on the burner by itself.
~
Do not let cooking grease or other
flammable materials accumulate on the
appliance. Fire Hazard.
~
Place the grates on vertically to
prevent any scratches.
~
The use of a gas cooktop leads to
the formation of heat, moisture and
combustion products in the room where
the appliance is installed. Ensure
proper attention is paid to the
ventilation of the installation area:
windows kept open or a ventilation
hood installed and running.
IMPORTANT SAFETY INSTRUCTIONS
7
~
When using a portable appliance
near the cooktop, make sure that its
power cord does not come in contact
with the cooktop.
~
If there is a drawer directly
underneath the appliance without a
wooden base in between, ensure that
no aerosols, combustible liquids or
other easily flammable materials are
kept in it. If cutlery inserts are to be
placed in the drawer, they must be
made of a heat-resistant material.
~
Do not use roasting pans, frying
pans or grill stones large enough to
cover several burners. The resulting
heat accumulation can damage the
appliance.
~
If the gas cooktop is installed
behind a cabinet door, it must only be
used with the door open.
Only close the cabinet door when the
appliance is switched off.
~
If the gas cooktop has not been
used for an unusually long time, it
should be thoroughly cleaned before
using it again and checked that it is
working properly by an authorized
expert.
~
Before discarding an old appliance,
disconnect it from the gas and
electrical supply, and cut off the power
cord to prevent it from becoming a
hazard.
SAVE THESE INSTRUCTIONS
AND REVIEW THEM
PERIODICALLY
IMPORTANT SAFETY INSTRUCTIONS
8
Cooktop
a Fast burner
b Auxiliary burner
cd Normal burners
e Grates
f Burner symbols
Control knobs:
g Front right burner
h Right rear burner
i Left rear burner
j Front left burner
Guide to the appliance
9

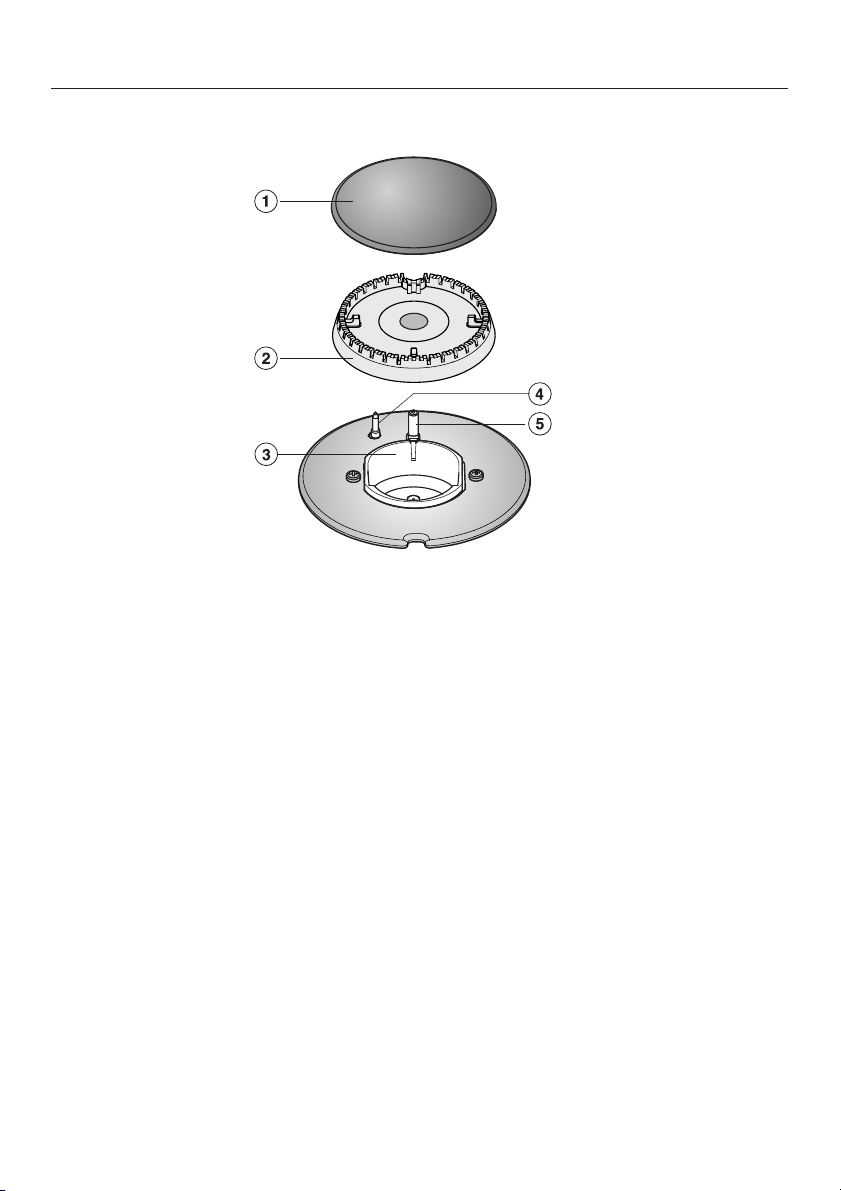

Burners
Fast, Auxiliary and Normal burners
a Burner cap
b Burner head
c Burner base
d Ignition safety control
(Thermocouple)
e Ignitor
Guide to the appliance
10
Cleaning the cooktop
^
Remove any protective films.
^
Wash the removable parts of the gas burner in a mild
solution of warm water and liquid dish soap.
^
Dry and reassemble the parts in the correct order (see
"Cleaning and care").
^
Wipe the cooktop with a damp cloth and dry thoroughly.
Metal components have a protective coating which may give
off a slight odor the first time your new appliance is heated.
The harmless odor will dissipate after a short time and does
not indicate a faulty connection or appliance defect.
Before the first use
11
Control knobs
The control knob is used to turn on the burner and to regulate
the strength of the flame.
Fast, Auxiliary and Normal burners
ß The gas supply is turned off
& Highest flame
/ Lowest flame
Turning on
^ To light the burner, press the corresponding burner control
knob and turn it counterclockwise to the largest flame
symbol.
Pressing a burner control knob automatically generates a
spark at all burners on the cooktop. This is normal and
does not indicate a faulty appliance.
^
When a flame is visible, keep the burner control knob
pressed for5-10seconds, then release it.
^
If the flame goes out prematurely, turn the burner control
knob to "ß". Air out the room or wait at least 1 minute before
attempting to reignite. You may have to keep the burner
control knob pressed a little longer.
^
If the burner does not ignite even at the second attempt,
turn the burner control knob to "ß" and and see "Frequently
asked questions".
Operation
12
Turning on in the event of a power failure
If there is a power loss, you can ignite the flame manually,
e.g. with a match.
^
Press the burner control knob and turn it
counterclockwise to the largest flame symbol.
^
Keep the knob pressed and ignite the escaping gas-air
mixture with a match.
^
Keep the knob pressed for a further approx.5-10seconds
and then release it.
Regulating
The flame should be regulated so that it never protrudes
beyond the pot. Since the outer part of the gas flame is much
hotter than the center of the flame, the flame tips should
remain under the base of the pot. Protruding flame tips give
off unnecessary heat into the air and can damage pot
handles and increase the risk of burning.
The burner can be continuously regulated between the
highest and lowest flame.
^ To switch from the high to the low setting, turn the burner
control knob clockwise until resistance is felt. Press the
knob down until you pass the stop, and release the
pressure and set the cooktop the desired setting.
^
To switch from the low to the high setting, turn the burner
control knob counterclockwise until resistance is felt. Press
the knob down until you pass the stop, and release the
pressure and set the cooktop the desired setting.
Turning off
^
Turn the burner control knob clockwise to "ß".
The gas supply is stopped and the flame goes out.
Do not turn the burner control knob clockwise beyond "ß".
Operation
13
–
Select the cookware to match the burner:
large diameter = large burner
small diameter = small burner.
–
Using oversized pans may cause the flames to spread out
and damage the surrounding countertop or other
countertop appliances. The proper pan size will also
improve efficiency.
–
Pots with a smaller diameter than the pan support and pots
that do not sit securely (without wobbling) are hazardous
and should not be used.
–
Unlike pans used on an electric cooktop, the bases do not
need to be even for good results.
–
When buying pots and pans, keep in mind that it is
generally not the base diameter but the upper diameter
which is specified.
– Only use heat-resistant cookware.
– Thick pan bases will give more even results, as hot spots
are reduced due to better heat distribution.
Thin pan bases will conduct the heat faster but not as
evenly as thick pan bases. Stir the food frequently to
prevent burning.
– Always place the cookware on the grate. The cookware
must not be placed directly on the burner.
–
Position the cookware on the grate so that it cannot tip
over. A minimum amount of wobbling can never be
completely ruled out.
–
Do not use pots or pans with edge-supported bases.
Cookware
14
–
If possible, cook in covered pots or pans. This prevents
unnecessary heat loss.
–
Cook with less water.
–
The cooking time can be significantly reduced by using a
pressure cooker.
–
After cooking or frying, promptly set to a lower flame.
–
Generally, wide / shallow pans will heat quicker and cook
more evenly than narrow / tall ones.
Energy saving tips
15
Ignition safety control
The appliance is equipped with an Ignition safety control.
This control cuts the gas supply if the flame goes out and
reignition is unsuccessful, e.g. from a boilover or a draft. Any
further escape of gas is prevented.
^
To reignite the burner knob clockwise to "ß" and then turn it
on as usual.
The Ignition safety control works independently of the power
supply. It is active if the appliance is in use during a power
failure.
Safety feature
16
,
Never use a steam cleaner to clean this cooktop.
Pressurized steam could cause permanent damage to the
surface and to components.
Do not use any sharp or pointed objects which could
damage the seal between the frame and the countertop.
Keep the ignitor in the burner dry. If it gets wet it will not
spark.
Dry your cooktop thoroughly after cleaning it to prevent
lime deposits.
Spills containing salt or sugar should be cleaned immedi
-
ately.
The surfaces of the burner parts and grates become
slightly duller over time. This is normal and does not
indicate any impairment of the material.
To better maintain your appliance avoid the following:
– cleaners containing soda, ammonia, thinners, or chlorides,
– cleaners containing descaling agents or lime removers,
–
abrasive cleaners,
–
stainless steel cleaners,
–
dishwasher soap,
–
caustic (oven) cleaners,
–
scouring pads, steel wool, hard brushes,
–
metal scrapers.
Glass cleaners may be used to clean the exterior.
However do not allow them to sit or "puddle", this can
cause damage to the surface. Remove the cleaner
promptly.
Cleaning and care
17
Cleaning Instructions
Ceramic
surfaces
Remove heavy dirt with a damp cloth and stubborn
dirt with a glass scraper.
Clean with the Miele ceramic surface and stainless
steel cleaner (see the Miele online store) and with
kitchen paper or a clean cloth.
Do not apply cleaner to a hot cooktop as this can
cause discoloration.
Wipe with a damp cloth and dry with a soft cloth.
Do not use liquid dish soap
as not all soiling and
residue will be removed.
This results in an invisible
film which causes
discoloration of the glass
ceramic. This discoloration
is permanent.
When using special
ceramic cleaning agents,
follow the instructions of the
manufacturer.
Grates Take out the grates.
Clean in the dishwasher or with a sponge cloth, a
mild solution of liquid dish soap and warm water.
If necessary, use the rough side of the sponge.
Bei hellen Stellen kann es
sich um Reinigerreste aus
der Spülmaschine oder um
Abrieb der Topfböden
handeln. Reinigen Sie wie
links beschrieben.
Burner control
knob
Clean with a sponge cloth, some liquid dish soap
and warm water.
Not dishwasher safe.
Burner Remove all loose parts of the burner.
Clean with a sponge cloth, a mild solution of liquid
dish soap and warm water.
Wipe the non-detachable parts of the burner with a
damp cloth.
Not dishwasher suitable.
Make sure that the flame
openings are completely
dry after cleaning.
Ignition safety
control
(thermocouple)
Wipe carefully with a well damp cloth. The Ignition safety control
(thermocouple) must not
become wet, otherwise it
will not spark.
Cleaning and care
18
Assembling the burners
Auxiliary, normal and fast burners
^ Place the burner head b on the burner base c so that the
thermocouple d and the ignitor e feed through the holes
of the burner head. The burner head must engage
properly.
^
Lay the burner cap a flat on the burner ring b.
The burner cap cannot shift if positioned correctly.
Make sure the burner parts are assembled in the right order.
Cleaning and care
19
,
Repairs should only be carried out by an authorized technician in
accordance with local and national safety regulations. Unauthorized repairs
could cause injury or appliance damage.
Problem Cause Solution
The burner does not
ignite after several
attempts
The burner is not assembled
correctly.
Assemble the burner correctly.
The gas valve is closed. Open the gas valve.
The burners are wet and soiled
and/or the flame holes in the
burners are soiled and clogged.
Clean and dry the burner.
The igniters are wet. Dry the igniters.
The cooktop is not plugged in
and the circuit breaker has
tripped.
Plug the cooktop in and restore power.
If lack of power is the problem, the cooktop
can be lit with a match. See “Turning on in the
event of a power failure”.
Gas flame goes out
after ignition
- Residue has been built up
between the ignitor and the
burner.
- The burners are assembled
incorrectly.
Clean the burners.
Position the burner parts correctly.
The shape of the gas
flame varies
The burner parts are not
positioned correctly.
Position the burner parts correctly.
The burner head or burner
cover holes are dirty.
Clean the burners.
The burner ignitor is
not working
The circuit breaker has tripped. Restore power.
If lack of power is the problem, the cooktop
can be lit with a match. See “Turning on in the
event of a power failure”.
There is food residue between
the ignitor and the burner cover.
Clean carefully (see "Cleaning and care").
Frequently asked questions
20
In the event of a fault which you cannot easily fix yourself, please contact the
Miele Technical Service Department at the address on the back of this booklet.
When contacting Technical Service please quote the serial number and model of
the cooktop.
MieleCare
MieleCare, our Extended ServiceContract program; gives you the assurance of
knowing that yourappliance investment is covered by 5 years of worry free
ownership. MieleCare is the only Extended Service Contract in the industry that
guarantees repairs by a Miele Authorized Service Provider using genuine Miele
parts. Only genuine Miele parts installed by factory trained professionals can
guarantee the safety, reliability and longevity of your Miele appliance.
Please note that unless expressly approved in writing by the Miele Service
department, Extended Service Contracts offered by other providers for Miele
products will not be recognized by Miele. Our goal is to prevent unauthorized (and
untrained) service personnel from working on your Miele products, possibly doing
further damage to them, you and/or your home.
To learn more about MieleCare Extended Service Contracts, please contact your
appliance dealer or visit us online at:
http://mieleusa.com
Technical Service
21
22
Installation Instructions
IMPORTANT: SAVE FOR THE LOCAL ELECTRICAL INSPECTOR'S USE
Information is subject to change. Please refer to our website to obtain the most
current product specification, technical & warranty information.
To prevent accidents and appliance damage read these instructions
before installation or use.
Installation
The minimum distances given in
these Installation instructions are to
combustible surfaces, and must be
observed to ensure safe operation.
Failure to do so increases the risk of
fire.
The cabinetry and venting hood
should be installed first to prevent
damage to the combiset.
~
Gas appliances should only be
installed in a well ventilated area.
~
The countertop must be bonded
with heat resistant (212°F/100°C)
adhesive to prevent distortion or
dissolving.
Any wall coverings must be heat
resistant as well.
~
This appliance must not be used in
a non-stationary location (e.g. on a
ship).
~
Deep fat fryers must not be installed
directly next to gas cooktops. Gas
flames can ignite splattering oil. A
distance of at least 11
3
/
4
" (300 mm)
should be maintained between these
two appliances.
~
The cooktop must not be installed
over a dishwasher, washer, dryer,
refrigerator or freezer. Heat radiated by
the cooktop may damage the
appliances.
~
Install the appliance so that the
power cord or gas piping does not
come into contact with any portion of
the cooktop which may become hot
during use.
~
The power cord and a flexible gas
connection line must be attached in
such a way that they are not in contact
with moving parts of kitchen elements
(e.g. a drawer) and are not subject to
mechanical stress.
~
The safety distances listed on the
following pages must be carefully
maintained.
~
Never use a sealant unless
expressly stipulated. The sealing tape
of the appliance ensures adequate
sealing to the countertop.
This appliance must be installed
with its own shut off valve and the
included gas pressure regulator.
Both the valve and the regulator
must be easily accessible to the
consumer after the appliance is
installed.
This appliance must be
disconnected from the gas supply
during any pressure testing of the
system performed in excess of ½
psi (3.5 kPa). This appliance must
be isolated at test pressures equal
to or less than ½ psi (3.5 kPa).
Any pipe connections must be
made using a thread sealant
approved for gas connections.
Failure to correctly install these
items could lead to a gas leak and
subsequent explosion.
IMPORTANT INSTALLATION SAFETY INSTRUCTIONS
24
Safety distances above the
appliance
The minimum safety distance given by
the hood manufacturer must be
maintained between the combiset and
the hood above it. See the installation
instructions of the hood for these safety
measurements.
If the hood manufacturers instructions
are not available or if flammable objects
are installed over the combiset (e.g.
cabinets, utensil rail, etc.), a minimum
safety distance of 30" (760 mm) must
be maintained.
If there is more than one appliance
beneath a hood (e.g. gas cooktop
and electric cooktop), and they have
different minimum safety distances
always observe the greater
distance.
IMPORTANT INSTALLATION SAFETY INSTRUCTIONS
25
Safety distances
When installing a gas cooktop, there
may be cupboard or room walls of any
size on the rear side and on one side
(right or left) (see illustrations).
The following minimum safety distances
must be maintained:
a 2" (50 mm) minimum distance at the
rear of the countertop cutout to the
rear edge of the countertop.
b 5 7/8" (150 mm) minimum distance to
the right of the countertop cutout to
an adjacent piece of furniture (e. g.
tall cabinet) or room wall.
b 5 7/8" 150 mm minimum distance to
the left of the countertop cutout to an
adjacent piece of furniture (e. g. tall
cabinet) or room wall.
Not allowed
Recommended
Not recommended
Not recommended
IMPORTANT INSTALLATION SAFETY INSTRUCTIONS
26
a Appliance front
b Installation height
c Power supply box with connection cableL=4ft(1.2m)
d Gas connection
Installation dimensions
27
^
Create the countertop cutout as per
the dimension drawing. Remember to
maintain a minimum safety distance
from the back wall, as well as from
any tall unit or side wall to the right
or left of the cooktop (see
"IMPORTANT INSTALLATION
SAFETY INSTRUCTIONS").
^
Seal the cut surfaces with a suitable
heat-resistant sealant to avoid
swelling caused by moisture.
The materials used must be
heat-resistant.
Make sure that these materials do
not touch the surface of the
countertop.
^ Feed the appliance power cord
downwards through the countertop
cutout.
^ Place the appliance loosely in the
cutout.
If during installation the seal around
the frame does not sit flush with the
countertop in the corners, the corner
radius, maximum
3
/
16
" (4 mm), can be
carefully filed down to fit.
^
Connect the appliance to the
electrical supply (see "Electrical
connection").
^
Connect the gas (see "Gas
connection").
^
Secure the appliance in place with
the supplied brackets a.
After installation
After installing the appliance, check the
cooktop function by turning on all
burners.
In the "low setting", the gas flame must
not go out, even if the burner knob is
quickly turned from the "high setting" to
the "low setting".
In the "high setting", the gas flame must
burn with a clearly visible center.
Installation
28

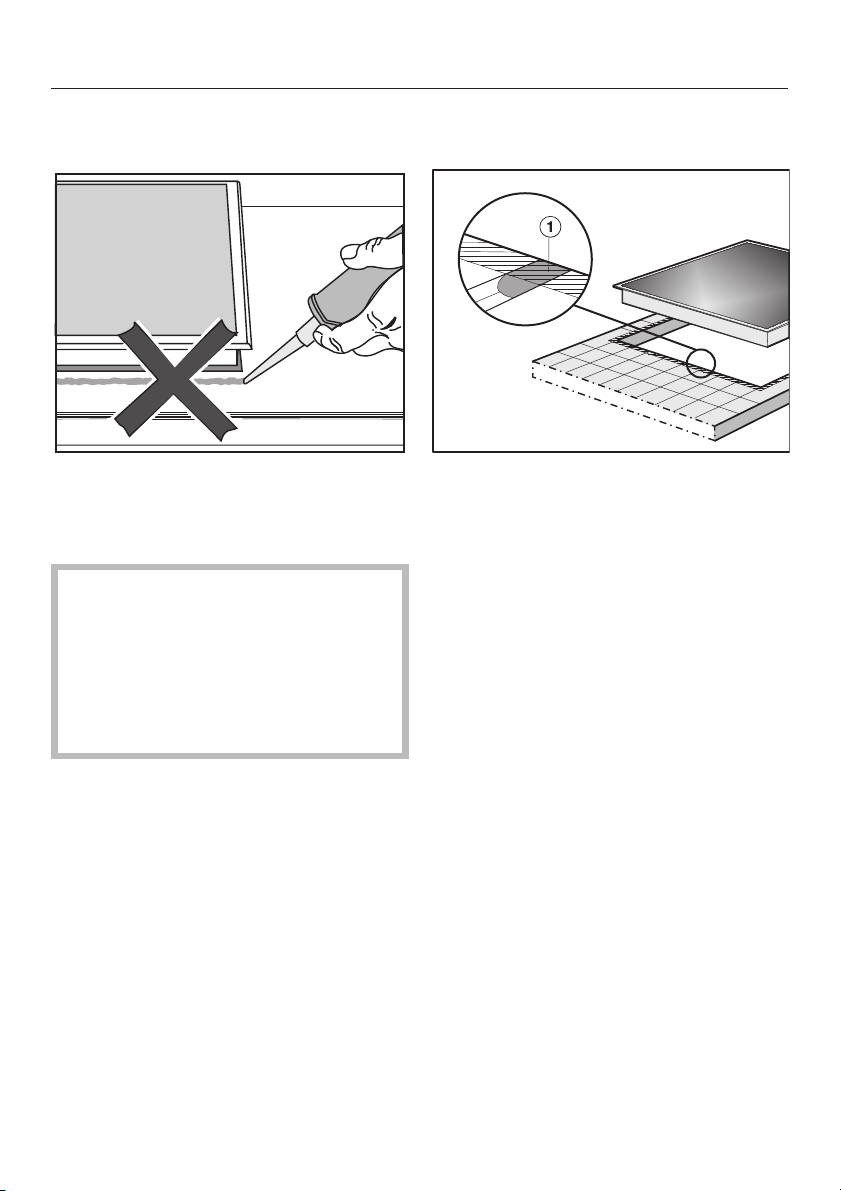

Sealing
The sealing strip under the edge of the
top part of the cooktop provides a
sufficient seal for the countertop.
Do not let sealant get in between the
cooktop frame and the countertop.
This could cause difficulties if the
cooktop ever needs to be taken out
for servicing and possibly result in
damage to the cooktop frame or the
countertop.
Tiled surfaces
The grouting a and shaded area under
the appliance frame must be flat and
even so that the frame will lie evenly
and the sealing strip under the edge of
the upper part of the appliance can
provide an adequate seal against the
countertop.
Installation
29
This appliance must be grounded
according to local or national codes.
All electrical work should be
performed by a qualified electrician
in accordance with local codes and
with the:
- National Electrical Code
ANSI / NFPA No. 70
for the USA
or
- Canadian Electrical Code Part I
for Canada
(CSA Standard C 22.1).
,
WARNING
Disconnect the appliance from the
main power supply before
installation or service. To reduce the
risk of electric shock, make sure that
the appliance is properly grounded
after installation.
Power supply
The automatic ignition requires that the
appliance be connected to a 120 VAC,
60 Hz power supply. The supply line
should be protected by a 15 A fuse.
Actual power consumption (during
ignition only) is 25 W.
This appliance is equipped witha4ft
(1.2 m) long power cord that is ready
for connection to the appropriate outlet.
Place the power outlet so that it is
accessible after the appliance has
been installed in the countertop.
This appliance is equipped with a
three-prong grounding plug to
prevent shock hazards. It should be
plugged directly into a properly
grounded outlet. Do not cut or
remove the grounding prong from
the plug. If the plug does not fit the
outlet, have the proper outlet
installed by a licensed electrician.
To guarantee the electrical safety of
this appliance, continuity must exist
between the appliance and an
effective grounding system. It is
imperative that this basic safety
requirement be met. If there is any
doubt, have the electrical system of
the house checked by a qualified
electrician.
Note to the installer
Please leave these instructions with the
consumer or the appliance.
Electrical connection
30
Wiring diagram
,
Caution: Label all wires prior to disconnection when servicing controls.
Wiring errors can cause improper and dangerous operation.
Verify proper operation after servicing.
Electrical connection
31
Installation and service must be
performed by a qualified installer,
service agency or gas supplier.
In Massachusetts installation must
be performed by a licensed
plumber/gas fitter.
This appliance must be installed
with its own shut off valve and the
included gas pressure regulator.
Both the valve and the regulator
must be easily accessible to the
consumer to turn on or shut off the
gas supply after the appliance is
installed.
This appliance and its individual
shut off valve must be disconnected
from the gas supply during any
pressure testing of that system
performed in excess of ½ psi
(3.5 kPa). The appliance must be
isolated from the gas supply line by
closing its individual manual shut off
valve at test pressures equal to or
less than ½ psi (3.5 kPa).
Any pipe connections must be
made using a thread sealant
approved for gas connections.
Failure to correctly install these
items could lead to a gas leak and
subsequent explosion.
Leak testing of the appliance shall
be conducted according to the
manufacturer's instructions.
The gas connection must be made in
accordance with local codes or, in
the absence of local codes, with
- the National Fuel Gas Code,
ANSI Z 21.1 / NFPA 54
for the USA
or
- the current Can / CGA B 149.1
and .2 Installation Codes for gas
burning appliances for Canada.
Make sure that the maximum gas
supply pressure before the gas
pressure regulator is never more than ½
psi for both natural gas or LP gas.
The minimum required gas supply
pressure to get the required gas input is
6" w.c. for natural gas
10" w.c. for LP gas.
Gas connection
32
Gas pressure regulator
A pressure regulator that is convertible
from natural to LP gas (Propane) or vice
versa is included with the appliance.
The included regulator corresponds
with the gas type of the appliance.
Verify before installing.
The adjusted pressure is:
natural gas - 4" w.c.
LP gas - 10" w.c.
a Appliance
b ½" NPT
c Regulator
As shown in the above diagram, the
included regulator must be used when
connecting the Miele appliance to your
gas supply. This item has been
customized by Miele to meet all
applicable safety requirements. Make
sure the regulator is easily accessible
for adjustment after the appliance has
been installed.
For convenience, an AGA or CGA
approved flexible stainless steel gas
hose (accordion type) may be used
between the gas connection and the
regulator. This will allow the appliance
to be lifted out of the countertop for
cleaning or servicing. Make sure that
any drawers, cabinet doors, etc., do not
rub on this gas hose.
Do not use any regulator unless it
has been supplied by Miele. Doing
so may cause a gas leak.
If there is any doubt concerning
installation contact the Miele Technical
Service Department.
After connecting the appliance check
all fittings for gas leaks e.g. with
soapy water.
When installed properly, the flame will
be steady and quiet. It will also have a
sharp, blue inner core that will vary in
length proportional to the burner size.
Flame adjustment will not be
necessary.
Gas connection
33
The applinace
should have been
ordered for connection to either natural
gas or LP gas (propane).
If the appliance is not configured for the
proper type of gas connection please
contact your Miele Dealer.
Conversion to another type of gas
34
Nominal ratings
Maximum output
Gas type BTU/hr kW
Auxiliary burner Natural Gas (NG)
Propane (LP)
3,750
3,300
1.10
0.97
Normal burner Natural Gas (NG)
Propane (LP)
5,800
6,400
1.70
1.88
Fast burner Natural Gas (NG)
Propane (LP)
9,300
9,800
2.73
2.87
Total output Natural Gas (NG)
Propane (LP)
24,650
25,900
7.20
7.60
Minimum output
Gas type BTU/hr kW
Auxiliary burner Natural Gas (NG)
Propane (LP)
1,000
1,700
0.29
0.50
Normal burner Natural Gas (NG)
Propane (LP)
1,450
1,300
0.42
0.38
Fast burner Natural Gas (NG)
Propane (LP)
2,000
2,100
0.59
0.62
Burner capacity
35
Disposal of packing materials
The cardboard box and packing
materials are biodegradable and
recyclable. Please recycle.
Ensure that any plastic wrappings,
bags, etc. are disposed of safely and
kept out of the reach of children.
Danger of suffocation!
Disposal of an old appliance
Old appliances contain materials that
can be recycled. Please contact your
local recycling authority about the
possibility of recycling these materials.
Before discarding an old appliance
disconnect it from the electrical supply
and cut off the power cord to prevent it
from becoming a hazard.
Help protect our environment
36
37
38
INFORMATION IS SUBJECT TO CHANGE. PLEASE REFER TO OUR WEBSITE
TO OBTAIN THE MOST CURRENT PRODUCT SPECIFICATIONS, TECHNICAL
& WARRANTY INFORMATION.
39
9 Independence Way
Princeton, NJ 08540
Phone:
Fax:
www.mieleusa.com
U.S.A.
Miele, Inc.
National Headquarters
Please have the model and serial number
of your appliance available before
contacting Technical Service.
Canada
Importer
Miele Limited
Headquarters and Miele Centre
800-843-7231
609-419-9898
609-419-4298
Technical Service & Support
Nationwide
Phone:
Fax:
T
161 Four Valley Drive
Vaughan, ON L4K 4V8
www.miele.ca
800-999-1360
888-586-8056
Customer Care Centre
Phone:
800-565-6435
905-532-2272
Germany
Manufacturer
Miele & Cie. KG
Carl-Miele-Straße 29
33332 Gütersloh
9 Independence Way
Princeton, NJ 08540
Phone:
Fax:
www.mieleusa.com
U.S.A.
Miele, Inc.
National Headquarters
Please have the model and serial number
of your appliance available before
contacting Technical Service.
Canada
Importer
Miele Limited
Headquarters and Miele Centre
800-843-7231
609-419-9898
609-419-4298
Technical Service & Support
Nationwide
Phone:
Fax:
T
161 Four Valley Drive
Vaughan, ON L4K 4V8
www.miele.ca
800-999-1360
888-586-8056
Customer Care Centre
Phone:
800-565-6435
905-532-2272
Germany
Manufacturer
Miele & Cie. KG
Carl-Miele-Straße 29
33332 Gütersloh
M.-Nr. 09 317 500 / 03
en - US, CA
KM 3010
