Operating and installation instructions
SmartLine Teppanyaki
To prevent the risk of accidents or damage to the appliance, it is
essential to read these instructions before it is installed and used for
the first time.
en-AU, NZ M.-Nr. 10 883 191
Contents
2
Warning and Safety instructions.......................................................................... 4
Caring for the environment ................................................................................ 14
Overview............................................................................................................... 15
Teppanyaki ............................................................................................................ 15
Controls / Indicators.............................................................................................. 16
Before using for the first time ............................................................................ 17
Cleaning the SmartLine appliance for the first time .............................................. 17
Switching on the SmartLine appliance for the first time ....................................... 17
How induction works .......................................................................................... 18
Power level range ................................................................................................ 19
Operation.............................................................................................................. 20
Operating principles .............................................................................................. 20
Setting the power level.......................................................................................... 21
Switching off.......................................................................................................... 21
Residual heat indicator.......................................................................................... 21
Setting the power level - extended level range ..................................................... 22
Switching the heating elements on together......................................................... 22
Tips on cooking..................................................................................................... 23
Keeping warm ....................................................................................................... 23
Timer..................................................................................................................... 24
Minute minder duration ......................................................................................... 24
Switching off the heating element/Teppanyaki zone automatically ...................... 25
Additional functions ............................................................................................ 26
Stop & Go.............................................................................................................. 26
Recall..................................................................................................................... 26
Wipe protection ..................................................................................................... 27
Demonstration mode............................................................................................. 27
Displaying the SmartLine appliance data.............................................................. 27
Safety features..................................................................................................... 28
System lock / Safety lock...................................................................................... 28
Safety switch-off ................................................................................................... 30
Overheating protection.......................................................................................... 31
Programming ....................................................................................................... 32
Cleaning and care ............................................................................................... 35
Control panel......................................................................................................... 36
Contents
3
Cooking surface .................................................................................................... 36
Problem solving guide ........................................................................................ 37
Optional accessories .......................................................................................... 40
Service.................................................................................................................. 41
Contact in case of fault ......................................................................................... 41
Data plate .............................................................................................................. 41
Warranty ................................................................................................................ 41
Installation............................................................................................................ 42
Safety instructions for installation ......................................................................... 42
Safety distances.................................................................................................... 43
Surface-mounted .................................................................................................. 45
Installation notes – surface-mounted.................................................................... 45
Worktop cut-out – surface-mounted..................................................................... 47
Spacer bars – surface-mounted............................................................................ 50
Installation dimensions– Surface-mounted.......................................................... 51
Installation – surface-mounted.............................................................................. 52
Flush-fit ................................................................................................................. 54
Installation notes – flush-fit ................................................................................... 54
Worktop cut-out – flush-fit .................................................................................... 56
Spacer bars – flush-fit ........................................................................................... 59
Installation dimensions–Flush ............................................................................. 60
Installation – flush-fit ............................................................................................. 61
Electrical connection ............................................................................................. 63
Warning and Safety instructions
4
This appliance complies with all current local and national safety
requirements. However, inappropriate use can lead to personal
injury and damage to property.
Read the operating and installation instructions carefully before
using the Teppanyaki. They contain important information on
safety, installation, use and maintenance of the appliance. This
prevents both personal injury and damage to the Teppanyaki.
In accordance with standard IEC 60335-1, Miele expressly and
strongly advises that you read and follow the instructions in
"Installation" and in "Warning and Safety instructions".
Miele cannot be held liable for injury or damage caused by non-
compliance with these instructions.
Keep these instructions in a safe place and pass them on to any
future owner.
Warning and Safety instructions
5
Correct application
This Teppanyaki is designed for domestic use and for use in
similar environments by guests in hotel or motel rooms, bed &
breakfasts and other typical living quarters. This does not include
common/shared facilities or commercial facilities within hotels,
motels or bed & breakfasts.
The Teppanyaki is not suitable for outdoor use.
The Teppanyaki is intended only to cook food and keep it warm.
Any other use is not permitted.
This Teppanyaki is not intended for use by people (including
children) with reduced physical, sensory or mental capabilities or
lack of experience and knowledge, unless they have been given
supervision and instruction concerning its use by a person
responsible for their safety. They may only use the appliance
unsupervised if they have been shown how to use it in a safe way.
They must be able to recognise and understand the dangers of
misuse.
Warning and Safety instructions
6
Safety with children
Young children must not be allowed to use this appliance.
Older children may only use the Teppanyaki if its operation has
been clearly explained to them and they are able to use it safely.
They must be aware of the potential dangers caused by incorrect
operation.
Cleaning may only be carried out by older children under the
supervision of an adult.
Children should be supervised in the vicinity of the Teppanyaki.
Do not allow them to play with it.
The Teppanyaki gets hot when in use and remains hot for quite a
while after being switched off. Keep children well away from the
Teppanyaki until it has cooled down and there is no danger of
burning.
Danger of burning!
Do not store anything which might arouse a child's interest in
storage areas above or next to the Teppanyaki. Otherwise children
could be tempted to climb onto the Teppanyaki with the risk of
burning themselves.
Danger of suffocation! Whilst playing, children may become
entangled in packaging material (such as plastic wrapping) or pull it
over their head with the risk of suffocation. Keep packaging material
away from children.
Activate the system lock to ensure that children cannot switch on
the Teppanyaki inadvertently. Use the safety lock when the
Teppanyaki is in use to prevent children from altering the settings
selected.
Warning and Safety instructions
7
Technical safety
Unauthorised installation, maintenance and repairs (including
removal of any cover) can cause considerable danger for the user.
Installation, maintenance and repairs must only be carried out by a
Miele authorised technician.
Damage to the Teppanyaki can compromise your safety. Check
the appliance for visible signs of damage. Never use a damaged
Teppanyaki.
Reliable and safe operation of this appliance can only be assured
if it has been connected to the mains electricity supply.
The Teppanyaki must not be connected to the inverter of an
autonomous power supply, e.g. a solar power system. When the
appliance is switched on, power surges could result in a safety cut-
out. This can damage the electronic unit.
The electrical safety of this appliance can only be guaranteed
when continuity is complete between it and an effective earthing
system. It is essential that this basic safety requirement is present
and tested regularly. If in doubt, the electrical installation should be
checked by a qualified electrician.
Before connecting the Teppanyaki to the electricity supply, ensure
that the connection data on the data plate (voltage and frequency)
match the mains supply.
Compare this data before connecting the appliance. If in any doubt,
consult a qualified electrician.
Multi-socket adapters and extension leads do not guarantee the
required safety of the appliance (fire hazard). Do not use these to
connect the Teppanyaki to the mains electricity supply.
For safety reasons, the Teppanyaki may only be used after it has
been built in.
This appliance must not be installed and operated in mobile
installations (e.g. on a ship).
Warning and Safety instructions
8
Any contact with live connections or tampering with the electrical
or mechanical components of the Teppanyaki will endanger your
safety and may lead to appliance malfunctions.
Do not open the appliance housing under any circumstances.
Repairs must only be undertaken by a Miele authorised service
technician. Otherwise the warranty is invalidated.
Faulty components must only be replaced by genuine Miele spare
parts. The manufacturer can only guarantee the safety of the
appliance when Miele replacement parts are used.
The Teppanyaki is not intended for use with an external timer
switch or a remote control system.
If the plug is removed from the connection cable or if the cable is
supplied without a plug, the Teppanyaki must be connected to the
electricity supply by a suitably qualified and competent electrician.
If the mains connection cable is damaged, it must be replaced
with a special connection cable type H 05 VV-F (PVC insulated),
available from Miele, by a Miele authorised service technician or
suitably qualified and competent electrician in order to avoid a
hazard (see “Electrical connection”).
Warning and Safety instructions
9
During installation, maintenance and repair work, the Teppanyaki
must be completely disconnected from the mains electricity supply.
It is only completely isolated from the electricity supply when:
– the mains circuit breaker has been disconnected, or
– it is switched off at the wall socket and the plug is withdrawn from
the socket. Do not pull the mains connection cable but the mains
plug to disconnect the appliance from the mains electricity
supply.
Danger of electric shock!
Do not use the Teppanyaki if it is damaged or not working. Switch it
off immediately. Disconnect it from the electricity supply. Contact
Miele.
If the Teppanyaki is installed behind a furniture door, do not close
the door while the appliance is in operation. Heat and moisture will
build up behind the closed door, potentially causing damage to the
appliance, the furniture unit and the flooring. Do not close the door
until the appliance has cooled down and the residual heat indicators
have gone out.
DO NOT MODIFY THIS APPLIANCE.
Warning and Safety instructions
10
Correct use
The Teppanyaki gets hot when in use and remains hot for quite a
while after being switched off. There is a danger of burning until the
residual heat indicators go out.
Due to the high temperatures radiated, objects left near the
Teppanyaki could catch fire.
Do not use the Teppanyaki to heat up the room.
Oils and fats can ignite if allowed to overheat. Never leave the
Teppanyaki unattended when cooking with oil or fats. Never attempt
to put out oil or fat fires with water. Switch the Teppanyaki off.
Extinguish the flames carefully with a lid or fire blanket.
The cooking process has to be supervised. A short term cooking
process has to be supervised continuously.
Flames could set the grease filters of a rangehood on fire. Do not
flambé under a rangehood.
Spray cans, flammable liquids, aerosols, or combustible materials
can ignite when heated. Therefore do not store such items or
substances in a drawer under the Teppanyaki. Cutlery inserts must
be heat-resistant.
Heating up food in closed containers e.g. tins or sealed jars,
results in an increase in pressure which can cause them to explode.
Do not use the Teppanyaki for canning food or for heating up food in
tins.
Do not cover the Teppanyaki, e.g. with a cooktop cover, a cloth or
protective foil. The material could catch fire, shatter or melt if the
Teppanyaki is switched on by mistake or if residual heat is still
present.
Warning and Safety instructions
11
When the Teppanyaki is switched on, either deliberately or by
mistake, or when there is residual heat present, there is a risk of any
metal items left on the Teppanyaki heating up. Depending on the
material, other items left on the appliance could also melt or catch
fire. Do not use the Teppanyaki as a resting place. Always switch the
Teppanyaki off after use.
You could burn yourself on the hot surface. Protect your hands
with heat-resistant pot holders or oven gloves when using the
Teppanyaki. Do not let them get wet or damp. This causes heat to
transfer through the material more quickly with the risk of scalding or
burning yourself.
When using an electrical appliance, e.g. a hand-held food mixer,
near the Teppanyaki, ensure that the cable of the electrical appliance
cannot come into contact with the hot Teppanyaki. The insulation on
the cable could become damaged.
Placing hot pans on the sensors and indicators could damage the
electronics underneath. Do not place hot pans on the sensors or
indicators.
Because induction heating works extremely quickly, the
temperature at which oil or fat self-ignites may be reached within a
very short time. Do not leave the Teppanyaki unattended whilst it is
being used.
For people fitted with a heart pacemaker: please note that the
area immediately surrounding the Teppanyaki is electromagnetically
charged when it is switched on. It is very unlikely to affect a
pacemaker. However, if in any doubt, consult the manufacturer of
the pacemaker or your doctor.
When switched on, the electromagnetic field of the Teppanyaki
can impair the function of magnetisable objects. Do not leave credit
cards, digital storage devices, pocket calculators, etc. in the
immediate vicinity of the Teppanyaki.
Warning and Safety instructions
12
Metal objects stored in a drawer under the Teppanyaki can
become hot if the appliance is used intensively for a long time. Do
not store any metal items or utensils in a drawer under the
Teppanyaki.
The Teppanyaki is fitted with a cooling fan. If a drawer is fitted
directly underneath the built-in Teppanyaki, ensure that there is
sufficient space between the drawer and its contents and the
underside of the appliance in order to ensure sufficient ventilation for
the Teppanyaki. Do not store pointed or small items or paper in the
drawer. They could get in through the ventilation slots or be sucked
into the casing by the fan and damage the fan or impair cooling.
The Teppanyaki gets very hot. Do not use coated barbecue
utensils. Heat-resistant, coated cutlery is also not suitable.
Warning and Safety instructions
13
Cleaning and care
The steam from a steam cleaning appliance could reach electrical
components and cause a short circuit.
Do not use a steam cleaner to clean the Teppanyaki.
If the Teppanyaki is built-in above a pyrolytic oven, do not use it
during a Pyrolytic cleaning programme as this could trigger the
overheating protection mechanism on the Teppanyaki (see “Safety
features – Overheating protection”).
Caring for the environment
14
Disposal of the packing
material
The transport and protective packaging
has been selected from materials which
are environmentally friendly for
disposal, and can normally be recycled.
Recycling the packaging reduces the
use of raw materials in the
manufacturing process and also
reduces the amount of waste in landfill
sites. Ensure that any plastic
wrappings, bags etc. are disposed of
safely and kept out of the reach of
babies and young children. Danger of
suffocation.
Disposing of your old
appliance
Electrical and electronic appliances
often contain valuable materials. They
also contain specific materials,
compounds and components, which
were essential for their correct function
and safety. These could be hazardous
to human health and to the environment
if disposed of with your domestic waste
or if handled incorrectly. Please do not,
therefore, dispose of your old appliance
with your household waste.
Please dispose of it at your local
community waste collection / recycling
centre for electrical and electronic
appliances. You are also responsible for
deleting any personal data that may be
stored on the appliance prior to
disposal. Please ensure that your old
appliance poses no risk to children
while being stored prior to disposal.
Overview
15

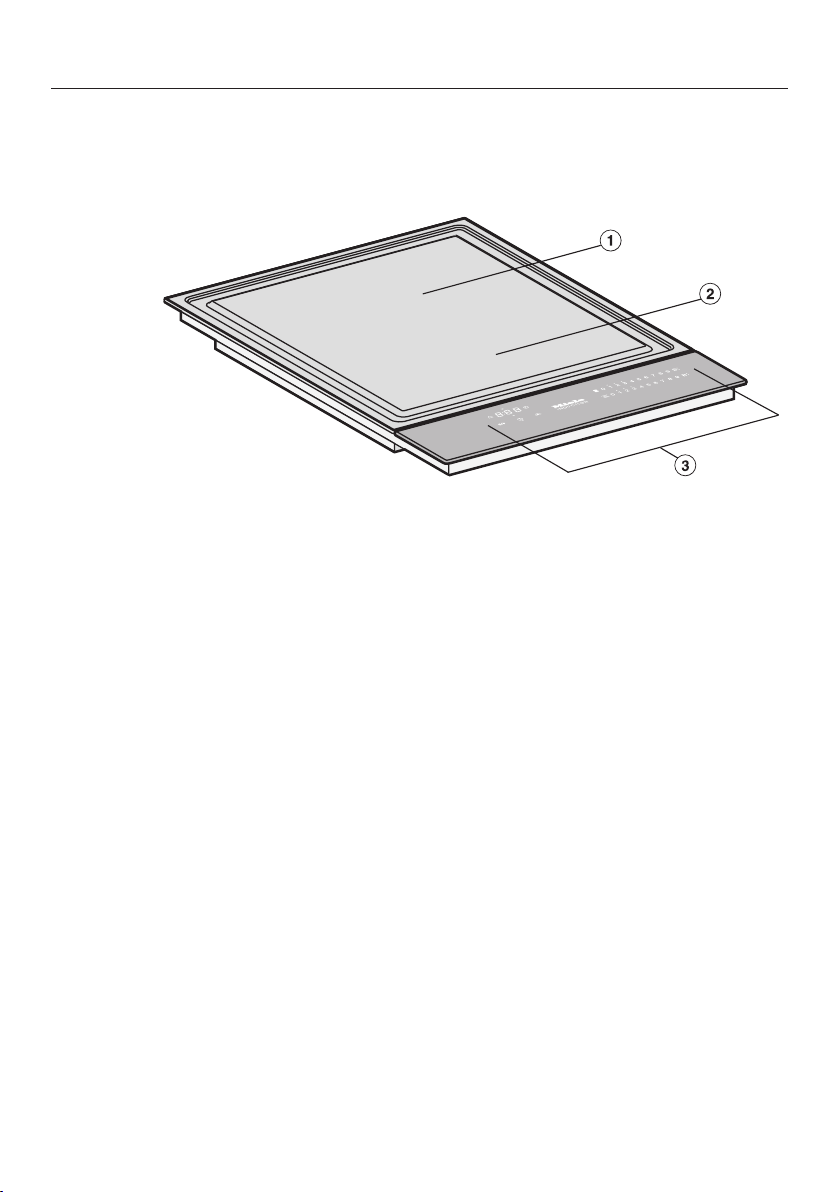

Teppanyaki
a
Rear Teppanyaki zone
b
Front Teppanyaki zone
c
Controls / Indicators
Overview
16
Controls / Indicators
Sensor controls
a
Switching the SmartLine appliance on/off
b
Stop & Go
c
Wipe protection
d
Switching the heating elements on together/separately
e
Activating/Deactivating the keeping warm function
f
Numerical keybank
For setting power levels/minute minder and switch-off times
g
Heating element selection, automatic switch-off timer
h
Minute minder
Indicator lights
i
Heating element allocation, automatic switch-off indicator light
j
Residual heat
k
Timer display
: to
:
Duration
System lock/Safety lock activated
Demonstration mode activated
Before using for the first time
17
Please stick the extra data plate for
the appliance supplied with this
documentation in the space provided
in the “Service” section of this
booklet. Alternatively, the additional
label can be stuck near the appliance
if the appliance markings are not
visible after installation.
Remove any protective wrapping and
stickers (except the data plate).
Cleaning the SmartLine
appliance for the first time
Clean all surfaces with a damp cloth,
and then wipe dry.
Switching on the SmartLine
appliance for the first time
The metal components have a
protective coating. Smells and possibly
some vapours may occur when the
SmartLine appliance is used for the first
time. The heating of the induction coils
also causes odours in the first few
hours of operation. This smell will be
less noticeable with each subsequent
use before dissipating completely.
The smell and any vapours given off do
not indicate a faulty connection or
appliance and they are not hazardous
to health.
Please note that the heating-up time
for induction is much shorter than for
conventional electric heating.
How induction works
18
The Teppanyaki is heated by induction.
An induction coil is located under the
cooking zone. When the Teppanyaki is
switched on, this coil creates a
magnetic field which acts directly on
the surface and heats it up.
Risk of burning due to hot items!
When the Teppanyaki is switched on,
either deliberately or by mistake, or
when there is residual heat present,
there is a risk of any metal items left
on the Teppanyaki heating up.
Do not use the Teppanyaki as a
resting place.
After use, switch the Teppanyaki off
with the sensor.
Power level range
19
Cooking process Power level
range
Keeping cooked food warm 1–2
Gently cooking fruit, e.g. apple slices, peach halves, bananas
slices, etc.
3–4
Gently stir-frying vegetables, e.g. leeks, sliced mushrooms,
capsicum strips, onion rings, etc.
4–5
Gently frying eggs, fish, meat, sausages, schnitzels, vegetables,
bacon
5–6
Frying meat, fish, hash browns, potato cakes 6–8
Frying steaks, pancakes, marinated meat and meat strips 8–9
These settings should only be taken as a guide. Times will vary depending on the
type, texture and thickness of the food being cooked.
Operation
20
Operating principles
This SmartLine appliance is equipped
with electronic sensor controls which
react to finger contact. For safety
reasons, in order to switch the
appliance on, the On/Off sensor
needs to be touched for a little longer
than the other sensors.
Each time you touch a sensor, an
audible tone sounds.
Only the printed On/Off symbol is
visible when the SmartLine appliance is
switched off. The other sensor controls
light up when the SmartLine appliance
is switched on.
Malfunction due to dirty and/or
covered sensor controls.
If the sensor controls are dirty or
covered this could cause them to fail
to react, to activate a function or
even to switch the appliance off
automatically (see “Safety features -
Safety switch-off”). Placing hot pans
on the sensor controls/indicators can
damage the electronic unit
underneath.
Keep the sensor controls and
indicators clean and do not place hot
pans or anything else on top of them.
The Teppanyaki is divided into two
cooking zones that can be switched on
and controlled separately. The entire
area can be used when frying food or
keeping large quantities of food warm.
For smaller quantities, the rear zone can
be used for frying food whilst the front
area can be used for keeping food
warm with the keeping warm
function.
Operation
21
Risk of fire due to overheated
food!
Unattended food can overheat and
ignite.
Do not leave the Teppanyaki
unattended whilst it is being used.
Please note that the heating-up time
is very short with induction heating.
Switching on the Teppanyaki
Touch the sensor.
Further sensor controls will light up. If
no further entry is made, the appliance
will switch itself off after a few seconds
for safety reasons.
Setting the power level
Touch the sensor control for the
desired power level on the respective
numerical keybank.
Switching off
To switch off a cooking zone, touch
the 0sensor for that zone on the
numerical keybank.
To switch off the Teppanyaki, i.e. both
cooking zones, touch the sensor.
Residual heat indicator
If the SmartLine appliance is still hot,
the residual heat indicator will light up
after it has been switched off.
Depending on the temperature, a dot
will appear above power levels 1, 2 and
3.
The dots of the residual heat indicator
go out one after the other as the
SmartLine appliance cools down. The
last dot only goes out when the
SmartLine appliance is safe to touch.
Risk of burning due to hot
surfaces.
The surfaces will be hot after use.
Do not touch the surfaces while the
residual heat indicators are on.
Operation
22
Setting the power level -
extended level range
9 power levels are programmed at the
factory. If you wish to fine-tune a
setting, you can extend the power
level range to 17power levels (see
“Programming”).
Touch the numerical keybank
between two number sensors.
The sensors in front of and after the
interim level will light up brighter than
the other sensors.
Example:
If you have set power level 7., the
numbers 7 and 8 will be brighter than
the other numbers.
Switching the heating
elements on together
If you want to use the entire surface
with a single setting, the heating
elements can be switched on and
linked together. The settings are
controlled by the front numerical
keybank.
Touch the sensor.
Operation
23
Tips on cooking
Wipe the surface of the Teppanyaki
before each use with a damp cloth to
remove any dust or other soiling
which may have settled on it since it
was last used.
– Always preheat the Teppanyaki for
2-3 minutes before use. To do this,
set the power level that you are going
to be using for cooking.
– It is important that the Teppanyaki
gets sufficiently hot before use,
particularly when browning and
sealing meat. If it is not hot enough,
the meat will lose too much juice and
become tough.
– Very little fat is required for cooking
on the Teppanyaki, and no fat is
required for marinated food.
– Use only fats and oils that can
withstand high temperatures.
– We recommend that you marinate the
food to be cooked. This will improve
the flavour of the food.
– Pat wet food dry with kitchen paper
before cooking to prevent it spitting.
– To prevent meat drying out, do not
season with salt until after it has been
cooked.
Keeping warm
This function is for keeping food warm
which has just been cooked and is still
hot. It is not for reheating food that
has gone cold.
The maximum duration for keeping food
warm is 2hours.
Activating/Deactivating the keeping
warm function
Touch the sensor for the cooking
zone you wish to use.
Timer
24
The SmartLine appliance has to be
switched on if you wish to use the timer.
A duration of between 1minute (:)
and 9hours 59minutes (:) can be
set.
Durations of up to 59minutes are
shown in minutes (00:59) and durations
of more than 60minutes are shown in
hours and minutes. Times are entered in
the order of hours, followed by minutes
in tens and then units.
Example:
59min = 00:59, entry: 5-9
80min = 1:20, entry: 1-2-0
After the first number has been entered,
the timer display will light up constantly.
After the second number has been
entered, the first number will move to
the left. After the third number has been
entered, the first and second numbers
will move to the left.
The timer can be used for the following
2 functions:
– For setting the minute minder
– For automatically switching off a
cooking zone/heating element/
Teppanyaki zone.
The functions can be used at the same
time. The shortest time is always
displayed and the sensor control
(minute minder) or the indicator light for
automatic switch-off pulsates.
Touch the or sensor control if you
want to show the times remaining
counting down in the background. If
more than one switch-off time is
programmed, touch the sensor
control repeatedly until the
corresponding indicator light pulsates.
Minute minder duration
The minute minder is set using the left
or front left numerical keybank
(depending on model).
Setting the minute minder
Touch the sensor.
The timer display will start to flash.
Select the time you require.
Changing the time set for the minute
minder
Touch the sensor.
Select the time you require.
Cancelling the minute minder
duration
Touch the sensor until:
appears in the timer display.
Timer
25
Switching off the heating
element/Teppanyaki zone
automatically
You can set a time after which the
heating element/cooking zone will
switch off automatically. This function
can be used on all heating elements/
Teppanyaki zones at the same time.
The switch-off time is set on the
numerical keybank for the heating
element/Teppanyaki zone that you
want to switch off automatically.
If the time programmed is longer than
the maximum operational time
allowed, the heating element/
Teppanyaki zone will be switched off
by the safety switch-off mechanism
(see “Safety features - Safety switch-
off”).
Select a power level for the required
heating element/Teppanyaki zone.
Touch the sensor.
The indicator light will start to flash.
Set the required time.
If you want to set a switch-off time for
another heating element/Teppanyaki
zone, follow the same steps as
described above.
If more than one switch-off time is
programmed, the shortest time
remaining will be displayed, and the
corresponding indicator light will flash.
The other indicator lights will light up
constantly.
If you want to show the remaining
times counting down in the
background, touch the sensor
control repeatedly until the indicator
light for the required heating element/
Teppanyaki zone flashes.
Changing the switch-off time
Touch the sensor control
repeatedly until the indicator light for
the required heating element/
Teppanyaki zone flashes.
Set the required time.
Deleting the switch-off time
Touch the sensor control
repeatedly until the indicator light for
the required heating element/
Teppanyaki zone flashes.
Touch the 0sensor control on the
numerical keybank.
Additional functions
26
Stop & Go
The set power level is reduced to 1
when the Stop&Go function is
activated.
The power levels and the timer settings
cannot be changed, the SmartLine
appliance can only be switched off. The
minute minder and automatic switch-off
times continue to run.
If the function is deactivated, the
appliance switches back to the power
level that was set last.
If the function is not deactivated within
1hour, the SmartLine appliance will
switch off.
Activating / Deactivating
Touch the sensor.
Recall
If the SmartLine appliance is
accidentally switched off during use,
you can use this function to restore all
the settings. The SmartLine appliance
must be switched on again within
10seconds.
Switch the SmartLine appliance on
again.
The previously set power levels flash.
Press one of the flashing power level
indicators immediately.
The appliance will continue to operate
using the settings selected previously.
Additional functions
27
Wipe protection
You can lock the SmartLine appliance
sensor controls for 20seconds in
order, for example, to remove soiling.
The sensor control is not locked.
Activating
Touch the sensor.
The time counts down in the timer
display.
Deactivating
Touch the sensor control until the
timer display goes out.
Demonstration mode
This function enables the SmartLine
appliance to be demonstrated in
showrooms without heating up.
Activating/Deactivating the
demonstration mode
Switch the SmartLine appliance on.
Touch the 0sensor control on any of
the numerical keybanks.
Then touch the0 and 2 sensors at
the same time for 6seconds.
In the timer display, flashes
alternately with (demonstration mode
activated) or (demonstration mode
deactivated) for a few seconds.
Displaying the SmartLine
appliance data
The model designation and software
version of the SmartLine appliance can
be displayed. To do this, there must not
be any pots or pans on the SmartLine
appliance.
Model designation
Switch the SmartLine appliance on.
Touch the 0sensor control on any of
the numerical keybanks.
Then touch the 0 and 4 sensor
controls at the same time.
The timer display shows 2 numbers
flashing alternately:
flashes alternately with = CS 1234
(example only)
Software version
Switch the SmartLine appliance on.
Touch the 0sensor control on any of
the numerical keybanks.
Then touch the 0 and 3 sensor
controls at the same time.
Numbers will appear in the timer
display:
: = software version
Safety features
28
System lock / Safety lock
The safety lock is deactivated if there
is an interruption to the power
supply.
Your SmartLine appliance is equipped
with a system lock and a safety lock to
prevent the appliance from being
switched on or any settings being
altered by mistake.
The system lock is activated while the
SmartLine appliance is switched off. If
the system lock is activated, the
appliance cannot be switched on and
the timer cannot be used. A set minute
minder time continues to count down.
The SmartLine appliance is
programmed so that the system lock
must be activated manually. It can be
programmed to be activated
automatically 5minutes after the
SmartLine appliance has been switched
off (see “Programming”).
The safety lock is activated while the
SmartLine appliance is switched on.
When the safety lock is activated, the
appliance can be operated only in a
limited way:
– Selected power levels cannot be
changed.
– A set minute minder time can be
modified.
– The SmartLine appliance can only be
switched off.
If an unavailable sensor control is
touched whilst the system lock or
safety lock is activated, will appear
in the timer display for a few seconds
and a tone will sound.
Activating the system lock
Touch the sensor for 6seconds.
The seconds can be seen counting
down in the timer display. When this
time has elapsed will appear in the
timer display. The system lock has been
activated.
Deactivating the system lock
Touch the sensor for 6seconds.
will appear briefly in the timer
display and then the seconds will count
down. The system lock is deactivated
once the time has elapsed.
Safety features
29
Activating the safety lock
Touch and hold the and
sensors at the same time for
6seconds.
The seconds can be seen counting
down in the timer display. When this
time has elapsed will appear in the
timer display. The safety lock is
activated.
Deactivating the safety lock
Touch and hold the and
sensors at the same time for
6seconds.
will appear briefly in the timer
display and then the seconds will count
down. The safety lock is deactivated
once the time has elapsed.
Safety features
30
Safety switch-off
Sensor controls are covered
Your SmartLine appliance will turn off
automatically if one or several of the
sensor controls remain covered for
longer than 10seconds, for example,
by finger contact, food boiling over, or
by an object such as an oven glove or a
tea towel. flashes briefly above the
sensor control and a tone will sound.
If you remove the obstruction and/or
clean the appliance, will go out and
the SmartLine appliance is ready for
use again.
Excessive operating time
The safety switch-off mechanism is
triggered automatically if a heating
element is heated for an unusually long
period of time. This time depends on
the power level selected. If it has been
exceeded, the heating element
switches off and the residual heat
indicator appears. The SmartLine
appliance can now be used as normal
again.
The SmartLine appliance is
programmed to safety setting 0 at the
factory. If required, you can set a
higher safety setting with a shorter
maximum operating time (see chart).
Power level* Maximum operating time
[h:min]
Safety setting
0** 1 2
1 10:00 8:00 5:00
1. 10:00 7:00 4:00
2/2. 5:00 4:00 3:00
3/3. 5:00 3:30 2:00
4/4. 4:00 2:00 1:30
5/5. 4:00 1:30 1:00
6/6. 4:00 1:00 00:30
7/7. 4:00 00:42 00:24
8 4:00 00:30 00:20
8. 4:00 00:30 00:18
9 1:00 00:24 00:10
* The power levels with a dot after the
number are only available if the power level
range has been extended (see “Power level
range”).
** Factory default setting
Safety features
31
Overheating protection
All the induction coils and cooling
elements for the electronics are fitted
with an overheating protection
mechanism. Before the induction coils
and/or cooling elements get too hot, the
overheating protection mechanism cuts
in in one of the following ways:
Induction coils
– The set power level is reduced.
– The Teppanyaki zone switches off
automatically. flashes alternately
with in the timer display.
You can use the Teppanyaki zone again
as usual as soon as the fault code has
gone out.
Cooling elements
– The set power level is reduced.
– The Teppanyaki zone switches off
automatically.
The affected Teppanyaki zone can only
be used again as usual once the
cooling element has cooled down to a
safe level.
The overheating protection may be
triggered under the following
circumstances:
– Fat or oil being heated on a high
power level.
– Insufficient ventilation to the
underside of the Teppanyaki.
– A hot Teppanyaki zone being
switched on after an interruption to
the power supply.
If, despite removing the cause, the
overheating protection mechanism
triggers again, contact Miele.
Programming
32
You can adapt the programming of the
SmartLine appliance to your personal
needs. Several settings can be altered
in succession.
After accessing the programming
mode, the symbol lights up and
appears in the timer display. After a few
seconds : (Programme 01) will flash
alternately with : (Code) in the timer
display.
Changing the programming
Calling up programming mode
With the SmartLine appliance
switched off, press and hold the
and sensor controls together until
the symbol lights up and
appears in the timer display.
Setting a programme
For a two-digit programme number
you need to first set the tens position.
Touch the sensor control
repeatedly until the programme
number you want appears in the
display, or touch the appropriate
number on the numerical keybank.
Setting the code
Touch the sensor control
repeatedly until the code number you
want appears in the display, or touch
the appropriate number on the
numerical keybank.
How to save the settings
While the programme is visible in the
display (e.g.:), touch the
sensor control until the indicators
go out.
How to avoid saving the settings
Touch the sensor until the
indicators go out.
Programming
33
Programme
1)
Code
2)
Settings
P:01 Demonstration mode C:00 Demonstration mode off
C:01
Demonstration mode on
3)
P:03 Factory settings C:00 Do not restore the factory settings
C:01 Restore factory settings
P:04 Number of power levels C:00 9 power levels
C:01
17 power levels
4)
P:06 Confirmation tone when a
sensor control is touched
C:00
Off
5)
C:01 Quiet
C:02 Medium
C:03 Loud
P:07 Audible tone for the timer C:00
Off
5)
C:01 Quiet
C:02 Medium
C:03 Loud
P:08 System lock C:00 System lock can only be activated
manually
C:01 System lock activated
automatically
P:09 Maximum operating time C:00 Safety setting 0
C:01 Safety setting 1
C:02 Safety setting 2
Programming
34
Programme
1)
Code
2)
Settings
P:12 Sensor controls reaction
speed
C:00 Slow
C:01 Normal
C:02 Fast
1)
Programmes not shown here have no allocation.
2)
The factory setting is shown in bold.
3)
After the SmartLine appliance has been switched on, appears in the timer display for a
few seconds.
4)
In the text and charts, the extended power levels are shown with a dot after the number.
5)
The confirmation tone of the On/Off sensorcontrol cannot be switched off.
Cleaning and care
35
Risk of burning due to hot
surfaces!
The surfaces will be hot after use.
Switch off the Teppanyaki.
Allow the surfaces to cool down
before cleaning the Teppanyaki.
Risk of damage due to moisture
ingress.
The steam from a steam cleaning
appliance could reach electrical
components and cause a short
circuit.
Do not use a steam cleaner to clean
the Teppanyaki.
The use of unsuitable cleaning
agents can cause the surfaces to
discolour or alter. All surfaces are
susceptible to scratching.
Remove any residual cleaning agent
immediately.
Never use abrasive sponges or
cleaning agents.
Allow the SmartLine appliance to
cool down before cleaning.
Clean the SmartLine appliance and
accessories after each use.
Dry the SmartLine appliance
thoroughly every time after cleaning
to avoid limescale residue.
Unsuitable cleaning agents
To avoid damaging the surfaces of the
appliance, do not use:
– cleaning agents containing soda,
alkalines, ammonia, acids or
chlorides,
– cleaning agents containing descaling
agents,
– stain or rust removers,
– abrasive cleaning agents, e.g.
powder cleaners and cream cleaners,
– solvent-based cleaning agents,
– dishwasher cleaner,
– grill and oven cleaners,
– glass cleaning agents,
– hard, abrasive brushes or sponges,
e.g. pot scourers, brushes or
sponges which have been previously
used with abrasive cleaning agents,
– dirt erasers.
Cleaning and care
36
Control panel
Remove any coarse soiling with a
damp cloth and more stubborn
soiling with a glass scraper.
Then clean the control panel with the
Miele ceramic and stainless steel
cooktop cleaner (see “Optional
accessories”) or with a commercially
available ceramic glass cleaner
applied with a paper towel or a clean
cloth.
Finally wipe the control panel with a
damp cloth, and then dry it.
Cooking surface
Remove coarse soiling immediately
using a spatula.
Allow the cooking surface to cool
down until it can be touched by hand,
and then use a solution of hot water
and washing-up liquid to soften the
soiling. Clean the cooking surface
with the rough side of a non-scouring
dishwashing sponge and a few drops
of Miele ceramic and stainless steel
cooktop cleaner (see “Optional
accessories”). Finally wipe the
surface with water and dry it
thoroughly with a clean cloth.
Always use clean water to wipe the
surface to ensure that every trace of
cleaning agent has been removed.
Any remaining traces of cleaning
agent could affect the food the next
time you use the appliance.
Important: Conditioning agents for
stainless steel must not be used on
the cooking surface.
Problem solving guide
37
With the help of the following guide, minor faults in the performance of the
appliance, some of which may result from incorrect operation, can be remedied
without contacting Miele. This will save you time and money because you won't
need a service call.
Please note that a call-out charge will be applied to unnecessary service visits
where the problem could have been rectified as described in these operating
instructions.
Problem Possible cause and remedy
The SmartLine
appliance cannot be
switched on.
There is no power to the SmartLine appliance.
Check if the circuit breaker has tripped. Contact
an electrician or Miele (for the minimum fuse
rating, see data plate).
There may be a technical fault.
Disconnect the SmartLine appliance from the
mains electricity supply for approx. 1 minute by
– switching off at the wall socket and withdrawing
the plug, or
– switching off the main circuit breaker or residual
current device.
If, after resetting the fuse in the mains fuse box or
the residual current protection device, the
SmartLine appliance will still not switch on,
contact a qualified electrician or Miele.
After the SmartLine
appliance has been
switched on or a sensor
control has been
touched, appears in
the timer display for a
few seconds.
The system lock or safety lock is activated.
Deactivate the system lock or safety lock (see
“Safety features - System lock / Safety lock”).
The SmartLine
appliance has switched
off automatically. When
the appliance is
switched back on,
appears above the On/
Off sensor control.
One or more of the sensor controls are covered, e.g.
by finger contact, food boiling over, or an object.
Clean off any dirt and/or remove the object (see
“Safety features – Safety switch-off”).
Problem solving guide
38
Problem Possible cause and remedy
After the SmartLine
appliance has been
switched on, appears
briefly in the timer
display. The SmartLine
appliance does not heat
up.
The SmartLine appliance is in demonstration mode.
Touch the0 and 2 sensor controls at the same
time until flashes alternately with in the
timer display.
The Teppanyaki or a
Teppanyaki zone
switches off
automatically.
It has been operated for too long.
Switch the Teppanyaki or the zone back on (see
“Safety features – Safety switch-off”).
The overheating protection mechanism has been
triggered.
See “Safety features - Overheating protection”.
An operating noise can
be heard after the
SmartLine appliance
has been switched off.
The cooling fan runs until the SmartLine appliance
has cooled down and then switches off
automatically.
The sensor controls
show increased
sensitivity or fail to
react.
The sensitivity level of the sensor controls has
changed.
Make sure that there is no direct light (from the sun
or from an artificial source) falling onto the
SmartLine appliance. Also ensure the area
surrounding the SmartLine appliance is not too
dark.
Take any pans off the SmartLine appliance and
wipe away any food deposits.
Ensure that there is nothing covering the entire
SmartLine appliance or sensor controls.
Interrupt the power supply to the SmartLine
appliance for approx. 1minute.
If the problem persists after power is restored,
please contact Miele.
flashes alternately
with in the timer
display and a tone is
sounding.
The SmartLine appliance is connected incorrectly.
Disconnect the SmartLine appliance from the
mains.
Contact Miele.
Problem solving guide
39
Problem Possible cause and remedy
1 and a number, e.g. 1-0
flash alternately with a 3
digit number in the
timer display.
Heating element malfunction
Interrupt the power supply to the SmartLine
appliance for approx. 1minute.
If the problem persists after power is restored,
please contact Miele.
alternating with
numbers flashes in the
timer display.
The overheating protection mechanism has been
activated.
See “Safety features - Overheating protection”.
, or
The fan is blocked or defective.
Make sure it has not been blocked by something,
for example a fork. Remove the cause of the
blockage.
If this fault code continues to appear in the
display, contact Miele.
and other numbers
There is a fault in the electronic module.
Interrupt the power supply to the SmartLine
appliance for approx. 1minute.
If the problem persists after power is restored,
please contact Miele.
Optional accessories
40
Miele offers a range of useful
accessories, as well as cleaning and
conditioning products for your
appliance.
These products can be ordered from
the Miele online shop.
They can also be ordered directly from
Miele (see end of this booklet for
contact details).
Original Miele ceramic and
stainless steel cleaner 250ml
Removes heavy soiling, limescale
deposits and aluminium residues.
Original Miele all purpose
microfibre cloth
Removes finger marks and light soiling.
Service
41
Contact in case of fault
In the event of any faults which you cannot remedy yourself, please contact Miele.
Contact information for Miele can be found at the end of this booklet.
Please quote the model and serial number of your appliance when contacting
Miele. This information can be found on the data plate.
Data plate
Adhere the extra data plate supplied with the appliance in the space below. Make
sure that the model number matches the one specified on the back cover of these
operating and installation instructions.
Warranty
The manufacturer's warranty for this appliance is 2years.
For further information, please refer to your warranty booklet.
Installation
*INSTALLATION*
42
Safety instructions for installation
Risk of damage from incorrect installation.
Incorrect installation can cause damage to the SmartLine appliance.
The SmartLine appliance must only be installed by a suitably qualified and
competent person.
Risk of electric shock!
Incorrect connection to the power supply may result in an electric shock.
The SmartLine appliance must be connected to the electrical supply by a
qualified person only.
Damage from falling objects.
Take care not to damage the SmartLine appliance when fitting wall units or a
rangehood above it.
Fit the wall units and the rangehood before the SmartLine appliance.
The veneer or laminate coatings of worktops (or adjacent kitchen
units) must be treated with 100°C heat-resistant adhesive which will
not dissolve or distort. Any splashbacks must be of heat-resistant
material.
The SmartLine appliance must not be installed over a fridge,
fridge-freezer, freezer, dishwasher, washing machine, washer-dryer
or tumble dryer.
This SmartLine appliance must not be installed above ovens
unless these have a built-in cooling fan.
When installing the SmartLine appliance, make sure that the
mains connection cable cannot come into contact with hot appliance
parts.
Carefully observe the safety clearances listed on the following
pages.
Installation
*INSTALLATION*
43
Safety distances
Safety distance above the SmartLine
element
The safety distance specified by the
manufacturer of the cooker hood must
be maintained between the SmartLine
element and the cooker hood above it.
If combustible objects are installed
above the SmartLine element (e.g.
cabinets, utensil rail, etc.), a minimum
safety distance of 600mm must be
maintained.
When two or more SmartLine
elements which have different safety
distances are installed together
below a cooker hood, you should
observe the greatest specified safety
distance.
Installation
*INSTALLATION*
44
Safety distances to the sides and
back of the appliance
The SmartLine appliance should
preferably be installed with plenty of
space on the right and left.
The minimum distance specified
below must be observed between the
rear of the SmartLine element and a tall
unit or room wall.
The minimum distance, specified
below must be adhered to between one
side of the SmartLine element (right or
left) and a tall unit or room wall. A
minimum distance of 300mm must be
observed on the opposite side.
Minimum horizontal distance from the
back edge of the appliance to a
combustible surface:
50mm
Minimum distance on the right side
between the worktop cut-out and the
closest adjacent piece of furniture (e.g.
tall unit) or a room wall:
50mm.
Minimum distance on the left side
between the worktop cut-out and the
closest adjacent piece of furniture (e.g.
tall unit) or a room wall:
50mm.
Minimum safety distance underneath
the SmartLine appliance
To ensure proper ventilation of the
SmartLine appliance, a minimum safety
distance is required between the
SmartLine appliance and an oven,
interim shelf or drawer.
The minimum safety distance from the
lower edge of the SmartLine appliance
to
– the top edge of an oven: 15mm
– the top edge of an interim shelf:
15mm
– the top edge of a drawer: 5mm
– the base of a drawer: 75mm
Interim shelf
It is not necessary to fit an interim shelf
underneath the SmartLine appliance,
but one may be fitted if you wish.
Leave a gap of 10mm at the back of
the shelf to accommodate the mains
connection cable. We recommend a
gap at the front of the SmartLine
appliance of 20mm to ensure good
ventilation.
Installation
*INSTALLATION*
45
Surface-mounted
Installation notes –
surface-mounted
Sealing between the SmartLine
appliance and the worktop
The SmartLine appliance and
worktop may be damaged if the
appliance needs to be removed after
it has been sealed with a sealant.
Do not use any sealant between the
SmartLine appliance and the
worktop.
The sealing strip under the edge of
the top part of the appliance
provides a sufficient seal for the
worktop.
Tiled worktop
Grout lines and the hatched area
underneath the SmartLine appliance
frame must be smooth and even. If they
are not, the SmartLine appliance will
not sit flush with the worktop and the
sealing strip underneath the top part of
the appliance will not provide a good
seal between the appliance and the
worktop.
Sealing strip
Dismantling the SmartLine appliance
for service purposes may damage
the sealing strip underneath the edge
of the SmartLine appliance.
Always replace the sealing strip
before reinstalling the cooktop.
Installation
*INSTALLATION*
46
Installing several
SmartLine appliances
The gaps between the individual
SmartLine appliances must be sealed
with a silicone sealant that is heat-
resistant to at least 160°C. With flush-
fit installation, the gap between the
SmartLine appliance(s) and the worktop
must also be sealed with a silicone
sealant that is heat-resistant to at least
160°C.
After installation, the SmartLine
appliances must be easily accessible
from below, so that the bottom half of
the casing can be removed for
maintenance. If the SmartLine
appliances are not accessible from
below, the sealant must be removed so
that they can be removed.
Combination with a downdraft
extractor
If the SmartLine appliance is installed in
combination with a downdraft extractor,
the latter must be installed first.
Installation
*INSTALLATION*
47
Worktop cut-out – surface-mounted
B
500
+1
ß
R 4
B
10
0
10
Information for calculating the cut-out
The appliances overlap the worktop by 10mm.
When installing several appliances, a distance of 2mm must be observed between
the individual appliances.
Calculating cut-out dimensionB
1 appliance = width of the appliance minus 10mm on the right, minus 10mm on
the left
Several appliances = total width of the appliances plus 2mm distance between
the appliances, minus 10mm on the right, minus 10mm on the left.
Some examples are illustrated below.
Installation
*INSTALLATION*
48
Installation with a downdraft extractor
Sample combinations Numberxwidth [mm] Dimension
B
[mm]
Cooking
appliances
Downdraft
extractor
1 x 378 1 x 120
480
+1
2 x 378 1 x 120
860
+1
1x378
1x620
2 x 120
1224
+1
3 x 378 2 x 120
1362
+1
2x378
1x620
2 x 120
1604
+1
4 x 378 2 x 120
1742
+1
1 x 620 2 x 120
844
+1
Installation
*INSTALLATION*
49
Installation without a downdraft extractor
Sample combinations Numberxwidth [mm] DimensionB
[mm]
Cooking appliances
1 x 378
358
+1
2 x 378
738
+1
1x378
1x620
980
+1
3 x 378
1118
+1
2x378
1x620
1360
+1
4 x 378
1498
+1
Installation
*INSTALLATION*
50
Spacer bars – surface-mounted
When installing several SmartLine appliances, an additional spacer bar must be
fitted in between the individual appliances.
The clips supplied with the spacer bars are only required for installing a
CSDA700xFL.

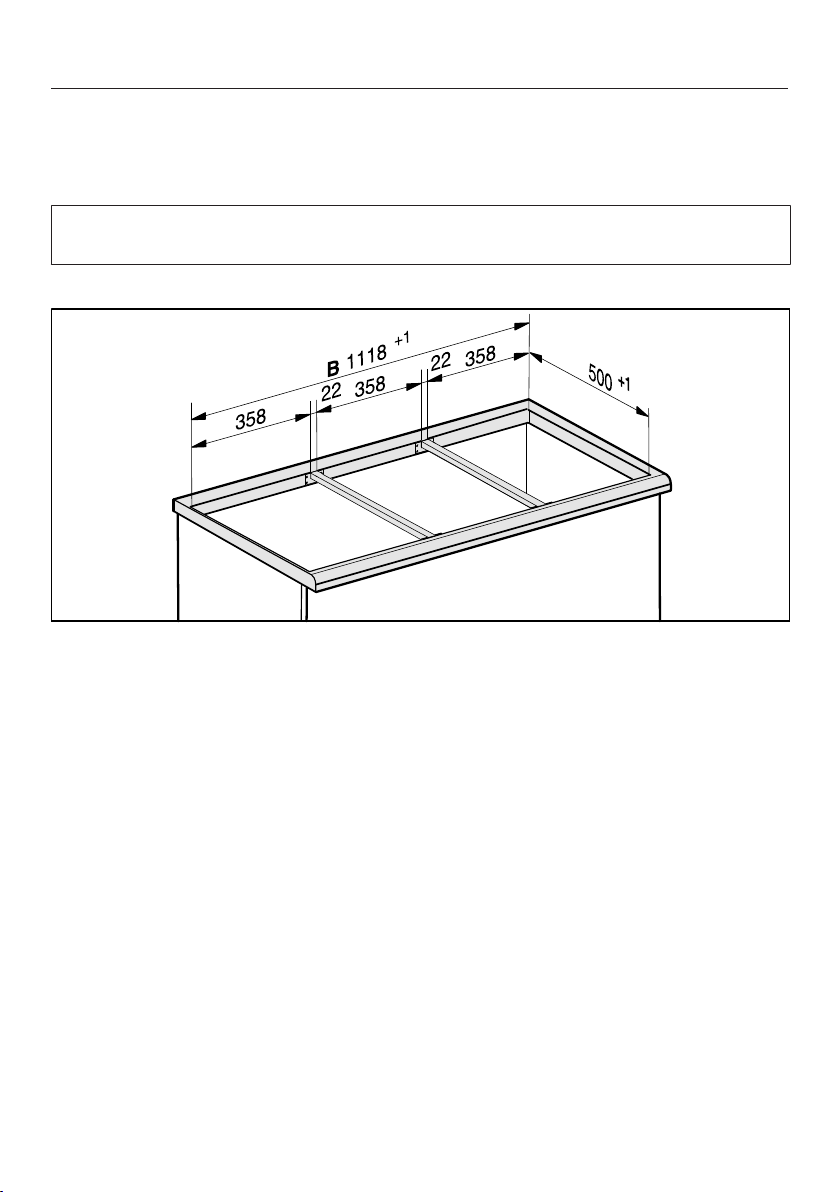

Installing 3 appliances and 2 spacer bars
Installation
*INSTALLATION*
51

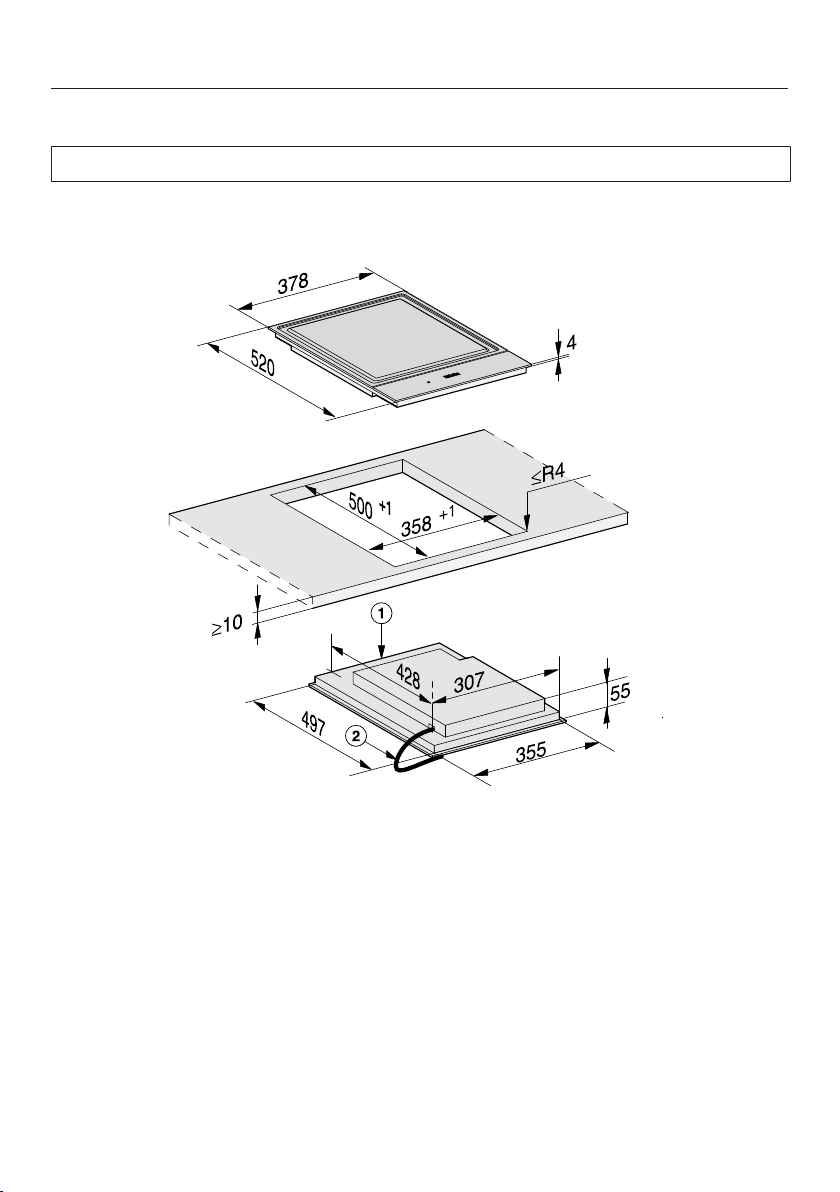

Installation dimensions– Surface-mounted
All dimensions in this instruction booklet are given in mm.
a
Front
b
Mains connection cable, L = 2000 mm
Installation
*INSTALLATION*
52
Installation – surface-mounted
Preparing the worktop
Create the worktop cut-out.
Remember to maintain the minimum
safety distances (see "Installation –
Safety distances").
Seal the cut surfaces of wooden
worktops with a suitable sealant to
avoid swelling caused by moisture.
The sealant must be heat-resistant.
Make sure the sealant does not
come into contact with the top
surface of the worktop.

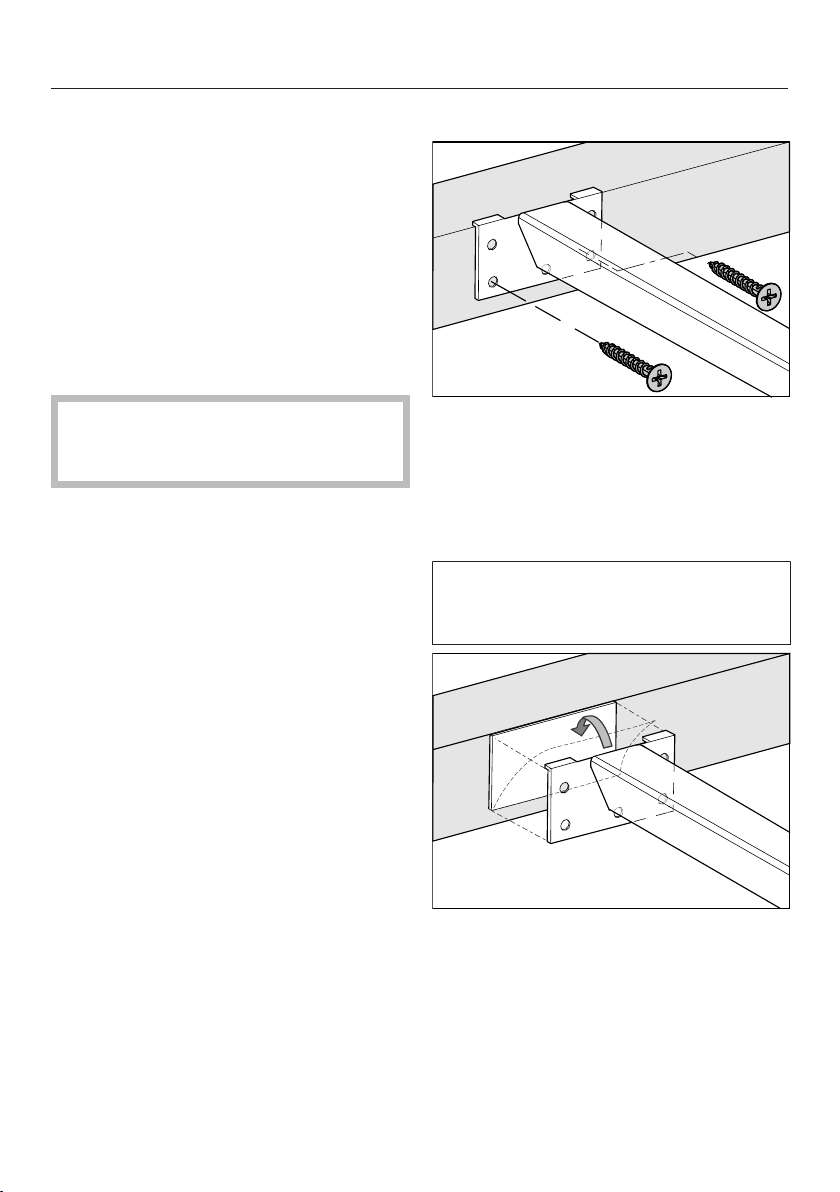

Fitting the spacer bars
Use the middle screw holes if one of the
following SmartLine appliances is
installed to the right or left of the spacer
bar: CS7611, CS 7641, CS7101(-1),
CS7102(-1)
Wooden worktops
Position the spacer bars flush onto
the upper edge of the cut-out.
Secure the spacer bars with the
3.5x25mm wood screws supplied.
Granite and marble worktops
You will need heavy-duty double-
sided tape (not supplied) to secure the
spacer bars.
Stick the tape along the top edge of
the worktop cut-out.
Position the spacer bars flush onto
the upper edge of the cut-out.
Press the spacer bars firmly into
place.
Installation
*INSTALLATION*
53
Installing the SmartLine appliance
Stick the supplied sealing strip under
the edge of the SmartLine appliance.
Do not apply the sealing strip under
tension.
Feed the mains connection cable
down through the worktop cut-out.
Position the SmartLine appliance in
the worktop cut-out. When doing this,
make sure that the seal of the
appliance sits flush with the worktop
on all sides. This is important to
ensure an effective seal with the
worktop.
If the seal does not meet the worktop
correctly on the corners, carefully
scribe the corner radii (≤R4) with a
jigsaw.
Do not use any additional sealant
(e.g. silicone) on the SmartLine
appliance.
Connect the SmartLine appliance to
the mains electrical supply.
If required, connect the SmartLine
appliance to the gas supply (see
“Installation – Gas connection”).
Check that the SmartLine appliance
works.
Seal the gaps between the individual
appliances with a silicone sealant that
is heat-resistant to at least 160°C.
Unsuitable sealant can damage
natural stone.
For natural stone worktops and
natural stone tiles, only use silicone
sealant that is specially formulated
for natural stone. Please follow the
manufacturer's instructions.
Installation
*INSTALLATION*
54
Flush-fit
Installation notes –
flush-fit
Flush-fit installation is only possible in
natural stone (granite, marble), solid
wood and tiled worktops. For
installation in worktops made of other
materials, please consult the relevant
manufacturer as to whether their
worktops are suitable for flush-fit
installation.
The internal width of the base unit
underneath the appliance must be at
least as wide as the inner worktop cut-
out (see “Installation – Installation
dimensions – Flush”), so that the
SmartLine appliance is easily
accessible from underneath after
installation and the bottom half of the
casing can be removed for
maintenance. If the appliance is not
freely accessible from below after
installation, the sealant must be
removed so that the appliance can be
removed.
Natural stone worktops
The SmartLine appliance is set directly
in the cut-out.
Solid wood worktops, tiled worktops,
glass worktops
The SmartLine appliance is set on a
wooden frame inside the cut-out. The
frame must be provided on site and is
not supplied with the appliance.
Sealing strip
Dismantling the SmartLine appliance
for service purposes may damage
the sealing strip underneath the edge
of the SmartLine appliance.
Always replace the sealing strip
before reinstalling the cooktop.
Installation
*INSTALLATION*
55
Installing several
SmartLine appliances
The gaps between the individual
SmartLine appliances must be sealed
with a silicone sealant that is heat-
resistant to at least 160°C. With flush-
fit installation, the gap between the
SmartLine appliance(s) and the worktop
must also be sealed with a silicone
sealant that is heat-resistant to at least
160°C.
After installation, the SmartLine
appliances must be easily accessible
from below, so that the bottom half of
the casing can be removed for
maintenance. If the SmartLine
appliances are not accessible from
below, the sealant must be removed so
that they can be removed.
Combination with a downdraft
extractor
If the SmartLine appliance is installed in
combination with a downdraft extractor,
the latter must be installed first.
Installation
*INSTALLATION*
56
Worktop cut-out – flush-fit
B
A
524
500
+
1
+1
ß R 4
B
A
0 2
12
0
10
5,5
+
0,5 *
0 2
B
A
12
0
10
5,5
+
0,5 *
Natural stone worktop Wooden worktop
* 7
+
0.5
mm with CS7611FL
Information for calculating the cut-out
The appliances overlap the stepped cut-out by 10mm.
When installing several appliances, a distance of 2mm must be observed between
the individual appliances.
Calculating cut-out dimensionA
1 appliance = width of the appliance plus 2mm on the right, plus 2mm on the left.
Several appliances = total width of the appliances plus 2mm distance between
the appliances, plus 2mm on the right, plus 2mm on the left
Calculating cut-out dimensionB = cut-out dimension A minus 12mm on the right,
minus 12mm on the left.
Some examples are illustrated below.
Installation
*INSTALLATION*
57
Installation with a downdraft extractor
Sample combinations
Numberxwidth [mm]
DimensionA
[mm]
DimensionB
[mm]
Cooking
appliances
Downdraft
extractor
1 x 378 1 x 120
504
+1
480
+1
2 x 378 1 x 120
884
+1
860
+1
1x378
1x620
2 x 120
1248
+1
1224
+1
3 x 378 2 x 120
1386
+1
1362
+1
2x378
1x620
2 x 120
1628
+1
1604
+1
4 x 378 2 x 120
1766
+1
1742
+1
1 x 620 2 x 120
868
+1
844
+1
Installation
*INSTALLATION*
58
Installation without a downdraft extractor
Sample
combinations
Numberxwidth
[mm]
DimensionA
[mm]
DimensionB
[mm]
Cooking
appliances
1 x 378
382
+1
358
+1
2 x 378
762
+1
738
+1
1x378
1x620
1004
+1
980
+1
3 x 378
1142
+1
1118
+1
2x378
1x620
1384
+1
1360
+1
4 x 378
1522
+1
1498
+1
Installation
*INSTALLATION*
59
Spacer bars – flush-fit
When installing several SmartLine appliances, an additional spacer bar must be
fitted in between the individual appliances.
The clips supplied with the spacer bars are only required for installing a
CSDA700xFL.

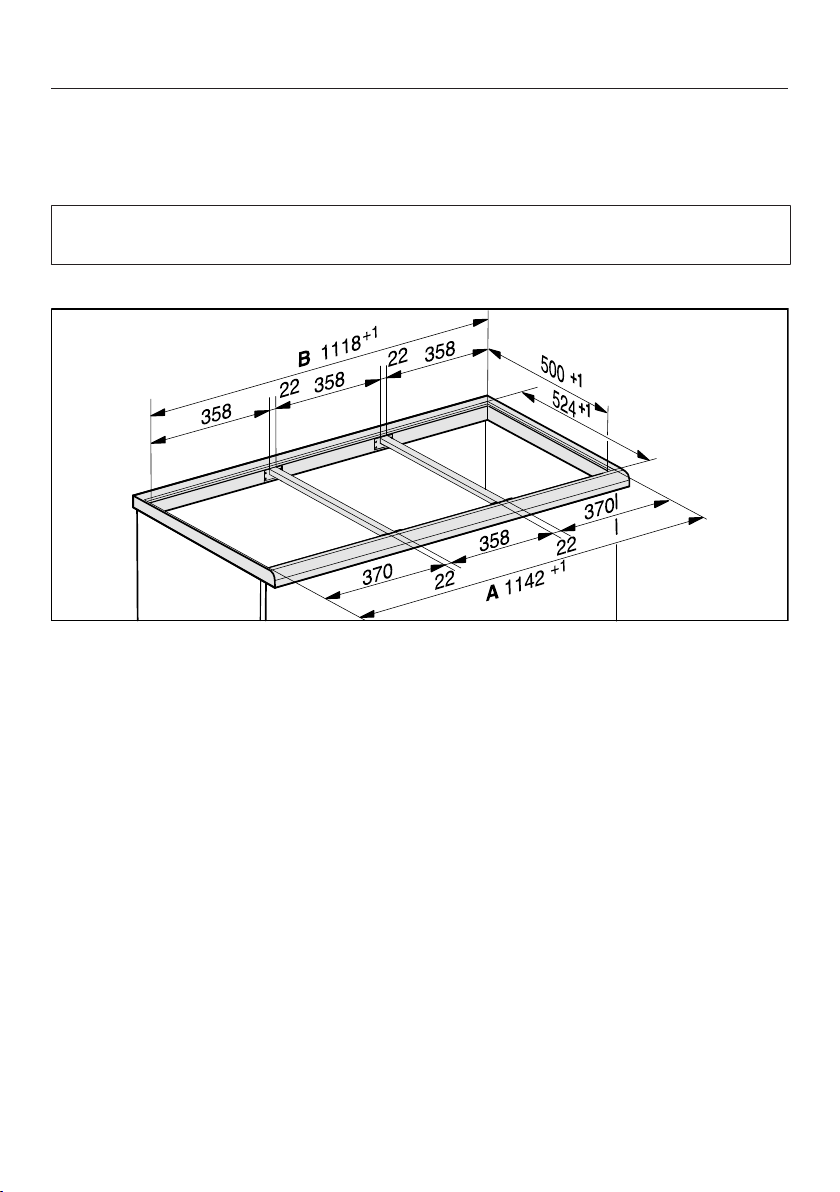

Installing 3 appliances and 2 spacer bars
Installation
*INSTALLATION*
60

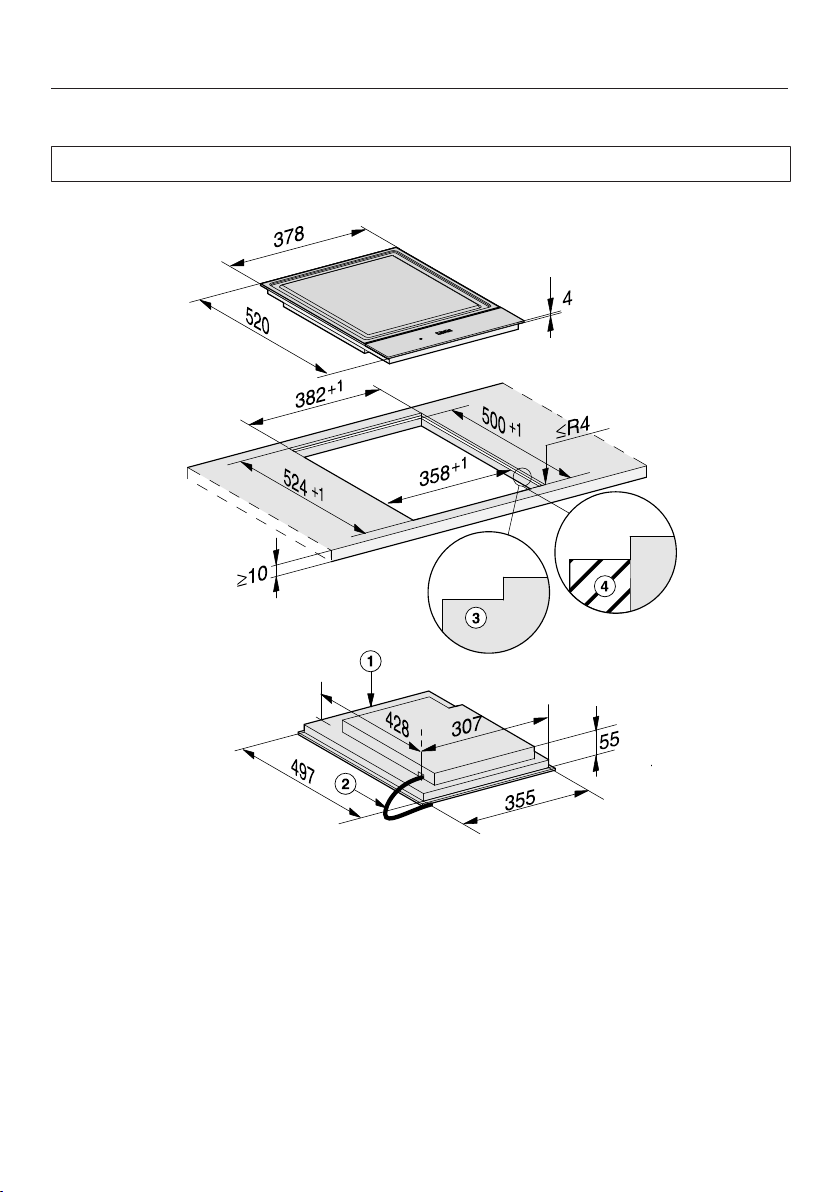

Installation dimensions–Flush
All dimensions in this instruction booklet are given in mm.
a
Front
b
Mains connection cable, L = 2000 mm
c
Stepped cut-out (for detailed illustrations, see “Installation - Worktop cut-out -
flush-fit”)
d
12mm wooden frame (not supplied, for detailed illustrations, see “Installation -
Worktop cut-out - flush-fit”)
Installation
*INSTALLATION*
61
Installation – flush-fit
Preparing the worktop
Create the worktop cut-out.
Remember to maintain the minimum
safety distances (see "Installation –
Safety distances").
Seal the cut surfaces of wooden
worktops with a suitable sealant to
avoid swelling caused by moisture.
The sealant must be heat-resistant.
Make sure the sealant does not
come into contact with the top
surface of the worktop.
For wooden worktops, secure the
wooden frames 5.5mm below the
upper edge of the worktop.
For CS7611FL, the wooden frame
must be secured 7mm under the
upper edge of the worktop.

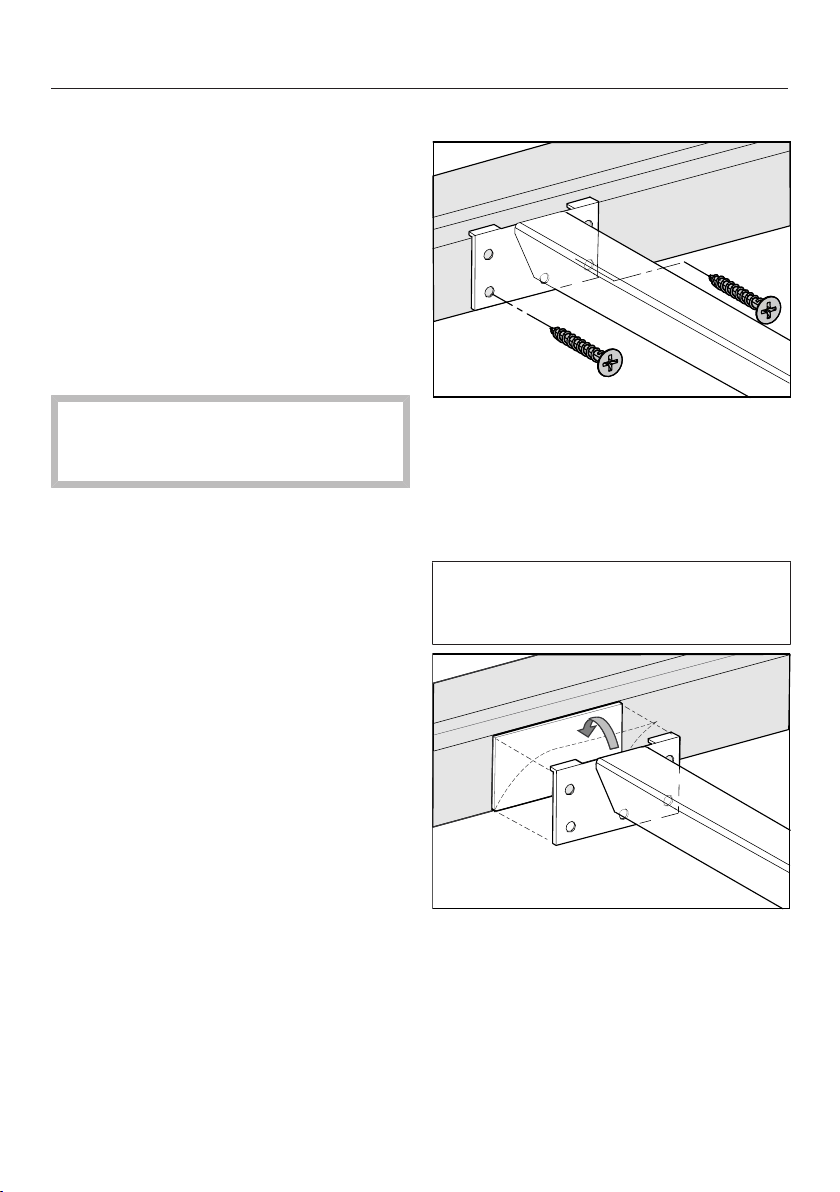

Fitting the spacer bars
Use the middle screw holes if one of the
following SmartLine appliances is
installed to the right or left of the spacer
bar: CS7611, CS 7641, CS7101(-1),
CS7102(-1)
Wooden worktops
Position the spacer bars flush onto
the lower step of the stepped cut-out.
Secure the spacer bars with the
3.5x25mm wood screws supplied.
Granite and marble worktops
You will need heavy-duty double-
sided tape (not supplied) to secure the
spacer bars.
Stick the tape onto the lower step of
the stepped cut-out.
Position the spacer bars flush onto
the lower step of the stepped cut-out.
Press the spacer bars firmly into
place.
Installation
*INSTALLATION*
62
Installing the SmartLine appliance
Stick the supplied sealing strip under
the edge of the SmartLine appliance.
Do not apply the sealing strip under
tension.
Feed the mains connection cable
down through the worktop cut-out.
Position the SmartLine appliance in
the worktop cut-out. When doing this,
make sure that the seal of the
appliance sits flush with the worktop
on all sides. This is important to
ensure an effective seal with the
worktop.
Connect the SmartLine appliance to
the mains electrical supply.
If required, connect the SmartLine
appliance to the gas supply (see
“Installation – Gas connection”).
Check that the SmartLine appliance
works.
Seal the gaps between the individual
SmartLine appliances and between
the appliances and the worktop with
a silicone sealant that is heat-
resistant to at least 160°C.
Unsuitable sealant can damage
natural stone.
For natural stone worktops and
natural stone tiles, only use silicone
sealant that is specially formulated
for natural stone. Please follow the
manufacturer's instructions.
Installation
*INSTALLATION*
63
Electrical connection
Risk of damage from incorrect
connection.
Incorrect installation, maintenance
and repairs can be dangerous to
users.
Miele cannot be held liable for
damage or injury (e.g. electric shock)
caused by unauthorised installation,
maintenance or repair work, or by an
inadequate or faulty on-site earthing
system.
This SmartLine appliance must be
connected to the electricity supply
by a qualified electrician.
The electrician must be familiar with
and comply with the national
regulations and any additional
regulations of the local electricity
provider.
After installation, ensure that all
electrical components are shielded
and cannot be accessed by users.
Total power output
See data plate.
Connection data
The connection data is given on the
data plate. Please ensure this
information matches the household
mains supply.
Residual current device
For extra safety, it is advisable to
protect the SmartLine appliance with a
suitable residual current device (RCD)
with a trip range of 30mA.
Disconnecting devices
It must be possible to disconnect the
SmartLine appliance from the mains at
all poles using disconnecting devices. A
contact distance of at least 3mm must
be observed in the switched-off state.
The disconnecting devices are
overcurrent protection devices and
residual current protection devices.
Installation
*INSTALLATION*
64
Replacing the mains connection
cable
Danger of electric shock!
Incorrect connection to the electricity
supply may result in an electric
shock.
The mains connection cable must
only be replaced in accordance with
current local and national safety
regulations.
When replacing the mains connection
cable, it must be replaced with cable
type H05VV-F by a Miele authorised
service technician or a suitably qualified
and competent electrician in order to
avoid a hazard. These cables are
available from Miele.
Miele Experience Centre and
Head Office Melbourne:
1 Gilbert Park Drive
Knoxfield, VIC 3180
Miele Experience Centre South Melbourne:
206-210 Coventry Street
South Melbourne, VIC 3205
Miele Experience Centre and Office Sydney:
3 Skyline Place
Frenchs Forest, NSW 2086
Miele Experience Centre and Office Brisbane:
Tenancy 4C, 63 Skyring Terrace
Newstead, QLD 4006
Miele Experience Centre and Office Perth:
83-85 Sir Donald Bradman Drive
Hilton, SA 5033
Miele Experience Centre and Office Adelaide:
Miele Australia Pty. Ltd. Miele New Zealand Limited
Level 2, 10 College Hill
Freemans Bay, Auckland 1011
Miele Experience Centre
Auckland:
8 College Hill
Freemans Bay, Auckland 1011
Miele Global Headquarters
Germany
Miele & Cie. KG
Carl-Miele-Straße 29
33332 Gütersloh
Federal Republic of Germany
Head Office:
IRD 98 463 631
ACN 005 635 398
ABN 96 005 635 398
Miele Experience Centre Gold Coast:
131 Ferry Road
Southport, QLD 4215
Miele Experience Centre
Wellington:
183 Featherston Street
Wellington 6011
0800 464 353 (0800 4 MIELE)
www.miele.co.nz
205-207 Stirling Highway
Claremont, WA 6010
1300 464 353 (1300 4 MIELE)
www.miele.com.au
M.-Nr. 10 883 191 / 02en-AU, NZ
CS7632
