OWNER’S MANUAL
LED TV
*
Please read this manual carefully before operating
your set and retain it for future reference.
* Disclaimer
www.lg.com
LB58**
LG LED TV applies LCD screen with LED backlights.
P/NO : MFL68027132 (1506-REV07)
Printed in Korea
*MFL68027132*
India region only. (Below sentence is not applicable for above
1920 X 1080 resolution TV models.)
ATTENTION:
This product is qualified for the BEE Star rating in the ‘Home’ Mode.
The Objectives of Star Labeling Program is designed to promote energy efficient products and
practices.
When the television is initially set up, it is designed to meet the BEE Star Labeling requirements
while maintaining optimum picture quality.
yy
Changes to certain functionalities of this television (TV Guide, Picture/sound etc) may
change the power consumption.
yy
Depending upon such changed setting (eg., Retail mode), the power consumption may vary
which possibly could exceed the stated energy consumption.
To reset the television to Star rating qualified settings, select ‘Home’ mode from the initial set-up
procedure in ‘factory settings’ under the ‘Set-up’ menu.
3
ENGENGLISH
LICENSES / OPEN SOURCE SOFTWARE NOTICE INFORMATION / EXTERNAL CONTROL DEVICE SETUP
LIcENsEs
Supported licenses may differ by model. For more information about licenses, visit www.lg.com.
(Australia region only) FreeviewPlus provides access to content and services from the
Freeview networks. The FreeviewPlus service provides a 7 + day
EPG, all available Catch Up TV, recommendations and the ability to set
reminders and favourites. FreeviewPlus is available by pressing the
green button on the remote.
*FreeviewPlus uses HbbTV technology which combines broadcast
and broadband. It requires an internet connection. Normal data usage
charges and conditions apply.
OpEN sOurcE sOfTwArE NOTIcE INfOrmATION
To obtain the source code under GPL, LGPL, MPL, and other open source licenses, that is
contained in this product, please visit http://opensource.lge.com.
In addition to the source code, all referred license terms, warranty disclaimers and copyright notices
are available for download.
LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost
of performing such distribution (such as the cost of media, shipping, and handling) upon email request
to [email protected]. This offer is valid for three (3) years from the date on which you purchased
the product.
EXTErNAL cONTrOL DEVIcE sETup
To obtain the external control device setup information, please visit www.lg.com.
4
ENG
ENGLISH

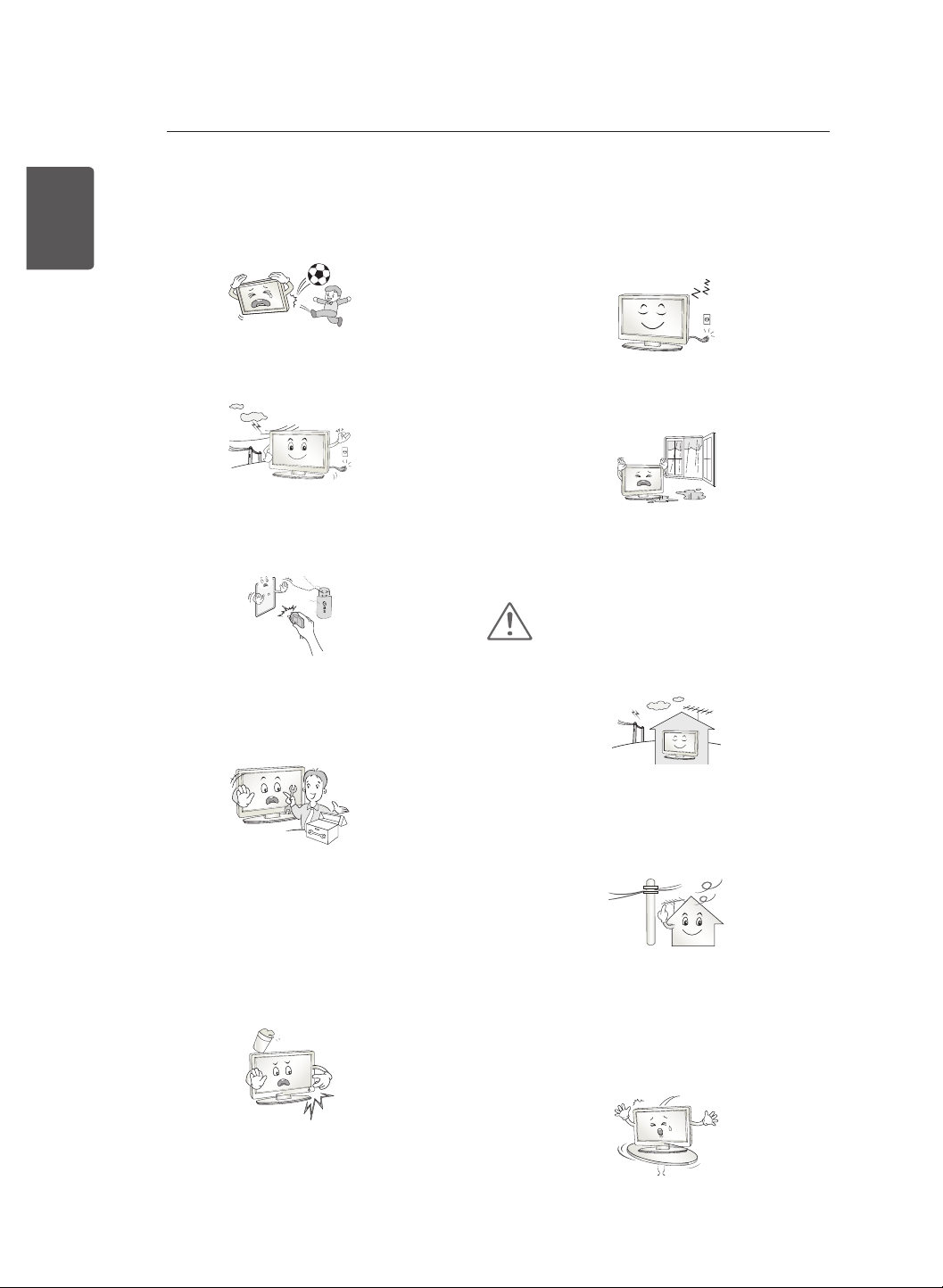

SAFETY INSTRUCTIONS
yy
Do not place the TV and/or remote
control in the following environments:
y
- A location exposed to direct sunlight
y
- An area with high humidity such as a
bathroom
y
- Near any heat source such as stoves
and other devices that produce heat
y
- Near kitchen counters or humidifiers
where they can easily be exposed to
steam or oil
y
- An area exposed to rain or wind
y
- Near containers of water such as vases
Otherwise, this may result in fire, electric
shock, malfunction or product deformation.
yy
Do not place the product where it might
be exposed to dust.
This may cause a fire hazard.
yy
Mains Plug is the TV connecting/
disconnecting device to AC mains electric
supply. This plug must remain readily
attached and operable when TV is in use.
yy
Do not touch the power plug with wet
hands. Additionally, if the cord pin is wet
or covered with dust, dry the power plug
completely or wipe dust off.
You may be electrocuted due to excess
moisture.
yy
Make sure to connect Mains cable to
compliant AC mains socket with Grounded
earth pin. (Except for devices which are not
grounded on earth.) Otherwise possibility
you may be electrocuted or injured.
yy
Insert power cable plug completely into
wall socket otherwise if not secured
completely into socket, fire ignition may
break out.
yy
Ensure the power cord does not come into
contact with hot objects such as a heater.
This may cause a fire or an electric shock
hazard.
yy
Do not place a heavy object, or the product
itself, on power cables.
Otherwise, this may result in fire or electric
shock.
yy
Bend antenna cable between inside and
outside building to prevent rain from
flowing in.
This may cause water damaged inside the
Product and could give an electric shock.
sAfETy INsTrucTIONs
Please read these safety precautions carefully before using the product.
wArNING
5
ENGENGLISH
SAFETY INSTRUCTIONS
yy
When mounting TV onto wall make sure to
neatly install and isolate cabling from rear
of TV as to not create possibility of electric
shock /fire hazard.
yy
Do not plug too many electrical devices
into a single multiple electrical outlet.
Otherwise, this may result in fire due to
over-heating.
yy
Do not drop the product or let it fall over
when connecting external devices.
Otherwise, this may result in injury or
damage to the product.
yy
Keep the anti-moisture packing material or
vinyl packing out of the reach of children.
Anti-moisture material is harmful if
swallowed. If swallowed by mistake, force
the patient to vomit and visit the nearest
hospital. Additionally, vinyl packing can
cause suffocation. Keep it out of the reach
of children.
Desiccant
yy
Do not let your children climb or cling onto
the TV. Otherwise, the TV may fall over,
which may cause serious injury.
yy
Dispose of used batteries carefully to
ensure that a small child does not consume
them. Please seek Doctor- Medical
Attention immediately if child consumes
batteries.
yy
Do not insert any metal objects/conductors
(like a metal chopstick/cutlery/screwdriver)
between power cable plug and input Wall
Socket while it is connected to the input
terminal on the wall. Additionally, do not
touch the power cable right after plugging
into the wall input terminal. You may be
electrocuted. (Depending on model)
yy
Do not put or store inflammable
substances near the product. There is a
danger of combustion/explosion or fire due
to careless handling of the inflammable
substances.
yy
Do not drop metallic objects such as
coins, hair pins, chopsticks or wire into
the product, or inflammable objects such
as paper and matches. Children must pay
particular attention. Electrical shock, fire
or injury can occur. If a foreign object is
dropped into the product, unplug the power
cord and contact the service centre.
yy
Do not spray water on the product or scrub
with an inflammable substance (thinner or
benzene). Fire or electric shock accident
can occur.
6
ENG
ENGLISH
SAFETY INSTRUCTIONS
yy
Do not allow any impact, shock or any
objects to fall into the unit, and do not drop
anything onto the screen.
You may be injured or the product can be
damaged.
yy
Never touch this product or antenna during
a thunder or lighting storm.
You may be electrocuted.
yy
Never touch the wall outlet when there is
leakage of gas, open the windows and
ventilate.
It may cause a fire or a burn by a spark.
yy
Do not disassemble, repair or modify the
product at your own discretion.
Fire or electric shock accident can occur.
Contact the service centre for check,
calibration or repair.
yy
If any of the following occur, unplug the
product immediately and contact your local
service centre.
y
- The product has been impacted by shock
y
- The product has been damaged
y
- Foreign objects have entered the product
y
- The product produced smoke or a
strange smell
This may result in fire or electric shock.
yy
Unplug the TV from AC mains wall socket
if you do not intend to use the TV for a
long period of time. Accumulated dust
can cause fire hazard and insulation
deterioration can cause electric leakage/
shock/fire.
yy
Apparatus shall not be exposed to dripping
or splashing and no objects filled with
liquids, such as vases, shall be placed on
the apparatus.
yy
Do not install this product on a wall if it
could be exposed to oil or oil mist.
This may damage the product and causeit
to fall.
cAuTION
yy
Install the product where no radio wave
occurs.
yy
There should be enough distance between
an outside antenna and power lines to
keep the former from touching the latter
even when the antenna falls.
This may cause an electric shock.
yy
Do not install the product on places such
as unstable shelves or inclined surfaces.
Also avoid places where there is vibration
or where the product cannot be fully
supported. Otherwise, the product may
fall or flip over, which may cause injury or
damage to the product.
7
ENGENGLISH
SAFETY INSTRUCTIONS
yy
If you install the TV on a stand, you need
to take actions to prevent the product from
overturning. Otherwise, the product may fall
over, which may cause injury.
yy
If you intend to mount the product to a wall,
attach VESA standard mounting interface
(optional parts) to the back of the product.
When you install the set to use the wall
mounting bracket (optional parts), fix it
carefully so as not to drop.
yy
Only use the attachments / accessories
specified by the manufacturer.
yy
When installing the antenna, consult with a
qualified service technician. If not installed
by a qualified technician, this may create a
fire hazard or an electric shock hazard.
yy
We recommend that you maintain a
distance of at least 2 to 7 times the diagonal
screen size when watching TV.
If you watch TV for a long period of time,
this may cause blurred vision.
yy
Only use the specified type of battery.
This could cause damage to the remote
control.
yy
Do not mix new batteries with old batteries.
This may cause the batteries to overheat
and leak.
yy
Batteries should not be exposed to
excessive heat. For example, keep away
from direct Sunlight, open fireplace and
electric heaters.
yy
Do not place non-rechargeable batteries in
charging device.
yy
Make sure there are no objects between the
remote control and its sensor.
yy
Signal from Remote Control can be
interrupted due to external/internal lighting
eg Sunlight, fluorescent lighting.If this
occurs turn off lighting or darken viewing
area.
yy
When connecting external devices such
as video game consoles, make sure the
connecting cables are long enough.
Otherwise, the product may fall over, which
may cause injury or damage the product.
yy
Do not turn the product On/Off by plugging-
in or unplugging the power plug to the
wall outlet. (Do not use the power plug for
switch.)
It may cause mechanical failure or could
give an electric shock.
yy
Please follow the installation instructions
below to prevent the product from
overheating.
y
- The distance between the product and the
wall should be more than 10 cm.
y
- Do not install the product in a place with
no ventilation (e.g., on a bookshelf or in a
cupboard).
y
- Do not install the product on a carpet or
cushion.
y
- Make sure the air vent is not blocked by a
tablecloth or curtain.
Otherwise, this may result in fire.
8
ENG
ENGLISH
SAFETY INSTRUCTIONS
yy
Take care not to touch the ventilation
openings when watching the TV for long
periods as the ventilation openings may
become hot. This does not affect the
operation or performance of the product.
yy
Periodically examine the cord of your
appliance, and if its appearance indicates
damage or deterioration, unplug it,
discontinue use of the appliance, and have
the cord replaced with an exact replacement
part by an authorized servicer.
yy
Prevent dust collecting on the power plug
pins or outlet.
This may cause a fire hazard.
yy
Protect the power cord from physical or
mechanical abuse, such as being twisted,
kinked, pinched, closed in a door, or walked
upon. Pay particular attention to plugs, wall
outlets, and the point where the cord exits
the appliance.
yy
Do not press strongly upon the panel with
a hand or sharp object such as nail, pencil
or pen, or make a scratch on it, as it may
cause damage to screen.
yy
Avoid touching the screen or holding your
finger(s) against it for long periods of time.
Doing so may produce some temporary or
permanent distortion/damage to screen.
yy
When cleaning the product and its
components, unplug the power first
and wipe it with a soft cloth. Applying
excessive force may cause scratches or
discolouration. Do not spray with water
or wipe with a wet cloth. Never use glass
cleaner, car or industrial shiner, abrasives
or wax, benzene, alcohol etc., which can
damage the product and its panel.
Otherwise, this may result in fire, electric
shock or product damage (deformation,
corrosion or breakage).
yy
As long as this unit is connected to the AC
wall outlet, it is not disconnected from the
AC power source even if you turn off this
unit by SWITCH.
yy
When unplugging the cable, grab the plug
and unplug it, by pulling at the plug. Don’t
pull at the cord to unplug the power cord
from the power board, as this could be
hazardous.
yy
When moving the product, make sure
you turn the power off first. Then, unplug
the power cables, antenna cables and all
connecting cables.
The TV set or power cord may be damaged,
which may create a fire hazard or cause
electric shock.
yy

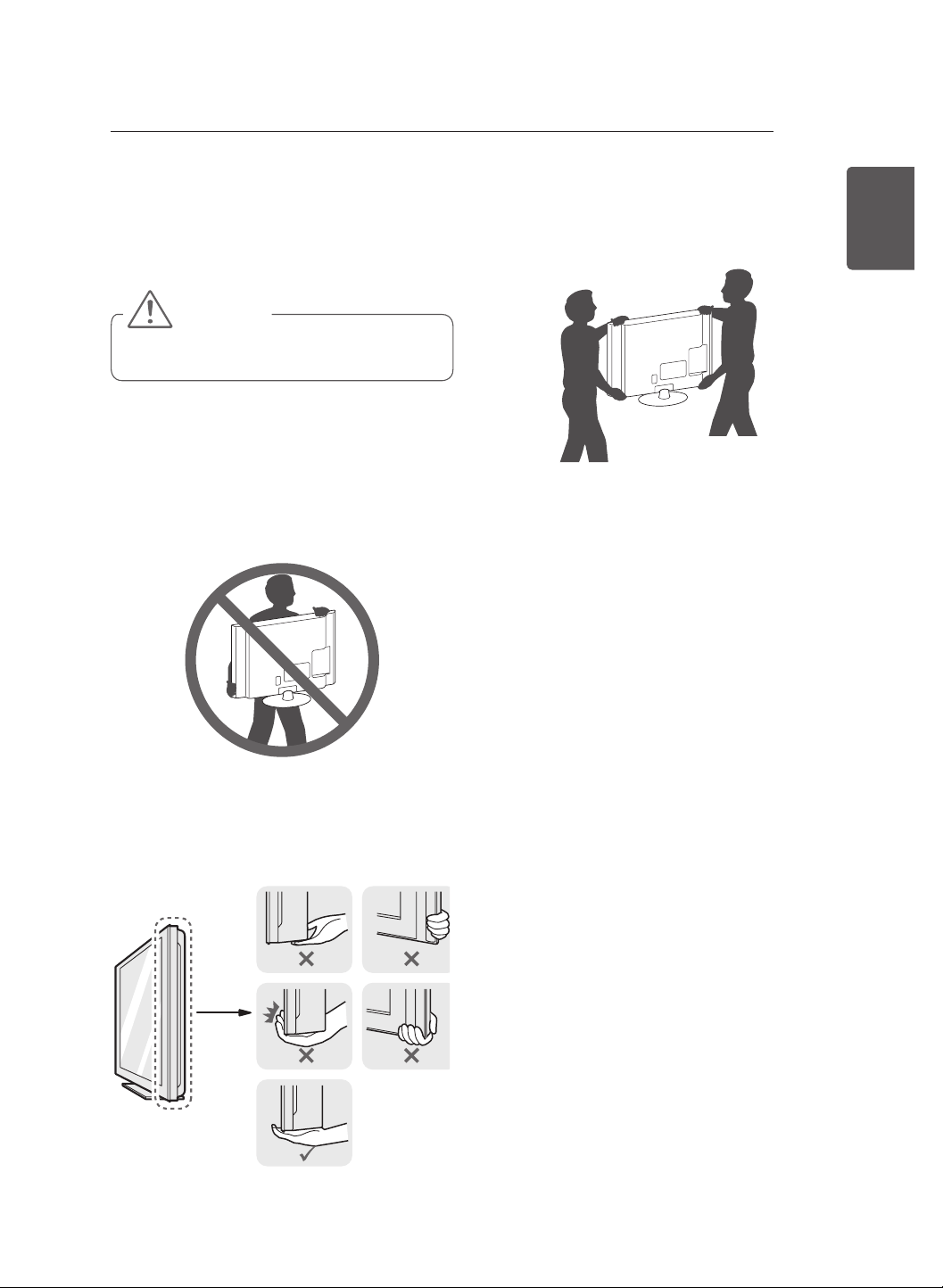

When moving or unpacking the product,
work in pairs because the product is heavy.
Otherwise, this may result in injury.
9
ENGENGLISH
SAFETY INSTRUCTIONS
yy
Contact the service centre once a year to
clean the internal parts of the product.
Accumulated dust can cause mechanical
failure.
yy
Refer all servicing to qualified service
personnel. Servicing is required when
the apparatus has been damaged in any
way, such as power supply cord or plug
is damaged, liquid has been spilled or
objects have fallen into the apparatus, the
apparatus has been exposed to rain or
moisture, does not operate normally, or has
been dropped.
yy
If the product feels cold to the touch, there
may be a small “flicker” when it is turned on.
This is normal, there is nothing wrong with
product.
yy
The panel is a high technology display
product with resolution of two million to six
million pixels. You may see tiny black dots
and/or brightly coloured dots (red, blue or
green) at a size of 1 ppm on the panel. This
does not indicate a malfunction and does
not affect the performance and reliability of
the product.
This phenomenon also occurs in third-party
products and is not subject to exchange or
refund.
yy
You may find different brightness and colour
of the panel depending on your viewing
position(left/right/top/down).
This phenomenon occurs due to the
characteristic of the panel. It is not related
with the product performance, and it is not
malfunction.
yy
Displaying a still image (e.g., broadcasting
channel logo, on-screen menu, scene from
a video game) for a prolonged time may
cause damage to the screen, resulting in
retention of the image, which is known as
image sticking. The warranty does not cover
the product for image sticking.
Avoid displaying a fixed image on your
television’s screen for a prolonged period (2
or more hours for LCD, 1 or more hours for
Plasma).
Also, if you watch the TV at a ratio of 4:3 for
a long time, image sticking may occur on
the borders of the panel.
This phenomenon also occurs in third-party
products and is not subject to exchange or
refund.
yy
Generated Sound
“Cracking” noise: A cracking noise that
occurs when watching or turning off the TV
is generated by plastic thermal contraction
due to tempera-ture and humidity. This
noise is common for products where
thermal deformation is required. Electrical
circuit humming/panel buzzing: A low level
noise is generated from a high-speed
switching circuit, which supplies a large
amount of current to operate a product. It
varies depend-ing on the product.
This generated sound does not affect the
performance and reliability of the product.
yy
Do not use high voltage electrical goods
near the TV (e.g. electric mosquito-swatter).
This may result in product malfunction.
10
ENG
ENGLISH
ASSEMBLING AND PREPARING
NOTE
y
Image shown may differ from your TV.
y
Your TV’s OSD (On Screen Display) may differ slightly from that shown in this manual.
y
The available menus and options may differ from the input source or product model that you
are using.
y
New features may be added to this TV in the future.
y
The TV can be placed in standby mode in order to reduce the power consumption. And the
TV should be turned off if it will not be watched for some time, as this will reduce energy
consumption.
y
The energy consumed during use can be significantly reduced if the level of brightness of the
picture is reduced, and this will reduce the overall running cost.
AssEmBLING AND prEpArING
unpacking
Check your product box for the following items. If there are any missing accessories, contact the local
dealer where you purchased your product. The illustrations in this manual may differ from the actual
product and item.
cAuTION
y
Do not use any unapproved items to ensure the safety and product life span.
y
Any damages or injuries by using unapproved items are not covered by the manufacturer’s
warranty.
y
Some models have a thin film attached on to the screen and this must not be removed.
NOTE
y
The items supplied with your product may vary depending on the model.
y
Product specifications or contents of this manual may be changed without prior notice due to
upgrade of product functions.
y
For an optimal connection, HDMI cables and USB devices should have bezels less than 10 mm
thick and 18 mm width. Use an extension cable that supports USB 2.0 if the USB cable or USB
memory stick does not fit into your TV’s USB port.
A
B
A
B
*A
<
=
10 mm
*B
<
=
18 mm
y
Use a certified cable with the HDMI logo attached.
y
If you do not use a certified HDMI cable, the screen may not display or a connection error may
occur. (Recommended HDMI Cable Types)
- High-Speed HDMI
®
/™ Cable
- High-Speed HDMI
®
/™ Cable with Ethernet
11
ENGENGLISH
ASSEMBLING AND PREPARING
NOTE
y
Image shown may differ from your TV.
y
Your TV’s OSD (On Screen Display) may differ slightly from that shown in this manual.
y
The available menus and options may differ from the input source or product model that you
are using.
y
New features may be added to this TV in the future.
y
The TV can be placed in standby mode in order to reduce the power consumption. And the
TV should be turned off if it will not be watched for some time, as this will reduce energy
consumption.
y
The energy consumed during use can be significantly reduced if the level of brightness of the
picture is reduced, and this will reduce the overall running cost.
AssEmBLING AND prEpArING
unpacking
Check your product box for the following items. If there are any missing accessories, contact the local
dealer where you purchased your product. The illustrations in this manual may differ from the actual
product and item.
cAuTION
y
Do not use any unapproved items to ensure the safety and product life span.
y
Any damages or injuries by using unapproved items are not covered by the manufacturer’s
warranty.
y
Some models have a thin film attached on to the screen and this must not be removed.
NOTE
y
The items supplied with your product may vary depending on the model.
y
Product specifications or contents of this manual may be changed without prior notice due to
upgrade of product functions.
y
For an optimal connection, HDMI cables and USB devices should have bezels less than 10 mm
thick and 18 mm width. Use an extension cable that supports USB 2.0 if the USB cable or USB
memory stick does not fit into your TV’s USB port.
A
B
A
B
*A
<
=
10 mm
*B
<
=
18 mm
y
Use a certified cable with the HDMI logo attached.
y
If you do not use a certified HDMI cable, the screen may not display or a connection error may
occur. (Recommended HDMI Cable Types)
- High-Speed HDMI
®
/™ Cable
- High-Speed HDMI
®
/™ Cable with Ethernet
FREEZE
RATIO
L/R SELECT
ENTER
BACK
EXIT
Q.MENU
INFO
MENU
CHVOL
P
A
G
E
FAV
3D
MUTE
123
456
78
0
9
MARK
LIST
FLASHBK
ENERGY
SAVING
TV
AV MODE
INPUT
remote control, Batteries
(AAA)
Owner’s manual cable Holder
cable managements
2EA
power cord wall mount spacers
2EA
(Only 42LB58**)
stand screws
4EA, M4 x L20
(Only 32LB58**)
stand screws
4EA, M4 x L14
(Only
39/42/47/50/55/60/65LB58**)
stand Bases
(Only
32/39/42/47/50/55/60LB58**)
stand Assys
(stand Body/stand Base)
(Only 65LB58**)
12
ENG
ENGLISH
ASSEMBLING AND PREPARING
separate purchase
Separate purchase items can be changed or modified for quality improvement without any notification.
Contact your dealer to buy these items.
These devices only work with certain models.
The model name or design may be changed depending on the upgrade of product functions,
manufacturer’s circumstances or policies.
AN-mr500
Magic remote
AN-Vc5**
Video call camera
LG Audio Device
AN-wf500
Wi-Fi/Bluetooth Dongle
* You can use the Magic Remote and LG Audio Device(Wireless) only when you are using the Wi-Fi/
Bluetooth Dongle.
13
ENGENGLISH
ASSEMBLING AND PREPARING
parts and buttons
Speakers
Screen
Joystick Button
2
Remote control and
Intelligent
1
sensors
Power Indicator
1 Intelligent sensor - Adjusts the image quality and brightness based on the surrounding
environment.
2 Joystick Button - This button is located below the TV screen.
NOTE
y
You can set the Power indicator Light to on or off by selecting OpTION in the main menus.
14
ENG
ENGLISH
ASSEMBLING AND PREPARING
using the Joystick button
You can simply operate the TV functions by pressing to turn On/Off or sliding your nger over
joystick button moving up, down, left or right.
Basic functions
Power On
When the TV is turned off, place your finger on the joystick
button and press it once and release it.
Power Off
When the TV is turned on, place your finger on the joystick
button and press it once for a few seconds and release it.
(However, if the Menu button is on the screen, pressing and
holding the joystick button will let you exit the Menu.)
Volume
Control
If you place your finger over the joystick button and move it left
or right, you can adjust the volume level you want.
Programmes
Control
If you place your finger over the joystick button and move it up
or down, you can scrolls through the saved programmes you
want.
NOTE
y
When your finger over the joystick button and push it to the up, down, left or right, be careful
not to press the joystick button. If you press the joystick button first, you may not be able to
adjust the volume level and saved programmes.
Adjusting the menu
When the TV is turned on, press the joystick button one time.
You can adjust the Menu items(
) moving the joystick button up, down, left or right.
TV off
Turns the power off.
settings Accesses the main menu.
close
Closes Clears on-screen displays and returns to
TV viewing.
Input List Changes the input source.
15
ENGENGLISH
ASSEMBLING AND PREPARING
Lifting and moving the TV
Please note the following advice to prevent the
TV from being scratched or damaged and for
safe transportation regardless of its type and
size.
cAuTION
y
Avoid touching the screen at all times, as
this may result in damage to the screen.
y
It is recommended to move the TV in the
box or packing material that the TV originally
came in.
y
Before moving or lifting the TV, disconnect
the power cord and all cables.
y
When holding the TV, the screen should face
away from you to avoid damage.
y
Hold the top and bottom of the TV frame
rmly. Make sure not to hold the transparent
part, speaker, or speaker grill area.
y
When transporting a large TV, there should
be at least 2 people.
y
When transporting the TV by hand, hold the
TV as shown in the following illustration.
y
When transporting the TV, do not expose the
TV to jolts or excessive vibration.
y
When transporting the TV, keep the TV
upright, never turn the TV on its side or tilt
towards the left or right.
y
Do not apply excessive pressure to cause
exing /bending of frame chassis as it may
damage screen.
y
When handling the TV, be careful not to
damage the protruding joystick button.
16
ENG
ENGLISH
ASSEMBLING AND PREPARING
Setting up the TV
Image shown may differ from your TV.
Attaching the stand
2
3
B stand base
1
2
A stand base
4EA
M4 x L14
M4 x L20
(Only 32LB58**)
CAUTION
y
When attaching the stand to the TV
set, place the screen facing down on a
cushioned table or flat surface to protect
the screen from scratches.
Mounting on a table
1 Lift and tilt the TV into its upright position on
a table.
- Leave a 10 cm (minimum) space from
the wall for proper ventilation.
10 cm
10 cm
10 cm
10 cm
10 cm
2 Connect the power cord to a wall outlet.
CAUTION
y
Do not place the TV near or on sources
of heat, as this may result in fire or other
damage.
(Only 32/39/42/47/
50/55/60LB58**)
(Only 65LB58**)
Stand Base
Stand Base
Stand Body
1
17
ENGENGLISH
ASSEMBLING AND PREPARING
Securing the TV to a wall
(This feature is not available for all models.)
1 Insert and tighten the eye-bolts, or TV
brackets and bolts on the back of the TV.
- If there are bolts inserted at the eye-
bolts position, remove the bolts first.
2 Mount the wall brackets with the bolts to the
wall.
Match the location of the wall bracket and
the eye-bolts on the rear of the TV.
3 Connect the eye-bolts and wall brackets
tightly with a sturdy rope.
Make sure to keep the rope horizontal with
the flat surface.
CAUTION
y
Make sure that children do not climb on
or hang on the TV.
NOTE
y
Use a platform or cabinet that is strong
and large enough to support the TV
securely.
y
Brackets, bolts and ropes are not
provided. You can obtain additional
accessories from your local dealer.
WARNING
y
If a television is not positioned in a
sufficiently stable location, it can be
potentially hazardous due to falling. Many
injuries, particularly to children, can be
avoided by taking simple precautions
such as:
»
Using cabinets or stands
recommended by the manufacturer of
the television.
»
Only using furniture that can safely
support the television.
»
Ensuring the television is not
overhanging the edge of the
supporting furniture.
»
Not placing the television on tall
furniture (for example, cupboards or
bookcases) without anchoring both
the furniture and the television to a
suitable support.
»
Not standing the televisions on cloth
or other materials placed between the
television and supporting furniture.
»
Educating children about the dangers
of climbing on furniture to reach the
television or its controls.
18
ENG
ENGLISH
ASSEMBLING AND PREPARING
Make sure to use screws and wall mount
bracket that meet the VESA standard. Standard
dimensions for the wall mount kits are described
in the following table.
Separate purchase (Wall Mounting Bracket)
Model 32/39LB58** 42/47/50/55LB58**
VESA (mm)
(A x B)
200 x 200 400 x 400
Standard screw M6 M6
Number of
screws
4 4
Wall mount
bracket
LSW240B
MSW240
LSW440B
MSW240
Model 60/65LB58**
VESA (mm)
(A x B)
400 x 400
Standard screw M6
Number of
screws
4
Wall mount
bracket
LSW440B
A
B
Mounting on a wall
Attach an optional wall mount bracket at the rear
of the TV carefully and install the wall mount
bracket on a solid wall perpendicular to the
floor. When you attach the TV to other building
materials, please contact qualified personnel.
LG recommends that wall mounting be
performed by a qualified professional installer.
We recommend the use of LG’s wall mount
bracket.
When you do not use LG’s wall mount bracket,
please use a wall mount bracket where the
device is adequately secured to the wall with
enough space to allow connectivity to external
devices.
10 cm
10 cm
10 cm
10 cm
19
ENGENGLISH
ASSEMBLING AND PREPARING
cAuTION
y
Disconnect the power first, and then
move or install the TV. Otherwise electric
shock may occur.
y
If you install the TV on a ceiling or slanted
wall, it may fall and result in severe injury.
Use an authorised LG wall mount and
contact the local dealer or qualified
personnel.
y
Do not over tighten the screws as this
may cause damage to the TV and void
your warranty.
y
Use the screws and wall mounts that
meet the VESA standard. Any damages
or injuries by misuse or using an
improper accessory are not covered by
the manufacturer’s warranty.
NOTE
y
Use the screws that are listed on the
VESA standard screw specifications.
y
The wall mount kit includes an installation
manual and necessary parts.
y
The wall mount bracket is not provided.
You can obtain additional accessories
from your local dealer.
y
The length of screws may differ
depending on the wall mount. Make sure
to use the proper length.
y
For more information, refer to the manual
supplied with the wall mount.
y
When attaching a wall mounting bracket
to the TV, insert the wall mount spacers
into the TV wall mount holes to adjust the
vertical angle of the TV. (Only 42LB58**)
Wall Mount Spacer
20
ENG
ENGLISH
MAKING CONNECTIONS
mAKING cONNEcTIONs
This section on mAKING cONNEcTIONs
mainly uses diagrams for the 47LB580V models.
Connect various external devices to the TV
and switch input modes to select an external
device. For more information of external device’s
connection, refer to the manual provided with
each device.
Available external devices are: HD receivers,
DVD players, VCRs, audio systems, USB
storage devices, PC, gaming devices, and other
external devices.
NOTE
y
The external device connection may differ
from the model.
y
Connect external devices to the TV
regardless of the order of the TV port.
y
If you record a TV programme on a
DVD recorder or VCR, make sure to
connect the TV signal input cable to the
TV through a DVD recorder or VCR. For
more information of recording, refer to
the manual provided with the connected
device.
y
Refer to the external equipment’s manual
for operating instructions.
y
If you connect a gaming device to the TV,
use the cable supplied with the gaming
device.
y
In PC mode, there may be noise
associated with the resolution, vertical
pattern, contrast or brightness. If noise is
present, change the PC output to another
resolution, change the refresh rate to
another rate or adjust the brightness and
contrast on the PICTURE menu until the
picture is clear.
y
In PC mode, some resolution settings
may not work properly depending on the
graphics card.
Antenna connection
Connect the TV to a wall antenna socket with an
RF cable (75 Ω).
ANTENNA /
CABLE IN
(*Not Provided)
NOTE
y
Use a signal splitter to use more than 2
TVs.
y
If the image quality is poor, install a signal
amplifier properly to improve the image
quality.
y
If the image quality is poor with an
antenna connected, try to realign the
antenna in the correct direction.
y
An antenna cable and converter are not
supplied.
y
Supported DTV Audio: MPEG, Dolby
Digital, Dolby Digital Plus, HE-AAC.
21
ENGENGLISH
MAKING CONNECTIONS
Euro scart connection
(Only Satellite models)
Transmits the video and audio signals from an
external device to the TV set. Connect the ex-
ternal device and the TV set with the euro scart
cable as shown.
AV1
IN/OUT
(*Not Provided)
Output
Type
current
input mode
AV1
(TV Out
1
)
Digital TV Digital TV
Analogue TV, AV
Analogue TVComponent
HDMI
1 TV Out : Outputs Analogue TV or Digital TV
signals.
NOTE
y
Any Euro scart cable used must be signal
shielded.
satellite dish connection
(Only Satellite models)
Connect the TV to a satellite dish to a satellite
socket with a satellite RF cable (75 Ω).
LNB
Satellite IN
13/18 V
700 mA Max
(*Not Provided)
22
ENG
ENGLISH
MAKING CONNECTIONS
AUDIO
VIDEO
MONO
( )
VIDEO
ANTENNA /
CABLE IN
H/P OUT
OPTICAL
AUDIO IN
LNB
Satellite IN
13/18V
700 mA Max
DVD / Blu-Ray / HD Cable BoxDVD / Blu-Ray / HD Cable Box / VCR
Digital Audio System
GREEN
BLUE
RED
WHITE
RED
GREEN
BLUE
RED
WHITE
RED
YELLOW
WHITE
RED
RED
WHITE
YELLOW
Headphone
Other connections
Connect your TV to external devices. For the best picture and audio quality, Connect the external
device and the TV with the HDMI cable as shown. Some separate cable is not provided.
(Only
Satellite models)
23
ENGENGLISH
MAKING CONNECTIONS
HDMI
DVI OUT
AUDIO OUT
RED
WHITE
MHL passive cable
Mobile phone
HUB
HDD
USB
PCMCIA card
DVD / Blu-Ray / HD Cable Box / HD STB /
PC (Only HDmI IN 1 (Arc) or HDmI IN 2)
DVD / Blu-Ray / HD Cable Box / HD STB /
PC (Only HDmI IN 1 (Arc) or HDmI IN 2)
(Only Satellite models)
24
ENG
ENGLISH
REMOTE CONTROL
rEmOTE cONTrOL
The descriptions in this manual are based on the buttons on the remote control.
Please read this manual carefully and use the TV correctly. To replace batteries,
open the battery cover, replace batteries (1.5 V AAA) matching the
and
ends to the label inside the compartment, and close the battery cover.
To remove the batteries, perform the installation actions in reverse.
cAuTION
yy
Do not mix old and new batteries, as this may damage the remote control.
yy
In Analogue TV and some countries, some remote control buttons may not work.
Make sure to point the remote control toward the remote control sensor on the TV.
(pOwEr)
Turns the TV on or off.
suBTITLE
Recalls your preferred subtitle in digital mode.
rATIO
Resizes an image
.
INpuT
Changes the input source.
TV/rAD
Selects Radio, TV and DTV programme.
Number buttons
Enters numbers.
LIsT
Accesses the saved programme list.
Q.VIEw Returns to the previously viewed programme.
Adjusts the volume level.
fAV
Accesses your favourite programme list.
GuIDE
Shows programme guide.
muTE
Mutes all sounds.
ꕌ
p
ꕍ
Scrolls through the saved programmes.
pAGE
Moves to the previous or next screen.
INfO
Views the information of the current programme and screen.
smArT
Accesses the Home menus.
my Apps Shows the list of Apps.
Navigation buttons (up/down/left/right)
Scrolls through menus or options.
OK
Selects menus or options and confirms your input.
BAcK
Returns to the previous level.
sETTINGs
Accesses the main menus.
EXIT
Clears on-screen displays and returns to TV viewing.
coloured buttons
These access special functions in some menus.
( :
Red
, :
Green
, :
Yellow
, :
Blue
)
1
Teletext buttons
These buttons are used for teletext.
Q.mENu Accesses the Quick menus.
LIVE TV
Returns to LIVE TV.
control buttons
( )
Controls the Premium contents, Time
Machine or SmartShare menus or the SIMPLINK compatible devices (USB or
SIMPLINK or Time Machine).
rEc
Starts to record and displays record menu. (Only Time Machine
supported model)
sLEEp Sets the sleep timer.
AD/ By Pressing AD button, audio descriptions function will be
enabled. (Depending on model)
1 23
4
5 6
78
0
9
P
A
G
E
FAV
MUTE
Q.VIEW
EXIT
OK
LIST
MY APPS
LIVE TV
REC
TEXT
T.OPT
SUBTITLE
BACK
SETTINGS
INFO
GUIDE
INPUT
RATIO
TV/
RAD
SLEEP
Q.MENU
AD/
1
25
ENGENGLISH
USING THE USER GUIDE / MAINTENANCE
usING THE usEr GuIDE
User Guide allows you to more easily access the
detailed TV information.
1 Press the
smArT button to access the
Home menu.
2 Select sETTINGs
suppOrT.
3 Select user Guide and press OK
.
suppOrT
user Guide
Software Update
Initialization of App
Product/Service Info.
Picture Test
Sound Test
Signal Test
mAINTENANcE
cleaning your TV
Clean your TV regularly to keep the best
performance and to extend the product lifespan.
cAuTION
y
Make sure to turn the power off and
disconnect the power cord and all other
cables first.
y
When the TV is left unattended and
unused for a long time, disconnect the
power cord from the wall outlet to prevent
possible damage from lightning or power
surges.
screen, frame, cabinet and stand
y
To remove dust or light dirt, wipe the
surface with a dry, clean, and soft cloth.
y
To remove major dirt, wipe the surface
with a soft cloth dampened in clean water
or a diluted mild detergent. Then wipe
immediately with a dry cloth.
cAuTION
y
Avoid touching the screen at all times, as
this may result in damage to the screen.
y
Do not push, rub, or hit the screen
surface with your fingernail or a sharp
object, as this may result in scratches
and image distortions.
y
Do not use any chemicals as this may
damage the product.
y
Do not spray liquid onto the surface. If
water enters the TV, it may result in fire,
electric shock, or malfunction.
power cord
Remove the accumulated dust or dirt on the
power cord regularly.
26
ENG
ENGLISH
TROUBLESHOOTING
TrOuBLEsHOOTING
problem solution
Cannot control the
TV with the remote
control.
y
Check the remote control sensor on the product and try again.
y
Check if there is any obstacle between the product and the remote control.
y
Check if the batteries are still working and properly installed (
to , to
).
No image display
and no sound is
produced.
y
Check if the product is turned on.
y
Check if the power cord is connected to a wall outlet.
y
Check if there is a problem in the wall outlet by connecting other products.
The TV turns off
suddenly.
y
Check the power control settings. The power supply may be interrupted.
y
Check if the sleep Timer or Off Time feature is activated in the TImE
settings.
y
If there is no signal while the TV is on, the TV will turn off automatically after
15 minutes of inactivity.
When connecting
to the PC (HDMI/
DVI), ‘No signal’ or
‘Invalid Format’ is
displayed.
y
Turn the TV off/on using the remote control.
y
Reconnect the HDMI cable.
y
Restart the PC with the TV on.
27
ENGENGLISH
ENVIRONMENTAL INFORMATION
TrOuBLEsHOOTING
problem solution
Cannot control the
TV with the remote
control.
y
Check the remote control sensor on the product and try again.
y
Check if there is any obstacle between the product and the remote control.
y
Check if the batteries are still working and properly installed (
to , to
).
No image display
and no sound is
produced.
y
Check if the product is turned on.
y
Check if the power cord is connected to a wall outlet.
y
Check if there is a problem in the wall outlet by connecting other products.
The TV turns off
suddenly.
y
Check the power control settings. The power supply may be interrupted.
y
Check if the sleep Timer or Off Time feature is activated in the TImE
settings.
y
If there is no signal while the TV is on, the TV will turn off automatically after
15 minutes of inactivity.
When connecting
to the PC (HDMI/
DVI), ‘No signal’ or
‘Invalid Format’ is
displayed.
y
Turn the TV off/on using the remote control.
y
Reconnect the HDMI cable.
y
Restart the PC with the TV on.
ENVIrONmENTAL INfOrmATION
(India region only)
Disposal of your old appliance (as per e-waste rules)
1. When this crossed out wheeled bin symbol is depicted on the product and its operator’s manual, it
means the product is covered by the e-waste Management and Handling Rules, 2011 and are meant to
be recycled, dismantled, refurbished or disposed off.
2. Dos
a. The product is required to be handed over only to the authorized recycler for disposal.
b. Keep the product in isolated area, after it becomes non-functional/un-repairable so as to prevent its
accidental breakage.
Don’t
a. The product should not be opened by the user himself/herself, but only by authorized service personnel.
b. The product is not meant for re-sale to any unauthorized agencies/scrap dealer/kabariwalah.
c. The product is not meant for mixing into household waste stream.
d. Do not keep any replaced spare part(s) from the product in exposed area.
3. Any disposal through unauthorized agencies/person will attract action under Environment (Protection) Act 1986.
4. Hazards of improper handling or accidental breakage:
a. All picture tubes are hazardous due to concentration of lead, cadmium and zinc in it. The various chemicals and
heavy metals contained in picture tubes cause cancer, birth defects, hormone disruption, and damage body organs
when they leak into the environment. All of this can, and does, leach into the soil, ground water, air and our own bodies.
To prevent possible injury in case of breakage, wear heavy protective clothing, including gloves & safety goggles.
b. If batteries are disposed incorrectly, it can greatly harm the environment. The chemical by-products are hazardous.
The metals and chemicals found in batteries can mix into soil which may be hazardous to humans, plants and animals.
If thrown in re, they can cause blast and release toxic gases which may be harmful for health.
5. To locate a nearest collection centre or call for pick-up (limited area only) for disposal of this appliance, please contact
Toll Free No. 1800-180-9999 for details. All collection centre and pick up facilities are done by third parties whith LG
Electronics India Pvt. Ltd. merely as a facilitator. For more detailed information, please visit : http://www.lge.com/in
28
ENG
ENGLISH
SPECIFICATIONS
spEcIfIcATIONs
Wireless LAN module(TWFM-B006D) specification
Standard IEEE802.11a/b/g/n
Frequency Range
2400 to 2483.5 MHz
5150 to 5250 MHz
5725 to 5850 MHz (for Non EU)
Output Power (Max.)
802.11a: 11 dBm
802.11b: 14 dBm
802.11g: 10.5 dBm
802.11n - 2.4GHz: 11 dBm
802.11n - 5GHz: 12.5 dBm
yy
Because band channel used by the country could be different, the user can not change or adjust
the operating frequency and this product is set for the regional frequency table.
yy
This device should be installed and operated with minimum distance 20 cm between the device
and your body. And this phrase is f or the general statement for consideration of user environment.
0197
0197
29
ENGENGLISH
SPECIFICATIONS
Product specifications may be changed without prior notice due to upgrade of product functions.
For the power supply and power consumption, refer to the label attached to the product.
mODELs
32LB58** 39LB58** 42LB58**
32LB5800-TA
32LB580V-TA
32LB5820-TB
32LB582B-TB
32LB582D-TB
32LB582T-TB
32LB582Y-TB
32LB582Z-TB
32LB5840-TA
32LB584T-TA
32LB589Y-TB
32LB589Z-TB
39LB5800-TA
39LB580V-TA
39LB5820-TB
39LB582B-TB
39LB582D-TB
39LB582T-TB
39LB582Y-TB
39LB582Z-TB
39LB5840-TA
39LB584T-TA
39LB589Y-TB
39LB589Z-TB
42LB5800-TA
42LB580V-TA
42LB5820-TB
42LB582B-TB
42LB582D-TB
42LB582T-TB
42LB582Y-TB
42LB582Z-TB
42LB5840-TA
42LB584T-TA
42LB589Y-TB
42LB589Z-TB
Dimensions
(W x H x D)
With stand (mm)
732 x 481 x 207 885 x 567 x 218 961 x 610 x 218
Without stand(mm)
732 x 437 x 55.5 885 x 524 x 55.5 961 x 567 x 55.5
Weight
With stand (kg)
6.2 8.3 9.5
Without stand (kg)
6.0 8 9.2
Power requirement
AC 100-240 V~ 50 / 60 Hz AC 100-240 V~ 50 / 60 Hz AC 100-240 V~ 50 / 60 Hz
mODELs
47LB58** 50LB58** 55LB58**
47LB5800-TA
47LB580V-TA
47LB5820-TB
47LB582B-TB
47LB582D-TB
47LB582T-TB
47LB582Y-TB
47LB582Z-TB
47LB5840-TA
47LB584T-TA
47LB589Y-TB
47LB589Z-TB
50LB5800-TA
50LB580V-TA
50LB5820-TB
50LB582B-TB
50LB582D-TB
50LB582T-TB
50LB582Y-TB
50LB582Z-TB
50LB5840-TA
50LB584T-TA
50LB589Y-TB
50LB589Z-TB
55LB5800-TA
55LB580V-TA
55LB5820-TB
55LB582B-TB
55LB582D-TB
55LB582T-TB
55LB582Y-TB
55LB582Z-TB
55LB5840-TA
55LB584T-TA
55LB589Y-TB
55LB589Z-TB
Dimensions
(W x H x D)
With stand (mm)
1073 x 676 x 255 1128 x 708 x 255 1243 x 772 x 255
Without stand(mm)
1073 x 629 x 55.8 1128 x 660 x 55.8 1243 x 725 x 56.8
Weight
With stand (kg)
12.7 14.2 17.7
Without stand (kg)
12.3 13.8 17.3
Power requirement
AC 100-240 V~ 50 / 60 Hz AC 100-240 V~ 50 / 60 Hz AC 100-240 V~ 50 / 60 Hz
30
ENG
ENGLISH
SPECIFICATIONS
mODELs
60LB58** 65LB58**
60LB5800-TA
60LB580V-TA
60LB5820-TB
60LB582B-TB
60LB582D-TB
60LB582T-TB
60LB582Y-TB
60LB582Z-TB
60LB5840-TA
60LB584T-TA
60LB589Y-TB
60LB589Z-TB
65LB5800-TA
65LB580V-TA
65LB5820-TB
65LB582B-TB
65LB582D-TB
65LB582T-TB
65LB582Y-TB
65LB582Z-TB
65LB5840-TA
65LB584T-TA
65LB589Y-TB
65LB589Z-TB
Dimensions
(W x H x D)
With stand (mm)
1373 x 848 x 280 1462 x 898 x 314
Without stand(mm)
1373 x 801 x 58.8 1462 x 850 x 59.2
Weight
With stand (kg)
23.5 30.5
Without stand (kg)
23.0 29.0
Power requirement
AC 100-240 V~ 50 / 60 Hz AC 100-240 V~ 50 / 60 Hz
CI Module Size
1
(W x H x D)
100.0 mm x 55.0 mm x 5.0 mm
Environment condition
Operating Temperature 0 °C
to
40 °C
Operating Humidity Less than 80 %
Storage Temperature -20 °C
to
60 °C
Storage Humidity Less than 85 %
1 Only Satellite models.
Digital TV
(Depending on Country)
Analogue TV
(Depending on Country)
Television System
DVB-T
3
DVB-T/T2
1
DVB-T/T2/C/S/S2
2
PAL B/B, PAL B/G, PAL D/K, PAL-I
SECAM B/G, SECAM D/K
NTSC-M
Programme Coverage
VHF, UHF
C-Band
2
, Ku-Band
2
VHF, UHF, CATV
Maximum number of
storable programmes
DVB-T/T2 & Analogue TV : 1,500
DVB-S/S2 : 6,000
External Antenna Impedance 75 Ω
1 Only DVB-T2 support models.
2 Only DVB-T2/C/S2 support models.
3 Despite DVB-T model, DVB-T function does not apply in India and Philippines.
Record the model number and serial
number of the TV.
Refer to the label on the back cover and
quote this information to your dealer
when requiring any service.
MODEL
SERIAL
(Only DTV)
OWNER’S MANUAL
EXTERNAL CONTROL
DEVICE SETUP
Please read this manual carefully before operating the set and retain it for
future reference.
www.lg.com
2
ENG
ENGLISH
2
KEY CODES
kEy CODES
• This feature is not available for all models.
Code
(Hexa)
Function Note
Code
(Hexa)
Function Note
00 CH +, PR + R/C Button 53 List R/C Button
01 CH -, PR - R/C Button 5B Exit R/C Button
02 Volume + R/C Button 60 PIP(AD) R/C Button
03 Volume - R/C Button 61 Blue R/C Button
06 > (Arrow Key / Right Key) R/C Button 63 Yellow R/C Button
07 < (Arrow Key / Left Key) R/C Button 71 Green R/C Button
08 Power R/C Button 72 Red R/C Button
09 Mute R/C Button 79 Ratio / Aspect Ratio R/C Button
0B Input R/C Button 91 AD (Audio Description) R/C Button
0E SLEEP R/C Button 7A User Guide R/C Button
0F TV, TV/RAD R/C Button 7C Smart / Home R/C Button
10 - 19 * Number Key 0 - 9 R/C Button 7E SIMPLINK R/C Button
1A Q.View / Flashback R/C Button 8E ►►(Forward) R/C Button
1E FAV (Favorite Channel) R/C Button 8F ◄◄(Rewind) R/C Button
20 Text (Teletext) R/C Button AA Info R/C Button
21 T. Opt (Teletext Option) R/C Button AB Program Guide R/C Button
28 Return (BACK) R/C Button B0 ►(Play) R/C Button
30 AV (Audio / Video) Mode R/C Button B1
ꕗ (Stop / File List)
R/C Button
39 Caption/Subtitle R/C Button BA
ꕘ (Freeze / Slow Play /
Pause)
R/C Button
40 Λ
(Arrow Key / Cursor Up)
R/C Button BB Soccer R/C Button
41
V (Arrow Key / Cursor
Down)
R/C Button BD
ꔄ (REC)
R/C Button
42 My Apps R/C Button DC 3D R/C Button
43 Menu / Settings R/C Button 99 AutoConfig R/C Button
44 OK / Enter R/C Button 9F App / * R/C Button
45 Q.Menu R/C Button
4C List, - (ATSC Only) R/C Button
* Key code 4C (0x4C) is available on ATSC/ISDB models which use major/minor channel.
(For South Korea, Japan, North America, Latin America except Colombia models)
3
ENGENGLISH
3
EXTERNAL CONTROL DEVICE SETUP
EXTERNAL CONTROL DEVICE SETUP
• Image shown may differ from your TV.
Connect the USB to Serial converter/RS-232C input jack to an external control device (such as a computer
or an A/V control system) to control the product’s functions externally.
Note: The type of control port on the TV can be different between model series.
* Please be advised that not all models support this type of connectivity.
* Cable is not provided.
USB to Serial converter with USB Cable
USB Type
USB IN
(TV)
(PC )
(PC )
RS-232C IN
(CONTROL & SERVICE)
(TV)
(TV)
(PC )
(TV)
(PC )
SERVICE ONLY
RS-232C IN
(CONTROL & SERVICE)
RS-232C IN
(CONTROL & SERVICE)
1
3
2
1
3
2
• LGTV supports PL2303 chip-based (Vendor ID : 0x0557, Product ID : 0x2008) USB to serial converter
which is not made nor provided by LG.
• It can be purchased from computer stores that carry accessories for IT support professionals.
RS-232C With RS232C Cable
DE9 (D-Sub 9pin) Type
• You need to purchase the RS-232C (DE9, D-Sub 9pin female-to-female type) to RS-232C cable required
for the connection between the PC and the TV, which is specified in the manual.
USB IN
(TV)
(PC )
(PC )
RS-232C IN
(CONTROL & SERVICE)
(TV)
(TV)
(PC )
(TV)
(PC )
SERVICE ONLY
RS-232C IN
(CONTROL & SERVICE)
RS-232C IN
(CONTROL & SERVICE)
1
3
2
1
3
2
The connection interface may differ from your TV.
4
ENG
ENGLISH
4
EXTERNAL CONTROL DEVICE SETUP
Phone jack Type
• You need to purchase the phone-jack to RS-232 cable required for the connection between the PC and
the TV, which is specified in the manual.
* For other models, connect to the USB port.
* The connection interface may differ from your TV.
USB IN
(TV)
(PC )
(PC )
RS-232C IN
(CONTROL & SERVICE)
(TV)
(TV)
(PC )
(TV)
(PC )
SERVICE ONLY
RS-232C IN
(CONTROL & SERVICE)
RS-232C IN
(CONTROL & SERVICE)
1
3
2
1
3
2
- or
USB IN
(TV)
(PC )
(PC )
RS-232C IN
(CONTROL & SERVICE)
(TV)
(TV)
(PC )
(TV)
(PC
)
SERVICE ONLY
RS-232C IN
(CONTROL & SERVICE)
RS-232C IN
(CONTROL & SERVICE)
1
3
2
1
3
2
Customer Computer RS-232C configurations
3-Wire Configurations(Not standard)
1
6
5
9
PC TV
RXD 2 2 TXD
TXD 3 1 RXD
GND 5 3 GND
OR
RXD 3 2 TXD
TXD 2 1 RXD
GND 5 3 GND
D-Sub 9 Phone
RS-232C
(Serial port)
Set ID
For Set ID number, see "Real Data Mapping" on p.6
1. Press SETTINGS to access the main menus.
2. Press the Navigation buttons to scroll to (*General → About this TV or OPTION) and press Ok.
3. Press the Navigation buttons to scroll to SET ID and press Ok.
4. Scroll left or right to select a set ID number and select CLOSE. The adjustment range is 1-99.
5. When you are finished, press EXIT.
* (Depending on model)
5
ENGENGLISH
5
EXTERNAL CONTROL DEVICE SETUP
Communication Parameters
• Baud rate : 9600 bps (UART)
• Data length : 8 bits
• Parity : None
• Stop bit : 1 bit
• Communication code : ASCII code
• Use a crossed (reverse) cable.
Command reference list
(Depending on model)
COMMAND1 COMMAND2
DATA
(Hexadecimal)
COMMAND1 COMMAND2
DATA
(Hexadecimal)
01. Power* k a 00 to 01 15. Balance k t 00 to 64
02. Aspect
Ratio
k c (p.7)
16. Color
(Colour)
Temperature
x u 00 to 64
03. Screen
Mute
k d (p.7)
17. ISM
Method (Only
Plasma TV)
j p (p.8)
04. Volume
Mute
k e 00 to 01 18. Equalizer j v (p.8)
05. Volume
Control
k f 00 to 64
19. Energy
Saving
j q 00 to 05
06. Contrast k g 00 to 64
20. Tune
Command
m a (p.9)
07.
Brightness
k h 00 to 64
21. Channel
(Programme)
Add/Del(Skip)
m b 00 to 01
08. Color/
Colour
k i 00 to 64 22. Key m c Key Codes
09. Tint k j 00 to 64
23. Control
Backlight,
Control Panel
Light
m g 00 to 64
10.
Sharpness
k k 00 to 32
24. Input
select (Main)
x b (p.11)
11. OSD
Select
k l 00 to 01
25. 3D (Only
3D models)
x t (p.11)
12. Remote
Control Lock
Mode
k m 00 to 01
26. Extended
3D (Only 3D
models)
x v (p.11)
13. Treble k r 00 to 64
27. Auto
Configure
j u (p.12)
14. Bass k s 00 to 64
* Note: During playing or recording media, all commands except Power (ka) and Key (mc) are not
executed and treated as NG.
With RS232C cable, TV can communicate "ka command" in power-on or power-off status. but with
USB-to-Serial converter cable, the command works only if TV is on.
6
ENG
ENGLISH
6
EXTERNAL CONTROL DEVICE SETUP
Transmission / Receiving Protocol
Transmission
[Command1][Command2][ ][Set ID][ ][Data][Cr]
[Command 1] : First command to control the TV. (j, k, m or x)
[Command 2] : Second command to control the TV.
[Set ID] : You can adjust the [Set ID] to choose desired monitor ID number in option menu.
Adjustment range in TV is 1 to 99. If [Set ID] value is selected to ‘0’, every connected set
can be controlled.
* [Set ID] is indicated as decimal (1 to 99) on menu and as Hexadecimal (0x00 to 0x63) on
transmission/receiving protocol.
[DATA] : To transmit command data (hexadecimal). Transmit ‘FF’ data to read status of command.
[Cr] : Carriage Return - ASCII code ‘0x0D’
[ ] : Space – ASCII code ‘0x20’
Ok Acknowledgement
[Command2][ ][Set ID][ ][OK][Data][x]
* The set transmits ACK (acknowledgement) based on this format when receiving normal data. At this time,
if the data is data read mode, it indicates present status data. If the data is data write mode, it returns the
data of the PC computer.
Error Acknowledgement
[Command2][ ][Set ID][ ][NG][Data][x]
* The set transmits ACK (acknowledgement) based on this format when receiving abnormal data from
non-viable functions or communication errors.
Data 00: Illegal Code
Real data mapping (Hexadecimal b Decimal)
* When you enter the [data] in hexadecimal, refer to following conversion table.
* Channel Tune (ma) Command uses two-byte hexadecimal value([data]) to select channel number.
00 : Step 0 32 : Step 50 (Set ID 50) FE : Step 254
01 : Step 1 (Set ID 1) 33 : Step 51 (Set ID 51) FF : Step 255
... ... ...
0A : Step 10 (Set ID 10) 63 : Step 99 (Set ID 99) 01 00 : Step 256
... ... ...
0F : Step 15 (Set ID 15) C7 : Step 199 27 0E : Step 9998
10 : Step 16 (Set ID 16) C8 : Step 200 27 0F : Step 9999
... ... ...
7
ENGENGLISH
7
EXTERNAL CONTROL DEVICE SETUP
* Commands may work differently depending on model and signal.
01. Power (Command: k a)
► To control Power *On or Off of the set.
Transmission[k][a][ ][Set ID][ ][Data][Cr]
Data 00 : Power Off 01 : *Power On
Ack [a][ ][Set ID][ ][OK/NG][Data][x]
► To Show TV is Power On or *Off
Transmission [k][a][ ][Set ID][ ][FF][Cr]
Ack [a][ ][Set ID][ ][OK][Data][x]
* Similarly, if other functions transmit ‘FF’ data
based on this format, Acknowledgement feedback
presents status about each function.
02. Aspect Ratio (Command: k c)
(Main Picture Size)
► To adjust the screen format. (Main picture format)
You can also adjust the screen format using the
Aspect Ratio in the Q.MENU. or PICTURE menu.
Transmission [k][c][ ][Set ID][ ][Data][Cr]
Data 01 : Normal screen
(4:3)
02 : Wide screen
(16:9)
04 : Zoom
05 : Zoom 2
(Latin America
except Colombia
Only)
06 : Set by Program/
Original
07 : 14:9
(Europe, Colombia, Mid-East,
Asia except South Korea and
Japan)
09 : * Just Scan
0B : Full Wide
(Europe, Colombia, Mid-
East, Asia except South
Korea and Japan)
10 to 1F : Cinema Zoom 1 to 16
0c : 21:9 (Depending on model)
Ack [c][ ][Set ID][ ][OK/NG][Data][x]
* Using the PC input, you select either 16:9 or 4:3
screen aspect ratio.
* In DTV/HDMI/Component mode (high-definition),
Just Scan is available.
* Full wide mode may work differently based on
model and is supported for DTV fully, and ATV,
AV partially.
03. Screen Mute (Command: k d)
► To select screen mute on/off.
Transmission [k][d][ ][Set ID][ ][Data][Cr]
Data 00 : Screen mute off (Picture on)
Video mute off
01 : Screen mute on (Picture off)
10 : Video mute on
Ack [d][ ][Set ID][ ][OK/NG][Data][x]
* In case of video mute on only, TV will display On
Screen Display(OSD). But, in case of Screen mute
on, TV will not display OSD.
04. Volume Mute (Command: k e)
► To control volume mute on/off.
You can also adjust mute using the MUTE button
on remote control.
Transmission [k][e][ ][Set ID][ ][Data][Cr]
Data 00 : Volume mute on (Volume off)
01 : Volume mute off (Volume on)
Ack [e][ ][Set ID][ ][OK/NG][Data][x]
05. Volume Control (Command: k f)
► To adjust volume.
You can also adjust volume with the volume
buttons on remote control.
Transmission [k][f][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 64
Ack [f][ ][Set ID][ ][OK/NG][Data][x]
06. Contrast (Command: k g)
► To adjust screen contrast.
You can also adjust contrast in the PICTURE
menu.
Transmission [k][g][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 64
Ack [g][ ][Set ID][ ][OK/NG][Data][x]
07. Brightness (Command: k h)
► To adjust screen brightness.
You can also adjust brightness in the PICTURE
menu.
Transmission [k][h][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 64
Ack [h][ ][Set ID][ ][OK/NG][Data][x]
08. Color/Colour (Command: k i)
► To adjust the screen Color(Colour).
You can also adjust colour in the PICTURE menu.
Transmission [k][i][ ][Set ID][ ][Data][Cr]
8
ENG
ENGLISH
8
EXTERNAL CONTROL DEVICE SETUP
Data Min : 00 to Max : 64
Ack [i][ ][Set ID][ ][OK/NG][Data][x]
09. Tint (Command: k j)
► To adjust the screen tint.
You can also adjust tint in the PICTURE menu.
Transmission [k][j][ ][Set ID][ ][Data][Cr]
Data Red : 00 to Green : 64
Ack [j][ ][Set ID][ ][OK/NG][Data][x]
10. Sharpness (Command: k k)
► To adjust the screen sharpness.
You can also adjust sharpness in the PICTURE
menu.
Transmission [k][k][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 32
Ack [k][ ][Set ID][ ][OK/NG][Data][x]
11. OSD Select (Command: k l)
► To select OSD (On Screen Display) on/off when
controlling remotely.
Transmission [k][l][ ][Set ID][ ][Data][Cr]
Data 00 : OSD off 01 : OSD on
Ack [l][ ][Set ID][ ][OK/NG][Data][x]
12. Remote control lock mode (Command: k m)
► To lock the front panel controls on the monitor and
remote control.
Transmission [k][m][ ][Set ID][ ][Data][Cr]
Data 00 : Lock off 01 : Lock on
Ack [m][ ][Set ID][ ][OK/NG][Data][x]
* If you are not using the remote control, use this
mode.
When main power is off & on (plug-off and plug-in,
after 20 - 30 seconds), external control lock is
released.
* In the standby mode (DC off by off timer or ‘ka’,
‘mc’ command), and if key lock is on, TV will not
turn on by power on key of IR & Local Key.
13. Treble (Command: k r)
► To adjust treble.
You can also adjust in the AUDIO menu.
Transmission [k][r][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 64
Ack [r][ ][Set ID][ ][OK/NG][Data][x]
* (Depending on model)
14. Bass (Command: k s)
► To adjust Bass.
You can also adjust in the AUDIO menu.
Transmission [k][s][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 64
Ack [s][ ][Set ID][ ][OK/NG][Data][x]
* (Depending on model)
15. Balance (Command: k t)
► To adjust balance.
You can also adjust balance in the AUDIO menu.
Transmission [k][t][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 64
Ack [t][ ][Set ID][ ][OK/NG][Data][x]
16. Color(Colour) Temperature (Command: x u)
► To adjust colour temperature. You can also adjust
Color(Colour) Temperature in the PICTURE menu.
Transmission [x][u][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 64
Ack [u][ ][Set ID][ ][OK/NG][Data][x]
17. ISM Method (Command: j p) (Only Plasma TV)
► To control the ISM method. You can also adjust
ISM Method in OPTION menu.
Transmission [j][p][ ][Set ID][ ][Data][Cr]
Data Min : 02: Orbiter
08: Normal
20: Color(Colour) Wash
Ack [p][ ][Set ID][ ][OK/NG][Data][x]
18. Equalizer (Command : j v)
► Adjust EQ of the set.
Transmission [j][v][ ][Set ID][ ][Data][Cr]
0 0 0 0 0 0 0 0
MSB
Frequency Data
LSB
7 6 5
Frequency
4 3 2 1 0 Step
0 0 0
1st Band
0 0 0 0 0
0(decimal)
0 0 1
2nd Band
0 0 0 0 1
1(decimal)
0 1 0
3rd Band
... ... ... ... ...
...
0 1 1
4th Band
0 0 0 1 1
19(decimal)
9
ENGENGLISH
9
EXTERNAL CONTROL DEVICE SETUP
1 0 0
5th Band
0 0 1 0 1
20(decimal)
Acknowledgement [v][ ][Set ID][ ][OK/NG][Data][x]
* It depends on model, and can adjust when sound
mode is EQ adjustable value.
19. Energy Saving (Command: j q)
► To reduce the power consumption of the TV. You
can also adjust Energy Saving in PICTURE menu.
Transmission [j][q][ ][Set ID][ ][Data][Cr]
Data
00 : Off
01 : Minimum
02 : Medium
03 : Maximum
04 : Auto (For LCD TV / LED TV) /
Intelligent sensor (For PDP TV)
05 : Screen off
* (Depending on model)
Ack [q][ ][Set ID][ ][OK/NG][Data][x]
20. Tune Command (Command: m a)
* This command may work differently depending on
model and signal.
• For Europe, Mid-East, Colombia, Asia except
South Korea and Japan Model
► Select channel to following physical number.
Transmission [m][a][ ][Set ID][ ][Data 00][ ]
[Data 01][ ][Data 02][Cr]
* Analog Antenna/Cable
[Data 00][Data 01] Channel Data
Data 00 : High byte channel data
Data 01 : Low byte channel data
- 00 00 ~ 00 C7 (Decimal : 0 ~ 199)
Data 02 : Input Source (Analog)
- 00 : Antenna TV (ATV)
- 80 : Cable TV (CATV)
* Digital Antenna/Cable/Satellite
[Data 00][Data 01]: Channel Data
Data 00 : High Channel data
Data 01 : Low Channel data
- 00 00 ~ 27 0F (Decimal: 0 ~ 9999)
Data 02 : Input Source (Digital)
- 10 : Antenna TV (DTV)
- 20 : Antenna Radio (Radio)
- 40 : Satellite TV (SDTV)
- 50 : Satellite Radio (S-Radio)
- 90 : Cable TV (CADTV)
- a0 : Cable Radio (CA-Radio)
* Tune Command Examples:
1. Tune to the Analog antenna (PAL) Channel 10.
Set ID = All = 00
Data 00 & 01 = Channel Data is 10 = 00 0a
Data 02 = Analog Antenna TV = 00
Result = ma 00 00 0a 00
2. Tune to the digital antenna (DVB-T) Channel 01.
Set ID = All = 00
Data 00 & 01 = Channel Data is 1 = 00 01
Data 02 = Digital Antenna TV = 10
Result = ma 00 00 01 10
3. Tune to the satellite (DVB-S) Channel 1000.
Set ID = All = 00
Data 00 & 01 = Channel Data is 1000 = 03 E8
Data 02 = Digital Satellite TV = 40
Result = ma 00 03 E8 40
Ack [a][ ][Set ID][ ][OK][Data 00][Data 01]
[Data 02][x][a][ ][Set ID][ ][NG][Data 00][x]
• For South Korea, North/Latin America except
Colombia Model
► To tune channel to following physical/major/minor
number.
Transmission [m][a][ ][0][ ][Data00][ ][Data01]
[ ][Data02][ ][Data03][ ][Data04][ ][Data05][Cr]
Digital channels have a Physical, Major, and Minor
channel number. The Physical number is the actual
digital channel number, the Major is the number that
the channel should be mapped to, and the Minor is
the sub-channel. Since the ATSC tuner automatically
maps the channel from the Major / Minor number,
the Physical number is not required when sending a
command in Digital.
* Analog Antenna/Cable
Data 00 : Physical Channel Number
- Antenna (ATV) : 02~45 (Decimal: 2 ~ 69)
- Cable (CATV) : 01, 0E~7D (Decimal : 1, 14~125)
[Data 01 ~ 04]: Major/Minor Channel Number
Data 01 & 02: xx (Don't care)
Data 03 & 04: xx (Don't care)
Data 05: Input Source (Analog)
- 00 : Antenna TV (ATV)
- 01 : Cable TV (CATV)
* Digital Antenna/Cable
Data 00 : xx (Don't care)
[Data 01][Data 02]: Major Channel Number
Data 01 : High byte Channel Data
Data 02 : Low byte Channel Data
- 00 01 ~ 27 0F (Decimal: 1 ~ 9999)
[Data 03][Data 04]: Minor Channel Number
Data 03 : High byte Channel Data
Data 04 : Low byte Channel Data
Data 05 : Input Source (Digital)
- 02 : Antenna TV (DTV) – Use Physical Channel
Number
- 06 : Cable TV (CADTV) – Use Physical Channel
10
ENG
ENGLISH
10
EXTERNAL CONTROL DEVICE SETUP
Number
- 22 : Antenna TV (DTV) – Don’t Use Physical
Channel Number
- 26 : Cable TV (CADTV) - Don’t Use Physical
Channel Number
- 46 : Cable TV (CADTV) – Use Major Channel
Number Only (One Part Channel)
Two bytes are available for each major and minor
channel data, but usually the low byte is used alone
(high byte is 0).
* Tune Command Examples:
1. Tune to the Analog cable (NTSC) channel 35.
Set ID = All = 00
Data 00 = Channel Data is 35 = 23
Data 01 & 02 = No Major = 00 00
Data 03 & 04 = No Minor = 00 00
Data 05 = Analog Cable TV = 01
Total = ma 00 23 00 00 00 00 01
2. Tune to the digital antenna (ATSC) channel 30-3.
Set ID = All = 00
Data 00 = Don’t know Physical = 00
Data 01 & 02 = Major is 30 = 00 1E
Data 03 & 04 = Minor is 3 = 00 03
Data 05 = Digital Antenna TV = 22
Total = ma 00 00 00 1E 00 03 22
Ack [a][ ][Set ID][ ][OK][Data 00][Data 01]
[Data 02][Data 03][Data 04][Data 05]
[x][a][ ][Set ID][ ][NG][Data 00][x]
• For Japan Model
► To tune channel to following physical/major/minor
number.
Transmission [m][a][ ][0][ ][Data00][ ][Data01]
[ ][Data02][ ][Data03][ ][Data04][ ][Data05][Cr]
* Digital Antenna/Satellite
Data 00: xx (Don't care)
[Data 01][Data 02]: Major Channel Number
Data 01: High byte Channel Data
Data 02: Low byte Channel Data
- 00 01 ~ 27 0F (Decimal: 1 ~ 9999)
[Data 03][Data 04]: Minor/Branch Channel Number
(Don’t care in Satellite)
Data 03: High byte Channel Data
Data 04: Low byte Channel Data
Data 05 : Input Source (Digital/Satellite for Japan)
- 02 : Antenna TV (DTV)
- 07 : BS (Broadcasting Satellite)
- 08 : CS1 (Communication Satellite 1)
- 09 : CS2 (Communication Satellite 2)
* Tune Command Examples:
1
Tune to the digital antenna (ISDB-T) channel 17-1
.
Set ID = All = 00
Data 00 = Don’t know Physical = 00
Data 01 & 02 = Major is 17 = 00 11
Data 03 & 04 = Minor/Branch is 1 = 00 01
Data 05 = Digital Antenna TV = 02
Total = ma 00 00 00 11 00 01 02
2. Tune to the BS (ISDB-BS) channel 30.
Set ID = All = 00
Data 00 = Don’t know Physical = 00
Data 01 & 02 = Major is 30 = 00 1E
Data 03 & 04 = Don’t Care = 00 00
Data 05 =
Digital BS TV = 07
Total = ma 00 00 00 1E 00 00 07
* This feature is varied based on the model.
Ack [a][ ][Set ID][ ][OK][Data 00][Data 01]
[Data 02][Data 03][Data 04][Data 05]
[x][a][ ][Set ID][ ][NG][Data 00][x]
21. Channel(Programme) Add/Del(Skip)
(Command: m b)
► To skip current channel(programme) for next time.
Transmission [m][b][ ][Set ID][ ][Data][Cr]
Data 00 : Del(ATSC,ISDB)/Skip(DVB) 01 : Add
Ack [b][ ][Set ID][ ][OK/NG][Data][x]
* Set the saved channel status to del(ATSC, ISDB)/
skip(DVB) or add.
22. Key (Command: m c)
► To send IR remote key code.
Transmission [m][c][ ][Set ID][ ][Data][Cr]
Data Key code - p.2.
Ack [c][ ][Set ID][ ][OK/NG][Data][x]
23. Control Backlight (Command: m g)
• For LCD TV / LED TV
► To control the backlight.
Transmission [m][g][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 64
Ack [g][ ][Set ID][ ][OK/NG][Data][x]
Control Panel Light (Command: m g)
• For Plasma TV
► To control the panel light.
Transmission [m][g][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 64
Ack [g][ ][Set ID][ ][OK/NG][Data][x]
11
ENGENGLISH
11
EXTERNAL CONTROL DEVICE SETUP
24. Input select (Command: x b)
(Main Picture Input)
► To select input source for main picture.
Transmission [x][b][ ][Set ID][ ][Data][Cr]
Data
00 : DTV
02 : Satellite DTV
ISDB-BS (Japan)
03 : ISDB-CS1 (Japan)
04 : ISDB-CS2 (Japan)
11 : CATV
01 : CADTV
10 : ATV
20 : AV or AV1 21 : AV2
40 : Component1
60 : RGB
41 : Component2
90 : HDMI1
92 : HDMI3
91 : HDMI2
93 : HDMI4
Ack [b][ ][Set ID][ ][OK/NG][Data][x]
* This function depends on model and signal.
25. 3D(Command: x t) (only 3D models)
(Depending on model)
► To change 3D mode for TV.
Transmission [x][t][ ][Set ID][ ][Data 00][ ][Data 01]
[ ][Data 02][ ][Data 03][Cr]
* (Depending on model)
Data Structure
[Data 00] 00 : 3D On
01 : 3D Off
02 : 3D to 2D
03 : 2D to 3D
[Data 01] 00 : Top and Bottom
01 : Side by Side
02 : Check Board
03 : Frame Sequential
04 : Column interleaving
05 : Row interleaving
[Data 02] 00 : Right to Left
01 : Left to Right
[Data 03] 3D Effect(3D Depth): Min : 00 - Max : 14
(*transmit by Hexadecimal code)
* [Data 02], [Data 03] functions depend on model
and signal.
* If [Data 00] is 00 (3D On), [Data 03] has no
meaning.
* If [Data 00] is 01 (3D off) or 02 (3D to 2D), [Data
01], [Data 02] and [Data 03] have no meaning.
* If [Data 00] is 03 (2D to 3D), [Data 01] and
[Data 02] have no meaning.
* If [Data 00] is 00 (3D On) or 03 (2D to 3D), [Data
03] works when 3D Mode (Genre) is manual only.
* All 3D pattern options ([Data 01]) may not be
available according to broadcasting/video signal.
[Data 00] [Data 01] [Data 02] [Data 03]
00 O O O
01 X X X
02 X X X
03 X O O
X : don’t care
Ack [t][ ][Set ID][ ][OK][Data00][Data01][Data02]
[Data03][x]
[t][ ][Set ID][ ][NG][Data00][x]
26. Extended 3D(Command: x v) (only 3D models)
(Depending on model)
► To change 3D option for TV.
Transmission [x][v][ ][Set ID][ ][Data 00][ ]
[Data 01][Cr]
[Data 00] 3D option
00 : 3D Picture Correction
01 : 3D Depth (3D Mode is Manual Only)
02 : 3D Viewpoint
06 : 3D Color Correction
07 : 3D Sound Zooming
08 : Normal Image View
09 : 3D Mode (Genre)
[Data 01] It has own range for each 3D option
determined by [Data 00].
1) When [Data 00] is 00
00 : Right to Left
01 : Left to Right
2) When [Data 00] is 01, 02
Data Min: 0 - Max: 14 (*transmit by Hexadecimal
code)
Data value range(0 - 20) converts Viewpoint range
(-10 - +10) automatically (Depending on model)
* This option works when 3D Mode (Genre) is manual
only.
3) When [Data 00] is 06, 07
00 : Off
01 : On
4) When [Data 00] is 08
00 : Revert to 3D video from 3D-to-2D
converted 2D video
01 : Change 3D video to 2D video, except
2D-to-3D video
* If conversion condition doesn’t meet, command is
treated as NG.
5) When [Data 00] is 09
00 : Standard
02 : Cinema
04 : Manual
01 : Sport
03 : Extreme
05 : Auto
Ack [v][ ][Set ID][ ][OK][Data00][Data01][x]
[v][ ][Set ID][ ][NG][Data00][x]
12
ENG
ENGLISH
12
EXTERNAL CONTROL DEVICE SETUP
27. Auto Configure (Command: j u)
(Depending on model)
► To adjust picture position and minimize image
shaking automatically. It works only in RGB (PC)
mode.
Transmission [j][u][ ][Set ID][ ][Data][Cr]
Data 01 : To set
Ack [u][ ][Set ID][ ][OK/NG][Data][x]
