Operating and control elements
Type plate
Interior light
(LED light strip)
Pull-out shelf
Adjustable glass shelf
Sectioned glass shelf
Disposal notes
The appliance contains reusable materials and should
be disposed of properly - not simply with unsorted
household refuse. Appliances which are no longer
needed must be disposed of in a professional and
appropriate way, in accordance with the current local
regulations and laws.
When disposing of the appliance, ensure that the refrigerant circuit
is not damaged to prevent uncontrolled escape of the refrigerant
it contains (data on type plate) and oil.
• Disabletheappliance.
• Pulloutthemainsplug.
• Cutthroughtheconnectioncable.
WARNING
Danger of suocation due to packing material
and plastic lm!
Do not allow children to play with packaging
material.
Take the packaging material to an ocial collec-
tion point.
Description of the appliance
Content
Description of the appliance .....................................................2
Disposal notes ..........................................................................2
Safety instructions and warnings .............................................3
Range of appliance use ............................................................3
Climaterating ...........................................................................4
Setting up .................................................................................4
Appliance Dimensions .............................................................4
Levelling the appliance .............................................................4
Electrical connection ................................................................ 4
Operating and control elements ............................................... 5
Switchingtheapplianceonando ..........................................5
Setting the temperature ............................................................5
Fan switch ................................................................................5
Door open alarm .......................................................................5
Temperature alarm ...................................................................5
Interior light ...............................................................................5
Setup mode ..............................................................................6
Safety Lock ...............................................................................6
Equipment ................................................................................7
Cleaning ...................................................................................8
ChangingOverDoorHinges .................................................. 10
Type plate
Adjustable-height feet
3
Safety instructions and warnings
•Topreventinjuryordamagetotheunit,theap-
pliance should be unpacked and set up by two
people.
•Intheeventthattheapplianceisdamagedon
delivery, contact the supplier immediately before
connecting to the mains.
•Toguaranteesafeoperation,ensurethattheap-
pliance is set up and connected as described in
these operating instructions.
•Disconnecttheappliancefromthemainsifany
fault occurs. Pull out the plug, switch off or remove
the fuse.
•Whendisconnectingtheappliance,pullonthe
plug, not on the cable.
•Anyrepairsandworkontheapplianceshould
only be carried out by the customer service
department, as unauthorised work could prove
highly dangerous for the user. The same applies
to changing the mains power cable.
•Donotallownakedflamesorignitionsources
to enter the appliance. When transporting and
cleaning the appliance, ensure that the refrigerant
circuit is not damaged. In the event of damage,
make sure that there are no ignition sources
nearby and keep the room well ventilated.
•Donotstandontheplinth,drawersordoorsor
use them to support anything else.
•Thisappliancecanbeusedbychildrenof8years
old and over, and also by persons with restricted
physical, sensory or mental capacity or lack of
experience and knowledge, if they are supervised
or have been instructed on safe use of the appli-
anceandunderstandtheresultingrisks.Children
must not be allowed to play with the appliance.
Cleaning and user maintenance must not be
carried out by children without supervision.
•Avoidprolongedskincontactwithcoldsurfacesor
chilled/frozen food. This could cause pain, numb-
ness and frostbite. In the case of prolonged skin
contact, protective measures should be taken,
e.g. gloves should be worn.
•Donotconsumefoodwhichhasbeenstoredfor
too long, as it could cause food poisoning.
•Do not store explosives or sprays using com-
bustible propellants such as butane, propane,
pentane, etc. in the appliance. Electrical com-
ponents might cause leaking gas to ignite. You
may identify such sprays by the printed contents
or a flame symbol.
•Donotuseelectricalappliancesinsidetheap-
pliance.
•Ifyouhavealockableappliance,donotkeepthe
key near the appliance or within reach of children.
•Theapplianceisdesignedforuseinenclosed
areas. Do not operate the appliance outdoors or
in areas where it is exposed to splash water or
damp conditions.
•TheLEDlightstripilluminatestheinteriorofthe
appliance. It is not suitable for lighting a room.
•Whentransportingoroperatingtheapplianceat
an altitude of more than 1500 m above sea level,
the glass pane in the door can break due to the
reduction in air pressure. Broken fragments are
sharp-edged and can cause serious injury.
Range of appliance use
The appliance is suitable solely for cooling food in
a domestic environment or similar. This includes,
for example, use
- in staff kitchenettes, bed and breakfast establish-
ments,
- by guests in cottages, hotels, motels and other
forms of accommodation.
The appliance is not intended for com-
mercial use such as in catering and
similar services in the wholesale trade.
Use the appliance solely as is customary within a domestic en-
vironment. All other types of use are inadmissible.
The appliance is not suitable for storing and cooling medicines,
blood plasma, laboratory preparations or similar substances and
productscoveredbythe2007/47/ECMedicalDevicesDirective.
Any misuse of the appliance may result in damage to or spoilage
of stored goods.
Furthermore, the appliance is not suitable for operation in poten-
tially explosive atmospheres.
EN
4
Setting up
The appliance is intended for out door use.
It is recommended to install the appliance in a sheltered
area, avoiding direct contact with extreme weather.
D o n o t p l a c e t h e a p p l i a n c e w h e r e i t m a y b e i n s t a n d i n g w a t e r
or where the power cord may be immersed.
• Avoidpositioningtheapplianceindirectsunlightornearcookers,
radiators and similar sources of heat.
• StandardEN 378specifies thattheroominwhich youinstall
your appliance must have a volume of 1 m
3
per 8 g of R 600a
refrigerant used in the appliance, so as to avoid the formation
of inflammable gas/air mixtures in the room
where the appliance is located in the event
of a leak in the refrigerant circuit. The quan-
tity of refrigerant used in your appliance is
indicated on the type plate on the inside of
the appliance.
•
Do not cover ventilation openings
or grille.
Electrical connection
Only operate the appliance with alternating current (AC).
The permissible voltage and frequency are indicated on the
type plate.
The position of the type plate is shown in the section entitled
Description of the appliance.
When using the appliance indoors, it must be connected to
a socket which is properly ear thed and prote cted by a fuse.
The tripping current of the fuse must be between 10 A and 16 A.
When using the appliance outdoors, it must be connected
to a GFCI (Ground Fault Circuit Interrupter) socket.
Contact a qualied electrician if you are not sure whether
thesockettowhichthisappliancewillbeconnectedisGFC-
protected.
The socket must not be situated behind the appli-
ance and must be easily accessible.
Do not connect the appliance using
an extension cable or extension
socket.
Do not use stand-alone inverters (conversion of
direct current to alternating/three-phase current)
or energy-saving plugs. Risk of damage to the
electronic control system!
Climate rating
The climate rating indicates the room
temperature at which the appliance may
be operated in order to achieve full refrig-
eration performance.
The climate rating is indicated on the
type plate.
The position of the type plate is shown in the section entitled
Description of the appliance.
Climate rating Room temperature
SN-T +10°Cto+43°C
Do not operate the appliance outside the
specied room temperature range.
Appliance Dimensions
Heightwhenadjustablefeethavebeenscrewed
in as far as they will go.
Maximumheightadjustment=51mm
• Placetheapplianceinitsfinalpositionattheplaceofinstallation.
• Compensate floor unevenness using the
adjustable feet.
Important
The appliance must be aligned horizon-
tally and vertically. If the appliance is not
level, the main body of the appliance can
be deformed and the door will not close
properly.
Levelling the appliance
Turn the spanner clockwise to raise the appliance and anticlock-
wise to lower it.
Position the spanner accordingly.
5
Fan switch
Switch on the Ventilation function when loading the
appliance with a large amount of food. This ensures an
even interior temperature andhasapositiveeecton
the cooling down process.
SwitchotheVentilationfunctionapprox.12hoursafterloading
the appliance.
Switching on
Press the Ventilation button.
The symbol
in the button will light up.
Switching o
Press the Ventilation button again.
The symbol
in the button will go out.
Switching the appliance on and o
Switching the appliance on
Press the On/O button until the temperature display
lights up.
Switching the appliance o
Keep the On/O button pressed for approx. 3 seconds so that
the temperature display goes out.

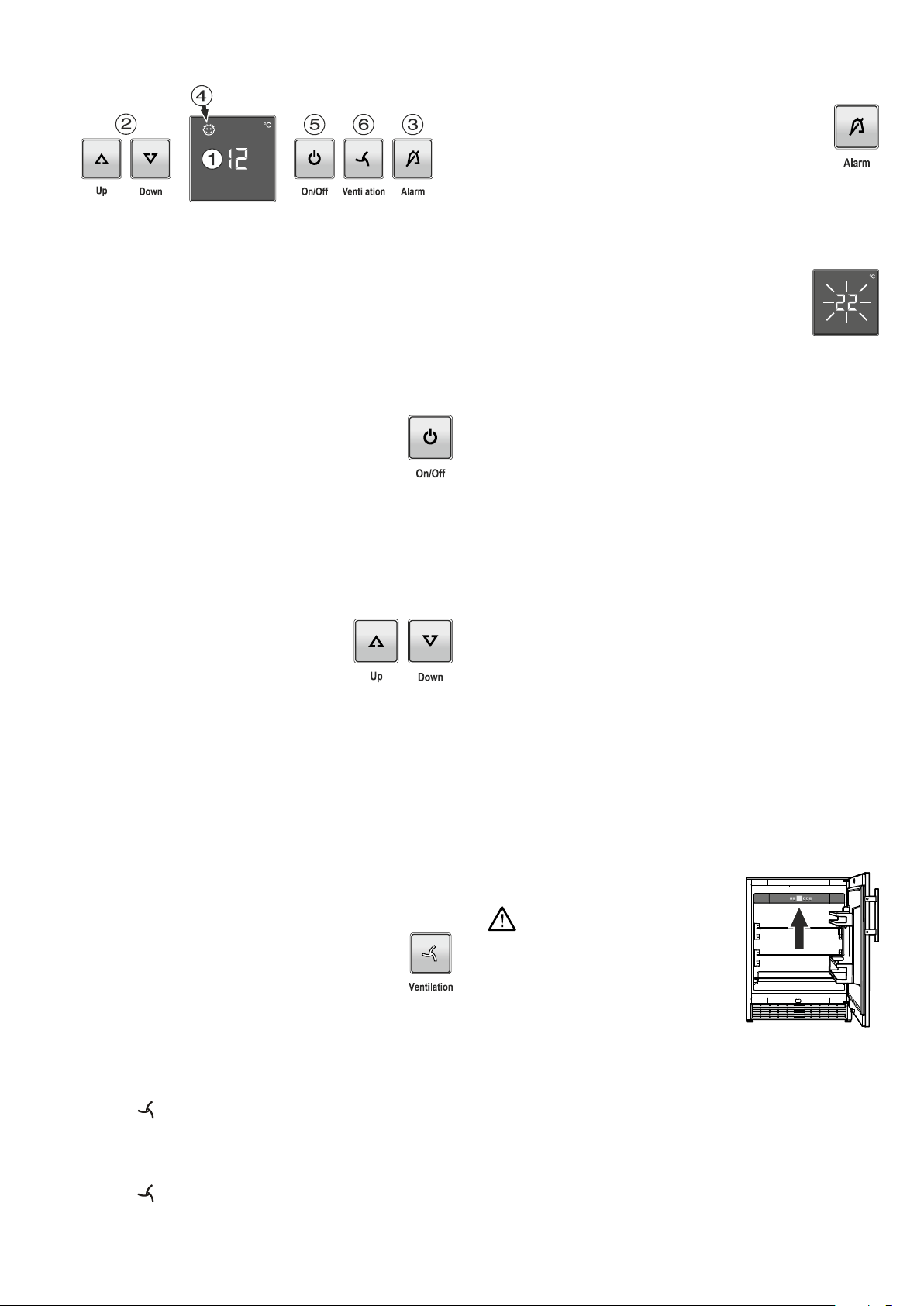

Operating and control elements
1
Temperature display
2
Temperature setting buttons
3
Audible warning on/off button
4
Childlockactivatedsymbol
5
On/off button
6
Fan button
Setting the temperature
Increasing the temperature
Press the Up button.
Reducing the temperature
Press the Down button.
- When pressing one of the buttons for the first time, the display
will start to flash.
- Pressing this button again enables you to change the temperature
setting.
- The electronic controls will switch over automatically about
5 seconds after the last time you pressed the button, and the
actual temperature will be displayed.
Door open alarm
If the door is left open for more than 60 seconds, the audible
warning signal will sound.
If the door must be opened for a lengthy period to place
items into the appliance, cancel the audible warning
signal by pressing the Alarm button.
The alarm switches back to standby when the door is shut.
Temperature alarm
If the temperatures in the interior are out of the per-
mitted range, the audible warning signal will sound
andthetemperaturedisplaywillash.
• Canceltheaudiblewarningsignalbypressingthe
Alarm button.
After a lengthy power failure, the temperature in the interior may
have risen to too high a level. After the power supply returns, the
fall in temperature can be watched on the display.
Thetemperaturedisplaywillstopashingassoonasthetem-
perature in the interior has reached the set value.
Temperature alarm after a fault in the appliance
If the appliance develops a fault, the temperature in the interior
may rise too high or fall too low. The audible warning signal will
soundandthetemperaturedisplaywillash.
• CanceltheaudiblewarningsignalbypressingtheAlarm button.
Ifthetemperaturedisplayedistoohigh(warm),rstcheckwhether
the door is closed correctly.
If the temperature display continues to show a value that is too high
or too low after one hour, contact the customer service department.
If F1appearsinthedisplay,theappliancehassueredafault.In
this case, contact the customer service department.
EN
Interior light
The interior light will always switch on when the appliance door
is opened.
The light intensity of the LED light cor-
responds to laser class 1/1M.
Important
The light cover may only be removed
by customer service sta.
If the cover is removed, do not look
directly at the light through optical
lenses from close distance. This can
damage your eyes.
6
Setup mode
In set-up mode you can set the child lock and adjust the brightness
of the display. The child lock is designed to protect the appliance
frombeingswitchedoaccidentally.
Activating the child lock
Press for5seconds. Display=
Display=
Display=
Display=
Display=
Deactivating the child lock
Press for5seconds. Display=
Display=
Display=
Display=
Display=
Adjusting the display brightness
Press for5seconds. Display=
Display=
Display=
Use buttons and to select the desired setting.
h1=minimumbrightness
h5=maximumbrightness
Display=
Display=
The adjusted brightness will be activated after one minute.
Note
If a button is pressed, the display lights up for one minute at
maximum brightness.
When commissioning the appliance, the adjusted brightness will
only be active once the set interior temperature of the appliance
has been reached.
Safety Lock
The lock in the appliance door is equipped
with a safety mechanism.
Locking the appliance
• Insertthekeyandpushasshownbyar-
row 1.
• Turnthekey90°clockwise2.
Unlocking the appliance
• Insertthekeyandpush.
• Turnthekey90°counterclockwise.
Note
Holdthekeyatalltimes.Thelockcylinderisspringloadedand
will eject the key if you release it.
WARNING!
Risk of child entrapment and suffocation
due to a locked appliance door.
Keep the key in a safe place out of reach
of children and not in the vicinity of the
appliance.
7
Pull-out shelf
The pull-out shelf allows stored items to be viewed
and removed more easily.
Equipment
Sectioned glass shelf
If you need to make space for tall containers, simply carefully
slide the front half of the sectioned glass shelf underneath the
back half.
IMPORTANT
1 The sectioned glass shelf may
only be inserted in the top chan-
nel of the supports.
2 The bottom channel of the
supports is not suitable for the
sectioned glass shelf.
3 Do not place the shelf on the
top of the supports.
Repositioning the glass shelf
2 Remove the shelf forward
1 Lift the shelf at the front.
Insert the shelf in the bottom channel of the supports.
Be sure the rear angles of the shelf rests on the marked areas
of the supports.
IMPORTANT
Do not place the shelf on the top of the supports.
EN
Adjustable Door Rack
The top door rack can be moved
to a lower position.
Slide the door rack up, pull out
toward you and replace in reverse
order.
8
Cleaning
Before cleaning, always switch o the appli-
ance. Disconnect from the mains or switch
o or unscrew the fuse.
• Cleanthesidepanels,toppanelanddoorsurfaceusingasoft
cloth and a high-quality stainless steel cleaner.
Always clean and polish in the direction of the grain and finish.
Do not use steam cleaners because of the
risk of injury and damage.
• Ensure that no cleaning water penetrates into the electrical
components or ventilation grille.
• Donotdamageorremovethetypeplateontheinsideofthe
appliance. It is very important for servicing purposes.
Cleaning the dust lter
Thedustlterintheapplianceplinthmustbecleanedatleast
once a year.
• Takeholdoftheventilationgrilleattopandbot-
tom in the places shown and pull towards you.
• Cleanthedustfilterusingavacuumcleaner.
• Reattachtheventilationgrille.
Cleaning the appliance interior
Remove the glass shelves.
2 Remove the shelf forward.
1 Lift the shelf at the front.
• Remove the glass plate
from the pull-out shelf.
Removing the bottom
shelf
Pull the shelf upwards on the
right and left at the back and then
remove it towards you.
9
EN
• Cleanthe insideofthe applianceandequipment parts with
lukewarm water and a little detergent.
• Thoroughlydryallpartswithacloth.
IMPORTANT
Do not damage or remove the model plate on the inside of the
appliance. It is very important for servicing your appliance.

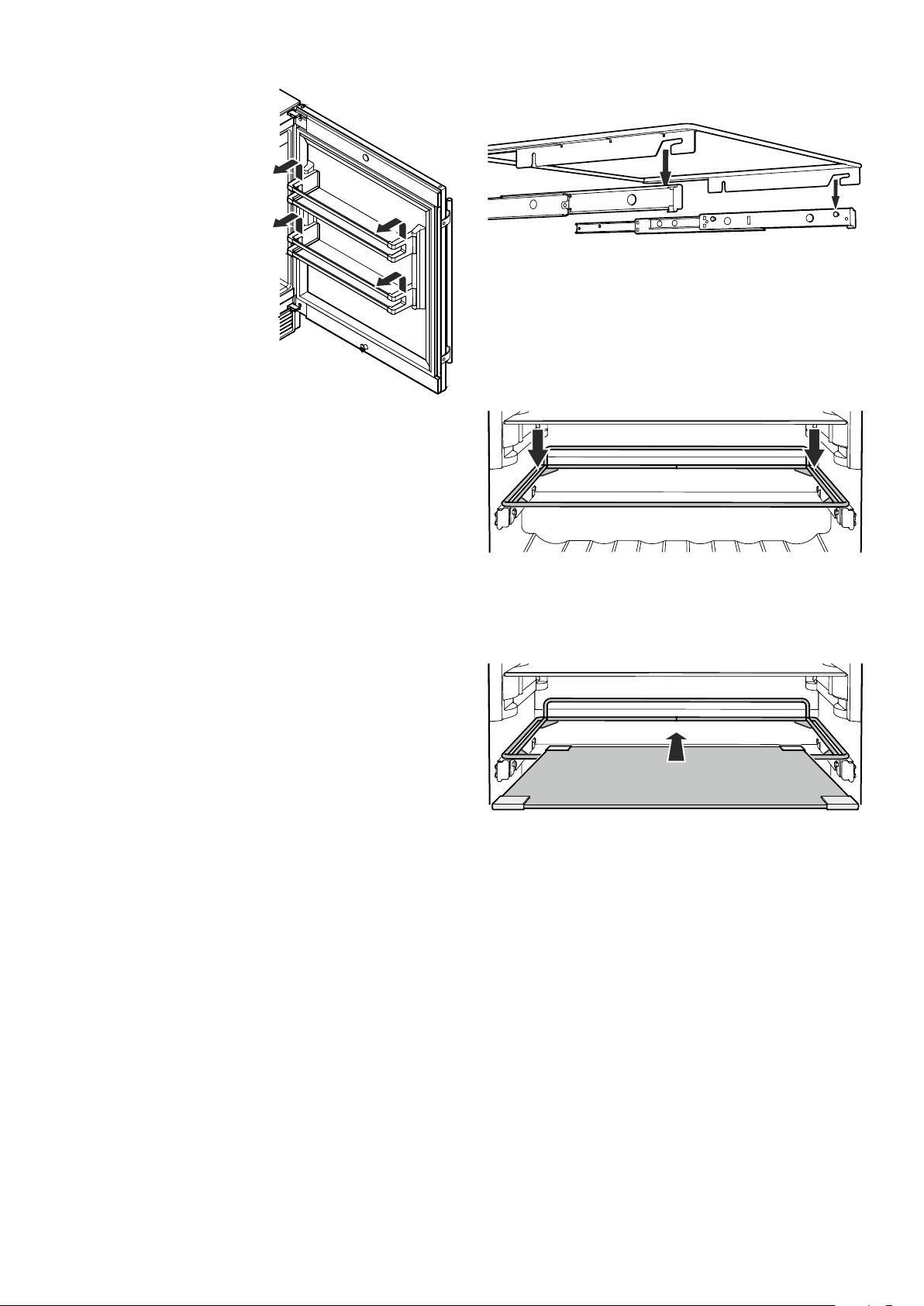

Removing the door racks
Slide the door rack up and remove
it towards you.
Inserting the bottom shelf
Extend the pull-out rails as far as they will go. Place the front
recesses of the shelf on the securing pins.
Slide the shelf together with the pull-out rails into the appliance
as far as they will go.
Push the shelf downwards on the right and left at the back.
• Reinserttheglassplateofthepull-outshelf.
• Reinsertthedoorracksandglassshelves.
10
Changing Over Door Hinges
Door hinges should only be changed by a trained expert.
Changingoverthedoorhingesrequirestwopeople.
1.
2.
3.
1. Remove screw.
2. Remove screw.
Important
The door must now be held secure by
another person.
3. Pull out hinge pin.
4.
5.
4. Remove upper hinge pin.
5. Move the door towards the ap-
pliance until the pin in the hinge
bracket is visible (see detailed
drawing).
Remove door.
6.
7.
6. Remove cover.
7. Unscrew door latch.
11
EN
8. Compressthecoversinthe
places shown and release.
Turnthecovers180°andclick
into place on the opposite
side.
8.
9.
10.
9. Clickcoverintoplace.
10. Screw on the door latch.
11. Transfer door handle and
plugs to the opposite
side.
11.
12. Take hold of the ventilation
grille at top and bottom in
the places shown and pull
towards you.
13. Remove the covers.
14. Unscrew the hinge bracket and
re-fit on the left at the top.
Insert screws in the marked
openings.
12.
13.
14.
12
15.
15. Remove the lower retaining
bracket and transfer to the
opposite side.
17.
17. Fit the door on the hinge brackets.
Important
The door must now be held secure by another
person.
16.
16. Unscrew the hinge bracket
and re-fit on the left at the
bottom.
Insert screws in the marked
openings.
18. Insert hinge pin.
Thedoormustbeopen90°.
Insertthehingepinwiththeatpart
facing the appliance.
The hinge pin must be fully inserted
in the borehole and may not pro-
trude at the top.
19. Insert the bottom hinge pin
in the same way.
19.
18.
13
21. Closedoorandchecktoen-
sure that it is aligned with the
side walls of the appliance.
20.
20. Screw in the screws at the top
and bottom.
21.
23.
Adjusting the lateral tilt of
the door
If the door is at an angle, adjust
the angle.
22. Undo screws and slide hinge
bracket to the right or left.
Tighten screws.
23. Fit the covers.
24. Fit the ventilation grille and click
into place.
22.
24.
LiebherrHausgeräteLienzGmbH*Dr.-Hans-Liebherr-Strasse1*A-9900Lienz**www.liebherr.com
