OWNER’S MANUAL
FRENCH DOOR
REFRIGERATOR
Please read this owner's manual thoroughly before
operating and keep it handy for reference at all times.
ENGLISH
FRANÇAIS ESPAÑOL
LMX25986
**
ENGLISH
2
TABLE OF CONTENTS
TABLE OF CONTENTS
3 PRODUCT FEATURES
4 IMPORTANT SAFETY INSTRUCTIONS
7 COMPONENTS
7 Refrigerator Exterior
8 Refrigerator Interior
8 - Key Parts and Components
9 - Special Features
10 INSTALLATION
10 Specifications
11 Unpacking Your Refrigerator
11 Choosing the Proper Location
11 - Flooring
11 - Ambient Temperature
11 - Measuring the Clearances
12 Removing/Assembling the Refrigerator
Door Handles
12 Removing/Assembling the Freezer Drawer Handle
13 Removing/Assembling the Doors and Drawers
13 - Removing the Left Refrigerator Door
14 - Removing the Right Refrigerator Door
14 - Assembling the Right Refrigerator Door
15 - Assembling the Left Refrigerator Door
16 - Removing the Freezer Drawers
18 - Assembling the Freezer Drawers
19 Connecting the Water Line
19 -Before You Begin
19 - Water Pressure
19 - What You Will Need
20 - Water Line Installation Instructions
21 Turning On the Power
22 Leveling and Door Alignment
23 HOW TO USE
23 Before Use
24 Control Panel
24 - Control Panel Features
26 In-Door Ice Bin
26 - Detaching the In-Door Ice Bin
26 - Assembling the In-Door Ice Bin
27 Automatic Icemaker
27 - Turning the Automatic Icemaker On or Off
28 - When You Should Turn the Icemaker Off
28 - Normal Sounds You May Hear
28 - Preparing for Vacation
29 Ice and Water Dispenser
29 - Dispenser
29 - Using the Dispenser
29 - Locking the Dispenser
29 - Cleaning the Dispenser Tray
30 Storing Food
30 - Food Preservation Location
31 - Food Storage Tips
31 - Storing Frozen Food
32 Humidity Controlled Crisper and Glide’N’Serve
33 Detaching and Assembling the Storage Bins
34 Adjusting the Refrigerator Shelves
35 MAINTENANCE
35 Cleaning
36 Replacing the Water Filter
40 SMART DIAGNOSIS
41 TROUBLESHOOTING
49 WARRANTY
ENGLISH
3
PRODUCT FEATURES
PRODUCT FEATURES
* Depending on the model, some of the following functions may not be available.
FILTERED WATER AND ICE DISPENSER
The water dispenser dispenses fresh, chilled water. The ice dispenser dispenses cubed and crushed ice.
DOOR ALARM
The Door Alarm function is designed to prevent refrigerator malfunctioning that could occur if a refrigera-
tor door or freezer drawer remains open. If a refrigerator door or freezer drawer is left open for more than
60 seconds, a warning alarm sounds in 30 second intervals.
HUMIDITY CONTROLLED CRISPER
The Humidity Controlled Crisper is designed to help keep your fruits and vegetables fresh and crisp. You
can control the amount of humidity in the crisper by adjusting the setting between High and Low.
GLIDE‘N’SERVE
Glide‘N’Serve provides storage space with a variable temperature control that keeps the compartment
colder than the refrigerator. It is a convenient place to store sandwiches or meat to be cooked.
AUTO CLOSING HINGE
The refrigerator doors and freezer drawers close automatically with a slight push.
(The door only closes automatically when it is open at an angle less than 30°.)
ICE PLUS
Ice production can be increased by approximately 20 percent when the freezer section is maintained at
the coldest temperature for a 24-hour period.
ENGLISH
4
IMPORTANT SAFETY INSTRUCTIONS
IMPORTANT SAFETY INSTRUCTIONS
READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE.
This guide contains many important safety messages. Always
read and obey
all safety messages.
WARNING
You can be killed or seriously injured if you do not follow instructions.
CAUTION
Indicates an imminently hazardous situation which, if not avoided, may result in minor or moderate injury, or
product damage.
WARNING
To reduce the risk of fire, electric shock, or personal injury when using your product, basic safety precautions should be
followed, including the following.
Power
NEVER unplug your refrigerator by pulling on the power cord. Always grip the plug firmly and pull it straight out from the
y
outlet.
Immediately repair or replace all power cords that have become frayed or otherwise damaged. Do not use a cord that
y
shows cracks or abrasion damage along its length or at either the plug or connector end.
Do not use an uncertified power outlet.
y
Unplug the power plug immediately in the event of a blackout or thunderstorm.
y
Plug in the power plug with the power cord facing downward.
y
Installation
Contact an authorized service center when you install or relocate the refrigerator.
y
When moving your refrigerator away from the wall, be careful not to roll over or damage the power cord.
y
Connect this product to a dedicated grounded electric outlet conforming with the rating prior to use. It is the user’s respon-
y
sibility to replace a standard 2-prong wall outlet with a standard 3-prong wall outlet.
Do not install the refrigerator where there may be a danger of falling.
y
Use
DO NOT allow children to climb, stand, or hang on the refrigerator doors or shelves in the refrigerator. They could damage
y
the refrigerator and seriously injure themselves.
Do not place heavy objects on the dispenser of the refrigerator or hang onto it.
y
Do not place heavy or dangerous objects (bottles with liquid) on the refrigerator.
y
Do not put live animals inside of the refrigerator.
y
Do not allow children to climb into the product when it is in use.
y
In the event of a gas leak (propane/LPG), ventilate sufficiently and contact an authorized service center before use. Do not
y
touch or disassemble the electric outlet of the refrigerator.
In the event of a refrigerant leak, move flammable objects away from the refrigerator. Ventilate sufficiently and contact an
y
authorized service center.
Do not use or place flammable substances (chemicals, medicine, cosmetics, etc) near the refrigerator or store them inside
y
the refrigerator. Do not place the refrigerator in the vicinity of flammable gas.
This is the safety alert symbol. It alerts you to safety messages that inform you of hazards that can kill or hurt you or
others, or cause damage to the product.
All safety messages will be preceded by the safety alert symbol and the hazard
signal word WARNING or CAUTION. These words mean:
ENGLISH
5
IMPORTANT SAFETY INSTRUCTIONS
Do not use this product for special purposes (storage of medicine or test materials or for ships, etc).
y
Unplug the power plug before cleaning or repairing the refrigerator.
y
When you replace the light bulb in the refrigerator, unplug the refrigerator or turn off the power.
y
Do not modify or extend the power cord.
y
Do not use a dryer to dry the interior. Do not light a candle to remove the interior odor.
y
For your safety, this appliance must be properly grounded. Have the wall outlet and the circuit checked by a qualified electri-
y
cian to make sure the outlet is properly grounded.
Do not use an outlet that can be turned off with a switch. Do not use an extension cord. It is the user’s responsibility to
y
replace a standard 2-prong wall outlet with a standard 3-prong wall outlet.
Do not, under any circumstances, cut or remove the third (ground) prong from the power cord.
y
Do not use an adapter plug and plug the power plug into a multi-outlet extension cord.
y
Disconnect the power cord immediately if you hear a noise, smell a strange odor or detect smoke.
y
Turn the power off if water or dust penetrates into the refrigerator. Call a service agent.
y
Do not disassemble or modify the refrigerator.
y
Do not put hands, feet, or metal objects below or behind the refrigerator.
y
Do not operate the refrigerator or touch the power cord with wet hands.
y
In refrigerators with automatic icemakers, avoid contact with the moving parts of the ejector mechanism or with the heating
y
element that releases the cubes. Do not place fingers or hands on the automatic ice-making mechanism while the refrigera-
tor is plugged in.
When dispensing ice from the dispenser, do not use crystal ceramics.
y
Do not touch the cold surfaces in the freezer compartment with wet or damp hands, when your refrigerator is in operation.
y
Do not put glass containers, glass bottles or soda in the freezer.
y
This appliance is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities,
y
or lack of experience and knowledge, unless they have been given supervision or instruction concerning the use of the
appliance by a person responsible for their safety.
Do not refreeze frozen food that have thawed completely. It may result in a serious health issue.
y
If you are throwing away your old refrigerator, make sure the CFC coolant is removed for proper disposal by a qualified
y
servicer. If you release CFC coolant, you may be fined or imprisoned in accordance with the relevant environmental law.
Junked or abandoned refrigerators are dangerous, even if they are sitting for only a few days. When disposing the refrigera-
y
tor, remove the packing materials from the door or take off the doors but leave the shelves in place so that children may not
easily climb inside.
READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE.
To reduce the risk of fire, electric shock, or personal injury when using your product, basic safety precautions should be
followed, including the following.
ENGLISH
6
IMPORTANT SAFETY INSTRUCTIONS
CAUTION
Installation
The refrigerator must be properly installed in accordance with the Installer Instructions that were taped to the front of the
y
refrigerator.
Be careful when you unpack and install the refrigerator. Immediately dispose of packing materials (plastic) out of reach of
y
children.
Use
Close the door carefully when children are around.
y
Keep fingers out of pinch point areas; clearances between the doors and cabinets are necessarily small. Be careful closing
y
doors when children are in the area.
If you store food properly, beware that it may fall and cause injury.
y
Maintenance
Do not use strong detergents like wax or thinners for cleaning. Clean with a soft fabric.
y
Wipe foreign objects (dust, water, etc) off the prongs of the power plug and contact areas regularly.
y
SAVE THESE INSTUCTIONS
READ ALL INSTRUCTIONS BEFORE USING THE APPLIANCE.
To reduce the risk of fire, electric shock, or personal injury when using your product, basic safety precautions should be
followed, including the following.
ENGLISH
7
COMPONENTS
COMPONENTS
Use this page to become more familiar with the parts and features of your refrigerator. Page references are included for your
convenience.
*The appearance and specifications of the actual product may differ depending on the model.
Refrigerator Exterior
LED Display
Displays the refrigerator and freezer
temperature, the water filter condi-
tion and the dispenser status.
Ice Plus
When this feature is activated, the
freezer section will run at the coldest
temperature for a 24-hour period to
increase ice production.
Filtered Water and
Ice Dispenser
Dispenses fresh, chilled, filtered
water through the door. The ice
dispenser offers cubed or crushed
ice.
Door Alarm
A warning alarm sounds at 30-
second intervals when the refrig-
erator or freezer door is left open
for more than 60 seconds.
ENGLISH
8
COMPONENTS

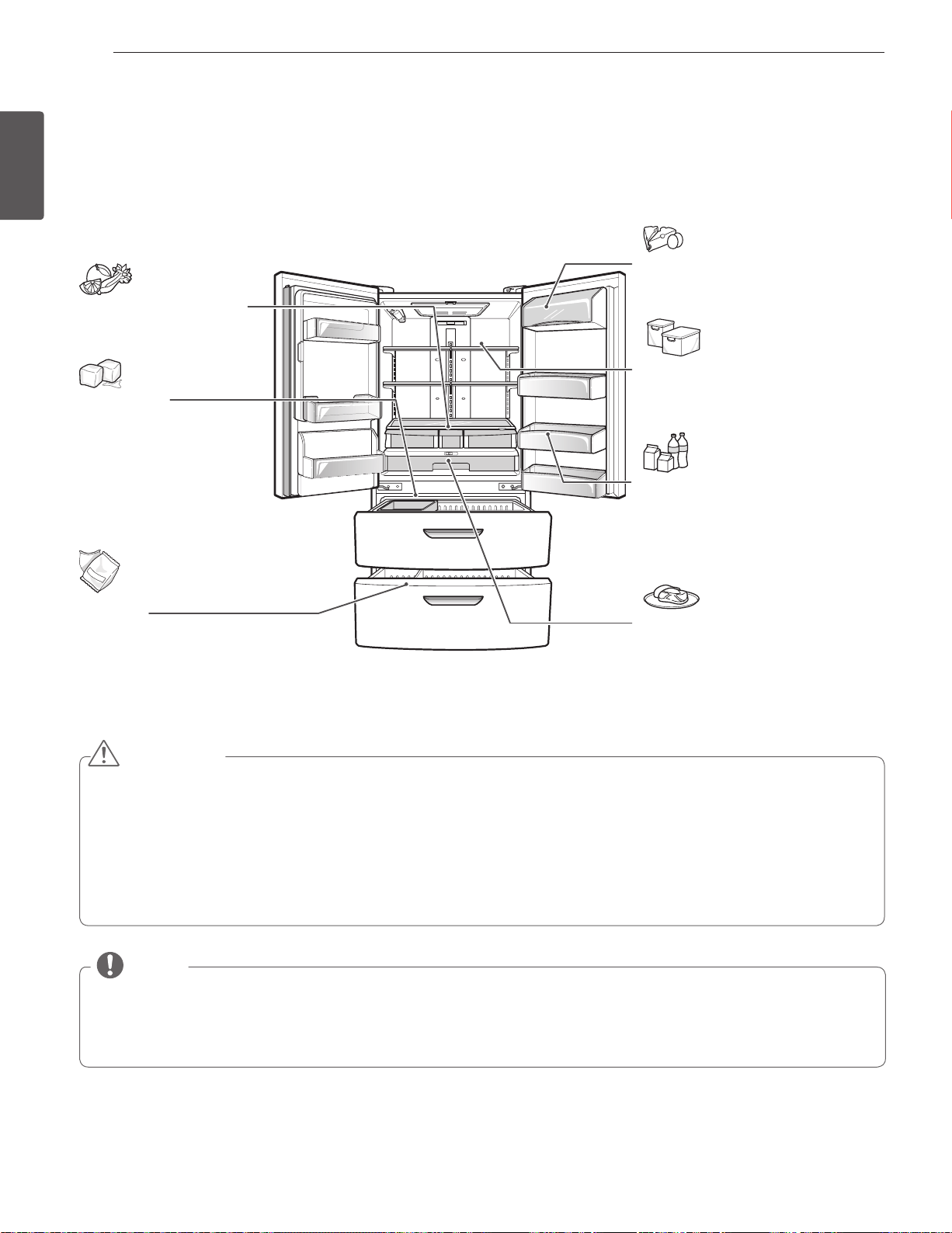

Refrigerator Interior
Key Parts and Components
Can Storage Bin
Used to preserve
chilled food or drinks.
Gallon Storage Bins
Interchangeable bins
that can be arranged
to suit your storage
needs.
LED Interior Lamps
The interior lamps light up the
inside of the refrigerator.
Ice Storage Bin
For additional ice
storage.
Fixed Door
Bins
Fixed Door Bin
Adjustable
Refrigerator Shelf
The shelves in your re-
frigerator are adjustable
to meet your individual
storage needs.
ENGLISH
9
COMPONENTS
Smart Diagnosis Speaker
Hold your phone to this
speaker when activating
Smart Diagnosis. Refer to
the Smart Diagnosis section
for more details.
SpacePlus Ice
System
Automatically
produces 80-130 ice
cubes in a 24-hour
period.
Auto Closing Hinge
The refrigerator doors
and freezer drawers
close automatically when
you push them slightly.
(The door only closes
automatically when it is
open at an angle of less
than 30°.)
Mullion
Folds in when the
left door is opened.
Glide’N’Serve
Allows you to store
food items at a dif-
ferent temperature
than the regular
refrigerator area.
Crispers
Controls humidity
and helps vege-
tables and fruit to
stay crisp.
Special Features
ENGLISH
10
INSTALLATION
INSTALLATION
Specifications
The appearance and specifications listed in this manual may vary due to constant product improvements.
Bottom-freezer refrigerator model LMX25986
Description French door refrigerator
Electrical requirements 115 VAC @ 60 Hz
Min. / Max. Water pressure 20 -120 PSI (1.4 - 8.4 kgf/cm
2
)
Dimensions 35 3/4" (W) X 34 1/4" (D) X 69 3/4" (H), 46 1/2" (D w/ door open)
908 mm (W) X 869.95 mm (D) X 1 771.65 (H), 1 181.1 mm (D w/ door open)
Net weight 309 lb. (140kg)
Refrigerator storage capacity 17.56 cu. ft.
Freezer storage capacity 7.14 cu. ft.
ENGLISH
11
INSTALLATION
Choosing the Proper Location
Select a place where a water supply can be easily con-
y
nected for the automatic icemaker.
Ambient Temperature
Install this appliance in an area where the temperature is
between 55°F (13°C) and 110°F (43°C). If the temperature
around the appliance is too low or high, cooling ability may
be adversely affected.
Unpacking Your Refrigerator
WARNING
Use two or more people to move and install the
y
refrigerator. Failure to do so can result in back or
other injury.
Your refrigerator is heavy. When moving the refrig-
y
erator for cleaning or service, be sure to protect
the floor. Always pull the refrigerator straight out
when moving it. Do not wiggle or walk the refrig-
erator when trying to move it, as floor damage
could occur.
Keep flammable materials and vapors, such as
y
gasoline, away from the refrigerator. Failure to do
so can result in fire, explosion, or death.
Remove tape and any temporary labels from your refrigera-
tor before using. Do not remove any warning-type labels,
the model and serial number label, or the Tech Sheet that is
located under the front of the refrigerator, behind the base
grille.
To remove any remaining tape or glue, rub the area briskly
with your thumb. Tape or glue residue can also be easily re-
moved by rubbing a small amount of liquid dish soap over the
adhesive with your fingers. Wipe with warm water and dry.
Do not use sharp instruments, rubbing alcohol, flammable
fluids, or abrasive cleaners to remove tape or glue. These
products can damage the surface of your refrigerator.
Refrigerator shelves are installed in the shipping position.
Please reinstall shelves according to your individual storage
needs.
Flooring
To avoid noise and vibration, the unit must be leveled and
installed on a solidly constructed floor. If required, adjust the
leveling legs to compensate for unevenness of the floor. The
front should be slightly higher than the rear to aid in door
closing. Leveling legs can be turned easily by tipping the cabi-
net slightly. Turn the leveling legs to the left to raise the unit
or to the right to lower it. (See Leveling and door AlIgnment.)
NOTE
Installing on carpeting, soft tile surfaces, a platform or
weakly supported structure is not recommended.
NOTE
The water pressure must be between 20 and 120 psi
on models without a water filter and between 40 and
120 psi on models with a water filter.
Measuring the Clearances
Too small of a distance from adjacent items may result in
lowered freezing capability and increased electricity con-
sumption charges. Allow at least 24 inches (61 cm) in front
of the refrigerator to open the doors and at least 2 inches
(5.08 cm) between the back of the refrigerator and the wall.
The refrigerator should always be plugged into its own
y
individual properly grounded electrical outlet rated for
115 Volts, 60 Hz, AC only, and fused at 15 or 20 am-
peres. This provides the best performance and also
prevents overloading house wiring circuits which could
cause a fire hazard from overheated wires. It is recom-
mended that a separate circuit serving only this appli-
ance be provided.
WARNING
To reduce the risk of electric shock, do not install the
refrigerator in a wet or damp area.
2” (5.08 cm)
ENGLISH
12
INSTALLATION
Removing/Assembling the
Refrigerator Door Handles
Removing the Handles
1
Loosen the set screws with a
3
/
32
in. Allen wrench and
remove the handle.
2
Loosen the mounting fasteners that connect to the
refrigerator door and handle using a
1
/
4
in. Allen wrench,
remove the mounting fasteners.
Assembling the Handles
1
Assemble the mounting fasteners at both ends of the
handle using a
1
/
4
in. Allen wrench.
2
Place the handle on the door by fitting the handle foot-
prints over the mounting fasteners and tightening the set
screws with a
3
/
32
in. Allen wrench.
Removing/Assembling the
Freezer Drawer Handle
N O T E
Removing the doors is always recommended when it
is necessary to move the refrigerator through a nar-
row opening. If it is necessary to remove the handles,
follow the directions below.
Removing the Handles
1
Loosen the set screws located on the lower side of the
handle with a
1
/
8
in. Allen wrench and remove the handle.
2
Loosen the mounting fasteners that connect to the
freezer drawer and handle using a
1
/
4
in. Allen wrench,
and remove the mounting fasteners.
Assembling the Handles
1
Assemble the mounting fasteners at both ends of the
handle using a
1
/
4
in. Allen wrench.
2
Place the handle on the door by fitting the handle foot-
prints over the mounting fasteners and tightening the set
screws with a
1
/
8
in. Allen wrench.
Mounting
Fasteners
Set Screw
Allen
Wrench
Mounting
Fasteners
WARNING
When the customer takes apart the handle or assemble it
from a refrigerator, please be cautious of following things.
Hold the handle with your own hand to make sure not
y
to drop the handle to the floor or instep while taking
apart the handle from a refrigerator.
Do not swing the handle towards people or animals
y
after taking apart the handle.
Insert the bracket hole of the handle into the stopper
y
bolt of the door exactly, and then assemble the set
screws to fix the handle.
Check if there’s any gap between the door and handle
y
after fixing the handle.
ENGLISH
13
INSTALLATION
CAUTION
When lifting the hinge free of the latch, be careful that
the door does not fall forward.
Removing the Left Refrigerator Door
1
The water supply is connected to the upper right part
of the rear surface of the refrigerator. Remove the ring
in the joint area. Hold the water supply connection and
gently push the Collet to detach the water supply line as
shown in
and .
NOTE
Detachment of the water supply line is applicable only
when detaching the left refrigerator door.
WARNING
If your entrance door is too narrow for the refrigera-
y
tor to pass through, remove the refrigerator doors and
move the refrigerator sideways through the doorway.
Use two or more people to remove and install the
y
refrigerator doors. Failure to do so can result in back or
other injury.
Disconnect the electrical supply to the refrigerator
y
before installing. Failure to do so could result in serious
injury or death.
Do not put hands, feet or other objects into the air
y
vents, base grille, or bottom of the refrigerator. You
may be injured or receive an electrical shock.
Be careful when handling the hinge, base grille and
y
stopper. It may result in injury.
Remove food and bins from the doors and drawers
y
before detaching.
Collet
Removing/Assembling the Doors
and Drawers
Removing the doors is always recommended when it is nec-
essary to move the refrigerator through a narrow opening.
(1)
(2)
(4)
(3)
(6)
(7)
(8)
(5)
(2)
(3)
(4)
(5)
(1)
2
Open the left door. Remove the top hinge cover screw (1).
Lift up the cover (2).
3
Remove the cover.
4
Pull out the tube (3).
5
Disconnect all wire harnesses (4).
6
Remove the grounding screw (5).
7
Rotate the hinge lever (6) counterclockwise. Lift the top
hinge (7) free of the hinge lever latch (8).
8
Lift the door from the middle hinge pin and remove the
door.
9
Place the door, inside facing up, on a non-scratching sur-
face.
ENGLISH
14
INSTALLATION
Removing the Right Refrigerator Door
1
Open the door. Remove the top hinge cover screw (1).
Lift up the cover (2).
2
Remove the cover.
3
Rotate the hinge lever (3) clockwise. Lift the top hinge (4)
free of the hinge lever latch (5).
4
Lift the door from the middle hinge pin and remove the
door.
5
Place the door, inside facing up, on a non-scratching
surface.
(1)
(2)
(4)
(3)
(6)
(7)
(8)
(5)
(2)
(3)
(4)
(5)
(1)
CAUTION
When lifting the hinge free of the latch, be careful that
the door does not fall forward.

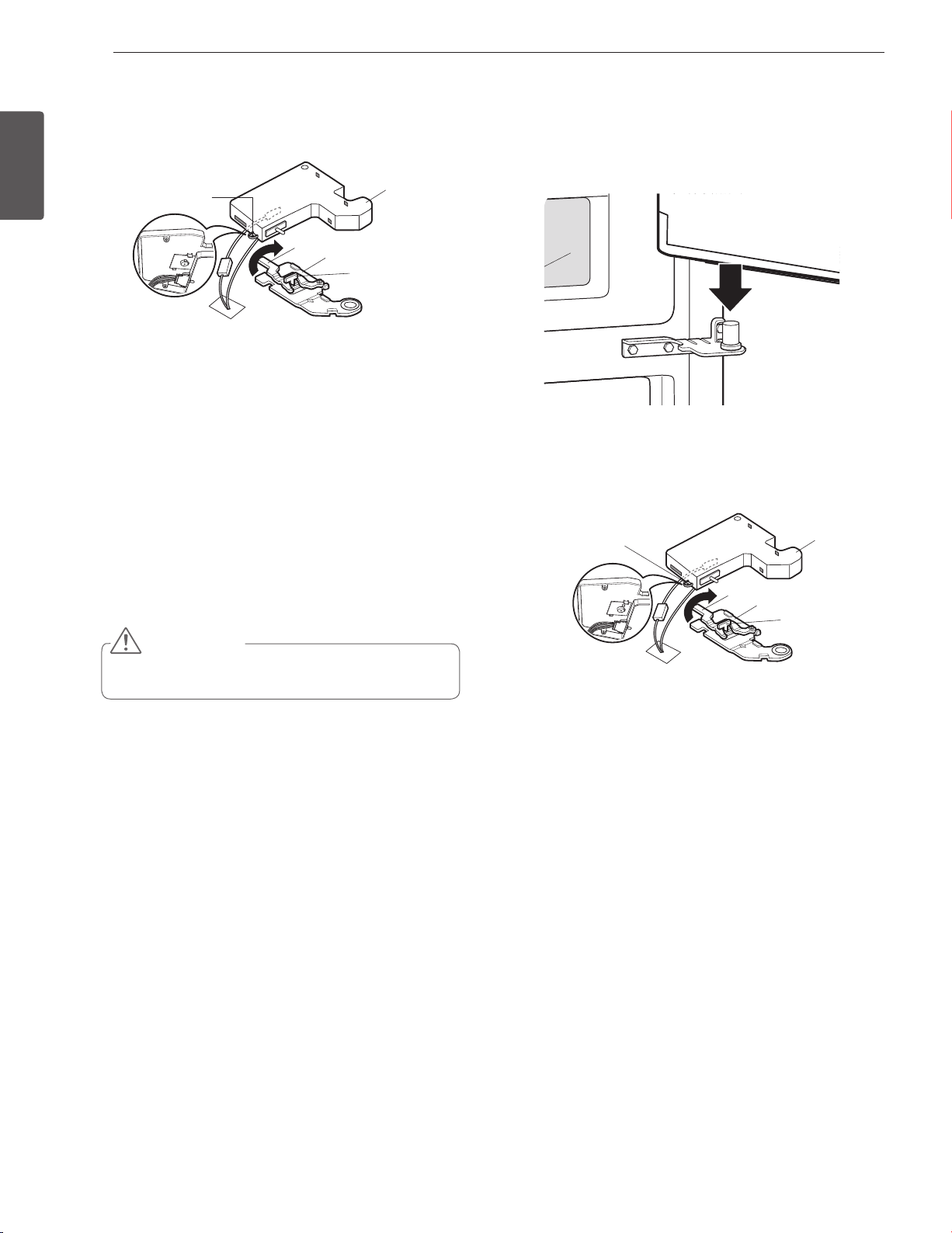

Assembling the Right Refrigerator Door
Install the right-side door first.
1
Lower the door onto the middle hinge pin. Make sure that
the plastic sleeve is inserted into the bottom of the door.
2
Fit the top hinge (4) over the hinge lever latch (5) and into
place.
3
Rotate the lever (3) counterclockwise to secure the hinge.
4
Hook the tabs on the right side of the hinge cover (2)
under the edge of the top hinge (4) and position the cover
in place.
5
Insert and tighten the cover screw (1).
1
(1)
(2)
(3)
(4)
(5)
(2)
(1)
(3)
(4)
(5)
(6)
(7)
(8)
1
(1)
(2)
(3)
(4)
(5)
(2)
(1)
(3)
(4)
(5)
(6)
(7)
(8)
ENGLISH
15
INSTALLATION
Assembling the Left Refrigerator Door
Install the left refrigerator door after the right door is installed.
1
Lower the door onto the middle hinge pin.
2
Fit the top hinge (7) over the hinge lever latch (8) and into
place.
3
Rotate the lever (6) clockwise to secure the hinge.
4
Install the grounding screws (5) and connect the two wire
harnesses (4).
5
Push the water tube (3) located at the top of the left door
into the hole beside the left hinge on the top of the cabi-
net until it exits through the back.
6
Insert the water supply tube (3) into the connector until
you see only one scale mark. Fully insert the tub cover
(15 mm).
7
Hook the tabs on the left side of the hinge cover (1) under
the edge of the top hinge (7) and position the cover in
place.
8
Insert and tighten the cover screw (1).
1
(1)
(2)
(3)
(4)
(5)
(2)
(1)
(3)
(4)
(5)
(6)
(7)
(8)
1
(1)
(2)
(3)
(4)
(5)
(2)
(1)
(3)
(4)
(5)
(6)
(7)
(8)
9
Insert the water supply tube at least 5/8 in.
(15 mm) into the connector.
10
Hook the tab on the door switch side of the cover under
the edge of the wire opening in the cabinet top.
11
Position the cover into place. Insert and tighten the cover
screw.

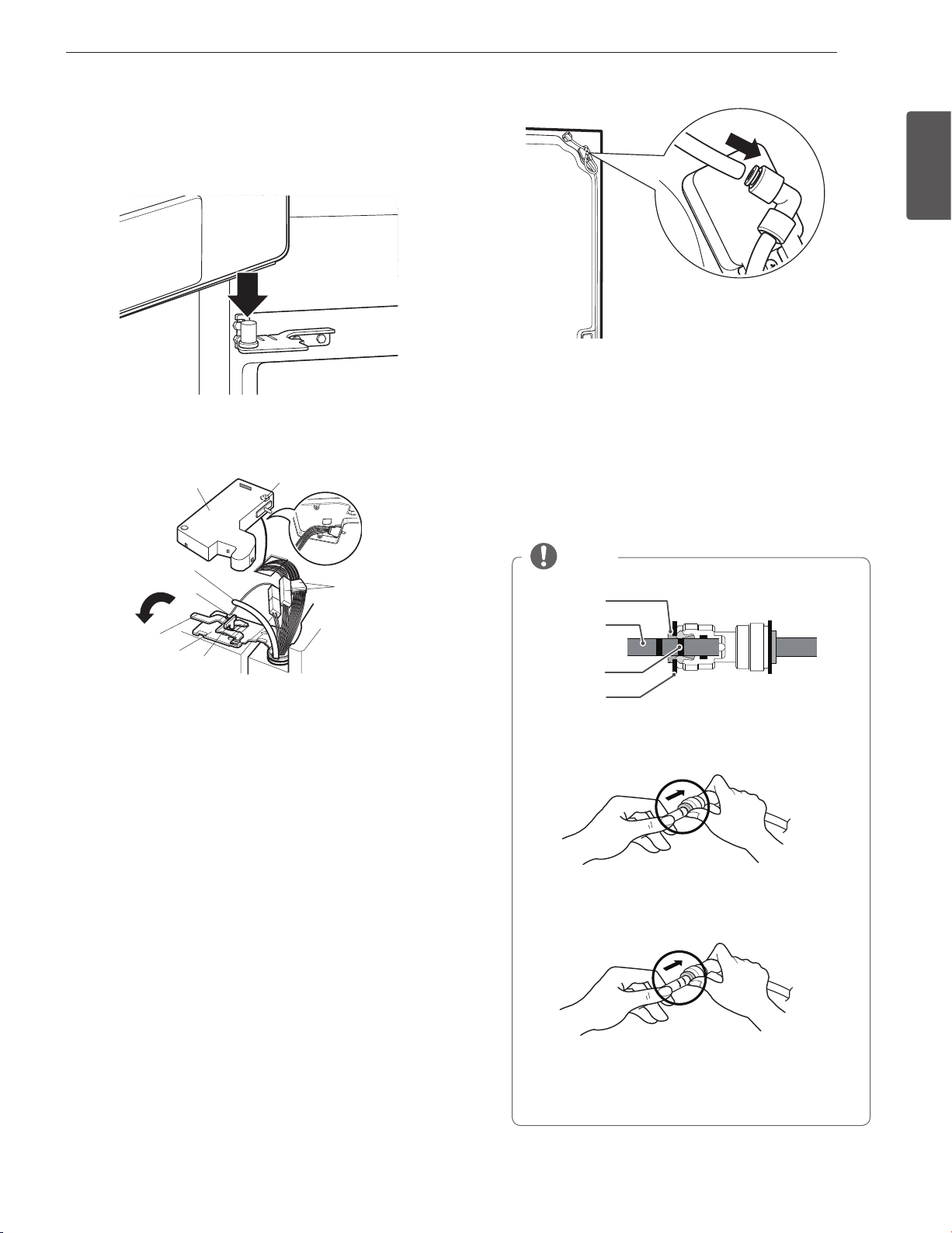

Collet
tcerrocnItcerroC
Insert Line
Clip
Tube
NOTE
Collet
Tube
Insert Line
Clip
1) Gently press the Collet and insert the tube until
only one line shows on the tube.
(Correct)
(Incorrect)
2) Pull the tube to make sure that the tube is tightly
fastened and then insert the clip.
ENGLISH
16
INSTALLATION

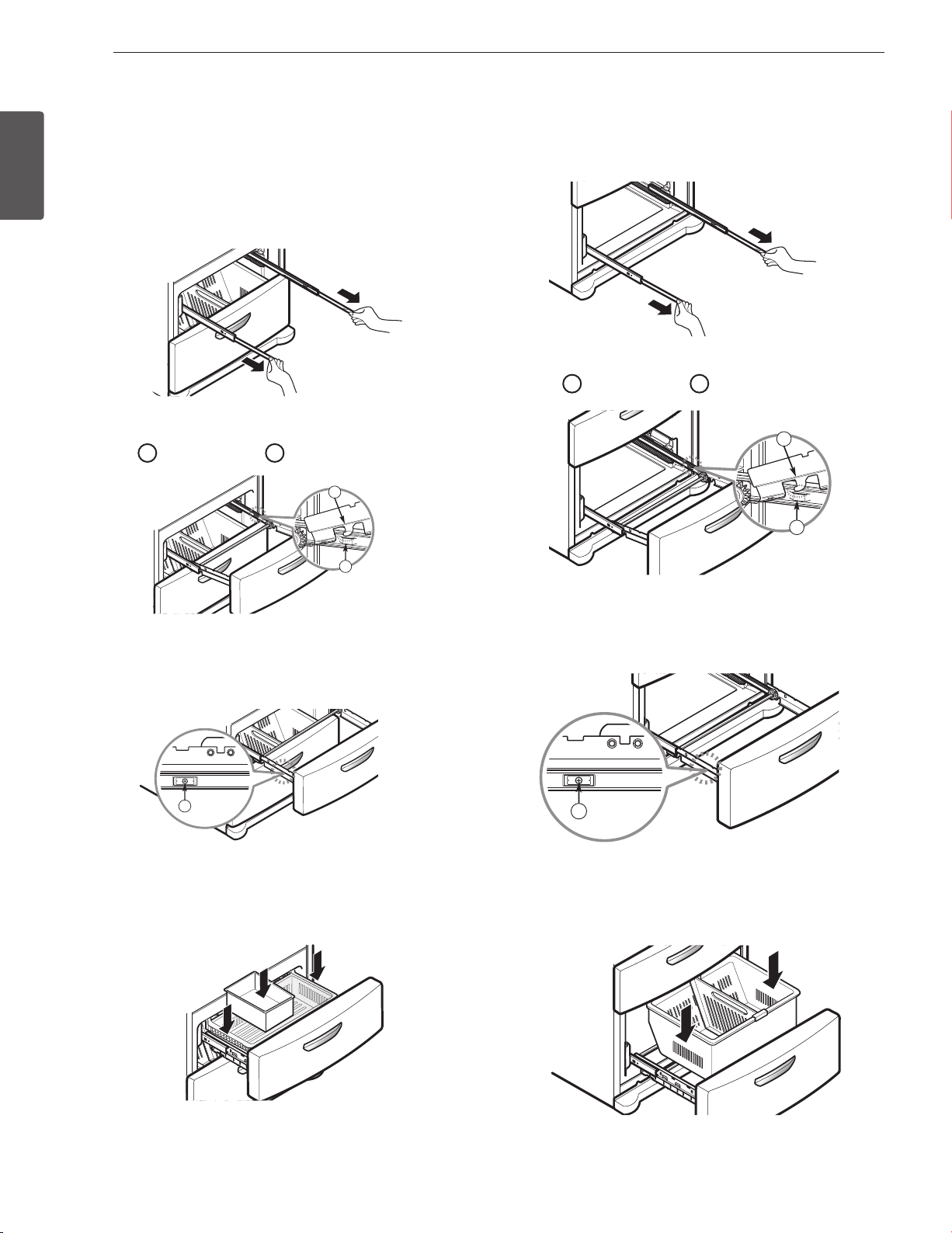

Removing the Freezer Drawers
The top, middle and bottom drawers are all removed in the
same way. In the following figures, the Pullout Drawer
located above the freezer drawer is not shown for clarity.
Top Freezer Drawer
1
Pull the drawer open to full extension. Remove the bas-
ket and ice bin by lifting the basket from the rail system.
2
Remove the screws on both the left and right rails.
CAUTION
Use two or more people to remove and install the
y
freezer drawer. Failure to do so can result in back
or other injury.
Do not hold the handle when removing or replac-
y
ing the drawer. The handle may come off and it
could cause personal injury.
Be careful of sharp hinges on both sides of the
y
drawer.
When you lay the drawer down, be careful not to
y
damage the floor.
Do not sit or stand on the freezer drawer.
y
To prevent accidents, keep children and pets away
y
from the drawer. Do not leave the drawer open.
3
Grasp the drawer on each side and pull it up to separate it
from the rails.
4
With both hands, hold each rail and push it in to allow
both rails to slide in simultaneously.
CAUTION
Do not hold the handle when removing or replacing
the drawer. The handle may come off and it could
cause personal injury.
ENGLISH
17
INSTALLATION
Bottom Freezer Drawer
1
Pull the drawer open to full extension. Remove the bas-
ket by lifting the basket from the rail system.
2
Remove the screws on both the left and right rails.
3
Grasp the drawer on each side and pull it up to separate it
from the rails.
4
With both hands, hold each rail and push it in to allow
both rails to slide in simultaneously.
CAUTION
Do not hold the handle when removing or replacing the
drawer. The handle may come off and it could cause
personal injury.
ENGLISH
18
INSTALLATION

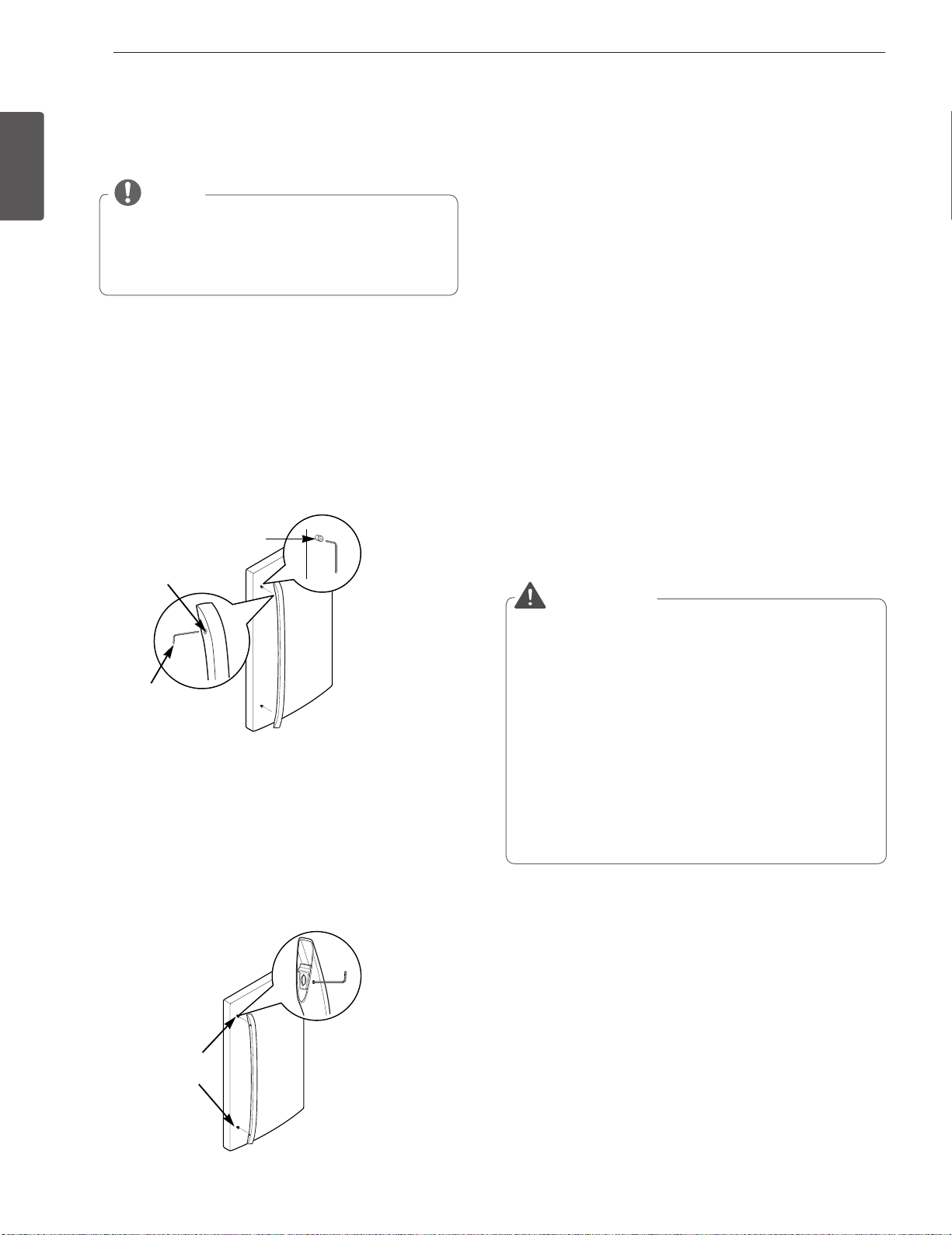

Assembling the Freezer Drawers
1
With both hands, pull out each rail simultaneously until
both rails are fully extended.
3
Lower the door into final position and tighten the
screws located on both sides.
4
With the drawer pulled out to full extension, insert the
basket and ice bin in the rail assembly.
2
Grasp the drawer on each side and hook the door sup-
ports
1
into the rail tabs
2
located on both sides.
Top Freezer Drawer
1
With both hands, pull out each rail simultaneously until
both rails are fully extended.
3
Lower the door into final position and tighten the
screws located on both sides.
4
With the drawer pulled out to full extension, insert the
basket in the rail assembly.
2
Grasp the drawer on each side and hook the door sup-
ports
1
into the rail tabs
2
located on both sides.
Bottom Freezer Drawer
2
1
2
3
2
1
2
3
2
1
2
3
2
1
2
3
1
2
1
2
3
1
2
1
2
3
1
2
1
2
3
1
2
1
2
3
ENGLISH
19
INSTALLATION
Connecting the Water Line
Before You Begin
This water line installation is not covered by the refrigerator
warranty. Follow these instructions carefully to minimize the
risk of expensive water damage.
Water hammer (water banging in the pipes) in house plumbing
can cause damage to refrigerator parts and can lead to water
leakage or flooding. Call a qualified plumber to correct water
hammer before installing the water supply line to the refrigera-
tor.
CAUTION
To prevent burns and product damange, only con-
nect the refrigerator water line to a cold water
supply.
If you use your refrigerator before connecting the
water line, make sure the icemaker power switch is in
the OFF (O) position.
CAUTION
Do not install the icemaker tubing in areas where
temperatures fall below freezing.
Water Pressure
A cold water supply. The water pressure must be between 20
and 120 psi on models without a water filter and between 40
and 120 psi on models with a water filter.
If a reverse osmosis water filtration system is connected to
your cold water supply, this water line installation is not covered
by the refrigerator warranty. Follow the following instructions
carefully to minimize the risk of expensive water damage.
If a reverse osmosis water filtration system is connected to
your cold water supply, the water pressure to the reverse os-
mosis system needs to be a minimum of 40 to 60 psi (2.8 kgf/
cm
2
~ 4.2 kgf/cm
2
, less than 2.0~3.0 sec. to fill a cup of 7 oz
capacity).
If the water pressure from the reverse osmosis system is less
than 21 psi or 1.5 kgf/cm
2
(takes more than 4.0 sec to fill a cup
of 7 oz capacity):
Check to see if the sediment filter in the reverse osmosis
y
system is blocked. Replace the filter if necessary.
Allow the storage tank on the reverse osmosis system to
y
refill after heavy usage.
If the issue concerning water pressure from reverse
y
osmosis remains, call a licensed, qualified plumber.
All installations must be in accordance with local plumb-
y
ing code requirements.

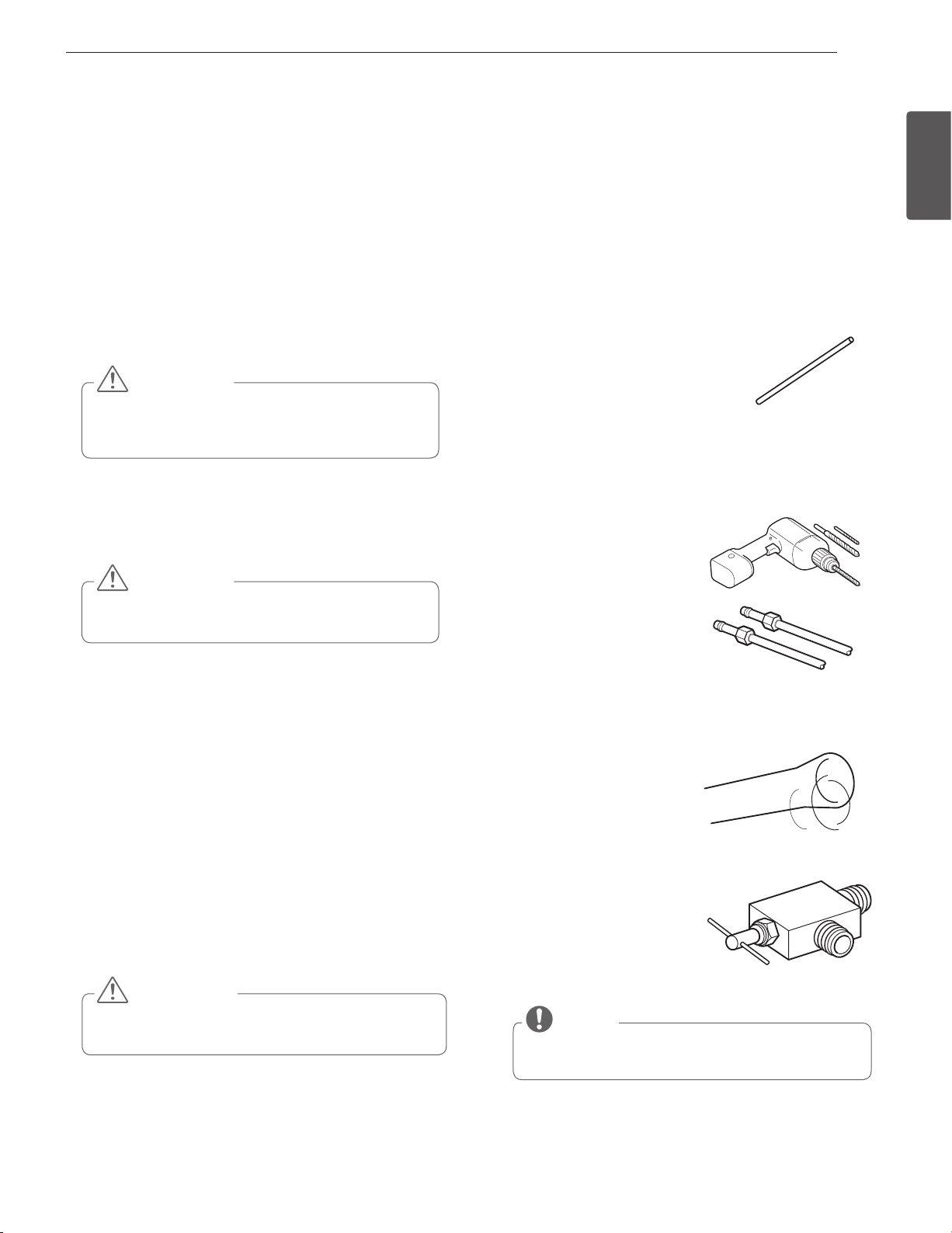

What You Will Need
Copper Tubing, ¼ in. outer diameter, to connect the
y
refrigerator to the water supply. Be sure both ends of the
tubing are cut square.
To determine how much tubing you
y
need: measure the distance from the
water valve on the back of the refrig-
erator to the water supply pipe. Then,
add 8 feet (2.4 m). Be sure there is
sufficient extra tubing (about 8 feet [2.4 m] coiled into 3
turns of about 10 in. [25 cm] diameter) to allow the refrig-
erator to move out from the wall after installation.
Power drill.
y
½ in. or adjustable wrench.
y
Flat blade and Phillips head
y
screwdrivers.
Two ¼ in. outer diameter
y
compression nuts and 2 ferrules
(sleeves) to connect the copper
tubing to the shutoff valve and
the refrigerator water valve.
If your existing copper water
y
line has a flared fitting at the end, you will need an adapter
(available at plumbing supply stores) to connect the water
line
to the refrigerator OR you can
cut off the flared fitting with
a tube cutter and then use a
compression fitting.
Shutoff valve to connect to the
y
cold water line. The shutoff valve should have a water inlet
with a minimum inside diameter of 5/32 in. at the point of
connection to the COLD WATER
LINE. Saddle-type shutoff valves
are included in many water
supply kits. Before purchasing,
make sure a saddle-type valve
complies with your local plumbing codes.
CAUTION
Wear eye protection during installation to prevent
injury.
NOTE
A self piercing saddle type water valve should not be
used.
ENGLISH
20
INSTALLATION
Water Line Installation Instructions
Install the shutoff valve on the nearest frequently used drink-
ing water line.
1
SHUT OFF THE MAIN WATER SUPPLY
Turn on the nearest faucet to relieve the pressure on the
line.
2
CHOOSE THE VALVE LOCATION
Choose a location for the valve that is easily accessible.
It is best to connect into the side of a
vertical water pipe. When it is necessary
to connect into a horizontal water pipe,
make the connection to the top or side,
rather than at the bottom, to avoid draw-
ing off any sediment from the water pipe.
3
DRILL THE HOLE FOR THE VALVE
Drill a ¼ in. hole in the water pipe
using a sharp bit. Remove any burrs
resulting from drilling the hole in the
pipe. Be careful not to allow water
to drain into the drill. Failure to drill a
¼ in. hole may result in reduced ice
production or smaller cubes.
4
FASTEN THE SHUTOFF VALVE
Fasten the shutoff valve to the cold water pipe with the
pipe clamp.
5
TIGHTEN THE PIPE CLAMP
Tighten the clamp screws until the sealing washer begins
to swell.
NOTE: Do not overtighten clamp or you may
crush the tubing.
6
R
OUTE THE TUBING
Route the tubing between the cold water line
and the refrigerator.
Route the tubing through a hole drilled in the
wall or floor (behind the refrigerator or adjacent
base cabinet) as close to the wall as possible.
NOTE
Be sure there is sufficient extra tubing (about 8 feet
coiled into 3 turns of about 10 in. diameter) to allow
the refrigerator to move out from the wall after instal-
lation.
7
CONNECT THE TUBING TO THE VALVE
Place the compression nut and ferrule (sleeve) for copper
tubing onto the end of the tubing and connect it to the
shutoff valve. Make sure the tubing is fully inserted into
the valve. Tighten the compression nut securely.
Pipe Clamp
Saddle-Type
Shutoff Valve
Vertical Cold
Water Pipe
Pipe Clamp
Clamp Screw
Washer
Inlet End
WARNING
When using any electrical device (such as a power
drill) during installation, be sure the device is bat-
tery powered, double insulated or grounded in
a manner that will prevent the hazard of electric
shock.
NOTE
The hookup line cannot be white, plastic tubing.
Licensed plumbers must use only copper tubing NDA
tubing #49595 or 49599 or Cross Link Polyethylene
(PEX) tubing.
Saddle-Type
Shutoff Valve
Packing
Nut
Outlet
Valve
Compression Nut
Ferrule (sleeve)
NOTE
Commonwealth of Massachusetts Plumbing Codes
248CMR shall be adhered to. Saddle valves are illegal
and use is not permitted in Massachusetts. Consult
with your licensed plumber.
ENGLISH
21
INSTALLATION
8
FLUSH OUT THE TUBING
Turn the main water supply on and
flush out the tubing until the water
is clear.
Shut the water off at the water valve
after about one quart of water has
been flushed through the tubing.
9
CONNECT THE TUBING TO THE REFRIGERATOR
NOTE: Before making the connection to the
refrigerator, be sure that the refrigerator power
cord is not plugged into the wall outlet.
a
. Remove the plastic flexible cap from the water valve.
b
. Place the compression nut and ferrule (sleeve) onto the
end of the tubing as shown.
c
. Insert the end of the copper tubing into the connection as
far as possible. While holding the tubing, tighten the fit-
ting.
10
TURN THE WATER ON AT THE SHUTOFF VALVE
Tighten any connections that leak.
11
PLUG IN THE REFRIGERATOR
Arrange the coil of tubing so that it does not vibrate
against the back of the refrigerator or against the wall.
Push the refrigerator back to the wall.
12
START THE ICEMAKER
Set the icemaker power switch to the
ON
position.
The icemaker will not begin to operate until it reaches
its operating temperature of 15°F (–9°C) or below. It
will then begin operation automatically if the icemaker
power switch is in the
ON (I)
position.
Tubing Clamp
¼ in. Tubing
¼ in.
Compression
Nut
Refrigerator
Connection
Ferrule
(sleeve)
CAUTION
Check to see if leaks occur at the water line
connections.
Turning On The Power
1
Plug in the refrigerator.
CAUTION
Connect to a rated power outlet.
y
Have a certified electrician check the wall outlet and
y
wiring for proper grounding.
Do not damage or cut off the ground terminal of the
y
power plug.
ENGLISH
22
INSTALLATION
Leveling and Door Alignment
Leveling
After installing, plug the refrigerator’s power cord into a
3-prong grounded outlet and push the refrigerator into the
final position.
Your refrigerator has two front leveling legs—one on the right
and one on the left. Adjust the legs to alter the tilt from front-
to-back or side-to-side. If your refrigerator seems unsteady,
or you want the doors to close more easily, adjust the
refrigerator’s tilt using the instructions below:
1
Remove the base grille. Refer to the Base Grille
Installation section.
2
Turn the leveling leg to the left to raise that side of the
refrigerator or to the right to lower it. It may take several
turns of the leveling leg to adjust the tilt of the
refrigerator.
NOTE
A flare nut wrench works best, but an open-end
wrench will suffice. Do not over-tighten.
3
Open both doors again and check to make sure that they
close easily. If the doors do not close easily, tilt the refrig-
erator slightly more to the rear by turning both leveling
legs to the left. It may take several more turns, and you
should turn both leveling legs the same mount.
4
Replace the base grille.
Door Alignment
Both the left and right refrigerator doors have an adjustable
nut, located on the bottom hinge, to raise and lower them to
align properly. If the space between your doors is uneven,
follow the instructions below to align the doors evenly:
Use the wrench (included with the Owner’s Manual) to turn
the nut in the door hinge to adjust the height. To the right to
raise or to the left to lower the height.
ENGLISH
23
HOW TO USE
HOW TO USE
Before Use
Clean the refrigerator.
Clean your refrigerator thoroughly and wipe off all dust that accumulated during shipping.
Connect the power supply.
Check if the power supply is connected before use.
Read the “Turning On The Power” section.
Turn off the icemaker if the refrigerator is not yet connected to the water supply.
Turn off the automatic icemaker and then plug the power plug of the refrigerator into the grounded electric
outlet.
* This is applicable only to certain models.
Wait for the refrigerator to cool.
Allow your refrigerator to run for at least two to three hours before putting food in it. Check the flow of cold
air in the freezer compartment to ensure proper cooling.
The refrigerator makes a loud noise after initial operation.
This is normal. The loudness will decrease as the temperature lowers.
Open refrigerator doors and freezer drawers to ventilate the interior.
The inside of the refrigerator may smell like plastic at first. Remove any adhesive tape from inside the refrig-
erator and open the refrigerator doors and the freezer drawers for ventilation.
CAUTION
Putting food in the refrigerator before it has cooled could cause the food to spoil, or a bad odor could
remain inside the refrigerator.
CAUTION
Running the automatic icemaker before connecting it to the water supply may cause the refrigerator to
malfunction.
CAUTION
Do not scratch the refrigerator with a sharp object or use a detergent that contains alcohol, a flam-
y
mable liquid or an abrasive when removing any tape or adhesive from the refrigerator,.
Do not peel off the model or serial number label or the technical information on the rear surface of the
y
refrigerator.
NOTE
Remove adhesive residue by wiping it off with your thumb or dish detergent.
ENGLISH
24
HOW TO USE
Control Panel
* Depending on the model, some of the following functions may not be available.
NOTE
To change the display from Fahrenheit to Celsius,
press and hold the FREEZER and REFRIGERATOR
button for five seconds.
LED Display
Control
Buttons
Control Panel Features
The LED Display shows the temperature settings, dispenser
options, water filter, door alarm, andl ocking status mes-
sages.
Ice Type
Press the ICE TYPE button to select either Crushed or Cubed
Ice. The selected option will illuminate on the LED display.
Freezer
Press the FREEZER button to adjust the temperature in the
freezer compartment.
Refrigerator
Press the REFRIGERATOR button to adjust the temperature
in the freezer compartment.
Ice Plus
This function increases both ice making and freezing
capabilities.
When you touch the
y
Ice Plus
button, the graphic will
illuminate in the display and will continue for 24 hours.
The function will automatically shut off after 24 hours.
You can stop this function manually by touching the
y
button one more time.
Energy Saving
The Energy Saving function disables the mullion heater
located on the refrigerator door in order to conserve electric-
ity. Press and hold the Energy Saving button for three sec-
onds to activate or deactivate this function.
NOTE
Discontinue using the Energy Saving function if ex-
cessive moisture begins to collect on the door
mullion.
ENGLISH
25
HOW TO USE
Light
Press the LIGHT button, to turn on the dispenser light. The
indicator will appear on the LED display.
Change Filter
When the water filter indicator turns on, you have to change
the water filter. After changing the water filter, press and
hold the FILTER button for three seconds to turn the indica-
tor light off. You need to change the water filter approximate-
ly every six months.
Alarm
When power is connected to the refrigerator, the door
y
alarm is initially set to ON. When you press the ALARM
button, the display will change to OFF and the Alarm
function will deactivate.
When either the refrigerator or the freezer door is left
y
open for more than 60 seconds, the alarm tone will
sound to let you know that the door is open.
When you close the door, the door alarm will stop.
y
Control Lock
The Control Lock function disables every other button on the
display.
When power is initially connected to the refrigerator,
y
the
Lock
function is off.
If you want to activate the
y
Lock
function to lock other
buttons, press and hold the
Lock
button for three
seconds or more. The
Lock
icon will display and the
Lock
function is now enabled.
To disable the
y
Lock
function, press and hold the
Lock
button for approximately three seconds.
Control Panel Features (continued)
Display Mode (For Store Use Only)
The Display Mode disables all cooling in the refrigera-
tor and freezer sections to conserve energy while
on display in a retail store. When activated, OFF will
display on the control panel.
To deactivate:
With either refrigerator door opened, press and hold
the Refrigerator and Ice Plus buttons at the same
time for five seconds. The control panel will beep and
the temperature settings will display to confirm that
Display Mode is deactivated. Use the same proce-
dure to activate the Display Mode.
CAUTION
ENGLISH
26
HOW TO USE
In-Door Ice Bin
* Depending on the model, some of the following functions
may not be available.
Detaching the In-Door Ice Bin
1
Gently pull the handle to open the ice compartment.
2
To remove the in-door ice bin, grip the front handle,
slightly lift the lower part, and slowly pull out the bin as
shown.
Assembling the In-Door Ice Bin
1
Carefully insert the in-door ice bin while slightly slanting it
to avoid contact with the icemaker.
2
Avoid touching the ice-detecting sensor when replacing
the ice bin. See the label on the ice compartment door for
details.
Ice-detecting
sensor
Keep hands and tools out of the ice compartment
y
door and dispenser chute. Failure to do so may result
in damage or personal injury.
The icemaker will stop producing ice when the in-
y
door ice bin is full. If you need more ice, empty the
ice bin into the extra ice bin in the freezer compart-
ment. During use, the ice can become uneven caus-
ing the icemaker to misread the amount of ice cubes
and stop producing ice. Shaking the ice bin to level
the ice within it can reduce this problem.
Storing cans or other items in the ice bin will damage
y
the icemaker.
Keep the ice compartment door closed tightly. If the
y
ice compartment door is not closed tightly, the cold
air in the ice bin will freeze food in the refrigerator
compartment. This could also cause the icemaker to
stop producing ice.
If the O
y
N/OFF switch on the icemaker is set to OFF
for an extended period of time, the ice compartment
will gradually warm up to the temperature of the
refrigerator compartment. To prevent ice cubes from
melting and leaking from the dispenser, ALWAYS
empty the ice bin when the icemaker is set to OFF
for more than a few hours.
CAUTION
CAUTION
When handling the ice bin, keep
hands away from the icemaker tray
area to avoid personal injury.
ENGLISH
27
HOW TO USE
Automatic Icemaker
* Depending on the model, some of the following functions
may not be available.
Ice is made in the automatic icemaker and sent to the dis-
penser. The icemaker will produce 14 cubes per cycle—
approximately 140 cubes in a 24-hour period, depending
on freezer compartment temperature, room temperature,
number of door openings and other operating conditions.
It takes about 12 to 24 hours for a newly installed re-
y
frigerator to begin making ice. Wait 72 hours for full ice
production to occur.
Ice making stops when the in-door ice bin is full. When
y
full, the in-door ice bin holds approximately 6 to 8 (12-16
oz) glasses of ice.
The water pressure must be between 20 and
y
120 psi on models without a water filter and between
40 and 120 psi on models with a water filter to produce
the normal amount and size of
ice cubes.
Foreign substances or frost on the ice-detecting sensor
y
can interrupt ice production. Make sure the sensor area
is clean at all times for proper operation.
Turning the Automatic Icekamer On or Off
To turn off the automatic icemaker, set the icemaker switch to
OFF (O)
. To turn on the automatic icemaker, set the switch to
ON (I)
.
Ice-detecting
Sensor
Power Switch
Icemaker
ENGLISH
28
HOW TO USE
The first ice and water dispensed may include particles
y
or odor from the water supply line or the water tank.
Throw away the first few batches of ice (about 24
y
cubes). This is also necessary if the refrigerator has not
been used for a long time.
Never store beverage cans or other items in the ice bin
y
for the purpose of rapid cooling. Doing so may damage
the icemaker or the containers may burst.
If discolored ice is dispensed, check the water filter and
y
water supply. If the problem continues, contact a Sears
or other qualified service center. Do not use the ice or
water until the problem is corrected.
Keep children away from the dispenser. Children may
y
play with or damage the controls.
The ice passage may become blocked with frost if only
y
crushed ice is used. Remove the frost that accumulates
by removing the ice bin and clearing the passage with
a rubber spatula. Dispensing cubed ice can also help
prevent frost buildup.
Never use thin crystal glass or crockery to collect ice.
y
Such containers may chip or break resulting in glass
fragments in the ice.
Dispense ice into a glass before filling it with water
y
or other beverages. Splashing may occur if ice is dis-
pensed into a glass that already contains liquid.
Never use a glass that is exceptionally narrow or deep.
y
Ice may jam in the ice passage and refrigerator perfor-
mance may be affected.
Keep the glass at a proper distance from the ice outlet.
y
A glass held too close to the outlet may prevent ice
from dispensing.
To avoid personal injury, keep hands out of the ice door
y
and passage.
Never remove the dispenser cover.
y
If ice or water dispenses unexpectedly, turn off the
y
water supply and contact a qualified service center.
When You Should Turn the Icemaker Off
When the water supply will be shut off for several
y
hours.
When the ice bin is removed for more than one or two
y
minutes.
When the refrigerator will not be used for several days.
y
Normal Sounds You May Hear
The icemaker water valve will buzz as the icemaker fills
y
with water. If the power switch is in the ON (I) position,
it will buzz even if it has not yet been hooked up to
water. To stop the buzzing, move the power switch to
OFF (O).
You will hear the sound of cubes dropping into the bin
y
and water running in the pipes as the icemaker refills.
Preparing For Vacation
Set the icemaker power switch to OFF (O) and shut off the
water supply to the refrigerator.
If the ambient temperature will drop below freezing, have a
qualified technician drain the water supply system to prevent
serious property damage due to flooding caused by ruptured
water lines or connections.
Automatic Icemaker (continued)
CAUTION
NOTE
The ice bin should be emptied when the icemaker on/
off switch is turned to the
OFF
position.
NOTE
Keeping the power switch in the ON (I) position
before the water line is connected can damage the
icemaker.
NOTE
The ice bin should be emptied anytime the icemaker
on/off switch is turned to the OFF (O) position.
ENGLISH
29
HOW TO USE
CAUTION
Using the Dispenser
Ice and Water Dispenser
* Depending on the model, some of the following functions
may not be available.
Dispenser
Locking the Dispenser
Press and hold the Lock button for 3 seconds to lock the dis-
penser and all the control panel functions. Follow the same
instructions to unlock.
Cleaning the Dispenser Tray
1
Grip the tray with both hands, pess down and pull it out.
2
Wipe out dirty areas with a clean cloth.
Keep children away from the dispenser. Children may play
with or damage the controls.
To dispense
y
cold
water
, push on the water switch with
a glass.
To dispense
y
ice
, push on the ice switch with a glass.
If discolored ice is dispensed, check the water filter
y
and water supply. If the problem continues, contact
a qualified service center. Do not use the ice or
water until the problem is corrected.
The dispenser will not operate when either of the
y
refrigerator doors are open.
If dispensing water or ice into a container with a
y
small opening, place it as close to the dispenser as
possible.
Some dripping may occur after dispensing. Hold
y
your cup beneath the dispenser for a few seconds
after dispensing to catch all of the drops.
NOTE
Throw away the first few batches of ice (about 24
cubes). This is also necessary if the refrigerator has not
been used for a long time.
CAUTION
Water Switch
Ice Switch
Tray
Incorrect Way Correct Way
Water
Ice
ENGLISH
30
HOW TO USE
CAUTION
Do not store food with high moisture content towards the top of the refrigerator. The moisture could come in direct contact
y
with the cold air and freeze.
Wash food before storing it in the refrigerator. Vegetables and fruit should be washed, and food packaging should be wiped
y
down to prevent adjacent foods from being contaminated.
If the refrigerator is kept in a hot and humid place, frequent opening of the door or storing a lot of vegetables in the refrig-
y
erator may cause condensation to form. Wipe off the condensation with a clean cloth or a paper towel.
If the refrigerator door or freezer drawer is opened or closed too often, warm air may penetrate the refrigerator and raise its
y
temperature. It can also increase the cost of electricity.
NOTE
If you are leaving home for a short period of time, like a short vacation, the refrigerator should be left on. Refrigerated foods
y
that are able to be frozen will stay preserved longer if stored in the freezer.
If you are leaving the refrigerator turned off for an extended period of time, remove all food and unplug the power cord.
y
Clean the interior, and leave the door open to prevent fungi from growing in the refrigerator.
Storing Food
Food Preservation Location
Each compartment inside the refrigerator is designed to store different types of food.
Store your food in the optimal space to enjoy the freshest taste.
Vegetable Storage (Crisper)
Preserves vegetables and fruit.
Ice Storage Bin
If a large amount of ice is
needed, transfer the ice in the
in-door ice bin to the ice
storage bin.
Dairy Product Bin
Adjustable Refrigerator Shelf
Adjustable shelves to meet your individual
storage needs
.
Gallon Storage Bin
Store drinks such as juice and soda, as well
as seasonings, salad dressings and other
food items.
Glide‘N’Serve
Provides storage space with a variable
temperature control that keeps the com-
partment at a different temperature than
the refrigerator. It is a convenient place to
store sandwiches or meat to be cooked.
Durabase
®
Largest storage space in
the freezer.
ENGLISH
31
HOW TO USE
Food Storage Tips
* The following tips may not be applicable depending on
the model.
Wrap or store food in the refrigerator in airtight and moisture-
proof material unless otherwise noted. This prevents food
odor and taste transfer throughout the refrigerator. For dated
products, check date code to ensure freshness.
Storing Frozen Food
Freezing
Your freezer will not quick-freeze a large quantity of food. Do
not put more unfrozen food into the freezer than will freeze
within 24 hours (no more than 2 to 3 lbs. of food per cubic
foot of freezer space). Leave enough space in the freezer for
air to circulate around packages. Be careful to leave enough
room at the front so the door can close tightly.
Storage times will vary according to the quality and type of
food, the type of packaging or wrap used (how airtight and
moisture-proof) and the storage temperature. Ice crystals
inside a sealed package are normal. This simply means that
moisture in the food and air inside the package have con-
densed, creating ice crystals.
Packaging
Successful freezing depends on correct packaging. When
you close and seal the package, it must not allow air or mois-
ture in or out. If it does, you could have food odor and taste
transfer throughout the refrigerator and could also dry out
frozen food.
Packaging recommendations:
Rigid plastic containers with tight-fitting lids
y
Straight-sided canning/freezing jars
y
Heavy-duty aluminum foil
y
Plastic-coated paper
y
Non-permeable plastic wraps
y
Specified freezer-grade self-sealing plastic bags
y
Follow package or container instructions for proper freezing
methods.
Do not use
Bread wrappers
y
Non-polyethylene plastic containers
y
Containers without tight lids
y
Wax paper or wax-coated freezer wrap
y
Thin, semi-permeable wrap
y
Food How to
Butter or
Margarine
Cheese
Milk
Eggs
Fruit
Leafy
Vegetables
Vegetables with
skins (carrots,
peppers)
Fish
Leftovers
Keep opened butter in a covered dish
or closed compartment. When stor-
ing an extra supply, wrap in freezer
packaging and freeze.
Store in the original wrapping until
you are ready to use it. Once opened,
rewrap tightly in plastic wrap or alu-
minum foil.
Wipe milk cartons. For best storage,
place milk on interior shelf, not on
door shelf.
Store in original carton on interior
shelf, not on door shelf.
Do not wash or hull the fruit until it is
ready to be used. Sort and keep fruit
in its original container, in a crisper,
or store in a completely closed paper
bag on a refrigerator shelf.
Remove store wrapping and trim or
tear off bruised and discolored areas.
Wash in cold water and drain. Place
in plastic bag or plastic container and
store in crisper.
Place in plastic bags or plastic con-
tainer and store in crisper.
Store fresh fish and shellfish in the
freezer section if they are not being
consumed the same day of purchase.
It is recommended to consume fresh
fish and shellfish the same day pur-
chased.
Cover leftovers with plastic wrap,
aluminum foil, or plastic containers
with tight lids.
NOTE
Check a freezer guide or a reliable cookbook for fur-
ther information about preparing food for freezing or
food storage times.
NOTE
Allow hot foods to cool at room temperature for 30
minutes, then package and freeze. Cooling hot foods
before freezing saves energy.
ENGLISH
32
HOW TO USE
Glide’N’Serve
The Glide’N’Serve provides storage space with a variable
temperature control that can keep the compartment at a
slightly different temperature than the refrigerator section.
This drawer can be used for large party trays, deli items and
beverages. (This drawer should not be used for vegetables
that require high humidity.)
Set the control between COLD and COLDER. Use the
COLDER setting for items such as meats and deli items.
Humidity Controlled Crisper
and Glide’N’Serve
Humidity Controlled Crisper
* Depending on the model, some of the following functions
may not be available.
The crispers provide fresher tasting fruit and vegetables by
letting you easily control humidity inside the drawer.
You can control the amount of humidity in the moisture-
sealed crispers by adjusting the control to any setting be-
tween
HIGH
and
LOW
.
HIGH
y
keeps moist air in the crisper for best storage of
fresh, leafy vegetables.
LOW
y
lets moist air out of the crisper for best storage of
fruit.
ENGLISH
33
HOW TO USE
Door Bins
Detaching and Assembling the
Storage Bins
Glide’N’Serve and Humidity Controlled
Crisper
To remove the Humidity Controlled Crisper and the
Glide’N’Server,
pull out the Crisper and Glide’N’Server to
full extension, lift the front up, and pull straight out.
CAUTION
Do not apply excessive force while detatching or
y
assembling the storage bins.
Do not use the dishwasher to clean the storage bins
y
and shelves.
Regularly detach and wash the storage bins and
y
shelves; they can become easily contaminated by
the food.
To Remove the Glass
(Pantry drawer not shown for clarity)
Lift up the glass under the crisper cover, and pull up and out.
To install, slightly tilt up the front, insert the drawer into the
frame and push it back into place.
The door bins are removable for easy cleaning and
adjustment.
1
To remove the bin, simply lift the bin up and pull
straight out.
2
To replace the bin, slide it in above the desired support and
push down until it snaps into place.
NOTE
Some bins may vary in appearance and will only fit in
one location.
32
REMOVING AND REPLACING COMPONENTS
NOTE: When reinstalling components, reverse
the order of steps for removal. To prevent damage,
never use excessive force when removing or
reinstalling components.
wCAUTION
• Personal injury can occur if the door bins are not
firmly assembled.
NOTE: DO NOT adjust a loaded bin.
• DO NOT allow children to play with baskets.
The sharp corners on the baskets could cause
injury.
Dairy Bin Gallon Storage Bins
To remove the dairy bin, simply lift it and pull
straight out. To replace the dairy bin, slide it into
place and push down until it stops.
NOTE: The dairy bin will only fit in the top space
on the right-hand door.
The door bins are removable for easy cleaning
and adjusting. Simply lift the bin and pull it straight
out to remove it. To replace the bin, slide it in
above the desired support button and push down
until it stops.
Dispenser Drip Tray
The dispenser drip tray has no self-draining function. It should be cleaned regularly. Remove the cover by
pressing and pulling the tray. Dry it with a cloth. To reinstall the tray, slightly tilt the front of the tray and
snap the ribs into the holes.
NOTE
Storage Bins may vary in appearance, depending on
your model.
ENGLISH
34
HOW TO USE
Using the Folding Shelf
You can store taller items, such as a gallon container or bot-
tles, by simply pushing the front half of the shelf underneath
the back half of the shelf. Pull the front of the shelf toward
you to return to a full shelf.
CAUTION
Adjusting the Refrigerator Shelves
The shelves in your refrigerator are adjustable to meet your
individual storage needs. Your model may have glass or wire
shelves.
Adjusting the shelves to fit different heights of items will
make finding the exact item you want easier. Doing so will
also reduce the amount of time the refrigerator door is open
which will save energy.
Detaching the Shelf
Tilt up the front of the shelf and lift it straight up. Pull the
shelf out.
Assembling the Shelf
Tilt the front of the shelf up and guide the shelf hooks into
the slots at a desired height. Then, lower the front of the
shelf so that the hooks drop into the slots.
CAUTION
Make sure that shelves are level from one side to the
other. Failure to do so may result in the shelf falling or
spilling food.
Do not clean glass shelves with warm water while
y
they are cold. Shelves may break if exposed to
sudden temperature changes or impact.
Glass shelves are heavy. Use special care when
y
removing them.
NOTE
Shelves may vary in appearance, depending on your
model.
ENGLISH
35
MAINTENANCE
MAINTENANCE
Cleaning
Both the refrigerator and freezer sections defrost automatically; however, clean both sections about once a month to pre-
y
vent odors.
Wipe up spills immediately.
y
Always unplug the refrigeration before cleaning.
y
CAUTION
Do not use a rough cloth or sponge when cleaning
y
the interior and exterior of the refrigerator.
Do not place your hand on the bottom surface of
y
the refrigerator when opening and closing.
WARNING
Use non-flammable cleaner. Failure to do so can result
in fire, explosion, or death.
General Cleaning Tips
Unplug refrigerator or disconnect power.
y
Remove all removable parts, such as shelves, crispers,
y
etc.
Use a clean sponge or soft cloth and a mild detergent
y
in warm water. Do not use abrasive or harsh cleaners.
Hand wash, rinse and dry all surfaces thoroughly.
y
Exterior
Waxing external painted metal surfaces helps provide rust
protection. Do not wax plastic parts. Wax painted metal sur-
faces at least twice a year using appliance wax (or auto paste
wax). Apply wax with a clean, soft cloth.
For products with a stainless steel exterior, use a clean
sponge or soft cloth and a mild detergent in warm water. Do
not use abrasive or harsh cleaners. Dry thoroughly with a soft
cloth.
Inside Walls (allow freezer to warm up so
the cloth will not stick)
To help remove odors, you can wash the inside of the refrig-
erator with a mixture of baking soda and warm water. Mix
2 tablespoons of baking soda to 1 quart of water (26 g soda
to 1 liter water.) Be sure the baking soda is completely dis-
solved so it does not scratch the surfaces of the refrigerator.
Door Liners and Gaskets
Use a clean sponge or soft cloth and a mild detergent in
warm water. Do not use cleaning waxes, concentrated deter-
gents, bleaches, or cleaners containing petroleum on plastic
refrigerator parts.
Plastic Parts (covers and panels)
Use a clean sponge or soft cloth and a mild detergent in
warm water. Do not use window sprays, abrasive cleansers,
or flammable fluids. These can scratch or damage the
material.
Condenser Coils
Use a vacuum cleaner with an attachment to clean the con-
denser cover and vents. Do not remove the panel covering
the condenser coil area.
ENGLISH
36
MAINTENANCE
Replacing the Water Filter
It is recommended that you replace the water filter:
Approximately every six months.
y
When the water filter indicator turns on.
y
When the water dispenser output decreases.
y
When the ice cubes are small-
y
er than normal.
1
Remove the old water filter.
Lower or remove the top left
y
shelf to allow the water filter
to rotate all the way down.
Press the push button to open
y
the water filter cover.
NOTE: Replacing the water
lter causes a small amount of
water (around 1 oz. or 25 cc)
to drain. Place a cup under the
front end of the water lter
cover to collect any leaking
water. Hold the water lter
upright, once it is removed, to
prevent any remaining water
from spilling out of the water
lter.
Pull the water filter downward
y
and pull out. Make sure to ro-
tate the filter down completely
before pulling it out of the
manifold hole.
2
Replace with a new water filter.
Take the new water filter out of its packing and remove
y
the protective cover from the o-rings. With water filter
tabs in the horizontal position, push the new water
filter into the manifold hole until it stops.
NOTE
To purchase a replacement water filter:
y
- Visit your local dealer or distributor
- Web: Find Parts & Accessories from Support
section of lg.com
- Call : 1-800-243-0000 (USA)
1-888-542-2623 (Canada)
Part number of the replacement water filter:
y
ADQ36006101
Rotate the water filter up into
y
position and close the cover.
The cover will click when
closed correctly.
3
After the water filter is replaced, dispense 2.5 gallons
of water (flush for approximately 5 minutes) to remove
trapped air and contaminates from the system. Do not
dispense the entire 2.5 gallon amount continuously.
Depress and release the dispenser pad for cycles of 30
seconds ON and 60 seconds OFF.
4
Water Filter Bypass Plug
Keep the water fil-
ter bypass plug. You
MUST use the
water filter bypass plug
when a replacement
water filter cartridge is
not available.
CAUTION
DO NOT operate refrigerator without water filter or
water filter plug installed.
1 2
1 2
1
Filter Bypass Plug
1
Filter Bypass Plug
38
REPLACING THE WATER FILTER (CONT.)
2. Replace with a new cartridge.
NOTE: After replacing the lter, ush 2.5 gallons
through lter before use (ush for approximately
5 minutes).
Check the lter for leaks.
When the water lter indicator displays the
message
0 Filter Month , hold 3 seconds .
Reset the water lter status display and indicator
light by pressing and holding the LIGHT/FILTER
button for at least 3 seconds.
NOTE: Filter Bypass Plug
Keep the lter bypass plug.
You must use the lter bypass plug when a
replacement lter cartridge is not available.
The icemaker will not operate without the lter or lter
bypass plug inserted in the proper compartment.
To purchase replacement water lter cartridges,
visit your local appliance dealer or parts distributor.
You can also call
USA 1-800-243-0000
CANADA 1-888-LGCANADA
(24 hours per day/
7 days per week).
The replacement water lter cartridge’s part
number is
ADQ36006101.
Take the new cartridge out of its packing and
remove the protective cover from the o-rings.
With cartridge ears in the horizontal position,
push the new lter cartridge into the manifold
hole until it stops.
Firmly lock in the cartridge.
The cover will click back into place.
2
Filter Bypass Plug
ENGLISH
37
MAINTENANCE
* Based on the use of Cryptosporidium parvum oocysts.
Performance Data Sheet
Model: LG ADQ36006101-S
Use Replacement Cartridge: ADQ36006101
The concentration of the indicated substances in water entering the system was reduced to a concentration less than or equal to
the permissible limit for water leaving the system as specified in NSF/ANSI Standard 42 and Standard 53.
Contaminant Reduction Average
Influent
Avg %
Reduction
Average Product
Water
Concentration
Max Permissible
Product Water
Concentration
NSF Reduction
Requirements
NSF Test
Report
NSF specified Challenge
Concentration
Chlorine Taste and Odor
Nominal Particulate Class I, ,
≥0.5 to < 1.0 µm
Asbestos
Atrazine
Benzene
Carbofuran
Lindane
P-Dichlorobenzene
Toxaphene
2,4-D
Lead pH @6.5
Lead pH @8.5
Mercury @ pH 6.5
Mercury @ pH 8.5
Cyst*
2.1 mg/L
5,600,000 pts/
mL
190 MFL
0.0094 mg/L
0.016 mg/L
0.08 mg/L
0.002 mg/L
0.22 mg/L
0.014 mg/L
0.213 mg/L
0.150 mg/L
0.150 mg/L
0.0059 mg/L
0.0058 mg/L
120,000 cysts/L
97.2%
98.7%
>99%
94.7%
96.7%
98.1%
98.2%
99.8%
93%
95.2%
>99.3%
>99.3%
96.1
90.1
99.99%
0.06 mg/L
73,000 pts/ml
< 1MLF
0.00005 mg/L
0.005 mg/L
0.002 mg/L
0.00004 mg/L
0.0005 mg/L
0.001 mg/L
0.009 mg/L
0.001 mg/L
0.001 mg/L
0.0002 mg/L
0.0006 mg/L
<1 cyst/L
N/A
N/A
N/A
0.003 mg/L
0.005 mg/L
0.04 mg/L
0.0002 mg/L
0.075 mg/L
0.003 mg/L
0.07 mg/L
0.010 mg/L
0.010 mg/L
0.002 mg/L
0.002 mg/L
N/A
≥ 50%
≥85%
≥99%
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
N/A
≥99.95%
J-00049247
J-00049282
J-0004928
J-00049293
J-00049300
J-00049294
J-00051975
J-00049298
J-00049302
J-00049284
J-00051974
J-00049277
J-00053886
J-00051972
J-00049281
2.0 mg/L ± 10%
At least 10,000 particles/mL
10
7
to 10
8
MFL; fibers greater
than 10 µm in length
0.009 mg/L ± 10%
0.015 mg/L ± 10%
0.08 mg/L ± 10%
0.002 mg/L ± 10%
0.225 mg/L ± 10%
0.015 mg/L ± 10%
0.210 mg/L ± 10%
0.15 mg/L ± 10%
0.15 mg/L ± 10%
0.006 mg/L ± 10%
0.006 mg/L ± 10%
Minimum 50,000 cysts/L
System tested and certified by NSF International against NSF/ANSI Standard 42 and Standard 53 for the reduction
of substances listed below.
Care and cleaning
ENGLISH
38
MAINTENANCE
It is essential that the manufacturer’s recommended
installation, maintenance and filter replacement requirements
be carried out for the product to perform as advertised.
Note: While the testing was performed under standard
laboratory conditions, actual performance may vary.
Replacement Cartridge: ADQ36006101
For estimated costs of replacement elements
please call USA 1-800-243-0000 CANADA 1-888-542-2623
(24 hours per day/7 days per week)
or visit our website at www.lg.com
3M is a trademark of 3M Company.
NSF is a trademark of NSF International.
© 2009 3M Company. All rights reserved.
wWARNING
To reduce the risk associated with ingestion of
contaminants: Do not use with water that is
microbiologically unsafe or of unknown quality without
adequate disinfection before and after the system. Systems
certified for cyst reduction may be used on disinfected water
that may contain filterable cysts. EPA Establishment Number
10350-MN-005
wCAUTION
To reduce the risk associated with property damage due to
water leakage:
• Read and follow. Use Instructions before installation and
use of this system.
• Installation and use MUST comply with all state and local
plumbing codes.
• Do not install if water pressure exceeds 120 psi
(827 kPa). If your water pressure exceeds 80 psi, you must
install a pressure limiting valve. Contact a plumbing
professional if you are uncertain how to check your water
pressure.
• Do not install where water hammer conditions may occur.
If water hammer conditions exist you must install a water
hammer arrester. Contact a plumbing professional if you
uncertain how to check for this condition.
• Do not install on hot water supply lines. The maximum
operating water temperature of this filter system is 100°F
(38°C).
• Protect filter from freezing. Drain filter when
temperatures drop below 40°F (4.4°C).
• The disposable filter cartridge must be replaced every 6
months, at the rated capacity or if a noticeable reduction in
flow rate occurs.
Manufactured for LG®Electronics by CUNO Incorporated
400 Research Parkway Meriden,
CT 06450 U.S.A Worldwide: 203-237-5541
www.cuno.com
Application Guidelines/Water Supply Parameters
Service Flow 0.5 gpm (1.9 lpm)
Water Supply Potable Water
Water Pressure 20 -120 psi (138 - 827 kPa)
Water Temperature 33°F - 100°F (0.6°C - 38°C)
ENGLISH
39
MAINTENANCE
State of California
Department of Public Health
Water Treatment Device
Certificate Number
Date Issued: December 15, 2009
Trademark/Model Designation
Replacement Elements
201809 -
ADQ36006101-S
ADQ36006101
Manufacturer:
Cuno Inc.
The water treatment device(s) listed on this certificate have met the testing requirements pursuant to Section
116830 of the Health and Safety Code for the following health related contaminants:
Cysts Asbestos
Lead
Mercury
2,4-D Reduction
Atrazine
Benzene
Carbofuran
Lindane
p-Dichlorobenzene
Toxaphene
Microbiological Contaminants and Turbidity
Inorganic/Radiological Contaminants
Organic Contaminants
200 gal
Rated Service Capacity:
0.5 gpm
Rated Service Flow:
Conditions of Certification:
ENGLISH
40
SMART DIAGNOSIS
Should you experience any problems with your refrigerator,
it has the capability of transmitting data via your telephone to
the LG service center. This gives you the capability of speak-
ing directly to our trained specialists. The specialist records
the data transmitted from your machine and uses it to ana-
lyze the issue, providing a fast and effective diagnosis.
If you experience problems with your refrigerator, call
1-800-243-0000. Only use the Smart Diagnosis feature when
instructed to do so by the LG call center agent. The transmis-
sion sounds that you will hear are normal and sound similar
to a fax machine.
Smart Diagnosis cannot be activated unless your refrigerator
is connected to power. If your refrigerator is unable to turn
on, then troubleshooting must be done without using Smart
Diagnosis.
Using Smart Diagnosis
Using Smart Diagnosis
First, call 1-800-243-0000. Only use the Smart Diagnosis
feature when instructed to do so by the LG call center agent.
1
Lock the display. To lock the display, press and hold the
Lock button for three seconds. (If the display has been
locked for over five minutes, you must deactivate the lock
and then reactivate it.)
2
Open the right refrigerator door.
3
Hold the mouthpiece of your phone in front of the speak-
er that is located on the right hinge of the refrigerator
door, when instructed to do so by the call center.
SMART DIAGNOSIS
SMART DIAGNOSIS
4
Press and hold the Freezer Temperature button for three
seconds while continuing to hold your phone to the
speaker.
5
After you hear three beeps, release the Freezer Tempera-
ture button.
6
Keep the phone in place until the tone transmission has
finished. This takes about 15 seconds, and the display will
count down the time. Once the countdown is over and
the tones have stopped, resume your conversation with
the specialist, who will then be able to assist you in using
the information transmitted for analysis.
N O T E
For best results, do not move the phone while the
y
tones are being transmitted.
If the call center agent is not able to get an accurate
y
recording of the data, you may be asked to try again.
N O T E
Call quality differences by region may affect the func-
y
tion.
Use the home telephone for better communication
y
performance, resulting in better service.
Bad call quality may result in poor data transmission
y
from your phone to the machine, which could cause
Smart Diagnosis to not work properly.
ENGLISH
41
TROUBLESHOOTING
TROUBLESHOOTING
Review the Troubleshooting section before calling for service; doing so will save you both time and money.
Problem Possible Causes Solutions
Refrigerator and Freezer
section are not cooling.
The refrigerator control is set to OFF (some
models).
Turn the control ON. Refer to the Setting the
Controls section for proper temperature settings.
Refrigerator is set to demo mode. Demo Mode allows the lights and control display to
work normally while disabling cooling to save energy
while on the showroom floor. Refer to the Setting
the Controls section for instructions on how to
disable Demo Mode.
Refrigerator is in the defrost cycle. During the defrost cycle, the temperature of each
compartment may raise slightly. Wait 30 minutes
and confirm the proper temperature has been
restored once the defrost cycle has completed.
Refrigerator was recently installed. It may take up to 24 hours for each compartment to
reach the desired temperature.
Refrigerator was recently relocated. If the refrigerator was stored for a long period of
time or moved on its side, it is necessary for the
refrigerator to stand upright for 24 hours before
connecting it to power.
Cooling System runs too
much.
Refrigerator is replacing an older model. Modern refrigerators require more operating
time but use less energy due to more efficient
technology.
Refrigerator was recently plugged in or
power restored.
The refrigerator will take up to 24 hours to cool
completely.
Door opened often or a large amount of food
/ hot food was added.
Adding food and opening the door warms the
refrigerator, requiring the compressor to run longer
in order to cool the refrigerator back down. In order
to conserve energy, try to get everything you need
out of the refrigerator at once, keep food organized
so it is easy to find, and close the door as soon as
the food is removed. (Refer to the Food Storage
Guide.)
Doors are not closed completely. Firmly push the doors shut. If they will not
shut all the way, see the Doors will not close
completely or pop open section in Parts & Features
Troubleshooting.
Refrigerator is installed in a hot location. The compressor will run longer under warm
conditions. At normal room temperatures (70°F)
expect your compressor to run about 40% to 80%
of the time. Under warmer conditions, expect it to
run even more often. The refrigerator should not be
operated above 110°F.
Condenser / back cover is clogged. Use a vacuum cleaner with an attachment to clean
the condenser cover and vents. Do not remove the
panel covering the condenser coil area.
ENGLISH
42
TROUBLESHOOTING
Problem Possible Causes Solutions
Refrigerator or Freezer
section is too warm.
Refrigerator was recently installed. It may take up to 24 hours for each compartment to
reach the desired temperature.
Air vents are blocked. Rearrange items to allow air to flow throughout the
compartment. Refer to the Airflow diagram in the
Using Your Refrigerator section.
Doors are opened often or for long periods
of time.
When the doors are opened often or for long periods
of time, warm, humid air enters the compartment.
This raises the temperature and moisture level
within the compartment. To lessen the effect,
reduce the frequency and duration of door openings.
Unit is installed in a hot location. The refrigerator should not be operated in
temperatures above 110F.
A large amount of food or hot food was
added to either compartment.
Adding food warms the compartment requiring the
cooling system to run. Allowing hot food to cool to
room temperature before putting it in the refrigerator
will reduce this effect.
Doors not closed correctly. See the Doors will not close correctly or pop open
section in Parts & Features Troubleshooting.
Temperature control is not set correctly. If the temperature is too warm, adjust the
control one increment at a time and wait for the
temperature to stabilize. Refer to the Setting the
Controls section for more information.
Defrost cycle has recently completed. During the defrost cycle, the temperature of each
compartment may raise slightly and condensation
may form on the back wall. Wait 30 minutes and
confirm the proper temperature has been restored
once the defrost cycle has completed.
Interior moisture buildup. Doors are opened often or for long periods
of time.
When the doors are opened often or for long periods
of time, warm, humid air enters the compartment.
This raises the temperature and moisture level
within the compartment. To lessen the effect,
reduce the frequency and duration of door openings.
Doors not closed correctly. See the Doors will not close correctly section in the
Troubleshooting section.
Weather is humid. Humid weather allows additional moisture to enter
the compartments when the doors are opened
leading to condensation or frost. Maintaining a
reasonable level of humidity in the home will help
to control the amount of moisture that can enter the
compartments.
Defrost cycle recently completed. During the defrost cycle, the temperature of each
compartment may raise slightly and condensation
may form on the back wall. Wait 30 minutes and
confirm that the proper temperature has been
restored once the defrost cycle has completed.
Food is not packaged correctly. Food stored uncovered or unwrapped, and damp
containers can lead to moisture accumulation within
each compartment. Wipe all containers dry and store
food in sealed packaging to prevent condensation
and frost.
ENGLISH
43
TROUBLESHOOTING
Problem Possible Causes Solutions
Food is freezing
in the refrigerator
compartment.
Food with high water content was placed
near an air vent.
Rearrange items with high water content away from
air vents.
Refrigerator temperature control is set
incorrectly.
If the temperature is too cold, adjust the control one
increment at a time and wait for the temperature to
stabilize. Refer to the Setting the Controls section
for more information.
Refrigerator is installed in a cold location. When the refrigerator is operated in temperature
below 41°F (5°C), food can freeze in the refrigerator
compartment. The refrigerator should not be
operated in temperature below 55°F (13°C).
Frost or ice crystals form
on frozen food (outside
of package).
Door is opened frequently or for long periods
of time.
When the doors are opened often or for long periods
of time, warm, humid air enters the compartment.
This raises the temperature and moisture level
within the compartment. Increased moisture will
lead to frost and condensation. To lessen the effect,
reduce the frequency and duration of door openings.
Door is not closing properly. Refer to the Doors will not close correctly or pop
open section in the Troubleshooting section.
Refrigerator or Freezer
section is too cold.
Incorrect temperature control settings. If the temperature is too cold, adjust the control one
increment at a time and wait for the temperature to
stabilize. Refer to the Setting the Controls section
for more information.
Frost or ice crystals on
frozen food (inside of
sealed package).
Condensation from food with a high water
content has frozen inside of the food
package.
This is normal for food items with a high water
content.
Food has been left in the freezer for a long
period of time.
Do not store food items with high water content in
the freezer for a long period of time.
Icemaker is not making
enough ice.
Demand exceeds ice storage capacity. The icemaker will produce approximately 140 cubes
in a 24 hour period.
House water supply is not connected, valve
is not turned on fully, or valve is clogged.
Connect the refrigerator to a cold water supply with
adequate pressure and turn the water shutoff valve
fully open.
If the problem persists, it may be necessary to
contact a plumber.
Water filter has been exhausted. It is recommended that you replace the water filter:
Approximately every six months.•
When the water filter indicator turns on.•
When the water dispenser output decreases. •
When the ice cubes are smaller than normal.•
Low house water supply pressure. The water pressure must be between 20 and 120
psi on models without a water filter and between 40
and 120 psi on models with a water filter.
If the problem persists, it may be necessary to
contact a plumber.
Reverse Osmosis filtration system is used. Reverse osmosis filtration systems can reduce the
water pressure below the minimum amount and
result in icemaker issues. (Refer to Water Pressure
section.)
Tubing connecting refrigerator to house
supply valve is kinked.
The tubing can kink when the refrigerator is moved
during installation or cleaning resulting in reduced
water flow. Straighten or repair the water supply line
and arrange it to prevent future kinks.
ENGLISH
44
TROUBLESHOOTING
Problem Possible Causes Solutions
Icemaker is not making
enough ice (continued).
Doors are opened often or for long periods
of time.
If the doors of the unit are opened often, ambient
air will warm the refrigerator which will prevent the
unit from maintaining the set temperature. Lowering
the refrigerator temperature can help, as well as not
opening the doors as frequently.
Doors are not closed completely. If the doors are not properly closed, ice production
will be affected. See the Doors will not close
completely or pop open section in Parts & Features
Troubleshooting for more information.
The temperature setting for the freezer is
too warm.
The recommended temperature for the freezer
compartment for normal ice production is 0°F. If the
freezer temperature is warmer, ice production will
be affected.
Dispensing water slowly. Water filter has been exhausted. It is recommended that you replace the water filter:
Approximately every six months.•
When the water filter indicator turns on.•
When the water dispenser output decreases. •
When the ice cubes are smaller than normal.•
Reverse osmosis filtration system is used. Reverse osmosis filtration systems can reduce the
water pressure below the minimum amount and
result in icemaker issues.
If the problem persists, it may be necessary to
contact a plumber.
Low house water supply pressure. The water pressure must be between 20 and 120
psi on models without a water filter and between 40
and 120 psi on models with a water filter.
If the problem persists, it may be necessary to
contact a plumber.
Not dispensing ice. Doors are not closed completely. Ice will not dispense if any of the refrigerator doors
are left open.
Infrequent use of the dispenser. Infrequent use of the ice dispenser will cause the
cubes to stick together over time, which will prevent
them from properly dispensing. Check the ice bin
for ice cubes clumping/sticking together. If they are,
break up the ice cubes to allow for proper operation.
The delivery chute is clogged with frost or
ice fragments.
Eliminate the frost or ice fragments by removing the
ice bin and clearing the chute with a plastic utensil.
Dispensing cubed ice can also help prevent frost or
ice fragment buildup.
The dispenser display is locked. Press and hold the Lock button for three seconds to
unlock the control panel and dispenser.
Ice bin is empty. It may take up to 24 hours for each compartment to
reach the desired temperature and for the icemaker
to begin making ice. Make sure that the shutoff
(arm/sensor) is not obstructed.
Once the ice supply in the bin has been completely
exhausted, it my take up to 90 minutes before
additional ice is available, and approximately 24
hours to completely refill the bin.
ENGLISH
45
TROUBLESHOOTING
Problem Possible Causes Solutions
Icemaker is not making
ice.
Refrigerator was recently installed or
icemaker recently connected.
It may take up to 24 hours for each compartment to
reach the desired temperature and for the icemaker
to begin making ice.
Icemaker not turned on. Locate the icemaker ON/OFF switch and confirm
that it is in the ON (I) position.
The ice detecting sensor is obstructed. Foreign substances or frost on the ice-detecting
sensor can interrupt ice production. Make sure
that the sensor area is clean at all times for proper
operation.
The refrigerator is not connected to a water
supply or the supply shutoff valve is not
turned on.
Connect refrigerator to the water supply and turn the
water shutoff valve fully open.
Icemaker shutoff (arm or sensor) obstructed. If your icemaker is equipped with an ice shutoff
arm, make sure that the arm moves freely. If your
icemaker is equipped with the electronic ice shutoff
sensor, make sure that there is a clear path between
the two sensors.
Reverse osmosis water filtration system is
connected to your cold water supply.
Reverse osmosis filtration systems can reduce
the water pressure below the minimum amount
and result in icemaker issues. (Refer to the Water
Pressure section.)
Not dispensing water. New installation or water line recently
connected.
Dispense 2.5 gallons of water (flush for
approximately 5 minutes) to remove trapped air and
contaminates from the system. Do not dispense the
entire 2.5 gallon amount continuously. Depress and
release the dispenser pad for cycles of 30 seconds
ON and 60 seconds OFF.
The dispenser panel is locked. Press and hold the Lock button for three seconds to
unlock the control panel and dispenser.
The dispenser is not set for water
dispensing.
The dispenser can be set for ice or water. Make
certain that the control panel is set for the proper
operation. Press the Water button on the control
panel to dispense water.
Refrigerator or freezer doors are not closed
properly.
Water will not dispense if any of the refrigerator
doors are left open.
Water filter has been recently removed or
replaced.
After the water filter is replaced, dispense 2.5
gallons of water (flush for approximately 5 minutes)
to remove trapped air and contaminates from the
system. Do not dispense the entire 2.5 gallon
amount continuously. Depress and release the
dispenser pad for cycles of 30 seconds ON and 60
seconds OFF.
Tubing connecting refrigerator to house
supply valve is kinked.
The tubing can kink when the refrigerator is moved
during installation or cleaning resulting in reduced
water flow. Straighten or repair the water supply line
and arrange it to prevent future kinks.
The house water supply is not connected,
the valve is not turned on fully, or the valve
is clogged.
Connect refrigerator to the water supply and turn the
water shutoff valve fully open.
If the problem persists, it may be necessary to
contact a plumber.
ENGLISH
46
TROUBLESHOOTING
Problem Possible Causes Solutions
Ice has bad taste or odor. Water supply contains minerals such as
sulfur.
A water filter may need to be installed to eliminate
taste and odor problems.
NOTE: In some cases, a filter may not help. It may
not be possible to remove all minerals / odor / taste
in all water supplies.
Icemaker was recently installed. Discard the first few batches of ice to avoid
discolored or bad tasting ice.
Ice has been stored for too long. Ice that has been stored for too long will shrink,
become cloudy, and may develop a stale taste.
Throw away old ice and make a new supply.
The food has not been stored properly in
either compartment.
Rewrap the food. Odors may migrate to the ice if
food is not wrapped properly.
The interior of the refrigerator needs to be
cleaned.
See the Care and Cleaning section for more
information.
The ice storage bin needs to be cleaned. Empty and wash the bin (discard old cubes). Make
sure that the bin is completely dry before reinstalling
it.
Dispensing warm water. Refrigerator was recently installed. Allow 24 hours after installation for the water
storage tank to cool completely.
The water dispenser has been used recently
and the storage tank was exhausted.
Depending on your specific model, the water
storage capacity will range from approximately 20 to
30 oz.
Dispenser has not been used for several
hours.
If the dispenser has not been used for several hours,
the first glass dispensed may be warm. Discard the
first 10 oz.
Refrigerator is connected to the hot water
supply.
Make sure that the refrigerator is connected to a
cold water pipe.
WARNING: Connecting the refrigerator to a hot
water line may damage the icemaker.
Water has bad taste or
odor.
Water supply contains minerals such as
sulfur.
A water filter may need to be installed to eliminate
taste and odor problems.
Water filter has been exhausted. It is recommended that you replace the water filter:
Approximately every 6 months.•
When the water filter indicator turns on.•
When the water dispenser output decreases. •
When the ice cubes are smaller than normal.•
Refrigerator was recently installed. Dispense 2.5 gallons of water (flush for
approximately 5 minutes) to remove trapped air and
contaminates from the system. Do not dispense the
entire 2.5 gallon amount continuously. Depress and
release the dispenser pad for cycles of 30 seconds
ON and 60 seconds OFF.
Icemaker is making too
much ice.
Icemaker shutoff (arm/sensor) is obstructed. Empty the ice bin. If your icemaker is equipped
with an ice shutoff arm, make sure that the arm
moves freely. If your icemaker is equipped with the
electronic ice shutoff sensor, make sure that there
is a clear path between the two sensors. Reinstall
the ice bin and wait 24 hours to confirm proper
operation.
ENGLISH
47
TROUBLESHOOTING
Problem Possible Causes Solutions
Clicking The defrost control will click when the
automatic defrost cycle begins and ends.
The thermostat control (or refrigerator
control on some models) will also click when
cycling on and off.
Normal Operation
Rattling Rattling noises may come from the flow of
refrigerant, the water line on the back of the
unit, or items stored on top of or around the
refrigerator.
Normal Operation
Refrigerator is not resting solidly on the
floor.
Floor is weak or uneven or leveling legs need to be
adjusted. See the Door Alignment section.
Refrigerator with linear compressor was
jarred while running.
Normal Operation
Whooshing Evaporator fan motor is circulating air
through the refrigerator and freezer
compartments.
Normal Operation
Air is being forced over the condenser by
the condenser fan.
Normal Operation
Gurgling Refrigerant flowing through the cooling
system.
Normal Operation
Popping Contraction and expansion of the inside
walls due to changes in temperature.
Normal Operation
Sizzling Water dripping on the defrost heater during
a defrost cycle.
Normal Operation
Vibrating If the side or back of the refrigerator is
touching a cabinet or wall, some of the
normal vibrations may make an audible
sound.
To eliminate the noise, make sure that the sides and
back cannot vibrate against any wall or cabinet.
Dripping Water running into the drain pan during the
defrost cycle.
Normal Operation
Pulsating or High-Pitched
Sound
Your refrigerator is designed to run more
efficiently to keep your food items at the
desired temperature. The high efficiency
compressor may cause your new refrigerator
to run longer than your old one, but it is still
more energy efficient than previous models.
While the refrigerator is running, it is normal
to hear a pulsating or high-pitched sound.
Normal Operation
ENGLISH
48
TROUBLESHOOTING
Problem Possible Causes Solutions
Doors will not close
correctly or pop open.
Food packages are blocking the door open. Rearrange food containers to clear the door and door
shelves.
Ice bin, crisper cover, pans, shelves, door
bins, or baskets are out of position.
Push bins all the way in and put crisper cover, pans,
shelves and baskets into their correct positions.
See the Using Your Refrigerator section for more
information.
The doors were removed during product
installation and not properly replaced.
Remove and replace the doors according to the
Removing and Replacing Refrigerator Handles and
Doors section.
Refrigerator is not leveled properly. See Door Alignment in the Refrigeration Installation
section to level refrigerator.
Doors are difficult to
open.
The gaskets are dirty or sticky. Clean the gaskets and the surfaces that they touch.
Rub a thin coat of appliance polish or kitchen wax on
the gaskets after cleaning.
Door was recently closed. When you open the door, warmer air enters the
refrigerator. As the warm air cools, it can create a
vacuum. If the door is hard to open, wait one minute
to allow the air pressure to equalize, then see if it
opens more easily.
Refrigerator wobbles or
seems unstable.
Leveling legs are not adjusted properly. Refer to the Leveling and Door Alignment section.
Floor is not level. It may be necessary to add shims under the leveling
legs or rollers to complete installation.
Lights do not work. LED interior lighting failure. The refrigerator compartment lamp is LED interior
lighting, and service should be performed by
a qualified technician. Refer to the Light Bulb
Replacement section.
Refrigerator has an
unusual odor.
The Air Filter may need to be set to the MAX
setting or replaced.
Set the Air Filter to the MAX setting. If the odor
does not go away within 24 hours, the filter may
need to be replaced. See the Replacing the Air Filter
section for replacement instructions.
The interior of the
refrigerator is covered
with dust or soot.
The refrigerator is located near a fire source,
such as a fireplace, chimney or candle.
Make sure that the refrigerator is not located near a
fire source, such as a fireplace, chimney or candle.
ENGLISH
49
WARRANTY
WARRANTY (USA)
Should your LG Refrigerator (“Product”) fail due to a defect in materials or workmanship under normal home use, during the warranty period set
forth below, LG will at its option repair or replace the product. This limited warranty is valid only to the original retail purchaser of the product and
applies only when purchased and used within the United States including U.S. Territories. Proof of original retail purchase is required to obtain
warranty service under this limited warranty.
Noises associated with normal operation and failure to follow instructions found in the use and care and installation guides or operating the unit in an
unsuitable environment will not be covered under this warranty.
Replacement products and parts are warranted for the remaining portion of the original warranty period or ninety (90) days, whichever is greater.
Replacement products and parts may be new or remanufactured.
THIS WARRANTY IS IN LIEU OF ANY OTHER WARRANTY, EXPRESS OR IMPLIED, INCLUDING WITHOUT LIMITATION, ANY WARRANTY OF
MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. TO THE EXTENT ANY IMPLIED WARRANTY IS REQUIRED BY LAW, IT IS
LIMITED IN DURATION TO THE EXPRESS WARRANTY PERIOD ABOVE. NEITHER THE MANUFACTURER NOR ITS U.S. DISTRIBUTOR SHALL BE
LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY NATURE, INCLUDING WITHOUT
LIMITATION, LOST REVENUES OR PROFITS, OR ANY OTHER DAMAGE WHETHER BASED IN CONTRACT, TORT, OR OTHERWISE.
Some states
do not allow the exclusion or limitation of incidental or consequential damages or limitations on how long an implied warranty lasts, so the above
exclusion or limitation may not apply to you. This warranty gives you specific legal rights and you may also have other rights that vary from state to
state.
THIS LIMITED WARRANTY DOES NOT COVER:
1. Service trips to deliver, pick up, install, or repair the product; instruct the customer on operation of the product; repair or replace fuses or cor-
rect wiring or plumbing, or correction of unauthorized repairs/installation.
2. Failure of product to perform during power failures and interruptions or inadequate electrical service.
3. Damage caused by leaky or broken water pipes, frozen water pipes, restricted drain lines, inadequate or interrupted water supply or inad-
equate supply of air.
4. Damage resulting from operating the product in a corrosive atmosphere or contrary to the instructions outlined in the product owner’s manual.
5. Damage to the product caused by accidents, pests and vermin, lightning, wind, fire, floods, or acts of God.
6. Damage resulting from misuse, abuse, improper installation, repair, or maintenance. Improper repair includes use of parts not approved or
specified by LG.
7. Damage or failure caused by unauthorized modification or alteration, or if it is used for other than the intended purpose, or any water leakage
where the unit was not properly installed.
8. Damage or failure caused by incorrect electrical current, voltage, or plumbing codes, commercial or industrial use, or use of accessories, com-
ponents, or consumable cleaning products that are not approved by LG.
9. Damage caused by transportation and handling, including scratches, dents, chips, and/or other damage to the finish of your product, unless
such damage results from defects in materials or workmanship and is reported within one (1) week of delivery (Call: 1-800-243-0000).
10. Damage or missing items to any display, open box, discounted, or refurbished product.
11. Products with original serial numbers that have been removed, altered, or can not be readily determined. Model and Serial numbers, along
with original retail sales receipt, are required for warranty validation.
12. Increases in utility costs and additional utility expenses.
13. Replacement of light bulbs, filters, or any consumable parts.
14. Repairs when your product is used in other than normal and usual household use (e.g. commercial use, offices, and recreational facilities) or
contrary to the instructions outlined in the product owner’s manual.
15. Costs associated with removal of your product from your home for repairs.
16. The removal and reinstallation of the product if it is installed in an inaccessible location or is not installed in accordance with published installa-
tion instructions, including LG’s owner’s and installation manuals.
17. Shelves, door bins, drawers, handles, accessories, and other parts besidesÄthose that were originally included with this particular model.
The cost of repair or replacement under these excluded circumstances shall be borne by the consumer.
For complete warranty details and customer assistance,
please call or visit our website:
Write your warranty information below:
__________________________________________________
Product Registration Information:
__________________________________________________
Model: ___________________________________________
Serial Number: ____________________________________
Date of Purchase: _________________________________
Call 1-800-243-0000 (24 hours a day, 365 days a year) and select the appropriate
option from the menu, or visit our website at http://us.lgservice.com
Or by mail: LG Customer Information Center:
P. O. Box 240007, 201 James Record Road Huntsville, Alabama
35813 ATTN: CIC
Refrigerator
Sealed System
(Condenser, Dryer, Connecting Tube, Refrigerant and Evaporator)
One (1) year from the date of
original retail purchase
Parts and Labor
(internal/functional parts only)
One (1) year from the date of
original retail purchase
Parts and Labor
Linear Compressor
Ten (10) years from the date of
original retail purchase
Part only (Consumer will be
charged for labor)
Seven (7) years from the date of
original retail purchase
Parts only (Consumer will be
charged for labor)
WARRANTY PERIOD
ENGLISH
50
WARRANTY
WARRANTY (CANADA)
WARRANTY
: Should your LG Refrigerator (“Product”) fail due to a defect in material or workmanship under normal home use during the warranty
period set forth below, LG Canada will at its option repair or replace the Product upon receipt of proof of original retail purchase. This warranty is
valid only to the original retail purchaser of the product and applies only to a Product distributed in Canada by LG Canada or an authorized Cana-
dian distributor thereof. The warranty only applies to Products located and used within Canada.
Noises associated with normal operation and failure to follow instructions found in the use and care and installation guides or operating the unit in
an unsuitable environment will not be covered under this warranty.
Replacement products and parts are warranted for the remaining portion of the original warranty period or ninety (90) days, whichever is
greater.
Replacement products and parts may be new or remanufactured.
LG Authorized Service Center warranties their repair work for thirty (30) days.
LG CANADA’S SOLE LIABILITY IS LIMITED TO THE WARRANTY SET OUT ABOVE. EXCEPT AS EXPRESSLY PROVIDED ABOVE, LG CANADA
MAKES NO AND HEREBY DISCLAIMS ALL OTHER WARRANTIES AND CONDITIONS RESPECTING THE PRODUCT, WHETHER EXPRESS
OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, ANY IMPLIED WARRANTY OR CONDITION OF MERCHANTABILITY OR FITNESS FOR
A PARTICULAR PURPOSE, AND NO REPRESENTATIONS SHALL BE BINDING ON LG CANADA. LG CANADA DOES NOT AUTHORIZE ANY
PERSON TO CREATE OR ASSUME FOR IT ANY OTHER WARRANTY OBLIGATION OR LIABILITY IN CONNECTION WITH THE PRODUCT. TO
THE EXTENT THAT ANY WARRANTY OR CONDITION IS IMPLIED BY LAW, IT IS LIMITED TO THE EXPRESS WARRANTY PERIOD ABOVE.
LG CANADA, THE MANUFACTURER OR DISTRIBUTOR SHALL NOT BE LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, SPECIAL, DI-
RECT OR INDIRECT DAMAGES, LOSS OF GOODWILL, LOST PROFITS, PUNITIVE OR EXEMPLARY DAMAGES OR ANY OTHER DAMAGE,
WHETHER ARISING DIRECTLY OR INDIRECTLY FROM ANY CONTRACTUAL BREACH, FUNDAMENTAL OR OTHERWISE, OR FROM ANY
ACTS OR OMISSIONS, TORT, OR OTHERWISE.
This warranty gives you specific legal rights. You may have other rights which may vary from
province to province depending on applicable provincial laws. Any term of this warranty that negates or varies any implied condition or warranty
under provincial law is severable where it conflicts with provincial law without affecting the remainder of this warranty’s terms.
THIS LIMITED WARRANTY DOES NOT COVER:
1. Service trips to deliver, pick up, or install the product; instructing a customer on operation of the product; repair or replacement of fuses or
correction of wiring or plumbing, or correction of unauthorized repairs/installation.
2. Failure of the product to perform during power failures and interruptions or inadequate electrical service.
3. Damage caused by leaky or broken water pipes, frozen water pipes, restricted drain lines, inadequate or interrupted water supply or inad-
equate supply of air.
4. Damage resulting from operating the Product in a corrosive atmosphere or contrary to the instructions outlined in the Product owner’s manu-
al.
5. Damage to the Product caused by accidents, pests and vermin, lightning, wind, fire, floods, or acts of God.
6. Damage resulting from the misuse, abuse, improper installation, repair, or maintenance of the Product. Improper repair includes use of parts
not approved or specified by LG Canada.
7. Damage or product failure caused by unauthorized modification or alteration, or use for other than its intended purpose, or resulting from any
water leakage due to improper installation.
8. Damage or Product failure caused by incorrect electrical current, voltage, or plumbing codes, commercial or industrial use, or use of accesso-
ries, components, or cleaning products that are not approved by LG Canada.
9. Damage caused by transportation and handling, including scratches, dents, chips, and/or other damage to the finish of your product, unless
such damage results from defects in materials or workmanship and is reported within one (1) week of delivery.
10. Damage or missing items to any display, open box, discounted, or refurbished Product.
11. Products with original serial numbers that have been removed, altered, or cannot be readily determined. Model and Serial numbers, along
with original retail sales receipt, are required for warranty validation.
12. Increases in utility costs and additional utility expenses.
13. Replacement of light bulbs, filters, or any consumable parts.
14. Repairs when your Product is used in other than normal and usual household use (including, without limitation, commercial use, in offices or
recreational facilities) or contrary to the instructions outlined in the Product owner’s manual.
15. Costs associated with removal of the Product from your home for repairs.
16. The removal and reinstallation of the Product if it is installed in an inaccessible location or is not installed in accordance with published installa-
tion instructions, including the Product owner’s and installation manuals.
17. Shelves, door bins, drawers, handles, and accessories to the Product. Also excluded are parts besides those that were originally included with
the Product.
All costs associated with the above excluded circumstances shall be borne by the consumer.
For complete warranty details and customer assistance,
please call or visit our website:
Call 1-888-542-2623 (24
hours a day, 365 days a year) and select the appropriate
option from the menu, or visit our
website at
http://www.lg.ca
Write your warranty information below:
___________________________________
Product Registration Information:
_________________________________________
Model:
______________________
Serial Number:
______________________
Date of Purchase:
_______________________________________________________
Refrigerator/Freezer
Sealed System
(Condenser, Dryer, Connecting Tube, Refrigerant and Evaporator)
One (1) year from the date
of original retail purchase
Parts and Labor
(internal/functional parts only)
One (1) year from the date of
original retail purchase
Parts and Labor
Linear Compressor
Ten (10) years from the date of
original retail purchase
Part only (Consumer will be
charged for labor)
Seven (7) years from the date
of original retail purchase
Parts only (Consumer will be
charged for labor)
WARRANTY PERIOD: (Note: If the original date of purchase can not be verified,
the warranty will begin sixty (60) days from the date of manufacture)
1-800-243-0000
1-888-865-3026
1-888-542-2623
USA, Consumer User
USA, Commercial User
CANADA
For inquires or comments, visit www.lg.com or call;
www.lg.com
Register your product Online!
LG Customer Information Center
