Honeywell MN12CEDBB Portable Air Conditioner

User Manual - Transcript

• Page 1 - English - : Model MN10CED MN10CHED MN12CED MN12CHED MN14CED MN14CHED Series Portable Air Conditioner Dual Hose User Manual Read and save these instructions before use Customer Support Web wwwjmatekcom USA 18004742147 usinfojmatekcom CANADA 18882090999 canadainfojmatekcom Canada Customer Support service available for models sold in Canada only
• Page 2 - English - : EN DO NOT operate the unit with a damaged plug or loose wall outlet If the supply cord is damaged it must be replaced by the manufacturer its service agent or similarly qualified persons in order to avoid a hazard DO NOT cover the air intake and exhaust when in use DO NOT place objects on or sit on the unit Always turn off and unplug the unit when cleaning or servicing DO NOT use the appliance if it is damaged If service is needed contact an authorized service agent Unplug the unit when stored or not in use DO NOT pull or carry the appliance by the power cord DO NOT pinch the power cord in the door and DO NOT pull it along edges or sharp corners DO NOT run the power cord under carpeting and rugs Use caution to prevent tripping on cord DO NOT use the device in the following cases Near a fire source In areas where gasoline paint or other flammable goods are stored In an area where the water can be projected DO NOT touch the plug or the device with wet hands Basic safety precautions should always be followed when using electrical appliances SAFETY READ AND SAVE THESE INSTRUCTIONS IMPORTANT SAFETY INSTRUCTIONS READ CAREFULLY AND KEEP FOR FUTURE REFERENCE IN CASE THERE IS ANY INCONSISTENCY OR CONFLICT BETWEEN THE ENGLISH VERSION AND ANY OTHER LANGUAGE VERSION OF THE CONTENT OF THIS MATERIAL THE ENGLISH VERSION SHALL PREVAIL WARNING
• Page 3 - English - : EN SAFETY CONTINUED This appliance has been manufactured for use in domestic environments and should not be used for other purposes Only use the installation kit provided to install this unit DO NOT attempt to extend the exhaust Hose or install this unit using other methods other than that shown in this manual Improper installation will void any existing warranties DO NOT use an extension cord with this unit This appliance can be used by children aged from 8 years and above and persons with reduced physical sensory or mental capabilities or lack of experience and knowledge if they have been given supervision or instruction concerning use of the appliance in a safe way and understand the hazards involved Children shall not play with the appliance Cleaning and user maintenance shall not be made by children without supervision Never insert your fingers or rods into the air outlet Take special care to warn children of these dangers The manufacturer is not liable for injury caused to persons or property damage due to noncompliance with maintenance instructions and improper use of the appliance The appliance shall be installed in accordance with national wiring regulations The appliance is not to be used by persons including children with reduced physical sensory or mental capabilities or lack of experience and knowledge unless they have been given supervision or instruction Children should be supervised to ensure that they do not play with the appliance
• Page 4 - English - : THANK YOU USER TIPS Congratulations on your purchase of this Honeywell Portable Air Conditioner Regarding the information pertaining to the installation handling servicing cleaning and disposal of the appliance please refer to the below paragraph of the manual Portable Air Conditioners are ideal for spot cooling The compressor condenser and evaporator are housed in a compact unit The air is dehumidified and cooled while a flexible exhaust Hose sends heat outside The air conditioner includes a window venting kit No permanent installation is needed The unit is easy to move from room to room and offers a truly flexible air conditioning solution Auto Evaporation System The unit automatically evaporates the condensate through the exhaust Hose There is no need to empty the drainage tank except in humid conditions Read and follow the instructions carefully To ensure optimal efficiency of the product keep doors and windows closed when it is used as an air conditioner or dehumidifier If the product is being used with the fan function only an open window could improve air circulation EN Important Before installing the unit place it UPRIGHT for 1 hour before use to allow the refrigerant to stabilize Manually adjust the air vent located at the top of the unit to adjust the direction of air flow Follow installation instructions to set up the unit Plug the unit into a properly grounded circuit DO NOT plug into an extension cord Cooling Heating and Dehumidifying Operation Fan Operation Applicable for models with Heating feature only
• Page 5 - English - : PARTS DESCRIPTION EN 1 Control Panel Incl Signal Receptor 7 Air Exhaust Outlet 2 Air Outlet 8 Power Supply Cord 3 Handle 9 Remote Control 4 Casters 10 Lower Drain Plug with Plastic Cap Air Conditioning Mode 5 Upper Dust Filter 11 Upper Drain Plug Dehumidifier Mode 6 Upper Grill 12 Air Intake Outlet
• Page 6 - English - : 3EN INSTALLATION It is important that the installation instructions below are followed for successful installation of this Portable Air Conditioner Please call Customer Support if you have any difficulties or queries regarding these installation procedures Installation Kit Installation Steps Hose Connector Hose and window bracket panel adapter for both the Hose with diameter of 59quot 15 cm and the Hose with diameter of 51quot 13 cm are preassembled inside the package 1 Window Bracket Kit 1 Set 4 Hole Cover 2 Pieces 2 Window Bracket Panel Adapter Dia 59quot 15 cm Dia 51quot13 cm 2 Pieces 5 Hose Dia 59quot 15 cm Dia 51quot 13 cm 2 Pieces 3 Hose Connector Dia 59quot 15 cm Dia 51quot 13 cm 2 Pieces 1 3 x1 x2 x2 x2 x2 Hoses Length 12quot to 47quot 30 cm to 120 cm
• Page 7 - English - : INSTALLATION CONTINUED 2 The Window Brackets allow you to install to windows and balcony doors of different heights or width Adjustable Knobs 3 Connect one Hose to the rear air exhaust outlet on the back of the unit Slidein the Hose Connector from left to right Rotate clockwise to ensure the knob mechanism is locked in place Rotate anticlockwise to unlock the knob mechanism Note After setting the window bracket to the size of your window please remove it from the window and follow the instructions below Connect the second Hose to the rear air intake outlet on the back of the unit Slidein the Hose Connector downwards Rotate anticlockwise to ensure the knob mechanism is locked in place Rotate clockwise to unlock the knob mechanism Air Intake Outlet Air Exhaust Outlet To install the window bracket to the window frame you need to adjust the height or width of the window bracket by extending the length according to the height or width of the window When the length is set tighten the Adjustable Knobs preinstalled on the window bracket to ensure the window bracket is secured in the desired position Use one or all three pieces of window bracket as needed EN 197quot 50 cm 1 part 197quot 50 cm to 382quot 97 cm 2 parts 472quot 12 m 3 parts

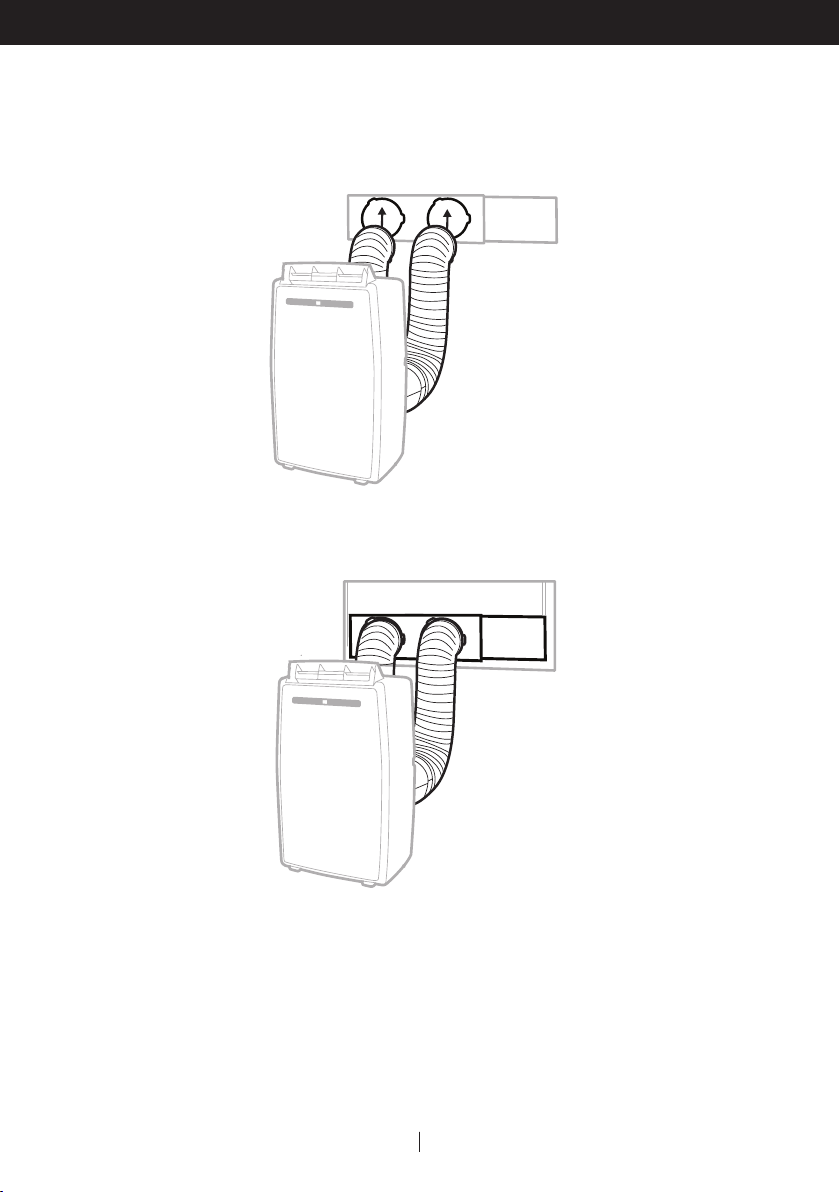

• Page 8 - English - : 5EN INSTALLATION CONTINUED 4 Connect the window bracket to the window bracket panel adapters Slidein the window bracket panel adapter for the Hose with diameter of 59quot 15 cm then rotate anticlockwise until it is locked in place Slidein the window bracket panel adapter for the Hose with diameter of 51quot 13 cm then rotate clockwise until it is locked in place 5 Connect the window bracket to the window 6 The Portable Air Conditioner is now ready to use
• Page 9 - English - : INSTALLATION CONTINUED IMPORTANT Do not replace or lengthen the exhaust Hose as this could cause the unit to malfunction One supplied Hose has a diameter of 59quot 15 cm and the other one has a diameter of 51quot 13 cm Both can be extended from 12quot to 47quot 30 cm to 120 cm Do not bend to the extent shown below the exhaust Hose A bent Hose will block exhaust air and cause the unit to malfunction or shutoff Make sure the back of the unit is at least 20quot 50 cm away from the wall Do not place the unit in front of curtains or drapes as this could obstruct the airflow WARNING Any warranties included with this product will be voided if an extra extension Hose is added to the originally provided installation kit or if the installation is performed differently than the manufacturers instructions without proper consultation Please contact Customer Support for help with installation procedures if needed NOT RECOMMENDED RECOMMENDED 20quot 50 cm MAX 14quot 36 cm EN MAX 40quot 102 cm MIN 356 cm
• Page 10 - English - : USE AND OPERATION CONTROL PANEL FUNCTION BUTTONS The Power Control turns the unit on and off When the unit is plugged in this button lights up indicating it is in a Standby Mode ready to be switched on anytime POWER CONTROL Applicable for models with Heating feature only 1 Power Control Standby Mode 4 Timer Temperature Set Controls 2 Warning Light when flashing 5 Fan Speed Control 3 Mode Control 6 Timer Control EN Settings Air Conditioning Heating Dehumidifying Fan The corresponding indicator light will illuminate to indicate the current mode setting MODE CONTROL Air Conditioning Mode Adjust fan speed and air temperature to suit your desired comfort level Temperature setting range is 16C 32C 61F 89F 6 5 4 4 3 12 Condensation may accumulate in the unit If the internal tank becomes full the Power Control light will flash and the unit will not operate until the unit has been drained refer to Water Condensation Drainage After switching the air conditioner off you must wait 3 minutes before switching it back on again WARNING LIGHT
• Page 11 - English - : Applicable for models with Heating feature only Heating Mode This unit uses HeatPump technology which reverses the air conditioning cooling cycle by transferring heat from the outside into the room this is more energy efficient than traditional electric heaters that generate heat instead of transferring heat into the room These properties make this heater ideal for use in autumn or spring when outdoor temperatures are not severely cold or as supplemental heating in colder rooms of your home Fan Mode For air circulation without air conditioner cooling Dehumidifying Mode Air is dehumidified as it passes through the unit without being in full cooling mode If room temperature is higher than 25C 77F fan speed can be adjusted otherwise fan speed is preset to LOW Note If the unit will be used mainly as a dehumidifier do not connect the exhaust Hoses Continuous drainage is then necessary refer to Continuous Draining for Dehumidifier Mode When heating mode is selected the indicator light will shine Heating is activated only when the ambient temperature is below 25C 77F In this mode the desired temperature can be set between 16C 25C 61F 77F Note The exhaust Hoses must vent outside the room when using heating mode IMPORTANT The Heat pump draws moisture from the air which then condenses into the internal water tank The unit will pause operation when the tank is full and will restart when the tank has been emptied It is recommended to use the heating mode in a room with 50 humidity or lower Avoid operating moistureproducing products or appliances such as a humidifier or a kettle when using the unit in heating mode See the quotDraining Water Condensation in Heat Modequot section for more information on draining the water tank USE AND OPERATION CONTINUED FUNCTION BUTTONS CONTINUED EN IMPORTANT The Dehumidifier mode is used to support moisture reduction but should not be expected to dehumidify to the same degree as a standard dehumidifieronly appliance The builtin dehumidifier automatically adjusts dehumidification based on ambient room temperatures It is not possible to adjust to a desired humidity percentage The front display only shows the current AND desired temperatures It does not show humidity levels
• Page 12 - English - : USE AND OPERATION CONTINUED EN FUNCTION BUTTONS CONTINUED While the unit is turned on press the timer button then press the or to select the number of hours you would like the unit to continue to run The unit will turn off automatically AUTO TURN OFF While unit is running press the or button to select the number of hours you want the unit to run in air conditioning mode AUTO TURN ON When unit is in a standby mode plugged in with power light on then press the or button to select the number of hours until you want the unit to automatically start running TIMER CONTROL TEMPERATURE TIMER SET CONTROLS Used for adjusting the timer and thermostat The default display is setting temperature In cooling mode when or button is pressed the set temperature is displayed and may be adjusted After 10 seconds the display will revert back to room temperature Temperature is only adjustable in cool mode The time is adjustable between 1 24 hours Note By pressing both or buttons at the same time the display will toggle between CelsiusC and FahrenheitF 3 settings High Medium and Low FAN SPEED CONTROL
• Page 13 - English - : 10EN USE AND OPERATION CONTINUED REMOTE CONTROL The functions work the same as the Portable Air Conditioners Control Panel All key functions can be accessed from the remote control Note Battery Installation Remove the cover on the back of the remote control and insert two AAA batteries with and pointing in the proper direction according to the polarity markings Use only two AAA or IEC R03 15V batteries Remove the batteries if the remote control is not in use for a month or longer All batteries should be replaced at the same time do not mix with old batteries Do not mix alkaline standard carbonzinc or rechargeable nickelcadmium batteries Properly dispose of used batteries Caution Power Control ON OFF Temperature Timer Set Used for adjusting the timer and temperature When the or key is pressed the set temperature is displayed and may be adjusted Timer setting is available from 1 24 hours by pressing the key or Fan Speed Control Timer Control In running mode Auto switch off In standby mode Auto switch on Press or button to adjust the time setting for 1 hour intervals HIGH MID LOW Mode Control Air Conditioning Dehumidifying Heating Fan Press this button to change the operation mode in the order of Applicable for models with Heating feature only This device complies with part 15 of the FCC Rules Operation is subject to following two conditions 1 this device may not cause harmful interference and 2 this device must accept any interference received including interference that may cause undesired operation This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to part 15 of the FCC Rules These limits are designed to provide reasonable protection against harmful interference in a residential installation This equipment generates uses and can radiate radio frequency energy and if not installed and used in accordance with the instructions may cause harmful interference to radio communications However there is no guarantee that interference will not occur in a particular installation If this equipment dose cause harmful interference to radio or television reception which can be determined by turning the equipment off and on the user is encouraged to try to correct the interference by one or more of the following measures Reorient or relocate the receiving antenna Increase the separation between the equipment and the receiver Connect the equipment info an outlet on a circuit different from that to which the receiver is connected Consult the dealer or an experienced radio TV technician for help Caution Any changes or modifications not expressly approved by the party responsible for compliance could void the users authority to operate the equipment
• Page 14 - English - : CLEANING AND MAINTENANCE Appliance Maintenance Turn off the appliance before disconnecting the power supply Only clean the appliance with a soft dry cloth End of Season Storage and Maintenance If the appliance will not be used for a long time follow these steps Be sure to drain the leftover water condensation Remove the lower drain plug and use a shallow pan to collect the water make sure to replace the drain plug when finished To dry excess moisture run the unit in Fan only mode for 30 minutes before storing Turn off and unplug the air conditioner from the power supply Remove the dust filter and clean with water Dry the dust filter and then reinstall EN Switch off and unplug the air conditioner from the electrical outlet Remove the Upper Dust Filter Gently wash using water and or diluted liquid dishwashing detergent Rinse thoroughly and gently shake excess water from the filter Make sure the filter is dry before reinstalling Note You may use a vacuum cleaner to remove dust Replace the Upper Dust Filter onto the unit Dust Filter Maintenance The dust filter is to be cleaned every two weeks to maintain air cooling efficiency Please follow the below instructions for cleaning the dust filter WARNING DO NOT power or operate the Air Conditioner when cleaning or when the Dust Filter is removed from the unit or if there is a loosefitting Dust Filter DO NOT attempt to handle or touch any of the parts or wiring inside the Rear Grill after the Dust Filter has been removed from the unit Doing so can cause serious injury or electrical shock Rear Grill Upper Dust Filter
• Page 15 - English - : Cover the air conditioner with a cloth plastic bag before storage to protect from dust and scratches collecting on the surface of the unit It is recommended to coil the power cord before storing to ensure the cord is protected from bents and creases Store the air conditioner in a cool dry place away from direct sunlight Remove the Hose from the air exhaust outlet by rotating anticlockwise to unlock the knob mechanism then sliding out Remove the Hose from the air intake outlet by rotating clockwise to unlock the knob mechanism then sliding out Remove the window bracket panel adapter for the Hose with diameter of 59quot 15 cm from the window bracket by rotating clockwise then pulling away Remove the window bracket panel adapter for the Hose with diameter of 51quot 13 cm from the window bracket by rotating anti clockwise then pulling away It is recommended to store the Window Kit parts in a bag together with the Remote Control and placing them together with the air conditioner unit If needed you can clean the Window Kit with a damp cloth and water before storing Make sure all parts of the Window Kit are dry before storage CLEANING AND MAINTENANCE CONTINUED Disconnecting the Window Installation Kit5 EN

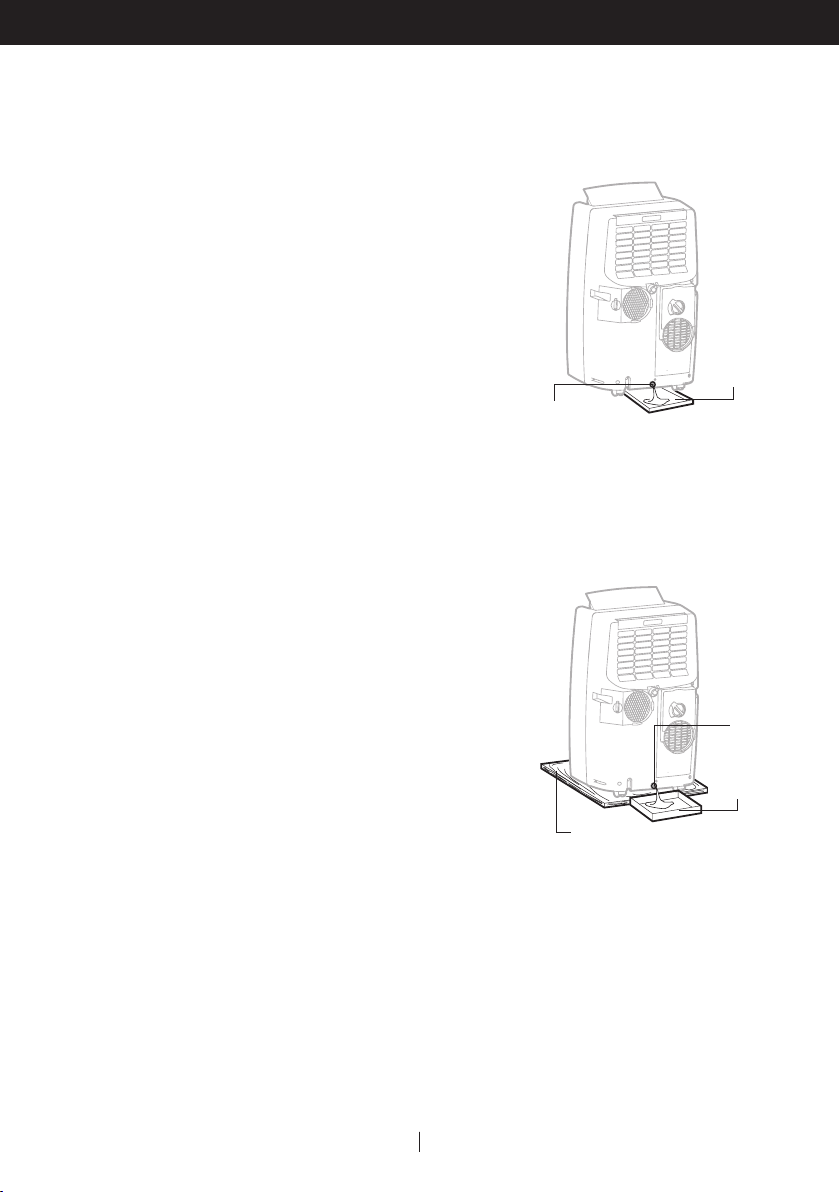

• Page 16 - English - : 13EN Applicable for models with Heating feature only WATER CONDENSATION DRAINAGE Plastic Cap and Lower Drain Plug Shallow Pan Not included Unplug the unit from power source Place a shallow pan under the lower rubber drain plug See diagram Remove the lower rubber drain plug Water will drain out and collect in the shallow pan After the water is drained replace the lower rubber drain plug firmly You can now turn on the unit Manual Draining in Cooling Dehumidifying and Heating Modes Water may need to be drained in high humidity areas If you find that there is a high volume of condensation and a shallow pan is not enough for your use you can use a large pan to drain Follow the below instructions carefully WARNING For safety reasons the Portable Air Conditioner must NOT be positioned on a base that is higher than 1quot from the floor This is only recommended if you have a stable flat base to position the portable air conditioner on safely Find a flat stable board that is up to 1quot thick The base could be a wooden board purchased from your local hardware store with a minimum base dimension of 20quot length x 17quot width x 1quot thick The base should be large and sturdy enough to fit the portable air conditioner on top The air conditioner must be stable and not rock or move when positioned on this base and not easy to topple over Drain the water from the lower drain plug as needed into a larger pan or through a drain tube If using a drain tube you can purchase vinyl tubing which has an outside diameter of 58quot and an inside diameter of ½quot Remember the drain tube must be positioned lower than the drain plug so the water condensation does not flow backwards back into the air conditioner Wooden Board Height up to 1quot Large Pan Not included Plastic Cap and Lower Drain Plug When there is excess water condensation inside the unit the air conditioner stops running and shows a warning light the Power Control button flashes with a red light This warning light indicates that the water condensation needs to be drained using the following procedures
• Page 17 - English - : WATER CONDENSATION DRAINAGE CONTINUED EN Unplug the unit from power source Remove the upper rubber drain plug Some residual water may spill so please have a pan to collect the water See diagram Connect the drain connector to a ¾quot Hose or standard garden Hose not included The water can be continuously drained through the drain tube into a floor drain or bucket Replace the drain plug You can now turn on the unit Continuous Draining for Dehumidifier Mode Drain Tube Upper Rubber Drain Plug While using the unit in dehumidifier mode continuous drainage is recommended IMPORTANT The water cannot be drained using the continuous drain option in heating mode In Heating mode the internal water tank collects condensation faster and may require more frequent emptying of the tank in more humid rooms It is recommended to use the heating mode in a room with 50 humidity or lower Avoid operating moisturecreating products or appliances such as a humidifier or a kettle when using the unit in heating mode IMPORTANT It is NOT recommended to connect the drain Hose for continuous drainage while the unit is switched ON in air conditioning cooling mode Doing so can reduce the cooling efficiency of the Portable Air Conditioner Only drain the water condensation when the unit is switched off Continuous drainage is only suitable when the unit is set up in Dehumidifier mode
• Page 18 - English - : The following troubleshooting guide addresses the most common problems If problems persist call customer support Unplug and disconnect the appliance from the power source before attempting to troubleshoot TROUBLESHOOTING GUIDE EN PROBLEM POSSIBLE CAUSE SOLUTION The air conditioning unit does not start No electricity Check for power Batteries in the remote control need to be replaced Change remote control batteries The power cord is not properly plugged in Remove and reconnect the power cord The safety LCDI plug has tripped USA Canada Mexico only Reset the safety LCDI plug if problem persists contact our customer support USA Canada Mexico only Runs a short while only The thermostat temperature setting is too close to room temperature Lower the set temperature Air outlet is blocked Make sure the exhaust Hose is properly connected There are tight bends in one or both Hoses Connect Hoses as per instructions on page 3 In Heating Modethe unit keeps switching off frequently The room is too humid Water Tank needs to be emptied In heating mode the heat pump condenses moisture from the air into the internal water tank In more humid rooms it will collect faster and need to be emptied out more frequently It is recommended to use the heating mode in 50 humidity or less Switch off any appliances such as a humidifier or kettle to avoid extra moisture build up in the room when operating in heating mode Applicable for models with Heating feature only
• Page 19 - English - : TROUBLESHOOTING GUIDE CONTINUED PROBLEM POSSIBLE CAUSE SOLUTION Runs but not cooling A door or window is open Make sure the window or door is closed The dust filter is dirty Clean the dust filter One or both of the Hoses are detached Reinstall Hoses properly refer to Installation section Temperature setting is too high Reduce temperature setting on control panel Air outlet or intake is blocked Remove blockage Room exceeds recommended size Move unit to smaller room Large size or number of windows are decreasing cooling effectiveness Cover windows with curtains or blinds Will not run and Power button is blinking water full indicator Excess water condensation inside the tank Drain the water refer to Water Condensation Drainage EN
• Page 20 - English - : 17EN TROUBLESHOOTING GUIDE CONTINUED PROBLEM POSSIBLE CAUSE SOLUTION Heater is not switching ON Heating function not activated yet The ambient temperature is too high Check that the Heating function has been activated will be illuminated when the Heater is switched ON Heating is activated only when the ambient temperature is below 25C 77F Switch on the Heating function when the ambient temperature reaches below 25C 77F EN Applicable for models with Heating feature only
• Page 21 - English - : JMATEK North America LLC Mahwah New Jersey 07495 USA Email usinfojmatekcom Web wwwjmatekcom Made in China 2019 JMATEK Limited All rights reserved The Honeywell Trademark is used under license from Honeywell International Inc Honeywell International Inc makes no representations or warranties with respect to this product This product is manufactured by Airtek Intl Corp Ltd subsidiary of JMATEK Ltd
