OWNER’S MANUAL
LED MONITOR
(LED TOUCH MONITOR)
23ET63V
23ET63B
Please read this manual carefully before operating
your set and retain it for future reference.
LED MONITOR(LED TOUCH MONITOR) MODEL LIST
ENGLISH
WARNING
: This product contains chemicals known to the State of California to cause cancer and birth
defects or other reproductive harm.
Wash hands after handling
.
3
ENG
ENGLISH
TABLE OF CONTENTS
CONTENTS
4 LICENSE
5 ASSEMBLINGANDPREPAR-
ING
5 Unpacking
6 Parts and buttons
7 Moving and Lifting the Monitor
7 Setting up the Monitor
7 - Mounting on a table
9 - Mounting on a wall
10 USINGTHEMONITOR
10 Connecting to a PC
10 - D-SUB connection
10 - HDMI connection
12 - USB cable-PC connection
12 - Headphone port connection
13 CUSTOMIZINGSETTINGS
14 Customizing Settings
14 - Menu Settings
15 - Picture
16 - Color
17 - Display
17 - Audio
18 - Others
19 SUPER ENERGY SAVING
20 Picture Mode
21 TROUBLESHOOTING
24 SPECIFICATIONS
25 Preset Modes (Resolution)
25 HDMI TIMING
25 Indicator
26 PROPERPOSTURE
26 Proper Posture for Using the Monitor
4
ENG
ENGLISH
LICENSE
LICENSE
Each model has different licenses. Visit www.lg.com for more information on the license.
The terms HDMI and HDMI High-Definition Multimedia Interface, and the
HDMI logo are trademarks or registered trademarks of HDMI Licensing LLC
in the United States and other countries.
* Touch does not respond when the desktop is extended to a second touch monitor. For more information.(See p.22)
NOTE
Only support Windows 7 and Windows 8 system.
Windows 7 Starter, Home basic version are not support multi-touch as default option.
Please check the details on the homepage of the Microsoft.
Multi touch does not work.
5
ENG
ENGLISH
ASSEMBLING AND PREPARING
ASSEMBLINGANDPREPARING
Unpacking

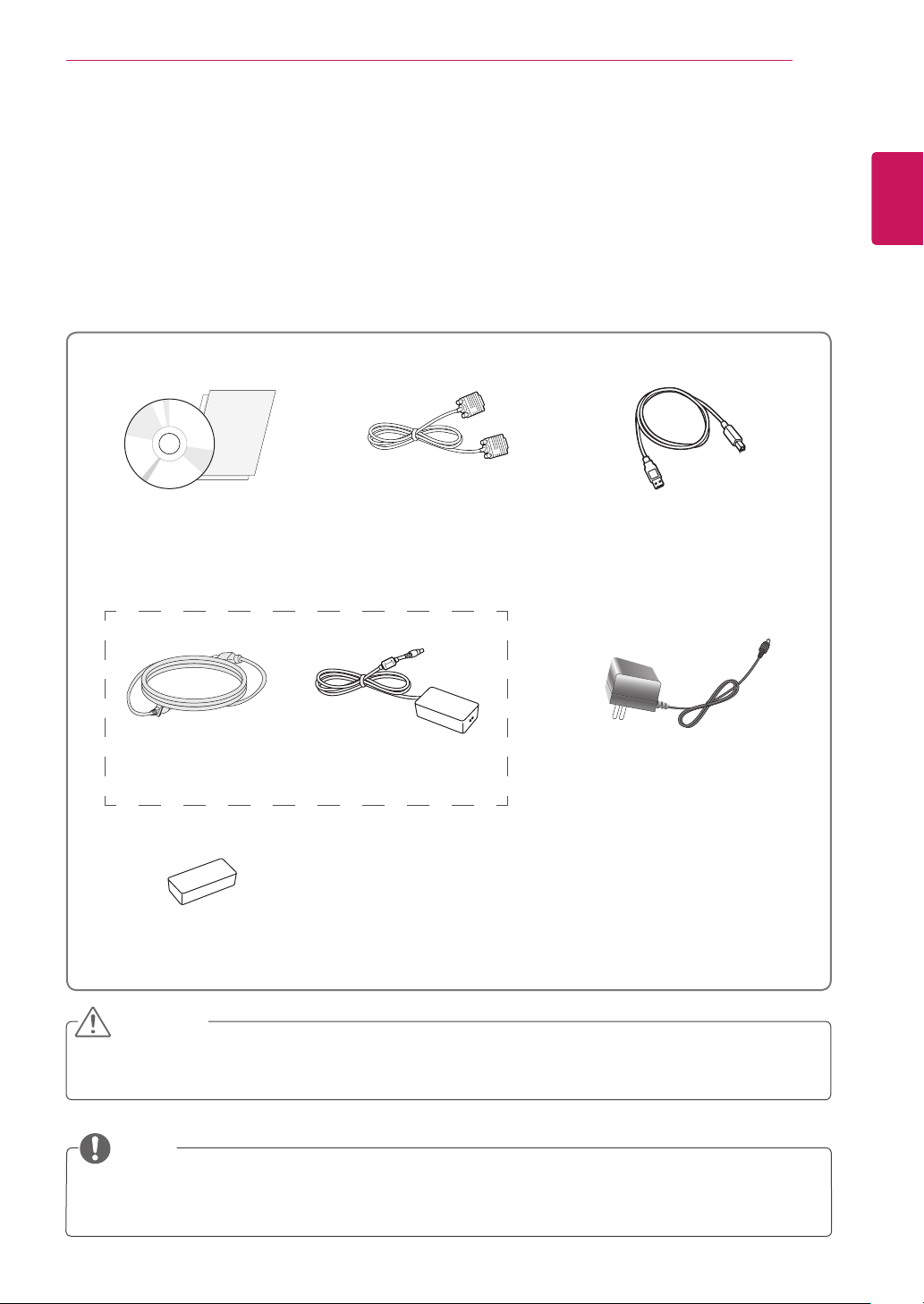

Check your product box for the following items. If there are any missing accessories, contact the local
dealer where you purchased your product. The illustrations in this manual may differ from the actual product
and accessories.
Do not use any unapproved accessories to ensure the safety and product life span.
Any damages or injuries by using unapproved accessories are not covered by the warranty.
The accessories supplied with your product may vary depending on the model.
Product specifications or contents in this manual may be changed without prior notice due to upgrade
of product functions.
CAUTION
NOTE
PowerCord
CD(Owner'sManual)/
Card
D-SUBCable
(This cable is not included in
all countries.)
( Depending on the country )
AC-DCAdapter
AC-DCAdapter
( Depending on the country )
or
A-BTypeUSB2.0Cable
Rubber(white)
6
ENG
ENGLISH
ASSEMBLING AND PREPARING

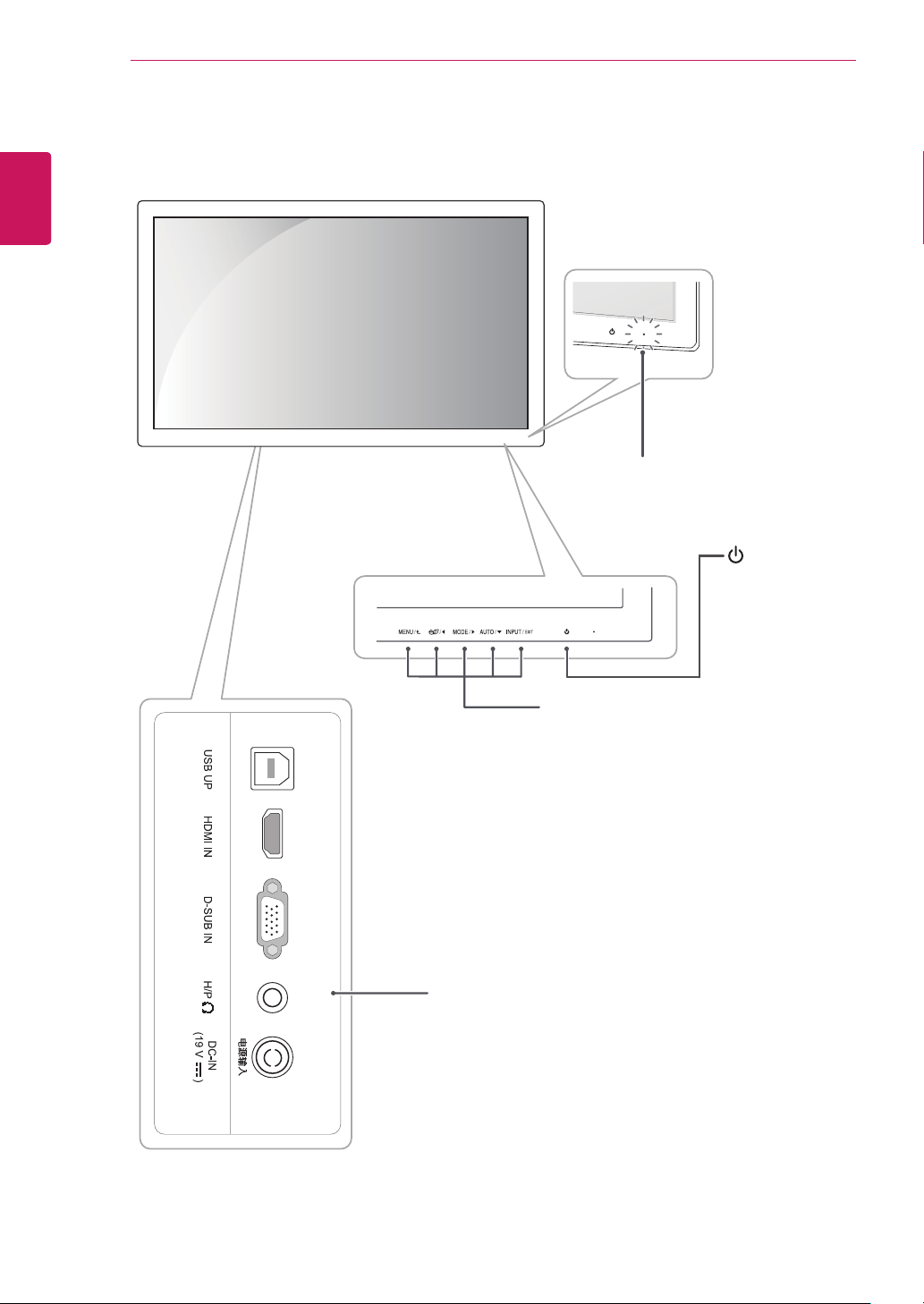

Partsandbuttons
PowerIndicator
LightingOn:Turnedon(Red)
LightingOff:Turnedoff
Connection panel
Button
(Power Button)
7
ENG
ENGLISH
ASSEMBLING AND PREPARING

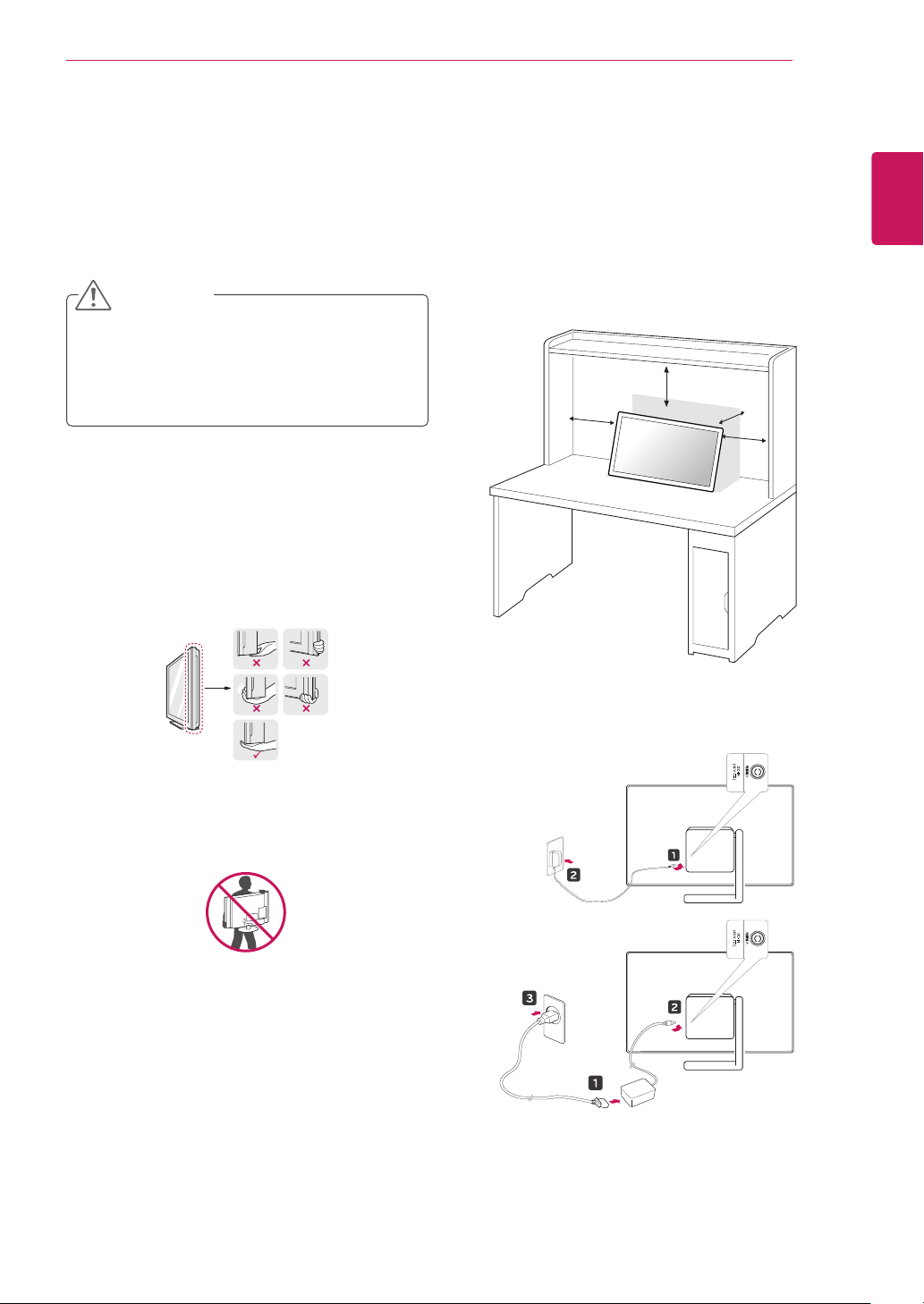

SettinguptheMonitor
Mountingonatable
1
Lift and tilt the Monitor set into its upright
position on a table.
Leave a 10 cm (minimum) space from the wall
for proper ventilation.
MovingandLiftingtheMonitor
When moving or lifting the monitor, follow these
instructions to prevent the monitor from being
scratched or damaged and to ensure safe trans-
portation regardless of its shape or size.
As much as possible, avoid touching the
monitor screen. This may result in damage
to the screen or some of the pixels used to
create images.
CAUTION
It is advisable to place the monitor in the
original box or packing material before
attempting to move it.
Before moving or lifting the monitor, discon-
nect the power cord and all cables.
Hold the top and bottom of the monitor frame
firmly. Do not hold the panel itself.
When holding the monitor, the screen should
face away from you to prevent it being
scratched.
When moving the monitor, avoid any strong
shock or vibrations to the product.
When moving the monitor, keep it upright,
never turn the monitor on its side or tilt it
sideways.
2
Connect the AC-DC Adapter and Power Cord
to a wall outlet.
or
10 cm
10 cm
10 cm
10 cm
8
ENG
ENGLISH
ASSEMBLING AND PREPARING

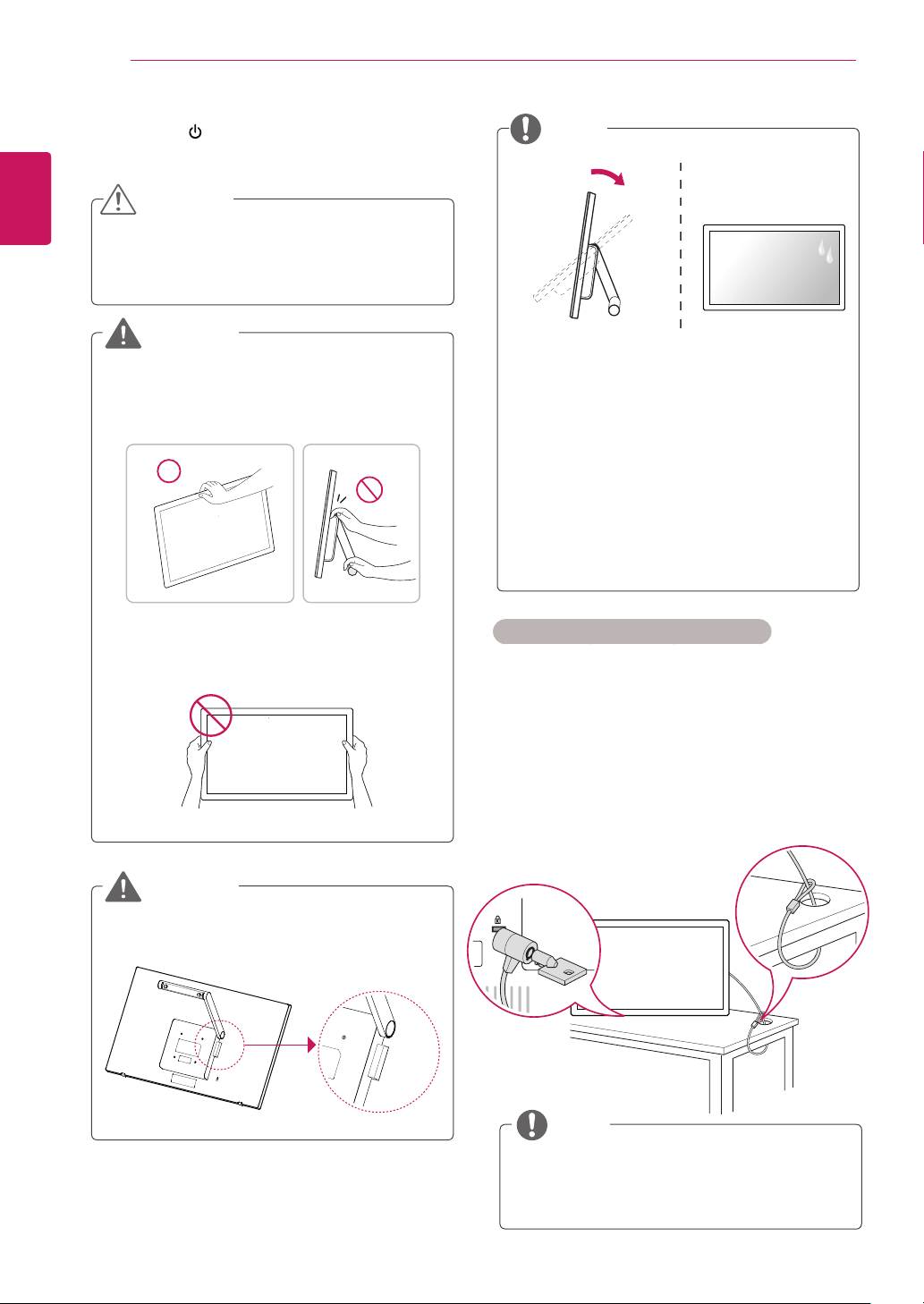

3
Press the (Power) button on the front panel
to turn the power on.
Unplug the power cord before moving the
Monitor to another location. Otherwise electric
shock may occur.
CAUTION
Do not touch or press the screen when
adjusting the angle of the monitor.
WARNING
NOTE
To avoid injury to the fingers when adjusting
the screen, do not hold the upper part of the
stand as shown below.
Front Rear
Tilt from 15 to 58 degrees up or down to
adjust the angle of the Monitor set to suit
your view.
Avoid using the product in a high
temperature and high humidity area. Moving
the monitor from a environment like this to
an air conditioned area may cause moisture
formation inside the glass. This moisture
will be dissipate over time, which may vary
depending on the operating environment.
Using the Kensington security system
The Kensington security system connector is
located at the back of the Monitor set. For more
information of installation and using, refer to the
manual supplied with the Kensington security
system or visit
http://www.kensington.com
.
Connect the Kensington security system cable
between the Monitor set and a table.
The Kensington security system is optional.
You can obtain it from most electronics stores.
NOTE
WARNING
Attach the rubber like the below picture.If not,
the fingers can be pinched or get damaged.
9
ENG
ENGLISH
ASSEMBLING AND PREPARING

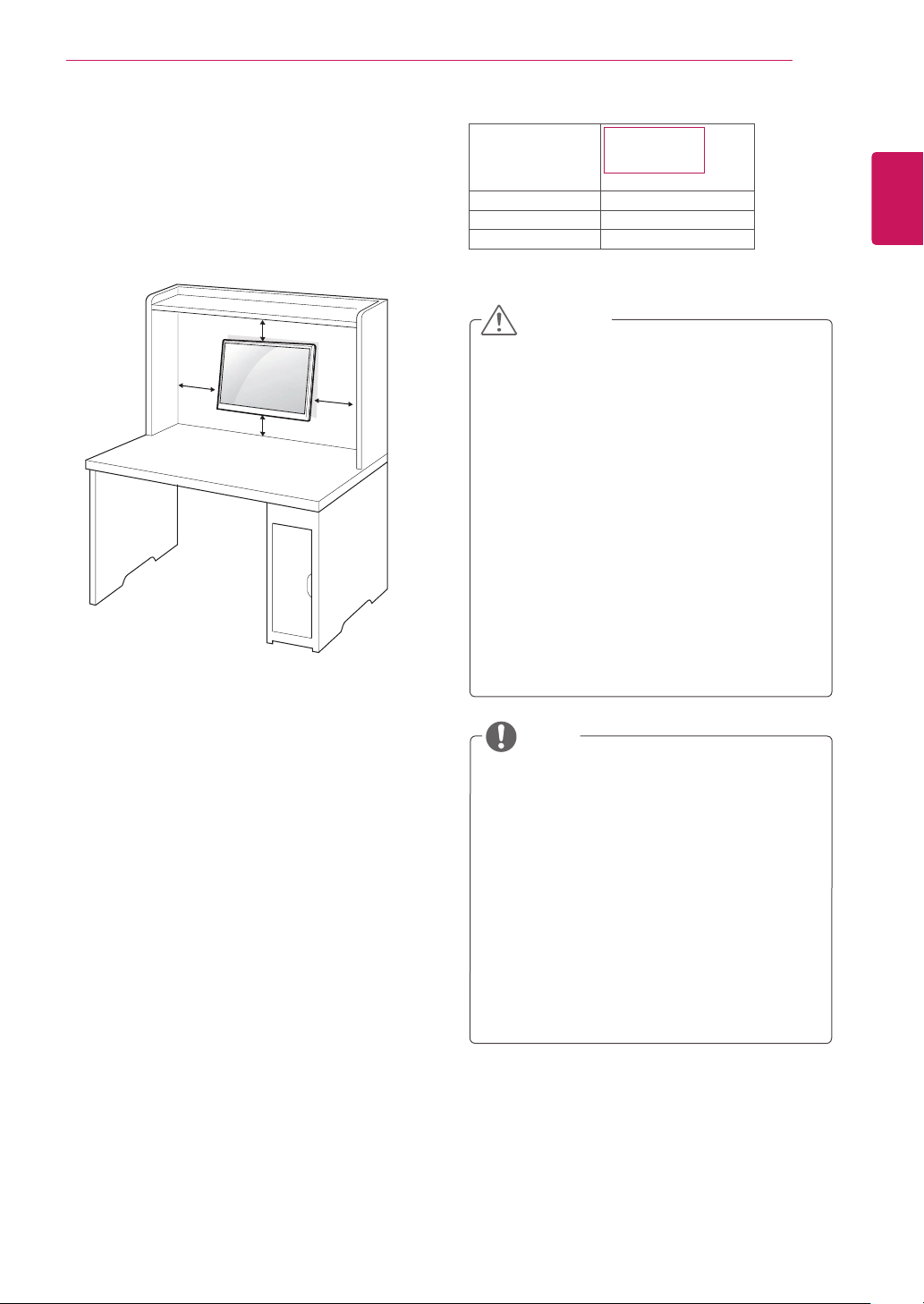

Mountingonawall
For proper ventilation, allow a clearance of 10 cm
on each side and from the wall. Detailed
instructions are available from your dealer, see the
optional Tilt Wall Mounting Bracket Installation and
Setup Guide.
If you intend to mount the Monitor set to a wall,
attach Wall mounting interface (optional parts) to
the back of the set.
When you install the Monitor set using a wall
mounting interface (optional parts), attach it
carefully so it will not drop.
1
Please, Use the screw and wall mount interface
in accordance with VESA Standards.
2
If you use screw longer than standard, the
monitor might be damaged internally.
3
If you use improper screw, the product might be
damaged and drop from mounted position. In
this case, LG Electronics is not responsible for
it.
4
VESA compatible.
5
Please use VESA standard as below.
784.8 mm (30.9 inch) and under
* Wall Mount Pad Thickness : 2.6 mm
* Screw : Φ 4.0 mm x Pitch 0.7 mm x
Length 10 mm
787.4 mm (31.0 inch) and above
* Please use VESA standard wall mount pad
and screws.
10 cm
10 cm
10 cm
10 cm
Disconnect the power cord first, and then
move or install the Monitor set. Otherwise
electric shock may occur.
If you install the Monitor set on a ceiling or
slanted wall, it may fall and result in severe
injury.
Use only an authorized LG wall mount
and contact the local dealer or qualified
personnel.
Do not over tighten the screws as this may
cause damage to the Monitor set and void
your warranty.
Use only screws and wall mounts that
meet the VESA standard. Any damages
or injuries by misuse or using an improper
accessory are not covered by the warranty.
Use the screws that are listed on the VESA
standard screw specifications.
The wall mount kit will include an installation
manual and necessary parts.
The wall mount bracket is optional. You can
obtain additional accessories from your local
dealer.
The length of screws may differ depending
on the wall mount. Be sure to use the proper
length.
For more information, refer to the
instructions supplied with the wall mount.
CAUTION
NOTE
Model
23ET63V
23ET63B
VESA(AxB) 75 x 75
Standardscrew M4
Numberofscrews 4
10
ENG
ENGLISH
USING THE MONITOR
USINGTHEMONITOR
ConnectingtoaPC
Your Monitor supports Plug & Play. When
connected to a PC and turned on, the device will
connect automatically without configuration or
user intervention.

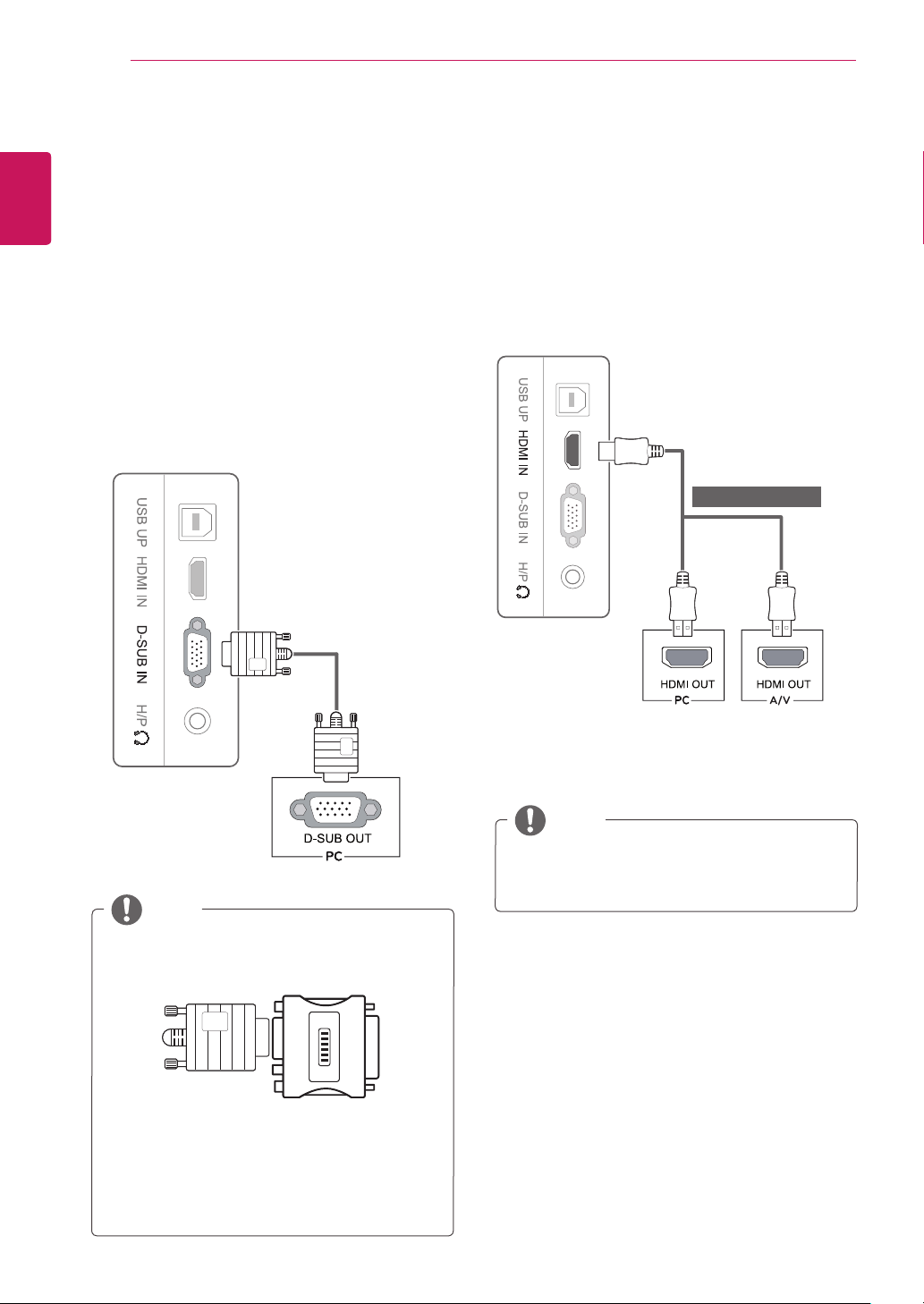

D-SUBconnection
Transmits analog video from your PC to the
Monitor set. Connect the PC and the Monitor with
the supplied D-sub 15 pin signal cable as shown in
the following illustrations.
This monitor support PC input via HDMI,
but you may experience some compatibility
issues.
NOTE
HDMIconnection
Transmits the digital video and audio signals from
your PC or A/V to the Monitor. Connect the PC or
A/V and the Monitor with the HDMI cable as shown
in the following illustrations.
Macadapter
For Apple Macintosh use, a separate plug
adapter is needed to change the 15 pin
high density (3 row) D-SUB VGA connector
on the supplied cable to a 15 pin 2 row
connector.
When using a D-Sub signal input cable
connector for Macintosh
NOTE
(soldseparately)
11
ENG
ENGLISH
USING THE MONITOR
"SelfImageSetting"Function.
This function provides the user with optimal
display settings.When the user connects
the monitor for the first time, this function
automatically adjusts the display to optimal
settings for individual input signals.(Only
supported in Analog Mode)
‘AUTO’Function.
When you encounter problems such as
blurry screen, blurred letters, screen flicker
or tilted screen while using the device or
after changing screen resolution, press the
AUTO function button to improve resolution.
(Only supported in Analog Mode)
NOTE
Connect the signal
input cable and tighten
it by turning the screws
clockwise.
Do not press the screen with your finger for
a long time as this may result in temporary
distortion on the screen.
Avoid displaying a fixed image on the
screen for a long period of time to prevent
image burn. Use a screensaver if possible.
CAUTION
Self Image Setting Function
Press the power button to turn on the monitor.
When monitor power is turned on, the "
SelfImage
Setting
" Function is executed automatically. (Only
supported in Analog Mode)
When connecting the power cord to the out-
let, use a grounded (3-hole) multi-socket or a
grounded power outlet.
The monitor may flicker when turned on in an
area of low temperature. This is normal.
Sometimes red, green, or blue spots may ap-
pear on the screen. This is normal.
Using a DVI to HDMI cable may cause com-
patibility issues.
NOTE
12
ENG
ENGLISH
USING THE MONITOR

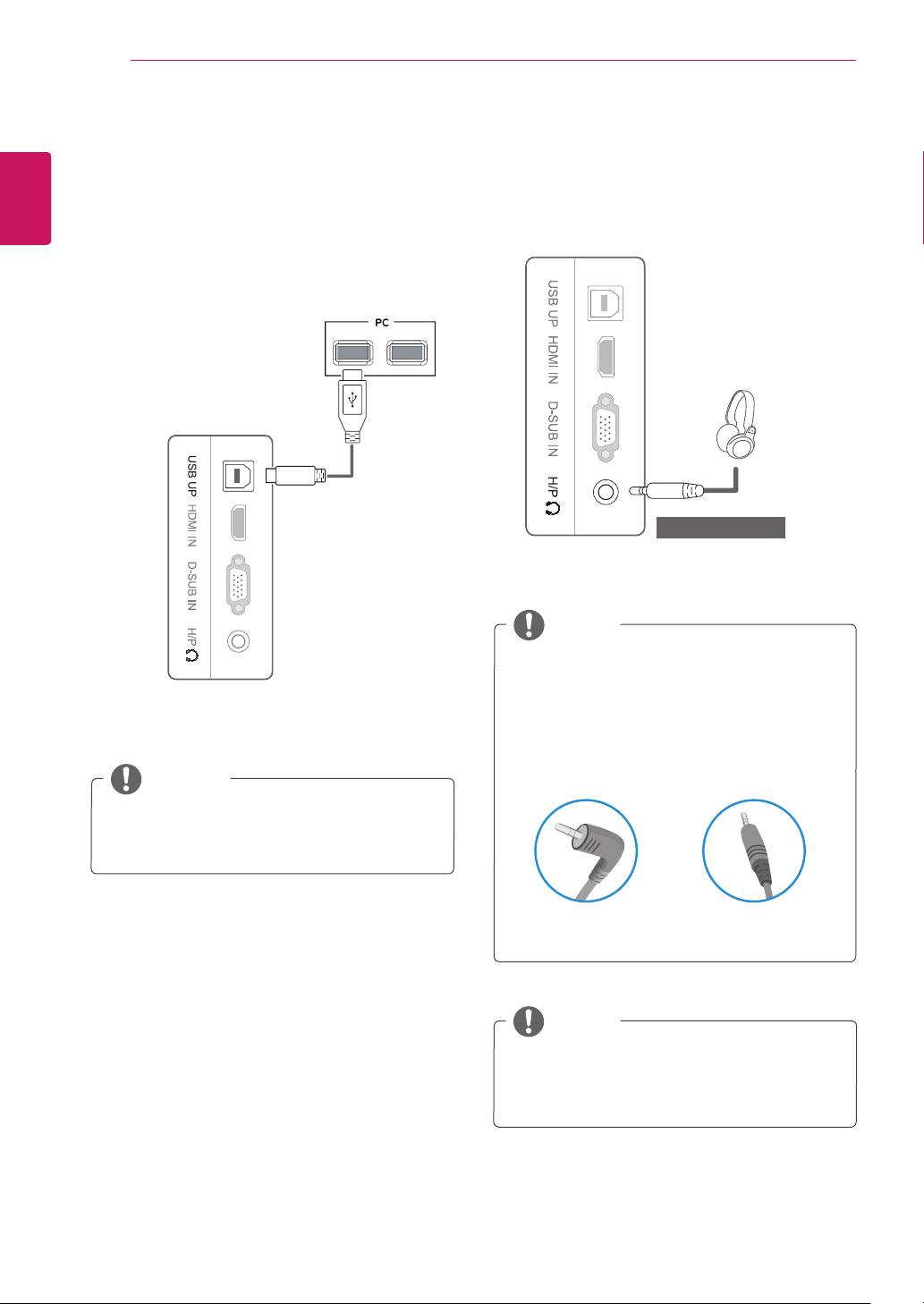

USBcable-PCconnection
To use the touch screen, connect the USB port to
the PC.
Use a USB 2.0 cable with A-B type to connect your
PC.
(The USB port on the monitor is only for the touch
screen feature.)
Please install the latest Windows service
pack before use.
NOTE
Headphoneportconnection
Use the headphone port to connect a peripheral
device to the monitor. Connect as illustrated.
Depending on the audio settings of the PC
and external device, headphone and speaker
functions may be limited.
NOTE
Peripheral devices are sold separately.
The USB port cannot be used to connect a
keyboard, mouse, and other USB devices.
For an angle plug earphone, it is difficult
connect it with a peripheral device, so use a
straight type.
NOTE
Angle Type Straight Type
(soldseparately)
13
ENG
ENGLISH
CUSTOMIZING SETTINGS
CUSTOMIZINGSETTINGS

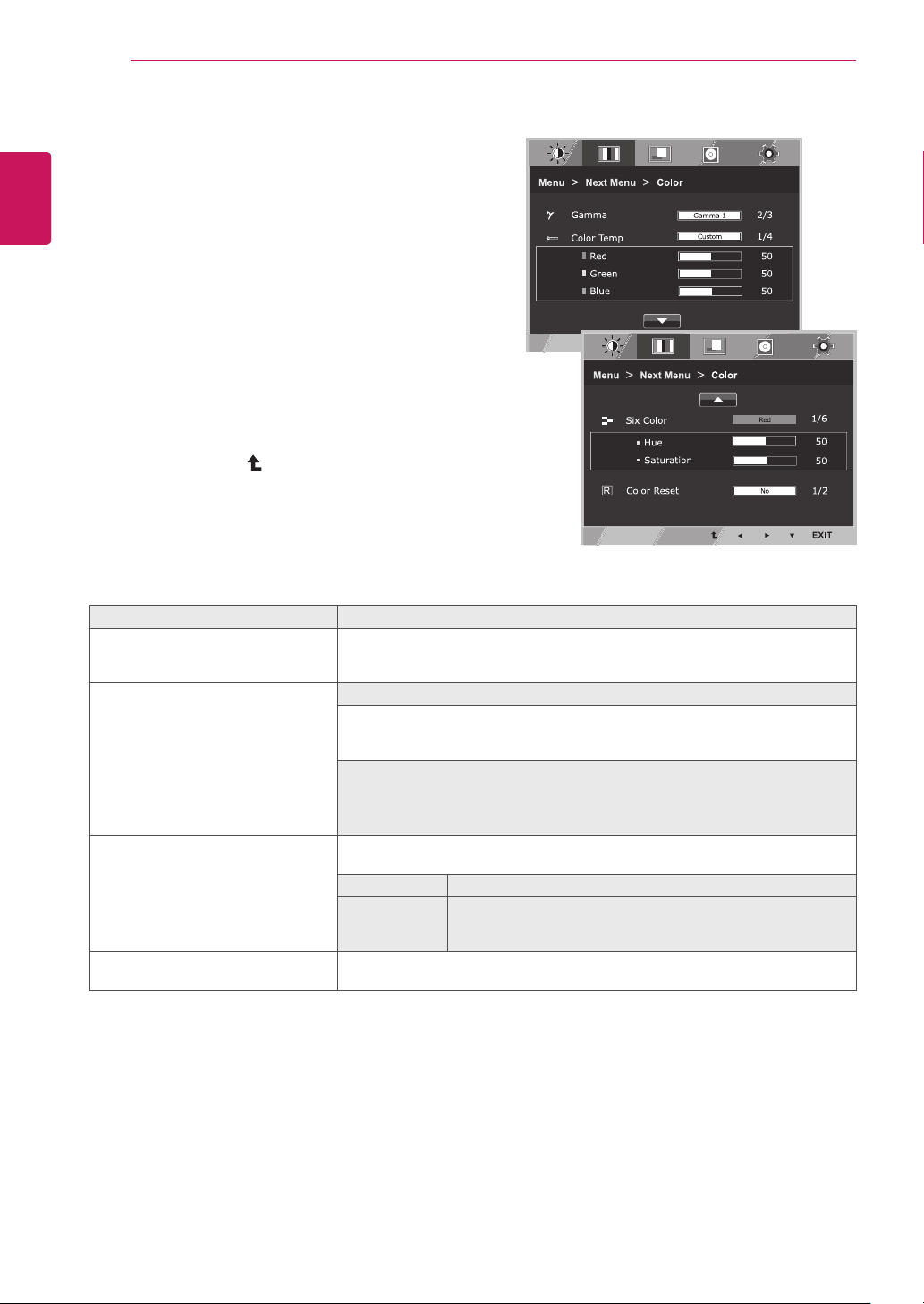

1
Press the desired button on the bottom of the Monitor.
2
Change the value of the menu item by pressing the buttons on the bottom of the Monitor.
To return to the upper menu or set other menu items, use the up arrow ( ) button.
3
Select
EXIT
to leave the OSD menu.
MonitorsetButtons
Button Description
MENU
Accesses the main menus.
OSDLOCKED/
UNLOCKED
This function allows you to lock the current control settings,
so that they cannot be inadvertently changed.
Press and hold the Menu button for a few seconds. Then,
you will be prompted to set the OSD Lock.
You can unlock the OSD controls at any time by pushing
the MENU button for several seconds. The message "OSD
UNLOCKED" should appear.
Enables the SUPER ENERGY SAVING function.
MODE /
Goes to the Picture Mode menu.
AUTO/
When adjusting your display settings, always press the AUTO button. (Only supported in
Analog Mode)
Thebestdisplaymode
1920 x 1080
INPUT / EXIT
You can choose the input signal.
• When two input signals are connected, you can select the input signal (D-SUB/
HDMI) you want.
• When only one signal is connected, it is automatically detected. The default setting is
D-SUB.
EXIT
Exit the OSD (On Screen Display).
(Power Button)
Turns the power on or off.
PowerIndicator
When the monitor is in operating mode, the power indicator
will turn red (on mode).
When the monitor is in power-saving mode, the power indica-
tor will blink red.
NOTE
All of the buttons are touch sensitive and can be operated by simply touching their label with your
finger.
14
ENG
ENGLISH
CUSTOMIZING SETTINGS
CustomizingSettings
MenuSettings
1
Press
MENU
button on the bottom of the Monitor set
to display the
Menu
OSD.
2
Set the options by pressing the ◄ or ► or ▼
buttons.
3
Select the "
NextMenu
" button to enter the more
option settings.
4
Select
EXIT
to leave the OSD menu.
To return to the upper menu or set other menu items,
use the up arrow ( ) button.
Each option is explained below.
Menu>NextMenu Analog HDMI Description
Picture Sharpness ● ●
To adjust the clearness of the screen .
BlackLevel ●
To set offset level
OverScan ●
To improve the clarity and stability of the screen
Color Gamma
● ●
To customize the color of the screen
ColorTemp
SixColor
ColorReset
Display Horizontal
●
To adjust the position of the screen
Vertical
Clock
●
To improve the clarity and stability of the screen
Phase
Audio
●
To adjust the Volume
Others Language
● ●
To customize the screen status for a user's
operating environment
PowerIndicator
AutomaticStandby
ResponseTime
Analog:
D-SUB(Analog signal) input.
HDMI:
HDMI(Digital signal) input.
Menu Analog HDMI Description
Brightness
● ●
To adjust the brightness, contrast of the screen
Contrast ● ●
Wide/Original
● ●
Wide
Switch to full screen mode according to input image signal.
Original
Change the input image signal ratio to original.
* This function works only if input resolution is lower than Monitor set ratio
(16:9).
Reset
● ●
Restore all factory default settings. Press the
◄
,
►
buttons to reset
immediately.
15
ENG
ENGLISH
CUSTOMIZING SETTINGS
1
Press
MENU
button on the bottom of the Monitor set
to display the
Menu
OSD.
2
Select the "
NextMenu
" button to enter the more
option settings.
3
Enter to
by pressing the ▼ button.
4
Set the options by pressing the ◄ or ► or ▼
buttons.
5
Select
EXIT
to leave the OSD menu.
To return to the upper menu or set other menu items,
use the up arrow ( ) button.
Each option is explained below.

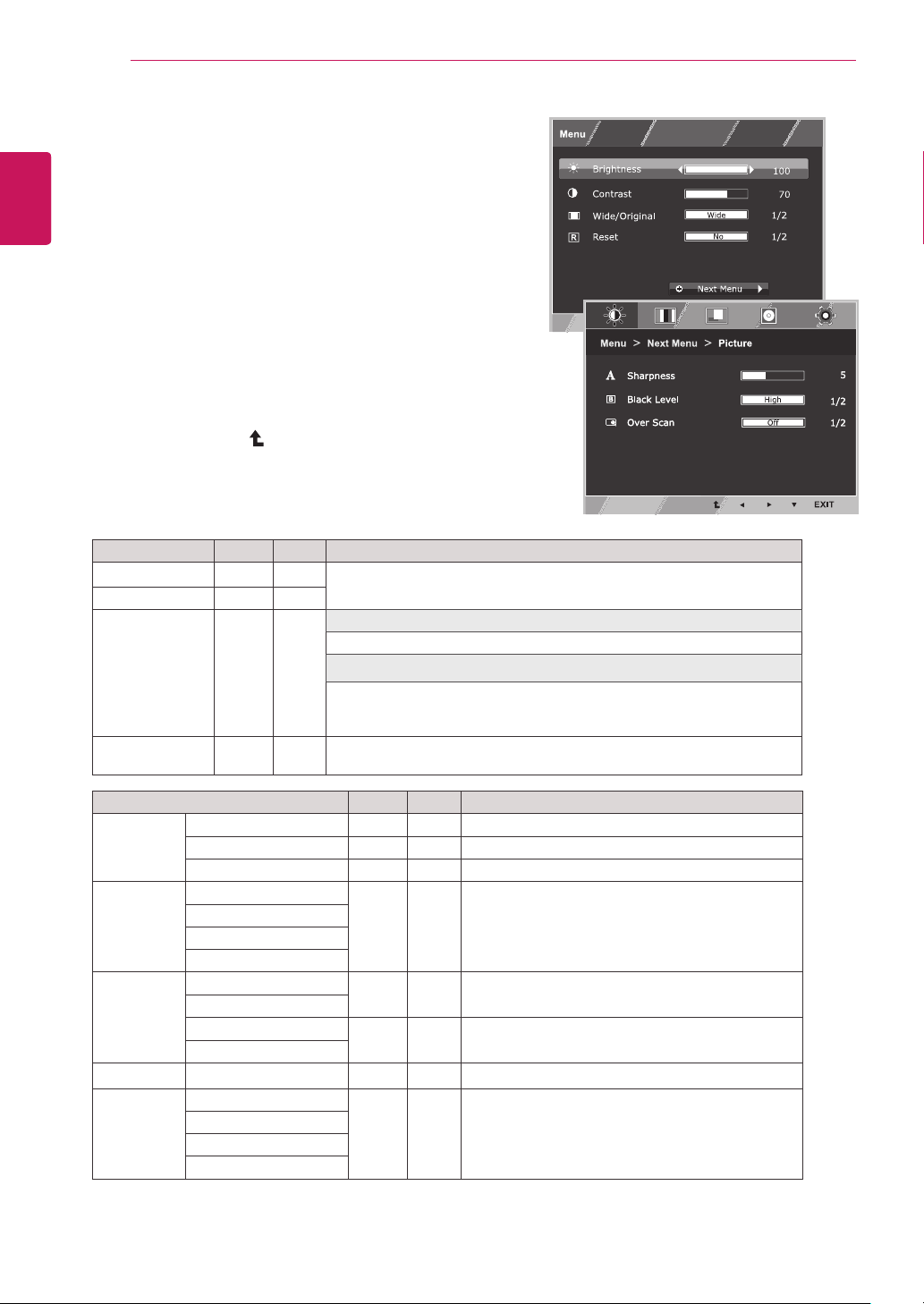

Menu>NextMenu>Picture Description
Sharpness To adjust the clearness of the screen.
BlackLevel You can set the offset level. If you select 'High', the screen will be bright and if
you select ‘Low’, the screen will be dark.(only for HDMI input)
* Offset?As the criteria for video signal, it is the darkest screen the monitor can
show.
OverScan To select the range of output image for DTV timing in HDMI input.(only for HDMI
input)Recommend overscan function to turn on when connect AV equipment.
16
ENG
ENGLISH
CUSTOMIZING SETTINGS
Color
1
Press
MENU
button on the bottom of the Monitor set
to display the
Menu
OSD.
2
Select the "
NextMenu
" button to enter the more
option settings.
3
Select
Color
by pressing the ► button.
4
Enter to
Color
by pressing the ▼ button.
5
Set the options by pressing the ◄ or ► or ▼
buttons.
6
Select
EXIT
to leave the OSD menu.
To return to the upper menu or set other menu items,
use the up arrow ( ) button.
Each option is explained below.
Menu>NextMenu>Color Description
Gamma Set your own gamma value. : Gamma 0, Gamma 1, Gamma 2 on the monitor,
high gamma values display whitish images and low gamma values display
blackish images.
ColorTemp Custom
•Red:
Set your own red color levels.
•Green:
Set your own green color levels.
•Blue:
Set your own blue color levels.
Select the screen color.
Warm:
Set the screen to warm color temperature (more red).
Medium:
Set the screen to medium color temperature.
Cool:
Set the screen to cool color temperature (more blue).
SixColor Sets and stores the hue and saturation for six colors(Red/Green/Blue/Cyan/
Magenta/Yellow) to satisfy the color requirements of a user.
Hue Adjusts the screen hue.
Saturation Adjusts the color sharpness on the screen. Lower values make
the color sharpness weaker and colors lighter while higher
values make the color sharpness stronger and colors dark.
ColorReset Resets the color settings to the factory default settings for the current input
device.
17
ENG
ENGLISH
CUSTOMIZING SETTINGS
Display
1
Press
MENU
button on the bottom of the Monitor set
to display the
Menu
OSD.
2
Select the "
NextMenu
" button to enter the more
option settings.
3
Select
Display
by pressing the ► button.
4
Enter to
Display
by pressing the ▼ button.
5
Set the options by pressing the ◄ or ► or ▼
buttons.
6
Select
EXIT
to leave the OSD menu.
To return to the upper menu or set other menu items,
use the up arrow ( ) button.
Each option is explained below.
Audio
1
Press
MENU
button on the bottom of the Monitor set
to display the
Menu
OSD.
2
Select the "
NextMenu
" button to enter the more
option settings.
3
Select
Audio
by pressing the ► button.
4
Enter to
Volume
by pressing the ▼ button.
5
Set the options by pressing the ◄ or ► buttons.
6
Select
EXIT
to leave the OSD menu.
To return to the upper menu or set other menu items,
use the up arrow ( ) button.
Each option is explained below.

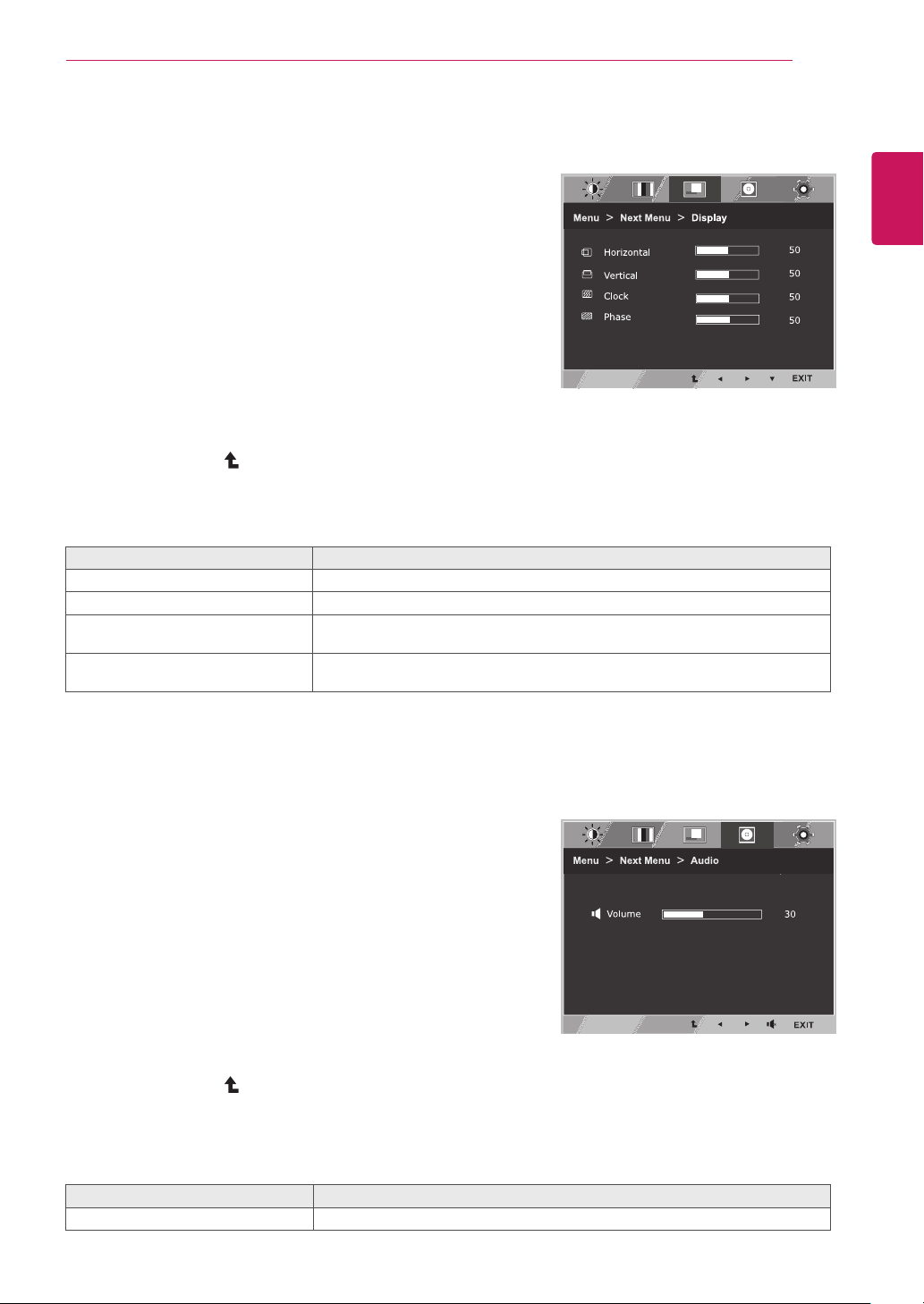

Menu>NextMenu>Display Description
Horizontal To move image left and right.
Vertical To move image up and down.
Clock To minimize any vertical bars or stripes visible on the screen background.The
horizontal screen size will also change.
Phase To adjust the focus of the display. This item allows you to remove any horizontal
noise and clear or sharpen the image of characters.
Menu>NextMenu>Audio Description
Volume To adjust the Volume of headphone/earphone.(Only for HDMI input)
18
ENG
ENGLISH
CUSTOMIZING SETTINGS
Each option is explained below.
Menu>Next
Menu>Others
Description
Language
Chooses the language of the OSD.
PowerIndicator
Activates/deactivates the power indicator LED.
On
The power indicator is automatically turned on.
Off
The power indicator is turned off.
Automatic
Standby
Once the specified standby time passes, the monitor turns off automatically. Pressing any button
or changing the resolution will initialize the standby time.
Off The automatic standby function is turned off.
4H The monitor is automatically turned off after 4 hours.
6H The monitor is automatically turned off after 6 hours.
8H The monitor is automatically turned off after 8 hours.
ResponseTime You can set a response time for displayed pictures based on the speed of the screen. For a
normal environment, it is recommended that you use 'Middle'. For a fast-moving picture, it is
recommended that you use 'High'.
Setting to High may cause image sticking.
Off The response time is turned off.
High
Sets the response time to High.
Middle
Sets the response time to Middle.
Low
Sets the response time to Low.
Others
1
Press
MENU
button on the bottom of the Monitor set
to display the
Menu
OSD.
2
Select the "
NextMenu
" button to enter the more
option settings.
3
Select
Others
by pressing the ► button.
4
Enter to
Others
by pressing the ▼ button.
5
Set the options by pressing the ◄ or ► or ▼
buttons.
6
Select
EXIT
to leave the OSD menu.
To return to the upper menu or set other menu items,
use the up arrow ( ) button.
19
ENG
ENGLISH
CUSTOMIZING SETTINGS
SUPERENERGYSAVING
1
Press
button on the bottom of the Monitor to display the
SUPERENERGYSAVING
OSD.
2
Set the options by pressing the ◄ or ►buttons.
3
Select
EXIT
to leave the OSD menu.
Each option is explained below.
TOTALPOWERREDUCTION
: How much power is saved while using the monitor.
TOTALCO2REDUCTION
: Change the TOTAL POWER REDUCTION to CO2.
SAVINGDATA(W/h)
584 mm
(23 inch)
SUPER SAVING(High)
6 W/h
SUPER SAVING(Low) 3 W/h
Saving Data depends on the Panel. Values will be different from each panel and panel vendor.
LG calculated these values by using a
“broadcastvideosignal”
(including broadcast video: IEC 62087)
SUPER SAVING refers to how much power can be saved using the SUPER ENERGY SAVING
function.
NOTE
SUPERENERGYSAVING Description
High
Enables SUPER ENERGY SAVING you can save energy with this energy- high efficient function.
Low
Enables SUPER ENERGY SAVING you can save energy with this energy- low efficient function.
Off Disables SUPER ENERGY SAVING.
Reset Resets the values of total energy consumption reduction and CO2 emission reduction
estimates.
20
ENG
ENGLISH
CUSTOMIZING SETTINGS
Each option is explained below.

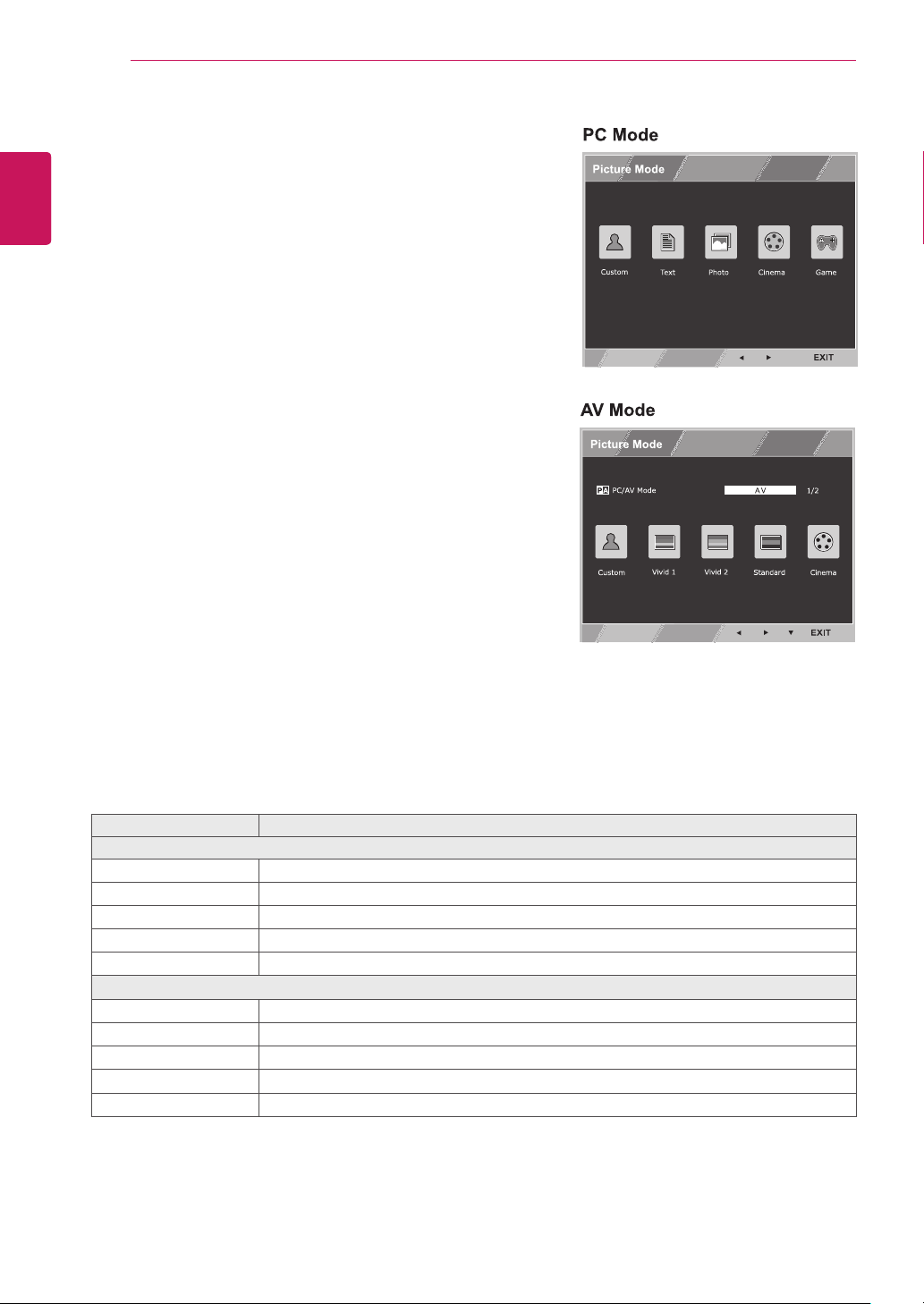

PictureMode Description
PCMode
Custom
Allows the user to adjust each element. The color mode of the main menu can be adjusted.
Text
Optimizes the screen for document processing.
Optimizes the screen to view photos.
Cinema
Optimizes the screen to improve the visual effects of a video.
Game
Optimizes the screen for gameplay.
AVMode(OnlyforHDMIinput)
Custom
Allows the user to adjust each element. The color mode of the main menu can be adjusted.
Vivid1
Optimizes the screen for vivid visual effects.
Vivid2
Optimizes the screen for more vivid visual effects.
Standard
Optimizes the screen to display normal picture quality.
Cinema
Optimizes the screen to improve the visual effects of a video.
PictureMode
1
Press
MODE
button on the bottom of the Monitor set to
display the
PictureMode
OSD.
2
Set the options by pressing the ◄ or ►buttons.
3
Select
EXIT
to leave the OSD menu.
21
ENG
ENGLISH
TROUBLESHOOTING
TROUBLESHOOTING
Nothingisdisplayedonthescreen.
Is the monitor's power cord plugged
in?
Check if the power cord is correctly plugged in to the power outlet.
Is the power indicator on?
Check the power cable connection and press the power button.
Is the power indicator displaying
red?
Check that the connected input is enabled (Menu - Input).
Is the power indicator blinking?
If the monitor is in power-saving mode, move the mouse or press any key on
the keyboard to switch the display on.
Check if the computer is turned on.
Is the "OUT OF RANGE" message
displayed?
This occurs when signals transferred from the PC (video card) are out of the
horizontal or vertical frequency range of the monitor. Please see the "Product
Specification" section of this manual to set the appropriate frequency.
Is the "CHECK SIGNAL CONNEC-
TION" message is displayed?
This is displayed when the signal cable between the PC and the monitor is
missing or disconnected. Check the cable and reconnect.
Doyouseea"OSDLOCKED"messageonthescreen?
Do you see “OSD LOCKED” when
you push MENU button?
You can secure the current control settings, so that they cannot be inadvertently
changed. You can unlock the OSD controls at any time by pushing the MENU
button for several seconds: the message “OSD UNLOCKED” will appear.
Thescreenretainsanimage.
Does image sticking occur even
when the monitor is turned off?
Displaying a still image for a prolonged time may cause damage to the screen,
resulting in the retention of the image.
Use a screen saver to protect the screen when using the monitor for a pro-
longed period of time.
VerticalFrequency:
In order to display an image, the screen must be refreshed dozens of times per second like a
fluorescent lamp.
The number of times the screen is refreshed per second is called vertical frequency or refresh rate and is repre-
sented by Hz.
HorizontalFrequency:
The time it takes to display one horizontal line is called the horizontal cycle. The number
of horizontal lines displayed in one second can be calculated by dividing one by the horizontal cycle. This is called
horizontal frequency and is represented by kHz.
NOTE
Touchdoesnotworknormally.
Touch does not work at all.
Check whether the USB cable is properly connected to the PC.
(No additional USB touch program installation is required.)
Check your operating system. The touch function is supported only on
Windows 7 and Windows 8.
Theimageonthescreenlooksstrange.(Itworksonlyinanalogmode.)
Does the screen area appear un-
centered?
Pressing the AUTO button will automatically optimize the screen to the current
display mode.
Do you see vertical lines on the
screen?
Pressing the AUTO button will automatically optimize the screen to the current
display mode.
Do you see horizontal noise lines
or does text appear blurred on the
screen?
Pressing the AUTO button will automatically optimize the screen to the current
display mode.
22
ENG
ENGLISH
TROUBLESHOOTING
Check
ControlPanel►Display►Settings
and see if the frequency or the resolution were changed. If yes,
readjust the video card to the recommend resolution.
If the recommended resolution (optimal resolution) is not selected, letters may be blurred and the screen may be
dimmed, truncated or biased. Make sure to select the recommend resolution.
Settings can differ between computer and O/S (Operation System), and resolution mentioned above may not be
supported by every video card. For graphics card related issues or to obtain the newest driver, refer to the maker
of your graphics card.
CAUTION
Thedisplaycolorisabnormal.
Does the display appear discolored
(16 color)?
Set the color to 24 bit (true color) or higher. In Windows, go to Control Panel >
Display > Settings > Color Quality.
Does the display color appear un-
stable or in monochrome?
Check if the signal cable is connected properly. Reconnect the cable or reinsert
the PC's video card.
Are there spots on the screen?
When using the monitor, pixilated spots (red, green, blue, white or black) may
appear on the screen. This is normal for the LCD screen. It is not an error nor
is it related to the monitor's performance.
Doyouseean"Unrecognizedmonitor,Plug&Play(VESADDC)monitorfound"message?
Have you installed the display
driver?
Be sure to install the display driver from the display driver CD (or diskette) that
comes with your display. Or, you can also download the driver from our web
site: http://www.lg.com.
Make sure to check if the video card supports Plug&Play function.
Thescreenisflickering.
Did you select the recommended
resolution?
If the selected resolution is HDMI
1080i
60/50 Hz, the screen may be flickering.
Change the resolution to the recommended resolution
1080P
.
HDMI

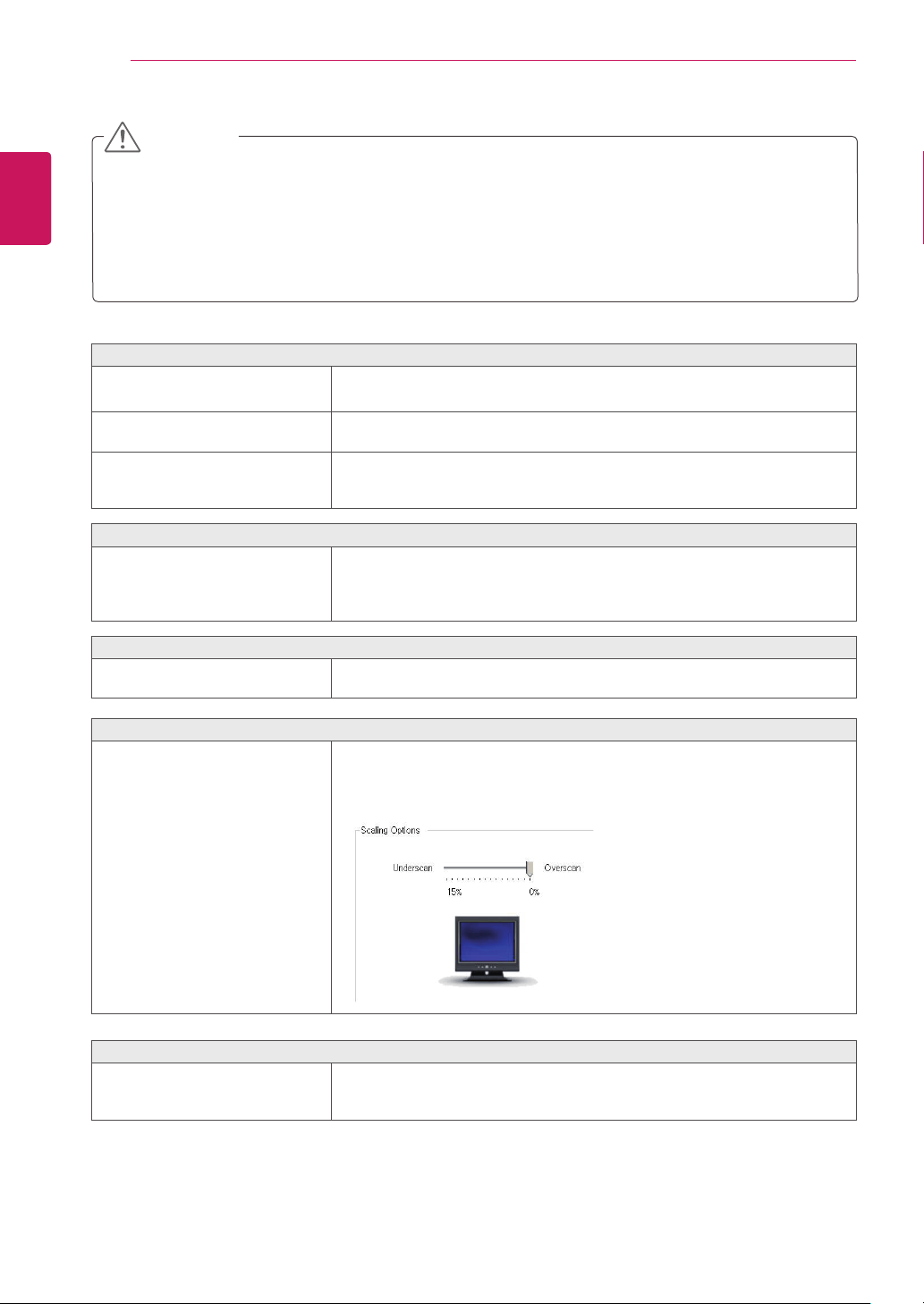

The picture cannot be displayed in
full screen in HDMI mode.
Did you change the Scaling Options for your video card?
The HDMI Scaling Options of the AMD/ATI video card is set to Underscan by
default so the picture cannot be displayed in full screen.
Run Catalyst Control Center and set the Scaling Options to 0% Overscan.
WindowsTouchkeyboard
Do you open Windows Touch
keyboard?
You can open or close the relation setting in Windows control board.
You can also use keyboard input and hand writing on Touch keyboard.
Please refer to the detail information from Windows Help.
23
ENG
ENGLISH
TROUBLESHOOTING

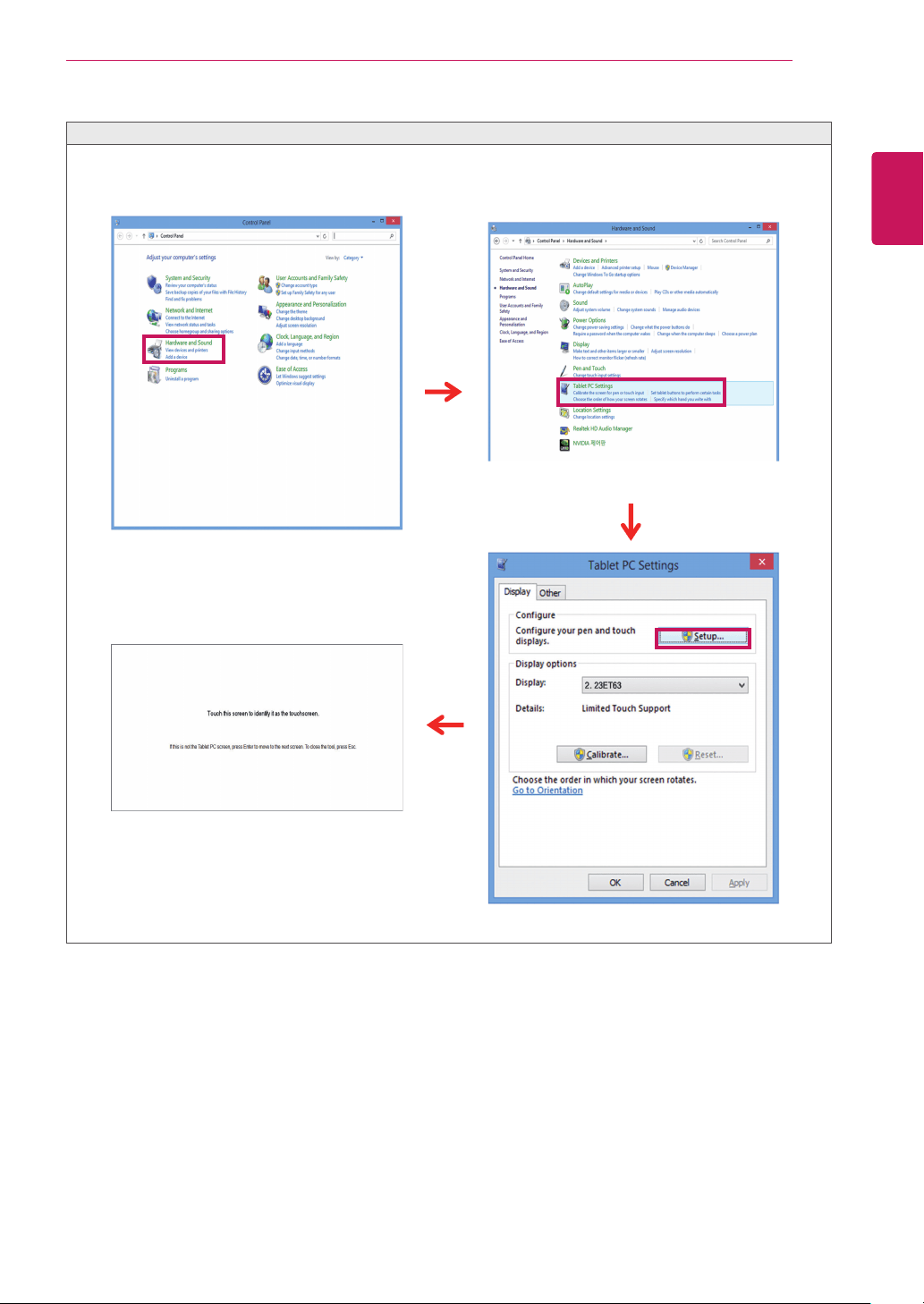

Touch does not respond when the desktop is extended to a second touch monitor.
In Windows 7 and Windows 8, you can configure the second monitor as the touch screen as shown below.
(Control Panel -> Hardware and Sound -> Tablet PC Settings -> Setup -> Setup and click the screen of the second
touch monitor)
<Control Panel -> Hardware and Sound>
<Setupandclickthescreenofthesecond
touchmonitor>
<Tablet PC Settings>
<Setup>
24
ENG
ENGLISH
SPECIFICATIONS
SPECIFICATIONS
LCD Screen Type
TFT (Thin Film Transistor) LCD (Liquid Crystal Display)
Panel,Anti-Glare coating
58.4 cm visible diagonal (23 inch)
Pixel Pitch 0.2652 mm x 0.2652 mm
Resolution Maximum Resolution D-Sub (Analog) : 1920 x 1080 @ 60 Hz
HDMI : 1920 x 1080 @ 60 Hz
Recommended Resolution 1920 x 1080 @ 60 Hz
Video Signal
Horizontal Frequency 30 kHz to 83 kHz
Vertical Frequency 56 Hz to 75 Hz (D-Sub)
56 Hz to 61 Hz (HDMI)
Synchronization Separate Sync. / HDMI
Input Connector 15 pin D-SUB Connector / HDMI Connector
Power Voltage
19 V 1.2 A
Power consumption (Typ.) On mode: 25 W (Typ.)
Power Saving Mode ≤ 0.3 W
Off Mode ≤ 0.3 W
AC/DC adaptor
Type ADS-40SG-19-3 19025G, manufactured by SHENZHEN HONOR ELECTRONIC
or Type ADS-40FSG-19 19025GPG-1, manufactured by SHENZHEN HONOR ELECTRONIC
or Type ADS-40FSG-19 19025GPBR-1, manufactured by SHENZHEN HONOR ELECTRONIC
or Type ADS-40FSG-19 19025GPI-1,manufactured by SHENZHEN HONOR ELECTRONIC
or Type ADS-40FSG-19 19025GPCU-1, manufactured by SHENZHEN HONOR ELECTRONIC
or Type ADS-40FSG-19 19025GPB-2, manufactured by SHENZHEN HONOR ELECTRONIC
or Type LCAP21, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE
or Type LCAP26-A, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE
or Type LCAP26-E, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE
or Type LCAP26-I, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE
or Type LCAP26-B, manufactured by LIEN CHANG ELECTRONIC ENTERPRISE
or Type PSAB-L203A, manufactured by LG Innotek Co.,Ltd
or Type PSAB-L202B, manufactured by LG Innotek Co.,Ltd
or Type PSAB-L202C, manufactured by LG Innotek Co.,Ltd
or Type PSAB-L202D, manufactured by LG Innotek Co.,Ltd
Output: 19 V 1.3 A
Dimension/
Weight
Monitor Size (Width x Height x Depth)
55.5 cm x 33.8 cm x 5.3 cm
Weight (Without Packag-
ing)
4.4 kg
Stand Angle
Adjustment
Forwards/Backwards: 15° to 58° (Head)
Environmental
Conditions
Operating Condition Temperature: 10°C to 35°C; Humidity: 10% to 80%
Storing Condition Temperature: -20°C to 60°C; Humidity: 5% to 90%
The specifications are subject to change without notice.
25
ENG
ENGLISH
SPECIFICATIONS
PresetModes(Resolution)
DisplayModes(Resolution)
Horizontal
Frequency(kHz)
Vertical
Frequency(Hz)
Polarity(H/V)
720 x 400 31.468 70 -/+
640 x 480 31.469 60 -/-
640 x 480 37.500 75 -/-
800 x 600 37.879 60 +/+
800 x 600 46.875 75 +/+
1024 x 768 48.363 60 -/-
1024 x 768 60.023 75 +/+
1152 x 864 67.500 75 +/+
1280 x 1024 63.981 60 +/+
1280 x 1024 79.976 75 +/+
1680 x 1050 65.290 60 -/+
1920 x 1080 67.500 60 +/+ Recommend Mode
HDMITIMING
DisplayModes(Resolution)
Horizontal
Frequency(kHz)
Vertical
Frequency(Hz)
HDMI
480P 31.50 60 O
576P 31.25 50 O
720P 37.50 50 O
720P 45.00 60 O
1080i 28.12 50 O
1080i 33.75 60 O
1080P 56.25 50 O
1080P 67.50 60 O (Recommend Mode)
Indicator
Mode LEDColor
On Mode Red
Sleep Mode Blinking Red
Off Mode Off
26
ENG
ENGLISH
PROPER POSTURE
PROPERPOSTURE
ProperPostureforUsingtheMonitor
Adjust the screen so that you can comfortably view at a slight downward angle from your natural eye level.
Take a break for approximately ten minutes every hour to reduce any fatigue caused by long-time us-
age.
The stand of the touch monitor allows the product to be used in the optimum position.
Adjust the stand angle from 15° to 58° to obtain the best view of the screen.
You should be looking
slightly down at the screen.
Place your hands gently
on the keyboard, keep- keep-keep-
ing your arms bent at
the elbows and extend- and extend-and extend-
ed horizontally in front
of you.
Adjust the angle
15° to 58°
So that there is no
reflection or glare from
the screen.
Make sure to read the Safety Precautions before
using the product.
Keep the Owner’s Manual (CD) in an accessible
place for future reference.
The model and serial number of the SET is
located on the back and one side of the SET.
Record it below should you ever need service.
MODEL
SERIAL
*above information is only for USA FCC Regulatory
Declaration of Conformity
Trade Name: LG
Model : 23ET63VB
Responsible Party: LG Electronics Inc.
Address : 1000 Sylvan Ave. Englewood Cliffs
NJ 07632 U.S.A
TEL: 201-266-2534
As an ENERGY STAR Partner LGE
U. S. A.,Inc. has determined that this
product meets the ENERGY STAR
guidelines for energy efficiency.
ENERGY STAR is a set of power-saving
guidelines issued by the U.S.Environmental
Protection Agency(EPA).
