GEAppliances.com
Refrigerators
Bottom Freezer
239D4106P009 49-60683 01-13 GE
Safety Instructions ............2, 3
Operating Instructions
Features ..........................4, 5
Controls ..........................6–9
Dispenser* .........................10
Autofill* ............................11
Water Filter ........................12
Fresh Food Storage Options .....13,14

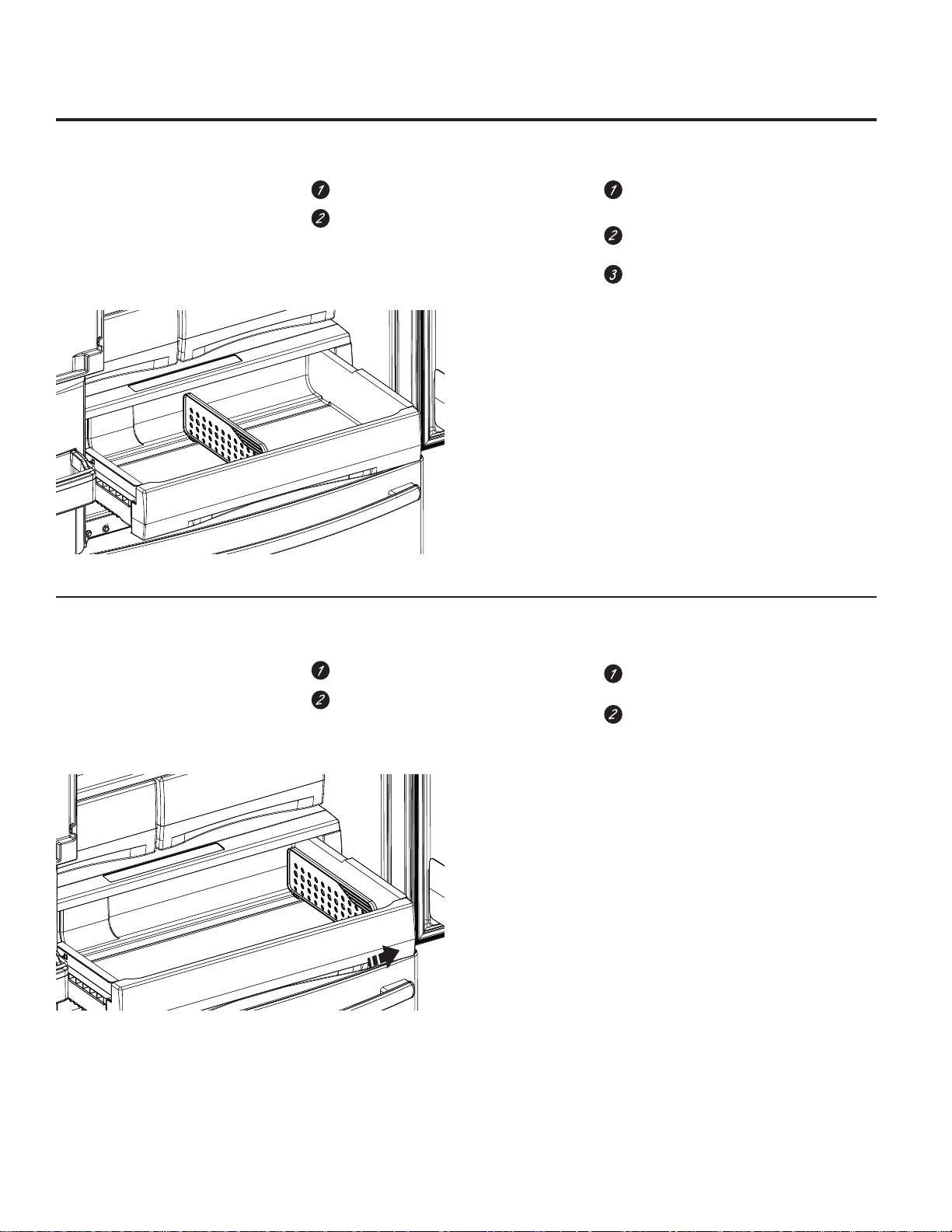

Climate Zone & Temperature
Controlled Drawer ...............15,16

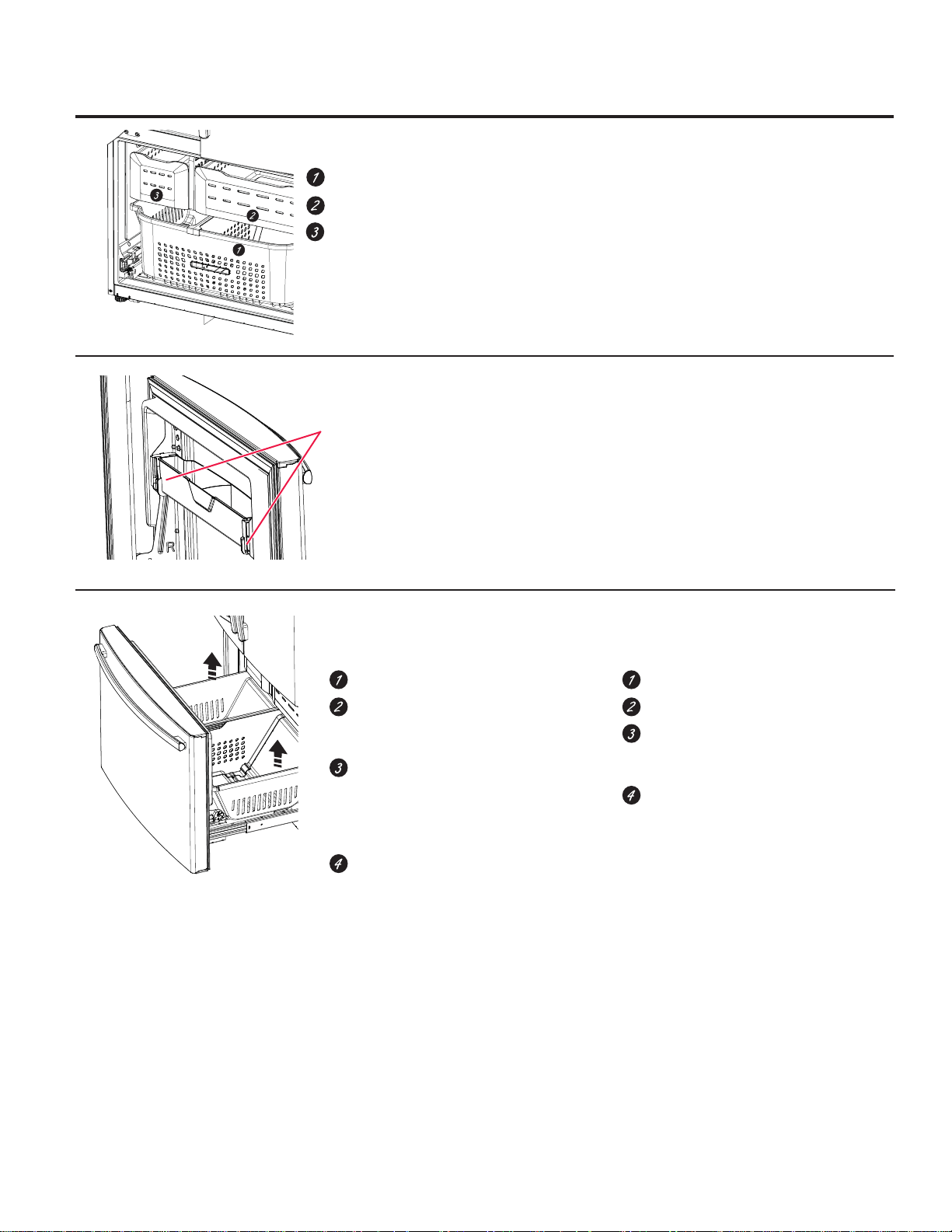

Freezer ............................17
Automatic Ice maker ...............18
Care and Cleaning ................ 19
Replacing the Lights ................20
Installation Instructions

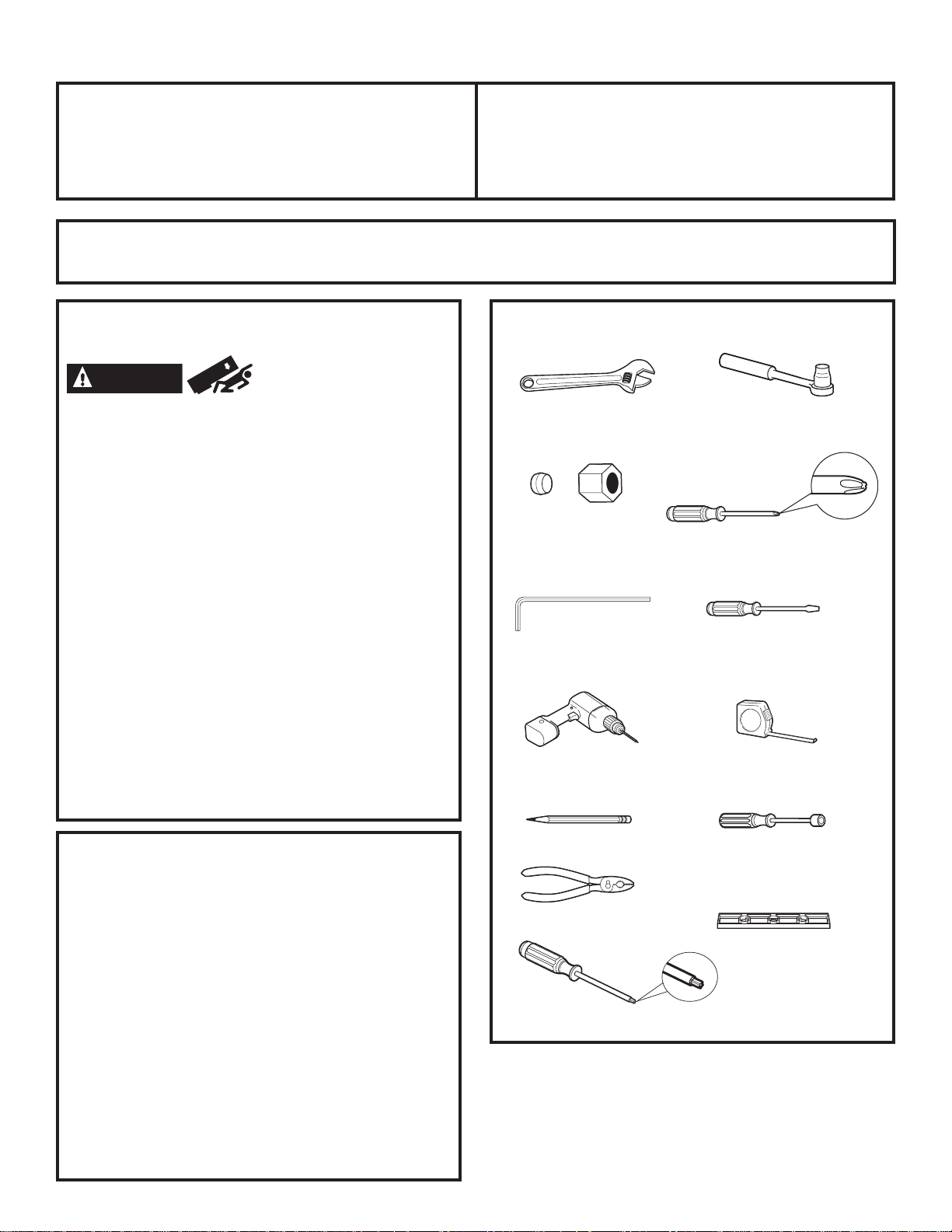

Preparing to Install the
Refrigerator ....................21, 22

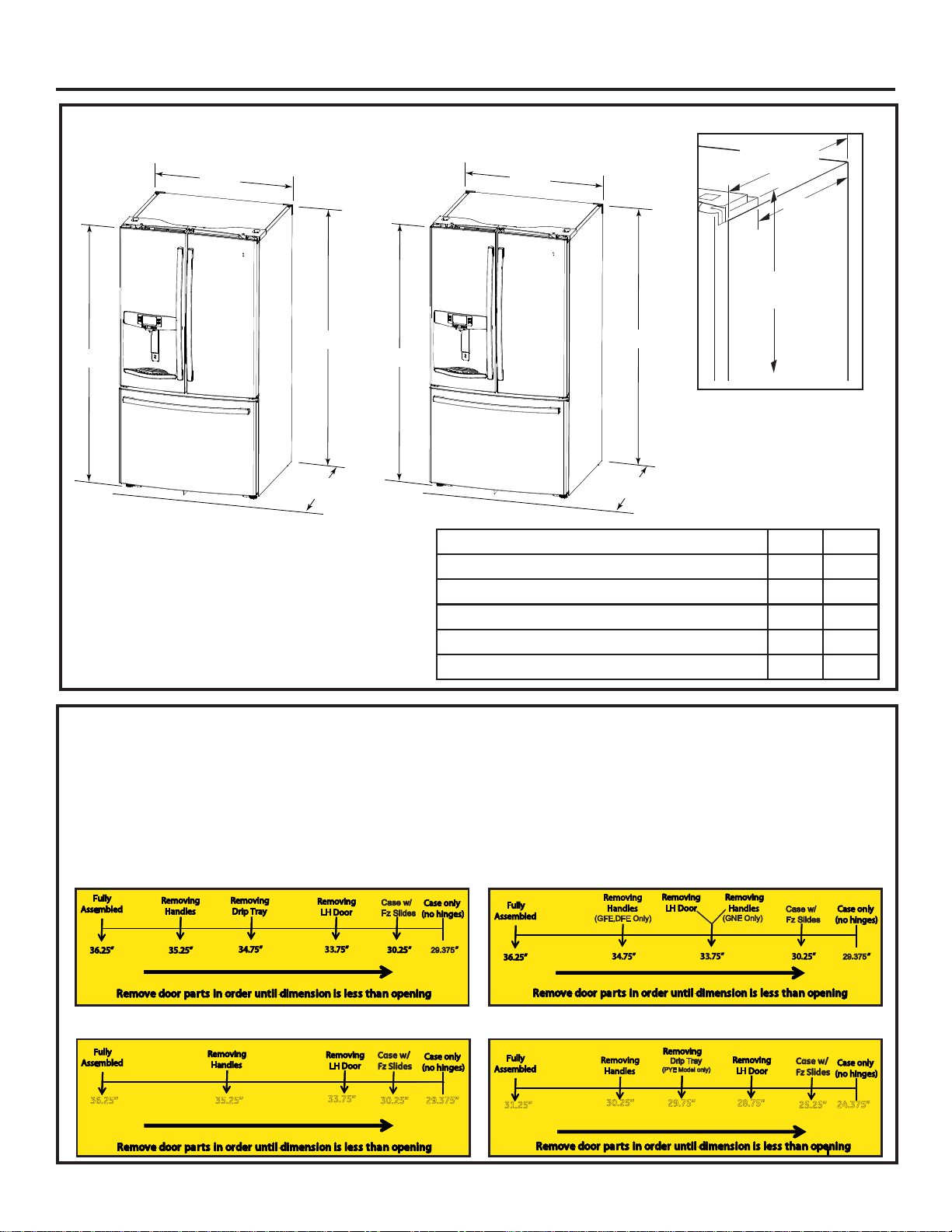

Installing the Refrigerator .......23–33
Installing the Water Line ........34–36
Troubleshooting Tips ......38, 39
Normal Operating Conditions .......37
Truth or Myth ..................40, 41
Consumer Support
GE
Brillion™ Get Connected
Starter Kit. . . . . . . . . . . . . . . . . . . . . . . . .42
Warranty for U.S. Customers ........43
RPWF Water Filter Cartridge Limited
Warranty .........................44
Performance Data Sheet ...........45
State of California Water Treatment
Device Certificate .................46
Consumer Support ........Back Cover
Write the model and serial
numbers here:
Model # ____________________
Serial # ____________________
Find these numbers on a label
on the left side, near the middle
of the refrigerator compartment.
GE and GE Profile™ models
Models that start with PFE, GFE, DFE,
and GNE are Standard Depth Models (SD)
Models that start with PYE and PWE
are Counter Depth Models (CD)
Owner’s Manual and
Installation Instructions
Lock
Control
Water
Cubed
Auto
Fill
Precise
Fill
Light
*Select Models Only
IMPORTANT SAFETY INFORMATION.
READ ALL INSTRUCTIONS BEFORE USING.
2
IMPORTANT SAFETY INFORMATION READ ALL INSTRUCTIONS BEFORE USING
GE Appliances website
For more information on your refrigerator’s operation, visit
www.GEAppliances.com
This refrigerator must be properly installed and located in
accordance with the Installation Instructions before it is used.
Unplug the refrigerator before cleaning and making repairs.
NOTE: Repairs must be performed by a qualified Service
Professional.
Replace all parts and panels before operating.
Because of potential safety hazards under certain conditions, we
strongly
recommend against the use of an extension cord. However, if you
must use an extension cord, it is absolutely necessary that it be a
UL-listed (in the United States) or a CSA certified (in Canada), 3-wire
grounding type appliance extension cord having a grounding type
plug and outlet and that the electrical rating of the cord be 15
amperes (minimum) and 120 volts.
To prevent suffocation and entrapment hazards to children,
Remove the fresh food and freezer doors from any refrigerator
before disposing of it or discontinuing its use.
Do not store or use gasoline or other flammable vapors and
liquids in the vicinity of this or any other appliance.
Power to the refrigerator cannot be disconnected by any
setting on the control panel, refrigerator must be unplugged to
remove power.
Do not allow children to climb, stand or hang on the door handles
or the shelves in the refrigerator. They could seriously injure
themselves.
In refrigerators with automatic ice makers, avoid contact with
the moving parts of the ejector mechanism, or with the heating
element that releases the cubes. Do not place fingers or hands
on the automatic ice making mechanism while the refrigerator is
plugged in.
Do not clean glass shelves or covers with warm water when
they are cold. Glass shelves and covers may break if exposed
to sudden temperature changes or impact, such as bumping or
dropping. Tempered glass is designed to shatter into many small
pieces if it breaks.
Keep fingers out of the “pinch point” areas; clearances between
the doors and between the doors and cabinet are necessarily
small. Be careful closing doors when children are in the area.
Do not touch the cold surfaces in the freezer compartment when
hands are damp or wet, skin may stick to these extremely cold
surfaces.
Do not refreeze frozen foods which have thawed completely.
Use a sturdy glass when dispensing ice (on models with ice
dispenser)
This is the safety alert symbol. This symbol alerts you to potential hazards that can kill or hurt you and others. All safety
messages will follow the safety alert symbol and the word “DANGER”, “WARNING”, or “CAUTION”. These words are defined as:
Indicates a hazardous situation which, if not avoided, will result in death or serious injury.
Indicates a hazardous situation which, if not avoided, could result in death or serious injury.
Indicates a hazardous situation which, if not avoided, could result in minor or moderate injury.
IMPORTANT SAFETY INSTRUCTIONS
To reduce the risk of fire, explosion, electric shock, or injury when using your
refrigerator follow these basic safety precautions:

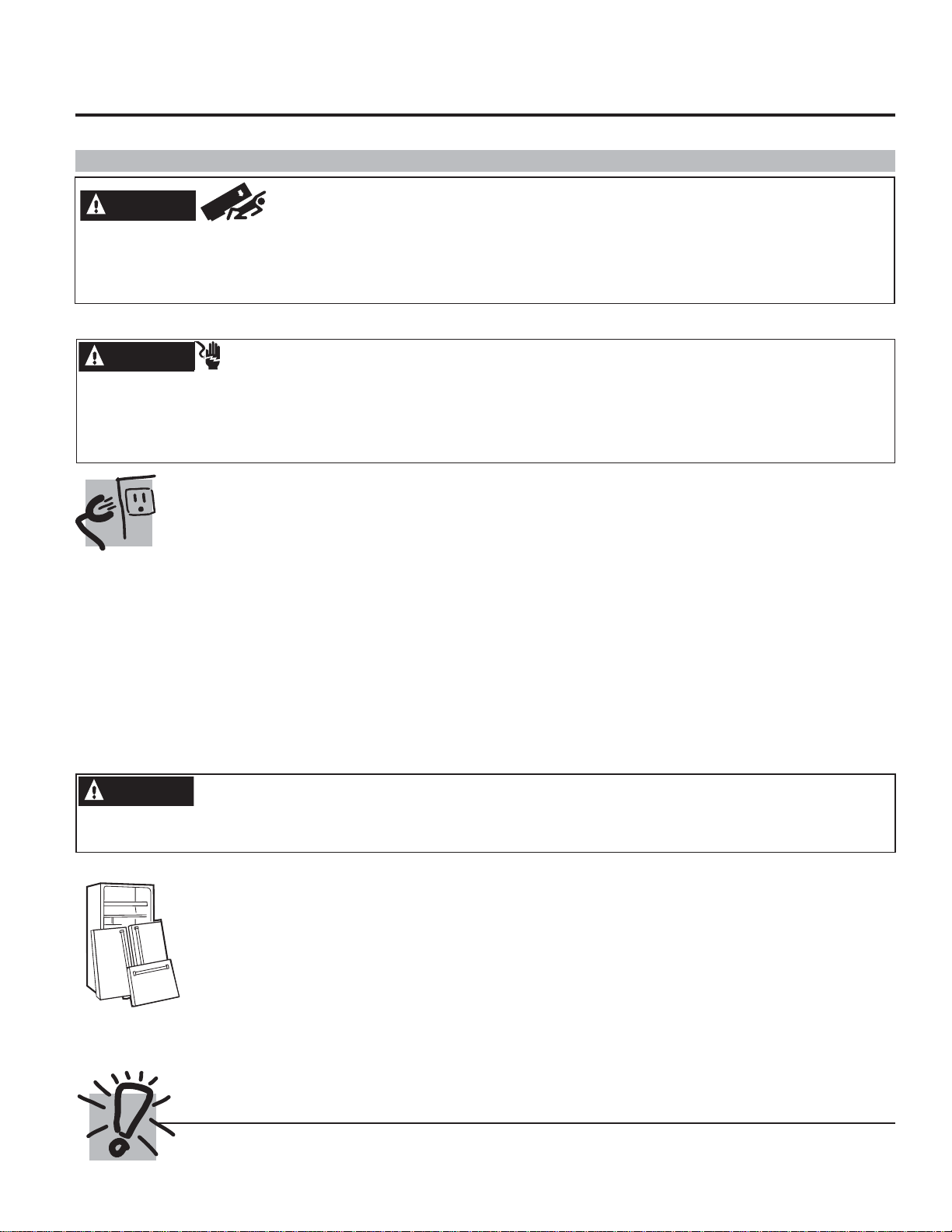

REFRIGERATOR SAFETY INFORMATION
SAFETY
WARNING
WARNING
DANGER
CAUTION
WARNING
Explosion Hazard.
Keep flammable materials and vapors, such as gasoline, away from refrigerator. Failure to do so can
result in fire, explosion, or death.
INSTALLATION
3
GEAppliances.com
READ AND FOLLOW THIS SAFETY INFORMATION CAREFULLY.
SAVE THESE INSTRUCTIONS
WARNING
Suffocation and child entrapment hazard.
Remove fresh-food and freezer doors from the refrigerator, prior to disposal. Failure to do so can
result in child entrapment which can lead to death or brain damage.
Child entrapment and suffocation are not problems of the past.
Junked or abandoned refrigerators are still dangerous even if
they will sit for “just a few days.” If you are getting rid of your old
refrigerator, please follow the instructions below to help prevent
accidents.
Before You Throw Away Your Old Refrigerator or
Freezer:
Take off the fresh food and freezer doors.
Leave the shelves in place so that children may not easily climb
inside.
Refrigerants
All refrigeration products contain refrigerants, which under
federal law must be removed prior to product disposal. If you
are getting rid of an old refrigeration product, check with the
company handling the disposal about what to do.
PROPER DISPOSAL OF YOUR OLD REFRIGERATOR
Do not, under any circumstances, cut or remove the third (ground) prong from the power cord.
For personal safety, this appliance must be properly grounded.
The power cord of this appliance is equipped with a 3-prong
(grounding) plug which mates with a standard 3-prong
(grounding) wall outlet to minimize the possibility of electric
shock hazard from this appliance.
Have the wall outlet and circuit checked by a qualified
electrician to make sure the outlet is properly grounded.
Where a standard 2-prong wall outlet is encountered, it is
your personal responsibility and obligation to have it replaced
with a properly grounded 3-prong wall outlet. Do not use an
adapter.
The refrigerator should always be plugged into its own
individual electrical outlet which has a voltage rating that
matches the rating plate.
A 115 Volt AC, 60 Hz, 15- or 20-amp fused, grounded electrical
supply is required. This provides the best performance and
also prevents overloading house wiring circuits which could
cause a fire hazard from overheated wires.
Never unplug your refrigerator by pulling on the power cord.
Always grip plug firmly and pull straight out from the outlet.
Repair or replace immediately all power cords that have
become frayed or otherwise damaged. Do not use a cord that
shows cracks or abrasion damage along its length or at either
end.
When moving the refrigerator away from the wall, be careful
not to roll over or damage the power cord.
IMPORTANT:
CONNECTING ELECTRICITY
WARNING
Electrical Shock Hazard.
Plug into a grounded 3-prong outlet
Do not remove the ground prong
Do not use an adapter
Failure to follow these instructions can result in death, fire, or electrical shock.
SAFETY (CONT.)
WARNING
Tip Over Hazard.

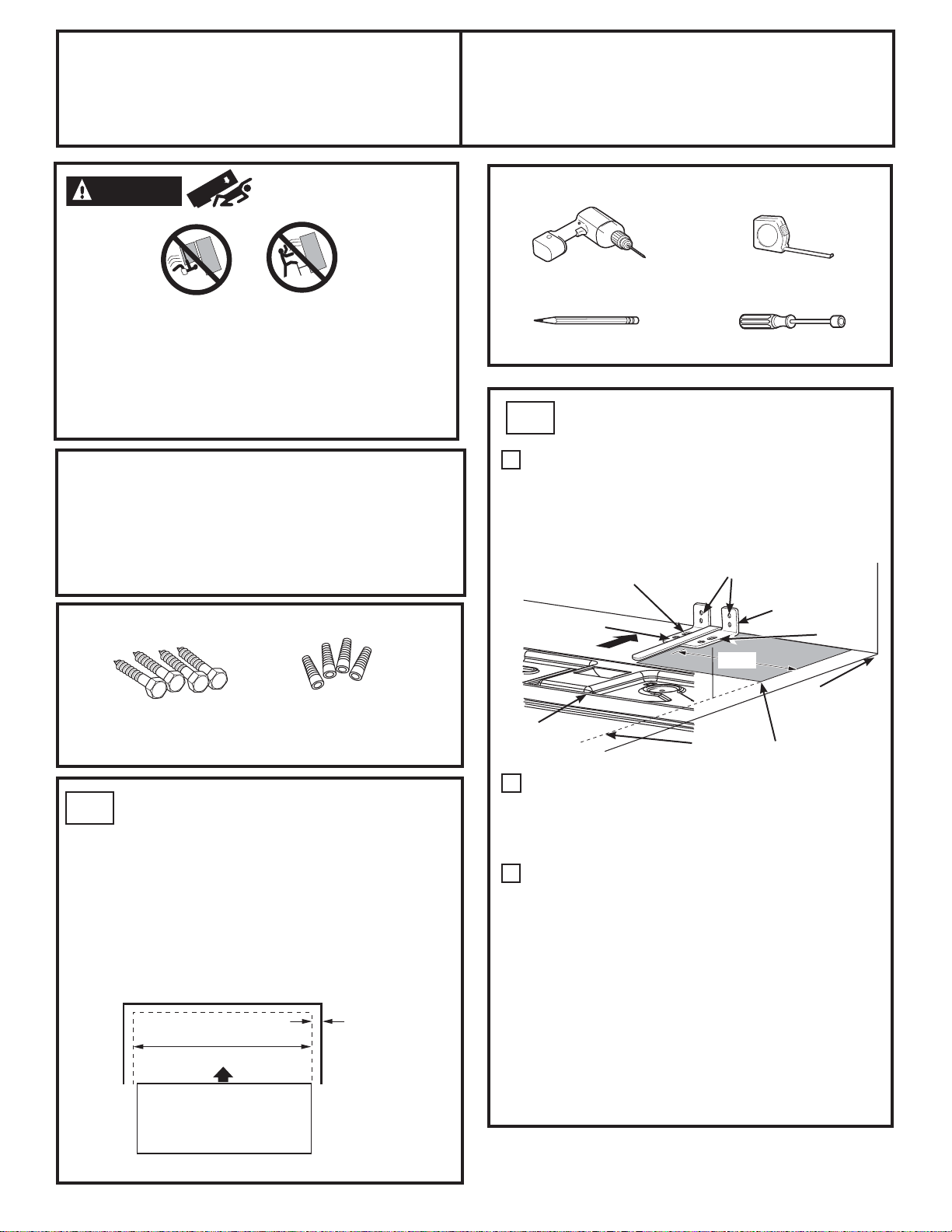

Built-in style models (model PYE, CYE, and PWE) are top heavy, especially with any doors open. These
models must be secured with the anti-tip floor bracket to prevent tipping forward, which could result
in death or serious injury. Read and follow the entire installation instructions for installing the anti-tip
floor bracket packed with your refrigerator.

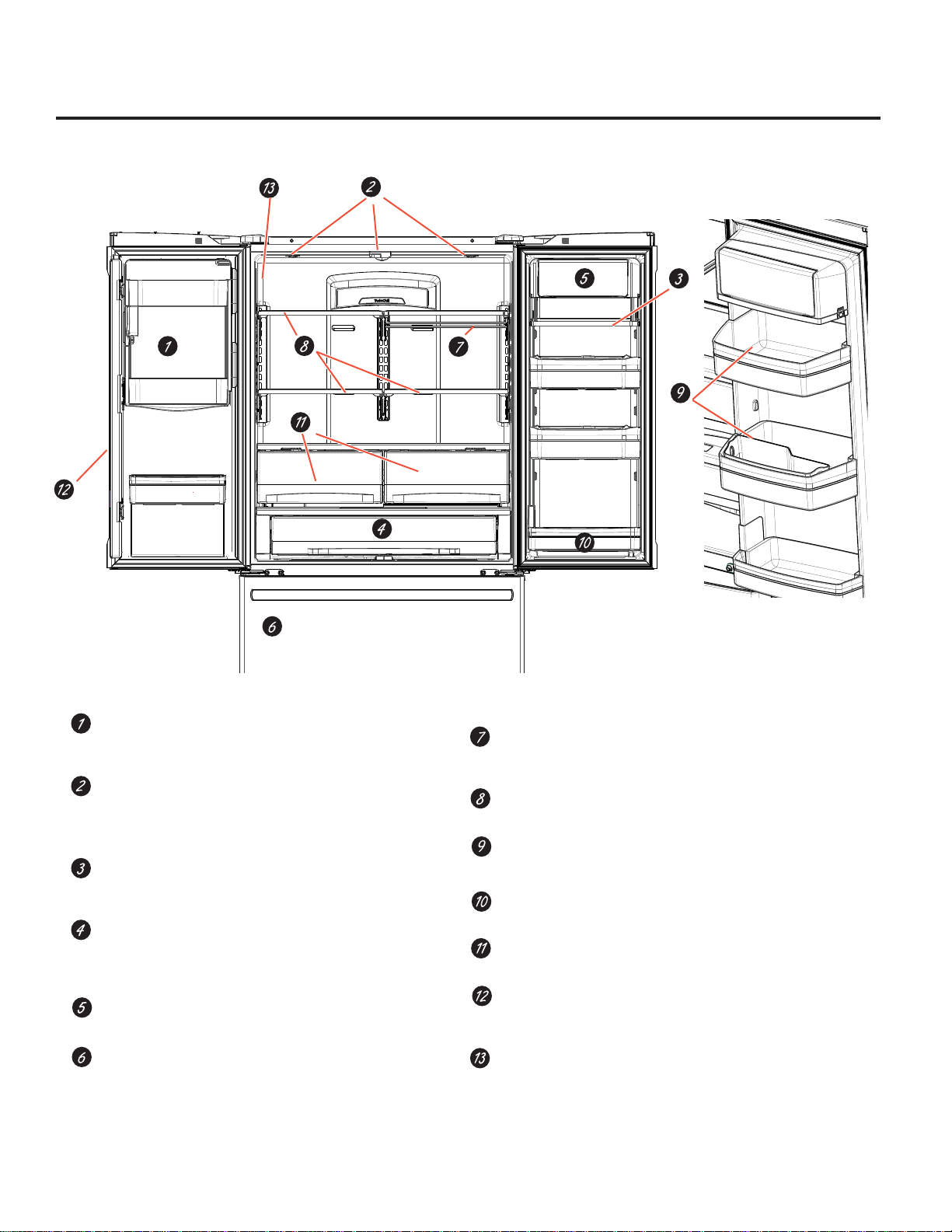

Space-saving ice maker*
Ice maker and bin are located on the door creating more usable
storage space.
Showcase LED lighting
LED lighting is positioned throughout the interior to spotlight areas
in the refrigerator. LEDs are located under the fresh food door to
light the freezer when opened.
Drop-down tray*
Allows for extra door storage when you need it and tucks away
when you don’t.
Full-width temperature controlled drawer
(on some models)
Adjustable temperature control bin that can accommodate
larger items.
Dairy bin
Separate compartment for your items.
Dual ice maker/utility bin (on some models)
An ice maker in both compartments gives you
more ice whenever you need it or a utility bin designed
for flexible storage.
QuickSpace™ shelf
Functions as a normal full-sized shelf when needed and easily slides
back to store tall items below.
Spillproof shelves
Designed to capture your spills for easier clean up.
Removable condiment bin
Separate bin designed for easy removal and storage.

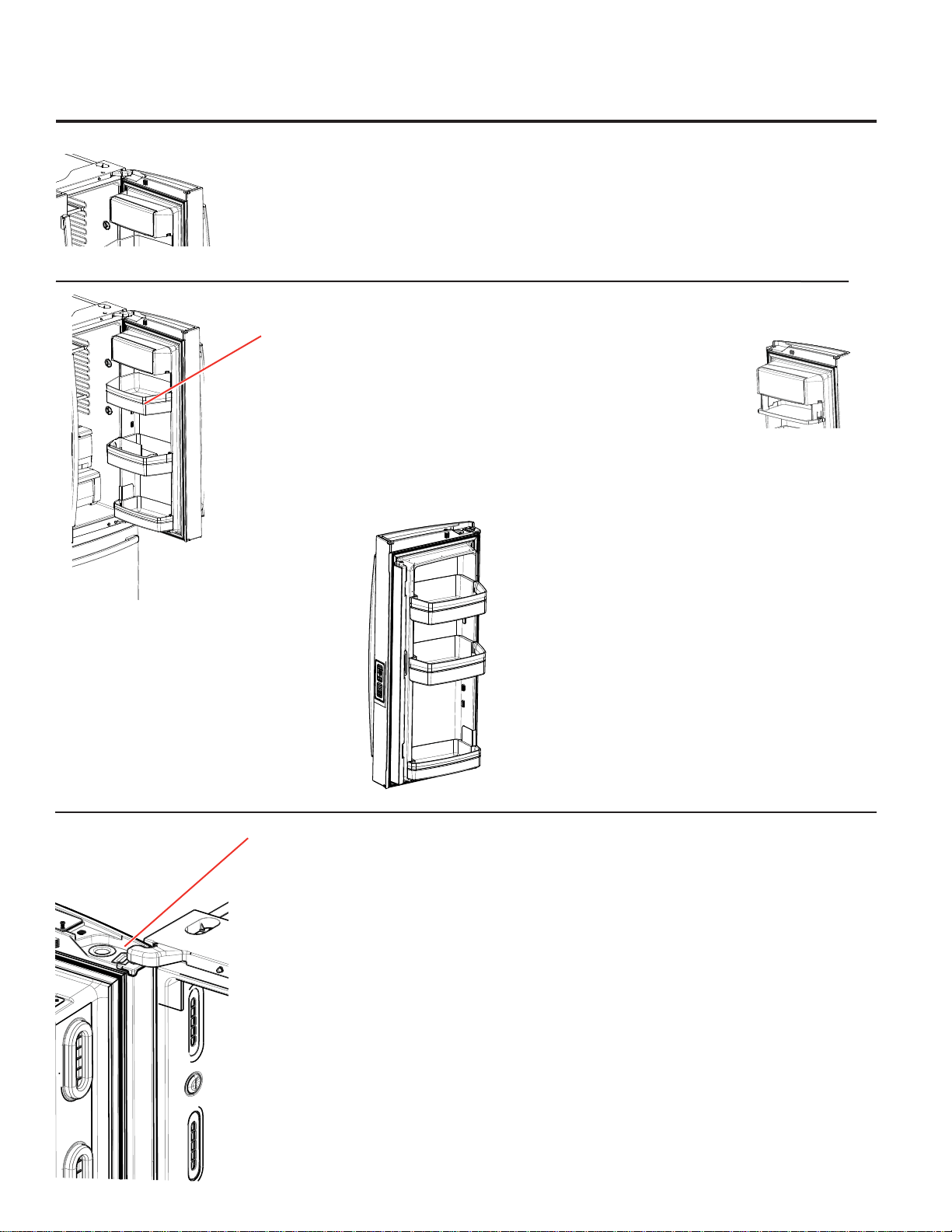

Removable door bin
Can be removed for those with a wall limiting the door opening.
Climate zone bin
Separate bins for produce storage.
In-the-door filter*
Located in the door for more available space in the fresh-food section
and easy replacement.
Water filter*
Filters water & Ice
4
About the features. *
*Select Models Only
5

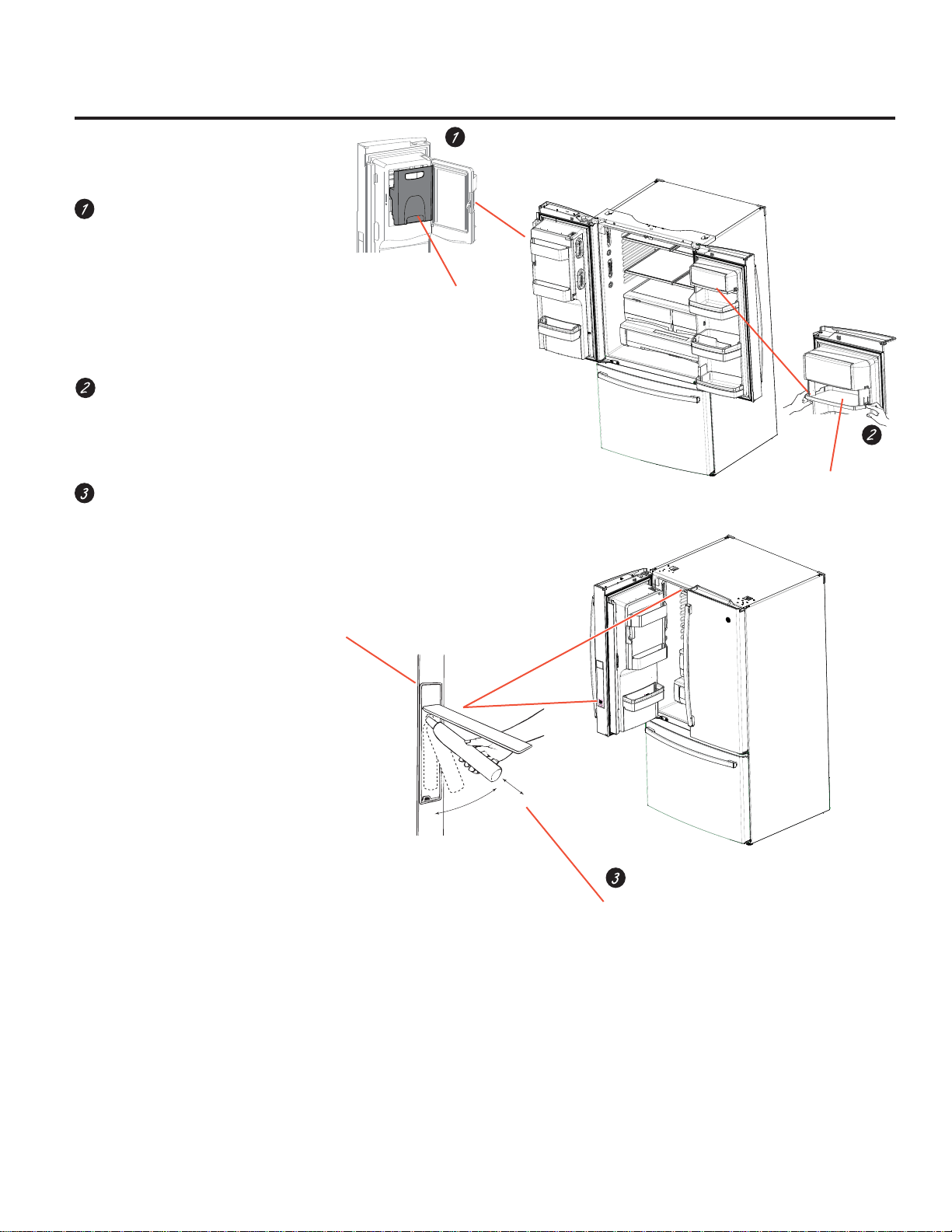

Door ice bin*
1. Open left fresh food door.
2. Pull down latch to release bin door.
3. Using handhold lift ice bucket up and
out to clear locators in bottom of bin.
4. To replace the ice bucket, set it on the
guide brackets and push until the ice
bucket seats properly.
5. If bucket cannot be replaced, rotate
the Ice Bucket Fork 1/4 turn clockwise.
Drop down dairy bin*
1. Open right fresh food
2. Depress both buttons on lower sides
and bin will drop down.
3. Reverse to reinstall.
Door ice/water filter
Remove filter/bypass plug
Push the indent on the cover and open
filter door. Pull up on filter/bypass plug
and pull straight out to remove.
Installing the filter cartridge
Push the indent at the bottom of the
cover and open. Lift door and align tabs
on filter to filter/holder and push filter into
place.
Filter cover is designed to be
reinstalled if accidently removed
Drop down tray
(tray open)
Ice bucket
Latch
Swing
Push/Pull
Water & Ice Filter (in door or case)
About the features. * GEAppliances.com
Do not twist
*Select Models Only
Swing
Push/Pull

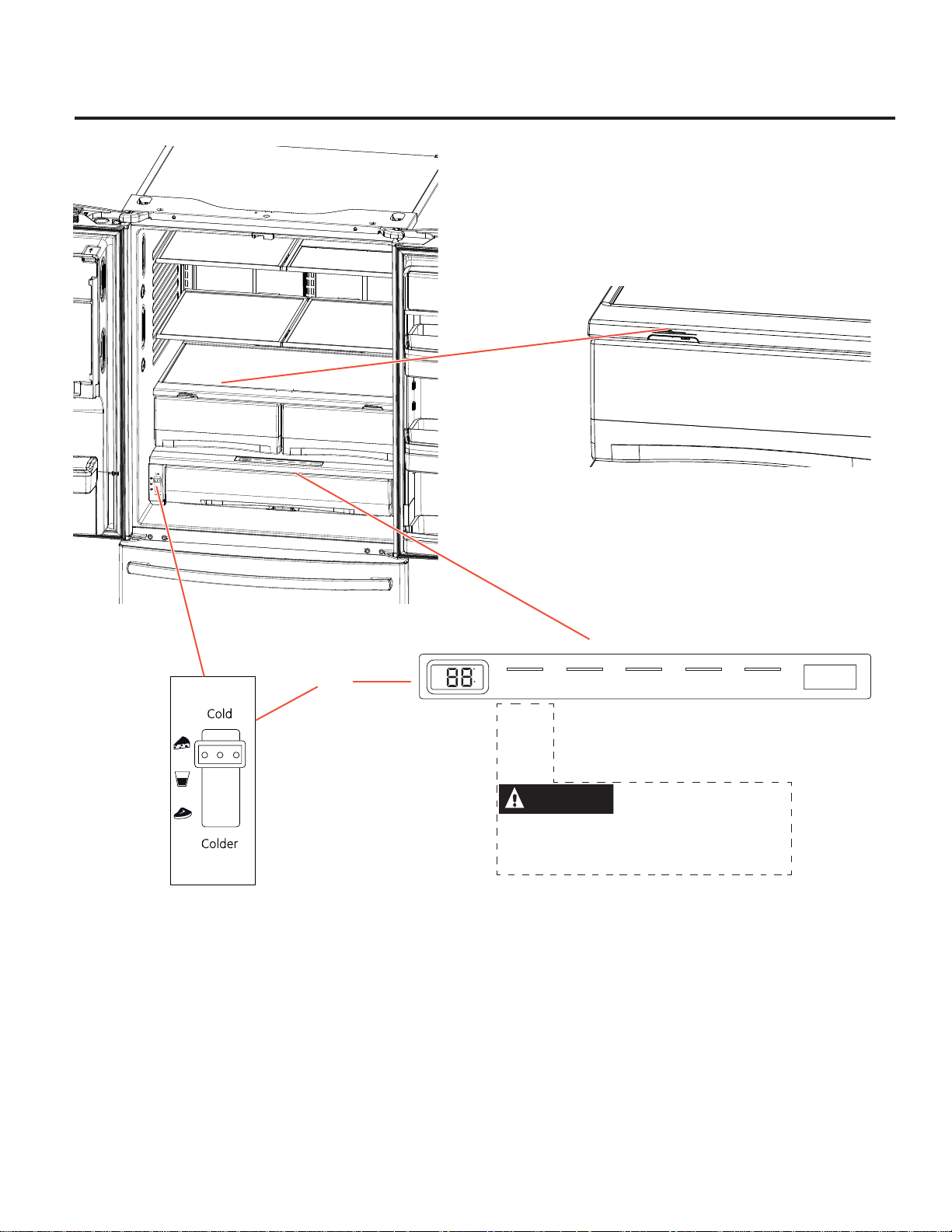

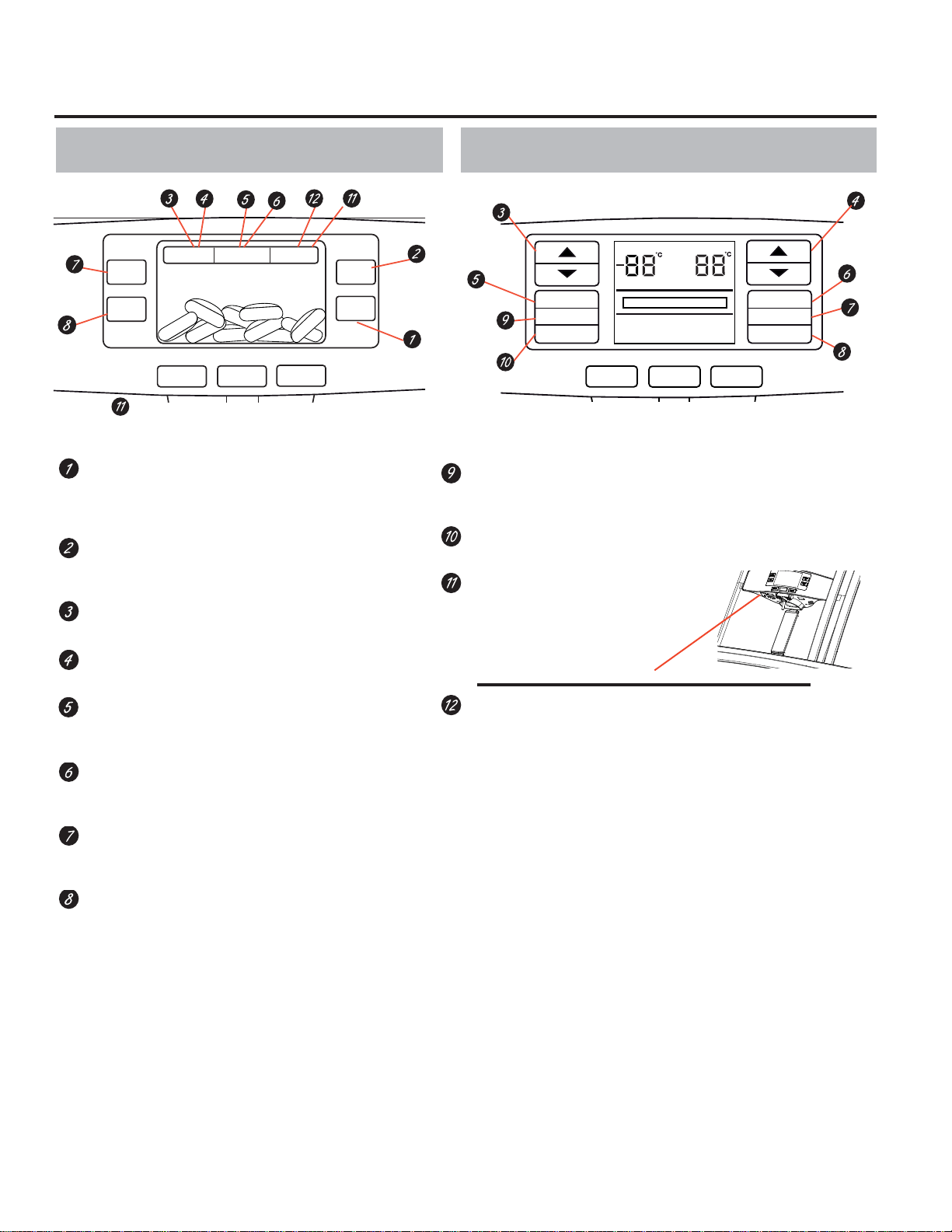

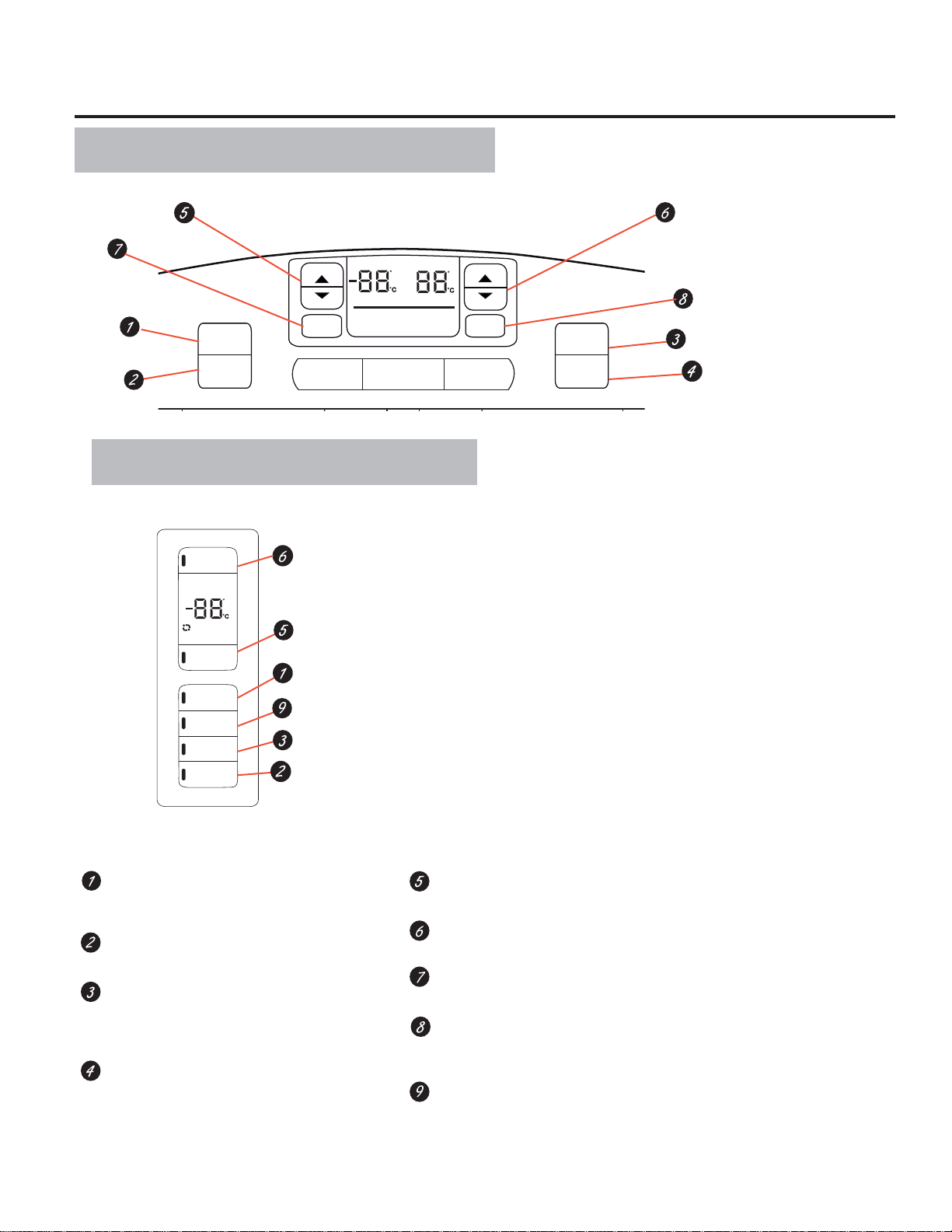

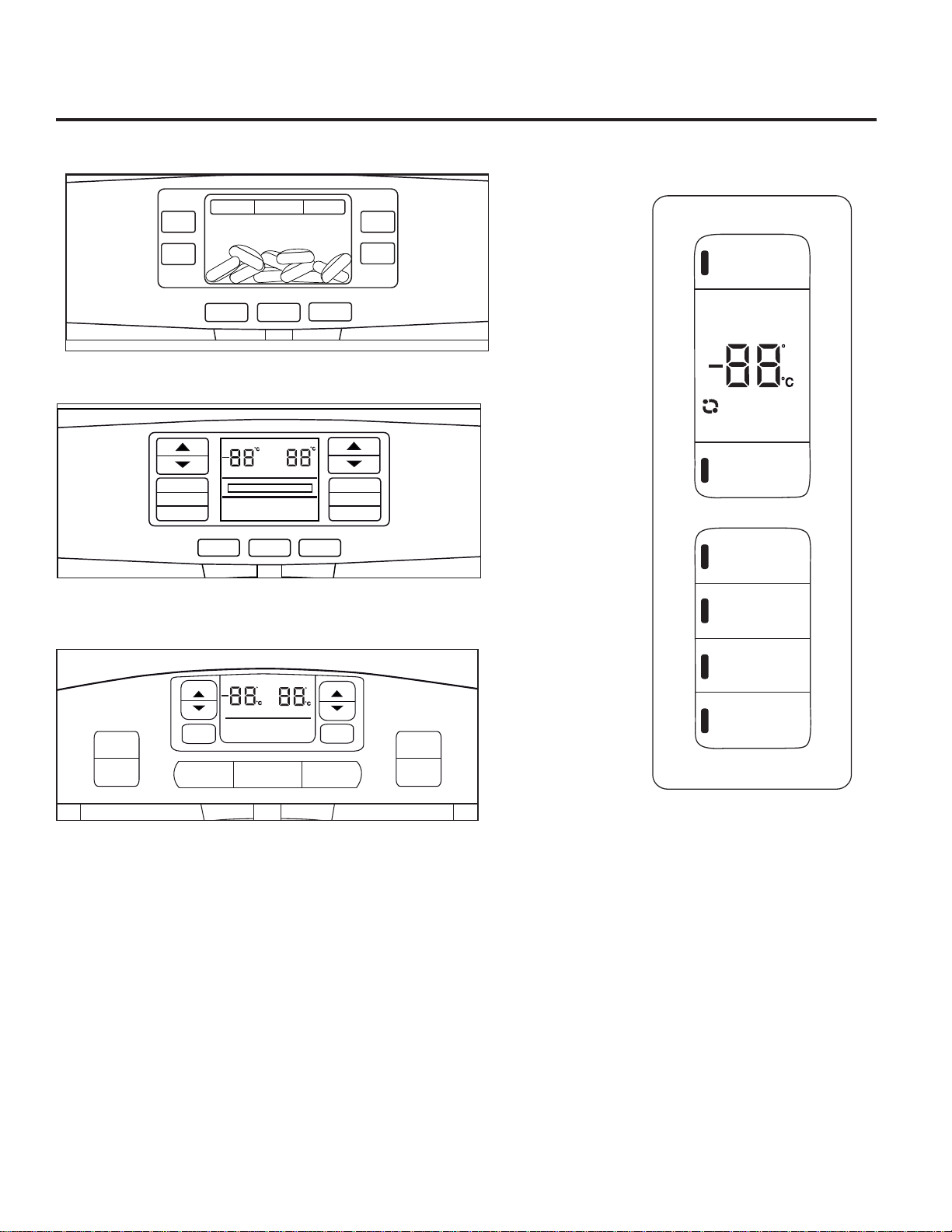

About the controls with temperature settings.
The temperature controls are preset in the factory at 37°F for the refrigerator compartment and 0°F for the freezer
compartment. Allow 24 hours for the temperature to stabilize to the preset recommended settings.
The temperature controls can display both the SET temperature as well as the actual temperature in the refrigerator and
freezer. The actual temperature may vary slightly from the SET temperature based on usage and operating environment.
NOTE: The refrigerator is shipped with protective film covering the temperature controls.
If this film was not removed during installation, remove it now.
Freezer
Refrigerator
F
F
Actual Temp Hold 3 sec Set Temp
Ice Top
Ice Bottom
ON OFF
ON OFF
EnergySmart
Replace Water Filter
Door
Alarm
Reset
Filter
Ice
Maker
Turbo
Cool
Lock
Controls
Dispenser
Light
Water
Crushed
Cubed
Turbo Cool
Lock Controls
Light
Turbo Freeze
Door Alarm
Reset Filter
Freezer
Refrigerator
Actual Temp Set Temp
Replace Water Filter
Water
Crushed
Cubed
PFE27, PYE23K Control Style B, LCD External Control
Cubed
Express Mode
Settings
Precise Fill
Control
Lock
Light
Auto Fill
Water
Crushed
Cubed
Temperature
PFE29,PYE23P Control Style A, LCD External Control
GFE29, GFE27, DFE29 Control Style C, External Control
GNE26, PWE23 Control Style D, Internal Control
Refrigerator
Hold 3 Sec for °F/°C
Hold 3 Seconds
Hold 3 Seconds
Recommended: 37 °F
Actual Set
Energy Smart
Energy Smart Override
Hold 3 Seconds
Freezer
Door Alarm
Ice Maker
Lock Controls
Reset Filter
Recommended: 0°F
F
6
Changing the Temperature for Control Style A
To Change the Refrigerator Temperature:
Access By: Temperature Button
Activate By: Below the word “Refrigerator”, use the
arrows to select the desired temperature. Press
DONE when finished to return to HOME screen.
To Change the Freezer Temperature:
Access By: Temperature Button
Activate By: Below the word “Freezer”, use the arrows to
select the desired temperature.
Press DONE when finished to return to HOME screen.
Changing the Temperature for Control Style B
To change the temperature, press and release the
pad. The ACTUAL TEMP light will come on and the display
will show the actual temperature. To change the
temperature, tap either the pad until the desired
temperature is displayed.
Changing the Temperature for Control Style C
To change the temperature, press and release the
pad. The ACTUAL TEMP light will come on and the display
will show the actual temperature. To change the
temperature, tap either the pad until the desired
temperature is displayed.
Changing Temp. for Control Style D
Temperature Display is located on inside of left-hand
refrigerator door. To change the temperature, press and
release the REFRIGERATOR or FREEZER pad. The ACTUAL
TEMP light will come on and the display will show the actual
temperature. To change the temperature, tap either the
REFRIGERATOR or FREEZER pad until the desired
temperature is displayed.
To turn OFF cooling system, access SETTINGS from the
HOME screen. Page over and tap COOLING SYSTEM ON.
Press DONE to return to HOME screen.
To turn ON cooling system, access SETTINGS from the HOME
screen. Page over and tap COOLING SYSTEM OFF. Press
DONE to return to HOME screen.
Turning the cooling system off stops the cooling to
refrigerator, but it does not shut off the electrical power.
To turn OFF cooling system, press and hold the Freezer
pads simultaneously for 3 seconds. When the cooling
system is OFF the display should read 0 FF.
To turn ON cooling system, press either pad. The
display will show ON and then the actual temperature for the
refrigerator and the freezer. Turning the cooling system OFF
stops the cooling to the refrigerator, but it does not shut OFF
the electrical power.
To turn OFF cooling system, press and hold the Freezer
pads simultaneously for 3 seconds. When the cooling
system is OFF the display should read OFF.
To turn ON cooling system, press either
pad. The
display will show the preset temperature settings of 37°F for
refrigerator and 0°F for freezer. Turning the cooling system
off stops the cooling to refrigerator, but it does not shut off
the electrical power.
To turn OFF cooling system, press and hold the
REFRIGERATOR and FREEZER pads simultaneously for 3
seconds. When the cooling system is OFF the display should
read OFF.
To turn ON cooling system, press either REFRIGERATOR or
FREEZER pad. The display will show the preset temperature
settings of 37°F for refrigerator and 0°F for freezer. Turning
the cooling system off stops the cooling to refrigerator, but it
does not shut off the electrical power.
7
About the controls with temperature settings. GEAppliances.com
Temperature
Temperature
NOTE: For optimal temperature performance, we recommend to avoid placing food items directly at the air flow vents of the
fresh food air tower and thus blocking the air flow.
8
Turbo Cool
Lock Controls
Light
Turbo Freeze
Door Alarm
Reset Filter
Freezer
Refrigerator
Actual Temp Set Temp
Replace Water Filter
Water
Crushed
Cubed
Hands-free Autofill*
Hands-free Autofill uses sensors to monitor
container height to automatically dispense filtered
water without having to activate the paddle.
PreciseFill setting*
Precisely dispenses filtered water in accurate measurements
in ounces, cups, quarts, or liters using paddle.
Refrigerator temp control
Adjust freezer compartment temperature.
Fresh food temp control
Adjust fresh food compartment temperature.
TurboFreeze™ setting
Activate TurboFreeze to quickly restore freezer
temperatures after frequent door openings.
TurboCool™ setting
Activate TurboCool to quickly restore fresh food
temperature after frequent door openings.
Lock controls
Press and hold 3 seconds to lock out ice and water dispenser
and all feature and temperature buttons.
LED dispenser light
LED lighting that can be turned on/off to light your dispenser.
Door Alarm
Sounds to alert when the freezer or fresh food doors
have been left open.
Reset filter
Press and hold for 3 seconds after replacing the filter.
Photo upload*
Insert USB memory stick to upload personal
photos to the refrigerator LCD screen.
LCD will provide on screen prompts to load
and view slideshow.
USB Cover
Additional settings:
Photo upload and delete
Slideshow
Connected Home ready
5HVHWZDWHUfilter
Ice maker on/off
Door alarm
Sound control
Cooling system On/Off
Metric/English units
$XWRILOOYLGHRWXURULDO
Additional Modes
Sabbath Mode
Press and hold lock & light simultaneously for 3 seconds to
enter/exit Sabbath mode.
Activate Sabbath Mode to turn off interior lights, temperature
control and advanced features. Compressor will run on a timed
defrost when in Sabbath mode.
Cubed
Express Mode
Settings
Precise Fill
Control
Lock
Light
Auto Fill
Water
Crushed
Cubed
Temperature
Control Style B, External Controls
PFE27, PYE23K
Control Style A, External Controls
PFE29, PYE23P
About the controls - features.
*Select Models Only
9
About the controls - features.* GEAppliances.com
Freezer
Refrigerator
F
F
Actual Temp Hold 3 sec Set Temp
Ice Top
Ice Bottom
ON OFF
ON OFF
EnergySmart
Replace Water Filter
Door
Alarm
Reset
Filter
Ice
Maker
Turbo
Cool
Lock
Controls
Dispenser
Light
Water
Crushed
Cubed
Control Style C, External Controls
GFE29, GFE27,
DFE29
Refrigerator
Hold 3 Sec for °F/°C
Hold 3 Seconds
Hold 3 Seconds
Recommended: 37 °F
Actual Set
Energy Smart
Energy Smart Override
Hold 3 Seconds
Freezer
Door Alarm
Ice Maker
Lock Controls
Reset Filter
Recommended: 0°F
F
Controls Style D, Internal Controls
GNE26, PWE23
Door Alarm
Sounds to alert when the freezer or fresh food
doors have been left open.
Reset Filter
Hold for 3 seconds after replacing filter.
Lock Controls
Press and hold 3 seconds to lock out ice
and water dispenser and all
feature and temperature buttons.
LED dispenser light
LED lighting that can be turned on/off to light
your dispenser.
Freezer temp control
Adjust freezer compartment temperature
Refrigerator temp control
Adjust fresh food compartment temperature
Dual ice maker control*
Turn your ice makers on/off.
TurboCool™ setting
Activate TurboCool to quickly restore refrigerator
temperature after frequent door openings.
Ice maker setting
Turn your ice makers on/off.
*Select Models Only
Lock
Control
W
a
ter
Cubed
Auto
Fill
Precise
Fill
Lig
h
t
10
About the dispenser.*
Dispenser tray
Important Facts About Your Dispenser
Do not add ice from trays or bags to the door ice maker
bucket. It may not crush or dispense.
Avoid overfilling glass with ice and use of narrow glasses.
Backed-up ice can jam the chute or cause the door in the
chute to freeze shut. If ice is blocking the chute remove the ice
bucket, poke it through with a wooden spoon.
Beverages and foods should not be quick-chilled in the
door ice maker bin. Cans, bottles or food packages in the
storage drawer may cause the ice maker or auger to jam.
To keep dispensed ice from missing the glass, put the glass
close to, but not touching, the dispenser opening.
Some crushed ice may be dispensed even though you
selected CUBED ICE. This happens occasionally when a few
cubes accidentally get directed to the crusher.
After crushed ice is dispensed, some water may drip from the
chute.
Sometimes a small mound of snow will form on the door in the
ice chute. This condition is normal and usually occurs when you
have dispensed crushed ice repeatedly. The snow will eventually
evaporate.
If no water is dispensed when the refrigerator is first installed,
there may be air in the water line system. Press the dispenser
paddle for at least five minutes to remove trapped air from the
water line and to fill the water system. To flush out impurities in
the water line, throw away the first six full glasses of water.
To remove Dispenser Tray
Pull Dispenser Tray out until it stops.
Locate tab in the center on the bottom and push up.
Pull Dispenser Tray assembly out.
Lift metal Dispenser Tray out at center notch to clean.
To reinstall Dispenser Tray
Place the Dispenser Tray cover on top of catch tray and
position under the two plastic retainers on either side.
Center Dispenser tray, and align with center guides.
Push in until it firmly in place.
Water & Ice Dispenser
(See About the controls
with temperature settings &
About the control features)

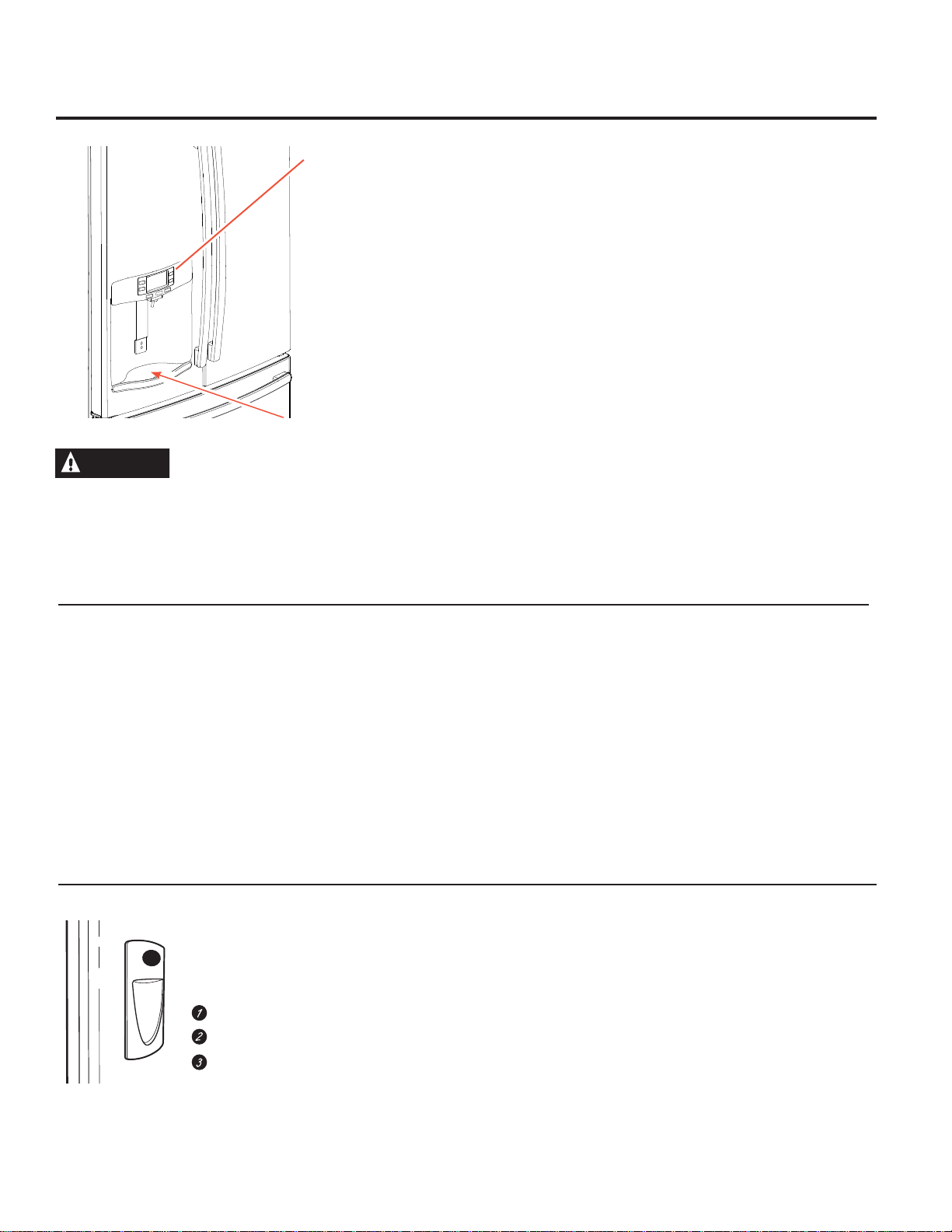

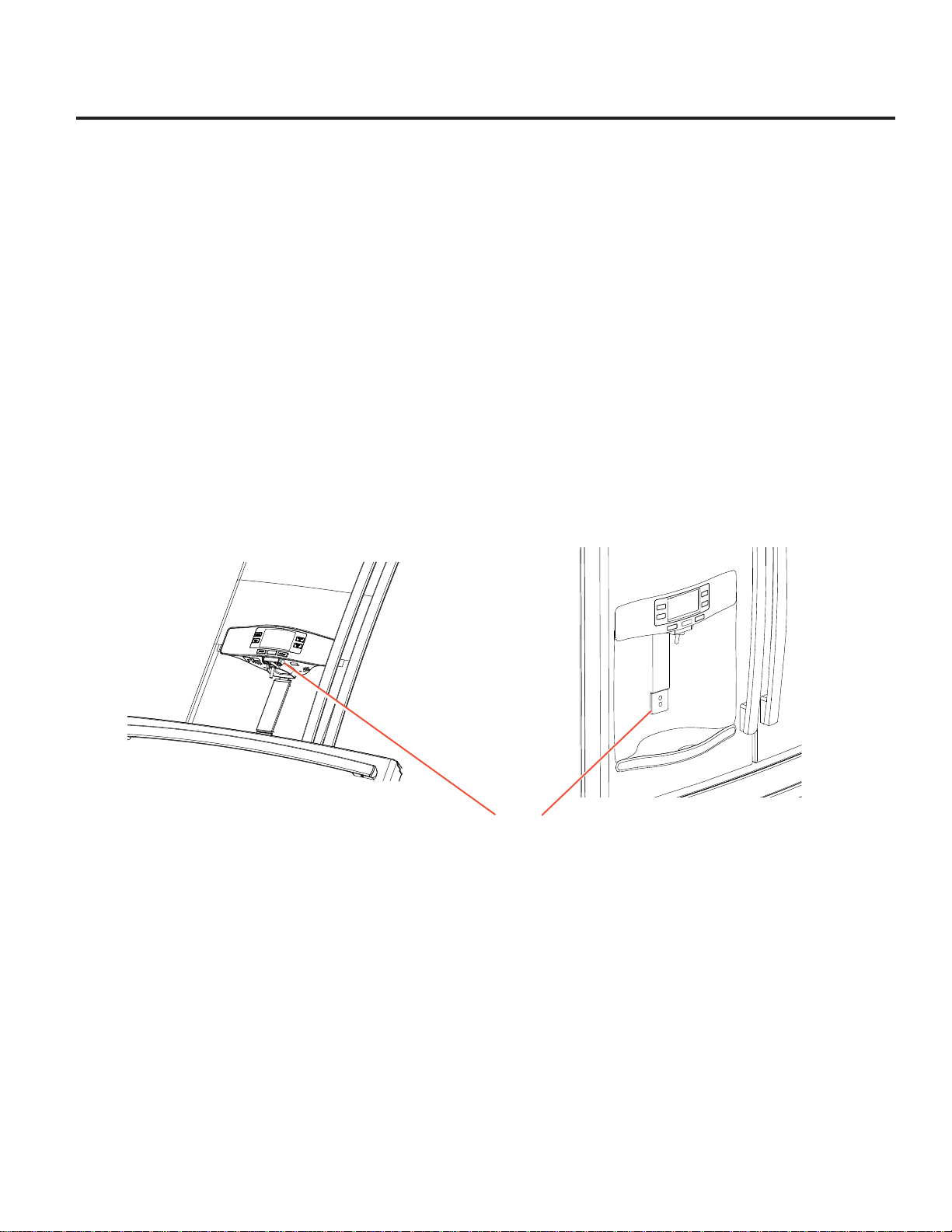

To Use the Internal Water Dispenser*
The water dispenser is located on the
left wall inside the refrigerator compart-
ment.
To dispense water:
Hold the glass against the recess.
Push the water dispenser button.
Hold the glass underneath the
dispenser for 2–3 seconds after
releasing the dispenser button. Water
may continue to dispense after the
button is released.
If no water is dispensed when the refrigerator is first installed,
there may be air in the water line system. Press the dispenser
button for at least 5 minutes to remove trapped air from the
water line and to fill the water system. During this process,
the dispenser noise may be loud as the air is purged from the
water line system. To flush out impurities in the water line,
throw away the first 6 glassfuls of water.
NOTE: To avoid water deposits, the dispenser should be
cleaned periodically by wiping with a clean cloth or sponge.
WARNING
Laceration Hazard
Never put fingers or any other object into ice crusher
discharge opening. Doing so can result in contacting the ice
crushing blades and lead to serious injury or amputation
Use a sturdy glass when dispensing ice. A delicate glass may
break and result in personal injury.
*Select Models Only
11
About autofill.*
GEAppliances.com
Lock
Control
Water
Cubed
Auto
Fill
Precise
Fill
Light
To Use HANDS FREE AUTO FILL:
Center container on Recess Dispenser Tray (not touching
bottom sensors) and remove hand from container
3UHVVAUTO FILL
To Stop AUTO FILL
Press CANCEL, to resume filling press AUTO FILL.
Important Facts about AUTO FILL
)RURSWLPXPUHVXOWVXVHDXQLIRUPFRQWDLQHUEHWZHHQµ
WDOODQGµZLGH&RQWDLQHUVKRXOGEHDVWDOODVWKHERWWRP
sensors.
&RQWDLQHUVKDSHILOOOHYHODQGIXQFWLRQDOLW\PD\YDU\RQ
FRQWDLQHUVWDOOHUWKDQµ
&RQWDLQHUYROXPHVPD\YDU\LIHUURUPHVVDJH´&RQWDLQHU
1RW)RXQGµLVJLYHQWU\DGLIIHUHQWFRQWDLQHU
$872),//ZLOOWLPHRXW
+DQGOHVDQGJDUQLVKHVRQWKHULPRIWKHFRQWDLQHUP\FDXVH
overfilling or variation in fill volumes.
6SODVKLQJPD\RFFXUGHSHQGLQJRQWKHORFDWLRQRIWKH
container, water flow rate, container shape, and ice cubes.
.HHSVHQVRUVFOHDQZLWKDFOHDQGDPSFORWKDQGGRQRW
spray liquid or cleaners directly on sensors
$872),//ZRUNVEHVWZLWKKRXVHKROGZDWHUSUHVVXUHRI
WRSVL
Sensors
*Select Models Only
12
About the GE® RPWF water filter cartridge.
Swing
Push/Pull
Water Filter Cartridge
The water filter cartridge is located in one of the following places:
Bottom-freezer (BF) refrigerators:
eht fo llaw edis thgir eht no tnemtrapmoc retlif retaw eht nI -
left-hand fresh food door.
.pot eht raen ,llaw edis tfel e
ht no roiretni doof hserf eht nI -
When to replace the filter cartridge
The filter cartridge should be replaced every six months or earlier
if the flow of water to the dispenser or icemaker decreases.
Touch Screen Models: A filter status message will appear on the
screen when the water filter needs to be replaced. The filter status
message must be reset manually.
The “Water Filter: Replace” status message can be reset by
entering the Settings menu from the home screen. Then, select
the Water Filter menu and press the RESET button. This will reset
the filter status.
Non-touch Screen Models: A filter indicator light (or message)
will illuminate on the screen when the water filter needs to be
replaced. This light must be reset by pressing and holding the
Reset Filter button for three seconds.
The filter cartridge has a maximum life of six months and
should be replaced when indicated by the filter indicator on the
refrigerator, or sooner if a significant reduction in flow occurs.
Removing the filter cartridge
To replace the filter, first remove the old cartridge by opening
the filter door and pulling on the bottom of the cartridge to allow
it to swing outward. When the cartridge can no longer swing,
gently pull to unseat it from the cartridge holder. DO NOT TWIST
CARTIDGE. A small amount of water may drip out.
Installing the Filter Cartridge
egdirtrac litnu hsup dna redloh egdirtrac htiw retlif fo pot ngilA .1
is fully seated.
egdirtrac erusne ot gniunitnoc elihW .2
is fully seated in the holder, gently
swing the filter inward until it is in a
vertical position. If filter will not swing
easily, check to ensure filter is properly
aligned and fully seated within the
cartridge holder.
dloc eht hguorht retaw fo snollag 2 nuR .3
water dispenser (about 5 minutes) to
remove air from the system. A newly
installed filter cartridge will cause
water to spurt from the dispenser. Use
a large pitcher or sports bottle to catch
the water spray. DO NOT use the hot
water dispenser or hands-free auto-fill
(some models) until all air is removed
from the system.
4. Reset Filter Status message
Touch Screen Models: Access RESET button through the Water
Filter menu.
Non-touch Screen Models: Press and hold the Reset Filter button
for three seconds.
WARNING Using the hot water dispenser prior to purging air
from the system may result in spurting of hot water and lead
to hot water scalding. Follow the instructions above to purge all air
from the system through the cold water dispenser prior to using the
hot water dispenser.
Note: It is normal for water to appear discolored during the initial
system flush. Water color will return to normal after first few minutes
of dispensing.
Filter Bypass Plug
To reduce the risk of property damage due to water leakage, you
MUST use the filter bypass plug when a replacement filter
cartridge
is not available. The dispenser and icemaker will not operate without
either the filter or bypass plug installed. The bypass plug is installed
in the same way as a filter cartridge.
RPWF
© 2012 General Electric Company PC71879
If you have questions, or to order additional filter cartridges, visit our website at www.geapplianceparts.com or call
GE Parts and Accessories, 800.626.2002.
Customers in Canada should consult the yellow pages for the nearest Camco Service Center.
To reduce the risk associated with choking, do not allow children under 3 years of age to have access to
small parts during the installation of this product. The disposable filter cartridge should be replaced every
6 months at the rated capacity, or sooner if a noticeable reduction in flow rate occurs.
For the maximum benefit of your filtration system, GE recommends the use of GE-branded filters only. Using GE-branded filters in GE
and Hotpoint
®
refrigerators provides optimal performance and reliability. GE filters meet rigorous industry NSF standards for safety
and quality that are important for products that are filtering your water. GE has not qualified non-GE-branded filters for use in GE and
Hotpoint refrigerators and there is no assurance that non-GE-branded filters meet GE's standards for quality, performance and reliability.
WARNING
GE
Appliances
Appliance Park
Louisville, KY 40225
geapplianceparts.com
Refer to 239D4126P002 Pub No. 31-45497
13

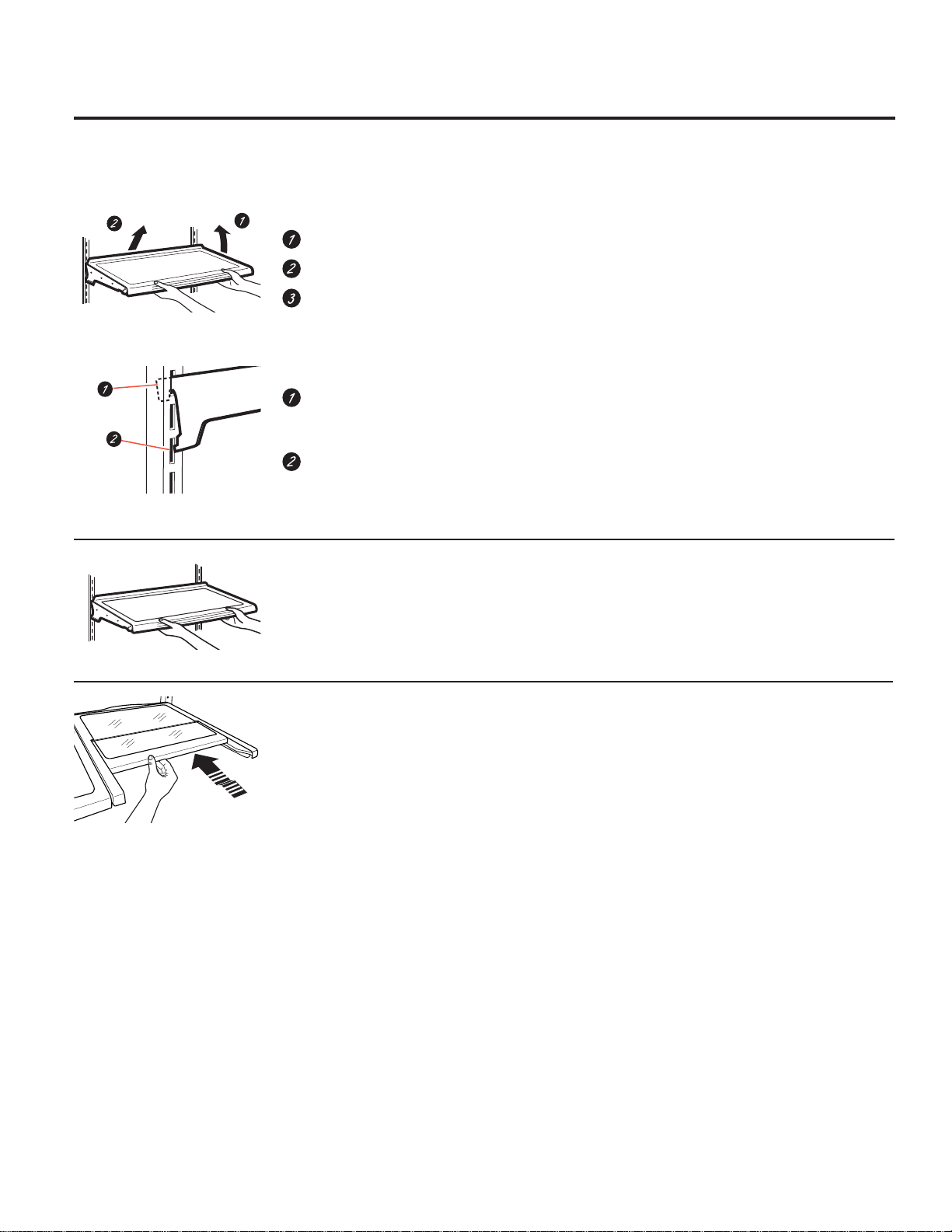

Rearranging the Shelves
To remove:
Remove all items from the shelf.
Tilt the shelf up at the front.
Lift the shelf up at the back and bring the
shelf out.
To replace:
While tilting the shelf up, insert the top hook
at the back of the shelf in a slot on the
track.
Lower the front of the shelf until the bottom
of the shelf locks into place.
Spillproof Shelves
Spillproof shelves have special edges to help
prevent spills from dripping to lower shelves.
Shelves in the refrigerator compartment are adjustable.
Quick Space Shelf
This shelf splits in half and slides under itself for
storage of tall items on the shelf below.
This shelf can be removed and replaced or
relocated (just like spillproof shelves).
NOTE: The location of the upper Quick Space
Shelf is not adjustable.
About the fresh food storage options.
14
About the fresh food storage options.

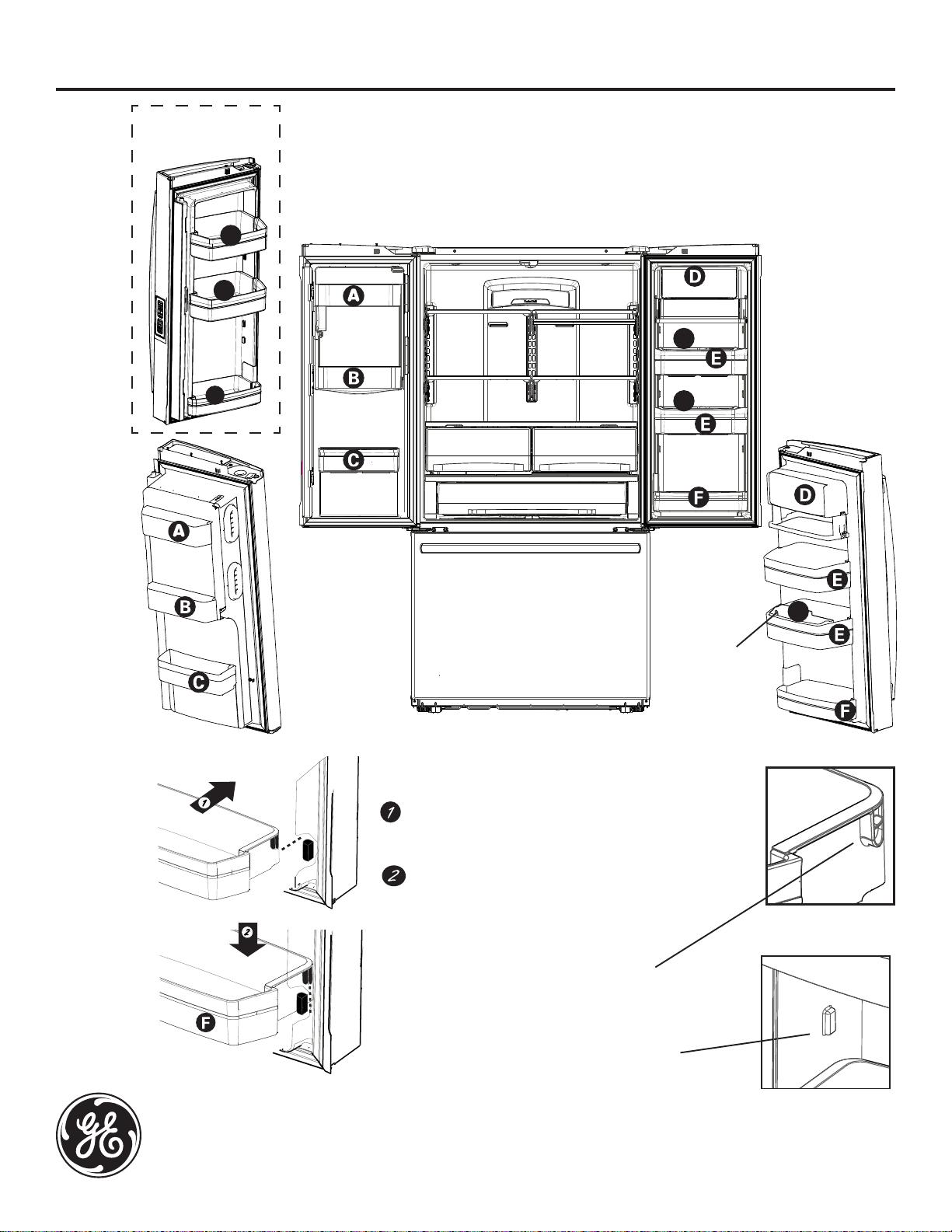

Non-Adjustable Bins on the Door
To remove: Lift the bin straight up, then pull out.
To replace: Engage the bin in the molded
supports on the door and push down. It will lock
in place.
The ice maker door bins are not
interchangeable, note the location upon
removal and replace the bin in its proper
location.
Adjustable Bins on the Door
Adjustable bins can easily be carried from
refrigerator to work area.
To remove: Lift bin straight up, then pull out.
To replace or relocate: Slide in the bin just
above the molded door supports, and push
down. The bin will lock in place. See page 33.
Drop down tray *
(tray open)
1. Open right fresh food
door
2. Depress both buttons
on lower sides of bin
and bin will drop down.
3. Reverse to reinstall.
Non-Adjustable Dairy Bin
To remove: Lift the dairy bin straight up,
then pull out.
To replace: Engage the bin in the molded door
supports and push down. The bin will lock in
place. See page 33.
Non-Dispense Models
(Left Hand Door)
*Select Models Only
CAUTION
Laceration Hazard
Do not store glass bottles at this setting. If
they are frozen, they can break and cause
personal injury.
ClimateZone
Temperature Controlled Drawer*
The Temperature Controlled Drawer is a
full-width drawer with adjustable temperature
control. This drawer can be used for large
miscellaneous items.
To change setting, press select button.
Keep fruits and vegetables organized in separate
compartments for easy access.
Excess water that may accumulate in the bottom
of the drawers or under the drawers should be
wiped dry.
15
About the climate zone and
temperature controlled drawer. GEAppliances.com
C
Fruits Vegetables
F
C
M
E
AT
DE
L
I
P
R
O
DU
C
E
CHE
ESE
C
IT
R
U
S
SE
L
EC
T
ClimateZone
Fruits Vegetables
Fruits Vege
D
F
C
MEAT
BEVERAGE
PRODUCE
CHEESE
CITRUS
SELECT
32° 34° 36° 38° 40°
NOTE: when fresh food temperature is set
to 40° or higher, the temperature controlled
drawer can only be set to citrus.
*Select Models Only
OR
To remove:
Pull the drawer out to the stop position.
Lift the front of the drawer up and out.
To replace:
Pull left and right slides until fully
extended.
Place drawer back in first and rotate
drawer front down to seat on slide.
Push the drawer in to closed position.
How to Remove and Replace the Adjustable Deli/Produce Drawer
To remove:
Pull the drawer out to the stop position.
Raise the front side of the divider
to unhook it from the rear wall of
the drawer.
To replace:
Hook the back of the divider over the
rear wall of the drawer.
Push the divider down.
How to Remove and Replace Drawer Divider
About the climate zone and temperature controlled drawer.
16
17
About the freezer. GEAppliances.com
Freezer Basket and Drawer
Basket.
Drawer
Utility Bin / Ice Bucket
Non-Adjustable Bin in the Freezer
To remove: push in plastic tab on either left
or right side
To replace: slide bin into location until it
locks into place.
Basket Removal
To remove, Standard Depth models only:
Open freezer door to the stop position.
Remove freezer door bin by pushing
plastic tab on either left or right side
to release bin hinge pin.
Remove freezer basket by lifting up
the rear of the basket and moving
basket rearward until the front of the
basket can be rotated upward and
out.
Lift it out to remove.
To remove, PYE and PWE models only:
Open fresh food doors.
Open freezer door to the stop position.
Remove freezer basket by lifting up
the rear of the basket and rotate it
upward.
Lift it out to remove.
To replace:
Reverse step 1 thru 4 to replace.
18

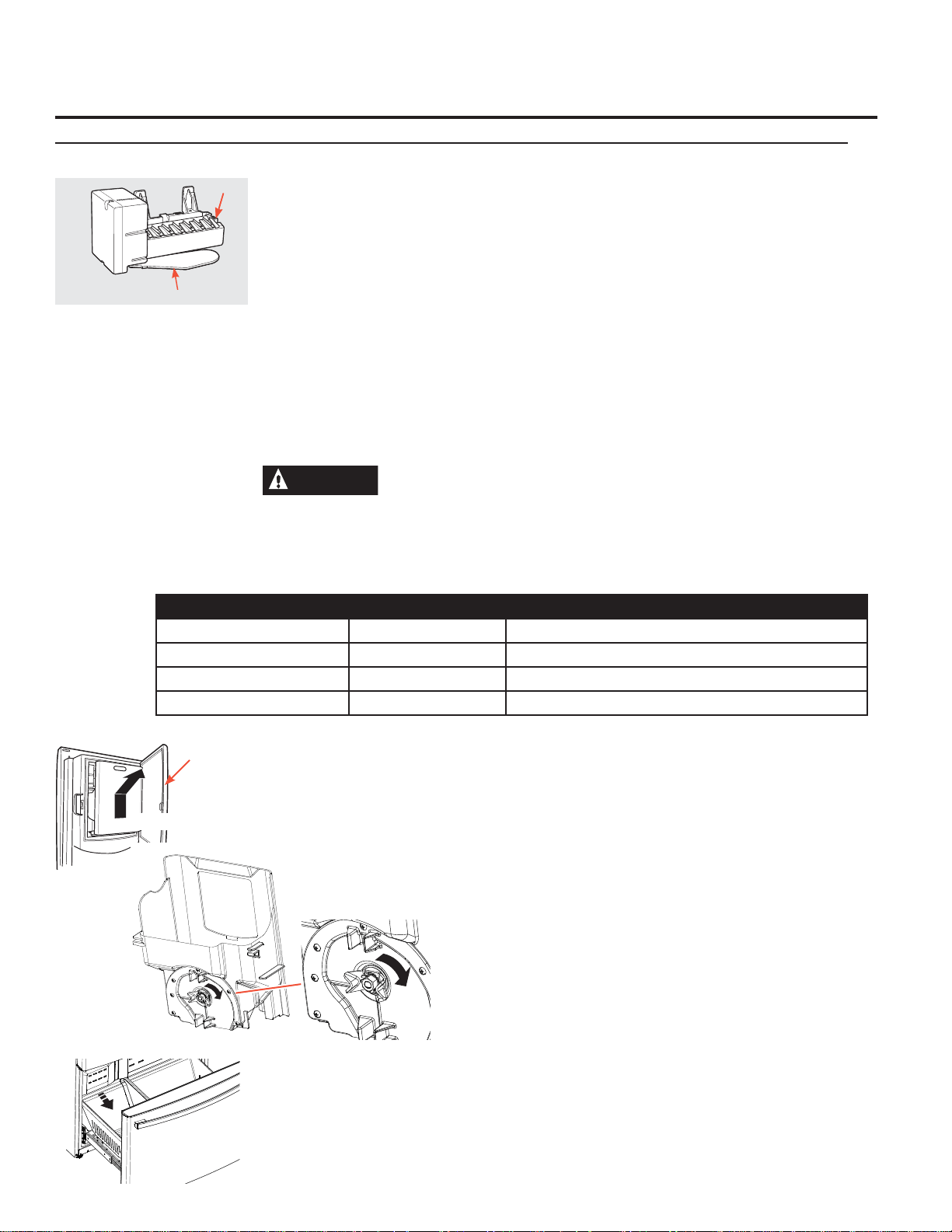

About the automatic ice maker.
A newly installed refrigerator may take 12 to 24 hours to begin making ice.
Automatic Ice Maker*
The ice maker will produce seven cubes
per cycle approximately 100–130 cubes
in a 24-hour period, depending on freezer
compartment temperature, room temperature,
number of door openings and other use
conditions.
The ice maker will fill with water when it cools to
15°F (–10°C). A newly installed refrigerator may
take 12 to 24 hours to begin making ice cubes.
If the refrigerator is operated before the water
line connection is made to the unit or if the
water supply to an operating refrigerator is
turned off, make sure that the ice maker is
turned off. Once the water has been connected
to the refrigerator, the ice maker may be turned
on. See the table below for details.
You may hear a buzzing sound each time
the ice maker fills with water.
Throw away the first few batches of ice to allow
the water line to clear.
Be sure nothing interferes with the sweep
of the feeler arm.
When the bin fills to the level of the feeler arm,
the ice maker will stop producing ice. It is normal
for several cubes to be joined together.
If ice is not used frequently, old ice cubes will
become cloudy, taste stale and shrink.
NOTE: In homes with lower-than-average water
pressure, you may hear the ice maker cycle
multiple times when making one batch of ice.

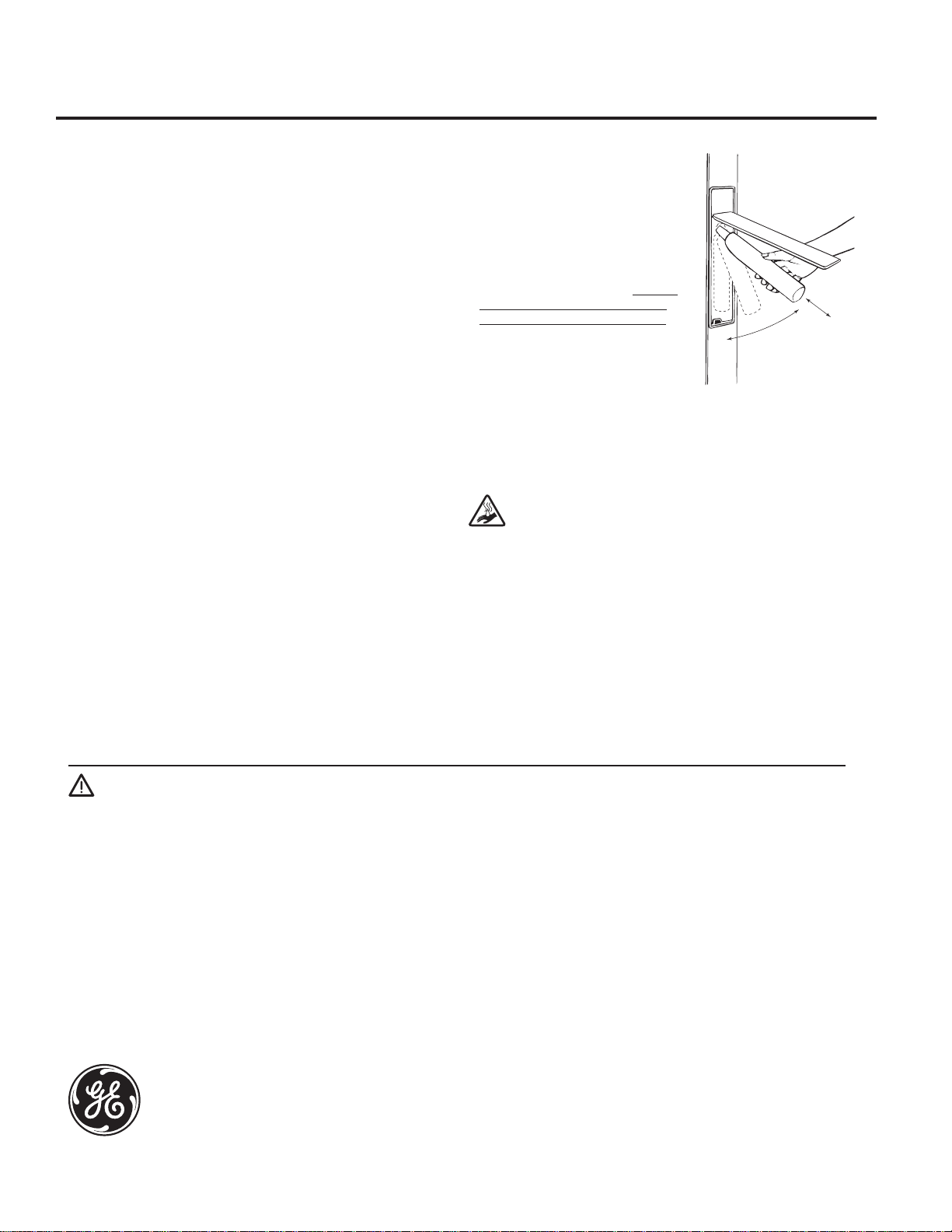

Lift and pull
Ice Box
Door
Feeler Arm
Ice maker
Display Type (See Page 6) Model # How to turn the ice maker on/off
Control Style A PFE29, PYE23P Use the settings menu on the touchscreen
Control Style B PFE27, PYE23K Hold “CRUSHED” and “CUBED” together for 3 seconds
Control Style C GFE29/27, DFE29 Use the “ICE MAKER” button on the control
Control Style D GNE26, PWE23 Use the “ICE MAKER” button on the control
Extra Ice Storage*
There is additional ice storage in the freezer compartment drawer.
2SHQWKHIUHH]HUGUDZHU
7KHLFHEXFNHWLVORFDWHGRQWKHOHIWVLGHEHORZWKHPXOOLRQ
3XOOWKHLFHEXFNHWIRUZDUG
How to Turn the Ice Maker On/Off
WARNING
To minimize the risk of personal injury, avoid contact with the moving parts of the ejector
mechanism, or with the heating element that releases the cubes. Do not place fingers or
hands on the automatic ice making mechanism while the refrigerator is plugged in.
Ice Bucket and Dispenser*
2SHQWKHLFHER[GRRURQLQVLGHRIWKHOHIW
door.
3XOOXSDQGRXWRQRQWKHLFHEXFNHWLQ
the left hand door to remove it from the
compartment .
7RUHSODFHWKHLFHEXFNHWVHWLWRQWKH
guide brackets and push until the ice
bucket seats properly.
,IEXFNHWFDQQRWEHUHSODFHGURWDWHWKHLFH
bucket fork 1/4 turn clockwise.
*Select Models Only
19
Care and cleaning of the refrigerator. GEAppliances.com
Cleaning the Outside
The stainless steel panels, door handles and trim.
Do not use appliance wax, polish, bleach, or other products
containing chlorine on stainless steel.
Stainless steel (on some models) can be cleaned with a
commercially available stainless steel cleaner. A spray-on
stainless steel cleaner works best.
Silver-accented plastic parts.
Wash parts with soap or other mild detergents. Wipe clean
with a sponge, damp cloth or paper towel.
Do not use scouring pads, powdered cleaners, bleach or
cleaners containing bleach because these products can
scratch and weaken the paint finish.
Should spill tray need cleaning use lime remover.
Cleaning the Inside
To help prevent odors, leave an open box of baking soda in
the refrigerator and freezer compartments.
Unplug the refrigerator before cleaning.
If this is not practical, wring excess moisture out of sponge or
cloth when cleaning around switches, lights or controls.
Use an appliance wax polish on the inside surface between
the doors.
8VHZDUPZDWHUDQGEDNLQJVRGDVROXWLRQ³DERXWD
tablespoon (15 ml) of baking soda to a quart (1 liter) of water.
This both cleans and neutralizes odors.
Rinse and wipe dry.
Behind the Refrigerator
Be careful when moving the refrigerator away from the wall. All
types of floor coverings can be damaged, particularly cushioned
coverings and those with embossed surfaces.

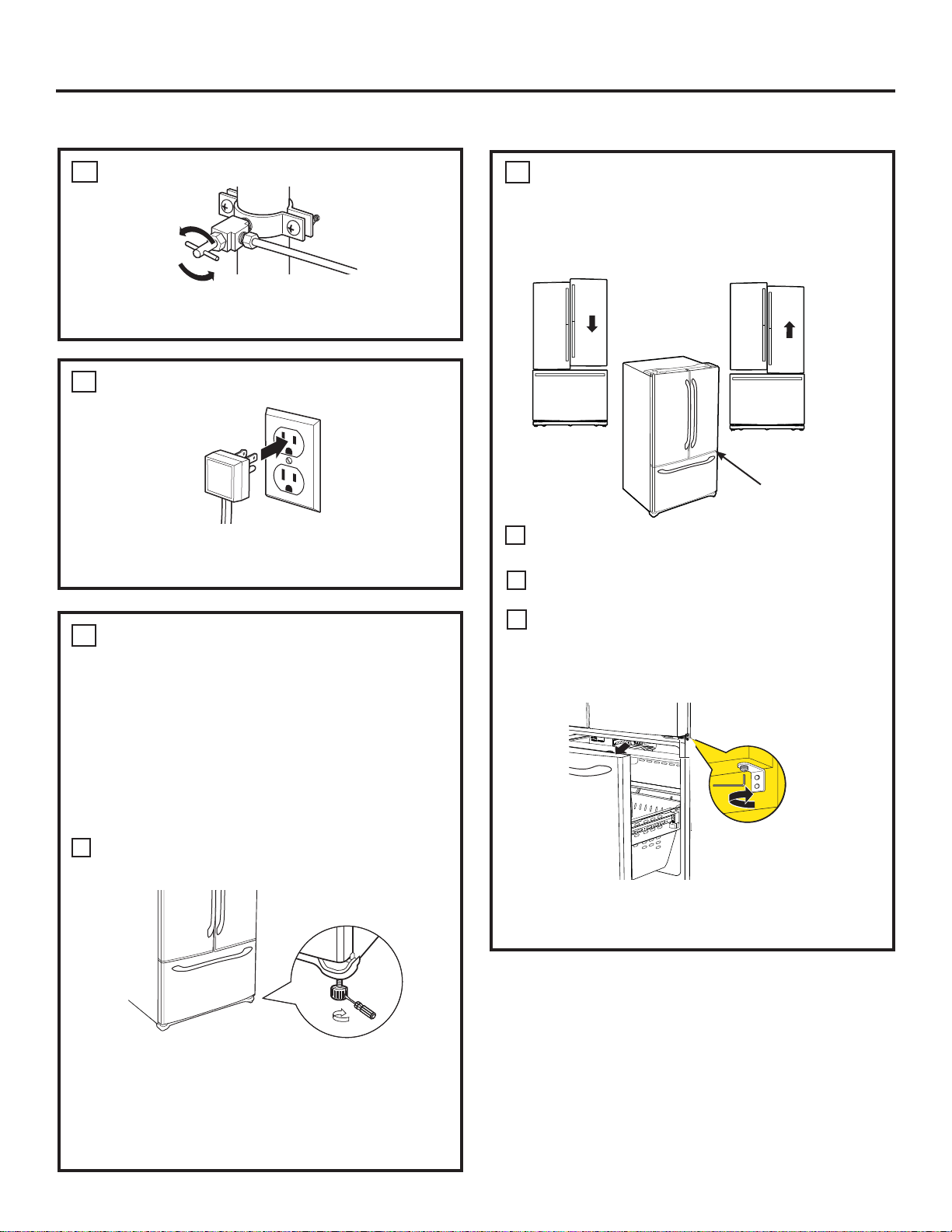

Raise the leveling legs located at the bottom front of the
refrigerator.
Pull the refrigerator straight out and return it to position by
pushing it straight in. Moving the refrigerator in a side direction
may result in damage to the floor covering or refrigerator.
Lower the leveling legs until they touch the floor.
When pushing the refrigerator back, make sure you don’t
roll over the power cord or water supply line.
Preparing for Vacation
Preparing to Move
Secure all loose items such as shelves and drawers by taping
them securely in place to prevent damage.
When using a hand truck to move the refrigerator, do not rest
the front or back of the refrigerator against the hand truck. This
could damage the refrigerator.
Handle only from the sides of the refrigerator.
Be sure the refrigerator stays in an upright position during
moving.
CAUTION
Do not clean glass shelves or covers
with warm water when they are cold. Glass shelves and
covers may break if exposed to sudden temperature
changes or impact such as bumping or dropping.
Tempered glass is designed to shatter into many small
pieces if it breaks.
For long vacations or absences, remove food and unplug the
refrigerator. Clean the interior with a baking soda solution of
one tablespoon (15 ml) of baking soda to one quart (1 liter) of
water. Leave the doors open.
LCD Models: turn refrigerator off at control (pg 7) .
If the temperature can drop below freezing, have a qualified
service technician drain the water supply system to prevent
serious property damage due to flooding.
1) Turn refrigerator off (pg. 7) or unplug the refrigerator.
2) Empty ice bucket
3) Turn water supply off
,I\RXFXWWKHZDWHUVXSSO\RIIWXUQRIIWKHLFHPDNHUSJ
Upon returning from vacation:
1) Replace the water filter.
2) Run 2 gallons of water through the cold water dispenser
(about 5 minutes) to flush the system.
20
Replacing the lights.
Refrigerator Lights (LEDs)
There is LED lighting in fresh food
compartment and on the bottom of
the fresh food doors to light the freezer
compartment.*
An authorized technician will need to
replace the LED light.
If this assembly needs to be replaced, call
GE Service at 1.800.432.2737
in the United States or 1.800.561.3344
in Canada.
*Select Models Only
21
TOOLS YOU MAY NEED
Installation
Refrigerator
Instructions
GE and GE Profile™ models
4XHVWLRQV"&DOO*(&$5(6or visit our Website at: GEAppliances.com
,Q&DQDGDFDOOor visit our Website at: www.GEAppliances.ca
BEFORE YOU BEGIN
Read these instructions completely and carefully.
WARNING
Tip Over Hazard.
Built-in style models (model PYE, CYE, and PWE) are top
heavy, especially with any doors open. These models
must be secured with the anti-tip floor bracket to prevent
tipping forward, which could result in death or serious
injury. Read and follow the entire installation instructions
for installing the anti-tip floor bracket packed with your
refrigerator.
IMPORTANT ³ Observe all governing codes and
ordinances. Save these instructions for local inspector’s use.
Note to Installer – Be sure to leave these instructions with
the Consumer.
1RWHWR&RQVXPHU².HHSWKHVHLQVWUXFWLRQVIRUIXWXUH
reference.
6NLOOOHYHO²,QVWDOODWLRQRIWKLVDSSOLDQFHUHTXLUHVEDVLF
mechanical skills.
&RPSOHWLRQWLPH²
Refrigerator Installation can vary
Water Line Installation 30 minutes
3URSHULQVWDOODWLRQLVWKHUHVSRQVLELOLW\RIWKHLQVWDOOHU
3URGXFWIDLOXUHGXHWRLPSURSHULQVWDOODWLRQLVQRWFRYHUHG
under the Warranty.
PREPARATION
MOVING THE REFRIGERATOR INDOORS
If the refrigerator will not fit through a doorway,
the refrigerator door and freezer drawer can be removed.
7RUHPRYHWKHUHIULJHUDWRUGRRUVHHWKH,QVWDOOLQJ
the Refrigerator section.

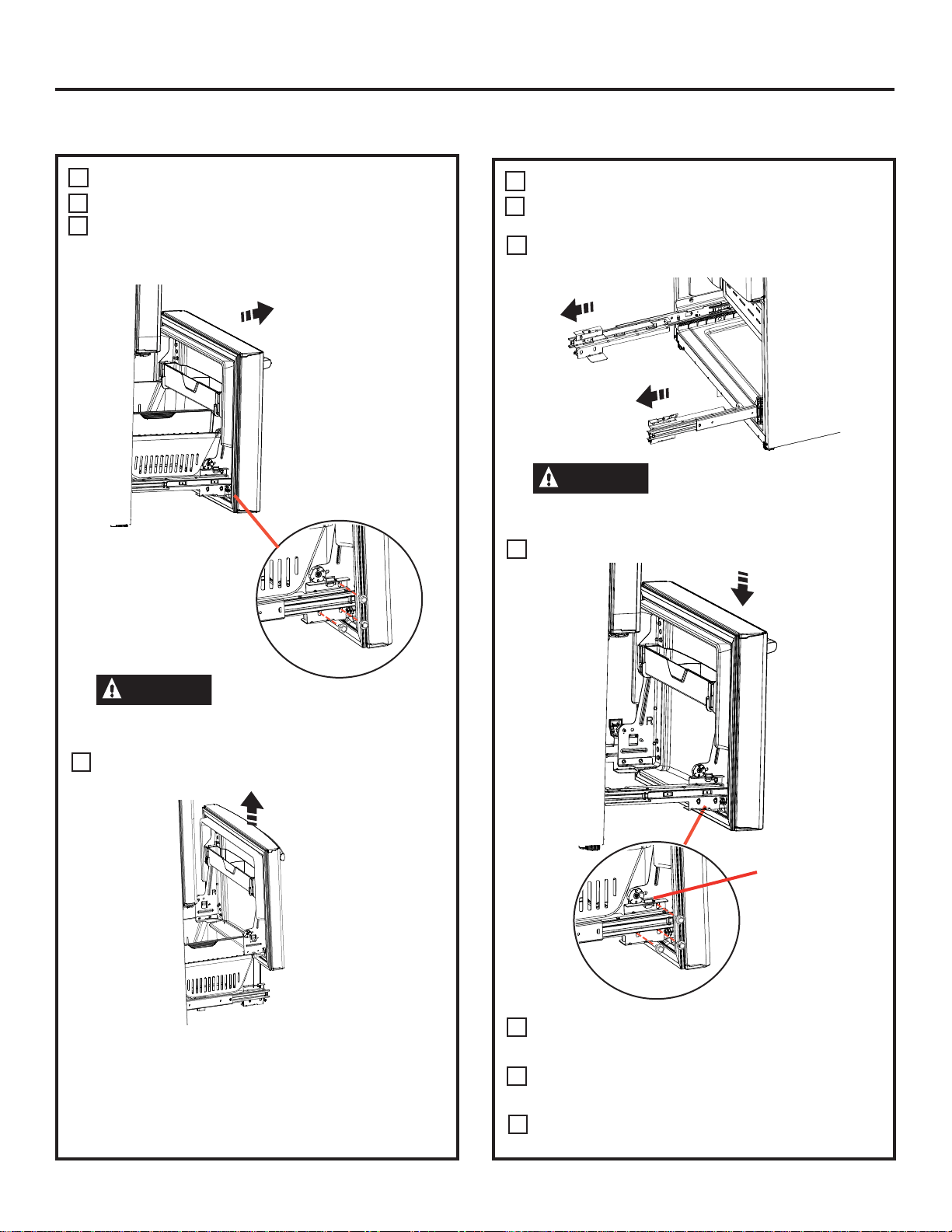

7RUHPRYHWKHIUHH]HUGUDZHUVHHWKH5HPRYLQJ
the Freezer Drawer section.

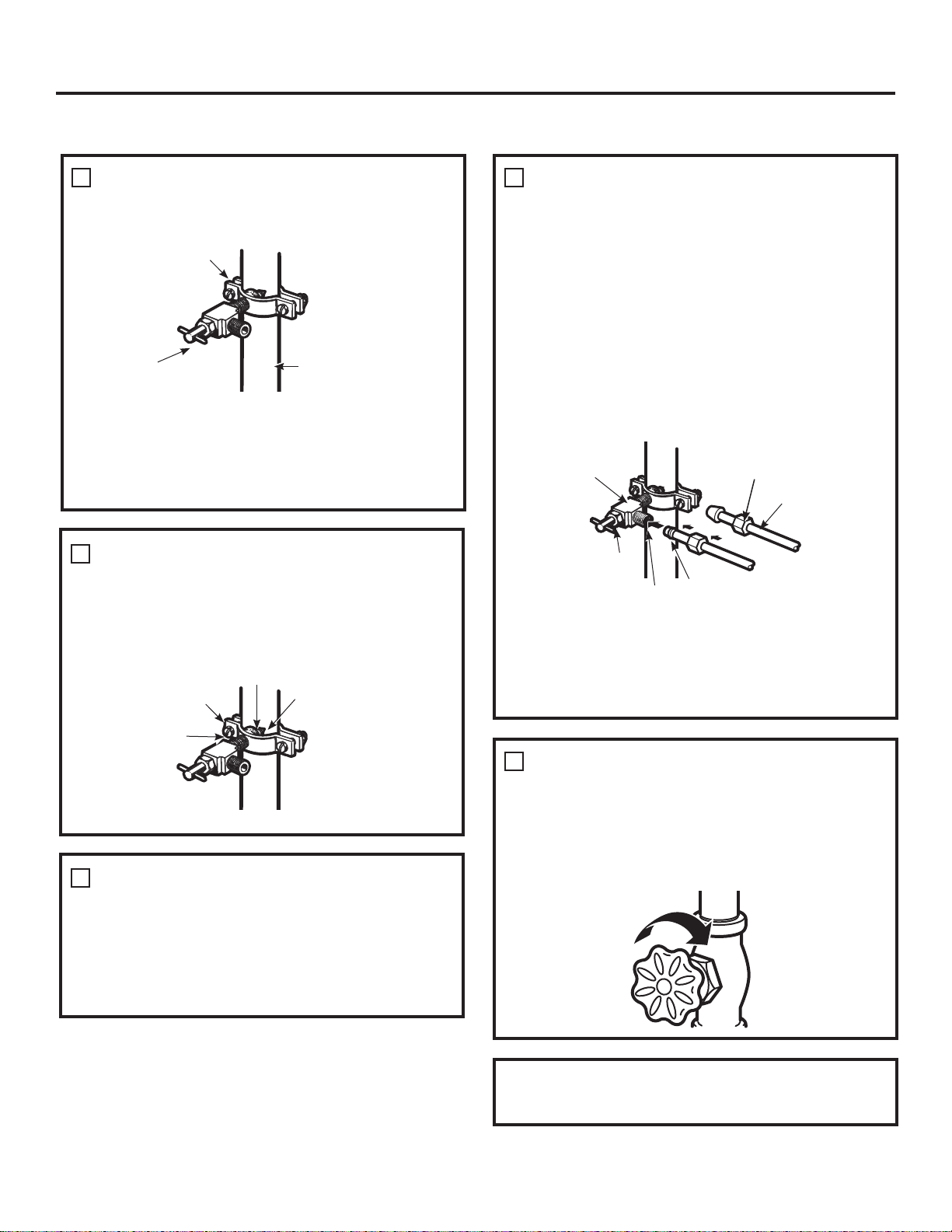

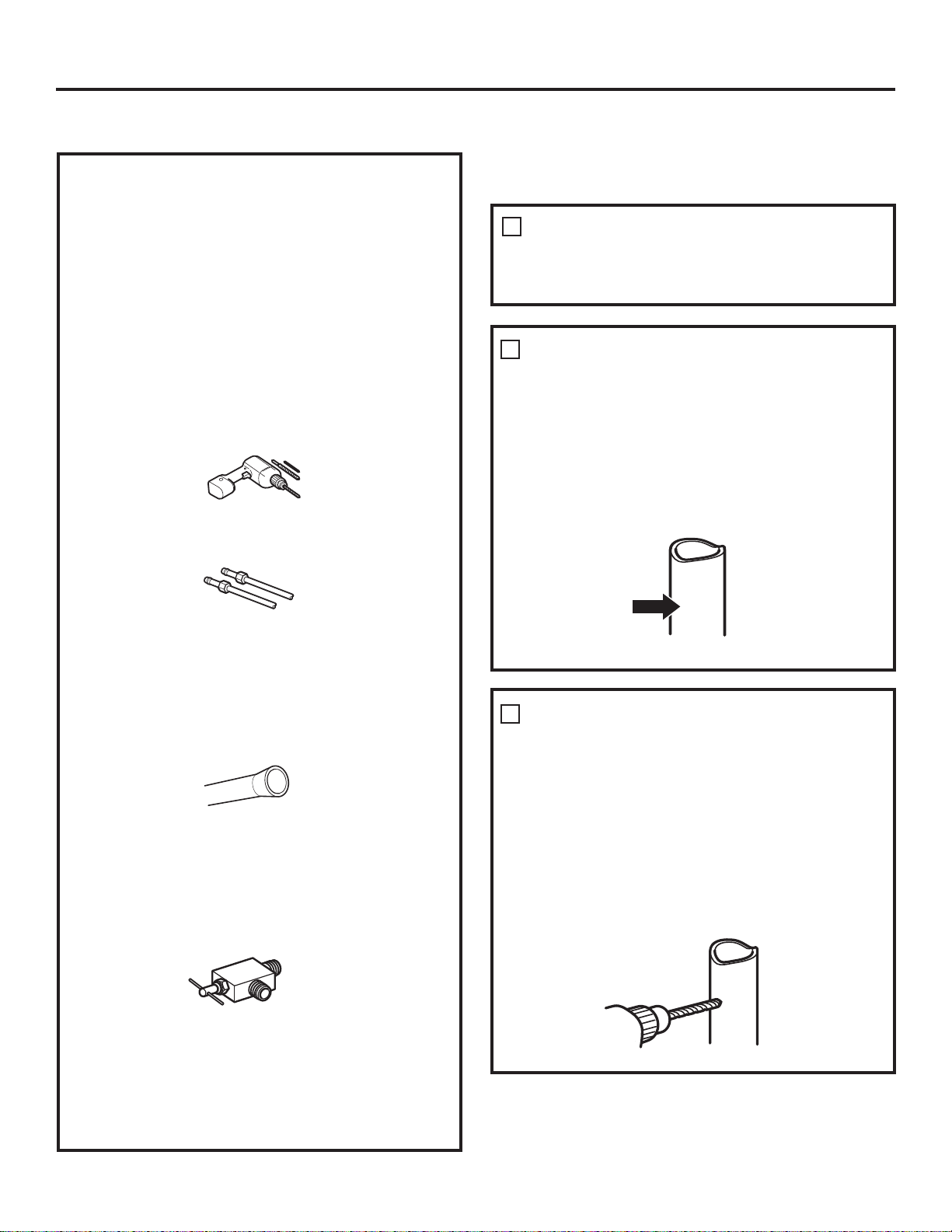

WATER SUPPLY TO THE ICE MAKER AND DISPENSER
If the refrigerator has an ice maker, it will have to be
connected to a cold water line. A GE water supply kit
(containing tubing, shutoff valve, fittings and instructions)
is available at extra cost from your dealer, by visiting
our website at GEAppliances.com (in Canada at www.
GEAppliances.ca) or from Parts and Accessories, 800.626.2002
(in Canada 1.800.661.1616).
Adjustable Wrench
1/4” Outer Diameter
Compression Nut
and Ferrule (sleeve)
Phillips-Head Screwdriver
Ȓµ Socket Ratchet/Driver
1/8”, 3/32”, 1/4” & 5/32”
Allen Wrenches
Pencil
1/8” Drill Bit and
Electric or Hand Drill
Tape Measure
1/4” Nut Driver
5/16” Nut Driver
Pliers
Level
Flat-Head Screwdriver
Torx T20, T25
22
Installation Instructions
8VLQJWKHFKDUWEHORZGHWHUPLQHLIWKHZLGWKRI\RXUSDVVDJHZD\FDQDFFRPPRGDWHWKHGHSWKRIWKHUHIULJHUDWRU(QVXUH\RXKDYHFOHDUDQFH
to prevent damage to the refrigerator before safety moving it to the final location.
,ISDVVDJHZD\VDUHODUJHHQRXJKWRDFFRPPRGDWHWKHUHIULJHUDWRUZLWKRXWUHPRYLQJWKHKDQGOHVVNLSWR6WHS/HDYHWDSHILOPDQGDOO
packaging on doors until the refrigerator is in the final location.
NOTE: Use a padded hand truck or moving straps to move this refrigerator. Place the refrigerator on the hand truck with a side against
the truck. We strongly recommend that two people move and complete this installation.
Moving THE REFRIGERATOR
DIMENSIONS
All measurements are given with leveling leg fully retracted.
SD CD
Overall Height to Top of Hinge Cover
69
7
ø8
”69
7
ø8
”
Height to Top of Cabinet
69” 69”
Case Depth without Doors 29
3
ø8
”24
3
ø8
Overall Exterior Case Width
35
3
ø4”35
3
ø4”
Overall Exterior Depth Doors/Drawers with Handles 36¼” 31¼”
Standard Depth (SD) Models OnlyCounter Depth (CD) Models Only
If your model number starts with PFE (SD)
If your model number starts with CFE (SD)
µ µ µ
µ
µ
If your model number starts with GFE, DFE, GNE (SD)
If your model number starts with CYE, PYE, PWE (CD)
µ
µ
µµ
µ
µ
Case Depth w/o
Doors 29
1
ø8
”
Height from
floor to hinge
cover top 69
7
ø8”
Additional Dimensions
23
1
ø4” CD
18
1
ø4” SD
35
3
ø4”
69”
31
1
ø4”
69
7
ø8
”
35
3
ø4”
69”
36
1
ø4”
69
7
ø8
”
23
Installation Instructions
INSTALLING THE REFRIGERATOR
REFRIGERATOR LOCATION
'RQRWLQVWDOOWKHUHIULJHUDWRUZKHUHWKHWHPSHUDWXUH
will go below 60°F (16°C) because it will not run often
enough to maintain proper temperatures.
'RQRWLQVWDOOWKHUHIULJHUDWRUZKHUHWKHWHPSHUDWXUH
will go above 100°F (37°C) because it will not perform
properly.
,QVWDOOLWRQDIORRUVWURQJHQRXJKWRVXSSRUWLWIXOO\
loaded.
CLEARANCES
Allow the following clearances for ease of installation,
proper air circulation and plumbing and electrical
connections.
Sides 1/8” (3 mm)
Top 1” (25 mm) Cabinet/Hinge Cover
Back 2” (50 mm)

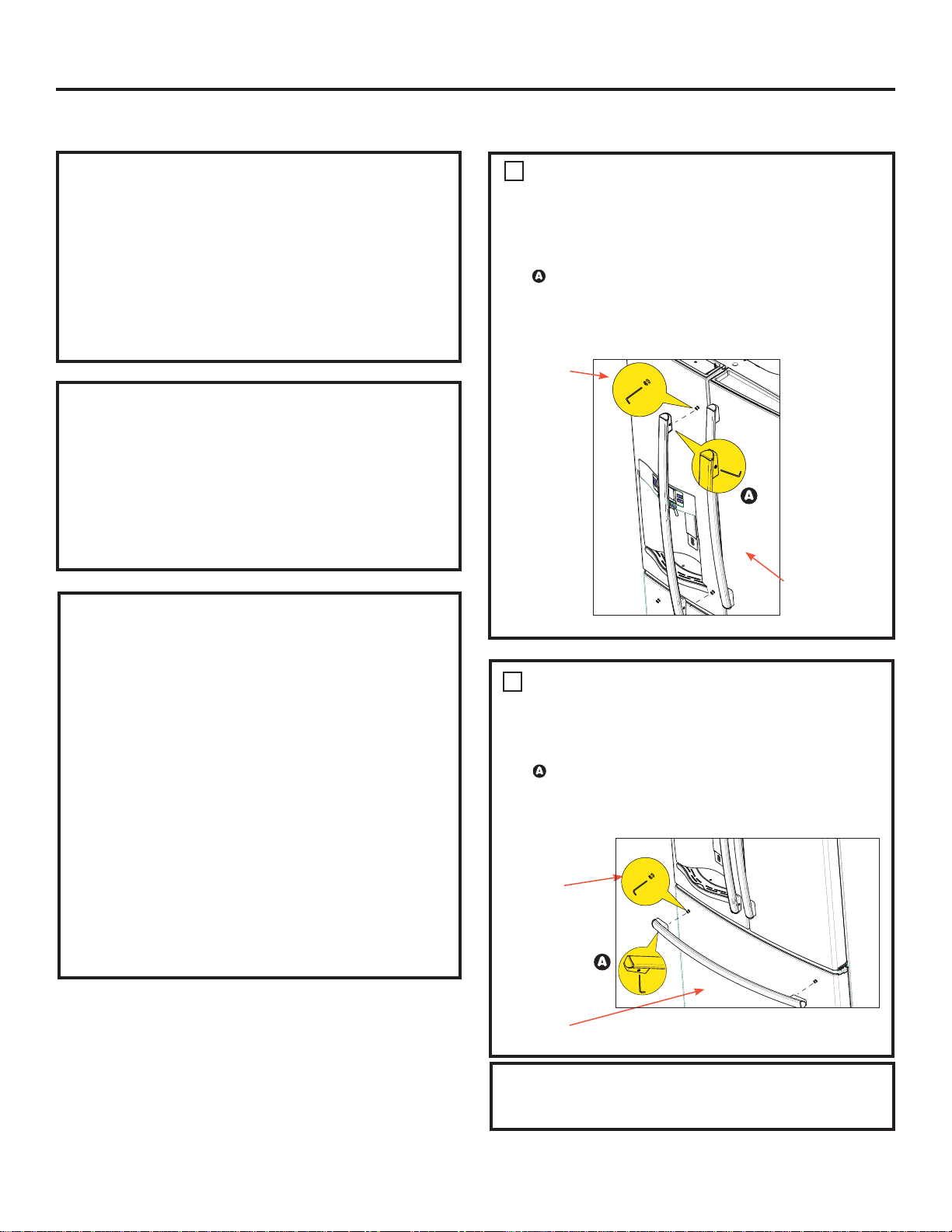

REMOVE THE FRESH FOOD
DOOR HANDLE
Handle Design varies based on models, however
Installation is same.
Stainless steel and plastic handles:
Loosen the set screws with the 1/8” Allen wrench
and remove the handle.
NOTE: If the handle mounting fasteners need to be
tightened or removed, use a 1/4” Allen wrench.
1
REMOVE THE FREEZER DOOR HANDLE
Handle Design varies based on models, however
Installation is same.
Stainless steel and plastic handles:
Loosen the set screws with the 1/8” Allen wrench and
remove the handle.
NOTE: If the handle mounting fasteners need to be
tightened or removed, use a 1/4” Allen wrench.
2
Mounting
Fasteners
Leave film
on until after
installation
Mounting
Fasteners
Leave film
on until after
installation
Reinstall the handles using the same procedure as
removing.

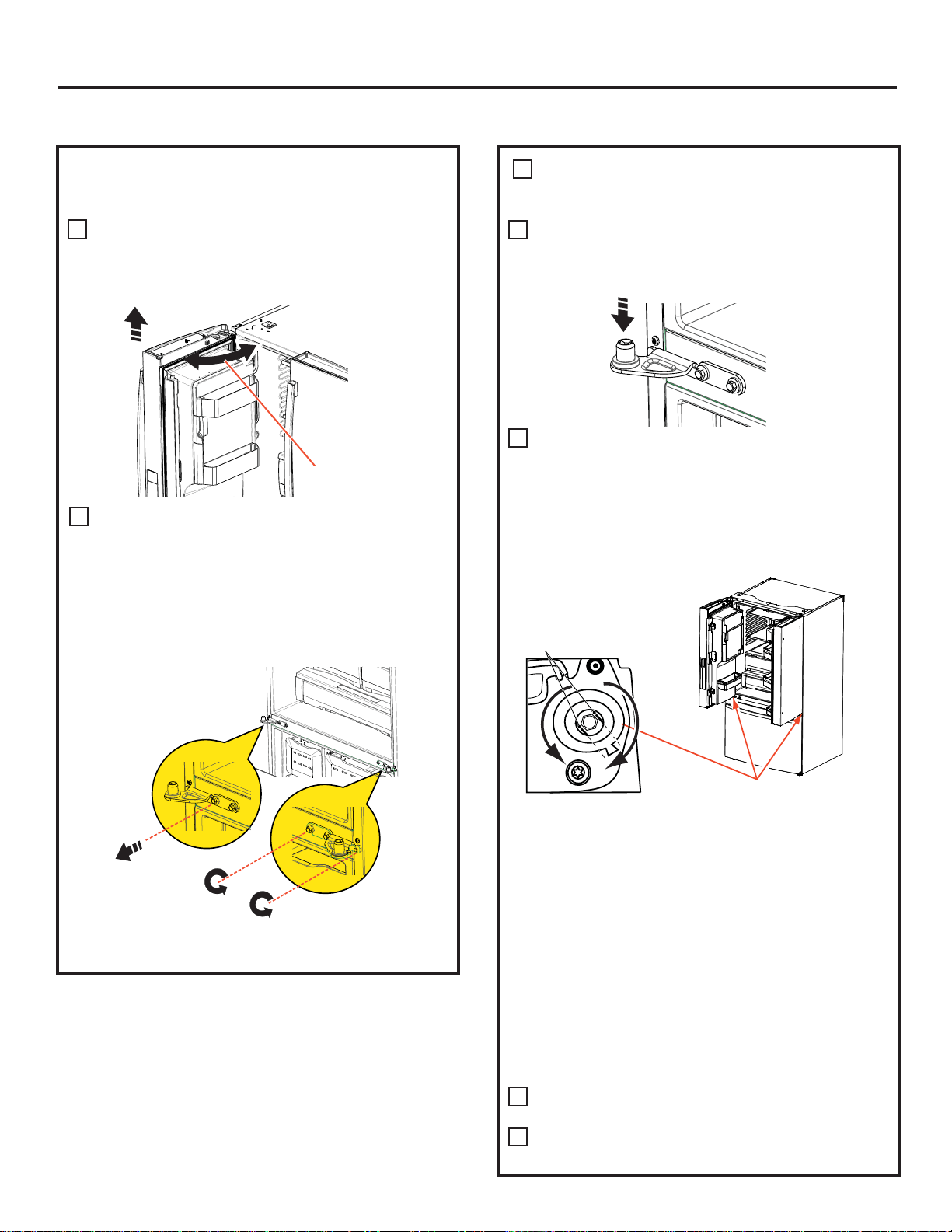

REMOVING THE REFRIGERATOR DOORS
IMPORTANT NOTE: This refrigerator is 36
1
/4” deep (31
1
/4”
for CD models). Doors and passageways leading to the
installation location must be at least 36
1
/4” wide in order to
leave the doors and handles attached to the refrigerator
while transporting it into the installation location. If
passageways are less than 36
1
/4”, the refrigerator doors
and handles can easily be scratched and damaged.
The top cap and doors can be removed to allow the
refrigerator to be safely moved indoors. If passageways
are less than 31
1
/4”, start with Step 1.
,ILWLVQRWQHFHVVDU\WRUHPRYHGRRUVVNLSWR6WHS
11. Leave tape and all packaging on doors until the
refrigerator is in the final location.
NOTE: Use a padded hand truck to move this refrigerator.
Place the refrigerator on the hand truck with a side
against the truck. We strongly recommend that TWO
PEOPLE move and complete this installation.
24
Installation Instructions

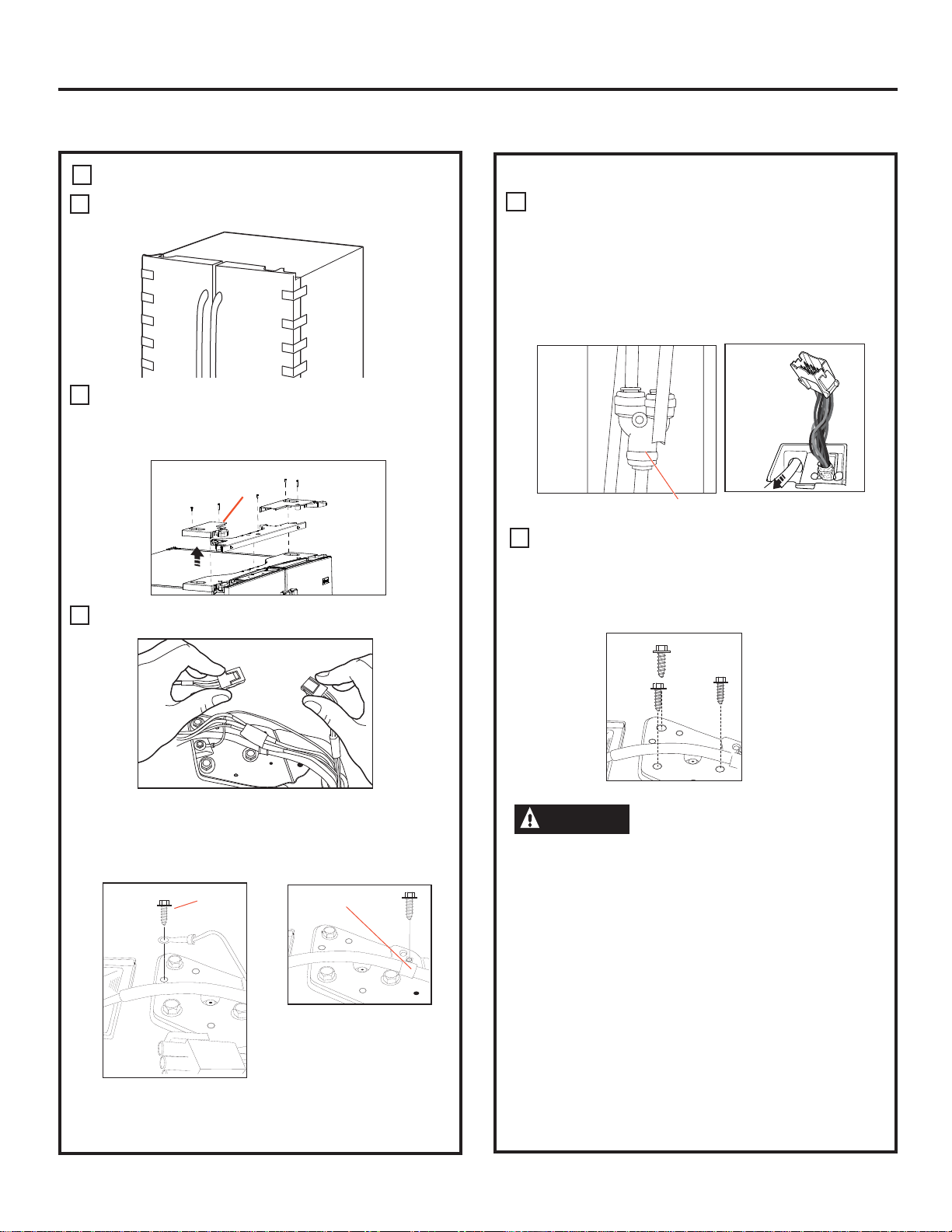

REMOVE THE REFRIGERATOR DOORS (cont)
Disconnect the water line from the back of the unit by
pressing down on the dark grey collar while pulling up
on the water line.
Pull water line through case conduit from the top to
free the line for door removal. The water line is more
than 4’ long and may need to be taped to Door for
accessibility when reinstalling.
Using a 3/8” socket ratchet/driver, remove the screws
securing the top hinge to the cabinet,
then lift the hinge straight up to free the hinge pin
from the location in the top of the door.
CAUTION
Lifting Hazard.
Single person lift could cause injury. Use assistance
when handling, moving or lifting the refrigerator
doors.
Note: when removing door, to prevent damage to door
and electronics, carefully place the door in a proper
location.
Note: The lower door hinge pin and hinge are keyed and
must be matched correctly for the door to self close
properly. Please follow the directions carefully.
REMOVE THE REFRIGERATOR DOORS
A
Securely tape the door shut with masking tape or have
a second person support the door.
B
Start with left-hand door first: Remove the hinge cover
on top of the left refrigerator door by removing all hex
screws and pulling it up. Do the same for the
right-hand door and the middle cover.
C
Disconnect both electrical connectors at the top cover.
Remove the 1/4” hex head screw to disconnect the
ground wire from the hinge.
Remove the 1/4” hex head screw to remove the strain
relief from the water line.
INSTALLING THE REFRIGERATOR (cont.)
3
E
D
Ground
screw
Strain
Relief
Hinge
Cover
Y or Straight
Connector
REINSTALLING THE REFRIGERATOR DOORS
Reverse steps 1 through 4 to reinstall refrigerator, follow
details below for critical alignments.
A
5HLQVWDOOFHQWHUKLQJHILUVWDQGWRUTXHWKHVFUHZVWR
in-lbs. With the LH door at 90º to the front of
the case, lower the refrigerator door onto the center
hinge. Ensure that the door and hinge align correctly.
B
Rotate doors closed and make sure moveable center
sealing portion of the door aligns with the striker. If the
door will not self-close after reinstalling, remove door, turn
door upside down, check alignment mark and arrow;
(there is an alignment mark on the door closure
mechanism It corresponds to an alignment arrow on
the plastic ring. Rotate door closure mechanism to align
mark and arrow, reinstall door).
Securely tape the door shut with masking tape or have a
second person support the door. Reinstall the top hinge
DQGWRUTXHWKHVFUHZVWRLQOEV
C
Be sure to reinstall the ground wire and strain relief to the
top hinge.
D
Reinstall hinge cover. NOTE: Ensure wires are not pinched
or under screw bosses before tightening screws.
REMOVE THE REFRIGERATOR DOORS (cont)
Note: for proper installation later, please follow the next step
carefully.
F
Remove the tape and keeping the door as
straight as possible, open the door to 90º then lift
straight up to remove it.
4
REMOVE OPPOSITE DOOR
Follow the same procedure on the opposite door.
There are no wires or water lines on the opposite side
REMOVE CENTER HINGE (if necessary)
Remove the 3/8ļscrews securing the center hinge to the
cabinet.
Use T20 driver to remove outboard screw
25
Installation Instructions
INSTALLING THE REFRIGERATOR (cont.)
5
Loosen Outer
screws
Remove
center screw
Lift up & off
center hinge
Open Door to 90°
Align flats with tab.
Underside OF
Fresh Food Door
,IGRRUFDQQRWEHLQVWDOOHGDWIROORZVWHSVEHORZ
1.
Install door at 180° to case front.
2. If space limits opening door to less than 180°, then:
a) Remove door, carefully turn door upside down.
b) Check alignment of door closure mechanism shaft on
underside of door. The flats on the shaft should
correspond to alignment tab on plastic ring or mark
on bottom end cap.
c) If shaft is not aligned to tab/mark, using 5/32” Allen
wrench, rotate door closure mechanism shaft
counterclockwise for right door and clockwise for left
door. Then align flat with tab/mark.
d) Install the door at 90°.
Installation Instructions
INSTALLING THE REFRIGERATOR (cont.)
26
REMOVE THE FREEZER DOOR
Pull the freezer door open to full extension.
Remove 3 attachment screws, located at the bottom
on each side of the freezer door using 3/8” hex socket
driver.
CAUTION
Lifting Hazard
Freezer door is heavy Use both hands to secure the
door before lifting.
Lift the freezer door to disengage it from the slide
mechanism
The door can safely rest on the bottom. Do not rest the
door on any other surfaces to avoid scratches.
Push the slide mechanism back completely until it self
retracts.
A
B
C
6
REPLACING THE FREEZER DOOR
Pull the slide Mechanism to full extension using both
hands simultaneously.
Remove the basket resting on the slides.
CAUTION
Lifting Hazard
Freezer door is heavy Use both hands to secure the
door before lifting.
Lift the freezer door and place it on the slide mechanism
Replace the attachment screws and torque the screws
to 65 in-lb
For adjusting freezer door gaps, follow the instructions
on pg 27.
Replace the basket
A
B
C
D
7
E
F
Align and insert
tab on Freezer
Door Bracket
with slot on
Freezer Slide
Bracket.
27
Installation Instructions
INSTALLING THE REFRIGERATOR (cont.)
Refer to 239D4144P001, Pub No. 31-45474-2

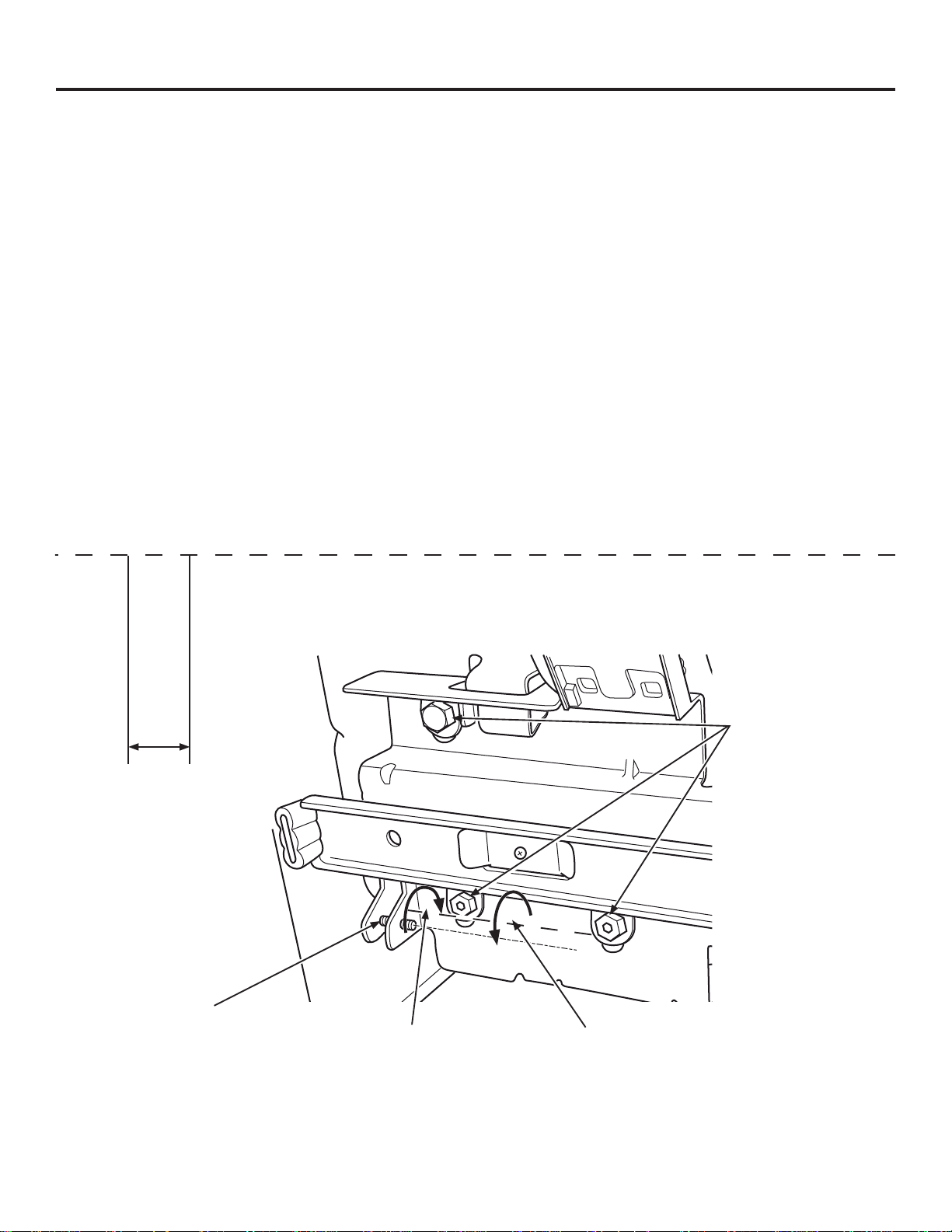

IMPORTANT!
The 6 mounting screws (3 on each side) are NOT interchangeable with the center or top hinge
screws. Drawer screws have flat washer heads, and other screws have lines/ribs on washer heads.
After installation of the freezer door, check for uniform gaps (top and bottom of right and left hand
side) with the template provided.
In the event of excessive gaps use the following steps to adjust the freezer door.
Step 1 - Loosen the 3 screws on each side (right and left) of the freezer door.
Step 2 - Adjust set screw clockwise if gap at the top is too big (see template). Turn the set screw using 3/32” hex
key clockwise by quarter to half a rotation
Step 3 - Adjust set screw counter-clockwise if gap at the bottom is too big (see template). Turn the set screw
using 3/32” hex key counter-clockwise by quarter to half a rotation
Step 4 - Tighten the 3 screws on each side (right and left).
Step 5 - Re-check the gaps using the template and repeat steps 1 to 4 if required and complete with step 5.
Instructions for adjusting freezer door gaps:
Fold here for using template
0.600”
Template for checking gaps.
Gap should be 0.6” or below.
Gabarit pour vérifier les
écarts. L’écart doit être de
0,6 po (1,5 cm) ou moins.
Plantilla para el control de
espacios. El espacio debería
ser de 0.6” o inferior.
Step 1
Étape 1
Paso 1
Step 4
Étape 4
Paso 4
Set Screw
Vis d’ajustement
Tornillo del Set
Step 3
Étape 3
Paso 3
Step 2
Étape 2
Paso 2
Plier ici pour utiliser le gabarit Dóblelo aquí para usar la plantilla
Installation Instructions
28

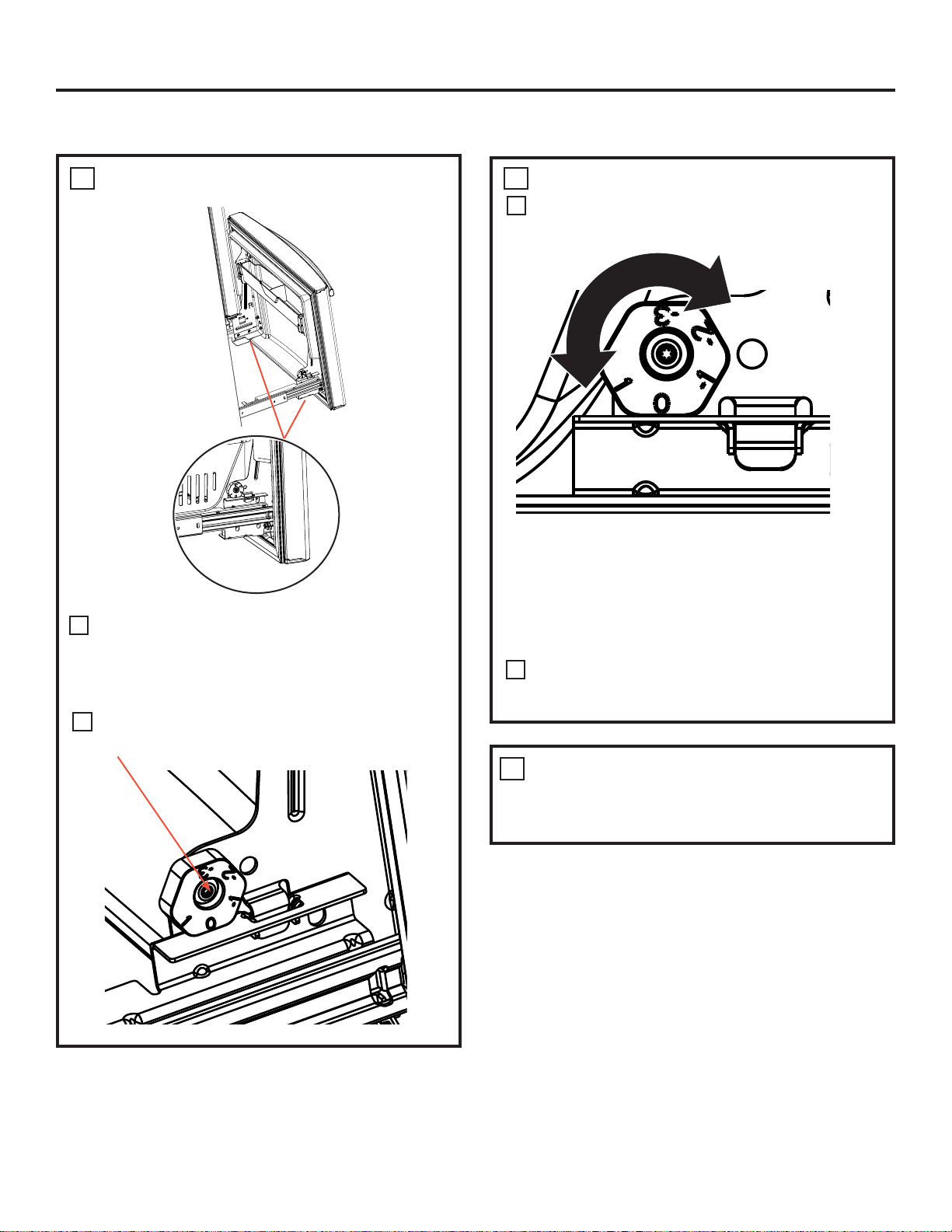

LEVEL THE FREEZER DOOR
Locate the height adjuster cam in the freezer
door. Slightly loosen the three door attachment
screws on both sides using a 3/8” hex socket
driver.
Locate and loosen the cam screw using the
T-27 screw driver.
8
A
B
REMOVE PACKAGING
A) Remove all tape, foam and protective
packing from shelves and drawers.
10
LEVEL THE FREEZER DOOR (cont.)
Lift the door on the side requiring adjustment,
rotate the cam to required position.
After adjustment tighten the 3 attachment
screws using to 65 in-lb.
9
INSTALLING THE REFRIGERATOR (cont.)
0 - Initial position
1 - Lift by 0.050”
-1 - Lower by 0.050”
-2 - Lower by 0.100
-3 - Lower by 0.150”
A
B
MEASURE CABINET OPENING
AVAILABLE VS. REFRIGERATOR WIDTH
Measure width of cabinet opening where
refrigerator will be placed, W.
Be sure to account for any countertop overhang,
baseboard thickness and any clearance desired.
Width, W, should not be less than 36”. The
refrigerator will be placed approximately in the
middle of this opening.
MATERIALS YOU MAY NEED (not included)
TOOLS YOU WILL NEED
Pencil
1/8” (3 mm) Drill Bit and
Electric or Hand Drill
Tape measure
5/16” (8 mm) Nut Driver
Lag Bolts
1/4” (6 mm) x 1-1/2” (38 mm)
Anchor Sleeves
1/2” (12 mm) OD
For Anti-Tip Bracket Mounted on CONCRETE Floors Only
Drill Bit Appropriate for Anchors
AT-1
Baseboard
Thickness or
Countertop
Overhang
(Whichever Is
Larger) Plus
Any Desired
Clearance
Rear Wall
Front
RH Side
AT-2
LOCATING THE ANTI-TIP FLOOR
BRACKET
Place the anti-tip floor bracket locator template
(included inside the anti-tip kit) onto the floor
up against the rear wall, within W, and in line
with the desired location of the RH side of the
refrigerator (see Figure 1).
Place the anti-tip floor bracket onto the locator
template with its RH floor holes lined up with
the floor holes indicated on the template sheet,
approximately 15 ¼” from the edge of the sheet
or the RH side of the refrigerator.
Hold down in position and use the anti-tip floor
bracket as a template for marking the holes
based upon your configuration and type of
construction as shown in Step 3. Mark the hole
locations with a pencil, nail or awl.
NOTE:
,WLV5(48,5('WRXVHDWOHDVWVFUHZVWRPRXQW
the floor bracket (one on each side of the
anti-tip floor bracket). Both must be into either
the wall or the floor. Figure 2 indicates all the
acceptable mounting configurations for screws.
Identify the screw holes on the anti-tip floor
bracket for your configuration.
A
B
C
W
REFRIGERATOR
Figure 1 – Installation Overview
Base Bracket
on the
Refrigerator
2 Wall Holes
RH Side of
Refrigerator
Floor – Concrete
(2 Holes)
Floor – Wood
(2 Holes)
15 ¼”
Locator Template
Sheet
Floor Bracket
to Install
RH Holes
Rear RH
Corner of
Cabinet Wall
NOTE:
If you did not receive an anti-tip bracket with your
purchase, call 1.800.626.8774 to receive one at no
cost. (In Canada, call 1.800.561.3344.)
For installation instructions of the bracket, visit: www.
GEAppliances.com.
(In Canada, www.GEAppliances.ca.)
29
Installation
Anti-Tip Floor Bracket
Instructions
WARNING
Tip Over Hazard.
Built-in style models (model PYE, CYE, and PWE) are
top heavy, especially with any doors open. These
models must be secured with the anti-tip floor
bracket to prevent tipping forward, which could result
in death or serious injury. Read and follow the entire
installation instructions for installing the anti-tip floor
bracket packed with your refrigerator.
PYE, PWE Models Only
Refer to 239D1142P001, Pub No. 31-45484-2

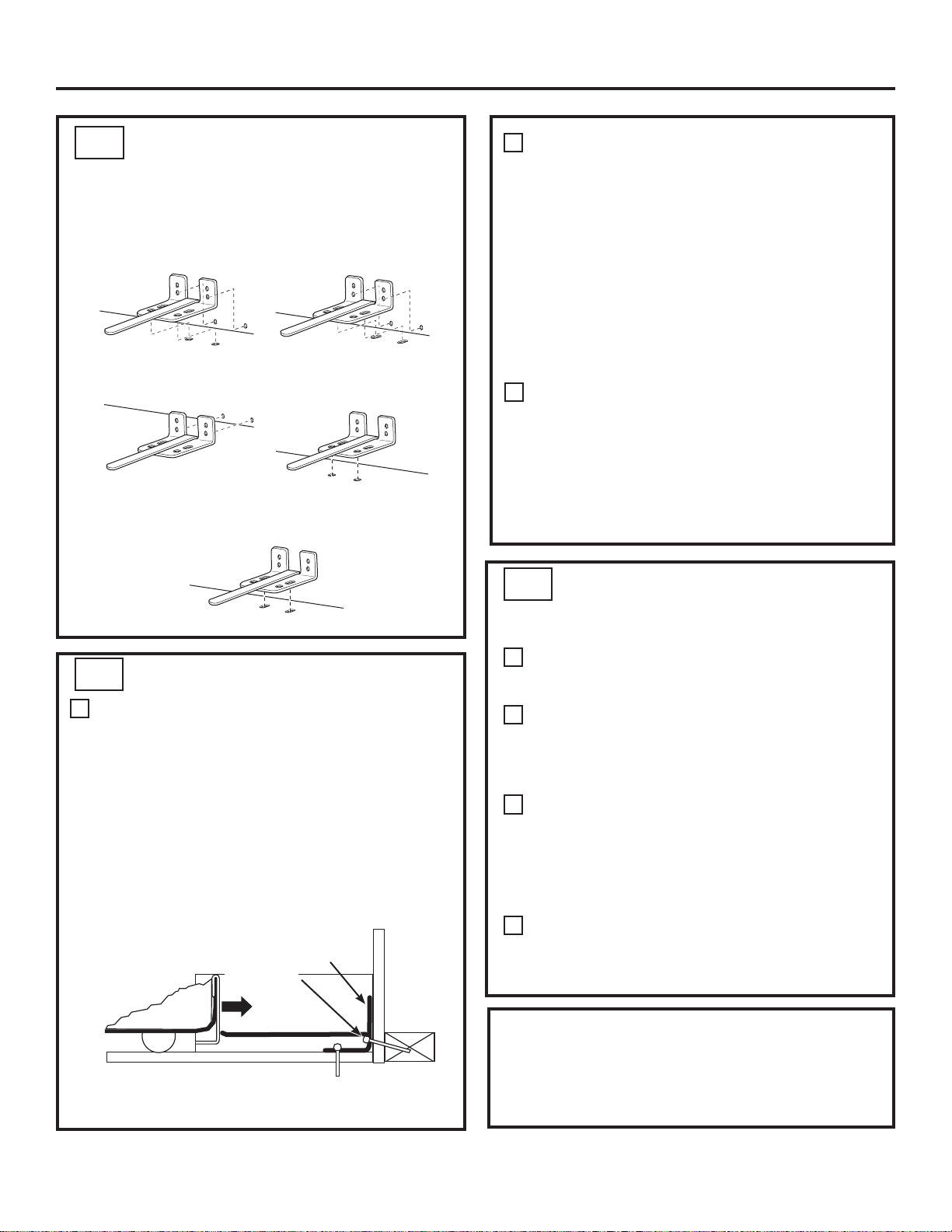

AT-2
LOCATING THE ANTI-TIP FLOOR
BRACKET (cont.)
Recommended Installation
– Wood
Recommended Installation
– Concrete
Minimum Acceptable #1 –
Wall Plate Stud
Minimum Acceptable #2 –
Wood Floor
Minimum Acceptable #3 –
Concrete Floor
Figure 2 – Acceptable
Screw Placement Locations
CONCRETE Wall and Floor Construction:
$QFKRUVUHTXLUHGQRWSURYLGHG
4 each 1/4” (6 mm) x 1-1/2” (38 mm) lag bolts
4 each 1/2” (12 mm) O.D. sleeve anchors
'ULOOWKHUHFRPPHQGHGVL]HKROHVIRUWKH
anchors into the concrete at the center of the
holes marked in Step 2.
,QVWDOOWKHVOHHYHDQFKRUVLQWRWKHGULOOHG
holes. Place the anti-tip floor bracket as
indicated in Step 2. Remove the locator
template from the floor.
,QVWDOOWKHODJEROWVWKURXJKWKHDQWLWLSIORRU
bracket and tighten appropriately.
WOOD Wall and TILE Floor Construction:
)RUWKLVVSHFLDOFDVHORFDWHWKHZDOOKROHV
identified in Fig. 1. Drill an angled 1/8” (3 mm)
pilot hole (approx. as shown in Fig. 3) in the
center of each hole.
0RXQWWKHDQWLWLSIORRUEUDFNHWXVLQJWKH
Minimum Acceptable Installation #1, as
illustrated in Fig. 2.
C
B
AT-3
ANTI-TIP BRACKET INSTALLATION
WOOD Wall and Floor Construction:
'ULOOWKHDSSURSULDWHQXPEHURIµPP
pilot holes in the center of each floor bracket
hole being used (a nail or awl may be used if
a drill is not available) AND remove the locator
template from the floor.
0RXQWWKHDQWLWLSIORRUEUDFNHWE\IDVWHQLQJ
the 2, or recommended 4, #10-16 hex-head
screws tightly into place as illustrated in
Figure 3.
A
AT-4
POSITIONING THE REFRIGERATOR
TO ENGAGE THE ANTI-TIP FLOOR
AND BASE BRACKETS
Before pushing the refrigerator into the opening,
plug the power cord into the receptacle and
connect waterline (if equipped). Check for leaks.
Locate the refrigerator’s RH side and move back
approximately in line with the RH side of the
cabinet opening, W. This should position the
anti-tip floor bracket to engage the anti-tip base
bracket on the refrigerator.
Gently roll the refrigerator back into the cabinet
opening until it comes to a complete stop. Check to
see if the refrigerator front lines up with the cabinet
front face. If not, carefully rock the refrigerator
forward and backward until engagement occurs
and you notice that the refrigerator is fully pushed
up against the rear wall.
If Applicable: Adjust the rear (and front) wheel
height settings to fully engage the rear anti-tip
brackets, while also aligning the refrigerator
front with the cabinet front face.
A
C
B
D
NOTE:
If you pull the refrigerator out and away from the wall
for any reason, make sure the anti-tip floor bracket is
engaged when the refrigerator is pushed back against
the rear wall.
Rear RH
Corner of the
Refrigerator
Floor
Wall
Plate
Stud
Floor
Bracket
2 Screws
Must Enter
Wood or
Metal Stud
Wall
Installation Instructions
30
Figure 3 – Attachment to Wall and Floor
Refer to 239D1142P001, Pub No. 31-45484-2
31
Installation Instructions

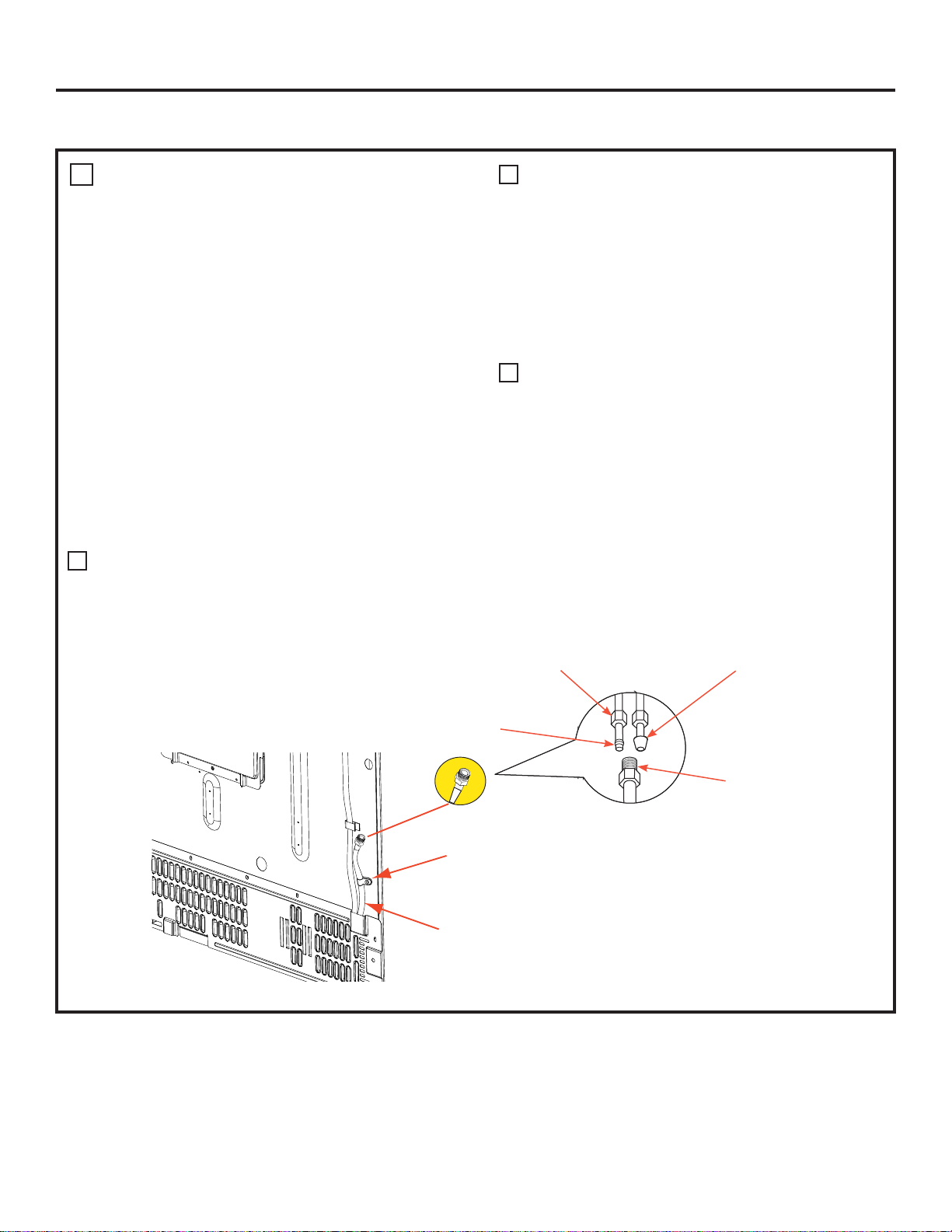

CONNECTING THE REFRIGERATOR
TO THE HOUSE WATER LINE
A cold water supply is required for automatic ice maker
operation. If there is not a cold water supply, you will
need to provide one. See Installing the Water Line section.
NOTES:
%HIRUHPDNLQJWKHFRQQHFWLRQWRWKHUHIULJHUDWRUEH
sure the refrigerator power cord is not plugged into the
wall outlet.
,I\RXUUHIULJHUDWRUGRHVQRWKDYHDZDWHUILOWHUZH
recommend installing one if your water supply has
sand or particles that could clog the screen of the
refrigerator’s water valve. Install it in the water line
near the refrigerator. If using GE SmartConnect
™
Refrigerator Tubing Kit, you will need an additional tube
(WX08X10002) to connect the filter. Do not cut plastic
tube to install filter.
%HIRUHFRQQHFWLQJWKHZDWHUOLQHWRWKHKRXVHSXUJH
the house line for at least 2 minutes.
If you are using copper tubing, place a compression nut
and ferrule (sleeve) onto the end of the tubing coming
from the house cold water supply.
If you are using the GE SmartConnect
™
tubing, the nuts
are already assembled to the tubing.
If you are using copper tubing, insert the end of the
tubing into the refrigerator connection, at the back of the
refrigerator, as far as possible. While holding the tubing,
tighten the fitting.
If you are using GE SmartConnect
™
tubing, insert
the molded end of the tubing into the refrigerator
connection, at the back of the refrigerator, and tighten
the compression nut until it is hand tight. Then tighten
one additional turn with a wrench. Over tightening may
cause leaks.
Fasten the tubing into the clamp provided to hold it in
position. You may need to pry open the clamp.
11
A
B
C
1/4”
Compression
Nut
Ferrule
(sleeve)
SmartConnect
™
Tubing
Refrigerator
Connection
INSTALLING THE REFRIGERATOR (cont.)
1/4“ Tubing
Tuyau de 1/4 p
o
Tubería de 1/4“
Tubing Clamp
Bride
Abrazadera del t
u
Installation Instructions
TURN ON THE WATER SUPPLY
Turn the water on at the shutoff valve (house water
supply) and check for any leaks.
12
PLUG IN THE REFRIGERATOR
See the grounding information attached to the power
cord.
13
LEVEL THE REFRIGERATOR
The leveling legs have 2 purposes:
1) Leveling legs adjust so the refrigerator is
firmly positioned on the floor and does not
wobble.
2) Leveling legs serve as a stabilizing brake
to hold the refrigerator securely in position
during operation and cleaning. The leveling
legs also prevent the refrigerator from
tipping.
Turn the leveling legs clockwise to raise
the refrigerator, counterclockwise to lower it.
NOTICE: To avoid possible property
damage, the leveling legs must be firmly
touching the floor.
14
A
Flat-Head Screwdriver
LEVEL THE REFRIGERATOR DOORS
Remember a level refrigerator is necessary for
getting the doors perfectly even. If you need
help, review the previous section on leveling the
refrigerator.
If you open the freezer door, you can see
the center hinge.
Insert 1/4” Allen wrench into the shaft of the
center hinge.
Adjust the height by turning clockwise
or counterclockwise. When you turn
counterclockwise, the door will move up.
15
A
B
When
the left
door is
lower than
the right
door.
When
the left
door is
higher than
the right
door.
Adjustment
point
C
INSTALLING THE REFRIGERATOR (cont.)
RAISE
32
Raise
Installation Instructions
G

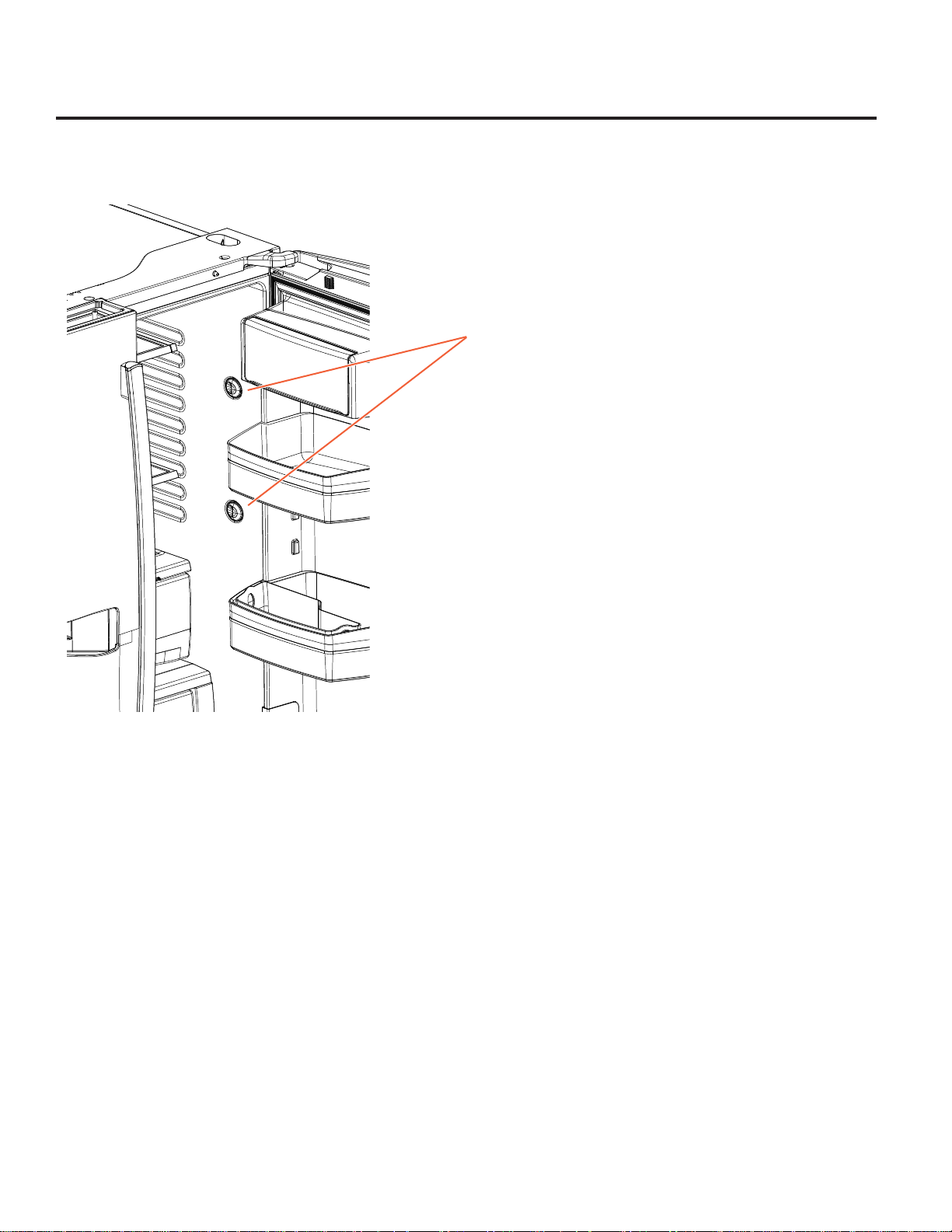

Refrigerator Assembly Instructions, suggested assembly.
,QVWUXFWLRQVĈDVVHPEODJHGXUpIULJHUDWRUĈDVVHPEODJHVXJJpUHU
Instrucciones de montaje del refrigerador, ensamble sugerido.
G
To place bins into doors:
Match your bin with the letter shown.
Position the bin hooks over the bin locator
and push forward until inserted fully.
Bin locator
each side
Bin hook
rear each side
Push bin down until locked into posi-
tion.
J
H
G
H
Divider
(Select
models only)
Non-Dispense
Models
33
Refer to 239D4129P002 Pub No. 31-45498
GE Appliances
General Electric Company
Louisville, KY 40225
GEAppliances.com
Installation Instructions
34
INSTALLING THE WATER LINE
Recommended copper water supply kits are WX8X2,
WX8X3 or WX8X4, depending on the amount of tubing
you need. Approved plastic water supply lines are GE
SmartConnect
™
Refrigerator Tubing (WX08X10006,
WX08X10015 and WX08X10025).
When connecting your refrigerator to a GE Reverse
Osmosis Water System, the only approved installation
is with a GE RVKit. For other reverse osmosis water
systems, follow the manufacturer’s recommendations.
If the water supply to the refrigerator is from
a Reverse Osmosis (RO) Water Filtration System
AND the refrigerator also has a water filter,
use the refrigerator’s filter bypass plug. Using
the refrigerator’s water filtration cartridge in
conjunction with the RO water filter can result in
hollow ice cubes.
This water line installation is not warranted
by the refrigerator or ice maker manufacturer.
Follow these instructions carefully to minimize
the risk of expensive water damage.
Water hammer (water banging in the pipes)
in house plumbing can cause damage to
refrigerator parts and lead to water leakage
or flooding. Call a qualified plumber to correct water
hammer before installing the water supply line to
the refrigerator.
To prevent burns and product damage, do not hook
up the water line to the hot water line.
For PFE27 and PYE23K Models: If the refrigerator is
operated before the water connection is made to
the ice maker, press and hold both the CRUSHED
and CUBED buttons together for 3 seconds to
disengage the ice maker. When the refrigerator has
been connected to the water supply, press and hold
both the CRUSHED and CUBED buttons together for
3 seconds to re-engage the ice maker.
For Non-LCD Models: If the refrigerator is operated
before the water connection is made to the ice
maker, press and release the ICE MAKER button on
the control panel to disengage the ice maker. When
the refrigerator has been connected to the water
supply, press and release the ICE MAKER button on
the control panel to re-engage the ice maker.
BEFORE YOU BEGIN
WHAT YOU WILL NEED
&RSSHURU*(6PDUW&RQQHFW
™
Refrigerator Tubing
kit, 1/4” outer diameter to connect
the refrigerator to the water supply. If using
copper, be sure both ends of the tubing are
cut square.
To determine how much tubing you need:
measure the distance from the water valve
on the back of the refrigerator to the water supply
pipe. Be sure there is sufficient extra tubing to allow
the refrigerator to move out from the wall after
installation.
GE SmartConnect
™
Refrigerator Tubing Kits are
available in the following lengths:
6’ (1.8 m) – WX08X10006
15’ (4.6 m) – WX08X10015
25’ (7.6 m) – WX08X10025
For PFE29 and PYE23P Models: If the refrigerator is
operated before the water connection is made to
the ice maker, see ICE MAKER under SETTINGS menu
of the LCD Operations section and follow the screen
commands to turn the ice maker OFF.
Do not install the ice maker tubing in areas where
temperatures fall below freezing.
When using any electrical device (such as a power
drill) during installation, be sure the device is double
insulated or grounded in a manner to prevent
the hazard of electric shock, or is battery powered.
All installations must be in accordance with local
plumbing code requirements.
Installation Instructions
INSTALLING THE WATER LINE (cont.)
NOTE: The only GE approved plastic tubing
is that supplied in GE SmartConnect
™
Refrigerator
Tubing kits. Do not use any other plastic water
supply line because the line is under pressure at all
times. Certain types of plastic will crack or rupture
with age and cause water damage to your home.
$*(ZDWHUVXSSO\NLW FRQWDLQLQJWXELQJ
shutoff valve and fittings listed below) is available
at extra cost from your dealer or from Parts
and Accessories, 800.626.2002 (in Canada
1.800.661.1616).
$FROGZDWHUVXSSO\ 7KHZDWHUSUHVVXUHPXVWEH
between 20 and 120 p.s.i. (1.4–8.1 bar).
3RZHUGULOO
1/2” or adjustable wrench.
6WUDLJKWDQG3KLOOLSVEODGHVFUHZGULYHU
7ZR” outer diameter compression nuts
DQGIHUUXOHVVOHHYHV³WRFRQQHFWWKHFRSSHU
tubing to the shutoff valve and the refrigerator
water valve.
OR
,I\RXDUHXVLQJD*(6PDUW&RQQHFW
™
Refrigerator Tubing kit, the necessary fittings
are preassembled to the tubing.
,I\RXUH[LVWLQJFRSSHUZDWHUOLQHKDVDIODUHG
fitting at the end, you will need an adapter
(available at plumbing supply stores) to connect
the water line to the refrigerator OR you can cut
off the flared fitting with a tube cutter and then
use a compression fitting. Do not cut formed end
from GE SmartConnect
™
Refrigerator tubing.
6KXWRIIYDOYHWRFRQQHFWWRWKHFROGZDWHUOLQH
The shutoff valve should have a water inlet with
a minimum inside diameter of 5/32” at the point of
connection to the COLD WATER LINE. Saddle-type
shutoff valves are included in many water supply
kits. Before purchasing, make sure a saddle-type
valve complies with your local plumbing codes.
WHAT YOU WILL NEED (CONT.)
SHUT OFF THE MAIN WATER SUPPLY
Turn on the nearest faucet long enough to clear
the line of water.
Install the shutoff valve on the nearest frequently
used drinking water line.
1
Choose a location for the valve that is easily
accessible. It is best to connect into the side
of a vertical water pipe. When it is necessary
to connect into a horizontal water pipe, make
the connection to the top or side, rather than at
the bottom, to avoid drawing off any sediment
from the water pipe.
CHOOSE THE VALVE LOCATION
2
DRILL THE HOLE FOR THE VALVE
3
Drill a 1/4” hole in the water pipe (even if using
a self-piercing valve), using a sharp bit. Remove
any burrs resulting from drilling the hole in
the pipe.
Take care not to allow water to drain into
the drill.
Failure to drill a 1/4” hole may result in reduced
ice production or smaller cubes.
35
Installation Instructions
36
Place the compression nut and ferrule (sleeve)
for copper tubing onto the end of the tubing
and connect it to the shutoff valve.
Make sure the tubing is fully inserted into
the valve. Tighten the compression nut securely.
For plastic tubing from a GE SmartConnect
™
Refrigerator Tubing kit, insert the molded end
of the tubing into the shutoff valve and tighten
compression nut until it is hand tight, then
tighten one additional turn with a wrench. Over
tightening may cause leaks.
NOTE: Commonwealth of Massachusetts
Plumbing Codes 248CMR shall be adhered to.
Saddle valves are illegal and use is not permitted
in Massachusetts. Consult with your licensed
plumber.
CONNECT THE TUBING TO THE VALVE
7
Saddle-Type
Shutoff Valve
Compression Nut
Packing Nut
Outlet Valve
Ferrule (sleeve)
Turn the main water supply on and flush out
the tubing until the water is clear.
Shut the water off at the water valve after about
one quart (1 liter or 2 minutes) of water has been
flushed through the tubing.
FLUSH OUT THE TUBING
8
SmartConnect
™
Tubing
Fasten the shutoff valve to the cold water pipe
with the pipe clamp.
NOTE: Commonwealth of Massachusetts
Plumbing Codes 248CMR shall be adhered to.
Saddle valves are illegal and use is not permitted
in Massachusetts. Consult with your licensed
plumber.
FASTEN THE SHUTOFF VALVE
4
Tighten the clamp screws until the sealing
washer begins to swell.
NOTE: Do not over tighten or you may crush
the tubing.
TIGHTEN THE PIPE CLAMP
5
Pipe Clamp
Vertical Cold Water
Pipe
Saddle-Type
Shutoff Valve
Washer
Inlet End
Pipe Clamp
Clamp
Screw
Route the tubing between the cold water line
and the refrigerator.
Route the tubing through a hole drilled in the
wall or floor (behind the refrigerator or adjacent
base cabinet) as close to the wall as possible.
ROUTE THE TUBING
6
To complete the installation of the refrigerator, go back
to Step 11 in Installing the Refrigerator.
INSTALLING THE WATER LINE (cont.)
Normal operating conditions.
GEAppliances.com
Newer refrigerators sound different from older refrigerators.
Modern refrigerators have more features and use newer technology.
HUMMM...
WHOOSH...
The new high efficiency compressor may run faster and longer
than your old refrigerator and you may hear a high-pitched hum
or pulsating sound while it is operating.
You may hear a whooshing sound when the doors close. This is
due to pressure equalizing within the refrigerator.
After dispensing ice, a motor will close the ice chute to keep
warn room air from entering the ice bucket, maintaining ice at a
freezing temperature.
The hum of the motor closing the ice chute is normal, shortly after
dispensing ice.
You may hear the fans spinning at high speeds. This happens
when the refrigerator is first plugged in, when the doors are
opened frequently or when a large amount of food is added to
the refrigerator or freezer compartments. The fans are helping to
maintain the correct temperatures.
The fans change speeds in order to provide optimal cooling and
energy savings.
CLICKS, POPS,
CRACKS and SNAPS
You may hear cracking or popping sounds when the refrigerator
is first plugged in. This happens as the refrigerator cools to the
correct temperature.
Expansion and contraction of cooling coils during and after
defrost can cause a cracking or popping sound.
On models with an ice maker, after an ice making cycle, you may
hear the ice cubes dropping into the ice bucket.
On models with a dispenser, during water dispense, you may
hear the water lines move at initial dispense and after dispenser
button is released.
WATER SOUNDS
The flow of refrigerant through the cooling coils may make a
gurgling noise like boiling water.
Water dropping on the defrost heater can cause a sizzling,
popping or buzzing sound during the defrost cycle.
A water dripping noise may occur during the defrost cycle as ice
melts from the evaporator and flows into the drain pan.
Closing the door may cause a gurgling sound due to pressure
equalization.
Do you hear what I hear? These sounds are normal.
37
START UP COOLING
It can take up to 24 hours for the refrigerator and freezer
temperatures to match the display. During that time refrigerator and
freezer door openings should be minimized.
TIPS
Freezer cools first.
Refrigerator compartment cools last; it may take several
hours after the freezer.
Turning off ice maker makes both fresh food and freezer
food cool faster.
Troubleshooting Tips
Save time and money! Review the charts on the following
pages first and you may not need to call for service.
Before you call for service…
38
Problem Possible Causes What to Do
Water filter indicator light
remains lit after replacing filter
Water filter indicator must be reset Non-LCD models:
-Press and hold reset button.
LCD models:
-On the LCD screen select
SETTINGS, then WATER FILTER. Select
RESET.
Water filter indicator light is not lit This is normal. This indicator will turn
on to tell you that you need to replace
the filter soon.
See About the Water Filter for more
information.
Handle is loose/handle has a gap. Handle needs adjusting See Attach Fresh Food Handle and
Attach the Freezer Handle sections for
detailed instructions.
Refrigerator beeping This is door alarm -Turn off or disable with door closed
-If door open and alarm is sounding, you
can only snooze the alarm
Not cooling The cooling system is off See About Controls.
Water has poor taste/odor* Water dispenser has not been used
for a long time
Dispense water, until all water in system
is replenished.
Water in glass is warm* Normal when refrigerator is first
installed
Wait 24 hours for the refrigerator to
completely cool down.
Water dispenser has not been used
for a long time
Dispense water, until all water in system
is replenished
Water system has drained Allow several hours for replenished
supply to chill
Water dispenser does not work* Water supply line turned off or not
connected
See Installing the Water Line
Water filter clogged or filter/bypass
plug not installed
Replace filter cartridge or remove filter
and install bypass plug
Air may be trapped in the water
system
Press the dispenser arm for at least 5
minutes.
Water in reservoir is frozen because
the controls are set too cold
Set the refrigerator control to a warmer
setting and wait 24 hours. If the water
does not dispense after 24 hours, call for
service
Water spurting from dispenser* Newly installed filter cartridge Run water from the dispenser for 5
minutes (about 2 gallons)
*Select Models Only
Troubleshooting Tips (cont)
39
Before you call for service…
GEAppliances.com
Problem Possible Causes What to Do
No water or ice cube production* Supply line or shutoff valve is clogge Call a plumber
Water filter is clogged Replace filter cartridge or remove filter and
install bypass plug
Filter cartridge not properly installed Remove and reinstall filter cartridge,
being certain that it locks in place.
Ice maker is turned off Check that the ice maker is turned on. See
About the Automatic Ice Maker.
Water is leaking from dispenser* Air may be present in the water line
system, causing water to drip after
being dispensed
Dispense water for at least 5 minutes to
remove air from system
Photos not found* Photos not in root directory of USB
Photos not in JPEG format
Camera/PC used with USB cord
Make sure the photos are in the root direc-
tory in your USB
Photos must be in JPEG format
Must use a USB drive
AUTO FILL under fill/no fill* Not all containers work with
AUTO FILL
Try different container
Container not found
Unstable container
Misaligned container
See pg. 11
AUTO FILL overfills* Not all containers work with
AUTO FILL
Try different container
PRECISE FILL will not fill container* Normal, PRECISE FILL requires use of
dispenser paddle
For a specific amount of water, select PRE-
CISE FILL to dispense water
Freezer cooling, fresh food not cooling Normal, when refrigerator first
plugged in or after extended power
outage
Wait 24 hours for temperature in both
compartments to reach selected
temperatures.
Ice dispenser opens after closing
freezer drawer *
Normal The ice dispenser door may open after
closing freezer door to allow access
*Select Models Only
40
Truth or Myth? Answer Explanation
The refrigerator water filter may require replacement,
even though the filter indicator has not turned red, or
reads “Filter Expired.”
TRUE The water filter indicator will indicate the need to replace the water filter
every six months. Water quality varies from city to city; if water flow from
the dispenser slows, or ice production decreases, the water filter should
be replaced, even though the filter indicator may not indicate the need for
replacement.
The automatic ice maker in my refrigerator will
produce ice when the refrigerator is plugged in to a
power receptacle.
MYTH The refrigerator must be connected to water, and the ice maker must be
turned on. Make sure the ice maker is turned on, only after the water line
is connected and water is turned on. The ice maker can be turned on/
off from the controls and ensure the ice maker is on, as indicated on the
refrigerator control panel. See About the Automatic Ice Maker.
After the refrigerator has been plugged in and
connected to water, I will immediately have unlimited
chilled water available from the water dispenser.
MYTH The water dispenser tank located inside the refrigerator stores water
for dispensing. The water in this tank requires 24 hours to chill after
installation. High usage conditions will not allow time for the water to
chill.
After water dispenses, a few drops of water are
normal.
TRUE A few drops of water may fall from the dispenser, after the dispenser
paddle has been released. To minimize the drops, remove the glass
slowly from the dispenser.
I will never see frost inside the freezer compartment. MYTH Frost inside the freezer typically indicates that the door is not properly
sealed, or has been left open. If frost is found, clear the frost using a
plastic spatula and towel, then check to ensure that no food packages
or containers are preventing the freezer door from closing. Check the
refrigerator control panel to ensure the door alarm is on.
When the refrigerator is installed, or after replac-
ing the water filter, I must dispense water for five
minutes.
TRUE
A newly installed refrigerator or water filter contains air in the water lines.
Press the dispenser paddle and dispense cold water for at least 5 minutes
to remove air from the water line, and flush the filter.
To fill the ice bucket to the maximum capacity, I
should dispense 12 and 18 hours after installation.
TRUE Dispensing 3-4 cubes 12 hours and 18 hours after installation, allows ice
to disperse within the ice bucket, which in turns calls on the ice maker to
produce additional ice. Normal ice production = 100 cubes in 24 hours.
I can use the water filter bypass plug to determine if
the filter requires replacement.
TRUE Decrease in flow from the water dispenser, or decreased ice production,
may indicate the need to replace the water filter. Install the water filter
bypass plug (provided with the refrigerator), and check flow from the
dispenser. If water flow returns to normal with the bypass plug in place,
replace the water filter.
The top of the refrigerator doors will always be
aligned.
MYTH Several things can affect the fresh food door alignment, including the
floor the refrigerator is installed on, and loading of doors. If the top of
the fresh food doors are not aligned, use a 1/4” allen wrench to adjust
the right hand door. The adjustment screw is located on the bottom right
hand side of the door; open the freezer door to access the screw. The left
hand fresh food door may be raised using spacers. Call 800-GECARES to
obtain the spacers.
Refrigerator door handles can be easily tightened. TRUE If door handles are loose or have a gap, the handle can be adjusted using
a 1/8” allen wrench, on set screws located on the ends of the handles.
There may be odor and taste problems with your ice. TRUE After starting the ice maker throw away 24 hours of ice production to
avoid odor and taste problems.
I can make fine adjustments to the fresh food doors
to align them.
TRUE If the fresh food doors are not aligned, use a 1/4” Allen wrench to adjust
the right hand door. The adjustment screw is located on the bottom of the
right door. Open the freezer door to access. The left hand fresh food door
may be raised using spacers. Call 800-GECARES to obtain the spacers.
Door handles should always be removed for
installation.
MYTH Check chart on reverse side of this instruction. If the doors must be
removed do not remove the handles, or if the refrigerator will fit easily
through the passage way opening. Adjust handles that are loose or have
a gap, by adjusting 1/8” set screws on either end of handles.
Before you call for service, review the detailed troubleshooting tips in the Owner’s
manual. If needed, service can be scheduled by visiting us online GEAppliances.
com or calling 800.ge.CARES 800.432.2737
Truth or Myth
SERVICE
41
Truth or Myth? Answer Explanation
Door removal is always required for installation. MYTH Check chart on reverse side of this instruction. Doors should only be
removed when necessary to prevent damage from passage way or
access to final location.
Refrigerator doors that won’t close after installation,
can be adjusted to close properly.
TRUE Door mechanism works best if installed at 90°+. If installed at 180°,
remove the door from the mid hinge, and swing the door 180° before
reinstalling. See Reinstalling the Refrigerator Doors.
There is an adjustment to rear wheels. MYTH Front leveling legs are adjustable and should be used to balance the
refrigerator. Leveling legs are used to make initial fresh food door
adjustment.
Check for leaks after all water connections are made. TRUE While purging the air from the water system, check all water line
connections for leaks. Check the connection to the household water
supply at back of refrigerator, and door water line connect.
My LCD display will always be on when I plug the
power cord in at installation.
MYTH If the refrigerator has been stored in a cold environment, the LCD may
be slow to give a proper display. Give the refrigerator enough time to
warm up, and the display should be okay.
Any packaging residue can be cleaned off the
refrigerator using any cleaner.
MYTH Do not use wax, polish, bleach, or other products containing chlorine
on Stainless Steel panels, door handles and trim. Check this instruction
under “Cleaning the Outside” for full details.
Before you call for service, review the detailed troubleshooting tips in the Owner’s
manual. If needed, service can be scheduled by visiting us online GEAppliances.
com or calling 800.ge.CARES 800.432.2737
Truth or Myth (cont.)
SERVICE
42
Refer to 239D3392P001 Pub No. 31-49000
Manage your appliances from your computer or iPhone
®
Combine a GE Brillion™ Get Connected Starter Kit with
your Brillion-enabled refrigerator, and you’ll have insight
to help protect your investment and track your energy
costs from your computer.
And that’s just the beginning! With one GE Nucleus
(included with the Get Connected Starter Kit), you can
build a network of GE products enabled with Brillion
technolog\³VXFKDVWKH*HR6SULQJwater heater
and the GE PrRJUDPPDEOH7KHUPRVWDW³WKDWyou can
manage from your computer or iPhone.
iPhone
®
is a registered trademark of Apple Inc.
Maintenance Alerts
Get text or email alerts if your Brillion-enabled
appliances need attention, as well as reminders
Remote Controls
Access your refrigerator’s Sabbath Mode from
your computer, and adjust GeoSpring and GE
Thermostat settings from your computer or
iPhone.
Energy Tracking
Track your appliances’ energy usage.
SPECIAL OFFER
Save 25% on a GE Brillion Get Connected Starter Kit
&DOORU
9LVLW*EApplianceParts.com and enter the promotion code JOIN when you
orGHUWKH*HW&RQQHFted Starter Kit (ParW+(.$(89
Offer valid through December 31, 2013
kW
GET CONNECTED.
Learn More at GEAppliances.com/connected-home-manager
43
Refrigerator Warranty. (For customers in the United States)
All warranty service provided by our Factory Service Centers, or
an authorized Customer Care
®
technician. To schedule service,
visit us online at GEAppliances.com, or call 800.GE.CARES
(800.432.2737). Please have serial number and model number
available when calling for service.
■ Service trips to your home to teach you how to use the product.
■ Improper installation, delivery or maintenance.
■ Failure of the product if it is abused, misused, or used for other
than the intended purpose or used commercially.
■ Loss of food due to spoilage.
■ Replacement of house fuses or resetting of circuit breakers.
■ Damage caused after delivery.
■ Replacement of the water filter cartridge, if included, due to
water pressure that is outside the specified operating range or
due to excessive sediment in the water supply.
■ Replacement of the light bulbs, if included, or water filter
cartridge, if included, other than as noted above.
■ Damage to the product caused by accident, fire, floods or acts
of God.
■ Incidental or consequential damage caused by possible defects
with this appliance.
■ Product not accessible to provide required service.
■ Damage caused by a non-GE Brand water filter.
What GE Will Not Cover:
This warranty is extended to the original purchaser and any succeeding owner for products purchased for home
use within the USA. If the product is located in an area where service by a GE Authorized Servicer is not available,
you may be responsible for a trip charge or you may be required to bring the product to an Authorized GE Service
location for service. In Alaska, the warranty excludes the cost of shipping or service calls to your home.
Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty gives
you specific legal rights, and you may also have other rights which vary from state to state. To know what your
legal rights are, consult your local or state consumer affairs office or your state’s Attorney General.
Warrantor: General Electric Company. Louisville, KY 40225
Staple your receipt here.
Proof of the original
purchase date is needed
to obtain service under the
warranty.
(;&/86,212),03/,(':$55$17,(6³<RXUVROHDQGH[FOXVLYHUHPHG\LVSURGXFWUHSDLUDVSURYLGHGLQWKLV
Limited Warranty. Any implied warranties, including the implied warranties of merchantability or fitness
for a particular purpose, are limited to one year or the shortest period allowed by law.
For the Period of: GE Will Replace
GE PROFILE ™ AND
GE CAFÉ™ MODELS
One Year
From the date of the original
purchase
Any part of the refrigerator which fails due to a defect in materials or workmanship.
During the limited one-year warranty, GE will also provide, free of charge, all labor and related
service to replace the defective part.
Thirty Days
(Water filter, if included)
From the original purchase
date of the refrigerator
Any part of the water filter cartridge which fails due to a defect in materials or workmanship. During
this limited thirty-day warranty, GE will also provide, free of charge, a replacement water filter
cartridge.
GE PROFILE MODELS ONLY
Five Years
(GE Profile models only)
From the date of the
purchase
Any part of the sealed refrigerating system (the compressor, condenser, evaporator an all
connecting tubing) which fails due to a defect in materials or workmanship.
During this limited five-year sealed refrigerating system warranty, GE will also provide, free of
charge, all labor and related service to replace the defective part in the sealed refrigerating system.
Servicing your refrigerator may require the use of the onboard data port for diagnostics. This gives a GE
Factory Service technician the ability to quickly diagnose any issues with your appliance and helps GE
improve its products by providing GE with information on your appliance. If you do not want your appliance
data to be sent to GE, please advise your technician NOT submit the data to GE at the time of service.
44
RPWF Water Filter Cartridge Limited Warranty.
Contact us at www.geapplianceparts.com,
or call 800.GE.CARES.
This warranty is extended to the original purchaser and any succeeding owner for products purchased for
home use within the U.S.A. In Alaska, the warranty excludes the cost of shipping or service calls to your home.
Some states do not allow the exclusion or limitation of incidental or consequential damages. This warranty
gives you specific legal rights, and you may also have other rights which vary from state to state. To know
what your legal rights are, consult your local or state consumer affairs office or your state’s Attorney General.
For Purchases Made In Iowa: This form must be signed and dated by the buyer and seller prior to the
consummation of this sale.
This form should be retained on file by the seller for a minimum of two years.
Buyer:
Name
Address
City State Zip
Signature Date
Seller:
Name
Address
City State Zip
Signatur
eDate
© 2012 General Electric Company PC66596
For The Period Of: We Will Replace, At No Charge To You:
Thirty Days
From the date of the
original purchase
Any part of the water filter cartridge which fails due to a defect in materials or
workmanship during this limited thirty-day warranty.*
What is Not Covered:
? Service trips to your home to teach you how to use the product.
? Improper installation.
? Failure of the product if it is abused, misused, used for other than the intended
purpose or used commercially.
? Replacement of house fuses or resetting of circuit breakers.
? Replacement of the water filter cartridge due to water pressure that is outside the
specified operating range or due to excessive sediment in the water supply.
? Damage to the product caused by accident, fire, floods or acts of God.
? Incidental or consequential damage caused by possible defects with this appliance.
Staple your receipt
here. Proof of the
original purchase
date is needed to
obtain service
under the warranty.
Appliance Service
800-GE-CARES
GE
Appliances
GE
Appliances
Appliance Park
Louisville, KY 40225
geapplianceparts.com
* If your GE part fails because of a manufacturing defect within thirty days from the date of original purchase for use, we will give you a new or, at our option, a rebuilt part without charge.
Return the defective part to the parts supplier from whom it was purchased together with a copy of the “proof of purchase” for the part. If the part is defective and shows no signs of abuse,
it will be exchanged. The warranty does not cover the failure of parts which are damaged while in your possession, are abused, or have been installed improperly. It does not cover the cost
of returning the part to the supplier from whom it was purchased nor does it cover the cost of labor to remove or install it to diagnose the fault. It does not cover parts used in products in
commercial use except in the case of air conditioning equipment. In no event shall GE be liable for consequential damages. Warrantor: General Electric Company
EXCLUSION OF IMPLIED WARRANTIES: Your sole and exclusive remedy is part exchange as provided in this Limited Warranty. Any implied warranties, including the implied warranties of
merchantability or fitness for a particular purpose, are limited to six months or the shortest period allowed by law.
45
Performance Data Sheet
Model: GE RPWF
Use Replacement Cartridge RPWF.
The concentration of the indicated substances in water entering the system was reduced to a concentration less than or equal to the permissible
limit for water leaving the system as specified in NSF/ANSI Standard 42 and Standard 53. System tested and certified by NSF International against
NSF/ANSI Standard 42 and Standard 53 for the reduction of substances listed below.
The following pharmaceutical reduction claims have not been certifi ed by NSF International. Claims tested and verifi ed
by independent laboratory:
Contaminant
Reduction Average Infl uent
NSF specifi ed
Challenge Concentration
Avg %
Reduction
Average Product Water
Concentration
Max Permissible
Product Water
Concentration
NSF
Test Report
Atenolol 1088 ng/L N/A 99.5% 5.0 ng/L N/A J-00103221
Fluoxetine 845 ng/l N/A 99.4% 5.0 ng/L N/A J-00103221
Ibuprofen 898 ng/L N/A 98.8% 9.9 ng/L N/A J-00103726
Progesterone 945 ng/L N/A 99.4% 5.5 ng/L N/A J-00103727
Trimethoprim 403 ng/L N/A 99.5% 2.0 ng/L N/A J-00103221
34-8708-7119-0
EPA #070595-MEX-001
© 2012 General Electric Company PC71879
It is essential that the manufacturer’s recommended installation, maintenance and filter replacement requirements be carried out for the product to perform as advertised.
See Installation Manual for Warranty information.
Application Guidelines/Water Supply Parameters
Service Flow 0.5 gpm (1.89 lpm)
Water Supply Potable Water
Water Pressure 25-120 psi (172– 827 kPa)
Water Temperature 33º F - 100º F (0.6º C - 38º C)
Note: While the testing was performed under standard laboratory conditions,
actual performance may vary.
Replacement Cartridge: RPWF. For estimated costs of replacement elements
please call 1-800-626-2002 or visit our website at www.geapplianceparts.com.
WARNING
To reduce the risk associated with ingestion of contaminants:
A ytilauq nwonknu fo ro efasnu yllacigoloiborcim si taht retaw htiw esu ton oD
without adequate disinfection before and after the system. Systems certifi ed
for cyst reduction may be used on disinfected water that may contain fi lterable
cysts. EPA Establishment Number 070595-MEX-001.
NOTICE
To reduce the risk associated with property damage due to water leakage:
DRead and follow use instructions before installation and use of this system.
D5stallation and use MUST comply with all state and local plumbing codes.
D Do not install if water pressure exceeds 120 psi (827 kPa). If your water pressure
exceeds 80 psi, you must install a pressure-limiting valve. Contact a plumbing
professional if you are uncertain how to check your water pressure.
K Do not install where water hammer conditions may occur. If water hammer
conditions exist you must install a water hammer arrester. Contact a plumbing
professional if you are uncertain how to check for this condition.
K Do not install on hot water supply lines. The maximum operating water
temperature of this fi lter system is 100º F (38º C).
K Protect fi lter from freezing. Drain fi lter when temperatures drop
below 33ºF (0.6ºC).
fi elbasopsid ehT Klter cartridge must be replaced every 6 months at the
rated capacity, or sooner if a noticeable reduction in fl ow rate occurs.
For conditions of use, health claims certified by the California Department of Public
Health, and replacements, see performance data sheet. California Department
of Public Health Certification #11-2110. The contaminants or other substances
removed or reduced by this water filter are not necessarily in all users’ water.
Capacity 170 Gallons (643.5 Liters). Contaminant Reduction Determined by NSF testing.
Substance Tested
for Reduction Average Infl uent
NSF specifi ed
Challenge Concentration
Avg %
Reduction
Average Product
Water
Concentration
Max Permissible
Product Water
Concentration
NSF Reduction
Requirements
NSF
Test Report
Chlorine Taste and Odor 2.0 mg/L 2.0 mg/L ± 10% 97.4% 0.05 mg/L N/A ≥50% J-00102044
Nominal Particulate
Class I, , ≥0.5 to < 1.0 μm 7,633,333 pts/mL At least 10,000 particles/mL 99.0% 71,850 pts/ml N/A ≥85% J-00106249
Asbestos 109 MFL
10
7
to 10
8
fi bers/L; fi bers
greater than 10μm in length 99.99% <1 MFL N/A ≥99% J-00102069
Atrazine 0.009 mg/L 0.009 mg/L ± 10% 94.4% 0.0005 mg/L 0.003 mg/L N/A J-00102058
Benzene 0.016 mg/L 0.015 mg/L ± 10% 96.4% 0.001 mg/L 0.005 mg/L N/A J-00102065
Carbofuran 0.08 mg/L 0.08 mg/L ± 10% 98.8% 0.001 mg/L 0.04 mg/L N/A J-00102059
Cyst* 104,750 cysts/L Minimum 50,000 cysts/L 99.99% 3 cyst/L N/A ≥99.95% J-00102057
Lead pH @6.5 0.140 mg/L 0.15 mg/L ± 10% 99.3% 0.001 mg/L 0.010 mg/L N/A J-00102052
Lead pH @8.5 0.158 mg/L 0.15 mg/L ± 10% 98.3% 0.002 mg/L 0.010 mg/L N/A J-00102053
Mercury @ pH 6.5 0.006 mg/L 0.006 mg/L ± 10% 91% 0.0003 mg/L 0.002 mg/L N/A J-00102054
Mercury @ pH 8.5 0.006 mg/L 0.006 mg/L ± 10% 88.3%% 0.0007 mg/L 0.002 mg/L N/A J-00104087
Lindane 0.002 mg/L 0.002 mg/L ± 10% 99% 0.00002 mg/L 0.0002 mg/L N/A J-00102063
P-Dichlorobenzene 0.222 mg/L 0.225 mg/L ± 10% 99.8% 0.0005 mg/L 0.075 mg/L N/A J-00102067
Toxaphene 0.015 mg/L 0.015 mg/L ± 10% 93.5% 0.001 mg/L 0.003 mg/L N/A J-00102061
2, 4-D Reduction 0.218 mg/L 0.210 mg/L±10% 99.9% 0.0001 mg/L 0.07 mg/L N/A J-00102064
07020100-J%59≥A/NL/gm 5100.0%7.79%01 ± L/gm 003.0L/gm 872.0COV
*Based on the use of Cryptosporidium parvum oocysts.
REPLACEMENT
TNEMELE
System tested and certifi ed by NSF
International against NSF/ANSI Standard
42 and Standard 53 in model GE RPWF
for the reduction of the claims specifi ed
on the performance data sheet.
GE
Appliances
Appliance Park
Louisville, KY 40225
geapplianceparts.com
46
State of California
Department of Public Health
Water Treatment Device
Certicate Number
Date Issued: November 16, 2011
Trademark/Model Designation
Replacement Elements
211011
-
GE RPWF
RPWF
Manufacturer:
3M Purication Inc.
The water treatment device(s) listed on this certificate have met the testing requirements pursuant to Section
116830 of the Health and Safety Code for the following health related contaminants:
Cysts
Asbestos
Lead
Mercury
CA AB1953 Low Lead Compliant
Atrazine
Benzene
Carbofuran
Lindane
p-Dichlorobenzene
Toxaphene
2, 4-D
VOC’s by chloroform surrogate
Microbiological Contaminants and Turbidity
Inorganic/Radiological Contaminants
Organic Contaminants
Do not use where water is microbiologically unsafe or with water of unknown quality, except that systems certied
for cyst reduction may be used on disinfected waters that may contain lterable cysts.
170 gallons
Rated Service Capacity:
0.5 gpm
Rated Service Flow:
Conditions of Certification:
Consumer Support.
GE Appliances Website
In the U.S.: GEAppliances.com
Have a question or need assistance with your appliance? Try the GE Appliances website, 24 hours a day, any day
of the year! For greater convenience and faster service, you can now download Owner’s Manuals, order parts
or even schedule service on-line. In Canada: www.GEAppliances.ca
Schedule Service In the U.S.: GEAppliances.com
Expert GE repair service is only one step away from your door. Get on-line and schedule your service at your
convenience any day of the year! Or call 800.GE.CARES (800.432.2737) during normal business hours.
In Canada, call 1.800.561.3344
Real Life Design Studio In the U.S.: GEAppliances.com
*(VXSSRUWVWKH8QLYHUVDO'HVLJQFRQFHSW³SURGXFWVVHUYLFHVDQGHQYLURQPHQWVWKDWFDQEHXVHGE\SHRSOHRI
all ages, sizes and capabilities. We recognize the need to design for a wide range of physical and mental abilities
and impairments. For details of GE’s Universal Design applications, including kitchen design ideas for people with
disabilities, check out our Website today. For the hearing impaired, please call 800.TDD.GEAC (800.833.4322).
In Canada, contact: Manager, Consumer Relations, Mabe Canada Inc.
Suite 310, 1 Factory Lane
Moncton, N.B. E1C 9M3
Extended Warranties In the U.S.: GEAppliances.com
Purchase a GE extended warranty and learn about special discounts that are available while your warranty is still
in effect. You can purchase it on-line anytime, or call 800.626.2224 during normal business hours. GE Consumer Home
Services will still be there after your warranty expires. In Canada, call 1.888.261.2133
Parts and Accessories In the U.S.: GEAppliances.com
Individuals qualified to service their own appliances can have parts or accessories sent directly to their homes
(VISA, MasterCard and Discover cards are accepted). Order on-line today, 24 hours every day or by phone at
800.626.2002 during normal business hours.
Instructions contained in this manual cover procedures to be performed by any user. Other servicing generally should
be referred to qualified service personnel. Caution must be exercised, since improper servicing may cause unsafe
operation.
Customers in Canada should consult the yellow pages for the nearest Mabe service center, or call 1.800.661.1616.
Contact Us In the U.S.: GEAppliances.com
If you are not satisfied with the service you receive from GE, contact us on our Website with all the details including your
phone number, or write to: General Manager, Customer Relations
GE Appliances, Appliance Park
Louisville, KY 40225
In Canada: www.GEAppliances.ca, or write to: Director, Consumer Relations, Mabe Canada Inc.
Suite 310, 1 Factory Lane
Moncton, N.B. E1C 9M3
Register Your Appliance In the U.S.: GEAppliances.com
5HJLVWHU\RXUQHZDSSOLDQFHRQOLQH³DW\RXUFRQYHQLHQFH7LPHO\SURGXFWUHJLVWUDWLRQZLOODOORZIRUHQKDQFHG
communication and prompt service under the terms of your warranty, should the need arise. You may also
mail in the pre-printed registration card included in the packing material. In Canada: www.GEAppliances.ca
Printed in United States
