Register your product and get support at
AJ3270D
EN User manual
j
k
e
g
h
f
c
d
b
a
n
m
l
i
A
B
C
D
E
VOL +/-
F
G
a
RADIO
b
TUNING +/-
HR
HR
PM
FM
H
I
EN
1 Important
Safety
Read these instructions.•
Heed all warnings.•
Follow all instructions.•
Do not use this clock radio near water.•
Clean only with dry cloth.•
Do not block any ventilation openings. Install in accordance •
with the manufacturer’s instructions.
Do not install near any heat sources such as radiators, heat •
registers, stoves, or other apparatus (including amplifi ers)
that produce heat.
Protect the power cord from being walked on or pinched, •
particularly at plugs, convenience receptacles, and the point
where they exit from the clock radio.
Only use attachments/accessories specifi ed by the •
manufacturer.
Unplug this clock radio during lightning storms or when •
unused for long periods of time.
Refer all servicing to qualifi ed service personnel. Servicing •
is required when the clock radio has been damaged in any
way, such as power-supply cord or plug is damaged, liquid
has been spilled or objects have fallen into the clock radio,
the clock radio has been exposed to rain or moisture, does
not operate normally, or has been dropped.
This clock radio shall not be exposed to dripping or •
splashing.
Do not place any sources of danger on the clock radio (e.g. •
liquid fi lled objects, lighted candles).
Where the MAINS plug or an appliance coupler is used as •
the disconnect device, the disconnect device shall remain
readily operable.
2 Your clock radio
Congratulations on your purchase, and welcome to Philips! To fully
benefi t from the support that Philips offers, register your product at
www.philips.com/welcome.
Introduction
With this clock radio, you can:
listen to FM radio;•
enjoy audio from iPod/iPhone;•
know the time; and•
wake up by buzzer alarm, radio, or audio in iPod/iPhone. •
What’s in the box
Check and identify the contents of your package:
Main unit (with a battery)•
AC adapter•
User manual•
Overview of the main unit A
a iPhone
Select or exit iPhone/iPod mode.•
b HR/TUNING +/-
Set hour.•
Tune to radio stations.•
c MIN/PRESET +/-
Set minute.•
Select a preset radio station.•
d Display panel
Show current information.•
e SLEEP
Set sleep timer.•
f SCAN / PROG / SET TIME
Scan/store radio stations.•
Set time.•
g VOL +/-
Adjust volume.•
h RADIO
Turn on/off radio.•
i AL1 / AL2
Set alarm.•
Turn on/off alarm.•
View alarm settings.•
j SNOOZE/BRIGHTNESS
Snooze alarm.•
Adjust display brightness.•
k DOCK for iPhone/iPod
l FM ANT
FM antenna. •
m DC IN 5V/2A
Power supply socket.•
n AL1/AL2 RADIO·BUZZ·iPhone
Select alarm source.•
3 Get started
Always follow the instructions in this chapter in sequence.
Install battery
Warning
Risk of explosion! Keep batteries away from heat, sunshine or •
fi re. Never discard batteries in fi re.
Danger of explosion if battery is incorrectly replaced. Replace
•
only with the same or equivalent type.
The battery contains chemical substances, so it should be
•
disposed of properly.
Keep children away from the battery.
•
Note
You can only use AC power as power supply. The lithium •
CR2032 battery is only for back-up purpose.
When power is disconnected, the display backlight is off.
•
For fi rst-time use:
Remove the protective tab to activate the battery. B
To replace the battery: C
Connect power D
Caution
Risk of product damage! Ensure that the power voltage corresponds •
to the voltage printed on the back or underside of the clock radio.
Risk of electric shock! When you unplug the AC adapter, always
•
pull the plug from the socket. Never pull the cord.
Set clock
1 In standby mode, press and hold SET TIME for two
seconds.
The current time is displayed. »
The hour and minute digits begin to blink. »
2 Press HR+/- and MIN+/- repeatedly to set hour and minute.
3 Press SET TIME again to confi rm.
» [12H] or [24H] is displayed.
4 Press HR+/- (or MIN+/- ) to select 12/24 hour format.
5 Press SET TIME to confi rm.
Note
When iPhone/iPod is connected, the clock radio synchronizes •
time with iPhone/iPod automatically.
4 Play from iPhone/iPod
You can enjoy audio from iPhone/iPod through this clock radio.
Compatible iPhone/iPod
The clock radio supports these iPod and iPhone models:
Made for.
iPod touch (1st, 2nd, 3rd, and 4th generation)•
iPod classic•
iPod with video •
iPod nano (1st, 2nd, 3rd, 4th, 5th, and 6th generation)•
iPod with color display•
iPod mini•
iPhone 4•
iPhone 3GS•
iPhone 3G•
iPhone •
Listen to audio from iPhone/iPod E
1 Place the iPhone/iPod in the dock.
2 Press iPhone to enter iPhone/iPod mode.
3 Play audio from the iPhone/iPod.
Tip
Press • iPhone again to switch to standby mode.

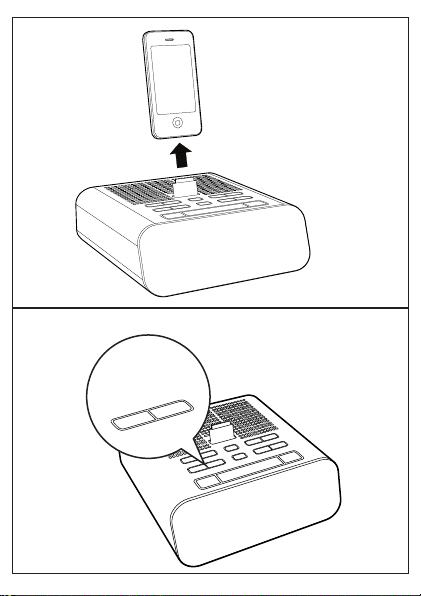

Remove the iPhone/iPod F
Pull the iPhone/iPod out of the dock.
Charge the iPhone/iPod
When the clock radio is connected to power, the docked iPhone/
iPod starts charging.
Adjust volume G
5 Listen to FM radio
Tune to FM radio stations H
Tip
Position the antenna as far as possible from TV, VCR, or other •
radiation source.
For better reception, fully extend and adjust the position of the
•
antenna.
Note
To turn on/off radio, press • RADIO .
Store FM radio stations automatically
You can store a maximum of 20 FM radio stations.
1 Press RADIO to turn on the radio.
2 Press and hold PROG for two seconds.
The clock radio stores all the available FM radio stations »
and broadcasts the fi rst available station automatically.
Store FM radio stations manually
1 Tune to an FM radio station.
2 Press PROG .
The preset number begins to blink. »
3 Press PRESET +/- or TUNING +/- repeatedly to select a
number.
4 Press PROG again to confi rm.
5 Repeat steps 1 to 4 to store other stations.
Note
To remove a pre-stored station, store another station in its •
place.
Select a preset radio station
In tuner mode, press PRESET +/- to select a preset number.
6 Other features
Set alarm timer I
Set alarm time
You can set two alarms to ring at different time.
Note
Make sure that you have set the clock correctly. •
1 Press and hold AL1 / AL2 for 2 seconds to enter alarm
setting mode.
The hour and minute digits begin to blink. »
»
or is displayed accordingly.
2 Press HR+/- and MIN+/- repeatedly to set hour and minute.
3 Press AL1 / AL2 again to confi rm.
Select alarm sound
For the alarm sound, you can select buzzer, your last heard radio
or played track in iPhone/iPod.
Adjust AL1/AL2 RADIO·BUZZ·iPhone to select alarm sound
for both alarms.
Tip
When alarm time arrives and you are listening to radio or audio •
in iPhone/iPod, buzzer can only be activated as alarm sound.
If you have selected iPhone/iPod source, while no iPhone/iPod is
•
connected, the clock radio switches to buzzer source instead.
Activate/deactivate alarm timer
1 Press AL1 / AL2 to view alarm settings.
2 Press AL1 / AL2 again to activate or deactivate the alarm
timer.
»
or appears if alarm timer is on and disappears if it
is off.
To stop alarm, press the corresponding • AL1 / AL2 .
The alarm repeats ringing for the next day. •
Snooze alarm
When alarm sounds, press SNOOZE .
The alarm snoozes and repeats ringing fi ve minutes later. »
To adjust alarm interval (in minutes), press SNOOZE repeatedly.
Set sleep timer
This clock radio can switch to standby mode automatically after a
preset period.
5 10 15 20 25 30
Press SLEEP repeatedly to select the sleep timer period (in
minutes).
When the sleep timer is activated, »
appears.
To deactivate the sleep timer, press SLEEP repeatedly until [OFF]
(off) appears.
Adjust display brightness
Press BRIGHTNESS repeatedly to select different brightness level:
high , mid, and low.
7 Product information
Note
Product information is subject to change without prior notice. •
Specifi cations
Amplifi er
Rated Output Power 2W RMS
15 30 60 90 120
off
Tuner
Tuning Range FM: 87.5 - 108 MHz
Tuning grid FM: 50 KHz
Sensitivity
- Mono, 26dB S/N Ratio
FM: <22 dBu
Search Selectivity FM: <28 dBu
Total Harmonic Distortion FM: <3%
Signal to Noise Ratio FM: >45 dB
General information
AC Power Model: AS100-050-AI200;
Input: 100-240 V ~, 50/60Hz,
0.5A; Output: 5 V
2.0A
Operation Power
Consumption
<10 W
Standby Power Consumption <2 W
Dimensions
- Main Unit (W x H x D)
130 x 78 x 146 mm
Weight
- With Packing
- Main Unit
0.6 kg
0.4 kg
8 Troubleshooting
Warning
Never remove the casing of this apparatus. •
To keep the warranty valid, never try to repair the system yourself.
If you encounter problems when using this apparatus, check the
following points before requesting service. If the problem remains
unsolved, go to the Philips web site (www.philips.com/welcome).
When you contact Philips, ensure that the apparatus is nearby and
the model number and serial number are available.
No response from the unit
Disconnect and reconnect the AC power plug, then turn on •
the unit again.
Poor radio reception
Increase the distance between the unit and your TV or •
VCR.
Fully extend the FM antenna. •
9 Notice
This product complies with the radio interference requirements of
the European Community.
Any changes or modifi cations made to this device that are not
expressly approved by Philips Consumer Lifestyle may void the
user’s authority to operate the equipment.
Note
The type plate is located on the bottom of the apparatus. •
“Made for iPod” and “Made for iPhone” mean that an electronic
accessory has been designed to connect specifi cally to iPod or
iPhone respectively, and has been certifi ed by the developer to
meet Apple performance standards. Apple is not responsible for the
operation of this device or its compliance with safety and regulatory
standards. Please note that the use of this accessory with iPod or
iPhone may affect wireless performance.
iPod and iPhone are trademarks of Apple Inc., registered in the U.S.
and other countries.
Your product is designed and manufactured with high quality
materials and components, which can be recycled and reused.
When this crossed-out wheeled bin symbol is attached to a product it
means that the product is covered by the European Directive 2002/96/
EC.
Please inform yourself about the local separate collection system
for electrical and electronic products.
Please act according to your local rules and do not dispose of
your old products with your normal household waste. Correct
disposal of your old product helps to prevent potential negative
consequences for the environment and human health.
Your product contains batteries covered by the European Directive
2006/66/EC, which cannot be disposed with normal household
waste. Please inform yourself about the local rules on separate
collection of batteries because correct disposal helps to prevent
negative consequences for the environmental and human health.
Environmental information
All unnecessary packaging has been omitted. We have tried to make
the packaging easy to separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene (bags, protective foam
sheet.)
Your system consists of materials which can be recycled and reused
if disassembled by a specialized company. Please observe the local
regulations regarding the disposal of packaging materials, exhausted
batteries and old equipment.
2011 © Koninklijke Philips Electronics N.V. All rights reserved.
Specifi cations are subject to change without notice. Trademarks
are the property of Koninklijke Philips Electronics N.V. or their
respective owners. Philips reserves the right to change products at
any time without being obliged to adjust earlier supplies accordingly.
© 2011 Koninklijke Philips Electronics N.V.
All rights reserved.
AJ3270D_05_UM_V1.1
