Operating Instructions
Heat-pump Dryer
It is essential to read these operating instructions before installing,
starting up, and using the appliance. This prevents both personal
injury and damage to the appliance.
en-US M.-Nr. 10 974 051
Contents
2
Caring for the environment ............................................................................. 5
IMPORTANT SAFETY INSTRUCTIONS ............................................................ 6
Operating the tumble dryer .............................................................................. 14
Control panel....................................................................................................... 14
How the display works ........................................................................................ 15
Energy saving tips ............................................................................................. 17
Functioning of the heat-pump dryer................................................................ 18
Initial set-up ....................................................................................................... 19
1. Notes on correct laundry care ..................................................................... 20
Points to note regarding washed laundry............................................................ 20
Preparing the laundry before drying.................................................................... 20
Drying .................................................................................................................. 21
Understanding the care label symbols........................................................... 21
Selecting the correct drying level................................................................... 21
2. Loading the tumble dryer ............................................................................. 22
Loading the laundry............................................................................................. 22
3. Selecting a program and starting it ............................................................. 23
Selecting a program ............................................................................................ 23
Selecting drying levels during drying level programs..................................... 23
Time-controlled and other programs.............................................................. 24
Selecting Gentle .................................................................................................. 24
Selecting Delay Start........................................................................................... 25
4. Removing the laundry at the end of the program ...................................... 27
End of program/Anti-crease ................................................................................ 27
Removing the laundry ......................................................................................... 27
Program chart.................................................................................................... 28
Changing the program sequence .................................................................... 31
Condensed water container ............................................................................. 33
Emptying the condensed water container .......................................................... 33
Fragrance flacon................................................................................................ 34
Using the fragrance flacon .................................................................................. 34
Removing the protective seal from the fragrance flacon................................ 34
Inserting the fragrance flacon......................................................................... 35
Contents
3
Opening the fragrance flacon.............................................................................. 36
Closing the fragrance flacon ............................................................................... 36
Removing/replacing the fragrance flacon ........................................................... 37
Cleaning and care ............................................................................................. 38
Lint filters............................................................................................................. 38
Removing the fragrance flacon ...................................................................... 38
Removing visible lint....................................................................................... 38
Cleaning the lint filters and air flow openings thoroughly .............................. 39
Cleaning the lint filters with water .................................................................. 40
Cleaning instructions when using fabric softener sheets............................... 41
Cleaning the plinth filter....................................................................................... 42
Removing the plinth filter ............................................................................... 42
Cleaning the plinth filter.................................................................................. 43
Cleaning the plinth filter flap........................................................................... 43
Checking the heat exchanger unit.................................................................. 44
Inserting the plinth filter.................................................................................. 44
Cleaning the dryer ............................................................................................... 45
Frequently Asked Questions ............................................................................ 46
Indicator lights or information on the time display .............................................. 46
Unsatisfactory drying results............................................................................... 48
The drying cycle duration is very long................................................................. 49
Other problems ................................................................................................... 50
Customer Service.............................................................................................. 51
Contact in the event of a fault ............................................................................. 51
Appliance warranty and product registration ...................................................... 51
Optional accessories........................................................................................... 51
IMPORTANT SAFETY INSTRUCTIONS ............................................................ 53
Installation.......................................................................................................... 55
Front view ............................................................................................................ 55
Rear view............................................................................................................. 56
Transporting the tumble dryer ............................................................................. 56
Transporting the tumble dryer to its installation site ...................................... 56
Installation ........................................................................................................... 57
Leveling the tumble dryer............................................................................... 57
Ventilation....................................................................................................... 57
Before moving the tumble dryer again ........................................................... 57
Additional installation requirements .................................................................... 58
Contents
4
Product dimensions ............................................................................................ 60
Dimensions..................................................................................................... 60
Installation on a plinth .................................................................................... 60
Washer-dryer stack ........................................................................................ 60
Electrical connection ........................................................................................... 61
Connection adapter for NEMA 14-30 socket................................................. 61
External draining of condensed water................................................................. 62
Arranging the drain hose ................................................................................ 62
Condensate drain ........................................................................................... 62
Changing the door hinging.................................................................................. 63
Changing the hinging over ............................................................................. 63
Refitting .......................................................................................................... 68
Technical data.................................................................................................... 69
Programmable functions .................................................................................. 70
Programming....................................................................................................... 70
Drying levels “Normal” ..................................................................................
72
Drying levels “Wrinkle-free”..........................................................................
72
Buzzer volume..............................................................................................
72
Keypad tone.................................................................................................
72
Code.............................................................................................................
73
Conductivity .................................................................................................
73
Display switch-off status ................................................................................
74
Appliance switch-off......................................................................................
74
Memory..........................................................................................................
75
Anti-crease ....................................................................................................
75
Buzzer on.......................................................................................................
75
Airway indicator............................................................................................
76
Display brightness dimmed ..........................................................................
76
Caring for the environment
5
Disposal of the packing
material
The cardboard box and packing
materials protect the appliance during
shipping. They have been designed to
be biodegradable and recyclable.
Ensure that any plastic wrappings,
bags, etc. are disposed of safely and
kept out of the reach of children.
Danger of suffocation!
Disposal of your old appliance
Electrical and electronic appliances
contain valuable materials. They also
contain certain substances, compounds
and components which were essential
for the proper functioning and safe use
of the equipment. Handling these
materials improperly by disposing of
them in your household waste can be
harmful to your health and the
environment. Therefore, please do not
dispose of your old appliance with
regular household waste and follow
local regulations on proper disposal.
Consult with local authorities, dealers or
Miele in order to dispose of and recycle
electrical and electronic appliances.
Miele assumes no responsibility for
deleting any personal data left on the
appliance being disposed. Please
ensure that your old appliance is kept
away from children until removal.
Observe safety requirements for
appliances that may tip over or pose an
entrapment hazard.
IMPORTANT SAFETY INSTRUCTIONS
WARNING
To reduce the risk of fire, electric shock, or injury to persons when
using your appliance, follow basic precautions, including the
following:
WARNING
This tumble dryer is intended for use in domestic households and
similar working and residential environments.
It is essential to read all instructions before using the appliance.
Do not allow children to play on or in the appliance. Close
supervision is necessary when the appliance is used near children.
Always close the door after use to prevent child hazards.
Before this appliance is removed for service or discarded, remove
the door to the drying compartment.
Do not install or use a dryer with visible damage.
Do not reach into the dryer if the drum is moving.
Do not install or store this appliance where it will be exposed to
the weather.
Do not tamper with the controls.
Do not repair or replace any part of the appliance or attempt any
servicing unless specifically recommended in these operating
instructions. Repairs to electrical appliances should only be
performed by qualified personnel. Incorrectly repaired machines may
pose a considerable risk to the user.
6
IMPORTANT SAFETY INSTRUCTIONS
Important information regarding use of fabric softener sheets:
We do not recommend use of fabric softener sheets. Use of fabric
softener sheets can clog the surfaces of the lint filters, extending the
drying time and increasing energy consumption. During subsequent
cleaning, the plastic and surfaces of the lint filters can be damaged!
The best results are obtained by using liquid fabric softener in the
washing machine. Follow the manufacturer's instructions.
If you still wish to use fabric softener sheets, be sure to follow the
cleaning instructions under “Cleaning and care” in the “Cleaning
instructions when using fabric softener sheets” section.
Tip:
Using a fragrance flacon (optional accessory) will add a pleasant
fragrance to your laundry.
When a fragrance flacon is used, the fragrance is acquired by the
entire load of laundry. The disadvantage of fabric softener sheets is
that under certain circumstances the fragrance is acquired by only a
few items of laundry, especially when drying a full load.
When you use a fragrance flacon, always follow the warnings
in this section as well as those under “Fragrance flacon”.
7
IMPORTANT SAFETY INSTRUCTIONS
To prevent the risk of fire, the following textiles must not be dried
in this dryer:
- items which have not been washed.
- items, such as work-wear, exposed to grease, oils, or other
deposits (such as lotions or cosmetics) in your dryer. If these
items have not been thoroughly cleaned there is a danger that
they may contribute to a chemical reaction that could cause the
laundry to ignite when heated even after being removed from the
dryer.
- items that have been previously cleaned, washed, soaked or
spotted with gasoline, dry-cleaning solvents or other flammable
or explosive substances. They may give off vapors that could
ignite or explode.
- items treated with flammable cleaning agents or items containing
acetone, alcohol, petrol, stain remover, wax or chemicals from
buffing, etc.
- items which have been splashed with hair spray, nail polish
remover, etc.
When washing heavily soiled items ensure that sufficient
detergent is used with a high temperature. If in doubt wash the
item several times.
- items containing foam rubber or similarly textured rubber-like
materials.
- items with padding or filling (e.g. pillows or jackets) which have
been damaged. Loose filling could catch fire.
8
IMPORTANT SAFETY INSTRUCTIONS
Allow the dryer to complete each stage of the program selected,
including the cooling down phase. This will ensure that the items
being removed are not too hot to handle.
Clean the lint filter before or after each load.
Keep the area around the air intake (toe kick) and adjacent
surrounding areas free from lint, dust and dirt.
The interior of the machine should be cleaned periodically by
qualified personnel.
GROUNDING INSTRUCTIONS
This appliance must be grounded. In the event of malfunction or
breakdown, grounding will reduce the risk of electric shock by
providing a path of least resistance for electric current. This
appliance is equipped with a cord having an equipment grounding
conductor and a grounding plug. The plug must be plugged into an
appropriate outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
WARNING – Improper connection of the equipment-grounding
conductor can result in a risk of electric shock. Contact a qualified
electrician if you are in doubt as to whether the appliance is properly
grounded.
9
IMPORTANT SAFETY INSTRUCTIONS
Do not modify the plug provided with the appliance: if it will not fit
the outlet, have a proper outlet installed by a qualified electrician.
Before installation, disconnect the tumble dryer from the electrical
supply by shutting off the power main, unplugging the power cord or
tripping the circuit breaker. Do not restore power until the installation
is complete.
Miele tumble dryers and Miele washing machines can be installed
as a washer-dryer stack. A Miele washer-dryer connection kit is
required as an optional accessory for this. Please ensure that the
washer-dryer connection kit is suitable for the Miele tumble dryer
and the Miele washing machine.
If you order a plinth for this tumble dryer (available from Miele as
an optional accessory), make sure it is the correct one.
The maximum dry laundry weight is 17.6 lbs (8.0kg).
See the “Program chart” for the maximum recommended loads for
individual programs.
Do not place shoes inside the drum for drying. Placing shoes
inside the drum for drying can cause the belt to tear, requiring a
service call.
You must always use the dryer basket (optional accessory) when
drying/airing shoes. Follow the additional operating instructions for
the dryer basket.
This tumble dryer is supplied with a special lamp to cope with
particular conditions (e.g., temperature, moisture, chemical
resistance, abrasion resistance, and vibration). This special lamp
must only be used for the purpose for which it is intended. It is not
suitable for room lighting. Replacement lamps may only be fitted by
a Miele authorized person or by Miele Technical Service.
10
IMPORTANT SAFETY INSTRUCTIONS
Heat-pump technology and refrigerant:
The heat pump in this tumble dryer uses a gaseous refrigerant which
is condensed by the compressor. The refrigerant, which is brought to
a higher temperature level and liquified by condensing, is led in a
closed circuit through the heat exchanger unit where heat exchange
with the circulating drying air takes place.
- The humming noises caused by the heat pump during the drying
process are normal. This does not impair the efficient functioning
of the dryer.
- The refrigerant is not flammable or explosive.
- This tumble dryer contains fluorinated greenhouse gases.
Hermetically sealed.
Designation of refrigerant: R134a
Amount of refrigerant: 16.6 oz (0.47) kg
Global warming potential of refrigerant: 1430 kg CO
2
e
Global warming potential of appliance: 672 kg CO
2
e
This product may contain chemicals known to the state of
California to cause cancer or birth defects or other reproductive
harm.
11
IMPORTANT SAFETY INSTRUCTIONS
Using a fragrance flacon (optional accessory)
Only use genuine Miele original fragrance flacons.
Store the fragrance flacon in its original packaging.
Caution: The fragrance can leak out of the flacon! Make sure that
you always keep the flacon, or the lint filter with the flacon inserted in
it, in a horizontal position when carrying and do not tip or place it
down on any surface.
Use an absorbent cloth to wipe up any fragrance which has
leaked out of the flacon onto the floor, the dryer or any dryer
components (e.g. the lint filter) immediately.
If fragrance comes in contact with the body: Wash skin
thoroughly with soap and water. Flush eyes with clean water for at
least 15minutes. If swallowed, rinse mouth thoroughly with clean
water. Seek medical attention if the fragrance comes in contact with
the eyes or is swallowed!
Immediately change clothes that have come in contact with the
fragrance. Thoroughly wash clothing or fabric using a large amount
of water and detergent.
There is the risk of fire or damage to the tumble dryer if the
following instructions are not observed:
- Never refill a flacon with fragrance or any other substance.
- Never use a faulty fragrance flacon.
Dispose of an empty fragrance flacon with the household waste
and never use it for any other purpose.
Please also observe the information supplied with the fragrance
flacon.
12
IMPORTANT SAFETY INSTRUCTIONS
FCC Declaration of Conformity
This appliance complies with Part 15 of the FCC regulations. This
appliance has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules and is
subject to the following conditions: This appliance does not cause
harmful interference. The appliances may be interconnected as
desired.
FCC Radiation Exposure Statement
This appliance complies with FCC RF radiation exposure limits set
forth for an uncontrolled environment. These appliances should be
installed and operated with a minimum distance of 8" (20cm)
between the radiator and body.
Industry Canada Statement
This digital device does not exceed the Class B limits for radio
noise emissions from digital devices specified in the radio
regulations of the Canadian Radio-television and
Telecommunications Commission. This appliance complies with the
Class B specification of the Canadian ICES-003.
SAVE THESE INSTRUCTIONS
13
Operating the tumble dryer

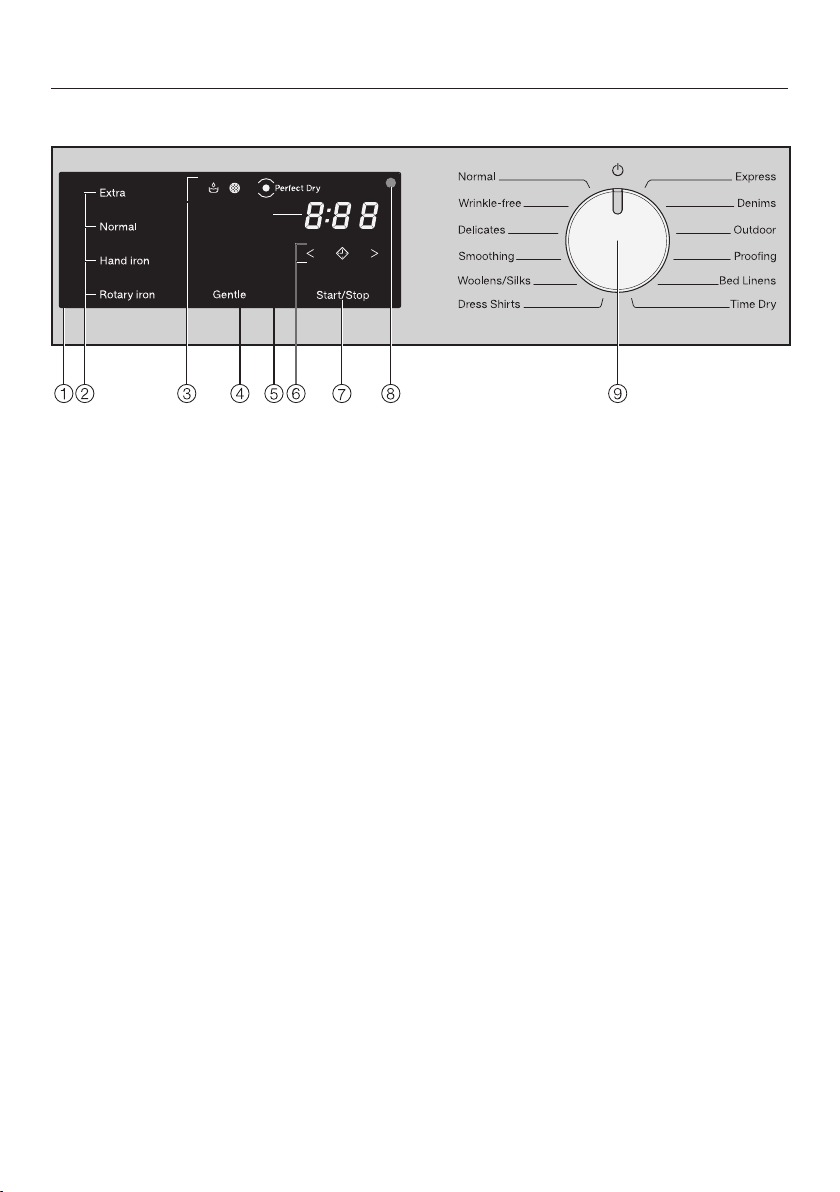

Control panel
a
Display
b
Sensor buttons for the drying
levels
c
Indicator lights
light up when necessary
d
Gentle sensor button
for gentle drying
e
Time display
for the program duration
f
Sensor buttons
for the time selection
g
Start/Stop sensor button
for program start/cancellation
h
Optical interface
for service technicians
i
Program selector
for selecting program and for
switching off. The tumble dryer is
switched on when you select a
program and switched off by turning
the program selector to the
position.
14
Operating the tumble dryer
15
How the display works
The , , , and sensor buttons
react to fingertip contact. Selection is
possible as long as the respective
sensor button is illuminated.
If a sensor button is brightly lit, this
means: currently selected
If a sensor button is dimly lit, this
means: selection possible
Sensor buttons for the drying
levels
After a drying level program is selected
with the program selector, the proposed
drying level lights up.
Drying levels that can be selected are
dimly lit.
Indicator lights
-
lights up when the condensed water
container needs to be emptied.
-
lights up when the plinth filter needs
to be cleaned.
- Perfect Dry
The Perfect Dry system measures the
residual moisture present in the
laundry in programs with selectable
drying levels and provides a more
precise drying result.
After starting the program, this
message . . .
. . . will flash until the program
duration has been determined and
then go out.
. . . will light up again when the
selected drying level is reached and
remain on until the end of the
program.
. . . remains off with the following
programs: Woolens/Silks, Time Dry.
Gentle sensor button
For drying temperature-sensitive textiles
with the symbol. When the sensor
button is touched, Gentle will light up
brightly.
With some programs, Gentle is always
active (lights up) or inactive (does not
light up).
Operating the tumble dryer
16
Time display
The remaining program duration will be
displayed in hours and minutes.
With most program, the duration
displayed may vary or “jump”. The
following factors, among others, affect
the program duration displayed: the
quantity of laundry, the type of fabric,
and the residual moisture in the laundry.
The electronic control continually
assesses conditions in the appliance
and then adjusts the program duration
with increasing accuracy.
sensor buttons
-
After touching the sensor button,
a later start time for the program
(Delay Start) can be selected. Once
selected, lights up brightly.
-
The or sensor buttons are used
for selecting the duration of the delay
start period or the duration of the
Time Dry program.
Start/Stop sensor button
Touching the Start/Stop sensor button
starts the selected program or cancels
a program that has already been
started. The sensor button flashes
slowly as soon as it is possible for a
program to be started and then lights
up constantly after the program has
started.
Drum lighting
The inside of the drum lights up so that
you don't forget any items of laundry
when you empty it.
The drum lighting switches off
automatically (energy saving).
Energy saving tips
17
This dryer with heat-pump technology
is designed for energy-saving drying
cycles. However, you can save a little
more energy with the following
measures as the drying time is not
extended unnecessarily.
- Make sure your laundry is spun at the
maximum spin speed before drying.
The higher the spin speed, the
greater the savings that can be made
in energy and time during drying, e.g.,
approx. 20% energy can be saved if
spun at 1,600rpm instead of
1,000rpm.
- Load according to the optimum
amount of laundry recommended for
the program being used. This will
mean that the energy consumption
for the amount of laundry is at its
most economical.
- Make sure that the room temperature
is not too high. If there are other heat-
producing appliances in the room in
which the dryer is located, make sure
the room is well ventilated and switch
the other appliances off, if possible.
- Clean the lint filters in the door
opening after every drying cycle.
Functioning of the heat-pump dryer
18
Two separate circuits ensure that the
laundry is dried:
Dry air circuit
The drying air flows through a heat
exchanger, the drum, and several
filters. This is ensured by a blower in
the dryer.
- The drying air flows through the heat
exchanger in the longitudinal
direction and is heated in the rear
area.
- The drying air is then blown into the
drum, where it absorbs the moisture
of the laundry.
- The damp drying air is blown back
through the heat exchanger via
several filters in the fill area and the
plinth area of the dryer.
- The drying air cools down in the
front, cool area of the heat
exchanger, and loses its moisture.
- The circuit begins again.
Refrigerant circuit
The refrigerant circuit regulates the
heating and cooling of the drying air
through the heat exchanger. The heat
pump is the central component: This
is a compressor that is connected to a
pipeline system which is filled with
refrigerant.
- The pipeline system surrounds the
heat exchanger in several bends.
- The compressor draws in the
gaseous refrigerant and compresses
it, causing the temperature to rise.
- The hot refrigerant is passed through
the pipeline system to the rear of the
heat exchanger. The heat is released
into the drying air, which flows
through the heat exchanger.
- The refrigerant liquifies by dissipating
the heat.
- The liquid refrigerant then flows
through a capillary tube (a very thin
tube) to the front area of the heat
exchanger. This changes the
pressure of the refrigerant.
- The refrigerant cools and reverts to
its gaseous state. This in turn cools
the front area of the heat exchanger
and dehumidifies the drying air.
- The circuit begins anew.
Initial set-up
19
Removing the protective film
and stickers
Remove:
- The protective film from the door
- Any stickers (if present) from the front
and the lid
Please do not remove any labels
(e.g., the data plate) which are visible
when you open the door.
Carrying out the procedure for
initial commissioning outlined
in these instructions
Read “1. Notes on correct laundry
care” and “2. Loading the tumble
dryer”.
You can then load the tumble dryer
and select a program as described in
“3. Selecting a program and starting
it”.
1. Notes on correct laundry care
20
Points to note regarding
washed laundry
- When washing very heavily soiled
items, ensure that you use sufficient
detergent and select a high
temperature. If in doubt, wash the
items several times.
- Do not load the drum with items that
are still soaking wet. Make sure your
laundry is spun at the maximum spin
speed before drying. The higher the
spin speed, the greater the savings
that can be made in energy and time
during drying.
- New dark colored garments should
be washed and dried separately from
light colored garments. There is the
risk of colors running and discoloring
other garments or even plastic
components in the dryer. Dark
colored fibers can also settle on light
colored garments and vice versa.
- Starched laundry can be tumble
dried. To achieve the usual finish,
double the amount of starch should
be used.
Preparing the laundry before
drying
Damage due to foreign objects
which were not removed from the
laundry.
Foreign objects can melt, burn, or
explode.
Ensure that any foreign objects (e.g.,
detergent dispensing balls, lighters,
etc.) have been removed from the
laundry.
Risk of fire due to incorrect use
and operation.
The laundry can burn and destroy
the dryer and the surroundings.
Read and observe “IMPORTANT
SAFETY INSTRUCTIONS”.
- Sort the laundry according to the type
of fiber and weave, size, garment
care label symbol, and the drying
level required.
- Check seams and stitching to ensure
that padding and linings are intact.
This way you will avoid the danger of
fillings coming out. These could catch
fire when being dried.
- Untangle the laundry.
- Tie together textile belts and apron
ties.
- Fasten duvet covers and pillow cases
to prevent small items from being
rolled up inside them.
- Fasten hooks and eyes.
- Leave jackets open and undo any
long zippers so that textiles dry
evenly.
- Sew in or remove underwiring from
bras.
- If necessary, reduce the size of the
load for these types of fabric. Easy
care fabric tends to crease more, the
larger the load. This is particularly the
case for garments made from very
fine weave fabric, such as dress
shirts or blouses.
1. Notes on correct laundry care
21
Drying
Tip: See the “Program chart”.
This describes the programs and gives
their maximum load.
- Always observe the maximum
recommended load for each program.
This will mean that the energy
consumption for the amount of
laundry is at its most economical.
- Down-filled garments have linings
which have a tendency to shrink,
depending on the quality of the item.
Only use the Smoothing program for
these items.
- You should only tumble dry pure linen
if it is specified as suitable by the
manufacturer on the care label, as the
surface of the fabric may otherwise
become rough. Only use the
Smoothing program for these items.
- Woolens and wool blends tend to
become matted and shrink if tumble
dried. Only use the Woolens/Silks
program for these items.
- Jersey fabrics (e.g., T-shirts,
underwear) tend to shrink when they
are washed for the first time.
Therefore, do not over-dry the fabrics
to prevent them from shrinking
further. Buy jersey fabrics that are
one or two sizes bigger.
- Select the extra Gentle option for
fabric which is particularly heat-
sensitive or susceptible to creasing.
Understanding the care label
symbols
Drying
Normal/higher temperature
Low temperature*
* Select Gentle
Do not tumble dry
Ironing
Very hot
Warm
Hot
Do not iron
Selecting the correct drying level
- Extra for multi-layered and very thick
fabrics.
- Normal for textiles that can shrink. Or
for light cotton or jersey textiles.
- Hand iron or Rotary iron if you want
to iron the laundry after drying.
Tip: You can alter the drying levels for
the Normal and Wrinkle-free programs
(damper or dryer). See “Programmable
functions” for this.
2. Loading the tumble dryer
22

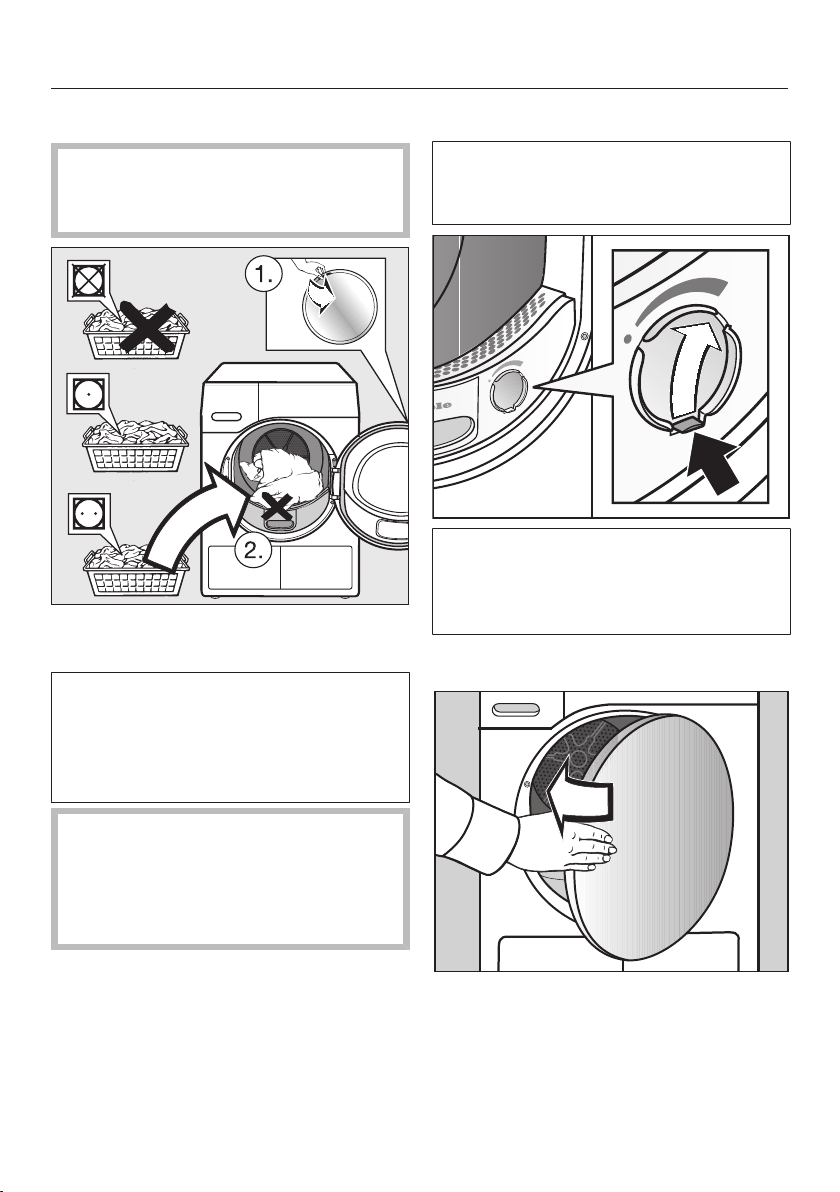

Loading the laundry
Textiles may be damaged.
Before loading, read “1. Notes on
correct laundry care”.
Unfold the laundry and load loosely
into the drum.
Do not overload the drum.
Overloading can cause unnecessary
wear and tear to the laundry, give a
disappointing drying result, and cause
more creasing.
This can result in damage to the
laundry.
When closing the door, make sure
that laundry does not get trapped in
the door opening.
Socket for the fragrance flacon
The “Fragrance flacon” chapter
describes how to use the fragrance
flacon.
If you are not using a fragrance flacon:
Push the tab down completely (see
arrow) so that the socket is closed.
Otherwise, lint will accumulate here.
Closing the door
Shut the door with a gentle swing.
3. Selecting a program and starting it
23
Selecting a program
The tumble dryer is switched on when
you select a program and switched off
by turning the program selector to the
position.
Turn the program selector.
A drying level may light up and
durations will appear on the time
display.
Selecting drying levels during drying
level programs
Normal, Wrinkle-free, Delicates, Dress
Shirts, Express, Denims, Bed Linens,
Smoothing
The pre-set drying level can be
changed if required.
Touch the sensor button for the
drying level you want. It will then light
up brightly.
Any drying level can be selected for the
Normal, Express, and Bed Linens
programs. A more limited range is
available when using the other
programs.
3. Selecting a program and starting it
24
Time-controlled and other programs
Time Dry
You can set the duration in ten-minute
increments from minutes to
hours.
Touch the or sensor button
repeatedly until the required program
duration appears on the time display.
Woolens/Silks, Proofing
The drying result is preset by the dryer
and cannot be altered.
Selecting Gentle
Delicate fabrics (with the symbol on
the care label, e.g., acrylic garments)
are dried at a lower temperature and
the program duration is longer.
Touch the Gentle sensor button. It will
then light up brightly.
- Gentle can be selected with the
following programs:
– Normal
– Wrinkle-free
– Dress Shirts
– Denims
– Time Dry
- Gentle is always activated/cannot be
deselected with Outdoor, Delicates,
Smoothing.
3. Selecting a program and starting it
25
Selecting Delay Start
You can delay the start of a program
from minutes up to hours.
However: Delay Start cannot be used
with the Time Dry program.
Touch the sensor button.
will light up brightly.
Touch the or sensor button
repeatedly until the required delayed
start time appears on the time
display.
Tip: The times will count upwards and
downwards automatically if you keep
your finger on the or sensor
button.
Changing Delay Start
Touch the Start/Stop sensor button.
You can change the time with the
sensor buttons.
Touch the Start/Stop sensor button
so that the delay start period
continues.
Cancelling/deleting Delay Start
To switch off, turn the program
selector to the position.
Sequence
- Delay start times of more than will
count down in hours and then in
minutes until the start of the program.
- The drum will turn briefly every hour
until the start of the program to
reduce laundry creasing.
3. Selecting a program and starting it
26
Starting a program
Touch the flashing Start/Stop sensor
button.
The Start/Stop sensor button will light
up.
Notes
If a delay start time has been selected,
then this will count down on the time
display. At the end of the delay start
time or immediately after the program
has started (if no delay start time has
been selected), the program duration
will appear on the time display.
With a longer delay start time, the drum
will rotate occasionally to untangle the
laundry. This is not a fault.
- The Perfect Dry indicator will only
flash/light up with programs with
selectable drying levels (see also
“Operating the tumble dryer”).
- This dryer measures residual
moisture content in the laundry to
ensure perfect drying results.
However, if you load the dryer with
little or dry laundry, it will be dried/
aired for a set duration. In this case,
Perfect Dry does not light up at the
end of the program.
Avoid overdrying items of
laundry and garments.
Otherwise they can wear out!
Energy savings
After 10minutes, the indicators dim and
the Start/Stop sensor button starts
flashing.
Touch the Start/Stop sensor button to
switch the indicators on again (this
does not have any effect on a running
program).
- Before the program finishes, the
laundry is cooled.
4. Removing the laundry at the end of the program
27
End of program/Anti-crease
End of program: lights up and the
Start/Stop sensor button goes out.
The dryer will switch off automatically. If
you want an Anti-crease phase after the
end of program, see “Programmable
functions“, “ Anti-crease”.
Energy savings
- 10minutes after the end of the
program, the Start/Stop sensor
button will begin to flash and the
display will go out.
- The dryer will switch off automatically
15minutes after the end of the Anti-
crease phase (with programs without
an Anti-crease phase, it will switch
off 15minutes after the end of the
program).
Removing the laundry
Only open the door when the drying
process has finished. Otherwise, the
laundry will not be properly dried
through and cooled down.

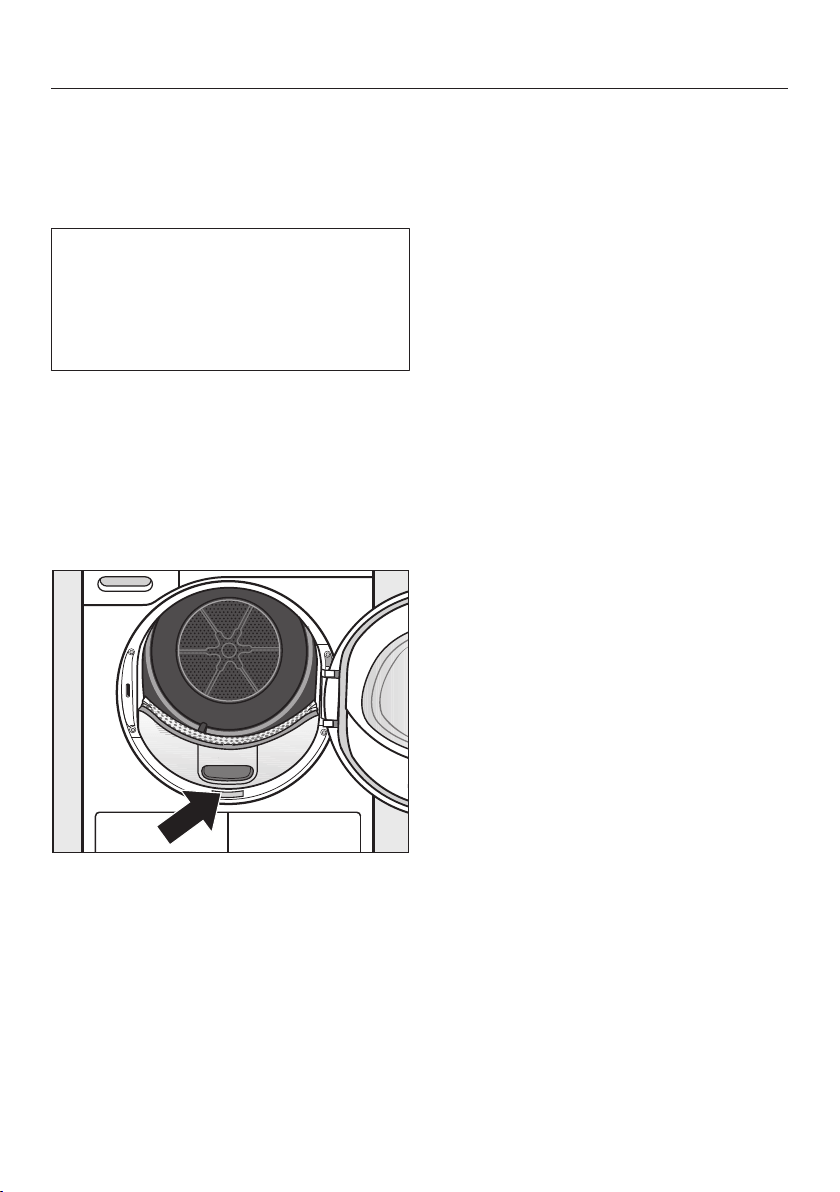

Pull the door open at the side with
the orange marker.
Remove the laundry.
Items left in the dryer could be
damaged by over-drying when the
dryer is used the next time.
Always remove all items from the
drum.
Turn the program selector to the
position.
Remove the lint from the 2 lint filters
in the door opening: see “Cleaning
and care”, “Cleaning lint filters”.
Shut the door gently.
Empty the condensed water
container.
Program chart
All weights marked with * are based on the weight of dry laundry.
Normal Full load (17.6lb/8kg)*
Extra, Normal
Items Single and multi-layered cotton items. For example, T-shirts,
underwear, baby clothes, workwear, jackets, covers, aprons,
overalls, hand towels, bath towels, bathrobes, and bed linen.
Tip - Select Extra for multi-layered and very thick fabrics.
- Do not use Extra for jersey fabrics (e.g., T-shirts, underwear, baby
clothes) because they can shrink.
Hand iron, Rotary iron
Items All cotton or linen fabrics requiring further processing. For example,
table linen, bed linen, or starched laundry.
Tip To prevent laundry from drying out, it should be rolled up until you
are ready for ironing.
Wrinkle-free Half load (8.8lb/4kg)*
Normal, Hand iron
Items For easy care items made of cotton, synthetic, or mixed fiber. For
example, workwear, dresses, pants, pantyhose, and table linen.
Delicates Small load (5.7lb/2.5kg)*
Normal, Hand iron
Items Delicate items with the symbol on the care label made of
synthetic fiber, mixed fiber, rayon, and easy care cotton. For
example, dress shirts, blouses, lingerie, and appliquéd garments.
Tip The load should be reduced further for a particularly crease-free
drying process.
28
Program chart
Smoothing Small load (2.2lb/1kg)*
Normal, Hand iron
Items - Cotton and linen fabric.
- For easy care items made of cotton, mixed, or synthetic fiber. For
example, pants, jackets, and shirts.
Tip - This program smoothes out creasing caused during the spin cycle
in the washing machine.
- This program is also suitable for dry fabrics.
- Please remove the garments as soon as the program has finished.
Woolens/Silks Small load (4.4lb/2kg)*
Items - For woolen garments and fabric containing wool blends. For
example, pullovers, knitted jackets, and pantyhose.
- Silk garments which are suitable for tumble drying, e.g., blouses
and shirts.
Tip - Woolen garments are loosened and fluffed up in a short amount of
time.
- The program reduces the amount of creases in silk garments that
are suitable for tumble drying.
- The items are not dried completely in this program.
- Please remove the garments as soon as the program has finished.
Dress Shirts Small load (4.4lb/2kg)*
Normal, Hand iron
Items For all shirts and blouses.
Express Half load (8.8lb/4kg)*
Extra, Normal, Hand iron, Rotary iron
Items Suitable for resistant garments for the Normal program.
Note The program duration is shortened.
Denims Small load (6.6lb/3kg)*
Normal, Hand iron
Items All the denim garments, e.g., jackets, jeans, shirts, and skirts.
29
Program chart
Outdoor Small load (5.5lb/2.5kg)*
Normal, Hand iron
Items Outdoor clothing which is suitable for drying in a tumble dryer.
Proofing Small load (5.5lb/2.5kg)*
Items For drying microfiber fabrics, skiwear, outdoor wear, fine,
closeweave cotton garments (poplin), and table linen which are
suitable for drying in a tumble dryer.
Note - Items are dried to a Normal level only.
- This program includes a proofing fixing phase.
- Only use proofing agents which are stated by the manufacturer as
being “suitable for use on membrane textiles”. These agents
contain fluorochemical compounds.
- Risk of fire! Do not dry items which have been treated with
proofing agents containing paraffin.
Bed Linens Full load (8.8lb/4kg)*
Extra, Normal, Hand iron, Rotary iron
Items Bed linen
Tip - Select Extra for multi-layered and very thick fabrics.
- To prevent laundry from drying out, it should be rolled up until you
are ready for ironing.
Time Dry Full load (17.6lb/8kg)*
Items - For multi-layered fabric whose layers have different drying
characteristics, e.g., jackets, pillows, sleeping bags, and other
voluminous items.
- For drying individual items, e.g., bath towels, swimwear, dish
cloths, and towels.
Tip Do not select the longest drying time to start with. Check the items
as you are drying them to find the optimum time.
30
Changing the program sequence
31
Changing a program once it
has started
You cannot change to another program
once a program has started (this
prevents unintentional alterations).
If you try to change a program, will
light up until the original program is
reset.
Exception: The dryer is switched off by
turning the program selector to the
position.
You will need to cancel the current
program before you can select a new
one.
Risk of fire due to incorrect use
and operation.
The laundry can burn and destroy
the dryer and the surroundings.
Read and observe “IMPORTANT
SAFETY INSTRUCTIONS”.
Cancelling the current program
Touch the Start/Stop sensor button.
The items will be cooled down,
depending on the temperature reached
and how long they have been dried for.
will light up if you press the Start/
Stop sensor button again during the
cooling-down phase.
Open the door.
Selecting another program
Close the door.
Turn the program selector to another
program.
Touch the Start/Stop sensor button.
Adding or removing laundry
Risk of burns when touching hot
laundry of the dryer drum.
You could burn yourself.
Let the laundry cool down and
remove it carefully.
Pull open the door.
Add or remove items.
Close the door.
Touch the Start/Stop sensor button.
The program starts.
Changing the program sequence
32
Adding laundry during ongoing
delay start period
You can open the door to add or
remove laundry.
- All program settings will be saved.
- You can still change the drying level,
if required.
Open the door.
Remove or add the laundry.
Close the door.
Touch the Start/Stop sensor button
so that the delay start period
continues.
Program duration
Altering the program sequence can
cause the program duration shown on
the time display to be adjusted.
Condensed water container
33
Emptying the condensed water
container
The condensed water is collected in
the condensed water container.
Empty the condensed water
container after every drying program.
The indicator light will light up if the
maximum level of the condensed water
container is reached.
To turn the indicator light off: Open
and close the door while the dryer is
switched on.

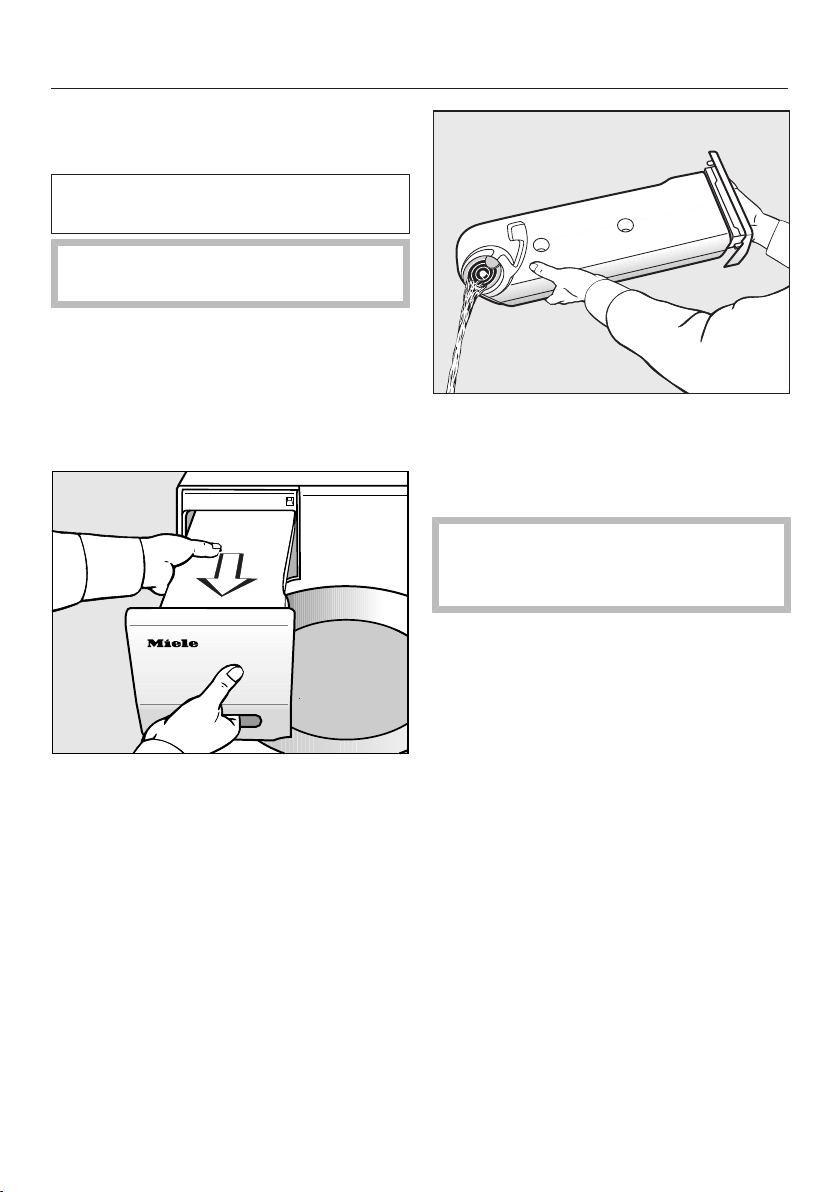

Remove the condensed water
container.
To prevent water from running out,
keep it in a horizontal position when
carrying it. Hold the condensed water
container at the front and towards the
back.
Empty the condensed water
container.
Replace the condensed water
container in the dryer.
It can cause health problems in
people and animals.
Do not drink condensed water.
You can use the condensed water in the
household (e.g., for steam irons or
humidifiers). For this, however, you
should pour the condensed water
through a fine sieve or a coffee filter.
This filters the finest pieces of lint,
which could possibly cause damage,
out of the water.
Fragrance flacon
34
Using the fragrance flacon
Using the fragrance flacon (optional
accessory) will add a pleasant
fragrance to your laundry.
Risk of fire and damage to the
health if fragrance flacons are used
incorrectly.
The leaked fragrance can damage
your health if it comes into contact
with your body. Leaked fragrance
can cause fire.
Before using a fragrance flacon,
please read “IMPORTANT SAFETY
INSTRUCTIONS”, “Using the
fragrance flacon (optional
accessory)”.
Removing the protective seal from
the fragrance flacon
Only hold the fragrance flacon as
illustrated. Do not hold it at an angle
or tip it as the fragrance will leak out
of the flacon.
Hold the flacon securely so that you
do not open it by mistake.
Pull off the protective seal.
Fragrance flacon
35

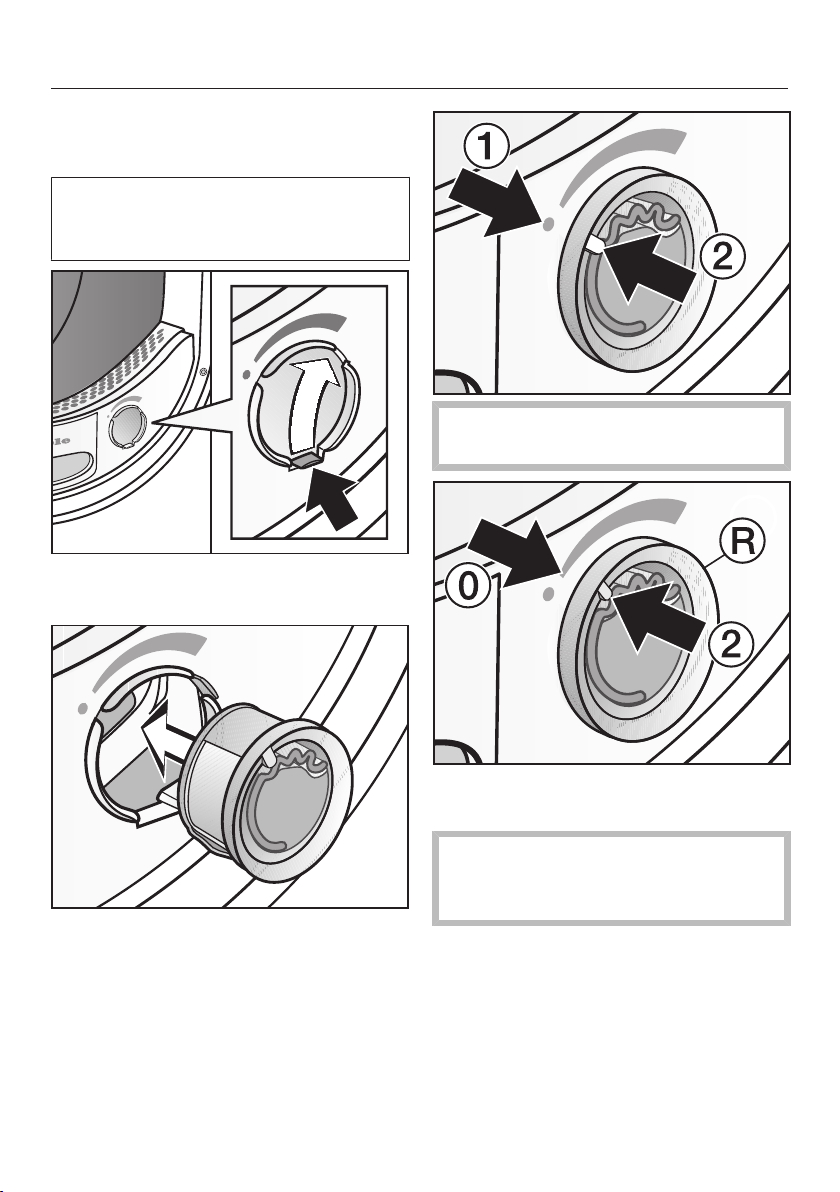

Inserting the fragrance flacon
Open the door of the tumble dryer.
The fragrance flacon is inserted in the
upper lint filter next to the recessed
grip.
Open the cover using the tab until the
tab is right at the top as shown.
Insert the fragrance flacon into the
socket as far as it will go.
Markers and must line up with
one another.
Turn the outer ring clockwise a
little.
The fragrance flacon can slip out.
Turn the outer ring in such a way that
markers and line up.
Fragrance flacon
36
Opening the fragrance flacon
Before drying, you can select the
intensity of the fragrance.
Turn the outer ring clockwise: The
further you open the fragrance flacon,
the more intense the fragrance.
Damp laundry and longer drying
durations with sufficient heat transfer
are needed for the fragrance to be
released into the laundry effectively.
The fragrance will also be noticeable in
the room air during the process.
Closing the fragrance flacon
After drying, the fragrance flacon should
be closed to prevent the fragrance from
escaping needlessly.
Turn the outer ring counter-clockwise
until marker b is in position _.
If you wish to dry without the
fragrance occasionally: Remove the
fragrance flacon and store it in its
original packaging.
Replace the fragrance flacon with a
new one when the intensity of the
fragrance is no longer sufficient.
Fragrance flacon
37
Removing/replacing the
fragrance flacon
Turn the outer ring counter-clockwise
until markers a and b line up.
Replace the fragrance flacon with a
new one.
When not in use, you can store the
fragrance flacon in its original
packaging.
Fragrance flacons are available to
order from Miele retailers or online.
The fragrance can leak out of the
pod.
Do not lay the fragrance flacon
down.
- If you are keeping the fragrance
flacon in its original packaging, do
not store the packaging upright on its
edge or upside down. Otherwise, the
fragrance will leak out.
- Always store in a cool, dry place
away from direct sunlight.
- When purchasing new fragrance
flacons, only remove the protective
seal just before use.
Cleaning and care
38
Lint filters
This tumble dryer has 2 lint filters in
the door opening: The upper and
lower lint filters trap lint produced
during the drying process.
Clean the lint filters after each drying
program. This prevents an extension
of the program duration.
Also clean the lint filters when the
indicator light comes on.
To turn the indicator light off:
Open and close the door while the
dryer is switched on.
Removing the fragrance flacon
The intensity of the fragrance will be
reduced if the lint filters and plinth filter
are not cleaned.
Remove the fragrance flacon. See
“Fragrance flacon”, “Removing/
replacing the fragrance flacon”.
Removing visible lint
Tip: You can also use a vacuum cleaner
so that you can remove the lint without
touching it.
Open the door.

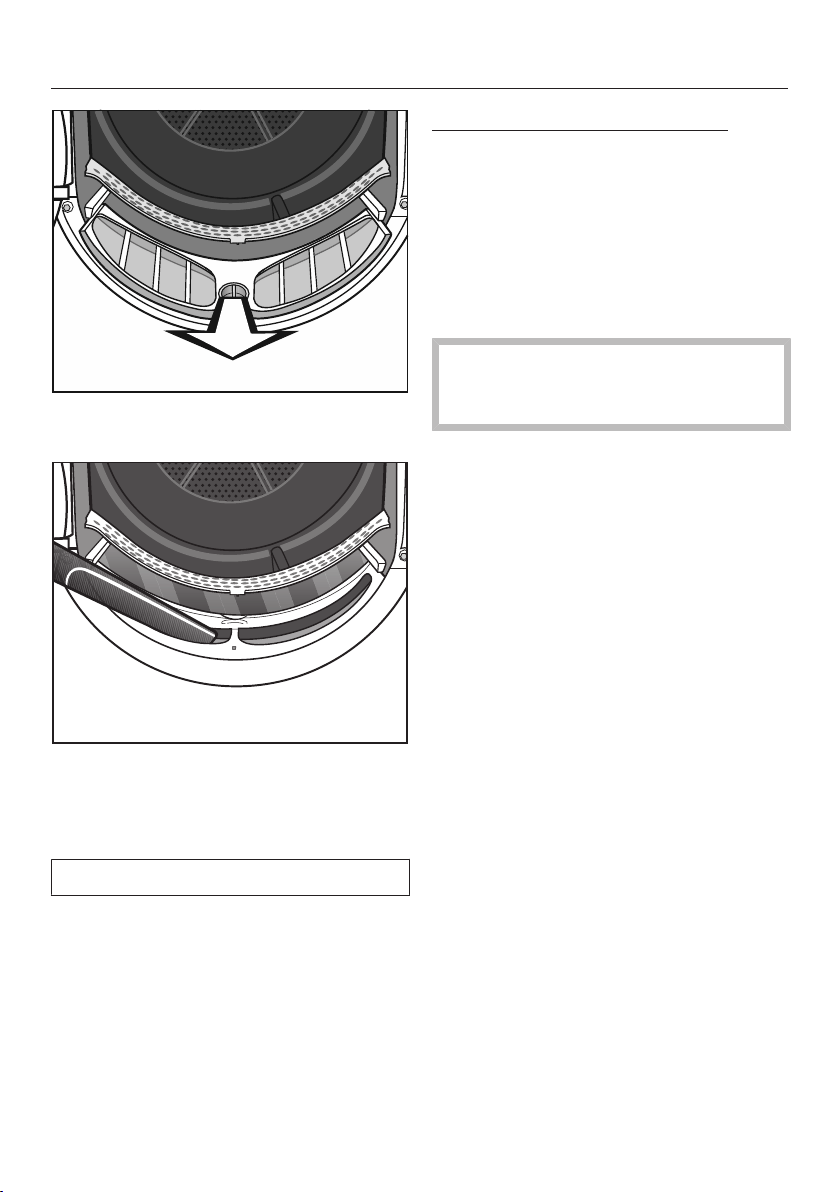

Pull the upper lint filter forward to
remove it.
Remove the lint (see arrows).
Cleaning and care
39
Remove the lint (see arrows) from the
filter surface of all the lint filters and
the perforated laundry deflector.
Push the upper lint filter back into
position until it clicks.
Close the door.
Cleaning the lint filters and air flow
openings thoroughly
If the drying duration has become
longer or the surface of the filters is
visibly compacted with lint, you should
carry out the following cleaning
procedure.
Remove the fragrance flacon. See
“Fragrance flacon”.
Pull the upper lint filter forward to
remove it.
Turn the yellow dial on the lower lint
filter in the direction of the arrow (until
you hear it click).
Cleaning and care
40

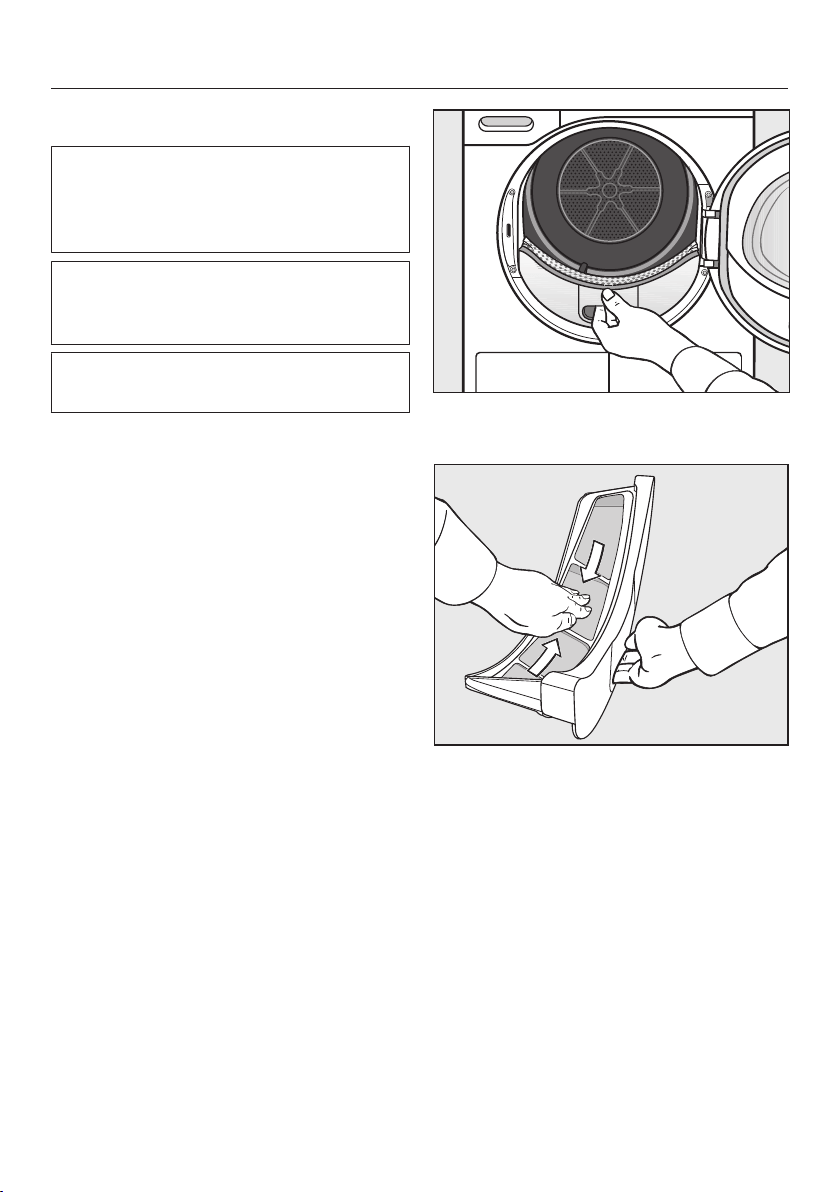

Hold the dial and pull the lint filter
forward to remove it.
Use a vacuum cleaner with a long
crevice nozzle attached to remove
any visible lint from the upper air flow
openings.
Finally, clean the lint filters with water.
Cleaning the lint filters with water
Wipe the smooth plastic surfaces of
the lint filters with a damp cloth to
clean them.
Flush the lint filters through with
warm running water.
Shake the lint filters thoroughly and
then dry them carefully.
Ensure the filters are dry before
replacing them. Wet filters could
cause operational faults.
Push the lower lint filter in completely
and lock it with the yellow dial.
Push the upper lint filter in
completely.
Close the door.
Cleaning and care
41
Cleaning instructions when using
fabric softener sheets
If you are using fabric softener sheets,
please follow these warnings and
instructions.
First, clean the filters as
described in “Cleaning the lint filters
with water”.
If the surfaces of the lint filters are
still strongly compacted with lint,
then follow these measures.
Please note the plastic and surfaces
of the lint filters can be damaged by
the cleaning process described
below.
If the surfaces of the lint filters
are not cleaned, this can extend the
drying time and increase the energy
consumption.
Try the following 3 cleaning instructions
to determine the one that achieves the
best results.
Option 1
Wipe the surfaces of the lint filters
several times with a cleaning cloth
with an alcohol base until you have
removed the impurities/obstructions.
Risk of fire!
Then rinse the filter surfaces
thoroughly with warm water to
remove all residues.
Option 2
Clean the lint filters in the dishwasher
without any other dishes. Use a high-
temperature program.
Option 3
Wet the surfaces of the lint filters with
a liquid color detergent (e.g., Miele
Ultra Color Liquid Laundry Detergent).
Leave it on for approx. 2 hours.
Risk of fire!
Then rinse the filter surfaces
thoroughly with warm water to
remove all residues.
Cleaning and care
42
Cleaning the plinth filter
Clean the plinth filter whenever the
indicator light comes on or when the
program duration is longer than usual.
To turn the indicator light off:
Open and close the door while the
dryer is switched on.
Removing the plinth filter

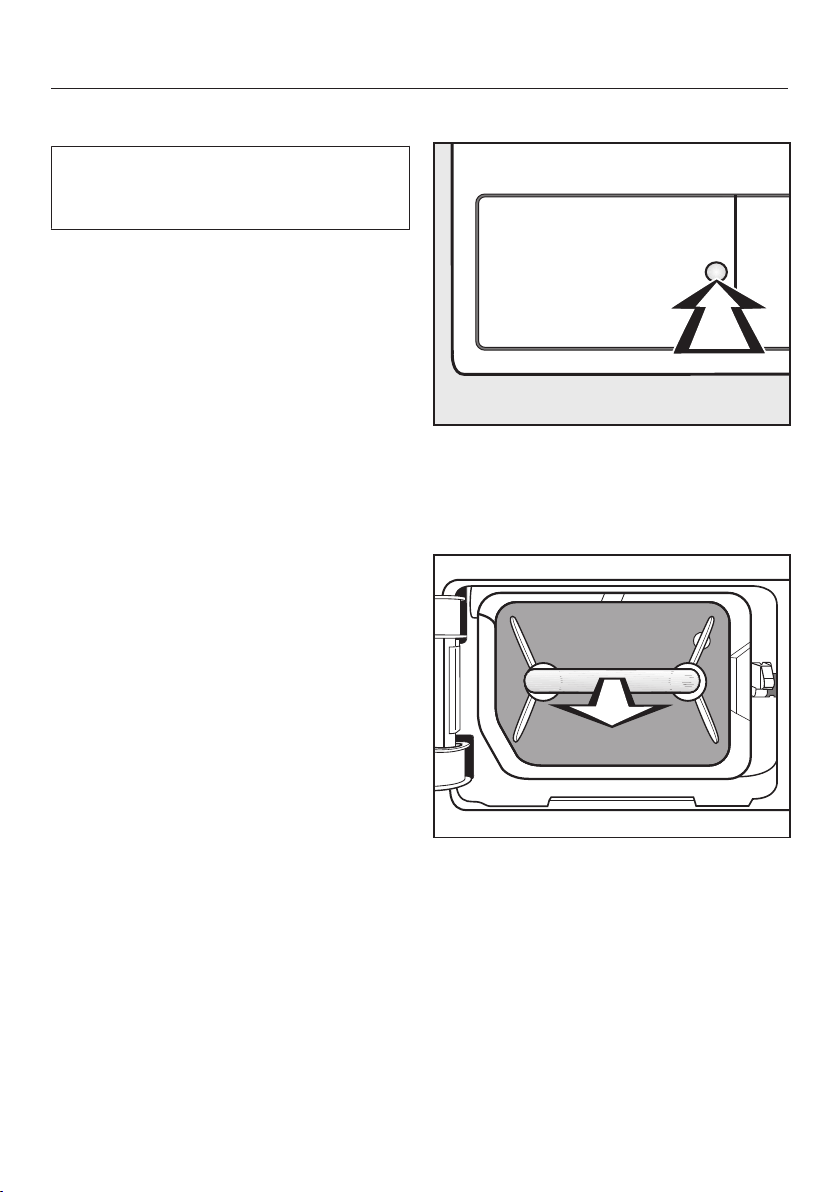

Press the round, indented area on the
heat exchanger access panel to open
it.
The panel will spring open.
Pull the plinth filter out by the handle.
This causes the right-hand guide pin in
the dryer to come out. This pin ensures
that the heat exchanger access panel
can only be closed if the plinth filter is
inserted the right way round.
Cleaning and care
43

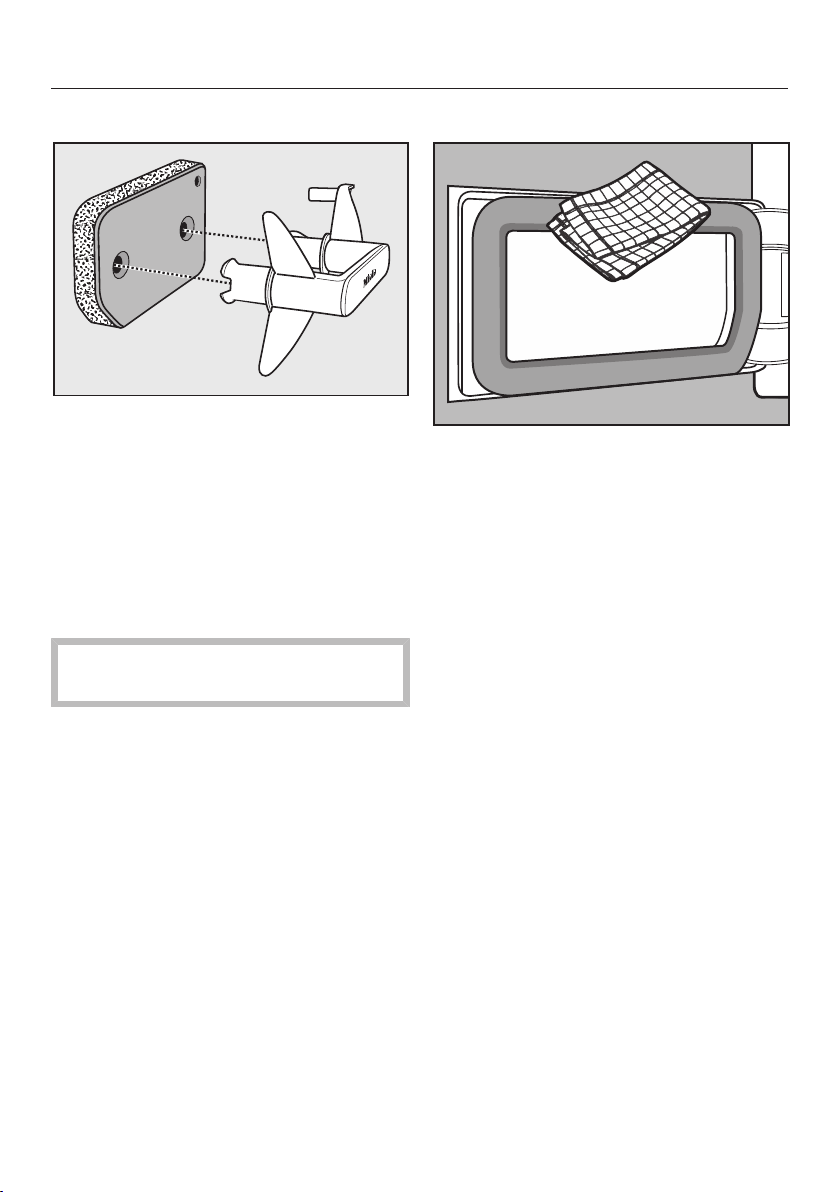

Cleaning the plinth filter
Pull the handle out of the plinth filter.
You can brush off a heavy build-up of
lint on the plinth filter or remove it
with a vacuum cleaner.
Clean the filter thoroughly under
running water.
Squeeze the water out of the plinth
filter thoroughly.
The plinth filter must not be replaced
dripping wet. This can cause a fault.
Use a damp cloth to remove any lint
from the handle.
Cleaning the plinth filter flap
Use a damp cloth to remove any lint.
Make sure that you do not damage
the rubber seal when doing this.
Check whether the cooling fins are
blocked with lint (as follows).
Cleaning and care
44
Checking the heat exchanger unit
Risk of injury from sharp cooling
fins.
You could cut yourself.
Do not touch the cooling fins with
your hands.
Look to see if lint has accumulated.
If there is visible soiling:
Damage due to incorrect
cleaning of the heat exchanger.
The dryer will not dry if the cooling
fins are damaged or bent.
Use a vacuum cleaner with a dusting
brush attached to clean the cooling
fins. Only pass the vacuum cleaner
brush over them lightly, without
applying any pressure.
Carefully vacuum up any visible lint or
dirt.
Inserting the plinth filter
Fit the filter back on the handle. Make
sure it is the correct way round.
To ensure that the filter is positioned
correctly in front of the heat exchanger
unit:
First insert the handle with the plinth
filter attached over the two guide
pins:
- The word Miele on the handle must
be the correct way up.
Push the plinth filter in completely.
This will push in the right-hand guide
pin at the same time.
Close the heat exchanger flap.
Cleaning and care
45
Damage or ineffective drying if
drying takes place without a plinth
filter or when the heat exchanger flap
is open.
Excessive accumulations of lint can
damage the dryer in the long term. If
the system is not leak-tight, this can
make the drying ineffective.
You may only operate the dryer with
the plinth filter fitted correctly and the
heat exchanger flap closed.
Cleaning the dryer
Disconnect the tumble dryer from the
electrical supply.
Damage due to the use of
unsuitable care products.
Unsuitable care products could
damage plastic surfaces and other
parts.
Do not use any solvents, abrasive
cleaners, glass cleaners, or all-
purpose cleaners.
Clean the tumble dryer and the seal
on the inside of the door with a
slightly damp soft cloth and a mild
solution of liquid dish soap and water.
Dry all the parts with a soft cloth.
Frequently Asked Questions
With the help of the following guide minor faults in the performance of the
machine, some of which may result from incorrect operation, can be remedied
without contacting the Service Department.
This guide may help you to find the reason for the fault, and how to correct it.
Indicator lights or information on the time display
Problem Possible cause and solution
The indicator light
comes on after a pro-
gram has been can-
celled and a signal
sounds.
The condensed water container is full or there is a
kink in the drain hose.
Empty out the condensed water container.
Check the drain hose.
See “Cleaning and care”.
To switch the indicator light off:
Open and close the door (with the dryer switched
on).
The indicator light
comes on at the end of
the program.
There is a build-up of lint in the airways.
Clean the lint filters.
Clean the plinth filter.
See “Cleaning and care”.
To switch the indicator light off:
Open and close the door (with the dryer switched
on).
You can influence when the indicator light comes
on: See “Programmable functions”, “ Airway
indicator”.
lights up. The program selector has been moved.
Select the original program. The time left will
appear on the display again.
Bars flash on the dis-
play at the end of a pro-
gram: .........
The program has finished but the laundry has not yet
cooled down.
Either remove the laundry and spread it out to cool
down or leave it in the tumble dryer to cool down
during the cooling phase.
46
Frequently Asked Questions
Problem Possible cause and solution
flashes/lights up
after the tumble
dryer is switched
on and a program
cannot be se-
lected.
Access via a code has been activated.
See “Programmable functions“, “ Code”.
and light up after
a program has been
cancelled, a signal
sounds.
An excessive amount of lint has built up.
Clean the lint filters.
Clean the plinth filter.
Clean the airways: the area underneath the plinth
filter and the heat exchanger.
See “Cleaning and care”.
To switch off:
Switch the dryer off and then on again.
and another number
combination flash after
a program has been
cancelled, a signal
sounds.
There is no obvious cause.
Switch the dryer off and then on again.
Start a program.
If the program is interrupted again and an error
message appears, there is a fault. Contact Miele
Technical Service.
: lights up and the
program has been can-
celled, a signal sounds.
The laundry is unevenly distributed or has rolled up.
Untangle the laundry and remove a few items if
necessary.
Switch the dryer off and then on again.
Start a program.
47
Frequently Asked Questions
Unsatisfactory drying results
Problem Possible cause and solution
The laundry is not suffi-
ciently dry.
The load consisted of different types of fabric.
Finish drying using the Time Dry program.
Select a more suitable program next time.
Useful tip: You can alter the drying levels for some
programs. See “Programmable functions“, sections
“ Drying levels “Normal”“ and “ Drying levels
“Wrinkle-free””.
The laundry or feather-
filled pillows develop a
smell after drying.
The laundry was washed with insufficient detergent.
Feathers have the property of developing a
significant odor when they are warm.
Laundry: use sufficient detergent.
Pillows: take out of the tumble dryer and air them.
Use a fragrance flacon (available as an optional
accessory) for your favorite fragrance.
Items made of synthetic
fibers are charged with
static electricity after
drying.
Synthetic fibers tend to attract static charge.
Static charge can be reduced by adding a fabric
softener to the final rinse in the washing program.
There is a build-up of
lint.
Lint is principally the result of friction when garments
are being worn and to some extent when they are
being washed. Machine drying hardly causes any lint
to form.
Lint is collected by the lint filters and the plinth filter
and can be removed easily.
See “Cleaning and care”.
48
Frequently Asked Questions
The drying cycle duration is very long
Problem Possible cause and solution
The drying process
goes on too long or
even switches off.*
The room in which the tumble dryer is located is too
warm.
Ventilate the room thoroughly.
Detergent residues, hair, and fine lint can clog the
filters.
Clean the lint filters and the plinth filter (see
“Cleaning and care”, sections “Cleaning the lint
filters” and “Cleaning the plinth filter”).
Remove any visible lint from the heat exchanger
(see “Cleaning and care”, “Cleaning the plinth
filter”).
The laundry is unevenly distributed or has rolled up.
The tumble dryer has been overloaded.
Untangle the laundry and remove a few items.
Start a program.
The cool air intake (bottom right grille) is blocked.
Move any objects, such as a laundry basket, away
from the dryer.
The lint filters and the plinth filter were wet when
replaced.
The lint filters and the plinth filter must be dry.
The laundry is too damp.
Spin using a higher spin speed in the washing
machine.
Metallic components, e.g., zippers, have prevented
the dryer from registering the correct moisture level.
Open the zippers next time.
If the problem recurs, dry these items using the
Time Dry program.
* Switch the tumble dryer off and on again before starting a new program.
49
Frequently Asked Questions
Other problems
Problem Possible cause and solution
You can hear operating
noises (buzzing/hum-
ming).
This is not a fault. The compressor is operating.
These noises are quite normal and can be heard
when the compressor is operating.
A program does not
start.
There is no obvious cause.
Connect the power plug.
Turn on the tumble dryer.
Close the door.
Check whether the fuse has tripped.
Power outage? When power is restored, any
previously running program will restart
automatically.
Only the Start/Stop sen-
sor button is flashing.
10minutes after the end of the program, the Start/
Stop sensor button will begin to flash and the display
will go out to save energy. This is not a fault, but a
normal function.
The drum will turn at intervals in the Anti-crease
phase.
Touch a sensor button to switch on the indicators.
See “Programmable functions“, “ Display switch-off
status”.
The tumble dryer is
switched off at the end
of the program.
The dryer switches off automatically to save energy.
This is not a fault, but a normal function.
To switch the dryer on, select a program.
The interior drum light-
ing does not come on.
The drum lighting switches off automatically ...
... when the door is closed.
... after a few minutes when the door is open to
save energy.
The drum lighting will come on when the door is
opened if the dryer is switched on.
50
Customer Service
51
Contact in the event of a fault
In the event of a fault which you cannot
remedy yourself, please contact your
Miele dealer or Miele Customer Service.
You can book a Miele Service Call
online at www.miele.com/service.
Contact information for Miele
Customer Service can be found at the
end of this document.
Please quote the model identifier and
serial number of your appliance (SN)
when contacting Miele Customer
Service. Both pieces of information can
be found on the data plate.
Open the door of your tumble dryer to
find the data plate:
Appliance warranty and
product registration
You can register your product and/or
view the manufacturer´s warranty terms
and conditions for Miele appliances and
vacuum cleaners at
www.mieleusa.com.
Optional accessories
Optional accessories for this tumble
dryer are available from your Miele
dealer or Miele Technical Service.
You also can order these and many
other useful products from the Miele
online shop.
Dryer basket
The dryer basket enables items which
must not be subjected to mechanical
action to be dried or aired.
Fragrance flacon
A fragrance flacon can be used in your
tumble dryer to add a pleasant
fragrance to your laundry.
Installation instructions
Alteration rights reserved.
Visit our website for all the current product specifications, technical appliance
information, and warranty information.
To avoid accidents or damage to the appliance, please read these instructions
before installing and/or using it.
52
IMPORTANT SAFETY INSTRUCTIONS
, WARNING - Risk of Fire
To reduce the risk of severe injury or death, follow all installation
instructions.
Clothes dryer installation must be performed by a qualified
installer.
Install the clothes dryer according to the manufacturer's
instructions and local codes.
Repair and maintenance work should be performed by a Miele
authorized service technician. Work by unqualified persons could be
dangerous and could void the warranty.
Before installation, disconnect the tumble dryer from the electrical
supply by shutting off the power main, unplugging the power cord or
tripping the circuit breaker. Do not restore power until the installation
is complete.
GROUNDING INSTRUCTIONS
This appliance must be grounded. In the event of malfunction or
breakdown, grounding will reduce the risk of electric shock by
providing a path of least resistance for electric current. This
appliance is equipped with a cord having an equipment grounding
conductor and a grounding plug. The plug must be plugged into an
appropriate outlet that is properly installed and grounded in
accordance with all local codes and ordinances.
WARNING – Improper connection of the equipment-grounding
conductor can result in a risk of electric shock. Contact a qualified
electrician if you are in doubt as to whether the appliance is properly
grounded.
Do not modify the plug provided with the appliance: if it will not fit
the outlet, have a proper outlet installed by a qualified electrician.
Do not use an extension cord to connect this appliance to the
power supply. Extension cords do not guarantee the required safety
of the appliance (e.g. danger of overheating).
53
IMPORTANT SAFETY INSTRUCTIONS
The installation of this unit in non stationary locations (e.g. ships)
must be performed by a qualified installer or service agency, in strict
accordance with national and local safety regulations and standards.
Do not install the machine in rooms where temperatures below
freezing may occur.
This dryer is not intended for wall-insert.
If there is any doubt concerning installation, contact Miele’s
Technical Service Department.
USA
1-800-999-1360 T[email protected]
CDN
1-800-565-6435 [email protected]
SAVE THESE INSTRUCTIONS
54
Installation
*INSTALLATION*
55
Front view
a
Drain hose for condensed water
b
Power cord
– Observe the section entitled
“Electrical connection”.
c
Control panel
d
Condensed water container
– empty after every drying cycle
e
Door
– do not open during drying
f
Access panel to the heat exchanger
and plinth filter
– do not open during drying
g
Cool air intake grille
– do not obstruct with a laundry
basket or other objects
h
Four height-adjustable screw feet
Installation
*INSTALLATION*
56

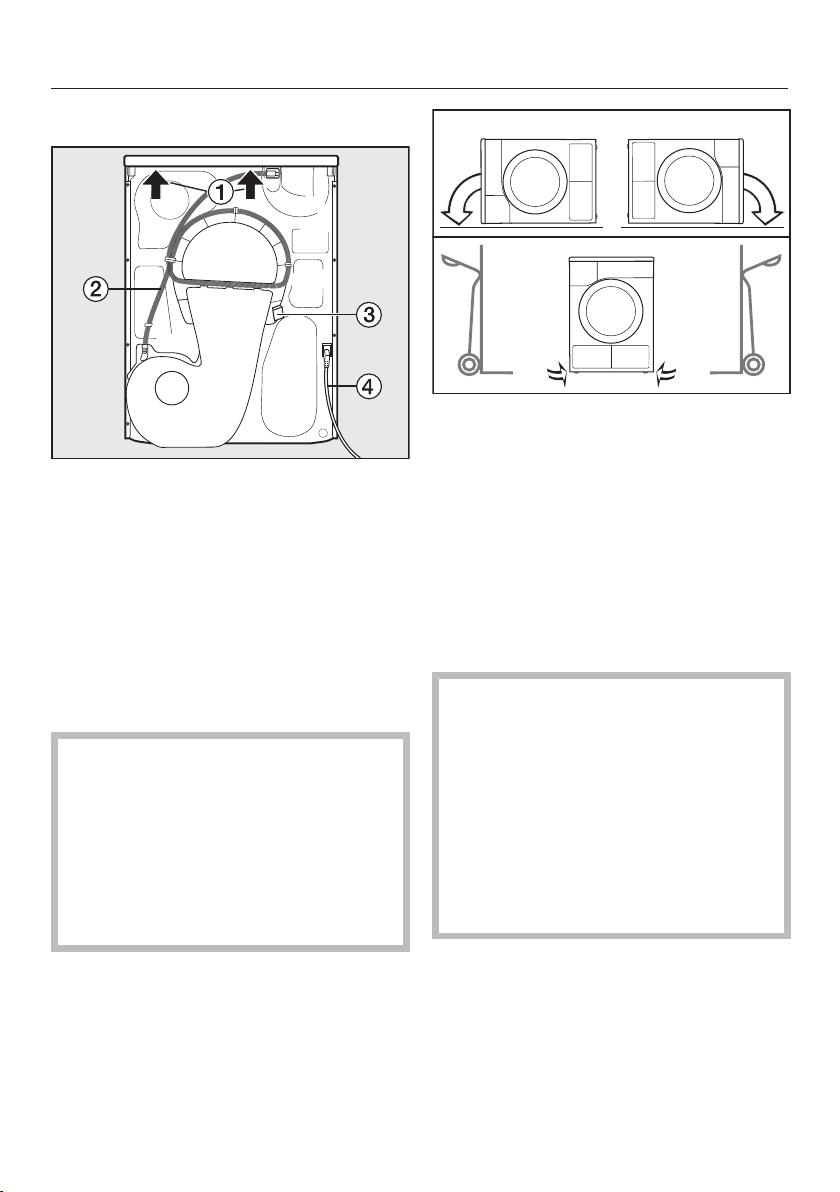

Rear view
a
Protruding lid for holding when
moving the tumble dryer (see
arrows)
b
Drain hose for condensed water
c
Hook for winding the power cord
during transport
d
Power cord
Transporting the tumble dryer
Danger of injury to people and
damage to property caused by
moving the appliance incorrectly.
If the tumble dryer tips up, there is a
danger of injury to people and
damage to property.
Ensure that the tumble dryer is stable
during transportation.
If the tumble dryer is being
transported on its side, it must be
tipped onto its left or right side.
If the tumble dryer is being
transported upright and you are using
a hand truck, you must transport it
with its left or right side resting on the
truck.
Transporting the tumble dryer to its
installation site
The fixings at the back of the lid
may become brittle due to external
circumstances.
There is a danger of the lid being
pulled off when carrying the
appliance.
Before carrying the appliance check
that the lid is secure where it
protrudes at the back of the
appliance.

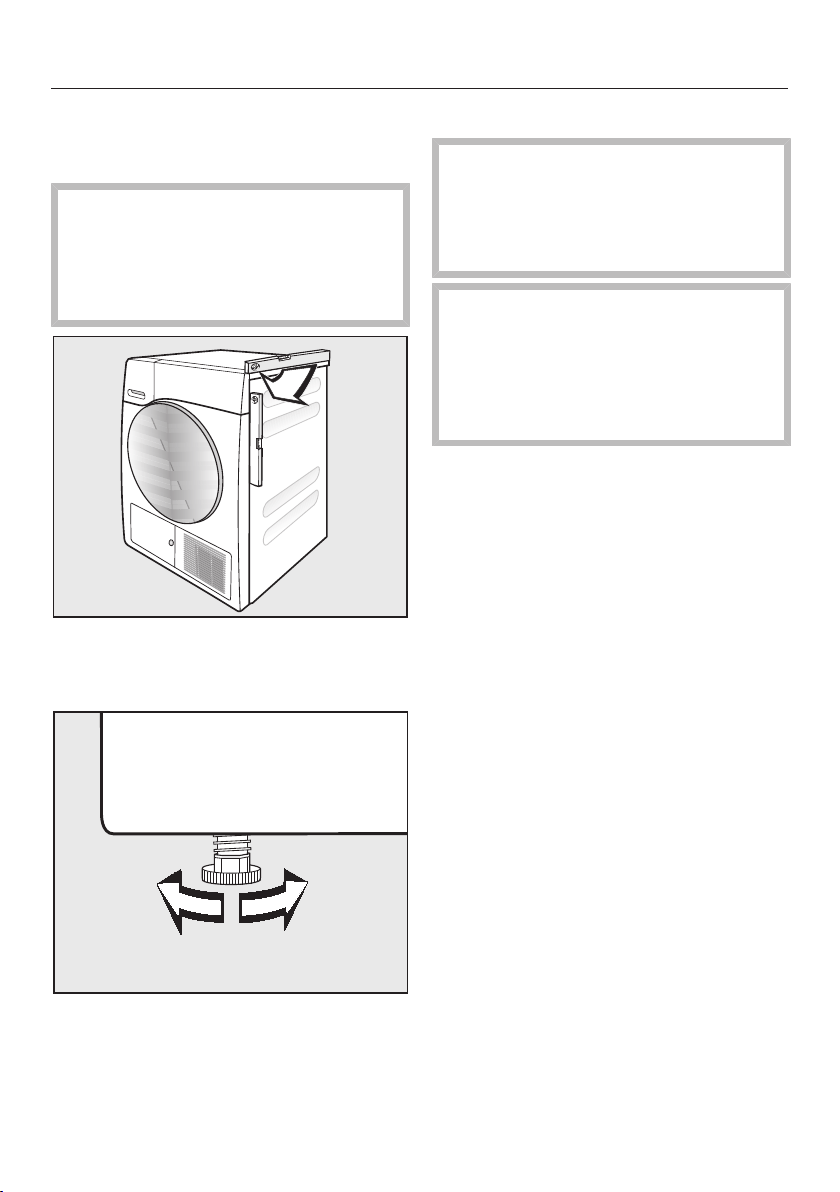

Carry the tumble dryer by the front
feet and by the lid where it protrudes
at the back of the appliance.
Installation
*INSTALLATION*
57
Installation
Leveling the tumble dryer
Ensure that no closeable door,
sliding door, or an oppositely hinged
door is installed that would hinder
the door of the dryer being opened in
any way.
The appliance must stand perfectly
level to ensure safe and proper
operation.
The screw feet can be adjusted to
compensate for unevenness in the floor.
Ventilation
The cool air intake at the front of the
dryer must not be blocked or
covered. This would hinder a
sufficient intake of cool air for the
heat exchanger.
Do not block the gap between the
bottom of the tumble dryer and the
floor with toe kicks, deep pile carpet,
etc. This would otherwise hinder a
sufficient flow of air to the tumble
dryer.
The hot air that is blown out from the
heat exchanger warms the room air.
Ensure sufficient ventilation of the
room, e.g., open the window. The
drying time will otherwise take longer
(higher energy requirement).
Before moving the tumble dryer
again
A small quantity of condensed water
that remains in the area around the
pump after the drying process can run
out if the dryer is tilted.
Recommendation: Start the Time Dry
program for approx. 1minute before
transporting the dryer. Any remaining
condensed water will then be fed into
the condensed water container (which
you will need to empty again) or out
through the drain hose.
Installation
*INSTALLATION*
58
Additional installation
requirements
All installations must be carried
out in accordance with local
regulations.
Slot-in
This tumble dryer is suitable for pushing
under a countertop.
It is very important to avoid a
build-up of heat. The warm air which
is expelled from the dryer must be
able to dissipate. Warm air which
cannot dissipate could cause a fault.
- The appliance lid must not be
removed.
- The electrical socket must be located
in an accessible position near the
tumble dryer.
- Drying durations may increase
slightly.
Installing the dryer in a closet
Minimum installation distance
You must insert sufficiently large
ventilation openings into the closet
door. You can also open the closet
door slightly while the dryer is
operating.
Otherwise, the dryer can overheat,
which can cause a fault.
Ensure that the dryer door can
be opened at any time.
Ensure that the laundry can be
removed at any time without
hindrance.
Installation
*INSTALLATION*
59
Installing the dryer in a floor-to-ceiling
closet
You can also insert a ventilation
opening at the top of the closet. In
addition, you must also provide an
opening on the bottom side of the
closet door.
Direct ventilation is also possible via
an air conditioning outlet in the closet.
The air must be able to circulate
freely at the top of the closet.
The air supply must not be hindered
by a shelf.
Installation
*INSTALLATION*
60
Product dimensions
Dimensions
5.2ft (1.6m) drain hose,
detachable, top right on the rear
6.5ft (2m) power cord, bottom
right on the rear
Installation on a plinth
- WTS 510
Washer-dryer stack
- WTV502 or WTV512
Installation
*INSTALLATION*
61
Electrical connection
GROUNDING INSTRUCTIONS
The electrical safety of this dryer can
only be guaranteed when continuity
is complete between it and an
effective grounding system. It is
essential that this standard safety
requirement is observed and
regularly tested. If in any doubt,
please have the electrical installation
inspected by a qualified electrician.
Miele cannot be held liable for the
consequences of an inadequate
grounding system. The electrical
socket must be easily accessible so
that the dryer can be disconnected
from the electricity supply.
WARNING – If the grounding
conductor is connected incorrectly,
this can result in electric shock.
Contact a qualified electrician if you
are unsure whether the appliance is
properly grounded.
Do not change the plug: If it does not
fit into the socket, you should have a
proper outlet installed by a qualified
electrician.
The dryer is equipped with a power
cord 6'7" (2m) with plug. The dryer is
connected to a NEMA 5-15 socket with
an electrical connection of 120V,
60Hz, 15A.
Connection adapter for NEMA 14-30
socket
If a NEMA 14-30 socket is
provided on-site for the dryer, the
Miele connection adapter* can be
used.
Observe the following description to
avoid damage to the dryer.
Tip: You can order the connection
adapter directly from Miele (USA or
CDN).
- The connection adapter has a NEMA
14-30 plug and two NEMA 5-15
socket-side connectors. The dryer
and washing machine can therefore
be connected to the 120V/60Hz
electricity supply.
- The connection adapter is equipped
with two 15A fuses which protect
both the connected appliances and
the connection adapter.
Installation
*INSTALLATION*
62
External draining of condensed
water
Note
When drying is in progress,
condensed water is pumped into the
condensed water container through
the drain hose which is located at the
back of the dryer.
The condensed water can also be
externally drained away via the drain
hose on the back of the dryer. This
means that the condensed water
container no longer has to be emptied.
Drain hose length: 5.2ft (1.6m)
Maximum delivery head: 3.3ft (1m)
Maximum drain hose length: 13ft
(4m)
Arranging the drain hose
Damage to the drain hose
through incorrect handling.
The drain hose can suffer damage
and leak.
Do not pull on the drain hose and do
not stretch it or allow it to become
kinked.
There will be a small amount of residual
water left in the drain hose. Have a
container ready to collect this.
Pull the drain hose off its connection
(light arrow).
Pull the hose out of the holders (dark
arrow) and unwind it.
Allow any residual water to run into a
container.
Condensate drain
The drain hose on the back of the dryer
can be inserted into the stand pipe.
Attach the end of the hose to the
stand pipe.
Secure the drain hose carefully
(e.g., by tying it) to make sure it
cannot slip.
Overflowing water can cause
damage.
Installation
*INSTALLATION*
63
Changing the door hinging
You can change the door hinging on
this tumble dryer yourself.
For safety reasons, the tumble dryer
must be disconnected from the
electricity supply before changing
the door hinging.
You will need:
- a Torx T20 and T30 screwdriver
- a flat head screwdriver or pointed
pliers
- the lock catch cover supplied
- the door hinge cover supplied
- a soft surface (e.g., a blanket)
Changing the hinging over
1. Remove the door from the tumble
dryer
Open the door.
Use a T30 Torx screwdriver to
unscrew the two screws on the base
plate of the door hinge .
The door cannot fall off.
Hold the door securely and pull it
forwards: to remove the door you will
need to pull the base plate of the
hinge with its 2 pins out of the dryer.
To avoid scratching the door,
place it outer side downwards on a
soft surface (e.g., a blanket).
2. Change over the door lock on the
dryer
Use a Torx T30 screwdriver to
unscrew the two screws on the door
lock .
Use the screwdriver to press the door
lock upwards.
The door lock will spring out of its
position and can then be removed.
Installation
*INSTALLATION*
64
Turn the door lock by 180°.
Press the door lock into the openings
on the opposite side of the door
opening.
Adjust the position of the door lock
so that the screw holes line up with
those in the front panel of the dryer
.
Screw in both Torx screws in order to
secure the door lock.
3. Remove the lock catch from the
door
First take the rubber seal off the door
and place this to one side.
Use a T20 Torx screwdriver to remove
screw on the lock catch.
Pull off the lock catch together with
the lock catch cover .
Installation
*INSTALLATION*
65
Remove the lock catch from the
cover.
This lock catch cover is no longer
needed.
Insert the lock catch into the new
cover supplied with the dryer.
Place this new lock catch cover to
one side for now.
4. Dismantle the door hinge from the
door
The door hinge cover must be
unclipped from position and then
removed.
Use a screwdriver to press down
gently on position on the door
hinge cover.
Using a little force, pull out door
hinge cover .
This lock catch cover is no longer
needed.
Installation
*INSTALLATION*
66
5. Change the door hinge on the door
The door hinge is secured to the door
with 2 angled rods. These rods need
to be removed with a screwdriver or
pointed pliers.
Insert the end of the screwdriver
blade under rod and rotate it so it
is in an upright position. Do the same
to the other rod.
Use the screwdriver or pointed pliers
to guide first one then the other rod
to the middle until each can be
removed.
Tip: In some circumstances, the rods
can be difficult to dislodge. Moving the
screwdriver with a levering action while
pulling at the same time may help to
work the rods free.
Remove the door hinge and turn it by
180°.
Refit the door hinge on the opposite
side of the door.
Secure the door hinge with the two
rods .
Position the screwdriver under the
end of the rod and then push it into
its resting position .
Installation
*INSTALLATION*
67
You now need the new door
hinge cover supplied with the dryer.
Fit new door hinge cover and clip
it into position.
6. Change the lock catch on the door
You now need the new lock
catch cover supplied with the dryer
which you have already fitted with
the lock catch.
Push the lock catch cover with its
lock catch into position.
Tighten the screw .
Installation
*INSTALLATION*
68
Refitting
7. Refit the door
Press the rubber seal back into the
groove on the door.
Position the door in front of the dryer.
Fit the base of the door hinge with its
2 pins into the openings on the dryer.
The base of the door hinge must be
flush with the front panel of the dryer.
The door cannot fall off in this position.
Screw the door securely to the dryer
at the base of door hinge .
Now that you have changed the
door hinging, the door will open from
the opposite side.
Push the orange marker round to the
other side so that you will see at
which side to pull the door open.
Please keep the lock catch and
door hinge covers which were no
longer needed in a safe place. These
will be required if you choose to
change the door hinging back to its
original position.
Technical data
Height 337/16" (850mm)
Width 237/16" (596mm)
Depth 255/16" (643mm)
Depth with door open 423/8" (1077mm)
Slot-in Yes
Stackable Yes
Weight Approx. 137lbs (62kg)
Drum volume 31.7gal (120l)
Load quantity 17.6lb (8kg) dry laundry
Capacity of condensed water container 1.27gal (4.8l)
Hose length 63" (1.60m)
Maximum head height 39 1/3" (1.00m)
Maximum drain hose length 157 1/2" (4m)
Length of wiring 78 3/4" (2m)
Connection voltage See data plate
Power rating See data plate
Fuse See data plate
Test certificates awarded See data plate
LEDs Class 1
69
Programmable functions
70
Programming
You can use the programmable
functions to alter the dryer's
electronics to suit your requirements.
Programming is carried out in these
steps (, , ... ) using the sensor
buttons.
Accessing the programming level
Before you begin, ensure the following:
- The dryer is switched on and any
program is selected.
- The door of the dryer is open.
Touch the Start/Stop sensor button
and hold it down during steps -.
Close the dryer door.
Wait until the Start/Stop sensor
button, which will now be flashing
quickly, lights up constantly ...
... and then release the Start/Stop
sensor button.
will light up on the time display.
Choosing and selecting
programmable functions
The number of the programmable
function will appear on the display as
and a number:
e.g., .
Touch the or sensor button to
scroll to the next or previous
programmable function:
Programmable function
Drying levels “Normal”
Drying levels “Wrinkle-free”
Buzzer volume
Keypad tone
Code
Conductivity
Display switch-off status
Appliance switch-off
Memory
Anti-crease
Buzzer on
Airway indicator
Display brightness dimmed
Confirm the selected programmable
function by touching the Start/Stop
sensor button.
Programmable functions
71
Editing and saving the programmable
function
You can either switch a programmable
function on or off or select different
options.
The programmable function option will
appear on the display as and a
number:
e.g., .
Touch the or sensor button to
switch the programmable function
on/off or to select an option:
Programmable function
Available options
X
X X X X X
X X X X X X
X
X
X
X
X
X
X
X
X X
X
X X
X
X
X X X X X
X = Can be selected
= Factory setting
Confirm the chosen selection with
the Start/Stop sensor button.
The number of the programmable
function, e.g., , will then light up
again.
Exiting the programming level
Turn the program selector to the
position.
The settings have been changed. You
can alter the settings again at any time.
Programmable functions
72
Drying levels “Normal”
You can adjust the drying levels for the
Normal program to one of seven
different levels.
Options
= Even damper
= Damper
= A little damper
= Factory setting
= A little drier
= Drier
= Even drier
Exception:
The Normal program will remain
unchanged.
Drying levels “Wrinkle-
free”
You can adjust the drying levels for the
Wrinkle-free program to one of seven
different levels.
Options
= Even damper
= Damper
= A little damper
= Factory setting
= A little drier
= Drier
= Even drier
Buzzer volume
The buzzer volume can be changed.
You will hear it as it changes.
= Quieter
= Factory setting
Keypad tone
With this setting, you can activate/
deactivate the signal tone that will
sound each time a sensor button is
touched.
The volume of the keypad tone will
depend on the setting selected for “
Buzzer volume”.
Options
= Off
= On (factory setting)
If a selection is not allowed, a negative
signal tone sounds.
Programmable functions
73
Code
The code prevents your dryer being
used without your knowledge.
When the code has been activated, you
have to enter the code after switching
the dryer on. Otherwise, the dryer
cannot be operated.
Options
= Off (factory setting)
= On
If the option has been selected, after
switching on you will have to enter the
code before you can operate the dryer.
Using the dryer when the code is
activated
After the dryer is switched on, will
flash on the time display.
The code is and cannot be altered.
Touch the sensor button until a
flashes in the first position.
Confirm with the Start/Stop sensor
button.
Enter the two other numbers in the
same way.
The dryer is ready for use after has
been entered and confirmed.
Conductivity
This programmable function should
only be altered if the water is so soft
that it is likely to cause the electronics
which sense residual moisture in the
laundry to give false readings.
Options
= Off (factory setting)
= Low
Important
This programmable function should only
be set if the water used for washing the
laundry is extremely soft with a
conductivity reading (electrical
conductivity) of less than 150μS/cm.
Contact your local water supplier for the
conductivity level of your water supply.
Make sure that you only activate
for the condition described above.
Otherwise, drying results can be
unsatisfactory.
Programmable functions
74
Display switch-off status
To save energy, the time display and
sensor buttons will go out after
10minutes, and only the Start/Stop
sensor button will flash. You can alter
this setting.
However, there is no switch-off in the
event of a fault.
Options
= Off
The time display and sensor
buttons will remain lit up while
the dryer is switched on.
= On (factory setting)
The time display and sensor
buttons will go out after
10minutes. . .
. . . if no further selection is
made after switching the dryer
on.
. . . after a program has
started.
However, the time display and
sensor buttons will remain lit
up for 10minutes after a delay
start time has elapsed, after
the end of a program, or at the
end of the Anti-crease phase.
“Switching on” the display again
- Turn the program selector to any
position (other than ) or touch a
sensor button. This will not alter a
running program.
- Open the door while the dryer is
switched on.
Appliance switch-off
The dryer switches off automatically
after 15minutes to save energy. This
time can be extended or reduced.
The dryer will switch off automatically
after 15, 20, or 30minutes
- if no further selection is made after
switching the dryer on,
- following the end of the Anti-crease
phase,
- after a program without an Anti-
crease phase has finished.
However, there is no switch-off in the
event of a fault.
Options
= After 15minutes (factory
setting)
= After 20minutes
= After 30minutes
Programmable functions
75
Memory
You can set the following: The
electronic module will save the drying
level and any options selected for the
current drying program. It will also
save the duration of the Time Dry
program. When the program is
selected again, these saved settings
will appear on the display.
Options
= Off (factory setting)
= On
Exception:
The Normal program will remain
unchanged.
Anti-crease
After the drying cycle has finished, the
drum will continue to rotate in a
special Anti-crease rhythm for a max.
of 2 hours. This helps to prevent
creasing if the laundry is not removed
immediately after the end of a
program. The duration can be
shortened.
Options
= No Anti-crease (factory
setting)
= 1 hour
= 2 hours
Buzzer on
The buzzer sounds to let you know the
program has finished. It can be
switched on or off.
The continuous tone which sounds
when there are error messages is
independent of the buzzer.
Options
= Off
= On (factory setting)
Programmable functions
76
Airway indicator
Lint should be removed after drying.
The indicator light will also come
on when a certain amount of lint has
collected in the filters.
You can decide at what level of lint
this reminder should be given.
You will have an idea of how often this
should be done after a few drying
programs.
Options
= Off
The indicator light does not
come on. However, if there is a
very severe blockage in the
ducting, the program will be
cancelled and the error
message will appear on
the display regardless of this
option.
= Heavy
The indicator light will come
on when there is a heavy build-
up of lint.
= Normal (factory setting)
= Light
The indicator light will come
on when there is only a small
build-up of lint.
Display brightness dimmed
The brightness of the dimmed sensor
buttons on the display can be set to
one of seven different levels.
The brightness will change as soon as a
different setting is chosen.
Options
= Darkest level
= Factory setting
...
= Brightest level
9 Independence Way
Princeton, NJ 08540
Phone:
Fax:
www.mieleusa.com
U.S.A.
Miele, Inc.
National Headquarters
Please have the model and serial number
of your appliance available when
contacting Customer Service.
Canada
Importer
Miele Limited
Headquarters and Miele Centre
800-843-7231
609-419-4298
Customer Service & Support
Phone:
Fax:
161 Four Valley Drive
Vaughan, ON L4K 4V8
www.miele.ca
888-99-MIELE(64353)
888-586-8056
Customer Care Centre
Phone:
800-565-6435
905-532-2272
International Headquarters
Miele & Cie. KG
Carl-Miele-Straße 29
33332 Gütersloh
Germany
M.-Nr. 10 974 051 / 01en-US
TWB 120 WP
