APPLY SERIAL NUMBER LABEL FROM CARTON
Serial No.
XXXXXX000000
MODEL NO.
N415-0239 MAR 17/11
INSTALLER: LEAVE THIS MANUAL WITH THE APPLIANCE.
CONSUMER: RETAIN THIS MANUAL FOR FUTURE REFERENCE.
This gas pao ame must be used only outdoors in a well-venlated space and must not be used
inside a building, garage, screened-in porch, gazebo or any other enclosed area.
WARNING
Do not try to light this appliance without reading
the “LIGHTING” instrucons secon of this manual.
Do not store or use gasoline or other ammable
liquids or vapors in the vicinity of this or any other
appliance. An L.P. cylinder not connected for
use must not be stored in the vicinity of this or
any other appliance. If the informaon in these
instrucons is not followed exactly, a re or explosion
may result, causing property damage, personal injury
or death.
DANGER
IF YOU SMELL GAS:
• Shut o gas to the appliance.
• Exnguish any open ame.
• If odor connues, keep away from the
appliance and immediately call your gas
supplier or re department.
DANGER! CARBON MONOZIDE HAZARD
This appliance can produce carbon monoxide, which has no odor. Using it in an
enclosed space can kill you. Never use this appliance in an enclosed space such as a
camper, tent, car or home.
LINEAR PATIOFLAME
OUTDOOR GAS FIREPLACE
GPFL48 (WITHOUT ENCLOSURE)
GPFL48MHP (WITH ENCLOSURE)
427-O-02-5
Napoleon Appliance Corp.,
214 Bayview Dr., Barrie, Ontario, Canada L4N 4Y8 Phone: (705)726-4278
Fax: (705)725-2564 email: wecare@napoleonproducts.com web site: www.napoleongrills.com
WARNING! For Outdoor Use Only.
2
www.napoleongrills.com
NAPOLEON products are designed with superior components and materials, and are
as
sem
bled by trained crasmen who take great pride in their work. Every component has
been thoroughly inspected by a qualied technician before packaging and shipping to
en
sure that you, the customer, receive the quality product you expect from NAPOLEON.
Napoleon® Gas Appliance 5 Year Limited Warranty
All stainless steel components (excluding burner screen) of your new NAPOLEON® gas
appliance are warranted against defects for ve years.
Components such as gas valves, thermocouples, igniters, logs, glass embers and gaskets are
covered and NAPOLEON
® will provide replacement parts free of charge during the rst year
of limited warranty.
NAPOLEON shall not be liable for any transportaon charges, labor costs or export dues.
Condions And Limitaons
NAPOLEON® warrants its products against manufacturing defects to the original purchaser only. Registering your warranty is not necessary. Simply provide
your proof of purchase along with the model and serial number to make a warranty claim. NAPOLEON® reserves the right to have its representave inspect
any product or part thereof prior to honouring any warranty claim. Provided that the purchase was made through an authorized NAPOLEON® dealer your
heater is subject to the following condions and limitaons:
This limited warranty applies only while the unit remains at the site of original installaon, and only if the unit is installed in Canada or the United States.
This factory warranty is non-transferable and may not be extended whatsoever by any of our representaves.
Installaon must be done in accordance with the installaon instrucons included with the product and all local and naonal building and re codes.
This limited warranty does not cover damages caused by misuse; lack of maintenance, accident, alteraons, abuse or neglect and parts installed from other
manufacturers will nullify this warranty.
This limited warranty further does not cover any scratches, dents, corrosion or discoloring caused by excessive heat, abrasive and chemical cleaners, mechanical
breakage of logs and embers.
In the rst year only, this warranty extends to the repair or replacement of warranted parts which are defecve in material or workmanship provided that the
product has been operated in accordance with the operaon instrucons and under normal condions.
Aer the rst year, with respect to the President’s Limited Lifeme Warranty, NAPOLEON® may, at its discreon, fully discharge all obligaons with respect to
this warranty by refunding to the original warranted purchaser the wholesale price of any warranted but defecve parts).
Aer the rst year, NAPOLEON® will not be responsible for installaon, labour or any other costs or expenses related to the reinstallaon of a warranted part,
and such expenses are not covered by this warranty.
Notwithstanding any provisions contained in the President’s Limited Lifeme Warranty, napoleon’s responsibility under this warranty is dened as above and it
shall not in any event extend to any incidental, consequenal or indirect damages.
This warranty denes the obligaons and liability of NAPOLEON® with respect to the NAPOLEON® gas appliance and any other warranes expressed or implied
with respect to this product, its components or accessories are excluded.
This limited warranty does not cover damages resulng from the use of components not supplied with the appliance, or the use of fuel other than those specied.
Any damages to appliance due to weather, long periods of dampness, condensaon, damaging chemicals or cleaners will not be the responsibility of NAPOLEON®.
The bill of sale or copy will be required together with a serial number and a model number when making any warranty claims from your authorized dealer. The
warranty registraon card must be returned within fourteen days to register the warranty.
NAPOLEON® reserves the right to have its representave inspect any product or part thereof prior to honouring any warranty claim.
3
www.napoleongrills.com
WARNING! For Outdoor Use Only.
WARNING! Improper installaon, adjustment, alteraon, service or maintenance can cause injury or
property damage.
Read the installaon, operang and maintenance instrucons thoroughly before installing
or servicing this gas pao ame.
Safe Operang Pracces
• THIS APPLIANCE IS HOT WHEN OPERATING AND CAN CAUSE SEVERE BURNS IF CONTACTED.
• Installaon and repair should be done by a qualied service person. The appliance should be inspected
before use and at least annually by a qualied service person. More frequent cleaning may be required
as necessary. It is imperave the control compartment, burners and circulang air passageways of the
appliance be kept clean.
• Do not operate appliance before reading and understanding operang instrucons. Failure to operate
appliance according to operang instrucons could cause re or injury.
• Risk of burns. The appliance should be turned o and cooled before servicing.
• Do not install damaged, incomplete or substute components.
• Young children should be carefully supervised when they are in the vicinity of the appliance. Toddlers,
young children and others may be suscepble to accidental contact burns. A physical barrier is
recommended if there are at risk individuals in the house. To restrict access to an appliance or stove,
install an adjustable safety gate to keep toddlers, young children and other at risk individuals out of
the vicinity and away from hot surfaces.
• Ensure you have incorporated adequate safety measures to protect infants/toddlers from touching hot
surfaces.
• Under no circumstances should this appliance be modied.
• Keep the packaging material out of reach of children and dispose of the material in a safe manner. As with
all plasc bags, these are not toys and should be kept away from children and infants.
• Do not leave appliance unaended when in use.
• For Outdoor use only.
• This appliance must not be used for cooking.
• This unit is not for use with solid fuel.
• Improper installaon, adjustment, alteraon, service, or maintenance can cause injury or property damage.
Read the installaon, operang and maintenance instrucons thoroughly before installing or servicing this
equipment.
• This appliance shall be used ONLY outdoors in a well-venlated space and shall NOT be used inside a building,
garage, or any other enclosed area.
• Cylinders must be stored outdoors in a well-venlated area out of reach of children. Disconnected cylinders
must have threaded valve plugs ghtly installed and must not be stored in a building, garage or any other
enclosed area.
• Storage of this appliance indoors is permissible only if it has been disconnected from its fuel supply
(natural gas line or LP gas cylinder).
• If it is evident there is excessive abrasion or wear, or the hose is cut, it must be replaced prior to the
appliance being put into operaon.
• Clothing or other ammable materials should not be hung from the appliance, or placed on or near the
appliance.
• Any guard or other protecve device removed for servicing the appliance must be replaced prior to
operang the appliance.
• Inspect the fuel supply connecon for signs of leakage (including the hose for LP models) before each use
of the appliance.
• The pressure regulator and hose assembly supplied with LP models must be used. Replacement pressure
regulators and hose assemblies must be those specied in this manual.
• The LP gas supply cylinder used with LP models must be constructed and marked in accordance with the
specicaons for LP-gas cylinders as required by the U.S. Department of Transportaon (DOT) or the Canadian
Transport Commission (CTC).
• The LP gas cylinder supply system must be arranged for vapour withdrawal.
• The LP-gas cylinder used must include a collar to protect the cylinder valve.
• When an LP model is not in use, the LP-gas must be turned o at the supply cylinder.
• To extend the life of your appliance, protect and cover it from the elements when not in use.
• This product must be installed by a licensed plumber or gas er when installed within the commonwealth
of Massachuses.
4
www.napoleongrills.com
General Informaon
This gas appliance is cered under Canadian and American Naonal Standards, ANSI Z21.97-2010 “Standard
for Outdoor Decorave Gas Appliance” and CAN/CGA 2.17-M91 (R2009) “Gas-Fired Appliance for use at High
Altude” and should be installed to conform with local codes. In absence of local codes, install to the current
CAN/CSA-B149.1 Propane Installaon Code in Canada or to the Naonal Fuel Gas Code, ANSI Z223.1 in the
United States.
This appliance should be installed and serviced by a qualied installer to conform with local codes.
Installaon pracces vary from region to region and it is important to know the specics that apply to your
area, for example: in Massachuses State:
• The appliance o valve must be a “T” handle gas cock.
• The exible connector must not be longer than 36 inches.
The installaon must conform with local codes or in the absence of local codes, with the Naonal Fuel Gas
Code ANSI Z223.1/INFPA 54 in the United States or CSA B149.1, Natural and Propane Installaon code in
Canada.
The appliance and its individual shut o valve must be disconnected from the gas supply piping system during
any pressure tesng of the system at test pressures in excess of 1/2 psig (3.5kPa).
This appliance must be isolated from the gas supply piping system by closing its individual manual shut o
valve during any pressure tesng of the gas supply piping system at test pressures equal to or less than
1/2 psig (3.5kPa).
The following clearances to combusble materials must be maintained:
Sides (all around) - 24 inches (610mm)
Top - 72 inches (1830mm)
• Always keep the appliance area clear and free from
combusble materials, gasoline, and other ammable
vapours and liquids.
• Do not locate appliance where it can get excessively
wet.
• Do not use this appliance if any part has been
under water. Immediately call a qualied service
technician to inspect the unit and to replace any
part of the control system and any gas control,
which has been underwater.
Geng Started
1. Remove all of the parts from the carton. Use the parts list to ensure all necessary parts are included.
2. Do not destroy packaging unl the pao ame has been installed and operates to your sasfacon.
3. Choose a locaon that meets the clearance to combusbles as outlined in the specicaon secon of this
manual. Take into consideraon the need for clear and easy access to the on/o valve AFTER the appliance
is installed and connected to the gas supply in order to safely turn o the burner.
4. Most stainless steel parts are supplied with a protecve plasc coang that must be removed prior to using
the pao ame.
5. Read and follow all instrucons in this manual before installing or servicing this gas pao ame.
If you have any quesons about assembly or pao ame operaon, or if there are damaged or missing parts
please call our Customer Care Department at 1-866-820-8686 between 9 AM and 5 PM (Eastern Standard Time).
WARNING! This appliance is designed for non-combusble enclosures only, and must be installed and
serviced by a qualied installer to local codes.
5
www.napoleongrills.com
DIMENSIONS
INPUT
MODEL FUEL MAX. INPUT Btu/Hr
GPFL48N Natural Gas 60, 000
GPFL48P Propane Gas 60, 000
GAS INLET PRESSURES
NATURAL PROPANE
Inlet Pressure 7.0" w.c. 11.0" w.c.
MINIMUM CLEARANCE TO COMBUSTIBLES
INCHES MM
Side Walls 24 610
Top of unit to ceiling 72 1830
Specicaons
72”
(1829mm)
CENTRE OF PATIOFLAME
24”
(610mm)
24”
(610mm)
MAXIMUM
OVERHANG
13 1/2”
(343mm)
17 7/8”
(455mm)
47 1/2”
(1206mm)
51 7/8”
(1318mm)
11 7/8”
(302mm)
BURNER BASE ENCLOSURE
5 1/2”
(138mm)
BURNER BASE
ENCLOSURE
6
www.napoleongrills.com
This unit is designed with some unique features that allow for maximum installaon exibility.
1. The gas supply to the enclosure can come either from underneath or through the side of the enclosure.
2. The burner unit can be used either with or without the enclosure. Simply li the unit out of the enclosure
to separate. A second person is required to guide out the gas hose /regulator when removing the burner
unit from the enclosure. The burner unit can be placed directly on combusble surfaces, but the required
clearances to the sides and top must sll be maintained.
Installaon Opons
Ensure
bushing
snaps into
side panel
as shown.
The gas supply is shown entering
the side of the enclosure.
The gas supply is shown entering
the boom of the enclosure.
Two people are required to li burner unit from enclosure
Li burner unit from enclsoure using handles
If the gas supply is to be routed through the side of the enclosure remove the (3) screws from the cover plate
so the hole is exposed. Snap the bushing into the side panel to secure the hose in place. Slide the cover plate
over, and reinstall.
7
www.napoleongrills.com
3. The supply can feed either into the side of the burner base, or is fed from below the base. The gas line
needs to be disconnected from the gas valve and reconnected in order to do this. This must be done by
a licensed gas er and the connecons need to be leak tested according to the leak tesng instrucons
before using the unit.
4. The burner unit can be built into a non-combusble enclosure. The control module can be removed from
the burner unit and located up to 12” away from the burner unit. A cap is provided to close the opening in
the side of the burner module. The gas line needs to be disconnected and reconnected in order to do this.
This must be done by a licensed gas er and the connecons need to be leak tested according to the leak
tesng instrucons before using the unit.
4 x N570-0013
The gas supply is shown entering
the boom of the burner.
The gas supply is shown entering
the side of the burner.
Removing Control Panel
8
www.napoleongrills.com
12.600” C-C Mounng Locaon
#8 Wood Screw
Recommended
Raise the burner unit by 3/4”
above the enclosure surface
as illustrated.
Insert cap (N510-0012) into end of
control panel as shown.
WARNING! Materials placed around the burner unit will get extremely hot. They must be non-
combusble
and must be able to expand and contract without cracking. Raise the burner unit above the enclosure by
(3/4”) to reduce the temperature of the enclosure surface. Tiled cement board is the preferred material.
WARNING! Cabinet frame, cabinet and counter top must be made from non-combusble material.
WARNING! You must have clear and easy access to the on/o valve AFTER the appliance is installed
and connected to the gas supply in order to safely turn o the burner.
9
www.napoleongrills.com
WARNING! If these instrucons are not followed exactly, a re causing death or serious injury may
occur.
Propane Cylinder Specicaons
A dented or rusty cylinder may be hazardous and should be checked by your propane supplier. Never use a
cylinder with a damaged valve. Use only a propane supply cylinder constructed and marked in accordance with
the specicaons for LP-gas cylinders of the Naonal Standard of Canada, CAN/CSA-b339, Cylinders, Spheres
and Tubes for Transportaon of Dangerous Goods; and Commission, as applicable or the Specicaons for
LP-
Gas Cylinders of the U.S. Department of Transportaon (D.O.T.). This appliance has been designed for use
with a 20 lb. (9.1 kg) or 30 lb (13.6 kg) size propane cylinder only (not supplied).
The propane cylinder must be provided with a cylinder connecon device compable with the connecon for
outdoor appliances. The propane cylinder must be provided with a shut-o valve terminang in a propane
cylinder valve type QCC1, and a safety relief device having direct communicaon with the vapor space of the
cylinder. The cylinder supply system must be arranged for vapor withdrawal and the cylinder shall include a
collar to protect the cylinder valve. The cylinder shall incorporate a listed OPD (overll protecon device). Do
not store a spare LP-gas cylinder under or near this appliance. Never ll the cylinder beyond 80 percent full.
Use only the pressure regulator and hose assembly provided with this appliance. Replacement pressure
regulators and hose assemblies must be specied by the manufacturer. The regulator supplies a pressure of 11
inches. water
column to the appliance and has a QCC1 type ng. Cylinders to be used with this unit must be supplied with
a QCC1 cylinder valve. A QCC1 cylinder has a posive seang connecon, which will not allow g
as ow unl a
posive seal has been achieved. It is also equipped with an excess ow device. In order to aain full ow to
the appliance, the valve must be in the o posion when the cylinder valve is turned on.
WARNING! A re will result if the gas supply hose makes contact with the underside of the appliance.
Gas Hook-Up Instrucons
LP (Propane) Gas
Aach cylinder retaining bracket supplied to the base of the cylinder. Then secure to the surface to which it
sits. Cylinder should be on a level surface.
Cylinder Retaining Bracket
1. Fasten the bracket to the boom of the propane bole using bolt
and nut supplied.
2. Tighten the lag screw into the mounng surface leaving approximately
1/4” of thread above the surface.
3. Slide propane bole into posion so that the bracket slides under
the head of the lag screw.
4. Tighten the lag screw onto the bracket.
5. For fastening to a concrete surface a concrete anchor will be
required. (Not supplied)
Cylinder Connecon: Ensure the gas regulator hose is kink
free. Remove the cap or plug from the cylinder fuel valve.
Insert the black
QCC1 regulator nipple onto the QCC1 fuel
valve. Hand ghten clock
wise. Do not use tools. Leak test
all joints prior to using the appliance. A leak test must be
performed annually and each me a cylinder is hooked up
or if a part of the gas system is replaced.
If this appliance is to be connected directly to a house
propane gas supply line, follow the instrucons for the
natural gas hook-up.
10
www.napoleongrills.com
CAUTION!
• Make sure cylinder valve is in its full o posion. (Turn clockwise to stop).
• Check cylinder valve features to ensure it has proper external mang threads. (Cylinder Valve Marked:
USE WITH TYPE 1)
• Inspect hose shipped with the unit for damage. Never aempt to use damaged or plugged equipment.
See your local LP Gas Dealer for repairs.
• When connecng regulator assembly to the cylinder valve, hand ghten black QCC1 nut clockwise to a
posive stop. DO NOT use a wrench to ghten. Use of a wrench may damage the quick closing coupling
nut and result in a hazardous condion.
• Locate the hose out of pathways where people may trip over it or in areas where the hose may be subject
to accidental damage.
• Open cylinder valve fully (counter-clockwise). Turn the on/o valve at the unit slowly to the on posion
and use a soapy water soluon to check all connecons for leaks as indicated in the diagrams before
aempng to light the appliance. If a leak is found, turn tank valve o and do not use the appliance unl
repairs can be made.
Enclosures For LP (Propane) Gas Supply Systems
If you build an enclosure for an LP gas cylinder, follow these recommended specicaons. You must also follow
local codes.
• An enclosure for an LP-gas cylinder shall be venlated by openings at both the upper and lower levels of
the enclosure.
This shall be accomplished by one of the following:
One side of the enclosure shall be completely open;
OR
For an enclosure having four sides, a top, and a boom:
a) At least two venlaon openings shall be provided in the sidewalls of the enclosure, located within 5 in (127
mm)
of the top of the enclosure, equally sized, spaced at 180 degrees, and unobstructed. The opening(s) shall have
a total free area of not less than 1 in
2
per lb (14.2 cm
2
/ kg) of stored fuel capacity.
b) Venlaon opening(s) shall be provided at oor level of the enclosure and shall have a total free area of not
less than 1/2 in
2
per lb (7.1 cm
2
/ kg) of stored fuel capacity. If venlaon openings at oor level are in a side
wall, there shall be at least two openings. The boom of the openings shall be 1 in (25.4 mm) or less from the
oor level and the upper edge no more than 5 in (127 mm) above the oor level. The openings shall be equally
sized, spaced at 180 degrees, and unobstructed.
c) Every opening shall have minimum dimensions so as to permit the entrance of a 1/8 inch (3.2mm) diameter
rod.
Venlaon openings in sidewalls shall not communicate directly with other enclosures of the appliance.
Cylinder valves shall be readily accessible for hand operaon. A door on the enclosure to gain access to the
cylinder valve is acceptable, provided it is non-locking and can be opened without the use of tools. Designs
using a cover to gain access to the cylinder and cylinder valve shall be provided with handles or equivalent at a
minimum of 180 degrees apart to facilitate liing of the cover.
There shall be a minimum clearance of 2 inches (50.8mm) between the lower surface of the oor of the LP gas
supply cylinder enclosure and the ground.
The design of the enclosure shall be such that (1) the LP gas supply cylinder(s) can be connected, disconnected
and the connecons inspected and tested outside the cylinder enclosure; and (2) those connecons which
could be disturbed when installing the cylinder(s) in the enclosure can be leak tested inside the enclosure.
11
www.napoleongrills.com
CYLINDER SIZE OPENING A AREA OPENING B AREA
20 lb (9.1 kg)
20 in
2
(130 cm
2
) 10 in
2
(65 cm
2
)
30 lb (13.6 kg)
30 in
2
(195 cm
2
) 15 in
2
(100 cm
2
)
The enclosure for the LP-gas cylinder shall isolate the cylinder from the burner compartment to provide:
a. Shielding from radiaon;
b. A ame barrier; and
c. Protecon from foreign material.
Be certain to mount or set the LP gas cylinder on a at surface and restrain it using the cylinder retaining
bracket to prevent it from pping.
OPENING
B
NON LOCKING DOOR
PARTITION TO ISOLATE CYLINDER
FROM PATIO FLAME
34” (864 mm)
RECOMMENDED
2” (51 mm)
MINIMUM
OPENING
A
5” (127 mm)
MAXIMUM
5” (127 mm)
MAXIMUM
1” (25.4 mm)
MAXIMUM
12
www.napoleongrills.com
Conversion to Natural Gas
WARNING! To avoid the possibility of burns conversions should only be done when the pao ame is
cool. Ensure burner is turned o. Turn gas o at source and disconnect the pao ame before beginning
conversion.
WARNING! Glass embers may have sharp edges wear safety glasses and gloves when handling.
WARNING! This conversion must be performed by a licensed gas er, and all connecons must be
leak tested before operang the pao ame.
Your pao ame can be easily converted to natural gas by following these steps:
1. Remove glass embers from the tray.
2. Remove the glass tray from the pao ame by removing the (18) screws that hold the tray in place.
3. Carefully li the glass tray from the pao ame and set aside. Take care not to damage or kink the
thermocouple wire.
4. Disconnect the stainless steel ex connector from the orice using (2) wrenches.
5. Unscrew the propane orice from the inside of the burner as illustrated.
6. Replace the propane orice with the natural gas orice supplied.
Note: The air shuer has been factory set and does not need to be adjusted.
13
www.napoleongrills.com
7. Reconnect the stainless steel ex connector to the orice and ghten using (2) wrenches.
8. Place the glass tray over the burner and fasten to the pao ame with the screws removed in step 2.
9. A leak test must be performed according to the leak tesng instrucons found in the manual.
Natural Gas Hook-Up
The gas appliance is designed to operate at an inlet pressure of 7 inches water column. The piping up to the
appliance is the responsibility of the installer. A exible metal connector is included to simplify the installaon
of the unit. Connect the exible connector to rigid pipe, copper tube or
an approved exible metal connector, which complies with Z21.4/CSA 6.10.
If using a gas hose (not supplied) connect the ared end of the hose to
the connector on the end of the ex tube as illustrated. Tighten using two
wrenches. (Do not use thread sealer/pipe dope.) Leak test all joints prior
to using the appliance. Piping and valves upstream of the quick disconnect
are not supplied. The gas supply pipe must be suciently sized to supply
the BTU/h specied on the rang plate, based on the length of the piping
run. The quick disconnect must not be installed in an upward direcon and
a readily accessible manual shut-o valve must be installed upstream of,
and as close to, the quick disconnect as is feasible.
Purge the gas supply line of any trapped air prior to the rst ring of the unit.
WARNING!
• The installaon must be performed by a licensed gas er, and all connecons must be leak tested before
operang the grill.
• Ensure all hose connecons are ghtened using two wrenches. Do not use Teon tape or pipe dope on
any hose connecon.
• Ensure the hose does not contact any high temperature surfaces or it may melt and leak causing a re.
• Locate the hose out of pathways where people may trip over it or in areas where the hose may be subject
to accidental damage.
• Leak test all the connecons using a soap and water soluon as per the leak tesng instrucons found in
the manual.
14
www.napoleongrills.com
Glass Ember Installaon
WARNING! Glass embers may have sharp edges, wear safety glasses and gloves when handling. Do
not change or substute the glass ember material provided with this appliance. If replacing, use only
replacement glass embers available from your local authorized dealer / distributor.
WARNING! Glass embers may have a ne oil residue that needs to be cleaned prior to installaon.
Clean the glass with mild dish soap, drain, rinse thoroughly and dry before installing.
1. Carefully pour the glass embers onto the appliance ember tray as shown.
2. Spread the glass embers over the tray and burner. The distribuon of clear glass over the burner will
inuence ame height.
3. Ensure no glass is placed on the ignion poron of the burner.
Finishing
ENSURE NO GLASS IS PLACED ON THE IGNITION PORTION OF THE BURNER,
DIFFICULTIES IN LIGHTING MAY RESULT.
15
www.napoleongrills.com
Leak Tesng Instrucons
WARNING! A leak test must be performed annually, or if a part of the gas system is replaced.
WARNING! Never use an open ame to check for gas leaks. Be certain no sparks or open ames are
in the area while you check for leaks. Sparks or open ames will result in a re or explosion, damage to
property, serious bodily injury, or death.
Leak tesng: This must be done before inial use, annually, and whenever any gas components are replaced
or serviced. Do not smoke while performing this test, and remove all sources of ignion. See Leak Tesng Diagram
for areas to check. Turn all burner controls to the o posion. Turn gas supply valve on.
Brush a half-and-half soluon of liquid soap and water onto all joints and connecons of the regulator, hose,
manifolds and valves.
Bubbles will indicate a gas leak. Either ghten the loose joint or have the part replaced with one recommended
by the Napoleon Customer Care department and have the grill inspected by a cered gas installer.
If the leak cannot be stopped, immediately shut o the gas supply, disconnect it, and have the grill inspected
by a cered gas installer or dealer. Do not use the grill unl the leak has been corrected.
DO NOT USE AN OPEN FLAME.
DO NOT USE AN OPEN FLAME.
16
www.napoleongrills.com
Lighng Instrucons
WARNING! Never use the appliance when it is raining. A cover has been provided to protect the burner
and glass embers when not in use. Remove the cover before starng the appliance.
WARNING! Keep face and body away from burner area when lighng.
WARNING! Ensure burner controls are in the o posion. Slowly turn on the gas supply valve.
1. Press and hold electronic igniter buon ( ).
2. Turn the burner control to the high posion, press and hold in. When the burner
lights, release the electronic igniter buon.
3. Connue to depress the burner control knob for 30 seconds and then release. If the
ame goes out, repeat the procedure.
4. Adjust the ame to the desired height with the burner control knob.
5. If the burner will not light with the electronic igniter, hold a lit long match or lit long
butane lighter to the ignion area of the burner and connue with step 2.
6. To shut down the burner turn the burner control knob clockwise to the o posion.
Then turn the gas o at the source (propane cylinder valve or natural gas supply valve).
WARNING! The propane cylinder is equipped with an excess ow device. Unless burners are turned
o prior to turning the cylinder on, only small ames and low heat will be achievable.
If lighng the unit with a match, clip the match into the supplied lighng rod.
Igniter
Open Cover
17
www.napoleongrills.com
Operang The Pao Flame
Inial Lighng: When lit for the rst me, the pao ame emits a slight odor. This is a normal temporary
condion caused by the “burn-in” of internal paints and lubricants used in the manufacturing process and does
not occur again. Simply run the main burner on high for approximately one-half hour.
WARNING!
• Children and adults should be alerted to the hazards of high surface temperatures and should stay away
from the pao ame to avoid burns or clothing ignion.
• Children should be carefully supervised when they are in the area of the pao ame.
• Clothing or other ammable materials should not be hung from the pao ame, or placed on or near
the pao ame. The area above the enclosure may be extremely hot. Direct contact with these metal
surfaces should be avoided in order to prevent burns or clothing ignion.
• Any guard or protecve device removed for servicing the pao ame must be replaced prior to operang
the pao ame.
• Installaon and repair should be done by a qualied service person. The pao ame should be inspected
before each use and at least annually by a qualied service person. More frequent cleaning may be
required as necessary. It is imperave that the control compartment, burners and circulang air
passageways of the pao ame be kept clean.
WARNING!
• Never use the pao ame while it is raining.
• Always turn the pao ame o when raining.
• Never splash any liquid on the glass embers when the pao ame is operang.
• The glass embers will be extremely hot while operang, never try to touch them.
• Always ensure the pao ame stands rmly on level ground.
• Never use the pao ame if the burner is damaged. Inspect the burner before each use. Ensure that
no debris such as leaves; grass or other objects have entered or are on the pao ame. If the burner is
damaged it must be replaced prior to using the pao ame with a replacement burner specied by your
Napoleon dealer.
• Inspect the hose assembly before each use. If there is evidence of excessive abrasion or wear, or if the
hose is damaged it must be replaced prior to using the pao ame with a replacement hose assembly
specied by your Napoleon dealer.
NOTE! The pao ame has been designed with several safety features, which include a safety valve. If
the burner ame is exnguished the pao ame will automacally shut down.
WARNING! Any modicaon to the pao ame may compromise the safety of this appliance. Special
concern is as follows.
• Do not bypass thermocouple safety.
• Do not operate pao ame if any part has been under water. Immediately call a qualied service technician to
inspect the unit and replace any part of the control system and any gas control, which has been underwater.
WARNING! You must have clear and easy access to the on/o valve AFTER the appliance is installed
and connected to the gas supply in order to safely turn o the burner.
WARNING! Never use this pao ame for other than the intended use. Do not use this appliance to
prepare food.
18
www.napoleongrills.com
WARNING! Glass embers may have sharp edges, wear safety glasses and gloves when handling. Do not
change or substute the glass ember material provided with this appliance. If replacing, use only replacement
glass embers available from your local authorized dealer / distributor.
WARNING! To avoid the possibility of burns, maintenance should be done only when the pao ame
is cool. Avoid unprotected contact with hot surfaces. Ensure burner is turned o. Turn gas o at source and
disconnect the pao ame before servicing. Clean the pao ame in an area where cleaning soluons will
not harm decks, lawns, or paos. Do not use ammable, corrosive or abrasive cleaners.
Note: Stainless steel tends to oxidize or stain in the presence of chlorides and suldes, parcularly in coastal
areas and other harsh environments, such as the warm, highly humid atmosphere around pools and hot tubs.
These stains could be perceived as rust, but can be easily removed or prevented. To provide stain prevenon
and removal, wash all stainless steel surfaces every 3-4 weeks or as oen as required with fresh water and/or
stainless steel cleaner.
Control Panel: The control panel text is printed directly on the stainless steel and with proper maintenance
will remain dark and legible. To clean the panel, use only warm soapy water or stainless steel cleaner available
from your Napoleon dealer. Never apply abrasive cleaners on any stainless surfaces, especially the printed poron
of the control panel or the prinng will gradually rub o.
Maintenance / Cleaning Instrucons
Burner: The burner is made from heavy wall 304 stainless steel, but extreme heat and a corrosive environment
can cause surface corrosion to occur. This can be removed with a brass wire brush. Inspect the burner at least
annually for cracks, insect nests, excessive corrosion or any other damage. If the burner is damaged, it must be
replaced with a burner specied by the manufacturer before the appliance is put into operaon.
CAUTION! Beware of Spiders.
Spiders and insects are aracted to the smell of propane and natural gas. The burner is equipped with an insect
screen on the air shuer, which reduces the likelihood of insects building nests inside the burner but does not
enrely eliminate the problem. A nest or web can cause the burner to burn with a so yellow or orange ame or
cause a re (ashback) at the air shuer underneath the control panel. Other warning signs that may indicate a
problem are:
• Strong or unusual odor coming from the pao ame.
• Connued diculty or delayed ignion.
• Flame appears either very short or very long.
• Flame only burns part way across the burner.
• Excessive soot building up on the glass embers.
To clean the inside of the burner, it must be removed from the pao ame: Remove the glass embers and
examine the burner. If dirty, clean with a wire brush. Remove the screws that aach the glass ember tray and
the nuts from the boom of the burner. Slide the burner back and up wards to remove.
Cleaning: Use a exible venturi tube brush to clean the inside of the burner. Shake any loose debris from the
burner through the gas inlet. Check the burner ports and valve orices for blockages. Burner ports can close
over me due to debris and corrosion, use an opened paperclip or a drill bit to clean them The ports are easier
to clean if the burner is removed from the pao ame, but it can also be done with the burner installed.
WARNING! Hose: Check for abrasions, melng, cuts, and cracks in the hose. If any of these condions
exist, do not use the pao ame. Have the part replaced by your Napoleon dealer or qualied gas installer.
Cleaning Inside The Pao Flame: While washing your pao ame, be sure to keep the area around the burner
and pilot assembly dry at all mes.
WARNING! If the gas control is exposed to water in any way, DO NOT try to use the pao ame. The
gas control must be replaced.
19
www.napoleongrills.com
Cleaning The Outer Pao Flame Surface: Do not use abrasive cleaners or steel wool on any painted, or stain
less
steel parts of your Napoleon Pao Flame. Doing so will scratch the nish. Exterior heater surfaces should be
cleaned with warm soapy water. To clean stainless surfaces, use a stainless steel or a non-abrasive cleaner.
Always wipe in the direcon of the grain. Over me, stainless steel parts discolor when heated, usually to a
golden or brown hue. This discoloraon is normal and does not aect the performance of the pao ame.
WARNING! The pao ame area must be clear and free from combusble materials, gasoline and
other ammable vapors and liquids. Do not obstruct the ow of combuson and venlaon air. Keep the
venlaon opening of the cylinder enclosure free and clear of debris.
Reinstallaon: Reverse the procedure to reinstall the burner. Check that the valve enters the burner when
installing. Replace the glass embers. When the appliance is put back in service, check the burner ame paern
with the image below.
NORMAL
ABNORMAL
20
www.napoleongrills.com
Troubleshoong
Problem Possible Causes Soluon
Low heat / Low ame when
valve turned to high.
For propane - improper lighng
procedure.
For natural gas - undersized supply
line.
Ensure lighng procedure is followed carefully.
The valve must be in the o posion when the
tank valve is turned on. Turn tank on slowly to
allow pressure to equalize. See lighng
instrucons.
Pipe must be sized according to installaon code.
Burners burn with yellow
ame, accompanied by the
smell of gas.
Possible spider web or other debris. Thoroughly clean burner venturi. See general
maintenance instrucons.
Burner will not light with the
igniter, but will light with a
match.
Dead baery / or installed incor-
rectly.
Loose electrode wire or switch
terminal wires.
Improper gap at electrode p.
Replace with heavy duty baery.
Check that electrode wire is rmly pushed onto
the terminal on the back of the igniter. Check
that the lead wires from the module to the
ignion switch (if equipped) are rmly pushed
onto their respecve terminals.
The gap can be adjusted by bending the p in or
out. Unl a spark is achieved.
Burner will not stay lit when
control knob is released.
Knob not being held in long enough.
Too windy.
Glass or debris in ignion area of
the burner prevenng
thermocouple from being fully
engulfed in ame.
Dirty thermocouple or thermocouple
connecon.
Faulty thermocouple or valve.
Thermocouple must have me to heat up – hold
the knob in for 30 seconds aer the burner lights,
then release
Unit will shut down if winds are greater than
10mph (16km/h). Either locate to dierent area
or use when it is less windy.
Ensure there is no glass or other debris in ignion
area, and that the small hole below the thermo-
couple is unobstructed.
Clean the thermocouple and clean the connecon
between the valve and thermocouple. Ensure the
connecon is properly ghtened.
Replace thermocouple and / or valve.
Humming regulator. Normal occurrence on hot days. This is not a defect. It is caused by internal
vibraons in the regulator and does not aect the
performance or safety of the gas heater.
Humming regulators will not be replaced.
Burner output on “high”
seng is too low. (Rumbling
noise and uering blue
ame at burner surface.)
Lack of gas.
Supply hose is pinched.
Dirty or clogged orice.
Spider webs or other maer in
venturi tube.
Propane regulator in “low ow”
state.
Check gas level in propane cylinder.
Reposion supply hose as necessary.
Clean burner orice.
Clean out venturi tube.
Ensure lighng procedure is followed carefully. All
valves must be in the o posion when the tank
valve is turned on. Turn tank on slowly to allow
pressure to equalize. See lighng instrucons.
21
www.napoleongrills.com
KEEP YOUR RECEIPT AS PROOF OF PURCHASE TO VALIDATE YOUR WARRANTY.
Ordering Replacement Parts
Warranty Informaon
MODEL:
DATE OF PURCHASE:
SERIAL NUMBER:
(Record informaon here for easy reference)
Before contacng the Customer Care Department, check the NAC Website for more extensive cleaning,
main
tenance, troubleshoong and parts replacement instrucons at www.napoleongrills.com. Contact
the factory directly for replacement parts and warranty claims. Our Customer Care Department is available
between 9 AM and 5 PM (Eastern Standard Time) at 1-866-820-8686 or fax at 1-705-727-4282. To process a
claim, we must be provided with the following informaon:
1. Model and serial number of the unit.
2. Part number and descripon.
3. A concise descripon of the problem (‘broken’ is not sucient).
4. Proof of purchase (photocopy of the invoice).
In some cases the Customer Care Representave could request to have the parts returned to the factory for
inspecon before providing replacement parts. These parts must be shipped prepaid to the aenon of the
Customer Care Department with the following informaon enclosed:
1. Model and serial number of the unit.
2. A concise descripon of the problem (‘broken’ is not sucient).
3. Proof of purchase (photocopy of the invoice).
4. Return Authorizaon Number - provided by the Customer Care Representave.
Before contacng customer care, please note that the following items are not covered by the warranty:
• Costs for transportaon, brokerage or export dues.
• Labor costs for removal and reinstallaon.
• Costs for service calls to diagnose problems.
• Discoloraon of stainless steel parts.
• Part failure due to lack of cleaning and maintenance, or use of improper cleaners (oven cleaner).
22
www.napoleongrills.com
Item Part # Descripon
1 n010-0699 base x
2 w272-0001 foot, rubber x
3 n570-0013 #8 x 5/8" screw x
4 n100-0043 main burner x
n565-0008 replacement screen x
5 n450-0025 1/4" - 20 nut x
6 n475-0289 control panel x
7 n725-0049 safety valve x
8 n051-0007 control knob bezel x
9 n380-0016r burner control knob x
10 n720-0044 ex connector 12" X 3/8" x
11 n255-0027 union ng 3/8" - 3/8" x
12 n010-0281 ex connector 30" X 3/8" x
13 w455-0076 orice propane #43 p
n455-0066 orice natural #25 n
14 w530-0023 regulator hose assembly p
15 n510-0012 plug,black snap in 1 3/4" x
16 n357-0013 igniter 1 spark - AAA 1.5V x
17 n043-0002 baery, AAA 1.5V x
18 n710-0071 glass tray x
19 n080-0274 bracket electrode - thermocouple x
20 n585-0077 wind shield x
21 n570-0022 #8-32x3/8 screw x
22 n680-0001 thermocouple x
23 n240-0028 electrode c/w lead x
24 n570-0008 #8x1/2" screw x
25 n325-0074 handle glass tray x
26 n570-0013 #8 x 5/8" screw x
27 n105-0002 bushing snap 1.5" x
28 n200-0095 cover unit x
29 n735-0003 1/4" lock washer x
30 n570-0073 1/4-20 X 3/8 screw x
31 n325-0049 handle cover x
32 n010-0700hs enclosure assembly x
33 n430-0006 magnec catch x
34 n570-0058 6-32 X 1/4" screw x
35 n080-0277 bracket supply cover x
36 w080-0761 bracket tank retainer x
37 n300-0002 glass embers - topaz 2 x 7.5lb x
n345-0001 natural gas hose 10 ac
mega glass embers - amber 1lb ac
megb glass embers - blue 1lb ac
megk glass embers - black 1lb ac
megr glass embers - red 1lb ac
Parts List
23
www.napoleongrills.com
Item Part # Descripon
mkga glass embers - amber 6lb ac
mkgc glass embers - clear 6lb ac
mkgk glass embers - black 6lb ac
mkgb glass embers - blue 6lb ac
mkgr glass embers - red 6lb ac
Parts List
x - standard p - propane units only n - natural gas units only ac - accessory
24
www.napoleongrills.com

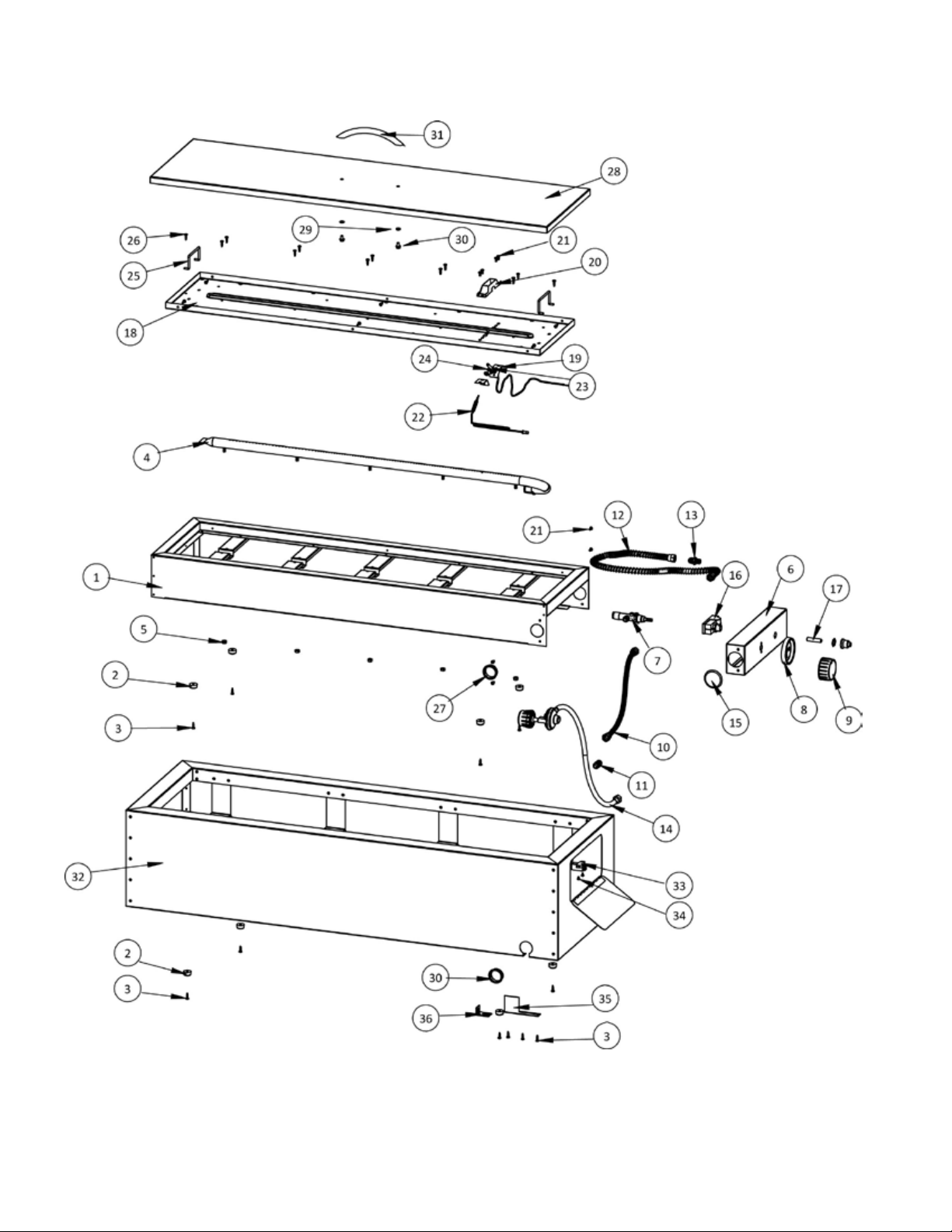

Parts Diagram
25
www.napoleongrills.com
FAX TO: 705 727 4282
CONTACT NAME:______________________________________________________________________
SHIP TO :_____________________________________________________________________________
_________________________________________________________________________________________
_________________________________________________________________________________________
_________________________________________________________________________________________
TEL :_________________________________ FAX :______________________________
EMAIL: __________________________________________________________________
VISA OR MASTERCARD # :_______________________________________ EXPIRY DATE: _____________
SIGNATURE:_____________________________________________________________________________
QUANTITY
TAXES MAY APPLY
SHIPPING EXTRA
IF CONFIRMATION IS REQUIRED PLEASE INCLUDE A FAX NUMBER OR EMAIL ADDRESS
ACCESSORIES & PARTS ORDER FORM
PART NUMBER DESCRIPTION
PLEASE PRINT CLEARLY
26
www.napoleongrills.com
TÉLÉCOPIEZ AU: 705 727 4282
NOM DU CLIENT______________________________________________________________________
ADRESSE:_____________________________________________________________________________
_________________________________________________________________________________________
_________________________________________________________________________________________
_________________________________________________________________________________________
TÉLÉPHONE :_________________________________ FAX :______________________________
EMAIL: __________________________________________________________________
# VISA OU MASTERCARD :_______________________________________
DATE D’EXPIRATION : _____________
SIGNATURE:_________________________________________
____________________________________
QUANTITÉ
LES TAXES PEUVENT S'APPLIQUER
LES FRAIS D'EXPEDITION SUPPLÉMENTAIRE
SI VOUS DÉSIREZ RECEVOIR UNE CONFIRMATION, VEUILLEZ INCLURE UN NUMÉRO DE
TÉLÉCOPIEUR OU UNE ADRESSE COURRIEL
BON DE COMMANDE POUR PIÈCES/ACCESSOIRES
NUMÉRO DE PRODUIT DESCRIPTION
