Safety
screw
Front guard Rear guard
Blade
cap
Guard knob
Fan blade
Handle
Oscillation
knob
Lock
Fan blade
stem
Tilt knob
Stand
Motor housing
(assembled)
Power knob
Power cord
Base
Pole locking cap
Motor shaft
Blade cap Guard knob
Fan blade Rear guard
Motor housing (assembled)
Base
Pole locking cap
Front guard
Safety screw
Quick Setup Guide
Fan blade
stem
Quick Setup Guide

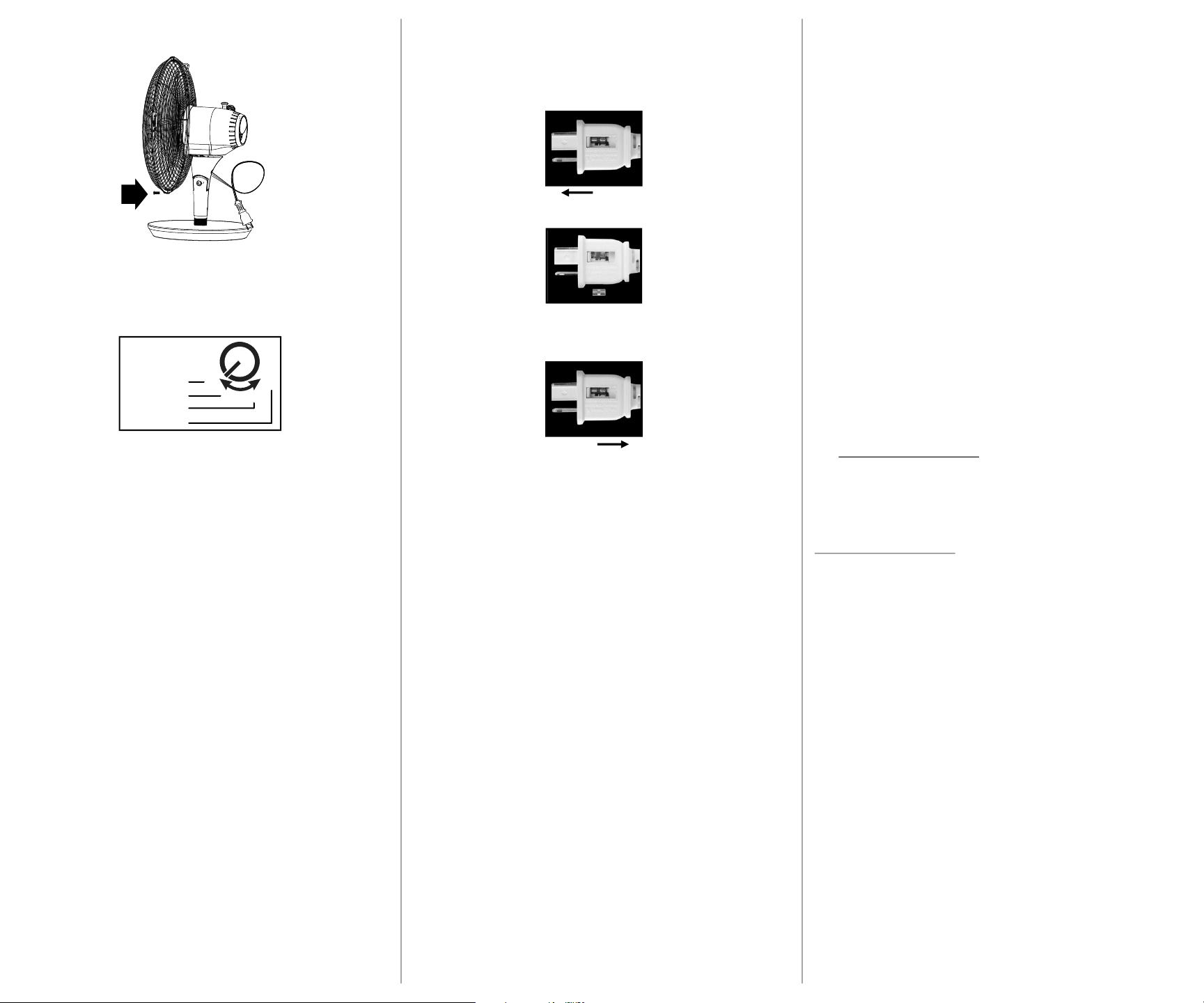

12" Table Fan
|
NS-FANT12-CH
Before using your new product, please read these instructions to prevent any damage.
Part callouts
Assembling your fan
1 Remove the pole locking cap from the stand, then remove the blade
cap and guard knob from the motor shaft.
2 Slide the stand into the hole at the center of the base, then tighten
the pole locking cap underneath the base.
Package contents
12" table fan includes:
Features
• Four metal blades
• Oscillating head with adjustable angle tilt
• 3-speed settings
• Fused safety plug
3 Slide the back guard onto the motor shaft, then screw the guard knob
on to hold it in place. Make sure that the handle is at the top.
4 Put the fan blade on the motor shaft, then screw the blade cap on to
hold it in place. Make sure that the stem of the fan blade is closest to
the motor housing.
5 Align the screw holes in the front and back guards with each other,
then close the four locks to hold the guards together.
Tip: The screw holes are at the bottom of the guards.
