Use Manual TCL TWAC-15CD|K8R1 15,000 Btu Window Air Conditioner Twac15cd/k8r1

TCL TWAC-15CD|K8R1 15,000 Btu Window Air Conditioner Twac15cd/k8r1 - Use Manual - Use Guide PDF download or read online.
Documents:

- Owner Manual ( English ) - 7.89 MB - pdf
- TWAC-15CD/K8R1 Warranty Sheet ( English )
- TWAC-15CD/K8R1 Energy Guide ( English )

TWAC-15CRA1/K8U(ES)
TWAC-18CRA2/K8U(ES)
TWAC-22CRA2/J3U(ES)
TWAC-24CRA2/J3U(ES)
INTRODUCTION
IMPORTANT SAFETY INSTRUCTION ...

Newest Added: TAW06CR19 TWC-08CR|UH-C DEA30E TDW70EPB19 DEA70EP
ELECTRICAL REQUIREMENTS
PACKING LIST ...

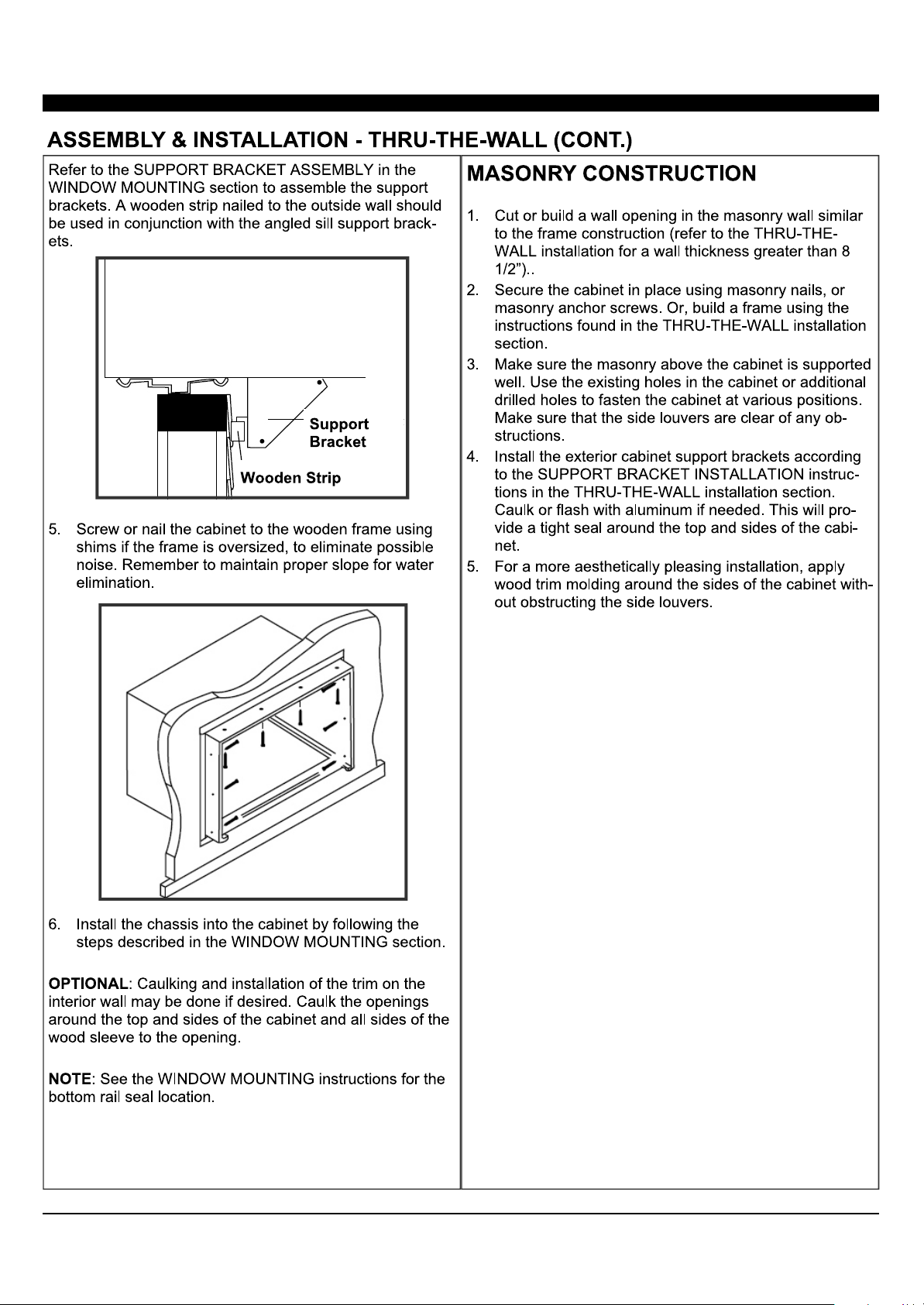

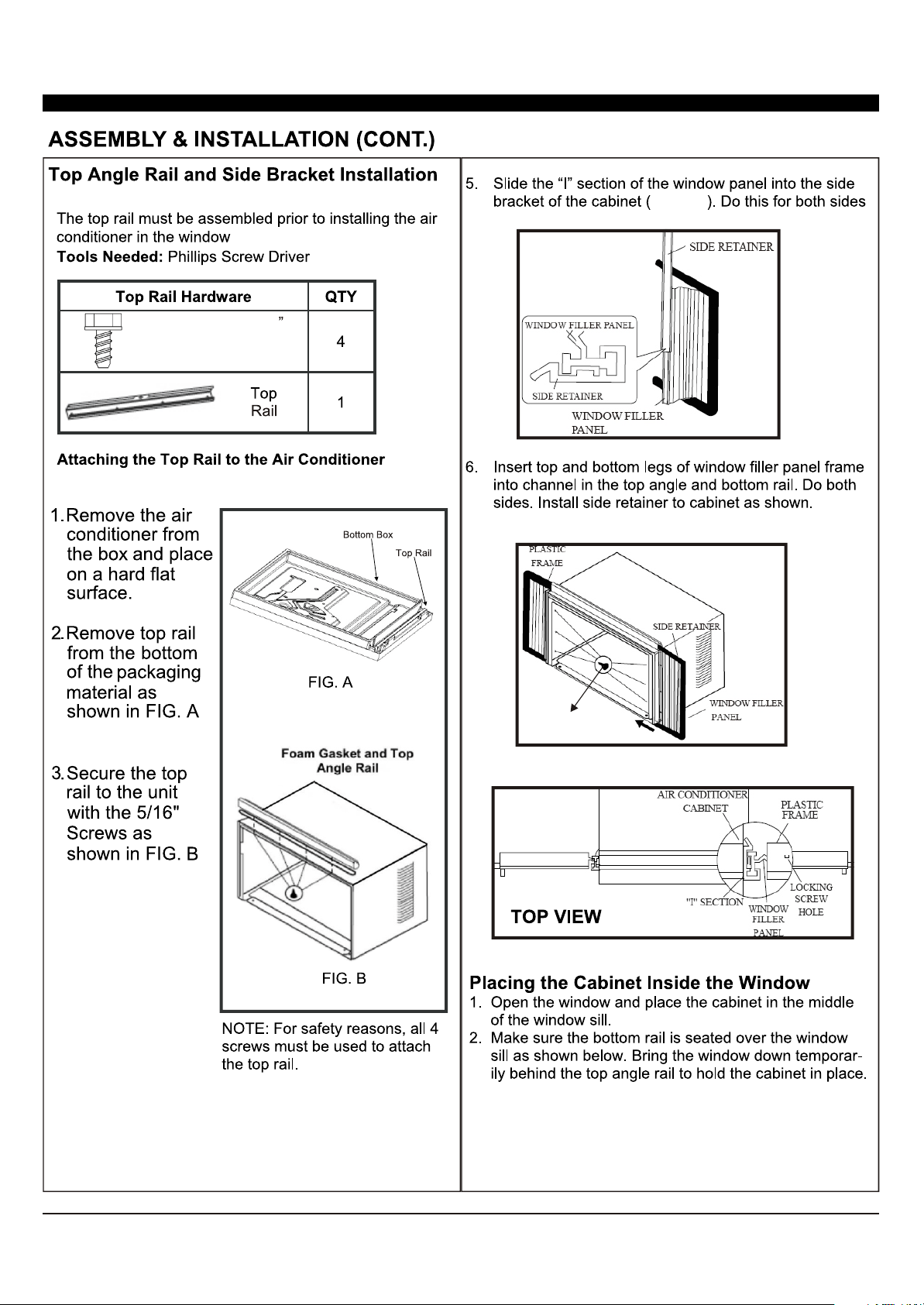

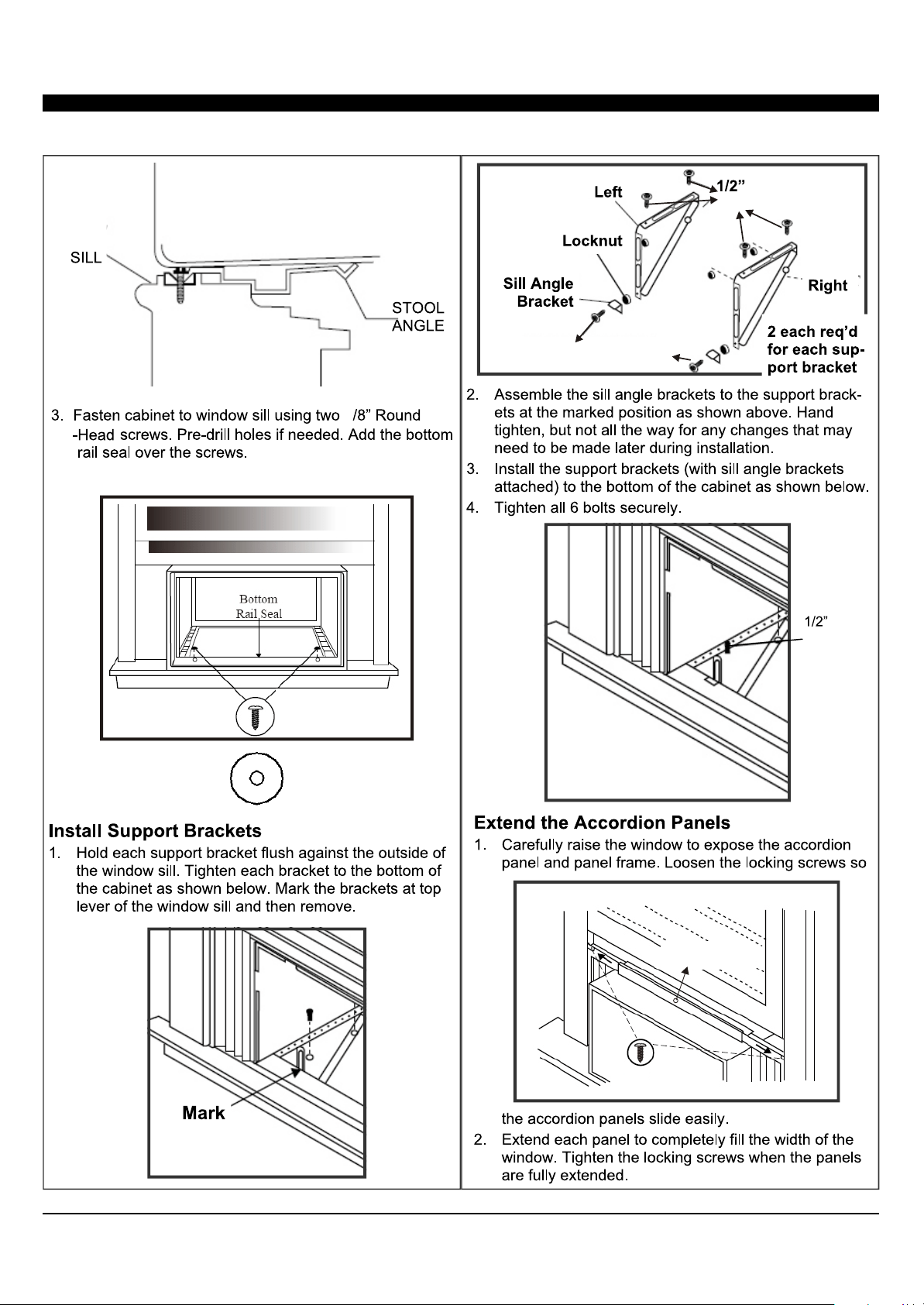

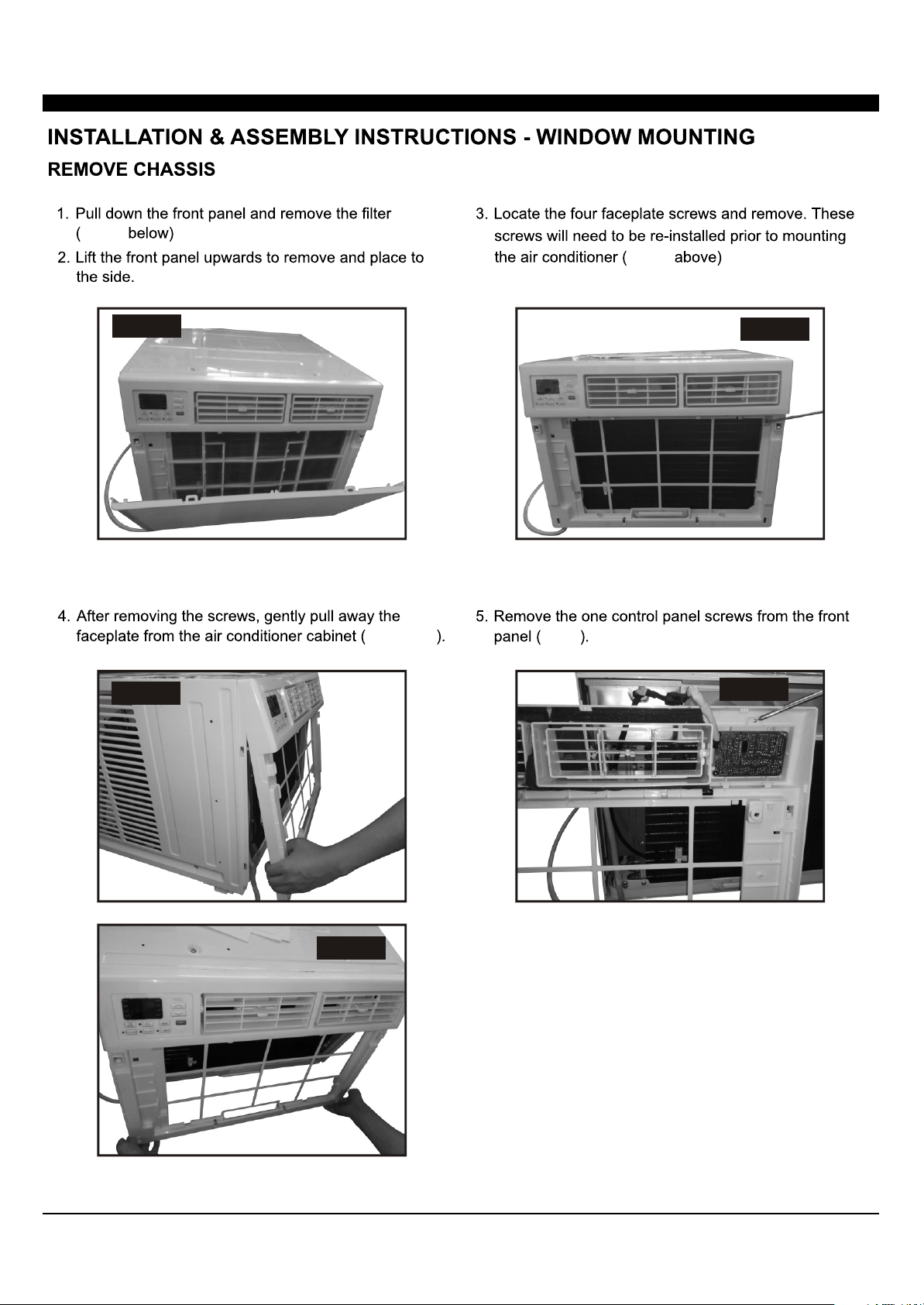

INSTALLATION&ASSEMBLY INSTRUCTIONS ...

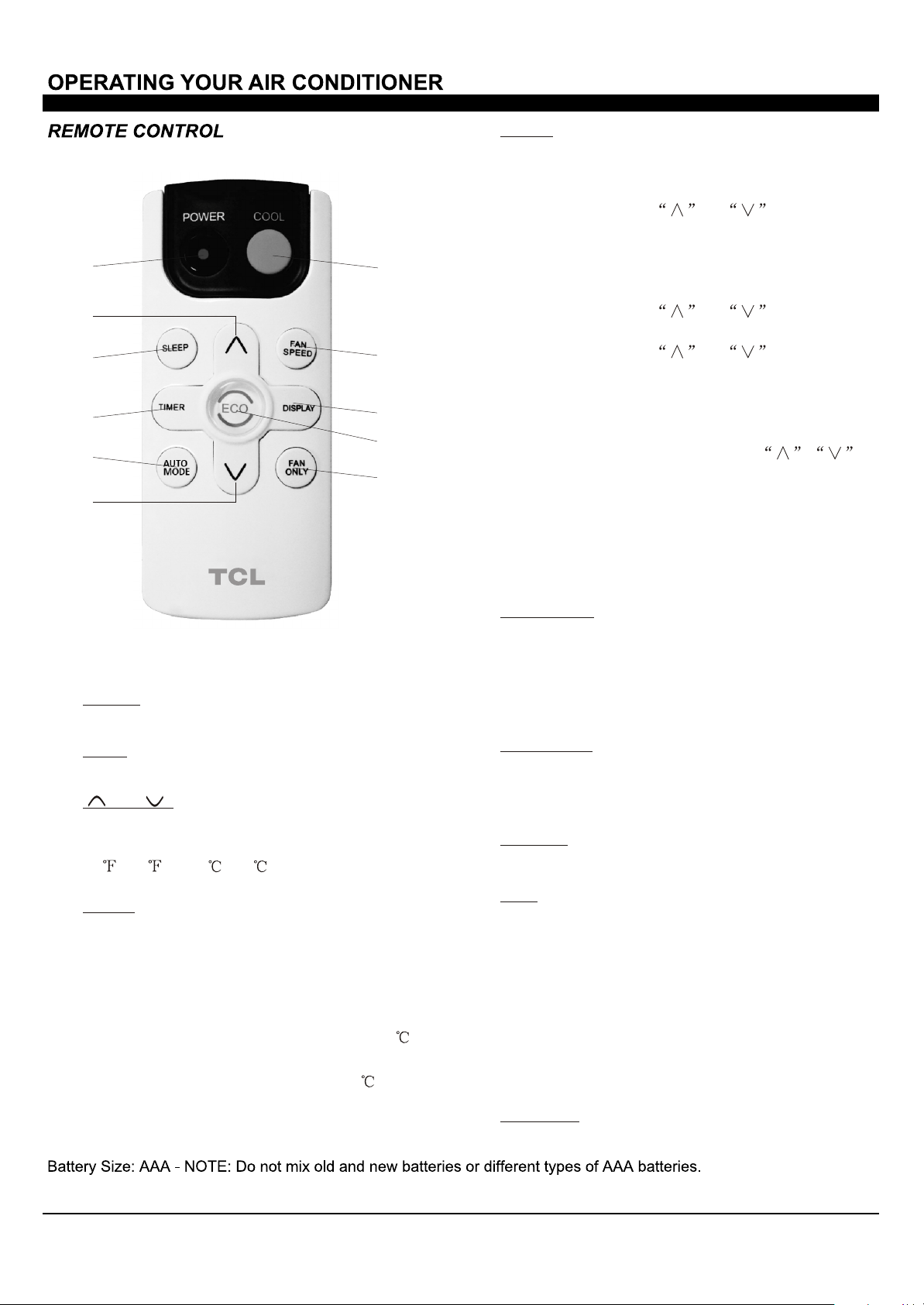

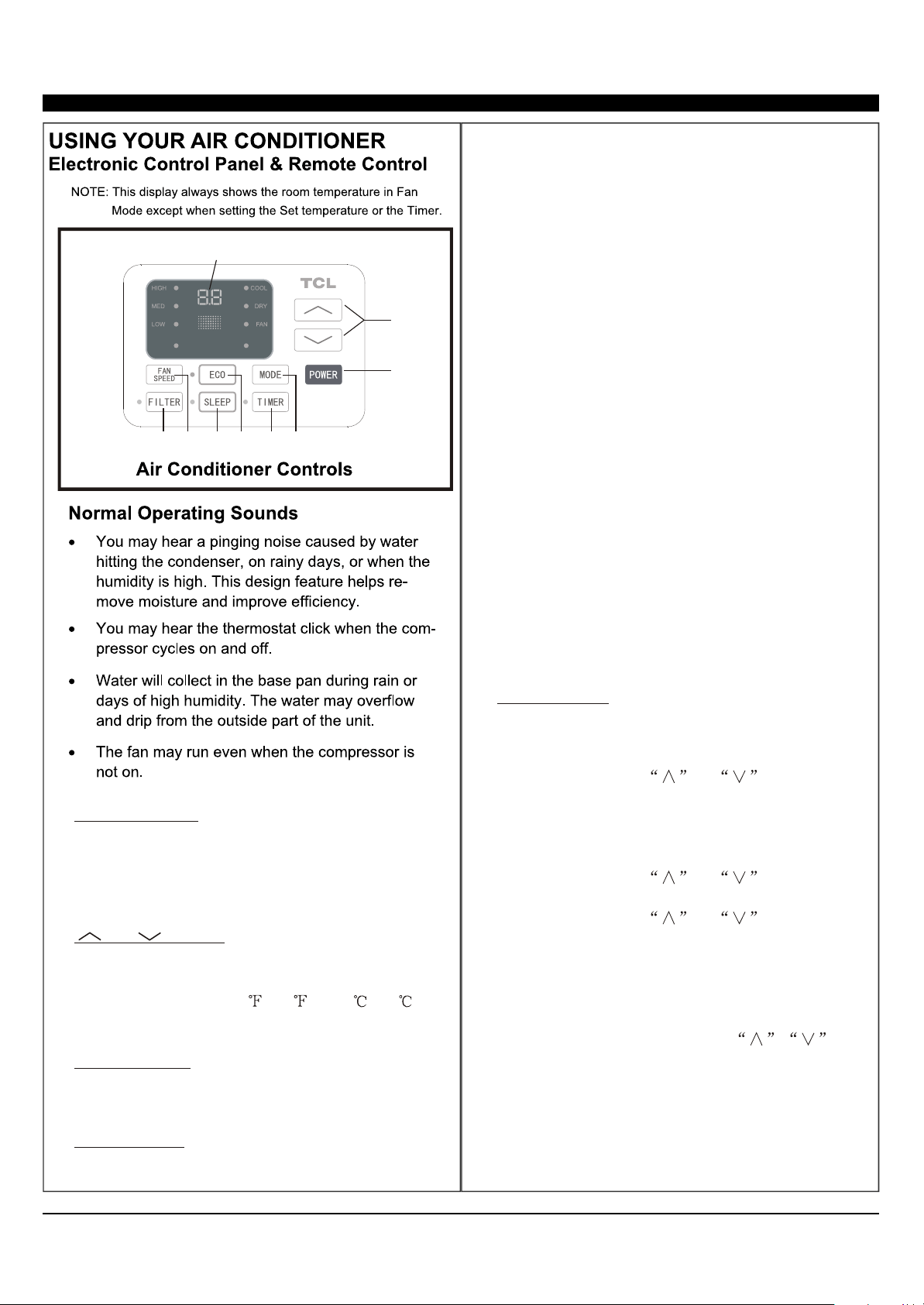

USING YOUR AIR CONDITIONER ... OPERATING YOUR AIR CONDITIONER
CARE AND CLEANING ...

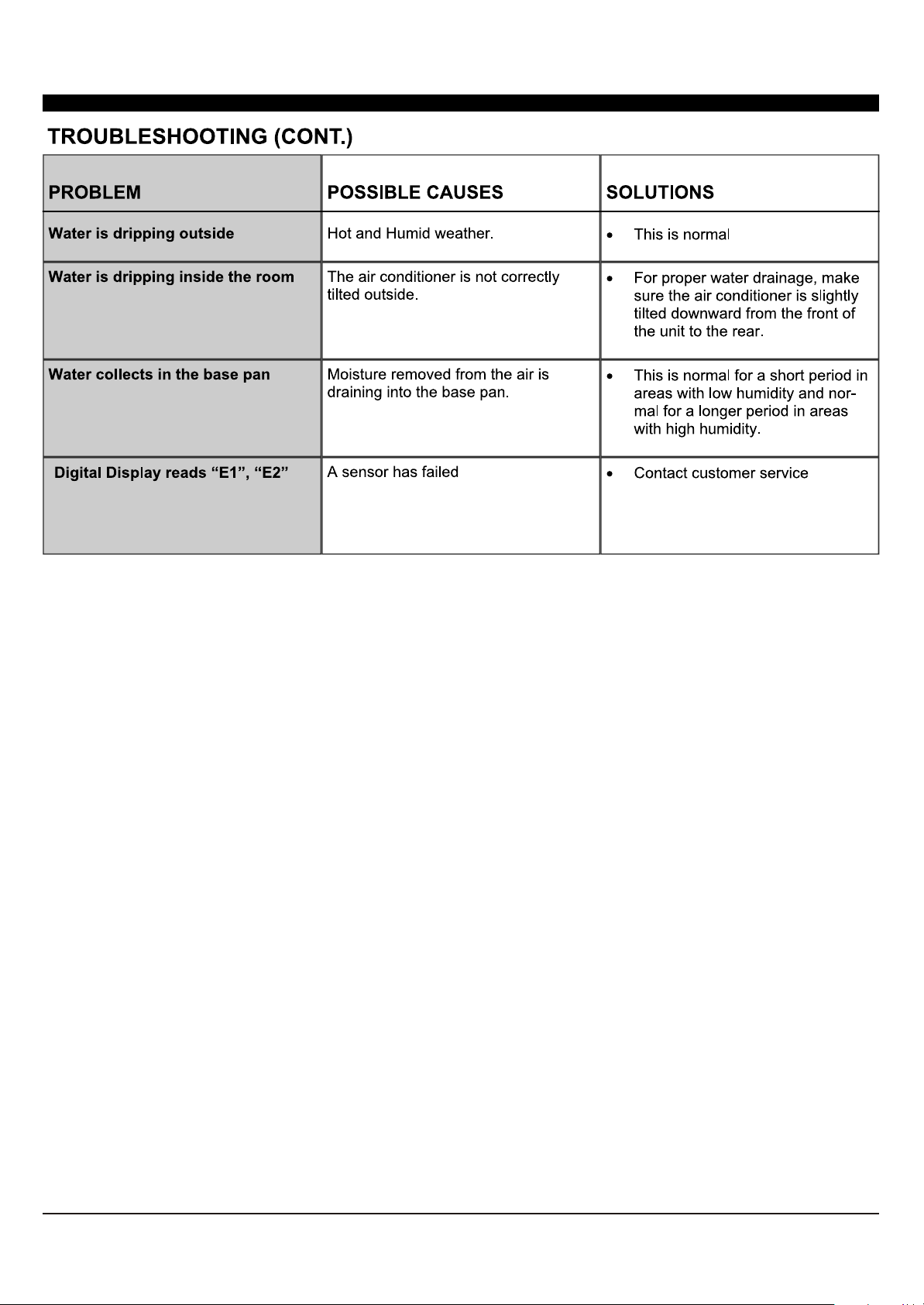

TROUBLESHOOTING ...
15K 18K/22K/24K
5/16" Long Hex-head Screw 5/8" Long Hex-head Screw 1/2" Long Hex-head Screw
5/8" Long Flat Head Bolt and
Sill Angel Bracket
1/2" Long Flat Head Bolt and
Support Bracket(with R and L
17.91 18.625 23.625 26.50
19.00 19.50
28.00 30.00 41.00 41.00
(15K/18K See FIG.1/FIG.2 ; 22K/24K See FIG.3/FIG.4).
Storm Window Frame or Obstruction SASH
Storm Window Frame or Obstruction
19 1/2 MIN
19 1/2 MIN
Storm Window Frame or Obstruction
Storm Window Frame or Obstruction
FIG.7 & 8
FIG.7 FIG.8
Hex-head
5/16" Long
Hex-head Screw
(Suggest to keep a downward oblique, to let accumulated rain water to drain out, from back side of the unit bottom.)
(It should set on the gasket for 22K/24K)
5/8" Long
Hex-head Screw
5/8" Long Flat Head Bolt 5/8" Long
Long Flat head Bolt and Locknut
Flat head Bolt and Locknut
Hex-head Screw
1/2" Long
Hex-head Screw sash lock
Sash Lock
5/8" Long
Hex-head Screw
18 1/4 (46.4 cm) 23 7/8 (60.6 cm)
19 1/2 (49.5 cm) 26 9/10 (68.3 cm)
(Page 6 and 7)
FIG.19 FIG.20
AUTO SPEED
Cool Mode: The cooling function allows the air conditioner to cool the room and at the same time reduces Air humidify. Press the MODE button to activate the cooling function. To optimize the function of the air conditioner, adjust the temperature and the speed by pressing the button indicated.
Dry Mode: This function reduces the humidity of the air to make the room more comfortable. Press MODE button to set the DRY mode. An automatic function of alternating cooling cycles and air fan is activated.
Fan Mode: The conditioner works in only ventilation. Press MODE button to set the FAN
9 8 7 6 5 4
1. Without timer setting,the
Digital Displ

TCL TWAC-15CD|K8R1 | File type: PDF | Filename: 52609062_twac-15cd-k8r1.pdf | Size: 7.89 MB | Language: English | Other documents: 2 files.

Download User Manual
TCL

TCL

Owner manual PDF of TCL TWAC-15CD|K8R1 15,000 Btu Window Air Conditioner Twac15cd/k8r1.

Use manuals file type: PDF. TCL - Window Air Conditioner

Product Infomation and Reviews - TWAC-15CD|K8R1 photo

TWAC 15CD K8R1 Photo
