KV-36FS13 KV-36FS17
© 2001 by Sony Corporation
4-081-776-22
Operating Instructions
TM
WARNING
To reduce the risk of fire or shock hazard, do not expose the TV to
rain or moisture.
This symbol is intended to alert the user to the
presence of uninsulated “dangerous voltage”
within the product’s enclosure that may be of
sufficient magnitude to constitute a risk of
electric shock to persons.
This symbol is intended to alert the user to the
presence of important operating and maintenance
(servicing) instructions in the literature
accompanying the appliance.
CAUTION
TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF
PLUG TO WIDE SLOT, FULLY INSERT.
CAUTION
When using TV games, computers, and similar products with your
TV, keep the brightness and contrast functions at low settings. If a
fixed (non-moving) pattern is left on the screen for long periods of
time at a high brightness or contrast setting, the image can be
permanently imprinted onto the screen. Continuously watching
the same program can cause the imprint of station logos onto the
TV screen. These types of imprints are not covered by your
warranty because they are the result of misuse.
Note on Caption Vision
This television receiver provides display of television closed
captioning in accordance with §15.119 of the FCC rules.
Note on Cleaning the TV
Clean the TV with a soft dry cloth. Never use strong solvents such
as thinner or benzine, which might damage the finish of the
cabinet.
Note to CATV System Installer
This reminder is provided to call the CATV system installer’s
attention to Article 820-40 of the NEC that provides guidelines for
proper grounding and, in particular, specifies that the cable ground
shall be connected to the grounding system of the building, as close
to the point of cable entry as practical.
Use of this television receiver for other than private viewing of
programs broadcast on UHF or VHF or transmitted by cable
companies for the use of the general public may require
authorization from the broadcaster/cable company and/or
program owner.
NOTIFICATION
This equipment has been tested and found to comply with the
limits for a Class B digital device pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable protection
against harmful interference in a residential installation. This
equipment generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions,
may cause harmful interference with radio communications.
However, there is no guarantee that interference will not occur in a
particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more of the
following measures:
❑ Reorient or relocate the receiving antennas.
❑ Increase the separation between the equipment and receiver.
❑ Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
❑ Consult the dealer or an experienced radio/TV technician for
help.
You are cautioned that any changes or modifications not
expressly approved in this manual could void your authority
to operate this equipment.
Safety
❑
Operate the TV only on 120 V AC.
❑ The plug is designed, for safety purposes, to fit into the wall
outlet only one way. If you are unable to insert the plug fully
into the outlet, contact your dealer.
❑ If any liquid or solid object should fall inside the cabinet,
unplug the TV immediately and have it checked by qualified
service personnel before operating it further.
Installing
❑
To prevent internal heat buildup, do not block the ventilation
openings.
❑ Do not install the TV in a hot or humid place, or in a place
subject to excessive dust or mechanical vibration.
❑ The AC power cord is attached to the rear of the TV with
hooks. Do not attempt to remove the cord from these hooks.
Doing so could cause damage to the TV
Owner’s Record
The model and serial numbers are provided on the front of this
instruction manual and at the rear of the TV. Refer to them
whenever you call upon your Sony dealer regarding this product.
About this Manual
This manual is for models KV-36FS13 and KV-36FS17. The menu
and illustrations shown are for model KV-36FS17 to show the
maximum features available. Differences in operation will be
indicated in the text, for example, “For KV-36FS13 only.”
RISK OF ELECTRIC SHOCK
DO NOT OPEN
RISQUE DE CHOC ELECTRIQUE,
NE PAS OUVRIR
ATTENTION
CAUTION
PRECAUCION
RIESGO DE CHOQUE ELECTRICO
NO ABRIR
CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE.
REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
As an ENERGY STAR Partner,
Sony has determined that this
product or product models meets
the E
NERGY STAR guidelines
for energy efficiency.
®
®
ENERGY STAR is a U.S. registered mark.
®
Important Safeguards
For your protection, please read these instructions completely, and
keep this manual for future reference.
Carefully observe and comply with all warnings, cautions and
instructions placed on the set or described in the operating
instructions or service manual.
WARNING
To guard against injury, the following basic safety precautions
should be observed in the installation, use and servicing of the set.
Use
Power Sources
This set should be operated only from the type
of power source indicated on the serial/model
plate. If you are not sure of the type of electrical
power supplied to your home, consult your
dealer or local power company. For those sets
designed to operate from battery power, refer
to the operating instructions.
Grounding or Polarization
This set is equipped with a polarized AC power cord plug (a plug
having one blade wider than the other), or with a three-wire
grounding type plug (a plug having a third pin for grounding).
Follow the instructions below:
For the set with a polarized AC power cord plug
This plug will fit into the power outlet only one
way. This is a safety feature. If you are unable to
insert the plug fully into the outlet, try reversing
the plug. If the plug still fails to fit, contact your electrician to have
a suitable outlet installed. Do not defeat the safety purpose of the
polarized plug by forcing it in.
Alternate Warning
For the set with a three-wire grounding type AC plug
This plug will only fit into a grounding-type
power outlet. This is a safety feature. If you are
unable to insert the plug into the outlet, contact
your electrician to have a suitable outlet installed.
Do not defeat the safety purpose of the grounding plug.
Overloading
Do not overload wall outlets, extension cords or
convenience receptacles beyond their capacity,
since this can result in fire or electric shock.
Always turn the set off when it is not being
used. When the set is left unattended and
unused for long periods of time, unplug it
from the wall outlet as a precaution against
the possibility of an internal malfunction that
could create a fire hazard.
If a snapping or popping sound from a TV set is
continuous or frequent while the TV is operating,
unplug the TV and consult your dealer or service
technician. It is normal for some TV sets to make
occasional snapping or popping sounds,
particularly when being turned on or off.
Object and Liquid Entry
Never push objects of any kind into the set
through the cabinet slots as they may touch
dangerous voltage points or short out parts that
could result in a fire or electric shock. Never spill
liquid of any kind on the set.
Cleaning
Unplug the set from the wall outlet before
cleaning or polishing it. Do not use liquid
cleaners or aerosol cleaners. Use a cloth lightly
dampened with water for cleaning the exterior
of the set.
Installation
Attachments
Do not use attachments not recommended by the
manufacturer, as they may cause hazards.
Water and Moisture
Do not use power-line operated sets near
water — for example, near a bathtub,
washbowl, kitchen sink, or laundry tub, in a
wet basement, or near a swimming pool, etc.
Accessories
Do not place the set on an unstable cart, stand,
table or shelf. The set may fall, causing serious
injury to a child or an adult and serious damage
to the set. Use only a cart or stand recommended
by the manufacturer for the specific model of TV.
An appliance and cart combination should be
moved with care. Quick stops, excessive force,
and uneven surfaces may cause the appliance and
cart combination to overturn.
Ventilation
The slots and openings in the cabinet and in the back or bottom are
provided for necessary ventilation. To ensure reliable operation of
the set, and to protect it from overheating, these slots and openings
must never be blocked or covered.
❑ Never cover the slots and openings with a
cloth or other materials.
❑ Never block the slots and openings by
placing the set on a bed, sofa, rug or other
similar surface.
❑ Never place the set in a confined space, such
as a bookcase or built-in cabinet, unless
proper ventilation is provided.
❑ Do not place the set near or over a radiator
or heat register, or where it is exposed to
direct sunlight.
Power-Cord Protection
Do not allow anything to rest on or roll over the
power cord, and do not place the set where the
power cord is subject to wear or abuse.
Antennas

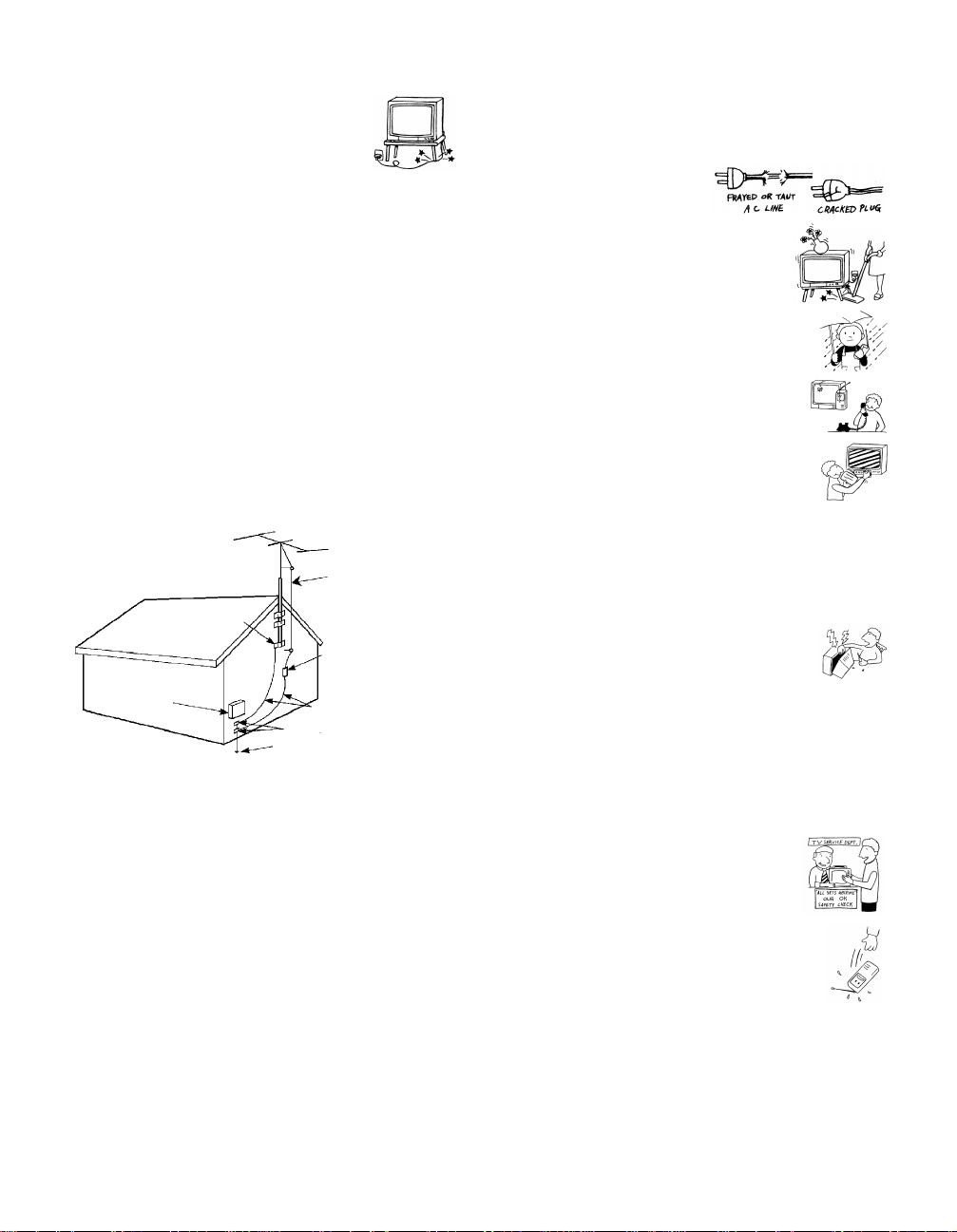

Outdoor Antenna Grounding
If an outdoor antenna is installed, follow the precautions below. An
outdoor antenna system should not be located in the vicinity of
overhead power lines or other electric light or power circuits, or
where it can come in contact with such power lines or circuits.
WHEN INSTALLING AN OUTDOOR ANTENNA SYSTEM,
EXTREME CARE SHOULD BE TAKEN TO KEEP FROM
CONTACTING SUCH POWER LINES OR CIRCUITS AS
CONTACT WITH THEM IS ALMOST INVARIABLY FATAL.
Be sure the antenna system is grounded so as to provide some
protection against voltage surges and built-up static charges.
Section 810 of the National Electrical Code (NEC) in USA and
Section 54 of the Canadian Electrical Code in Canada provides
information with respect to proper grounding of the mast and
supporting structure, grounding of the lead-in wire to an antenna
discharge unit, size of grounding conductors, location of antenna
discharge unit, connection to grounding electrodes, and
requirements for the grounding electrode.
Antenna Grounding According to the NEC
Refer to section 54-300 of Canadian Electrical Code for Antenna
Grounding.
Lightning
For added protection for this television receiver during a lightning
storm, or when it is left unattended and unused for long periods of
time, unplug it from the wall outlet and disconnect the antenna.
This will prevent damage to the receiver due to lightning and
power-line surges.
Service
Damage Requiring Service
Unplug the set from the wall outlet and refer servicing to qualified
service personnel under the following conditions:
❑ When the power cord or plug
is damaged or frayed.
❑ If liquid has been spilled into
the set.
❑ If the set has been exposed to
rain or water.
❑ If the set has been subject to
excessive shock by being
dropped, or the cabinet has
been damaged.
❑ If the set does not operate
normally when following the
operating instructions. Adjust
only those controls that are
specified in the operating
instructions. Improper
adjustment of other controls
may result in damage and
will often require extensive
work by a qualified technician
to restore the set to normal operation.
❑ When the set exhibits a distinct change in performance, it
indicates a need for service.
Servicing
Do not attempt to service the set yourself since
opening the cabinet may expose you to dangerous
voltage or other hazards. Refer all servicing to
qualified service personnel.
Replacement Parts
When replacement parts are required, be sure the service
technician certifies in writing that he has used replacement parts
specified by the manufacturer that have the same characteristics as
the original parts.
Unauthorized substitutions may result in fire, electric shock or
other hazards.
Safety Check
Upon completion of any service or repairs to the
set, ask the service technician to perform routine
safety checks (as specified by the manufacturer) to
determine that the set is in safe operating
condition, and to so certify. When the set reaches
the end of its useful life, improper disposal could
result in a picture tube implosion. Ask a qualified
service technician to dispose of the set.
Ground clamp
Antenna lead-in wire
Antenna discharge unit
Ground clamps
Antenna lead-in wire
Power service grounding electrode
NEC: National Electrical Code
Electrical wire
(NEC Section 810-20)
system (NEC Art 250 Part H)
equipment
Contents
Introducing the FD Trinitron Wega
Overview................................................................1
Presenting the FD Trinitron Wega......................2
Package Contents..................................................3
Using the Remote Control...................................3
Installing the TV
Overview................................................................9
TV Controls and Connectors.............................10
Basic Connections (Connecting a Cable
or Antenna)..................................................12
Connecting a VCR and Cable............................16
Connecting a VCR and Cable Box
(KV-36FS17 only) ........................................17
Connecting Two VCRs for Tape Editing.........20

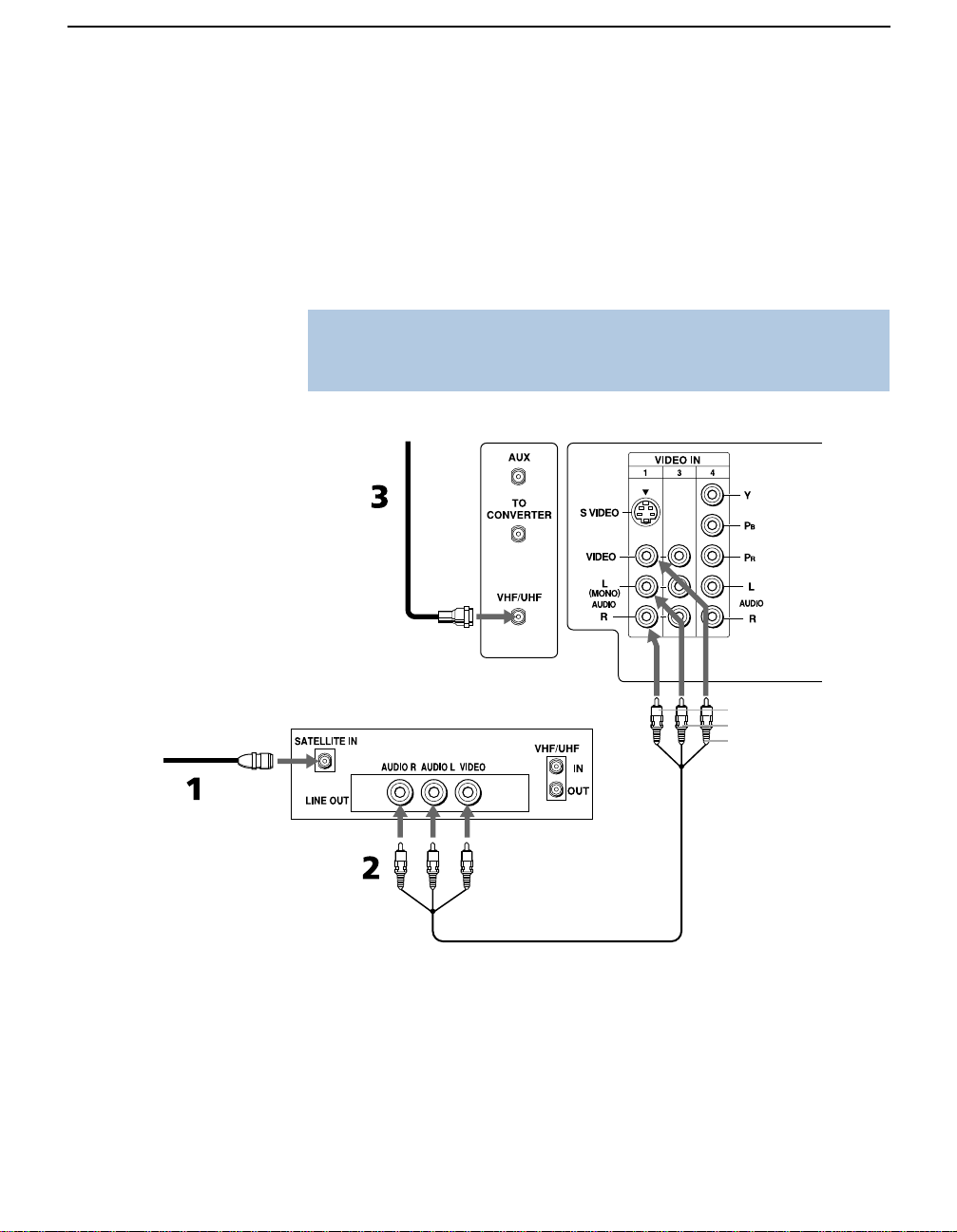

Connecting a Satellite Receiver.........................21

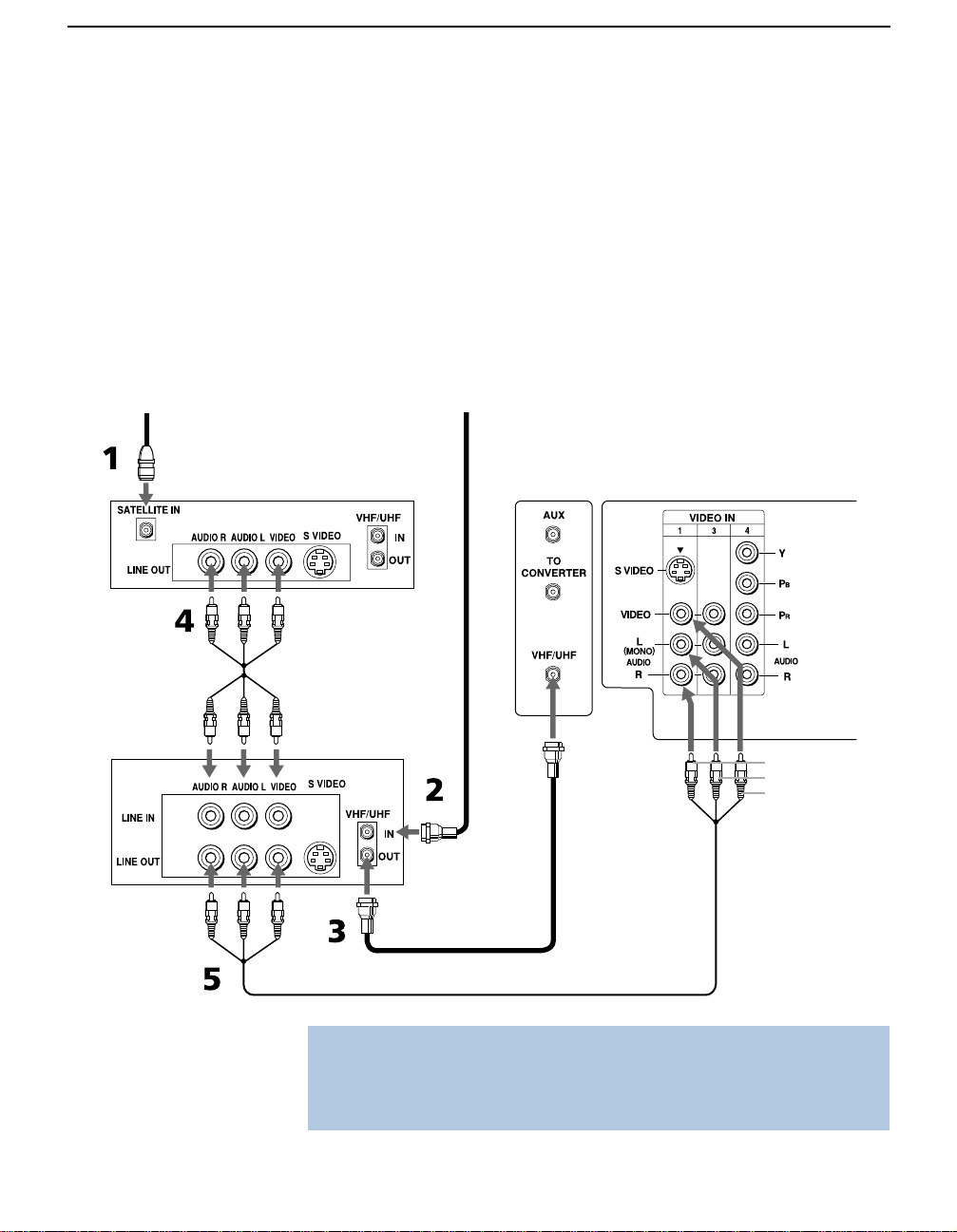

Connecting a Satellite Receiver with a VCR ...22
Connecting an Audio Receiver.........................24
Connecting a DVD Player with
Component Video Connectors..................25
Connecting a DVD Player with A/V
Connectors ...................................................26
Connecting a Camcorder ...................................27
Setting Up the TV Automatically .....................28
Using the Features
Overview..............................................................29
Using Favorite Channels ...................................30
Using Picture in Picture (PIP)
(KV-36FS17 only)........................................31
Using the Menus
Overview..............................................................35
Using the Video Menu......................................36

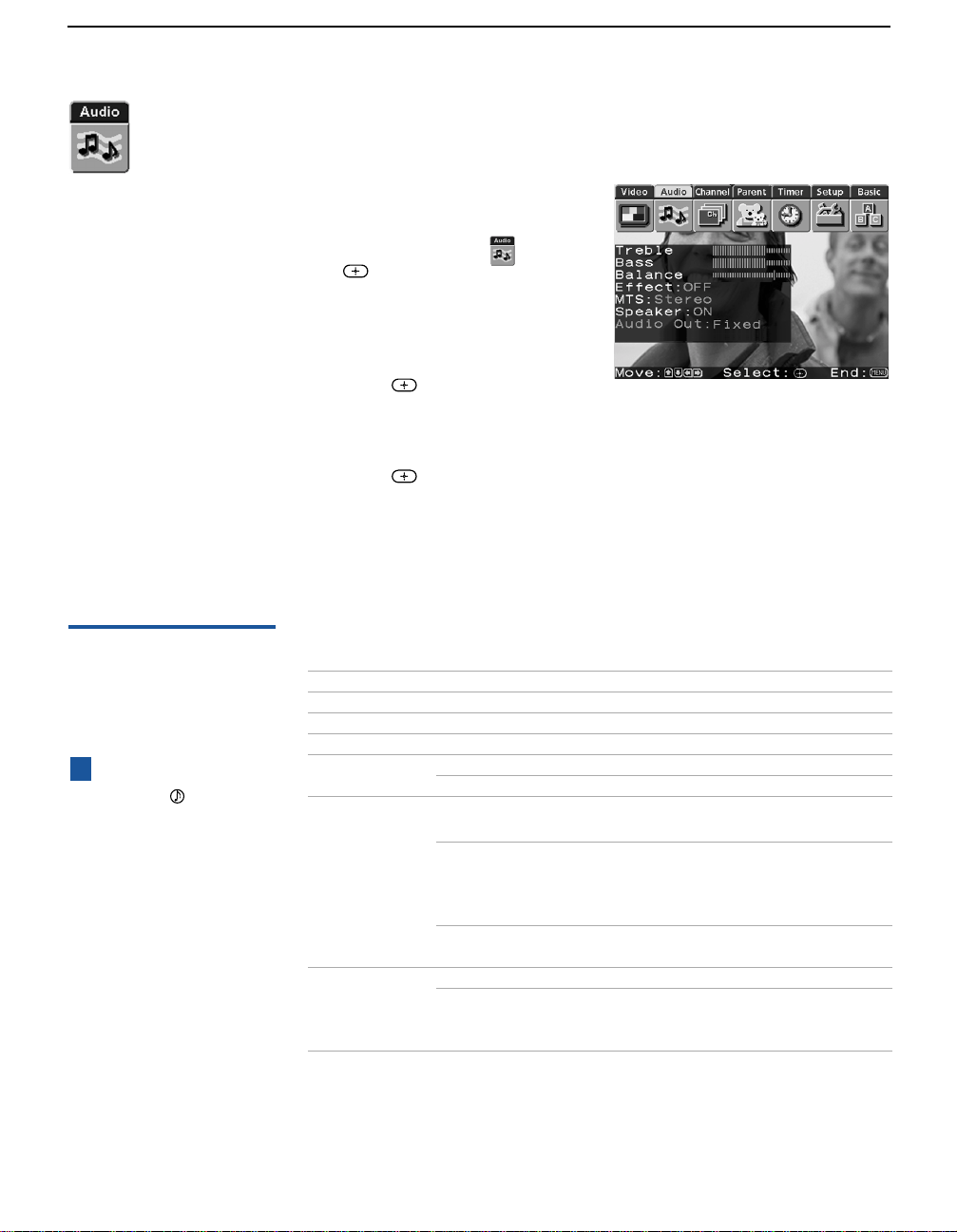

Using the Audio Menu .....................................38
Using the Channel Menu..................................40

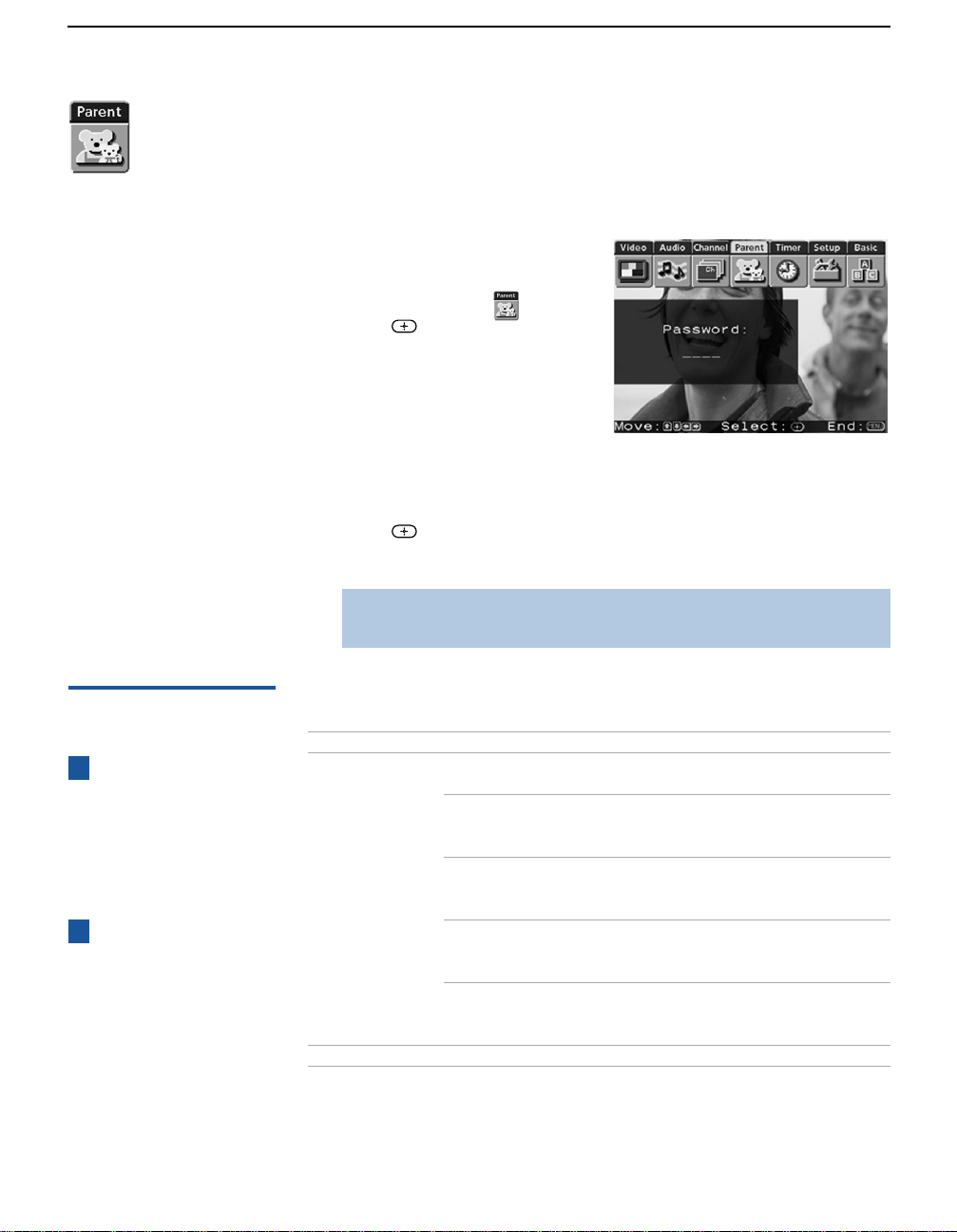

Using the Parent Menu .....................................42
Using the Timer Menu......................................45
Using the Setup Menu.......................................46
Using the Basic Menu........................................48
Other Information
Overview..............................................................49
Programming the Remote Control...................50
Operating Other Components with Your
TV Remote Control.....................................52
Troubleshooting..................................................54
Specifications.......................................................56
Index.....................................................................57
Introducing the FD Trinitron Wega
2
Presenting the FD Trinitron
Wega
The FD Trinitron Wega (pronounced VAY-GAH) is characterized by
outstanding contrast, uncompromising accuracy, and corner-to-
corner detail.
You will recognize the superiority of Wega technology almost
immediately. The first thing you will probably notice is minimal glare
from the flat picture tube. This flat-screen technology improves
picture detail without distortion, unlike conventional curved screens.
The FD Trinitron delivers outstanding image detail not only at the
screen center, but also at the corners — so you can enjoy a bright,
clear picture from any location in a room.
Features Some of the features that you will enjoy with your new TV include:
❑ 16:9 Enhancement: Vertical Compression technology that
maximizes picture resolution on “anamorphic” or “enhanced for
widescreen” sources, including selected DVDs.
❑ Velocity Modulation: Vertical line enhancement that sharpens
picture definition.
❑ Parental Control: V-Chip technology allows parents to block
unsuitable programming for younger viewers.
❑ Component Video Input: Offers the best video quality for DVD
player connections.
❑ S-VIDEO Input: Provides a high-quality image for connected
equipment.
Also, on the KV-36FS17 model:
❑ Dual Tuner Picture in Picture (PIP): Allows you to watch two
programs at once.
❑ Favorite Channel Preview: Preview up to eight favorite channels
without leaving the current channel.
Introducing the FD Trinitron Wega
3
Package Contents
Along with your new Trinitron TV, the packing box contains a remote
control and two AA batteries. These items are all you need to set it up
and operate the TV in its basic configuration.
Most peripherals come with the necessary cables to connect them. If
you want to set up special configurations, you may need to buy extra
cables or connectors. It is best to ensure that you have all needed
materials on hand before beginning a special-connection project.
Using the Remote Control
The remote control is the primary mechanism for controlling your TV.
Handle the remote control with care. avoid dropping it, getting it wet,
placing it in direct sunlight, near a heater, or where the humidity is
high.
Inserting Batteries Insert two size AA (R6) batteries (supplied) by matching the + and –
on the batteries to the diagram inside the battery compartment.
✍ Remove the batteries to avoid damage from possible battery leakage whenever
you anticipate that the remote control will not be used for an extended period.
Introducing the FD Trinitron Wega
4
Button Descriptions The POWER button on the remote control (no. 11 in the illustration
below) activates both the remote control and the TV.
Button Description
1 MUTING Mutes the sound. Press again or press VOL + to restore
the sound.
2 SYSTEM OFF Powers off all Sony equipment at once. (This feature
may not work with older Sony equipment.)
3 TV/VCR Switch between TV and VCR mode. If you have a
non-Sony VCR, you will need to program the remote
control to recognize your VCR. For details, see
“Programming the Remote Control” on page 50
m Rewind
M Fast-forward
N Play
x Stop
X Pause (Press again to resume playback or recording)
RECORD To record, press N and z simultaneously.
4 SLEEP Press repeatedly until the TV displays the time in
minutes (15, 30, 45, 60, or 90) that you want the TV to
remain on before shutting off automatically. Cancel by
pressing until SLEEP OFF appears.
5 PICTURE MODE Cycles through the available video picture modes:
Vivid, Standard, Movie, Sports. Also available in the Video
menu. For details, see “Selecting Video Options” on
page 36.
6 JUMP Press to jump back and forth between two channels.
The TV alternates between the current channel and the
last channel that was selected.
7 TV/SAT Switches between the TV and SAT (satellite) inputs
when in SAT FUNCTION mode.
Provides quick access for changing available audio
settings. For details, see “Selecting Audio Options” on
page 38.
8 RESET Press when in a menu to reset the settings to the
factory defaults.
9 VOL +/- Adjusts the volume.
q; CODE SET Used for programming the remote control to operate
non-Sony video equipment. For details, see
“Programming the Remote Control” on page 50.
qa POWER buttons
(GREEN)
Turn on and off the TV and other audio/video
equipment.
6
1
4
9
qa
qd
qh
w;
3
5
2
7
q;
8
qs
qf
qg
qj
ql
qk
Model Remote
KV-36FS13
RM-Y180
KV-36FS17
(See page 6)
RM-Y181
RM-Y180
Introducing the FD Trinitron Wega
5
qs FUNCTION buttons
(WHITE)
Select the equipment (TV, VCR/DVD, SAT/CABLE)
that you want to operate. The indicator lights up
momentarily when pressed to show which device the
remote control is operating.
qd TV/VIDEO Cycles through the video equipment connected to your
TV’s video inputs.
qf DISPLAY Press once to display the current time and channel
label (if set) and channel number. Press again to turn
Display off. For details on setting the time, see “To set
the Current Time” on page 45.
qg MTS/SAP Cycles through the Multi-channel TV Sound (MTS)
options: Stereo, Auto-SAP (Second Audio Program), and
Mono. For details, see “Using the Audio Menu” on
page 38.
qh 0 - 9 and ENTER Press 0 - 9 to select a channel, the channel changes after
2 seconds. Press ENTER to select immediately.
qj GUIDE Displays the program guide of your satellite antenna.
qk Arrows and Select. Pressing down on the center
button selects the item.
ql MENU Press to display the TV menu. Press again to exit from
the menus.
w; CH +/- Scan through channels.
Button Description
Introducing the FD Trinitron Wega
6
The POWER button on the remote control (no. 11 in the illustration
below) activates both the remote control and the TV.
Button Description
1 MUTING Mutes the sound. Press again or press VOL + to restore
the sound.
2 SYSTEM OFF Powers off all Sony equipment at once. (This feature
may not work with older Sony equipment.)
3 TV/VCR CONTROLS and PIP CONTROLS
AUDIO Alternates sound between the main picture and the
window picture.
CH+/- Changes the channel in the window picture.
FREEZE Freezes the window picture. Press again to restore the
picture.
PIP Turns on/off PIP. For details, see “Using Picture in
Picture (PIP)” on page 31.
POSITION Moves the location of the window picture.
SWAP Switches the position of the main picture with the
window picture.
TV/VCR Changes the VHF/UHF output of the VCR.
TV/VIDEO In the window picture, cycles through the video
equipment connected to your TV’s video inputs: TV,
VIDEO 1, VIDEO 2, VIDEO 3, VIDEO 4.
4 SLEEP Press repeatedly until the TV displays the time in
minutes (15, 30, 45, 60, or 90) that you want the TV to
remain on before shutting off automatically. Cancel by
pressing until SLEEP OFF appears.
5 PICTURE MODE Cycles through the available video picture modes:
Vivid, Standard, Movie, Sports. Also available in the Video
menu. For details, see “Selecting Video Options” on
page 36.
6 JUMP Press to jump back and forth between two channels.
The TV alternates between the current channel and the
last channel that was selected.
7
TV/SAT Switches between the TV and SAT (satellite) inputs
when in SAT FUNCTION mode.
Provides quick access for changing available audio
settings. For details, see “Selecting Audio Options” on
page 38.
8 RESET Press when in a menu to reset the settings to the
factory defaults.
9 VOL +/- Adjusts the volume.
q; CODE SET Used for programming the remote control to operate
non-Sony video equipment. For details, see
“Programming the Remote Control” on page 50.
6
1
4
9
qa
qd
qj
wa
5
2
7
q;
8
qs
qg
qh
qk
w;
ql
qf
3
RM-Y181
Introducing the FD Trinitron Wega
7
qa POWER buttons
(GREEN)
Turn on and off the TV and other audio/video
equipment.
qs FUNCTION buttons
(WHITE)
Select the equipment (TV, VCR/DVD, SAT/CABLE)
that you want to operate. The indicator lights up
momentarily when pressed to show which device the
remote control is operating.
qd TV/VIDEO Cycles through the video equipment connected to your
TV’s video inputs.
qf ANT Changes the VHF/UHF input to the AUX input.
qg DISPLAY Press once to display the current time and channel
label (if set) and channel number. Press again to turn
Display off. For details on setting the time, see “To set
the Current Time” on page 45.
qh MTS/SAP Cycles through the Multi-channel TV Sound (MTS)
options: Stereo, Auto-SAP (Second Audio Program), and
Mono. For details, see “Using the Audio Menu” on
page 38.
qj 0 - 9 and ENTER Press 0 - 9 to select a channel, the channel changes after
2 seconds. Press ENTER to select immediately.
qk GUIDE Displays the program guide of your satellite antenna.
ql Arrows and Select. Pressing down on the center
button selects the item.
w; MENU Press to display the TV menu. Press again to exit from
the menus.
wa CH+/- Changes the channel in the main picture.
Button Description
9
Installing the TV
Overview
This chapter includes illustrated instructions for setting up your TV.
Note About the AC
Power Cord
The AC power cord is attached to the rear of the TV with hooks. Use
caution when removing the AC plug from its holder. Gently slide the
cord in the upward direction without removing the cord from the two
lower hooks.
Topic Page
TV Controls and Connectors 10
Basic Connections (Connecting a Cable or Antenna) 12
Connecting a VCR and Cable 16
Connecting a VCR and Cable Box (KV-36FS17 only) 17
Connecting Two VCRs for Tape Editing 20
Connecting a Satellite Receiver 21
Connecting a Satellite Receiver with a VCR 22
Connecting an Audio Receiver 24
Connecting a DVD Player with Component Video
Connectors
25
Connecting a DVD Player with A/V Connectors 26
Connecting a Camcorder 27
Setting Up the TV Automatically 28
You can detach
the cord from
this hook
Do not remove the cord from the hook
AC Power cord
Installing the TV
10
TV Controls and Connectors
Front Panel Menu
Controls
The front panel menu controls allow access to the on-screen menus
without the use of a remote control. Pressing the
MENU button brings
up the on-screen menus. The arrow buttons (Vv) move the on-screen
cursor in the menus and the ( ) button selects the menu item.
TV Rear Panel
7
6
5
3
4
7
6
5
4
3
2
1
Model KV-36FS13
Model KV-36FS17
Installing the TV
11
Back Panel Descriptions
Connection Description
1AUX
(KV-36FS17)
Allows you to view local and cable channels if your cable
provider does not feature local channels. You can switch
between local and cable channels easily by pressing ANT
on the remote control. Devices connected to the AUX
input cannot be viewed in PIP.
2TO CONVERTER
(KV-36FS17)
This is a VHF/UHF out jack that lets you set up your TV
to switch between scrambled channels (through a cable
box) and normal cable channels (CATV). Use this jack
instead of a splitter to get better picture quality when
needing to switch between scrambled and unscrambled
cable channels.
3VHF/UHF Connects to your VHF/UHF antenna or cable.
4S VIDEO Connects to the S VIDEO OUT jack of your VCR or other
S VIDEO-equipped video component. Provides better
picture quality than the VHF/UHF jacks or the Video IN
jack.
5AUDIO (L/R)/
VIDEO
Connects to the audio and video OUT jacks on your VCR
or other video component. A third video input (VIDEO
2) is located on the front panel of the TV. The Audio and
Video IN jacks provide better picture quality than the
VHF/UHF jack.
6Y, P
B, PR, L, R Connects to your DVD player’s or Digital Set-top box’s
component video (Y, P
B, PR) and audio (L/R) jacks.
7AUDIO OUT
(VAR/FIX)
L (MONO)/R
Connects to the left and right audio inputs of your audio
or video component. You can use these outputs to listen
to your TV’s audio through your stereo system.
Installing the TV
12
Basic Connections (Connecting a Cable or Antenna)
Connecting Directly
to Cable or an
Antenna
The connection you choose depends on the cable found in your
home.
Newer homes usually have standard coaxial cable:
VHF Only or VHF/UHF or Cable
Older homes may have 300-ohm, twin-lead cable:
VHF Only or UHF Only or VHF/UHF
Other homes may have both:
VHF and UHF
75-ohm
Rear of TV
VHF/UHF
coaxial
cable
300-ohm twin
Rear of TV
lead cable
Antenna connector
VHF/UHF
75-ohm
Rear of TV
VHF/UHF
coaxial cable
300-ohm twin
lead cable
U/V Mixer
(not supplied)
Installing the TV
13
Cable and Antenna
(KV-36FS17 only)
If your cable provider does not feature local channels, you may find
this set-up convenient.
To receive channels using an antenna, instead of using the CATV cable
1 Select antenna mode by pressing the ANT button on the remote
control. (This is a toggle: pressing the button once selects antenna
mode; pressing the button again selects cable mode.)
2 Turn the Cable to OFF (see page 40).
3 Perform the Auto Program function (see page 40).
Basic Cable Box
Connections
Cable Box and Cable
This is the preferred basic cable TV hookup to use if your cable TV
company scrambles some channels, but not all of them (pay channels
vs. regular cable channels), and you need to use a cable box.
With this setup you can:
❑ Use the TV remote control to change channels on your cable box
when the signal is scrambled.
❑ Use the TV remote control to change channels using your TV
when the signal is not scrambled. (Your TV’s tuner provides a
better signal than the cable box.)
❑ Use the PIP feature normally with the CATV input.
❑ Use the PIP feature partially with the cable box. (When you
switch the TV input to AUX — to use the cable box — the
scrambled picture will display only in the main window. If you
turn on the PIP, you will be able to see any of the regular channels
in the PIP window, but you cannot SWAP the pictures between
the main and PIP windows.)
Rear of TV
AUX
TO CONVERTER
VHF/UHF
Antenna cable
(No connection to
CATV cable
TO CONVERTER)
Rear of TV
(Continued on the next page)
Installing the TV
14
1 Connect the Cable TV cable to the TV’s VHF/UHF jack.
2 Using a coaxial cable, connect the TV’s TO CONVERTER jack to
the cable box’s IN jack. The TV’s internal converter allows you to
switch between unscrambled signals coming straight into the TV
and scrambled signals coming in through the cable box,
eliminating the need for an external splitter.
3 Using a coaxial cable, connect the cable box’s OUT jack to the
TV’s AUX jack.
To switch between channels from cable box and channels from regular cable
❑
Press the ANT button on the TV remote control. (This is a toggle:
pressing the button once selects the cable box; pressing the button
again selects regular cable.)
To use the cable box
❑
Have your TV tuner set to channel 3 or 4 (as appropriate) and
then use the cable box to switch channels.
To use the TV remote control to switch channels on the cable box
❑
Program the remote control as necessary. (See “Programming the
Remote Control” on page 50.) Then use the remote control to
switch cable box channels.
To prevent the accidental switching of TV channels
❑
When using the cable box, you need your TV to stay on a
required channel (usually channel 3 or 4). You can use the TV’s
Channel Fix feature to lock in a specific channel. The Channel Fix
feature is under the Channel menu. For details, see “Using the
Channel Menu” on page 40.
1
2
3
OUT
75-ohm coaxial cable (not supplied)
IN
AUX
TO CONVERTER
VHF/UHF
CATV cable (unscrambled channels)
Cable box
75-ohm coaxial cable
(not supplied)
Rear of TV
Rear of TV
Rear of TV
(Continued from the previous page)
Installing the TV
15
Cable Box only
Use this hookup if:
❑ You subscribe to a cable TV system that scrambles or encodes all
signals, requiring a cable box to view all channels, and
❑ You do not intend to hook up any other audio or video
equipment to your TV.
When all channels are routed through your cable box, only one
unscrambled signal is sent to the TV, so you cannot use the PIP
feature. If some of your channels are scrambled, but others are not,
consider using the hookup “Cable Box and Cable” on page 13
instead.
1 Connect the coaxial connector from your cable service to the
cable box’s IN jack.
2 Using a coaxial cable, connect the cable box’s OUT jack to the
TV’s VHF/UHF jack.
12
Rear of TV
OUT
Cable box
IN
Cable
VHF/UHF
Installing the TV
16
Connecting a VCR and Cable
Use this hookup if you subscribe to a cable TV (CATV) system that
does not require a cable box.
1 Connect the CATV cable to the VCR’s IN jack.
2 Using a coaxial cable, connect the VCR’s OUT jack to the TV’s
VHF/UHF jack.
3 Using an A/V cable, connect the VCR’s Audio and Video OUT
jacks to the TV’s Audio and Video IN jacks.
✍ If the VCR you are connecting has an S VIDEO jack, you can use an S VIDEO
cable for improved picture quality (compared to a combination audio/video
cable). Because S VIDEO cables carry only the video signal, you will need audio
cables for sound.
VCR
TV
AUDIO-R (red)
AUDIO-L (white)
VIDEO (yellow)
CATV
Coaxial cable
A/V cable
Installing the TV
17
Connecting a VCR and Cable Box
(KV-36FS17 only)
Use this hookup if:
❑ Your cable TV company scrambles some channels, but not all of
them (pay channels vs. regular cable channels) and you therefore
need to use a cable box, and
❑ You want to use the PIP feature.
With this setup you can:
❑ Use the TV remote control to change cable box channels when the
signal is scrambled.
❑ Use the TV remote control to change TV channels when the
signal is not scrambled. (Your TV’s tuner provides a better signal
than the cable box.)
❑ Use the PIP feature.
❑ Record both regular CATV and scrambled channels.
To connect a cable box and a VCR, you will need:
❑ A small, inexpensive device known as a splitter.
❑ Three coaxial cables.
❑ Either a combination audio/video cable, or an S VIDEO cable
and audio cables.
1 Connect the CATV cable to the single (input) jack of the splitter.
2 Use a coaxial cable to connect one of the two output jacks of the
splitter to the TV’s VHF/UHF jack.
3 Use a coaxial cable to connect the other output jack of the splitter
to the input jack of the cable box.
4 Use a coaxial cable to connect the output jack of the cable box to
the input jack of the VCR.
5 Use the video line (yellow) of a combination audio/video (A/V)
cable to connect the video output jack of the VCR to the video
input jack of the TV.
Connect the left (white) and right (red) audio output channels of
the VCR to the respective input channels on the TV.
✍ If the VCR has an S VIDEO jack, you can use an S VIDEO cable to improve
picture quality; replace the yellow video cable of the combination A/V
cable with the S VIDEO cable. You will still need audio cables for sound.
(Continued on the next page)
Installing the TV
18
To view cable box channels
❑
Turn on the VCR and set it to the channel the cable box uses
(channel 3 or 4). Set the TV to VIDEO 1. Use the cable box to
switch channels.
To use the TV remote control to switch channels on the cable box
❑
Program the remote control as necessary. (See “Programming the
Remote Control” on page 50.) Then use the remote control to
switch cable box channels.
To use the TV remote control to switch channels on the VCR
❑
Program the remote control as necessary. (By default, the remote
control is set for a Sony VCR; to change to another brand see
“Programming the Remote Control” on page 50.) Then use the
VCR buttons on the remote control to switch VCR channels.
AUDIO-R (red)
AUDIO-L (white)
VIDEO (yellow)
VCR
Cable box
CATV
Coaxial
cable
A/V cable
TV
Coaxial
cable
cable
Splitter
(not supplied)
(Continued from the previous page)
Installing the TV
19
To use PIP with the Cable Box
❑
Turn on the cable box and VCR. Use the remote control’s TV/VIDEO
(yellow) button to set the PIP output to VIDEO 1. Change the PIP
channel via the cable box. (The cable box’s tuner is used as the
PIP video source; if you do not turn on the cable box, the PIP will
not work.)
✍ This system is needed because the cable box unscrambles only one channel at
a time (unlike regular cable, which makes all channels available concurrently).
Installing the TV
20
Connecting Two VCRs for Tape Editing
If you connect two VCR’s together, so you can record from one to the
other, you may want to monitor the recording process. You can
connect the recording VCR into your TV and then view what is being
recorded. The procedure below shows you how to do this.
1 Using an A/V cable, connect the playback VCR’s Audio and
Video OUT jacks to the recording VCR’s Audio and Video IN
jacks.
2 Using an A/V cable, connect the recording VCR’s Audio and
Video OUT jacks to the TV’s Audio and Video IN jacks.
To change the video input of the VCR.
❑
See your VCR’s user’s guide for instructions.
To view what is being recorded
❑
Use the remote control to set the TV to the video input to which
the recording VCR is connected. (VIDEO 1 in the illustration
above.)
VCR (recording)
VCR (playback)
TV
A/V cable
A/V cable
AUDIO-R (red)
AUDIO-L (white)
VIDEO (yellow)
✍ If the VCRs you are connecting have S VIDEO jacks, you can use S VIDEO
cables to improve picture quality; replace the yellow video cable of the
combination A/V cable with the S VIDEO cable. You will still need audio cables
for sound.
Installing the TV
21
Connecting a Satellite Receiver
1 Connect the satellite antenna cable to the satellite receiver’s
SATELLITE IN jack.
2 Using an A/V cable, connect the satellite receiver’s Audio and
Video OUT jacks to the TV’s Audio and Video IN jacks.
3 Connect a coaxial cable from your cable or antenna to the TV’s
VHF/UHF jack.
✍ If the satellite receiver has an S VIDEO jack, you can use an S VIDEO cable to
improve picture quality; replace the yellow video cable of the combination A/V
cable with the S VIDEO cable. You will still need audio cables for sound.
AUDIO-R (red)
AUDIO-L (white)
VIDEO (yellow)
TV
Satellite receiver
Satellite antenna
cable
A/V cable
Coaxial
cable
Installing the TV
22
Connecting a Satellite Receiver with a VCR
1 Connect the satellite antenna cable to the satellite receiver’s
SATELLITE IN jack.
2 Connect the CATV cable to the VCR’s VHF/UHF IN jack.
3 Using a coaxial cable, connect the VCR’s OUT jack to the TV’s
VHF/UHF jack.
4 Using an A/V cable, connect the satellite receiver’s Audio and
Video OUT jacks to the VCR’s Audio and Video IN jacks.
5 Using an A/V cable, connect the VCR’s Audio and Video OUT
jacks to the TV’s Audio and Video IN jacks.
AUDIO-R (red)
AUDIO-L (white)
VIDEO (yellow)
TV
Satellite receiver
VCR
A/V cable
Coaxial
cable
Coaxial
cable
Satellite antenna
cable
CATV
✍ If the satellite receiver and VCR have S VIDEO jacks, you can use an S VIDEO
cable to improve picture quality; replace the yellow video cable of each
combination A/V cable with the S VIDEO cable. You will still need audio cables
for sound.
Installing the TV
23
To change VCR video input
❑
See your VCR’s user’s guide for instructions.
To watch satellite TV, or the VCR
❑
Use the TV/VIDEO on the remote control to select video source.
To watch cable TV
❑
Use the TV/VIDEO on the remote control to select VHF/UHF
source.
Installing the TV
24
Connecting an Audio Receiver
For improved sound quality, you may want to send the TV’s audio
signals to your stereo system. The procedure below tells you how.
1 Using audio cables, connect the TV’s Audio OUT jacks to the
audio receiver’s Audio LINE IN jacks.
AUDIO-R
AUDIO-L
Line input
(red)
(white)
Installing the TV
25
Connecting a DVD Player with Component
Video Connectors
This is the preferred hookup to use if your DVD player has
component video (Y, P
B, PR) jacks.
1 Using three separate component video cables, connect the DVD
player’s Y, P
B and PR jacks to the Y, PB and PR jacks on the TV. Use
the VIDEO 4 connections.
2
Using an audio cable, connect the DVD player’s Audio OUT jacks
to the TV’s Audio IN jacks. Be sure to use the same column
(VIDEO 4) of inputs that you used for the video connection.
✍ The Y, PB and PR jacks on your DVD player are sometimes labeled Y, CB and
C
R, or Y, B-Y and R-Y. If so, connect the cables to like colors.
Component video cables
DVD player
TV
AUDIO-R (red)
AUDIO-L (white)
Audio cable
✍ You cannot record the signal from any equipment connected into the Y, PB, PR
jacks.
Installing the TV
26
Connecting a DVD Player with A/V Connectors
Use this hookup if your DVD player does not have component video
(Y, P
B, PR) jacks.
1 Using audio cables, connect the DVD player’s Audio OUT jacks
to the TV’s Audio IN jacks.
2 Using an S VIDEO cable, connect the DVD player’s S VIDEO jack
to the TV’s S VIDEO jack.
To switch between your TV and DVD
❑
Use the TV/VIDEO button on the remote control to switch from one
input device to another.
✍ An S VIDEO connection will give a good quality video signal, but if your DVD
player has component video, that connection (described on the previous page)
will give an even better video signal.
Audio cable
DVD player
S VIDEO
cable
AUDIO-R (red)
AUDIO-L (white)
TV
Installing the TV
27
Connecting a Camcorder
For easy connection of a camcorder, the TV has front Audio and
Video inputs (shown below). If you prefer, however, you can connect
the camcorder to the TV’s rear Audio and Video IN jacks.
1 Using A/V cables, connect the camcorder’s Audio and Video
OUT jacks to the TV’s Audio and Video IN jacks.
If you have a mono camcorder, connect its audio output to the TV’s
AUDIO L jack.
To view the camera’s output
❑
Use the TV’s remote control to set the appropriate input on the
TV (VIDEO 2, in the illustration).
AUDIO-R (red)
AUDIO-L (white)
VIDEO (yellow)
A/V output
✍ If the camcorder has an S VIDEO jack, you can use an S VIDEO cable to
improve picture quality; replace the yellow video cable of the combination A/V
cable with the S VIDEO cable. You will still need audio cables for sound.
Installing the TV
28
Setting Up the TV Automatically
After you finish connecting your TV, you need to run Auto Setup to
set up your channels. The Auto Setup screen appears when you turn
your TV on for the first time after installing it. If you do not want to
set up the channels at this time, you can do it later by using the Auto
Program feature in the Channel menu (see page 40).
Using Auto Setup 1 Press POWER to turn on the TV.
2 Press the TV function button on the remote control.
3 Press CH+ on the front of your TV to run the Auto Setup or press
CH– to exit. If you use the channel buttons on your remote control,
be sure to use the main set of buttons.
To reset the TV to factory settings
1 Turn the TV on.
2 Hold down the RESET button on the remote control.
3 Press and release the POWER button on the TV. (The TV will turn
itself off, then back on.)
4 Release the RESET button.
✍ The Auto Setup feature does not apply for installations that use a cable box for
all channel selection.
Using the Features
30
Using Favorite Channels
The Favorite Channel feature lets you select programs from a list of
favorite channels that you specify.
To display a list of your favorite channels
1 If you have not already done so, create a list of favorite channels.
(See the Favorite Channels section of “Selecting Channel
Options” on page 40.)
2 If any menus are open, close them.
3 Press . (The Favorite Channels options appear.)
4 Press V or v to highlight the channel you want to watch. (If you
have a KV-36FS17 model, the PIP window will open, showing a
preview of the highlighted Favorite Channel.)
5 When you find the channel you want, press to select it.
Using the Features
31
Using Picture in Picture (PIP)
(KV-36FS17 only)
Picture in Picture (PIP) allows you to watch two channels
simultaneously — one in the main window and another in a
secondary (PIP) window.
Displaying Picture in
To use PIP:
1 Make sure your TV is tuned to a channel that you know is airing
programming.
2 Press the button (or the button labeled PIP). The window
picture appears.
3 Use the yellow-labeled buttons on your remote control (see
diagram) to control the PIP features (which are listed on the next
page).
To check your PIP:
1 Tune your TV to a channel that you know is airing programming.
2 Press SWAP and select that same channel as the main window.
You should now have the same program playing in both your
main window and your picture window.
3 Use the PIP (yellow) CH+/- buttons to change the channel in the
picture window.
✍ You must press TV (FUNCTION) before you can control PIP with the yellow-
labeled buttons.
The AUX input cannot be viewed in the PIP window.
6
Indicates which picture is
2
Main picture channel
Window picture channel
Window picture
Main
currently receiving sound
9
number in green
number in white
(Continued on the next page)
Using the Features
32
4 Now use the main CH+/- buttons of your remote control to
change the channel in the main window. If this does not work,
check “Troubleshooting” on page 54 for potential solutions.
PIP Functions
Yellow-labeled
PIP Button
Description
1
FREEZE Freezes the window picture. Press again to restore the
picture. The main window continues to play as usual.
2
CH +/- Changes the channel in the window picture. To change
the channel in the main window, use the main CH+/-
buttons at the bottom of the remote control.
3
POSITION Moves the location of the window picture among the
four corners of the screen.
4
SWAP Switches the main picture with the window picture.
Press again to change them back.
5
PIP Turns the PIP feature on and off. Press repeatedly to
change the window size (1/9, 1/16, OFF).
6
TV/VIDEO Cycles through available video equipment you have
connected to the TV.
7
AUDIO Alternates sound between the main picture and the
window picture. The sound symbol (
9) appears for 3
seconds, indicating whether you are hearing sound
from the main picture or the window picture.
5
4
7
6
1
3
2
RM-Y181 remote control
(Continued from the previous page)
Using the Features
33
To change channels/programs in the PIP window
❑
Use the yellow PIP CH+/- button to scroll through the TV
channels.
❑ Use the yellow TV/VIDEO button to cycle through your other video
equipment connected to the TV, such as your VCR, DVD player
or Satellite Receiver.
Setups that affect your ability to use PIP
❑
Any video equipment you have connected to the AUX input
cannot be viewed in the PIP window.
❑ If you are viewing all channels through a cable box, the PIP
feature will not work. The cable box only unscrambles one signal
at a time, so the window picture will be the same as the main
picture.
❑ You can use PIP to see pictures from different sources on your TV.
For example, you can have a regular (CATV) channel and the
output from a VCR or DVD player or satellite receiver on screen
at the same time using PIP. To do this:
1 Connect the CATV cable to the UHF/VHF input on the back
of the TV.
2 Connect the peripheral (VCR or DVD player or satellite
receiver) to any of the VIDEO IN inputs on the the back of the
TV.
3 Tune to one image in the main picture.
4 Tune to a second image in the PIP window.
You can then SWAP the images on the TV screen.
✍ You cannot use a signal from the AUX connection with PIP.
Be sure to label your
video sources to make
them easier to find in the
Display. See “Video Label”
on page 47 for labeling
instructions.
z
35
Using the Menus
Overview
Opening and choosing a menu:
1 Press MENU to display the Menu screen.
2 Use the arrow buttons to move to the desired menu icon. Press
to select it.
3 Use the arrow buttons to scroll up and down through the
features.
4 See the specific menu page for instructions on moving through
the menu.
The Menu gives you access to the following features:
Menu Icon Description Page
Allows you to make adjustments to your picture
settings. It also allows you to customize the Picture
Mode based on the type of program you are viewing.
36
Offers enhanced audio options such as listening to
second audio programming (SAP) or customizing
the Effect of the sound on your TV.
38
Allows you to set up a Favorite Channel list, run the
Auto Program function, and more.
40
Lets you control the viewing of programs based on
their ratings.
42
Lets you set the clock on your TV and allows you to
program your TV for scheduled viewing using the
Timers.
45
Provides several options for setting up your
channels, labeling your video inputs, and
selecting the language of the on-screen menus.
46
Provides quick access to frequently used settings. 48
Arrow buttons
To end a menu session:
Press MENU again
To end one menu session
and move to another:
Press F to return to the
menu icons.
Move
Select
RESET MENU
GUIDE
TV/SAT
Using the Menus
36
Using the Video Menu
To select the Video Menu
1 Press MENU.
2 Use the arrow buttons to move
to the Video icon and
press .
3 Use the arrow buttons to scroll
up and down through the
options.
4 Press to select a feature.
That feature’s adjustment appears.
5 Use the arrow buttons to make the desired adjustments.
6 Press to select/set.
7 Press MENU to exit the menu screen.
To restore the factory default settings for Picture, Brightness, Color, Hue,
Sharpness, Color Temp and VM.
❑
Press RESET on the remote control when in the Video menu.
Selecting Video
Options
The Video Menu includes the following options.
To change from one Video
Mode to another, use the
PICTURE MODE button on the
remote control.
z
Option Description
Mode
Customized
viewing
Vivid Select for enhanced picture contrast and
sharpness.
Standard Select for standard picture settings.
Movie Select to display a softer picture.
Sports
Select to display a brighter, more intense picture.
✍ You can alter the Video Menu settings (Picture, Brightness,
Color, etc.) for each Mode.
Picture Adjust to increase picture contrast and deepen the color, or
decrease picture contrast and soften the color.
Brightness Adjust to brighten or darken the picture.
Color Adjust to increase or decrease color intensity.
Hue Adjust to increase or decrease the green tones.
Sharpness Adjust to sharpen or soften the picture.
Using the Menus
37
Color Temp
White
intensity
adjustment
Choose from three color temperatures:
Cool Select to give the white colors a blue tint.
Neutral Select to give the white colors a neutral tint.
Warm Select to give the white colors a red tint
(NTSC-Standard).
VM
Velocity
Modulation
Sharpens picture definition to give every object a sharp, clean
edge. Select from High, Low, OFF.
Option Description
Using the Menus
38
Using the Audio Menu
To select the Audio Menu
1 Press MENU.
2 Use the arrow buttons to move
to the Audio icon and press
.
3 Use the arrow buttons to scroll
up and down through the
options.
4 Press to select an option.
That option’s settings appear.
5 Use the arrow buttons to scroll through the settings.
6 Press to select the desired setting.
7 Press MENU to exit the menu screen.
To restore the factory default settings for Treble, Bass, and Balance
❑
Press RESET on the remote control when in the Audio menu.
Selecting Audio
Options
The Audio Menu includes the following options:
Option Description
Treble Adjust to decrease or increase higher-pitched sounds.
Bass Adjust to decrease or increase lower-pitched sounds.
Balance Adjust to emphasize left or right speaker balance.
Effect Surround Select for Surround sound.
OFF Normal stereo or mono reception.
MTS
Enjoy stereo,
bilingual and
mono programs
Stereo Select for stereo reception when viewing a
program broadcast in stereo.
Auto-SAP Select to automatically switch the TV to second
audio programs when a signal is received. (If no
SAP signal is present, the TV remains in Stereo
mode.)
Mono Select for mono reception. (Use to reduce noise
during weak stereo broadcasts.)
Speaker ON Select to turn on the TV speakers.
OFF Select to turn off the TV speakers and listen to
the TV's sound only through your external
audio system speakers.
As a shortcut to using the
menus, use the button on
the remote control to cycle
through available audio
effects.
z
Using the Menus
39
Audio Out
Easy control of
volume
adjustments
This option can be set only when the Speaker option is set
to OFF.
Variable The TV’s speakers are turned off, but the
volume output from your audio system can still
be controlled by the TV’s remote control.
Fixed The TV’s speakers are turned off and the
volume output of the TV is fixed. Use your
audio receiver’s remote control to adjust the
volume through your audio system.
Option Description
Using the Menus
40
Using the Channel Menu
To select the Channel Menu
1 Press MENU.
2 Use the arrow buttons to move
to the Channel icon and
press .
3 Use the arrow buttons to scroll
up and down through the
options.
4 Press to select a feature.
That feature’s options appear.
5 Use the arrow buttons to scroll through the options.
6 Press to select the desired option.
7 Press MENU to exit the menu screen.
Selecting Channel
Options
The Channel Menu includes the following options:
Option Description
Favorite Channel
1 Press to select a favorite channel number.
2 Use the arrow buttons to scroll through the channels
until you find the channel you want to add to your
favorites.
3 Press to select it.
Cable ON Select if you are receiving cable channels
with a CATV cable.
OFF Select if you are using an antenna.
✍ You should run Auto Program after changing the cable
setting.
Channel Fix
Useful when you
have a cable box or
satellite receiver
connected
2-6 “Fix” your TV’s channel setting to 2 – 6 and
use the cable box or Satellite receiver to
change channels. Select one of these
settings if you have connected the device to
the VHF/UHF jack.
AUX 2-6 Same as 2-6, except you select one of these
settings if you have connected the device to
the AUX jack (see page 11).
VIDEO 1 Use this setting if you have connected the
device to the Audio and Video IN jacks.
Auto Program Automatically programs the TV for all receivable
channels.
Using the Menus
41
Channel
Skip/Add
Removes and adds viewable channels.
1 Use the arrow buttons to scroll through the channels
until you find the channel you want to skip/add.
2 Press to select it.
3 Press the arrow buttons to toggle between “Add” or
“Skip.”
4 Press to select.
Channel Label Label up to 40 channels with their station call letters.
Option Description
Channels that you set to
be skipped can be accessed
only with the 0-9 buttons.
z
Using the Menus
42
Using the Parent Menu
The Parent menu allows you to set up the TV to block programs
according to their content and rating levels.
To select the Parent Menu
1 Press MENU.
2 Use the arrow buttons to move
to the Parent icon and
press .
3 Use the 0-9 buttons on the
remote control to enter your
four-digit password.
4 Confirm your password by
entering it again. (The Parent menu options appear.)
5 Use the arrow buttons to scroll through the settings.
6 Press to select the desired setting.
7 Press MENU to exit the menu screen.
Using the Parent
Menu
The Parent menu includes the following options.
✍ You need your password for any future access into the Parent menu. If you
lose your password, see “Lost password” on page 55.
If you are not familiar with
the Parental Guideline rating
system, you should select Child,
Youth, or Young Adult to help
simplify the rating selection. To
set more restrictive ratings,
select Custom.
z
Option Description
Parental Lock
Turn ratings on/off
and select a rating
system
OFF Parental lock is off. No programs are
blocked from viewing.
Child Maximum ratings permitted are:
❏ US: TV-Y, TV-G, G
❏ Canada: C, G
Youth Maximum ratings permitted are:
❏ US: TV-PG, PG
❏ Canada: 8 ans+
Young Adult Maximum ratings permitted are:
❏ US: TV-14, PG-13
❏ Canada: 14+, 13 ans+
Custom Select to set ratings manually.
❏ US: See page 43 for details.
❏ Canada: See page 44 for details.
Change Password For changing your password.
For descriptions of Child,
Youth, and Young Adult
ratings, see page 43.
z
Using the Menus
43
US Models:
Selecting Custom
Rating Options
For US models, the Custom Rating Menu includes the following
options. (For Canadian models, see page 44.
)
Viewing Blocked
Programs
You can view blocked programs by entering the password. Press the
ENTER button when tuned to a blocked program, then enter the
password. This temporarily switches off the Parental Lock. To
reactivate the Parental Lock settings, turn off the TV. When the TV is
turned on again, your Parental Controls settings are reactivated.
Option Description
Movie Rating G All children and General Audience.
PG Parental Guidance suggested.
PG-13 Parental Guidance for children under 13.
R Restricted viewing, parental guidance is
suggested for children under 17.
NC-17
and X
No one 17 or under allowed.
TV Rating
Block programs
by their rating,
content or both
Age-Based Options
TV-Y All children.
TV-Y7 Directed to older children.
TV-G General Audience.
TV-PG Parental Guidance suggested.
TV-14 Parents Strongly cautioned.
TV-MA Mature Audience only.
Content-Based Options
FV Fantasy Violence.
D Suggestive Dialogue.
L Strong Language.
S Sexual situations.
V Violence.
Unrated
Block programs
or movies that
are broadcast
without a rating
Block Blocks all programs and movies that are
broadcast without a rating.
Allow Allows programs and movies that are broadcast
without a rating.
The content ratings will
increase depending on the level
of the age-based rating. For
example, a program with a TV-
PG V (Violence) rating may
contain moderate violence,
while a TV-14 V (Violence)
rating may contain more intense
violence.
To ensure maximum
blocking capability, the age-
based ratings should be
blocked.
If you block unrated TV
programs, be aware that the
following types of programs
may be blocked: emergency
broadcasts, political programs,
sports, news, public service
announcements, religious
programs and weather.
z
z
z
(Continued on the next page)
Using the Menus
44
Canadian Models:
Selecting Custom
Rating Options
For Canadian models, the Custom Rating Menu includes the
following options. (For US models, see page 43
.)
Viewing Blocked
Programs
You can view blocked programs by entering the password. Press the
ENTER button when tuned to a blocked program, then enter the
password. This temporarily switches off the Parental Lock. To
reactivate the Parental Lock settings, turn off the TV. When the TV is
turned on again, your Parental Controls settings are reactivated.
Option Description
English Rating C All children.
C8 Children 8 years and older.
G General programming.
PG Parental Guidance.
14+ Viewers 14 and older.
18+ Adult programming.
French Rating G General programming.
8 ans+ Not recommended for young children.
13 ans+ Not recommended for ages under 13.
16 ans+ Not recommended for ages under 16.
18 ans+ Programming restricted to adults.
USA Rating See “US Models” on page 43 for details.
(Continued from the previous page)
Using the Menus
45
Using the Timer Menu
To select the Timer Menu
1 Press MENU.
2 Use the arrow buttons to move
to the Timer icon and press
.
To set the Current Time
1 Use the arrow buttons to select
“Current Time”, then press
.
2 If it is currently Daylight Saving Time, be sure to set the mode to
“ON” first. (Daylight Saving Time starts in the Spring, and ends
in the Fall.)
3 Use the arrow buttons to enter the correct time, then press .
4 Press MENU to exit the menu screen.
To set the Timer
Before setting the timer, be sure to set your TV’s clock to the current
time (and, if appropriate, to Daylight Saving mode).
1 Use the arrow buttons to move to “Timer 1” or
“Timer 2”, then press .
2 Use the arrow buttons to enter your date, time and channel
preferences, then press to select each one.
3 Press MENU to exit the menu screen. An LED on the front panel
will light, indicating the timer has been set.
To reset the Clock or Timers
❑
Press RESET on the remote control, when in the Timer menu, to
reset to the factory defaults.
Selecting Timer
Options
The Timer Menu includes the following options:
Option Description
Timer 1
Timer 2
Program Select to set the Timer by day, time, duration,
and channel.
OFF Select to turn off the Timer. (Your previous
settings will be saved.)
Current Time Set the current time.
Daylight Saving ON Select in the spring to turn on this mode
during Daylight Saving Time.
OFF Select in the fall to turn off this mode at the
end of Daylight Saving Time.
Using the Menus
46
Using the Setup Menu
To select the Setup Menu
1 Press MENU.
2 Use the arrow buttons to move
to the Setup icon
and press .
3 Use the arrow buttons to scroll
through the features.
4 Press to select a feature.
(That feature’s options appear.)
5 Use the arrow buttons to scroll through the options.
6 Press to select the desired option.
7 Press MENU to exit the menu screen.
Selecting
Setup Options
The Setup Menu includes the following options:
Option Description
Caption Vision Allows you to select from three closed-caption modes (for
programs that are broadcast with closed caption).
CC1, CC2,
CC3, CC4
Displays a printed version of the
dialog or sound effects of a
program. (Should be set to CC1 for
most programs.)
TEXT1, TEXT2,
TEXT3, TEXT4
Displays network/station
information presented using either
half or the whole screen (if
available). For closed captioning,
set to CC1.
XDS
(Extended Data
Service)
Displays a network name, program
name, program length, and time of
the show (if the broadcaster offers
this service).
OFF Turns off Caption Vision.
Using the Menus
47
Video Label Allows you to label the audio/video components you
connected to the TV, so you can identify them when using
the TV/VIDEO button. When in the Setup menu’s Video
Label feature, use the arrow buttons to highlight an input
to label, then press to select it. Use the arrow buttons
to scroll through the labels. Press to select the
component you connected to each of the input jacks on the
back of your TV. Select “Skip” if you do not have a
component connected to a particular set of input jacks.
VIDEO 1/2/3 Choose VHS, 8mm, Beta, LD,
Game, SAT, DVD, Web, Receiver,
DTV, Skip
VIDEO 4 Choose DVD, DTV, Skip
✍ If you select “Skip”, your TV skips this connection when
you press the TV/VIDEO button.
Tilt Correction Allows you to correct any tilt of the picture.
Language Select to display all on-screen menus in your language of
choice.
16:9 Enhanced Provides enhanced picture resolution for widescreen
(anamorphic) sources, such as selected DVD titles (only
available when the TV is in VIDEO mode). Press TV/VIDEO
and select from one of the following options:
ON To activate.
OFF To turn off 16:9.
Demo Runs a demonstration of on-screen menus.
Option Description
To use this feature with
widescreen DVDs, set your
DVD player to 16:9 aspect
ratio.
z
Using the Menus
48
Using the Basic Menu
To select the Basic Menu
1 Press MENU.
2 Use the arrow buttons to move
to the Basic icon and press
.
3 Use the arrow buttons to scroll
through the features.
4 Press to select a feature.
(That feature’s options appear.)
5 Use the arrow buttons to scroll through the options.
6 Press to select the desired option.
7 Press MENU to exit the menu screen.
Selecting
Basic Options
The Basic Menu includes the following options:
Option Description
Picture Adjust the picture contrast.
Caption Vision Displays your current advanced-menu setting:
(CC1–4, TEXT 1–4, or XDS) and OFF.
Effect Surround Select for Surround sound.
OFF Normal stereo or mono reception.
Advanced Menu Select to return to the advanced menus.
As a shortcut to using the
menus, use the button on
the remote control to cycle
through available audio
effects.
z
Other Information
50
Programming the Remote Control
The remote control is preset to operate Sony-brand video equipment.
If you have video equipment other than Sony brand that you want to
control with the TV’s remote control, use the following procedure to
program the remote control.
1 Check the list of “Manufacturer’s Codes” on page 51, and find
the three-digit code number for the manufacturer of your
component. (If more than one code number is listed, use the
number listed first.
2 Press CODE SET.
3 Press the function button for the type of component you want to
control with the TV’s remote control (VCR/DVD or SAT/
CABLE).
4 Enter the three-digit manufacturer’s code number.
5 Press ENTER.
6 To check if the code number works, aim the TV’s remote control
at the component and press the green POWER button that
corresponds with that component. If it responds, you are done. If
not, try using another code listed for that manufacturer.
✍ The equipment must have infrared (IR) remote capability in order to be used
with the remote control.
✍ You must do step 4 within 10 seconds of step 3, or you must redo
steps 2 and 3.
❑ If more than one code
number is listed, try
entering them one by
one until you come to
the correct code for
your component.
❑ If you enter a new code
number, the code
number you
previously entered at
that setting is erased.
❑ In some cases, you may
not be able to operate
your component with
the supplied remote
control. In such cases,
use the component’s
own remote control
unit.
❑ Whenever you remove
the batteries to replace
them, the code
numbers may revert to
the factory setting and
must be reset.
z
Other Information
51
Manufacturer’s Codes
VCRs
Laserdisc Players
DVD Players
Cable Boxes
Satellite Receivers
Manufacturer Code
Sony 301
Admiral
(M. Ward)
327
Aiwa 338, 344
Audio
Dynamic
314, 337
Broksonic 319, 317
Canon 309, 308
Citizen 332
Craig 302, 332
Criterion 315
Curtis Mathes 304, 338, 309
Daewoo 341, 312, 309
DBX 314, 336, 337
Dimensia 304
Emerson 319, 320, 316,
317, 318, 341
Fisher 330, 335
Funai 338
General
Electric
329, 304, 309
Go Video 322, 339, 340
Goldstar 332
Hitachi 306, 304,
305,338
Instant Replay 309, 308
JC Penney 309, 305, 304,
330, 314, 336,
337
JVC 314, 336, 337,
345, 346, 347
Kenwood 314, 336, 332,
337
LXI (Sears) 332, 305, 330,
335, 338
Magnavox 308, 309, 310
Marantz 314, 336, 337
Marta 332
Memorex 309, 335
Minolta 305, 304
Mitsubishi/
MGA
323, 324, 325,
326
Multitech 325, 338, 321
NEC 314, 336, 337
Olympic 309, 308
Optimus 327
Panasonic 308, 309, 306,
307
Pentax 305, 304
Philco 308, 309
Philips 308, 309, 310
Pioneer 308
Quasar 308, 309, 306
RCA/
PROSCAN
304, 305, 308,
309, 311, 312,
313, 310, 329
Realistic 309, 330, 328,
335, 324, 338
Sansui 314
Samsung 322, 313, 321
Sanyo 330, 335
Scott 312, 313, 321,
335, 323, 324,
325, 326
Sharp 327, 328
Shintom 315
Signature
2000 (M.
Ward)
338, 327
SV2000 338
Sylvania 308, 309, 338,
310
Symphonic 338
Tashiro 332
Tatung 314, 336, 337
Teac 314. 336, 338,
337
Technics 309, 308
Toshiba 312, 311
Wards 327, 328, 335,
331, 332
Yamaha 314, 330, 336,
337
Zenith 331
Manufacturer Code
Sony 701
Panasonic 704, 710
Pioneer 702
Manufacturer Code
Manufacturer Code
Sony 751
Hitachi 758
JVC 756
Magnavox 757
Mitsubishi 761
Oritron 759
Panasonic 753
Philips 757
Pioneer 752
RCA 755
Samsung 758
Toshiba 754
Zenith 760
Manufacturer Code
Sony 230
Hamlin/Regal 222, 223, 224,
225, 226
Jerrold/G. I. 201, 202, 203,
204, 205, 206,
207, 208, 218
Oak 227, 228, 229
Panasonic 219, 220, 221
Pioneer 214, 215
Scientific
Atlanta
209, 210, 211
Tocom 216, 217
Zenith 212, 213
Manufacturer Code
Sony 801
Dish Network 810
Echostar 810
General
Electric
802
Hitachi 805
Hughes 804
Mitsubishi 809
Panasonic 803
RCA/
PROSCAN
802, 808
Toshiba 806, 807
Other Information
52
Operating Other Components with Your TV Remote Control
Operating a VCR
Operating a DVD
Player
To Do This ... Press
Turn on/off VCR/DVD (green POWER button)
Select VCR VCR/DVD (FUNCTION button)
Change channels CH +/-
Record N and z simultaneously
Play N
Stop x
Fast forward M
Rewind the tape m
Pause X (press again to resume normal playback)
Search the picture forward
or backward
M or m during playback
(release to resume normal playback)
Change input mode TV/VCR
To Do This ... Press
Turn on/off VCR/DVD (green POWER button)
Select DVD VCR/DVD (FUNCTION button)
Play N
Stop x
Pause X (press again to resume normal playback)
Step through different
tracks of an audio disc
M to step forward, or m to step backward
Step through different
chapters of a video disc
CH+ to step forward, or CH- to step backward
Select tracks directly 0-9 buttons
Display the menu
(Setup)
MENU
Other Information
53
Operating a Cable
Box
Operating a Satellite
Receiver
Operating an MDP
(Laserdisc Player)
To Do This ... Press
Turn on/off SAT/CABLE (green POWER button)
Select Cable Box SAT/CABLE (FUNCTION button)
Select a channel 0-9 buttons, ENTER
Change channels CH +/-
Back to previous channel JUMP
To Do This ... Press
Turn on/off SAT/CABLE (green POWER button)
Select Satellite Receiver SAT/CABLE (FUNCTION button)
Select a channel 0-9 buttons, ENTER
Change channels CH +/-
Back to previous channel JUMP
Change input mode TV/SAT
Display channel number DISPLAY
Display DBS guide GUIDE
Display DBS menu MENU
Move highlight (cursor) arrows
Select item button
To Do This ... Press
Turn on/off VCR/DVD (green POWER button)
Select MDP VCR/DVD (FUNCTION button)
Play N
Stop x
Pause X (press again to resume normal playback)
Search the picture forward
or backward
M or m during playback
(release to resume normal playback)
Search a chapter forward or
backward
CH +/-
Other Information
54
Troubleshooting
Problem Possible Remedies
Reset TV to
factory settings
❏ Turn on the TV. While holding down the RESET button on the remote
control, press the POWER button on the TV. (The TV will turn itself off,
then back on again.) Release the RESET button.
No picture
(screen not lit), no sound
❏ If your TV does not turn on, and a red light keeps flashing, your TV may
need service. Call your local Sony Service Center.
❏ Make sure the power cord is plugged in.
❏ Push the power button on the front of the TV.
❏ Check to see if the TV/VIDEO setting is correct: when watching TV, set to
TV. When watching connected equipment, set to VIDEO 1, 2, 3, or 4, as
appropriate.
❏ Try another channel, it could be station trouble.
Remote control
does not operate
❏ Batteries could be weak. Replace the batteries.
❏ Press TV (FUNCTION) when operating your TV.
❏ Make sure the TV’s power cord is connected securely to the wall outlet.
❏ Locate the TV at least 3-4 feet away from fluorescent lights.
❏ Check the orientation of the batteries.
Dark, poor or no
picture (screen lit),
good sound
❏ Adjust the Picture setting in the Video menu (see page 36).
❏ Adjust the Brightness setting in the Video menu (see page 36).
❏ Check antenna/cable connections.
Good picture,
no sound
❏ Press MUTING so that “MUTING” disappears from the screen (see page 4).
❏ Make sure Speaker is set to ON in the Audio menu (see page 38).
Cannot receive upper
channels (UHF) when
using an antenna
❏ Change Cable to OFF (see page 40).
❏ Use Auto Program in the Channel menu to add receivable channels that are
not presently in the TV’s memory (see page 40).
No color ❏ Adjust the Color settings in the Video menu (see page 36).
Only snow and noise
appear on the screen
❏ Check the antenna/cable connections.
❏ Try another channel; it could be station trouble.
❏ Press ANT to change the input mode (see page 7).
Dotted lines
or stripes
❏ Adjust the antenna.
❏ Move the TV away from noise sources such as cars, neon signs, or hair-
dryers.
TV is fixed to one channel ❏ Use Auto Program in the Channel menu to add receivable channels that are
not presently in the TV’s memory (see page 40).
❏ Check your Channel Fix settings (see page 40).
Double images or ghosts ❏ Using a highly directional outdoor antenna or a cable may solve the
problem.
Cannot operate menu ❏ If the item you want to choose appears in gray, you cannot select it.
Cannot receive any
channels when using
cable TV
❏ Use Auto Program in the Channel menu to add receivable channels that are
not presently in the TV’s memory (see page 40).
❏ Check your cable settings.
❏ Make sure Cable is set to ON in the Channel menu (see page 40).
Cannot gain enough volume
when using a cable box
❏ Increase the volume of the cable box using the cable box’s remote control.
Then press TV (FUNCTION) and adjust the TV’s volume.
Other Information
55
If, after reading these operating instructions, you have additional questions related to the use of your Sony
television, please call our Direct Response Center at 1-800-222-SONY (7669) (U.S. residents only) or
(416) 499-SONY (7669) (Canadian residents only).
Cannot receive channels ❏ Use Auto Program in the Channel menu to add receivable TV channels that
are not presently in TV memory (see page 40).
Unable to select a channel ❏ Use Auto Program in the Channel menu to add receivable TV channels that
are not presently in TV memory (see page 40).
Lost password ❏ In the password screen (see page 42), enter the following master password:
4357. The master password clears your previous password; it cannot be
used to temporarily unblock channels.
Cannot change channels
with the remote control
❏ If you are using the TV to change channels, be sure the TV FUNCTION
button is selected.
❏ If you are using another device to change channels, be sure you have not
inadvertently switched your TV from the channel 3 or 4 setting. Use the
Channel Fix feature to “fix” the channel based on the hookup you used (see
page 40).
❏
If you are using another device to change channels, be sure to press the green
“FUNCTION” button for that device. For example, if you are using your
VCR to change channels, be sure to press the
VCR/DVD
FUNCTION button.
Cannot cycle through the
other video equipment
connected to the TV
❏ Be sure the Video Label feature has not been set to “Skip” (see page 47).
There is a black box
on the screen
❏ You have selected a text option in the Setup menu and no text is available.
(See page 46 to reset Setup selections.) To turn off this feature, select OFF in
the Caption Vision option. If you were trying to select closed captioning,
select CC1 instead of TEXT 1-4.
The remote control will
not work in PIP mode
❏ Press the TV FUNCTION button. You may have inadvertently pressed the
VCR/DVD FUNCTION button, which changes the PIP buttons to VCR mode.
There is no window
picture, or it is just static
❏ Be sure your window picture is set to a video source/channel that has a
program airing.
❏ You may be tuned to a video input with nothing connected to it. Try
cycling through your video inputs using the PIP TV/VIDEO button.
❏ PIP is not set to receive a signal from the AUX input. If you connected a
VCR, DVD player or Satellite Receiver to the AUX input on the TV, it will
not show in the small window picture.
I get the same program in
the window picture as in
the main picture
❏ Both may be set to the same channel. Try changing channels in either the
main picture or the window picture.
❏ You may using a cable box for all your channels. If you must have a cable
box to unscramble all channels, then you are limited to only one picture
(because that is all that the cable box allows - one channel at a time). But if
you need the cable box only part time (to unscramble premium channels),
then you can use PIP when you are not using the cable box (when you use
the CATV cable without going through the box).
I cannot get anything but
TV in my window picture
❏ Be sure the video label has not been set to skip your video inputs. (See the
Setup menu on page 47.)
Problem Possible Remedies
Other Information
56
Specifications
All Models (General)
Picture Tube FD Trinitron
®
tube
Antenna 75 ohm external terminal for VHF/UHF
Television System NTSC, American TV Standard
Channel Coverage
VHF 2-13
UHF 14-69
CATV 1-125
Power Requirements 120V, 60 Hz
Number of Inputs/Outputs
Video (IN) 3 1 Vp-p, 75 ohms unbalanced, sync negative
S Video (IN) 1 Y: 1 Vp-p, 75 ohms unbalanced, sync negative
C: 0.286 Vp-p (Burst signal), 75 ohms
Audio (IN) 4 500 mVrms (100% modulation)
Impedance: 47 kilohm
Variable/Fixed Audio (OUT) 1 More than 408 mVrms at the maximum
volume setting (Variable)
More than 408 mVrms (Fixed)
Impedance (output): 2 kilohms
Component Video Input 1 (Y, P
B
, P
R
) Y: 1.0 Vp-p, 75 ohms unbalanced, sync
negative; P
B
: 0.7 Vp-p, 75 ohms
P
R
: 0.7 Vp-p, 75 ohms
KV-36FS13, 36FS17
Supplied Accessories
Remote Control
KV-36FS13 RM-Y180
KV-36FS17 RM-Y181
AA (R6) Batteries 2 supplied for remote control
Optional Accessories
AV Cable VMC-810/820/830 HG
Audio Cable RKC-515HG
Component Video Cable VMC-10/30 HG
TV Stand SU-36FD4
Visible Screen Size 36 in (911 mm) picture measured diagonally
Actual CRT Size 38 in (965.2 mm) picture measured diagonally
Speaker Output 10 W x 2
Dimensions (W x H x D) 910 x 791 x 650 mm (35 7/8 x 31 1/8 x 25 5/8 in)
Mass 100 kg (220 lbs)
Power Consumption
In Use 200 W
In Standby 2 W
57
Index
16:9 (anamorphic or widescreen) 2, 47
A
Activating a PIP screen 31
Adding channels to the channel list 41
Adjusting the picture definition 37
ANT button 7
Aspect ratio, 16:9 47
Audio menu 35, 38
audio receiver, connecting 24
Auto Program (channel setup) 28, 40
Auto-SAP 35, 38
Auto setup 28
B
balance, adjusting 38
Basic menu 35, 48
bass, adjusting 38
batteries
inserting in remote 3
bilingual audio 38
blocking programs. See ratings 42
brightness, adjusting 36
C
cable
box, connecting with VCR 17
connecting 12
-15
setting ON/OFF
40
with VCR, connecting
16
cable box, using with TV remote control 53
camcorder, connecting 27
Caption Vision 46, 48
CATV. see cable
Channel List
Adding channels to 41
Removing channels from 41
Channel menu 35, 40
Channel Setup menu 40
Channel Skip/Add 41
channels
creating labels 41
setting up
28
closed caption modes 46
Code Set Button 4, 6, 50
color temperature, adjusting 37
color, adjusting 36
Connecting:
Audio Receiver 24
Cable or antenna 12
-15
Cable box 13
-15
Camcorder
27
DVD player 25
, 26
Satellite receiver 21
VCR
16-20
VCR with satellite receiver 22
Contents of box 3
Controls and connections 10-11
Converter 14
D
Demo, menus 47
Display button 5, 7
Display, turning off 5, 7
DVD player
using with TV remote control 52
with A/V connectors, connecting
26
with component video connectors,
connecting
25
E
Enhanced picture resolution 47
Extended Data Service 46
F
Favorite Channel
setting up 40
using
30
features 2
Front Panel controls 10
G
Guide button 5, 7
(Continued on the next page)
Index
58
H
Hookups 12-27
hue, adjusting 36
I
inputs, labeling 47
J
Jump button 4, 6
L
label
channels 41
video inputs
47
Languages 47
Locking programs 42
