Owner 's Manual for Refrigerator

COMPONENTS

Use this page to become more familiar with the parts and features of your refrigerator.

*The appearance and specifications of the actual product may differ depending on the model.

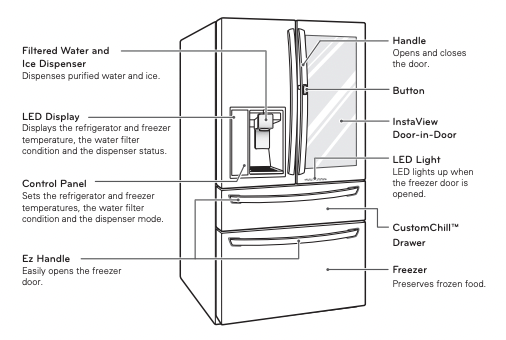

Refrigerator Exterior

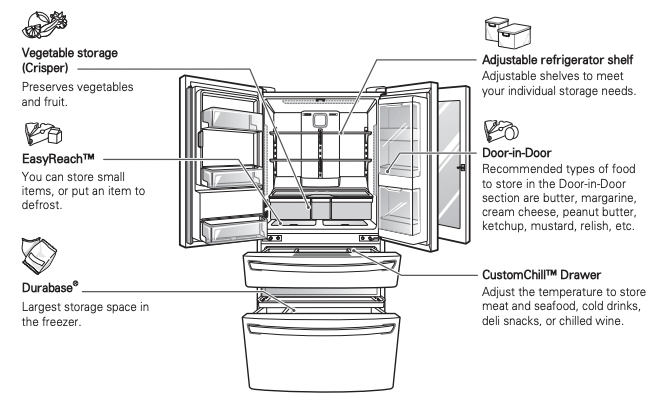

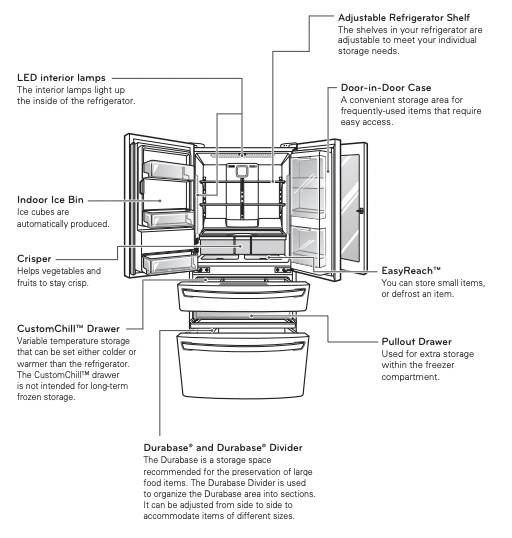

Refrigerator Interior

INSTALLATION

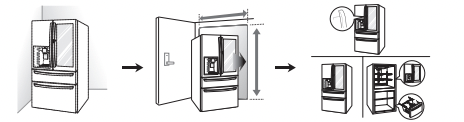

Installation Overview

Please read the following installation instructions first after purchasing this product or transporting it to another location.

1 Unpacking your refrigerator

2 Choosing the proper location

3 Disassembling/Assembling

4 Connecting the water supply and water line

5 Leveling and Door Alignment

Note Connect to potable water supply only.

Removing/Assembling the Refrigerator Door Handles

Note When it is necessary to move the refrigerator through a narrow opening, removing the doors is the recommended procedure. If it is necessary to remove the handles, follow the directions below.

1 Loosen the set screws with a 3 /32 in. Allen wrench and remove the handle.

2 Loosen the mounting fasteners that connect to the refrigerator door and handle using a 1 /4 in. Allen wrench, and remove the mounting fasteners.

Assembling the Handles

1 Assemble the mounting fasteners at both ends of the handle using a 1 /4 in. Allen wrench.

2 Place the handle on the door by fitting the handle footprints over the mounting fasteners and tightening the set screws with a 3 /32 in. Allen wrench.

Removing/Assembling the Freezer Drawer Handle

Removing the Handle

1 Loosen the set screws located on the lower side of the handle with a 1 /8 in. Allen wrench and remove the handle.

2 Loosen the mounting fasteners that connect to the freezer drawer and handle using a 1 /4 in. Allen wrench, and remove the mounting fasteners.

Assembling the Handle

1 Assemble the mounting fasteners at both ends of the handle using a 1 /4 in. Allen wrench.

2 Place the handle on the door by fitting the handle footprints over the mounting fasteners and tightening the set screws with a 1 /8 in. Allen wrench.

Warning

When assembling or disassembling the handle:

• Grasp the handle tightly to avoid dropping it.

• Do not swing the handle into nearby people or animals.

• Make sure that the bracket hole of the handle fits properly into the stopper bolt of the door. Assemble the set screws to fix the handle into place.

• Make sure that there is not a gap between the door and handle after assembling the handle.

Removing/Assembling the Doors and Drawers

When it is necessary to move the refrigerator through a narrow opening, removing the doors is the recommended procedure.

Warning

• If your entrance door is too narrow for the refrigerator to pass through, remove the refrigerator doors and move the refrigerator sideways through the doorway.

• Use two or more people to remove and install the refrigerator doors. Failure to do so can result in back or other injury.

• Disconnect the electrical supply to the refrigerator before installing. Failure to do so could result in serious injury or death.

• Do not put hands, feet or other objects into the air vents or bottom of the refrigerator. You may be injured or receive an electrical shock.

• Be careful when handling the hinge and stopper, to avoid injury.

• Remove food and bins before detaching the doors and drawers.

  • 1 The water supply is connected to the upper right part of the rear surface of the refrigerator. Remove the ring in the joint area. Hold the water supply connection and gently push the collet to detach the water supply line as shown in .

Note Detachment of the water supply line is applicable only when detaching the left refrigerator door.

  • 2 Remove the screw from the hinge cover at the top of the refrigerator. Lift the hook (not visible), located at the bottom of the front side of the cover with a flat-head screwdriver.

  • 3 Remove the cover and pull out the tube . Disconnect all wire harnesses . Unscrew the ground wire .

  • 4 Rotate the hinge lever counterclockwise . Lift the top hinge free of the hinge lever latch.

Caution When lifting the hinge free of the latch, be careful that the door does not fall forward.

  • 5 Lift the door from the middle hinge pin and remove the door.

Caution Place the door, inside facing up, on a non-scratching surface.

Removing the Right Refrigerator Door

  • 1 Remove the top hinge cover screw . Lift the hook (not visible), located at the bottom of the front side of the cover , with a flat-head screwdriver.

  • 2 Detach the wire harnesses . Unscrew the ground wire .

  • 3 Rotate the hinge lever clockwise. Lift the top hinge free of the hinge lever latch.


Caution
When lifting the hinge free of the hinge lever latch, be careful that the door does not fall forward.

  • 4 Lift the door from the middle hinge pin and remove the door.

Caution Place the door, inside facing up, on a non-scratching surface.

Assembling the Right Refrigerator Door

Install the right-side door first.

  • 1 Make sure that the plastic sleeve is inserted in the bottom of the door. Lower the door onto the middle hinge pin as shown in the figure.

  • 2 Fit the hinge over the hinge lever latch and slot it into place. Rotate the lever counterclockwise to secure the hinge.

  • 3 Connect the wire harnesses . Screw the ground wire .

  • 4 Make sure that the door-switch located inside the cover is tightly connected. Position the cover in its place. Insert and tighten the cover screw .

Assembling the Left Refrigerator Door

Install the left refrigerator door after the right door is installed.

  • 1 Make sure that the plastic sleeve is inserted in the bottom of the door. Install the refrigerator door onto the middle hinge.

  • 2 Fit the hinge over the hinge lever latch and slot it into place. Rotate the lever clockwise and fasten the hinge.

  • 3 Connect all the wire harnesses.

  • 4 Push the water supply tube into the hole on the top case and pull it through the backplate

  • 5 Hold the water supply connection and gently push in the collet to connect the water supply line as shown in . Insert the tube at least 5 /8 inch (15 mm) into the connector.

  • 6 Screw the ground wire . Make sure that the door-switch located inside the cover is tightly connected. Place the cover in its position and tighten the cover screw .

Note

1) Gently insert the tube until only one line shows on the tube.

2) Pull the tube to make sure that the tube is tightly fastened.

Removing the CustomChill™ Drawer

  • 1 Pull the drawer open to full extension. Remove the basket by lifting the basket from the rail system.

Note Before removing the CustomChill™ drawer, it must be disconnected from the temperature control.

  • 2 Disconnect the wire harness connection at the end of the right rail by pressing on the tabs on either side. It may help to use a small, flat-blade screwdriver to apply pressure to the ends of the tabs on either side.

  • 3 Hold both sides of the door and lift it to remove it from the rail system.

Assembling the CustomChill™ Drawer

  • 1 Grasp the door on each side and lower it into place on the rail system.

  • 2 Reconnect the wire harness to the connection at the end of the right rail by aligning the two ends and pushing them together until you hear a click. The tabs should snap back into place. Tug gently to make sure the connection is secure.

Note If you do not reconnect the wire harness securely, the CustomChill™ drawer will not work properly.

  • 3 Pull the drawer open to full extension. Lower the basket onto the rail system.

Removing the Freezer Drawer

Caution

  • Use two or more people to remove and install the freezer drawer. Failure to do so can result in back or other injury.
  • Do not hold the handle when removing or replacing the drawer. The handle may come off, causing personal injury.
  • Be careful of sharp hinges on both sides of the drawer.
  • When you lay the drawer down, be careful not to damage the floor.
  • Do not sit or stand on the freezer drawer.
  • To prevent accidents, keep children and pets away from the drawer. Do not leave the drawer open.

1 Pull the freezer drawer open to full extension.

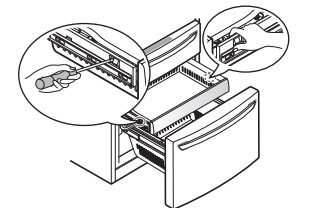

2 Remove the top pullout drawer by first pulling the drawer open to full extension.

On the left rail, use a flat blade screwdriver to push in on the tab to release the drawer from the rail, as shown below. Once the left side is loose, push the tab on the right side with your finger to release the drawer. Lift the front of the drawer up, then pull it straight out.

3 Remove the middle drawer by pulling the drawer out to full extension. Lift the front of the drawer up, then pull it straight out.

4 Remove the Durabase by opening the freezer drawer to full extension and lifting the basket off of the rail assembly.

5 Remove the screws from the rails at both ends.

6 With both hands, grip both sides of the drawer and pull it up to remove it from the rails.

Caution Do not hold the handle when removing or replacing the drawer. The handle may come off and it could cause personal injury.

7 With both hands, hold each rail and push them in simultaneously.

Assembling the Freezer Drawer

  • 1 With both hands, pull out each rail simultaneously until both rails are fully extended.

  • 2 Grasp the drawer on each side and hook the drawer supports into the rail tabs located on both sides.

Caution Do not hold the handle when removing or replacing the drawer. The handle may come off and it could cause personal injury.

  • 3 Lower the door into final position and tighten the screws located on both sides.

  • 4 Insert the the top pullout drawer into the frame, and push the drawer back into place until you hear a click.

  • 5 Slightly tilt up the front of the middle drawer, insert the drawer into the frame, and push it back into place.
  • 6 Insert the lower basket in the rail assembly.

HOW TO USE

Before use

Clean the refrigerator.

Clean your refrigerator thoroughly and wipe off all dust that accumulated during shipping.

Caution

• Do not scratch the refrigerator with a sharp object or use a detergent that contains alcohol, a flammable liquid or an abrasive when removing any tape or adhesive from the refrigerator,.

• Do not peel off the model or serial number label or the technical information on the rear surface of the refrigerator.

Note Remove adhesive residue by wiping it off with your thumb or dish detergent.

Open refrigerator doors and freezer drawers to ventilate the interior.

The inside of the refrigerator may smell like plastic at first. Remove any adhesive tape from inside the refrigerator and open the refrigerator doors and the freezer drawers for ventilation.

Connect the power supply.

Check if the power supply is connected before use. Read the “Turning On The Power” section.

Turn off the icemaker if the refrigerator is not yet connected to the water supply

Turn off the automatic icemaker and then plug the power plug of the refrigerator into the grounded electrical outlet. * This is applicable only to certain models.

Caution Running the automatic icemaker before connecting it to the water supply may cause the refrigerator to malfunction.

Wait for the refrigerator to cool.

Allow your refrigerator to run for at least two to three hours before putting food in it. Check the flow of cold air in the freezer compartment to ensure proper cooling.

Caution Putting food in the refrigerator before it has cooled could cause the food to spoil, or a bad odor could linger inside the refrigerator.

The refrigerator makes a loud noise after initial operation.

This is normal. The volume will decrease as the temperature lowers.

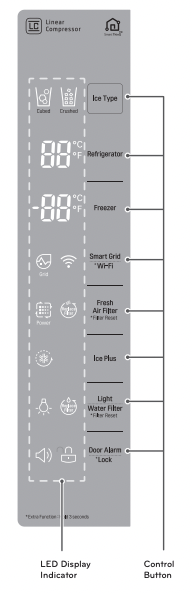

Control Panel

* Depending on the model, some of the following functions may not be available. The actual control panel may differ from model to model.

Control Panel Features

Ice Type

Press the Ice Type button to choose either cubed or crushed ice. The cubed or crushed ice icon will illuminate.

Refrigerator

Temperature Indicates the set temperature of the refrigerator compartment in Celsius (°C) or Fahrenheit (°F). The default temperature for the refrigerator is 37°F.

Freezer Temperature

Indicates the set temperature of the freezer compartment in Celsius (°C) or Fahrenheit (°F). The default temperature for the freezer is 0°F.

To change the temperature mode from °F to °C (or vice versa) press and hold the Refrigerator and Freezer temperature buttons simultaneously for approximately five seconds. The temperature indication on the display window switches between Celsius and Fahrenheit.

Note The displayed temperature is the target temperature, and not the actual temperature of the refrigerator. The actual refrigerator temperature depends on the food inside the refrigerator.

Fresh Air Filter

The Fresh Air Filter helps remove odors from the refrigerator. The Fresh Air Filter has two settings, Auto and Power. In Auto mode, the Fresh Air Filter will cycle on and off in increments of ten minutes on and 110 minutes off. If set to the Power mode, the Fresh Air Filter will stay on continuously for four hours, cycling on and off in increments of ten minutes on and five minutes off. After four hours, the Fresh Air Filter will switch back to Auto mode.

• Press the Fresh Air Filter button once for Power mode.

• Press the Fresh Air Filter button again to switch back to Auto mode.

Change Filter

When the Change Filter icon turns on, the air filter needs to be replaced. After replacing the air filter, press and hold the Fresh Air Filter button for three seconds to turn the icon light off. Change the air filter approximately every 6 months.

Ice Plus

This function increases both ice making and freezing capabilities.

• When you touch the Ice Plus button, the graphic will illuminate in the display and will continue for 24 hours. The function will automatically shut off after 24 hours.

• You can stop this function manually by touching the button one more time.

Light

When you press the Light button, the dispenser light will turn on and the indicator will appear on the LED display.

Change Water Filter

When the Water Filter indicator turns on, you need to change the water filter. After changing the water filter, press and hold the Change Filter button for three seconds to turn the indicator light off. Change the water filter approximately every six months.

Door Alarm

• When power is connected to the refrigerator, the door alarm is initially set to ON. When you press the Alarm button, the display will change to OFF and the Door Alarm function will deactivate.

• When either the refrigerator or the freezer door is left open for more than 60 seconds, the alarm tone will sound to let you know that the door is open.

• When you close the door, the door alarm will stop

Lock

The Lock function disables every other button on the display.

• When power is initially connected to the refrigerator, the Lock function is off.

• If you want to activate the Lock function to lock other buttons, press and hold the Lock button for three seconds or more. The Lock icon will display and the Lock function is now enabled.

• To disable the Lock function, press and hold the Lock button for approximately three seconds.

Wi-Fi

The Wi-Fi button, when used with the LG Smart Refrigerator smart phone app, allows the refrigerator to connect to your home’s WiFi network. Refer to the following page for information on the initial setup of the application.

The Wi-Fi icon allows you to check the status of the refrigerator’s network connection. When the refrigerator is connected to the network, the Wi-Fi icon is illuminated.

Press and hold the Wi-Fi button for 3 seconds to connect to the network. The icon will blink while the connection is being made, then turn on once the connection is successfully made.

Smart Grid

Press the Smart Grid button to turn the Smart Grid function On/Off. When the function is on, the icon will illuminate. The Smart Grid function automatically turns on when the refrigerator is connected to the Wi-Fi network.

When the refrigerator is responding to a Demand Response (DR) message from the electric company, the Grid text will illuminate.

Power Saving Mode

• When the refrigerator is in the Power Saving Mode, the display will remain off until a door is opened or a button is pressed. Once on, the display will remain on for 20 seconds.

Caution

Display Mode (For Store Use Only)

The Display Mode disables all cooling in the refrigerator and freezer sections to conserve energy while on display in a retail store. When activated, OFF will display on the control panel and the display will remain on for 20 seconds.

To deactivate / activate:

With either refrigerator door opened, press and hold the Refrigerator and Ice Plus buttons at the same time for five seconds. The control panel will beep and the temperature settings will display to confirm that Display Mode is deactivated. Use the same procedure to activate the Display Mode.

In-Door Ice Bin

* Depending on the model, some of the following functions may not be available.

Caution

  • Keep hands and tools out of the ice compartment door and dispenser chute. Failure to do so may result in damage or personal injury.
  • The icemaker will stop producing ice when the in-door ice bin is full. If you need more ice, empty the ice bin into the extra ice bin in the freezer compartment. During use, the ice can become uneven causing the icemaker to misread the amount of ice cubes and stop producing ice. Shaking the ice bin to level the ice within it can reduce this problem.
  • Storing cans or other items in the ice bin will damage the icemaker.
  • Keep the ice compartment door closed tightly. If the ice compartment door is not closed tightly, the cold air in the ice bin will freeze food in the refrigerator compartment. This could also cause the icemaker to stop producing ice.
  • If the On/Off switch on the icemaker is set to Off for an extended period of time, the ice compartment will gradually warm up to the temperature of the refrigerator compartment. To prevent ice cubes from melting and leaking from the dispenser, ALWAYS empty the ice bin when the icemaker is set to Off for more than a few hours.

Detaching the In-Door Ice Bin

  • 1 Gently pull the handle to open the ice compartment.

  • 2 To remove the in-door ice bin, grip the front handle, slightly lift the lower part, and slowly pull out the bin as shown.

Assembling the In-Door Ice Bin

  • 1 Carefully insert the in-door ice bin while slightly slanting it to avoid contact with the icemaker.

  • 2 Avoid touching the ice-detecting sensor when replacing the ice bin. See the label on the ice compartment door for details.

Caution When handling the ice bin, keep hands away from the icemaker tray area to avoid personal injury.

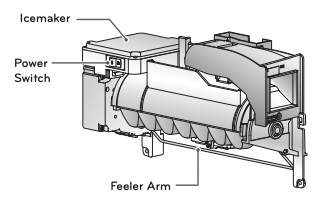

Automatic Icemaker

* Depending on the model, some of the following functions may not be available.

Ice is made in the automatic icemaker and sent to the dispenser. The icemaker will produce 70~182 cubes in a 24-hour period, depending on freezer compartment temperature, room temperature, number of door openings and other operating conditions.

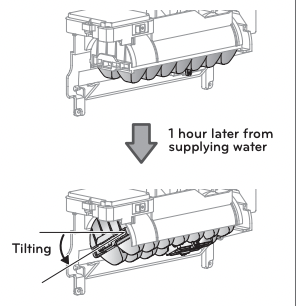

  • It takes about 12 to 24 hours for a newly installed refrigerator to begin making ice. Wait hours for full ice production to occur.
  • Ice making stops when the in-door ice bin is full. When full, the in-door ice bin holds approximately 6 to 8 (12~16 oz or 340~455 cc) glasses of ice.
  • The water pressure must be 20~120 psi or kPa or 1.4~8.4 kgf/cm² on models without a water filter and 40~120 psi or kPa or 2.8~8.4 kgf/cm² on models with a water filter to produce the normal amount and size of ice cubes.
  • Foreign substances or frost on the icedetecting sensor can interrupt ice production. Make sure the sensor area is clean at all times for proper operation.

Warning Personal Injury Hazard DO NOT place fingers or hands on the automatic ice making mechanism while the refrigerator is plugged in.

Water fills the ice tray.

• 60 minutes after water has been added to the ice tray, the ice tray will sit slightly tilted to help the cold air reach the ice.

• The ice-detecting sensors will sense when the ice is ready to be dumped into the ice bin.

Turning the Automatic Icemaker On or Off

To turn off the automatic icemaker, set the icemaker switch to OFF (O). To turn on the automatic icemaker, set the switch to ON (I).

Caution

• The first ice and water dispensed may include particles or odor from the water supply line or the water tank.

• Throw away the first few batches of ice. This is also necessary if the refrigerator has not been used for a long time.

• Never store beverage cans or other items in the ice bin for the purpose of rapid cooling. Doing so may damage the icemaker or the containers may burst.

• If discolored ice is dispensed, check the water filter and water supply. If the problem continues, contact a qualified service center. Do not use the ice or water until the problem is corrected.

• Keep children away from the dispenser. Children may play with or damage the controls.

• The ice passage may become blocked with frost if only crushed ice is used. Remove the frost that accumulates by removing the ice bin and clearing the passage with a rubber spatula. Dispensing cubed ice can also help prevent frost buildup.

• Never use thin crystal glass or crockery to collect ice. Such containers may chip or break resulting in glass fragments in the ice.

• Dispense ice into a glass before filling it with water or other beverages. Splashing may occur if ice is dispensed into a glass that already contains liquid.

• Never use a glass that is exceptionally narrow or deep. Ice may jam in the ice passage and refrigerator performance may be affected.

• Keep the glass at a proper distance from the ice outlet. A glass held too close to the outlet may prevent ice from dispensing.

• To avoid personal injury, keep hands out of the ice door and passage.

• Never remove the dispenser cover.

• If ice or water dispenses unexpectedly, turn off the water supply and contact a qualified service center.

When You Should Turn the Icemaker Off

• When the water supply will be shut off for several hours.

• When the ice bin is removed for more than one or two minutes.

• When the refrigerator will not be used for several days.

Note The ice bin should be emptied when the icemaker on/off switch is turned to the OFF position.

Normal Sounds You May Hear

• The icemaker water valve will buzz as the icemaker fills with water. If the power switch is in the ON (I) position, it will buzz even if it has not yet been hooked up to water. To stop the buzzing, move the power switch to OFF (O).

Note Keeping the power switch in the ON (I) position before the water line is connected can damage the icemaker.

• You will hear the sound of cubes dropping into the bin and water running in the pipes as the icemaker refills.

Preparing for Vacation

Set the icemaker power switch to OFF (O) and shut off the water supply to the refrigerator.

Note The ice bin should be emptied anytime the icemaker on/off switch is turned to the OFF (O) position.

If the ambient temperature is expected to drop below freezing, have a qualified technician drain the water supply system to prevent serious property damage due to flooding caused by ruptured water lines or connections.

Ice and Water Dispenser

* Depending on the model, some of the following functions may not be available.

Caution Keep children away from the dispenser to prevent children playing with or damaging the controls.

Dispenser

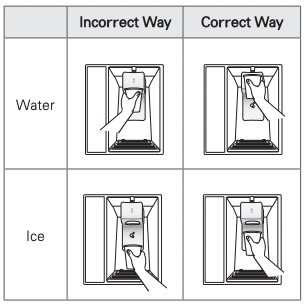

Using the Dispenser

• To dispense cold water, push on the water switch with a glass.

• To dispense ice, push on the ice switch with a glass.

Note

• If discolored ice is dispensed, check the water filter and water supply. If the problem continues, contact a qualified service center. Do not use the ice or water until the problem is corrected.

• The dispenser will not operate when either of the refrigerator doors are open.

• If dispensing water or ice into a container with a small opening, place it as close to the dispenser as possible.

• Some dripping may occur after dispensing. Hold your cup beneath the dispenser for a few seconds after dispensing to catch all of the drops.

Caution Throw away the first few batches of ice (about 24 cubes). This is also necessary if the refrigerator has not been used for a long time.

Locking the Dispenser

Press and hold the Alarm and Lock button simultainously for 3 seconds to lock the dispenser and all the control panel functions. Follow the same instructions to unlock.

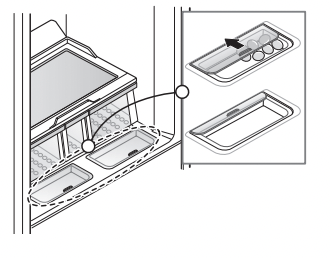

Cleaning the Dispenser Stand

  • 1 Grip the stand with both hands and pull it out.

  • 2 Wipe out dirty areas with a clean cloth.

Storing Food

Food Preservation Location

Each compartment inside the refrigerator is designed to store different types of food. Store your food in the optimal space to enjoy the freshest taste.

Caution

  • Do not store food with high moisture content towards the top of the refrigerator. The moisture could come in direct contact with the cold air and freeze.
  • Wash food before storing it in the refrigerator. Vegetables and fruit should be washed, and food packaging should be wiped down to prevent adjacent foods from being contaminated.
  • If the refrigerator is kept in a hot and humid place, frequent opening of the door or storing a lot of vegetables in the refrigerator may cause condensation to form. Wipe off the condensation with a clean cloth or a paper towel.
  • If the refrigerator door or freezer drawer is opened too often, warm air may penetrate the refrigerator and raise its temperature. It can also increase the cost to run the appliance.
  • Do not overfill or pack items too tightly into door bins. Doing so may cause damage to the bin or personal injury if items are removed with excessive force.
  • The temperature inside the EasyReach™ is slightly lower than in the shelf or door bin area.

Note

  • If you are leaving home for a short period of time, like a short vacation, the refrigerator should be left on. Refrigerated foods that are able to be frozen will stay preserved longer if stored in the freezer.
  • If you are leaving the refrigerator turned off for an extended period of time, remove all food and unplug the power cord. Clean the interior, and leave the door open to prevent fungi from growing in the refrigerator.

Food Storage Tips

* The following tips may not be applicable depending on the model.

Wrap or store food in the refrigerator in airtight and moisture-proof material unless otherwise noted. This prevents food odor and taste transfer throughout the refrigerator. For dated products, check date code to ensure freshness.

Food How to
Butter or Margarine Keep opened butter in a covered dish or closed compartment. When storing an extra supply, wrap in freezer packaging and freeze.
Cheese Store in the original wrapping until you are ready to use it. Once opened, rewrap tightly in plastic wrap or aluminum foil.
Milk Wipe milk cartons. For coldest milk, place containers on interior shelf.
Eggs Store in original carton on interior shelf, not on door shelf.
Fruit Do not wash or hull the fruit until it is ready to be used. Sort and keep fruit in its original container, in a crisper, or store in a completely closed paper bag on a refrigerator shelf.
Leafy Vegetables Remove store wrapping and trim or tear off bruised and discolored areas. Wash in cold water and drain. Place in plastic bag or plastic container and store in crisper.
Vegetables with skins (carrots, peppers) Place in plastic bags or plastic container and store in crisper.
Fish Store fresh fish and shellfish in the freezer section if they are not being consumed the same day of purchase. It is recommended to consume fresh fish and shellfish the same day purchased.
Leftovers Cover leftovers with plastic wrap or aluminum foil, or store in plastic containers with tight lids.

Storing Frozen Food

Note Check a freezer guide or a reliable cookbook for further information about preparing food for freezing or food storage times.

Freezing

Your freezer will not quick-freeze a large quantity of food. Do not put more unfrozen food into the freezer than will freeze within 24 hours (no more than 2 to 3 lbs. of food per cubic foot of freezer space). Leave enough space in the freezer for air to circulate around packages. Be careful to leave enough room at the front so the door can close tightly.

Storage times will vary according to the quality and type of food, the type of packaging or wrap used (how airtight and moisture-proof) and the storage temperature. Ice crystals inside a sealed package are normal. This simply means that moisture in the food and air inside the package have condensed, creating ice crystals.

Note Allow hot foods to cool at room temperature for 30 minutes, then package and freeze. Cooling hot foods before freezing saves energy

Glide‘N’Access™ (on some models)

The Glide’N’Access™ slides out for easy loading of large items, like sheet cakes or deli trays, and to give you easy access to items stored at the back of the shelf. To slide out, grasp the handle at the front of the shelf and gently pull forward. Push back to slide in.

Caution Take care when sliding the Glide'N'Access™ in and out, as taller items may fall, causing damage or injury

EasyReach™ (on some models)

The EasyReach™ compartments are slightly cooler than the shelf or door bin areas, so they are a convenient place to store dairy snacks or other small items you want to keep especially cold. They are also a handy place to defrost meat. Open and close by pulling the handle.

Humidity Controlled Crisper (on some models)

Depending on the model, some of the following functions may not be available.

The crispers provide fresher tasting fruit and vegetables by letting you easily control humidity inside the drawer.

Control the amount of humidity in the moisture-sealed crispers by adjusting the control to any setting between Vegetables and Fruit.

  • Vegetables keeps moist air in the crisper for best storage of fresh, leafy vegetables.
  • Fruit lets moist air out of the crisper for best storage of fruit.

Door Bins

The door bins are removable for easy cleaning and adjustment.

  • 1 To remove the bin, simply lift the bin up and pull straight out.
  • 2 To replace the bin, slide it in above the desired support and push down until it snaps into place.

Note Some bins may vary in appearance and will only fit in one location.

Caution

• Do not apply excessive force while detaching or assembling the storage bins.

• Do not use the dishwasher to clean the storage bins and shelves.

• Regularly detach and wash the storage bins and shelves; they can become easily contaminated by the food.

InstaView Door-in-Door

The InstaView Door-in-Door compartment allows for easy access to commonly used food items.

InstaView Door-in-Door Compartment

To access the InstaView Door-in-Door compartment, lightly press the button on the right refrigerator door handle to open the door.

InstaView Function

The InstaView function on the Door-in-Door lets you see if you’re running low on frequently used items like beverages and snacks, without opening the refrigerator door.

1 Knock twice on the glass to turn the LED light inside the Door-in-Door on or off.

2 The LED light turns off automatically after ten seconds.

• The InstaView Door-in-Door function is disabled when the right refrigerator door is open, for two seconds after closing the door, and when the ice dispenser is in use.

• Knock near the center of the glass. Knocking near the edges of the glass may not activate the InstaView Door-in-Door function properly.

• Knock hard enough that the knocking sound is audible.

• The InstaView Door-in-Door function may activate if a loud noise occurs near the refrigerator.

Door-in-Door Case

To open the Door-in-Door case, slightly push the marked area to pop it open. The Door-inDoor Case is removable for easy cleaning and adjustment.

  • 1 To remove the Door-in-Door case, lift up and pull out.

  • 2 To replace the Door-in-Door case, line the tabs on the Door-in-Door case with the slots on the door and push down until it snaps into place.

CustomChill™ Drawer

The CustomChill™ Drawer provides storage space with a variable temperature control that can be adjusted to keep the compartment either colder or warmer than the refrigerator.

Setting the Temperature

Press the Select/Lock button repeatedly to toggle through the four temperature settings. Store meat and seafood at 29°F/-1°C, cold drinks at 33°F/1°C, deli snacks at 37°F/3°C, or chilled wine at 42°F/5°C.

Control Lock

The control panel can also be locked to prevent the temperature from accidentally being changed or tampered with by children. To lock the panel, press and hold the Select/Lock button for three seconds until the Lock icon lights up. To unlock the panel, press and hold the Select/Lock button until the Lock icon light turns off.

MAINTENANCE

Cleaning

• Both the refrigerator and freezer sections defrost automatically; however, clean both sections about once a month to prevent odors.

• Wipe up spills immediately.

• Always unplug the refrigerator before cleaning.

General Cleaning Tips

• Unplug refrigerator or disconnect power.

• Remove all removable parts, such as shelves, crispers, etc.

• Use a clean sponge or soft cloth and a mild detergent in warm water. Do not use abrasive or harsh cleaners.

• Hand wash, rinse and dry all surfaces thoroughly

Exterior

Waxing external painted metal surfaces helps provide rust protection. Do not wax plastic parts. Wax painted metal surfaces at least twice a year using appliance wax (or auto paste wax). Apply wax with a clean, soft cloth.

For products with a stainless steel exterior, use a clean sponge or soft cloth and a mild detergent in warm water. Do not use abrasive or harsh cleaners. Dry thoroughly with a soft cloth.

Caution

• Do not use a rough cloth or sponge when cleaning the interior and exterior of the refrigerator.

• Do not place your hand on the bottom surface of the refrigerator when opening and closing.

Warning Use non-flammable cleaner. Failure to do so can result in fire, explosion, or death.

Inside Walls (Allow the freezer to warm up so that the cloth will not stick.)

To help remove odors, you can wash the inside of the refrigerator with a mixture of baking soda and warm water. Mix 2 tablespoons of baking soda to 1 quart of water (26 g soda to 1 liter water) Be sure the baking soda is completely dissolved so it does not scratch the surfaces of the refrigerator.

Door Liners and Gaskets

Use a clean sponge or soft cloth and a mild detergent in warm water. Do not use cleaning waxes, concentrated detergents, bleaches, or cleaners containing petroleum on plastic refrigerator parts.

Plastic Parts (covers and panels)

Use a clean sponge or soft cloth and a mild detergent in warm water. Do not use glass cleaners, abrasive cleansers, or flammable fluids. These can scratch or damage the material.

Condenser Coils

Use a vacuum cleaner with an attachment to clean the condenser cover and vents. Do not remove the panel covering the condenser coil area.

Replacing the Fresh Air Filter

It is recommended that you replace the air filter:

• Approximately every six months.

• When the CHANGE FILTER light turns on.

1 Remove the Old Filter

Turn the filter cover to the left to detach from the refrigerator wall. The filter is located on the inside of the filter cover. Remove the filter from the cover and replace it with a new filter.

2 Install a New Air Filter.

Place the new filter inside of the cover with the side that says “Front” facing outward. Turn the filter cover to the right to attach to the refrigerator wall.

After changing the filter, push and hold the Air Filter button for three seconds to reset the filter sensor.

Replacing the Water Filter

Note This refrigerator does not require a filter bypass plug when the filter is not in place.

It is recommended that you replace the water filter:

• Approximately every six months.

• When the water filter indicator turns on.

• When the water dispenser output decreases.

• When the ice cubes are smaller than normal.

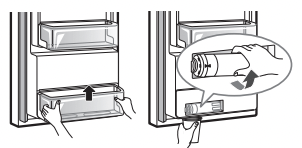

1 Remove the old water filter.

Lift up and remove the lower door bin. Swing the right end of the water filter out of the compartment and then grasp and rotate the filter counterclockwise to remove it from the filter head.

Note Replacing the water filter could cause a small amount of water to drain. Place a cup under the filter head to catch any water.

2 Replace with a new water filter.

Insert the new filter into the filter head and rotate it clockwise until the arrow on the new filter lines up with the arrow on the filter head. Swing the filter back into the compartment.

3 Assemble the door bin.

TROUBLESHOOTING

Review the Troubleshooting section before calling for service; doing so will save you both time and money.

Problem Possible Causes Solutions
Refrigerator and Freezer section are not cooling The refrigerator control is set to OFF (some models). Turn the control ON. Refer to the Setting the Controls section for proper temperature settings.
Refrigerator is in the defrost cycle. During the defrost cycle, the temperature of each compartment may rise slightly. Wait 30 minutes and confirm the proper temperature has been restored once the defrost cycle has completed.
Refrigerator was recently installed. It may take up to 24 hours for each compartment to reach the desired temperature.
Refrigerator was recently relocated. If the refrigerator was stored for a long period of time or moved on its side, it is necessary for the refrigerator to stand upright for 24 hours before connecting it to power.
Cooling System runs too much. Refrigerator is replacing an older model. Modern refrigerators require more operating time but use less energy due to more efficient technology.
Refrigerator was recently plugged in or power restored. The refrigerator will take up to 24 hours to cool completely.
Door opened often or a large amount of food / hot food was added. Adding food and opening the door warms the refrigerator, requiring the compressor to run longer in order to cool the refrigerator back down. In order to conserve energy, try to get everything you need out of the refrigerator at once, keep food organized so it is easy to find, and close the door as soon as the food is removed. (Refer to the Food Storage Guide.)
Doors are not closed completely. Firmly push the doors shut.
Refrigerator is installed in a hot location. The compressor will run longer under warm conditions. At normal room temperatures (70°F) expect your compressor to run about 40% to 80% of the time. Under warmer conditions, expect it to run even more often. The refrigerator should not be operated above 110°F.
Condenser / back cover is clogged. Use a vacuum cleaner with an attachment to clean the condenser cover and vents. Do not remove the panel covering the condenser coil area.
Refrigerator or Freezer section is too warm. Refrigerator was recently installed. It may take up to 24 hours for each compartment to reach the desired temperature.
Air vents are blocked. Rearrange items to allow air to flow throughout the compartment. Refer to the Airflow diagram in the Using Your Refrigerator section.
Doors are opened often or for long periods of time. When the doors are opened often or for long periods of time, warm, humid air enters the compartment. This raises the temperature and moisture level within the compartment. To lessen the effect, reduce the frequency and duration of door openings.
Unit is installed in a hot location The refrigerator should not be operated in temperatures above 110°F.
A large amount of food or hot food was added to either compartment. Adding food warms the compartment requiring the cooling system to run. Allowing hot food to cool to room temperature before putting it in the refrigerator will reduce this effect.
Doors not closed correctly. See the Doors will not close correctly or pop open section in Troubleshooting.
Temperature control is not set correctly. If the temperature is too warm, adjust the control one increment at a time and wait for the temperature to stabilize. Refer to the Setting the Controls section for more information.
Defrost cycle has recently completed. During the defrost cycle, the temperature of each compartment may rise slightly and condensation may form on the back wall. Wait 30 minutes and confirm the proper temperature has been restored once the defrost cycle has completed.
Interior moisture buildup. Doors are opened often or for long periods of time. When the doors are opened often or for long periods of time, warm, humid air enters the compartment. This raises the temperature and moisture level within the compartment. To lessen the effect, reduce the frequency and duration of door openings.
Doors not closed correctly. See the Doors will not close correctly section in the Troubleshooting section.
Weather is humid. Humid weather allows additional moisture to enter the compartments when the doors are opened leading to condensation or frost. Maintaining a reasonable level of humidity in the home will help to control the amount of moisture that can enter the compartments.
Defrost cycle recently completed. During the defrost cycle, the temperature of each compartment may rise slightly and condensation may form on the back wall. Wait 30 minutes and confirm that the proper temperature has been restored once the defrost cycle has completed.
Food is not packaged correctly. Food stored uncovered or unwrapped, and damp containers can lead to moisture accumulation within each compartment. Wipe all containers dry and store food in sealed packaging to prevent condensation and frost.
Food is freezing in the refrigerator compartment. Food with high water content was placed near an air vent. Rearrange items with high water content away from air vents.
Refrigerator temperature control is set incorrectly. If the temperature is too cold, adjust the control one increment at a time and wait for the temperature to stabilize. Refer to the Setting the Controls section for more information.
Refrigerator is installed in a cold location. When the refrigerator is operated in temperatures below 41°F (5°C), food can freeze in the refrigerator compartment. The refrigerator should not be operated in temperatures below 55°F (13°C).
Frost or ice crystals form on frozen food (outside of package). Door is opened frequently or for long periods of time. When the doors are opened often or for long periods of time, warm, humid air enters the compartment. This raises the temperature and moisture level within the compartment. Increased moisture will lead to frost and condensation. To lessen the effect, reduce the frequency and duration of door openings.
Door is not closing properly. Refer to the Doors will not close correctly or pop open section in the Troubleshooting section.
Refrigerator or Freezer section is too cold. Incorrect temperature control settings. If the temperature is too cold, adjust the control one increment at a time and wait for the temperature to stabilize. Refer to the Setting the Controls section for more information.
Frost or ice crystals on frozen food (inside of sealed package).
Condensation from food with a high water content has frozen inside of the food package. This is normal for food items with a high water content.
Food has been left in the freezer for a long period of time. Do not store food items with high water content in the freezer for a long period of time.
Icemaker is not making enough ice. Demand exceeds ice storage capacity. The icemaker will produce approximately 70~182 cubes in a 24 hour period.
House water supply is not connected, valve is not turned on fully, or valve is clogged. Connect the refrigerator to a cold water supply with adequate pressure and turn the water shutoff valve fully open. If the problem persists, it may be necessary to contact a plumber.
Water filter has been exhausted.

It is recommended that you replace the water filter:

• Approximately every six months.

• When the water filter indicator turns on.

• When the water dispenser output decreases.

• When the ice cubes are smaller than normal.

Low house water supply pressure. The water pressure must be 20~120 psi or 138~827 kPa or 1.4~8.4 kgf/cm² on models without a water filter and 40~120 psi or 276~827 kPa or 2.8~8.4 kgf/cm² on models with a water filter. If the problem persists, it may be necessary to contact a plumber.
Reverse Osmosis filtration system is used. Reverse osmosis filtration systems can reduce the water pressure below the minimum amount and result in icemaker issues. (Refer to Water Pressure section.)
Tubing connecting refrigerator to house supply valve is kinked. The tubing can kink when the refrigerator is moved during installation or cleaning resulting in reduced water flow. Straighten or repair the water supply line and arrange it to prevent future kinks.
Doors are opened often or for long periods of time. If the doors of the unit are opened often, ambient air will warm the refrigerator which will prevent the unit from maintaining the set temperature. Lowering the refrigerator temperature can help, as well as not opening the doors as frequently.
Doors are not closed completely. If the doors are not properly closed, ice production will be affected. See the Doors will not close completely or pop open section in Parts & Features Troubleshooting for more information.
The temperature setting for the freezer is too warm. The recommended temperature for the freezer compartment for normal ice production is 0°F. If the freezer temperature is warmer, ice production will be affected.
Dispensing water slowly. Water filter has been exhausted.

It is recommended that you replace the water filter:

• Approximately every six months.

• When the water filter indicator turns on.

• When the water dispenser output decreases.

When the ice cubes are smaller than normal.

Reverse osmosis filtration system is used.

Reverse osmosis filtration systems can reduce the water pressure below the minimum amount and result in icemaker issues.

If the problem persists, it may be necessary to contact a plumber.

Low house water supply pressure.

The water pressure must be 20~120 psi or 138~827 kPa or 1.4~8.4 kgf/cm² on models without a water filter and 40~120 psi or 276~827 kPa or 2.8~8.4 kgf/cm² on models with a water filter.

If the problem persists, it may be necessary to contact a plumber.

Not dispensing ice. Doors are not closed completely. Ice will not dispense if any of the refrigerator doors are left open.
Infrequent use of the dispenser. Infrequent use of the ice dispenser will cause the cubes to stick together over time, which will prevent them from properly dispensing. Check the ice bin for ice cubes clumping/sticking together. If they are, break up the ice cubes to allow for proper operation.
The delivery chute is clogged with frost or ice fragments. Eliminate the frost or ice fragments by removing the ice bin and clearing the chute with a plastic utensil. Dispensing cubed ice can also help prevent frost or ice fragment buildup.
The dispenser display is locked. Press and hold the Lock button for three seconds to unlock the control panel and dispenser.
Ice bin is empty.

It may take up to 24 hours for each compartment to reach the desired temperature and for the icemaker to begin making ice. Make sure that the shutoff (arm/sensor) is not obstructed.

Once the ice supply in the bin has been completely exhausted, it my take up to 90 minutes before additional ice is available, and approximately 24 hours to completely refill the bin.

Icemaker is not making ice. Refrigerator was recently installed or icemaker recently connected. It may take up to 24 hours for each compartment to reach the desired temperature and for the icemaker to begin making ice.
Icemaker not turned on. Locate the icemaker on/off switch and confirm that it is in the ON (I) position.
The ice detecting sensor is obstructed. Foreign substances or frost on the ice-detecting sensor can interrupt ice production. Make sure that the sensor area is clean at all times for proper operation.
The refrigerator is not connected to a water supply or the supply shutoff valve is not turned on. Connect refrigerator to the water supply and turn the water shutoff valve fully open.
Icemaker shutoff (arm or sensor) obstructed. If your icemaker is equipped with an ice shutoff arm, make sure that the arm moves freely. If your icemaker is equipped with the electronic ice shutoff sensor, make sure that there is a clear path between the two sensors.
Reverse osmosis water filtration system is connected to your cold water supply. Reverse osmosis filtration systems can reduce the water pressure below the minimum amount and result in icemaker issues. (Refer to the Water Pressure section.)
Not dispensing water. New installation or water line recently connected. Dispense 2.5 gallons of water (flush for approximately 5 minutes) to remove trapped air and contaminants from the system. Do not dispense the entire 2.5 gallon amount continuously. Depress and release the dispenser pad for cycles of 30 seconds ON and 60 seconds OFF.
The dispenser panel is locked. Press and hold the Lock button for three seconds to unlock the control panel and dispenser.
The dispenser is not set for water dispensing. The dispenser can be set for ice or water. Make certain that the control panel is set for the proper operation. Press the Water button on the control panel to dispense water.
Refrigerator or freezer doors are not closed properly. Water will not dispense if any of the refrigerator doors are left open.
Water filter has been recently removed or replaced. After the water filter is replaced, dispense 2.5 gallons of water (flush for approximately 5 minutes) to remove trapped air and contaminants from the system. Do not dispense the entire 2.5 gallon amount continuously. Depress and release the dispenser pad for cycles of 30 seconds ON and 60 seconds OFF.
Tubing connecting refrigerator to house supply valve is kinked The tubing can kink when the refrigerator is moved during installation or cleaning resulting in reduced water flow. Straighten or repair the water supply line and arrange it to prevent future kinks.
The house water supply is not connected, the valve is not turned on fully, or the valve is clogged.

Connect refrigerator to the water supply and turn the water shutoff valve fully open.

If the problem persists, it may be necessary to contact a plumber.

Ice has bad taste or odor. Water supply contains minerals such as sulfur.

A water filter may need to be installed to eliminate taste and odor problems.

NOTE: In some cases, a filter may not help. It may not be possible to remove all minerals / odor / taste in all water supplies.

Icemaker was recently installed. Discard the first few batches of ice to avoid discolored or bad tasting ice.
Ice has been stored for too long. Ice that has been stored for too long will shrink, become cloudy, and may develop a stale taste. Throw away old ice and make a new supply
The food has not been stored properly in either compartment. Rewrap the food. Odors may migrate to the ice if food is not wrapped properly.
The interior of the refrigerator needs to be cleaned. See the Care and Cleaning section for more information.
The ice storage bin needs to be cleaned. Empty and wash the bin (discard old cubes). Make sure that the bin is completely dry before reinstalling it.
Dispensing warm water. Refrigerator was recently installed. Allow 24 hours after installation for the water storage tank to cool completely.
The water dispenser has been used recently and the storage tank was exhausted. Depending on your specific model, the water storage capacity will range from approximately 20 to 30 oz.
Dispenser has not been used for several hours. If the dispenser has not been used for several hours, the first glass dispensed may be warm. Discard the first 10 oz.
Refrigerator is connected to the hot water supply.

Make sure that the refrigerator is connected to a cold water pipe.

WARNING: Connecting the refrigerator to a hot water line may damage the icemaker

Water has bad taste or odor. Water supply contains minerals such as sulfur. A water filter may need to be installed to eliminate taste and odor problems
Water filter has been exhausted.

. It is recommended that you replace the water filter:

• Approximately every 6 months.

• When the water filter indicator turns on.

• When the water dispenser output decreases.

• When the ice cubes are smaller than normal.

Refrigerator was recently installed. Dispense 2.5 gallons of water (flush for approximately 5 minutes) to remove trapped air and contaminants from the system. Do not dispense the entire 2.5 gallon amount continuously. Depress and release the dispenser pad for cycles of 30 seconds ON and 60 seconds OFF.
Icemaker is making too much ice. Icemaker shutoff (arm/sensor) is obstructed. Empty the ice bin. If your icemaker is equipped with an ice shutoff arm, make sure that the arm moves freely. If your icemaker is equipped with the electronic ice shutoff sensor, make sure that there is a clear path between the two sensors. Reinstall the ice bin and wait 24 hours to confirm proper operation
Clicking The defrost control will click when the automatic defrost cycle begins and ends. The thermostat control (or refrigerator control on some models) will also click when cycling on and off Normal Operation
Rattling Rattling noises may come from the flow of refrigerant, the water line on the back of the unit, or items stored on top of or around the refrigerator. Normal Operation
Refrigerator is not resting solidly on the floor. Floor is weak or uneven or leveling legs need to be adjusted. See the Door Alignment section.
Refrigerator with linear compressor was jarred while running. Normal Operation
Whooshing

See other models: LFXS28596S LSXC22396D LMXC23796D LFCC22426S LFC24770ST
Evaporator fan motor is circulating air through the refrigerator and freezer compartments. Normal Operation
Air is being forced over the condenser by the condenser fan. Normal Operation
Gurgling Refrigerant flowing through the cooling system. Normal Operation
Popping Contraction and expansion of the inside walls due to changes in temperature. Normal Operation
Sizzling Water dripping on the defrost heater during a defrost cycle. Normal Operation
Vibrating If the side or back of the refrigerator is touching a cabinet or wall, some of the normal vibrations may make an audible sound. To eliminate the noise, make sure that the sides and back cannot vibrate against any wall or cabinet.
Dripping Water running into the drain pan during the defrost cycle. Normal Operation
Pulsating or High-Pitched Sound Your refrigerator is designed to run more efficiently to keep your food items at the desired temperature. The high efficiency compressor may cause your new refrigerator to run longer than your old one, but it is still more energy efficient than previous models. While the refrigerator is running, it is normal to hear a pulsating or high-pitched sound. Normal Operation
Doors will not close correctly or pop open. Food packages are blocking the door open. Rearrange food containers to clear the door and door shelves.
Ice bin, crisper cover, pans, shelves, door bins, or baskets are out of position. Push bins all the way in and put crisper cover, pans, shelves and baskets into their correct positions. See the Using Your Refrigerator section for more information
The doors were removed during product installation and not properly replaced. Remove and replace the doors according to the Removing and Replacing Refrigerator Handles and Doors section.
Refrigerator is not leveled properly. See Door Alignment in the Refrigerator Installation section to level refrigerator.
Doors are difficult to open. The gaskets are dirty or sticky. Clean the gaskets and the surfaces that they touch. Rub a thin coat of appliance polish or kitchen wax on the gaskets after cleaning.
Door was recently closed. When you open the door, warmer air enters the refrigerator. As the warm air cools, it can create a vacuum. If the door is hard to open, wait one minute to allow the air pressure to equalize, then see if it opens more easily.
Refrigerator wobbles or seems unstable. Leveling legs are not adjusted properly. Refer to the Leveling and Door Alignment section.
Floor is not level. It may be necessary to add shims under the leveling legs or rollers to complete installation.
Lights do not work. LED interior lighting failure. The refrigerator compartment lamp is LED interior lighting, and service should be performed by a qualified technician.
Refrigerator has an unusual odor. The Air Filter may need to be set to the MAX setting or replaced. Set the Air Filter to the MAX setting. If the odor does not go away within 24 hours, the filter may need to be replaced. See the Replacing the Air Filter section for replacement instructions.
The interior of the refrigerator is covered with dust or soot. The refrigerator is located near a fire source, such as a fireplace, chimney or candle. Make sure that the refrigerator is not located near a fire source, such as a fireplace, chimney or candle.
Trouble connecting appliance and smartphone to Wi-Fi network The password for the Wi-Fi network was entered incorrectly. Delete your home Wi-Fi network and begin the registration process again.
Mobile data for your smartphone is turned on. Turn off the Mobile data on your smartphone before registering the appliance.
The wireless network name (SSID) is set incorrectly. The wireless network name (SSID) should be a combination of English letters and numbers. (Do not use special characters.)
The router frequency is not 2.4 GHz. Only a 2.4 GHz router frequency is supported. Set the wireless router to 2.4 GHz and connect the appliance to the wireless router. To check the router frequency, check with your Internet service provider or the router manufacturer.
The distance between the appliance and the router is too far. If the appliance is too far from the router, the signal may be weak and the connection may not be configured correctly. Move the router closer to the appliance or purchase and install a Wi-Fi repeater.

LG Electronics LMXS30796S | File type: PDF | Filename: LG LMXS30796S 30 cu. ft. Smart wi-fi Enabled InstaView™ Door-in-Door® Refrigerator.pdf | Size: 3.33 MB | Language: English | Other documents: 1 files.

Download User Manual

Product Infomation and Reviews - LMXS30796S photo

LMXS30796S Photo

View more photos

LG Electronics in United States

(800) 243-0000 Consumer (7am-midnight CST) (888) 865-3026 Commercial (8am-6pm CST)

LG Electronics LMXS30796S Questions and Answers

Find answers or Ask a question.
  • Total questions: 1
  • Questions unAnswered : 1

Q: How do I use my phone to diagnose my lg refrigerator Reply
