LASER
Type Semiconductor laser
GaAIAs
Wave length 650 - 660 nm (DVD)
784 - 796 nm (CD)
Output Power 7 mW (DVD)
10 mW (VCD/CD)
Beam divergence 60 degrees
ATTENTION!
For Customer Use:
Read carefully the information located at the
bottom or rear of your DVD Home Theatre
System and enter below the Serial No. Retain
this information for future reference.
Model No. HTS3156
Serial No. _______________
CAUTION
Use of controls or adjustments or performance
of procedures other than herein may result in
hazardous radiation exposure or other unsafe
operation.
‘CONSUMERS SHOULD NOTE THAT NOT ALL HIGH
DEFINITION TELEVISION SETS ARE FULLY
COMPATIBLE WITH THIS PRODUCT AND MAY CAUSE
ARTIFACTS TO BE DISPLAYED IN THE PICTURE. IN
CASE OF 525 OR 625 PROGRESSIVE SCAN PICTURE
PROBLEMS, IT IS RECOMMENDED THAT THE USER
SWITCH THE CONNECTION TO THE ‘STANDARD
DEFINITION’ OUTPUT. IF THERE ARE QUESTIONS
REGARDING OUR TV SET COMPATIBILITY WITH THIS
MODEL 525p AND 625p DVD PLAYER, PLEASE
CONTACT OUR CUSTOMER SERVICE CENTER.’
Manufactured under license from Dolby
Laboratories. Dolby, Pro Logic and the
double-D symbol are trademarks of Dolby
Laboratories.
Manufactured under license under U.S.
Patent #’s: 5,451,942; 5,956,674; 5,974,380;
5,978,762; 6,487,535 & other U.S. and
worldwide patents issued & pending. DTS
and DTS Digital Surround are registered
trademarks and the DTS logos and Symbol
are trademarks of DTS, Inc. © 1996-2007
DTS, Inc. All Rights Reserved.
DivX, DivX Ultra Certi ed, and associated
logos are trademarks of DivX, Inc. and are
used under license.
Of cial DivX® Ultra Certi ed product.
Plays all versions of DivX® video (including
DivX® 6) with enhanced playback of DivX®
media les and the DivX® Media Format.
Windows Media and the Windows logo are
trademarks, or registered trademarks of
Microsoft Corporation in the United States
and/or other countries.
1_hts3156_93_eng2_final815.indd 31_hts3156_93_eng2_final815.indd 3 2008-04-11 10:51:11 AM2008-04-11 10:51:11 AM
4
Language Code
Abkhazian 6566
Afar 6565
Afrikaans 6570
Amharic 6577
Arabic 6582
Armenian 7289
Assamese 6583
Avestan 6569
Aymara 6589
Azerhaijani 6590
Bahasa Melayu 7783
Bashkir 6665
Belarusian 6669
Bengali 6678
Bihari 6672
Bislama 6673
Bokmål, Norwegian 7866
Bosanski 6683
Brezhoneg 6682
Bulgarian 6671
Burmese 7789
Castellano, Español 6983
Catalán 6765
Chamorro 6772
Chechen 6769
Chewa; Chichewa; Nyanja 7889
9072
Chuang; Zhuang 9065
Church Slavic; Slavonic 6785
Chuvash 6786
Corsican 6779
Česky 6783
Dansk 6865
Deutsch 6869
Dzongkha 6890
English 6978
Esperanto 6979
Estonian 6984
Euskara 6985
6976
Faroese 7079
Français 7082
Frysk 7089
Fijian 7074
Gaelic; Scottish Gaelic 7168
Gallegan 7176
Georgian 7565
Gikuyu; Kikuyu 7573
Guarani 7178
Gujarati 7185
Hausa 7265
Herero 7290
Hindi 7273
Hiri Motu 7279
Hrwatski 6779
Ido 7379
Interlingua (International)7365
Interlingue 7365
Inuktitut 7385
Inupiaq 7375
Irish 7165
Íslenska 7383
Italiano 7384
Ivrit 7269
Japanese 7465
Javanese 7486
Kalaallisut 7576
Kannada 7578
Kashmiri 7583
Kazakh 7575
Kernewek 7587
Khmer 7577
Kinyarwanda 8287
Kirghiz 7589
Komi 7586
Korean 7579
Kuanyama; Kwanyama 7574
Kurdish 7585
Lao 7679
Latina 7665
Latvian 7686
Letzeburgesch; 7666
Limburgan; Limburger 7673
Lingala 7678
Lithuanian 7684
Luxembourgish; 7666
Macedonian 7775
Malagasy 7771
Magyar 7285
Malayalam 7776
Maltese 7784
Manx 7186
Maori 7773
Marathi 7782
Marshallese 7772
Moldavian 7779
Mongolian 7778
Nauru 7865
Navaho; Navajo 7886
Ndebele, North 7868
Ndebele, South 7882
Ndonga 7871
Nederlands 7876
Nepali 7869
Norsk 7879
Northern Sami 8369
North Ndebele 7868
Norwegian Nynorsk; 7878
Occitan; Provencal 7967
Old Bulgarian; Old Slavonic 6785
Oriya 7982
Oromo 7977
Ossetian; Ossetic 7983
Pali 8073
Panjabi 8065
Persian 7065
Polski 8076
Português 8084
Pushto 8083
Russian 8285
Quechua 8185
Raeto-Romance 8277
Romanian 8279
Rundi 8278
Samoan 8377
Sango 8371
Sanskrit 8365
Sardinian 8367
Serbian 8382
Shona 8378
Shqip 8381
Sindhi 8368
Sinhalese 8373
Slovensky 8373
Slovenian 8376
Somali 8379
Sotho; Southern 8384
South Ndebele 7882
Sundanese 8385
Suomi 7073
Swahili 8387
Swati 8383
Svenska 8386
Tagalog 8476
Tahitian 8489
Tajik 8471
Tamil 8465
Tatar 8484
Telugu 8469
Thai 8472
Tibetan 6679
Tigrinya 8473
Tonga (Tonga Islands) 8479
Tsonga 8483
Tswana 8478
Türkçe 8482
Turkmen 8475
Twi 8487
Uighur 8571
Ukrainian 8575
Urdu 8582
Uzbek 8590
Vietnamese 8673
Volapuk 8679
Walloon 8765
Welsh 6789
Wolof 8779
Xhosa 8872
Yiddish 8973
Yoruba 8979
Zulu 9085
中文
1_hts3156_93_eng2_final815.indd 41_hts3156_93_eng2_final815.indd 4 2008-04-11 10:51:12 AM2008-04-11 10:51:12 AM
5
English ------------------------------------ 6
----------------------------- 52
English
This product incorporates copyright protection
technology that is protected by method claims of
certain U.S. patents and other intellectual property
rights owned by Macrovision Corporation and
other rights owners. Use of this copyright
protection technology must be authorised by
Macrovision Corporation, and is intended for
home and other limited viewing uses only unless
otherwise authorised by Macrovision Corporation.
Reserve engineering or disassembly is prohibited.
Ensure that the power outlet is always within
reach. If abnormal situations occur, fully
disconnect power: unplug the power cord
from the power outlet.
Index
通过此网站注册您的产品并获得支持：
www.philips.com/welcome
Where the MAINS plug or an appliance
coupler is used as the disconnect device, the
disconnect device shall remain readily
operable.
1_hts3156_93_eng2_final815.indd 51_hts3156_93_eng2_final815.indd 5 2008-04-11 10:51:12 AM2008-04-11 10:51:12 AM
6
English
Table of contents
General
General Information ........................................................................................................ 8
Setup precautions .................................................................................................................................................8
Accessories supplied ...........................................................................................................................................8
Cleaning discs ........................................................................................................................................................8
About recycling .....................................................................................................................................................8
Product Overview
Main Unit ........................................................................................................................... 9
Remote Control .........................................................................................................10-12
Using the remote control ................................................................................................................................12
Connections
Basic Connections .....................................................................................................13-16
Step 1: Placing the speakers .............................................................................................................................13
Step 2: Connecting to TV ................................................................................................................................14
Option 1: Connecting to the Video socket .........................................................................................14
Option 2: Connecting to a Progressive Scan TV or component video input ............................14
Step 3: Connecting speakers and subwoofer .............................................................................................15
Step 4: Connecting the FM and AM/MW antennas ..................................................................................16
Step 5: Connecting the power cord ..............................................................................................................16
Optional Connections .................................................................................................... 17
Connecting audio from other devices ..........................................................................................................17
Basic Setup
Getting Started ..........................................................................................................18-22
Finding the correct viewing channel .............................................................................................................18
Switching to different play source .................................................................................................................18
Setting language preferences ...........................................................................................................................19
On-screen display (OSD) language ........................................................................................................19
Audio, Subtitle and Menu language for DVD playback ...............................................................19-20
Setting up Progressive Scan feature ..............................................................................................................21
Setting the speakers’ channels ....................................................................................................................... 22
Disc Playback
Disc Operations .........................................................................................................23-31
Playable discs .......................................................................................................................................................23
Playing a disc ........................................................................................................................................................23
Basic playback controls .....................................................................................................................................24
Selecting various repeat/shuf e functions ...................................................................................................24
Programming disc tracks ................................................................................................................................. 25
Other playback features for video discs (DVD/VCD/SVCD) ......................................................... 25-28
Using the Disc Menu ................................................................................................................................. 25
Viewing playback information ..................................................................................................................26
Zooming.........................................................................................................................................................26
Changing subtitle language .......................................................................................................................26
Switching camera angles ............................................................................................................................26
Changing sound track language ...............................................................................................................27
Setting the delay times for audio playback ...........................................................................................27
Playback Control (VCD only) ..................................................................................................................27
Preview function (VCD/SVCD only) .................................................................................................... 28
1_hts3156_93_eng2_final815.indd 61_hts3156_93_eng2_final815.indd 6 2008-04-11 10:51:13 AM2008-04-11 10:51:13 AM
7
English
Table of contents
Playing a MP3/ WMA disc ................................................................................................................................29
Playing a JPEG image le (slide show) .......................................................................................................... 30
Preview function ......................................................................................................................................... 30
Zooming........................................................................................................................................................ 30
Flip/Rotate picture ..................................................................................................................................... 30
Playing a JPEG image le (slide show) .......................................................................................................... 30
Playing music and photo les simultaneously .............................................................................................31
Playing a DivX disc .............................................................................................................................................31
Playback other supported devices
Playback - Karaoke ......................................................................................................... 32
Playing a Karaoke disc .......................................................................................................................................32
Microphone setting.....................................................................................................................................32
Playback - USB Device ...................................................................................................33
Playing from a USB device ................................................................................................................................33
Playback - Other Audio Player .....................................................................................34
Playing from other portable audio player ................................................................................................... 34
Setup Options
Setup Menu Options ................................................................................................. 35-40
Accessing the setup menu .........................................................................................................................35-40
General Setup Page ....................................................................................................................................36
Audio Setup Page ........................................................................................................................................37
Video Setup Page ........................................................................................................................................ 38
Preference Page ....................................................................................................................................39-40
Radio Tuning
Radio Operations .......................................................................................................41-42
Tuning to radio stations ....................................................................................................................................41
Changing tuning grid ..........................................................................................................................................41
Presetting radio stations ........................................................................................................................... 41-42
Using auto install .........................................................................................................................................41
Using automatic preset ..............................................................................................................................42
Using manual preset ...................................................................................................................................42
Selecting a preset radio station ......................................................................................................................42
Deleting a preset radio station .......................................................................................................................42
Others
Sound and Volume Controls .........................................................................................43
Volume control ...................................................................................................................................................43
Selecting surround sound .................................................................................................................................43
Selecting digital sound effects .........................................................................................................................43
Other Features................................................................................................................44
Installing the latest software .......................................................................................................................... 44
Troubleshooting ........................................................................................................ 45-47
Glossary...................................................................................................................... 48-49
Speci cations ..................................................................................................................50
1_hts3156_93_eng2_final815.indd 71_hts3156_93_eng2_final815.indd 7 2008-04-11 10:51:13 AM2008-04-11 10:51:13 AM
8
English
General Information
WARNING!
This unit does not contain any user-
serviceable parts. Please leave all
maintenance work to quali ed
personnel.
Setup precautions
Finding a suitable location
– Place this unit on a at, hard and
stable surface. Never place the unit on a
carpet.
– Never place this unit on top of other
equipment that might heat it up (e.g.,
receiver or ampli er).
– Never put anything under this unit
(e.g., CDs, magazines).
– Install this unit near the AC outlet
where the AC power plug can be easily
reached.
Space for ventilation
– Place this unit in a location with
adequate ventilation to prevent internal
heat build up. Allow at least 10 cm (4”)
clearance from the rear and the top of
this unit and 5cm (2”) from the left and
right to prevent overheating.
Avoid high temperature, moisture,
water and dust
– This unit must not be exposed to
dripping or splashing.
– Never place any object or items that
can damage this unit (e.g., liquid lled
objects, lighted candles).
Accessories supplied
– 1 subwoofer
– 2 front speakers
– 2 rear speakers
– 1 centre speaker
– 1 remote control with batteries
– 1 composite video cable (yellow)
– 1 FM wire antenna
– 1 AM/MW loop antenna
– Quick Start Guide
Cleaning discs
To clean a disc, use a micro bre cleaning
cloth and wipe the disc from the centre
to the edge in a straight line.
CAUTION!
Never use solvents e.g. benzene, thinner,
commercially available cleaners, or anti-
static sprays intended for discs.
About recycling
These operating instructions have been
printed on non-polluting paper. The
electronic equipment contains a large
number of materials that can be recycled.
If you are disposing of an old machine,
please take it to a recycling centre.
Please observe the local regulations
regarding disposal of packaging materials,
exhausted batteries and old equipment.
1_hts3156_93_eng2_final815.indd 81_hts3156_93_eng2_final815.indd 8 2008-04-15 10:21:45 AM2008-04-15 10:21:45 AM
9
English

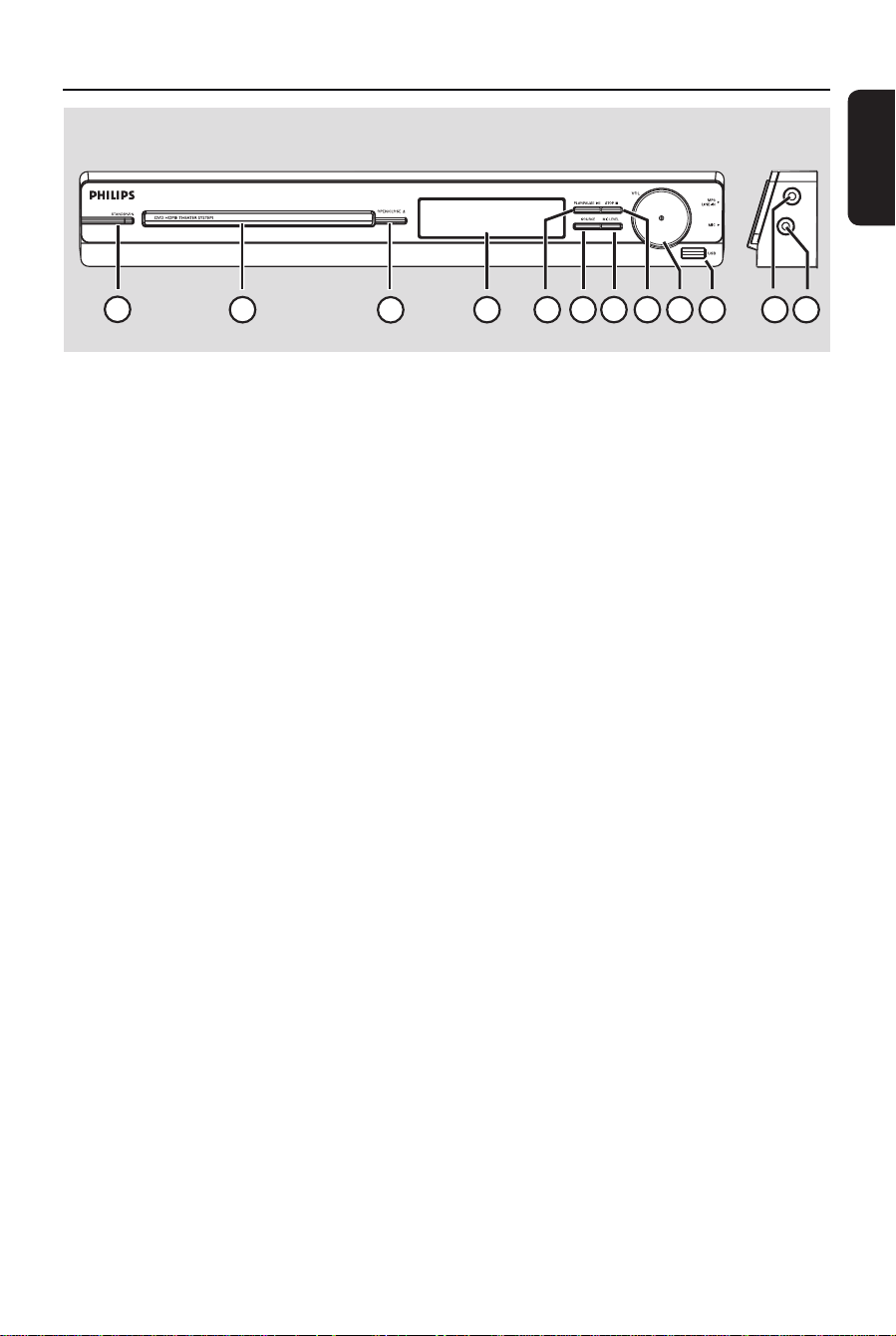

Main Unit
a STANDBY-ON
– Turns on this unit or turns off to normal
standby mode.
b Disc Tray
c OPEN/CLOSE ç
– Opens/closes the disc tray.
d Display panel
e PLAY/ PAUSE u
– DISC: starts/pauses playback.
– RADIO: starts auto radio installation for
rst time setup.
f SOURCE
– Selects the relevant active source mode:
DISC, FM, AM/MW, TV, AUX,
MP3 LINE-IN.
g MIC LEVEL
– Activates microphone level mode and
use the volume control to set the
microphone volume level.
h STOP
– Exits an operation.
– DISC: stops playback.
– RADIO: press and hold this button to
erase the current preset radio station.
i VOL
– Adjusts the volume level.
j USB socket
– Input for USB ash drive or USB memory
card reader.
k MP3 LINE-IN socket
– Phono input for connecting to the
headphone out socket on your portable
audio player.
l MIC socket
– For microphone connection.
1
2
4
5
6
3
7
8 9 10 12
11
Front Panel View
Side Panel
1_hts3156_93_eng2_final815.indd 91_hts3156_93_eng2_final815.indd 9 2008-04-11 10:51:13 AM2008-04-11 10:51:13 AM
10
English

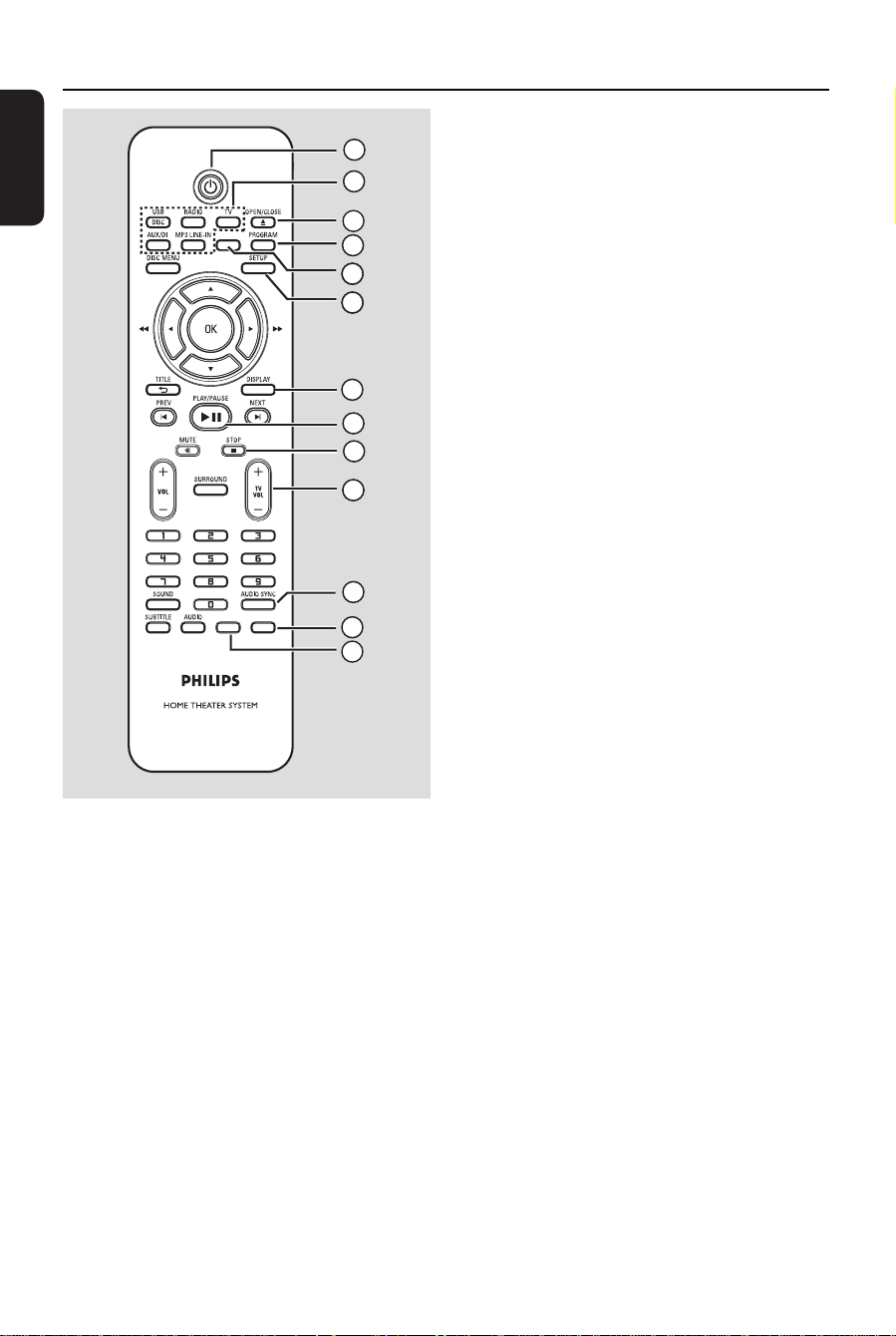

Remote Control
a 2
– Turns on this unit or turns off to normal
standby mode.
b Source buttons
– DISC/USB: switches to DISC or USB
mode.
RADIO: switches to FM or AM/MW
band.
TV: switches to TV mode. The sound
from the TV will output through the
connected speaker system.
AUX/DI: switches to AUX external
source mode.
MP3 LINE-IN: switches to MP3 LINE-
IN external source mode.
c OPEN/CLOSE ç
– Opens/closes the disc tray.
d PROGRAM
– DISC: starts programming.
– RADIO: press and hold this button to
start automatic/ manual preset
programming.
e ZOOM
– Zoom in or out the picture on the TV.
f SETUP
– Enters or exits the system setup menu.
g DISPLAY
– Displays the current status or disc
information.
– Selects a different viewing angle of a DVD
movie (if available).
h PLAY/PAUSE u
– DISC: starts/pauses playback.
– RADIO: starts auto radio installation for
rst time setup.
i STOP x
– Exits an operation.
– DISC: stops playback.
– RADIO: press and hold this button to
erase the current preset radio station.
j TV VOL +/-
– Adjusts the volume of the TV (for Philips
TVs or compatible brands only).
k AUDIO SYNC
– Sets the audio output delay times if the
video playback is slower than the audio
output.
l KARAOKE
– Enters microphone setting menu.
m VOCAL
– Toggles between various audio mode.
ZOOM
VOCAL KARAOKE
2
3
4
6
7
8
9
10
11
12
13
6
1
65
1_hts3156_93_eng2_final815.indd 101_hts3156_93_eng2_final815.indd 10 2008-04-11 10:51:14 AM2008-04-11 10:51:14 AM
11
English

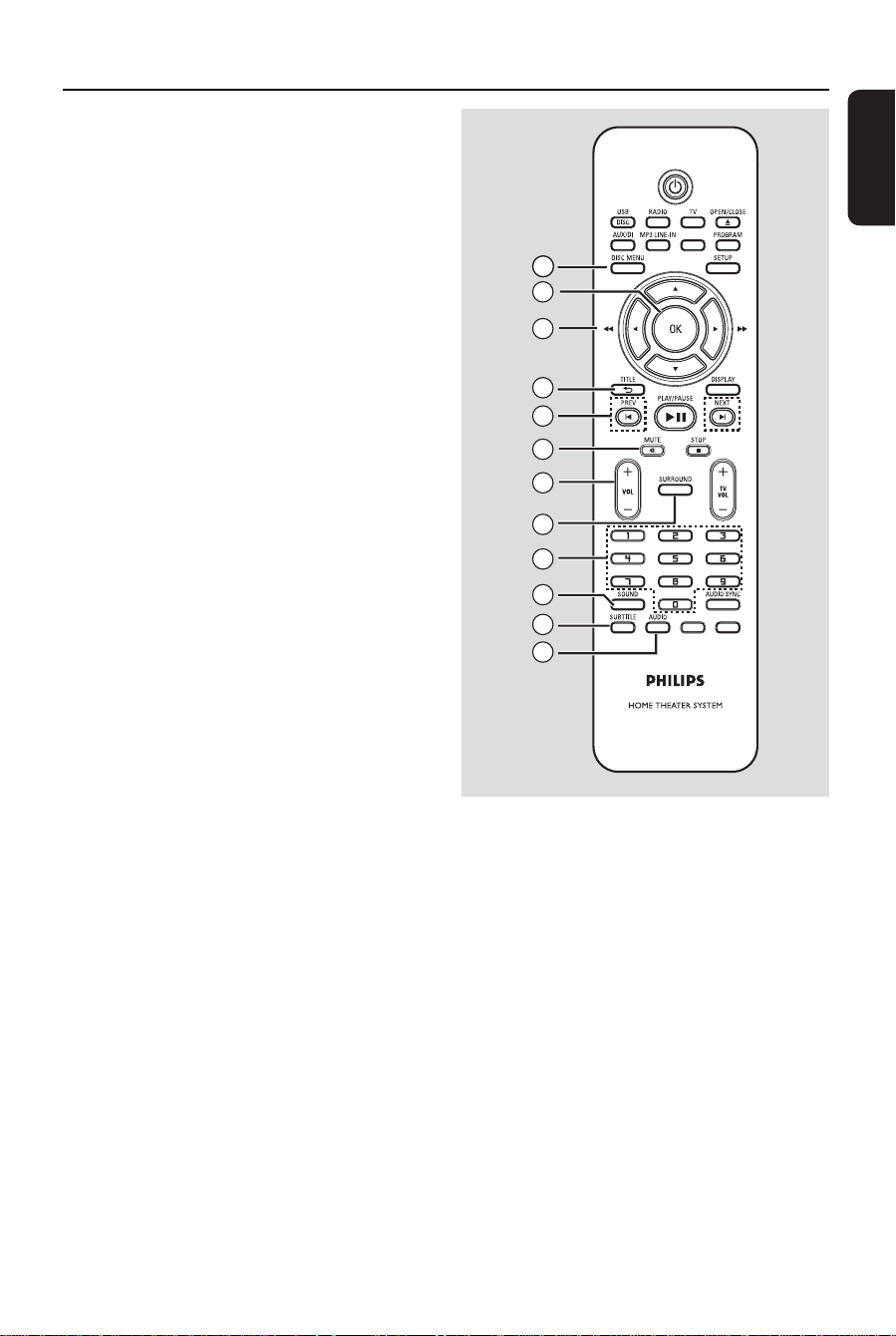

Remote Control (continued)
n DISC MENU
– For DVD, enters or exits disc contents
menu.
– For VCD/SVCD, enters digest menu.
o OK
– Con rms an entry or selection.
p v V b B
– DISC: selects movement direction in the
menu.
– DISC: press left or right for fast forward
and backward search.
– RADIO: press up or down to tune the
radio frequency.
– RADIO: press left or right to start auto
search.
q TITLE
– For DVD, go back to the previous menu.
– For VCD version 2.0 only;
During playback, display the disc title
menu or return to the main menu.
r PREVí / NEXT ë
– DISC: skips to the previous or next title/
chapter/track.
– RADIO: selects a preset radio station.
s MUTE %
– Mutes or restores the volume.
t VOL +/-
– Adjusts the volume level.
u SURROUND
– Selects multi-channel surround or
stereo mode.
v Numeric keypad 0-9
– Enters a track/title number of the disc.
– Enters a number of a preset radio station.
w SOUND
– Selects a prede ned sound effect.
x SUBTITLE
– Selects a DVD subtitle language.
y AUDIO
– DISC: selects an audio language/channel.
15
16
17
18
19
20
21
22
23
24
25
14
ZOOM
VOCAL KARAOKE
1_hts3156_93_eng2_final815.indd 111_hts3156_93_eng2_final815.indd 11 2008-04-11 10:51:14 AM2008-04-11 10:51:14 AM
12
English
Remote Control (continued)
Using the remote control
A Open the battery compartment.
B Insert two batteries type R03 or AAA,
following the indications (+-) inside
the compartment.
C Close the cover.
D Point the remote control directly at the
remote sensor (iR) on the front panel.
E Select the source you wish to control by
pressing the DISC/USB, RADIO, TV,
AUX/DI or MP3 LINE-IN button on the
remote control.
F Then select the desired function (for
example í, ë).
CAUTION!
– Remove batteries if they are
exhausted or if the remote control
is not to be used for a long time.
– Never mix batteries (old and new
or carbon and alkaline, etc).
– Batteries contain chemical
substances, they should be disposed
of properly.
1_hts3156_93_eng2_final815.indd 121_hts3156_93_eng2_final815.indd 12 2008-04-11 10:51:14 AM2008-04-11 10:51:14 AM
13
English
Basic Connections

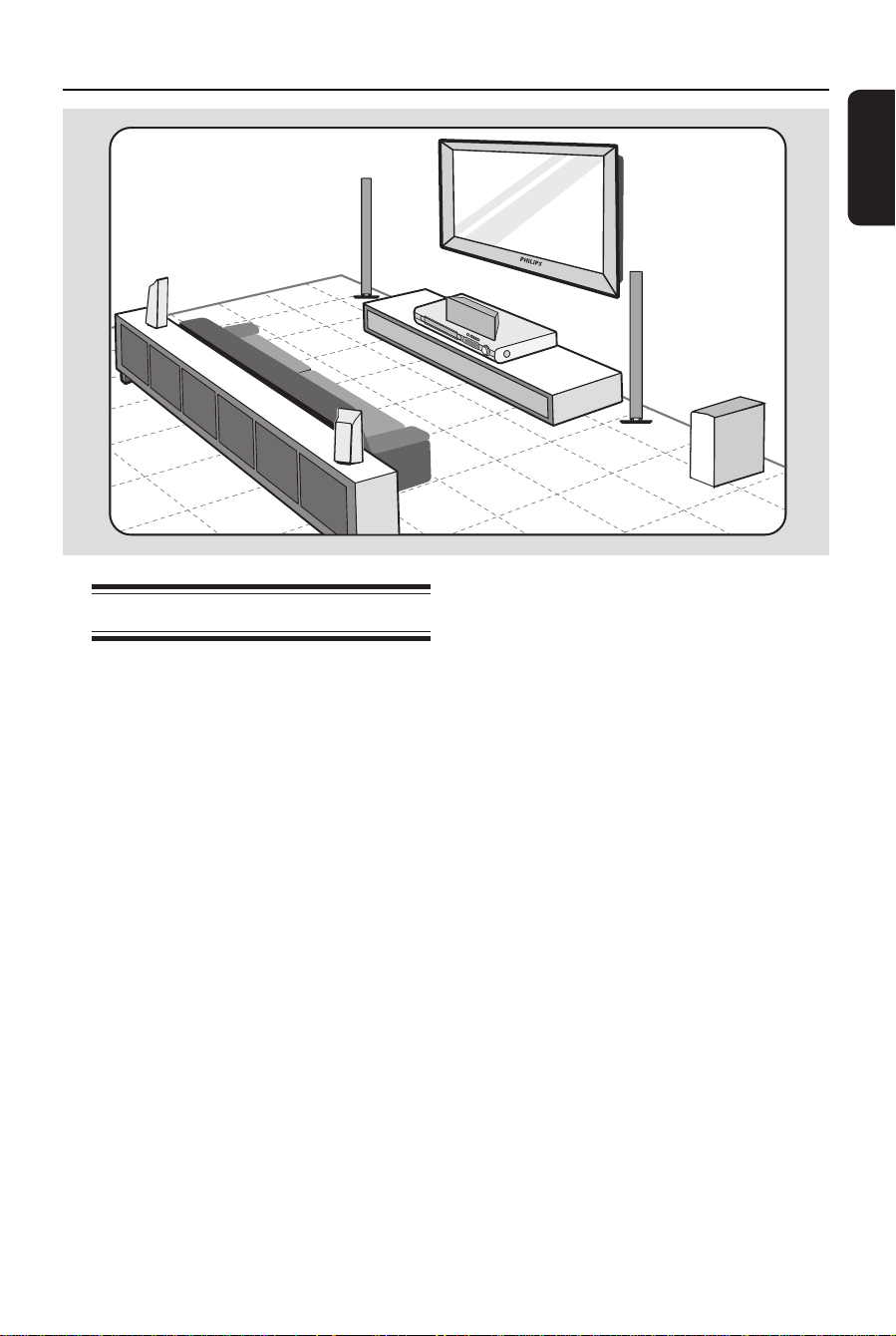

Step 1: Placing the speakers
The Philips Home Theatre System is
simple to install. However, proper system
placement is critical to ensure an
optimum sound experience.
A Place the front left and right speakers at
equal distances from the TV and at an
angle of approximately 45 degrees from
the listening position.
B Place the centre speaker above the TV or
the main unit such that the centre
channel’s sound is localised.
C Place the rear speakers at normal
listening ear level facing each other or
hang on the wall.
D Place the subwoofer at the corner of the
room. Otherwise, keep it at least one
metre away from the TV.
Helpful Hints:
– The placement diagram shown here is
only a guideline that provides great system
performance. You may nd other placement
choices that are more suitable for your room
layout that provide the sound experience you
enjoy.
– To avoid magnetic interference, never
position the front speakers too close to your
TV.
– The rear speakers are labelled as REAR
LEFT or REAR RIGHT.
– The front speakers are labelled as
FRONT LEFT or FRONT RIGHT.
– For speaker setting, see ‘Getting Started -
Setting the speakers’ channel’.
SUBWOOFER
FRONT
RIGHT
FRONT
LEFT
CENTER
REAR
RIGHT
REAR
LEFT
1_hts3156_93_eng2_final815.indd 131_hts3156_93_eng2_final815.indd 13 2008-04-11 10:51:14 AM2008-04-11 10:51:14 AM
14
English
SPEAKERS
AM/
MW

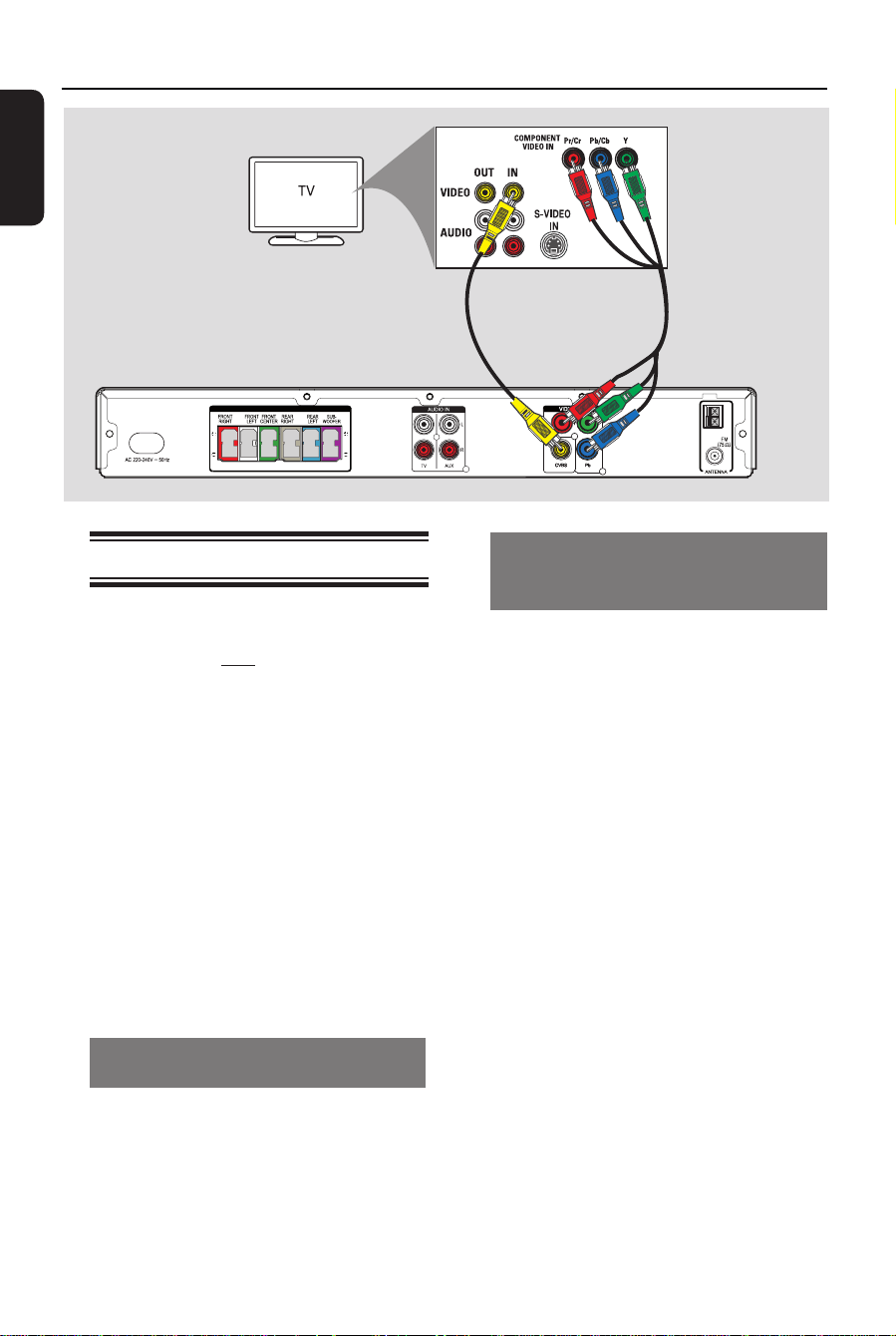

Step 2: Connecting to TV
This connection enables you to view the
video playback from this unit. You only
need to choose one of the options
below to make the video connection.
– For a standard TV, follow option 1.
– For a progressive scan TV, follow
option 2.
Helpful Hints:
– It is important to connect this unit directly
to the TV in order to enjoy optimum video
quality.
– To hear the TV audio through this unit,
connect the AUDIO IN sockets on the unit to
the audio output sockets on your TV (audio
cables not supplied). Press TV on the remote
control when watching the TV programs.
Option 1: Connecting to the Video
socket
Use a composite video cable (yellow -
supplied) to connect the CVBS socket
on the main unit to the video input
socket (or labeled as A/V In, Video In,
Composite or Baseband) on the TV.
It provides good picture quality..
Option 2: Connecting to a
Progressive Scan TV or component
video input
The progressive scan video quality is only
available when using Y Pb Pr connection
and a progressive scan TV is required. It
provides superior picture quality when
watching DVD movies.
A Use the component video cables (red/
blue/green - not supplied) to connect the
Y Pb Pr sockets on the main unit to the
corresponding component video input
sockets (or labeled as Y Pb/Cb Pr/Cr or
YUV) on the TV.
It provides better picture quality.
B If your TV accepts progressive signals,
proceed to chapter ‘Getting Started -
Setting up Progressive Scan feature’ for
detailed progressive feature setup.
Basic Connections (continued)
Option 1
Option 2
Main Unit (rear)
1_hts3156_93_eng2_final815.indd 141_hts3156_93_eng2_final815.indd 14 2008-04-11 10:51:14 AM2008-04-11 10:51:14 AM
15
English
SPEAKERS
Basic Connections (continued)

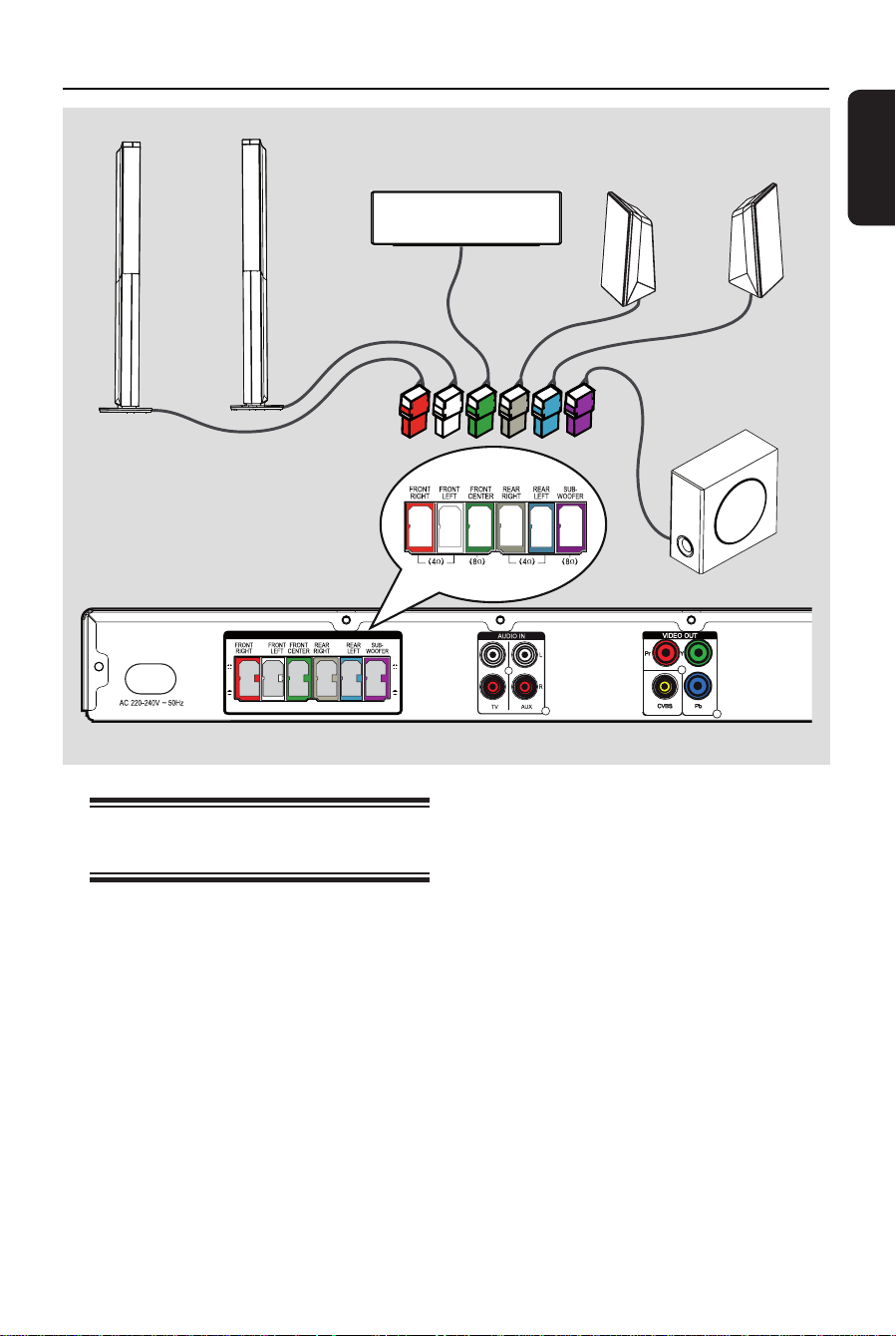

Step 3: Connecting speakers
and subwoofer
Connect all the speakers and subwoofer
to the matching sockets at the rear of the
main unit, Make sure that the colours of
the plugs and sockets are matched.
Helpful Hint:
– To prevent unwanted noise, never place
the speakers too close to the main unit,
subwoofer, AC power adapter, TV or any
other radiation sources.
REAR
LEFT
REAR
RIGHT
SUBWOOFER
FRONT CENTRE
FRONT
LEFT
FRONT
RIGHT
Main Unit (rear)
1_hts3156_93_eng2_final815.indd 151_hts3156_93_eng2_final815.indd 15 2008-04-11 10:51:14 AM2008-04-11 10:51:14 AM
16
English
Basic Connections (continued)
FM
antenna
AM/MW
antenna
x the claw
into the slot

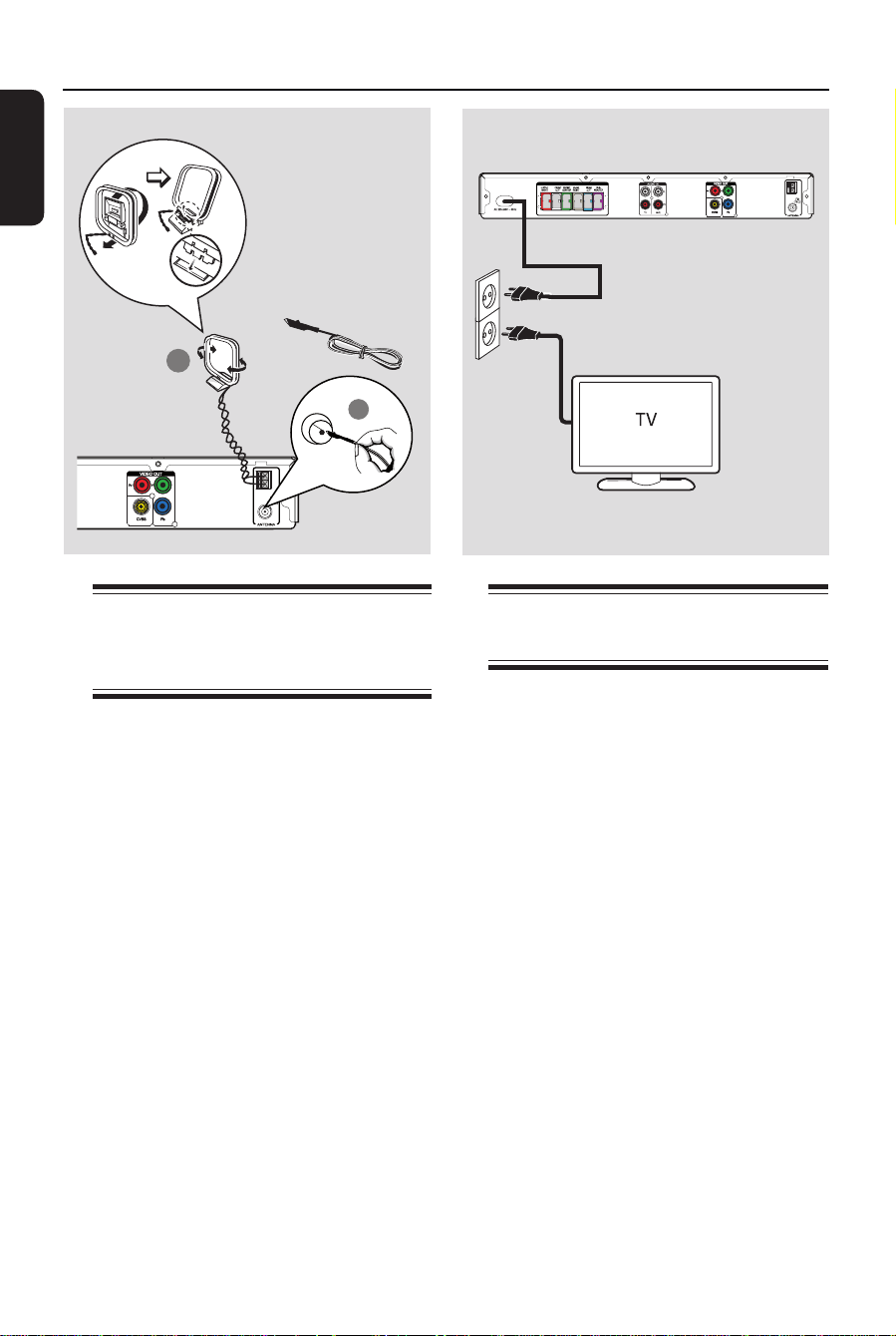

Step 4: Connecting the
FM and AM/MW
antennas
A Connect the supplied AM/MW loop
antenna to the AM/MW socket. Place
the AM/MW loop antenna on a shelf, or
attach it to a stand or wall.
B Connect the supplied FM antenna to the
FM 75 Ω socket. Extend the FM antenna
and x its ends to the wall.
For better FM stereo reception, connect
an external FM antenna (not supplied).
Helpful Hints:
– Adjust the position of the antennas for
optimal reception.
– Position the antennas as far away as
possible from your TV, VCR or other
radiation source to prevent any unwanted
interference.
Step 5: Connecting the
power cord
After everything is connected
properly, connect the AC power
cord into the power outlet.
The standby LED on the main unit lights
up.
Helpful Hints:
– Refer to the type plate at the rear or
bottom of the product for identi cation and
supply ratings.
– Before making or changing any
connections, make sure that all the devices
are disconnected from the power outlet.
SPEAKERS
AM/
MW
Main Unit (rear)
AM/
MW
1
2
1_hts3156_93_eng2_final815.indd 161_hts3156_93_eng2_final815.indd 16 2008-04-11 10:51:15 AM2008-04-11 10:51:15 AM
17
English
Optional Connections

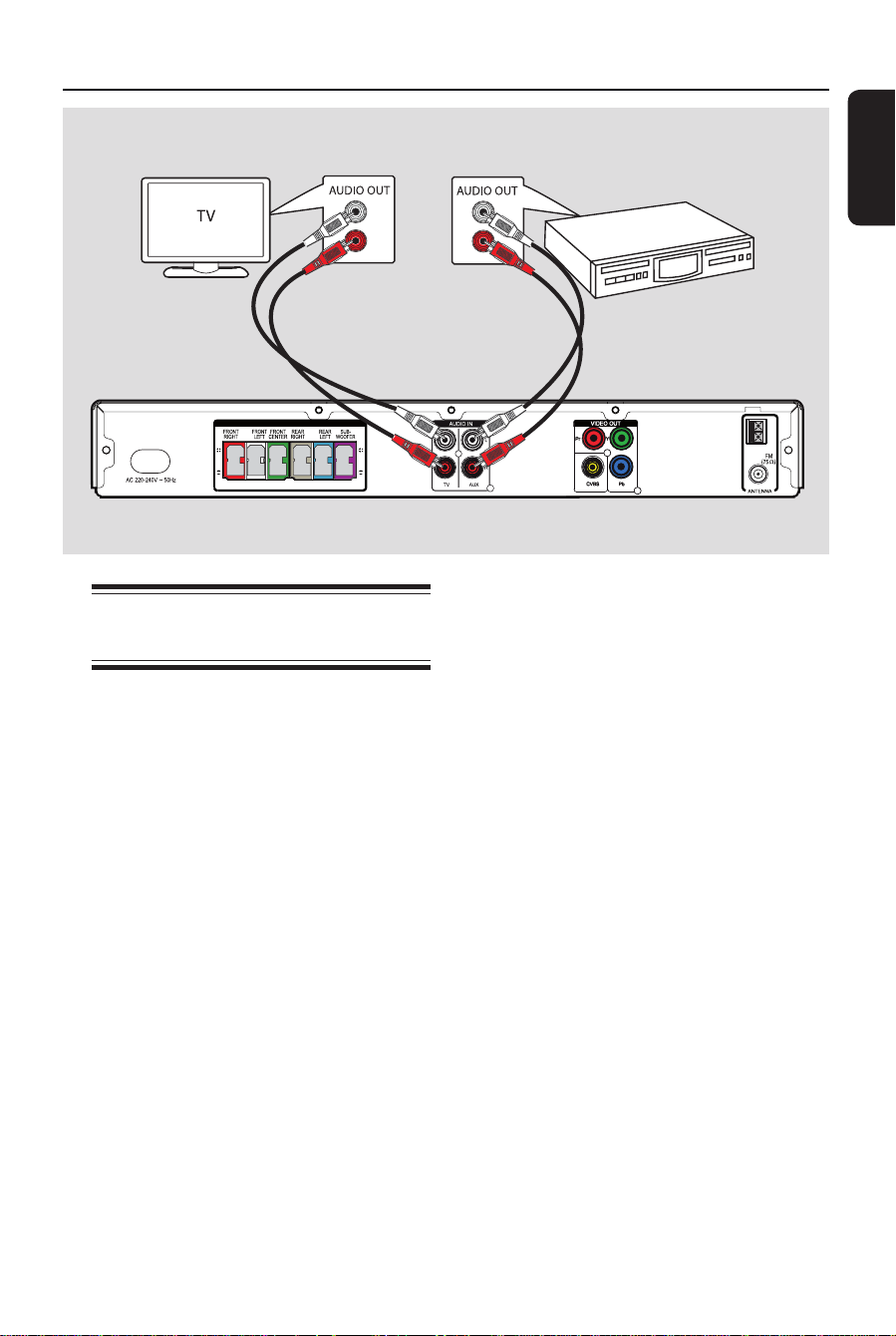

Connecting audio from other
devices
This unit provides analog audio
connection. You can connect the audio
output from an audio/video device (e.g.
DVD Recorder, VCR, Cable/Satellite
Box, game console or TV) to the main
unit in order to enjoy the multi-channel
surround sound capabilities.
Use an audio cable (not supplied) to
connect the AUDIO IN-TV sockets on
the main unit to the AUDIO OUT
sockets on the connected device.
OR
Use an audio cable (not supplied) to
connect the AUDIO IN-AUX sockets
on the main unit to the AUDIO OUT
sockets on the connected device.
To listen to the audio output from this
connection, press TV or AUX /DI to
get the sound output from the speakers.
SPEAKERS
AM/
MW
DVD Recorder/
VCR/ Cable/
Satellite Box
Main Unit (rear)
OR
1_hts3156_93_eng2_final815.indd 171_hts3156_93_eng2_final815.indd 17 2008-04-11 10:51:15 AM2008-04-11 10:51:15 AM
18
English
Finding the correct viewing
channel
A Press SOURCE button on the main unit
until ‘DISC’ appears on the display panel
(or DISC/USB on the remote control).
B Turn on the TV and switch it to the
correct video-in channel.
You may go to the lowest channel on
your TV, then press the Channel Down
button on your TVs remote control until
you see the Video In channel.
You may press ° button repeatedly
on your TV’s remote control.
Usually this channel is between the
lowest and highest channels and may be
called FRONT, A/V IN, VIDEO, etc..
Refer to your TVs user manual on
how to select the correct input on your
TV.
Getting Started
Switching to different play
source
On the main unit
Press the SOURCE button on the front
panel repeatedly to select:
DISC ¤ FM ¤ AM/MW ¤ TV ¤ AUX
¤ MP3 LINE-IN ¤ DISC ....
Or
On the remote control
ZOOM
Press DISC/USB repeatedly to hear the
audio output from the external device.
Press ‘DISC’ to switch to DISC mode.
Press ‘USB’ to switch to USB mode
Press RADIO to switch to FM or AM/
MW band.
Press TV to hear the TV sound output
through this unit if the audio input on this
unit is connected to your TV.
Press AUX/DI for device connected to
the AUDIO IN-AUX sockets.
Press MP3 LINE-IN for device
connected to the MP3 LINE-IN sockets.
1_hts3156_93_eng2_final815.indd 181_hts3156_93_eng2_final815.indd 18 2008-04-11 10:51:15 AM2008-04-11 10:51:15 AM
19
English
Setting language preferences
The language options are different
depending on your country or region. It
may not correspond to the illustrations
shown on the user manual.
On-screen display (OSD) language
The OSD (On-Screen Display) language
for this unit remains as you have set it,
regardless of the changes made to the
DVD disc language.
A In disc mode, press SETUP on the
remote control.
{ General Setup Page } appears.
B Press to highlight { OSD Language }
in the menu and press .
General Setup Page
Disc Lock
Display Dim
Program
OSD Language
Screen Saver
Sleep
DivX(R) VOD Code
English
C Use keys to select a language and
press OK to con rm.
Audio, Subtitle and Menu language
for DVD playback
You can select your preferred language
settings for DVD playback. If the selected
language is recorded on the DVD disc,
this unit automatically plays the disc in
that language. Otherwise, the disc’s
default language will be used instead.
A Press Ç twice to stop playback (if any),
then press SETUP.
B Press repeatedly to select
{ Preference Page }.
C Use keys to select one of the
options below and press .
English
Chinese (Simp)
French
Spanish
Portuguese
Polish
Italian
Turkish
Preference Page
Audio
Subtitle
Disc Menu
Parental
Surround
PBC
MP3/JPEG Nav
Password
{ Audio }
Select the preferred audio language for
DVD playback.
{ Subtitle }
Select the preferred subtitle language for
DVD playback.
{ Disc Menu }
Select the preferred disc menu language
for DVD playback.
D Use keys to select a language and
press OK to con rm.
Getting Started (continued)
1_hts3156_93_eng2_final815.indd 191_hts3156_93_eng2_final815.indd 19 2008-04-11 10:51:15 AM2008-04-11 10:51:15 AM
20
English
If the language you want is not
available in the list, select { Others }.
Use the numeric keypad (0-9) on the
remote control to enter the 4-digit
language code ‘XXXX’ (see page 4) and
press OK to con rm.
E Repeat steps C ~ D for other settings.
Helpful Hints:
– During DVD playback, you can press the
AUDIO and SUBTITLE on the remote control
to change the audio and subtitle languages
respectively. However, this does not change
the default settings you have made here.
– For some DVDs, the subtitle/audio/disc
menu language can only be changed via the
DVD disc menu.
Getting Started (continued)
1_hts3156_93_eng2_final815.indd 201_hts3156_93_eng2_final815.indd 20 2008-04-11 10:51:15 AM2008-04-11 10:51:15 AM
21
English
Setting up Progressive Scan
feature
(for Progressive Scan TV only)
The progressive scan displays twice the
number of frames per second than
interlaced scanning (ordinary normal TV
system). With nearly double the number
of lines, progressive scan offers higher
picture resolution and quality.
Before you start...
Ensure that you have connected this unit
to a progressive scan TV using the
Y Pb Pr connection (see ‘Option 2:
Connecting to a Progressive Scan TV or
component video input’).
A Turn on the TV to the correct viewing
channel for this unit.
Make sure that the TVs progressive
scan mode is turned off (or set to
interlaced mode). Refer to your TVs user
manual.
B Turn on this unit and press DISC/USB
on the remote control.
C Press SETUP on the remote control.
D Press repeatedly to select { Video
Setup Page }.
E Move to { Progressive } > { On } in the
menu and press OK to con rm.
Video Setup Page
TV Type
TV Display
Progressive
Picture Setting
Off
On
F Read the noti cation message on the TV
and con rm your action by selecting the
in the menu and press OK.
There will be no picture on your TV
at this state until you have turned
on the progressive scan mode on
your TV.
G Turn on your TV progressive scan mode,
refer to your TVs user manual.
A message appears on the TV.
H Con rm your action by selecting the
in the menu and press OK.
The setup is now completed and you
can start to enjoy the high quality picture.
If no picture is displayed
A Press OPEN/CLOSE ç.
B Press on the remote control.
C Press AUDIO on the remote control.
Helpful Hints:
– If a blank/distorted screen appears, wait
for 15 seconds for the auto recovery.
– There are some progressive scan TVs that
are not fully compatible with this unit,
resulting in an unnatural picture when
playing back a DVD VIDEO disc in the
progressive scan mode. In such a case, turn
off the progressive scan feature on this unit
and your TV.
Getting Started (continued)
1_hts3156_93_eng2_final815.indd 211_hts3156_93_eng2_final815.indd 21 2008-04-11 10:51:15 AM2008-04-11 10:51:15 AM
22
English
Getting Started (continued)
Setting the speakers’
channels
You can adjust the delay times (centre
and surround only) and volume level for
individual speakers. These adjustments let
you optimise the sound according to
your surroundings and setup.
Before you start...
Stop the disc playback by pressing STOP
button twice or remove the disc from
the disc tray. Otherwise, the settings are
not accessible.
A In disc mode, press SETUP on the
remote control.
B Press
repeatedly to select { Audio
Setup Page }.
C Press to highlight { Speakers
Volume } and press
.
Audio Setup Page
Speakers Volume
Speakers Delay
CD Upsampling
Audio Sync
Front Left
Front Right
Center
Subwoofer
Rear Left
Rear Right
0dB
0dB
0dB
0dB
0dB
0dB
Speakers Level Setup
D Use keys to set the volume level for
each speaker (-6dB ~ +6dB) and press
OK to con rm.
E Use keys to highlight { Speakers
Delay } and press
.
Audio Setup Page
Speakers Volume
Speakers Delay
CD Upsampling
Audio Sync
Center
Rear Left
Rear Right
Speakers Distance Setup
0ms
0ms
0ms
F Use keys to set the delay times
(0 ms ~ 15 ms) for centre and rear
speakers that best suit your surround
sound needs.
G Press OK to con rm.
Helpful Hints:
– A 1ms increase/decrease of delay time is
equivalent to 30 cm change in distance.
– Use the longer delay time settings when
the rear speakers are closer to the listener
than the front speakers.
– The test tone will be automatically
generated to help you judge the sound level
of each speaker.
1_hts3156_93_eng2_final815.indd 221_hts3156_93_eng2_final815.indd 22 2008-04-11 10:51:16 AM2008-04-11 10:51:16 AM
23
English
Disc Operations
Playable discs
Your DVD home theatre system
plays:
– Digital Versatile Discs (DVDs)
– Video CDs (VCDs)
– Super Video CDs (SVCDs)
– Finalised DVD Recordable (DVD±R),
DVD Rewritable (DVD±RW)
– Audio Compact Discs (CDs)
– MP3/ Windows Media™ Audio discs,
picture (Kodak, JPEG) les on
CD-R(W)
– ISO 9660/UDF format
– JPEG resolution support up to
3072 x 2048
– Supported sampling frequencies:
32 kHz, 44.1 kHz, 48 kHz
– Supported Bit-rates: 32~256 (kbps),
variable bit rates (average 128 kbps)
– DivX les on CD-R(W)/DVD+R(W):
– DivX 3/4/5/6, DivX Ultra
Region Codes for DVD discs
DVD discs and players are designed with
regional restrictions. Before playing a disc,
make sure the disc is for the same region
as the unit. The regional code for this unit
is indicated at the rear or bottom panel.
Notes:
– If the inhibit icon (ø or X) appears
on the TV when a button is pressed,
it means the function is not
available on the current disc or at
the current time.
– Never put any objects other than
discs on the disc tray. Doing so may
cause this unit to malfunction.
Playing a disc
A Press SOURCE repeatedly until ‘DISC’
appears on the display panel (or press
DISC/USB on the remote control).
B Turn on the TV to the correct viewing
channel for this unit.
The blue DVD background screen
appears on the TV.
C Press OPEN/CLOSE ç to open the
disc tray.
D Load a disc and press OPEN/CLOSE ç
to close the disc tray.
Make sure the disc label is facing up.
For double-sided discs, load the side
which you want to play facing up.
E Playback starts automatically.
See the following pages for more
playback options and features.
Helpful Hints:
– If you are having trouble playing a certain
disc, remove the disc and try a different one.
Improperly formatted discs cannot be played
on this unit.
– Some discs cannot be played on this unit
due to the con guration and characteristics
of the disc, or due to the condition of
recording and authoring software that was
used.
1_hts3156_93_eng2_final815.indd 231_hts3156_93_eng2_final815.indd 23 2008-04-11 10:51:16 AM2008-04-11 10:51:16 AM
24
English
Disc Operations (continued)
Basic playback controls
Pausing playback
During playback, press u.
While in pause mode, you can press
to step forward one frame at each
press.
To resume playback, press u again.
Selecting another track/chapter
Press í / ë or use the numeric
keypad 0-9 to key in a track/chapter
number.
If the repeat track mode is active, press
í again to replay the same track/
chapter.
Searching backward/forward
Press m / M on the remote control.
While searching, press m / M
repeatedly to increase the search speed.
To resume normal playback, press
u.
Stopping playback
Press x.
Helpful Hints:
– If the message ‘To playback from the
beginning, press PREV key’ appears on the
TV while you load in a disc, you can press
í to start playback from the beginning.
– This is a power-saving feature, this unit
automatically switches to standby mode if
you do not press any buttons within 15
minutes after a disc has stopped playing.
– Screen saver starts automatically if the
disc playback is stopped for about 5 minutes.
Selecting various repeat/
shuf e functions
The available of the repeat play options
and shuf e play mode are vary depending
on the disc type.
While playing a disc, press
DISPLAY on the remote control
repeatedly to choose a repeat or shuf e
play mode.
DVD
RPT ONE (repeat chapter)
RPT TT (repeat title)
SHUFFLE (random play)
RPT SHF (repeat random play)
RPT OFF (exit repeat mode)
VCD/SVCD/CD
RPT ONE (repeat track)
RPT ALL (repeat disc)
SHUFFLE (random play)
RPT SHF (repeat random play)
RPT OFF (exit repeat mode)
MP3/ Windows Media™ Audio/ DivX
®
RPT ONE (repeat track)
RPT ALL/FLD (repeat folder)
SHUFFLE (random play)
RPT OFF (exit repeat mode)
Helpful Hint:
– Repeat playback is not possible on VCDs /
SVCDs when the PBC mode is turned on.
1_hts3156_93_eng2_final815.indd 241_hts3156_93_eng2_final815.indd 24 2008-04-11 10:51:16 AM2008-04-11 10:51:16 AM
25
English
Disc Operations (continued)
Programming disc tracks
(not for Picture CD/MP3 discs)
You can play the contents of the disc in
the order you want by programming the
playing order of the tracks.
A Press PROGRAM on the remote
control.
The programming menu appears.
12
6
7
8
9
10
Program: Track (01-16)
Exit Start Next
2
B Use the numeric keypad (0-9) to
enter a valid track/chapter number.
C Use keys to move the cursor to
the next position.
If there are more than ten total
programme tracks, select { Next } on
the screen and press OK (or press ëon
the remote control) to access the next
programming page.
To remove the track/chapter from the
programming menu, select the track/
chapter and press OK.
D Once complete, select { Start } on the
screen and press OK to start playback.
Playback starts from the selected track
under the programmed sequence.
E To exit the programme menu, select
{ Exit } in the menu and press OK.
Other playback features
for video discs (DVD/VCD/
SVCD)
DISPLAY
AUDIO SYNC
ZOOM
AUDIO
TITLE
DISC MENU
SUBTITLE
ZOOM
VOCAL KARAOKE
Note:
The operating features described here
might not be possible for certain discs.
Always refer to the instructions supplied
with the discs.
Using the Disc Menu
Depending on the disc format, a menu
may appear on the TV screen once you
load the disc.
To select a playback feature or item
Use keys or numeric keypad
0-9 on the remote control, then press
OK to start playback.
To access or remove the menu
Press DISC MENU on the remote
control.
1_hts3156_93_eng2_final815.indd 251_hts3156_93_eng2_final815.indd 25 2008-04-11 10:51:16 AM2008-04-11 10:51:16 AM
26
English
Viewing playback information
This unit can display the disc playback
information (for example, title or chapter
number, elapsed playing time, audio/
subtitle language) and a number of
operations can be done without
interrupting disc playback.
A During playback, press DISPLAY.
A list of available disc information
appears on the TV.
DVD
Menu
Title
Chapter
Audio
Subtitle
01/01
02/99
2ch Chi
Off
Bitrate 7
Title Elapsed
VCD/SVCD
Bitrate 8
Total Elapsed
Track
Disc Time
Track Time
Repeat
09/16
1:16:05
0:04:32
Off
Menu
B Use keys to view the information
and press OK to access.
C Use the numeric keypad 0-9 to input
the number/time or use keys to
make the selection.
D Press OK to con rm.
Playback changes according to the
chosen time or to the selected title/
chapter/track.
Zooming
This option allows you to zoom and pan
through the picture on the TV.
A During playback, press ZOOM
repeatedly to select a different zoom
factor.
Playback continues.
B Use keys to pan through the
zoomed image.
C Press ZOOM repeatedly to return to
the original size.
Changing subtitle language
This operation works only on DVDs with
multiple subtitle languages. You can
change the language you want while
playing a DVD.
Press SUBTITLE repeatedly to select
different subtitle languages.
Switching camera angles
This option is only available on DVDs
that contain sequences recorded from
different camera angles. This allows you
to view the picture from different angles.
A During playback, press DISPLAY.
Playback information menu appears.
B Press to highlight ‘ANGLE’ function in
the menu.
C If different camera angles choices are
available, press and numeric keys to
select.
Disc Operations (continued)
1_hts3156_93_eng2_final815.indd 261_hts3156_93_eng2_final815.indd 26 2008-04-11 10:51:16 AM2008-04-11 10:51:16 AM
27
English
Changing sound track language
This operation works only on DVDs with
multiple sound track languages, or VCDs/
SVCDs with multiple audio channels.
For DVD
Press AUDIO repeatedly to select the
available audio languages.
For VCD and SVCD
Press AUDIO repeatedly to select the
available audio channels provided by the
disc (STEREO, MONO LEFT, MONO
RIGHT or MIX MONO).
Setting the delay times for audio
playback
This feature allows you to adjust the
audio delay times if the video playback is
slower than the audio output streams,
hence resulting in ‘Lip-sync’. The only
way to correct ‘Lip-sync’ error caused by
delayed video is to delay audio by an
equal amount.
A Press AUDIO SYNC.
B Within ve seconds, use the VOL +-
to set the audio output delay times
(0 ~ 200 ms).
If the volume control is not used
within ve seconds, it resumes its normal
volume control function.
Helpful Hint:
– Set your preferred default AUDIO SYNC
setting in the setup menu, see ‘Setup Menu
Options - { Audio Setup Page > Audio Sync }’
for details.
Playback Control (VCD only)
Playback Control (PBC) playback allows
you to play VCDs/SCVDs interactively,
following the menu on the display. The
PBC feature on this unit is turned on by
default.
For VCDs with PBC feature
(version 2.0 only) and SVCDs
During playback, press TITLE to
return to the disc title menu or main
menu.
Helpful Hint:
– Set your preferred default PBC setting in
the setup menu, see ‘Setup Menu Options -
{ Preference Page > PBC } for details.’
Disc Operations (continued)
1_hts3156_93_eng2_final815.indd 271_hts3156_93_eng2_final815.indd 27 2008-04-11 10:51:16 AM2008-04-11 10:51:16 AM
28
English
Preview function (VCD/SVCD only)
This function allows you to preview the
contents of a VCD/SVCD.
A
Press DISC MENU.
Select Digest Type:
Track Digest
Disc Interval
Track Interval
B Use keys to select one of the
following options and press OK.
{ Track Digest }
View six different tracks on one screen
each time. It allows you to have a quick
glance at all the tracks on the disc.
{ Disc Interval }
View the whole disc in six thumbnail
pictures. It divides a disc into six portions
at regular intervals and displays them on
one screen.
{ Track Interval }
View the content of a single track in six
thumbnail pictures. It divides a single
track into six portions at regular intervals
and displays them on one screen.
This option is only available during
playback mode.
Exit Menu
01 02 03
04 05 06
Disc Operations (continued)
To go to the previous or next page, press
í / ë.
To return to the main menu, select
{ Menu } on the screen and press OK.
Press OK on the selected thumbnail
picture to start playback from there.
C To exit the preview menu, select
{ Exit } on the screen and press OK.
1_hts3156_93_eng2_final815.indd 281_hts3156_93_eng2_final815.indd 28 2008-04-11 10:51:17 AM2008-04-11 10:51:17 AM
29
English
Playing a MP3/ WMA disc
This unit can playback most of the MP3
and Windows Media™ Audio les
recorded on a recordable disc or
commercial CD.
Before you start ...
Turn on your TV to the correct Video In
channel. See ‘Finding the correct viewing
channel’ for details.
A Insert a MP3/WMA disc.
The disc reading time may exceed 30
seconds due to the complexity of the
directory/ le con guration.
The disc menu appears on the TV.
00:06 04:04 001/018
\UDF_MP3\
000 018 000 Disc
Previous
08-AudioTrack
09-AudioTrack
10-AudioTrack
11-AudioTrack
12-AudioTrack
13-AudioTrack
14-AudioTrack
B If the disc main menu contains various
folders, use keys to select a desired
folder and press OK to open the folder.
C Use keys to select a le and press
OK to start playback.
Playback starts from the selected le
and continue till the end of the folder.
During playback;
Press í / ë to playback another le in
the current folder.
Press m / M to fast reverse/forward
search for a music track.
To select another folder from the
current disc, press repeatedly to
highlight ‘Previous’ folder and press OK
to return to the root menu.
Press DISPLAY repeatedly to access
various play modes.
D To stop playback, press x.
Helpful Hints:
– You can set to display or skip the folders
when you load a MP3/JPEG disc. Press
SETUP, then go to { Preferences Page >
MP3/JPEG NAV }.
– Only the rst session of a multi-session CD
will be played back.
– It is normal to experience an occasional
‘skip’ while listening to your MP3/WMA disc
due to poor clarity of digital contents during
internet downloading.
– If any special characters are present in the
MP3/WMA track name (ID3) or album
name, it might not be displayed correctly on
the screen because this unit does not support
the characters.
Disc Operations (continued)
1_hts3156_93_eng2_final815.indd 291_hts3156_93_eng2_final815.indd 29 2008-04-11 10:51:17 AM2008-04-11 10:51:17 AM
30
English
Playing a JPEG image le
(slide show)
Before you start ...
Turn on your TV to the correct Video In
channel. See ‘Finding the correct viewing
channel’ for details.
Insert a JPEG photo CD (Kodak Picture
CD, JPEG).
For a Kodak disc, the slide show
begins automatically.
For a JPEG disc, the picture menu
appears on the TV. Press u to start the
slide-show playback.
Helpful Hint:
– It may require longer time to display the
disc content due to the large number of
songs/pictures compiled into the disc.
Supported le format:
– The le extension has to be ‘*.JPG’ and
not ‘*.JPEG’.
– This unit can only display digital camera
pictures according to the JPEG-EXIF
format, typically used by almost all digital
cameras. It cannot display progressive
JPEG, Motion JPEG, or pictures in
formats other than JPEG, or sound clips
associated with pictures.
Preview function
A During playback, press x.
12 thumbnail pictures will be displayed
on the TV.
B Press í / ë to display the other
pictures on the previous/next page.
C Use keys to select one of the
pictures and press OK to start playback.
D Press DISC MENU to return to Picture
CD menu.
Zooming
A During playback, press ZOOM
repeatedly to select a different zoom
factor.
B Use keys to pan through the
zoomed image.

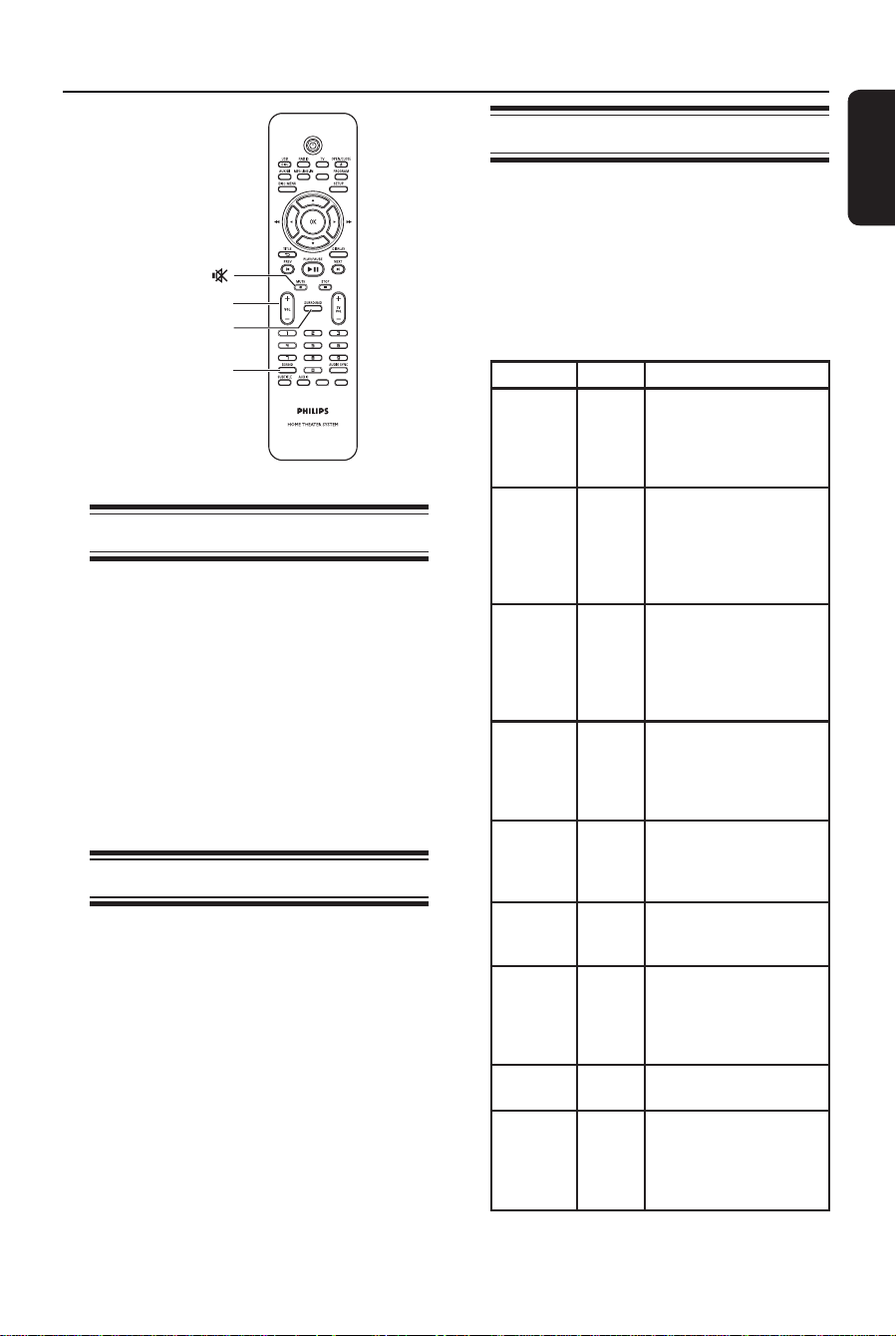

Flip/Rotate picture
During playback, use keys to
ip/rotate the picture on the TV.
Action
Remote
Control
Rotate the picture anti-clockwise.
Rotate the picture clockwise.
Flip the picture vertically.
Flip the picture horizontally.
Disc Operations (continued)
1_hts3156_93_eng2_final815.indd 301_hts3156_93_eng2_final815.indd 30 2008-04-11 10:51:17 AM2008-04-11 10:51:17 AM
31
English
Disc Operations (continued)
Playing music and photo les
simultaneously
You can create a musical slide show
playback if the disc contains both the
MP3/WMA music and JPEG picture les.
A Load a disc that contains both MP3/WMA
and JPEG les.
B Use keys to select a MP3/WMA le
from the disc menu and press OK to
start playback.
C During MP3/WMA playback, use
keys to select a JPEG le from
the disc menu and press OK.
Slideshow begins and continues till the
end of the photo folder or album.
To return to the menu, press
DISC MENU.
D To stop simultaneous playback, press x
twice.
Playing a DivX disc
You can only play those DivX
®
videos
that were rented or purchased using the
DivX
®
registration code of this unit (see
‘Setup Menu Options - { General Setup >
DivX(R) VOD Code }’ for details.)
A Load a DivX
®
disc.
B Use keys to navigate to the le
you want to play.
C Press OK to start playback.
During playback;
If the DivX disc has multilingual subtitles,
you can press SUBTITLE on the
remote control to change the subtitle
language.
If the DivX title has different audio
tracks, you can press AUDIO on the
remote control to change the audio
stream.
Use m / M keys on the remote
control to perform fast reverse/forward
search.
Press DISPLAY repeatedly until the
Time Search menu appears, key in the
time where playback should start.
Playback skips to the time entered.
Helpful Hints:
– Subtitle les with the following le name
extensions (.srt, .smi, .sub, .ssa, .ass) are
supported but do not appear on the le
navigation menu.
– The subtitle le name has to be the same
as the le name of the movie.
– The subtitle can only be displayed up to an
average of 45 characters.
1_hts3156_93_eng2_final815.indd 311_hts3156_93_eng2_final815.indd 31 2008-04-11 10:51:17 AM2008-04-11 10:51:17 AM
32
English

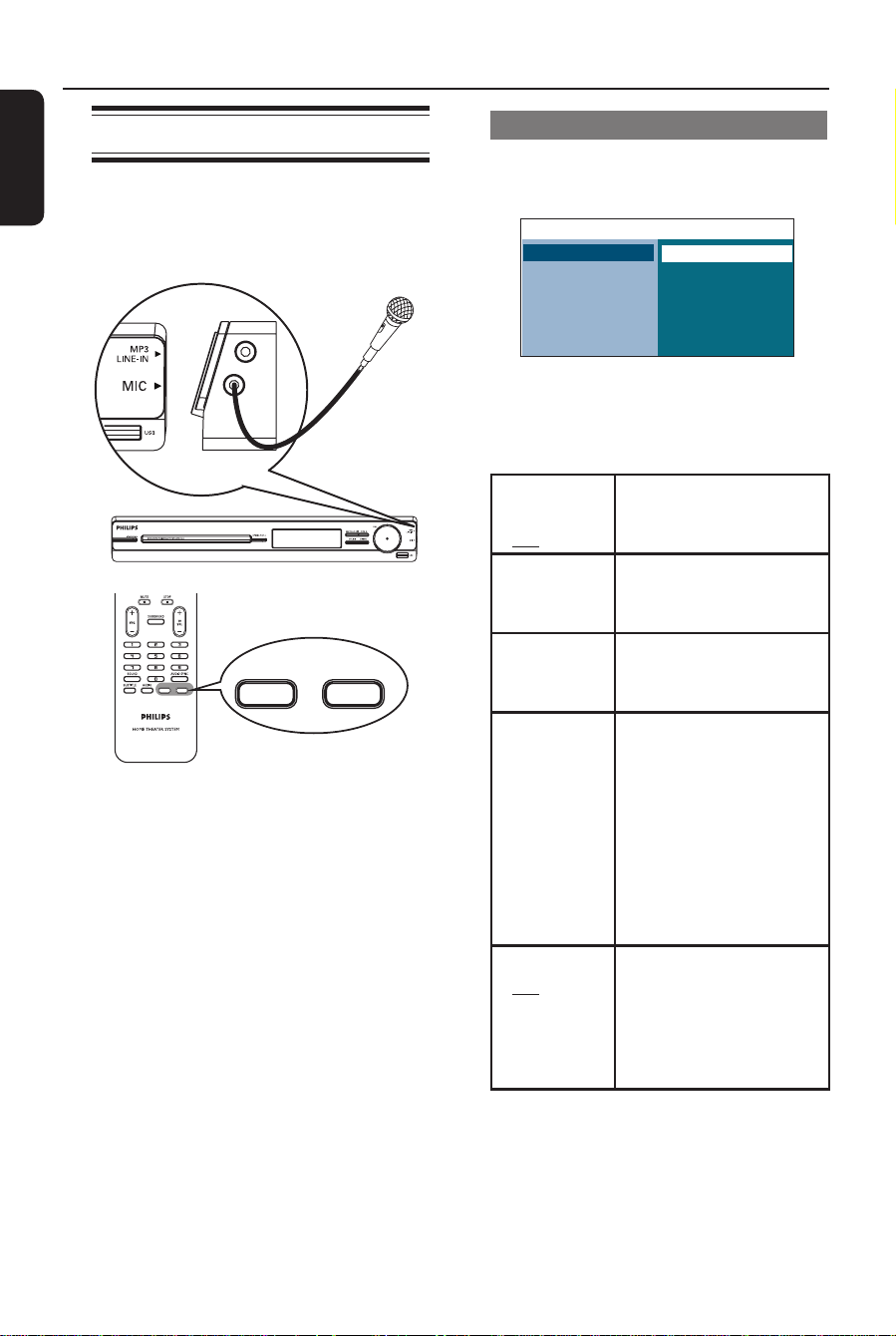

Playing a Karaoke disc
A Connect a microphone (not supplied) to
the MIC socket at the right side panel of
the main unit (as shown below).
VOCAL KARAOKE
VOCAL KARAOKE
B Load a karaoke disc.
If the disc menu appears, use keys
to make your selection and press OK to
start playback.
C To turn off the vocal or change the
sound channel of a karaoke disc, press
VOCAL on the remote control
repeatedly to toggle between various
audio modes.
D Start enjoying the karaoke.
Helpful Hints:
– While singing, you can press MIC LEVEL
on the main unit followed by adjusting the
volume control to set the microphone volume
level.
Playback - Karaoke
Microphone setting
A Press KARAOKE to access ‘Microphone
Setup’ page.
Microphone Setup
Mic
Mic Volume
Echo Level
Key
Score
On
4:3 Letter Box
Off
B In ‘Microphone Setup’ page, use
keys to select the option for microphone
settings and press OK to con rm.
{ Mic }
- On
- Off
To turn on or off the
karaoke microphone.
{ Mic
Volume }
Set the microphone
volume level (0 ~ 20).
Default setting is 10.
{ Echo
Level }
Set the Echo Level
(0 ~ 20).
Default setting is 10.
{ Key } Set the pitch level
(-10~ +10) that
matching your voice.
Note: Select ‘-10’ for
lowest possible tone
and ‘+10’ for highest
tone. To return to
original tone, select ‘00’.
{ Score }
- Off
- Easy
- Normal
- Hard
Select the level of
scoring option.
Note: Select { Off } to
turn off the karaoke
scoring option.
1_hts3156_93_eng2_final815.indd 321_hts3156_93_eng2_final815.indd 32 2008-04-11 10:51:17 AM2008-04-11 10:51:17 AM
33
English

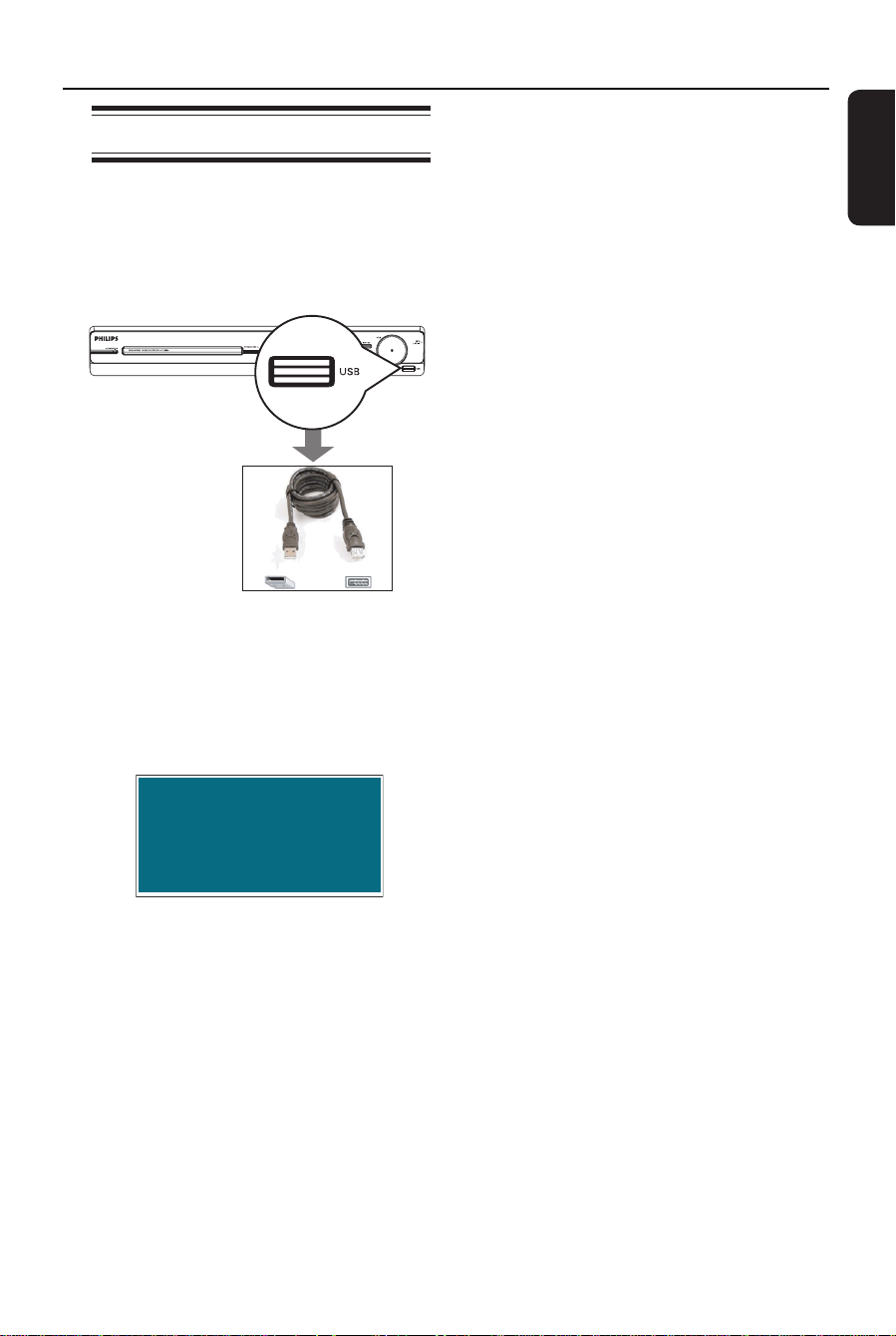

Playing from a USB device
You can play or view the data les (JPEG,
MP3, Windows Media™ Audio or DivX)
in the USB ash drive or USB memory
card reader. However, editing or copying
the data le is not possible.
A Connect the USB ash drive / USB
memory card reader directly to the USB
socket on this unit.
B A message appears on the TV for 5 ( ve)
seconds when the device is detected.
Press DISC/USB to select device
C Press DISC/USB on the remote control
to access the data in the drive.
When using multiple drives on a single
card reader, only one of the connected
cards can be accessed.
The device numbers may vary from
different card readers.
D Select the le to play and press u.
For more playback information, see
‘Playing a MP3/WMA disc,’ ‘Playing a JPEG
image le (slideshow)’ or ‘Playing a DivX
disc’ for details.
E Before removing the USB device, press x
to stop playback or press DISC/USB to
switch to disc mode.
Helpful Hints:
– The USB socket does not support the
connection of other USB devices except to a
USB ash drive / USB memory card reader.
– When the USB device does not t into the
USB socket, a USB extension cable is (not
supplied) required.
– You can only read and playback the
content from the USB device.
– Copy-protected contents are not playable.
Playback - USB Device
1_hts3156_93_eng2_final815.indd 331_hts3156_93_eng2_final815.indd 33 2008-04-11 10:51:18 AM2008-04-11 10:51:18 AM
34
English
Playing from other portable
audio player
You can connect your portable audio
player to this unit to get the best
immersion sound experience through the
speaker system. However, controlling of
playback is only possible on the portable
audio player.
A Use a 3.5mm stereo audio cable (not
supplied) to connect the MP3 LINE-IN
socket on this unit to the ‘headphone’
output socket on your portable audio
player.
B Press MP3 LINE-IN on the remote
control.
C Start playback on your portable audio
player.
The music will be heard through the
speakers.
D To stop playback, press the STOP button
on the portable audio player.
Helpful Hint:
– Stop playback on your portable audio
player before you switch this unit to another
input source (eg. DISC/USB, RADIO).
Playback - Other Audio Player
1_hts3156_93_eng2_final815.indd 341_hts3156_93_eng2_final815.indd 34 2008-04-11 10:51:18 AM2008-04-11 10:51:18 AM
35
English
Setup Menu Options
Accessing the setup menu
You can change the settings in this unit to
suit your particular requirements.
SETUP
OK
ZOOM
A In disc mode, press SETUP on the
remote control.
The setup menu appears.
B Use keys to select one of the setup
menu options and press OK.
If you are not able to access the
{ Preference Page }, press SETUP to
exit the menu. Then, press STOP x
twice before you press the SETUP
again.
C Use keys to select a setup option
and press to access.
D Select the setting you wish to change and
press OK to con rm and go back to the
previously selected item.
Instructions and explanations of the
options are provided in the following
pages.
If the option in the menu is greyed
out, that means the setting is not
available or cannot be changed in the
current state.
E To exit, press SETUP.
General Setup Page
Disc Lock
Display Dim
Program
OSD Language
Screen Saver
Sleep
DivX(R) VOD Code
See ‘General Setup Page’ on this Chapter.
Audio Setup Page
Speakers Volume
Speakers Delay
CD Upsampling
Audio Sync
See ‘Audio Setup Page’ on this Chapter.
Video Setup Page
TV Type
TV Display
Progressive
Picture Setting
See ‘Video Setup Page’ on this Chapter.
Preference Page
Audio
Subtitle
Disc Menu
Parental
Surround
PBC
MP3/JPEG Nav
Password
DivX Subtitle
Default
See ‘Preference Page’ on this Chapter.
1_hts3156_93_eng2_final815.indd 351_hts3156_93_eng2_final815.indd 35 2008-04-11 10:51:18 AM2008-04-11 10:51:18 AM
36
English
Setup Menu Options (continued)
General Setup Page (underlined options are the factory default settings)
Disc Lock
Not all discs are rated or coded by the disc maker. You can
prevent play of speci c discs with the disc lock function. Up to 40
discs can be locked.
{ Lock } – To block the playback of the current disc.
Subsequent access to a locked disc requires a
six-digit password. The default password is
‘136900’ (see ‘Preference Setup Page -
{ Password }).
{ Unlock } – All discs can be played.
Display Dim
Select the brightness of this unit’s display panel.
{ 100% } – Full brightness.
{ 70% } – Medium brightness.
{ 40% } – Dimmest display. This switches off all LEDs and
icons on the front display panel of this unit.
Program
Access the track programming menu. See ‘Programming disc
tracks’ for details.
OSD Language
Select the menu language for this unit’s on-screen display.
Screen Saver
The screen saver prevents damage to the TV screen by avoiding
exposure to a static image for too long.
{ On } – Switch to TV screen saver mode when
playback has been stopped or paused for
about 5 minutes.
{ Off } – Turn off the screen saver function.
Sleep
The sleep timer enables the unit to switch to standby mode
automatically after the selected preset time.
{ 15/30/45/60 mins } – Select the preset minutes for switching
the unit to standby mode automatically.
{ Off } – Turn off the sleep mode function.
DivX(R) VOD Code
Philips provides you with the DivX
®
VOD (Video On Demand)
registration code that allows you to rent or purchase videos from
DivX
®
VOD service at www.divx.com/vod. All the downloaded
videos from DivX
®
VOD can only be played back on this unit.
Press to see the registration code and press OK to exit.
1_hts3156_93_eng2_final815.indd 361_hts3156_93_eng2_final815.indd 36 2008-04-11 10:51:18 AM2008-04-11 10:51:18 AM
37
English
Audio Setup Page (underlined options are the factory default settings)
Speakers Volume
Access the speaker’s level setup menu. Use keys to adjust
the volume level for each connected speaker between -6dB to
+6dB.
See ‘Getting Started - Setting the speakers’ channels’.
Speakers Delay
Access the speaker’s distance setup menu. Use keys to set
the delay times for the centre and rear speakers based on the
listening position and distance.
See ‘Getting Started - Setting
the speakers’ channels’.
Note: 1 ms increase/decrease of delay time is equivalent to one (1) foot
change in distance. Use the longer delay time settings when the rear
speakers are closer to the listener than the front speakers.
CD Upsampling
This feature enables you to convert the music CD to a
higher sampling rate using sophisticated digital signal
processing for better sound quality.
{ Off } – Turn off CD-upsampling.
{ 88.2 kHz (X2) } – To convert the sampling rate of the
CDs twice as high as the original rate.
Notes:
–
This function is not available if you switch to Multi-channel mode.
–
If you press SURROUND on the remote control, it turns off the
CD upsampling feature.
Audio Sync
This feature allows you to adjust the audio delay times if the
video playback is slower than the audio output streams.
Use keys to set the delay times for the audio output
between 0~200ms.
Setup Menu Options (continued)
1_hts3156_93_eng2_final815.indd 371_hts3156_93_eng2_final815.indd 37 2008-04-11 10:51:18 AM2008-04-11 10:51:18 AM
38
English
Video Setup Page (underlined options are the factory default settings)
TV Type
Select the colour system that matches the connected TV. It
enables playback of a different type of disc (PAL or NTSC disc)
on this unit.
{ PAL } – For PAL-system TV.
{ NTSC } – For NTSC-system TV.
{ Multi } – For TV that is compatible with both
PAL and NTSC.
TV Display
The picture shape can be adjusted to t your TV.
{ 4:3 Pan Scan } – For a full-height picture
with the sides trimmed.
{ 4:3 Letter Box } – For a ‘wide-screen’
display with black bars on
the top and bottom.
{ 16:9 Wide Screen } – For wide-screen TV
(frame ratio 16:9).
Progressive
Before enabling the progressive scan feature, you
must ensure that your TV can accept progressive signals (a
progressive scan TV is required) and that you have connected this
unit to your TV using the Y Pb Pr. See ‘Getting Started > Setting up
progressive scan feature’ for details.
{ Off } – Turn off the progressive scan mode.
{ On } – Turn on progressive scan mode.
Read the instructions on the TV and
con rm your action by pressing OK on
the remote control.
Picture Setting
This unit provides three prede ned sets of picture colour settings
and one personal setting which you can de ne yourself.
{ Standard } – Original colour setting.
{ Bright } – Vibrant colour setting.
{ Soft } – Warm colour setting.
{ Personal } – Select this to personalise the picture
colour setting. Use keys to adjust
to the setting that best suits your
personal preference and press OK to
con rm. For an average setting, select
{ 0 }.
Setup Menu Options (continued)
Brightness
Contrast
Tint
Color
Personal Picture Setup
1_hts3156_93_eng2_final815.indd 381_hts3156_93_eng2_final815.indd 38 2008-04-11 10:51:18 AM2008-04-11 10:51:18 AM
39
English
Preference Page (underlined options are the factory default settings)
Audio
Select the preferred audio language for DVDs with multiple
sound tracks.
Subtitle
Select the preferred subtitle language for DVD playback.
Disc Menu
Select the preferred disc menu language for DVD playback.
Note: If the selected audio/subtitle/disc menu language is not available on
the DVD, the disc’s default language will be used instead.
Parental
This is to prohibit viewing of discs that had exceeded the limits
you set. It works only on the DVDs with parental level assigned
to the complete disc or to certain scenes on the disc.
1) Use keys to select a rating level from 1 to 8 and press OK.
2) Use the numeric keypad 0-9 on the remote control to enter your
six-digit password.
Notes:
– The ratings are country-dependent (‘1’ is considered material that is
least offensive and ‘8’ is most offensive). To disable parental controls and
allow all discs to play, select ‘8’.
– Some DVDs are not encoded with a rating though the movie rating
may be printed on the disc cover. The rating level feature does not
prohibit playback of such discs. VCD, SVCD and CD have no level
indication, so parental control has no effect on these type of discs.
– DVDs that are rated higher than the level you selected will not be
played unless you enter the same six-digit password.
Surround
Set the preferred surround setting when the unit is powered up.
{
On } – Turn on to multi-channel surround
mode.
{ Last Setting } – Turn on to the last surround setting.
PBC
Play Back Control feature is applicable for VCD/SVCD only. It
allows you to play Video CDs (2.0) interactively, following the
menu on the display.
{
On } – The index menu (if available) appears on
the TV when you load a VCD/SVCD.
{ Off } – The VCD/SVCD skips the index menu
and playback directly from the
beginning.
Setup Menu Options (continued)
1_hts3156_93_eng2_final815.indd 391_hts3156_93_eng2_final815.indd 39 2008-04-11 10:51:19 AM2008-04-11 10:51:19 AM
40
English
Preference Page (underlined options are the factory default settings)
MP3/JPEG Nav
MP3/JPEG Navigator can only be set if the disc is recorded with a
menu. It allows you to select different display menus for easy
navigation.
{ Without Menu
} – Display all the les contained in the
MP3/Picture disc.
{ With Menu } – Display the folder menu of the MP3/
Picture disc.
Note: This unit can only display 650 les in the directory.
Password
The password is used for the Disc Lock and Parental. The default
password is ‘136900’. To change the password:
1) Press OK to access the change password menu.
Old Password
New Password
Confirm PWD
Change Password
OK
2) Use the numeric keypad 0-9 on the remote control to
enter your existing six-digit password at { Old Password }.
Note: When doing this for the rst time or if you forget your existing
password, key in ‘136900’.
3) Enter the new six-digit password at { New Password }.
4) Enter the new six-digit password again at { Con rm PWD }.
5) Press OK to con rm and exit the menu.
DivX Subtitle
Select the font type that supports the recorded DivX subtitle.
{ Central Europe } – Display Central Europe fonts.
{ Cyrillic } – Display Cyrillic fonts.
{ Greek } – Display Greek subtitle fonts.
{ Standard } – Display a standard list of Roman subtitle
fonts provided by this unit.
{ Hebrew } – Display Hebrew subtitle fonts.
{ Chinese (Simp) } – Display Simpli ed Chinese fonts.
{ Korean } – Display Korean fonts.
Default
This feature enables you to reset all the setup menu options and
your personal settings to the factory defaults, except your
password for the Disc Lock and Parental.
Press OK to con rm the default reset.
Setup Menu Options (continued)
1_hts3156_93_eng2_final815.indd 401_hts3156_93_eng2_final815.indd 40 2008-04-11 10:51:19 AM2008-04-11 10:51:19 AM
41
English
Radio Operations
Before you start ...
Make sure the FM and AM/MW antennas antennas
are connected.are connected.
Tuning to radio stations
A Press SOURCE repeatedly until ‘FM’
appears on the display panel (or press
RADIO on the remote control).
B Press / on the remote control to
start tuning.
The frequency indication starts to
change until a radio station with suf cient
signal strength is found.
C Repeat step B if necessary until you nd
the desired radio station
D To ne-tune the reception of a weak
station, press / brie y and
repeatedly until an optimal reception is
found.
Changing tuning grid
(only applicable for certain regions)
In some countries, the frequency step
between adjacent channels in the (AM/
MW)/ FM band is 9 kHz/ 50 kHz (10 kHz/
100 kHz in some areas).
Note:
Changing the tuning grid erases all
previously stored preset radio stations.
A Press SOURCE repeatedly until ‘FM’ or
‘AM/MW’ appears
B Press x.
C Press and hold u until ‘GRID 9’ or
‘GRID 10’ appears.
Presetting radio stations
You can store up to 40 FM and 20
AM/MW preset radio stations in the
memory. There are three different ways
to program the radio stations:
– Using auto install (for rst time setup
only)
– Using automatic preset
– Using manual preset
Helpful Hints:
– This unit exits presetting mode if no
button is pressed within 20 seconds.
– If no stereo signal is detected or less than
5 ( ve) stations are detected during radio
installation, ‘CHECK ANTENNA’ appears.
Using auto install
When you access the ‘RADIO’ mode for
the very rst time, you will be prompted
to install the radio stations. With this
feature, you can install all the available
radio station automatically with one
touch of button.
RADIO
ZOOM
A Press RADIO.
‘AUTO INSTALL ... PRESS PLAY’
appears.
1_hts3156_93_eng2_final815.indd 411_hts3156_93_eng2_final815.indd 41 2008-04-11 10:51:19 AM2008-04-11 10:51:19 AM
42
English
Radio Operations (continued)
B
Press u.
This unit starts searching from the FM
band followed by the AM/MW band.
All the available radio stations with
strong signal will be stored automatically.
Once complete, the rst tuned radio
station will be played back.
Using automatic preset
Use automatic presetting to store or
reinstall all the preset radio stations.
RADIO
PROGRAM
ZOOM
A Press RADIO to switch to ‘FM’ or ‘AM/
MW’ band.
B Press and hold PROGRAM until
‘START ...’ appears on the display panel.
All previously stored radio stations
will be replaced.
Using manual preset
Use manual presetting to store your
favourite radio stations.
A Tune to your desired radio station (see
‘Tuning to radio stations’).
B Press PROGRAM.
C Use í / ë keys or use the numeric
keypad 0-9 to select a preset number
that you want to store the current radio
station.
D Press PROGRAM to store.
Selecting a preset radio
station
A Press RADIO to switch to ‘FM’ or
‘AM/MW’ band.
B Use í / ë keys or use the numeric
keypad 0-9 to select a preset radio
stations.
The preset number and radio
frequency appear on the display panel.
Deleting a preset radio
station
A In radio mode, use í / ë keys to select
a preset radio station.
B Press and hold x until ‘FM or AM/MW X
DELETED’ appears.
‘X’ is the preset number.
The radio station continues to play
but has been deleted from the preset list.
The rest of the preset radio stations
remain unchanged.
1_hts3156_93_eng2_final815.indd 421_hts3156_93_eng2_final815.indd 42 2008-04-11 10:51:19 AM2008-04-11 10:51:19 AM
43
English
Sound and Volume Controls
MUTE
SURROUND
VOL+-
SOUND
ZOOM
VOCAL KARAOKE
Volume control
Press VOL +
/- to increase or
decrease the volume level.
To turn off the volume temporarily
Press MUTE %.
Playback continues without sound and
‘MUTE’ appears.
To restore the volume, press MUTE
% again, or increase the volume level.
Selecting surround sound
Press SURROUND to select between
Multi-Channel or Stereo sound.
The availability of the various
surround sound modes depends on the
sound available on the disc.
The available output modes for
Multi-channel include: Dolby Digital, DTS
(Digital Theatre Systems) Surround and
Dolby Pro Logic II.
Stereo broadcasts or recordings will
produce some surround channel effects
when played in a surround mode.
Selecting digital sound effects
Select a preset digital sound effect that
matches your disc’s content or that
optimises the sound of the musical style
you are playing.
Press SOUND to select the available
sound effect.
Movies Music Description
CONCERT CLASSIC
Flat and pure sound
mode. Ideal for listening
to classical music and
watching live concert
DVDs.
DRAMA JAZZ
Clear mid and high range.
Recreates the atmosphere
of a live club with the
artist just in front of you.
Good for Jazz music and
watching dramas.
ACTION ROCK
Enhanced low and high
range for great sounding
movie effects and
atmosphere. Great for
action movies and rock/
pop music.
MTV RnB
Enhanced low and mid
range for groovy and
punchy sounds. Suitable
for R&B, Hip Hop and
MTV videos.
GAMING PARTY
Slightly enhanced low
range and strong mid
range ideal for party
music and video gaming.
CARTOONS LOUNGE
Moderate sound mode
suitable for lounge music
and watching cartoons.
SPORTS SPORTS
Moderate mid range and
surround effects for clear
vocals and the
atmosphere of a live
sports venue.
NEWS NEWS
Enhanced mid range for
clear vocals/speech.
NIGHT NIGHT
Dynamically controlled
sound mode suitable for
watching movies at night
or for non-intrusive
background music.
1_hts3156_93_eng2_final815.indd 431_hts3156_93_eng2_final815.indd 43 2008-04-11 10:51:19 AM2008-04-11 10:51:19 AM
44
English
Other Features
Installing the latest software
Philips provides software upgrades to
make sure that this unit is compatible
with the newest formats. To check the
updates, compare the current software
version of this unit with the latest
software version available at the Philips
website.
A Press OPEN/CLOSE ç to open the
disc tray.
B Press DISPLAY on the remote control
to check the software version of this unit.
C Write down the version number.
D Go to www.philips.com/support to check
the latest software version available for
this unit.
E If the latest software version is higher
than the software version of this unit,
download it and store onto a CD-R.
F Insert the CD-R to this unit and con rm
upgrade operation.
The software upgrading is in process.
Note:
Never unplug or turn off this unit
during the upgrade.
G Once complete, this unit turns off to
standby mode automatically.
1_hts3156_93_eng2_final815.indd 441_hts3156_93_eng2_final815.indd 44 2008-04-11 10:51:20 AM2008-04-11 10:51:20 AM
45
English
Troubleshooting
WARNING
Under no circumstances should you try to repair the system yourself, as this will
invalidate the warranty. Never open the system as there is a risk of electric shock.
If a fault occurs, rst check the points listed below before taking the system for repair.
If you are unable to solve a problem by following these instructions, consult your dealer or
Philips for help.
No picture.
Completely distorted picture
or black/white picture.
No sound or distorted sound.
No surround sound effect
from the speakers.
The remote control does not
function properly.
– Refer to your TVs manual for correct Video In
channel selection. Change the TV channel until you
see the DVD screen.
– Press DISC/USB to select disc mode.
– If this happens when you turn on the progressive scan
feature, wait for 15 seconds for the auto recovery or
switch back to the default mode as below:
1) Press OPEN/CLOSE ç.
2) Press on the remote control.
3) Press AUDIO on the remote control.
– Check the video connection.
– Sometimes a small amount of picture distortion may
appear. This is not a malfunction.
– The disc is dirty. Clean the disc.
– Adjust the volume.
– Check the speaker connections and settings.
– Make sure that the audio cables are connected and
press the correct source button (for example,
TV or AUX/DI) to choose the device that you want to
hear through this unit.
– Press SURROUND to select a correct surround
sound setting.
– Make sure that the source you are playing is recorded
or broadcast in surround sound (DTS, Dolby Digital,
etc).
– Select the source you want to play (for example,
DISC/USB or RADIO) before pressing the function
button (u, í / ë).
– Reduce the distance between the remote control and
this unit.
– Batteries are weak, replace the batteries.
– Point the remote control directly toward the IR sensor.
Problem (General) Solution
1_hts3156_93_eng2_final815.indd 451_hts3156_93_eng2_final815.indd 45 2008-04-11 10:51:20 AM2008-04-11 10:51:20 AM
46
English
The unit does not start
playback.
The aspect ratio of the screen
cannot be changed even
though you have set the TV
display.
Cannot activate some features
e.g. Angles, Subtitles, or
multi-language Audio.
Not able to select some items
in the setup/system menu.
Unable to play DivX movies.
Radio reception is poor.
– Insert a readable disc with the playback side facing
down. The DVD+R/CD-R must be nalised.
– Make sure the disc is not scratched or warped.
– Press SETUP to turn off the system setup menu
screen.
– You may need to enter the password in order to
unlock the disc for playback.
– Moisture may have condensed inside this unit.
Remove the disc and leave this unit turned on for
about an hour.
– The aspect ratio is xed on the DVD disc.
– Depending on the TV, it may not be possible to
change the aspect ratio.
– The features may not be available on the DVD.
– Changing the language for the sound or subtitle is
prohibited on this DVD.
– Press STOP x button twice before selecting the
system setup menu.
– Depending on the disc availability, some menu items
cannot be selected.
– Ensure that the DivX le is encoded according to the
‘Home Theatre Pro le’ with the DivX encoder.
– Check that the DivX movie downloaded is a complete
le.
– If the signal is too weak, adjust the antenna or
connect an external antenna for better reception.
– Increase the distance between this unit and your TV
or VCR.
– Tune in to the correct frequency.
– Place the antenna further away from any equipment
that may be causing the interference.
Problem (Playback) Solution
Troubleshooting (continued)
1_hts3156_93_eng2_final815.indd 461_hts3156_93_eng2_final815.indd 46 2008-04-11 10:51:20 AM2008-04-11 10:51:20 AM
47
English
Problem (USB) Solution
Troubleshooting (continued)
The contents of the USB ash
drive cannot be read.
Slow operation of the USB
ash drive.
– The USB ash drive format is not compatible with this
unit.
– Drive is formatted with a different le system which is
not supported by this unit (e.g. NTFS).
– Large le size or high memory USB ash drive takes
longer time to read and display on the TV.
1_hts3156_93_eng2_final815.indd 471_hts3156_93_eng2_final815.indd 47 2008-04-11 10:51:20 AM2008-04-11 10:51:20 AM
48
English
Glossary
Analogue audio: Sound that has not been
turned into numbers. Analogue sound is
available if you use the AUDIO LEFT/RIGHT.
These red and white sockets send audio
through two channels, the left and right.
Aspect ratio: Aspect ratio refers to the
length to height ratio of TV screens. The
ratio of a standard TV is 4:3, while the ratio
of a high-de nition or wide TV is 16:9. The
letter box allows you to enjoy a picture with
a wider perspective on a standard 4:3 screen.
AUDIO IN sockets: Red and white
sockets on the back of the unit that receive
audio from another system (TV, Stereo,
etc.).
Bit Rate: The amount of data used to hold
a given length of music; measured in kilobits
per second, or kbps. Or, the speed at which
you record. Generally, the higher the bit
rate, or the higher the recording speed, the
better the sound quality. However, higher bit
rates use more space on a disc.
Chapter: Sections of a picture or a music
piece on a DVD that are smaller than titles.
A title is composed of several chapters. Each
chapter is assigned a chapter number
enabling you to locate the chapter you want.
Composite video (CVBS): A single video
signal commonly used in most consumer
video products.
Disc menu: A screen display prepared for
allowing a selection of images, sounds,
subtitles, multi-angles, etc., recorded on a
DVD.
DivX: The DivX code is a patent-pending,
MPEG-4 based video compression
technology, developed by DivX Networks,
Inc., that can shrink digital video to sizes
small enough to be transported over the
internet, while maintaining high visual quality.
Dolby Digital: A surround sound system
developed by Dolby Laboratories containing
up to six channels of digital audio (front left
and right, surround left and right, centre and
subwoofer).
Dolby Surround Pro Logic II: It is an
improved matrix decoding technology that
provides better spatiality and directionality
on Dolby Surround programme material,
provides a convincing three dimensional
sound eld on conventional stereo music
recordings and is ideally suited to bring the
surround experience to automotive sound.
While conventional surround programming
is fully compatible with Dolby Surround Pro
Logic II decoders, soundtracks will be able to
be encoded speci cally to take full advantage
of Pro Logic II playback, including separate
left and right surround channels. (Such
material is also compatible with conventional
Pro Logic decoders).
DTS: Digital Theatre Systems. This is a
surround sound system, but it is different
from the Dolby Digital. The formats were
developed by different companies.
JPEG: A very common digital still picture
format. A still-picture data compression
system proposed by the Joint Photographic
Expert Group, which features small decrease
in image quality in spite of its high
compression ratio. Files are recognised by
their le extension ‘JPG or JPEG’.
MP3: A le format with a sound data
compression system. ‘MP3’ is the
abbreviation of Motion Picture Experts
Group 1 (or MPEG-1) Audio Layer3. By
using the MP3 format, one CD-R or CD-RW
can contain about 10 times more data than a
regular CD.
1_hts3156_93_eng2_final815.indd 481_hts3156_93_eng2_final815.indd 48 2008-04-11 10:51:20 AM2008-04-11 10:51:20 AM
49
English
Glossary (continued)
MPEG: Motion Picture Experts Group. A
collection of compression systems for digital
audio and video.
Multi-channel: DVDs are formatted to
have each sound track constitute one sound
eld. Multi-channel refers to a structure of
sound tracks having three or more channels.
PBC: Playback Control. A system of
navigating a Video CD/Super VCD through
on-screen menus recorded onto the disc.
You can enjoy interactive playback and
searching.
Progressive Scan: The progressive scan
displays twice the number of frames per
second than in an ordinary TV system. It
offers higher picture resolution and quality.
Region code: A system allowing discs to be
played only in the region designated. This
unit will only play discs that have compatible
region codes. You can nd the region code
of your unit by looking at the product label.
Some discs are compatible with more than
one region (or ALL regions).
Surround: A system for creating realistic
three dimensional sound elds full of realism
by arranging multiple speakers around the
listener.
Title: The longest section of a movie or
music feature on DVD. Each title is assigned
a title number, enabling you to locate the
title you want.
WMA: Windows Media™ Audio. Refers to
an audio compression technology developed
by Microsoft Corporation. WMA data can be
encoded by using Windows Media Player
version 9 or Windows Media Player for
Windows XP. Files are recognised by their
le extension ‘WMA’.
1_hts3156_93_eng2_final815.indd 491_hts3156_93_eng2_final815.indd 49 2008-04-11 10:51:20 AM2008-04-11 10:51:20 AM
50
English
Speci cations
AMPLIFIER
Total output power –
Home Theatre mode: 300 W
Frequency Response: 180 Hz – 18 kHz / ±3 dB
Signal-to-Noise Ratio: > 60 dB (A-weighted)
Input Sensitivity
- AUX In: 500 mV
- TV In: 250 mV
- MP3 LINE-IN: 500 mV
RADIO
Tuning Range: FM 87.5–108 MHz
(50/100kHz)
AM 531–1602 kHz (9kHz)
AM 530–1700 kHz (10kHz)
26 dB Quieting
Sensitivity: FM 22 dBf, AM 5000μV/m
IF Rejection Ratio: FM 60 dB, AM 24 dB
Signal-to-Noise Ratio: FM 50 dB, AM 30 dB
AM Suppression Ratio: FM 30 dB
Harmonic Distortion: FM Mono 3%
FM Stereo 3%
AM 5%
Frequency Response FM 180 Hz–9 kHz / ±6 dB
Stereo Separation FM 26 dB (1 kHz)
Stereo Threshold FM 23.5 dB
DISC
Laser Type Semiconductor
Disc Diametre 12cm / 8cm
Video Decoding MPEG-1 / MPEG-2 /
/ DivX 3/4/5/6, Ultra
Video DAC 12 Bits
Signal System PAL / NTSC
Video Format 4:3 / 16:9
Video S/N 56 dB (minimum)
Composite Video
Output 1.0 Vp-p, 75Ω
Audio DAC 24 Bits / 96 kHz
Frequency Response 4 Hz–20 kHz (44.1 kHz)
4 Hz–22 kHz (48 kHz)
4 Hz–44 kHz (96 kHz)
PCM IEC 60958
Dolby Digital IEC 60958, IEC 61937
DTS IEC 60958, IEC 61937
MAIN UNIT
Power Supply Rating: 220-240 V ~ 50Hz
Power Consumption: 60 W
Dimensions: 360 x 55 x 332 (mm)
(w x h x d)
Weight: 2.82 kg
FRONT SPEAKERS
System: Full range satellite
Impedance: 4 Ω
Speaker drivers: 3” full range speaker
Frequency response: 150 Hz – 20 kHz
Dimensions: 95 x 1184 x 73.7 (mm)
(w x h x d)
Weight: 5.99 kg/each
REAR SPEAKERS
System: Full range satellite
Impedance: 4 Ω
Speaker drivers: 3” full range speaker
Frequency response: 150 Hz – 20 kHz
Dimensions: 95.5 x 198 x 75 (mm)
(w x h x d)
Weight: 0.53 kg/each
CENTRE SPEAKER
System: Full range satellite
Impedance: 8 Ω
Speaker drivers: 3” full range speaker
Frequency response: 150 Hz – 20 kHz
Dimensions: 240 x 99.5 x 64 (mm)
(w x h x d)
Weight: 0.53 kg
SUBWOOFER
Impedance: 8 Ω
Speaker drivers: 165 mm (6.5”) woofer
Frequency response: 40 Hz – 150 Hz
Dimensions: 163 x 363 x 369 (mm)
(w x h x d)
Weight: 5.08 kg
Speci cations subject to change without prior
notice.
1_hts3156_93_eng2_final815.indd 501_hts3156_93_eng2_final815.indd 50 2008-04-11 10:51:20 AM2008-04-11 10:51:20 AM
