Thank you very much for purchasing this Air Conditioner.
Please read this use and installation instructions carefully
before installing and using this appliance and keep this
manual for future reference.
Preparation before use
3
Safety Precautions
4
Installation instructions
13

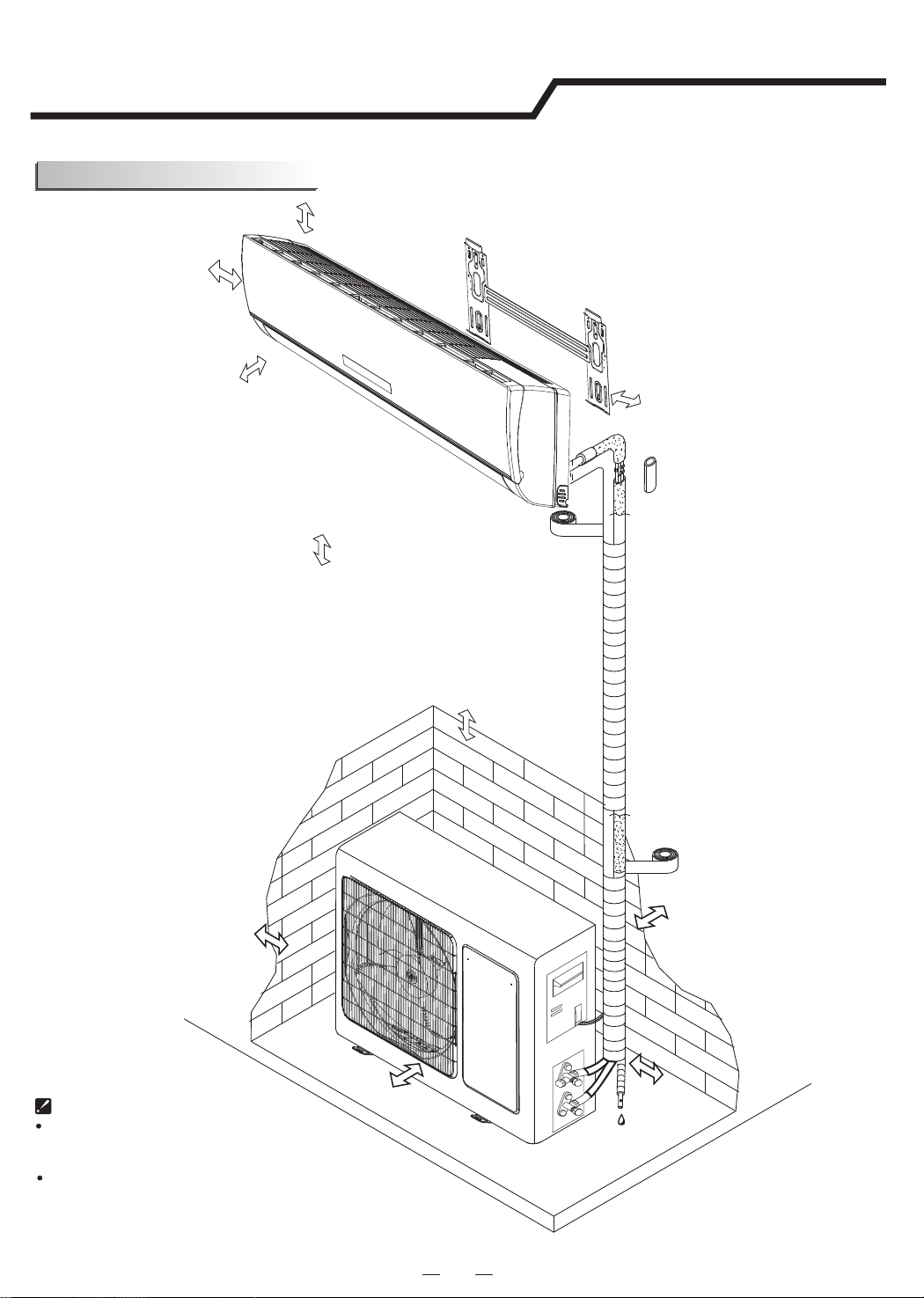

Installation diagram
13
1
Safety instructions
Contents

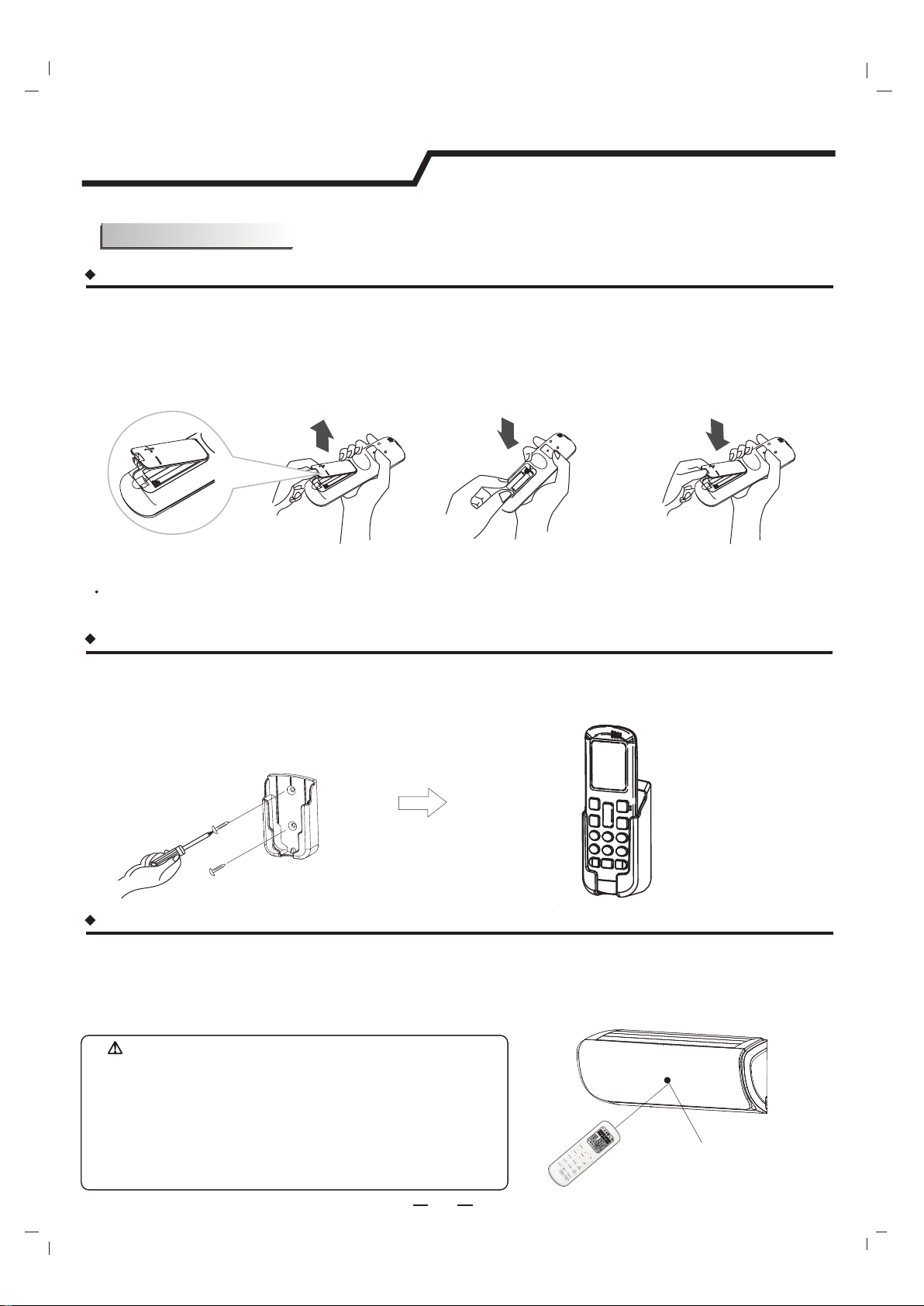

Remote controller
16
Operation instructions

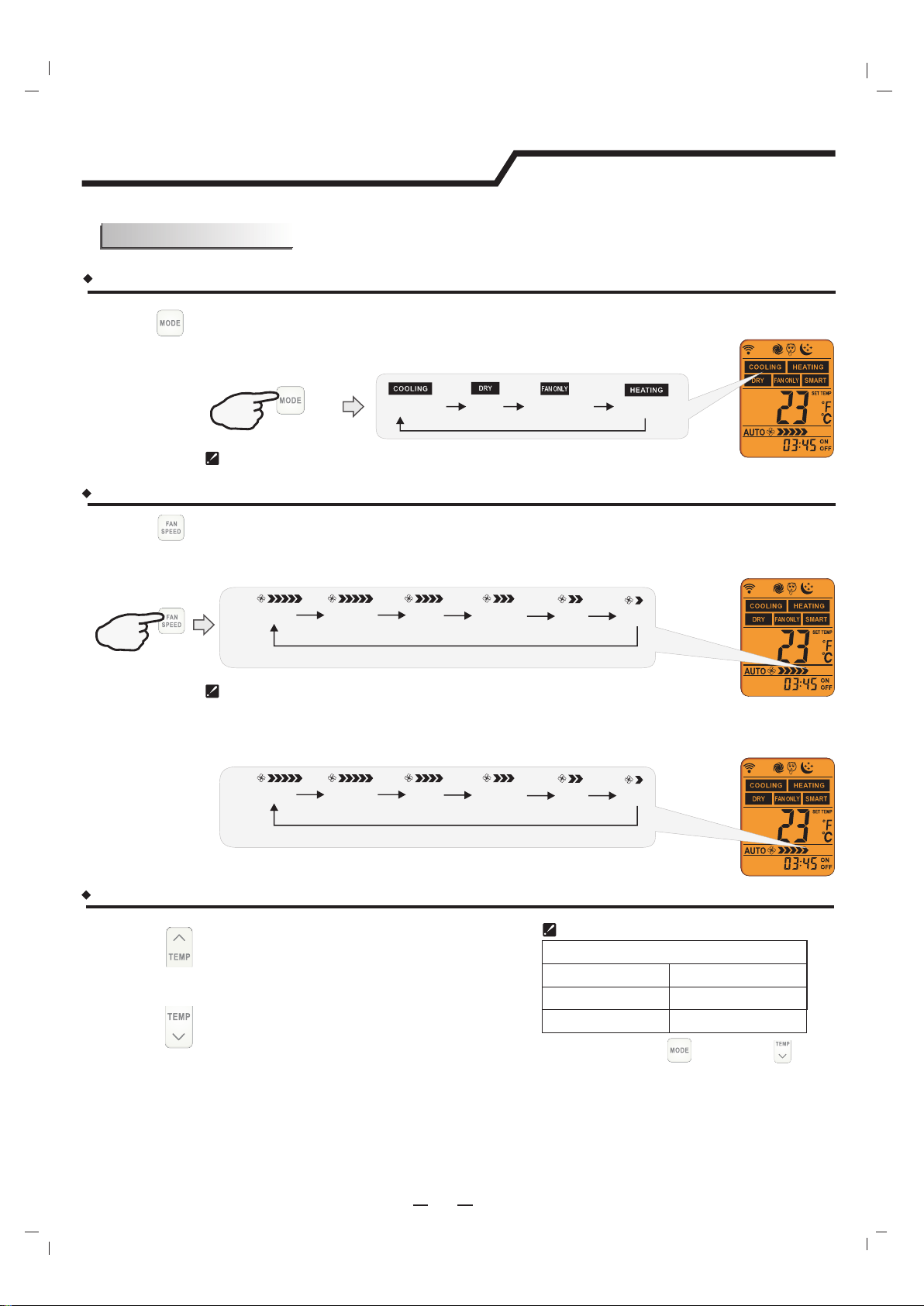

Operation modes
18

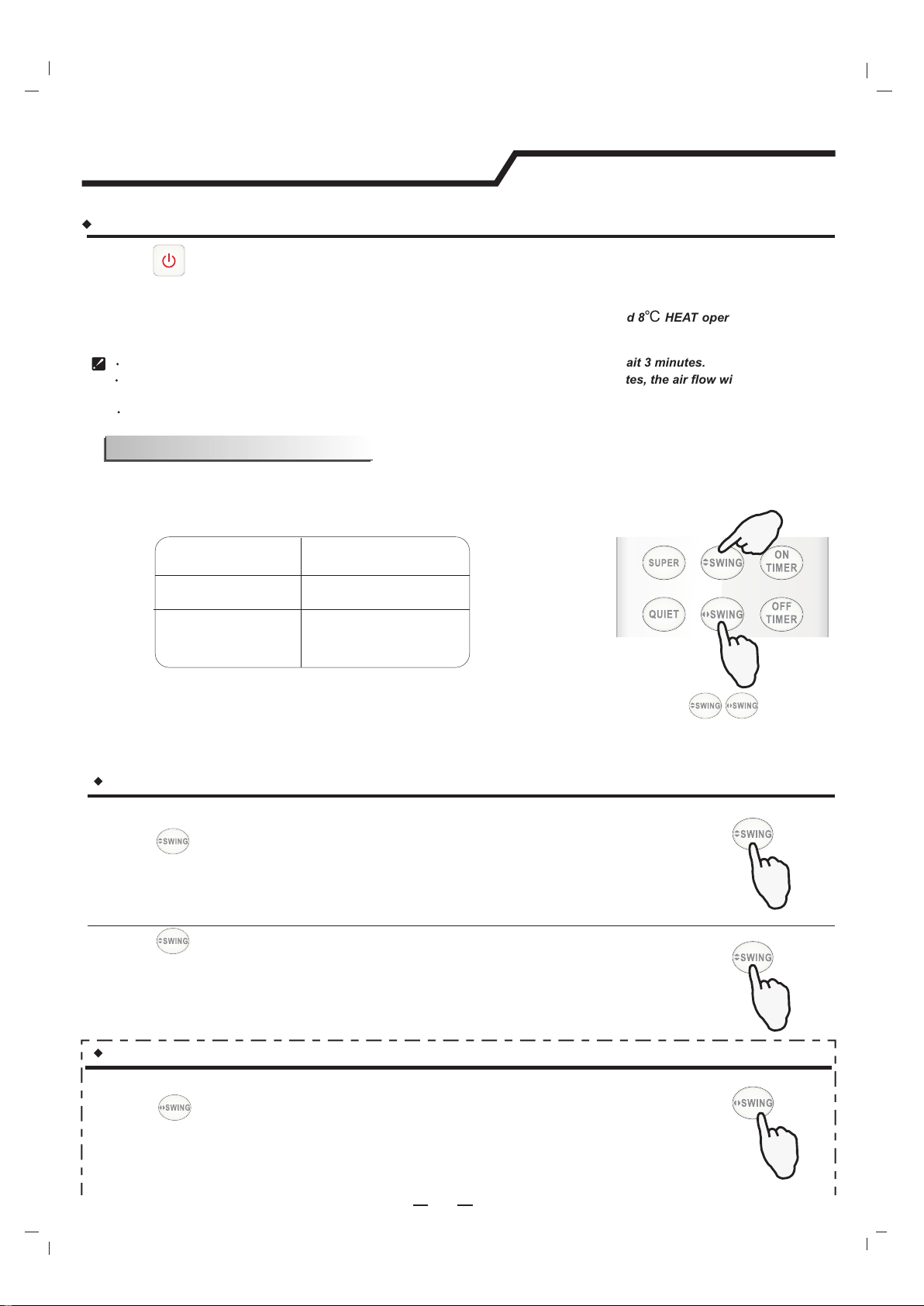

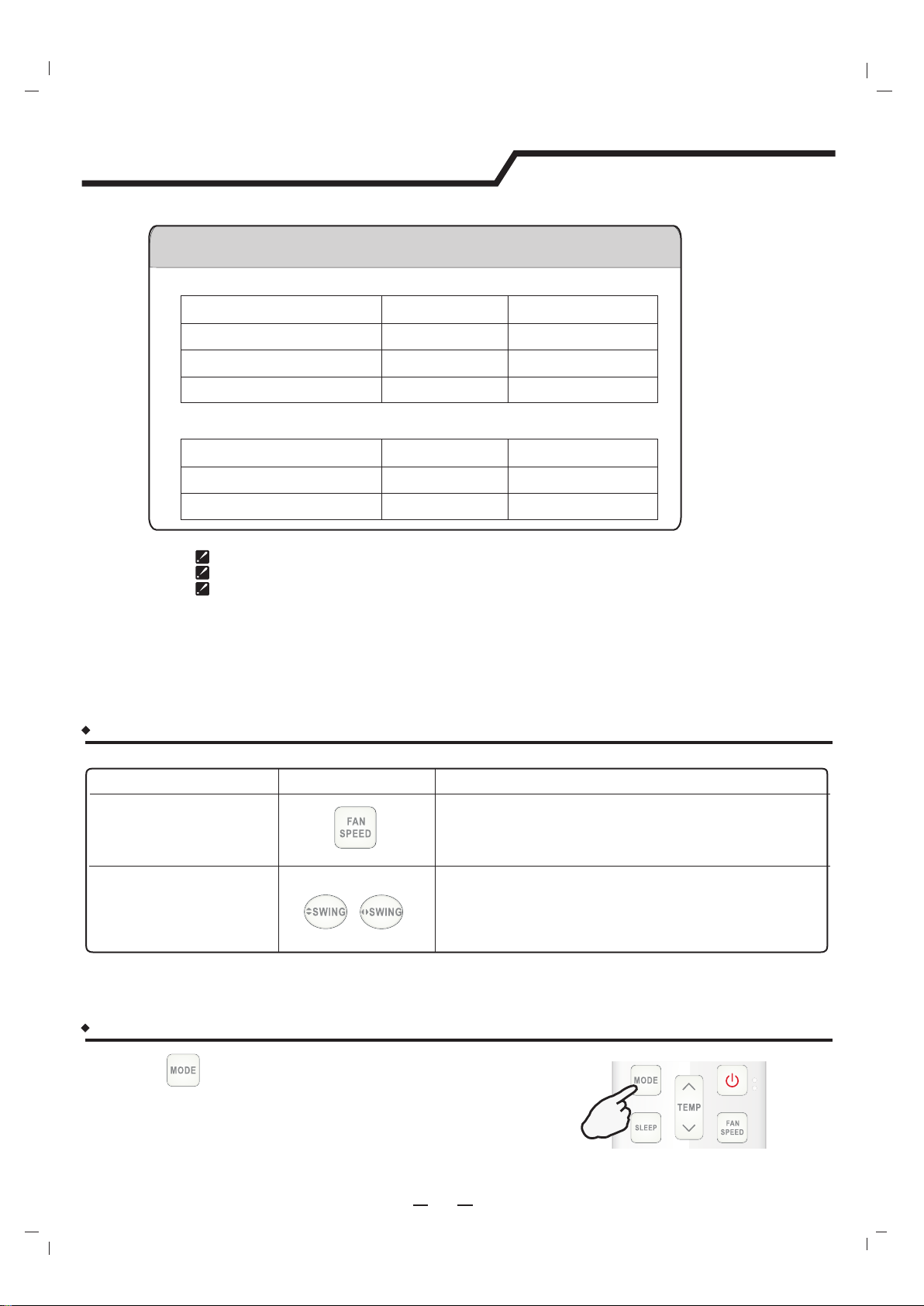

Airflow direction control
19

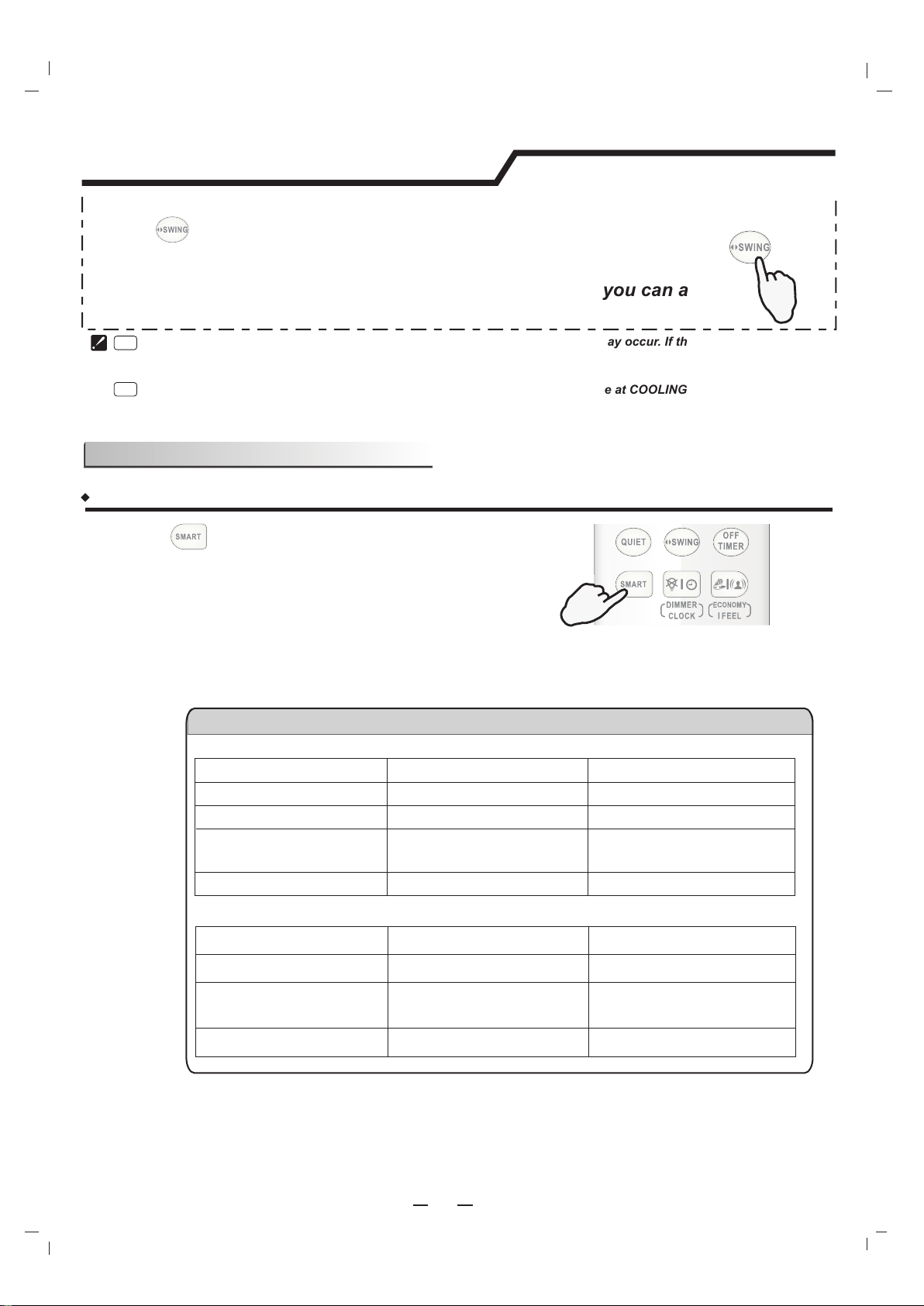

SMART mode
20

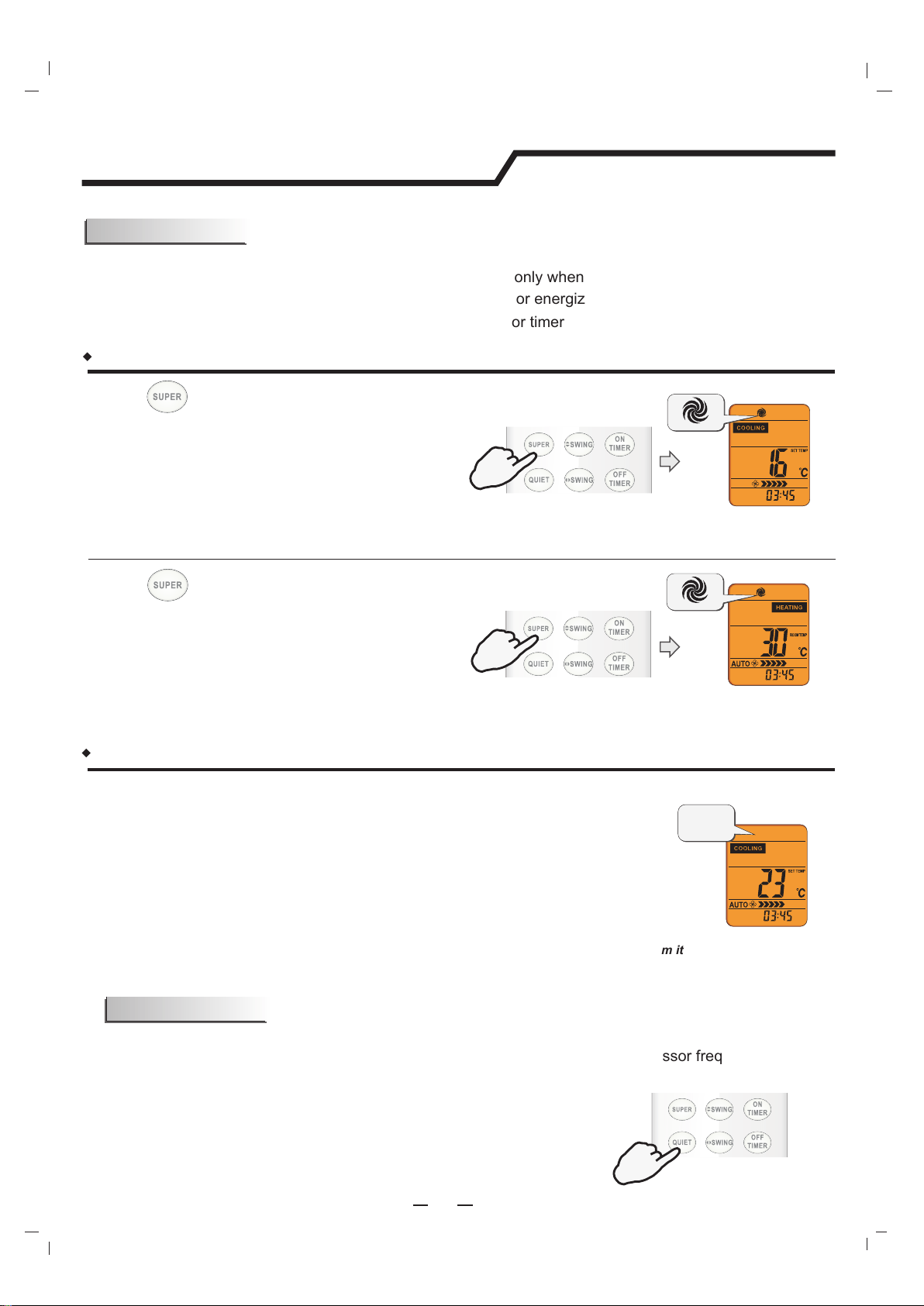

SUPER mode
22
ECONOMY mode
23
QUIET mode
22
IFEEL mode
24

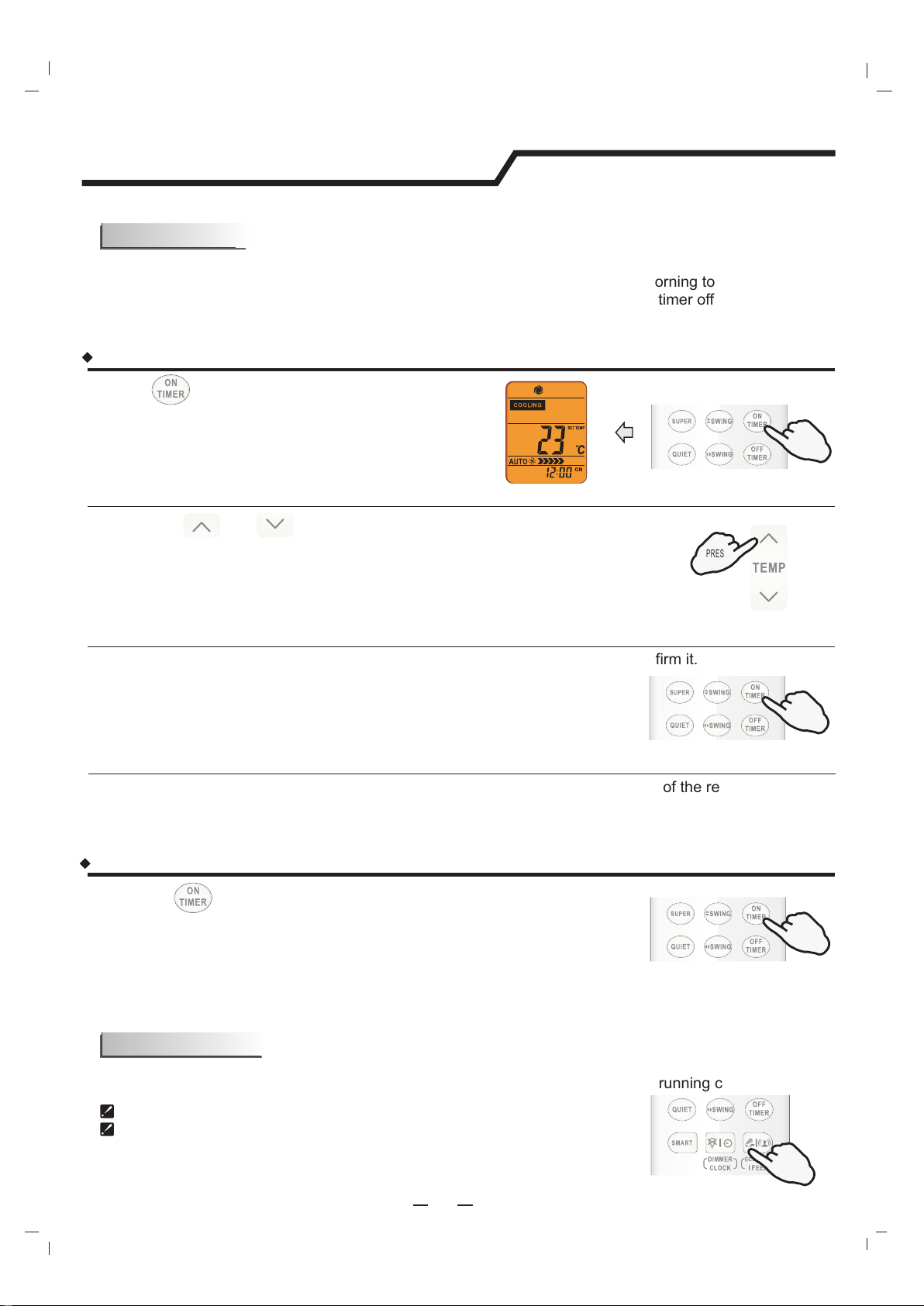

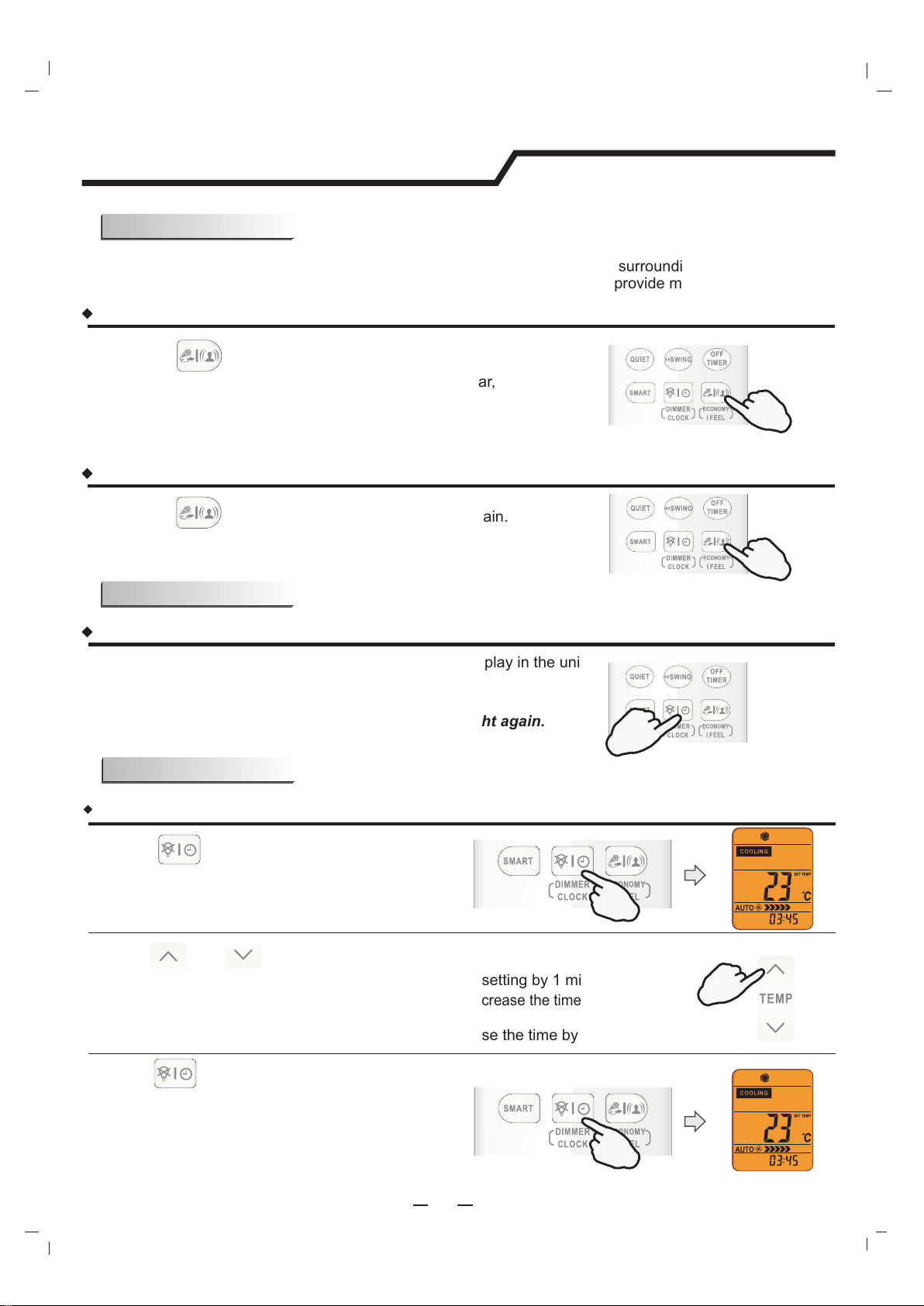

TIMER mode
23
DIMMER button
24
CLOCK button
24
SLEEP mode
8°C HEAT mode
25
25

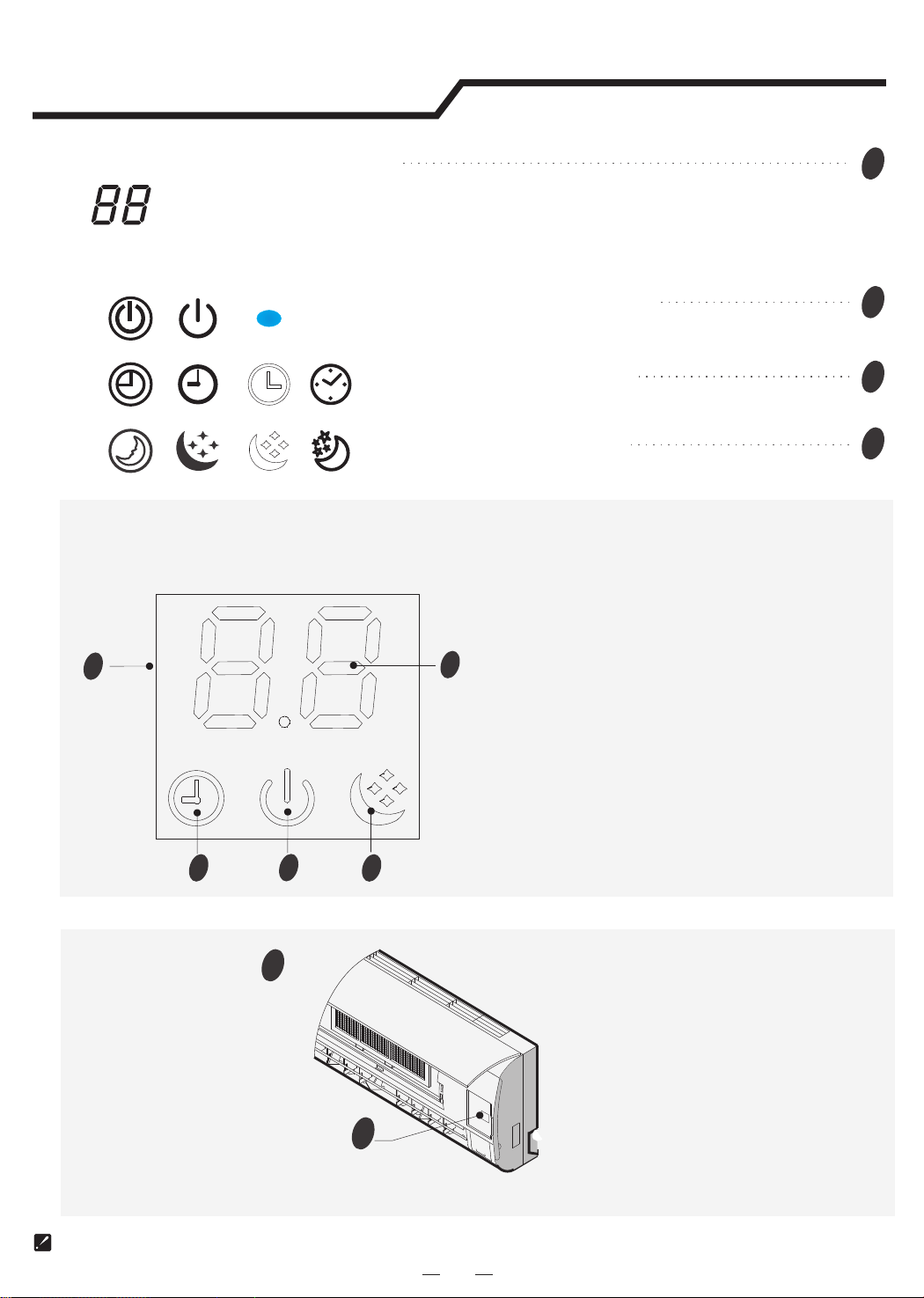

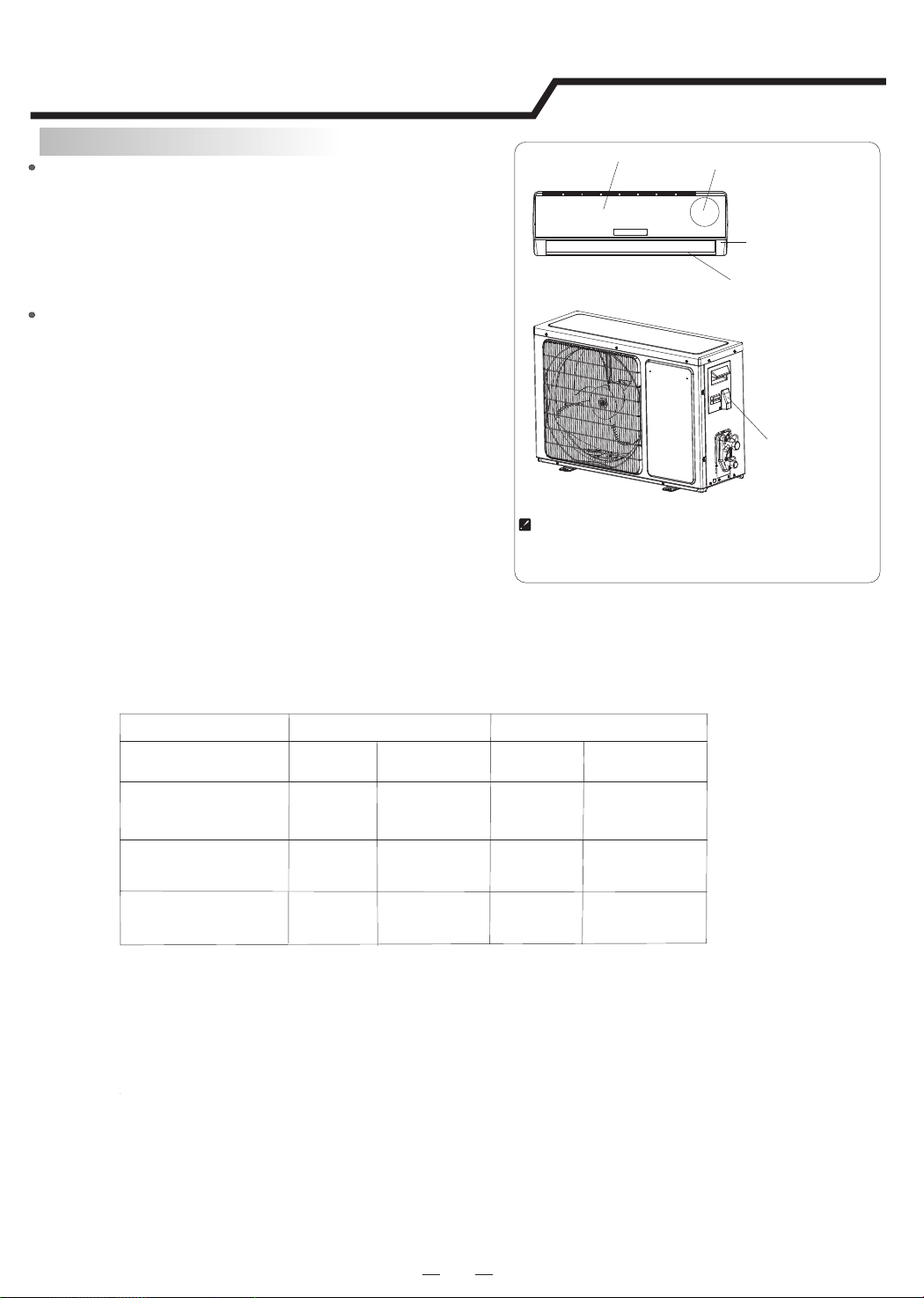

Display introduction
Indoor unit
Outdoor unit

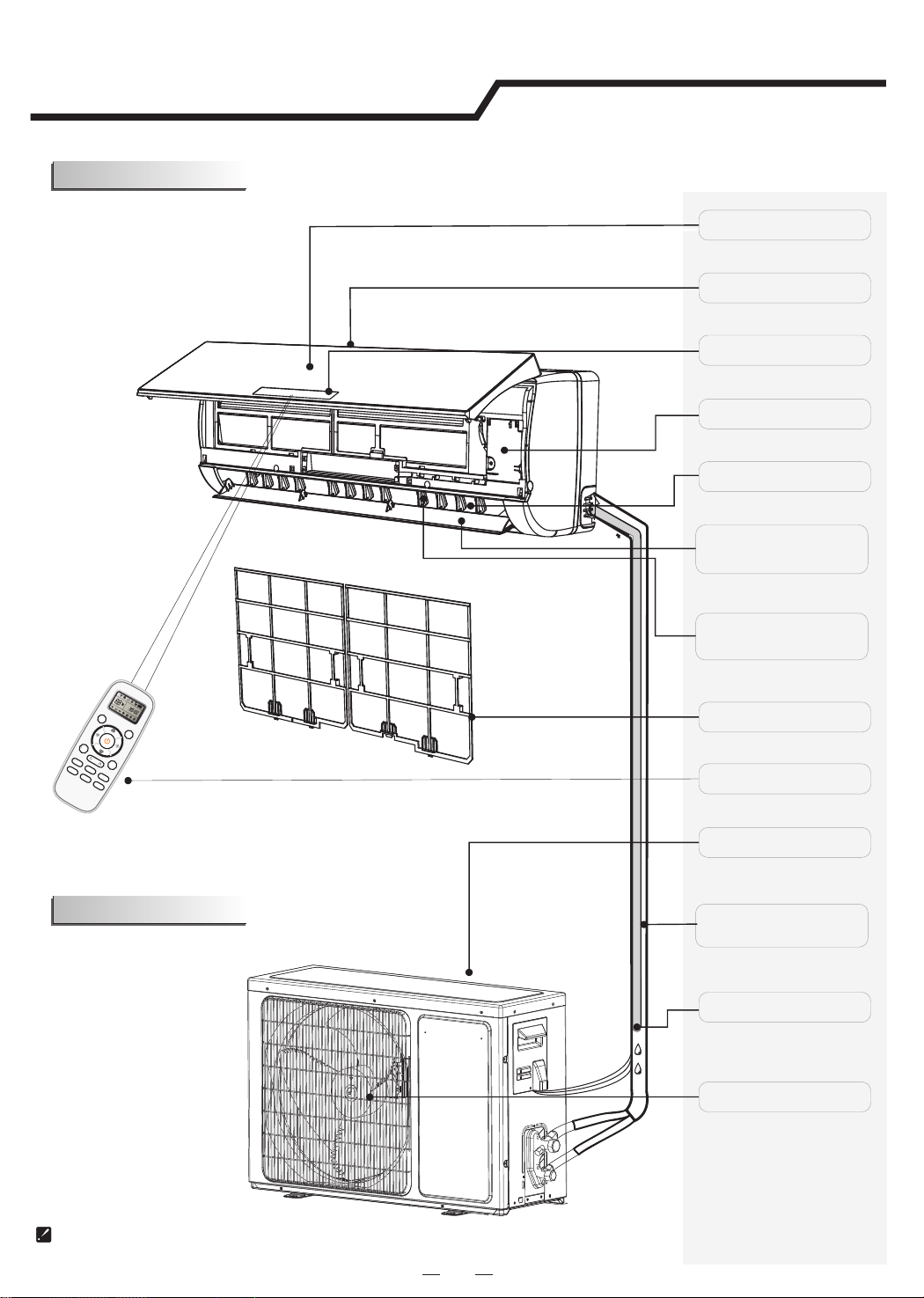

Identification of parts
14
14
14
15

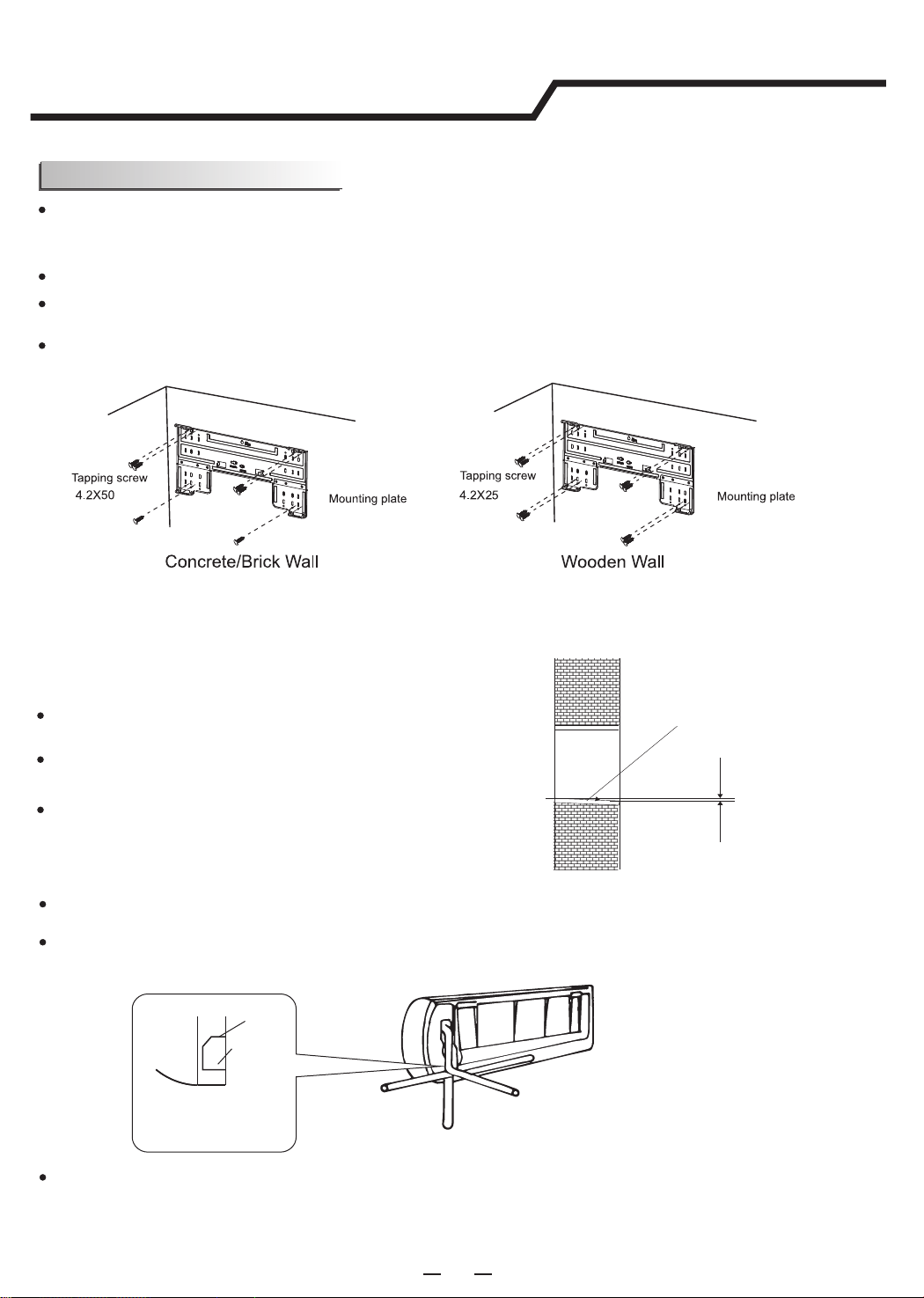

Indoor unit installation
26
Select the installation locations
26
Maintenance
34
35
36
Troubleshooting
Protection
29
30
32
Connecting of the cable
Outdoor unit installation
33
Air purging
Wiring diagram
Safety instructions
1. To guarantee the unit work normally, please read the manual carefully before
installation, and try to install strictly according to this manual.
2. Do not let air enter the refrigeration system or discharge refrigerant when moving the
air conditioner.
6. After installing, the consumer must operate the air conditioner correctly
according to this manual, keep a suitable storage for maintenance and moving of
the air conditioner in the future.
5. There must be an air-break switch.
4. Check the connecting cables and pipes carefully, make sure they are correct and firm
before connecting the power of the air conditioner.
7. Fuse of indoor unit: T 3.15A 250VAC or T 5A 250VAC. Please refer to the screen
printing on the circuit board for the actual parameters, which must be consistent with the
parameters on the screen printing.
8. For 2.5,3.5Kw models, f T 15A 250VAC or T 20A 250VAC. Please
refer to the screen printing on the circuit board for the actual parameters, which must be
consistent with the parameters on the screen printing.
use of outdoor unit:
10. For 7.0Kw models, f T 30A 250VAC.use of outdoor unit:
3. Properly ground the air conditioner into the earth.
12. Warning: Risk of electric shock can cause injury or death: Disconnect all
remote electric power supplies before servicing.
11. The installation instructions for appliances that are intended to be permanently
connected to fixed wiring, and have a leakage current that may exceed 10 mA,
shall state that the installation of a residual current device (RCD) having a rated
residual operating current not exceeding 30 mA is advisable.
13. The maximum length of the connecting pipe between the indoor unit and
outdoor unit should be less than 5 meters. It will affect the efficiency of the air
conditioner if the distance longer than that length.
14. This appliance is not intended for use by person (including children) with
reduced physical, sensory or mental capabilities, or lack of experience and
knowledge, unless they have been given supervision or instruction concerning
use of the appliance by a person responsible for their safety.Children should be
supervised to ensure that they do not play with the appliance.Cleaning and user
maintenance shall not be made by children without supervision.
15. This appliance can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or instruction
concerning use of the appliance in a safe way and understand the hazards
involved. Children shall not play with the appliance. Cleaning and user
maintenance shall not be made by children without supervision.
9. For 5.0Kw models, f
20A 250VAC.
use of outdoor unit: T
1
18. If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualified persons in order to avoid a hazard.
17. If the appliance is fixed wiring, the appliance must be fitted with means for
disconnection from the supply mains having a contact separation in all poles that
provide full disconnection under over voltage category III conditions, and these
means must be incorporated in the fixed wiring in accordance with the wiring rules.
19. The appliance shall be installed in accordance with national wiring regulations.
23. Regarding to maintenance, please refer to section “Maintenance”.
24. For models using R32 refrigerant, piping connection should be conducted on
outdoor side.
22.Regarding to installation, please refer to section “Installation instructions”.
Safety instructions
21. The appliance shall not be installed in the laundry.
20. Servicing shall only be performed as recommended by the equipment
manufacturer. Maintenance and repair requiring the assistance of other skilled
personnel shall be carried out under the supervision of the person competent in
the use of flammable refrigerants.
16. The batteries in remote controller must be recycled or disposed of properly.
Disposal of Scrap Batteries --- Please discard the batteries as sorted municipal
waste at the accessible collection point.
2
Preparation before use
The air conditioner has an Auto-Restart function.
Each time after the remote control is replaced with new batteries or is energized, auto presetting
heat pump.If the air conditioner you purchased is a Cooling Only one, heat pump remote controller can also be
used.
remote control
Remote Control presetting
Before using the air conditioner, be sure to check and preset the following.
Auto Restart Presetting
Hold down any button on remote control to activate the back light. It automatically shuts off 10 seconds
later.
Note: Back-light is an optional function.
Back-light function (optional) of Remote Control
This appliance is made of recyclable or re-usable material. Scrapping must be carried out in
compliance with local waste disposal regulations. Before scrapping it, make sure to cut off the
mains cord so that the appliance cannot be re-used.
For more detailed information on handling and recycling this product, contact your local authorities
who deal with the separate collection of rubbish or the shop where you bought the appliance.
SCRAPPING OF APPLIANCE
This appliance is marked according to the European Directive 2012/19/EC,
Waste Electrical and Electronic Equipment (WEEE).
This marking indicates that this product should not be disposed
with other household wastes throughout the EU. To prevent possible
harm to the environment or human health from uncontrolled waste
disposal,recycle it responsibly to promote the sustainable reuse of
material resources. To return your used device, please use the return
and collection systems or contact the retailer where the product was
purchased. They can take this product for environmental safe recycling.
Note
Preset
Safeguarding the environment
When charging refrigerant into the system, make sure to charge in liquid state,if the
refrigerant of the appliance is R32.Otherwise, chemical composition of refrigerant
(R32) inside the system may change and thus affect performance of the air conditioner.
According to the character of
of the tube is very high, so be sure to be careful when you install and repair the
appliance.
refrigerant (R32,the value of GWP is 675), the pressure
If the supply cord is damaged, it must be replaced by the manufacturer, its
service agent or similarly qualified persons in order to avoid a hazard.
Installation of this product must be done by experienced service technicians
professional installers only in accordance with this manual.
The temperature of refrigerant circuit will be high, please keep the
interconnection cable away from the copper tube.
3

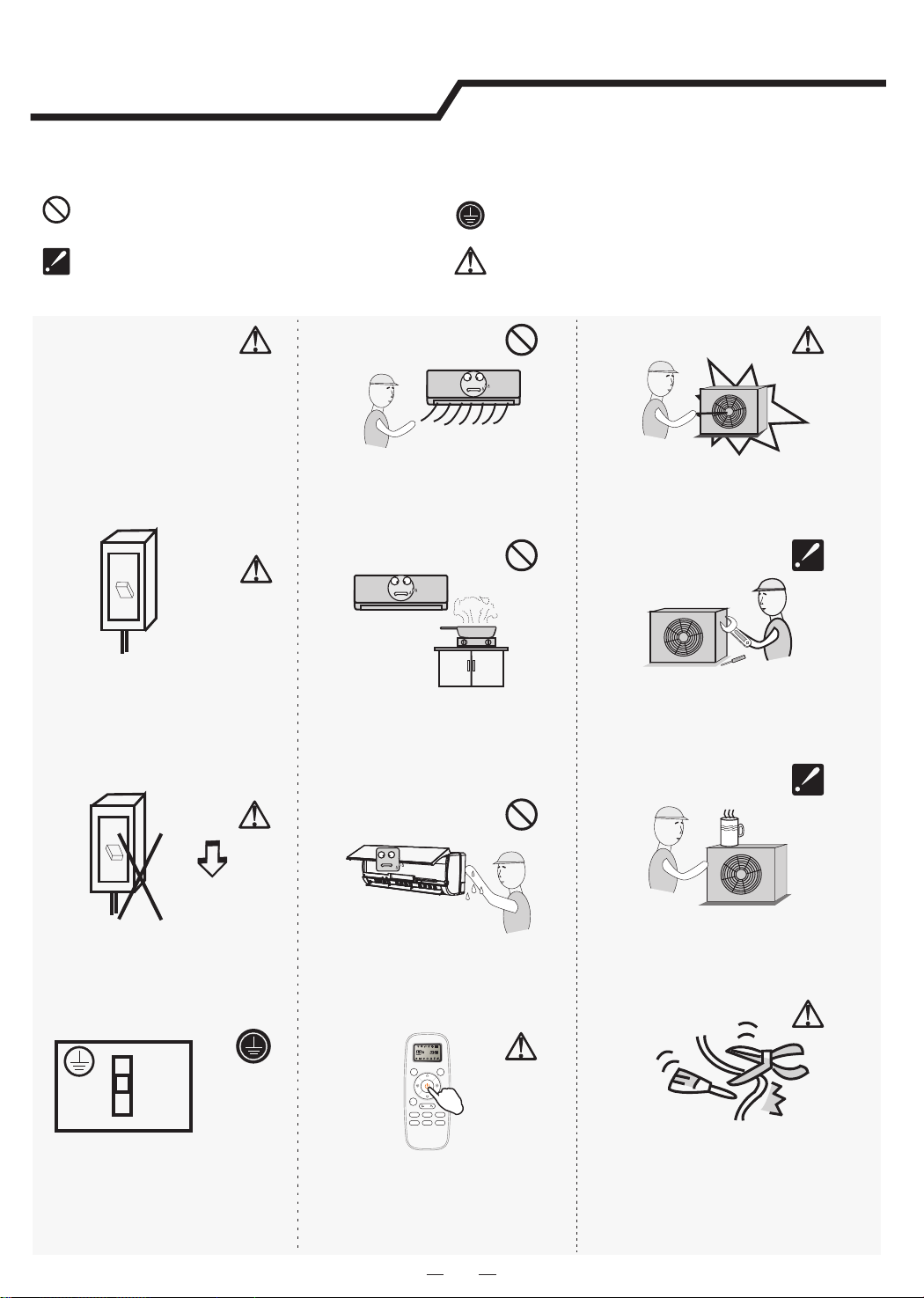

Safety precautions
Symbols in this Use and Care Manual are interpreted as shown below.
Be sure not to do.
Pay attention to such a situation.
Grounding is essential.
Warning: Incorrect handling could
cause a serious hazard, such as death,
serious injury, etc.
Do not use the power supply
circuit breaker or pull off the plug
to turn it off during operation.
This may cause a fire due to
spark, etc.
Keep the power supply circuit
breaker or plug from dirt.
Connect the power supply cord
to it firmly and correctly, lest an
electric shock or a fire break out
due to insufficient contact.
Use correct power supply in
accordance with the rating plate
requirement. Otherwise, serious
faults or hazard may occur or a
fire maybe break out.
Do not knit, pull or press the power
supply cord, lest the power supply cord
be broken. An electric shock or fire is
probably caused by a broken power
supply cord.
Never insert a stick or similar obstacle
to the unit. Since the fan rotates at high
speed, this may cause an injury.
Do not repair the appliance by yourself.
If this is done incorrectly, it may cause
an electric shock, etc.
Turn off the appliance by remote
control firstly before cutting off
power supply if malfunction occurs.
It is harmful to your health if the cool
air reaches you for a long time. It is
advisable to let the air flow be
deflected to all the room.
Prevent the air flow from reaching
the gas burners and stove.
Do not touch the operation buttons
when your hands are wet.
Do not put any objects on the outdoor
unit.
It is the user's responsibility to
make the appliance be grounded
according to local codes or
ordinances by a licenced
technician.
OFF
OFF
ON
ON
ON
OFF
MODE
SMART
QUIET
DIMMER
ECONOM Y
FEEL
FAN SPEED
CLOCK
TIMER ON
TIMER OFF
SLEEP
TEMP.
TEMP.
SUPER
4
Safety precautions
Precautions for using R32 refrigerant
5
For the multi system, the refrigerant refer to the multi outdoor unit.
are the same as the conventional refrigerant (R22 or R410A). However, pay attention to the following points:
The basic installation work procedures
CAUTION
1. Transport of equipment containing flammable refrigerants
Compliance with the transport regulations
2. Marking of equipment using signs
Compliance with local regulations
3. Disposal of equipment using flammable refrigerants
Compliance with national regulations
4. Storage of equipment/appliances
The storage of equipment should be in accordance with the manufacturer's
instructions.
5. Storage of packed (unsold) equipment
Storage package protection should be constructed such that mechanical
damage to the equipment inside the package will not cause a leak of the
refrigerant charge.
The maximum number of pieces of equipment permitted to be stored together
will be determined by local regulations.
6. Information on servicing
6-1 Checks to the area
Prior to beginning work on systems containing flammable refrigerants, safety
checks are necessary to ensure that the risk of ignition is minimised. For repair
to the refrigerating system, the following precautions shall be complied with
prior to conducting work on the system.
6-2 Work procedure
Work shall be undertaken under a controlled procedure so as to minimise the
risk of flammable gas or vapour being present while the work is being
performed.
6-3 General work area
All maintenance staff and others working in the local area shall be instructed
on the nature of work being carried out. Work in confined spaces shall be
avoided.
The area around the workspace shall be sectioned off. Ensure that the
conditions within the area have been made safe by control of flammable
material.
6-4 Checking for presence of refrigerant
The area shall be checked with an appropriate refrigerant detector prior to and
during work, to ensure the technician is aware of potentially flammable
atmospheres.
Ensure that the leak detection equipment being used is suitable for use with
flammable refrigerants, i.e. non-sparking, adequately sealed or intrinsically
safe.
Safety precautions
6
CAUTION
6-5 Presence of fire extinguisher
If any hot work is to be conducted on the refrigeration equipment or any
associated parts, appropriate fire extinguishing equipment shall be available
to hand.
Have a dry powder or CO2 fire extinguisher adjacent to the charging area.
6-6 No ignition sources
No person carrying out work in relation to a refrigeration system which involves
exposing any pipe work that contains or has contained flammable refrigerant
shall use any sources of ignition in such a manner that it may lead to the risk of
fire or explosion.
All possible ignition sources, including cigarette smoking, should be kept
sufficiently far away from the site of installation, repairing, removing and
disposal, during which flammable refrigerant can possibly be released to the
surrounding space.
Prior to work taking place, the area around the equipment is to be surveyed to
make sure that there are no flammable hazards or ignition risks. “No Smoking”
signs shall be displayed.
6-7 Ventilated area
Ensure that the area is in the open or that it is adequately ventilated before
breaking into the system or conducting any hot work.
A degree of ventilation shall continue during the period that the work is carried
out.
The ventilation should safely disperse any released refrigerant and preferably
expel it externally into the atmosphere.
6-8 Checks to the refrigeration equipment
Where electrical components are being changed, they shall be fit for the
purpose and to the correct specification.
At all times the manufacturer's maintenance and service guidelines shall be
followed. If in doubt consult the manufacturer's technical department for
assistance.
The following checks shall be applied to installations using flammable
refrigerants:
– The charge size is in accordance with the room size within which the
refrigerant containing parts are installed;
– The ventilation machinery and outlets are operating adequately and are not
obstructed;
– If an indirect refrigerating circuit is being used, the secondary circuit shall be
checked for the presence of refrigerant;
– Marking to the equipment continues to be visible and legible. Markings and
signs that are illegible shall be corrected;
– Refrigeration pipe or components are installed in a position where they are
unlikely to be exposed to any substance which may corrode refrigerant
containing components, unless the components are constructed of materials
Safety precautions
7
CAUTION
which are inherently resistant to being corroded or are suitably protected
against being so corroded.
6-9 Checks to electrical devices
Repair and maintenance to electrical components shall include initial safety
checks and component inspection procedures.
If a fault exists that could compromise safety, then no electrical supply shall be
connected to the circuit until it is satisfactorily dealt with.
If the fault cannot be corrected immediately but it is necessary to continue
operation, an adequate temporary solution shall be used.
This shall be reported to the owner of the equipment so all parties are advised.
Initial safety checks shall include:
– That capacitors are discharged: this shall be done in a safe manner to avoid
possibility of sparking;
– That there no live electrical components and wiring are exposed while
charging, recovering or purging the system;
– That there is continuity of earth bonding.
7. Repairs to sealed components
During repairs to sealed components, all electrical supplies shall be
disconnected from the equipment being worked upon prior to any removal of
sealed covers, etc.
If it is absolutely necessary to have an electrical supply to equipment during
servicing, then a permanently operating form of leak detection shall be located
at the most critical point to warn of a potentially hazardous situation.
Particular attention shall be paid to the following to ensure that by working on
electrical components, the casing is not altered in such a way that the level of
protection is affected.
This shall include damage to cables, excessive number of connections,
terminals not made to original specification, damage to seals, incorrect fitting
of glands, etc.
Ensure that apparatus is mounted securely.
Ensure that seals or sealing materials have not degraded such that they no
longer serve the purpose of preventing the ingress of flammable atmospheres.
Replacement parts shall be in accordance with the manufacturer's
specifications.
NOTE:
The use of silicon sealant may inhibit the effectiveness of some types of
leak detection equipment. Intrinsically safe components do not have to be
isolated prior to working on them.
8. Repair to intrinsically safe components
Do not apply any permanent inductive or capacitance loads to the circuit
without ensuring that this will not exceed the permissible voltage and current
permitted for the equipment in use.
Intrinsically safe components are the only types that can be worked on while
Safety precautions
8
CAUTION
live in the presence of a flammable atmosphere. The test apparatus shall be at
the correct rating.
Replace components only with parts specified by the manufacturer.
Other parts may result in the ignition of refrigerant in the atmosphere from a
leak.
9. Cabling
Check that cabling will not be subject to wear, corrosion, excessive pressure,
vibration, sharp edges or any other adverse environmental effects.
The check shall also take into account the effects of aging or continual
vibration from sources such as compressors or fans.
10.Detection of flammable refrigerants
Under no circumstances shall potential sources of ignition be used in the
searching for or detection of refrigerant leaks.
A halide torch (or any other detector using a naked flame) shall not be used.
11.Leak detection methods
The following leak detection methods are deemed acceptable for systems
containing flammable refrigerants:
– Electronic leak detectors shall be used to detect flammable refrigerants, but
the sensitivity may not be adequate, or may need re-calibration. (Detection
equipment shall be calibrated in a refrigerant-free area.)
– Ensure that the detector is not a potential source of ignition and is suitable
for the refrigerant used.
– Leak detection equipment shall be set at a percentage of the LFL of the
refrigerant and shall be calibrated to the refrigerant employed and the
appropriate percentage of gas (25 % maximum) is confirmed.
– Leak detection fluids are suitable for use with most refrigerants but the use
of detergents containing chlorine shall be avoided as the chlorine may react
with the refrigerant and corrode the copper pipe-work.
– If a leak is suspected, all naked flames shall be removed/ extinguished.
– If a leakage of refrigerant is found which requires brazing, all of the
refrigerant shall be recovered from the system, or isolated (by means of shut
off valves) in a part of the system remote from the leak.
– Oxygen free nitrogen (OFN) shall then be purged through the system both
before and during the brazing process.
12.Removal and evacuation
When breaking into the refrigerant circuit to make repairs – or for any other
purpose – conventional procedures shall be used.
However, it is important that best practice is followed since flammability is a
consideration.
The following procedure shall be adhered to:
– Remove refrigerant;
– Purge the circuit with inert gas;
Safety precautions
9
CAUTION
– Evacuate;
– Purge again with inert gas;
– Open the circuit by cutting or brazing.
The refrigerant charge shall be recovered into the correct recovery cylinders.
The system shall be “flushed” with OFN to render the unit safe.
This process may need to be repeated several times.
Compressed air or oxygen shall not be used for this task.
Flushing shall be achieved by breaking the vacuum in the system with OFN and
continuing to fill until the working pressure is achieved, then venting to
atmosphere, and finally pulling down to a vacuum.
This process shall be repeated until no refrigerant is within the system. When
the final OFN charge is used, the system shall be vented down to atmospheric
pressure to enable work to take place.
This operation is absolutely vital if brazing operations on the pipe-work are to
take place.
Ensure that the outlet for the vacuum pump is not close to any ignition sources
and there is ventilation available.
13.Charging procedures
In addition to conventional charging procedures, the following requirements
shall be followed:
– Ensure that contamination of different refrigerants does not occur when
using charging equipment.
– Hoses or lines shall be as short as possible to minimise the amount of
refrigerant contained in them.
– Cylinders shall be kept upright.
– Ensure that the refrigeration system is earthed prior to charging the system
with refrigerant.
– Label the system when charging is complete (if not already).
– Extreme care shall be taken not to overfill the refrigeration system.
Prior to recharging the system it shall be pressure tested with OFN.
The system shall be leak tested on completion of charging but prior to
commissioning.
A follow up leak test shall be carried out prior to leaving the site.
14.Decommissioning
Before carrying out this procedure, it is essential that the technician is
completely familiar with the equipment and all its detail.
It is recommended good practice that all refrigerants are recovered safely.
Prior to the task being carried out, an oil and refrigerant sample shall be taken in
case analysis is required prior to re-use of reclaimed refrigerant. It is essential
that electrical power is available before the task is commenced.
a) Become familiar with the equipment and its operation.
b) Isolate system electrically.
Safety precautions
10
CAUTION
c) Before attempting the procedure ensure that:
– Mechanical handling equipment is available, if required, for handling
refrigerant cylinders;
– All personal protective equipment is available and being used correctly;
– The recovery process is supervised at all times by a competent person;
– Recovery equipment and cylinders conform to the appropriate standards.
d) Pump down refrigerant system, if possible.
e) If a vacuum is not possible, make a manifold so that refrigerant can be
removed from various parts of the system.
f) Make sure that cylinder is situated on the scales before recovery takes
place.
g) Start the recovery machine and operate in accordance with manufacturer's
instructions.
h) Do not overfill cylinders. (No more than 80 % volume liquid charge).
I ) Do not exceed the maximum working pressure of the cylinder, even
temporarily.
j ) When the cylinders have been filled correctly and the process completed,
make sure that the cylinders and the equipment are removed from site
promptly and all isolation valves on the equipment are closed off.
k) Recovered refrigerant shall not be charged into another refrigeration system
unless it has been cleaned and checked.
15.Labelling
Equipment shall be labelled stating that it has been de-commissioned and emptied
of refrigerant.
The label shall be dated and signed.
Ensure that there are labels on the equipment stating the equipment contains
flammable refrigerant.
16.Recovery
When removing refrigerant from a system, either for servicing or
decommissioning, it is recommended good practice that all refrigerants are
removed safely.
When transferring refrigerant into cylinders, ensure that only appropriate
refrigerant recovery cylinders are employed.
Ensure that the correct number of cylinders for holding the total system charge
is available.
All cylinders to be used are designated for the recovered refrigerant and
labelled for that refrigerant (i.e. special cylinders for the recovery of
refrigerant).
Cylinders shall be complete with pressure relief valve and associated shut-
off valves in good working order.
Empty recovery cylinders are evacuated and, if possible, cooled before
recovery occurs.
The recovery equipment shall be in good working order with a set of
Safety precautions
11
CAUTION
instructions concerning the equipment that is at hand and shall be suitable for
the recovery of flammable refrigerants.
In addition, a set of calibrated weighing scales shall be available and in good
working order.
Hoses shall be complete with leak-free disconnect couplings and in good
condition.
Before using the recovery machine, check that it is in satisfactory working
order, has been properly maintained and that any associated electrical
components are sealed to prevent ignition in the event of a refrigerant release.
Consult manufacturer if in doubt.
The recovered refrigerant shall be returned to the refrigerant supplier in the
correct recovery cylinder, and the relevant Waste Transfer Note arranged.
Do not mix refrigerants in recovery units and especially not in cylinders.
If compressors or compressor oils are to be removed, ensure that they have
been evacuated to an acceptable level to make certain that flammable
refrigerant does not remain within the lubricant.
The evacuation process shall be carried out prior to returning the compressor
to the suppliers.
Only electric heating to the compressor body shall be employed to accelerate
this process.
When oil is drained from a system, it shall be carried out safely.
CAUTION
When moving or relocating the air conditioner, consult experienced service
technicians for disconnection and reinstallation of the unit.
Do not place any other electrical products or household belongings under
indoor unit or outdoor unit. Condensation dripping from the unit might get them
wet, and may cause damage or malfunction of your property.
Do not use means to accelerate the defrosting process or to clean, other than
those recommended by the manufacturer.
The appliance shall be stored in a room without continuously operating ignition
sources(for example, open flames, an operating gas appliance or an operating
electric heater).
Do not pierce or burn.
Be aware that refrigerants may not contain an odor.
To keep ventilation openings clear of obstruction.
The appliance shall be stored in a well-ventilated area where the room size
corresponds to the room area as specified for operation.
The appliance shall be stored in a room without continuously operating open
flames (for example an operating gas appliance) and ignition sources (for
example an operating electric heater).
Safety precautions
12
Explanation of symbols displayed on the indoor unit or outdoor unit.
WARNING
This symbol shows that this appliance uses a flammable
refrigerant.
If the refrigerant is leaked and exposed to an external
ignition source, there is a risk of fire
CAUTION
This symbol shows that the operation manual should be
read carefully.
CAUTION
This symbol shows that a service personnel should be
handling this equipment with reference to the
installation manual.
CAUTION
This symbol shows that information is available such as
the operating manual or installation manual.
Caution, risk of fire
CAUTION
Any person who is involved with working on or breaking into a refrigerant circuit
should hold a current valid certificate from an industry-accredited assessment
authority, which authorises their competence to handle refrigerants safely in
accordance with an industry recognised assessment specification.
Servicing shall only be performed as recommended by the equipment
manufacturer.
Maintenance and repair requiring the assistance of other skilled personnel
shall be carried out under the supervision of the person competent in the use of
flammable refrigerants.
Do not use means to accelerate the defrosting process or to clean, other than
those recommended by the manufacturer.
Appliance shall be installed, operated and stored in a room with a floor
2
arealarger than 10 m .
The installation of pipe-work shall be kept to a a room with a floor area larger
2
than 10 m .
The pipe-work shall be complianced with national gas regulations.
The maximum refrigerant charge amount is 2.5 kg.The specific refrigerant
charge is based on the nameplate of the outdoor unit.
Mechanical connectors used indoors shall comply with ISO 14903. When
mechanical connectors are reused indoors, sealing parts shall be renewed.
When flared joints are reused indoors, the flare part shall be re-fabricated.
The installation of pipe-work shall be kept to a minimum.
Mechanical connections shall be accessible for maintenance purposes.
13
Distance from ceiling
Distance from wall
should be over 50mm
Distance from the wall
Air intake distance from
the wall should be
over 250mm
Air intake distance from the wall
over 250mm
air outlet distance from the wall
should be over 500mm
should be over 200 mm
should be over 50mm
Distance from floor
over 2500mm.
should be
Distance from the obstacle
should be over 3000mm.
Distance from the obstacle
should be over 500mm.
should be over 250mm
Installation instructions
Installation diagram
Installation must be performed in accordance with
the national wiring standards by authorized personnel only.
Above figure is only a simple presentation
of the unit, it may not match the external
appearance of the unit you purchased.
14
The figures in this manual are based on the external view of a standard model.
Consequently, the shape may differ from that of the air conditioner you have selected.
Air Intake
Air Outlet
Air Outlet
Louver
Vertical Adjustment
Louver
Horizontal Adjustment
Air Filter
Remote Controller
Connection Cord
Pipes and Power
Drain Hose
Emergency Panel
Display Panel
Note: Condensate water drains
at COOLING or DRY operation.
Identification of parts
Indoor unit
Outdoor unit
Air Intake
Front Panel
ON
O
F
F
MO
D
E
S
M
ART
QU
I
E
T
D
IMM
ER
E
C
ON
O
MY
F
EEL
SUPER
FA
N SPEE
D
C
L
O
C
K
TI
M
E
R O
N
T
IME
R O
F
F
S
L
E
EP
TEM
P.
TE
M
P
.
Display introduction
15
Display set temperature.
It shows FC after 200 hours of usage as reminder to clean the filter.
After filter cleaning press the filter reset button located on the indoor unit behind the front
panel in order to reset the display.(optional)
It displays set humidity in humidity mode.(optional)
Temperature indicator
1
The symbols may be different from these models, but the functions are similar.
Running indicator
It lights up when the AC is running.
It flashes during defrosting.
Timer indicator
It lights up during set time.
Sleep indicator
It lights up in sleep mode.
2
3
4
DJ
series
8
1
2
3
4
Emergency button
A
A
ON/OFF
To let the AC run or stop by pressing the button.

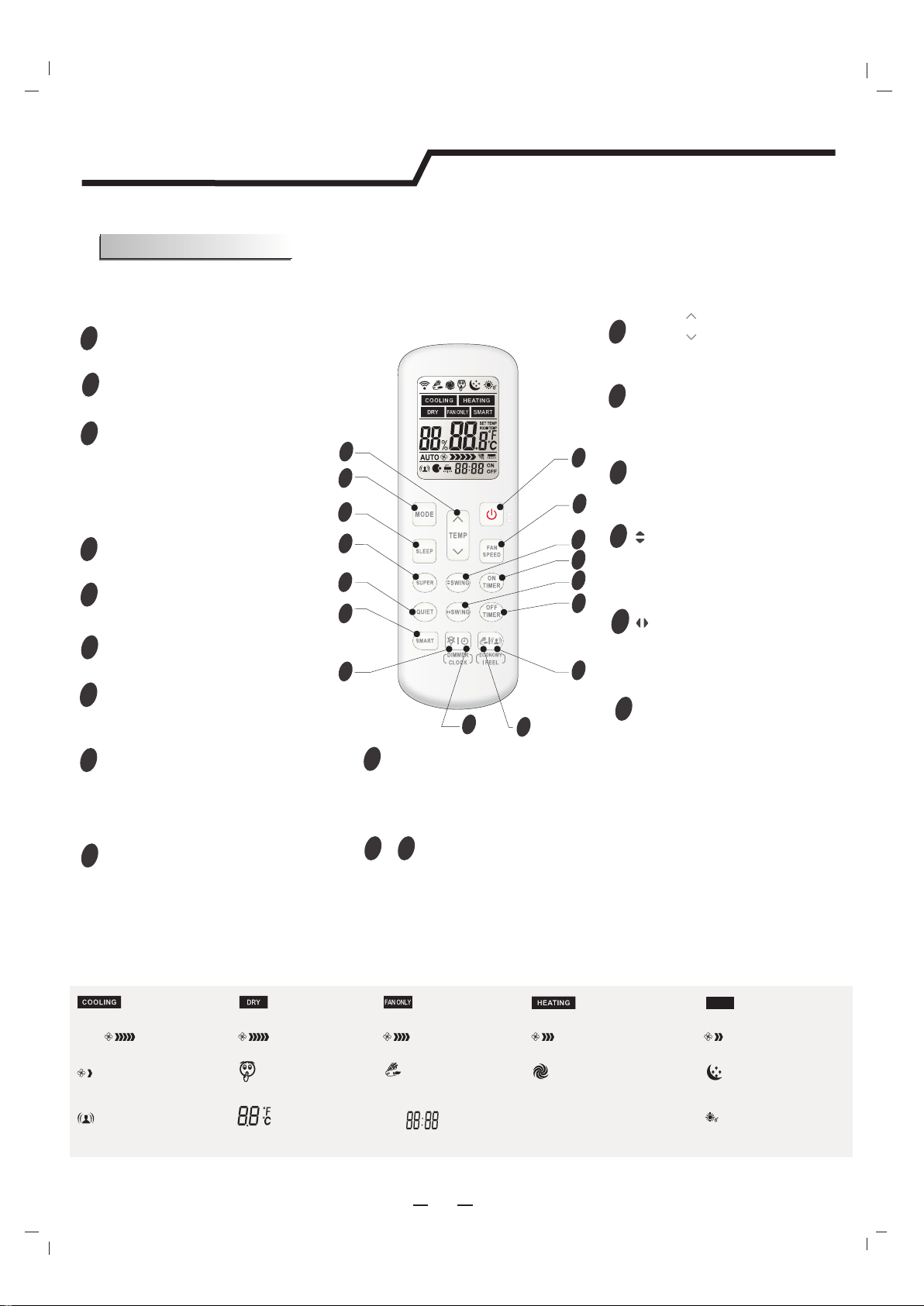

Remote controller
1
5
13
13
The remote controller transmits signals to the system.
FAN SPEED
Used to select fan speed in sequence auto,
higher, high, medium, low and lower.
SMART(invalid for multi system)
Used to enter fuzzy logic operation directly when
the unit is on .
POWER
The appliance will be started when it is
energized or will be stopped when it is
in operation, if you press this button.
MODE
Press this button to select the operation mode.
Remote controller
5
Used to adjust the room temperature and
the timer, also real time.
DIMMER
When you press this button, all the display
of indoor unit will be closed. Press any
button to resume display.
Used to stop or start vertical adjustment
louver swinging and set the desired up/
downairflow direction.
Used to stop or start Horizontal adjustment
louver swinging and set the desired left/right
airflow direction.
QUIET
Used to set or cancel Quiet Mode operation.
ECONOMY
8℃ HEAT(optional)
IFEEL
Used to set or cancel Economy Mode
operation.
Used to start or stop 8℃ HEAT mode.
+
Press to set IFEEL Mode operation.
In IFEEL mode,the Air Conditioner
operates basis temperature sensor
fitted in remote instead of machine,
Advice to use IFEEL mode and the
remote put where the indoor unit
receive signal easily.Press this
button above 5 seconds,start or
stop IFEEL mode.
SUPER
Used to start or stop the fast cooling/heating.
(Fast cooling operates at high fan speed with
16℃ 61 ) set temp automatically ; Fast heating
operates at auto fan speed with 30℃ 86°F) set
temp automatically)
( °F
(
13
ON TIMER
Used to set or cancel the timer operation.
SLEEP
Used to set or cancel Sleep Mode operation.
CLOCK
Used to set the current time.
OFF TIMER
Used to set or cancel the timer operation.
11
9
10
16
3
4
1
2
6
8
5
12
7
7
14
15
2
13
9
12
10
11
3
1
2
6
5
7
8
4
13
14
16
19
15
SWING
SWING
16
Note: Each mode and relevant function will be further specified in following pages.
Display set timer
Display current time
ON
OFF
Display temperature
Dry indicator
Fan only indicator
Auto fan speed
Auto
Higher fan speed High fan speed
Cooling indicator
Medium fan speed
Lower fan speed
Smart indicator
Super indicator
IFEEL
Quiet indicator
Economy indicator
Sleep indicator
8℃ Heat indicator
Heating indicator
Low fan speed
SMARTSMART
Indication symbols on LCD:
TEMP
Remote controller
How to Insert the Batteries
How to Use
Pry open the battery cover according to the arrow direction.
Insert new batteries making sure that the (+) and (-) of
battery are matched correctly.
Reattach the cover by pressing it back into position.
Storage and Tips for Using the Remote Controller
The remote controller may be stored mounted on a wall with a holder.
Note: The remote controller holder is an optional part.
remote controller
holder fixing.
remote controller
mounting.
Note:
you have selected.
The shape may differ from that of the remote controller holder
17
To operate the room air conditioner, aim the remote controller
to the signal receptor.The remote controller will operate the air
conditioner at a distance of up to 7m when pointing at signal
receptor of indoor unit.
Remote controller
Note:
Use 2 LR03 AAA(1.5volt) batteries. Do not use rechargeable batteries. Replace batteries with new ones of the same type
when the display becomes dim.
Signal receptor
1.
2.
3.
1 2
3
CAUTIONS
For appropriate signal transmission between remote controller and
indoor unit, keep the signal receiver away from the following items:
Direct sunlight or other strong lights or heat
Flat panel television screen or other electrical appliances that
react to the remote controller
Additionally, the air conditioner will not operate if curtains, doors or
other materials block the signals from the remote controller to the
indoor unit. If the signal may not be transmitted properly, either move
these materials or consult your local dealer.
Operation instructions
The operation modes changed in sequence:
The fan speed is changed in sequence:
Selecting mode
FAN mode
Heating mode is NOT available for cooling only air conditioner.
At "FAN ONLY" mode, only "Auto" is not available.
Some models, such as commercial air conditioner products, only have the third
gear speed.
At "DRY" mode, Fan speed is set at "AUTO” automatically, "FAN SPEED" button
is ineffective in this case.
Operation modes
Result :
Result :
Press button once by once
Press button once by once
Auto
Auto
Higher
High
High
High
Lower
Low
Medium
Medium
HEATING
COOLING
DRY
FAN ONLY
PRESS
PRESS
Auto
Auto
Low
Low
Setting temperature
16℃~30 61℃( )°F~86°F
Range of available set temperature
*HEATING, COOLING
DRY
±7 deg C
unable to set
FAN
ONLY
*Note:
Remote controller
*Note: Press and hold “ ” button and “ ” button
together for 2 seconds will alternate the temperature display
between the ℃ a nd °F s cale.
*Note: Heating mode is NOT available for cooling only models.
At “Dry” mode, a decrease or rise of up to 7℃ can be set
with if you still feel uncomfortable.
Press button once
Raise temperature setting by 1℃ 1 or °F
Lower temperature setting by 1℃ 1 or °F
Press button once
Result :
Result :
18
Operation instructions
Turning on
SWING , SMART , SUPER , QUIET, TIMER , ECONOMY , IFEEL , DIMMER , CLOCK , and 8℃ HEAT operation modes will
be specified in the following pages.
SLEEP
Changing modes during operation, sometimes the unit does not response at once. Wait 3 minutes.
Wait 3 minutes before restarting the appliance.
During heating operation, air flow is not discharged at the beginning. After 2－5 minutes, the air flow will be discharged
until temperature of indoor heat exchanger rises.
19
Press button .
T he RUN indicator of the indoor unit lights up.
Result :
Vertical airflow(Horizontal airflow) is automatically adjusted to a certain angle in accordance with the
operation mode after turning on the unit.
The direction of airflow can be also adjusted to your own requirement by pressing the " " buttons of
the remote controller.
Operation mode
Direction of airflow
COOLING, DRY
*HEATING,
FAN ONLY
horizontal
downward
Using remote controller to set various angles of flow or specific angle as you like.
*Heating mode is only available for heat pump models.
Airflow direction control
Press " " button once.
Press " " button again .
The louvers swing to a suitable angle as desired.
The vertical adjustment louver will swing up and down automatically.Result :
Result :
Vertical airflow control (with the remote controller)
Using remote controller to set various angles of flow or specific angle as you like.
Press " " button once.
The horizontal adjustment louver will swing left and right automatically.
Result :
Horizontal airflow control (with the remote controller)
PRESS
PRESS
PRESS
P
R
E
SS
PRESS
Operation instructions
Do not turn the vertical adjustment louvers manually, otherwise malfunction may occur. If that happens, turn off the
unit first and cut off the power supply, then restore power supply again.
It is better not to let the vertical adjustment louver tilt downward for a long time at COOLING or DRY mode to prevent
condensed water from dripping.
A
B
20
Press " " button again .
The louvers swing to a suitable angle as desired.
Result :
NOTE:If the unit doesn’t have four ways airflow function, you can adjust
horizontal airflow by yourself.(invalid for some models)
PRESS
Indoor temperature
Target temperature
21 70℃( ) or below°F
22 7℃( )2°F
26 7℃( )9°FOver 26 7℃( )9°F
21 3°F℃-23℃( )70°F-7
23 9°F℃-26℃( )73°F-7
Operation mode
HEATING
FAN ONLY
DRY
Room temperature
decrease 2 2°F℃( ) after
operate for 3 minutes
COOLING
Heat pump models
Cooling only models
Indoor temperature
Target temperature
23 7℃( ) or below3°F
26 7℃( )9°F
Over 26 7℃( )9°F
23 73°F 79°F℃-26℃( - )
Operation mode
FAN ONLY
DRY
Room temperature
decrease 2 2°F℃( ) after
operate for 3 minutes
COOLING
How to set SMART mode?
Press the button.
Result : Enters SMART mode(fuzzy logic operation)
directly only when the unit is on .
Temperature and fan speed are automatically
set based on theactual room temperature.
PRESS
SMART mode( )invalid for multi system
For the split-type models, such as wall-mounted air conditioners and some
floor-standing air conditioners, their operation mode and set temperature
should be determined based on the indoor temperature.
Operation mode and temperature are determined by indoor temperature
For commercial air conditioner products, such as cassette type air conditioners, duct type
air conditioners, ceiling & floor air conditioners and some floor-standing air conditioners,
their operation mode should be determined based on the difference between the indoor
temperature and set temperature.
Operation instructions
SMART button is ineffective in SUPER mode.
Your feeling
What you can do in SMART mode?
Button
Adjust
Uncomfortable because
of unsuitable air flow
volume.
Uncomfortable because
of unsuitable flow
direction.
Note: Temperature, airflow and direction are controlled automatically in SMART mode.
However, For the on/off, you can choose from -2 to 2 (for some models you can choose
from -7 to 7), for the inverter you can choose from -7 to 7. if you still feel uncomfortable.
21
How to cancel the SMART mode?
Press the button.
Result :
Indoor fan speed alternates among Auto, Higher, High,
Medium, Low and Lower each time this button is
pressed.
Press it once, the vertical adjustment louver(horizontal
adjustment louver) swings to change vertical airflow
direction(horizontal airflow direction). Press it again,
swings stops.
The SMART mode will be cancelled.
Press MODE button cancel SMART mode.
PRESS
ECONOMY button is ineffective in SMART mode.
The operation mode is determined by the difference between the indoor
temperature and set temperature.
Heat pump models
Cooling only models
Indoor temperature
Target temperature
Below T-3℃( )3°F
T
T
T
Operation mode
HEATING
FAN ONLY
T-3℃ T+3℃( )≤T ≤ 3°F
indoor
O 3°Fver T+3℃( )
COOLING
Indoor temperature
Target temperature
T
T
Operation mode
FAN ONLY
T+3℃( ) or below3°F
O 3°F)ver T+3℃(
COOLING
Operation instructions
SUPER mode can be set when the appliance is in operation or energized.
Note:
The Appliance will continue working in SUPER mode for 15 minutes , if you don't escape from it
by pressing any of the buttons mentioned above.
SMART button is not available in SUPER mode.
SUPER mode
SUPER mode is used to start or stop fast cooling or heating only when the unit is on.
How to set SUPER mode?
Press button at the cool,dry and fan only mode.
Result :
At high fan speed ,the set temperature
automatically to 16℃ .(61°F)
Press button at the heat mode.
Result :
At auto fan speed ,the set temperature
automatically to 30℃ .(86°F)
How to cancel SUPER mode?
22
Press . SUPER , MODE, FAN SPEED, ON/OFF, QUIET or SLEEP button
Result :
The display return to the original mode.
In SUPER mode, you can set temperature, airflow direction or timer
Escape from SUPER mode.
PRESS
Cancel
PRESS
QUIET mode
In this mode, the air conditioner will work with low noise performance by low compressor frequency and low
fan speed. This mode is only available for inverter models.
Note: Press MODE, FAN SPEED, SMART, SUPER, or ON/OFF button
cancel QUIET mode.
ECONOMY
PRESS
ECONOMY button is in SUPER mode.not available
Operation instructions
Timer mode
Note: It is similar to set OFF TIMER , you can make the appliance
switch off automatically at your desired time.
It is convenient to set the timer on with ON TIMER buttons when you go out in the morning to
achieve a comfortable room temperature at the time you get home. You can also set timer off at night to enjoy
a good sleep.
23
Press the or button.
Once to increase or decrease the time setting by 1 minute.
One and a half seconds to increase or decrease the time setting
by 10 minute.
For a longer time to increase or decrease the time by 1 hour.
A "beep" can be heard.
The TIMER indicator on the indoor unit lights up.
(invalid
for multi system)
"ON" stops flashing.
When your desired time displayed on LCD, press the ON TIMER button and confirm it.
After the set timer displayed for 5 seconds the clock will be displayed on the LCD of the remote controller
instead of set timer.
Result :
Result :
Press button.
Press the button.
A "beep" can be heard and the indicator disappears,
the time on mode has been canceled.
Result :
How to cancel ON TIMER ?
How to set ON TIMER ?
Result :
“12:00 " flashes on the LCD. ON
1.
2.
3.
4.
PRESS
PRESS
PRESS
PRESS
ECONOMY mode
In this mode, the air conditioner will bring you energy saving performance by lower running currency.
ECONOMY button is ineffective in SUPER and mode.SMART
Press ON/OFF , MODE ,TEMP ∧,TEMP ∨, FAN SPEED , SLEEP ,
QUIET or ECONOMY button cancel ECONOMY mode.
PRESS
Operation instructions
IFEEL mode
The temperature sensor built in remote controller is activated.It can sense its surrounding temperature,and
transmit the signal back the unit,the unit can adjust the temperature so as to provide maximum comfort.
How to set IFEEL mode ?
Note:
The default setting is IFEEL inactiving.
Press the button for about 5 seconds once again.
DIMMER button
Press the DIMMER button to turn off the light and the display in the unit.
Note:
When the light is off,receive signal will turn on the light again.
How to set the DIMMER ?
How to cancel IFEEL mode?
Result :
The transmit signal in the display will appear,
the IFEEL function will be started.
1st
Press the button for about 5 seconds once.
Result :
IFEEL function will be shunted off.
2nd
PRESS
CLOCK button
How to adjust the real time?
Press button for about 5 seconds once.
Press and buttons.
Press button once again.
Result :
Result :
Result :
The time flashes on the LCD.
1.
2.
3.
The real time is set.
PRESS
Once to increase or decrease the time setting by 1 minute.
One and a half seconds to increase or decrease the time setting
by 10 minute.
For a longer time to increase or decrease the time by 1 hour.
PRESS
PRESS
24
Operation instructions
25

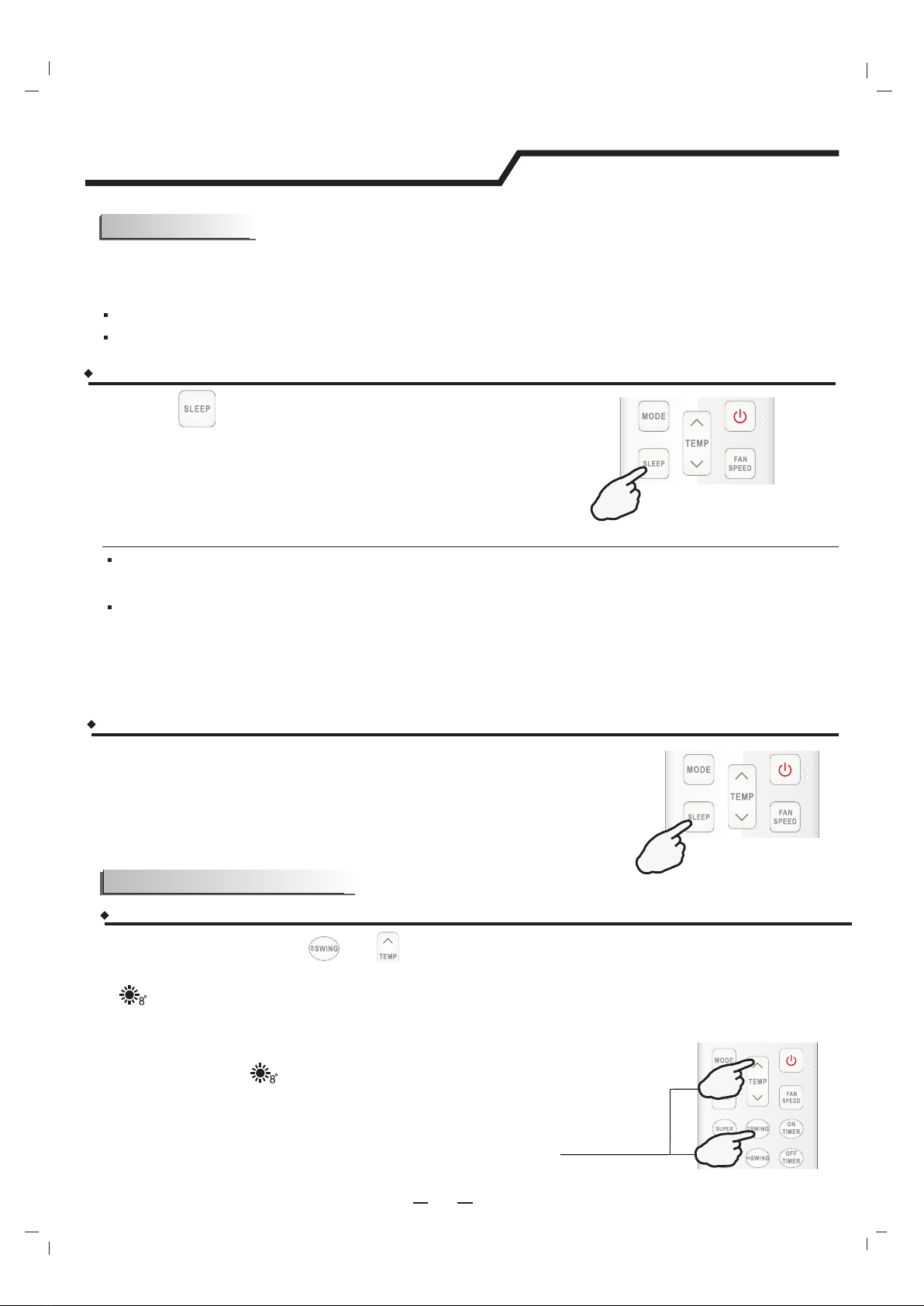

SLEEP mode can be set in COOLING ,HEATING mode. or DRYING
This function gives you a more comfortable environment for sleep.
The appliance will stop operation automatically after operating for 8 hours.
Fan speed is automatically set at low speed.
SLEEP mode
8℃ HEAT mode(optional)
Each time button is pressed.
How to set SLEEP mode ?
Result :
SLEEP function will be started.
Note: In cooling mode, if room temperature is 26℃ ) or above, set temperature will not change. (79°F
Note: Heating is NOT available for cooling only air conditioner.
Set temperature will rise by 2 (2°F if the appliance operates in cooling mode for 2 hours
constantly, then keeps steady.
℃ ) at most
Set temperature will decrease by 2 (2°F℃ ) at most if the appliance operates in heating mode for 2
hours constantly, then keeps steady.
SLEEP mode :
How to cancel SLEEP mode ?
How to set ?8℃ HEAT
Press any button, except SLEEP button.
In HEATING mode, P for 2 seconds 8℃ HEAT moderess and . buttons together to start
Result :
Note :
The display return to the original mode.
In 8°C HEAT mode, the fan speed is set at “AUTO” automatically.The icon
will appear on the LCD.
If pressing any button, other than ON TIMER, OFF TIMER, CLOCK,
DIMMER, IFEEL and SWING, 8°C HEAT function will be turned
off. And the icon will disappear.
Escape from SLEEP mode.
In 8°C HEAT mode, the default temperature is set 8℃.
8°C HEAT mode can be set only when the air conditioner
works in HEATING mode.
PRESS
PRESS
1
2
Press together
for 2 seconds
Outdoor unit
Outdoor
unit
Indoor unit
Indoor unit
Pipe length is
15 meters Max.
Pipe length is
15 meters Max.
be less than 5m
be less than 5m
Height should
Height should
26
Installation instructions
Select the installation locations
Location for Installing Outdoor Unit
Where it is convenient to install and well ventilated.
Avoid installing it where flammable gas could leak.
Keep the required distance apart from the wall.
The pipe length between indoor and outdoor unit should be not
more than 5 meters in factory default status, but it can go up to
maximum 15 meters with additional refrigerant charge.
Keep the outdoor unit away from greasy dirt,
exit.
vulcanization gas
Avoid installing it by the roadside where there is a risk of
muddy water.
A fixed base where it is not subject to increased operation
noise.
Where there is not any blockage of the air outlet.
Location for Installing Indoor Unit
Where there is no obstacle near the air outlet and air can be
easily blown to every corner.
Where piping and wall hole can be easily arranged.
Keep the required space from the unit to the ceiling and wall
according to the installation diagram on previous page.
Where the air filter can be easily removed.
Keep the unit and remote controller 1m or more apart from
television, radio etc.
keep as far as possible from fluorescent lamps.
Do not put anything near the air inlet to obstruct it from air
absorption.
Install on a wall that is strong enough to bear the weight of the unit.
Install in a place that will not increase operation noise and vibration.
Keep away from direct sunlight and heating sources. Do not place
flammable materials or combustion apparatuses on top of the unit.
Avoid installing under direct sunlight, in an aisle or sideway,
or near heat sources and ventilation fans. Keep away from
flammable materials, thick oil fog, and wet or uneven places.
If the height or pipe length is out of the scope of the table, please consult the dealer.
Model
2.5Kw
5
15
5
20
Max. allowed pipe length
without additional
refrigerant (m)
Limit of
length (m)
pipe
Limit of Elevation
Difference H (m)
Required amount of
additional refrigerant (g/m)
7.1Kw
5
15
5
30
3.5Kw
5.0Kw
Pipe direction
1
2
3
4
trough
Note: When installing the pipe at the directions
1,2 or 4, saw the corresponding unloading piece
off the indoor unit base.
Unloading
piece
Saw the unloading piece
off along the trough
Put the pipes (liquid and gas pipe) and cables through the wall hole from outside or put them through
from inside after indoor pipe and cables connection complete so as to connect to outdoor unit.
Decide whether saw the unloading piece off in accordance with the pipe direction.(as shown below)
3. Indoor Unit Pipe Installation
27
Installation instructions
Indoor
Outdoor
Wall hole sleeve
( hard polythene tube
prepared by user)
5mm
(tilt downward)
Install a sleeve through the wall hole to keep the wall
tidy and clean.
Drill a hole on the wall about 50mm. The hole should
tilt a littledownward toward outside.
Decide the position of hole for pipe according to the
location of mounting plate.
2. Drill a Hole for Pipe
Indoor unit installation
After connecting pipe as required, install the drain hose. Then connect the power cords. After connecting,
wrap the pipes, cords and drain hose together with thermal insulation materials.
. Keep the mounting plate horizontal with a horizontal level or dropping line.
Mark the center of the indoor unit on mounting plate for future reference.
Tapping mounting plate to the wall with a minimum of five screws, evenly spaced to properly support
indoor unit weight.
Decide an installing location for the mounting plate according to the indoor unit location and piping
direction.
Note: The shape of your mounting plate may be different from the one above, but the installation method is similar.
Note: it is recommended to install screw anchors for sheet rock, concrete block, brick and such type of wall.
Note: the center of the mounting bracket may be not the center of the indoor unit.
Note: As the above figure shown, the six holes matched with tapping screw on the mounting plate must be used to
fix the mounting plate, the others are prepared.

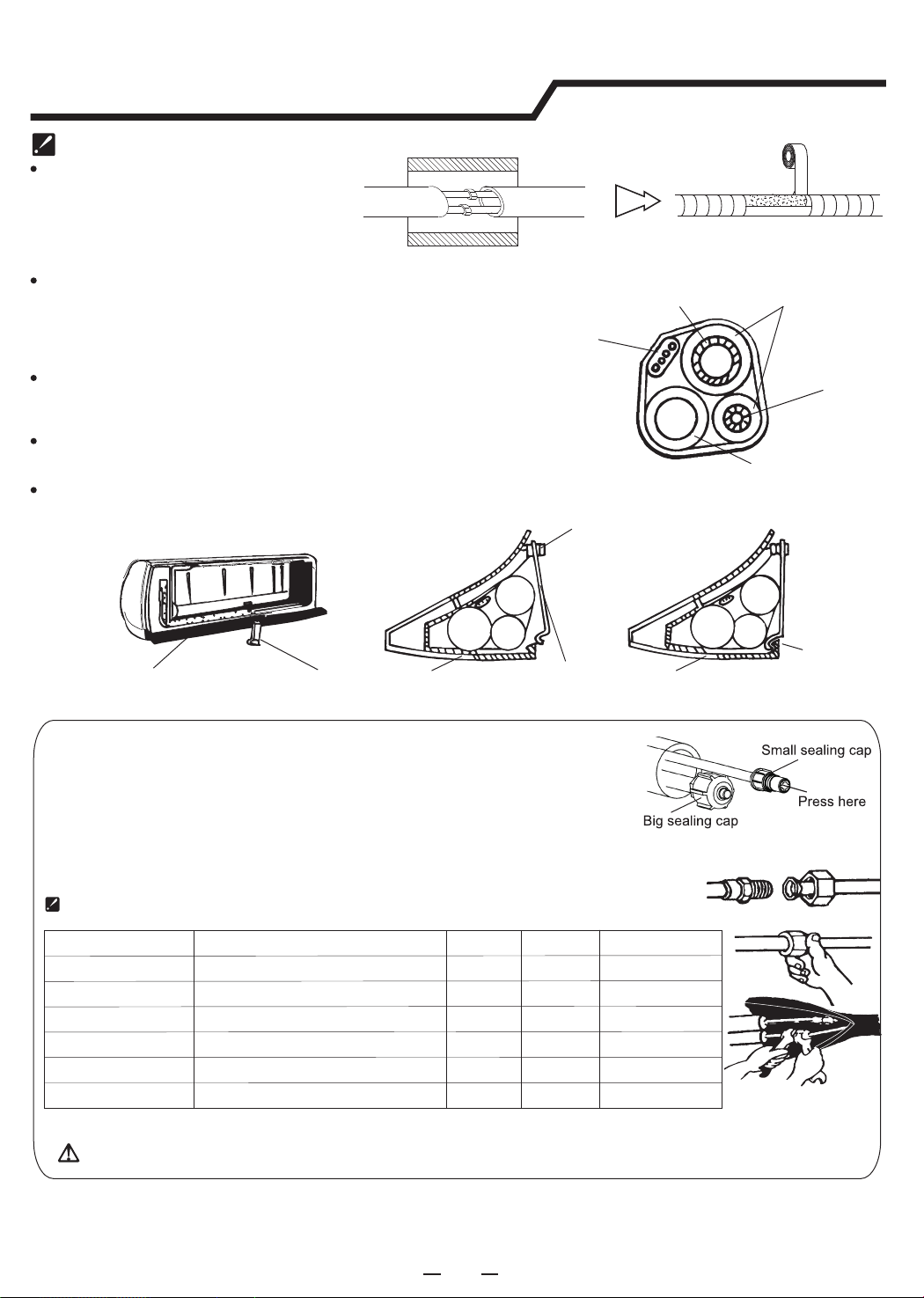

Installation instructions
Pipe Joints Thermal Insulation:
Wrap the pipes joints with thermal
insulation materials and then wrap
with a vinyl tape.
Pipes Thermal Insulation:
a. Place the drain hose under the pipes.
b. Insulation material uses polythene foam over 6mm in thickness.
Note: Drain hose is prepared by user.
Drain pipe should point downward for easy drain flow.
Do not arrange the drain pipe twisted, sticking out or wave
around, do not immerse the end of it in water.
If an extension drain hose is connected to the drain pipe, make
sure to thermal insulated when passing along the indoor unit.
When the pipes is directed to the right, pipes, power
Cord and drain pipe should be thermal insulated and
fixed onto the back of the unit with a pipe fixer.
Thermal insulation
wrapped with vinyl type
Small
pipe
Large pipe
Thermal insulation
tube
Power cord
Drain hose
(prepared by user)
A. Insert the pipe fixer to the slot.
B. Press to hook the pipe fixer onto the base.
Base
Base
Base
Pipe fixer
Pipe fixer
Hook here
Insert here
drain
hose
drain
hose
large
pipe
large
pipe
small
pipe
small
pipe
28
Note: Piping connection should be conducted on outdoor side !
c. Pre-tighten them with fingers at first, then use the wrenches.
If you don't hear the exhaust noise, please contact with the merchant.
a.Before unscrewing the big and the small sealing caps, press the small
sealing cap with the finger until the exhaust noise stops, and then loosen
the finger.
b. Connect indoor unit pipes with two wrenches. Pay special attention
to the allowed torque as shown below to prevent the pipes, connectors
and flare nuts from being deformed and damaged.
Piping Connection:
Pipe size
Model
Liquid Side ( 1/4 inch) φ6mm or
2.5Kw,3.5Kw,5.0Kw
5.0Kw
7.1Kw
7.1Kw
2.5Kw,3.5Kw
15~20N·m
17mm
0.5mm
0.6mm
0.6mm
0.6mm
0.6mm
22mm
24mm
22mm
27mm
30~35N·m
30~35N·m
50~55N·m
60~65N·m
Liquid Side ( 3/8 inch)φ9.53mm or
Gas Side ( inch)φ12mm or 1/2
Gas Side ( 3/8 inch)φ9.53mm or
Gas Side ( 5/8 inch)φ16mm or
Torque
Nut width Min.thickness
1.0mm
32mm
70~75N·m
Gas Side ( 3/4 inch)φ19mm or
# # #
Note: The unit of 12K ,18K and 36K is bigger than the unit of 12K,18K and 36K.
29
Connecting of the Cable
Outdoor Unit
Indoor Unit
1) Remove the access door from the unit by loosening
Connect the power cord to the indoor unit by connecting
the wires to the terminals on the control board individually
in accordance with the outdoor unit connection.
the screw. Connect the wires to the terminals on the
control board individually as follows.
2) Secure the power cord onto the control
board with cable clamp.
3) Reinstall the access door to the original position
with the screw.
4) Use a recognized circuit breaker for 24K model between
the power source and the unit. A disconnecting device to
adequately disconnect all supply lines must be fitted.
Note: For some models, it is necessary to remove the cabinet to
connect to the indoor unit terminal.
Access door
Terminal(inside)
Outdoor unit
Installation instructions
The figures in this manual are based on the external
view of a standard model. Consequently, the shape
may differ from that of the air conditioner you have
selected.
Chassis
Cabinet
Front panel
Terminal (inside)
Indoor unit
Caution:
1. Never fail to have an individual power circuit specifically for the air conditioner. As for the method of
wiring, refer to the circuit diagram posted on the inside of the access door .
2. Comfirm that the cable thickness is as specified in the power source specification.
3. Check the wires and make sure that they are all tightly fastened after cable connection.
4. Be sure to install an earth leakage circuit breaker in wet or moist areas.
Attention:
The plug must be accessible even after the installation of the appliance in case there is a need to
disconnect it. If not possible, connect appliance to a double-pole switching device with contact
separation of at least 3 mm placed in an accessible position even after installation.
Cable Specifications
Capacity (Btu/h)
2.5Kw,3.5Kw
Power connecting cord
Power cord
Type Type
Normal cross
- sectional area
Normal cross
- sectional area
H07RN-F H05RN-F
2
0.75mm X4
2
mm1.0 X3
7.1Kw
H07RN-F
2
2.5mm X3
5.0kw
H07RN-F
2
1.5mm X3
H05RN-F
2
0.75mmX4
2
0.75mmX4
H05RN-F
30
Installation instructions
Warning: Before obtaining access to terminals, all supply circuits must be disconnected.
Make sure that the color of the wires in the outdoor unit and terminal No. are the same as
those of the indoor unit.
Wiring diagram
Power supply
Power connecting cord
1(L)
3(SI)
2(N)
1(L)
2(N)
3(SI)
N
L
BN
BU
YE/GN
Terminal
Indoor unit
Terminal
Outdoor unit
31

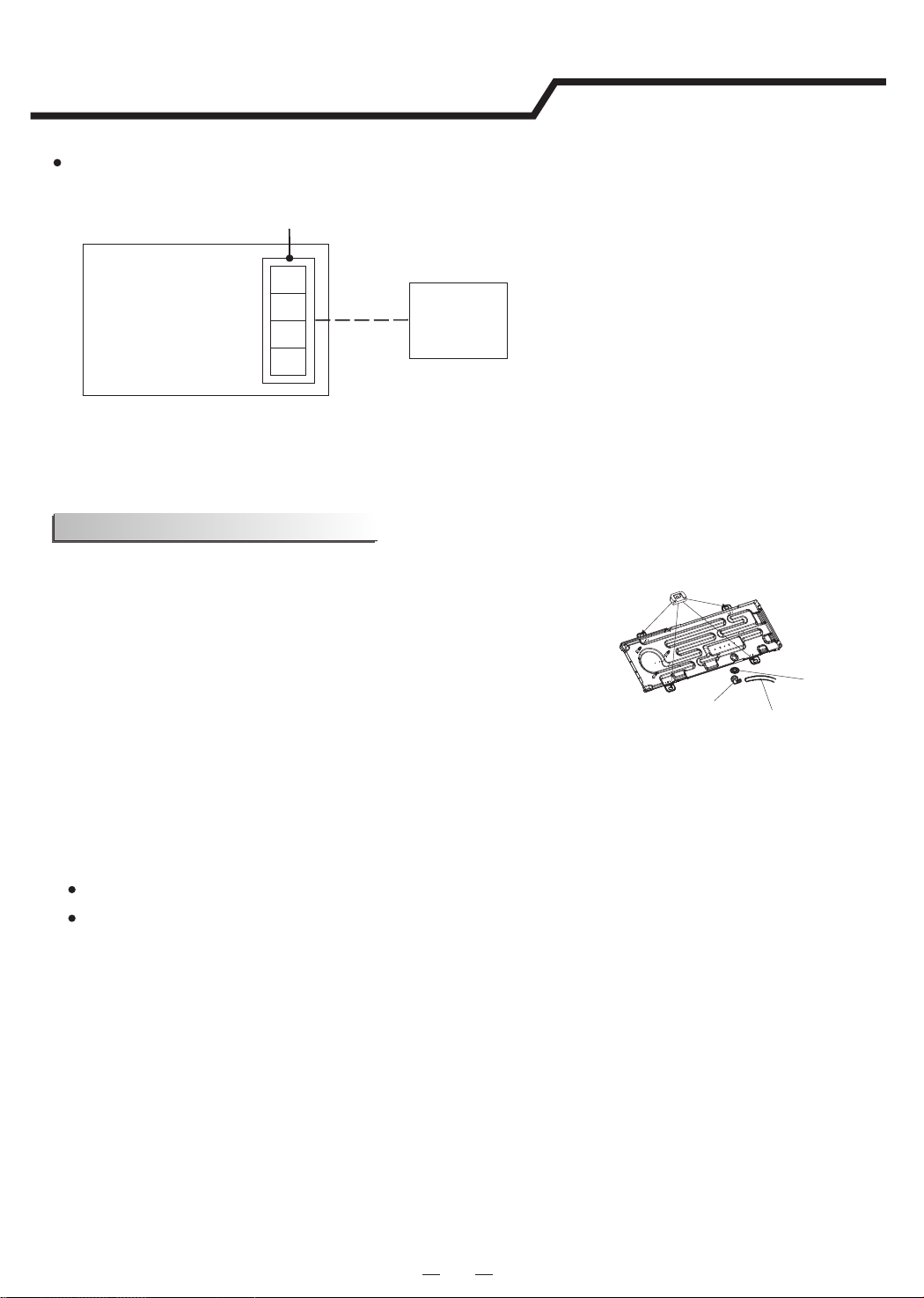

Installation instructions
Fix with bolts and nuts tightly on a flat and strong floor.
If installed on the wall or roof, make sure to fix the supporter well to prevent it
from shaking due to serious vibration or strong wind.
3. Outdoor Unit Piping Connection
4. Outdoor Unit Cable Connection (see previous page)
Remove the valve caps from the 2-way and 3-way valve.
Connect the pipes to the 2-way and 3-way valves separately according to the required torque.
2. Install and Fix Outdoor Unit
1. Install Drain Port and Drain Hose (for heat-pump model only)
The condensate drains from the outdoor unit when the unit operates
in heating mode. In order not to disturb your neighbor and protect
the environment, install a drain port and a drain hose to direct the
condensate water. Just install the drain port and rubber washer to
the chassis of the outdoor unit, then connect a drain hose to the
port as the right figure demonstrates.
Outdoor unit installation
Drain hose
(prepared by user)
Washer
Drain port
Rubber pad (optional)
Place under the leg pedestal
DRED
DRED terminal
Air conditioner
2
1
3
C
For some air conditioners exported to Australia, connect the DRED device to the DRED terminal on the
air conditioner.
(1) Unscrew and remove caps from 2 and 3-way valves.
(4) Start vacuum pump for 10-15 minutes until reaching a vacuum of 10 mm Hg absolutes.
(6) Open 2-way valve ,1/4 turn, then close it after 10 seconds. Check tightness of all joints using liquid
soap or an electronic leak detector.
(7) Turn 2 and 3-way valves stem to fully open the valves. Disconnect the flexible vacuum pump hose.
(8) Replace and tighten all valve caps.
(5) With vacuum pump still running close the low pressure knob on vacuum pump manifold. Then stop
the vacuum pump.
(2) Unscrew and remove cap from service valve.
(3) Connect vacuum pump flexible hose to the service valve.
How to Purge Air Tubes:
32

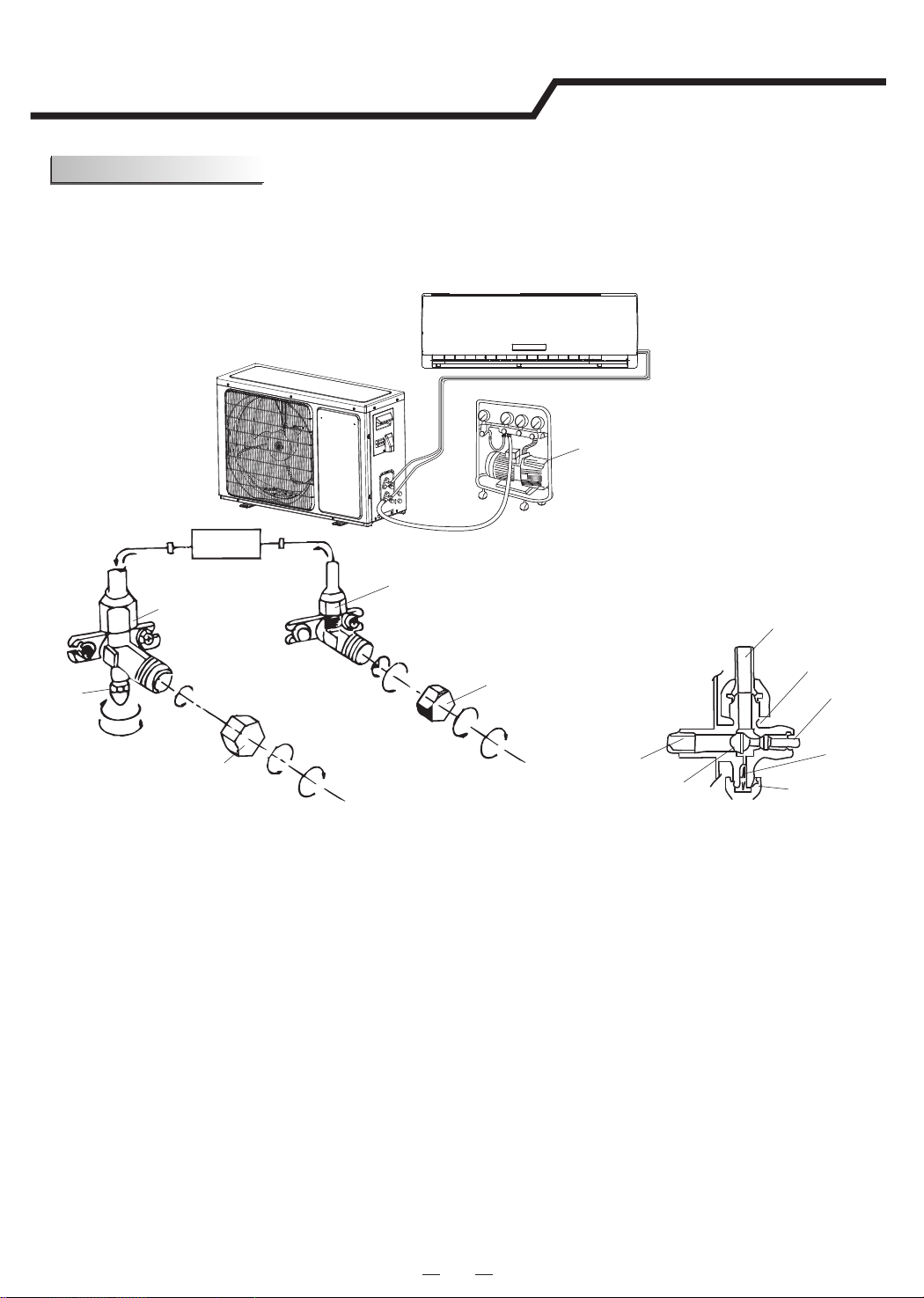

Installation instructions
The air which contains moisture remaining in the refrigeration cycle may cause a malfunction on the
compressor. After connecting the indoor and outdoor units, release air and moisture from the refrigerant
cycle using a vacuum pump, as shown below.
Air purging
Note: To protect the environment, be sure not to discharge the refrigerant to the air directly.
Refrigerant flow direction
2-way valve
(6) Open 1/4 turn
valve cap
(1) Turn
(8) Tighten
(2) Turn
3-way valve
(8) Tighten
(1) Turn
(7) Turn to fully open the
valve
(7) Turn to fully open the valve
(8) Tighten
3-way valve diagram
connect to indoor unit
open position
spindle
service port cap
Service
port
Connect to outdoor unit
Valve core
needle
indoor unit
Valve cap
Vacuum pump
33

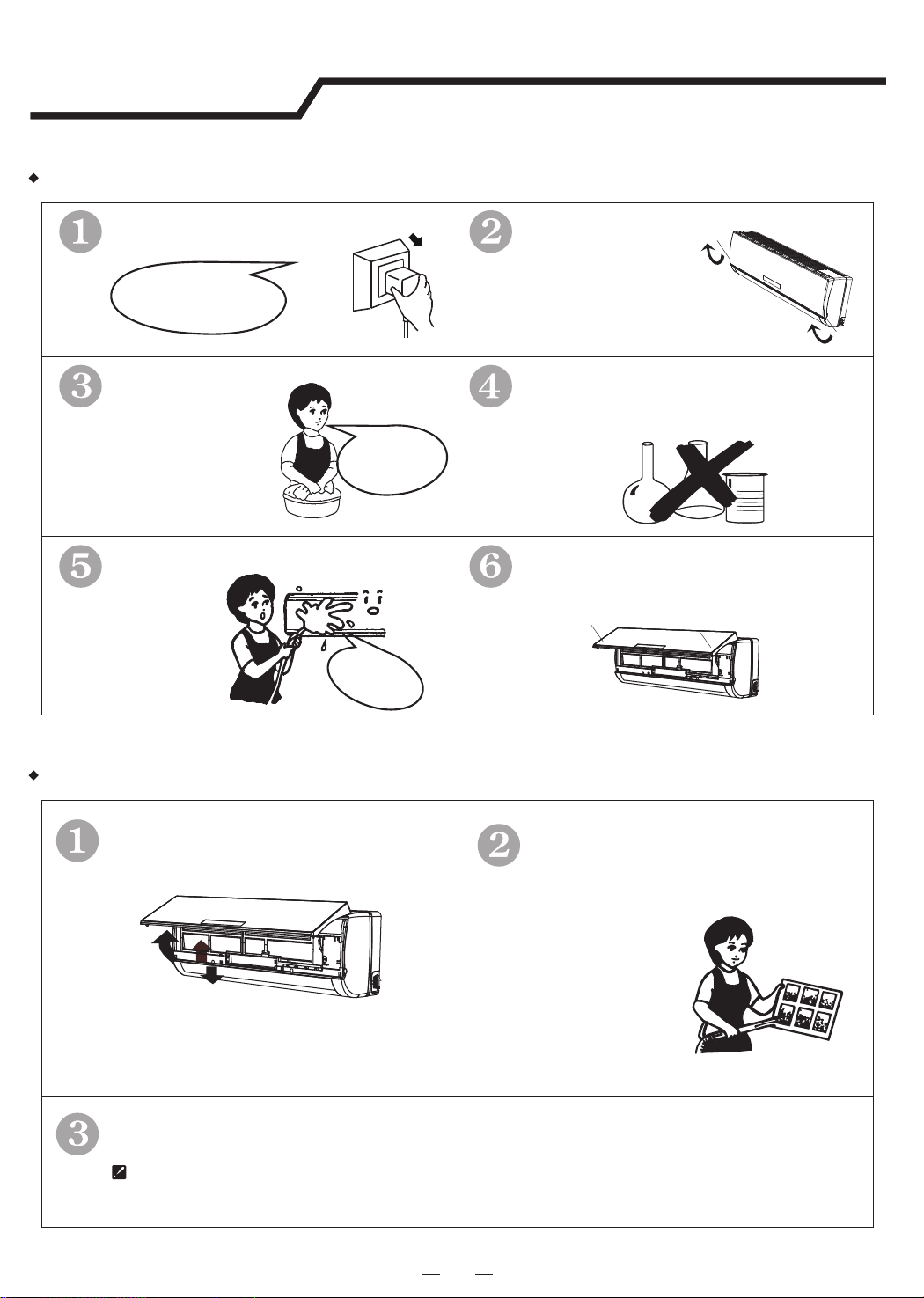

MaintenanceMaintenance
It is necessary to clean the air filter
after using it for about 100 hours.
Front panel maintenance
Air filter maintenance
Never use volatile substance
such as gasoline or polishing
powder to clean the appliance.
Clean and reinstall the air filter.
Close the front panel again.
shock!
Electric
Dangerous!
Wipe with a soft
and dry cloth.
Use soft moisture cloth
to clean if the front panel
is very dirty;
Never sprinkle water onto the
indoor
unit
Reinstall and shut the front panel.
Reinstall and shut the front panel by
pressing position "b" downward.
If the dirt is conspicuous,
wash it with a solution of
detergent in lukewarm water.
After cleaning, dry well in
shade.
Clean the air filter every two weeks
if the air conditioner operates in an
extremely dusty environment.
Stop the appliance, c
power supply and remove the air
filter.
ut off the
1
2
3
1.Open the front panel.
2.Press the handle of the filter gently
from the front.
3.Grasp the handle and slide out the filter.
soft cloth to
clean it.
Use a dry and
b
b
Turn off the appliance
first before disconnecting
from power supply.
Cut off the power supply
Grasp position "a" and
pull outward to remove the
front panel.
a
a
34
Protection
Operating condition
Noise pollution
Install the air conditioner at a place that can bear its weight in order to operate more quietly.
Install the outdoor unit at a place where the air discharged and the operation noise would not annoy
your neighbors.
Do not place any obstacles in front of the air outlet of the outdoor unit lest it increases the noise level.
Features of protector
If all operation has stopped, press ON/OFF button again to restart, Timer should be set again if it has
been canceled.
The protective device will work at following cases.
Restarting the unit at once after operation stops or changing mode during operation, you need to wait for
3 minutes.
Connect to power supply and turn on the unit at once, it may start 20 seconds later.
Features of HEATING mode
Preheat
Defrost
At the beginning of the HEATING operation, the airflow from the indoor unit is discharged 2-5 minutes later.
In HEATING operation the appliance will defrost (de-ice) automatically to raise efficiency.
This procedure usually lasts 2-10 minutes. During defrosting, fans stop operation.
After defrosting completes, it returns to HEATING mode automatically.
Note: Heating is NOT available for cooling only air conditioner models.
1.
2.
Temperature
Cooling operation Heating operation Drying operation
Indoor
temperature
max
32℃
27℃
32℃
min
21℃
7℃
18℃
Outdoor
temperature
max
℃
24℃ 43℃
min
-15℃
21℃
NOTE:
Operating temperature
*Optimum performance will be achieved within these operating temperature. If air conditioner is used outside of
the above conditions, the protective device may trip and stop the appliance.
The temperature of some products is allowed beyond the range. In specific situation, please consult the
merchant. When relative humidity is above 80%, if the air conditioner runs in COOLING or DRY mode with door
or window opened for a long time, dew may drip down from the outlet.
50
-15℃
The following cases may not always be a malfunction, please check it before asking for service.
35

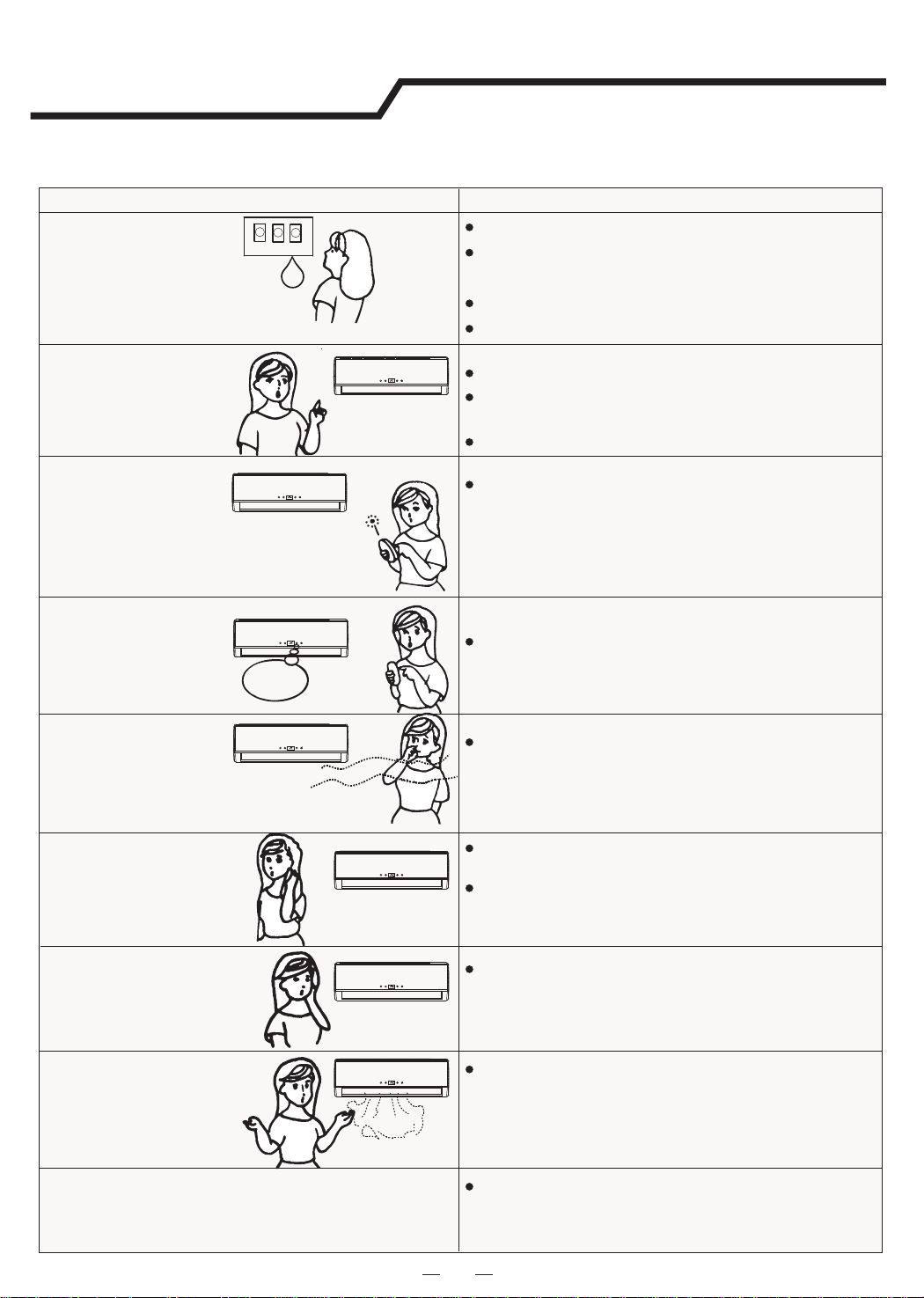

Troubleshooting
Trouble Analysis
Does not run
No cooling or
heating air
Ineffective control
Does not operate
immediately
Peculiar odor
A sound of
flowing water
Cracking sound is
heard
Spray mist from
the outlet
The compressor indicator(red) lights on constantly,
and indoor fan stops.
The unit is shifting from heating mode to defrost.
The indicator will lights off within ten minutes and
returns to heating mode.
Is the air filter dirty?
Are the intakes and outlets of the air
conditioner blocked？
Is the temperature set properly？
don't run
If the protector trip or fuse is blown.
If the plug is not properly plugged.
If batteries in the remote controller exhausted.
Please wait for 3 minutes and start again,
protector device may be preventing unit to work.
.
If strong interference(from excessive static
electricity discharge, power supply voltage
abnormality)presents, operation will be
abnormal. At this time, disconnect from the
power supply and connect back 2-3 seconds later.
Changing mode during operation, 3 minutes
will delay.
This odor may come from another source
such as furniture, cigarette etc, which is
sucked in the unit and blows out with the air.
Caused by the flow of refrigerant in the
air conditioner, not a trouble.
Defrosting sound in heating mode.
The sound may be generated by the expansion
or contraction of the front panel due to change
of temperature.
Mist appears when the room air becomes
very cold because of cool air discharged
from indoor unit during COOLING or DRY
operation mode.
