48” RESIDENTIAL GAS RANGE | Specifications
PERFORMER SERIES with Open Burners
Customize with RAL
®
for the best color that suits your lifestyle.
CONVECTION OVEN TECHNOLOGY
Balanced turbulent heat distribution is essential
when baking, roasting, and dehydrating food. The
American Range convection oven technology
features a convection motor and fan to enhance
uniform heat distribution throughout the large
(4.4 CU. FT.) oven cavity.
The strategic placement of the convection fan ensures consistent heat
distribution even when challenged with cooking the largest turkey, ham or
roast.
CONVECTION OVEN IS GREEN TECHNOLOGY
The efficient design of the convection oven uses less gas than a standard
oven.
RANGE TOP FEATURES
• True commercial lift-off burners for easy cleaning.
• 3 sizes of burners to serve your everyday needs:
25,000 BTU (lg), 18,000 BTU (med) and 12,000 BTU (sm)
• Variable infinite flame settings for all open top burners.
• Automatic, electronic ignition ensures re-ignition in the event the flame
goes out, even on the lowest burner setting.
• Continuous commercial-grade cast iron grates.
• Porcelainized burner pans catch spills and lift out for easy cleaning.
• Analog controls provide easy, push to turn operation.
• Blue light indicates oven functions.
• Heavy duty metal die-cast black satin knobs with chrome bezels.
• Stainless steel Island Back trim included and installed.
• Front panel switch controls oven lighting for optimal visibility.
OVEN FEATURES
• Multiple functions include: Standard Bake (18” and 30” oven),
Convection Bake, Fan modes and Infrared Broil (30" oven).
• Convection system optimizes uniform air flow.
• Two chrome plated heavy duty racks with 4 positions on heavy chrome
side supports.
• Accommodates full size commercial sheet pan in large oven.
• Ceramic Infrared Broiler provides rapid searing at 1,600ºF in large oven.
• Quick Preheat times & uniform cooking temp. with 28,000 BTU Bake
Burner.
• Extra-large viewing window in oven door.
• Porcelainized oven interior simplifies cleaning.One piece durable
precision frame construction oven front.
ARROB-648GD
Shown with 4” Riser (optional).
Hand polished stainless steel nish.
Open Burner
13592 Desmond St. Pacoima, CA 91331 USA • www.americanrange.com
T • 888.753.9898
Page |
2

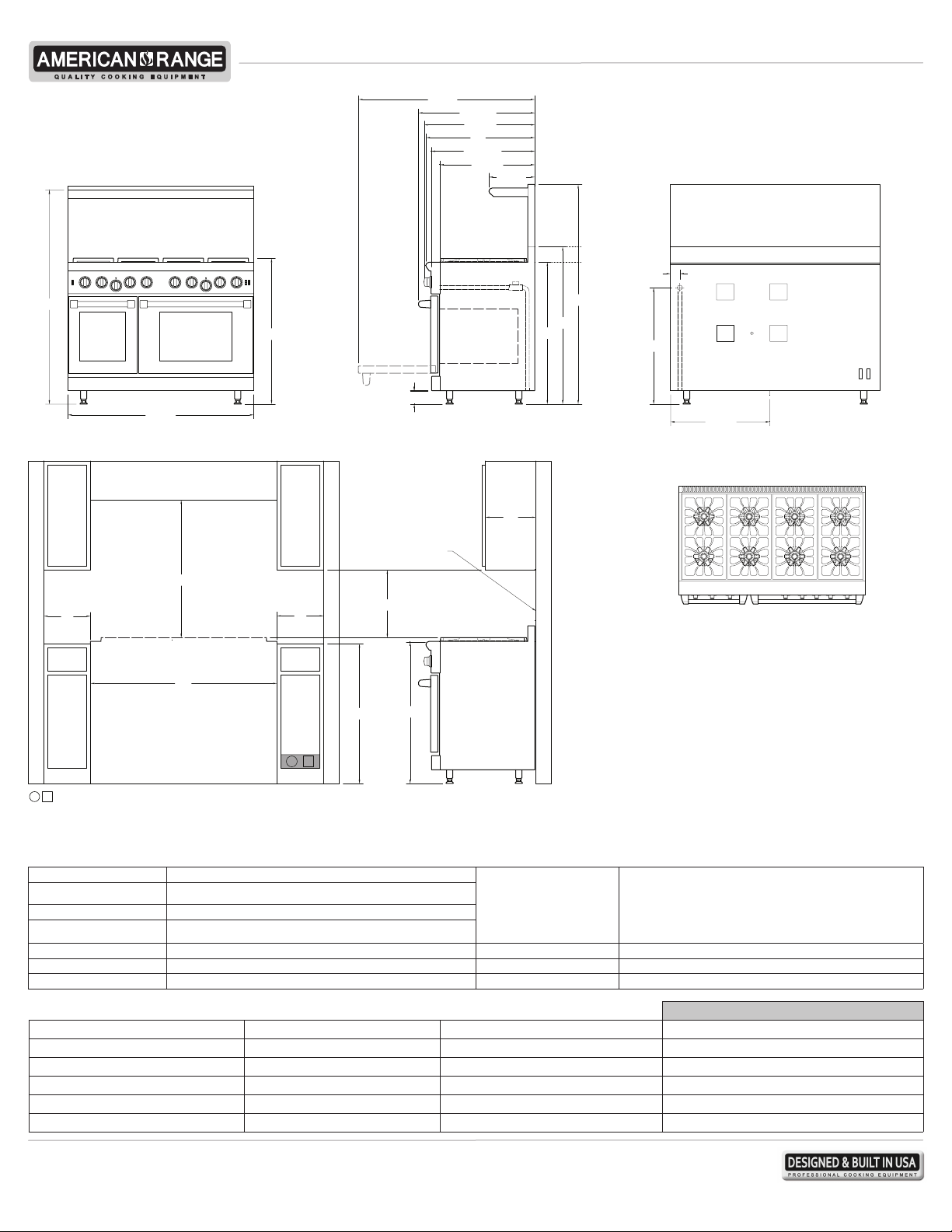

Specifications | 48” RESIDENTIAL GAS RANGE
PERFORMER SERIES with Open Burners
G
E
48"
36"
6"
6"
CABINET DEPTH
GAS
INLET
ELECTRIC
CORD
30"
2
3/8
"
55"
37
1/2
"
47
7/8
"
25
1/2
"
COMBUSTIBLE MATERIAL
30" TO VENTILLATION HOOD
30" - 4.4 C.F.
18" - 2.4 C.F.
40
1/2
"
56
1/2
"
36
1/2
"
45
3/8
"
24
1/2
"
29
15/16
"
28"
26
11/16
"
28
1/2
"
3
7/16
"
11
13/16
"
36"
18"
13"
IN. MIN COMBUSTIBLE
TO COOKING SURFACE
ISLAND TRIM
REQUIRES 10" MINIMUM
DISTANCE FROM REAR
COMBUSTIBLE WALL
MIN COMBUSTIBLE
MATERIAL
MIN COMBUSTIBLE
MATERIAL
COUNTERTOP
FINISHED OPENING WIDTH
PLATE
SHELF
FRONT VIEW
SIDE VIEW
BACK VIEW
OVERALL WIDTH
LEGS ALLOW +1" ADJUSTMENT
DEPTH TO OVEN DOOR
DEPTH TO HANDLE
DEPTH TO KNOB
DEPTH TO BULL-NOSE
DEPTH TO CONTROL PANEL
DEPTH TO COOKTOP
DEPTH TO SHELF
WITH 20" RISER
WITH 4" RISER
ISLAND TRIM
BULL-NOSE
RECOMMENDED LOC
ATION OF GAS AND ELECTRICAL SUPPLY
ISLAND OR PENINSULA INST
ALLATIONS 10" MINIMUM CLEARANCE FROM BACK OF RANGE TO COMBUSTIBLE SURFACE. ISLAND TRIM 0 IN. CLEARANCE TO NON COMBUSTIBLE SURFACE. NO SIDE WALL ABOVE COOKING SURFACE
E
G
THIS
APPLIANCE SHOULD NOT BE INSTALLED WITH AN AIR CURTAIN OR OTHER TYPE OF VENTILAT ION SYSTEM THAT BLOWS AIR DOWNWARD TOWARD THE RANGE. SUCH TYPE OF VENTILATION SYSTEM MAY CA
USE IGNITION
AND COMBUSTION PR
OBLEMS WITH THE GAS COOKING APPLIANCE RESULTING IN PERSONAL INJURY OR UNINTENDED OPERATION.
OVERALL HEIGHT
COOKING SURFACE
COOKING SURFACE
TOP VIEW
ARROB-848
36" MIN COOKING
SURFACE TO
COMBUSTIBLE
MATERIAL OR
30" to BOTTOM OF
VENTILATION HOOD
36
1/2
"
BULL-NOSE
TECHNICAL SPECIFICATIONS
Overall Oven Capacity 2.4 CU. FT. (18" oven) - 4.4 CU. FT. (30" oven)
Total Gas Connection Rating
per model #
ARROB-848
ARROB-648GD
ARROB-648GR
ARROB-448GDGR
ARROB-4482GD
ARROB-448X2GR
222,000 BTU
199,000 BTU
197,000 BTU
174,000 BTU
176,000 BTU
172,000 BTU
8 burners
6 burners & griddle
6 burners & grill
4 burners, griddle & grill
4 burners double griddle
4 burners double grill
Oven Dimensions
14-1/2" W x 19" D x 15" H (18” oven)
26-1/2" W x 19" D x 15" H (30” oven)
Surface Burner Rating 25,000 BTU (lg) - 18,000 BTU (md) - 12,000 BTU (sm)
Griddle Burner Rating 20,000 BTU for every 11" section
Grill Burner Rating 18,000 BTU for every 11" section Gas Supply 7" W.C. Natural, 11" W.C. Propane
Infrared Broiler 17,000 BTU (30" oven) Electrical Supply 120 VAC 15 AMP 60 Hz Single Phase
Oven Bake Burner 28,000 BTU each oven (Convection Bake 30” Oven) Shipping Weight 660 Lbs
* ADJUSTABLE + 1”
A manual gas shut-off valve must be installed external to the appliance, in a location
accessible from the front, for the purpose of shutting off the gas supply. This is a vented
appliance. To be used in conjunction with a suitable vent hood only.
*ELECTRICAL REQUIREMENTS
A grounded three prong plug with proper polarity must be used.
SCALE: NOT TO SCALE
ACCESSORIES AND OPTIONS
Island back (standard) ARR48SIB-P 12" Griddle Cover ARRGDSCOV12-P 12" Cutting Board ARRCUTB12-P 11" Chrome Flat Griddle Plate MC11FS-P
Island back (welded) ARR48IB-P 12" Grill Cover ARRGRCOV12-P Wok Adapter ARR-WOK-P 11" Chrome Grooved Griddle Plate MC11-GG-P
4" Stub Back ARR484SB-P 12" Griddle Plate ARRPGP12-P Extra Oven Rack 18" Oven R31011 22" Chrome Flat Griddle Plate MC22FSP
21" High back w/ Shelf ARR4821HBS-P 24" Griddle Plate ARRPGP24-P Extra Oven Rack 30" Oven R31013 22" Chrome L- Flat R - Grooved Griddle MC22HGP
S/S Curb base ARR48CB-P 24" Griddle Cover ARRGDCOV24S-P
Glide Rack 18" & 30" ARR-SR-18-P or 30-P
22" Chrome Grooved Griddle MC22GG-P
Stainless Steel Leg Caps (3) ARR3LC-P 24" Grill Cover ARR-GRCOV24-P Porcelainized Broiler Pan R31005 22" Chrome Griddle w/ Separator MC22SP-P
OPTIONS (FACTORY INSTALLED)
| Page
13592 Desmond St. Pacoima, CA 91331 USA • www.americanrange.com
T • 888.753.9898
3
A70407
REVISED 09222015
**The American Range Company continually improves its products and reserves the right to change materials, specications and dimensions without notice. This unit is manufactured for residential use only.

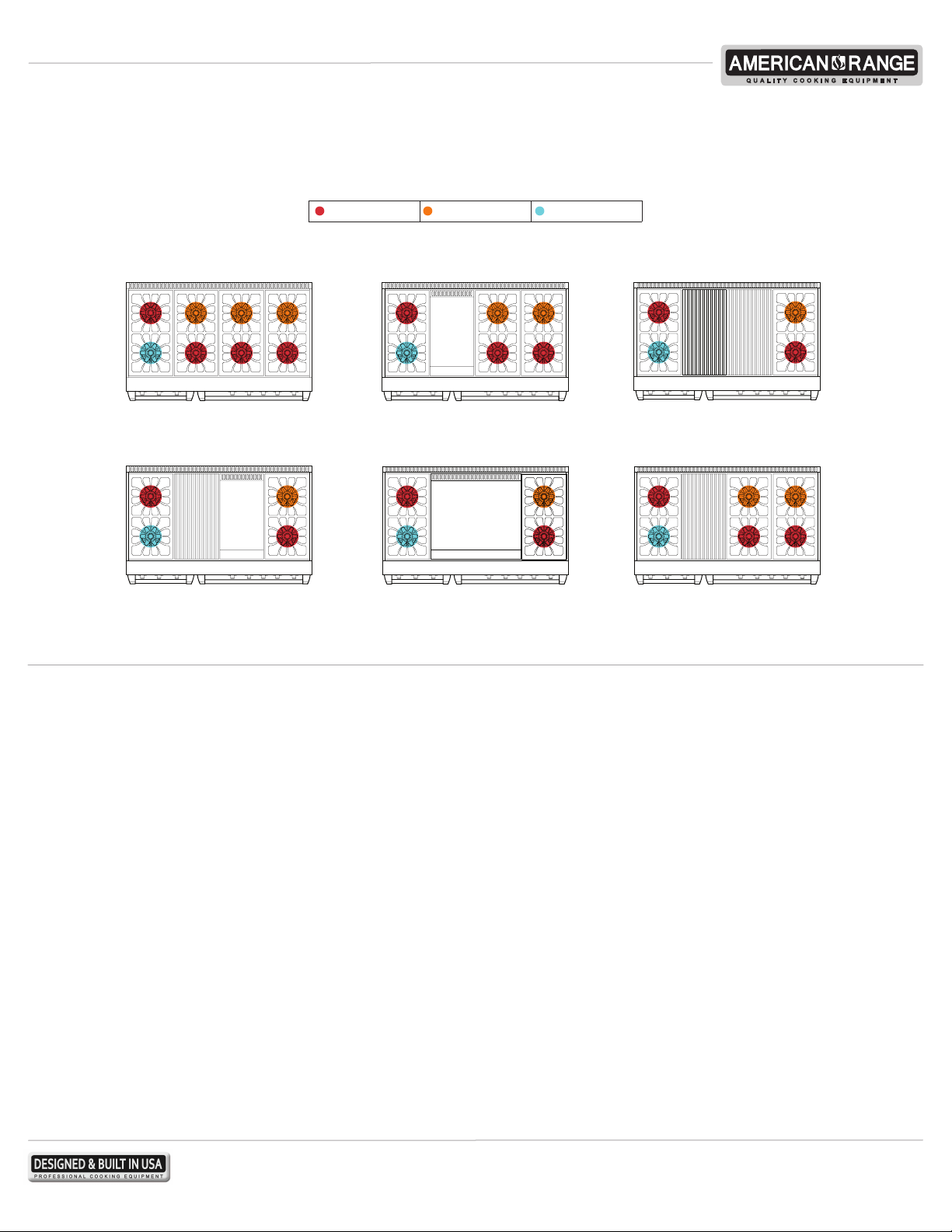

BURNER CONFIGURATIONS
25,000 BTU (lg) 18,000 BTU (md) 12,000 BTU (sm)
SCALE: NOT TO SCALE
MUST SHIP FROM FACTORY WITH PROPER GAS TYPE
N=Natural gas L= LP Gas. Must provide N or L after model number for type of gas needed. Example: ARROB-636-L. Must specify elevation if over 2000 ft.
when ordering.
ARROB-848
ARROB-448GDGR ARROB-4482GD
ARROB-648GD ARROB-448X2GR
ARROB-648GR
