GL/GLX STRENGTH TRAINING SYSTEM
OWNERS MANUAL
Model No. BCG-GL
Recreation Supply Inc.
BODYCRAFT is a division
of Recreation Supply, Inc.
7699 Green Meadows Drive
Lewis Center, OH 43035
Serial Number Location
Record your Serial number
and purchase date here:
S/N __________________
DATE:________________
DEALER:______________
______________________
SERIAL
12345678
Congratulations and Thank You!
Important Safety Notes
QUESTIONS?
1
Thank you for selecting the Bodycraft GL/GLX Strength Training System.
The Bodycraft GL/GLX offers an impressive array of strength training
exercises to develop every major muscle group of the body. Whether your
goal is cardiovascular fitness, a shapely, toned body or dramatic muscle size
and strength, the Bodycraft GL/GLX will help you achieve the results you want.
For your safety and benefit, read this manual and the accompanying literature
before using the Bodycraft GL/GLX. Keep this manual for future reference.
If you have additional questions, please call your local Bodycraft GL/GLX
Dealer or our customer service department at 800-990-5556 Monday through
Friday, 9 am until 5 pm Eastern Standard Time.
There is a risk assumed by individuals who use this type of equipment.
Before beginning this or any other exercise program consult your physician.
This is especially important for individuals over the age of 35 or persons
with preexisting health problems. Recreation Supply, Inc. assumes no
responsibility for personal injury or property damage sustained by or
through use of this product.
1. This product must be assembled on a flat, level surface to assure its proper function.
2. Clean pads and frame on a regular basis. We recommend warm, soapy water.
Do not use harsh or abrasive chemicals.
3. Inspect and tighten all parts before every use. Replace any worn
parts immediately. Failure to do so may result in serious injury.
4. Keep children away from the BODYCRAFT GLX at all times.
5. Keep your hands away from cables and pulleys during operation.
6. Keep your hands away from moving parts other than the designated handles.
7. When adjusting the seat, make sure the spring pin is fully engaged.
If not, the seat may slip and cause serious injury.
8. Make certain all cables are seated within the pulleys before every use.
9. Exercise with care to avoid injury.
10. If you are unsure about the proper use of the BODYCRAFT GL/GLX strength training
system call your local BODYCRAFT dealer or our customer service department.
As a quality home gym supplier we are committed to your complete satisfaction.
If you have questions, or find missing or damaged parts, we will guarantee your
complete satisfaction through our authorized dealer service centers or our home
office customer service department. Please call your local dealer for assistance
or BODYCRAFT at 800-990-5556 (9 AM - 5 PM) EST. Our trained technicians
will provide immediate assistance to you, free of charge.
Gym Placement Planner
The dimensions below below are based on installing the gym into a corner of your workout room.
Important Notes and Tips:
Ratchet
9/16" Socket
3/4" Socket
9/16" Combination Wrench
3/4" Combination Wrench
Adjustable Wrench
Rubber Mallet
Metric Allen Key Set
Silicone Spray
Window Cleaner or Water
Recommended Tools
for Assembly
1. Do not tighten any bolts until instructed.
2. Two people are reguired for the safe assembly
of the gym.
3. Use window cleaner or water to assist with roller
pad installation.
4. Use silicone lubricant on guide rods prior to weight
plate installation.
5. Carefully install plastic caps using a rubber mallet.
6. When measuring bolt lengths, only measure the shank.
i.e. 2-1/4" Hex Bolt
0 1/4 1/2 3/4 1/4 1/2 3/4 1/4 1/2 3/4 1/41" 2" 3"
HEIGHT
83"
GL 45"
GLX 54"
GL/
GLX
52.5"
GL/
GLX
77"
GL 65"
GLX 74"
HEIGHT
83"
GL/GLX Dimensions
GL/GLX w/Leg Press
Option Dimensions
2
(1) BASE FRAME
(2) TOP FRAME
(3) FRONT
UPRIGHT
(4) REAR
UPRIGHT
(10)
UPRIGHT
SUPPORT
FRAME
(6) PRESS
ARM
(26) PRESS
ARM AXLE
(12) PRESS
ARM
SUPPORT
(18)
LAT BAR
HOLDER
(8) SEAT
SUPPORT FRAME
(9) LEG
EXTENSION
ARM
(7) SEAT
ADJ. FRAME
(25) 1" FOAM
ROLLER
HOLDER
(2 PCS)
(11) SEAT
BACK
ADJUSTER
(16) LEG
HOLDER
(21) METAL
HINGE
(2 PCS)
(32) TOP
PLATE
(31) SELECTOR ROD
(33) WEIGHT
PLATE
(19 PCS)
(6)
GUIDE
ROD
(2 PCS)
(13) ADJ.
PULLEY
BLOCK
(14)
DOUBLE
PULLEY
BLOCK
(15)
FLOATING
PULLEY
BLOCK
(30) GUIDE
ROD
MOUNT
(17)
STABILIZING
PLATE
3
(19)
150LBS
LONGER
STACK
SPACER
(2 PCS)
(20)
200LBS
SHORTER
STACK
SPACER
(2 PCS)
(28) LAT BAR
(29)
CURL
BAR
(34) 243L
NONSLIP
(2 PCS)
(35) 188L
NONSLIP
(2 PCS)

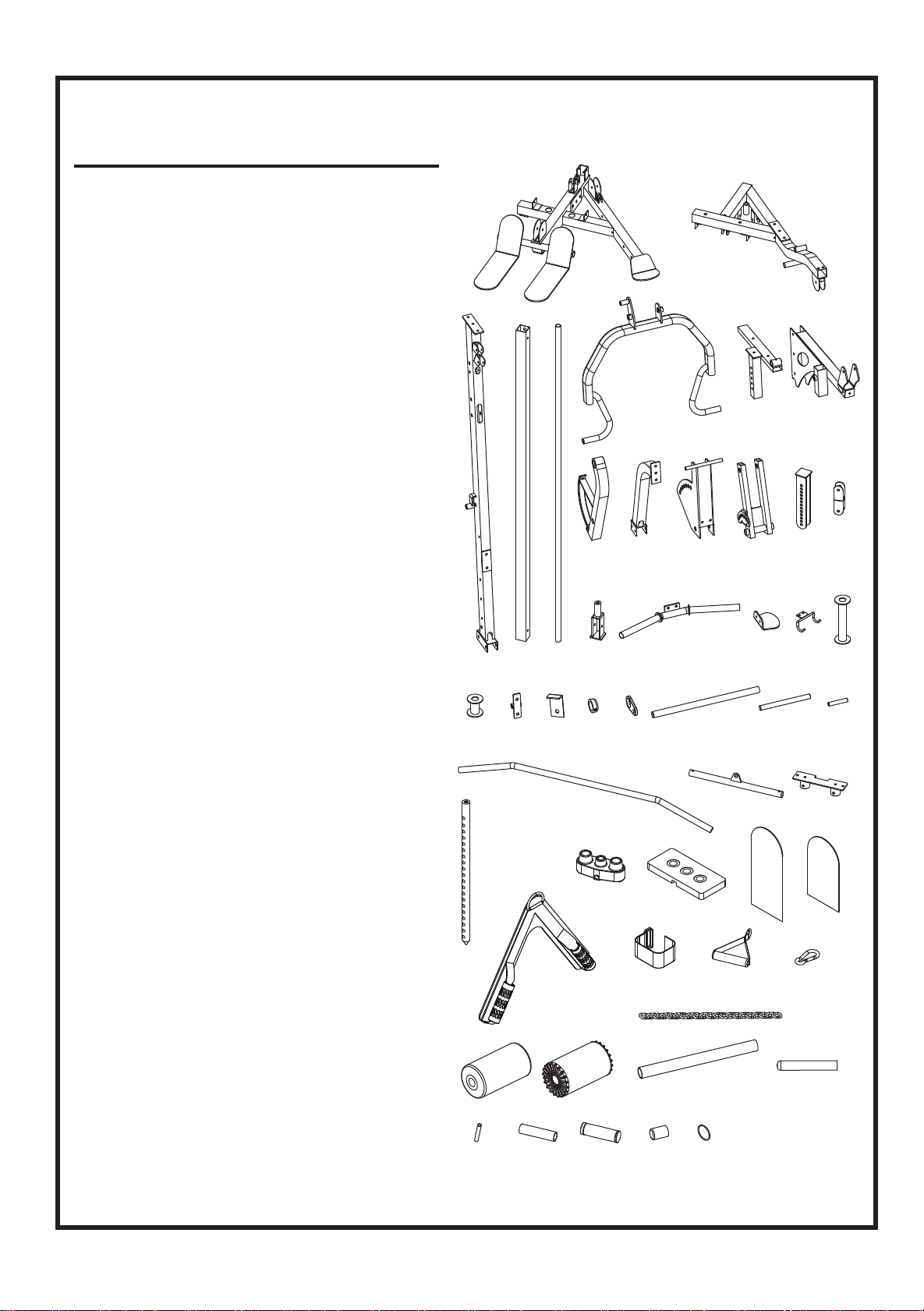

GL/GLX Assembly Parts List 1
NOTE: IF YOU SEEM TO BE MISSING A PART, DO NOT WORRY, IT
LIKELY HAS BEEN PRE-INSTALLED FOR QUALITY CONTROL PURPOSES.
(55) 2" X 2"
SQUARE
END CAP
(5 PCS)
(54)
2" X 3"
END CAP
(58) 1-1/4"
ROUND
END
PLUG
(2 PCS)
(73) SHORTER
POP PIN
(57)
40 X 80mm
OVAL PLUG
(2 PCS)
(71) LOCKING
SPRING
KNOB
(50) SEAT PAD
(42) FOAM
ROLLER PAD
(6 PCS)
(59) PLASTIC
COVER
(6 PCS)
(60) PLASTIC
ROLLER
CAP
(6 PCS)
(51)
BACK PAD
(77)
SELECTOR
PIN
(36) AB
CRUNCH
STRAP
(40)
SINGLE
HANDLE
(2 PCS)
(62) 1" ID
PLASTIC
GUIDE ROD
HOLDER
(2 PCS)
(75) AB
CRUNCH
CABLE
(38) CHAIN
(41) CLIP
(4 PCS)
(52)
90mm
PULLEY
(22 PCS)
4
(37)
ANKLE
STRAP
(74)
TOP
CABLE
(76)
LOWER
CABLE
(93) 1/2"
HALF
THREADED
STUD & 1/2"
NUT
(67)
RUBBER
CUSHION
(2 PCS)
(56)
1" X 2"
END CAP
(6 PCS)
(70) RUBBER
STOPPER
& 1/2" NUT
(65) 3/8" ID
FLANGE
BUSHING
(8 PCS)
GL/GLX Assembly Parts List 2
NOTE: IF YOU SEEM TO BE MISSING A PART, DO NOT WORRY, IT
LIKELY HAS BEEN PRE-INSTALLED FOR QUALITY CONTROL PURPOSES.
78
79
80
81
82
83
84
85
86
87
91
99
100
103
104
108
109
1
2
2
2
7
5
14
2
4
6
1
2
46
1
32
1
1
5/8" X 5-1/2" HEX HEAD BOLT
3/8" X 4-1/4" HEX HEAD BOLT
3/8" X 3-1/8" HEX HEAD BOLT
3/8" X 3-1/4" HEX HEAD BOLT
3/8" X 3" HEX HEAD BOLT
3/8" X 2-3/4" HEX HEAD BOLT
3/8" X 1-3/4" HEX HEAD BOLT
3/8" X 1-3/4" HEX THREADED BOLT
3/8" X 1" HEX THREADED BOLT
3/8" X 3/4" BUTTON HEAD BOLT
TOP PLATE BOLT
5/8" WASHER
3/8" WASHER
5/8" NYLA-NUT
3/8" NYLA-NUT
4mm HEX WRENCH
5mm HEX WRENCH
78
79
80
81
82
83
84
85
86
87
91
99
103
104
108
109
GLX Hardware Parts List
NO. DESCRIPTION QTY.
100
5
NOTE: IF YOU SEEM TO BE MISSING A PART, DO NOT WORRY, IT
LIKELY HAS BEEN PRE-INSTALLED FOR QUALITY CONTROL PURPOSES.
i.e. 2-1/4" Hex Bolt
0 1/4 1/2 3/4 1/4 1/2 3/4 1/4 1/2 3/4 1/41" 2" 3"
When measuring bolt lengths, only measure the shank.
6
STEP 1 ASSEMBLE BASE FRAME
80
100
55
55
100
87
87
87
100
100
55
2
104
100
104
3
4
100
100
100
100
87
87
54
17
100
10
104
104
55
87
35
35
34
34
58
1
104
100
100
82
82
100
79
100
58
81
81
100
1. Attach FRONT UPRIGHT (3) to BASE
FRAME (1), using two 3/8" X 3" HEX
HEAD BOLTS (82), four 3/8" WASHERS
(100) and two 3/8" NYLA-NUTS (104).
2. Attach REAR UPRIGHT (4) to BASE FRAME
(1), using three 3/8" X 3/4" BUTTON HEAD
BOLTS (87) and three 3/8" WASHERS (100).
3. Insert the two 1-1/4" ROUND END PLUGS (58)
into the ends of the round Foot Plate Tube. Insert
one 2" X 3" END CAP (54) into the rear of the
BASE FRAME (1). Insert one 2" SQUARE END
CAP (55) into the side of the BASE FRAME (1).
4. Attach TOP FRAME (2) to REAR UPRIGHT (4),
using three 3/8" X 3/4" BUTTON HEAD BOLTS
(87) and three 3/8" WASHERS (100).
5. Attach the TOP FRAME (2) to the FRONT
UPRIGHT (3) using two 3/8" X 3-1/8" HEX HEAD
BOLTS (80), four 3/8" WASHERS (100), and two
3/8" NYLA-NUTS (104).
6. Insert three 2" SQUARE END CAPS (55) to
each end of the TOP FRAME (2).
7. Loosely attach UPRIGHT SUPPORT
FRAME (10) to the FRONT UPRIGHT
(3) using two 3/8" X 4-1/4" HEX
HEAD BOLTS (79), four 3/8"
WASHERS (100), and two 3/8"
NYLA-NUTS (104). Attach UPRIGHT
SUPPORT FRAME (10) to BASE
FRAME (1) and STABILIZING PLATE
(17) using two 3/8" X 3-1/4" HEX
HEAD BOLTS (81), four 3/8"
WASHERS (100) and two 3/8"
NYLA-NUTS.
To ease the assembly process, Do
not tighten bolts until instructed.
Skip Step 7 if you have purchased
the GLX/Cable Arm Option.
NOTE: (If you have purchased the Optional
Weight Stack Shrouds, you may need to
temporarily remove the upright support.
56
94
6
57
57
26
94
72
56
12
78
2
99
99
56
18
101
88
88
101
56
103
7
STEP 2 ASSEMBLE PRESS STATION
1. Attach PRESS ARM SUPPORT (12) to the TOP FRAME (2) by aligning the holes and
inserting the 5/8" X 5-1/2" HEX HEAD BOLT (78) with two 5/8" WASHERS (99) and
one 5/8" NTLA-NUT (103). Tighten.
2. Attach four 1" X 2" END CAPS (56) to PRESS ARM SUPPORT (12).
0 1/4 1/2 3/4 1/4 1/2 3/4 1/4 1/2 3/4 1/4 1/2 3/41" 2" 3" 4" 1/4 1/2 3/4 1/4 1/2 3/45" 6"
(inch)
3. Attach PRESS ARM (6) to the
PRESS ARM SUPPORT (12)
by aligning the holes and
inserting the PRESS
ARM AXLE (26).
Tighten the pre-
installed 5/16"X 1/4"
SET SCREWS (94) on
the PRESS ARM (6).
Make sure the LONGER
POP PIN (72) is seated in
one of the adjustment holes
on the PRESS
ARM SUPPORT
(12).
4. Attach LAT BAR HOLDER (18)
to TOP FRAME (2), using two
5/16" X 1/2" BUTTON HEAD
BOLTS (88) and two 5/16"
WASHERS (101). Tighten.
8
STEP 3 ASSEMBLE SEAT SUPPORT FRAME
AND SEAT & BACK PAD
1. Attach SEAT SUPPORT FRAME (8) to FRONT UPRIGHT (3), using three 3/8" X 3"
HEX HEAD BOLTS (82) six 3/8" WASHERS (100) and three 3/8" NYLA-NUTS
(104). Tighten.
2. Attach the SEAT BACK ADJUSTER (11) to the FRONT UPRIGHT (3) using one
3/8" X 5-1/2" HEX HEAD BOLT (78), two 3/8" WASHERS (163) and one 3/8"
NYLA-NUT (170). Tighten this bolt until there is no play in the SEAT BACK
ADJUSTER (11). NOTE: If it does not pivot freely, loosen slightly.
3. Attach LEG HOLDER (16) to SEAT BACK ADJUSTER (11), using two 5/16" X 1/2"
BUTTON HEAD BOLT (88) and two 5/16" LARGER WASHERS (101). Tighten
these screws.
4. Slide the two METAL HINGES (21), holes at bottom, onto the axle welded to the top
of the SEAT BACK ADJUSTER (11), then attach the BACK PAD (51) to the METAL
HINGES (21) using four 3/8" X 1" HEX THREADED BOLTS (86), and four 3/8"
WASHERS (100). Tighten.
5. Insert a 1" X 2" END CAP (56) into each end of the SEAT ADJ. FRAME (7) and
then slide the SEAT ADJ. FRAME (7) into the SEAT SUPPORT FRAME (8). The
SEAT ADJ. FRAME (7) is held in place by a LOCKING SPRING KNOB (71).
6. Attach LEG EXTENSION ARM (9) to SEAT SUPPORT FRAME (8), by inserting
LEG EXTENSION AXLE (27). Fasten LEG EXTENSION AXLE (27) using two 5/16"
X 5/8" BUTTON HEAD BOLTS (89), two 5/16" SPRING WASHERS (102), and two
5/16" LARGER WASHERS (101). Tighten.
7. Insert and center 1" FOAM ROLLER HOLDER (25) into the SEAT ADJ. FRAME (7)
and another into the LEG EXTENSTION ARM (9). Tighten 5/16" X 1/4" SET
SCREW (94) in both.
8. On the two FOAM ROLLER HOLDERS (25) and the LEG HOLDER (16) slide
PLASTIC ROLLER CAP (60) (domed side first) and a FOAM ROLLER PAD (59)
onto each side and secure with a PLASTIC ROLLER CAP (60) and 5/16"
SMALLER WASHER (106) and 5/16" X 1-1/4" ROUND HEAD ALLEN BOLT (92)
on each side as shown. Tighten. NOTE: The Washer goes in between the
PLASTIC ROLLER CAP (60) and FOAM ROLLER HOLDER (25), LEG HOLDER
(16) as shown.
TIP!
TO EASE THE ASSEMBLY PROCESS, spray window cleaner
or water into the holes of the FOAM ROLLER PADS (42) before
sliding onto shafts.
0 1/4 1/2 3/4 1/4 1/2 3/4 1/4 1/2 3/4 1/4 1/2 3/41" 2" 3" 4" 1/4 1/2 3/4 1/4 1/2 3/45" 6"
(inch)
9
88
42
42A
42
42A
59
59
42
42A
25
56
7
94
59
60
106
71
8
59
55
59
60
106
92
60
106
25
9
92
66
95
42
42A
42
42A
66
89
102
101
27
101
102
89
92
56
85
85
82
100
104
104
100
100
100
100
101
60
106
92
60
106
92
82
100
100
104
100
100
21
21
11
86
50
51
59
42
42A
60
106
92
73
3
16
101
101
STEP 3 ASSEMBLE SEAT SUPPORT FRAME
AND SEAT & BACK PAD
0 1/4 1/2 3/4 1/4 1/2 3/4 1/4 1/2 3/4 1/4 1/2 3/41" 2" 3" 4" 1/4 1/2 3/4 1/4 1/2 3/45" 6"
(inch)
10
STEP 4 ASSEMBLE WEIGHT STACK
91
77
32
31
5
20
20
67
67
30
89
94
89
2
33
2. APPLY SILICONE to the GUIDE RODS
(5), then CAREFULLY slide a total of 14
WEIGHT PLATES (33) (NOTE: 19
WEIGHT PLATES if you have the optional
50lb add-on kit) one at a time onto the
GUIDE RODS (5) making sure to orient
the selector holes toward the front and
bottom. Attach the SELCTOR ROD (31) to
the TOP PLATE (32) using TOP PLATE
BOLT (91) and Tighten. Slide top plate
assembly onto the weight stack.
1. Insert two 1" ID PLASTIC GUIDE ROD HOLDERS (62) into the holes on the BASE
FRAME (1). Insert the GUIDE RODS (5) into the 1" ID PLASTIC GUIDE ROD HOLDERS
(62). See Note below before proceeding! Slide the LONGER STACK SPACERS (19) onto
the GUIDE RODS (5), followed by the RUBBER CUSHIONS (67).
NOTE: If you have purchased the 50lb Add-on Weight
Plate kit use the Shorter Stack Spacers (20) in
place of the Longer Stack Spacers (19).
CAUTION. Be CAREFULL NOT
to pinch fingers when lowering
the weight plates in the next step.
3. Attach the GUIDE
ROD MOUNT (30)
onto the GUIDE
RODS (5), then
attach to TOP
FRAME (2) using
two 5/16" X 5/8"
BUTTON HEAD
BOLTS (89) as
shown. Tighten
5/16" X 1/4" SET
SCREWS (94) into
the GUIDE RODS
(5).
11
STEP 5 INSTALL TOP CABLE
Pulleys T3 and T5 are mounted to either side of the steel tab. Do not mount both pulleys to
one side. Assemble cables and pulleys simultaneously
1. See Fig. T1 Run the threaded end of the TOP CABLE (74) over pulley T1 at the front of the
TOP FRAME (2) and secure using one 3/8" X 1-3/4" HEX HEAD BOLT (84) and one 3/8"
NYLA-NUT (104).
2. See Fig. T2,T4 Run the cable backand over pulley T2 mounted onto the FRONT UPRIGHT(2),
and secure using one 3/8" X 1-3/4" HEX HEAD BOLT (84) and one 3/8" NYLA-NUT (104).
3. See Fig. T3,T5 Loosely preinstall PULLEYS onto each side of the tab welded to the PRESS
ARM SUPPORT (12) using one 3/8" X 3" HEX HEAD BOLT (82), two 3/8" WASHERS (100)
and one 3/8" NYLA-NUT (104).
NOTE: MAKE SURE NOT TO INSTALL BOTH PULLEYS TO ONE SIDE OF THE TAB.
Route the cable to the top of pulley T3 (T3 is the pulley on the right side as if siting on the seat)
around to the underside of pulley T4, exiting the top and then forward and overtop of T5 (left
side pulley). The cable should now be exiting the underside of T5.
4. See Fig. T6 Route Cable under Pulley T6 mounted inside the FRONT UPRIGHT (3) and secure
using one 3/8" X 3" HEX HEAD BOLT (82), two 3/8" WASHERS (100), two 3/8" ID FLANGE
BUSHINGS (65) and one 3/8" NYLA-NUT (104).
5. See Fig. T7 Route cable over top of Pulley T7 you will mount in the rear bracket on the TOP
FRAME (2) using one 3/8" X 2-3/4" HEX BOLT (83) and one 3/8" NYLA-NUT (104).
6. See Fig. T8 Mount a pulley in the closed end of the ADJUSTABLE PULLEY BLOCK (13) using
one 3/8" X 1-3/4" HEX HEAD BOLT (84) and one 3/8" NYLA-NUT (104). Hang this
ADJUSTABLE PULLEY BLOCK (13) by routing the cable to the underside of the pulley as
shown in T8. Continue routing the cable over top of Pulley T9, which you will mount to TOP
FRAME (2) using one 3/8" X 1-3/4" HEX HEAD BOLT (84) and one 3/8" NYLA-NUT (104).
7. See Fig. T9,T11 Route the cable over Pulley T9 mounted to the TOP FRAME (2) using one 3/8"
X 1-3/4" HEX HEAD BOLT (84) and one 3/8" NYLA-NUT (104).
8. See Fig. T10 Then run the cable through the FLOATING PULLEY BLOCK (15). Orient the
FLOATING PULLEY BLOCK (15) with the threaded end up, flat side down. Threaded installed
1/2" HALF THREADED STUD (93) to bracket welded on TOP FRAME (2). Insert a pulley into
the FLOATING PULLEY BLOCK (15), making sure the cable runs to the underside. Secure the
pulley using one 3/8" X 1-3/4" HEX HEAD BOLT (84) and one 3/8" NYLA-NUT (104). If you
purchased option LEG PRESS at same time, please orient the FLOATING PULLEY BLOCK
(15), with the threaded end down, flat side up as LEG PRESS manual.
9. Screw the threaded end of the TOP CABLE (74) into the TOP PLATE (32) about half way.
10. Adjust TOP CABLE (74) to remove all slack by loosening the Stop at the top of Pulley T8. The
Bolt in the TOP PLATE (32) can also be adjusted. NOTE: This BOLT must always be at least
1/3 of the way into the TOP PLATE (32). TIGHTEN the JAM NUTS at both Adjustment
points.
Note: If you have purchased the optional Leg press Station,
the FLOATING PULLEY BLOCK (15) will mounted
differently, please refer to the Leg Press Manual.
12
STEP 5 INSTALL TOP CABLE
T1
T2
T5
T7
T3
T4
T6
T8
T9
T10
T12
T11
84
52
2
104
83
100
100
104
65
65
52
3
TOP CABLE (74)Threaded End Ball End
STEP2STEP1
82
100
12
104
T5
T3
84
104
13
52
84
52
104
T4
T2
3
2
Fig. T1
Fig. T3,T5
Fig. T2,T4
Fig. T6
93
2
104
84
15
52
Fig. T10
84
84
104
52
52
104
2
T9
T11
Fig. T9,T11
Fig. T8
Fig. T12
Fig. T7
104
83
52
2
13
STEP 6 INSTALL AB CRUNCH CABLE
A1
A6
A2
A4
A5
A3
52
84
T8
13
104
AB CRUNCH CABLE (75)
83
100
65
3
65
65
100
100
52
104
Fig. A1
Fig. A5 Fig. A6
84
52
15
104
Fig. A4
Fig. A2,A3
1. See Fig. A1 Run the steel ball end of the AB CRUNCH CABLE (75) through the slot in the FRONT
UPRIGHT (3) and attach two pulleys in the slot as shown in Fig. A1, using two 3/8" X 2-3/4" HEX
HEAD BOLTS (83), four 3/8" WASHERS (100), four 3/8" ID FLANGE BUSHINGS (65), and two
3/8" NYLA-NUTS (104). The cable should run from the bottom of the upper Pulley A1 up to A2.
2. See Fig. A2,A3 Route the cable over the Pulley A2 mounted to the TOP FRAME (2) using one 3/8"
X 1-3/4" HEX HEAD BOLT (84) and one 3/8" NYLA-NUT (104). Continue routing the cable up and
over Pulley A3 mounted in TOP FRAME (2) using assembled one 3/8" X 2-3/4" HEX HEAD BOLT
(83) as Pulley T7, one 3/8" NYLA-NUT (104), and CABLE RETAINER BRACKET (22).
3. See Fig. A4 Then route the cable under Pulley A4 mounted in a FLOATING PULLEY BLOCK (15)
using one 3/8" X 1-3/4" HEX HEAD BOLT (84) and one 3/8" NYLA-NUT (104).
4. See Fig. A5 Mount a pulley in the open end of the ADJUSTABLE PULLEY BLOCK (13) using one
3/8" X 1-3/4" HEX HEAD BOLT (84) and one 3/8" NYLA-NUT (104).
We recommend the third from bottom hole. This can be adjusted
later if needed. Route the cable over top of this pulley
and then down to cable.
1. See Fig. A1 Run the steel ball end of the AB CRUNCH CABLE (75) through the slot in the FRONT
UPRIGHT (3) and attach two pulleys in the slot as shown in Fig. A1, using two 3/8" X 2-3/4" HEX
HEAD BOLTS (83), four 3/8" WASHERS (100), four 3/8" ID FLANGE BUSHINGS (65), and two
3/8" NYLA-NUTS (104). The cable should run from the bottom of the upper Pulley A1 up to A2.
2. See Fig. A2,A3 Route the cable over the Pulley A2 mounted to the TOP FRAME (2) using one 3/8"
X 1-3/4" HEX HEAD BOLT (84) and one 3/8" NYLA-NUT (104). Continue routing the cable up and
over Pulley A3 mounted in TOP FRAME (2) using assembled one 3/8" X 2-3/4" HEX HEAD BOLT
(83) as Pulley T7, one 3/8" NYLA-NUT (104), and CABLE RETAINER BRACKET (22).
3. See Fig. A4 Then route the cable under Pulley A4 mounted in a FLOATING PULLEY BLOCK (15)
using one 3/8" X 1-3/4" HEX HEAD BOLT (84) and one 3/8" NYLA-NUT (104).
4. See Fig. A5 Mount a pulley in the open end of the ADJUSTABLE PULLEY BLOCK (13) using one
3/8" X 1-3/4" HEX HEAD BOLT (84) and one 3/8" NYLA-NUT (104).
We recommend the third from bottom hole. This can be adjusted
later if needed. Route the cable over top of this pulley
and then down to cable.
A2
84
83
2
104
124
A3
T7
NOTE: IF YOU HAVE PURCHASED THE GLX/CABLE ARM OPTION, SKIP STEP 6 AND REFER
TO THE CABLE ARM ASSEMBLY MANUAL. WHEN FINISHED WITH THE CABLE ARM
INSTALLATION, RESUME WITH STEP 7 ON THE NEXT PAGE.
DISCARD CABLE 75, YOU WILL USE CABLE #420 IN PLACE OF CABLE #75 LOCATED IN THE CABLE ARM PACKAGE).
14
STEP 7 INSTALL LOWER CABLE
LOWER CABLE (76)
Ball End Steel Ball End
L1
L4
L2
L3
L5
L6
84
104
52
Fig. L1
A3
52
104
84
14
Fig. L3
104
84
1
52
Fig. L2
Fig. L6
84
1
104
52
Fig. L4
9
83
65
65
52
100
100
104
Fig. L5
1. See Fig. L1 Route the steel ball end of the LOWER CABLE (76) under Pulley L1 mounted at the front of the
Low Pull Station using one 3/8" X 1-3/4" HEX HEAD BOLT (84) and one 3/8" NYLA-NUT (104).
2. See Fig. L2 Continue back to Pulley L2 mounted on the BASE FRAME (1) using one 3/8" X 1-3/4" HEX HEAD
BOLT (84) and one 3/8" NYLA-NUT (104).
3. See Fig. L3 Route the cable underneath Pulley L2 and then up to Pulley L3 mounted in bottom of the DOUBLE
PULLEY BOLCK (14) using one 3/8" X 1-3/4" HEX HEAD BOLT (84) and one 3/8" NYLA-NUT (104).
3. See Fig. L4 Continue down to Pulley L4 mounted to the BASE FRAME (1) using one 3/8" X 1-3/4" HEX HEAD
BOLT (84) and one 3/8" NYLA-NUT (104).
4. See Fig. L5 Route the cable underneath Pulley L4 and Pulley L5 mounted in the slot in the bottom of the
FRONT UPRIGHT (3) using one 3/8" X 2-3/4" HEX HEAD BOLT (83), two 3/8" WASHERS (100), two 3/8" ID
FLANGE BUSHINGS (65), and one 3/8" NYLA-NUT (104).
5. See Fig. L6 Connect the steel ball end of the cable to the receptor bracket L6 welded to the LEG EXTENSION
ARM (9).
15
STEP 8 INSTALL ACCESSORIES
28
36
40
29
41
38
41
37
76
1. Attach Lat Bar (28), Curl Bar (29), AB Crunch Strap (36) to the
GL Strength Training System.
1
75
74
2
3
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
40
41
42
42A
43
44
45
46
47
48
49
1
1
1
1
2
1
1
1
1
1
1
1
1
1
1
1
1
1
2
2
2
1
2
1
2
1
1
1
1
1
1
1
19
2
2
1
1
1
1
4
6
6
2
2
2
2
2
2
2
BASE FRAME
TOP FRAME
FRONT UPRIGHT
REAR UPRIGHT
GUIDE ROD
PRESS ARM
SEAT ADJ. FRAME
SEAT SUPPORT FRAME
LEG EXTENSION ARM
UPRIGHT SUPPORT FRAME
SEAT BACK ADJUSTER
PRESS ARM SUPPORT
ADJUSTABLE PULLEY BLOCK
DOUBLE PULLEY BLOCK
FLOATING PULLEY BLOCK
LEG HOLDER
STABILIZING PLATE
LAT BAR HOLDER
150LBS LONGER STACK SPACER
200LBS SHORTER STACK SPACER
METAL HINGE
CABLE RETAINER BRACKET
COLLAR
HOOK PLATE
1" FOAM ROLLER HOLDER
PRESS ARM AXLE
LEG EXTENSION AXLE
LAT BAR
CURL BAR
GUIDE ROD MOUNT
SELECTOR ROD
TOP PLATE
WEIGHT PLATE
243L NONSLIP
188L NONSLIP
AB CRUNCH STRAP
ANKLE STRAP
CHAIN
SINGLE HANDLE
CLIP
FOAM ROLLER PAD
FOAM ROLLER PAD COVER
1-1/4" X 430mm HAND GRIP
1" X 200mm ROUND HAND GRIP
LAT BAR HOLDER COVER
1-1/4" X 125mm ROUND HAND GRIP
1-1/4" X 130mm HAND GRIP
1" X 50L HAND GRIP
RUBBER RING
49
NO. DESCRIPTION QTY.
16
1 2
3 4 5
6
8
9 10 11 12
16 17
13 14
15 18 19
21 25 26
28
22 27
3029
23 24
31
32 33
7
20
34 35
36
37
38
40 41
42
42A
43 44
45 46 47 48
COMPLETE PARTS CHART
*Parts images are not to scale.
50
51
52
53
54
55
56
57
58
59
60
62
63
64
65
66
67
68
69
70
71
72
73
74
75
76
77
78
79
80
81
82
83
84
85
86
87
88
89
91
92
93
94
95
96
97
98
99
100
101
102
103
104
105
106
107
108
109
1
1
22
2
1
5
6
2
2
6
6
2
2
2
8
2
2
2
2
1
1
1
1
1
1
1
1
1
2
2
2
7
5
14
2
4
8
4
4
1
6
1
5
2
2
2
6
2
46
6
2
1
32
2
6
2
1
1
SEAT PAD
BACK PAD
90mm PULLEY (3-1/2")
1" T SHAPE END PLUG
2" X 3" END CAP
2" X 2" SQUARE END CAP
1" X 2" END CAP
40 X 80mm OVAL PLUG
1-1/4" ROUND END PLUG
PLASTIC COVER
PLASTIC ROLLER CAP
1" ID PLASTIC GUIDE ROD HOLDER
3/4" ID BUSHING
5/8" ID BUSHING
3/8" ID FLANGE BUSHING
LEG EXTENSION BEARING
RUBBER CUSHION
1/2" STOPPER
PRESS ARM STOPPER
RUBBER STOPPER
LOCKING SPRING KNOB
LONGER POP PIN
SHORTER POP PIN
TOP CABLE
AB CRUNCH CABLE
LOWER CABLE
SELECTOR PIN
5/8" X 5-1/2" HEX HEAD BOLT
3/8" X 4-1/4" HEX HEAD BOLT
3/8" X 3-1/8" HEX HEAD BOLT
3/8" X 3-1/4" HEX HEAD BOLT
3/8" X 3" HEX HEAD BOLT
3/8" X 2-3/4" HEX HEAD BOLT
3/8" X 1-3/4" HEX HEAD BOLT
3/8" X 1-3/4" HEX THREADED BOLT
3/8" X 1" HEX THREADED BOLT
3/8" X 3/4" BUTTON HEAD BOLT
5/16" X 1/2" BUTTON HEAD BOLT
5/16" X 5/8" BUTTON HEAD BOLT
TOP PLATE BOLT
5/16" X 1-1/4" ROUND HEAD ALLEN BOLT
1/2" HALF THREADED STUD
5/16" X 1/4" SET SCREW
5/16" X 1/2" SET SCREW
M6 SET SCREW
5/16" LARGER NUT
5/16" SMALLER NUT
5/8" WASHER
3/8" WASHER
5/16" LARGER WASHER
5/16" SPRING WASHER
5/8" NYLA-NUT
3/8" NYLA-NUT
1/2" NUT
5/16" SMALLER WASHER
5/16" X 1-1/4" COUNTER ALLEN BOLT
4mm HEX WRENCH
5mm HEX WRENCH
78
79
80
81
82
83
84
85
86
87
88
94
95
91
89
93 99
102
103 104 105
108 109
107
NO. DESCRIPTION QTY.
17
51
50
5352 54 55
56 57 58 59 60
66
72 73
74
75
76
77
67 68 69
70 71
62 63 64 65
92
96
97
98
100
101
106
COMPLETE PARTS CHART
*Parts images are not to scale.
1
58
76
58
55
2
55
55
80
88
13
84
84
52
52
91
83
87
87
87
74
52
52
84
84
3
4
5
6
57
57
7
8
9
10
73
87
87
87
52
84
84
81
54
52
52
65
65
36
11
82
83
83
16
98
88
59
75
41
12
31
33
32
15
52
14
84
30
17
18
19
19
38
41
41
20
67
62
62
84
67
20
52
21
86
65
21
50
42
42
60
43
69
97
68
87
59
98
92
100
101
106
42A
101
106
107
42A
100
100
100
100
107
100
104
100
100
104
100
100
100
106
42A
100
100
92
51
52
65
65
52
52
84
84
23
96
23
96
77
44
44
49
24
28
29
37
46
53
47
47
53
46
40
49
25
98
56
94
59
85
79
82
85
98
82
56
59
87
60
92
60
92
27
89
101
102
68
59
95
60
92
59
60
92
55
35
35
34
34
25
98
42
42
42
42
98
71
89
66
66
26
72
74
52
56
56
78
99
99
82
100
100
104
103
100
101
56
63
94
63
94
48
64
55
52
84
52
64
89
89
94
93
70
52
22
52
52
48
45
60
83
76
104
104
104
105
104
100
104
104
104
104
100
104
100
104
104
104
104
104
100
100
100
100
104
106
100
43
69
97
84
104
100
104
65
100
42A
102
106
101
100
100
42A
100
86
100
18
106
42A
EXPLODED
VIEW
a. The Cables should be tightened to the point just before the Top Plate lifts off the stack. In
other words, if the Top Plate is not resting on the stack, you will need to add length, or, if there
is slack in the cables, you will need to shorten the cables. There are several adjustment
points. If only minor adjustments need to be made, you can adjust the Screw ends on the Top
Cable (at the Top Plate), the Low Cable (where it screws into the Pulley Block), or the Bench
Press Cable (where it screws into the Pulley Block with Stopper). These ends of these
cables must be screwed in at least 1/3 of their length for safety purposes. Once you are
done with these adjustments, lock them into place using the jam nuts.
b. Broader adjustments are made at the Adjustable Pulley Block (13). Moving the bottom pulley
toward the center decreases length (takes up slack). Conversely, moving the bottom pulley
outward gains cable length.
c. Once the cables have been adjusted to remove all slack, adjust the Adjustable Stoppers in the
Top Frame to where they just touch the Adjustable Pulley Block (13). The Adjustable Stoppers
welded on top frame aid in the function of the gym by eliminating the need to engage all
cables in any given exercise routine.
The Cable Adjustment of GL Strength Training System
19
13
Assembly is complete!
Please take the following steps before using the gym:
1. Make certain all bolts are tightened securely.
2. Make certain all Cable Bolt Jam Nuts are properly Secured.
3. Make certain all cables are seated into all pulley grooves and pulley retainers properly aligned.
A cable rubbing against steel will damage the nylon coating, voiding warranty and resulting in
a need for replacement.
4. Pre-stretch the cables. The cables may require an additional adjustment after the first few
workouts. To speed up this process you can put the Weight Selector Pin in the bottom hole on
the weight stack. Carefully pull on the cables with great force, providing any initial cable stretch.
5. The cables should be adjusted as tight as possible, but no so tight as to lift the Top Plate above
the weight stack. Be certain to secure the jam nuts after adjustments are made.
6. For better performance, apply a household lubricant (such as silicone) to any adjustable areas
and to the Guide Rods.
MAINTENANCE:
1. Inspect cables for bulging fraying and damage prior to each workout.
2. Inspect all accessory attachments for wear prior to each workout.
3. Inspect all bolts and welds weekly.
4. Inspect pulleys for visible damage and wear weekly.
5. Clean and apply silicone to the Guide Rods every 6 months.
Enjoy many years of a Fit Lifestyle.
Thank you for purchasing the BodyCraft GL/GLX Strength Training
System. If you have any questions, please call your local BodyCraft
dealer, call our customer service department at 800-990-5556 or at
www.bodycraft.com.
