REFRIGERATOR
REFRIGERADOR
LSC27926**
Owner´s Manual
2
Entry
Important Safety Instruction
Identification of Parts
Where to install
Door Removal
Door Replacement
Water Pipe Installation
Water Connection Instruction Guide
Operation Instruction Guide
Height Adjustment
Starting
Adjusting the Temperatures and functions
(Dispenser/Automatic Icemaker)
Shelf
Wine Holder (Applicable to some models only)
Egg Bin (Applicable to some models only)
Humidity Control in the Vegetable Compartment
Location of Foods
Storing Foods
How to Dismantle Parts
General Information
Cleaning
Troubleshooting
Table of Contents
Introduction
Installation
Operation
Suggestion on
Food Storage
Care and
Maintenance
3
3
6
6
8
9
9
9
11
12
13
13
19
19
19
19
20
21
22
24
24
25
Introduction
this guide as a permanent record of your purchase. Staple your receipt here.
Date of purchase
:
:
:
:
:
:
Dealer
Dealer address
Dealer phone no.
Model no.
Serial no.
Important safety
Instructions
WARNING
WARNING
CAUTION
You can
be killed or seriously injured if you don’t follow instructions.
Indicates an imminently hazardous situation which, if not avoided,
may
result in minor or moderate injury, or product damage only.
All safety messages will identify the hazard, tell you how to reduce the chance of injury
and tell you what can happed if the instructions are not followed.
DANGER
You will be killed or seriously injured if you don’t follow instructions.
This guide contains many important safety messages. Always read and obey
SAFETY MESSAGES
To reduce the risk of fire, electric shock or injury to persons when using your
product, basic safety precautions should be followed, including the
following. Read all instructions before using this appliance:
NEVER unplug your refrigerator by pulling on the power cord. Always grip the
plug firmly and pull it straight out from the outlet.
Repair or replace inmediately all electric service cords that have become frayed
or otherwise damaged. Do not use a cord that shows cracks or abrasion damage
along its length or at either the plug or connector end.
When moving your refrigerator away from the wall, be careful not to roll over or
damage it in any way.
Do not crush or damage the water line.
Do not store or use gasoline or other flammable vapors and liquids in the vicinity
of this or any other appliance.
Do not allow children to climb, stand, or hang on the refrigerator doors or
shelves in refrigerator. They could damage the refrigerator and seriously injure
themshelves.
Keep fingers out of “pinch point” areas; clearances between the doors and
cabinet are necessarily small. Be careful when you open the doors when children
Unplug your refrigerator before cleaning or making any repairs.
NOTE : We strongly recommend that any servicing be performed by a qualified
individual.
Entry
The model and serial numbers are found on the inner case or back of refrigerator
compartment of this unit. These numbers are unique to this unit and not
available to others. You should record requested information here and retain
3
are in the area.
Introduction
Before replacing a burned-out light bulb, unplug the refrigerator or turn off power
at the circuit breaker or fuse box in order to avoid contact with a live wire filament.
(A burned-out light bulb may break when being replaced). NO TE:Setting either or
both controls to the OFF position does not remove power to the light circuit.
Do not store bottles in the freezer compartment they may break when frozen,
causing damage.
The refrigerator-freezer should be so positioned that the supply plug is accessible
for quick disconnection when accident happens.
For personal safety, this appliance must be properly grounded. Have the wall
outlet and the circuit checked by a qualified electrician to make sure the outlet is
properly grounded.
This refrigerator must be properly installed in accordance with the Attention
Installer Instructions that were taped to the front of the refrigerator.
After your refrigerator is in operation, do not touch the cold surfaces in the freezer
compartment when hands are damp or wet. Skin may adhere to the extremely cold
surfaces.
In refrigerators with automatic icemakers, avoid contact with the moving parts of
the ejector mechanism, or with the heating element that releases the cubes. DO
NOT place fingers or hands on the automatic icemaking mechanism while the
refrigerator is plugged in.
DO NOT refreeze frozen foods which have thawed completely. The United States
Department of Agriculture in Home and Garden Bulletin No. 69 says:
“...You may safely refreeze frozen foods that have thawed if they still contain ice
crystals or if they are still cold below 40° (4°C).”
“...Thawed ground meats, poultry, or fish that have any off-odor or off-color should
not be frozen and should not be eaten. Thawed ice cream should be discarded. If
the odor or color of any food is poor or questionable, get rid of it. The food may be
dangerous to eat.”
“Even partial thawing and refreezing reduces the eating quality of foods,
particularly fruits, vegetables and prepared foods.
The eating quality of red meats is affected less than that of many other foods. Use
refrozen foods as soon as possible to save as much of their quality as you can.”
DANGER
CFC DISPOSAL
Risk of child
entrapment
BEFORE YOU THROW AWAY YOUR OLD REFRIGERATOR OR FREEZER
T ake off the doors.
Leave the shelves in place so that
children may not easily climb inside.
Child entrapment and suffocation are not problems of
the past. Junked or abandoned refrigerators are still
dangerous... even if they will sit for “just a few days”.
Your old refrigerator may have a cooling system that used CFCs
(chlorofuorocarbons). CFCs are believed to harm stratospheric ozone.
If you are throwing away your old refrigerator, make sure the CFC refrigerant is
removed for proper disposal by a qualified servicer. If you intentionally release
this CFC refrigerant, you can be subject to fines and imprisonment under
provisions of environmental legislation.
This appliance contains fluid (refrigerant, lubricant), is made of parts and
materials which are reusable and / or recyclable. All the important materials
should be sent to the collection center of waste material and can be reused
after rework (recycling). For take back, please contact with the local agency.
4
Introduction
IMPORTANT: Please read carefully.
TO CONNECT ELECTRICITY
GROUNDING
REQUIREMENTS
Shock Hazard
Electrical
FOR PERSONAL SAFETY,this appliance must be
properly grounded. Have the wall outlet and the
circuit checked by a qualified electrician to make sure
the outlet is properly grounded.
Ensure proper
ground exists
before use.
3-prong
grounding
plug
3-prong
grounding type
wall receptacle
WARNING
RECOMMENDED GROUNDING METHOD
The refrigerator should always be plugged into it's own individual properly
grounded electrical outlet rated for 115 Volts, 60 Hz, AC only and fused at 15 or 20
amperes. This provides the best performance and also prevents overloading house
wiring circuits which could cause a fire hazard from overheated wires. It is
recommended that a separate circuit serving only this appliance be provided.
Use a receptacle which cannot be turned off with a switch or pull chain. Do not use
an extension cord.
Where a standard two-prong wall outlet is encountered, it is your personal
responsibility and obligation to have it replaced with a properly grounded three-
prong wall outlet.
Do not, under any circumstances, cut or remove the third (ground) prong from the
power cord.
NOTE: Before performing any type of installation, cleaning, or removing a light
bulb, turn the control (Thermostat, Refrigerator Control or Freezer Control,
depending on the model) to OFF and then disconnect the refrigerator from the
electrical source. When you are finished, reconnect the refrigerator to the electrical
source and reset the control (Thermostat, Refrigerator Control or Freezer Control,
depending on the model) to the desired setting.
USE OF EXTENSION CORDS
Because of potential safety hazards under certain conditions, we strongly
recommend against the use of an extension cord. However, if you still elect to use
an extension cord, it is absolutely necessary that it be a UL-listed (in the United
States), 3-wire grounding type appliance extension cord having a groundind type
plug and outlet, and that the electrical rating of the cord be 15 amperes (minimum)
and 120 volts.
Use of an extension cord will increase the clearance needed for the back of the
refrigerator.
If the supply cord is damaged, it must be replaced by the manufacturer or its
service agent or a similarly qualified person in order to avoid any hazard.
5
Introduction
Freezer
Compartment
Refrigerator
Compartment
Dairy Corner
Water Filter
Lamp
Door Rack
Lamp
Automatic
Icemaker
Shelf (steel)
Door Rack
Drawer
Door Rack
Lower Cover
Shelf
Shelf
Snack Drawer
Vegetable Drawer
Vegetable Drawer
Door Rack

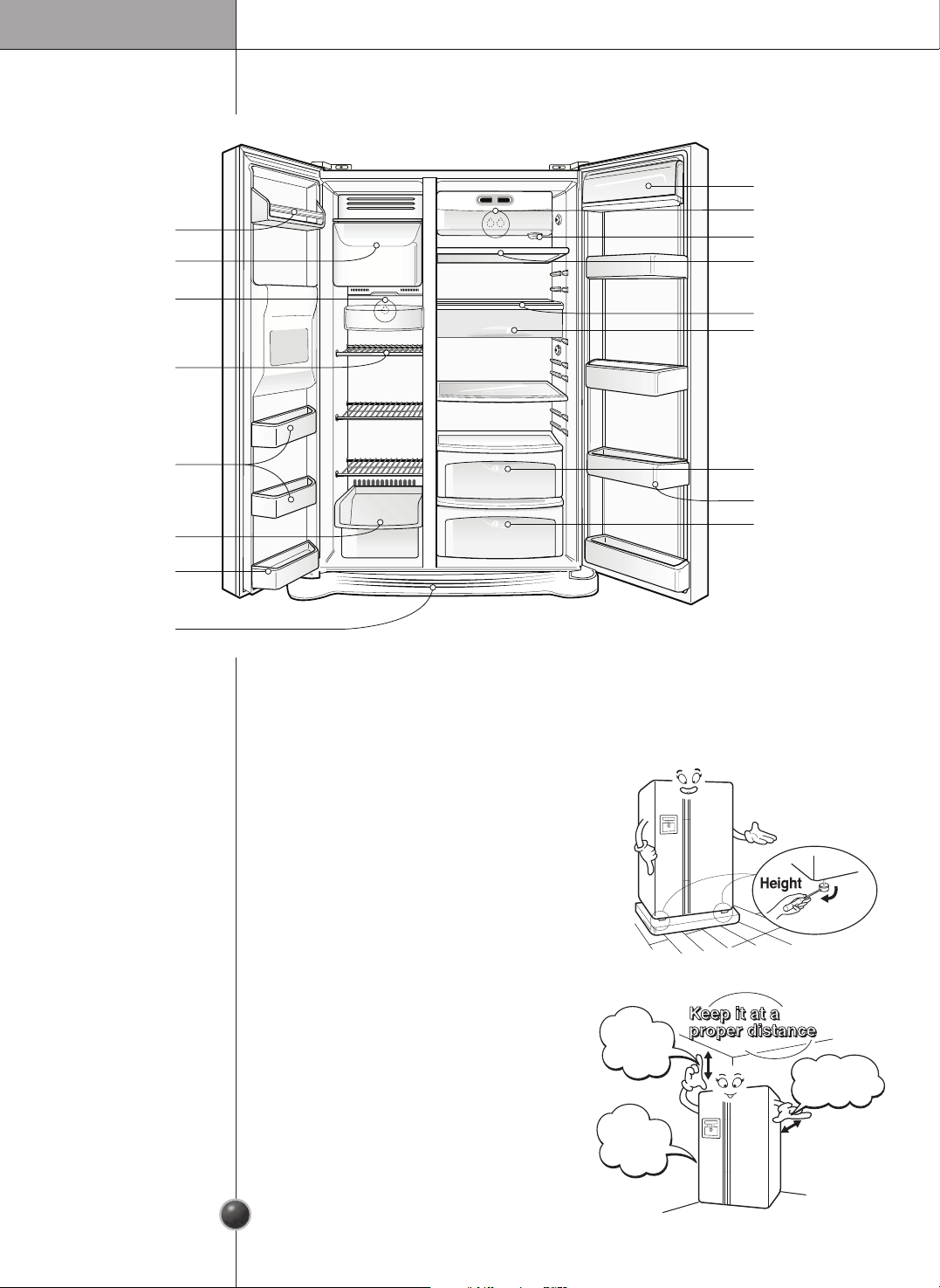

Identification of Parts
6
6
•
NOTE:
If you nd some parts missing from your unit,
they may be parts only used in other models.
Where to install
Unstable installation may cause vibration and
noise. If the oor to install the refrigerator on
is not even, make the refrigerator level by
rotating the height adjusting screw. Carpet
or oor covering on which a refrigerator is
installed may be discolored by heat from the
bottom of the refrigerator.
If our refrigerator causes this kind of
damage, there is something wrong with it.
Customers will not stand for this.
Strong
and even floor
A proper
distance from
adjacent items
Please keep the refrigerator at a proper
distance from other things. Too small a
distance from adjacent items may result in
lowered freezing capability and increased
electricity charges consumption.
More than
1"(2.5 cm)
to top
More than
1"(2.5 cm)
to back
More than
.125"(4 mm)
to side
Installation
Where water
supply can be
easily connected
in a dry place
Where it is free
from heat
Select a place where a water supply can be
easily connected between the automatic ice
maker and dispenser.
Installing the refrigerator in a wet or damp
area may cause rust and may be an electrical
hazard.
If this refrigerator is installed where the
ambient temperature is high, the freezing
capacity is deteriorated and the cost of
electricity used increases.
•
Install the refrigerator at a place where the ambient temperature is 5˚C ~ 43˚C
(41˚F
~
110˚F).
Ambient temperature outside this range may cause product malfunction. Also, the
tube between the dispenser and automatic ice maker may freeze.
NOTE
Bottom Pad
6
7
Method to remove protection film(Some Model)
1. Grasp the handles with both hands and push them upward to remove.
2. Entirely remove the protection film adhered to the external surface of the door.
3. Assemble the fixing bracket on both ends of the handle to the fixing bolt of the door
and lower the handle downward until it is entirely fixed.
Door removal
Failure to do so could result in death or serious injury.
If your entrance door is too narrow for the
refrigerator to pass through, remove the
refrigerator door and pass the refrigerator laterally.
Electric Shock Hazard
Disconnect electrical supply to refrigerator before installing.

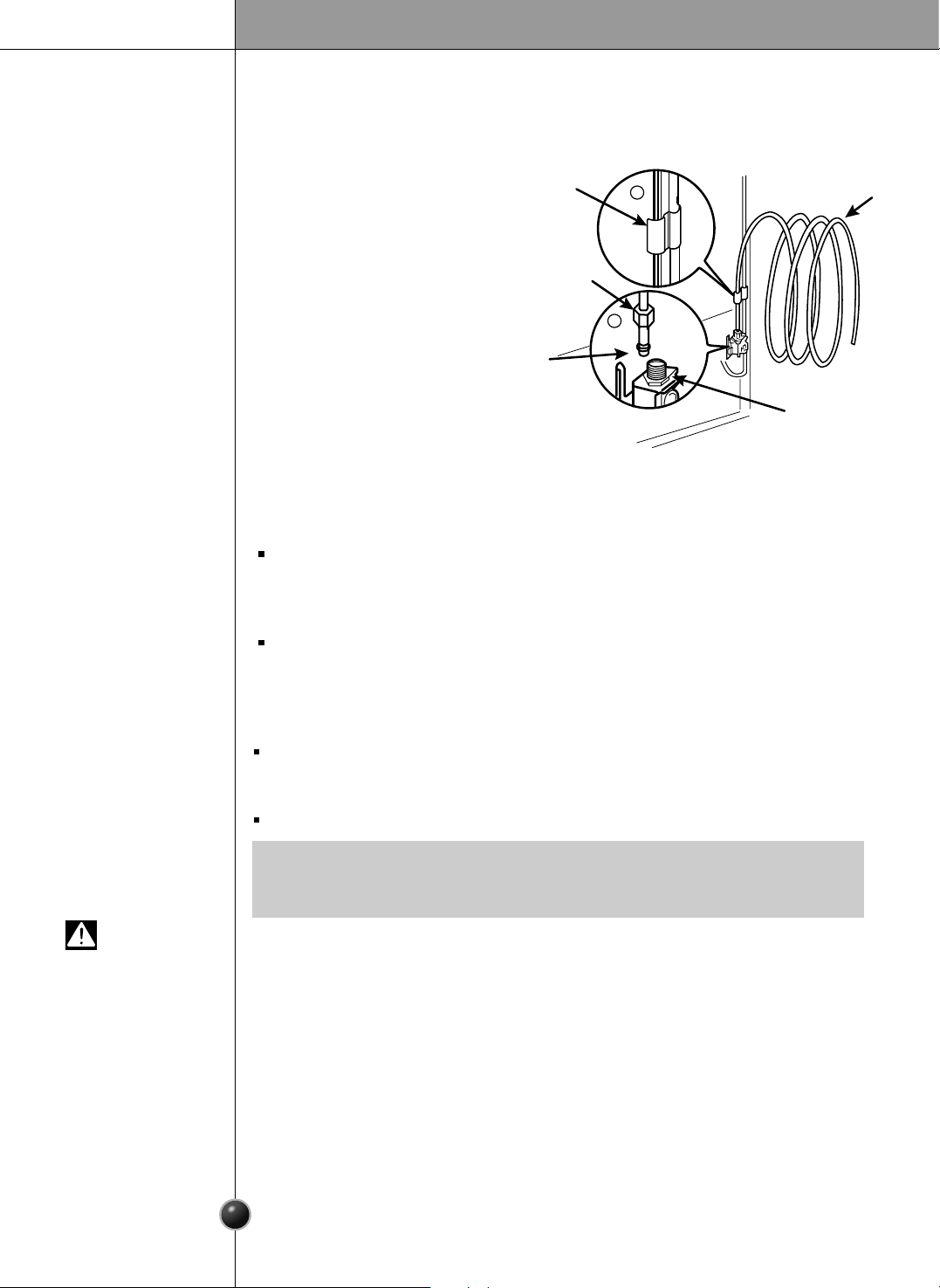

Remove the lower cover by lifting upward, and
then pull up the water feed tube while pressing
area
shown in the figure to the right.
Remove Lower
Cover and
Water Feed Tube
Warning
Remove the
Freezer
Compartment
Door
Remove the
Refrigerator
Door
Installation
1) Remove the hinge cover by loosening the
screws. Disconnect all connections except
the ground line.
2) Remove the keeper by rotating it counter
clockwise
and then lifting the upper
hinge up
.
3) Remove the freezer compartment door by
lifting it upward. This time, the door should
be lifted enough for the water feed tube to
be completely pulled out.
1) Loosen the hinge cover screws and remove
the cover. Remove connection wire, if any,
except for the ground line.
2) Remove keeper by rotating it clockwise
and then remove the upper hinge by lifting
it up
.
3) Remove the refrigerator compartment door
by lifting it up.
•
If a tube end is deformed or abraded, trim the part away.
Disconnecting the tube under the door causes about 1.5 litters water to flow out.
Please put up a big container to prevent it.
NOTE
•
When removing the upper hinge, be careful that the door does not fall forward .
NOTE
•
After removing the door, take it into the kitchen where you are installing the
refrigerator. Lay it down on a blanket and be careful to avoid damaging the water
feed tube.
NOTE
Lower Cover
Lower hinge
Lower Hinge
Keeper
Water Feed Tube
Connection
Wires
Connection
Wires
Hinge
Cover
Upper Hinge
Upper Hinge
Keeper
Upper Hinge
Earth Line
8
Door replacement
Feed water tube installation
Push the refrigerator sideways through the
entrance door as shown in the right picture.
Automatic icemaker operation needs water pressure of 21.3~121psi(lb/inch
2
) (That
is, a 7oz. paper cup will be filled within 3 sec.).
If water pressure does not reach the rated 21.3psi (lb/in² or below), it is necessary
to purchase a separate pressure pump for normal automatic icemaking and cool
water feed.
Keep the total length of the water feed tube within 40 feet and be careful not to
bend or kink the tube. If the tube is longer than 40 feet, the icemaker and water
dispenser will not operate properly.
Install the water feed tube at a place free from heat.
Connect to potable water supply only.
Refer to instructions with water filter kit for installation.
Mount the doors in the reverse order of
removal after the refrigerator is brought to
the installation area.
Move the
Refrigerator
Before
Installation
Warning
Installation
9
Water Connection Instruction Guide
Read all directions carefully before you begin.
Connecting
the Refrigerator
to a Water Source
•
If operating the refrigerator before installing the water connection, turn icemaker
to theOFF position to prevent operation without water.
•
All installations must be in accordance with local plumbing code requirements.
•
Use copper tubing and check for leaks.
•
Install copper tubing only in areas where temperatures will remain above freezing.
•
It may take up to 24 hours for your icemaker to begin producing ice.
IMPORTANT
Standard screwdriver
7/16-inch and 1/2-inch open-end wrenches or two adjustable wrenches
1/4-inch nut driver
1/4-inch drill bit
Hand drill or electric drill (properly grounded)
Tools Required
NOTE
In order to perform the water connection you will need to buy: a 1/4-inch saddle-type
shut off valve, a union, and copper tubing. Before purchasing, make sure the saddle-type
valve complies with your local plumbing codes. Do not use a piercing-type or 3/16-inch
saddle valve which reduces water flow and clogs more easily.
Screwdriver
Adjustable wrenches
Electric drill
NOTE:
Check the direction of the lever hinge.
Correct
Incorrect
1. Unplug refrigerator or disconnect power.
2. Turn OFF main water supply. Turn on the nearest faucet to relieve the pressure
on the line. It may help to open an outside faucet to allow the water to drain from
the line in the house.
3. Find a 1/2-inch to 1-1/4-inch vertical COLD water pipe near the refrigerator.
Connect
the Tubing to
Water Line
Cold Water Pipe
Pipe Clamp
Coil of Polyethylene or
Copper Tubing
Compression NutCompression Sleeve
Shut Off Valve
Packing Nut
Installation
10
•
Horizontal pipe will work, but the following precaution must be taken: Drill on the top of
the pipe, not the bottom. This will help keep water away from the drill. This also keeps
normal sediment from collecting in the valve.
NOTE
4. To determine the length of copper tubing you will need, measure from the
connection on the lower left rear of the refrigerator to the water pipe. Add 7
feet (2.1m) to allow for moving refrigerator for cleaning. Use 1/4-inch O.D.
(outside diameter) copper tubing. Be sure both ends of copper tubing are cut
square.
5. Using a drill, drill a 1/4-inch hole in the cold water pipe you have selected.
6. Fasten shut-off valve to cold water pipe with pipe clamp. Be sure outlet end is
solidly in the 1/4-inch drilled hole in the water pipe and that the washer is
under the pipe clamp. Tighten packing nut. Tighten the pipe clamp screws
carefully and evenly so washer makes a watertight seal. Do not overtighten or
you may crush the copper tubing, especially if soft (coiled) copper tubing is
used. Now you are ready to connect the copper tubing.
7. Slip compression sleeve and compression nut on copper tubing as shown.
Insert end of tubing into outlet end squarely as far as it will go. Screw
compression nut onto outlet end with adjustable wrench. Do not over tighten.
8. Place the free end of the tubing into a container or sink, and turn ON main
water supply and flush out tubing until water is clear. Turn OFF shutoff valve
on the water pipe. Coil the copper tubing as shown below.
Operation Instruction Guide
Before making the connection to the refrigerator, be sure the refrigerator
power cord is not plugged into the wall outlet.
• If your refrigerator does not
have a water filter, we
recommend installing one. If
your water supply has sand or
particles that could clog the
screen of the refrigerator’s
water valve. Install the filter in
the water line near the
refrigerator.
1. Remove the plastic flexible
cap from the water valve.
2. Place the compression nut and
ferrule (sleeve) into the end of
the tubing as shown.
3. Insert the end of the copper tubing into the connection as far as possible. While
holding the tubing, tighten the fitting.
Connect the Tubing
to the Refrigerator
Tighten any connections that leak.
Plug In the Refrigerator
Arrange the coil of copper tubing behind the refrigerator so it does not vibrate
against the back of the refrigerator or against the wall. Push the refrigerator
back to the wall.
Start the lcemaker
Set the icemaking stop switch to the ON position The icemaker will not begin
to operate until it reaches its operating temperature of 15 °F (-9 °C). It will then
begin operation automatically if the icemaking stop switch is in the ON
position.
Turn the Water On at
the Shutoff Valve
The automatic icemaker makes 8 cubes at a time, 120/150 pieces per day.
But these quantities may vary according to circumstance, including ambient
temperature, door openings, freezer load etc.
The Icemaker stops when the bin is full.
Automatic Ice maker
•
It is normal to hear a noise when ice drops into the bin.
NOTE
Installation
1 1
Coil of Polyethylene or
1/4" Cooper Tubing
Tubi ng Clamp
1/4"
Compression
Nut
Ferrule
(sleeve)
Refrigerator Connection
1
2
It takes about 12 hours for a newly installed refrigerator to make ice.
•
- The first ice and water may include particles or odor from the feed water pipe or
feed water box. Throw away the ice.
- This is also necessary if the refrigerator has not been used for a long time.
- Never store beverage cans or other foods in ice storage bin for the purpose of rapid
cooling. Such actions may damage the automatic ice maker.
- Never remove the icemaker cover.
- Shake the bin occasionally to cause the ice to settle.
- Ice may pile up just around the icemaker causing the icemaker to think that the ice
storage bin is full.
- If discolored ice is dispensed, contact an Authorized Service Center immediately.
Do not use the ice or water until the problem is corrected.
CAUTION
12
Height adjustment
Make themlevel by insertingflat (
-
type) driver into the grooveof theleft height adjusting
screw and rotating it clockwise ( ).
Make them level by inserting flat (
-
type) driver into the groove of the right height
adjusting screw and rotating it clockwise (
Adjust the level when the refrigerator door is lower than the freezer door during the
use of the refrigerator.
1. Using the wide side of the tool for adjustment , turn the keeper nut
Keeper nut
Adjustment
hinge pin
Tool for
adjustment
Up
Down
Installation
CAUTION
).
The refrigerator door will close smoothly by raising the front side by adjusting the
height adjusting screw. If the door does not close properly because it is improperly
adjusted, the performance of the refrigerator will be affected.
If the freezer
compartment door
is lower than the
refrigerator
compartment door
If the freezer
compartment door
is higher than the
refrigerator
compartment door
-
Type 1
After leveling the
door height
Do not force too hard to level the height. The hinge pin can be pulled out.
(Adjustable range of height is a maximum of 1/2" (1,27 cm ).
( )
clockwise to loosen the keeper nut.
2. Using the narrow side of the tool for adjustment, turn the adjustment hinge pin
( ) clockwise or ( ) counterclockwise to level the refrigerator and
freezer door.
3. After setting the level of the door, turn the keeper nut( ) counterclockwise to
tighten.
If the freezer
compartment door
is higher than the
refrigerator
compartment door
-Type 2
(First identify your adjusting screw type, it could vary)
Starting
Adjusting The Temperatures and Functions
When your refrigerator is first installed, allow it to stabilize at normal operating
temperatures for 2-3 hours prior to filling it with fresh or frozen foods.
If operation is interrupted, wait 5 minutes before restarting.
Water/Ice Output
Operation
1
3
1.Display Power
Saving Mode
2.Change Display Degree
Fahrenheit Centigrade Mode
°C
°F
l
Dispenser Push Switch
l
NOTE:
Your model may not include every option.
The control display is operated by touch. Excessive moisture on the display may
cause a malfunction. Please keep display clean and dry.
l
14
Operation
1. Display Power Saving Mode
This function places the display into power saving mode until the next time the
door is opened.
Press the FREEZER and ICE PLUS buttons simultaneously and hold them for 5
seconds until the Ding sounds. All LEDs will then turn ON, then OFF. When the
power saving mode is activated, the display will remain off until the next time the
door is opened. Then, it will come on whenever a door is opened or a button is
pressed and remain on for 20 seconds after the last door opening or button
selection. To deactivate the power saving mode, press the FREEZER and ICE
PLUS buttons simultaneously and hold them for 5 seconds until the Ding sounds.
2. To change temperature display from Fahrenheit to Celsius press and hold
FREEZER and REFRIGERATOR buttons simultaneously for more than 5 seconds.
Do the same to convert back to Celsius.
Freezer Compartment temperature adjustment
Setting
temperature
Setting
temperature
Refrigerator Compartment temperature adjustment
You can adjust temperature of freezer compartment and refrigerator
Compartment.
To adjust the temperature in the refrigerator compartment, press the
REFRIGERATOR button to cycle through the settings of MEDIUM
COLDER
COLDEST COOL COOLER.
The actual inner temperature varies depending on the food status, as the
indicated setting temperature is the target temperature, not actual temperature
within refrigerator.
Please adjust temperature as above after using refrigerator for minimum 2~3
days.
How to adjust the
temperature in
the freezer
compartment
How to adjust the
temperature in
the refrigerator
compartment
Operation
Operation
15
•
Reference : Hold your cup in place for a couple of seconds after dispensing ice or water so
the last few drops go iinto your cup instead of the floor.
How to use
dispenser
Select among crushed ice, water, and cubed ice and press the push switch with a
glass or other container.
Water
Light the water lamp by
pressing the selection
button.
•
Water will be dispensed
by pressing the push
switch with a glass.
Crushed Ice
Light the crushed ice
lamp by pressing the
selection button.
•
C
rushed ice will be
dispensed by pressing the
push switch with a glass.
Cubed Ice
Light the cubed ice
lamp by pressing the
selection button.
•
Cubed ice will be
dispensed by pressing the
push switch with a glass.
15
•
It is normal that a noise is produced when ice drops into the ice storage bin.
NOTE:
The automatic icemaker can automatically make 8 cubes at a time,
120~150 pieces per day. This quantity may vary by circumstance, including ambient
temperature, door opening, freezer load etc.
Icemaking stops when the ice storage bin is full.
If you don't want to use automatic icemaker, turn the icemaker switch to OFF. If you
want to use automatic ice-maker again, change the switch to ON. To switch ON/OFF
Automatic
Icemaker
1
2
follow steps 1 & 2 in the picture.
ON
OF
F
Operation
16
Ice is lumped together
If the ice lumps together, take it out, break it apart, and put it back into the storage bin.
When the icemaker produces too small or lumped together ice, the amount of
water supplied to the ice maker needs to adjusted. Contact the service center.
If ice is not used frequently, it may lump together.
Power failure
Water may drop from the refrigerator. Take the ice storage bin out and discard
all the ice then dry it and place it back. After the power is restored, the refrigerator
defaults to crushed ice.
The unit is newly installed
It takes about 12 hours for a newly installed refrigerator to make ice.
When ice
dispensing does
not operate
smoothly
Please select this function for prompt freezer.
OFF ICE PLUS JET OFF
or OFF ON OFF is repeated
whenever pressing button.
The arrow mark graphic remains
at the On status after flickering
4 times when selecting Special
Refrigeration On.
Prompt freezer function automatically turns off after a fixed time passes.
Jet Freezing is not applicable to all models.
Ice plus/Jet freezer
Do not place your hands into the water & ice dispenser
opening. Doing so can result in amputation or cuts.
Warning
Off
On
Off
17
This button stops operation of different button and dispenser function.
Locking or Release is repeated whenever
the is pressed more than 3 seconds.
If you use the ALARM/LOCK button,
none of the other buttons will work
until you unlock them.
Lock
Operation
Door alarm
Door open warning
A warning tone will sound 3 times at thirty-second
intervals if the refrigerator or freezer door is left open
for more than sixty seconds.
Please contact with the local service center if warning
continue to sound even after closing the door.
There is a replacement indicator light for the
water filter cartridge on the dispenser.
The water filter should be replaced every six
months.
The filter light comes on to let you know
when to replace filter.
After replacing the filter, press and hold the
filter button more than 3 seconds to reset the indicator.
Filter condition
filter replacement
cycle display
function
This button turn the dispenser light in the dispenser on an off.
The dispenser light function is
turned ON or OFF by pressing
Light/Filter button.
If the dispenser light stays on
for more than 7 minutes, it will
turn off automatically.
Some models have an auto
mode that uses a light sensor to
turn the dispenser light on and
off.
Auto light is not applicable to all models.
Dispenser light
Lock
Unlock
On
Off
On
Off
Operation
18
Throw away the ice (about 20 pieces) and water (about 7 glasses) rst made after
refrigerator installation.
This is also necessary when the refrigerator has not been used for a long time.
Keep children away from the dispenser.
Children may play with or damage the controls.
Be careful that food does not block the ice passage.
If foods are placed at the entrance of ice passage, the
dispenser may malfunction. The passage may also
become blocked with frost if only crushed ice is used.
Remove the frost that accumulates.
Storing cans or other items in the ice bin may damage
the icemaker or the container may burst.
Never use thin crystal glass or crockery to collect ice.
Such glasses or containers may be broken, and glass fragments could be in the ice.
Put ice rst into a glass before lling water or other beverages.
Water may be splashed if ice is added to existing liquid in a glass.
Keep your hands out of the ice door and passage.
You might break something or injure yourself.
Never remove the ice maker cover.
Shake the ice bin occasionally to level the ice in it.
Sometimes the ice piles up near the icemaker, causing the icemaker to misinterpret the
bin level and stop producing ice.
Never use too narrow or deep glass.
Ice may be jammed in the ice passage and, thus, the refrigerator may fail.
Keep the glass at a proper distance from ice outlet.
A glass too close to the outlet may prevent ice from coming out.
Cautions
Other functions
Ambient Temperature Display Window.
Temperature is displayed only between 16
°F ~ 120 °F (-9°C ~ 49 °C).
Temperature less than 15°F (-9°C) is indicated with LO and
temperature more than 121° F (49 °C) is indicated with HI.
Diagnostic (failure detection) function
The diagnostic function automatically detects failure when failure is found in product
during the use of refrigerator.
If your refrigerator fails, do not turn o the power. Call 1-800-243-0000 24/7 and select
the option to locate an authorized servicer or call our support line for assistance.
Turning o the appliance will make it more dicult for the service technician to
determine the problem.
Water is cooled while stored in the water tank in freezer door, and then sent to the
dispenser.
Ice is made in the automatic icemaker and sent to the dispenser.
How ice/cold
water is supplied
If discolored ice is dispensed, contact an Authorized Service Center immediately.
Do not use the ice or water until the problem is corrected.
Operation
1
3
2
1
2
3
Shelf
Wine Holder
(Applicable to some models only)
The refrigerator compartment shelf is movable so that you can place it at a height
according to space requirement of foods.
Slide Shelf
Pull the shelf ahead and take it off while
lifting both, front and rear part.
Fix Shelf, Folding Shelf
Lightly lift up the front part of shelf to pull it
ahead and then take it off while lifting the
rear part of shelf.
Bottles can be stored on their sides in this
wine rack. It can be mounted only at the
SLIDE SHELF.
Move to left to pull out after lifting slightly.
Shelf Height
Adjustment
Wine Holder
Adjustment
•
Make sure the shelf is horizontal. If not, it may drop.
NOTE
19
Egg Bin (Applicable to some models only)
Humidity control in the vegetable compartment
You can place the egg box wherever you want it.
The humidity can be controlled by adjusting the humidity control switch to the left
or right when storing vegetables or fruits.
[Normal] [For Many Eggs]
High
High
Low
Low
High Low
Humidity Control
High Low
Humidity Control
High humidity
Low humidity
•
Never use the egg box as ice
storage bin. It can be broken.
NOTE
•
Never store egg box in the
freezer or fresh compartment.
Suggestion on Food Storage
Location of Foods
(Refer to Identification of Parts)
Store wine.
Store small foods such as bread, snacks, etc.
Store various frozen foods such as meat, fish,
ice cream, frozen snacks, etc.
Store small packed frozen food.
Temperature is likely to increase as door
opens.
So, do not store long-term food such
ice cream, etc.
Wine Holder
Snack
Drawer
Freezer
Compartment
Shelf
Freezer
Compartment
Door Rack
Freezer
Compartment
Drawer
Milk Product
Corner
Egg Bin
Refreshment
Center
Refrigerator
Compartment
Shelf
Refrigerator
Compartment
Door Rack
Vegetable Drawer
Store meat, fish, chicken, etc. after
wrapping them with thin foil.
Store dry
.
Store milk products such as butter, cheese,
etc.
Place this egg box in the proper location.
Store foods of frequent use such as beverage,
etc.
Store side dishes or other foods at a proper
distance.
Store small packed food or beverages such
as milk, juice, beer, etc.
Store vegetables or fruits.
20
Suggestion on Food Storage
Storing Foods
Store fresh food in the refrigerator compartment. How food is frozen and thawed is an
important factor in maintaining it's freshness and flavor.
Do not store food which spoils easily at low temperatures, such as bananas and
melons.
Allow hot food to cool prior to storing, placing hot food in the refrigerator could spoil
other food, and lead to higher energy consumption.
When storing the food, cover it with vinyl wrap or store in a container with a lid. This
prevents moisture from evaporating, and helps food to keep its taste and nutrients.
Do not block air vents with food. Smooth circulation of chilled air keeps refrigerator
temperatures even.
Do not open the door frequently. Opening the door lets warm air enter the refrigerator,
and cause temperatures to rise.
Never keep too much food in door rack because they may be push against the inner racks
and could not be fully closed.
Do not store bottles in the freezer compartment - they may break when frozen.
Do not refreeze food that has been thawed. This causes loss of taste and nutrient.
When storing frozen food like ice cream for a long period, place it on the freezer
shelf, not in the door rack.
Do not touch the cold foods or containers- especially made of metal -, with wet
hands and place glass products in the freezer compartment.
- That’s why you may have chilblains and they may be broken when their inner matters
are frozen, causing personal injury.
Avoid placing moist food in top refrigerator shelves, it could freeze from direct
contact with chilled air.
Always clean food prior to refrigeration. Vegetables and fruits should be washed and
wiped, and packed food should be wiped, to prevent adjacent food from spoiling.
When storing eggs in their storage rack or box, ensure that they are fresh, and always
store them in an upright position, which keeps them fresh longer.
Freezer
Compartment
Refrigerator
Compartment
•
If you keep the refrigerator in a hot and humid place, frequent opening of the door or
storing a lot of vegetables in it may cause condensation to form. Remove the
condensation with dust cloth free from care.
NOTE
21
Care and Maintenance
How to Dismantle Parts
Freezer
Compartment
Lamp
Dispenser Lamp
Freezer
Compartment
Shelf
Door Rack and
Support
Ice Storage Bin
After Dispenser
Is Used
Seperate the lamp by pulling it out, and then
remove the lamp. Max. 15 W bulb for
refrigerator is used and can be purchased at a
service center.
To remove a shelf, lift the left part of the shelf
a bit, push it to the direction , lift the right part
to the direction , and take it out.
Lift the door rack holding both sides and
pull it out to direction.
Lift the ice shelf as shown in the right figure
and pull it out .
The water collector has no self-draining
function. It should be cleaned regularly.
Remove the cover by pulling the front side of
water collector cover and dry it with a cloth.
Hold the ice storage bin as shown in the right
figure and pull it out ➃ while slightly lifting it ➂.
•
Dismantling is done in the reverse sequence of assembly.
Be sure to unplug the power plug before dismantling and assembly.
Never apply severe force to dismantle parts. Parts may be damaged.
NOTE
Separate the lamp by pulling it out ➂
while
slightly striking
➀and rotating ➁
the lamp cover.
Turn the bulb counterclockwise. Max. 40 W
bulb
for refrigerator is used and can be purchased at
a service center.
22
To assemble the ice storage bin, push it
while slightly lifting it .
6
5
Care and Maintenance
It is recommended not to dismantle the ice
storage bin unless it is necessary.
Use both hands to remove the ice bin to avoid
dropping it.
If the ice bin does not slide into place easily,
twist the drive device slightly.
EXPRESS/JET FRZ
DISPENSER FREEZER
REFRIGERATER
FILTER/LIGHT
LOCK
2
1
3
4
1
2
3
1
2
Care and Maintenance
To remove the lamp cover, press the protrusion under the lamp cover to the front and
then pull the lamp cover out.
Turn the bulb counterclockwise. Max. 40 W bulb for refrigerator is used and can be
purchased at a service center.
Lamp in
Refrigerator
Compartment
To remove the vegetable compartment
cover, pull out the vegetable compartment
a bit to the front , lift the front part of the
vegetable compartment cover as shown by
, and take it out.
Vegetable
Compartment
Cover
1
2
•
Be sure to remove parts from the refrigerator door when removing the vegetable
compartment,
snack drawer, and refreshment center cover.
NOTE
Filter
Replacement
•
Replacing filter causes small amount of water(around 25cc) to flow out.
Please put up a cup under the hole to prevent it.
NOTE
It is recommended that you replace the filter
when the water filter indicator light turns on or
your water dispenser or ice maker decreases
noticeably.
After changing the water filter cartridge, reset
the water filter status display and indicator light
by pressing and holding the BUTTON for 3
seconds.
1) Remove the old cartridge.
Rotate the knob of the cartridge counter clockwise.
When the cartridge is removed, you will feel it click
out of place.
Pull out the cartridge.
3) Flushing the Water System After Replacing Filter.
Dispense water through the water dispenser for 3
minutes to purge the system.
2) Replace with a new cartridge.
Take the new cartridge out of it's packaging and remove
protective cover from the o-rings. With cartridge knob in
the vertical position, push the new filter cartridge into
the cover until it stops.
If you can’t turn the filter from side to side, it isn’t fully
inserted. Push it in firmly and twist it into place. You will
hear the snap when it clicks into place. Using it's handle,
twist the cartridge clockwise about 1/4 turn. You will hear
the snap when it clicks into place.
23
Care and Maintenance
General Information
Cleaning
During average length vacations, you will probably find it best to leave the refrigerator
in operation. Place freezable items in freezer for longer life.
When you plan to store the refrigerator, remove all food, disconnect the power cord,
clean the interior thoroughly, and Block the doors open to prevent mold and mildew.
Be certain the stored refrigerator does not present a child entrapment danger.
Vacation Time
Power Failure
If You Move
Anti-
Condensation
Pipe
Most power failures that are corrected in an hour or two will not affect your
refrigerator temperatures.
However, you should minimize the number of door openings while the power is off.
Remove or securely fasten down all loose items inside the refrigerator.
To avoid damaging the height adjusting screws, turn them all the way into the base.
The outside wall of the refrigerator cabinet may sometimes get warm, especially just
after installation.
Don’t be alarmed. This is due to the anti-condensation pipe, which pumps hot
refrigerant to prevent sweating on the outer cabinet wall.
Regular cleaning is recommended. Wash all compartments with a baking soda
solution or a mild detergent and warm water. Rinse and dry.
Please verify that the power cord is not damaged, power plug is not overheated, or
power plug is well inserted into the power consent.
Always remove power cord from the wall outlet prior to cleaning in the vicinity of
electrical parts (lamps, switches, controls, etc.).
Wipe up excess moisture with a sponge or cloth to prevent water or liquid from
getting into any electrical part and causing an electric shock.
Never use metallic scouring pads, brushes, coarse abrasive cleaners, strong alkaline
solutions, flammable or toxic cleaning liquids on any surface.
Do not touch frozen surfaces with wet or damp hands, because damp object will stick
or adhere to extremely cold surfaces.
It is important that your refrigerator be kept clean to prevent undesirable odors. Spilled
food should be wiped up immediately, since it may acidify and stain plastic surfaces if
allowed to settle.
Use a lukewarm solution of mild soap or detergent to clean the durable finish of your
refrigerator. Wipe with a clean damp cloth and then dry.
Exterior
Interior
After Cleaning
Warning
24
Care and Maintenance
Troubleshooting
Before calling for service, review this list. It may save you both time and expense.
This list includes common occurrences that are not the result of defective
workmanship or materials in this appliance.
Possible cause
Refrigerator control is off.
Refrigerator is in defrost cycle.
Plug at wall outlet is disconnected.
Power outage. Check house lights.
Refrigerator is larger than the previous
one you owned.
Room or outside weather is hot.
Refrigerator has recently been
disconnected for a period of time.
Large amounts of warm or hot food
may have been stored recently.
Doors are opened too frequently or too
long.
Refrigerator or freezer door may be
slightly open.
Refrigerator control is set too cold.
Refrigerator or freezer gasket is dirty,
worn, cracked, or poorly fitted.
Thermostat is keeping the refrigerator
at a constant temperature.
Solution
Set refrigerator control. See setting the
controls.
This is normal for a fully automatic
defrosting refrigerator. The defrost
cycle occurs periodically.
Make sure plug is tightly pushed into
outlet.
Call local electric company.
This is normal. Larger, more efficient
units run longer in these conditions.
It is normal for the refrigerator to work
longer under these conditions.
It takes some hours for the refrigerator
to cool down completely.
Warm food will cause the refrigerator to
run longer until the desired temperature
is reached.
Warm air entering the refrigerator
causes it to run longer. Open the door
less often.
Make sure the refrigerator is level.
Keep food and containers from
blocking door. See Troubleshooting
section OPENING/CLOSING of doors.
Set the refrigerator control to a
warmer setting until the refrigerator
temperature is satisfactory.
Clean or change gasket. Leaks in the
door seal will cause refrigerator to run
longer in order to maintain desired
temperatures.
This is normal. Refrigerator goes on
and
off to keep the temperature constant.
Running of refrigerator
Refrigerator
compressor
does not run.
Refrigerator
runs too much
or too long
Occurrence
25
Water / Moisture / Ice inside refrigerator
Moisture collects
on the inside walls
of the refrigerator
The weather is hot and humid which increases
the rate of frost build up and internal sweating.
This is normal.
Door is slightly open.
See problem section opening/closing of
doors.
Door opened too often or too long. Open the door less often.
Water / Moisture / Ice outside refrigerator
Moisteure forms
on the outside of
the refrigerator or
between doors
Weather is humid.
This is normal in humid weather. When humidity
is lower, the moisture should disappear.
Door is slightly open, causing cold air from
the inside the refrigerator to meet warm air
from the outside.
This time, close the door completely .
Care and Maintenance
Refrigerator
compressor
does not run.
Occurrence
Temperature in the
freezer is too cold
but the refrigerator
temperature is
satisfactory.
Temperatures are too cold
Temperature in the
refrigerator is too
warm but the freezer
temperature is
satisfactory.
Temperatures in
the refrigerator
or freezer are
too warm.
Temperatures are too warm
Food stored in
drawers freezes.
Possible cause
Thermostat is keeping the refrigerator
at a constant temperature.
Freezer control is set too cold
Doors are opened too frequently or too
long.
Door is slightly open.
Large amounts of warm or hot food
may have been stored recently.
Refrigerator has recently been
disconnected for a period of time.
Refrigerator control is set too warm.
Refrigerator control is set too warm.
Refrigerator control has some eect on
freezer temperature.
Freezer control is set too warm.
Refrigerator control is set too cold.
Refrigerator control is set too cold.
Solution
This is normal. The refrigerator goes on
and o to keep the temperature constant.
Set the refrigerator control to a colder
setting.
A refrigerator requires some hours to
cool down completely.
Wait until the refrigerator or freezer
has a chance to reach its selected
temperature.
Warm air enters the refrigerator/ freezer
whenever the door is opened.
Open the door less often.
Set the freezer or refrigerator
control to a
colder setting
until the freezer or
refrigerator temperature is satisfactory.
Set the freezer or refrigerator control to
a colder setting until the freezer or
refrigerator temperature is satisfactory.
Set the refrigerator control to a
warmer setting
See above solution.
Set the freezer control to a warmer
setting until the freezer temperature is
satisfactory.
Close the door completely.
Temperature in the
refrigerator is too
cold and the
freezer
temperature
is satisfactory.
26
Care and Maintenance
Sound and noise
Louder sound levels
when the refrigerator
is on.
Today´s refrigerators have increased storage
capacity and maintain more even
temperatures.
It is normal for sound levels to be higher.
Louder sound levels
when compressor
comes on.
Refrigerator operates at higher pressures
during the start of the ON cycle.
This is normal. The sound will level off as the
refrigerator continues to run.
Vibrating or
rattling noise.
Floor is uneven or weak.
Refrigerator rocks on the floor when it is
moved slightly.
Be sure floor is level and solid and can
adequately support refrigerator.
Items placed on the top of refrigerator are
vibrating.
Remove items.
Dishes are vibrating on the shelves in the
refrigerator.
Move dishes slightly.
Make sure refrigerator is level and firmly
set on the floor.
Care and Maintenance
Odors in refrigerator
Occurrence
Door(s) will not
close.
Door(s) will not
close.
Drawers are
difficult to move.
Dispenser
Dispenser will not
dispense ice
Opening/Closing of doors/Drawers
Possible cause
Food is touching shelf on top of the
drawer
Track that drawer slides on is dirty.
Ice storage bin is empty.
Freezer temperature is set too warm.
Household water line valve is not open.
Refrigerator or freezer door is not
closed.
Refrigerator is not level. It rocks on the
oor when it is moved slightly.
Floor is uneven or weak.
Refrigerator rocks on the oor when it
is moved slightly.
Refrigerator is touching wall or cabinets.
Interior needs to be cleaned.
Food with strong odor is in the refrigerator.
Some containers and wrapping materials
produce odors.
Food package is keeping door open.
Door was closed too hard, causing other
door to open slightly.
Solution
Be sure both doors are closed.
Open household water line valve and
allow sucient time for ice to be made.
When ice is made, dispenser should
operate.
Turn the freezer control to a higher
setting so that ice cubes will be made.
When the rst supply of ice is made,
the dispenser should operate.
Clean drawer and track.
Be sure oor is level and can adequately
support refrigerator.
Contact carpenter to correct sagging or
sloping oor.
Move refrigerator.
.
Keep less food in drawer.
Adjust the height adjusting screw.
Use a dierent container or brand of
wrapping
materials
.
Move packages that keep door from
closing.
Close both doors gently.
Cover food completely.
Clean interior with sponge,warm water
and baking soda.
When the rst supply of ice is dropped
into the bin, the dispenser should operate.
27
Refrigerator is touchig wall or cabinets.
Move refrigerator so that it does not touch
the wall or refrigerator
Care and Maintenance
Care and Maintenance
Dispenser will
not dispense
ice.
Ice dispenser
is jammed.
Occurrence
Water has an
odd taste
and/or odor.
Dispenser will
not dispense
water.
Possible cause
Water has been in the tank for too long.
Unit not properly connected to cold
water line.
This sound is normally made when automatically made ice is dropped into ice storage
bin. Volume may vary according to refrigerator’s location.
This sound is normally made when ice maker is supplied with water after dropping
the automatically made ice.
Please thoroughly read Automatic icemaker and dispenser in this manual.
Ice cubes are frozen together.
Ice has melted and frozen around auger
due to infrequent use, temperature
fluctuations and/or power outrages.
Ice cubes are jammed between the ice
maker arm and back of the bin.
Ice cubes that have been purchased or
made in some other way have been
used in the dispenser.
Household water line valve is not open.
See problem Icemaker is not making
any ice.
Refrigerator or freezer door is not closed.
Solution
Be sure both doors are closed.
Draw and discard 7 glasses of water
to freshen the supply. Draw and discard
an additional 7 glasses to completely rinse
out tank.
Connect unit to cold water line which
supplies water to kitchen faucet.
Open household water line valve.
Use the dispenser often so that cubes do
not freeze together.
Only the ice cubes made by the ice maker
should be used with the dispenser.
Remove the ice cubes that are jamming
the dispenser.
Remove ice storage bin, and thaw and
the contents. Clean bin, wipe dry and
replace in proper position.
When new ice is made, dispenser should
operate.
Sound of ice
dropping
Sound of water
supply
Other
CUSTOMER ASSISTANCE NUMBERS:
To Prove Warranty Coverage
Retain your Sales Receipt to prove date of purchase.
A copy of your Sales Receipt must be submitted at the time warranty service is provided.
To Obtain Product, Customer or Service Assistance
Call Toll-free for Customer Service
Tel : 1-800-243-0000
To Obtain Nearest Authorized Service Center
Call 1-800-243-0000, push option #1, 24 hours a day, 7 days per week.
Please have your product type (Monitor, TV, VCR, MWO, Refrigerator) and ZIP code ready.
http://www.lgservice.com
28
ONLY IN UNITED STATES
LG ELECTRONICS, INC.
LG REFRIGERATOR LIMITED WARRANTY - USA
Your LG Refrigerator will be will repaired or replaced, at LG’s option, if it proves to be defective in material or
workmanship under normal use, during the warranty period ("Warranty Period") set forth below, effective from the date
("Date of Purchase") of original consumer purchase of the product. This warranty is good only to the original purchaser
of the product and effective only when used in the United States, including Alaska, Hawaii, and U.S. Territories.
THIS WARRANTY IS IN LIEU OF ANY OTHER WARRANTY, EXPRESS OR IMPLIED, INCLUDING WITHOUT
LIMITATION, ANY WARRANTY OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE. TO THE
EXTENT ANY IMPLIED WARRANTY IS REQUIRED BY LAW, IT IS LIMITED IN DURATION TO THE EXPRESS
WARRANTY PERIOD ABOVE. NEITHER THE MANUFACTURER NOR ITS U.S. DISTRIBUTOR SHALL BE
LIABLE FOR ANY INCIDENTAL, CONSEQUENTIAL, INDIRECT, SPECIAL, OR PUNITIVE DAMAGES OF ANY
NATURE, INCLUDING WITHOUT LIMITATION, LOST REVENUES OR PROFITS, OR ANY OTHER DAMAGE
WHETHER BASED IN CONTRACT, TORT, OR OTHERWISE. Some states do not allow the exclusion or limitation of
incidental or consequential damages or limitations on how long an implied warranty lasts, so the above exclusion or
limitation may not apply to you. This warranty gives you specific legal rights and you may also have other rights that
vary from state to state.
THIS LIMITED WARRANTY DOES NOT APPLY TO:
• Service trips to your home to deliver, pick up, and/or install the product, instruct, or replace house fuses or
correct wiring, or correction of unauthorized repairs.
• Damages or operating problems that result from misuse, abuse, operation outside environmental
specifications or contrary to the requirements of precautions in the Operating Guide, accident, vermin, fire,
flood, improper installation, acts of God, unauthorized modification or alteration, incorrect electrical current or
voltage, or commercial use, or use for other than intended purpose.
• Repairs when your LG refrigerator is used in other than normal, single-family household use.
• Damages caused during and/or after delivery.
• Display, discount, or refurbished units purchased with scratches, dents, or defects.
The cost of repair or replacement under these excluded circumstances shall be borne by the consumer.
Proof of purchase is required and must be provided to LG in order to validate warranty.
CUSTOMER INTERACTIVE CENTER NUMBERS
TO CONTACT LG ELECTRONICS BY MAIL:
LG Customer Interactive Center
P. O. Box 240007
201 James Record Road
Huntsville, Alabama 35813
ATTN: CIC
WARRANTY PERIOD:
REFRIGERATOR/FREEZER
LABOR: One Year from the Date of Purchase.
PARTS: One Year from the Date of Purchase.
SEALED SYSTEM (Compressor, Condenser, and
Evaporator)
LABOR: One Year from the Date of Purchase.
PARTS: Seven years from the Date of Purchase.
Replacement Units and Repair Parts are warranted
for the remaining portion of the original unit’s
warranty period.
HOW SERVICE IS HANDLED:
In-Home Service (Except Model GR051):
Please retain dealer’s dated bill of sale or delivery
ticket as evidence of the Date of Purchase for proof
of warranty, and submit a copy of the bill of sale to
the service person at the time warranty service is
provided.
Please call 1-800-243-0000 and choose the
appropriate option to locate your nearest LG
Authorized Service Center. (Phones are
answered 24 hours a day, 365 days per year.)
Or visit our website at: http://www.lgservice.com
To obtain Customer Assistance, Product
Information, or Dealer or Authorized Service Center
location:
Call 1-800-243-0000 (24 hours a day, 365 days per
year) and select the appropriate option from the menu.
Or visit our website at: http://www.lgservice.com
http://www.lge.com
P/No. 3828JL8797J
