User manual
Always there to help you
Register your product and get support at
Question?
Contact
Philips
BDP2205
BDP2205_05_UM_EN.indd 1 3/27/2014 10:55:16 AM
2
Safety and
important notice
Read and understand all instructions before you
use this Blu-ray disc/ DVD player. If damage is
caused by failure to follow the instructions, the
warranty does not apply.
Important notes for users in
the U.K.
Mains fuse
This information applies only to products with a
UK mains plug.
This product is tted with an approved molded
plug. If you replace the fuse, use one with:
• the ratings shown on the plug,
• a BS 1362 approval, and
• the ASTA approval mark.
Contact your dealer if you are not sure about
what type of fuse to use.
Caution: To conform with the EMC directive
(2004/108/EC), do not detach the plug from
the power cord.
How to connect a plug
The wires in the power cord are colored as
follows: blue = neutral (N), brown = live (L).
If the colors do not correspond with the colors
on your plug, identify the terminals in your plug
as follows:
1 Connect the blue wire to the terminal
marked N or colored black.
2 Connect the brown wire to the terminal
marked L or colored red.
3 Do not connect either wire to the earth
terminal in the plug, marked E (or e) or
colored green (or green and yellow).
Before you replace the plug cover, make sure
that the cord grip is clamped over the sheath
of the cable and not just over the two wires in
the cable.
Copyright in the U.K.
Recording and playback of material may require
consent. see Copyright Act 1956 and The
performer’s Protection Acts 1958 to 1972
Safety
Risk of electric shock or re!
• Never expose the product and accessories
to rain or water. Never place liquid
containers, such as vases, near the product.
If liquids are spilt on or into the product,
disconnect it from the power outlet
immediately. Contact Philips Consumer
Care to have the product checked before
use.
• Never place the product and accessories
near naked ames or other heat sources,
including direct sunlight.
• Never insert objects into the ventilation
slots or other openings on the product.
• Where the mains plug or an appliance
coupler is used as the disconnect device,
the disconnect device shall remain readily
operable.
• Batteries (battery pack or batteries
installed) shall not be exposed to excessive
heat such as sunshine, re or the like.
• Disconnect the product from the power
outlet before lightning storms.
• When you disconnect the power cord,
always pull the plug, never the cable.
Risk of short circuit or re!
• Before you connect the product to the
power outlet, ensure that the power
voltage matches the value printed on the
back or bottom of the product. Never
connect the product to the power outlet if
the voltage is different.
Risk of injury or damage to the product!
• Visible and invisible laser radiation when
open. Avoid exposure to beam.
• Do not touch the disc optical lens inside
the disc compartment.
BDP2205_05_UM_EN.indd 2 3/27/2014 10:55:17 AM
3
• Never place the product or any objects
on power cords or on other electrical
equipment.
• If the product is transported in
temperatures below 5°C, unpack the
product and wait until its temperature
matches room temperature before
connecting it to the power outlet.
Risk of overheating!
• Never install this product in a conned
space. Always leave a space of at least four
inches around the product for ventilation.
Make sure that curtains or other objects
never cover the ventilation slots on the
product.
Risk of contamination!
• Do not mix batteries (old and new or
carbon and alkaline, etc.).
• Remove batteries if they are exhausted or
if the remote control is not to be used for
a long time.
• Batteries contain chemical substances, they
should be disposed of properly.
Risk of swallowing batteries!
• The product/remote control may contain a
coin type battery, which can be swallowed.
• Keep the battery out of reach of children
at all times!
Class II equipment symbol:
This symbol indicates that this product has a
double insulation system.
CLASS 1
LASER PRODUCT
Care for your product
• Do not insert any objects other than discs
into the disc compartment.
• Do not insert warped or cracked discs into
the disc compartment.
• Remove discs from the disc compartment
if you are not using the product for an
extended period of time.
• Only use microber cloth to clean the
product.
Care of the environment
Your product is designed and manufactured
with high quality materials and components,
which can be recycled and reused.
When this crossed-out wheeled bin symbol is
attached to a product it means that the product
is covered by the European Directive 2002/96/
EC. Please inform yourself about the local
separate collection system for electrical and
electronic products.
Please act according to your local rules and
do not dispose of your old products with your
normal household waste. Correct disposal of
your old product helps to prevent potential
negative consequences for the environment and
human health.
Your product contains batteries covered by the
European Directive 2006/66/EC, which cannot
be disposed with normal household waste.
Please inform yourself about the local rules
on separate collection of batteries because
correct disposal helps to prevent negative
consequences for the environmental and
human health.
BDP2205_05_UM_EN.indd 3 3/27/2014 10:55:18 AM
4
Compliance
This product complies with the radio
interference requirements of the European
Community.
Hereby, Philips Consumer Lifestyle, declares
that this product is in compliance with the
essential requirements and other relevant
provisions of Directive 1999/5/EC. You
can nd the Declaration of Conformity on
www.p4c.philips.com.
Copyright
This item incorporates copy protection
technology that is protected by U.S. patents
and other intellectual property rights of
Rovi Corporation. Reverse engineering and
disassembly are prohibited.
This product incorporates proprietary
technology under license from Verance
Corporation and is protected by U.S. Patent
7,369,677 and other U.S. and worldwide
patents issued and pending as well as copyright
and trade secret protection for certain aspects
of such technology. Cinavia is a trademark of
Verance Corporation. Copyright 2004-2013
Verance Corporation. All rights reserved by
Verance. Reverse engineering or disassembly is
prohibited.
Cinavia notice
This product uses Cinavia technology to
limit the use of unauthorized copies of some
commercially-produced lm and videos and
their soundtracks. When a prohibited use of an
unauthorized copy is detected, a message will
be displayed and playback or copying will be
interrupted.
More information about Cinavia technology
is provided at the Cinavia Online Consumer
Information Center at http://www.cinavia.com.
To request additional information about Cinavia
by mail, send a postcard with your mailing
address to: Cinavia Consumer Information
Center, P.O. Box 86851, San Diego, CA, 92138,
USA.
Open source software
Philips Electronics Singapore hereby offers to
deliver, upon request, a copy of the complete
corresponding source code for the copyrighted
open source software packages used in this
product for which such delivery is requested by
the respective licenses. This offer is valid up to
three years after product purchase to anyone
in receipt of this information. To obtain source
code, please send your request in English with
product type to [email protected]. If
you prefer not to use email or if you do not
receive conrmation receipt within 2 weeks
after mailing to this email address, please
write in English to “Open Source Team, Philips
Intellectual Property & Standards, P.O. Box 220,
5600 AE Eindhoven, The Netherlands”. If you do
not receive timely conrmation of your letter,
please email to the email address above. The
texts of the licenses and acknowledgements for
open source software used in this product are
included on a separate leaet.
BDP2205_05_UM_EN.indd 4 3/27/2014 10:55:18 AM
5
User Manual
1
HDMI
COAXIAL
C
OA
X
IA
L
A
A
BDP2205_05_UM_EN.indd 5 3/27/2014 10:55:20 AM
6
COAXIAL
C
OA
XIA
AL
A
A
COAXIAL
2
HDMI OUT
HDMI OUT
BDP2205_05_UM_EN.indd 6 3/27/2014 10:55:21 AM
7
4
3
5
SOURCE
1
2
TV
BDP2205_05_UM_EN.indd 7 3/27/2014 10:55:24 AM

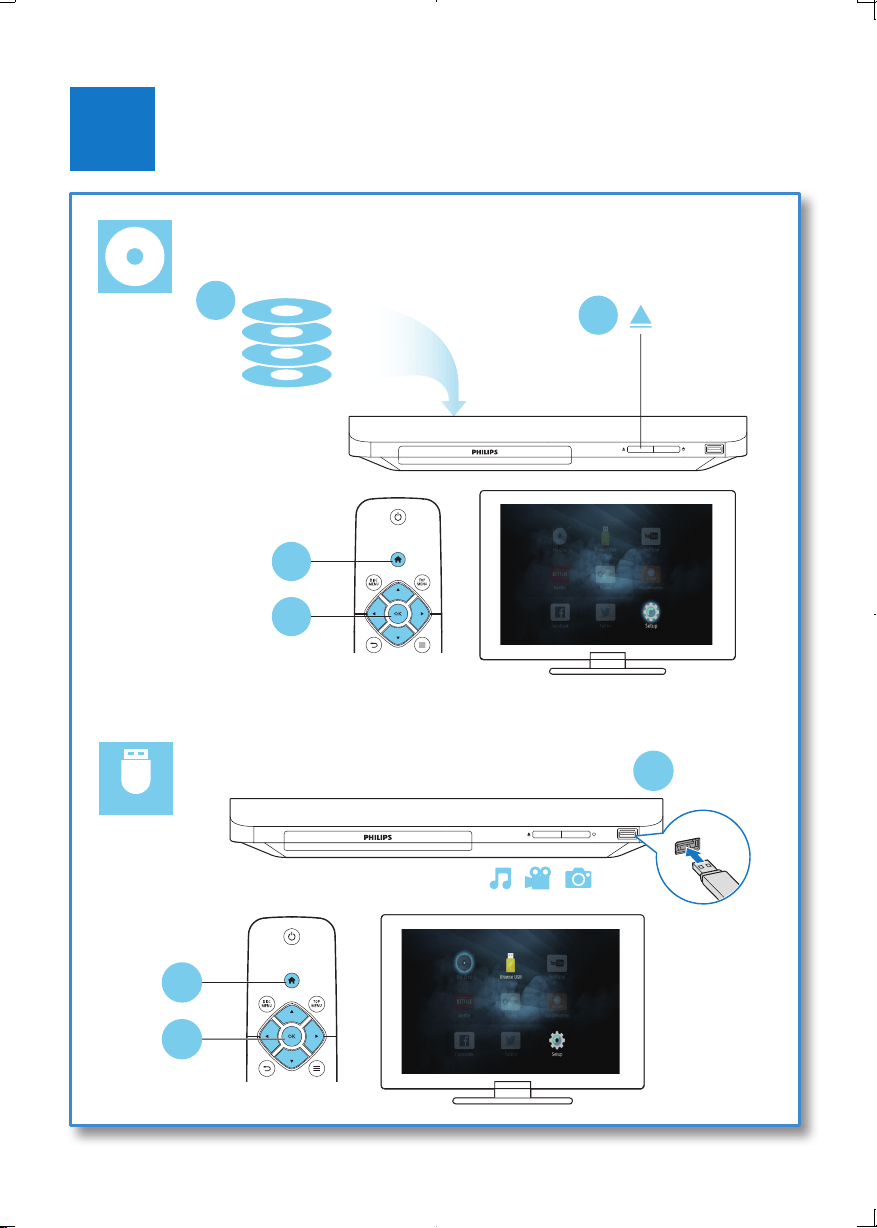

8
6
USB
DVD/VCD/CD
BD
DivX Plus HD/MKV
MP3 / JPEG
2
1
3
4
1
2
3
BDP2205_05_UM_EN.indd 8 3/27/2014 10:55:26 AM
1
Contents
1 Use your Blu-ray disc/ DVD player 2
Basic play control 2
Video, audio and picture options 3
DivX videos 4
Play a musical slideshow 5
BonusView on Blu-ray 5
BD-Live on Blu-ray 5
Set up a network 6
Enjoy Internet services 7
Use Philips EasyLink 7
2 Change settings 8
Picture 8
Sound 8
Network (installation, status...) 9
Preference (languages, parental control...) 9
Advanced options (clear memory...) 9
3 Update software 10
Update software via the Internet 10
Update software via USB 10
4 Specications 11
5 Troubleshooting 14
6 Trademarks 16
EN
BDP2205_05_UM_EN.indd 1 3/27/2014 10:55:26 AM
2
1 Use your Blu-
ray disc/ DVD
player
Congratulations on your purchase, and
welcome to Philips! To fully benet from
the support that Philips offers (e.g. product
software upgrade), register your product at
www.philips.com/welcome.
Basic play control
During play, press the following buttons to
control.
Button Action
Turn on the player, or switch
to standby.
Access the home menu.
EN
BDP2205_05_UM_EN.indd 2 3/27/2014 10:55:27 AM
3
Button Action
DISC MENU Access or exit the disc menu
or Pop-up menu.
TOP MENU Access the main menu of a
video disc.
Navigate the menus.
Press to rotate a picture
clockwise or counter-clockwise
during slideshow.
OK Conrm a selection or entry.
Return to a previous display
menu.
Access more options during
play.
Color
buttons
Select tasks or options for
Blu-ray discs.
Open or close the disc
compartment.
Start or resume play.
Pause play.
Press repeatedly to slow
forward frame by frame.
Stop play.
/ Skip to the previous or next
track, chapter or le.
/ Fast backward or forward.
Press repeatedly to change the
search speed.
Press once, and then press
to slow forward.
AUDIO Select an audio language or
channel.
SUBTITLE Select a subtitle language.
Alphanumeric
buttons
Select an item to play.
Enter values.
Enter letters via SMS style
entry.
Video, audio and picture
options
More options are available for video or picture
play from a disc or USB storage device.
Video options
Access more options during video play.
• [Audio language]: Select an audio language.
• [Subtitle language]: Select a subtitle
language.
• [Subtitle shift]: Change the subtitle
position on the screen. Press to
change the subtitle position.
• [Info]: Display play information.
• [Character set]: Select a character set that
supports the DivX video subtitle (only for
DivX videos).
• [Time search]: Skip to a specic time
via the numeric buttons on the remote
control.
• [2nd audio language]: Select the second
audio language (only for Blu-ray discs that
support BonusView).
• [2nd subtitle language]: Select the second
subtitle language (only for Blu-ray discs that
support BonusView).
• [Titles]: Select a title.
• [Chapters]: Select a chapter.
• [Angle list]: Select a camera angle.
• [Menus]: Display a disc menu.
• [PIP selection]: Display a picture-in-picture
window (only for Blu-ray discs that support
BonusView).
2
3
1
EN
BDP2205_05_UM_EN.indd 3 3/27/2014 10:55:30 AM
4
• [Zoom]: Zoom into a video picture. Press
to select a zoom factor.
• [Repeat]: Repeat a chapter or title.
• [Repeat A-B]: Mark two points within a
chapter for repeat play, or turn off repeat
mode.
• [Picture settings]: Select a predened
color setting.
Note
• Available video options depend on the video source.
Picture options
Access more options during slideshow.
• [Rotate +90]: Rotate a picture 90 degrees
clockwise.
• [Rotate -90]: Rotate a picture 90 degrees
counter-clockwise.
• [Zoom]: Zoom into a picture. Press to
select a zoom factor.
• [Info]: Display picture information.
• [Duration per slide]: Set a display interval
for a slideshow.
• [Slide animation]: Select a transition effect
for a slideshow.
• [Picture settings]: Select a predened
color setting.
• [Repeat]: Repeat a selected folder.
2
3
1
Audio options
Press repeatedly to cycle through the
following options.
• Repeat the current track.
• Repeat all the tracks on the disc or folder.
• Play audio tracks in a random loop.
• Turn off a repeat mode.
DivX videos
You can play DivX videos from a disc or a USB
storage device.
VOD code for DivX
• Before you purchase DivX videos and play
them on this player, register this player on
www.divx.com using the DivX VOD code.
• Display the DivX VOD code: press , and
select [Setup] > [Advanced] > [DivX
®
VOD Code].
DivX subtitles
• Press SUBTITLE to select a language.
• If the subtitle is not displayed correctly,
change the character set that supports the
DivX subtitle. Select a character set: press
, and select [Character set].
Character
set
Languages
[Standard] English, Albanian, Danish, Dutch,
Finnish, French, Gaelic, German,
Italian, Kurdish (Latin), Norwegian,
Portuguese, Spanish, Swedish, and
Turkish
EN
BDP2205_05_UM_EN.indd 4 3/27/2014 10:55:31 AM
5
Character
set
Languages
[Central
Europe]
Albanian, Croat, Czech, Dutch,
English, German, Hungarian, Irish,
Polish, Romanian, Slovak, Slovene,
and Serbian
[Cyrillic] Bulgarian, Belorussian, English,
Macedonian, Moldavian, Russian,
Serbian, and Ukrainian
[Greek] Greek
[Baltic] Estonian, Latvian and Lithuanian
[Chinese] Simplied Chinese
[Chinese-
Traditional]
Traditional Chinese
[Korean] English and Korean
Note
• To use the subtitles, make sure that the subtitle le
has the same name as the DivX video le name. For
example, if the DivX video le is named “movie.avi",
save the subtitle le as “movie.srt”, or “movie.sub”.
• This player can play subtitle les in the following
formats: .srt, .sub, .txt, .ssa, and .smi.
Play a musical slideshow
Play music and pictures simultaneously to create
a musical slideshow.
1 From a disc or connected USB storage
device, play a music le.
2 Press , and go to the picture folder.
3 Select a picture from the same disc or
USB, and press OK to start slideshow.
4 Press to stop slideshow.
5 Press again to stop music play.
BonusView on Blu-ray
View special content (such as commentaries) in
a small screen window.
This feature is only applicable to Blu-ray discs
compatible with BonusView (also known as
picture in picture).
1 During play, press .
» The options menu is displayed.
2 Select [PIP selection] > [PIP], and press
OK.
» PIP options [1]/[2] depend on the
video contents.
» The secondary video window is
displayed.
3 Select [2nd audio language] or [2nd
subtitle language], and press OK.
BD-Live on Blu-ray
Access exclusive online services, such as movie
trailers, games, ringtones and other bonus
contents.
This feature is only applicable to Blu-ray discs
that are BD-Live enabled.
1 Prepare the Internet connection and set
up a network (see “Set up a network”).
2 Connect a USB storage device to the
(USB) connector on this player.
• A USB storage device is used to store
the downloaded BD-Live content.
• To delete the BD-Live previously
downloaded on the USB storage
device for memory release, press
and select [Setup] > [Advanced] >
[Clear memory].
3 Play a disc that is BD-Live enabled.
4 On the disc menu, select the BD-Live icon,
and press OK.
» BD-Live starts to load. The loading
time depends on the disc and the
Internet connection.
EN
BDP2205_05_UM_EN.indd 5 3/27/2014 10:55:32 AM
6
5 On the BD-Live interface, select an item
to access.
Note
• BD-Live services vary from discs and countries.
• When you use BD-Live, data on the disc and this player
are accessed by the content provider
• Use a USB storage device with at least 1GB of free
space to store the download.
Set up a network
Connect this player to a computer network and
the Internet to access the services:
• Update software: update the software of
this player via the Internet.
• BD-Live: access online bonus features
(applicable to Blu-ray discs that are BD-
Live enabled).
• Online services: access Internet services
such as YouTube, Picasa, Facebook and
Twitter.
1 Connect this player to a computer
network and the Internet, through wired
(Ethernet) or wireless connection.
• For wired connection, connect a
network cable (not supplied) to the
LAN port on the back panel of this
player.
• This player has a built-in Wi-Fi for a
wireless connection.
2 Perform the network installation.
1) Press .
2) Select [Setup], and press OK.
3) Select [Network] > [Network
installation], and press OK.
4) Follow the instructions on the TV screen to
complete the installation.
Caution
• Before you connect to a network, familiarize yourself
with the network router and networking principles. If
necessary, read documentation accompanying network
components. Philips is not responsible for lost, damaged,
or corrupt data.
EN
BDP2205_05_UM_EN.indd 6 3/27/2014 10:55:34 AM
7
Enjoy Internet services
With this player, you can access online services,
such as movies, pictures and music.
What you need
• Connect this player to the Internet (see
“Set up a network”).
1 Press .
2 Select a service and press OK.
• [YouTube]: a video-sharing service
• [Netix]: an online subscription service
streaming movies & TV episodes over the
Internet
• [Picasa]: an online photo album
• [AccuWeather]: an online weather
forecasting service worldwide
• [Facebook]: a social networking service
• [Twitter]: an online social networking
service and microblogging service
3 Follow the on-screen instruction and use
your remote control to enjoy the services.
Function Button/Action
Select a service or item.
Conrm a selection. OK
Return to a previous page, or
delete input text.
Return to the home page.
Note
• Netix is available in certain countries. Streaming
membership required. More information at
www.netix.com.
Use Philips EasyLink
This player supports Philips EasyLink which
uses the HDMI CEC (Consumer Electronics
Control) protocol. You can use a single remote
control to control EasyLink compliant devices
that are connected through HDMI. Philips does
not guarantee 100% interoperability with all
HDMI CEC devices.
1 Connect the HDMI CEC compliant devices
through HDMI, and turn on the HDMI
CEC operations on the TV and other
connected devices (see the user manual of
the TV or other devices for details).
2 Press .
3 Select [Setup]> [EasyLink].
4 Select [On] under the options: [EasyLink],
[One Touch Play] and [One Touch
Standby].
» EasyLink function is turned on.
One Touch Play
When a video disc is in the disc compartment,
press to wake up the TV from standby, and
then play a disc.
One Touch Standby
When a connected device (for example TV)
is put to standby with its own remote control,
this player is put to standby automatically.
EN
BDP2205_05_UM_EN.indd 7 3/27/2014 10:55:34 AM
8
2 Change settings
This section helps you change the settings of
this player.
Note
• You cannot change a menu option that is grayed out.
• To return to the previous menu, press . To exit the
menu, press .
1 Press .
2 Select [Setup] > [Video] to access the
video setup options.
• [TV display]: Select a picture display format
to t the TV screen.
• [HDMI video]: Select an HDMI video
resolution.
• [HDMI Deep Color]: Display colors with
more shades and hues when the video
content is recorded in Deep Color and the
TV supports this feature.
• [Picture settings]: Select a predened
color setting.
1
3
2
3
Note
• If you change a setting, make sure that the TV supports
the new setting.
Sound
1 Press .
2 Select [Setup] > [Audio] to access the
audio setup options.
• [Night mode]: Select quiet or full dynamic
sound. Night mode decreases the volume
of loud sound and increases the volume of
soft sound (such as speech).
• [HDMI audio]: Set an HDMI audio format
when this player is connected through
HDMI.
• [Digital audio]: Select an audio format
for the sound output when this player is
connected through a digital connector
(coaxial).
• [PCM downsampling]: Set the sampling
rate for PCM audio output when this
player is connected through a digital
connector (coaxial).
Note
• For settings related to HDMI, the TV must be
connected through HDMI.
• Night mode is only available for Dolby TrueHD, Dolby
Digital Plus encoded DVD and Blu-ray discs.
EN
BDP2205_05_UM_EN.indd 8 3/27/2014 10:55:36 AM
9
Network (installation,
status...)
1 Press .
2 Select [Setup] > [Network] to access the
network setup options.
• [Network installation]: Start a wired or
wireless installation to make the network
work.
• [View network settings]: Display the
current network status.
• [View wireless settings]: Display the
current Wi-Fi status.
Preference (languages,
parental control...)
1 Press .
2 Select [Setup] > [Preference] to access
the preference setup options.
• [Menu language]: Select an onscreen
display menu language.
• [Audio]: Select an audio language for video.
• [Subtitle]: Select a subtitle language for
video.
• [Disc menu]: Select a menu language for a
video disc.
• [Parental control]: Restrict access to discs
that are encoded with ratings. Input “0000”
to access the restriction options. To play all
discs irrespective of the rating, select level
“8”.
• [Screen saver]: Enable or disable screen
saver mode. If enabled, the screen enters
idle mode after 10 minutes of inactivity (for
example, in pause or stop mode).
• [Auto subtitle shift]: Enable or disable
subtitle shift. If enabled, the subtitle position
is changed automatically to t the TV
screen (this feature works with some
Philips TVs only).
• [Change password]: Set or change a
password to play a restricted disc. Input
“0000” if you do not have a password or if
you have forgotten your password.
• [Auto standby]: Enable or disable auto
standby. If enabled, the player switches to
standby after 30 minutes of inactivity (for
example, in pause or stop mode).
• [VCD PBC]: Display or skip the content
menu for VCD and SVCD.
• [Auto play disc]: Enable or disable the
automatic disc playback after power on.
• [Auto play after video]: Enable or disable
sequential playback of videos from USB.
Note
• If your preferred language is not available for disc
language, audio or subtitle, you can select [Other]
from the menu options and input 4-digit language code
which can be found at the back of this user manual.
• If you select a language which is not available on a disc,
this player uses the default language of the disc.
Advanced options (clear
memory...)
1 Press .
2 Select [Setup] > [Advanced] to access the
advanced setup options.
• [BD-Live security]: Restrict or allow access
to BD-Live (only for non-commercial, user-
created BD-Live discs).
• [Downmix mode]: Control 2-channel
stereo audio output.
• [Software update]: Select to update
software from a network or from USB
storage device.
• [Clear memory]: Delete the previous BD-
Live download on the USB storage device.
A “BUDA” folder is automatically created
to store the BD-Live download.
• [DivX
®
VOD Code]: Display the DivX
®
registration code or the deregistration
code for this player.
EN
BDP2205_05_UM_EN.indd 9 3/27/2014 10:55:36 AM
10
• [Netix ESN]: Display ESN (Electronic
Serial Number) for this player.
• [Deactivation]: Cancel Netix activation
on this player.
• [Version information]: Display the
software version of this player.
• [Restore default settings]: Reset this player
to the default settings made at the factory,
except for password and parental control
level.
Note
• You cannot restrict Internet access on commercial
Blu-ray discs.
• Before you purchase DivX videos and play them on this
player, register this player on www.divx.com with the
DivX VOD code.
3 Update software
Before you update the software of this player,
check the current software version:
• Press , and then select [Setup] >
[Advanced] > [Version information], and
press OK.
Update software via the
Internet
1 Connect the player to the Internet (see
“Set up a network”).
2 Press , and select [Setup].
3 Select [Advanced] > [Software update]>
[Network].
» If an upgrade media is detected, you
are prompted to start the update.
4 Follow the instructions on the TV screen
to update the software.
» When the update is complete, this
player automatically turns off and on
again.
Update software via USB
1 Check the latest software version on
www.philips.com/support.
• Search for your model and click on
“Software and drivers”.
2 Download the software into a USB storage
device.
a Unzip the download, and make sure
that the unzipped folder is named
“UPG”.
b Put the “UPG” folder in the root
directory.
3 Connect the USB storage device to the
(USB) connector on this player.
EN
BDP2205_05_UM_EN.indd 10 3/27/2014 10:55:36 AM
11
4 Press , and select [Setup].
5 Select [Advanced] > [Software update]>
[USB].
» If an upgrade media is detected, you
are prompted to start the update.
6 Follow the instructions on the TV screen
to update the software.
» When the update is complete, this
player automatically turns off and on
again.
Caution
• Do not turn off the power or remove the USB storage
device when the software update is in progress because
you might damage this player.
4 Specifications
Note
• Specications are subject to change without notice
Region code
This player can play discs with the following
region codes.
DVD Blu-ray Countries
Europe,
United
Kingdom
Media formats
• BD-Video
• DVD-Video, DVD+R/+RW, DVD-R/-RW,
DVD+R/-R DL (Dual Layer)
• VCD/SVCD
• Audio CD, CD-R/CD-RW, MP3 media,
WMA media, JPEG les
• DivX (Ultra)/DivX Plus HD media, MKV
media
• USB storage device
File formats
• Audio:
• .aac, .mka, .mp3, .wma, .wav, .m4a, .ac,
.ogg
• Video:
• .avi, .divx, .mp4, .m4v, .ts, .mov, .mkv,
.m2ts, .mpg, .mpeg, .3gp
• Picture: .jpg, .jpeg, .gif, .png
B
EN
BDP2205_05_UM_EN.indd 11 3/27/2014 10:55:37 AM
12
Audio formats
This product supports the following audio les.
Exten-
sion
Con-
tainer
Audio
codec
Bit rate
.mp3 MP3 MP3 Up to 320 kbps
.wma ASF WMA Up to 192 kbps
WMA Pro Up to 768kbps
.aac AAC AAC, HE-
AAC
Up to 192 kbps
.wav WAV PCM 27.648 Mbps
.m4a MKV AAC 192 kbps
ALAC Up to 192kHz
sampling rate
.mka MKA PCM 27.648 Mbps
AC-3 640kbps
DTS core 1.54 Mbps
MPEG 912 kbps
MP3 Up to 320 kbps
WMA Up to 192 kbps
WMA Pro Up to 768kbps
AAC, HE-
AAC
Up to 192 kbps
.ac FLAC FLAC Up to 24 bit per
sample
.ogg OGG Vorbis Variable bit rate,
maximum block
size 4096
FLAC Up to 192kHz
sampling rate
OGGPCM No limitation
MP3 Upto 320 kbps
Video formats
If you have a high denition TV, this product
allows you to play your video les with:
• Resolution: 1920 x 1080 pixels at
• Frame rate: 6 ~ 30 frames per second.
.avi les in AVI container (or .ts les in TS
container)
Audio codec Video codec Bit rate
PCM, AC-3,
DTS core,
MP3, WMA,
DD+
DivX 3.11,
DivX 4.x,
DivX 5.x,
DivX 6.x
10 Mbps max
MPEG 1,
MPEG 2
40 Mbps
MPEG 4 SP /
ASP
38.4 Mbps
H.264/AVC up
25 Mbps
WMV9 45 Mbps
.divx les in AVI container
Audio codec Video codec Bit rate
PCM, AC-3,
DTS core,
MP3, WMA,
DD+
DivX 3.11,
DivX 4.x,
DivX 5.x,
DivX 6.x
10 Mbps max
.mp4 or .m4v les in MP4 container
Audio codec Video codec Bit rate
AC-3, MPEG,
MP3, AAC,
HE-AAC,
DD+
MPEG 1,
MPEG 2
40 Mbps
MPEG 4 ASP 38.4 Mbps
H.264/AVC up
25 Mbps
.mov les in MOV container
Audio codec Video codec Bit rate
AC-3, MPEG,
MP3, AAC,
HE-AAC
MPEG 1,
MPEG 2
40 Mbps
MPEG 4 ASP 38.4 Mbps
H.264/AVC up
25 Mbps
EN
BDP2205_05_UM_EN.indd 12 3/27/2014 10:55:37 AM
13
.mkv les in MKV container
Audio codec Video codec Bit rate
PCM, AC-3,
DTS core,
MPEG, MP3,
WMA, AAC,
HE-AAC,
DD+, FLAC
DivX Plus HD 30 Mbps
MPEG 1,
MPEG 2
40 Mbps
MPEG 4 ASP 38.4 Mbps
H.264/AVC up
25 Mbps
WMV9 45 Mbps
.m2ts les in MKV container
Audio codec Video codec Bit rate
PCM, AC-3,
DTS core,
MPEG, MP3,
WMA, AAC,
HE-AAC,
DD+
MPEG 1,
MPEG 2
40 Mbps
MPEG 4 ASP 38.4 Mbps
H.264/AVC up
25 Mbps
WMV9 45 Mbps
.mpg and .mpeg les in PS container
Audio codec Video codec Bit rate
PCM, DTS
core, MPEG,
MP3
MPEG 1,
MPEG 2
40 Mbps
.3gp les in 3GP container
Audio codec Video codec Bit rate
AAC, HE-
AAC
MPEG 4 ASP 38.4 Mbps
H.264/AVC up
25 Mbps max
Video
• Signal system: PAL / NTSC
• HDMI output: 480i/576i, 480p/576p, 720p,
1080i, 1080p, 1080p/24Hz
Audio
• Digital output: 0.5 Vp-p (75 ohm)
• Coaxial
• HDMI output
• Sampling frequency:
• MP3: 32 kHz, 44.1 kHz, 48 kHz
• WMA: 44.1 kHz, 48 kHz
• Constant bit rate:
• MP3: 112 kbps - 320 kpbs
• WMA: 48 kpbs - 192 kpbs
Wi-Fi
• Support wireless standards: IEEE802.11
b/g/n (2.4 GHz)
USB
• Compatibility: Hi-Speed USB (2.0)
• Class support: USB Mass Storage Class
• File system: FAT16, FAT32
• USB port: 5V , 500mA
• Support HDD (a portable hard disc drive):
an external power source may be needed.
Main unit
• Power supply rating:
220-240V~, 50Hz -60Hz
• Power consumption: 11 W
• Power consumption in standby mode:
< 0.5 W
• Dimensions (w x h x d):
310 x 39.5 x 217.7 (mm)
EN
BDP2205_05_UM_EN.indd 13 3/27/2014 10:55:37 AM
14
• Net Weight: 1.12 kg
Operating Temperature & Humidity
• 0°C to 45°C, 5% to 90% Humidity for all
climates.
Storage Temperature & Humidity
• -40 °C to 70 °C, 5% to 95%
Accessories
• Remote control and batteries
• User manual
Laser
• Laser Type (Diode): AlGaInN (BD),
AlGaInP (DVD/CD)
• Wave length: 398nm to 413nm (BD),
645nm to 664nm (DVD),
770nm to 800nm(CD)
• Output power: 1.7mW (BD),
0.19mW(DVD), 0.25mW (CD)
5 Troubleshooting
Note
• For identication and supply ratings, see the type plate
at the back or bottom of the product.
• Before you make or change any connections, make sure
that all devices are disconnected from the power outlet.
Warning
• Risk of electric shock. Never remove the casing of the
player.
To keep the warranty valid, never try to repair
the player yourself.
If you have problems using this player, check the
following points before you request service. If
you still have a problem, register your player and
get support at www.philips.com/support.
If you contact Philips, you will be asked for the
model and serial number of this player. The
model number and serial number are on the
back of this player. Write the numbers here:
Model No. __________________________
Serial No. ___________________________
Main unit
The buttons on this player do not work.
• Disconnect this player from the power
supply for a few minutes, and then
reconnect.
No picture.
• Make sure that the TV is switched to the
correct source input for this player.
No picture on HDMI connection.
• Make sure that the HDMI cable is not
faulty. If it is faulty, replace with a new
HDMI cable.
EN
BDP2205_05_UM_EN.indd 14 3/27/2014 10:55:37 AM
15
• On the remote control, press and then
press “731” (numeric buttons) to recover
picture display. Or wait for 10 seconds for
auto recovery.
• If this player is connected to an
unauthorized display device with an HDMI
cable, the audio and video signals may not
be output.
The disc does not play high-denition video.
• Make sure that the disc contains high-
denition video.
• Make sure that the TV supports high-
denition video.
Sound
No audio output from the TV.
• Make sure that the audio cables are
connected to the audio input of the TV.
• Make sure that the TV is switched to the
correct source input for this player.
No audio output from the loudspeakers of
the external audio device (home theater or
amplier).
• Make sure that the audio cables are
connected to the audio input of the audio
device.
• Switch the external audio device to the
correct audio source input.
No sound on HDMI connection.
• You may not hear any sound from the
HDMI output if the connected device
is non-HDCP compliant or only DVI-
compatible.
No secondary audio output for Picture-in-
Picture feature.
• When [Bitstream] under the [HDMI
Audio] or [Digital Audio] menu is selected,
interactive sound like secondary sound for
Picture-in-Picture feature is muted. De-
select [Bitstream].
Play
Cannot play a disc.
• Clean the disc.
• Make sure that the disc is correctly loaded.
• Make sure that this player supports the
disc. See “Specications”.
• Make sure that this player supports the
region code of the DVD or BD.
• For DVD±RW or DVD±R, make sure that
the disc is nalized.
Cannot play DivX video les.
• Make sure that the DivX video le is
complete.
• Make sure that the video le name
extension is correct.
DivX subtitles do not display correctly.
• Make sure that the subtitle le has the
same name as the DivX video le.
• Make sure that the subtitle le has an
extension name supported by this player
(.srt, .sub, .txt, .ssa, or .smi).
Cannot read the contents of a connected USB
storage.
• Make sure that the format of the USB
storage device is compatible with this
player.
• Make sure that the le system on the USB
storage device is supported by this player.
• For a USB HDD (a portable hard disc
drive), an external power source may be
needed.
‘No entry’ or ‘x’ sign is displayed on the TV.
• The operation is not possible.
EasyLink feature does not work.
• Make sure that this player is connected
to the Philips brand EasyLink TV, and the
EasyLink option is turned on (see “Use
your Blu-ray disc/ DVD player” > “Use
Philips EasyLink”).
Cannot access BD-Live features.
• Make sure that this player is connected to
the network (see “Use your Blu-ray disc/
DVD player” > “Set up a network”).
EN
BDP2205_05_UM_EN.indd 15 3/27/2014 10:55:37 AM
16
• Make sure that the network installation is
made (see “Use your Blu-ray disc/ DVD
player” > “Set up a network”).
• Make sure that the Blu-ray disc supports
BD-Live features.
• Clear memory storage (see “Change
settings” > “Advanced options (BD-Live
security, clear memory...)”).
Network
Wireless network is not found or distorted.
• Make sure that the network is correctly
connected (see “Use your Blu-ray disc/
DVD player” > “Set up a network”).
• Make sure that the network installation is
made (see “Use your Blu-ray disc/ DVD
player” > “Set up a network”).
• Make sure that the wireless network is
not disturbed by microwave ovens, DECT
phones, or other neighboring Wi-Fi devices.
• If the wireless network does not work
properly, try a wired network installation
(see “Use your Blu-ray disc/ DVD player” >
“Set up a network”).
Internet services do not work.
• Make sure that the network is correctly
connected (see “Use your Blu-ray disc/
DVD player” > “Set up a network”).
• Make sure that the network installation is
made (see “Use your Blu-ray disc/ DVD
player” > “Set up a network”).
• Check the router connection (refer to the
user manual for the router).
Internet services work slowly.
• Look in your wireless router’s user manual
for information on indoor range, transfer
rate, and other factors of signal quality.
• You need a high speed Internet connection
for your router.
6 Trademarks
‘Blu-ray Disc ‘ and ‘Blu-ray Disc ‘ logo are
trademarks of Blu-ray Disc Association.
HDMI, and HDMI logo and High-Denition
Multimedia Interface are trademarks or
registered trademarks of HDMI licensing LLC in
the United States and other countries.
Manufactured under license from Dolby
Laboratories. Dolby and the double-D symbol
are trademarks of Dolby Laboratories.
ABOUT DIVX VIDEO: DivX
®
is a digital video
format created by DivX, LLC, a subsidiary
of Rovi Corporation. This is an ofcial DivX
Certied
®
device that plays PDivX video. Visit
divx.com for more information and software
tools to convert your les into DivX videos.
ABOUT DIVX VIDEO-ON-DEMAND: This
DivX Certied
®
device must be registered
in order to play purchased DivX Video-on-
Demand (VOD) movies. To obtain your
registration code, locate the DivX VOD section
in your device setup menu. Go to vod.divx.com
for more information on how to complete your
registration.
DivX Certied
®
to play DivX
®
and DivX Plus
®
HD (H.264/MKV) video up to 1080p HD
including premium content.
DivX
®
, DivX Certied
®
, DivX Plus
®
HD
and associated logos are trademarks of Rovi
EN
BDP2205_05_UM_EN.indd 16 3/27/2014 10:55:38 AM
17
Corporation or its subsidiaries and are used
under license.
For DTS patents,see http://patents.dts.com.
Manufactured under license from DTS Licensing
Limited. DTS, the Symbol, & DTS and the
Symbol together are registered trademarks, and
DTS 2.0+Digital Out is a trademark of DTS, Inc.
© DTS, Inc. ALL Rights Reserved.
BONUSVIEW™
‘BD LIVE ‘ and ‘BONUSVIEW ‘ are
trademarks of Blu-ray Disc Association.
‘DVD Video’ is a trademark of DVD Format/
Logo Licensing Corporation.
Netix and the Netix logo are trademarks or
registered trademarks of Netix, Inc.
Oracle and Java are registered trademarks of
Oracle and/or its afliates. Other names may be
trademarks of their respective owners.
BDP2205_05_UM_EN.indd 17 3/27/2014 10:55:40 AM
19
Abkhazian 6566
Afar 6565
Afrikaans 6570
Amharic 6577
Arabic 6582
Armenian 7289
Assamese 6583
Avestan 6569
Aymara 6589
Azerhaijani 6590
Bahasa Melayu 7783
Bashkir 6665
Belarusian 6669
Bengali 6678
Bihari 6672
Bislama 6673
Bokmål, Norwegian 7866
Bosanski 6683
Brezhoneg 6682
Bulgarian 6671
Burmese 7789
Castellano, Español 6983
Catalán 6765
Chamorro 6772
Chechen 6769
Chewa; Chichewa; Nyanja
7889
9072
Chuang; Zhuang 9065
Church Slavic; Slavonic 6785
Chuvash 6786
Corsican 6779
Česky 6783
Dansk 6865
Deutsch 6869
Dzongkha 6890
English 6978
Esperanto 6979
Estonian 6984
Euskara 6985
6976
Faroese 7079
Français 7082
Frysk 7089
Fijian 7074
Gaelic; Scottish Gaelic 7168
Gallegan 7176
Georgian 7565
Gikuyu; Kikuyu 7573
Guarani 7178
Gujarati 7185
Hausa 7265
Herero 7290
Hindi 7273
Hiri Motu 7279
Hrwatski 6779
Ido 7379
Interlingua (International)7365
Interlingue 7365
Inuktitut 7385
Inupiaq 7375
Irish 7165
Íslenska 7383
Italiano 7384
Ivrit 7269
Japanese 7465
Javanese 7486
Kalaallisut 7576
Kannada 7578
Kashmiri 7583
Kazakh 7575
Kernewek 7587
Khmer 7577
Kinyarwanda 8287
Kirghiz 7589
Komi 7586
Korean 7579
Kuanyama; Kwanyama 7574
Kurdish 7585
Lao 7679
Latina 7665
Latvian 7686
Letzeburgesch; 7666
Limburgan; Limburger 7673
Lingala 7678
Lithuanian 7684
Luxembourgish; 7666
Macedonian 7775
Malagasy 7771
Magyar 7285
Malayalam 7776
Maltese 7784
Manx 7186
Maori 7773
Marathi 7782
Marshallese 7772
Moldavian 7779
Mongolian 7778
Nauru 7865
Navaho; Navajo 7886
Ndebele, North 7868
Ndebele, South 7882
Ndonga 7871
Nederlands 7876
Nepali 7869
Norsk 7879
Northern Sami 8369
North Ndebele 7868
Norwegian Nynorsk; 7878
Occitan; Provencal 7967
Old Bulgarian; Old Slavonic 6785
Oriya 7982
Oromo 7977
Ossetian; Ossetic 7983
Pali 8073
Panjabi 8065
Persian 7065
Polski 8076
Português 8084
Pushto 8083
Russian 8285
Quechua 8185
Raeto-Romance 8277
Romanian 8279
Rundi 8278
Samoan 8377
Sango 8371
Sanskrit 8365
Sardinian 8367
Serbian 8382
Shona 8378
Shqip 8381
Sindhi 8368
Sinhalese 8373
Slovensky 8373
Slovenian 8376
Somali 8379
Sotho; Southern 8384
South Ndebele 7882
Sundanese 8385
Suomi 7073
Swahili 8387
Swati 8383
Svenska 8386
Tagalog 8476
Tahitian 8489
Tajik 8471
Tamil 8465
Tatar 8484
Telugu 8469
Thai 8472
Tibetan 6679
Tigrinya 8473
To nga (Tonga Islands) 8479
Tsonga 8483
Tswana 8478
Türkçe 8482
Turkmen 8475
Tw i
8487
Uighur 8571
Ukrainian 8575
Urdu 8582
Uzbek 8590
Vietnamese 8673
Volapuk 8679
Walloon 8765
Welsh 6789
Wolof 8779
Xhosa 8872
Yiddish 8973
Yoruba 8979
Zulu 9085
Language Code
BDP2205_05_UM_EN.indd 19 3/27/2014 10:55:41 AM
Specifications are subject to change without notice
© 2014 Koninklijke Philips N.V. All rights reserved.
Trademarks are the property of Koninklijke Philips N.V. or their respective owners.
BDP2205_05_UM_V1.0
BDP2205_05_UM_EN.indd 20 3/27/2014 10:55:41 AM
