Multi Channel AV
Receiver
Operating Instructions
STR-DG920
2
US
Owner’s Record
The model and serial numbers are located on the rear
of the unit. Record the serial number in the space
provided below. Refer to them whenever you call
upon your Sony dealer regarding this product.
M o d e l N o . ______________________________________________________
S e r i a l N o . ______________________________________________________
To reduce the risk of fire or electric
shock, do not expose this apparatus to
rain or moisture.
To prevent fire, do not cover the ventilation of the
apparatus with newspapers, table-cloths, curtains,
etc. And don’t place lighted candles on the
apparatus.
To prevent fire or shock hazard, do not place objects
filled with liquids, such as vases, on the apparatus.
Do not install the appliance in a confined space, such
as a bookcase or built-in cabinet.
Install this system so that the power cord can be
unplugged from the wall socket immediately in the
event of trouble.
Batteries or batteries installed apparatus shall not be
exposed to excessive heat such as sunshine, fire or
the like.
For customers in the United
States
This symbol is intended to alert the
user to the presence of uninsulated
“dangerous voltage” within the
product’s enclosure that may be of
sufficient magnitude to constitute a
risk of electric shock to persons.
This symbol is intended to alert the
user to the presence of important
operating and maintenance
(servicing) instructions in the
literature accompanying the
appliance.
WARNING
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant
to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference in a residential installation.
This equipment generates, uses, and can radiate
radio frequency energy and, if not installed and used
in accordance with the instructions, may cause
harmful interference to radio communications.
However, there is no guarantee that interference will
not occur in a particular installation. If this
equipment does cause harmful interference to radio
or television reception, which can be determined by
turning the equipment off and on, the user is
encouraged to try to correct the interference by one
or more of the following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment
and receiver.
– Connect the equipment into an outlet on a circuit
different from that to which the receiver is
connected.
– Consult the dealer or an experienced radio/TV
technician for help.
CAUTION
You are cautioned that any changes or modification
not expressly approved in this manual could void
your authority to operate this equipment.
Note to CATV system installer:
This reminder is provided to call CATV system
installer’s attention to Article 820-40 of the NEC
that provides guidelines for proper grounding and, in
particular, specifies that the cable ground shall be
connected to the grounding system of the building,
as close to the point of cable entry as practical.
WARNING
3
US
About This Manual
• The instructions in this manual are for model
STR-DG920. Check your model number by
looking at the lower right corner of the front panel.
In this manual, models of area code U is used for
illustration purposes unless stated otherwise. Any
difference in operation is clearly indicated in the
text, for example, “Models of area code CA only”.
• The instructions in this manual describe the
controls on the supplied remote. You can also use
the controls on the receiver if they have the same
or similar names as those on the remote.
• “Neural-THX” and “neural THX” introduced in
the Operating Instructions and displayed on the
GUI menu screen and on the display mean Neural-
THX Surround.
This receiver incorporates Dolby* Digital and Pro
Logic Surround and the DTS** Digital Surround
System.
* Manufactured under license from Dolby
Laboratories. Dolby, Pro Logic, Surround EX
and the double-D symbol are trademarks of
Dolby Laboratories.
** Manufactured under license under U.S. Patent
#’s: 5,451,942; 5,956,674; 5,974,380; 5,978,762;
6,226,616; 6,487,535 & other U.S. and
worldwide patents issued & pending. DTS is a
registered trademark and the DTS logos, Symbol,
DTS-HD and DTS-HD Master Audio are
trademarks of DTS, Inc. © 1996-2007 DTS, Inc.
All Rights Reserved.
This receiver incorporates High-Definition
Multimedia Interface (HDMI
TM
) technology.
HDMI, the HDMI logo and High-Definition
Multimedia Interface are trademarks or registered
trademarks of HDMI Licensing LLC.
XM Ready
®
is a registered trademark of XM
Satellite Radio Inc. All rights reserved.
The font type (Shin Go R) installed in this receiver
is provided by MORISAWA & COMPANY LTD.
These names are the trademarks of MORISAWA &
COMPANY LTD., and the copyright of the font also
belongs to MORISAWA & COMPANY LTD.
This product is manufactured under license from
Neural Audio Corporation and THX Ltd. Sony
Corporation hereby grants the user a non-exclusive,
non-transferable, limited right of use to this product
under USA and foreign patent, patent pending and
other technology or trademarks owned by Neural
Audio Corporation and THX Ltd. “Neural
Surround”, “Neural Audio”, “Neural” and “NRL”
are trademarks and logos owned by Neural Audio
Corporation, THX is a trademark of THX Ltd.,
which may be registered in some jurisdictions. All
rights reserved.
iPod is a trademark of Apple Inc., registered in the
U.S. and other countries.
All other trademarks and registered trademarks are
of their respective holders. In this manual, ™ and ®
marks are not specified.
The Bluetooth word mark and logos are owned by
the Bluetooth SIG, Inc. and any use of such marks
by Sony Corporation is under license.
Other trademarks and trade names are those of their
respective owners.
“M-crew Server” is a trademark of Sony
Corporation.
“x.v.Color” and “x.v.Color” logo are trademarks of
Sony Corporation.
“BRAVIA” and are trademarks of
Sony Corporation.
About area codes
The area code of the receiver you purchased is
shown on the upper right portion of the rear panel
(see the illustration below).
Any differences in operation, according to the area
code, are clearly indicated in the text, for example,
“Models of area code AA only”.
FRONT A
LR
FRONT B
LR
SURROUND CENTER
LR
SURROUND BACK
LR
SPEAKERS
Area code
4
US
Table of Contents
Getting Started
Description and location of parts...................6
1: Installing speakers ...................................14
2: Connecting speakers................................16
3: Connecting the TV ..................................18
4a: Connecting the audio components.........19
4b: Connecting the video components ........24
5: Connecting the antennas (aerials)............34
6: Preparing the receiver and the remote .....35
7: Operating the receiver using the GUI
(Graphical User Interface)......................36
8: Selecting the speaker system...................39
9: Calibrating the appropriate speaker
settings automatically
(Auto Calibration) ..................................39
Playback
Selecting a component.................................44
Listening/Watching a component ................46
Amplifier Operations
Settings for the audio
(Audio settings menu) ............................48
Settings for the video
(Video settings menu).............................49
Settings for HDMI
(HDMI settings menu)............................49
Enjoying Surround Sound
Enjoying a pre-programmed sound field .....50
Resetting sound fields to the initial
settings....................................................55
Enjoying the surround effect at low
volume levels (NIGHT MODE) .............56
Advanced Speakers Setting
Up
Adjusting the speaker settings manually..... 56
Adjusting the equalizer ............................... 61
Tuner Operations
Listening to FM/AM radio.......................... 62
Listening to the XM Radio ......................... 65
Control for HDMI
Using the Control for HDMI function
for “BRAVIA” Sync .............................. 72
Preparing Control for HDMI function ........ 74
Watching a DVD (One-Touch Play) ........... 75
Enjoying the TV sound from the speakers
connected to the receiver
(System Audio Control)......................... 76
Turning off the receiver with the TV
(System Power Off) ............................... 76
Other Operations
Converting analog video input signals........ 77
Enjoying the DIGITAL MEDIA PORT
(DMPORT) ............................................ 77
Naming inputs............................................. 81
Switching between digital and analog
audio (INPUT MODE) .......................... 81
Enjoying the sound/images from
other inputs ............................................ 82
Changing the display .................................. 84
Using the Sleep Timer ................................ 87
Recording using the receiver....................... 88
Operating without connecting to the TV .... 89
5
US
Using the Remote
Programming the remote............................. 99
Clearing all the contents of the remote’s
memory ................................................ 104
Additional Information
Glossary .................................................... 104
Precautions................................................ 108
Troubleshooting ........................................ 109
Specifications ............................................ 114
Index.............................................. Back cover
6
US
Description and location of parts
Status of the POWER button
x
(Off)
The receiver is turned off (initial setting).
Press POWER to turn the receiver on.
You cannot turn the receiver on using the
remote.
x (On/Standby)
Press
?/1 on the remote to turn the receiver on
or set it to the standby mode.
When you press POWER on the receiver, the
receiver will be turned off.
To remove the cover
Press PUSH.
When you remove the cover, keep it out of
reach from children.
Getting Started

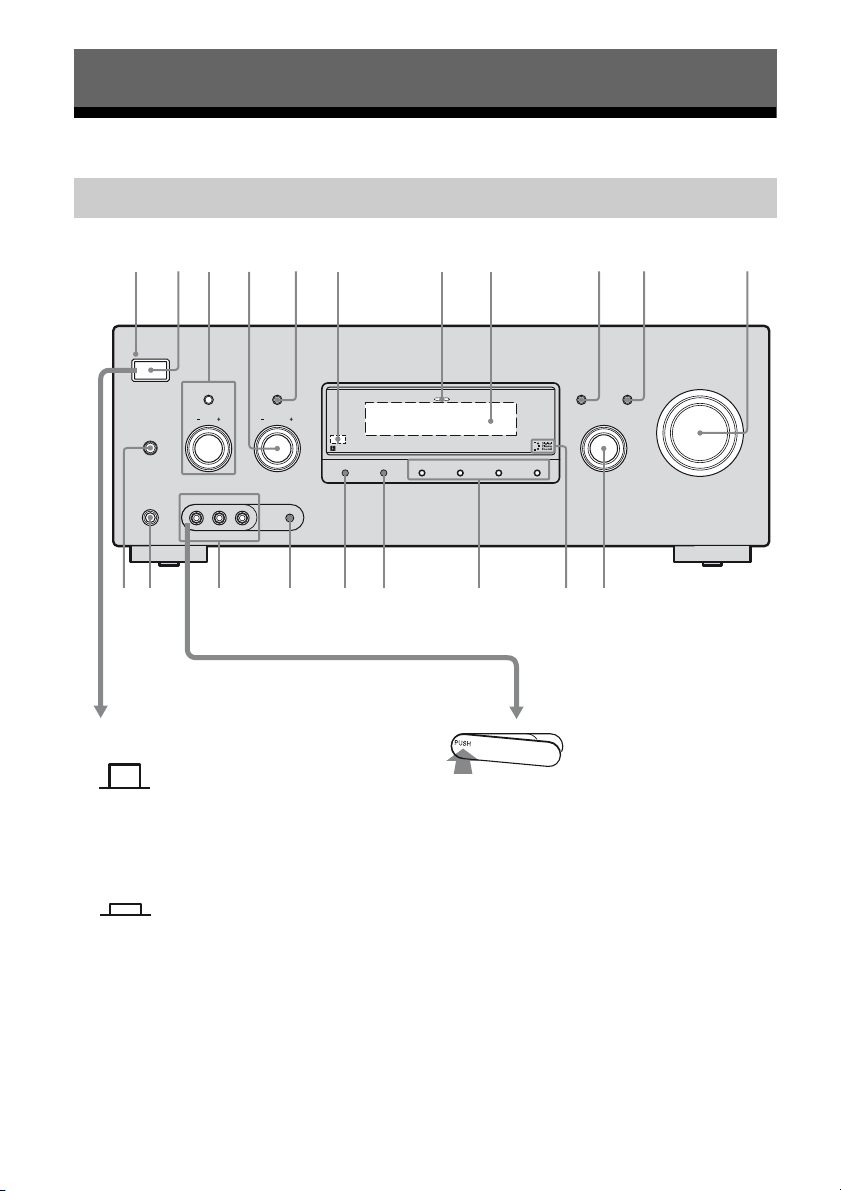

Front panel
SPEAKERS
(OFF/A/B/A+B)
PHONES
VIDEO 2 IN/PORTABLE AV IN
VIDEO L AUDIO R AUTO CAL MIC
MEMORY/
ENTER
2CH/
A.DIRECT
A.F.D. MOVIE MUSICDIMMER
MULTI CHANNEL DECODING
INPUT SELECTOR
TONE MODE
ON/STANDBY
TUNING MODE
POWER
TUNING
DISPLAY INPUT MODE
MASTER VOLUME
TONE
1 32 5
qa
46 78 9q;
qsqf qdqgqhqlw; qjqk
7
US
Getting Started
Name Function
A ON/STANDBY
lamp
Lights up in green when the
receiver is turned on.
Lights up in red when the
receiver is set to standby
mode.
B POWER Press to turn the receiver on
or off (page 6, 35, 46, 47,
55).
C TONE MODE Adjusts the tonal quality
(bass/treble level) of the
front, center and surround
speakers.
Press TONE MODE
repeatedly to select bass or
treble level, then turn
TONE +/– to adjust the
level (page 90).
TONE +/–
D TUNING +/– Turn to scan a station (page
96, 98).
E TUNING MODE Press to select the tuning
mode (page 96, 99, 114).
F Remote sensor Receives signals from
remote commander.
G MULTI
CHANNEL
DECODING lamp
Lights up when multi
channel audio signals are
decoded (page 47).
H Display The current status of the
selected component or a list
of selectable items appears
here (page 85).
I DISPLAY Press to select information
displayed on the display
(page 84, 113).
J INPUT MODE Press to select the input
mode when the same
components are connected
to both digital and analog
jacks (page 81).
K MASTER
VOLUME
Turn to adjust the volume
level of all speakers at the
same time (page 45, 46,
47).
L INPUT
SELECTOR
Turn to select the input
source to playback (page
44).
M Digital Cinema
Sound lamp
Lights up when a sound
field with DCS is
selected (page 54).
Name Function
N 2CH/A.DIRECT Press to select a sound field
(page 96).
A.F.D.
MOVIE
MUSIC
O DIMMER Press to adjust the
brightness of the display
(page 93).
P MEMORY/
ENTER
Press to store a station or
enter the selection when
selecting the settings
(page 97).
Q AUTO CAL MIC
jack
Connects to the supplied
optimizer microphone for
the Auto Calibration
function (page 40).
R VIDEO 2 IN/
PORTABLE AV
IN jacks
Connects to a portable
audio/video component
such as a camcorder or
video game (page 30, 45).
S PHONES jack Connects to headphones
(page 109).
T SPEAKERS
(OFF/A/B/A+B)
Press to select the speaker
system (page 39).
8
US

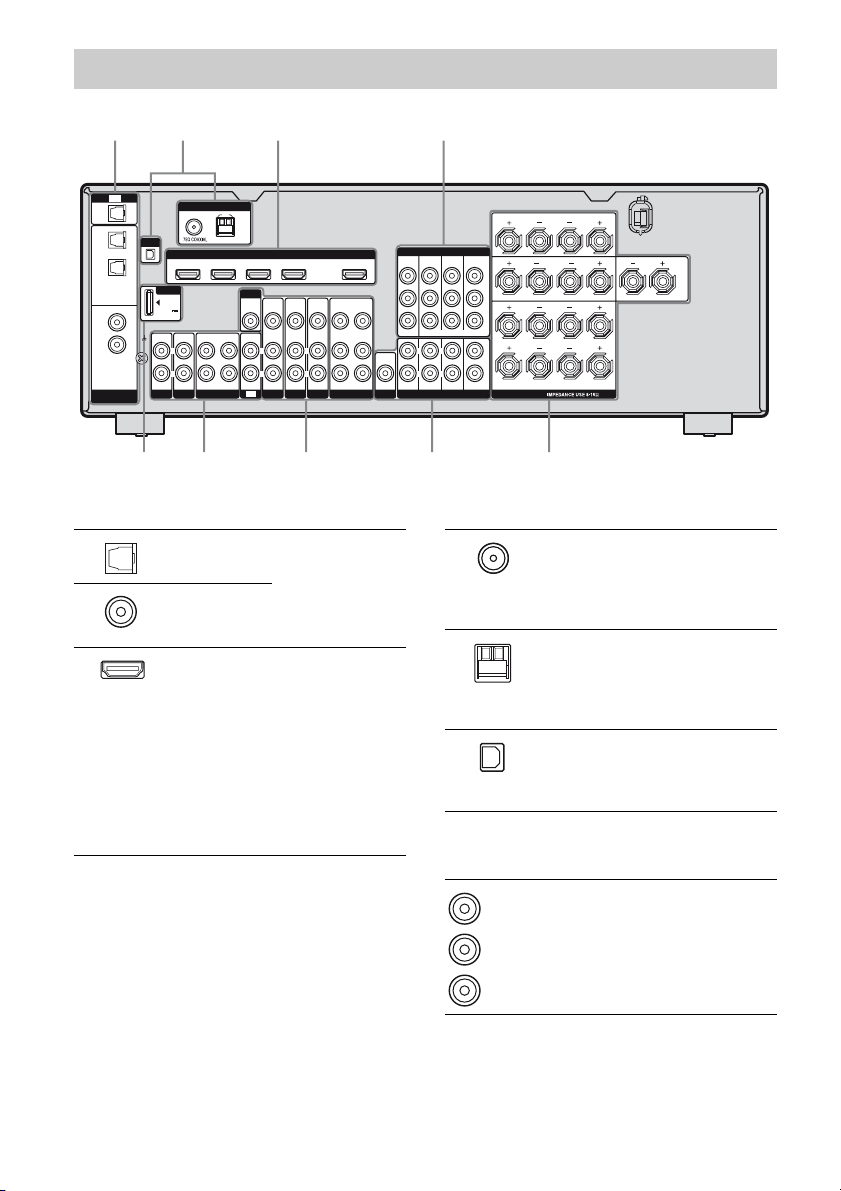

Rear panel
DIGITAL
ASSIGNABLE
ASSIGNABLE (INPUT ONLY)
OPTICAL
IN
OPTICAL
VIDEO 1
IN
COAXIAL
DVD
IN
TV
SAT
IN
SA-CD/
CD
IN
XM
DMPORT
DC5V
0.7A MAX
SAT IN
HDMI
BD IN DVD IN VIDEO 1 IN OUT
MD/TAPE
OUT IN IN
TV
IN
AUDIO
IN
VIDEO
IN
SAT
AUDIO
IN
VIDEO
IN
BD
MONITOR
AUDIO
IN
VIDEO
IN
AUDIO
IN
VIDEO
IN
DVD
AUDIO
OUT
AUDIO
OUT
VIDEO
OUT
VIDEO
OUT
VIDEO 1
MULTI CHANNEL INPUT
SA-CD
/
CD
IN
PHONO
SUBWOOFER
FRONT
SURROUND SUR BACK
SUBWOOFER
CENTER
COMPONENT VIDEO
MONITOR
OUT
COMPO 3
IN
COMPO 2
IN
COMPO 1
IN
Y
P
B
/
C
B
P
R
/
C
R
FRONT A
LR
FRONT B
LR
SURROUND CENTER
LR
SURROUND BACK
LR
SPEAKERS
AM
FM
ANTENNA
R
L
R
L
R
L
R
L
R
L
R
L
R
L
7
SIGNAL
GND
1132
4556
A DIGITAL INPUT/OUTPUT section
OPTICAL IN
jacks
Connects to a DVD
player, etc. The
COAXIAL jack
provides a better
quality sound (page
20, 27, 29).
COAXIAL IN
jacks
HDMI IN/
OUT* jacks
Connects to a DVD
player, satellite
tuner, or a Blu-ray
disc player. The
image is output to a
TV or a projector
while the sound can
be output from a TV
or/and speakers
connected to this
receiver (page 25).
B ANTENNA section
FM
ANTENNA
jack
Connects to the FM
wire antenna
(aerial) supplied
with this receiver
(page 34).
AM
ANTENNA
terminals
Connects to the AM
loop antenna
(aerial) supplied
with this receiver
(page 34).
XM jack Connects to the XM
Mini-Tuner and
Home Dock (not
supplied) (page 66).
C COMPONENT VIDEO INPUT/
OUTPUT section
Y, PB/CB,
P
R/CR IN/
OUT* jacks
Connects to a DVD
player, TV, satellite
tuner, etc. (page18,
27, 29).
Green
(Y)
Blue
(P
B/CB)
Red
(P
R/CR)
9
US
Getting Started
* You can watch the selected input image when you
connect the MONITOR OUT or HDMI OUT jack
to a TV (page 18). You can operate this receiver
using a GUI (Graphical User Interface) (page 36).
You can use the supplied remote to operate the
receiver and to control the Sony audio/video
components that the remote is assigned to
operate.
You can also program the remote to control
non-Sony audio/video components. For
details, see “Programming the remote” (page
99).
RM-AAP023
D SPEAKERS section
Connects to
speakers (page 16).
E AUDIO INPUT/OUTPUT section
AUDIO IN/
OUT jacks
Connects to a Super
Audio CD player,
etc. (page 18, 20,
23).
MULTI
CHANNEL
INPUT jacks
Connect to a Super
Audio CD player,
etc. with an analog
audio jack for 7.1
channel or 5.1
channel sound (page
22).
AUDIO OUT
jack
Connects to
subwoofer (page
16).
F VIDEO/AUDIO INPUT/OUTPUT
section
AUDIO IN/
OUT jacks
Connects to a VCR,
DVD player, etc.
(page 27–30).
VIDEO IN/
OUT* jacks
G DMPORT
DMPORT
jack
Connects to a
DIGITAL MEDIA
PORT adapter
(page 20).
White (L)
Red (R)
MULTI CHANNEL INPUT
FRONT
SURROUND SUR BACK
SUBWOOFER
CENTER
R
L
R
L
Black
White (L)
Red (R)
Yellow

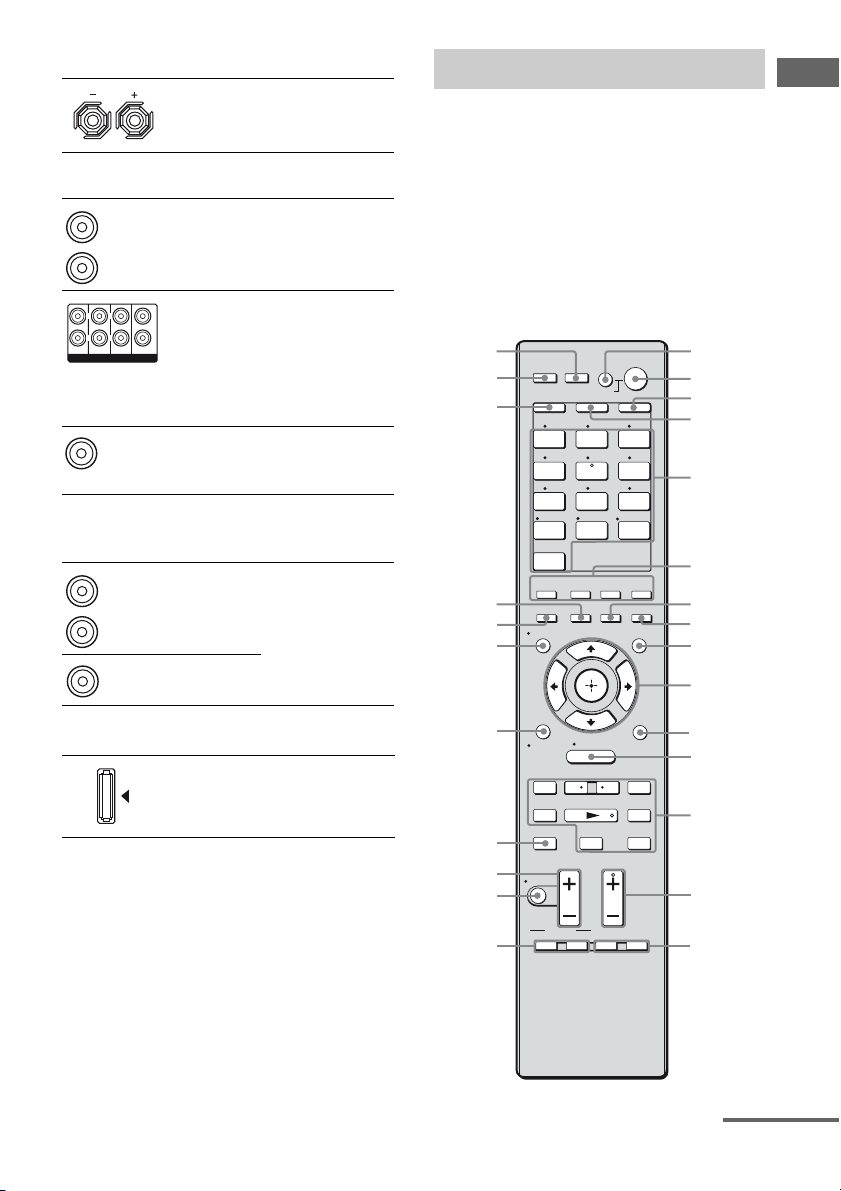

Remote commander
1 2 3
4 5 6
7 8 9
-/--
0/10
ENT/MEM
2CH/
A.DIRECT A.F.D. MOVIE MUSIC
THEATER
SYSTEM STANDBY
?/1
CLEAR/>10
SHIFT TV
– CATEGORY +
TUNING – TUNING +
DISC SKIP D.TUNING
CATEGORY MODE
RESOLUTION
.
mM
>
Xx
MUTING
VIDEO 1 VIDEO 2 BD
SAT TV
PHONO
XM
MULTI IN DMPORT
MD/
TAPE
SA-CD/
CD
TUNER
TV VOL
MASTER VOL
TV CH
PRESET
<
<
MENU
AV
?/1
F1 F2
TV INPUT
TOP MENU
MENU
BD/DVD
WIDE
RETURN/
EXIT
OPTIONS
TOOLS
HOME
DISPLAY
GUI
MODE
O
DVD
1
2
3
4
5
6
7
8
0
qa
qs
qd
qf
qg
9
INPUT
MODE
SLEEP
NIGHT
MODE
RM SET UP
AMP
qh
qj
qk
ql
w;
wa
wd
wf
wg
wh
ws
continued
10
US
Name Function
A AV ?/1
(on/standby)
Press to turn on or off the
audio/video components that
the remote is programmed to
operate.
To turn the TV on or off, press
TV (D) and then press AV
?/1.
If you press ?/1 (B) at the
same time, it will turn off the
receiver and other components
(SYSTEM STANDBY).
Note
The function of the AV ?/1
switch changes automatically
each time you press the input
buttons (E).
B ?/1
(on/standby)
Press to turn the receiver on or
set it to the standby mode.
To turn off all components,
press ?/1 and AV ?/1 (A) at
the same time (SYSTEM
STANDBY).
Saving the power in
standby mode.
When “Control for HDMI” is
set to “OFF” (page 75).
C AMP Press to enable the receiver
operation (page 89).
D TV Press to light up the button. It
changes the remote key
function to activate the buttons
with yellow printing. It also
activate the DISPLAY (U),
OPTIONS TOOLS (K),
HOME/MENU (L),
RETURN/EXIT O (T),
(J), and V/v/B/b (J)
buttons to perform menu
operations for Sony TVs only.
E Input buttons Press one of the buttons to
select the component you want
to use. When you press any of
the input buttons, the receiver
turns on. The buttons are
factory assigned to control
Sony components (page 45).
You can program the remote to
control non-Sony components
following the steps in
“Programming the remote” on
page 99.
Name Function
Numeric
buttons
(number 5*)
Press SHIFT (X), then press
numeric buttons to
– preset/tune to preset stations.
– select track numbers of the
CD player, VCD player, LD
player, DVD player, MD
deck, DAT deck, or tape
deck. Press 0/10 to select
track number 10.
– select channel numbers of
the VCR, satellite tuner, Blu-
ray disc player, PSX, DVD/
VHS COMBO, or DVD/
HDD COMBO.
Press TV (D) and then press
the numeric buttons to select
the TV channels.
ENT/MEM Press SHIFT (X), then press
ENT/MEM to
– enter the value after selecting
a channel, disc or track using
the numeric buttons of the
VCR, CD player, DVD
player, LD player, MD deck,
DAT deck, tape deck,
satellite tuner, Blu-ray disc
player, PSX, DVD/VHS
COMBO, or DVD/HDD
COMBO.
– store a station during tuner
operation.
To enter the value of Sony TV,
press TV (D) and then press
ENT/MEM.
CLEAR Press SHIFT (X), then press
CLEAR to
– clear a mistake when you
press the incorrect numeric
button of the DVD player,
Blu-ray disc player, PSX,
satellite tuner, DVD/VHS
COMBO, or DVD/HDD
COMBO.
– return to continuous
playback, etc. of the satellite
tuner or DVD player.
11
US
Getting Started
Name Function
-/-- Press SHIFT (X), then press
-/-- to select the channel entry
mode, either one or two digit
of the VCR or satellite tuner.
To select the channel entry
mode of the TV, press TV
(D) and then press -/--.
>10 Press SHIFT (X), then press
>10 to
– select track numbers over 10
of the CD player, VCD
player, LD player, MD
deck, tape deck, TV, VCR,
or satellite tuner.
– select channel numbers of
the Digital CATV terminal.
F 2CH/
A.DIRECT
Press to select a sound field
(page 96).
A.F.D.
MOVIE
MUSIC
G SLEEP Press to activate the Sleep
Timer function and the
duration which the receiver
turns off automatically
(page 87).
H NIGHT MODE Press to activate the NIGHT
MODE function (page 56).
I GUI MODE Press to display the GUI menu
on the TV screen.
J
V/v/B/b
After pressing AMP (C),
press MENU (L) for
receiver operation, then press
V/v/B /b to select the
settings.
After pressing BD/DVD TOP
MENU (P) or BD/DVD
MENU (P), press V/v/B/b
to select the settings, and then
press to enter the
selection.
Press also to enter the
selection of the receiver,
VCR, satellite tuner, DVD
player, Blu-ray disc player,
PSX, DVD/VHS COMBO, or
DVD/HDD COMBO.
,
Name Function
K OPTIONS
TOOLS
Press to display and select
items from the option
menus for receiver, DVD
player, Blu-ray disc player
or satellite tuner.
Press TV (D) and then
press TOOLS to display the
options of Sony TV.
L HOME/MENU Press to display the menu to
operate the audio/video
components.
Then, use V/v/B/b (J)
and (J) to perform
menu operations.
To display the menus of
Sony TV, press TV (D)
and then press HOME/
MENU.
M ./> Press to skip tracks of the
VCR, CD player, VCD
player, LD player, DVD
player, MD deck, DAT
deck, tape deck, Blu-ray
disc player, PSX, DVD/
VHS COMBO, or DVD/
HDD COMBO.
m/M Press to
– search tracks in the
forward/backward
direction of the CD
player, VCD player, DVD
player, LD player, MD
deck, Blu-ray disc player,
PSX, DVD/VHS
COMBO, or DVD/HDD
COMBO.
– fast forward/rewind of the
VCR, DAT deck, or tape
deck.
N* Press to start playback of
the VCR, CD player, VCD
player, LD player, DVD
player, MD deck, DAT
deck, tape deck, Blu-ray
disc player, PSX, DVD/
VHS COMBO, or DVD/
HDD COMBO.
continued
12
US
Name Function
X Press to pause playback or
recording of the VCR, CD
player, VCD player, LD
player, DVD player, MD
deck, DAT deck, tape deck,
Blu-ray disc player, PSX,
DVD/VHS COMBO, or
DVD/HDD COMBO. (Also
starts recording with
components in recording
standby.)
x Press to stop playback of the
VCR, CD player, VCD
player, LD player, DVD
player, MD deck, DAT deck,
tape deck, Blu-ray disc player,
PSX, DVD/VHS COMBO, or
DVD/HDD COMBO.
TUNING +/– Press to scan a station.
CATEGORY
MODE
Press to select the category
mode for XM Radio (page
98).
CATEGORY
+/–
Press to select a category for
XM Radio (page 98).
D.TUNING Press to enter direct tuning
mode (page 96).
N TV CH +/– Press TV (D) and then press
TV CH +/– to sel e ct preset TV
channels.
PRESET
+*/–
Press to
– select preset stations.
– select preset channels of the
VCR, satellite tuner,
Blu-ray disc player, DVD
player, LD player, DVD/
VHS COMBO, or DVD/
HDD COMBO.
O F1, F2 Press F1 or F2 to select a
component.
• DVD/HDD COMBO
F1: HDD mode
F2: DVD mode
• DVD/VHS COMBO
F1: DVD mode
F2: VHS mode
Name Function
P BD/DVD TOP
MENU
Press to display the menu or
on-screen guide of the DVD
player, Blu-ray disc player,
PSX, DVD/VHS COMBO, or
DVD/HDD COMBO on the
TV screen. Then, use V/v/B/
b (J) and (J) to
perform menu operations.
BD/DVD
MENU
Press to display the menu of
the DVD player or Blu-ray
disc player on the TV screen.
Then, use V/v/B/b (J) and
(J) to perform menu
operations.
TV INPUT Press TV (D) and then press
TV INPUT to select the input
signal (TV input or video
input).
WIDE Press TV (D) and then press
WIDE to select the wide
picture mode.
Q MUTING Press to turn off the sound
temporarily. Press the button
again to restore the sound.
To mute the sound of the TV,
press TV (D) and then press
MUTING.
R TV VOL +/– Press TV (D) and then press
TV VOL +/– to adjust the TV
volume level.
MASTER
VOL +/–
Press to adjust the volume
level of all speakers at the
same time.
S DISC SKIP Press to skip disc when using
a multi-disc changer.
T RETURN/
EXIT O
Press to
– return to the previous menu.
– exit the menu while the
menu or on-screen guide of
the VCD player, LD player,
DVD player, Blu-ray disc
player, PSX, DVD/VHS
COMBO, or satellite tuner
is displayed on the TV
screen.
To return to the previous
menu of Sony TV, press TV
(D) and then press
RETURN/EXIT O.
13
US
Getting Started
* The number 5, PRESET + and N buttons have
tactile dots. Use the tactile dots as references when
operating the receiver.
Notes
• Some functions explained in this section may not
work depending on the model.
• The above explanation is intended to serve as an
example only. Therefore, depending on the
component, the above operation may not be
possible or may operate differently than described.
Name Function
U DISPLAY Press to select information
displayed in the display, TV
screen of the VCR, VCD
player, LD player, DVD
player, CD player, MD deck,
Blu-ray disc player, PSX,
satellite tuner, DVD/VHS
COMBO, or DVD/HDD
COMBO.
To select information of Sony
TV, press TV (D) and then
press DISPLAY.
V RESOLUTION Press to change the resolution
of signals output from the
HDMI OUT or
COMPONENT VIDEO
MONITOR OUT jack
(page 77).
W INPUT MODE Press to select the input mode
when the same components
are connected to both digital
and analog jacks (page 81).
X SHIFT Press to light up the button. It
changes the remote button
function to activate the
buttons with pink printing.
Y THEATER Press to enjoy optimal image
suited for movies and to
output the sound from the
speakers connected to this
receiver automatically.
Note
This button will only function
if your TV is compatible with
Theater Mode.
For details, refer to the
operating instructions
supplied with the TV.
Z RM SET UP Press to set up the remote.
14
US
1: Installing speakers
This receiver allows you to use a 7.1 channel
system (7 speakers and one subwoofer).
To fully enjoy theater-like multi channel
surround sound requires five speakers (two
front speakers, a center speaker, and two
surround speakers) and a subwoofer (5.1
channel).

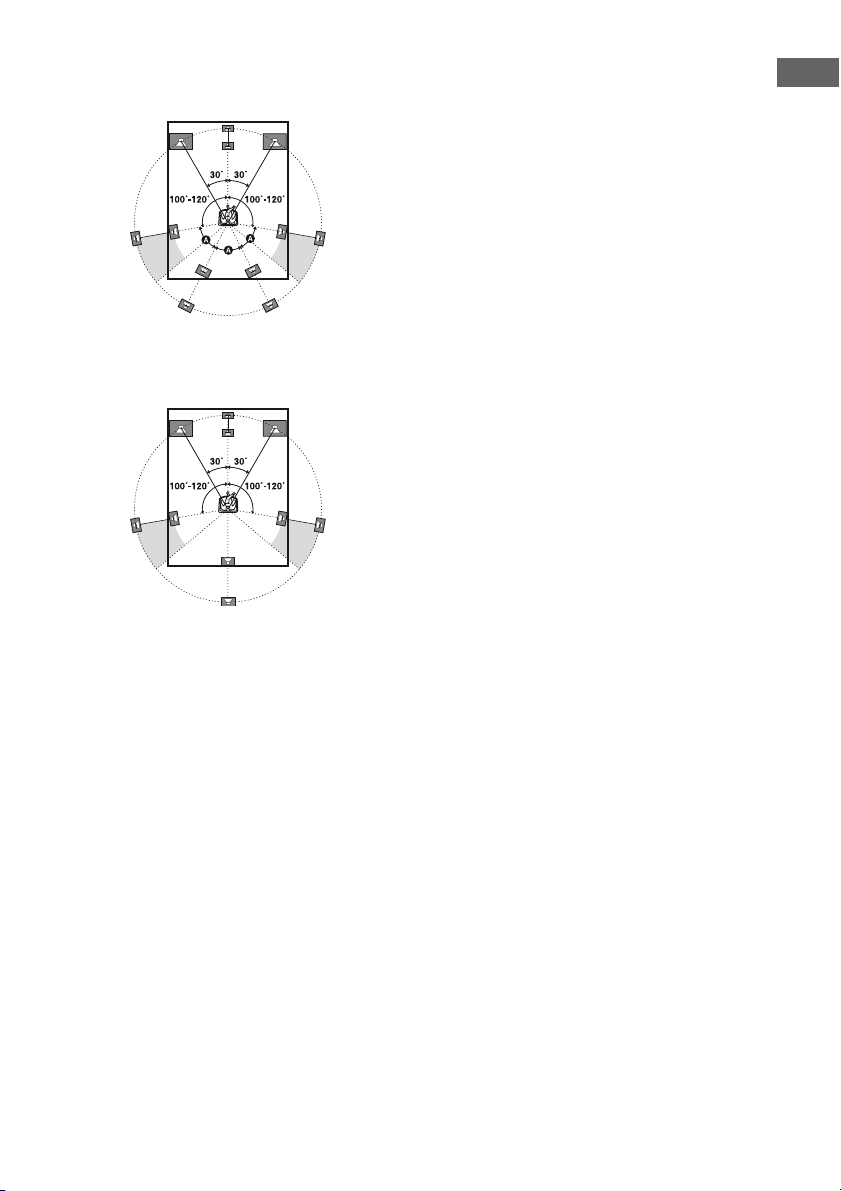

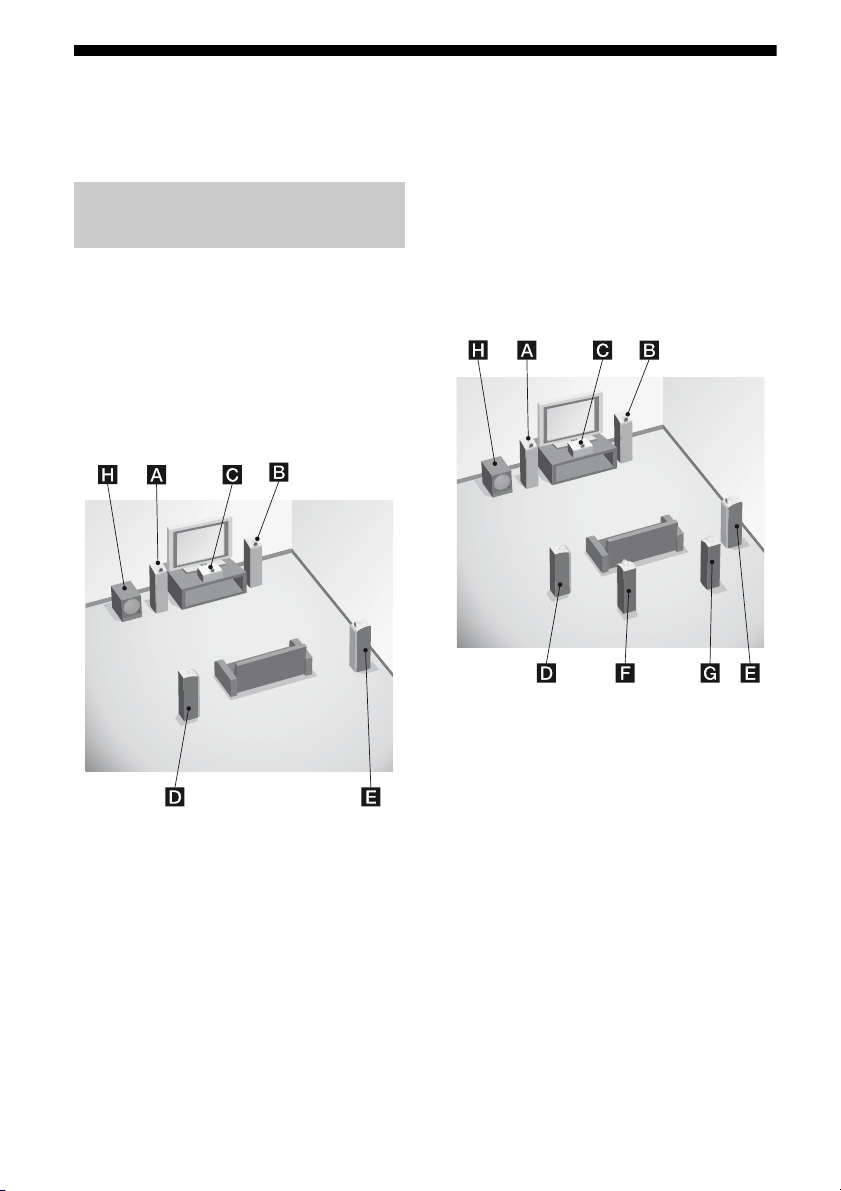

Example of a 5.1 channel
speaker system configuration
AFront speaker (left)
BFront speaker (right)
CCenter speaker
DSurround speaker (left)
ESurround speaker (right)
HSubwoofer
You can enjoy high fidelity reproduction of
DVD software recorded sound in the Surround
EX format if you connect one additional
surround back speaker (6.1 channel system) or
two surround back speakers (7.1 channel
system).
Example of a 7.1 channel
speaker system configuration
AFront speaker (left)
BFront speaker (right)
CCenter speaker
DSurround speaker (left)
ESurround speaker (right)
FSurround back speaker (left)
GSurround back speaker (right)
HSubwoofer
Enjoying a 5.1/7.1 channel
system
15
US
Getting Started
Tips
• When you connect a 7.1 channel speaker system,
the angle A should be the same.
• When you connect a 6.1 channel speaker system,
place the surround back speaker behind the
listening position.
• Since the subwoofer does not emit highly
directional signals, you can place it wherever you
want.
16
US
2: Connecting speakers
Before connecting cords, make sure to
disconnect the AC power cord (mains lead).

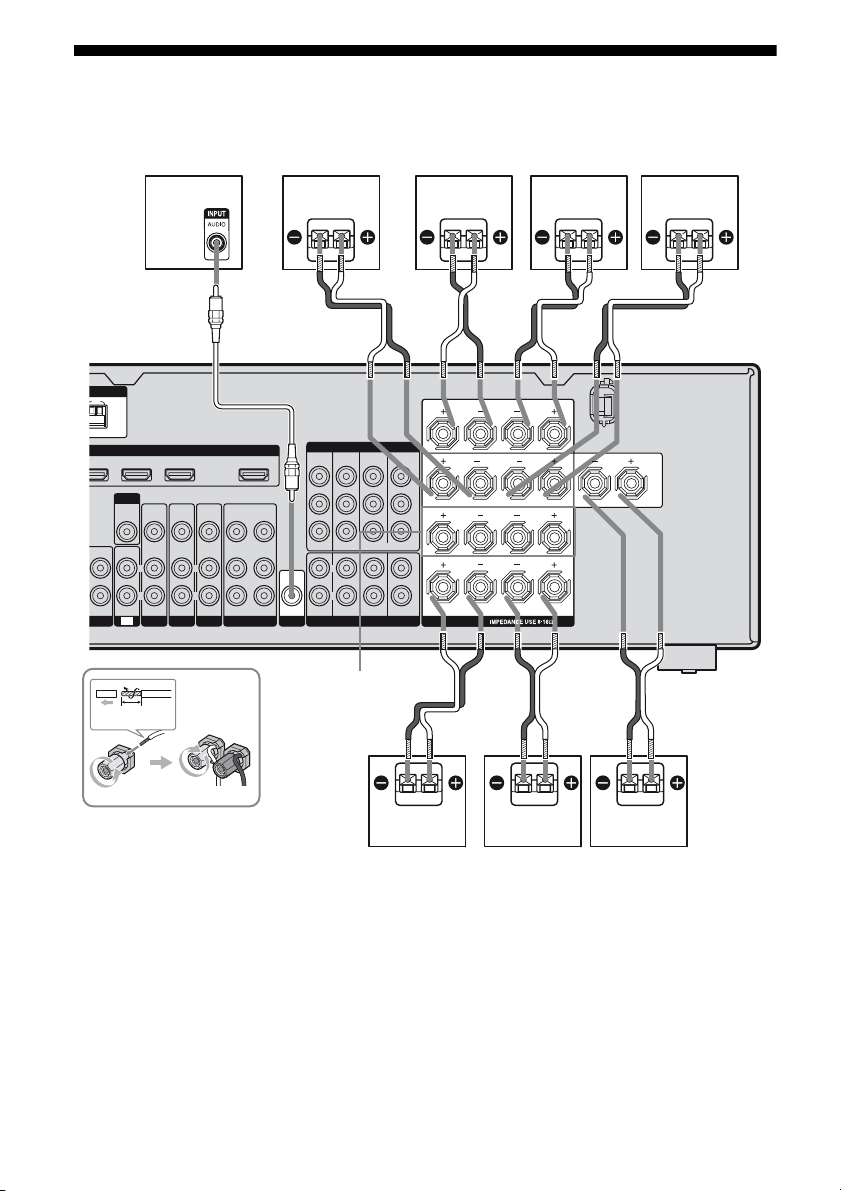

AFront speaker A (left)
BFront speaker A (right)
CCenter speaker
DSurround speaker (left)
ESurround speaker (right)
FSurround back speaker (left)
b)
GSurround back speaker (right)
b)
HSubwoofer
c)
ASSIGNABLE (INPUT ONLY)
HDMI
BD IN DVD IN VIDEO 1 IN OUT
A
PE
IN IN
TV
AUDIO
IN
VIDEO
IN
SAT
AUDIO
IN
VIDEO
IN
BD
MONITOR
AUDIO
IN
VIDEO
IN
AUDIO
IN
VIDEO
IN
DVD
AUDIO
OUT
VIDEO
OUT
VIDEO
OUT
VIDEO 1
FRONT
SURROUND SUR BACK
SUBWOOFER
CENTER
MONITOR
OUT
COMPO 3
IN
COMPO 2
IN
P
B
/
C
B
FRONT A
LR
FRONT B
LR
SURROUND CENTER
R
LR
AM
N
NA
R
L
R
L
R
L
R
L
SUBWOOFER
13
/32 in.
(10 mm)
AUDIO
OUT
COMPONENT VIDEO
COMPO 1
IN
Y
R
L
MULTI CHANNEL INPUT
SURROUND BACK
SPEAKERS
P
R
/
C
R
L
H
D
AB
B
AB
A Monaural audio cord (not supplied)
B Speaker cord (not supplied)
G
SPEAKERS FRONT B
terminals
a)
C
EF
17
US
Getting Started
a)
If you have an additional front speaker system,
connect them to the SPEAKERS FRONT B
terminals. You can select the front speakers you
want to use with the SPEAKERS (OFF/A/B/A+B)
button on the receiver (page 39).
b)
If you connect only one surround back speaker,
connect it to the SPEAKERS SURROUND BACK
L terminals.
c)
When you connect a subwoofer with an auto
standby function, turn off the function when
watching movies. If the auto standby function is
set to on, it turns to standby mode automatically
based on the level of the input signal to a
subwoofer, then sound may not be output.
Note
Before connecting the AC power cord (mains lead),
make sure that metallic wires of the speaker cords
are not touching each other between the
SPEAKERS terminals.
18
US
3: Connecting the TV
You can watch the selected input image when
you connect the HDMI OUT or MONITOR
OUT jack to a TV. You can operate this
receiver using a GUI (Graphical User
Interface).
It is not necessary to connect all the cables.
Connect audio and video cords according to
the jacks of your components.
DIGITAL
ASSIGNABLE
OPTICAL
VIDEO 1
IN
COAXIAL
DVD
IN
SAT
IN
SA-CD/
CD
IN
XM
DMPORT
DC5V
0.7A MAX
MD/TAPE
OUT
SIGNAL
GND
ININ
AUDIO
IN
VIDEO
IN
SAT
AUDIO
IN
VIDEO
IN
BD
AUDIO
IN
VIDEO
IN
AUDIO
IN
VIDEO
IN
DVD
AUDIO
OUT
AUDIO
OUT
VIDEO
OUT
VIDEO 1
MULTI CHANNEL INPUT
SA-CD
/
CD
IN
PHONO
SUBWOOFER
FRONT
SURROUND SUR BACK
SUBWOOFER
CENTER
FRONT A
LR
FRONT B
LR
SURROUND
LR
SURROUND BACK
LR
SPEAKERS
AM
FM
ANTENNA
R
L
R
L
R
L
R
L
R
L
R
L
OPTICAL
TV
MONITOR
VIDEO
OUT
IN
TV
R
L
ASSIGNABLE (INPUT ONLY)
MONITOR
OUT
COMPO 1
IN
P
B
/
C
B
P
R
/
C
R
SAT IN
HDMI
BD IN DVD IN VIDEO 1 IN OUT
COMPONENT VIDEO
COMPO 3
IN
COMPO 2
IN
Y
IN
TV
AB

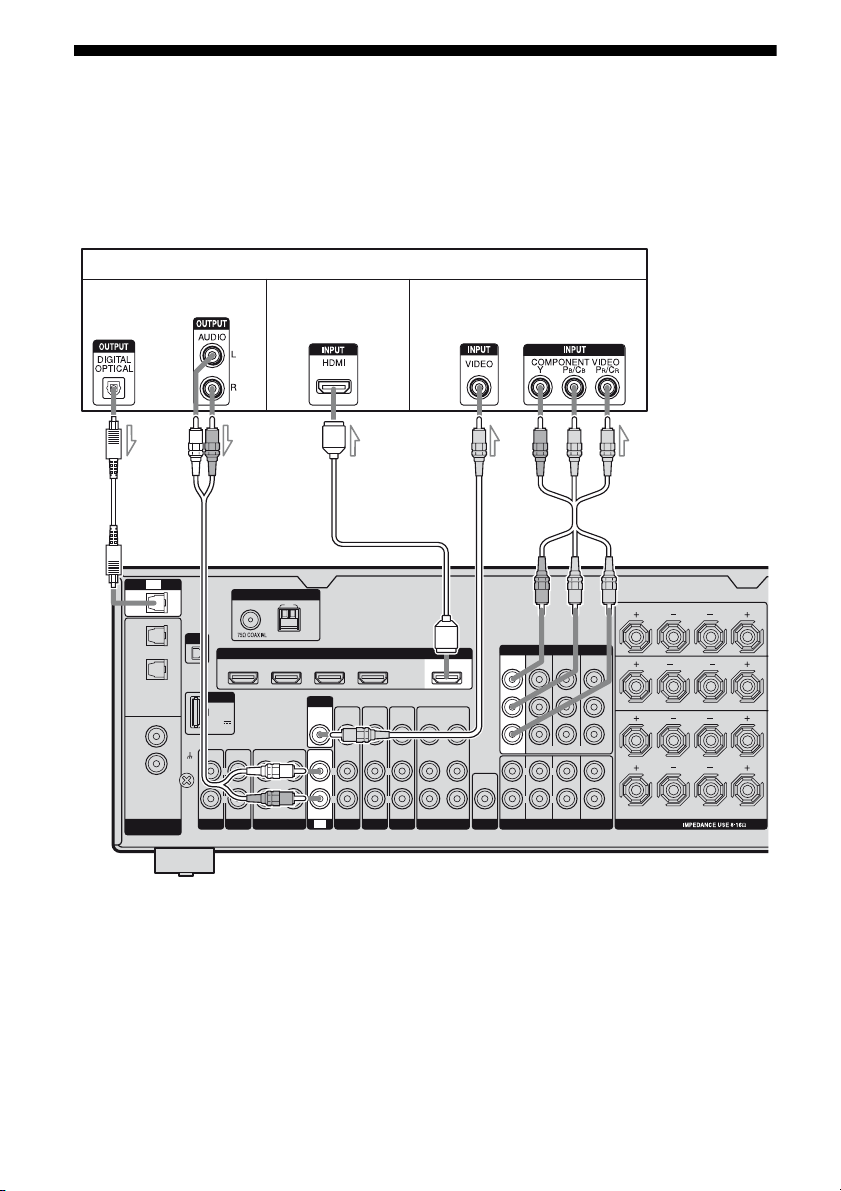

A Optical digital cord (not supplied)
B Audio cord (not supplied)
C HDMI cable (not supplied)
We recommend that you use a Sony HDMI cable.
D Video cord (not supplied)
E Component video cord (not supplied)

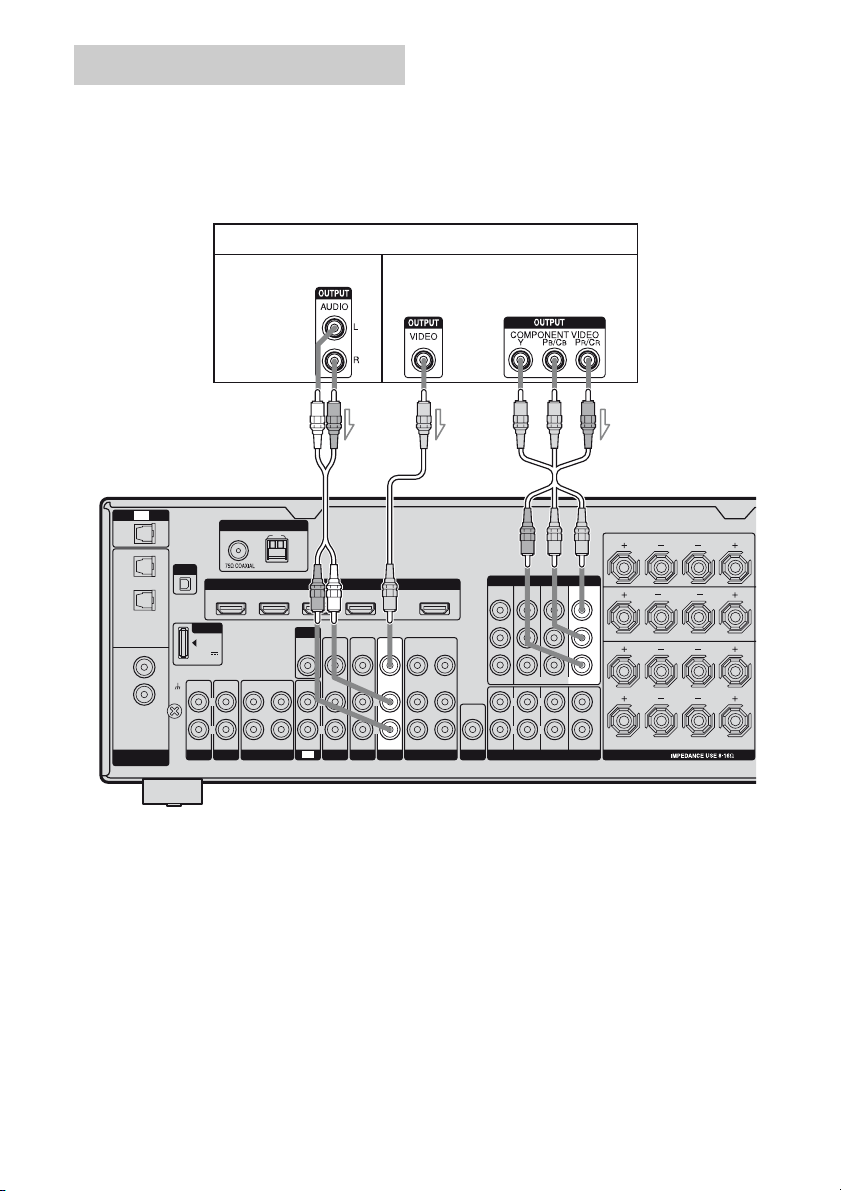

Audio signals
CD
E
Audio/video
signals
Video signals
19
US
Getting Started
Notes
• Before connecting cords, make sure to disconnect
the AC power cord (mains lead).
• Be sure to turn on the receiver when the video and
audio of a playback component are being output to
a TV via the receiver. If the power supply of the
receiver is not turned on, neither video nor audio is
transmitted.
• Depending on the status of the connection between
the TV and the antenna (aerial), the image on the
TV screen may be distorted. In this case, place the
antenna (aerial) farther away from the receiver.
• When connecting optical digital cords, insert the
plugs straight in until they click into place.
• Do not bend or tie optical digital cords.
Tips
• The receiver has a video conversion function. For
details, see “Notes on converting video signals”
(page 32).
• The sound of the TV is output from the speakers
connected to the receiver if you connect the audio
output jack of the TV to the TV IN jacks of the
receiver. In this configuration, set the sound output
jack of the TV to “Fixed” if it can be switched
between either “Fixed” or “Variable”.
• All the digital audio jacks are compatible with
32 kHz, 44.1 kHz, 48 kHz, and 96 kHz sampling
frequencies.
4a: Connecting the audio
components
This section describes how to connect your
audio components to this receiver. Before you
begin, refer to “Component to be connected”
below for the pages which describe how to
connect each component.
After connecting your audio component,
proceed to “4b: Connecting the video
components” (page 24) or “5: Connecting the
antennas (aerials)” (page 34).
How to connect your
components
Component to be connected Page
Super Audio CD
player, CD player
With digital audio
output
20
With multi channel
audio output
22
With analog audio
output only
23
MD deck, Tape deck, Analog disc
turntable
23
DIGITAL MEDIA PORT adapter 20
20
US

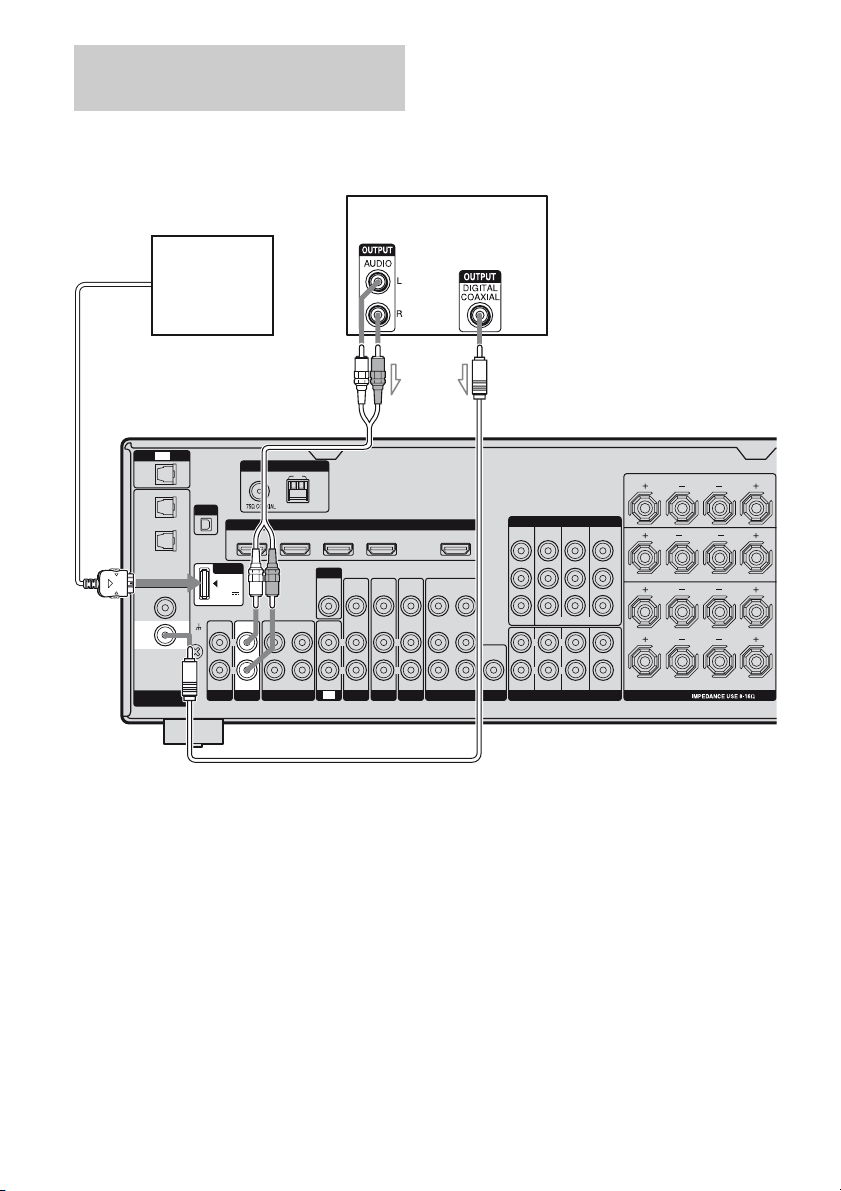

The following illustration shows how to
connect a Super Audio CD player, CD player
and DIGITAL MEDIA PORT adapter.
Notes
• Before connecting cords, make sure to disconnect
the AC power cord (mains lead).
• When you play back a Super Audio CD disc on a
Super Audio CD player, the sound is output only if
you make the connection to MULTI CHANNEL
INPUT or SA-CD/CD IN jacks (analog input jack)
on the receiver. Refer to the operating instructions
supplied with the Super Audio CD player.
Tip
All the digital audio jacks are compatible with
32 kHz, 44.1 kHz, 48 kHz, and 96 kHz sampling
frequencies.
Connecting components with
digital audio output jack
ASSIGNABLE (INPUT ONLY)
OPTICAL
IN
TV
XM
SAT IN
HDMI
BD IN DVD IN VIDEO 1 IN OUT
MD/TAPE
IN IN
TV
AUDIO
IN
VIDEO
IN
SAT
AUDIO
IN
VIDEO
IN
BD
MONITOR
AUDIO
IN
VIDEO
IN
AUDIO
IN
VIDEO
IN
DVD
AUDIO
OUT
AUDIO
OUT
VIDEO
OUT
VIDEO
OUT
VIDEO 1
MULTI CHANNEL INPUT
IN
PHONO
SUBWOOFER
FRONT
SURROUND SUR BACK
SUBWOOFER
CENTER
COMPONENT VIDEO
MONITOR
OUT
COMPO 3
IN
COMPO 2
IN
COMPO 1
IN
Y
P
B
/
C
B
P
R
/
C
R
FRONT A
LR
FRONT B
LR
SURROUND
LR
SURROUND BACK
LR
SPEAKERS
AM
FM
ANTENNA
R
L
R
L
R
L
R
L
R
L
R
L
R
L
DIGITAL
ASSIGNABLE
OPTICAL
VIDEO 1
IN
COAXIAL
DVD
IN
SAT
IN
IN
SA-CD
/
CD
DMPORT
DC5V
0.7A MAX
SA-CD/
CD
IN
SIGNAL
GND
OUT
Super Audio CD player,
CD player
A Audio cord (not supplied)
B Coaxial digital cord (not supplied)
BA
DIGITAL MEDIA
PORT adapter
21
US
Getting Started
Notes on connecting DIGITAL
MEDIA PORT adapter
• When connecting the DIGITAL MEDIA
PORT adapter, be sure the connector is
inserted with the arrow mark facing towards
the arrow mark on the DMPORT jack.
• Be sure to make DMPORT connections
firmly, insert the connector straight in.
• As the connector of the DIGITAL MEDIA
PORT adapter is fragile, be sure to handle
with care when placing or moving the
receiver.
• To disconnect the DIGITAL MEDIA PORT
adapter, squeeze the sides of the connector,
since the connector is locked in place.
If you want to connect several
digital components, but cannot
find an unused input
See “Enjoying the sound/images from other
inputs” (page 82).
22
US
If your DVD or Super Audio CD player is
equipped with multi channel output jacks, you
can connect them to the MULTI CHANNEL
INPUT jacks of this receiver to enjoy multi
channel sound. Alternatively, the multi
channel input jacks can be used to connect an
external multi channel decoder.
Notes
• Before connecting cords, make sure to disconnect
the AC power cord (mains lead).
• Audio input signals from MULTI CHANNEL
INPUT jacks are not output to any audio output
jacks. The signals cannot be recorded.
Connecting components with
multi channel output jacks
DIGITAL
ASSIGNABLE
OPTICAL
IN
OPTICAL
VIDEO 1
IN
COAXIAL
DVD
IN
TV
SAT
IN
SA-CD/
CD
IN
XM
DMPORT
DC5V
0.7A MAX
SAT IN
HDMI
BD IN DVD IN VIDEO 1 IN OUT
MD/TAPE
OUT
SIGNAL
GND
IN IN
TV
IN
AUDIO
IN
VIDEO
IN
SAT
AUDIO
IN
VIDEO
IN
BD
MONITOR
AUDIO
IN
VIDEO
IN
AUDIO
IN
VIDEO
IN
DVD
AUDIO
OUT
AUDIO
OUT
VIDEO
OUT
VIDEO
OUT
VIDEO 1
MULTI CHANNEL INPUT
SA-CD
/
CD
IN
PHONO
SUBWOOFER
FRONT
SURROUND SUR BACK
COMPONENT VIDEO
MONITOR
OUT
COMPO 3
IN
COMPO 2
IN
COMPO 1
IN
Y
P
B
/
C
B
P
R
/
C
R
FRONT A
LR
FRONT B
LR
SURROUND
LR
SURROUND BACK
LR
SPEAKERS
AM
FM
ANTENNA
R
L
R
L
R
L
R R
L
R
L
R
L L
ASSIGNABLE (INPUT ONLY)
CENTER
SUBWOOFER
DVD player,
Super Audio CD
player, etc.
AB
A Audio cord (not supplied)
B Monaural audio cord (not supplied)
23
US
Getting Started

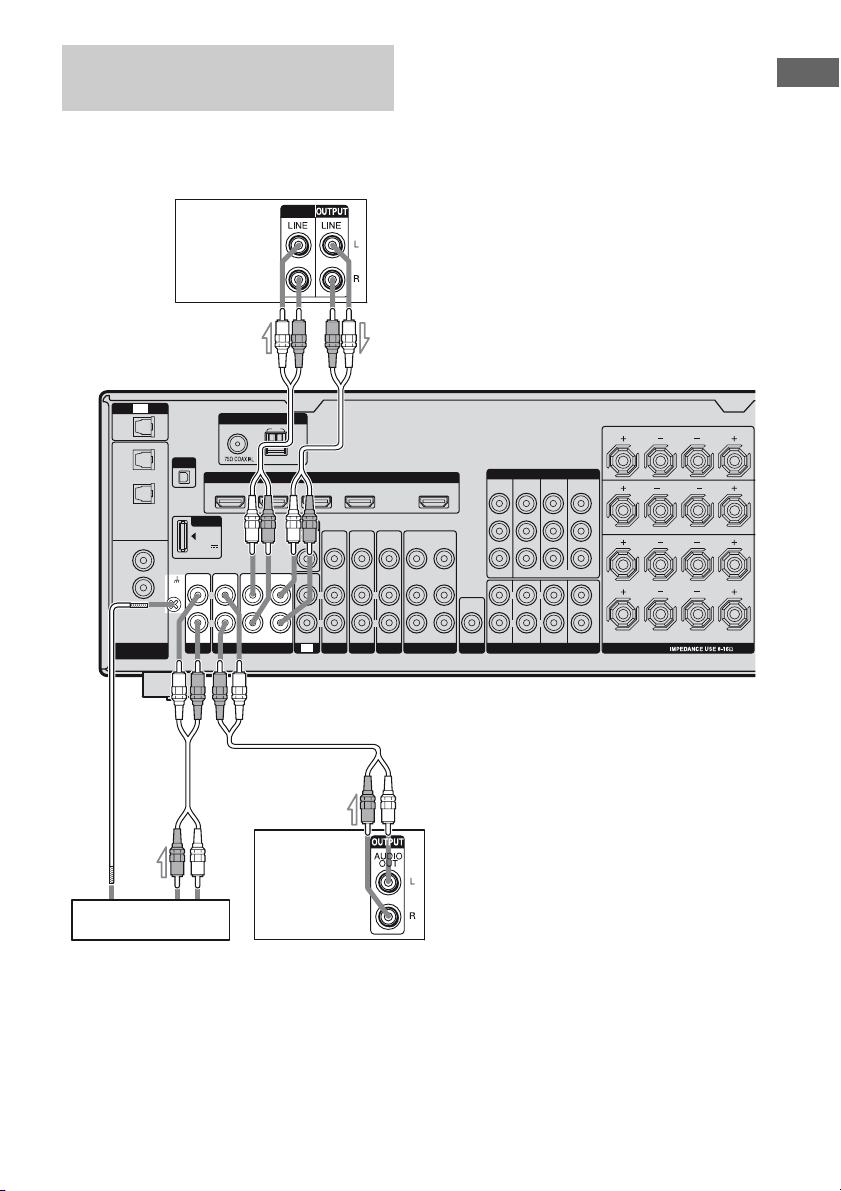

The following illustration shows how to
connect a component which has analog jacks
such as tape deck, etc.
Notes
• If your turntable has a ground (earth) wire, connect
it to the U SIGNAL GND terminal.
• Before connecting cords, make sure to disconnect
the AC power cord (mains lead).
Connecting components with
analog audio jacks
DIGITAL
ASSIGNABLE
ASSIGNABLE (INPUT ONLY)
OPTICAL
IN
OPTICAL
VIDEO 1
IN
COAXIAL
DVD
IN
TV
SAT
IN
SA-CD/
CD
IN
XM
DMPORT
DC5V
0.7A MAX
SAT IN
HDMI
BD IN DVD IN VIDEO 1 IN OUT
TV
AUDIO
IN
VIDEO
IN
SAT
AUDIO
IN
VIDEO
IN
BD
MONITOR
AUDIO
IN
VIDEO
IN
AUDIO
IN
VIDEO
IN
DVD
AUDIO
OUT
AUDIO
OUT
VIDEO
OUT
VIDEO
OUT
VIDEO 1
MULTI CHANNEL INPUT
SUBWOOFER
FRONT
SURROUND SUR BACK
SUBWOOFER
CENTER
COMPONENT VIDEO
MONITOR
OUT
COMPO 3
IN
COMPO 2
IN
COMPO 1
IN
Y
P
B
/
C
B
P
R
/
C
R
FRONT A
LR
FRONT B
LR
SURROUND
LR
SURROUND BACK
LR
SPEAKERS
AM
FM
ANTENNA
R
L
R
L
R
L
R
L
R
L
MD/TAPE
INININ
R
L
R
INPUT
SIGNAL
GND
INOUT
SA-CD
/
CD
PHONO
L
MD deck,
Tape deck
A Audio cord (not supplied)
A
Super Audio
CD player,
CD player
A
Tur ntable
A
24
US
4b: Connecting the video components
This section describes how to connect your
video components to this receiver. Before you
begin, refer to “Component to be connected”
below for the pages which describe how to
connect each component.
After connecting all your components,
proceed to “5: Connecting the antennas
(aerials)” (page 34).
The image quality depends on the connecting
jack. Refer to the illustration that follows.
Select the connection according to the jacks on
your components.
Note
Be sure to turn on the receiver when the video and
audio of a playback component are being output to a
TV via the receiver. If the power supply of the
receiver is not turned on, neither video nor audio is
transmitted.
Converting video signals
This receiver is equipped with a function for
up-converting video signals. For details, see
page 31.
How to connect your
components
Component to be connected Page
TV 18
With HDMI jack 25
DVD player 27
Blu-ray disc player 28
Satellite tuner, Set-top box 29
DVD recorder, VCR 30
Camcorder, video game, etc. 30
Video input/output jack to be
connected
COMPONENT VIDEO
Y
P
B
/
C
B
P
R
/
C
R
Digital Analog
High quality image
25
US
Getting Started
HDMI is the abbreviated name for High-
Definition Multimedia Interface. It is an
interface which transmits video and audio
signals in digital format.
HDMI features
• A digital audio signals transmitted by HDMI
can be output from the speakers connected to
the receiver. This signal supports Dolby
Digital, DTS, and linear PCM.
• The receiver can receive Multi Linear PCM
(up to 8 channels) with a sampling frequency
of 192 kHz or less with an HDMI
connection.
• Analog video signals input to the VIDEO
jack or COMPONENT VIDEO jacks can be
up-converted as HDMI signals. Audio
signals are not output from an HDMI OUT
jack when the image is converted.
• This receiver supports High Bitrate Audio
(DTS-HD Master Audio, Dolby TrueHD),
Deep Color and xvYCC transmission,
extended by HDMI ver1.3.
• This receiver supports the Control for HDMI
function (page 72).

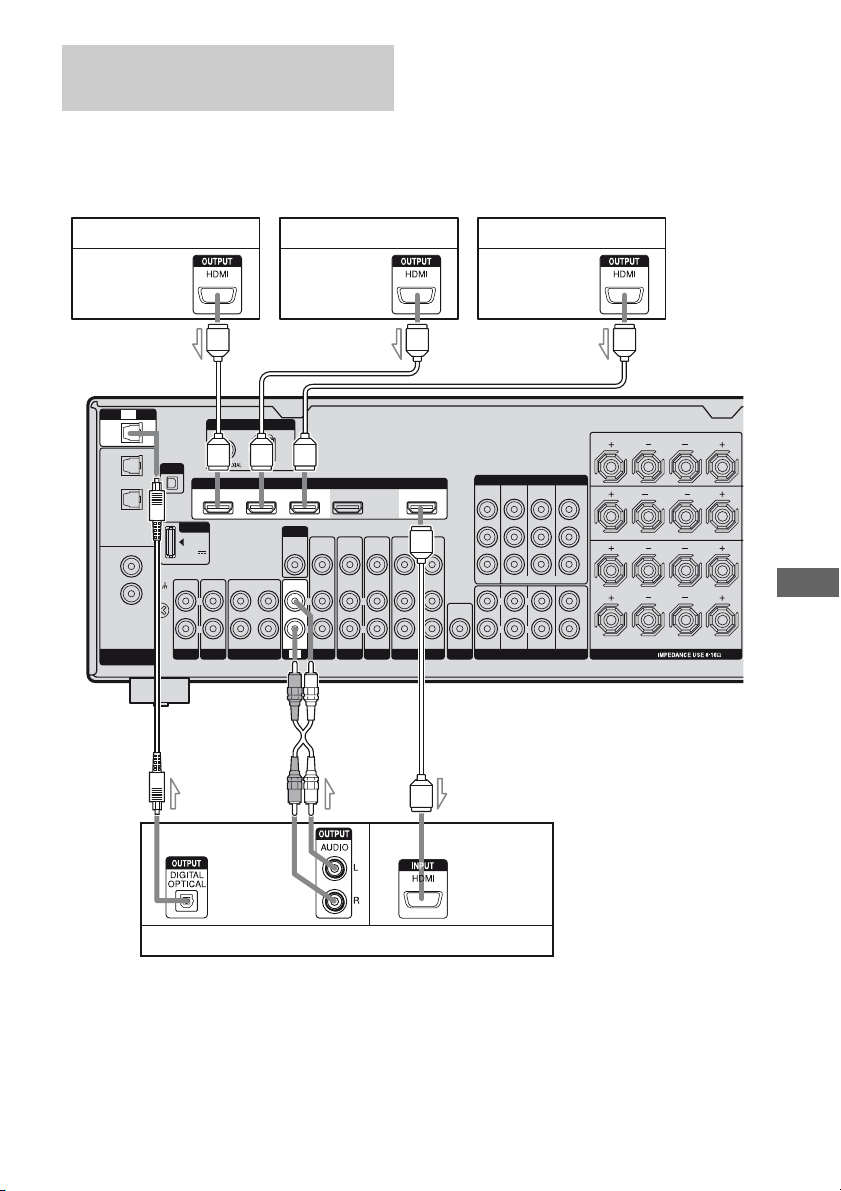

Connecting components with
HDMI jacks
DIGITAL
ASSIGNABLE
ASSIGNABLE (INPUT ONLY)
OPTICAL
IN
OPTICAL
VIDEO 1
IN
COAXIAL
DVD
IN
TV
SAT
IN
SA-CD/
CD
IN
XM
DMPORT
DC5V
0.7A MAX
MD/TAPE
OUT
SIGNAL
GND
IN IN
TV
IN
AUDIO
IN
VIDEO
IN
SAT
AUDIO
IN
VIDEO
IN
BD
MONITOR
AUDIO
IN
VIDEO
IN
AUDIO
IN
VIDEO
IN
DVD
AUDIO
OUT
AUDIO
OUT
VIDEO
OUT
VIDEO
OUT
VIDEO 1
MULTI CHANNEL INPUT
SA-CD
/
CD
IN
PHONO
SUBWOOFER
FRONT
SURROUND SUR BACK
SUBWOOFER
CENTER
COMPONENT VIDEO
MONITOR
OUT
COMPO 3
IN
COMPO 2
IN
COMPO 1
IN
Y
P
B
/
C
B
P
R
/
C
R
FRONT A
LR
FRONT B
LR
SURROUND
LR
SURROUND BACK
LR
SPEAKERS
AM
FM
ANTENNA
R
L
R
L
R
L
R
L
R
L
R
L
R
L
SAT IN
HDMI
BD IN DVD IN VIDEO 1 IN OUT
A
A HDMI cable (not supplied)
We recommend that you use a Sony HDMI cable.
Blu-ray disc player
Audio/video
signals
DVD player
Audio/video
signals
AA
TV, projector, etc.
Audio/video
signals
Audio/video
signals
Satellite tuner,
Set-top box
A
continued
26
US
Notes on connecting cables
• We recommend that you use a Sony HDMI
cable.
• We recommend that you use an HDMI cable
with the HDMI logo (made by Sony) for the
HDMI jack corresponding to high speed (an
HDMI version1.3a, category 2 cable) when
you view images or listen to sound during a
Deep Color transmission or when you watch
a video image of 1080p or higher.
• We do not recommend using an HDMI-DVI
conversion cable. When you connect an
HDMI-DVI conversion cable to a DVI-D
component, the sound and/or the image may
not be output. Connect other audio cords or
digital connecting cords, then set “Input
Assign” in the Input Option menu when the
sound is not output correctly.
• Before connecting cables, make sure to
disconnect the AC power cord (mains lead).
Notes on HDMI connections
• An audio signal input to the HDMI IN jack
is output from the SPEAKERS jacks and
HDMI OUT jack. It is not output from any
other audio jacks.
• Video signals input to the HDMI IN jack can
only be output from the HDMI OUT jack.
The video input signals cannot be output
from the VIDEO OUT jacks or MONITOR
OUT jacks.
• The audio and video signals of HDMI input
are not output from the HDMI OUT jack
while the receiver menu is displayed.
• When you want to listen to the sound from
the TV speaker, set “Audio Out” to
“TV+AMP” in the HDMI settings menu
(page 49). If you cannot play back multi
channel audio source, set to “AMP”.
However, the sound will not output from the
TV speaker.
• DSD signals of Super Audio CD are not
input and output.
• Be sure to turn on the receiver when the
video and audio of a playback component
are being output to a TV via the receiver. If
the power supply of the receiver is not
turned on, neither video nor audio is
transmitted.
• Audio signals (sampling frequency, bit
length, etc.) transmitted from a HDMI jack
may be suppressed by the connected
component. Check the setup of the
connected component if the image is poor or
the sound does not come out of a component
connected via the HDMI cable.
• Sound may be interrupted when the
sampling frequency, the number of channels
or audio format of audio output signals from
the playback component is switched.
• When the connected component is not
compatible with copyright protection
technology (HDCP), the image and/or the
sound from the HDMI OUT jack may be
distorted or may not be output.
In this case, check the specification of the
connected component.
• You can enjoy High Bitrate Audio (DTS-HD
Master Audio, Dolby TrueHD), multi
channel Linear PCM only with an HDMI
connection.
• Set the image resolution of the playback
component to more than 720p to enjoy High
Bitrate Audio (DTS-HD Master Audio,
Dolby TrueHD).
• The image resolution of playback
component may need certain settings be
made before you can enjoy multi channel
Linear PCM. Refer to the operating
instructions of the playback component.
• Not every HDMI component supports all
functions that are defined by the specified
HDMI version. For example, components
that support HDMI, ver. 1.3a, may not
support Deep Color.
• Refer to the operating instructions of each
connected component for details.
27
US
Getting Started
The following illustration shows how to
connect a DVD player.
It is not necessary to connect all the cords.
Connect audio and video cords according to
the jacks of your components.
Notes
• To input multi channel digital audio from the DVD
player, set the digital audio output setting on the
DVD player. Refer to the operating instructions
supplied with the DVD player.
• Before connecting cords, make sure to disconnect
the AC power cord (mains lead).
Tips
• All the digital audio jacks are compatible with
32 kHz, 44.1 kHz, 48 kHz, and 96 kHz sampling
frequencies.
• The COMPONENT VIDEO COMPO 2 IN jacks
have been assigned to the DVD player. If you
connect your DVD player to the COMPONENT
VIDEO COMPO 1 or COMPO 3 IN jacks, set
“Input Assign” in the Input menu (page 82).

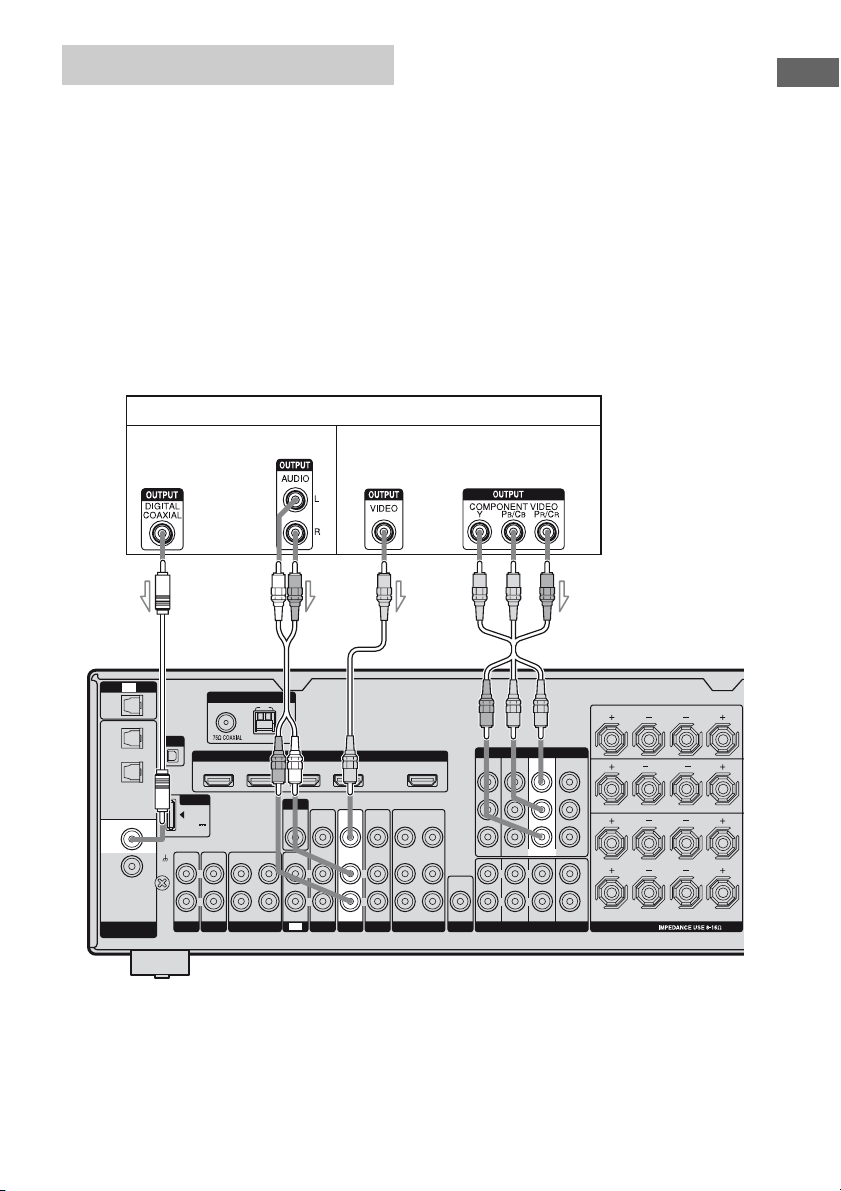

Connecting a DVD player
OPTICAL
IN
TV
XM
DMPORT
DC5V
0.7A MAX
SAT IN
HDMI
BD IN DVD IN VIDEO 1 IN OUT
MD/TAPE
OUT
SIGNAL
GND
IN IN
TV
IN
VIDEO
IN
SAT
AUDIO
IN
VIDEO
IN
BD
AUDIO
IN
VIDEO
IN
AUDIO
OUT
AUDIO
OUT
VIDEO
OUT
VIDEO 1
MULTI CHANNEL INPUT
SA-CD
/
CD
IN
PHONO
SUBWOOFER
FRONT
SURROUND SUR BACK
SUBWOOFER
CENTER
FRONT A
LR
FRONT B
LR
SURROUND
LR
SURROUND BACK
LR
SPEAKERS
AM
FM
ANTENNA
R
L
R
L
R
L
R
L
R
L
R
L
R
L
AUDIO
IN
DVD
ASSIGNABLE (INPUT ONLY)
COMPO 1
IN
Y
P
B
/
C
B
P
R
/
C
R
DIGITAL
ASSIGNABLE
COAXIAL
DVD
IN
SAT
IN
SA-CD/
CD
IN
OPTICAL
VIDEO 1
IN
MONITOR
VIDEO
OUT
AUDIO
IN
COMPONENT VIDEO
MONITOR
OUT
COMPO 3
IN
COMPO 2
IN
VIDEO
IN
DVD player
A
B
A Coaxial digital cord (not supplied)
B Audio cord (not supplied)
C Video cord (not supplied)
D Component video cord (not supplied)
DC
Audio signals Video signals
28
US
The following illustration shows how to
connect a Blu-ray disc player.
It is not necessary to connect all the cords.
Connect audio and video cords according to
the jacks of your components.
Notes
• To input multi channel digital audio from the Blu-
ray disc player, set the digital audio output setting
on the Blu-ray disc player. Refer to the operating
instructions supplied with the Blu-ray disc player.
• Before connecting cords, make sure to disconnect
the AC power cord (mains lead).
Tip
The COMPONENT VIDEO COMPO 1 IN jacks
have been assigned to the Blu-ray disc player. If you
connect your Blu-ray disc player to the
COMPONENT VIDEO COMPO 2 or COMPO 3 IN
jacks, set “Input Assign” in the Input menu (page
82).
Connecting a Blu-ray disc player
OPTICAL
IN
TV
XM
DMPORT
DC5V
0.7A MAX
SAT IN
HDMI
BD IN DVD IN VIDEO 1 IN OUT
MD/TAPE
OUT
SIGNAL
GND
IN IN
TV
IN
SAT
AUDIO
IN
VIDEO
IN
AUDIO
OUT
AUDIO
OUT
VIDEO
OUT
VIDEO 1
MULTI CHANNEL INPUT
SA-CD
/
CD
IN
PHONO
SUBWOOFER
FRONT
SURROUND SUR BACK
SUBWOOFER
CENTER
FRONT A
LR
FRONT B
LR
SURROUND
LR
SURROUND BACK
LR
SPEAKERS
AM
FM
ANTENNA
R
L
R R
L
R
L
R
L
R
L
R
L
DVD
AUDIO
IN
BD
ASSIGNABLE (INPUT ONLY)
Y
P
B
/
C
B
P
R
/
C
R
DIGITAL
ASSIGNABLE
COAXIAL
DVD
IN
SAT
IN
SA-CD/
CD
IN
OPTICAL
VIDEO 1
IN
MONITOR
VIDEO
OUT
AUDIO
IN
COMPONENT VIDEO
MONITOR
OUT
COMPO 3
IN
COMPO 2
IN
VIDEO
IN
VIDEO
IN
L
AUDIO
IN
COMPO 1
IN
VIDEO
IN
Blu-ray disc player
A
A Audio cord (not supplied)
B Video cord (not supplied)
C Component video cord (not supplied)
CB
Audio signals Video signals
29
US
Getting Started
The following illustration shows how to
connect a satellite tuner or set-top box.
It is not necessary to connect all the cords.
Connect audio and video cords according to
the jacks of your components.
Notes
• Before connecting cords, make sure to disconnect
the AC power cord (mains lead).
• When connecting optical digital cords, insert the
plugs straight in until they click into place.
• Do not bend or tie optical digital cords.
Tips
• All the digital audio jacks are compatible with
32 kHz, 44.1 kHz, 48 kHz, and 96 kHz sampling
frequencies.
• The COMPONENT VIDEO COMPO 3 IN jacks
have been assigned to the satellite tuner. If you
connect your satellite tuner to the COMPONENT
VIDEO COMPO 1 or COMPO 2 IN jacks, set
“Input Assign” in the Input menu (page 82).

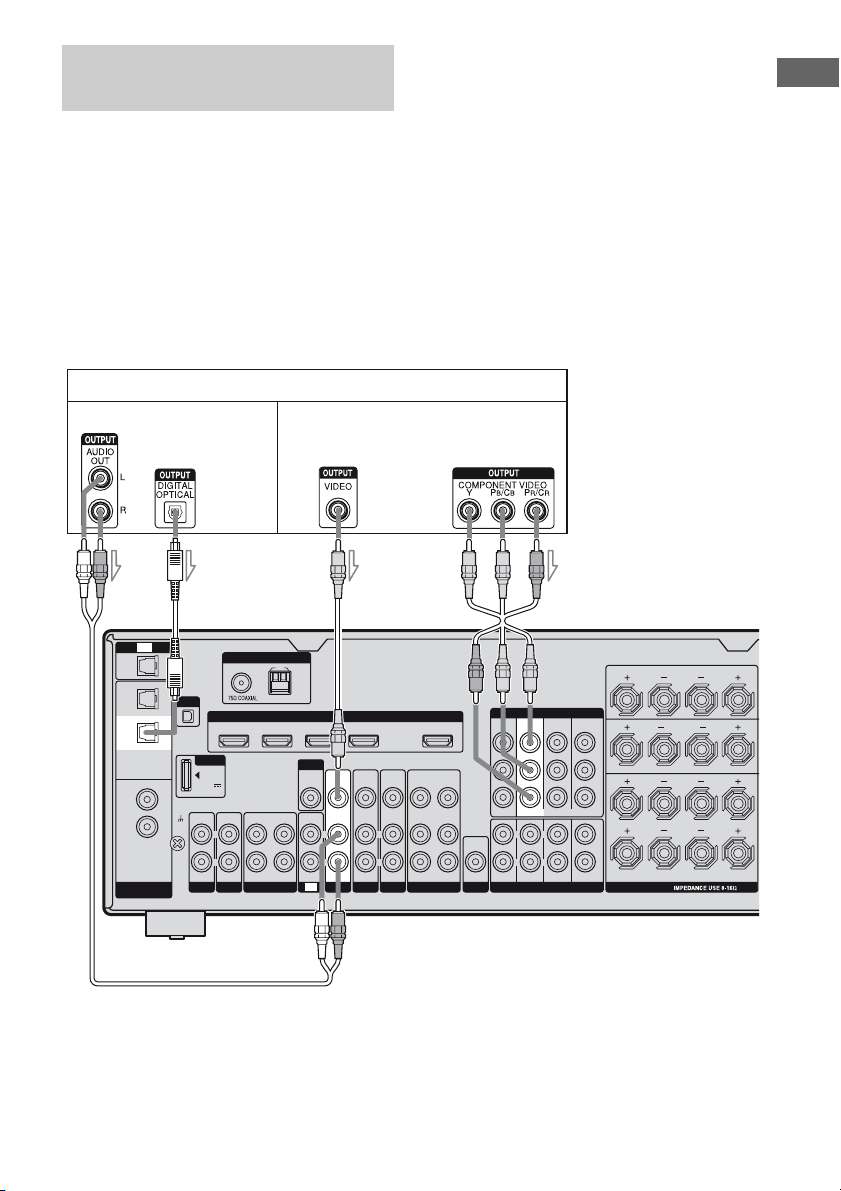

Connecting a satellite tuner,
set-top box
OPTICAL
IN
TV
XM
DMPORT
DC5V
0.7A MAX
SAT IN
HDMI
BD IN DVD IN VIDEO 1 IN OUT
MD/TAPE
OUT IN IN
TV
IN
AUDIO
IN
VIDEO
IN
BD
MONITOR
AUDIO
IN
VIDEO
IN
AUDIO
IN
VIDEO
IN
DVD
AUDIO
OUT
AUDIO
OUT
VIDEO
OUT
VIDEO
OUT
VIDEO 1
MULTI CHANNEL INPUT
SA-CD
/
CD
IN
PHONO
SUBWOOFER
FRONT
SURROUND SUR BACK
SUBWOOFER
CENTER
FRONT A
LR
FRONT B
LR
SURROUND
LR
SURROUND BACK
LR
SPEAKERS
AM
FM
ANTENNA
R
L
R
L
R
L
R
L
R
L
R
L
AUDIO
IN
ASSIGNABLE (INPUT ONLY)
COMPO 2
IN
COMPO 1
IN
Y
P
B
/
C
B
P
R
/
C
R
DIGITAL
ASSIGNABLE
OPTICAL
VIDEO 1
IN
COAXIAL
DVD
IN
SAT
IN
SA-CD/
CD
IN
SIGNAL
GND
VIDEO
IN
R
L
SAT
COMPONENT VIDEO
MONITOR
OUT
COMPO 3
IN
BA
Audio signals Video signals
C
Satellite tuner, Set-top box
D
A Audio cord (not supplied)
B Optical digital cord (not supplied)
C Video cord (not supplied)
D Component video cord (not supplied)
30
US
The following illustration shows how to
connect a component which has analog jacks
such as a DVD recorder, VCR, etc.
It is not necessary to connect all the cords.
Connect audio and video cords according to
the jacks of your components.
Notes
• Before connecting cords, make sure to disconnect
the AC power cord (mains lead)
• Be sure to change the factory setting of the VIDEO
1 input button on the remote so that you can use the
button to control your DVD recorder. For details,
see “Programming the remote” (page 99).
• You can also rename the VIDEO 1 input so that it
can be displayed on the TV screen and display. For
details, see “Naming inputs” (page 81).

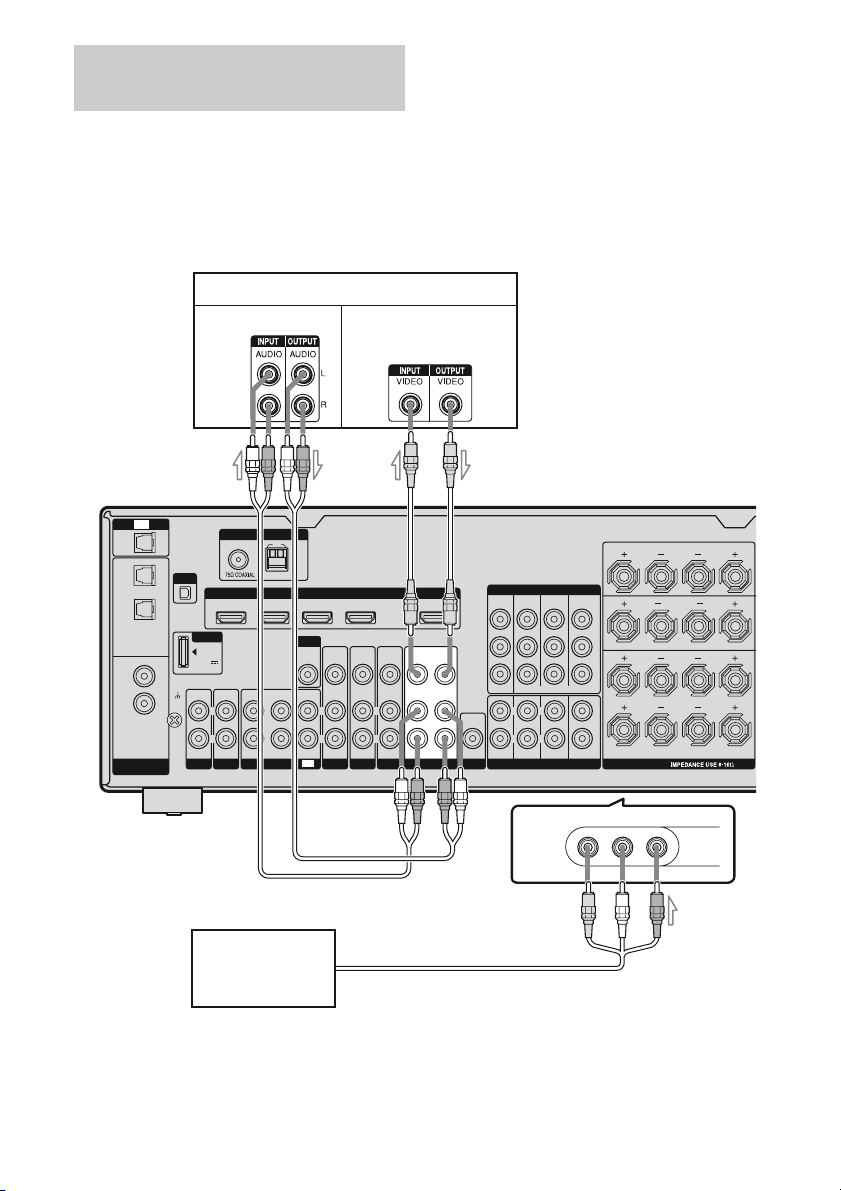

Connecting components with
analog video and audio jack
DIGITAL
ASSIGNABLE
ASSIGNABLE (INPUT ONLY)
OPTICAL
IN
OPTICAL
VIDEO 1
IN
COAXIAL
DVD
IN
TV
SAT
IN
SA-CD/
CD
IN
XM
DMPORT
DC5V
0.7A MAX
SAT IN
HDMI
BD IN DVD IN VIDEO 1 IN OUT
MD/TAPE
OUT
SIGNAL
GND
IN IN
TV
IN
AUDIO
IN
VIDEO
IN
SAT
AUDIO
IN
VIDEO
IN
BD
MONITOR
AUDIO
IN
VIDEO
IN
DVD
AUDIO
OUT
VIDEO
OUT
MULTI CHANNEL INPUT
SA-CD
/
CD
IN
PHONO
FRONT
SURROUND SUR BACK
SUBWOOFER
CENTER
COMPONENT VIDEO
MONITOR
OUT
COMPO 3
IN
COMPO 2
IN
COMPO 1
IN
Y
P
B
/
C
B
P
R
/
C
R
FRONT A
LR
FRONT B
LR
SURROUND
LR
SURROUND BACK
LR
SPEAKERS
AM
FM
ANTENNA
R
L
R
L
R
L
R
L
R
L
R
L
AUDIO
IN
AUDIO
OUT
R
L
VIDEO 2 IN/PORTABLE AV IN
VIDEO L AUDIO R
SUBWOOFER
VIDEO
IN
VIDEO
OUT
VIDEO 1
DVD recorder, VCR
A
To the VIDEO 2 IN/PORTABLE AV IN jacks
(Front panel)
Camcorder,
video game
C
Audio signals
Video signals
B
A Audio cord (not supplied)
B Video cord (not supplied)
C Audio/video cord (not supplied)
31
US
Getting Started

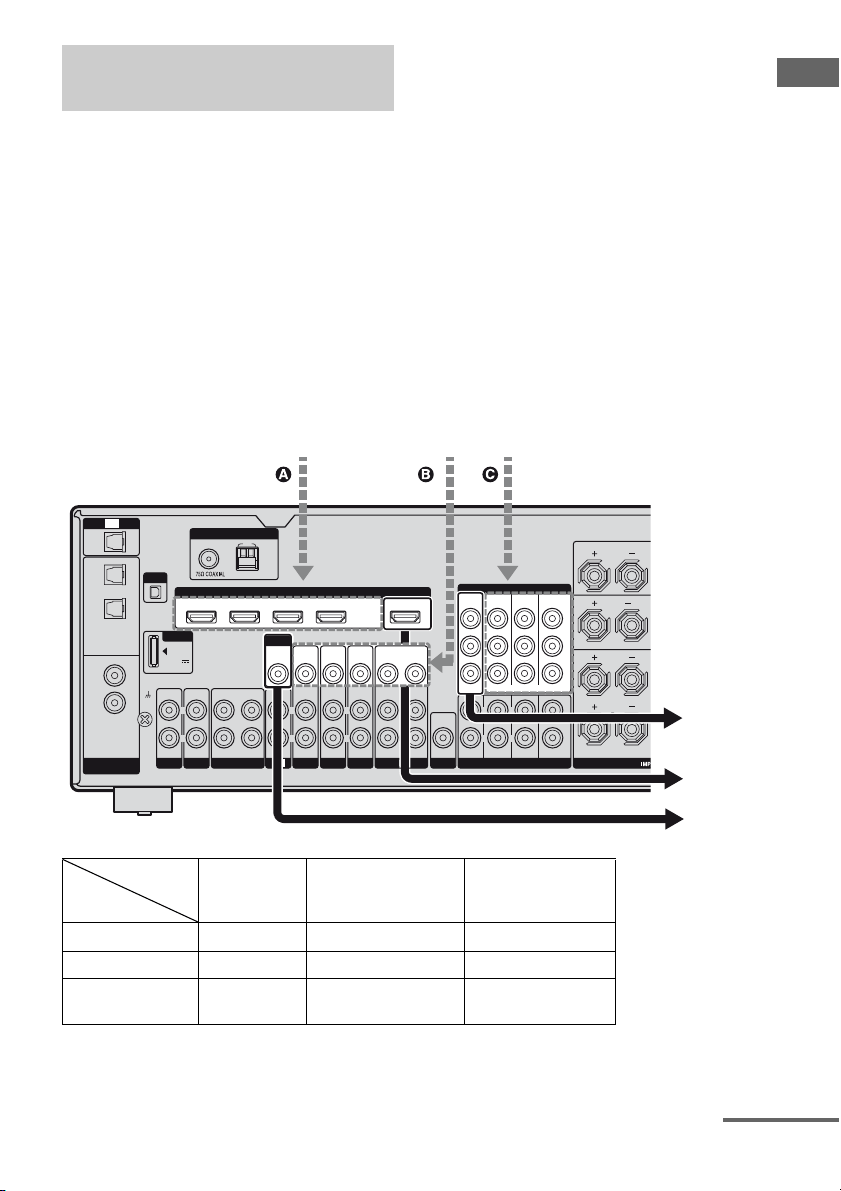

This receiver is equipped with a function for
converting video signals.
You can output the video signal after
connecting this receiver via MONITOR OUT
or HDMI OUT jack as shown in the
illustration below.
• Video signals can be output as HDMI video
and component video signals.
• Component video signals can be output as
HDMI video signals.
In the video input/output conversion table of the receiver
Refer to “In the video input/output conversion table classified by the menu settings” (page 33) on
the conversion function of images.
a : Video signals are up-converted and output through the video converter.
f : The same type of signal as that of the input signal is output. Video signals are not converted.
X : Video signals are not output.
Function for conversion of video
signals
DIGITAL
ASSIGNABLE
OPTICAL
IN
OPTICAL
VIDEO 1
IN
COAXIAL
DVD
IN
TV
SAT
IN
SA-CD/
CD
IN
XM
DMPORT
DC5V
0.7A MAX
MD/TAPE
OUT
SIGNAL
GND
IN IN
TV
IN
AUDIO
IN
SAT
AUDIO
IN
BD
AUDIO
IN
AUDIO
IN
DVD
AUDIO
OUT
AUDIO
OUT
VIDEO 1
MULTI CHANNEL INPUT
SA-CD
/
CD
IN
PHONO
SUBWOOFER
FRONT
SURROUND SUR BACK
SUBWOOFER
CENTER
COMPONENT VIDEO
MONITOR
OUT
COMPO 3
IN
COMPO 2
IN
COMPO 1
IN
Y
P
B
/
C
B
P
R
/
C
R
FRO
N
R
FRO
N
R
SURR
O
R
SURROU
N
R
SPEAKERS
AM
FM
ANTENNA
R
L
R
L
R
L
R
L
R
L
L
R
VIDEO
IN
VIDEO
IN
VIDEO
IN
VIDEO
IN
VIDEO
OUT
R
L
R
L
SAT IN
HDMI
BD IN DVD IN VIDEO 1 IN OUT
ASSIGNABLE (INPUT ONLY)
MONITOR
VIDEO
OUT
Input Signals
Output Signals
B C
B
A B C
HDMI OUT COMPONENT
VIDEO
MONITOR OUT
MONITOR
VIDEO OUT
HDMI IN A f XX
VIDEO IN B aa f
COMPONENT
VIDEO IN C
af/a X
INPUT jack
OUTPUT jack
continued
32
US
Notes on converting video
signals
• When video signals from a VCR, etc., are
converted on this receiver and then output to
your TV, depending on the status of the
video signal output, the image on the TV
screen may appear distorted horizontally or
no image may be output.
• HDMI video signals cannot be converted to
component video signals and video signals.
• When you play back a VCR with an image
improvement circuit, such as TBC, the
images may be distorted or may not be
output. In this case, set the image
improvement circuit function to off.
• The resolution of the signals output to the
COMPONENT VIDEO MONITOR OUT
jacks is converted up to 1080i. The
resolution of the signals output to the HDMI
OUT jack is converted up to 1080p.
• COMPONENT VIDEO MONITOR OUT
jacks have restrictions on resolution when
the resolution of video signals protected by
copyright technology is converted.
Resolution of up to 480p can be output to the
COMPONENT VIDEO MONITOR OUT
jacks. The HDMI OUT jack has no
restriction on resolution.
• Set “Resolution” to “AUTO” or “480/576i”
in the Video settings menu to output the
video signals from the MONITOR VIDEO
OUT, or COMPONENT VIDEO
MONITOR OUT jack when both are
connected.
To display Closed Caption
Set “Resolution” to “DIRECT” in the Video
settings menu when receiving a signal that
supports Closed Captions.
Use the same type of cords for the input/output
signals.
33
US
Getting Started
In the video input/output conversion table classified by the menu
settings
For details on “Resolution” menu setting, see “Settings for the video (Video settings menu)” (page
49) and on operating, see “Converting analog video input signals” (page 77).
a : Video signals are up-converted and output through the video converter.
f : The same type of signal as that of the input signal is output. Video signals are not converted.
X : Video signals are not output.
a)
The resolution is set automatically, depending on the connected TV.
b)
When the TV is connected to jacks other than the HDMI jacks, 480/576i signals are output when “Resolution”
is set to “AUTO”.
c)
480/576p signals are output even if 480/576i is set.
d)
Video signals without copyright protection are output based on the settings menu. Video signals with
copyright protection are output as 480p.
Notes
• Video signals are not output from the COMPONENT VIDEO MONITOR OUT jacks when the TV, etc., is
connected to the HDMI OUT jack.
• If you select a resolution that the connected TV does not support in the “Resolution” menu, the images from
the TV cannot be output correctly.
• Converted HDMI image output signals do not support “x.v.Color”.
• Converted HDMI image output signals do not support Deep Color.
• When HDMI OUT jack is connected, there is no up-converted video signal output from COMPONENT
VIDEO MONITOR OUT jacks. The COMPONENT VIDEO MONITOR OUT jacks has the component
signal direct output only.
“Resolution”
menu setting
HDMI OUT
jack
COMPONENT
VIDEO
MONITOR OUT
jacks
MONITOR
VIDEO OUT
jack
DIRECT Component video X f X
Video XXf
AUTO (initial
setting)
Component video a
a)
a
b)
X
Video a
a)
a
b)
f
480/576i Component video a
c)
a X
Video a
c)
af
480/576p Component video aaX
Video aaf
720p, 1080i Component video aa
d)
X
Video aa
d)
f
1080p Component video afX
Video a X f
Input signals
Output from
34
US
5: Connecting the antennas (aerials)
Connect the supplied AM loop antenna
(aerial) and FM wire antenna (aerial).
* The shape of the connector varies depending on
the area code of this receiver.
Notes
• To prevent noise pickup, keep the AM loop
antenna (aerial) away from the receiver and other
components.
• Be sure to fully extend the FM wire antenna
(aerial).
• After connecting the FM wire antenna (aerial),
keep it as horizontal as possible.
• Before connecting the antennas (aerials), make
sure to disconnect the AC power cord (mains lead).
DIGITAL
ASSIGNABLE
ASSIGNABLE (INPUT ONLY)
OPTICAL
IN
OPTICAL
VIDEO 1
IN
COAXIAL
DVD
IN
TV
SAT
IN
SA-CD/
CD
IN
XM
DMPORT
DC5V
0.7A MAX
SAT IN
HDMI
BD IN DVD IN VIDEO 1 IN OUT
MD/TAPE
OUT
SIGNAL
GND
IN IN
TV
IN
AUDIO
IN
VIDEO
IN
SAT
AUDIO
IN
VIDEO
IN
BD
MONITOR
AUDIO
IN
VIDEO
IN
AUDIO
IN
VIDEO
IN
DVD
AUDIO
OUT
AUDIO
OUT
VIDEO
OUT
VIDEO
OUT
VIDEO 1
MULTI CHANNEL INPUT
SA-CD
/
CD
IN
PHONO
SUBWOOFER
FRONT
SURROUND SUR BACK
SUBWOOFER
CENTER
COMPONENT VIDEO
MONITOR
OUT
COMPO 3
IN
COMPO 2
IN
COMPO 1
IN
Y
P
B
/
C
B
P
R
/
C
R
FRONT A
LR
FRONT B
LR
SURROUND
LR
SURROUND BACK
LR
SPEAKERS
AM
FM
ANTENNA
R
L
R
L
R
L
R
L
R
L
R
L
R
L
FM wire antenna (aerial) (supplied)
AM loop antenna (aerial) (supplied)
35
US
Getting Started
6: Preparing the receiver
and the remote
Connect the AC power cord (mains lead) to a
wall outlet.
Notes
• Before connecting the AC power cord (mains
lead), make sure that metallic wires of the speaker
cords are not touching each other between the
SPEAKERS terminals.
• Connect the AC power cord (mains lead) firmly.
Before using the receiver for the first time,
initialize the receiver by performing the
following procedure. This procedure can also
be used to return settings you have made to
their factory defaults.
Be sure to use the buttons on the receiver for
this operation.
1 Press POWER to turn off the
receiver.
2 While holding down TONE
MODE and 2CH/A.DIRECT,
press POWER to turn on the
receiver.
3 Release the TONE MODE and
2CH/A.DIRECT after a few
seconds.
After “CLEARING” appears on the
display for a while, “CLEARED !”
appears.
All the settings you have changed or
adjusted are reset to the initial settings.

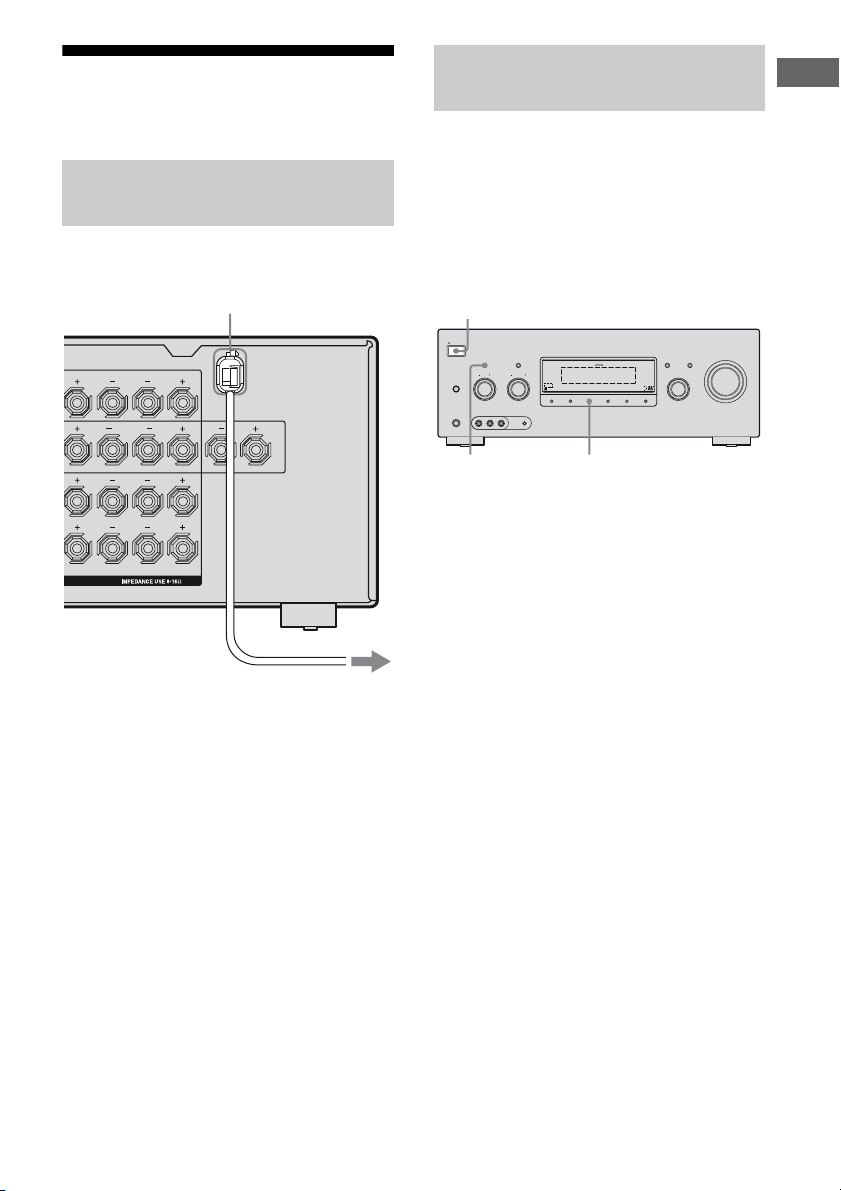

Connecting the AC power cord
(mains lead)
FRONT A
LR
FRONT B
LR
SURROUND CENTER
LR
SURROUND BACK
LR
SPEAKERS
AC power cord (mains lead)
To the wall outlet
Performing initial setup
operations
SPEAKERS
(OFF/A/B/A+B)
PHONES
VIDEO 2 IN/PORTABLE AV IN
VIDEO L AUDIO R AUTO CAL MIC
MEMORY/
ENTER
2CH/
A.DIRECT
A.F.D. MOVIE MUSICDIMMER
MULTI CHANNEL DECODING
INPUT SELECTOR
TONE MODE
ON/STANDBY
TUNING MODE
POWER
TUNING
DISPLAY INPUT MODE
MASTER VOLUME
TONE
1,2
2,3 2,3
36
US

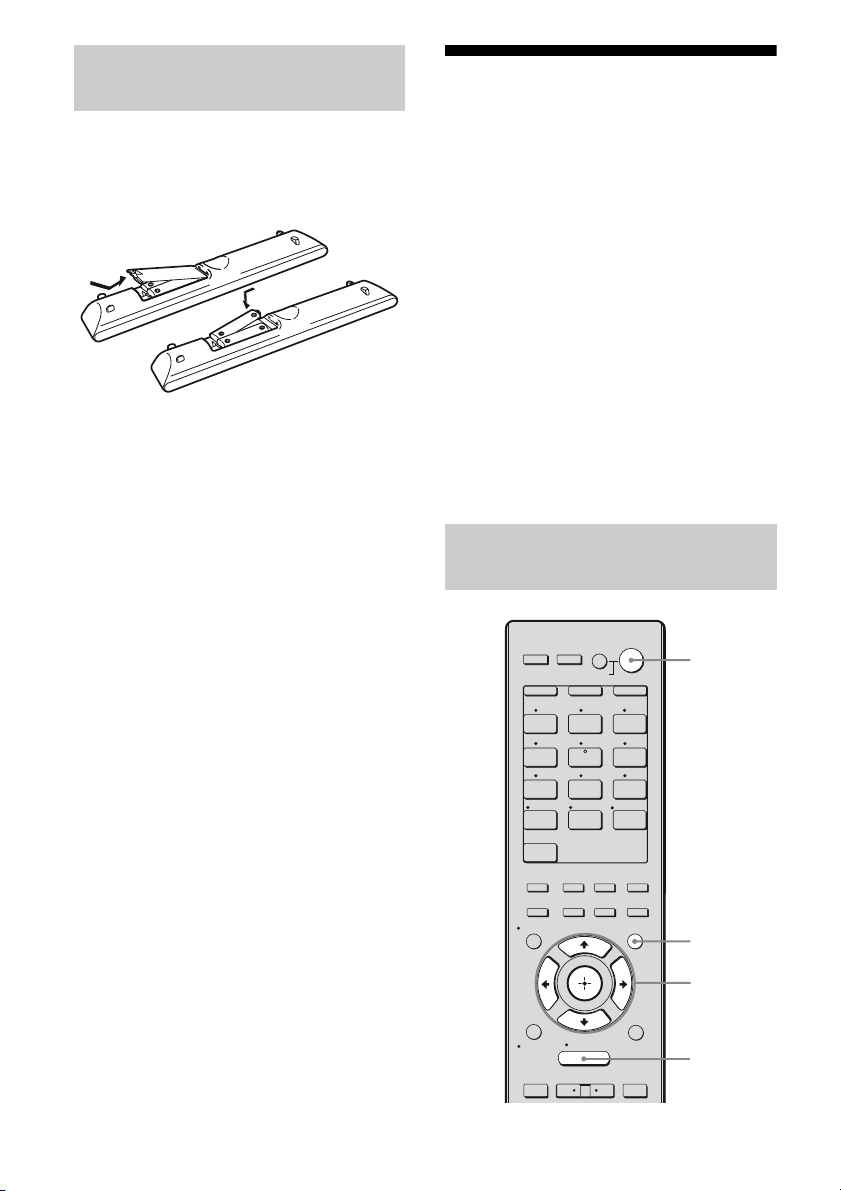

Insert two R6 (size-AA) batteries in the
RM-AAP023 remote commander.
Observe the correct polarity when installing
batteries.
Notes
• Do not leave the remote in an extremely hot or
humid place.
• Do not use a new battery with old ones.
• Do not mix manganese batteries and other kinds of
batteries.
• Do not expose the remote sensor to direct sunlight
or lighting apparatuses. Doing so may cause a
malfunction.
• If you do not intend to use the remote for an
extended period of time, remove the batteries to
avoid possible damage from battery leakage and
corrosion.
• When you replace the batteries, the programmed
remote codes may be cleared. If this happens,
program the remote codes again (page 99).
Tip
Under normal conditions, the batteries should last
for about 3 months. When the remote no longer
operates the receiver, replace all the batteries with
new ones.
7: Operating the receiver
using the GUI
(Graphical User Interface)
You can change the display mode of the
receiver menu to the screen mode using the
following procedures. In the screen mode,
“GUI MODE” appears on the display of the
receiver.
By using the GUI menu, you can make various
settings and adjustments.
Refer to “Operating without connecting to the
TV” (page 89) if you are not going to use a
GUI menu.
Note
GUI menu does not appear on the TV screen when
you have connected your TV to the MONITOR
VIDEO OUT jack.
Inserting batteries into the
remote
Displaying the GUI menu on the
TV screen
1 2 3
4 5 6
7 8 9
-/--
0/10
ENT/MEM
2CH/
A.DIRECT
A.F.D. MOVIE MUSIC
THEATER
SYSTEM STANDBY
?/1
CLEAR
/>10
SHIFT TV
– CATEGORY +
RESOLUTION
.
>
VIDEO 1 VIDEO 2 BD
SAT TV
PHONO
XM
MULTI IN DMPORT
MD/
TAPE
SA-CD/
CD
TUNER
<
<
MENU
AV
?/1
RETURN/
EXIT
OPTIONS
TOOLS
HOME
DISPLAY
GUI
MODE
O
DVD
INPUT
MODE
SLEEP
NIGHT
MODE
RM SET UP
AMP
5
3
4
MENU
37
US
Getting Started
1 Connect a TV to this receiver.
Refer to “3: Connecting the TV” (page
18).
2 Turn on the TV.
3 Press ?/1 to turn on the
receiver.
4 Press GUI MODE.
“GUI MODE” appears on the display and
the GUI menu appears on the TV screen.
Press MENU if the GUI menu does not
appear on the TV screen.
5 Press V/v repeatedly to select a
menu you want, then press
or b.
The following menu items are available in
each settings menu.
Input
Selects the input to the receiver.
For details on each input, see “Selecting a
component” (page 44).
Music
You can enjoy music and image from an audio/
video component connected the DIGITAL
MEDIA PORT adapter.
For details on Music function, see “Enjoying
the DIGITAL MEDIA PORT (DMPORT)”
(page 77).
FM/AM/XM
You can listen to the radio using the receiver.
For details on Tuner operation, see “Tuner
Operations” (page 62).
Settings
You can use Settings menu to set and adjust
this receiver.
Auto Calibration
You can use the Auto Calibration settings
menu to adjust the speakers automatically.
For details, see “9: Calibrating the
appropriate speaker settings automatically
(Auto Calibration)” (page 39).
Speaker
You can use the Speaker settings menu to
adjust the speakers manually for the current
position. For details, see “Adjusting the
speaker settings manually” (page 56).
Surround
You can use the Surround settings menu to
select the sound field you want for your
listening pleasure. For details on adjusting
the parameters, see “Enjoying a pre-
programmed sound field” (page 50).
EQ
You can use the EQ settings menu to adjust
the equalizer. For details, see “Adjusting the
equalizer” (page 61).
Audio
For details on adjusting the audio using the
Audio settings menu, see “Settings for the
audio (Audio settings menu)” (page 48).
Video
For details on adjusting the video using the
Video settings menu, see “Settings for the
video (Video settings menu)” (page 49).
HDMI
You can use the HDMI settings menu to
operate components connected to the HDMI
jacks. For details on adjusting the
parameters, see “Settings for HDMI (HDMI
settings menu)” (page 49).
Overview of the GUI menus
38
US

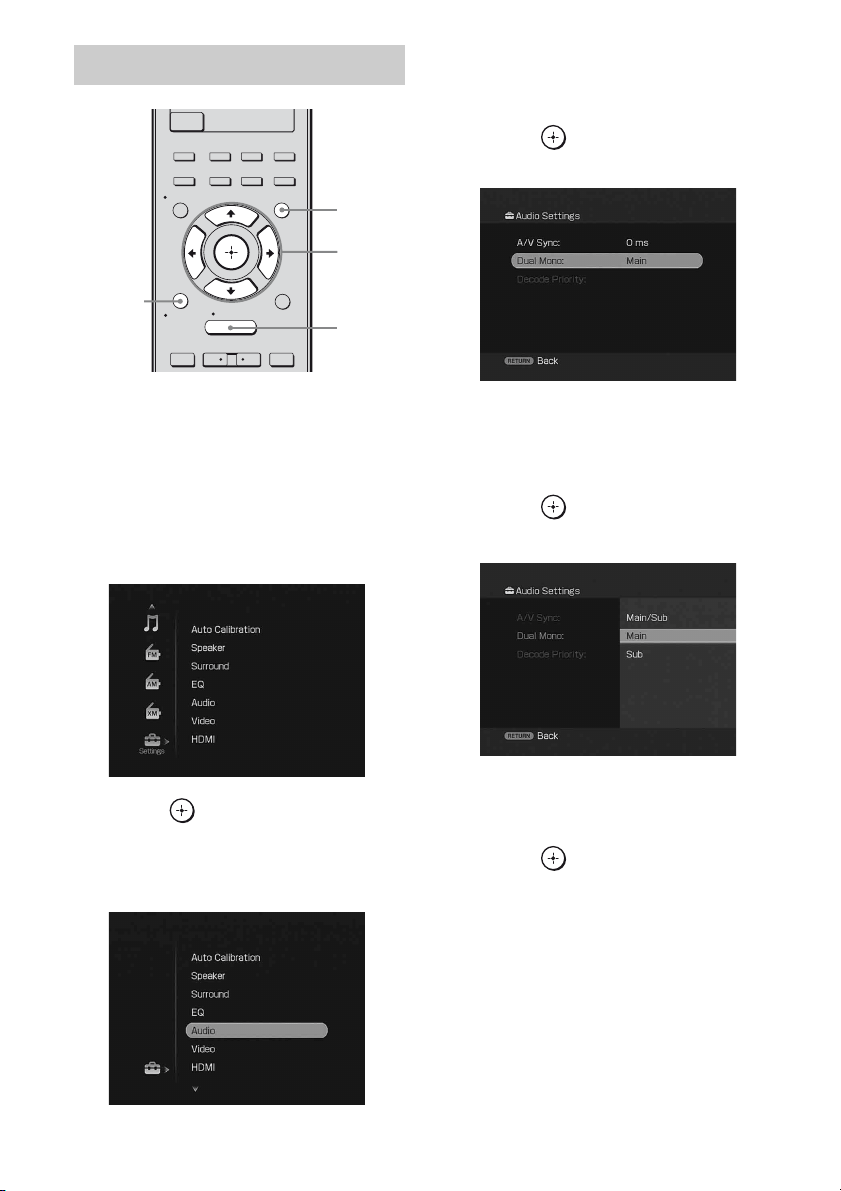

1 Press GUI MODE.
“GUI MODE” appears on the display and
the GUI menu appears on the TV screen.
Press MENU if the GUI menu does not
appear on the TV screen.
2 Press V/v repeatedly to select a
menu you want.
3 Press or b to enter the
menu.
The menu item list appears on the TV
screen.
4 Press V/v repeatedly to select
the menu item you want to
adjust.
5 Press or b enter the menu
item.
6 Press V/v repeatedly to select
the parameter you want to
adjust.
7 Press or b to enter the
parameter.
8 Press V/v repeatedly to select
the setting you want.
9 Press to enter the setting.
10Repeat steps 2 to 9 to make
other settings.
To return to the previous screen
Press RETURN/EXIT O.
To exit the menu
Press MENU.
Navigating through GUI menu
2CH/
A.DIRECT
A.F.D. MOVIE MUSIC
– CATEGORY +
RESOLUTION
.
>
XM
<
<
MENU
RETURN/
EXIT
OPTIONS
TOOLS
HOME
DISPLAY
GUI
MODE
O
INPUT
MODE
SLEEP
NIGHT
MODE
2-9
RETURN/
EXIT O
1
MENU
39
US
Getting Started
8: Selecting the speaker
system
You can select the front speakers you want to
drive.
Be sure to use the buttons on the receiver for
this operation.
Press SPEAKERS (OFF/A/B/A+B)
repeatedly to select the front
speaker system you want to drive.
To turn off the speaker output
Press SPEAKERS (OFF/A/B/A+B)
repeatedly until the “SP A”, “SP B” and
“SP A + B” indicators on the display do not
light up. “ALL OFF” appears on the display
for a while.
No audio signals are output from any speaker
terminals.
Note
You cannot switch the front speaker system by
pressing SPEAKERS (OFF/A/B/A+B) when the
headphones are connected.
9: Calibrating the
appropriate speaker
settings automatically
(Auto Calibration)
This receiver is equipped with DCAC (Digital
Cinema Auto Calibration) function which
allows you to perform automatic calibration as
follows:
• Check the connection between each speaker
and the receiver.
a)
• Adjust the speaker level.
• Measure the distance of each speaker to your
listening position.
a)
• Measure the speaker polarity.
• Measure the speaker size.
a)
• Measure the frequency characteristics.
a)b)
a)
The measurement result is not utilized in the
following case.
– “Analog Direct” is being used.
– The multi channel input is selected.
b)
The measurement result is not utilized in the
following case.
– Dolby TrueHD signals with a sampling
frequency of more than 96 kHz are being
received.
– PCM signals with a sampling frequency of more
than 96 kHz are being received.
The DCAC is designed to obtain proper sound
balance in your room. However, you can
adjust the speaker levels and balance manually
according to your preference. For details, see
“Making settings with the Test Tone menu”
(page 59).
To select Light up
The speakers connected to the
SPEAKERS FRONT A terminals
SP A
The speakers connected to the
SPEAKERS FRONT B terminals
SP B
The speakers connected to both the
SPEAKERS FRONT A and B
terminals (parallel connection)
SP A + B
SPEAKERS
(OFF/A/B/A+B)
PHONES
VIDEO 2 IN/PORTABLE AV IN
VIDEO L AUDIO R AUTO CAL MIC
MEMORY/
ENTER
2CH/
A.DIRECT
A.F.D. MOVIE MUSICDIMMER
MULTI CHANNEL DECODING
INPUT SELECTOR
TONE MODE
ON/STANDBY
TUNING MODE
POWER
TUNING
DISPLAY INPUT MODE
MASTER VOLUME
TONE
SPEAKERS (OFF/A/B/A+B)
40
US

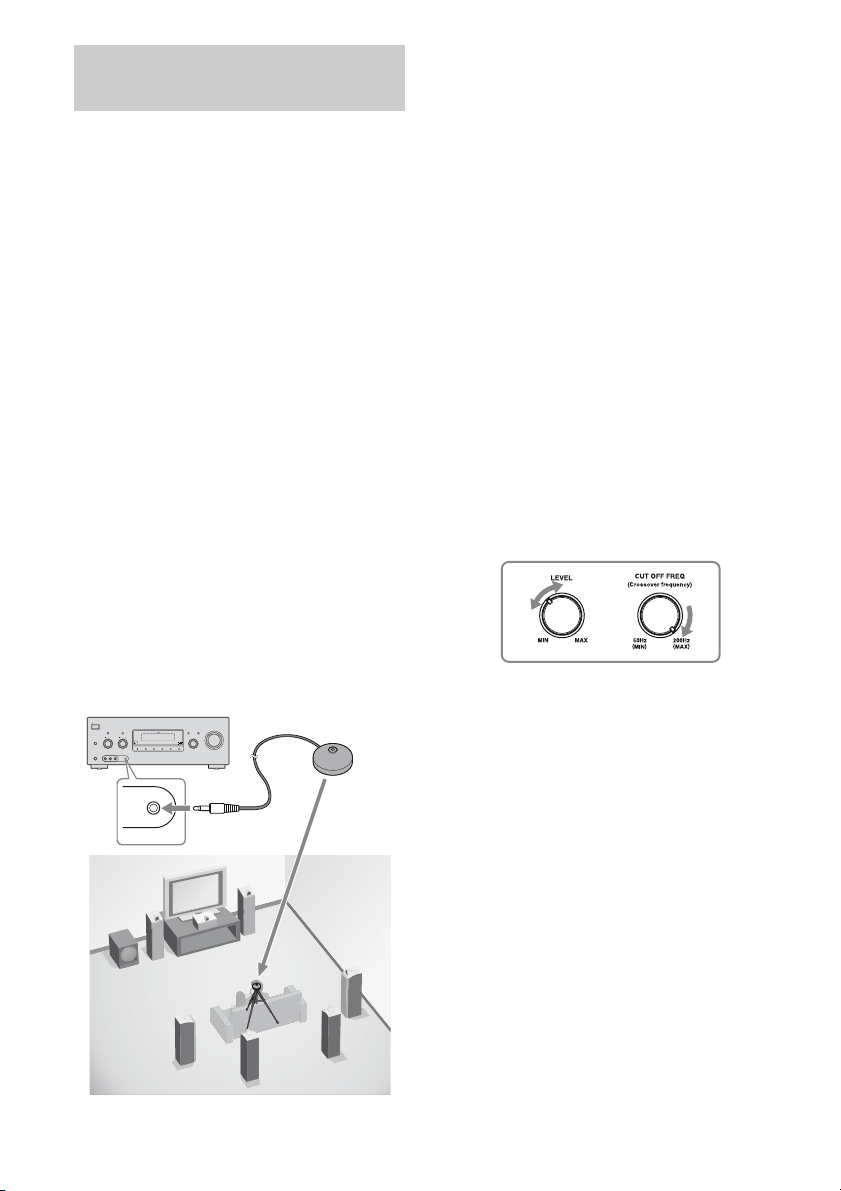

Before you perform the Auto Calibration, set
up and connect the speakers (page 14–16).
• The AUTO CAL MIC jack is used for the
supplied optimizer microphone only. Do not
connect other microphones to this jack.
Doing so may damage the receiver and the
microphone.
• During the measurement, the sound that
comes out of the speakers is very loud. The
volume of the sound cannot be adjusted. Pay
attention to the presence of children or to the
effect on your neighborhood.
• Perform the measurement in a quiet
environment to avoid the effect of noise and
get a more accurate measurement.
• If there are any obstacles in the path between
the optimizer microphone and the speakers,
the calibration cannot be performed
correctly. Remove any obstacles from the
measurement area to avoid measurement
error.
Note
The Auto Calibration function does not work in the
following cases.
– Headphones are connected
– SPEAKERS (OFF/A/B/A+B) is set to off.
1 Connect the supplied optimizer
microphone to the AUTO CAL
MIC jack.
2 Set up the optimizer
microphone.
Place the optimizer microphone at your
listening position. Use a stool or tripod so
that the optimizer microphone remains at
the same height as your ears.
On setting up the active
subwoofer
• When a subwoofer is connected, turn on the
subwoofer and turn up the volume
beforehand. Turn the MASTER VOLUME
to just before the mid-point.
• If you connect a subwoofer with a crossover
frequency function, set the value to the
maximum.
• If you connect a subwoofer with an auto
standby function, set it to off (deactivated).
Note
Depending on the characteristics of the subwoofer
you are using, the setup distance value may be
further away from the actual position.
Before you perform Auto
Calibration
SPEAKERS
(OFF/A/B/A+B)
PHONES
VIDEO 2 IN/PORTABLE AV IN
VIDEO L AUDIO R
MEMORY/
ENTER
2CH/
A.DIRECT
A.F.D. MOVIE MUSICDIMMER
MULTI CHANNEL DECODING
INPUT SELECTOR
TONE MODE
ON/STANDBY
TUNING MODE
POWER
TUNING
DISPLAY INPUT MODE
MASTER VOLUME
TONE
AUTO CAL MIC
AUTO CAL MIC
Optimizer microphone
41
US
Getting Started

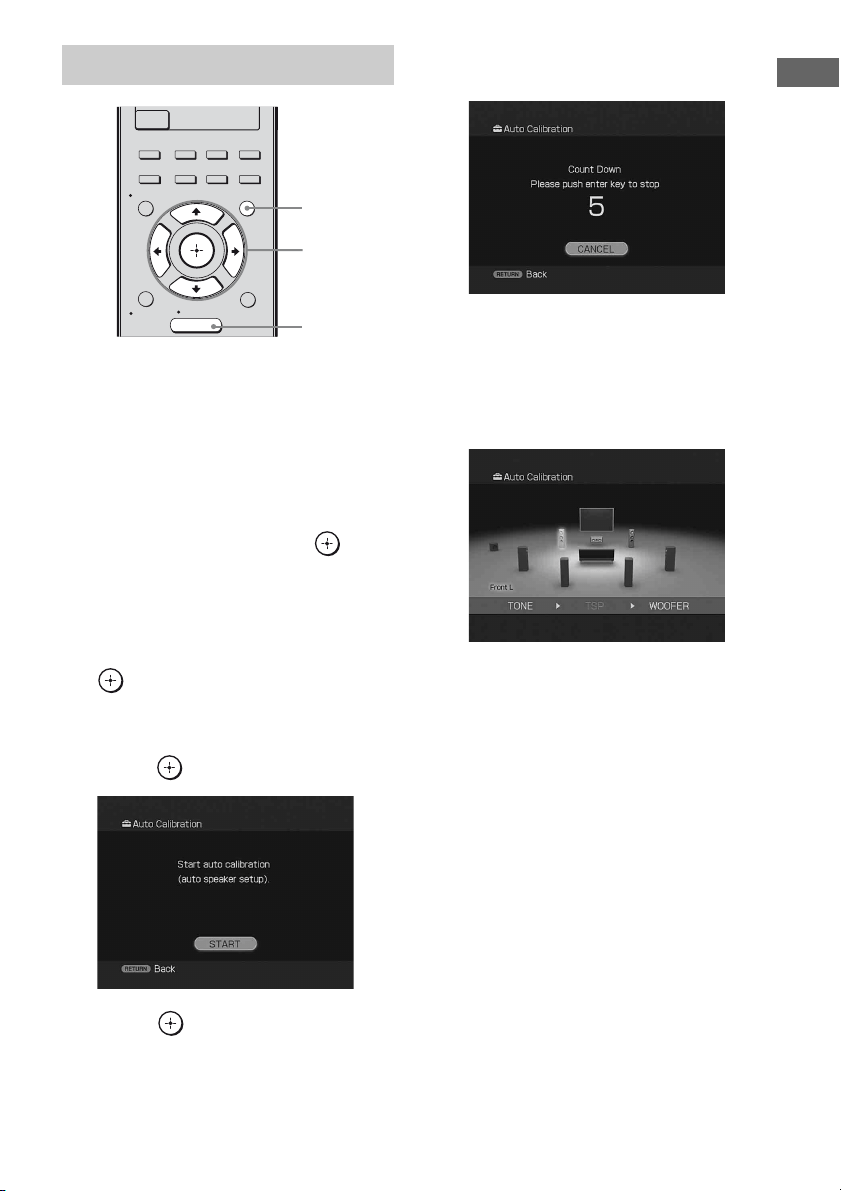

1 Press GUI MODE.
“GUI MODE” appears on the display and
the GUI menu appears on the TV screen.
Press MENU if the GUI menu does not
appear on the TV screen.
2 Press V/v repeatedly to select
“Settings”, then press or b.
The Settings menu list appears on the TV
screen.
3 Press V/v repeatedly to select
“Auto Calibration”, then press
or b.
4 Press V/v repeatedly to select
“Auto Calibration Start”, then
press or b.
5 Press to select “START”.
6 The measurement starts in five
seconds.
7 Measurement starts.
The measurement process will take
approximately 30 seconds with a test
tone. Wait until the measurement process
completes.
Tip
The measurements may not be performed correctly
or Auto Calibration cannot be performed when
special speakers, such as dipole speakers are used.
To cancel the measurement
The measurement will be canceled when you
do the following:
– Press ?/1, input buttons or MUTING.
– Press SPEAKERS (OFF/A/B/A+B) on the
receiver.
– Change the volume level.
– Connect the headphones.
Performing Auto Calibration
2CH/
A.DIRECT
A.F.D. MOVIE MUSIC
RESOLUTION
XM
MENU
RETURN/
EXIT
OPTIONS
TOOLS
HOME
DISPLAY
GUI
MODE
O
INPUT
MODE
SLEEP
NIGHT
MODE
2-5
1
MENU
42
US

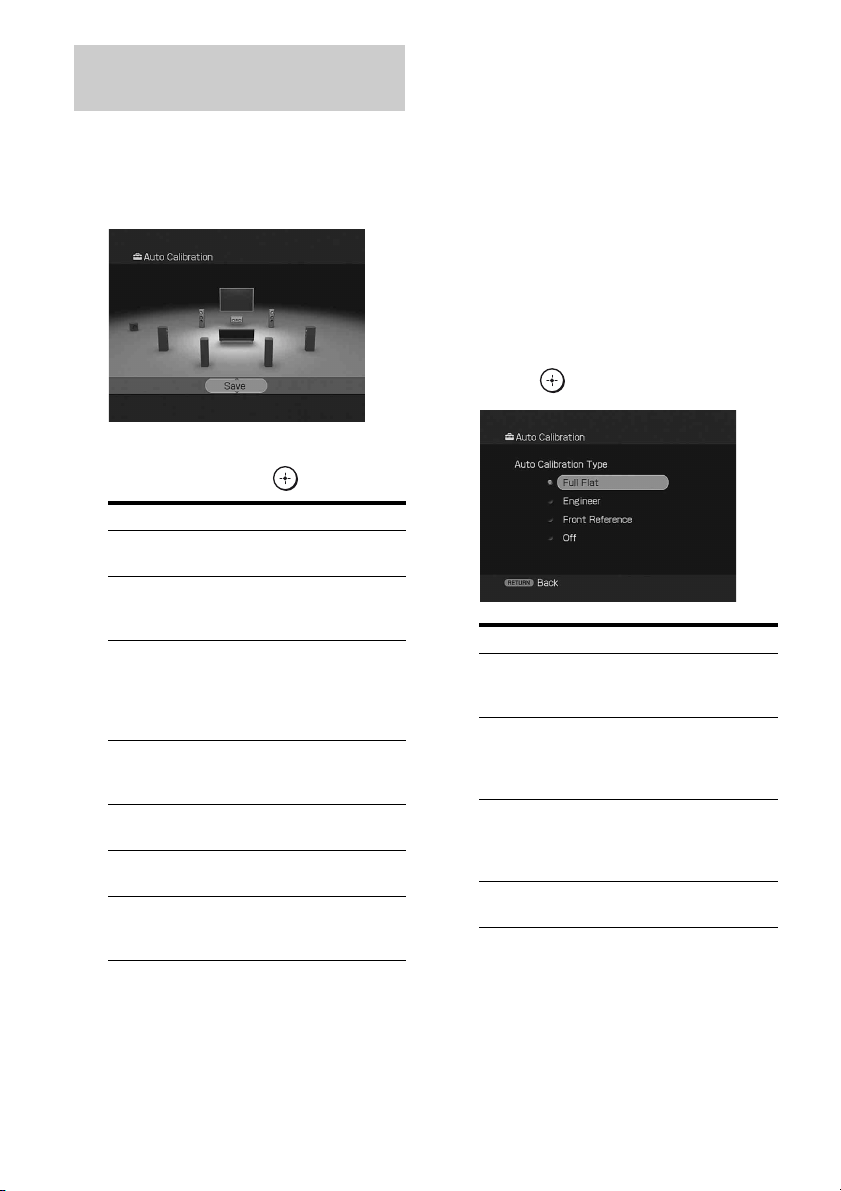

1 Confirm the measurement
result.
When the measurement ends, a beep
sounds.
2 Press V/v to select the item you
want, then press .
* When the speaker(s) is (are) out of the phase,
“OUT” is displayed on the TV screen. The
“+” and “–” terminals of the speaker may be
connected the other way around.
However, depending on the speakers, “OUT”
appears on the TV screen even though the
speakers are connected properly. This is
because of the speakers’ specifications. In
this case, you can continue to use the
receiver.
3 Select “Save” in step 2 to save
the measurement result.
4 Press V/v repeatedly to select
the Auto Calibration Type, then
press .
Confirming/saving the
measurement results
Item Explanation
Retry Performs the Auto Calibration
again.
Save Saves the measurement
results and exits the setting
process.
Warning Displays warning concerning
the measurement results. See
“Message list after Auto
Calibration measurement”
(page 43).
Phase* Displays the phase of each
speaker (in phase/out of
phase).
Distance Displays the measurement
result for speaker distance.
Level Displays the measurement
result for speaker level.
Exit Exits the setting process
without saving the
measurement results.
Parameter Explanation
Full Flat Makes the measurement of
frequency from each speaker
flat.
Engineer Sets the frequency
characteristics to a set that
matches that of the Sony
listening room standard.
Front
Reference
Adjusts the characteristics of
all the speakers to match the
characteristics of the front
speaker.
Off Sets the Auto Calibration EQ
to off.
43
US
Getting Started
Tip
The size of a speaker (LARGE/SMALL) is
determined by the low frequency characteristics.
The measurement results may vary, depending on
the position of the optimizer microphone and
speakers, and the shape of the room. It is
recommended that you follow the measurement
results. However, you can change those settings in
the Speaker settings menu. Save the measurement
results first, then try to change the settings if you
want.
Message list after Auto Calibration measurement
Error and
warning code
Explanation
Error Code 31 The SPEAKERS (OFF/A/B/A+B) is set to off. Set it to others and perform the Auto
Calibration again.
Error Code 32 None of the speakers were detected. Make sure that the optimizer microphone is connected
properly and perform the measurement again.
If the optimizer microphone is connected properly but the error code appears, the optimizer
microphone cable may be damaged or improperly connected.
Error Code 33 • None of the front speakers are connected or only one front speaker is connected.
• The optimizer microphone is not connected.
• Either the left or right surround speakers is not connected.
• Surround back speakers are connected even though surround speakers are not connected.
Connect the surround speaker(s) to the SPEAKERS SURROUND terminals.
• The surround back speaker is connected only to the SPEAKERS SURROUND BACK R
terminals. When you connect only one surround back speaker, connect it to the SPEAKERS
SURROUND BACK L terminals.
Warning 40 The measurement has completed. However, the noise level is high. You may be able to
perform the measurement properly if you try it again, even though the measurement cannot
be performed in all environments. Try to perform the measurement in a quiet environment.
Warning 41 The sound input from the optimizer microphone is out of range. It is louder than the loudest
sound that can be measured. Try to perform the measurement when the environment is quiet
enough to allow proper measurement.
Warning 42 The volume of the receiver is out of range. Try to perform the measurement when the
environment is quiet enough to allow proper measurement.
Warning 43 The distance and position of a subwoofer cannot be detected. This may be caused by noise.
Try to perform the measurement in a quiet environment.
NO WARNING There is no warning information.
continued
44
US
Error Code 31, 32, 33
1
When you press , “RETRY?” appears.
2 Press B/b to select “YES”, then press .
3 The measurement starts in five seconds.
When “Warning” appears
If a warning on the measurement result is
present, detailed information is displayed.
Press to return to step 1 of “Confirming/
saving the measurement results” (page 42).
Tip
Depending on the position of the subwoofer, the
measurement results for polarity may vary.
However, there will be no problems even if you
continue to use the receiver with that value.
To set Auto Calibration items
more precisely
On the Auto Calibration settings menu, then
press .
• Position
You can register three patterns as Position 1,
2, and 3, depending on the listening position,
listening environment, and measurement
conditions.
• Auto Calibration Type
You can select this parameter only when you
have performed the Auto Calibration and
saved the measurement result.
For details, see the table on page 42.
• Name Input
You can rename the position number. For
details, refer to “Naming inputs” (page 81).
Selecting a component
1 Press one of the input buttons
to select the component you
want.
You can also use INPUT SELECTOR on
the receiver.
Playback
1 2 3
4 5 6
7 8 9
-/--
0/10
ENT/MEM
2CH/
A.DIRECT A.F.D. MOVIE MUSIC
CLEAR
/>10
SHIFT TV
– CATEGORY +
TUNING – TUNING +
DISC SKIP D.TUNING
CATEGORY MODE
RESOLUTION
.
mM
>
Xx
MUTING
VIDEO 1 VIDEO 2 BD
SAT TV
PHONO
XM
MULTI IN DMPORT
MD/
TAPE
SA-CD/
CD
TUNER
TV VOL
MASTER VOL
TV CH
PRESET
<
<
MENU
F1 F2
TV INPUT
TOP MENU
MENU
BD/DVD
WIDE
RETURN/
EXIT
OPTIONS
TOOLS
HOME
DISPLAY
GUI
MODE
O
DVD
INPUT
MODE
SLEEP
NIGHT
MODE
AMP
1
3
MUTING
45
US
Playback
2 Turn on the component and
start playback.
3 Press MASTER VOL +/– to
adjust the volume.
You can also use MASTER VOLUME on
the receiver.
Tips
• You can adjust the volume differently depending
on the speed with which you turn the MASTER
VOLUME on the receiver.
To turn the volume up or down quickly: turn the
knob quickly.
To make fine adjustment: turn the knob slowly.
• You can adjust the volume differently depending
on the length of time you press and hold the
MASTER VOL +/– button on the remote.
To turn the volume up or down quickly: press and
hold the button.
To make a fine adjustment: press the button and
release it immediately.
To activate the muting function
Press MUTING.
The muting function will be canceled when
you do the following.
• Press MUTING again.
• Increase the volume.
• Turn off the receiver.
To avoid damaging your
speakers
Before you turn off the receiver, be sure to turn
down the volume level.
Selected input Components that can
be played back
VIDEO 1 VCR, etc., connected to the
VIDEO 1 jack
VIDEO 2 Camcorder, video game,
etc., connected to the
VIDEO 2 IN/PORTABLE
AV IN jack
BD Blu-ray disc player, etc.,
connected to the BD jack
DVD DVD player, etc.,
connected to DVD jack
SAT Satellite tuner, set-top box,
etc., connected to SAT jack
TV TV, etc., connected to TV
jack
MD/TAPE MD deck, tape deck, etc.,
connected to MD/TAPE
jack
SA-CD/CD Super Audio CD player,
CD player, etc., connected
to the SA-CD/CD jack
TUNER Built-in radio tuner
PHONO Turntable, etc., connected
to the PHONO jack
MULTI IN Component connected to
the MULTI CHANNEL
INPUT jack
DMPORT Portable audio, etc.,
connected to the DIGITAL
MEDIA PORT adapter
connected to the receiver
XM XM Mini-Tuner and Home
Dock connected to the jack
46
US
Listening/Watching a component

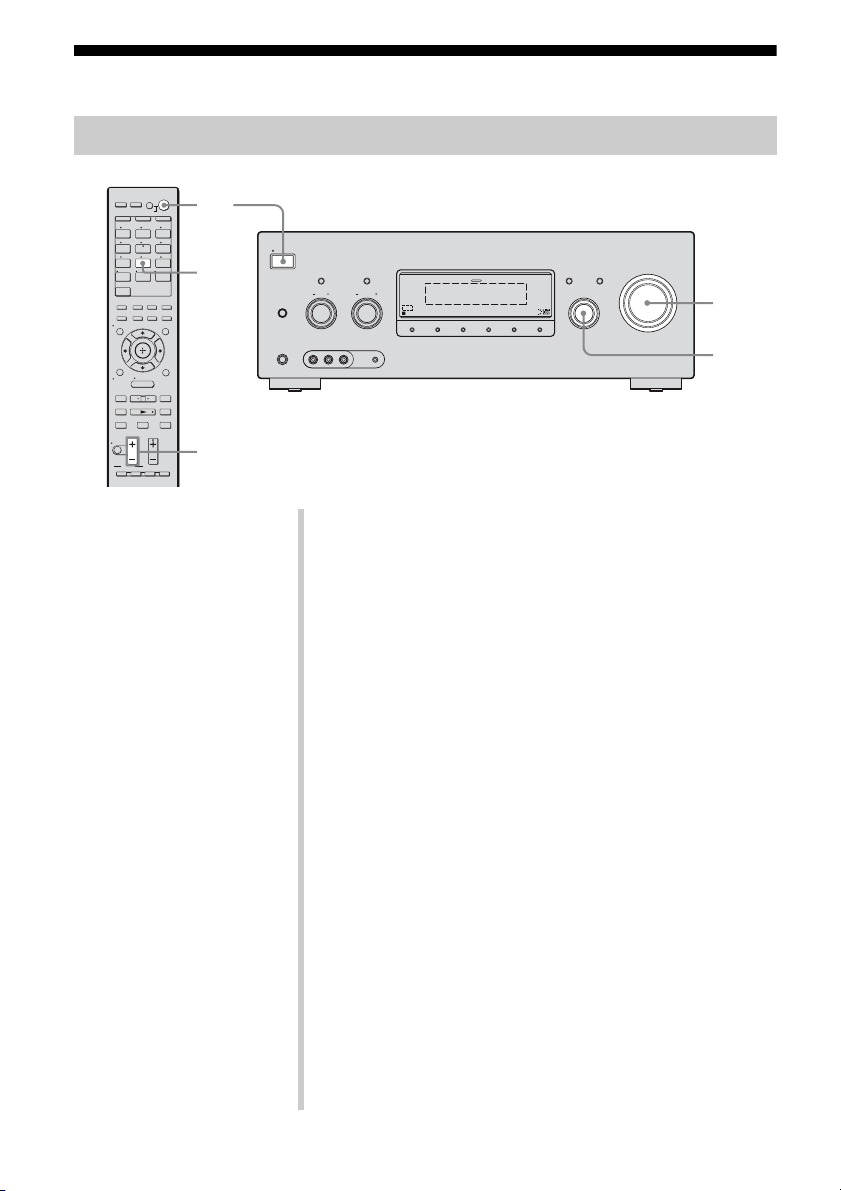

Listening to a Super Audio CD/CD
1 2 3
4 5 6
7 8 9
-/--
0/10
ENT/MEM
2CH/
A.DIRECT
A.F.D. MOVIE MUSIC
THEATER
SYSTEM STANDBY
?/1
CLEAR
/>10
SHIFT TV
– CATEGORY +
TUNING – TUNING +
DISC SKIP D.TUNING
CATEGORY MODE
RESOLUTION
.
mM
>
Xx
MUTING
VIDEO 1 VIDEO 2 BD
SAT TV
PHONO
XM
MULTI IN DMPORT
MD/
TAPE
TUNER
TV VOL
MASTER VOL
TV CH
PRESET
<
<
MENU
AV
?/1
F1 F2
TV INPUT
TOP MENU
MENU
BD/DVD
WIDE
RETURN/
EXIT
OPTIONS
TOOLS
HOME
DISPLAY
GUI
MODE
O
DVD
INPUT
MODE
SLEEP
NIGHT
MODE
RM SET UP
AMP
SPEAKERS
(OFF/A/B/A+B)
PHONES
VIDEO 2 IN/PORTABLE AV IN
VIDEO L AUDIO R AUTO CAL MIC
MEMORY/
ENTER
2CH/
A.DIRECT
A.F.D. MOVIE MUSICDIMMER
MULTI CHANNEL DECODING
INPUT SELECTOR
TONE MODE TUNING MODE
TUNING
DISPLAY INPUT MODE
MASTER VOLUME
TONE
SA-CD/
CD
ON/STANDBY
POWER
5
5
3
2
3
Notes
• The operation is described for a
Sony Super Audio CD player.
• Refer to the operating
instructions supplied with the
Super Audio CD player or CD
player.
Tip
You can select the sound field to
suit the music. Refer to page 54
for details.
1 Turn on the Super Audio CD player or CD
player, then place the disc on the tray.
2 Turn on the receiver.
3 Press SA-CD/CD.
You can also use INPUT SELECTOR on the receiver to
select “SA-CD/CD”.
4 Play back the disc.
5 Adjust to a suitable volume.
6 After you have finished listening to the
Super Audio CD or CD, eject the disc and
turn off the receiver and Super Audio CD
player or CD player.
47
US
Playback

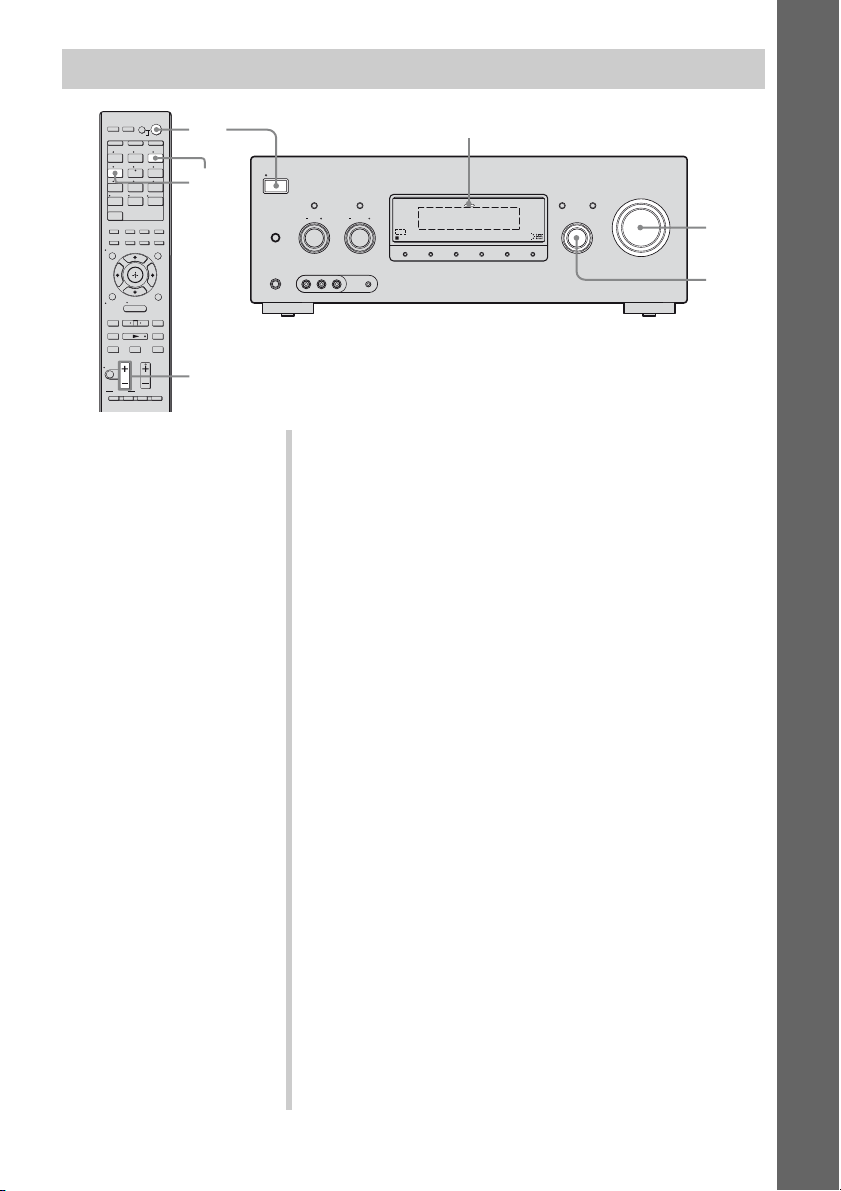

Watching a DVD/Blu-ray disc
1 2 3
4 5 6
7 8 9
-/--
0/10
ENT/MEM
2CH/
A.DIRECT
A.F.D. MOVIE MUSIC
THEATER
SYSTEM STANDBY
?/1
CLEAR
/>10
SHIFT TV
– CATEGORY +
TUNING – TUNING +
DISC SKIP D.TUNING
CATEGORY MODE
RESOLUTION
.
mM
>
Xx
MUTING
VIDEO 1 VIDEO 2
SAT TV
PHONO
XM
MULTI IN DMPORT
MD/
TAPE
SA-CD/
CD
TUNER
TV VOL
MASTER VOL
TV CH
PRESET
<
<
MENU
AV
?/1
F1 F2
TV INPUT
TOP MENU
MENU
BD/DVD
WIDE
RETURN/
EXIT
OPTIONS
TOOLS
HOME
DISPLAY
GUI
MODE
O
INPUT
MODE
SLEEP
NIGHT
MODE
RM SET UP
AMP
SPEAKERS
(OFF/A/B/A+B)
PHONES
VIDEO 2 IN/PORTABLE AV IN
VIDEO L AUDIO R AUTO CAL MIC
MEMORY/
ENTER
2CH/
A.DIRECT
A.F.D. MOVIE MUSICDIMMER
INPUT SELECTOR
TONE MODE TUNING MODE
TUNING
DISPLAY INPUT MODE
MASTER VOLUME
TONE
DVD
BD
ON/STANDBY
POWER
MULTI CHANNEL DECODING
2
3
6
6
3
MULTI CHANNEL DECODING lamp
Notes
• Refer to the operating
instructions supplied with the
TV and DVD player/Blu-ray
disc player.
• Check the following if you
cannot listen to multi channel
sound.
– Be sure the audio source
corresponds to the multi
channel format (the MULTI
CHANNEL DECODING
lamp on the front panel lights
up during playback).
– Be sure this receiver is
connected to the DVD player/
Blu-ray disc player via a
digital connection.
– Be sure the digital audio
output of the DVD player/
Blu-ray disc player is set up
properly.
Tips
• Select the audio format of the
disc to be played back, if
necessary.
• You can select the sound field to
suit the movie or music. Refer to
page 54 for details.
1 Turn on the TV and DVD player/Blu-ray disc
player.
2 Turn on the receiver.
3 Press DVD to watch a DVD or press BD to
watch a Blu-ray disc.
You can also use INPUT SELECTOR on the receiver to
select “DVD” or “BD”.
4 Switch the input of the TV so that an image
of the DVD/Blu-ray disc is displayed.
5 Play back the disc.
6 Adjust to a suitable volume.
7 After you have finished watching the DVD/
Blu-ray disc, eject the disc and turn off the
receiver, TV and DVD player/Blu-ray disc
player.
48
US
Settings for the audio
(Audio settings menu)
You can use the Audio settings menu to make
settings for the audio to suit your preference.
Select “Audio” in the Settings menu. For
details on adjusting the parameters, see
“7: Operating the receiver using the GUI
(Graphical User Interface)” (page 36).
x A/V Sync (Synchronizes audio
with video output)
Lets you delay the output of audio to minimize
the time gap between audio output and visual
display. You can adjust from 0 ms to 300 ms
in 10 ms steps.
Notes
• This parameter is useful when you use a large LCD
or plasma monitor or a projector.
• This parameter is not valid when
– multi channel input is selected.
– “Analog Direct” is being used.
x Dual Mono (Digital broadcast
language selection)
Lets you select the language you want to listen
to during digital broadcast. This feature only
functions for Dolby Digital sources.
•Main/Sub
Sound of the main language will be output
through the front left speaker and sound of
the sub language will be output through the
front right speaker simultaneously.
•Main
Sound of the main language will be output.
•Sub
Sound of the sub language will be output.
x Decode Priority (Digital audio
input decoding priority)
Lets you specify the input mode for the digital
signal input to the HDMI IN jacks.
•PCM
When signals from the HDMI IN jack are
selected, only PCM signals are output from
the connected component. To prevent
interruption when playback starts, set to
“PCM”. When signals other than PCM
signals are received, set this item to
“AUTO”.
• AUTO
Automatically switches the input mode
between DTS, Dolby Digital, or PCM.
Note
Even when “Decode Priority” is set to “PCM”, the
sound may be interrupted at the very beginning of
the first track depending on the CD being played
back.
Amplifier Operations
Audio settings menu parameters
49
US
Amplifier Operations
Settings for the video
(Video settings menu)
You can use the Video settings menu to make
settings for video. Select “Video” in the
Settings menu. For details on adjusting the
parameters, see “7: Operating the receiver
using the GUI (Graphical User Interface)”
(page 36).
x Resolution
(Converting video signals)
Lets you convert the resolution of analog video
input signals.
•DIRECT
• AUTO
• 480/576i
• 480/576p
•720p
• 1080i
• 1080p
For details on operating, see “In the video
input/output conversion table classified by the
menu settings” (page 33).
Settings for HDMI
(HDMI settings menu)
You can use the HDMI settings menu to make
the required settings for components
connected to the HDMI jack. Select “HDMI”
in the Settings menu. For details on adjusting
the parameters, see “7: Operating the receiver
using the GUI (Graphical User Interface)”
(page 36).
x Control for HDMI
Lets you turn the Control for HDMI function
on or off. For details, see “Control for HDMI”
(page 72).
x Audio Out (Setting HDMI audio
input)
Lets you set the audio output for HDMI from
the playback component connected to the
receiver via a HDMI connection.
•AMP
The HDMI audio signals from the playback
component is only output to the speakers
connected to the receiver. Multi channel
sound can be played back as it is.
Note
Audio signals are not output from the TV speakers
when “Audio Out” is set to “AMP”.
• TV+AMP
The sound is output from TV’s speaker and
the speakers connected to the receiver.
Notes
• The sound quality of the playback component
depends on the TV’s sound quality, such as the
number of channels, and the sampling
frequency, etc. When the TV has stereo
speakers, the sound output from the receiver is
also stereo as that of the TV, even if you play
back multi channel source.
• When you connect the receiver to an image
display component (projector, etc.), sound may
not be output from the receiver. In this case,
select “AMP”.
Video settings menu parameters
HDMI settings menu parameters
continued
50
US
x SW Level (Subwoofer level for
HDMI)
Lets you set the level of the subwoofer to 0 dB
or +10 dB when PCM signals are input via an
HDMI connection. You can set the level for
each HDMI input independently.
• AUTO
The subwoofer level is automatically set to 0
dB or +10 dB depending on the sampling
frequency.
•+10 dB
•0 dB
Enjoying a pre-
programmed sound field
1
Start playing a sound source
you want to listen to (CD, DVD,
etc.).
2 Press GUI MODE.
“GUI MODE” appears on the display and
the GUI menu appears on the TV screen.
Press MENU if the GUI menu does not
appear on the TV screen.
3 Press V/v repeatedly to select
“Settings” then press or b.
The Settings menu list appears on the TV
screen.
4 Press V/v repeatedly to select
“Surround”, then press or
b.
5 Press V/v repeatedly to select
“Sound Field Setup”, then
press or b.
Enjoying Surround Sound
2CH/
A.DIRECT
A.F.D. MOVIE MUSIC
RESOLUTION
MENU
RETURN/
EXIT
OPTIONS
TOOLS
HOME
DISPLAY
GUI
MODE
O
INPUT
MODE
SLEEP
NIGHT
MODE
3-6
2
MENU
51
US
Enjoying Surround Sound
6 Press V/v repeatedly to select
the surround sound you want.
To select Enhanced Surround
Mode
1 Select “Enhanced Sur Mode” in step 5
above.
2 Press V/v repeatedly to select the enhanced
surround sound you want.
3 Press .
Note
The selected Enhanced Surround Mode can only be
applied if you have selected “Enhanced Sur”
as a sound field in “Sound Field Setup” parameter.
To adjust the effect level
1 After you have selected the surround sound
in step 6, press or b.
2 Press V/v repeatedly to adjust the effect
level, then press /B/b.
Higher settings apply more surround effect.
You can adjust the effect level in 4 steps
(50%, 80%, 100%, 150%).
Note
You may not able to adjust the effect level for some
sound field.
x 2ch Stereo
The receiver outputs the sound from the front
left/right speakers only. There is no sound
from the subwoofer.
Standard 2 channel stereo sources completely
bypass the sound field processing and multi
channel surround formats are downmixed to 2
channel (except LFE signals).
Note
No sound is output from the subwoofer in the 2ch
Stereo mode. To listen to 2 channel stereo sources
using the front left/right speakers and a subwoofer,
select “A.F.D. Auto”.
This receiver will generate a low frequency signal
for output to the subwoofer when there is no LFE
signal, which is a low-pass sound effect output from
a subwoofer to a 2 channel signal.
x Analog Direct
You can switch the audio of the selected input
to 2 channel analog input. This function
enables you to enjoy high quality analog
sources.
When using this function, only the volume and
front speaker level can be adjusted.
Types of 2CH mode
52
US
This receiver supports the following audio formats.
a)
Audio signals are output in another format if the playback component does not correspond to the format. For
details, refer to the operating instructions of the playback component.
b)
Signals with a sampling frequency of more than 96 kHz are played back at 96 kHz.
When connecting Blu-ray disc players and other next generation HD
players
Audio format
Maximum number
of channels
Connection of the playback component and
the receiver
COAXIAL/OPTICAL HDMI
Dolby Digital 5.1ch aa
Dolby Digital EX 6.1ch aa
Dolby Digital Plus
a)
7.1ch × a
Dolby TrueHD
a)
7.1ch × a
DTS 5.1ch aa
DTS-ES 6.1ch aa
DTS 96/24 5.1ch aa
DTS-HD
High Resolution Audio
a)
7.1ch
× a
DTS-HD
Master Audio
a)b)
7.1ch
× a
Multi channel Linear PCM
a)
7.1ch × a
53
US
Enjoying Surround Sound
The Auto Format Direct (A.F.D.) mode allows
you to listen to higher fidelity sound and select
the decoding mode for listening to a 2 channel
stereo sound as multi channel sound.
* Depends on the Speaker Pattern setting, some Enhanced Surround Mode parameters may not be available.
Notes
• This function does not work in the following cases.
– The multi channel input is selected.
– DTS-HD signals with a sampling frequency of
more than 48 kHz are being received.
– Dolby TrueHD signals with a sampling
frequency of more than 48 kHz are being
received.
– “Analog Direct” is being used.
• The beginning of the sound stream may be dropped
out when Neural-THX
®
processing is turned on or
off.
Tips
• You can identify the encoding format of DVD
software, etc., by looking at the logo on the
package.
• When a multi channel signal is input, only Dolby
Pro Logic IIx decoding is effective.
If you connect a subwoofer
This receiver will generate a low frequency
signal for output to the subwoofer when there
is no LFE signal, which is a low-pass sound
effect output to a subwoofer from a 2 channel
signal. However, the low frequency signal is
not generated for “Neo:6 Cinema” or “Neo:6
Music” when all speakers are set to “LARGE”.
In order to take full advantage of the Dolby
Digital bass redirection circuitry, we
recommend setting the subwoofer’s cut off
frequency as high as possible.
Types of A.F.D. mode
A.F.D. mode
[appears on TV screen]
Multi channel
audio after
decoding
Effect
A.F.D. Auto
[A.F.D. Auto]
(Detecting
automatically)
Presets the sound as it was recorded/encoded without adding
any surround effects.
Enhanced Surround Mode
[Enhanced Sur]
Pro Logic II*
[PL II]
5-channel signals Perform Dolby Pro Logic II decoding.
Pro Logic IIx*
[PL IIx]
7-channel signals Perform Dolby Pro Logic IIx decoding.
Neo:6 Cinema
[Neo:6 Cinema]
7-channel signals Perform DTS Neo:6 Cinema mode decoding.
Neo:6 Music
[Neo:6 Music]
7-channel signals Performs DTS Neo:6 Music mode decoding.
This setting is ideal for normal stereo sources such as CDs.
Neural-THX
®
[Neural-THX]
7-channel signals Next generation of Neural-THX
®
Surround. In addition to
stereo enhancement processing and pure discrete 5.1
surround sound, now capable for full 360° 7.1 surround sound
playback from Neural-THX
®
surround encoded content.
Multi Stereo
[Multi Stereo]
(Multi Stereo) Outputs 2 channel left/right signals from all speakers.
However, sound may not be output from certain speakers
depending on the speaker settings.
54
US
You can take advantage of surround sound
simply by selecting one of the receiver’s
preprogrammed sound fields. They bring the
exciting and powerful sound of movie theaters
and concert halls into your home.
a)
You can only select this sound field if the headphones are connected to the receiver.
b)
Appears on the display only.
Types of music/movie mode
Sound field
for
Sound field
[appears on TV screen]
Effect
Movie Cinema Studio EX A DCS
[Cinema St EX A]
Reproduces the sound characteristics of the Sony Pictures
Entertainment “Cary Grant Theater” cinema production
studio. This is a standard mode, great for watching almost any
type of movie.
Cinema Studio EX B DCS
[Cinema St EX B]
Reproduces the sound characteristics of the Sony Pictures
Entertainment “Kim Novak Theater” cinema production
studio. This mode is ideal for watching science-fiction or
action movies with lots of sound effects.
Cinema Studio EX C DCS
[Cinema St EX C]
Reproduces the sound characteristics of the Sony Pictures
Entertainment scoring stage. This mode is ideal for watching
musicals or films where orchestra music is featured in the
soundtrack.
V.Multi Dimension DCS
[V.Multi Dimension]
Creates many virtual speakers from a single pair of actual
surround speakers.
Music Hall [Hall] Reproduces the acoustics of a classical concert hall.
Jazz Club [Jazz Club] Reproduces the acoustics of a jazz club.
Live Concert [Live Concert] Reproduces the acoustics of a 300-seat live house.
Stadium [Stadium] Reproduces the feeling of a large open-air stadium.
Sports [Sports] Reproduces the feeling of sports broadcasting.
Portable Audio Enhancer
[Portable Audio]
Reproduces a clear enhanced sound image from your portable
audio device. This mode is ideal for MP3 and other
compressed music.
Headphone
a)
Headphone (2ch)
[HP (2CH)]
This mode is selected automatically if you use headphones
when 2ch Stereo mode (page 51)/A.F.D. mode (page 53) is
selected. Standard 2 channel stereo sources completely
bypass the sound field processing and multi channel surround
formats are downmixed to 2 channels (except LFE signals).
Headphone Theater DCS
[HP Theater]
This mode is selected automatically if you use headphones
when sound field for movie or music is selected. It allows you
to experience a theater-like environment while listening
through a pair of headphones.
Headphone (Multi)
[HP MULTI]
b)
This mode is selected automatically if you use headphones
when the multi channel input is selected. Outputs the front
analog signals from the MULTI CHANNEL INPUT jacks.
Headphone (Direct)
[HP (Direct)]
Outputs the analog signals without processing by the
equalizer, sound field, etc.
55
US
Enjoying Surround Sound
Notes
• The sound fields for music and movies do not work
in the following cases.
– The multi channel input is selected.
– DTS-HD signals with a sampling frequency of
more than 48 kHz are being received.
– Dolby TrueHD signals with a sampling
frequency of more than 48 kHz are being
received.
– Signals with a sampling frequency of more than
48 kHz are being received.
– The multi channel PCM signals are received via
a HDMI IN jack with a sampling frequency more
than 48 kHz.
• When one of the sound fields for music is selected,
no sound is output from the subwoofer if all the
speakers are set to “LARGE” on the Speaker
settings menu. However, the sound will be output
from the subwoofer if
– the digital input signal contains LFE signals.
– the front and surround speakers are set to
“SMALL”.
– the sound field for movie is selected.
– “Portable Audio” is selected.
Tips
• You can identify the encoding format of DVD
software, etc., by looking at the logo on the
package.
• Sound fields with DCS marks use DCS
technology. See “Glossary” (page 104).
• When the sound field’s DCS mark is selected,
the Digital Cinema Sound lamp lights up on the
display.
To turn off the surround effect
for movie/music
Select “2ch Stereo” or “A.F.D. Auto” in the
Surround settings menu.
Resetting sound fields to
the initial settings
Be sure to use the buttons on the receiver for
this operation.
1 Press POWER to turn off the
receiver.
2 While holding down MUSIC,
press POWER.
“S.F. CLEAR” appears on the display and
all sound fields are reset to their initial
setting.
SPEAKERS
(OFF/A/B/A+B)
PHONES
VIDEO 2 IN/PORTABLE AV IN
VIDEO L AUDIO R AUTO CAL MIC
MEMORY/
ENTER
2CH/
A.DIRECT
A.F.D. MOVIE MUSICDIMMER
MULTI CHANNEL DECODING
INPUT SELECTOR
TONE MODE TUNING MODE
POWER
TUNING
DISPLAY INPUT MODE
MASTER VOLUME
TONE
ON/STANDBY
1,2
2
56
US
Enjoying the surround
effect at low volume
levels
(NIGHT MODE)
This function allows you to retain a theater like
environment at low volume levels. This
function can be used with other sound fields.
When watching a movie late at night, you will
be able to hear the dialog clearly even at a low
volume level.
Press NIGHT MODE.
The NIGHT MODE function is activated. The
NIGHT MODE is set to on and off as you
press NIGHT MODE.
Note
This function does not work in the following cases.
– The multi channel input is selected.
– PCM signals with a sampling frequency of more
than 96 kHz are being received.
– Dolby TrueHD signals with a sampling frequency
of more than 96 kHz are being received.
Tip
While this function is on, the Bass, Treble, and
Effect Levels increase, and “D.Range Comp” is
automatically set to “MAX”.
Adjusting the speaker
settings manually
You can adjust the each speaker manually.
You can also adjust the speaker levels after the
Auto Calibration is completed.
1 Press GUI MODE.
“GUI MODE” appears on the display and
the GUI menu appears on the TV screen.
Press MENU if the GUI menu does not
appear on the TV screen.
2 Press V/v repeatedly to select
“Settings”, then press or b.
The Settings menu list appears on the TV
screen.
3 Press V/v repeatedly to select
“Speaker”, then press or b.
2CH/
A.DIRECT
A.F.D. MOVIE MUSIC
CLEAR
/>10
RESOLUTION
XM
DISPLAY
GUI
MODE
INPUT
MODE
SLEEP
NIGHT
MODE
NIGHT
MODE
Advanced Speakers Setting Up
Making settings with the
Manual Setup menu
2CH/
A.DIRECT
A.F.D. MOVIE MUSIC
RESOLUTION
MENU
RETURN/
EXIT
OPTIONS
TOOLS
HOME
DISPLAY
GUI
MODE
O
INPUT
MODE
SLEEP
NIGHT
MODE
2-8
1
MENU
57
US
Advanced Speakers Setting Up

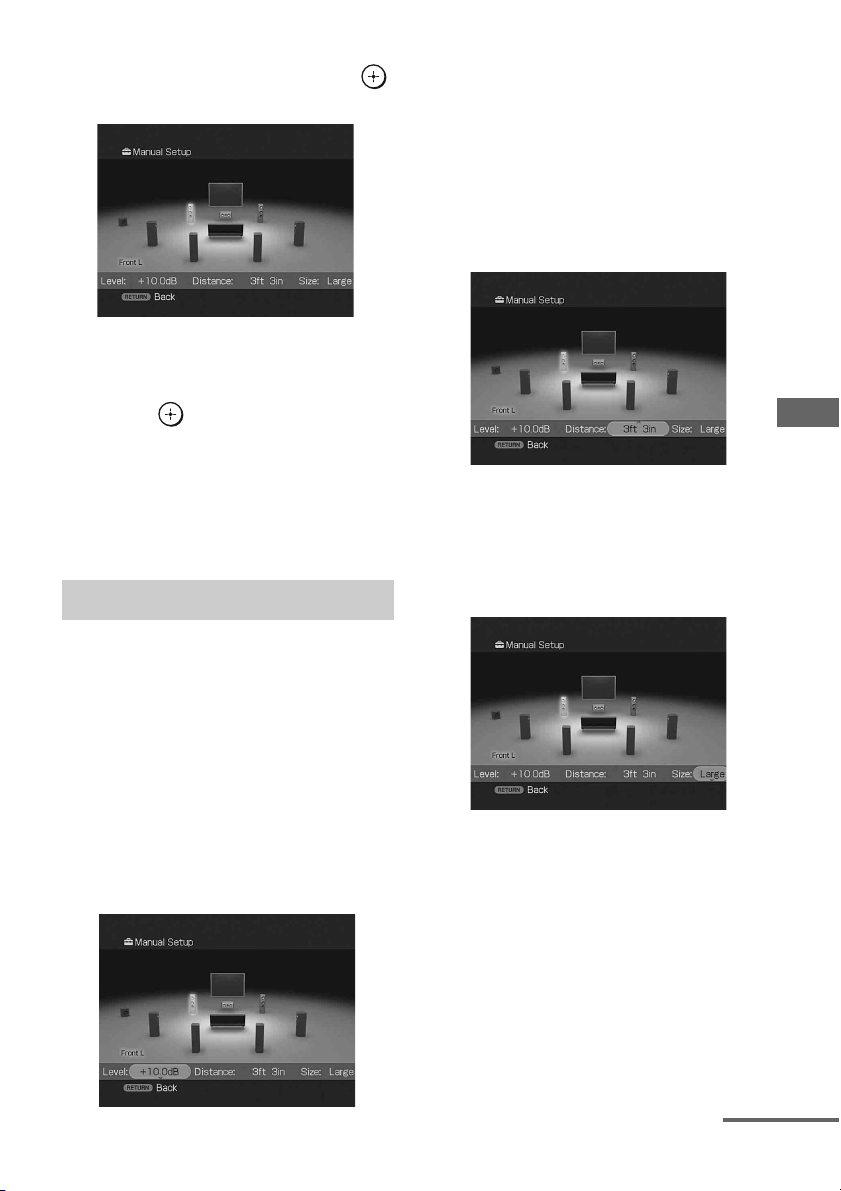

4 Press V/v repeatedly to select
“Manual Setup”, then press
or b.
5 Press V/v/B/b to select speaker
you want to adjust.
6 Press .
7 Press B/b repeatedly to select
the parameter you want.
8 Press V/v repeatedly to adjust
the setting.
x Level
(Level of speaker)
You can adjust each speaker’s level (center,
surround left/right, surround back left/right,
subwoofer). You can adjust the level from
–20.0 dB to +10.0 dB in 0.5 dB steps.
For the front left/right speakers, you can adjust
the balance on either side. You can adjust the
front left level from FL–10.0 dB to FL+10.0
dB in 0.5 dB steps. You can also adjust the
front right level from FR–10.0 dB to FR+10.0
dB in 0.5 dB steps.
x Distance
(Distance from the listening
position to each speaker)
You can adjust the distance from the listening
position to each speaker (front left/right,
center, surround left/right, surround back left/
right, subwoofer).
You can adjust the distance from 3 feet 3
inches to 32 feet 9 inches (1.0 meter to 10.0
meters) in 1 inch (0.01 meter) steps.
x Size
(Size of each speaker)
You can adjust each speaker’s (front left/right,
center, surround left/right, surround back left/
right) size.
• LARGE
If you connect large speakers that will
effectively reproduce bass frequencies,
select “LARGE”. Normally, select
“LARGE”.
•SMALL
If the sound is distorted, or you feel a lack of
surround effects when using multi channel
surround sound, select “SMALL” to activate
the bass redirection circuitry and output the
bass frequencies of each channel from the
subwoofer or other “LARGE” speakers.
Manual Setup menu parameters
continued
58
US
Note
When one of the sound fields for music is selected,
no sound is output from the subwoofer if all the
speakers are set to “LARGE”. However, the sound
will be output from the subwoofer if
– the digital input signal contains LFE signals.
– the front and surround speakers are set to
“SMALL”.
– the sound field for movie is selected.
– “Portable Audio” is selected.
Tips
• The “LARGE” and “SMALL” settings for each
speaker determine whether the internal sound
processor will cut the bass signal from that
channel.
When the bass is cut from a channel, the bass
redirection circuitry sends the corresponding bass
frequencies to the subwoofer or other “LARGE”
speakers.
However, since bass sound has a certain amount of
directionality, it is best not to cut it, if possible.
Therefore, even when using small speakers, you
can set them to “LARGE” if you want to output the
bass frequencies from that speaker. On the other
hand, if you are using a large speaker, but prefer
not to have bass frequencies output from that
speaker, set it to “SMALL”.
If the overall sound level is lower than you prefer,
set all speakers to “LARGE”. If there is not enough
bass, you can use the equalizer to boost the bass
levels.
• The surround back speakers will be set to the same
setting as that of the surround speakers.
• When the front speakers are set to “SMALL”, the
center, surround, and surround back speakers are
also automatically set to “SMALL”.
• If you do not use the subwoofer, the front speakers
are automatically set to “LARGE”.
1 Press GUI MODE.
“GUI MODE” appears on the display and
the GUI menu appears on the TV screen.
Press MENU if the GUI menu does not
appear on the TV screen.
2 Press V/v repeatedly to select
“Settings”, then press or b.
The Settings menu list appears on the TV
screen.
3 Press V/v repeatedly to select
“Speaker”, then press or b.
4 Press V/v repeatedly to select
“Speaker Pattern”, then press
or b.
Select “Speaker Pattern” according to the
speaker system which you are using. You
do not need to select the speaker pattern
after Auto Calibration.
Making settings with the
Speaker Pattern menu
2CH/
A.DIRECT
A.F.D. MOVIE MUSIC
CLEAR
/>10
RESOLUTION
XM
MENU
RETURN/
EXIT
OPTIONS
TOOLS
HOME
DISPLAY
GUI
MODE
O
INPUT
MODE
SLEEP
NIGHT
MODE
2-5
1
MENU
59
US
Advanced Speakers Setting Up

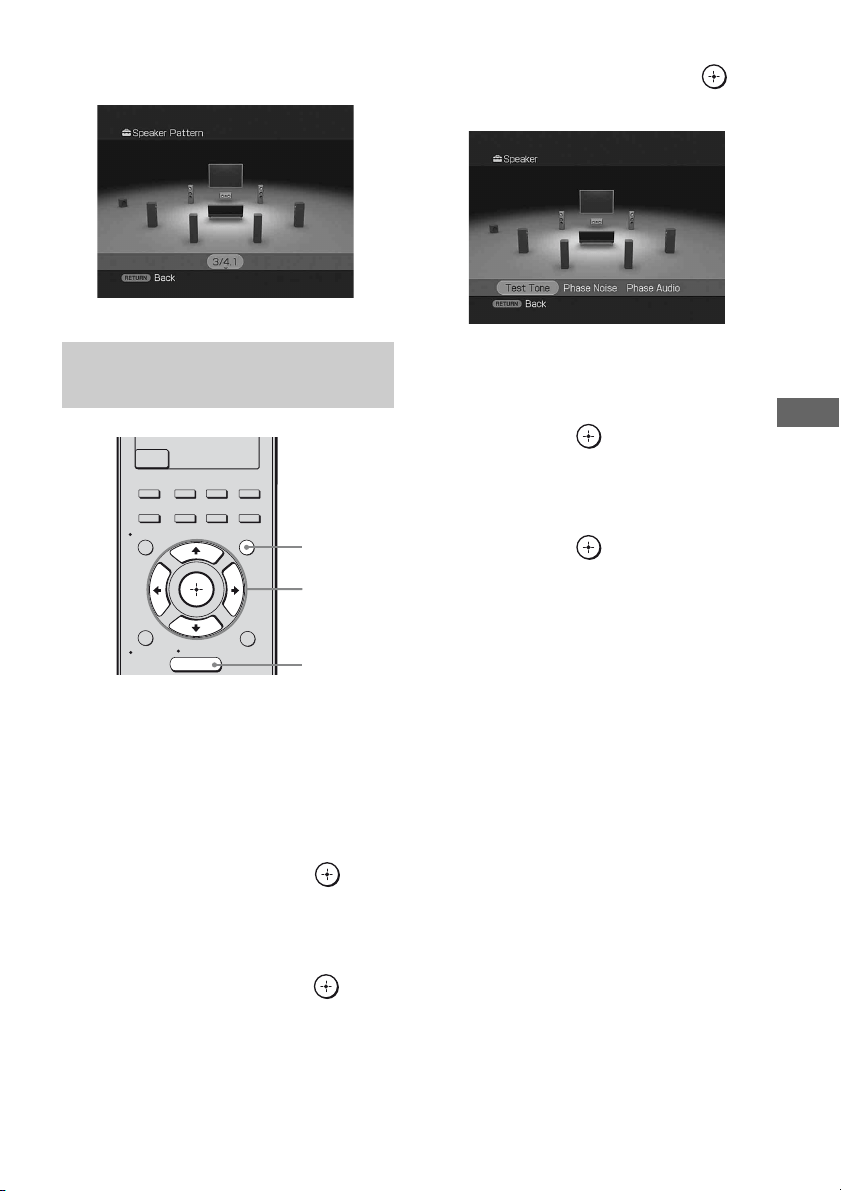

5 Press V/v repeatedly to select
the speaker pattern you want.
1 Press GUI MODE.
“GUI MODE” appears on the display and
the GUI menu appears on the TV screen.
Press MENU if the GUI menu does not
appear on the TV screen.
2 Press V/v repeatedly to select
“Settings”, then press or b.
The Settings menu list appears on the TV
screen.
3 Press V/v repeatedly to select
“Speaker”, then press or b.
4 Press V/v repeatedly to select
“Test Tone”, then press or
b.
You can select the test tone type.
5 Press V/v repeatedly to select
the speaker you want to adjust,
then press .
The test tone is output from each speaker
in sequence.
6 Adjust the parameter using V/v,
then press .
Tips
• To adjust the level of all speakers at the same
time, press MASTER VOL +/–. You can also
use MASTER VOLUME on the receiver.
• The adjusted value is shown on the TV screen
during adjustment.
When a test tone is not output
from the speakers
• The speaker cords may not be connected
securely. Check to see if they are connected
securely and cannot be disconnected by
pulling on them slightly.
• The speaker cords may have the short-circuit
problem.
When a test tone is output from
a different speaker than the
speaker displayed on the TV
screen
The speaker pattern to the connected speaker
is not set up correctly. Make sure the speaker
connection and the speaker pattern match.
Making settings with the Test
Tone menu
2CH/
A.DIRECT
A.F.D. MOVIE MUSIC
CLEAR
/>10
RESOLUTION
XM
MENU
RETURN/
EXIT
OPTIONS
TOOLS
HOME
DISPLAY
GUI
MODE
O
INPUT
MODE
SLEEP
NIGHT
MODE
2-6
1
MENU
60
US
x Test Tone
•OFF
• AUTO
The test tone is output from each speaker in
sequence.
• FL, CNT, FR, SR, SBR, SBL, SB, SL, SW
You can select which speakers will output
the test tone.
x Phase Noise
•OFF
• FL/FR, FL/CNT, CNT/FR, FR/SL, FR/SR,
SR/SL, SR/SBR, SBR/SBL, SR/SB,
SBL/SL, SB/SL, SL/FL, FL/SR
Lets you output the test tone sequentially
from adjacent speakers.
Some items may not be displayed,
depending on the setting of the speaker
pattern.
x Phase Audio
•OFF
•
FL/FR, FL/CNT, CNT/FR, FR/SL, FR/SR,
SR/SL, SR/SBR, SBR/SBL, SR/SB,
SBL/SL, SB/SL, SL/FL, FL/SR
Lets you output front 2 channel source sound
(instead of the test tone) sequentially from
adjacent speakers.
Some items may not be displayed,
depending on the setting of the speaker
pattern.
x Crossover Freq
(Speaker crossover frequency)
Lets you set the bass crossover frequency of
speakers that has been set to “SMALL” in the
Speaker settings menu. Measured speaker
crossover frequency is set for each speaker
after the Auto Calibration.
The adjusted value is set for each speaker
when you adjust the speaker crossover
frequency using “Crossover Freq” after the
Auto Calibration.
x D.Range Comp
(Dynamic range compressor)
Lets you compress the dynamic range of the
soundtrack. This may be useful when you want
to watch movies at low volumes late at night.
Dynamic range compression is possible with
Dolby Digital sources only.
•MAX
The dynamic range is compressed
dramatically.
•STD
The dynamic range is compressed as
intended by the recording engineer.
• AUTO
The dynamic range is applied automatically
with Dolby TrueHD source or other source
is set to “OFF”.
•OFF
The dynamic range is not compressed.
Tips
• Dynamic range compressor lets you compress the
dynamic range of the soundtrack based on the
dynamic range information included in the Dolby
Digital signal.
• “STD” is the standard setting, but it only enacts
light compression. Therefore, we recommend
using the “MAX” setting. This greatly compresses
the dynamic range and lets you view movies late at
night at low volumes. Unlike analog limiters, the
levels are predetermined and provide a very natural
compression.
Test Tone menu parameters Other parameters of Speaker
settings menu
61
US
Advanced Speakers Setting Up
x Distance Unit (Distance unit)
Lets you select the unit of measure for setting
distances.
• METER
The distance is displayed in meters.
• FEET
The distance is displayed in feet.
Adjusting the equalizer
You can use the following parameters to adjust
the tonal quality (bass/trebel level) of all
speakers.
Notes
• This function does not work in the following cases.
– The multi channel input is selected.
– PCM signals with a sampling frequency of more
than 96 kHz are being received.
– Dolby TrueHD signals with a sampling
frequency of more than 96 kHz are being
received.
• If the equalizer is adjusted while the receiver is
receiving signals with a sampling frequency of
more than 96 kHz, the signals will always be
played back at 96 kHz.
1 Press GUI MODE.
“GUI MODE” appears on the display and
the GUI menu appears on the TV screen.
Press MENU if the GUI menu does not
appear on the TV screen.
Level
(dB)
Bass Treble
Frequency
(Hz)
2CH/
A.DIRECT
A.F.D. MOVIE MUSIC
CLEAR
/>10
RESOLUTION
XM
MENU
RETURN/
EXIT
OPTIONS
TOOLS
HOME
DISPLAY
GUI
MODE
O
INPUT
MODE
SLEEP
NIGHT
MODE
2-5
1
MENU
continued
62
US
2 Press V/v repeatedly to select
“Settings”, then press or b.
The Settings menu list appears on the TV
screen.
3 Press V/v repeatedly to select
“EQ”, then press or b.
4 Choose the speaker you want
to adjust using B/b, then press
.
5 Press B/b repeatedly to select
“Bass” or “Treble”, then press
V/v to adjust the parameter.
Tip
You can adjust the front speaker bass and
treble level with TONE MODE and TONE +/–
on the receiver.
Listening to FM/AM radio
You can listen to FM and AM broadcasts
through the built-in tuner. Before operation,
make sure you have connected the FM and
AM antennas (aerials) to the receiver (page
34).
Tip
The tuning scale for direct tuning differs depending
on the area code as shown in the following table. For
details on area codes, see page 3.
* The AM tuning scale can be changed (page 114).
1 Press GUI MODE.
“GUI MODE” appears on the display and
the GUI menu appears on the TV screen.
Press MENU if the GUI menu does not
appear on the TV screen.
2 Press V/v repeatedly to select
“FM” or “AM”, then press or
b.
The FM or AM menu list appears on the
TV screen.
Tuner Operations
Area code FM AM
U, CA 100 kHz 10 kHz*
Automatic tuning
2CH/
A.DIRECT
A.F.D. MOVIE MUSIC
CLEAR
/>10
RESOLUTION
XM
MENU
RETURN/
EXIT
OPTIONS
TOOLS
HOME
DISPLAY
GUI
MODE
O
INPUT
MODE
SLEEP
NIGHT
MODE
2-4
1
MENU
OPTIONS
63
US
Tuner Operations

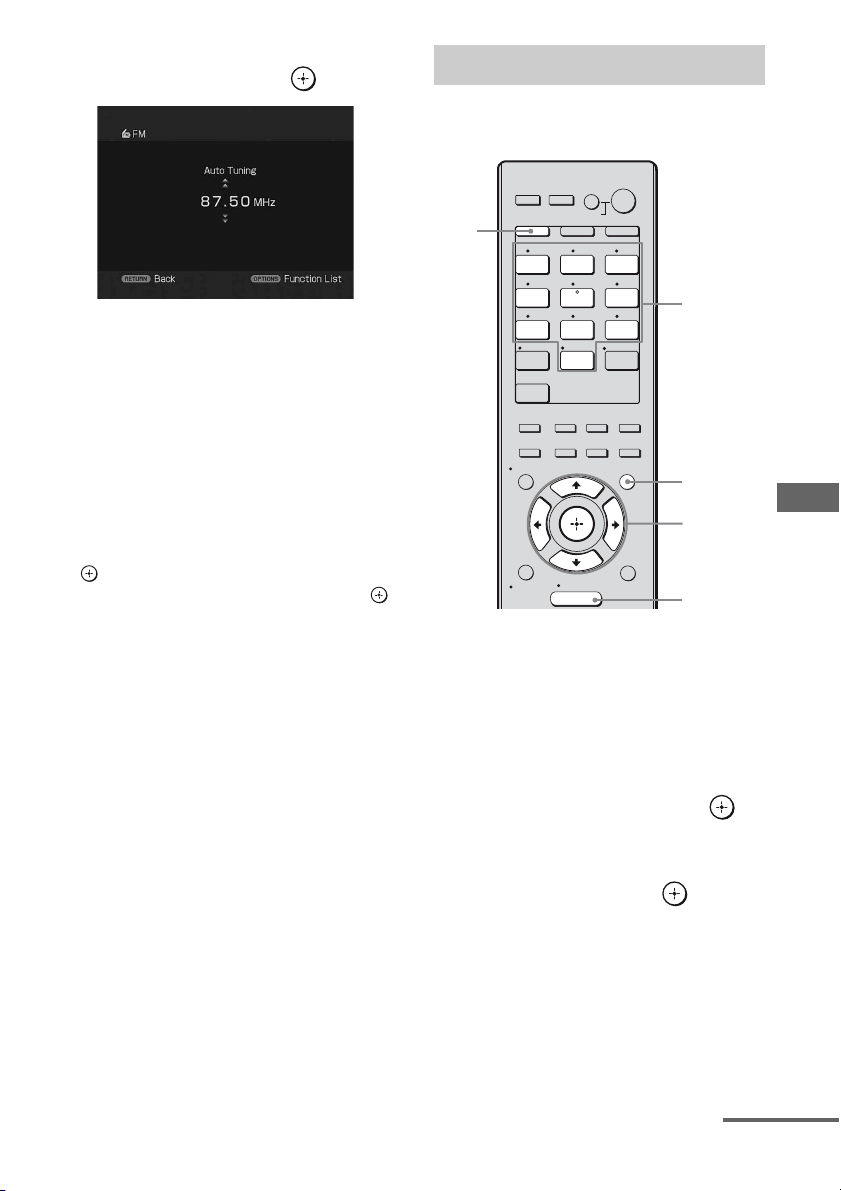

3 Press V/v to select “Auto
Tuning”, then press or b.
4 Press V/v.
Press V to scan from low to high, press v
to scan from high to low.
The receiver stops scanning whenever a
station is received.
In case of poor FM stereo
reception
1 Press OPTIONS.
2 Press V/v to select “FM Mode”, then press
or b.
3 Press V /v to select “MONO”, then press .
You can enter the frequency of a station
directly by using the numeric buttons.
1 Press GUI MODE.
“GUI MODE” appears on the display and
the GUI menu appears on the TV screen.
Press MENU if the GUI menu does not
appear on the TV screen.
2 Press V/v repeatedly to select
“FM” or “AM”, then press or
b.
3 Press V/v to select “Direct
Tuning”, then press or b.
Direct tuning
1 2 3
4 5 6
7 8 9
-/--
0/10
ENT/MEM
2CH/
A.DIRECT
A.F.D. MOVIE MUSIC
THEATER
SYSTEM STANDBY
?/1
CLEAR
/>10
SHIFT TV
RESOLUTION
VIDEO 1 VIDEO 2 BD
SAT TV
PHONO
XM
MULTI IN DMPORT
MD/
TAPE
SA-CD/
CD
TUNER
MENU
AV
?/1
RETURN/
EXIT
OPTIONS
TOOLS
HOME
DISPLAY
GUI
MODE
O
DVD
INPUT
MODE
SLEEP
NIGHT
MODE
RM SET UP
AMP
1
4
2,3,5
4
MENU
continued
64
US

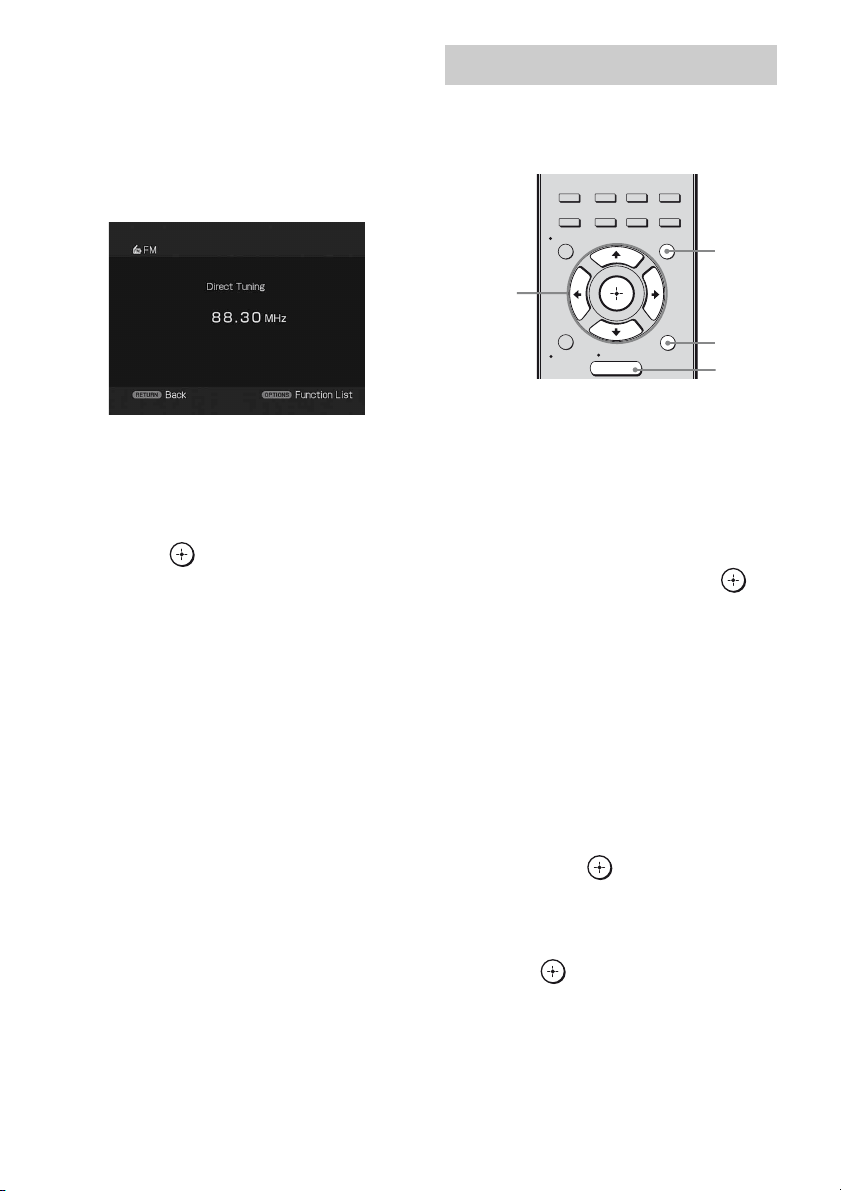

4 Press SHIFT, then press
numeric buttons to enter the
frequency.
Example 1: FM 102.50 MHz
Select 1 b 0 b 2 b 5
Example 2: AM 1,350 kHz
Select 1 b 3 b 5 b 0
Tip
If you have tuned in an AM station, adjust
the direction of the AM loop antenna
(aerial) for optimum reception.
5 Press .
If you cannot tune in a station
“– – – .– 0 MHz” appears and then the screen
returns to the current frequency.
Make sure you have entered the right
frequency. If not, repeat step 4. If you still
cannot tune in a station, the frequency is not
used in your area.
You can preset up to 30 FM and 30 AM
stations. Then you can easily tune in the
stations you often listen to.
1 Press GUI MODE.
“GUI MODE” appears on the display and
the GUI menu appears on the TV screen.
Press MENU if the GUI menu does not
appear on the TV screen.
2 Press V/v repeatedly to select
“FM” or “AM”, then press or
b.
3 Tune in the station that you
want to preset using Automatic
Tuning (page 62) or Direct
Tuning (page 63).
In case of poor FM stereo reception,
switch the FM reception mode (page 63).
4 Press OPTIONS.
5 Press V/v to select “Memory”,
then press or b.
6 Press V/v to select a preset
number.
7 Press .
The station is stored as the selected preset
number.
8 Repeat steps 3 to 7 to preset
another station.
Presetting radio stations
2CH/
A.DIRECT
A.F.D. MOVIE MUSIC
RESOLUTION
MENU
RETURN/
EXIT
OPTIONS
TOOLS
HOME
DISPLAY
GUI
MODE
O
INPUT
MODE
SLEEP
NIGHT
MODE
2,
5-7
1
4
MENU
65
US
Tuner Operations
To tune to preset stations
1 Repeat steps 1 and 2 of “Presetting radio
stations”.
2 Press V/v to select the preset station you
want.
You can select a preset station as follows:
• AM band AM 1 to AM 30
• FM band FM 1 to FM 30
To name preset stations
1 Select a preset station you want to name.
2 Press OPTIONS, then select “Name Input”.
For details on naming operations, refer to
“Naming inputs” (page 81).
Listening to the XM Radio
About XM Radio
XM is North America’s number one satellite
radio company, offering an extraordinary
variety of commercial-free music, plus the
best in premier sports, news, talk radio,
comedy, children’s and entertainment
programming, broadcast in superior digital
audio quality coast to coast. For more
information, or to subscribe, U.S. customers
visit xmradio.com or call XM Listener Care at
1-800-XMRADIO (1-800-967-2346);
Canadian customers visit xmradio.ca or call
XM Listener Care at 1-877-GETXMSR
(1-877-438-9677).
XM Ready
®
Legal
XM monthly service subscription sold
separately. XM Mini-Tuner and Home Dock
required (each sold separately) to receive XM
service. It is prohibited to copy, decompile,
disassemble, reverse engineer, hack,
manipulate or otherwise make available any
technology or software incorporated in
receivers compatible with the XM satellite
Radio System. Installation costs and other fees
and taxes, including a one-time activation fee
may apply. All fees and programming subject
to change. Channels with frequent explicit
language are indicated with an XL. Channel
blocking is available for XM radio receivers
by calling 1-800-XMRADIO (U.S. residents)
and 1-877-GETXMSR (Canadian residents).
Only available in the 48 contiguous United
States and Canada. ©2008 XM Satellite Radio
Inc. All rights reserved.
continued
66
US
XM Ready
®
Subscription
Once you have installed the XM Mini-Tuner
Home Dock, inserted the XM Mini-Tuner,
connected the XM Mini-Tuner Home Dock to
your XM Ready
®
audio system, and installed
the antenna, you are ready to subscribe and
begin receiving XM programming. There
are three places to find your eight character
XM Radio ID: On the XM Mini-Tuner, on the
XM Mini-Tuner package, and on XM Channel
0. Record the Radio ID below for reference.
s s s s s s s s
Note
The XM Radio ID does not use the letters “I”, “O”,
“S” or “F”.
Activate your XM Satellite Radio service in
the U.S. online at http://activate.xmradio.com
or call 1-800-XMRADIO (1-800-967-2346).
Activate your XM Satellite Radio service in
Canada online at https://activate.xmradio.ca or
call 1-877-GET-XMSR (1-877-438-9677).
You will need a major credit card. XM will
send a signal from the satellites to activate the
full channel lineup. Activation normally takes
10-15 minutes, but during peak busy periods
you may need to keep your XM Ready audio
system on for up to an hour. When you can
access the full lineup on your XM Ready audio
system you are done.
Before operating the receiver, connect the XM
Mini-Tuner and Home Dock to the XM jack.
Note
To ensure optimal reception of XM’s satellite signal,
move your antenna to various window locations
around your home to see where the best reception
will be received. Most XM customers place the
antenna in a south-facing window with a clear view
to the sky.

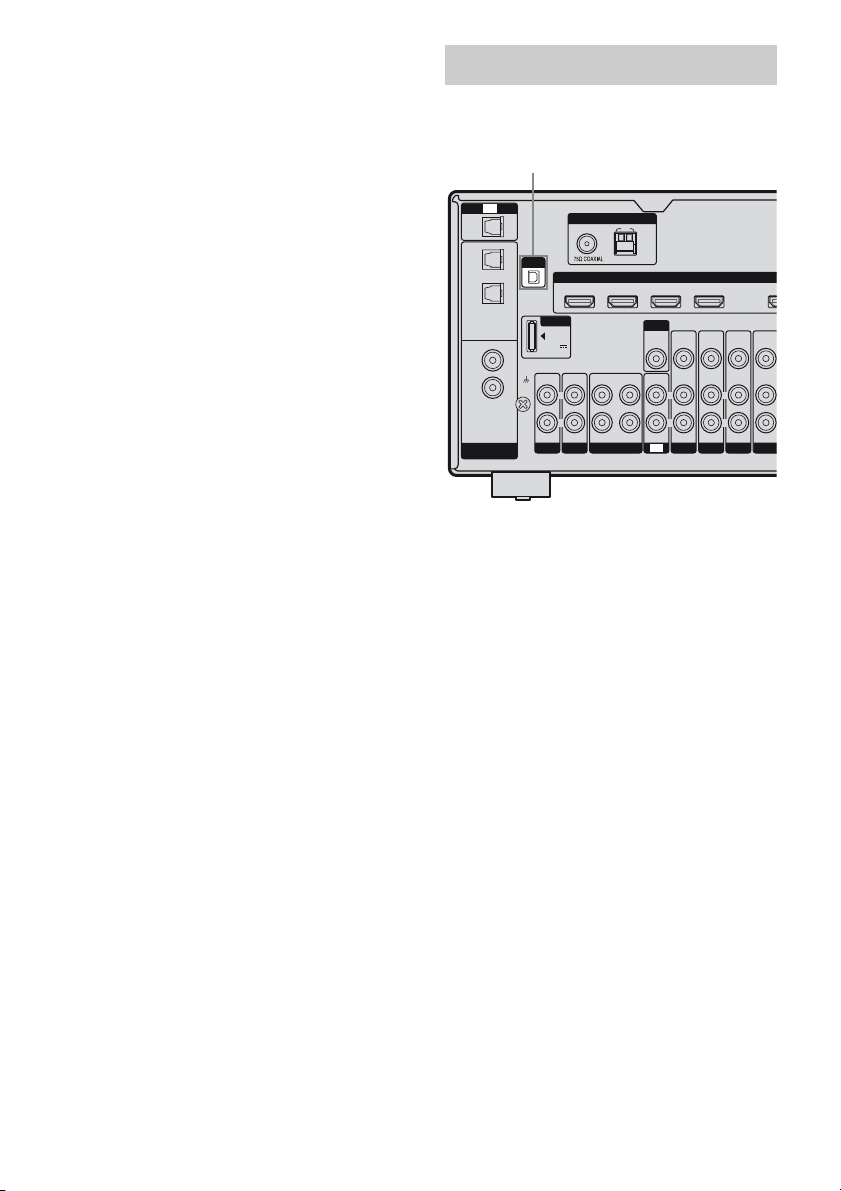

Connecting the XM Radio
DIGITAL
ASSIGNABLE
OPTICAL
IN
OPTICAL
VIDEO 1
IN
COAXIAL
DVD
IN
TV
SAT
IN
SA-CD/
CD
IN
DMPORT
DC5V
0.7A MAX
SAT IN
HDMI
BD IN DVD IN VIDEO 1 IN
MD/TAPE
OUT
SIGNAL
GND
IN IN
TV
IN
AUDIO
IN
VIDEO
IN
SAT
AUDIO
IN
VIDEO
IN
BD
MONITOR
AUDIO
IN
VIDEO
IN
DVD
AUDIO
OUT
VIDEO
OUT
VIDEO
OUT
VID
SA-CD
/
CD
IN
PHONO
AM
FM
ANTENNA
R
L
R
L
R
L
R
L
XM
XM jack
67
US

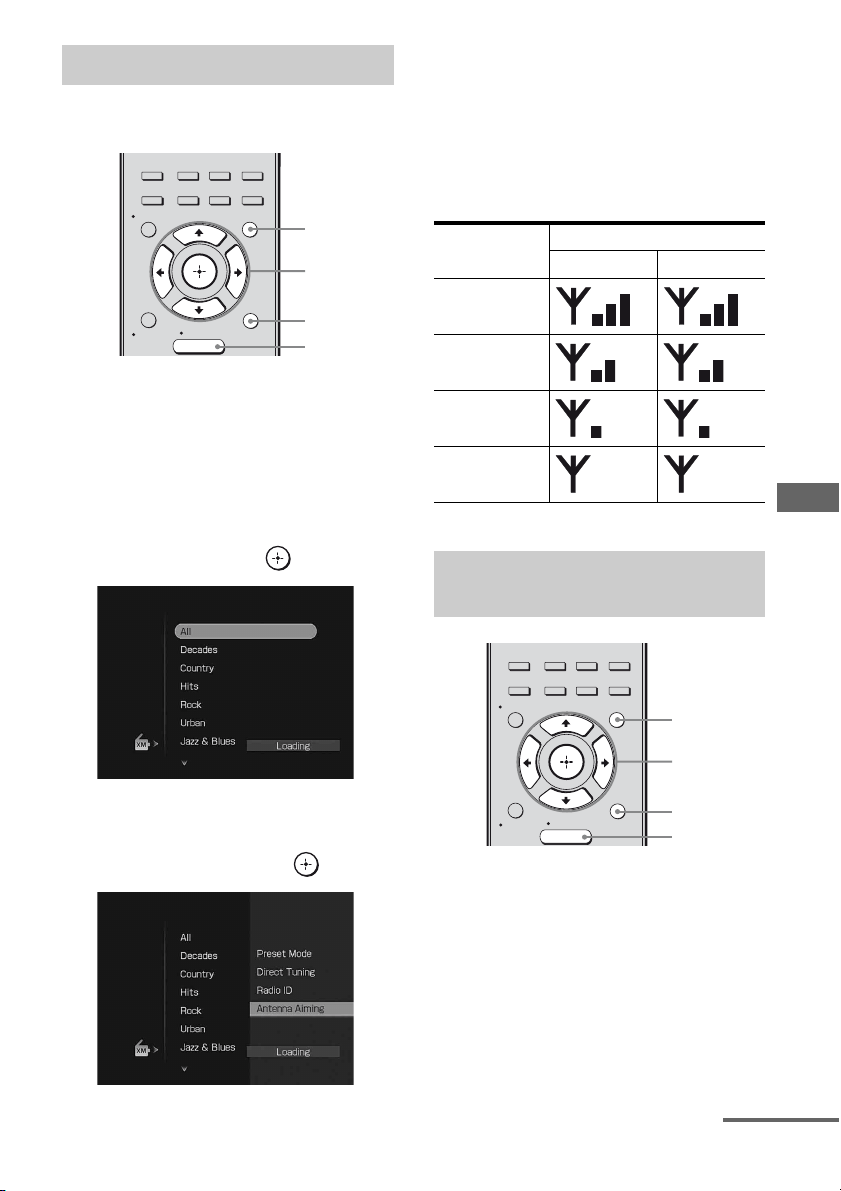

Tuner Operations
You can aim your antenna for optimal signal
reception.
1 Press GUI MODE.
“GUI MODE” appears on the display and
the GUI menu appears on the TV screen.
Press MENU if the GUI menu does not
appear on the TV screen.
2 Press V/v repeatedly to select
“XM”, then press or b.
3 Press OPTIONS, then press V/v
repeatedly to select “Antenna
Aiming”, then press or b.
4 While checking the parameter,
aim your antenna to where the
best reception will be received.
For details on the parameter, see “Signal
strength” below.
Signal strength
1 Press GUI MODE.
“GUI MODE” appears on the display and
the GUI menu appears on the TV screen.
Press MENU if the GUI menu does not
appear on the TV screen.
Aiming the XM Antenna
2CH/
A.DIRECT
A.F.D. MOVIE MUSIC
RESOLUTION
MENU
RETURN/
EXIT
OPTIONS
TOOLS
HOME
DISPLAY
GUI
MODE
O
INPUT
MODE
SLEEP
NIGHT
MODE
2,3
1
3
MENU
Signal
strength
Signal type
Satellite Terrestrial
Good
Marginal
Weak
None
Checking the XM Radio ID
number
2CH/
A.DIRECT
A.F.D. MOVIE MUSIC
RESOLUTION
MENU
RETURN/
EXIT
OPTIONS
TOOLS
HOME
DISPLAY
GUI
MODE
O
INPUT
MODE
SLEEP
NIGHT
MODE
2,3
1
3
MENU
continued
68
US

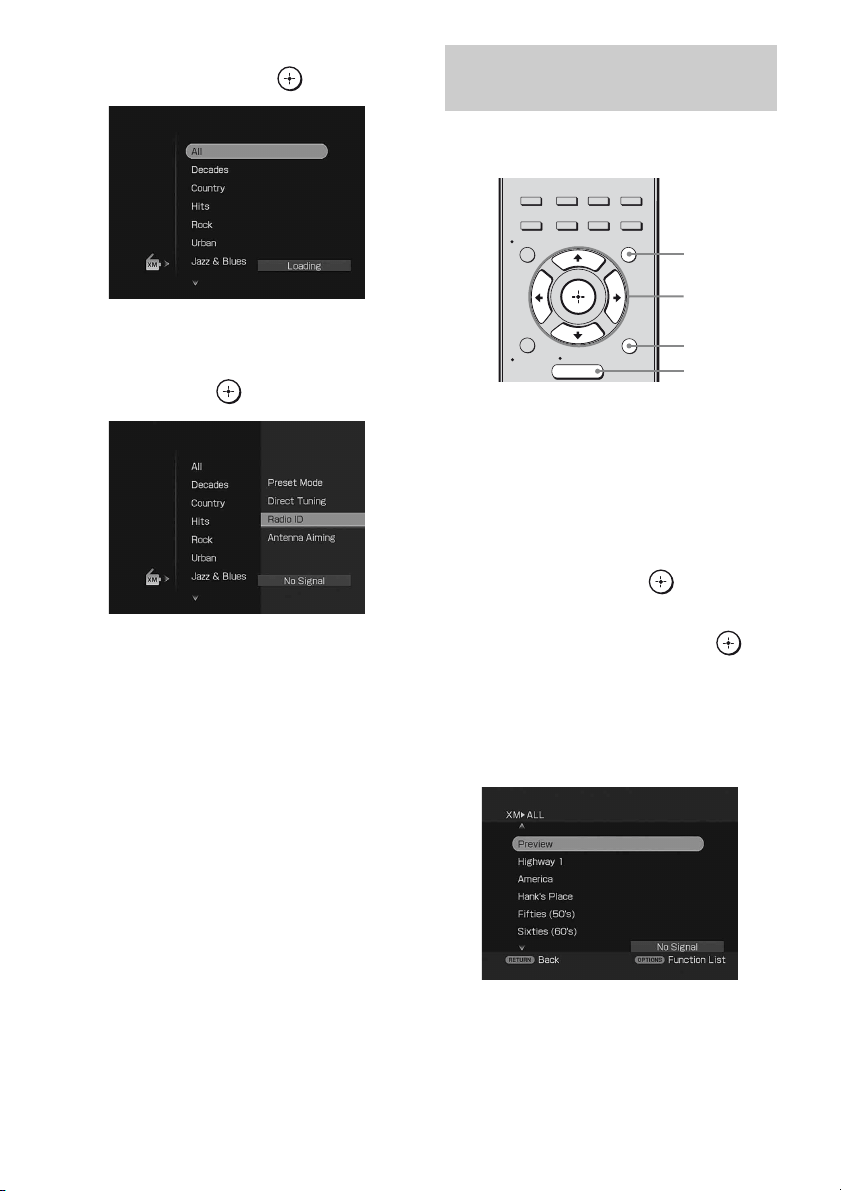

2 Press V/v repeatedly to select
“XM”, then press or b.
3 Press OPTIONS, then press V/v
repeatedly to select “Radio ID”,
then press or b.
4 Check the XM Radio ID on the
TV screen and write it in the
space provided here.
ID:_____________________________
You can also check the XM Radio ID
using the display on the receiver.
You can select a channel from one category or
all the categories.
1 Press GUI MODE.
“GUI MODE” appears on the display and
the GUI menu appears on the TV screen.
Press MENU if the GUI menu does not
appear on the TV screen.
2 Press V/v repeatedly to select
“XM”, then press or b .
3 Press V/v repeatedly to select
the category, then press or
b.
• ALL: You can select a channel from all
the categories.
• (category name): You can select a
channel from one category.
Note
When the “Preset Mode” screen is displayed,
press OPTIONS, then press V/v repeatedly to
select “Category Mode”.
Selecting a channel by Category
Mode
2CH/
A.DIRECT
A.F.D. MOVIE MUSIC
RESOLUTION
MENU
RETURN/
EXIT
OPTIONS
TOOLS
HOME
DISPLAY
GUI
MODE
O
INPUT
MODE
SLEEP
NIGHT
MODE
2-4
1
MENU
OPTIONS
69
US
Tuner Operations
4 Press V/v to select the channel,
then press .
The selected channel is being received.
The channel information is displayed on
the TV screen.
Note
When you select a channel in the “Category Mode,”
the channel you selected may not be the one in the
category you want. This is because one channel may
belong to more than one category.
1 Press GUI MODE.
“GUI MODE” appears on the display and
the GUI menu appears on the TV screen.
Press MENU if the GUI menu does not
appear on the TV screen.
2 Press V/v repeatedly to select
“XM”, then press or b.
3 Press OPTIONS.
4 Press V/v to select “Direct
Tuning”, then press .
5 Press SHIFT, then press
numeric buttons to enter the
channel number.
6 Press .
The selected channel is tune in.
Selecting a channel by inputting
the channel number directly
1 2 3
4 5 6
7 8 9
-/--
0/10
ENT/MEM
2CH/
A.DIRECT
A.F.D. MOVIE MUSIC
THEATER
SYSTEM STANDBY
?/1
CLEAR
/>10
SHIFT TV
RESOLUTION
VIDEO 1 VIDEO 2 BD
SAT TV
PHONO
XM
MULTI IN DMPORT
MD/
TAPE
SA-CD/
CD
TUNER
MENU
AV
?/1
RETURN/
EXIT
OPTIONS
TOOLS
HOME
DISPLAY
GUI
MODE
O
DVD
INPUT
MODE
SLEEP
NIGHT
MODE
RM SET UP
AMP
1
5
2,
4,6
3
5
MENU
70
US
You can select the channels you want directly
by presetting them using the preset numbers.
You can preset up to 30 XM Radio channels.
1 Press GUI MODE.
“GUI MODE” appears on the display and
the GUI menu appears on the TV screen.
Press MENU if the GUI menu does not
appear on the TV screen.
2 Press V/v repeatedly to select
“XM”, then press or b.
3 Select a channel you want to
preset using Category Tuning
(page 68) or Direct Tuning
(page 69).
4 Press OPTIONS.
5 Press V/v to select “Memory”,
then press or b.
6 Press V/v repeatedly to select
the preset channel you want,
then press .
Preset channels from 1 to 30 are available,
and a default channel is preset for all the
preset channels when you purchase the
receiver.
The selected channel is registered as the
preset channel you selected in step 3.
7 Repeat steps 3 to 6 to preset
another channel.
To select the preset channels
1 Repeat steps 1 and 2 of “Presetting the
channels”.
2 Press V/v to select the preset number from
the preset list, then press .
You can select stored preset channels from 1
to 30.
Notes
• The channel information you have preset may be
changed if XM Satellite Radio Inc. change their
channel programming.
• When the “Category Mode” screen is displayed,
press OPTIONS, then press V/v to select “Preset
Mode”.
Presetting the channels
2CH/
A.DIRECT
A.F.D. MOVIE MUSIC
RESOLUTION
MENU
RETURN/
EXIT
OPTIONS
TOOLS
HOME
DISPLAY
GUI
MODE
O
INPUT
MODE
SLEEP
NIGHT
MODE
2,
5,6
1
4
MENU
71
US
Tuner Operations
XM Radio message list
Message
appears on TV
screen
[Display]
Explanation Remedies
Check Antenna
[ANTENNA]
The XM antenna is not
connected to the XM Mini-
Tuner and Home Dock or the
XM antenna cable is damaged.
Check that the XM antenna is connected to the XM Mini-
Tuner and Home Dock securely and check the antenna cable
for damage. Replace the XM antenna if the cable is
damaged.
CH
Unauthorized
[UNAUTH]
You selected an XM channel
that is blocked or cannot be
received with your XM
subscription package.
Consult the latest channel guide at www.xmradio.com (US
residents) or www.xmradio.ca (Canadian residents) for the
current list of channels.
For information on receiving this channel, visit
www.xmradio.com (US residents) or www.xmradio.ca
(Canadian residents). You can also contact XM Satellite
Radio at 1-800-967-2346 (US residents) or 1-877-438-9677
(Canadian residents).
No Signal
[NO SIGNAL]
The XM Mini-Tuner is not
receiving the XM satellite
signal. The XM antenna’s view
of the satellites may be blocked
or the antenna is not properly
aimed.
Check the antenna for obstructions and reposition the XM
antenna to get a better signal reception. To optimize the
antenna position, see “Aiming the XM Antenna” (page 67).
Refer to the operating instructions supplied with the XM
Mini-Tuner and Home Dock for antenna installation
information.
Loading
[LOADING]
The XM Mini-Tuner is
acquiring audio or program
information from the XM
satellite signal. This message
can also appear if the signal is
weak.
This message should disappear in few seconds when the
signal is strong. If you often see this message, reposition the
XM antenna for better signal reception. To optimize the
antenna position, see “Aiming the XM Antenna” (page 67).
Off Air
[OFF AIR]
You selected an XM channel
that is not currently
broadcasting.
Check this XM channel later. In the meantime, select
another channel.
– – – No artist name or song title is
available for this selection.
—
CH Unavailable
[CH UNAVL]
The selected channel is not
available. The channel may
have been reassigned to a
different channel number. This
message may occur initially
with a new radio or a radio that
has not received XM’s signal
for an extended period.
Consult the latest channel guide at www.xmradio.com (US
residents) or www.xmradio.ca (Canadian residents) for the
current list of channels. For a new radio or a radio that has
not received XM’s signal for an extended period, allow the
radio to receive the XM satellite signal for at least 5 minutes
and then select the channel again.
Check XM
Tuner
[XM TUNER]
The XM Mini-Tuner is not
installed or not fully seated in
the XM Mini-Tuner Dock or
the XM Mini-Tuner Dock is not
connected to the receiver.
Confirm the XM Mini-Tuner is fully seated in the dock and
check the XM Mini-Tuner dock cable is connected to the
receiver.
72
US
Using the Control for
HDMI function for
“BRAVIA” Sync
To use “BRAVIA” Sync, set the Control for
HDMI function as explained below.
By connecting Sony components that are
compatible with the Control for HDMI
function with an HDMI cable (not supplied),
operation is simplified as follows:
• One-Touch Play: When you play back a
component such as a DVD/Blu-ray disc
player, the receiver and the TV are turned on
automatically and switched to the
appropriate HDMI input.
• System Audio Control: While watching TV,
you can select to output the sound from the
TV speaker or the speakers connected to the
receiver.
• System Power Off: When you turn off the
TV, the receiver and connected components
are also turned off simultaneously.
Control for HDMI is a mutual control function
standard used by HDMI CEC (Consumer
Electronics Control) for HDMI (High-
Definition Multimedia Interface).
The Control for HDMI function
does not work in the following
cases:
• When you connect the receiver to a
component which does not correspond with
Sony Control for HDMI function.
• When you connect the receiver and
components using other than HDMI
connection.
We recommend that you connect the receiver
to products featuring “BRAVIA” Sync.
Note
Depending on the connected component, the
Control for HDMI function may not work. Refer to
the operating instructions of the component.
Control for HDMI
73
US
Control for HDMI
Before connecting the cords, be sure to
disconnect the AC power cord (main lead).
To enjoy TV multi channel
surround sound broadcasting
You can listen to TV multi channel surround
sound broadcasting from the speakers
connected to the receiver.
Connect the OPTICAL output jack of the TV
to the TV OPTICAL IN jack of the receiver.
a)
Connect at least one of the audio cords (B or C).
Connecting a TV and other
components
DIGITAL
ASSIGNABLE
ASSIGNABLE (INPUT ONLY)
OPTICAL
VIDEO 1
IN
COAXIAL
DVD
IN
SAT
IN
SA-CD/
CD
IN
XM
DMPORT
DC5V
0.7A MAX
MD/TAPE
OUT
SIGNAL
GND
ININ
AUDIO
IN
VIDEO
IN
SAT
AUDIO
IN
VIDEO
IN
BD
MONITOR
AUDIO
IN
VIDEO
IN
AUDIO
IN
VIDEO
IN
DVD
AUDIO
OUT
AUDIO
OUT
VIDEO
OUT
VIDEO
OUT
VIDEO 1
MULTI CHANNEL INPUT
SA-CD
/
CD
IN
PHONO
SUBWOOFER
FRONT
SURROUND SUR BACK
SUBWOOFER
CENTER
COMPONENT VIDEO
MONITOR
OUT
COMPO 3
IN
COMPO 2
IN
COMPO 1
IN
Y
P
B
/
C
B
P
R
/
C
R
FRONT A
LR
FRONT B
LR
SURROUND
LR
SURROUND BACK
LR
SPEAKERS
AM
FM
ANTENNA
R
L
R
L
R
L
R
L
R
L
R
L
OPTICAL
IN
TV
SAT IN BD IN DVD IN OUT
IN
L
HDMI
VIDEO 1 IN
TV
R
Satellite tuner/Set-top box
A HDMI cable (not supplied)
We recommend that you use a Sony HDMI cable.
B Optical digital cord (not supplied)
a)
C Audio cord (not supplied)
a)
Blu-ray disc player DVD player
Audio/video
signals
Audio/video
signals
Audio/video
signals
Audio signals
TV, etc.
Audio/video
signals
AA A
ACB
74
US
Preparing Control for
HDMI function
This receiver supports the Control for HDMI-
Easy Setting function.
This function is only available for certain
types of TV. When you perform the Control
for HDMI-Easy Setting from the TV, the
Control for HDMI setting on this receiver will
automatically change accordingly.
During Control for HDMI-Easy Setting
operation, “SCANNING” flashes on the
display.
This receiver will automatically change the
input to HDMI input. When the setting is
completed, “COMPLETE” appears on the
display.
For details, refer to the operating instructions
of the TV.
If your TV does not support the Control for
HDMI-Easy Setting function, do the following
procedures. For details on setting the TV and
connected components, refer to the operating
instructions of the respective components.
1 Make sure that the receiver is connected to
the TV and components (compatible with
Control for HDMI function) via HDMI
connection.
2 Turn on the receiver, TV and connected
components.
3 Set the respective Control for HDMI
function for the receiver and TV to on.
See “To set Control for HDMI” (page 75).
When the receiver menu is displayed on the
TV screen in the screen mode, press GUI
MODE repeatedly to select “GUI OFF” to
enter the display mode, then check the TV
display image of the component connected
to the receiver.
For details on setting the TV, refer to the
operating instructions of the TV.
4 Select the HDMI input of the receiver and
TV to match the HDMI input of the
connected component, so that the image
from the connected component is displayed.
5 Set the Control for HDMI function for the
connected component to on.
If the Control for HDMI function for the
connected component is already set to on,
you do not need to change the setting.
6 Repeat step 4 and 5 for other components
that you want to use the Control for HDMI
function.
Notes
• If you unplug and reconnect the HDMI cable, be
sure to repeat steps 1 to 6 above.
• You cannot perform One-Touch Play and System
Audio Control during Control for HDMI-Easy
Setting operation.
• Before you do the Control for HDMI-Easy Setting
from the TV, be sure to turn on the TV, connected
components and receiver.
• If the playback components cannot function after
you have made the settings for Control for HDMI-
Easy Setting, check the Control for HDMI setting
on your TV.
• If the connected components do not support
Control for HDMI-Easy Setting, you need to set
the Control for HDMI function for the connected
components to on before you perform the Control
for HDMI-Easy Setting from the TV.
75
US
Control for HDMI
1 Press GUI MODE.
“GUI MODE” appears on the display and
the GUI menu appears on the TV screen.
Press MENU if the GUI menu does not
appear on the TV screen.
2 Press V/v repeatedly to select
“Settings”, then press or b.
The Settings menu list appears on the TV
screen.
3 Press V/v repeatedly to select
“HDMI”, then press or b.
4 Press V/v repeatedly to select
“Control for HDMI”, then press
or b.
5 Press V/v repeatedly to select
“ON”, then press .
Control for HDMI function is activated.
Watching a DVD
(One-Touch Play)
You can enjoy sound and image from the
components connected to the receiver via
HDMI connections by a simple operation.
Play back a connected component.
The receiver and the TV are turned on
automatically and switched to the appropriate
HDMI input.
Watching a DVD by simple
operation
You can also select a connected component,
such as a DVD/Blu-ray disc player using the
TV menu. In this case, the receiver and the TV
switch to the appropriate HDMI input.
Note
Depending on the TV, the start of the content may
not be output.
To set Control for HDMI
2CH/
A.DIRECT
A.F.D. MOVIE MUSIC
CLEAR
/>10
RESOLUTION
XM
MENU
RETURN/
EXIT
OPTIONS
TOOLS
HOME
DISPLAY
GUI
MODE
O
INPUT
MODE
SLEEP
NIGHT
MODE
2-5
1
MENU
76
US
Enjoying the TV sound
from the speakers
connected to the receiver
(System Audio Control)
You can enjoy the TV sound from the speakers
connected to the receiver by a simple
operation.
You can operate System Audio Control
function using the TV menu. For details, refer
to the operating instructions of the TV.
When System Audio Control function is
turned on, the receiver will turns on and
switches to the appropriate input
automatically.
TV sound is output from the speakers
connected to the receiver, and the volume of
the TV is minimized simultaneously.
You can also use the System Audio Control
function as follows.
• If you turn on the receiver while the TV is
turned on, the System Audio Control
function will automatically be set to on and
the TV sound will output from the speakers
connected to the receiver. However, if you
turn off the receiver, the sound will output
from the TV speakers.
• You can adjust the receiver’s volume when
you adjust the TV volume.
Notes
• If System Audio Control does not function
according to your TV setting, refer to the operating
instructions of the TV.
• When “Control for HDMI” is set to “ON”, the
“Audio Out” settings in the HDMI settings menu
will set automatically depending on the System
Audio Control settings.
• When you connect a TV that does not have System
Audio Control function, the System Audio Control
function does not work.
• If the TV is turned on before turning on the
receiver, the TV sound will not be output for a
moment.
Turning off the receiver
with the TV
(System Power Off)
When you turn the TV off by using the
POWER button on the TV’s remote, the
receiver and the connected components turn
off automatically.
You can also use the receiver’s remote to turn
off the TV.
Press TV, then press AV ?/1.
The TV, receiver and the components
connected via HDMI are turned off.
Notes
• Set the TV Standby Synchro to “ON” before using
the System Power Off function. For details, refer to
the operating instructions of the TV.
• Depending on the status, the connected
components may not be turned off. For details,
refer to the operating instructions of the connected
components.
1 2 3
4 5 6
7 8 9
-/--
0/10
ENT/MEM
THEATER
SYSTEM STANDBY
?/1
CLEAR
/>10
SHIFT TV
VIDEO 1 VIDEO 2 BD
SAT TV
PHONO
XM
MULTI IN DMPORT
MD/
TAPE
SA-CD/
CD
TUNER
AV
?/1
DVD
RM SET UP
AMP
TV
AV ?/1
77
US
Other Operations
Converting analog video
input signals
This receiver allows you to convert the
resolution of analog video input signals.
Press RESOLUTION repeatedly.
Each time you press the button, the resolution
of the output signals will be changed.
You can also use “Resolution” in the Video
settings menu.
Enjoying the DIGITAL
MEDIA PORT
(DMPORT)
The DIGITAL MEDIA PORT (DMPORT)
allows you to enjoy sound from a network
system such as a portable audio/video source
or computer.
By connecting a DIGITAL MEDIA PORT
adapter, you can enjoy sound and image from
the connected component on the receiver.
For details on connecting the DIGITAL
MEDIA PORT adapter, see “Connecting
components with digital audio output jack”
(page 20).
Sony offers the following DIGITAL MEDIA
PORT adapters:
• TDM-BT1 Bluetooth™ Wireless Audio
Adapter
• TDM-NW1/NW10 DIGITAL MEDIA
PORT Adapter
• TDM-NC1 Wireless Network Audio Client
• TDM-iP1/iP10/iP50 DIGITAL MEDIA
PORT Adapter
• TDM-MP10 DIGITAL MEDIA PORT
Adapter
The DIGITAL MEDIA PORT adapter is an
optional product.
Notes
• Do not connect an adapter other than the DIGITAL
MEDIA PORT adapter.
• Before disconnecting the DIGITAL MEDIA
PORT adapter, make sure to turn the receiver off.
• Do not connect or disconnect the DIGITAL
MEDIA PORT adapter while the receiver is turned
on.
• Depending on the DIGITAL MEDIA PORT
adapter, video output may not be possible.
• The DIGITAL MEDIA PORT adapters are
available for purchase depending on the area.
Other Operations
78
US
You can select an operation screen using the
GUI menu, depending on the DIGITAL
MEDIA PORT adapter you want to use. For
some adapter, such as TDM-BT1 or TDM-
NW1, the operation screen is fixed and you
cannot change it on the GUI screen.
1 Press GUI MODE.
“GUI MODE” appears on the display and
the GUI menu appears on the TV screen.
Press MENU if the GUI menu does not
appear on the TV screen.
2 Press V/v repeatedly to select
“Music”, then press or b.
“DMPORT” appears beside “Music”.
3 Press or b.
The component connected to the
DIGITAL MEDIA PORT adapter is
recognized and “DMPORT” on the TV
screen will change to respective
component’s name.
The category of the component connected
to DIGITAL MEDIA PORT adapter
appears on the TV screen.
4 Press OPTIONS to display
“Function List”.
5 Press V/v to select “DMPORT
Control”.
You can select the following modes in
this menu;
• System GUI
This mode is for the TDM-iP1 and
TDM-NC1. The list of tracks will be
displayed on the GUI screen of the
receiver. You can select a track you
want and play back it on each GUI
screen.
• Adapter GUI
This mode is for the TDM-iP1 and
TDM-NC1. The menu of the adapter
will be displayed on the TV screen.
•iPod
This mode can be selected only when
the TDM-iP1 is connected.
If “DMPORT Control” is not displayed,
see the operating instructions supplied
with the connected component for details
on operating that component.
Selecting an operation screen
to operate the component
connected to the DIGITAL MEDIA
PORT adapter
79
US
Other Operations

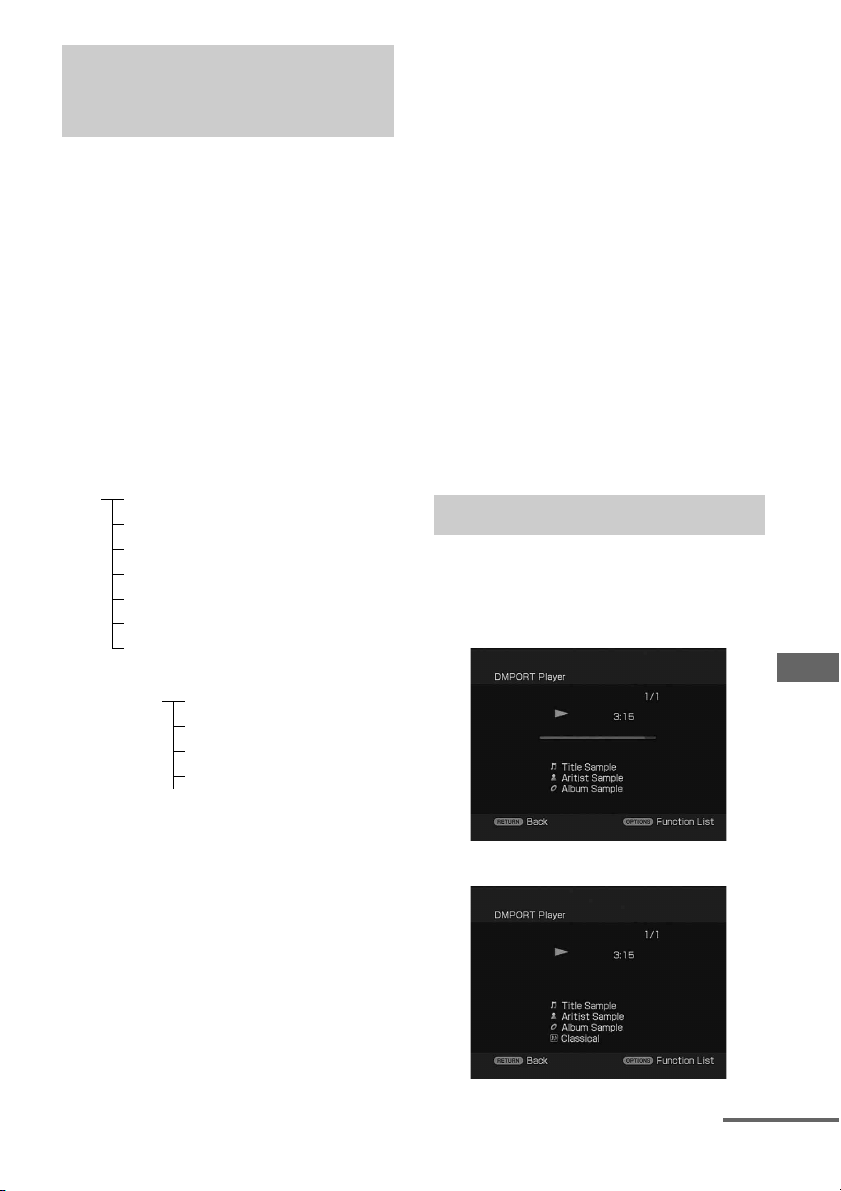

To operate the TDM-iP1 or TDM-
NC1 using the GUI menu of the
receiver
1 Make sure that “System GUI” is
selected in step 5 in “Selecting
an operation screen to operate
the component connected to
the DIGITAL MEDIA PORT
adapter” (page 78).
2 Select content from the
contents list displayed on the
GUI screen and play back it.
a)
Displayed only when M-crew Server is connected.
b)
Displayed only when a DLNA server other than
M-crew Server is connected.
c)
Displayed as “Genre”, “Artist” or “Album”,
depending on setting of “List Mode”.
To operate the TDM-iP1 or TDM-
NC1 using the adapter menu
Make sure that “Adapter GUI” is selected in
step 5 in “Selecting an operation screen to
operate the component connected to the
DIGITAL MEDIA PORT adapter” (page 78).
For details on operating the adapter using the
adapter GUI menu, refer to the operating
instructions supplied with the adapter you are
using.
To operate the TDM-iP1 using
the iPod menu
Make sure that “iPod” is selected in step 5 in
“Selecting an operation screen to operate the
component connected to the DIGITAL
MEDIA PORT adapter” (page 78).
For details on operating the iPod, refer to the
operating instruction supplied with the iPod.
During playback of the selected track, the
displayed screen changes depending on the
DIGITAL MEDIA PORT adapter connected.
Operating the component
connected to the DIGITAL MEDIA
PORT adapter
iPod Playlists > Playlist > Track
Artists > Track
Albums > Album > Track
Songs > Track
Genres > Genre > Artist > Album > Track
Composers > Composer > Track
Audiobooks > Audiobook
Network Client Music Surfin
a)
> Album
c)
> Track
Playlist
a)
> Playlist > Track
Web Radio
a)
> Station > Program
Music Library
b)
> Album > Track
Playing the selected track
TDM-iP1
TDM-NC1
continued
80
US
You can also operate the components
connected to the DIGITAL MEDIA PORT
adapter using the following buttons on the
remote of the receiver.
* When a TDM-iP1 is connected, the receiver
enters pause mode when x is pressed.
** Fast-backward/forward while pressing and
holding the m/M button.
Option parameters in the play
modes
x Repeat Mode (TDM-iP1 only)
•Off
•One
•All
x Shuffle (TDM-iP1 only)
•Off
• Songs
•Albums
x List Mode (TDM-NC1 only)
• All Tracks
•Disc List
• Artist List
•Genre List
Tip
The List Mode can be used with the Function List
menu even when the list is displayed.
DIGITAL MEDIA PORT message
list
* TDM-NC1 only.
To Do the following
Play Press N.
Pause Press X. To resume play,
press the button again.
Stop Press x.*
Find the beginning of a
track during playback, or
find the beginning of the
previous track
Press ..
Find the beginning of the
next track
Press >.
Skip to the previous
album
Press
B•
.
Skip to the next album Press
•
b.
Go backward/forward Press m/M.**
Message appears Explanation
No Adapter The adapter is not connected.
No Device There is no device connected
to the adapter.
No Audio No audio file was found.
Loading The data is being read.
No Server* There is no server connected.
No Track* No track was found.
No Item* No item was found.
Connecting* Connecting to the server.
Configuring* The network is setting up.
Warning* Check the display of the
DIGITAL MEDIA PORT
adapter.
Party Mode* The unit is currently in party
mode “Guest”.
Searching* Searching the server.
81
US
Other Operations
Naming inputs
You can enter a name of up to 8 characters for
inputs and display it.
This is convenient for labeling the jacks with
the names of the connected components.
1 Choose the item you want to
create an index name for.
You can name the following items.
• Auto calibration position (page 39)
• Inputs (page 44)
• Preset stations (page 64)
2 Press OPTIONS.
3 Select “Name Input”, then
press .
4 Press V/v/B/b to select a
character, then press .
The name you entered is registered.
To cancel naming input
Press RETURN/EXIT O.
Switching between
digital and analog audio
(INPUT MODE)
When you connect components to both digital
and analog audio input jacks on the receiver,
you can fix the audio input mode to either of
them, or switch from one to the other,
depending on the type of material you intend
to watch.
1 Press the input button.
You can also use the INPUT SELECTOR
on the receiver.
2 Press INPUT MODE repeatedly
to select the audio input mode.
The selected audio input mode appears on
the display.
Audio input modes
x AUTO
Gives priority to digital audio signals when
there are both digital and analog connections.
If there are more than one digital connection,
HDMI audio signals have priority over
COAXIAL and OPTICAL audio signals.
If there are no digital audio signals, analog
audio signals are selected.
x COAX
Specifies the digital audio signals input to the
DIGITAL COAXIAL jack.
x OPT
Specifies the digital audio signals input to the
DIGITAL OPTICAL jack.
x ANALOG
Specifies the analog audio signals input to the
AUDIO IN (L/R) jacks.
continued
82
US
Notes
• Some audio input modes may not be set up
depending on the input.
• When either XM or DMPORT input is selected,
“------” appears on the display, and you cannot
select other modes. Select an input mode other than
the XM and DMPORT input, then set the audio
input mode.
• When “Analog Direct” is being used, or the multi
channel input is selected, audio input is
automatically set to “ANALOG”. You cannot
select other modes.
Enjoying the sound/
images from other inputs
You can reassign video and/or audio signals to
another input.
For example, connect the OPTICAL OUT jack
of the DVD player to the OPTICAL VIDEO 1
IN jack of this receiver when you want to input
the only digital optical audio signals from the
DVD player.
Connect the component video jack of the DVD
player to the COMPONENT VIDEO COMPO
1 IN jack of this receiver when you want to
input the video signals from the DVD player.
Assign video and/or audio signals to the DVD
input jack using “Input Assign” in the Input
menu.
1 Press GUI MODE.
“GUI MODE” appears on the display and
the GUI menu appears on the TV screen.
Press MENU if the GUI menu does not
appear on the TV screen.
2 Press V/v repeatedly to select
“Input”, then press or b.
3 Press V/v to select the input
name you want to assign.
83
US
Other Operations

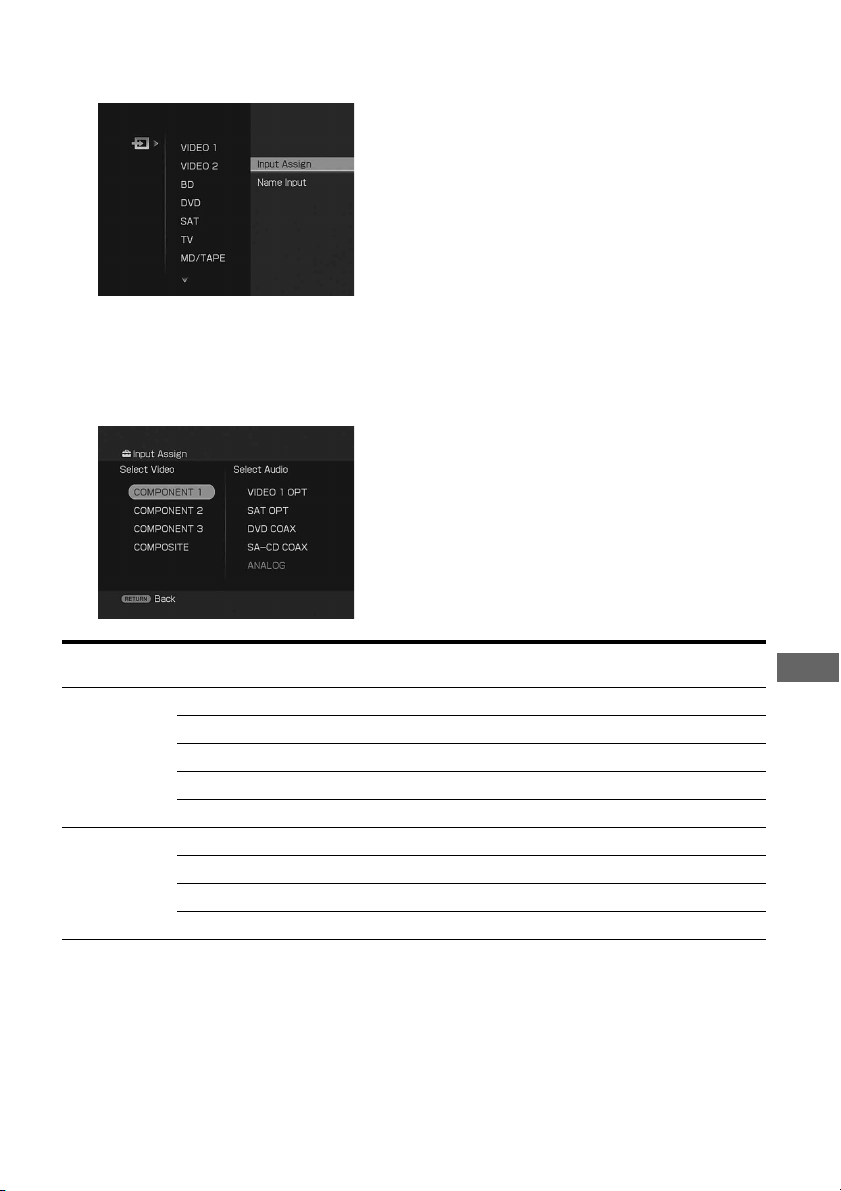

4 Press OPTIONS, then select
“Input Assign”.
5 Select the audio and/or video
signals you want to assign to
the input which you selected in
step 3 using V/v/B/b.
6 Press RETURN/EXIT O to
enter the setting.
Notes
• You cannot assign optical signals from an input
source to the optical input jacks on the receiver,
and you cannot assign coaxial signals from the
input source to the coaxial input jacks on the
receiver.
• When you assign the digital audio input, the
INPUT MODE setting may change automatically.
Input name VIDEO
1
VIDEO
2
BD DVD SAT MD/
TAPE
SA-CD/
CD
MULTI
IN
Assignable video
input jacks
COMPONENT 1 aaaaaaaa
COMPONENT 2 aaaaaaaa
COMPONENT 3 aaaaaaaa
NONE – – – – – aaa
COMPOSITE aaaaa –––
Assignable audio
input jacks
VIDEO1 OPT aaaa – aa –
SAT OPT – aaaaaa –
DVD COAX aaaaaa ––
SA-CD COAX aaa – aaa –
84
US
Changing the display
You can check the sound field, etc., by
changing the information on the display.
Press DISPLAY repeatedly.
Each time you press DISPLAY, the display
will change cyclically as follows.
Input name you selected* t Original input
name t Sound field currently applied t
Vo l u m e t Stream information
FM and AM band
Preset station name* t Frequency t Sound
field currently applied t Vo l u m e
* Index name appears only when you have assigned
one to the input or preset station. Index name does
not appear when only blank spaces have been
entered.
Note
Character or marks may not be displayed for some
languages.
Tip
You cannot switch the display while “GUI MODE”
is shown on the display. Press GUI MODE
repeatedly to select “GUI OFF”.
85
US
Other Operations
About the indicators on the display
12
4
3
5 6 7
8
9 q;
qa qs
qd
w;
qg
wg
wf
wd
ws
wa
ql
qj
qk
qf
qh
Name Function
A SW Lights up when subwoofer is
connected and the audio signal
is output from the
SUBWOOFER jack. While this
indicator lights up, the receiver
creates a subwoofer signal
based on the LFE signal in the
disc being played back or the
low frequency components of
the front channels.
B LFE Lights up when the disc being
played back contains an LFE
(Low Frequency Effect)
channel and the LFE channel
signal is actually being
reproduced.
C MULTI IN Lights up when multi channel
input is selected.
D COAX Lights up when INPUT MODE
is set to “AUTO” and the source
signal is a digital signal being
input through the COAXIAL
jack or when INPUT MODE is
set to “COAX”.
E OPT Lights up when INPUT MODE
is set to “AUTO” and the source
signal is a digital signal being
input through the OPTICAL
jack or when INPUT MODE is
set to “OPT”.
Name Function
F ; D/
; D EX/
; D+/
; TrueHD
“; D” lights up when the
receiver is decoding Dolby
Digital signals.
“; D EX” lights up when the
receiver is decoding Dolby
Digital Surround EX signals.
“; D+” lights up when the
receiver is decoding Dolby
Digital + signals.
“; TrueHD” lights up when
the receiver is decoding Dolby
TrueHD signals.
Note
When playing a Dolby Digital
format disc, be sure that you
have made digital connections
and that INPUT MODE is set
to “AUTO”.
G Neural-THX Lights up when the receiver
applies Neural-THX
processing to input signals.
H DTS/
DTS-ES/
DTS 96/24
“DTS” lights up when the
receiver is decoding DTS
signals.
“DTS-ES” lights up when the
receiver is decoding DTS-ES
signals.
“DTS 96/24” lights up when
the receiver is decoding DTS
96/24 (96 kHz/24 bit) signals.
Note
When playing a DTS format
disc, be sure that you have
made digital connections and
that INPUT MODE is set to
“AUTO”.
continued
86
US
Name Function
I D.RANGE Lights up when dynamic range
compression is activated.
J CAT Lights up when category mode is
selected during the XM Radio
operation.
K SP A/
SP B/
SP A+B
Lights up according to the
speaker system used (page 39).
However, these indicators do not
light up if the speaker output is
turned off or if headphones are
connected.
L SLEEP Lights up when the Sleep Timer
is activated.
M Tuner
indicators
Lights up when using the
receiver to tune in radio stations,
etc.
N A.DIRECT Lights up when ANALOG
DIRECT is selected.
O MEM Lights up when a memory
function, such as Preset
Memory, etc., is activated.
P XM Lights up when XM Mini-Tuner
and Home Dock are connected
and “XM” is selected.
Q ; PL/
; PLII/
; PLIIx
“; PL” lights up when the
receiver applies Dolby Pro Logic
processing to 2 channel signals
in order to output the center and
surround channel signals.
“; PLII” lights up when the
Dolby Pro Logic II decoder is
activated.
“; PL IIx” lights up when the
Dolby Pro Logic IIx decoder is
activated.
However, these indicators do not
light up if both the center and
surround speakers are not
connected and you select a sound
field using the A.F.D. button.
Note
Dolby Pro Logic IIx decoding
does not function for signals
with a sampling frequency of
more than 48 kHz.
Name Function
R NEO:6 Lights up when DTS Neo:6
Cinema/Music decoder is
activated.
S EQ Lights up when the equalizer is
activated.
T DTS-HD
MSTR/
DTS-HD HI
RES
“DTS-HD MSTR” lights up
when the receiver is decoding
DTS-HD Master Audio signals.
“DTS-HD HI RES” lights up
when the receiver is decoding
DTS-HD Hi-Resolution
signals.
U LPCM Lights up when Linear PCM
signals is received.
V ANALOG Lights up when
– INPUT MODE is set to
“AUTO” and no digital signal
is being input through the
COAXIAL, OPTICAL or
HDMI jacks.
– INPUT MODE is set to
“ANALOG”.
– the “Analog Direct” is being
used.
W DMPORT Lights up when DIGITAL
MEDIA PORT adapter is
connected and “DMPORT” is
selected.
X HDMI Lights up when the receiver
recognizes a component
connected via a HDMI IN jack.
87
US
Other Operations
Using the Sleep Timer
You can set the receiver to turn off
automatically at a specified time.
Press SLEEP repeatedly while the
power is on.
Each time you press the button, the display
changes cyclically as follows:
0:30:00 t 1:00:00 t 1:30:00 t 2:00:00
t OFF
When Sleep Timer is activated, “SLEEP”
lights up in the display.
Tip
To check the remaining time before the receiver
turns off, press SLEEP. The remaining time appears
on the display. If you press SLEEP again, the Sleep
Timer will be canceled.
Name Function
Y Playback
channel
indicators
L
R
C
SL
SR
S
SBL
SBR
SB
The letters (L, C, R, etc.)
indicate the channels being
played back. The boxes around
the letters vary to show how the
receiver downmixes the source
sound (based on the speaker
settings).
Front Left
Front Right
Center (monaural)
Surround Left
Surround Right
Surround (monaural or the
surround components obtained
by Pro Logic processing)
Surround Back Left
Surround Back Right
Surround Back (the surround
back components obtained by
6.1 channel decoding)
Example:
Recording format (Front/
Surround): 3/2.1
Output channel: When Speaker
Pattern is set to “3/0.1”
(page 91)
Sound Field: A.F.D. AUTO
88
US
Recording using the
receiver
You can record from a video/audio component
using the receiver. Refer to the operating
instructions supplied with your recording
component.
You can record onto a MiniDisc or audio tape
using the receiver. See the operating
instructions supplied with your MD deck or
tape deck.
1 Press the input button of the
playback component.
You can also use INPUT SELECTOR on
the receiver.
2 Prepare the playback
component for playing.
For example, insert a CD into the CD
player.
3 Prepare the recording
component.
Insert a blank MD or tape into the
recording deck and adjust the recording
level.
4 Start recording on the
recording component, then
start playback on the playback
component.
Notes
• Sound adjustments do not affect the signal output
from the MD/TAPE OUT jacks.
• The audio input signals from the MULTI
CHANNEL INPUT jacks are not output.
1 Press the input button of the
playback component.
You can also use INPUT SELECTOR on
the receiver.
2 Prepare the playback
component for playing.
For example, insert the video tape you
want to copy into the VCR.
3 Prepare the recording
component.
Insert a blank video tape, etc. into the
recording component (connected to
VIDEO 1 OUT jack) for recording.
4 Start recording on the
recording component, then
start playback on the playback
component.
Notes
• Some sources contain copy guards to prevent
recording. In this case, you may not be able to
record from the source.
• The audio input signals from the MULTI
CHANNEL INPUT jacks are not output.
• Only analog input signals are output from the
analog output jack (for recording).
• HDMI sound cannot be recorded.
Recording onto a MiniDisc or
audio tape
Recording onto a recording
media
89
US
Other Operations
Operating without
connecting to the TV
You can operate this receiver using the display
even if you do not use a GUI when a TV is not
connected.
Press GUI MODE repeatedly to
select “GUI OFF”.
When “GUI MODE” is displayed in the
display, the menu is set to display on the TV
screen using a GUI.
1 Press AMP.
2 Press MENU.
3 Press V/v repeatedly to select
the menu you want.
4 Press or b to enter the
menu.
5 Press V/v repeatedly to select
the parameter you want to
adjust.
6 Press or b to enter the
parameter.
7 Press V/v repeatedly to select
the setting you want.
8 Press to enter the setting.
To return to the previous
display
Press B.
To exit the menu
Press MENU.
Note
Some parameters and settings may appear dimmed
on the display. This means that they are either
unavailable or fixed and unchangeable.
Navigating through menus on
the display
90
US
The following options are available in each
menu. For details on navigating through
menus, see page 89.
Overview of the menus
Menu
[Display]
Parameters
[Display]
Settings Initial
setting
Auto Calibration
settings
[<AUTO CAL>]
Auto Calibration start
[A.CAL START]
Calibration type
[CAL TYPE]
FULL FLAT, ENGINEER,
FRONT REF, OFF
FULL FLAT
Position [POSITION] POS 1, POS 2, POS 3 POS
1
Naming input [NAME IN]
Level settings
[<LEVEL>]
Test tone
[TEST TONE] OFF, AUTO (FL to SW),
FIX (FL to SW)
OFF
Phase noise [P. NOISE] OFF, FL/FR, FL/CNT, CNT/FR,
FR/SL, FR/SR, SR/SL, SR/SBR,
SBR/SBL, SR/SB, SBL/SL, SB/SL,
SL/FL, FL/SR
OFF
Phase audio [P. AUDIO] OFF, FL/FR, FL/CNT, CNT/FR,
FR/SL, FR/SR, SR/SL, SR/SBR,
SBR/SBL, SR/SB, SBL/SL, SB/SL,
SL/FL, FL/SR
OFF
Front left speaker level
[FL LEVEL]
FL –10.0 dB to FL+10.0 dB
(0.5 dB step)
FL 0 dB
Front right speaker level
[FR LEVEL]
FR –10.0 dB to FR+10.0 dB
(0.5 dB step)
FR 0 dB
Center speaker level
[CNT LEVEL]
CNT –20.0 dB to CNT +10.0 dB
(0.5 dB step)
CNT 0 dB
Surround left speaker level
[SL LEVEL]
SL –20.0 dB to SL +10.0 dB
(0.5 dB step)
SL 0 dB
Surround right speaker level
[SR LEVEL]
SR –20.0 dB to SR +10.0 dB
(0.5 dB step)
SR 0 dB
Surround back speaker level
[SB LEVEL]
SB –20.0 dB to SB +10.0 dB
(0.5 dB step)
SB 0 dB
Surround back left speaker level
[SBL LEVEL]
SBL –20.0 dB to SBL +10.0 dB
(0.5 dB step)
SBL 0 dB
Surround back right speaker level
[SBR LEVEL]
SBR –20.0 dB to SBR +10.0 dB
(0.5 dB step)
SBR 0 dB
Subwoofer level
[SW LEVEL]
SW –20.0 dB to SW +10.0 dB
(0.5 dB step)
SW 0 dB
Dynamic range compressor
[D. RANGE]
COMP. MAX, COMP. STD,
COMP. AUTO, COMP. OFF
COMP. AUTO
91
US
Other Operations
Menu
[Display]
Parameters
[Display]
Settings Initial
setting
Speaker settings
[<SPEAKER>]
Speaker pattern
[SP PATTERN]
2/0 to 3/4.1 3/4.1
Front speakers
[FRT SP]
LARGE, SMALL LARGE
Center speaker
[CNT SP]
LARGE, SMALL LARGE
Surround speakers
[SUR SP]
LARGE, SMALL LARGE
Front left speaker distance
[FL DIST.]
FL 3’3” to FL 32’9” (FL 1.0 m to
FL 10.0 m) (1 inch (0.01 m) step)
FL 9’10” (3 m)
Front right speaker distance
[FR DIST.]
FR 3’3” to FR 32’9” (FR 1.0 m to
FR 10.0 m) (1 inch (0.01 m) step)
FR 9’10” (3 m)
Center speaker distance
[CNT DIST.]
CNT 3’3” to CNT 32’9” (CNT 1.0 m
to CNT 10.0 m) (1 inch (0.01 m) step)
CNT 9’10”
(3 m)
Surround left speaker distance
[SL DIST.]
SL 3’3” to SL 32’9” (SL 1.0 m to
SL 10.0 m) (1 inch (0.01 m) step)
SL 9’10” (3 m)
Surround right speaker distance
[SR DIST.]
SR 3’3” to SR 32’9” (SR 1.0 m to SR
10.0 m) (1 inch (0.01 m) step)
SR 9’10” (3 m)
Surround back speaker distance
[SB DIST.]
SB 3’3” to SB 32’9” (SB 1.0 m to
SB 10.0 m) (1 inch (0.01 m) step)
SB 9’10” (3 m)
Surround back left speaker
distance
[SBL DIST.]
SBL 3’3” to SBL 32’9” (SBL 1.0 m to
SBL 10.0 m) (1 inch (0.01 m) step)
SBL 9’10”
(3 m)
Surround back right speaker
distance
[SBR DIST.]
SBR 3’3” to SBR 32’9” (SBR 1.0 m
to SBR 10.0 m) (1 inch (0.01 m) step)
SBR 9’10”
(3 m)
Subwoofer distance
[SW DIST.]
SW 3’3” to SW 32’9” (SW 1.0 m to
SW 10.0 m) (1 inch (0.01 m) step)
SW 9’10”
(3 m)
Distance unit [DIST. UNIT] METER, FEET FEET
Front speaker crossover
frequency
b)
[FRT CROSS]
CROSS 40 Hz to CROSS 200 Hz
(10 Hz step)
CROSS 120 Hz
Center speaker crossover
frequency
b)
[CTR CROSS]
CROSS 40 Hz to CROSS 200 Hz
(10 Hz step)
CROSS 120 Hz
Surround speaker crossover
frequency
b)
[SUR CROSS]
CROSS 40 Hz to CROSS 200 Hz
(10 Hz step)
CROSS 120 Hz
continued
92
US
Menu
[Display]
Parameters
[Display]
Settings Initial
setting
Surround settings
[<SURROUND>]
Sound field selection
[S.F. SELECT]
Enhanced Surround Mode
[E.SUR MODE]
PLII, PLIIx, NEO6 CIN,
NEO6 MUS, NEURAL-THX
PL IIx
Effect level [EFFECT] EFCT. 50%, EFCT. 80%,
EFCT. 100%, EFCT. 150%
EFCT. 100%
EQ settings
[<EQ>]
Front speakers bass level
[FRT BASS]
FRT B. –10 dB to FRT B. +10 dB
(1 dB step)
FRT B. 0 dB
Front speakers treble level
[FRT TREBLE]
FRT T. –10 dB to FRT T. +10 dB
(1 dB step)
FRT T. 0 dB
Center speaker bass level
[CNT BASS]
CNT B. –10 dB to CNT B. +10 dB
(1 dB step)
CNT B. 0 dB
Center speaker treble level
[CNT TREBLE]
CNT T. –10 dB to CNT T. +10 dB
(1 dB step)
CNT T. 0 dB
Surround speakers bass level
[SUR BASS]
SUR B. –10 dB to SUR B. +10 dB
(1 dB step)
SUR B. 0 dB
Surround speakers treble level
[SUR TREBLE]
SUR T. –10 dB to SUR T. +10 dB
(1 dB step)
SUR T. 0 dB
Tuner settings
[<TUNER>]
FM station receiving mode
[FM MODE]
STEREO, MONO STEREO
Naming preset stations
[NAME IN]
XM aiming mode
[XM ANT AIM]
a)
XM Radio ID [XM ID]
Audio settings
[<AUDIO>]
Synchronizes audio with video
output [A/V SYNC]
0 ms to 300 ms (10 ms step) 0 ms
Digital broadcast language
selection [DUAL MONO]
MAIN/SUB, MAIN, SUB MAIN
Digital audio input decoding
priority
[DEC. PRIO]
DEC. AUTO, DEC. PCM DEC. AUTO
Digital audio input assignment
[A. ASSIGN]
VIDEO 1 ? c VIDEO 1 OPT, SAT OPT,
DVD COAX, SA-CD COAX, ANALOG
VIDEO 2 ? c
BD ? c
DVD ? c
SAT ? c
MD/TAPE ? c
SA-CD/CD ? c
93
US
Other Operations
a)
This parameter is only available if the XM Mini-Tuner and Home Dock is connected to the XM jack on the
receiver.
b)
You cannot select this setting if your speaker is set to “LARGE”.
Menu
[Display]
Parameters
[Display]
Settings Initial
setting
Video settings
[<VIDEO>]
Resolution
[RESOLUTION]
DIRECT, AUTO, 480/576i,
480/576p, 720p, 1080i, 1080p
AUTO
Video input assignment
[V. ASSIGN]
VIDEO 1 ? c COMPONENT 1, COMPONENT 2,
COMPONENT 3, NONE, COMPOSITE
VIDEO 2 ? c
BD ? c
DVD ? c
SAT ? c
MD/TAPE ? c
SA-CD/CD ? c
MULTI IN ? c
HDMI settings
[<HDMI>]
Control for HDMI
[CTRL: HDMI]
CTRL ON, CTRL OFF CTRL OFF
Setting HDMI audio input
[AUDIO OUT]
AMP, TV+AMP AMP
Subwoofer level for HDMI
[SW LEVEL]
SW AUTO, SW +10 dB, SW 0 dB SW 0 dB
System settings
[<SYSTEM>]
Naming inputs
[NAME IN]
Brightness of the display
[DIMMER]
100% DOWN, 60% DOWN,
0% DOWN
0% DOWN
94
US
For details on the Auto Calibration, see “9:
Calibrating the appropriate speaker settings
automatically (Auto Calibration)” (page 39).
Refer to “Before you perform Auto
Calibration” (page 40) before performing the
Auto Calibration.
To operate on the receiver
1 Press GUI MODE repeatedly to select “GUI
OFF”.
2 Press AMP.
Receiver operation is enabled.
3 Press MENU.
4 Press V/v repeatedly to select “<AUTO
CAL>”, then press .
5 Press V/v repeatedly to select “A.CAL
START”, then press to start the
measurement.
Measurement starts in 5 seconds. A count
down is displayed.
Note
While the time is counting down, stand away
from the measurement area to avoid measurement
error.
6 Measurement starts.
The measurement process will take
approximately 30 seconds. Wait until the
measurement process completes.
To cancel Auto Calibration
The measurement will be canceled when you
do the following:
– Press ?/1, input buttons or MUTING.
– Press SPEAKERS (OFF/A/B/A+B) on the
receiver.
– Change the volume level.
– Connect the headphones.
Tips
• Operations other than turning the receiver on or off
are deactivated during Auto Calibration.
• The measurements may not be performed correctly
or Auto Calibration cannot be performed when
special speakers, such as dipole speakers are used.
To confirm/save Auto
Calibration when GUI function
is turned off
1 Confirm the measurement result.
When the measurement ends, a beep sounds
and the measurement result appears on the
display.
2 Press V/v repeatedly to select the item, then
press .
Performing Auto Calibration
Measurement
result
Display Explanation
When the
measurement
process
completes
properly
COMPLETE Proceed to step 2.
When the
measurement
process fails
E – xxx :
xx
See “Message list
after Auto
Calibration
measurement”
(page 43).
Item Explanation
RETRY Performs the Auto Calibration
again.
SAVE EXIT Saves the measurement results
and exits the setting process.
WA RN
CHECK
Displays a warning concerning
the measurement results. See
“Message list after Auto
Calibration measurement”
(page 43).
PHASE INFO. Displays the phase of each
speaker (in phase/out of phase).
See “When you select “PHASE
INFO.”” (page 95).
DIST. INFO. Displays the measurement
result for speaker distance.
95
US
Other Operations
3 Select “SAVE EXIT” in step 2.
The measurement results are saved.
4 Press V/v repeatedly to select the Auto
Calibration type, then press .
Tip
The size of a speaker (LARGE/SMALL) is
determined by the low frequency characteristics.
The measurement results may vary, depending on
the position of the optimizer microphone and
speakers, and the shape of the room. It is
recommended that you follow the measurement
results. However, you can change those settings in
the Speaker settings menu. Save the measurement
results first, then try to change the settings if you
want.
When you select “PHASE INFO.”
You can check the phase of each speaker (in
phase/out of phase).
Press V/v repeatedly to select a speaker, then
press to return to step 1 in “To confirm/save
Auto Calibration when GUI function is turned
off.”
* xxx represent a speaker channel.
FL Front Left
FR Front Right
CNT Center
SL Surround Left
SR Surround Right
SB Surround Back
SBL Surround Back Left
SBR Surround Back Right
SW Subwoofer
Tip
Depending on the position of the subwoofer, the
measurement results for polarity may vary.
However, there will be no problems even if you
continue to use the receiver with that value.
Item Explanation
LEVEL INFO. Displays the measurement
result for speaker level.
EXIT Exits the setting process
without saving the
measurement results.
Auto
Calibration
type
Explanation
FULL FLAT Makes the measurement of
frequency from each speaker
flat.
ENGINEER Sets the frequency
characteristics to a set that
matches that of the Sony
listening room standard.
FRONT REF Adjusts the characteristics of
all the speakers to match the
characteristics of the front
speaker.
OFF Set the Auto Calibration EQ to
off.
Display Explanation
xxx* :IN The speaker is in phase.
xxx* :OUT The speaker is out of phase. The
“+” and “–” terminals of the
speaker may be connected the
other way around. However,
depending on the speakers,
“
xxx :OUT” appears on the
display even though the speakers
are connected properly. This is
because of the speakers’
specifications. In this case, you
can continue to use the receiver.
xxx* :– – – No speakers are connected.
96
US
For details on each sound field type, see
“Enjoying a pre-programmed sound field”
(page 50).
Press 2CH/A.DIRECT, A.F.D.,
MOVIE, or MUSIC repeatedly.
The selected sound field type appears on the
display.
To select Enhanced Surround
Mode
1 Press AMP.
2 Press MENU.
3 Press V/v repeatedly to select
“<SURROUND>”, then press or b.
4 Press V/v repeatedly to select “E.SUR
MODE”, then press or b.
5 Press V/v repeatedly to select the enhanced
surround sound you want, then press .
Note
The selected Enhanced Surround Mode can only be
applied if you have selected “E.SURROUND” by
pressing A.F.D. repeatedly.
Press 2CH/A.DIRECT repeatedly to
select “A. DIRECT”.
For details on the tuner function, see “Tuner
Operations” (page 62).
Tuning radio stations
1 Press TUNER repeatedly to select the FM or
AM band.
You can also use INPUT SELECTOR on the
receiver.
2 Press TUNING + or TUNING –.
Press TUNING + to scan from low to high
frequencies, press TUNING – to scan from
high to low frequencies. The receiver stops
scanning whenever a station is received.
You can also press TUNING MODE on the
receiver to select “AUTO”, and then turn
TUNING +/– to select stations.
Selecting a frequency directly
(Direct Tuning)
1 After selecting the FM or AM band, press
D.TUNING.
2 Press SHIFT, then press numeric buttons to
enter the frequency.
3 Press .
1 Tune in the station that you
want to preset.
For details on the operation, refer to
“Tuning radio stations”.
2 Press SHIFT, then press
ENT/MEM.
You can also use MEMORY/ENTER on
the receiver.
“MEM” lights up for a few seconds.
Perform steps 3 and 4 before “MEM”
disappears.
Selecting a sound field type
Listening to the sound without
any adjustment (ANALOG
DIRECT)
Listening to the FM/AM radio
Presetting radio stations
97
US
Other Operations
3 Press PRESET + or PRESET –
to select a preset number.
30 FM and 30 AM preset numbers are
available. If “MEM” disappears before
you select the preset number, start again
from step 2.
4 Press ENT/MEM.
If SHIFT indicator is light off before you
press ENT/MEM, press SHIFT.
You can also use MEMORY/ENTER on
the receiver.
The station is stored as the selected preset
number.
If “MEM” disappears before you press
ENT/MEM, start again from step 2.
5 Repeat steps 1 to 4 to preset
another station.
Selecting a preset station
1 Press TUNER repeatedly to select the FM or
AM band.
2 Press PRESET+ or PRESET – repeatedly to
select the preset station you want.
You can also press SHIFT, then press
numeric buttons to select the preset station
you want. Then, press to enter the
selection.
You can also press TUNING MODE on the
receiver repeatedly to select “PRESET”
then use TUNING +/– to select the preset
stations you want.
For details on XM Radio service, refer to
“Listening to the XM Radio” (page 65) in
“Tuner Operations”.
Aiming the XM Antenna
You can use “XM ANT AIM” in the Tuner
settings menu to help you aim the antenna for
optimal signal reception.
1 Press XM to select “XM RADIO”.
You can also use INPUT SELECTOR on the
receiver.
2 Press AMP.
3 Press MENU.
4 Press V/v repeatedly to select “<TUNER>”.
5 Press or b to enter the menu.
6 Press V/v repeatedly to select “XM ANT
AIM”.
7 Press or b to enter the parameter.
8 While checking the parameter, aim your
antenna to where the best reception will be
received.
For details on the parameter, see “Signal
strength” below.
Signal strength
Listening to the XM Radio
Signal
strength
Signal type
Satellite Terrestrial
Good S : 3 T : 3
Marginal S : 2 T : 2
Weak S : 1 T : 1
None S : 0 T : 0
continued
98
US
Checking the XM Radio ID
1 Press XM to select “XM RADIO”.
You can also use INPUT SELECTOR on the
receiver.
2 Press TUNING + or TUNING – to select
channel 0.
You can also press TUNING MODE on the
receiver to select “AUTO”, then turn
TUNING +/– to select channel 0.
3 Check the XM ID on the display and write it
in the space provided here.
ID:________________________________
Selecting channels from a
category (CATEGORY TUNING)
1 Press XM to select “XM RADIO”.
You can also use INPUT SELECTOR on the
receiver.
2 Press CATEGORY MODE repeatedly to
select “ONE CAT”.
• ALL CAT: You can select a channel from
all the categories. The initial setting is
“ALL CAT”,
• ONE CAT: You can select a channel from
one category. “CAT” is lights up on the
display when you set to “ONE CAT”
mode.
3 Press CATEGORY + or CATEGORY – to
select the category you want.
The category is selected and the channel
with the lowest number in the specified
category is selected.
4 Press TUNING + or TUNING – to select the
channel.
You can also press TUNING MODE on the
receiver to select “AUTO”, then turn
TUNING +/– to select the channel.
Selecting a channel number
directly (Direct tuning)
1 After selecting XM Radio, press
D.TUNING.
2 Press SHIFT, then press numeric buttons to
enter the channel number.
3 Press .
Displaying the XM Radio
information
Press DISPLAY repeatedly.
Each time you press DISPLAY while tuning in
the channel, the display changes cyclically as
follows:
Channel name t Channel number t
Category name t Artist name/Feature t
Song/Program title t Signal Strength t
Sound field type t Volume
1 Select a channel you want to
preset.
For details on this operation, refer to
“Selecting channels from a category
(CATEGORY TUNING)” (page 98).
2 Press SHIFT, then press
ENT/MEM.
You can also use MEMORY/ENTER on
the receiver.
“MEM” lights up on the display.
3 Press PRESET + or PRESET –
to select a preset number.
You can also select the number by
pressing SHIFT, then numeric buttons.
Preset numbers from 1 to 30 are available.
Channel 1 is preset for the preset numbers
when you purchase the receiver.
4 Press ENT/MEM.
If SHIFT indicator is light off before you
press ENT/MEM, press SHIFT.
You can also use MEMORY/ENTER on
the receiver.
“MEM” lights off.
5 Repeat steps 1 to 4 to preset
another channel.
Presetting XM Radio channels
99
US
Using the Remote
Selecting a preset channel
1 Press XM to select “XM RADIO”.
2 Press PRESET+ or PRESET – repeatedly to
select the preset channel you want.
You can also press SHIFT, then press
numeric buttons to select the preset channel
you want. Then, press ENT/MEM to enter
the selection.
You can also press TUNING MODE on the
receiver repeatedly to select “PRESET”
then use TUNING +/– to select the preset
channels you want.
Programming the remote
You can customize the remote to match the
components connected to your receiver. You
can even program the remote to control non-
Sony components and also Sony components
that the remote is normally unable to control.
The procedure below uses as an example a
case in which a VCR made by a company
other than Sony is connected to the VIDEO 1
IN jacks on the receiver.
Before you begin, note that:
– You cannot change the settings of PHONO.
– The remote can control only components
that accept infrared wireless control signals.
Be sure to turn on the receiver and
point the remote towards the
receiver when performing the
following procedure.
1 Press and hold RM SET UP,
then press AV ?/1.
The RM SET UP indicator slowly flashes.
2 Press the input button
(including TV) for the
component you want to control.
For example, if you are going to control a
VCR connected to VIDEO 1 IN, press
VIDEO 1.
The RM SET UP and SHIFT indicator
light up.
If you press the button for a component of
which you cannot program the remote,
such as DMPORT, XM, etc., the RM SET
UP indicator keeps flashing.
Using the Remote
continued
100
US
3 Press numeric buttons to enter
the numeric code (or one of the
codes if more than one code
exists) corresponding to the
component and the maker of
the component you want to
control.
See the tables on page 101–103 for
information on the numeric code(s).
Note
For a TV remote code value, only numbers in
the 500’s are valid.
4 Press ENT/MEM.
Once the numeric code has been verified,
the RM SET UP indicator slowly flashes
twice and the remote automatically exits
the programming mode.
5 Repeat steps 1 to 4 to control
other components.
Notes
• The indicator turns off while a valid button is
pressed.
• In step 2, if you press TUNER, you can only
program the button to control a tuner (page 103).
• In step 2, if you want to change to other input, press
SHIFT and then press the new input button you
want.
• For the numeric codes, only the last three numbers
entered are valid.
To cancel programming
Press RM SET UP during any step. The RM
SET UP indicator flashes 5 times in quick
succession. The remote automatically exits the
programming mode.
To activate the input after
programming
Press the programmed button to activate the
input you want.
If programming is
unsuccessful, check the
following:
• If the indicator does not light up in step 1, the
batteries are weak. Replace both batteries.
• If the indicator flashes 5 times in quick
succession while entering the numeric code,
an error has occurred. Start again from step
1.
The numeric codes
corresponding to the
component and the maker of
the component
Use the numeric codes in the tables below to
control non-Sony components and also Sony
components that the remote is normally unable
to control. Since the remote signal that a
component accepts differs depending on the
model and year of the component, more than
one numeric code may be assigned to a
component. If you fail to program your remote
using one of the codes, try using other codes.
Notes
• The numeric codes are based on the latest
information available for each brand. There is a
chance, however, that your component will not
respond to some or all of the codes.
• All of the input buttons on this remote may not be
available when used with your particular
component.
101
US
Using the Remote
To control a CD player
To control a DAT deck
To control an MD deck
To control a tape deck
To control an LD player
To control a video CD player
To control a VCR
* If an AIWA VCR does not work even though you
enter the code for AIWA, enter the code for Sony
instead.
Maker Code(s)
SONY 101, 102, 103
DENON 104, 123
JVC 105, 106, 107
KENWOOD 108, 109, 110
MAGNAVOX 111, 116
MARANTZ 116
ONKYO 112, 113, 114
PANASONIC 115
PHILIPS 116
PIONEER 117
TECHNICS 115, 118, 119
YAMAHA 120, 121, 122
Maker Code(s)
SONY 203
PIONEER 219
Maker Code(s)
SONY 301
DENON 302
JVC 303
KENWOOD 304
Maker Code(s)
SONY 201, 202
DENON 204, 205
KENWOOD 206, 207, 208, 209
NAKAMICHI 210
PANASONIC 216
PHILIPS 211, 212
PIONEER 213, 214
TECHNICS 215, 216
YAMAHA 217, 218
Maker Code(s)
SONY 601, 602, 603
PIONEER 606
Maker Code(s)
SONY 605
Maker Code(s)
SONY 701, 702, 703, 704,
705, 706
AIWA* 710, 750, 757, 758
AKAI 707, 708, 709, 759
BLAUPUNKT 740
EMERSON 711, 712, 713, 714,
715, 716, 750
FISHER 717, 718, 719, 720
GENERAL ELECTRIC
(GE)
721, 722, 730
GOLDSTAR/LG 723, 753
GRUNDIG 724
HITACHI 722, 725, 729, 741
ITT/NOKIA 717
JVC 726, 727, 728, 736
MAGNAVOX 730, 731, 738
MITSUBISHI/MGA 732, 733, 734, 735
NEC 736
PANASONIC 729, 730, 737, 738,
739, 740
PHILIPS 729, 730, 731
PIONEER 729
RCA/PROSCAN 722, 729, 730, 731,
741, 747
SAMSUNG 742, 743, 744, 745
SANYO 717, 720, 746
SHARP 748, 749
TELEFUNKEN 751, 752
TOSHIBA 747, 756
ZENITH 754
continued
102
US
To control a DVD player
To control a DVD recorder
To control a TV
Maker Code(s)
SONY 401, 402, 403
BROKSONIC 424
DENON 405
HITACHI 416
JVC 415, 423
MITSUBISHI 419
ORITRON 417
PANASONIC 406, 408, 425
PHILIPS 407
PIONEER 409, 410
RCA 414
SAMSUNG 416, 422
TOSHIBA 404, 421
ZENITH 418, 420
Maker Code(s)
SONY 401, 402, 403
Maker Code(s)
SONY 501
AIWA 536, 539, 501
AKAI 503
AOC 503
CENTURION 566
CORONADO 517
CURTIS-MATHES 503, 551, 566, 567
DAYTRON 517, 566
DAEWOO 504, 505, 506, 507,
515, 544
FISHER 508, 545
FUNAI 548
FUJITSU 528
GOLDSTAR/LG 503, 512, 515, 517,
534, 544, 556, 568
GRUNDIG 511, 533, 534
HITACHI 513, 514, 515, 544,
557, 503, 519, 517,
571
ITT/NOKIA 521, 522
J.C.PENNY 503, 510, 566
JVC 516, 552
KMC 517
MAGNAVOX 503, 518, 544, 515,
517, 566
MARANTZ 527
MITSUBISHI/MGA 503, 519, 527, 544,
566, 568
NEC 503, 520, 544, 554,
517, 540, 566
NORDMENDE 530, 558
NOKIA 521, 522, 573, 575
PANASONIC 509, 524, 553, 559,
572
PHILIPS 515, 518, 557, 570,
571
PHILCO 503, 504, 514, 517,
518
PIONEER 509, 525, 526, 540,
551, 555
PORTLAND 503
QUASAR 509, 535
RADIO SHACK 503, 510, 527, 565,
567
RCA/PROSCAN 510, 523, 529, 544,
503
SAMSUNG 503, 515, 531, 532,
534, 544, 556, 557,
517, 562, 563, 566,
569
SAMPO 566
SABA 547, 537, 549, 558,
530
SANYO 508, 545, 546, 560,
567
SCOTT 503, 566
SEARS 517, 510, 508, 503,
518, 551
SHARP 535, 550, 517, 561,
565
SYLVANIA 503, 518, 566
THOMSON 530, 537, 547, 549
TOSHIBA 535, 539, 540, 541,
551
TELEFUNKEN 537, 538, 547, 549,
558, 530
Maker Code(s)
103
US
Using the Remote
To control a satellite tuner
To control a cable box
To control a tuner
To control a Blu-ray disc player
To control a PSX
To control a DVD/VHS COMBO
To control a DVD/HDD COMBO
TEKNIKA 517, 518, 567
WARDS 503, 517, 566
YORK 566
ZENITH 542, 543, 567
GE 509, 510, 503, 544
LOEWE 515, 534, 556
Maker Code(s)
SONY 801, 802, 803, 804,
824, 825, 865
AMSTRAD 845, 846
BskyB 862
GENERAL ELECTRIC
(GE)
866
GRUNDIG 859, 860
HUMAX 846, 847
THOMSON 857, 861, 864, 876
PACE 848, 849, 850, 852,
862, 863, 864
PANASONIC 818, 855
PHILIPS 856, 857, 858, 859,
860, 864, 874
NOKIA 851, 853, 854, 864
RCA/PROSCAN 866, 871
BITA/HITACHI 868
HUGHES 867
JVC/Echostar/Dish
Network
873
MITSUBISHI 872
SAMSUNG 875
TOSHIBA 869, 870
Maker Code(s)
Maker Code(s)
SONY 821, 822, 823
HAMLIN/REGAL 836, 837, 838, 839,
840
JERROLD/G.I./
MOTOROLA
806, 807, 808, 809,
810, 811, 812, 813,
814, 819
JERROLD 830, 831
OAK 841, 842, 843
PANASONIC 816, 826, 832, 833,
834, 835
PHILIPS 830, 831
PIONEER 828, 829
RCA 805
SCIENTIFIC ATLANTA 815, 816, 817, 844
TOCOM/PHILIPS 830, 831
ZENITH 826, 827
Maker Code(s)
SONY 002, 005
Maker Code(s)
SONY 310, 311, 312
Maker Code(s)
SONY 313, 314, 315
Maker Code(s)
SONY 411
Maker Code(s)
SONY 401, 402, 403
104
US
Clearing all the contents
of the remote’s memory
1
While holding down MASTER
VOL – , press and hold ?/1, then
press AV ?/1.
The RM SET UP indicator flashes 3
times.
All the contents of the remote’s memory
(i.e., all the programmed data) are
cleared.
Glossary
x Cinema Studio EX
A surround sound mode that can be regarded
as the compilation of Digital Cinema Sound
technology, delivers the sound of a dubbing
theater using three technologies: “Virtual
Multi Dimensions”, “Screen Depth
Matching”, and “Cinema Studio
Reverberation”.
“Virtual Multi Dimensions”, the virtual
speaker technology, creates a virtual multi-
surround environment with actual speakers up
to 7.1 channels, and brings the surround sound
experience of a theater with the latest facilities
into your home.
“Screen Depth Matching” reproduces treble
attenuation, fullness, and depth of sound
usually created in a theater using sound
emission from behind the screen. This is then
added to the front and center channels.
“Cinema Studio Reverberation” reproduces
the sound characteristics of state-of-the-art
dubbing theaters and recording studios,
including Sony Pictures Entertainment’s
dubbing studios. There are three modes, A/B/
C, available according to the studio type.
x Component video
A format for transmitting video signal
information consisting of three separate
signals: luminance Y, chrominance Pb, and
chrominance Pr. High quality pictures, such as
DVD video or HDTV pictures, are transmitted
more faithfully. The three jacks are color -
coded green, blue and red.
x Composite video
A standard format for transmitting video
signal information. The luminance signal Y
and chrominance signal C are combined and
transmitted together.
Additional Information
105
US
Additional Information
x Crossover frequency
The frequency at which two speaker’s
frequencies intersect.
x Deep Color
Video signals for which the color depth of
signals passing through an HDMI jack have
been raised.
The number of colors that could be expressed
by 1 pixel was 24 bits (16,777,216 colors) with
the current HDMI jack. However, the number
of colors which can be expressed by 1 pixel
will be 36, etc., bits when the receiver
corresponds to Deep Color.
Since the gradation of the depth of a color can
be expressed more finely with more bits,
continuous color changes can be more
smoothly expressed.
x Digital Cinema Sound (DCS)
Unique sound reproduction technology for
home theater developed by Sony, in
cooperation with Sony Pictures Entertainment,
for enjoying the exciting and powerful sound
of movie theaters at home. With this “Digital
Cinema Sound” developed by integrating a
DSP (Digital Signal Processor) and measured
data, the ideal sound field intended by
filmmakers can be experienced at home.
x Dolby Digital
Digital audio encoding/decoding technology
developed by Dolby Laboratories, Inc. It
consists of front (left/right), center, surround
(left/right) and subwoofer channels. It is a
designated audio standard for DVD video and
also known as 5.1 channel surround. Since
surround information is recorded and
reproduced in stereo, more realistic sound with
fuller presence is delivered than with Dolby
surround.
x Dolby Digital Plus
Dolby Digital Plus provides the flexibility and
efficiency to deliver more channels of
compelling surround sound for high-definition
video media. Its superior coding efficiencies
enable up to 7.1ch of high-quality multi
channel audio without negatively impacting
bit budgets allocated for video performance or
additional feature sets.
x Dolby Digital Surround EX
Acoustic technology developed by Dolby
Laboratories, Inc. Surround back information
is matrixed into regular left and right surround
channels so that the sound can be reproduced
in 6.1 channel. Active scenes, especially, are
recreated with a more dynamic and realistic
sound field.
x Dolby Pro Logic II
This technology converts 2 channel stereo
recorded audio into 5.1 channel for playback.
There is a MOVIE mode for movies and
MUSIC mode for stereo sources such as
music. Old movies encoded in the traditional
stereo format can be enhanced with 5.1
channel surround sound.
x Dolby Pro Logic IIx
Technology for 7.1 channel (or 6.1 channel)
playback. Along with audio encoded in Dolby
Digital Surround EX, 5.1 channel Dolby
Digital encoded audio can be reproduced in
7.1 channel (or 6.1 channel). Furthermore,
existing stereo recorded content can also be
reproduced in 7.1 channel (or 6.1 channel).
x Dolby Surround (Dolby Pro
Logic)
Audio processing technology developed by
Dolby Laboratories, Inc. Center and mono
surround information is matrixed into two
stereo channels. When reproduced, audio is
decoded and output in 4 channel surround
sound. This is the most common audio
processing method for DVD video.
continued
106
US
x Dolby TrueHD
Dolby TrueHD is Dolby’s lossless audio
technology developed for high-definition
optical discs. Dolby TrueHD audio is bit-for-
bit identical to the original studio masters and
provides supreme-quality audio up to 8ch at
96 kHz/24 bit and up to 6ch at 192 kHz/24 bit.
Together with high-definition video, it offers
an unprecedented home theater experience.
x DTS 96/24
A high sound quality digital signal format. It
records audio at a sampling frequency and bit
rate of 96 kHz/24bit which is the highest
possible for DVD video. The number of
playback channels varies depending on the
software.
x DTS Digital Surround
Digital audio encoding/decoding technology
for theaters developed by DTS, Inc. It
compresses audio less than Dolby Digital,
delivering a higher quality sound
reproduction.
x DTS-ES
Format for 6.1 channel playback with
surround back information. There are two
modes, “Discrete 6.1” which records all
channels independently, and “Matrix 6.1”
which matrixes surround back channel into
surround left and surround right channels. It is
ideal for playback of motion picture
soundtracks.
x DTS-HD
Audio format which extends the conventional
DTS Digital Surround format.
This format consists of a core and an
extension, and the core part has DTS Digital
Surround compatibility. There are two kinds of
DTS-HD, DTS-HD High Resolution Audio
and DTS-HD Master Audio. DTS-HD High
Resolution Audio has a maximum
transmission rate of 6 Mbps, with lossy
compression (Lossy), and DTS-HD High
Resolution Audio corresponds to a maximum
sampling frequency of 96 kHz, and a
maximum of 7.1 ch. DTS-HD Master Audio
has a the maximum transmission rate of
24.5 Mbps, and uses lossless
compression(Lossless), and DTS-HD Master
Audio corresponds to a maximum sampling
frequency of 192 kHz, and a maximum of
7.1 ch.
x DTS Neo:6
This technology converts 2 channel stereo
recorded audio for 6.1 channel playback.
There are two modes to select according to the
playback source or your preference, CINEMA
for movies, and MUSIC for stereo sources
such as music.
x HDMI (High-Definition
Multimedia Interface)
HDMI (High-Definition Multimedia
Interface) is an interface that supports both
video and audio on a single digital connection,
allowing you to enjoy high quality digital
picture and sound. The HDMI specification
supports HDCP (High-bandwidth Digital
Contents Protection), a copy protection
technology that incorporates coding
technology for digital video signals.
x High Bitrate Audio
It refers to the audio formats of the
compression method (DTS-HD Master Audio,
Dolby TrueHD, etc.) which is a high bitrate
format recorded mainly on Blu-ray disc etc.
107
US
Additional Information
x Interlace
A scanning method which completes a picture
by displaying half of the lines on a tube surface
of a TV or monitor each 1/60 second. First, all
the odd-numbered lines are drawn, leaving
spaces between each line, then all the even-
numbered lines are drawn to fill the spaces.
“i” of “480i” stands for “Interlace.”
x LFE (Low Frequency Effects)
Sound effects of low frequencies which are
output from a subwoofer in Dolby Digital or
DTS, etc. By adding a deep bass with a
frequency between 20 to 120 Hz, audio
becomes more powerful.
x Neural-THX
Neural-THX
®
Surround is taking surround
sound to the next level. This revolutionary new
technology delivers the rich envelopment and
discrete image detail of surround sound in a
format that is fully compatible with stereo.
Neural-THX Surround reduces the bandwidth
needed for broadcasters to deliver true, multi-
channel surround presentations, and enables
7.1-channel support for gaming and movies.
By unmasking the audio details, typically lost
by other playback systems, audiences will
experience the deep ambience and subtle
details of movies, music and games. And with
this technology being used by sound designers
during content creation, as well as embedded
into playback devices, Neural-THX Surround
promises a listening experience that is true to
the original mix.
Neural-THX Surround has been chosen as the
official surround sound broadcast format for
XM Satellite Radio’s “XM HD Surround”, as
well as other leading FM/HD radio stations
worldwide.
For additional information, please visit
www.neuralsurround.com.
x PCM (Pulse Code Modulation)
A method of converting analog audio to digital
audio for easy enjoyment of digital sound.
x Progressive
A scanning method that draws all scanning
lines sequentially, as opposed to interlaced
scanning where all the odd and then all the
even lines are drawn.
“p” of “480p” stands for “Progressive.”
x Sampling frequency
To convert analog audio to digital, analog data
should be quantified. This process is called
sampling, and the number of times per second
the analog data is quantified is called the
sampling frequency. A standard music CD
stores data quantified at 44,100 times per
second, which is expressed as a sampling
frequency of 44.1 kHz. Generally speaking, a
higher sampling frequency means better sound
quality.
x TSP (Time Stretched Pulse)
A TSP signal is a highly precise measuring
signal that utilizes impulse energy, measuring
a wide band, from low to high, in a short
period.
The amount of energy used to measure signals
is important to ensure measurement accuracy
in a normal indoor environment. Using TSP
signals makes it possible to measure signals
effectively.
x x.v.Color
x.v.Color is a more familiar term for the
xvYCC standard proposed by Sony, and is a
trademark of Sony. xvYCC is an international
standard for color space in video.
This standard can express a wider color range
than the currently used broadcast standard.
108
US
Precautions
On safety
Should any solid object or liquid fall into the
cabinet, unplug the receiver and have it
checked by qualified personnel before
operating it any further.
On power sources
• Before operating the receiver, check that the
operating voltage is identical with your local
power supply.
The operating voltage is indicated on the
nameplate on the back of the receiver.
• The unit is not disconnected from the AC
power source (mains) as long as it is
connected to the wall outlet, even if the unit
itself has been turned off.
• If you are not going to use the receiver for a
long time, be sure to disconnect the receiver
from the wall outlet. To disconnect the AC
power cord (mains lead), grasp the plug
itself; never pull the cord.
• One blade of the plug is wider than the other
for the purpose of safety and will fit into the
wall outlet only one way. If you are unable to
insert the plug fully into the outlet, contact
your dealer.
• The AC power cord (mains lead) must be
changed only at a qualified service shop.
On heat buildup
Although the receiver heats up during
operation, this is not a malfunction. If you
continuously use this receiver at a large
volume, the cabinet temperature of the top,
side and bottom rises considerably. To avoid
burning yourself, do not touch the cabinet.
On placement
• Place the receiver in a location with adequate
ventilation to prevent heat buildup and
prolong the life of the receiver.
• Do not place the receiver near heat sources,
or in a place subject to direct sunlight,
excessive dust, or mechanical shock.
• Do not place anything on top of the cabinet
that might block the ventilation holes and
cause malfunctions.
• Do not place the receiver near equipment
such as a TV, VCR, or tape deck. (If the
receiver is being used in combination with a
TV, VCR, or tape deck, and is placed too
close to that equipment, noise may result,
and picture quality may suffer. This is
especially likely when using an indoor
antenna (aerial). Therefore, we recommend
using an outdoor antenna (aerial).)
• Use caution when placing the receiver on
surfaces that have been specially treated
(with wax, oil, polish, etc.) as staining or
discoloration of the surface may result.
On operation
Before connecting other components, be sure
to turn off and unplug the receiver.
On cleaning
Clean the cabinet, panel, and controls with a
soft cloth slightly moistened with a mild
detergent solution. Do not use any type of
abrasive pad, scouring powder, or solvent,
such as alcohol or benzine.
If you have any questions or problems
concerning your receiver, please consult your
nearest Sony dealer.
109
US
Additional Information
Troubleshooting
If you experience any of the following
difficulties while using the receiver, use this
troubleshooting guide to help you remedy the
problem.
Audio
There is no sound, no matter which
component is selected, or only a very
low-level sound is heard.
• Check that the speakers and components
are connected securely.
• Check that all speaker cords are connected
correctly.
• Check that both the receiver and all
components are turned on.
• Check that MASTER VOLUME control is
not set at –∞ dB. Try to set it at about
– 40 dB.
• Check that the SPEAKERS (OFF/A/B/
A+B) is not set to off (page 39).
• Check that headphones are not connected.
• Press MUTING to cancel the muting
function.
• Check that you have selected the correct
component with the input buttons (page
44).
• When only a very low-level sound is
heard, check to see if NIGHT MODE
function is activated (page 56).
• The protective device on the receiver has
been activated. Turn off the receiver,
eliminate the short-circuit problem, and
turn on the power again.
There is no sound from a specific
component.
• Check that the component is connected
correctly to the audio input jacks for that
component.
• Check that the cord(s) used for the
connection is (are) fully inserted into the
jacks on both the receiver and the
component.
There is no sound from one of the front
speakers.
• Connect a pair of headphones to the
PHONES jack to verify that sound is
output from the headphones. If only one
channel is output from the headphones, the
component may not be connected to the
receiver correctly. Check that all the cords
are fully inserted into the jacks on both the
receiver and the component. If both
channels are output from the headphones,
the front speaker may not be connected to
the receiver correctly. Check the
connection of the front speaker which is
not outputting any sound.
• Make sure you have connected to both the
L and R jacks of an analog component, and
not only to either the L or R jack. Use an
audio cord (not supplied).
There is no sound from analog 2
channel sources.
• Check to make sure the selected digital
audio input jack is not assigned to other
inputs in “Input Assign” in the Input menu
(page 82).
• Check that the INPUT MODE is not set to
“COAX” or “OPT” for the selected input
(page 81).
There is no sound from digital sources
(from COAXIAL or OPTICAL input jack).
• Check that the INPUT MODE is set to
“AUTO” (page 81).
• Check that the “Analog Direct” is not
being used.
• Check to make sure the selected digital
audio input jack is not assigned to other
inputs in “Input Assign” in the Input menu
(page 82).
The left and right sounds are
unbalanced or reversed.
• Check that the speakers and components
are connected correctly and securely.
• Adjust the balance parameters using the
Speaker settings menu in GUI menu.
continued
110
US
There is severe hum or noise.
• Check that the speakers and components
are connected securely.
• Check that the connecting cords are away
from a transformer or motor, and at least
10 feet (3 metres) away from a TV set or
fluorescent light.
• Move your audio components away from
the TV.
• Make sure you have grounded the U
SIGNAL GND terminal (only when a
turntable is connected).
• The plugs and jacks are dirty. Wipe them
with a cloth slightly moistened with
alcohol.
There is no sound, or only a very low-
level sound is heard from the center/
surround/surround back speakers.
• Select a Cinema Studio EX mode (page
54).
• Adjust the speaker level (page 59).
There is no sound from the subwoofer.
• Check that the subwoofer is connected
correctly and securely.
• Make sure you have turned on your
subwoofer.
• Depending on the selected sound field, no
sound output from the subwoofer.
• When all speakers are set to “LARGE”
and “Neo:6 Cinema” or “Neo:6 Music” is
selected, there is no sound from the
subwoofer.
The surround effect cannot be
obtained.
• Make sure the sound field function is on
(press MOVIE).
• Sound fields do not function for signals
with a sampling frequency of more than
48 kHz.
Dolby Digital or DTS multi channel
sound is not reproduced.
• Check that the DVD, etc. you are playing
is recorded in Dolby Digital or DTS
format.
• When connecting the DVD player, etc., to
the digital input jacks of this receiver,
make sure the setting for the digital audio
output of the connected component is
available.
Recording cannot be carried out.
• Check that the components are connected
correctly.
• Select the source component using the
input buttons (page 44).
The MULTI CHANNEL DECODING lamp
does not light up in blue.
• Check that the playback component is
connected to a digital jack and the input is
selected properly on this receiver.
• Check whether the input source of the
software being played back corresponds to
the multi channel format.
• Check whether the setup on the playback
component is set to multi channel sound.
• Check to make sure the selected digital
audio input jack is not assigned to other
inputs in “Input Assign” in the Input menu
(page 82).
There is no sound from the component
connected to the DIGITAL MEDIA PORT
adapter.
• Adjust the volume of this receiver.
• The DIGITAL MEDIA PORT adapter
and/or component is not connected
correctly. Turn off the receiver, then
reconnect the DIGITAL MEDIA PORT
adapter and/or component.
• Check the DIGITAL MEDIA PORT
adapter and/or component device to make
sure it supports this receiver.
111
US
Additional Information
Video
There is no picture or an unclear
picture appears on the TV screen.
• Select the appropriate input on the receiver
(page 44).
• Set your TV to the appropriate input mode.
• Move your audio components away from
the TV.
• Assign the component video input
correctly.
• The input signal should be same as the
input function when you are up-converting
an input signal with this receiver
(page 31).
• Depending on the DIGITAL MEDIA
PORT adapter, video output may not be
possible.
Recording cannot be carried out.
• Check that the components are connected
correctly.
• Select the source component using the
input buttons (page 44).
The GUI menu does not appear on the
TV screen.
• Press GUI MODE repeatedly to select
“GUI ON”. If the GUI menu still does not
appear on the TV screen, press MENU.
• Check the TV is connected correctly.
HDMI
The source sound input from the HDMI
jack on the receiver is not output from
the receiver or TV speaker.
• Check the setting of “Audio Out” in the
HDMI settings menu (page 49).
• Check that the component is connected
correctly to the HDMI jack for that
component.
• You cannot listen to the Super Audio CD
by connecting HDMI.
• Depending on the playback component,
you may need to set up the component.
Refer to the operating instructions
supplied with each component.
• Be sure to use a connecting cable for the
HDMI jack corresponding to high speed
(an HDMI version1.3a, category 2 cable)
when you view images or listen to sound
during a Deep Color transmission.
The source image input to the HDMI
jack on the receiver is not output from
the TV.
• Make sure that cables are correctly and
securely connected to components.
• Depending on the playback component,
you may need to set up the component.
Refer to the operating instructions
supplied with each component.
• Be sure to use a connecting cable for the
HDMI jack corresponding to high speed
(an HDMI version1.3a, category 2 cable)
when you view images or listen to sound
during a Deep Color transmission.
continued
112
US
The Control for HDMI function does not
work.
• Check the HDMI connection (page 73).
• Make sure “Control for HDMI” is set to
“ON” in HDMI settings menu.
• Make sure the connected component is
compatible with the Control for HDMI
function.
• Check the Control for HDMI settings on
the connected component. See the
operating instructions of the connected
component.
• If you change the HDMI connection,
connect/disconnect the AC power cord, or
there is a power failure, repeat the
procedures of “Preparing Control for
HDMI function” (page 74).
No sound is output from the receiver
and TV speaker while using the System
Audio Control function.
• Make sure the TV is compatible with the
System Audio Control function.
• If the TV does not have System Audio
Control function, set the “Audio Out”
settings in HDMI settings menu to
– “TV+AMP” if you want to listen to the
sound from the TV speaker and
receiver.
– “AMP” if you want to listen to the
sound from the receiver.
• If you cannot listen to the sound of a
component connected to the receiver
while TV input is selected on the receiver
– Select the appropriate input when you
want to watch a program on a
component connected via HDMI
connection to the receiver.
– Change the TV channel when you want
to watch a TV broadcast.
– Select the component or input you want
to watch when you watch a program on
the component connected to the TV.
Refer to the operating instructions of the
TV on this operation.
The TV’s remote cannot be used to
control the connected component
when using the Control for HDMI
function.
• Change the input of the receiver to the
HDMI input connected to the component.
Tuner
The FM reception is poor.
• Use a 75-ohm coaxial cable (not supplied)
to connect the receiver to an outdoor FM
antennas (aerial) as shown below. If you
connect the receiver to an outdoor antenna
(aerial), ground it against lightning. To
prevent a gas explosion, do not connect the
ground (earth) wire to a gas pipe.
SIGNAL
GND
AM
FM
ANTENNA
Receiver
To ground
Ground (earth) wire
(not supplied)
Outdoor FM antenna (aerial)
113
US
Additional Information
Radio stations cannot be tuned in.
• Check that the antennas (aerials) are
connected securely. Adjust the antennas
(aerials) and connect an external antenna
(aerial), if necessary.
• Keep the XM antenna, away from the
speaker cords and the power cord to avoid
picking up noise.
• The signal strength of the stations is too
weak (when tuning in with automatic
tuning). Use direct tuning.
• Make sure you set the tuning interval
correctly (when tuning in AM stations
with direct tuning).
• No stations have been preset or the preset
stations have been cleared (when tuning
by scanning preset stations). Preset the
stations (page 64).
• Press DISPLAY repeatedly so that the
frequency appears on the display.
The receiver cannot receive XM
channels at all.
• The receiving condition is not good. Move
the antenna to the place where the
condition is good.
• Check that you subscribed to the satellite
radio service you want (page 65).
Remote commander
The remote does not function.
• Point the remote at the remote sensor on
the receiver.
• Remove any obstacles in the path between
the remote and the receiver.
• Replace all the batteries in the remote with
new ones, if they are weak.
• Make sure you select the correct input on
the remote.
• When you operate a programmed non-
Sony component, the remote may not
function properly depending on the model
and the maker of the component.
Error messages
If there is a malfunction, the display shows a
message. You can check the condition of the
system by the message. Refer to the following
table to solve the problem. If any problem
persists, consult your nearest Sony dealer.
PROTECTOR
Irregular current is output to the speakers, or
upper panel of the receiver is covered with
something. The receiver will automatically
turn off after a few seconds. Check the
speaker connection and turn on the power
again.
For other messages, refer to “Message list after
Auto Calibration measurement” (page 43),
“XM Radio message list” (page 71) and
“DIGITAL MEDIA PORT message list”
(page 80).
If you are unable to remedy the
problem using the
troubleshooting guide
Clearing the receiver’s memory may remedy
the problem (page 35). However, note that all
memorized settings will be reset to their
factory settings and you will have to readjust
all settings on the receiver.
If the problem persist
Consult your nearest Sony dealer. Note that if
service personnel changes some parts during
repair, these parts may be retained.
Reference sections for clearing
the receiver’s memory
To clear See
All memorized settings page 35
Customized sound fields page 55
114
US
Specifications
AUDIO POWER
SPECIFICATIONS
POWER OUTPUT AND TOTAL
HARMONIC DISTORTION:
(Models of area code U only)
With 8 ohm loads, both channels driven, from
20 – 20,000 Hz; rated 100 watts per channel
minimum RMS power, with no more than
0.09% total harmonic distortion from 250
milliwatts to rated output.
Amplifier section
Models of area code U, CA
1)
Minimum RMS Output Power
(8 ohms, 20 Hz – 20 kHz, THD 0.09%)
100 W + 100 W
Stereo Mode Output Power
(8 ohms, 1 kHz, THD 0.7%)
110 W + 110 W
Surround Mode Output Power
2)
(8 ohms, 1 kHz, THD 10%)
150 W per channel
1)
Measured under the following conditions:
2)
Reference power output for front, center, surround
and surround back speakers. Depending on the
sound field settings and the source, there may be
no sound output.
Frequency response
Analog 10 Hz – 100 kHz,
±3 dB (with sound field
and equalizer bypassed)
Input
Analog Sensitivity: 150 mV/
50 kohms
S/N
3)
: 96 dB
(A, 20 kHz LPF)
Digital (Coaxial) Impedance: 75 ohms
S/N: 100 dB
(A, 20 kHz LPF)
Digital (Optical) S/N: 100 dB
(A, 20 kHz LPF)
Output (Analog)
AUDIO OUT Voltage: 150 mV/1 kohms
SUBWOOFER Voltage: 2 V/1 kohm
Equalizer
Gain levels ±10 dB, 1 dB step
3)
INPUT SHORT (with sound field and equalizer
bypassed).
FM tuner section
Tuning range 87.5 – 108.0 MHz
Antenna (aerial) FM wire antenna (aerial)
Antenna (aerial) terminals
75 ohms, unbalanced
Intermediate frequency
10.7 MHz
AM tuner section
Tuning range
Models of area code U, CA
With 10-kHz tuning scale:
530 – 1,710 kHz
4)
With 9-kHz tuning scale:
531 – 1,710 kHz
4)
Antenna (aerial) Loop antenna (aerial)
Intermediate frequency
450 kHz
4)
You can change the AM tuning scale to 9 kHz or
10 kHz. After tuning in any AM station, turn off
the receiver. While holding down TUNING
MODE, press POWER. All preset stations will be
erased when you change the tuning scale. To reset
the scale to 10 kHz (or 9 kHz), repeat the
procedure.
Area code Power requirements
U, CA 120 V AC, 60 Hz
115
US
Additional Information
Video section
Inputs/Outputs
Video: 1 Vp-p, 75 ohms
COMPONENT VIDEO:
Y: 1 Vp-p, 75 ohms
P
B/CB: 0.7 Vp-p, 75 ohms
P
R/CR: 0.7 Vp-p, 75 ohms
80 MHz HD Pass Through
General
Power requirements
Power output (DIGITAL MEDIA PORT)
DC OUT: 5V, 0.7 A MAX
Power consumption
Power consumption (during standby mode)
0.7 W (When “Control For
HDMI” is set to “OFF”)
Dimensions (width/height/depth) (Approx.)
17 × 6 1/4 × 15 inches
(430 × 157.5 × 378 mm)
including projecting parts
and controls
Mass (Approx.) 26 lb 1 oz (11.8 kg)
Supplied accessories
Operating instructions (this manual)
Quick Setup Guide (1)
GUI Menu List (1)
FM wire antenna (aerial) (1)
AM loop antenna (aerial) (1)
RM-AAP023 Remote commander (1)
R6 (size-AA) batteries (2)
Optimizer microphone (ECM-AC2) (1)
Design and specifications are subject to
change without notice.
Area code Power requirements
U, CA 120 V AC, 60 Hz
Area code Power consumption
U 350 W
CA 480 VA
For details on the area code of the
component you are using, see page 3.
(1)
Sony Corporation Printed in Malaysia
Index
Numerics
2ch Stereo 51
5.1 channel 14
7.1 channel 14
A
Auto Calibration 39, 94
B
Blu-ray disc player
connecting 25, 28
playback 47
C
Camcorder
connecting 30
CD player
connecting 20, 23
playback 46
D
Digital Cinema Sound
(DCS) 54
DIGITAL MEDIA PORT
connecting 20
enjoying 77
input 44
Dolby Digital 105
DTS 106
DVD player
connecting 27
playback 47
DVD recorder
connecting 30
E
Error messages 113
H
HDMI
connecting 25, 73
Control for HDMI 72
I
Initial setup 35
INPUT MODE 81
M
MD deck
connecting 23
Muting 45
N
Naming 81
R
Recording
onto a MiniDisc or audio
tape 88
onto a recording media
88
Remote commander 9
S
Satellite tuner/Set-top box
connecting 29
Selecting
component 44
sound field 50, 96
speaker system 39
Settings menu
Audio 48
Auto Calibration 41
EQ 61
HDMI 49
Level 90
Speaker 56
Surround 50
System 93
Tuner 92
Video 49
Sleep Timer 87
Speakers
connecting 16
installing 14
Super Audio CD player
connecting 20, 23
playback 46
T
Tape deck
connecting 23
Test Tone 59
Tuner
connecting 34
Tuning
automatically 62, 96
directly 63, 96
TV
connecting 18
V
VCR
connecting 30
Video game
connecting 30
X
XM Radio 65, 97
