www.lg.com
Please read this manual carefully before operating
your set and retain it for future reference.
LA62**
LA64**
LA66**
LA69**
LA74**
LN57**
OWNER’S MANUAL
LED TV
* LG LED TV applies LCD screen with LED backlights.
P/NO : MFL67706422 (1303-REV01)
Printed in Korea
2
ENG
ENGLISH
TABLE OF CONTENTS
TABLE OF CONTENTS
3 SAFETY INSTRUCTIONS
8 Viewing 3D Imaging (Only 3D models)
9 INSTALLATION PROCEDURE
9 ASSEMBLING AND PREPARING
9 Unpacking
13 Separate purchase

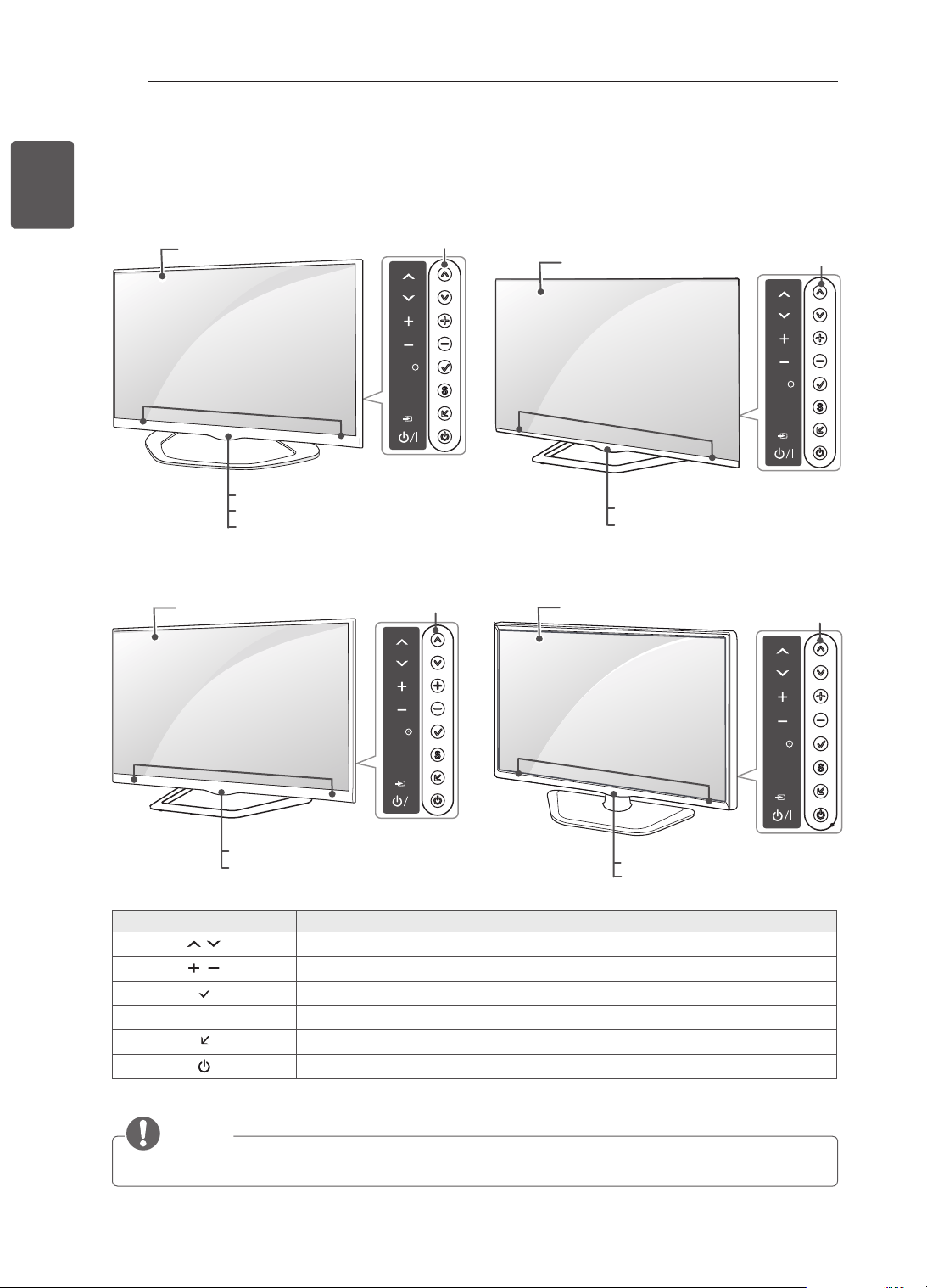

14 Parts and buttons
15 Lifting and moving the TV
16 Setting up the TV

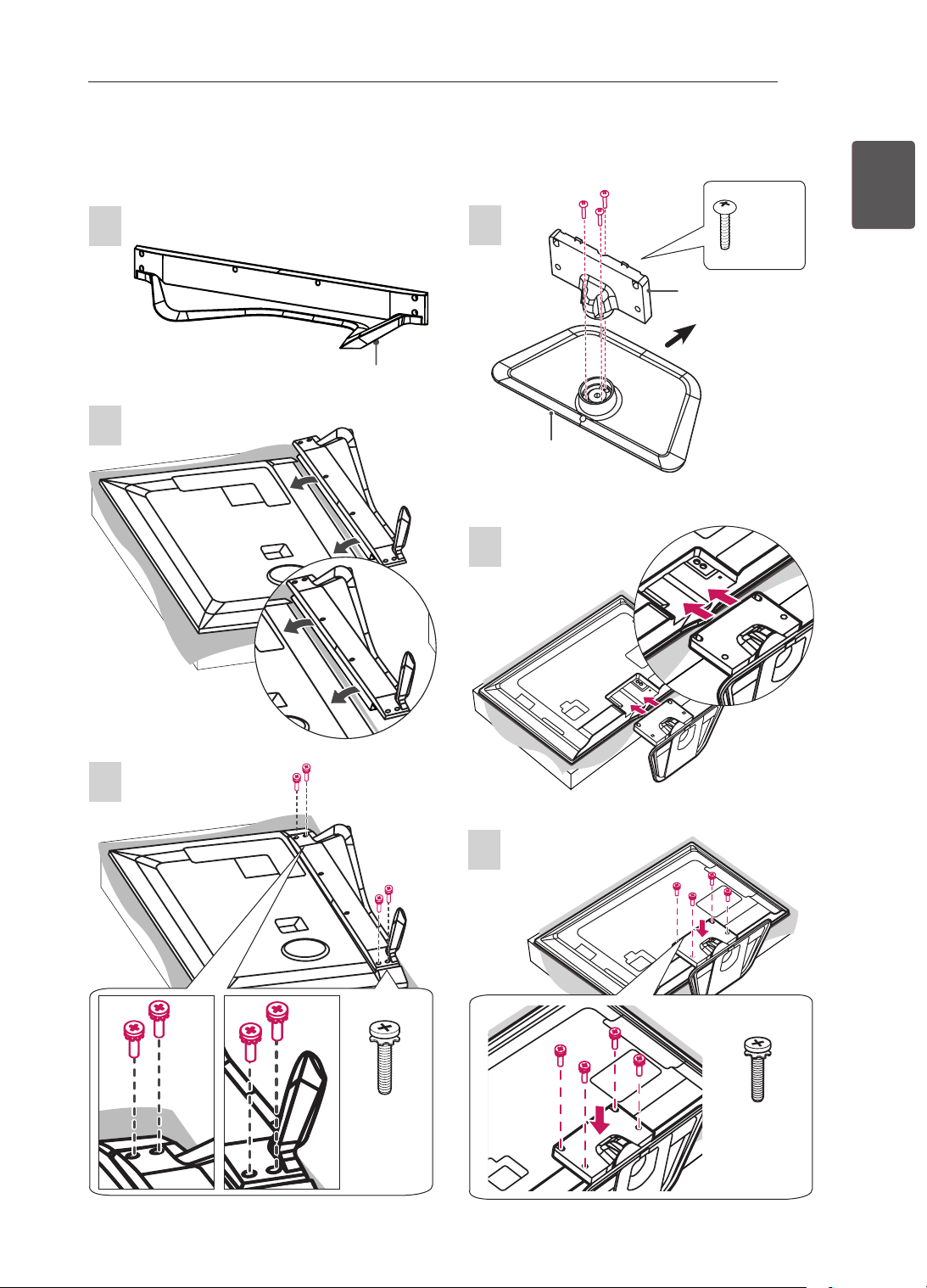

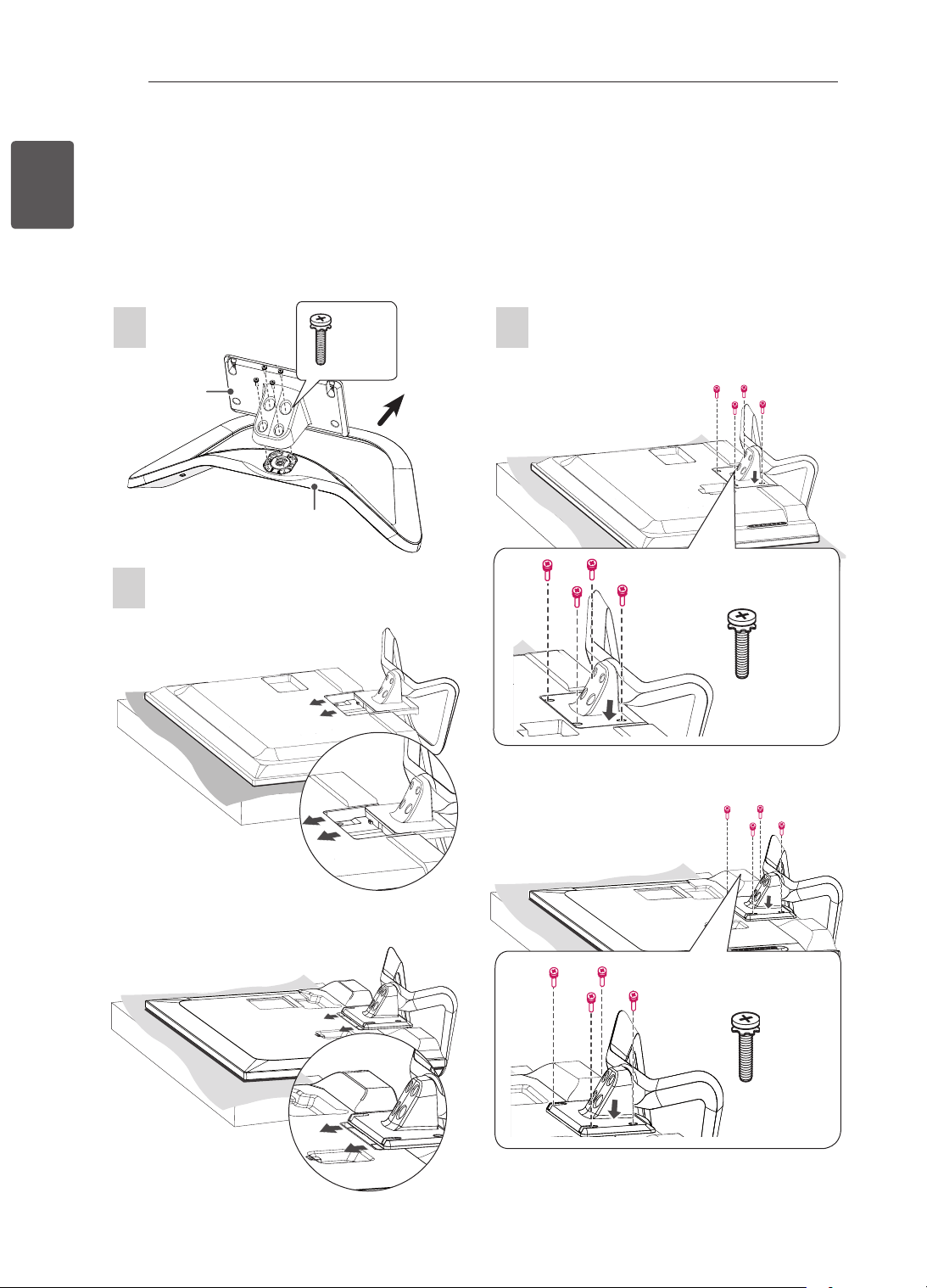

16 - Attaching the stand

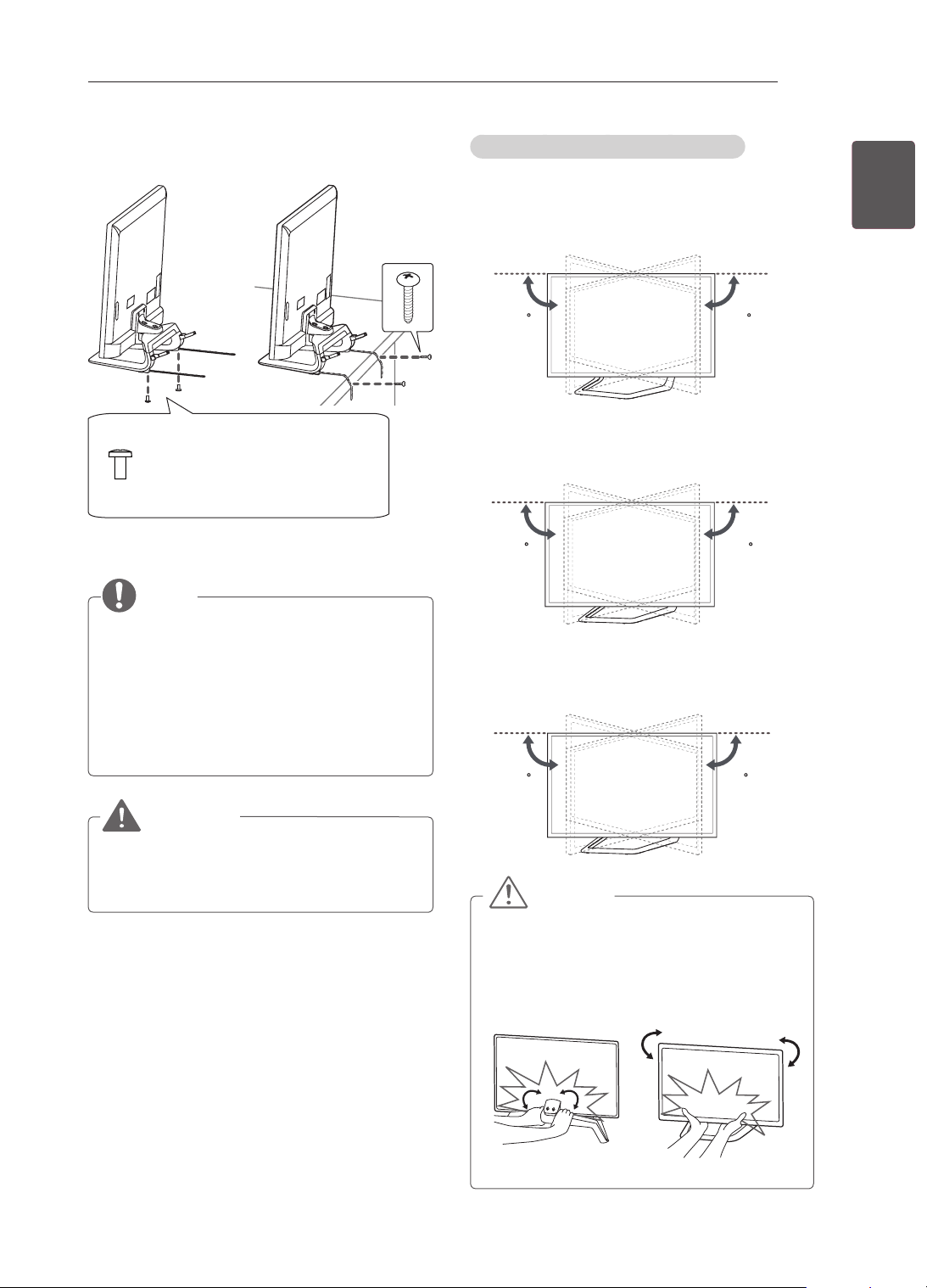

18 Mounting on a table
21 Mounting on a wall
22 Tidying cables
23 MAKING CONNECTIONS
23 Antenna connection
24 HDMI connection
24 DVI to HDMI connection
25 Component connection
25 Composite connection

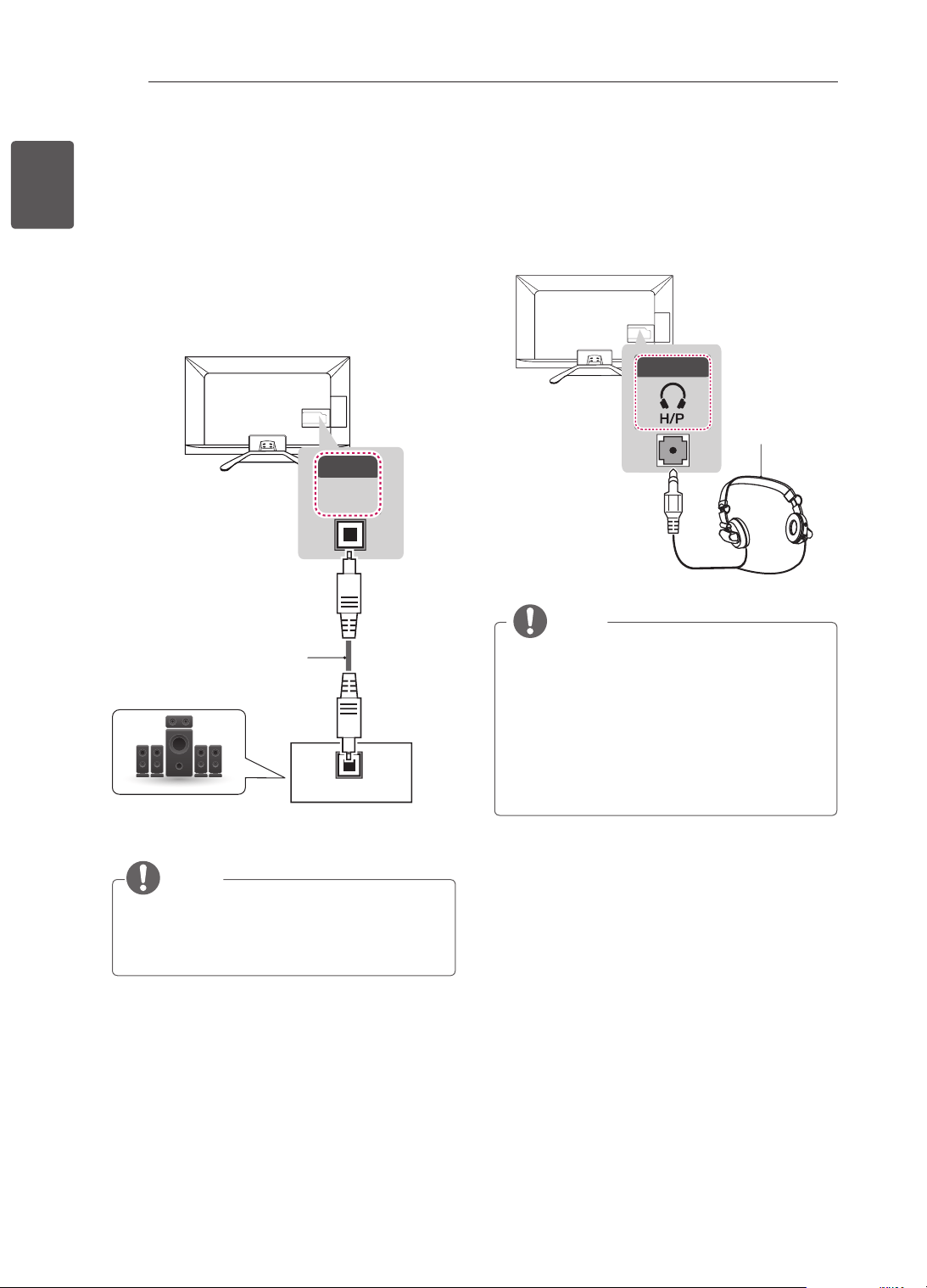

26 Audio connection
26 - Digital optical audio connection
26 Headphone connection

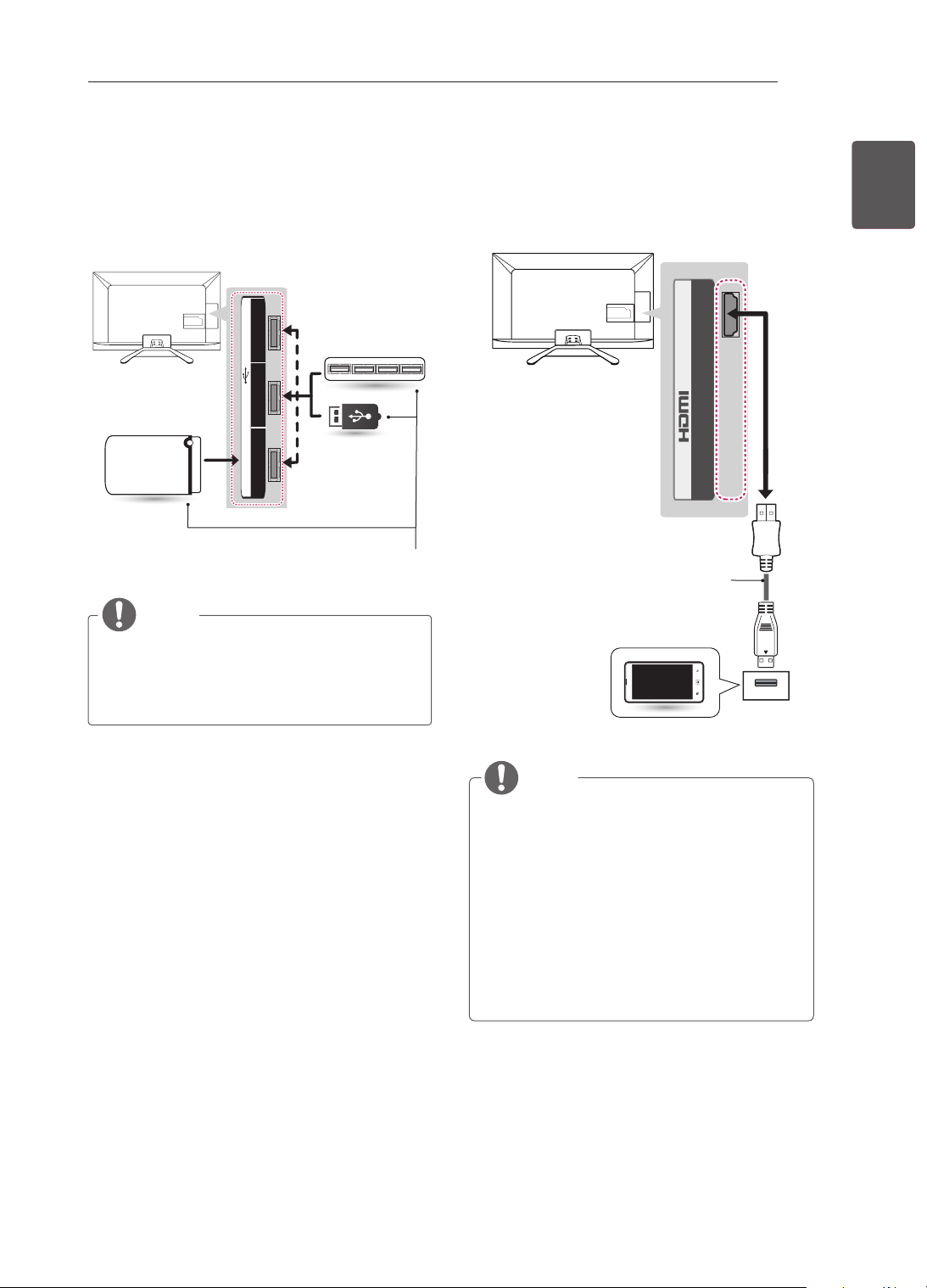

27 USB connection
27 MHL connection

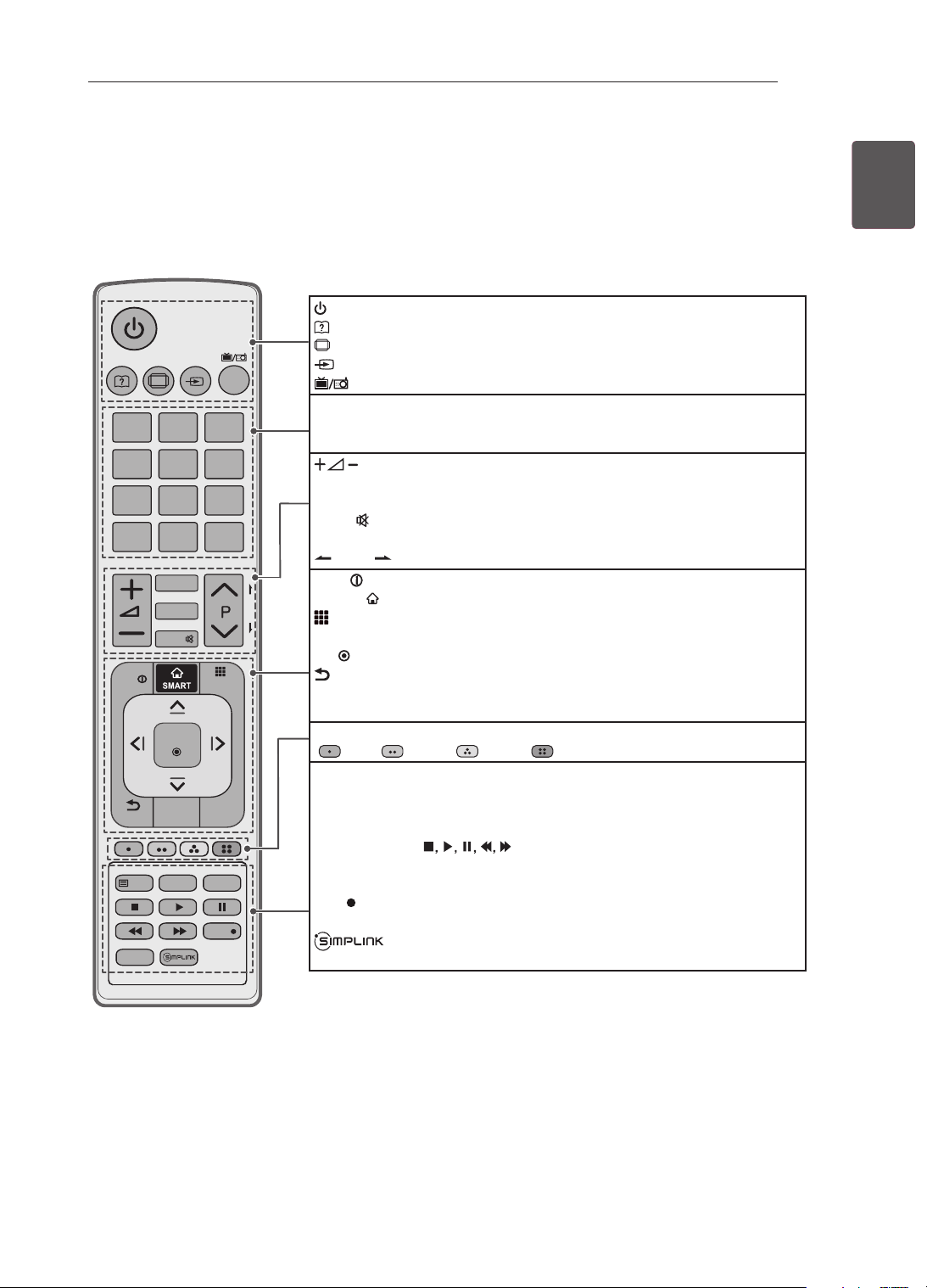

28 REMOTE CONTROL
30 MAGIC REMOTE CONTROL
FUNCTIONS
31 Registering Magic Remote Control

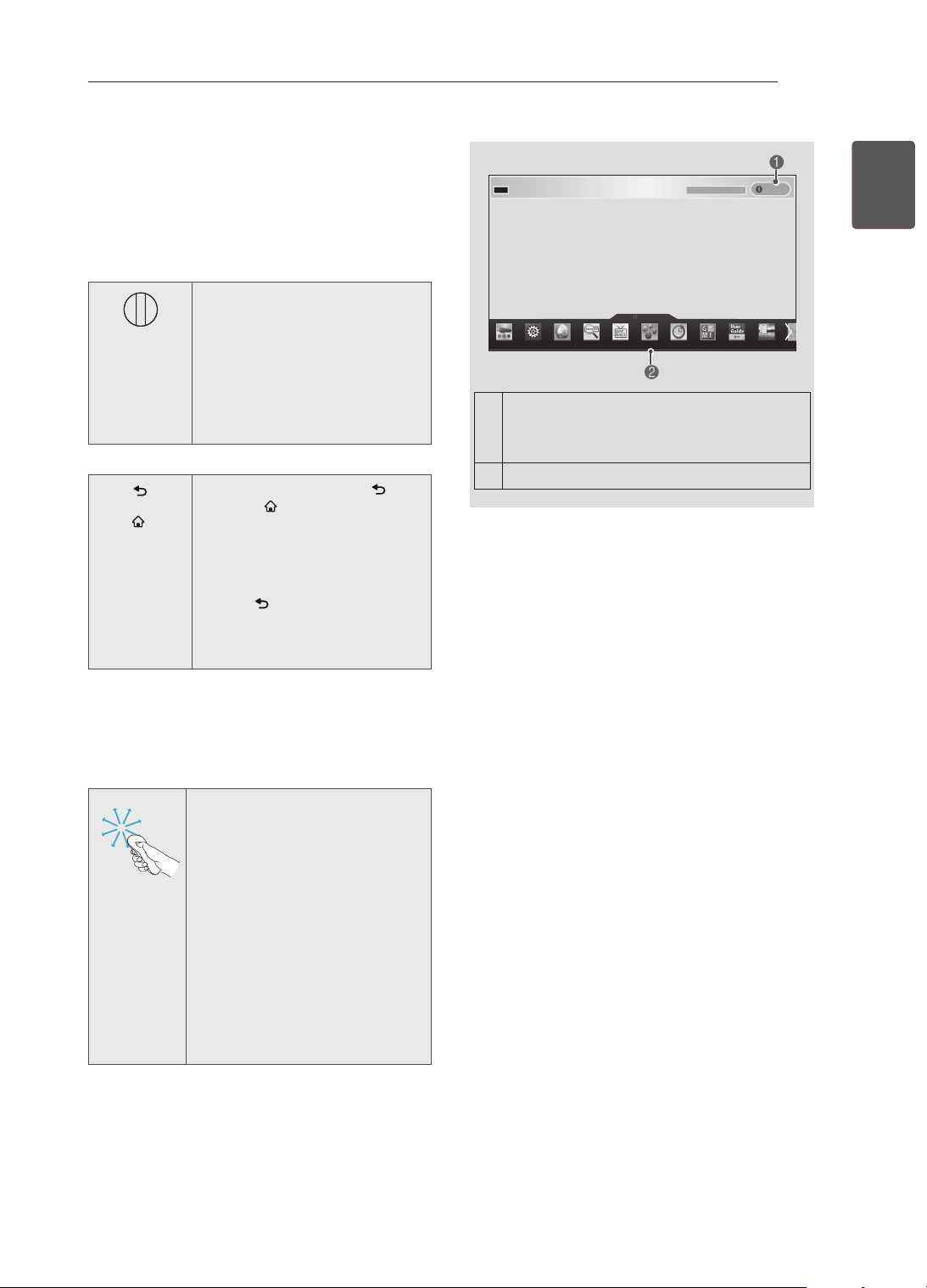

31 How to use Magic Remote Control
31 Precautions to Take when Using the Magic
Remote Control
32 USING THE USER GUIDE
33 MAINTENANCE
33 Cleaning your TV
33 - Screen, frame, cabinet and stand
33 - Power cord
33 TROUBLESHOOTING
34 ENVIRON MENTAL INFORMATION
34 WEEE
WARNING
y
If you ignore the warning message, you may
be seriously injured or there is a possibility of
accident or death.
CAUTION
y
If you ignore the caution message, you may be
slightly injured or the product may be damaged.
NOTE
y
The note helps you understand and use the
product safely. Please read the note carefully
before using the product.
35 SPECIFICATIONS
44 LICENSES
44 OPEN SOURCE SOFTWARE NOTICE
44 EXTERNALCONTROL DEVICE
SETUP
3
ENGENGLISH
SAFETY INSTRUCTIONS
SAFETY INSTRUCTIONS
Please read these safety precautions carefully before using the product.
WARNING
y
Do not place the TV and/or
remote control in the following
environments.
- A location exposed to
direct sunlight
- An area with high humidity
such as a bathroom
- Near any heat source
such as stoves and other
devices that produce heat
- Near kitchen counters or
humidifiers where they can
easily be exposed to steam
or oil
- An area exposed to rain or
wind
- Near containers of water
such as vases
Otherwise, this may result in
fire, electric shock, malfunction
or product deformation.
y
Do not place the product
where it might be exposed to
dust.
This may cause a fire hazard.
y
Mains Plug is the TV
connecting/disconnecting
device to AC mains electric
supply.
This plug must remain readily
attached and operable when
TV is in use.
y
Do not touch the power plug
with wet hands. Additionally, if
the cord pin is wet or covered
with dust, dry the power plug
completely or wipe dust off.
You may be electrocuted due
to excess moisture.
y
Make sure to connect Mains
cable to compliant AC mains
socket with Grounded earth
pin. (Except for devices which
are not grounded on earth.)
Otherwise possibility you may
be electrocuted or injured.
y
Insert power cable plug
completely into wall socket
otherwise if not secured
completely into socket, fire
ignition may break out.
y
Ensure the power cord does
not come into contact with
hot objects such as a heater.
This may cause a fire or an
electric shock hazard.
y
Do not place a heavy object,
or the product itself, on power
cables.
Otherwise, this may result in
fire or electric shock.
y
Bend antenna cable between
inside and outside building to
prevent rain from flowing in.
This may cause water
damaged inside the Product
and could give an electric
shock.
y
When mounting TV onto wall
make sure to neatly install
and isolate cabling from
rear of TV as to not create
possibility of electric shock /
fire hazard.
y
Do not plug too many
electrical devices into a single
multiple electrical outlet.
Otherwise, this may result in
fire due to over-heating.
y
Do not drop the product or let
it fall over when connecting
external devices.
Otherwise, this may result
in injury or damage to the
product.
4
ENG
ENGLISH
SAFETY INSTRUCTIONS
Desiccant
y
Keep the anti-moisture
packing material or vinyl
packing out of the reach of
children.
Anti-moisture material is
harmful if swallowed. If
swallowed by mistake, force
the patient to vomit and
visit the nearest hospital.
Additionally, vinyl packing
can cause suffocation. Keep
it out of the reach of children.
y
Do not let your children climb
or cling onto the TV.
Otherwise, the TV may
fall over, which may cause
serious injury.
y
Dispose of used batteries
carefully to ensure that a
small child does not consume
them.
Please seek Doctor- Medical
Attention immediately if child
consumes batteries.
y
Do not insert any metal
objects/conductors (like
a metal chopstick/cutlery/
screwdriver) between power
cable plug and input Wall
Socket while it is connected
to the input terminal on the
wall. Additionally, do not
touch the power cable right
after plugging into the wall
input terminal.
You may be electrocuted.
(Depending on model)
y
Do not put or store
inflammable substances near
the product.
There is a danger of
combustion/explosion or fire
due to careless handling of
the inflammable substances.
y
Do not drop metallic objects
such as coins, hair pins,
chopsticks or wire into the
product, or inflammable
objects such as paper and
matches. Children must pay
particular attention.
Electrical shock, fire or injury
can occur. If a foreign object
is dropped into the product,
unplug the power cord and
contact the service centre.
y
Do not spray water on the
product or scrub with an
inflammable substance
(thinner or benzene). Fire or
electric shock accident can
occur.
y
Do not allow any impact,
shock or any objects to fall
into the unit, and do not drop
anything onto the screen.
You may be injured or the
product can be damaged.
y
Never touch this product or
antenna during a thunder or
lighting storm.
You may be electrocuted.
y
Never touch the wall outlet
when there is leakage of
gas, open the windows and
ventilate.
It may cause a fire or a burn
by a spark.
y
Do not disassemble, repair
or modify the product at your
own discretion.
Fire or electric shock accident
can occur.
Contact the service centre for
check, calibration or repair.
y
If any of the following
occur, unplug the product
immediately and contact your
local service centre.
- The product has been
impacted by shock
- The product has been
damaged
- Foreign objects have
entered the product
- The product produced
smoke or a strange smell
This may result in fire or
electric shock.
5
ENGENGLISH
SAFETY INSTRUCTIONS
CAUTION
y
Install the product where no
radio wave occurs.
y
There should be enough
distance between an outside
antenna and power lines
to keep the former from
touching the latter even when
the antenna falls.
This may cause an electric
shock.
y
Do not install the product
on places such as unstable
shelves or inclined surfaces.
Also avoid places where
there is vibration or where
the product cannot be fully
supported.
Otherwise, the product may
fall or flip over, which may
cause injury or damage to the
product.
y
If you install the TV on a
stand, you need to take
actions to prevent the product
from overturning. Otherwise,
the product may fall over,
which may cause injury.
y
If you intend to mount the product to a wall,
attach VESA standard mounting interface
(optional parts) to the back of the product. When
you install the set to use the wall mounting
bracket (optional parts), fix it carefully so as not
to drop.
y
Only use the attachments / accessories specified
by the manufacturer.
y
Unplug the TV from AC
mains wall socket if you do
not intend to use the TV for a
long period of time.
Accumulated dust can cause
fire hazard and insulation
deterioration can cause
electric leakage/shock/fire.
y
Apparatus shall not be
exposed to dripping or
splashing and no objects
filled with liquids, such as
vases, shall be placed on the
apparatus.
y
When installing the antenna,
consult with a qualified
service technician.
If not installed by a qualified
technician, this may create
a fire hazard or an electric
shock hazard.
y
We recommend that you
maintain a distance of at least
2 to 7 times the diagonal
screen size when watching
TV.
If you watch TV for a long
period of time, this may
cause blurred vision.
y
Only use the specified type of
battery.
This could cause damage to
the remote control.
y
Do not mix new batteries with
old batteries.
This may cause the batteries
to overheat and leak.
y
Batteries should not be exposed to excessive
heat. For example, keep away from direct
sunlight, open fireplace and electric heaters.
y
Do not place non-rechargeable batteries in
charging device.
y
Make sure there are no
objects between the remote
control and its sensor.
y
Signal from Remote Control
can be interrupted due to
external/internal lighting eg
Sunlight, fluorescent lighting.
If this occurs turn off lighting
or darken viewing area.
y
When connecting external
devices such as video game
consoles, make sure the
connecting cables are long
enough.
Otherwise, the product may
fall over, which may cause
injury or damage the product.
y
Do not turn the product
On/Off by plugging-in or
unplugging the power plug to
the wall outlet. (Do not use
the power plug for switch.)
It may cause mechanical
failure or could give an
electric shock.
6
ENG
ENGLISH
SAFETY INSTRUCTIONS
y
Please follow the installation
instructions below to prevent
the product from overheating.
- The distance between the
product and the wall should
be more than 10 cm.
- Do not install the product in
a place with no ventilation
(e.g., on a bookshelf or in
a cupboard).
- Do not install the product
on a carpet or cushion.
- Make sure the air vent is
not blocked by a tablecloth
or curtain.
Otherwise, this may result in
fire.
y
Take care not to touch the
ventilation openings when
watching the TV for long
periods as the ventilation
openings may become hot.
This does not affect the
operation or performance of
the product.
y
Periodically examine the cord of your appliance,
and if its appearance indicates damage or
deterioration, unplug it, discontinue use of the
appliance, and have the cord replaced with an
exact replacement part by an authorized servicer.
y
Prevent dust collecting on the
power plug pins or outlet.
This may cause a fire hazard.
y
Protect the power cord from
physical or mechanical
abuse, such as being twisted,
kinked, pinched, closed in a
door, or walked upon. Pay
particular attention to plugs,
wall outlets, and the point
where the cord exits the
appliance.
y
Do not press strongly upon
the panel with a hand or
sharp object such as nail,
pencil or pen, or make a
scratch on it, as it may cause
damage to screen.
y
Avoid touching the screen or
holding your finger(s) against
it for long periods of time.
Doing so may produce some
temporary or permanent
distortion/damage to screen.
y
When cleaning the product
and its components, unplug
the power first and wipe it
with a soft cloth. Applying
excessive force may cause
scratches or discolouration.
Do not spray with water or
wipe with a wet cloth. Never
use glass cleaner, car or
industrial shiner, abrasives
or wax, benzene, alcohol
etc., which can damage the
product and its panel.
Otherwise, this may result in
fire, electric shock or product
damage (deformation,
corrosion or breakage).
y
As long as this unit is connected to the AC wall
outlet, it is not disconnected from the AC power
source even if you turn off this unit by SWITCH.
y
When unplugging the cable,
grab the plug and unplug it,
by pulling at the plug.
Don’t pull at the cord to
unplug the power cord from
the power board, as this
could be hazardous.
y
When moving the product,
make sure you turn the
power off first. Then, unplug
the power cables, antenna
cables and all connecting
cables.
The TV set or power cord
may be damaged, which may
create a fire hazard or cause
electric shock.
y
When moving or unpacking
the product, work in pairs
because the product is heavy.
Otherwise, this may result in
injury.
7
ENGENGLISH
SAFETY INSTRUCTIONS
y
Contact the service centre
once a year to clean the
internal parts of the product.
Accumulated dust can cause
mechanical failure.
y
Refer all servicing to
qualified service personnel.
Servicing is required when
the apparatus has been
damaged in any way, such
as power supply cord or
plug is damaged, liquid has
been spilled or objects have
fallen into the apparatus, the
apparatus has been exposed
to rain or moisture, does not
operate normally, or has been
dropped.
y
If the product feels cold to the
touch, there may be a small
“flicker” when it is turned
on. This is normal, there is
nothing wrong with product.
y
The panel is a high
technology display product
with resolution of two million
to six million pixels. You
may see tiny black dots and/
or brightly coloured dots
(red, blue or green) at a
size of 1 ppm on the panel.
This does not indicate a
malfunction and does not
affect the performance and
reliability of the product.
This phenomenon also
occurs in third-party products
and is not subject to
exchange or refund.
y
You may find different
brightness and colour of the
panel depending on your
viewing position(left/right/top/
down).
This phenomenon occurs due
to the characteristic of the
panel. It is not related with
the product performance, and
it is not malfunction.
y
Displaying a still image (e.g., broadcasting
channel logo, on-screen menu, scene from a
video game) for a prolonged time may cause
damage to the screen, resulting in retention of
the image, which is known as image sticking. The
warranty does not cover the product for image
sticking.
Avoid displaying a fixed image on your
television’s screen for a prolonged period (2
or more hours for LCD, 1 or more hours for
Plasma).
Also, if you watch the TV at a ratio of 4:3 for
a long time, image sticking may occur on the
borders of the panel.
This phenomenon also occurs in third-party
products and is not subject to exchange or
refund.
y
Generated Sound
“Cracking” noise: A cracking noise that occurs
when watching or turning off the TV is generated
by plastic thermal contraction due to tempera-
ture and humidity. This noise is common for
products where thermal deformation is required.
Electrical circuit humming/panel buzzing: A
low level noise is generated from a high-speed
switching circuit, which supplies a large amount
of current to operate a product. It varies depend-
ing on the product.
This generated sound does not affect the
performance and reliability of the product.
8
ENG
ENGLISH
SAFETY INSTRUCTIONS
Viewing 3D Imaging (Only 3D
models)
WARNING
Viewing Environment
y
Viewing Time
- When watching 3D contents, take 5 - 15 minute
breaks every hour. Viewing 3D contents for
a long period of time may cause headache,
dizziness, fatigue or eye strain.
Those that have a photosensitive seizure or
chronic illness
y
Some users may experience a seizure or other
abnormal symptoms when they are exposed to a
ashing light or particular pattern from 3D contents.
y
Do not watch 3D videos if you feel nausea, are
pregnant and/ or have a chronic illness such as
epilepsy, cardiac disorder, or blood pressure disease,
etc.
y
3D Contents are not recommended to those who
suffer from stereo blindness or stereo anomaly.
Double images or discomfort in viewing may be
experienced.
y
If you have strabismus (cross-eyed), amblyopia (weak
eyesight) or astigmatism, you may have trouble
sensing depth and easily feel fatigue due to double
images. It is advised to take frequent breaks than the
average adult.
y
If your eyesight varies between your right and left
eye, revise your eyesight prior to watching 3D
contents.
Symptoms which require discontinuation or
refraining from watching 3D contents
y
Do not watch 3D contents when you feel fatigue from
lack of sleep, overwork or drinking.
y
When these symptoms are experienced, stop using/
watching 3D contents and get enough rest until the
symptom subsides.
- Consult your doctor when the symptoms persist.
Symptoms may include headache, eyeball
pain, dizziness, nausea, palpitation, blurriness,
discomfort, double image, visual inconvenience
or fatigue.
CAUTION
Viewing Environment
y
Viewing Distance
- Maintain a distance of at least twice the screen
diagonal length when watching 3D contents.
If you feel discomfort in viewing 3D contents,
move further away from the TV.
Viewing Age
y
Infants/Children
- Usage/ Viewing 3D contents for children under
the age of 5 are prohibited.
- Children under the age of 10 may overreact
and become overly excited because their vision
is in development (for example: trying to touch
the screen or trying to jump into it. Special
monitoring and extra attention is required for
children watching 3D contents.
- Children have greater binocular disparity of 3D
presentations than adults because the distance
between the eyes is shorter than one of adults.
Therefore they will perceive more stereoscopic
depth compared to adults for the same 3D
image.
y
Teenagers
- Teenagers under the age of 19 may react with
sensitivity due to stimulation from light in 3D
contents. Advise them to refrain from watching
3D contens for a long time when they are tired.
y
Elderly
- The elderly may perceive less 3D effect
compared to the youth. Do not sit closer to the
TV than the recommended distance.
Cautions when using the 3D glasses
y
Make sure to use LG 3D glasses. Otherwise, you
may not be able to view 3D videos properly.
y
Do not use 3D glasses instead of your normal
glasses, sunglasses or protective goggles.
y
Using modied 3D glasses may cause eye strain or
image distortion.
y
Do not keep your 3D glasses in extremely high or low
temperatures. It will cause deformation.
y
The 3D glasses are fragile and are easy to be
scratched. Always use a soft, clean piece of cloth
when wiping the lenses. Do not scratch the lenses of
the 3D glasses with sharp objects or clean/wipe them
with chemicals.
9
ENGENGLISH
INSTALLATION PROCEDURE / ASSEMBLING AND PREPARING
NOTE
y
Image shown may differ from your TV.
y
Your TV’s OSD (On Screen Display) may differ slightly from that shown in this manual.
y
The available menus and options may differ from the input source or product model that you are using.
y
New features may be added to this TV in the future.
y
The TV can be placed in standby mode in order to reduce the power consumption. And the TV should be turned
off if it will not be watched for some time, as this will reduce energy consumption.
y
The energy consumed during use can be significantly reduced if the level of brightness of the picture is reduced,
and this will reduce the overall running cost.
INSTALLATION PROCEDURE
1 Open the package and make sure all the accessories are included.
2 Attach the stand to the TV set.
3 Connect an external device to the TV set.
4 Make sure the network connection is available.
You can use the TV network functions only when the network connection is made.
ASSEMBLING AND PREPARING
Unpacking
Check your product box for the following items. If there are any missing accessories, contact the local dealer where you
purchased your product. The illustrations in this manual may differ from the actual product and item.
CAUTION
y
Do not use any unapproved items to ensure the safety and product life span.
y
Any damages or injuries by using unapproved items are not covered by the manufacturer’s warranty.
y
Some models have a thin film attached on to the screen and this must not be removed.
NOTE
y
The items supplied with your product may vary depending on the model.
y
Product specifications or contents of this manual may be changed without prior notice due to upgrade of product
functions.
y
For an optimal connection, HDMI cables and USB devices should have bezels less than 10 mm thick and 18 mm
width. Use an extension cable that supports USB 2.0 if the USB cable or USB memory stick does not fit into your
TV’s USB port.
A
B
A
B
*A
<
=
10 mm
*B
<
=
18 mm
10
ENG
ENGLISH
ASSEMBLING AND PREPARING
FREEZE
RATIO
L/R SELECT
ENTER
BACK
EXIT
Q.MENU
INFO
MENU
CHVOL
P
A
G
E
FAV
3D
MUTE
1 2 3
4 5 6
7 8
0
9
MARK
LIST
FLASHBK
ENERGY
SAVING
TV
AV MODE
INPUT
FREEZE
RATIO
L/R SELECT
ENTER
BACK
EXIT
Q.MENU
INFO
MENU
CHVOL
P
A
G
E
FAV
3D
MUTE
1 2 3
4 5 6
7 8
0
9
MARK
LIST
FLASHBK
ENERGY
SAVING
TV
AV MODE
INPUT
P
Tag On
Remote control,
batteries (AAA)
(Depending on model)
(See p. 28, 29)
Magic remote control,
batteries (AA)
(Only LA620*, LA621*,
LA64**, LA66**, LA69**,
LA74**, LN570*, LN572*)
(Depending on model)
(See p. 30)
Owner’s manual Tag on
(Depending on model)
Cinema 3D Glasses
The number of 3D glasses
may differ depending on
the model or country.
(Depending on model)
Dual play glasses
(Depending on model)
Cable holder
(Depending on model)
(See p. 22)
Power Cord
(Depending on model)
Desk-mount Screw
(1EA : Only
32/42/47/50/60LN570*,
32/42/47/50/60LN572*)
(2EA : Only
32/42/47/50LA62**,
32/42/47/50LA64**,
32/42/47/50LA66**,
32/42/47/50LN571*)
(See p. 18, 19)
Desk-mount Cable
2EA
(Only 32/42/47/50LA62**,
32/42/47/50LA64**,
32/42/47/50LA66**,
32/42/47/50LN571*)
(See p. 19)
Bracket Screw
2EA, M4 x 8
(Only 32/42LA62**,
32/42LA64**,
32/42LA66**,
32/42LN571*)
(See p. 19)
Bracket Screw
2EA, P4 x 8
(Only 47/50LA62**,
47/50LA64**,
47/50LA66**,
47/50LN571*)
(See p. 19)
or
Stand Screws
8EA, M4 x 14
(Only LA62**, LA64**,
LA66**, LN571*)
(See p. 16)
Stand Screws
4EA, M4 x 20
(Only LA69**, LA74**)
(See p. 17)
Stand Screws
3EA, P5 x 25
4EA, M4 x 14
(Only LN570*, LN572*)
(See p. 17)
Isolator
(Depending on model)
(See p. 12)
11
ENGENGLISH
ASSEMBLING AND PREPARING
Wall mount inner
spacers
4EA
(Only LA64**)
(See p. 22)
Blu-Ray
(Only LA6980)
Stand Body / Stand
Base
(Only LA62**, LA64**,
LA66**, LN571*)
(See p. 16)
Stand Base
(Only LA69**, LA74**)
(See p. 17)
Stand Body / Stand
Base
(Only LN570*, LN572*)
(See p. 17)
12
ENG
ENGLISH
ASSEMBLING AND PREPARING
NOTE
y
Antenna Isolator Installation Guide
- Use this to install TV in a place where there is a voltage difference between TV Set and GND of antenna signal.
»
If there is a voltage difference between TV Set and GND of antenna signal, the antenna contact might be
heated and excessive heat might cause an accident.
- You can improve the safety when watching TV by efficiently removing power voltage from TV antenna. It is
recommended to mount the isolator to the wall. If it cannot be mounted to the wall, mount it on the TV. Avoid
disconnecting the antenna Isolator after installation.
- Before starting, be sure that the TV antenna is connected.
ANTENNA/
CABLE IN
Cable / Antenna
Wall
Isolator
1. Connect to TV.
2. Connect to Set-Top box.
or
Connect one end of the isolator to cable/antenna jack and the other to TV set or set-top box.
“Equipment connected to the protective earthing of the building installation through the mains connection or through
other equipment with a connection to protective earthing - and to a cable distribution system using coaxial cable,
may in some circumstances create a re hazard. Connection to a cable distribution system has therefore to be
provided through a device providing electrical isolation below a certain frequency range (galvanic isolator, see EN
60728-11)”
When applying the RF Isolator, a slight loss of signal sensitivity can occur.
13
ENGENGLISH
ASSEMBLING AND PREPARING
Separate purchase
Separate purchase items can be changed or modified for quality improvement without any notification.
Contact your dealer to buy these items.
These devices only work with certain models.
P
AG-F***DP
Dual play glasses
AG-F***
Cinema 3D glasses
AN-MR400
Magic remote
Tag On
Tag on AN-VC4**
Video call camera
LG Audio device
Compatibility
LN57**
LA62**, LA64**, LA66**, LA69**, LA74**
AG-F***DP
Dual play glasses
•
AG-F***
Cinema 3D glasses
•
AN-MR400
Magic remote
• •
AN-VC4**
Video call camera
• •
LG Audio device
• •
Tag on
• •
The model name or design may be changed depending on the upgrade of product functions, manufacturer’s
circumstances or policies.
14
ENG
ENGLISH
ASSEMBLING AND PREPARING
SETTINGS
INPUT
OK
Parts and buttons
Button Description
H
Scrolls through the saved programmes.
H
Adjusts the volume level.
H
Selects the highlighted menu option or confirms an input.
S
Accesses the main menu, or saves your input and exits the menus.
H
Changes the input source.
Turns the power on or off.
NOTE
y
You can set the LG Logo light to on or off by selecting OPTION in the main menus. (Depending on model)
A type : LA62**, LA64**, LA66**, LN571*
LAN
(PC)
RGB IN
(RGB/HDMI-PC)
AUDIO
IN IN OUT
OPTICAL
DIGITAL
AUDIO
H/P
IN/OUT
(RGB)
AV1
IN
HDD IN USB Hub
USB Appps
USB IN
11(ARC) 2 3 4(PC) 2
USB IN
3
ANTENNA
/CABLE
13/18V
700mA MAx
LNB IN
Satellite
IN
COMPONENT
AV
PR
PB Y
VIDEO
AUDIO
SETTINGS
INPUT
OK
SETTINGS
INPUT
OK
Buttons
Screen
Speakers
Remote control sensor
LG Logo light (Only LA64**, LA66**)
Power Indicator (Only LN571*, LA62**)
C type : 60LA74**
SETTINGS
INPUT
OK
Screen
Buttons
Remote control sensor
Power Indicator
Speakers
B type : LA69**, 42/47/55LA74**
Screen
Buttons
Speakers
Remote control sensor
LG Logo light
D type : LN570*, LN572*
SETTINGS
INPUT
OK
Screen
Buttons
Speakers
Remote control sensor
LG Logo light
15
ENGENGLISH
ASSEMBLING AND PREPARING
Remote control sensor
Power Indicator
Lifting and moving the TV
Please note the following advice to prevent the
TV from being scratched or damaged and for safe
transportation regardless of its type and size.
CAUTION
y
Avoid touching the screen at all times, as this may
result in damage to the screen.
y
It is recommended to move the TV in the box or
packing material that the TV originally came in.
y
Before moving or lifting the TV, disconnect the power
cord and all cables.
y
When holding the TV, the screen should face away
from you to avoid damage.
y
Hold the top and bottom of the TV frame rmly. Make
sure not to hold the transparent part, speaker, or
speaker grill area.
y
When transporting a large TV, there should be at
least 2 people.
y
When transporting the TV by hand, hold the TV as
shown in the following illustration.
y
When transporting the TV, do not expose the TV to
jolts or excessive vibration.
y
When transporting the TV, keep the TV upright, never
turn the TV on its side or tilt towards the left or right.
y
Do not apply excessive pressure to cause exing /
bending of frame chassis as it may damage screen.
16
ENG
ENGLISH
ASSEMBLING AND PREPARING
Setting up the TV
Image shown may differ from your TV.
Attaching the stand
LA62**, LA64**, LA66**, LN571*
1
Front
M4 x 14
4 EA
Stand Base
Stand Body
M4 x 14
4 EA
2
3
(Only LA62**, LN571*)
(Only LA64**, LA66**)
M4 x 14
4 EA
(Only LA62**, LN571*)
(Only LA64**, LA66**)
17
ENGENGLISH
ASSEMBLING AND PREPARING
LA69**, LA74**
1
2
3
Stand Base
M4 x 20
4EA
LN570*, LN572*
M4 x 14
4EA
1
2
3
Stand Body
Stand Base
Front
P5 x 25
3EA
18
ENG
ENGLISH
ASSEMBLING AND PREPARING
Mounting on a table
1 Lift and tilt the TV into its upright position on a table.
- Leave a 10 cm (minimum) space from the wall
for proper ventilation.
10 cm
10 cm
10 cm
10 cm
10 cm
2 Connect the power cord to a wall outlet.
CAUTION
y
Do not place the TV near or on sources of heat,
as this may result in fire or other damage.
CAUTION
y
When attaching the stand to the TV set, place the
screen facing down on a cushioned table or flat
surface to protect the screen from scratches.
y
Make sure that the screws are fastened
completely. (If they are not fastened securely
enough, the TV may tilt forward after being
installed.)
Do not fasten the screws with excessive force
otherwise they may be worn out and become
loose.
NOTE
y
Remove the stand before installing the TV on a
wall mount by performing the stand attachment in
reverse.
y
Removing the protective film (from the bottom)
(Depending on model)
»
Protective film is temporarily attached to
prevent the surface of the product from being
damaged during delivery.
»
Once the TV has been installed, please
remove the protective film on the bottom of the
unit as shown in the figure.
Securing the TV to a table
Fix the TV to a table to prevent from tilting forward,
damage, and potential injury.
To secure the TV to a table, insert and tighten the
supplied screw on the rear of the stand.
(Only 32/42/47/50/60LN570*, 32/42/47/50/60LN572*)
19
ENGENGLISH
ASSEMBLING AND PREPARING
NOTE
(Only 32/42/47/50LA62**, 32/42/47/50LA64**,
32/42/47/50LA66**, 32/42/47/50LN571*)
How to fix the TV to a table
1 Connect the Desk-mount Cables to the Stand Base
using the Bracket Screws.
2 Fix the Desk-mount Cables to a table using the
Desk-mount Screws.
3 Once the TV is xed, move the table close to the
wall. Children may go in, causing injuries.
WARNING
y
To prevent TV from falling over, the TV should be
securely attached to the floor/wall per installation
instructions. Tipping, shaking, or rocking the TV
may cause injury.
Adjusting the angle of the TV to suit view
(This feature is not available for all models.)
Swivel 15 degrees to the left or right and adjust the angle
of the TV to suit your view.
(Only LA62**, LA64**, LA66**, LN571*)
1515
Swivel 10 degrees to the left or right and adjust the angle
of the TV to suit your view.
(Only 42/47LA69**, 42/47LA74**)
1010
Swivel 8 degrees to the left or right and adjust the angle
of the TV to suit your view.
(Only 55LA69**, 55/60LA74**)
88
CAUTION
y
When adjusting the angle of the product, watch
out for your fingers.
»
Personal injury may occur if hands or fingers are
pinched. If the product is tilted too much, it may fall,
causing damage or injury.
(Only LA62**, LA64**, LA66**, LN571*)
<Rear> <Front>
(Only 32/42/47/50LA62**, 32/42/47/50LA64**,
32/42/47/50LA66**, 32/42/47/50LN571*)
M4 x 8, 2EA
(Only 32/42LA62**, 32/42LA64**,
32/42LA66**, 32/42LN571*)
P4 x 8, 2EA
(Only 47/50LA62**, 47/50LA64**,
47/50LA66**, 47/50LN571*)
20
ENG
ENGLISH
ASSEMBLING AND PREPARING
Securing the TV to a wall
(This feature is not available for all models.)
1 Insert and tighten the eye-bolts, or TV brackets and
bolts on the back of the TV.
- If there are bolts inserted at the eye-bolts
position, remove the bolts first.
2 Mount the wall brackets with the bolts to the wall.
Match the location of the wall bracket and the eye-
bolts on the rear of the TV.
3 Connect the eye-bolts and wall brackets tightly with a
sturdy rope.
Make sure to keep the rope horizontal with the at
surface.
CAUTION
y
Make sure that children do not climb on or hang
on the TV.
NOTE
y
Use a platform or cabinet that is strong and large
enough to support the TV securely.
y
Brackets, bolts and ropes are not provided. You
can obtain additional accessories from your local
dealer.
WARNING
y
If a television is not positioned in a sufficiently
stable location, it can be potentially hazardous
due to falling. Many injuries, particularly to
children, can be avoided by taking simple
precautions such as:
»
Using cabinets or stands recommended by the
manufacturer of the television.
»
Only using furniture that can safely support the
television.
»
Ensuring the television is not overhanging the
edge of the supporting furniture.
»
Not placing the television on tall furniture (for
example, cupboards or bookcases) without
anchoring both the furniture and the television
to a suitable support.
»
Not standing the televisions on cloth or other
materials placed between the television and
supporting furniture.
»
Educating children about the dangers of
climbing on furniture to reach the television or
its controls.
21
ENGENGLISH
ASSEMBLING AND PREPARING
Using the Kensington security system
(This feature is not available for all models.)
The Kensington security system connector is located at
the rear of the TV. For more information of installation and
using, refer to the manual provided with the Kensington
security system or visit http://www.kensington.com.
Connect the Kensington security system cable between
the TV and a table.
Mounting on a wall
Attach an optional wall mount bracket at the rear of the
TV carefully and install the wall mount bracket on a solid
wall perpendicular to the floor. When you attach the
TV to other building materials, please contact qualified
personnel.
LG recommends that wall mounting be performed by a
qualified professional installer.
10 cm
10 cm
10 cm
10 cm
Make sure to use screws and wall mount bracket that
meet the VESA standard. Standard dimensions for the
wall mount kits are described in the following table.
Separate purchase(Wall Mounting Bracket)
Model 32LA62**
32LN57**
42LA62**
32LA64**
32LA66**
42LN57**
VESA (A x B) 200 x 100 200 x 200
Standard screw M4 M6
Number of screws 4 4
Wall mount bracket LSW130B
LSW230B
Model 47/50/55/60LA62**
42/47/50/55LA64**
42/47/50/55LA66**
42/47/55LA69**
42/47/55/60LA74**
47/50/55/60LN57**
VESA (A x B) 400 x 400
Standard screw M6
Number of screws 4
Wall mount bracket LSW430B
A
B
22
ENG
ENGLISH
ASSEMBLING AND PREPARING
CAUTION
y
Disconnect the power first, and then move or
install the TV. Otherwise electric shock may occur.
y
If you install the TV on a ceiling or slanted wall, it
may fall and result in severe injury.
Use an authorised LG wall mount and contact the
local dealer or qualified personnel.
y
Do not over tighten the screws as this may cause
damage to the TV and void your warranty.
y
Use the screws and wall mounts that meet the
VESA standard. Any damages or injuries by
misuse or using an improper accessory are not
covered by the manufacturer’s warranty.
NOTE
y
Use the screws that are listed on the VESA
standard screw specifications.
y
The wall mount kit includes an installation manual
and necessary parts.
y
The wall mount bracket is not provided. You can
obtain additional accessories from your local
dealer.
y
The length of screws may differ depending on the
wall mount. Make sure to use the proper length.
y
For more information, refer to the manual supplied
with the wall mount.
y
When attaching a third-party wall mounting
bracket to the TV, insert the wall mount inner
spacers into the TV wall mount holes to move
your TV in vertical angle. Please make sure not
to use the spacers for LG wall mounting bracket.
(Only LA64**)
Wall Mount Inner Spacer
Tidying cables
1 Gather and bind the cables with the Cable Holder
and the Cable Management.
2 Attach the cable management to TV.
(Only LA62**, LA64**, LA66**, LN571*)
Cable Holder
Cable Management
(Only LA69**, LA74**)
⨲㘶ᖂ2
㏪ⱞ⋾#Ɐᴏ
Cable Holder
Cable Management
Gather and bind the cables with the Cable Holder.
(Only LN570*, LN572*)
Cable Holder
CAUTION
y
Do not move the TV by holding the cable holders,
as the cable holders may break, and injuries and
damage to the TV may occur.
23
ENGENGLISH
MAKING CONNECTIONS
MAKING CONNECTIONS
This section on MAKING CONNECTIONS
mainly uses diagrams for the LA64** models.
Connect various external devices to the TV and switch
input modes to select an external device. For more
information of external device’s connection, refer to the
manual provided with each device.
Available external devices are: HD receivers, DVD
players, VCRs, audio systems, USB storage devices,
PC, gaming devices, and other external devices.
NOTE
y
The external device connection may differ from
the model.
y
Connect external devices to the TV regardless of
the order of the TV port.
y
If you record a TV programme on a DVD recorder
or VCR, make sure to connect the TV signal input
cable to the TV through a DVD recorder or VCR.
For more information of recording, refer to the
manual provided with the connected device.
y
Refer to the external equipment’s manual for
operating instructions.
y
If you connect a gaming device to the TV, use the
cable supplied with the gaming device.
y
In PC mode, there may be noise associated
with the resolution, vertical pattern, contrast or
brightness. If noise is present, change the PC
output to another resolution, change the refresh
rate to another rate or adjust the brightness and
contrast on the PICTURE menu until the picture is
clear.
y
In PC mode, some resolution settings may not
work properly depending on the graphics card.
Antenna connection
Connect the TV to a wall antenna socket with an RF
cable (75 Ω).
ANTENNA/
CABLE IN
NOTE
y
Use a signal splitter to use more than 2 TVs.
y
If the image quality is poor, install a signal
amplifier properly to improve the image quality.
y
If the image quality is poor with an antenna
connected, try to realign the antenna in the correct
direction.
y
An antenna cable and converter are not supplied.
y
Supported DTV Audio: MPEG, Dolby Digital,
Dolby Digital Plus
24
ENG
ENGLISH
MAKING CONNECTIONS
HDMI connection
Transmits the digital video and audio signals from an
external device to the TV. Connect the external device
and the TV with the HDMI cable as shown.
Choose any HDMI input port to connect. It does not
matter which port you use.
HDMI
/DVI IN
2
3
1
(ARC)
(MHL)
NOTE
y
It is recommended to use the TV with the HDMI
connection for the best image quality.
y
Use the latest High Speed HDMI™ Cable with
CEC (Customer Electronics Control) function.
y
High Speed HDMI™ Cables are tested to carry an
HD signal up to 1080p and higher.
y
Supported HDMI Audio format : Dolby Digital,
DTS, PCM (Up to 192 KHz, 32KHz/44.1KHz/48K
Hz/88KHz/96KHz/176KHz/192KHz).
ARC (Audio Return Channel)
y
An external audio device that supports SIMPLINK
and ARC must be connected using HDMI/DVI IN
1 (ARC) port.
y
When connected with a high-speed HDMI cable,
the external audio device that supports ARC
outputs optical SPDIF without additional optical
audio cable and supports the SIMPLINK function.
(*Not Provided)
DVD/ Blu-Ray / HD Cable
Box / HD STB / PC
DVD/ Blu-Ray / HD Cable Box / PC
DVI to HDMI connection
Transmits the digital video signal from an external device
to the TV. Connect the external device and the TV with
the DVI-HDMI cable as shown. To transmit an audio
signal, connect an audio cable.
Choose any HDMI input port to connect. It does not
matter which port you use.
DVI OUT
AUDIO OUT
/DVI IN
L / MONO
2
3
1
(ARC)
(MHL)
NOTE
y
Depending on the graphics card, DOS mode may
not work if a HDMI to DVI Cable is in use.
y
When using the HDMI/DVI cable, Single link is
only supported.
(*Not Provided)
RED
WHITE
25
ENGENGLISH
MAKING CONNECTIONS
Composite connection
Transmits analog video and audio signals from an
external device to the TV. Connect the external device
and the TV with the composite cable as shown.
VIDEO
MONO
( )
AUDIOL R
/ AV IN
L / MONO
COMPONENT IN
YELLOW
WHITE
RED
RED
WHITE
(*Not Provided)
DVD/ Blu-Ray / HD Cable Box / VCR
Component connection
Transmits analog video and audio signals from an
external device to the TV. Connect the external device
and the TV with a component cable as shown.
NOTE
y
If cables are not installed correctly, it could cause
this image to display in black and white or with
distorted colours.
VIDEO
AUDIO
/ AV IN
L / MONO
VIDEO
AUDIO
COMPONENT IN
DVD/ Blu-Ray / HD Cable Box
GREEN
BLUE
RED
RED
WHITE
(*Not Provided)
YELLOW
26
ENG
ENGLISH
MAKING CONNECTIONS
Headphone connection
Transmits the headphone signal from the TV to
an external device. Connect the external device
and the TV with the headphone as shown on the
following illustration.
OUT
(*Not Provided)
NOTE
y
AUDIO menu items are disabled when connecting
a headphone.
y
When changing AV MODE with a headphone
connected, the change is applied to video but not
to audio.
y
Optical Digital Audio Out is not available when
connecting a headphone.
y
Headphone impedance: 16 Ω
y
Max audio output of headphone: 9 mW to 15 mW
y
Headphone jack size: 0.35 cm
Audio connection
You may use an optional external audio system instead
of the built-in speaker.
Digital optical audio connection
Transmits a digital audio signal from the TV to an
external device. Connect the external device and the TV
with the optical audio cable as shown.
OPTICAL
AUDIO IN
OUT
OPTICAL
DIGITAL
AUDIO
(*Not Provided)
Digital Audio System
NOTE
y
Do not look into the optical output port. Looking at
the laser beam may damage your vision.
y
Audio with ACP (Audio Copy Protection) function
may block digital audio output.
27
ENGENGLISH
MAKING CONNECTIONS
MHL connection
Mobile High-definition Link (MHL) is an interface for
transmitting digital audiovisual signals from mobile
phones to television sets.
3
(MHL)
/DVI IN
MHL passive cable
(*Not Provided)
Mobile phone
NOTE
y
Connect the mobile phone to the HDMI/DVI IN 3
(MHL) port to view the phone screen on the TV.
y
The MHL passive cable is needed to connect the
TV and a mobile phone.
y
This only works for the MHL-enabled phone.
y
Some applications can be operated by the remote
control.
y
For some mobile phones supporting MHL, you can
control with the magic remote control.
y
Remove the MHL passive cable from the TV when:
»
the MHL function is disabled.
»
your mobile device is fully charged in standby
mode.
USB connection
Connect a USB storage device such as a USB flash
memory, external hard drive, or a USB memory card
reader to the TV and access the Smart Share menu to
use various multimedia files.
USB IN
1
2
3
HDD IN
HUB
HDD
(*Not Provided)
USB
NOTE
y
Some USB Hubs may not work. If a USB device
connected using a USB Hub is not detected,
connect it to the USB port on the TV directly.
y
Connect the external power source if your USB is
needed.
28
ENG
ENGLISH
REMOTE CONTROL
REMOTE CONTROL
(Depending on model)
The descriptions in this manual are based on the buttons on the remote control.
Please read this manual carefully and use the TV correctly.
To replace batteries, open the battery cover, replace batteries (1.5 V AAA) matching the
and
ends to the label inside the compartment, and close the battery cover.
To remove the batteries, perform the installation actions in reverse.
CAUTION
y
Do not mix old and new batteries, as this may damage the remote control.
y
In Analogue TV and some countries, some remote control buttons may not work.
Make sure to point the remote control toward the remote control sensor on the TV.
(Only LA62**, LA64**, LA66**, LA69**, LA74**)
1
2 3
4
5
6
7 8
0
9
P
A
G
E
TV/
RAD
RATIO INPUT
FAV
MUTE
LIST
Q.VIEW
EXIT
OK
GUIDE
MY APPS
LIVE TV
REC
TEXT
T.OPT
SUBTITLE
Q.MENU
AV MODE
BACK
SETTINGS
INFO
(POWER)
Turns the TV on or off.
(User Guide) Sees user- guide.
RATIO Resizes an image.
INPUT Changes the input source.
TV/RAD Selects Radio, TV and DTV programme.
Number buttons Enters numbers.
LIST Accesses the saved programme list.
Q.VIEW Returns to the previously viewed programme.
Adjusts the volume level.
FAV Accesses your favourite programme list.
3D Used for viewing 3D video.
MUTE Mutes all sounds.
ꕌ
P
ꕍ
Scrolls through the saved programmes.
PAGE
Moves to the previous or next screen.
INFO
Views the information of the current programme and screen.
SMART Accesses the Smart Home menus.
MY APPS Shows the list of Apps.
Navigation buttons (up/down/left/right) Scrolls through menus or options.
OK
Selects menus or options and confirms your input.
BACK Returns to the previous level.
GUIDE Shows programme guide.
EXIT Clears on-screen displays and return to TV viewing.
Control buttons
These access special functions in some menus.
( : Red, : Green, : Yellow, : Blue)
TELETEXT BUTTONS (TEXT, T.OPT) These buttons are used for teletext.
SUBTITLE Recalls your preferred subtitle in digital mode.
Q. MENU Accesses the quick menus.
LIVE TV Return to LIVE TV.
Control buttons
( )
Controls the Premium contents, Time
Machine
Ⅱ
or Smart Share menus or the SIMPLINK compatible devices (USB or
SIMPLINK or Time Machine
Ⅱ
).
REC Start to record and display record menu.
SETTINGS Accesses the main menus.
AV MODE Selects an AV mode.
Accesses the AV devices connected with the HDMI cable through
HDMI-CEC. Opens the SIMPLINK menu.
29
ENGENGLISH
REMOTE CONTROL
(Only LN57**)
1
2 3
4
5
6
7 8
0
9
P
A
G
E
TV/
RAD
RATIO INPUT
FAV
MUTE
LIST
Q.VIEW
EXIT
OK
GUIDE
MY APPS
LIVE TV
REC
TEXT
T.OPT
SUBTITLE
Q.MENU
AV MODE
BACK
INFO
SETTINGS
(POWER)
Turns the TV on or off.
(User Guide) Sees user- guide.
RATIO Resizes an image.
INPUT Changes the input source.
TV/RAD Selects Radio, TV and DTV programme.
Number buttons Enters numbers.
LIST Accesses the saved programme list.
Q.VIEW Returns to the previously viewed programme.
Adjusts the volume level.
FAV Accesses your favourite programme list.
SETTINGS Accesses the main menus.
MUTE Mutes all sounds.
ꕌ
P
ꕍ
Scrolls through the saved programmes.
PAGE
Moves to the previous or next screen.
INFO
Views the information of the current programme and screen.
SMART Accesses the Smart Home menus.
MY APPS Shows the list of Apps.
Navigation buttons (up/down/left/right) Scrolls through menus or options.
OK
Selects menus or options and confirms your input.
BACK Returns to the previous level.
GUIDE Shows programme guide.
EXIT Clears on-screen displays and return to TV viewing.
Control buttons
These access special functions in some menus.
( : Red, : Green, : Yellow, : Blue)
TELETEXT BUTTONS (TEXT, T.OPT) These buttons are used for teletext.
SUBTITLE Recalls your preferred subtitle in digital mode.
Q. MENU Accesses the quick menus.
LIVE TV Return to LIVE TV.
Control buttons
( )
Controls the Premium contents, Time
Machine
Ⅱ
or Smart Share menus or the SIMPLINK compatible devices (USB or
SIMPLINK or Time Machine
Ⅱ
).
REC Start to record and display record menu.
AV MODE Selects an AV mode.
Accesses the AV devices connected with the HDMI cable through
HDMI-CEC. Opens the SIMPLINK menu.
30
ENG
ENGLISH
MAGIC REMOTE CONTROL FUNCTIONS
P
MAGIC REMOTE CONTROL FUNCTIONS
This item is not included for all models.
When the message “Magic Remote Control battery is low. Change the battery.” is displayed,
replace the battery.
To replace batteries, open the battery cover, replace batteries (1.5 V AA) matching
and ends to the label inside the compartment, and close the battery cover. Be sure to point
the remote control toward the remote control sensor on the TV.
To remove the batteries, perform the installation actions in reverse.
CAUTION
y
Do not mix old and new batteries, as this may damage the remote control.
y
In Analogue TV and some countries, some remote control buttons may not work.
(Only LA620*, LA621*, LA64**, LA66**, LA69**, LA74**, LN570*, LN572*)
Voice recognition (Depending on model)
Network connection is required to use the voice recognition function.
The recognition rate may vary depending on the user’s characteristics (voice, pronunciation, intonation and speed)
and the environment (noise and TV volume).
1 Press the Voice recognition button.
2 Speak when the voice display window appears on the left of the TV screen.
• The voice recognition may fail when you speak too fast or too slow.
• Use the Magic remote control no further than 10 cm from your face.
Navigation buttons
(up/down/left/right)
Scrolls through menus or options.
SMART
Accesses the Smart Home menu.
(POWER)
Turns the TV on or off.
BACK
Returns to the previous level.
Adjusts the volume level.
ꕌPꕍ
Scrolls through the saved
programmes or channels.
MUTE
Mutes all sounds.
3D
Used for viewing 3D video.
(Depending on model)
/Q.MENU
Accesses the quick menus.
Accesses the Universal Control.
Voice recognition
(Depending on model)
Wheel(OK)
Selects menus or options and
confirms your input. Scrolls through
the saved programmes.
If you press the navigation button
while moving the pointer on the
screen, the pointer disappears, and
the magic remote control works as
a regular remote control. To display
the pointer again, shake the magic
remote control from side to side.
Pointer (RF transmitter)
31
ENGENGLISH
MAGIC REMOTE CONTROL FUNCTIONS
Registering Magic Remote
Control
It is necessary to ‘pair’ (register) the magic remote control
to your TV before it will work.
How to register the Magic Remote Control
BACK
HOME
P
MY APPS
1 To register automatically, turn the
TV on and press the Wheel(OK)
button. When registration is
completed, the completion
message appears on the screen.
2 If registration fails, turn the TV
off and back on, then press the
Wheel(OK) button to complete
registration.
How to re-register the Magic Remote Control
BACK
SMART
1 Press and hold the BACK
and
SMART
buttons together for 5
seconds to reset, then register it
by following “How to register the
Magic Remote Control” above.
2 To re-register the Magic Remote
Control, press and hold the
BACK
button for 5 seconds
toward the TV. When registration
is completed, the completion
message appears on the screen.
How to use Magic Remote
Control
1 If the pointer disappears, move
the Magic Remote Control
slightly to left or right. Then, it
will automatically appear on the
screen.
»
If the pointer has not been used
for a certain period of time, it will
disappear.
2 You can move the pointer by
aiming the Pointer Receiver of the
Magic Remote Control at your TV
then move it left, right, up or down.
»
If the pointer does not work
properly, leave the Magic
Remote Control for 10 seconds
then use it again.
1
If you press Wheel(OK) on the Magic Remote
Control, the following screen appears.
Shows information about the current programme
and screen.
2
You can select More Menu.
More
11-1 Brief Info Title Test...
Info.
Precautions to Take when Using
the Magic Remote Control
y
Use the Magic Remote Control within the maximum
communication distance (10 m). Using the Magic
Remote Control beyond this distance, or with an
object obstructing it, may cause a communication
failure.
y
A communication failure may occur due to nearby
devices. Electrical devices such as a microwave
oven or wireless LAN product may cause
interference, as these use the same bandwidth (2.4
GHz) as the Magic Remote Control.
y
The Magic Remote Control may be damaged
or may malfunction if it is dropped or receives a
heavy impact.
y
Take care not to bump into nearby furniture or
other people when using the Magic Remote
Control.
y
Manufacturer and installer cannot provide service
related to human safety as the applicable wireless
device has possibility of electric wave interference.
y
It is recommended that an Access Point (AP) be
located more than 1 m away from the TV. If the
AP is installed closer than 1 m, the Magic Remote
Control may not perform as expected due to
frequency interference.
32
ENG
ENGLISH
USING THE USER GUIDE
1 Press the SMART
button to access the Smart home
menu.
2 Select User Guide and press Wheel(OK).
User Guide
User Guide
NOTE
y
You can also access the User Guide by pressing
(User Guide) in the remote control.
To use input device
To set TV lock options
To set country
To set subtitle
To set Magic remote control
To set language
To set time options
User Guide
OPTION
PROGRAMME Setting
PICTURE, SOUND Setting
LG SMART Function
Advanced Function
Information
3
2
1
Index
Online User Guide
4 5
1
Shows the current watching programme or input
source screen.
2
Allows to select the category you want.
3
Allows to select the item you want.
You can use
ꕌ
/
ꕍ
to move between pages.
4
Allows to browse the description of the function
you want from the index.
5
Provides the detailed information on the functions
of LG Smart TV when the Internet is connected.
(It may not be available depending on the country/
language.)
1
2
OPTION > To set language
SMART Settings OPTION Language
Selects Menu Language and Audio Language displayed on the screen.
Menu Language
Audio Language
Selects a language for the display text.
[In Digital Mode Only]
When watching a digital broadcast containing several audio
languages, you can select the language you want.
Subtitle
Language
[In Digital mode Only]
Use the Subtitle function when two or more subtitle
languages are broadcast.
✎ If subtitle data in a selected language is not broadcast,
the default language subtitle will be displayed.
Try Now
Close
Index
Online User Guide
1
Shows the description of the selected menu.
You can use
ꕌ
/
ꕍ
to move between pages.
2
Moves to the selected menu directly from the User
Guide.
USING THE USER GUIDE
User Guide allows you to more easily access the detailed TV information.
33
ENGENGLISH
MAINTENANCE / TROUBLESHOOTING
MAINTENANCE
Cleaning your TV
Clean your TV regularly to keep the best performance and to extend the product lifespan.
CAUTION
y
Make sure to turn the power off and disconnect the power cord and all other cables first.
y
When the TV is left unattended and unused for a long time, disconnect the power cord from the wall outlet to
prevent possible damage from lightning or power surges.
Screen, frame, cabinet and stand
y
To remove dust or light dirt, wipe the surface with a dry, clean, and soft cloth.
y
To remove major dirt, wipe the surface with a soft cloth dampened in clean water or a diluted mild detergent. Then
wipe immediately with a dry cloth.
CAUTION
y
Avoid touching the screen at all times, as this may result in damage to the screen.
y
Do not push, rub, or hit the screen surface with your fingernail or a sharp object, as this may result in scratches
and image distortions.
y
Do not use any chemicals as this may damage the product.
y
Do not spray liquid onto the surface. If water enters the TV, it may result in fire, electric shock, or malfunction.
Power cord
Remove the accumulated dust or dirt on the power cord regularly.
TROUBLESHOOTING
Problem Solution
Cannot control the
TV with the remote
control.
y
Check the remote control sensor on the product and try again.
y
Check if there is any obstacle between the product and the remote control.
y
Check if the batteries are still working and properly installed (
to , to ).
No image display and
no sound is produced.
y
Check if the product is turned on.
y
Check if the power cord is connected to a wall outlet.
y
Check if there is a problem in the wall outlet by connecting other products.
The TV turns off
suddenly.
y
Check the power control settings. The power supply may be interrupted.
y
Check if the Auto sleep feature is activated in the Time settings.
y
If there is no signal while the TV is on, the TV will turn off automatically after 15 minutes
of inactivity.
When connecting to
the PC (HDMI DVI),
‘No signal’ or ‘Invalid
Format’ is displayed.
y
Turn the TV off/on using the remote control.
y
Reconnect the HDMI cable.
y
Restart the PC with the TV on.
34
ENG
ENGLISH
ENVIRONMENTAL INFORMATION
ENVIRONMENTAL INFORMATION
(India only)
WEEE
Disposal of your old appliance
1. When this crossed-out wheeled bin symbol is attached to a product it means the product is covered
by the e-waste (Management and Handling) Rules, 2011.
2. All electrical and electronic products should be disposed of separately from the municipal waste
stream via designated collection facilities appointed by the government or the local authorities.
3. The correct disposal of your old appliance will help prevent potential negative consequences for the
environment and human health.
4. For more detailed information about disposal of your old appliance, please contact your city office,
waste disposal service or the shop where you purchased the product.
5. This product does not contain any of the hazardous substances as specified in the rule 13 (1) and (2) of the e-waste
(Management and Handling) Rules, 2011.
i;kZoj.kh; tkudkjh
WEEE
vius iqjkus midj.k dk fuiVku
ƒ. tc ;g dkVs x;s ifg;s okys fcu dk fpg+u fdlh mRikn ds lkFk layXu gksrk gS rks bldk vFkZ gS mRikn
¼izca/ku vkSj gFkkyu½ fu;e „Œƒƒ ds varxZr lfEefyr fd;k x;k gSA
„
. lHkh bysfDVªdy ,oa vkSj bysDVªkfud mRiknkas dks ljdkj ;k LFkkuh; vf/kdkfj;ksaa }kjk fu;qDr uxjikfydk /kkjk
ls vyx izkf/kd`r dh xbZ laxzg lqfo/kkvksa ds ek/;e ls fuiVk;k tkuk pkfg,A
…
. lgh rjhds ls vius iqjkus midj.kksa dk fuiVku okrkoj.k vkSj ekuoh; LokLF; dss fy, laHkkfor udkjkRed ifj.kkeksa dks
jksdus esa enn djsxkA
†
. vius iqjkus midj.kksa ds fuiVku ds lac/k esa vkSj vf/kd folr`r tkudkjh ds fy,] d`i;k vius uxj dk;kZy;] fuiVku lsok ;k tgka
ls vkius mRikn [kjhnk Fkk] ogka laidZ djsaA
‡
. bl mRikn esa ¼izca/ku vkSj gFkkyu½ fu;e] „Œƒƒ ds fu;e ƒ… ¼ƒ½ vkSj ¼„½ esa funsZ’kkuqlkj dksbZ Hkh gkfudkjd inkFkZ “kkfey ugha gSA
35
ENGENGLISH
SPECIFICATIONS
SPECIFICATIONS
(Only LA620*, LA621*, LA64**, LA66**, LA69**, LA74**, LN570*, LN572*)
Wireless LAN module(TWFM-B006D) specification
Standard IEEE802.11a/b/g/n
Frequency Range
2400 to 2483.5 MHz
5150 to 5250 MHz
5725 to 5850 MHz (for Non EU)
Output Power
(Max.)
802.11a: 11 dBm
802.11b: 14 dBm
802.11g: 10.5 dBm
802.11n - 2.4GHz: 11 dBm
802.11n - 5GHz: 12.5 dBm
Bluetooth module (BM-LDS401) specification
Standard Bluetooth Version 3.0
Frequency Range 2400 ~ 2483.5 MHz
Output Power (Max.) 10 dBm or lower
y
Because band channel used by the country could be different, the user can not change or adjust the operating
frequency and this product is set for the regional frequency table.
(Only LA623*, LN571*)
Wireless LAN module(TWFM-B006D) specification
Standard IEEE802.11a/b/g/n
Frequency Range
2400 to 2483.5 MHz
5150 to 5250 MHz
5725 to 5850 MHz (for Non EU)
Output Power
(Max.)
802.11a: 11 dBm
802.11b: 14 dBm
802.11g: 10.5 dBm
802.11n - 2.4GHz: 11 dBm
802.11n - 5GHz: 12.5 dBm
y
Because band channel used by the country could be different, the user can not change or adjust the operating
frequency and this product is set for the regional frequency table.
36
ENG
ENGLISH
SPECIFICATIONS
Product specifications may be changed without prior notice due to upgrade of product functions.
For the power supply and power consumption, refer to the label attached to the product.
MODELS
32LA62** 42LA62** 47LA62**
32LA6200-TA
32LA6210-TD
32LA6230-TB
32LA620T-TA
32LA620Y-TA
32LA621Y-TD
32LA623T-TB
32LA623Y-TB
42LA6200-TA
42LA6210-TD
42LA6230-TB
42LA620T-TA
42LA620Y-TA
42LA621Y-TD
42LA623T-TB
42LA623Y-TB
47LA6200-TA
47LA6210-TD
47LA6230-TB
47LA620T-TA
47LA620Y-TA
47LA621Y-TD
47LA623T-TB
47LA623Y-TB
Dimensions
(W x H x D)
With stand (
mm
)
733.0 x 499.0 x 242.0 964.0 x 631.0 x 294.0 1076.0 x 695.0 x 327.0
Without stand(
mm)
733.0 x 444.0 x 78.0 964.0 x 573.0 x 78.0 1076.0
x
637.0
x
79.4
Weight With stand (kg)
7.6 11.8 15.0
Without stand (kg)
6.4 10.0 12.8
Power requirement
AC 100-240 V~ 50 / 60 Hz AC 100-240 V~ 50 / 60 Hz AC 100-240 V~ 50 / 60 Hz
MODELS
50LA62** 55LA62** 60LA62**
50LA6200-TA
50LA6210-TD
50LA6230-TB
50LA620T-TA
50LA620Y-TA
50LA621Y-TD
50LA623T-TB
50LA623Y-TB
55LA6200-TA
55LA6210-TD
55LA6230-TB
55LA620T-TA
55LA620Y-TA
55LA621Y-TD
55LA623T-TB
55LA623Y-TB
60LA6200-TA
60LA6210-TD
60LA6230-TB
60LA620T-TA
60LA620Y-TA
60LA621Y-TD
60LA623T-TB
60LA623Y-TB
Dimensions
(W x H x D)
With stand (
mm
)
1131.0 x 725.0 x 327.0 1246.0 x 803.0 x 343.0 1355.0 x 865.0 x 343.0
Without stand(
mm)
1131.0 x 667.0 x 80.9 1246.0 x 732.0 x 77.2 1355.0
x
793.0
x
65.3
Weight With stand (kg)
17.0 21.5 25.9
Without stand (kg)
14.5 18.7 23.1
Power requirement
AC 100-240 V~ 50 / 60 Hz AC 100-240 V~ 50 / 60 Hz AC 100-240 V~ 50 / 60 Hz
MODELS
32LA64** 42LA64** 47LA64**
32LA6400-TA
32LA640Y-TA
42LA6400-TA
42LA640Y-TA
47LA6400-TA
47LA640Y-TA
Dimensions
(W x H x D)
With stand (
mm
)
743.0 x 518.0 x 241.0 973.0 x 652.0 x 294.0 1086.0 x 711.0 x 327.0
Without stand(
mm)
743.0 x 461.0 x 36.4 973.0
x
591.0
x
36.3 1086.0
x
654.0
x
36.3
Weight With stand (kg)
9.2 14.2 17.5
Without stand (kg)
8.0 12.4 15.0
Power requirement
AC 100-240 V~ 50 / 60 Hz AC 100-240 V~ 50 / 60 Hz AC 100-240 V~ 50 / 60 Hz
MODELS
50LA64** 55LA64**
50LA6400-TA
50LA640Y-TA
55LA6400-TA
55LA640Y-TA
Dimensions
(W x H x D)
With stand (
mm
)
1137.0 x 732.0 x 327.0 1260.0 x 821.0 x 343.0
Without stand(
mm)
1137.0 x 677.0 x 37.2 1260.0 x 753.0 x 36.3
Weight With stand (kg)
19.2 24.2
Without stand (kg)
16.7 21.5
Power requirement
AC 100-240 V~ 50 / 60 Hz AC 100-240 V~ 50 / 60 Hz
37
ENGENGLISH
SPECIFICATIONS
MODELS
32LA66** 42LA66** 47LA66**
32LA6600-TA
32LA6610-TB
32LA6620-TD
32LA660Y-TA
32LA661Y-TB
32LA662Y-TD
42LA6600-TA
42LA6610-TB
42LA6620-TD
42LA660Y-TA
42LA661Y-TB
42LA662Y-TD
47LA6600-TA
47LA6610-TB
47LA6620-TD
47LA660Y-TA
47LA661Y-TB
47LA662Y-TD
Dimensions
(W x H x D)
With stand (
mm
)
725.0 x 501.0 x 241.0 957.0 x 635.0 x 294.0 1069.0 x 695.0 x 327.0
Without stand(
mm)
725.0
x
443.0
x
37.1 957.0
x
574.0
x
35.0 1069.0
x
637.0
x
35.0
Weight With stand (kg)
8.7 14.3 17.2
Without stand (kg)
7.5 12.4 14.7
Power requirement
AC 100-240 V~ 50 / 60 Hz AC 100-240 V~ 50 / 60 Hz AC 100-240 V~ 50 / 60 Hz
MODELS
50LA66** 55LA66**
50LA6600-TA
50LA6610-TB
50LA6620-TD
50LA660Y-TA
50LA661Y-TB
50LA662Y-TD
55LA6600-TA
55LA6610-TB
55LA6620-TD
55LA660Y-TA
55LA661Y-TB
55LA662Y-TD
Dimensions
(W x H x D)
With stand (
mm
)
1129.0 x 730.0 x 326.0 1238.0 x 802.0 x 343.0
Without stand(
mm) 1129.0
x
672.0
x
37.2 1238.0
x
733.0
x
35.2
Weight With stand (kg)
19.8 22.7
Without stand (kg)
17.3 20.0
Power requirement
AC 100-240 V~ 50 / 60 Hz AC 100-240 V~ 50 / 60 Hz
MODELS
42LA69** 47LA69** 55LA69**
42LA6980-TA
42LA6910-TB
42LA698Y-TA
42LA691Y-TB
47LA6980-TA
47LA6910-TB
47LA698Y-TA
47LA691Y-TB
55LA6980-TA
55LA6910-TB
55LA698Y-TA
55LA691Y-TB
Dimensions
(W x H x D)
With stand (
mm
)
951.0 x 634.0 x 269.0
1063.0 x 697.0 x 269.0
1233.0 x 793.0 x 316.0
Without stand(
mm)
951.0 x 564
.0
x 34.5
1063.0 x 627.0 x 34.5
1233.0
x
723.0
x
34.7
Weight With stand (kg)
14.3 16.7
22.8
Without stand (kg)
12.2 14.6
20.0
Power requirement
AC 100-240 V~ 50 / 60 Hz AC 100-240 V~ 50 / 60 Hz AC 100-240 V~ 50 / 60 Hz
38
ENG
ENGLISH
SPECIFICATIONS
MODELS
42LA74** 47LA74** 55LA74**
42LA7400-TC
42LA740Y-TC
47LA7400-TC
47LA740Y-TC
55LA7400-TC
55LA740Y-TC
Dimensions
(W x H x D)
With stand (
mm
)
951.0 x 634.0 x 269.0
1063.0 x 697.0 x 269.0
1233.0 x 793.0 x 316.0
Without stand(
mm)
951.0 x 564
.0
x 34.5
1063.0 x 627.0 x 34.5
1233.0
x
723.0
x
34.7
Weight With stand (kg)
14.3 16.7
22.8
Without stand (kg)
12.2 14.6
20.0
Power requirement
AC 100-240 V~ 50 / 60 Hz AC 100-240 V~ 50 / 60 Hz AC 100-240 V~ 50 / 60 Hz
MODELS
60LA74**
60LA7400-TA
60LA740Y-TA
Dimensions
(W x H x D)
With stand (
mm
)
1352.0 x 848.0 x 316.0
Without stand(
mm)
1352.0 x 794.0 x 59.9
Weight With stand (kg)
27.6
Without stand (kg)
24.8
Power requirement
AC 100-240 V~ 50 / 60 Hz
MODELS
32LN570*
32LN572*
42LN570*
42LN572*
47LN570*
47LN572*
32LN5700-TB
32LN570B-TA
32LN570B-TB
32LN5720-TH
32LN572B-TH
32LN570Y-TB
32LN570Z-TB
32LN572Y-TH
32LN572Z-TH
42LN5700-TB
42LN570B-TA
42LN570B-TB
42LN5720-TH
42LN572B-TH
42LN570Y-TB
42LN570Z-TB
42LN572Y-TH
42LN572Z-TH
47LN5700-TB
47LN570B-TA
47LN570B-TB
47LN5720-TH
47LN572B-TH
47LN570Y-TB
47LN570Z-TB
47LN572Y-TH
47LN572Z-TH
Dimensions
(W x H x D)
With stand (
mm
)
738.0 x 497.0 x 207.0 968.0 x 629.0 x 236.0 1080.0 x 694.0 x 264.0
Without stand(
mm)
738.0 x 449.0 x 79.0 968.0 x 579.0 x 79.0 1080.0
x
642.0
x
80.5
Weight With stand (kg)
7.0 10.7 14.7
Without stand (kg)
6.4
9.6 13.4
Power requirement
AC 100-240 V~ 50 / 60 Hz AC 100-240 V~ 50 / 60 Hz AC 100-240 V~ 50 / 60 Hz
MODELS
50LN570*
50LN572*
55LN570*
55LN572*
60LN570*
60LN572*
50LN5700-TB
50LN570B-TA
50LN570B-TB
50LN5720-TH
50LN572B-TH
50LN570Y-TB
50LN570Z-TB
50LN572Y-TH
50LN572Z-TH
55LN5700-TB
55LN570B-TA
55LN570B-TB
55LN5720-TH
55LN572B-TH
55LN570Y-TB
55LN570Z-TB
55LN572Y-TH
55LN572Z-TH
60LN5700-TB
60LN570B-TA
60LN570B-TB
60LN5720-TH
60LN572B-TH
60LN570Y-TB
60LN570Z-TB
60LN572Y-TH
60LN572Z-TH
Dimensions
(W x H x D)
With stand (
mm
)
1136.0 x 727.0 x 264.0 1250.0 x 790.0 x 297.0 1359.0 x 852.0 x 297.0
Without stand(
mm)
1136.0 x 673.0 x 82.1 1250.0 x 737.0 x 79.1 1359.0 x 799.0 x 67.2
Weight With stand (kg)
15.6 21.2 26.3
Without stand (kg)
14.2 19.1 24.2
Power requirement
AC 100-240 V~ 50 / 60 Hz AC 100-240 V~ 50 / 60 Hz AC 100-240 V~ 50 / 60 Hz
39
ENGENGLISH
SPECIFICATIONS
MODELS
32LN571* 42LN571* 47LN571*
32LN5710-TE
32LN571B-TE
32LN571Y-TE
42LN5710-TE
42LN571B-TE
42LN571Y-TE
47LN5710-TE
47LN571B-TE
47LN571Y-TE
Dimensions
(W x H x D)
With stand (
mm
)
738.0 x 502.0 x 242.0 968.0 x 637.0 x 294.0 1080.0 x 701.0 x 327.0
Without stand(
mm)
738.0 x 449.0 x 79.0 968.0 x 579.0 x 79.0 1080.0
x
642.0
x
80.5
Weight With stand (kg)
7.6 11.4 15.9
Without stand (kg)
7.0
9.6 13.4
Power requirement
AC 100-240 V~ 50 / 60 Hz AC 100-240 V~ 50 / 60 Hz AC 100-240 V~ 50 / 60 Hz
MODELS
50LN571* 55LN571* 60LN571*
50LN5710-TE
50LN571B-TE
50LN571Y-TE
55LN5710-TE
55LN571B-TE
55LN571Y-TE
60LN5710-TE
60LN571B-TE
60LN571Y-TE
Dimensions
(W x H x D)
With stand (
mm
)
1136.0 x 745.0 x 327.0 1250.0 x 804.0 x 343.0 1359.0 x 867.0 x 343.0
Without stand(
mm)
1136.0 x 673.0 x 82.1 1250.0 x 737.0 x 79.1 1359.0 x 799.0 x 67.2
Weight With stand (kg)
16.8 21.9 27.0
Without stand (kg)
14.2 19.1 24.2
Power requirement
AC 100-240 V~ 50 / 60 Hz AC 100-240 V~ 50 / 60 Hz AC 100-240 V~ 50 / 60 Hz
40
ENG
ENGLISH
SPECIFICATIONS
Environment
condition
Operating Temperature
0 °C
to
40 °C
Operating Humidity
Less than 80 %
Storage Temperature
-20 °C
to
60 °C
Storage Humidity
Less than 85 %
Digital TV Analogue TV
New Zealand,
Singapore
Television System DVB-T PAL/SECAM-B/G/D/K
, PAL-I
Programme Coverage UHF 21 to 69
BG : VHF/UHF 1 to 69, CATV 01 to 47
I : VHF/UHF 1 to 69, CATV 01 to 47
DK : VHF/UHF 1 to 69, CATV 01 to 47
Australia Television System DVB-T PAL B/B
Programme Coverage
VHF 06 to 12,
UHF 27 to 69
B/B : VHF/UHF 0 to 75, CATV : 2 to 44
Indonesia, Israel,
Myanmar, Sri Lanka
Television System DVB-T PAL/SECAM-B/G/D/K
, PAL-I, NTSC-M
Programme Coverage UHF 21 to 69
BG : VHF/UHF 1 to 69, CATV 01 to 47
I : VHF/UHF 1 to 69, CATV 01 to 47
DK : VHF/UHF 1 to 69, CATV 01 to 47
M : VHF/UHF 2 to 78, CATV 01 to 71
Vietnam, Malaysia Television System DVB-T PAL/SECAM-B/G/D/K
, PAL-I, NTSC-M
Programme Coverage
VHF 6 to 12,
UHF 21 to 69
BG : VHF/UHF 1 to 69, CATV 01 to 47
I : VHF/UHF 1 to 69, CATV 01 to 47
DK : VHF/UHF 1 to 69, CATV 01 to 47
M : VHF/UHF 2 to 78, CATV 01 to 71
Iran, Algeria,
Tunisia, Digital
model
Television System DVB-T PAL/SECAM-B/G/D/K
, PAL-I, NTSC-M
Programme Coverage
VHF 5 to 12,
UHF 21 to 69
BG : VHF/UHF 1 to 69, CATV 01 to 47
I : VHF/UHF 1 to 69, CATV 01 to 47
DK : VHF/UHF 1 to 69, CATV 01 to 47
M : VHF/UHF 2 to 78, CATV 01 to 71
Analogue model,
India, Thailand,
South Africa --
Television System - PAL/SECAM-B/G/D/K
, PAL-I, NTSC-M
Programme Coverage -
BG : VHF/UHF 1 to 69, CATV 01 to 47
I : VHF/UHF 1 to 69, CATV 01 to 47
DK : VHF/UHF 1 to 69, CATV 01 to 47
M : VHF/UHF 2 to 78, CATV 01 to 71
External Antenna
Impedance
75 Ω 75 Ω
41
ENGENGLISH
SPECIFICATIONS
HDMI/DVI-DTV supported mode
Resolution
Horizontal
Frequency (kHz)
Vertical
Frequency (Hz)
640x480 31.469
31.5
59.94
60
720x480 31.469
31.5
59.94
60
720x576 31.25
15.625
50
50
1280x720 37.5
44.96
45
50
59.94
60
1920x1080 33.72
33.75
28.125
26.97
27
28.125
33.716
33.75
56.25
67.43
67.5
59.94
60
50
23.97
24
25
29.976
30.00
50
59.94
60
HDMI/DVI-PC supported mode
Resolution
Horizontal
Frequency
(kHz)
Vertical
Frequency
(Hz)
640x350 31.468 70.09
720x400 31.469 70.08
640x480 31.469 59.94
800x600 37.879 60.31
1024x768 48.363 60.00
1152x864 54.348 60.053
1360x768 47.712 60.015
1280x1024 63.981 60.020
1920x1080 67.50 60.00
Component port connecting information
Component ports on the TV Y P
B
P
R
Video output ports on DVD
player
Y P
B
P
R
Y B-Y R-Y
Y Cb Cr
Y Pb Pr
Signal Component
480i/576i O
480p/576p O
720p/1080i O
1080p O
(50 Hz / 60 Hz only)
(Except for 32LN57**)
42
ENG
ENGLISH
SPECIFICATIONS
3D supported mode
y
Video, which is input as below media contents is switched into the 3D screen automatically.
3D supported mode automatically
Input Signal
Horizontal
Frequency (kHz)
Vertical
Frequency (Hz)
Playable 3D video format
HDMI
640 X 480
31.469 / 31.5
59.94 / 60
Top & Bottom,
Side by Side(Half), Side by Side(Full)
62.938 / 63 Frame Packing, Line Alternative
480p
31.469 / 31.5
Top & Bottom,
Side by Side(Half), Side by Side(Full)
62.938 / 63
Frame Packing, Line Alternative
576p
31.25
50
Top & Bottom,
Side by Side(Half), Side by Side(Full)
62.5
Frame Packing, Line Alternative
720p
37.50
50
Top & Bottom,
Side by Side(Half), Side by Side(Full)
44.96 / 45
59.94 / 60
75
50
Frame Packing, Line Alternative
89.91 / 90
59.94 / 60
1080i
28.125
50
Top & Bottom,
Side by Side(Half), Side by Side(Full)
33.72 / 33.75 59.94 / 60
56.25
50
Frame Packing, Field Alternative
67.432 / 67.5
59.94 / 60
1080p
26.97 / 27
23.97 / 24
Top & Bottom,
Side by Side(Half), Side by Side(Full)
28.125
25
33.716 / 33.75
29.976 / 30
43.94 / 54
23.97 / 24
Frame Packing, Line Alternative
56.25
25
67.432 / 67.5
29.976 / 30
56.25
50
Top & Bottom, Side by Side(Half)
67.432 / 67.5
59.94 / 60
USB
1080p
33.75
30
Side by Side(Half), Top & Bottom,
Checker Board, MPO(Photo), JPS(Photo)
DLNA
1080p
33.75
30
43
ENGENGLISH
SPECIFICATIONS
3D supported mode manually
Input
Signal
Playable 3D video format
Resolution
Horizontal
Frequency
(kHz)
Verticla
Frequency (Hz)
DTV HD / SD - -
2D to 3D, Side by Side(Half), Top &
Bottom
ATV(CVBS) SD - -
Component HD / SD - -
HDMI-PC
1024X768 48.36
60
1360X768 47.71
1920X1080 67.5
2D to 3D, Side by Side(Half), Top &
Bottom, Checker Board, Frame
Sequential, Row Interleaving,
Column Interleaving
Others - -
2D to 3D, Side by Side(Half), Top &
Bottom
HDMI-DTV
480P 31.5 60
2D to 3D, Side by Side(Half), Top &
Bottom, Checker Board, Frame
Sequential, Row Interleaving,
Column Interleaving
576P 31.25 50
720p
37.5 50
45 60
1080i
28.12 50
2D to 3D, Side by Sied(Half), Top &
Bottom
33.75 60
1080p
27 24
2D to 3D, Side by Side(Half), Top &
Bottom,Checker Board, Row
Interleaving, Column Interleaving
28.12 25
33.75 30
56.25 50
2D to 3D, Side by Side(Half), Top &
Bottom, Checker Board, Frame
Sequential, Row Interleaving,
Column Interleaving
67.5 60
USB ,DLNA
(Movie)
Under 704x480 - - 2D to 3D
Over 704x480
interlaced
- -
2D to 3D, Side by Side(Half), Top &
Bottom
Over 704x480
progressive
- 50 / 60
2D to 3D, Side by Side(Half), Top &
Bottom,Checker Board, Frame
Sequential, Row Interleaving,
Column Interleaving
Over 704x480
progressive
- others
2D to 3D, Side by Side(Half), Top &
Bottom,Checker Board, Row
Interleaving, Column Interleaving
USB, DLNA
(Photo)
Under 320x240 - - 2D to 3D
Over 320x240 - -
2D to 3D, Side by Side(Half), Top &
Bottom
Miracast/Widi
1024X768p - 30 / 60
2D to 3D, Side by Side(Half), Top &
Bottom
1280x720p - 30 / 60
1920X1080p - 30 / 60
Others - - 2D to 3D
44
ENG
ENGLISH
LICENSES / OPEN SOURCE SOFTWARE NOTICE / EXTERNAL CONTROL DEVICE SETUP
LICENSES
Supported licenses may differ by model. For more information about licenses, visit www.lg.com.
Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are
trademarks of Dolby Laboratories.
The terms HDMI and HDMI High-Definition Multimedia interface, and the HDMI logo are
trademarks or registered trademarks of HDMI Licensing LLC in the United States and other
countries.
ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a subsidiary of Rovi
Corporation. This is an official DivX Certified® device that plays DivX video. Visit divx.com for
more information and software tools to convert your files into DivX video.
ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certified® device must be registered in order to
play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code, locate
the DivX VOD section in your device setup menu. Go to vod.divx.com for more information on
how to complete your registration.
“DivX Certified® to play DivX® video up to HD 1080p, including premium content.”
“DivX®, DivX Certified® and associated logos are trademarks of Rovi Corporation or its
subsidiaries and are used under license.”
“Covered by one or more of the following U.S. patents :
7,295,673; 7,460,668; 7,515,710; 7,519,274”
Manufactured under license under U.S. Patent Nos: 5,956,674; 5,974,380; 6,487,535 & other
U.S. and worldwide patents issued & pending. DTS, the Symbol & DTS and the Symbol
together are registered trademarks & DTS 2.0+Digital Out is a trademark of DTS, Inc. Product
includes software. © DTS, Inc. All Rights Reserved.
OPEN SOURCE SOFTWARE NOTICE
To obtain the source code under GPL, LGPL, MPL and other open source licenses, that is contained in this product,
please visit http://opensource.lge.com .
In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for
download.
LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such
distribution (such as the cost of media, shipping and handling) upon email request to [email protected]. This offer is
valid for three (3) years from the date on which you purchased the product.
EXTERNAL CONTROL DEVICE SETUP
To obtain the external control device setup information, please visit www.lg.com
Record the model number and serial number of
the TV.
Refer to the label on the back cover and quote
this information to your dealer when requiring any
service.
MODEL
SERIAL
(Only DTV)
OWNER’S MANUAL
EXTERNAL CONTROL
DEVICE SETUP
Please read this manual carefully before operating the set and retain it for
future reference.
www.lg.com
2
ENG
ENGLISH
2
KEY CODES
KEY CODES
• This feature is not available for all models.
Code
(Hexa)
Function Note
Code
(Hexa)
Function Note
00
CH +, PR + R/C Button
45 Q.Menu
R/C Button
01 CH -, PR -
R/C Button
4C List, - (ATSC Only)
R/C Button
02 Volume +
R/C Button
53 List
R/C Button
03 Volume -
R/C Button
5B Exit
R/C Button
06 >
(Arrow Key / Right Key)
R/C Button
61 Blue R/C Button
07 <
(Arrow Key / Left Key)
R/C Button
63 Yellow
R/C Button
08 Power
R/C Button
71 Green
R/C Button
09 Mute
R/C Button
72 Red
R/C Button
0B Input
R/C Button
79 Ratio / Aspect Ratio
R/C Button
0E SLEEP
R/C Button
91 AD (Audio Description)
R/C Button
0F TV, TV/RAD
R/C Button
7A User Guide
R/C Button
10 - 19 * Number Key 0 - 9
R/C Button
7C Smart/ Home
R/C Button
1A Q.View / Flashback
R/C Button
7E Simplink
R/C Button
1E
FAV
(Favorite Channel)
R/C Button
8E
►►(Forward) R/C Button
20 Text (Teletext)
R/C Button
8F
◄◄(Rewind) R/C Button
21 T. Opt (Teletext Option)
R/C Button
AA Info
R/C Button
28 Return (BACK)
R/C Button
AB Program Guide
R/C Button
30 AV (Audio/ Video) Mode
R/C Button
B0 ►(Play)
R/C Button
39 Caption/Subtitle
R/C Button
B1
ꕗ
(Stop/ Live TV)
R/C Button
40
Λ
(Arrow Key/ Cursor Up)
R/C Button
BA
ꕘ
(
Freeze/Slow Play/Pause)
R/C Button
41
V
(Arrow Key/ Cursor Down)
R/C Button
BD
●
(REC)
R/C Button
42 My Apps
R/C Button
DC 3D
R/C Button
43
Menu / Settings
R/C Button
9F App/ *
R/C Button
44 OK / Enter
R/C Button
* Key code 4C (0x4C) is available on ATSC/ISDB models which use major/minor channel.
(For South Korea, Japan, North America, Latin America except Colombia models)
3
ENGENGLISH
3
EXTERNAL CONTROL DEVICE SETUP
EXTERNAL CONTROL DEVICE SETUP
• Image shown may differ from your TV.
Connect the USB to Serial converter/RS-232C input jack to an external control device (such as a computer
or an A/V control system) to control the product’s functions externally.
Note: There are several ways to connect TV based on model’s support port.
* Please be advised that not all models support these connectivity.
* Cable is not provided.
USB to Serial converter with USB Cable
USB Type
USB IN
(TV)
(PC )
(PC )
RS-232C IN
(CONTROL & SERVICE)
(TV)
(TV)
(PC )
(TV)
(PC )
SERVICE ONLY
RS-232C IN
(CONTROL & SERVICE)
RS-232C IN
(CONTROL & SERVICE)
1
3
2
1
3
2
• LGTV supports PL2303 chip-based (Vendor ID : 0x0557, Product ID : 0x2008) USB to serial converter
which is not made nor provided by LG.
• It can be purchased from computer stores that carry accessories for IT support professionals.
4
ENG
ENGLISH
4
EXTERNAL CONTROL DEVICE SETUP
RS-232C with RS-232C Cable (Legacy)
Phone jack Type
• You need to purchase the phone-jack to RS-232 cable required for the connection between the PC and
the TV, which is specified in the manual.
* For other models, connect to the USB port.
USB IN
(TV)
(PC )
(PC )
RS-232C IN
(CONTROL & SERVICE)
(TV)
(TV)
(PC )
(TV)
(PC )
SERVICE ONLY
RS-232C IN
(CONTROL & SERVICE)
RS-232C IN
(CONTROL & SERVICE)
1
3
2
1
3
2
- This connection can only be used for the following models: 55/47/39LN5450-UA, 55/50/47/42LN5400-
UA, 42/39/32LN5300-UA, and 37/32LN530B-UA.
USB IN
(TV)
(PC )
(PC )
RS-232C IN
(CONTROL & SERVICE)
(TV)
(TV)
(PC )
(TV)
(PC
)
SERVICE ONLY
RS-232C IN
(CONTROL & SERVICE)
RS-232C IN
(CONTROL & SERVICE)
1
3
2
1
3
2
- This connection can only be used for the following models: 60PN6550-UA, 50/60PN6500-UA,
50/60PN5300-UF, and 42/50PN4500-UA.
Customer Computer RS-232C configurations
3-Wire Configurations(Not standard)
1
6
5
9
PC TV
RXD 2 2 TXD
TXD 3 1 RXD
GND 5 3 GND
OR
RXD 3 2 TXD
TXD 2 1 RXD
GND 5 3 GND
D-Sub 9 Phone
RS-232C
(Serial port)
Set ID
For Set ID number, see "Real Data Mapping" on p. 6
1. Press SETTINGS to access the main menus.
2. Press the Navigation buttons to scroll to OPTION and press OK.
3. Press the Navigation buttons to scroll to SET ID and press OK.
4. Scroll left or right to select a set ID number and select CLOSE. The adjustment range is 1-99.
5. When you are finished, press EXIT.
5
ENGENGLISH
5
EXTERNAL CONTROL DEVICE SETUP
Communication Parameters
• Baud rate : 9600 bps (UART)
• Data length : 8 bits
• Parity : None
• Stop bit : 1 bit
• Communication code : ASCII code
• Use a crossed (reverse) cable.
Command reference list
(Depending on model)
COMMAND1 COMMAND2
DATA
(Hexadecimal)
COMMAND1 COMMAND2
DATA
(Hexadecimal)
01. Power
off
k a 00 13. Balance k t 00 to 64
02. Aspect
Ratio
k c (See p.7)
14. Color
(Colour)
Temperature
x u 00 to 64
03. Screen
Mute
k d (See p.7)
15. ISM
Method (Only
Plasma TV)
j p (See p.8)
04. Volume
Mute
k e 00 to 01
16. Energy
Saving
j q 00 to 05
05. Volume
Control
k f 00 to 64
17. Tune
Command
m a (See p.8)
06. Contrast k g 00 to 64
18.
Channel
(Programme)
Add/Del(Skip)
m b 00 to 01
07.
Brightness
k h 00 to 64 19. Key m c
Key
Codes
08. Color/
Colour
k i 00 to 64
20. Control
Back Light,
Control
Panel
Light
m g 00 to 64
09. Tint k j 00 to 64
21. Input
select (Main)
x b (See p.10)
10.
Sharpness
k k 00 to 32
22. 3D
(Only 3D
models)
x t (See p.11)
11. OSD
Select
k l 00 to 01
23. Extended
3D (Only 3D
models)
x v (See p.11)
12. Remote
Control
Lock Mode
k m 00 to 01
* Note: During USB operations such as DivX or EMF, all commands except Power(ka) and Key(mc) are
not executed and treated as NG.
6
ENG
ENGLISH
6
EXTERNAL CONTROL DEVICE SETUP
Transmission / Receiving Protocol
Transmission
[Command1][Command2][ ][Set ID][ ][Data][Cr]
[Command 1] : First command to control the TV. (j, k, m or x)
[Command 2] : Second command to control the TV.
[Set ID] : You can adjust the [Set ID] to choose desired monitor ID number in option menu.
Adjustment range in TV is 1 to 99. If [Set ID] value is selected to ‘0’, every connected set
can be controlled.
* [Set ID] is indicated as decimal (1 to 99) on menu and as Hexadecimal (0x00 to 0x63) on
transmission/receiving protocol.
[DATA] : To transmit command data (hexadecimal). Transmit ‘FF’ data to read status of command.
[Cr] : Carriage Return - ASCII code ‘0x0D’
[ ] : Space – ASCII code ‘0x20’
OK Acknowledgement
[Command2][ ][Set ID][ ][OK][Data][x]
* The set transmits ACK (acknowledgement) based on this format when receiving normal data. At this time,
if the data is data read mode, it indicates present status data. If the data is data write mode, it returns the
data of the PC computer.
Error Acknowledgement
[Command2][ ][Set ID][ ][NG][Data][x]
* The set transmits ACK (acknowledgement) based on this format when receiving abnormal data from non-
viable functions or communication errors.
Data 00: Illegal Code
Real data mapping (Hexadecimal b Decimal)
* When you enter the [data] in hexadecimal, refer to following conversion table.
* Channel Tune (ma) Command uses two-byte hexadecimal value([data]) to select channel number.
00 : Step 0 32 : Step 50 (Set ID 50) FE : Step 254
01 : Step 1 (Set ID 1) 33 : Step 51 (Set ID 51) FF : Step 255
... ... ...
0A : Step 10 (Set ID 10) 63 : Step 99 (Set ID 99) 01 00 : Step 256
... ... ...
0F : Step 15 (Set ID 15) C7 : Step 199 27 0E : Step 9998
10 : Step 16 (Set ID 16) C8 : Step 200 27 0F : Step 9999
... ... ...
7
ENGENGLISH
7
EXTERNAL CONTROL DEVICE SETUP
* Commands may work differently depending on model and signal.
01. Power (Command: k a)
► To control Power Off of the set.
Transmission[k][a][ ][Set ID][ ][Data][Cr]
Data 00 : Power Off
Ack [a][ ][Set ID][ ][OK/NG][Data][x]
► To Show Power On. (Works TV is On Only)
Transmission [k][a][ ][Set ID][ ][FF][Cr]
Ack [a][ ][Set ID][ ][OK][01][x]
* Similarly, if other functions transmit ‘FF’ data
based on this format, Acknowledgement feedback
presents status about each function.
02. Aspect Ratio (Command: k c)
(Main Picture Size)
► To adjust the screen format. (Main picture format)
You can also adjust the screen format using the
Aspect Ratio in the Q.MENU. or PICTURE menu.
Transmission [k][c][ ][Set ID][ ][Data][Cr]
Data 01 : Normal screen
(4:3)
02 : Wide screen
(16:9)
04 : Zoom
05 : Zoom 2
(Latin America
except Colombia
Only)
06 : Set by Program/
Original
07 : 14:9
(Europe, Colombia, Mid-East,
Asia except South Korea and
Japan)
09 : * Just Scan
0B : Full Wide
(Europe, Colombia, Mid-
East, Asia except South
Korea and Japan)
10 to 1F : Cinema Zoom 1
to 16
Ack [c][ ][Set ID][ ][OK/NG][Data][x]
* Using the PC input, you select either 16:9 or 4:3
screen aspect ratio.
* In DTV/HDMI/Component mode (high-definition),
Just Scan is available.
* Full wide mode may work differently based on
model and is supported for DTV fully, and ATV,
AV partially.
03. Screen Mute (Command: k d)
► To select screen mute on/off.
Transmission [k][d][ ][Set ID][ ][Data][Cr]
Data 00 : Screen mute off (Picture on)
Video mute off
01 : Screen mute on (Picture off)
10 : Video mute on
Ack [d][ ][Set ID][ ][OK/NG][Data][x]
* In case of video mute on only, TV will display On
Screen Display(OSD). But, in case of Screen mute
on, TV will not display OSD.
04. Volume Mute (Command: k e)
► To control volume mute on/off.
You can also adjust mute using the MUTE button
on remote control.
Transmission [k][e][ ][Set ID][ ][Data][Cr]
Data 00 : Volume mute on (Volume off)
01 : Volume mute off (Volume on)
Ack [e][ ][Set ID][ ][OK/NG][Data][x]
05. Volume Control (Command: k f)
► To adjust volume.
You can also adjust volume with the volume
buttons on remote control.
Transmission [k][f][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 64
Ack [f][ ][Set ID][ ][OK/NG][Data][x]
06. Contrast (Command: k g)
► To adjust screen contrast.
You can also adjust contrast in the PICTURE
menu.
Transmission [k][g][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 64
Ack [g][ ][Set ID][ ][OK/NG][Data][x]
07. Brightness (Command: k h)
► To adjust screen brightness.
You can also adjust brightness in the PICTURE
menu.
Transmission [k][h][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 64
Ack [h][ ][Set ID][ ][OK/NG][Data][x]
08. Color/Colour (Command: k i)
► To adjust the screen Color(Colour).
You can also adjust colour in the PICTURE menu.
Transmission [k][i][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 64
Ack [i][ ][Set ID][ ][OK/NG][Data][x]
8
ENG
ENGLISH
8
EXTERNAL CONTROL DEVICE SETUP
09. Tint (Command: k j)
► To adjust the screen tint.
You can also adjust tint in the PICTURE menu.
Transmission [k][j][ ][Set ID][ ][Data][Cr]
Data Red : 00 to Green : 64
Ack [j][ ][Set ID][ ][OK/NG][Data][x]
10. Sharpness (Command: k k)
► To adjust the screen sharpness.
You can also adjust sharpness in the PICTURE
menu.
Transmission [k][k][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 32
Ack [k][ ][Set ID][ ][OK/NG][Data][x]
11. OSD Select (Command: k l)
► To select OSD (On Screen Display) on/off when
controlling remotely.
Transmission [k][l][ ][Set ID][ ][Data][Cr]
Data 00 : OSD off 01 : OSD on
Ack [l][ ][Set ID][ ][OK/NG][Data][x]
12. Remote control lock mode (Command: k m)
► To lock the front panel controls on the monitor and
remote control.
Transmission [k][m][ ][Set ID][ ][Data][Cr]
Data 00 : Lock off 01 : Lock on
Ack [m][ ][Set ID][ ][OK/NG][Data][x]
* If you are not using the remote control, use this
mode.
When main power is off & on (plug-off and plug-in,
after 20 - 30 seconds), external control lock is
released.
* In the standby mode (DC off by off timer or ‘ka’,
‘mc’ command), and if key lock is on, TV will not
turn on by power on key of IR & Local Key.
13. Balance (Command: k t)
► To adjust balance.
You can also adjust balance in the AUDIO menu.
Transmission [k][t][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 64
Ack [t][ ][Set ID][ ][OK/NG][Data][x]
14. Color(Colour) Temperature (Command: x u)
► To adjust colour temperature. You can also adjust
Color(Colour) Temperature in the PICTURE menu.
Transmission [x][u][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 64
Ack [u][ ][Set ID][ ][OK/NG][Data][x]
15. ISM Method (Command: j p) (Only Plasma TV)
► To control the ISM method. You can also adjust
ISM Method in OPTION menu.
Transmission [j][p][ ][Set ID][ ][Data][Cr]
Data Min : 02: Orbiter
08: Normal
20: Color(Colour) Wash
Ack [p][ ][Set ID][ ][OK/NG][Data][x]
16. Energy Saving (Command: j q)
► To reduce the power consumption of the TV. You
can also adjust Energy Saving in PICTURE menu.
Transmission [j][q][ ][Set ID][ ][Data][Cr]
Data
00 : Off
01 : Minimum
02 : Medium
03 : Maximum
04 : Auto
05 : Screen off
* (Depending on model)
Ack [q][ ][Set ID][ ][OK/NG][Data][x]
17. Tune Command (Command: m a)
* This command may work differently depending on
model and signal.
• For Europe, Mid-East, Colombia, Asia except
South Korea and Japan Model
► Select channel to following physical number.
Transmission [m][a][ ][Set ID][ ][Data 00][ ][Data 01]
[ ][Data 02][Cr]
* Analogue Terrestrial/Cable
[Data 00][Data 01] Channel Data
Data 00 : High byte channel data
Data 01 : Low byte channel data
- 00 00 ~ 00 C7 (Decimal : 0 ~ 199)
Data 02 : Input Source (Analogue)
- 00 : Terrestrial TV (ATV)
- 80 : Cable TV (CATV)
9
ENGENGLISH
9
EXTERNAL CONTROL DEVICE SETUP
* Digital Terrestrial/Cable/Satellite
[Data 00][Data 01]: Channel Data
Data 00 : High Channel data
Data 01 : Low Channel data
- 00 00 ~ 27 0F (Decimal: 0 ~ 9999)
Data 02 : Input Source (Digital)
- 10 : Terrestrial TV (DTV)
- 20 : Terrestrial Radio (Radio)
- 40 : Satellite TV (SDTV)
- 50 : Satellite Radio (S-Radio)
- 90 : Cable TV (CADTV)
- a0 : Cable Radio (CA-Radio)
* Tune Command Examples:
1. Tune to the analogue terrestrial (PAL) Channel 10.
Set ID = All = 00
Data 00 & 01 = Channel Data is 10 = 00 0a
Data 02 = Analogue Terrestrial TV = 00
Result = ma 00 00 0a 00
2. Tune to the digital terrestrial (DVB-T) Channel 01.
Set ID = All = 00
Data 00 & 01 = Channel Data is 1 = 00 01
Data 02 = Digital Terrestrial TV = 10
Result = ma 00 00 01 10
3. Tune to the satellite (DVB-S) Channel 1000.
Set ID = All = 00
Data 00 & 01 = Channel Data is 1000 = 03 E8
Data 02 = Digital Satellite TV = 40
Result = ma 00 03 E8 40
Ack [a][ ][Set ID][ ][OK][Data 00][Data 01][Data 02][x]
[a][ ][Set ID][ ][NG][Data 00][x]
• For South Korea, North/Latin America except
Colombia Model
► To tune channel to following physical/major/minor
number.
Transmission [m][a][ ][0][ ][Data00][ ][Data01]
[ ][Data02][ ][Data03][ ][Data04][ ][Data05][Cr]
Digital channels have a Physical, Major, and Minor
channel number. The Physical number is the actual
digital channel number, the Major is the number that
the channel should be mapped to, and the Minor is
the sub-channel. Since the ATSC tuner automatically
maps the channel from the Major / Minor number,
the Physical number is not required when sending a
command in Digital.
* Analogue Terrestrial/Cable
Data 00 : Physical Channel Number
- Terrestrial (ATV) : 02~45 (Decimal: 2 ~ 69)
- Cable (CATV) : 01, 0E~7D (Decimal : 1, 14~125)
[Data 01 ~ 04]: Major/Minor Channel Number
Data 01 & 02: xx (Don't care)
Data 03 & 04: xx (Don't care)
Data 05: Input Source (Analogue)
- 00 : Terrestrial TV (ATV)
- 01 : Cable TV (CATV)
* Digital Terrestrial/Cable
Data 00 : xx (Don't care)
[Data 01][Data 02]: Major Channel Number
Data 01 : High byte Channel Data
Data 02 : Low byte Channel Data
- 00 01 ~ 27 0F (Decimal: 1 ~ 9999)
[Data 03][Data 04]: Minor Channel Number
Data 03 : High byte Channel Data
Data 04 : Low byte Channel Data
Data 05 : Input Source (Digital)
- 02 : Terrestrial TV (DTV) – Use Physical Channel
Number
- 06 : Cable TV (CADTV) – Use Physical Channel
Number
- 22 : Terrestrial TV (DTV) – Don’t Use Physical
Channel Number
- 26 : Cable TV (CADTV) - Don’t Use Physical
Channel Number
- 46 : Cable TV (CADTV) – Use Major Channel
Number Only (One Part Channel)
Two bytes are available for each major and minor
channel data, but usually the low byte is used alone
(high byte is 0).
* Tune Command Examples:
1. Tune to the analogue cable (NTSC) channel 35.
Set ID = All = 00
Data 00 = Channel Data is 35 = 23
Data 01 & 02 = No Major = 00 00
Data 03 & 04 = No Minor = 00 00
Data 05 = Analogue Cable TV = 01
Total = ma 00 23 00 00 00 00 01
2. Tune to the digital terrestrial (ATSC) channel 30-3.
Set ID = All = 00
Data 00 = Don’t know Physical = 00
Data 01 & 02 = Major is 30 = 00 1E
Data 03 & 04 = Minor is 3 = 00 03
Data 05 = Digital Terrestrial TV = 22
Total = ma 00 00 00 1E 00 03 22
Ack [a][ ][Set ID][ ][OK][Data 00][Data 01]
[Data 02][Data 03][Data 04][Data 05]
[x][a][ ][Set ID][ ][NG][Data 00][x]
• For Japan Model
► To tune channel to following physical/major/minor
number.
Transmission [m][a][ ][0][ ][Data00][ ][Data01]
[ ][Data02][ ][Data03][ ][Data04][ ][Data05][Cr]
* Digital Terrestrial/Satellite
Data 00: xx (Don't care)
10
ENG
ENGLISH
10
EXTERNAL CONTROL DEVICE SETUP
[Data 01][Data 02]: Major Channel Number
Data 01: High byte Channel Data
Data 02: Low byte Channel Data
- 00 01 ~ 27 0F (Decimal: 1 ~ 9999)
[Data 03][Data 04]: Minor/Branch Channel Number
(Don’t care in Satellite)
Data 03: High byte Channel Data
Data 04: Low byte Channel Data
Data 05 : Input Source (Digital/Satellite for Japan)
- 02 : Terrestrial TV (DTV)
- 07 : BS (Broadcasting Satellite)
- 08 : CS1 (Communication Satellite 1)
- 09 : CS2 (Communication Satellite 2)
* Tune Command Examples:
1
Tune to the digital terrestrial (ISDB-T) channel 17-1
.
Set ID = All = 00
Data 00 = Don’t know Physical = 00
Data 01 & 02 = Major is 17 = 00 11
Data 03 & 04 = Minor/Branch is 1 = 00 01
Data 05 = Digital Terrestrial TV = 02
Total = ma 00 00 00 11 00 01 02
2. Tune to the BS (ISDB-BS) channel 30.
Set ID = All = 00
Data 00 = Don’t know Physical = 00
Data 01 & 02 = Major is 30 = 00 1E
Data 03 & 04 = Don’t Care = 00 00
Data 05 = Digital BS TV = 07
Total = ma 00 00 00 1E 00 00 07
* This feature is varied based on the model.
Ack [a][ ][Set ID][ ][OK][Data 00][Data 01]
[Data 02][Data 03][Data 04][Data 05]
[x][a][ ][Set ID][ ][NG][Data 00][x]
18. Channel(Programme) Add/Del(Skip)
(Command: m b)
► To skip current channel(programme) for next time.
Transmission [m][b][ ][Set ID][ ][Data][Cr]
Data 00 : Del(ATSC,ISDB)/Skip(DVB) 01 : Add
Ack [b][ ][Set ID][ ][OK/NG][Data][x]
* Set the saved channel status to del(ATSC, ISDB)/
skip(DVB) or add.
19. Key (Command: m c)
► To send IR remote key code.
Transmission [m][c][ ][Set ID][ ][Data][Cr]
Data Key code - See p.2.
Ack [c][ ][Set ID][ ][OK/NG][Data][x]
20. Control Back Light (Command: m g)
• For LCD TV / LED TV
► To control the back light.
Transmission [m][g][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 64
Ack [g][ ][Set ID][ ][OK/NG][Data][x]
Control Panel Light (Command: m g)
• For Plasma TV
► To control the panel light.
Transmission [m][g][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 64
Ack [g][ ][Set ID][ ][OK/NG][Data][x]
21. Input select (Command: x b)
(Main Picture Input)
► To select input source for main picture.
Transmission [x][b][ ][Set ID][ ][Data][Cr]
Data
00 : DTV
02 : Satellite DTV
ISDB-BS (Japan)
03 : ISDB-CS1 (Japan)
04 : ISDB-CS2 (Japan)
11 : CATV
01 : CADTV
10 : ATV
20 : AV or AV1 21 : AV2
40 : Component1 41 : Component2
90 : HDMI1
92 : HDMI3
91 : HDMI2
93 : HDMI4
Ack [b][ ][Set ID][ ][OK/NG][Data][x]
* This function depends on model and signal.
11
ENGENGLISH
11
EXTERNAL CONTROL DEVICE SETUP
22. 3D(Command: x t) (only 3D models)
(Depending on model)
► To change 3D mode for TV.
Transmission [x][t][ ][Set ID][ ][Data 00][ ][Data 01]
[ ][Data 02][ ][Data 03][Cr]
Data Structure
[Data 00] 00 : 3D On
01 : 3D Off
02 : 3D to 2D
03 : 2D to 3D
[Data 01] 00 : Top and Bottom
01 : Side by Side
02 : Checker Board
03 : Frame Sequential
04 : Column interleaving
05 : Row interleaving
[Data 02] 00 : Right to Left
01 : Left to Right
[Data 03] 3D Effect(3D Depth): Min : 00 - Max : 14
(*transmit by Hexadecimal code)
* If [Data 00] is 00 (3D On), [Data 03] has no
meaning.
* If [Data 00] is 01 (3D off) or 02 (3D to 2D), [Data
01], [Data 02] and [Data 03] have no meaning.
* If [Data 00] is 03(2D to 3D), [Data 01] and [Data 02]
have no meaning.
* If [Data 00] is 00 (3D On) or 03 (2D to 3D), [Data
03] works when 3D Mode (Genre) is manual only
* All 3D pattern options ([Data 01]) may not be
available according to broadcasting/video signal.
[Data 00] [Data 01] [Data 02] [Data 03]
00 O O O
01 X X X
02 X X X
03 X X O
X : don’t care
Ack [t][ ][Set ID][ ][OK][Data00][Data01][Data02]
[Data03][x]
[t][ ][Set ID][ ][NG][Data00][x]
23. Extended 3D(Command: x v) (only 3D models)
(Depending on model)
► To change 3D option for TV.
Transmission [x][v][ ][Set ID][ ][Data 00][ ]
[Data 01][Cr]
[Data 00] 3D option
00 : 3D Picture Correction
01 : 3D Depth (3D Mode is Manual Only)
02 : 3D Viewpoint
06 : 3D Color Correction
07 : 3D Sound Zooming
08 : Normal Image View
09 : 3D Mode (Genre)
[Data 01] It has own range for each 3D option
determined by [Data 00].
1) When [Data 00] is 00
00 : Right to Left
01 : Left to Right
2) When [Data 00] is 01, 02
Data Min: 0 - Max: 14 (*transmit by Hexadecimal
code)
Data value range(0 - 20) converts Viewpoint range
(-10 - +10) automatically (Depending on model)
* This option works when 3D Mode (Genre) is manual
only.
3) When [Data 00] is 06, 07
00 : Off
01 : On
4) When [Data 00] is 08
00 : Revert to 3D video from 3D-to-2D
converted 3D video
01 : Change 3D video to 2D video, except
2D-to-3D video
* If conversion condition doesn’t meet, command is
treated as NG.
5) When [Data 00] is 09
00 : Standard
02 : Cinema
04 : Manual
01 : Sport
03 : Extreme
Ack [v][ ][Set ID][ ][OK][Data00][Data01][x]
[v][ ][Set ID][ ][NG][Data00][x]
