INSTALLATION INSTRUCTION
EMERGENCY LIGHTS (VT-543)
OPERATION DIAGRAM
INTRODUCTION & WARRANTY
Thank you for selecting and buying V-TAC product. V-TAC will serve you the best. Please read these instruc-
tions carefully before starting the installing and keep this manual handy for future reference. If you have any
another query, please contact our dealer or local vendor from whom you have purchased the product. They
are trained and ready to serve you at the best.
The warranty is valid for 2 years from the date of purchase. The warranty does not apply to damage caused
by incorrect installation or abnormal wear and tear. The company gives no warranty against damage to any
surface due to incorrect removal and installation of the product. This product is warranted for manufacturing
defects only. The products are suitable for 10-12 Hours Daily operation. Usage of product for 24 Hours a day
would void the warranty. This product is warranted for manufacturing defects only.
Our products are designed to comply with the recommendations of BS EN 60598-1:2008 code of practice for
emergency lighting and should be installed by a competent person in accordance with the relevant regula-
tions. Before installation of any type of emergency lighting always seek the advice of the local fire prevention
officer (or equivalent authority).
Multi-Language Manual QR CODE
WEEE Number: 80133970
LUMINAIRE INFORMATION
• Watts: 3W
• Lamp Type: 16 SMD LEDs, Wall-Bulkhead
• Lumens: 140 LM
• Input Power: AC: 220-240V, 50/60Hz
• Protection Rating: IP65
• Operation Tine: >3 Hours
• Charging Current: 70~150mA
• Discharging Current: 100~450mA
• Battery type: Ni-Cd 3.6V 1200mAh
• Recharge time: 12 hours (Initial charge: 36 hrs)
• Indicator: Green Light Indicator
• Material: PC Cover
• Product size: 346x107x60 mm (LxWxH)

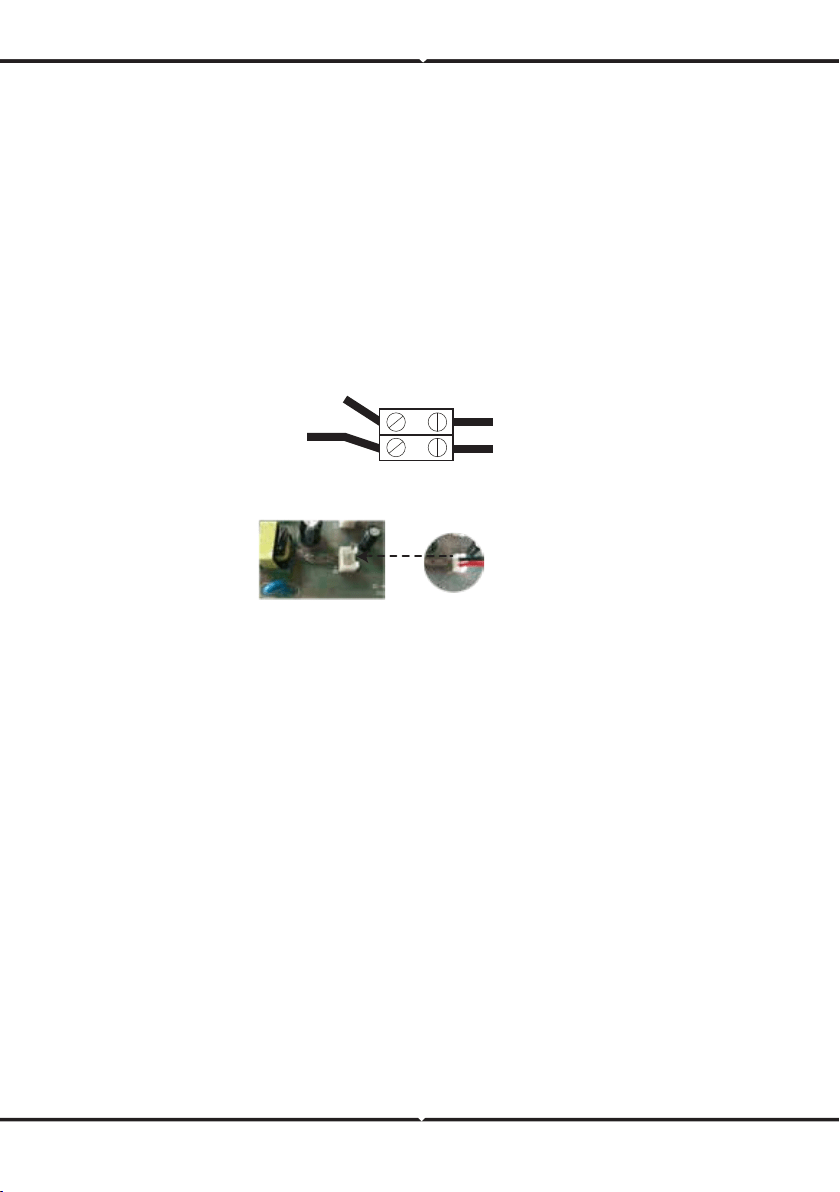

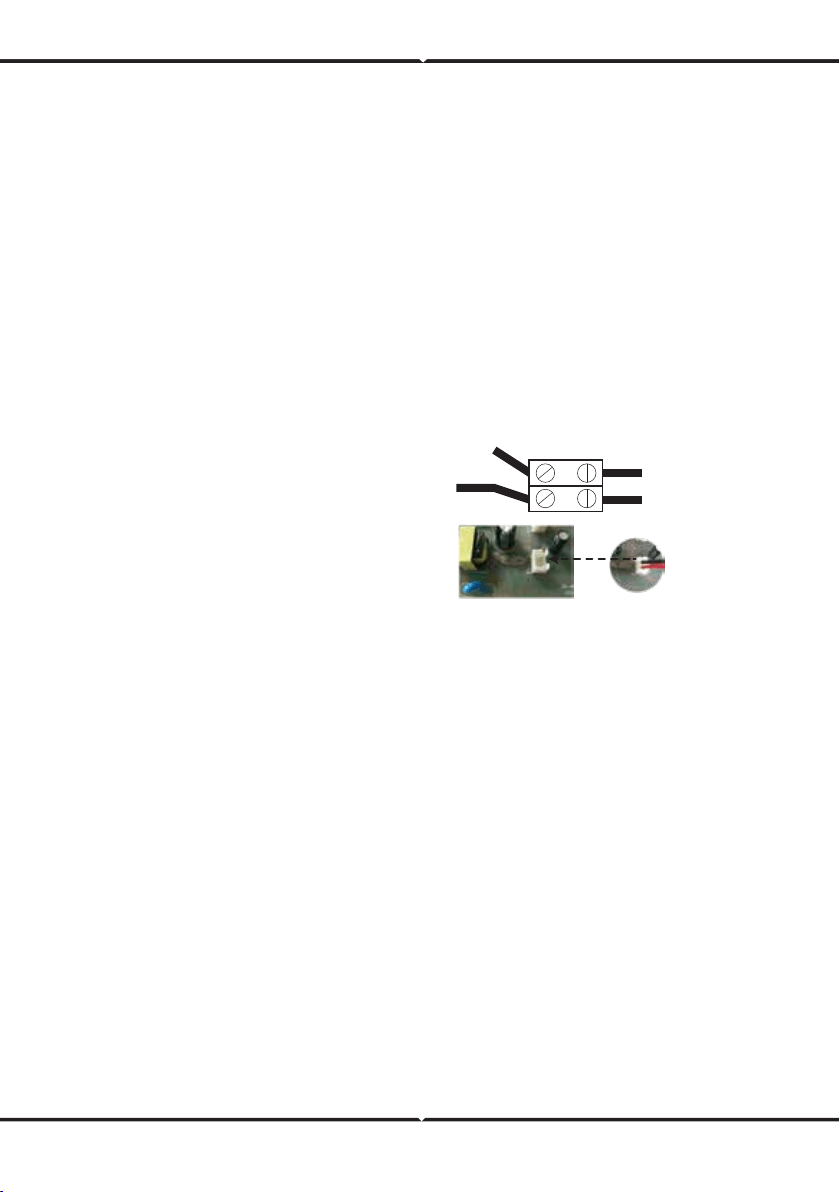

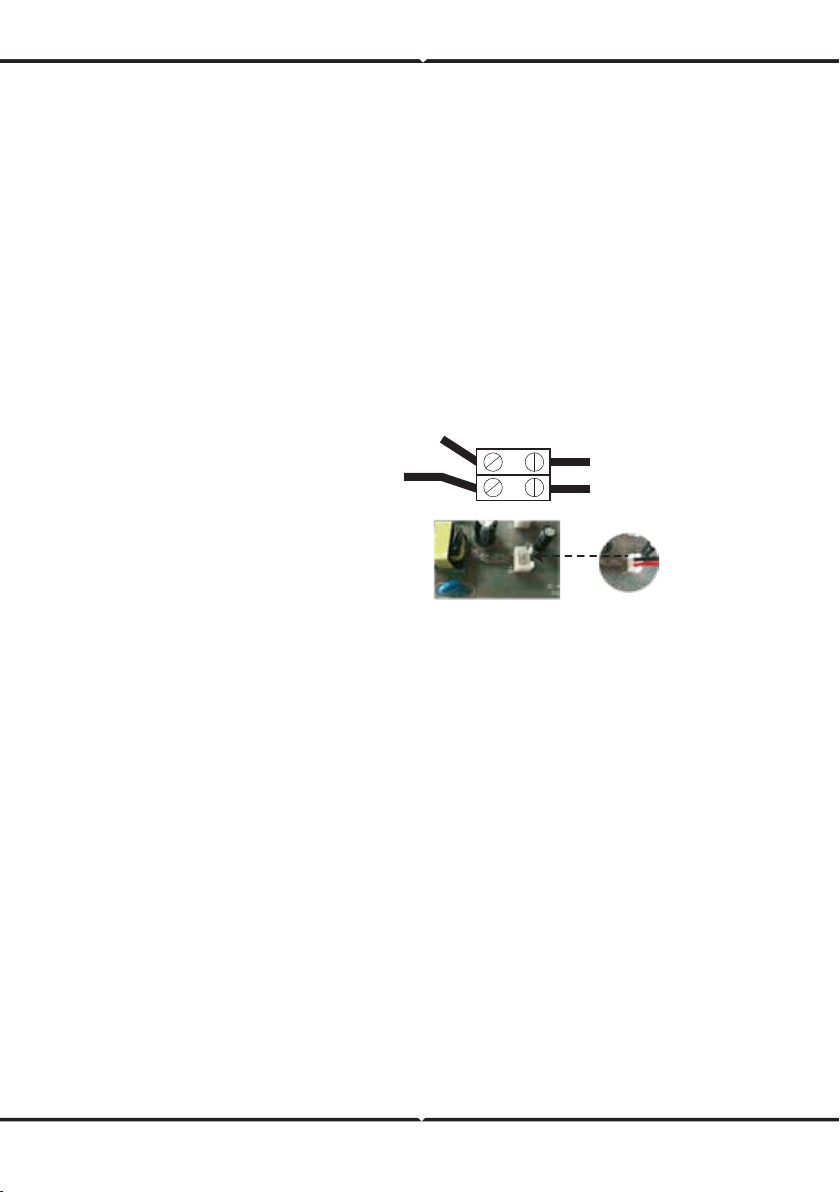

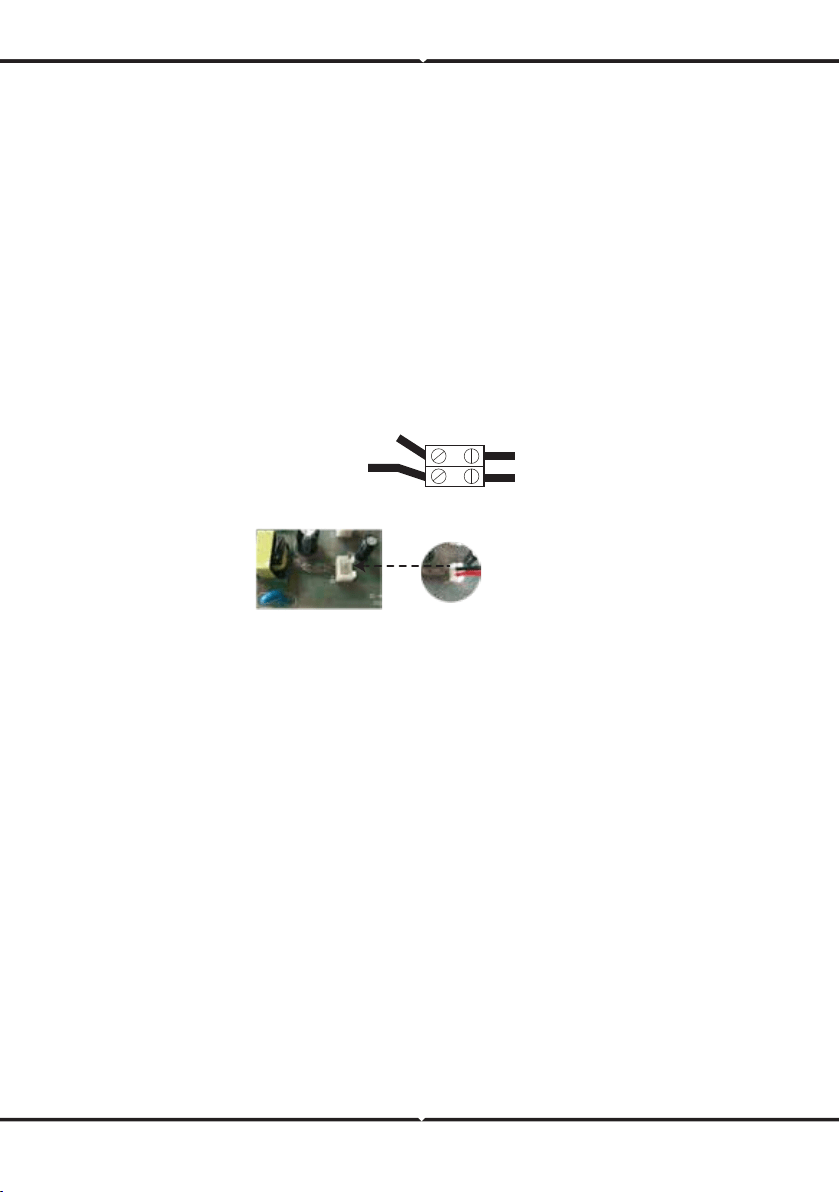

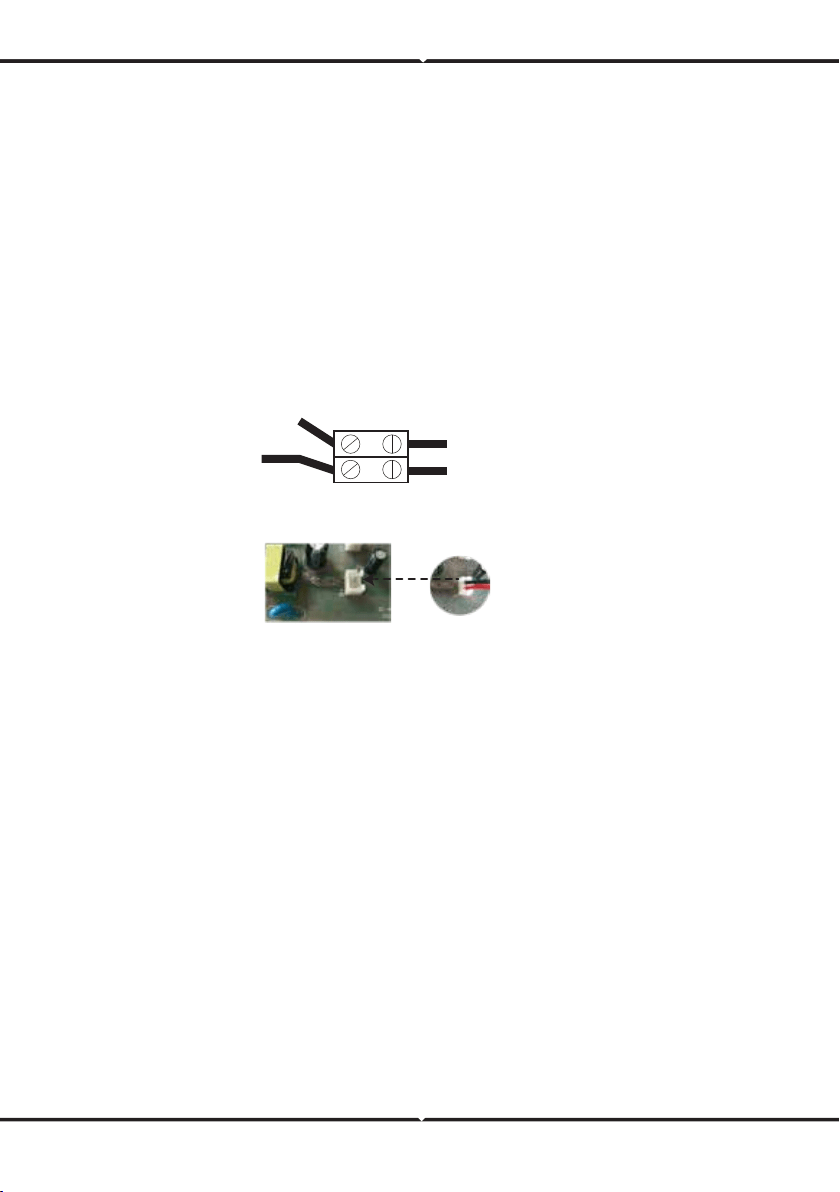

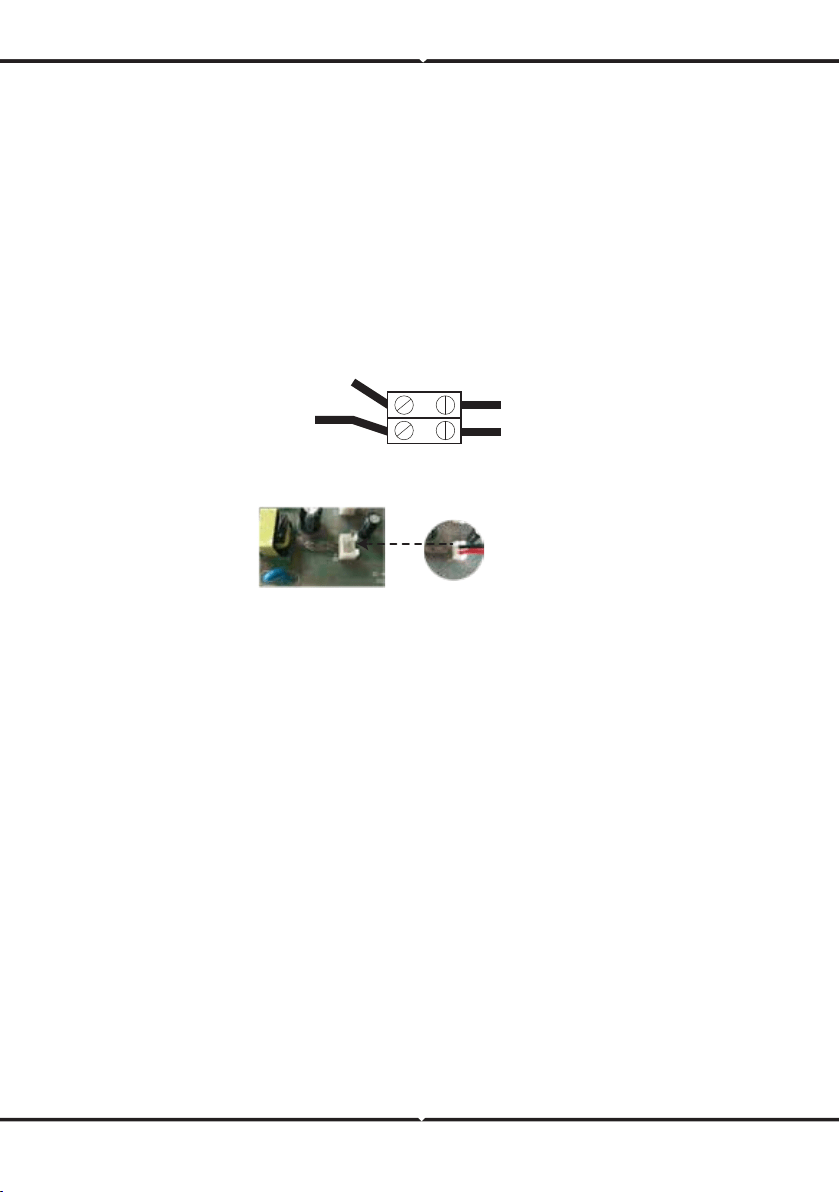

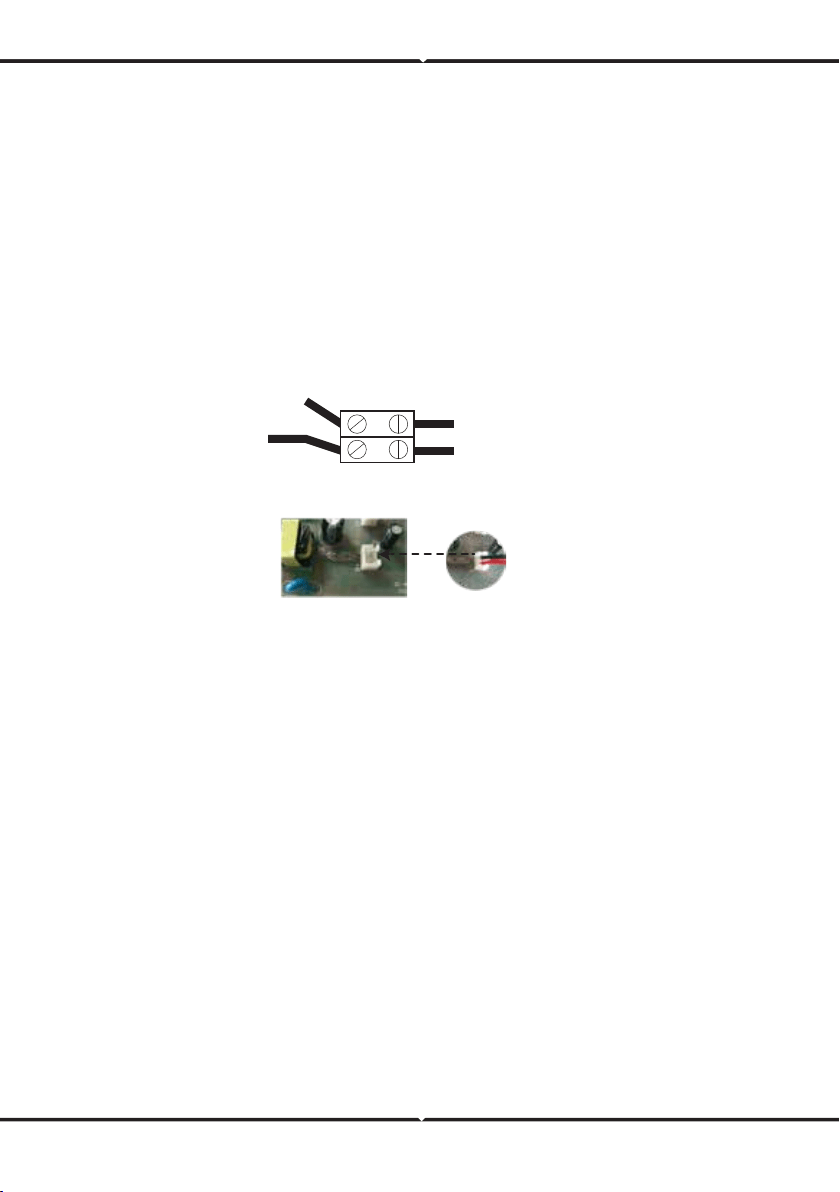

For Maintained Operation - Maintained operation, link L
(Switched Live) to terminal Ls (permanent Live). If ‘Ls’ is not
connected, the fitting works as non-maintained
All self-contained emergency lighting luminaires require a
continuous (un-switched) 220V-240V single phase 50hz (L)
supply to keep the inbuilt batteries charged.
Note: the LEDs contained in this fitting are not designed to be
replaced.
MAINTAINED
Ls N L
NON-MAINTAINED
Ls N L
Please scan the QR code to access the
manual in multiple languages.
