4-543-850-11(1)
Television
Operating Instructions
Introducing Your New
BRAVIA
®
Getting Started
Operating the TV
Using Features
Using the Menus
Other Information
Sony Customer Support
U.S.A.: http://www.sony.com/tvsupport
Canada: http://www.sony.ca/support
United States
1.800.222.SONY
Canada
1.877.899.SONY
Please Do Not Return
the Product to the Store
KDL-60R510A
2
CAUTION
To prevent electric shock and blade exposure, do not use
this polarized AC plug with an extension cord, receptacle or
other outlet unless the blades can be fully inserted.
Operate the TV only on 110-240 V AC
(USA/Canada 120 V AC).
Avoid operating the TV at temperatures
below 41°F (5°C).
Licensing Information
MHL, Mobile High-Definition Link and the MHL Logo are
trademarks or registered trademarks of MHL Licensing, LLC.
The terms HDMI and HDMI High-Definition Multimedia
Interface, and the HDMI Logo are trademarks or registered
trademarks of HDMI Licensing LLC in the United States and
other countries.
Fergason Patent Properties, LLC:
U.S. Patent No. 5,717,422
U.S. Patent No. 6,816,141
Manufactured under license from Dolby Laboratories. Dolby
and the double-D symbol are trademarks of Dolby
Laboratories.
Blu-ray Disc is a trademark.
“BRAVIA” and , BRAVIA Sync, and are
trademarks or registered marks of Sony Corporation.
“PlayStation” is a registered trademark and “PS3” is a
trademark of Sony Computer Entertainment Inc.
Opera
®
Devices SDK from Opera Software ASA.
Copyright 1995-2014 Opera Software ASA.
All rights reserved.
DLNA
®
, the DLNA Logo and DLNA CERTIFIED
®
are
trademarks, service marks, or certification marks of the
Digital Living Network Alliance.
Wi-Fi is a registered trademark of Wi-Fi Alliance.
Cleaning
When cleaning, be sure to unplug the power
cord to avoid any chance of electric shock.
• Wipe the LCD screen gently with a soft cloth.
• Stubborn stains may be removed with a
cloth slightly moistened with a solution of
mild soap and warm water.
• If using a chemically pretreated cloth, please
follow the instruction provided on the
package.
• Never use strong solvents such as a thinner,
alcohol or benzine for cleaning.
• See the supplied Safety Booklet for
additional information.
Your BRAVIA TV is ENERGY STAR
®
qualified
in the default mode. It meets strict energy
efficiency guidelines set by the U.S.
Environmental Protection Agency and
Department of Energy.
ENERGY STAR is a joint program of these
government agencies, designed to promote energy efficient
products and practices. Changes to certain features,
settings, and functionalities (when available) of this TV (i.e.
Picture/Sound, Power Savings, Picture Scene/Mode, Auto
Display, Shop Front Display Settings) can increase or
change the power consumption.
The “Auto” and “General” picture scenes are default settings
optimized for the input signal selected. Your BRAVIA TV is
tested in these settings for ENERGY STAR qualification.
Depending upon such changed settings, the power
consumption may exceed the limits required for the ENERGY
STAR qualification in the default mode.
Wi-Fi Protected Setup ™ (WPS) is a mark of the Wi-Fi
Alliance.
Wi-Fi Protected Access ™ (WPA) is a mark of the Wi-Fi
Alliance.
Location of the identification label
Labels for the TV Model No. and Power Supply rating are
located on the rear of the TV.
Owner’s Record
The model and serial numbers are located at the side
and rear of the TV. Record these numbers in the spaces
provided below. Refer to them whenever you call upon
your Sony dealer regarding this TV.
Model Name
Serial No.
3
Contents
Introducing Your New BRAVIA
®
Welcome to the World of BRAVIA
®
. . . . . . . .4
Experiencing Stunning HD with Your
BRAVIA . . . . . . . . . . . . . . . . . . . . . . . . . . .4
The Four Steps to a Stunning HD
Experience . . . . . . . . . . . . . . . . . . . . . . . . .4
Getting Started
Setting Up Your TV . . . . . . . . . . . . . . . . . . . . .5
Attaching the Table-Top Stand . . . . . . . . . . . .6
Locating Inputs and Outputs . . . . . . . . . . . . . .8
Connecting the TV . . . . . . . . . . . . . . . . . . . .10
Connecting Other Equipment . . . . . . . . . . . .12
When Installing the TV Against a Wall or
Enclosed Area . . . . . . . . . . . . . . . . . . . . .13
Securing the TV . . . . . . . . . . . . . . . . . . . . . .14
Running Initial Setup. . . . . . . . . . . . . . . . . . .17
Operating the TV
Using the Remote Control. . . . . . . . . . . . . . .18
Remote Control Button Description . . . . . . .19
TV Controls and Indicators . . . . . . . . . . . . . .22
Using Features
Using PIP Feature. . . . . . . . . . . . . . . . . . . . .23
Using PAP Feature . . . . . . . . . . . . . . . . . . . .23
Favorites . . . . . . . . . . . . . . . . . . . . . . . . . . . .24
Wide Mode . . . . . . . . . . . . . . . . . . . . . . . . . .24
Playing back Photo/Music/Video via USB. . . 25
Home Network . . . . . . . . . . . . . . . . . . . . . . .27
Photo Frame . . . . . . . . . . . . . . . . . . . . . . . . .28
Using Home Network Features. . . . . . . . . . .29
Setting up the Internet Connection . . . . . . . .29
If You Cannot Connect to the Internet . . . . .32
Adjusting the Server Display Settings. . . . . .32
Browsing Websites . . . . . . . . . . . . . . . . . . . .33
Enjoying Sony Entertainment Network . . . . .33
Enjoying Applications . . . . . . . . . . . . . . . . . .34
Using the Menus
Navigating through TV Menus . . . . . . . . . . .35
Other Information
PC Input Signal Reference Chart for
HDMI/MHL IN . . . . . . . . . . . . . . . . . . . . . .50
Using a Wall-Mount Bracket . . . . . . . . . . . . .51
Troubleshooting . . . . . . . . . . . . . . . . . . . . . .52
Important Notices . . . . . . . . . . . . . . . . . . . . .59
Specifications . . . . . . . . . . . . . . . . . . . . . . . .60
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .62
Customer Support
United States
http://www.sony.com/tvsupport
Canada
http://www.sony.ca/support
On-line Registration
United States
http://productregistration.sony.com
Canada
http://www.sony.ca/registration
4
Introducing Your New BRAVIA
®
Welcome to the World of BRAVIA
®
Thank you for choosing this Sony
BRAVIA
®
high-definition television. Use the
documentation listed below to get the most out of your TV.
Experiencing Stunning HD with Your
BRAVIA
To experience the stunning detail of your new
BRAVIA
TV, you need access to HD
programming. Your
BRAVIA
TV can receive and display HD programming from:
• Over-the-air broadcasting via HD-quality antenna
• HD cable subscription
• HD satellite subscription
• Blu-ray Disc™ player or other HD compatible external equipment
Contact your cable, satellite or HD service provider for information on upgrading to HD
programming.
The Four Steps to a Stunning HD
Experience
Along with your BRAVIA TV set, a complete HD system requires a source of HD
programming, an HD sound system, and a proper connection setup. Refer to the Quick
Setup Guide, enclosed separately, for connecting optional equipment.
Safety Booklet
Contains precautionary measures to
keep you and your TV safe. Read
this information prior to setting up
your TV.
Quick Setup Guide
Provides TV setup information with
sample connection diagrams.
Operating Instructions
Provides the most detailed
information to operate your TV.
5
Getting Started
Getting Started
Setting Up Your TV
Some TV models are packaged with a detached Table-Top Stand so you can mount
your TV to a wall right away. If you are not mounting the TV to a wall, you will need to
attach the Table-Top Stand. You will need a Phillips screwdriver (not supplied) and the
supplied screws to complete the task. Look for the supplied Table-Top Stand instruction
leaflet.
Be sure to consider the following while setting up your TV:
• Disconnect all cables when carrying the TV.
• Carry the TV with the adequate number of people; larger size TVs require two or more people.
• Correct hand placement while carrying the TV is very important for safety and to avoid damage.
• Do not put stress on the LCD panel or the frame around the screen.
• Ensure your TV has adequate ventilation, see page 13.
• For best picture quality, do not expose the screen to direct illumination or sunlight.
• Avoid installing the TV in a room with reflective wall and floor materials.
• Avoid moving the TV from a cold area to a warm area. Sudden room temperature changes may
cause moisture condensation. This may cause the TV to show poor picture and/or poor color.
Should this occur, allow moisture to evaporate completely before powering the TV on.
Be sure to hold the bottom of
the panel, not the front part.
6

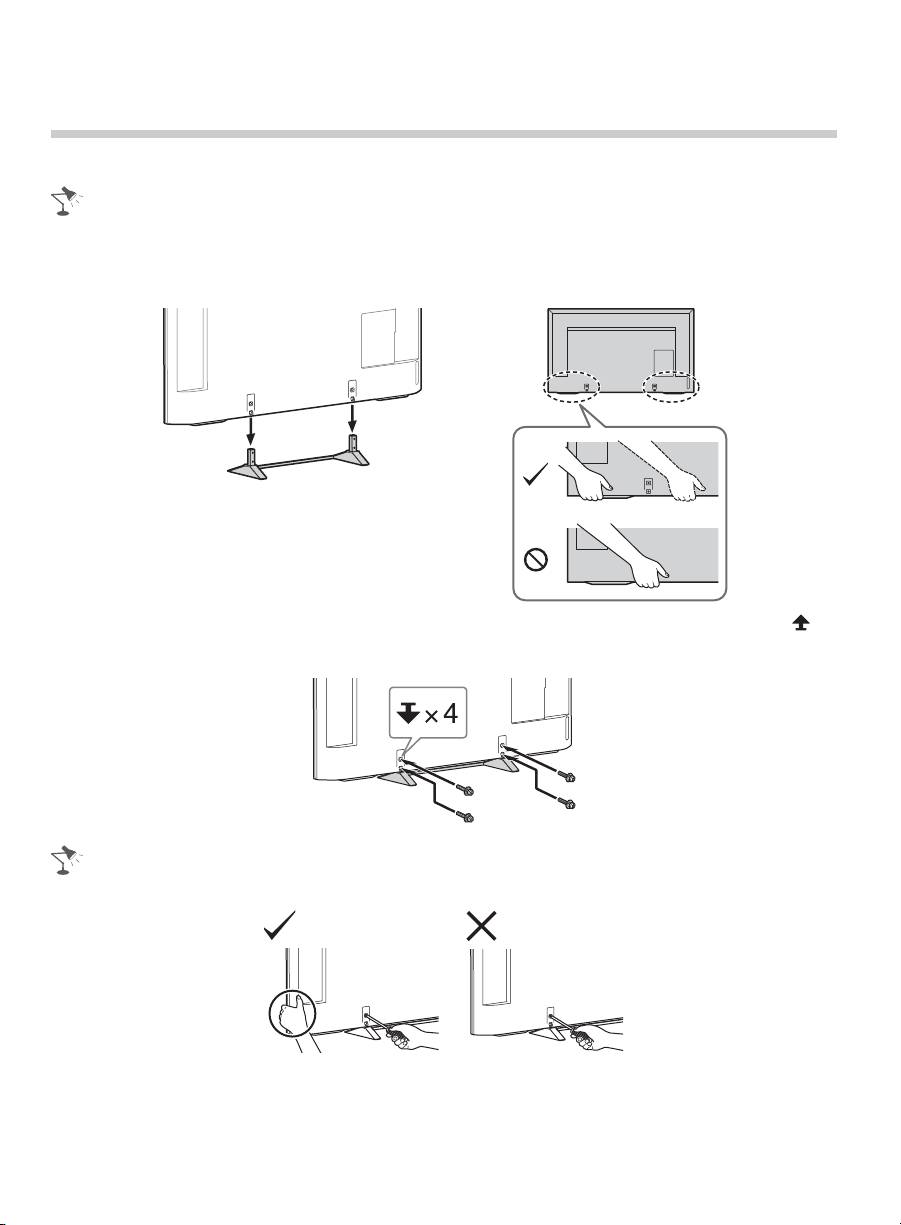

Attaching the Table-Top Stand
Refer to the supplied Table-Top Stand instruction leaflet for proper attachment.
• Be careful to not pinch your hands or the AC power cord when you install the TV set to the Table-
Top Stand.
1 Place the TV set on the Table-Top Stand.
2 Fix the TV to the Table-Top Stand using the supplied screws. The arrow marks
indicate the location of the screw holes used for securing the Table-Top Stand.
• Hold the TV with one hand to avoid it dropping when attaching.
• Align the TV from the top, slide it in until the guide pins cannot be seen.
• If using an electric screwdriver, set the torque at approximately 1.5 N·m {15 kgf·cm}.
• When detaching the Table-Top Stand, reverse the attaching procedure. Do not remove any
screws other than those used when attaching the Table-Top Stand.
7
Getting Started
• Be sure the TV is on the vertical position before switching on.
• TV set must not powered on with LCD panel face down to avoid uneven picture uniformity.
8

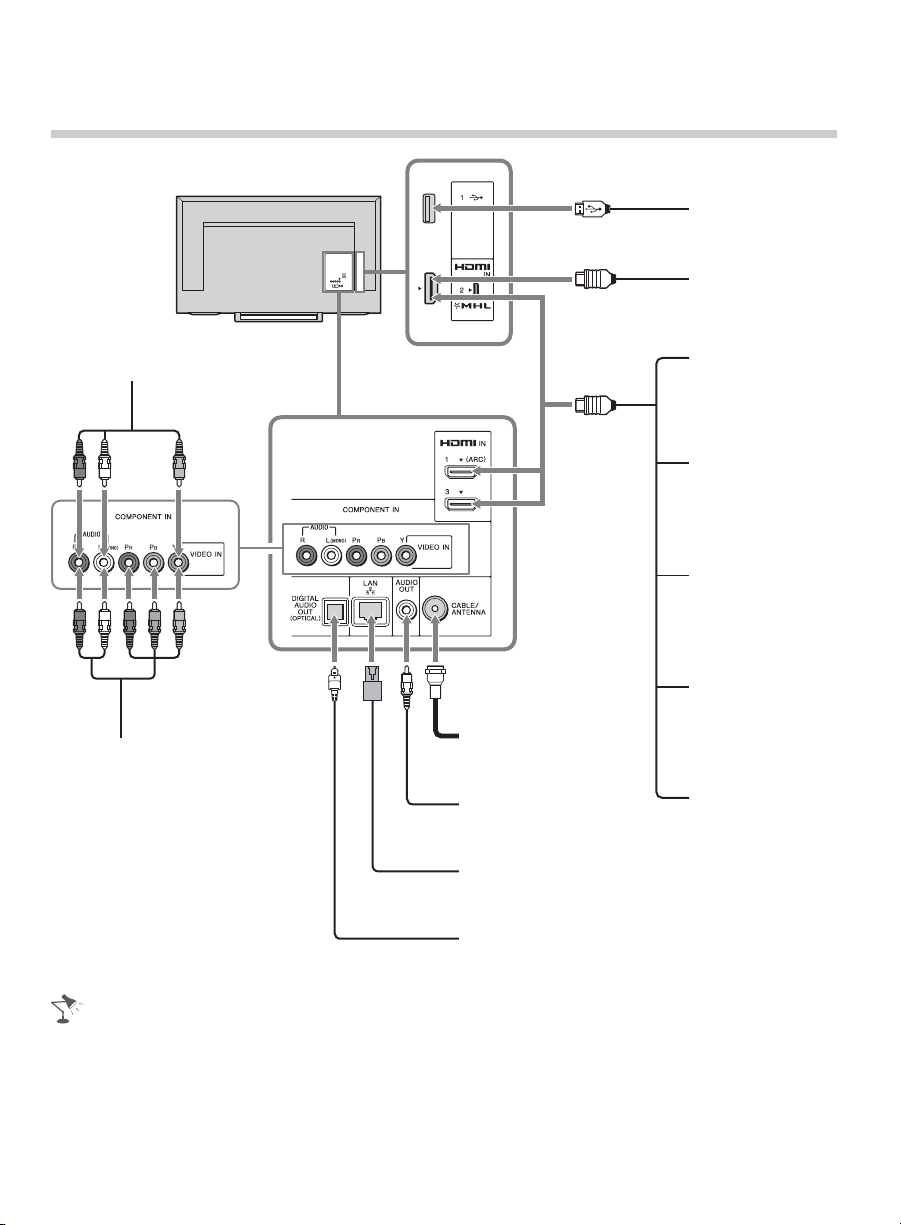

Locating Inputs and Outputs
Item Description
1 VIDEO IN/
COMPONENT
IN/R-AUDIO-L
(MONO)
This input port can be used as a composite video input (VIDEO) or as a
component video input (COMPONENT). For composite use, connect the
yellow jack to Y for video and use audio L (mono) and R for audio signal.
For component connection, use Y, P
B
, P
R
for video signals and also
connect the audio L (mono) and R for audio signal.
This TV can auto detect and switch between the VIDEO and COMPONENT
when VIDEO or COMPONENT is connected.
To set to auto detection, press HOME, select Settings, and then select the
Setup settings. Select the Video/Component Selection option in AV
Setup then set to Auto.
2, 8
HDMI IN 1
(ARC)
HDMI IN 2/MHL
HDMI IN 3
HDMI (High-Definition Multimedia Interface) provides an uncompressed,
all-digital audio/video interface between this TV and any HDMI-equipped
audio/video equipment, such as a set-top box, DVD player, and A/V
receiver. HDMI supports enhanced, or high-definition video, plus digital
audio.
You can also connect your MHL (Mobile High-Definition Link) device to
HDMI IN 2/MHL using an MHL cable. In addition, when you connect
BRAVIA Sync-compatible equipment, communication with the connected
device is supported.
If connecting a digital audio system that is compatible with Audio Return
Channel (ARC) technology, use HDMI IN 1 (ARC). If not, an additional
connection with DIGITAL AUDIO OUT (OPTICAL) is necessary.
Side PanelRear Panel
9
Getting Started
• An HDMI or Component video (YP
B
P
R
) connection is required to view 480i, 480p, 720p, 1080i
and 1080p video formats. 1080/24p is available only with HDMI/MHL connection.
• Be sure to use only an authorized HDMI cable bearing the HDMI logo. We recommend that you
use a Sony HDMI cable (high speed type).
3 CABLE/
ANTENNA
RF input that connects to your Cable or VHF/UHF antenna.
4 AUDIO OUT Connects to the audio input jack of your analog audio equipment. You can
use this output to listen to your TV’s audio through your stereo system.
5 LAN You can enjoy contents stored in DLNA Certified™ devices via a network
(page 29), and also IPTV, applications and Internet Browser are available.
6 DIGITAL AUDIO
OUT (OPTICAL)
Connects to the optical audio input of digital audio equipment that is PCM/
Dolby Digital compatible.
7 USB Connects to USB equipment to access photo, music, and video files.
A standard USB mouse and USB keyboard can also be connected to the
USB ports. An USB mouse or USB keyboard can only operate while
navigating on the internet browser (page 33).
Item Description
10
Connecting the TV
Cable System or VHF/UHF Antenna System
You can enjoy high-definition and standard-definition digital programming (if available in
your area) along with standard-definition analog programming.
This TV is capable of receiving unscrambled digital programming for both cable (QAM
and 8VSB) and external VHF/UHF antenna (ATSC).
x Cable or VHF/UHF (or VHF only)
• It is strongly recommended that you connect the CABLE/ANTENNA input using a 75-ohm
coaxial cable to receive optimum picture quality. A 300-ohm twin lead cable can easily be
affected by radio frequency interference, resulting in signal degradation.
Cable System and VHF/UHF Antenna System
Use an optional A-B RF switch (not supplied) to switch between the cable and over-the-
air antenna programming, as indicated below.
• Be sure to set the Signal Type setting to Cable or Antenna found under the Channel settings
for your input signal (page 41).
75-ohm coaxial cable Rear of TV
CABLE/ANTENNA
B
A
Cable
Antenna
A/B RF Switch
Rear of TV
CABLE/ANTENNA
11
Getting Started

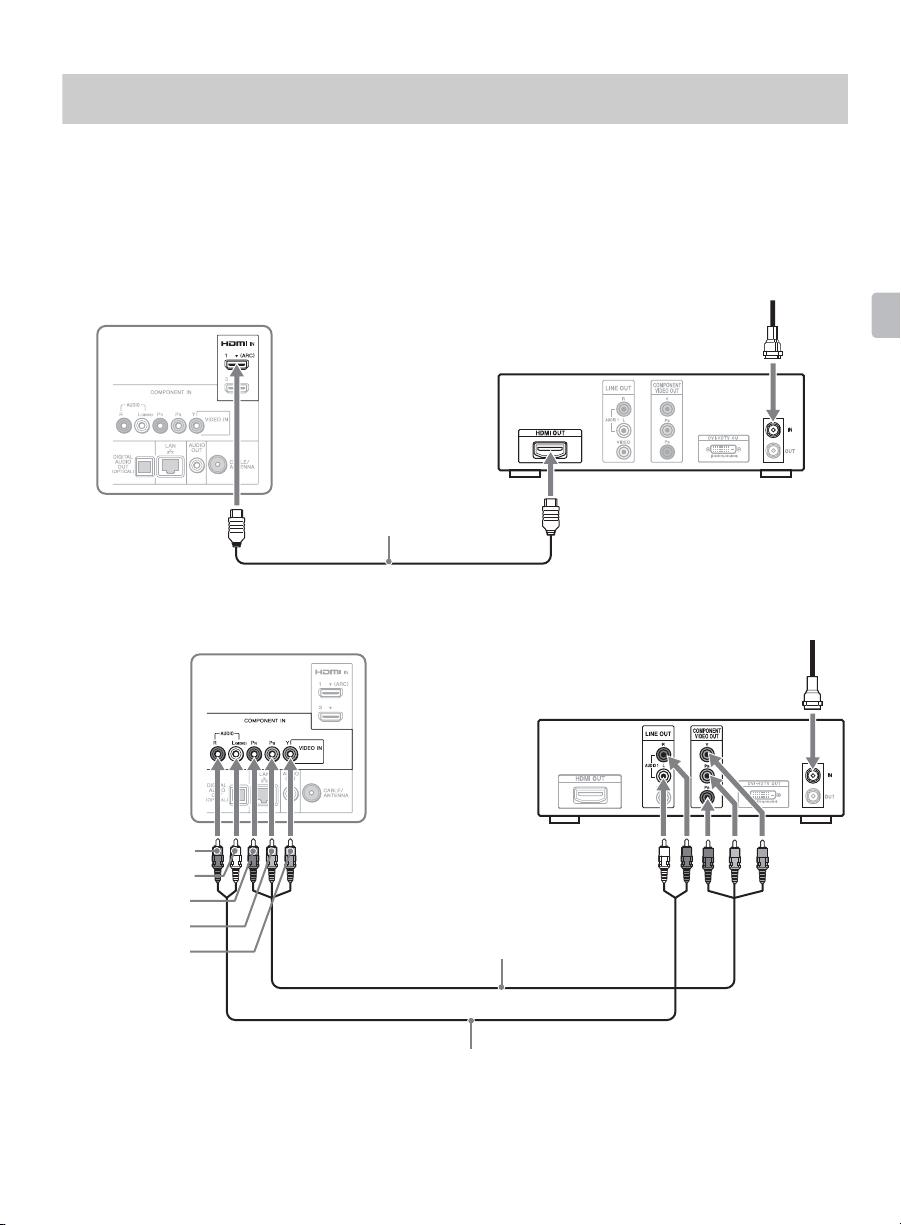

HD Cable Box/HD Satellite Box
You can enjoy high-definition programming by subscribing to a high-definition cable
service or a high-definition satellite service. For the best possible picture, make sure you
connect this equipment to your TV via the HDMI or component video (with audio) input
located on the back of your TV.
x Shown with HDMI Connection
x Shown with Component Connection
Rear of TV
HDMI cable
HD cable box/
HD satellite box
CATV/Satellite antenna cable
Rear of TV
CATV/Satellite antenna cable
AUDIO-R (red)
AUDIO-L (white)
Component video cable
Audio cable
P
R
(red)
P
B
(blue)
Y (green)
HD cable box/
HD satellite box
12
Connecting Other Equipment
• Refer to the Quick Setup Guide (supplied) when connecting other equipment to your TV.
Blu-ray Disc
Player/“PS3”
DVD
player
Digital satellite
receiver
Analog audio equipment
(A/V Receiver/
HomeTheater)
Digital
cable box
Audio
system
Digital audio equipment
(A/V Receiver/Home Theater)
Digital
recorder
VCR/Game system/
Camcorder
USB
CABLE/ANTENNA
Router/Modem
MHL device
13
Getting Started
When Installing the TV Against a
Wall or Enclosed Area
Make sure that your TV has adequate ventilation. Allow enough space around the TV as
shown below. Avoid operating the TV at temperatures below 41 °F (5 °C).
• Inadequate ventilation can lead to overheating of the TV and may cause TV damage or cause a
fire.
(30 cm)
11
7
/
8
inches
(6 cm)
inches
4 inches
(10 cm)
4 inches
(10 cm)
2
3
/
8
Leave at least this much space around the set.
Installed with stand
inches
11
7
/
8
4 inches
(10 cm)
4 inches
(10 cm)
4 inches (10 cm)
(30 cm)
Installed on the wall
Leave at least
this much space
around the set.
Never install the TV set as follows:
Air circulation is blocked.
Air circulation is blocked.
Wall Wall
14
Securing the TV
Sony strongly recommends taking measures to prevent the TV from toppling
over. Unsecured TVs may topple and result in property damage, serious bodily
injury or even death.
Preventing the TV from Toppling
Secure the TV to a wall and/or stand.
Do not allow children to play or climb on furniture and TV sets.
Avoid placing or hanging items on the TV.
Never install the TV on:
• Slippery, unstable and/or uneven surfaces.
• Furniture that can easily be used as steps, such as a chest of drawers.
Install the TV where it cannot be pulled, pushed, or knocked over.
Route all AC power cords and connecting cables so that they are not accessible to curious
children.
Recommended Measures to Secure the TV
Consider the following measures when securing your TV to a TV stand (not supplied).
1 Secure the stand for the TV.
Make sure the TV stand can adequately support the weight of the TV. Use two angle
braces (not supplied) to secure the stand.
For each angle brace use the appropriate hardware to:
• Attach one side of the angle brace to the wall stud.
• Attach the other side to the TV stand.
Angle Braces
(not supplied)
Stand
15
Getting Started
2 Secure the TV to the stand.
Use the optional hardware listed below (not supplied):
• M4 machine screw (screwed into the screw hole of the TV).
• A screw or similar (attach it to the TV stand).
• Rope or chain (strong enough to support the weight of the TV). Make sure that there is
no excess slack in the rope or chain.
The length of the M4 machine screw differs depending on the rope or chain
diameter. Please refer to below illustration.
Screw hole of the TV
Machine screw
(not supplied)
Screw
(not
supplied)
Rope or chain
(not supplied)
6-8 mm
Screw M4
rope or chainTV
(Continued)
16
3 Anchor the TV to the wall.
Anchor the TV to the wall by using bolts, wall anchor and chain (or rope).
• Securing the TV to the stand without securing the TV and the stand to the wall provides minimum
protection against the TV toppling over. For further protection, be sure to follow the three
measures recommended.
• Your TV is shipped with screws attached to the rear of the TV depending on the TV model. (They
are fastened in the screw holes for wall mounting.) Be sure to remove the upper two screws prior
to anchoring the TV to a wall.
Wall-mount
holes
Anchor bolts
(not supplied)
Wall-anchor
(not supplied)
Rope or chain
(not supplied)
17
Getting Started

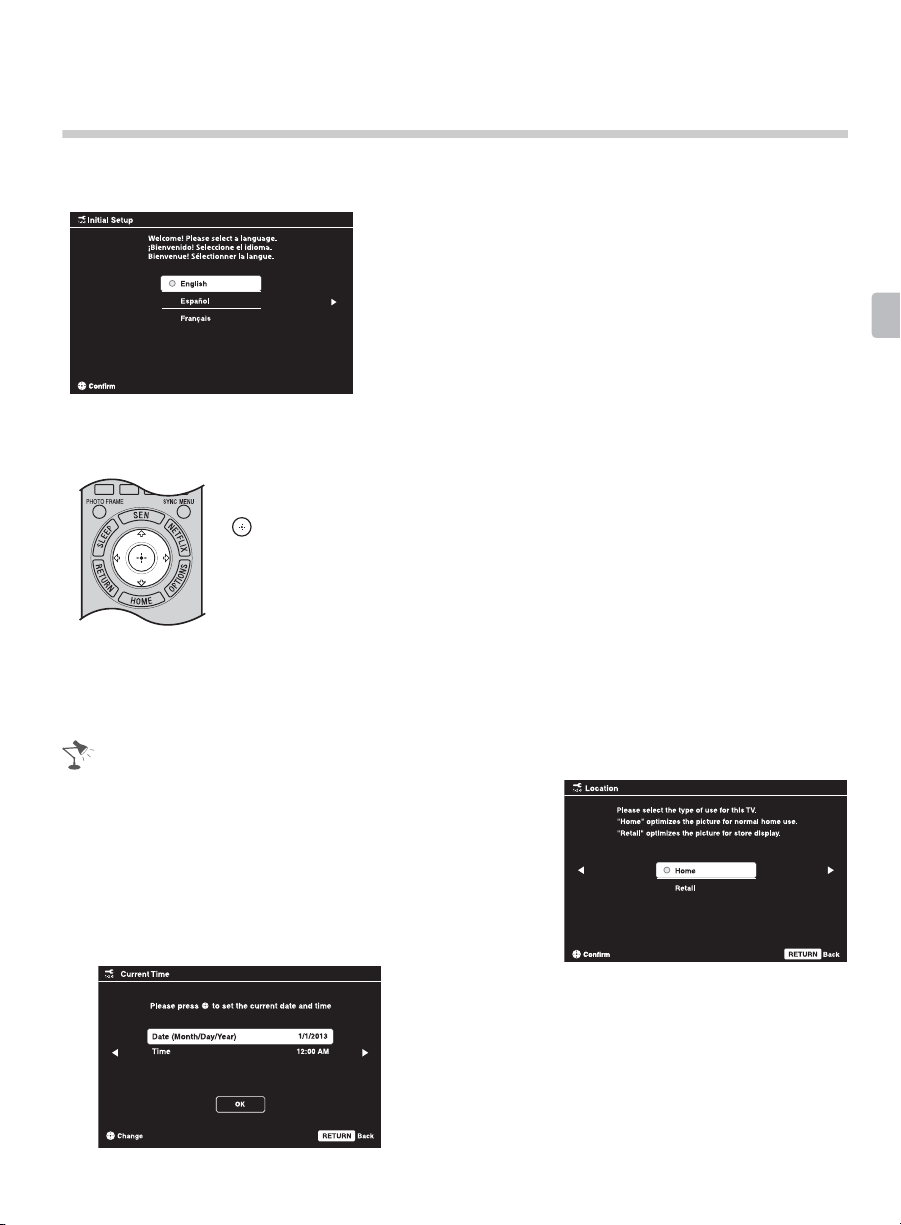

Running Initial Setup
Complete your cable connections before beginning the Initial Setup. Refer to the Quick
Setup Guide (supplied) for sample connection diagrams.
2 Use the remote control buttons described below to navigate through the Initial
Setup.
3 Auto Program will scan for available channels from the signal source directly
connected to the TV’s CABLE/ANTENNA input. Follow the help text provided on the
screen to run the Auto Program.
• If you cancel the Auto Program, any channels you have
selected are not registered. To rescan for available
channels, run Auto Program.
• Connect either your cable or antenna to the TV (you can
connect both using an A-B RF switch (not supplied)); for
more details see page 10.
4 Set the current date and time.
1 Turn on the TV.
The Initial Setup screen will appear.
V/v/B/b buttons:
Allow you to navigate and highlight options where applicable.
button:
Allows you to select the highlighted option and advance to the next screen.
18
Operating the TV
Using the Remote Control

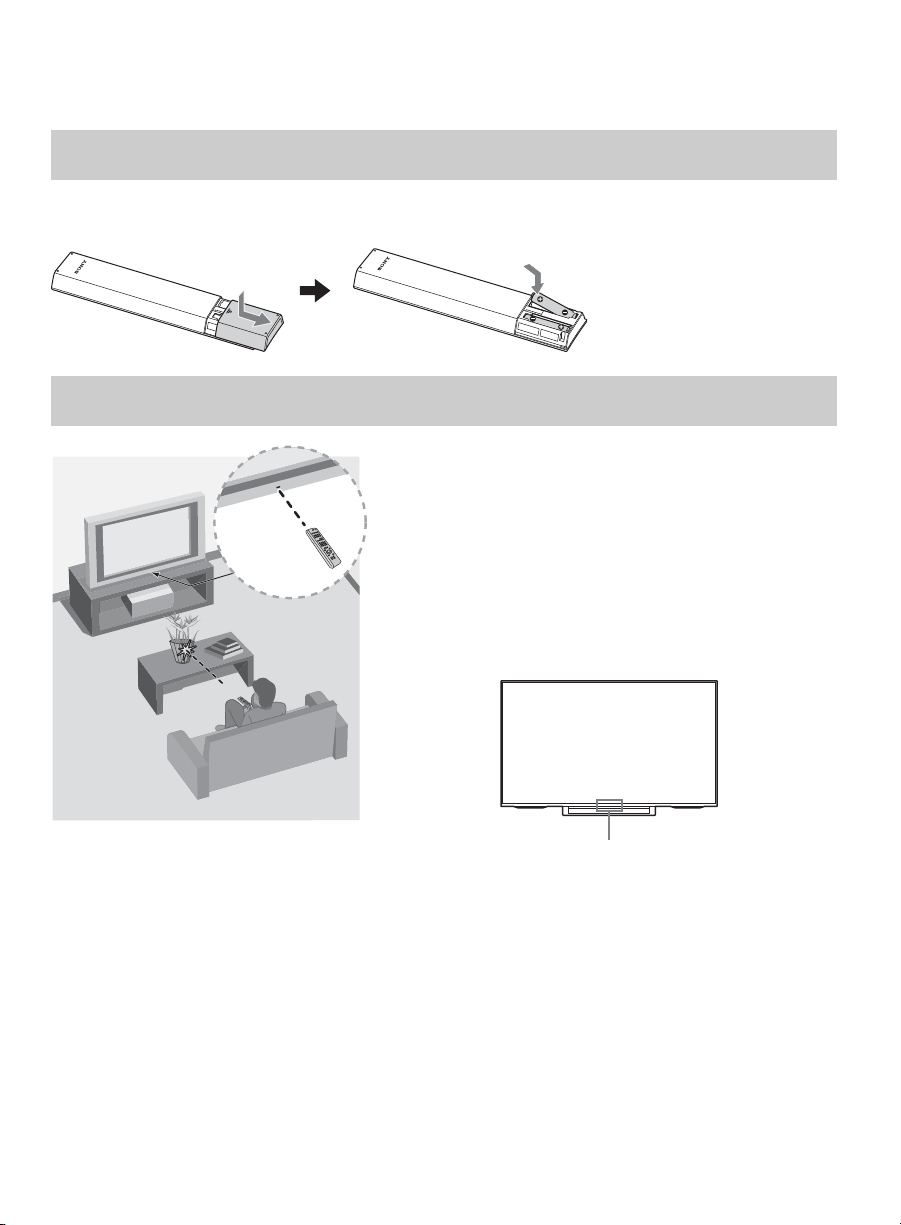

To Insert Batteries into the Remote Control
Insert two size AAA batteries (supplied) by matching e and E on the batteries to the
diagram inside the battery compartment of the remote control.
Guidelines to Follow
• Point your remote control directly at the IR sensor
located on your TV.
• Make sure that no objects are blocking the path
between the remote control and the IR sensor on your
TV.
• Fluorescent lamps can interfere with your remote
control; try turning off the fluorescent lamps.
• If you are having problems with the remote control,
reinsert or replace your batteries and make sure that
they are correctly inserted.
• Ensure that there are no objects in front of the TV.
IR Sensor
19
Operating the TV

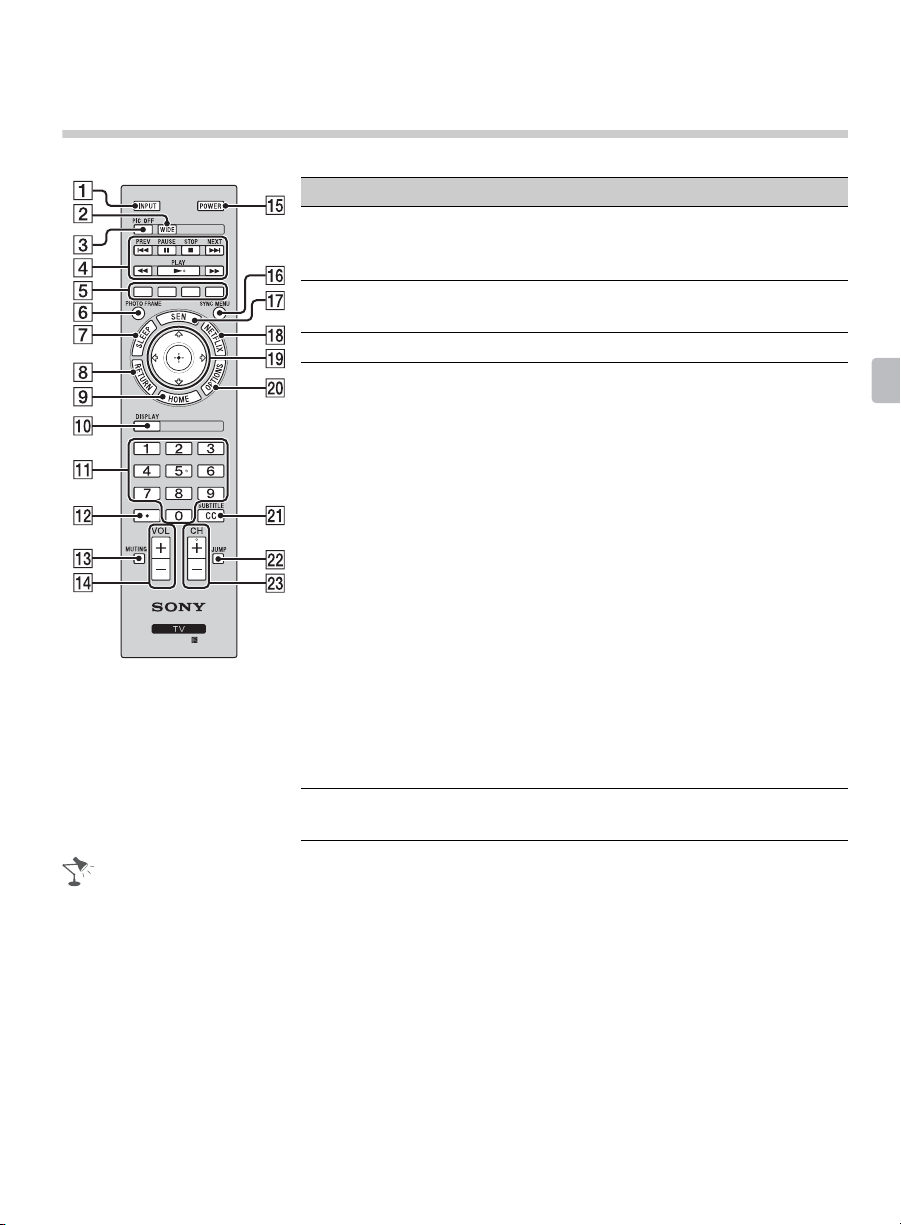

Remote Control Button Description
• The 5, N and CH + buttons have a tactile dot. Use them as a reference when operating the TV.
Button Description
1 INPUT Press to display the connected equipment list and
select the input source. Press repeatedly to
toggle through the inputs.
2 WIDE Press repeatedly to cycle through the available
Wide Mode settings. See page 24.
3 PIC OFF Press to turn picture off, and sound remains on.
4 Equipment
Control
These buttons are used to control the equipment
connected to the TV by using the BRAVIA Sync
Control function (not available on all BRAVIA
Sync Control equipment). Some other buttons on
the remote control may also operate BRAVIA
®
Sync™ equipment.
.
(PREV): Press to replay the current program
from the previous chapter mark.
X (PAUSE): Press to pause playback.
x (STOP): Press to stop playback.
>
(NEXT): Press to advance forward to the
next chapter mark.
m (fast reverse): Press to play a program in
fast rewind mode.
N (PLAY): Press to play a program at a normal
speed.
M (fast forward): Press to play a program in
fast forward mode.
5 Colored
buttons
When the colored buttons are available, an
operation guide appears on the screen.
(Continued)
20
• The scene select function is not compliant with USB/DLNA-Photo, -Music, -Video, IPTV,
applications and Internet Browser.
Button Description
6 PHOTO
FRAME

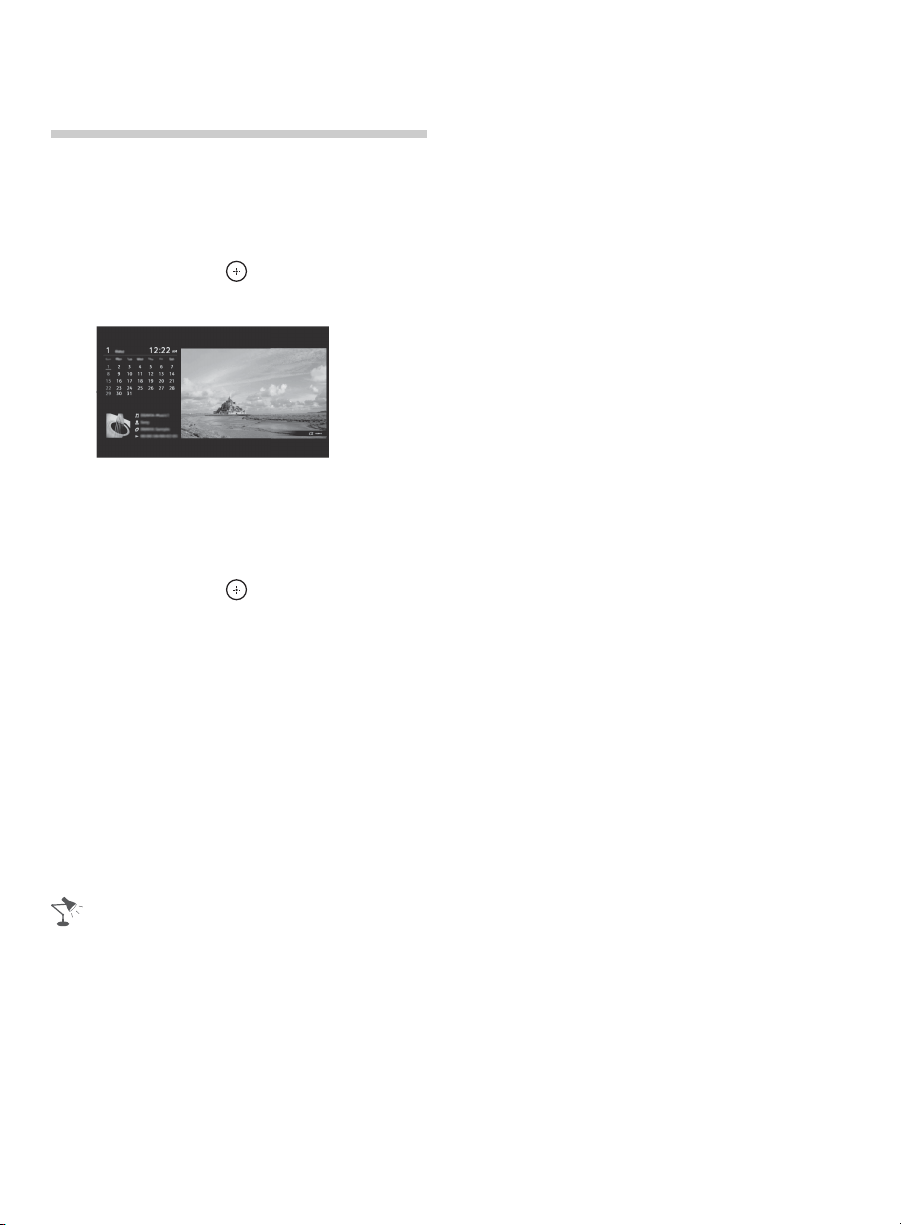

Press to display the Photo Frame. See page 28.
7 SLEEP Press repeatedly until the TV displays the time in
minutes (Off/15/30/45/60/90/120) that you want
the TV to remain on before shutting off. To cancel
the sleep timer, press SLEEP repeatedly until Off
appears.
8 RETURN Press to go back to the previous screen or exit
from the screen when displaying menu items and
settings.
9 HOME Press to display the menu with TV functions and
settings. See “Using the Menus” on page 35.
0 DISPLAY Press once to display the banner with channel/
program information you are watching. The
banner will time out in a few seconds or press
again to exit.
qa 0-9 Press 0-9 to select a channel.
qs Use with 0-9 to select digital channels.
For example, to enter 2.1, press , ,
and .
qd MUTING Press to mute the sound. Press again or press
VOL + to restore the sound.
qf VOL +/– Press to adjust the volume.
qg POWER Press to turn on and off the TV.
21
Operating the TV
Button Description
qh SYNC
MENU
Press to display the BRAVIA Sync Menu and
then select connected HDMI/MHL equipment
from
Device Selection
.
qj SEN Enables selection of content from the online
service “SEN” (Sony Entertainment Network). If
“SEN” is unavailable, the “SEN” category is not
displayed.
qk NETFLIX Press to display the NETFLIX menu.
ql V/v/B/b Press V/v/B/b to move focus/highlight. Press
to select/confirm an item.
w; OPTIONS Press to display a list of convenient functions and
menu shortcuts. The options menu items vary
based on current input and content.
wa CC/
SUBTITLE
Press to cycle through the available settings for
Closed Captions (CC) : On, Off, and On when
Muting.
ws JUMP Press to jump back and forth between two
channels and external inputs. The TV alternates
between the current/last channel or external input
selected.
wd CH +/– Press to scan through channels. To scan quickly
through channels, press and hold down either CH
+/–.
22
TV Controls and Indicators
• The 2 + button has a tactile dot. Use it as a reference when operating the TV.
• Make sure that the TV is completely switched off before unplugging the power cord.
Item Description
1 "/1 (Power) Press to turn on and off the TV.
2 – 2 +Press to adjust the volume, or select a channel/external input. When the
volume Up/Down screen is displayed by pressing 2 +/–, volume can be
adjusted. When the channel Up/Down screen is displayed by pressing CH/
INPUT, channels can be selected. When the input select screen is displayed
by pressing CH/INPUT, external input can be selected.
3 CH/INPUT Switches between the channel Up/Down screen, input select screen and
volume Up/Down screen.
4 LED indicator Receives IR signal from the remote control.
• Lights up in green when the TV is turned on.
• Lights up in orange when the timer is set or the TV is in Photo Frame Mode.
Lights up in green when the Power Saving is set to Picture Off.
23
Using Features
Using Features
Using PIP Feature
PIP (picture in picture) displays a picture
from a connected PC in full screen, and a
TV program or other external input (see
below “To Enter PIP” table) in an inset
window. (Closed Captions (CC) is not
available with PIP mode.)
To Enter PIP
1 Press OPTIONS while a PC is
connected to the TV.
2 Select PIP from the OPTIONS menu.
3 The sub window will appear.
Using PAP Feature
PAP (picture and picture) displays two
pictures (left and right) on the screen
simultaneously (e.g. external input and TV
program). For details on external
equipment, see page 12.
To Enter PAP
1 Press OPTIONS and then select P&P.
2 Press B/b to select active picture.
PIP Supported Inputs
In main window In sub window
HDMI IN (PC timing) TV channel (CABLE/
ANTENNA), VIDEO
IN, COMPONENT IN
PAP Supported Inputs
In main window In sub window
Component TV channel (CABLE/
ANTENNA), VIDEO IN
HDMI IN (except PC
timing)
TV channel (CABLE/
ANTENNA), VIDEO
IN, COMPONENT IN
24

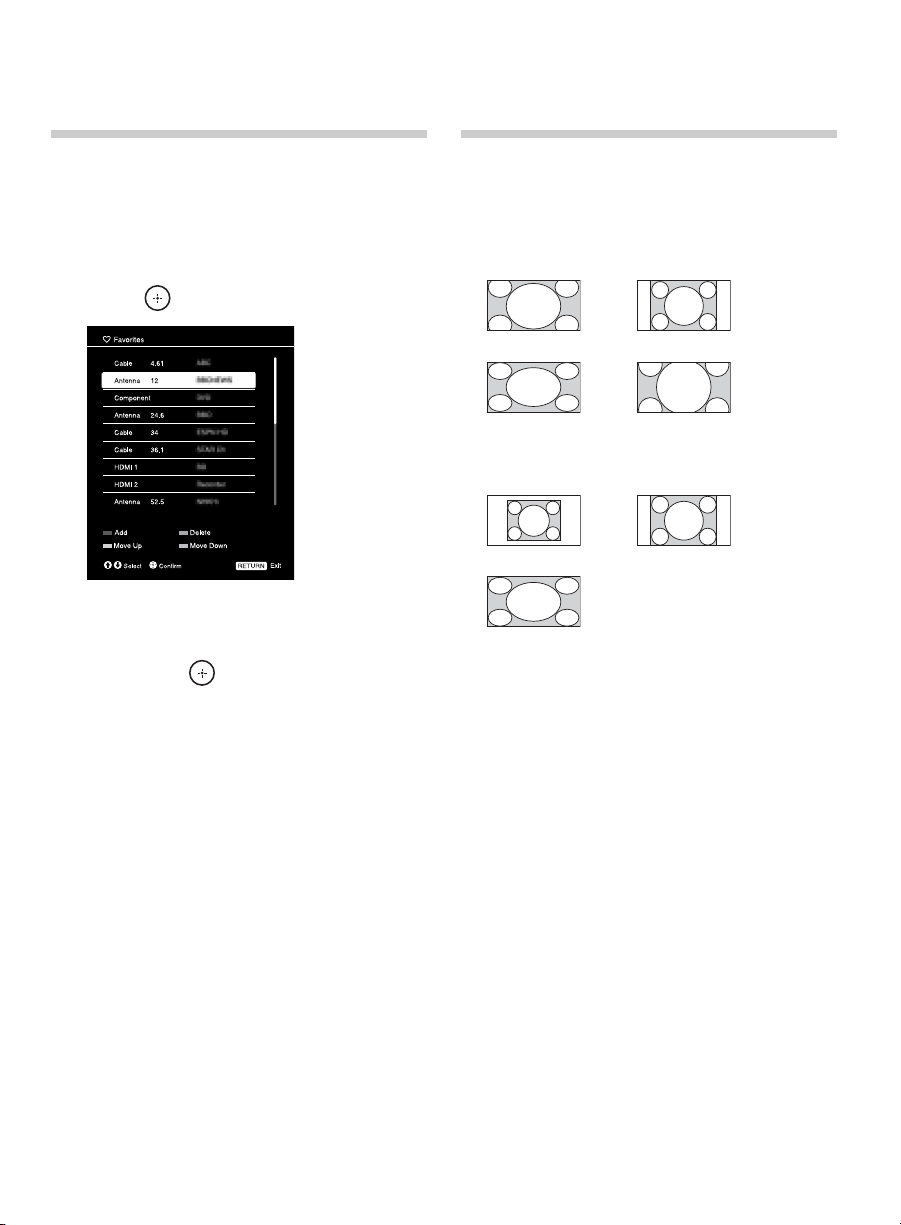

Favorites
Your favorite channels and external inputs
can be accessed by pressing the HOME
button once they are added to the list.
1 Press HOME.
2 Press V/v to select Favorites, then
press .
The favorites list appears.
3 Press V/v to select a channel or input,
then press .
Wide Mode
x To change the Wide Screen mode
1 Press WIDE repeatedly to select the
wide mode.
For HDMI PC Input (PC timing)
Wide Zoom* Normal
Full Zoom*
* Parts of the top and bottom of the picture may
be cut off.
Normal Full 1
Full 2
25
Using Features
Playing back Photo/
Music/Video via USB
You can enjoy photo/music/video files
stored in a Sony digital still camera or
camcorder through a USB cable or USB
storage device on your TV.
1 Connect a supported USB device to
the TV.
2 Press HOME.
3 Press V/v to select Media, then press
V/v/B/b to select Photo, Music,
Video, then press .
4 Device Selection appears. Press V/v
to select a device.
5 Press V/v/B/b to select a file or folder,
then press .
When you select a folder, select a file,
then press .
Playback starts.
If more than one device is connected,
and you select a file from another
device, repeat step 2 and 3.
x Photo Playback Auto Start
The TV automatically displays the
thumbnail view screen when the TV is
turned on and a digital still camera or
other device storing photo files is
connected to the USB port then turned on
(page 45).
x Notes when playing back files
• While the TV is accessing the data on
the USB device, observe the following:
– Do not turn off the TV or connect USB
device.
– Do not disconnect the USB cable.
– Do not remove the USB device.
The data on the USB device may be
damaged.
• Sony will not be held liable for any
damage to, or loss of, data on the
recording media due to a malfunction of
any connected devices or the TV.
• Playback does not start automatically if
the TV is turned on after connecting the
digital still camera or other device to the
USB port.
• The USB device supports FAT16, FAT32
and NTFS. Maximum USB Mass Storage
(USB HDD) is 2TB.
• Photo Playback Auto Start works only for
photo files in the newest digital still
camera folder (DCF-compliant, highest-
numbered “DCIM” folder).
• Playback may not start automatically
when some digital still cameras (such as
cameras with internal memory) are
connected.
• The file name and folder name support
only English.
• When you connect a Sony digital still
camera, it is recommended to set the
camera’s USB connection mode to
“Auto” or “Mass Storage.” For more
information about USB connection
mode, refer to the instructions supplied
with your digital camera.
• Use a USB storage device that is
compliant with USB Mass Storage Class
standards.
• If a selected file has incorrect container
information, or is incomplete, it cannot
be played back.
(Continued)
26
USB Video format
USB Music format USB Photo format
DCF2.0 or EXIF2.21 supported.
• Playback of the above file formats is not guaranteed.
Extension Container Video Codec Audio Codec
.avi AVI
Xvid PCM / MPEG1 Layer1, 2 / MP3 /
MPEG2 AAC (2ch) /
MPEG4 AAC (2ch) /
MPEG4 HE-AAC (2ch) /
Dolby Digital (2ch) /
Dolby Digital Plus (2ch) /
WMA v8
MPEG1
MPEG2 MP
H.264 BP/MP/HP
MPEG-4 SP/ASP
.wmv
.asf
ASF
WMV v9
MP3 / WMA v8
Xvid
MPEG-4 SP/ASP
VC-1
.mp4
.mov
.3gp
MP4
H.264 BP/MP/HP MPEG1 Layer1, 2 / MP3 /
MPEG2 AAC /
MPEG4 AAC /
MPEG4 HE-AAC
MPEG-4 SP/ASP
H.263
.mkv MKV
H.264 BP/MP/HP PCM / MPEG1 Layer1, 2 / MP3 /
MPEG2 AAC (2ch) /
MPEG4 AAC (2ch) /
MPEG4 HE-AAC (2ch) /
Dolby Digital (2ch) /
Dolby Digital Plus (2ch) /
WMA v8 / VORBIS
MPEG-4 SP/ASP
WMV v9
VC-1
VP8
.mpg
.mpeg
.vob
.vro
PS
MPEG1
MPEG1 Layer1, 2 / MP3 /
Dolby Digital (2ch) /
Dolby Digital Plus (2ch)
MPEG2 MP
.ts
.m2ts
TS
MPEG2 MP MPEG1 Layer1, 2 / MP3 /
MPEG2 AAC (2ch) /
MPEG4 AAC (2ch) /
MPEG4 HE-AAC (2ch) /
Dolby Digital Plus (2ch) /
Dolby Digital (2ch)
VC-1
H.264 BP/MP/HP
Extension Audio Codec
.mp3 MP3
.wma WMA v8
Extension Image Codec
.jpg, .jpeg JPEG
27
Using Features
Home Network
Connecting to a Home
Network
You can enjoy various content (e.g. photo/
music/video files) stored on DLNA
Certified™ media servers. The home
network feature allows you to enjoy
network content in other rooms.
x Playing photo/music/video
1 Press HOME, then select Media >
Photo, Music or Video > the desired
media server.
2 Select files or folders to play from the
list.
• The server is required to be DLNA
Certified™.
• Files from a network device need to be in the
following formats:
– Still images: JPEG
– Music: MP3, linear PCM, WMA
– Video: AVCHD, MPEG2, MPEG1, MP4
(AVC), MP4 (MPEG4), WMV
• Depending on the file, playback may not be
possible even when using the supported
formats.
Renderer
You can play back photo, music and
video files stored in network devices (e.g.
digital still cameras, mobile phones, PC)
on the TV screen by directly operating the
target device. The network should also be
renderer-compatible.
x Adjusting the renderer settings
Press HOME, then select Settings >
Setup > Network > Home Network
Setup > Renderer > the desired setting.
Display Settings for Media
Servers
Select home network servers to be
displayed in the Home Menu. Up to 10
servers can be displayed in the Home
Menu automatically.
1 Press HOME, then select Settings >
Setup > Network > Home Network
Setup > Show/Hide Media Servers.
2 Select the server to display in the
Home Menu.
28
Photo Frame
Photo Frame displays the clock and
calendar at the same time as displaying a
photo and listening to music.
1 Press HOME.
2 Press V/v then to select Photo
Frame Mode.
x To select photo or music from USB
memory
1 Press OPTIONS while playing back a
photo or music file.
2 Press V/v then to select Photo
Frame Mode to launch Photo
Frame.
x To select Display mode
You can change the photo frame display
by selecting Display Mode in the Photo
Frame Settings (page 45).
x To select Clock Display mode
You can select among three clock display
modes by selecting Clock Display in the
Photo Frame Settings (page 45).
• This TV does not have a battery powered
backup for the clock. Therefore, if there is a
power failure or if you disconnect the power
cord, be sure to reset the current date and
time.
x Duration
To save power, the TV continually plays
back in photo frame mode for up to 24
hours before powering off automatically.
After automatic power off, do not use
photo frame mode for at least one hour to
avoid panel burn-in.
You can change the setting of the
Duration in the Photo Frame Settings
(page 45).
To avoid panel burn-in, the position of the
photo, clock and calendar are switched
automatically every hour.
29
Using Features
Using Home Network
Features
When you connect this TV to the Internet,
you can enjoy multiple functions: enjoying
Internet video, etc.
• You will need to contract with an Internet
service provider to connect to the Internet.
Preparing a Wired Network
• For LAN connections, use a Category 7
cable (not supplied).
Setting up the Internet
Connection
Using the network feature you can
connect the TV to the Internet. The set-up
procedure differs depending on the type
of network and LAN router. Before setting
up the Internet connection, be sure to set
up a LAN router. Check your wireless LAN
environment using the following chart.
Wireless LAN
Wired LAN , Type 4
* Type 1 is easier to set up if your router has
an automatic setting button, e.g. Air Station
One-Touch Secure System (AOSS). Most of
the latest routers have this function. Check
your router.
Type 1: Follow the configuration for
Secured network with Wi-Fi Protected
Setup™ (WPS).
Type 2: Follow the configuration for
Secured network without Wi-Fi
Protected Setup™ (WPS).
Type 3: Follow the configuration for
Unsecured network with any type of
wireless LAN router.
Type 4: Follow the configuration for Wired
network set-up.
TV
Internet
Modem
with router
functions
Router
Modem
Internet
or
Secure Wireless LAN? NO
k
Type 3
YES m
Do you use a wireless LAN
router compatible with Wi-Fi
Protected Setup™ (WPS)?
NO
k
Type 2
YES m
Type 1*
30
Type 1: Secured network
with Wi-Fi Protected Setup™
(WPS)
The WPS standard makes security of a
wireless home network as straightforward
as pressing the WPS button on the
wireless LAN router. Before setting up a
wireless LAN, check the location of the
WPS button on the router and verify how
to use it.
For security purpose, WPS (PIN) provides
a PIN code for your router. PIN code is
renewed every time you select WPS
(PIN).
1 Press HOME, then select Settings >
Setup > Network > Network Setup.
2 IP Address setting/Proxy server:
– automatic setting:
Set up network connection > Auto
– manual setting:
Set up network connection >
Custom > Wireless Setup
3 Select WPS (Push Button) for Push
Button method or WPS (PIN) for PIN
method.
• Button name of the WPS may differ
depending on the router (e.g. AOSS
button).
4 Follow the instructions on the set-up
screen.
• To use the network with IPv6, select
Settings > Setup > Network > IPv6/IPv4
Priority > IPv6, then select Auto in Set up
network connection.
• When IPv6 is selected, HTTP Proxy cannot
be set.
Type 2: Secured network
without Wi-Fi Protected
Setup™ (WPS)
To set up a wireless LAN, SSID (wireless
network name) and security key (WEP or
WPA key) will be required. If you do not
know them, consult the instruction manual
of your router.
1 Press HOME, then select Settings >
Setup> Network > Network Setup.
2 IP Address setting/Proxy server:
– automatic setting:
Set up network connection > Auto
– manual setting:
Set up network connection >
Custom > Wireless Setup
3 Select Scan, then select a network
from the list of scanned wireless
networks.
4 Follow the instructions on the set-up
screen.
• If you use WPS for network set-up, the
security settings of the wireless LAN router
activate, and any equipment previously
connected to the wireless LAN in a non-
secure status will be disconnected from the
network.
In this case, activate the security settings of
the disconnected equipment and then
reconnect. Or, you can deactivate the
security settings of the wireless LAN router,
and then connect the equipment to a TV in a
non-secure status.
• To use the network with IPv6, select
Settings > Setup > Network > IPv6/IPv4
Priority > IPv6, then select Auto in Set up
network connection.
• When IPv6 is selected, HTTP Proxy cannot
be set.
31
Using Features
Type 3: Unsecured network
with any type of wireless
LAN router
To set up a wireless LAN, SSID (wireless
network name) will be required.
1 Press HOME, then select Settings >
Setup > Network > Network Setup.
2 IP Address setting/Proxy server:
– automatic setting:
Set up network connection > Auto
– manual setting:
Set up network connection >
Custom > Wireless Setup
3 Select Scan, then select a network
from the list of scanned wireless
networks.
4 Follow the instructions on the set-up
screen.
• Security key (WEP or WPA key) will not be
required because you do not need to select
any security method in this procedure.
• To use the network with IPv6, select
Settings > Setup > Network > IPv6/IPv4
Priority > IPv6, then select Auto in Set up
network connection.
• When IPv6 is selected, HTTP Proxy cannot
be set.
Type 4: Wired network
set-up
Enter the respective alphanumeric values
for your router if necessary. The items that
need to be set (e.g. IP Address, Subnet
Mask, DHCP) may differ depending on
the Internet service provider or router. For
details, refer to the instruction manuals
provided by your Internet service
provider, or those supplied with the router.
1 Press HOME, then select Settings >
Setup > Network > Network Setup.
2 IP Address setting/Proxy server:
– automatic setting:
Set up network connection > Auto
– manual setting:
Set up network connection >
Custom > Wired Setup
3 Follow the instructions on the set-up
screen.
Network Setup can also be set from
Initial Setup menu.
• Allows automatic configuration of your wired/
wireless network.
– When connecting with LAN cable: Wired
– When connecting with built-in Wireless
LAN: Wireless
– When connecting with both of the cables:
Wired
• Set to Auto, sets the IP address
automatically. For proxy server is not use.
• To use the network with IPv6, select
Settings > Setup > Network > IPv6/IPv4
Priority > IPv6, then select Auto in Set up
network connection.
• When IPv6 is selected, HTTP Proxy cannot
be set.
Viewing the Network Status
You can confirm your network status.
1 Press HOME, then select Settings >
Setup > Network > Network Setup.
2 Select View Network settings and
status.
32
If You Cannot Connect
to the Internet
Use the diagnosis to check possible
causes for network connection failures,
and settings.
1 Press HOME, then select Settings >
Setup > Network > Network Setup.
2 Select View Network settings and
status.
3 Select Check Connection.
This may take several minutes. You
cannot cancel the diagnosis after
selecting Check Connection.
Adjusting the Server
Display Settings
You can select home network servers to
be displayed on the Home Menu. Up to 10
servers can be displayed in the Home
Menu automatically.
1 Press HOME, then select Settings >
Setup > Network > Home Network
Setup.
2 Select Show/Hide Media Servers.
3 Select the server you want to display
on the Home Menu, and adjust the
settings.
x If you cannot connect to your home
network
The TV detects if the server is being
correctly recognised when you cannot
connect it to your home network. If the
diagnostic results indicate a failure, check
possible causes, and network
connections and settings.
1 Press HOME, then select Settings >
Setup > Network > Home Network
Setup.
2 Select Media Server
Troubleshooting.
Press Yes, then the server diagnostic
starts. When the server diagnostic is
complete, the diagnostic result list
appears.
33
Using Features
Browsing Websites
When the TV is connected to the Internet,
you can browse websites.
Press HOME, then select Internet
Browser to launch the browser.
You can bookmark your favorite sites for
easy access.
• Web content may not be displayed correctly,
or some functions may not work properly, if
the TV does not support functions provided
by certain Internet services. Also, the TV
may not support functions developed in the
future.
x Note on Internet Browser
In no event shall Sony be liable for any
damage caused or associated with the
use of Internet browser, malfunction
(including software) or communication
failure.
x When using a USB mouse/USB
keyboard
• You can move the cursor with the USB
mouse.
• You can enter text with a keyboard.
• Depending on the USB equipment, you may
not be able to control the browser.
Enjoying Sony
Entertainment Network
Sony Entertainment Network serves as a
gateway to Internet content, delivering a
variety of on-demand entertainment
straight to your TV. By making a
broadband Internet connection, you can
enjoy video content, including movies and
cartoons.
• Be sure to connect your TV to the broadband
Internet and complete Network Setup
(page 44).
x To use Sony Entertainment Network
1 Press HOME, then select Sony
Entertainment Network.
2 Press V/v/B/b to select the desired
video service in Service list and press
.
3 Highlight the desired content, then
press .
x To exit Sony Entertainment Network
Press HOME.
x To launch Internet Video
Internet Video can also launched by
pressing the SEN button on the remote
control.
• If you experience difficulties with this feature,
check that the Internet connection is set up
properly.
• Information about the highlighted icon
appears in the information banner.
• The interface to Internet content depends on
the Internet content providers.
• Services block video content is based on the
Parental Lock setting of the TV. Some
service providers do not support this
function (page 41).
(Continued)
34
• To update Sony Entertainment Network
content services, Press HOME, then select
Settings > Setup > Network > Refresh
Internet Content.
x Seeking forward/backward in video
content
Press the buttons on the remote controls
that correspond with the control
indications on the screen.
x To use NETFLIX
Press NETFLIX button on the remote
control to launch menu.
x To use YouTube Leanback
Follow the steps in “To use Sony
Entertainment Network” (page 33) to
launch Sony Entertainment Network,
then select YouTube to launch the
YouTube Leanback.
• It is possible that Netflix cannot be used via
a Proxy server.
Enjoying Applications
With the applications, you can display a
variety of information on the screen.
Applications provide easy access to
interactive content when your TV is
connected to the Internet.
• Be sure to connect your TV to the Internet,
and complete Network Setup.
• If you experience difficulties with this feature,
check that the Internet connection is set up
properly.
1 Press HOME.
2 Press V/v to select Applications, and
press .
3 Select applications to display on the
screen.
x To launch applications
Applications can be also launched by
pressing the SEN button on the remote
control.
Control indications
35
Using the Menus
Using the Menus
Navigating through TV Menus
The HOME button allows you to access a variety of TV settings and USB media files.
1 Press on the remote control to display the menu
options.
2 Press V/v/B/b to navigate on the menu or adjust the
settings.
3 Press to select or confirm.
4 Press to exit.
Sony Entertainment Network serves as a gateway to Internet content,
delivering a variety of on-demand entertainment straight to your TV.
Enables access to Internet services for TV. For details, see page 33.
Internet Apps are small downloadable applications that provide easy access
to interactive content when your TV is connected to the Internet. You can
display a variety of information on the screen.
Internet Apps may not be available in some region/country. For details, see
page 34.
When the TV is connected to the Internet, you can browse websites. Select
the browser and enter a URL. For details, see page 33.
The Favorites feature provides quick access to your frequently used items,
such as preferred TV channels or external inputs (e.g. game console, DVD
player). For details, see page 24.
Sony
Entertainment
Network
Internet
Contents
Applications
Internet
Browser
Favorites
(Continued)
36
Using the Picture Settings
The Photo, Music, and Video icons organize your photo, music, and
video files from DLNA Certified™ networked equipment or Sony USB
connected equipment. Be sure to select the correct icon when
accessing files. Refer to the feature section for more information on
these icons.
You can select the frame image which enables you to enjoy with photo,
music and clock. For details, see page 28.
The Settings icon contains all of the necessary configurations to customize
your TV settings. The options you can select may vary. Unavailable options
are grayed out or not displayed.
Picture: adjust the picture on your TV to fit your viewing preference.
Sound: customize your sound settings to suit your audio preference. You can
also change the settings to output the sound to your connected audio
equipment.
Screen: adjust the size and shape of the images you see on the screen.
Channel: navigate your favorite channels and inputs and select the signal type,
as well as autoprogram channels. You can also customize the channels you see
and the labels assigned to them.
Parental Lock: set the password and limit access to programming based on
rating levels. You can also block channels and inputs.
Setup: modify and customize a variety of general setting options.
Eco: changes the settings related to power consumption.
Option Description
Picture Mode
Customized
picture viewing
Displays the options selected in the Scene Select settings.
Vivid Select for enhanced picture contrast and sharpness.
Standard Select for standard picture settings. Recommended for home
entertainment.
Custom Select to store your preferred settings.
Cinema For film-based content. Suitable in a theater-like environment.
Graphics Optimizes picture quality for viewing graphics.
Reset Resets the current Picture settings to their defaults, except Picture Mode.
Backlight Adjust to brighten or darken the backlight.
Picture Adjust to increase or decrease picture contrast.
Media
Video
Music
Photo Frame
Mode
Settings
37
Using the Menus
• You can change the IPTV picture setting, only when watching Internet video.
Brightness Adjust to brighten or darken the picture.
Color Adjust to increase or decrease color intensity.
Hue Adjust to increase or decrease the green tones.
Sharpness Adjust to sharpen or soften the picture.
Color
Temperature
White adjustment
Cool Select to give the white colors a bluish tint.
Neutral Select to give the white colors a neutral tint.
Warm Select to give the white colors a reddish tint.
Noise Reduction Select to reduce the picture noise level. Select from Auto, High, Medium,
Low and Off.
MPEG Noise
Reduction
Select to reduce the picture noise in MPEG-compressed videos. This is
effective when viewing a DVD or digital broadcast. Select from High, Medium,
Low and Off.
Motionflow Provides smoother picture movement and reduces picture blur.
High Provides smoother picture movement such as for film-based
contents.
Standard Provides smooth picture movement. Use this setting for
standard use.
Off Use this setting when the High and Standard settings result
in noise.
Option Description
CineMotion Provides improved picture movement and reduces picture blur and graininess
for film-based content. Select Auto 1 to represent original film-based content
as is, or Auto 2 for standard use. (Setting items vary depending on the TV
model.)
Advanced
Settings
Reset Resets the advanced settings to the default values.
Adv. Contrast
Enhancer
Automatically adjusts backlight and contrast to the most
suitable settings judging from the brightness of the screen.
This setting is especially effective for dark scenes, and will
increase the contrast distinction of the darker picture scenes.
Select from High, Medium, Low and Off.
Black
Corrector
Enhances black areas of the picture for stronger contrast.
Select from High, Medium, Low and Off.
Gamma Adjusts the balance between bright and dark areas of the
picture.
Clear White Emphasizes white colors. Select from High, Low and Off.
Live Color Makes colors more vivid. Select from High, Medium, Low
and Off.
LED Motion
Mode
Lights up the backlight adequately, reducing blur in movies,
but the brightness decreases.
Option Description
(Continued)
38
• Available Picture options, including options in Advanced Settings depend on Scene Select
and Picture Mode.
Using the Sound Settings
Option Description
Sound Mode
Customized
sound listening
Sets a sound mode. Sound Mode includes options best suited for video and
photographs, respectively.
Standard Optimizes sound quality for general content.
Music Lets you experience dynamic and clear sound, like that of a
concert.
Cinema Optimizes surround sound for movies.
Game Broadens your game-playing experience with superb sound
quality.
Sports Reproduces realistic sound, like that in a stadium.
Reset Resets the current Sound settings to their defaults, except MTS Audio,
Alternate Audio, Speakers, Audio Out and Digital Audio Out.
Equalizer Adjust allows you to select your frequency response curve. Select Reset to
reset the Equalizer settings to the default values.
Sound Booster Select On to enhance treble/bass and reproduces dynamic sound, or Off to
provide natural sound.
Clear Voice Select On for spoken dialog.
Steady Sound Select On to stabilize the volume across all programs and commercials.
Select Off to disable this function.
Balance Adjust to emphasize left or right speaker balance.
Volume Offset Adjust the volume level of the current input relative to other inputs.
MTS Audio
Enjoy stereo,
bilingual and
mono programs
Stereo Select for stereo reception when viewing a program
broadcast in stereo.
Auto SAP Select to automatically switch the TV to second audio
programs when a signal is received. If no SAP signal is
present, the TV remains in Stereo mode.
Mono Select for mono reception. Use to reduce noise during weak
stereo broadcasts.
Alternate Audio
Digital channels
only
Select among the available options to switch among the alternate audio
streams. The program you are tuned to may be broadcasted in a different
language in the alternate audio streams.
Speakers TV Speakers Select to use the TV speakers.
Audio System Select to use an external audio system for the TV sound. By
selecting this option you are disabling the TV speakers.
39
Using the Menus
• MTS Audio is only available for analog programs.
• Alternate Audio is only available if the program is broadcast with alternate audio streams.
• You can also access Sound Mode, MTS Audio, Alternate Audio and Speakers by using the
OPTIONS button on the remote control.
Using the Screen Settings
Audio Out Variable Adjusts the volume with the TV’s remote control, when using
an external audio system.
Fixed Adjusts the volume using the connected audio system’s
remote control.
Digital Audio Out Select Auto if the device connected via DIGITAL AUDIO OUT (OPTICAL) is
compatible with Dolby Digital. Select PCM if the device is not compatible with
Dolby Digital.
Option Description
Wide Mode Wide Zoom Fills the screen with minimum distortion.
Normal Select to display 4:3 picture in original size when the original
source is 4:3.
Full Select to enlarge the picture horizontally to fill the screen when
the original source is 4:3 (Standard definition source). When the
original source is 16:9 (High-definition source), select this mode
to display the 16:9 picture in its original size.
Zoom Select to enlarge the original picture without distorting the aspect
ratio.
Auto Wide On Select On to automatically change Wide Mode setting based on
the content.
Off If frequent screen changes are disturbing to you, select Off.
Choose one of the Wide Mode options when this function is set
to Off.
4:3 Default
Select the default
Screen Mode to
use for 4:3
sources
Wide Zoom Enlarges the 4:3 picture to fill the 16:9 screen, displaying as
much of the original image as possible.
Normal Select to display the 4:3 picture in its original size.
Off Select to continue using the current Wide Mode setting when the
channel or input is changed.
Auto Display
Area
Automatically adjusts the picture to the most appropriate display area.
Option Description
(Continued)
40
• Normal in the Wide Mode setting is not available when you are watching a 720p, 1080i or 1080p
source.
• If 4:3 Default is set to anything but Off, the Wide Mode setting changes only for the current
channel. When you change channels (or inputs), Wide Mode is automatically replaced with the
4:3 Default setting for 4:3 sources. To retain the current Wide Mode setting as channels and
inputs are changed, set 4:3 Default to Off.
• 4:3 Default is not available if Auto Wide is set to Off.
• For the PC Input Signal Reference Chart, see page 50.
Display Area Each setting depends on the resolution you are watching.
Full Pixel Displays pictures in their original size when parts of the picture
are cut off (available depending on the TV model).
+1 Displays pictures in their original size.
Normal Displays pictures in their recommended size.
-1 Enlarges the picture so that the edges are outside the visible
display area.
Horizontal
Center
Allows you to move the position of the picture left and right. (Available in Wide
Zoom and Zoom.)
Vertical Center Allows you to move the position of the picture up and down. (Available in Wide
Zoom and Zoom.)
Option Description
PC Settings When a PC is connected to the TV, the PC settings screen appears instead of
the Screen settings.
You can also select the PIP feature which allows you to view two pictures
simultaneously from OPTIONS button (page 23).
Wide Mode Normal Select to display in the original image size.
Full 1 Select to enlarge the picture to fill the display area,
keeping its original aspect ratio.
Full 2 Select to enlarge the picture to fill the display area.
Reset Resets all PC settings to the default values.
Horizontal
Center
Allows you to move the position of the picture left and right.
Vertical
Center
Allows you to move the position of the picture up and down.
Option Description
41
Using the Menus
Using the Channel Settings
• You should run Auto Program after changing the Signal Type setting.
• Running Auto Program will clear the Favorites list.
• Channels that you set to be hidden can be accessed by the 0-9 and buttons.
• You can set channels to be hidden that are automatically set in Auto Program.
Using the Parental Lock Settings
Option Description
Signal Type Cable Select if you are receiving cable channels via Cable TV
provider.
Antenna Select if you are using an antenna.
Auto Program Automatically sets up the channel list on the TV for all receivable channels.
1 Select Auto Program.
2 Select OK to start Auto Program.
Add Digital
Channels
1 Select Add Digital Channels.
2 Select OK to add digital channels.
Show/Hide
Channels
Allows you to show or hide channels that appear when you use the CH +/–
buttons.
1 Press V/v to scroll through the channels until you find the channel you
want to show or hide. Then press to select it.
2 Press V/v to determine if the channel will be shown or hidden. Then press
to select it.
Edit Channel
Labels
Allows you to assign labels (such as station call letters) to channel numbers.
1 Press V/v to scroll through the channel numbers. Then press to
select the channel number that you want to assign a label.
2 Press V/v to scroll through the label characters (A-Z, 0-9, etc.). Press b to
move to the next character. Repeat the previous steps to add up to seven
characters to the label. When finished, press .
Analog Fine
Tune
Allows you to fine-tune the selected analog channel manually if you feel that a
slight tuning adjustment may improve picture quality. Select Auto to adjust to
the most appropriate analog channel.
Option Description
Password The Parental Lock settings allow you to set up the TV to block programs
according to their content and rating levels. Use 0-9 on the remote control to
enter a four-digit password. The first time you create a password, confirm the
password by entering it again.
Change
Password
Select to change your password.
(Continued)
42
• You need your password for any future access into the Parental Lock settings. If you lose your
password, see “Lost password” on page 57.
• Selecting Clear All will delete the current Downloadable U.S. Rating menu and the menu will
no longer be available until the TV is tuned to a channel that contains downloadable ratings.
• If you block unrated TV programs, be aware that the following types of programs may be
blocked: programs broadcasted from another country, emergency broadcasts, political
programs, sports, news, public service announcements, religious programs and weather.
Country U.S.A. Select to use U.S.A. ratings (page 43).
Canada Select to use Canadian ratings (page 43).
Rating Off Turn Parental Lock off. No programs are blocked from
viewing.
Child Maximum ratings permitted are:
U.S.: TV-Y, TV-G, G
Canada: C, G, TV-Y
Youth Maximum ratings permitted are:
U.S.: TV-PG, PG
Canada: C8+, PG, 8 ans+, TV-PG
Young Adult Maximum ratings permitted are:
U.S.: TV-14, PG-13
Canada: 14+, 13 ans+, TV-14
Custom Select to set ratings manually.
U.S.: See page 43 for details.
Canada: See page 43 for details.
Downloadable
U.S. Rating
(Available only
in U.S.A.
where advanced
ratings exist)
Off Turn Downloadable U.S. Rating off. No programs that contain
downloadable ratings are blocked from viewing.
Custom Select to block programs based on downloadable ratings.
Clear All Select to clear the entire downloadable rating system.
Unrated
(Available only
when Country is
set to U.S.A.)
Allow Allows programs and movies that are broadcasted without a
rating.
Block Blocks all programs and movies that are broadcasted without
a rating.
Channel Block Allows you to block channels regardless of program ratings.
To View a Blocked Channel
Press when tuned to the blocked channel then enter the password.
External Input
Block
Allows you to block external inputs regardless of program ratings.
To View a Blocked External Input
Press when tuned to the blocked input then enter the password.
Option Description
43
Using the Menus
x US Models: Selecting Custom Parental Lock Rating Options
To select custom rating options for the U.S., select U.S.A. in the Country setting (page
42).
• To ensure maximum blocking capability, set the Age-Based Ratings.
x Canadian Models: Selecting Custom Parental Lock Rating Options
To select custom rating options for Canada, select Canada in the Country setting (page
42).
Option Description
Movie Rating G All children and general audience.
PG Parental guidance suggested.
PG-13 Parental guidance for children under 13.
R Restricted viewing, parental guidance is suggested for
children under 17.
NC-17 and X No one 17 or under allowed.
TV Rating
Block programs
by their rating,
content or both
Age-Based Ratings
TV-Y All children.
TV-Y7 Directed to children age 7 and older.
TV-G General audience.
TV-PG Parental guidance suggested.
TV-14 Parents strongly cautioned.
TV-MA Mature audience only.
Content-Based Ratings
FV Fantasy violence.
D Suggestive dialog.
L Strong language.
S Sexual situations.
V Violence.
Option Description
English Rating C All children.
C8+ Children 8 years and older.
G General programming.
PG Parental guidance.
14+ Viewers 14 and older.
18+ Adult programming.
(Continued)
44
x Viewing Blocked Programs
You can view blocked programs by entering your password. Press when tuned to a
blocked program, then enter the password. This temporarily deactivates the parental
control feature. To reactivate the Parental Lock settings, turn off the TV. When the TV is
turned on again, your Parental Lock settings are reactivated.
Using the Setup Settings
French Rating G General programming.
8 ans+ Not recommended for young children.
13 ans+ Not recommended for ages under 13.
16 ans+ Not recommended for ages under 16.
18 ans+ Programming restricted to adults.
U.S.A. Rating See “US Models” on page 43 for details.
Option Description
Network Network Setup Sets the network status settings.
IPv6/IPv4
Priority
Switch between IPv6 and IPv4.
• To use the network with IPv6, select IPv6, then select Auto in
Set up network connection.
• When IPv6 is selected, HTTP Proxy cannot be set.
• When IPv6 is selected, some Internet browser sites,
applications or content cannot be watched.
Built-in
Wireless LAN
Turns the built-in wireless LAN On or Off.
Set to Off, if you do not use the built-in wireless LAN.
When you switch from Off to On, make the settings in Network
Setup.
Device Name Select to change the name of the TV shown on DLNA
Certified
TM
media servers.
Refresh
Internet
Content
Reconnects to the Internet to receive available Internet content
services.
Option Description
45
Using the Menus
Home Network
Setup
Show/Hide
Media
Servers
Displays the connected server list. You can select
the server to display in the Home menu.
Media Server
Troubleshooting
Diagnoses whether the TV can connect to each
server on the home network.
Renderer Renderer Enables the TV to play photo/
music/video files on a device
(e.g. digital still camera) by
operating the device via the
network.
Renderer
Access
Control
Allows access from a specified
control device.
Renderer
Options
Adjusts the Renderer Options
detailed settings.
Photo Frame
Settings
Display Mode Allows you to select the display mode. Select from Image and
Clock, Full Screen Image and Full Screen Clock. See page
28.
Clock Display Allows you to select the clock display. Select from Calendar,
Analog Clock, Digital Clock, Calendar and Clock or Clock.
Calendar and Clock and Clock can be displayed only when
Display Mode is Full Screen Clock.
Audio
Application
Music You can enjoy music with this function.
Off Turns off the music.
Selection
Select image.
Music
Selection
Select music.
Slideshow
Setting
Slideshow You can play a slideshow of photos.
Single View Displays one photo only.
Music
Playback
Setting
All Tracks Listen to all music tracks.
Single Track Set to listen to a single music track.
Duration Selects the time period (1h, 2h, 4h or 24h) after which the TV
automatically switches to standby mode.
First day of the
week
Set Sunday or Monday as the first day of the week on the
calendar.
USB Auto
Start
Select On to start photo/music/video playback automatically when the TV is
turned on and a digital still camera or other device containing photo, music or
video files is still connected to the USB port then turned on.
Option Description
(Continued)
46
• You can turn on Closed Captions (CC) options (On, Off or On when Muting) by pressing the
CC button on the remote control.
Closed
Captions
(CC)
Allows you to select from several closed caption modes (for programs that are
broadcast with closed captioning).
CC Display On Closed Captions (CC) is turned on.
Off Closed Captions (CC) is turned off.
On when
Muting
Closed Captions (CC) is turned on when the TV
is muted.
Analog CC Allows you to select basic analog (EIA-608) closed caption
options.
CC1, CC2,
CC3, CC4
Displays a printed version of the dialog or sound
effects of a program. (Should be set to CC1 for
most programs.)
Text1, Text2,
Text3, Text4
Displays network/station information presented
using either half or the whole screen (if available).
Digital CC When the digital closed caption service is available, select from
the Service 1-6 or CC1-4.
Digital CC
Options
Allows you to make additional settings for digital closed caption
options. Select As Broadcast or Custom. The Custom option is
available on the Digital CC setting.
Custom Allows you to customize the following settings:
Character
Size
Small, Standard, Large
Character
Style
Style 1-7
Character
Color
Color 1-8
Character
Opacity
Solid, Translucent
Edge Type None, Raised, Depressed,
Outline, Left Shadow,
Right Shadow
Edge Color Color 1-8
Background
Color
Color 1-8
Background
Opacity
Solid, Translucent
Audio
Description
Provides an audio description (narration) of visual information, when available.
Option Description
47
Using the Menus
• Favorite channel list will be cleared each time you run the Initial Setup.
• You can assign following labels for each input (except TV):
–, Cable, Satellite, VCR, DVD/BD, Home Theater, Game, Camcorder, Digital Camera, PC,
Edit
•“–” indicates that no labels are assigned.
• If you select Edit, you can edit video labels. Follow the same steps for Edit Channel Labels on
page 41.
Option Description
Info Banner Select Small to display minimal channel and program title or select Large to
display detailed channel and program information along with the TV icon if you
are viewing the TV. Select Hidden to hide information about the TV channel or
program. This information will appear if it is available from the broadcaster.
Info Banner appears on the screen each time the channel and external inputs
are changed or when DISPLAY on the remote control is pressed.
Clock/Timers Sleep Timer Set the time in minutes (Off, 15, 30, 45, 60, 90, or 120) that you
would like the TV to remain on before shutting off automatically.
On Timer Turns on the TV from standby mode at a time you set, and tuned
to a channel or input of your preference or photo frame mode.
Before setting this function, make sure you set the correct
current Time.
Current Time Set the current time manually. This can be set from Initial Setup
or Clock/Timers. Adjust the Current Time for Daylight Saving
Time.
• This TV does not have a battery powered backup for the
clock. Therefore, if there is a power failure or if you disconnect
the power cord, be sure to reset the current date and time.
Initial Setup If you miss the Initial Setup when you first connected the TV or if you want to
scan all receivable channels, select Initial Setup. Follow the instructions on the
screen. Some settings such as Picture, Sound, and Parental Lock will not be
affected by this Initial Setup. If you wish to return your TV to factory settings,
please see the Troubleshooting section on page 57.
Language Select to display all on-screen settings in your language of choice: English,
Español, Français.
Startup Logo Select On to display the logo when the TV is turned on. Select Off to disable it.
AV Setup Manage Inputs Assigns name to external equipment.
Select Auto to display names when the equipment is connected
and/or the signal of the equipment is ready to be shown, or
Always to display regardless of connection status or Off to
disable input (only for TV).
Video/
Component
Selection
Select Auto to have the TV detect and switch between the
Video or Component when Video or Component is connected.
(Continued)
48
Option Description
BRAVIA Sync
Settings
Communicates with equipment compatible with the BRAVIA Sync Control
function.
BRAVIA Sync
Control
Links the operations of the TV and the equipment.
For specific Sony equipment compatible with BRAVIA Sync
Control, this setting is applied automatically to the connected
equipment when set to On.
Device Auto
Power Off
Select On to have your connected equipment with BRAVIA
Sync Control function power off automatically when the TV is
turned off.
Select Off to disable this function. This feature is available when
BRAVIA Sync Control is On.
TV Auto Power
On
Select On to control your TV’s power on from your connected
equipment (except MHL-compatible device) with BRAVIA Sync
Control function. Select Off to disable this function. This feature
is available when BRAVIA Sync Control is On.
Auto Input
Change(MHL)
Select On to switch the TV input to the corresponding device
connected with an MHL cable.
BRAVIA Sync
Device List
Displays a list of equipment with BRAVIA Sync Control
function connected to the TV.
Device Control
Keys
Select button functions of the TV’s remote control to operate the
connected equipment.
None Deactivates the control by the TV’s remote
control.
Normal Enables basic operations, such as navigation
buttons (up, down, left or right, etc.).
Tuning Keys For basic operations and operation of channel-
related buttons, such as CH +/– or 0-9, etc. Useful
when you control a tuner or set-top box, etc; via
the remote control.
Menu Keys For basic operations and operation of the HOME/
OPTIONS buttons. Useful when you select menus
of a BD player, etc; via the remote control.
Tuning and
Menu Keys
For basic operations and operation of channel-
related buttons and HOME/OPTIONS buttons.
•Press OPTIONS while the equipment supporting BRAVIA Sync Control is
connected to display the Device Control options. The Device Control option
provides access to the Home
(Menu), Options and Content List of your
connected equipment with your TV remote control.
• Some equipment with BRAVIA Sync Control does not support the Device
Control feature.
• BRAVIA Sync Settings must be setup on the connected equipment.
Adjustments
Lock
Select Lock so no adjustment can be made to items grayed out, except Picture
Mode and CineMotion.
Select Unlock to allow adjustment to any of the Picture settings.
49
Using the Menus
Using the Eco Settings
Software
Update
Updates the TV system using USB memory or through Network. Select USB or
Network to update.
Automatic
Software
Download
Select On to download the software automatically. Select Off to disable it.
Product
Support
Contact Sony Sony contact information is available on this screen for your
convenience. TV specific information such as Model Name,
Serial Number, Software Version and downloadable ratings (if
available from the TV) are displayed here.
Signal
Diagnostics
Press to display the diagnostics information for the current
signal.
Initialize
Personal
Information
You can erase your personal information stored in the TV.
Option Description
Reset Resets the current Eco settings to the default values.
Power Saving Select from Off, Low, High, Picture Off to adjust your TV’s power consumption.
By selecting the High option, you will reduce the power consumption more than
the other available settings.
While Picture Off is set, pressing VOL +/– or MUTING buttons will not disable this
function. Press other buttons to disable it.
Idle TV
Standby
Select to automatically power off the TV after 1h, 2h, or 4h when no buttons are
pressed on the remote control or the TV. Select Off to disable this function.
This setting is not available if Internet Contents, Applications or Internet
Browser are running.
Auto Shut Off Select On to automatically power off the TV when no input signal is detected for a
certain period of time. Select Off to disable this function.
Option Description
50
Other Information
PC Input Signal Reference Chart for
HDMI/MHL IN
After connecting the PC to the TV, set the output signal from the PC according to the
chart below.
* The 1080p timing when applied to the HDMI/MHL input will be treated as a video timing and not
PC timing. This affects Picture settings and Wide Mode settings. To view PC content set Wide
Mode to Full, and Display Area to Full Pixel.
• This TV’s HDMI input does not support Sync on Green or Composite Sync.
• Your PC must support one of the above PC input signals to display on the television.
• In plug and play, signals with a 60 Hz vertical frequency will be detected automatically. (PC
reboot may be necessary.)
Resolution
Horizontal
frequency (kHz)
Vertical
frequency (Hz)
Standard
Signals Horizontal
(Pixel)
× Vertical
(Line)
VGA 640 × 480 31.5 60 VGA
SVGA 800 × 600 37.9 60 VESA Guidelines
XGA 1,024 × 768 48.4 60 VESA Guidelines
WXGA 1,280 × 768 47.4 60 VESA
1,280 × 768 47.8 60 VESA
1,360 × 768 47.7 60 VESA
SXGA 1,280 × 1,024 64.0 60 VESA
HDTV* 1,920 × 1,080 67.5 60 CEA-861*
51
Other Information
Using a Wall-Mount Bracket
This TV’s instruction manual only shows the steps on preparing the installation of the TV
before installing to the wall.
Your TV can be mounted on a wall using a Wall-Mount Bracket (not supplied) out of the
box as packaged. If the Table-Top Stand is attached to the TV, the TV may require
detaching the Table-Top Stand.
Prepare the TV for the Wall-Mount Bracket before making cable connections.
Sony does not supply the Wall-Mount Bracket or the installing service. For product
protection and safety reasons, Sony strongly recommends that installing of your
TV on the wall be performed by qualified professionals. Do not attempt to install it
yourself.
• Follow the instruction guide provided with the Wall-Mount Bracket for your model.
Sufficient expertise is required in installing this TV, especially to determine the strength
of the wall for withstanding the TV’s weight.
• The length of the screw for Wall-Mount Bracket differs depending on the mounting
hook thickness. Please see below illustration.
• Be sure to store the unused screws and Table-Top Stand in a safe place until you are
ready to attach the Table-Top Stand. Keep the screws away from small children.
• Read the supplied Safety Booklet for additional safety information.
8-12 mm
Screw M6
Mounting Hook
Hook attachment on rear of TV set
52
Troubleshooting
Many of the poor pictures and poor sound conditions are related to improper connection
of the cables; refer to the Quick Setup Guide provided for connections.
If you have questions, service needs, or require technical assistance related to the use
of your Sony TV even after you read this operating instructions manual, contact the
following:
For US Support:
http://www.sony.com/tvsupport
or call 1-800-222-SONY (7669)
For Canadian Support:
http://www.sony.ca/support
or call 1-877-899-SONY (7669)
x Things to consider
• Check the input selection by pressing the INPUT button. You may be watching the
wrong input.
• If you cannot hear sound from the TV, you may have accidentally pressed the MUTING
button on your remote control; press the MUTING button again or press VOL + to
deactivate muting.
• If the remote control is not functioning properly, the batteries may be installed
incorrectly or may be low or an object or light may be interfering with the remote
control.
• To reset the TV to factory default settings:
1 Turn on the TV.
2 Press and hold down the V button on the remote, press the "/1 button on the TV set.
(The TV will turn itself off, then back on again.)
3 Release the V button when the TV is turned on.
IMPORTANT: The factory reset will clear all of your customized settings including the
Parental Lock setting.
When the Password is lost or cannot be remembered, enter the master password: 4357.
This password clears your previous password and allows you to enter a new password.
Condition Explanation/Solution
No picture
No picture • Check the Power Saving settings (see page 49).
Cannot receive any
channels
• Make sure the power cord is connected securely.
• Turn on the power of the TV.
• Check cable/antenna connections.
• Make sure the Signal Type setting is correct for your TV signal
source.
53
Other Information
TV is locked to one
channel
•Perform Auto Program to add receivable channels that are not
present in the TV’s memory (see pages 17 and 41).
Cannot receive or select
channels
•Perform Auto Program to add receivable channels that are not
present in the TV’s memory (see pages 17 and 41).
• To receive or select cable channels, make sure that Signal Type
in the Channel settings is set to Cable (see page 41). To receive
or select UHF channels over an antenna, make sure Signal Type
is set to Antenna.
The TV turns off
automatically
• Check if Sleep Timer is activated (see page 47).
• Check Idle TV Standby in the Eco settings.
No picture from some
video sources
• Check the connection between the optional video equipment
and the TV.
•Press INPUT on the remote control.
Poor picture
Picture quality not as
good as viewed at the
store
• Picture quality depends on the signal content. See Quick Setup
Guide (supplied) to display the best possible picture for that
signal.
Broadcast HD formats
have poor quality
• Content and signal quality are controlled by the signal provider.
Many HD channels and content are actually upscaled versions of
standard-definition broadcasts. The picture is affected by the
quality of the signal received, which varies between channel and
program.
Double images or ghosts • Check cable/antenna connections.
• Check the antenna location and direction.
Only snow and noise
appear on the screen
• Check if the antenna is broken or bent.
• Check if the antenna has reached the end of its serviceable life.
(3-5 years in normal use, 1-2 years at the seaside.)
Dotted lines or stripes • Keep the TV away from noise sources such as cars, motorcycles,
or hair-dryers.
• If using 300 ohm twin lead, move the excess lead away from the
TV or try using 75-ohm coaxial cable instead.
No color / Dark picture /
Color is not correct / The
picture is too bright
• Adjust the Picture Mode options in the Picture settings (see
page 36).
• If you set the Power Saving mode to Low or High, it will
enhance the black level.
Noisy picture • Make sure that the antenna is connected using a 75-ohm coaxial
cable (not supplied).
• Keep the antenna cable away from other connecting cords.
• To avoid TV interference, make sure to use an undamaged
antenna cable.
Blurry picture / Poor color • Transporting the TV from a cold to a warm location or a sudden
change in room temperature may cause moisture condensation,
resulting in a blurry picture or poor color. Turn off your TV and
wait a few hours before powering on again.
Condition Explanation/Solution
(Continued)
54
No sound / Noisy sound
No sound but good
• Check the volume control.
•Press MUTING or VOL + so that “Muting” disappears from the
screen (see page 20).
•Set Speakers to TV Speakers in the Sound settings (see page
38). If it is set to Audio System, sound is not output from the TV’s
speakers regardless of the TV’s volume control.
• When using HDMI input with Super Audio CD or DVD-Audio,
DIGITAL AUDIO OUT (OPTICAL) may not provide an audio
signal.
• When tuned to a digital channel with Alternate Audio, the
broadcaster may not be broadcasting your preferred Alternate
Audio language. Press OPTIONS, highlight and select Alternate
Audio, and change the Alternate Audio language (see page
38).
Audio noise • Make sure that the antenna is connected using a 75-ohm coaxial
cable (not supplied).
• Keep the antenna cable away from other connecting cords.
• To avoid TV interference, make sure to use an undamaged
antenna cable.
No audio or low audio
with Home Theater
System
•Set Speakers to Audio System in the Sound settings (see page
38).
•Set Audio Out to Fixed in the Sound settings (see page 39).
No color / Irregular
• Verify that the Video/Component Selection (see page 47) is set
to the current input type in use. We suggest leaving this setting to
Auto.
BRAVIA Sync
Cannot find connected
BRAVIA Sync HDMI/
MHL device
• Make sure that the BRAVIA Sync Control is set up on both the
TV and the optional device compatible with BRAVIA Sync.
Second A/V receiver is
not listed on the BRAVIA
Sync Device List
• Only one A/V receiver may be used with the BRAVIA Sync and
BRAVIA Sync Control functions at one time (see page 48).
PC connection
No picture / No signal • Confirm the PC is correctly connected to the TV with the HDMI
IN.
• Ensure the output signal from the PC is one of the formats listed
on page 50.
• Turn the PC off. Confirm the PC connection and restart the PC.
Plug-and-play will auto-detect the TV and correctly set up PC
timing.
• Verify the PC is not in standby or hibernation mode.
Poor Picture • Adjust the resolution (see page 50).
Condition Explanation/Solution
55
Other Information
Applications
Apps are inaccessible • Check that the LAN cable or AC power cord of the router/
modem* has been connected properly.
* Your router/modem must be set in advance to connect to the
Internet. Contact your Internet service provider for router/modem
settings.
• Try using apps later. The app content provider’s server may be
out of service.
General
TV screen feels warm • Due to the thin profile of this television, the heat generated by the
LCD panel backlight and supporting electronics will be more
noticeable. This is normal operation and not a cause for concern.
One or more promotional
logo(s) appears (appear)
on the screen. (Demo
Mode)
•Press RETURN on the remote control to suspend Demo Mode.
Then, press HOME, select Settings and proceed with Initial
Setup in the Setup settings. Be sure to select Home on the
viewing environment (Location) step.
Wide Mode changes
automatically
• The current Wide Mode setting is automatically replaced with the
4:3 Default setting when you change the channel or video input,
if 4:3 Default in the Screen settings is set to other than Off. If you
want to lock in Wide Mode selected with WIDE on the remote
control, set 4:3 Default to Off in the Screen settings (see page
39).
• Check the Auto Wide option in the Screen settings (see page
39).
Suddenly the picture
gets smaller
• The picture gets smaller during the commercials due to the
method in which the provider broadcasts their content. When HD
content channels switch to SD content (commercials), the picture
may be small with a black border.
• Auto Wide will not expand the picture during these content
changes since the content information is regulated by the
channel signal provider. You can manually change the Wide
Mode if you prefer (see page 24). This setting will remain in
effect until you change the channel or input or manually change
the Wide Mode again.
“Black box” on screen • You have selected a text option and no text is available (see
page 46). To turn off this feature, set the CC Display option to
Off. If you were trying to select closed captioning, select CC1
instead of Text1-4.
Condition Explanation/Solution
(Continued)
56
Black bands appear at
the edges of the screen
• Some wide screen programs are filmed in aspect ratios that are
greater than 16:9 (this is especially common with theatrical
releases). Your TV will show these programs with black bands at
the top and bottom of the screen. For more details, check the
documentation that came with your DVD/Blu-ray (or contact your
program provider).
• Programs in 4:3 aspect ratio will have bands on left and right
sides of the screen.
• Programs broadcast in HD formats (720p and 1080i) with 4:3
content will commonly have black bands on the left and right
sides of the screen which are added by the broadcaster (see
image on left).
• Some cable and satellite set-top boxes can also control the size
of the picture. If you are using a set-top box, refer to the
manufacturer of the set-box for more information.
• Auto Wide will not expand the picture when the black bands on
the sides of the screen are added by the broadcaster. You can
manually change the Wide Mode to Wide Zoom, or Zoom to fill
the screen, which will remain in effect until you change the
channel or input or manually change the Wide Mode again.
Certain programs on
DVD or other digital
sources display a loss of
detail, especially during
fast-motion or dark
scenes
• This is due to the digital compression of the source content used
by certain digital broadcasts and DVDs which may cause your
TV’s screen to display less detail than usual, or cause artifacts
(small blocks or dots, pixelations) to appear on your screen.
These signal compressions are more visible and are dependent
on the clarity and resolution of the TV.
Remote control does not
operate
• To determine if the problem is with the remote control or not,
press a button on the TV.
• Check the polarity of the batteries or replace the batteries.
• Point the remote control at the remote control sensor located at
the front of the TV.
• Keep the remote control sensor area clear from obstacles.
• Fluorescent lamps can interfere with your remote control
operation; try turning off the fluorescent lamps.
Some digital cable
channels are not being
displayed
• Certain cable companies have limitations on the broadcast of
digital cable channels. Check with your cable company for more
information.
• The digital cable channel may be set to Hidden in the Show/
Hide Channels setting (see page 41).
Some photo, music, or
video files are not
displaying from my USB
equipment
• The accessible file or folder limit in a directory is 1,000 for USB
connected equipment. This limit includes non-supported files or
just folders. Files or folders are populated based on their time
stamps. Photo, music files or folders exceeding the limit will not
be displayed.
TV does not output
picture and/or sound
from the MHL device
• Disconnect the MHL cable, then reconnect it, or power the MHL
device off then on again and release its lock.
Condition Explanation/Solution
57
Other Information
Photo images appear
small in the screen
• Set display size to expanded.
• Whether photo images can be displayed in full screen or not
depends on the resolution or aspect ratio of the file.
Photo images or folders
take time to display
• Depending on the image dimension, file size, and number of files
in a folder, some photo images or folders take time to display.
• The first time a camera is connected to the TV via USB cable, it
may take up to a couple of minutes for the photos to display.
Lost password • Select the Password settings on the Parental Lock settings,
then enter the following master password: 4357. This password
clears your previous password and allows you to enter a new
password (see page 41).
How to reset the TV to
factory settings
• Turn on the TV. While holding down V on the remote control,
press 1 on the TV. (The TV will turn itself off, then back on
again.) Release V.
IMPORTANT: The reset will clear all of your customized settings
including the Parental Lock setting.
Sometimes video
streaming quality is poor
when using the wireless
LAN
• The wireless network connection quality varies depending on the
distance or obstacles (e.g. wall) between the TV and the wireless
router (access point), environment interference, and quality of
the wireless router (access point).
Wireless LAN connection
fails or radio reception
conditions are poor
• Check the installation location of the TV and wireless router
(access point). Signal condition may be affected for the following
reasons.
- Other wireless devices, microwaves, fluorescent lights, etc.,
are placed nearby.
- There are floors or walls between the wireless router (access
point) and TV.
If the problem persists even after checking the above, try
making a wired LAN connection.
Poor picture on Internet
Video
• Quality depends on the original video provided by the video
content provider and your connection bandwidth.
Small picture on Internet
Video
• Use the color buttons to zoom in and out.
Certain Internet video
content displays a loss of
detail, especially during
fast-motion or dark
scenes
• Video quality and picture size depend on broadband speed and
delivery by content providers.
Good picture quality but
no sound on the Internet
video content
• Quality depends on the original content provided by the video
content provider and your connection bandwidth.
• Due to the nature of Internet video, not all videos will contain
sound.
You do not see many
videos in the Internet
Video Guide
•Press OPTIONS and select categories to view more content.
• Check the Parental Lock ratings on the TV; some Internet
content may be blocked based on the rating.
Condition Explanation/Solution
(Continued)
58
Your TV cannot connect
to the server
• Check the LAN cable or connection to your server and your TV.
• Check if your network is properly configured on your TV.
A message appears
starting that the TV
cannot connect to your
network
• Check the current network settings. Press HOME, then select
Settings > Setup > Network > Network Setup > View Network
settings and status. If all of your network settings are “-”, your
server may not be connected properly. Check your network
connections and/or server’s instruction manual for connection
information.
• Reconfigure your network settings.
• If the LAN cable is connected to an active server and the TV has
acquired an IP address, check your DLNA Certified™ media
server’s connections and configurations.
• Your IP address configuration can be viewed by selecting the
View Network settings and status option.
DLNA Certified™ media
server is inaccessible
although it is listed under
[Media] in the Home
Menu
• Check your LAN cable/connection or your server connections.
The TV may have lost connection with the server.
•Perform Media Server Troubleshooting to check if your media
server is properly communicating with the TV. Press HOME, then
select Settings > Setup > Network > Home Network Setup >
Media Server Troubleshooting.
Some photos, music,
video files in the
connected USB device
or DLNA Certified™
media server are not
displayed
• Unsupported files may not be displayed.
• The accessible file or folder limit in a directory is 1,000 for USB
and a DLNA Certified™ media server. This limit includes non-
supported files or just folders. Files or folders are populated
based on their timestamps. Photo, music files or folders
exceeding the limit will not be displayed.
When using the renderer
function, music files
cannot be played back
• Some applications display a photo file pre-installed in the PC
simultaneously with music playback when using the renderer
function. Depending on the pre-installed photo file, music
playback may not be possible, but may become possible by
changing the photo file.
The TV surrounds
become warm.
• When the TV is used for an extended period, the TV surrounds
become warm. You may feel hot when touching there by the
hand.
Condition Explanation/Solution
59
Other Information
Important Notices
FCC Related Information
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15 of
the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and
used in accordance with the instructions, may cause harmful
interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user is
encouraged to try to correct the interference by one or more
of the following measures:
Reorient or relocate the receiving antenna.
Increase the separation between the equipment and
receiver.
Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
Consult the dealer or an experienced radio/TV
technician for help.
Safety and Regulatory
This device complies with Industry Canada licence-exempt
RSS standard (s). Operation is subject to the following two
conditions: (1) this device may not cause interference, and
(2) this device must accept any interference, including
interference that may cause undesired operation of the
device.
This equipment complies with FCC/IC radiation exposure
limits set forth for uncontrolled equipment and meets the FCC
radio frequency (RF) Exposure Guidelines in Supplement C
to OET65 and RSS-102 of the IC radio frequency (RF)
Exposure rules. This equipment has very low levels of RF
energy that it deemed to comply without maximum
permissive exposure evaluation (MPE). But it is desirable that
it should be installed and operated with at least 20 cm and
more between the radiator and person’s body (excluding
extremities: hands, wrists, feet and ankles).
This device and its antenna(s) must not be co-located or
operating with any other antenna or transmitter except Grant
condition.
Note
This television includes a QAM demodulator which should
allow you to receive unscrambled digital cable television
programming via subscription service to a cable service
provider. Availability of digital cable television programming
in your area depends on the type of programming and signal
provided by your cable service provider.
Declaration of Conformity
Trade Name: SONY
Model: KDL-60R510A
Responsible Party: Sony Electronics Inc.
Address: 16530 Via Esprillo,
San Diego, CA 92127 U.S.A.
Telephone Number: 858-942-2230
This device complies with part 15 of the FCC rules.
Operation is subject to the following two conditions: (1)
This device may not cause harmful interference, and (2)
this device must accept any interference received,
including interference that may cause undesired
operation.
Pursuant to FCC regulations, you are cautioned that any
changes or modifications not expressly approved in this
manual could void your authority to operate this
equipment.
60
Specifications
System
Television system NTSC: American TV standard
ATSC (8VSB terrestrial): ATSC compliant 8VSB
QAM on cable: ANSI/SCTE 07 2000 (Does not include CableCARD functionality)
Channel coverage Analog terrestrial: 2 - 69 / Digital terrestrial: 2 - 69
Analog Cable: 1 - 135 / Digital Cable: 1 - 135
Panel system LCD (Liquid Crystal Display) Panel (LED backlight)
Speaker output 10 W + 10 W
Input/Output jacks
CABLE/ANTENNA 75-ohm external terminal for RF inputs
VIDEO IN VIDEO: 1 Vp-p, 75 ohms unbalanced, sync negative
AUDIO: 500 mVrms (Typical) / Impedance: 47 kilohms
COMPONENT IN YP
BPR (Component Video): Y: 1.0 Vp-p, 75 ohms unbalanced, sync negative / PB: 0.7 Vp-p,
75 ohms
P
R: 0.7 Vp-p, 75 ohms / Signal format: 480i, 480p, 720p, 1080i, 1080p
AUDIO: 500 mVrms (Typical) / Impedance: 47 kilohms
HDMI IN 1(ARC)
HDMI IN 2/MHL
HDMI IN 3
HDMI: Video: 480i, 480p, 720p, 1080i, 1080p, 1080/24p
MHL: Video: 480i, 480p, 720p, 720/30p, 1080i, 1080/30p, 1080/24p
Audio: Two channel linear PCM 32, 44.1 and 48 kHz, 16, 20 and 24bits, Dolby Digital
PC Input (see page 50)
AUDIO OUT 500 mVrms (typical)
DIGITAL AUDIO OUT
(OPTICAL)
PCM/Dolby Digital optical signal
USB Compliant with USB mass storage e.g. digital camera or USB memory.
DLNA DLNA Certified™ codec is the same as USB. (Some DLNA Certified™ servers may not be
able to play back.)
LAN 10BASE-T/100BASE-TX connector (Depending on the operating environment of the
network, connection speed may differ. 10BASE-T/100BASE-TX communication rate and
communication quality are not guaranteed for this TV.)
61
Other Information
• Optional accessories availability depends on its stock.
• Design and specifications are subject to change without notice.
* Dimensions and mass are approximate values.
Model name KDL- 60R510A
Power and others
Power requirement 110-240 V AC, 50/60 Hz (U.S.A./Canada 120 V AC, 60 Hz)
Power consumption
175 W
in use
in standby Less than 0.3 W with 120 V AC and with 240 V AC less than 0.3 W
Screen size*
(measured diagonally)
(inches)
60
(cm) 152.5
Display resolution 1,920 dots (horizontal) × 1,080 lines (vertical)
Speaker/Full range (2) (mm)
(inches)
48 × 148
(1
15
/16 × 5
7
/8)
Dimensions*
with Table-Top Stand
(mm)
(inches)
1,357 × 838 × 259
53
1
/2 × 33 × 10
1
/4
without Table-Top Stand
(mm)
(inches)
1,357 × 799 × 86
53
1
/2 × 31
1
/2 × 3
1
/2
wall-mount hole pattern
(mm)
400 × 300
wall-mount screw size
(mm)
M6 (length: refer to diagram on page 51)
Mass*
with Table-Top Stand
(kg)
(lb.)
20.1
44.3
without Table-Top Stand
(kg)
(lb.)
19.1
42.1
Supplied accessories Remote control RM-YD096 (1)/Size AAA batteries (2)/Operating Instructions (2)/Quick Setup
Guide (2)/Warranty Card (1)/Safety and Regulatory Booklet (1)/Software License (2)/Stand
installation guide (1)/Table-Top Stand (1 set)/Screw (4)
common to all models
Optional accessories Connecting cables
62
Index
"/1 button 22
0-9 buttons 20
4:3 Default 39
A
Add Digital Channels 41
Advanced Settings 37
Alternate Audio 38
Analog Fine Tune 41
Applications 34
Audio Description 46
AUDIO OUT 9
Audio Out 39
Auto Display Area 39
Auto Program 17, 41
Auto Shut Off 49
Auto Wide 39
Automatic Software Download 49
AV Setup 47
B
Backlight 36
Balance 38
BRAVIA Sync Settings 48
Brightness 37
C
CABLE/ANTENNA 9
CC/SUBTITLE button 21
CH +/– button 21
CH/INPUT button 22
Change Password 41
Channel Block 42
CineMotion 37
Clear Voice 38
Clock/Timers 47
Closed Captions (CC) 46
Color 37
Color Temperature 37
Colored buttons 19
COMPONENT IN 8
Country 42
D
Digital Audio Out 39
DIGITAL AUDIO OUT (OPTICAL)
9
Display Area 40
DISPLAY button 20
Downloadable U.S. Rating 42
E
Edit Channel Labels 41
English Rating 43
Equalizer 38
Equipment Control button 19
External Input Block 42
F
Favorites 24
French Rating 44
H
HDMI IN 8
HOME button 20
Horizontal Center 40
Hue 37
I
Idle TV Standby 49
Info Banner 47
Initial Setup 47
INPUT button 19
Installing the TV on a wall 51
Internet Browser 33
J
JUMP button 21
L
LAN 9
Language 47
LED indicator 22
M
Motionflow 37
Movie Rating 43
MPEG Noise Reduction 37
MTS Audio 38
Music 25
MUTING button 20
N
Netflix 34
NETFLIX button 21
Network 44
Noise Reduction 37
O
OPTIONS button 21
P
PAP 23
Password 41
PC Settings 40
Photo 25
Photo Frame 28
PHOTO FRAME button 20
Photo Frame Settings 45
PIC OFF button 19
Picture 36
Picture Adjustments Lock 48
Picture Mode 36
PIP 23
POWER button 20
Power Saving 49
Product Support 49
R
Rating 42
Reset 36, 38, 49, 57
RETURN button 20
S
SEN button 21
Settings
Channel
41
Eco 49
Parental Lock 41
Picture 36
Screen 39
Setup 44
Sound 38
Sharpness 37
Show/Hide Channels 41
Signal Type 41
SLEEP button 20
Software Update 49
Sony Entertainment Network 33
Sound Booster 38
Sound Mode 38
Speakers 38
Startup Logo 47
Steady Sound 38
SYNC MENU button 21
T
Troubleshooting 52–58
TV Rating 43
U
U.S.A. Rating 44
Unrated 42
USB 9
USB Auto Start 45
V
Vertical Center 40
Video 25
VIDEO IN 8
Viewing Blocked Programs 44
VOL (2) +/– button 20, 22
Volume Offset 38
W
WIDE button 19
Wide Mode 39
Y
YouTube Leanback 34
© 2014 Sony Corporation Printed in Mexico
4-543-850-11(1)
For Your Convenience
Online
Registration:
Be sure to register your TV.
United States
Canada
http://productregistration.sony.com
http://www.sony.ca/registration
Software
Updates:
Your TV is capable of receiving software updates. For the latest information
about software updates for your TV, visit:
United States
Canada
http://www.sony.com/tvsupport
http://www.sony.ca/support
NOTE: If your TV is connected to the Internet, you can check for software
updates by selecting Settings, Setup and then Software Update.
