Instructions for installation and use
Extractor hood
Loading ...
Loading ...
Loading ...
1
2
3
4
5
6
>
Summary of Contents for Neff D35KHM2S0/02:
[en] Instructions for installation and use
1
à Table of contents
2
[en] Instructions for installation and use
2
8 Intended use 2
2
( Important safety information 3
2
7 Environmental protection 4
2
1 Operating the appliance 5
2
2 Cleaning and maintenance 6
2
3 Trouble shooting 8
2
4 Customer service 9
2
( Important safety information 10
2
K General information 11
2
5 Installation 12
2
Instruction manual
2
8 Intended use
2
Intended use
2
( Important safety information
3
Important safety information
3
: Warning
3
Danger of suffocation!
3
: Warning
3
Risk of fire!
3
: Warning
3
Risk of burns!
3
: Warning
3
Risk of injury!
3
: Warning
3
Risk of electric shock!
3
Causes of damage
3
Caution!
3
7 Environmental protection
4
Environmental protection
4
Saving energy
4
Environmentally-friendly disposal
4
1 Operating the appliance
5
Operating the appliance
5
Note:
5
Control panel
5
Symbol
5
Explanation
5
Indicator/ symbol
5
Explanation
5
Setting the fan
5
Noise reduction function
5
Switching on
5
Note:
5
Switching off
5
AirFresh function
5
Switching on
5
Switching off
5
Intensive setting
5
Switching on
5
Note:
5
Switching off
5
Fan run-on time
5
Switching on
5
Switching off
5
Lighting
6
Saturation display
6
Audible signal
6
Switching on
6
Switching off
6
2 Cleaning and maintenance
6
Cleaning and maintenance
6
: Warning
6
Risk of injury!
6
: Warning
6
Risk of electric shock!
6
: Warning
6
Risk of electric shock!
6
: Warning
6
Risk of injury!
6
Cleaning agents
6
Note:
6
Note:
6
Area
7
Cleaning products
7
Removing metal grease filter
7
1. Open the lock and swing down the metal grease filter. When you do this, take hold of the metal grease filter from underneath with your other hand.
7
2. Take the metal grease filter out of the holder.
7
Notes
7
3. Clean the metal grease filter.
7
4. Clean the accessible parts of the housing. Clean the inside of the appliance.
7
: Warning
7
Risk of injury!
7
Cleaning the metal mesh grease filters
7
: Warning
7
Risk of fire!
7
Notes
7
By hand:
7
Note:
7
In the dishwasher:
7
Note:
7
Installing the metal mesh grease filter
8
1. Insert the metal grease filter. When you do this, take hold of the metal grease filter from underneath with your other hand.
8
Note:
8
2. Swing the metal grease filter up and click it into place.
8
3. If the metal grease filter has not been inserted correctly, open the lock and reinsert the metal grease filter correctly.
8
Replacing the activated charcoal filter
8
Note:
8
1. Open the cover on the top of the appliance.
8
2. Remove the old activated charcoal filter and insert the new one.
8
3. Close the cover.
8
4. Reset the saturation indicator.~ "Saturation display" on page 6
8
3 Trouble shooting
8
Trouble shooting
8
: Warning
8
Risk of electric shock!
8
Malfunction table
8
Problem
8
Possible cause
8
Solution
8
LED lights
8
: Warning
8
Risk of injury!
8
4 Customer service
9
Customer service
9
To book an engineer visit and product advice
9
Accessories
9
Note:
9
Note:
9
Installation instructions
10
( Important safety information
10
Important safety information
10
Caution!
10
Damage to the appliance
10
: Warning
10
Risk of fire!
10
: Warning
10
Risk of fire!
10
: Warning
11
Risk of injury!
11
: Warning
11
Risk of electric shock!
11
: Warning
11
Risk of electric shock!
11
: Warning
11
Danger of suffocation!
11
K General information
11
General information
11
Checking the wall
11
Electrical connection
11
: Warning
11
Risk of electric shock!
11
: Warning
11
Risk of electric shock!
11
5 Installation
12
Installation
12
Preparing for installation
12
Caution!
12

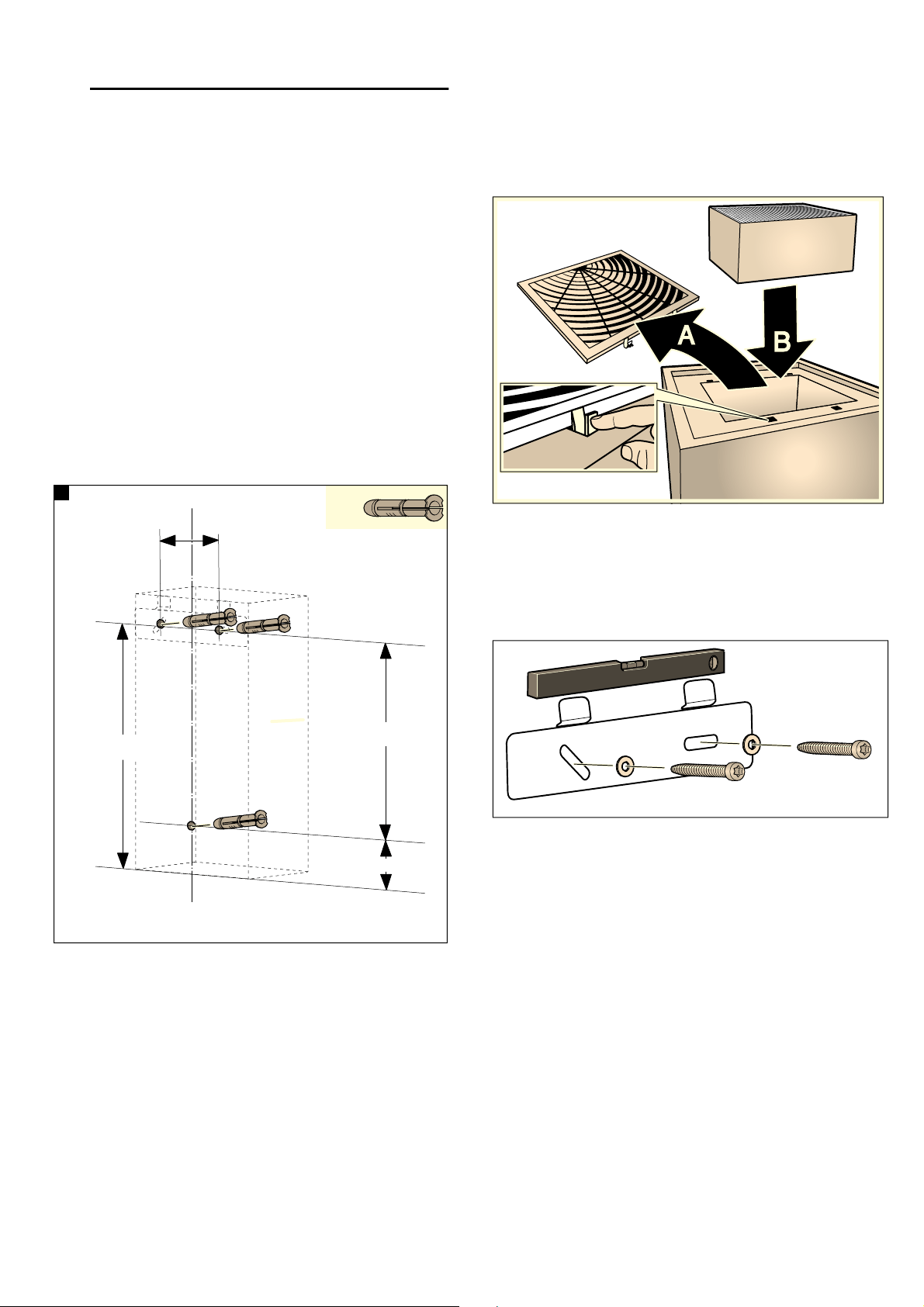

1. Determine where the extractor hood should be positioned and lightly mark where the lower edge of the appliance should be on the wall. Determine where the middle should be based on the hob.
12
Note:
12
2. Place the template against the line drawn on the wall. Mark where the screws should be inserted.
12
3. Drill three 8 mm diameter holes to a depth of 80 mm for fastening the appliance and press in the wall plugs flush with the wall.
12
Preparing the appliance
12
1. Remove the activated charcoal filter from the film.
12
2. Open the cover on the top of the appliance and remove it ¨, insert the activated charcoal filter © and then close the cover.
12
Installation
12
1. Screw in the mounting supports for the extractor hood until they are hand-tight, use a spirit level to level the appliance and then screw the mounting supports in fully.
12
2. Screw in the threaded bolt, leaving it protruding out of the wall by 5 - 9 mm.
13
Hanging the appliance
13
1. If there is any protective film on the appliance, first remove the protective film from the back and, following installation, remove the rest of the film.
13
2. Remove the metal grease filter before hanging the appliance.
13
3. Hang the appliance on the wall.
13
4. Firmly tighten the knurled nuts.
13
5. Reinsert the metal grease filter and connect the power supply.
13
File type: PDF
File name: 25497629_d35khm2s0-01.pdf
File size: 1.11 MB
File Language: English
Pages: 16
Author: Neff
Published: 2021-03-22
Updated: 2023-06-14
Download File
