DVP1120
DVP2008
Register you product and get support at
www.philips.com/welcome
EN DVD Video Player 6
ZH_CN
DVD
播放机
42
1_dvp1120-2008_93_eng1_final813.1 11_dvp1120-2008_93_eng1_final813.1 1 2008-03-24 2:43:09 PM2008-03-24 2:43:09 PM
2
᳝↦᳝ᆇ⠽䋼ܗ㋴
+D]DUGRXV7R[LF6XEVWDQFH
䚼ӊৡ⿄
1DPHRIWKH3DUWV
䪙
3E/HDG
∲+J
0HUFXU\
䬝&G
&DGPLXP
݁Ӌ䫀
&KURPLXP
⒈㘨㣃
3%%
⒈Ѡ㣃䝮
3%'(˅
'9'ORDGHU
'9'ܝⲦ
+RXVLQJ
3:%V
⬉䏃ᵓ㒘ӊ
$FFHVVRULHV
5HPRWHFRQWURO
FDEOHV
䰘ӊ˄䘹఼ˈ
⬉⑤㒓ˈ䖲㒓˅
%DWWHULHVLQ
5HPRWH&RQWURO
=Q&
䘹఼⬉∴
ƻ˖㸼⼎䆹᳝↦᳝ᆇ⠽䋼䆹䚼ӊ᠔᳝ഛ䋼ᴤ᭭Ёⱘ䞣ഛ6-7ޚ㾘ᅮⱘ䰤䞣㽕∖ҹϟDŽ
O: Indicates that this toxic or hazardous substance contained in all of the homogeneous
materials for this part is below the limit requirement in SJ/T11363 – 2006.
h˖㸼⼎䆹᳝↦᳝ᆇ⠽䋼㟇ᇥ䆹䚼ӊⱘᶤϔഛ䋼ᴤ᭭Ёⱘ䞣䍙ߎ6-7ޚ㾘ᅮⱘ䰤䞣㽕∖DŽ
X: Indicates that this toxic or hazardous substance contained in at least one of the
homogeneous materials used for this part is above the limit requirement in SJ/T11363 - 2006.

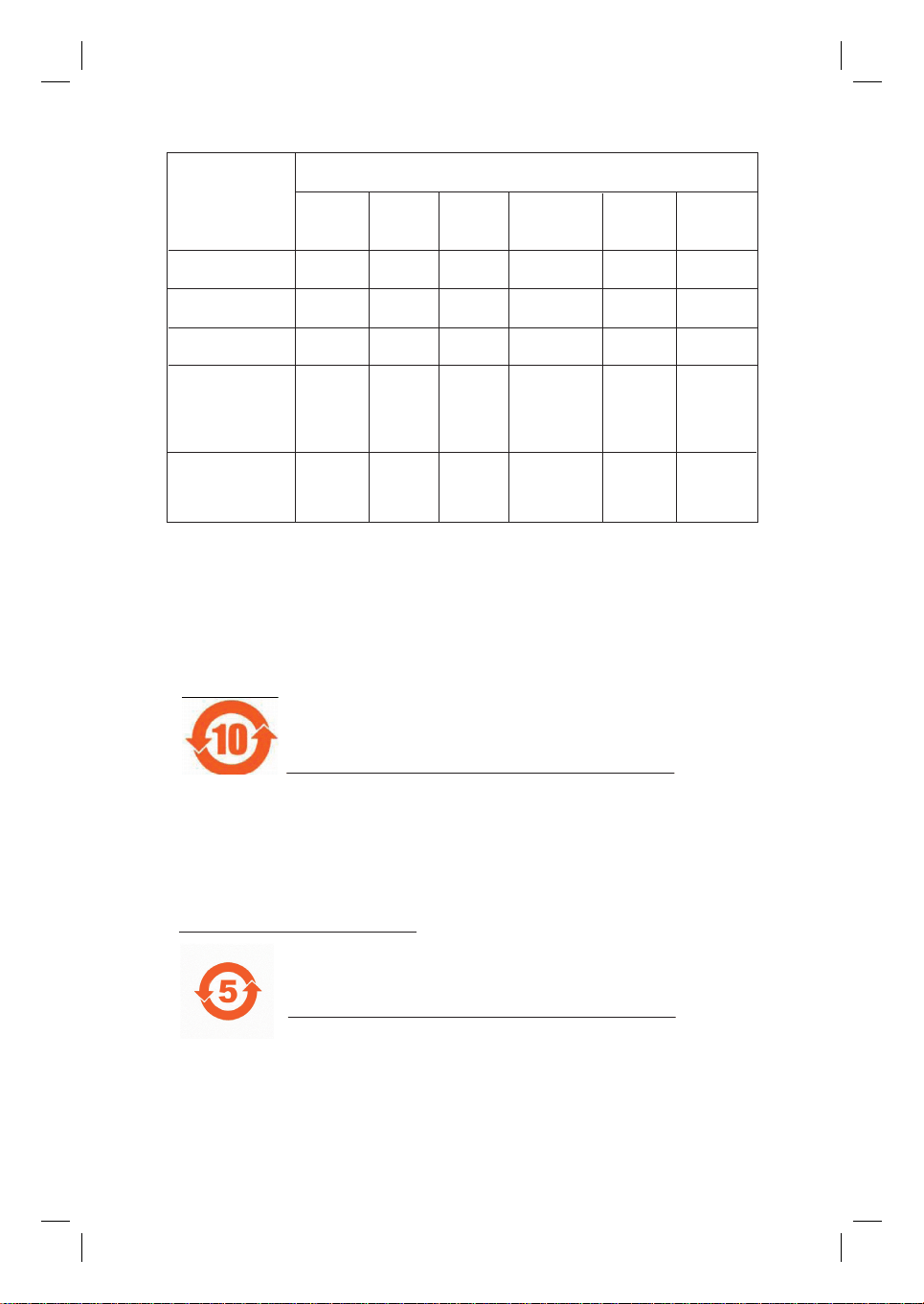

⦃ֱՓ⫼ᳳ䰤Environmental Protection Use Period
ℸ䆚ᣛᳳ䰤˄ᑈ˅ˈ⬉ᄤֵᙃѻકЁ᳝ⱘ᳝↦᳝ᆇ⠽䋼ܗ㋴ℷᐌՓ⫼ⱘᴵӊϟϡӮথ
⫳⊘さবˈ⫼᠋Փ⫼䆹⬉ᄤֵᙃѻકϡӮᇍ⦃๗䗴៤Ϲ䞡∵ᶧᇍ݊Ҏ䑿ǃ䋶ѻ䗴៤Ϲ䞡ᤳᆇ
ⱘᳳ䰤DŽ
This logo refers to the period ( 10 years ) during which the toxic or hazardous substances or elements
contained in electronic information products will not leak or mutate so that the use of these [substances or
elements] will not result in any severe environmental pollution, any bodily injury or damage to any assets.
ℸ䆚ᣛᳳ䰤˄Ѩᑈ˅ˈ⬉∴Ё᳝ⱘ᳝↦᳝ᆇ⠽䋼ܗ㋴ℷᐌՓ⫼ⱘᴵӊϟϡӮথ⫳⊘さ
বˈ⫼᠋Փ⫼䆹⬉∴ѻકϡӮᇍ⦃๗䗴៤Ϲ䞡∵ᶧᇍ݊Ҏ䑿ǃ䋶ѻ䗴៤Ϲ䞡ᤳᆇⱘᳳ䰤DŽ
This logo refers to the period ( 5 years ) during which the toxic or hazardous substances or elements
contained in the battery will not leak or mutate so that the use of these [substances or elements] will not
result in any severe environmental pollution, any bodily injury or damage to any assets.
⦃ֱՓ⫼ᳳ䰤Environmental Protection Use Period
⬉∴䆚Battery labeling logo
OOO O O O
XOO O O O
XO
OO OO
XOO O O O
XO
OO OO
1_dvp1120-2008_93_eng1_final813.2 21_dvp1120-2008_93_eng1_final813.2 2 2008-03-24 2:43:10 PM2008-03-24 2:43:10 PM
3
Index
English ------------------------------------ 6
--------------------------------- 42
English
‘CONSUMERS SHOULD NOTE THAT NOT ALL HIGH
DEFINITION TELEVISION SETS ARE FULLY
COMPATIBLE WITH THIS PRODUCT AND MAY CAUSE
ARTIFACTS TO BE DISPLAYED IN THE PICTURE. IN
CASE OF 525 OR 625 PROGRESSIVE SCAN PICTURE
PROBLEMS, IT IS RECOMMENDED THAT THE USER
SWITCH THE CONNECTION TO THE ‘STANDARD
DEFINITION’ OUTPUT. IF THERE ARE QUESTIONS
REGARDING OUR TV SET COMPATIBILITY WITH THIS
MODEL 525p AND 625p DVD PLAYER, PLEASE
CONTACT OUR CUSTOMER SERVICE CENTER.’
This product incorporates copyright protection
technology that is protected by method claims of
certain U.S. patents and other intellectual property
rights owned by Macrovision Corporation and
other rights owners. Use of this copyright protec-
tion technology must be authorized by Macrovi-
sion Corporation, and is intended for home and
other limited viewing uses only unless otherwise
authorized by Macrovision Corporation. Reserve
engineering or disassembly is prohibited.
The apparatus shall not be exposed to
dripping or splashing and that no objects lled
with liquids, such as vases, shall be placed on
apparatus.
1_dvp1120-2008_93_eng1_final813.3 31_dvp1120-2008_93_eng1_final813.3 3 2008-03-24 2:43:10 PM2008-03-24 2:43:10 PM
4
LASER
Type Semiconductor laser
InGaAlP (DVD)
AIGaAs (CD)
Wave length 658 nm (DVD)
790 nm (CD)
Output Power 7.0 mW (DVD)
10.0 mW (VCD/CD)
Beam divergence 60 degrees
General Information
Laser Safety
This unit employs a laser. Due to possible
eye injury, only a quali ed service person
should remove the cover or attempt to
service this device.
NOTE:
Pictures shown maybe different
between countries.
CAUTION:
WARNING LOCATION: ON THE
BACKPLATE OF THE SET
NEVER MAKE OR CHANGE
CONNECTIONS WITH THE POWER
SWITCHED ON.
For Customer Use:
Read carefully the information located at
the bottom or rear of your DVD Video
player and enter below the Serial No.
Retain this information for future
reference.
Model No. DVP1120, DVP2008
Serial No. ___________________
Manufactured under license from Dolby
Laboratories, Dolby and the double-D symbol are
trademarks of Dolby Laboratories.
Windows Media and the Windows logo are
trademarks, or registered trademarks of Microsoft
Corporation in the United States and/or other
countries.
Manufactured under license under U.S. Patent #:
5,451,942 & other U.S. and worldwide patents
issued & pending. DTS and DTS Digital Out are
registered trademarks and the DTS logos and
Symbol are trademarks of DTS, Inc. © 1996-2007
DTS, Inc. All Rights Reserved.
Where the MAINS plug or an appliance
coupler is used as the disconnect device, the
disconnect device shall remain readily
operable.
1_dvp1120-2008_93_eng1_final813.4 41_dvp1120-2008_93_eng1_final813.4 4 2008-04-16 2:03:49 PM2008-04-16 2:03:49 PM
5
Language Code
Abkhazian 6566
Afar 6565
Afrikaans 6570
Amharic 6577
Arabic 6582
Armenian 7289
Assamese 6583
Avestan 6569
Aymara 6589
Azerhaijani 6590
Bahasa Melayu 7783
Bashkir 6665
Belarusian 6669
Bengali 6678
Bihari 6672
Bislama 6673
Bokmål, Norwegian 7866
Bosanski 6683
Brezhoneg 6682
Bulgarian 6671
Burmese 7789
Castellano, Español 6983
Catalán 6765
Chamorro 6772
Chechen 6769
Chewa; Chichewa; Nyanja 7889
9072
Chuang; Zhuang 9065
Church Slavic; Slavonic 6785
Chuvash 6786
Corsican 6779
Česky 6783
Dansk 6865
Deutsch 6869
Dzongkha 6890
English 6978
Esperanto 6979
Estonian 6984
Euskara 6985
6976
Faroese 7079
Français 7082
Frysk 7089
Fijian 7074
Gaelic; Scottish Gaelic 7168
Gallegan 7176
Georgian 7565
Gikuyu; Kikuyu 7573
Guarani 7178
Gujarati 7185
Hausa 7265
Herero 7290
Hindi 7273
Hiri Motu 7279
Hrwatski 6779
Ido 7379
Interlingua (International)7365
Interlingue 7365
Inuktitut 7385
Inupiaq 7375
Irish 7165
Íslenska 7383
Italiano 7384
Ivrit 7269
Japanese 7465
Javanese 7486
Kalaallisut 7576
Kannada 7578
Kashmiri 7583
Kazakh 7575
Kernewek 7587
Khmer 7577
Kinyarwanda 8287
Kirghiz 7589
Komi 7586
Korean 7579
Kuanyama; Kwanyama 7574
Kurdish 7585
Lao 7679
Latina 7665
Latvian 7686
Letzeburgesch; 7666
Limburgan; Limburger 7673
Lingala 7678
Lithuanian 7684
Luxembourgish; 7666
Macedonian 7775
Malagasy 7771
Magyar 7285
Malayalam 7776
Maltese 7784
Manx 7186
Maori 7773
Marathi 7782
Marshallese 7772
Moldavian 7779
Mongolian 7778
Nauru 7865
Navaho; Navajo 7886
Ndebele, North 7868
Ndebele, South 7882
Ndonga 7871
Nederlands 7876
Nepali 7869
Norsk 7879
Northern Sami 8369
North Ndebele 7868
Norwegian Nynorsk; 7878
Occitan; Provencal 7967
Old Bulgarian; Old Slavonic 6785
Oriya 7982
Oromo 7977
Ossetian; Ossetic 7983
Pali 8073
Panjabi 8065
Persian 7065
Polski 8076
Português 8084
Pushto 8083
Russian 8285
Quechua 8185
Raeto-Romance 8277
Romanian 8279
Rundi 8278
Samoan 8377
Sango 8371
Sanskrit 8365
Sardinian 8367
Serbian 8382
Shona 8378
Shqip 8381
Sindhi 8368
Sinhalese 8373
Slovensky 8373
Slovenian 8376
Somali 8379
Sotho; Southern 8384
South Ndebele 7882
Sundanese 8385
Suomi 7073
Swahili 8387
Swati 8383
Svenska 8386
Tagalog 8476
Tahitian 8489
Tajik 8471
Tamil 8465
Tatar 8484
Telugu 8469
Thai 8472
Tibetan 6679
Tigrinya 8473
Tonga (Tonga Islands) 8479
Tsonga 8483
Tswana 8478
Türkçe 8482
Turkmen 8475
Twi 8487
Uighur 8571
Ukrainian 8575
Urdu 8582
Uzbek 8590
Vietnamese 8673
Volapuk 8679
Walloon 8765
Welsh 6789
Wolof 8779
Xhosa 8872
Yiddish 8973
Yoruba 8979
Zulu 9085
中文
1_dvp1120-2008_93_eng1_final813.5 51_dvp1120-2008_93_eng1_final813.5 5 2008-03-24 2:43:11 PM2008-03-24 2:43:11 PM
English
6
Table of contents
General
General Information ........................................................................................................ 8
Setup precautions .................................................................................................................................................8
Accessories supplied ...........................................................................................................................................8
Cleaning discs ........................................................................................................................................................8
About recycling .....................................................................................................................................................8
Product Overview
Your DVD Player ............................................................................................................... 9
Remote Control .........................................................................................................10-12
Using the remote control ................................................................................................................................12
Connections
Basic Connections .....................................................................................................13-14
Step 1: Connecting to television ....................................................................................................................13
Option 1: Using Composite Video sockets (CVBS) ..........................................................................13
Option 2: Using Component Video sockets (Y Pb Pr).....................................................................13
Step 2: Connecting the power cord ..............................................................................................................14
Optional Connections .................................................................................................... 15
Connecting to an Analog Stereo System .....................................................................................................15
Connecting to a Digital AV Ampli er/Receiver .........................................................................................15
Basic Setup
Getting Started ..........................................................................................................16-18
Finding the correct viewing channel .............................................................................................................16
Setting language preferences .....................................................................................................................16-17
On-screen display (OSD) language ........................................................................................................16
Subtitle, Audio and Menu language for DVD playback .....................................................................17
Setting up Progressive Scan feature ..............................................................................................................18
Disc Playback
Disc Operations .........................................................................................................19-27
Playable discs .......................................................................................................................................................19
Region codes for DVD discs ...........................................................................................................................19
Playing a disc ....................................................................................................................................................... 20
Basic playback controls .................................................................................................................................... 20
Selecting various repeat functions ...........................................................................................................21-22
Repeating a speci c segment (A-B) ....................................................................................................... 22
Other playback features for video discs .............................................................................................. 22-23
Using the Disc Menu ................................................................................................................................. 22
Changing sound track language ...............................................................................................................23
Changing subtitle language .......................................................................................................................23
Zooming.........................................................................................................................................................23
Playback Control (VCD/SVCD) ..............................................................................................................23
1_dvp1120-2008_93_eng1_final813.6 61_dvp1120-2008_93_eng1_final813.6 6 2008-03-24 2:43:11 PM2008-03-24 2:43:11 PM
English
7
Table of contents
Using Display menu options .................................................................................................................... 24-25
Selecting title/chaper/track ......................................................................................................................24
Searching by time ........................................................................................................................................24
Switching camera angles ........................................................................................................................... 25
Playing a JPEG photo disc (slide show) .........................................................................................................26
Zoom picture ...............................................................................................................................................26
Rotating the picture ...................................................................................................................................26
Playing a MP3/ WMA disc ................................................................................................................................27
Setup Options
Setup Menu Options ................................................................................................. 28-34
Accessing the setup menu ............................................................................................................................... 28
Language Menu ............................................................................................................................................29
Video Menu ............................................................................................................................................ 30-31
Audio Menu ..................................................................................................................................................32
Rating Menu ..................................................................................................................................................33
Misc Menu .................................................................................................................................................... 34
Others
Other Features................................................................................................................35
Installing the latest software ...........................................................................................................................35
Troubleshooting ........................................................................................................ 36-38
Speci cations .................................................................................................................. 39
Glossary...................................................................................................................... 40-41
1_dvp1120-2008_93_eng1_final813.7 71_dvp1120-2008_93_eng1_final813.7 7 2008-03-24 2:43:12 PM2008-03-24 2:43:12 PM
English
8
General Information
WARNING!
This unit does not contain any user-
serviceable parts. Please leave all
maintenance work to quali ed
personnel.
Setup precautions
Finding a suitable location
– Place this unit on a at, hard and
stable surface. Never place the unit on a
carpet.
– Never place this unit on top of other
equipment that might heat it up (e.g.,
receiver or ampli er).
– Never put anything under this unit
(e.g., CDs, magazines).
– Install this unit near the AC outlet
where the AC power plug can be easily
reached.
Space for ventilation
– Place this unit in a location with
adequate ventilation to prevent internal
heat build up. Allow at least 10 cm (4”)
clearance from the rear and the top of
this unit and 5 cm (2”) from the left and
right to prevent overheating.
Avoid high temperature, moisture,
water and dust
– This unit must not be exposed to
dripping or splashing.
– Never place any object or items that
can damage this unit (e.g., liquid lled
objects, lighted candles).
Accessories supplied
– 1 remote control with batteries
– 1 audio/video cables (yellow/white/
red)
– 1 power cable
Note:
The 3-in-1 audio/video cable is specially
designed for this unit. To purchase or
replace the cable, kindly quote part
number: 41-UH1500-0KKA6 at
Philips’s service hotline. Replacement of
cable is only applicable within the
warranty period.
Cleaning discs
CAUTION!
Risk of damage to discs! Never use
solvents such as benzene, thinner,
cleaners available commercially, or anti-
static sprays intended for discs.
Wipe the disc with a micro ber cleaning
cloth from the centre to the edge in a
straight line movement.
About recycling
This user manual is printed on non-
polluting paper. This unit contains a large
number of materials that can be recycled.
If you are disposing an old equipment,
please take it to a recycling center.
Please observe the local regulations
regarding disposal of packaging materials,
exhausted batteries and old equipment.
1_dvp1120-2008_93_eng1_final813.8 81_dvp1120-2008_93_eng1_final813.8 8 2008-03-24 2:43:12 PM2008-03-24 2:43:12 PM
English
9

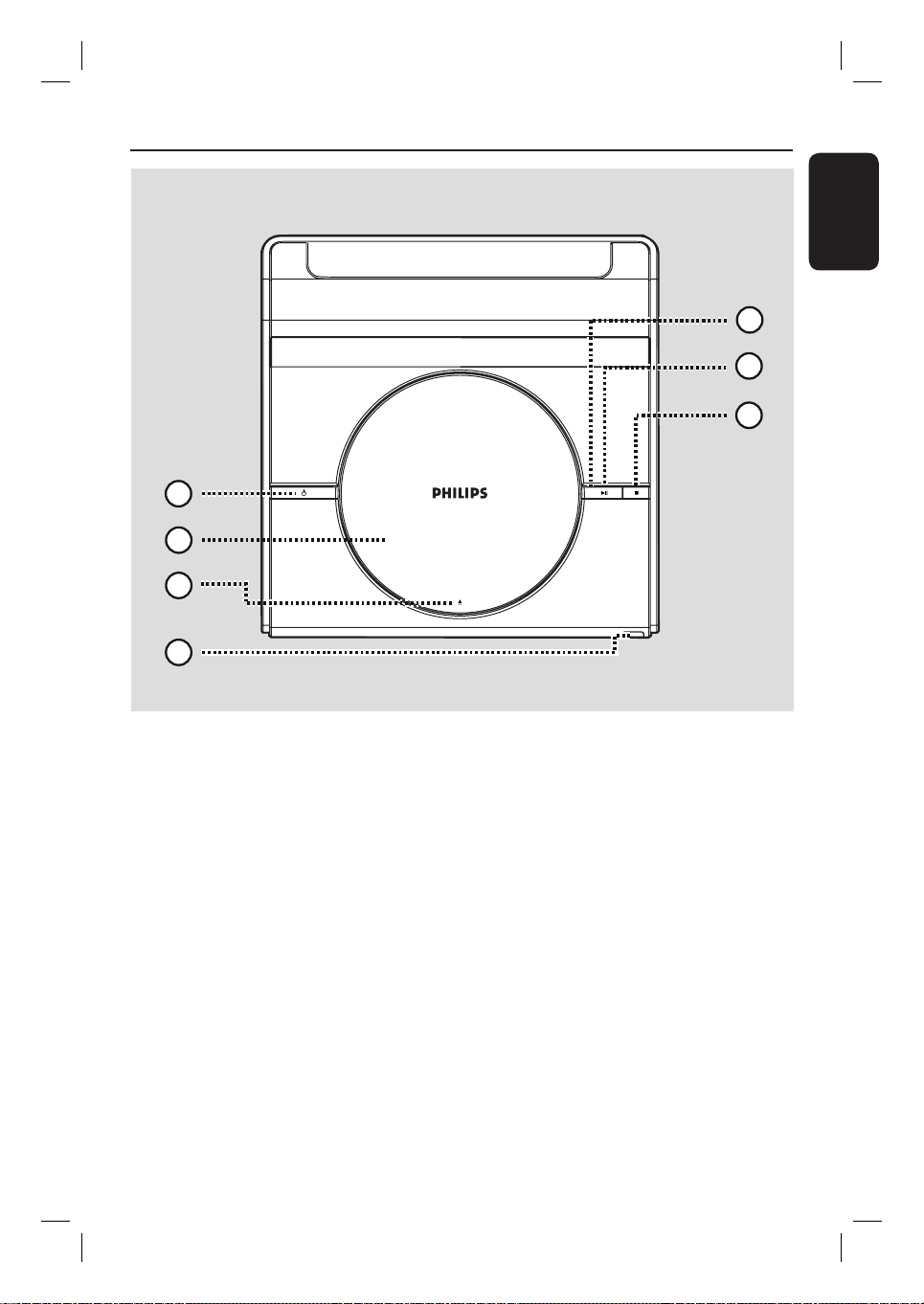

Your DVD Player
a 2 (STANDBY-ON)
– Turns on this unit or turns off to normal
standby mode.
b Disc compartment
c ç (OPEN/CLOSE)
– Opens/closes the disc compartment.
d IR Sensor
– Point the remote control towards this
sensor.
e LED light
– Lights up when disc is playing.
f u (PLAY/PAUSE)
– Starts/pauses playback.
g Ç (STOP)
– Disc: stops playback.
–
4
6
3
1
7
5
2
Top panel view
1_dvp1120-2008_93_eng1_final813.9 91_dvp1120-2008_93_eng1_final813.9 9 2008-03-24 2:43:12 PM2008-03-24 2:43:12 PM
English
10
Remote Control
SUBTITLE
ZOOM
AUDIO
REPEAT
REPEAT A-B
STOP
PLAY/PAUSE
MUTE
SETUP
TITLE
RETURN
MENU
DISC
DISPLAY
NEXT
PREV
4
3
5
6
7
8
1
2
a 2
– Turns on this unit or turns off to normal
standby mode.
b DISPLAY
– Displays the current status or disc
information.
c
– : press up or down for a slow
forward or backward search.
– : press left or right for fast forward
or backward search.
d SETUP
– Enters or exits the disc setup menu.
e PREV í / NEXT ë
– Skips to the previous or next title/
chapter/track.
– Press and hold this button for fast
forward or backward search.
f MUTE
– Mutes or restores the volume.
g AUDIO
– Selects an audio language or channel.
h REPEAT
– Selects various repeat modes; turns off
repeat mode.
REPEAT A-B
– Repeat playback a speci c section on a
disc.
1_dvp1120-2008_93_eng1_final813.10 101_dvp1120-2008_93_eng1_final813.10 10 2008-03-24 2:43:12 PM2008-03-24 2:43:12 PM
English
11
SUBTITLE
ZOOM
AUDIO
REPEAT
REPEAT A-B
STOP
PLAY/PAUSE
MUTE
SETUP
TITLE
RETURN
MENU
DISC
DISPLAY
NEXT
PREV
9
16
11
12
15
13
14
10

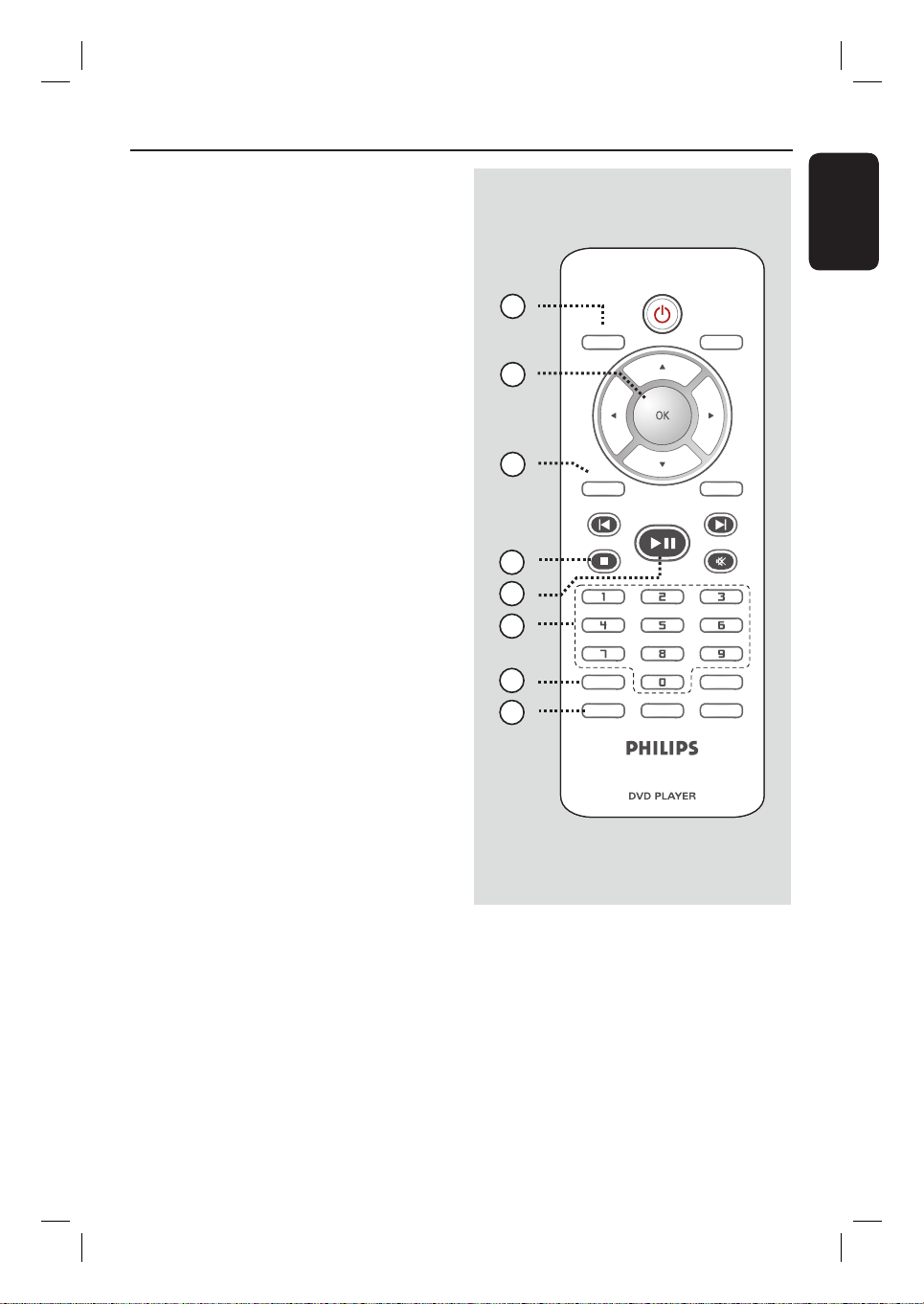

Remote Control (continued)
i
DISC MENU
– Enters or exits disc contents menu.
– For VCD 2.0 and SVCD, switches on or
off the playback control mode.
j OK
– Con rms an entry or selection.
k RETURN/TITLE
– Returns to the previous menu or shows
title menu
l STOP
Ç
– Stops playback.
m PLAY/PAUSE u
– Starts or pauses playback.
n Numeric keypad 0-9
– Selects a track or chapter number of the
disc.
o SUBTITLE
– Selects a DVD subtitle language.
p ZOOM
– Zoom the picture on the TV.
1_dvp1120-2008_93_eng1_final813.11 111_dvp1120-2008_93_eng1_final813.11 11 2008-03-24 2:43:12 PM2008-03-24 2:43:12 PM
English
12
Remote Control (continued)

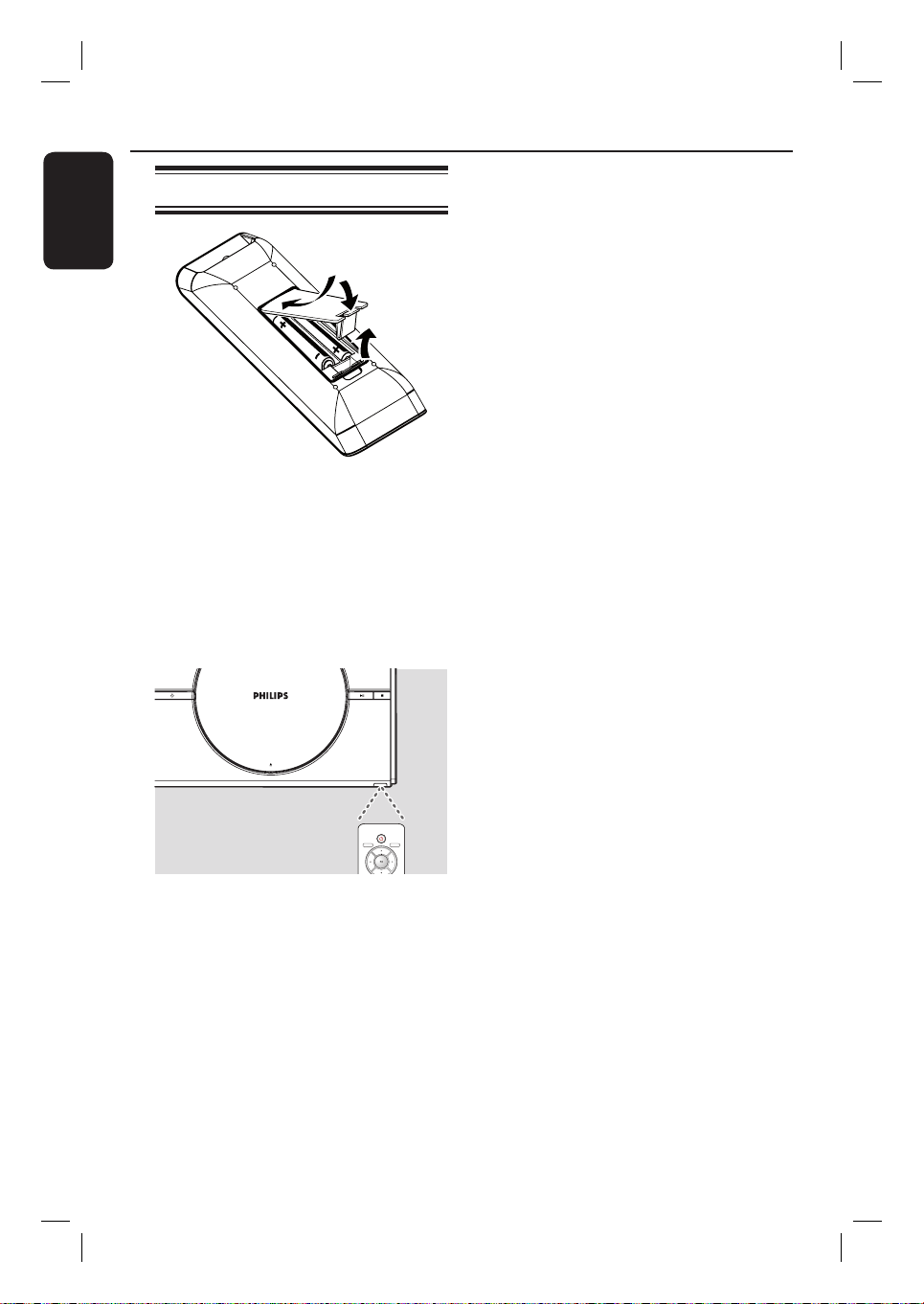

Using the remote control
A Open the battery compartment.
B Insert two batteries type R03 or AAA,
following the indications (+-) inside
the compartment.
C Close the cover.
D Point the remote control directly at the
remote sensor (IR) on the front panel.
MENU
DISC
DISPLAY
Note:
Never place any objects between the
remote control and this unit while
operating.
E Select the desired function (for example
u).
CAUTION!
– Remove batteries if they are
exhausted or if the remote control
is not to be used for a long time.
– Never mix batteries (old and new
or carbon and alkaline, etc.).
– Batteries contain chemical
substances; they should be disposed
of properly.
1_dvp1120-2008_93_eng1_final813.12 121_dvp1120-2008_93_eng1_final813.12 12 2008-03-24 2:43:12 PM2008-03-24 2:43:12 PM
English
13
Option 2: Using Component Video
sockets (Y Pb Pr)
You can connect this unit to a TV
through the component video cables
which provides superior picture quality.
The progressive scan video quality is only
available when using Y Pb Pr connection
and a progressive scan TV is required.
A Connect the component video cables
(red/blue/green - not supplied) from the
Y Pb Pr sockets on this unit to the
corresponding component video input
sockets (or labeled as Y Pb/Cb Pr/Cr or
YUV) on your TV.
B Connect the audio/video cables (supplied)
from the VIDEO AUDIO L/R socket
on this unit to the Audio In sockets (red/
white) on your TV. Leave the yellow
video plug disconnected.
C Proceed to ‘Getting Started - Setting up
Progressive Scan feature’ for detailed
progressive feature setup.
Basic Connections
Step 1: Connecting to
television
This connection enables you to view the
video playback from this unit.
You only need to choose one of the
options below to make the video
connection.
– For a standard TV, follow option 1.
– For a progressive scan TV, follow
option 2.
Option 1: Using Composite Video
sockets (CVBS)
You can connect this unit to a TV
through the composite video cable which
provides good picture quality.
Connect the audio/video cables (supplied)
from the VIDEO AUDIO L/R socket
on this unit to the video input socket
(yellow) and Audio In sockets (red/white)
on your TV.
AUDIO
IN
V (Pr/Cr)
U (Pb/Cb)
Y
S-VIDEO
IN
VIDEO IN
COMPONENT
VIDEO IN
AUDIO
OUT
V (Pr/Cr)
U (Pb/Cb)
Y
S-VIDEO
IN
VIDEO IN
TV
COMPONENT
VIDEO IN
2
1
Video
Audio
AUDIO
IN
V (Pr/Cr)
U (Pb/Cb)
Y
S-VIDEO
IN
VIDEO IN
COMPONENT
VIDEO IN
AUDIO
OUT
V (Pr/Cr)
U (Pb/Cb)
Y
S-VIDEO
IN
VIDEO IN
TV
COMPONENT
VIDEO IN
Video
(yellow plug)
Audio
(red/white plugs)
1_dvp1120-2008_93_eng1_final813.13 131_dvp1120-2008_93_eng1_final813.13 13 2008-03-24 2:43:13 PM2008-03-24 2:43:13 PM
English
14

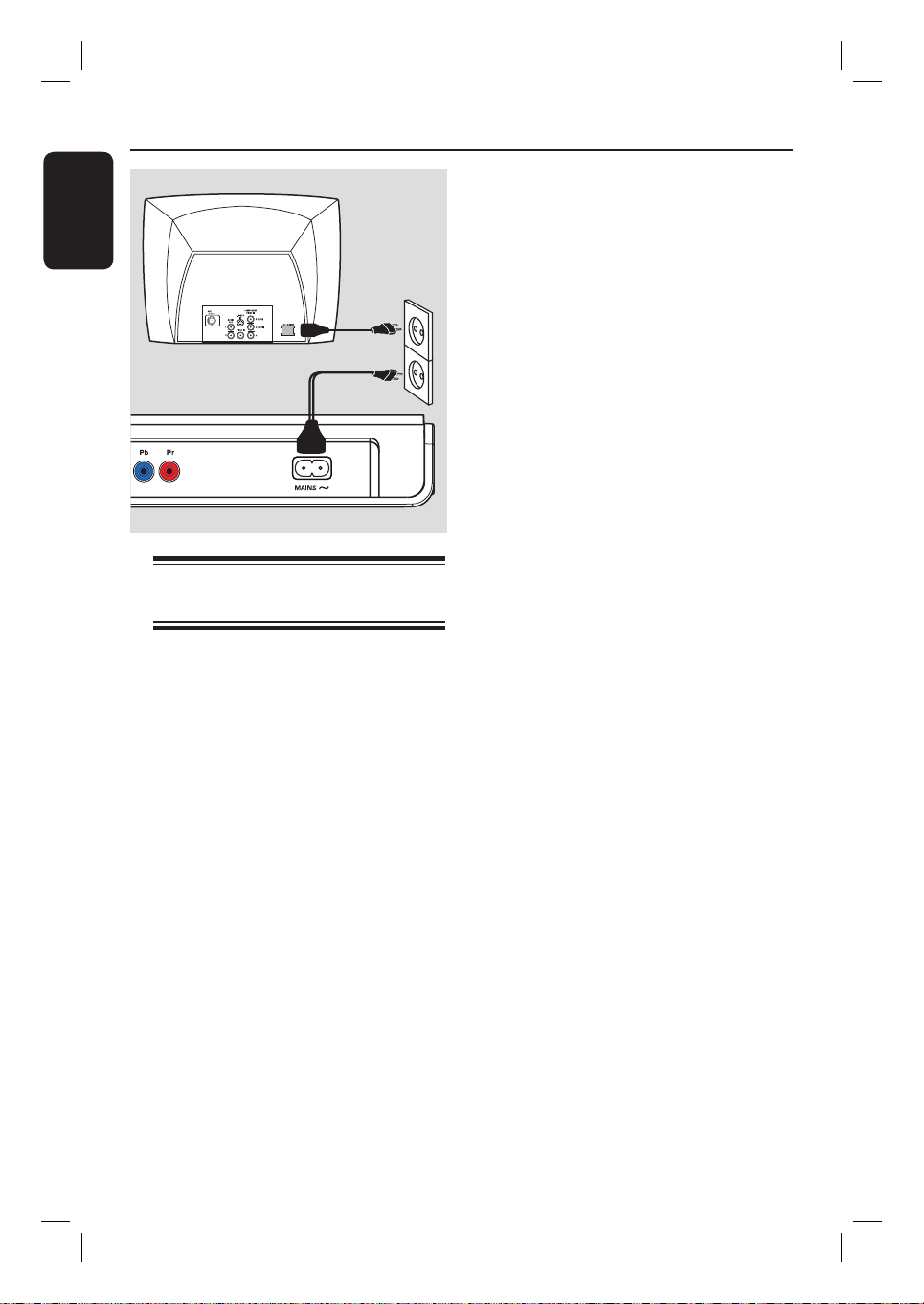

Step 2: Connecting the
power cord
After everything is connected
properly, plug the AC power cord
into the power outlet.
Never make or change any connections
with the power turned on.
Helpful Hint:
– Refer to the type plate at the rear or
bottom of the product for identi cation and
supply ratings.
Basic Connections (continued)
1_dvp1120-2008_93_eng1_final813.14 141_dvp1120-2008_93_eng1_final813.14 14 2008-03-24 2:43:13 PM2008-03-24 2:43:13 PM
English
15

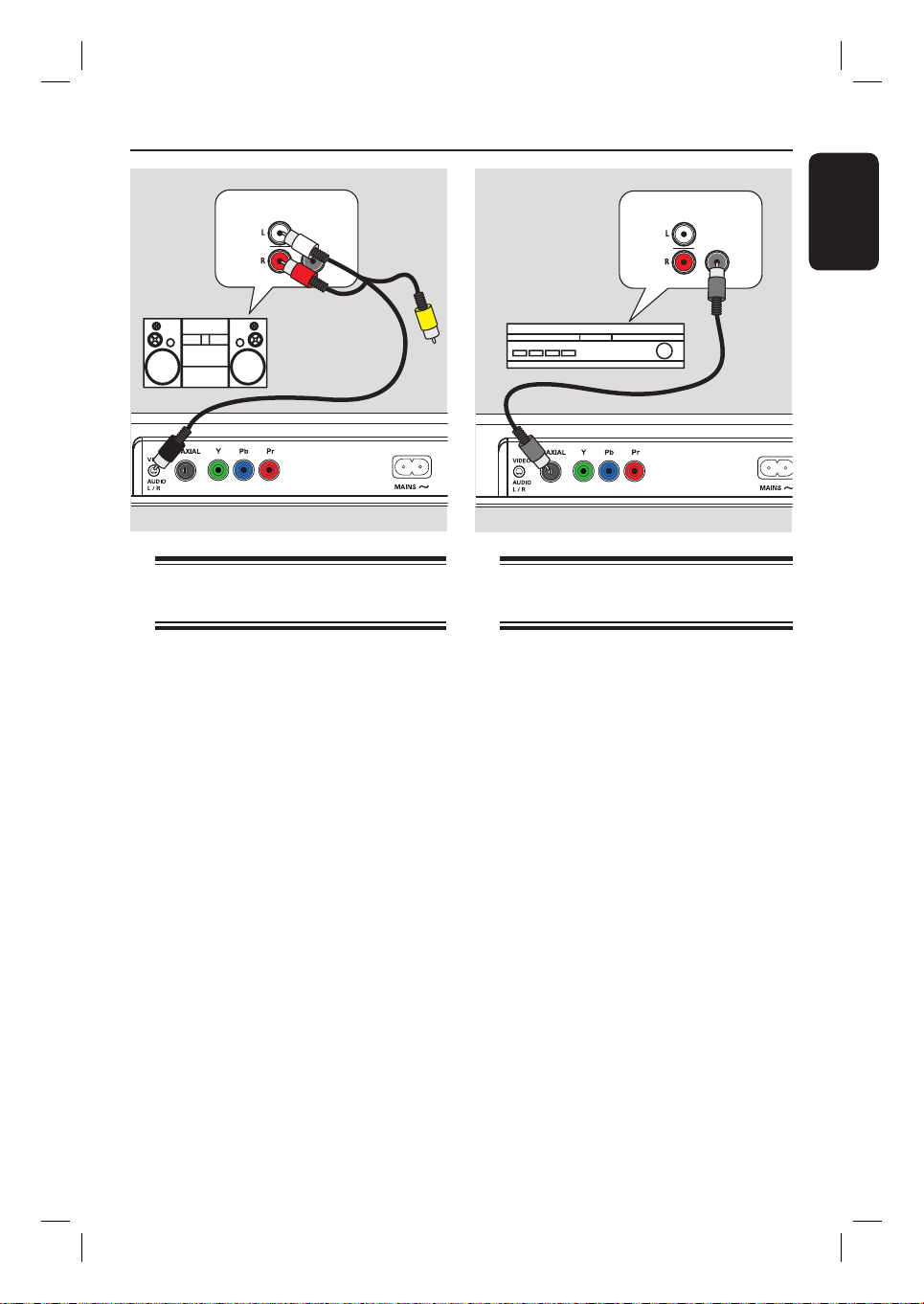

Connecting to an Analog
Stereo System
You can connect this unit to a two
channel stereo system (e.g. mini system,
analog receiver) in order to enjoy stereo
sound output.
A Connect the audio/video cables
(supplied) from the VIDEO AUDIO
L/R socket on this unit to the Audio In
sockets (red/white) on your connecting
device. Leave the yellow video plug
disconnected.
B
For video connection, see ‘Basic
Connections - Step 1: Connecting to
television’ for details.
Helpful Hint:
– See ‘Setup Menu Options - Audio Menu’
for optimum audio settings.
Optional Connections
Connecting to a Digital AV
Ampli er/Receiver
You can connect this unit to an AV
ampli er/receiver in order to enjoy
quality sound.
A Connect a coaxial cable (not supplied)
from the COAXIAL socket on this unit
to the digital coaxial input socket of the
connected device.
B
For video connection, see ‘Basic
Connections - Step 1: Connecting to
television’ for details.
Helpful Hint:
– You have to set the appropriate Digital
Audio Output setting. Otherwise, no sound or
interference may occur. See ‘Setup Menu
Options - Audio Menu - Digital Output’ for
details.
AV Receiver
AUDIO
IN
DIGITAL
STEREO
AUDIO
IN
DIGITAL
Audio
(red/white plugs)
1_dvp1120-2008_93_eng1_final813.15 151_dvp1120-2008_93_eng1_final813.15 15 2008-03-24 2:43:13 PM2008-03-24 2:43:13 PM
English
16
Finding the correct viewing
channel
A Press 2 to turn on this unit.
B Turn on the TV and switch it to the
correct video-in channel. You should see
the blue DVD background screen.
You may go to the lowest channel on
your TV, then press the Channel Down
button on your TV remote control until
you see the Video In channel.
You may press
°
button repeatedly
on your TV remote control.
Usually this channel is between the
lowest and highest channels and may be
called FRONT, A/V IN, VIDEO, etc..
Refer to your TV user manual on how
to select the correct input on your TV.
C If you are using external device, (such as
audio system or receiver), turn it on and
select the appropriate input source for
this unit output. Refer to the device
user’s manual for detail.
Getting Started
Setting language preferences
The language options are different
depending on your country or region. It
may not correspond to the illustrations
shown on the user manual.
On-screen display (OSD) language
Select this to change the language of the
On screen display menu of this unit.
The menu language will remain once you
have set it.
A Press SETUP on the remote control.
B Move to { Language } in the menu and
press .
C Use keys to select { OSD
Language } in the menu and press .
Language
Video
Audio
Rating
Misc
Audio
DVD menu
OSD language English
Subtitle
D Select a language and press OK to
con rm.
1_dvp1120-2008_93_eng1_final813.16 161_dvp1120-2008_93_eng1_final813.16 16 2008-03-24 2:43:13 PM2008-03-24 2:43:13 PM
English
17
Subtitle, Audio and Menu language
for DVD playback
You can select your preferred language
settings for DVD playback. If the selected
language is not available on the disc, the
disc’s default language is used instead.
A Press SETUP on the remote control.
B Move to { Language } in the menu and
press .
Language
Video
Audio
Rating
Misc
OSD language
: English
Subtitle
: Auto
DVD menu
Audio
English
Chinese
C Use keys to select one of the
options below and press .
{ Subtitle }
Select this to change the subtitle
language.
{ Audio }
Select this to change disc sound track
language.
{ DVD menu }
Select this to change the language of the
disc menu.
Getting Started (continued)
D Use keys to select a language and
press OK to con rm.
E Repeat steps C - D for other language
settings.
1_dvp1120-2008_93_eng1_final813.17 171_dvp1120-2008_93_eng1_final813.17 17 2008-03-24 2:43:14 PM2008-03-24 2:43:14 PM
English
18
Getting Started (continued)
Setting up Progressive Scan
feature
(for Progressive Scan TV only)
The progressive scan displays twice the
number of frames per second than
interlaced scanning (ordinary normal TV
system). With nearly double the number
of lines, progressive scan offers higher
picture resolution and quality.
Before you start...
– Ensure that you have connected this
unit to a progressive scan TV using the
Y Pb Pr connection (see ‘Option 2: Using
Component Video sockets (Y Pb Pr)’ ).
A Turn on the TV to the correct viewing
channel for this unit.
Make sure that the TV progressive
scan mode is turned off (or set to
interlaced mode). Refer to your TV user
manual.
B Turn on this unit and press SETUP on
the remote control.
C Use keys to select { Video } menu
and press .
D Move to { Video Out } in the menu and
press .
Aspect Ratio : 4:3
View Mode : Auto Fit
TV System : PAL
Smart Picture :
Language
Video
Audio
Misc
Rating
Video Out
Interlaced
P-Scan
E Select { P-Scan } and press OK to
con rm.
Read the noti cation message on the
TV.
F Use to select { Yes } in the menu
and press OK to con rm.
There will be no picture on your TV
at this state until you have turned
on the progressive scan mode on
your TV.
G Turn on your TV progressive scan mode.
(refer to your TV user manual.)
A message appears on the TV.
H Use to select { Yes } in the menu
and press OK to con rm.
The setup is now completed and you
can start to enjoy the high quality picture.
If no picture is displayed
A Press ç on this unit.
B Press numeric keypad ‘1’ on the
remote control.
Helpful Hints:
– If a blank/distorted screen appears, wait
for 15 seconds for the auto recovery.
– There are some progressive scan TV that
are not fully compatible with this unit,
resulting in an unnatural picture when
playing back a DVD VIDEO disc in the
progressive scan mode. In such a case, turn
off the progressive scan feature on this unit
and your TV.
1_dvp1120-2008_93_eng1_final813.18 181_dvp1120-2008_93_eng1_final813.18 18 2008-03-24 2:43:14 PM2008-03-24 2:43:14 PM
English
19
Playable discs
This unit plays:
– Digital Versatile Discs (DVDs)
– Video CDs (VCDs)
– Super Video CDs (SVCDs)
– Finalized DVD Recordable (DVD±R),
DVD Rewritable (DVD±RW)
– Audio Compact Discs (CDs)
– MP3/ WMA discs
– The le extension has to be ‘.mp3’,
‘.wma’
– JPEG/ISO format
– Maximum 15 characters display.
– Supported bit-rate;
MP3
32 kHz 64 – 320 kbps
44.1 kHz, 48 kHz 80 – 320 kbps
WMA
44 kHz 64 – 192 kbps
48 kHz 128 – 192 kbps
– Picture les (Kodak, JPEG) on
CD-R(W)
– The le extension has to be ‘.JPG’
and not ‘.JPEG.’
– JPEG/ISO format
– It can only display DCF-standard
still pictures or JPEG pictures such
as TIFF.
Region codes for DVD discs
DVD discs and players are designed with
regional restrictions. Before playing a disc,
make sure the disc is for the same region
as your player.
Region
U.S.A. and
Canada regions
U.K and
Europe regions
Asia Paci c,
Taiwan, Korea
Australia,
New Zealand,
Latin America
Russia and
India regions
China, Calcos
Islands,
Walls and Futuna
Islands
Discs that can
be played
Helpful Hints:
– Maximum 100 sessions for CD and 10
multi border for DVD are supported.
– For DVD-R and DVD-RW multi border,
only nalised disc are supported.
– For DVD+R and DVD+RW multi border
both nalised and un nalised disc are not
supported.
Disc Operations
1_dvp1120-2008_93_eng1_final813.19 191_dvp1120-2008_93_eng1_final813.19 19 2008-03-24 2:43:14 PM2008-03-24 2:43:14 PM
English
20
Notes:
– If the inhibit icon
appears on
the TV when a button is pressed, it
means the function is not available
on the current disc or at the current
time.
– Never put any objects other than
discs in the disc compartment.
Doing so may cause the disc player
to malfunction.
Playing a disc
A Press 2 to turn on this unit.
B Turn on the TV to the correct viewing
channel for this unit.
C Press ç to open the disc compartment.
D Insert a disc into the disc compartment
and press ç.
Make sure the disc label is facing
towards you.
E Playback starts automatically.
If not, press u.
See the following pages for more
playback options and features.
Helpful Hints:
– If you are having trouble playing a certain
disc, remove the disc and try a different one.
Improperly formatted discs cannot be played
on this unit.
– Some discs cannot be played on this
player due to the con guration and
characteristics of the disc, or due to the
condition of recording and authoring software
that was used.
Disc Operations (continued)
Basic playback controls
Pausing playback
During playback, press PLAY/PAUSE
u.
To resume playback, press
PLAY/PAUSE u.
Selecting another track/chapter/
title
Press PREVí / NEXT ë or use the
numeric keypad 0-9 to enter a track/
chapter/title number.
If the repeat track mode is active,
press PREVí again to replay the same
track/chapter/title.
Searching backward/forward
Press and hold PREVí / NEXT ë.
While searching, press /
repeatedly to select different search
speed (2X, 4X, 8X, 16X, 32X).
To resume normal playback, press
PLAY/PAUSE u.
Playing in slow motion mode
(not applicable for CD, WMA, MP3)
During playback, press / to start
slow motion play.
Sound will be muted. Press /
repeatedly to select different play speed
(1/2, 1/4, 1/8, 1/16).
To resume normal playback, press
PLAY/PAUSE u.
Stopping playback
Press STOP x.
1_dvp1120-2008_93_eng1_final813.20 201_dvp1120-2008_93_eng1_final813.20 20 2008-03-24 2:43:15 PM2008-03-24 2:43:15 PM
English
21
Disc Operations (continued)
Helpful Hints:
– This unit has resume playback ability (for
certain type of disc). In this case, if you want
to playback from the beginning, press
PREV
í
while the message ‘Play from start,
press [ PREV ]’ appears on the TV.
– This is a power-saving feature, this unit
automatically switches to low power standby
mode if you do not press any buttons within
15 minutes after a disc has stopped playing.
– Screen saver starts automatically if the
disc playback is stopped for about 5 minutes.
Selecting various repeat
functions
The repeat play options mode varies
depending on the disc type.
While playing a disc, press REPEAT on
the remote control repeatedly to choose
a repeat play mode.
DVD
Chapter (repeat current chapter)
Title (repeat current title)
Off (exit repeat mode)
VCD/SVCD/CD
Single (repeat current track)
All (repeat entire disc)
Off (exit repeat mode)
MP3/JPEG/WMA
Single (repeat current le)
All (repeat all les in the current
folder)
Off (exit repeat mode)
To cancel repeat play mode, press
REPEAT repeatedly until ‘Off’ appears
or press STOP x twice.
Helpful Hint:
– Repeat playback is not possible on VCDs
or SVCDs when the PBC mode is turned on.
1_dvp1120-2008_93_eng1_final813.21 211_dvp1120-2008_93_eng1_final813.21 21 2008-03-24 2:43:15 PM2008-03-24 2:43:15 PM
English
22
Repeating a speci c segment (A-B)
You can repeat the playback of a speci c
segment within a title/chapter/track. To
do this, you must mark the start and end
of the segment you want.
A During playback, press REPEAT A-B at
the point where you want the repeat
playback to begin.
B Press REPEAT A-B again at the point
where you want to end the repeat
playback.
Playback skips to the start of the
marked segment. The segment is
repeated until the repeat mode is
cancelled.
C To cancel repeat playback, press
REPEAT A-B again.
Other playback features for
video discs
SUBTITLE
ZOOM
AUDIO
REPEAT
REPEAT A-B
STOP
PLAY/PAUSE
MUTE
SETUP
TITLE
RETURN
MENU
DISC
DISPLAY
NEXT
PREV
REPEAT
SETUP
DISPLA
Y
AUDIO
ZOOM
SUBTITLE
RETURN/
TITLE
DISC MENU
Note:
The operating features described here
might not be possible for certain discs.
Always refer to the instructions supplied
with the discs.
Using the Disc Menu
Depending on the disc, a menu may
appear on the TV once you load in the
disc.
To select a playback feature or item
Use keys or numeric keypad
0-9 on the remote control, then press
OK to start playback.
To access or remove the menu
Press DISC MENU on the remote
control.
Disc Operations (continued)
1_dvp1120-2008_93_eng1_final813.22 221_dvp1120-2008_93_eng1_final813.22 22 2008-03-24 2:43:15 PM2008-03-24 2:43:15 PM
English
23
Changing sound track language
This operation works only on DVDs with
multiple sound track languages, or SVCDs
with multiple audio channels.
For DVD
Press AUDIO repeatedly to select the
available audio languages.
For VCD (changing the audio
channel)
Press AUDIO repeatedly to select the
available audio channels provided by the
disc (LEFT, RIGHT, MIX, STEREO).
Changing subtitle language
This operation works only on DVDs with
multiple subtitle languages. You can
change to your desired language during
playback.
Press SUBTITLE repeatedly to select
different subtitle languages.
Zooming
This option allows you to zoom and to
pan through the picture on the TV.
A During playback, press ZOOM
repeatedly to select a different zoom
factor.
Playback continues.
B Use keys to pan through the
enlarged picture.
C Press ZOOM repeatedly to return to
the original size.
Playback Control (VCD/SVCD)
Playback Control (PBC) playback allows
you to play Video CDs interactively,
following the menu on the display.
For VCDs with PBC feature
(version 2.0 only) and SVCDs
Press DISC MENU to turn on or off
the PBC mode.
If the PBC mode is turned on, the disc
menu (if available) appears on the TV.
If the PBC mode is turned off, it skips
the disc menu and playback from the rst
track.
If the PBC mode is turned on, pressing
RETURN/TITLE during playback will
return to the disc title menu or main
menu.
Disc Operations (continued)
1_dvp1120-2008_93_eng1_final813.23 231_dvp1120-2008_93_eng1_final813.23 23 2008-03-24 2:43:15 PM2008-03-24 2:43:15 PM
English
24
Using Display menu options
This unit can display the disc playback
information (for example, title or chapter
number, elapsed playing time), a number
of operations can be done without
interrupting disc playback.
STOP
PLAY/PAUSE
MUTE
SETUP
TITLE
RETURN
MENU
DISC
DISPLAY
NEXT
PREV
DISPLA
Y
OK
A During playback, press DISPLAY
repeatedly on the remote control.
The available disc information appears
on the TV.
(DVD)
Title
Title
1/1
6/16
Chapter
Time
Time
00:03:36/01:22:34
Repeat/Repeat A-B/Angle
Off
Rep Off 1/1
(VCD)
Track
Track
3/21
Time
Time
00:00:56/00:03:34
Repeat/Repeat A-B
Off
Rep Off
Disc Operations (continued)
B Use the numeric keypad 0-9 to input
the number/time or use keys to
make the selection.
C Press OK to con rm.
Playback changes to the chosen
operation.
Selecting title/chaper/track
This option allows you to skip to a
speci c title/chapter/track in the current
disc.
A Move to { Title } / { Chapter } or { Track }
option in the display menu.
Note: { Track } option can only be
selected if PBC is set to off. See ‘Disc
Operations - Playback Control (VCD/
SVCD)’ for details.
B Use the numeric keypad 0-9 to input
the a valid number.
C Press OK to con rm.
Playback skips to the chosen title/
chapter/track
.
Searching by time
This option allows you to skip to a
speci c point in the current disc.
A Move to { Time } option.
B Use the numeric keypad 0-9 to enter
the time where playback should start (eg.
0:34:27).
C Press OK to con rm.
Playback skips to the selected time.
1_dvp1120-2008_93_eng1_final813.24 241_dvp1120-2008_93_eng1_final813.24 24 2008-03-24 2:43:15 PM2008-03-24 2:43:15 PM
English
25
Disc Operations (continued)
.
Switching camera angles
This option is only available on DVDs
that contain sequences recorded from
different camera angles. This allows you
to view the picture from different angles.
A Move to { Repeat/ Repeat A-B/ Angle }
option in the display menu.
B Use keys to select the angle symbol
.
C Press OK repeatedly to switch between
different angle.
Playback changes to the selected
angle.
1_dvp1120-2008_93_eng1_final813.25 251_dvp1120-2008_93_eng1_final813.25 25 2008-03-24 2:43:16 PM2008-03-24 2:43:16 PM
English
26
Playing a JPEG photo disc
(slide show)
Before you start ...
Turn on your TV to the correct Video In
channel. See ‘Finding the correct viewing
channel’ for details.
Load a JPEG photo CD (Kodak Picture
CD, JPEG).
The picture menu appears on the TV.
Press PLAY/PAUSE u to start the
slide-show playback.
Helpful Hints:
– It may require longer time for this unit to
display the disc content on the TV due to the
large number of songs/pictures compiled into
one disc.
Supported le format:
– The le extension has to be ‘*.JPG’
and not ‘*.JPEG’.
– This unit can only display digital
camera pictures according to the JPEG-
EXIF format, typically used by almost all
digital cameras. It cannot display Motion
JPEG, progressive JPEG and other JPEG
formats, or sound clips associated with
pictures.
Zoom picture
During playback,
A Press ZOOM repeatedly to select a
magni cation level.
B Use keys to pan through the
enlarged picture.
Rotating the picture
During playback, use keys to
rotate the picture on the TV.
– : rotate the picture vertically
-180°.
– : rotate the picture vertically
+180°.
– : rotate the picture counter-
clockwise.
– : rotate the picture clockwise.
Disc Operations (continued)
1_dvp1120-2008_93_eng1_final813.26 261_dvp1120-2008_93_eng1_final813.26 26 2008-03-24 2:43:16 PM2008-03-24 2:43:16 PM
English
27
Playing a MP3/ WMA disc
This unit can playback most of the MP3
and WMA les recorded on a recordable
disc or commercial CD.
Before you start ...
Turn on your TV to the correct Video In
channel. See ‘Finding the correct viewing
channel’ for details.
A Load a MP3/WMA disc.
The disc reading time may exceed 30
seconds due to the complexity of the
directory/ le con guration.
The disc menu appears on the TV.
Music Playing
Repeat
: Off
Title:-----
Singer:-----
Album Year:
Comment:
Filter
00:00:46
02/20 /MP3/07......MP3
Go Up
07.----
09.---
2002 .---
TAKE ME TO YOUR
----
---
----
B Use keys to select a desired folder
and press OK to open the folder.
C Use keys to select a track/ le and
press OK to start playback.
Playback starts from the selected le
and continues through to the end of the
folder.
During playback:
Use PREV í / NEXT ë to playback
another track/ le in the current folder.
Press and hold PREV í / NEXT ë to
fast forward/backward search on the
music track.
To select another folder from current
disc, use keys to navigate back
to the root menu.
D To stop playback, press STOP x.
Helpful Hints:
– Only the rst session of a multi-session
CD will be played back.
– It is normal to experience an occasional
‘skip’ while listening to your MP3/WMA disc
due to poor clarity of digital contents during
internet downloading.
– If any special characters are present in
the MP3/WMA track name (ID3) or album
name, it might not be displayed correctly on
the screen because this unit does not support
the characters.
Disc Operations (continued)
1_dvp1120-2008_93_eng1_final813.27 271_dvp1120-2008_93_eng1_final813.27 27 2008-03-24 2:43:16 PM2008-03-24 2:43:16 PM
English
28
Setup Menu Options
Accessing the setup menu
This unit setup is carried out via the TV,
enabling you to customize it to suit your
particular requirements.
STOP
PLAY/PAUSE
MUTE
SETUP
TITLE
RETURN
MENU
DISC
DISPLAY
NEXT
PREV
SETUP
OK
A Press SETUP on the remote control.
The setup menu appears.
B Use keys to select one of the setup
menu options and press to access.
Language
Video
Audio
Rating
Misc
C Use keys to select the option you
wish to change and press .
D Use keys to select the setting that
you wish to change and press OK to
con rm.
Instructions and explanations of the
options are provided in the following
pages.
If the option in the menu is grayed
out, that means the setting is not
available or cannot be changed in the
current state.
E To exit, press SETUP.
Language
Video
Audio
Rating
Misc
OSD Language :
Subtitle :
Audio :
DVD Menu :
English
Auto
English
English
See ‘Language Menu’ on this chapter.
Aspect Ratio
View Mode :
TV System :
Video Out
Smart Picture :
Auto Fit
NTSC
Component
Personal
Aspect Ratio
View Mode :
TV System :
Video Out
Smart Picture :
Auto Fit
NTSCC
Component
Personal
Language
Video
Audio
Rating
Misc
Aspect Ratio : 4:3
View Mode :
TV System :
Video Out :
Smart Picture
:
Auto Fit
PAL
Interlaced
Standard
See ‘Video Menu’ on this chapter.
:
Language
Video
Audio
Misc
Rating
Digital Output
:
Night Mode
Down Sampling
All
: Off
: On
See ‘Audio Menu’ on this chapter.
Video
Language
Audio
Misc
Rating
Parental control : 8.Aduit
Set Password
See ‘Rating Menu’ on this chapter.
Video
Language
Audio
Misc
Rating
Use Default Settings
63
Volume
See ‘Misc Menu’ on this chapter.
1_dvp1120-2008_93_eng1_final813.28 281_dvp1120-2008_93_eng1_final813.28 28 2008-03-24 2:43:17 PM2008-03-24 2:43:17 PM
English
29
Setup Menu Options (continued)
Language Menu (underlined options are the factory default settings)
Select the menu language for this unit’s on-screen display.
See ‘Getting Started – Setting language preferences’.
Select the preferred subtitle language for DVD playback.
Select the preferred audio language for DVD playback.
Select the preferred disc menu language for DVD playback.
Note: If the selected audio/subtitle/disc menu language is not
available on the DVD, the disc’s default language will be used
instead.
OSD Language
Subtitle
Audio
DVD Menu
1_dvp1120-2008_93_eng1_final813.29 291_dvp1120-2008_93_eng1_final813.29 29 2008-03-24 2:43:17 PM2008-03-24 2:43:17 PM
English
30
Video Menu (underlined options are the factory default settings)
Setup Menu Options (continued)
The picture shape can be adjusted to t your TV.
{ 4:3 } – For a ‘wide-screen’ display
with black bars on the top and
bottom.
{ 16:9 } – For wide-screen TV
(frame ratio 16:9).
This setting allows you to scale the picture to t the TV width
and height.
{ Fill } – Scale the picture to ll the screen height
and width equally.
{ Original } – Scale the picture to t to the original screen
size (only for MPEG).
{ Height Fit } – Scale the picture to t the screen height.
{ Width Fit } – Scale the picture to t the screen width.
{ Auto Fit } – Scale the picture proportionally with
minimum screen ratio.
{ Pan Scan } – Scale the picture proportionally with
maximum screen ratio.
Select the colour system that matches the connected TV. It
enables playback of a different type of disc (PAL or NTSC disc)
on this unit.
{ NTSC } – For NTSC-system TV.
{ PAL } – For PAL-system TV.
{ Multi } – For TV that is compatible with both PAL
and NTSC.
Con rm the setting by pressing to select { Yes } in the menu
and press OK on the remote control.
Aspect Ratio
View Mode
TV System
1_dvp1120-2008_93_eng1_final813.30 301_dvp1120-2008_93_eng1_final813.30 30 2008-03-24 2:43:17 PM2008-03-24 2:43:17 PM
English
31
Setup Menu Options (continued)
Video Menu (underlined options are the factory default settings)
Ensure that your TV can accept progressive signals (a progressive
scan TV is required) and that you have connected this unit to
your TV using the Y Pb Pr. See ‘Getting Started - Setting up the
progressive scan feature’ for details.
{ Interlaced } – Turn off progressive scan mode.
{ P-Scan } – Turn on progressive scan mode.
Con rm the setting by pressing to select { Yes } in the menu
and press OK on the remote control.
This unit provides three prede ned sets of picture colour
settings and one personal setting which you can de ne yourself.
{ Standard } – Original colour setting.
{ Vivid } – Vibrant colour setting.
{ Cool } – Soft colour setting.
{ Personal } – Select this to personalise the picture
colour setting. Use the keys to
adjust to the setting that best suits your
personal preference. For an average
setting, select { 0 }.
Brightness 0
Contrast
0
Tint
0
Color
0
Video Out
Smart Picture
1_dvp1120-2008_93_eng1_final813.31 311_dvp1120-2008_93_eng1_final813.31 31 2008-03-24 2:43:17 PM2008-03-24 2:43:17 PM
English
32
Audio Menu (underlined options are the factory default settings)
Setup Menu Options (continued)
Digital Output
Night Mode
Down Sampling
This setting is only required if the COAXIAL/DIGITAL OUT
socket of this unit is connected to other audio/video device.
{ Off } – Deactivate the digital audio output. For
example, if you use the AUDIO OUT
sockets to connect this unit to a TV or
Stereo system.
{ PCM } – The connected device does not support
multi-channel formats. This unit
converts multi-channel to PCM (Pulse
Code Modulation) format.
{ ALL } – The connected device supports multi-
channel audio formats. The digital audio
format will be output as on disc.
Note: If the { Digital Output } is set to { All } during MPEG, MP3
or WMA playback, the audio output will be in PCM format.
This mode optimizes playback of sound at low volume. High
volume outputs will be softened and low volume outputs will be
enhanced to an audible level. This feature is only applicable for
DVD video discs with Dolby Digital mode.
{ Off } – Turn off night mode. Select this to enjoy
the surround sound with its full dynamic
range.
{ On } – Turn on night mode.
This feature enables you to disable digital signal processing for
better sound quality.
{ Off } – Play disc recorded at sampling rate of
96kHz. This rate can only be achieved in
Stereo-Classic (Flat) mode.
{ On } – Play disc recorded at sampling rate of
48kHz.
1_dvp1120-2008_93_eng1_final813.32 321_dvp1120-2008_93_eng1_final813.32 32 2008-03-24 2:43:18 PM2008-03-24 2:43:18 PM
English
33
Rating Menu (underlined options are the factory default settings)
Setup Menu Options (continued)
Parental Control
Set Password
This is to prohibit viewing of discs that had exceeded the limits
you set. It works only on the DVDs with parental level assigned
to the complete disc or to certain scenes on the disc.
1) Use the numeric keypad 0-9 on the remote control to
enter your 4-digit password and press OK.
2) Use keys to select a rating level from 1 to 8 and press
OK.
Notes:
– The ratings are country-dependent (‘1’ is considered material
that is least offensive and ‘8’ is most offensive). To disable
parental controls and allow all discs to play, select ‘8’.
– Some DVDs are not encoded with a rating though the movie
rating may be printed on the disc cover. The rating level
feature does not prohibit playback of such discs. VCD, SVCD
and CD have no level indication, so parental control has no
effect on these type of discs.
– DVDs that are rated higher than the level you selected will
not be played unless you enter the same 4-digit password.
The password is used for Parental Control. The default password
is ‘0000’.
To change the password:
1) Use keys to select { Set Password } and press OK.
2) Use the numeric keypad 0-9 on the remote control to
enter your existing 4-digit password at { Password }.
Password
Note: When doing this for the rst time or if you forget your
existing password, enter ‘0000’.
3) Press OK to proceed.
4) Enter the new 4-digit password at { New Password }.
5) Press OK to con rm and press SETUP to exit the menu..
1_dvp1120-2008_93_eng1_final813.33 331_dvp1120-2008_93_eng1_final813.33 33 2008-03-24 2:43:18 PM2008-03-24 2:43:18 PM
English
34
This feature enables you to reset all the setup menu options and
your personal settings to the factory defaults, except your
password for Parental Control.
{ Yes } – Select this to reset to factory default
settings.
{ No } – Select this to keep the existing setting.
Use keys to make a selection and press OK to con rm.
This feature allows you to adjust the volume level.
Use keys to set the volume level between 0 ~ 63.
(63 is the default setting)
Misc Menu (underlined options are the factory default settings)
Setup Menu Options (continued)
Use Default
Settings
Volume
1_dvp1120-2008_93_eng1_final813.34 341_dvp1120-2008_93_eng1_final813.34 34 2008-03-24 2:43:18 PM2008-03-24 2:43:18 PM
English
35
Other Features
Installing the latest software
Periodically Philips issue software
upgrades to enhance the user experience.
A Get the software version of this unit by
pressing ç to open the disc
compartment
B Press numeric keypad ‘966’ on the
remote control.
Write down the le name of your
current software.
C Visit the Philips website ‘www.philips.
com/support’ to check the availability of
the latest software upgrade and
download the software to a CD-R.
Note:
Never unplug or turn off this unit
during upgrade.
D Insert the CD-R to the disc
compartment.
A message appears.
E Press OK to confirm.
Installation of software starts.
Once complete, this unit will power
off automatically.
1_dvp1120-2008_93_eng1_final813.35 351_dvp1120-2008_93_eng1_final813.35 35 2008-03-24 2:43:18 PM2008-03-24 2:43:18 PM
English
36
Troubleshooting
– Press 2 on the unit to turn on the power.
– Ensure that the AC outlet have power.
– Disconnect the power cord from the power outlet
for a few minutes. Reconnect the power cord and try
to operate again as usual.
– Refer to your TV manual for correct Video In channel
selection. Change the TV channel until you see the
DVD screen.
– If this happens when you turn on the progressive scan
feature, wait for 15 seconds for the auto recovery or
switch back to the default mode as below:
1) Press ç on this unit.
2) Press and hold numeric keypad ‘1’ on the remote
control.
– If this happens after you set the colour system, wait
for 15 seconds for the auto recovery or switch back
to the default TV colour system:
1) Press ç on this unit.
2) Press and hold numeric keypad ‘3’ on the remote
control.
– Check the video connection.
– Ensure that the disc is compatible with this unit.
– Sometimes a small amount of picture distortion may
appear. This is not a malfunction.
– The disc is dirty. Clean the disc.
Problem Solution
No power.
No picture.
Completely distorted picture
or black/white picture.
WARNING
Under no circumstances should you try to repair this unit yourself, as this invalidate the
warranty. Do not open this unit as there is a risk of electric shock.
If a fault occurs, rst check the points listed below before taking this unit for repair. If you
are unable to remedy a problem by following these hints, consult your dealer or Philips for
help.
1_dvp1120-2008_93_eng1_final813.36 361_dvp1120-2008_93_eng1_final813.36 36 2008-03-24 2:43:18 PM2008-03-24 2:43:18 PM
English
37
Troubleshooting (continued)
No sound or distorted sound.
The remote control does not
function properly.
The unit does not start
playback.
The buttons on the unit do not
work.
– Check the audio connections to the connected audio
device.
– Make sure that the connected audio device is turned
on to the correct input source.
– Set the digital output setting correctly, based on the
device you connected to this unit. See “Audio Menu –
Digital Output” for details.
– Aim the remote control directly at the sensor on the
front of this unit (not towards the TV).
– Remove any obstacles between this unit and the
remote control.
– Batteries are weak, replace the batteries.
– Check the polarities of the batteries are as indicated
on the remote control (± signs).
– Insert a readable disc with the playback side facing
inwards. The DVD+R/CD-R must be nalised.
– Make sure the disc is not scratched or warped. Check
if the disc is defective by trying another disc.
– The disc is of a different region code.
– You may need to enter the password in order to
unlock the disc for playback.
– Moisture may have condensed inside this unit.
Remove the disc and leave this unit turned on for
about an hour.
– There is a technical problem. Disconnect this unit
from the power outlet for 10 seconds and reconnect
again.
Problem Solution
1_dvp1120-2008_93_eng1_final813.37 371_dvp1120-2008_93_eng1_final813.37 37 2008-03-24 2:43:18 PM2008-03-24 2:43:18 PM
English
38
Troubleshooting (continued)
The aspect ratio of the
screen cannot be changed
even though you have set the
TV display.
Not able to select some
items in the setup/system
menu.
Picture freezes momentarily
during playback.
Unable to select Progressive
Scan on/off.
– The aspect ratio is xed on the DVD disc.
– Depending on the TV, it may not be possible to
change the aspect ratio.
– Press STOP button twice before selecting the disc
setup menu.
– Depending on the disc availability, some menu items
cannot be selected.
– Check the disc for ngerprint/scratches and clean
with a soft cloth wiping from centre to edge.
– Check that the video output of this unit is connected
using the Component Video (Y Pb Pr) sockets.
Problem Solution
1_dvp1120-2008_93_eng1_final813.38 381_dvp1120-2008_93_eng1_final813.38 38 2008-03-24 2:43:18 PM2008-03-24 2:43:18 PM
English
39
Speci cations
TV STANDARD
(PAL/50Hz) (NTSC/60Hz)
Number of lines 625 525
Playback Multistandard (PAL/NTSC)
VIDEO PERFORMANCE
Video DAC 12 bit, 108 MHz
Y Pb Pr 0.7 Vpp ~ 75 ohm
Video Output 1 Vpp ~ 75 ohm
VIDEO FORMAT
Digital MPEG 2 for DVD, SVCD
Compression MPEG 1 for VCD
DVD 50 Hz 60 Hz
Horiz. resolution 720 pixels 720 pixels
Vertical resolution 576 lines 480 lines
VCD 50 Hz 60 Hz
Horiz. resolution 352 pixels 352 pixels
Vertical resolution 288 lines 240 lines
AUDIO FORMAT
Digital MPEG/ AC-3/ compressed
PCM Digital
16, 20, 24 bits
fs, 44.1, 48, 96 kHz
MP3 (ISO 9660) 96, 112, 128,
256 kbps &
variable bit rate
fs, 32, 44.1, 48 kHz
Analog Sound Stereo
Dolby Surround compatible downmix from
Dolby Digital multi-channel sound
AUDIO PERFORMANCE
DA Converter 24 bit, 192 kHz
DVD fs 96 kHz 4 Hz - 44 kHz
fs 48 kHz 4 Hz - 22 kHz
SVCD fs 48 kHz 4 Hz - 22 kHz
fs 44.1kHz 4 Hz - 20 kHz
CD/VCD fs 44.1kHz 4 Hz - 20 kHz
Signal-Noise (1kHz) > 90 dB
Dynamic range(1kHz) > 77 dB
Crosstalk (1kHz) > 65 dB
Distortion/noise (1kHz) > 65 dB
MPEG MP3 MPEG Audio L3
CONNECTIONS
Y Pb Pr Output Cinch 3x
Video Output cum
Audio Output*(L+R) 3.5mm socket (1x)
Digital Output 1 coaxial
IEC60958 for CDDA /
LPCM IEC61937 for
MPEG 1/2,
Dolby Digital
* Audio and Video output share one socket at
the rear panel of this unit.
CABINET
Dimensions (w x h x d) 250 x 52 x 250 mm
Weight Approximately
0.879 kg
POWER CONSUMPTION
Power Supply Rating 110 V – 240 V;
50/60 Hz
Power consumption < 10 W
Power consumption in < 1 W
Standby mode
Speci cations are subject to change without
prior notice.
1_dvp1120-2008_93_eng1_final813.39 391_dvp1120-2008_93_eng1_final813.39 39 2008-03-24 2:43:19 PM2008-03-24 2:43:19 PM
English
40
Glossary
Analog audio: Sound that has not been
turned into numbers. Analog sound is
available if you use the AUDIO LEFT/RIGHT
sockets. These red and white sockets send
audio through two channels, the left and
right.
Aspect ratio: Aspect ratio refers to the
length to height ratio of TV. The ratio of a
standard TV is 4:3, while the ratio of a high-
de nition or wide TV is 16:9. The letter box
allows you to enjoy a picture with a wider
perspective on a standard 4:3 screen.
Bit Rate: The amount of data used to hold
a given length of music; measured in kilobits
per second, or kbps. Or, the speed at which
you record. Generally, the higher the bit
rate, or the higher the recording speed, the
better the sound quality. However, higher bit
rates use more space on a disc.
Chapter: Sections of a picture or a music
piece on a DVD that are smaller than titles.
A title is composed of several chapters. Each
chapter is assigned a chapter number
enabling you to locate the chapter you want.
CVBS: Composite video (or Composite
Video Blanking and Sync). A single video
signal commonly used in most consumer
video products.
DVD menu: A screen display prepared for
allowing a selection of images, sounds,
subtitles, multi-angles, etc., recorded on a
DVD.
Dolby Digital: A surround sound system
developed by Dolby Laboratories containing
up to six channels of digital audio (front left
and right, surround left and right, centre and
subwoofer).
JPEG: A very common digital still picture
format. A still-picture data compression
system proposed by the Joint Photographic
Expert Group, which features small decrease
in image quality in spite of its high
compression ratio. Files are recognized by
their le extension ‘JPG or JPEG’.
MP3: A le format with a sound data
compression system. ‘MP3’ is the
abbreviation of Motion Picture Experts
Group 1 (or MPEG-1) Audio Layer3. By
using the MP3 format, one CD-R or CD-RW
can contain about 10 times more data than a
regular CD.
Parental Control: A function of the DVD
to limit playback of the disc by the age of the
users according to the limitation level in each
country. The limitation varies from disc to
disc; when it is activated, playback will be
prohibited if the software’s level is higher
than the user-set level.
PBC: Playback Control. A system of
navigating a Video CD/Super VCD through
on-screen menus recorded onto the disc.
You can enjoy interactive playback and
searching.
PCM (Pulse Code Modulation): A
system for converting analog sound signal to
digital signal for later processing, with no
data compression used in conversion.
Progressive Scan: The progressive scan
displays twice the number of frames per
second than in an ordinary TV system. It
offers higher picture resolution and quality.
1_dvp1120-2008_93_eng1_final813.40 401_dvp1120-2008_93_eng1_final813.40 40 2008-03-24 2:43:19 PM2008-03-24 2:43:19 PM
English
41
Glossary (continued)
Region code: A system allowing discs to be
played only in the region designated. This
unit will only play discs that have compatible
region codes. You can nd the region code
of your unit by looking at the product label.
Some discs are compatible with more than
one region (or ALL regions).
Title: The longest section of a movie or
music feature on DVD. Each title is assigned
a title number, enabling you to locate the
title you want.
VIDEO AUDIO L/R socket: Socket on
the back of this unit that sends out audio and
video signals to the TV.
WMA: Windows Media™ Audio. Refers to
an audio compression technology developed
by Microsoft Corporation. WMA data can be
encoded by using Windows Media Player
version 9 or Windows Media Player for
Windows XP. Files are recognized by their
le extension ‘WMA’.
