4-295-323-12(1)
Network Media
Player
Operating Instructions
SMP-N200/NX20
2
WARNING
To reduce the risk of fire or electric shock, do not
expose this apparatus to rain or moisture.
To avoid electrical shock, do not open the cabinet.
Refer servicing to qualified personnel only.
Batteries or batteries installed apparatus shall not be
exposed to excessive heat such as sunshine, fire or the
like.
This symbol is intended to alert the user to
the presence of uninsulated “dangerous
voltage” within the product’s enclosure
that may be of sufficient magnitude to
constitute a risk of electric shock to
persons.
This symbol is intended to alert the user to
the presence of important operating and
maintenance (servicing) instructions in
the literature accompanying the
appliance.
This graphical symbol is located on the AC adapter.
Precautions
• The nameplate is located on the bottom of the unit.
• To prevent fire or shock hazard, do not place objects
filled with liquids, such as vases, on the apparatus.
• Install this unit so that the AC power cord can be
unplugged from the wall socket immediately in the
event of trouble.
FCC WARNING
You are cautioned that any changes or
modifications not expressly approved in this
manual could void your authority to operate this
equipment.
This transmitter must not be co-located or operating
in conjunction with any other antenna or
transmitter.
The shielded Interface cable (LAN cable) must be
used with the equipment in order to comply with the
limits for a digital device pursuant to Subpart B of
Part 15 of FCC Rules.
b
This equipment has been tested and found to
comply with the limits for a Class B digital device,
pursuant to Part 15 of the FCC Rules. These limits
are designed to provide reasonable protection
against harmful interference in a residential
installation. This equipment generates, uses, and
can radiate radio frequency energy and, if not
installed and used in accordance with the
instructions, may cause harmful interference to
radio communications. However, there is no
guarantee that interference will not occur in a
particular installation. If this equipment does cause
harmful interference to radio or television
reception, which can be determined by turning the
equipment off and on, the user is encouraged to try
to correct the interference by one or more of the
following measures:
– Reorient or relocate the receiving antenna.
– Increase the separation between the equipment
and receiver.
– Connect the equipment into an outlet on a circuit
different from that to which the receiver is
connected.
– Consult the dealer or an experienced radio/TV
technician for help.
Operation is subject to the following two conditions;
(1) this device may not cause interference, and
(2) this device must accept any interference received,
including interference that may cause undesired
operation of the device.
3
FCC Radiation Exposure Statement:
This equipment complies with FCC radiation
exposure limits set forth for an uncontrolled
environment and meets the FCC radio frequency
(RF) Exposure Guidelines in Supplement C to
OET65. This equipment should be installed and
operated keeping the radiator at least 20cm or more
away from person’s body (excluding extremities:
hands, wrists, feet and ankles).
Contains FCC ID : EW4DWMW042
Owner’s Record
The model and serial numbers are located at the bottom
of the unit. Record the serial number in the space
provided below. Refer to them whenever you call upon
your Sony dealer regarding this product.
Model No.______________
Serial No.______________
If this product is not working properly, please call 1-
866-909-7669.
Precautions
This equipment has been tested and found to
comply with the limits set out in the EMC Directive
using a connection cable shorter than 3 meters.
On placement
• Place the player in a location with adequate
ventilation to prevent heat build-up in the player.
• Do not place any cloth on the player, do not place
any objects in front of the player, and do not place
the player on soft surfaces such as a rug, as it may
block the ventilation holes.
• Do not install this player in a confined space, such
as a bookshelf or similar unit.
• Do not place the player in a location near heat
sources, or in a place subject to direct sunlight,
excessive dust, or mechanical shock.
• Do not place the player outdoors, in vehicles, on
ships, or on other vessels.
• Do not install the player in an inclined position. It
is designed to be operated in a horizontal position
only.
• Do not place metal objects in front of the front
panel. It may limit reception of radio waves.
• Do not place the player in a place where medical
equipment is in use. It may cause a malfunction of
medical instruments.
• If you use a pacemaker or other medical device,
consult your physician or the manufacturer of
your medical device before using the wireless
LAN function.
• Do not place heavy or unstable objects on the
player.
• Disconnect the AC power cord and all other
cables from the player when you move the player.
On power sources
• The player is not disconnected from the AC
power source as long as it is connected to the wall
outlet, even if the player itself has been turned off.
• Disconnect the player from the wall outlet if you
are not going to use the player for a long time. To
disconnect the AC power cord, grasp the plug
itself; never pull the cord.
• Observe following points to prevent the AC
power cord being damaged. Do not use the AC
power cord if it is damaged, as doing so may
result in an electric shock or fire.
– Do not pinch the AC power cord between the
player and wall, shelf, etc.
– Do not put anything heavy on the AC power
cord or pull on the AC power cord itself.
,continued
4
On AC adapter
• Use the supplied AC adapter (AC-NX1W) for
this player, as other adapters may cause a
malfunction.
• Do not disassemble or reverse-engineer.
• Do not confine the AC adapter in a closed place
such as a bookshelf or an AV cabinet.
• Do not connect the AC adapter to a traveler’s
electric transformer, which may generate heat and
cause a malfunction.
• Do not drop or apply shock.
On adjusting volume
Do not turn up the volume while listening to a
section with very low level inputs or no audio
signals. If you do, your ears and the speakers may
be damaged when a peak level section is played.
On cleaning
Clean the cabinet, panel, and controls with a soft
cloth. Do not use any type of abrasive pad, scouring
powder or solvent such as alcohol or benzine.
On replacement of parts
In the events that this player is repaired, repaired
parts may be collected for reuse or recycling
purposes.
On connecting to the HDMI OUT jack
Observe the following as improper handling may
damage the HDMI OUT jack and the connector.
• Carefully align the HDMI OUT jack on the rear
of the player and the HDMI connector by
checking their shapes. Make sure the connector is
not upside down or tilted.
• Be sure to disconnect the HDMI cable when
moving the player.
• Hold the HDMI connector straight when
connecting or disconnecting the HDMI cable. Do
not twist or force the HDMI connector into the
HDMI OUT jack.
On watching 3D video images
Some people may experience discomfort (such as
eye strain, fatigue, or nausea) while watching 3D
video images. Sony recommends that all viewers
take regular breaks while watching 3D video
images. The length and frequency of necessary
breaks will vary from person to person. You must
decide what works best. If you experience any
discomfort, you should stop watching the 3D video
images until the discomfort ends; consult a doctor if
you believe necessary. You should also review (i)
the instruction manual and/or the caution message
of any other device used with, or streaming contents
played with this product and (ii) our website
(http://esupport.sony.com/) for the latest
information. The vision of young children
(especially those under six years old) is still under
development. Consult your doctor (such as a
pediatrician or eye doctor) before allowing young
children to watch 3D video images.
Adults should supervise young children to ensure
they follow the recommendations listed above.
If you have any questions or problems concerning
your player, please consult your nearest Sony
dealer.
IMPORTANT NOTICE
Caution: This player is capable of holding a
still video image or on-screen display image on
your television screen indefinitely. If you leave
the still video image or on-screen display
image displayed on your TV for an extended
period of time you risk permanent damage to
your television screen. Plasma display panel
televisions and projection televisions are
susceptible to this.
5
Important Safety Instructions
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
8) Do not install near any heat sources such as
radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two
blades with one wider than the other. A grounding
type plug has two blades and a third grounding
prong. The wide blade or the third prong are
provided for your safety. If the provided plug does
not fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10)Protect the power cord from being walked on or
pinched particularly at plugs, convenience
receptacles, and the point where they exit from the
apparatus.
11)Only use attachments/accessories specified by the
manufacturer.
12)Use only with the cart, stand, tripod, bracket, or
table specified by the manufacturer, or sold with the
apparatus. When a cart is used, use caution when
moving the cart/apparatus combination to avoid
injury from tip-over.
13)Unplug this apparatus during lightning storms or
when unused for long periods of time.
14)Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has
been exposed to rain or moisture, does not operate
normally, or has been dropped.
For the State of California, U.S.A. only
Perchlorate Material: special handling may apply.
See
www.dtsc.ca.gov/hazardouswaste/perchlorate
Perchlorate Material: Lithium battery contains
perchlorate.
Copyrights and Trademarks
• “AVCHD” and the “AVCHD” logo are
trademarks of Panasonic Corporation and Sony
Corporation.
• , “XMB,” and “xross media bar” are
trademarks of Sony Corporation and Sony
Computer Entertainment Inc.
• This product incorporates High-Definition
Multimedia Interface (HDMI™) technology.
HDMI, the HDMI logo and High-Definition
Multimedia Interface are trademarks or registered
trademarks of HDMI Licensing LLC in the
United States and other countries.
• “x.v.Color” and “x.v.Color” logo are trademarks
of Sony Corporation.
• “BRAVIA” is a trademark of Sony Corporation.
• “PhotoTV HD” and the “PhotoTV HD” logo are
trademarks of Sony Corporation.
• MPEG Layer-3 audio coding technology and
patents licensed from Fraunhofer IIS and
Thomson.
• Windows Media is either a registered trademark
or trademark of Microsoft Corporation in the
United States and/or other countries.
This product contains technology subject to
certain intellectual property rights of Microsoft.
Use or distribution of this technology outside of
this product is prohibited without the appropriate
license(s) from Microsoft.
Content owners use Microsoft PlayReady™
content access technology to protect their
intellectual property, including copyrighted
content. This device uses PlayReady technology
to access PlayReady-protected content and/or
WMDRM-protected content. If the device fails to
properly enforce restrictions on content usage,
content owners may require Microsoft to revoke
the device’s ability to consume PlayReady-
protected content. Revocation should not affect
unprotected content or content protected by other
content access technologies. Content owners may
require you to upgrade PlayReady to access their
content. If you decline an upgrade, you will not be
able to access content that requires the upgrade.
• This product meets ENERGY STAR
®
guidelines
for energy efficiency.
ENERGY STAR and the ENERGY STAR mark
are registered U.S. marks. ENERGY STAR is a
registered mark owned by the U.S. government.
• “Wi-Fi
®
,” “Wi-Fi Protected Access
®
” and “Wi-
Fi Alliance
®
” are registered marks of the Wi-Fi
Alliance.
• “Wi-Fi CERTIFIED™,” “WPA™,” “WPA2™”
and “Wi-Fi Protected Setup™” are marks of the
Wi-Fi Alliance.
• The Wi-Fi CERTIFIED Logo is a certification
mark of the Wi-Fi Alliance.
• The Wi-Fi Protected Setup Mark is a mark of the
Wi-Fi Alliance.
,continued
6
•DLNA
®
, the DLNA Logo and DLNA
CERTIFIED™ are trademarks, service marks, or
certification marks of the Digital Living Network
Alliance.
• All other trademarks are trademarks of their
respective owners.
• Other system and product names are generally
trademarks or registered trademarks of the
manufacturers. ™ and ® marks are not indicated
in this document.
7
Table of Contents
WARNING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Guide to Parts and Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Hookups and Settings
Step 1: Connecting the Player . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 11
Connecting to the Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 13
Step 2: Easy Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Playback
Playing via a Network . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Playing from a USB Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Available Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Internet
Browsing Websites . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Settings and Adjustments
Using the Settings Displays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Network Update . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Screen Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Audio Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21
Parental Control Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
System Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Network Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Easy Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23
Resetting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 23
Additional Information
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
8
Guide to Parts and Controls
A Remote sensor B Indicator
Lights up when the player is turned on.
A DC IN 12V (AC adapter input)
jack
B COMPONENT VIDEO OUT
(
Y, PB,PR) jacks
C LINE OUT (R-AUDIO-L/VIDEO)
jacks
D HDMI OUT jack
E DIGITAL OUT (OPTICAL) jack
F LAN (100) terminal
A (USB) jack
Front panel
Rear panel
Right panel
9
The available functions of the remote differ
depending on the situation.
z
The N button has a tactile dot. Use the tactile dot
as a reference when operating the player.
The player automatically returns to
standby mode
If any button on the remote is not pressed for
more than 30 minutes, the player
automatically returns to standby mode.
A [/1 (on/standby)
Turns on the player, or sets to standby
mode.
B Color buttons (RED/GREEN/
YELLOW/BLUE)
Shortcut keys for interactive functions.
C DISPLAY (page 15)
Displays the playback and web browsing
information on the screen.
SEN
Accesses the SEN (Sony Entertainment
Network) online service.
OPTIONS (page 17)
The options menu that can be selected
appears on the screen.
HOME
Enters the player’s home menu.
Displays the wallpaper when pressed on
the category icon of the home menu.
RETURN
Returns to the previous display.
</M/m/,
Moves the highlight to select a displayed
item.
Center button (ENTER)
Enters the selected item.
D ./> (previous/next)
Skips to the previous/next chapter, track,
or file.
N (play)
Starts or re-starts playback.
m/M (fast/slow/freeze frame)
• Fast reverses/fast forwards when
pressed during playback. Each time
you press the button during playback of
videos, the search speed changes.
• Plays in slow motion, when pressed for
more than one second in pause mode.
• Plays one frame at a time, when pressed
briefly in pause mode.
x (stop)
Stops playback and remembers the stop
point (resume point).
The resume point for a title/track is the
last point you played or the last photo for
a photo folder.
X (pause)
Pauses or re-starts playback.
Remote
,continued
10
The home menu appears when you press
HOME. Select a category using </,.
Select an item using M/m, and press ENTER.
(Setup): Adjusts the player settings.
(Photo): Displays photos.
(Music): Plays music.
(Video): Plays videos.
(Network): Displays network items.
Home menu display
Item Category
11
Hookups and Settings
Hookups and Settings

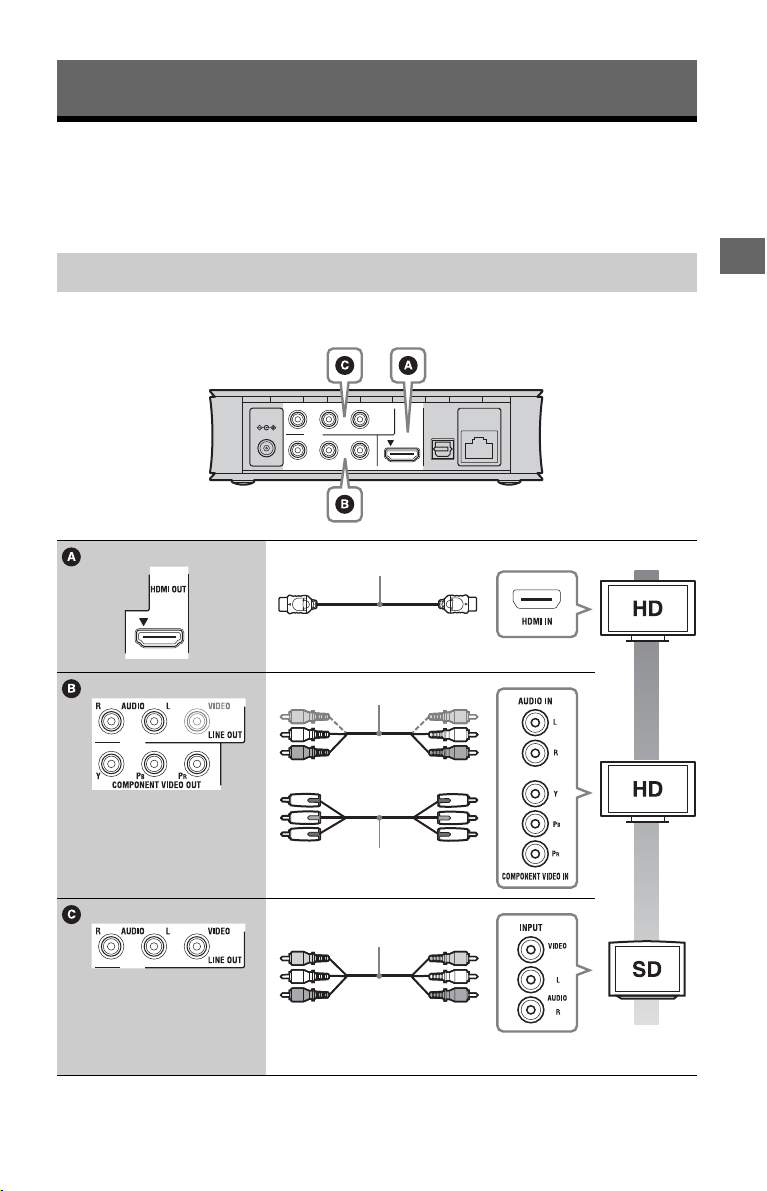

Step 1: Connecting the Player
Do not connect the AC power cord until you have made all the connections.
For supplied accessories, see “Supplied accessories” (page 27).
Select one of the following connection methods according to the input jacks on your TV.
Match the color of the plug to that of the jack when connecting.
* See “Supplied accessories” (page 27).
Connecting to your TV
High quality
Standard
quality
HDMI cable*
Audio/video cable (supplied)
Component video cable
(not supplied)
Audio/video cable (supplied)
,continued
12
z
To enjoy 3D content, connect the player to your 3D-compatible TV using a high-speed HDMI cable.
b
Do not connect the player through a VCR. Video signals fed through VCRs may be affected by copyright
protection systems and the picture will be distorted on the television.
Select one of the following connection methods according to the input jacks on your AV
amplifier (receiver). When you select A or B, make the appropriate settings in the “Audio
Settings” setup (page 21).
*1
See “Supplied accessories” (page 27).
Connecting to your AV amplifier (receiver)
HDMI cable
(not supplied)
HDMI cable*
1
t Set “Dolby Digital
*2
” (page 21) and “DTS
*3
” (page 21).
Optical digital cable (not supplied)
Audio/video cable (supplied)
*2
*3
13
Hookups and Settings
Connecting to the
Network
Use a LAN cable to connect to the LAN (100)
terminal on the player.
z
Using a shielded interface cable (LAN cable) is
recommended.
Use the wireless LAN that is built into the
player.
z
Use a wireless LAN router supporting 802.11b/g or
802.11b/g/n.
Before setting the network settings
When your wireless LAN router (access
point) is Wi-Fi Protected Setup (WPS)-
compatible, you can easily set the network
settings with the WPS button.
If not, check the following information in
advance, and record it in the space provided
below.
• The network name (SSID
*1
) that identifies
your network
*2
.
______________________
• If security is set on your wireless network,
the security key (WEP key, WPA key)
*2
.
______________________
*1
SSID (Service Set Identifier) is a name that
identifies a particular wireless network.
*2
You need to check the setting of your wireless
LAN router to get the information about SSID
and security key. For details:
– visit the following website:
http://esupport.sony.com/
– refer to the instruction manual supplied with
the wireless LAN router
– consult the manufacturer of the wireless LAN
router
Wired Setup
Wireless Setup
ADSL modem/
Cable modem
Broadband
router
LAN cable
(not supplied)
Internet
Wireless LAN
router
ADSL modem/
Cable modem
LAN cable (not supplied)
Internet
14
Step 2: Easy Setup
1 Remove the insulation film from the
remote.
2 Connect the supplied AC adapter and
AC power cord in the numeric order
shown below.
When removing them, do so in reverse
order.
After connecting, wait for about 30
seconds until the player enters standby.
3 Press [/1 on the remote to turn on the
player.
4 Turn on the TV, then switch the input
selector on your TV so that the signal
from the player appears on your TV
screen.
5 Perform “Easy Setup.”
Follow the on-screen instructions to
make the basic settings using </M/m/
, and ENTER on the remote.
When turned on for the first time
Wait for a short while before the player
turns on and starts “Easy Setup.”
to DC IN 12V
AC adapter (supplied)
AC power cord
(supplied)
to AC outlet
ENTER
</M/m/,
15
Playback
Playback
Playing via a Network
Serves as a gateway delivering the selected
Internet content and a variety of on-demand
entertainment straight to your player.
z
• Some Internet content requires registration via a
PC before it can be played.
For further details, visit the following website:
http://esupport.sony.com/
• Some Internet content may not be available in
some regions/countries.
1 Prepare for Sony Entertainment
Network.
Connect the player to a network
(page 13).
2 Select (Video), (Music), or
(Photo) on the home menu using
</,.
3 Select an Internet content provider
icon using M/m, and press ENTER.
When an Internet content list has not
been acquired, an unacquired icon or a
new icon is displayed.
To use the control panel
The control panel appears when the video file
starts playing. The displayed items may differ
depending on Internet content providers.
To display again, press DISPLAY.
A Control display
Press </M/m/, or ENTER for
playback operations.
B Playing status bar
Status bar, Cursor indicating the
current position, Playing time,
Duration of the video file
C Network condition
indicates the signal strength for
wireless connection.
indicates the wired connection.
D Network transmission speed
E The next video file name
F The currently selected video file name
The player (DLNA Player) can play video/
music/photo files stored on another DLNA-
compatible product (DLNA Server) via a
network.
1 Prepare for using DLNA.
• Connect the player to a network
(page 13).
• Prepare the other necessary DLNA-
compatible products. Refer to the
instruction manual supplied with the
product.
2 Select the DLNA Server icon from
(Video), (Music), or
(Photo) on the home menu.
3 Select the file you want to play using
M/m, and press ENTER.
Enjoying Sony Entertainment
Network (SEN)
Playing files on a Home
Network (DLNA)
Server
Player
,continued
16
To control the player using another
product (Renderer)
When you play files from a DLNA Server on
the player, you can use a DLNA Controller-
compatible product (a phone, etc.) to control
playback.
z
Refer to the instruction manual supplied with the
DLNA Controller.
You can play music files on the player
(PARTY host) in other rooms simultaneously
through Sony products (PARTY guest)
which are compatible with DLNA and the
PARTY STREAMING function, or vice
versa.
1 Prepare for PARTY STREAMING.
• Connect the player to a network
(page 13).
• Connect the products which are
compatible with the PARTY
STREAMING function to a network.
2 Select a track in (Music) on the
home menu.
3 Select “Start Party” from the options
menu.
To join in a PARTY (for the PARTY guest
only)
Select (Party) in (Music), then select
the PARTY host device icon.
To close the PARTY
Press HOME.
z
The sale and lineup of products that are compatible
with the PARTY STREAMING function differ
depending on the area.
Playing from a USB
Device
You can play video/music/photo files on the
connected USB device.
For playable USB devices, see “Playable
types of files” (page 27).
1 Connect the USB device to the USB
jack on the right of the player.
Refer to the instruction manual supplied
with the USB device before connecting.
2 Select (Video), (Music), or
(Photo) on the home menu using
</,.
3 Select (USB device) using M/m,
and press ENTER.
Playing the same music in
different rooms (PARTY
STREAMING)
Server
Controller
Renderer
PARTY host
PARTY guest
PARTY guest
USB device
17
Playback
Available Options
Various settings and playback operations are
available by pressing OPTIONS. The
available items differ depending on the
situation.
Common options
(Video) only
(Music) only
(Photo) only
Item Details
Repeat
Setting
Sets the repeat mode.
Favorites List Displays the Favorites List.
Play/Stop Starts or stops the playback.
Play from
beginning
Plays the item from the
beginning.
Add to
Favorites
Adds Internet content to the
Favorites List.
Remove from
Favorites
Removes Internet content
from the Favorites List.
Item Details
3D Output
Setting
Sets whether or not to output
3D video automatically.
A/V SYNC Adjusts the gap between
picture and sound, by
delaying the sound output in
relation to the picture output
(0 to 120 milliseconds).
Video Settings • Picture Quality Mode:
Selects the picture settings
for different lighting
environments.
• FNR: Reduces the random
noise appearing in the
picture.
• BNR: Reduces the mosaic-
like block noise in the
picture.
• MNR: Reduces minor
noise around the picture
outlines (mosquito noise).
Pause Pauses the playback.
Chapter
Search
Searches for a chapter and
starts playback from the
beginning.
IP Content
Noise
Reduction
Adjusts the picture quality of
Internet content.
Item Details
Add
Slideshow
BGM
Registers music files in the
USB memory as slideshow
background music (BGM).
Start Party Starts a PARTY with the
selected source.
This item may not appear
depending on the source.
Leave Party Leaves from a PARTY
which the player is
participating in. The
PARTY STREAMING
function continues among
other participating products.
Close Party Closes a PARTY which the
player is participating in.
The PARTY STREAMING
function ends for all other
participating products.
Item Details
Slideshow
Speed
Changes the slideshow
speed.
Slideshow
Effect
Sets the effect for
slideshows.
Slideshow
BGM
• Off: Turns off the
function.
• My Music from USB: Sets
the music files registered
in “Add Slideshow BGM.”
Slideshow Plays a slideshow.
Rotate Left Rotates the photo
counterclockwise by
90 degrees.
Rotate Right Rotates the photo clockwise
by 90 degrees.
18
Internet
Browsing Websites
You can connect to the Internet and enjoy
websites.
1 Prepare for Internet Browser.
Connect the player to a network
(page 13).
2 Select (Network) on the home
menu using </,.
3 Select (Internet Browser) using M/
m, and press ENTER.
z
Some websites use functions which this browser
does not support. Some websites may not be
displayed correctly, or may not function.
To enter a URL
Select “URL entry” from the options menu.
Enter the URL using the software keyboard,
then select “Enter.”
To set the default start page
While displaying the page you want to set,
select “Set as start page” from the options
menu.
To return to the previous page
Select “Previous page” from the options
menu.
When the previous page does not appear even
if you select “Previous page,” select
“Window List” from the options menu and
select the page you want to return to from the
list.
To quit the Internet browser
Press HOME.
You can check the website information by
pressing DISPLAY.
The display information differs depending on
the website and page status.
A Page title
B Cursor
To view a linked site, press </M/m/,
to move the cursor, and press ENTER.
C Page address
D SSL icon
Appears when the website is secured.
E Signal strength indicator (wireless
network connection only)
F Progress bar/Loading icon
Appears when the page is being read, or
during file download/transfer.
G Text input field
Press ENTER and select “Input” from
the options menu to display the software
keyboard.
H Scroll bar
Press </M/m/, to move the page
display.
Internet browser display
19
Internet
Various settings and operations are available
by pressing OPTIONS.
The available items differ depending on the
situation.
Available options
Item Details
Browser
Setup
• Zoom: Increases or
decreases the size of the
displayed content.
• JavaScript Setup: Enables
or disables JavaScript.
• Cookie Setup: Sets
whether or not to accept
cookies.
• SSL Alarm Display:
Enables or disables SSL.
Input Displays the software
keyboard to enter characters
while browsing a website.
Break Moves the cursor to the next
line in the text input field.
Delete Erases one character on the
left side of the cursor during
text input.
Window List Displays a list of currently
opened windows of website.
Allows you to return to a
previously displayed
website by selecting the
window.
Bookmark List Displays the bookmark list.
Character
encoding
Sets the character code.
Previous
page/Next
page
Moves to the previous/next
page.
Cancel
loading
Stops loading a page.
Reload Reloads the same page.
URL entry Allows you to enter a URL
when the software keyboard
is displayed.
Add to
Bookmark
Adds the currently displayed
website to the bookmark list.
Set as start
page
Sets the currently displayed
website as the default start
page.
Open in new
window
Opens a link in a new
window.
Display
certificate
View server certificates sent
from pages that support
SSL.
Item Details
20
Settings and Adjustments
Using the Settings
Displays
Select (Setup) on the home menu when
you need to change the settings of the player.
The default settings are underlined.
1 Select (Setup) on the home menu
using </,.
2 Select the setup category icon using
M/m, and press ENTER.
Network Update
Select “OK” to update the player’s software
via the network.
z
• We recommend the network update every 2
months or so.
• For information about update functions, visit the
following website:
http://esupport.sony.com/
Screen Settings
3D Output Setting
Auto: Normally select this.
Off: Select this to display all content in 2D.
TV Type
16:9: Select this when connecting to a wide-
screen TV or a TV with a wide mode
function.
4:3: Select this when connecting to a 4:3
screen TV without a wide mode function.
Screen Format
Original: Select this when connecting to a TV
with a wide mode function. Displays a
4:3 screen picture in 16:9 aspect ratio
even on a wide-screen TV.
Fixed Aspect Ratio: Changes the picture size
to fit the screen size with the original
picture aspect ratio.
Cinema Conversion Mode
Auto: Normally select this. The player
automatically detects whether the
material is video-based or film-based,
and switches to the appropriate
conversion method.
Video: The conversion method suited for
video-based material will always be
selected regardless of the material.
Icon Explanation
Network Update (page 20)
Updates the software of the
player.
Screen Settings (page 20)
Makes the video settings
according to the type of
connecting jacks.
Audio Settings (page 21)
Makes the audio settings
according to the type of
connecting jacks.
Parental Control Settings
(page 22)
Makes detailed settings for the
Parental Control function.
System Settings (page 22)
Makes the player-related
settings.
Network Settings (page 23)
Makes detailed settings for the
Internet and network.
Easy Setup (page 23)
Re-runs the Easy Setup to make
the basic settings.
Resetting (page 23)
Resets the player to the factory
settings.
21
Settings and Adjustments
Output Video Format
HDMI: Normally select “Auto.”
Component Video: Select the resolution that
suits your TV.
Video: Automatically sets the lowest
resolution.
z
• When connecting the HDMI OUT jack and other
video output jacks at the same time, select
“Component Video.”
• If no picture appears when setting “HDMI” or
“Component Video” resolution, try another
resolution setting.
YCbCr/RGB (HDMI)
Auto: Automatically detects the connected
TV type, and switches to the matching
color setting.
YCbCr (4:2:2): Outputs YCbCr 4:2:2 video
signals.
YCbCr (4:4:4): Outputs YCbCr 4:4:4 video
signals.
RGB: Outputs RGB video signals.
HDMI Deep Color Output
Auto: Normally select this.
16bit/12bit/10bit: Outputs 16bit/12bit/10bit
video signals when the connected TV is
compatible with Deep Color.
Off: Select this when the picture is unstable
or colors appear unnatural.
Pause Mode
Auto: Normally select this. Dynamic moving
pictures appear without blurring.
Frame: Displays static pictures at high
resolution.
Audio Settings
Audio (HDMI)
Auto: Normally select this. Outputs audio
signals according to the status of the
connected HDMI device.
PCM: Outputs PCM signals from the HDMI
OUT jack.
Dolby Digital
Downmix PCM: Converts to output Linear
PCM signals. Select this when
connecting an audio device without a
built-in Dolby Digital decoder.
Dolby Digital
: Select this when connecting
an audio device with a built-in Dolby
Digital decoder.
DTS
Downmix PCM: Converts to output Linear
PCM signals. Select this when
connecting to an audio device without a
built-in DTS decoder.
DTS
: Select this when connecting to an audio
device with a built-in DTS decoder.
Audio DRC
Auto: Performs playback at the dynamic
range specified by the current file.
On: Performs playback at a standard
compression level.
Off: No compression works. A more dynamic
sound is produced.
Downmix
Surround: Outputs audio signals with
surround effects. Select this when
connecting an audio device that supports
Dolby Surround (Pro Logic) or DTS
Neo:6.
Stereo
: Outputs audio signals without
surround effects. Select this when
connecting an audio device that does not
support Dolby Surround (Pro Logic) or
DTS Neo:6.
22
Parental Control
Settings
Password
Sets or changes the password for the Parental
Control function. A password allows you to
set a restriction on Internet video playback.
Parental Control Area Code
Playback of some Internet videos can be
limited according to the geographic area.
Scenes may be blocked or replaced with
different scenes. Follow the on-screen
instructions and enter your four-digit
password.
Internet Video Parental Control
Playback of some Internet videos can be
limited according to the age of the users.
Scenes may be blocked or replaced with
different scenes. Follow the on-screen
instructions and enter your four-digit
password.
Internet Video Unrated
Allow: Allows the playback of unrated
Internet videos.
Block: Blocks the playback of unrated
Internet videos.
System Settings
OSD
Selects your language for the player on-
screen displays.
Control for HDMI
On: The following BRAVIA Sync features
are available:
–One-Touch Play
– System Power-Off
– Language Follow
Off: Turns off the function.
z
For details, refer to the instruction manual supplied
with the TV or components.
HDMI: Linked to TV-off
On: Automatically turns off the player and
HDMI-compatible components when the
connected TV enters standby mode
(BRAVIA Sync).
Off: Turns off the function.
Quick Start Mode
On: Shortens the startup time when turning
on the player.
Off: Reduces standby power consumption.
Auto Standby
On: Automatically returns to standby mode if no
button is pressed for more than 30 minutes.
Off: Turns off the function.
Auto Display
On: Automatically displays information on
the screen when changing the viewing
titles, picture modes, audio signals, etc.
Off: Displays information only when you
press DISPLAY.
Screen Saver
On: Turns on the screen saver function. The
screen saver image appears when you do
not use the player for more than 10
minutes while an on-screen display is
displayed.
Off: Turns off the function.
Software Update Notification
On: Sets the player to inform you of newer
software version information (page 20).
Off: Turns off the function.
System Information
Displays the player’s software version
information and the MAC address.
23
Settings and Adjustments
Network Settings
Internet Settings
Connect the player to the network
beforehand. For details, see “Connecting to
the Network” (page 13).
View Network Status: Displays the current
network status.
Wired Setup
: Select this when you connect to
a broadband router using a LAN cable.
Wireless Setup(built-in): Select this when
you use the wireless LAN that is built
into the player for wireless network
connection.
z
For further details, visit the following website and
check the FAQ contents:
http://esupport.sony.com/
Network Connection Diagnostics
You can run the network diagnostic to check
if the network connection has been made
properly.
Connection Server Settings
Sets whether or not to display the connected
server.
Renderer Options
Auto Access Permission: Sets whether or not
to allow automatic access from newly
detected DLNA renderer-compatible
product.
Renderer Name: Displays the player’s name
as it is listed on other DLNA products on
the network.
Renderer Access Control
Displays a list of DLNA controller-
compatible products and sets whether or not
each product is accessible via this player.
Party Auto Start
On: Starts a PARTY or joins an existing
PARTY at the request of a networked
product compatible with the PARTY
STREAMING function.
Off: Turns off the function.
Media Remote Device Registration
Registers your “Media Remote” device.
Some mobile devices can install the “Media
Remote” application. For the latest
compatible devices, visit the following
website:
http://esupport.sony.com/
Registered Media Remote Devices
Displays a list of your registered “Media
Remote” devices.
Easy Setup
Re-runs the “Easy Setup” to make the basic
settings. Follow the on-screen instructions.
Resetting
Reset to Factory Default Settings
You can reset the player settings to the
factory default by selecting the group of
settings. All the settings within the group will
be reset.
Initialize Personal Information
You can erase your personal information
stored in the player.
24
Additional Information
Troubleshooting
If you experience any of the following
difficulties while using the player, use this
troubleshooting guide to help remedy the
problem before requesting repairs. Should
any problem persist, consult your nearest
Sony dealer.
There is no picture or the picture is not
output correctly.
, Check that all the connecting cables are
securely connected (page 11).
, Switch the input selector on your TV to
display the signal from the player.
, Connect the player to your TV using the
LINE OUT (VIDEO) jack, and check the
“Output Video Format” settings in the
“Screen Settings” setup (page 21).
, For HDMI connections, try the following:
1Turn the player off and on again. 2Turn
the connected equipment off and on again.
3Disconnect and then reconnect the HDMI
cable.
, The HDMI OUT jack is connected to a DVI
device that does not support copyright
protection technology.
, For HDMI connections, check the “Output
Video Format” settings in the “Screen
Settings” setup (page 21).
The display language on the screen
switches automatically when connected to
the HDMI OUT jack.
, When “Control for HDMI” is set to “On”
(page 22), the display language on the
screen automatically switches according to
the language setting of the connected TV (if
you change the setting on your TV, etc.).
There is no sound or the sound is not
output correctly.
, Check that all the connecting cables are
securely connected (page 11).
, Switch the input selector on your AV
amplifier (receiver) so that the audio signals
of the player are output from your AV
amplifier (receiver).
, If the audio signal does not come through
the DIGITAL OUT (OPTICAL)/HDMI
OUT jack, check the audio settings
(page 21).
, For HDMI connections, try the following:
1Turn the player off and on again. 2Turn
the connected equipment off and on again.
3Disconnect and then reconnect the HDMI
cable.
, For HDMI connections, if the player is
connected to a TV through an AV amplifier
(receiver), try connecting the HDMI cable
directly to the TV. Refer also to the
instruction manual supplied with the AV
amplifier (receiver).
, The HDMI OUT jack is connected to a DVI
device (DVI jacks do not accept audio
signals).
, The device connected to the HDMI OUT
jack does not support the audio format of
the player. Check the audio settings
(page 21).
The player does not detect a USB device
connected to the player.
, Make sure that the USB device is securely
connected to the USB jack.
, Check if the USB device or a cable is
damaged.
, Check if the USB device is on.
, If the USB device is connected via a USB
hub, connect the USB device directly to the
player.
Sound
USB device
25
Additional Information
The picture/sound is poor/certain
programs display a loss of detail,
especially during fast-motion or dark
scenes.
, Picture/sound quality may be poor
depending on Internet content providers.
, Picture/sound quality may be improved by
changing the connection speed. We
recommend a connection speed of at least
2.5 Mbps for standard definition video
(10 Mbps for high definition video).
, Not all videos will contain sound.
The picture is small.
, Press M to zoom in.
The player cannot connect to the network.
, Check the network connection (page 13)
and the network settings (page 23).
You cannot connect your PC to the Internet
after “Wi-Fi Protected Setup (WPS)” is
performed.
, The wireless settings of the router may
change automatically if you use the Wi-Fi
Protected Setup function before adjusting
the settings of the router. In this case,
change the wireless settings of your PC
accordingly.
You cannot connect the player to the
wireless LAN router.
, Check if the wireless LAN router is on.
, Depending on the surrounding
environment, such as the wall material,
radio wave receiving condition, or obstacles
between the player and the wireless LAN
router, the communication distance may be
shortened. Move the player and the wireless
LAN router closer to each other.
, Devices that use a 2.4 GHz frequency band,
such as a microwave, Bluetooth, or digital
cordless device, may interrupt the
communication. Move the player away
from such devices, or turn off such devices.
The desired wireless router is not
detected even if “Scan” is performed.
, Press RETURN to return to the previous
screen, and try “Scan” again. If the desired
wireless router is still not detected, press
RETURN to select “Manual registration.”
The message “A new software version is
available. Please go to the "Setup" section
of the menu and select "Network update"
to perform the update.” appears on the
screen when turning the player on.
, See “Network Update” (page 20) to update
the player to a newer software version.
You cannot start the PARTY STREAMING
function.
, Check that “Party Auto Start” is set to “On”
in “Network Settings” (page 23).
The “Control for HDMI” function does not
work (BRAVIA Sync).
, Check that “Control for HDMI” is set to
“On” (page 22).
, If you change the HDMI connection, turn
the player off and on again.
, If power failure occurs, set “Control for
HDMI” to “Off,” then set “Control for
HDMI” to “On” (page 22).
, Check the following and refer to the
instruction manual supplied with the
component.
– the connected component is compatible
with the “Control for HDMI” function.
– the connected component’s setting for
the “Control for HDMI” function is
correct.
Sony Entertainment Network
(SEN)
Network connection
“Control for HDMI” (BRAVIA
Sync)
,continued
26
, When you connect the player to a TV
through an AV amplifier (receiver),
– if the AV amplifier (receiver) is not
compatible with the “Control for HDMI”
function, you may be unable to control
the TV from the player.
– if you change the HDMI connection,
disconnect and reconnect the AC power
cord, or a power failure occurs, try the
following:
1Switch the input selector of
the AV amplifier (receiver) so that the
picture from the player appears on the
TV screen.
2Set “Control for HDMI” to
“Off,” then set “Control for HDMI” to
“On” (page 22). Refer to the instruction
manual supplied with the AV amplifier
(receiver).
The System Power-Off function does not
work (BRAVIA Sync).
, Check that “Control for HDMI” and
“HDMI: Linked to TV-off” are set to “On”
(page 22).
Playback does not start from the
beginning of content.
, Press OPTIONS, and select “Play from
beginning.”
Playback does not start from the resume
point where you last stopped playing.
, The resume point may be cleared from
memory when
– you disconnect the USB device.
– you play other content.
– you turn off the player.
The player does not respond to any button.
, Replace the battery in the remote with a
new one if it becomes weak.
, Press the reset button on the bottom of the
player.
, If the player still does not respond to the
reset button, disconnect then reconnect the
AC power cord.
Specifications
Inputs and outputs
(Jack name:
Jack type/Output level/Load impedance)
LINE OUT R-AUDIO-L:
Phono jack/2 Vrms/10 kilohms
DIGITAL OUT (OPTICAL):
Optical output jack/–18 dBm
(wave length 660 nm)
HDMI OUT:
HDMI 19-pin standard connector
COMPONENT VIDEO OUT
(Y, P
B, PR):
Phono jack/Y: 1.0 Vp-p/
P
B, PR: 0.7 Vp-p/75 ohms
LINE OUT VIDEO:
Phono jack/1.0 Vp-p/75 ohms
LAN (100):
100BASE-TX Terminal
USB:
USB jack Type A (For connecting a USB
memory, memory card reader, digital still
camera, and digital video camera)
DC IN:
12 V DC
Wireless
Wireless LAN standard:
IEEE802.11b/g/n
Frequency range:
2.4 GHz band: Channels 1-11
Modulation:
DS-SS Modem and OFDM Modem
General
Power requirements:
AC adapter: 110–240 V AC, 50/60 Hz
Power consumption:
11 W
Dimensions (approx.):
150 mm × 150 mm × 43 mm
(6 in. × 6 in. × 1
3
/
4
in.)
(width/depth/height) incl. projecting parts
Mass (approx.):
420 g (14
3
/
4
oz)
Operating temperature:
5ºC to 35ºC (41°F to 95°F)
Operating humidity:
25 % to 80 %
Others
27
Additional Information
Supplied accessories
Audio/video cable (phono plug ×3) (1)
HDMI cable (1) (SMP-NX20 only)
AC power cord (1)
AC adapter (1)
Remote control (remote) (with CR2032
battery) (1)
Specifications and design are subject to
change without notice.
Video
Music
*1
The player does not play coded files such as
DRM.
*2
The player does not play this file format on a
DLNA server.
*3
The player can only play standard definition
video on a DLNA server.
*4
The player plays AVCHD format files that are
recorded on a digital video camera, etc.
*5
The player does not play coded files such as
Lossless.
*6
The player does not play animated PNG or
animated GIF files.
*7
For MPO files other than 3D, the key image or
the first image is displayed.
b
• Some files may not play depending on the file
format, file encoding, recording condition, or
DLNA server condition.
• Some files edited on a PC may not play.
• The player can recognize the following files or
folders in USB devices:
– up to folders in the 3rd tree
– up to 500 files in a single tree
• The player can recognize the following files or
folders stored in the DLNA server:
– up to folders in the 18th tree
– up to 999 files in a single tree
• Some USB devices may not work with this
player.
• The player can recognize Mass Storage Class
(MSC) devices (such as flash memory or an
HDD), Still Image Capture Device (SICD) class
devices and 101 keyboard.
• To avoid data corruption or damage to the USB
memory or devices, turn the player off when
connecting or removing the USB memory or
devices.
Playable types of files
File format Extensions
MPEG-1 Video/
PS
*1*2
MPEG-2 Video/PS,
TS
*1*3
“.mpg,” “.mpeg,”
“.m2ts,” “.mts”
MPEG-4 AVC
*1*2
“.mkv,” “.mp4,”
“.m4v,” “.m2ts,”
“.mts”
WMV9
*1*2
“.wmv,” “.asf”
AVCHD
*2 *4
Xvid “.avi”
File format Extensions
MP3 (MPEG-1 Audio
Layer III)
“.mp3”
AAC/HE-AAC
*1*2*5
“.m4a”
WMA9
Standard
*1*2*5
“.wma”
LPCM “.wav”
File format Extensions
JPEG “.jpg,” “.jpeg,”
*6
,” “.gif
*6
”
MPO “.mpo
*7
”
,continued
28
Since communication via the wireless LAN
function is established by radio waves, the
wireless signal may be susceptible to
interception. To protect wireless
communication, this player supports various
security functions. Be sure to correctly
configure the security settings in accordance
with your network environment.
No Security
Although you can easily make settings,
anyone can intercept wireless
communication or intrude into your wireless
network, even without any sophisticated
tools. Keep in mind that there is a risk of
unauthorized access or interception of data.
WEP
WEP applies security to communications to
prevent outsiders from intercepting
communications or intruding into your
wireless network. WEP is a legacy security
technology that enables older devices, which
do not support TKIP/AES, to be connected.
WPA-PSK (TKIP), WPA2-PSK (TKIP)
TKIP is a security technology developed to
correct for the deficiencies of WEP. TKIP
assures a higher security level than WEP.
WPA-PSK (AES), WPA2-PSK (AES)
AES is a security technology that uses an
advanced security method that is distinct
from WEP and TKIP.
AES assures a higher security level than
WEP or TKIP.
For details, see “Parental Control Area Code”
(page 22).
About wireless LAN security Parental control/area code
Code Area
2044 Argentina 2047 Australia
2046 Austria 2057 Belgium
2070 Brazil 2090 Chile
2092 China 2093 Colombia
2115 Denmark 2165 Finland
2174 France 2109 Germany
2200 Greece 2219 Hong Kong
2248 India 2238 Indonesia
2239 Ireland 2254 Italy
2276 Japan 2304 Korea
2333 Luxembourg 2363 Malaysia
2362 Mexico 2376 Netherlands
2390 New Zealand 2379 Norway
2427 Pakistan 2424 Philippines
2428 Poland 2436 Portugal
2489 Russia 2501 Singapore
2149 Spain 2499 Sweden
2086 Switzerland 2543 Taiwan
2528 Thailand 2184 United Kingdom
29
Additional Information
1 Pull out the battery compartment with
a stick.
2 Replace the old battery with a new
one.
Insert the new battery with the 3 side
facing up.
3 Close the battery compartment.
Replacing the battery
CAUTION
Danger of explosion if battery is
incorrectly replaced.
Replace only with the same or equivalent
type.
Sony CR2032
30
Index
Words in quotations appear
in the on-screen displays.
Numerics
“3D Output Setting” 20
A
AC adapter 14
“Audio Settings”
21
“Auto Standby”
22
B
BRAVIA Sync 25
C
Color buttons 9
Connecting
AV amplifier
(Receiver)
12
Network
13
TV
11
“Control for HDMI”
22,
25
D
Deep Color 21
DISPLAY
9
DLNA
15, 16, 23
Dolby Digital
21
DTS
21
E
“Easy Setup” 14, 23
H
HDMI 21
HOME
9, 20
Home menu
20
I
Internet Browser 18
Internet content
15
“IP Content Noise
Reduction” 17
M
MAC address 22
N
“Network Settings” 23
“Network Update”
20
O
OPTIONS 9
“OSD”
22
P
Parental Control 22
“Parental Control Settings”
22
PARTY STREAMING
16
Playable files
27
Q
“Quick Start Mode” 22
R
Remote 9
“Resetting”
23
Resetting the player
23
Resume
9, 26
S
“Screen Settings” 20
SEN
9
“Setup”
20
Software update
20, 22
Sony Entertainment
Network 15
“System Settings”
22
T
Troubleshooting 24
“TV Type”
20
U
Update 20
USB
16
W
WEP 28
WPA2-PSK (AES)
28
WPA2-PSK (TKIP)
28
WPA-PSK (AES)
28
WPA-PSK (TKIP)
28
31
© 2011 Sony Corporation Printed in Malaysia
4-295-323-12(1)
The software of this player may be updated in the future. For information about any
available updates and the latest Operating Instructions, please visit the following website:
http://esupport.sony.com/
