OWNER’S MANUAL
LED TV
Please read this manual carefully before operating
your set and retain it for future reference.
LN54**
LN565*
LA61**
P/NO : MFL67725402 (1301-REV02)
Printed in Korea
*LG LED TV applies LCD screen with LED backlights.
www.lg.com
2
ENG
ENGLISH
TABLE OF CONTENTS
WARNING
If you ignore the warning message, you may
be seriously injured or there is a possibility of
accident or death.
CAUTION
If you ignore the caution message, you may be
slightly injured or the product may be damaged.
NOTE
The note helps you understand and use the
product safely. Please read the note carefully
before using the product.
TABLE OF CONTENTS
3 SAFETY INSTRUCTIONS
8 Viewing 3D Imaging (Only 3D models)
9 INSTALLATION PROCEDURE
9 ASSEMBLING AND PREPARING

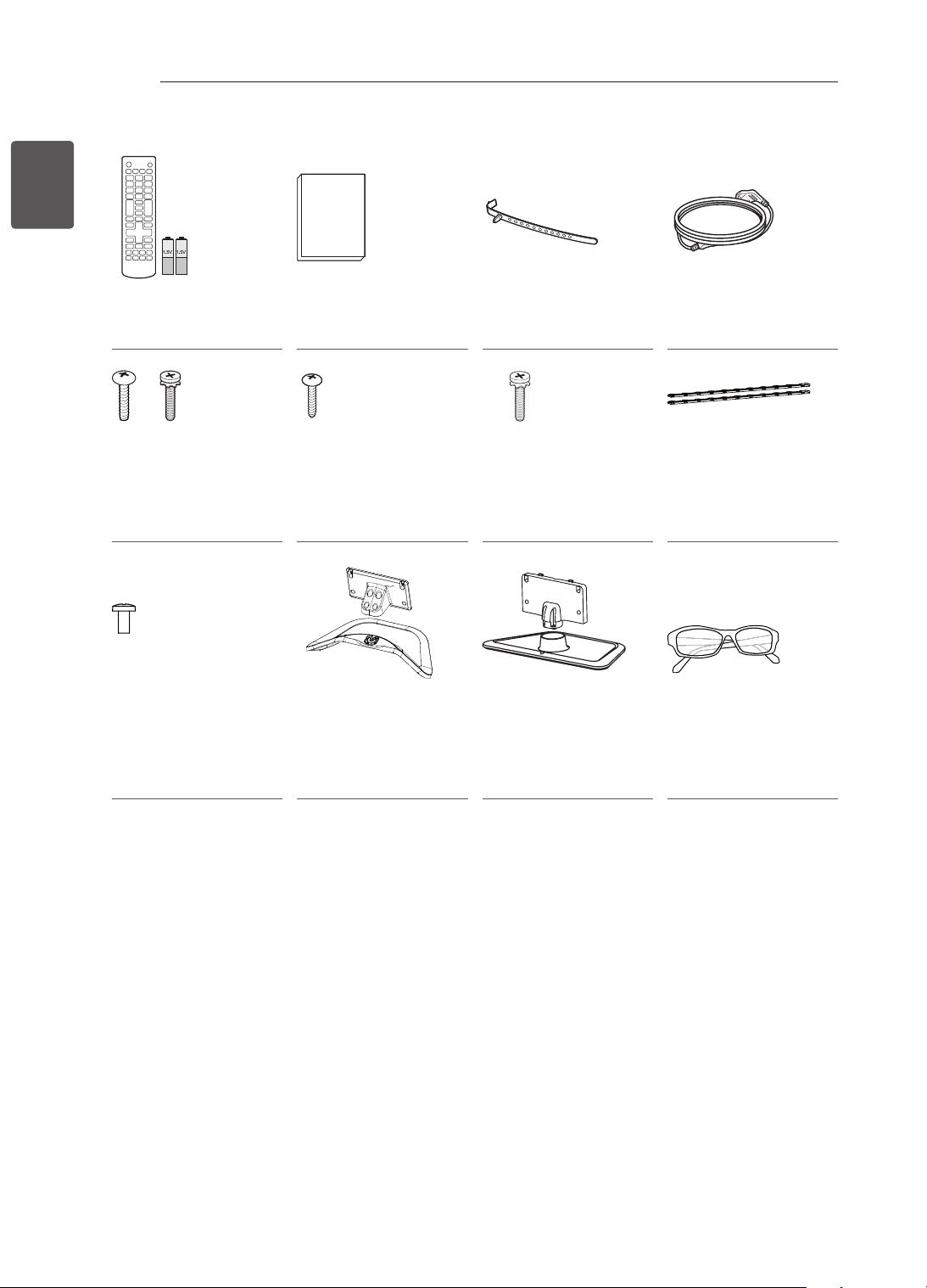

9 Unpacking
11 Separate purchase
12 Parts and buttons
13 Lifting and moving the TV
14 Setting up the TV

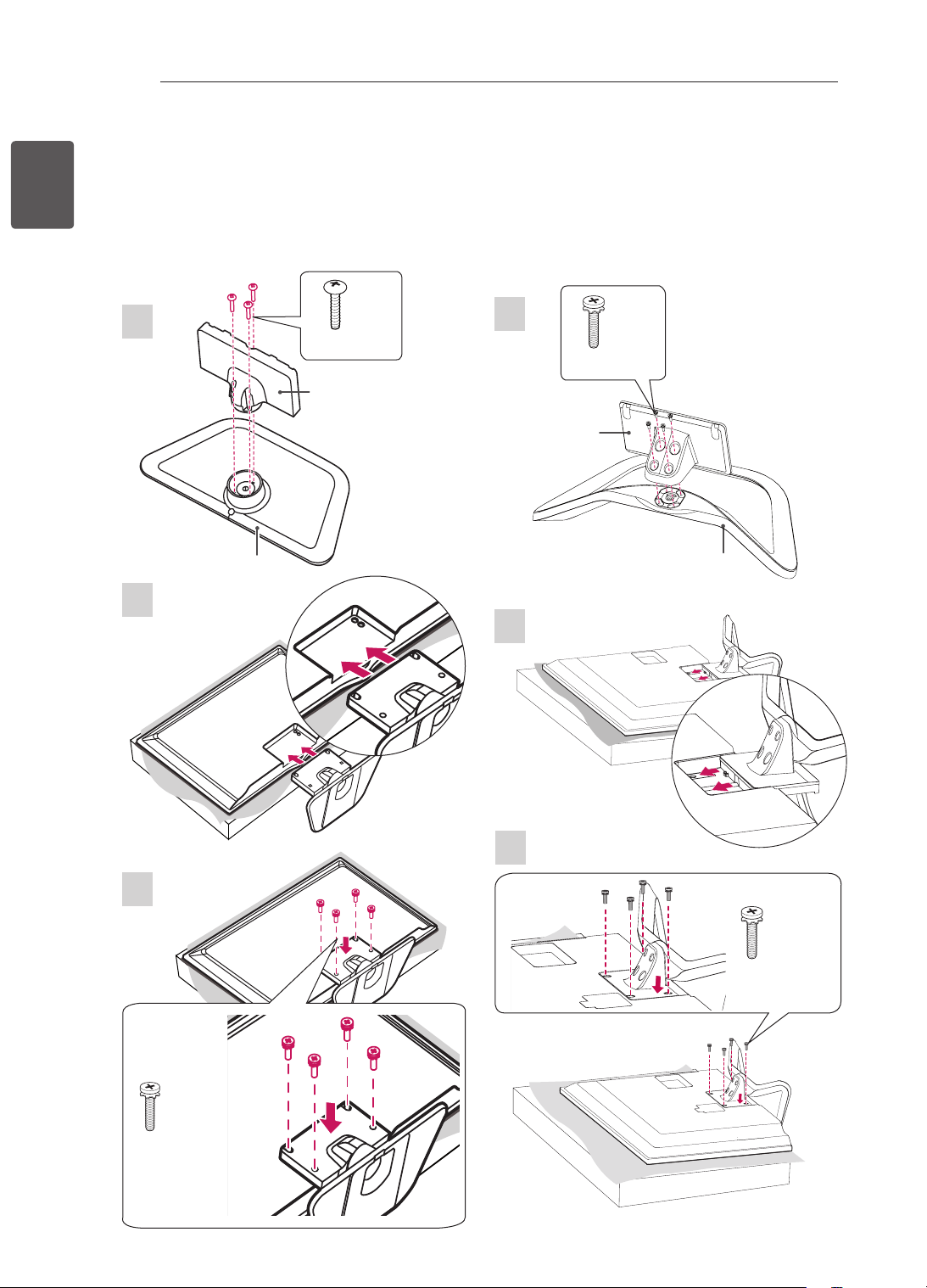

14 - Attaching the stand
15 Mounting on a table
17 Mounting on a wall
18 Tidying cables
19 MAKING CONNECTIONS
19 Antenna connection
20 HDMI connection
20 Component connection
21 Composite connection
21 USB connection
22 Headphone connection

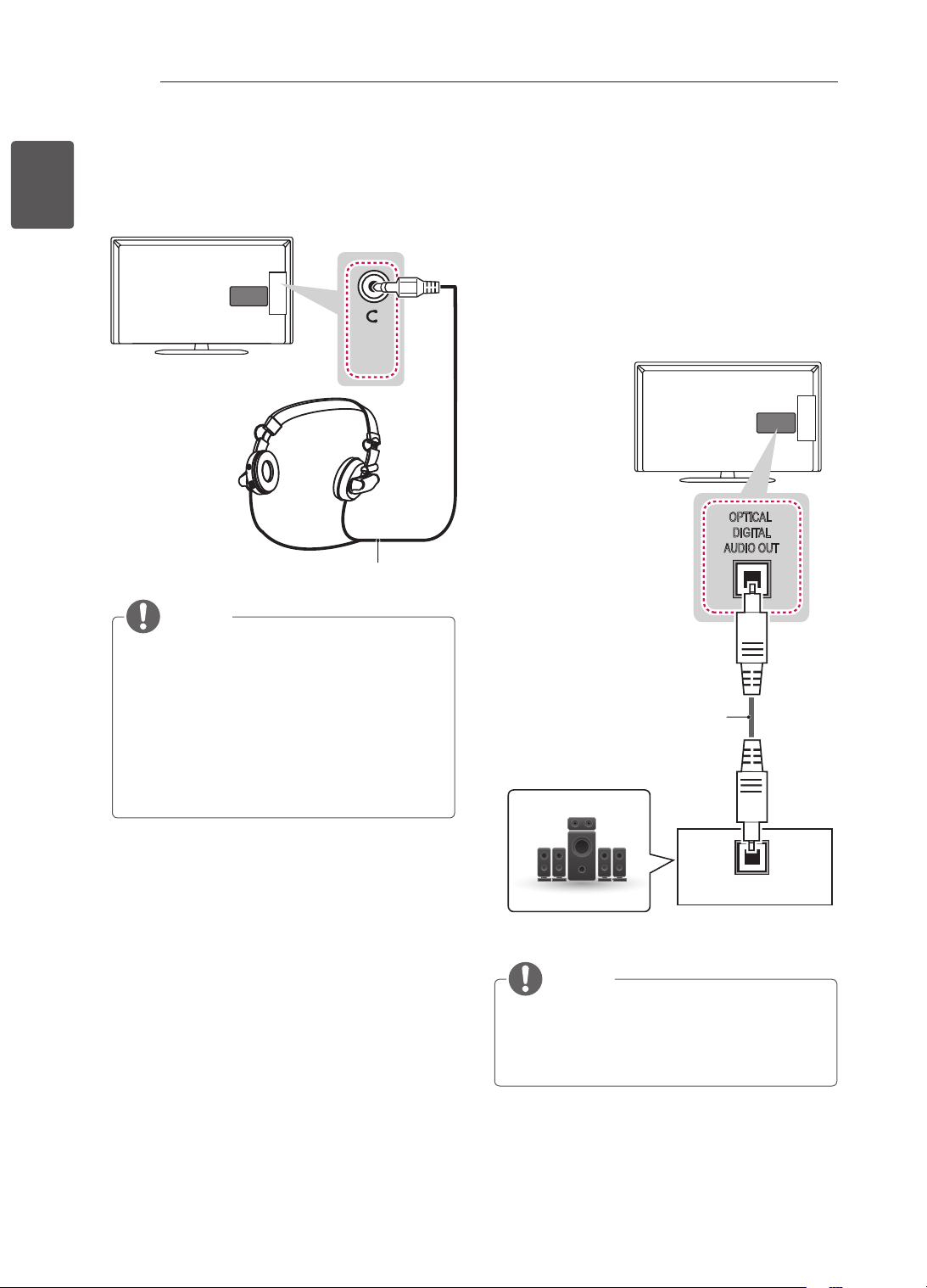

22 Audio Connection
22 - Digital optical audio connection
23 MHL connection
24 REMOTE CONTROL

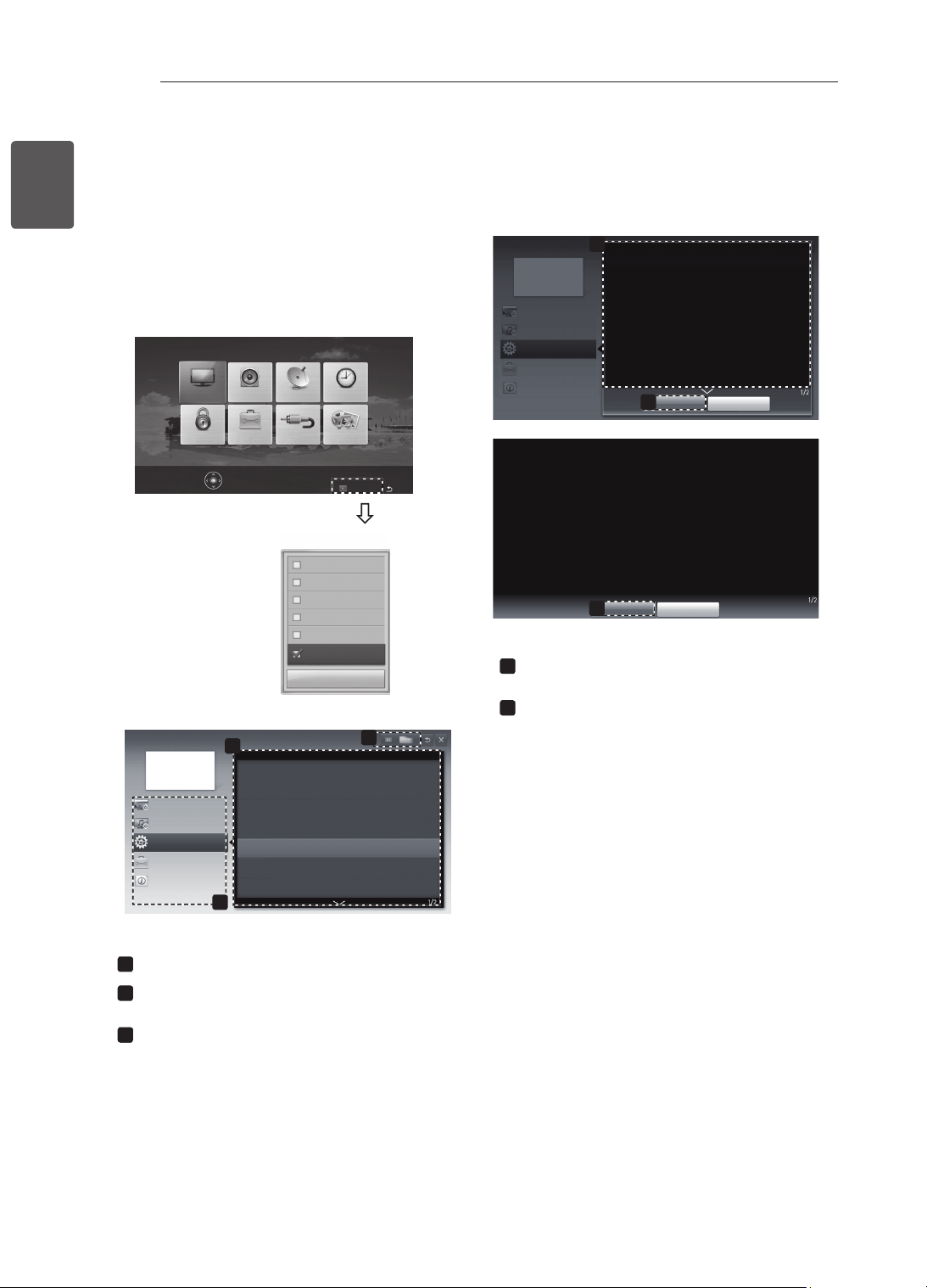

26 USING THE USER GUIDE
27 MAINTENANCE
27 Cleaning your TV
27 - Screen, frame, cabinet and stand
27 - Power cord
27 TROUBLESHOOTING
28 ENVIRONMENTAL INFORMATION
28 WEEE
29 SPECIFICATIONS
35 LICENSES
35 OPEN SOURCE SOFTWARE NOTICE
35 EXTERNAL CONTROL DEVICE
SETUP
3
ENGENGLISH

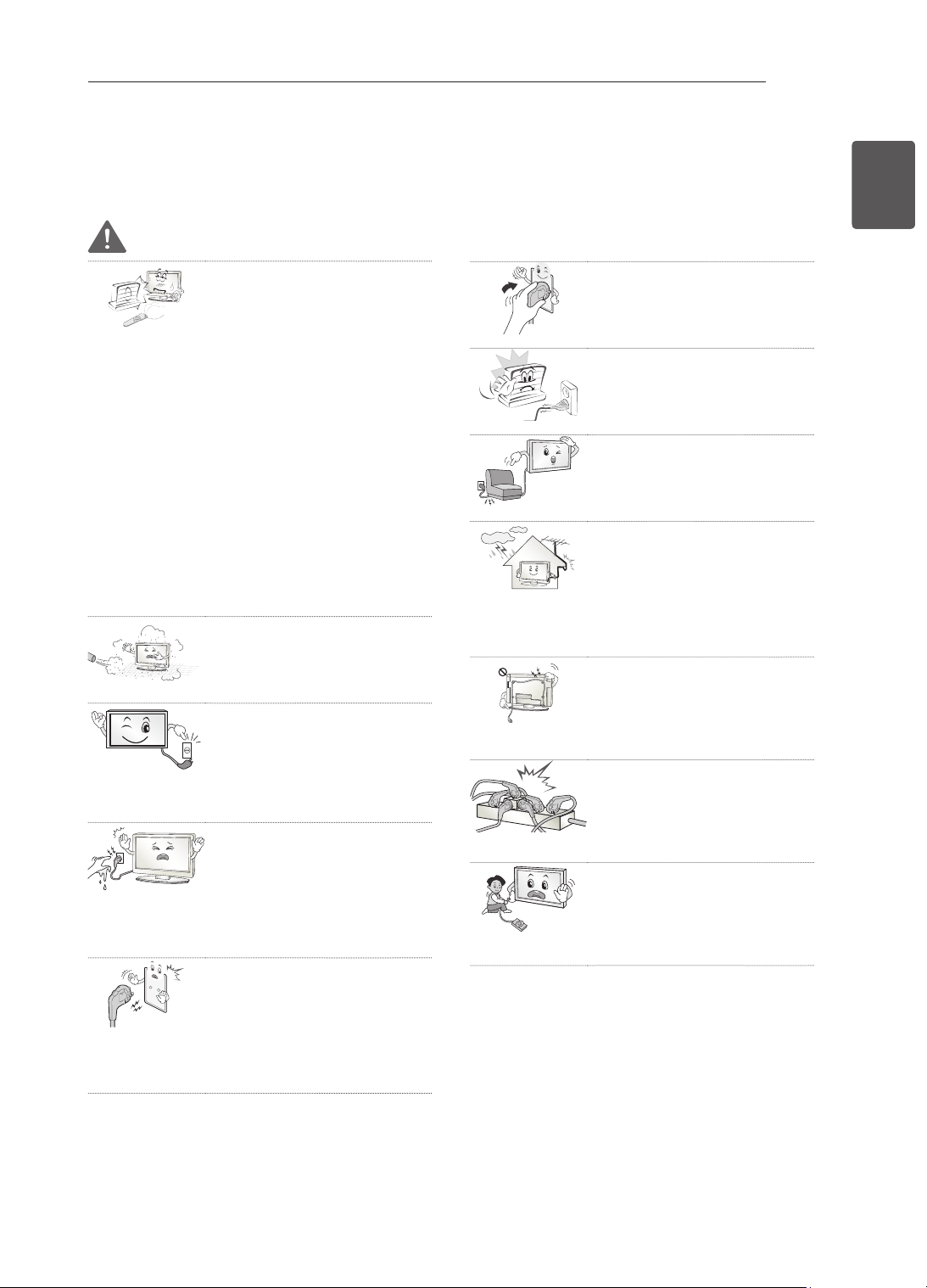

SAFETY INSTRUCTIONS
WARNING
Do not place the TV and
remote control in the
following environments:
- A location exposed to
direct sunlight
- An area with high humidity
such as a bathroom
- Near any heat source
such as stoves and other
devices that produce heat
- Near kitchen counters or
humidifiers where they can
easily be exposed to steam
or oil
- An area exposed to rain or
wind
- Near containers of water
such as vases
Otherwise, this may result in
fire, electric shock, malfunction
or product deformation.
Do not place the product
where it might be exposed to
dust.
This may cause a fire
hazard.
Mains Plug is the
TV connecting/
disconnecting device to AC
mains electric supply. This
plug must remain readily
attached and operable when
TV is in use.
Do not touch the power plug
with wet hands. Additionally,
if the cord pin is wet or
covered with dust, dry the
power plug completely or
wipe dust off.
You may be electrocuted
due to excess moisture.
Make sure to connect Mains
cable to compliant AC mains
socket with Grounded earth
pin. (Except for devices
which are not grounded
o earth.) Otherwise
possibility you may be
electrocuted or injured.
Insert power cable plug
completely into wall socket
otherwise if not secured
completely into socket, fire
ignition may break out.
Ensure the power cord does
not come into contact with
hot objects such as a heater.
This may cause a fire or an
electric shock hazard.
Do not place a heavy object,
or the product itself, on
power cables.
Otherwise, this may result in
fire or electric shock.
Bend antenna cable between
inside and outside building
to prevent rain from flowing
in.
This may cause water
damaged inside the Product
and could give an electric
shock.
When mounting TV onto wall
make sure to neatly install
and isolate cabling from
rear of TV as to not create
possibility of electric shock /
fire hazard.
Do not plug too many
electrical devices into a
single multiple electrical
outlet.
Otherwise, this may result in
fire due to over-heating.
Do not drop the product
or let it fall over when
connecting external devices.
Otherwise, this may result
in injury or damage to the
product.
SAFETY INSTRUCTIONS
Please read these safety precautions carefully before using the product.
4
ENG
ENGLISH
SAFETY INSTRUCTIONS
Keep the packing anti-
moisture material or vinyl
packing out of the reach of
children.
Anti-moisture material is
harmful if swallowed. If
swallowed by mistake, force
the patient to vomit and
visit the nearest hospital.
Additionally, vinyl packing
can cause suffocation. Keep
it out of the reach of children.
Do not let your children climb
or cling onto the TV.
Otherwise, the TV may
fall over, which may cause
serious injury.
Dispose of used batteries
carefully to protect a child
from eating them.
Please seek Doctor- Medical
Attention immediately if child
consumes batteries.
Do not insert any metal
objects/conductors (like
a metal chopstick/cutlery/
screwdriver) between power
cable plug and input Wall
Socket while it is connected
to the input terminal on the
wall. Additionally, do not
touch the power cable right
after plugging into the wall
input terminal.
You may be electrocuted.
(Depending on model)
Do not put or store
inflammable substances
near the product. There is
a danger of combustion/
explosion or fire due to
careless handling of the
inflammable substances.
Do not drop metallic objects
such as coins, hair pins,
chopsticks or wire into the
product, or inflammable
objects such as paper and
matches. Children must pay
particular attention.
Electrical shock, fire or injury
can occur. If a foreign object
is dropped into the product,
unplug the power cord and
contact the service centre.
Do not spray water on the
product or scrub with an
inflammable substance
(thinner or benzene). Fire or
electric shock accident can
occur.
Do not allow any impact,
shock or any objects to fall
into the unit, and do not drop
anything onto the screen.
You may be injured or the
product can be damaged.
Never touch this product or
antenna during a thunder or
lighting storm.
You may be electrocuted.
Never touch the wall outlet
when there is leakage of
gas, open the windows and
ventilate.
It may cause a fire or a burn
by a spark.
Do not disassemble, repair
or modify the product at your
own discretion.
Fire or electric shock
accident can occur.
Contact the service centre
for check, calibration or
repair.
If any of the following
occur, unplug the product
immediately and contact
your local service centre.
- The product has been
impacted by shock
- The product has been
damaged
- Foreign objects have
entered the product
- The product produced
smoke or a strange smell
This may result in fire or
electric shock.
5
ENGENGLISH
SAFETY INSTRUCTIONS
Unplug the TV from AC
mains wall socket if you do
not intend to use the TV
for a long period of time.
Accumulated dust can cause
fire hazard and insulation
deterioration can cause
electric leakage/shock/fire.
Apparatus shall not be
exposed to dripping or
splashing and no objects
filled with liquids, such as
vases, shall be placed on
the apparatus.
CAUTION
Install the product where no
radio wave occurs.
There should be enough
distance between an outside
antenna and power lines
to keep the former from
touching the latter even
when the antenna falls.
This may cause an electric
shock.
Do not install the product
on places such as unstable
shelves or inclined surfaces.
Also avoid places where
there is vibration or where
the product cannot be fully
supported.
Otherwise, the product may
fall or flip over, which may
cause injury or damage to
the product.
If you install the TV on a
stand, you need to take
actions to prevent the
product from overturning.
Otherwise, the product may
fall over, which may cause
injury.
If you intend to mount the product to a wall,
attach VESA standard mounting interface
(optional parts) to the back of the product. When
you install the set to use the wall mounting
bracket (optional parts), fix it carefully so as not
to drop.
Only use the attachments / accessories
specified by the manufacturer.
When installing the antenna,
consult with a qualified
service technician. If not
installed by a qualified
technician, this may create
a fire hazard or an electric
shock hazard.
We recommend that you
maintain a distance of
at least 2 to 7 times the
diagonal screen size when
watching TV.
If you watch TV for a long
period of time, this may
cause blurred vision.
Only use the specified type
of battery.
This could cause damage to
the remote control.
Do not mix new batteries
with old batteries.
This may cause the batteries
to overheat and leak.
Batteries should not be exposed to excessive
heat.eg keep away from direct Sunlight, open
fireplace and electric heaters.
Do not place non-rechargeable batteries in
charging device.
Make sure there are no
objects between the remote
control and its sensor.
Signal from Remote Control
can be interrupted due to
external/internal lighting eg
Sunlight, fluorescent lighting.
If this occurs turn off lighting
or darken viewing area.
When connecting external
devices such as video game
consoles, make sure the
connecting cables are long
enough.
Otherwise, the product
may fall over, which may
cause injury or damage the
product.
Do not turn the product
On/Off by plugging-in or
unplugging the power plug to
the wall outlet. (Do not use
the power plug for switch.)
It may cause mechanical
failure or could give an
electric shock.
6
ENG
ENGLISH
SAFETY INSTRUCTIONS
Please follow the installation
instructions below to
prevent the product from
overheating.
- The distance between the
product and the wall should
be more than 10 cm.
- Do not install the product in
a place with no ventilation
(e.g., on a bookshelf or in
a cupboard).
- Do not install the product
on a carpet or cushion.
- Make sure the air vent is
not blocked by a tablecloth
or curtain.
Otherwise, this may result in
fire.
Take care not to touch the
ventilation openings when
watching the TV for long
periods as the ventilation
openings may become hot.
This does not affect the
operation or performance of
the product.
Periodically examine the cord of your appliance,
and if its appearance indicates damage or
deterioration, unplug it, discontinue use of the
appliance, and have the cord replaced with
an exact replacement part by an authorized
servicer.
Prevent dust collecting on
the power plug pins or outlet.
This may cause a fire
hazard.
Protect the power cord from
physical or mechanical
abuse, such as being
twisted, kinked, pinched,
closed in a door, or walked
upon. Pay particular
attention to plugs, wall
outlets, and the point where
the cord exits the appliance.
Do not press strongly upon
the panel with a hand or
sharp object such as nail,
pencil or pen, or make
a scratch on it as it may
cause damage to screen.
Avoid touching the screen or
holding your finger(s) against
it for long periods of time.
Doing so may produce some
temporary or permanent
distortion/damage to screen.

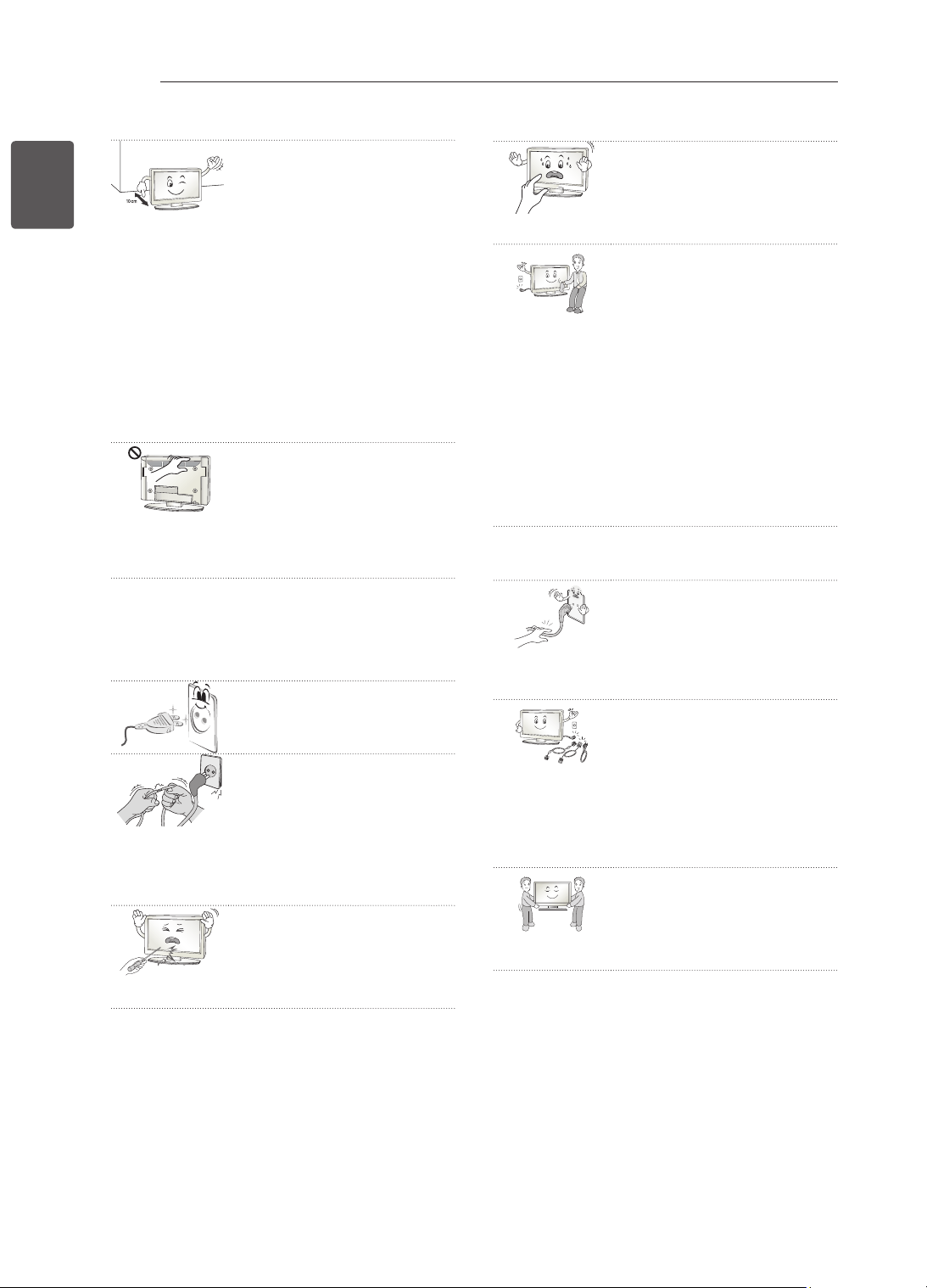

When cleaning the product
and its components, unplug
the power first and wipe it
with a soft cloth. Applying
excessive force may cause
scratches or discolouration.
Do not spray with water or
wipe with a wet cloth. Never
use glass cleaner, car or
industrial shiner, abrasives
or wax, benzene, alcohol
etc., which can damage the
product and its panel.
Otherwise, this may result in
fire, electric shock or product
damage (deformation,
corrosion or breakage).
As long as this unit is connected to the AC wall
outlet, it is not disconnected from the AC power
source even if you turn off this unit by SWITCH.
When unplugging the cable,
grab the plug and unplug it,
by pulling at the plug. Don’t
pull at the cord to unplug the
power cord from the power
board, as this could be
hazardous.
When moving the product,
make sure you turn the
power off first. Then, unplug
the power cables, antenna
cables and all connecting
cables.
The TV set or power cord
may be damaged, which
may create a fire hazard or
cause electric shock.
When moving or unpacking
the product, work in pairs
because the product is
heavy.
Otherwise, this may result in
injury.
7
ENGENGLISH
SAFETY INSTRUCTIONS
Contact the service centre
once a year to clean the
internal parts of the product.
Accumulated dust can cause
mechanical failure.
Refer all servicing to
qualified service personnel.
Servicing is required when
the apparatus has been
damaged in any way, such
as power supply cord or
plug is damaged, liquid has
been spilled or objects have
fallen into the apparatus,
the apparatus has been
exposed to rain or moisture,
does not operate normally,
or has been dropped.
If the product feels cold to
the touch, there may be
a small “flicker” when it is
turned on. This is normal,
there is nothing wrong with
product.
The panel is a high
technology display product
with resolution of two million
to six million pixels. You
may see tiny black dots and/
or brightly coloured dots
(red, blue or green) at a
size of 1 ppm on the panel.
This does not indicate a
malfunction and does not
affect the performance and
reliability of the product.
This phenomenon also
occurs in third-party
products and is not subject
to exchange or refund.
You may find different
brightness and colour of the
panel depending on your
viewing position(left/right/
top/down).
This phenomenon occurs
due to the characteristic
of the panel. It is not
related with the product
performance, and it is not
malfunction.
Displaying a still image (e.g., broadcasting
channel logo, on-screen menu, scene from a
video game) for a prolonged time may cause
damage to the screen, resulting in retention of
the image, which is known as image sticking.
The warranty does not cover the product for
image sticking.
Avoid displaying a fixed image on your
television’s screen for a prolonged period (2
or more hours for LCD, 1 or more hours for
Plasma).
Also, if you watch the TV at a ratio of 4:3 for
a long time, image sticking may occur on the
borders of the panel.
This phenomenon also occurs in third-party
products and is not subject to exchange or
refund.
Generated Sound
“Cracking” noise: A cracking noise that occurs
when watching or turning off the TV is generated
by plastic thermal contraction due to tempera-
ture and humidity. This noise is common for
products where thermal deformation is required.
Electrical circuit humming/panel buzzing: A
low level noise is generated from a high-speed
switching circuit, which supplies a large amount
of current to operate a product. It varies depend-
ing on the product.
This generated sound does not affect the
performance and reliability of the product.
8
ENG
ENGLISH
SAFETY INSTRUCTIONS
Viewing 3D Imaging (Only 3D
models)
WARNING
Viewing Environment
Viewing Time
- When watching 3D contents, take 5 - 15 minute
breaks every hour. Viewing 3D contents for
a long period of time may cause headache,
dizziness, fatigue or eye strain.
Those that have a photosensitive seizure or
chronic illness
Some users may experience a seizure or other
abnormal symptoms when they are exposed to a
ashing light or particular pattern from 3D contents.
Do not watch 3D videos if you feel nausea, are
pregnant and/ or have a chronic illness such as
epilepsy, cardiac disorder, or blood pressure disease,
etc.
3D Contents are not recommended to those who
suffer from stereo blindness or stereo anomaly.
Double images or discomfort in viewing may be
experienced.
If you have strabismus (cross-eyed), amblyopia (weak
eyesight) or astigmatism, you may have trouble
sensing depth and easily feel fatigue due to double
images. It is advised to take frequent breaks than the
average adult.
If your eyesight varies between your right and left
eye, revise your eyesight prior to watching 3D
contents.
Symptoms which require discontinuation or
refraining from watching 3D contents
Do not watch 3D contents when you feel fatigue from
lack of sleep, overwork or drinking.
When these symptoms are experienced, stop using/
watching 3D contents and get enough rest until the
symptom subsides.
- Consult your doctor when the symptoms persist.
Symptoms may include headache, eyeball
pain, dizziness, nausea, palpitation, blurriness,
discomfort, double image, visual inconvenience
or fatigue.
CAUTION
Viewing Environment
Viewing Distance
- Maintain a distance of at least twice the screen
diagonal length when watching 3D contents.
If you feel discomfort in viewing 3D contents,
move further away from the TV.
Viewing Age
Infants/Children
- Usage/ Viewing 3D contents for children under
the age of 5 are prohibited.
- Children under the age of 10 may overreact
and become overly excited because their vision
is in development (for example: trying to touch
the screen or trying to jump into it. Special
monitoring and extra attention is required for
children watching 3D contents.
- Children have greater binocular disparity of 3D
presentations than adults because the distance
between the eyes is shorter than one of adults.
Therefore they will perceive more stereoscopic
depth compared to adults for the same 3D
image.
Teenagers
- Teenagers under the age of 19 may react with
sensitivity due to stimulation from light in 3D
contents. Advise them to refrain from watching
3D contens for a long time when they are tired.
Elderly
- The elderly may perceive less 3D effect
compared to the youth. Do not sit closer to the
TV than the recommended distance.
Cautions when using the 3D glasses
Make sure to use LG 3D glasses. Otherwise, you
may not be able to view 3D videos properly.
Do not use 3D glasses instead of your normal
glasses, sunglasses or protective goggles.
Using modied 3D glasses may cause eye strain or
image distortion.
Do not keep your 3D glasses in extremely high or low
temperatures. It will cause deformation.
The 3D glasses are fragile and are easy to be
scratched. Always use a soft, clean piece of cloth
when wiping the lenses. Do not scratch the lenses of
the 3D glasses with sharp objects or clean/wipe them
with chemicals.
9
ENGENGLISH
INSTALLATION PROCEDURE / ASSEMBLING AND PREPARING
NOTE
Image shown may differ from your TV.
Your TV’s OSD (On Screen Display) may differ slightly from that shown in this manual.
The available menus and options may differ from the input source or product model that you are using.
New features may be added to this TV in the future.
The TV can be placed in standby mode in order to reduce the power consumption. And the TV should be turned
off if it will not be watched for some time, as this will reduce energy consumption.
The energy consumed during use can be significantly reduced if the level of brightness of the picture is reduced,
and this will reduce the overall running cost.
INSTALLATION PROCEDURE
1 Open the package and make sure all the accessories are included.
2 Attach the stand to the TV set.
3 Connect an external device to the TV set.
ASSEMBLING AND PREPARING
Unpacking
Check your product box for the following items. If there are any missing accessories, contact the local dealer where you
purchased your product. The illustrations in this manual may differ from the actual product and item.
CAUTION
Do not use any unapproved items to ensure the safety and product life span.
Any damages or injuries by using unapproved items are not covered by the manufacturer’s warranty.
Some models have a thin film attached on to the screen and this must not be removed.
NOTE
The items supplied with your product may vary depending on the model.
Product specifications or contents of this manual may be changed without prior notice due to upgrade of product
functions.
For an optimal connection, HDMI cables and USB devices should have bezels less than 10 mm thick and 18 mm
width. Use an extension cable that supports USB 2.0 if the USB cable or USB memory stick does not fit into your
TV’s USB port.
A
B
A
B
*A
<
=
10 mm
*B
<
=
18 mm
10
ENG
ENGLISH
ASSEMBLING AND PREPARING
Remote control and
batteries (AAA)
(See p.24, 25)
Owner’s manual Cable holder
(Depending on model)
(See p.18)
Power Cord
Stand Screws
3EA, P5 x 25
4EA, M4 x 14
(Only LN54**, LN565*)
(See p.14)
Desk-mount Screw
(2EA : Only LA61**)
(1EA : Only
32/37/39/42/47/50/
60LN54**, LN565*)
(See p.16)
Stand Screws
8EA, M4 x 14
(Only LA61**)
(See p.14)
Desk-mount Cable
2EA
(Only LA61**)
(See p.16)
Bracket Screw
2EA, M4 x 8
(Only 32/42LA61**)
2EA, P4 x 8
(Only 50LA61**)
(See p.16)
Stand Body /
Stand Base
(Only LA61**)
(See p.14)
Stand Body /
Stand Base
(Only LN54**, LN565*)
(See p.14)
Cinema 3D Glasses
The number of 3D glass-
es may differ depending
on the model or country.
(Only LA61**)
11
ENGENGLISH
ASSEMBLING AND PREPARING

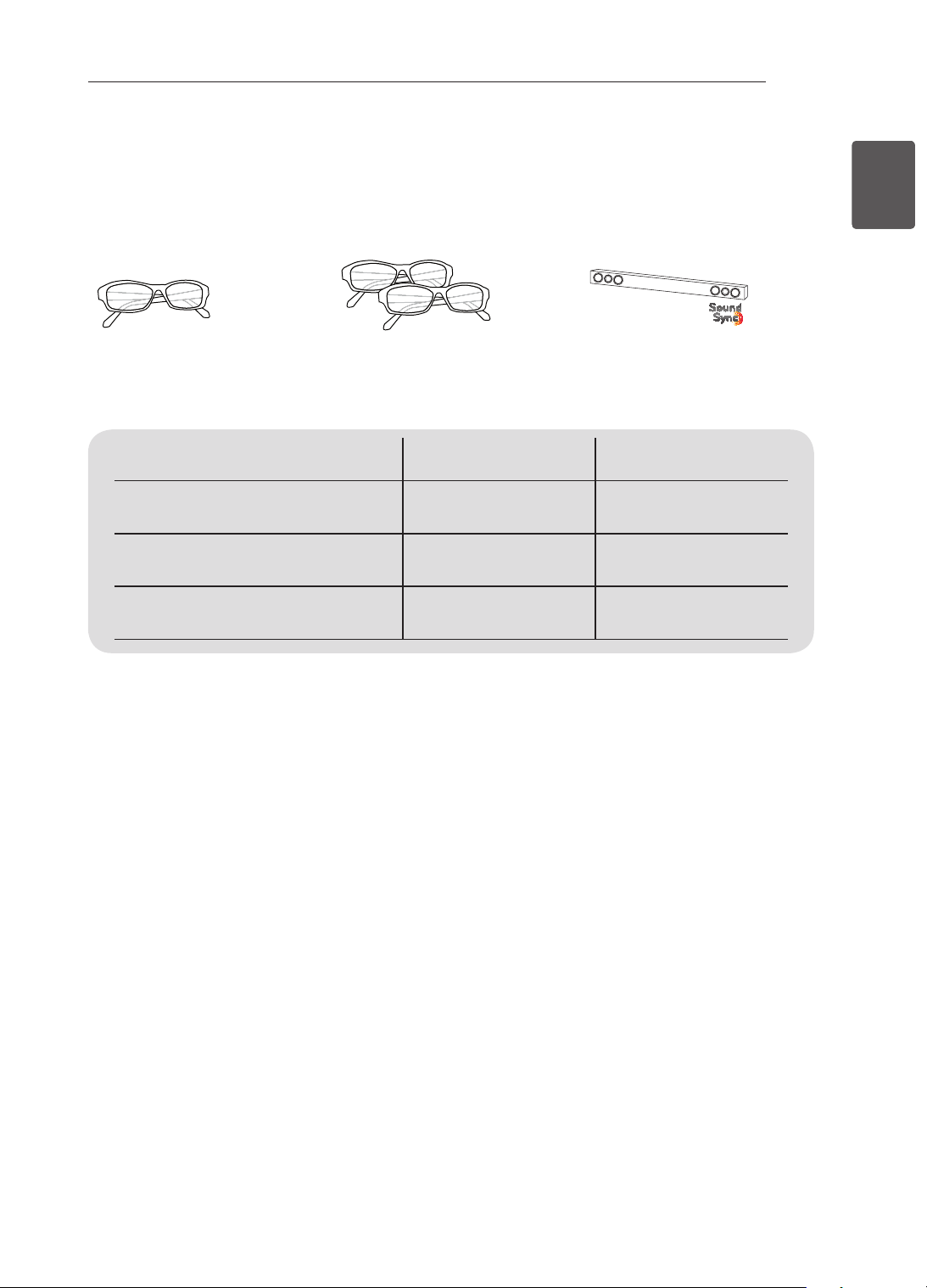

Separate purchase
Separate purchase items can be changed or modified for quality improvement without any notification.
Contact your dealer to buy these items.
These devices only work with certain models.
AG-F2**, AG-F3**, AG-F4**
Cinema 3D glasses
AG-F2**DP, AG-F3**DP
Dual play glasses
LG Audio Device
Compatibility
LA61** LN54**, LN565*
AG-F2**, AG-F3**, AG-F4**
Cinema 3D glasses
•
AG-F2**DP, AG-F3**DP
Dual play glasses
•
LG Audio Device •
The model name or design may be changed depending on the upgrade of product functions, manufacturer’s
circumstances or policies.
12
ENG
ENGLISH
ASSEMBLING AND PREPARING
Parts and buttons
Button Description
H
Scrolls through the saved programmes.
H
Adjusts the volume level.
H
Selects the highlighted menu option or confirms an input.
S
Accesses the main menu, or saves your input and exits the menus.
H
Changes the input source.
Turns the power on or off.
LAN
(PC)
RGB IN
(RGB/HDMI-PC)
AUDIO
IN IN OUT
OPTICAL
DIGITAL
AUDIO
H/P
IN/ OUT
(RGB)
AV1
IN
HDD IN USB Hub
USB Appps
USB IN
11(ARC) 2 3 4(PC) 2
USB IN
3
ANTENNA
/CABLE
13/18V
700mA MAx
LNB IN
Satellite
IN
COMPONENT
AV
PR
PB Y
VIDEO
AUDIO
SETTINGS
INPUT
OK
SETTINGS
INPUT
OK
Only LA61**
Buttons
Speakers
Screen
Power indicator and
Remote control sensor
SETTINGS
OK
INPUT
Only LN54**, LN565*
Speakers
Screen
Power indicator and
Remote control sensor
Buttons
NOTE
You can set the power indicator light to on or off by selecting OPTION in the main menus.
13
ENGENGLISH
ASSEMBLING AND PREPARING
Lifting and moving the TV
Please note the following advice to prevent the
TV from being scratched or damaged and for safe
transportation regardless of its type and size.
CAUTION
Avoid touching the screen at all times, as this may
result in damage to the screen.
It is recommended to move the TV in the box or
packing material that the TV originally came in.
Before moving or lifting the TV, disconnect the power
cord and all cables.
When holding the TV, the screen should face away
from you to avoid damage.
Hold the top and bottom of the TV frame rmly. Make
sure not to hold the transparent part, speaker, or
speaker grill area.
When transporting a large TV, there should be at
least 2 people.
When transporting the TV by hand, hold the TV as
shown in the following illustration.
When transporting the TV, do not expose the TV to
jolts or excessive vibration.
When transporting the TV, keep the TV upright, never
turn the TV on its side or tilt towards the left or right.
Do not apply excessive pressure to cause exing /
bending of frame chassis as it may damage screen.
14
ENG
ENGLISH
ASSEMBLING AND PREPARING
Setting up the TV
Image shown may differ from your TV.
Attaching the stand
Stand Base
M4 x 14
4 EA
Stand Body
1
2
3
LA61**
4EA
M4 x 14
2
3
1
Stand Body
Stand Base
P5 x 25
3EA
M4 x 14
4EA
LN54**, LN565*
15
ENGENGLISH
ASSEMBLING AND PREPARING

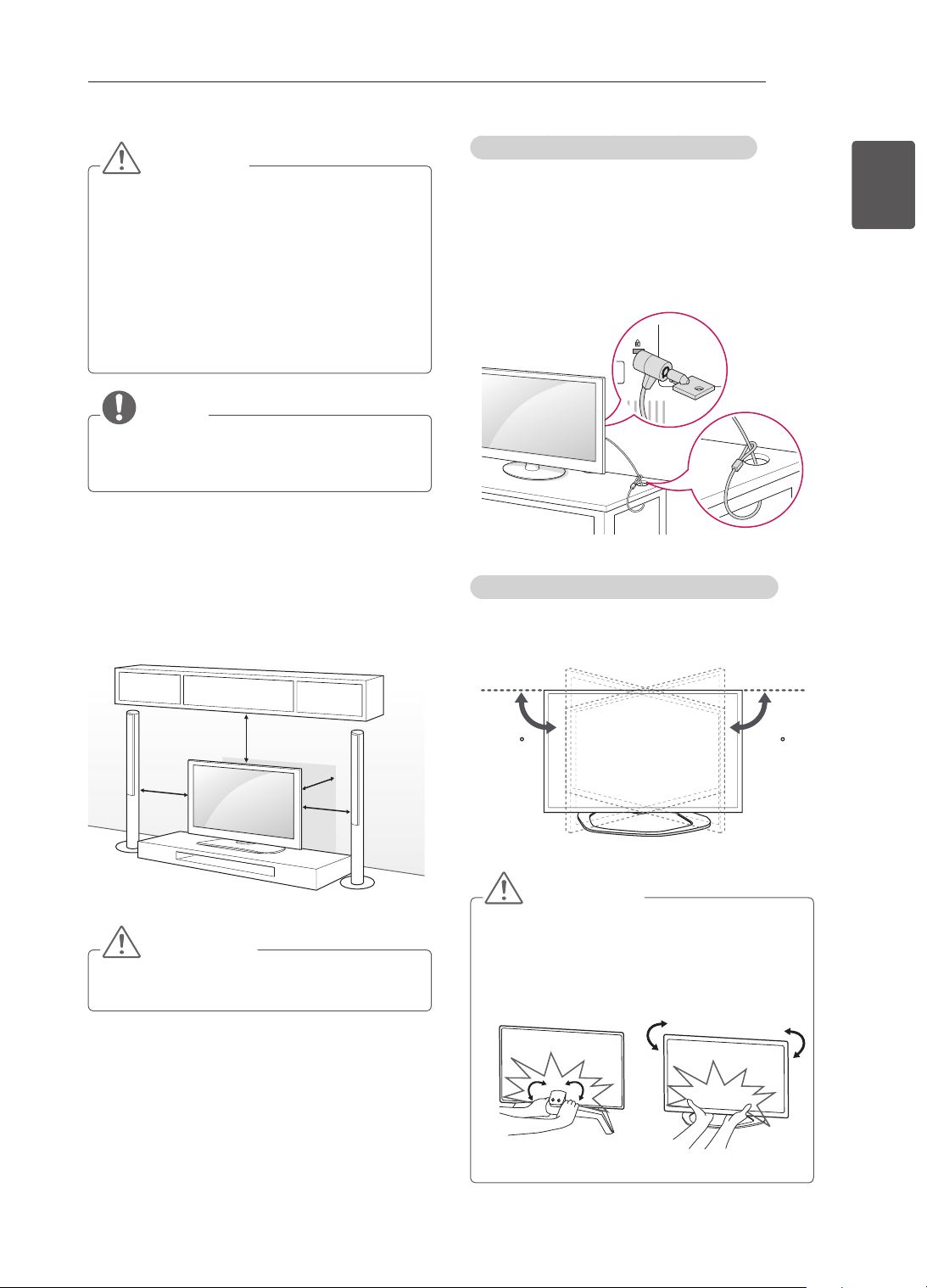

CAUTION
When attaching the stand to the TV set, place the
screen facing down on a cushioned table or flat
surface to protect the screen from scratches.
Make sure that the screws are inserted correctly
and fastened securely. (If they are not fastened
securely enough, the TV may tilt forward after
being installed.)
Do not use too much force and over tighten the
screws; otherwise screw may be damaged and
not tighten correctly.
NOTE
Remove the stand before installing the TV on a
wall mount by performing the stand attachment in
reverse.
Mounting on a table
1 Lift and tilt the TV into its upright position on a table.
- Leave a 10 cm (minimum) space from the wall
for proper ventilation.
10 cm
10 cm
10 cm
10 cm
2 Connect the power cord to a wall outlet.
CAUTION
Do not place the TV near or on sources of heat,
as this may result in fire or other damage.
Using the Kensington security system
(This feature is not available for all models.)
The Kensington security system connector is located at
the rear of the TV. For more information of installation and
using, refer to the manual provided with the Kensington
security system or visit http://www.kensington.com.
Connect the Kensington security system cable between
the TV and a table.
Adjusting the angle of the TV to suit view
(Only LA61**)
Swivel 15 degrees to the left or right and adjust the angle
of the TV to suit your view.
1515
CAUTION
»
When adjusting the angle adof the product, watch
out for your fingers.
»
Personal injury may occur if hands or fingers are
pinched. If the product is tilted too much, it may fall,
causing damage or injury.
<Rear> <Front>
16
ENG
ENGLISH
ASSEMBLING AND PREPARING

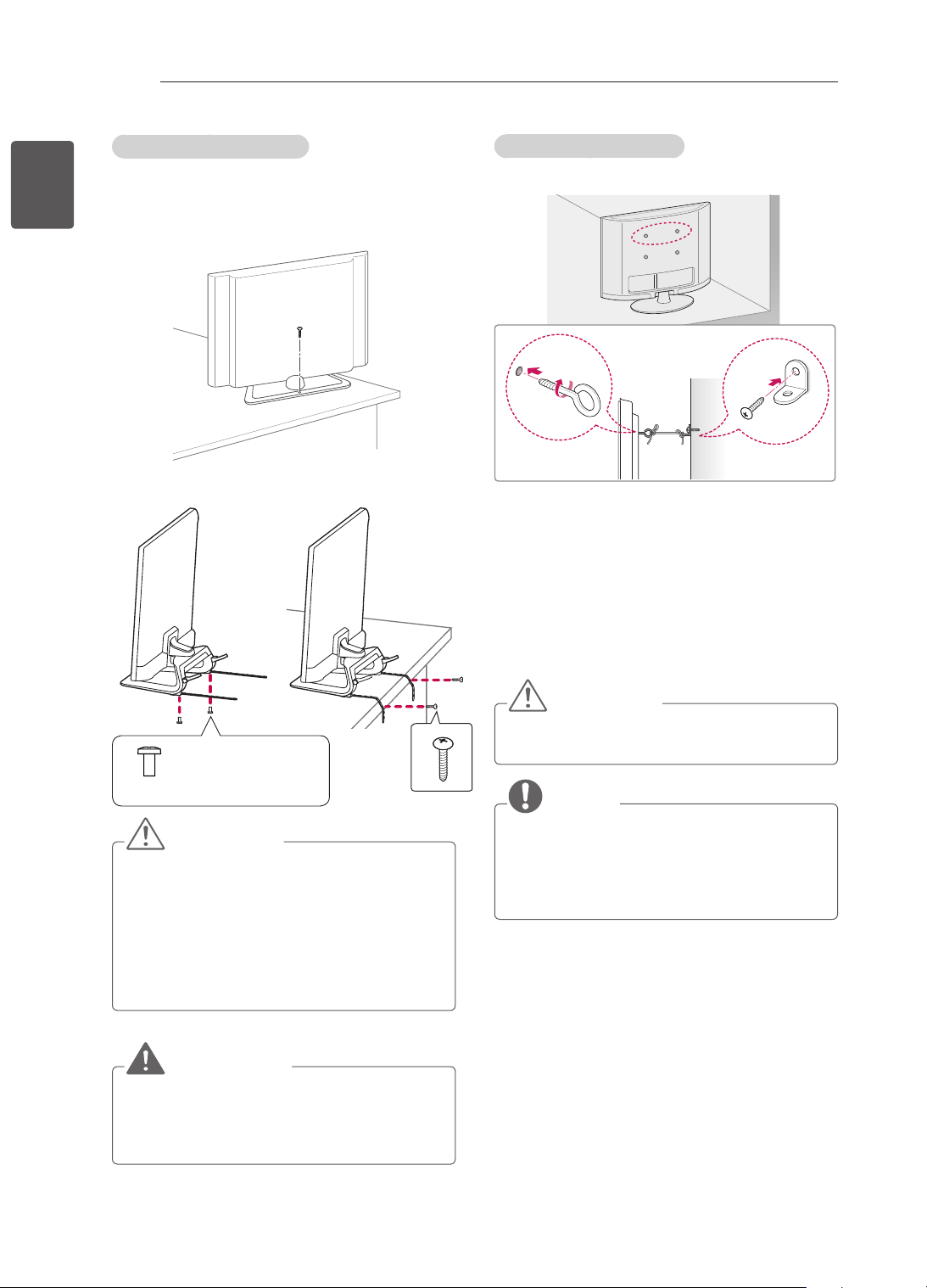

Securing the TV to a wall
(This feature is not available for all models.)
1 Insert and tighten the eye-bolts, or TV brackets and
bolts on the back of the TV.
- If there are bolts inserted at the eye-bolts
position, remove the bolts first.
2 Mount the wall brackets with the bolts to the wall.
Match the location of the wall bracket and the eye-
bolts on the rear of the TV.
3 Connect the eye-bolts and wall brackets tightly with a
sturdy rope.
Make sure to keep the rope horizontal with the flat
surface.
CAUTION
Make sure that children do not climb on or hang
on the TV.
NOTE
Use a platform or cabinet that is strong and large
enough to support the TV securely.
Brackets, bolts and ropes are not provided. You
can obtain additional accessories from your local
dealer.
Securing the TV to a table
Fix the TV to a table to prevent from tilting forward,
damage, and potential injury.
To secure the TV to a table, insert and tighten the
supplied screw on the rear of the stand.
(Only 32/37/39/42/47/50/60LN54**, LN565*)
(Only LA61**)
P4 x 8
(Only 50LA61**)
M4 x 8 (Only 32/42LA61**)
2EA
CAUTION
(Only LA61**)
How to fix the TV to a table
1 . Connect the Desk-mount Cables to the Stand
Base using the Bracket Screws.
2 . Fix the Desk-mount Cables to a table using the
Desk-mount Screws.
3 . Once the TV is fixed, move the table close to the
wall. Children may go in, causing injuries.
WARNING
To prevent TV from falling over, the TV should be
securely attached to the floor/wall per installation
instructions. Tipping, shaking, or rocking the TV
may cause injury.
17
ENGENGLISH
ASSEMBLING AND PREPARING

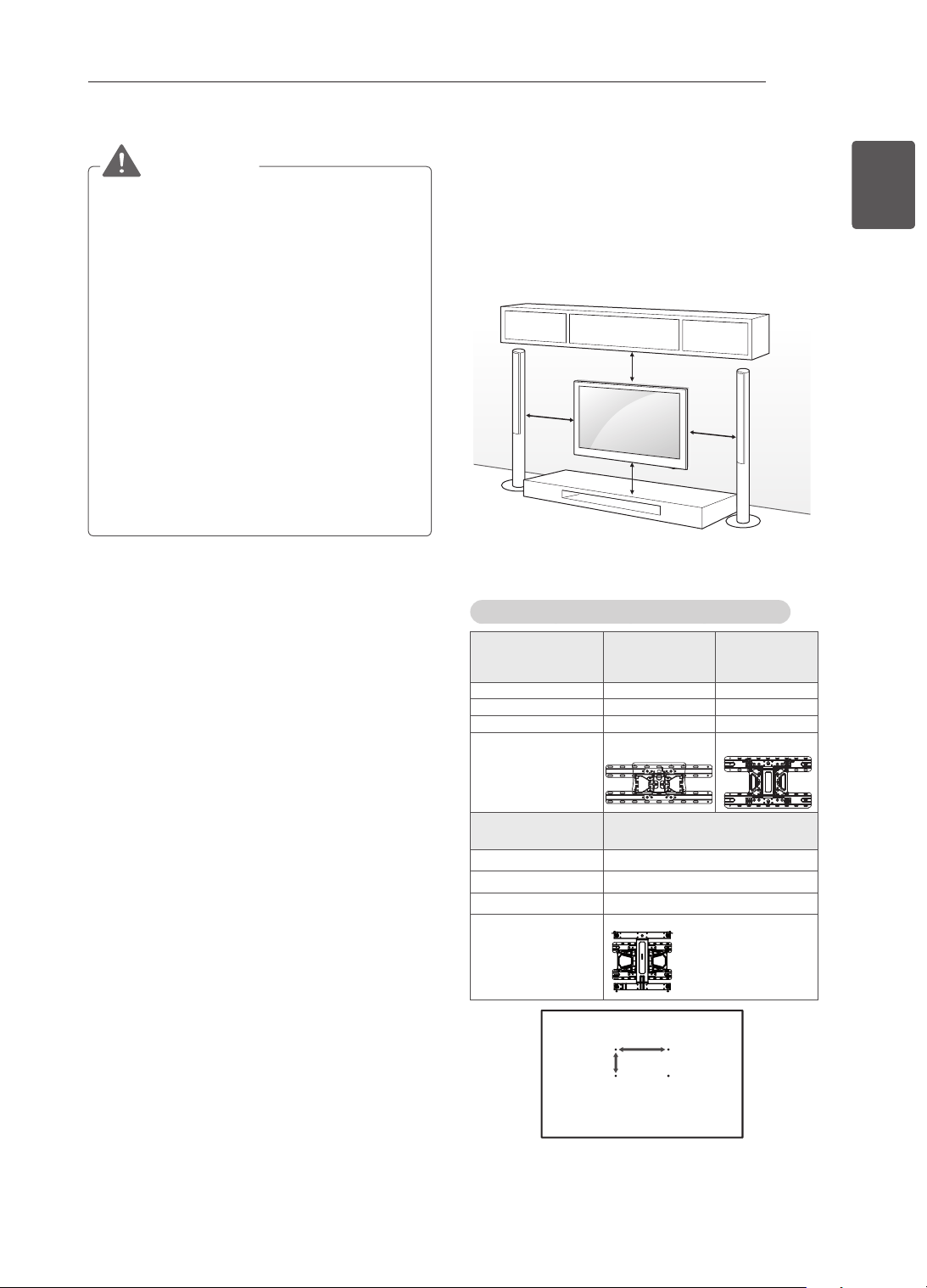

Mounting on a wall
Attach an optional wall mount bracket at the rear of the
TV carefully and install the wall mount bracket on a solid
wall perpendicular to the floor. When you attach the
TV to other building materials, please contact qualified
personnel.
LG recommends that wall mounting be performed by a
qualified professional installer.
10 cm
10 cm
10 cm
10 cm
Make sure to use screws and wall mount bracket that
meet the VESA standard. Standard dimensions for the
wall mount kits are described in the following table.
Separate purchase(Wall Mounting Bracket)
Model 32LN54**
32LN565*
32LA61**
37/39/42LN54**
42LA61**
VESA (A x B) 200 x 100 200 x 200
Standard screw M4 M6
Number of screws 4 4
Wall mount bracket LSW130B LSW230B
Model
47/50/55/60LN54**
50LA61**
VESA (A x B)
400 x 400
Standard screw
M6
Number of screws
4
Wall mount bracket LSW430B
A
B
WARNING
If a television is not positioned in a sufficiently
stable location, it can be potentially hazardous
due to falling. Many injuries, particularly to
children, can be avoided by taking simple
precautions such as:
»
Using cabinets or stands recommended by
the manufacturer of the television.
»
Only using furniture that can safely support
the television.
»
Ensuring the television is not overhanging the
edge of the supporting furniture.
»
Not placing the television on tall furniture (for
example, cupboards or bookcases) without
anchoring both the furniture and the television
to a suitable support.
»
Not standing the televisions on cloth or other
materials placed between the television and
supporting furniture.
»
Educating children about the dangers of
climbing on furniture to reach the television or
its controls.
18
ENG
ENGLISH
ASSEMBLING AND PREPARING
CAUTION
Disconnect the power first, and then move or
install the TV. Otherwise electric shock may occur.
If you install the TV on a ceiling or slanted wall, it
may fall and result in severe injury.
Use an authorized LG wall mount and contact the
local dealer or qualified personnel.
Do not over tighten the screws as this may cause
damage to the TV and void your warranty.
Use the screws and wall mounts that meet the
VESA standard. Any damages or injuries by
misuse or using an improper accessory are not
covered by the manufacturer’s warranty.
NOTE
Use the screws that are listed on the VESA
standard screw specifications.
The wall mount kit includes an installation manual
and necessary parts.
The wall mount bracket is not provided. You can
obtain additional accessories from your local
dealer.
The length of screws may differ depending on the
wall mount. Make sure to use the proper length.
For more information, refer to the manual supplied
with the wall mount.
Tidying cables
(Only LA61**)
1 Use Cable Holder to neatly secure and position
cables together.
2 Fix the Cable Management firmly to the TV.
Cable Holder
Cable Management
(Only LN54**, LN565*)
Use Cable Holder to neatly secure and position
cables together.
Cable Holder
CAUTION
Do not move the TV by holding the cable holder,
as the cable holders may break, and injuries and
damage to the TV may occur.
19
ENGENGLISH
MAKING CONNECTIONS
MAKING CONNECTIONS
This section on MAKING CONNECTIONS
mainly uses diagrams for the LN54** models.
Connect various external devices to the TV and switch
input modes to select an external device. For more
information of external device’s connection, refer to the
manual provided with each device.
Available external devices are: HD receivers, DVD
players, VCRs, audio systems, USB storage devices,
PC, gaming devices, and other external devices.
NOTE
The external device connection may differ from
the model.
Connect external devices to the TV regardless of
the order of the TV port.
If you record a TV programme on a DVD recorder
or VCR, make sure to connect the TV signal input
cable to the TV through a DVD recorder or VCR.
For more information of recording, refer to the
manual provided with the connected device.
Refer to the external equipment’s manual for
operating instructions.
If you connect a gaming device to the TV, use the
cable supplied with the gaming device.
In PC mode, there may be noise associated
with the resolution, vertical pattern, contrast or
brightness. If noise is present, change the PC
output to another resolution, change the refresh
rate to another rate or adjust the brightness and
contrast on the PICTURE menu until the picture is
clear.
In PC mode, some resolution settings may not
work properly depending on the graphics card.
Antenna connection
Connect the TV to a wall antenna socket with an RF
cable (75 Ω).
ANTENNA/
CABLE IN
NOTE
Use a signal splitter to use more than 2 TVs.
If the image quality is poor, install a signal
amplifier properly to improve the image quality.
If the image quality is poor with an antenna
connected, try to realign the antenna in the correct
direction.
An antenna cable and converter are not supplied.
Supported DTV Audio: MPEG, Dolby Digital,
Dolby Digital Plus
20
ENG
ENGLISH
MAKING CONNECTIONS
HDMI connection
Transmits the digital video and audio signals from an
external device to the TV. Connect the external device
and the TV with the HDMI cable as shown.
HDMI
IN
(*Not Provided)
DVD/ Blu-Ray / HD Cable
Box / HD STB / PC
NOTE
It is recommended to use the TV with the HDMI
connection for the best image quality.
Use the latest High Speed HDMI™ Cable with
CEC (Customer Electronics Control) function.
High Speed HDMI™ Cables are tested to carry
an HD signal up to 1080p and higher.
Supported HDMI Audio format : Dolby
Digital, DTS, PCM (Up to 192 kHz,
32k/44.1k/48k/88k/96k/176k/192k)(Only LA61**,
LN565*)
Supported HDMI Audio format : Dolby Digital,
PCM (Up to 192 kHz, 32k/44.1k/48k/88k/96k/17
6k/192k) *DTS Not Supported. (Only LN54**)
If you use DVI to HDMI cable for PC, you have
to use external speaker for PC audio sound.

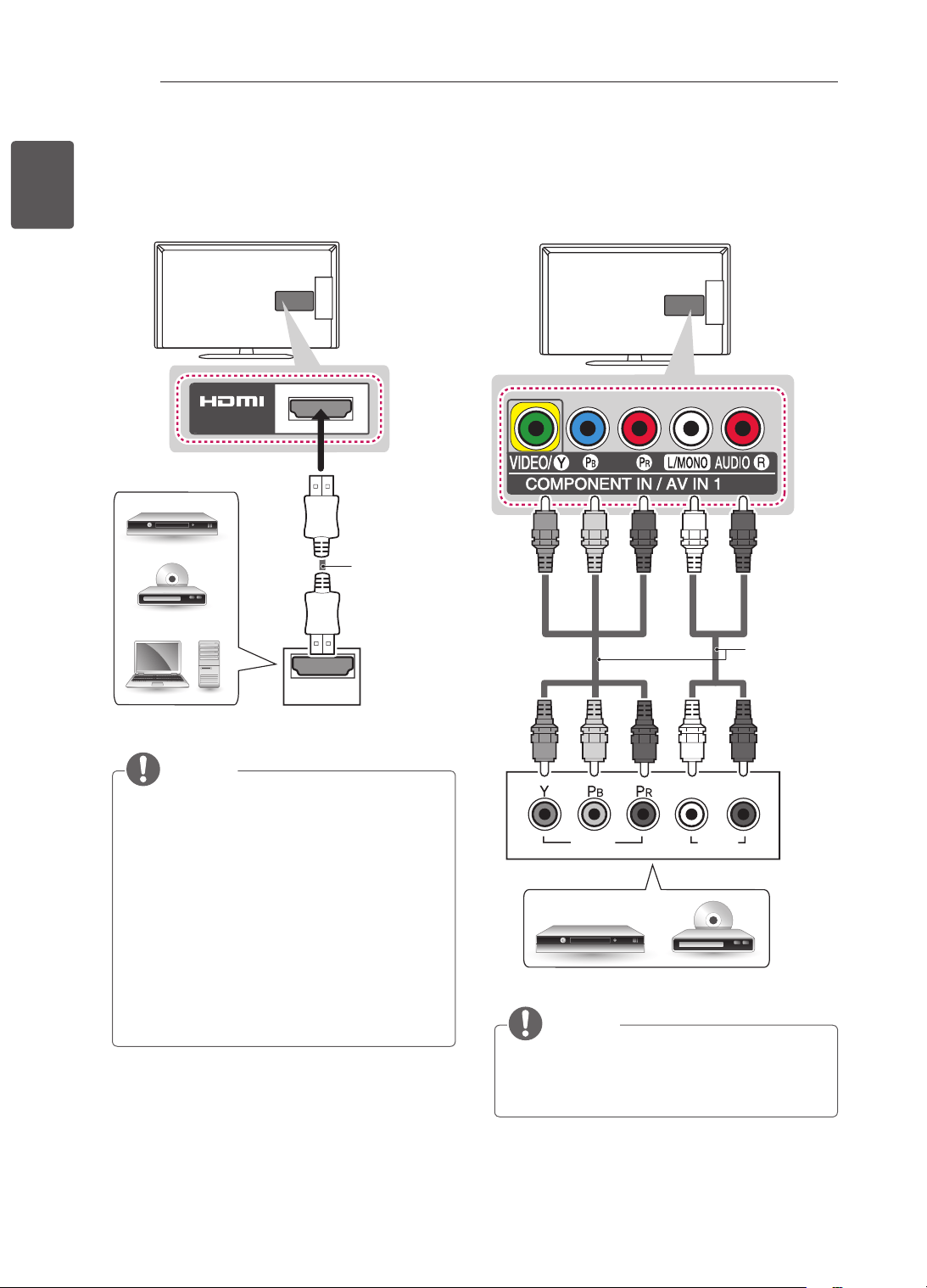

Component connection
Transmits analog video and audio signals from an
external device to the TV. Connect the external device
and the TV with a component cable as shown.
AUDIO
VIDEO
L R
DVD/ Blu-Ray / HD Cable Box
GREEN
GREEN
BLUE
BLUE
RED
RED
RED
RED
WHITE
WHITE
(*Not Provided)
NOTE
If cables are not installed correctly, it could cause
this image to display in black and white or with
distorted colours.
21
ENGENGLISH
MAKING CONNECTIONS

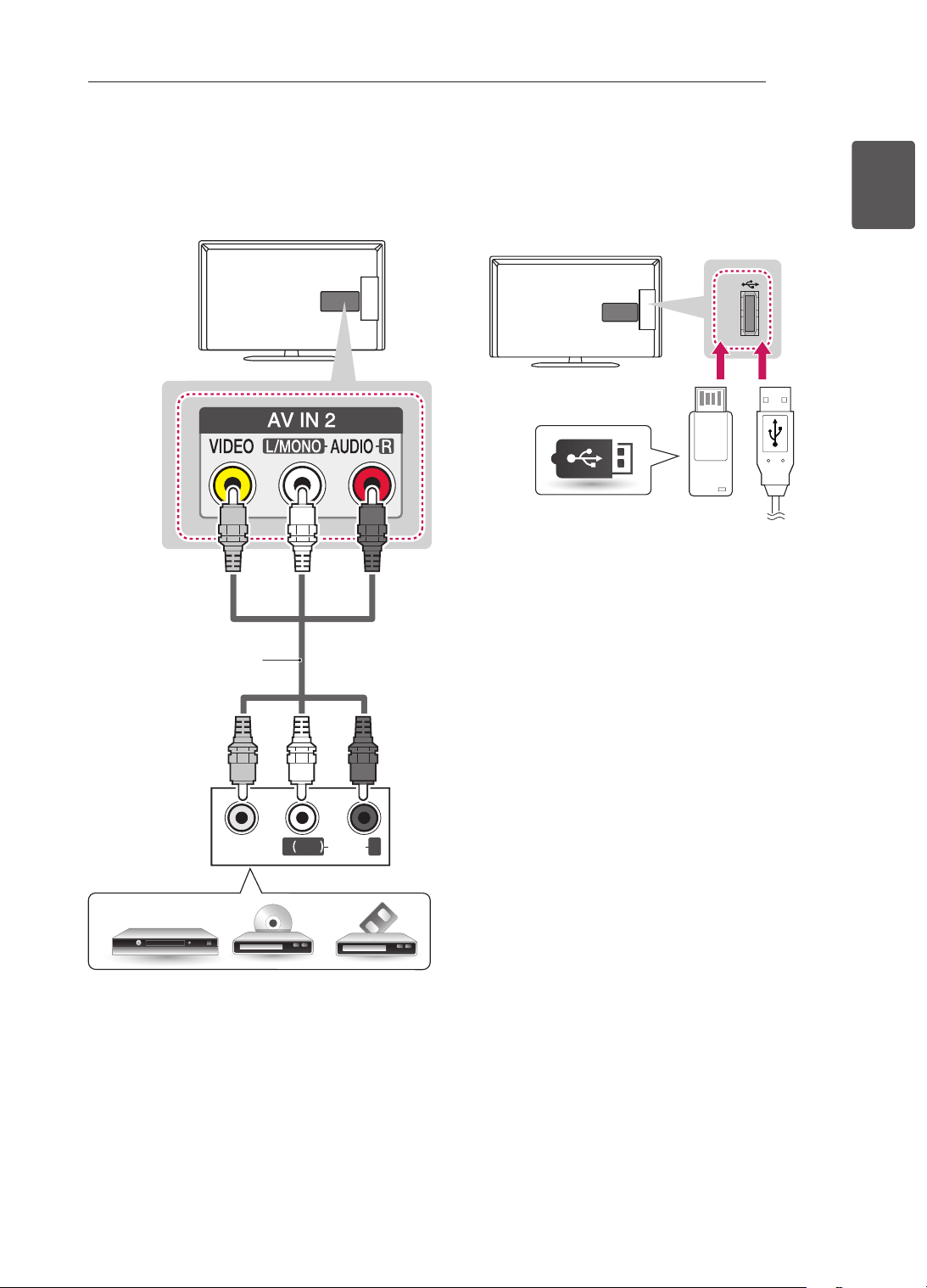

Composite connection
Transmits analog video and audio signals from an
external device to the TV. Connect the external device
and the TV with the composite cable as shown.
VIDEO
MONO
( )
AUDIOL R
YELLOW
WHITE
RED
RED
YELLOW
WHITE
(*Not Provided)
DVD/ Blu-Ray / HD Cable Box / VCR
USB connection
Connect a USB storage device such as a USB flash
memory, external hard drive, or a USB memory card
reader to the TV and access the My media menu to use
various multimedia files.
USB IN
USB
(*Not Provided)
22
ENG
ENGLISH
MAKING CONNECTIONS
Headphone connection
Transmits the headphone signal from the TV to
an external device. Connect the external device
and the TV with the headphone as shown.
H/P OUT
(*Not Provided)
NOTE
AUDIO menu items are disabled when connecting
a headphone.
When changing AV MODE with a headphone
connected, the change is applied to video but not
to audio.
Optical Digital Audio Out is not available when
connecting a headphone. (Only LA61**)
Headphone impedance: 16 Ω
Max audio output of headphone: 9 mW to 15 mW
Headphone jack size: 0.35 cm
Audio Connection
(Only LA61**)
You may use an optional external audio system instead
of the built-in speaker.
Digital optical audio connection
Transmits a digital audio signal from the TV to an
external device. Connect the external device and the TV
with the optical audio cable as shown.
OPTICAL
DIGITAL
AUDIO OUT
OPTICAL
AUDIO IN
Digital Audio System
(*Not Provided)
NOTE
Do not look into the optical output port. Looking at
the laser beam may damage your vision.
Audio with ACP (Audio Copy Protection) function
may block digital audio output.
23
ENGENGLISH
MAKING CONNECTIONS
MHL connection
Mobile High-definition Link (MHL) is an interface for
transmitting digital audiovisual signals from mobile
phones to television sets.
IN 2 (MHL)
MHL passive cable
(*Not Provided)
Mobile phone
NOTE
Connect the mobile phone to the HDMI IN 2
(MHL) port to view the phone screen on the TV.
The MHL passive cable is needed to connect the
TV and a mobile phone.
This only works for the MHL-enabled phone.
Some applications can be operated by the
remote control.
Remove the MHL passive cable from the TV
when:
- The MHL function is disabled.
- Your mobile device is fully charged in standby
mode.
24
ENG
ENGLISH
REMOTE CONTROL
REMOTE CONTROL

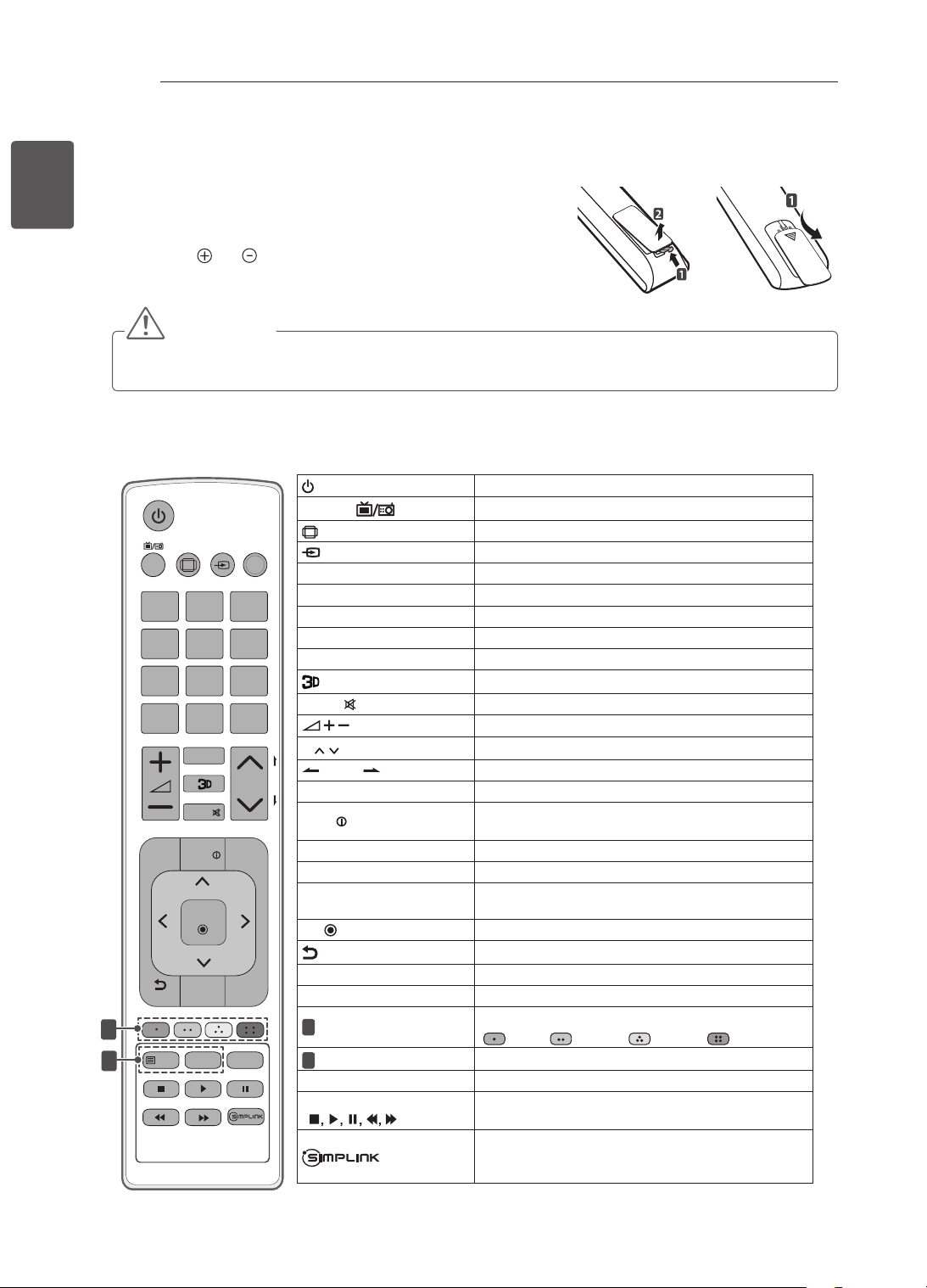

The descriptions in this manual are based on the buttons on the remote
control.
Please read this manual carefully and use the TV correctly.
To replace batteries, open the battery cover, replace batteries (1.5 V AAA)
matching the and ends to the label inside the compartment, and close
the battery cover.
To remove the batteries, perform the installation actions in reverse.
or
CAUTION
Do not mix old and new batteries, as this may damage the remote control.
In Analogue TV and some countries, some remote control buttons may not work.
Make sure to point the remote control toward the remote control sensor on the TV.
(Only LA61**)
RATIO
INPUT
TV/
RAD
21 3
4 5 6
7 8 9
0
LIST
Q.VIEW
FAV
MUTE
P
P
A
G
E
TEXT
OK
GUIDE
AV MODE
INFO
SETTINGS
Q.MENU
EXIT
3D OPTION
BACK
T.OPT
SUBTITLE
2
1

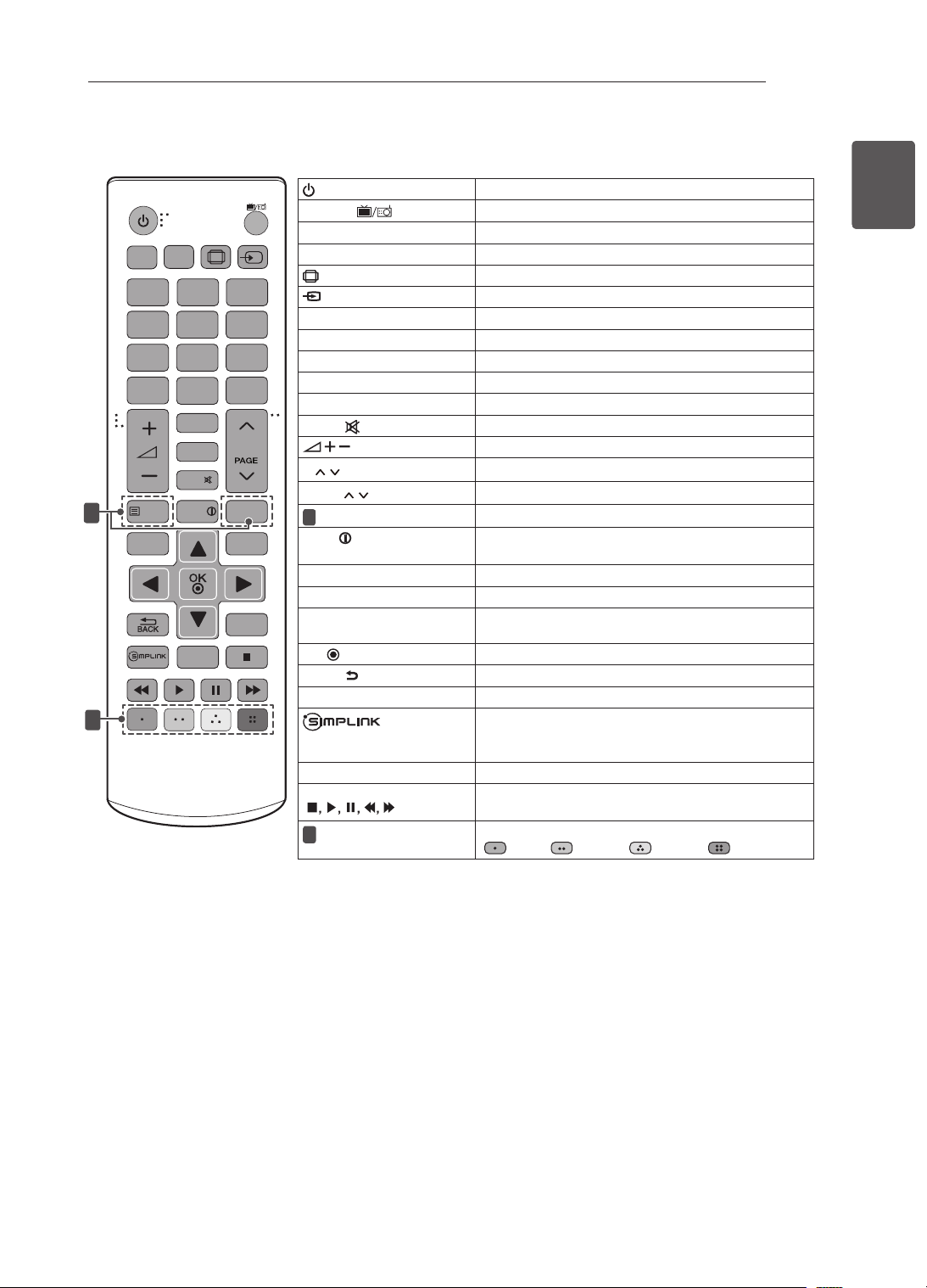

(POWER)
Turns the TV on or off.
TV/RAD
Selects Radio, TV and DTV programme.
RATIO
Resizes an image.
INPUT
Changes the input source.
AV MODE
Selects an AV mode.
Number buttons Enters numbers.
LIST
Accesses the saved programme list.
Q.VIEW
Returns to the previously viewed programme.
FAV
Accesses your favourite programme list.
Used for viewing 3D video.
MUTE
Mutes all sounds.
Adjusts the volume level.
P
Scrolls through the saved programmes.
PAGE Moves to the previous or next screen.
SETTINGS
Accesses the main menus.
INFO
Views the information of the current programme and
screen.
Q.MENU
Accesses the Quick menus.
3D OPTION
Use this to view 3D video.
Navigation buttons
(up/down/left/right)
Scrolls through menus or options.
OK
Selects menus or options and confirms your input.
BACK
Returns to the previous level.
GUIDE
Shows programme guide.
EXIT
Clears on-screen displays and return to TV viewing.
1
Coloured buttons
These access special functions in some menus.
( : Red, : Green, : Yellow, : Blue)
2
TELETEXT BUTTONS
These buttons are used for teletext.
SUBTITLE
Recalls your preferred subtitle in digital mode.
Control buttons
( )
Controls the MY MEDIA menus, or the SIMPLINK
compatible devices (USB,SIMPLINK).
Accesses the AV devices connected with the HDMI
cable through HDMI-CEC.
Opens the SIMPLINK menu.
25
ENGENGLISH
REMOTE CONTROL
(POWER)
Turns the TV on or off.
TV/RAD
Selects Radio, TV and DTV programme.
SUBTITLE Recalls your preferred subtitle in digital mode.
AV MODE Selects an AV mode.
RATIO
Resizes an image.
INPUT Changes the input source.
Number buttons Enters numbers.
LIST Accesses the saved programme list.
Q.VIEW Returns to the previously viewed programme.
FAV Accesses your favourite programme list.
GUIDE Shows programme guide.
MUTE
Mutes all sounds.
Adjusts the volume level.
P
Scrolls through the saved programmes.
PAGE
Moves to the previous or next screen.
1
TELETEXT BUTTONS
These buttons are used for teletext.
INFO
Views the information of the current programme and
screen.
SETTINGS Accesses the main menus.
Q.MENU Accesses the Quick menus.
Navigation buttons (up/
down/left/right)
Scrolls through menus or options.
OK
Selects menus or options and confirms your input.
BACK Returns to the previous level.
EXIT Clears on-screen displays and return to TV viewing.
Accesses the AV devices connected with the
HDMI cable through HDMI-CEC.
Opens the SIMPLINK menu.
SLEEP Sets the sleep timer.
Control buttons
( )
Controls the MY MEDIA menus, or the SIMPLINK
compatible devices (USB,SIMPLINK).
2
Coloured buttons
These access special functions in some menus.
( : Red, : Green, : Yellow, : Blue)
1
4 5 6
7 8 9
LIST
SUBTITLE
TEXT
SETTINGS
Q.MENU
EXIT
AV MODE
SLEEP
INFO
T.OPT
Q.VIEW
P
0
FAV
GUIDE
MUTE
2 3
RATIO
INPUT
TV/
RAD
2
1
(Only LN54**, LN565*)
26
ENG
ENGLISH
USING THE USER GUIDE
1 Press SETTINGS to access the main menus.
2 Press the RED button to access the Customer
Support menus.
3 Press the Navigation buttons to scroll to User Guide
and press OK.
PICTURE AUDIO SETUP TIME
MY MEDIAINPUTOPTIONLOCK
Press OK(
) to set picture settings.
Customer Support Exit
Software Update
Picture Test
Sound Test
Signal Test
Product/Service Info.
User Guide
Close
2
User Guide
OPTION
PROGRAMME Setting
PICTURE, SOUND Setting
Advanced Function
To use input device
To set time options
To set language
To set country
To set subtitle
To set TV lock options
To use Energy Saving feature
3
Information
1
1
Allows to select the category you want.
2
Allows to select the item you want.
You can use
ꕌ
/
ꕍ
to move between pages.
3
Allows to browse the description of the function
you want from the index.
1
2
User Guide
OPTION > To set language
SETTING OPTION Language
You can select the language of the menu displayed on the screen and the digital
sound broadcasting.
Menu Language : Selects a language for the display text.
Audio Language [In Digital Mode Only] : Select the desired language when
watching digital broadcasting containg several voice languages.
Subtitle Language [In Digital Mode Only] : Use the Subtitle function when two
or more subtitle languages are broadcast.
✎ If subtitle data in a selected language is not broadcast, the default
language subtitle will be displayed.
Close
Zoom In
OPTION
PROGRAMME Setting
PICTURE, SOUND Setting
Advanced Function
Information
2
Close
Zoom Out
SETTING OPTION Language
You can select the language of the menu displayed on the screen and the digital
sound broadcasting.
Menu Language : Selects a language for the display text.
Audio Language [In Digital Mode Only] : elect the desired language when
watching digital broadcasting containg several voice languages.
Subtitle Language [In Digital Mode Only] : Use the Subtitle function when two
or more subtitle languages are broadcast.
✎ If subtitle data in a selected language is not broadcast, the default
language subtitle will be displayed.
1
Shows the description of the selected menu.
You can use
ꕌ
/
ꕍ
to move between pages.
2
Zooms in or out the screen.
USING THE USER GUIDE
User Guide allows you to more easily access the detailed TV information.
27
ENGENGLISH
MAINTENANCE / TROUBLESHOOTING
MAINTENANCE
Cleaning your TV
Clean your TV regularly to keep the best performance and to extend the product lifespan.
CAUTION
Make sure to turn the power off and disconnect the power cord and all other cables first.
When the TV is left unattended and unused for a long time, disconnect the power cord from the wall outlet to
prevent possible damage from lightning or power surges.
Screen, frame, cabinet and stand
To remove dust or light dirt, wipe the surface with a dry, clean, and soft cloth.
To remove major dirt, wipe the surface with a soft cloth dampened in clean water or a diluted mild detergent. Then
wipe immediately with a dry cloth.
CAUTION
Avoid touching the screen at all times, as this may result in damage to the screen.
Do not push, rub, or hit the screen surface with your fingernail or a sharp object, as this may result in scratches
and image distortions.
Do not use any chemicals as this may damage the product.
Do not spray liquid onto the surface. If water enters the TV, it may result in fire, electric shock, or malfunction.
Power cord
Remove the accumulated dust or dirt on the power cord regularly.
TROUBLESHOOTING
Problem Solution
Cannot control the
TV with the remote
control.
Check the remote control sensor on the product and try again.
Check if there is any obstacle between the product and the remote control.
Check if the batteries are still working and properly installed (
to , to ).
No image display and
no sound is produced.
Check if the product is turned on.
Check if the power cord is connected to a wall outlet.
Check if there is a problem in the wall outlet by connecting other products.
The TV turns off
suddenly.
Check the power control settings. The power supply may be interrupted.
Check if the Auto sleep feature is activated in the Time settings.
If there is no signal while the TV is on, the TV will turn off automatically after 15 minutes
of inactivity.
When connecting
to the PC (HDMI),
‘No signal’ or ‘Invalid
Format’ is displayed.
Turn the TV off/on using the remote control.
Reconnect the HDMI cable.
Restart the PC with the TV on.
28
ENG
ENGLISH
ENVIRONMENTAL INFORMATION
ENVIRONMENTAL INFORMATION
(India only)
WEEE
Disposal of your old appliance
1. When this crossed-out wheeled bin symbol is attached to a product it means the product
is covered by the e-waste (Management and Handling) Rules, 2011.
2. All electrical and electronic products should be disposed of separately from the
municipal waste stream via designated collection facilities appointed by the government
or the local authorities.
3. The correct disposal of your old appliance will help prevent potential negative
consequences for the environment and human health.
4. For more detailed information about disposal of your old appliance, please contact your city office, waste disposal
service or the shop where you purchased the product.
5. This product does not contain any of the hazardous substances as specified in the rule 13 (1) and (2) of
the e-waste (Management and Handling) Rules, 2011.
i;kZoj.kh; tkudkjh
WEEE
vius iqjkus midj.k dk fuiVku
ƒ. tc ;g dkVs x;s ifg;s okys fcu dk fpg+u fdlh mRikn ds lkFk layXu gksrk gS rks bldk vFkZ gS mRikn
¼izca/ku vkSj gFkkyu½ fu;e „Œƒƒ ds varxZr lfEefyr fd;k x;k gSA
„. lHkh bysfDVªdy ,oa vkSj bysDVªkfud mRiknkas dks ljdkj ;k LFkkuh; vf/kdkfj;ksaa }kjk fu;qDr uxjikfydk /kkjk
ls vyx izkf/kd`r dh xbZ laxzg lqfo/kkvksa ds ek/;e ls fuiVk;k tkuk pkfg,A
…. lgh rjhds ls vius iqjkus midj.kksa dk fuiVku okrkoj.k vkSj ekuoh; LokLF; dss fy, laHkkfor udkjkRed ifj.kkeksa dks
jksdus esa enn djsxkA
†. vius iqjkus midj.kksa ds fuiVku ds lac/k esa vkSj vf/kd folr`r tkudkjh ds fy,] d`i;k vius uxj dk;kZy;] fuiVku lsok ;k tgka
ls vkius mRikn [kjhnk Fkk] ogka laidZ djsaA
‡. bl mRikn esa ¼izca/ku vkSj gFkkyu½ fu;e] „Œƒƒ ds fu;e ƒ… ¼ƒ½ vkSj ¼„½ esa funsZ’kkuqlkj dksbZ Hkh gkfudkjd inkFkZ “kkfey ugha gSA
29
ENGENGLISH
SPECIFICATIONS
SPECIFICATIONS
Product specifications may be changed without prior notice due to upgrade of product functions.
For the power supply and power consumption, refer to the label attached to the product.
MODELS
32LN54** 37LN54** 39LN54**
32LN5400-TA
32LN541B-TB
32LN5420-TC
32LN542B-TC
32LN5430-TD
32LN543B-TD
32LN5440-TJ
32LN544B-TJ
32LN542Y-TC
32LN542Z-TC
32LN543Y-TD
32LN543Z-TD
32LN544Y-TJ
32LN544Z-TJ
32LN541B-TC
32LN541Y-TC
32LN540B-TA
32LN5460-TA
32LN546B-TA
32LN5460-TM
32LN546B-TM
32LN546Y-TM
32LN546Z-TM
37LN5400-TA
37LN541B-TB
37LN5420-TC
37LN542B-TC
37LN5430-TD
37LN543B-TD
37LN5440-TJ
37LN544B-TJ
37LN542Y-TC
37LN542Z-TC
37LN543Y-TD
37LN543Z-TD
37LN544Y-TJ
37LN544Z-TJ
37LN541B-TC
37LN541Y-TC
37LN540B-TA
37LN5460-TA
37LN546B-TA
37LN5460-TM
37LN546B-TM
37LN546Y-TM
37LN546Z-TM
39LN5400-TA
39LN541B-TB
39LN5420-TC
39LN542B-TC
39LN5430-TD
39LN543B-TD
39LN5440-TJ
39LN544B-TJ
39LN542Y-TC
39LN542Z-TC
39LN543Y-TD
39LN543Z-TD
39LN544Y-TJ
39LN544Z-TJ
39LN541B-TC
39LN541Y-TC
39LN540B-TA
39LN5460-TA
39LN546B-TA
39LN5460-TM
39LN546B-TM
39LN546Y-TM
39LN546Z-TM
Dimensions
(W x H x D)
With stand (
mm
)
738.0 x 497.0 x 207.0 849.0 x 561.0 x 236.0 894.0 x 587.0 x 236.0
Without stand(
mm)
738.0 x 449.0 x 79.0 849.0 x 512.0 x 79.0 894.0 x 537.0 x 79.0
Weight With stand (kg)
7.0 9.1 9.7
Without stand (kg)
6.4 8.0 8.6
Power requirement
AC 100-240 V~ 50 / 60 Hz AC 100-240 V~ 50 / 60 Hz AC 100-240 V~ 50 / 60 Hz
30
ENG
ENGLISH
SPECIFICATIONS
MODELS
42LN54** 47LN54** 50LN54**
42LN5400-TA
42LN541B-TB
42LN5420-TC
42LN542B-TC
42LN5430-TD
42LN543B-TD
42LN5440-TJ
42LN544B-TJ
42LN542Y-TC
42LN542Z-TC
42LN543Y-TD
42LN543Z-TD
42LN544Y-TJ
42LN544Z-TJ
42LN541B-TC
42LN541Y-TC
42LN540B-TA
42LN5460-TA
42LN546B-TA
42LN5460-TM
42LN546B-TM
42LN546Y-TM
42LN546Z-TM
47LN5400-TA
47LN541B-TB
47LN5420-TC
47LN542B-TC
47LN5430-TD
47LN543B-TD
47LN5440-TJ
47LN544B-TJ
47LN542Y-TC
47LN542Z-TC
47LN543Y-TD
47LN543Z-TD
47LN544Y-TJ
47LN544Z-TJ
47LN541B-TC
47LN541Y-TC
47LN540B-TA
47LN5460-TA
47LN546B-TA
47LN5460-TM
47LN546B-TM
47LN546Y-TM
47LN546Z-TM
50LN5400-TA
50LN541B-TB
50LN5420-TC
50LN542B-TC
50LN5430-TD
50LN543B-TD
50LN5440-TJ
50LN544B-TJ
50LN542Y-TC
50LN542Z-TC
50LN543Y-TD
50LN543Z-TD
50LN544Y-TJ
50LN544Z-TJ
50LN541B-TC
50LN541Y-TC
50LN540B-TA
50LN5460-TA
50LN546B-TA
50LN5460-TM
50LN546B-TM
50LN546Y-TM
50LN546Z-TM
Dimensions
(W x H x D)
With stand (mm)
968.0 x 629.0 x 236.0 1080.0 x 694.0 x 264.0 1136.0 x 727.0 x 264.0
Without stand(mm)
968.0 x 579.0 x 79.0 1080.0 x 642.0 x 80.5 1136.0 x 673.0 x 82.1
Weight With stand (kg)
10.7 14.5 15.6
Without stand (kg)
9.6 13.1 14.2
Power requirement
AC 100-240 V~ 50 / 60 Hz AC 100-240 V~ 50 / 60 Hz AC 100-240 V~ 50 / 60 Hz
MODELS
55LN54** 60LN54** 32LN565*
55LN5400-TA
55LN541B-TB
55LN5420-TC
55LN542B-TC
55LN5430-TD
55LN543B-TD
55LN5440-TJ
55LN544B-TJ
55LN542Y-TC
55LN542Z-TC
55LN543Y-TD
55LN543Z-TD
55LN544Y-TJ
55LN544Z-TJ
55LN541B-TC
55LN541Y-TC
55LN540B-TA
55LN5460-TA
55LN546B-TA
55LN5460-TM
55LN546B-TM
55LN546Y-TM
55LN546Z-TM
60LN5400-TA
60LN541B-TB
60LN5420-TC
60LN542B-TC
60LN5430-TD
60LN543B-TD
60LN5440-TJ
60LN544B-TJ
60LN542Y-TC
60LN542Z-TC
60LN543Y-TD
60LN543Z-TD
60LN544Y-TJ
60LN544Z-TJ
60LN541B-TC
60LN541Y-TC
60LN540B-TA
60LN5460-TA
60LN546B-TA
60LN5460-TM
60LN546B-TM
60LN546Y-TM
60LN546Z-TM
32LN5650-TA
Dimensions
(W x H x D)
With stand (mm)
1250.0 x 790.0 x 297.0 1359.0 x 852.0 x 297.0 743.0 x 499.0 x 206.0
Without stand(mm)
1250.0 x 737.0 x 79.1 1359.0 x 799.0 x 67.2 743.0 x 451.0 x 96.0
Weight With stand (kg)
21.2 26.3 8.9
Without stand (kg)
19.1 24.2 8.3
Power requirement
AC 100-240 V~ 50 / 60 Hz AC 100-240 V~ 50 / 60 Hz AC 100-240 V~ 50 / 60 Hz
31
ENGENGLISH
SPECIFICATIONS
MODELS
32LA61** 42LA61** 50LA61**
32LA6130-TB
32LA6150-TC
32LA615B-TC
32LA613B-TB
32LA615Y-TC
32LA613Y-TB
32LA6160-TD
32LA616B-TD
32LA6170-TE
32LA617B-TE
32LA616Y-TD
42LA6130-TB
42LA6150-TC
42LA615B-TC
42LA613B-TB
42LA615Y-TC
42LA613Y-TB
42LA6160-TD
42LA616B-TD
42LA6170-TE
42LA617B-TE
42LA616Y-TD
50LA6130-TB
50LA6150-TC
50LA615B-TC
50LA613B-TB
50LA615Y-TC
50LA613Y-TB
50LA6160-TD
50LA616B-TD
50LA6170-TE
50LA617B-TE
50LA616Y-TD
Dimensions
(W x H x D)
With stand (mm)
733.0 x 499.0 x 242.0 964.0 x 631.0 x 294.0 1131.0 x 725.0 x 327.0
Without stand(mm)
733.0 x 444.0 x 78.0 964.0 x 573.0 x 78.0 1131.0 x 667.0 x 80.9
Weight With stand (kg)
7.6 11.8 17.0
Without stand (kg)
6.4
10.0 14.5
Power requirement
AC 100-240 V~ 50 / 60 Hz AC 100-240 V~ 50 / 60 Hz AC 100-240 V~ 50 / 60 Hz
32
ENG
ENGLISH
SPECIFICATIONS
Environment
condition
Operating Temperature 0 °C to 40 °C
Operating Humidity Less than 80 %
Storage Temperature -20 °C to 60 °C
Storage Humidity Less than 85 %
Digital TV Analogue TV
New Zealand,
Singapore
Television System DVB-T PAL/SECAM-B/G/D/K, PAL-I
Programme Coverage UHF 21 to 69
BG : VHF/UHF 1 to 69, CATV 01 to 47
I : VHF/UHF 1 to 69, CATV 01 to 47
DK : VHF/UHF 1 to 69, CATV 01 to 47
Australia Television System DVB-T PAL B/B
Programme Coverage
VHF 06 to 12,
UHF 27 to 69
B/B : VHF/UHF 0 to 75, CATV : 2 to 44
Indonesia, Israel,
Myanmar, Sri Lanka
Television System DVB-T PAL/SECAM-B/G/D/K, PAL-I, NTSC-M
Programme Coverage UHF 21 to 69
BG : VHF/UHF 1 to 69, CATV 01 to 47
I : VHF/UHF 1 to 69, CATV 01 to 47
DK : VHF/UHF 1 to 69, CATV 01 to 47
M : VHF/UHF 2 to 78, CATV 01 to 71
Vietnam, Malaysia Television System DVB-T PAL/SECAM-B/G/D/K, PAL-I, NTSC-M
Programme Coverage
VHF 6 to 12,
UHF 21 to 69
BG : VHF/UHF 1 to 69, CATV 01 to 47
I : VHF/UHF 1 to 69, CATV 01 to 47
DK : VHF/UHF 1 to 69, CATV 01 to 47
M : VHF/UHF 2 to 78, CATV 01 to 71
Iran, Algeria,
Tunisia, Digital
model
Television System DVB-T PAL/SECAM-B/G/D/K, PAL-I, NTSC-M
Programme Coverage
VHF 5 to 12,
UHF 21 to 69
BG : VHF/UHF 1 to 69, CATV 01 to 47
I : VHF/UHF 1 to 69, CATV 01 to 47
DK : VHF/UHF 1 to 69, CATV 01 to 47
M : VHF/UHF 2 to 78, CATV 01 to 71
Analogue model,
India, Thailand,
South Africa, --
Television System - PAL/SECAM-B/G/D/K, PAL-I, NTSC-M
Programme Coverage -
BG : VHF/UHF 1 to 69, CATV 01 to 47
I : VHF/UHF 1 to 69, CATV 01 to 47
DK : VHF/UHF 1 to 69, CATV 01 to 47
M : VHF/UHF 2 to 78, CATV 01 to 71
External Antenna
Impedance
75 Ω 75 Ω
33
ENGENGLISH
SPECIFICATIONS
HDMI-DTV supported mode
Resolution
Horizontal
Frequency (kHz)
Vertical
Frequency (Hz)
720x480 31.469
31.5
59.94
60
720x576 31.25 50
1280x720 37.5
44.96
45
50
59.94
60
1920x1080 33.72
33.75
28.125
26.97
27
33.716
33.75
56.25
67.43
67.5
59.94
60
50
23.97
24
29.976
30.00
50
59.94
60
HDMI-PC supported mode
Resolution
Horizontal
Frequency (kHz)
Vertical
Frequency (Hz)
640x350 31.468 70.09
720x400 31.469 70.08
640x480 31.469 59.94
800x600 37.879 60.31
1024x768 48.363 60.00
1152x864 54.348 60.053
1360x768 47.712 60.015
1280x1024 63.981 60.020
1920x1080 67.50 60.00
Component port connecting information
Component ports on the TV Y P
B
P
R
Video output ports on DVD
player
Y P
B
P
R
Y B-Y R-Y
Y Cb Cr
Y Pb Pr
Signal Component
480i/576i O
480p/576p O
720p/1080i O
1080p
O
(50 Hz / 60 Hz only)
(Except for 32LN565*, 32/37LN541B, 32LN542B,
32/37LN543B, 32LN544B, 32LN542Z, 32LN543Z,
32LN544Z, 37LN541Y, 37LN543Y, 32LN540B,
32LN546B, 32LA613B, 32LA613Y, 32LA616B,
32LA617B, 32LA616Y )
34
ENG
ENGLISH
SPECIFICATIONS
3D supported mode (Only 3D model)
Video, which is input as below media contents is switched into the 3D screen automatically.
The method for 3D digital broadcast may differ depending on the signal environment. If video is not switched
automatically into 3D, manually convert the settings to view 3D images.
Input Signal Resolution
Horizontal
Frequency (kHz)
Vertical
Frequency (Hz)
Playable 3D video format
HDMI
720p 1280X720
37.5 50
Side by Side(half),
Top and Bottom
45 60
75 50
Frame packing
89.9 / 90 59.94 / 60
1080i 1920X1080
28.125 50
Side by Side(half),
Top and Bottom
33.7 60
1080p 1920X1080
27 24
Side by Side(half),
Top and Bottom
33.7 30
53.95 / 54 23.98 / 24 Frame packing
56.3 50
Side by Side(half),
Top and Bottom
67.5 60
DTV
720p 1280X720 37.5 50
Side by Side, Top and Bottom
1080i 1920X1080 28.125 50
USB 1080p 1920X1080 33.75 30
Side by Side, Top and Bottom,
MPO(Photo)
35
ENGENGLISH
LICENSES / OPEN SOURCE SOFTWARE NOTICE / EXTERNAL CONTROL DEVICE SETUP
LICENSES
Supported licenses may differ by model. For more information about licenses, visit www.lg.com.
Manufactured under license from Dolby Laboratories. “Dolby” and the double-D symbol are
trademarks of Dolby Laboratories.
The terms HDMI and HDMI High-Denition Multimedia Interface, and the HDMI logo are
trademarks or registered trademarks of HDMI Licensing LLC in the United States and other
countries.
ABOUT DIVX VIDEO: DivX® is a digital video format created by DivX, LLC, a subsidiary of
Rovi Corporation. This is an ofcial DivX Certied® device that plays DivX video. Visit divx.
com for more information and software tools to convert your les into DivX video.
ABOUT DIVX VIDEO-ON-DEMAND: This DivX Certied® device must be registered in order
to play purchased DivX Video-on-Demand (VOD) movies. To obtain your registration code,
locate the DivX VOD section in your device setup menu. Go to vod.divx.com for more infor-
mation on how to complete your registration.
“DivX Certied® to play DivX® video up to HD 1080p, including premium content.”
“DivX®, DivX Certied® and associated logos are trademarks of Rovi Corporation or its
subsidiaries and are used under license.”
“Covered by one or more of the following U.S. patents :
7,295,673; 7,460,668; 7,515,710; 7,519,274”
Manufactured under license under U.S. Patent Nos: 5,956,674; 5,974,380; 6,487,535 & other
U.S. and worldwide patents issued & pending. DTS, the Symbol & DTS and the Symbol
together are registered trademarks & DTS 2.0+Digital Out is a trademark of DTS, Inc. Product
includes software. © DTS, Inc. All Rights Reserved.
Manufactured under license under U.S. Patent Nos: 5,956,674; 5,974,380; 6,487,535 & other
U.S. and worldwide patents issued & pending. DTS, the Symbol, & DTS and the Symbol
together are registered trademarks & DTS 2.0 Channel is a trademark of DTS, Inc. Product
includes software. © DTS, Inc. All Rights Reserved.
OPEN SOURCE SOFTWARE NOTICE
To obtain the source code under GPL, LGPL, MPL and other open source licenses, that is contained in this product,
please visit http://opensource.lge.com.
In addition to the source code, all referred license terms, warranty disclaimers and copyright notices are available for
download.
LG Electronics will also provide open source code to you on CD-ROM for a charge covering the cost of performing such
distribution (such as the cost of media, shipping and handling) upon email request to [email protected]. This offer is
valid for three (3) years from the date on which you purchased the product.
EXTERNAL CONTROL DEVICE SETUP
To obtain the external control device setup information, please visit www.lg.com
(Only LA61**)
(Only LN565*)
Record the model number and serial number of
the TV.
Refer to the label on the back cover and quote
this information to your dealer when requiring any
service.
MODEL
SERIAL
(Only DTV)
OWNER’S MANUAL
EXTERNAL CONTROL
DEVICE SETUP
Please read this manual carefully before operating the set and retain it for
future reference.
www.lg.com
2
ENG
ENGLISH
2
KEY CODES
KEY CODES
• This feature is not available for all models.
Code
(Hexa)
Function Note
Code
(Hexa)
Function Note
00
CH +, PR + R/C Button
45 Q.Menu
R/C Button
01 CH -, PR -
R/C Button
4C List, - (ATSC Only)
R/C Button
02 Volume +
R/C Button
53 List
R/C Button
03 Volume -
R/C Button
5B Exit
R/C Button
06 >
(Arrow Key / Right Key)
R/C Button
61 Blue R/C Button
07 <
(Arrow Key / Left Key)
R/C Button
63 Yellow
R/C Button
08 Power
R/C Button
71 Green
R/C Button
09 Mute
R/C Button
72 Red
R/C Button
0B Input
R/C Button
79 Ratio / Aspect Ratio
R/C Button
0E SLEEP
R/C Button
91 AD (Audio Description)
R/C Button
0F TV, TV/RAD
R/C Button
7A User Guide
R/C Button
10 - 19 * Number Key 0 - 9
R/C Button
7C Smart/ Home
R/C Button
1A Q.View / Flashback
R/C Button
7E Simplink
R/C Button
1E
FAV
(Favorite Channel)
R/C Button
8E
►►(Forward) R/C Button
20 Text (Teletext)
R/C Button
8F
◄◄(Rewind) R/C Button
21 T. Opt (Teletext Option)
R/C Button
AA Info
R/C Button
28 Return (BACK)
R/C Button
AB Program Guide
R/C Button
30 AV (Audio/ Video) Mode
R/C Button
B0 ►(Play)
R/C Button
39 Caption/Subtitle
R/C Button
B1
ꕗ
(Stop/ Live TV)
R/C Button
40
Λ
(Arrow Key/ Cursor Up)
R/C Button
BA
ꕘ
(
Freeze/Slow Play/Pause)
R/C Button
41
V
(Arrow Key/ Cursor Down)
R/C Button
BD
●
(REC)
R/C Button
42 My Apps
R/C Button
DC 3D
R/C Button
43
Menu / Settings
R/C Button
9F App/ *
R/C Button
44 OK / Enter
R/C Button
* Key code 4C (0x4C) is available on ATSC/ISDB models which use major/minor channel.
(For South Korea, Japan, North America, Latin America except Colombia models)
3
ENGENGLISH
3
EXTERNAL CONTROL DEVICE SETUP
EXTERNAL CONTROL DEVICE SETUP
• Image shown may differ from your TV.
Connect the USB to Serial converter/RS-232C input jack to an external control device (such as a computer
or an A/V control system) to control the product’s functions externally.
Note: There are several ways to connect TV based on model’s support port.
* Please be advised that not all models support these connectivity.
* Cable is not provided.
USB to Serial converter with USB Cable
USB Type
USB IN
(TV)
(PC )
(PC )
RS-232C IN
(CONTROL & SERVICE)
(TV)
(TV)
(PC )
(TV)
(PC )
SERVICE ONLY
RS-232C IN
(CONTROL & SERVICE)
RS-232C IN
(CONTROL & SERVICE)
1
3
2
1
3
2
• LGTV supports PL2303 chip-based (Vendor ID : 0x0557, Product ID : 0x2008) USB to serial converter
which is not made nor provided by LG.
• It can be purchased from computer stores that carry accessories for IT support professionals.
4
ENG
ENGLISH
4

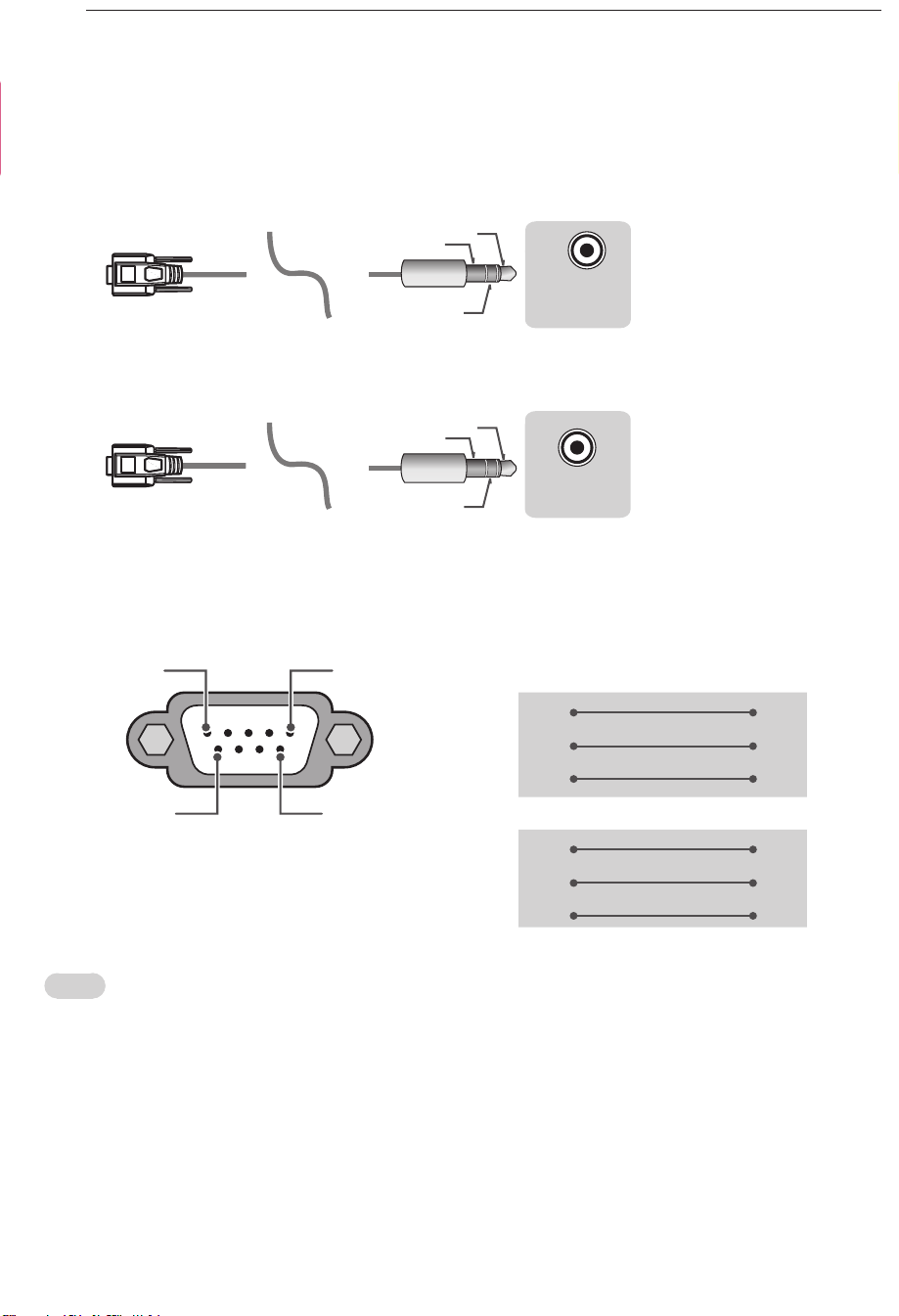

EXTERNAL CONTROL DEVICE SETUP
RS-232C with RS-232C Cable (Legacy)
Phone jack Type
• You need to purchase the phone-jack to RS-232 cable required for the connection between the PC and
the TV, which is specified in the manual.
* For other models, connect to the USB port.
USB IN
(TV)
(PC )
(PC )
RS-232C IN
(CONTROL & SERVICE)
(TV)
(TV)
(PC )
(TV)
(PC )
SERVICE ONLY
RS-232C IN
(CONTROL & SERVICE)
RS-232C IN
(CONTROL & SERVICE)
1
3
2
1
3
2
- This connection can only be used for the following models: 55/47/39LN5450-UA, 55/50/47/42LN5400-
UA, 42/39/32LN5300-UA, and 37/32LN530B-UA.
USB IN
(TV)
(PC )
(PC )
RS-232C IN
(CONTROL & SERVICE)
(TV)
(TV)
(PC )
(TV)
(PC
)
SERVICE ONLY
RS-232C IN
(CONTROL & SERVICE)
RS-232C IN
(CONTROL & SERVICE)
1
3
2
1
3
2
- This connection can only be used for the following models: 60PN6550-UA, 50/60PN6500-UA,
50/60PN5300-UF, and 42/50PN4500-UA.
Customer Computer RS-232C configurations
3-Wire Configurations(Not standard)
1
6
5
9
PC TV
RXD 2 2 TXD
TXD 3 1 RXD
GND 5 3 GND
OR
RXD 3 2 TXD
TXD 2 1 RXD
GND 5 3 GND
D-Sub 9 Phone
RS-232C
(Serial port)
Set ID
For Set ID number, see "Real Data Mapping" on p. 6
1. Press SETTINGS to access the main menus.
2. Press the Navigation buttons to scroll to OPTION and press OK.
3. Press the Navigation buttons to scroll to SET ID and press OK.
4. Scroll left or right to select a set ID number and select CLOSE. The adjustment range is 1-99.
5. When you are finished, press EXIT.
5
ENGENGLISH
5
EXTERNAL CONTROL DEVICE SETUP
Communication Parameters
• Baud rate : 9600 bps (UART)
• Data length : 8 bits
• Parity : None
• Stop bit : 1 bit
• Communication code : ASCII code
• Use a crossed (reverse) cable.
Command reference list
(Depending on model)
COMMAND1 COMMAND2
DATA
(Hexadecimal)
COMMAND1 COMMAND2
DATA
(Hexadecimal)
01. Power
off
k a 00 13. Balance k t 00 to 64
02. Aspect
Ratio
k c (See p.7)
14. Color
(Colour)
Temperature
x u 00 to 64
03. Screen
Mute
k d (See p.7)
15. ISM
Method (Only
Plasma TV)
j p (See p.9)
04. Volume
Mute
k e 00 to 01
16. Energy
Saving
j q 00 to 05
05. Volume
Control
k f 00 to 64
17. Tune
Command
m a (See p.9)
06. Contrast k g 00 to 64
18.
Channel
(Programme)
Add/Del(Skip)
m b 00 to 01
07.
Brightness
k h 00 to 64 19. Key m c
Key
Codes
08. Color/
Colour
k i 00 to 64
20. Control
Back Light,
Control
Panel
Light
m g 00 to 64
09. Tint k j 00 to 64
21. Input
select (Main)
x b (See p.11)
10.
Sharpness
k k 00 to 32
22. 3D
(Only 3D
models)
x t (See p.12)
11. OSD
Select
k l 00 to 01
23. Extended
3D (Only 3D
models)
x v (See p.12)
12. Remote
Control
Lock Mode
k m 00 to 01
* Note: During USB operations such as DivX or EMF, all commands except Power(ka) and Key(mc) are
not executed and treated as NG.
6
ENG
ENGLISH
6
EXTERNAL CONTROL DEVICE SETUP
Transmission / Receiving Protocol
Transmission
[Command1][Command2][ ][Set ID][ ][Data][Cr]
[Command 1] : First command to control the TV. (j, k, m or x)
[Command 2] : Second command to control the TV.
[Set ID] : You can adjust the [Set ID] to choose desired monitor ID number in option menu.
Adjustment range in TV is 1 to 99. If [Set ID] value is selected to ‘0’, every connected set
can be controlled.
* [Set ID] is indicated as decimal (1 to 99) on menu and as Hexadecimal (0x00 to 0x63) on
transmission/receiving protocol.
[DATA] : To transmit command data (hexadecimal). Transmit ‘FF’ data to read status of command.
[Cr] : Carriage Return - ASCII code ‘0x0D’
[ ] : Space – ASCII code ‘0x20’
OK Acknowledgement
[Command2][ ][Set ID][ ][OK][Data][x]
* The set transmits ACK (acknowledgement) based on this format when receiving normal data. At this time,
if the data is data read mode, it indicates present status data. If the data is data write mode, it returns the
data of the PC computer.
Error Acknowledgement
[Command2][ ][Set ID][ ][NG][Data][x]
* The set transmits ACK (acknowledgement) based on this format when receiving abnormal data from non-
viable functions or communication errors.
Data 00: Illegal Code
Real data mapping (Hexadecimal b Decimal)
* When you enter the [data] in hexadecimal, refer to following conversion table.
* Channel Tune (ma) Command uses two-byte hexadecimal value([data]) to select channel number.
00 : Step 0 32 : Step 50 (Set ID 50) FE : Step 254
01 : Step 1 (Set ID 1) 33 : Step 51 (Set ID 51) FF : Step 255
... ... ...
0A : Step 10 (Set ID 10) 63 : Step 99 (Set ID 99) 01 00 : Step 256
... ... ...
0F : Step 15 (Set ID 15) C7 : Step 199 27 0E : Step 9998
10 : Step 16 (Set ID 16) C8 : Step 200 27 0F : Step 9999
... ... ...
7
ENGENGLISH
7
EXTERNAL CONTROL DEVICE SETUP
* Commands may work differently depending on model and signal.
01. Power (Command: k a)
► To control Power Off of the set.
Transmission[k][a][ ][Set ID][ ][Data][Cr]
Data 00 : Power Off
Ack [a][ ][Set ID][ ][OK/NG][Data][x]
► To Show Power On. (Works TV is On Only)
Transmission [k][a][ ][Set ID][ ][FF][Cr]
Ack [a][ ][Set ID][ ][OK][01][x]
* Similarly, if other functions transmit ‘FF’ data
based on this format, Acknowledgement feedback
presents status about each function.
02. Aspect Ratio (Command: k c)
(Main Picture Size)
► To adjust the screen format. (Main picture format)
You can also adjust the screen format using the
Aspect Ratio in the Q.MENU. or PICTURE menu.
Transmission [k][c][ ][Set ID][ ][Data][Cr]
Data 01 : Normal screen
(4:3)
02 : Wide screen
(16:9)
04 : Zoom
05 : Zoom 2
(Latin America
except Colombia
Only)
06 : Set by Program/
Original
07 : 14:9
(Europe, Colombia, Mid-East,
Asia except South Korea and
Japan)
09 : * Just Scan
0B : Full Wide
(Europe, Colombia, Mid-
East, Asia except South
Korea and Japan)
10 to 1F : Cinema Zoom 1
to 16
Ack [c][ ][Set ID][ ][OK/NG][Data][x]
* Using the PC input, you select either 16:9 or 4:3
screen aspect ratio.
* In DTV/HDMI/Component mode (high-definition),
Just Scan is available.
* Full wide mode may work differently based on
model and is supported for DTV fully, and ATV,
AV partially.
03. Screen Mute (Command: k d)
► To select screen mute on/off.
Transmission [k][d][ ][Set ID][ ][Data][Cr]
Data 00 : Screen mute off (Picture on)
Video mute off
01 : Screen mute on (Picture off)
10 : Video mute on
Ack [d][ ][Set ID][ ][OK/NG][Data][x]
* In case of video mute on only, TV will display On
Screen Display(OSD). But, in case of Screen mute
on, TV will not display OSD.
04. Volume Mute (Command: k e)
► To control volume mute on/off.
You can also adjust mute using the MUTE button
on remote control.
Transmission [k][e][ ][Set ID][ ][Data][Cr]
Data 00 : Volume mute on (Volume off)
01 : Volume mute off (Volume on)
Ack [e][ ][Set ID][ ][OK/NG][Data][x]
05. Volume Control (Command: k f)
► To adjust volume.
You can also adjust volume with the volume
buttons on remote control.
Transmission [k][f][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 64
Ack [f][ ][Set ID][ ][OK/NG][Data][x]
06. Contrast (Command: k g)
► To adjust screen contrast.
You can also adjust contrast in the PICTURE
menu.
Transmission [k][g][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 64
Ack [g][ ][Set ID][ ][OK/NG][Data][x]
07. Brightness (Command: k h)
► To adjust screen brightness.
You can also adjust brightness in the PICTURE
menu.
Transmission [k][h][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 64
Ack [h][ ][Set ID][ ][OK/NG][Data][x]
08. Color/Colour (Command: k i)
► To adjust the screen Color(Colour).
You can also adjust colour in the PICTURE menu.
Transmission [k][i][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 64
Ack [i][ ][Set ID][ ][OK/NG][Data][x]
8
ENG
ENGLISH
8
EXTERNAL CONTROL DEVICE SETUP
09. Tint (Command: k j)
► To adjust the screen tint.
You can also adjust tint in the PICTURE menu.
Transmission [k][j][ ][Set ID][ ][Data][Cr]
Data Red : 00 to Green : 64
Ack [j][ ][Set ID][ ][OK/NG][Data][x]
10. Sharpness (Command: k k)
► To adjust the screen sharpness.
You can also adjust sharpness in the PICTURE
menu.
Transmission [k][k][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 32
Ack [k][ ][Set ID][ ][OK/NG][Data][x]
11. OSD Select (Command: k l)
► To select OSD (On Screen Display) on/off when
controlling remotely.
Transmission [k][l][ ][Set ID][ ][Data][Cr]
Data 01 : OSD off 01 : OSD on
Ack [l][ ][Set ID][ ][OK/NG][Data][x]
12. Remote control lock mode (Command: k m)
► To lock the front panel controls on the monitor and
remote control.
Transmission [k][m][ ][Set ID][ ][Data][Cr]
Data 01 : Lock off 01 : Lock on
Ack [m][ ][Set ID][ ][OK/NG][Data][x]
* If you are not using the remote control, use this
mode.
When main power is off & on (plug-off and plug-in,
after 20 - 30 seconds), external control lock is
released.
* In the standby mode (DC off by off timer or ‘ka’,
‘mc’ command), and if key lock is on, TV will not
turn on by power on key of IR & Local Key.
13. Balance (Command: k t)
► To adjust balance.
You can also adjust balance in the AUDIO menu.
Transmission [k][t][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 64
Ack [t][ ][Set ID][ ][OK/NG][Data][x]
14. Color(Colour) Temperature (Command: x u)
► To adjust colour temperature. You can also adjust
Color(Colour) Temperature in the PICTURE menu.
Transmission [x][u][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 64
Ack [u][ ][Set ID][ ][OK/NG][Data][x]
15. ISM Method (Command: j p) (Only Plasma TV)
► To control the ISM method. You can also adjust
ISM Method in OPTION menu.
Transmission [j][p][ ][Set ID][ ][Data][Cr]
Data Min : 02: Orbiter
08: Normal
20: Color(Colour) Wash
Ack [p][ ][Set ID][ ][OK/NG][Data][x]
16. Energy Saving (Command: j q)
► To reduce the power consumption of the TV. You
can also adjust Energy Saving in PICTURE menu.
Transmission [j][q][ ][Set ID][ ][Data][Cr]
Data
00 : Off
01 : Minimum
02 : Medium
03 : Maximum
04 : Auto
05 : Screen off
* (Depending on model)
Ack [q][ ][Set ID][ ][OK/NG][Data][x]
17. Tune Command (Command: m a)
* This command may work differently depending on
model and signal.
• For Europe, Mid-East, Colombia, Asia except
South Korea and Japan Model
► Select channel to following physical number.
Transmission [m][a][ ][Set ID][ ][Data 00][ ][Data 01]
[ ][Data 02][Cr]
* Analogue Terrestrial/Cable
[Data 00][Data 01] Channel Data
Data 00 : High byte channel data
Data 01 : Low byte channel data
- 00 00 ~ 00 C7 (Decimal : 0 ~ 199)
Data 02 : Input Source (Analogue)
- 00 : Terrestrial TV (ATV)
- 80 : Cable TV (CATV)
9
ENGENGLISH
9
EXTERNAL CONTROL DEVICE SETUP
* Digital Terrestrial/Cable/Satellite
[Data 00][Data 01]: Channel Data
Data 00 : High Channel data
Data 01 : Low Channel data
- 00 00 ~ 27 0F (Decimal: 0 ~ 9999)
Data 02 : Input Source (Digital)
- 10 : Terrestrial TV (DTV)
- 20 : Terrestrial Radio (Radio)
- 40 : Satellite TV (SDTV)
- 50 : Satellite Radio (S-Radio)
- 90 : Cable TV (CADTV)
- a0 : Cable Radio (CA-Radio)
* Tune Command Examples:
1. Tune to the analogue terrestrial (PAL) Channel 10.
Set ID = All = 00
Data 00 & 01 = Channel Data is 10 = 00 0a
Data 02 = Analogue Terrestrial TV = 00
Result = ma 00 00 0a 00
2. Tune to the digital terrestrial (DVB-T) Channel 01.
Set ID = All = 00
Data 00 & 01 = Channel Data is 1 = 00 01
Data 02 = Digital Terrestrial TV = 10
Result = ma 00 00 01 10
3. Tune to the satellite (DVB-S) Channel 1000.
Set ID = All = 00
Data 00 & 01 = Channel Data is 1000 = 03 E8
Data 02 = Digital Satellite TV = 40
Result = ma 00 03 E8 40
Ack [a][ ][Set ID][ ][OK][Data 00][Data 01][Data 02][x]
[a][ ][Set ID][ ][NG][Data 00][x]
• For South Korea, North/Latin America except
Colombia Model
► To tune channel to following physical/major/minor
number.
Transmission [m][a][ ][0][ ][Data00][ ][Data01]
[ ][Data02][ ][Data03][ ][Data04][ ][Data05][Cr]
Digital channels have a Physical, Major, and Minor
channel number. The Physical number is the actual
digital channel number, the Major is the number that
the channel should be mapped to, and the Minor is
the sub-channel. Since the ATSC tuner automatically
maps the channel from the Major / Minor number,
the Physical number is not required when sending a
command in Digital.
* Analogue Terrestrial/Cable
Data 00 : Physical Channel Number
- Terrestrial (ATV) : 02~45 (Decimal: 2 ~ 69)
- Cable (CATV) : 01, 0E~7D (Decimal : 1, 14~125)
[Data 01 ~ 04]: Major/Minor Channel Number
Data 01 & 02: xx (Don't care)
Data 03 & 04: xx (Don't care)
Data 05: Input Source (Analogue)
- 00 : Terrestrial TV (ATV)
- 01 : Cable TV (CATV)
* Digital Terrestrial/Cable
Data 00 : xx (Don't care)
[Data 01][Data 02]: Major Channel Number
Data 01 : High byte Channel Data
Data 02 : Low byte Channel Data
- 00 01 ~ 27 0F (Decimal: 1 ~ 9999)
[Data 03][Data 04]: Minor Channel Number
Data 03 : High byte Channel Data
Data 04 : Low byte Channel Data
Data 05 : Input Source (Digital)
- 02 : Terrestrial TV (DTV) – Use Physical Channel
Number
- 06 : Cable TV (CADTV) – Use Physical Channel
Number
- 22 : Terrestrial TV (DTV) – Don’t Use Physical
Channel Number
- 26 : Cable TV (CADTV) - Don’t Use Physical
Channel Number
- 46 : Cable TV (CADTV) – Use Major Channel
Number Only (One Part Channel)
Two bytes are available for each major and minor
channel data, but usually the low byte is used alone
(high byte is 0).
* Tune Command Examples:
1. Tune to the analogue cable (NTSC) channel 35.
Set ID = All = 00
Data 00 = Channel Data is 35 = 23
Data 01 & 02 = No Major = 00 00
Data 03 & 04 = No Minor = 00 00
Data 05 = Analogue Cable TV = 01
Total = ma 00 23 00 00 00 00 01
2. Tune to the digital terrestrial (ATSC) channel 30-3.
Set ID = All = 00
Data 00 = Don’t know Physical = 00
Data 01 & 02 = Major is 30 = 00 1E
Data 03 & 04 = Minor is 3 = 00 03
Data 05 = Digital Terrestrial TV = 22
Total = ma 00 00 00 1E 00 03 22
Ack [a][ ][Set ID][ ][OK][Data 00][Data 01]
[Data 02][Data 03][Data 04][Data 05]
[x][a][ ][Set ID][ ][NG][Data 00][x]
• For Japan Model
► To tune channel to following physical/major/minor
number.
Transmission [m][a][ ][0][ ][Data00][ ][Data01]
[ ][Data02][ ][Data03][ ][Data04][ ][Data05][Cr]
* Digital Terrestrial/Satellite
Data 00: xx (Don't care)
10
ENG
ENGLISH
10
EXTERNAL CONTROL DEVICE SETUP
[Data 01][Data 02]: Major Channel Number
Data 01: High byte Channel Data
Data 02: Low byte Channel Data
- 00 01 ~ 27 0F (Decimal: 1 ~ 9999)
[Data 03][Data 04]: Minor/Branch Channel Number
(Don’t care in Satellite)
Data 03: High byte Channel Data
Data 04: Low byte Channel Data
Data 05 : Input Source (Digital/Satellite for Japan)
- 02 : Terrestrial TV (DTV)
- 07 : BS (Broadcasting Satellite)
- 08 : CS1 (Communication Satellite 1)
- 09 : CS2 (Communication Satellite 2)
* Tune Command Examples:
1
Tune to the digital terrestrial (ISDB-T) channel 17-1
.
Set ID = All = 00
Data 00 = Don’t know Physical = 00
Data 01 & 02 = Major is 17 = 00 11
Data 03 & 04 = Minor/Branch is 1 = 00 01
Data 05 = Digital Terrestrial TV = 02
Total = ma 00 00 00 11 00 01 02
2. Tune to the BS (ISDB-BS) channel 30.
Set ID = All = 00
Data 00 = Don’t know Physical = 00
Data 01 & 02 = Major is 30 = 00 1E
Data 03 & 04 = Don’t Care = 00 00
Data 05 = Digital BS TV = 07
Total = ma 00 00 00 1E 00 00 07
* This feature is varied based on the model.
Ack [a][ ][Set ID][ ][OK][Data 00][Data 01]
[Data 02][Data 03][Data 04][Data 05]
[x][a][ ][Set ID][ ][NG][Data 00][x]
18. Channel(Programme) Add/Del(Skip)
(Command: m b)
► To skip current channel(programme) for next time.
Transmission [m][b][ ][Set ID][ ][Data][Cr]
Data 00 : Del(ATSC,ISDB)/Skip(DVB) 01 : Add
Ack [b][ ][Set ID][ ][OK/NG][Data][x]
* Set the saved channel status to del(ATSC, ISDB)/
skip(DVB) or add.
19. Key (Command: m c)
► To send IR remote key code.
Transmission [m][c][ ][Set ID][ ][Data][Cr]
Data Key code - See p.2.
Ack [c][ ][Set ID][ ][OK/NG][Data][x]
20. Control Back Light (Command: m g)
• For LCD TV / LED TV
► To control the back light.
Transmission [m][g][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 64
Ack [g][ ][Set ID][ ][OK/NG][Data][x]
Control Panel Light (Command: m g)
• For Plasma TV
► To control the panel light.
Transmission [m][g][ ][Set ID][ ][Data][Cr]
Data Min : 00 to Max : 64
Ack [g][ ][Set ID][ ][OK/NG][Data][x]
21. Input select (Command: x b)
(Main Picture Input)
► To select input source for main picture.
Transmission [x][b][ ][Set ID][ ][Data][Cr]
Data
00 : DTV
02 : Satellite DTV
ISDB-BS (Japan)
03 : ISDB-CS1 (Japan)
04 : ISDB-CS2 (Japan)
11 : CATV
01 : CADTV
10 : ATV
20 : AV or AV1 21 : AV2
40 : Component1 41 : Component2
90 : HDMI1
92 : HDMI3
91 : HDMI2
93 : HDMI4
Ack [b][ ][Set ID][ ][OK/NG][Data][x]
* This function depends on model and signal.
11
ENGENGLISH
11
EXTERNAL CONTROL DEVICE SETUP
22. 3D(Command: x t) (only 3D models)
(Depending on model)
► To change 3D mode for TV.
Transmission [x][t][ ][Set ID][ ][Data 00][ ][Data 01]
[ ][Data 02][ ][Data 03][Cr]
Data Structure
[Data 00] 00 : 3D On
01 : 3D Off
02 : 3D to 2D
03 : 2D to 3D
[Data 01] 00 : Top and Bottom
01 : Side by Side
02 : Checker Board
03 : Frame Sequential
04 : Column interleaving
05 : Row interleaving
[Data 02] 00 : Right to Left
01 : Left to Right
[Data 03] 3D Effect(3D Depth): Min : 00 - Max : 14
(*transmit by Hexadecimal code)
* If [Data 00] is 00 (3D On), [Data 03] has no
meaning.
* If [Data 00] is 01 (3D off) or 02 (3D to 2D), [Data
01], [Data 02] and [Data 03] have no meaning.
* If [Data 00] is 03(2D to 3D), [Data 01] and [Data 02]
have no meaning.
* If [Data 00] is 03(2D to 3D), [Data 03] works when
3D Mode (Genre) is manual only.
* All 3D pattern options ([Data 01]) may not be
available according to broadcasting/video signal.
[Data 00] [Data 01] [Data 02] [Data 03]
00 O O X
01 X X X
02 X X X
03 X X O
X : don’t care
Ack [t][ ][Set ID][ ][OK][Data00][Data01][Data02]
[Data03][x]
[t][ ][Set ID][ ][NG][Data00][x]
23. Extended 3D(Command: x v) (only 3D models)
(Depending on model)
► To change 3D option for TV.
Transmission [x][v][ ][Set ID][ ][Data 00][ ]
[Data 01][Cr]
[Data 00] 3D option
00 : 3D Picture Correction
01 : 3D Depth (3D Mode is Manual Only)
02 : 3D Viewpoint
06 : 3D Color Correction
07 : 3D Sound Zooming
08 : Normal Image View
09 : 3D Mode (Genre)
[Data 01] It has own range for each 3D option
determined by [Data 00].
1) When [Data 00] is 00
00 : Right to Left
01 : Left to Right
2) When [Data 00] is 01, 02
Data Min: 0 - Max: 14 (*transmit by Hexadecimal
code)
Data value range(0 - 20) converts Viewpoint range
(-10 - +10) automatically (Depending on model)
3) When [Data 00] is 06, 07, 08
00 : Off
01 : On
4) When [Data 00] is 09
00 : Standard
02 : Cinema
04 : Manual
01 : Sport
03 : Extreme
Ack [v][ ][Set ID][ ][OK][Data00][Data01][x]
[v][ ][Set ID][ ][NG][Data00][x]
