Welcome!
Thank you for purchasing this Sony
CD/DVD Player. Before operating this
player, please read this manual
thoroughly and retain it for future
reference.
3
Precautions
On safety
• Caution – The use of optical instruments
with this product will increase eye hazard.
• Should any solid object or liquid fall into
the cabinet, unplug the player and have it
checked by qualified personnel before
operating it any further.
• Do not put any foreign objects in the DC IN
10.5 V (external power input) jack.
On power sources
• Use only the supplied AC power adaptor.
Do not use any other AC power adaptor. It
may cause a malfunction.
• If the AC power adaptor causes interference
to the radio reception, move it away from
the radio.
• Do not touch the AC power adaptor with
wet hands.
• The player is not disconnected from the AC
power source as long as it is connected to
the wall outlet, even if the player itself has
been turned off.
• If you are not going to use the player for a
long time, be sure to disconnect the player
from the wall outlet. To disconnect the AC
power cord, grasp the plug itself; never pull
the cord.
• Should the AC power cord need to be
changed, have it done at a qualified service
shop only.
• Use a commercially available AC plug
adaptor, if necessary, depending on the
design of the wall outlet.
On placement
• Place the player in a location with adequate
ventilation to prevent heat build-up in the
player.
• Do not place the player and the AC power
adaptor on a soft surface such as a rug.
• Do not place the player and the AC power
adaptor in a location near heat sources, or in
a place subject to direct sunlight, excessive
dust, or mechanical shock.
• Do not put any object on top of the player.
The player may be damaged.
On operation
• If the player is brought directly from a cold
to a warm location, or is placed in a very
damp room, moisture may condense on the
lenses inside the player. Should this occur,
the player may not operate properly. In this
case, remove the disc and leave the player
turned on for about half an hour until the
moisture evaporates.
• Do not insert a disc with non-standard
shape (e.g., card, heart) into the player. The
disc may not be ejected and cause a
malfunction.
• When you move the player, take out any
discs. If you don’t, the disc may be
damaged.
On adjusting volume
Do not turn up the volume while listening to
a section with very low level inputs or no
audio signals. If you do, the speakers may be
damaged when a peak level section is played.
On cleaning
Clean the cabinet, panel, and controls with a
soft cloth slightly moistened with a mild
detergent solution. Do not use any type of
abrasive pad, scouring powder or solvent
such as alcohol or benzine.
If you have any questions or problems
concerning your player, please consult your
nearest Sony dealer.
Polarity of the plug
Wall outlet
AC plug adaptor
AC-F21
4
On cleaning discs
Do not use a commercially available cleaning
disc. It may cause a malfunction.
IMPORTANT NOTICE
Caution: This player is capable of holding a
still video image or on-screen display
image on your television screen
indefinitely. If you leave the still video
image or on-screen display image displayed
on your TV for an extended period of time
you risk permanent damage to your
television screen. Projection televisions are
especially susceptible to this.
5
Table of Contents
WARNING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Welcome! . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2
Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3
About this Manual . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
This Player Can Play the Following Discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7
Notes about the Discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Index to Parts and Controls . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Guide to On-Screen Displays (Status Bar, Control Bar, Control Menu) . . . . . 13
Getting Started . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Quick Overview . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Step 1: Unpacking . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Step 2: Inserting Batteries into the Remote . . . . . . . . . . . . . . . . . . . . . . . . . . 15
Step 3: TV Hookups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
Step 4: Playing a Disc . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18
Hookups . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Hooking Up the Player. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 19
Step 1: Connecting the Video Cords . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
Step 2: Connecting the Audio Cords . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22
Step 3: Attaching the Jack Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 30
Step 4: Connecting the Power Cord . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31
Step 5: Quick Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32
Playing Discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Playing Discs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 36
Resuming Playback from the Point Where You Stopped the Disc
(Resume Play)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Using the DVD’s Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39
Playing VIDEO CDs with PBC Functions (PBC Playback) . . . . . . . . . . . . . . 40
Various Play Mode Functions (Program Play, Shuffle Play, Repeat Play,
A-B Repeat Play) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 41
Searching for a Scene . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 46
Searching for a Particular Point on a Disc (Scan, Slow-motion Play) . . . . . . . 46
Searching for a Title/Chapter/Track/Index/Scene (Search mode) . . . . . . . . . 47
Viewing Information About the Disc . . . . . . . . . . . . . . . . . . . . . . 48
Viewing the Playing Time and Remaining Time on the Front Panel Display . 48
Checking the Playing Time and Remaining Time . . . . . . . . . . . . . . . . . . . . . 49
6
Sound Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51
Changing the Sound . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .51
TV Virtual Surround Sound Settings (TVS) . . . . . . . . . . . . . . . . . . . . . . . . . . .53
Enjoying Movies . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55
Changing the Angles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55
Displaying the Subtitles . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .55
Adjusting the Picture Quality (BNR)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .56
Using Various Additional Functions . . . . . . . . . . . . . . . . . . . . . .58
Locking Discs (Custom Parental Control, Parental Control). . . . . . . . . . . . . . .58
Operation Sound Effects (Sound Feedback) . . . . . . . . . . . . . . . . . . . . . . . . . .63
Controlling Your TV, etc. with the Supplied Remote . . . . . . . . . . . . . . . . . . . .64
Settings and Adjustments . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66
Using the Setup Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .66
Setting the Display or Sound Track Language (LANGUAGE SETUP) . . . . . .67
Settings for the Display (SCREEN SETUP) . . . . . . . . . . . . . . . . . . . . . . . . . .68
Custom Settings (CUSTOM SETUP) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .70
Settings for the Sound (AUDIO SETUP) . . . . . . . . . . . . . . . . . . . . . . . . . . . . .71
Additional Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74
Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .74
Self-diagnosis Function (When letters/numbers appear in the display) . . . . . .76
Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .77
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .79
Language Code List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .81
List of Setup Display Items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .82
Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .84
7
About this Manual
• Instructions in this manual describe the
controls on the remote. You can also use the
controls on the player if they have the same
or similar names as those on the remote.
• The icons used in this manual are described
below:
This Player Can Play the
Following Discs
The “DVD VIDEO” logo is a trademark.
Region code
Your player has a region code printed on the
back of the unit and will only play DVDs
labeled with identical region codes.
DVDs labeled will also play on this
player.
If you try to play any other DVD, the
message “Playback prohibited by area
limitations.” will appear on the TV screen.
Depending on the DVD, no region code
indication may be labeled even though
playing the DVD is prohibited by area
restrictions.
Example of discs that the player
cannot play
The player cannot play the following discs:
• CD-ROMs (PHOTO CDs included)
• All CD-Rs/RWs other than music and VCD
format CD-Rs/RWs
• Data part of CD-Extras
• DVD-ROMs
• DVD Audio discs
• DVD-RWs recorded in video recording
format (VR mode)
• HD layer on SACDs
Also, the player cannot play the following
discs:
• A DVD with a different region code (page
78).
• A disc recorded in a color system other than
NTSC, such as PAL or SECAM. (This
player conforms to the NTSC color
system.)
• A disc that has a non-standard shape (e.g.,
card, heart).
• A disc with paper or stickers on it.
• A disc that has the adhesive of cellophane
tape or a sticker still left on it.
Icon Meaning Icon Meaning
Functions
available in
DVD video
mode
Functions
available in
music CD
mode
Functions
available in
VIDEO CD
mode
z
More
convenient
features
Format of discs
ALL
Region Code
DVD VIDEO
VIDEO CD
Music CD
continued
8
Note
Some CD-Rs or CD-RWs cannot be played on this
player depending upon the recording quality or
physical condition of the disc, or the characteristics of
the recording device.
Furthermore, the disc will not play if it has not been
correctly finalized. For more information, see the
operating instructions for the recording device.
Note on playback operations of DVDs
and VIDEO CDs
Some playback operations of DVDs and
VIDEO CDs may be intentionally set by
software producers. Since this player plays
DVDs and VIDEO CDs according to the disc
contents the software producers designed,
some playback features may not be available.
Also, refer to the instructions supplied with
the DVDs or VIDEO CDs.
Copyrights
This product incorporates copyright
protection technology that is protected by
method claims of certain U.S. patents, other
intellectual property rights owned by
Macrovision Corporation, and other rights
owners. Use of this copyright protection
technology must be authorized by
Macrovision Corporation, and is intended for
home and other limited viewing uses only,
unless otherwise authorized by Macrovision
Corporation. Reverse engineering or
disassembly is prohibited.
Notes about the Discs
On handling discs
• To keep the disc clean, handle the disc by its
edge. Do not touch the surface.
• Do not expose the disc to direct sunlight or
heat sources such as hot air ducts, or leave
it in a car parked in direct sunlight as the
temperature may rise considerably inside
the car.
• After pressing A on the player to eject the
disc, do no leave the disc as it is. Remove it
completely from the player.
• After playing, store the disc in its case.
• If glue is present on the outer edge of the
disc, wipe the edge of the disc with the side
of a pen or pencil so that the glue is spread
evenly along the edge before inserting the
disc into the player. Be sure not to touch the
playback side of the disc when wiping the
edge.
• If burrs remain on the outer edge of the
disc, remove them by rubbing with the side
of a pen or pencil. If burrs are not removed,
discs may not load properly into the player,
or fragments of plastic adhering to the
playback side of the disc may cause
skipping in the sound.
On cleaning
• Before playing, clean the disc with a
cleaning cloth. Wipe the disc from the
center out.
• Do not use solvents such as benzine,
thinner, commercially available cleaners, or
anti-static spray intended for vinyl LPs.
9
Index to Parts and Controls
For more information, refer to the pages indicated in parentheses.
Front Panel
A ./> (previous/next) buttons (37)
B x (stop) button (36)
C X (pause) button (37, 63)
D N (play) button (36)
E Disc slot (36)
F Front panel display (10)
G (remote sensor) (15)
H SURROUND indicator (53)
I A (eject) button (37)
J ?/1 (power) button/indicator (36)
10

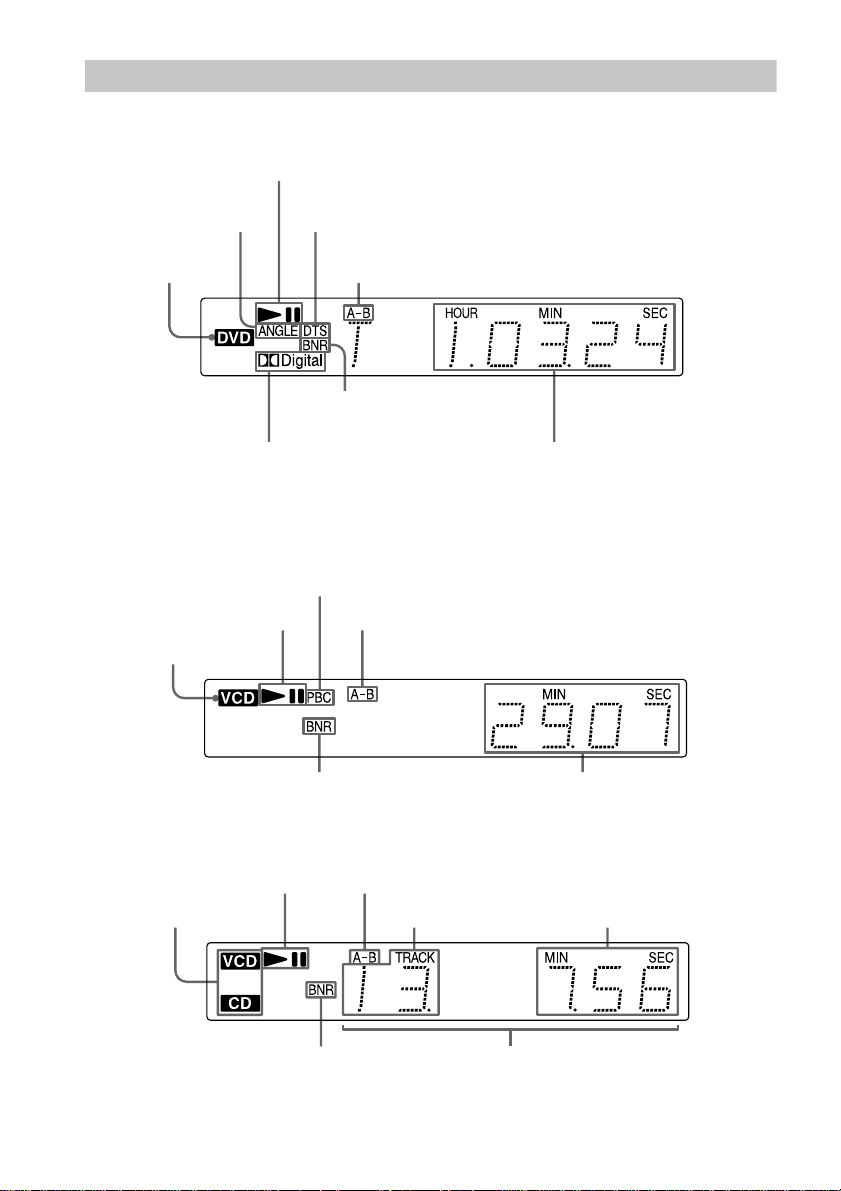

Front Panel Display
When playing back a DVD
When playing back a VIDEO CD (PBC)
When playing back a CD or VIDEO CD (without PBC)
Lights up when you
can change the angle
Disc type
Playing status
Lights up when BNR is
on (56)
Current play mode (A-B
Repeat Play) (44)
Current audio signal
(DTS format signal) (72)
Playing time, current title and
chapter number, etc. (48)
Current audio signal (Dolby Digital signal) (72)
Playing time or current scene
number (48)
Lights up when playing back a
VIDEO CD with PBC (40)
Playing status
Disc type
Current play mode (A-B Repeat Play) (44)
Lights up when BNR is on (56)
Playing status
Playing timeCurrent track
Disc type
Lights up when BNR is on
(56)
Current play mode (A-B Repeat Play) (44)
Current track and index
number, playing time, etc. (48)
11
Side Panel
A DC IN 10.5 V jack (17)
B AUDIO OUT L/R jacks (17, 23, 24, 26)
C DIGITAL OUT (OPTICAL) jack (24,
26, 28)
D VIDEO OUT jack (17, 20)
E S-VIDEO OUT jack (20)
12
Remote
A SEARCH MODE button (47)
B BNR (Block Noise Reduction) button
(56)
C TIME/TEXT button (48)
D SURROUND button (53)
E ANGLE button (55)
F AUDIO button (51)
G PROGRAM button (41)
H SHUFFLE button (43)
I REPEAT button (44)
J ./> PREV (previous) /NEXT
buttons (37)
K H PLAY button (36)
L TOP MENU button (39)
M DISPLAY button (66)
N TV/DVD switch (64)
O ?/1 (power) button (36)
P TV operation buttons (64)
Q SUBTITLE button (55)
R CLEAR button (41, 43, 44, 44)
S VOL (volume) +/– buttons (64)
T A-B button (44)
U REPLAY button (37)
V / SCAN/SLOW buttons (46)
wd x STOP button (37)
wf X PAUSE button (37)
wg MENU button (39)
wh C/X/x/c buttons (32)
wj ORETURN button (40)
wk ENTER button (32)
13
Guide to On-Screen Displays (Status Bar, Control Bar, Control Menu)
The following explains the three types of on-screen displays used with this player:
Status Bar, Control Bar, and Control Menu.
Status Bar
Displays the current playing status.
This display appears when the DISPLAY button is pressed repeatedly during playback.
The numbers in parentheses indicate reference pages.
DVD T41
–
8
T 0:08:41
3/2.1
DOLBY DIGITAL
CHAPTER
Chapter number of the DVD
or the index number of the
VIDEO CD or CD (77).
Playback status
(
NPlayback,
XPause, xStop, etc.)
Title number of the
DVD or the track
number of the VIDEO
CD or CD (77).
Playing time or
remaining time (49).
Type of disc being played back.
(DVD playback only)
Format of the current audio
signal (52).
Unit being repeated.
Lights up in green during Shuffle Play (43).
Lights up in green
during Program Play
(41).
Lights up in green
during Repeat Play
(44).
Example of when Repeat
Play is selected. The
display will differ when A-B
Repeat Pay is set.
14
Control Bar
The Control Bar appears when a playback function is selected by pressing the function’s button
on the remote.
Control Menu
The Control Menu appears when the DISPLAY button is pressed when the player is in stop mode.
The number in parenthesis indicate reference pages.
2
(
7
)
Playback function icon.
Lights up in green when a
playback function is
selected.
Selected item or unit.
Example of when
ANGLE is pressed
on the remote.
QUICK
SETUP (66)
• Select QUICK to make the minimum number of basic adjustments to use the
player.
• Select CUSTOM to make a full range of adjustments.
• Select RESET to return the adjustments to the default settings.
Lights up in green during
Program Play.
PROGRAM (41)
• Allows you to play, titles,
chapters or tracks in any
order you want.
CUSTOM
PARENTAL CONTROL
(58)
• Set this to limit the
playback of selected
discs.
15
Getting Started
15
Getting Started
Quick Overview
A quick overview presented in this chapter will give you enough information to start using the
player for your enjoyment. To use the surround sound features of this player, refer to “Hookups”
on page 19.
Notes
• You cannot connect this player to a TV that does not have a video input jack.
• Be sure to turn off the power of each component before connecting.
Step 1: Unpacking
Check that you have the following items:
• Audio/video cord (pinplug x 3 y pinplug x 3) (1)
• Remote commander (remote) RMT-D137A (1)
• Size AA (R6) batteries (2)
• AC power adaptor AC-F21 (1)
• AC power cord (1)
• Jack cover for vertical installation (1)
Step 2: Inserting Batteries into the Remote
You can control the player using the supplied remote. Insert two size AA (R6) batteries by
matching the 3 and # ends on the batteries to the markings inside the compartment. When using
the remote, point it at the remote sensor on the player.
Continued
16
If you cannot operate the player with the remote
The player has 2 remote sensors, one at the top and one on the front (page 18). If one of the remote
sensor is exposed to direct sunlight or lighting apparatus, the remote may not operate correctly.
If this happens, select a remote sensor in the following way until you find one that works.
When the power is on and no disc is inserted in the player, press . for more than 2 seconds
while pressing x.
The selected remote sensor is displayed on the front panel display as follows:
* The default setting
Notes
• Do not leave the remote in an extremely hot or humid place.
• Do not drop any foreign object into the remote casing, particularly when replacing the batteries.
• Do not expose the remote sensor to direct light from the sun or lighting apparatus. Doing so may cause a
malfunction.
• If you do not use the remote for an extended period of time, remove the batteries to avoid possible damage from
battery leakage and corrosion.
BOTH* (The player
receives the remote
signal at both remote
sensors.)
TOP (The player
receives the remote
signal at the top
remote sensor.)
FRONT (The player
receives the remote
signal at the front
remote sensor.)
t
t
17
Getting Started
17

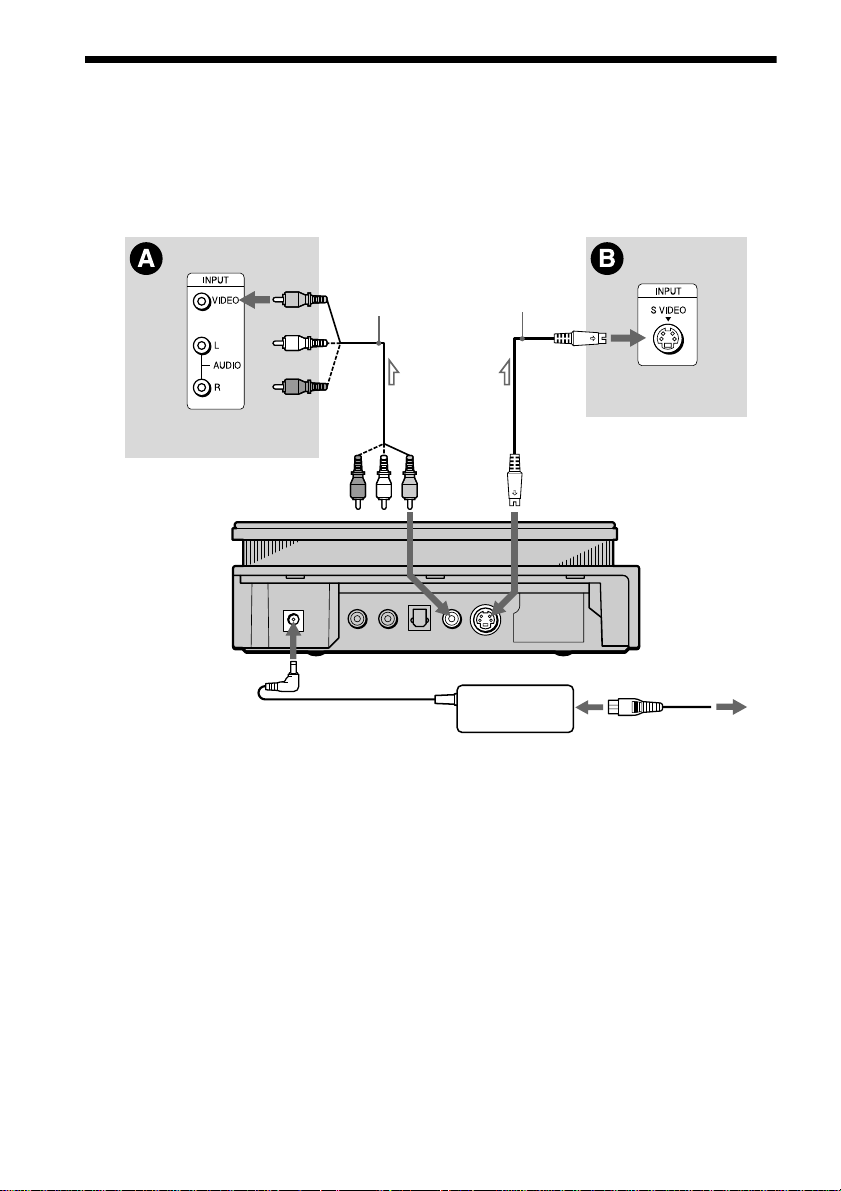

Step 3: TV Hookups

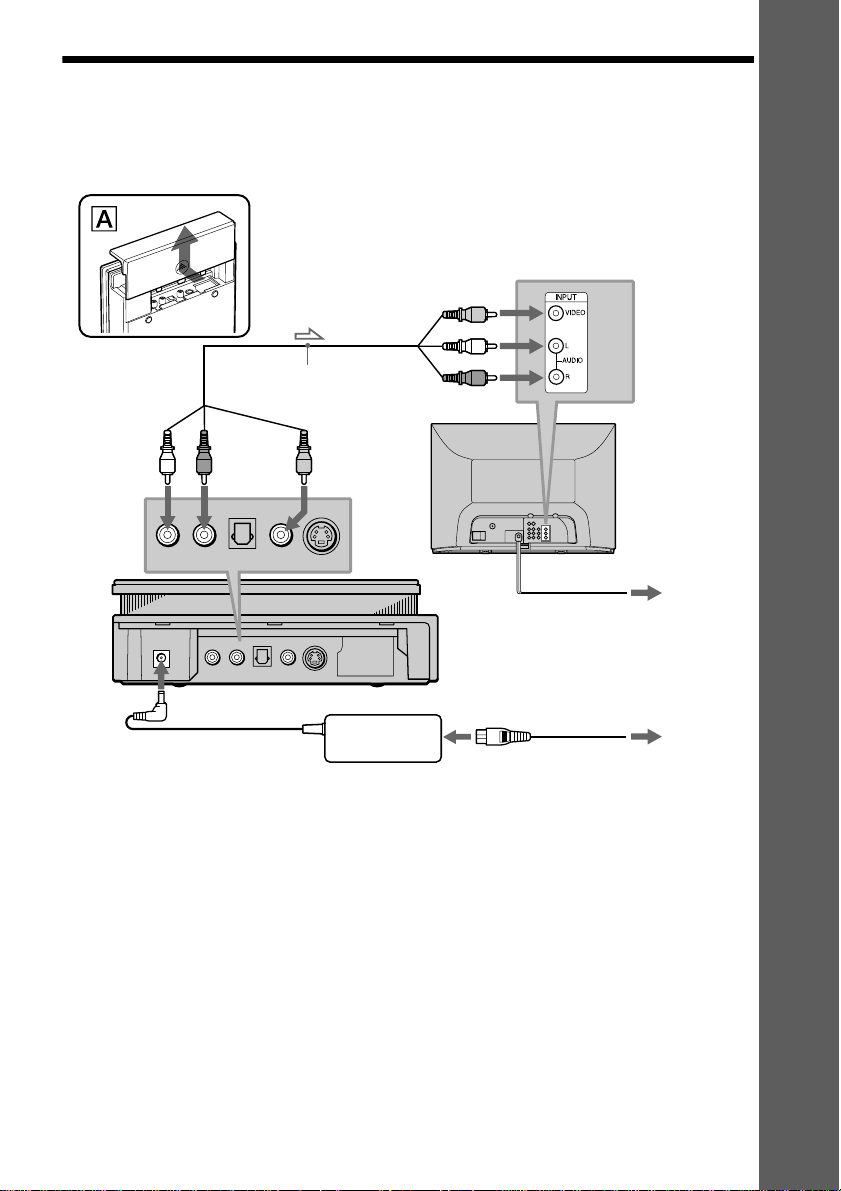

Remove the jack cover from the player (see fig. A). Connect the supplied audio/video cord and
power cord in the order (1~3) shown below. Be sure to connect the power cord last.
When connecting to a wide screen TV
Depending on the disc, the image may not fit your TV screen.
If you want to change the aspect ratio, please refer to page 68.

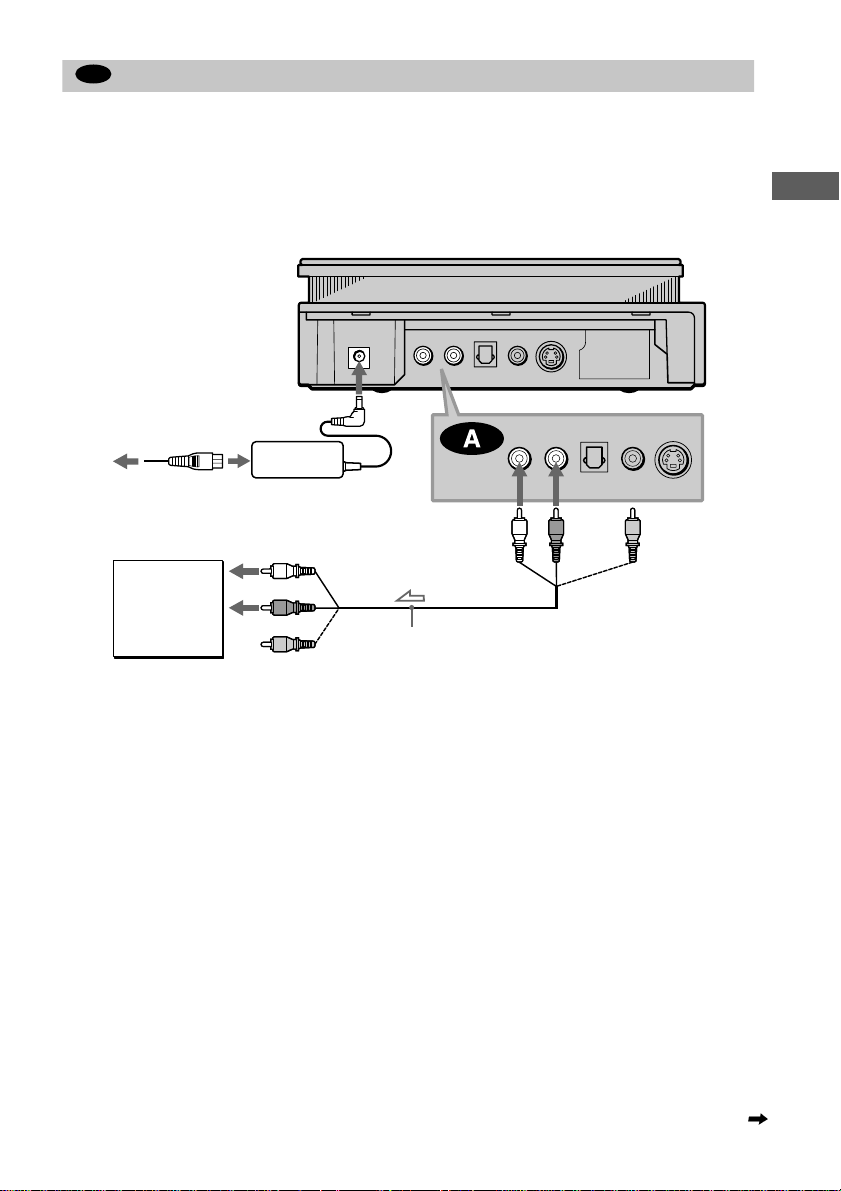

3 Power source
1 Audio/video cord
(supplied)
CD/DVD Player
TV
2 Power source
l: Signal flow
to video input
to AUDIO
OUT L
(red)
(white)
(yellow)
to VIDEO
OUT
(red)
(white)
(yellow)
to audio input
(yellow)
(white)
(red)
AC power adaptor
(AC-F21, supplied)
to
AUDIO
OUT R
(white)
(red)
(yellow)
AC power cord
(supplied)
18

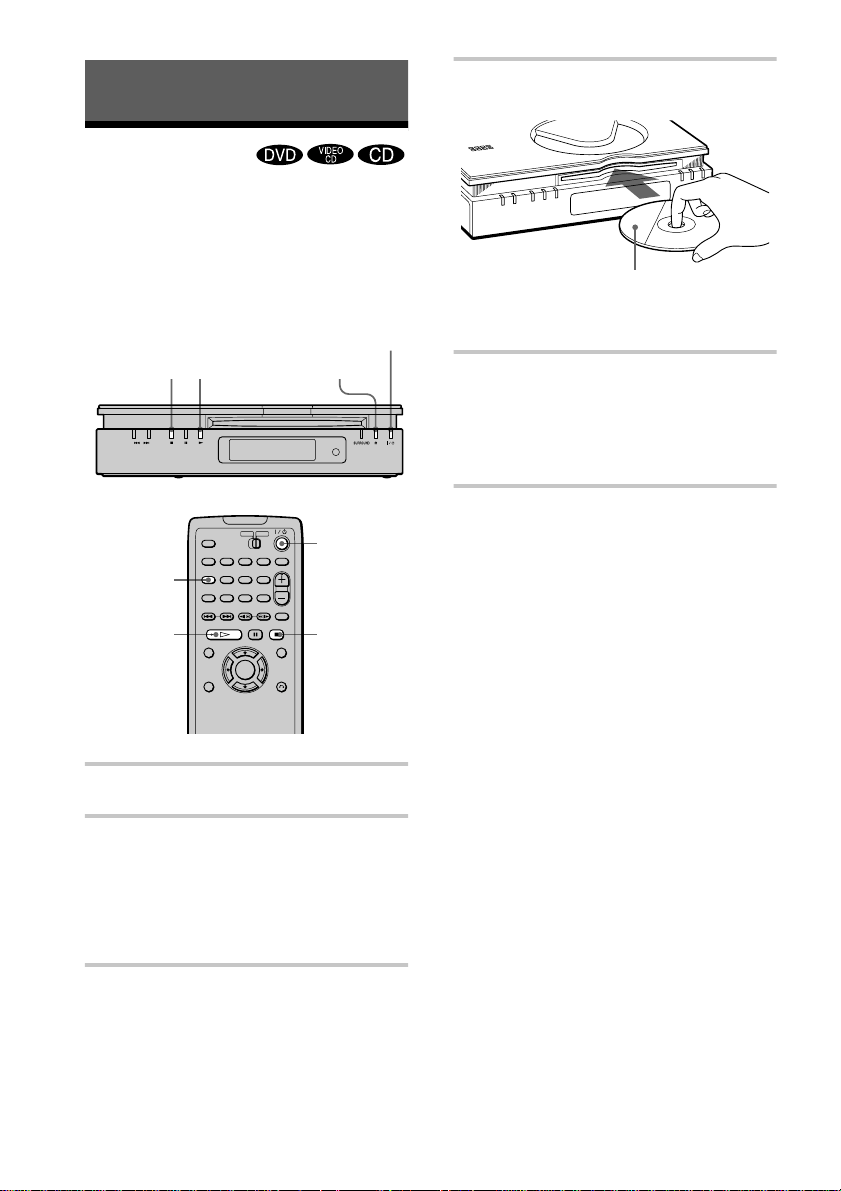

Step 4: Playing a Disc
A Turn on the TV.
B Switch the input selector on the TV to the player.
C Press
?/1 on the player.
D Insert the disc into the disc slot with the playback side facing down.
E Press
N.
The player begins playing the disc.
After Step 5
Depending on the disc, a menu may be displayed on the TV screen. If so, select the item you want
from the menu and play the DVD (page 39) or VIDEO CD disc (page 40).
To stop playing
Press x.
To take out the disc
Press A on the player, then remove the disc.
To turn off the player
Press ?/1. The player is set to standby mode and the ?/1 indicator lights up in red.
53
With the playback side facing down
A
Remote sensor Remote sensor
19
Hookups
Hookups
Hooking Up the Player
Follow Steps 1 to 5 to hook up and adjust the settings of the player.
Before you start, turn off the power, check that you have all of the supplied accessories, and insert
the batteries into the remote (page 15). Remove the jack cover.
Notes
• Plug cords securely to prevent unwanted noise.
• Refer to the instructions supplied with the components to be connected.
20
Step 1: Connecting the Video Cords
Connect this player to your TV monitor, projector, or AV amplifier (receiver) using a video cord.
Select one of the patterns A or B, according to the input jack on your TV monitor, projector, or
AV amplifier (receiver).
Audio/video cord
(supplied)
S video cord
(not supplied)
CD/DVD player
AC power adaptor
(AC-F21, supplied)
TV, projector, AV
amplifier (receiver)
(yellow)
(yellow)
TV, projector, AV
amplifier (receiver)
(yellow)
l: Signal flow
to VIDEO
OUT
AC power cord
(supplied)
to S-VIDEO
OUT
21
Hookups
A If you are connecting to a video input jack
Connect the yellow plugs of the audio/video cord (supplied) to the yellow (video) jacks. You will
enjoy standard quality images.
Use the red and white plugs to connect to the audio input jacks (page 23).
B If you are connecting to an S VIDEO input jack
Connect the S VIDEO cord (not supplied). You will enjoy high quality images.
Note
Do not connect your player to a VCR. You may not receive a clear image on the TV screen if you pass the player
signals via the VCR.
Yellow (Video)
White (L)
Red (R)
Yellow (Video)
White (L)
Red (R)
VCR
CD/DVD player
TV
Connect directly.
22
Step 2: Connecting the Audio Cords
Refer to the chart below to select the connection that best suits your system. The surround effects
you will enjoy depend on the connections and components you use.
Select a connection
Select one of the following connections, through .
* Manufactured under license from Dolby Laboratories. “Dolby,” “Pro Logic,” and the double-D symbol are
trademarks of Dolby Laboratories. Confidential unpublished works. © 1992-1997 Dolby Laboratories. All rights
reserved.
**“DTS” is a registered trademark of Digital Theater Systems, Inc.
Connection Components to be connected
(page 23)
TV (stereo)
(page 24)
Stereo amplifier (receiver)
(having L and R audio input jacks only, or having a digital input jack)
• 2 speakers
(front L and R)
(page 24)
MD deck/DAT deck
(page 26)
AV amplifier (receiver) with a Dolby* Surround (Pro Logic) decoder
(having L and R audio input jacks only, or having a digital input jack)
• 3 speakers
(front L and R, and rear (monaural))
• 6 speakers
(front L and R, center, rear L and R, subwoofer)
(page 28)
AV amplifier (receiver) having a Dolby Digital or DTS** decoder, and
a digital input jack
• 6 speakers
(front L and R, center, rear L and R, subwoofer)
A
D
A
B
B
C
D
23
Hookups
Connecting to your TV
This connection will use your TV speakers for sound.
xRecommended surround sound effects for this connection.
• TVS DYNAMIC (page 53)
• TVS WIDE (page 53)
The yellow plug is used for video signals (page 20).
A
Audio/video cord
(supplied)
CD/DVD player
TV
(white)
(red)
(yellow)
(white)
(red)
(yellow)
l: Signal flow
to audio input
to AUDIO
OUT L
to
AUDIO
OUT R
AC power cord
(supplied)
AC power adaptor
(AC-F21, supplied)
(white)
(red)
continued
24

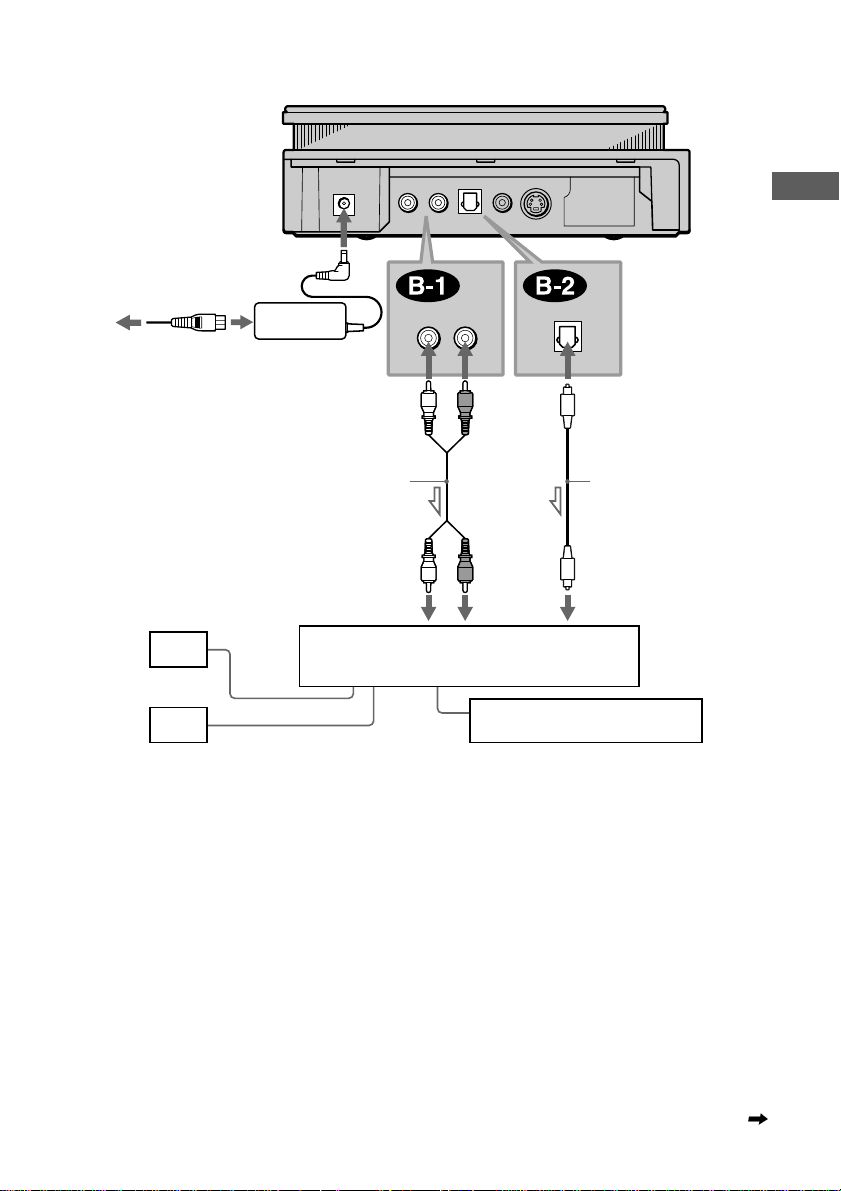

Connecting to a stereo amplifier (receiver) and 2 speakers/Connecting to an
MD deck or DAT deck
This connection will use your 2 front speakers connected to your stereo amplifier (receiver) for
sound. If the stereo amplifier (receiver) has audio input jacks L and R only, use . If the
amplifier (receiver) has a digital input jack, use . When connecting to an MD deck or a DAT
deck, use . In this case, you can also connect the player directly to the MD deck or DAT
deck without using your stereo amplifier (receiver).
xRecommended surround sound effects for the connection only.
• TVS STANDARD (page 53)
z
In connection , you can use the supplied audio/video cord instead of using a separate audio cord.
z To realize better surround sound effects, make sure that your listening position is in between your speakers.
Note
If you select one of the TVS effects while playing a disc, no sound will come from your speakers with the
connection.
B
B-1
B-2
B-2
B-1
B-1
B-2
25
Hookups
Stereo amplifier (receiver)
CD/DVD player
Stereo audio cord
(not supplied)
Optical digital cord
(not supplied)
to audio input
to optical digital
input
(white) (red)
(white)
(red)
[Speakers]
Front (L)
Front (R)
MD deck/DAT deck
or
l: Signal flow
to AUDIO
OUT R
to AUDIO
OUT L
to DIGITAL OUT
(OPTICAL)
AC power adaptor
(AC-F21, supplied)
AC power cord
(supplied)
(white)
(red)
continued
26
Connecting to a Dolby Surround (Pro Logic) decoder amplifier (receiver) and
3 to 6 speakers
This connection will allow you to enjoy the surround effects of the Dolby Surround (Pro Logic)
decoder on your amplifier (receiver). If you have an AV amplifier (receiver) equipped with a
Dolby Digital or DTS decoder, refer to page 28.
You can enjoy the Dolby Surround effects only when playing Dolby Surround audio or
multichannel audio (Dolby Digital) discs.
Pro Logic uses a minimum of 3 speakers (front L and R, and rear (monaural)). The surround
effects are enhanced if 6 speakers (front L and R, center, rear L and R, and subwoofer) are used.
If your amplifier (receiver) has R and L audio input jacks only, use . If your amplifier
(receiver) has a digital input jack, use .
xRecommended surround sound effects using this connection with your amplifier (receiver).
• Dolby Surround (Pro Logic) (page 72)
z
For correct speaker setting location, please refer to the operating instructions of the amplifier (receiver).
C
C-1
C-2
27
Hookups
* When connecting 6 speakers, replace the monaural rear speaker with a center speaker, 2 rear speakers and a
subwoofer.
to audio input
CD/DVD player
Optical digital cord
(not supplied)
Stereo audio cord
(not supplied)
to optical digital
input
(white)
(red)
(white)
(red)
Amplifier (receiver) with
Dolby Surround decoder
[Speakers]
[Speakers]
Rear (L)
Rear (R)
Subwoofer
Center
Rear*
(mono)
Front (L)
Front (R)
l: Signal flow
or
to AUDIO
OUT R
to AUDIO
OUT L
to DIGITAL OUT
(OPTICAL)
AC power adaptor
(AC-F21, supplied)
AC power cord
(supplied)
(white)
(red)
continued
28
Connecting to an AV amplifier (receiver) with a digital input jack having a
Dolby Digital or DTS decoder, and 6 speakers
This connection will allow you to use the Dolby Digital or DTS decoder function of your AV
amplifier (receiver). You are not able to enjoy the TVS sound effects of the player.
xRecommended surround sound effects using this connection with your amplifier (receiver).
• Dolby Digital (5.1ch) (page 72)
• DTS (5.1ch) (page 72)
z
To enhance the surround sound effects, refer to the operating instructions of the amplifier (receiver) for correct
speaker setting location.
Note
After you have completed the connection, be sure to set “DOLBY DIGITAL” to “DOLBY DIGITAL” (page 32). If
your AV amplifier (receiver) has a DTS decoder, set “DTS” to “ON” (page 32). Otherwise, no sound or a loud noise
will come from the speakers.
D
29
Hookups
to optical digital input
Optical digital cord (not
supplied)
CD/DVD player
[Speakers]
[Speakers]
AV amplifier (receiver) with a decoder
Front (R)
Front (L) Center
Rear (R)
Rear (L)
Subwoofer
l: Signal flow
to DIGITAL OUT
(OPTICAL)
AC power adaptor
(AC-F21, supplied)
AC power cord
(supplied)
30
Step 3: Attaching the Jack Cover
You can install the player horizontally, vertically or on the wall.
Notes
• Make sure that the connecting cords are not trapped by the jack cover.
• If you use commercially available cords, make sure that those cords are similar to the supplied cords in size. If the
cords are too thick or hard, or the plug is too large, you may not be able to attach the jack cover securely.
When you install the player horizontally
First, gather all the connecting cords together and let them pass through the side of the player.
Then attach the jack cover carefully not to trap the cords.
When you install the player vertically
First, gather all the connecting cords together and let them pass through the side of the player.
Then attach the jack cover for vertical installation (supplied) carefully not to trap the cords.
Notes
• When you place the player in a horizontal position, remove the jack cover for vertical installation.
• To move the player, hold the player itself. If you hold the flat part of the jack cover for vertical installation, it may
break.
• Do not place the player in a vertical position without attaching the jack cover for vertical installation. If you do not
attach it, the player will be unstable and may fall over.
31
Hookups
When you install the player on the wall
When you install the player on the wall, ask a qualified installer to do the job. The player should
be installed in the following way.
Attach the jack cover as in the same way for the horizontal installation.
Fasten screws (not supplied) to the wall at the same height 3 1/4 in. (80 mm) apart. The screws
should protrude by 3/16 to 7/32 in. (4 to 5 mm).
Remove the seals covering the hanging holes. Hang the player on the screws. Push the player
tightly against the wall.
Note
When you disconnect or connect the cords, take the player down from the wall.
Step 4: Connecting the Power Cord
Plug the player and TV power cords into an AC outlet.
Do not connect the power cord of your player to the “switched” power socket of an amplifier
(receiver). Otherwise, when you turn off the power of your amplifier (receiver), the settings for
the player may be lost.
3 1/4 in.
3/16 - 7/32 in.
32
Step 5: Quick Setup
Follow the steps below to make the minimum number of basic adjustments to use the player. To
skip an adjustment press >, to return to the previous adjustment, press ..
A Turn on the TV.
B Switch the input selector on the TV to the player.
C Press ?/1 on the player or the remote.
“Press [ENTER] to run QUICK SETUP.” appears at the bottom of the screen. If this message
does not appear, select “QUICK” under “SETUP” in the Control Menu (page 66) to run Quick
Setup.
D Press ENTER without inserting a disc.
The Setup Display for selecting the language used in the on-screen display appears.
E Press X/x to select a language.
The player uses the language selected here to display the menu and subtitles as well.
?/1
./>
X
/x
ENTER
?/1
LANGUAGE SETUP
OSD:
MENU:
AUDIO:
SUBTITLE:
FRENCH
ENGLISH
ENGLISH
SPANISH
PORTUGUESE
33
Hookups
F Press ENTER.
The Setup Display for selecting the aspect ratio of the TV to be connected appears.
G Press X/x to select the item.
H Press ENTER.
The Setup Display for selecting the type of jack used to connect your amplifier (receiver)
appears.
I Press X/x to select the item, then press ENTER.
• When “NO” or “AUDIO OUTPUT L/R” is selected, Quick Setup is finished and connections
are complete.
• When “DIGITAL OUTPUT” is selected, the Setup Display for “DOLBY DIGITAL”
appears. Proceed to Step 0.
TV Type You select Page
4:3 standard TV 4:3 LETTER BOX or 4:3
PAN SCAN
68
A wide-screen TV or 4:3 standard TV with the
wide-screen mode
16:9 68
SCREEN SETUP
TV TYPE:
SCREEN SAVER:
BACKGROUND:
4:3 PAN SCAN
4:3 LETTER BOX
16:9
4:3 LETTER BOX
YES
NO
Is this player connected to an amplifier
(receiver) ? Select the type of jack you
are using.
AUDIO OUTPUT L/R
DIGITAL OUTPUT
continued
34
J Press X/x to select the item.
Choose the item that matches the audio connection you selected in pages 24 to 28 (
through ).
K Press ENTER.
“DTS” is selected.
L Press X/x to select the item.
Choose the item that matches the audio connection you selected in pages 24 to 28 (
through ).
M Press ENTER.
Quick Setup is finished. All connections and setup operations are complete.
Note
You can directly start Quick Setup only when you run it for the first time.
To run Quick Setup a second time, select “QUICK” under “SETUP” in the Control Menu (page 66).
Audio Cord Connection Type You select Page
D-PCM 71
DOLBY DIGITAL (only if the
amplifier/receiver has a Dolby Digital
decoder)
71
Audio Cord Connection Type You select Page
OFF 71
ON (only if the amplifier/receiver has
a DTS decoder)
71
B
D
AUDIO SETUP
AUDIO ATT:
AUDIO DRC:
DIGITAL OUT:
DOLBY DIGITAL:
DTS:
OFF
STANDARD
ON
DOWNMIX:
DOLBY SURROUND
DOLBY DIGITAL
D-PCM
D-PCM
B-2 C-2
D
AUDIO SETUP
AUDIO ATT:
AUDIO DRC:
DIGITAL OUT:
DOLBY DIGITAL:
DTS:
OFF
STANDARD
ON
DOWNMIX:
DOLBY SURROUND
D-PCM
OFF
OFF
ON
B
D
B-2
C-2
D
35
Hookups
Enjoying the surround sound effects
To enjoy the surround sound effects of this player or your amplifier (receiver), the following
items must be set as described below for the audio connection you selected in pages 24 to 28
( through ). Each of these are the default settings and do not need to be adjusted when
you first connect the player. Refer to page 66 for using the Setup Display.
Audio Connection (pages 23 to 28)
No additional settings are needed.
• If the sound distorts even when the volume is turned down, set “AUDIO ATT” to “ON” (page
71).
Item You select Page
DOWNMIX DOLBY SURROUND 72
Item You select Page
DOWNMIX DOLBY SURROUND 72
DIGITAL OUT ON 72
B
D
A
B-1
C-1
B-2 C-2
D
36
Playing Discs
Playing Discs
Depending on the DVD or VIDEO CD, some
operations may be different or restricted.
Refer to the operating instructions supplied
with your disc.
1 Turn on your TV.
2 Switch the input selector on the TV
to the player.
When using an amplifier (receiver)
Turn on the amplifier (receiver) and
select the appropriate channel.
3 Press ?/1.
The ?/1 indicator (red) changes to green
and the front panel display lights up.
4 Insert a disc in the player.
5 Press N on the player or H on the
remote.
The player starts playback (continuous
play). Adjust the volume on the TV or the
amplifier (receiver).
After following Step 5
Depending on the disc, a menu may appear
on the TV screen. You can play the disc
interactively by following the instructions on
the menu. DVD (page 39), VIDEO CD (page
40).
To turn off the player
Press ?/1. The player enters standby mode
and the ?/1 indicator lights up in red. To turn
off the player completely, disconnect the AC
power cord. While playing a disc, do not
disconnect the AC power cord. Doing so may
cancel the menu settings. When you turn off
the player, first press x to stop playback and
then press ?/1.
Notes on playing DTS sound tracks on
a CD
• When playing DTS-encoded CDs,
excessive noise will be heard from the
analog stereo jacks. To avoid possible
damage to the audio system, the consumer
should take proper precautions when the
analog stereo jacks of the player are
connected to an amplification system. To
x
A
?/1 button/indicator
N
H
x
AUDIO
?/1
With the playback side
facing down
37
Playing Discs
enjoy DTS Digital Surround™ playback, an
external 5.1-channel decoder system must
be connected to the digital jack of the
player.
• Set the sound to “STEREO” using the
AUDIO button when you play DTS sound
tracks on a CD (page 51).
• Do not play DTS sound tracks without first
connecting the player to an audio
component having a built-in DTS decoder.
The player outputs the DTS signal via the
DIGITAL OUT (OPTICAL) jack even if
“DTS” in “AUDIO SETUP” is set to “OFF”
in the Setup Display (page 73), and may
affect your ears or cause your speakers to be
damaged.
Notes on playing DVDs with a DTS
sound track
• DTS audio signals are output only through
the DIGITAL OUT (OPTICAL) jack.
• If you connect the player to audio
equipment without a DTS decoder, do not
set “DTS” to “ON” in “AUDIO SETUP”
(page 73). A loud noise may come out from
the speakers, affecting your ears or causing
the speakers to be damaged.
• When you play a DVD with DTS sound
tracks, set “DTS” to “ON” in “AUDIO
SETUP” (page 73).
Notes
• When you insert an 8-cm (3-inch) disc, insert the
disc slowly at the center of the disc slot. If you
cannot eject the disc, consult your nearest Sony
dealer.
• No adaptor is required in order to play 8-cm (3-inch)
discs on this player. If an adapter is used, damage to
the player may result; therefore, never use an adapter
when playing 8-cm (3-inch) discs.
Additional operations
z The Replay function is useful when you want to
review a scene or dialog that you missed.
Note
You may not be able to use the Replay function with
some scenes.
To Operation
Stop
Press
x
Pause
Press
X
Resume play after
pause
Press
X or H or N
Go to the next chapter,
track, or scene in
continuous play mode
Press
>
Go back to the
preceding chapter,
track, or scene in
continuous play mode
Press
.
Stop play and remove
the disc
Press
A
Replay a previous
scene (DVD only)
Press REPLAY
./>
x
XN
A
./>
H
x
X
REPLAY
38
Resuming Playback from
the Point Where You
Stopped the Disc (Resume
Play)
When you stop the disc, the player
remembers the point where you pressed x
and “RESUME” appears on the front panel
display. As long as you do not remove the
disc, Resume Play works even if the player
enters standby mode by pressing ?/1.
1 While playing a disc, press x to stop
playback.
“RESUME” appears on the front panel
display and you can restart the disc from
the point where you stopped the disc.
If “RESUME” does not appear, Resume
Play is not available.
2 Press H.
The player starts playback from the point
where you stopped the disc in Step 1.
z To play from the beginning of the disc, press x
twice, then press
H.
Notes
• Depending on where you stopped the disc, the player
may not resume playback from exactly the same
point.
• The point where you stopped playing is cleared
when:
– you disconnect the AC power cord.
– you change the play mode.
– you change the settings on the Setup Display.
H
x
39
Playing Discs

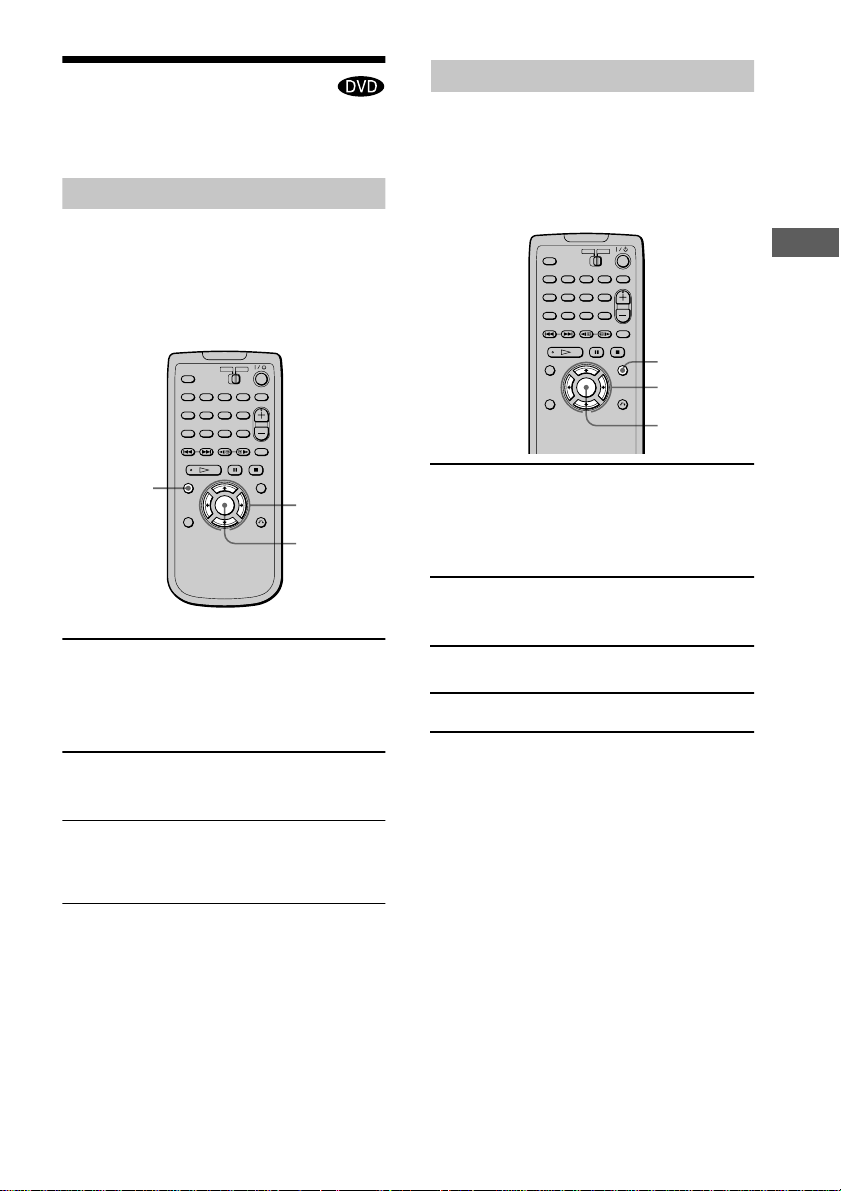

Using the DVD’s Menu
Some discs have a “top menu” or a “menu.”
Using the top menu
A DVD is divided into long sections of a
picture or a music feature called “titles.”
When you play a DVD which contains
several titles, you can select the title you want
using the top menu.
1 Press TOP MENU.
The top menu appears on the TV screen.
The contents of the menu vary from disc
to disc.
2 Press C/X/x/c to select the title you
want to play.
3 Press ENTER.
The player starts playing the selected
title.
Using the menu
Some DVDs allow you to select the disc
contents using a menu. When you play these
DVDs, you can select items such as the
language for the subtitles and the language
for the sound using the menu.
1 Press MENU.
The menu appears on the TV screen. The
contents of the menu vary from disc to
disc.
2 Press C/X/x/c to select the item you
want to change.
3 To change other items, repeat Step 2.
4 Press ENTER.
TOP MENU
C/X/x/c
ENTER
C/X/x/c
MENU
ENTER
40
Playing VIDEO CDs with
PBC Functions (PBC Playback)
With PBC (Playback Control) functions, you
can enjoy simple interactive operations,
search functions, and other operations.
PBC playback allows you to play VIDEO
CDs interactively by following the menu on
the TV screen.
1 Start playing a VIDEO CD with PBC
functions.
The menu for your selection appears.
2 Select the item number you want by
pressing X/x.
3 Press ENTER.
4 Follow the instructions in the menu
for interactive operations.
Refer to the instructions supplied with
the disc, as the operating procedure may
differ according to the VIDEO CD.
To go back to the menu
Press ORETURN.
z To play without using PBC, press ./>
while the player is stopped to select a track, then press
H or ENTER.
“Play without PBC.” appears on the TV screen and the
player starts continuous play. You cannot play still
pictures such as a menu.
To return to PBC playback, press
x twice then press
H.
Note
Depending on the VIDEO CD, “Press ENTER” in
Step 3 may appear as “Press SELECT” in the
instructions supplied with the disc. In this case, press
H.
./>
X/x
x
O
RETURN
ENTER
H
41
Playing Discs
Various Play Mode
Functions (Program Play, Shuffle
Play, Repeat Play, A-B Repeat Play)
You can set the following play modes:
• Program Play (page 41)
• Shuffle Play (page 43)
• Repeat Play (page 44)
• A-B Repeat Play (page 44)
Note
• The play mode is canceled when:
– you eject the disc.
– the player enters standby mode by pressing
?/1.
Creating your own program (Program
Play)
You can play the contents of the discs in the
order you want by arranging the order of the
titles, chapters, or tracks to create your own
program. You can program up to 99 titles,
chapters, and tracks.
1 Press DISPLAY while the player is in
stop mode.
The Control Menu is displayed.
2 Press X/x to select (PROGRAM)
and press ENTER.
The options for “PROGRAM” appear.
CLEAR
PROGRAM
H
ENTER X/x/c
DISPLAY
REPEAT
SHUFFLE
SET
OFF
ON
OFF
continued
42
3 Press X/x to select “SETt” and press
ENTER.
The display for programming appears.
4 Press c.
The cursor moves to the title or track (in
this case, “01”).
5 Select the title, chapter, or track you
want to program.
x When playing a DVD
For example, select chapter “03” of title
“02.”
Press X/x to select “02” under “T,” then
press ENTER.
Next, press X/x to select “03” under
“C,” then press ENTER.
x When playing a VIDEO CD or CD
For example, select track “02.”
Press X/x to select “02” under “T,” then
press ENTER.
6 To program other titles, chapters, or
tracks, repeat Steps 4 to 5.
The programmed titles, chapters, and
tracks are displayed in the selected order.
PROGRAM
1. TITLE
ALL CLEAR
2. TITLE
– –
3. TITLE
– –
4. TITLE
– –
5. TITLE
– –
6. TITLE
– –
7. TITLE
– –
T
– –
01
02
03
04
05
Tracks or titles recorded on a disc
“TRACK” is displayed when you
play a VIDEO CD or a CD
PROGRAM
1. TITLE
– –
ALL CLEAR
2. TITLE
– –
3. TITLE
– –
4. TITLE
– –
5. TITLE
– –
6. TITLE
– –
7. TITLE
– –
T
C
ALL
01
02
03
04
05
06
– –
01
02
03
04
05
Chapters recorded on a disc
PROGRAM
1. TITLE
– –
ALL CLEAR
2. TITLE
– –
3. TITLE
– –
4. TITLE
– –
5. TITLE
– –
6. TITLE
– –
7. TITLE
– –
C
ALL
02
03
04
05
06
T
– –
01
02
03
04
05
01
T
– –
01
02
03
04
05
PROGRAM
1. TITLE 0 2
–
0 3
ALL CLEAR
2. TITLE
– –
3. TITLE
– –
4. TITLE
– –
5. TITLE
– –
6. TITLE
– –
7. TITLE
– –
Selected title and chapter
PROGRAM
1. TRACK 0 2
ALL CLEAR
2. TRACK
– –
3. TRACK
– –
4. TRACK
– –
5. TRACK
– –
6. TRACK
– –
7. TRACK
– –
0:15:30
– –
01
02
03
04
05
T
Total time of the programmed
tracks
Selected track
43
Playing Discs
7 Press H to start Program Play.
Program Play begins.
When the program ends, you can restart
the same program again by pressing H.
To return to normal play
Press CLEAR, or select “OFF” in Step 3.
To play the same program again, select “ON”
in Step 3 and press H.
To turn off the Control Menu
Press DISPLAY repeatedly until the Control
Menu is turned off.
To change or cancel a program
1 Follow Steps 1 through 3 of “Creating
your own program (Program Play).”
2 Select the program number of the title,
chapter, or track you want to change or
cancel using X/x, and press c.
3 Follow Step 5 for new programming. To
cancel a program, select “--” under “T,”
then press ENTER.
To cancel all the titles, chapters, or
tracks in the programmed order
1 Follow Steps 1 through 3 of “Creating
your own program (Program Play).”
2 Press X and select “ALL CLEAR.”
3 Then press ENTER.
z
You can do Repeat Play or Shuffle Play of the
programmed titles, chapters, or tracks by pressing
REPEAT or SHUFFLE during Program Play.
z You can select “PROGRAM” directly by pressing
PROGRAM.
Note
The number of titles, chapters, or tracks displayed are
the same number of titles, chapters, or tracks recorded
on a disc.
Playing in random order (Shuffle
Play)
You can have the player “shuffle” titles,
chapters, or tracks and play them in a random
order. Subsequent “shuffling” may produce a
different playing order.
1 Press SHUFFLE during playback.
The Control Bar is displayed.
2 Press SHUFFLE repeatedly to select the
item you want to set.
x When playing a DVD (Program Play is
set to “OFF”)
• TITLE: Shuffles titles and plays
them in random order.
• CHAPTER: Shuffles chapters and
plays them in random order.
x When playing a VIDEO CD or CD
(Program Play is set to “OFF”)
• TRACK: Shuffles tracks and plays
them in random order.
x When playing a VIDEO CD, CD, or
DVD (Program Play is set to “ON”)
• ON: Shuffles titles or tracks selected
in Program Play and plays them in
random order.
CLEAR
SHUFFLE
H
TITLE
continued
44
To return to normal play
Press CLEAR or select “OFF” in Step 2.
z
You can set the player to “shuffle” in stop mode as
well. After pressing SHUFFLE to select the item you
want to set, press
H. Shuffle Play starts.
Note
Up to 200 chapters in a disc can be played in random
order when “CHAPTER” is selected.
Playing repeatedly (Repeat Play)
You can play all of the titles or tracks on a
disc or a single title, chapter, or track
repeatedly.
You can use a combination of Shuffle or
Program Play modes.
1 Press REPEAT during playback.
The Control Bar appears.
2 Press REPEAT repeatedly to select the
item you want to set.
x When playing a DVD (Program Play
and Shuffle Play are set to “OFF”)
• DISC: Repeats all of the titles.
• TITLE: Repeats the current title on a
disc.
• CHAPTER: Repeats the current
chapter.
x When playing a VIDEO CD or CD
(Program Play and Shuffle Play are set
to “OFF”)
• DISC: Repeats all of the tracks on a
disc.
• TRACK: Repeats the current track.
x When Program Play is set to “ON” or
Shuffle Play is activated
• ON: Repeats Program Play or Shuf-
fle Play.
To return to normal play
Press CLEAR or select “OFF” in Step 2.
z
You can set the player to “repeat” in stop mode as
well. After pressing REPEAT to select the item you
want to set, press
H. Repeat Play starts.
Repeating a specific portion (A-B
Repeat Play)
You can play a specific portion of a title,
chapter, or track repeatedly. (This function is
useful when you want to memorize lyrics,
etc.)
)
1 During playback, when you find the
starting point (point A) of the portion to
be played repeatedly, press A-B.
The Control Bar appears.
The starting point (point A) is set.
CLEAR
REPEAT
H
CHAPTER
CLEAR
A-B
A13
–
0:27:34 B
45
Playing Discs
2 When you reach the ending point (point
B), press A-B again.
The set points are displayed and the
player starts repeating this specific
portion.
“A-B” appears on the front panel display
during A-B Repeat Play.
To return to normal play
Press CLEAR.
Notes
• You can set A-B Repeat Play for only one specific
section.
• When you set A-B Repeat Play, the settings for
Shuffle Play, Repeat Play, and Program Play are
canceled.
46

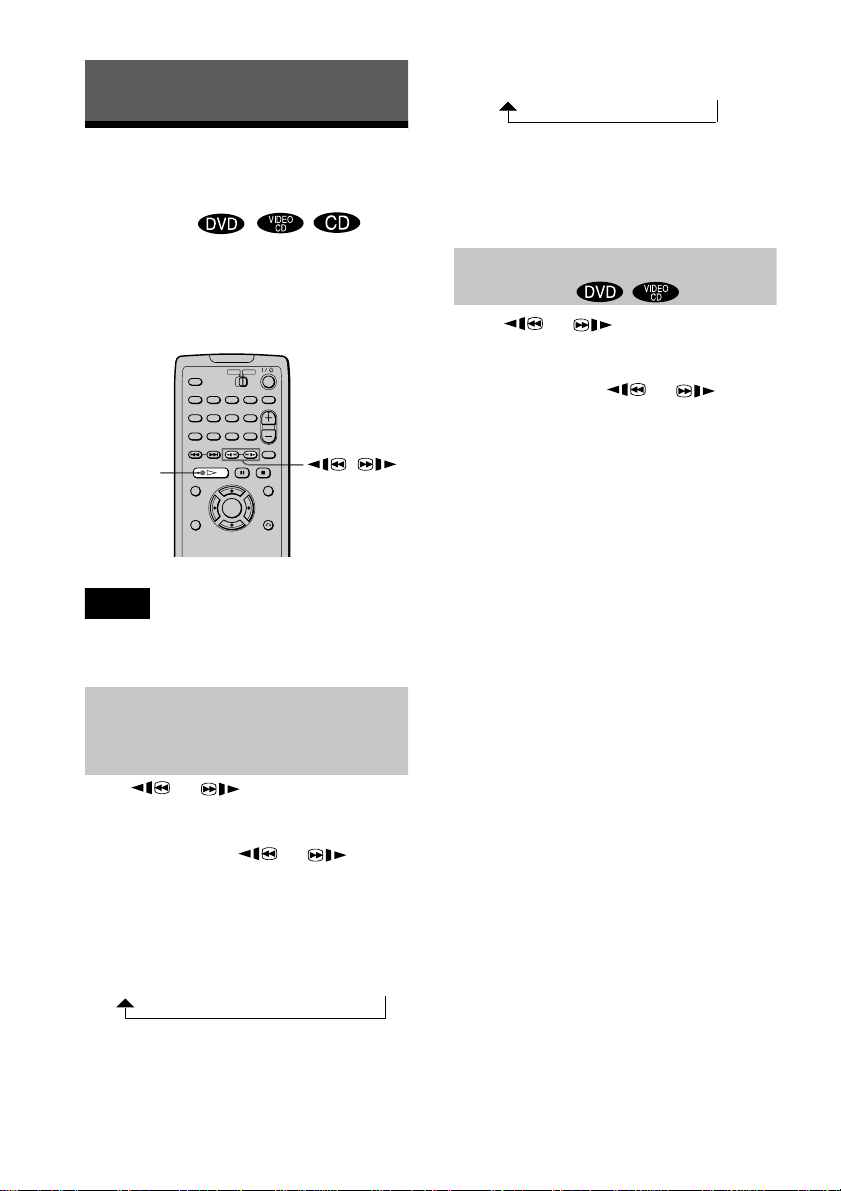

Searching for a Scene
Searching for a Particular
Point on a Disc (Scan, Slow-
motion Play)
You can locate a particular point on a disc
quickly by monitoring the picture or playing
back slowly.
Note
Depending on the DVD/VIDEO CD, you may not be
able to do some of the operations described.
Locating a point quickly by playing a
disc in fast forward or fast reverse
(Scan)
Press or while playing a disc.
When you find the point you want, press H
to return to normal speed.
Each time you press
or during
scan, the playback speed changes. Three
speeds are available. With each press the
indication changes as follows:
Playback direction
x2B (DVD/CD only) t 1M t 2M
Opposite direction
x2b (DVD only) t 1m t 2m
The “x2B”/”x2b” playback speed is about
twice the normal speed. The “2M”/”2m”
playback speed is faster than “1M”/
”1m.”
Watching frame by frame (Slow-
motion Play)
Press or when the player is in
pause mode. To return to the normal speed,
press H.
Each time you press
or during
Slow-motion Play, the playback speed
changes. Two speeds are available. With
each press the indication changes as follows:
Playback direction
2y y 1y
Opposite direction (DVD only)
2 y 1
The “2y”/”2 ” playback speed is slower
than “1y”/”1.”
H
/
y
y
y
y
47
Searching for a Scene
Searching for a Title/
Chapter/Track/Index/
Scene (Search mode)
You can search a DVD disc by title or
chapter, and you can search a VIDEO CD or
CD by track, index, or scene.
As title and tracks are assigned unique
numbers on the disc, you can select the
desired one by entering its number. Or, you
can search for a scene using the time code.
1 Press SEARCH MODE during
playback.
The Control Bar appears.
“--(
**
)” appears next to the icon on the
Control Bar (
**
refers to a number). The
number in parentheses indicates the total
number of titles, tracks, scenes, etc. of the
disc.
2 Press SEARCH MODE repeatedly to
select the search method.
x When playing a DVD
(TITLE), (CHAPTER),
(TIME/TEXT), or (NUMBER
INPUT)
Select “TIME/TEXT” to search for a
starting point by inputting the time code.
x When playing a VIDEO CD
(TRACK) or (INDEX)
x When playing a VIDEO CD with PBC
Playback
(SCENE)
x When playing a CD
(TRACK) or (INDEX)
3 Select the number of the title, track,
scene, time code, etc., you want by
pressing X/x to select the digit,
following by c to move the cursor.
For example, to find the scene at 2 hours,
10 minutes, and 20 seconds after the
beginning, select “TIME/TEXT” in Step
2 and enter “2:10:20.”
If you make a mistake
Cancel the number by pressing CLEAR,
then select another number.
4 Press ENTER.
The player starts playback from the
selected number.
z If you are playing a disc and it is necessary to enter
a number, select “NUMBER INPUT” in Step 2.
SEARCH
MODE
CLEAR
X/x/c
ENTER
-
(
10
)
48

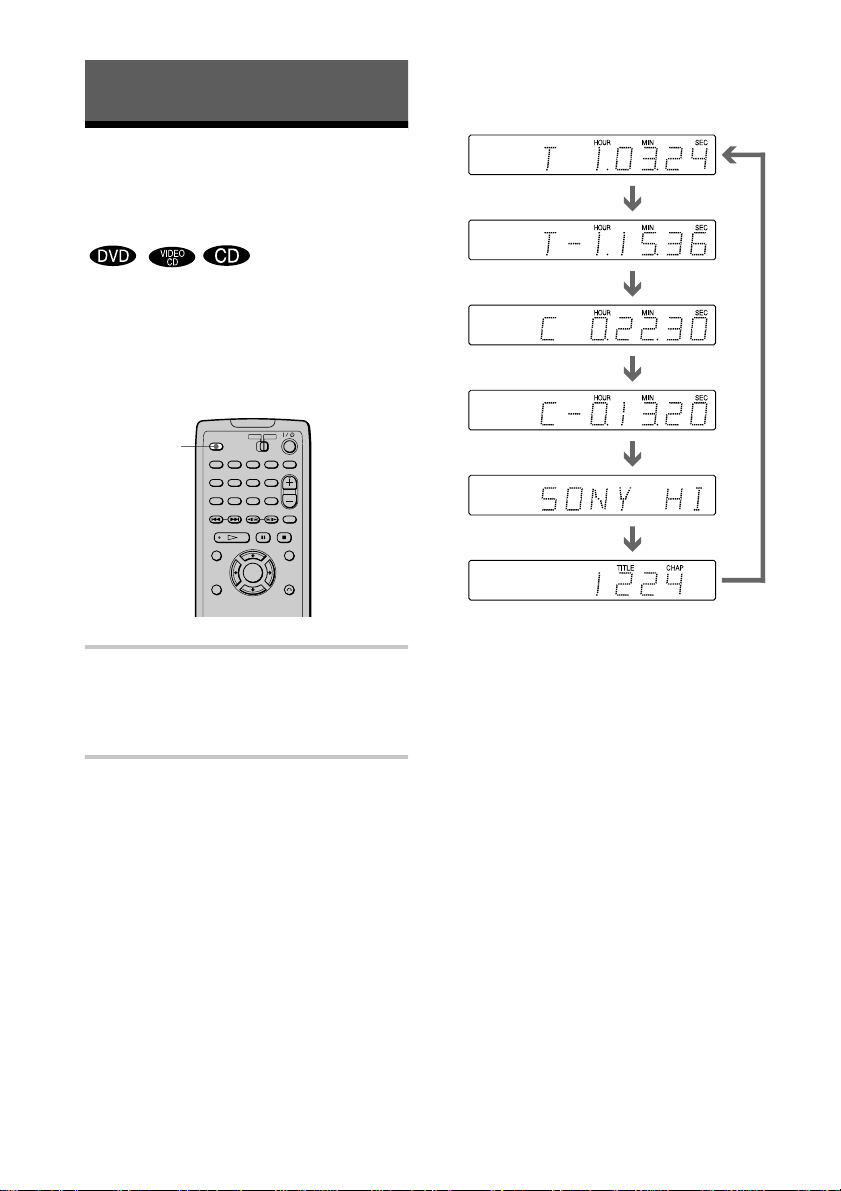

Viewing Information About the Disc
Viewing the Playing Time
and Remaining Time on
the Front Panel Display
You can check information about the disc,
such as the remaining time, current number
of title of a DVD, or track of a CD or VIDEO
CD, using the front panel display (page 10).
Press TIME/TEXT.
Each time you press TIME/TEXT while
playing the disc, the display changes as
shown in the following charts.
When playing a DVD
TIME/TEXT
Playing time of the current title
Remaining time of the
current title
Playing time of the
current chapter
Text
Remaining time of the
current chapter
Current title and
chapter number
Automatically
49
Viewing Information About the Disc
When playing a VIDEO CD (without
PBC functions) or CD
z
When playing VIDEO CDs with PBC functions,
the scene number or the playing time is displayed.
z The playing time and remaining time of the current
chapter, title, track, scene, or disc will also appear on
your TV screen. See the following section “Checking
the Playing Time and Remaining Time” for
instructions on how to read this information.
Note
Depending on the type of disc being played and the
playing mode, the above mentioned disc information
may not be displayed.
Checking the Playing
Time and Remaining Time
You can check the playing time and
remaining time of the current title, chapter, or
track, and the playing time or remaining time
of the disc. Also, you can check the DVD/CD
text recorded on the disc.
1 Press DISPLAY once during
playback.
The Status Bar is displayed.
Track playing time and the current track
number
Remaining time of the
current track
Playing time of the
disc
Remaining time of
the disc
Text
Current track and
index number
Automatically
TIME/
TEXT
DISPLAY
DVD T41
–
8
T 1:01:57
Time information
Disc type
Title or track number
continued
50
2 Press TIME/TEXT repeatedly to
change the time information.
The display and the kinds of time that you
can change depend on the disc you are
playing.
x When playing a DVD
• T
**
:
**
:
**
Playing time of the current title
• T–
**
:
**
:
**
Remaining time of the current title
• C
**
:
**
:
**
Playing time of the current chapter
• C–
**
:
**
:
**
Remaining time of the current chap-
ter
x When playing a VIDEO CD (with PBC
functions)
•
**
:
**
Playing time of the current scene
x When playing a VIDEO CD (without
PBC functions) or CD
• T
**
:
**
Playing time of the current track
• T–
**
:
**
Remaining time of the current track
• D
**
:
**
Playing time of the current disc
• D–
**
:
**
Remaining time of the current disc
To turn off the Status Bar
Press DISPLAY repeatedly until the Status
Bar is turned off.
Checking the DVD/CD text
Press TIME/TEXT repeatedly in Step 2 to
display the text recorded on the DVD/CD.
z
If the DVD/CD text does not fit on a single line,
you can see the entire text by watching it scroll across
the front panel display.
z You can select the time and text directly by
pressing TIME/TEXT.
Notes
• Only letters of the alphabet can be displayed.
• This player can only display the first level of DVD/
CD text, such as the disc’s name or title.
BRAHMS SYMPHONY
The
DVD/
CD text
51
Sound Adjustments
Sound Adjustments
Changing the Sound
If the DVD is recorded with multilingual
tracks, you can select the language you want
while playing the DVD.
If the DVD is recorded in multiple audio
formats (PCM, Dolby Digital, or DTS), you
can select the audio format you want while
playing the DVD.
With stereo CDs or VIDEO CDs, you can
select the sound from the right or left channel
and listen to the sound of the selected channel
through both the right and left speakers. (In
this case, the sound loses its stereo effect.)
For example, when playing a disc containing
a song with the vocals on the right channel
and the instruments on the left channel, you
can select the left channel and hear the
instruments from both speakers.
1 Press AUDIO during playback.
The Control Bar is displayed.
The number in parentheses indicates the
total number of available audio signals.
2 Press AUDIO repeatedly to select the
desired audio signal.
x When playing a DVD
Depending on the DVD, the choice of
language varies.
When 4 digits are displayed, they
represent the language code. Refer to the
language code list on page 81 to see
which language the code represents.
When the same language is displayed two
or more times, the DVD is recorded in
multiple audio formats.
x When playing a VIDEO CD or CD
The default setting is underlined.
• STEREO
: The standard stereo
sound
• 1/L: The sound of the left channel
(monaural)
• 2/R: The sound of the right channel
(monaural)
Notes
• For discs not in multiple audio format, you cannot
change the sound.
• While playing a DVD, the sound may change
automatically.
AUDIO
DISPLAY
1
(
4
):
ENGLISH
continued
52
Checking the audio signal format
If you press DISPLAY twice during
playback, the format of the current audio
signal (Dolby Digital, DTS, PCM, etc.)
appears as shown below.
Example
• Dolby Digital 5.1 ch
• Dolby Digital 3 ch
• PCM (Stereo)
About audio signals
Audio signals recorded in a disc contain the
sound elements (channels) shown below.
Each channel is output from a separate
speaker.
• Front (L)
• Front (R)
• Center
• Rear (L)
• Rear (R)
• Rear (Monaural): This signal can be either
the Dolby Surround Sound processed
signals or the Dolby Digital sound’s
monaural rear audio signals.
• LFE (Low Frequency Effect) signal
Note
If “DTS” is set to “OFF” in “AUDIO SETUP,” the
DTS track selection option will not appear on the
screen even if the disc contains DTS tracks (page 73).
3 / 2 .1
DOLBY DIGITAL
Rear (L/R)
Front (L/R) +
Center
LFE (Low
Frequency
Effect)
DOLBY DIGITAL 2 / 1
Front (L/R)
Rear
(monaural)
PCM 96kHz 24bit
Quantized bit rate
Sampling frequency
53
Sound Adjustments
TV Virtual Surround Sound
Settings (TVS)
When you connect a stereo TV or 2 front
speakers, TV Virtual Surround lets you enjoy
surround sound effects by using sound
imaging to create virtual rear speakers from
the sound of the front speakers (L: left, R:
right) without using actual rear speakers.
This function is designed to work with the
AUDIO OUT L/R jacks. Note that if you
select one of the TVS settings while playing
a DVD, the player does not output the Dolby
Digital signals from the DIGITAL OUT
(OPTICAL) jack (when you set “DOLBY
DIGITAL” in “AUDIO SETUP” to “D-
PCM”) (page 68).
1 Press SURROUND during playback.
The Control Bar is displayed.
2 Press SURROUND repeatedly to
select one of the TVS (TV Virtual
Surround) sounds.
Refer to the explanations given for each
item.
• TVS DYNAMIC
• TVS WIDE
• TVS NIGHT
• TVS STANDARD
To reset the TVS setting
In Step 2, select “OFF.”
TVS DYNAMIC
Uses sound imaging to create virtual rear
speakers from the sound of the front speakers
(L, R) without using actual rear speakers. The
virtual speakers are reproduced as shown in
the illustration below. The sound imaging
effect is distinct and clearly reproduces each
aural element of the audio track.
This mode is effective when the distance
between the front L and R speakers is short,
such as with built-in speakers on a stereo TV.
TVS WIDE
Uses sound imaging to create virtual rear
speakers from the sound of the front speakers
(L, R) without using actual rear speakers. The
virtual speakers are reproduced as shown in
the illustration below. This gives the sound
an expanded effect that fills the area
surrounding the listener.
This mode is effective when the distance
between the front L and R speakers is short,
such as with built-in speakers on a stereo TV.
SURROUND
TVS DYNAMIC
TV
TV
continued
54
TVS NIGHT
The large sounds, such as explosions, are
suppressed, but the quieter sounds are
unaffected. This feature is useful when you
don’t want to disturb other people but still
want to hear the dialog and enjoy the
surround sound effects of “TVS WIDE.”
TVS STANDARD
Uses sound imaging to create virtual rear
speakers from the sound of the front speakers
(L, R) without using actual rear speakers. The
virtual speakers are reproduced as shown in
the illustration below. Use this setting when
you want to use TVS with 2 separate speakers
and retain the sound quality.
z
If you select any TVS setting other than “OFF,”
the SURROUND indicator on the player lights up.
Notes
• When you select an effect, the sound cuts off for a
moment.
• When the playing signal does not contain a signal for
the rear speakers (page 52), the surround effects may
be difficult to hear.
• When you select one of the TVS modes, turn off the
surround setting of the connected TV or amplifier
(receiver).
• Make sure that your listening position is between
and at an equal distance from your speakers, and that
the speakers are located in similar surroundings.
Otherwise, the TVS effect may be hard to discern.
•“TVS NIGHT” only works with Dolby Digital discs.
However, not all discs will respond to the “TVS
NIGHT” function in the same way.
• If you use the DIGITAL OUT (OPTICAL) jack,
sound will come from your speakers but it will not
have the TVS effect.
L: Left front speaker
R: Right front speaker
: Virtual speakers
LR
55
Enjoying Movies
Enjoying Movies
Changing the Angles
If various angles (multi-angles) for a scene
are recorded on the DVD, “ANGLE” appears
on the front panel display. This means that
you can change the viewing angle.
For example, while playing a scene of a train
in motion, you can display the view from
either the front of the train, the left window of
the train, or from the right window without
having the train’s movement interrupted.
1 Press ANGLE during playback.
The Control Bar is displayed.
The number in parentheses indicates the
total number of available angles.
2 Press ANGLE repeatedly to select
the angle number.
The scene changes to the selected angle.
Note
Depending on the DVD, you may not be able to
change the angles even if multi-angles are recorded on
the DVD.
Displaying the Subtitles
If subtitles are recorded on the disc, you can
turn the subtitles on and off whenever you
want while playing. If multilingual subtitles
are recorded on the disc, you can change the
subtitle language while playing, and turn it on
or off whenever you want. For example, you
can select the language you want to practice
and turn the subtitles on for better
understanding.
1 Press SUBTITLE during playback.
The Control Bar is displayed.
The number in parentheses indicates the
total number of available subtitles.
2 Press SUBTITLE repeatedly to select
the language.
Depending on the DVD, the choice of
language varies.
When 4 digits are displayed, they
indicate the language code. Refer to the
language code list on page 81 to see
which language the code represents.
To turn off the subtitles
Select “OFF” in Step 2.
ANGLE
1
(
7
)
SUBTITLE
1
(
8
)
:ENGLISH
continued
56
Note
Depending on the DVD, you may not be able to
change the subtitles even if multilingual subtitles are
recorded on it.
Adjusting the Picture
Quality (BNR)
The Block Noise Reduction (BNR) function
adjusts the picture quality by reducing the
“block noise” or mosaic like patterns that
appear on your TV screen.
1 Press BNR during playback.
The Control Bar is displayed.
2 Press BNR repeatedly to select a
level.
As the value increases, the mosaic like
patterns on your TV screen will decrease.
• 1: reduces the “block noise.”
• 2: reduces the “block noise” more than
1.
• 3: reduces the “block noise” more than
2.
To reset the BNR setting
Select “OFF” in Step 2.
BNR
1
57
Enjoying Movies
Notes
• If the outlines of the images on your screen should
become blurred, set “BNR” to “OFF.”
• Depending on the disc or the scene being played, the
“BNR” effect may be hard to discern.
58
Using Various Additional
Functions
Locking Discs (Custom Parental
Control, Parental Control)
You can set two kinds of playback
restrictions for the desired disc.
• Custom Parental Control
You can set the playback restrictions so that
the player will not play inappropriate discs.
• Parental Control
Playback of some DVDs can be limited
according to a predetermined level such as
the age of the users.
The same password is used for both Parental
Control and Custom Parental Control.
Custom Parental Control
You can set the same Custom Parental
Control password for up to 50 discs. When
you set the fifty-first disc, the first disc is
canceled.
1 Insert the disc you want to lock.
If the disc is playing, press x to stop
playback.
2 Press DISPLAY while the player is in
stop mode.
The Control Menu is displayed.
3 Press X/x to select (CUSTOM
PARENTAL CONTROL), then press
ENTER.
The options for “CUSTOM PARENTAL
CONTROL” appear.
4 Press X/x to select “ON t,” then
press ENTER.
x If you have not entered a password
The display for registering a new
password appears.
Enter a 4-digit password by pressing X/
x to select the digit, followed by c to
move the cursor. Then press ENTER.
The display for confirming the password
appears.
x When you have already registered a
password
The display for entering the password
appears.
x
ENTER
ORETURN
DISPLAY
C/X/x/c
ON
PASSWORD
OFF
CUSTOM PARENTAL CONTROL
Enter a new 4-digit password, then
press
.
ENTER
CUSTOM PARENTAL CONTROL
Enter password, then press
.
ENTER
59
Using Various Additional Functions
5 Enter or re-enter your 4-digit password
by pressing X/x to select the digit,
followed by c to move the cursor. Then
press ENTER.
“Custom parental control is set.” appears
and then the screen returns to the Control
Menu display.
If you make a mistake entering your
password
Press C before you press ENTER and
input the correct number.
If you make a mistake
Press ORETURN, then start from Step 3
again.
To turn off the Control Menu
Press ORETURN, then press DISPLAY
repeatedly until the Control Menu is turned
off.
To turn off the Custom Parental
Control function
1 Follow Steps 1 through 3 of “Custom
Parental Control.”
2 Press X/x to select “OFF t,” then press
ENTER.
3 Enter your 4-digit password using X/x
to select the digit, followed by c to move
the cursor. Then press ENTER.
To change the password
1 Follow Steps 1 through 3 of “Custom
Parental Control.”
2 Press X/x to select “PASSWORD t,”
then press ENTER.
The display for entering the password
appears.
3 Enter your 4-digit password using X/x
to select the digit, followed by c to move
the cursor. Then press ENTER.
4 Enter a new 4-digit password using X/x
to select the digit, followed by c to move
the cursor. Then press ENTER.
5 To confirm your password, re-enter it
using X/x to select the digit, followed by
c to move the cursor. Then press
ENTER.
Playing the disc for which Custom
Parental Control is set
1 Insert the disc for which Custom
Parental Control is set.
The “CUSTOM PARENTAL
CONTROL” display appears.
2 Enter your 4-digit password using X/x
to select the digit, followed by c to move
the cursor. Then press ENTER.
The player is ready for playback.
z If you forget your password, enter the 6-digit
number “199703” when the “CUSTOM PARENTAL
CONTROL” display asks you for your password, then
press ENTER. (Press c after the 4th digit to allow the
entire 6-digit number to be entered.) The display will
ask you to enter a new 4-digit password.
CUSTOM PARENTAL CONTROL
Custom parental control is already
set. To play, enter your password
and press
.
ENTER
continued
60
Limiting playback by children
(Parental Control)
Playback of some DVDs can be limited
according to a predetermined level such as
the age of the users. The “PARENTAL
CONTROL” function allows you to set a
playback limitation level.
A scene that is limited is not played, or it is
replaced by a different scene.
1 Press DISPLAY while the player is in
stop mode.
The Control Menu is displayed.
2 Press X/x to select (SETUP), then
press ENTER.
3 Press X/x to select “CUSTOM,” then
press ENTER.
The Setup Display appears.
4 Press X/x to select “CUSTOM SETUP,”
then press ENTER.
“CUSTOM SETUP” is displayed.
5 Press X/x to select “PARENTAL
CONTROL t,” then press ENTER.
x If you have not entered a password
The display for registering a new
password appears.
Enter a 4-digit password using X/x to
select the digit, followed by c to move
the cursor. Then press ENTER.
The display for confirming the password
appears.
x When you have already registered a
password
The display for entering the password
appears.
ENTER
ORETURN
DISPLAY
H
X/x/c
CUSTOM SETUP
AUTO PLAY:
DIMMER:
PAUSE MODE:
OFF
BRIGHT
AUTO
OFF
TRACK SELECTION:
PARENTAL CONTROL
CUSTOM SETUP
PARENTAL CONTROL
Enter a new 4-digit password, then
press
.
ENTER
CUSTOM SETUP
PARENTAL CONTROL
Enter password, then press
.
ENTER
61
Using Various Additional Functions
6 Enter or re-enter your password using
X/x to select the digit, followed by c to
move the cursor. Then press ENTER.
The display for setting the playback
limitation level and changing the
password appears.
7 Press X/x to select “STANDARD,” then
press ENTER.
The selection items for “STANDARD”
are displayed.
8 Press X/x to select a geographic area
as the playback limitation level, then
press ENTER.
The area is selected.
When you select “OTHERS t,” select
and enter the standard code in the table on
page 62 using X/x.
9 Press ENTER.
The selection items for “LEVEL” are
displayed.
10Select the level you want using X/x,
then press ENTER.
Parental Control setting is complete.
The lower the value, the more strict the
limitation.
If you make a mistake
Press ORETURN to go back to the previous
screen.
To turn off the Control Menu
Press DISPLAY repeatedly until the Control
Menu is turned off.
To turn off the Parental Control
function
Set “LEVEL” to “OFF” in Step 10.
CUSTOM SETUP
PARENTAL CONTROL
LEVEL:
OFF
STANDARD:
CHANGE PASSWORD
USA
CUSTOM SETUP
PARENTAL CONTROL
LEVEL:
OFF
USA
STANDARD:
CHANGE PASSWORD
USA
OTHERS
CUSTOM SETUP
PARENTAL CONTROL
LEVEL: OFF
OFF
STANDARD:
CHANGE PASSWORD
8:
7:
6:
5:
NC17
R
CUSTOM SETUP
PARENTAL CONTROL
LEVEL:
STANDARD:
CHANGE PASSWORD
USA
4: PG13
continued
62
To change the password
1 Follow Steps 1 through 6 of “Limiting
playback by children (Parental Control).”
2 Select “CHANGE PASSWORD t”
using x, then press ENTER.
The display for entering the password
appears.
3 Follow Step 6 to enter a new password.
Playing the disc for which Parental
Control is set
1 Insert the disc and press H.
The Control Bar appears.
2 Enter your 4-digit password using X/x
to select the digit, followed by c to move
the cursor. Then press ENTER.
The player starts playback.
z If you forget your password, remove the disc and
repeat Step 1 to 5 of “Limiting playback by children.”
When you are asked to enter your password, enter
“199703,” then press ENTER. (Press c after the 4th
digit to allow the entire 6 digit number to be entered.)
The display will ask you to enter a new 4-digit
password. After you enter a new 4-digit password in
Step 6, insert the disc in the player and press
H.
When the Control Bar appears, enter your new
password.
Note
When you play DVDs which do not have the Parental
Control function, playback cannot be limited on this
player.
Area Code
PASSWORD
Standard Code
number
Argentina 2044
Australia 2047
Austria 2046
Belgium 2057
Brazil 2070
Canada 2079
Chile 2090
China 2092
Denmark 2115
Finland 2165
France 2174
Germany 2109
Hong Kong 2219
India 2248
Indonesia 2238
Italy 2254
Japan 2276
Standard Code
number
Korea 2304
Malaysia 2363
Mexico 2362
Netherlands 2376
New Zealand 2390
Norway 2379
Pakistan 2427
Philippines 2424
Portugal 2436
Russia 2489
Singapore 2501
Spain 2149
Sweden 2499
Switzerland 2086
Taiwan 2543
Thailand 2528
United
Kingdom
2184
63
Using Various Additional Functions
Operation Sound Effects
(Sound Feedback)
The player beeps when the following
operations are performed.
The default setting of the Sound Feedback
function is set to off.
To set Sound Feedback
1 Press ?/1 on the player or the remote.
The ?/1 indicator lights up in green.
When there is a disc in the player, press
A and remove the disc.
2 Press and hold X on the player for more
than two seconds.
You will hear one beep and the Sound
Feedback function is turned on.
To turn off the Sound Feedback
function
When there is no disc in the player, press and
hold X on the player for more than two
seconds. You will hear two beeps and the
Sound Feedback function is turned off.
Operation Operation sound
Power is turned on One beep
Power is turned off Two beeps
H is pressed
One beep
X is pressed
Two beeps
Playback is stopped One long beep
Operation is not possible Three beeps
?/1 button/indicator
X
?/1
A
64
Controlling Your TV, etc.
with the Supplied Remote
By adjusting the remote signal, you can
control your TV or Sony Active Speaker
System SA-F21 (not supplied) with the
supplied remote.
Notes
• Depending on the units being connected, you may
not be able to control your TV or Sony AV amplifier
(receiver) using some of the buttons below.
• If you enter a new TV code, the code previously
entered will be erased.
• When you replace the batteries of the remote, the TV
code may be reset to the default setting. Reset the
appropriate code.
Controlling TVs with the remote
1 Slide the TV/DVD switch to “TV.”
2 Hold down ?/1, and enter your TV’s
manufacturer’s code (see the table)
using C/X/x/c.
3 Release ?/1.
Manufacturer’s codes of controllable
TVs
Controlling the TV
When you set the TV/DVD switch to “TV,”
you can control your TV using the buttons
below.
TV/VIDEO
VOL
?/1TV/DVD
WIDE MODE
C/X/x/c
By pressing You can
?/1
Turn the TV on or off
VOL (volume) +/– Adjust the volume of the
TV
TV/VIDEO Switch the TV’s input
source between the TV and
other input sources
WIDE MODE Switch to or from the wide
mode of a Sony wide TV
Manufacturer Press C /X/x/c to input code
Sony (default) XX
Fisher Xx
General Electric XC
JVC xX
Magnavox Xc
Panasonic cc
Philips Xc
Quasar cx
RCA XC
Samsung xc
Sanyo Xx
Sears cC or XC or Xx
Sharp cx
Teknika Xc
Toshiba cC
Zenith cX
65
Using Various Additional Functions
Controlling Active Speaker System
SA-F21
When you set the TV/DVD switch to
“DVD,” you can adjust the volume using
VOL +/–.
z
There are some Sony audio products you can
adjust the volume with the supplied remote.
66
Settings and Adjustments
Using the Setup Display
By using the Setup Display, you can make
various adjustments to items such as picture
and sound. You can also set a language for
the subtitles and the Setup Display, among
other things. For details on each Setup
Display item see page 67 through 73. For an
overall list of Setup Display items, see page
82.
How to use the Setup Display
1 Press DISPLAY on the remote when the
player is in stop mode.
The Control Menu appears.
2 Press X/x to select (SETUP) and
press ENTER.
The options for “SETUP” appear.
3 Press X/x to select “CUSTOM” and
press ENTER.
The Setup Display appears.
4 Press X/x to select the setup item from
the displayed list: “LANGUAGE SETUP,”
“SCREEN SETUP,” “CUSTOM SETUP,”
or “AUDIO SETUP.” Then press ENTER.
The selected setup item appears.
Example: “SCREEN SETUP”
DISPLAY
ENTER
X/x
QUICK
QUICK
CUSTOM
RESET
LANGUAGE SETUP
MENU:
AUDIO:
SUBTITLE:
ORIGINAL
ENGLISH
OSD:
ENGLISH
ENGLISH
SCREEN SETUP
TV TYPE:
SCREEN SAVER:
BACKGROUND:
4:3 LETTER BOX
ON
JACKET PICTURE
Selected item
Setup items
67
Settings and Adjustments
5 Select an item using X/x, then press
ENTER.
The options for the selected item appear.
Example: “TV TYPE”
6 Select a setting using X/x, then press
ENTER.
The setting is selected and setup is
complete.
Example: “16:9”
To turn off the Setup Display
Press DISPLAY repeatedly until the Setup
Display is turned off.
z
If you select “QUICK” in Step 3, you will enter the
Quick Setup mode (page 32).
Follow from Step 5 of the Quick Setup explanation to
make basic adjustments.
z If you select “RESET” in Step 3, you can reset all
of the “SETUP” settings on pages 82 to 83 (except for
“PARENTAL CONTROL”) to the default settings.
After you select “RESET” and press ENTER, select
“YES” and press ENTER to reset the settings (it takes
a few seconds to complete), or select “NO” and press
ENTER to return to the Control Menu. Do not press
?/
1
when resetting the player.
Setting the Display or
Sound Track Language
(LANGUAGE SETUP)
“LANGUAGE SETUP” allows you to set
various languages for the on-screen display
or sound track.
Select “LANGUAGE SETUP” in the Setup
Display. For details on using the display, see
“Using the Setup Display” (page 66).
xOSD (On-Screen Display)
Switches the display language on the screen.
Selects the language from the displayed list.
xMENU (DVD only)
You can select the desired language for the
menu.
xAUDIO (DVD only)
Switches the language of the sound track.
Selects the language from the displayed list.
When you select “ORIGINAL,” the language
given priority in the disc is selected.
xSUBTITLE (DVD only)
Switches the language of the subtitles
recorded on the DVD.
Select the language from the displayed list.
When you select “AUDIO FOLLOW,” the
language for the subtitles changes according
to the language you selected for the sound
track.
SCREEN SETUP
TV TYPE:
SCREEN SAVER:
BACKGROUND:
4:3 LETTER BOX
4:3 LETTER BOX
4:3 PAN SCAN
16:9
Options
SCREEN SETUP
TV TYPE:
SCREEN SAVER:
BACKGROUND:
16:9
ON
JACKET PICTURE
Selected setting
LANGUAGE SETUP
OSD:
MENU:
AUDIO:
SUBTITLE:
ENGLISH
ENGLISH
ORIGINAL
ENGLISH
continued
68
z If you select “OTHERS t” in “MENU,”
“SUBTITLE,” and “AUDIO,” select and enter the
language code from the list using X/x to select the
digit, followed by c to move the cursor (page 81).
After you have made a selection, the language code (4
digits) is displayed the next time you select
“OTHERS t.”
Note
When you select a language that is not recorded on the
DVD, one of the recorded languages will be
automatically selected (except for the “OSD”).
Settings for the Display
(SCREEN SETUP)
Choose settings according to the TV to be
connected.
Select “SCREEN SETUP” in the Setup
Display. For details on using the display, see
“Using the Setup Display” (page 66).
The default settings are underlined.
xTV TYPE
Selects the aspect ratio of the connected TV
(4:3 standard or wide).
4:3
LETTER
BOX
Select this when you connect a
4:3 screen TV. Displays a wide
picture with bands on the upper
and lower portions of the screen.
4:3 PAN
SCAN
Select this when you connect a
4:3 screen TV. Automatically
displays the wide picture on the
entire screen and cuts off the
portions that do not fit.
16:9 Select this when you connect a
wide-screen TV or a TV with a
wide mode function.
SCREEN SETUP
TV TYPE:
SCREEN SAVER:
BACKGROUND:
4:3 LETTER BOX
ON
JACKET PICTURE
69
Settings and Adjustments
Note
Depending on the DVD, “4:3 LETTER BOX” may be
selected automatically instead of “4:3 PAN SCAN” or
vice versa.
xSCREEN SAVER
Turns on and off the screen saver so that the
screen saver image appears when you leave
the player in pause or stop mode for 15
minutes, or when you play back a CD for
more than 15 minutes. The screen saver will
help prevent your display device from
becoming damaged (ghosting). Press H to
turn off the screen saver.
xBACKGROUND
Selects the background color or picture on the
TV screen in stop mode or while playing a
CD.
ON Turns on the screen saver.
OFF Turns off the screen saver.
4:3 LETTER BOX
4:3 PAN SCAN
16:9
JACKET
The jacket picture (still picture)
appears in the background, but
only when the jacket picture is
already recorded on the disc
(CD-EXTRA, etc.). If the disc
does not contain a jacket picture,
the “GRAPHICS” picture
appears.
GRAPHICS A preset picture stored in the
player appears in the background.
BLUE The background color is blue.
BLACK The background color is black.
70
Custom Settings (CUSTOM
SETUP)
Allows setting up Parental Control and other
settings.
Select “CUSTOM SETUP” in the Setup
Display. For details on using the display, see
“Using the Setup Display” (page 66).
The default settings are underlined.
xAUTO PLAY
Selects the Auto Play setting when you turn
on the player.
xDIMMER
Adjusts the lighting of the front panel
display.
xPAUSE MODE (DVD only)
Selects the picture in pause mode.
xPARENTAL CONTROL t
(DVD only)
Sets a password and playback limitation level
for DVDs with playback limitation for
children. For details, see “Limiting playback
by children (Parental Control)” (page 60).
xTRACK SELECTION (DVD only)
Gives the sound track which contains the
highest number of channels priority when
you play a DVD on which multiple audio
formats (PCM, DTS or Dolby Digital format)
are recorded.
OFF Does not use “TIMER,”
“DEMO1,” or “DEMO2” to start
playback.
TIMER Starts playing when the player is
turned on. The player can be
played at any time when
connected to a timer (not
supplied). Set the timer when the
player is in standby mode (the
?/
1
indicator lights up in red).
DEMO1 Starts playing the first
demonstration automatically.
DEMO2 Starts playing the second
demonstration automatically.
CUSTOM SETUP
DIMMER:
PAUSE MODE:
BRIGHT
AUTO
OFF
TRACK SELECTION:
PARENTAL CONTROL
OFF
AUTO PLAY:
BRIGHT Makes the front panel display
bright.
DARK Makes the front panel display
dark.
OFF Turns off the lighting of the front
panel display.
AUTO Turn on the front panel display
for a few seconds when a button
on the player or remote is
pressed.
AUTO
The picture, including subjects
that move dynamically, is output
with no jitter. Normally, select
this position.
FRAME The picture, including subjects
that do not move dynamically, is
output in high resolution.
OFF
No priority given.
AUTO Priority given.
71
Settings and Adjustments
Notes
• When you set the item to “AUTO,” the language
may change. The “TRACK SELECTION” setting
has higher priority than the “AUDIO” settings in
“LANGUAGE SETUP” (page 67).
• If you set “DTS” to “OFF” (page 73), the DTS sound
track is not played even if you set “TRACK
SELECTION” to “AUTO.”
• If PCM, DTS and Dolby Digital sound tracks have
the same number of channels, the player selects
PCM, DTS and Dolby Digital sound tracks in this
order.
• Depending on the DVD, the audio channel with
priority may be predetermined. In this case, you
cannot give priority to the DTS or Dolby Digital
format by selecting “AUTO.”
Settings for the Sound
(AUDIO SETUP)
“AUDIO SETUP” allows you to set the
sound according to the playback and
connection conditions.
Select “AUDIO SETUP” in the Setup
Display. For details on using the display, see
“Using the Setup Display” (page 66).
The default settings are underlined.
xAUDIO ATT (attenuation)
If the playback sound is distorted, set this
item to “ON.” The player reduces the audio
output level.
This function affects the output of the
following jacks:
–AUDIO OUT L/R jacks
OFF Turns off the audio attenuation.
Normally, select this position.
ON Reduces the audio output level so
that no sound distortion occurs.
Select this when the playback
sound from the speakers is
distorted.
AUDIO SETUP
AUDIO ATT:
AUDIO DRC:
DIGITAL OUT:
OFF
STANDARD
ON
DOWNMIX:
DOLBY SURROUND
DOLBY DIGITAL:
DTS:
D-PCM
OFF
continued
72
xAUDIO DRC (Dynamic Range
Control) (DVD only)
Makes the sound clear when the volume is
turned down when playing a DVD that has
the “AUDIO DRC” function. This affects the
output from the following jacks:
–AUDIO OUT L/R jacks
–DIGITAL OUT (OPTICAL) jack only
when “DOLBY DIGITAL” is set to “D-
PCM” in “DIGITAL OUT” (page 73).
xDOWNMIX (DVD only)
Switches the mixing down methods when
you play a DVD on which rear signal
components such as “Rear (L),” “Rear (R),”
or “Rear (Monaural)” are recorded in Dolby
Digital format. For details on the rear signal
components, see “Changing the Sound”
(page 51). This function affects the output of
the following jacks:
–AUDIO OUT L/R jacks
–DIGITAL OUT (OPTICAL) jack when
“DOLBY DIGITAL” is set to “D-PCM” in
“DIGITAL OUT” (page 73).
xDIGITAL OUT
Selects if audio signals are output via the
DIGITAL OUT (OPTICAL) jack.
Setting the digital output signal
Switches the method of outputting audio
signals when you connect the following
component using an optical digital cord via
the DIGITAL OUT (OPTICAL) jack.
–Amplifier (receiver) with digital input jack
–Amplifier (receiver) with a built-in DTS or
DOLBY DIGITAL decoder
–MD or DAT deck
For connection details, see page 24.
Select “DOLBY DIGITAL” and “DTS” after
setting “DIGITAL OUT” to “ON.”
STANDARD Normally, select this position.
TV MODE Makes the low sounds clear even
if you turn the volume down. It
is especially recommended
when you listen to the sound
using the speakers of the TV.
WIDE
RANGE
Gives you the feeling of being at
a live performance. When you
use high quality speakers, it is
even more effective.
DOLBY
SURROUND
Select this when the player is
connected to an audio
component that conforms to
Dolby Surround (Pro Logic).
The output signals which
reproduce the Dolby Surround
effect are downmixed to 2
channels.
NORMAL Select this when the player is
connected to an audio
component that does not
conform to Dolby Surround (Pro
Logic). All of the output signals
are downmixed to 2 channels
without the Dolby Surround
(Pro Logic) effect.
ON
Normally, select this position. When
you select “ON,” set “DOLBY
DIGITAL” and “DTS.” For details on
setting these items, see “Setting the
digital output signal.”
OFF The player does not output the audio
signals via the DIGITAL OUT
(OPTICAL) jack. The influence of the
digital circuit upon the analog circuit is
minimal.
AUDIO SETUP
AUDIO ATT:
AUDIO DRC:
DIGITAL OUT:
DOLBY DIGITAL:
DTS:
OFF
STANDARD
ON
DOWNMIX:
DOLBY SURROUND
D-PCM
OFF
73
Settings and Adjustments
xDOLBY DIGITAL
Selects the Dolby Digital signals output via
the DIGITAL OUT (OPTICAL) jack.
xDTS
Selects if DTS signals are output via the
DIGITAL OUT (OPTICAL) jack.
Note
If you select one of the TVS settings while playing a
DVD, the player does not output the Dolby Digital
signals from the DIGITAL OUT (OPTICAL) jack
(when you set “DOLBY DIGITAL” in “AUDIO
SETUP” to “D-PCM”).
D-PCM Select this when the player is
connected to an audio component
lacking a built-in Dolby Digital
decoder. You can select whether
the signals conform to Dolby
Surround (Pro Logic) or not by
making adjustments to the
“DOWNMIX” item in “AUDIO
SETUP” (page 72).
DOLBY
DIGITAL
Select this when the player is
connected to an audio component
with a built-in Dolby Digital
decoder. If the player is connected
to an audio component lacking a
built-in Dolby Digital decoder, do
not set this. Otherwise, when you
play the Dolby Digital sound track,
a loud noise (or no sound) will
come out from the speakers,
affecting your ears or causing the
speakers to be damaged.
OFF
Select this when the player is
connected to an audio component
lacking a built-in DTS decoder. Note,
however, that the DTS signals
contained in a CD are output even if
“OFF” is selected.
ON Select this when the player is
connected to an audio component
having a built-in DTS decoder.
If the player is connected to an audio
component lacking a built-in DTS
decoder, do not set this. Otherwise,
when you play the DTS sound track, a
loud noise (or no sound) will come
out from the speakers, affecting your
ears or causing the speakers to be
damaged.
74
Additional Information
Troubleshooting
If you experience any of the following
difficulties while using the player, use this
troubleshooting guide to help remedy the
problem before requesting repairs. Should
any problem persist, consult your nearest
Sony dealer.
Power
The power is not turned on.
, Check that the AC power adaptor and AC
power cord are connected securely.
There is no picture.
, The connecting cords are not connected
securely.
, The connecting cords are damaged.
, The player is not connected to the correct TV
input jack (page 20).
, The video input on the TV is not set so that you
can view pictures on the player.
Picture noise appears.
, The disc is dirty or flawed.
, If the picture output from your player goes
through your VCR to get to your TV, the copy-
protection signal applied to some DVD
programs could affect picture quality. If you
still experience problems even when you
connect your player directly to your TV,
please try connecting your player to your TV’s
S video input (page 20).
Even though you set the aspect ratio
in “TV TYPE” of “SCREEN SETUP,”
the picture does not fill the screen.
, The aspect ratio of the disc is fixed on your
DVD.
Sound
There is no sound.
, The connecting cord is not connected securely.
, The connecting cord is damaged.
, The player is connected to the wrong input
jack on the amplifier (receiver) (page 24, 26,
28).
, The amplifier (receiver) input is not changed
so that you can listen to the player.
, The player is in pause mode or in Slow-motion
Play mode.
, The player is in fast forward or fast reverse
mode.
, If the audio signal does not come through the
DIGITAL OUT (OPTICAL) jack, check the
audio settings (page 71).
Sound is noisy.
, The disc is dirty or flawed.
, When playing a CD with DTS sound tracks,
noise will come from the AUDIO OUT L/R
jacks (page 36).
Sound distortion occurs.
, Set “AUDIO ATT” in “AUDIO SETUP” to
“ON” (page 71).
Operation
The remote does not function.
, There are obstacles between the remote and
the player.
, The distance between the remote and the
player is too far.
, The remote is not pointed at the remote sensor
on the player.
, The remote sensor of the player is exposed to
strong light. Select another remote sensor
(page 15).
, The batteries in the remote are weak.
75
Additional Information
The disc does not play.
, There is no disc inside.
, The disc is turned over. Insert the disc with the
playback side facing down in the disc slot.
, The disc is skewed.
, The player cannot play CD-ROMs, etc. (page
7).
, The region code on the DVD does not match
the player.
, Moisture has condensed inside the player.
Remove the disc and leave the player turned
on for about half an hour. Turn on the power
again before playing the disc (page 3).
The disc does not start playing from
the beginning.
, Program Play, Shuffle Play, Repeat Play or A-
B Repeat Play has been selected (page 41).
Press CLEAR to cancel these functions before
playing a disc.
, Resume Play has been selected.
During stop, press
x on the player or the
remote and then start playback (page 38).
, The disc automatically displays the menu.
The player starts playing the disc
automatically.
, The DVD features an auto playback function.
, “AUTO PLAY” in “CUSTOM SETUP” is set
to “TIMER” (page 70).
Playback stops automatically.
, Some discs may contain an auto pause signal.
While playing such a disc, the player stops
playback at the auto pause signal.
You cannot perform some functions
such as stop, Scan, Slow-motion Play,
Repeat Play, Shuffle Play, or Program
Play.
, Depending on the disc, you may not be able to
do some of the operations above. See the
operating manual that comes with the disc.
Messages do not appear on the
screen in the language you want.
, In the Setup Display, select the desired
language for the on-screen display in “OSD”
under “LANGUAGE SETUP” (page 67).
The language for the sound track
cannot be changed.
, Multilingual tracks are not recorded on the
DVD being played.
, The DVD prohibits the changing of the
language for the sound track.
The subtitle language cannot be
changed.
, Multilingual subtitles are not recorded on the
DVD being played.
, The DVD prohibits the changing of the
subtitles.
The subtitle cannot be turned off.
, The DVD prohibits the subtitles being turned
off.
The angles cannot be changed.
, Multi-angles are not recorded on the DVD
being played. The angle can be changed when
the “ANGLE” indicator lights up on the front
panel display (page 10).
, The DVD prohibits changing of the angles.
continued
76
The player does not operate properly.
, When static electricity, etc., causes the player
to operate abnormally, disconnect the AC
power cord once, then connect it again.
Nothing is displayed on the front
panel display.
, “DIMMER” in “CUSTOM SETUP” is set to
“OFF.” Set “DIMMER” to “BRIGHT” or
“DARK” (page 70). If you set to “AUTO,” the
display turns on only when you operate the
player.
5 numbers or letters are displayed on
the screen and on the front panel
display.
, The self-diagnosis function was activated.
(See the table on page 76.)
The disc cannot be removed and
“LOCKED” appears on the front panel
display.
, Contact your Sony dealer or local authorized
Sony service facility.
Self-diagnosis Function
(When letters/numbers appear in the
display)
When the self-diagnosis function is activated
to prevent the player from malfunctioning, a
five-character service number (e.g., C 13 00)
with a combination of a letter and digits
appears on the screen and the front panel
display. In this case, check the following
table.
First three
characters
of the
service
number
Cause and/or corrective
action
C 13 The disc is dirty.
, Clean the disc with a soft cloth
(page 8).
C 31 The disc is not inserted correctly.
, Re-insert the disc correctly.
E XX
(xx is a
number)
To prevent a malfunction, the
player has performed the self-
diagnosis function.
, Contact your nearest Sony
dealer or local authorized
Sony service facility and give
the 5-character service
number.
Example: E 61 10
C:13:00
77
Additional Information
Glossary
Chapter (page 10)
Sections of a picture or a music feature that
are smaller than titles. A title is composed of
several chapters. Depending on the disc, no
chapters may be recorded.
Dolby Digital (page 22, 73)
Digital audio compression technology
developed by Dolby Laboratories. This
technology conforms to 5.1-channel
surround sound. The rear channel is stereo
and there is a discrete subwoofer channel in
this format. Dolby Digital provides the same
5.1 discrete channels of high quality digital
audio found in Dolby Digital cinema audio
systems. Good channel separation is realized
because all of the channel data are recorded
discretely and little deterioration is realized
because all channel data processing is digital.
Dolby Surround (Pro Logic) (page 71)
Audio signal processing technology that
Dolby Laboratories developed for surround
sound. When the input signal contains a
surround component, the Pro Logic process
outputs the front, center, and rear signals. The
rear channel is monaural.
DTS (page 22, 73)
Digital audio compression technology that
Digital Theater Systems, Inc. developed.
This technology conforms to 5.1-channel
surround sound. The rear channel is stereo
and there is a discrete subwoofer channel in
this format. DTS provides the same 5.1
discrete channels of high quality digital
audio.
Good channel separation is realized because
all of the channel data is recorded discretely
and little deterioration is realized because all
channel data processing is digital.
DVD (page 7)
A disc that contains up to 8 hours of moving
pictures even though its diameter is the same
as a CD.
The data capacity of a single-layer and
single-sided DVD is 4.7 GB (Giga Byte),
which is 7 times that of a CD. The data
capacity of a double-layer and single-sided
DVD is 8.5 GB, a single-layer and double-
sided DVD is 9.4 GB, and double-layer and
double-sided DVD is 17 GB.
The picture data uses the MPEG 2 format,
one of the worldwide standards of digital
compression technology. The picture data is
compressed to about 1/40 (average) of its
original size. The DVD also uses a variable
rate coding technology that changes the data
to be allocated according to the status of the
picture. Audio information is recorded in
Dolby Digital as well as in PCM, allowing
you to enjoy a more real audio presence.
Furthermore, various advanced functions
such as the multi-angle, multilingual, and
Parental Control functions are provided with
the DVD.
Index (CD)/Video Index (VIDEO CD) (page
47)
A number that divides a track into sections to
easily locate the point you want on a VIDEO
CD or CD. Depending on the disc, no index
may be recorded.
Parental Control (page 58)
A function of the DVD used to limit playback
of the disc according to the age of the user
and the limitation level in each country. The
limitation varies from disc to disc; when it is
activated, or playback is completely
prohibited, violent scenes are skipped or
replaced with other scenes, etc.
continued
78
Region Code (page 7)
This system is used to protect copyrights. A
region number is allocated on each DVD
player or DVD disc according to the sales
region. Each region code is shown on the
player as well as on the disc packaging. The
player can play the discs that match its region
code. The player can also play discs with the
mark. Even when the region code is not
shown on the DVD, the region limit may still
be activated.
Scene (page 10)
On a VIDEO CD with PBC (playback
control) functions, the menu screens, moving
pictures and still pictures are divided into
sections called “scenes.”
Title (page 10)
The longest section of a picture or music
feature on a DVD, movie, etc., in video
software, or the entire album in audio
software.
Track (page 10)
Sections of a picture or a music feature on a
VIDEO CD or CD (the length of a song).
TV Virtual Surround (TVS) (page 53)
Technology from Sony developed to produce
surround sound for home use using just a
stereo TV. Designed to work with the sound
characteristics of your TV, this technology
brings the excitement of surround sound to
your home using nothing more than your
stereo TV’s internal speakers. Furthermore,
various TVS modes are available. For
example, “TVS WIDE” uses just two
speakers to create a virtual sound
environment that makes you feel like you are
surrounded by multiple speakers.
ALL
79
Additional Information
Specifications
System
Laser Semiconductor laser
Signal format system NTSC
Audio characteristics
Frequency response DVD (PCM 96 kHz): 2 Hz to 44 kHz (±1.0 dB)
DVD (PCM 48 kHz): 2 Hz to 22 kHz (±0.5 dB)
CD: 2 Hz to 20 kHz (±0.5 dB)
Signal-to-noise ratio (S/N ratio) 115 dB (AUDIO OUT L/R jacks only)
Harmonic distortion 0.003%
Dynamic range DVD: 103 dB
CD: 99 dB
Wow and flutter Less than detected value (±0.001% W PEAK)
The signals from AUDIO OUT L/R jacks are measured. When you play PCM sound tracks with a 96 kHz sampling
frequency, the output signal from the DIGITAL OUT (OPTICAL) jack is converted to 48 kHz sampling frequency.
Outputs
General
Power requirements DC 10.5 V
See page 3 for further information.
Power consumption 12 W
Dimensions (approx.) 252
× 60 × 183 mm (10 × 2 3/8 × 7 1/4 in.) (width/height/depth)
including projecting parts
Mass (approx.) 1.5 kg (3 lb 5 oz)
Operating temperature 5°C to 35°C (41°F to 95°F)
Operating humidity 25% to 80%
Jack name Jack type Maximum output
level
Load impedance
DIGITAL OUT
(OPTICAL)
Optical output jack -18 dBm Wave length 660 nm
AUDIO OUT L/R Phono jack 2 Vrms (50 kilohms) Over 10 kilohms
VIDEO OUT Phono jack 1.0 Vp-p 75 ohms, sync negative
S-VIDEO OUT 4-pin mini DIN Luminance signal:
1.0 Vp-p
Color signal:
0.286 Vp-p
75 ohms, sync negative
75 ohms terminated
continued
80
AC power adaptor
Model name AC-F21
Power requirements 100 to 240 V AC, 50/60 Hz
Output voltage DC 10.5 V, 1.3 A in operating mode
Operating temperature 5°C to 35°C (41°F to 95°F)
Storage temperature –20°C to 60°C (–4°F to 140°F)
Supplied accessories
See page 15.
Optional accessory
Active Speaker System SA-F21
Specifications and design are subject to change without notice.
ENERGY STAR is a U.S. registered mark. As an ENERGY STAR Partner, Sony Corporation has determined
that this product meets the
ENERGY STAR guidelines for energy efficiency.
81
Additional Information
Language Code List
For details, see page 51, 55, 67.
The language spellings conform to the ISO 639: 1988 (E/F) standard.
Code Language Code Language Code Language Code Language
1027 Afar
1028 Abkhazian
1032 Afrikaans
1039 Amharic
1044 Arabic
1045 Assamese
1051 Aymara
1052 Azerbaijani
1053 Bashkir
1057 Byelorussian
1059 Bulgarian
1060 Bihari
1061 Bislama
1066 Bengali;
Bangla
1067 Tibetan
1070 Breton
1079 Catalan
1093 Corsican
1097 Czech
1103 Welsh
1105 Danish
1109 German
1130 Bhutani
1142 Greek
1144 English
1145 Esperanto
1149 Spanish
1150 Estonian
1151 Basque
1157 Persian
1165 Finnish
1166 Fiji
1171 Faroese
1174 French
1181 Frisian
1183 Irish
1186 Scots
Gaelic
1194 Galician
1196 Guarani
1203 Gujarati
1209 Hausa
1217 Hindi
1226 Croatian
1229 Hungarian
1233 Armenian
1235 Interlingua
1239 Interlingue
1245 Inupiak
1248 Indonesian
1253 Icelandic
1254 Italian
1257 Hebrew
1261 Japanese
1269 Yiddish
1283 Javanese
1287 Georgian
1297 Kazakh
1298 Greenlandic
1299 Cambodian
1300 Kannada
1301 Korean
1305 Kashmiri
1307 Kurdish
1311 Kirghiz
1313 Latin
1326 Lingala
1327 Laothian
1332 Lithuanian
1334 Latvian;
Lettish
1345 Malagasy
1347 Maori
1349 Macedonian
1350 Malayalam
1352 Mongolian
1353 Moldavian
1356 Marathi
1357 Malay
1358 Maltese
1363 Burmese
1365 Nauru
1369 Nepali
1376 Dutch
1379 Norwegian
1393 Occitan
1403 (Afan)
Oromo
1408 Oriya
1417 Punjabi
1428 Polish
1435 Pashto;
Pushto
1436 Portuguese
1463 Quechua
1481 Rhaeto-
Romance
1482 Kirundi
1483 Romanian
1489 Russian
1491 Kinyarwanda
1495 Sanskrit
1498 Sindhi
1501 Sangho
1502 Serbo-
Croatian
1503 Singhalese
1505 Slovak
1506 Slovenian
1507 Samoan
1508 Shona
1509 Somali
1511 Albanian
1512 Serbian
1513 Siswati
1514 Sesotho
1515 Sundanese
1516 Swedish
1517 Swahili
1521 Tamil
1525 Telugu
1527 Tajik
1528 Thai
1529 Tigrinya
1531 Turkmen
1532 Tagalog
1534 Setswana
1535 Tonga
1538 Turkish
1539 Tsonga
1540 Tatar
1543 Twi
1557 Ukrainian
1564 Urdu
1572 Uzbek
1581 Vietnamese
1587 Volapük
1613 Wolof
1632 Xhosa
1665 Yoruba
1684 Chinese
1697 Zulu
1703 Not
specified
82
List of Setup Display Items
The default settings are underlined.
LANGUAGE SETUP (page 67)
SCREEN SETUP (page 68)
OSD ENGLISH
FRENCH
SPANISH
PORTUGUESE
MENU ENGLISH
FRENCH
SPANISH
PORTUGUESE
GERMAN
ITALIAN
DUTCH
CHINESE
JAPANESE
DANISH
SWEDISH
FINNISH
NORWEGIAN
RUSSIAN
OTHERS t
AUDIO ORIGINAL
(All other selections are same as the “MENU” language.)
SUBTITLE AUDIO FOLLOW
(All other selections are same as the “MENU” language.)
TV TYPE 4:3 LETTER BOX
4:3 PAN SCAN
16:9
SCREEN SAVER ON
OFF
BACKGROUND JACKET PICTURE
GRAPHICS
BLUE
BLACK
83
Additional Information
CUSTOM SETUP (page 70)
AUDIO SETUP (page 71)
AUTO PLAY OFF
TIMER
DEMO1
DEMO2
DIMMER BRIGHT
DARK
OFF
AUTO
PAUSE MODE AUTO
FRAME
PARENTAL CONTROL ,
TRACK SELECTION OFF
AUTO
AUDIO ATT OFF
ON
AUDIO DRC STANDARD
TV MODE
WIDE RANGE
DOWNMIX DOLBY SURROUND
NORMAL
DIGITAL OUT ON
DOLBY
DIGITAL
D-PCM
DOLBY DIGITAL
DTS OFF
ON
OFF
Sony Corporation Printed in Japan
Index
Numerics
16:9 68
4:3 LETTER BOX
68
4:3 PAN SCAN
68
5.1 Channel Surround
26
A
A-B Repeat Play 44
ANGLE
55
AUDIO
51, 67
AUDIO ATT
71
AUDIO DRC
72
AUDIO SETUP
71
AUTO PLAY
70
B
BACKGROUND 69
Batteries
15
BNR
56
C
CD 36
CHAPTER
47
Chapter
77
Connecting
19
Continuous Play
CD/VIDEO CD/DVD
36
Control Bar
14
Control Menu
14
CUSTOM
66
CUSTOM PARENTAL
CONTROL
58
CUSTOM SETUP
70
D
DIGITAL OUT 72
Digital output
24, 72
DIMMER
70
Display
Control Menu Display
14
Front Panel Display
10
Setup Display
66
DOLBY DIGITAL
51, 73
DOWNMIX
72
DTS
51
DVD
36, 77
DVD’s menu
39
F
Fast forward 37
Fast reverse
37
Front Panel Display
10
H
Handling discs 8
Hooking up
19
I
INDEX 47
Index
77
L
LANGUAGE SETUP 67
Locating
a specific point by watching
the TV screen
46
M
MENU 39, 67
N
Number input 47
O
On-screen display
Control Menu display
14
Setup Display
66
OSD
67
P
PARENTAL CONTROL 60,
70
PAUSE MODE
70
PBC Playback
40
Playing
36
PROGRAM
41
Program Play
41
Q
QUICK 67
Quick Setup
32
R
Remote 15
REPEAT
44
Repeat Play
44
Replay
37
RESET
67
Resume Play
38
S
SCENE 47
Scene
78
SCREEN SAVER
69
SCREEN SETUP
68
SETUP
66
Setup Display
66
SHUFFLE
43
Shuffle Play
43
Slow-motion Play
46
Speakers
hookups
24
Stand
30
Status Bar
13
SUBTITLE
67
Subtitles
55
SURROUND
53
S-VIDEO output
20
T
TIME/TEXT 47
TITLE
47
Title
78
TOP MENU
39
Top menu
39
TRACK
47
Track
78
TRACK SELECTION
70
Troubleshooting
74
TV TYPE
68
TVS (TV Virtual Surround)
53
U
Usable discs 7
V
VIDEO CD 36
W
Wall installation 31
