Operating and installation instructions
Induction cooktops
To prevent the risk of accidents or damage to the appliance, it is
essential to read these instructions before it is installed and used for
the first time.
en-AU, NZ M.-Nr. 11 274 100
Contents
2
Warning and Safety instructions.......................................................................... 4
Caring for the environment ................................................................................ 15
Overview............................................................................................................... 16
Cooktop................................................................................................................. 16
KM7200FR ..................................................................................................... 16
KM7201FR ..................................................................................................... 17
KM7210FR ..................................................................................................... 18
KM7262FR ..................................................................................................... 19
Controls and display ............................................................................................. 20
Cooking zone data ................................................................................................ 22
Before using for the first time ............................................................................ 24
Cleaning the cooktop for the first time.................................................................. 24
Switching on the cooktop for the first time ........................................................... 24
Induction .............................................................................................................. 25
How it works.......................................................................................................... 25
Cookware .............................................................................................................. 25
Noises.................................................................................................................... 27
Tips on saving energy ........................................................................................ 28
Power level range ................................................................................................ 29
Operation.............................................................................................................. 30
Operating principles .............................................................................................. 30
Switching on the cooktop ..................................................................................... 31
Setting the power level.......................................................................................... 31
Changing the power level...................................................................................... 31
Switching off a cooking zone/the cooktop............................................................ 31
Residual heat indicator.......................................................................................... 32
Setting the power level - extended setting range ................................................. 32
Auto heat-up ......................................................................................................... 33
Booster.................................................................................................................. 34
Keeping warm ....................................................................................................... 35
Timer..................................................................................................................... 36
Minute minder duration ......................................................................................... 36
Switching off a cooking zone automatically.......................................................... 37
Using both timer functions at the same time ........................................................ 38
Additional functions ............................................................................................ 39
Stop & Go.............................................................................................................. 39
Contents
3
Recall..................................................................................................................... 39
Demonstration mode............................................................................................. 40
Displaying cooktop data ....................................................................................... 40
Safety features..................................................................................................... 41
System lock / Safety lock...................................................................................... 41
Safety switch-off ................................................................................................... 43
Overheating protection.......................................................................................... 44
Programming ....................................................................................................... 45
Cleaning and care ............................................................................................... 48
Problem solving guide ........................................................................................ 50
Optional accessories .......................................................................................... 53
Service.................................................................................................................. 54
Contact in case of fault ......................................................................................... 54
Data plate .............................................................................................................. 54
Warranty ................................................................................................................ 54
Installation............................................................................................................ 55
Safety instructions for installation ......................................................................... 55
Safety distances.................................................................................................... 56
Installation notes ................................................................................................... 58
Installation dimensions.......................................................................................... 59
KM7200FR ..................................................................................................... 59
KM7201FR ..................................................................................................... 60
KM7210FR ..................................................................................................... 61
KM7262FR ..................................................................................................... 62
Installation ............................................................................................................. 63
Electrical connection ............................................................................................. 64
Warning and Safety instructions
4
This cooktop complies with all relevant local and national safety
requirements. However, inappropriate use can lead to personal
injury and damage to property.
Read the operating and installation instructions carefully before
using the cooktop. They contain important information on safety,
installation, use and maintenance of the appliance. This prevents
both personal injury and damage to the cooktop.
In accordance with standard IEC 60335-1, Miele expressly and
strongly advises that you read and follow the instructions in
“Installation”, as well as in the “Warning and Safety instructions”.
Miele cannot be held liable for injury or damage caused by non-
compliance with these instructions.
Keep these instructions in a safe place and pass them on to any
future owner.
Warning and Safety instructions
5
Correct application
This cooktop is designed for domestic use and for use in similar
environments by guests in hotel or motel rooms, bed & breakfasts
and other typical living quarters. This does not include common/
shared facilities or commercial facilities within hotels, motels or bed
& breakfasts.
This cooktop is not suitable for outdoor use.
It is intended only to cook food and keep it warm. Any other use is
not supported by Miele and could be dangerous.
This cooktop is not intended for use by people (including children)
with reduced physical, sensory or mental capabilities or lack of
experience and knowledge, unless they have been given supervision
and instruction concerning its use by a person responsible for their
safety. They may only use the cooktop unsupervised if they have
been shown how to use it in a safe way. They must be able to
recognise and understand the potential dangers of improper use.
Warning and Safety instructions
6
Safety with children
Young children must not be allowed to use this appliance.
Older children may only use the appliance if its operation has
been clearly explained to them and they are able to use it safely.
They must be aware of the potential dangers caused by incorrect
operation.
Cleaning may only be carried out by older children under the
supervision of an adult.
Please supervise children in the vicinity of the cooktop and do not
let them play with it.
The cooktop gets hot when in use and remains hot for a while
after being switched off. Keep children well away from the cooktop
until it has cooled down and there is no danger of burning.
Danger of burning! Do not store anything which might arouse a
child's interest in storage areas above or behind the cooktop.
Otherwise children could be tempted to climb onto the cooktop with
the risk of burning themselves.
Danger of burning and scalding! Turn the handles of pots and
pans on the cooktop to the side or the rear so that children cannot
pull them down and burn themselves.
Danger of suffocation! Whilst playing, children may become
entangled in packaging material (such as plastic wrapping) or pull it
over their head with the risk of suffocation. Keep packaging material
away from children.
Activate the system lock to ensure that children cannot switch on
the cooktop inadvertently. Use the safety lock when the cooktop is in
use to prevent children from altering the settings selected.
Warning and Safety instructions
7
Technical safety
Unauthorised installation, maintenance and repairs (including
removal of any cover) can cause considerable danger for the user.
Installation, maintenance and repairs must only be carried out by a
Miele authorised technician.
Damage to the cooktop can compromise your safety. Check the
appliance for visible signs of damage. Do not use the cooktop if it is
damaged.
Reliable and safe operation of this cooktop can only be assured if
it has been connected to the mains electricity supply.
The cooktop must not be connected to the inverter of an
autonomous power supply, e.g. a solar power system. When the
cooktop is switched on, power surges could result in a safety
switch-off. This may damage the electronic unit.
The electrical safety of this appliance can only be guaranteed
when continuity is complete between it and an effective earthing
system which complies with local and national safety regulations. It
is most important that this basic safety requirement is present and
tested regularly and, where there is any doubt, the household wiring
system should be inspected by a qualified electrician.
Before connecting the appliance to the mains electricity supply,
ensure that the connection data on the data plate (voltage and
frequency) matches the mains electricity supply. This data must
correspond in order to avoid the risk of damage to the appliance.
Do not connect the cooktop to the mains electricity supply by a
multi-socket adapter or extension lead. These are a fire hazard and
do not guarantee the required safety of the appliance.
For safety reasons, this cooktop may only be used after it has
been built in.
This appliance must not be installed and operated in mobile
installations (e.g. on a ship).
Warning and Safety instructions
8
Never open the casing of the cooktop.
Touching or tampering with electrical connections or components
and mechanical parts is highly dangerous to the user and can cause
operational faults.
The manufacturer's warranty will be invalidated if the appliance is
not repaired by a Miele authorised service technician.
Faulty components must only be replaced by genuine Miele spare
parts. The manufacturer can only guarantee the safety of the
appliance when Miele replacement parts are used.
The cooktop is not intended for use with an external timer switch
or a remote control system.
The cooktop must be connected to the electricity supply by a
qualified electrician (see “Installation – Electrical connection”).
If the mains connection cable is damaged, it must be replaced
with a special mains connection cable, available from Miele, by a
Miele authorised service technician or suitably qualified and
competent electrician in order to avoid a hazard (see “Installation -
Electrical connection”).
During installation, maintenance and repair work, the appliance
must be disconnected from the mains electricity supply. It is only
completely isolated from the electricity supply when:
– the mains circuit breaker is switched off, or
– it is switched off at the wall socket and the plug is withdrawn from
the socket. Do not pull the mains connection cable but the mains
plug to disconnect your appliance from the mains electricity
supply.
Danger of electric shock! If the ceramic surface is faulty, cracked,
chipped or damaged in any way, do not use the cooktop and switch
it off immediately. Disconnect the cooktop from the electricity
supply. Contact Miele.
Warning and Safety instructions
9
If the cooktop is installed behind a furniture door, do not close the
door while the cooktop is in operation. Heat and moisture can build
up behind the closed door. This can result in damage to the cooktop,
the housing unit and the floor. Do not close the door until the
appliance has cooled down and the residual heat indicators have
gone out.
In areas which may be subject to infestation by cockroaches or
other vermin, pay particular attention to keeping the appliance and
its surroundings clean at all times. Any damage caused by
cockroaches or other vermin will not be covered by the warranty.
DO NOT MODIFY THIS APPLIANCE.
Warning and Safety instructions
10
Correct use
The cooktop gets hot when in use and remains hot for a while
after being switched off. There is a danger of burning until the
residual heat indicators go out.
Oil and fat can overheat and catch fire. Do not leave the cooktop
unattended when cooking with oil and fat. If it does ignite, do not
attempt to put the flames out with water.
Switch off the cooktop and use a suitable fire blanket, saucepan lid,
damp towel or similar to smother the flames.
The cooking process has to be supervised. A short term cooking
process has to be supervised continuously.
Flames could set the grease filters of a rangehood on fire. Do not
flambé under a rangehood.
Spray canisters, aerosols and other inflammable substances can
ignite when heated. Therefore do not store such items or substances
in a drawer under the cooktop. Cutlery inserts must be heatresistant.
Do not heat an empty pan.
Do not heat up food in closed containers e.g. tins or sealed jars
on the cooktop, as pressure can build up in the containers, causing
them to explode.
Do not cover the cooktop, e.g. with a cooktop cover, a cloth or
protective foil. The material could catch fire, shatter or melt if the
cooktop is switched on by mistake or if residual heat is still present.
When the appliance is switched on either deliberately or by
mistake, or when there is residual heat present, there is the risk of
any metal items left on the cooktop heating up, with the danger of
burning. Depending on the material, other items left on the cooktop
could also melt or catch fire. Damp pan lids might adhere to the
ceramic surface and be difficult to dislodge. Do not use the
appliance as a resting place. Switch the cooking zones off after use
and do not rely on the pan detector.
Warning and Safety instructions
11
You could burn yourself on the hot cooktop. Protect your hands
with heat-resistant pot holders or oven gloves when handling hot
pots and pans. Do not let them get wet or damp, as this causes heat
to transfer through the material more quickly with the risk of scalding
or burning yourself.
When using an electrical appliance, e.g. a hand-held food mixer,
near the cooktop, ensure that the cable of the electrical appliance
cannot come into contact with the hot cooktop. The insulation on the
cable could become damaged.
Grains of salt, sugar and sand (e.g. from cleaning vegetables) can
cause scratches if they get under pan bases. Make sure that the
ceramic surface is clean before placing pans on it.
Even a light object can cause damage in certain circumstances.
Do not drop anything on the ceramic surface.
Placing hot pans on the sensors and indicators could damage the
electronics underneath. Do not place hot pans on the sensors or
indicators.
Do not allow solid or liquid sugar, or pieces of plastic or aluminium
foil to get onto the cooktop when it is hot, as they can damage the
ceramic surface when it cools down. If this should occur, switch off
the appliance and scrape off all the sugar, plastic or aluminium
residues whilst still hot, using a shielded scraper blade suitable for
use on glass. Wear oven gloves when doing this. Allow the ceramic
surface to cool down and then clean it with a suitable ceramic
cooktop cleaning agent.
Pans which boil dry can cause damage to the ceramic glass. Do
not leave the cooktop unattended whilst it is being used.
Only use pots and pans with smooth bases. Rough bases will
scratch the ceramic glass.
Lift pans into position on the cooktop. Sliding them into place can
cause scuffs and scratches.
Warning and Safety instructions
12
Because induction heating works extremely quickly, the base of
the pan could heat up to the temperature at which oil or fat self-
ignites within a very short time. Do not leave the cooktop unattended
whilst it is being used.
Heat oil or fat for a maximum of one minute. Never use the
Booster function to heat oil or fat.
For people fitted with a heart pacemaker: please note that the
area immediately surrounding the cooktop is electromagnetically
charged when it is switched on. It is very unlikely to affect a
pacemaker. However, if in any doubt, consult the manufacturer of
the pacemaker or your doctor.
To prevent damage to items which are susceptible to
electromagnetic fields, e.g. credit cards, digital storage devices,
pocket calculators, etc., do not leave them in the immediate vicinity
of the cooktop.
Metal utensils stored in a drawer under the cooktop can become
hot if the appliance is used intensively for a long time. Do not store
any metal items or utensils in a drawer under the cooktop.
The cooktop is fitted with a cooling fan. If a drawer is fitted directly
underneath the cooktop, ensure that there is sufficient space
between the drawer and its contents and the underside of the
cooktop in order to ensure sufficient ventilation for the cooktop.
The cooktop is fitted with a cooling fan. If a drawer is fitted directly
underneath the cooktop, ensure that there is sufficient space
between the drawer and its contents and the underside of the
cooktop in order to ensure sufficient ventilation of the cooktop. Do
not store pointed or small items or paper in the drawer. They could
get in through the ventilation slots or be sucked into the casing by
the fan and damage the fan or impair cooling.
Never use two pans on a cooking zone or extended zone at the
same time.
Warning and Safety instructions
13
If the cookware only partially covers a cooking zone or extended
zone, the handle could become very hot.
Always place cookware in the middle of a cooking zone or extended
zone!
Warning and Safety instructions
14
Cleaning and care
Do not use a steam cleaning appliance to clean this appliance.
The steam could reach the electrical components and cause a short
circuit.
If the cooktop is built in over a pyrolytic oven, the cooktop should
not be used whilst the pyrolytic process is being carried out, as this
could trigger the overheating protection mechanism on the cooktop
(see “Safety features - Overheating protection”).
Caring for the environment
15
Disposal of the packing
material
The transport and protective packaging
has been selected from materials which
are environmentally friendly for
disposal, and can normally be recycled.
Recycling the packaging reduces the
use of raw materials in the
manufacturing process and also
reduces the amount of waste in landfill
sites. Ensure that any plastic
wrappings, bags etc. are disposed of
safely and kept out of the reach of
babies and young children. Danger of
suffocation.
Disposing of your old
appliance
Electrical and electronic appliances
often contain valuable materials. They
also contain specific materials,
compounds and components, which
were essential for their correct function
and safety. These could be hazardous
to human health and to the environment
if disposed of with your domestic waste
or if handled incorrectly. Please do not,
therefore, dispose of your old appliance
with your household waste.
Please dispose of it at your local
community waste collection / recycling
centre for electrical and electronic
appliances. You are also responsible for
deleting any personal data that may be
stored on the appliance prior to
disposal. Please ensure that your old
appliance poses no risk to children
while being stored prior to disposal.
Overview
16
Cooktop
KM7200FR
a
Cooking zone with TwinBooster
b
Cooking zone with TwinBooster
c
Cooking zone with TwinBooster
d
Controls and indicators
Overview
17
KM7201FR
a
Cooking zone with TwinBooster
b
Cooking zone with TwinBooster
c
Cooking zone with TwinBooster
d
Cooking zone with TwinBooster
e
Controls and indicators
Overview
18
KM7210FR
a
Cooking zone with TwinBooster
b
Cooking zone with TwinBooster
c
Extended zone with TwinBooster
d
Cooking zone with TwinBooster
e
Controls and indicators
Overview
19
KM7262FR
a
Cooking zone with TwinBooster
b
Cooking zone with TwinBooster
c
Extended zone with TwinBooster
d
Cooking zone with TwinBooster
e
Controls and indicators
Overview
20
Controls and display
Sensor controls
a
For switching the cooktop on/off
b
Numerical keybank
- For setting the power level
- For setting the timer
c
Timer
- For switching on and off
- For switching between timer functions
- For selecting a cooking zone (see “Timer - Switching a cooking zone off
automatically”)
d
Stop & Go
e
Cooking zone selection and display
Cooking zone ready for use
Keeping warm function
to Power level
TwinBooster level 1
TwinBooster level 2
No pan on cooking zone or pan unsuitable (see “Induction -
Cookware”)
Residual heat
Auto heat-up
Overview
21
Display / Indicator lights
f
Timer display
to Duration in minutes
System lock/Safety lock activated
Demonstration mode activated
g
Automatic switch-off allocation of cooking zones
h
Extended power level range setting
i
Stop & Go activated
j
Timer
Overview
22
Cooking zone data
KM7200FR
Cooking zone Øin cm* Rating in watts for 230V**
14–28 Normal
TwinBooster, level 1
TwinBooster, level 2
2,600
3,300
5,500
14–19 Normal
TwinBooster, level 1
TwinBooster, level 2
1,850
2,500
3,000
10–16 Normal
TwinBooster, level 1
TwinBooster, level 2
1,400
1,700
2,200
Total 7,300
* Pans with any base diameter within the given range may be used.
** The wattage quoted may vary depending on the size and material of the cookware used.
KM7201FR
Cooking zone Øin cm* Rating in watts for 230V**
16–22 Normal
TwinBooster, level 1
TwinBooster, level 2
2,300
3,000
3,650
10–16 Normal
TwinBooster, level 1
TwinBooster, level 2
1,400
1,700
2,200
14–19 Normal
TwinBooster, level 1
TwinBooster, level 2
1,850
2,500
3,000
14–19 Normal
TwinBooster, level 1
TwinBooster, level 2
1,850
2,500
3,000
Total 7,300
* Pans with any base diameter within the given range may be used.
** The wattage quoted may vary depending on the size and material of the cookware used.
Overview
23
KM7210FR,KM7262FR
Cooking zone Size in cm
Max. rating in watts for 230V
3
Ø
1
2
16–22 – Normal
TwinBooster, level 1
TwinBooster, level 2
2,300
3,000
3,650
10–16 – Normal
TwinBooster, level 1
TwinBooster, level 2
1,400
1,700
2,200
14–19 – Normal
TwinBooster, level 1
TwinBooster, level 2
1,850
2,500
3,000
– 19X29 Normal
TwinBooster, level 1
TwinBooster, level 2
2,100
3,000
3,650
14–19 – Normal
TwinBooster, level 1
TwinBooster, level 2
1,850
2,500
3,000
Total 7,300
1
Pans with a base diameter within the given range may be used.
2
The given range corresponds to the maximum base surface of the pans that may be used.
3
The power level given may vary depending on the size and material of the pans used.
Before using for the first time
24
Please stick the extra data plate for
the appliance supplied with this
documentation in the space provided
in the “Service” section of this
booklet. Alternatively, the additional
label can be stuck near the appliance
if the appliance markings are not
visible after installation.
Remove any protective wrapping and
stickers (except the data plate).
Cleaning the cooktop for the
first time
Before using for the first time, clean
the cooktop with a damp cloth only
and then wipe dry.
Switching on the cooktop for
the first time
The metal components have a
protective coating which may give off a
slight smell when heated up for the first
time. The induction coils may also give
off a slight smell for the first few hours
of operation. This smell will be less
noticeable with each subsequent use
before dissipating completely.
The smell and any vapours given off do
not indicate a faulty connection or
appliance and they are not hazardous
to health.
Please note that the heating up time
on induction cooktops is significantly
shorter than on conventional
cooktops.
Induction
25
How it works
An induction coil is located under each
cooking zone. The coil creates a
magnetic field that reacts directly with
the base of the pan and heats it up. The
cooking zone itself is heated up
indirectly by the heat given off by the
pan.
An induction cooking zone only works
when a pan with a magnetic base is
placed on it (see “Induction -
Cookware”). Induction automatically
recognises the size of the pan.
Risk of burning due to hot items!
When the cooktop is switched on,
either deliberately or by mistake, or
when there is residual heat present,
there is a risk of metal items placed
on the cooktop heating up.
Do not use the cooktop as a resting
place for anything else.
After use, switch the cooktop off with
the sensor control.
Cookware
Suitable pans
– stainless steel pans with a base that
can be magnetised
– enamelled steel pans
– cast iron pans
Please be aware that the properties of
the pan base can affect the evenness
with which the food heats up (e.g. when
making pancakes). The base of the pan
must be able to distribute the heat
evenly. A sandwich base made of
stainless steel is particularly suitable.
Unsuitable pans
– stainless steel pans with a base
which cannot be magnetised
– aluminium or copper pans
– glass, ceramic or earthenware pots
and pans
Testing cookware
To test whether a pot or pan is suitable
for use on an induction cooktop, hold a
magnet to the base of the pan in
several different places. If the magnet
sticks, the pan is generally suitable.
Induction
26
No pan/unsuitable pan display
Thesymbol flashes alternately with
the power level selected in one of the
cooking zone displays
– if the cooking zone has been
switched on without a pan in place,
or if the pan is unsuitable (non-
magnetic base).
– if the diameter of the base of the pan
is too small.
– if the pan is taken off the cooking
zone while it is switched on.
If a suitable pan is placed on the
cooking zone within 3minutes, will go
out and you can continue as normal.
If no pan or an unsuitable pan is placed
on the cooking zone, the cooking zone
will switch off automatically after
3minutes.
Useful tips
– To make optimum use of the cooking
zones, choose pans with a suitable
base diameter (see “Overview -
Cooking zone data”). If the pan is too
small it will not be recognised.
– Use only pots and pans with smooth
bases. Rough bases can scratch the
ceramic glass.
– Always lift the pans to move them.
This will help prevent scratching. If
any scratches do appear as a result
of pans being pushed around, this
will not affect the function of the
cooktop. These scratches are normal
signs of use and are not grounds for
making a complaint.
– Please note that the maximum
diameter quoted by manufacturers
often refers to the diameter of the top
rim of the pot or pan. The diameter of
the base (generally smaller) is more
important.
– Where possible, use pans with
vertically straight sides. If a pan has
angular sides, induction also acts on
the sides of the pan. The sides of the
pan may discolour or the coating
may peel off.
Induction
27
Noises
When using an induction cooking zone,
the following noises can occur in the
pan, depending on what it is made of
and how it has been constructed.
On the higher power settings, the
appliance might buzz. This will
decrease or cease altogether when the
power setting is reduced.
If the pan base is made of layers of
different materials (e.g. in a sandwiched
base), it might emit a cracking sound.
Whistling might occur if linked zones
(see “Operation - Booster”) are being
used at the same time, and the pans
also have bases made of layers of
different materials.
You might hear a clicking sound from
the electronic switches, especially on
lower power settings.
You might hear a whirring sound when
the cooling fan switches on. It switches
on to protect the electronics when the
cooktop is being used intensively. The
fan may continue to run after the
cooktop has been switched off.
Tips on saving energy
28
– Use a lid whenever possible to
minimise heat loss.
– Select a smaller pan when cooking
small quantities. A smaller pan uses
less energy than a larger pan with
very little in it.
– Cook with as little water as possible.
– Once food has come to the boil or
the oil in the pan is hot enough for
frying, reduce the heat to a lower
setting.
– Use a pressure cooker to reduce
cooking times.
Power level range
29
The cooktop is programmed with 9power levels at the factory. If you wish to fine-
tune a setting, you can extend the power level range to 17power levels (see
“Programming”).
Power level range
Default
setting
(9 power
levels)
Extended
settings
(17 power
levels)
Melting butter
Melting chocolate
Dissolving gelatine
1–2 1–2.
Warming up small quantities of liquid
Keeping warm food which sticks easily
Cooking rice or porridge
Defrosting vegetables frozen in a block
2–4 2–3.
Warming up liquid and semi-solid food
Steaming fruit
Simmering potatoes (pans with lids)
4–6 3.–5.
Making omelettes or lightly fried eggs
Gently frying rissoles
Steaming fish and vegetables
Cooking dumplings and dried pulses
Defrosting and warming up frozen food
Thickening sauces, e.g. Hollandaise
5–7 4.–7.
Gently frying meat, fish, sausages and eggs (without
overheating the fat)
6–8 6–7.
Cooking potato fritters, pancakes etc. 7–8 7–8.
Boiling large quantities of water
Bringing to the boil
Searing large amounts of meat
9 8.–9
These settings should only be taken as a guide. The power of the induction coils will vary
depending on the size and material of the pan. For this reason, it is possible that the
settings will need to be adjusted slightly to suit your pans. As you use the cooktop, you will
get to know which settings suit your pans best. When using new pans that you are not
familiar with, set the power level below the one specified.
Operation
30
Operating principles
This ceramic cooktop is equipped with
electronic sensor controls which react
to finger contact. For safety reasons,
when switching the appliance on, the
On/Off sensor needs to be touched
for a little longer than the other sensors.
Each time you touch a sensor, an
acoustic signal sounds.
When the cooktop is switched off, only
the printed sensor control symbols and
numbers on the keybank for setting the
power levels are visible. More sensor
controls light up when the cooktop is
switched on.
In order to set or alter a power level, the
cooking zones must be “active”. To
activate a cooking zone, touch the
indicator of the relevant cooking zone.
The relevant cooking zone indicator will
begin to flash when touched. While the
indicator is flashing, you can set or
adjust the power level or the duration.
Exception: If only one of the cooking
zones is in operation, you can alter the
power level without activating the
cooking zone.
Malfunction due to dirty and/or
covered sensor controls.
If the sensor controls are dirty or
covered this could cause them to fail
to react, to activate a function
inadvertently or even to switch the
appliance off automatically (see
“Safety features – Safety switch-
off”). Placing hot pans on the sensor
controls/indicators can damage the
electronic unit underneath.
Keep the sensor controls and
indicators clean.
Do not place anything over the
sensor control or indicators.
Do not place hot pans over the
sensor controls or indicators.
a
Sensor controls and indicators
Operation
31
Risk of fire due to overheated
food.
Unattended food can overheat and
ignite.
Do not leave the cooktop unattended
whilst it is being used.
Please note that the heating-up time
on induction cooktops is much
shorter than on conventional
cooktops.
Switching on the cooktop
Touch the sensor.
Further sensor controls will light up.
If no further entry is made, the
cooktop will switch itself off after a
few seconds for safety reasons.
Setting the power level
Permanent pan recognition is
activated as standard (see
“Programming”). When the cooktop is
switched on and you place a pan on a
cooking zone, the cooking zone
indicator starts to flash.
Place a pan on the cooking zone you
want to use.
The cooking zone indicator will begin to
flash.
Touch the appropriate sensor control
on the numerical keybank for the
power level you want.
The power level selected will flash in the
display for a few seconds and then light
up constantly.
Changing the power level
Touch the relevant cooking zone
indicator.
The cooking zone indicator control will
begin to flash.
Touch the appropriate sensor control
on the numerical keybank for the
power level you want.
Switching off a cooking zone/
the cooktop
To switch off a cooking zone, touch
the relevant cooking zone indicator.
The cooking zone indicator control will
begin to flash.
Touch the0 sensor control on the
numerical keybank.
To switch off the cooktop and all the
cooking zones, touch the sensor.
Operation
32
Residual heat indicator
If a cooking zone is still hot, the residual
heat indicator will light up after it has
been switched off.
The lines of the residual heat indicator
go out one after another as the cooking
zone cools down. The last horizontal
line only goes out when the cooking
zone is safe to touch.
Risk of burning on hot cooking
zones!
The cooking zones will be hot after
use.
Do not touch the cooking zones
while the residual heat indicators are
on.
Setting the power level -
extended setting range
Touch the numerical keybank
between two number sensors.
The power level selected flashes in the
display for a few seconds to start with
and then lights up constantly. The
intermediate setting will be represented
by an illuminated dot next to the
number.
Operation
33
Auto heat-up
When Auto heat-up has been activated,
the highest setting automatically
switches on and then switches to the
continued cooking setting which you
have previously selected. The heat-up
time depends on which continued
cooking setting has been chosen (see
chart).
Activating Auto heat-up
Briefly touch the indicator for the
required cooking zone.
Touch the sensor control for the
continued cooking setting you want
until a tone sounds and lights up in
the cooking zone display.
The symbol flashes alternately with
the selected power level in the cooking
zone display during the heat-up time
(see chart).
Changing the continued cooking
setting while the cooking zone is
heating up deactivates Auto heat-up.
Deactivating Auto heat-up
Briefly touch the indicator of the
required cooking zone.
Touch the continued cooking setting
you have set until goes out.
Or
Set a different power level.
Continued
cooking setting*
Heat-up time
[min:sec]
1 Approx. 0:15
1. Approx. 0:15
2 Approx. 0:15
2. Approx. 0:15
3 Approx. 0:25
3. Approx. 0:25
4 Approx. 0:50
4. Approx. 0:50
5 Approx. 2:00
5. Approx. 5:50
6 Approx. 5:50
6. Approx. 2:50
7 Approx. 2:50
7. Approx. 2:50
8 Approx. 2:50
8. Approx. 2:50
9 –
* The continued cooking settings with a dot
after the number are only available if the
power level range has been extended (see
“Programming”).
Operation
34
Booster
The cooking zones are equipped with a
Booster or TwinBooster (see “Overview
- Cooktop”).
When activated, the power is boosted
so that large quantities can be heated
up quickly, e.g. when boiling water for
cooking pasta. The boost in power is
active for a maximum of 15minutes.
The Booster function can be used on a
maximum of two cooking zones at the
same time.
The cooking zone will automatically
revert to power level9 at the end of the
Booster time.
In each case two cooking zones are
linked together in order to provide
sufficient power for the Booster. While
the Booster is in operation some of the
power is taken away from the linked
cooking zone. This has one of the
following effects:
– Auto heat-up is deactivated.
– The power level is reduced.
– The linked cooking zone is switched
off.
Activating TwinBooster
Level 1
Touch the sensor for the cooking
zone you wish to use.
Touch the 9sensor control on the
numerical keybank twice.
appears in the cooking zone display.
Level 2
Touch the sensor for the cooking
zone you wish to use.
Touch the 9sensor control on the
numerical keybank three times.
appears in the cooking zone display.
Deactivating TwinBooster
Touch the sensor for the cooking
zone you wish to use.
Set a different power level.
Operation
35
Keeping warm
The keeping warm function is for
keeping food warm that has just been
cooked, i.e. food that is still hot. It is
not for reheating food that has gone
cold.
The maximum duration for keeping food
warm is 2hours.
– Only keep food warm in suitable
cookware (pots/pans). Cover the pot/
pan with a lid.
– Stir firm or viscous food (mashed
potatoes, stew) occasionally.
– Nutrients are lost when food is
cooked, and continue to diminish
when food is kept warm. The longer
food is kept warm for, the greater the
loss of nutrients. Try to keep food
warm for as short a time as possible.
Setting the keeping warm function
Touch the sensor for the cooking
zone you wish to use.
Touch the numerical keybank in
between sensor controls 0 and 1.
appears in the cooking zone display.
Timer
36
The cooktop has to be switched on if
you wish to use the timer.
You can set a time up to a maximum
of 99minutes.
The timer can be used for the following
2 functions:
– For setting the minute minder
– For automatically switching a cooking
zone off
Minute minder duration
Setting the minute minder
Example: You want to set a time of
15minutes.
Make sure the cooktop is switched
on.
Touch the sensor.
will flash in the timer display.
First the tens digit is set, then the units
digit.
Touch the number sensor which
corresponds to the tens position (1 in
this case).
The timer display then changes and
appears on the right.
Touch the number sensor which
corresponds to the units position (5 in
this case).
The timer display will change. The
moves to the left and appears on the
right.
The minute minder will begin to count
down.
Changing the time set for the minute
minder
Touch the sensor.
Set a new minute minder time, as
described above.
Cancelling the minute minder
Touch thesensor repeatedly
untilappears.
Timer
37
Switching off a cooking zone
automatically
You can set a time after which the
cooking zone will switch off
automatically. This function can be
used on all zones at the same time.
If the time programmed is longer than
the maximum operational time
allowed, the safety switch-off will
switch off the cooking zone after the
maximum permitted safety time has
elapsed (see “Safety features - Safety
switch-off”).
Select a power level for the cooking
zone you wish to use.
Keep touching the sensor until the
indicator light for this cooking zone
starts flashing.
If several cooking zones are on, the
indicator lights flash in a clockwise
direction, starting with the front left.
Set the required time.
If you want to set another cooking
zone to switch off automatically,
follow the same steps as described
above.
If more than one switch-off time is
programmed, the shortest time
remaining will be displayed, and the
corresponding indicator light will flash.
The other indicator lights will light up
constantly.
If you want to show the time
remaining for another zone which is
counting down in the background,
touch the sensor repeatedly until
the indicator light for the zone you
require flashes.
Changing the switch-off time
Touch the sensor repeatedly until
the indicator light for the zone you
require flashes.
Set the required time.
Deleting the switch-off time
Touch the sensor repeatedly until
the indicator light for the zone you
require flashes.
Touch on the numerical keybank.
Timer
38
Using both timer functions at
the same time
The minute minder and automatic
switch-off functions can be used at
the same time.
If you have programmed one or more
switch-off times, and would like to use
the minute minder as well:
Touch thesensor repeatedly until
the indicator lights of the
programmed cooking zones light up
constantly andstarts flashing in
the timer display.
Set the time as described above.
If you have set the minute minder and
would like to programme one or more
switch-off times as well:
Touch the sensor repeatedly until
the indicator light for the zone you
require flashes.
Set the time as described above.
Shortly after the last entry, the timer
display switches to the function with the
shortest remaining time.
If you want to show the times counting
down in the background:
Touch thesensor repeatedly until
– the indicator light for the required
cooking zone flashes (automatic
switch-off).
– the timer display flashes (minute
minder).
Starting with the shortest time
remaining which is shown in the
display, all cooking zones which are
switched on and the minute minder
are selected clockwise.
Additional functions
39
Stop & Go
When Stop & Go is activated, the power
of all cooking zones in use is reduced to
power level1.
The power levels set for the cooking
zones and the timer settings cannot be
changed; the cooktop can only be
switched off. The minute minder,
automatic switch-off, Booster and Auto
heat-up times continue to run.
When Stop & Go is deactivated, the
cooking zones will operate at the power
level previously selected.
If the function is not deactivated within
1hour, the cooktop will switch off.
Activating/Deactivating
Touch the sensor.
Use this function when the sensors
need to be cleaned quickly or there is a
risk of boiling over.
Recall
If the cooktop is switched off
inadvertently during operation, this
function can be used to reset all
settings. For this to work, the cooktop
must be switched on again within
10seconds of being switched off.
Switch the cooktop on again.
Immediately after switching the
cooktop on, touch one of the flashing
cooking zone indicators.
Additional functions
40
Demonstration mode
This function enables the cooktop to be
demonstrated in showrooms without
heating up.
Activating/Deactivating the
demonstration mode
Switch the cooktop on.
Touch and hold the0 and 2 sensor
controls on the numerical keybank at
the same time for 6seconds.
In the timer display, flashes
alternately with (demonstration mode
activated) or (demonstration mode
deactivated) for a few seconds.
Displaying cooktop data
The model designation and software
version can be displayed. There must
not be any pots or pans on the
cooktop.
Model number/Serial number
Switch the cooktop on.
Touch and hold the0 and 4 sensor
controls on the numerical keybank at
the same time for 6seconds.
Numbers appear in the timer display
separated by a dash.
Example: (Model number
KM1234)– (Serial
number)
Software version
Switch the cooktop on.
Touch and hold the0 and 3 sensor
controls on the numerical keybank at
the same time for 6seconds.
Numbers will flash on and off in the
timer display:
Example: flashing alternately with =
Software version 123.
Safety features
41
System lock / Safety lock
Your cooktop is equipped with a system
lock and a safety lock to prevent the
cooktop and the cooking zones being
switched on or any settings being
altered unintentionally.
The system lock is activated when the
cooktop is switched off. If the system
lock is activated, the cooktop cannot be
switched on and the timer cannot be
used. A set minute minder time
continues to count down. The cooktop
is programmed so that the system lock
must be activated manually. It can be
programmed to be activated
automatically 5minutes after the
cooktop has been switched off (see
“Programming”).
The safety lock is activated while the
cooktop is switched on. When the
safety lock is activated, the cooktop
can only be operated to a limited
extent:
– The cooking zones and the cooktop
can only be switched off.
– A set minute minder time can be
modified.
If an unavailable sensor is touched
whilst the system lock or safety lock is
activated will appear in the timer
display for few seconds and a tone will
sound.
Activating the system lock
Touch the sensor for 6seconds.
The seconds can be seen counting
down in the timer display. When this
time has elapsed will appear in the
timer display. The system lock has been
activated.
Deactivating the system lock
Touch the sensor for 6seconds.
will appear briefly in the timer display
and then the seconds will count down.
The system lock is deactivated once the
time has elapsed.
Safety features
42
Activating the safety lock
Touch and hold the and
sensors at the same time for
6seconds.
The seconds can be seen counting
down in the timer display. When this
time has elapsed, will appear in the
timer display. The safety lock is
activated.
Deactivating the safety lock
Touch and hold the and
sensors at the same time for
6seconds.
will appear briefly in the timer display
and then the seconds will count down.
The safety lock is deactivated once the
time has elapsed.
Safety features
43
Safety switch-off
Safety switch-off if the sensors are
covered
Your cooktop will switch off
automatically if one or several of the
sensors remain covered for longer than
10seconds, for example, by finger
contact, food boiling over or by an
object such as an oven glove or a tea
towel. will appear in the timer display
for a few seconds. If the sensor is
affected, will light up until the object
or soiling has been removed.
will go out once you have removed
the object or cleaned the cooktop and
the cooktop will be ready to use again.
Excessive operating time
The safety switch-off mechanism is
triggered automatically if a cooking
zone is heated for an unusually long
period of time. This time depends on
the power level selected. If it has been
exceeded, the cooking zone switches
off and the residual heat indicator for
that zone appears. If you switch the
cooking zone on and off again, it is
ready for operation again.
The cooktop is programmed to safety
setting0 at the factory. If required, you
can set a higher safety setting with a
shorter maximum operating time (see
chart).
Power level* Maximum operating time
[h:min]
Safety setting
0** 1 2
1 10:00 8:00 5:00
1. 10:00 7:00 4:00
2/2. 5:00 4:00 3:00
3/3. 5:00 3:30 2:00
4/4. 4:00 2:00 1:30
5/5. 4:00 1:30 1:00
6/6. 4:00 1:00 00:30
7/7. 4:00 00:42 00:24
8 4:00 00:30 00:20
8. 4:00 00:30 00:18
9 1:00 00:24 00:10
* The power levels with a dot after the
number are only available if the power level
range has been extended (see “Power level
range”).
** Factory default setting
Safety features
44
Overheating protection
All the induction coils and cooling
elements for the electronics are fitted
with an overheating protection
mechanism. Before the induction coils
and/or cooling elements get too hot, the
overheating protection activates in one
of the following ways:
Induction coils
– Any Booster function in operation will
be switched off.
– The set power level is reduced.
– The cooking zone switches off
automatically. will flash alternately
with in the timer display.
You can use the cooking zone again as
usual when the fault message has gone
out.
Cooling elements
– Any Booster function in operation will
be switched off.
– The set power level is reduced.
– The cooking zones switch off
automatically.
The affected cooking zones can only be
used again as usual once the cooling
element has cooled down to a safe
level.
The overheating protection may be
triggered under the following
circumstances:
– The pot or pan being used is empty.
– Fat or oil being heated on a high
power level.
– Insufficient ventilation to the
underside of the cooktop.
– A hot cooking zone being switched
on after an interruption to the power
supply.
If, despite removing the cause, the
overheating protection mechanism
triggers again, contact Miele.
Programming
45
You can adapt the programming of the
cooktop to your personal needs.
Several settings can be altered in
succession.
After accessing programming mode,
(Programme) and (Code) will appear in
the timer display and 2 cooking zone
indicators will light up.
The programme is shown in the left-
hand cooking zone display, and the
code in the right-hand cooking zone
display. From programme stage10 the
numbers appear alternately: flashes
alternately with .
Changing the programming
Calling up programming mode
With the cooktop switched off press
both the and sensor controls
until appears in the timer display
and 2 cooking zone indicators light
up.
Setting a programme
First touch the left-hand cooking
zone display and then touch the
relevant number on the numerical
keybank.
A dot will start to flash next to the
number.
While the dot is flashing, press the
relevant number(s) on the numerical
keybank for the programme number.
Setting the code
First touch the right-hand cooking
zone display and then touch the
relevant number on the numerical
keybank.
A dot will start to flash next to the
number.
While the dot is flashing, press the
relevant number(s) on the numerical
keybank for the code.
Saving the settings
Touch the sensor until the
indicators go out.
Programming
46
Programme
1)
Code
2)
Settings
1 Demonstration mode 0 Demonstration mode off
1
Demonstration mode on
3)
2
Power management
4)
0 Off
1 3680W
2 3000W
3 2000W
4 1000W
3 Factory settings 0 Do not restore the factory settings
1 Restore factory settings
4 Number of power levels 0 9 power levels
1
17 power levels
5)
6 Confirmation tone when a
sensor control is touched
0
Off
6)
1 Quiet
2 Medium
3 Loud
7 Timer signal tone 0
Off
6)
1 Quiet
2 Medium
3 Loud
8 System lock 0 System lock can only be activated
manually
1 Activating the system lock
automatically
9 Maximum operating time 0 Safety setting 0
1 Safety setting 1
2 Safety setting 2
12 Sensor controls reaction
speed
0 Slow
1 Normal
2 Fast
Programming
47
Programme
1)
Code
2)
Settings
15 Permanent pan recognition 0 Not active
1 Active
1)
Programmes not shown here have no allocation.
2)
The factory setting is shown in bold.
3)
After the cooktop has been switched on, appears in the timer display for a few
seconds.
4)
The total output of the cooktop may be reduced in order to meet the local network
provider’s requirements.
5)
The extended power levels are shown with a dot after the number.
6)
The keypad tone for the On/Off sensor control cannot be switched off.
Cleaning and care
48
Risk of burning due to hot
surfaces!
The cooking zones will be hot after
use.
Switch the cooktop off.
Allow the cooking zones to cool
down before cleaning the cooktop.
Risk of damage due to moisture
ingress.
The steam from a steam cleaner
could reach electrical components
and cause a short circuit.
Do not use a steam cleaner to clean
the cooktop.
The use of unsuitable cleaning
agents can cause the surfaces to
discolour or alter. All surfaces are
susceptible to scratching.
Remove any residual cleaning agent
immediately.
Never use abrasive sponges or
cleaning agents.
Clean the cooktop after every use.
Dry the cooktop thoroughly after
every cleaning to avoid limescale
residue.
Unsuitable cleaning agents
To avoid damaging the surfaces of the
appliance, do not use:
– washing-up liquid,
– cleaning agents containing soda,
alkalines, ammonia, acids or
chlorides,
– cleaning agents containing descaling
agents,
– stain and rust removers,
– abrasive cleaning agents, e.g.
powder cleaners and cream cleaners,
– solvent-based cleaning agents,
– dishwasher cleaner,
– grill and oven cleaners,
– glass cleaning agents,
– hard, abrasive brushes or sponges
(e.g. pot scourers), or sponges which
have been previously used and still
contain abrasive cleaning agents,
– dirt erasers.
Cleaning and care
49
Cleaning the ceramic surface
Risk of damage by pointed
objects.
The seal between the cooktop and
the worktop could be damaged.
The seal between the ceramic
surface and the frame could be
damaged.
Do not use pointed objects for
cleaning.
Do not use washing-up liquid to
clean the appliance. Using washing-
up liquid will not remove all soiling
and residues. An invisible film can
develop that can lead to
discolouration of the ceramic glass
surface. This discolouration cannot
be removed.
Clean the ceramic surface regularly
with a proprietary ceramic glass
cleaning agent.
Remove any coarse soiling with a
damp cloth and more stubborn
soiling with a glass scraper.
Then clean the ceramic glass surface
with the Miele ceramic and stainless
steel cooktop cleaner (see “Optional
accessories”) or with a proprietary
ceramic glass cleaner applied with
paper towel or a clean cloth. Do not
apply the cleaner while the cooktop is
still hot, as this can result in marking.
Please follow the cleaning agent
manufacturer's instructions.
Finally wipe the cooktop with a damp
cloth and dry it with a soft, dry cloth.
Residues can burn onto the cooktop
the next time it is used and cause
damage to the glass ceramic surface.
Ensure that all cleaner residues are
removed.
Spots caused by limescale, water
and aluminium residues (spots with a
metallic appearance) can be removed
using the Miele ceramic and stainless
steel cooktop cleaner.
Risk of burning due to hot
surfaces!
The cooking zones are hot during
use.
Wear oven gloves when removing
residues of sugar, plastic or
aluminium foil from a hot cooktop
with a glass scraper.
Should any sugar, plastic or
aluminium foil spill or fall onto a hot
cooking zone while it is in use, first
switch off the appliance.
Then carefully scrape off these
residues immediately whilst they are
still hot, using a shielded scraper
blade suitable for use on glass.
Afterwards, clean the ceramic surface
in its cooled state, as described
above.
Problem solving guide
50
With the help of the following guide, minor faults in the performance of the
appliance, some of which may result from incorrect operation, can be remedied
without contacting Miele. This will save you time and money because you won't
need a service call.
Please note that a call-out charge will be applied to unnecessary service visits
where the problem could have been rectified as described in these operating
instructions.
Problem Possible cause and remedy
The cooktop or cooking
zones do not switch on.
There is no power to the cooktop.
Check if the circuit breaker has tripped. Contact
an electrician or Miele (for the minimum fuse
rating, see data plate).
There may be a technical fault.
Disconnect the appliance from the mains
electricity supply for approx. 1 minute. To do this:
– switch off at the wall socket and withdraw the
plug, or
– switch off at the residual current device.
If, after switching the circuit breaker or residual
current device back on, the appliance will still not
switch on, contact a qualified electrician or Miele.
A smell and vapours are
given off when the new
appliance is being used.
The metal components have a protective coating.
When the appliance is used for the first time, this
causes a smell and possibly also vapour. The
material from which the induction coils are made also
gives off a smell in the first few hours of operation.
This smell will be less noticeable with each
subsequent use before dissipating completely. The
smell and any vapours given off do not indicate a
faulty connection or appliance and they are not
hazardous to health.
In the cooking zone
display, thesymbol
will flash alternately
with the selected power
level or.
An unsuitable pan has been placed on the cooktop.
Use suitable pans (see “Induction - Cookware”).
Problem solving guide
51
Problem Possible cause and remedy
After the cooktop has
been switched on
appears in the timer
display for a few
seconds.
The system lock or safety lock is activated.
Deactivate the system lock or safety lock (see
“Safety features - System lock / Safety lock”).
flashes in the timer
display and the cooktop
switches off
automatically.
One or more of the sensor controls are covered, e.g.
by finger contact, food boiling over or an object.
Clean off any dirt and/or remove the object (see
“Safety features - Safety switch-off”).
After the cooktop has
been switched on
appears in the timer
display for a few
seconds. The cooking
zones do not heat up.
The cooktop is in Demonstration mode.
Touch the0 and 2 sensor controls at the same
time until flashes alternately with in the timer
display.
A cooking zone
switches itself off
automatically.
It has been operated for too long.
You can use the cooking zone again by switching
it back on (see “Safety features - Safety switch-
off”).
A cooking zone or the
whole cooktop switches
off automatically.
The overheating protection mechanism has been
activated.
See “Safety features - Overheating protection”.
The Booster has
automatically switched
off early.
The overheating protection mechanism has been
activated.
See “Safety features - Overheating protection”.
A cooking zone is not
working in the usual
way on the power level
selected.
The overheating protection mechanism has been
activated.
See “Safety features - Overheating protection”.
Power level 9 is
automatically reduced if
you select power level 9
on two linked cooking
zones or extended
zones at the same time.
Operating both zones at power level 9 would exceed
the permitted maximum power for the cooktop.
Use another cooking zone which is not linked.
Problem solving guide
52
Problem Possible cause and remedy
The food in the pan
hardly heats up or does
not heat up at all when
the Auto heat-up
function is switched on.
There is too much food in the pan.
Start cooking at the highest power level and then
turn down to a lower one manually later on.
The pan is not conducting heat properly.
Use a different pan which is better able to conduct
heat.
A noise can be heard
after the appliance is
switched off.
The fan will continue running until the cooktop has
cooled down. It will then switch itself off
automatically.
alternating with
numbers flashes in the
timer display.
The overheating protection mechanism has been
activated.
See “Safety features - Overheating protection”.
, or
The fan is blocked or defective.
Make sure the fan has not been blocked by an
object.
Remove the obstruction.
If this fault code continues to appear in the
display, contact Miele.
and other numbers
There is a fault in the electronic module.
Interrupt the power supply to the cooktop for
approx. 1minute.
If the problem persists after power is restored,
please contact Miele.
Optional accessories
53
Miele offers a range of useful
accessories, as well as cleaning and
conditioning products for your
appliance.
These products can be ordered from
the Miele online shop.
They can also be ordered directly from
Miele (see end of this booklet for
contact details).
Saucepans and frying pans
Miele offers a wide range of pans which
are perfect for Miele cooktops. Please
refer to the Miele website for more
details on individual products.
– Pans in various sizes
– Non-stick pan
– Wok
– Gourmet oven dishes
Cleaning and care products
Original Miele ceramic and stainless
steel cleaner 250ml
Removes heavy soiling, limescale
deposits and aluminium residues.
Original Miele all purpose microfibre
cloth
Removes finger marks and light soiling.
Service
54
Contact in case of fault
In the event of any faults which you cannot remedy yourself, please contact Miele.
Contact information for Miele can be found at the end of this booklet.
Please quote the model and serial number of your appliance when contacting
Miele. This information can be found on the data plate.
Data plate
Adhere the extra data plate supplied with the appliance in the space below. Make
sure that the model number matches the one specified on the back cover of these
operating and installation instructions.
Warranty
The manufacturer's warranty for this appliance is 2years.
For further information, please refer to your warranty booklet.
Installation
*INSTALLATION*
55
Safety instructions for installation
Risk of damage from incorrect installation.
Incorrect installation can cause damage to the cooktop.
The cooktop must only be installed by a qualified person.
Danger of electric shock!
Incorrect connection to the power supply may result in an electric shock.
The cooktop must be connected to the power supply by a qualified electrician.
Damage from falling objects.
Take care not to damage the cooktop when fitting wall units or a rangehood
above it.
Fit the wall units and the rangehood before the cooktop.
The veneer or laminate coatings of worktops (or adjacent kitchen
units) must be treated with 100°C heat-resistant adhesive which will
not dissolve or distort. Any splashbacks must be of heat-resistant
material.
The cooktop must not be installed over a fridge, fridge-freezer,
freezer, dishwasher, washing machine, washer-dryer or tumble dryer.
This cooktop must not be installed above ovens unless these
have a built-in cooling fan.
After installation, ensure that nothing can come into contact with
the connection cable and that it is without hindrance.
The connection cable may not come into contact with any moving
kitchen component (e.g. a drawer) or be subject to mechanical
obstruction which could damage it.
Carefully observe the safety clearances listed on the following
pages.
Installation
*INSTALLATION*
56
Safety distances
Safety distance above the cooktop
The safety distance specified by the
manufacturer of the rangehood must be
maintained between the cooktop and
the rangehood above it.
If the manufacturer's instructions are
not available for the rangehood, a
minimum safety distance of 600mm
must be maintained.
For any flammable objects, e.g. utensil
rails, wall units etc., a minimum safety
distance of 600mm must be
maintained between these objects and
the highest part of the cooktop below.
When two or more appliances which
have different safety distances are
installed together below a
rangehood, observe the greatest
specified safety distance.
Installation
*INSTALLATION*
57
Safety distances to the sides and
back of the appliance
The minimum distance shown below
must be maintained between the back
edge of the cooktop and a tall unit or
wall.
Ideally the cooktop should be installed
with plenty of space on either side.
There may be a wall at the rear or a tall
unit or wall on one side (right or left),
taking into account the distances
below. On the other side, however, no
tall unit or wall should stand closer than
300mm to the edge of the cooktop.
Before installing the cooktop, check
that the below clearance requirements
are met.
Minimum horizontal distance from the
back edge of the cooktop to a
combustible surface:
50mm.
Minimum horizontal distance from the
right edge of the cooktop to a
combustible surface:
50mm.
Minimum horizontal distance from the
left edge of the cooktop to a
combustible surface:
50mm.
Minimum safety distance underneath
the cooktop
To ensure sufficient ventilation to the
cooktop, a minimum distance must be
left between the underside of the
cooktop and any oven, interim shelf or
drawer.
The minimum gap between the
underside of the cooktop and
– the top edge of an oven: 15mm
– the top edge of an interim shelf:
15mm
– the top edge of a drawer: 5mm
– the base of a drawer: 75mm
Interim shelf
It is not necessary to fit an interim shelf
underneath the cooktop but one may
be fitted if you wish.
Leave a gap of 10mm at the back
between the cabinet and the interim
shelf to accommodate the power
cable.
A gap of 20mm is recommended at the
front between the cabinet and interim
shelf for better ventilation of the
cooktop.
Installation
*INSTALLATION*
58
Installation notes
Seal between the cooktop and the
worktop
Damage caused by incorrect
installation.
Using sealant under the cooktop
could result in damage to the
cooktop and the worktop if the
cooktop ever needs to be removed
for servicing.
Do not use sealant between the
cooktop and the worktop.
The sealing strip under the edge of
the cooktop provides a sufficient seal
for the worktop.
Tiled worktop
Grout lines and the hatched area
underneath the cooktop frame must be
smooth and even. If they are not, the
cooktop will not sit flush with the
worktop and the sealing strip
underneath the cooktop will not provide
a good seal between the cooktop and
the worktop.
Sealing strip
Dismantling the cooktop for service
purposes may damage the sealing
strip underneath the edge of the
cooktop.
Always replace the sealing strip
before reinstalling the cooktop.
Installation
*INSTALLATION*
59
Installation dimensions
All dimensions in this instruction booklet are given in mm.

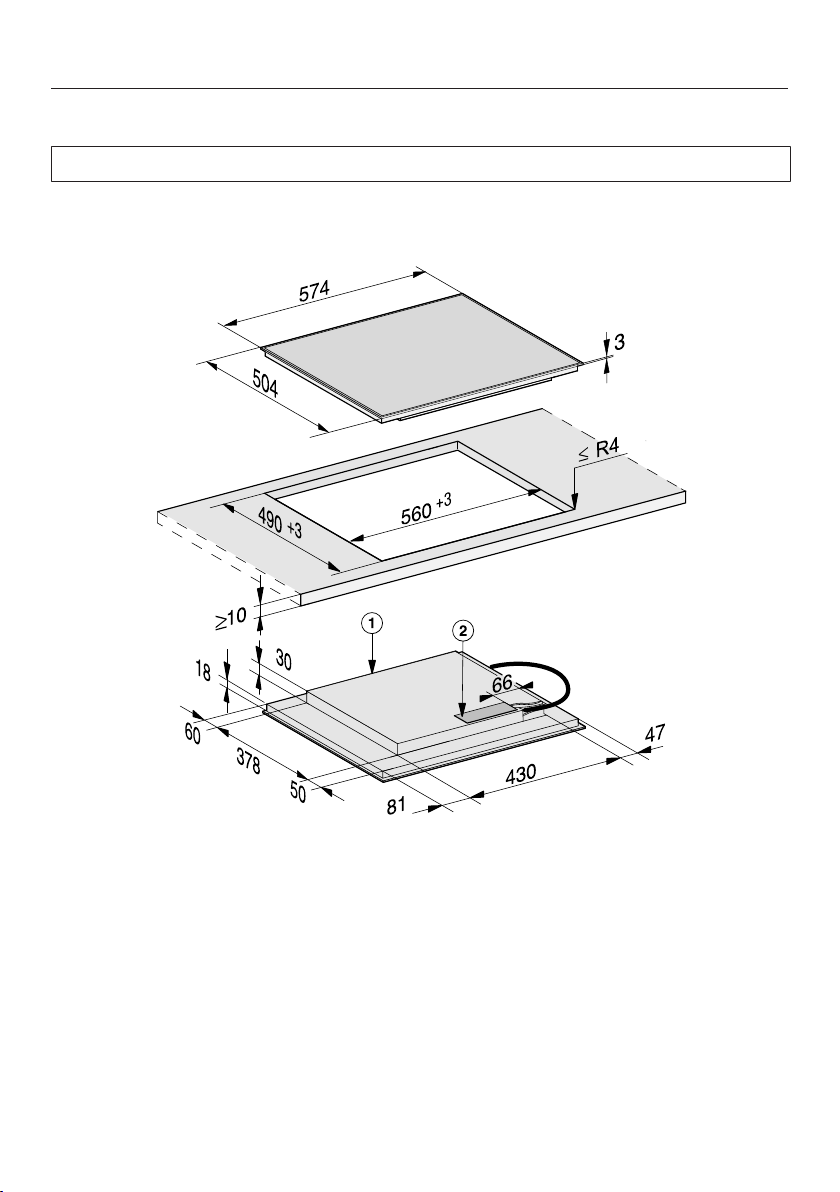

KM7200FR
a
Front
b
Mains connection box
The mains connection cable (L = 1,440mm) is supplied loose
Installation
*INSTALLATION*
60

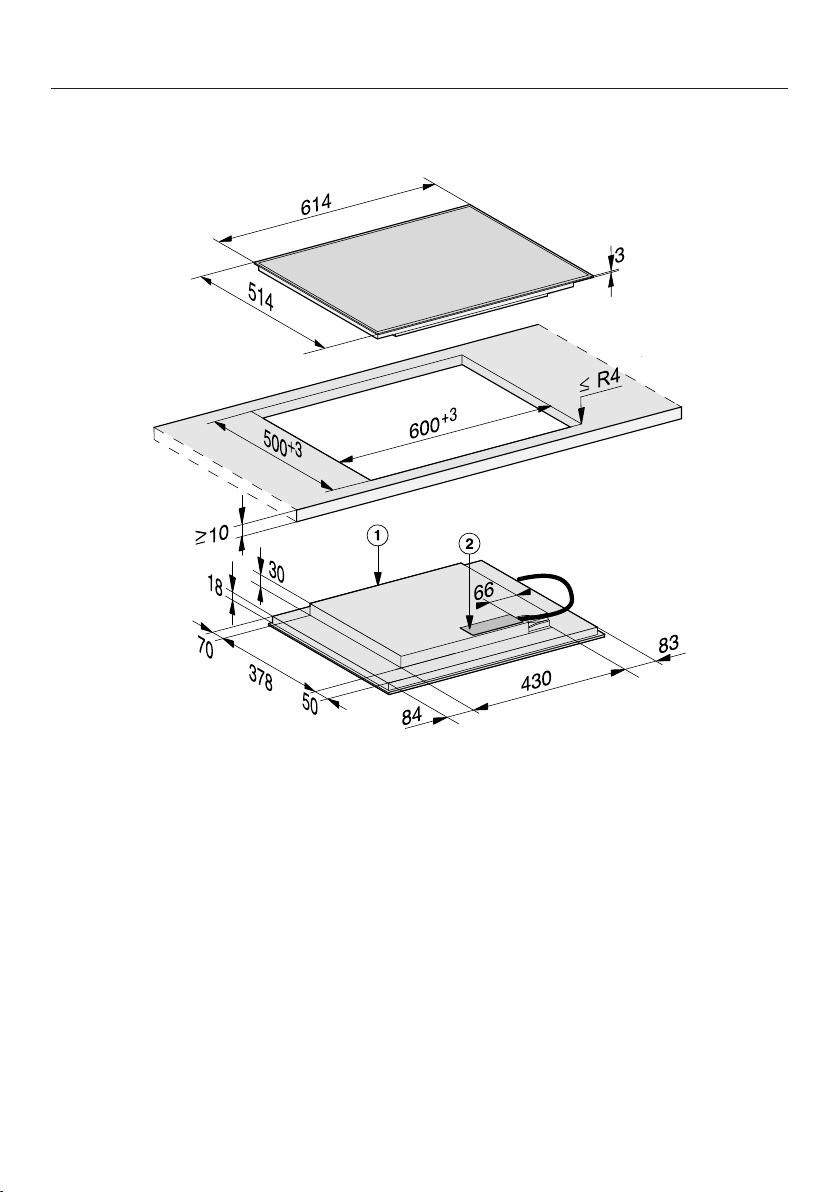

KM7201FR
a
Front
b
Mains connection box
The mains connection cable (L = 1,440mm) is supplied loose
Installation
*INSTALLATION*
61
KM7210FR
a
Front
b
Mains connection box
The mains connection cable (L = 1,440mm) is supplied loose
Installation
*INSTALLATION*
62
KM7262FR
a
Front
b
Mains connection box
The mains connection cable (L = 1,440mm) is supplied loose
Installation
*INSTALLATION*
63
Installation
Create the worktop cut-out.
Remember to maintain the minimum
safety distances (see “Installation –
Safety distances”).
Seal the cut surfaces of wooden
worktops with a suitable sealant to
avoid swelling caused by moisture.
The sealant must be heat-resistant.
Make sure the sealant does not
come into contact with the top
surface of the worktop.
Attach the sealing strip provided
underneath the edge of the cooktop.
Do not apply the sealing strip under
tension.
Risk of damage from incorrect
connection.
The electronics of the cooktop may
be damaged if a short-circuit occurs.
The mains connection cable must be
connected to the cooktop by a
qualified electrician.
Connect the mains connection cable
by following the instructions in the
wiring diagram on the cooktop (see
“Installation – Electrical connection”).
Feed the mains connection cable
down through the worktop cut-out.
Place the cooktop centrally in the
cut-out. When doing this make sure
that the seal of the appliance sits
flush with the worktop on all sides.
This is important to ensure an
effective seal with the worktop.
If the seal does not meet the worktop
correctly on the corners, the corner
radius (≤ R4) can be carefully scribed
to suit.
Connect the cooktop to the electricity
supply (see “Installation – Electrical
connection”).
Check that the cooktop works.
Installation
*INSTALLATION*
64
Electrical connection
Risk of damage from incorrect
connection.
Incorrect installation, maintenance
and repairs can be dangerous to
users.
Miele cannot be held liable for
damage or injury caused by incorrect
or unauthorised installation,
maintenance or repair work, or by an
inadequate or faulty on-site earthing
system (e.g. electric shock).
All electrical work must be carried
out by a suitably qualified and
competent electrician, in strict
accordance with current national and
local safety regulations, and any
additional regulations of the local
electricity provider.
After installation, ensure that all
electrical components are shielded
and cannot be accessed by users.
Total power output
See data plate.
Connection data
The connection data is quoted on the
data plate. Please ensure this
information matches the household
mains supply.
Please see the wiring diagrams for
connection.
Residual current device
For extra safety, it is advisable to
protect the appliance with a suitable
residual current device (RCD) with a trip
range of 30 mA.
Disconnecting devices
Connection must be made via a
suitable isolator switch which provides
disconnection on all poles and which
complies with national and local safety
regulations. When switched off there
must be an all-pole contact gap of at
least 3mm in the isolator switch. The
isolator switch must be easily
accessible after the appliance has been
built in.
Installation
*INSTALLATION*
65
Mains connection cable
The cooktop must be connected to the
electrical supply with a special
connection cable, type H 05 VV-F (PVC
insulated) with a suitable diameter.
Please see the wiring diagram for
connection.
See the data plate on the cooktop for
the correct voltage and frequency.
The connection cable comes supplied
with a ferrite sleeve attached. This end
must be fitted to the terminal box of the
cooktop. If using a different connection
cable, with the exception of the earth
conductor, all other single conductors
of the power cable must be fed through
the opening of the ferrite sleeve before
attaching them to the connection
terminals.
Replacing the mains connection
cable
Danger of electric shock!
Incorrect connection to the electricity
supply may result in an electric
shock.
The mains connection cable must
only be replaced in accordance with
current local and national safety
regulations.
When replacing the mains connection
cable, it must be replaced with cable
type H05VV-F by a Miele authorised
service technician or a suitably qualified
and competent electrician in order to
avoid a hazard. These cables are
available from Miele.
Wiring diagram
L1
200-240 V~
200-240 V~
200-240 V~
ab
cde
-
L2 L3 N
-
L2
b
L1
a cd
N
e
(L3)
200-240 V~
200-240 V~
a
L1
bcd
N
e
-
(L2)
200-240 V~
Miele Experience Centre and
Head Office Melbourne:
1 Gilbert Park Drive
Knoxfield, VIC 3180
Miele Experience Centre South Melbourne:
206-210 Coventry Street
South Melbourne, VIC 3205
Miele Experience Centre and Office Sydney:
3 Skyline Place
Frenchs Forest, NSW 2086
Miele Experience Centre and Office Brisbane:
Tenancy 4C, 63 Skyring Terrace
Newstead, QLD 4006
Miele Experience Centre and Office Perth:
83-85 Sir Donald Bradman Drive
Hilton, SA 5033
Miele Experience Centre and Office Adelaide:
Miele Australia Pty. Ltd. Miele New Zealand Limited
Level 2, 10 College Hill
Freemans Bay, Auckland 1011
Miele Experience Centre
Auckland:
8 College Hill
Freemans Bay, Auckland 1011
Miele Global Headquarters
Germany
Miele & Cie. KG
Carl-Miele-Straße 29
33332 Gütersloh
Federal Republic of Germany
Head Office:
IRD 98 463 631
ACN 005 635 398
ABN 96 005 635 398
Miele Experience Centre Gold Coast:
131 Ferry Road
Southport, QLD 4215
Miele Experience Centre
Wellington:
183 Featherston Street
Wellington 6011
0800 464 353 (0800 4 MIELE)
www.miele.co.nz
205-207 Stirling Highway
Claremont, WA 6010
1300 464 353 (1300 4 MIELE)
www.miele.com.au
M.-Nr. 11 274 100 / 01en-AU, NZ
KM 7200FR, KM7201FR, KM7210FR, KM7262FR
