42PC1D
42PC1DA
P/NO : 38289U0512D (0607-REV04)
Printed in Korea
As an ENERGY STAR
Partner LGE U. S. A.,Inc.
has determined that this
product meets the ENERGY
STAR guidelines for
energy efficiency.
WARNING / CAUTION
1
WARNING / CAUTION
WARNING / CAUTION
To prevent fire or shock hazards, do not expose
this product to rain or moisture.
FCC NOTICE
Class B digital device
This equipment has been tested and found to com-
ply with the limits for a Class B digital device, pur-
suant to Part 15 of the FCC Rules. These limits are
designed to provide reasonable protection against
harmful interference in a residential installation. This
equipment generates, uses and can radiate radio fre-
quency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However,
there is no guarantee that interference will not
occur in a particular installation. If this equipment
does cause harmful interference to radio or televi-
sion reception, which can be determined by turning
the equipment off and on, the user is encouraged to
try to correct the interference by one or more of
the following measures:
- Reorient or relocate the receiving antenna.
- Increase the separation between the equipment
and receiver.
- Connect the equipment to an outlet on a circuit
different from that to which the receiver is con-
nected.
- Consult the dealer or an experienced radio/TV
technician for help.
Any changes or modifications not expressly
approved by the party responsible for compliance
could void the user’s authority to operate the
equipment.
CAUTION
Do not attempt to modify this product in any way
without written authorization from LG Electronics.
Unauthorized modification could void the user’s
authority to operate this product
The lightning flash with arrowhead
symbol, within an equilateral triangle,
is intended to alert the user to the
presence of uninsulated “dangerous voltage”
within the product’s enclosure that may be of
sufficient magnitude to constitute a risk of electric
shock to persons.
The exclamation point within an equilateral
triangle is intended to alert the user to
the presence of important operating and main-
tenance (servicing) instructions in the literature
accompanying the appliance.
TO REDUCE THE RISK OF ELECTRIC SHOCK
DO NOT REMOVE COVER (OR BACK). NO
USER SERVICEABLE PARTS INSIDE. REFER TO
QUALIFIED SERVICE PERSONNEL.
WARNING/CAUTION
TO REDUCE THE RISK OF FIRE AND ELECTRIC
SHOCK, DO NOT EXPOSE THIS PRODUCT TO
RAIN OR MOISTURE.
1_512Den-1 06/5/2 10:20 AM Page 1
SAFETY INSTRUCTION
2
IMPORTANT SAFETY INSTRUCTIONS
SAFETY INSTRUCTION
Read these instructions.
Keep these instructions.
Heed all warnings.
Follow all instructions.
Do not use this apparatus near water
Clean only with dry cloth.
Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
Do not install near any heat sources such as
radiators, heat registers, stoves, or other apparatus
(including amplifiers)that produce heat.
Do not defeat the safety purpose of the
polarized or grounding-type plug. A polarized
plug has two blades with one wider than the
other. A grounding type plug has two blades
and a third grounding prong, The wide blade
or the third prong are provided for your safety.
If the provided plug does not fit into your
outlet, consult an electrician for replacement
of the obsolete outlet.
Protect the power cord from being walked on
or pinched particularly at plugs, convenience
receptacles, and the point where they exit
from the apparatus.
Only use attachments/accessories specified
by the manufacturer.
Important safety instructions shall be provided with each apparatus. This information shall be given in a separate
booklet or sheet, or be located before any operating instructions in an instruction for installation for use and
supplied with the apparatus.
This information shall be given in a language acceptable to the country where the apparatus is intended to
be used.
The important safety instructions shall be entitled “Important Safety Instructions”. The following safety
instructions shall be included where applicable, and, when used, shall be verbatim as follows. Additional safety
information may be included by adding statements after the end of the following safety instruction list. At
the manufacturer’s option, a picture or drawing that illustrates the intent of a specific safety instruction may
be placed immediately adjacent to that safety instruction :
1
2
3
4
5
6
7
1_512Den-1 06/5/2 10:20 AM Page 2
SAFETY INSTRUCTION
3
Use only with the cart, stand, tripod, bracket,
or table specified by the manufacturer, or sold
with the apparatus. When a cart is used, use
caution when moving the cart/apparatus
combination to avoid injury from tip-over.
Unplug this apparatus during lightning storms
or when unused for long periods of time.
Refer all servicing to qualified service person-
nel. Servicing is required when the apparatus
has been damaged in any way, such as power-
supply cord or plug is damaged, liquid has
been spilled or objects have fallen into the
apparatus, the apparatus has exposed to rain
or moisture, does not operate normally, or
has been dropped.
CAUTION concerning the Power Cord :
Most appliances recommend they be placed
upon a dedicated circuit; that is, a single outlet
circuit which powers only that appliance and
has no additional outlets or branch circuits.
Check the specification page of this owner's
manual to be certain.
Do not overload wall outlets. Overloaded wall
outlets, loose or damaged wall outlets, extension
cords, frayed power cords, or damaged or
cracked wire insulation are dangerous. Any of
these conditions could result in electric shock
or fire. Periodically examine the cord of your
appliance, and if its appearance indicates
damage or deterioration, unplug it, discontinue
use of the appliance, and have the cord
replaced with an exact replacement part by
an authorized servicer. Protect the power
cord from physical or mechanical abuse, such
as being twisted, kinked, pinched, closed in a
door, or walked upon. Pay particular attention
to plugs, wall outlets, and the point where
the cord exits the appliance.
Outdoor Use Marking :
WARNING - To Reduce The Risk Of Fire Or
Electric Shock, Do Not Expose This Appliance
To Rain Or Moisture
Wet Location Marking : Apparatus shall not
be exposed to dripping or splashing and no
objects filled with liquids, such as vases, shall
be placed on or over apparatus.
DDIISSCCOONNNNEECCTTIINNGG DDEEVVIICCEE FFRROOMM MMAAIINNSS
Mains plug is the disconnecting device. The
plug must remain readily operable.
8
9
10
11
12
13
14
512Den-1 06/6/28 8:05 PM Page 3
4
CONTENTS
CONTENTS
WARNING / CAUTION
. . . . . . . . . . . . . . . . . . . . . . . . . . . . 1
SAFETY INSTRUCTIONS
. . . . . . . . . . . . . . . . . . . . . . 2-3
INTRODUCTION
TV Guide On Screen
TM
Notices for U.S.A. /
Digital Cable Compatibility
. . . . . . . . . . . . . . . . . . . . . . . . . . . . 8
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9
Controls / Connection Options
. . . . . . . . . . . . . . . . . . 10-11
Remote Control Key Functions . . . . . . . . . . . . . . . . . . . . 12-13
INSTALLATION
Attaching the TV to a Wall . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 14
Unfolding the Stand Base
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
15

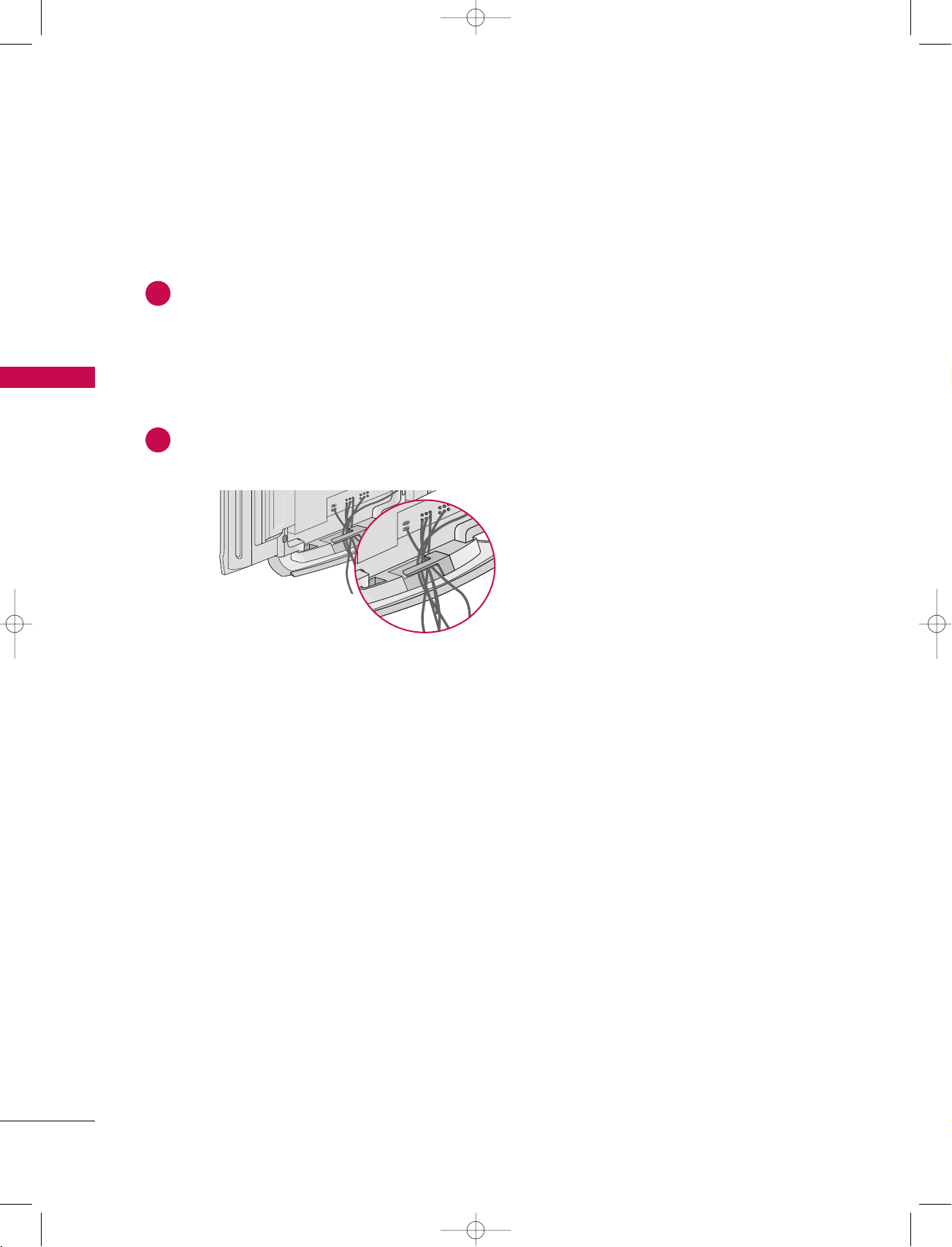

Wire Arrangement
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16
Desktop Pedestal Installation
. . . . . . . . . . . . . . . . . . . . . . . . . . . . 17
CONNECTIONS & SETUP
Auto Link . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 18

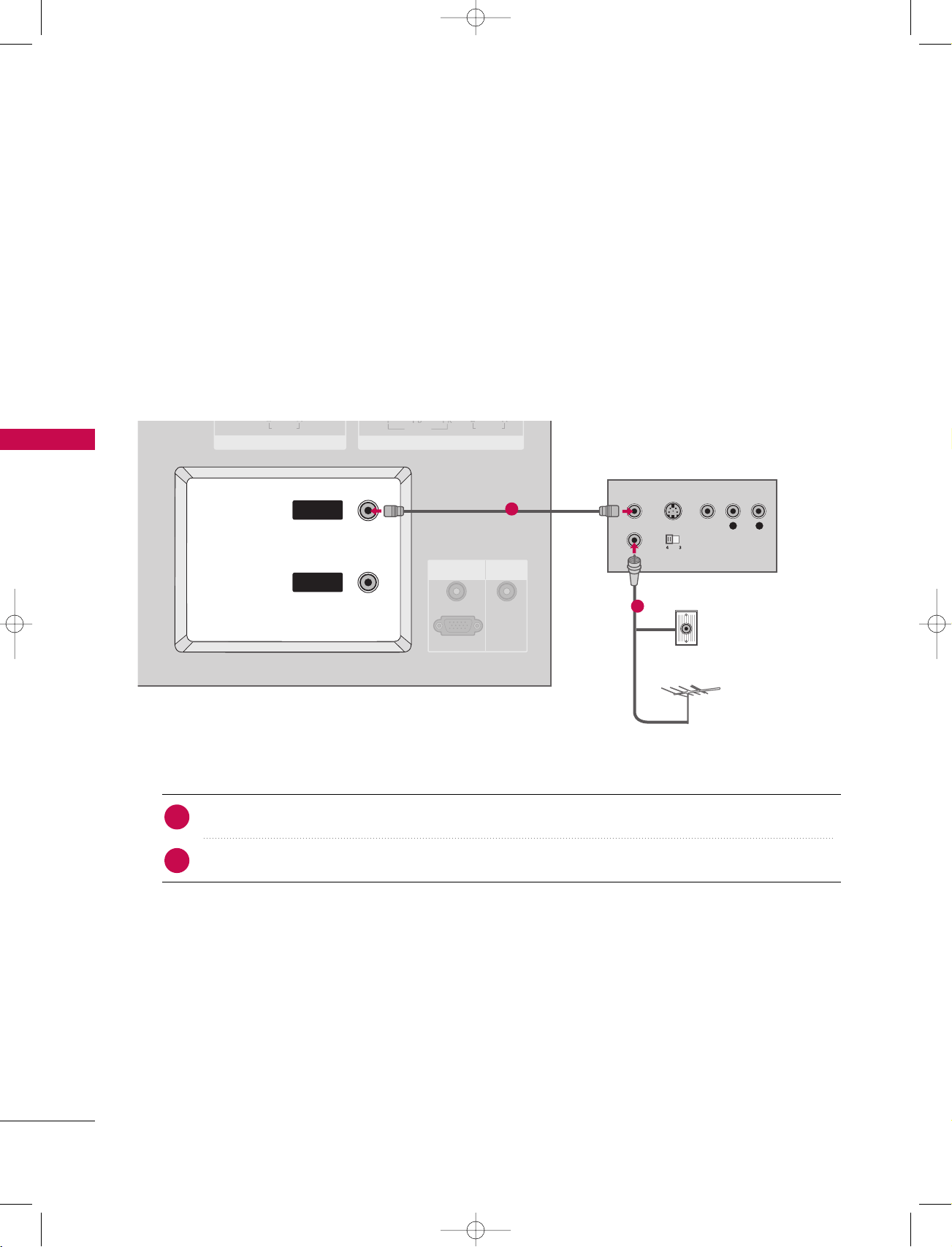

Antenna or Cable Connection
. . . . . . . . . . . . . . . . . . . . 19-20
CableCARD
TM
Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20
HDSTB Setup
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 21-23
VCR Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24-25
AV Out Setup
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26
Digital Audio Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 27
External A/V Source Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28
DVD Setup
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29-30
PC Setup
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 31-34
BASIC OPERATION
Turning the TV On . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35
On-Screen Menus Language Selection
. . . . . . . . . . . . . 36
Initial Channel Search (EZ Scan) . . . . . . . . . . . . . . . . . . . . . . 37
Channel Selection
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38
Volume Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 38

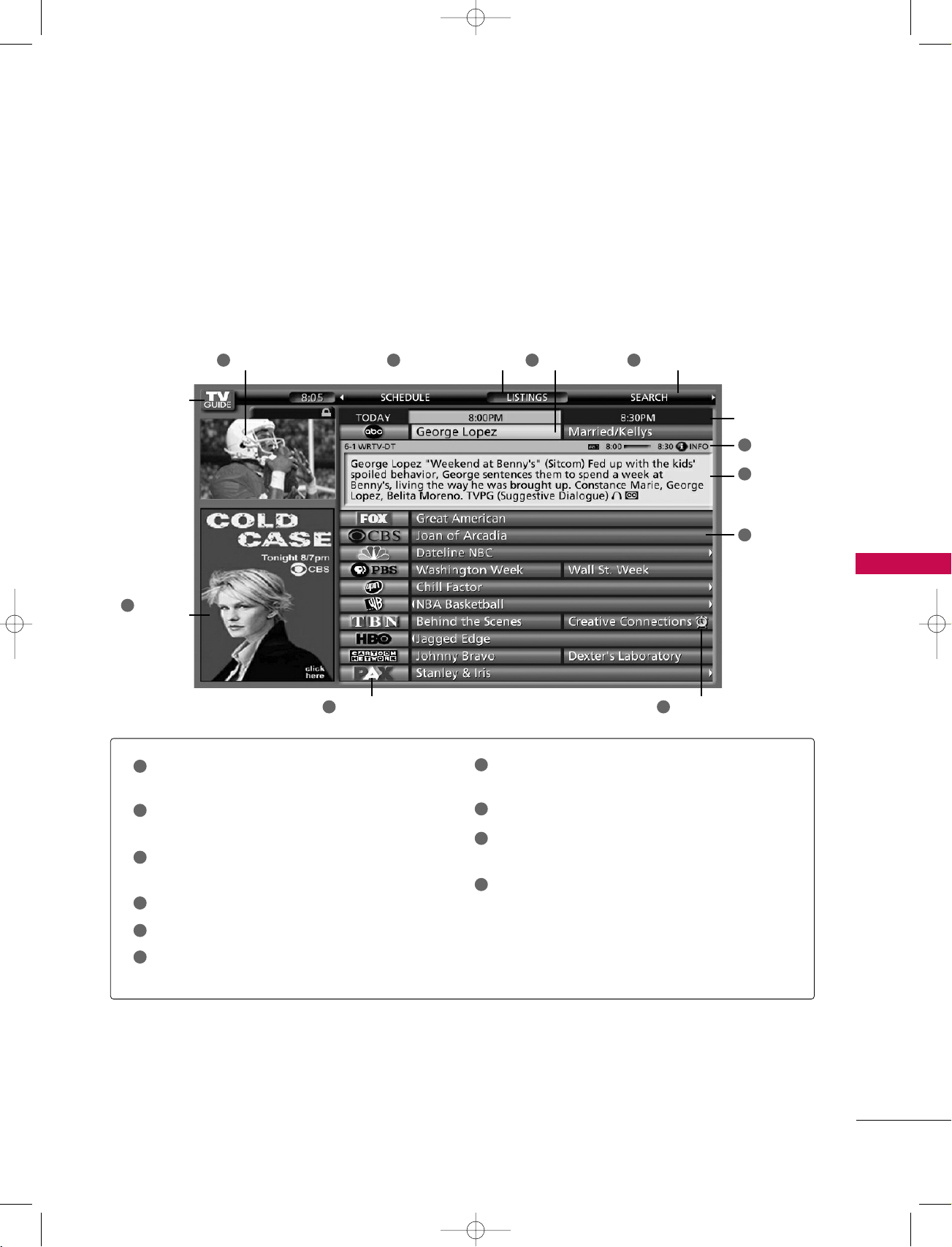

TV GUIDE ON SCREEN
TM
SYSTEM
TV Guide On Screen Setup . . . . . . . . . . . . . . . . . . . . . . . . 39-41
- Ready to Setup
- Using TV Guide
TV Guide On Screen
TM
Feature . . . . . . . . . . . . . . . . . . . .
42-57
- Overview
- Screen Components
- Panel Menu
- Main Services
Listings | Search
Schedule | Setup
- Remind Features
SPECIAL FUNCTIONS
PIP/POP/Twin Picture
- Watching PIP/POP/Twin Picture . . . . . . . . . . . . . . . . . . . . . 58
- Selecting an Input Signal Source
for PIP/Twin Picture
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59
- TV Program Selection for PIP . . . . . . . . . . . . . . . . . . . . . . . . . 59
- Moving the PIP Sub Picture
. . . . . . . . . . . . . . . . . . . . . . . . . . . 59
- Swapping PIP/Twin Picture . . . . . . . . . . . . . . . . . . . . . . . . . . . .
60
- Adjusting Main and Sub Picture Sizes
for Twin Picture
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60
- POP (Picture-out-of-Picture: Channel Scan)
. . . . 61
1_512Den-1 06/5/2 10:20 AM Page 4
5
CONTENTS
TV MENU
On Screen Menus Selection and Adjustment . . . . 62
Setup(Channel)
Auto Channel Search (EZ Scan) . . . . . . . . . . . . . . . . . . . . . . . 63
Manual Channel Search (Manual Scan)
. . . . . . . . . . . . . 64
Channel Edit
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
65
DTV Signal Strength
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66
Main Picture Source Selection . . . . . . . . . . . . . . . . . . . . . . . . . . 67
Input Label
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 68
Video Adjustment
Auto Picture Control (EZ Picture) . . . . . . . . . . . . . . . . . . . . 69
Adaptive Picture Mode (APM). . . . . . . . . . . . . . . . . . . . . . . . . . 70
Manual Picture Control
(EZ Picture-User Option)
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
71
Color Temperature Control
. . . . . . . . . . . . . . . . . . . . . . . . 72-73
- Auto Color Temperature Control
. . . . . . . . . . . . . . . . . . . 72
- Manual Color Temperature Control
. . . . . . . . . . . . . . . . 73
XD
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74
Advanced
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75-76
- Cinema 3:2 Mode Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75
- Black Level
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 76
Video Reset . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 77
Audio Adjustment
Audio Language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 78
Auto Volume Leveler (EZ SoundRite) . . . . . . . . . . . . . . . . 79
Auto Sound Control (EZ Sound)
. . . . . . . . . . . . . . . . . . . . . 80
Manual Sound Control
(EZ Sound-User Option)
. . . . . . . . . . . . . . . . . . . . . . . . . . . 81-82
Balance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 83
TV Speakers On/Off Setup
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 84
BBE . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 85
Stereo/SAP Broadcasts Setup
. . . . . . . . . . . . . . . . . . . . . . . . . . 86
Time Setting
Auto Clock Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 87
Manual Clock Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 88
On/Off Timer Setup
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 89
Sleep Timer
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 90
Auto Off . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 91
Optional Features
Aspect Ratio Control
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 92-93
Caption/Text
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 94-95
- Analog Broadcasting System Captions
. . . . . . . . . . . 94
- Digital Broadcasting System Captions
. . . . . . . . . . . . 95
Caption Option . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 96
ISM (Image Sticking Minimization) Method
. . . . . . . 97
Low Power . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 98
Brief Info.
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 99
Lock Adjustment
Setting Up Your Password . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 0
Lock System . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
Set Password
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 101
Block Channel
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102
Movie Rating (MPAA)- for USA only
. . . . . . . . . . . . . . . 10 3
TV Rating Children- for USA only
. . . . . . . . . . . . . . . . . . . 10 4
TV Rating General- for USA only
. . . . . . . . . . . . . . . . . . . . 104
TV Rating English- for CANADA only
. . . . . . . . . . . . . . 10 5
TV Rating French- for CANADA only
. . . . . . . . . . . . . . 10 5
Input Block . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 6
CableCARD
TM
Function
Cable Menu Options
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 7
Scrambled channel
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 8
Cable Channel List
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10 9
Emergency Message Alert . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109
APPENDIX
External Control Device Setup . . . . . . . . . . . . . . . . . .110-116
IR Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .117-118
Programming the Remote Control
. . . . . . . . . . . . . . . . . . 119
Programming Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 120-122
Troubleshooting Checklist
. . . . . . . . . . . . . . . . . . . . . . . 123-125
Maintenance
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 126
Product Specifications
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127
After reading this manual, keep it handy for future reference.
1_512Den-1 06/5/2 10:20 AM Page 5
INTRODUCTION
6
INTRODUCTION
What is a Plasma TV?
Using plasma is the best way to achieve flat panel
displays with excellent image quality and large screen
sizes that are easily viewable. The Plasma TV can be
thought of as a descendant of the neon lamp and or
a series of fluorescent lamps.
How does it work?
Plasma TV is an array of cells, known as pixels, which
are comprised of three sub-pixels, corresponding
to the colors red, green, and blue. Gas in a plasma
state is used to react with phosphors in each sub-
pixel to produce colored light (red, green, or blue).
These phosphors are the same types used in
Cathode Ray Tube (CRT) devices such as televisions
and common computer monitors.
Plasma TV offers a rich, dynamic display because
each sub-pixel is individually controlled by advanced
electronics to produce over 16 million different col-
ors. This means that you get perfect images that are
easily viewable in a display that is fewer than five
inches thick.
160° - Wide angle range of vision
Your flat panel plasma screen offers an exceptionally
broad viewing angle of over 160 degrees. This means
that the display is clear and visible to viewers any-
where in the room.
Wide Screen
The wide screen offers a theater-like experience in
your own home.
Multimedia
Connect your plasma display to a PC and use it for
conferencing, games, and Internet browsing. The
Picture-in-Picture feature allows you to view your PC
and video images simultaneously.
Versatile
The light weight and thin size makes it easy to install
your plasma display in a variety of locations where
conventional TVs do not fit.
The Plasma TV Manufacturing Process: a few
minute colored dots may be present on the
Plasma TV screen
The Plasma TV is composed of 0.9 to 2.2 million
cells. A few cell defects will normally occur in the
Plasma TV manufacturing process. Several tiny,
minute colored dots visible on the screen should be
acceptable. This also occurs in other Plasma TV
manufacturers' products. The tiny dots appearing
does not mean that this Plasma TV is defective. Thus
a few cell defects are not sufficient cause for the
Plasma TV to be exchanged or returned. Our pro-
duction technology minimizes these cell defects dur-
ing the manufacture and operation of this product.
1_512Den-1 06/5/2 10:20 AM Page 6
INTRODUCTION
7
Official term for an HDTV that conforms to the plug-
and-play digital cable TV standard using POD (Point
of Deployment) access cards, also called
CableCARDs, that allow users to plug the cable
directly into an HDTV set and enjoy HDTV and digi-
tal cable without having to use a separate set-top
box.
is a trademark of SRS Labs, Inc.
TruSurround XT technology is incorporated under
license from SRS Labs, Inc.
Manufactured under license from BBE Sound, Inc.
Manufactured under license from Dolby Laboratories.
“
Dolby
“and the double-D symbol are trademarks of
Dolby Laboratories.
High-definition television. High-resolution digital
television broadcast and playback system composed
of roughly a million or more pixels, 16:9 aspect-ratio
screens, and AC3 digital audio. A subset of digital
television, HDTV formats include 1080i and 720p
resolutions.
HDMI
TM
, the HDMI logo and High-Definition
Multimedia Interface are trademarks or registered
trademarks of HDMI Licensing."
LG's own special digital image generator, consisting
of a full digital image processor, APM mode & six dif-
ferent main picture quality factors.
1_512Den-1 06/5/2 10:20 AM Page 7
INTRODUCTION
8
INTRODUCTION
TV GUIDE ON SCREEN
TM
NOTICES FOR U.S.A.
This digital television is capable of receiving basic analog, digital basic and digital premium cable
television programming by direct connection to a cable system providing such programming. A secu-
rity card provided by your cable operator is required to view encrypted digital programming. Cable
operator enhanced program (For example, electronic program guide provided by the cable opera-
tor), and data enhanced television service may require the use of a set top box. For more informa-
tion contact your local cable operator.
Trademark Notice
In the United States, TV GUIDE and other related marks are registered marks of Gemstar-TV Guide
International, Inc. and/or one of its affiliates. In Canada, TV GUIDE is a registered mark of
Transcontinental Inc., and is used under license by Gemstar-TV Guide International, Inc.
License Notice
The TV Guide On Screen
TM
system is manufactured under license from Gemstar-TV Guide
International, Inc. and/or one of its affiliates.
Patent Notice
The TV Guide On Screen
TM
system is protected by one or more of the following issued United
States patents 6,498,895, 6,418,556, 6,331,877; 6,239,794; 6,154,203; 5,940,073; 4,908,713;
4,751,578; 4,706,121.
Use of the CableCARD
TM
TradeMark.
“CableCARD
TM
is a trademark of Cable Television Laboratories, Inc.”
Gemstar-TV Guide International Inc. and/or its related affiliates are not in any way liable for the
accuracy or availability of the program schedule information or other data in the TV Guide On
Screen system and cannot guarantee service availability in your area. In no event shall Gemstar-TV
Guide International, Inc. and/or its related affiliates be liable for any damages in connection with
the accuracy or availability of the program schedule information or other data in the TV Guide On
Screen system.
DIGITAL CABLE COMPATIBILITY
TM
1_512Den-1 06/5/2 10:20 AM Page 8
INTRODUCTION
9
ACCESSORIES
Ensure that the following accessories are included with your product. If an accessory is missing, please con-
tact the dealer where you purchased the product.
User must use shielded signal interface cables (D-sub 15 pin cable) with ferrite cores to maintain standard
compliance for the product.
Manuel de l’Utilisateur
1.5V 1.5V
Owner’s Manual Batteries
APM
CC
AUTO DEMO
M/C EJECT
1 2 3
4 5 6
78
0
9
FLASHBK
VOL CH
MUTE
FAV
PAGE
PAGE
M
E
NU
INFO i
T
V GUIDE
ENTER
EXIT
S
AP
C
C
RATI
O
POWER
DAY -
D
A
Y
+
VCR
TV
DVD
AUDIO
CABLE
STB
MODE
TV INPUT
INPUT
Remote Control Power Cord
75ohm Round Cable
2-Bolts
(Refer to p.15)
2-eye-bolts2-Wall brackets
* Slightly wipe stained spot on the exterior only with
the polishing cloth for the product exterior if there is
stain or fingerprint on surface of the exterior.
* Do not wipe roughly when removing stain. Please be
cautions of that excessive power may cause scratch or
discoloration.
Polishing Cloth
Polish the screen with the cloth.
OOppttiioonn EExxttrraass
D-sub 15 pin Cable
512Den-1 06/7/24 2:29 PM Page 9
INTRODUCTION
10
INTRODUCTION
CONTROLS
■
Here shown may be somewhat different from your TV.
Front Panel Controls
CH
VOL
MENU
INPUT
TV GUIDE
Remote Control
Sensor
POWER
Button
TV
GUIDE
Button
INPUT
Button
MENU
Button
VOLUME
(
FF
,
GG
)Buttons
CHANNEL
(
EE
,
DD
)Buttons
Power Standby Indicator
Illuminates red in standby
mode.
When the TV is turned
on, the indicator blinks
white and then illuminates
white before the picture is
displayed.
1_512Den-1 06/5/2 10:21 AM Page 10
INTRODUCTION
11
CONNECTION OPTIONS
Back Connection Panel
HDMI IN
DIGITAL AUDIO
OUT
OPTICAL
2
1 (DVI)
RS-232C IN
(CONTROL & SERVICE)
RGB (PC/DTV)
RGB IN
AUDIO (RGB/DVI)
COMPONENT IN
VIDEO
AUDIO
VIDEO
AUDIO
( )
S-VIDEO
AV IN 1
AV OUT
ANTENNA
IN
CABLE
IN
REMOTE
CONTROL IN
Cable CARD
HDMI INHDMI IN
DIGITAL AUDIO DIGITAL AUDIO
OUTOUT
OPTICALPTICAL
2
1 (DVI)
1 (DVI)
RS-232C INRS-232C IN
(CONTROL & SERVICE)(CONTROL & SERVICE)
RGB (PC/DTV)RGB (PC/DTV)
RGB INRGB IN
AUDIO (RGB/DVI)AUDIO (RGB/DVI)
COMPONENT INCOMPONENT IN
VIDEOVIDEO
AUDIOAUDIO
VIDEOVIDEO
AUDIOAUDIO
MONO
( )
S-VIDEOS-VIDEO
AV IN 1AV IN 1
AV OUTAV OUT
ANTENNAANTENNA
ININ
CABLECABLE
ININ
REMOTEREMOTE
CONTROL INCONTROL IN
S-VIDEO Input
Provides better picture quality than the
video input.
AUDIO Input
Connections are available for listening to
stereo sound from an external device.
VIDEO Input
Connects the video signal from a video
device.
CableCARD
™
Used for
CableCARD
™
Cable Service
Provider.
AV OUT
Connect a second TV or monitor.
AV (Audio/Video) IN 1
Connect audio/video output from an external
device to these jacks.
S-VIDEO
Connect S-Video out from an S-VIDEO device.
COMPONENT IN
Connect a component video/audio device to these
jacks.
HDMI IN
Connect a HDMI signal to 1(DVI) or 2.
Or DVI(VIDEO)signal to the 1(DVI) port with a DVI
to HDMI cable.
DIGITAL AUDIO OUT
Connect digital audio from various types of equipment.
Note: In standby mode, these ports do not work.
RS-232C IN (CONTROL & SERVICE) PORT
Connect to the RS-232C port on a PC.
ANTENNA IN
Connect over-the air signals to this jack.
CABLE IN
Connect cable signals to this jack.
RGB/AUDIO IN
Connect the monitor output from a PC to the
appropriate input port.
Remote Control Port
Connect your wired remote control.
Power Cord Socket
For operation with AC power.
Caution:
Never attempt to operate the TV on DC power.
10
1
2
4
1 6
7
8
9
10
2
3
4
5
5 6
7
8
3
9
1_512Den-1 06/5/2 10:21 AM Page 11
INTRODUCTION
12
INTRODUCTION
REMOTE CONTROL KEY FUNCTIONS
When using the remote control, aim it at the remote control sensor on the TV.
APM
CC
AUTO DEMO
M/C EJECT
1 2 3
4 5 6
78
0
9
FLASHBK
VOL CH
MUTE
FAV
PAGE
PAGE
MENU
INFO i
TV GUIDE
ENTER
EXIT
SAP
CC
RATIO
POWER
DAY -
DAY+
VCR
TV
DVD
AUDIO
CABLE
STB
MODE
TV INPUT
INPUT
MODE
DAY+/DAY-
MENU
INFO
TV GUIDE
THUMBSTICK
(Up/Down/Left
Right/ENTER)
EXIT
SAP
CC
RATIO
VOLUME UP
/DOWN
MUTE
FAV
CHANNEL
UP/DOWN
PAGE UP/
PAGE DOWN
— (DASH)
FLASHBK
Select the remote operating mode: TV, DVD, VCR,
AUDIO, CABLE or STB.
Control video cassette recorders or DVD players.
Move the Listings Grid forward or backward in 24 hour
increments.
Displays the main menu. Enters or exits a Panel Menu in
the TV Guide On Screen system.
Display information at the top of the screen.
GG
pp..9999
Displays the TV Guide On Screen system.
Navigate the on-screen menus and adjust the system set-
tings to your preference.
Clear all on-screen displays and return to TV viewing
from any menu.
Analog mode: Selects MTS sound(Mono, Stereo, and a SAP)
DTV mode: Change the audio language.
Select a closed caption.
GG
pp..9944
(*In DTV/CADTV mode
GG
pp..9955
)
Change the aspect ratio.
GG
pp..9922--9933
Increase/decrease the sound level.
Switch the sound on or off.
GG
pp..3388
Scroll through the programmed Favorite channels.
Select available channels.
Move from one full set of screen information to the next
one.
Used to enter a program number for multiple program
channels such as 2-1, 2-2, etc.
Tune to the last channel viewed.
VCR/DVD
control buttons
NUMBER button
1_512Den-1 06/5/2 10:21 AM Page 12
INTRODUCTION
13
APM
TIMER
ADJUST
SWAP
PIP CH +PIP CH -
PIP
PIP INPUT
78
0
9
FLASHBK
EZ SOUND
EZ PIC
Installing Batteries
■
Open the battery compartment
cover on the back side and
install the batteries matching
correct polarity
(
+with +,-with -
)
.
■
Install two 1.5V AA batteries.
Don’t mix old or used batteries
with new ones.
■
Close cover.
Inside the Sliding Cover
POWER
TV INPUT
INPUT
Turns your TV or any other
programmed equipment on or
off, depending on the mode.
In AV 1-2, Component 1-2,
RGB-PC (or RGB-DTV),
HDMI1/DVI, and HDMI2
input sources, screen returns
to the last TV channel.
External input modes rotate in
regular sequence: Antenna,
Cable, AV1-2, Component 1-2,
RGB-PC (or RGB-DTV),
HDMI1/DVI and HDMI2.
(AV 1-2, Component 1-2,
RGB-PC (or RGB-DTV),
HDMI1/DVI, and HDMI2
input sources are linked auto-
matically, only if these are
connected.)
TIMER
APM
ADJUST
Select the amount of time before your TV turns off
automatically.
GG
pp..9900
Compare the Daylight, Normal, Night Time and
User1(or2) on the screen.
GG
pp..7700
Adjust the screen position, size, and phase in PC mode.
GG
pp..3344
PIP
PIP CH-/PIP CH+
PIP INPUT
SWAP
EZ PIC
EZ SOUND
Switches the sub picture PIP, POP, Twin picture
or off mode.
GG
pp..5588--6611
Changes the PIP channel.
GG
pp..5599
Select the connected input source for the
sub-picture.
GG
pp..5599
Exchange the main/sub images.
GG
pp..6600
Adjust the factory preset picture depend on
the viewing environment.
GG
pp..6699
Select the appropriate type of sound for type
of program.
GG
pp..8800
■
Use a remote control up to 7
meters distance and 30 degree
(left/right) within the receiving
unit scope.
■
Dispose of used batteries in a
recycle bin to preserve environ-
ment.
M
E
NU
INFO i
TV GUIDE
ENTER
EXIT
RATIO
POWER
D
AY -
DAY+
VCR
TV
DVD
AUDIO
CABLE
STB
MODE
TV INPUT
INPUT
Remote control effective range
1_512Den-1 06/5/2 10:21 AM Page 13
INSTALLATION
14
ATTACHING THE TV TO A WALL
INSTALLATION
We recommend that you set up the TV close to a wall so it cannot fall over if pushed backwards.
Additionally, we recommend that the TV be attached to a wall so it cannot be pulled in a forward direction,
potentially causing injury or damaging the product.
Caution: Please make sure that children don’t climb on or hang from the TV.
■
Insert the eye-bolts (or TV brackets and bolts) to tighten the product to the wall as shown in the picture.
* If your product has the bolts in the eye-bolts position before inserting the eye-bolts, loosen the bolts.
Secure the wall brackets with the bolts (not provided as parts of the product, must purchase separately) on
the wall. Match the height of the bracket that is mounted on the wall to the holes in the product.
Ensure the eye-bolts or brackets are tightened securely.
■
Use a sturdy rope (not provided as parts of the product, must purchase
separately) to tie the product. It is safer to tie the rope so it becomes
horizontal between the wall and the product.
VESA Mounting
These 4 threaded holes are
available for attaching the
bracket provided with the
accessory wall-mount
installation kit.
600mm
400
mm
1_512Den-1 06/5/2 10:21 AM Page 14
INSTALLATION
15
UNFOLDING THE STAND BASE
NOTE
!
(B)
(A)
(D)
(C)
Place the set with the screen facing
down on a cushion or soft cloth as
shown.
Before unfolding the stand, please make
sure two locks (A) on the bottom of the
stand push outward.
Pull the stand out as shown.
After unfolding the stand, please insert
and tighten the screws (provided as
parts of the product) in the holes (B) on
the bottom of the stand.
1
2
When connecting cables to the set, Do
not disengage the lock (C).
This may cause the set to fall, causing
serious bodily injury and serious damage
to the set.
3
(A)
(B)
GG
WWhheenn cclloossiinngg tthhee ssttaanndd ffoorr ssttoorraaggee
■
First remove the screws in the holes (B) on the
bottom of the stand. And then pull two Hooks
(D) of the stand bottom and fold the stand into
the back of the set.
■
After folding, push the two Locks (A) of the
stand bottom outward.
Image shown here may be slightly different from your set.
1_512Den-1 06/5/2 10:21 AM Page 15
INSTALLATION
16
WIRE ARRANGEMENT
INSTALLATION
Arrange the cable as shown.
2
Connect the cables as necessary.
After connecting the cables neatly, arrange the cables to the Cable Holder.
To connect an additional equipment, see the Connections & Setup section.
1
1_512Den-1 06/5/2 10:21 AM Page 16
INSTALLATION
17
DESKTOP PEDESTAL INSTALLATION
For proper ventilation, allow a clearance of 4inches on each side from the wall.
4 inches
4 inches
GG
Ensure adequate ventilation by following the clearance recommendations.
CAUTION
Power Supply
Short-circuit
Breaker
■
Here shown may be somewhat different from your TV.
GROUNDING
Ensure that you connect the earth ground wire to prevent possible electric shock. If grounding methods
are not possible, have a qualified electrician install a separate circuit breaker.
Do not try to ground the unit by connecting it to telephone wires, lightening rods, or gas pipes.
4 inches
4 inches
1_512Den-1 06/5/2 10:21 AM Page 17
CONNECTIONS & SETUP
18
CONNECTIONS & SETUP
AUTO LINK
■
You can also select
MMaaiinn IInnppuutt
in the
SSEETTUUPP
menu.
■
AAnntteennnnaa
: Select it when watching the TV/DTV.
■
CCaabbllee
: Select it when watching the CATV/CADTV.
■
AAVV 11--22
: Select it when watching the VCR or external equipment.
■
CCoommppoonneenntt 11--22
: Select it when using the DVD or the Digital set-top box depend on connector.
■
RRGGBB--PPCC//RRGGBB--DDTTVV
: Select it when using PC or Digital set-top box depend on connector.
■
HHDDMMII11//DDVVII,, HHDDMMII22
: Select it when using DVD, PC or Digital set-top box depend on connector.
Press the
IINNPPUUTT
button and then displays the connected
external equipment list on the screen.
Press the
EENNTTEERR
button to change the main input to the active
external equipment. Use the
DD
or
EE
button to select the main
input source.
EZ Scan
Manual Scan
Channel Edit
DTV Signal
Main Input
G
Sub Input
Input Label
Set ID
Antenna
Cable
AV 1
AV 2
Component1
Component2
RGB-PC
HDMI1/DVI
HDMI2
Antenna
Cable
AV 1
AV 2
Component1
Auto Link
AV 2
AAnntteennnnaa CCaabbllee
When every external equipment is connected:
1
When any external equipment is not connected:
2
When some External Equipment is connected:
(ex: When connected to AV 2)
3
AAnntteennnnaa CCaabbllee
AAVV11
AAnntteennnnaa CCaabbllee AAVV22
AAVV22 CCoommppoonneenntt11
HHDDMMII22 HHDDMMII11//DDVVII RRGGBB--PPCC ((oorr RRGGBB--DDTTVV)) CCoommppoonneenntt22
MENU
INFO i
T
V GUIDE
ENTER
EXIT
SAP
CC
RATIO
POWER
DAY -
D
AY +
VCR
TV
DVD
AUDIO
CABLE
STB
MODE
TV INPUT
INPUT
INPUT
EE
1_512Den-1 06/5/2 10:21 AM Page 18
ANTENNA OR CABLE CONNECTION
CONNECTIONS & SETUP
19
1. Antenna (Analog or Digital)
Wall Antenna Socket or Outdoor Antenna without a Cable Box Connections.
For optimum picture quality, adjust antenna direction if needed.
ANTENNA
IN
CABLE
IN
CABLE
IN
CABLE
IN
CABLE
IN
ANTENNA
IN
CABLE
IN
CABLE
IN
CABLE
IN
ANTENNA
IN
CABLE
IN
2. Cable
3. Using both Cable and Antenna
Multi-family Dwellings/Apartments
(Connect to wall antenna socket)
Single-family Dwellings /Houses
(Connect to wall jack for outdoor antenna)
Outdoor
Antenna
(VHF, UHF)
Wall
Antenna
Socket
RF Coaxial Wire (75 ohm)
Bronze Wire
Be careful not to bend the bronze
wire when connecting the antenna.
Cable TV
Wall Jack
Cable TV
Wall Jack
Antenna
RF Coaxial Wire (75 ohm)
RF Coaxial Wire (75 ohm)
RF Coaxial Wire (75 ohm)
HDMI IN
DIGITAL AUDIO
OUT
OPTICAL
2
1 (DVI)
RS-232C IN
(CONTROL & SERVICE)
RGB (PC/DTV)
RGB IN
AUDIO (RGB/DVI)
COMPONENT IN
VIDEO
AUDIO
VIDEO
AUDIO
( )
S-VIDEO
AV IN 1
AV OUT
ANTENNA
IN
CABLE
IN
REMOTE
CONTROL IN
1_512Den-1 06/5/2 10:21 AM Page 19
CONNECTIONS & SETUP
20
CONNECTIONS & SETUP
The TV will let you know when the analog, cable, and digital channel scans are complete.
NOTE
!
CABLE
IN
ANTENNA
IN
CABLE
IN
■
To improve the picture quality in a poor signal area, please purchase a signal amplifier and install properly.
■
If the antenna needs to be split for two TV’s, install a 2-Way Signal Splitter.
■
If the antenna is not installed properly, contact your dealer for assistance.
Antenna
UHF
Signal
Amplifier
VHF
CABLECARD
TM
SETUP
1. How to use
Insert the CableCARD
TM
from your cable service provider into the CableCARD
TM
slot on the back of your TV.
If pairing information about this TV and the CableCARD is displayed on the screen, contact your cable ser-
vice provider.
GG
This TV supports CableCARD
TM
technology from
Motorola, Scientific Atlanta, and SCM.
NOTE
!
GG
When removing, do not drop it as this may cause
damage to the CableCARD
TM
.
CAUTION
ANTENNA
IN
CABLE
IN
Cable CARD
Cable CARD
1_512Den-1 06/5/2 10:21 AM Page 20
CONNECTIONS & SETUP
21
HDSTB SETUP
This TV can receive Digital Over-the-air/Cable signals without an external digital set-top box. However, if you
do receive digital signals from a digital set-top box or other digital external device, refer to the figure as
shown below.
This TV supports HDCP
(
High-bandwidth Digital Contents Protection
)
protocol for Digital Contents
(
480p,720p,1080i
)
.
Y L RPB PR
S-VIDEO
ANTENNA
IN
CABLE
IN
VIDEO
AUDIO
COMPONENT INCOMPONENT IN
ANTENNA
IN
CABLE
IN
HDMI IN
2
1(DVI)
ANTENNA
IN
CABLE
IN
HDMI IN
2
1(DVI)
ANTENNA
IN
CABLE
IN
RGB IN
AUDIO (RGB/DVI)
RGB IN
AUDIO (RGB/DVI)
RGB (PC/DTV)
When connecting Component cable
1. How to connect
Connect the video outputs
(
Y, PB, PR
)
of the digital set
top box to the
CCOOMMPPOONNEENNTT IINN VVIIDDEEOO 11
jacks
on the set. Match the jack colors
(Y = green, P
B = blue, and PR
= red).
Connect the audio output of the digital set-top box to
the
CCOOMMPPOONNEENNTT IINN AAUUDDIIOO 11
jacks on the set.
2
1
2. How to use
■
Turn on the digital set-top box.
(
Refer to the owner’s manual for the digital set-top box.
)
■
Select
CCOOMMPPOONNEENNTT 11
input source with using the
IINNPPUUTT
button on the remote control.
■
If connected to
CCOOMMPPOONNEENNTT IINN22
input, select
CCOOMMPPOONNEENNTT 22
input source.
Signal
480i
480p
720p
108 0 i
Component 1/2
Yes
Yes
Yes
Yes
HDMI1/DVI,
RGB-DTV, HDMI2
No
Yes
Yes
Yes
1 2
1_512Den-1 06/5/2 10:21 AM Page 21
CONNECTIONS & SETUP
22
CONNECTIONS & SETUP

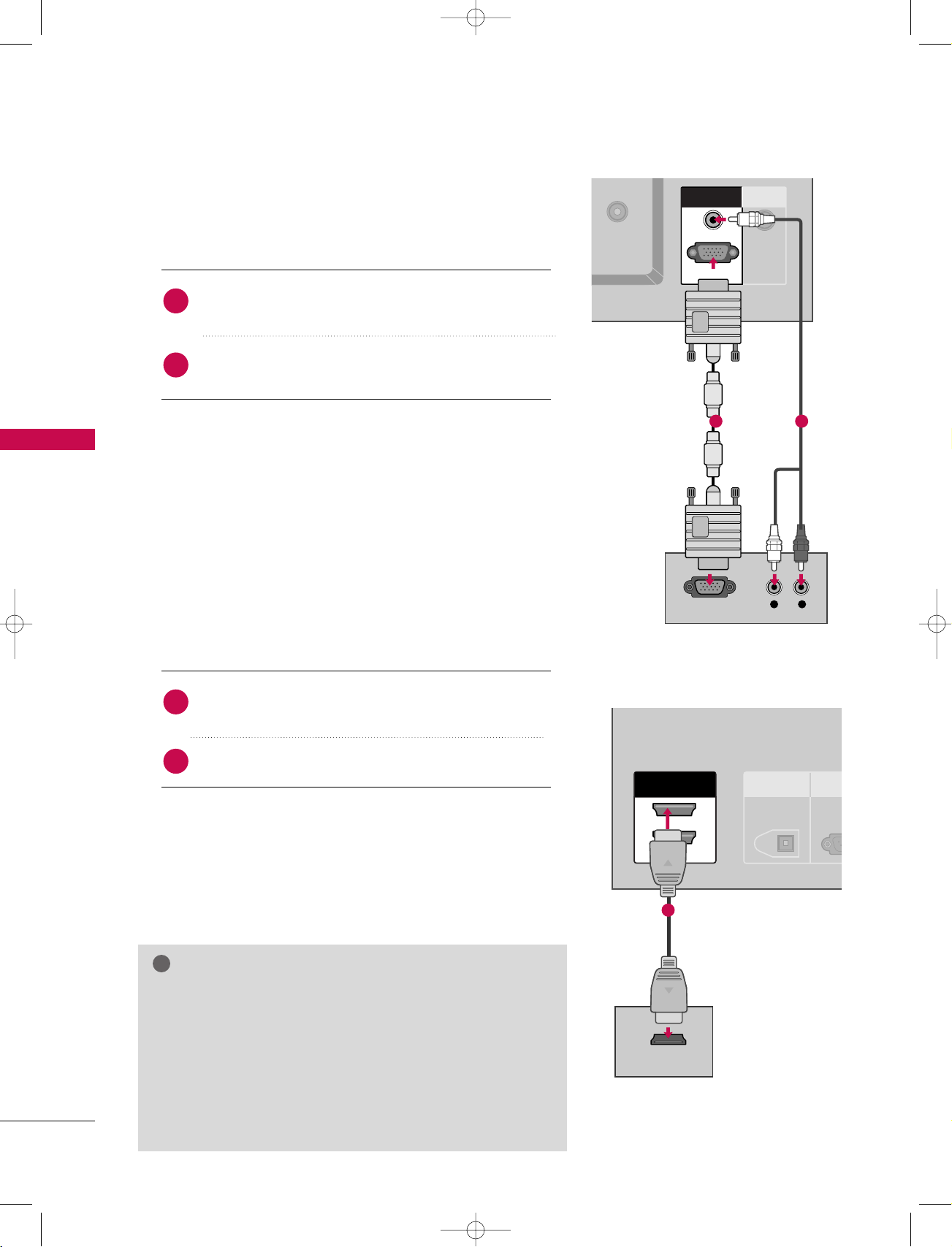

When connecting D-sub 15pin cable
Connect the RGB output of the digital set-top box to
the
RRGGBB
((
PPCC//DDTTVV
))
jack on the set.
Connect the audio outputs of the set-top box to the
AAUUDDIIOO
((
RRGGBB//DDVVII
))
jack on the set.
1. How to connect
2. How to use
■
Turn on the digital set-top box.
(
Refer to the owner’s manual for the digital set-top box.
)
■
Select
RRGGBB--DDTTVV
input source with using the
IINNPPUUTT
button on the remote control.
When connecting HDMI cable
Connect the digital set-top box to
HHDDMMII IINN 11((DDVVII))
or
22
jack on the set.
No separated audio connection is necessary.
1. How to connect
2. How to use
■
Turn on the digital set-top box.
(
Refer to the owner’s manual for the digital set-top box.
)
■
Select
HHDDMMII11//DDVVII
or
HHDDMMII22
input source with using
the
IINNPPUUTT
button on the remote control.
2
1
2
1
ANTENNA
IN
CABLE
IN
VIDEO
AUDIO
COMPONENT IN
ANTENNA
IN
CABLE
IN
HDMI IN
2
1(DVI)
ANTENNA
IN
CABLE
IN
HDMI IN
2
1(DVI)
ANTENNA
IN
CABLE
IN
L R
RGB OUTPUT
RGB IN
AUDIO (RGB/DVI)
REMOTE
CONTROL IN
RGB IN
AUDIO (RGB/DVI)AUDIO (RGB/DVI)
RGB (PC/DTV)
1 2
ANTENNA
IN
CABLE
IN
VIDEO
AUDIO
COMPONENT IN
DIGITAL AUDIO
OUT
OPTICAL
RS-2
(CONTRO
ANTENNA
IN
CABLE
IN
HDMI INHDMI IN
2
1(DVI)
HDMI-DTV OUTPUT
ANTENNA
IN
CABLE
IN
HDMI IN
2
1(DVI)
ANTENNA
IN
CABLE
IN
RGB IN
AUDIO (RGB/DVI)
RGB IN
AUDIO (RGB/DVI)
RGB (PC/DTV)
1
GG
If the digital set-top box supports Auto HDMI function, the
output resolution of the source device will be automatically
set to 1280x720p.
GG
If the digital set-top box player does not support Auto HDMI,
you need to set the output resolution appropriately.
To get the best picture quality, adjust the output resolution of
the source device to 1280x720p.
NOTE
!
1_512Den-1 06/5/2 10:21 AM Page 22
CONNECTIONS & SETUP
23

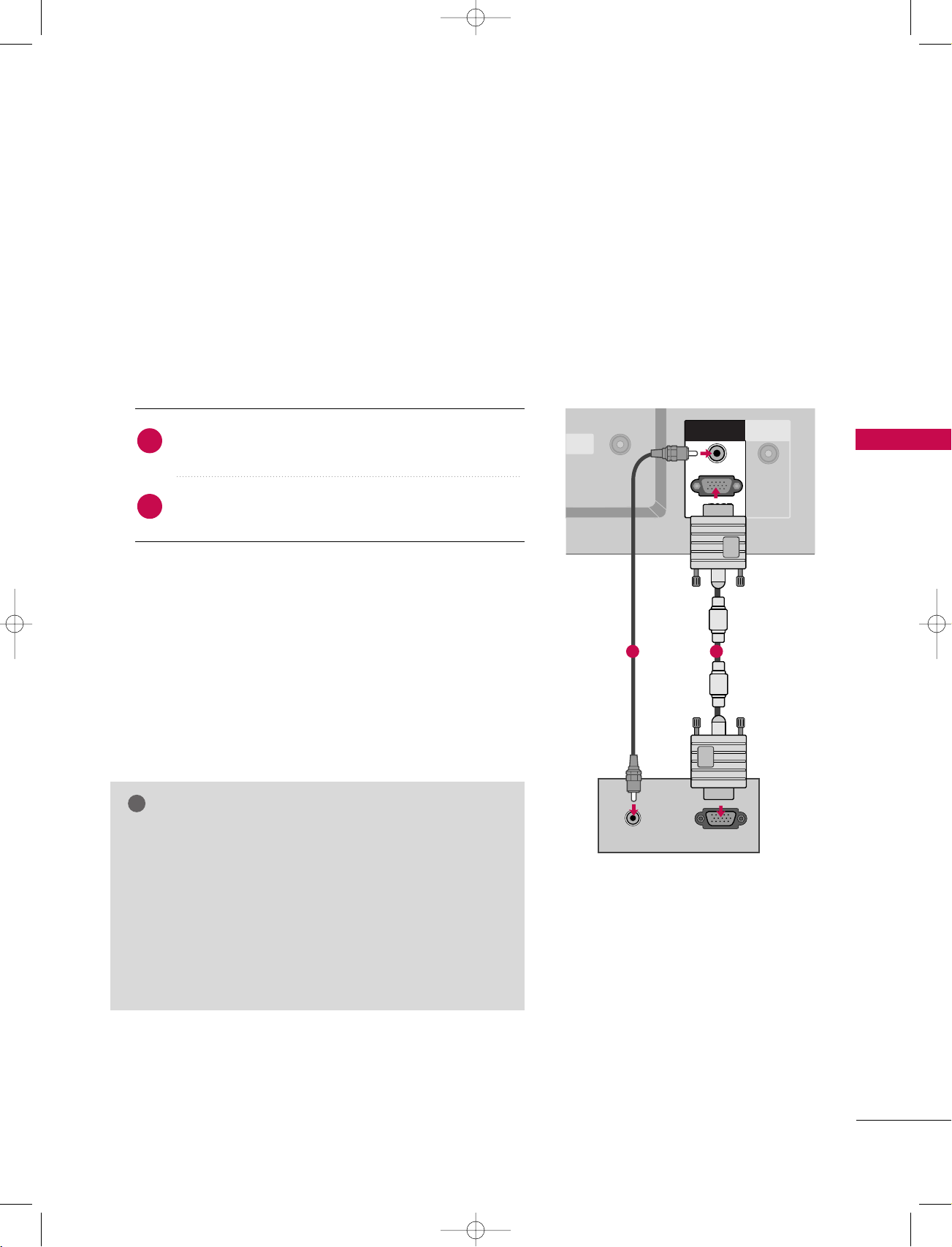

When connecting HDMI to DVI cable
ANTENNA
IN
CABLE
IN
VIDEO
AUDIO
COMPONENT IN
ANTENNA
IN
CABLE
IN
HDMI IN
2
1(DVI)
L R
DIGITAL AUDIO
OUT
OPTICAL
RS-232C IN
(CONTROL
&
SERVICE)
ANTENNA
IN
CABLE
IN
HDMI INHDMI IN
2
1(DVI)
DVI-DTV OUTPUT
ANTENNA
IN
CABLE
IN
REMOTE
CONTROL IN
RGB INRGB IN
AUDIO (RGB/DVI)
RGB (PC
/
DTV)
RGB IN
AUDIO (RGB/DVI)
RGB (PC
/
DTV)
Connect the DVI output of the digital set-top box to the
HHDDMMII IINN 11((DDVVII))
jack on the set.
Connect the audio output of the digital set-top box to the
AAUUDDIIOO
((
RRGGBB//DDVVII
))
jack on the set.
1. How to connect
■
Turn on the digital set-top box.
(
Refer to the owner’s manual for the digital set-top box.
)
■
Select
HHDDMMII11//DDVVII
input source with using the
IINNPPUUTT
button on the remote control.
2. How to use
2
1
1 2
1_512Den-1 06/5/2 10:21 AM Page 23
CONNECTIONS & SETUP
24
CONNECTIONS & SETUP
VCR SETUP
When connecting with an antenna
■
To avoid picture noise
(
interference
)
, leave an adequate distance between the VCR and TV
■
Use the ISM feature in the Option menu to avoid having a fixed image remain on the screen for a long period
of time. If the 4:3 picture format is used; the fixed images on the sides of the screen may remain visible on
the screen. This phenomenon is common to all manufactures and in consequence the manufactures warranty
does not cover the product bearing this phenomenon.
L R
S-VIDEO VIDEO
OUTPUT
SWITCH
ANT IN
ANT OUT
ANTENNA
IN
CABLE
IN
AV IN 1
ANTENNA
IN
CABLE
IN
AV IN 1
VIDEO
AUDIO
VIDEO
AUDIO
COMPONENT IN
S-VIDEO
AV IN 1
RGB (PC/DTV)
RGB IN
AUDIO (RGB/DVI)
REMOTE
CONTROL IN
ANTENNAANTENNA
ININ
CABLECABLE
ININ
VIDEO
AUDIO
( )
AUDIO
( )
S-VIDEO
Wall Jack
Antenna
1
2
Connect the RF antenna out socket of the VCR to the
AAnntteennnnaa
socket on the set.
Connect the antenna cable to the RF antenna in socket of the VCR.
1. How to connect
■
Set VCR output switch to 3 or 4 and then tune TV to the same channel number.
■
Insert a video tape into the VCR and press PLAY on the VCR.
(
Refer to the VCR owner’s manual.
)
2. How to use
2
1
1_512Den-1 06/5/2 10:21 AM Page 24
CONNECTIONS & SETUP
25
GG
Do not connect to both Video
and S-Video at the same time. In
the event that you connect both
Video and the S-Video cables,
only the S-Video will work.
CAUTION
When connecting with a RCA cable
GG
The picture quality is improved: compared to normal
composite (RCA cable) input.
NOTE
!
L R
S-VIDEOVIDEO
OUTPUT
SWITCH
ANT IN
ANT OUT
VID
CO
AV OUT
ANTENNA
IN
CABLE
IN
AV IN 1AV IN 1
ANTENNA
IN
CABLE
IN
AV IN 1
ANTENNA
IN
CABLE
IN
VIDEOVIDEO
AUDIOAUDIO
MONO
( )
S-VIDEO
AUDIO
( )
S-VIDEO
ANTENNA
IN
CABLE
IN
AV IN 1
VIDE
COM
AV OUT
ANTENNA
IN
CABLE
IN
AV IN 1AV IN 1
L R
S-VIDEOVIDEO
OUTPUT
SWITCH
ANT IN
ANT OUT
ANTENNA
IN
CABLE
IN
VIDEO
AUDIO
( )
VIDEO
AUDIOAUDIO
MONO
( )
S-VIDEOS-VIDEO
Connect the
AAUUDDIIOO
/
VVIIDDEEOO
jacks between TV and
VCR. Match the jack colors (Video = yellow, Audio Left
= white, and Audio Right = red)
1. How to connect
2. How to use
■
Insert a video tape into the VCR and press PLAY on the
VCR.
(
Refer to the VCR owner’s manual.
)
■
Select
AAVV11
input source with using the
IINNPPUUTT
button on
the remote control.
■
If connected to
AAVV IINN22
, select
AAVV22
input source.
When connecting with an S-Video cable
Connect the S-VIDEO output of the VCR to the
SS --VVIIDDEEOO
input on the set.
Connect the audio outputs of the VCR to the
AAUUDDIIOO
input jacks on the set.
1. How to connect
2. How to use
■
Insert a video tape into the VCR and press PLAY on the VCR.
(
Refer to the VCR owner’s manual.
)
■
Select
AAVV11
input source with using the
IINNPPUUTT
button on
the remote control.
■
If connected to
AAVV IINN22
, select
AAVV22
input source.
1
2
1
GG
If you have a mono VCR, con-
nect the audio cable from the
VCR to the
AAUUDDIIOO
LL//MMOONNOO
jack of the set.
NOTE
!
1
12
1_512Den-1 06/5/2 10:21 AM Page 25
CONNECTIONS & SETUP
26
CONNECTIONS & SETUP
AV OUT SETUP
The TV has a special signal output capability which allows you to hook up the second TV or monitor.
L R
S-VIDEOVIDEO
VIDEO
AUDIO
MONO
( )
S-VIDEO
ANTENNA
IN
CABLE
IN
AV OUTV OUT
Connect the second TV or monitor to the TV’s
AAVV OOUUTT
jacks.
See the Operating Manual of the second TV or monitor
for further details regarding that device’s input settings.
1. How to connect
GG
Component1-2, RGB-PC/RGB-DTV, HDMI1/DVI, HDMI2,
DTV input sources cannot be used for AV out.
GG
We recommend to use the AV OUT jacks for VCR recording.
NOTE
!
2
1
1
1_512Den-1 06/5/2 10:21 AM Page 26
CONNECTIONS & SETUP
27
DIGITAL AUDIO OUTPUT
Send the TV’s audio to external audio equipment via the Digital Audio Output
(
Optical
)
port.
HDMI IN
2
1(DVI)
RS-232C IN
(CONTROL
&
SERVICE)
ANTENNA
IN
CABLE
IN
DIGITAL AUDIO
OUT
OPTICAL
GG
When connecting with external audio equipments, such as
amplifiers or speakers, please turn the TV speakers off.
(
GG
pp..8844
)
NOTE
!
GG
Do not look into the optical output port. Looking at the
laser beam may damage your vision.
CAUTION
Connect one end of an optical cable to the TV Digital
Audio
(
Optical
)
Output port.
Connect the other end of the optical cable to the
digital audio
(
optical
)
input on the audio equipment.
Set the “TV Speaker option - Off” in the AUDIO
menu. (
GG
pp..8844
). See the external audio equipment
instruction manual for operation.
1. How to connect
2
3
1
1
2
1_512Den-1 06/5/2 10:21 AM Page 27
CONNECTIONS & SETUP
28
CONNECTIONS & SETUP
EXTERNAL A/V SOURCE SETUP
L R
VIDEO
Camcorder
Video Game Set
Connect the
AAUUDDIIOO
/
VVIIDDEEOO
jacks
between TV and external equipment.
Match the jack colors
.
(
Video = yellow, Audio Left = white, and
Audio Right = red
)
1. How to connect
2. How to use
■
Select
AAVV11
input source with using the
IINNPPUUTT
button on the remote control.
■
If connected to
AAVV IINN22
input, select
AAVV22
input source.
■
Operate the corresponding external equipment.
1
1
1_512Den-1 06/5/2 10:21 AM Page 28
CONNECTIONS & SETUP
29
When connecting Component cable
ANTENNA
IN
CABLE
IN
AV IN 1
ANTENNA
IN
CABLE
IN
HDMI IN
2
1(DVI)
Y L RPB PR
S-VIDEO
ANTENNA
IN
CABLE
IN
VIDEO
AUDIO
COMPONENT INCOMPONENT IN
AUDIO
( )
S-VIDEO
DVD SETUP
Component Input ports
To get better picture quality, connect a DVD player to the component input ports as shown below.
Component ports on the TV
YPB PR
Video output ports
on DVD player
Y
Y
Y
Y
PB
B-Y
Cb
Pb
P
R
R-Y
Cr
Pr
Connect the video outputs
(
Y, P
B, PR
)
of the DVD to
the
CCOOMMPPOONNEENNTT IINN VVIIDDEEOO11
jacks on the set.
Match the jack colors
(
Y = green, P
B = blue, and PR = red
)
.
Connect the audio outputs of the DVD to the
CCOOMMPPOONNEENNTT IINN AAUUDDIIOO11
jacks on the set.
1. How to connect
2. How to use
■
Turn on the DVD player, insert a DVD.
■
Select
CCOOMMPPOONNEENNTT 11
input source with using the
IINNPPUUTT
button on the remote control.
■
If connected to
CCOOMMPPOONNEENNTT IINN 22
input, select
CCOOMM--
PPOONNEENNTT 22
input source.
■
Refer to the DVD player's manual for operating instructions.
2
1
1 2
1_512Den-1 06/5/2 10:21 AM Page 29
CONNECTIONS & SETUP
30
CONNECTIONS & SETUP
When connecting with an S-Video cable
AV OUT
ANTENNA
IN
CABLE
IN
AV IN 1
L R
S-VIDEO
AUDIO
ANTENNA
IN
CABLE
IN
HDMI IN
2
1(DVI)
ANTENNA
IN
CABLE
IN
VIDEO
AUDIO
COMPONENT IN
VIDEO
AUDIOUDIO
MONO
( )
S-VIDEOS-VIDEO
12
ANTENNA
IN
CABLE
IN
AV IN 1
DIGITAL AUDIO
OUT
OPTICAL
ANTENNA
IN
CABLE
IN
HDMI INHDMI IN
2
1(DVI)
HDMI-DVD OUTPUT
ANTENNA
IN
CABLE
IN
VIDEO
AUDIO
COMPONENT IN
AUDIO
( )
S-VIDEO
1
Connect the S-VIDEO output of the DVD to the
SS --VVIIDDEEOO
input on the set.
Connect the audio outputs of the DVD to the
AAUUDDIIOO
input jacks on the set.
1. How to connect
2. How to use
■
Turn on the DVD player, insert a DVD.
■
Select
AAVV11
input source with using the
IINNPPUUTT
button on
the remote control.
■
If connected to
AAVV IINN22
, select
AAVV22
input source.
■
Refer to the DVD player's manual for operating instructions.
When connecting HDMI cable
Connect the HDMI output of the DVD to the
HHDDMMII IINN 11((DDVVII))
or
22
jack on the set.
No separated audio connection is necessary.
1. How to connect
2. How to use
■
Select
HHDDMMII11//DDVVII
or
HHDDMMII22
input source with using
the
IINNPPUUTT
button on the remote control.
■
Refer to the DVD player's manual for operating instructions.
2
1
2
1
GG
If the DVD supports Auto HDMI function, the DVD output
resolution will be automatically set to 1280x720p.
GG
If the DVD does not support Auto HDMI, you need to set
the output resolution appropriately.
To get the best picture quality, adjust the output resolution
of the DVD to 1280x720p.
NOTE
!
1_512Den-1 06/5/2 10:21 AM Page 30
CONNECTIONS & SETUP
31
PC SETUP
This TV provides Plug and Play capability, meaning that the PC adjusts automatically to the TV's settings.
The TV perceives 640x480, 60Hz as DTV 480p based on the PC graphic card. If necessary, change the
screen scanning rate for the graphic card accordingly.
When connecting D-sub 15pin cable
GG
Check the image on your TV. There may be noise associ-
ated with the resolution, vertical pattern, contrast or
brightness in PC mode. If noise is present, change the PC
output to another resolution, change the refresh rate to
another rate or adjust the brightness and contrast on the
VIDEO menu until the picture is clear. If the refresh rate
of the PC graphic card can not be changed, change the
PC graphic card or consult the manufacturer of the PC
graphic card.
NOTE
!
ANTENNA
IN
BLECABLE
NIN
REMOTE
CONTROL IN
RGB OUTPUTAUDIO
ANTENNA
IN
CABLE
IN
HDMI IN
2
1(DVI)
RGB (PC/DTV)
AUDIO (RGB/DVI)AUDIO (RGB/DVI)
RGB IN
RGB IN
AUDIO (RGB/DVI)
Connect the RGB output of the PC to the
RRGGBB
((
PPCC//DDTTVV
))
jack on the set.
Connect the PC audio output to the
AAUUDDIIOO
((
RRGGBB//DDVVII
))
jack on the set.
1. How to connect
2. How to use
■
Turn on the PC and the set.
■
Select
RRGGBB--PPCC
input source in main input option of
SETUP menu.
((
GG
pp..6677
))
■
Once you select
RRGGBB--PPCC
in main input option of
SSEETTUUPP
menu,
IINNPPUUTT
button is also available for this purpose.
2
1
12
1_512Den-1 06/5/2 10:21 AM Page 31
CONNECTIONS & SETUP
32
CONNECTIONS & SETUP
When connecting HDMI to DVI cable
GG
HDMI2 source does not support DVI source.
GG
If the PC has a DVI output and no HDMI output, a separated audio connection is necessary.
GG
If the PC does not support Auto DVI, you need to set the output resolution appropriately. To get the
best picture quality, adjust the output resolution of PC graphics card's output resolution to 1024x768,
60Hz.
NOTE
!
ANTENNA
IN
CABLE
IN
DIGITAL AUDIO
OUT
OPTICAL
RS-232C IN
(CONTROL
&
SERVICE)
ANTENNA
IN
CABLE
IN
HDMI IN
2
1(DVI)
REMOTE
CONTROL IN
DVI-PC OUTPUT
AUDIO
RGB (PC
/
DTV)
AUDIO (RGB/DVI)
RGB IN
RGB IN
AUDIO (RGB/DVI)AUDIO (RGB/DVI)
RGB (PC
/
DTV)
Connect the DVI output of the PC to the
HHDDMMII IINN 11((DDVVII))
jack on the set.
Connect the PC audio output to the
AAUUDDIIOO
((
RRGGBB//DDVVII
))
jack on the set.
1. How to connect
■
Turn on the PC and the set
■
Select
HHDDMMII11//DDVVII
input source with using the
IINNPPUUTT
button on the remote control.
2. How to use
2
1
1 2
1_512Den-1 06/5/2 10:21 AM Page 32
CONNECTIONS & SETUP
33
GG
To get the the best picture quality, adjust the PC
graphics card to 1024x768, 60Hz.
GG
Depending on the graphics card, DOS mode may
not work if a HDMI to DVI Cable is in use.
GG
When Source Devices are connected with
HDMI/DVI Input, the output PC Resolution (VGA,
SVGA, XGA), Position and Size may not fit on the
Screen. As shown in the picture, press the
ADJUST button to adjust the screen Position of
the TV SET and contact a PC graphics card ser-
vice center.
GG
When Source Devices connected with HDMI/DVI
Input, output TV SET Resolution
(
480p, 720p,
1080i) and TV SET Display fit EIA/CEA-861-B
Specification to Screen. If not, refer to the Manual
of HDMI/DVI Source Devices or contact your ser-
vice center.
GG
If the HDMI/DVI Source Device is not connected
to the Cable or if there is a poor cable connec-
tion, "No signal" is displayed in the HDMI/DVI
Input. In this case, that Video Resolution is not
supported. If "Invalid Format" is displayed, refer to
the Source Device manual or contact your service
center.
GG
Avoid keeping a fixed image on the screen for a
long period of time. The fixed image may become
permanently imprinted on the screen.
GG
The synchronization input form for Horizontal
and Vertical frequencies is separate.
NOTES
!
Supported Display Specifications
(
RGB/HDMI-PC
)
Horizontal Vertical
Frequency
(
KHz
)
Frequency
(
Hz
)
31.468 70.09
31.469 70.08
31.469 59.94
37.861 72.80
37.500 75.00
35.156 56.25
37.879 60.31
48.077 72.18
46.875 75.00
48.363 60.00
56.476 70.06
60.023 75.02
47.776 59.870
47.720 59.799
Resolution
720x400
1360x768
640x350
* RGB-PC mode only: 640x350, 720X400
* HDMI-PC mode only: 1280x768
640x480
800x600
1024x768
Supported Display Specifications
(
RGB/HDMI-DTV
)
Horizontal Vertical
Frequency
(
KHz
)
Frequency
(
Hz
)
31.47 60
31.47 59.94
45.00 60.00
44.96 59.94
33.75 60.00
33.72 59.94
Resolution
720x480
1280x720
1920x1080
1280x768
1_512Den-1 06/5/2 10:21 AM Page 33
CONNECTIONS & SETUP
34
CONNECTIONS & SETUP

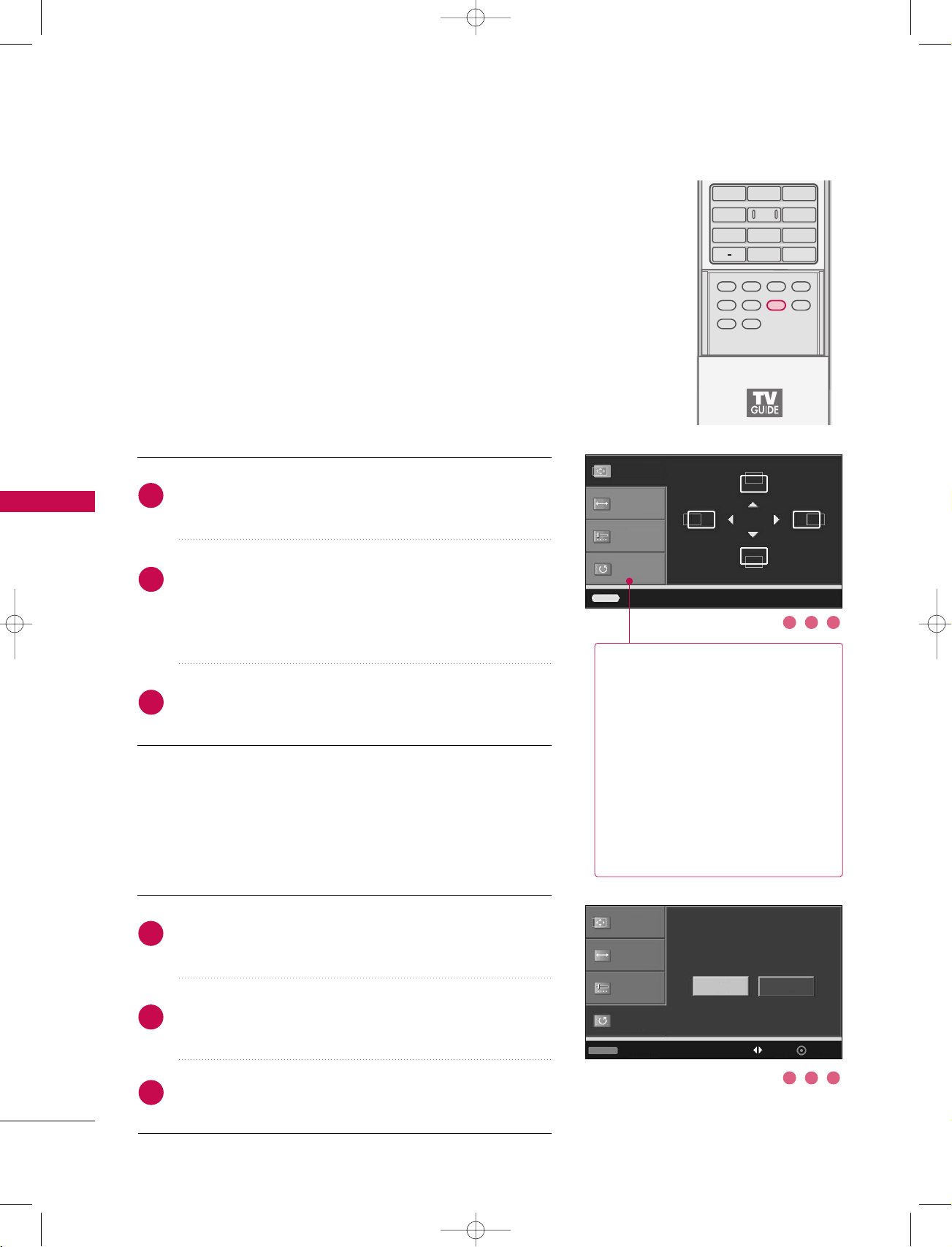

Screen Setup for PC mode
Overview
When RGB connect to PC output and select the RGB-PC in Main
Input, this function is used.
When HDMI IN 1 (DVI) connect to PC output and select HDMI1/DVI
input, this function is used.
In RGB-DTV mode, SIZE and PHASE is not available.
Adjustment for screen Position, Size, Phase, Reset
Press the
AADDJJUUSSTT
button and then use
DD
or
EE
button to
select
PPoossiittiioonn
,
SSiizzee
, or
PPhhaassee
.
Press the
EENNTTEERR
button and then use
DD EE FF GG
button to
make appropriate adjustments.
■
The
PPhhaassee
adjustment range is
--1166
~
++1166
.
■
The
SSiizzee
adjustment range is
--3300
~
++3300
.
Press the
EENNTTEERR
button.
Position
GG
Size
Phase
Reset
Adjust Close
Initializing (Reset to original factory values)
Press the
AADDJJUUSSTT
button and then use
DD
or
EE
button to
select
RReesseett
.
Press the
EENNTTEERR
button and then use
FF
or
GG
button to
select
YYeess
.
Press the
EENNTTEERR
button.
Position
Size
Phase
Reset
GG
To initialize the adjusted values
APM
TIMER
ADJUSTADJUST
SWAP
PIP CH +PIP CH -
PIP
PIP INPUT
1 2 3
4 5 6
78
0
9
FLASHBK
EZ SOUND
EZ PIC
Initialize Settings
Yes
No
Adjust Previous
Move Select
1
2
3
1
2
3
PPoossiittiioonn
This function is to adjust picture
to left/right and up/down as you
prefer.
SSiizzee
This function is to minimize any
vertical bars or stripes visible on
the screen background. And the
horizontal screen size will also
change.
PPhhaassee
This function allows you to
remove any horizontal noise and
clear or sharpen the image of char-
acters. In HDMI/DVI-PC mode,
PHASE is not available.
1 2 3
1 2 3
1_512Den-1 06/5/2 10:21 AM Page 34
BASIC OPERATION
35
BASIC OPERATION
NOTE
!
GG
If you intend to be away on vacation, disconnect the
power plug from the wall power outlet.
GG
After turning on the TV, it could take up to a week for
the TV Guide On Screen system to receive full listings
data.
GG
When the TV is turned on, the indicator will blink white
before the picture is seen.
First, connect power cord correctly.
At this moment, the TV switches to standby mode.
■
In standby mode, press the ,
IINNPPUUTT
,
CCHH ((
DD
or
EE
))
button on the TV or press the
PPOOWWEERR
,
IINNPPUUTT
,
TTVV
IINNPPUUTT
,
CCHH((
DD
or
EE
))
,
NNuummbbeerr ((00
~
99))
button on the
remote control.
Select the viewing source by using the
IINNPPUUTT
button on
the remote control.
■
This TV is programmed to remember which mode it was
last set to, even if you turn the TV off.
When finished using the TV, press the
PPOOWWEERR
button on
the remote control. The TV reverts to standby mode.
APM
TIMER
ADJUST
SWAP
PIP CH +PIP CH -
PIP
PIP INPUT
1122 3 3
4455 6 6
7788
00
9 9
FLASHBK
VOL CHCH
MUTE
FAV
PAG E
PAG E
MENU
INFO i
TV GUIDE
EXIT
SAP
CC
RATIO
POWERPOWER
DAY -
DAY+
VCR
TV
DVD
AUDIO
CABLE
STB
MODE
TV INPUTTV INPUT
INPUTINPUT
EZ SOUND
EZ PIC
ENTERENTER
1
2
3

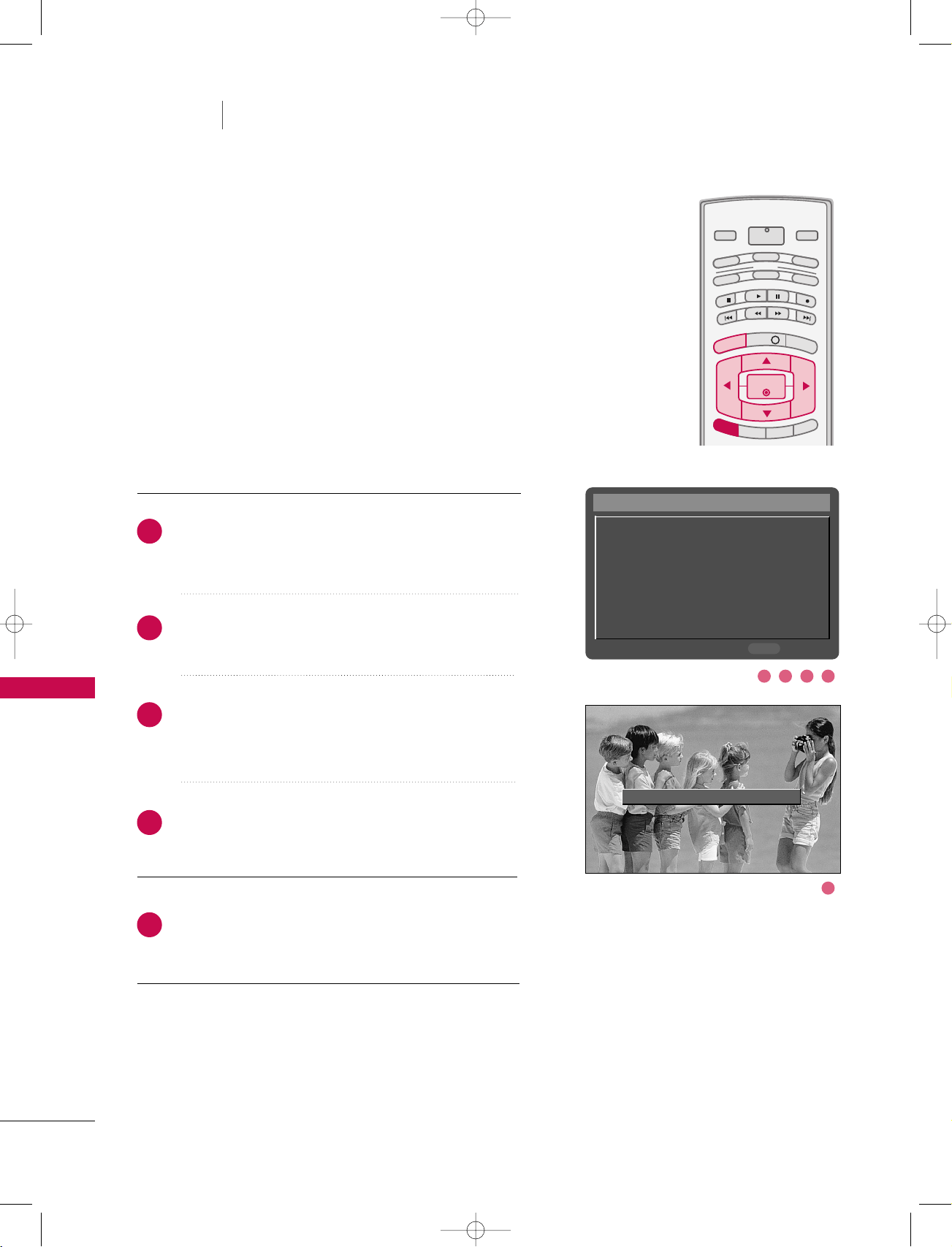

TURNING THE TV ON
1_512Den-1 06/5/2 10:21 AM Page 35
BASIC OPERATION
36
BASIC OPERATION

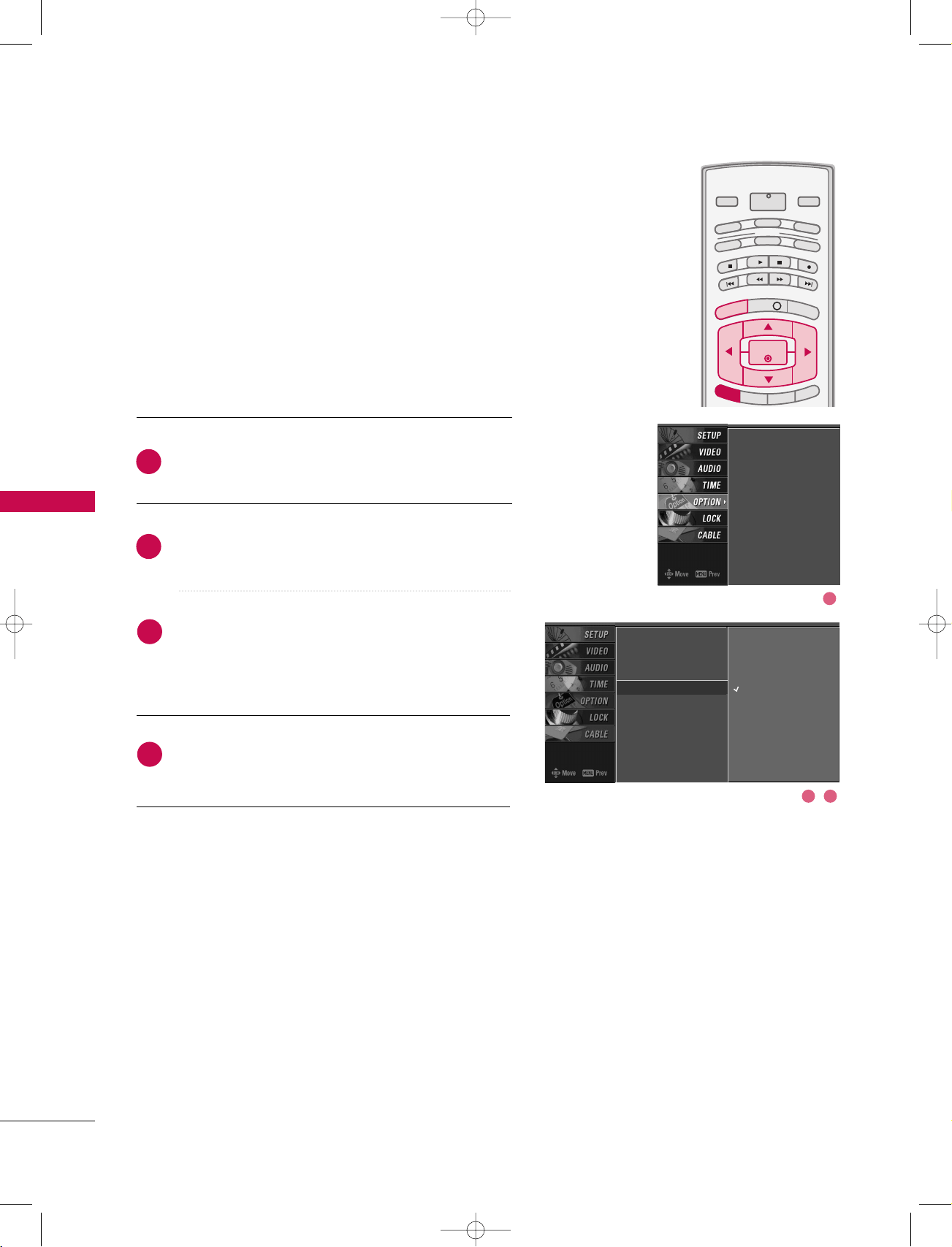

Press the
MMEENNUU
button and then use
DD
or
EE
but-
ton to select the
OOPPTTIIOONN
menu.
Press the
GG
button and then use
DD
or
EE
button to
select
LLaanngguuaaggee..
Press the
GG
button and then use
DD
or
EE
button to
select your desired language.
From this point on, the on-screen menus will be
shown in the selected language.
Press the
EEXXIITT
button to return to TV viewing or
press
MMEENNUU
to return to the previous menu.

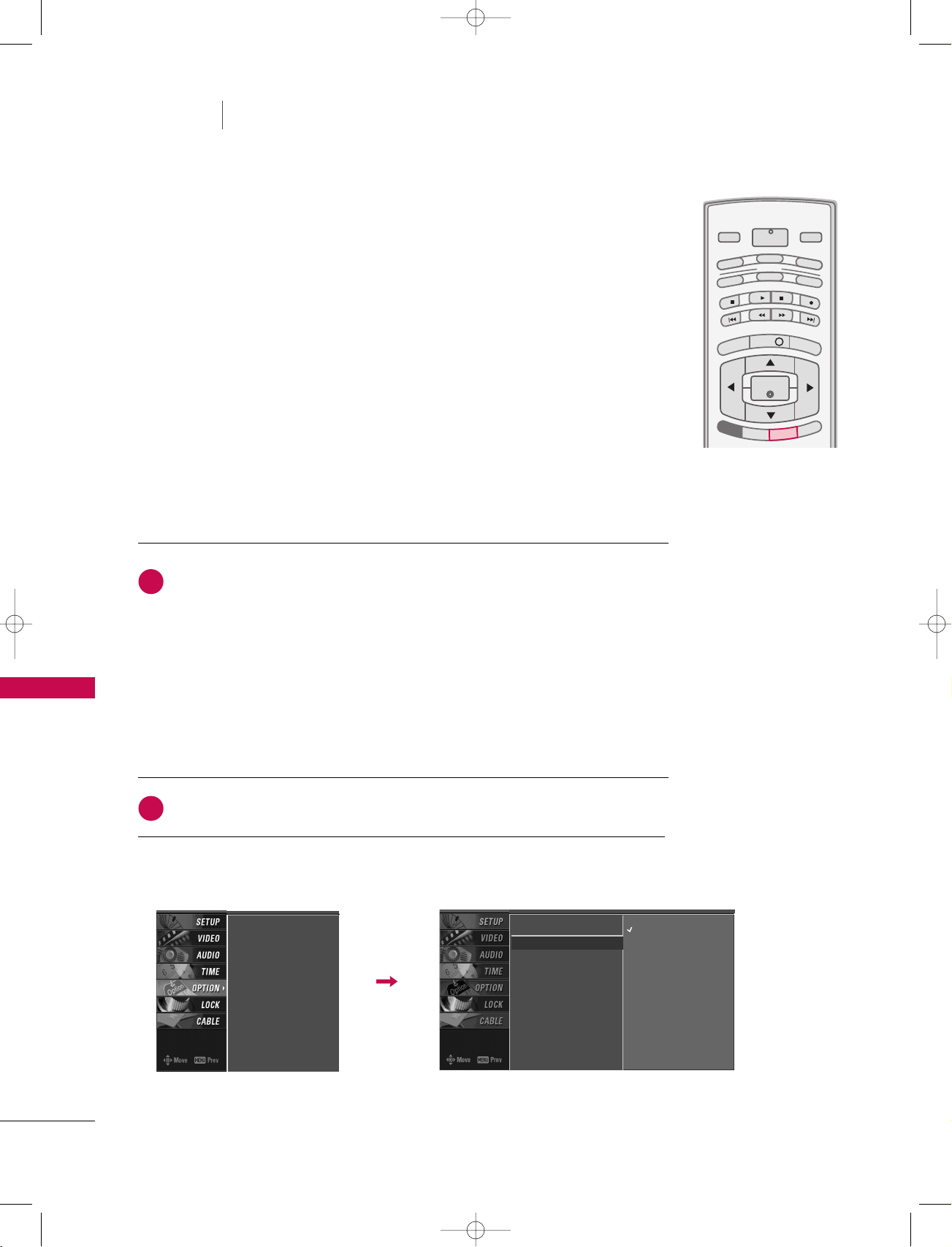

ON-SCREEN MENUS LANGUAGE SELECTION
INFO i
TV GUIDE
ENTERENTER
SAP
CC
RATIO
POWER
DAY -
DAY+
VCR
TV
DVD
AUDIO
CABLE
STB
MODE
TV INPUT
INPUT
MENUMENU
EXIT
The menus can be shown on the screen in the selected language.
First select your language.
Aspect Ratio
Caption/Text
Caption Option
Language
G
ISM Method
Low Power
English
Español (Spanish)
Français (French)
Aspect Ratio
Caption/Text
Caption Option
Language
ISM Method
Low Power
1
2
3
4
1
2 3
1_512Den-1 06/5/2 10:21 AM Page 36
BASIC OPERATION
37
INITIAL CHANNEL SEARCH
(
EZ SCAN
)
Press the
MMEENNUU
button and then use
DD
or
EE
but-
ton to select the
SSEETTUUPP
menu.
Press the
GG
button and then use
DD
or
EE
button to
select
EEZZ SSccaann
.
Press the
EENNTTEERR
button to begin the channel search.
Allow EZ Scan to complete the channel search cycle
for ANTENNA and CABLE.
INFO i
TV GUIDE
ENTERENTER
SAP
CC
RATIO
POWER
DAY -
DAY+
VCR
TV
DVD
AUDIO
CABLE
STB
MODE
TV INPUT
INPUT
MENUMENU
EXIT
This feature automatically finds all channels available through the
antenna or cable input and stores them in memory on the channel
list.
Run EZ Scan again after any Antenna/Cable connection changes.
Note: A password is required to gain access to EZ Scan menu if
the Lock System is turned on.
1
2
3
EZ Scan
Manual Scan
Channel Edit
DTV Signal
Main Input
Sub Input
Input Label
Set ID
Selection (
G
or )
leads you to the EZ
scan screen.
EZ Scan
Manual Scan
Channel Edit
DTV Signal
Main Input
Sub Input
Input Label
Set ID
EZ Scan
G
Manual Scan
Channel Edit
DTV Signal
Main Input
Sub Input
Input Label
Set ID
Selection (
G
or )
leads you to the EZ
scan screen.
Processing EZ scan...
ANTENNA Ch.20
11 channel(s) found
Press to stop the
current scan and start
CABLE channel scan.
MENU Previous
Next
1
2
3
1_512Den-1 06/5/2 10:21 AM Page 37
BASIC OPERATION
38
CHANNEL SELECTION
BASIC OPERATIONBASIC OPERATION
1122 3 3
4455 6 6
7788
00
9 9
FLASHBK
VOL CHCH
MUTE
FAV
PAG E
PAG E
MENU
INFO i
T
V GUIDE
ENTERENTER
EXIT
SAP
CC
RATIO
Press the
CCHH
DD EE
or
NNUUMMBBEERR
buttons to select a
channel number.
1
VOLUME ADJUSTMENT
Press the
VVOOLL
DD
or
EE
button to adjust the volume.
If you want to switch the sound off, press the
MMUUTTEE
button.
You can cancel the Mute function by pressing the
MMUUTTEE
or
VVOOLL
DD
or
EE
button.
VOL CH
MUTE
FAV
PAG E
PAG E
MENU
INFO i
TV GUIDE
ENTER
EXIT
SAP
CC
RATIO
POWER
DAY -
DAY+
VCR
TV
DVD
AUDIO
CABLE
STB
MODE
TV INPUT
INPUT
Adjust the volume to suit your personal preference.
1
2
3
1_512Den-1 06/5/2 10:21 AM Page 38
TV GUIDE ON SCREEN
TM
SYSTEM
39
TV GUIDE ON SCREEN
TM
SYSTEM
TV GUIDE ON SCREEN SETUP
Ready to setup
Welcome Screen
The TV Guide On Screen system's Welcome Screen appears:
■
By pressing the
TTVV GGUUIIDDEE
button
■
When you power On your TV if you previously skipped
"Set up TV Guide On Screen now" on the Reminder
Screen.
The Welcome Screen highlights features of the TV Guide
On Screen system.
Press the
EENNTTEERR
button to begin Setup.
Reminder Screen
The TV Guide On Screen system's Reminder Screen
appears:
■
After initial TV set up.
■
If you power Off the TV and then power it back On.
To make a selection, use the
DD
or
EE
button to highlight an
option, and press the
EENNTTEERR
button.
■
"Set up TV Guide On Screen now", displays the Welcome
Screen. Press the
EENNTTEERR
button to begin Setup.
■
"Remind me to set up later" returns you to watching TV.
■
"Don't remind me again" returns you to watching TV and
stops the reminder screen from appearing upon power On.
1
2
The TV Guide On Screen system uses Setup information to provide you with show listings and lineups in your
area—which are updated several times a day.
Once you set up the TV according to manufacturer’s instructions, you are ready to set up the TV Guide On
Screen system.
NOTE
!
GG
The TV Guide On Screen system provides listings for cable-ready, and digital cable services as well as
over-the-air broadcast. It does not provide listings for satellite services.
1
2
1_512Den-1 06/5/2 10:21 AM Page 39
TV GUIDE ON SCREEN
TM
SYSTEM
40
TV GUIDE ON SCREEN
TM
SYSTEM
Screen 1: Country
■
This screen asks you the location of your TV.
■
Use the
DD
or
EE
button to highlight a country.
■
Press the
EENNTTEERR
button to display Screen 2.
Screen 2: Enter ZIP or Postal Code
OOppttiioonn 11
■
If you selected USA in Screen 1, you see the ZIP Code
screen.
■
You input numbers by either pressing the number keys on
the remote or using the
DD
or
EE
button to display a num-
ber, and then the
FF
or
GG
button to move to another
field.
■
Press the
EENNTTEERR
button to display Screen 3.
OOppttiioonn 22
■
If you selected Canada in Screen 1, you see the Postal
Code screen.
■
You input characters by using the
DD
or
EE
button, and
then the
FF
or
GG
button to move to another field.
■
Press the
EENNTTEERR
button to display Screen 3.
Screen 3: Do you have Cable Service connected?
■
If you select Yes, you see Screen 4.
■
If you select No, you see Screen 4.
1
2
3
Using TV Guide
1
2
2
3
1_512Den-1 06/5/2 10:21 AM Page 40
TV GUIDE ON SCREEN
TM
SYSTEM
41

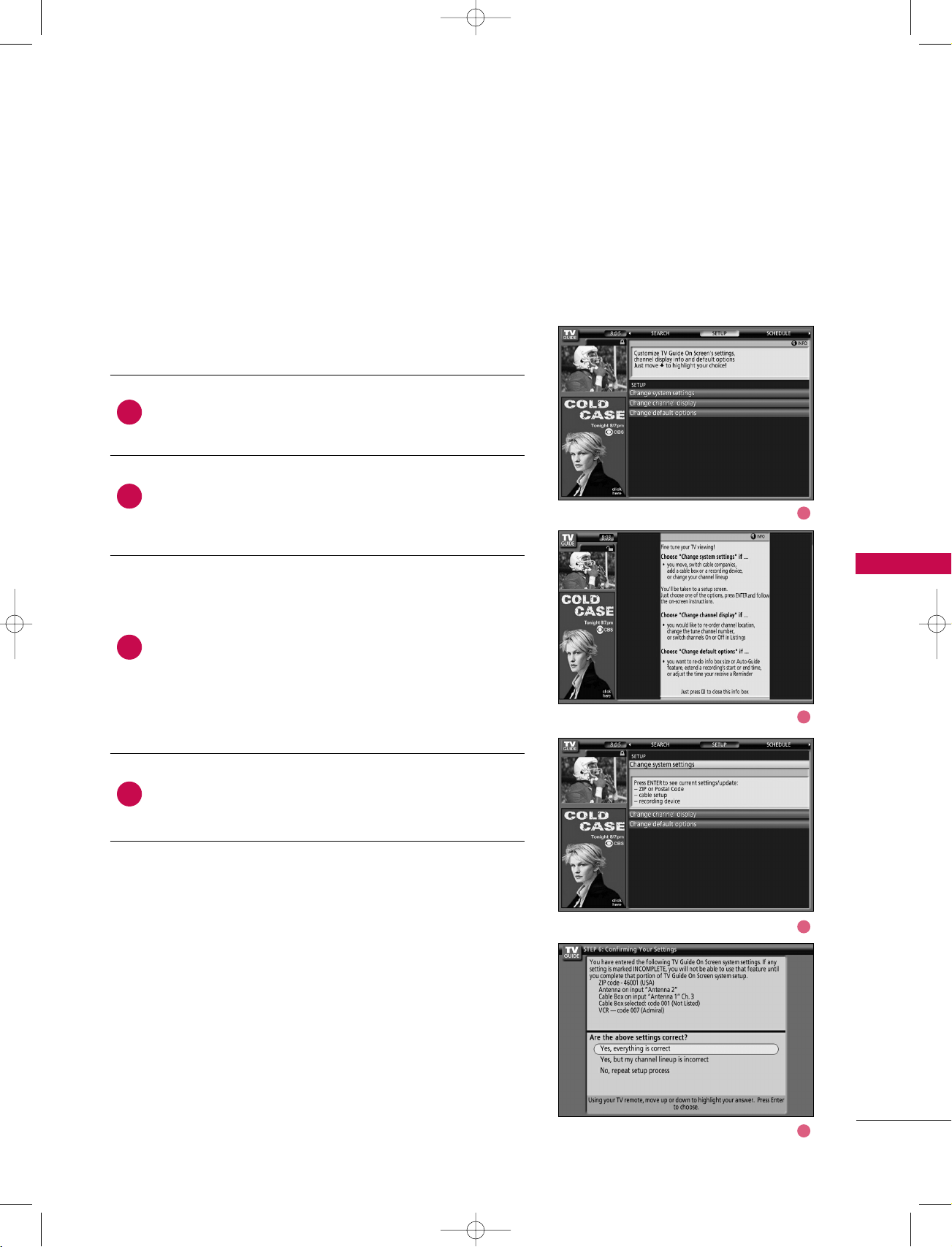

Screen 4: Do you have an antenna connected?
■
If you select Yes, you see Screen 5.
■
If you select No, you see Screen 5.
Screen 5: Are your basic settings correct?
■
If you select Yes, you see Screen 6.
■
If you select No, you see Screen 1.
Screen 6: Congratulations
■
Press the
EENNTTEERR
button to display Screen 7.
Screen 7: Helpful Information
■
This screen tells you valuable information on using your
Guide.
■
Press the
EENNTTEERR
button to watch TV.
NOTE
!
If you selected No in Screen 3 then you must select Yes
in this screen to receive a channel lineup and listings.
NOTE
!
GG
The TV Guide On Screen system receives program
listings data through your cable or over-the-air
video signal. In order to receive regular program
listings, please remember to do the following:
1. Turn OFF your TV when it is not in use. (Do not
unplug the power cord.)
2. If you have more than one Cable system in your
area, you may be prompted to select which
Cable system’s program data to download. If so
prompted, please follow the on-screen instruc-
tions.
GG
Program listings are updated several times a day. It
may take up to 24 hours to begin to receive any
TV program listings. It may take up to one week to
receive all eight days of TV program listings.
4
5
6
7
4
5
6
7
1_512Den-1 06/5/2 10:21 AM Page 41
TV GUIDE ON SCREEN
TM
SYSTEM
42
TV GUIDE ON SCREEN
TM
SYSTEM
TV GUIDE ON SCREEN
TM
FEATURE
Overview
Your new TV contains the TV Guide On Screen Interactive Program Guide.
The TV Guide On Screen system has features that help you get the most out of your viewing experience.
TV Guide On Screen Overview
The TV Guide On Screen system has the following features:
■
Eight days of show listings (today plus seven days).
■
Icons that indicate show rating, stereo, HDTV, new episode, etc.
■
Intuitive up/down/left/right navigation using your remote control.
■
Schedule show Reminders.
■
Search shows by category (e.g., Movies, Sports, Children, etc.).
■
Search for shows based on keywords or alphabetically by title.
■
Direct tuning to a channel.
■
Streamlined System Setup and default setting options.
■
Channel lineup customization.
■
Help screens while in the TV Guide On Screen system.
1_512Den-1 06/5/2 10:21 AM Page 42
TV GUIDE ON SCREEN
TM
SYSTEM
43
Screen Components
The screens displayed in the TV Guide On Screen system share many of the same components, as shown in
the following figure:
Video Window - Displays TV video while The TV
Guide On Screen system is displayed.
Service Bar - Provides access to the 3 main
Guide Services.
Current Service Label - Indented to indicate cur-
rent Service displayed.
Tile - Displays show title.
Highlight - Indicates an active tile.
INFO Box - Provides information for a highlighted
item.
INFO Button - Indicates you can cycle through
the various Info Box sizes.
Channel Logo - Identifies network.
Remind Icons - Indicates a show is set as a
Reminder.
Panel Ad - Location where show- or product-spe-
cific information appears (and also where Panel
Menu appears).
Video Window Current Service Label Highlight Service bar
Time slot
Tile
INFO button
INFO box
Remind iconChannel Logo
Panel Ad
and Panel
Menu Entry
TV Guide
Logo
1
7
6
4
8
1
2
3
4
7
8
9
10
5
6
10
9
23 5
1_512Den-1 06/5/2 10:21 AM Page 43
TV GUIDE ON SCREEN
TM
SYSTEM
TV GUIDE ON SCREEN
TM
SYSTEM
44
■
A Panel Menu appears when the
MMEENNUU
button is pressed on a highlighted tile and additional options are
available. It also appears when you press the
EENNTTEERR
button on a show starting in the future.
■
When a Panel Menu appears, the highlighted tile changes color to indicate the Panel Menu relates to this
tile.
■
The Panel Menu displays below the Video Window.
■
Help is available for a displayed Panel Menu by pressing the
IINNFFOO
button.
■
The
DD
or
EE
button move between the options within the Panel Menu.
■
The left and right arrows move to adjacent options unless the highlight is on an odometer, where these
arrows change the odometer choice.
■
Pressing the
EENNTTEERR
button from an odometer or number entry box moves the highlight to the default
command button of that Panel Menu, for example, Schedule Reminder.
■
Pressing the
EENNTTEERR
button from a highlighted command button executes the action and closes the Panel
Menu (e.g., Schedule Reminder, Cancel).
■
Select Cancel to cancel any changes and press the
EENNTTEERR
button to close the menu.
■
Pressing the
MMEENNUU
button is a shortcut to Cancel. Press the
MMEENNUU
button to cancel any changes and
close the menu.
■
If a Panel Menu contains more menu options than can be displayed on a single screen, the more
EE
text
appears at the bottom of the menu. Simply scroll down to access additional options.
Default Command
Button
Panel Menu
Highlight
Entry Box
Odometer
Panel Menu
1_512Den-1 06/5/2 10:21 AM Page 44
TV GUIDE ON SCREEN
TM
SYSTEM
45
Main Services
Listings
Use the
DD EE FF GG
button to move the highlight within
Listings to:
■
VViieeww 88 ddaayyss ooff sshhooww lliissttiinnggss
■
RReeaadd sshhooww ddeessccrriippttiioonnss
■
TTuunnee ddiirreeccttllyy ttoo aa sshhooww ccuurrrreennttllyy aaiirriinngg
■
SSeett aa sshhooww ttoo RReemmiinndd
■
LLoocckk aanndd UUnnlloocckk tthhee VViiddeeoo WWiinnddooww
■
AAcccceessss PPaanneell aanndd CChhaannnneell AAddss
Access Listings by pressing the TV GUIDE button on your remote or on the front
panel of your TV.
Listings is always the first Service displayed in the Guide.
With Listings highlighted, press the INFO button to display a Help screen. Press the
INFO button again to close the screen.
NOTE
!
GG
There may be times when the TV Guide On Screen system
could display partial or no program listings. The reasons
for this include:
■
Program schedule information was not provided to TV
Guide On Screen.
■
The transmission of the program listings was interrupted.
■
The phrase “No Listings” will be replaced with program
information during the next transmission, which should
occur within the next 24 hours.
■
Please remember to turn off your TV when not in use in
order to receive program listings.
1
1
1
1
1_512Den-1 06/5/2 10:21 AM Page 45
TV GUIDE ON SCREEN
TM
SYSTEM
46
TV GUIDE ON SCREEN
TM
SYSTEM
Search
From Search, use the
EE
button to highlight Movies.
Search lets you find shows alphabetically, by category (Movies, Sports, Children,
Educational, News, Variety, Series, HDTV) or by Keyword.
With Search highlighted, press the INFO button to display a Help screen. Press the
INFO button again to close the screen.
Category Search Example: Movies
1
1
1
1
1_512Den-1 06/5/2 10:21 AM Page 46
Use the
EE
button to highlight a subcategory (for example,
All).
Press the
EENNTTEERR
button to display a list of all Movies, orga-
nized by date and time.
TV GUIDE ON SCREEN
TM
SYSTEM
47
Highlight a show and press the
EENNTTEERR
button to watch (if
on now) or the
MMEENNUU
button to display the Episode
Options menu.
You can choose to set a reminder, or tune to the channel.
GG
Go to Service Bar - Closes the menu, changes no infor-
mation, and returns to the Search Service Bar.
GG
Tune to Channel - Exits the Guide and tunes to the
channel of the highlighted show (show airs in the
future).
GG
Set Recording - This TV doesn’t support recording fea-
ture.
GG
Set Reminder - Displays the Remind Options menu, from
which you can set frequency, when, automatically power
On, and auto-tune the TV.
GG
Cancel - Closes the menu, changes no information, and
returns to the highlighted show.
This option reads Watch Now if the show is cur-
rently airing.
NOTE
!
2
3
4
5
2 3
4
5
1_512Den-1 06/5/2 10:21 AM Page 47
TV GUIDE ON SCREEN
TM
SYSTEM
48
TV GUIDE ON SCREEN
TM
SYSTEM
Keyword Search
Highlight the Keyword navigation label, and press the
EENNTTEERR
button to display the Keyword Search menu.
Highlight New Search, and press the
EENNTTEERR
button.
The Search Options menu is displayed.
Highlight Category, and use the
FF
or
GG
button to select a
category to search (e.g. All, HDTV, Children, Sports, etc.).
When finished, use the
EE
button to highlight Enter
Keyword.
Highlight Enter Keyword, and press the
EENNTTEERR
button.
The keyboard is displayed.
Use the
DD EE FF GG
button to highlight a character, and
press the
EENNTTEERR
button to display it. When complete,
highlight Done and press the
EENNTTEERR
button.
Keyword search lets you enter a word(s) to look for a particular show by category
or for every show title that matches.
2
1
3
4
5
6
1 2
43 5
6
1_512Den-1 06/5/2 10:21 AM Page 48
TV GUIDE ON SCREEN
TM
SYSTEM
49
GG
Go to Service Bar - Closes the menu, changes no infor-
mation, and returns to the Search Service Bar.
GG
Edit Search - Displays the keyboard, where you can
change the keyword.
GG
Delete Search - A Confirm menu is displayed.
■
Yes - Deletes the Search.
■
No - Closes the panel menu.
GG
Cancel - Closes the menu, changes no information, and
returns to the highlighted show.
A list of all matching shows for that keyword is displayed.
You can highlight a show, and press the
EENNTTEERR
button to
display all airings. You can then highlight a specific listing
and press the
EENNTTEERR
button to watch (if On now) or the
MMEENNUU
button to display the Episode Options menu.
From the Episode Options menu, choose to set a reminder,
or tune to the channel, as previously described.
The TV Guide On Screen system stores all the keywords
you create. To edit or delete a keyword, highlight the key-
word and press the
MMEENNUU
button. A Search Options menu
is displayed.
7
7
7
1_512Den-1 06/5/2 10:21 AM Page 49
TV GUIDE ON SCREEN
TM
SYSTEM
50
TV GUIDE ON SCREEN
TM
SYSTEM

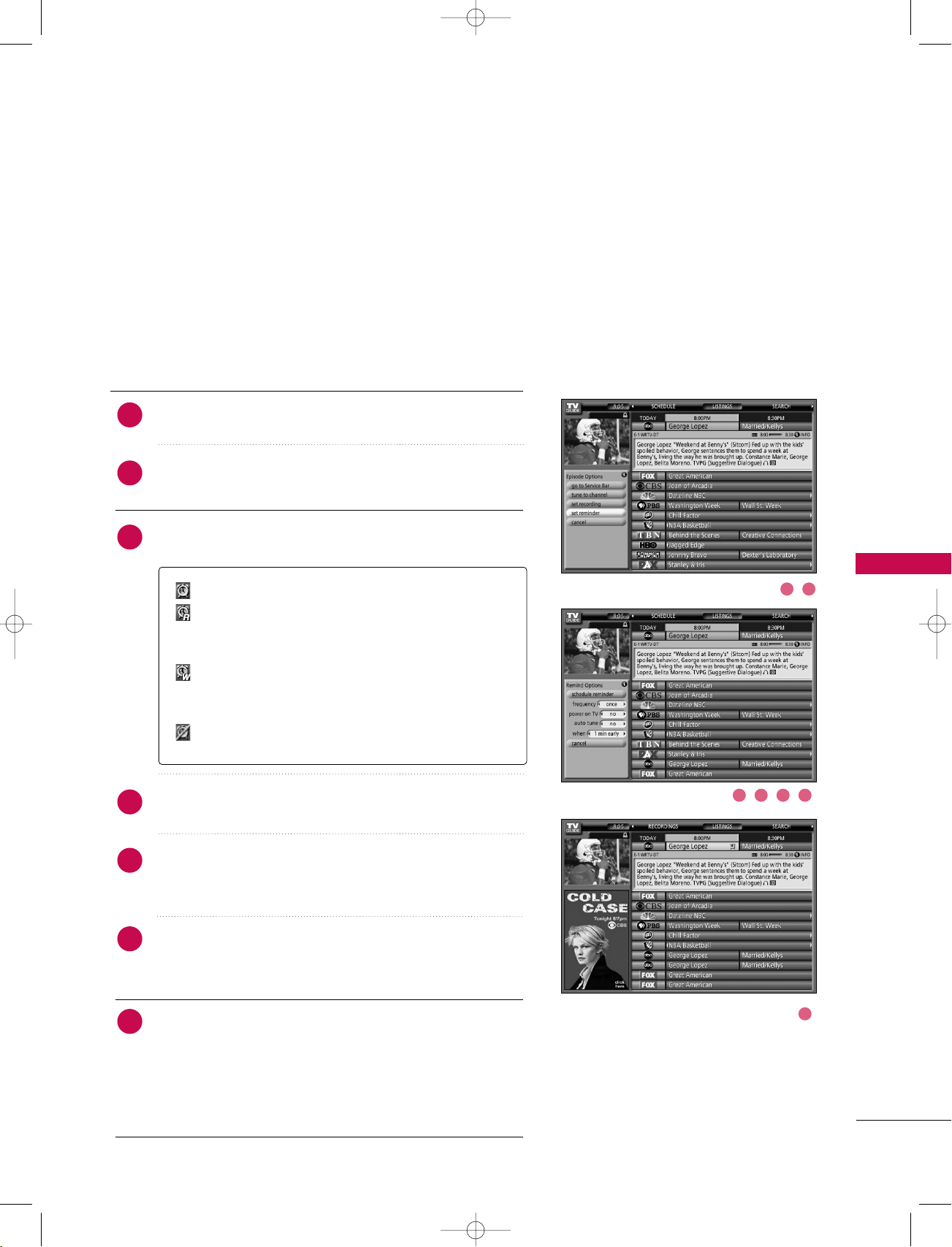

Schedule
Highlight an event, and press the
MMEENNUU
button for options.
Schedule lets you review, edit, or delete Remind events that you set previously. See page 55 for information
on how to set a reminder.
With Schedule highlighted, press the
IINNFFOO
button to display a Help screen. Press the
IINNFFOO
button again to
close the screen.
An icon identifies the event type:
Remind
Once - Sets a show reminder one time.
Regularly - Sets a show reminder every time the show airs on
the same channel and starts at the same time.
Weekly - Sets a show reminder each time the show airs on the
same day of the week, on the same channel and starts at the
same time.
Off - Keeps the show in the list but will not remind the show
until the frequency is changed.
GG
Go to Service Bar - Closes the menu, changes no information,
and returns to the Schedule Service Bar.
GG
Tune to channel - Exits the TV Guide On Screen system and
tunes to the highlighted show.
GG
Set Recording - This TV doesn’t support recording feature.
GG
Delete Reminder - Removes the reminder from the Schedule after
a Confirm screen.
GG
Edit Reminder - Opens a menu from which you can change exist-
ing reminder information.
GG
Cancel - Closes the menu, changes no information, and returns
to the highlighted show.
1_512Den-1 06/5/2 10:21 AM Page 50
TV GUIDE ON SCREEN
TM
SYSTEM
51

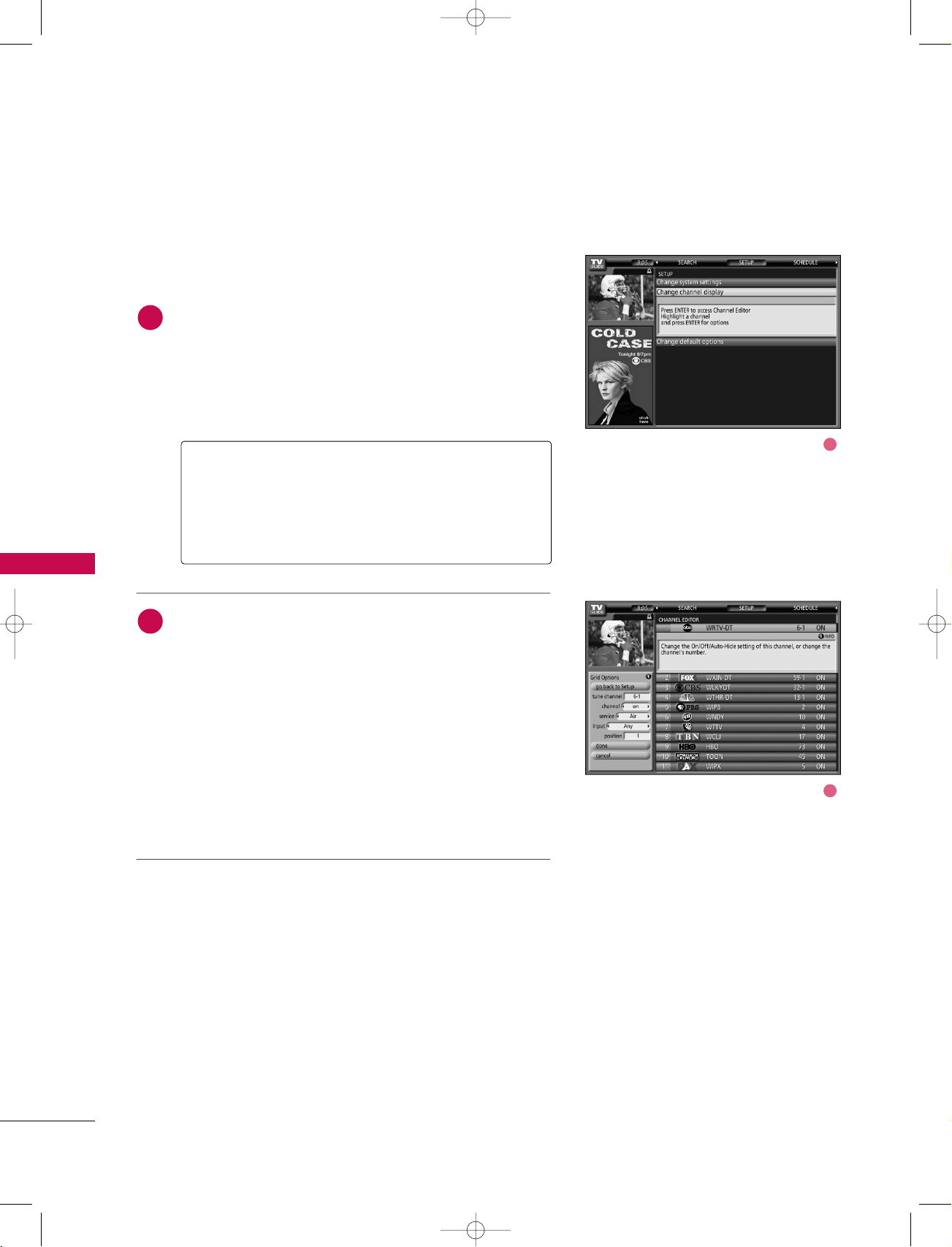

Setup
Highlight a choice, press the
EENNTTEERR
button, and follow the
on-screen instructions.
With Setup highlighted, press the
IINNFFOO
button to display a
Help screen. Press the
IINNFFOO
button again to close the
screen.
Change System Settings
This option appears after you have completed the initial
Guide Setup process.
Press the
EENNTTEERR
button to display the Confirming Your
Settings screen. You can see your current settings.
Choose one of the options, press the
EENNTTEERR
button, and
follow the on-screen instructions.
After you initially complete Guide Setup, you can make changes to Guide settings
in the following areas:
■
Change System Settings
■
Change Channel Display
■
Change Default Options
2
1
3
4
1
2
3
4
1_512Den-1 06/5/2 10:21 AM Page 51
TV GUIDE ON SCREEN
TM
SYSTEM
52
TV GUIDE ON SCREEN
TM
SYSTEM
Change Channel Display
Change Channel Display lets you edit channel information
that appears in Listings. With Change Channel Display you
can :
■
Re-order the position of the channel in Listings.
■
Change the tune channel number.
■
Switch a channel:
Press the
EENNTTEERR
button to display the Channel Editor
screen.
Then, highlight a channel and press the
MMEENNUU
button. A
Grid Options menu is displayed.
Highlight Go Back to Setup to close the menu, change no
information, and return to the Setup Service Bar.
Or make changes and when finished, press the
EENNTTEERR
button to highlight Done. Press the
EENNTTEERR
button again
to close the menu and accept the changes.
Highlight Cancel to close the menu, change no information,
and return to the highlighted channel.
GG
On - The channel is always displayed.
GG
Off - The channel is never displayed.
GG
Auto-Hide - The channel is only displayed when
program information is available.
1
2
1
2
1_512Den-1 06/5/2 10:21 AM Page 52
TV GUIDE ON SCREEN
TM
SYSTEM
53
Change Default Options
Change Default Options lets you change default settings in the
following categories:
■
General Defaults
■
Record Defaults
■
Remind Defaults
Highlight Change Default Options, and press the
EENNTTEERR
button.
GGeenneerraall DDeeffaauullttss
General Defaults lets you set defaults for the following:
■
The initial Info Box size when the TV Guide On Screen
system is entered.
Choices are No, Small, Large, and Last Used. (Default =
Last Used)
■
The Info Box size rotation when the
IINNFFOO
button is
pressed while in the TV Guide On Screen system. Choices
are No only, Small only, Large only, No & Small, No &
Large, Small & Large, All. (Default = All)
■
Automatic entry into the TV Guide On Screen system
(Auto-Guide) when the TV is powered On. Choices are
On and Off. (Default = Off)
Highlight General Defaults, and press the
MMEENNUU
button to
display the General Defaults menu.
Highlight Go to Service Bar to close the menu, change no
information, and return to the Setup Service Bar.
When finished, press the
EENNTTEERR
button to highlight Done.
Press the
EENNTTEERR
button again to close the menu and
accept the changes.
Highlight Cancel to close the menu, change no information,
and return to the highlighted option.
1
1
1
1_512Den-1 06/5/2 10:21 AM Page 53
TV GUIDE ON SCREEN
TM
SYSTEM
54
TV GUIDE ON SCREEN
TM
SYSTEM
RReeccoorrdd DDeeffaauullttss
This TV doesn’t support recording feature.
RReemmiinndd DDeeffaauullttss
Remind Defaults lets you set defaults for the following:
■
Power On the TV, if Off, when a Reminder is scheduled.
Choices are Yes and No. (Default = No)
■
Automatically tune the TV to the channel (TV must be
On), when a Reminder is scheduled. Choices are Yes and
No. (Default = No)
■
When to display the reminder screen, choices are 30 seconds
to 15 minutes early, to 30 seconds to 15 minutes late, to On
time. (Default = 1 min early)
Highlight Remind Defaults, and press the
MMEENNUU
button to
display the Remind Defaults menu.
Highlight Go to Service Bar to close the menu, change no
information, and return to the Setup Service Bar.
When finished, press the
EENNTTEERR
button to highlight Done.
Press the
EENNTTEERR
button again to close the menu and
accept the changes.
Highlight Cancel to close the menu, change no information,
and return to the highlighted option.
2
3
2
3
3
1_512Den-1 06/5/2 10:21 AM Page 54
TV GUIDE ON SCREEN
TM
SYSTEM
55
Remind Features
From a Panel Menu
Highlight a show, and press the
MMEENNUU
button to display
the Episode Options menu.
Highlight Set Reminder, and press the
EENNTTEERR
button to
display the Remind Options menu.
Highlight the Frequency option, and use the
FF
or
GG
but-
ton to choose between:
Power On the TV, if Off, when a Reminder is scheduled.
Choices are Yes and No. (Default = No)
Automatically tune the TV to the channel (TV must be
On), when a Reminder is scheduled. Choices are Yes and
No. (Default =No)
When to display the reminder screen. Choices are 30 seconds
to 15 minutes early, to 30 seconds to 15 minutes late, to On
time. (Default = 1 min early)
When finished, press the
EENNTTEERR
button to highlight
Schedule Reminder. Press the
EENNTTEERR
button again to close
the menu. You can see a Remind icon for the selected fre-
quency next to the show title. Highlight Cancel to close the
menu, change no information, and return to the highlighted
show.
You can set a show Reminder in Listings, Search, and Schedule or change Reminder
settings for a show in Schedule.
There are 2 ways to set a show Reminder:
Once - Sets a show reminder one time.
Regularly - Sets a show reminder every time the
show airs on the same channel and starts at the
same time.
Weekly - Sets a show reminder each time the show
airs on the same day of the week, on the same
channel and starts at the same time.
Off - Keeps the show in the list but will not remind
until the frequency is changed.
2
1
3
4
5
6
7
1 2
3 4 5 6
7
1_512Den-1 06/5/2 10:21 AM Page 55
TV GUIDE ON SCREEN
TM
SYSTEM
56
TV GUIDE ON SCREEN
TM
SYSTEM
Manual Reminder
Highlight the Schedule Service label, and press the
MMEENNUU
button to display the Schedule Options menu.
Highlight New Manual Reminder and press the
EENNTTEERR
button to display the Remind Options menu.
Current information (i.e., date, start and end times, chan-
nel, input) is displayed.
Use the
DD EE FF GG
button to move through the options.
Use the number or the
DD EE FF GG
buttons to change the
information, as necessary.
Highlight the Frequency option, and use the
FF
or
GG
button
to choose among Once, Daily, Weekly, and Off, as follows :
Power On the TV, if the TV is Off, when a Reminder is
scheduled. Choices are Yes and No.(Default =No)
Automatically tune the TV to the channel (TV must be On),
when a Reminder is scheduled. Choices are Yes and No.
(Default = No)
When finished, press the
EENNTTEERR
button to highlight
Schedule Reminder. Press the
EENNTTEERR
button again to close
the menu. You can see a Remind icon for the selected fre-
quency next to the input and channel number.
Highlight Cancel to close the menu, change no information,
and return to the highlighted show.
Once - Sets a show reminder for the time, chan-
nel, input combination one time.
Daily - Reminds for the time, channel, input com-
bination Monday through Friday.
Weekly - Sets a show reminder for the time, chan-
nel, input combination once a week on this select-
ed day of the week.
Off (not cancel) - Keeps the time, channel, input
combination in the list without reminding until the
frequency is changed.
2
1
3
4
5
6
7
8
1 2
3 4 5 6 7
8
1_512Den-1 06/5/2 10:21 AM Page 56
TV GUIDE ON SCREEN
TM
SYSTEM
57
Remind Conflict
A conflict message appears for the following reasons:
■
A show set with an Auto-Tune Reminder has the same start
time as an existing Auto-Tune Reminder.
Select one of these options:
■
Auto-tune anyway - This show will override an existing
show set to auto-tune.
■
Proceed, no auto-tune - Set the show as a Reminder but
do not auto-tune.
■
Don't set this reminder - Cancel the Reminder.
GG
If more than 2 reminders are set for the same
time, arrows appear on the Reminder screen. Use
the
DD
or
EE
button to view the shows.
NOTE
!
Remind Alerts
Based on your option settings, a notification
screen will appear, if your TV is On at the
reminder time. Then you can choose to hide
the reminder, or highlight the show, and press
the
EENNTTEERR
button to tune to the show. If
there is no activity for 3 minutes, the notifica-
tion screen automatically closes and com-
pletes the highlighted item (hide reminders).
If you choose Hide Reminders, the window closes for the
show or shows, but does not affect other Reminders you set.
1_512Den-1 06/5/2 10:21 AM Page 57
SPECIAL FUNCTIONS / PIP / POP / TWIN PICTURE
58
APM
TIMER
ADJUST
SWAP
PIP CH +PIP CH +PIP CH -PIP CH -
PIPPIP
PIP INPUTPIP INPUT
EZ SOUND
EZ PIC
Watching PIP/POP/Twin Picture
Press the
PPIIPP
button to access the sub picture.
Each press of PIP changes the PIP options as shown below.
PIP Mode POP Mode
Twin Picture Mode
PIP lets you view 2 different inputs (sources) on your TV screen
at the same time. One source will be large, and the other
source will show a smaller inset image.
Twin Picture mode splits the screen into two images, allowing
two picture sources to be shown on the TV screen at the same
time. Each source is given half the screen.
PIP Off
TV 2-0
TV 4-0
TV 6-0
SPECIAL FUNCTIONS
PIP / POP / Twin Picture
1_512Den-2 06/5/2 10:22 AM Page 58
SPECIAL FUNCTIONS / PIP / POP / TWIN PICTURE
59
Selecting an Input Signal Source for PIP/Twin Picture
Use the
PPIIPP IINNPPUUTT
button to select the input source for the sub picture. Each press of
PPIIPP IINNPPUUTT
button
changes the PIP source. You can also select sources for the
SSuubb IInnppuutt
in the
SSEETTUUPP
menu.
Main Picture Source Available Sub Picture Sources
DTV/CADTV Analog (TV/CATV), AV1, and AV2
TV/CATV, AV1, AV2, Component1,
Component2, RGB-PC/RGB-DTV, DTV/CADTV, Analog(TV/CATV), AV1, and AV2
HDMI1/DVI, HDMI2
TV Program Selection for PIP
Moving the PIP Sub Picture
Press the
PPIIPP
button.
Select the
AAnntteennnnaa
or
CCaabbllee
option on the Sub input menu or with the
PPIIPP
IINNPPUUTT
button. Use the
PPIIPP CCHH++
/
PPIIPP CCHH--
button to select a channel for
the sub picture.
(You can’t select DTV for main and sub picture simultaneously).
In PIP mode, press the
DD EE FF GG
button to move the sub
picture to a different location on the screen.
1
1
2
1_512Den-2 06/5/2 10:22 AM Page 59
SPECIAL FUNCTIONS / PIP / POP / TWIN PICTURE
60
Swapping the PIP/Twin Picture
SPECIAL FUNCTIONS
PIP / POP / Twin Picture
Repeatedly, use the
SSWWAAPP
button to switch the main and sub pictures.
■
Component 1, Component 2, RGB-PC (or RGB-DTV), HDMI1/DVI, HDMI2 input sources for the main
picture can’t be used to swap the main and sub pictures.
Main Picture Sub Picture
Adjusting Main and Sub Picture Sizes for Twin Picture
Use the
DD EE FF GG
button to change main and sub picture
sizes in Twin Picture mode.
■
If screen is adjusted to the maximum size, the large screen
is filled with entire screen vertically as shown.
Main Picture Sub Picture
SWAP
SWAP
PIP
Twin
1
1
1_512Den-2 06/5/2 10:22 AM Page 60
SPECIAL FUNCTIONS / PIP / POP / TWIN PICTURE
61

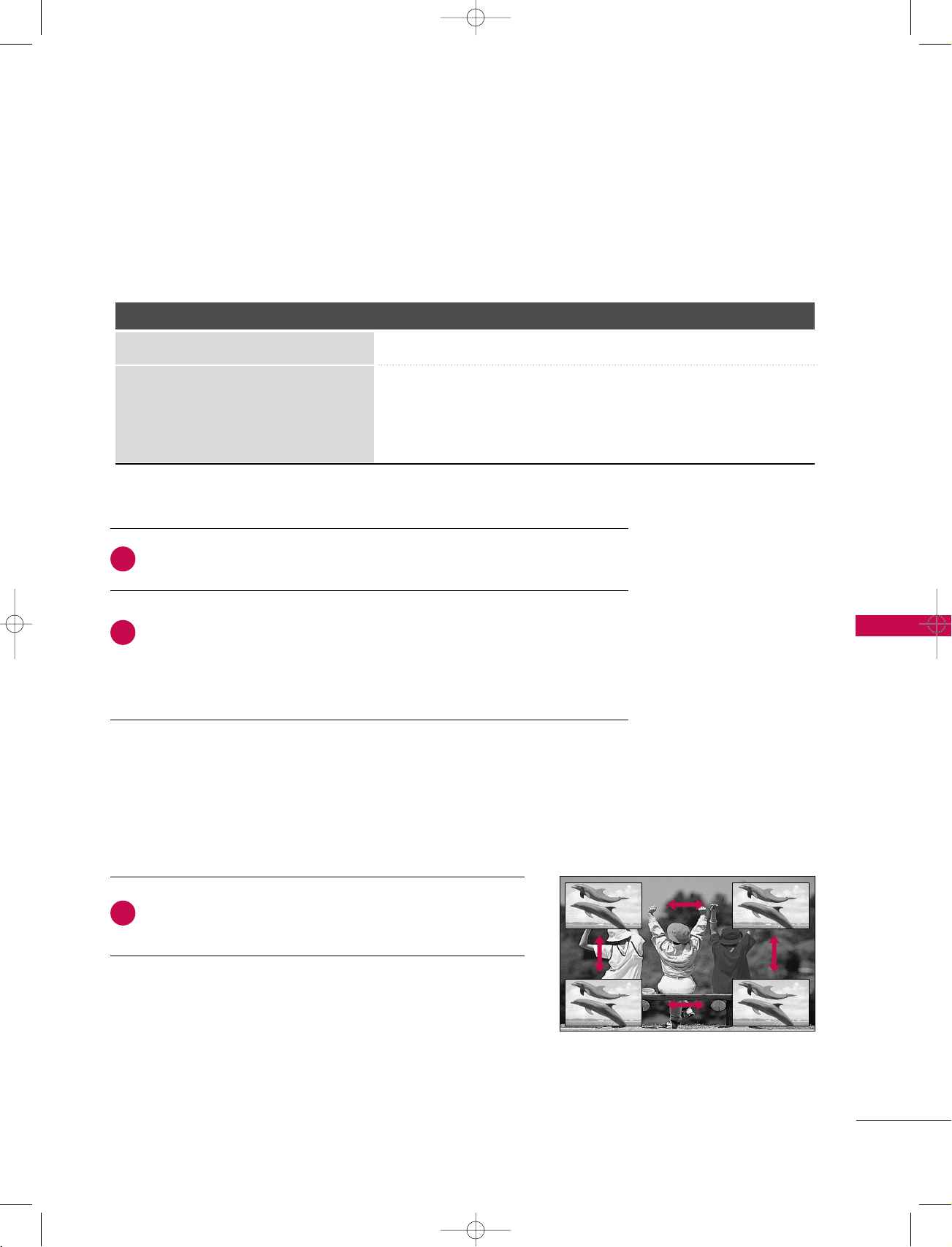

POP (Picture-out-of-Picture : Channel Scan)
Press the
PPIIPP
button to activate the
PPOOPP mmooddee
while in
PPIIPP
mmooddee..
■
CChhaannnneell sseelleeccttiioonn
: Use
FF
button to enlarge the
selected channel being searched on the PIP screen to
shift it for viewing on the Main screen.
■
PPIIPP sseelleeccttiioonn
: Use
DD
or
EE
button to select one of 3
PIP screen pictures in
PPOOPP
mode.
■
When watching TV/CATV, TV/DTV or CATV/CADTV Sub
pictures are scanned. However, when watching
DTV/CADTV, only TV/CATV Sub pictures are scanned.
Press the
EEXXIITT
button to cancel POP mode.
Use POP to search the programs of all the memorized channels
one-by-one on the 3 PIP screen display, (while the main picture
source remains the current channel). The pictures of all the
programmed channels are searched with the 3 POP screens.
NOTE
!
GG
Run EZ Scan channel search before using POP mode.
GG
When Sub pictures are changed from the TV/DTV to
CATV/CADTV in POP mode, you may hear a noise from the
Tuner switch.
TV 2-0
TV 4-0
TV 6-0
1
2
1_512Den-2 06/5/2 10:22 AM Page 61
TV MENU
62
ON SCREEN MENUS SELECTION AND ADJUSTMENT
TV MENU
Press the
MMEENNUU
button and then use
DD
or
EE
button to select the each menu.
Press the
GG
button and then use
DD EE FF GG
button to display the available menus.
Your TV's OSD
(
On Screen Display
)
may differ slightly from what is shown in this manual.
SETUP
VIDEO
CABLE
OPTIONLOCK
TIME
EZ Scan
Manual Scan
Channel Edit
DTV Signal
Main Input
Sub Input
Input Label
Set ID
EZ Picture
Color Temperature
XD
Advanced
Video Reset
Auto Clock
Manual Clock
Off Timer
On Timer
Sleep Timer
Auto Off
Aspect Ratio
Caption/Text
Caption Option
Language
ISM Method
Low Power
AUDIO
Audio Language
EZ SoundRite
EZ Sound
Balance
TV Speaker
BBE
Lock System
Set Password
Block Channel
Movie Rating
TV Rating-Children
TV Rating-General
Input Block
SA CableCARD CP Screen
G
SA CableCARD Diag Screen
SA CableCARD Host ID Screen
2
1
In case of Scientific Atlanta CableCARD™
Lock System
Set Password
Block Channel
TV Rating-English
TV Rating-French
Input Block
For USA
For Canada
1_512Den-2 06/5/2 10:22 AM Page 62
TV MENU
/
SETUP
(
CHANNEL
)
63
AUTO CHANNEL SEARCH
(
EZ SCAN
)
TV MENU
INFO i
TV GUIDE
ENTERENTER
SAP
CC
RATIO
POWER
DAY -
DAY+
VCR
TV
DVD
AUDIO
CABLE
STB
MODE
TV INPUT
INPUT
MENUMENU
EXIT
Press the
MMEENNUU
button and then use
DD
or
EE
button
to select the
SSEETTUUPP
menu.
Press the
GG
button and then use
DD
or
EE
button to
select
EEZZ SSccaann
.
Press the
EENNTTEERR
button to begin the channel search.
Allow
EEZZ SSccaann
to complete the channel search cycle
for
AANNTTEENNNNAA
and
CCAABBLLEE
.
Automatically finds all channels available through antenna
or cable inputs, and stores them in memory on the channel
list.
Run EZ Scan again after any Antenna/Cable connection
changes.
A password is required to gain access to EZ Scan menu if
the Lock System is turned on.
EZ Scan
Manual Scan
Channel Edit
DTV Signal
Main Input
Sub Input
Input Label
Set ID
Selection (
G
or )
leads you to the EZ
scan screen.
EZ Scan
Manual Scan
Channel Edit
DTV Signal
Main Input
Sub Input
Input Label
Set ID
EZ Scan
G
Manual Scan
Channel Edit
DTV Signal
Main Input
Sub Input
Input Label
Set ID
Selection (
G
or )
leads you to the EZ
scan screen.
2
3
1
Processing EZ scan...
ANTENNA Ch.20
11 channel(s) found
Press to stop the
current scan and start
CABLE channel scan.
MENU Previous
Next
NOTE
!
Analog TV signal
Digital DTV signal
Analog CATV signal
Digital CADTV signal
1
2
3
SETUP(Channel)
1_512Den-2 06/5/2 10:22 AM Page 63
TV MENU
/
SETUP
(
CHANNEL
)
64
MANUAL CHANNEL SEARCH
(
MANUAL SCAN
)
TV MENU
SETUP(Channel)
A password is required to gain access to Manual Scan
menu if the Lock System is turned on.
While using the CableCARD
TM
, CATV, CADTV is not work-
ing in Manual Scan.
Press the
MMEENNUU
button and then use
DD
or
EE
button
to select the
SSEETTUUPP
menu.
Press the
GG
button and then use
DD
or
EE
button to
select
MMaannuuaall SSccaann
.
Press the
GG
button and then use
DD
or
EE
button to
select
TTVV
,
DDTTVV
,
CCAATTVV
, and
CCAADDTTVV
.
Press the
GG
button and then use
DD
or
EE
button to
select channel you want to add or delete.
Press the
EENNTTEERR
button to add or delete the channel.
Press the
EEXXIITT
button to return to TV viewing or press
MMEENNUU
button to return to the previous menu.
INFO i
TV GUIDE
ENTERENTER
SAP
CC
RATIO
POWER
DAY -
DAY+
VCR
TV
DVD
AUDIO
CABLE
STB
MODE
TV INPUT
INPUT
MENUMENU
EXIT
NOTE
!
GG
This digital channel number is a physical channel
number, which is different from the normal channel
number shown in Channel Edit.
EZ Scan
Manual Scan
G
Channel Edit
DTV Signal
Main Input
Sub Input
Input Label
Set ID
Select channel type and
RF-channel number.
TV 2
EZ Scan
Manual Scan
Channel Edit
DTV Signal
Main Input
Sub Input
Input Label
Set ID
EZ Scan
Manual Scan
Channel Edit
DTV Signal
Main Input
Sub Input
Input Label
Set ID
2
1
4
3
6
5
Select channel type and
RF-channel number.
TV
GG
2
Press to delete the
channel
TV 2-0
DD
EE
1
2
3 4 5
1_512Den-2 06/5/2 10:22 AM Page 64
TV MENU
/
SETUP
(
CHANNEL
)
65
CHANNEL EDIT
From the default channel list created from the EZ Scan channel
search, you can create two different types of channel lists in
memory: “custom list” and “favorite channel list”.
A custom list can be created by toggling each channel on or off
with
EENNTTEERR
button. The channels in the Custom List are dis-
played in black and the channels deleted from the Custom List
are displayed in gray. Once a channel is highlighted you can add
or delete the channel by referring to the small window at the
top-left corner of the screen.
You can create your own Favorite List. Use the
FFAAVV
button on
the remote control when a channel is highlighted and then add
or delete the channel to/from your Favorite List.
Press the
MMEENNUU
button and then use
DD
or
EE
button
to select the
SSEETTUUPP
menu.
Press the
GG
button and then use
DD
or
EE
button to
select
CChhaannnneell EEddiitt
.
Press the
GG
button. You will now see a screen filled
with channel numbers and a preview picture.
Use
DD EE FF GG
button to select a channel and then
use the
EENNTTEERR
button to add or delete it.
Press
FFAAVV
button to add the channel to the Favorite List.
The surfing icon mark will appear in front of that
channel number.
Press
EEXXIITT
button to return to TV viewing or press
MMEENNUU
button to return to the previous menu.
VOL CH
MUTE
FAV
PAG E
PAG E
INFO i
TV GUIDE
ENTER
SAP
CC
RATIO
POWER
DAY -
DAY+
VCR
TV
DVD
AUDIO
CABLE
STB
MODE
TV INPUT
INPUT
MENUMENU
EXIT
EZ Scan
Manual Scan
Channel Edit
G
DTV Signal
Main Input
Sub Input
Input Label
Set ID
Selection (
G
or ) leads
you to the channel edit
screen.
EZ Scan
Manual Scan
Channel Edit
DTV Signal
Main Input
Sub Input
Input Label
Set ID
2
1
4
3
5
1
2
3 4
1_512Den-2 06/5/2 10:22 AM Page 65
TV MENU
/
SETUP
(
CHANNEL
)
66
DTV SIGNAL STRENGTH
TV MENU
SETUP(Channel)
This feature displays the DTV signal levels being received
and indicates whether you need to adjust your antenna or
digital cable input. The higher the signal strength, the less
likely you are to experience picture degradation.
DTV Signal: This function is only available when the input
signal is DTV or CADTV.
Press the
MMEENNUU
button and then use
DD
or
EE
button
to select the
SSEETTUUPP
menu.
Press the
GG
button and then use
DD
or
EE
button to
select
DDTTVV SSiiggnnaall..
View the on-screen signal strength monitor to see
the quality of the signal being received.
Press
EEXXIITT
button to return to TV viewing or press
MMEENNUU
button to return to the previous menu.
INFO i
TV GUIDE
ENTERENTER
SAP
CC
RATIO
POWER
DAY -
DAY+
VCR
TV
DVD
AUDIO
CABLE
STB
MODE
TV INPUT
INPUT
MENUMENU
EXIT
EZ Scan
Manual Scan
Channel Edit
DTV Signal
Main Input
Sub Input
Input Label
Set ID
Bad Normal Good
EZ Scan
Manual Scan
Channel Edit
DTV Signal
Main Input
Sub Input
Input Label
Set ID
2
3
4
1
1
2 3
1_512Den-2 06/5/2 10:22 AM Page 66
TV MENU
/
SETUP
(
CHANNEL
)
67
MAIN PICTURE SOURCE SELECTION
Changes the picture source so you can watch your off-air
TV, cable TV, VCR, DVD, or any other devices that are con-
nected to your TV.
Press the
MMEENNUU
button and then use
DD
or
EE
button
to select the
SSEETTUUPP
menu.
Press the
GG
button and then use
DD
or
EE
button to
select
MMaaiinn IInnppuutt..
Press the
GG
button and then use
DD
or
EE
button to
select the source:
AAnntteennnnaa
,
CCaabbllee
,
AAVV11
,
AAVV22
,
CCoommppoonneenntt11
,
CCoommppoonneenntt22
,
RRGGBB--PPCC
(or
RRGGBB--
DDTTVV
),
HHDDMMII11//DDVVII
, or
HHDDMMII22
.
■
To toggle RGB-DTV and RGB-PC, select RGB-PC (or
RGB-DTV) and press the
GG
button.
Press
EEXXIITT
button to return to TV viewing or press
MMEENNUU
button to return to the previous menu.
Select sources for the
SSuubb IInnppuutt
in the
SSEETTUUPP
menu.
See Page 59 for selecting the input
source for the sub picture by pressing the
PPIIPP IINNPPUUTT
button.
Sub Picture Source Selection
INFO i
TV GUIDE
ENTERENTER
SAP
CC
RATIO
POWER
DAY -
DAY+
VCR
TV
DVD
AUDIO
CABLE
STB
MODE
TV INPUT
INPUT
MENUMENU
EXIT
EZ Scan
Manual Scan
Channel Edit
DTV Signal
Main Input
G
Sub Input
Input Label
Set ID
Antenna
Cable
AV1
AV2
Component1
Component2
RGB-PC
HDMI1/DVI
HDMI2
EZ Scan
Manual Scan
Channel Edit
DTV Signal
Main Input
Sub Input
Input Label
Set ID
2
3
4
1
1
2 3
1_512Den-2 06/5/2 10:22 AM Page 67
TV MENU
/
SETUP
(
CHANNEL
)
68
INPUT LABEL
TV MENU
SETUP(Channel)
Sets a label to each input source which is not in use when
you press the INPUT button.
Press the
MMEENNUU
button and then use
DD
or
EE
but-
ton to select the
SSEETTUUPP
menu.
Press the
GG
button and then use
DD
or
EE
button to
select
IInnppuutt LLaabbeell
.
Press the
GG
button and then use
DD
or
EE
button to
select the source:
AAVV11
,
AAVV22
,
CCoommppoonneenntt11
,
CCoommppoonneenntt22
,
RRGGBB
,
HHDDMMII11//DDVVII
or
HHDDMMII22
.
Press the
FF
or
GG
button to select the label.
Press
EEXXIITT
button to return to TV viewing or press
MMEENNUU
button to return to the previous menu.
INFO i
T
V GUIDE
ENTERENTER
SAP
CC
RATIO
POWER
DAY -
DAY+
VCR
TV
DVD
AUDIO
CABLE
STB
MODE
TV INPUT
INPUT
MENUMENU
EXIT
EZ Scan
Manual Scan
Channel Edit
DTV Signal
Main Input
Sub Input
Input Label
G
Set ID
AV1 Cable Box
AV2 VCR
Component1 DVD
Component2 Set Top Box
RGB PC
HDMI1/DVI Game
HDMI2 Satellite
EZ Scan
Manual Scan
Channel Edit
DTV Signal
Main Input
Sub Input
Input Label
Set ID
2
3
4
5
1
1
3 42
1_512Den-2 06/5/2 10:22 AM Page 68
TV MENU
/
VIDEO ADJUSTMENT
69
AUTO PICTURE CONTROL
(
EZ PICTURE
)
Press the
EEZZ PPIICC
button repeatedly to select the picture
appearance setup option as below :
DDaayylliigghhtt
,
NNoorrmmaall
,
NNiigghhtt TTiimmee
,
UUsseerr11
, and
UUsseerr22
(your own settings).
Press the
EEXXIITT
button to save and return to TV viewing.
■
You can also use the
VVIIDDEEOO
menu to adjust
EEZZ PPiiccttuurree
.
APM
TIMER
ADJUST
SWAP
PIP CH +PIP CH -
PIP
PIP INPUT
1 2 3
456
78
0
9
FLASHBK
EZ SOUND
EZ PICEZ PIC
EZ Picture adjusts the TV for the best picture appearance.
Select the preset value in the EZ Picture menu based on the
program category.
DDaayylliigghhtt
,
NNoorrmmaall
,
NNiigghhtt TTiimmee
Settings are preset for optimum
picture quality at the factory and are not adjustable.
In the
UUsseerr11
, and
UUsseerr22
modes only, user can directly adjust
the contrast, brightness, color, sharpness, tint.
TV MENU
VIDEO ADJUSTMENT
2
1
EZ Picture
G
Color Temperature
XD
Advanced
Video Reset
Daylight
Normal
Night Time
User 1
User 2
EZ Picture
Color Temperature
XD
Advanced
Video Reset
1_512Den-2 06/5/2 10:22 AM Page 69
TV MENU
/
VIDEO ADJUSTMENT
70
ADAPTIVE PICTURE MODE
(
APM
)
TV MENU
VIDEO ADJUSTMENT
Press the
AAPPMM
button at once. As shown below, the screen
is divided to 4-split.
Use the
DD EE FF GG
button to navigate 4 EZ Pictures.
By pressing the
EENNTTEERR
button, you can select the desired
mode.
Press the
AAPPMM
button twice. The 4-same screens are dis-
played. You can easily compare with 4 modes.
Use the
DD EE FF GG
button to navigate 4 EZ Pictures.
By pressing the
EENNTTEERR
button, you can select the desired
mode.
Allows you to select your preferred picture mode after
comparing the four different picture (Daylight, Normal,
Night Time, User1 (or User2)) settings.
APMAPM
TIMER
ADJUST
SWAP
PIP CH +PIP CH -
PIP
PIP INPUT
1 2 3
4 5 6
78
0
9
FLASHBK
EZ SOUND
EZ PIC
DDaayylliigghhtt
Normal
User1Night Time
EXIT
Navigate Select Exit
DDaayylliigghhtt
Normal
User1Night Time
EXIT
Navigate Select Exit
NOTE
!
GG
While operating the 4-split, any button except
AAPPMM
,
EENNTTEERR
,
EEXXIITT
,
DD EE FF GG
,
VVOOLLUUMMEE
DD
or
EE
,
MMUUTTEE
button
on the remote control are not usable.
GG
APM screen will automatically disappear after approx. 40
seconds unless a button is pressed.
2
3
4
1
1 2
3 4
1_512Den-2 06/5/2 10:22 AM Page 70
TV MENU
/
VIDEO ADJUSTMENT
71

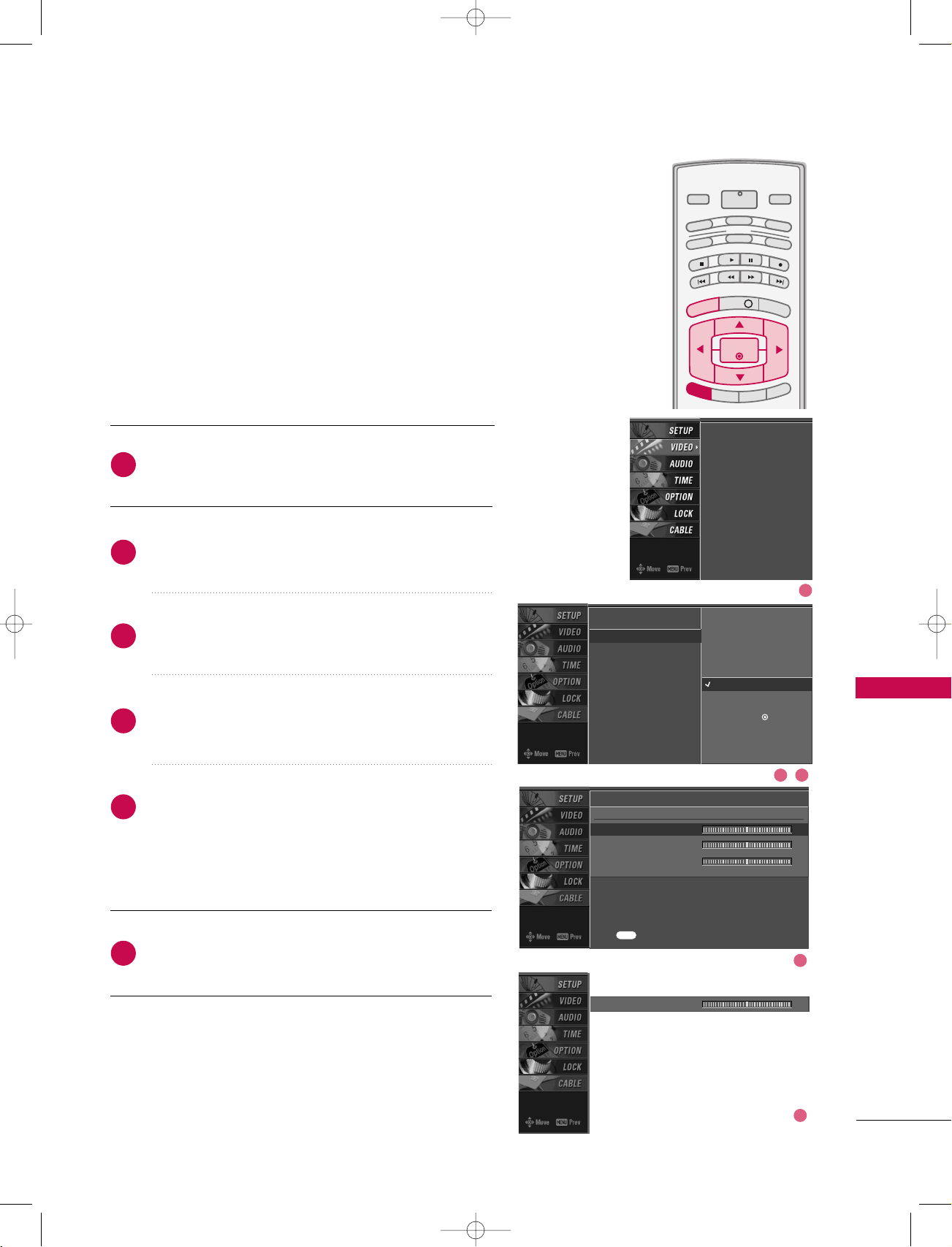

MANUAL PICTURE CONTROL
(
EZ Picture-
UUsseerr
option
)
Press the
MMEENNUU
button and then use
DD
or
EE
button
to select the
VVIIDDEEOO
menu.
Press the
GG
button and then use
DD
or
EE
button to
select
EEZZ PPiiccttuurree
.
Press the
GG
button and then use
DD
or
EE
button to
select
UUsseerr 11
or
UUsseerr 22
.
Press the
GG
button and then use
DD
or
EE
button to
select the desired picture option
((
CCoonnttrraasstt
,
BBrriigghhttnneessss
,
CCoolloorr
,
SShhaarrppnneessss
, or
TTiinntt
))
.
Press the
GG
button and then use
FF
or
GG
button to
make appropriate adjustments.
Press
EEXXIITT
button to return to TV viewing or press
MMEENNUU
button to return to the previous menu.
INFO i
TV GUIDE
ENTERENTER
SAP
CC
RATIO
POWER
DAY -
DAY+
VCR
TV
DVD
AUDIO
CABLE
STB
MODE
TV INPUT
INPUT
MENUMENU
EXIT
Adjust the picture appearance to suit your preference and
viewing situations.
EZ Picture
Color Temperature
XD
Advanced
Video Reset
Daylight
Normal
Night Time
User 1
G
User 2
Selection (
G
or ) leads you
to the detailed setting
screen.
Contrast 85
FF
G
EE
User1
Contrast 85
G
Brightness 50
Color 50
Sharpness 50
Tint 0
R G
Press to confirm.
MENU
EZ Picture
Color Temperature
XD
Advanced
Video Reset
2
3
4
5
6
1
1
2 3
4
5
1_512Den-2 06/5/2 10:22 AM Page 71
TV MENU
/
VIDEO ADJUSTMENT
72
COLOR TEMPERATURE CONTROL
TV MENU
VIDEO ADJUSTMENT
Auto Color Temperature Control
Choose one of three automatic color adjustments. Set to
warm to enhance hotter colors such as red, or set to cool
to see less intense colors with more blue.
Press the
MMEENNUU
button and then use
DD
or
EE
button
to select the
VVIIDDEEOO
menu.
Press the
GG
button and then use
DD
or
EE
button to
select
CCoolloorr TTeemmppeerraattuurree
.
Press the
GG
button and then use
DD
or
EE
button to
select either
CCooooll
,
MMeeddiiuumm
,
WWaarrmm
or
UUsseerr
.
Press
EEXXIITT
button to return to TV viewing or press
MMEENNUU
button to return to the previous menu.
INFO i
T
V GUIDE
ENTERENTER
SAP
CC
RATIO
POWER
DAY -
DAY+
VCR
TV
DVD
AUDIO
CABLE
STB
MODE
TV INPUT
INPUT
MENUMENU
EXIT
EZ Picture
Color Temperature
G
XD
Advanced
Video Reset
Cool
Medium
Warm
User
EZ Picture
Color Temperature
XD
Advanced
Video Reset
2
3
4
1
1
2 3
1_512Den-2 06/5/2 10:22 AM Page 72
TV MENU
/
VIDEO ADJUSTMENT
73
Manual Color Temperature Control
You can also adjust the detailed settings(Red, Green, Blue)
by selecting the
UUsseerr
menu.
Press the
MMEENNUU
button and then use
DD
or
EE
button
to select the
VVIIDDEEOO
menu.
Press the
GG
button and then use
DD
or
EE
button to
select
CCoolloorr TTeemmppeerraattuurree
.
Press the
GG
button and then use
DD
or
EE
button to
select
UUsseerr
.
Press the
GG
button and then use
DD
or
EE
button to
select
RReedd
,
GGrreeeenn
, or
BBlluuee
.
Press the
GG
button and then use
FF
or
GG
button to
make appropriate adjustments.
■
The adjustment range of
RRGGBB
,
GGrreeeenn
, or
BBlluuee
is
-20~ +20.
Press
EEXXIITT
button to return to TV viewing or press
MMEENNUU
button to return to the previous menu.
INFO i
TV GUIDE
ENTERENTER
SAP
CC
RATIO
POWER
DAY -
DAY+
VCR
TV
DVD
AUDIO
CABLE
STB
MODE
TV INPUT
INPUT
MENUMENU
EXIT
EZ Picture
Color Temperature
XD
Advanced
Video Reset
EZ Picture
Color Temperature
XD
Advanced
Video Reset
2
3
4
5
6
1
User
Red 0
G
Green 0
Blue 0
Press to confirm.
MENU
Selection (
G
or ) leads you
to the detailed setting
screen.
Cool
Medium
Warm
User
G
Red 0
FF
G
EE
2 3
1
4
5
1_512Den-2 06/5/2 10:22 AM Page 73
TV MENU
/
VIDEO ADJUSTMENT
74
TV MENU
VIDEO ADJUSTMENT
XD
Press the
MMEENNUU
button and then use
DD
or
EE
button
to select the
VVIIDDEEOO
menu.
Press the
GG
button and then use
DD
or
EE
button to
select
XX DD
.
Press the
GG
button and then use
DD
or
EE
button to
select
AAuuttoo
or
MMaannuuaall
.
Press
EEXXIITT
button to return to TV viewing or press
MMEENNUU
button to return to the previous menu.
INFO i
TV GUIDE
ENTERENTER
SAP
CC
RATIO
POWER
DAY -
DAY+
VCR
TV
DVD
AUDIO
CABLE
STB
MODE
TV INPUT
INPUT
MENUMENU
EXIT
XD is LG Electronic’s unique picture improving technology
to display a real HD source through an advanced digital
signal processing algorithm.
When selecting EZ Picture options (Daylight, Normal and
Night time), XD is automatically changed to Auto.
When selecting EZ Picture options (User 1 and User 2),
you can choose the Auto / Manual.
When selecting the Manual, you can adjust the XD
Contrast, XD color and XD Noise.
EZ Picture
Color Temperature
XD
G
Advanced
Video Reset
Manual
XD Contrast On
XD Color On
XD Noise On
EZ Picture
Color Temperature
XD
Advanced
Video Reset
2
3
4
1
SSeelleeccttiinngg tthhee MMaannuuaall
1. Press the
GG
button and then use
FF
or
GG
but-
ton to select
XXDD CCoonnttrraasstt
,
XXDD CCoolloorr
or
XXDD NNooiissee
.
■
XXDD CCoonnttrraasstt::
Optimizing the contrast
automatically according to the brightness of
the reflection.
■
XXDD CCoolloorr::
Adjusting the colors of the
reflection automatically to reproduce as
closely as possible to the natural colors.
■
XXDD NNooiissee ::
Removing the noise up to the
point where it does not damage the original
picture.
2. Use the
DD
or
EE
button to select
OOnn
or
OOffff
.
2 3
1
1_512Den-2 06/5/2 10:22 AM Page 74
TV MENU
/
VIDEO ADJUSTMENT
75
ADVANCED-CINEMA 3:2 MODE SETUP
Press the
MMEENNUU
button and then use
DD
or
EE
button
to select the
VVIIDDEEOO
menu.
Press the
GG
button and then use
DD
or
EE
button to
select
AAddvvaanncceedd
.
Press the
GG
button and then use
DD
or
EE
button to
select
CCiinneemmaa 33::22 MMooddee
.
Press the
GG
button and then use
DD
or
EE
button to
select
OOnn
or
OOffff
.
Press
EEXXIITT
button to return to TV viewing or press
MMEENNUU
button to return to the previous menu.
INFO i
TV GUIDE
ENTERENTER
SAP
CC
RATIO
POWER
DAY -
DAY+
VCR
TV
DVD
AUDIO
CABLE
STB
MODE
TV INPUT
INPUT
MENUMENU
EXIT
Set up the TV for the best picture appearance for viewing
movies.
When you operate Cinema 3:2 Mode (3:2 Pull-Down
Mode or Cinema Correction Mode), the TV will adjust 24
fps video from movies to 30 fps video for display.
This feature operates only in Analog, AV1, AV2, and
Component 480i mode.
EZ Picture
Color Temperature
XD
Advanced
G
Video Reset
Cinema 3:2 Mode Off
Black Level Auto
EZ Picture
Color Temperature
XD
Advanced
Video Reset
2
3
4
5
1
2 3 4
1
1_512Den-2 06/5/2 10:22 AM Page 75
TV MENU
/
VIDEO ADJUSTMENT
76
ADVANCED-BLACK LEVEL
TV MENU
VIDEO ADJUSTMENT
Press the
MMEENNUU
button and then use
DD
or
EE
button
to select the
VVIIDDEEOO
menu.
Press the
GG
button and then use
DD
or
EE
button to
select
AAddvvaanncceedd
.
Press the
GG
button and then use
DD
or
EE
button to
select
BBllaacckk lleevveell
.
Press the
GG
button and then use
DD
or
EE
button to
select
AAuuttoo
,
LLooww
, or
HHiigghh
.
■
AAuuttoo
Realizing the black level of the screen and set it to
High or Low automatically.
■
LLooww
The screen gets darker.
■
HHiigghh
The screen gets brighter.
Press
EEXXIITT
button to return to TV viewing or press
MMEENNUU
button to return to the previous menu.
INFO i
TV GUIDE
ENTERENTER
SAP
CC
RATIO
POWER
DAY -
DAY+
VCR
TV
DVD
AUDIO
CABLE
STB
MODE
TV INPUT
INPUT
MENUMENU
EXIT
Adjusting the contrast and the brightness of the screen
using the black level of the screen.
This feature operates only in AV1, AV2, HDMI1/DVI, or
HDMI2mode.
EZ Picture
Color Temperature
XD
Advanced
G
Video Reset
Cinema 3:2 Mode Off
Black Level Auto
EZ Picture
Color Temperature
XD
Advanced
Video Reset
2
3
4
5
1
3 42
1
1_512Den-2 06/5/2 10:22 AM Page 76
TV MENU
/
VIDEO ADJUSTMENT
77
VIDEO RESET
Press the
MMEENNUU
button and then use
DD
or
EE
button
to select the
VVIIDDEEOO
menu.
Press the
GG
button and then use
DD
or
EE
button to
select
VViiddeeoo RReesseett
.
Press the
GG
button to reset the Video menu options
to original values.
INFO i
TV GUIDE
ENTERENTER
SAP
CC
RATIO
POWER
DAY -
DAY+
VCR
TV
DVD
AUDIO
CABLE
STB
MODE
TV INPUT
INPUT
MENUMENU
EXIT
Use to quickly reset all the Video menu options to their
original factory preset values.
EZ Picture
Color Temperature
XD
Advanced
Video Reset
G
Selection (
G
or ) resets
to the factory settings
(default).
EZ Picture
Color Temperature
XD
Advanced
Video Reset
2
3
1
2 3
1
1_512Den-2 06/5/2 10:22 AM Page 77
TV MENU
/
AUDIO ADJUSTMENT
78
AUDIO LANGUAGE
AUDIO ADJUSTMENT
Other languages may be available if a digital signal is pro-
vided by the broadcasting station.
This feature operates only in DTV/CADTV mode.
Press the
MMEENNUU
button and then use
DD
or
EE
button
to select the
AAUUDDIIOO
menu.
Press the
GG
button and then use
DD
or
EE
button to
select
AAuuddiioo LLaanngguuaaggee
.
Press the
GG
button and then use
DD
or
EE
button to
select :
EEnngglliisshh
,
SSppaanniisshh
, or
FFrreenncchh
.
Press
EEXXIITT
button to return to TV viewing or press
MMEENNUU
button to return to the previous menu.
INFO i
TV GUIDE
ENTERENTER
SAP
CC
RATIO
POWER
DAY -
DAY+
VCR
TV
DVD
AUDIO
CABLE
STB
MODE
TV INPUT
INPUT
MENUMENU
EXIT
Audio Language
G
EZ SoundRite
EZ Sound
Balance
TV Speaker
BBE
English
Spanish
French
2
3
4
1
TV MENU
Audio Language
EZ SoundRite
EZ Sound
Balance
TV Speaker
BBE
2 3
1
1_512Den-2 06/5/2 10:22 AM Page 78
TV MENU
/
AUDIO ADJUSTMENT
79
AUTO VOLUME LEVELER
(
EZ SOUNDRITE
)
Press the
MMEENNUU
button and then use
DD
or
EE
button
to select the
AAUUDDIIOO
menu.
Press the
GG
button and then use
DD
or
EE
button to
select
EEZZ SSoouunnddRRiittee
.
Press the
GG
button and then use
DD
or
EE
button to
select
OOnn
or
OOffff
.
Press
EEXXIITT
button to return to TV viewing or press
MMEENNUU
button to return to the previous menu.
Scans for changes in sound levels during commercials, then
adjusts the sound to match the specified audio level.
SoundRite makes sure that the volume level remains con-
sistent whether you are watching a commercial or a regular
TV program.
INFO i
TV GUIDE
ENTERENTER
SAP
CC
RATIO
POWER
DAY -
DAY+
VCR
TV
DVD
AUDIO
CABLE
STB
MODE
TV INPUT
INPUT
MENUMENU
EXIT
Audio Language
EZ SoundRite
G
EZ Sound
Balance
TV Speaker
BBE
Off
On
2
3
4
1
Audio Language
EZ SoundRite
EZ Sound
Balance
TV Speaker
BBE
2 3
1
1_512Den-2 06/5/2 10:22 AM Page 79
TV MENU
/
AUDIO ADJUSTMENT
80
AUTO SOUND CONTROL
(
EZ SOUND
)
TV MENU
AUDIO ADJUSTMENT
EZ Sound lets you enjoy the best sound without any special
adjustment because the TV sets the appropriate sound options
based on the program content.
Normal, Stadium, News, Music and Theater are preset for good
sound quality at the factory and are not adjustable.
Press the
EEZZ SSOOUUNNDD
button repeatedly to select the
appropriate sound setup as below :
NNoorrmmaall
,
SSttaaddiiuumm
,
NNeewwss
,
MMuussiicc
,
TThheeaatteerr
, and
UUsseerr
(
your own settings
).
Press
EEXXIITT
button to return to TV viewing.
APM
TIMER
ADJUST
SWAP
PIP CH +PIP CH -
PIP
PIP INPUT
1 2 3
456
78
0
9
FLASHBK
EZ SOUNDEZ SOUND
EZ PIC
■
You can also adjust
EEZZ SSoouunndd
in the
AAUUDDIIOO
menu.
Audio Language
EZ SoundRite
EZ Sound
G
Balance
TV Speaker
BBE
Normal
Stadium
News
Music
Theater
User
2
1
Audio Language
EZ SoundRite
EZ Sound
Balance
TV Speaker
BBE
1_512Den-2 06/5/2 10:22 AM Page 80
TV MENU
/
AUDIO ADJUSTMENT
81
MANUAL SOUND CONTROL
(
EZ SOUND-
UUsseerr
option
)
Press the
MMEENNUU
button and then use
DD
or
EE
button
to select the
AAUUDDIIOO
menu.
Press the
GG
button and then use
DD
or
EE
button to
select
EEZZ SSoouunndd
.
Press the
GG
button and then use
DD
or
EE
button to
select
UUsseerr
.
Press the
GG
button and then use
DD
or
EE
button to
select the desired sound option (
TTrreebbllee
,
BBaassss
,or
FFrroonntt SSuurrrroouunndd
).
INFO i
TV GUIDE
ENTERENTER
SAP
CC
RATIO
POWER
DAY -
DAY+
VCR
TV
DVD
AUDIO
CABLE
STB
MODE
TV INPUT
INPUT
MENUMENU
EXIT
Adjust the sound to suit your taste and room situations.
Audio Language
EZ SoundRite
EZ Sound
Balance
TV Speaker
BBE
Selection (
G
or ) leads you
to the detailed setting
screen.
Normal
Stadium
News
Music
Theater
User
G
User
Treble 50
G
Bass 50
Front Surround Off
Press to confirm.
MENU
2
3
4
1
(Continued on next page)
21 3
4
1_512Den-2 06/5/2 10:22 AM Page 81
TV MENU
/
AUDIO ADJUSTMENT
82
MANUAL SOUND CONTROL Continued
TV MENU
AUDIO ADJUSTMENT
Press the
GG
button and then use
FF
or
GG
button to
make appropriate adjustments.
SSeelleeccttiinngg tthhee FFrroonntt ssuurrrroouunndd
Press the
GG
button and then use
FF
or
GG
button to
select
OOffff
,
33DD EEcchhooSSoouunndd SSyysstteemm
or
SSRRSS
(
Sound Retrieval System)
TTrruuSSuurrrroouunndd XXTT
.
Press
EEXXIITT
button to return to TV viewing or press
MMEENNUU
button to return to the previous menu.
Front Surround 3D EchoSound System
SSRRSS TTrruuSSuurrrroouunndd XXTT
Takes advantage of any multi-channel format without
needing to add extra speakers or equipment. Dialog clari-
ty, bass enrichment, and the addition of stereo audio
enhancement produces an immersive sound experience
from standard stereo material.
33DD EEcchhooSSoouunndd SSyysstteemm
Creates a stunning simulated stereo effect from any mono
sound and a realistic three-dimensional sound with a very
wide and deep sound stage.
6
5
1_512Den-2 06/5/2 10:22 AM Page 82
83
BALANCE
TV MENU
/
AUDIO ADJUSTMENT
Press the
MMEENNUU
button and then use
DD
or
EE
button
to select the
AAUUDDIIOO
menu.
Press the
GG
button and then use
DD
or
EE
button to
select
BBaallaannccee
.
Press the
GG
button and then use
FF
or
GG
button to
make appropriate adjustments.
Press
EEXXIITT
button to return to TV viewing or press
MMEENNUU
button to return to the previous menu.
INFO i
TV GUIDE
ENTERENTER
SAP
CC
RATIO
POWER
DAY -
DAY+
VCR
TV
DVD
AUDIO
CABLE
STB
MODE
TV INPUT
INPUT
MENUMENU
EXIT
Adjust the left/right sound of speaker to suit your taste
and room situations.
L R
Balance 0
2
3
4
1
Audio Language
EZ SoundRite
EZ Sound
Balance
TV Speaker
BBE
Audio Language
EZ SoundRite
EZ Sound
Balance 0
TV Speaker
BBE
L R
1
2
3
1_512Den-2 06/5/2 10:22 AM Page 83
TV MENU
/
AUDIO ADJUSTMENT
84
TV SPEAKERS ON/OFF SETUP
TV MENU
AUDIO ADJUSTMENT
Press the
MMEENNUU
button and then use
DD
or
EE
button
to select the
AAUUDDIIOO
menu.
Press the
GG
button and then use
DD
or
EE
button to
select
TTVV SSppeeaakkeerr
.
Press the
GG
button and then use
DD
or
EE
button to
select
OOnn
or
OOffff
.
Press
EEXXIITT
button to return to TV viewing or press
MMEENNUU
button to return to the previous menu.
INFO i
TV GUIDE
ENTERENTER
SAP
CC
RATIO
POWER
DAY -
DAY+
VCR
TV
DVD
AUDIO
CABLE
STB
MODE
TV INPUT
INPUT
MENUMENU
EXIT
Turn the TV speakers off if using external audio equipment.
Feature turns the TV Speakers option On or Off.
Audio Language
EZ SoundRite
EZ Sound
Balance
TV Speaker
G
BBE
Off
On
2
3
4
1
Audio Language
EZ SoundRite
EZ Sound
Balance
TV Speaker
BBE
1
32
1_512Den-2 06/5/2 10:22 AM Page 84
TV MENU
/
AUDIO ADJUSTMENT
85
BBE
Press the
MMEENNUU
button and then use
DD
or
EE
button
to select the
AAUUDDIIOO
menu.
Press the
GG
button and then use
DD
or
EE
button to
select
BBBBEE
.
Press the
GG
button and then use
DD
or
EE
button to
select
OOnn
or
OOffff
.
Press
EEXXIITT
button to return to TV viewing or press
MMEENNUU
button to return to the previous menu.
BBE High Definition Sound restores clarity for better
speech intelligibility and musical realism.
INFO i
TV GUIDE
ENTERENTER
SAP
CC
RATIO
POWER
DAY -
DAY+
VCR
TV
DVD
AUDIO
CABLE
STB
MODE
TV INPUT
INPUT
MENUMENU
EXIT
Audio Language
EZ SoundRite
EZ Sound
Balance
TV Speaker
BBE
G
Off
On
2
3
4
1
Audio Language
EZ SoundRite
EZ Sound
Balance
TV Speaker
BBE
1
32
1_512Den-2 06/5/2 10:22 AM Page 85
TV MENU
/
AUDIO ADJUSTMENT
86
STEREO/SAP BROADCAST SETUP
TV MENU
AUDIO ADJUSTMENT
MENU
INFO i
T
V GUIDE
ENTER
EXIT
CC
RATIO
POWER
DAY -
D
AY +
VCR
TV
DVD
AUDIO
CABLE
STB
MODE
TV INPUT
INPUT
SAPSAP
This TV can receive MTS stereo programs and any SAP
(
Secondary Audio Program
)
that accompanies the stereo pro-
gram if the station transmits an additional sound signal as well
as the original one and when you select Stereo or SAP on the
remote control.
Mono sound is automatically received if the broadcast is only in
Mono; even though Stereo or SAP has been selected.
Select Mono if you want to listen to the mono sound in remote
areas during stereo/SAP broadcasting.
Stereo or SAP can be received in Analog channel.
Use the
SSAAPP
button to select your desired MTS mode in analog signal. Each
time you press the
SSAAPP
button,
MMoonnoo
,
SStteerreeoo
, or
SSAAPP
appear in turn.
■
If other languages available on the digital signal, select them with the
SSAAPP
button.
Press
EEXXIITT
button to save and return to TV viewing.
2
1
1_512Den-2 06/5/2 10:22 AM Page 86
TV MENU
/
TIME SETTING
87
AUTO CLOCK SETUP
The time is set automatically from a digital channel signal.
The digital channel signal includes information for the cur-
rent time provided by the broadcasting station.
Set the clock manually if the current time is set incorrectly
by the auto clock function.
Note: When you set up the TV Guide On Screen system,
Auto Clock menu is not available.
Press the
MMEENNUU
button and then use
DD
or
EE
button
to select the
TTIIMMEE
menu.
Press the
GG
button and then use
DD
or
EE
button to
select
AAuuttoo CClloocckk
.
Press the
GG
button and then use
DD
or
EE
button to
select
OOnn
.
Press the
GG
button and then use
DD
or
EE
button to
select your viewing area time zone:
U.S.A :
EEaasstteerrnn
,
CCeennttrraall
,
MMoouunnttaaiinn
,
PPaacciiffiicc
,
AAllaasskkaa
or
HHaawwaaiiii
.
Canada :
EEaasstteerrnn
,
CCeennttrraall
,
MMoouunnttaaiinn
,
PPaacciiffiicc
,
NNeeww FF..llaanndd
or
AAttllaannttiicc
.
Press the
GG
button and then use
DD
or
EE
button to
select
AAuuttoo
,
OOffff
,
OOnn
, depending on whether or not
your viewing area observes Daylight Saving time.
Press
EEXXIITT
button to return to TV viewing or press
MMEENNUU
button to return to the previous menu.
INFO i
TV GUIDE
ENTERENTER
SAP
CC
RATIO
POWER
DAY -
DAY+
VCR
TV
DVD
AUDIO
CABLE
STB
MODE
TV INPUT
INPUT
MENUMENU
EXIT
TV MENU
TIME SETTING
Auto Clock
G
Manual Clock
Off Timer
On Timer
Sleep Timer
Auto Off
Off
On
Time Zone Eastern
Auto
Daylight
Saving
Auto Clock
Manual Clock
Off Timer
On Timer
Sleep Timer
Auto Off
2
3
4
5
6
1
1
32 54
1_512Den-2 06/5/2 10:22 AM Page 87
TV MENU
/
TIME SETTING
88
MANUAL CLOCK SETUP
TV MENU
TIME SETTING
Press the
MMEENNUU
button and then use
DD
or
EE
button
to select the
TTIIMMEE
menu.
Press the
GG
button and then use
DD
or
EE
button to
select
MMaannuuaall CClloocckk
.
Press the
GG
button and then use
FF
or
GG
to select
either the year, date, or time option. Once selected,
use the
DD
or
EE
button to set the year, date, and time
options.
Press
EEXXIITT
button to return to TV viewing or press
MMEENNUU
button to return to the previous menu.
INFO i
TV GUIDE
ENTERENTER
SAP
CC
RATIO
POWER
DAY -
DAY+
VCR
TV
DVD
AUDIO
CABLE
STB
MODE
TV INPUT
INPUT
MENUMENU
EXIT
If the current time setting is wrong, reset the clock manually.
When you set up the TV Guide On Screen system, the
Manual Clock menu is not available.
Auto Clock
Manual Clock
G
Off Timer
On Timer
Sleep Timer
Auto Off
Year - - - -
Date - - / - -
Time - - : - - - -
Auto Clock
Manual Clock
Off Timer
On Timer
Sleep Timer
Auto Off
2
3
4
1
1
32
1_512Den-2 06/5/2 10:22 AM Page 88
TV MENU
/
TIME SETTING
89
ON/OFF TIMER SETUP
Press the
MMEENNUU
button and then use
DD
or
EE
button
to select the
TTIIMMEE
menu.
Press the
GG
button and then use
DD
or
EE
button to
select
OOffff TTiimmeerr
or
OOnn TTiimmeerr
.
Press the
GG
button and then use
DD
or
EE
button to
select
OOnn
.
■
To cancel the
OOnn//OOffff ttiimmeerr
function, select
OOffff
.
Press the
GG
button and then use
DD
or
EE
button to
set the hour.
Press the
GG
button and then use
DD
or
EE
button to
set the minutes.
OOnnllyy OOnn ttiimmeerr
Press the
GG
button and then use
DD
or
EE
to select
the channel at turn-on.
Press the
GG
button and then use
DD
or
EE
to set the
sound level at turn-on.
Press
EEXXIITT
button to return to TV viewing or press
MMEENNUU
button to return to the previous menu.
INFO i
TV GUIDE
ENTERENTER
SAP
CC
RATIO
POWER
DAY -
DAY+
VCR
TV
DVD
AUDIO
CABLE
STB
MODE
TV INPUT
INPUT
MENUMENU
EXIT
Auto Clock
Manual Clock
Off Timer
On Timer
G
Sleep Timer
Auto Off
Auto Clock
Manual Clock
Off Timer
On Timer
Sleep Timer
Auto Off
2
3
4
5
6
7
1
The timer function operates only if the current time has
been set.
The Off-Timer function overrides the On-Timer function if
they are both set to the same time.
The TV must be in standby mode for the On-Timer to
work.
If you do not press any button within 2 hours after the TV
turns on with the On Timer function, the TV will automati-
cally revert to standby mode.
1
32 54 6
Off
On
Time 6 : 30 AM
Ch. TV 2-0
Vol 17
1_512Den-2 06/5/2 10:22 AM Page 89
TV MENU
/
TIME SETTING
90
SLEEP TIMER
TV MENU
TIME SETTING
Press the
TTIIMMEERR
button repeatedly to select the number of minutes. First
the
OOffff
option appears on the screen, followed by the following sleep timer
options : 10, 20, 30, 60, 90, 120, 180, and 240 minutes.
When the number of minutes you want is displayed on the screen, press the
EENNTTEERR
button. The timer begins to count down from the number of min-
utes selected.
To check the remaining minutes before the TV turns off, press the
TTIIMMEERR
button once.
To cancel the Sleep Timer, press the
TTIIMMEERR
button repeatedly to select
OOffff
.
APM
TIMERTIMER
ADJUST
SWAP
PIP CH +PIP CH -
PIP
PIP INPUT
1 2 3
4 5 6
78
0
9
FLASHBK
EZ SOUND
EZ PIC
The Sleep Timer turns the TV off at the preset time.
Note that this setting is cleared when the TV is turned off.
■
You can also set up the
SSlleeeepp TTiimmeerr
in the
TTIIMMEE
menu.
Auto Clock
Manual Clock
Off Timer
On Timer
Sleep Timer
G
Auto Off
Off
10 min
20 min
30 min
60 min
90 min
120 min
180 min
240 min
Auto Clock
Manual Clock
Off Timer
On Timer
Sleep Timer
Auto Off
2
3
4
1
1_512Den-2 06/5/2 10:22 AM Page 90
TV MENU
/
TIME SETTING
91
AUTO OFF
If set to on and there is no input signal, the TV turns off
automatically after 10 minutes.
Press the
MMEENNUU
button and then use
DD
or
EE
button
to select the
TTIIMMEE
menu.
Press the
GG
button and then use
DD
or
EE
button to
select
AAuuttoo OOffff
.
Press the
GG
button and then use
DD
or
EE
button to
select
OOnn
or
OOffff
.
Press
EEXXIITT
button to return to TV viewing or press
MMEENNUU
button to return to the previous menu.
INFO i
TV GUIDE
ENTERENTER
SAP
CC
RATIO
POWER
DAY -
DAY+
VCR
TV
DVD
AUDIO
CABLE
STB
MODE
TV INPUT
INPUT
MENUMENU
EXIT
Auto Clock
Manual Clock
Off Timer
On Timer
Sleep Timer
Auto Off
G
Off
On
TV will be automatically turned
off, in case of No Signal for
10 minutes.
Auto Clock
Manual Clock
Off Timer
On Timer
Sleep Timer
Auto Off
2
3
4
1
1
32
1_512Den-2 06/5/2 10:22 AM Page 91
TV MENU
/
OPTIONAL FEATURES
92
ASPECT RATIO CONTROL
TV MENU
This feature lets you choose the way an analog picture with a 4:3 aspect ratio is
displayed on your TV. When you receive an analog picture with a 4:3 aspect
ratio on your 16:9 TV, you need to specify how the picture is to be displayed.
■
RGB-PC/DVI-PC input source use 4:3 or 16:9 aspect ratio.
Set by program
Selects the proper picture proportion to
match the source’s image.
4:3
Choose 4:3 when you want to view a picture
with an original 4:3 aspect ratio.
NOTE
!
GG
If a fixed image is displayed on the screen for a long time, the image may
become imprinted on the screen and remain visible.
This phenomenon is common to all manufactures and in consequence the
manufactures warranty does not cover the product bearing this phenomenon.
OPTIONAL FEATURES
MENU
INFO i
TV GUIDE
ENTER
EXIT
POWER
DAY -
DAY+
VCR
TV
DVD
AUDIO
CABLE
STB
MODE
TV INPUT
INPUT
CC
SAP
RATI
ORATI
O
Press the
RRAATTIIOO
button repeatedly to select the desired picture format.
You can also adjust
AAssppeecctt RRaattiioo
in the
OOPPTTIIOONN
menu.
1
Set By Program
4:3
Set By Program
4:3 4:3
16:9 16:9
1_512Den-2 06/5/2 10:22 AM Page 92
TV MENU
/
OPTIONAL FEATURES
93
16:9
Adjust the picture horizontally, in a linear pro-
portion to fill the entire screen.
Horizon
The screen size is, more enlarged at both
sides, to create a spectacular view.
Zoom 1
Choose Zoom 1 when you want to view the
picture without any alteration. However, the
top and bottom portions of the picture will be
cropped.
Zoom 2
Choose Zoom 2 when you want the picture to
be altered, both vertically extended and
cropped. The picture taking a halfway trade
off between alteration and screen coverage.
Cinema Zoom
Choose Cinema Zoom when you want to
enlarge the picture in correct proportion.
Note: When enlarging or reducing the picture,
the image may become distorted.
You can adjust the enlarge proportion of
Cinema Zoom using
DD
or
EE
button.
The adjustment range is 1-16.
16:9
Horizon
Zoom 1
Zoom 2
Cinema Zoom
DD
1
1_512Den-2 06/5/2 10:22 AM Page 93
TV MENU
/
OPTIONAL FEATURES
94
TV MENU
OPTIONAL FEATURES
CAPTION / TEXT
Analog Broadcasting System Captions
Select a caption mode for displaying captioning information if provided on a
program. Analog caption displays information at any position on the screen
and is usually the program's dialog.
Text displays information, usually at the bottom position and is used for a
data service, generally not program related. Caption/Text, if provided by the
broadcaster, would be available for both digital and analog channels on the
Antenna/Cable.
This TV is programmed to memorize the caption/text mode which was last
set when you turn the power off.
MENU
INFO i
TV GUIDE
ENTER
EXIT
RATIO
POWER
DAY -
DAY+
VCR
TV
DVD
AUDIO
CABLE
STB
MODE
TV INPUT
INPUT
CCCC
SAP
Aspect Ratio
Caption/Text
G
Caption Option
Language
ISM Method
Low Power
Off
CC 1
CC 2
CC 3
CC 4
Text 1
Text 2
Text 3
Text 4
Aspect Ratio
Caption/Text
Caption Option
Language
ISM Method
Low Power
Use the
CC CC
button repeatedly to select Caption
OOffff
,
CCCC11
,
CCCC22
,
CCCC33
,
CCCC44
,
TTeexxtt11
,
TTeexxtt22
,
TTeexxtt33
or
TTeexxtt44
.
■
CCAAPPTTIIOONN
The term for the words that scroll across the bottom of the TV screen; usually
the audio portion of the program provided for the hearing impaired.
■
TTEEXXTT
The term for the words that appear in a large black frame and almost cover the
entire screen; usually messages provided by the broadcaster.
Press
EEXXIITT
to save and return to TV viewing.
■
You can also use the
OOPPTTIIOONN
menu to select
CCaappttiioonn
/
TTeexxtt
.
2
1
1_512Den-2 06/5/2 10:22 AM Page 94
TV MENU
/
OPTIONAL FEATURES
95
Press the
MMEENNUU
button and then use
DD
or
EE
button
to select the
OOPPTTIIOONN
menu.
Press the
GG
button and then use
DD
or
EE
button to
select
CCaappttiioonn
/
TTeexxtt
.
Press the
GG
button and then use
DD
or
EE
button to
select available caption languages :
EEnngglliisshh
,
SSppaanniisshh
or
FFrreenncchh
.
Press
EEXXIITT
button to return to TV viewing or press
MMEENNUU
button to return to the previous menu.
INFO i
TV GUIDE
ENTERENTER
SAP
CC
RATIO
POWER
DAY -
DAY+
VCR
TV
DVD
AUDIO
CABLE
STB
MODE
TV INPUT
INPUT
MENUMENU
EXIT
Digital Broadcasting System Captions
Choose the language you want the DTV/CADTV Captions to
appear in.
Languages can be chosen for digital sources only if they are
included on the program.
Aspect Ratio
Caption/Text
G
Caption Option
Language
ISM Method
Low Power
Off
English
Spanish
French
Aspect Ratio
Caption/Text
Caption Option
Language
ISM Method
Low Power
2
3
4
1
1
32
1_512Den-2 06/5/2 10:22 AM Page 95
TV MENU
/
OPTIONAL FEATURES
96
TV MENU
OPTIONAL FEATURES
CAPTION OPTION
Customize the DTV/CADTV captions that appear on your
screen.
Press the
MMEENNUU
button and then use
DD
or
EE
button
to select the
OOPPTTIIOONN
menu.
Press the
GG
button and then use
DD
or
EE
button to
select
CCaappttiioonn OOppttiioonn
.
Press the
GG
button and then use
FF
or
GG
button to
select
CCuussttoomm
.
Use
DD
or
EE
button to customize the
SSttyyllee
,
FFoonntt
,
etc., to your preference.
A preview icon is provided at the bottom of the
screen, use it to see the caption language.
Press
EEXXIITT
button to return to TV viewing or press
MMEENNUU
button to return to the previous menu.
INFO i
T
V GUIDE
ENTERENTER
SAP
CC
RATIO
POWER
DAY -
DAY+
VCR
TV
DVD
AUDIO
CABLE
STB
MODE
TV INPUT
INPUT
MENUMENU
EXIT
GG
SSiizzee
: Set the word size.
GG
FFoonntt
: Select a typeface for the text.
GG
TTeexxtt CCoolloorr
: Choose a color for the text.
GG
TTeexxtt OOppaacciittyy
: Specify the opacity for the text color.
GG
BBgg
((
BBaacckkggrroouunndd
))
CCoolloorr
: Select a background color.
GG
BBgg
((
BBaacckkggrroouunndd
))
OOppaacciittyy
: Select the opacity for
the background color.
GG
EEddggee TTyyppee
: Select an edge type.
GG
EEddggee CCoolloorr
: Select a color for the edges.
Aspect Ratio
Caption/Text
Caption Option
G
Language
ISM Method
Low Power
Style Custom
Size A Standard
Font Font 0
Text Color White
Text Opacity
Solid
Bg Color Black
Bg Opacity Solid
Edge Type None
Edge Color Black
Aspect Ratio
Caption/Text
Caption Option
Language
ISM Method
Low Power
2
3
4
5
1
1
3 42
1_512Den-2 06/5/2 10:22 AM Page 96
TV MENU
/
OPTIONAL FEATURES

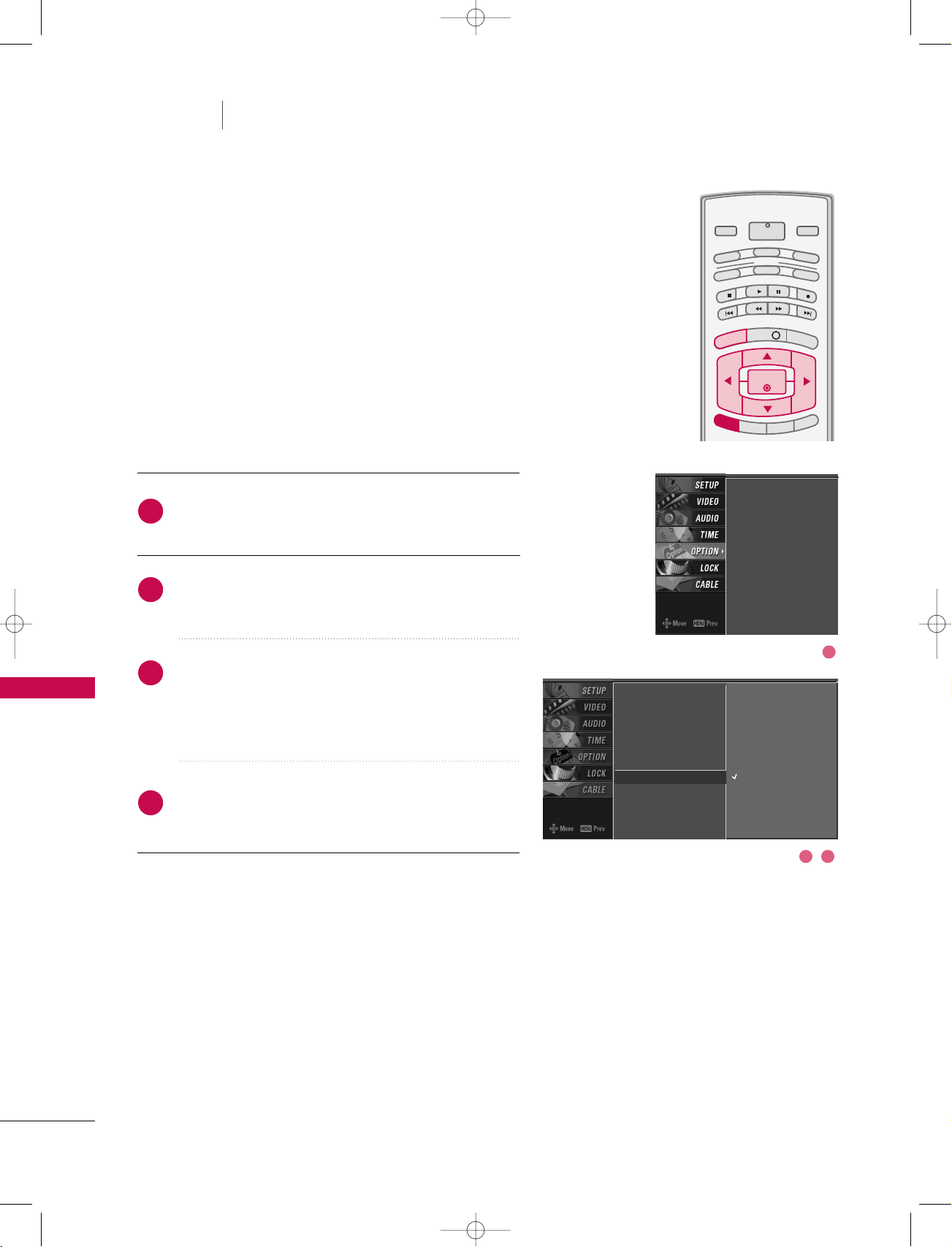

97
ISM
(
IMAGE STICKING MINIMIZATION) METHOD
Press the
MMEENNUU
button and then use
DD
or
EE
button
to select the
OOPPTTIIOONN
menu.
Press the
GG
button and then use
DD
or
EE
button to
select
IISSMM MMeetthhoodd
.
Press the
GG
button and then use
DD
or
EE
button to select
either
NNoorrmmaall
,
WWhhiittee wwaasshh
,
OOrrbbiitteerr
or
IInnvveerrssiioonn
.
■
NNoorrmmaall
If image sticking is never a problem, ISM is not
necessary - set to Normal.
■
WWhhiittee wwaasshh
White Wash removes permanent images from the screen.
■
OOrrbbiitteerr
Orbiter may help prevent ghost images. However, it
is best not to allow any fixed image to remain on the
screen. To avoid a permanent image on the screen,
the image will move once per 2 minutes : Left
Right Upside Downside Right Left
Downside Upside.
■
IInnvveerrssiioonn
Inversion will automatically invert the plasma display
panel color every 30 minutes.
Press
EEXXIITT
button to return to TV viewing or press
MMEENNUU
button to return to the previous menu.
INFO i
TV GUIDE
ENTERENTER
SAP
CC
RATIO
POWER
DAY -
DAY+
VCR
TV
DVD
AUDIO
CABLE
STB
MODE
TV INPUT
INPUT
MENUMENU
EXIT
A frozen still picture from a PC/video game displayed on
the screen for prolonged periods will result in a ghost
image. Use our unique method to minimize any fixed image
on the screen.
NOTE
!
GG
An excessive permanent image may be impossible
to clear entirely with White Wash. To return to
normal viewing, press any button.
Aspect Ratio
Caption/Text
Caption Option
Language
ISM Method
G
Low Power
Normal
White Wash
Orbiter
Inversion
Aspect Ratio
Caption/Text
Caption Option
Language
ISM Method
Low Power
2
3
4
1
1
32
1_512Den-2 06/5/2 10:22 AM Page 97
TV MENU
/
OPTIONAL FEATURES
98
LOW POWER
TV MENU
OPTIONAL FEATURES
Low power reduces the plasma display power consumption.
Press the
MMEENNUU
button and then use
DD
or
EE
button
to select the
OOPPTTIIOONN
menu.
Press the
GG
button and then use
DD
or
EE
button to
select
LLooww ppoowweerr
.
Press the
GG
button and then use
DD
or
EE
button to
select
OOnn
or
OOffff
.
■
When you select
OOnn
, the screen darkens.
Press
EEXXIITT
button to return to TV viewing or press
MMEENNUU
button to return to the previous menu.
INFO i
TV GUIDE
ENTERENTER
SAP
CC
RATIO
POWER
DAY -
DAY+
VCR
TV
DVD
AUDIO
CABLE
STB
MODE
TV INPUT
INPUT
MENUMENU
EXIT
Aspect Ratio
Caption/Text
Caption Option
Language
ISM Method
Low Power
Aspect Ratio
Caption/Text
Caption Option
Language
ISM Method
Low Power
G
Off
On
2
3
4
1
1
32
1_512Den-2 06/5/2 10:22 AM Page 98
TV MENU
/
OPTIONAL FEATURES
99
BRIEF INFO.
What is Brief Info.?
: Brief Info shows the present screen information.
: On Watching with the upper Input signal, press the
IINNFFOO
button.
How To Use?
1. Press the
IINNFFOO
button to show the Brief Info on the screen.
2. Press the
IINNFFOO
button or
EEXXIITT
button to exit.
MMuullttiilliinngguuaall
: Press the
SSAAPP
button to select your choice.
CCaappttiioonn
: Press the
CC CC
button to select wanted Closed caption.
Screen Ratio of Input Signal 4:3
Screen Ratio of Input Signal 16:9
Resolution of Input Signal 720x480i
Resolution of Input Signal 720x480p
Resolution of Input Signal 1280x720p
Resolution of Input Signal 1920x1080i
Input Signal have rating information. Refer to the <Lock Menu>.
D
(
Dialogue
)
, L
(
Language
)
, S
(
Sex
)
, V
(
Violence
)
, FV
(
Fantasy Violence
)
480i
480p
720p
108 0 i
4:3
16:9
Program title
Day, Month, Year
Program start time
Program progress bar
Program finish time
Present time
Program information
Banner information
CC
MENU
T
V GUIDE
ENTER
EXIT
POWER
DAY -
D
AY +
VCR
TV
DVD
AUDIO
CABLE
STB
MODE
TV INPUT
INPUT
CC
SAP
RATIO
INFO iINFO i
NNoo ddeessccrriippttiioonn iiss aavvaaiillaabbllee
1 2 3 4 5 6 8
7
1
2
3
4
5
6
7
8
1_512Den-2 06/5/2 10:22 AM Page 99
TV MENU
/
LOCK ADJUSTMENT
100
TV MENU
LOCK ADJUSTMENT
Parental Control can be used to block specific channels, ratings and other viewing sources.
The Parental Control Function (V-Chip) is used to block program viewing based on the ratings
sent by the broadcasting station. The default setting is to allow all programs to be viewed.
Viewing can be blocked by choosing the type of the program and the categories. It is also possi-
ble to block all program viewing for a time period. To use this function, the following must be
done :
1. Set ratings and categories to be blocked.
2. Specify a password
3. Enable the lock
V-Chip rating and categories
Rating guidelines are provided by broadcasting stations. Most television programs and television
movies can be blocked by TV Rating and/or Individual Categories. Movies that have been shown
at the theaters or direct-to-video movies use the Movie Rating System
(
MPAA
)
only.
Ratings for Television programs including made-for-TV movies :
■
TV-G
(
General audience
)
■
TV-PG
(
Parental guidance suggested
)
■
TV-14
(
Parents strongly cautioned
)
■
TV-MA
(
Mature audience only
)
■
TV-Y
(
All children
)
■
TV-Y7
(
Children 7 years older
)
SETTING UP YOUR PASSWORD
Set up blocking schemes to block specific channels, ratings, and
external viewing sources.
A password is required to gain access to this menu.
Press the
MMEENNUU
button and then use the
DD
or
EE
button
to select the
LLOOCCKK
menu. Then, press the
GG
button.
■
Enter the password as requested.
■
The TV is set up with the initial
password “0-0-0-0”.
INFO i
TV GUIDE
ENTERENTER
SAP
CC
RATIO
POWER
DAY -
DAY+
VCR
TV
DVD
AUDIO
CABLE
STB
MODE
TV INPUT
INPUT
MENUMENU
EXIT
Enter Password
1
Enter Password
** **
1_512Den-2 06/5/2 10:22 AM Page 100
TV MENU
/
LOCK ADJUSTMENT
101
LOCK SYSTEM
SET PASSWORD
After inputting the password, use the
DD
or
EE
button
to choose
SSeett ppaasssswwoorrdd
.
Press the
GG
button and then choose any 4 digits for
your new password.
As soon as the 4 digits are entered, re-enter the same
4 digits on the
CCoonnffiirrmm
.
Then your changed password has been memorized.
Press
EEXXIITT
to return to TV viewing or press
MMEENNUU
to return to the previous menu.
Change the password by inputting a new password twice.
After inputting the password, use the
DD
or
EE
button
to choose
LLoocckk SSyysstteemm
.
Press the
GG
button and then use the
DD
or
EE
button
to select
OOnn
or
OOffff
.
■
When you select
OOnn
, the Lock System is enable.
Press
EEXXIITT
button to return to TV viewing or press
MMEENNUU
button to return to the previous menu.
Enables or disables the blocking scheme you set up previously.
Lock System
G
Set Password
Block Channel
Movie Rating
TV Rating-Children
TV Rating-General
Input Block
Off
On
Lock System
Set Password
Block Channel
Movie Rating
TV Rating-Children
TV Rating-General
Input Block
Lock System
Set Password
G
Block Channel
Movie Rating
TV Rating-Children
TV Rating-General
Input Block
New
Confirm
2
3
1
2
3
1
****
****
1
2
1
2
NOTE
!
GG
If you ever forget your password, key in ‘7’, ‘7’, ‘7’, ‘7’
on the remote control.
Lock System
Set Password
Block Channel
TV Rating-English
TV Rating-French
Input Block
For USA For Canada
Lock System
Set Password
Block Channel
Movie Rating
TV Rating-Children
TV Rating-General
Input Block
Lock System
Set Password
Block Channel
TV Rating-English
TV Rating-French
Input Block
For USA For Canada
1_512Den-2 06/5/2 10:22 AM Page 101
TV MENU
/
LOCK ADJUSTMENT
102
TV MENU
LOCK ADJUSTMENT
BLOCK CHANNEL
Blocks any channels that you do not want to watch or that
you do not want your children to watch.
After inputting the password, use the
DD
or
EE
button
to choose
BBlloocckk CChhaannnneell
.
Press the
GG
button. You will now see a screen filled
with channel numbers and a preview picture.
Use
DD EE FF GG
button to select a channel and then
use the
EENNTTEERR
button to block or unblock it.
Press
EEXXIITT
button to return to TV viewing or press
MMEENNUU
button to return to the previous menu.
Lock System
Set Password
Block Channel
G
Movie Rating
TV Rating-Children
TV Rating-General
Input Block
Selection (
G
or
) leads
you to the block channel
screen.
2
3
4
1
1
2
3
Lock System
Set Password
Block Channel
Movie Rating
TV Rating-Children
TV Rating-General
Input Block
Lock System
Set Password
Block Channel
TV Rating-English
TV Rating-French
Input Block
For USA For Canada
1_512Den-2 06/5/2 10:22 AM Page 102
TV MENU
/
LOCK ADJUSTMENT
103
MOVIE RATING (MPAA) -
for USA only
Blocks movies according to the movie ratings limits speci-
fied, so children cannot view certain movies. You can set
the ratings limit by blocking out all the movies with the
ratings above a specified level. Keep in mind that the
movie ratings limit only applies to movies shown on TV,
not TV programs, such as soap operas.
After inputting the password, use the
DD
or
EE
button
to choose
MMoovviiee RRaattiinngg
.
Press the
GG
button and then use the
DD
or
EE
button
to select
GG
,
PP GG
,
PPGG--1133
,
RR
,
NNCC--1177
or
XX
.
■
G (General audience)
■
PG (Parental guidance suggested)
■
PG-13 (Parents strongly cautioned)
■
R (Restricted)
■
NC-17 (No one 17 and under admitted)
■
X (Adult only)
■
Blocking Off (Permits all programs)
Press
EEXXIITT
button to return to TV viewing or press
MMEENNUU
button to return to the previous menu.
GG
If you set PG-13 : G and PG movies will be available,
PG-13, R, NC-17 and X will be blocked.
Lock System
Set Password
Block Channel
Movie Rating
TV Rating-Children
TV Rating-General
Input Block
Lock System
Set Password
Block Channel
Movie Rating
G
TV Rating-Children
TV Rating-General
Input Block
Blocking off : permits
all programs
G
PG
PG-13
R
NC-17
X
Blocking Off
2
3
1
1
2
1_512Den-2 06/5/2 10:22 AM Page 103
TV MENU
/
LOCK ADJUSTMENT
104
TV MENU
LOCK ADJUSTMENT
TV RATING CHILDREN -
for USA only
After inputting the password, use the
DD
or
EE
button to
choose
TTVV RRaattiinngg--CChhiillddrreenn
.
Press the
GG
button and then use the
DD
or
EE
button to
select
AAggee
, or
FFaannttaassyy VViioolleennccee
.
Press the
GG
button and then use the
DD
or
EE
button to
select block options.
■
Age(applies to TV-Y, TV-Y7)
■
Fantasy Violence(applies to TV-Y7)
Press
EEXXIITT
button to return to TV viewing or press
MMEENNUU
button to return to the previous menu.
Prevents children from watching certain children's TV programs, according to
the ratings limit set. The children rating does not apply to other TV programs.
Unless you block certain TV programs intended for mature audiences in the TV
Rating - sub menu, your children can view those programs.
TV RATING GENERAL
-
for USA only
After inputting the password, use the
DD
or
EE
button to
choose
TTVV RRaattiinngg--GGeenneerraall
.
Press the
GG
button and then use the
DD
or
EE
button to
select
AAggee
,
DDiiaalloogguuee
,
LLaanngguuaaggee
,
SSeexx
or
VViioolleennccee
.
Press the
GG
button and then use the
DD
or
EE
button to
select block options.
■
Age(applies to TV-G,TV-PG,TV-14,TV-MA)
■
Dialogue-sexual dialogue (applies to TV-PG,TV-14)
■
Language-adult language (applies to TV-PG,TV-14,TV-MA)
■
Sex-sexual situations (applies to TV-PG,TV-14,TV-MA)
■
Violence (applies to TV-PG,TV-14,TV-MA)
Press
EEXXIITT
button to return to TV viewing or press
MMEENNUU
button to return to the previous menu.
Based on the ratings, blocks certain TV programs that you
and your family do not want to view.
Lock System
Set Password
Block Channel
Movie Rating
TV Rating-Children
G
TV Rating-General
Input Block
Age
Fantasy Violence
Lock System
Set Password
Block Channel
Movie Rating
TV Rating-Children
TV Rating-General
Input Block
Lock System
Set Password
Block Channel
Movie Rating
TV Rating-Children
TV Rating-General
Input Block
Lock System
Set Password
Block Channel
Movie Rating
TV Rating-Children
TV Rating-General
G
Input Block
Age
Dialogue
Language
Sex
Violence
2
3
1
2
3
1
1
2
1
2
1_512Den-2 06/5/2 10:22 AM Page 104
TV MENU
/
LOCK ADJUSTMENT
105
TV RATING ENGLISH -
for CANADA only
After inputting the password, use the
DD
or
EE
button to
choose
TTVV RRaattiinngg--EEnngglliisshh
.
Press the
GG
button and then use the
DD
or
EE
button to
select
EE
,
CC
,
CC88++
,
GG
,
PP GG
,
1144++
,
1188++
, or
BBlloocckkiinngg OOffff
.
■
E (Exempt)
■
C (Children)
■
C8+ (Children eight years and older)
■
G (General programming, suitable for all audiences)
■
PG (Parental Guidance )
■
14+ (Viewers 14 years and older)
■
18+ (Adult programming)
■
Blocking Off (Permits all programs)
Press
EEXXIITT
button to return to TV viewing or press
MMEENNUU
button to return to the previous menu.
Selecting canadian english language rating system.
TV RATING FRENCH
-
for CANADA only
After inputting the password, use the
DD
or
EE
button
to choose
TTVV RRaattiinngg--FFrreenncchh
.
Press the
GG
button and then use the
DD
or
EE
button
to select
EE
,
GG
,
88aannss++
,
1133aannss++
,
1166aannss++
,
1188aannss++
,
or
BBlloocckkiinngg ooffff
.
■
E(Exempt)
■
G(General)
■
8ans+ (General-Not convenient for little children)
■
13ans+ (Not convenient for children of 13 years
and younger)
■
16ans+ (Not convenient for children of 16 years
and younger)
■
18ans+ (This programs is only for adults)
■
Blocking off (Permits all programs)
Press
EEXXIITT
button to return to TV viewing or press
MMEENNUU
button to return to the previous menu.
Selecting canadian french language rating system.
Lock System
Set Password
Block Channel
TV Rating-English
G
TV Rating-French
Input Block
Lock System
Set Password
Block Channel
TV Rating-English
TV Rating-French
Input Block
Lock System
Set Password
Block Channel
TV Rating-English
TV Rating-French
Input Block
Lock System
Set Password
Block Channel
TV Rating-English
TV Rating-French
G
Input Block
2
3
1
2
3
1
Blocking off : permits
all programs
E
C
C8+
G
PG
14+
18+
Blocking Off
Blocking off : permits
all programs
E
G
8 ans+
13 ans+
16 ans+
18 ans+
Blocking Off
1
2
1
2
1_512Den-2 06/5/2 10:22 AM Page 105
TV MENU
/
LOCK ADJUSTMENT
106
TV MENU
LOCK ADJUSTMENT
INPUT BLOCK
Enables you to select a source to block from the external
source devices you have hooked up.
After inputting the password, use the
DD
or
EE
button
to choose
IInnppuutt BBlloocckk
.
Press the
GG
button and then use the
FF
or
GG
button
to select a source.
Press the
GG
button and then use the
DD
or
EE
button
to select
OOnn
or
OOffff
on the each source.
Press
EEXXIITT
button to return to TV viewing or press
MMEENNUU
button to return to the previous menu.
Lock System
Set Password
Block Channel
Movie Rating
TV Rating-Children
TV Rating-General
Input Block
G
AV1 On
AV2 On
Component1 Off
Component2 On
RGB
Off
HDMI1/DVI On
HDMI2 Off
2
3
4
1
1
32
Lock System
Set Password
Block Channel
Movie Rating
TV Rating-Children
TV Rating-General
Input Block
Lock System
Set Password
Block Channel
TV Rating-English
TV Rating-French
Input Block
For USA For Canada
1_512Den-2 06/5/2 10:22 AM Page 106
TV MENU
/
CableCARD
TM
FUNCTION
107
TV MENU
In this manual, the OSD (On Screen Display) may be different from your TV’s because it is just
example to help the TV operation.
In case of Scientific Atlanta CableCARD™
CableCARD
™
/ Host ID Screen
As shown, the pairing number means
your TV and CableCARDTM ID. For
further information regarding cable
TV service, contact your local cable
TV service provider(s).
Press the
MMEENNUU
button and then use
DD
or
EE
button
to select the
CCAABBLLEE
menu.
Press the
GG
button and then use
DD
or
EE
button to
select your desired item.
Press the
GG
button.
Press
EEXXIITT
button to return to TV viewing.
INFO i
TV GUIDE
ENTERENTER
SAP
CC
RATIO
POWER
DAY -
DAY+
VCR
TV
DVD
AUDIO
CABLE
STB
MODE
TV INPUT
INPUT
MENUMENU
EXIT
The Cable sub menu displays when inserting the
CableCARD
TM
to the TV.
The CableCARD
TM
type is Motorola, Scientific Atlanta (SA),
or SCM etc. The OSD (On screen display) is different from
your TV according to your CableCARD
TM
type.
CableCARD(tm) Message
In order to start service for
this device, please contact
customer service at
Ph#: 1-866-303-0422
CableCARD(tm): 0-010-405-698-001
HOST ID: 0-080-000-000-226
Exit
EXIT
SA CableCARD CP Screen
SA CableCARD Diag Screen
SA CableCARD Host ID Screen
G
2
3
4
1
CableCARD
TM
FUNCTION
CABLE MENU OPTIONS
1_512Den-2 06/5/2 10:22 AM Page 107
TV MENU
/
CableCARD
TM
FUNCTION
108
SCRAMBLED CHANNEL
TV MENU
CableCARD
TM
FUNCTION
INFO i
TV GUIDE
ENTERENTER
SAP
CC
RATIO
POWER
DAY -
DAY+
VCR
TV
DVD
AUDIO
CABLE
STB
MODE
TV INPUT
INPUT
MENUMENU
EXIT
PPllee aassee ccaallll yyoouurr ooppeerraattoorr aa nndd rr ee ppoorrtt aann iinnvv aalliidd CCaa bbllee CC AA RRDD
TT MM
..
Insert the CableCARD
TM
. It takes about 1 minute to
exchange data between the TV and the CableCARD
TM
.
The screen displays information as shown to the right.
Let your cable TV service provider know the
CableCARD
TM
ID and Host ID.
If your cable TV service provider registers the
CableCARD
TM
ID and Host ID, you can watch premium
or high value channel. If you are subscribed to them.
If you registered with the cable TV service provider,
you can watch premium or high value channel without
a message.
If the certificates don’t match between the TV and the
CableCARD
TM
, the OSD
(
On screen display
)
displays
as shown right.
CableCARD™ Message
In order to start service for
this device, please contact
customer service at
Ph#: 1-866-303-0422
CableCARD(tm): 0-010-405-698-001
HOST ID: 0-080-000-000-226
Exit
EXIT
2
3
4
5
1
21 4
5
3
1_512Den-2 06/5/2 10:22 AM Page 108
TV MENU
/
CableCARD
TM
FUNCTION
109
CABLE CHANNEL LIST
EMERGENCY MESSAGE ALERT
If an emergency situation occurs while you are watching
the TV/DTV/CATV/CADTV, you may receive a message
from your cable TV service provider(s).
When receiving an emergency message, the message is
displayed on the screen as shown or the channel is
changed to one that maintains the emergency message.
When the broadcast is complete the TV returns to the
channel you were viewing.
EEmmeerrggee nncc yy AA ccttiioonn NN oott iiff iiccaattiioonn
HHuu rrrriiccaa nnee wwiillll bb ee ccoommiinngg!! !!!!
If you select
CChhaannnneell EEddiitt
after running the EZ Scan without a CableCARD
TM
, the cable channel list dis-
plays, as in the picture below.
Insert the CableCARD
TM
. After a few minutes(about 2~3 minutes), the TV receives a new cable channel
list.
(
Occasionally more time will be needed)
EZ Scan
G
Manual Scan
Channel Edit
DTV Signal
Main Input
Sub Input
Input Label
Set ID
Selection (
G
or )
leads you to the EZ
scan screen.
EZ Scan
Manual Scan
Channel Edit
G
DTV Signal
Main Input
Sub Input
Input Label
Set ID
Selection (
G
or ) leads
you to the channel edit
screen.
2
1
2
1
1 2
3 4
21
1_512Den-2 06/5/2 10:22 AM Page 109
APPENDIX
110
EXTERNAL CONTROL DEVICE SETUP
APPENDIX
RS-232C Setup
Connect the RS-232C (serial port) input jack to an external control device (such as a computer or an A/V
control system) to control the product’s functions externally.
Connect the serial port of the control device to the RS-232C jack on the product back panel.
Note: RS-232C connection cables are not supplied with the product.
HDMI IN
2
1(DVI)
DIGITAL AUDIO
OUT
OPTICAL
RS-232C INRS-232C IN
(CONTROL(CONTROL & SERVICE)SERVICE)
Type of Connector; D-Sub 9-Pin Male
No. Pin Name
1 No connection
2 RXD
(
Receive data
)
3 TXD
(
Transmit data
)
4 DTR
(
DTE side ready
)
5 GND
6 DSR
(
DCE side ready
)
7RTS
(
Ready to send
)
8 CTS
(
Clear to send
)
9 No Connection
1
6
5
9
1_512Den-2 06/5/2 10:22 AM Page 110
APPENDIX
111
Press the
MMEENNUU
button and then use
DD
or
EE
button
to select the
SSEETTUUPP
menu.
Press the
GG
button and then use
DD
or
EE
button to
select
SSeett IIDD
.
Press the
GG
button and then use
DD
or
EE
button to
adjust
SSeett IIDD
to choose the desired TV ID number.
The adjustment range of Set ID is 1~99.
Press
EEXXIITT
button to return to TV viewing or press
MMEENNUU
button to return to the previous menu.
Use this function to specify a TV ID number.
Refer to ‘Real Data Mapping 1’.
GG
pp..111133
.
Set ID
INFO i
TV GUIDE
ENTERENTER
SAP
CC
RATIO
DAY -
DAY+
MENUMENU
EXIT
Communication Parameters
■
Baud rate : 9600 bps
(
UART
)
■
Data length : 8 bits
■
Parity : None
■
Stop bit : 1 bit
■
Communication code : ASCII code
■
Use a crossed (reverse) cable.
RS-232C Configurations
EZ Scan
Manual Scan
Channel Edit
DTV Signal
Main Input
Sub Input
Input Label
Set ID
G
1
EZ Scan
Manual Scan
Channel Edit
DTV Signal
Main Input
Sub Input
Input Label
Set ID
2
1
3
4
PC TV
RXD 2 3 TXD
TXD 3 2 RXD
GND 5 5 GND
DTR 4 6 DSR
DSR 6 4 DTR
RTS 7 8 CTS
CTS 8 7 RTS
D-Sub 9 D-Sub 9
PC TV
RXD 2 3 TXD
TXD 3 2 RXD
GND 5 5 GND
DTR 4 6 DTR
DSR 6 4 DSR
RTS 7 7 RTS
CTS 8 8 CTS
D-Sub 9 D-Sub 9
7-Wire Configurations
(
Standard RS-232C cable
)
3-Wire Configurations
(
Not standard
)
23
1
2
1_512Den-2 06/5/2 10:22 AM Page 111
APPENDIX
112
APPENDIX
Transmission / Receiving Protocol
Command Reference List
CCOOMMMMAANNDD11 CCOOMMMMAANNDD22
28. Channel Tuning
29. Channel Add/Del
30. Key
31. Input Select
32. PIP Input Select
DATA
(Hexadecimal)
CCOOMMMMAANNDD11 CCOOMMMMAANNDD22
DATA
(Hexadecimal)
CCOOMMMMAANNDD11 CCOOMMMMAANNDD22
DATA0
(Hexadecimal)
DATA1
(Hexadecimal)
DATA2
(Hexadecimal)
DATA3
(Hexadecimal)
DATA4
(Hexadecimal)
DATA5
(Hexadecimal)
physical major major low minor high minor low attribute
program high program low
TTrraannssmmiissssiioonn
[Command 1] : First command to control the set.
(j, k, m or x)
[Command 2] : Second command to control the set.
[Set ID] : You can adjust the set ID to choose desired TV ID
number in Setup menu. Adjustment range is 1
~ 99.
When selecting Set ID ‘0’, every connected the TV
is controlled. Set ID is indicated as decimal
(
1
~
99
)
on menu and as Hexa decimal
(
0x0~ 0x63
)
on
transmission/receiving protocol.
[DATA] : To transmit command data.
Transmit ‘FF’ data to read status of command.
[Cr] : Carriage Return
ASCII code ‘0x0D’
[ ] : ASCII code ‘space (0x20)’
OOKK AAcckknnoowwlleeddggeemmeenntt
The TV transmits ACK (acknowledgement) based on this
format when receiving normal data. At this time, if the data
is data read mode, it indicates present status data. If the
data is data write mode, it returns the data of the PC com-
puter.
EErrrroorr AAcckknnoowwlleeddggeemmeenntt
The TV transmits ACK (acknowledgement) based on this
format when receiving abnormal data from non-viable func-
tions or communication errors.
Data1: Illegal Code
Data2: Not supported function
Data3: Wait more time
01. Power k a 0 ~ 1
02. Input Select k b 0 ~ 9
03. Aspect Ratio k c (
GG
p.113)
04. Screen Mute k d 0 ~ 1
05. Volume Mute k e 0 ~ 1
06. Volume Control k f 0 ~ 64
07. Contrast k g 0 ~ 64
08. Brightness k h 0 ~ 64
09. Color k i 0 ~ 64
10. Tint k j 0 ~ 64
11. Sharpness k k 0 ~ 64
12. OSD Select k l 0 ~ 1
13. Remote Control
Lock Mode
14. PIP/POP/Twin k n 0,1,2,5
k m
m a
mb0 ~ 1
mc (
GG
p.116)
xb(
GG
p.116)
xy(
GG
p.116)
[[CCoommmmaanndd11]][[CCoommmmaanndd22]][[ ]][[SSeett IIDD]][[ ]][[DDaattaa]][[CCrr]]
[[CCoommmmaanndd22]][[ ]][[SSeett IIDD]][[ ]][[OOKK]][[DDaattaa]][[xx]]
[[CCoommmmaanndd22]][[ ]][[SSeett IIDD]][[ ]][[NNGG]][[DDaattaa]][[xx]]
0 ~ 1
15. PIP Position k q 0 ~ 3
16. Treble k r 0 ~ 64
17. Bass k s 0 ~ 64
18. Balance k t 0 ~ 64
19 .
Color Temperature
k u 0 ~ 3
20. Red adjustment k v 0 ~ C8
21. Green adjustment k w 0 ~ C8
22. Blue adjustment k $ 0 ~ C8
23. PIP Input Select k y 0 ~ 3
24. ISM Method j p (
GG
p.115)
25. Low Power j q 0 ~ 1
26. Orbiter Time
jr1
~
FE
Setting
27. Orbiter Pixel
js1
~
3
Setting
1_512Den-2 06/5/2 10:22 AM Page 112
APPENDIX
113
0011.. PPoowweerr ((CCoommmmaanndd22::aa))
To control Power On/Off of the TV.
Transmission [k][a][ ][Set ID][ ][Data][Cr]
Data 0 : Power Off Data 1 : Power On
Acknowledgement [a][ ][Set ID][ ][OK/NG][Data][x]
* In a like manner, if other functions transmit ‘FF’ data
based on this format, Acknowledgement data feedback
presents status about each function.
0022.. IInnppuutt SSeelleecctt ((CCoommmmaanndd22::bb)) ((MMaaiinn PPiiccttuurree IInnppuutt))
To select input source for the TV.
Transmission [k][b][ ][Set ID][ ][Data][Cr]
Data 0: DTV Data 1: Analog
Data 2: AV1 Data 3: AV2
Data 4: Component 1 Data 5: Component 2
Data 6: RGB-DTV Data 7: RGB-PC
Data 8: HDMI1/DVI Data 9: HDMI2
Acknowledgement [b][ ][Set ID][ ][OK/NG][Data][x]
0033.. AAssppeecctt RRaattiioo ((CCoommmmaanndd22::cc)) ((MMaaiinn ppiiccttuurree ffoorrmmaatt))
To adjust the screen format.
You can also adjust the screen format using the RATIO
button on remote control or in the Option menu.
Transmission [k][c][ ][Set ID][ ][Data][Cr]
Date 1: 4:3 5: Zoom 2
2: 16:9 6: Set by program
3: Horizon 10: Cinema Zoom (1)
4: Zoom 1
1F: Cinema Zoom (16)
Acknowledgement [c][ ][Set ID][ ][OK/NG][Data][x]
0044.. SSccrreeeenn MMuuttee ((CCoommmmaanndd22::dd))
To select screen mute on/off.
Transmission [k][d][ ][Set ID][ ][Data][Cr]
Data 0 : Screen mute off (Picture on)
Data 1 : Screen mute on (Picture off)
Acknowledgement [d][ ][Set ID][ ][OK/NG][Data][x]
0055.. VVoolluummee MMuuttee ((CCoommmmaanndd22::ee))
To control volume mute on/off.
You can also adjust mute using the MUTE button on
remote control.
Transmission [k][e][ ][Set ID][ ][Data][Cr]
Data 0 : Volume mute off (Volume on)
Data 1 : Volume mute on (Volume off)
Acknowledgement [e][ ][Set ID][ ][OK/NG][Data][x]
0066.. VVoolluummee CCoonnttrrooll ((CCoommmmaanndd22::ff))
To adjust volume.
You can also adjust volume with the volume buttons on
remote control.
Transmission [k][f][ ][Set ID][ ][Data][Cr]
Data Min : 0 ~ Max : 64
Refer to ‘Real data mapping1’ as shown below.
Acknowledgement [f][ ][Set ID][ ][OK/NG][Data][x]
0077.. CCoonnttrraasstt ((CCoommmmaanndd22::gg))
To adjust screen contrast.
You can also adjust contrast in the Video menu.
Transmission [k][g][ ][Set ID][ ][Data][Cr]
Data Min : 0 ~ Max : 64
Refer to ‘Real data mapping1’ as shown below.
Acknowledgement [g][ ][Set ID][ ][OK/NG][Data][x]
0088.. BBrriigghhttnneessss ((CCoommmmaanndd22::hh))
To adjust screen brightness.
You can also adjust brightness in the Video menu.
Transmission [k][h][ ][Set ID][ ][Data][Cr]
Data Min : 0 ~ Max : 64(*transmit by Hexadecimal code)
Refer to ‘Real data mapping1’ as shown below.
Acknowledgement [h][ ][Set ID][ ][OK/NG][Data][x]
0099.. CCoolloorr ((CCoommmmaanndd22::ii))
To adjust the screen color.
You can also adjust color in the Video menu.
Transmission [k][i][ ][Set ID][ ][Data][Cr]
Data Min : 0 ~ Max : 64
Refer to ‘Real data mapping1’ as shown below.
Acknowledgement [i][ ][Set ID][ ][OK/NG][Data][x]
*Real data mapping 1
0 : Step 0
A : Step 10 (SET ID 10)
F : Step 15 (SET ID 15)
10 : Step 16 (SET ID 16)
63 : Step 99 (SET ID 99)
64 : Step 100
1_512Den-2 06/5/2 10:22 AM Page 113
APPENDIX
114
APPENDIX
1100.. TTiinntt ((CCoommmmaanndd22::jj))
To adjust the screen tint.
You can also adjust tint in the Video menu.
Transmission [k][j][ ][Set ID][ ][Data][Cr]
Data Red : 0 ~ Green : 64
*Refer to ‘Real data mapping1’.
GG
p.113 .
Acknowledgement [ j ][ ][Set ID][ ][OK/NG][Data][x]
1111.. SShhaarrppnneessss ((CCoommmmaanndd22::kk))
To adjust the screen sharpness.
You can also adjust sharpness in the Video menu.
Transmission [k][k][ ][Set ID][ ][Data][Cr]
Data Min: 0 ~ Max: 64
*Refer to ‘Real data mapping1’.
GG
p.113 .
Acknowledgement [k][ ][Set ID][ ][OK/NG][Data][x]
1122.. OOSSDD SSeelleecctt ((CCoommmmaanndd22::ll))
To select OSD (On Screen Display) on/off.
Transmission [k][l][ ][Set ID][ ][Data][Cr]
Data 0: OSD off Data 1: OSD on
Acknowledgement [l][ ][Set ID][ ][OK/NG][Data][x]
1133.. RReemmoottee CCoonnttrrooll LLoocckk MMooddee ((CCoommmmaanndd22::mm))
To lock the remote control and the front panel controls
on the set.
Transmission [k][m][ ][Set ID][ ][Data][Cr]
Data 0: Lock off Data 1: Lock on
Acknowledgement [m][ ][Set ID][ ][OK/NG][Data][x]
If you’re not using the remote control and front panel
controls on the TV, use this mode. When main power is
on/off, remote control lock is released.
1144.. PPIIPP // PPOOPP // TTwwiinn PPiiccttuurree ((CCoommmmaanndd22::nn))
To control the PIP (Picture-in-Picture)/POP/Twin pic-
ture. You can also control the PIP/POP/Twin picture
using the PIP button on the remote control.
Transmission [k][n][ ][Set ID][ ][Data][Cr]
Data 0: PIP Off 2: Twin picture
1: PIP 5: POP4(POP Scan)
Acknowledgement [n][ ][Set ID][ ][OK/NG][Data][x]
1155.. PPIIPP PPoossiittiioonn ((CCoommmmaanndd22::qq))
To select sub picture position for PIP.
Transmission [k][q][ ][Set ID][ ][Data][Cr]
Data 0: Right down on screen
Data 1: Left down on screen
Data 2: Left up on screen
Data 3: Right up on screen
Acknowledgement [q][ ][Set ID][ ][OK/NG][Data][x]
11 66.. TTrreebbllee ((CCoommmmaanndd22::rr))
To adjust treble.
You can also adjust treble in the Audio menu.
Transmission [k][r][ ][Set ID][ ][Data][Cr]
Data Min: 0 ~ Max: 64(*transmit by Hexadecimal code)
*Refer to ‘Real data mapping1’.
GG
p.113 .
Acknowledgement [r][ ][Set ID][ ][OK/NG][Data][x]
11 77.. BBaassss ((CCoommmmaanndd22::ss))
To adjust bass.
You can also adjust bass in the Audio menu.
Transmission [k][s][ ][Set ID][ ][Data][Cr]
Data Min: 0 ~ Max: 64(*transmit by Hexadecimal code)
*Refer to ‘Real data mapping1’.
GG
p.
113 .
Acknowledgement [s][ ][Set ID][ ][OK/NG][Data][x]
1188.. BBaallaannccee ((CCoommmmaanndd22::tt))
To adjust balance.
You can also adjust balance in the Audio menu.
Transmission [k][t][ ][Set ID][ ][Data][Cr]
Data Min: 0 ~ Max: 64(*transmit by Hexadecimal code)
*Refer to ‘Real data mapping1’.
GG
p.113 .
Acknowledgement [t][ ][Set ID][ ][OK/NG][Data][x]
1199.. CCoolloorr TTeemmppeerraattuurree ((CCoommmmaanndd22::uu))
To adjust color temperature.
You can also adjust color temperature in the Video
menu.
Transmission [k][u][ ][Set ID][ ][Data][Cr]
Data 0: Medium 1: Cool 2: Warm 3: User
Acknowledgement [u][ ][Set ID][ ][OK/NG][Data][x]
2200.. RReedd aaddjjuussttmmeenntt((CCoommmmaanndd::vv))
To adjust red in color temperature
Transmission [k][v][ ][Set ID][ ][Data][Cr]
Data Min:0 ~ Max:C8
*Refer to "Real data mapping 2".
GG
p.115 .
Acknowledgement [v][ ][Set ID][ ][OK/NG][Data][x]
1_512Den-2 06/5/2 10:22 AM Page 114
APPENDIX
115
2211.. GGrreeeenn aaddjjuussttmmeenntt((CCoommmmaanndd::ww))
To adjust green in color temperature.
Transmission [k][w][ ][Set ID][ ][Data][Cr]
Data Min:0 ~ Max:C8
*Refer to "Real data mapping 2" as shown below.
Acknowledgement [w][ ][Set ID][ ][OK/NG][Data][x]
2222.. BBlluuee aaddjjuussttmmeenntt((CCoommmmaanndd::$$))
To adjust blue in color temperature.
Transmission [k][$][ ][Set ID][ ][Data][Cr]
Data Min:0 ~ Max:C8
*Refer to "Real data mapping 2" as shown below.
Acknowledgement [$][ ][Set ID][ ][OK/NG][Data][x]
*Real data mapping 2
0 : -20
5 : -19
A : -18
5F: -1
64: 0
69: +1
C3 : +19
C8 : +20
2233..
PPIIPP IInnppuutt SSeelleecctt
((CCoommmmaanndd22::yy))
To select input source for sub picture in PIP/Twin picture
mode.
Transmission [k][y][ ][Set ID][ ][Data][Cr]
Data 0: DTV 1: Analog
2: AV1 3: AV2
Acknowledgement [y][ ][Set ID][ ][OK/NG][Data][x]
2244.. IISSMM MMeetthhoodd ((CCoommmmaanndd22::pp))
To avoid having a fixed image remain on screen.
Transmission [ j ][p][ ][Set ID][ ][Data][Cr]
Data 1: Inversion 2: Orbiter
4: White Wash 8: Normal
Acknowledgement [p][ ][Set ID][ ][OK/NG][Data][x]
2255.. LLooww PPoowweerr ((CCoommmmaanndd22::qq))
To control the low power function on/off.
Transmission [ j ][q][ ][Set ID][ ][Data][Cr]
Data 0: Low power off
1: Low power on
Acknowledgement [q][ ][Set ID][ ][OK/NG][Data][x]
2266.. OOrrbbiitteerr TTiimmee SSeettttiinngg ((CCoommmmaanndd22::rr))
To adjust orbiter operation time term.
Transmission [ j ][r][ ][Set ID][ ][Data][Cr]
Data Min: 1~ Max: FE (*transmit by Hexadecimal code)
Unit: Second
Acknowledgement [r][ ][Set ID][ ][OK/NG][Data][x]
2277.. OOrrbbiitteerr PPiixxeell SSeettttiinngg ((CCoommmmaanndd22::ss))
To adjust pixel number in orbiter function.
Transmission [ j ][s][ ][Set ID][ ][Data][Cr]
Data Min: 1~ Max: 3
Acknowledgement [s][ ][Set ID][ ][OK/NG][Data][x]
2288.. CChhaannnneell TTuunniinngg ((CCoommmmaanndd:: mm aa))
To tune channel to following physical/major/minor number.
Transmission [m][a][ ][Set ID][ ][Data0][ ][Data1]
[ ][Data2][ ][Data3][ ][Data4][ ][Data5][Cr]
Data 0: Physical Channel Number(Transmit by Hexadecimal
code)
NTSC air:02~45
NTSC cable: 01, 0E~7D
ATSC air:01~45
ATSC cable:01~87
Data1,Data2: Major Channel Number (two part) /
Channel Number (One part)
Data1: High byte
Data2: Low byte
Two part channel number:
Major number-Minor number
One part channel number:
If the channel band is ATSC digital cable, it can be
used. In case of using one part channel number,
minor channel does not need.
Data3, Data 4: Minor Channel Number
Data3: High byte , Data4: Low byte
1_512Den-2 06/5/2 10:22 AM Page 115
APPENDIX
116
APPENDIX
Data5:
All data are transmitted by Hexadecimal code
* Two/One part Channel: 6th bit
This bit is used in a cable-ready system.
* Using physical channel: 5th bit
If the channel band is NTSC air or NTSC cable, channel
tuning can be done by only physical channel. In this
case, using physical channel bit must be low(0).
But if the channel band is ATSC air or ATSC cable, there
are two cases that physical channel enable or disable.
If the physical channel sending is meaningful, you should
set this bit low(0). If the physical channel sending is
meaningless, you should set this bit high(1).
Example)
1. Analog channel: NTSC cable, channel number(35),
main picture Command: ma 00 23 xx xx xx xx 01
attribute(0x01): main picture, two part(it’s not
mandatory), using physical channel, NTSC cable ‘xx’
data: don’t care major and minor channel number in
case analog channel tuning.
2. Digital channel: ATSC air, channel number(don’t know
physical channel, major(30), minor(3)), sub picture
Command: ma 00 xx 00 1E 00 03 A2
attribute(0xA2): sub picture, two part, not using
physical channel, ATSC air ‘xx’ data: don’t care analog
channel number in case digital channel tuning.
3. Digital channel: ATSC air, channel number(physi-
cal(20),major(20), minor(3)), sub picture Command:
ma 00 14 00 14 00 03 82
attribute(0x82): sub picture, two part, using physical
channel, ATSC air.
Acknowledgement[a][ ][Set ID][ ][OK][Data0][Data1]
[Data2][Data3][Data4][x][a][ ][Set ID]
[ ][NG][Data0][x]
2299.. CChhaannnneell AAdddd//DDeell ((CCoommmmaanndd:: mm bb))
To add and delete the channels
Transmission [m][b][ ][Set ID][ ][Data][Cr]
Data 0: Channel Delete Data 1: Channel Add
Acknowledgement [b][ ][Set ID][ ][OK/NG][Data][x]
3300.. KKeeyy ((CCoommmmaanndd:: mm cc))
To send IR remote key code.
Transmission [m][c][ ][Set ID][ ][Data][Cr]
Data Key code: Refer to page 118.
Acknowledgement [c][ ][Set ID][ ][OK/NG][Data][x]
3311.. IInnppuutt sseelleecctt((CCoommmmaanndd:: xx bb)) ((MMaaiinn PPiiccttuurree IInnppuutt))
To select input source for TV.
Transmission [x][b][ ][Set ID][ ][Data][Cr]
Data 00 : DTV (Antenna) Data 01 : DTV (Cable)
Data 10 : Analog (Antenna) Data 11 : Analog (Cable)
Data 20 : AV1 Data 21 : AV2
Data 40 : Component 1 Data 41 : Component 2
Data 50 : RGB DTV Data 60 : RGB PC
Data 90 : HDMI1/DVI Data 91 : HDMI2
Acknowledgement [b][ ][Set ID][ ][OK/NG][Data][x]
3322.. PPIIPP IInnppuutt SSeelleecctt((CCoommmmaanndd:: xx yy))
To adjust input source for sub picture in PIP mode.
Transmission [x][y][ ][Set ID][ ][Data][Cr]
Data 00 : DTV (Antenna)
Data 01 : DTV (Cable)
Data 10 : Analog (Antenna)
Data 11 : Analog (Cable)
Data 20 : AV1
Data 21 : AV2
Acknowledgement [y][ ][Set ID][ ][OK/NG][Data][x]
Step
NTSC Air
NTSC Cable
ATSC Air
ATSC Cable_std
ATSC Cable_hrc
ATSC Cable_irc
ATSC cable_auto
Reserved
-
Reserved
1
0
0
1
1
0
0
1
1
x
1
2
0
0
0
0
1
1
1
1
x
1
3
0
0
0
0
0
0
0
1
x
1
4
x
x
x
x
x
x
x
x
x
x
Reserved
5
0
1
Use
No Use
Using Physical
Channel
6
0
1
Two
One
Two/One
Part Channel
7
0
1
Main
Sub
Main/Sub
0
0
1
0
1
0
1
0
1
x
1
1_512Den-2 06/5/2 10:22 AM Page 116
APPENDIX
117
IR CODES
■
Configuration of frame
1st frame
Repeat frame
■
Lead code
■
Repeat code
■
BBiitt ddeessccrriippttiioonn
■
FFrraammee iinntteerrvvaall:: TTff
The waveform is transmitted as long as a key is depressed.
C0 C1 C2 C3 C4 C5 C6 C7 C0 C1 C2 C3 C4 C5 C6 C7 D0 D1 D2 D3 D4 D5 D6 D7 D0 D1 D2 D3 D4 D5 D6 D7
Lead code Low custom code High custom code Data code Data code
Repeat code
Tf
4.5 ms
9 ms
2.25 ms
9 ms
0.55 ms
0.56 ms
1.12 ms
0.56 ms
2.24 ms
Tf Tf
Tf=108ms @455KHz
Bit ”0”
Bit ”1”
1. How to Connect
■
Connect your wired remote control to the Remote Control port on the TV.
2. Remote Control IR Codes
■
Output waveform
Single pulse, modulated with 37.917KHz signal at 455KHz
T1
Tc
Carrier frequency
FCAR = 1/TC = fOSC/12
Duty ratio = T1/TC = 1/3
1_512Den-2 06/5/2 10:22 AM Page 117
APPENDIX
118
APPENDIX
Code
Function Note
(Hexa)
Code
Function Note
(Hexa)
0F TV INPUT Remote control Button
0B INPUT Remote control Button
08 POWER
Remote control Button (Power On/Off)
79 RATIO Remote control Button
0E TIMER Remote control Button
10-19 Number Key 0-9 Remote control Button
4C - (Dash) Remote control Button
1A FLASHBK Remote control Button
09 MUTE Remote control Button
02 VOL
DD
Remote control Button
03 VOL
EE
Remote control Button
00 CH
DD
Remote control Button
01 CH
EE
Remote control Button
1E FAV Remote control Button
AA INFO Remote control Button
39 CC Remote control Button
40
DD
Remote control Button
41
EE
Remote control Button
07
FF
Remote control Button
06
GG
Remote control Button
44 ENTER Remote control Button
43 MENU Remote control Button
52 EZ SOUND Remote control Button
4D EZ PIC Remote control Button
5B EXIT Remote control Button
60 PIP Remote control Button
72 PIPCH - Remote control Button
71 PIPCH + Remote control Button
61 PIP INPUT Remote control Button
63 SWAP Remote control Button
0A SAP Remote control Button
CB ADJUST Remote control Button
D6 TV Discrete IR Code
(TV Input Selection)
5A AV1 Discrete IR Code
(AV1 Input Selection)
D0 AV2 Discrete IR Code
(AV2 Input Selection)
BF COMPONENT1 Discrete IR Code
(Component1 Input Selection)
D4 COMPONENT2 Discrete IR Code
(Component2 Input Selection)
D5 RGB-PC Discrete IR Code
(RGB-PC Input Selection)
D7 RGB-DTV Discrete IR Code
(RGB-DTV Input Selection)
C6 HDMI1/DVI Discrete IR Code
(HDMI1/DVI Input Selection)
CC HDMI2 Discrete IR Code
(HDMI2 Input Selection)
76 Ratio 4:3 Discrete IR Code
(Only 4:3 Mode)
77 Ratio 16:9 Discrete IR Code
(Only 16:9 Mode)
AF Ratio Zoom Discrete IR Code
(Only Zoom1 Mode)
70 POP Discrete IR Code
(Channel Search)
C4 POWER ON Discrete IR Code
(Only Power On)
C5 POWER OFF Discrete IR Code
(Only Power Off)
A9 TV GUIDE Remote control Button
92 APM Remote control Button
1_512Den-2 06/5/2 10:22 AM Page 118
APPENDIX
119
Programming a code into a remote mode
To find out whether your remote control can operate each device without programming, turn on the device
(such as a VCR) and press the corresponding mode button on the remote.
After that, press the
PPOOWWEERR
button. If the device is turned off and it responds properly the remote control
need not be programmed. If not, the remote should be programmed to operate the device. The program-
ming procedures are explained below.
Press the
MMEENNUU
and
MMUUTTEE
button continuously at the same time for two seconds; the currently selected
device button is illuminated.
If you don't press any button for 20 seconds, the light on the mode button will be turned off. In that case,
you have to repeat from step 2.
Enter the appropriate code from the code table on the following pages. When pressing the button, the light
blinks at a time. If the device turned off, the programming is successful.
Press the
MMEENNUU
button to store the code. After blinking twice, this code is stored.
Test the remote control functions to see if the device responds properly. If not, steps 2-5.
The provided universal remote control can be programmed to operate most remote-controllable devices.
Note that the remote may not control all models of other brands.
2
3
4
5
1
PROGRAMMING THE REMOTE CONTROL
1_512Den-2 06/5/2 10:22 AM Page 119
APPENDIX
120
APPENDIX
PROGRAMMING CODES
VCRs
Brand Codes Brand Codes Brand Codes
AIWA 034
AKAI 016 043 046 124
12 5 146
AMPRO 072
ANAM 031 033 103
AUDIO DYNAMICS
012 023 039 043
BROKSONIC 035 037 129
CANON 028 031 033
CAPEHART 108
CRAIG 003 040 135
CURTIS MATHES 031 033 041
DAEWOO 005 007 010 064
0 6 5 10 8 110 111
112 116 117 119
DAYTRON 108
DBX 012 023 039 043
DYNATECH 034 053
ELECTROHOME 059
EMERSON 006 017 025 027
029 031 034 035
036 037 046 101
129 13 1 138 153
FISHER 003 008 009 010
FUNAI 034
GE 031 033 063 072
10 7 10 9 144 14 7
GO VIDEO 132 136
HARMAN KARDON 012 045
HITACHI 004 018 026 034
043 063 137 150
INSTANTREPLAY 031 033
JCL 031 033
JCPENNY 012 013 015 033
040 066 101
JENSEN 043
JVC 012 031 033 043
048 050 055 060
130 150 152
KENWOOD 014 034 039 043
047 048
LG (GOLDSTAR) 001 012 013 020
101 10 6 114 123
LLOYD 034
LXI 003 009 013 014
017 034 101 106
MAGIN 040
MAGNAVOX 031 033 034 041
067 068
012 031 033 067
MARANTZ 069
MARTA 101
MATSUI 027 030
MEI 031 033
MEMOREX 003 010 014 031
033 034 053 072
101 102 134 13 9
MGA 045 046 059
MINOLTA 013 020
MITSUBISHI 013 020 045 046
049 051 059 061
151
MTC 034 040
MULTITECH 024 034
NEC 012 023 039 043
048
NORDMENDE 043
OPTONICA 053 054
PANASONIC 066 070 074 083
13 3 14 0 145
PENTAX 013 020 031 033
063
PHILCO 031 034 067
PHILIPS 031 033 034 054
067 071 101
PILOT 101
PIONEER 013 021 048
PORTLAND 108
PULSAR 072
QUARTZ 011 014
QUASAR 033 066 075 145
RCA 013 020 033 034
040 041 062 063
10 7 10 9 14 0 14 4
14 5 14 7
REALISTIC 003 008 010 014
031 033 034 040
053 054 101
RICO 058
RUNCO 148
SALORA 014
SAMSUNG 032 040 102 104
10 5 10 7 10 9 112
113 115 12 0 12 2
125
SANSUI 022 043 048 135
SANYO 003 007 010 014
10 2 13 4
SCOTT 017 037 112 129
131
SEARS 003 008 009 010
013 014 017 020
031 042 073 081
101
SHARP 031 054 149
SHINTOM 024
SONY 003 009 031 052
056 057 058 076
077 078 149
SOUNDESIGN 034
STS 013
SYLVANIA 031 033 034 059
067
SYMPHONIC 034
TANDY 010 034
TATUNG 039 043
TEAC 034 039 043
TECHNICS 031 033 070
TEKNIKA 019 031 033 034
101
THOMAS 034
TMK 006
TOSHIBA 008 013 042 047
059 082 112 131
TOTEVISION 040 101
UNITECH 040
VECTOR RESEARCH
012
VICTOR 048
VIDEO CONCEPTS
012 034 0 46
VIDEOSONIC 040
WARDS 003 013 017 024
031 033 034 040
053 054 131
YAMAHA 012 034 039 043
ZENITH 034 048 056
058 072 080 101
1_512Den-2 06/5/2 10:22 AM Page 120
APPENDIX
121
Cable Box
Brand Codes Brand Codes Brand Codes
Brand Codes Brand Codes Brand Codes
HDSTB
ABC 003 004 039 042
046 052 053
AJIN 112
ANTRONIK 014
ARCHER 005 007 014 024
CABLE STAR 026
CENTURION 092
CENTURY 007
CITIZEN 007
COLOUR VOICE 065 090
COMBANO 080 081
COMTRONICS 019 030
DIAMOND 023
EAGLE 020 030 040
EASTERN 057 062 066
ELECTRICORD 032
GE 072
GEMINI 008 022 025 054
GI 052 074
GOLDEN CHANNEL
030
HAMLIN 049 050 055
HITACHI 052 055
HOSPITALITY 070 077
JERROLD 002 003 004 008
009 010 052 069
074
LG (GOLDSTAR) 001 106 101 005
M-NET 037
MACOM 033
MAGNAVOX 010 012 064 079
MEMOREX 100
MOVIE TIME 028 032
NSC 015 028 038 071
073
OAK 016 031 037 053
PANASONIC 044 047
PARAGON 100
PHILIPS 006 012 013 020
065 085 090
PIONEER 034 051 052 063
076
POST NEWS WEEK016
PRUCER 059
PTS 011 048 071 072
073 074
PULSAR 100
RCA 047
REGAL 049 050
REGENCY 057
REMBRANT 025
SAMSUNG 102 107 030 068
SCIENTIFIC ATLANTA
003 011 041 042
043 045 046
SHERITECH 022
SIGNAL 030
SIGNATURE 052
SL MARX 030
SPRUCER 047 078
STARCOM 002 004 008 009
STARGATE 008 030
TADIRAN 030
TAEKWANG 110
TAIHAN 105
TANDY 017
TEXSCAN 029
TOCOM 039 040 056
TOSHIBA 100
UNIKA 007 014 024
UNITED CABLE 004 053
UNIVERSAL 005 007 014 024
026 027 032 035
VIEWSTAR 012 015 018 086
087 088 089
ZENITH 100 114 060 093
ALPHASTAR DSR 123
AMPLICA 050
BIRDVIEW 051 126 129
CHANNEL MASTER
013 014 015 018
036 055
CHAPARRAL 008 009 012 077
CITOH 054
CURTIS MATHES 050 145
DRAKE 005 006 007 010
011 052 112 116
141
DX ANTENNA 024 046 056 076
ECHOSTAR 038 040 057 058
093 094 095 096
097 098 099 100
12 2
ELECTRO HOME 089
EUROPLUS 114
FUJITSU 017 021 022 027
13 3 134
GENERAL INSTRUMENT
003 004 016 029
031 059 101
HITACHI 139 140
HOUSTON TRACKER
033 037 039 051
057 104
HUGHES 068
JANIEL 060 147
JERROLD 061
KATHREIN 108
LEGEND 057
LG 001
LUTRON 132
LUXOR 062 144
MACOM 010 059 063 064
065
MEMOREX 057
NEXTWAVE 028 124 125
NORSAT 069 070
PACE SKY SATELLITE
14 3
PANASONIC 060 142
PANSAT 121
PERSONAL CABLE 117
PHILIPS 071
PICO 105
PRESIDENT 019 102
PRIMESTAR 030 110 111
PROSAT 072
RCA 066 106
REALISTIC 043 074
SAMSUNG 123
SATELLITE SERVICE CO
028 035 047 057
085
SCIENTIFIC ATLANTA
032 138
SONY 103
STARCAST 041
SUPER GUIDE 020 124 125
TEECOM 023 026 075 087
088 090 107 130
137
TOSHIBA 002 127
UNIDEN 016 025 042 043
044 045 048 049
078 079 080 086
101 135 136
VIEWSTAR 115
WINEGARD 128 146
ZENITH 081 082 083 084
091 120
1_512Den-2 06/5/2 10:22 AM Page 121
APPENDIX
122
APPENDIX
Brand Codes Brand Codes Brand Codes
Brand Codes Brand Codes Brand Codes
DVD
Audio
AIWA 014 028 070 096
125 129 139 229
230
AKAI 163
ANAM 003 014 017 023
059 106 189 216
217 235 23 6
BURMECTER 252
CARVER 086
CLARION 199
DAEWOO 027 053 060 084
10 2 14 8 198 2 21
DENON 015 075 130 143
FANTASIA 071
FINEARTS 022
FISHER 089 099
LG(GOLDSTAR) 001 021 024 029
087 107 108 110
190 191 19 2 210
211 212 239
HAITAI 034 035 188 222
HARMAN/KARDON 068
JVC 004 013 141
KEC 185 186 187
KOHEL 030
NAD 045 046
KENWOOD 038 050 067 089
17 0 171 19 7 2 0 6
215 222
INKEL 037 058 062 069
078 079 095 121
122 149 15 0 15 1
152 15 3 15 4 15 5
15 7 158 159 16 0
189 207 222 224
225 226 227 243
247
LOTTE 014 016 036 098
10 0 17 2 173 174
17 5 17 6 177 178
179 180 18 1 183
201 202 208 213
214 219 223 232
238 240
LXI 103
MAGNAVOX 111
MARANTZ 002 018 020 025
034 041 081 090
097 112
MCINTOSH 049
MCS 104
MEMOREX 107
NAD 046
ONKYO 013 040 041 047
048 056 057 132
13 3 14 0
OPTIMUS 158
PANASONIC 007 033 064 113
14 2 2 2 0 2 41 2 51
PENNEY 104
PHILIPS 026 112 143
PIONEER 039 042 043 063
065 091 093 094
115 12 3 12 7 2 5 0
QUASAR 113
RCA 080
RCX 092
REALISTIC 103 106
SAMSUNG 124 145 146 182
19 3 19 4 19 5 2 0 3
204 244 245 246
SANSUI 011 135 138 144
SANYO 019 083 234
SCOTT 106 186
SHARP 031 032 051 052
072 082 117 119
156 184 199 200
206 209
SHERWOOD 005 006 158
SONY 044 045 109 114
118 12 6 2 4 8 2 4 9
TAEKWANG 012 020 073 074
076 077 105 161
162 163 16 4 16 5
166 16 7 16 8 16 9
205 231 233 242
TEAC 010 085 106 136
18 5 187 237
TECHNICS 101 113 128 134
14 7 218
TOSHIBA 137
THE 061
VICTOR 088 131
WARDS 089
YAMAHA 054 055 066 092
199
APEX DIGITAL 022
DENON 020 014
GE 005 006
HARMAN KARDON 027
JVC 012
LG 001 010 016 025
MAGNAVOX 013
MARANTZ 024
MITSUBISHI 002
NAD 023
ONKYO 008 017
PANASONIC 003 009
PHILIPS 013
PIONEER 004 026
PROCEED 021
PROSCAN 005 006
RCA 005 006
SAMSUNG 011 015
SONY 007
THOMPSON 005 006
TOSHIBA 019 008
YAMAHA 009 018
ZENITH 010 016 025
1_512Den-2 06/5/2 10:22 AM Page 122
APPENDIX
123
TROUBLESHOOTING CHECKLIST
TThhee ooppeerraattiioonn ddooeess nnoott wwoorrkk nnoorrmmaallllyy..
TThhee vviiddeeoo ffuunnccttiioonn ddooeess nnoott wwoorrkk..
No picture &No sound
No or poor color
or poor picture
Poor reception on
some channels
Lines or streaks
in pictures
Horizontal/vertical bars
or picture shaking
Picture appears slowly
after switching on
The remote control
doesn’t work
Power is suddenly
turned off
■
Check to see if there is any object between the product and the remote control
causing obstruction. Ensure you are pointing the remote control directly at the TV.
■
Ensure that the batteries are installed with correct polarity (+ to +, - to -).
■
Ensure that the correct remote operating mode is set: TV, VCR etc.
■
Install new batteries.
■
Is the sleep timer set?
■
Check the power control settings. Power interrupted.
■
No broadcast on station tuned with Auto off activated.
■
Check whether the product is turned on.
■
Try another channel. The problem may be with the broadcast.
■
Is the power cord inserted into wall power outlet?
■
Check your antenna direction and/or location.
■
Test the wall power outlet, plug another product’s power cord into the outlet
where the product’s power cord was plugged in.
■
This is normal, the image is muted during the product startup process. Please
contact your service center, if the picture has not appeared after five minutes.
■
Adjust Color in menu option.
■
Keep a sufficient distance between the product and the VCR.
■
Try another channel. The problem may be with the broadcast.
■
Are the video cables installed properly?
■
Activate any function to restore the brightness of the picture.
■
Check for local interference such as an electrical appliance or power tool.
■
Station or cable product experiencing problems, tune to another station.
■
Station signal is weak, reorient antenna to receive weaker station.
■
Check for sources of possible interference.
■
Check antenna (Change the direction of the antenna).
1_512Den-2 06/5/2 10:22 AM Page 123
APPENDIX
124
APPENDIX
■
Press the VOL or VOLUME button.
■
Sound muted? Press MUTE button.
■
Try another channel. The problem may be with the broadcast.
■
Are the audio cables installed properly?
■
Adjust Balance in menu option.
■
A change in ambient humidity or temperature may result in an unusual noise
when the product is turned on or off and does not indicate a fault with the
product.
Picture OK & No sound
Unusual sound from
inside
the product
No output from one
of the speakers
TThheerree iiss aa pprroobblleemm iinn PPCC mmooddee.. ((OOnnllyy PPCC mmooddee aapppplliieedd))
■
Adjust resolution, horizontal frequency, or vertical frequency.
■
Check the input source.
■
Work the Auto configure or adjust clock, phase, or H/V position. (Option)
■
Check the signal cable.
■
Reinstall the PC video card.
The signal is out of range
Screen color is unstable
or single color
Vertical bar or stripe on
background &
Horizontal Noise &
Incorrect position
TThhee aauuddiioo ffuunnccttiioonn ddooeess nnoott wwoorrkk..
1_512Den-2 06/5/2 10:22 AM Page 124
APPENDIX
125
■
You should begin to receive listings again within 24 hours.
■
You can correct them using Change Channel Display under the Setup menu.
■
Listings usually appear within 24 hours after a successful Setup.
■
It may take up to a week to fill the Listings grid with the full 8 days of listings.
■
If you see a Listings grid with the message "No Listings" displayed you should
start to receive updated program listings within 24 hours.
■
If the message "No data for this screen" is displayed:
- Check the connections between the TV, cable, antenna.
- Verify Setup information under Change System Settings.
- If this message is still displayed after multiple days, please contact the
LG
®
Brand Customer Support.
■
Check the Schedule menu and verify that the show is listed as a reminder.
■
Check the Schedule menu and verify that the show is listed as a Reminder.
■
Highlight the show under Listings and do the following:
- Press the
MMEENNUU
button on the remote.
- Use the down arrow to highlight Edit Reminder, and press the
EENNTTEERR
.
- Verify the Auto-Tune option reads Yes.
■
The TV must be On at the scheduled time for Auto-Tune.
■
Check the Schedule menu and verify that the show is listed as a Reminder.
■
Highlight the show under Listings and do the following:
- Press the
MMEENNUU
button on the remote.
- Use the down arrow to highlight Edit Reminder, and press the
EENNTTEERR
.
- Verify the Power On TV option reads Yes.
My Guide listings disap-
peared after a power failure
I have not received any
Guide listings.
I set a show to Auto-Tune
and it did not.
I set a show with the Power
On TV option and it did not
A show I set to Remind
did not.
Some channel numbers
in the Guide are incorrect.
TThheerree iiss aa pprroobblleemm oonn tthhee TTVV GGuuiiddee OOnn SSccrreeeenn
TTMM
ffuunnccttiioonn..
1_512Den-2 06/5/2 10:22 AM Page 125
APPENDIX
126
MAINTENANCE
APPENDIX
Early malfunctions can be prevented. Careful and regular cleaning can extend the amount of time you can
enjoy your new TV.
Caution: Be sure to turn the power off and unplug the power cord before you begin any cleaning.
Cleaning the Screen
Here’s a great way to keep the dust off your screen for a while. Wet a soft cloth in a mixture of lukewarm
water and a little fabric softener or dish washing detergent. Wring the cloth until it’s almost dry, and then
use it to wipe the screen.
Make sure the excess water is off the screen, and then let it air-dry before you turn on your TV.
Cleaning the Cabinet
■
To remove dirt or dust, wipe the cabinet with a soft, dry, lint-free cloth.
■
Please be sure not to use a wet cloth.
Extended Absence
GG
If you expect to leave your TV dormant for a long time (such as a vacation), it’s a good idea to unplug
the power cord to protect against possible damage from lightning or power surges.
CAUTION
2
1
1_512Den-2 06/5/2 10:22 AM Page 126
APPENDIX
127
PRODUCT SPECIFICATIONS
■
The specifications shown above may be changed without prior notice for quality improvement.
42PC1D
(42PC1D-UB)
42PC1DA
(42PC1DA-UB)
MODELS
44.4 x 29.6 x 15.0 inches
1129.0 x 752.5 x 380.0 mm
44.4 x 27.4 x 3.9 inches
1129.0 x 695.0 x 98.5 mm
64.6 pounds / 29.3 kg
56.2 pounds / 25.5 kg
AC100-240V ~ 50/60Hz
NTSC-M, ATSC, 64 & 256 QAM
VHF 2-13, UHF 14-69, CATV 1-135, DTV 2-69, CADTV 1-135
75 ohm
32 ~ 104°F (0 ~ 40°C)
Less than 80%
-4 ~ 140°F (-20 ~ 60°C)
Less than 85%
Dimensions
(Width x Height x Depth)
Weight
Power requirement
Television System
Program Coverage
External Antenna Impedance
Environment condition
Including stand
Excluding stand
including stand
excluding stand
Operating Temperature
Operating Humidity
Storage Temperature
Storage Humidity
1_512Den-2 06/5/2 10:22 AM Page 127
