Installation notes
2 PG 8130 / PG 8131 / PG 8132 / PG 8133
Please read and observe the operating instructions and the
service documents regarding installation and setting up of this
dishwasher.
Installation
requirements
This dishwasher must be installed by a suitably qualified person
with the appropriate electrical and plumbing qualifications in
accordance with the installation instructions supplied.
This dishwasher must be installed in accordance with all applicable
standards and guidelines, including legal requirements and health
and safety regulations.
The machine must be commissioned and operatives trained in its
use by Miele Professional Service or by an authorised Miele Service
Partner only.
Electrical
connection
Connection to the electrical supply must be in accordance with valid
legal requirements, health and safety regulations, and applicable
standards. The mains connection cable must be protected from the
risk of thermal damage.
We recommend connecting the dishwasher to the power supply via a
suitable plug and socket as this will make it easier to carry out the
electrical safety test during commissioning and after any service
work.
For hard-wired dishwashers, connection must be via a main switch
to be provided on site, which must completely isolate the machine
from the power supply with a contact gap of at least 3mm.
The plug, socket, and main switch must be easily accessible once the
dishwasher has been installed.
Equipotential
bonding and
earthing
For added safety, the dishwasher should be protected with a residual
current device with a trip current of 30mA.
Equipotential bonding should be carried out if required. The screw
connection point for equipotential bonding is located at the back of
the dishwasher. Equipotential bonding and earthing must be carried
out before the machine is commissioned.
Water connection
This appliance must be installed according to AS/NZS3500.1. This
appliance has been supplied with a separate backflow prevention
device (non-return valve) and must be connected to the water tap..
The tap for the water supply must be easily accessible.
The dishwasher can be connected to either a cold water or hot water
supply.
Environmental
requirements
Condensate can build up in the area surrounding the dishwasher.
Any cabinetry and fittings in the room must therefore be suitable for
purpose. If the machine is fitted under a suitable worktop (built-under
and integrated models), the stainless steel steam deflector plate
provided must be fitted above the door aperture to protect the
worktop from moisture damage. A matching steam deflector plate is
also available for order at a later date from Miele Professional Service.
Installation notes
PG 8130 / PG 8131 / PG 8132 / PG 8133 3
Connecting an
external
dispensing
system
A dispensing system for liquid detergent and rinse aid can be
connected at the back of the machine.
Illustrations
4 PG 8130 / PG 8131 / PG 8132 / PG 8133

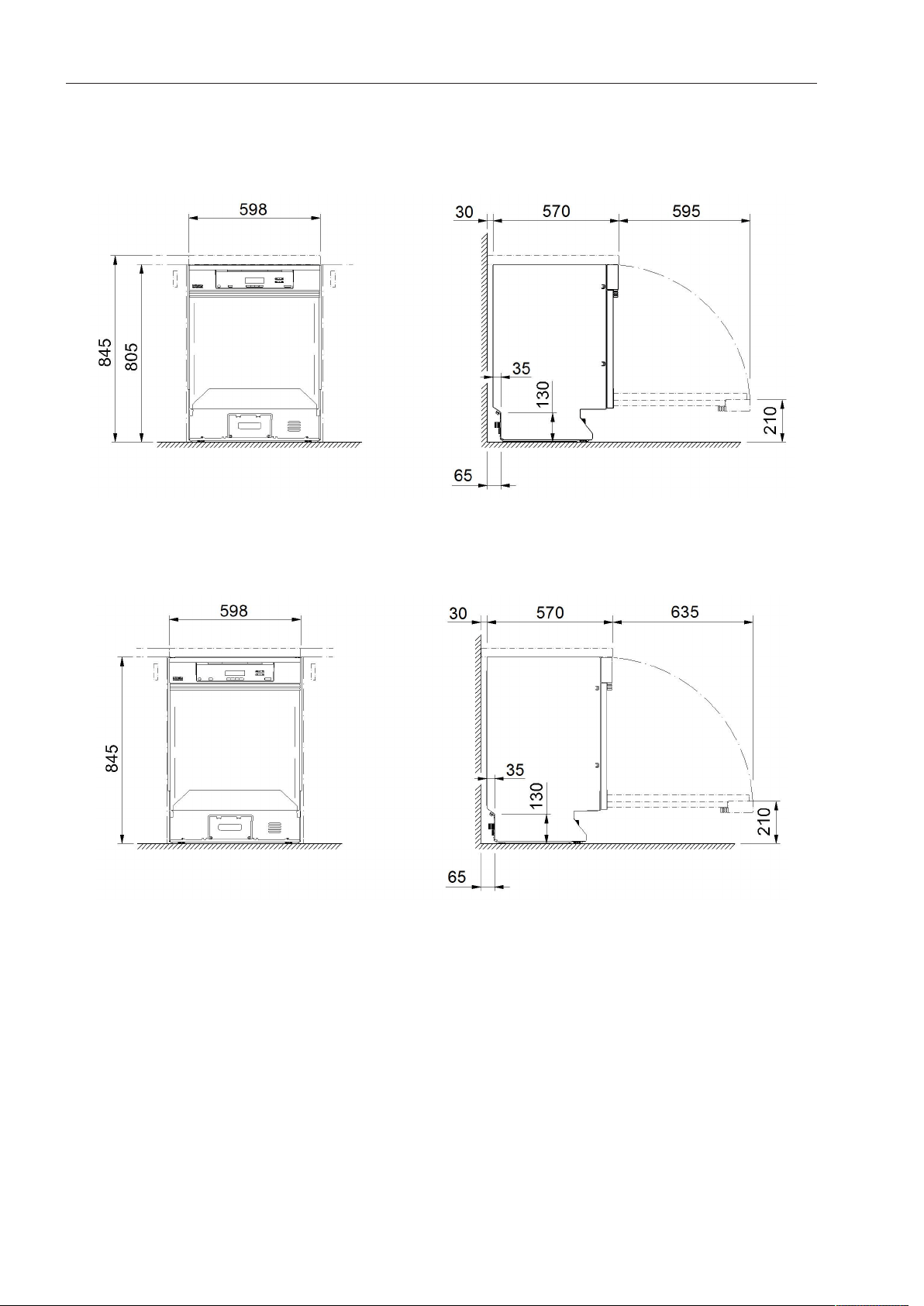

PG 8130-31 dimensions
PG 8132-33 XXL dimensions
Illustrations
PG 8130 / PG 8131 / PG 8132 / PG 8133 5

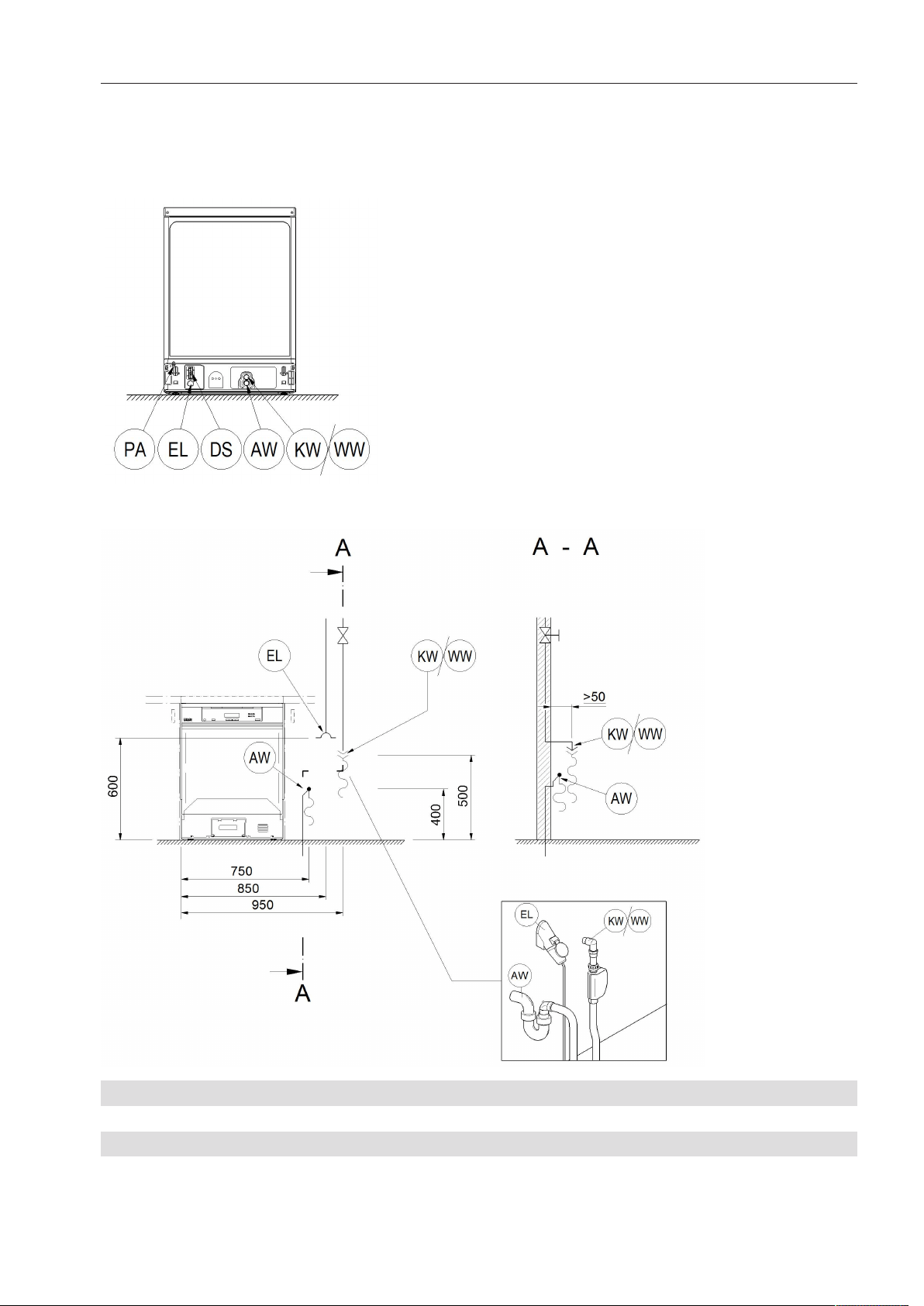

Connections at the back of the machine
On-site connections
KW/WW Connection to cold or hot water EL Electrical connection
AW Drain connection PA Equipotential bonding
DS External dispensing
Illustrations
6 PG 8130 / PG 8131 / PG 8132 / PG 8133

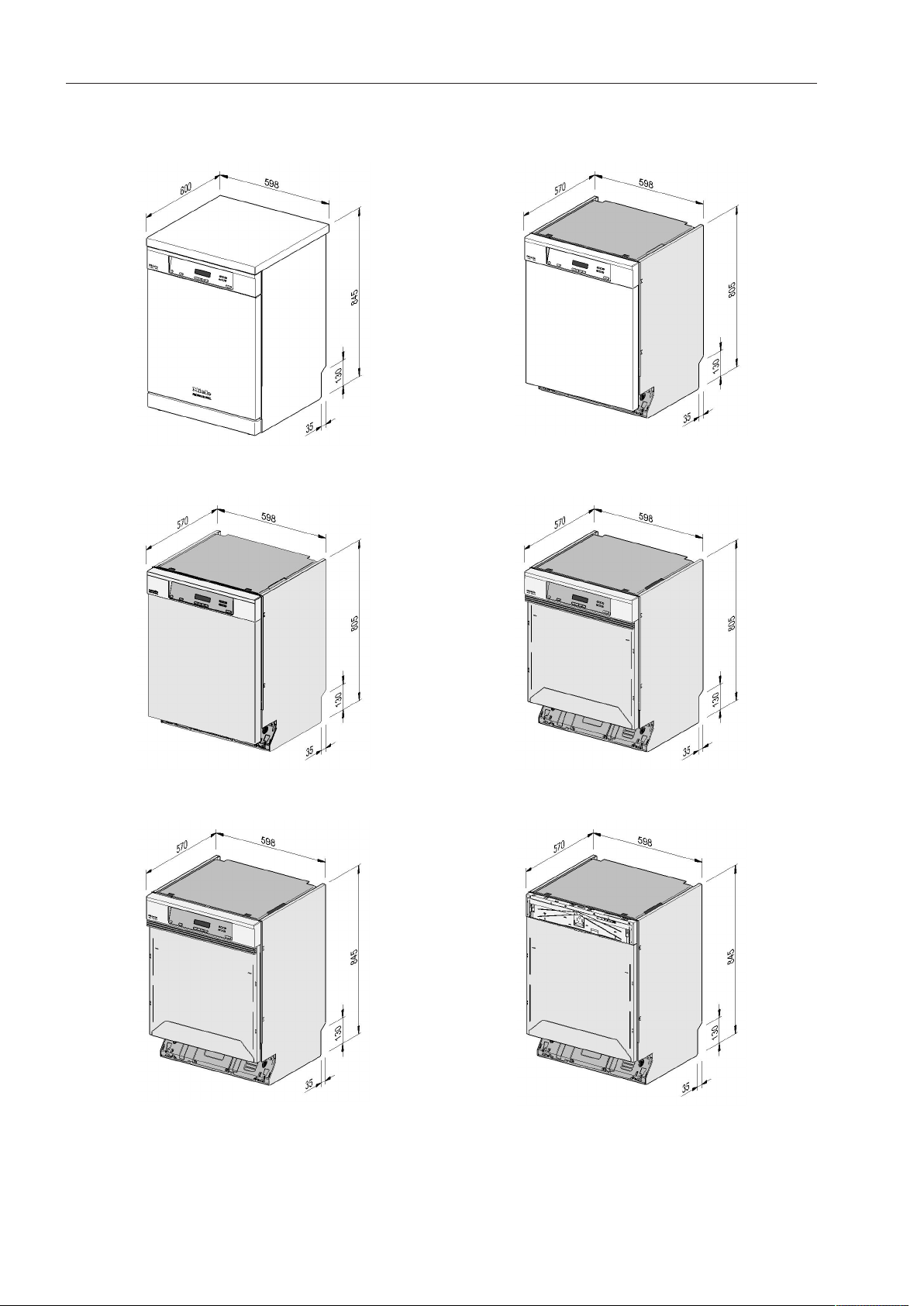

Machine versions
PG 8130 freestanding model
PG 8130 U
PG 8130 U/i PG 8130i / PG 8131i
PG 8132 SCi XXL
PG 8133 SCVi XXL
Technical data
PG 8130 / PG 8131 / PG 8132 / PG 8133 7
Electrical connection for PG 8130
Voltage (standard delivered) AC 230V/50Hz
Total rated load 3.1kW
Fuse rating 1 x 15A
Mains connection cable, min. cross-section 3 x 1.5mm²
Length of mains connection cable with plug SAA/3/25 Typ HPM 106/5 2.4m
Voltage (convertible) AC 230V/50Hz
Total rated load 2.3kW
Fuse rating 1 x 10A
Mains connection cable, min. cross-section 3 x 1.5mm²
Length of mains connection cable with plug SAA/3/25 Typ HPM 106/5 2.4m
Electrical connection for PG 8131, PG 8132 and PG 8133
Voltage (standard delivered) AC 230V/50Hz
Total rated load 2.3kW
Fuse rating 1 x 10A
Mains connection cable, min. cross-section 3 x 1.5mm²
,
Length of mains connection cable with plug SAA/3/25 Typ HPM 106/5 2.4m
Voltage (convertible) AC 230V/50Hz
Total rated load 5.3kW
Fuse rating 1 x 25A
Mains connection cable, min. cross-section 3 x 4mm²
Length of mains connection cable with plug SAA/3/25 Typ HPM 106/5 2.4m
Water connection
Max. temperature 60°C
Max. water hardness 6.5 mmol/l
36°dH
On-site water pressure 50 - 1000kPa
Recommended flow pressure 200kPa
On-site threaded union in accordance with AS3688 (flat sealing) 3/4inches
Length of cold water inlet hose 1.5 m
Technical data
8 PG 8130 / PG 8131 / PG 8132 / PG 8133
Drain water
Drain water temperature 75°C
Standard length of drain hose 1.5 m
Max. drainage length of drain hose 4.0 m
Max. drain pump head height from bottom edge of machine 1.0 m
Max. transient flow rate 16l/min
Hose sleeves to be provided on site (ext. dia.xl) 22 x 30 mm
Internal diameter of drain hose 22 mm
Machine feet
Machine feet height adjustment 65 mm
Diameter of machine feet 30 mm
Insert for machine feet, size of thread 20 mm
Machine data
Height including lid PG 8130 845 mm
Building-under height PG 8130 / PG 8131 805 mm
Building-under height PG 8132 XXL / PG 8133 XXL 845 mm
Width PG 8130 freestanding model 600 mm
Width without lid 598 mm
Depth PG 8130 freestanding model 600 mm
Depth without lid 570 mm
Door height PG 8130 freestanding model 720 mm
Door height PG 8130-31 650 mm
Door height PG 8132-33 XXL 690 mm
Weight PG 8130 freestanding model 61.5kg
Weight PG 8130 U 54.0kg
Weight PG 8130i / PG 8131i 54.7kg
Weight PG 8132 SCi XXL 56.2kg
Weight PG 8133 SCVi XXL 56.0kg
Floor load in operation 1000 N
Min. access width incl. transport pallet 670 mm
Min. access depth including transport pallet 690 mm
Min. access height including transport pallet 970 mm
Noise level in dB (A),
sound power pressure LpA during cleaning and drying phases (ECO programme) 45dB (A)
Technical data
PG 8130 / PG 8131 / PG 8132 / PG 8133 9
Ambient conditions
Permitted temperature range in operation 5 - 40°C
Max. relative humidity up to 31°C 80%
Relative humidity, declining proportionally to 40°C 50%
Transport conditions - permitted temperature range -20 - 60°C
Transport conditions - permitted relative humidity 10 - 85%
Transport conditions - permitted air pressure 500 - 1060hPa
Max. installation altitude above sea level 2000 m
