Photoelectric Smoke Alarm XS01
User Manual
01 02
This user manual contains important information regarding the operation of your
X-Sense smoke alarm. Ensure you read this user manual fully before installing and
operating the alarm. If you are installing this smoke alarm for use by others, you
must leave this manual (or a copy of it) with the end user.
Introduction
This smoke alarm is manufactured in accordance to the UL 217 Standard and is
designed to detect smoke. Our products are constantly being improved and
expanded.
•
Battery Operated
A long-life lithium battery sealed inside the alarm ensures a 10-year lifetime in
standby condition.
•
Low Battery Warning
The alarm beeps once and LED indicator fl ashes every 60 seconds when the
battery is low.
•
Malfunction Warning
The alarm beeps twice and LED indicator fl ashes every 40 seconds when the alarm
is in malfunction.
•
Silence Mode
Silence your smoke alarm by momentarily pressing the test button when
non-emergency smoke (e.g. steam) causes nuisance alarms. The red light fl ashes
every 5 seconds to remind you that the smoke alarm has been silenced. Press the
test/silence button to exit the silence mode or wait 9 minutes for the alarm to
automatically exit the silence mode.
1 × Alarm Unit 1 × Mounting Bracket 2 × Screws
2 × Anchor Plugs 1 × User Manual
• Loud 85 Decibel Piezo Electric Alarm
The alarm automatically resets when a hazardous condition has passed.
Package Contents
03 04
Safety Information
IMPORTANT!
1. DANGERS, WARNINGS, AND CAUTIONS ALERT YOU TO IMPORTANT
OPERATING INSTRUCTIONS OR TO POTENTIALLY HAZARDOUS SITUATIONS.
PAY SPECIAL ATTENTION TO THESE SITUATIONS.
2. THIS ALARM IS NOT INTENDED TO ALERT HEARING IMPAIRED INDIVIDUALS.
THE USE OF ALCOHOL OR DRUGS MAY ALSO IMPAIR ONE’S ABILITY TO HEAR
THE SMOKE ALARM.
3. FIRES IN CHIMNEYS, WALLS, ROOFS, DIFFERENT LEVELS OR BEHIND
CLOSED DOORS MIGHT NOT BE DETECTED.
4. THIS DEVICE DOES NOT DETECT FLAMES, HEAT, CARBON MONOXIDE OR
OTHER HAZARDOUS GASES.
WARNING!
1. NEVER IGNORE ANY ALARM. FAILURE TO RESPOND CAN RESULT IN SERIOUS
INJURY OR DEATH.
2. THE SILENCE FEATURE IS ONLY FOR YOUR CONVENIENCE AND WILL NOT
CORRECT A PROBLEM. ALWAYS CHECK YOUR HOME FOR A POTENTIAL
PROBLEM AFTER ANY ALARM. FAILURE TO DO SO CAN RESULT IN INJURY
OR DEATH.
3. TEST THIS SMOKE ALARM ONCE A WEEK. IF THE ALARM EVER FAILS TO TEST
CORRECTLY, REPLACE IT IMMEDIATELY! IF THE ALARM CANNOT WORK PROPERLY,
IT WILL NOT ALERT YOU TO A PROBLEM.
Installation Positioning
Smoke Alarms
Carbon Monoxide Alarms
Smoke & Carbon Monoxide Alarms
Fire Extinguishers
05 06
1. Prioritize the installation of a smoke alarm in the bedroom and walkways, and
make sure you can hear the alarm from all sleeping areas. In a home with several
bedrooms, install an alarm in every bedroom. If you install only one smoke alarm
in your home, install the alarm near to all bedrooms where possible, and not in a
basement or furnace room.
2. Install an alarm above the stairway and on every fl oor of the house.
3. Smoke, heat and anything burning will spread horizontally after rising to
the ceiling, so install the alarm in the middle of the ceiling where possible.
Ensure that the alarm is installed at the minimum distance away from corner.
4. If an alarm cannot be installed in the middle of a ceiling, install it at a distance of
20 inches (50 cm) away from the corners of the room.
5. If an alarm is installed onto a wall, a distance of 4-12 inches (10-30 cm) should be
kept below the ceiling.
6. If the length of a room or hall is beyond 30 feet (900 cm), several alarms should
be installed in the same space.
7. When the wall or ceiling is angled, the alarm needs to be installed within 3 feet
(90 cm) of the highest wall or ceiling point (measured horizontally) in the room.
07 08
WARNING!
1. THIS ALARM SHOULD BE INSTALLED BY A COMPETENT PERSON.
2. ALARMS SHOULD NOT BE USED AS A SUBSTITUTE FOR PROPER INSTALLATION,
USE AND MAINTENANCE OF FUEL BURNING APPLIANCES INCLUDING
APPROPRIATE VENTILATION AND EXHAUST SYSTEMS.

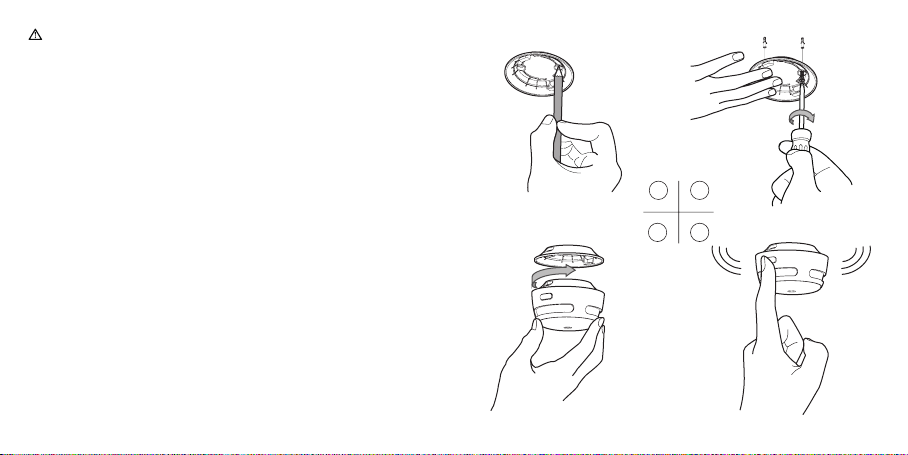

Installation Method
1. Use the mounting bracket to mark the screw holes on the ceiling or the wall.
2. Drill holes at the 2 marks using an appropriately-sized drill bit. Insert the anchor
plugs and screw the mounting bracket using the screws provided.
3. Attach the alarm to the mounting bracket and turn clockwise to lock the alarm.
4. Test the smoke alarm according to the steps in the section below.
01
02
03 04
09 10
Alarm Test
The alarm must be properly attached to the mounting bracket before it can be
tested.
1. Press the test button.
2. The unit beeps 3 times.
3. The red LED will fl ash once every second during the audible signal.
NOTE: The test function accurately tests the alarm’s smoke sensing circuit without the
need of test smoke. If your smoke alarm fails to give an audible test signal, please refer
immediately to the troubleshooting guide at the end of this manual.
LED Indicators and Audible Alarm
Status LED indicator Audible alarm
Normal Red LED fl ashes once every 60 seconds. None
Test Red LED fl ashes once every second. 3 short quick beeps
Alarm Red LED fl ashes once every second. Short quick beeps
Silence Mode Red LED fl ashes once every 5 seconds. None
Low Battery Red LED fl ashes once every 60 seconds. 1 beep every 60 seconds
Malfunction Red LED fl ashes twice every 40 seconds. 2 beeps every 40 seconds
Technical Speci cations
Power Supply 10-year sealed lithium battery
Sensor Type Photoelectric
Safety Standards UL 217
Standby Current < 6 uA
Alarm Current < 60 mA
C overage Area 20-40 m
2
Best Operating Ambient 4.4-37.8
Temperature
Operating Relative Humidity ≤ 85% (non-condensing)
Alarm Loudness ≥ 85 dB at 3 m @ 3.2 ± 0.3 kHz pulsing alarm
Silence Duration About 9 minutes
Maintenance
To keep your smoke alarm in good working order, follow these simple steps:
1. Verify the unit’s alarm sound and indicator are working properly by testing the
unit once a week.
2. As a minimum your smoke alarm should be cleaned once every 3 months:
Remove the unit from the ceiling and clean the alarm cover and vents with your
vacuum cleaner fi tted with the soft brush attachment to remove dust and dirt.
3. Never use detergents or other solvents to clean the unit.
°C
11 12
4. Avoid spraying air fresheners, hair spray or other aerosols near the alarm.
5. Do not paint the unit. Paint will seal the vents and interfere with the sensor’s
ability to detect fi re.
6. Never attempt to disassemble the unit or clean inside. Doing so will void your
warranty.
7. When removed, place the smoke alarm back in its proper location as soon as
possible, to assure continuous protection from fi re.
8. When household cleaning supplies or similar contaminants are used, the area
should be ventilated.
Troubleshooting
PROBLEM
Your smoke alarm does not
sound during testing.
False alarms triggered
intermittently or when
residents are cooking,
taking showers, etc.
SOLUTION
Please check whether the alarm is properly
attached to the mounting bracket.
Make sure you push the test button firmly.
Check the location of your smoke alarm
(see “Installation Positioning”).
Clean the smoke alarm (see “Maintenance”).
Red LED fl ashes and the
alarm sounds 1 beep
every 60 seconds.
Red LED fl ashes and the
alarm sounds 2 beeps
every 40 seconds.
The battery is low. Replace immediately.
The alarm is malfunctioning. Please clean
your smoke alarm, or replace immediately.
Environmental Protection
Waste electrical products should not be disposed of with household
waste. Please recycle where facilities exist. Check with Local Authority
or retailer for recycling advice.
Manufacturer and Service Information
X-Sense Innovations Co., Ltd.
Address: B4-503-D, Tower B, Kexing Science Park, No. 15 Keyuan
Road, Technology Park Community, Yuehai Avenue, Nanshan District,
Shenzhen, 518057, CHINA
Email: [email protected]
