WFG150
single flat grill
WFG150C
Canadian single flat grill
WPG150
single panini grill
WPG150B
208 volt single panini grill
WPG150C
Canadian single panini grill
6
7
8
10
11
9
503131 Base Unit Assembly /WFG150
503302 Base Unit Assembly /WFG150C
Tostato Perfetto
1
2
3
4
5
503132 Base Unit Assembly /WPG150
503244 Base Unit Assembly /WPG150B
503303 Base Unit Assembly /WPG150C
Panini Perfetto
Graphic By: Sandra A. Montysko Revised March 6, 2013 Approved 3/11/13 Page 1 of 5
Unit Information
WFG150, WPG150 1800 Watts - 120 volt
WPG150B 2400 Watts - 208 volt
WFG150C, WPG150C 1800 Watts - 120 volt
Grill takes about 10 minutes to warm up.
The WPG150B will heat-up and recover 25% faster than the WPG150.
9.75 x 9.25 Cooking Surface
Flat or Ribbed Cast Iron Plates
NEMA 5-20
NEMA 6-20
NEMA 5-15
032000
Cleaning Brush
029824
5/32
"
Short Arm Hex Key
Allen Wrench
Page 2 of 5 Revised March 6, 2013
Base Units
12
12
13
13
14
14
15
17
19
35
32
33
34
35
36
38
37
39
40
41
42
43
44
50
51
52
53
54
55
57
58
59
60
61
62
63
64
65
66
67
68
69
70
1
2
45
46
47
48
49
17
18
16
20
21
22
23
28
25
26
27
27
56
6
7
24
29
30
31

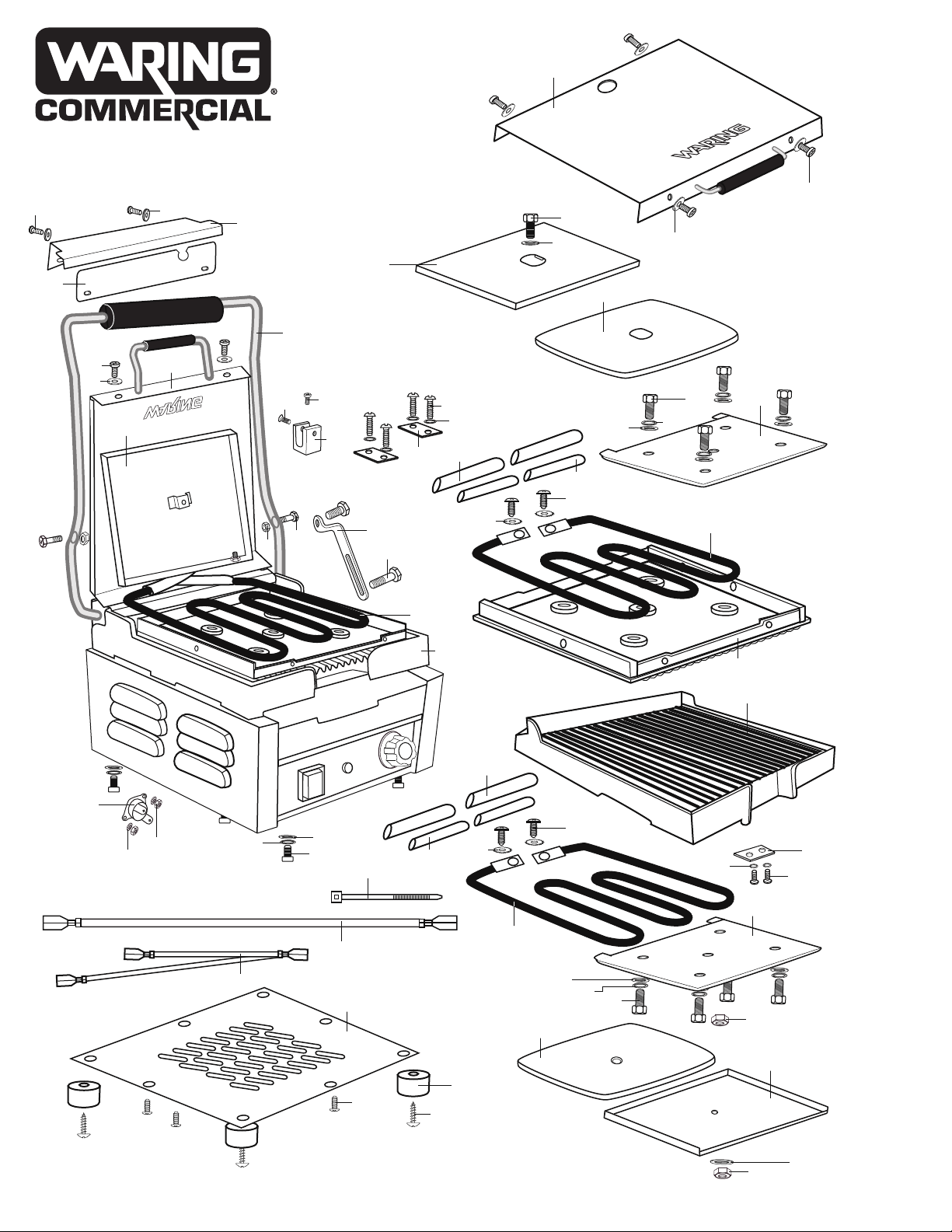

Illustration # Part # Description
1 028625 Pivot Bracket Screw Set
(1 small and 1 large)
2 028624 Pivot Bracket
3 028627 Set Screw (2 required)
4 028626 Control Knob
5 029502 Drip Tray
6 028622 Foot (4 required)
7 028623 Foot Screw (4 required)
8 029477 On-Off Switch
029478 On-Off Switch /WPG150B
9 029941 Indicator Light
030018 Indicator Light for WPG150B
10 029942 Thermostat
030013 Thermostat for WPG150B
11 029943 Thermostat Screw
(2 required)
12 029944 Cover
13 029946 Washer (4 required)
14 029947 Screw (4 required)
15 029950 Hex Head Bolt
16 029951 Washer
17 029952 Top Insulation Plate
18 029948 Top Insulation
19 029954 Top Element Plate
20 029962 Hex Head Bolt
(4 required)
21 029963 Spring Washer (4 required)
22 029964 Washer (4 required)
23 029956 Fiber Sleeve (2 required)
24 029957 Plastic Sleeve (2 required)
25 029958 Screw (2 required)
26 029959 Washer (2 required)
27 029960 Top Element
030015 Top Element for WPG150B
28 029966 Top Flat Grill Plate
029965 Top Ribbed Grill Plate
Revised March 6, 2013 Page 3 of 5
Catalog/Model
WFG150
WFG150C
Waring Factory Service Center
314 Ella T. Grasso Ave.
Torrington, CT 06790
Tele. 1-800-269-6640
Fax 860-496-9017
www.waringcommercialproducts.com
WPG150
WPG150B
WPG150C
Illustration # Part # Description
29 030054 Screw
30 030055 Tension Screw
31 030056 Tension Bracket
32 029992 Screw
(4 required)
33 029993 Spring Washer (4 required)
34 029994 Large Handle Bracket (2 required)
35 029970 Bottom Flat Grill Plate
029969 Bottom Ribbed Grill Plate
36 029973 Thermostat Bracket
37 029974 Washer
(2 required)
38 029975 Screw (2 required)
39 029956 Fiber Sleeve (2 required)
40 029957 Plastic Sleeve (2 required)
41 029958 Screw (2 required)
42 029959 Washer (2 required)
43 029976 Bottom Element
030016 Bottom Element for WPG150B
44 029978 Bottom Element Plate
45 029964 Washer (4 required)
46 029963 Spring Washer (4 required)
47 029962 Hex Head Bolt
(4 required)
48 029980 Nut
49 029981 Bottom Insulation
50 029983 Bottom Insulation Plate
51 029951 Washer
52 029980 Nut
53 029985 Screw (2 required)
54 029986 Washer (2 required)
55 029987 Rear Cover with Tension Cover
56 029988 Rear Cover Plate with Tension Hole
57 029989 Large Handle
58 029990 Hex Head Screw (2 required)
Page 4 of 5 Revised March 6, 2013
Catalog/Model
WFG150
WFG150C
Waring Factory Service Center
314 Ella T. Grasso Ave.
Torrington, CT 06790
Tele. 1-800-269-6640
Fax 860-496-9017
www.waringcommercialproducts.com
WPG150
WPG150B
WPG150C
Illustration # Part # Description
Revised March 6, 2013 Page 5 of 5
59 029991 Handle Nut (2 required)
60 029996 Thermal Cut-off
030014 Thermal Cut-off for WPG150B
61 029997 Washer
(2 required)
62 029998 Nut (2 required)
63 029999 Washer (4 required)
64 030000 Spring Washer (4 required)
65 030001 Bolt (4 required)
66 013731 Wire Tie (7 required)
67 030003 17 Red Lead
68 030004 Red and White Lead (joined)
69 030005 Bottom Housing Plate
70 030006 Screw (4 required)
033053 - Coil
Catalog/Model
WFG150
WFG150C
Waring Factory Service Center
314 Ella T. Grasso Ave.
Torrington, CT 06790
Tele. 1-800-269-6640
Fax 860-496-9017
www.waringcommercialproducts.com
WPG150
WPG150B
WPG150C

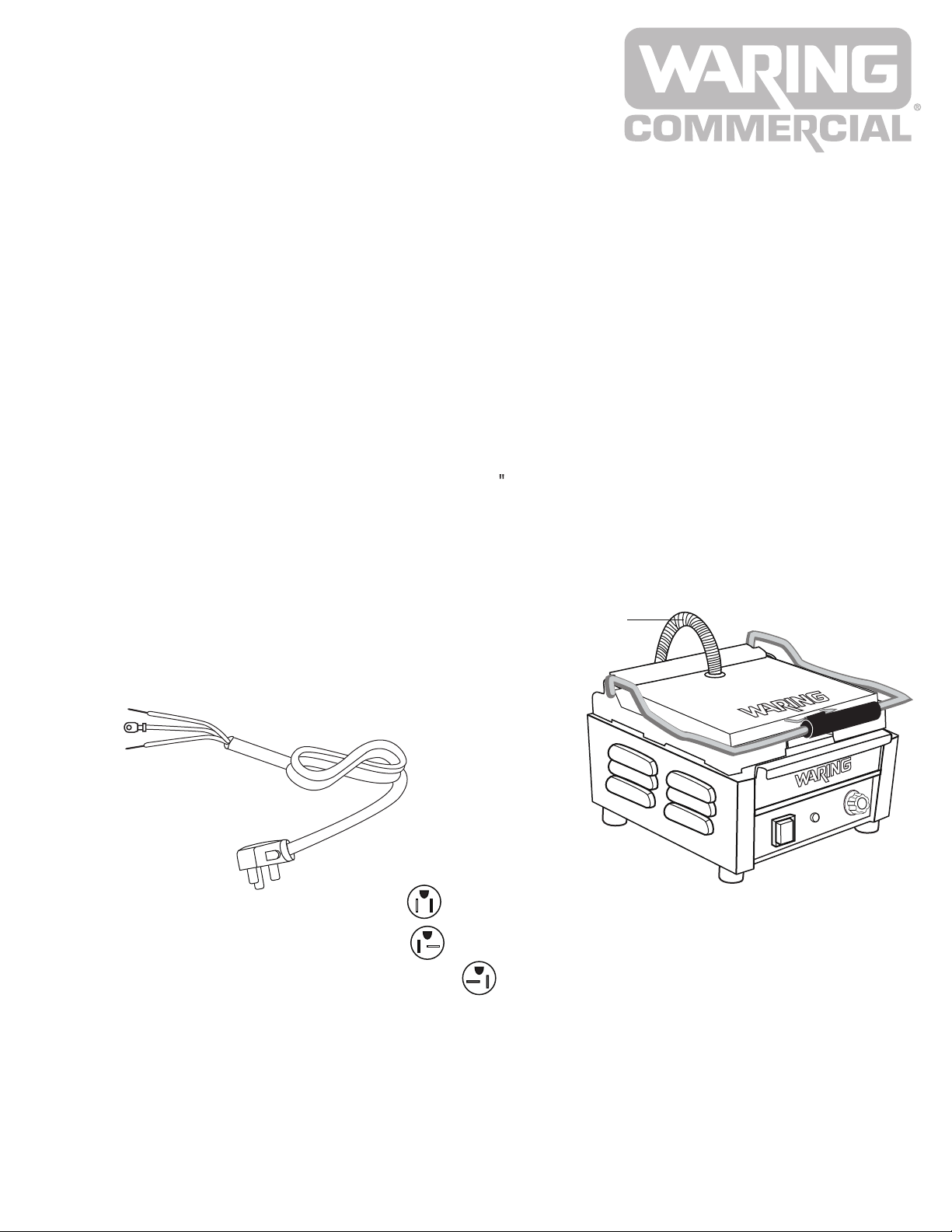

033681
- Cord 120 volt NEMA 5-15
033682
- Cord 208 Volt NEMA 6-20
033683
- Cord Canadian Unit NEMA 5-20
* Certified replacement of the cord set can
only be performed by an Authorized Service Center
or the Waring Factory Service Center.
