Operating Instructions
Heat-pump Dryer
It is essential to read these operating instructions before installing,
starting up, and using the appliance. This prevents both personal in-
jury and damage to the appliance.
en-US M.-Nr. 11 631 570
Contents
2
Caring for the environment ............................................................................. 6
IMPORTANT SAFETY INSTRUCTIONS ............................................................ 7
Operating the tumble dryer .............................................................................. 15
Control panel....................................................................................................... 15
Operating the sensor buttons.............................................................................. 16
Display................................................................................................................. 17
Examples on how to operate the appliance........................................................ 17
Energy-saving tips............................................................................................. 18
Functioning of the heat-pump dryer................................................................ 19
Initial set-up ....................................................................................................... 20
Downtime after installation.................................................................................. 20
Miele@home ........................................................................................................ 20
1. Notes on correct laundry care ..................................................................... 24
Points to note regarding washed laundry............................................................ 24
Preparing the laundry before drying.................................................................... 24
Drying .................................................................................................................. 25
Understanding the care label symbols........................................................... 25
Selecting the correct drying level................................................................... 25
2. Selecting a program...................................................................................... 26
3. Loading the tumble dryer ............................................................................. 28
Loading the laundry............................................................................................. 28
4. Selecting program settings .......................................................................... 29
Program settings ................................................................................................. 29
Selecting the drying level for programs with a selectable drying level .......... 29
Time-controlled and other programs.............................................................. 29
Selecting an extra option..................................................................................... 30
Delay start/SmartStart ................................................................................... 30
5. Starting a program ........................................................................................ 32
6. Program end – removing the laundry .......................................................... 34
Program end........................................................................................................ 34
Removing the laundry ......................................................................................... 34
Program chart.................................................................................................... 35
More programs.................................................................................................... 38
Contents
3
Extra options...................................................................................................... 41
Gentle .................................................................................................................. 41
Freshen up........................................................................................................... 41
Anti-crease .......................................................................................................... 41
Buzzer.................................................................................................................. 41
Drying program chart – extra options.................................................................. 42
Changing the program sequence .................................................................... 43
Adding or removing laundry ................................................................................ 43
Condensed water container ............................................................................. 44
Emptying the condensed water container .......................................................... 44
Preparing the condensed water container for the Steam Care program ............ 45
Fragrance flacon................................................................................................ 46
FragranceDos ...................................................................................................... 46
Removing the protective seal from the fragrance flacon..................................... 46
Inserting a fragrance flacon................................................................................. 47
Setting the fragrance intensity............................................................................. 48
Closing the fragrance flacon ............................................................................... 48
Removing/replacing the fragrance flacon ........................................................... 49
Cleaning and care ............................................................................................. 50
Lint filters............................................................................................................. 50
Removing the fragrance flacon ...................................................................... 50
Removing visible lint....................................................................................... 50
Cleaning the lint filters and air flow openings thoroughly .............................. 51
Cleaning the plinth filter....................................................................................... 54
Removing the plinth filter ............................................................................... 54
Cleaning the plinth filter.................................................................................. 55
Cleaning the plinth-filter access panel ........................................................... 56
Cleaning the dryer ............................................................................................... 56
Frequently Asked Questions ............................................................................ 57
The display indicates messages or faults ........................................................... 57
Unsatisfactory drying results............................................................................... 60
The drying cycle duration is very long................................................................. 61
General problems with the tumble dryer ............................................................. 62
Replacing the plinth filter..................................................................................... 63
Reactivating the plinth filter................................................................................. 65
Checking the heat exchanger unit....................................................................... 65
Cleaning the lint filter in the condensed water container .................................... 66
Replacing the blocked spray jet for the Steam Care program ............................ 67
Bottom right grille................................................................................................ 68
Contents
4
Customer Service.............................................................................................. 69
Contact in the event of a fault ............................................................................. 69
Appliance warranty and product registration ...................................................... 69
Optional accessories........................................................................................... 69
IMPORTANT SAFETY INSTRUCTIONS ............................................................ 71
Installation.......................................................................................................... 73
Front view ............................................................................................................ 73
Rear view............................................................................................................. 74
Transporting the tumble dryer ............................................................................. 74
Transporting the tumble dryer to its installation site ...................................... 74
Installation ........................................................................................................... 75
Leveling the tumble dryer............................................................................... 75
Downtime after installation............................................................................. 75
Ventilation....................................................................................................... 75
Before moving the tumble dryer again ........................................................... 76
Additional installation requirements .................................................................... 76
Product dimensions ............................................................................................ 78
Dimensions..................................................................................................... 78
Installation on a plinth .................................................................................... 78
Washer-dryer stack ........................................................................................ 78
Electrical connection ........................................................................................... 79
Connection adapter for NEMA 14-30 socket................................................. 79
External draining of condensed water................................................................. 80
Arranging the drain hose ................................................................................ 80
Condensate drain ........................................................................................... 80
Changing the door hinging.................................................................................. 81

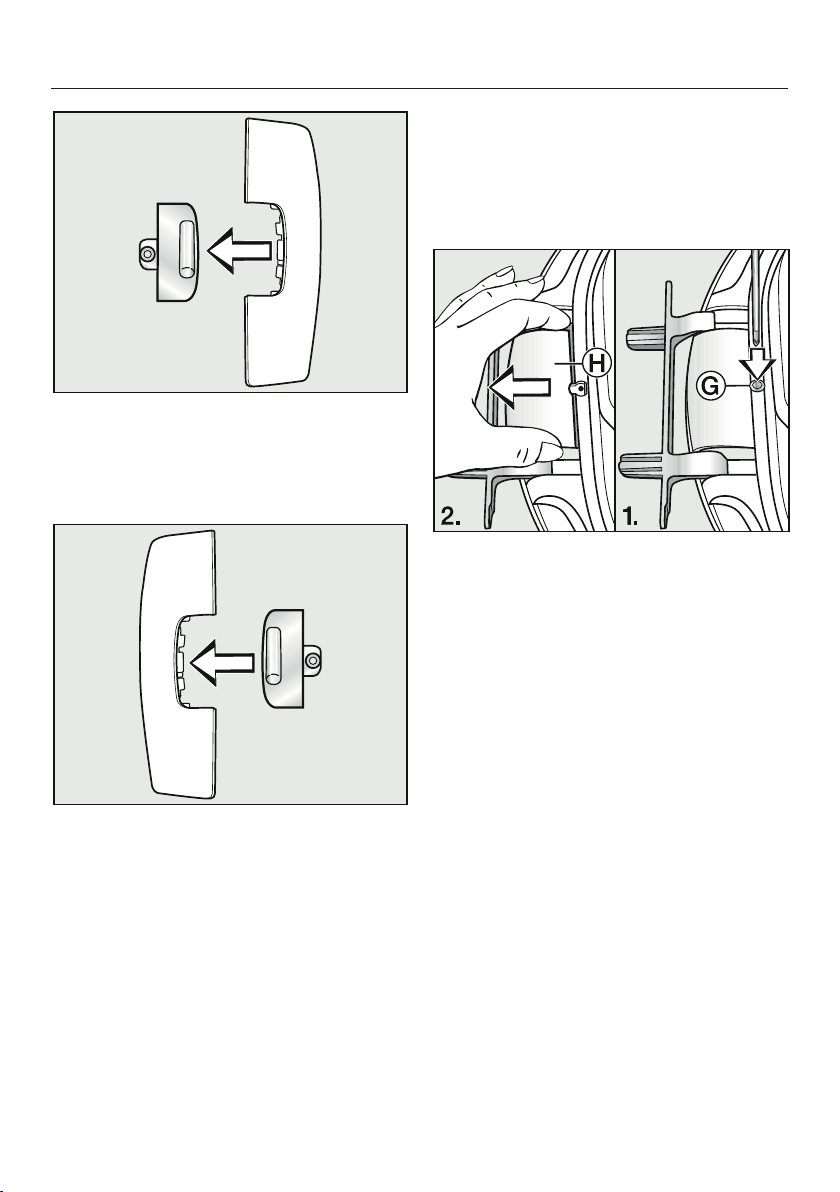

Changing the hinging over ............................................................................. 81
Refitting .......................................................................................................... 86
Technical data.................................................................................................... 87
Settings .............................................................................................................. 88
Accessing settings .............................................................................................. 88
Language ......................................................................................................... 89
Drying levels ........................................................................................................ 89
Welcome tone ..................................................................................................... 89
Keypad tone ........................................................................................................ 90
Buzzer volume..................................................................................................... 90
Airway indicator................................................................................................... 90
Conductivity ........................................................................................................ 91
Code.................................................................................................................... 91
Contents
5
Brightness ........................................................................................................... 91
Display............................................................................................................ 91
Buttons active ................................................................................................ 91
Buttons inactive.............................................................................................. 91
Display switch-off................................................................................................ 92
Memory ............................................................................................................... 92
Anti-Crease.......................................................................................................... 92
Program info........................................................................................................ 93
Miele@home ........................................................................................................ 93
Remote control.................................................................................................... 94
SmartGrid ............................................................................................................ 94
RemoteUpdate .................................................................................................... 95
Running a RemoteUpdate.............................................................................. 95
Caring for the environment
6
Disposal of packaging material
The packaging material protects the
dryer from transport damage. The pack-
aging materials used are selected from
materials which are environmentally
friendly for disposal and should be re-
cycled.
Recycling the packaging reduces the
use of raw materials in the manufactur-
ing process and also the amount of
waste. You can return the packaging to
your Miele dealer.
Disposal of your old appliance
Electrical and electronic appliances
contain valuable materials. They also
contain certain substances, compounds
and components which were essential
for the proper functioning and safe use
of the equipment. Handling these mate-
rials improperly by disposing of them in
your household waste can be harmful to
your health and the environment. There-
fore, please do not dispose of your old
appliance with regular household waste
and follow local regulations on proper
disposal.
Consult with local authorities, dealers or
Miele in order to dispose of and recycle
electrical and electronic appliances.
Miele assumes no responsibility for
deleting any personal data left on the
appliance being disposed. Please en-
sure that your old appliance is kept
away from children until removal. Ob-
serve safety requirements for appli-
ances that may tip over or pose an en-
trapment hazard.
IMPORTANT SAFETY INSTRUCTIONS
7
WARNING
To reduce the risk of fire, electric shock, or injury to persons when
using your appliance, follow basic precautions, including the fol-
lowing:
WARNING
This tumble dryer is intended for use in domestic households and
similar working and residential environments.
It is essential to read all instructions before using the appliance.
Do not allow children to play on or in the appliance. Close super-
vision is necessary when the appliance is used near children. Always
close the door after use to prevent child hazards.
Before this appliance is removed for service or discarded, remove
the door to the drying compartment.
Do not install or use a dryer with visible damage.
Do not reach into the dryer if the drum is moving.
Do not install or store this appliance where it will be exposed to
the weather.
Do not tamper with the controls.
Do not repair or replace any part of the appliance or attempt any
servicing unless specifically recommended in these operating in-
structions. Repairs to electrical appliances should only be performed
by qualified personnel. Incorrectly repaired machines may pose a
considerable risk to the user.
IMPORTANT SAFETY INSTRUCTIONS
8
Important information regarding use of fabric softener sheets:
We do not recommend use of fabric softener sheets. Use of fabric
softener sheets can clog the surfaces of the lint filters, extending the
drying time and increasing energy consumption. During subsequent
cleaning, the plastic and surfaces of the lint filters can be damaged!
The best results are obtained by using liquid fabric softener in the
washing machine. Follow the manufacturer's instructions.
If you still wish to use fabric softener sheets, be sure to follow the
cleaning instructions under “Cleaning and care” in the “Cleaning in-
structions when using fabric softener sheets” section.
Tip:
Using a fragrance flacon (optional accessory) will add a pleasant fra-
grance to your laundry.
When a fragrance flacon is used, the fragrance is acquired by the en-
tire load of laundry. The disadvantage of fabric softener sheets is
that under certain circumstances the fragrance is acquired by only a
few items of laundry, especially when drying a full load.
When you use a fragrance flacon, always follow the warnings
in this section as well as those under “Fragrance flacon”.
IMPORTANT SAFETY INSTRUCTIONS
9
To prevent the risk of fire, the following textiles must not be dried
in this dryer:
- items which have not been washed.
- items, such as work-wear, exposed to grease, oils, or other de-
posits (such as lotions or cosmetics) in your dryer. If these items
have not been thoroughly cleaned there is a danger that they may
contribute to a chemical reaction that could cause the laundry to
ignite when heated even after being removed from the dryer.
- items that have been previously cleaned, washed, soaked or
spotted with gasoline, dry-cleaning solvents or other flammable
or explosive substances. They may give off vapors that could ig-
nite or explode.
- items treated with flammable cleaning agents or items containing
acetone, alcohol, petrol, stain remover, wax or chemicals from
buffing, etc.
- items which have been splashed with hair spray, nail polish re-
mover, etc.
When washing heavily soiled items ensure that sufficient deter-
gent is used with a high temperature. If in doubt wash the item
several times.
- items containing foam rubber or similarly textured rubber-like ma-
terials.
- items with padding or filling (e.g. pillows or jackets) which have
been damaged. Loose filling could catch fire.
IMPORTANT SAFETY INSTRUCTIONS
10
Allow the dryer to complete each stage of the program selected,
including the cooling down phase. This will ensure that the items be-
ing removed are not too hot to handle.
Clean the lint filter before or after each load.
Keep the area around the air intake (toe kick) and adjacent sur-
rounding areas free from lint, dust and dirt.
The interior of the machine should be cleaned periodically by
qualified personnel.
GROUNDING INSTRUCTIONS
This appliance must be grounded. In the event of malfunction or
breakdown, grounding will reduce the risk of electric shock by pro-
viding a path of least resistance for electric current. This appliance is
equipped with a cord having an equipment grounding conductor and
a grounding plug. The plug must be plugged into an appropriate out-
let that is properly installed and grounded in accordance with all lo-
cal codes and ordinances.
WARNING – Improper connection of the equipment-grounding
conductor can result in a risk of electric shock. Contact a qualified
electrician if you are in doubt as to whether the appliance is properly
grounded.
IMPORTANT SAFETY INSTRUCTIONS
11
Do not modify the plug provided with the appliance: if it will not fit
the outlet, have a proper outlet installed by a qualified electrician.
Before installation, disconnect the tumble dryer from the electrical
supply by shutting off the power main, unplugging the power cord or
tripping the circuit breaker. Do not restore power until the installation
is complete.
Miele tumble dryers and Miele washing machines can be installed
as a washer-dryer stack. A Miele washer-dryer connection kit is re-
quired as an optional accessory for this. Please ensure that the
washer-dryer connection kit is suitable for the Miele tumble dryer
and the Miele washing machine.
If you order a plinth for this tumble dryer (available from Miele as
an optional accessory), make sure it is the correct one.
The maximum dry laundry weight is 17.6 lbs (8.0kg).
See the “Program chart” for the maximum recommended loads for
individual programs.
Do not place shoes inside the drum for drying. Placing shoes in-
side the drum for drying can cause the belt to tear, requiring a ser-
vice call.
You must always use the dryer basket (optional accessory) when
drying/airing shoes. Follow the additional operating instructions for
the dryer basket.
This tumble dryer is supplied with a special bulb to cope with par-
ticular conditions (e.g., temperature, moisture, chemical resistance,
abrasion resistance, and vibration). This special bulb must only be
used for the purpose for which it is intended. It is not suitable for
room lighting. Replacement bulbs may only be fitted by a Miele au-
thorized person or by Miele Service.
IMPORTANT SAFETY INSTRUCTIONS
12
Heat-pump technology and refrigerant:
The heat pump in this tumble dryer uses a gaseous refrigerant which
is condensed by the compressor. The refrigerant, which is brought to
a higher temperature level and liquified by condensing, is led in a
closed circuit through the heat exchanger unit where heat exchange
with the circulating drying air takes place.
- The humming noises caused by the heat pump during the drying
process are normal. This does not impair the efficient functioning
of the dryer.
- The refrigerant is not flammable or explosive.
- This tumble dryer contains fluorinated greenhouse gases. Her-
metically sealed.
Designation of refrigerant: R134a
Amount of refrigerant: 16.6 oz (0.47) kg
Global warming potential of refrigerant: 1430 kg CO
2
e
Global warming potential of appliance: 672 kg CO
2
e
This product contains chemicals known to the state of California
to cause cancer or reproductive harm. For more information go to
www.P65Warnings.ca.gov.
IMPORTANT SAFETY INSTRUCTIONS
13
Using a fragrance flacon (optional accessory)
Only use genuine Miele original fragrance flacons.
Store the fragrance flacon in its original packaging.
Caution: The fragrance can leak out of the flacon! Make sure that
you always keep the flacon, or the lint filter with the flacon inserted in
it, in a horizontal position when carrying and do not tip or place it
down on any surface.
Use an absorbent cloth to wipe up any fragrance which has
leaked out of the flacon onto the floor, the dryer or any dryer compo-
nents (e.g. the lint filter) immediately.
If fragrance comes in contact with the body: Wash skin thor-
oughly with soap and water. Flush eyes with clean water for at least
15minutes. If swallowed, rinse mouth thoroughly with clean water.
Seek medical attention if the fragrance comes in contact with the
eyes or is swallowed!
Immediately change clothes that have come in contact with the
fragrance. Thoroughly wash clothing or fabric using a large amount
of water and detergent.
There is the risk of fire or damage to the tumble dryer if the follow-
ing instructions are not observed:
- Never refill a flacon with fragrance or any other substance.
- Never use a faulty fragrance flacon.
Dispose of an empty fragrance flacon with the household waste
and never use it for any other purpose.
Please also observe the information supplied with the fragrance
flacon.
IMPORTANT SAFETY INSTRUCTIONS
14
FCC Declaration of Conformity
This appliance complies with Part 15 of the FCC regulations. This
appliance has been tested and found to comply with the limits for a
Class B digital device, pursuant to Part 15 of the FCC Rules and is
subject to the following conditions: This appliance does not cause
harmful interference. The appliances may be interconnected as de-
sired.
FCC Radiation Exposure Statement
This appliance complies with FCC RF radiation exposure limits set
forth for an uncontrolled environment. These appliances should be
installed and operated with a minimum distance of 8" (20cm) be-
tween the radiator and body.
Industry Canada Statement
This digital device does not exceed the Class B limits for radio
noise emissions from digital devices specified in the radio regula-
tions of the Canadian Radio-television and Telecommunications
Commission. This appliance complies with the Class B specification
of the Canadian ICES-003.
SAVE THESE INSTRUCTIONS
Operating the tumble dryer
15
Control panel
a
Control field
The control field consists of a dis-
play and various sensor buttons. The
individual sensor buttons are ex-
plained in the following sections.
b
Display
The following values are displayed
and/or selected on the display:
1. The program names, the drying
level, and the duration of the se-
lected program
2. The individual values of the selec-
tion lists for the settings
c
Sensor buttons
The values in the display can be
changed with the sensor but-
tons. The sensor button increases
the value or moves the selection list
up; the sensor button decreases
the value or moves the selection list
down.
d
OK sensor button
Confirm the selected values with the
OKsensor button.
e
PerfectDry indicator
The PerfectDry indicator will flash af-
ter the program has started and go
out when the program duration ap-
pears in the display. With programs
with a selectable drying level, the
PerfectDry system calculates the
residual moisture present in the
laundry to ensure a precise drying
result.
The PerfectDry indicator will light up
again when the selected drying level
is reached and remain on until the
end of the program.
In the Woolens Handcare, Silks
Handcare, Cold Air, Time Dry, Bas-
ket programs, the PerfectDry indica-
tor does not light up at all.
Operating the tumble dryer
16
f
Optical interface
This is used by Miele service techni-
cians as a transmission point.
g
Sensor buttons for extra options
You can select extra options to aug-
ment the wash programs.
If a drying program has been se-
lected, the sensor buttons for the
possible extra options light up dimly.
h
Sensor button
You can use the sensor button to
call up an energy consumption fore-
cast for the selected drying program.
i
Sensor buttons
The sensor button starts the de-
lay start function. With the delay
start function, you can delay the
start of the program. The start of the
program can be delayed from
15minutes up to a maximum of
24hours. This allows you to make
use of night-time economy electric-
ity rates, for example.
Additional information can be found
in “4. Selecting program settings”.
j
Start/Add laundry sensor button
Touching the Start/Add laundrysen-
sor button starts a program. The
current program can be interrupted
to add laundry. The program can be
started when the sensor button is
flashing on and off. The sensor but-
ton lights up constantly once the
program has started.
k
Program selector
For selecting programs and for
switching off. The tumble dryer is
switched on when you select a pro-
gram, and switched off by turning
the program selector to the posi-
tion.
Operating the sensor buttons
The sensor buttons react to fingertip
contact. Selection is possible as long
as the respective sensor button is illu-
minated.
If a sensor button is brightly lit, this
means: currently selected
If a sensor button is dimly lit, this
means: selection possible
Operating the tumble dryer
17
Display
The basic display shows the following
for a drying level program:
OK
Normal 0:55
- The selected drying level and the ex-
pected program duration
- The drying level reached after the
start of the program and the remain-
ing program duration
The basic display shows only the pro-
gram duration for a time-controlled pro-
gram:
OK
2:00
Examples on how to operate
the appliance
Scrolling through a list
The scroll bar in the display indicates
that a selection is available.
OK
Language
Touching the sensor button scrolls
down the list to the next option and
touching the sensor button scrolls up
the list to the next option. The OK sen-
sor button is used to activate the option
in the display.
Identifying the selected option
OK
On
An activated option in a list will have a
check mark next to it.
Setting numerical values
OK
:0000
Start in h
The numerical value is highlighted in
white. Touching the sensor button
decreases the value and touching the
sensor button increases it. The OK sen-
sor button is used to activate the value
in the display.
Leaving a sub-menu
Select Back to exit a sub-menu.
Energy-saving tips
18
This dryer with heat-pump technology
is designed for energy-saving drying
cycles. However, you can save a little
more energy with the following mea-
sures as the drying time is not ex-
tended unnecessarily.
- Make sure your laundry is spun at the
maximum spin speed in the washing
machine before drying.
The higher the spin speed, the
greater the savings that can be made
in energy and time during drying, e.g.,
approx. 20% energy can be saved if
spun at 1,600rpm instead of
1,000rpm.
- Load according to the optimum
amount of laundry recommended for
the drying program being used. This
will mean that the energy consump-
tion for the amount of laundry is at its
most economical.
- Make sure that the room temperature
is not too high. If there are other heat-
producing appliances in the room in
which the dryer is located, make sure
the room is well ventilated and switch
the other appliances off, if possible.
- Clean the lint filters in the door open-
ing after every drying cycle.
Viewing the estimated energy
consumption
You can view information about the
energy consumption of your tumble
dryer with the sensor button.
After selecting a drying program,
touch the sensor button.
The estimated energy-consumption lev-
els will be displayed as a bar chart.
OK
The more bars visible(), the higher the
energy consumption.
The estimate will vary depending on the
drying program and any extra options
selected.
Touch the OK sensor button or wait
until the display automatically returns
to the standard display.
Functioning of the heat-pump dryer
19
Two separate circuits ensure that the
laundry is dried:
Dry air circuit
The drying air flows through a heat ex-
changer, the drum, and several filters.
This is ensured by a blower in the
dryer.
- The drying air flows through the heat
exchanger in the longitudinal direc-
tion and is heated in the rear area.
- The drying air is then blown into the
drum, where it absorbs the moisture
of the laundry.
- The damp drying air is blown back
through the heat exchanger via sev-
eral filters in the fill area and the
plinth area of the dryer.
- The drying air cools down in the
front, cool area of the heat ex-
changer, and loses its moisture.
- The circuit begins again.
Refrigerant circuit
The refrigerant circuit regulates the
heating and cooling of the drying air
through the heat exchanger. The heat
pump is the central component: This
is a compressor that is connected to a
pipeline system which is filled with re-
frigerant.
- The pipeline system surrounds the
heat exchanger in several bends.
- The compressor draws in the
gaseous refrigerant and compresses
it, causing the temperature to rise.
- The hot refrigerant is passed through
the pipeline system to the rear of the
heat exchanger. The heat is released
into the drying air, which flows
through the heat exchanger.
- The refrigerant liquifies by dissipating
the heat.
- The liquid refrigerant then flows
through a capillary tube (a very thin
tube) to the front area of the heat ex-
changer. This changes the pressure
of the refrigerant.
- The refrigerant cools and reverts to
its gaseous state. This in turn cools
the front area of the heat exchanger
and dehumidifies the drying air.
- The circuit begins again.
Initial set-up
20
Downtime after installation
Damage caused by switching the
appliance on too soon.
This can damage the heat pump.
After setting up the tumble dryer,
wait for at least one hour before
starting a drying program.
Removing the protective film
and stickers
Remove:
- any protective film from the door
- any stickers from the front and from
the lid
Please do not remove any labels
(e.g., the data plate) which are visible
when you open the door.
Miele@home
Your tumble dryer is equipped with an
integrated WiFi module.
To use this feature, you will need:
- a WiFi network
- the Miele@mobile app
- a Miele user account You can create
a user account via the Miele@mobile
app.
The Miele@mobile app will guide you as
you connect your tumble dryer to your
home WiFi network.
Once your dryer is connected to your
WiFi network, you can use the app to
carry out various activities, such as:
- controlling your tumble dryer re-
motely
- calling up information on the operat-
ing status of your tumble dryer
- calling up information on the program
sequence of your tumble dryer
Connecting your tumble dryer to your
WiFi network will increase energy con-
sumption, even when the tumble dryer
is switched off.
Before installing the dryer in its final
location, ensure the signal strength is
sufficient for your WiFi network.
Initial set-up
21
Availability of the WiFi connection
The WiFi connection shares a frequency
range with other appliances (including
microwave ovens and remote control
toys). This can cause sporadic or even
complete connection failures. There-
fore, the availability of featured func-
tions cannot be guaranteed.
Miele@home availability
The ability to use the Miele app de-
pends on the availability of the
Miele@home service in your country.
The Miele@home service is not avail-
able in every country.
For information about availability,
please visit www.miele.com.
Miele App
The Miele App is available to download
free of charge from the Apple App
Store
®
or from the Google Play Store™.
Initial set-up
22
Switching on the tumble dryer
Turn the program selector to the Cot-
tons program.
The welcome tone will sound and the
welcome screen will light up.
Setting the display language
You will be asked to set the display lan-
guage. It is possible to change the lan-
guage at any time by setting the pro-
gram selector to the More programs/
position in the Settings sub-menu.
OK
english (US)
Touch the sensor button until the
language you want appears in the
display.
Confirm your language selection by
touching the OK button.
Setting up Miele@home
The following message appears in the
display:
Miele@home
Touch the OKsensor button.
OK
Set up now
To set up Miele@home now:
Touch the OK sensor button.
To postpone set-up until later:
Touch the sensor button until Set
up later appears in the display and
press the OK sensor button to con-
firm.
The following selection options appear
in the display:
1. Connect via WPS
2. Connect via App
Select the required connection type.
Initial set-up
23
You will then be guided by the display
and the Miele@mobile app.
Before installing the dryer in its final
location, ensure the signal strength is
sufficient for your WiFi network.
If the connection is successful, the fol-
lowing will appear in the display:
OK
Connection OK
Confirm with the OK sensor button.
You will require a WPS-compatible
router for the Connect via WPSconnec-
tion type.
Activate the WPS function on your
router within 2minutes.
Continuing set-up
Confirm with the OKsensor button.
Please see “1. Notes on correct laun-
dry care” first.
You can then select a program and
load the tumble dryer as described in
“2. Selecting a program“ and “3.
Loading the tumble dryer”.
The procedure for initial commissioning
is completed when a program lasting
longer than one hour has been carried
out in full.
1. Notes on correct laundry care
24
Points to note regarding
washed laundry
- When washing very heavily soiled
items, ensure that you use sufficient
detergent and select a high tempera-
ture. If in doubt, wash the items sev-
eral times.
- Do not load the drum with items that
are still soaking wet. Make sure your
laundry is spun at the maximum spin
speed before drying. The higher the
spin speed, the greater the savings
that can be made in energy and time
during drying.
- New dark colored garments should
be washed and dried separately from
light colored garments. There is the
risk of colors running and discoloring
other garments or even plastic com-
ponents in the dryer. Dark colored
fibers can also settle on light colored
garments and vice versa.
- Starched laundry can be tumble
dried. To achieve the usual finish,
double the amount of starch should
be used.
Preparing the laundry before
drying
Damage due to foreign objects
which were not removed from the
laundry.
Foreign objects can melt, burn, or
explode.
Ensure that any foreign objects (e.g.,
detergent dispensing balls, lighters,
etc.) have been removed from the
laundry.
Risk of fire due to incorrect use
and operation.
The laundry can burn and destroy
the dryer and the surroundings.
Read and observe “IMPORTANT
SAFETY INSTRUCTIONS”.
- Sort the laundry according to the type
of fiber and weave, size, garment
care label symbol, and the drying
level required.
- Check seams and stitching to ensure
that padding and linings are intact.
This way you will avoid the danger of
fillings coming out. These could catch
fire when being dried.
- Untangle the laundry.
- Tie together textile belts and apron
ties.
- Fasten duvet covers and pillow cases
to prevent small items from being
rolled up inside them.
- Fasten hooks and eyes.
- Leave jackets open and undo any
long zippers so that textiles dry
evenly.
- Sew in or remove underwiring from
bras.
- If necessary, reduce the size of the
load for these types of fabric. Easy
care fabric tends to crease more, the
larger the load. This is particularly the
case for garments made from very
fine weave fabric, such as dress
shirts or blouses.
1. Notes on correct laundry care
25
Drying
Tip: See the “Program chart”.
This describes the programs and gives
their maximum load.
- Always observe the maximum recom-
mended load for each program. This
will mean that the energy consump-
tion for the amount of laundry is at its
most economical.
- Down-filled garments have linings
which have a tendency to shrink, de-
pending on the quality of the item.
Only use the SoftSteam program for
these items.
- You should only tumble dry pure linen
if it is specified as suitable by the
manufacturer on the care label, as the
surface of the fabric may otherwise
become rough. Only use the Soft-
Steam program for these items.
- Woolens and wool blends tend to be-
come matted and shrink if tumble
dried. Only use the Woolens Hand-
care program for these items.
- Jersey fabrics (e.g., T-shirts, under-
wear) tend to shrink when they are
washed for the first time. Therefore,
do not over-dry the fabrics to prevent
them from shrinking further. Buy jer-
sey fabrics that are one or two sizes
bigger.
- Select the Gentle extra option for fab-
ric which is particularly heat-sensitive
or susceptible to creasing.
Understanding the care label sym-
bols
Drying
Normal/higher temperature
Low temperature*
* Select Gentle
Do not tumble dry
Ironing
Very hot
Warm
Hot
Do not iron
Selecting the correct drying level
- Extra Dry for hard-wearing and very
thick fabrics.
- Normal Plus if you want to fold the
laundry after drying and put it in the
closet.
- Normal for textiles that can shrink. Or
for light cotton or jersey textiles.
- Slightly Dry for particularly delicate
garments that you wish to line dry af-
terward.
- Hand Iron/ or Machine Iron if you
want to iron the laundry after drying.
2. Selecting a program
26
Switching on the tumble dryer
The tumble dryer is switched on when
you select a program and switched off
by turning the program selector to the
position.
Turn the program selector to a pro-
gram.
When a program is selected, the pro-
gram name and the maximum load
(weight of dry laundry) possible for the
program will appear in the display for
a few seconds.
Selecting a program
There are three possible ways to select
a program.
1. Selecting standard programs with
the program selector
Turn the program selector to the re-
quired program.
The selected program will be shown in
the display. This will then be replaced
by the standard display.
Important: When selecting the
Soft Steam program, you must make
sure that the condensed water con-
tainer has been filled as described in
these operating instructions (see
“Condensed water container”).
2. Selecting a program
27
2. Selecting programs via the “More
programs/” setting and the display
Turn the program selector.
You can select the program you want
via the display.
Touch the sensor buttons until
the program you want appears in the
display.
OK
Time Dry
Confirm the program with the OK
sensor button.
The selected program will be shown in
the display. This will then be replaced
by the standard display.
Important: When selecting the
Soft Steam program, you must make
sure that the condensed water con-
tainer has been filled as described in
these operating instructions (see
“Condensed water container”).
3. Selecting programs via the Mo-
bileStartprogram selector posi-
tion and the Miele@mobile app
Tip: In order to use MobileStart, the
tumble dryer must be logged on to the
WiFi network and Remote control must
be switched on.
Smoothing
Turn the program selector.
Follow the instructions in the display.
Touch the Start/Add laundry sensor
button.
The dryer can now be operated via a
mobile device together with the
Miele@mobile app.
3. Loading the tumble dryer
28
Loading the laundry
Textiles may be damaged.
Before loading, read “1. Notes on
correct laundry care”.
Unfold the laundry and load loosely
into the drum.
Do not overload the drum. Overload-
ing can cause unnecessary wear and
tear to the laundry, give a disappoint-
ing drying result, and cause more
creasing.
This can result in damage to the
laundry.
When closing the door, make sure
that laundry does not get trapped in
the door opening.
Twosockets for inserting fragrance
flacons
The “Fragrance flacon” chapter de-
scribes how to use the fragrance fla-
con.
If you are not using a fragrance flacon:
Push the tab down completely (see ar-
row) to close the socket. Otherwise,
lint will accumulate here.
Closing the door
Shut the door with a gentle swing.
4. Selecting program settings
29
Program settings
Selecting the drying level for pro-
grams with a selectable drying level
Normal, Delicates, Bed Linens, Dress
Shirts, Denims, SoftSteam, Express,
Outdoor, Table Linens/Drapes, Smooth-
ing, Wrinkle-free, Sportswear
The preset drying level can be
changed if required.
OK
Normal 0:55
Touch the or sensor buttons to
select a drying level.
Not all drying levels are suitable for use
with every program. The range is limited
for certain programs.
When selecting the Steam Care pro-
gram, you must make sure that the
condensed water container has been
filled as described in these operating
instructions (see “Condensed water
container”).
Time-controlled and other programs
Time Dry, Cold Air, Basket, DryFresh
You can change the duration in 10-
minute increments.
Cold Air: 20min – 1:00h
Time Dry: 20min – 2:00h
Basket: 40min – 2:30h
DryFresh: 1:00–2:00h
OK
2:00
Touch the or sensor buttons to
select a duration.
Woolens/Silks, Pillows, Proofing
The drying result is preset by the dryer
and cannot be altered.
4. Selecting program settings
30
Selecting an extra option
Anti-crease
Gentle
Buzzer
Freshen up
Touch a sensor button to select the
desired extra option.
The relevant sensor button will light up
brightly.
Freshen up and Gentle cannot be
combined, see “Extra options” for ad-
ditional notes.
Delay start/SmartStart
Delay start
With the delay start function, you can
delay the start of the program.
This function is active when the set-
ting SmartGrid is switched off.
The hours can be set in the values from
00 to 24. The minutes can be set in 15-
minute increments from 00 to 45.
Setting the delay start time
Touch the sensor button.
The following will appear in the display:
OK
:0000
Start in h
Set the hours with the and sen-
sor buttons. Confirm with the OK
sensor button.
The display will change:
OK
4506:
Start in h
Set the minutes with the and
sensor buttons. Confirm with the OK
sensor button.
Tip: The values will count upwards and
downwards automatically if you keep
your finger on the or sensor but-
ton.
Changing delay start
The selected delay start time can be
changed before the program start.
Touch the sensor button.
If desired, change the specified time
and confirm with the OK sensor but-
ton.
Canceling delay start
The selected delay-start period can be
canceled before the program starts.
Touch the sensor button.
The selected delay-start period will ap-
pear in the display.
4. Selecting program settings
31
Set a time value of 00:00 h with the
sensor buttons. Confirm with the
OK sensor button.
The selected delay-start period has
been canceled.
After the program has started, the se-
lected delay-start period can only be
changed or canceled by interrupting
the program.
Adding laundry during ongoing Delay
Start period
Follow the description in “Changing
the program sequence – Adding or
removing laundry”.
SmartStart
The SmartStart function lets you de-
fine a time period during which your
dryer will start automatically. The start
takes place via a signal, e.g., from
your energy supplier, that indicates
that the electricity rate is particularly
economical. Please check with your
local utility provider for availability.
This function is active when the Smart-
Grid setting is switched on.
The time period can be defined be-
tween 15minutes and 24 hours. During
this period, the dryer waits for the sig-
nal from the energy supplier. If no signal
is sent during the defined period, the
dryer starts the drying program.
Setting the timeframe
If you have activated the SmartGrid
function in Settings, SmartStart in in-
stead of Start in will appear in the dis-
play when you touch the sensor
button (see “Settings – SmartGrid”).
The procedure for setting this is the
same as for setting the time for delay
start.
Use the sensor buttons to enter
the hour and confirm your entry with
the OK sensor button.
The hour will be saved and the minute
number block will be highlighted.
Use the sensor buttons to enter
the minutes and confirm your entry
with the OK sensor button.
Press the Start/Add laundry sensor
button to start the drying program
with SmartStart.
The following will appear in the display:
OK
SmartStart
5. Starting a program
32
Starting a program
Touch the flashing Start/Add laundry
sensor button.
The Start/Add laundry sensor button
will light up and Drying appears in the
display.
Notes
If a delay start time has been selected,
then this will count down on the time
display. At the end of the delay start
time or immediately after the program
has started (if no delay start time has
been selected), the program duration
will appear on the time display.
With a longer delay start time, the drum
will rotate occasionally to untangle the
laundry. This is not a fault.
- The Perfect Dry indicator will only
flash/light up with programs with se-
lectable drying levels (see also “Op-
erating the tumble dryer”).
- This dryer measures residual mois-
ture content in the laundry to ensure
perfect drying results.
However, if you load the dryer with
little or dry laundry, it will be dried/
aired for a set duration. In this case,
Perfect Dry does not light up at the
end of the program.
Avoid overdrying items of laun-
dry and garments.
Otherwise they can wear out!
5. Starting a program
33
- The drying level reached for the se-
lected drying level program will light
up in the display.
- Before the program finishes, the laun-
dry is cooled.
Energy savings
After 10minutes, the indicators dim.
The Start/Add laundry sensor button
flashes slowly.
Touch the Start/Add laundry sensor
button to switch the indicators on
again (this does not have any effect
on a running program).
The drum lighting switches off once the
program has started.
Adding laundry
You can add laundry after the program
has started.
Follow the description in “Changing
the program sequence – Adding or
removing laundry”.
6. Program end – removing the laundry
34
Program end
The program is finished when End/Anti-
Crease or End appears in the display.
The Start/Add laundry sensor light goes
out.
The tumble dryer will switch off auto-
matically 15minutes after the end of the
Anti-crease phase (with programs with-
out an Anti-crease phase it will switch
off 15minutes after the end of the pro-
gram).
Removing the laundry
Only open the door when the drying
process has finished. Otherwise, the
laundry will not be properly dried
through and cooled down.
Pull the door open at the side with
the orange marker.
Remove the laundry.
Items left in the dryer could be dam-
aged by over-drying when the dryer
is used the next time.
Always remove all items from the
drum.
Turn the program selector to the
position.
Remove the lint from the 2 lint filters
in the door opening: see “Cleaning
and care”, “Cleaning lint filters”.
Shut the door gently.
Empty the condensed water con-
tainer.
Tip: The condensed water can be used
for the Steam Care program. See “Con-
densed water container – Preparing the
condensed water container for the
Steam Care program”.
Drum lighting
The inside of the drum lights up so that
you don't forget any items of laundry
when you empty it.
The drum lighting switches off automat-
ically (energy saving).
Program chart
35
All weights marked with * are based on the weight of dry laundry.
Normal Full load (17.6lb/8kg)*
Extra dry, Normal Plus, Normal**, Slightly dry
Items Single and multi-layered cotton items. For example, T-Shirts, under-
wear, baby clothes, workwear, jackets, covers, aprons, overalls,
hand towels, bath towels, bathrobes, and flannelette/bed linen.
Tip - Select Extra dry for multi-layered and very thick fabrics.
- Do not use Extra dry for jersey fabrics (e.g., T-shirts, underwear,
baby clothes) because they can shrink.
Hand Iron, Hand iron, Machine Iron
Items All cotton or linen fabrics requiring further processing. For example,
table linen, bed linen, or starched laundry.
Tip To prevent laundry from drying out it should be rolled up until you
are ready for ironing.
** Note: The Normal programme with the Normal drying level is the most energy-
efficient for drying cotton items with normal residual moisture levels. Using the
Normal programme with the Normal drying level is recommended for a mixed
cotton load and is the programme used in energy consumption tests to
CAN/CSA-C361-16 Standard and DOE test procedure methods specified at
10 CFR 430, Subpart B, Appendix D2.
Delicates Small load (5.7lb/2.5kg)*
Normal Plus, Normal, Slightly Dry, Hand Iron, Hand Iron
Items Delicate items with the symbol on the care label made of syn-
thetic fiber, mixed fiber, rayon, and easy care cotton. For example,
dress shirts, blouses, lingerie, and appliquéd garments.
Tip The load should be reduced further for a particularly crease-free dry-
ing process.
Program chart
36
Bed Linens Half load (8.8lb/4kg)*
Extra dry, Normal Plus, Normal, Slightly dry, Hand Iron, Hand Iron, Ma-
chine iron
Items Bed Linens
Tip - Select Extra dry for multi-layered and very thick fabrics.
- To prevent laundry from drying out it should be rolled up until you
are ready for ironing.
Woolens/Silks Small load (4.4lb/2kg)*
Items - For woolen garments and fabric containing wool blends. For ex-
ample, pullovers, knitted jackets, and pantyhose.
- Silk garments which are suitable for tumble drying, e.g., blouses
and shirts.
Tip - Woolen garments are loosened and fluffed up in a short amount of
time.
- The program reduces the amount of creases in silk garments that
are suitable for tumble drying.
- The items are not dried completely in this program.
- Please remove the garments as soon as the program has finished.
Dress Shirts Small load (4.4lb/2kg)*
Normal Plus, Normal, Slightly dry, Hand Iron, Hand Iron
Items For all shirts and blouses.
Denims Small load (6.6lb/3kg)*
Normal Plus, Normal, Slightly dry, Hand Iron, Hand Iron
Items All the denim garments, e.g., jackets, jeans, shirts, and skirts.
MobileStart
The Miele@mobile app is used to select the programs and operate the appliance.
Program chart
37
Smoothing Very small load (2.2lb/1kg)*
Normal, Hand Iron
Items - Cotton and linen fabric.
- For minimum iron items made of cotton, mixed, or synthetic fiber.
For example, pants, jackets, and shirts.
Tip - This program smoothes out creasing caused during the spin cycle
in the washing machine.
- This program is also suitable for dry fabrics.
- Please remove the garments as soon as the program has finished.
SoftSteam Very small load (2.2lb/1kg)*
Normal, Hand Iron
Items - All items made of cotton or linen fabric.
- For minimum iron items made of cotton, mixed, or synthetic fiber.
For example, pants, anoraks, and shirts.
Tip - For dampening the items before ironing.
- For smoothing items that are creased.
- Select Hand iron if the items are to be ironed after drying.
Note - At the beginning of the program, the condensed water collected in
the condensed water container is sprayed into the drum via a
spray jet. The condensed water container must therefore be filled
with water to at least the –min– marker.
- You can hear a humming noise during the spraying process.
Program chart
38
Express Half load (8.8lb/4kg)*
Extra dry, Normal Plus, Normal, Slightly dry, Hand Iron, Hand Iron, Ma-
chine Iron
Items Suitable for resistant garments for the Normal program.
Note The program duration is shortened.
Outdoor Small load (5.5lb/2.5kg)*
Normal, Hand Iron
Items Outdoor clothing which is suitable for drying in a tumble dryer.
More programs
Time Dry Full load (17.6lb/8kg)*
Items - For multi-layered fabric whose layers have different drying charac-
teristics, e.g., jackets, pillows, sleeping bags, and other volumi-
nous items.
- For drying individual items, e.g., bath towels, swimwear, dish
cloths, and towels.
Tip Do not select the longest drying time to start with. Check the items
as you are drying them to find the optimum time.
Table Linens/Drapes Half load (8.8lb/4kg)*
Normal, Hand Iron, Hand Iron
Items For resistant garments made of cottons, linens, or polycottons, e.g.,
table linen, curtains, and drapes.
Wrinkle-free Half load (8.8lb/4kg)*
Normal Plus, Normal, Slightly dry, Hand Iron, Hand Iron
Items For minimum iron items made of cotton, synthetic, or mixed fiber.
For example, workwear, overalls, pullovers, dresses, pants, panty-
hose, and table linen.
Program chart
39
Pillows 1–2 pillows
153/4" (40x80cm) or
1 pillow
311/2" (80x80cm)
Items Pillows suitable for drying in a tumble dryer, with feather, down, or
synthetic fillings.
Note/tip: - Items are dried to a Normal level only.
- Pillows can still feel damp after being dried. You can use this pro-
gram several times until the pillow feels dry.
Cold Air Full load (17.6lb/8kg)*
Items Any item which only needs airing.
Proofing Small load (5.5lb/2.5kg)*
Items For drying microfiber fabrics, skiwear, outdoor wear, fine,
closeweave cotton garments (poplin), and table linen which are suit-
able for drying in a tumble dryer.
Note - Items are dried to a Normal level only.
- This program includes a proofing fixing phase.
- Only use proofing agents which are stated by the manufacturer as
being “suitable for use on membrane textiles”. These agents con-
tain fluorochemical compounds.
- Risk of fire! Do not dry items which have been treated with proof-
ing agents containing paraffin.
Program chart
40
Basket Load for basket(7.7lb/3.5kg)
Note - This program may only be used with the Miele dryer basket (op-
tional accessory).
- You must follow the operating instructions for the dryer basket.
Fabric
type/Items
- You must follow the operating instructions for the dryer basket.
- Only use this program to dry or air items which are suitable for
drying in a tumble dryer but should not be physically tumbled.
- Do not place shoes inside the drum for drying. Placing shoes in-
side the drum for drying can cause the belt to tear.
You must always use the dryer basket when drying/airing shoes.
Sportswear Small load (6.6lb/3kg)*
Normal Plus, Normal, Slightly dry, Hand Iron, Hand Iron
Items For sportswear which is suitable for drying in a tumble dryer.
DryFresh Full load (17.6lb/8kg)*
Items Any item which only needs airing.
Note You can reduce or eliminate unwanted odors in clean, dry textiles.
Use this program in conjunction with the DryFresh fragrance flacon
(optional accessory
1
). Select a time of at least 60minutes in order to
freshen up the textiles effectively.
1
Insert fragrance flacon and set the intensity; see “Fragrance flacon”
Extra options
41
The drying programs can be aug-
mented with various extra options.
However, Freshen up and Gentle can-
not be combined.
Anti-crease
Gentle
Buzzer
Freshen up
Gentle
Delicate fabrics (with the symbol on
the care label, e.g., acrylic garments)
are dried at a lower temperature and the
program duration is longer.
Freshen up
You can use the Freshen up option to
help remove or reduce odors in clean
(dry or damp) clothing.
The drying air is heated up for a specific
length of time. After this, the garments
are aired to the Normal drying level
without any more heat being added.
The drying level cannot be altered.
The option will be more effective if you
dampen the garments a little before-
hand, use a fragrance flacon, and re-
duce the load. Please note that odors
will not be removed as effectively from
parts of garments made of synthetic
fibers.
Anti-crease
After the program has finished, the
drum will continue to rotate in a certain
rhythm. This “Anti-crease rhythm” helps
to prevent creasing if the laundry is not
removed immediately after the end of a
program.
Buzzer
A buzzer sounds to let you know the
program has finished. The continuous
buzzer which sounds during fault mes-
sages is independent of this setting.
Extra options
42
Drying program chart – extra options
Freshen up
1
Gentle
1
Anti-crease Buzzer
Normal X X X X
Delicates – O X X
Bed Linens – – X X
Woolens/Silks – – – X
Dress Shirts X X X X
Denims X X X X
Smoothing – O X X
SoftSteam – – X X
Express – – X X
Outdoor – O X X
Time Dry – X X X
Table Linens/
Drapes
– – X X
Wrinkle-free X X X X
Pillows – – X X
Cold Air – – X X
Proofing – – X X
Basket – – – X
Sportswear – O X X
DryFresh – – X X
1
= These extra options cannot be combined with one another
X = Can be selected
O = Cannot be changed/Always active
– = Cannot be selected
Changing the program sequence
43
Changing a program once it
has started
It is no longer possible to change the
selected program. This prevents the ap-
pliance being operated unintentionally.
If you adjust the program selector,
Change not possible will light up in the
display. This indicator goes out when
you select the original program.
Canceling the current program
Turn the program selector to the
position.
The program is canceled.
You can now select a new program.
Follow the prompt in the display.
Adding or removing laundry
You have forgotten an item of laundry,
but the program has already started.
Touch the Start/Add laundry sensor
button.
The following appears in the display:
Door can be opened. The Start/Add
laundry sensor button flashes slowly.
Open the door.
Add or remove laundry items.
You can still change the program selec-
tion.
Close the door.
Touch the Start/Add laundry sensor
button.
The program continues.
Exceptions when adding laundry
In some cases – for example, during
the cooling phase or the Proofing pro-
gram – it is not possible to add laun-
dry items.
In exceptional cases, the door can be
opened while the program is running.
Condensed water container
44
Emptying the condensed water
container
The condensed water is collected in
the condensed water container.
Empty the condensed water container
after every drying program.
When the maximum level in the con-
densed water container is reached, the
following message lights up in the dis-
play: Empty container See
To delete the message:
Open and close the door (with the
dryer switched on).
Remove the condensed water con-
tainer.
To prevent water from running out,
keep it in a horizontal position when
carrying it. Hold the condensed water
container at the front and towards the
back.
Empty the condensed water con-
tainer.
Replace the condensed water con-
tainer in the dryer.
It can cause health problems in peo-
ple and animals.
Do not drink condensed water.
The condensed water can be used for
the Soft Steam program. The con-
densed water container must be filled
to use this program (see the following
section).
Condensed water container
45
Preparing the condensed wa-
ter container for the Steam
Care program
During the Steam Care program, the
condensed water collected in the con-
densed water container is sprayed into
the drum via a spray jet. The con-
densed water container must therefore
be filled with water to at least the
–min– marker. Otherwise, this could
cause a fault.
The –min– marker is at the front left-
hand side of the container.
Make use of the condensed water
which collects during the drying
process.
Filling the empty condensed water
container
You can fill the condensed water con-
tainer with commercially available
condensed water (ironing water).
You should only use tap water in excep-
tional circumstances. If tap water is
used frequently, however, the spray jet
(in the door opening) can become calci-
fied.
1 spout, 2 rubber seal
Pour the water in through the rings of
the spout 1.
The spray jet in the door opening can
suffer a blockage.
It should only be filled with clean wa-
ter. The water must not contain any
fragrance, detergent, or other sub-
stances.
Checking the rubber seal from time
to time
If tap water is used frequently, white
limescale deposits can build up on the
rubber seal 2.
Use a damp cloth to carefully remove
any limescale deposits from the rub-
ber seal 2.
Fragrance flacon
46
FragranceDos
Fragrance flacons (optional acces-
sories) can be used to give your laun-
dry a pleasant scent.
This tumble dryer has 2sockets for in-
serting fragrance flacons. This gives
you a choice of how to use them.
- You can use both sockets if you wish
to change from one fragrance to an-
other. You can close the fragrance fla-
con that you are not using.
- Use both sockets if you want a more
intense scent of the same fragrance.
Or if you wish to conveniently switch
between a fragrance for normal laun-
dry and DryFresh to freshen up your
laundry.
- To use just one fragrance, use one
socket only.
Risk of fire and harm to health if
fragrance flacons are used incor-
rectly.
Leaked fragrance can be harmful to
your health if it comes into contact
with your body. Leaked fragrance
can cause fire.
Before using a fragrance flacon,
please read “IMPORTANT SAFETY
INSTRUCTIONS”, “Using the fra-
grance flacon (optional accessory)”.
Removing the protective seal
from the fragrance flacon
Only hold the fragrance flacon as il-
lustrated. Do not hold it at an angle
or tip it as the fragrance will leak out
of the flacon.
Hold the flacon securely so that you
do not open it by mistake.
Pull off the protective seal.
Fragrance flacon
47
Inserting a fragrance flacon
Open the door of the tumble dryer.
The fragrance flacon is inserted in the
upper lint filter. There is one socket on
the left-hand side of the recessed grip
and another on the right-hand side.
To open the cover, push the tab all
the way up to the top.
If you are not using a socket, keep its
cover closed to prevent the accumu-
lation of lint.
Push the tab of the cover all the way
down (see arrow), until you hear it
click into position.
Insert the fragrance flacon as far it will
go into the socket.
The markers and must line up
with one another.
Fragrance flacon
48
Turn the outer ring clockwise a lit-
tle.
The fragrance flacon may slip out.
Turn the outer ring so that the mark-
ers and line up.
Setting the fragrance intensity
Before drying, you can select the inten-
sity of the fragrance.
Turn the outer ring clockwise: the fur-
ther you open the fragrance flacon,
the more intense the fragrance.
Damp laundry and longer drying dura-
tions with sufficient heat transfer are
needed for the fragrance to be released
into the laundry effectively.
The fragrance will also be noticeable in
the room air during the process. The
Cold Air program will not generally ap-
ply fragrance.
Closing the fragrance flacon
After drying, the fragrance flacon should
be closed to prevent the fragrance from
escaping needlessly.
Turn the outer ring counterclockwise
until markerb is in position_.
Replace the fragrance flacon with a
new one when the intensity of the fra-
grance is no longer sufficient.
Fragrance flacon
49
Removing/replacing the fra-
grance flacon
Turn the outer ring counterclockwise
until the markersa andb line up.
Replace the fragrance flacon with a
new one.
When not in use, you can store the fra-
grance flacon in its original packaging.
Fragrance flacons are available to or-
der from Miele dealers, Miele Cus-
tomer Service, or online.
Fragrance can leak out of the flacon.
Do not lay the fragrance flacon
down.
- If you are keeping the fragrance fla-
con in its original packaging, do not
store the packaging upright on its
edge or upside down. Otherwise, the
fragrance will leak out.
- Always store in a cool, dry place
away from direct sunlight.
- When purchasing new fragrance fla-
cons, only remove the protective seal
just before use.
Cleaning and care
50
Lint filters
This tumble dryer has 2 lint filters in
the door opening: the upper and lower
lint filters trap lint produced during the
drying process.
Clean the lint filters after each drying
program. This prevents an extension
of the program duration.
Also clean the lint filters when this
message appears in the display: Clean
the lint and plinth filters. See the Operating
Instructions for more information.
To delete the message:
Confirm with OK.
Removing the fragrance flacon
The intensity of the fragrance will be re-
duced if the lint filters and plinth filter
are not cleaned.
Remove the fragrance flacon. See
“Fragrance flacon”, “Removing/re-
placing the fragrance flacon”.
Removing visible lint
Tip: You can also use a vacuum cleaner
so that you can remove the lint without
touching it.
Open the door.
Pull the upper lint filter forward to re-
move it.
Remove the lint (see arrows).
Cleaning and care
51
Remove the lint (see arrows) from the
filter surface of all the lint filters and
the perforated laundry deflector.
Push the upper lint filter back into po-
sition until it clicks.
Close the door.
Cleaning the lint filters and air flow
openings thoroughly
If the drying duration has become
longer or the surface of the filters is
visibly compacted with lint, you should
carry out the following cleaning proce-
dure.
Remove the fragrance flacon. See
“Fragrance flacon”.
Pull the upper lint filter forward to re-
move it.
Turn the yellow dial on the lower lint
filter in the direction of the arrow (until
you hear it click).
Cleaning and care
52
Hold the dial and pull the lint filter for-
ward to remove it.
Use a vacuum cleaner with a long
crevice nozzle attached to remove
any visible lint from the upper air flow
openings.
Finally, clean the lint filters with water.
Cleaning the lint filters with water
Wipe the smooth plastic surfaces of
the lint filters with a damp cloth to
clean them.
Flush the lint filters through with
warm running water.
Shake the lint filters thoroughly and
then dry them carefully.
Ensure the filters are dry before re-
placing them. Wet filters could cause
operational faults.
Push the lower lint filter in completely
and lock it with the yellow dial.
Push the upper lint filter in com-
pletely.
Close the door.
Cleaning and care
53
Cleaning instructions when using
fabric softener sheets
If you are using fabric softener sheets,
please follow these warnings and in-
structions.
First, clean the filters as de-
scribed in “Cleaning the lint filters
with water”.
If the surfaces of the lint filters are
still strongly compacted with lint,
then follow these measures.
Please note the plastic and surfaces
of the lint filters can be damaged by
the cleaning process described be-
low.
If the surfaces of the lint filters
are not cleaned, this can extend the
drying time and increase the energy
consumption.
Try the following 3 cleaning instructions
to determine the one that achieves the
best results.
Option 1
Wipe the surfaces of the lint filters
several times with a cleaning cloth
with an alcohol base until you have
removed any debris//obstructions.
Risk of fire!
Then rinse the filter surfaces thor-
oughly with warm water to remove all
residues.
Option 2
Clean the lint filters in the dishwasher
without any other dishes. Use a high-
temperature program.
Option 3
Wet the surfaces of the lint filters with
a liquid color detergent (e.g., Miele
Ultra Color Liquid Laundry Detergent).
Leave it on for approx. 2 hours.
Risk of fire!
Then rinse the filter surfaces thor-
oughly with warm water to remove all
residues.
Cleaning and care
54
Cleaning the plinth filter
Clean the plinth filter when the pro-
gram duration has been extended or
when this message appears in the dis-
play: Clean the lint and plinth filters. See
the Operating Instructions for more infor-
mation.
To delete the message:
Confirm with OK.
Removing the plinth filter
Press the round, indented area on the
heat exchanger access panel to open
it.
The access panel will spring open.
Pull the plinth filter out by the handle.
The right-hand guide pin comes out
when the plinth filter is removed. The
guide pin prevents the access panel
from closing without the plinth filter.
Cleaning and care
55
Cleaning the plinth filter
Pull the handle out of the plinth filter.
Clean the plinth filter thoroughly un-
der running water.
Squeeze the plinth filter very carefully
several times as you rinse it.
Rinse the plinth filter until all visible
residues have been removed.
Use a damp cloth to remove any lint
from the handle.
Damage caused by a damaged
or worn plinth filter.
The heat exchanger will clog up if the
plinth filter is not in good working or-
der. This can cause a fault.
Check the plinth filter following the
instructions provided in “Frequently
Asked Questions – Replacing the
plinth filter”. Replace the plinth filter if
necessary.
Install the plinth filter back on the
handle. Make sure it is the correct
way round.
Push the plinth filter in completely.
This will push in the right-hand guide
pin at the same time.
Cleaning and care
56
Cleaning the plinth-filter access
panel
Use a damp cloth to remove any lint.
Make sure that you do not damage
the rubber seal when doing this.
Close the heat-exchanger access
panel.
Damage or ineffective drying if
drying takes place without a plinth
filter or when the heat-exchanger ac-
cess panel is open.
An excessive accumulation of lint
can damage the tumble dryer. If the
system is not leak-tight, this can
make the drying ineffective.
Only operate the tumble dryer with
the plinth filter installed and the heat-
exchanger access panel closed.
Cleaning the dryer
Disconnect the tumble dryer from the
electrical supply.
Damage due to the use of un-
suitable care products.
Unsuitable care products could dam-
age plastic surfaces and other parts.
Do not use any solvents, abrasive
cleaners, glass cleaners, or all-pur-
pose cleaners.
Clean the tumble dryer and the seal
on the inside of the door with a
slightly damp soft cloth and a mild
solution of liquid dish soap and water.
Dry all the parts with a soft cloth.
Frequently Asked Questions
57
With the help of the following guide minor faults in the performance of the ma-
chine, some of which may result from incorrect operation, can be remedied with-
out contacting the Service Department.
This guide may help you to find the reason for the fault, and how to correct it.
Some of the messages in the display are more than one line long. Touch the or
sensor button to read them in full.
The display indicates messages or faults
Message Possible cause and solution
000 lights up after
switching on.
The PIN code is activated.
Enter the code and confirm the entry. Deactivate
the PIN code if you do not wish this message to
appear in the display the next time the machine is
switched on.
End/Cooling down The laundry will be cooled down at the end of the
program.
Either remove the laundry and spread it out to cool
down or leave it in the tumble dryer to cool down
during the cooling phase.
Clean plinth filter.
See lights up
at the end of a
program.
The tumble dryer is not working correctly or econom-
ically. Possible causes could be clogging caused by
lint or detergent residue.
Please see “Cleaning and care” for notes on clean-
ing.
Clean the lint filters.
Also check the plinth filter and clean it if neces-
sary.
To switch off the message: press OK.
You can influence when the Clean plinth filter. See
message lights up.
To do this, follow the instructions in “Settings –
Airway indicator”.
Frequently Asked Questions
58
Message Possible cause and solution
Clean plinth filter.
See lights up
after a program
has been can-
celed.
The system has been clogged by lint or detergent
residue.
To switch off the message: press OK.
Clean the lint filters and the plinth filter.
Please see “Cleaning and care” for notes on clean-
ing.
Check that the lint filters and the plinth filter are
not damaged or worn.
If all lint filters are damaged, deformed, or cannot be
cleaned anymore, they must be replaced. For infor-
mation on when to replace a plinth filter that is not
functioning properly, refer to “Frequently Asked
Questions – Replacing the plinth filter”.
Clean plinth filter.
See continues
to light up after a
program has
been canceled,
despite thorough
cleaning.
The plinth filter looks clean after thorough cleaning.
However, the program terminates and the fault mes-
sage appears again. It is likely that there is still un-
derlying residue that could not be removed.
To switch off the message: press OK.
Check for the possible causes described below.
The heat exchanger is clogged.
Check the heat exchanger. Follow the instructions
described in “Frequently Asked Questions –
Checking the heat exchanger”.
The plinth filter is clogged further down.
Check the plinth filter. Follow the instructions de-
scribed in “Frequently Asked Questions – Replac-
ing the plinth filter”.
If the plinth filter is not deformed or defective, you
can reactivate it in the washing machine. Follow
the instructions described in “Frequently Asked
Questions – Reactivating the plinth filter”.
Frequently Asked Questions
59
Message Possible cause and solution
Empty container See
lights up after
a program has
been canceled.
The condensed water container is full or there is a
kink in the drain hose.
Empty out the condensed water container.
Check the drain hose.
To switch the fault message off:
Open and close the door while the dryer is
switched on or switch the dryer off and back on
again.
Soft Steam
This is to remind you that water is taken from the
condensed water container when the Soft Steam pro-
gram is being used. The condensed water container
must be filled with water to at least the –min–
marker.
Fill the condensed water container.
To switch off the message:
Confirm with OK.
Open & close door
This it to remind you to load the laundry when the
SoftSteam program is selected.
Load the laundry in the drum.
Blockage detected.
See lights up
after a program
has been inter-
rupted.
The laundry is unevenly distributed or has rolled up.
Open the door and untangle the laundry, and re-
move a few items, if necessary.
Switch the dryer off and then on again.
Start a program.
Service Fault F
XXX lights up af-
ter a program
has been inter-
rupted.
There is no obvious cause.
Switch the dryer off and then on again.
Start a program.
If the program is interrupted again and an error mes-
sage appears, there is a fault. Contact Miele Service.
Frequently Asked Questions
60
Unsatisfactory drying results
Problem Possible cause and solution
The laundry is not suffi-
ciently dry.
The load consisted of different types of fabric.
Finish drying using the Time Dry timed drying pro-
gram.
Select a more suitable program next time.
Tip: You can alter the residual moisture level for some
programs. See “Settings”.
The laundry or feather-
filled pillows develop a
smell after drying.
The laundry was washed with insufficient detergent.
Feathers have the property of developing a signifi-
cant odor when they are warm.
Laundry: use sufficient detergent.
Pillows: take out of the tumble dryer and air them.
Use a fragrance flacon (available as an optional
accessory) for your favorite fragrance.
Items made of synthetic
fibers are charged with
static electricity after
drying.
Synthetic fibers tend to attract static charge.
Static charge can be reduced by adding a fabric
softener to the final rinse in the washing program.
There is a build-up of
lint.
Lint is principally the result of friction when garments
are being worn and to some extent when they are be-
ing washed. Machine drying hardly causes any lint to
form.
Lint is collected by the lint filters and the plinth filter
and can be removed easily.
See “Cleaning and care”.
Frequently Asked Questions
61
The drying cycle duration is very long
Problem Possible cause and solution
The drying process
goes on too long or
even switches off.*
The room where the tumble dryer is located is too
warm.
Ventilate the room thoroughly.
Detergent residue, hair, and fine lint can clog the fil-
ters.
Clean the lint filters and the plinth filter.
Remove visible lint
– at the bottom left, behind the panel in the heat
exchanger cavity (see “Cleaning and care”)
– at the bottom right of the cooling fins behind the
grille (see the end of this section)
The laundry is unevenly distributed or has rolled up.
The drum is too full.
Untangle the laundry and remove a few items.
Start a program.
The cool air intake (bottom right grille) is blocked.
Move any objects, such as a laundry basket, away
from the dryer.
The laundry is too damp.
Spin using a higher spin speed in the washing ma-
chine.
Metallic components, e.g., zippers, have prevented
the dryer from registering the correct moisture level.
Open the zippers next time.
If the problem recurs, dry these items using the
Time Dry program.
* Switch the tumble dryer off and on again before starting a new program.
Frequently Asked Questions
62
General problems with the tumble dryer
Problem Possible cause and solution
You can hear operating
noises (buzzing/hum-
ming).
This is not a fault.
The compressor (heat pump) is operating.
No action required. These noises are quite normal
and can be heard when the compressor is operat-
ing.
A program does not
start.
There is no obvious cause.
Connect the power plug.
Turn on the tumble dryer.
Close the door.
Check whether the fuse has tripped.
Power outage? When power is restored, any previ-
ously running program will restart automatically.
The display is off and
the Start/Add laundry
sensor button is flash-
ing slowly.
The display has switched off automatically to save
energy (Standby mode).
The drum will turn at intervals in the Anti-crease
phase.
Press any button. This switches Standby off.
The tumble dryer is
switched off at the end
of the program.
The tumble dryer switches off automatically. This is
not a fault, but a normal function.
The display is in a dif-
ferent language.
A different language has been selected in “Settings,
Language ”.
Set the language you want. The flag symbol will
guide you.
The interior drum light-
ing does not come on.
Not a fault. The drum lighting switches off automati-
cally in the following cases:
If the door is closed.
If the door remains open for an extended period of
time.
Frequently Asked Questions
63
Replacing the plinth filter
The heat exchanger can clog up.
Replace the plinth filter immediately
if you see the following signs of wear
before or after cleaning (optional ac-
cessory).
Poor fit
The edges of the plinth filter do not sit
properly and the plinth filter is de-
formed. Lint will blow into the heat ex-
changer unfiltered through edges that
do not sit properly. This will cause a
permanent obstruction in the heat ex-
changer.
Deformation
Deformations indicate that the plinth fil-
ter has become worn.
Frequently Asked Questions
64
Cracks, tears, indentations
Lint will blow into the heat exchanger
through cracks and tears. This will
cause a permanent obstruction in the
heat exchanger.
White residues or residues of other col-
ors
Residues arise from laundry fibers and
traces of detergent components. They
can be found on the front and side
edges of the plinth filter. In extreme
cases, they can form stubborn crust.
Residues are a sign that the plinth filter
no is longer a snug fit at the sides, even
if it appears to be perfect:
Lint is getting in unfiltered at the edges.
Reactivate the plinth filter. If these
residues appear on the plinth filter again
soon after cleaning, the plinth filter must
be replaced.
Frequently Asked Questions
65
Reactivating the plinth filter
You can reactivate one or more dirty
plinth filters in the washing machine.
You will then be able to use the plinth
filter again.
Prior to reactivation, check that the
plinth filter is in good order. Check the
plinth filter following the instructions
provided in “Frequently Asked Ques-
tions – Replacing the plinth filter”. Re-
place the plinth filter if it has worn out.
Wash the plinth filter(s) separately,
not with any laundry items. Do not
add any detergent.
Select a short wash program with a
maximum temperature of 104°F
(40°C) and a maximum spin speed of
600rpm.
You can re-insert the plinth filter once
the wash and spin cycle is complete.
Checking the heat exchanger
unit
Risk of injury from sharp cooling
fins.
You could cut yourself.
Do not touch the cooling fins with
your hands.
Look to see if lint has accumulated.
Remove any lint you can see.
Damage due to incorrect clean-
ing of the heat exchanger.
The tumble dryer will not dry if the
cooling fins are damaged or bent.
Clean using a vacuum cleaner with a
dusting brush attached. Only pass
the vacuum cleaner dusting brush
over the heat-exchanger fins lightly,
without applying any pressure.
Vacuum up any lint and residues.
Frequently Asked Questions
66
Cleaning the lint filter in the
condensed water container
In some circumstances, there can be
problems running the Steam Care pro-
gram. The lint filter at the end of the
hose which is connected to the rubber
seal in the condensed water container
could be blocked.
Remove the condensed water con-
tainer.
Pull out the spout. Remove the spout
by holding the side lug and pulling
upwards.
To avoid detaching the hose, be
careful not to tug on it.
Guide the end of the hose through
the opening and hold it securely with
one hand.
Use your other hand to pull the lint fil-
ter off the hose.
Rinse the lint filter with a jet of water
until all the lint has been removed.
Refit the cleaned lint filter onto the
hose.
Now feed the hose with its lint filter
attached into the condensed water
container.
Refit the spout in the condensed wa-
ter container ensuring that it is posi-
tioned correctly. Please refer to the
image.
Frequently Asked Questions
67
Replacing the blocked spray
jet for the Steam Care program
Limescale deposits will impair the
spray jet.
In this case, the spray jet must be re-
moved and replaced with a new one
(see “Optional accessories”).
You can only replace the spray jet us-
ing a special tool. The special tool is
supplied with the new spray jet.
Using the wrong tool can cause
damage.
Doing so can damage the spray jet
or the tumble dryer.
Only use the tool supplied. Do not
use any other tool.
The Steam Care program must never
be used without the spray jet in-
stalled and screwed in correctly.
Open the door of the tumble dryer.
The spray jet is located in the top left of
the door opening.
Attach the tool to the spray jet.
Turn the tool counterclockwise to un-
screw the spray jet.
Insert the new spray jet in the tool.
Turn the tool clockwise to screw the
spray jet securely in position.
Frequently Asked Questions
68
Bottom right grille
In general, the cooling fins be-
hind the grille on the bottom right do
not need cleaning. They should only
be cleaned if the drying process is
taking an exceptionally long time due
to a very high level of dust or lint in
the room in which the dryer is lo-
cated.
First open the panel for the plinth fil-
ter (bottom left).
To remove the grille, the catch under-
neath it needs to be released using a
teaspoon.
Insert a spoon handle underneath the
grille in the middle.
Press the spoon handle against the
catch and lever the grille open.
Remove the grille.
Danger of injury! Do not touch
the cooling fins with your hands. You
could cut yourself.
Clean using a vacuum cleaner
with a dusting brush attached. Only
pass the vacuum cleaner brush over
them lightly, without applying any
pressure.
Take care not to bend the cooling
fins out of shape or to damage them.
Carefully vacuum up any visible lint or
dirt.
Re-insert the 3 hooks on the grille
into the appropriate holes in the front
of the dryer.
Press the grille firmly back into posi-
tion by pressing it in at the middle on
the left.
Customer Service
69
Contact in the event of a fault
In the event of a fault which you cannot
remedy yourself, please contact your
Miele dealer or Miele Customer Service.
You can book a Miele Service Call on-
line at www.miele.com/service.
Contact information for Miele Cus-
tomer Service can be found at the end
of this document.
Please quote the model identifier and
serial number of your appliance (SN)
when contacting Miele Customer Ser-
vice. Both pieces of information can be
found on the data plate.
Open the door of your tumble dryer to
find the data plate:
Appliance warranty and prod-
uct registration
You can register your product and/or
view the manufacturer´s warranty terms
and conditions for Miele appliances and
vacuum cleaners at
www.mieleusa.com.
Optional accessories
Optional accessories for this tumble
dryer are available from your Miele
dealer or Miele Service.
You also can order these and many
other useful products from the Miele
online shop.
Dryer basket
The dryer basket enables items which
must not be subjected to mechanical
action to be dried or aired.
Fragrance flacon
A fragrance flacon can be used in your
tumble dryer to add a pleasant fra-
grance to your laundry.
70
Installation instructions
Alteration rights reserved.
Visit our website for all the current product specifications, technical appliance
information, and warranty information.
To avoid accidents or damage to the appliance, please read these instructions
before installing and/or using it.
IMPORTANT SAFETY INSTRUCTIONS
71
, WARNING - Risk of Fire
To reduce the risk of severe injury or death, follow all installation
instructions.
Clothes dryer installation must be performed by a qualified in-
staller.
Install the clothes dryer according to the manufacturer's instruc-
tions and local codes.
Repair and maintenance work should be performed by a Miele au-
thorized service technician. Work by unqualified persons could be
dangerous and could void the warranty.
Before installation, disconnect the tumble dryer from the electrical
supply by shutting off the power main, unplugging the power cord or
tripping the circuit breaker. Do not restore power until the installation
is complete.
GROUNDING INSTRUCTIONS
This appliance must be grounded. In the event of malfunction or
breakdown, grounding will reduce the risk of electric shock by pro-
viding a path of least resistance for electric current. This appliance is
equipped with a cord having an equipment grounding conductor and
a grounding plug. The plug must be plugged into an appropriate out-
let that is properly installed and grounded in accordance with all lo-
cal codes and ordinances.
WARNING – Improper connection of the equipment-grounding
conductor can result in a risk of electric shock. Contact a qualified
electrician if you are in doubt as to whether the appliance is properly
grounded.
Do not modify the plug provided with the appliance: if it will not fit
the outlet, have a proper outlet installed by a qualified electrician.
Do not use an extension cord to connect this appliance to the
power supply. Extension cords do not guarantee the required safety
of the appliance (e.g. danger of overheating).
IMPORTANT SAFETY INSTRUCTIONS
72
The installation of this unit in non stationary locations (e.g. ships)
must be performed by a qualified installer or service agency, in strict
accordance with national and local safety regulations and standards.
Do not install the machine in rooms where temperatures below
freezing may occur.
This dryer is not intended for wall-insert.
If there is any doubt concerning installation, contact Miele’s Ser-
vice Department.
USA
888-99-MIELE(64353) [email protected]
CDN
1-800-565-6435 [email protected]
SAVE THESE INSTRUCTIONS
Installation
*INSTALLATION*
73
Front view
a
Drain hose for condensed water
b
Power cord
– Observe the section entitled
“Electrical connection”.
c
Control panel
d
Condensed water container
– empty after every drying cycle
e
Door
– do not open during drying
f
Access panel to the heat exchanger
and plinth filter
– do not open during drying
g
Cool air intake grille
– do not obstruct with a laundry bas-
ket or other objects
h
Four height-adjustable screw feet
Installation
*INSTALLATION*
74
Rear view
a
Protruding lid for holding when mov-
ing the tumble dryer (see arrows)
b
Drain hose for condensed water
c
Hook for winding the power cord
during transport
d
Power cord
Transporting the tumble dryer
Danger of injury to people and
damage to property caused by mov-
ing the appliance incorrectly.
If the tumble dryer tips up, there is a
danger of injury to people and dam-
age to property.
Ensure that the tumble dryer is stable
during transportation.
If the tumble dryer is being trans-
ported on its side, it must be tipped
onto its left or right side.
If the tumble dryer is being trans-
ported upright and you are using a
hand truck, you must transport it with
its left or right side resting on the
truck.
Transporting the tumble dryer to its
installation site
The fixings at the back of the lid
may become brittle due to external
circumstances.
There is a danger of the lid being
pulled off when carrying the appli-
ance.
Before carrying the appliance check
that the lid is secure where it pro-
trudes at the back of the appliance.
Carry the tumble dryer by the front
feet and by the lid where it protrudes
at the back of the appliance.
Installation
*INSTALLATION*
75
Installation
Leveling the tumble dryer
Ensure that no closeable door,
sliding door, or an oppositely hinged
door is installed that would hinder
the door of the dryer being opened in
any way.
The appliance must stand perfectly
level to ensure safe and proper opera-
tion.
The screw feet can be adjusted to com-
pensate for unevenness in the floor.
Downtime after installation
Damage caused by switching the
appliance on too soon.
This can damage the heat pump.
After setting up the tumble dryer,
wait for at least one hour before
starting a drying program.
Ventilation
The cool air intake at the front of the
dryer must not be blocked or cov-
ered. This would hinder a sufficient
intake of cool air for the heat ex-
changer.
Do not block the gap between the
bottom of the tumble dryer and the
floor with toe kicks, deep pile carpet,
etc. This would otherwise hinder a
sufficient flow of air to the tumble
dryer.
The hot air that is blown out from the
heat exchanger warms the room air. En-
sure sufficient ventilation of the room,
e.g., open the window. The drying time
will otherwise take longer (higher energy
requirement).
Installation
*INSTALLATION*
76
Before moving the tumble dryer
again
A small quantity of condensed water
that remains in the area around the
pump after the drying process can run
out if the dryer is tilted. Recommenda-
tion: Start the Time Dry program for ap-
prox. 1minute before transporting the
dryer. Any remaining condensed water
will then be fed into the condensed wa-
ter container (which you will need to
empty again) or out through the drain
hose.
Additional installation require-
ments
All installations must be carried
out in accordance with local regula-
tions.
Slot-in
This tumble dryer is suitable for pushing
under a countertop.
It is very important to avoid a
build-up of heat. The warm air which
is expelled from the dryer must be
able to dissipate. Warm air which
cannot dissipate could cause a fault.
- The appliance lid must not be re-
moved.
- The electrical socket must be located
in an accessible position near the
tumble dryer.
- Drying durations may increase
slightly.
Installing the dryer in a closet
Minimum installation distance
You must insert sufficiently large
ventilation openings into the closet
door. You can also open the closet
door slightly while the dryer is oper-
ating.
Otherwise, the dryer can overheat,
which can cause a fault.
Ensure that the dryer door can
be opened at any time.
Ensure that the laundry can easily be
removed at any time.
Installation
*INSTALLATION*
77
Installing the dryer in a floor-to-ceiling
closet
You can also insert a ventilation open-
ing at the top of the closet. In addition,
you must also provide an opening on
the bottom side of the closet door.
Direct ventilation is also possible via
an air conditioning outlet in the closet.
The air must be able to circulate
freely at the top of the closet.
The air supply must not be hindered
by a shelf.
Installation
*INSTALLATION*
78
Product dimensions
Dimensions
5.2ft (1.6m) drain hose, detach-
able, top right on the rear
6.5ft (2m) power cord, bottom
right on the rear
Installation on a plinth
- WTS 510
Washer-dryer stack
- WTV502 or WTV512
Installation
*INSTALLATION*
79
Electrical connection
GROUNDING INSTRUCTIONS
The electrical safety of this dryer can
only be guaranteed when continuity
is complete between it and an effec-
tive grounding system. It is essential
that this standard safety requirement
is observed and regularly tested. If in
any doubt, please have the electrical
installation inspected by a qualified
electrician. Miele cannot be held li-
able for the consequences of an in-
adequate grounding system. The
electrical socket must be easily ac-
cessible so that the dryer can be dis-
connected from the electricity sup-
ply.
WARNING – If the grounding con-
ductor is connected incorrectly, this
can result in electric shock. Contact
a qualified electrician if you are un-
sure whether the appliance is prop-
erly grounded.
Do not change the plug: If it does not
fit into the socket, you should have a
proper outlet installed by a qualified
electrician.
The dryer is equipped with a power
cord 6'7" (2m) with plug. The dryer is
connected to a NEMA 5-15 socket with
an electrical connection of 120V,
60Hz, 15A.
The manufacturer recommends operat-
ing the appliance on a dedicated circuit
to avoid overloading the electrical cir-
cuit.
Connection adapter for NEMA 14-30
socket
If a NEMA 14-30 socket is pro-
vided on-site for the dryer, the Miele
connection adapter* can be used.
Observe the following description to
avoid damage to the dryer.
Tip: * You can order the connection
adapter directly from Miele (USA or
CDN).
- The connection adapter has a NEMA
14-30 plug and two NEMA 5-15
socket-side connectors. The dryer
and washing machine can therefore
be connected to the 120V/60Hz
electricity supply.
- The connection adapter is equipped
with two 15A fuses which protect
both the connected appliances and
the connection adapter.
Installation
*INSTALLATION*
80
External draining of condensed
water
Note
When drying is in progress, con-
densed water is pumped into the con-
densed water container through the
drain hose which is located at the
back of the dryer.
The condensed water can also be ex-
ternally drained away via the drain hose
on the back of the dryer. This means
that the condensed water container no
longer has to be emptied.
Drain hose length: 5.2ft (1.6m)
Maximum delivery head: 3.3ft (1m)
Maximum drain hose length: 13ft
(4m)
Arranging the drain hose
Damage to the drain hose
through incorrect handling.
The drain hose can suffer damage
and leak.
Do not pull on the drain hose and do
not stretch it or allow it to become
kinked.
There will be a small amount of residual
water left in the drain hose. Have a con-
tainer ready to collect this.
Pull the drain hose off its connection
(light arrow).
Pull the hose out of the holders (dark
arrow) and unwind it.
Allow any residual water to run into a
container.
Condensate drain
The drain hose on the back of the dryer
can be inserted into the stand pipe.
Attach the end of the hose to the
stand pipe.
Secure the drain hose carefully
(e.g., by tying it) to make sure it can-
not slip.
Overflowing water can cause dam-
age.
Installation
*INSTALLATION*
81
Changing the door hinging
You can change the door hinging on
this tumble dryer yourself.
For safety reasons, the tumble dryer
must be disconnected from the elec-
tricity supply before changing the
door hinging.
You will need:
- a Torx T20 and T30 screwdriver
- a flat head screwdriver or pointed pli-
ers
- the lock catch cover supplied
- the door hinge cover supplied
- a soft surface (e.g., a blanket)
Changing the hinging over
1. Remove the door from the tumble
dryer
Open the door.
Use a T30 Torx screwdriver to un-
screw the two screws on the base
plate of the door hinge .
The door cannot fall off.
Hold the door securely and pull it for-
wards: to remove the door you will
need to pull the base plate of the
hinge with its 2 pins out of the dryer.
To avoid scratching the door,
place it outer side downwards on a
soft surface (e.g., a blanket).
2. Change over the door lock on the
dryer
Use a Torx T30 screwdriver to un-
screw the two screws on the door
lock .
Use the screwdriver to press the door
lock upwards.
The door lock will spring out of its posi-
tion and can then be removed.
Installation
*INSTALLATION*
82
Turn the door lock by 180°.
Press the door lock into the openings
on the opposite side of the door
opening.
Adjust the position of the door lock
so that the screw holes line up with
those in the front panel of the dryer
.
Screw in both Torx screws in order to
secure the door lock.
3. Remove the lock catch from the
door
First take the rubber seal off the door
and place this to one side.
Use a T20 Torx screwdriver to remove
screw on the lock catch.
Pull off the lock catch together with
the lock catch cover .
Installation
*INSTALLATION*
83
Remove the lock catch from the
cover.
This lock catch cover is no longer
needed.
Insert the lock catch into the new
cover supplied with the dryer.
Place this new lock catch cover to
one side for now.
4. Dismantle the door hinge from the
door
The door hinge cover must be un-
clipped from position and then re-
moved.
Use a screwdriver to press down
gently on position on the door
hinge cover.
Using a little force, pull out door
hinge cover .
This lock catch cover is no longer
needed.
Installation
*INSTALLATION*
84
5. Change the door hinge on the door
The door hinge is secured to the door
with 2 angled rods. These rods need
to be removed with a screwdriver or
pointed pliers.
Insert the end of the screwdriver
blade under rod and rotate it so it
is in an upright position. Do the same
to the other rod.
Use the screwdriver or pointed pliers
to guide first one then the other rod
to the middle until each can be re-
moved.
Tip: In some circumstances, the rods
can be difficult to dislodge. Moving the
screwdriver with a levering action while
pulling at the same time may help to
work the rods free.
Remove the door hinge and turn it by
180°.
Refit the door hinge on the opposite
side of the door.
Secure the door hinge with the two
rods .
Position the screwdriver under the
end of the rod and then push it into
its resting position .
Installation
*INSTALLATION*
85
You now need the new door
hinge cover supplied with the dryer.
Fit new door hinge cover and clip
it into position.
6. Change the lock catch on the door
You now need the new lock
catch cover supplied with the dryer
which you have already fitted with
the lock catch.
Push the lock catch cover with its
lock catch into position.
Tighten the screw .
Installation
*INSTALLATION*
86
Refitting
7. Refit the door
Press the rubber seal back into the
groove on the door.
Position the door in front of the dryer.
Fit the base of the door hinge with its
2 pins into the openings on the dryer.
The base of the door hinge must be
flush with the front panel of the dryer.
The door cannot fall off in this position.
Screw the door securely to the dryer
at the base of door hinge .
Now that you have changed the
door hinging, the door will open from
the opposite side.
Push the orange marker round to the
other side so that you will see at
which side to pull the door open.
Please keep the lock catch and
door hinge covers which were no
longer needed in a safe place. These
will be required if you choose to
change the door hinging back to its
original position.
Technical data
87
Height 337/16" (850mm)
Width 237/16" (596mm)
Depth 255/8" (643mm)
Depth with door open 423/8" (1077mm)
Slot-in Yes
Stackable Yes
Weight Approx. 137lbs (62kg)
Drum volume 31.7gal (120l)
Load quantity 17.6lb (8kg) dry laundry
Capacity of condensed water container 1.27gal (4.8l)
Hose length 63" (1.60m)
Maximum head height 39 1/3" (1.00m)
Maximum drain hose length 157 1/2" (4m)
Length of wiring 78 3/4" (2m)
Connection voltage See data plate
Power rating See data plate
Fuse See data plate
Test certificates awarded See data plate
LEDs Class 1
Frequency range 2.4000–2.4835GHz
Maximum transmission power <100mW
Settings
88
Accessing settings
You can alter the tumble dryer's elec-
tronics to suit your needs with the set-
tings.
The settings can be altered at any
time.
Turn the program selector to More
programs/.
OK
Time Dry
Touch the sensor button once.
The following appears in the display:
OK
Settings
Confirm with the OKsensor button.
OK
Language
You are now in the Settings sub-menu.
Selecting settings
Touch the or sensor button until
the setting you want appears in the
display.
- The sensor button scrolls down
the list.
- The sensor button scrolls up the
list.
Touch the OK sensor button to select
the setting displayed.
Changing a setting
Touching the or sensor button
will call up the different options for
the setting.
For example, you can
- select a value (if the option is marked
with , it is active),
- change a bar chart,
- change numbers.
When the option you want appears in
the display, touch the OK sensor but-
ton to activate it.
Closing the Settings menu
Turn the program selector.
Settings
89
Language
The display can be set to appear in
one of several different languages.
The flag after the word Language acts
as a guide to prevent a language which
will not be understood from being set.
The language selected is saved to
memory.
Drying levels
You can alter the drying levels for the
Cottons and Wrinkle-free programs.
Options
- (damper)
The program duration is shorter
- (default setting)
- (drier)
The program duration is longer
Welcome tone
The volume for the welcome tone can
be set to one of 7different settings.
Options
- Off
- (quiet)
- (default setting)
- (loud)
Settings
90
Keypad tone
Each touch of a sensor button is con-
firmed with an audible tone.
Options
- Off (default setting)
- (quiet)
- (loud)
If a selection is not allowed, a negative
signal tone sounds.
Buzzer volume
The buzzer sounds to let you know the
program has finished. The buzzer can
be set to be louder or quieter.
Options
- (quiet)
- (default setting)
- (loud)
Airway indicator
Lint should be removed after drying. In
addition, this indicator will remind you
to clean the filters when a certain
amount of lint has collected in them:
Clean plinth filter. See
You can decide at what level of lint
this reminder should be given.
Options
You will have an idea of how often this
should be done after a few drying pro-
grams.
- Off
This reminder does not appear. How-
ever, if there is a very severe block-
age in the ducting, the program will
be canceled and the fault message
Clean plinth filter. See
will appear in the display regardless
of this option.
- Heavy
The reminder only appears when
there is a heavy build-up of lint.
- Normal (default setting)
- Light
The reminder appears when there is
only a small build-up of lint.
Settings
91
Conductivity
This setting is only relevant for regions
with very soft water.
Very soft water can result in unsatis-
factory drying results.
You should only select this setting if
the water used for washing the laun-
dry is extremely soft with a conduc-
tivity reading (electrical conductivity)
less than 150μS/cm. Contact your
local water supplier for the conduc-
tivity level of your water supply.
Options
- Normal (default setting)
- low <150ms (only for regions with very
soft water)
Code
The PIN code prevents your dryer be-
ing used without your knowledge.
Options
- Activate
The code is 250 and can be acti-
vated.
When the code has been activated,
you have to enter the code after
switching the dryer on. Otherwise,
the dryer cannot be operated.
- Deactivate
For using the dryer without entering
the code. This only appears if the PIN
code has been activated previously.
- Change
You can enter a PIN code of your
own.
Make a note of the new PIN
code. If you forget the code, the
dryer will need to be unlocked by
Miele Customer Service.
Brightness
The display and the sensor button
lighting is switched off to save energy.
The Start/Stop sensor button flashes
slowly.
Options
Display
Controls the brightness of the display.
- (dark)
- (default setting)
- (light)
Buttons active
Controls the brightness of the activated
sensor buttons.
- (dark)
- (light)
Buttons inactive
Controls the brightness of the sensor
buttons that can be activated.
- (dark) (default setting)
- (light)
Tip: Ensure that there is a big differ-
ence in brightness between the acti-
vated and dimmed sensor buttons. This
makes it easier to operate the dryer.
Settings
92
Display switch-off
To save energy, the display and sen-
sor buttons will go out after 10min-
utes. The Start/Add laundry button
flashes slowly. You can alter this set-
ting.
Options
- On (default setting)
The display will go out (after 10min-
utes):
– if a program is not selected after
the dryer has been switched on
– during the current program
– at the end of a program
- On (not crnt prog)
The display will go out (as described
above) but will remain on while the
program is running.
- Off
The display will remain on (i.e., it will
never go out).
You can switch the display back on by
touching any sensor button.
Memory
The dryer saves the settings that were
selected last for a drying program
(drying stage and/or extra option, or
the duration for some programs).
When the program is chosen again, the
saved settings will appear in the dis-
play.
Options
- Off (default setting)
- On
The activation of the delay start, the
buzzer, or the EcoFeedback data are
not saved.
Anti-Crease
The duration of the Anti-crease phase
can be altered.
Options
- Off (default setting)
- 1 h
- 2 h
Settings
93
Program info
The program names and maximum
load, which are lit in the display when
the program is selected with the pro-
gram selector, can be switched off.
Options
- Off (program name and load size are
not displayed)
- Program name (the load size does not
appear in the display)
- Prog. & Max load (both are displayed,
default setting)
Miele@home
Control the networking of your dryer
with your WiFi network.
The following points may appear in the
sub-menu:
– Set up
This message only appears if the tum-
ble dryer has not yet been connected to
a WiFi network.
Please refer to “Initial set-up” for in-
structions on how to set up the connec-
tion.
– Deactivate (visible if Miele@home is
activated)
Miele@home remains set up; the WiFi
function is turned off.
– Activate (visible if Miele@home is de-
activated)
The WiFi function is reactivated.
– Connection status (visible if
Miele@home is activated)
The following values are displayed:
- the quality of WiFi reception
- the network name
- the IP address
– Set up again (visible if set up)
Resets the WiFi login (network) to im-
mediately re-establish a new connec-
tion.
– Reset (visible if set up)
- The WiFi is switched off.
- The WiFi connection will be reset to
the default setting.
The network configuration should be re-
set whenever a tumble dryer is being
disposed of or sold, or if a used tumble
dryer is being put into operation. This is
the only way to ensure that all personal
data has been removed and the previ-
ous owner will no longer be able to ac-
cess the tumble dryer.
A new connection set-up has to be car-
ried out in order to use the Miele@home
setting again.
Settings
94
Remote control
The Remote control setting is only visi-
ble if the Miele@home setting is set up
and activated.
Once the Miele@mobile app has been
installed on your mobile device, you
can check the status of your tumble
dryer from anywhere and start it re-
motely. You can also control it re-
motely via the MobileStart function.
You can switch off the Remote control
setting if you do not want to operate the
dryer with your mobile device.
If Remote control is not switched on, the
app can cause the program to be can-
celed.
Use the “delay start” button to set a
time at which you wish to start the tum-
ble dryer and start the delay start (see
“Delay start/SmartStart”).
The tumble dryer will then start within
the timeframe specified when it receives
your signal.
If it has not received a start signal by
the latest start time set, the tumble
dryer will start automatically.
Remote control is activated by default.
SmartGrid
The Remote control setting is only visi-
ble if the Miele@home setting is set up
and activated.
This function can be used for starting
your tumble dryer automatically at a
time when your energy costs are most
economical.
Activating SmartGrid, gives the delay
start button a new function. You set the
SmartGrid via the “delay start” button.
The tumble dryer will then start within
the timeframe specified when it receives
a signal from the energy supplier. If it
has not received a signal from the en-
ergy supplier by the latest start time set,
the tumble dryer will start automatically
(see “Delay start”). Please check with
your local utility provider for availability.
The SmartGrid function is switched off
by default.
Settings
95
RemoteUpdate
The RemoteUpdate function is used for
updating the software in your tumble
dryer.
RemoteUpdate is activated by default.
If you do not install a RemoteUpdate,
you can continue to use your tumble
dryer in the usual way. However, Miele
recommends installing RemoteUpdates.
Activation
The RemoteUpdate menu option is
only displayed and can only be se-
lected if you have added your tumble
dryer to your WiFi network (see “Set-
tings – Miele@home”).
Miele’s RemoteUpdate function can
only be used if the tumble dryer is con-
nected to a WiFi network and you have
an account in the Miele@mobile app.
The tumble dryer must be registered in
the app.
See the Miele@mobile app for terms
and conditions of use.
Some software updates can only be
carried out by Miele Customer Service.
Running a RemoteUpdate
If a RemoteUpdate is available for your
tumble dryer, it will be displayed auto-
matically for you.
You can choose to start the RemoteUp-
date immediately or wait until later. If
you select “Start later”, the prompt to
run the RemoteUpdate will be displayed
again the next time you switch on your
tumble dryer.
The RemoteUpdate can take a few
minutes.
Please note the following information
about the RemoteUpdate function:
- You will only receive a message when
a RemoteUpdate is available.
- Once a RemoteUpdate has been in-
stalled, it cannot be undone.
- Do not switch off the tumble dryer
during a RemoteUpdate. Otherwise,
the RemoteUpdate will be aborted
and will not be installed.
9 Independence Way
Princeton, NJ 08540
www.mieleusa.com
U.S.A.
Miele, Inc.
National Headquarters
Please have the model and serial number
of your appliance available when
contacting Customer Service.
Canada
Importer
Miele Limited
Headquarters and Miele Centre
Customer Support
Phone: 888-99-MIELE (64353)
161 Four Valley Drive
Vaughan, ON L4K 4V8
www.miele.ca
Customer Care Centre
Phone:
800-565-6435
905-532-2272
International Headquarters
Miele & Cie. KG
Carl-Miele-Straße 29
33332 Gütersloh
Germany
M.-Nr. 11 631 570 / 01en-US
TXI 680 WP
