2
ENG
ENGLISH
TABLE OF CONTENTS
CONTENTS
4 LICENSES
5 ASSEMBLING AND
PREPARING
5 Accessories
6 Parts
7 To Install in a Portrait Layout
7 Remove L-brackets before Installation
8 STORAGE METHOD FOR PANEL
PROTECTION
8 - Correct Method
8 - Incorrect Method
9 Installing on a Wall
10 EXTERNAL EQUIPMENT SETUP
10 - IR RECEIVER
11 Tiling Displays
11 - How to Mount the Set
12 - How to Join Sets
13 REMOTE CONTROL
15 Displaying the Device Name Connected
to an Input Port
16 USING THE MONITOR SET
16 Connecting to a PC
16 - RGB Connection
17 - DVI Connection
17 - HDMI Connection
18 - DP Connection
18 - IR Receiver Connection
19 Adjusting the Screen
19 - Selecting an Image Mode
19 - Customizing Image Options
20 - Customizing PC Display Options
20 Adjusting the Sound
20 - Selecting an Sound Mode
21 - Customizing Sound Options
21 Using Additional Options
21 - Adjusting Aspect Rratio
23 - Using the Input List
24 ENTERTAINMENT
24 - Connecting to a Wired Network
25 - Network Status
26 - Connecting USB Storage Devices
27 - Browsing Files
29 - Viewing Movies
33 - Viewing Photos
35 - Listening to Music
37 3D IMAGING (ONLY 3D
MODELS)
37 3D Technology
37 Precautions to Take When Viewing 3D
Images
38 When Using 3D Glasses
39 3D Imaging Viewing Range
40 Viewing 3D Imaging
41 3D Mode Setting Option
43 CUSTOMIZING SETTINGS
43 Accessing Main Menus
44 - PICTURE Settings
47 - AUDIO Settings
48 - TIME Settings
49 - OPTION Settings
53 Picture ID
54 - NETWORK Settings
55 MAKING CONNECTIONS
56 Connecting to a HD receiver, DVD,
Camcorder, Camera, Gaming Device or
VCR player
56 - DVI Connection
3
ENG
ENGLISH
TABLE OF CONTENTS
56 - HDMI Connection
57 - Component Connection
57 - AV(CVBS) Connection
58 Connecting to the LAN
58 - LAN Connection
58 Connecting to a USB
59 Daisy Chain Monitors
59 - RGB Cable
59 - DVI Cable
60 TROUBLESHOOTING
63 TROUBLESHOOTING WHEN
USING 3D MODE
64 SPECIFICATIONS
66 CONTROLLING THE MULTIPLE
MONITORS
66 Connecting the Cable
66 RS-232C Configurations
66 Communication Parameter
67 Command Reference List
69 Transmission / Receiving Protocol
82 IR CODES
ENGLISH
4
LICENSES
LICENSES
Supported licenses may differ by model. For more information of the licenses, visit www.lg.com.
HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks
or registered trademarks of HDMI Licensing LLC.
ABOUT DIVX VIDEO: DivX is a digital video format created by DivX, LLC, a
subsidiary of Rovi Corporation. This is an official DivX Certified device that
plays DivX video. Visit divx.com for more information and software tools to
convert your files into DivX videos.
ABOUT DIVX VIDEO-ON-DEMAND: This DivX
Certified device must be registered in order to play purchased DivX Video-
on-Demand (VOD) movies. To obtain your registration code, locate the
DivX VOD section in your device setup menu. Go to vod.divx.com for more
information on how to complete your registration.
DivX Certified to play DivX video up to HD 1080p, including premium
content.
DivX , DivX Certified and associated logos are trademarks of Rovi
Corporation or its subsidiaries and are used under license.
Covered by one or more of the following U.S. patents: 7,295,673; 7,460,668;
7,515,710; 7,519,274
Manufactured under license from Dolby Laboratories. Dolby and the
double-D symbol are trademarks of Dolby Laboratories.
5
ENG
ENGLISH
ASSEMBLING AND PREPARING
ASSEMBLING AND PREPARING
Accessories
Check your product box for the following items. If there are any missing accessories, contact the local
dealer where you purchased your product. The illustrations in this manual may differ from the actual product
and accessories.
y
Do not use any unapproved accessories to ensure the safety and product life span.
y
Any damages or injuries by using unapproved accessories are not covered by the warranty.
CAUTION
y
The accessories supplied with your product may vary depending on the model.
y
Product specifications or contents in this manual may be changed without prior notice due to upgrade
of product functions.
NOTE
Remote control and Batteries
Power Cord DVI Cable
IR Receiver
M4 x 6L
Screw (8 ea)
(Guide Bracket
Screws)
M6
Screw (4 ea)
(VESA Mount Screws)
CD (Owner's Manual) / Card
D-sub 15 pin signal cable
RS-232C Cable
Tiling Guide
(4 ea)
3D Glasses (2 boxes)
(Normal type,Clip type)
P
A
G
E
INPUT
ENERGY
SAVING
MARK
ARC
ON
OFF
. , !
ABC
DEF
GHI
JKL
MNO
PQRS
TUV
1/a/A
- * #
WXYZ
CLEAR
MONITOR
3D
AUTO
MUTE
BRIGHT
NESS
MENU
POWER
OK
S.MENU
ID
TILE
ON
OFF
EXIT
PSM
6
ENG
ENGLISH
ASSEMBLING AND PREPARING
USB DP LAN
COMPOSITE
DVI IN DVI OUT
/DVI
SPEAKER
RGB
/COMPONENT OUT
RGB
/COMPONENT IN
AUDIO
IN
REMOTE
CONTROL IN

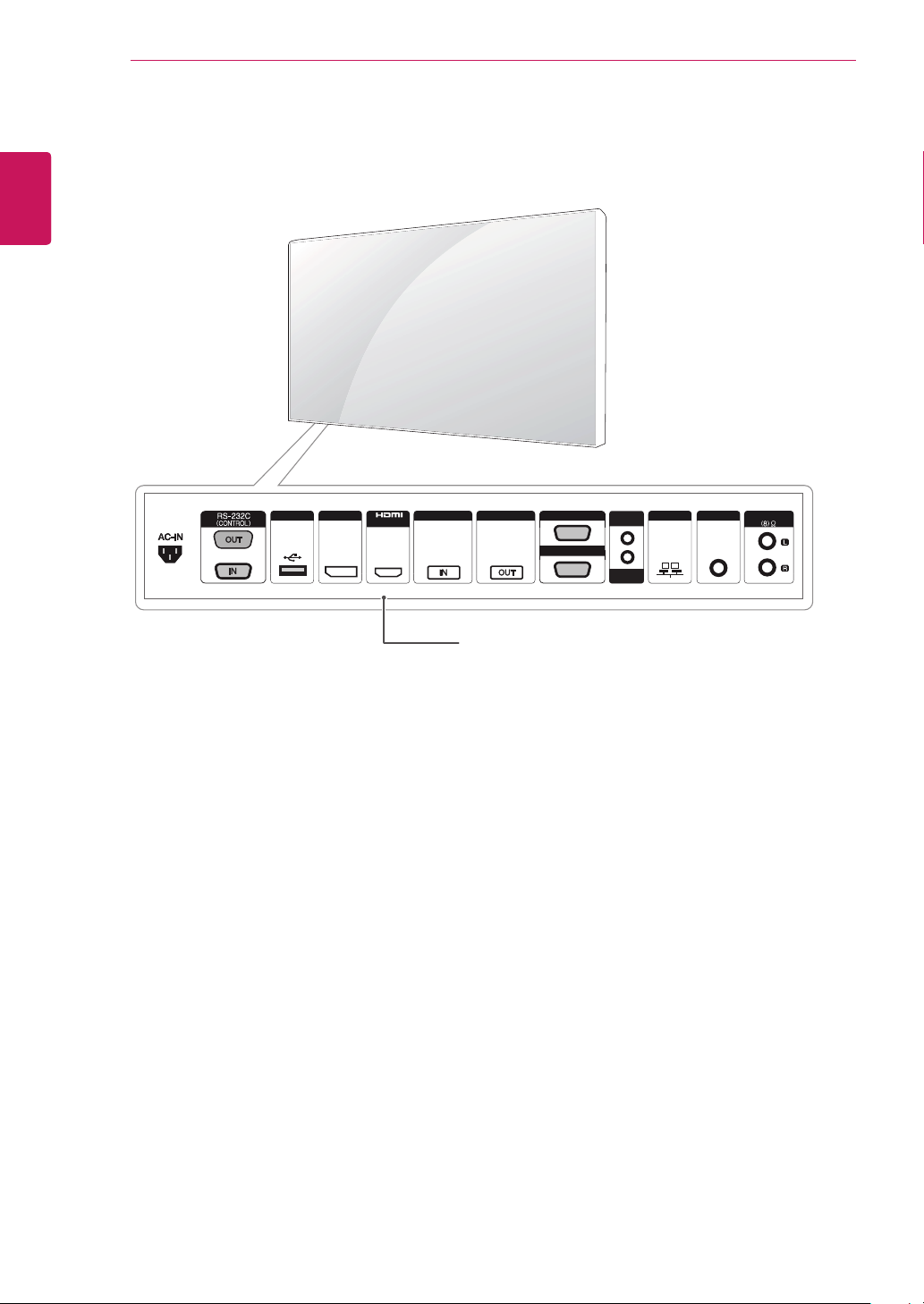

Parts
Connection panel
7
ENG
ENGLISH
ASSEMBLING AND PREPARING
To Install in a Portrait Layout
When installing in a Portrait Layout, rotate the monitor clockwise 90 degrees (when facing the screen).
Remove L-brackets before Installation
Remove the L-brackets from each corner of the monitor before installing it.
y
Keep the removed L-brackets and use them when moving the monitor later.
y
3D function is not supported in portrait mode.
NOTE
8
ENG
ENGLISH
ASSEMBLING AND PREPARING
Correct Method Incorrect Method
STORAGE METHOD FOR PANEL PROTECTION
Panel
Panel
Cushion
If the product needs to be set upright, hold both
sides of the product, and tilt backward carefully.
Do not let the panel touch the floor.
When laying down the product, lay a cushion on a
flat floor. Put the product on it with the panel of
the product facing down.
If there is not a cushion available, ensure the floor is
clean and then lay the product down carefully with the
panel facing either upward or downward.
At this time,
be careful objects are not fallen on the panel.
Panel
Panel
Panel
If the product is tilted onto the bezel, the bottom of
the panel may be damaged.
If the product is tilted onto the edge of the panel,
the panel may be damaged.
9
ENG
ENGLISH
ASSEMBLING AND PREPARING
y
Disconnect the power cord first, and then
move or install the Monitor set. Otherwise
electric shock may occur.
y
If you install the Monitor set on a ceiling or
slanted wall, it may fall and result in severe
injury.
y
Do not over tighten the screws as this may
cause damage to the Monitor set and void
your warranty.
y
Use the screws and wall mounts that
meet the VESA standard. Any damages
or injuries by misuse or using an improper
accessory are not covered by the warranty.
CAUTION
NOTE
Do not install the product in a place with
no ventilation (e.g., on a bookshelf or in a
closet) or on a carpet or cushion. If there is
no other option but to mount the product on
the wall, make sure that sufcient ventilation
is provided before installation.
- Failure to do so may result in a re due to
the increase in the internal temperature.
Install the monitor at least 10 cm away from the
wall and leave about 10 cm of space at each side
of the monitor to ensure sufficient ventilation.
Use the wall mount plate and screws that comply
with the VESA standard.
Installing on a Wall
To install the Monitor on a wall (optional),
use the VESA screws provided as accessories to
fasten it.
Please refer to p11 on How to Mount the Set.
10 cm
10 cm
10 cm
10 cm
20 cm
10
ENG
ENGLISH
ASSEMBLING AND PREPARING
EXTERNAL EQUIPMENT SETUP
IR RECEIVER
This allows a remote control sensor to be placed
in a custom location. Then that display can control
other displays via an RS-232 cable.
AUDIO
IN
REMOTE
CONTROL IN
11
ENG
ENGLISH
ASSEMBLING AND PREPARING
How to Mount the Set
Tiling Displays
*Example of 2 x 2 tiling
* Using the screws for fixing the VESA wall mount, mount the set to the wall mount plate or the wall.
* The wall mount plate is shaded in gray in the illustration to help you see it.
Screws for attaching
the VESA wall mount
<Rear view of the set with the wall mount plate>
12
ENG
ENGLISH
ASSEMBLING AND PREPARING

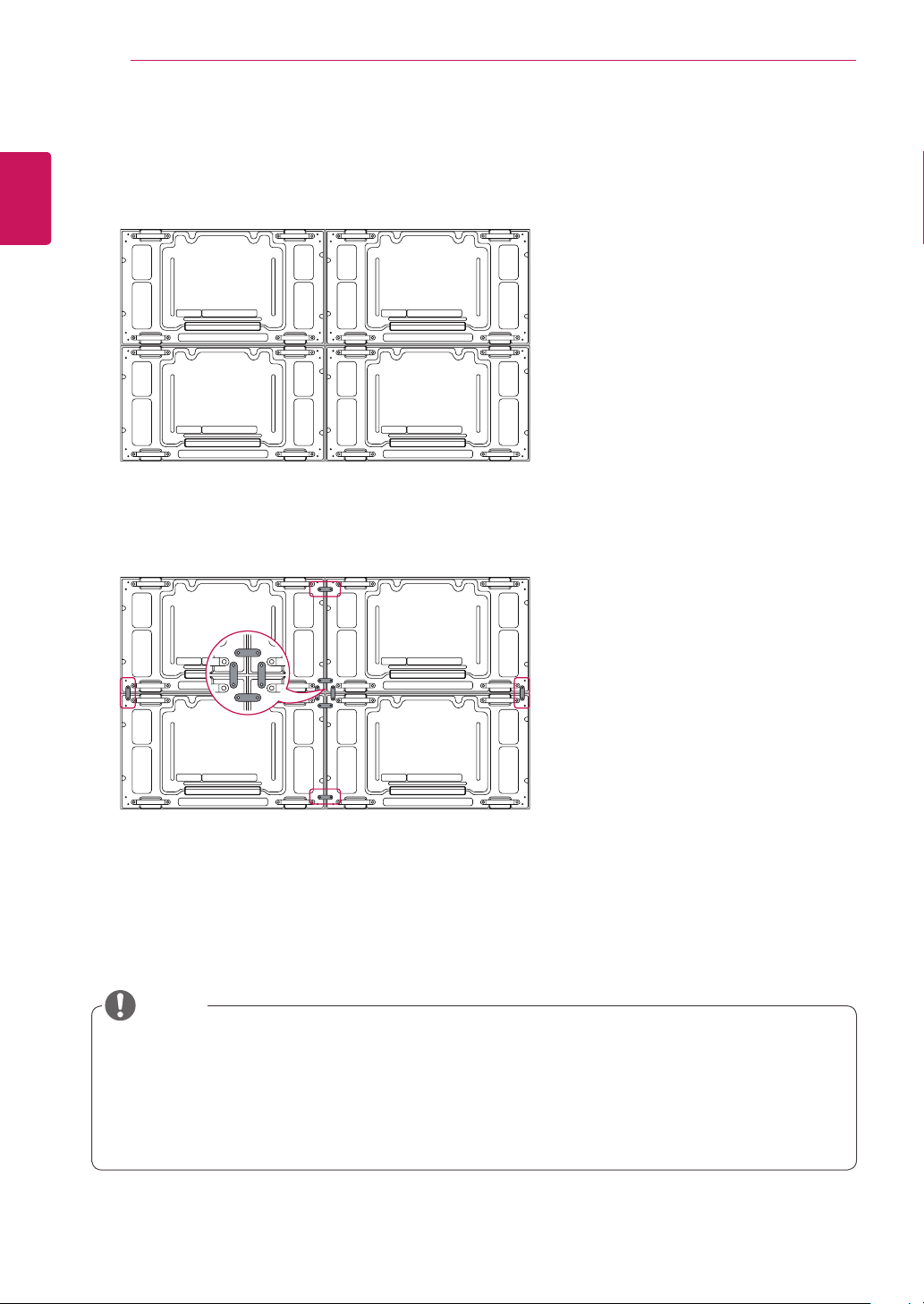

Set 4 joined to the rest of the sets
(2 x 2 tiling)
How to Join Sets
y
The load applied to each set should be supported by the wall mount plate or the wall using a VESA
wall mount (600 x 400).
y
The load applied to each set should be supported by the wall mount plate using a VESA wall mount.
(Each set must be firmly mounted to the wall mount plate or the wall.)
y
You may mount the set without using the tiling guide; this does not affect the performance of the
device.
NOTE
1 Join other sets using screws for xing the VESA wall mount in the same way as above.
2 After joining the sets, use the tiling guide to adjust the gap between the sets.
3 Now the 2 x 2 tiling is complete.
You can tile in various combinations, such as 3 x 3.
13
ENG
ENGLISH
REMOTE CONTROL

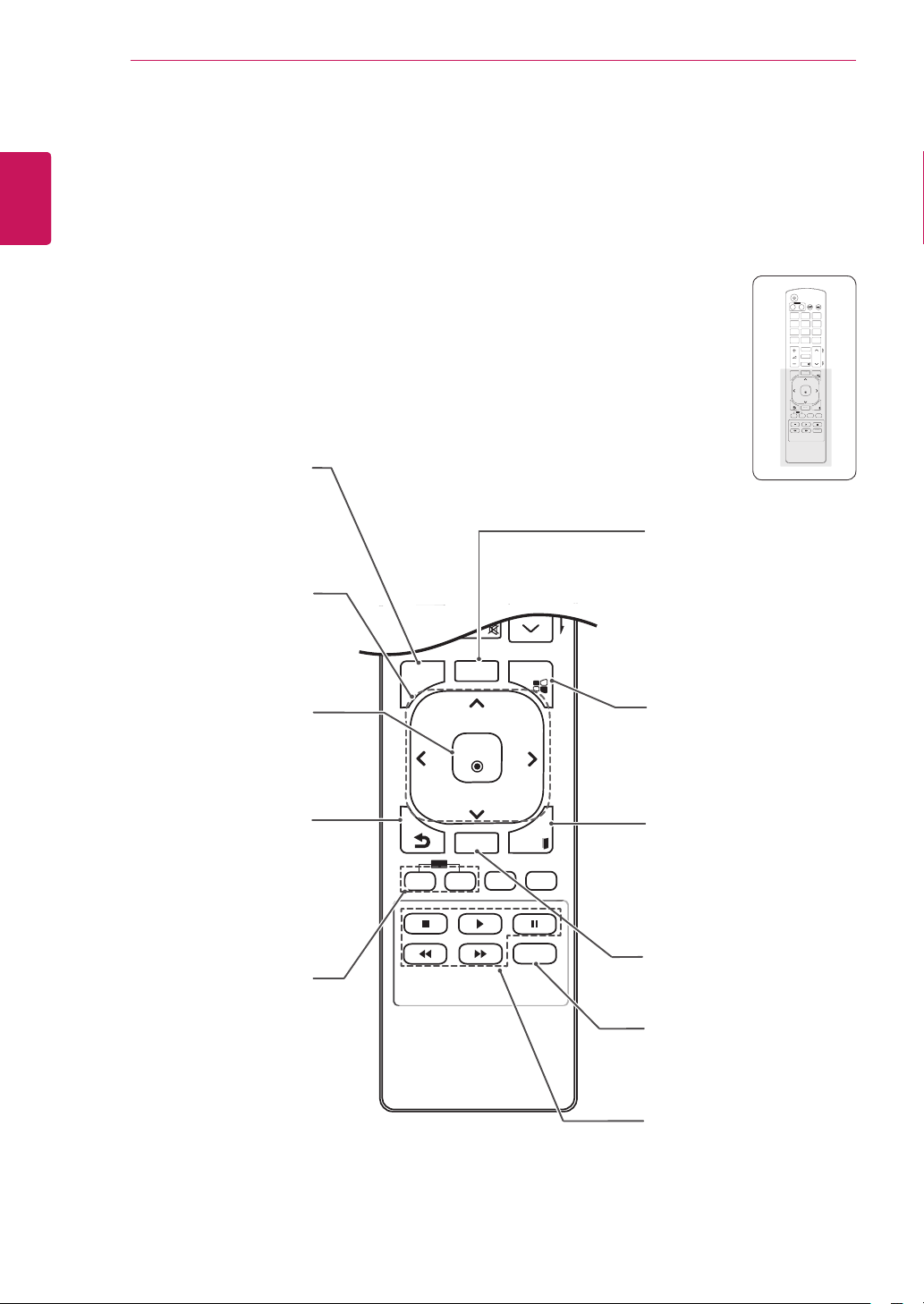

REMOTE CONTROL
The descriptions in this manual are based on the buttons of the remote control. Please read this manual
carefully and use the Monitor correctly.
To replace batteries, open the battery cover, replace batteries (1.5 V AAA) matching and ends to the
label inside the compartment, and close the battery cover.
To remove the batteries, perform the installation actions in reverse.
y
Do not mix old and new batteries, as this
may damage the remote control.
y
Make sure to point the remote control to the
remote control sensor on the Monitor.
CAUTION
/ I (POWER)
Turns the Monitor on or off.
Monitor On / Off
Turn off the monitor and then
turn it back on.
1/a/A Button
Toggles between numerical
and alphabetical.
ENERGY SAVING( )
Adjusts the brightness of
the screen to reduce energy
consumption.
INPUT
Selects the input mode.
Number and Alphabet buttons
Enters numerical or alphabetical
characters depending on the
setting.
CLEAR
Deletes the entered numerical
or alphabetical character.
3D
Selects the 3D Mode.
MUTE
Mutes all sounds.
ARC
Selects the Aspect Ratio
Mode.
Volume Up / Down
Adjusts the volume level.
Brightness Key
Adjust the brightness by
pressing the Up and Down
buttons on the remote control.
In USB mode, the OSD menu
has the Page function to
move to the next file list.
P
A
G
E
INPUT
ENERGY
SAVING
MARK
ARC
ON
OFF
. , !
ABC
DEF
GHI
JKL
MNO
PQRS
TUV
1/a/A
- * #
WXYZ
CLEAR
OK
S.MENU
MONITOR
3D
AUTO
MUTE
BRIGHT
NESS
MENU
ID
BACK
TILE
ON
OFF
EXIT
POWER
P
A
G
E
INPUT
ENERGY
SAVING
MARK
ARC
ON
OFF
1
. , !
2
ABC
3
DEF
4
GHI
5
JKL
6
MNO
7
PQRS
8
TUV
9
1/a/A
0
- * #
WXYZ
CLEAR
OK
S.MENU
MONITOR
AUTO
MUTE
BRIGHT
NESS
MENU
ID
TILE
ON
OFF
EXIT
POWER
P
A
G
E
INPUT
ENERGY
S
AVIN
G
MARK
A
R
C
1
. , !
2
ABC
3
DEF
4
G
HI
5
JKL
6
M
N
O
7
PQRS
7
7
8
TUV
9
1
/
a
/
A
0
-
*
#
WXYZ
C
LEA
R
ON
OF
F
MONITOR
MONITOR
M
UT
E
B
RIGHT
N
E
SS
PO
WE
R
PSM
3D
14
ENG
ENGLISH
REMOTE CONTROL
P
A
G
E
INPUT
ENERGY
SAVING
MARK
ARC
ON
OFF
1
. , !
2
ABC
3
DEF
4
GHI
5
JKL
6
MNO
7
PQRS
8
TUV
9
1/a/A
0
- * #
WXYZ
CLEAR
OK
S.MENU
MONITOR
3D
AUTO
MUTE
BRIGHT
NESS
MENU
ID
TILE
ON
OFF
EXIT
POWER
PSM
OK
S
.MEN
U
A
U
T
O
MEN
U
ID
T
IL
E
ON
O
FF
E
XIT
PSM
S.MENU
(SuperSign Menu Key)
This button selection is not
applicable.
EXIT
Clears all on-screen displays
and returns to Monitor set
viewing from any menu.
TILE
Selects the TILE Mode.
MENU (See p.43)
Accesses the main menus
or saves your input and exit
menus.
Navigation buttons
Scrolls through menus or
options.
OK
Selects menus or options and
confirms your input.
BACK
Allows the user to move back
one step in user interaction
function.
USB Menu control buttons
Controls media playback.
ID ON/OFF
When the number of Picture
ID is equal to Set ID you can
control the monitor which
you want in the multi display
condition.
AUTO
Automatically adjusts picture
position and minimizes image
instability.(RGB input only)
PSM
Selects the Picture Status
Mode.
P
A
G
E
INPUT
ENERGY
SAVING
MARK
ARC
ON
OFF
. , !
ABC
DEF
GHI
JKL
MNO
PQRS
TUV
1/a/A
- * #
WXYZ
CLEAR
OK
S.MENU
MONITOR
PSM
AUTO
MUTE
BRIGHT
NESS
MENU
ID
TILE
ON
OFF
EXIT
POWER
PSM
15
ENG
ENGLISH
REMOTE CONTROL
Displaying the Device Name Connected to an Input Port
Display which devices are connected to which
external input ports.
P
A
G
E
INPUT
ENERGY
SAVING
MARK
ARC
ON
OFF
. , !
ABC
DEF
GHI
JKL
MNO
PQRS
TUV
1/a/A
- * #
WXYZ
CLEAR
OK
S.MENU
MONITOR
AUTO
MUTE
BRIGHT
NESS
MENU
ID
BACK
TILE
ON
OFF
EXIT
POWER
P
A
G
E
INPUT
ENERGY
SAVING
MARK
ARC
ON
OFF
. , !
ABC
DEF
GHI
JKL
MNO
PQRS
TUV
1/a/A
- * #
WXYZ
CLEAR
OK
S.MENU
MONITOR
AUTO
MUTE
BRIGHT
NESS
MENU
ID
BACK
TILE
ON
OFF
EXIT
POWER
PSM
3D
PSM
3D

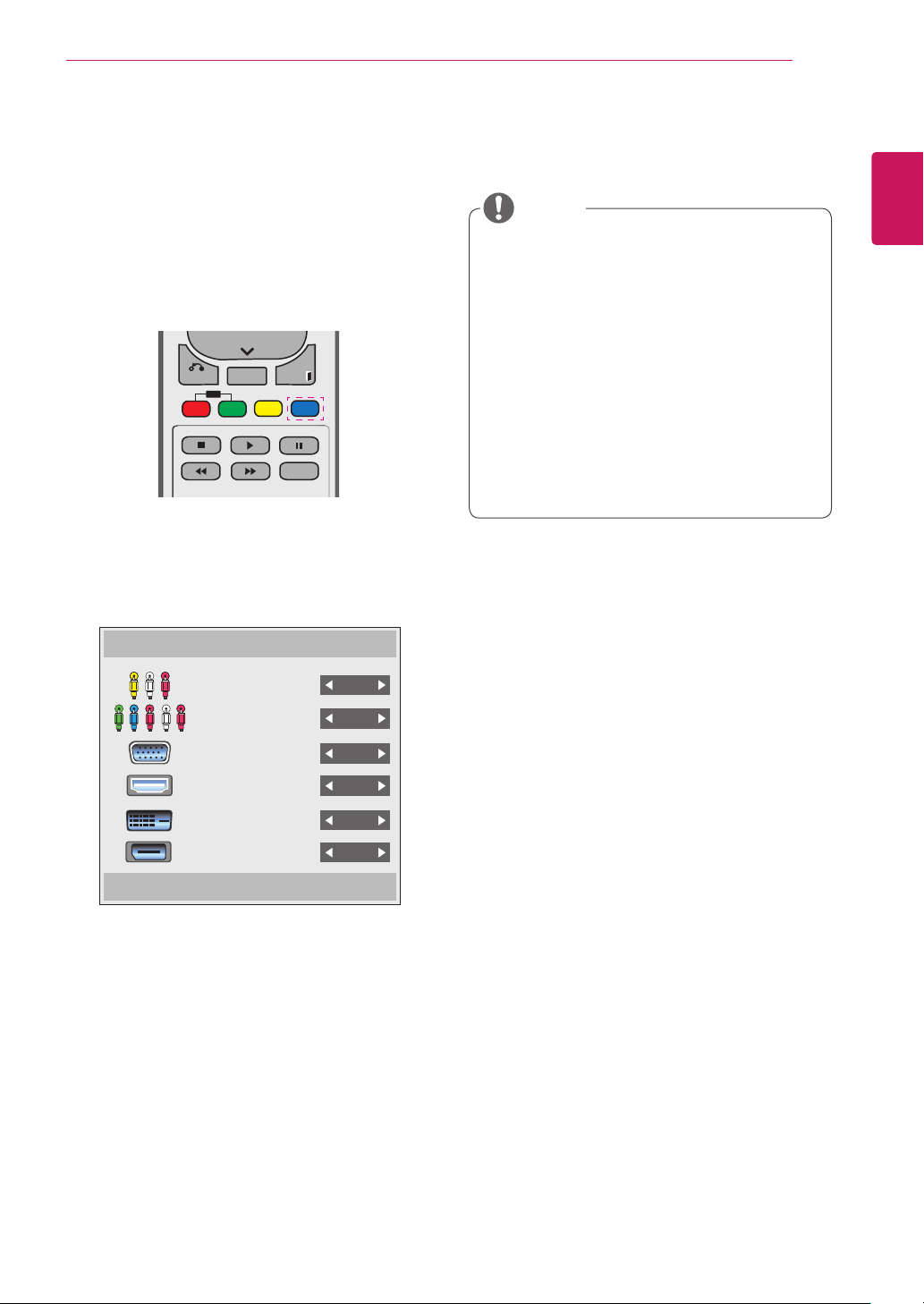

1 Access the Input list screen and press the blue
(input label) button on the remote control.
2 You can assign an input label for every input
except USB.
Input Label
Close
Component
AV
RGB
HDMI
DVI-D
Display Port
y
External inputs supported: AV, Component,
RGB, HDMI, DVI-D, Display Port
y
Labels available : VCR, DVD, Set top box,
Satellite, Game, PC, Blue-ray, HD-DVD
y
The input labels are displayed on the Input
Label screen or at the top left of the screen
when you change the external input
setting.
y
For DTV/PC-compatible signals, such as
1080p 60 Hz, the screen settings may
change according to the input label. The
Just Scan option is available if a PC is
connected as an external device.
NOTE
16
ENG
ENGLISH
USING THE MONITOR SET
AUDIO
IN
REMOTE
CONTROL IN
IN/DVI
DP
RGB
/COMPONENT OUT
RGB
/COMPONENT IN
AUDIO
IN
REMOTE
CONTROL IN
DVI IN
AUDIO
IN
REMOTE
CONTROL IN
USING THE MONITOR SET
Connecting to a PC
Your Monitor set supports the Plug & Play* feature.
* Plug & Play: A PC will have a built-in driver for
the monitor, no extra software is needed.
NOTE
y
Connect the signal
input cable and tighten
it by turning the screws
clockwise.
y
Do not press the screen with your finger for
a long time as this may result in temporary
distortion on the screen.
y
Avoid displaying a fixed image on the
screen for a long period of time to prevent
image burn. Use a screensaver if possible.
RGB Connection
Transmits the analog video signal from your PC to
the Monitor set. Connect the PC and the Monitor
set with the 15 pin signal cable as shown in the
following illustrations. Select RGB input.
y
Use the standard Macintosh
adapter since an incompatible
ad apter is av ailab le in the
market. (Different signaling
system)
y
Apple computers may require an adapter to
connect to this monitor. Call or visit their web
site for more information.
y
It is recommended to use the Monitor set
with the HDMI connection for the best image
quality.
y
To comply with the specifications of the
product, use a shielded interface cable with
ferrite core, such as D-sub 15 pin cable and
DVI/HDMI cable provided with the product.
y
If you turn the Monitor set on when the set
becomes cold, the screen may flicker. This
is normal.
y
Some red, green, or blue spots may appear
on the screen. This is normal.
CAUTION
NOTE
PC
Back of the product.
Macintosh Adapter
(not included)
(not included)
PC/MAC
17
ENG
ENGLISH
USING THE MONITOR SET
AUDIO
IN
REMOTE
CONTROL IN
IN/DVI
DP
RGB
/COMPONENT OUT
RGB
/COMPONENT IN
AUDIO
IN
REMOTE
CONTROL IN
DVI IN
AUDIO
IN
REMOTE
CONTROL IN
AUDIO
IN
REMOTE
CONTROL IN
IN/DVI
DP
RGB
/COMPONENT OUT
RGB
/COMPONENT IN
AUDIO
IN
REMOTE
CONTROL IN
DVI IN
AUDIO
IN
REMOTE
CONTROL IN
DVI Connection
Transmits the digital video signal from your PC to
the Monitor set. Connect the PC and the Monitor
set with the DVI cable as shown in the following
illustrations. Select DVI input.
HDMI Connection
Transmits digital video and audio signals from your
PC to the Monitor set. Connect the PC and the
Monitor set with the HDMI cable as shown in the
following illustrations.
Select HDMI input.
y
Use a High Speed HDMI™ Cable.
y
Please check the PC environment if you
cannot hear sound in HDMI mode. Some
PCs require you to manually change the
default audio output to HDMI.
y
If you want to use HDMI-PC mode, you
must set the input label to PC mode.
y
When HDMI PC is used, a compatiblity
problem might occur.
NOTE
PC PC
PC
Back of the product.
Back of the product.
(not included)
(not included)
18
ENG
ENGLISH
USING THE MONITOR SET
AUDIO
IN
REMOTE
CONTROL IN
IN/DVI
DP
RGB
/COMPONENT OUT
RGB
/COMPONENT IN
AUDIO
IN
REMOTE
CONTROL IN
DVI IN
AUDIO
IN
REMOTE
CONTROL IN
IR Receiver Connection
Allows the use of a wired remote or IR receiver
extension.
Back of the product.
DP Connection
Transmits the digital video and audio signals from
your PC to the Monitor set. Connect the PC and
the Monitor set with the DP cable as shown in the
following illustrations.
Select DP input.
y
Sound may not be available depending on
the DP version of your PC.
NOTE
PC
Back of the product.
(not included)
RGB OUT
RGB IN
RGB OUT
RGB IN
AUDIO
(RGB/DVI)
REMOTE
CONTROL IN
AUDIO
(RGB/DVI)
REMOTE
CONTROL IN
DVI IN
/DVI
19
ENG
ENGLISH
USING THE MONITOR SET
Adjusting the Screen
Selecting an Image Mode
Display images in its optimized settings by
selecting one of the preset image modes.
1
Press MENU to access the main menus.
2
Press the Navigation buttons to scroll to
PICTURE and press OK.
3
Press the Navigation buttons to scroll to
Picture Mode and press OK.
4
Press the Navigation buttons to scroll to an
image mode you want and press OK.
Customizing Image Options
Customize basic and advanced options of each
image mode for the best screen performance.
1
Press MENU to access the main menus.
2
Press the Navigation buttons to scroll to
PICTURE and press OK.
3
Press the Navigation buttons to scroll to
Picture Mode and press OK.
4
Press the Navigation buttons to scroll to an
image mode you want and press OK.
5
Select and adjust following options, and then
press OK.
Mode Description
Vivid Adjusts the video image for the retail
environment by enhancing the contrast,
brightness, Colour, and sharpness.
Standard Adjusts the image for the normal
environment.
Cinema Optimizes the video image for a cinematic
look to enjoy movies as if you are in a
movie theater.
Sport Optimizes the video image for high and
dynamic actions by emphasizing primary
Colors such as white, grass, or sky blue.
Game Optimizes the video image for a fast
gaming screen such as PCs or games.
5
When you are finished, press EXIT.
When you return to the previous menu, press
BACK.
Option Description
Backlight Adjusts the brightness of the screen
by controlling the LCD backlight. If
you decrease the brightness level,
the screen becomes darker and the
power consumption will be reduced
without any video signal loss.
Contrast Increases or decreases the gradient
of the video signal. You may use
Contrast when the bright part of the
picture is saturated.
Brightness Adjusts the base level of the signal in
the picture. You may use Brightness
when the dark part of the picture is
saturated.
Sharpness Adjusts the level of crispness in the
edges between the light and dark
areas of the picture. The lower the
level, the softer the image.
Color Adjusts intensity of all colors.
Tint Adjusts the balance between red and
green levels.
Color Temp. Set to warm to enhance hotter Colors
such as red, or set to cool to make
picture bluish.
Advanced
Control
Customizes the advanced options.
Refer to the Advanced image options.
Picture Reset Restores the options to the default
setting.
6
When you are finished, press EXIT.
When you return to the previous menu, press
BACK.
20
ENG
ENGLISH
USING THE MONITOR SET
Customizing PC Display Options
Customize options of each image mode for the
best image quality.
y
This function works in the following mode:
RGB[PC] mode.
1
Press MENU to access the main menus.
2
Press the Navigation buttons to scroll to
PICTURE and press OK.
3
Press the Navigation buttons to scroll to
Screen and press OK.
4
Select and adjust following options, and then
press OK.
Option Description
Resolution Selects a proper resolution. See
“Customizing PC display options”.
Auto
Config.
Sets to adjust the screen position, clock,
and phase automatically.
The displayed image may be unstable for
a few seconds while the configuration is
in progress.
Position/
Size/Phase
Adjusts the options when the picture is
not clear, especially when characters are
shaky, after the auto configuration.
Reset Restores the options to the default
setting.
5
When you are finished, press EXIT.
When you return to the previous menu, press
BACK.
Adjusting the Sound
Selecting an Sound Mode
Play the sound in its optimized settings by
selecting one of the preset sound modes.
1
Press MENU to access the main menus.
2
Press the Navigation buttons to scroll to
AUDIO and press OK.
3
Press the Navigation buttons to scroll to Sound
Mode and press OK.
4
Press the Navigation buttons to scroll to a
sound mode you want and press OK.
Mode Description
Standard Select when you want standard-quality
sound.
Music Select when you listen to music.
Cinema Select when you watch movies.
Sports Select when you watch sports events.
Game Select when you watch gaming events.
5
When you are finished, press EXIT.
When you return to the previous menu, press
BACK.
21
ENG
ENGLISH
USING THE MONITOR SET
Customizing Sound Options
Customize options of each sound mode for the
best sound quality.
1
Press MENU to access the main menus.
2
Press the Navigation buttons to scroll to
AUDIO and press OK.
3
Press the Navigation buttons to scroll to Sound
Mode and press OK.
4
Press the Navigation buttons to scroll to a
sound mode you want and press OK.
5
Select and adjust following options, and then
press OK.
Option Description
Infinite
Surround
LG's Infinite Surround option provides
5.1 channel stereo sound from two
speakers.
Treble Controls the dominant sounds in the
output. When you turn up the treble,
it will increase the output to the lower
frequency range.
Bass Makes the output sound softer. If the
bass is increased, the frequency of the
output also increases.
Reset Resets the sound mode to the default
setting.
6
When you are finished, press EXIT.
When you return to the previous menu, press
BACK.
Using Additional Options
Adjusting Aspect Rratio
Resize the image to view the image at its optimal
size by pressing ARC while you are watching
Monitor set.
y
If a fixed image displays on the screen for a
long period of time, it will be imprinted and
become a permanent disfigurement on the
screen. This is “image burn” or “burn-in” and
not covered by the warranty.
y
If the aspect ratio is set to 4:3 for a long
period of time, image burn may occur on
the letterboxed area of the screen.
You can also change the image size by
accessing the main menus.
CAUTION
NOTE
MODE
ARC
AV Component RGB Display
Port
DVI-D HDMI
PC DTV PC PC DTV PC
16:9
o o o o o o o o
Just Scan
x o x o x x o x
1:1
x x o x o o x o
4:3
o o o o o o o o
Zoom
o o x o x x o x
Cinema
Zoom
o o x o x x o x
22
ENG
ENGLISH
USING THE MONITOR SET
- 4:3 : This selection will allow you to view a
picture with an original 4:3 aspect ratio, black
bars will appear on both the left and right of the
screen.
- Zoom : This selection will allow you to view the
picture without any alteration, while filling the
entire screen. However, the top and bottom of
the picture will be cropped.
- Cinema Zoom : Choose Cinema Zoom when
you want to enlarge the picture in correct
proportion. Note: When enlarging or reducing
the picture, the image may become distorted.
- 16:9 : This selection will allow you to adjust the
picture horizontally, in linear proportion, to fill the
entire screen(useful for viewing 4:3 formatted
DVDs).
- Just Scan : This Selection will allow you view
the picture of best quality without loss of original
picture in high resolution image. Note: If there is
noise in original Picture, You can see the noise
at the edge.
- 1:1 : The aspect ratio is not adjusted from the
original. (Only Display Port PC, HDMI PC,
DVI-D PC, RGB PC)
Just Scan
23
ENG
ENGLISH
USING THE MONITOR SET
Using the Input List
Selecting an input source
1
Press INPUT to access the input source list.
2
Press the Navigation buttons to scroll to one of
the input sources and press OK.
Input source Description
AV(CVBS) Watch video from a VCR or other
external devices.
Component Watch the contents in a DVD or
other extemal devices, or through a
digital set-top box
RGB View a PC display on the screen
DVI-D View a PC display on the screen
HDMI Watch contents in a PC, DVD
of Digital set-top box other high
definition devices
Display Port Watch contents in a PC, DVD
of Digital set-top box other high
definition devices
24
ENG
ENGLISH
ENTERTAINMENT
ENTERTAINMENT
Connecting to a Wired Network
Connect the display to a local area network (LAN)
via the LAN port as shown on the following illustra-
tion and set up the network settings.
Only supports wired network connection.
After making a physical connection, a small
number of networks may require the display net-
work settings to be adjusted. For most networks,
the display will connect to automatically without
any adjustments.
For detail information, contact your internet pro-
vider or router manual.
y Do not connect a modular phone cable to
the LAN port.
y Since there are various connection meth-
ods, please follow the specifications of
your telecommunication carrier or internet
service provider.
y Network setting menu will not be availa-
ble until the display connected to physical
network.
y Since there are various connection meth-
ods, please follow the specifications of
your telecommunication carrier or internet
service provider.
To set up the network seetings: (Even if your dis-
play has already connected automatically, running
setup again will not harm anything),
1 Press MENU to access the main menus.
2 Press the Navigation buttons to scroll to NET-
WORK and press OK.
3 Press the Navigation buttons to select Net-
work Setting and press OK.
4 If you already set Network Setting, select
Resetting. The new connection settings resets
the current network settings.
5 Select IP Auto Setting or IP Manual Setting.
- If selecting IP Manual Setting, press the
Navigation and Number buttons. IP address-
es will need to be input manually.
- IP Auto Setting: Select this if there is a
DHCP server (Router) on the local area net-
work (LAN) via wired connection, the display
will automatically be allocated an IP address.
If you’re using a broadband router or broad-
band modem that has a DHCP (Dynamic
Host Configuration Protocol) server function.
The IP address will automatically be deter-
mined.
6 When you are finished, press EXIT.
LAN
Router
LAN WAN
Cable modem
ETHERNET
@
Internet
Internet
Cable modem
Router
CAUTION
CAUTION
25
ENG
ENGLISH
ENTERTAINMENT
y If you want to access the Internet directly
on your display, the internet connection
should always be on.
y If you cannot access the Internet, check
the network conditions from a PC on your
network.
y When you use Network Setting, check
the LAN cable or check if DHCP in the
router is turned on.
y If you do not complete the network set-
tings, the network may not work properly.
Tips for Network setting
y Use a standard LAN cable with this display.
Cat5 or better with a RJ45 connector.
y Many network connection problems during set
up can often be fixed by re-setting the router
or modem. After connecting the display to the
network, quickly power off and/or disconnect
the power cable of the network router or cable
modem. Then power on and/or connect the
power cable again.
y Depending on the internet service provider
(ISP), the number of devices that can receive
internet service may be limited by the applica-
ble terms of service. For details, contact your
ISP.
y LG is not responsible for any malfunction of the
display and/or the internet connection feature
due to communication errors/malfunctions as-
sociated with your internet connection, or other
connected equipment.
y LG is not responsible for problems within your
internet connection.
y You may experience undesired results if the
network connection speed does not meet the
requirements of the content being accessed.
y Some internet connection operations may not
be possible due to certain restrictions set by
the Internet service provider (ISP) supplying
your Internet connection.
y Any fees charged by an ISP including, without
limitation, connection charges are your respon-
sibility.
y A 10 Base-T or 100 Base-TX LAN port is
required when using a wired connection to this
display. If your internet service does not allow
for such a connection, you will not be able to
connect the display.
y A DSL modem is required to use DSL service
and a cable modem is required to use cable
modem service. Depending on the access
method of and subscriber agreement with your
ISP, you may not be able to use the internet
connection feature contained in this display or
you may be limited to the number of devices
you can connect at the same time. (If your ISP
limits sub-scription to one device, this display
may not be allowed to connect when a PC is
already connected.)
y The use of a “Router” may not be allowed or its
usage may be limited depending on the poli-
cies and restrictions of your ISP. For details,
contact your ISP directly.
Network Status
1 Press MENU to access the main menus.
2 Press the Navigation buttons to scroll to NET-
WORK and press OK.
3 Press the Navigation buttons to select Net-
work Status.
4 Press OK to check the network status.
5 When you are finished, press EXIT.
Option Description
Setting Return to the network setting menu.
Test
Test the current network status after set-
ting the network.
Close Return to the previous menu.
NOTE
26
ENG
ENGLISH
ENTERTAINMENT
Tips for using USB storage devices
y Only a USB storage device is recognizable.
y If the USB storage device is connected
through a USB hub, the device is not recog-
nizable.
y A USB storage device using an automatic
recognition programme may not be recog-
nized.
y A USB storage device which uses its own
driver may not be recognized.
y The recognition speed of a USB storage
device may depend on each device.
y Please do not turn off the display or unplug
the USB device when the connected USB
storage device is working. When such device
is suddenly separated or unplugged, the
stored files or the USB storage device may
be damaged.
y Please do not connect the USB storage
device which was artificially maneuvered on
the PC. The device may cause the product to
malfunction or fail to be played. Never forget
to use only a USB storage device which has
normal music files, image files or movie files.
y Please use only a USB storage device which
was formatted as a FAT32 file system, NTFS
file system provided with the Windows op-
erating system. In case of a storage device
formatted as a different utility programme
which is not supported by Windows, it may
not be recognized.
y Please connect power to a USB storage
device(over 0.5 A) which requires an external
power supply. If not, the device may not be
recognized.
y Please connect a USB storage device with
the cable offered by the device maker.
y Some USB storage devices may not be sup-
ported or operated smoothly.
y File alignment method of USB storage
device is similar to Window XP and filename
can recognize up to 100 English characters.
Connecting USB Storage Devices
Connect USB storage devices such as a USB
flash memory, external hard drive to the display
and use multimedia features (See "Browsing Files"
on page 27).
Connect a USB flash memory or USB memory
card reader to the Display as shown on the follow-
ing illustration. The My media screen appears.
y Do not turn the display off or remove a USB
storage device while EMF(my media) Menu
is activated, as this could result in loss of
files or damage to the USB storage device.
y Back up your files saved on a USB storage
device frequently, as you may lose or dam-
age the files and this may be not covered by
the warranty.
or
CAUTION
27
ENG
ENGLISH
ENTERTAINMENT
y Be sure to back up important files since data
stored in a USB memory device may be
damaged. We will not be responsible for any
data loss.
y If the USB HDD does not have an external
power source, the USB device may not be
detected. So be sure to connect the external
power source.
- Please use a power adaptor for an external
power source. We do not guarantee an USB
cable for an external power source.
y If your USB memory device has multiple
partitions, or if you use a USB multi-card
reader, you can use up to 4 partitions or USB
memory devices.
y If a USB memory device is connected to a
USB multi-card reader, its volume data may
not be detected.
y If the USB memory device does not work
properly, disconnect and reconnect it.
y How fast a USB memory device is detected
differs from device to device.
y If the USB is connected in Standby Mode,
specific hard disk will automatically be
loaded when the display is turned on.
y The recommended capacity is 1 TB or less
for a USB external hard disk and 32 GB or
less for USB memory.
y Any device with more than the recommended
capacity may not work properly.
y If a USB external hard disk with a “Energy
Saving” function does not work, turn the
hard disk off and on again to make it work
properly.
y USB storage devices below USB 2.0 are
supported as well. But they may not work
properly in the movie list.
y Maximum of 999 folders or files can be rec-
ognized under one folder.
y A USB 3.0 storage device may not work.
Browsing Files
Access the photo, music, or movie lists and browse
files.
1
Connect a USB storage device.
2
Press MENU to access the main menus.
3
Press the Navigation buttons to scroll to My
Media and press OK.
4
Press Navigation buttons to scroll to All Media,
Movie List, Photo List, or Music List and press
OK.
-
All Media: Shows all files in the file list.
-
Movie List, Photo List, or Music List: Shows
only one type of file in the file list.
5
Press Navigation buttons to select a folder or
file.
No. Description
1
Shows all media folders.
2
Current page number/total number of
pages.
3
Moves to the previous or next page.
4
Current page number/total number of
pages.
5
Files info or thumbnail.
6
Available buttons on the remote control.
Page 1/1
All Media
All
Media
Movie List Photo List Music List
Page 1/1
USB External
4
1
2
3
5
Go to root folde
Go to upper folder
Exit
6
28
ENG
ENGLISH
ENTERTAINMENT
Supported file format
Type Supported file format
Movie Supported Maximum resolution : 1920 x 1080 @30p (only Motion JPEG 640x480 @30p)
.asf, .wmv
[Video] VC-1 Advanced Profile, VC-1 Simple and Main Profiles
[Audio] WMA Standard
.divx, .avi
[Video] DivX3.11, DivX4, DivX5, DivX6, XViD, H.264/AVC, Motion JPEG
[Audio] MPEG-1 Layer I, II, Dolby Digital, MPEG-1 Layer III (MP3), DTS
.mp4, .m4v, .mov
[Video] H.264/AVC, MPEG-4 Part 2, XViD
[Audio] AAC, MPEG-1 Layer III (MP3), DTS.mkv
[Video] H.264/AVC, XViD, MPEG-4 Part2
[Audio] HE-AAC, Dolby Digital, MPEG-1 Layer III (MP3), DTS
.ts, .trp, .tp
[Video] H.264/AVC, MPEG-2
[Audio] MPEG-1 Layer I, II, MPEG-1 Layer III (MP3), Dolby Digital,
Dolby Digital Plus, AAC
.vob
[Video] MPEG-1, MPEG-2
[Audio] Dolby Digital, MPEG-1 Layer I, II, DVD-LPCM
.mpg, .mpeg, .mpe
[Video] MPEG-1
[Audio] MPEG-1 Layer I, II
JPEG
Baseline : 64 x 64 to 15360 x 8640
Progressive : 64 x 64 to 1920 x 1440
y You can play JPEG files only.
y Non-supported files are displayed in the form of predefined icon.
File
Extensions
Item Profile
2D jpeg
jpg
jpe
Supported file format y SOF0: baseline,
y SOF1: Extend Sequential,
y SOF2: Progressive
Photo size y Min : 64 x 64
y Max:
Normal Type: 15360 (W) x 8640 (H)
Progressive Type: 1920 (W) x 1440 (H)
3D
(Only 3D
models)
mpo Supported file format
mpo
Photo size
y 4:3 size : 3,648 x 2,736 / 2,592 x 1,944 / 2,048 x 1,536
y 3:2 size : 3,648 x 2,432
Music
y File type : mp3
y [Bit rate] 32 Kbps - 320 Kbps
y [Sample freq.] 16 kHz - 48 kHz
y [Support] MPEG1, MPEG2, Layer2, Layer3
29
ENG
ENGLISH
ENTERTAINMENT
Viewing Movies
Play video files on display. Your display shows all
of the video files saved in a USB storage device or
shared folder on a PC.
1 Press the Navigation buttons to scroll to My
Media and press OK.
2 Press the Navigation buttons to scroll to Movie
List and press OK.
3 Press the Navigation buttons to scroll to a
folder you want and press OK.
4 Press the Navigation buttons to scroll to a file
you want and press OK.
5 Play a movie.
y An unsupported file displays a preview image
icon only .
y Abnormal files are displayed in the form of
bitmap .
6 Control playback by using the following buttons.
NOTE
Page 1/1
Movie List
Drive1
Page 1/2
USB2 External
Go to root folder
Go to upper folder
Exit
Button Description
Stops the playback.
Plays a video.
Pauses or resumes the playback.
Scans backward in a file.
Scans forward in a file.
and
Plays videos in slow motion.
Selects the frame directly.
The entire file is divided into 10 frames.
Frames may not be displayed depending
on the file.
ENERGY
SAVING
Increases or decreases the brightness
of your screen.
3D
(Only 3D
models)
Views the 3D imaging.
MENU Shows the Option menu.
AV MODE Select the desired source.
BACK
Hides the menu on screen.
To see the menu again, press OK button
to display.
EXIT Moves to the previous menu screen.
Button Description
Navigation
button
Scrolls through the files.
OK Plays the highlighted file.
PAGE Moves to the previous or next page.
Green
button
Go to root folder.
Yellow
button
Go to upper folder.
Option
Hide
Exit
30
ENG
ENGLISH
ENTERTAINMENT
Video options
1 Press MENU to access the Pop-Up menus.
2 Press the Navigation buttons to scroll to Set
Video Play., Set Video. or Set Audio. and
press OK.
y Option values changed in Movie List does
not affect Photo List and Music List.
y Option value changed in Photo List and Mu-
sic List are changed likewise in Photo List
and Music List excluding Movie List.
y When replaying the video file after stopping,
you can play from where it stopped previ-
ously.
Tips for using playing video files
y Some user-created subtitles may not work
properly.
y Some special characters are not supported
in subtitles.
y HTML tags are not supported in subtitles.
y Subtitles in languages other than the sup-
ported languages are not available.
y The screen may suffer temporary interrup-
tions (image stoppage, faster playback, etc.)
when the audio language is changed.
y A damaged movie file may not be played
correctly, or some player functions may not
be usable.
y Movie files produced with some encoders
may not be played correctly.
y If the video and audio structure of recorded
file is not interleaved, either video or audio is
outputted.
y Videos with resolutions higher than
1920X1080@25/30P may not work properly
depending on the frame.
y Movie files other than the specified types and
formats may not work properly.
y Max bitrate of playable movie file is 20 Mbps.
(only, Motion JPEG : 10 Mbps)
y We do not guarantee smooth playback of
profiles encoded level 4.1 or higher in H.264/
AVC.
y DTS Audio codec is not supported.
y A movie file more than 30 GB in file size is
not supported for playback.
y A DivX movie file and its subtitle file must be
located in the same folder.
y A video file name and its subtitle file name
must be identical for it to be displayed.
y Playing a video via a USB connection that
doesn’t support high speed may not work
properly.
y Files encoded with GMC(Global Motion
Compensation) may not be played.
y When you are watching the movie by Movie
List function, you can adjust an image by
Energy Saving key on the remote control.
User setup for each image mode does not
operate.
NOTE
31
ENG
ENGLISH
ENTERTAINMENT
MENU options for movie list
1 Press MENU.
A pop-up window will appears.
2 Press the Navigation buttons to scroll to the op-
tion and press OK.
3 Press the Navigation buttons to scroll to one of
the following options and press OK.
Set Video Play.
Option Description
Size
Selects your desired picture format for vid-
eos.
y Full Mode: Files are played in full screen
mode according to the aspect ratio of
video.
y Original Mode: Files are played in their
native size.
Audio
Language
Changes the Language Group of the au-
dio for video files. Files with a single audio
track cannot be selected.
Subtitle
Language
The subtitles can be turned on or off.
Language
Activated for SMI subtitles and can select
the language within the subtitle.
Code
Page
Subtitle font selection. When set to default,
contents are displayed in the language set
in "Option - Language - Menu Language".
Option Description
S u b t i t l e
Language
Group
y
Latin1 : English, Spanish,
French, German, Italian,
Swedish, Finnish, Dutch,
P o r t u g u e s e , D a n i s h ,
Romanian, Norwegian,
Albanian, Gaelic, Welsh,
Irish, Catalan,Valencian
y
Latin2 : Bosnian, Polish,
Croatian, Czech, Slovak,
S l o v e n i a n , S e r b i a n ,
Hungarian
y
Latin4 : Estonian, Latvian,
Lithuanian
y
Cyrillic : Bulgarian, Mac-
edonian, Russian, Ukrain-
ian, Kazakh
y
Greek : Greek
y
Turkish : Turkish
Sync If the video is not synchronized
with the captions, it can be ad-
justed by 0.5 second.
Position Move the location of the subti-
tles.
Size Changes the subtitle font size.
Repeat
Turn on/off repeat function of movie play-
back. When turned on, the file within the
folder will be played back repeatedly. When
turned off, if the next file name is similar to
the previous file, it can be played sequen-
tially.
y Option values changed in Movie List does
not affect Photo List and Music List.
y Option value changed in Photo List and
Music List are changed likewise in Photo
List and Music List excluding Movie List.
y When replaying a video file after stopping,
select “Yes” to restart where it previously
stopped.
y If continuous series files exist within the
folder, the next file will automatically be
played. But, this excludes cases when the
Repeat function of Movie List Option is
turned “On”.
NOTE
32
ENG
ENGLISH
ENTERTAINMENT
y Only 10,000 of sync blocks can be supported
within the subtitle file.
y When playing a video, you can adjust the
Picture Size by pressing the ARC button.
y Subtitles in your language are only sup-
ported when the OSD menu is also in this
language.
y The code page options may be disabled de-
pending on the language of the subtitle files.
y Select the appropriate code page for the
subtitle files.
NOTE
Set Video.
Allows you to change Video presets. (Refer to “PIC-
TURE Settings”)
Set Audio.
Allows you to change Audio presets. (Refer to “AU-
DIO Settings”)
33
ENG
ENGLISH
ENTERTAINMENT

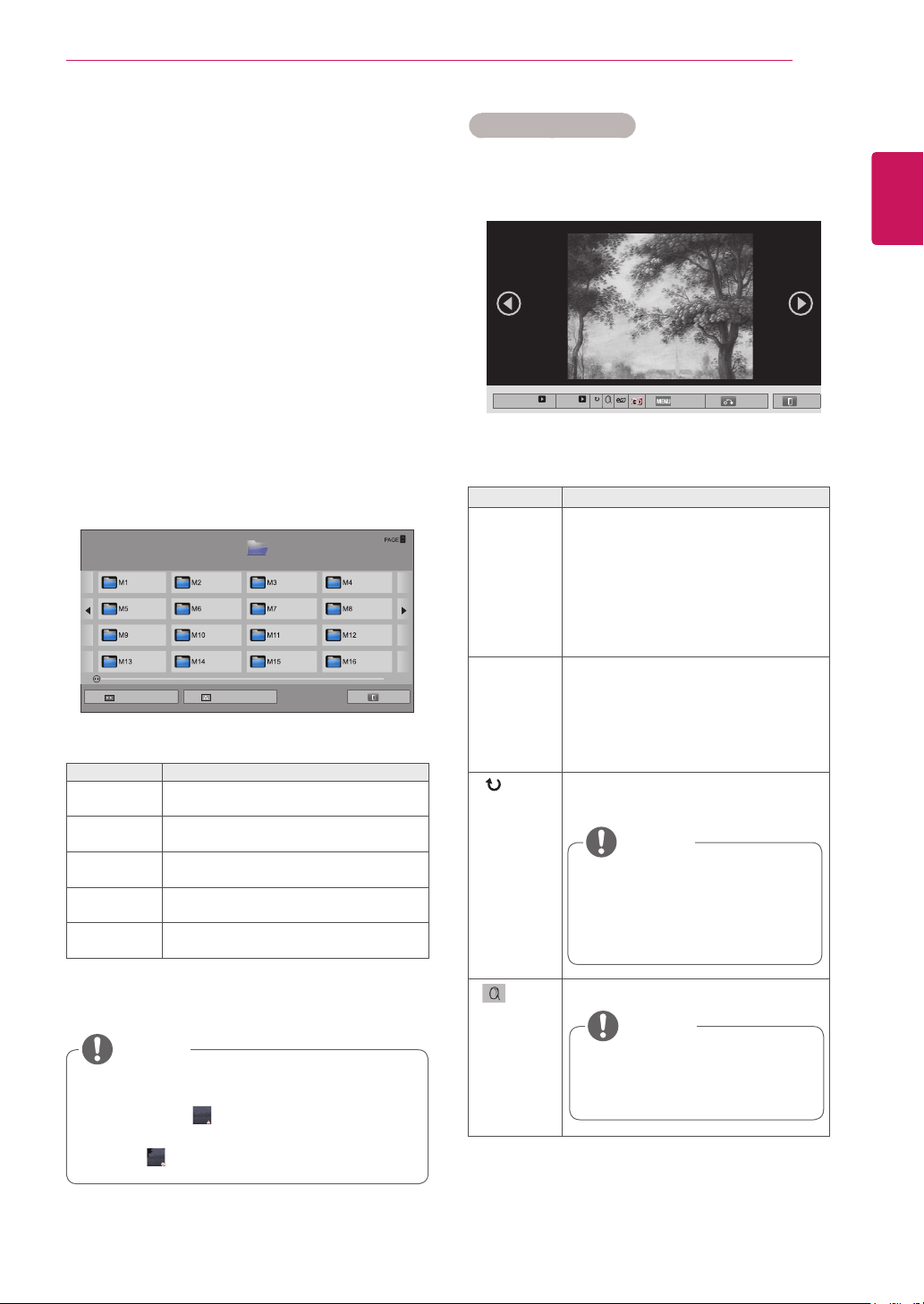

Viewing Photos
View image files saved in a USB storage device.
The displays on the screen may differ from the
model.
1 Press the Navigation buttons to scroll to My
Media and press OK.
2 Press the Navigation buttons to scroll to Photo
List and press OK.
3 Press the Navigation buttons to scroll to a
folder you want and press OK.
4 Press the Navigation buttons to scroll to a file
you want and press OK.
y An unsupported file displays a preview im-
age icon only .
y Abnormal files are displayed in the form of
bitmap .
NOTE
Button Description
Navigation
button
Scrolls the file.
OK Views the highlighted file.
PAGE Moves to the previous or next page.
Green
button
Go to root folder.
Yellow
button
Go to upper folder.
2008/12/10
1920 x 1080
479 KB
[1/66]
Slideshow BGM
Option
Hide
Exit
Using photo options
Use the following options while viewing photos.
Option Description
Slideshow Starts or stops a slideshow with selected
photos.
If there are no selected photos, all pho-
tos saved in the current folder display
during a slideshow.
Select Option to set the speed and view
mode of the slideshow.
BGM Turns the background music on or off.
To set the background music folder,
select Option.
You can adjust Option by MENU button
on the remote control.
Rotate
Rotates photos clockwise (90°, 180°,
270°, 360°).
y The supported photo size is
limited. You cannot rotate a
photo if the resolution of the
rotated width is larger than the
supported resolution size.
NOTE
Zoom
Enlarges the image to 200% or 400%.
NOTE
y Zoom to 200% or 400% only
work for image of 1372×772
pixel size or larger.
Page 1/1
Photo List
Drive1
Page 1/2
USB2 External
Go to root folder
Go to upper folder
Exit
34
ENG
ENGLISH
ENTERTAINMENT
ENER-
GY SAVING
Press the ENERGY SAVING button
repeatedly to change the brightness of
your screen.
3D
(Only 3D
models)
Views the 3D imaging.
Option y Slide Speed: Selects a slideshow
speed (Fast, Medium, Slow).
y BGM: Selects a music folder for the
background music.
y You cannot change the music
folder while the background
music is playing.
y You can only select the MP3
folder saved on the device that
currently displays the photo.
NOTE
Hide Hides the option window.
To display the options, press OK.
EXIT Return to Photo List.
MENU options for photo list
1 Press MENU.
A pop-up window will appears.
2 Press the Navigation buttons to scroll to the op-
tion and press OK.
3 Press the Navigation buttons to scroll to one of
the following options and press OK.
Set Photo View.
Option Description
Slide Speed
Selects a slideshow speed (Fast, Me-
dium, Slow).
BGM
Selects a music folder for the back-
ground music.
Select Repeat or Random option.
y You cannot change the music
folder while the background mu-
sic is playing.
NOTE
Set Video.
Allows you to change Video settings. (Refer to
“PICTURE Settings”)
Set Audio.
Allows you to change Audio settings. (Refer to “AU-
DIO Settings”)
y Option values changed in Photo List do not
affect Movie List.
y Option values changed in Photo List or Music
List are changed likewise in Photo List and
Music List, but not Movie List.
NOTE
35
ENG
ENGLISH
ENTERTAINMENT
5 Play music.
Listening to Music
1 Press the Navigation buttons to scroll to My Me-
dia and press OK.
2 Press the Navigation buttons to scroll to Music
List and press OK.
3 Press the Navigation buttons to scroll to a folder
you want and press OK.
4 Press the Navigation buttons to scroll to a file
you want and press OK.
Button Description
Stops playback.
Plays a music file.
Pauses or resumes playback.
Skips to the previous file.
Skips to the next file.
Indicates a cursor.
(ENERGY
SAVING)
Increases or decreases the brightness
of your screen.
MENU Shows the Option menu.
EXIT
Hides the option window.
To display the options, press OK.
BACK Moves to the previous menu screen.
Button Description
Navigation
button
Scrolls through the files.
OK Plays the highlighted file.
PAGE
Moves to the previous or next page.
Green
button
Go to root folder.
Yellow
button
Go to upper folder.
Blue
button
Open music player.
It is enabled during music playback.
Tips for playing music files
y This unit cannot support the ID3 Tag embedded
MP3 files.
Page 1/1
Music List
Drive1
Page 1/2
USB2 External
Go to root folder
Go to upper folder
Exit
Page 1/1
Music List
M2
Page 1/2
USB2 External
Option
Hide Exit
36
ENG
ENGLISH
ENTERTAINMENT
MENU options for music list
1 Press MENU.
A pop-up window will appears.
2 Press the Navigation buttons to scroll to the op-
tion and press OK.
3 Press the Navigation buttons to scroll to one of
the following options and press OK.
Set Audio Play.
Select Repeat or Random option.
Set Audio.
Allows you to change Audio settings. (Refer to “AU-
DIO Settings”)
y Option values changed in Music List do not
affect Movie List.
y Option value changed in Photo List and Music
List are changed likewise in Photo List and
Music List.
y The monitor will not play copy protected files.
y If the monitor is not in use for some time dur-
ing playback, the information box as a screen-
saver will appear to prevent image burn.
To return to the Music list screen, press OK.
NOTE
NOTE
Time elapsed/ Duration
file name
ENGLISH
37
3D IMAGING
3D IMAGING (Only 3D Models)
3D Technology
This Monitor can display in 3D when the Monitor is connected to a compatible device, such as a Blu-ray 3D
Player. The viewer must wear compatible 3D glasses in order to see these images in 3D format.
y
If you view 3D images from too close a distance, your eyesight may deteriorate.
y
If you view images in 3D for a long period of time, you may feel dizzy or experience blurred vision.
y
If you are pregnant, elderly, have heart problems, experience severe nausea or if you are under the
influence of alcohol, we recommend that you do not view 3D images. This is because the 3D images
can cause disorientation and confusion.
y
Put fragile or breakable objects away when viewing 3D images.
y
Such objects may break, or cause personal injuries when you are startled by the realistic 3D images.
y
Parents should prevent children who are 5 years or younger from watching 3D images because
viewing 3D images can be harmful to vision development.
y
Warning about photosensitivity seizures
Some users may have a seizure or other abnormal reactions when they are exposed to a flashing light
or a particular pattern in a video game or film. If anyone in your family has a history of epilepsy or has
ever experienced any kind of seizure, please consult your doctor before viewing 3D images. If you
exhibit any of the symptoms listed below when viewing 3D images, stop viewing immediately and have
a break.
»
Dizziness, blurred vision or facial tics, involuntary movements, twitching, blackouts, confusion and
disorientation. Please consult your doctor if such symptoms persist.
y
To prevent a photosensitivity seizure, please take the following precautions.
»
Have a 5- to 15-minute break every hour.
»
If your left and right eye sight is significantly different, correct the sight difference first.
»
You should be able to see all of the screen at eye level.
»
If you experience headaches, fatigue or dizziness, stop viewing and have a rest.
»
Do not view 3D images when you are tired or ill.
Precautions to Take When Viewing 3D Images
WARNING
ENGLISH
38
3D IMAGING
When Using 3D Glasses
y
Do not use the 3D glasses to replace your corrective glasses, sunglasses or protective goggles.
y
Do not store 3D glasses in very hot or very cold conditions. If you do, this may cause them to become
distorted. Do not use distorted glasses.
y
Do not drop objects onto the 3D glasses. Do not drop or bend the glasses.
y
Since the lenses of the 3D glasses are easily scratched, make sure to clean only with a soft cloth.
Shake off any dust before using the cloth
y
Do not scratch the surface of the lens(Polarized film) of 3D glasses with a sharp tool or wipe the lens
with chemicals.
y
Be careful not to poke your eye out with the frames of the 3D glasses.
y
Please use 3D glasses certified by LG Electronics.
y
The lens of the 3D glasses is different from those of general glasses, and is very thin. Therefore be
careful with the glasses as the lens can be popped out easily.
y
Be careful of the edges of the glass frame when putting on the 3D glasses.
CAUTION
CAUTION
y
3D is a technology that displays an image based on binocular disparity, giving the image depth. For
optimal 3D experience, wear the 3D glasses provided with the product and keep the optimal viewing
angle and distance.
ENGLISH
39
3D IMAGING
3D Imaging Viewing Range
Monitor size, viewing angle & other circumstances may change the viewing distance and the angle of view.
Mode Optimal
Viewing Angle
(D)
Size Configuration Optimal Viewing Distance (L)
(From the middle of multiple
screens)
When
watching 3D
images
30° 686 mm Landscape: one or more
Portrait: one
1,280 mm or longer
1,372 mm Landscape: one or more
Portrait: two
2,560 mm or longer
2,058 mm Landscape: one or more
Portrait: three
3,840 mm or longer
No. Description
1
Adjust the product height to allow you to view images at the optimal viewing angle (D).
2
Adjust your distance from the SET to allow you to view images from the optimal distance (L).
y When you are outside the optimal viewing angle or optimal viewing distance, 3D images may look over-
lapped or not be displayed properly in 3D.
y 3D crosstalk may occur depending on the depth of 3D content.
NOTE
1
2
ENGLISH
40
3D IMAGING
y
To watch 3D images, set your media player (e.g. Windows Media Player or other players) to full
screen mode. Otherwise, 3D images will not be displayed properly.
NOTE

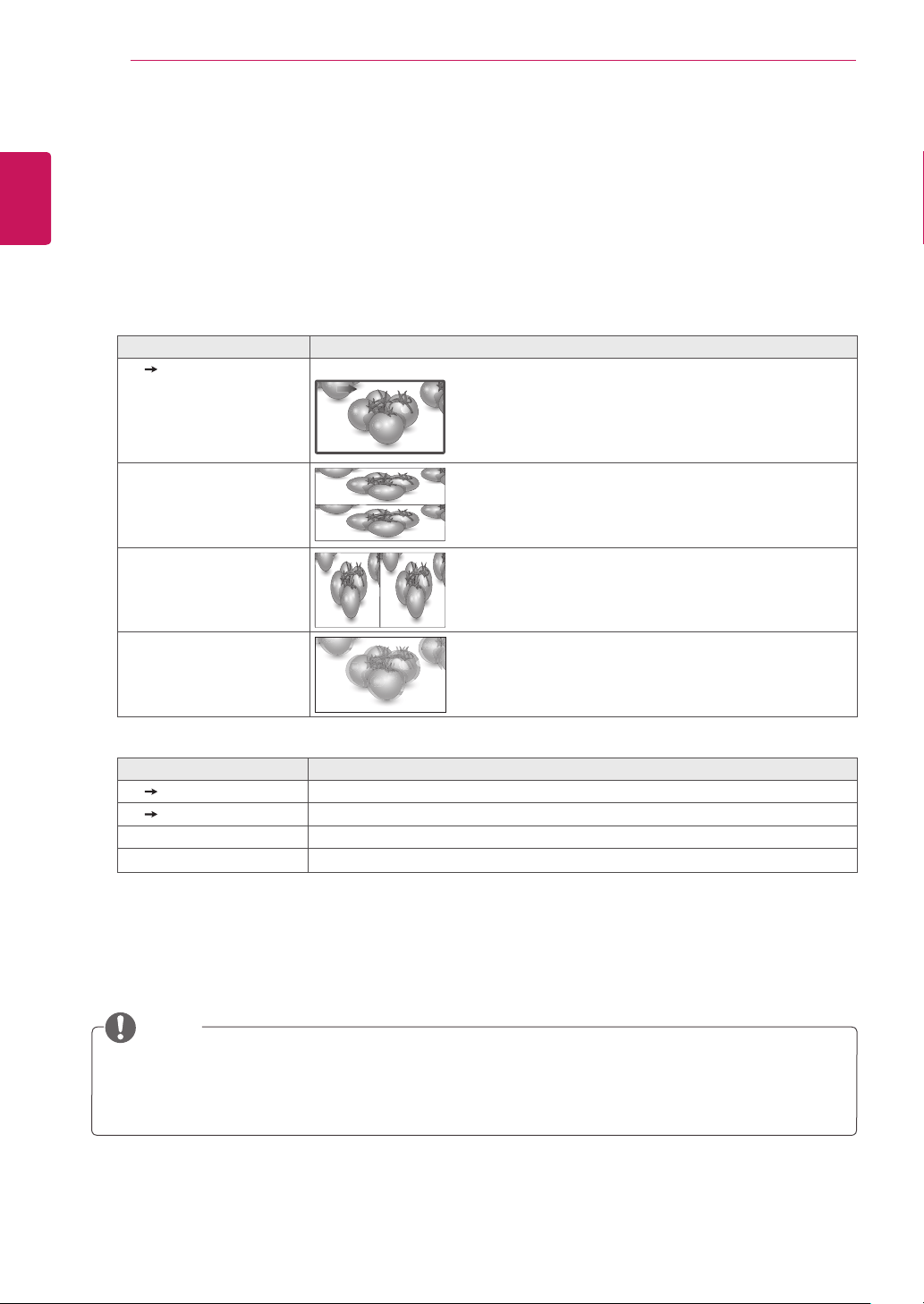

Viewing 3D Imaging
1
Play the video produced in 3D.
2
Press 3D.
3
Wear the 3D glasses.
4
Press the Navigation buttons to scroll the shape and press OK.
5
Press the Navigation buttons to scroll the OK and press OK.
Mode Description
2D 3D Changed from 2D imaging to 3D imaging.
2D 3D
Top & Bottom
Side by Side
Frame Sequential
6
Press 3D button to 2D Off or 3D Off.
Mode Description
3D 2D Displays images in 2D without any 3D effects.
2D 3D Displays images in 3D.
3D Off Displays images in original format.
Cancel Close the pop-up window.
ENGLISH
41
3D IMAGING
3D Mode Setting Option
1
Press 3D SETTING to access the Pop-Up menus.
2
Press the Navigation buttons to scroll to one of the
following options and press OK
y
Some menus may not work in 3D imaging mode.
y
The 3D imaging is disabled automatically when switching input source.
y
The screen may not be displayed properly if you view 2D images in 3D imaging mode.
y
3D effect can be seen when 3D Mode is selected appropriately for the 3D input signal supplied to the
Monitor.
y
When watching a 3D movie from the USB device, Picture Mode is not supported.
CAUTION
y
The Image View Mode option is disabled when 2D images are converted into 3D.
y
The 3D Depth option is enabled when 2D images are converted into 3D.
y
You cannot enter the Main menu while watching 3D imaging mode.
NOTE
The available Programme settings are described in the following:
Option Description
3D-On-Start
Setting
Enables the 3D mode automatically when the SET starts.
3D Picture
Correction
Select Left/Right or Right/Left.
Select the screen with 3D video with better visibility.
3D Depth Adjusts the stereoscopic effect of the 3D image converted from a 2D image.
3D Viewpoint Moves the 3D image to the front and back to adjust the 3D perspective view.
3D Mode Setting
End 3D video
OK
3D-On-Start Setting
3D Picture Correction
3D Depth 15
3D Viewpoint 0
Left/Right
◄
◄
Off
◄
◄
42
ENG
ENGLISH
CUSTOMIZING SETTINGS
Supported 3D input formats
Input Signal Resolution
Horizontal
Frequency
(kHz)
Vertical
Frequency
(Hz)
Supported 3D Formats
HDMI/Display
Port
1080p 1920*1080 53.95 / 54 23.98 / 24 Frame packing (HDMI Only)
1920*1080 67.5 60 Side by Side(half), Top & bottom
Single Frame Sequential
1920*1080 27 24 Side by Side(half), Top & bottom
1920*1080 33.7 30 Side by Side(half), Top & bottom
1080i 1920*1080 33.7 60 Side by Side(half), Top & bottom
720p 1280*720 89.9 / 90 59.94/60 Frame packing (HDMI Only)
1280*720 45 60 Side by Side(half), Top & bottom
1280*720 44.772 59.855 Side by Side(half), Top & bottom
RGB - 1920*1080 67.5 60 Side by Side, Top & Bottom
DVI - 1920*1080 67.5 60 Side by Side, Top & Bottom
- 1280*720 44.772 59.855 Side by Side, Top & Bottom
USB 1080p 1920*1080 33.75 30.000 Side by Side, Top & Bottom
y
To play videos and media in HDMI 3D Frame Packing, HDMI 3D Side by Side or HDMI 3D Top &
Bottom, the player needs to support these formats.
y
Any image inputted in the HDMI 1.4 3D format is automatically converted into 3D.
y
When a 3D image is converted to 2D, the left and right borders of the image may appear truncated
depending on the content file.
y
The 2D → 3D mode is available for all input modes.
y
When the input source is changed, 3D mode is automatically disabled.
y
When viewing multiple photos stored on the USB device, the conversion from 2D to 3D is maintained.
y
When viewing multiple video files stored on the USB device, the 3D mode is also maintained.
y
If the screen calibration is not performed in RGB input, 3D images may not be displayed properly.
NOTE
43
ENG
ENGLISH
CUSTOMIZING SETTINGS
CUSTOMIZING SETTINGS
Accessing Main Menus
1
Press MENU to access the main menus.
2
Press the Navigation buttons to scroll to one of the following menus and
press OK.
3
Press the Navigation buttons to scroll to the setting or option you want
and press OK.
4
When you are finished, press EXIT.
When you return to the previous menu, press BACK.
P
A
G
E
MARK
ARC
OK
S.MENU
PSM
AUTO
MUTE
BRIGHT
NESS
MENU
ID
BACK
TILE
ON
OFF
EXIT
PSM
OPTION
NETWORK
AUDIO TIME
MY MEDIA
PICTURE (See p.44)
Adjusts the image size,
quality, or effect.
AUDIO (See p.47)
Adjusts the sound quality,
effect, or volume level.
NETWORK (See p.54)
Sets up the network
setting.
OPTION (See p.49)
Customizes the general
settings.
TIME (See p.48)
Sets the time, date, or
Timer feature.
MY MIDIA (See p.26)
Display and play movie,
photo and music content
stored on your USB
44
ENG
ENGLISH
CUSTOMIZING SETTINGS
PICTURE Settings
1
Press MENU to access the main menus.
2
Press the Navigation buttons to scroll to PICTURE and
press OK.
3
Press the Navigation buttons to scroll to the setting or
option you want and press OK.
- To return to the previous level, press BACK.
4
When you are finished, press EXIT.
When you return to the previous menu, press
BACK.
The available picture settings are described in the following:
Setting Description
Set 3D Video
(Only 3D
model)
Sets the 3D imaging option.
Aspect Ratio Changes the image size to view images at its optimal size (See p.21).
Energy Saving
Sets to automatically adjust the screen brightness corresponding to the surroundings.
Level
Off Disables Energy Saving function.
Minimum/
Medium/
Maximum
Selects the brightness level of the backlight.
Screen Off The screen turns off in 3 seconds.
Smart Energy
Saving
Adjusts the backlight and contrast depending on the screen brightness.
Level
On Enables the Smart Energy Saving function to save power consumption as much
as the value set in the smart energy saving rate.
Off Disables the Smart Energy Saving function.
Picture Mode Selects one of the preset image or customizes options in each mode for the best Monitor set screen
performance. You are also able to customize advanced options of each mode.
The available preset picture modes vary depending on the Monitor set .
Mode
Vivid Adjusts the video image for the retail environment by enhancing the contrast,
brightness, Color, and sharpness.
Standard Adjusts the image for the normal environment.
Cinema Optimizes the video image for a cinematic look to enjoy movies as if you are in a
movie theater.
Sport Optimizes the video image for high and dynamic actions by emphasizing primary
Colours such as white, grass, or sky blue.
Game Optimizes the video image for a fast gaming screen such as PCs or games.
Move
OK
ꔋ
• Set 3D Video
• Aspect Ratio : 16:9
•
Energy Saving : Off
• Smart Energy Saving : Off
• Picture Mode : Standard
• Backlight 70
• Contrast 100
• Brightness 50
• Sharpness 50
• Color 60
• Tint 0
• Color Temp. 0
• Advanced Control
• Picture Reset
• TruMotion : Low
• Screen
R G
W C
45
ENG
ENGLISH
CUSTOMIZING SETTINGS
Basic image options
Setting Description
Backlight Adjusts the brightness of the screen by controlling the LCD backlight. If you decrease the
brightness level, the screen becomes darker and the power consumption will be reduced
without any video signal loss.
Contrast Increases or decreases the gradient of the video signal. You may use Contrast when the
bright part of the picture is saturated.
Brightness Adjusts the base level of the signal in the picture. You may use Brightness when the dark part
of the picture is saturated.
Sharpness Adjusts the level of crispness in the edges between the light and dark areas of the picture.
The lower the level, the softer the image.
Color Adjusts intensity of all colors.
Tint Adjusts the balance between red and green levels.
Color Temp. Set to warm to enhance hotter Colors such as red, or set to cool to make picture bluish.
Advanced Control Customizes the advanced options. Refer to the Advanced image options. (See p.46).
Picture Reset Restores the options to the default setting.
TruMotion Corrects images to display smoother motion sequences.
• Low : De-Judder / De-Blur value is set to 3.
• High : De-Judder / De-Blur value is set to 7.
• User : De-Judder / De-Blur can be set manually.
- De-Judder : This function adjusts juddering of
the screen.
- De-Blur : This function adjusts and eliminates blurring of the screen.
Setting Description
SCREEN
(In RGB
Mode Only)
Customizes the PC display options in RGB mode.
Option
Resolution Selects a proper resolution. See “Customizing PC display options”.
Auto Configure Sets to adjust the screen position, clock, and phase automatically.
The displayed image may be unstable for a few seconds while the configuration is
in progress.
Position/Size/
Phase
Adjusts the options when the picture is not clear, especially when characters are
shaky, after the auto configuration.
Reset Restores the options to the default setting.
y
If the 'Picture Mode' setting in the Picture menu is set to Vivid, Standard, Cinema, Sport or Game
the subsequent menus will be automatically set.
y
You cannot adjust color and tint in the RGB-PC / HDMI-PC mode.
y
When using the Smart Energy Saving function, the screen may look saturated in the white area of a
still image.
y
If Energy Saving is set to Minimum, Medium, or Maximum, the Smart Energy Saving function is
disabled.
NOTE
OK
TruMotion
• De-Judder 3
• De-Blur 3
◄
Low
►
46
ENG
ENGLISH
CUSTOMIZING SETTINGS
Setting Description
Dynamic
Contrast
(Off/High/
Medium/Low)
Adjusts the contrast to keep it at the best level according to the brightness of the screen. The
picture is improved by making bright parts brighter and dark parts darker. (This function can be used
only under Component.)
Dynamic Color
(Off/High/Low)
Adjusts screen Colors so that they look livelier, richer and clearer. This feature enhances
hue, saturation and luminance so that red, blue, green and white look more vivid. (This function can
be used only Component.)
Clear White
(Off/High/Low)
Make the white area of screen brighter and more white.
Skin Color
(-5 to 5)
It detects the skin area of video and adjusts it to express a natural skin color.
Noise
Reduction
(Off/High/
Medium/Low)
Reduces screen noise without compromising video quality. (This function can be used only under
Component.)
Digital Noise
Reduction
(Off/High/
Medium/Low)
This option reduces the noise produced while creating digital video signals.
Gamma
(High/Medium/
Low)
Set your own gamma value. On the monitor, high gamma values display whitish images and low
gamma values display high contrast images.
Black Level
(High/Low)
Low: The picture of the screen gets darker.
High: The picture of the screen gets brighter.
Set black level of the screen to proper level.
(Function works in the following mode - Component, HDMI-DTV)
Film Mode
(On/Off)
This function provides the optimal picture quality for watching a movie.
Advanced Control
47
ENG
ENGLISH
CUSTOMIZING SETTINGS
AUDIO Settings
1
Press MENU to access the main menus.
2
Press the Navigation buttons to scroll to AUDIO and press
OK.
3
Press the Navigation buttons to scroll to the setting or
option you want and press OK.
- To return to the previous level, press BACK.
4
When you are finished, press EXIT.
When you return to the previous menu, press BACK.
The available audio options are described in the following:
Move OK
AUDIO
ꔋ
• Clear Voice II : Off
• Balance 0
• Sound Mode : Standard
• Infinite Surround : Off
• Treble 50
• Bass 50
• Reset
• Digital Audio Input : Audio In
• Speaker : Off
L R
Setting Description
Clear Voice ll By differentiating the human sound range from others, it helps users listen to human voices better.
Balance Adjusts balance between the left and right speakers according to your room environment.
Sound Mode The best sound tone quality will be selected automatically depending on the video type that you're
currently watching.
Mode
Standard The most commanding and natural audio.
Music Select this option to enjoy the original sound when listening to the music.
Cinema Select this option to enjoy sublime sound.
Sport Select this option to watch sports broadcasting.
Game To enjoy dynamic sound when playing a game.
Option
Infinite Surround LG's Infinite Surround option provides 5.1 channel stereo sound from two
speakers.
Treble Controls the dominant sounds in the output. When you turn up the treble, it
will increase the output to the higher frequency range.
Bass Makes the output sound softer. When you turn up the bass, it will increase
the output to the lower Frequency.
Reset Resets the sound mode to the default setting.
Digital Audio
Input
HDMI/DisplayPort: Outputs the sound of digital signal from HDMI and display ports through the
monitor speaker.
Audio In: Outputs the sound through the monitor speaker by connecting HDMI and display ports
to the Audio In port.
Speaker ON: Enables sound to the monitor speaker. (* The monitor speaker is sold separately.)
OFF: Disables sound to the monitor speaker. Use this option when using an external sound device.
NOTE
y
If sound quality or volume is not at the level you want, it is recommended to
use a separate home theater system or amplifier to cope with different user
environments.
48
ENG
ENGLISH
CUSTOMIZING SETTINGS
TIME Settings
1
Press MENU to access the main menus.
2
Press the Navigation buttons to scroll to TIME and press
OK.
3
Press the Navigation buttons to scroll to the setting or option
you want and press OK.
- To return to the previous level, press BACK.
4
When you are finished, press EXIT.
When you return to the previous menu, press BACK.
The available time settings are described in the following:
Setting Description
Clock Sets the time feature.
On/Off Time Sets the time to turn on or off the Monitor set.
Sleep Timer Sets the length of time until the Monitor set to turns off. When you turn the Monitor set off and turn
it on again, the Sleep Timer will be set to off.
Power on delay When connecting multiple monitors and turning the power on, the monitors are turned on individually
to prevent overload.
Auto off If Auto off is active and there is no input signal, the set switches to off mode automatically after 15
minutes.
Automatic
Standby
If you do not use the monitor for more than 4 hours, it will be in standby mode automatically.
y
Once the on or off time is set, these functions operate daily at the preset time.
y
The scheduled power-off function works properly only when the device time is set correctly.
y
When the scheduled power-on and power-off times are the same, the power-off time has priority over the power-on time
if the set is turned on, and vice versa if the set is turned off.
NOTE
Move
OK
TIME
ꔋ
• Clock
• Off Time : Off
• On Time : Off
• Sleep Timer : Off
• Power On Delay : Off
• Auto Off : 15 min.
• Automatic Standby : 4hours
49
ENG
ENGLISH
CUSTOMIZING SETTINGS
Setting Description
Language To choose the language in which the control names are displayed.
ISM Method A frozen or still picture from a PC/Video game displayed on the screen for prolonged periods
could result in a ghost image remaining even when you change the image. Avoid allowing a fixed
image to remain on the screen for a long period of time.
Setting
Normal Leave on normal if you don't foresee image burn in being a problem.
Orbiter May help prevent ghost images. However, it is best not to allow any fixed
image to remain on the screen. To avoid a permanent image on the screen,
the screen will move every 2 minutes.
Inversion This function inverts the panel color of the screen. The panel color is
automatically inverted every 30 minutes.
White Wash White wash fills the screen with solid white. This helps removes permanent
images burned into the screen. A permanent image may be impossible to clear
entirely with white wash.
DPM Select A user can choose to turn the power saving mode on / off.
Fail Over If there is no input signal, it automatically switches to another input with signal.
Setting
Off Stops auto switch of the input source.
Auto Switches to another input source with video signal if no video signal comes
from the current input source.
Manual Selects the priority of input source for auto switch.
When several input sources are found, the input source with a higher priority
will be selected.
OPTION Settings
1
Press MENU to access the main menus.
2
Press the Navigation buttons to scroll to OPTION and press
OK.
3
Press the Navigation buttons to scroll to the setting or option
you want and press OK.
- To return to the previous level, press BACK.
4
When you are finished, press EXIT.
When you return to the previous menu, press BACK.
The available option settings are described in the following:
Move
OK
OPTION
ꔋ
• Language
• ISM Method : Normal
• DPM Select : On
• Fail Over : Off
• Portrait Mode
• Factory Reset
• Set ID : 1
• My Media Setting
• Tile Mode
• Fan
• Product/Service Info.
50
ENG
ENGLISH
CUSTOMIZING SETTINGS
Setting Description
Portrait mode Rotate OSD clockwise (90°,270°)
Option
Off Disables the Portrait mode.
90° Rotate OSD clockwise 90°.
270° Rotate OSD clockwise 270°.
ꔋ
Move
OK
OPTION
• Language
• ISM Method : Normal
• DPM Select : On
• Fail Over : Off
• Factory Reset
• Set ID : 1
• Tile Mode
• PIP/PBP
90°
ꔋ
Move
OK
OPTION
• Language
• ISM Method : Normal
• DPM Select : On
• Fail Over : Off
• Factory Reset
• Set ID : 1
• Tile Mode
• PIP/PBP
270°
Factory Reset Select this option to return to the default factory settings.
Set ID You can assign a unique Set ID NO (name assignment) to each product when several products
are connected for display. Specify the number (1 to 255) using the button and exit. Use the
assigned Set ID to individually control each product using the Product Control Program.
My Media Setting Activates or deactivates the DivX VOD registration code.
It also provides the product's DivX VOD registration code and registration guide.
NOTE
y While you are checking the registration code, some buttons may not work.
y If you use the DivX registration code of another device, you cannot play the
rented or purchased DivX file. Make sure to use the DivX registration code
assigned to your Monitor.
y The video or audio files that are not converted by the standard DivX codec
may be corrupted or not be played.
y The DivX VOD code allows you to activate up to 6 devices under one ac-
count.
y
Once the deregistration is executed, you must register your device again to
see DivX® VOD contents.
51
ENG
ENGLISH
CUSTOMIZING SETTINGS
Setting Description
Tile Mode Tile Mode To use this function
- Must be displayed with various other products.
- Must be in a function that can be connected to RGB Cable by distributor and
RS-232C.
Tile mode and choose Tile alignment and set the ID of the current product to
set location.
* Only after pressing the SET button the adjustments made to the settings will
be saved.
- Tile mode : column x row ( c = 1 to 15 r = 1 to 15)
- 15 x 15 available.
- Configuration of an integration screen is also available as well as
configuration of One by one Display.
NOTE
y
To use the Tile Mode when watching 3D images, select the 3D mode first and set the Tile
Mode.
Auto Config. Sets to adjust the screen position, clock, and phase automatically.
The displayed image may be unstable for a few seconds while the
configuration is in progress.
Position Moving the screen position horizontally and vertically.
Size Adjust the horizontal and vertical size of the screen taking into account the size
of the bezel.
Natural The image is omitted by the distance between the screens to be naturally
shown.
Reset Function to initialize and release Tile.
All Tile setting are released when selecting Tile recall and the screen returns to
Full screen.
Fan Setting
Mode This option indicates the monitor's internal temperature and controls the fan.
• Auto: Switches the fan on and off according to the set temperature.
• On: The fan is always switched on.
• Manual: Switches the fan on and off according to user settings.
Hysteresis The difference in temperature between when the fan is switched on and when
it is off.
Set Temperature Set the temperature at which the fan is switched on.
Current
Temperature
Current temperature inside the set.
NOTE
y
We recommend that you use the Auto mode to prevent any malfunctions resulting from
incorrect fan settings.
y
If the interior temperature of the set exceeds 80°C, the set will be turned off automatically
for safety reasons.
Product/Service
Info.
Displays the model name, software version, serial number, MAC address and home page.
52
ENG
ENGLISH
CUSTOMIZING SETTINGS
Tile Mode
This monitor can be tiled with additional monitors to create a large tiled display.
Tile Mode - Natural mode
When active, the part of the image that would normally be displayed in the gap between the monitors is
omitted.
ID 1
ID 2
ID 3
ID 4
ID 1
ID 2
ID 4
ID 5
ID 3
ID 6
ID 7
ID 8
ID 9
3X3
When using 9 monitors
ID 1
ID 2
ID 5
ID 6
ID 3
ID 7
ID 9
ID 10
ID 11
ID 4
ID 8
ID 12
ID 13
ID 14
ID 15
ID 16
ID 1
ID 2
ID 6
ID 7
ID 3
ID 8
ID 11
ID 12
ID 13
ID 4 ID 5
ID 9 ID 10
ID 14 ID 15
ID 16
ID 21
ID 17
ID 22
ID 18
ID 23
ID 19
ID 24
ID 20
ID 25
Off
When the Tile Mode
option is disabled
1X2
When using 2 monitors
2X2
When using 4 monitors
5X5
When using 25 monitors
4X4
When using 16 monitors
ID 1
ID 2
Tile ID
Before After
53
ENG
ENGLISH
CUSTOMIZING SETTINGS
Picture ID
Picture ID is used to change the settings of a
specic display using a single IR receiver for
multi-vision. The set receiving the IR signal
communicates with another set via an RS232
connection. Each set is identied by a Set ID. If
you assign the Picture ID using the remote control,
only displays with the same Picture ID and Set ID
can be controlled remotely.
1 Press the red ON button on the remote control
to assign the Picture ID.
2 If you press the left/right buttons or press the
ON button repeatedly, the Picture ID cycles
through OFF and 1 to 4. Assign the ID you
want.
y
If you assign the Set ID to each set with
multi-vision, and then assign the Picture ID
using the red button on the remote control,
the key command is displayed for the set
with the same Set ID and Picture ID. A set
with different Set IDs and Picture IDs cannot
be controlled by IR signals.
y
For more information on how to assign the
Set ID, see "Set ID" on page 49.
y
The maximum value of the Picture ID can be
set in the Total Set ID menu.
y
Please refer to the Installation Manual for
more information on Total Set ID assignment.
P
A
G
E
INPUT
ENERGY
SAVING
MARK
ARC
ON
OFF
. , !
ABC
DEF
GHI
JKL
MNO
PQRS
TUV
1/a/A
- * #
WXYZ
CLEAR
OK
S.MENU
MONITOR
AUTO
MUTE
BRIGHT
NESS
MENU
ID
BACK
TILE
ON
OFF
EXIT
POWER
P
A
G
E
INPUT
ENERGY
SAVING
MARK
ARC
ON
OFF
. , !
ABC
DEF
GHI
JKL
MNO
PQRS
TUV
1/a/A
- * #
WXYZ
CLEAR
OK
S.MENU
MONITOR
AUTO
MUTE
BRIGHT
NESS
MENU
ID
BACK
TILE
ON
OFF
EXIT
POWER
PSM
3D
PSM
3D
y
For example, if the Picture ID is assigned
to 2, the upper right display (Set ID: 2) can
be controlled by IR signals.
y
For each set, you can change the
settings for the PICTURE, AUDIO, TIME,
NETWORK and MY MEDIA menus or the
hot keys on the remote control.
y
If you press the green OFF button for
Picture IDs, the Picture IDs for all sets are
turned off. If you then press any button
on the remote control, all sets will start
working again.
y
Picture ID will be disabled while using the
MY MEDIA menu.
NOTE
Picture ID
Close
◀
Off
▶
2X2 Multi-Vision (Total Set ID: 4)
Set IDs are assigned as shown in the picture.
AUDIO
(RGB/DVI)
REMOTE
CONTROL IN
RS-232C OUT
RS-232C IN
RS-232C OUT
RS-232C IN
RS-232C OUT
RS-232C IN
AUDIO
(RGB/DVI)
REMOTE
CONTROL IN
RS-232C OUT
RS-232C IN
RS-232C OUT
RS-232C IN
RS-232C OUT
RS-232C IN
SET ID:1 SET ID:2
SET ID:3 SET ID:4
IR Receiver
Picture ID
Close
◄ Off ►
54
ENG
ENGLISH
CUSTOMIZING SETTINGS
Setting Description
Player Name
Setting
Sets the player name used in SuperSign Manager.(Up to 20 characters)
Network Setting Configure the network settings.
Network Status
Display the network status.
- Internet is connected : Extermally connected
- Network is connected : Only internally connected
- Not connected : When there is no network connection
Server IP Setting Sets the IP address of the computer (server) on which SuperSign Manager is installed.
Server IP Status Displays the connection status with the server.
- Not connected : When there is no network connection with SuperSign server
- Waiting for approval : When network connection with SuperSign server has been made, but
access to server has not been approved by the server
- Rejected : When network connection with SuperSign server has been made, but access to
server has been rejected by the server
- Internet is connected : When network connection with SuperSign server has been made and
access to server has also been approved by the server
NETWORK Settings
1
Press MENU to access the main menus.
2
Press the Navigation buttons to scroll to NETWORK and
press OK.
3
Press the Navigation buttons to scroll to the setting or option
you want and press OK.
- To return to the previous level, press BACK.
4
When you are finished, press EXIT.
When you return to the previous menu, press BACK.
The available option settings are described in the following:
Move OK
NETWORK
ꔋ
• Player Name Setting
• Network Setting : None
• Network Status : Not connected
• Server IP Setting
• Server IP Status : Not connected
y
When setting the Player Name, input delay may occur if you press the buttons on the remote control
continuously.
y
The Player Name Setting, Server IP Setting, Server IP Status settings may not be supported
depending on the model.
CAUTION
55
ENG
ENGLISH
MAKING CONNECTIONS
HDMI - See p.56
DVI - See p.56
AV - See p.57
Component - See p.57
HDMI - See p.17
DVI - See p.17
RGB - See p.16
LAN - See p.58
Display Port - See p.18
HDMI - See p.56
DVI - See p.56
AV - See p.57
Component - See p.57
AV - See p.57
Component - See p.57
HDMI - See p.56
DVI - See p.56
AV - See p.57
Component - See p.57
HDMI - See p.56
AV - See p.57
Component - See p.57
MAKING CONNECTIONS
Connect various external devices to the ports on the Monitor set’s back panel.
1
Find an external device you want to connect to your Monitor set shown on the following illustration.
2
Check the connection type of the external device.
3
Go to the appropriate illustration and check the connection details.
y
If you connect a gaming device to the Monitor set, use the cable supplied with the gaming device.
Memory storage
– See p.26
NOTE
HD Receiver DVD VCR
USB
PC
Camcorder/Camera Gaming device
Speaker
56
ENG
ENGLISH
MAKING CONNECTIONS
/DVI
DVI IN
RGB
/COMPONENT OUT
RGB
/COMPONENT IN
AUDIO
IN
REMOTE
CONTROL IN
Connecting to a HD receiver,
DVD, Camcorder, Camera,
Gaming Device or VCR player
Connect a HD receiver, DVD, or VCR player to the
Monitor set and select an appropriate input mode.
HDMI Connection
Transmits the digital video and audio signals from
an external device to the Monitor set. Connect the
external device and the Monitor set with the HDMI
cable as shown on the following illustration.
y
Use a High Speed HDMI™ Cable.
y
High Speed HDMI™ Cables are tested to
carry an HD signal up to 1080p and higher.
NOTE
DVI Connection
Transmits the digital video signal from an external
device to the Monitor set. Connect the external
device and the Monitor set with the DVI cable as
shown in the following illustration. To transmit an
audio signal, connect an optional audio cable.
Back of the product.
Back of the product.
(not included)
/DVI
DVI IN
RGB
/COMPONENT OUT
RGB
/COMPONENT IN
AUDIO
IN
REMOTE
CONTROL IN
(not included)
57
ENG
ENGLISH

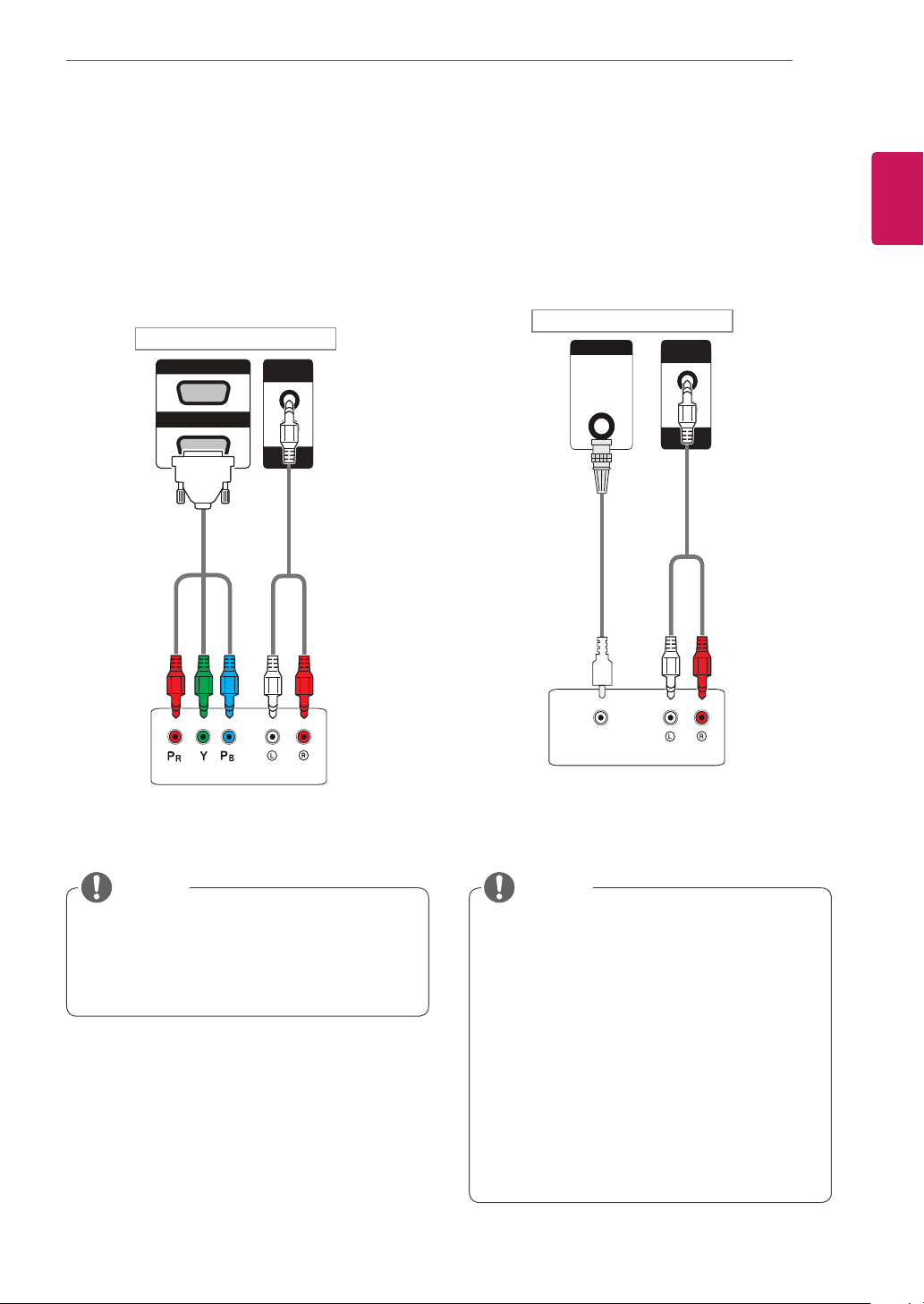

MAKING CONNECTIONS
VIDEO OUT
RGB
/COMPONENT OUT
RGB
/COMPONENT IN
AUDIO
IN
REMOTE
CONTROL IN
AUDIO
IN
REMOTE
CONTROL IN
COMPOSITE
VIDEO OUT
RGB
/COMPONENT OUT
RGB
/COMPONENT IN
AUDIO
IN
REMOTE
CONTROL IN
AUDIO
IN
REMOTE
CONTROL IN
COMPOSITE
AV(CVBS) Connection
Transmits the analog video and audio signals from
an external device to the Monitor set. Connect
the external device and the Monitor set with
the Composite cable as shown in the following
illustration.
Component Connection
Transmits the analog video and audio signals from
an external device to the Monitor set. Connect
the external device and the Monitor set with the
RGB-Component cable as shown in the following
illustration.
y
When connecting to the Component port
using the shared interface, the port must
match up to the input source. Otherwise,
noise may occur.
NOTE NOTE
Back of the product.
Back of the product.
(not included)
(not included)
(not included)
(not included)
y
If input signals are received through the AV
cable, multiple monitors cannot be connected
via the RGB OUT port.
y
Input signal may be degraded or lost when
multiple monitors are connected.
y
For Component, in general, up to 3 monitors
can be connected via the Component Out
port (RGB Shared) if the signal is stable and
there is no cable loss.
y
If you want to connect more than this number
of monitors, we recommended that you use a
distributor.
58
ENG
ENGLISH
MAKING CONNECTIONS
Connecting to the LAN
LAN Connection
A
Using a router(Switch)
Monitor Set
Network
PC
LAN
Switch
Monitor Set
Network
PC
LAN
B
Using the Internet.
Connecting to a USB
Connect a USB storage device such as s USB
flash memory, external hard drive, MP3 player or
a USB memory card reader to the Monitor set and
access the USB menu to use various multimedia
files.
or
15-pin D-Sub Signal Cable
(Max 3m)
59
ENG
ENGLISH
MAKING CONNECTIONS
Daisy Chain Monitors
Use this function to share the RGB video signal with other monitors without having to use a separate signal
splitter box.
• To use different products connected to each other Connect one end of the signal input cable (15-pin
D-Sub Signal Cable) to the RGB OUT connector of product 1 and connect the other end to the RGB IN
connector of other products.
DVI IN DVI OUT DVI IN DVI OUT DVI IN DVI OUT DVI IN
RGB
/COMPONENT OUT
RGB
/COMPONENT IN
RGB
/COMPONENT OUT
RGB
/COMPONENT IN
RGB
/COMPONENT OUT
RGB
/COMPONENT IN
RGB
/COMPONENT OUT
RGB
/COMPONENT IN
Monitor SET 1 Monitor SET 2 Monitor SET 3 Monitor SET 4
RGB Cable
15-pin D-Sub Signal Cable
(Max 3m)
DVI Cable
DVI IN DVI OUT DVI IN DVI OUT DVI IN DVI OUT DVI IN
RGB
/COMPONENT OUT
RGB
/COMPONENT IN
RGB
/COMPONENT OUT
RGB
/COMPONENT IN
RGB
/COMPONENT OUT
RGB
/COMPONENT IN
RGB
/COMPONENT OUT
RGB
/COMPONENT IN
DVI Cable
(Max 3m)
Monitor SET 1 Monitor SET 2 Monitor SET 3 Monitor SET 4
y
When multiple monitors are connected in RGB input, it is recommended to use a distributor to avoid
signal degradation and cable loss.
y
For DVI, in general, up to 12 monitors can be connected via the DVI Out port (at the recommended
resolution) if the signal is stable and there is no cable loss.If you want to connect more than this
number of monitors, we recommended that you use a distributor.
y
When the tile mode is configured via DVI cables, only the monitor that receives first signals can play
HDCP-encrypted content. (The DVI Out port does not support HDCP.)
y
If the signal cable between the product and your PC is too long, make sure to use the DVI (RGB)
booster or DVI (RGB) optical cable.
y
If input signals are received through the HDMI/DP cable, multiple monitors cannot be connected via
the DVI Out port.
NOTE
60
ENG
ENGLISH
TROUBLESHOOTING
TROUBLESHOOTING
No image is displayed
Problem Resolution
TV does not power on.
y
See if the power cord is properly connected to the outlet.
Power is on, but the screen
appears extremely dark.
y
Adjust brightness and contrast again.
y
Backlight may need repair.
Does the 'Invalid Format'
message appear?
y
The signal from the PC (video card) is out of the vertical or horizontal
frequency range of the product. Adjust the frequency range by
referring to the Specifications in this manual.
* Maximum resolution
RGB : 1920 x 1080(60 Hz)
HDMI/DVI/DP : 1920 x 1080(60 Hz)
Does the 'No signal' message
appear?
y
The signal cable between PC and product is not connected. Check
the signal cable.
y
Press the 'INPUT' menu in the remote Control to check the input
signal.
'Unknown Product' message appears when the product is connected.
Problem Resolution
Did you install the driver?
y
See if the plug&play function is supported by referring to the video
card user manual.
61
ENG
ENGLISH
TROUBLESHOOTING
The screen image looks abnormal.
Problem Resolution
Is the screen position wrong?
y
D-Sub analog signal - Press the "AUTO" button in the remote control
to automatically select the optimal screen status that fits into the
current mode. If adjustment is not satisfactory, use the Position OSD
menu.
y
See if the video card resolution and frequency are supported by the
product. If the frequency is out of range, set to the recommended
resolution in the Control Panel "Display" Setting menu.
Do thin lines appear on the
background screen?
y
D-Sub analog signal - Press the "AUTO" button in the remote control
to automatically select an optimal screen status that fits into the
current mode. If adjustment is not satisfactory, use the Clock OSD
menu.
Horizontal noise appears or the
characters look blurred.
y
D-Sub analog signal - Press the "AUTO" button in the remote control
to automatically select an optimal screen status that fits into the
current mode. If adjustment is not satisfactory, use the Phase OSD
menu.
The screen is displayed
abnormally.
y
The proper input signal is not connected to the signal port. Connect
the signal cable that matches with the source input signal.
After-image appears on the product.
Problem Resolution
After-image appears when the
product is turned off.
y
If you use a fixed image for a long time, the pixels may be damaged
quickly. Use the screen-saver function.
The audio function does not work.
Problem Resolution
No sound?
y
See if the audio cable is connected properly.
y
Adjust the volume.
y
See if the sound is set properly.
Sound is too dull.
y
Select the appropriate equalize sound.
Sound is too low.
y
Adjust the volume.
62
ENG
ENGLISH
TROUBLESHOOTING
Screen color is abnormal.
Problem Resolution
Screen has poor color resolution
(16 colors).
y
Set the number of colors to more than 24 bits (true color) Select
Control Panel - Display - Settings - Color Table menu in Windows.
Screen color is unstable or
mono-colored.
y
Check the connection status of the signal cable. Or, re-insert the PC
video card.
Do black spots appear on the
screen?
y
Several pixels (red, green, white or black color) may appear on the
screen, which can be attributable to the unique characteristics of the
LCD panel. It is not a malfunction of the LCD.
The operation does not work normally.
Problem Resolution
The power suddenly turned off.
y
Is the sleep timer set?
y
Check the power control settings. Power interrupted.
ENGLISH
63
TROUBLESHOOTING WHEN USING 3D MODE
TROUBLESHOOTING WHEN USING 3D MODE
I can see a swirling oil-like pattern on the screen when the monitor is turned off.
I can see a swirling oil-like pattern on the Monitor when the Monitor is turned off.
This is caused by the interference of external light in the air layer between the LCD surface and 3D filter.
The pattern becomes almost invisible when you turn on the power again.
I cannot see 3D image properly
Problem Resolution
If you are not using the glasses
provided with the Monitor.
y
When you view 3D images with this Monitor, it is very important
that you use the glasses provided with the Monitor. The glasses are
designed to compensate optically for the 3D filter attached to the
surface of the Monitor. If you wear third-party glasses, you may not
see 3D images properly on the Monitor.
If you view 3D images outside the
optimal viewing angle or distance.
y
The optimal vertical viewing angle for this product is 30° and the
optimal horizontal angle 178°. The optimal viewing distance for 3D is
128 cm from the monitor (for a single set). When you view 3D images
outside the optimal viewing angle or viewing distance, the images may
look overlapped or not be displayed properly in 3D.
I cannot see 3D but only 2D images.
Action
This Monitor supports both 2D and 3D modes. You can view a video in 3D if it is made in 3D. If you try to view 2D
images in 3D, they might not be displayed properly or you may experience poor picture quality.
64
ENG
ENGLISH
SPECIFICATIONS
SPECIFICATIONS
LCD Panel
Screen Type 55" class (54.6" diagonal) TFT (Thin Film Transistor)
LCD (Liquid Crystal Display) Panel.
Visible diagonal size : 1387.80 mm
Pixel Pitch 0.210 mm (H) x 0.630 mm (V)
Video Signal
Max. Resolution RGB : 1920 x 1080 @ 60 Hz
HDMI/DVI/DP : 1920 x 1080 @ 60 Hz
- It may not be supported depending on the OS or video card type.
Recommended Resolution RGB : 1920 x 1080 @ 60 Hz
HDMI/DVI/DP : 1920 x 1080 @ 60 Hz
- It may not be supported depending on the OS or video card type.
Horizontal Frequency RGB : 30 kHz to 68 kHz
HDMI/DVI/DP : 30kHz to 68 kHz
Vertical Frequency RGB : 56 Hz to 75 Hz
HDMI/DVI/DP : 56 Hz to 60 Hz
Synchronization Type Separate Sync, Composite(AV) Sync, Digital, SOG
Input Connector
15-pin D-Sub type (RGB / Component ), HDMI/DVI/DP(digital),
Composite(AV), RS-232C, LAN, USB
Power
Rated Voltage AC 100-240 V~, 50 / 60 Hz 3.3 A
Power Consumption On Mode : 240 W Typ.
Smart Energy Saving Mode : 150 W Typ.
Off Mode : ≤ 0.5 W
Dimensions
(Width x Height x
Depth) / Weight
* Wall Bracket available VESA
600 x 400
1215.2 mm X 686 mm X 99 mm / 33.4 Kg
Environmental
conditions
Operating Temperature
Operating Humidity
0 °C to 40 °C
10 % to 80 %
Storage Temperature
Storage Humidity
-20 °C to 60 °C
5 % to 95 %
* Applicable only for models that support the speakers
Audio
RMS Audio Output 10 W + 10 W (R + L)
Input Sensitivity 0.7 Vrms
Speaker Impedance 8 Ω
Product specifications shown above may be changed without prior notice due to upgrade of product
functions.
65
ENG
ENGLISH
SPECIFICATIONS
RGB (PC) supported mode
Resolution
Horizontal
Frequency(kHz)
Vertical
Frequency(Hz)
640 x 480
31.469 59.94
1024 x 768
48.363 60
1280 x 720
44.772 59.855
1366 x 768
47.7 60
1680 x 1050
65.290 59.954
1920 x 1080
67.5 60
HDMI/DVI/Display Port(PC) supported mode
Resolution
Horizontal
Frequency(kHz)
Vertical
Frequency(Hz)
640 x 480
31.469 59.94
800 x 600
37.879 60.317
1024 x 768
48.363 60
1280 x 720
44.772 59.855
1280 x 768
47.7 60
1366 x 768
47.7 60
1280 x 1024
63.981 60.02
1680 x 1050
65.290 59.954
1920 x 1080
67.5 60
y
PC resolutions available as the input label
option in RGB and HDMI/DVI input mode :
640 x 480 / 60 Hz, 1280 x 720 / 60 Hz, 1920
x 1080 / 60 Hz and DTV resolutions : 480p,
720p, 1080p.
DTV Mode
Resolution Component
HDMI/DVI
(DTV)
480i o x
576i o x
480p o o
576p o o
720p o o
1080i o o
1080p o o
NOTE
y
Vertical frequency: To enable the user to
watch the product display, screen image
should be changed tens of times every
second like a fluorescent lamp. The vertical
frequency or refresh rate is the times of
image display per second. The unit is Hz.
y
Horizontal frequency: The horizontal interval
is the time to display one vertical line. When
1 is divided by the horizontal interval, the
number of horizontal lines displayed every
second can be tabulated as the horizontal
frequency. The unit is kHz.
NOTE
66
ENG
ENGLISH

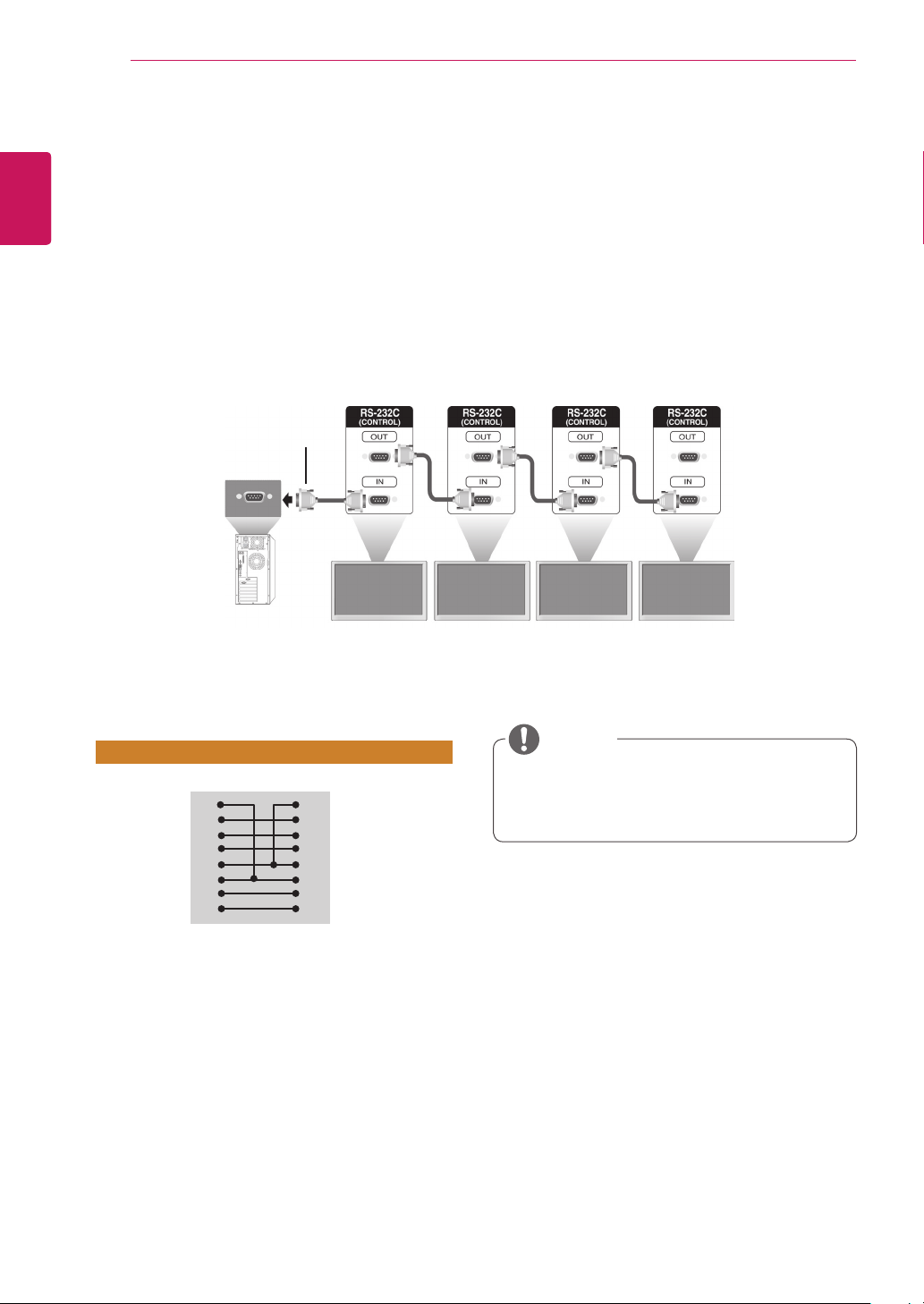

CONTROLLING THE MULTIPLE MONITORS
CONTROLLING THE MULTIPLE MONITORS
y
Use this method to connect several products to a single PC. You can control several monitors at one
time by connecting them to a single PC.
y
In the Option menu, Set ID must be between 1 and 255 without being duplicated.
Connecting the Cable
Connect the RS-232C cable as shown in the picture.
y
The RS-232C protocol is used for communication between the PC and product. You can turn the
product on/off, select an input source or adjust the OSD menu from your PC.
Communication Parameter
Monitor Set 1 Monitor Set 2 Monitor Set 3 Monitor Set 4
PC
RS-232C Cable
y
Baud Rate : 9600 buad Rate (UART)
y
Data Length : 8 bit
y
Parity Bit : None
y
Stop Bit : 1bit
y
Flow Control : None
y
Communication Code : ASCII code
y
Use a crossed (reverse) cable
y
When using 3-wire connections (non-
standard), an IR daisy chain cannot be
used.
NOTE
RS-232C Configurations
8-Wire Configurations (Cross-over RS-232C cable)
PC Set
D-Sub 9 D-Sub 9
(Female) (Female)
DCD
RXD
TXD
GND
DTR
DSR
RTS
CTS
DCD
TXD
RXD
GND
DSR
DTR
CTS
RTS
1
2
3
5
4
6
7
8
1
3
2
5
6
4
8
7
67
ENG
ENGLISH
CONTROLLING THE MULTIPLE MONITORS
Command Reference List
COMMAND
DATA
(Hexadecimal)
1 2
01 Power k a 00H to 01H
02 Input Select x b Refer to ‘02. Input Select’
03 Aspect Ratio k c Refer to ‘03. Aspect Ratio’
04 Energy Saving j q Refer to ‘04. Energy Saving’
05 Picture Mode d x Refer to ‘05. Picture Mode’
06 Contrast k g 00H to 64H
07 Brightness k h 00H to 64H
08 Sharpness k k 00H to 64H
09 Color k i 00H to 64H
10 Tint k j 00H to 64H
11 Color Temperature x u 00H to 64H
12 H Position f q 00H to 64H
13 V Position f r 00H to 64H
14 H Size f s 00H to 64H
15 Auto Configuration j u 01H
16 Balance k t 00H to 64H
17 Sound Mode d y Refer to ‘17. Sound Mode’
18 Treble k r 00H to 64H
19 Bass k s 00H to 64H
20 Speaker d v 00H to 01H
21 Volume Mute k e 00H to 01H
22 Volume Control k f 00H to 64H
23
Time 1(Years/ Months/ Days) f a Refer to ‘23. Time 1’
24
Time 2(Hours/ Minutes/ Seconds) f x Refer to ‘24. Time 2’
25
Off Timer(Repeat mode/ Time) f e Refer to ‘25. Off Timer’
26
On Timer(Repeat Mode/ Time) f d Refer to ‘26. On Timer’
27
On Timer Input f u Refer to ‘27. On Timer Input’
28 Sleep Time f f 00H to 08H
29 Power On Delay f h 00H to 64H
30 Automatic Standby m n 00H to 01H
31
Auto Off f g 00H to 01H
32 Language f i 00H to 0AH
33 ISM Method j p Refer to ‘33. ISM Method’
34
DPM Select f j 00H to 01H
35
Fail Over Select m i 00H to 02H
36
Fail Over Input Select m j Refer ‘36. Fail Over Input Select’
37 Reset f k 00H to 03H
38 Tile mode d d 00H to 01H
39 Tile Mode Check d z FFH
40 Tile ID d i Refer to ‘40. Tile ID’
68
ENG
ENGLISH
CONTROLLING THE MULTIPLE MONITORS
COMMAND
DATA
(Hexadecimal)
1 2
41 Tile H Position d e 00H to 32H
42 Tile V Position d f 00H to 32H
43 Tile H Size d g 00H to 32H
44 Tile V Size d h 00H to 32H
45 Natural Mode (in Tile Mode) d j 00H to 01H
46
FAN Control d o 00H to 02H
47
FAN Fault check d w FFH
48
Temperature Value d n FFH
49 Key m c Refer to ‘49. Key’
50 OSD Select k l 00H to 01H
51 Elapsed Time Return d l FFH
52 Serial No. Check f y FFH
53 S/W Version f z FFH
54
White Balance Red Gain j m 00H to FEH
55
White Balance Green Gain j n 00H to FEH
56
White Balance Blue Gain j o 00H to FEH
57
3D Mode x t
Refer to
‘
57. 3D Mode’
58
3D Mode Option Setting x v
Refer to
‘
58. 3D Mode Option Setting’
59
Screen Mute k d
00H to 01H
y
Note : During USB operations such as Dvix or EMF, all commands except Power(ka) and Key(mc)
Volume Mute(k e), Volume Control(k f) are not executed and treated as NG.
69
ENG
ENGLISH
CONTROLLING THE MULTIPLE MONITORS
Transmission
[Command1][Command2][ ][Set ID][ ][Data][Cr] or
[Command1][Command2][ ][Set ID][ ][Data1][ ][Data2][ ][Data3][Cr]
* [Command1]: First command to control the set.
* [Command2]: Second command to control the set.
* [Set ID]: Set ID with which you want to communicate. Etner [Set ID] = ‘00(0x00’ to communicate with all sets
regardless of their Set ID numbers.
* [Data]: Information passed to the set.
* [Data1]: Information passed to the set.
* [Data2]: Information passed to the set.
* [Data3]: Information passed to the set.
* [Cr]: Carriage Return. ASCII code ‘0x0D’.
* [ ]: ASCII code space ‘0x20’
* If Data is FF, OSD will not be marked on the Set.
(It may cause the interface factor during SuperSign Elite-w server communication)
Acknowledgement
[Command2][ ][Set ID][ ][OK/NG][Data][x] or
[Command2][ ][Set ID][ ][OK/NG][Data1][Data2][Data3][x]
* In a like manner, if other functions transmit ‘FF’ data based on this format, Acknowledgement data feedback
presents status about each function.
* Note : In this mode, display will send the acknowledgement after power on processing completion.
There might be a time delay between command and acknowledgement.
* No acknowledgement signal will be sent from display, if Set ID in transmission signal is set to ‘00’(=0x00).
* If 3D mode is on, it will work only the below commands.
COMMAND
1 2
Power k a
Input Select x b
Volume Mute k e
Volume Control k f
Fail Over Select m i
White Balance Red Gain j m
White Balance Green Gain j n
White Balance Blue Gain j o
3D Mode x t
3D Mode Option Setting x v
Transmission / Receiving Protocol
70
ENG
ENGLISH
CONTROLLING THE MULTIPLE MONITORS
01. Power (Command: k a)
To control power On/Off the display.
Transmission
[k][a][ ][Set ID][ ][Data][Cr]
Data 00 : Power Off
01 : Power On
FF: Power Status
Acknowledgement
[a][ ][Set ID][ ][OK/NG][Data][x]
* In a like manner, if other functions transmit ‘FF’
data based on this format, Acknowledgement data
feedback presents status about each function.
* Note: In this mode, display will send the
acknowledgement after power on processing
completion. There might be a time delay between
command and acknowledgement.
* Refer to ‘Real data mapping’ for hexadecimal data
to decimal data.
04. Energy Saving (Command: j q)
To control the energy saving function.
Transmission
[j][q][ ][Set ID][ ][Data][Cr]
Data 00: Off
01: Minimum
02: Medium
03: Maximum
05: Screen Off
Acknowledgement
[q][ ][Set ID][ ][OK/NG][Data][x]
05. Picture Mode (Command: d x)
To select the picture mode.
Transmission
[d][x][ ][Set ID][ ][Data][Cr]
Data 00: Vivid
01: Standard
02. Cinema
03. Sport
04: Game
Acknowledgement
[x][ ][Set ID][ ][OK/NG][Data][x]
06. Contrast (Command: k g)
To adjust screen contrast.
Transmission
[k][g][ ][Set ID][ ][Data][Cr]
Data 00 to 64: Contrast 0 to 100
Acknowledgement
[g][ ][Set ID][ ][OK/NG][Data][x]
02. Input Select (Command: x b)
To select input source for display.
Transmission
[x][b][ ][Set ID][ ][Data][Cr]
Data 20: AV
40: Component
60: RGB-PC
70: DVI-D(PC)
80: DVI-D(DTV)
90: HDMI(DTV)
A0: HDMI(PC)
C0: Display Port(PC)
D0: Display Port(DTV)
Acknowledgement
[b][ ][Set ID][ ][OK/NG][Data][x]
* Use this feature depending on your model
03. Aspect Ratio (Command: k c)
To adjust the screen format.
Transmission
[k][c][ ][Set ID][ ][Data][Cr]
Data 01: 4:3
02: 16:9
04: Zoom
(AV,Component,HDMI/Display Port DTV)
09: Just Scan(720p or higher)
/1:1(RGB-PC, DVI-D, HDMI/Display Port PC)
10 to 1F: Cinema Zoom 1~16
(AV, Component,HDMI/Display Port DTV)
Acknowledgement
[c][ ][Set ID][ ][OK/NG][Data][x]
71
ENG
ENGLISH
CONTROLLING THE MULTIPLE MONITORS
07. Brightness (Command: k h)
To adjust screen brightness.
Transmission
[k][h][ ][Set ID][ ][Data][Cr]
Data 00 to 64: Brightness 0 to 100
Acknowledgement
[h][ ][Set ID][ ][OK/NG][Data][x]
10. Tint (Command: k j)
To adjust screen tint.
* Only available for AV/Component input.
Transmission
[k][j][ ][Set ID][ ][Data][Cr]
Data 00~64: Tint R50 ~ G50
Acknowledgement
[j][ ][Set ID][ ][OK/NG][Data][x]
11. Color Temperature (Command: x u)
To adjust color temperature.
Transmission
[x][u][ ][Set ID][ ][Data][Cr]
Data 00 to 64: Warm 50 to Cool 50
Acknowledgement
[u][ ][Set ID][ ][OK/NG][Data][x]
12. H Position (Command: f q)
To set the Horizontal position.
* Only available for Tile Off mode.
Transmission
[f][q][ ][Set ID][ ][Data][Cr]
Data 00~64: Min. -50 (Left) ~ Max. 50(Right)
Acknowledgement
[q][ ][Set ID][ ][OK/NG][Data][x]
08. Sharpness (Command: k k)
To adjust screen sharpness.
* Only available for AV/Component input.
Transmission
[k][k][ ][Set ID][ ][Data][Cr]
Data 00 to 64: Sharpness 0 to 100
Acknowledgement
[k][ ][Set ID][ ][OK/NG][Data][x]
09. Color (Command: k i)
To adjust screen color.
* Only available for AV/Component input.
Transmission
[k][i][ ][Set ID][ ][Data][Cr]
Data 00 to 64: Color 0 to 100
Acknowledgement
[i][ ][Set ID][ ][OK/NG][Data][x]
72
ENG
ENGLISH
CONTROLLING THE MULTIPLE MONITORS
13. V Position (Command: f r)
To set the Vertical position.
* Only available for Tile Off mode.
* This function only works when the Tile Mode is
disabled in RGB-PC input.
* Data range varies depending on the resolution.
Transmission
[f][r][ ][Set ID][ ][Data][Cr]
Data 00~64: Min. -50 (Bottom) ~ Max. 50(Top)
Acknowledgement
[r][ ][Set ID][ ][OK/NG][Data][x]
16. Balance (Command: k t)
To adjust balance.
Transmission
[k][t][ ][Set ID][ ][Data][Cr]
Data 00 to 64: Left 50 to Right 50
Acknowledgement
[t][ ][Set ID][ ][OK/NG][Data][x]
17. Sound Mode (Command: d y)
To select the sound mode.
Transmission
[d][y][ ][Set ID][ ][Data][Cr]
Data 01: Standard
02: Music
03: Cinema
04: Sport
05. Game
Acknowledgement
[y][ ][Set ID][ ][OK/NG][Data][x]
18. Treble (Command: k r)
To adjust treble.
Transmission
[k][r][ ][Set ID][ ][Data][Cr]
Data 00 to 64: Treble 0 to 100
Acknowledgement
[r][ ][Set ID][ ][OK/NG][Data][x]
14. H Size (Command: f s)
To set the Horizontal size.
* Only available for Tile Off mode.
* This function only works when the Tile Mode is
disabled in RGB-PC input.
Transmission
[f][s][ ][Set ID][ ][Data][Cr]
Data 00~64: Size -50 (Scale down) ~ +50(Scale up)
Acknowledgement
[s][ ][Set ID][ ][OK/NG][Data][x]
15. Auto Configuration (Command: j u)
To adjust picture position and minimize image
shaking automatically.
* Only available for RGB input.
Transmission
[j][u][ ][Set ID][ ][Data][Cr]
Data 01 : Set
Acknowledgement
[u][ ][Set ID][ ][OK/NG][Data][x]
73
ENG
ENGLISH
CONTROLLING THE MULTIPLE MONITORS
19. Bass (Command: k s)
To adjust bass.
Transmission
[k][s][ ][Set ID][ ][Data][Cr]
Data 00 to 64: Bass 0 to 100
Acknowledgement
[s][ ][Set ID][ ][OK/NG][Data][x]
22. Volume Control (Command: k f)
To adjust volume.
Transmission
[k][f][ ][Set ID][ ][Data][Cr]
Data 00 to 64: Volume 0 to 100
Acknowledgement
[f][ ][Set ID][ ][OK/NG][Data][x]
23. Time 1(Year/ Month/ Day) (Command: f a)
To set the Time 1(Year/ Month/ Day) values.
Transmission
[f][a][ ][Set ID][ ][Data1][ ][Data2][ ][Data3][Cr]
Data 1 00 to 14: 2010 to 2030
Data 2 01 to 0C: January to December
Data 3 01 to 1F: 1 to 31
* Enter “fa [Set ID] ff” for checking Time 1 values.
Acknowledgement
[a][ ][Set ID][ ][OK/NG][Data1][Data2][Data3][x]
24. Time 2(Hour/ Minute/ Second) (Command: f x)
To set the Time 2(Hour/ Minute/ Second) values.
Transmission
[f][x][ ][Set ID][ ][Data1][ ][Data2][ ][Data3][Cr]
Data1 00 to 17: 00 to 23 hours
Data2 00 to 3B: 00 to 59 minutes
Data3 00 to 3B: 00 to 59 seconds
* Enter “fx [Set ID] ff” for checking Time 2 values.
** This command won’t work if Time 1 has not been
set in advance.
Acknowledgement
[x][ ][Set ID][ ][OK/NG][Data1][Data2][Data3][x]
20. Speaker (Command: d v)
To select speaker on/off.
Transmission
[d][v][ ][Set ID][ ][Data][Cr]
Data 00: Speaker Off
01: Speaker On
Acknowledgement
[v][ ][Set ID][ ][OK/NG][Data][x]
21. Volume Mute (Command: k e)
To select screen mute on/off.
Transmission
[k][e][ ][Set ID][ ][Data][Cr]
Data 00 : Volume Mute On (Volume Off)
01 : Volume Mute Off (Volume On)
Acknowledgement
[e][ ][Set ID][ ][OK/NG][Data][x]
74
ENG
ENGLISH
CONTROLLING THE MULTIPLE MONITORS
25. Off Timer(Repeat Mode/ Time) (Command: f e)
To set the Off Timer(Repeat mode/ Time) function.
Transmission
[f][e][ ][Set ID][ ][Data1][ ][Data2][ ][Data3][Cr]
Data1 00: Repeat Off
01: Repeat Once
02. Repeat Daily
03: Repeat from Monday to Friday
04: Repeat from Monday to Saturday
05: Repeat from Saturday to Sunday
06. Repeat on Sunday
07. Repeat on Monday
08. Repeat on Tuesday
09. Repeat on Wednesday
0A. Repeat on Thursday
0B. Repeat on Friday
0C. Repeat on Saturday
Data2 00 to 17: 00 to 23 Hours
Data3 00 to 3B: 00 to 59 Minutes
* Enter “fe [Set ID] ff” for checking Off Timer(Repeat
mode/ Time) values.
* Check if Time1 and Time2 have been set before
setting this function.
Acknowledgement
[e][ ][Set ID][ ][OK/NG][Data1][Data2][Data3][x]
To check current Off Timer(Repeat Mode/ Time)
function.
Transmission
[f][e][ ][Set ID][ ][Data][ ][f][f][ ][f][f][Cr]
Data f1~f7: 1st~ 7th element of schedule list
Acknowledgement
[e][ ][Set ID][ ][OK/NG][Data1][Data2][Data3][Data4][x]
Data1 f1~f7: 1st~ 7th index of schedule list
Data2 00: Repeat Off
01: Repeat Once
02. Repeat Daily
03: Repeat from Monday to Friday
04: Repeat from Monday to Saturday
05: Repeat from Saturday to Sunday
06. Repeat on Sunday
07. Repeat on Monday
08. Repeat on Tuesday
09. Repeat on Wednesday
0A. Repeat on Thursday
0B. Repeat on Friday
0C. Repeat on Saturday
Data3 00~17: 00 ~ 23 Hours
Data4 00~3B: 00 ~ 59 Minutes
26. On Timer(Repeat Mode/ Time) (Command: f d)
To set the On Timer(Repeat mode/ Time) function.
Transmission
[f][d][ ][Set ID][ ][Data1][ ][Data2][ ][Data3][Cr]
Data1 00: Repeat Off
01: Repeat Once
02. Repeat Daily
03: Repeat from Monday to Friday
04: Repeat from Monday to Saturday
05: Repeat from Saturday to Sunday
06. Repeat on Sunday
07. Repeat on Monday
08. Repeat on Tuesday
09. Repeat on Wednesday
0A. Repeat on Thursday
0B. Repeat on Friday
0C. Repeat on Saturday
Data2 00 to 17: 00 to 23 Hours
Data3 00 to 3B: 00 to 59 Minutes
* Enter “fd [Set ID] ff” for checking On Timer(Repeat
mode/ Time) values.
* Check if Time1 and Time2 have been set before
setting this function.
* On Timer Input command should be executed
followed just after executing this command to set On
Timer schedule properly.
Acknowledgement
[d][ ][Set ID][ ][OK/NG][Data1][Data2][Data3][x]
To check current On Timer(Repeat Mode/ Time)
function.
Transmission
[f][d][ ][Set ID][ ][Data][ ][f][f][ ][f][f][Cr]
Data f1~f7: 1st~ 7th element of schedule list
Acknowledgement
[d][ ][Set ID][ ][OK/NG][Data1][Data2][Data3][Data4][x]
Data1 f1~f7: 1st~ 7th index of schedule list
Data2 00: Repeat Off
01: Repeat Once
02. Repeat Daily
03: Repeat from Monday to Friday
04: Repeat from Monday to Saturday
05: Repeat from Saturday to Sunday
06. Repeat on Sunday
07. Repeat on Monday
08. Repeat on Tuesday
09. Repeat on Wednesday
0A. Repeat on Thursday
0B. Repeat on Friday
0C. Repeat on Saturday
Data3 00~17: 00 ~ 23 Hours
Data4 00~3B: 00 ~ 59 Minutes
75
ENG
ENGLISH
CONTROLLING THE MULTIPLE MONITORS
27. On Timer Input (Command: f u)
To set the On Timer Input function.
Transmission
[f][u][ ][Set ID][ ][Data][Cr]
Data 20: AV
40: Component
60. RGB-PC
70: DVI-D
90: HDMI
C0: DISPLAY PORT
* Check if Time1, Time2, and On Timer(Repeat
Mode/ Time) functions have been set before setting
this function.
* On Timer(Repeat Mode/ Time) command should be
executed in advance this command to set On Timer
schedule properly.
Acknowledgement
[u][ ][Set ID][ ][OK/NG][Data][x]
To check current On Timer Input function.
Transmission
[f][u][ ][Set ID][ ][Data][ ][f][f][Cr]
Data f1~f7: 1st~ 7th element of schedule list
Acknowledgement
[u][ ][Set ID][ ][OK/NG][Data1][Data2][x]
Data1 f1~f7: 1st~ 7th index of schedule list
Data2 20: AV
40: Component
60. RGB-PC
70: DVI-D
90: HDMI
C0: Display Port
28. Sleep Time (Command: f f)
To set sleep time.
Transmission
[f][f][ ][Set ID][ ][Data][Cr]
Data 00: Off
01: 10 min.
02: 20 min.
03: 30 min.
04: 60 min.
05: 90 min.
06: 120 min.
07: 180 min.
08: 240 min.
Acknowledgement
[f][ ][Set ID][ ][OK/NG][Data][x]
29. Power On Delay (Command: f h)
To set the schedule delay when the power is turned
on(unit: second).
Transmission
[f][h][ ][Set ID][ ][Data][Cr]
Data 00 : Off
01~64: Min. 1.~ Max. 100 (sec.)
Acknowledgement
[h][ ][Set ID][ ][OK/NG][Data][x]
76
ENG
ENGLISH
CONTROLLING THE MULTIPLE MONITORS
32. Language (Command: f i)
To set language for OSD.
Transmission
[f][i][ ][Set ID][ ][Data][Cr]
Data 00: Czech
01: Danish
02: German
03: English
04: Spanish(EU)
05: Greek
06: French
07: Italian
08: Dutch
09: Norwegian
0A: Portuguese
0B: Protuguese(BR)
0C: Russian
0D: Finnish
0E: Swedish
0F: Korean
10: Chinese (Mandarin)
11: Japanese
12: Yue Chinese(Cantonese)
Acknowledgement
[i][ ][Set ID][ ][OK/NG][Data][x]
33. ISM mode (Command: j p)
To select ISM method for avoiding having a fixed
image remain on screen.
Transmission
[j][p][ ][Set ID][ ][Data][Cr]
Data 01: Inversion
02: Orbiter
04: White Wash
08: Normal
Acknowledgement
[p][ ][Set ID][ ][OK/NG][Data][x]
30. Automatic Standby (Command: m n)
To set the Automatic Standby function.
Transmission
[m][n][ ][Set ID][ ][Data][Cr]
Data 00: Off(Auto off function doesn’t work.)
01: 4 Hours
(Display will be turned off in 4 hours)
Acknowledgement
[n][ ][Set ID][ ][OK/NG][Data][x]
31. Auto Off (Command: f g)
To set the Auto Off function.
Transmission
[f][g][ ][Set ID][ ][Data][Cr]
Data 00: Off (Auto off function doesn’t work.)
01: 15 min.
(Display will be turned off in case of no signal
for 15 minutes.)
Acknowledgement
[g][ ][Set ID][ ][OK/NG][Data][x]
34. DPM Select (Command: f j)
To set the DPM (Display Power Management)
function.
Transmission
[f][j][ ][Set ID][ ][Data][Cr]
Data 00: DPM Off
01: DPM On
Acknowledgement
[j][ ][Set ID][ ][OK/NG][Data][x]
35. Fail Over Select (Command: m i)
To set the Fail Over function.
Transmission
[m][i][ ][Set ID][ ][Data][Cr]
Data 00: Off
01: Auto
02: Manual
Acknowledgement
[i][ ][Set ID][ ][OK/NG][Data][x]
77
ENG
ENGLISH
CONTROLLING THE MULTIPLE MONITORS
37. Reset (Command: f k)
To execute the Picture, Screen, Audio and Factory
reset function.
* Screen reset function is only available for RGB-PC
input.
Transmission
[f][k][ ][Set ID][ ][Data][Cr]
Data 00: Picture Reset
01: Screen Reset
02: Audio Reset
03: Factory Reset
Acknowledgement
[k][ ][Set ID][ ][OK/NG][Data][x]
38. Tile Mode (Command: d d)
To select a Tile Mode Off/ On and Tile Row/ Column
size.
* NOT available when 3D mode ON.
Transmission
[d][d][ ][Set ID][ ][Data][Cr]
Data 00 to FF: 1st byte - Tile Column value
2nd byte - Tile Row value
*00, 01, 10, 11 means Tile Mode Off.
Acknowledgement
[d][ ][Set ID][ ][OK/NG][Data][x]
Data Description
00, 01, 10, 11 It means Tile mode Off.
12 2 x 1 (Row x Column)
13 3 x 1
14 4 x 1
... ...
FF 15 x 15
39. Tile Mode Check (Command: d z)
To check Tile Mode status.
Transmission
[d][z][ ][Set ID][ ][Data][Cr]
Data FF: Check Tile Mode status
Acknowledgement
[z][ ][Set ID][ ][OK/NG][Data1][Data2][Data3][x]
Data1 00: Tile Mode Off
01: Tile Mode On
Data2 00 to 0F: Tile Row Value
Data3 00 to 0F: Tile Column Value
* Row x Column will be displayed.
36. Fail Over Input Select (Command: m j)
To select fail over mode.
*Only available in Fail Over manual mode.
Transmission
[m][j][ ][Set ID][ ][Data1][ ][Data2][ ][Data3][ ][Data4][Cr]
Data 01 to 04(Input priority: 1 to 4)
60: RGB-PC
70: DVI-D*
90: HDMI**
C0: Display Port***
* Use 0x70 as data for DVI-D input, regardless DVI-
D(PC) or DVI-D(DTV).
** Use 0x90 as data for HDMI input, regardless
HDMI-DTV or HDMI-PC
*** Use 0xC0 as data for Display Port input,
regardless Display Port(DTV) or Display Port(PC)
Acknowledgement
[j][ ][Set ID][ ][OK/NG][Data1][Data2][Data3][Data4][x]
Data1~4(Priority 1~4)
60: RGB-PC
70: DVI-D****
90: HDMI*****
C0: Display Port******
**** Returns 0x70 as Data for DVI-D port, regardless
DVI-D(PC) or DVI-D(DTV).
***** Returns 0x90 as Data for HDMI port, regardless
HDMI-DTV or HDMI-PC.
****** Returns 0xC0 as Data for Display Port,
regardless Display Port(DTV) or Display Port(PC).
40. Tile ID (Command: d i)
To set Tile ID.
Transmission
[d][i][ ][Set ID][ ][Data][Cr]
Data 01 to E1: Tile ID 01 to 225**
FF: Read Tile ID
** Data could not be set over (Tile Row) x (Tile
Column)
Acknowledgement
[i][ ][Set ID][ ][OK/NG][Data][x]
78
ENG
ENGLISH
CONTROLLING THE MULTIPLE MONITORS
43. Tile H Size (Command: d g)
To set the Tile Horizontal Size.
*Set Tile H Position to 0x32 (50) before setting Tile H
Size.
* Only available when Tile Mode On and Tile Natural
Mode Off.
Transmission
[d][g][ ][Set ID][ ][Data][Cr]
Data 00~32: Min 0 ~ Max 50
Acknowledgement
[g][ ][Set ID][ ][OK/NG][Data][x]
44. Tile V Size (Command: d h)
To set the Tile Vertical size.
*Set Tile V Position to 0x00 before setting Tile V
Size.
* Only available when Tile Mode On and Tile Natural
Mode Off.
Transmission
[d][h][ ][Set ID][ ][Data][Cr]
Data 00~32: Min 0 ~ Max 50
Acknowledgement
[h][ ][Set ID][ ][OK/NG][Data][x]
45. Natural Mode (In Tile Mode) (Command : d j)
To assign the Tile Natural mode for Tiling function.
* Only available when Tile mode On.
Transmission
[d][j][ ][Set ID][ ][Data][Cr]
Data 00: Off
01: On
Acknowledgement
[j][ ][Set ID][ ][OK/NG][Data][x]
46. FAN Control (Command : d o)
To set Fan control on/off.
Transmission
[d][o][ ][Set ID][ ][Data][Cr]
Data 00: Auto
01: On
02: Manual
Acknowledgement
[o][ ][Set ID][ ][OK/NG][Data][x]
41. Tile H Position (Command: d e)
To set the Tile Horizontal position.
* Only available when Tile Mode On and Tile Natural
Mode Off.
* Only available after changing Tile H Size
Transmission
[d][e][ ][Set ID][ ][Data][Cr]
Data 00~32: Left -50 ~ Right 50
Acknowledgement
[e][ ][Set ID][ ][OK/NG][Data][x]
42. Tile V Position (Command: d f)
To set the Tile Vertical position.
* Only available when Tile Mode On and Tile Natural
Mode Off.
* Only available after changing Tile V Size
Transmission
[d][f][ ][Set ID][ ][Data][Cr]
Data 00~32: Bottom 0~Top 50
* Data range varies depending on the current Tile V
value.
Acknowledgement
[f][ ][Set ID][ ][OK/NG][Data][x]
79
ENG
ENGLISH
CONTROLLING THE MULTIPLE MONITORS
52. Serial No.Check (Command: f y)
To read the serial numbers.
Transmission
[f][y][ ][Set ID][ ][Data][Cr]
Data FF: Data should be always ff in hexadecimal.
Acknowledgement
[y][ ][Set ID][ ][OK/NG][Data][x]
* Data is ASCII code.
49. Key (Command: m c)
To send IR remote control code.
Transmission
[m][c][ ][Set ID][ ][Data][Cr]
Data IR_KEY_CODE
Acknowledgement
[c][ ][Set ID][ ][OK/NG][Data][x]
When display is in the standby mode, display will turn
on by Power button of remote control only.
47. FAN Fault Check (Command: d w)
To set Fan control on/off.
Transmission
[d][w][ ][Set ID][ ][Data][Cr]
Data FF: Data should be always ff in hexadecimal.
Acknowledgement
[w][ ][Set ID][ ][OK/NG][Data][x]
Data 00: Fan Error
01: Fan OK
48. Temperature Value (Command: d n)
To read the inside temperature of the display.
Transmission
[d][n][ ][Set ID][ ][Data][Cr]
Data FF: Data should be always ff in hexadecimal.
Acknowledgement
[n][ ][Set ID][ ][OK/NG][Data][x]
* Temperature will be shown in hexadecimal number.
50. OSD Select (Command: k l)
To select OSD(On Screen Display) on/off
Transmission
[k][l][ ][Set ID][ ][Data][Cr]
Data 00: OSD Off
01: OSD On
Acknowledgement
[l][ ][Set ID][ ][OK/NG][Data][x]
51. Elapsed time return (Command: d l)
To read the panel used time.
Transmission
[d][l][ ][Set ID][ ][Data][Cr]
Data FF: Data should be always ff in hexadecimal.
Acknowledgement
[l][ ][Set ID][ ][OK/NG][Data][x]
* Returned data means used hours in hexadecimal.
80
ENG
ENGLISH
CONTROLLING THE MULTIPLE MONITORS
53. S/W Version (Command: f z)
To read the software version.
Transmission
[f][z][ ][Set ID][ ][Data][Cr]
Data FF: Data should be always ff in hexadecimal.
Acknowledgement
[z][ ][Set ID][ ][OK/NG][Data][x]
54. White Balance Red Gain (Command: j m)
To adjust white balance red gain.
Transmission
[j][m][ ][Set ID][ ][Data][Cr]
Data 00 to FE: Red gain 0 to 254
Acknowledgement
[m][ ][Set ID][ ][OK/NG][Data][x]
55. White Balance Green Gain (Command: j n)
To adjust white balance green gain.
Transmission
[j][n][ ][Set ID][ ][Data][Cr]
Data 00 to FE: Green gain 0 to 254
Acknowledgement
[n][ ][Set ID][ ][OK/NG][Data][x]
56. White Balance Blue Gain (Command: j o)
To adjust white balance blue gain.
Transmission
[j][o][ ][Set ID][ ][Data][Cr]
Data 00 to FE: Blue gain 0 to 254
Acknowledgement
[o][ ][Set ID][ ][OK/NG][Data][x]
57. 3D Mode (Command: x t)
To Select 3D Mode.
** 3D Depth is only available for 2D to 3D Mode.
Transmission
[x][t][ ][Set ID][ ][Data1][ ] [Data2][ ] [Data3][ ]
[Data4][Cr]
Data1 00: 3D Mode On
01: 3D Mode Off
02: 3D to 2D Mode
03: 2D to 3D Mode
Data2 00: Top and Bottom
01: Side by Side
02: Frame Sequential
Data3 00: 3D Picture Correction (R/L)
(Right Left Sequence)
01: 3D Picture Correction (L/R)
( Left Right Sequence)
Data4 00~14: 3D Depth 0~20
* 3D mode should be under off status before
changing mode of Data2 ~ Data4.
** 3D mode will be turned off when Data1 is 01
regardless of Data2 ~ Data4.
Acknowledgement
[t][ ][Set ID][ ][OK/NG][Data1][Data2][Data3]
[Data4][x]
81
ENG
ENGLISH
IR CODES
59. Screen Mute (Command: k d)
To select screen mute on / off.
Transmission
[k][d][ ][Set ID][ ][Data][Cr]
Data 00: Screen mute off (Picture on)
01 : Screen mute on (Picture off)
Acknowledgement
[d][ ][Set ID][ ][OK][Data][x]
58. 3D Mode Option Setting (Command: x v)
To adjust 3D Mode Option.
* Only available when 3D Mode On.
** 3D Depth is only available for 2D to 3D Mode.
Transmission
[x][v][ ][Set ID][ ][Data1][ ][Data2][Cr]
Data1 00: 3D Picture Correction
01: 3D Depth
02: 3D View Point
1) If Data1 is 00,
Data2 00: 3D Picture Correction (R/L)
(Right Left Sequence)
01: 3D Picture Correction (L/R)
(Left Right Sequence)
2) If Data1 is 01,
Data2 00~14: Depth 0~20
3) If Data1 02,
Data2 00~14: View Point -10~10
Acknowledgement
[v][ ][Set ID][ ][OK/NG][Data1][Data2][x]
82
ENG
ENGLISH
IR CODES
Code (Hexa) Function Note
95 Energy Saving ( ) R/C BUTTON
08
POWER
R/C BUTTON (ON/OFF)
0B INPUT R/C BUTTON
C4 Monitor On R/C BUTTON
C5 Monitor Off R/C BUTTON
43 MENU R/C BUTTON
40 Up ( ) R/C BUTTON
41 Down ( ) R/C BUTTON
07 Left ( ) R/C BUTTON
06 Right ( ) R/C BUTTON
44 OK( ) R/C BUTTON
28
BACK( )
R/C BUTTON
5B EXIT R/C BUTTON
4D PSM R/C BUTTON
02
Volume
R/C BUTTON
03
Volume
R/C BUTTON
09 MUTE R/C BUTTON
E0 Bright (Page UP) R/C BUTTON
E1 Bright (Page Down) R/C BUTTON
10 to 19 Number Key 0 to 9 R/C BUTTON
72 Red Key (ID ON) R/C BUTTON
71 Green Key (ID OFF) R/C BUTTON
63 Yellow Key R/C BUTTON
61 Blue Key R/C BUTTON
7B TILE R/C BUTTON
76 ARC (4:3) R/C BUTTON
77 ARC (16:9) R/C BUTTON
AF ARC (ZOOM) R/C BUTTON
79 ARC (MARK) R/C BUTTON
99 Auto Config. R/C BUTTON
B1 R/C BUTTON
B0 R/C BUTTON
BA R/C BUTTON
8F R/C BUTTON
8E R/C BUTTON
DC 3D MODE R/C BUTTON
IR CODES
y
All models do not support the HDMI/USB function.
Make sure to read the Safety Precautions
before using the product.
Keep the Owner's Manual(CD) in an accessible
place for future reference.
The model and serial number of the SET is
located on the back and one side of the SET.
Record it below should you ever need service.
MODEL
SERIAL
Temporary noise is normal when powering ON or
OFF this device.
As an ENERGY STAR Partner LGE U. S. A.,Inc. has
determined that this product meets the ENERGY
STAR guidelines for energy efficiency.
ENERG Y STA R is a set of p o wer-
saving guidelines issued by the U.S.
Environmental Protection Agency(EPA).
Declaration of Conformity
Trade Name: LG
Model: 55WV70MD
Responsible Party: LG Electronics Inc.
Address: 1000 Sylvan Ave.
Englewood Cliffs NJ 07632
U.S.A
TEL: 201-266-2534
P/NO : 3840TRL098E (0801-REV00)
www.lge.com
